(1.2) INTRODUCTION

IMPORTANT

Please read these operating and safety

instructions carefully and completely.

For your own safety, if you are uncertain

about any aspect of using this equipment

please access the relevant Technical Helpline,

the number of which can be found on the

Evolution Power Tools website. We operate

several Helplines throughout our worldwide

organization, but Technical help is also

available from your supplier.

(1.3) CONTACT

Web: www.evolutionpowertools.com

UK: [email protected]

USA: evolutioninfo@evolutionpowertools.com

(1.4) WARRANTY

Congratulations on your purchase of an

Evolution Power Tools Machine. Please

complete your product registration ‘online’ as

explained in the registration leaflet included

with this machine. This will enable you to

validate your machine’s warranty period via

Evolutions website by entering your details

and thus ensure prompt service if ever needed.

We sincerely thank you for selecting

a product from Evolution Power Tools.

www.evolutionpowertools.com

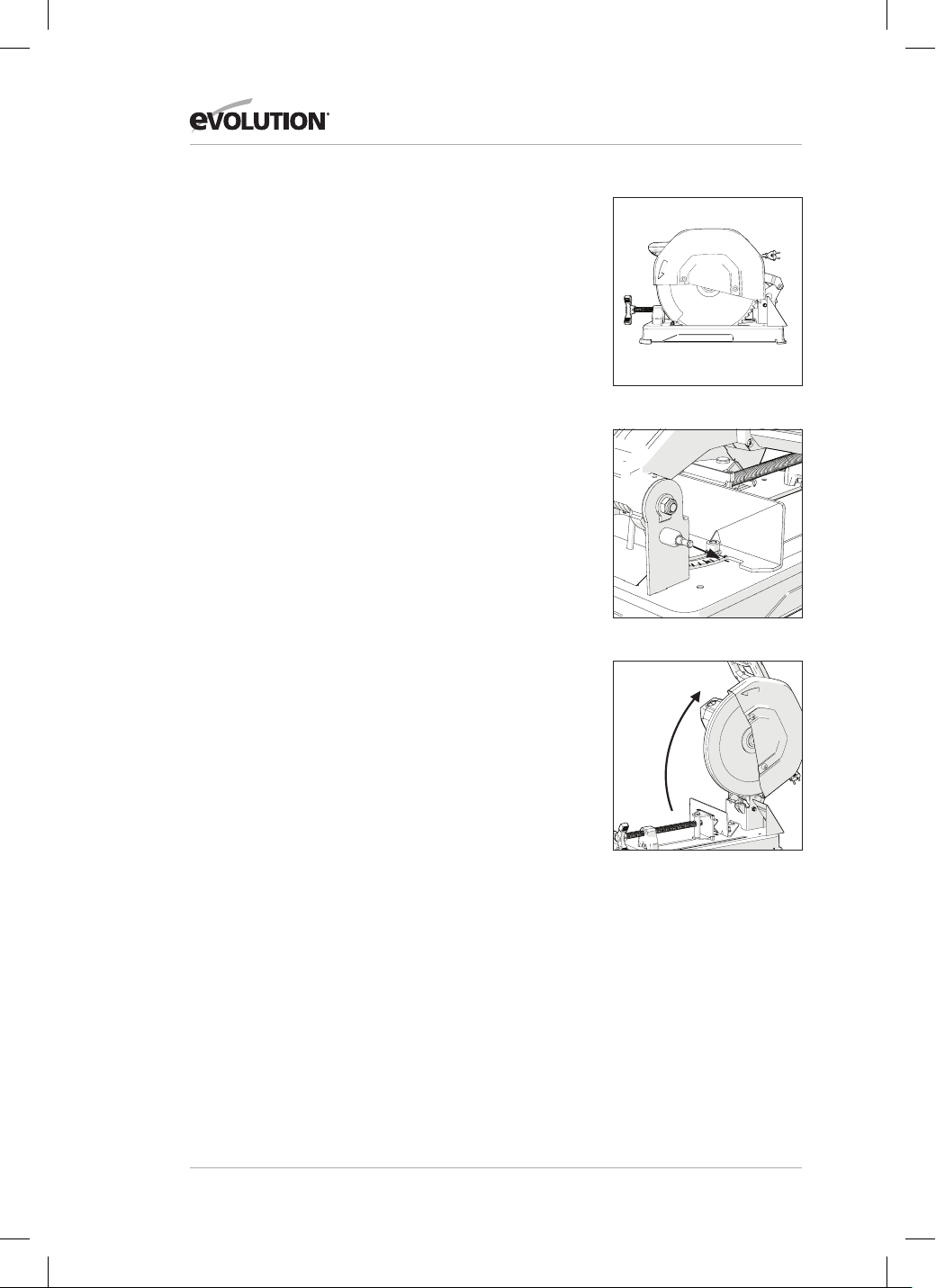

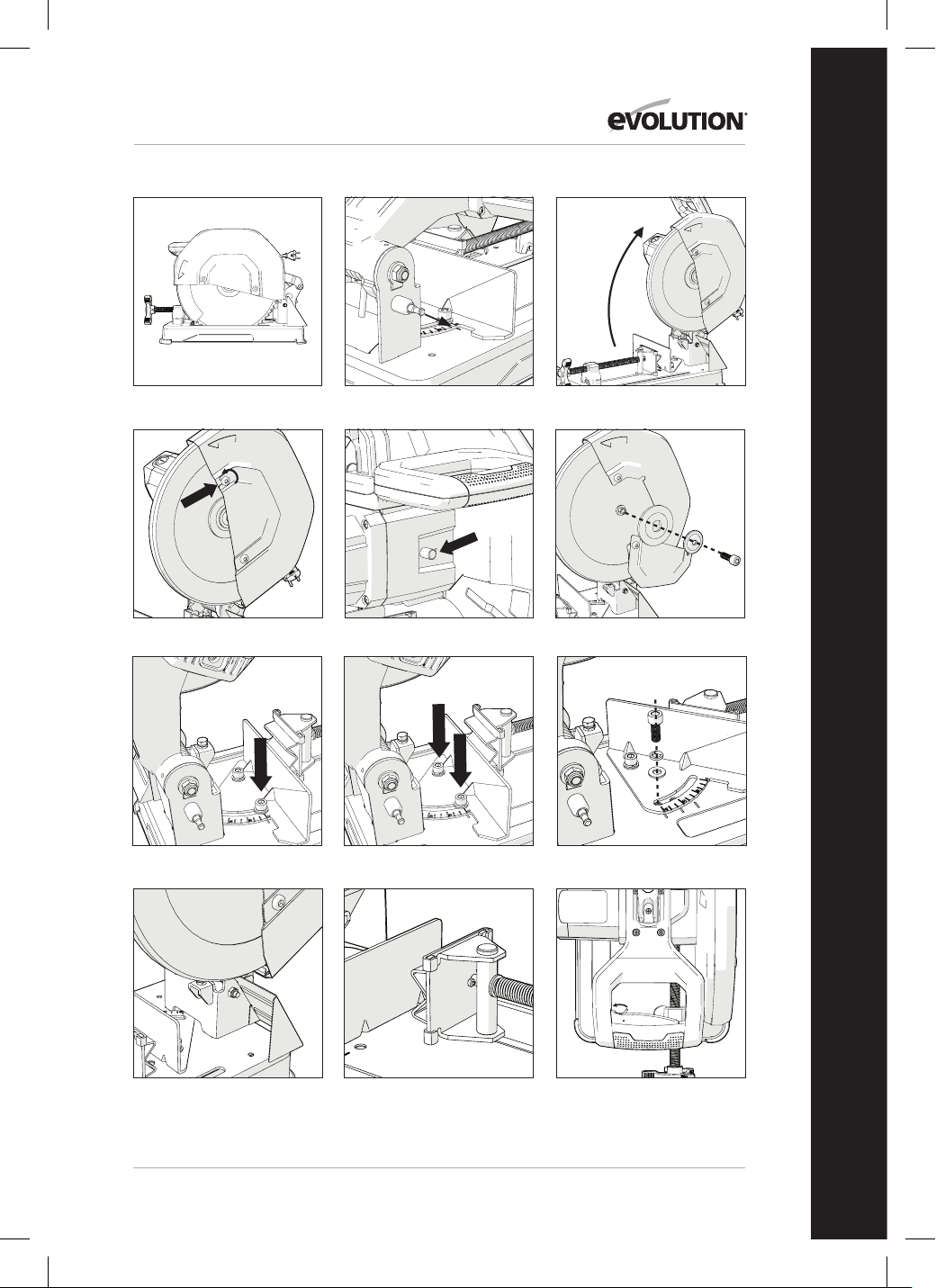

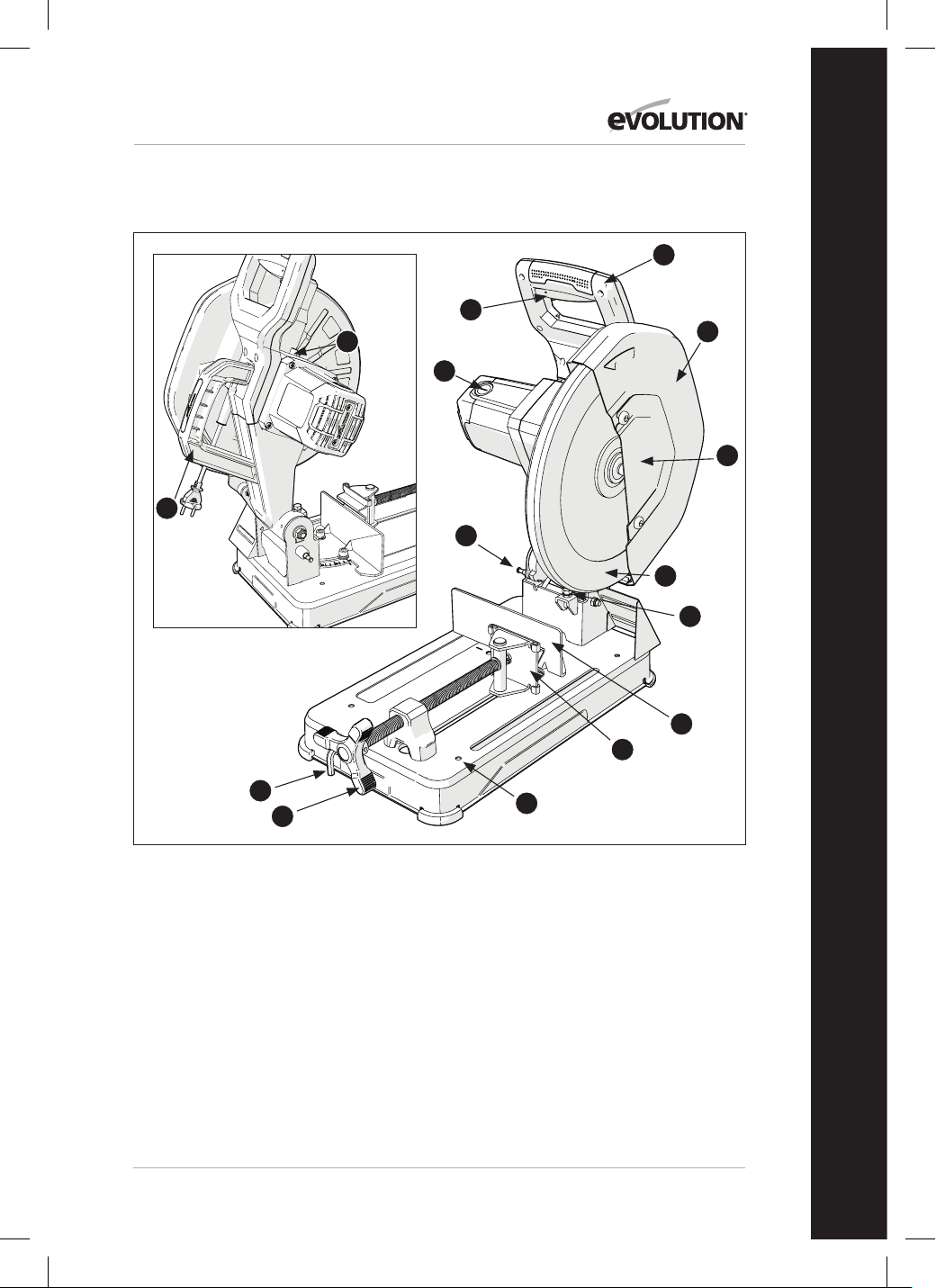

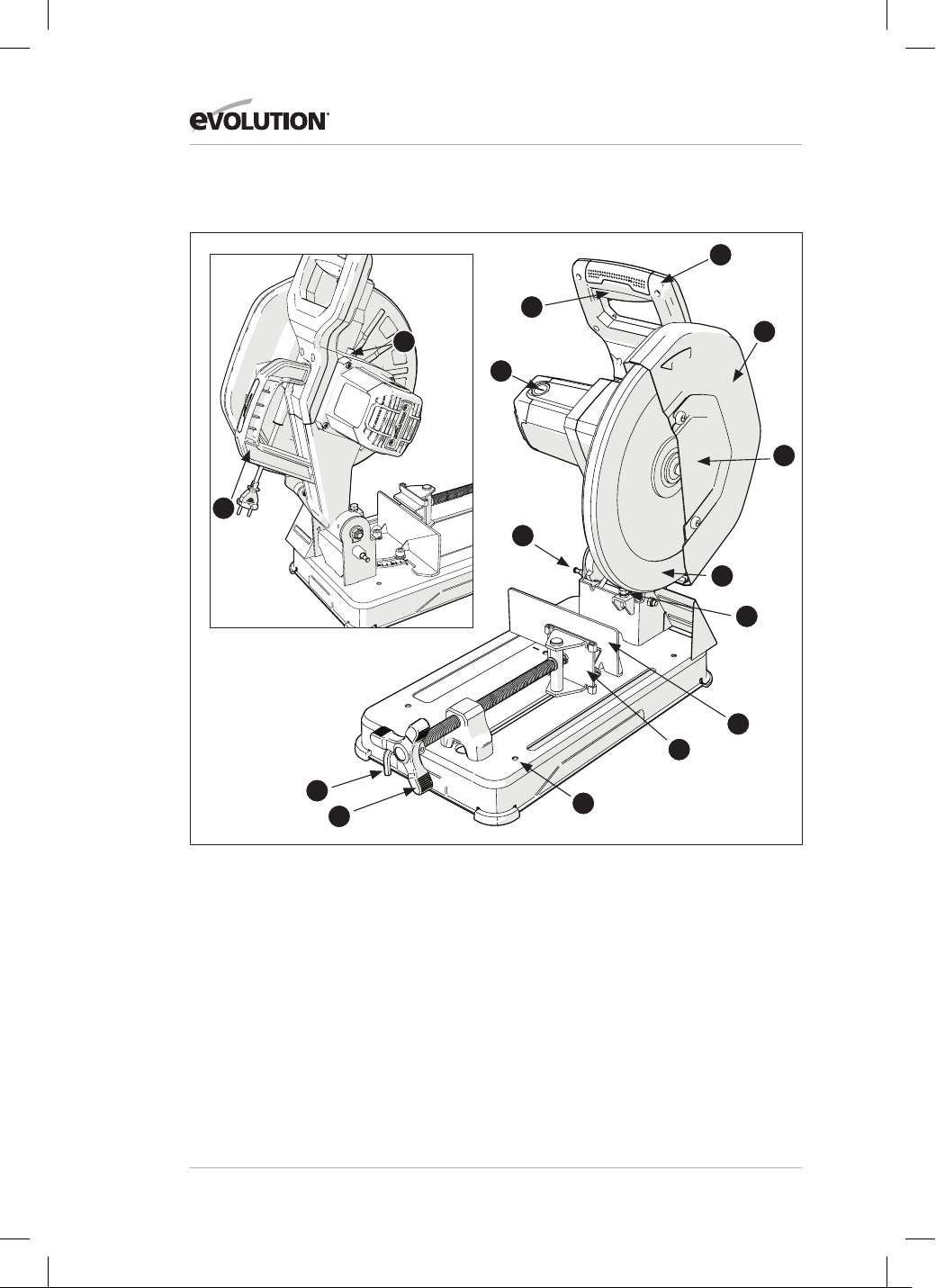

Fig. 1

Fig. 4

Fig. 7

Fig. 10

Fig. 2

Fig. 5

Fig. 8

Fig. 11

Fig. 3

Fig. 6

Fig. 9

Fig. 12

www.evolutionpowertools.com

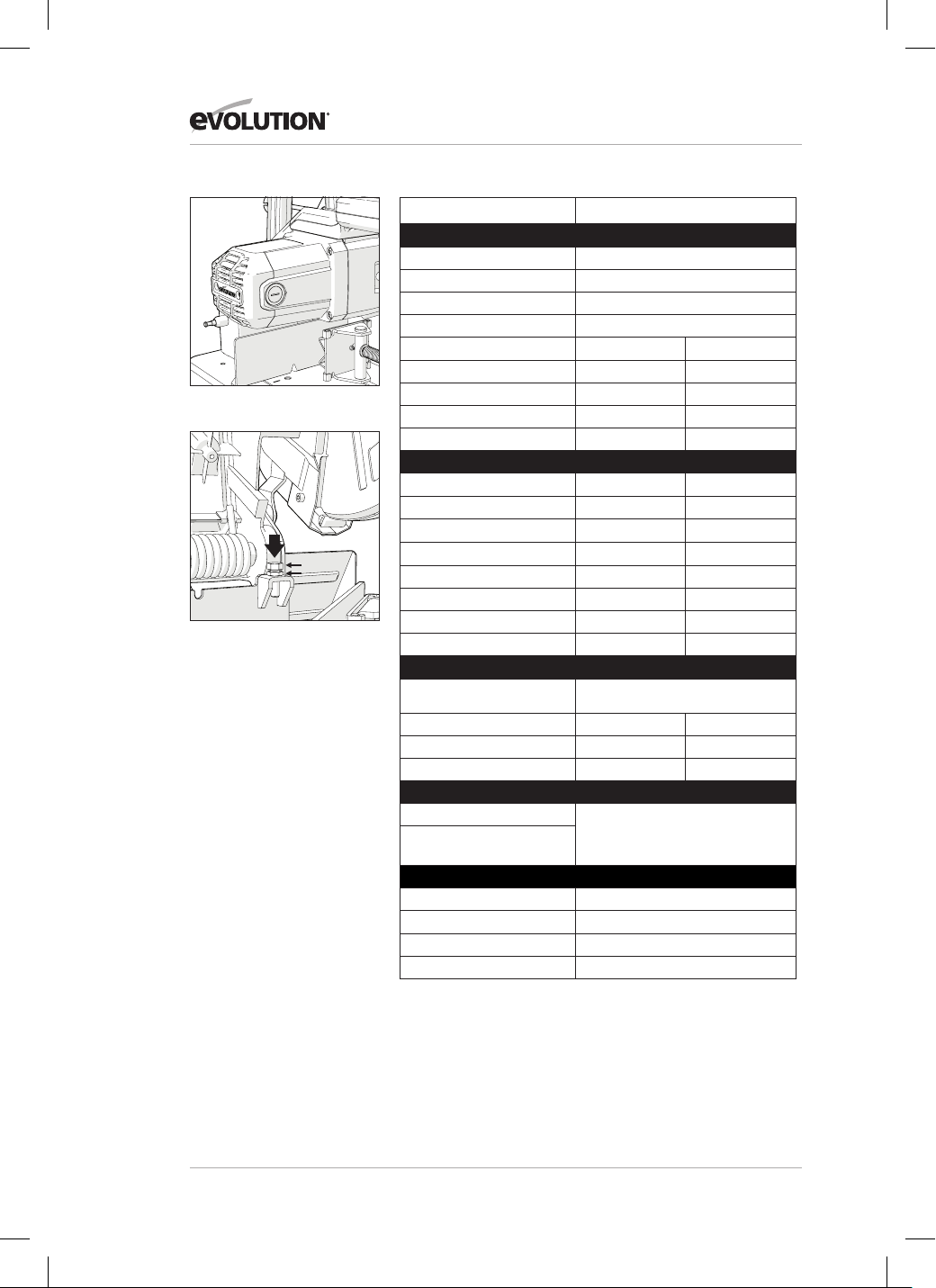

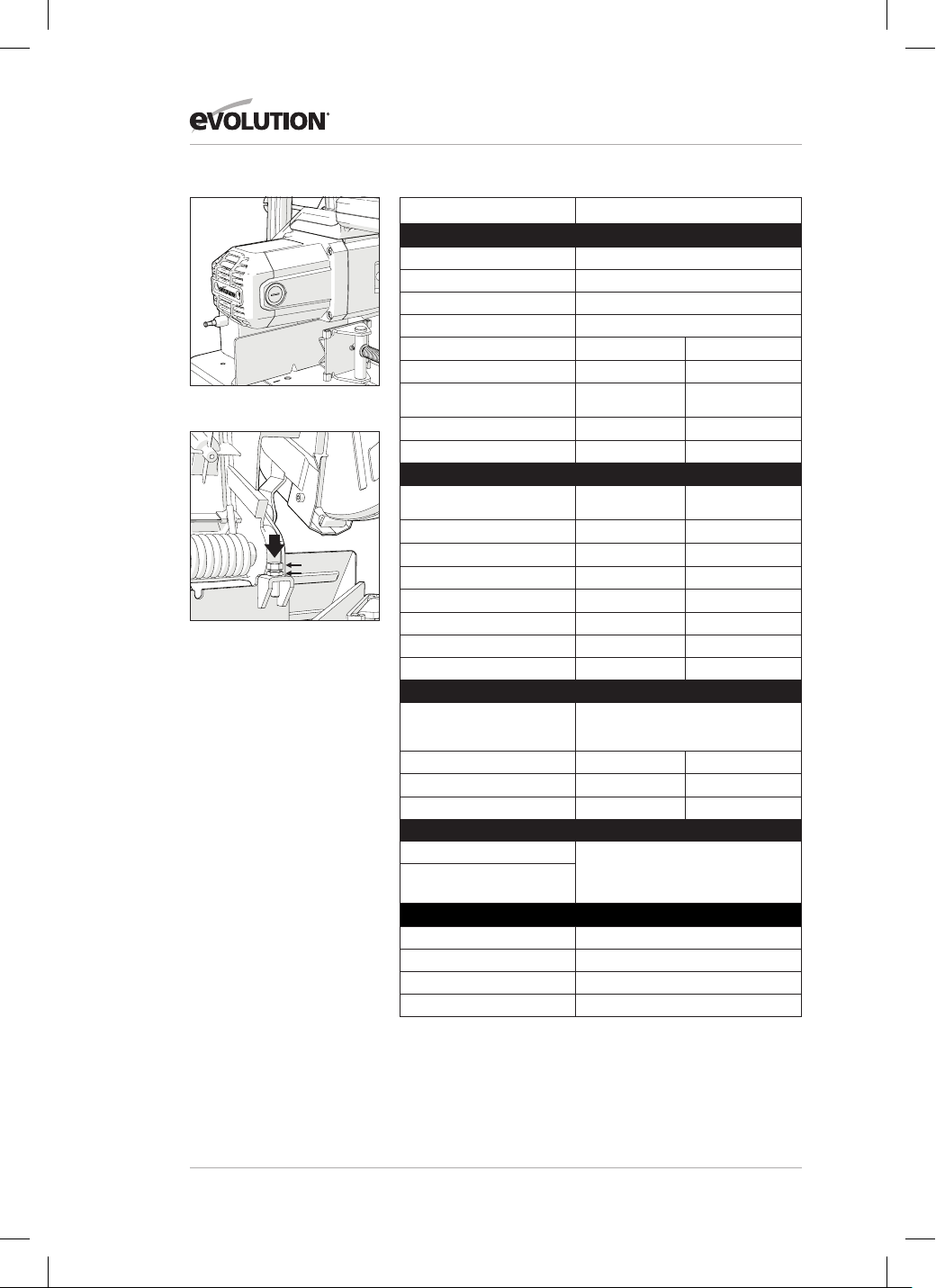

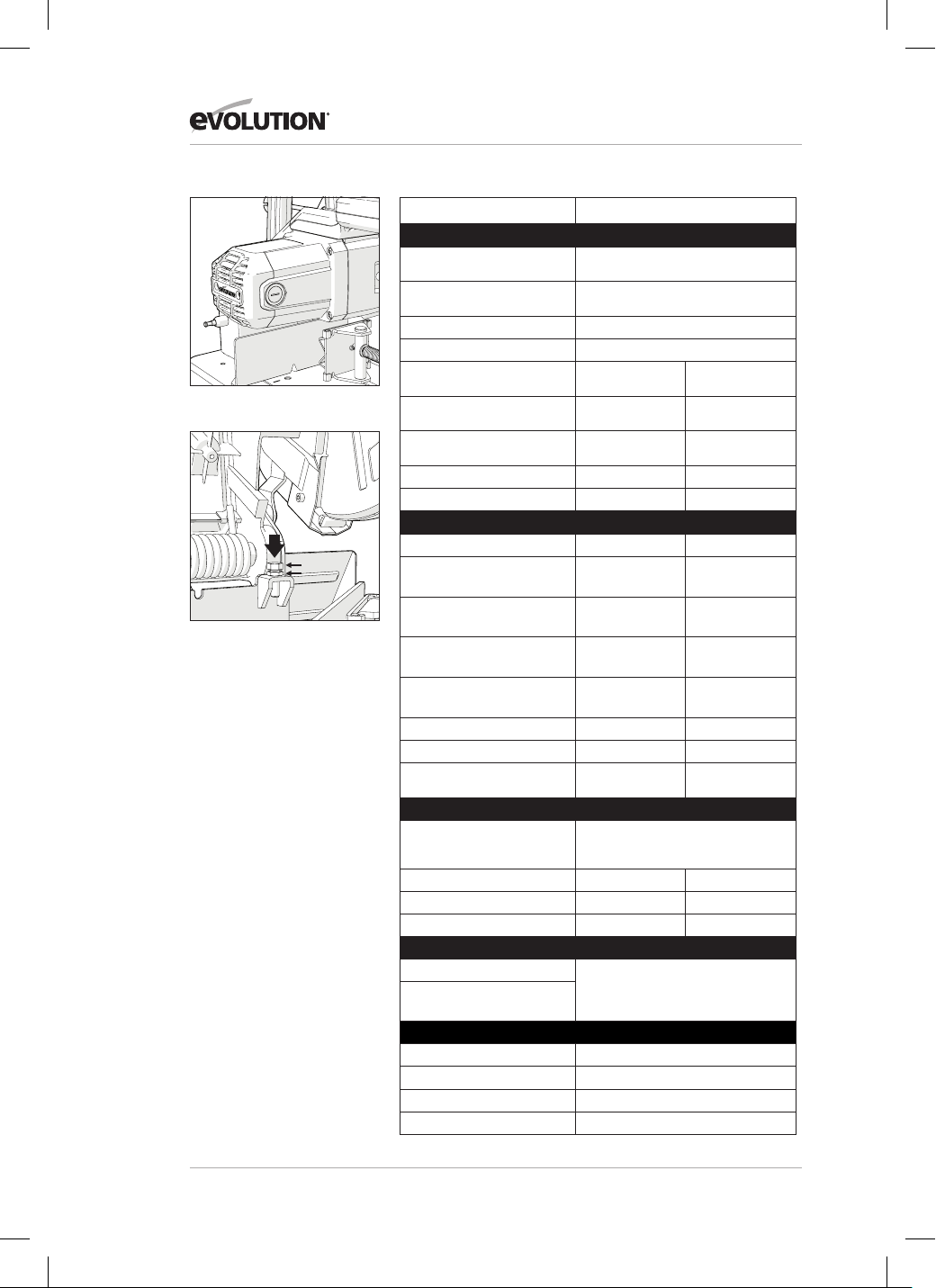

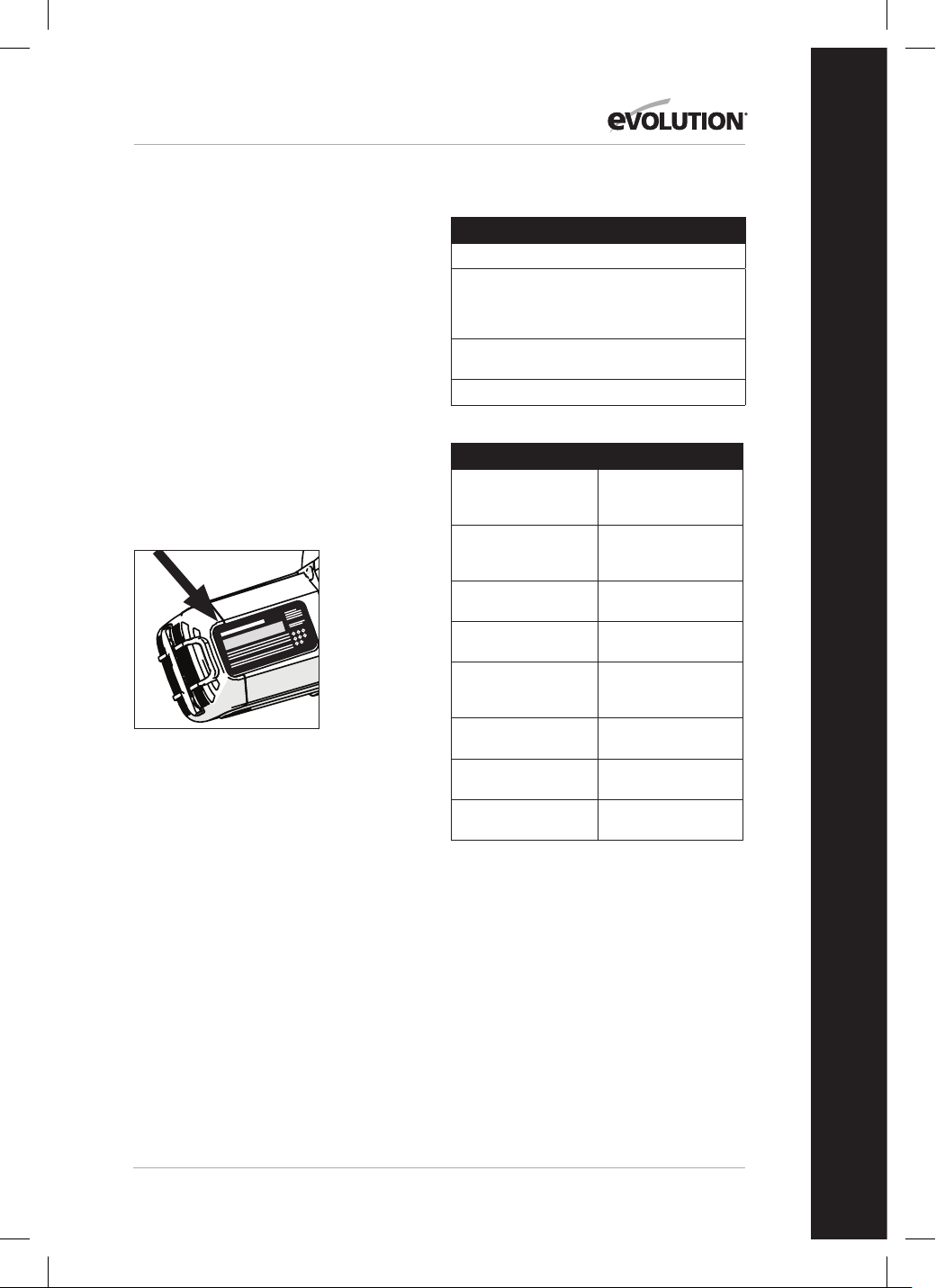

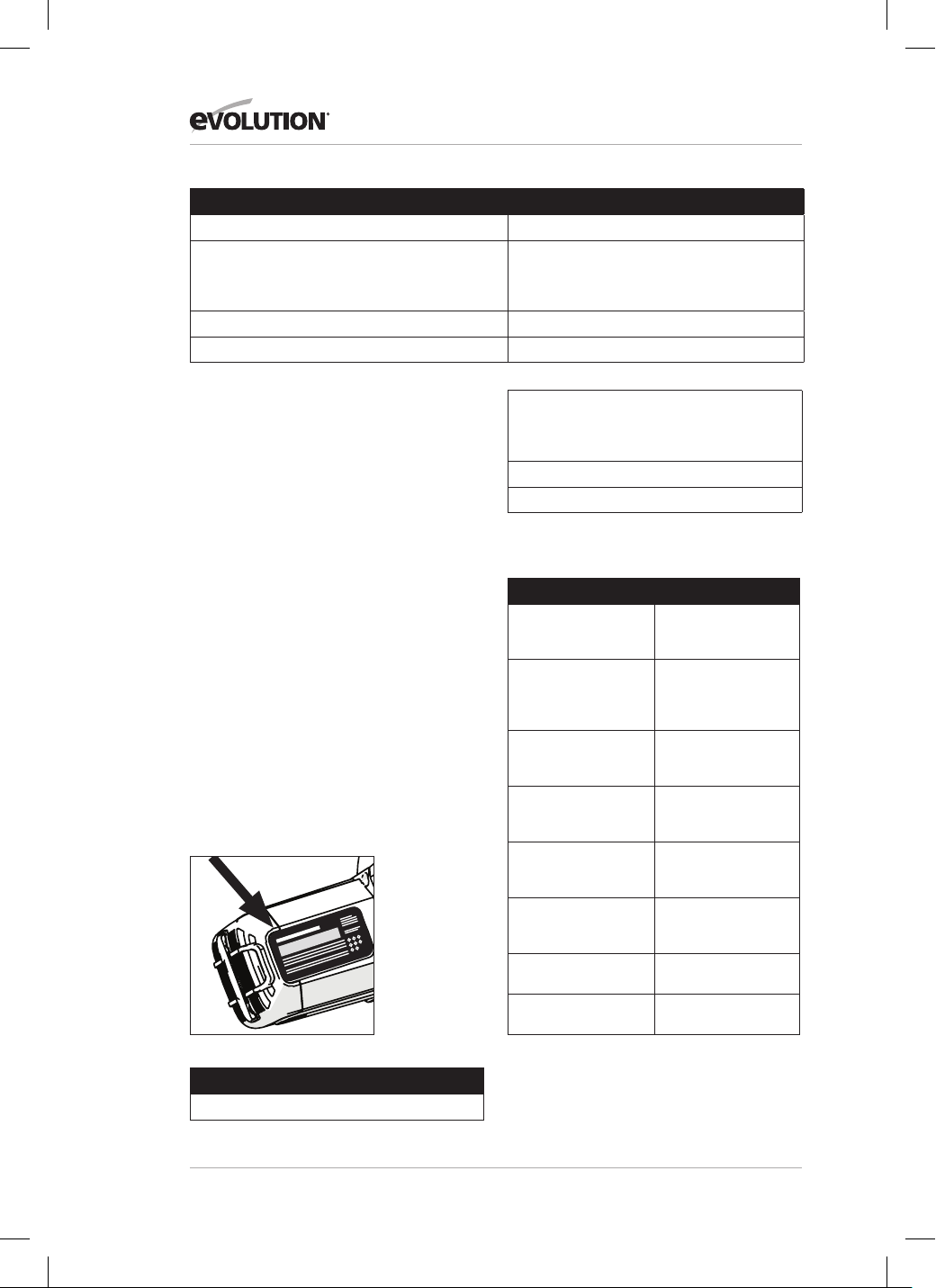

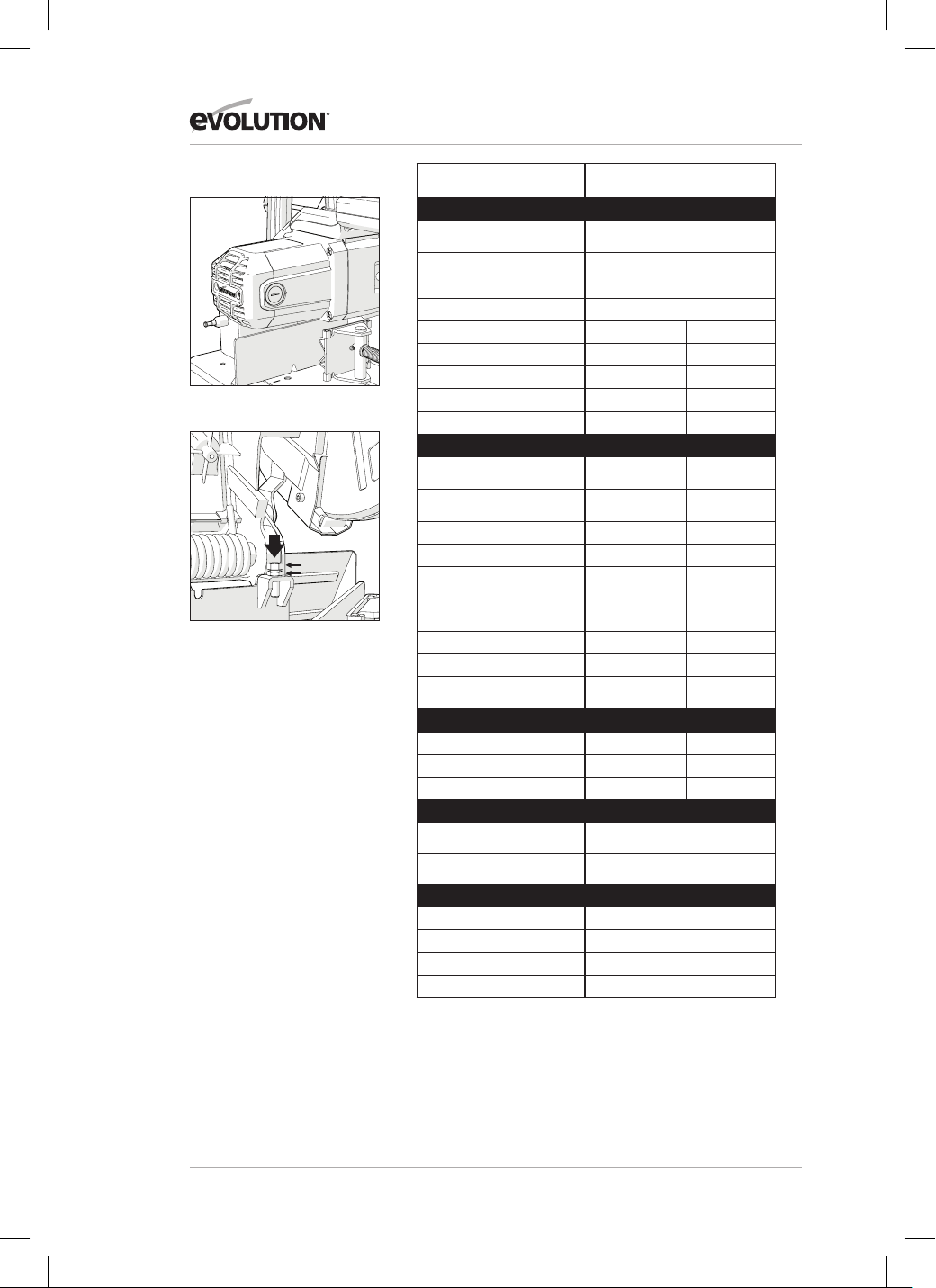

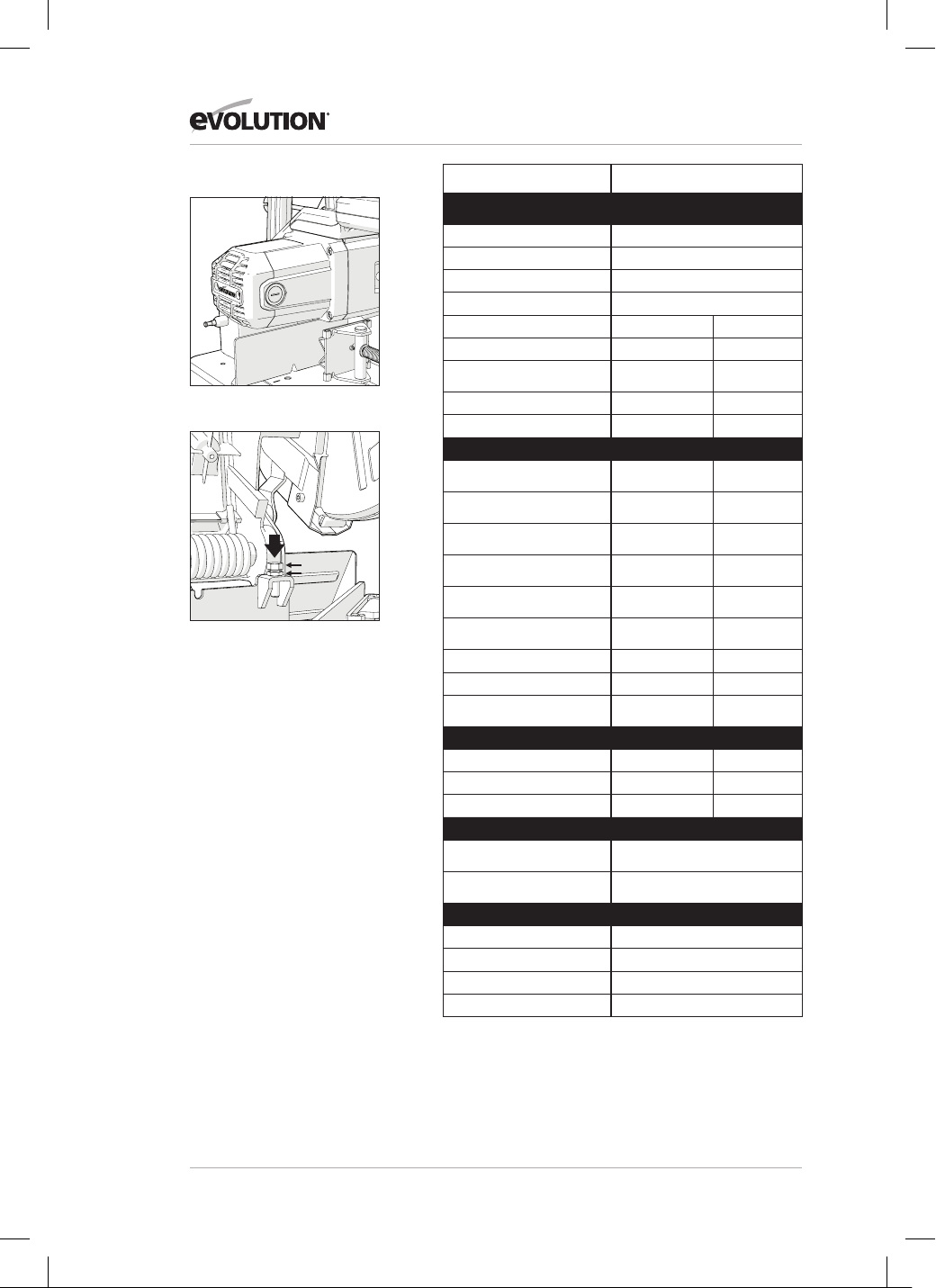

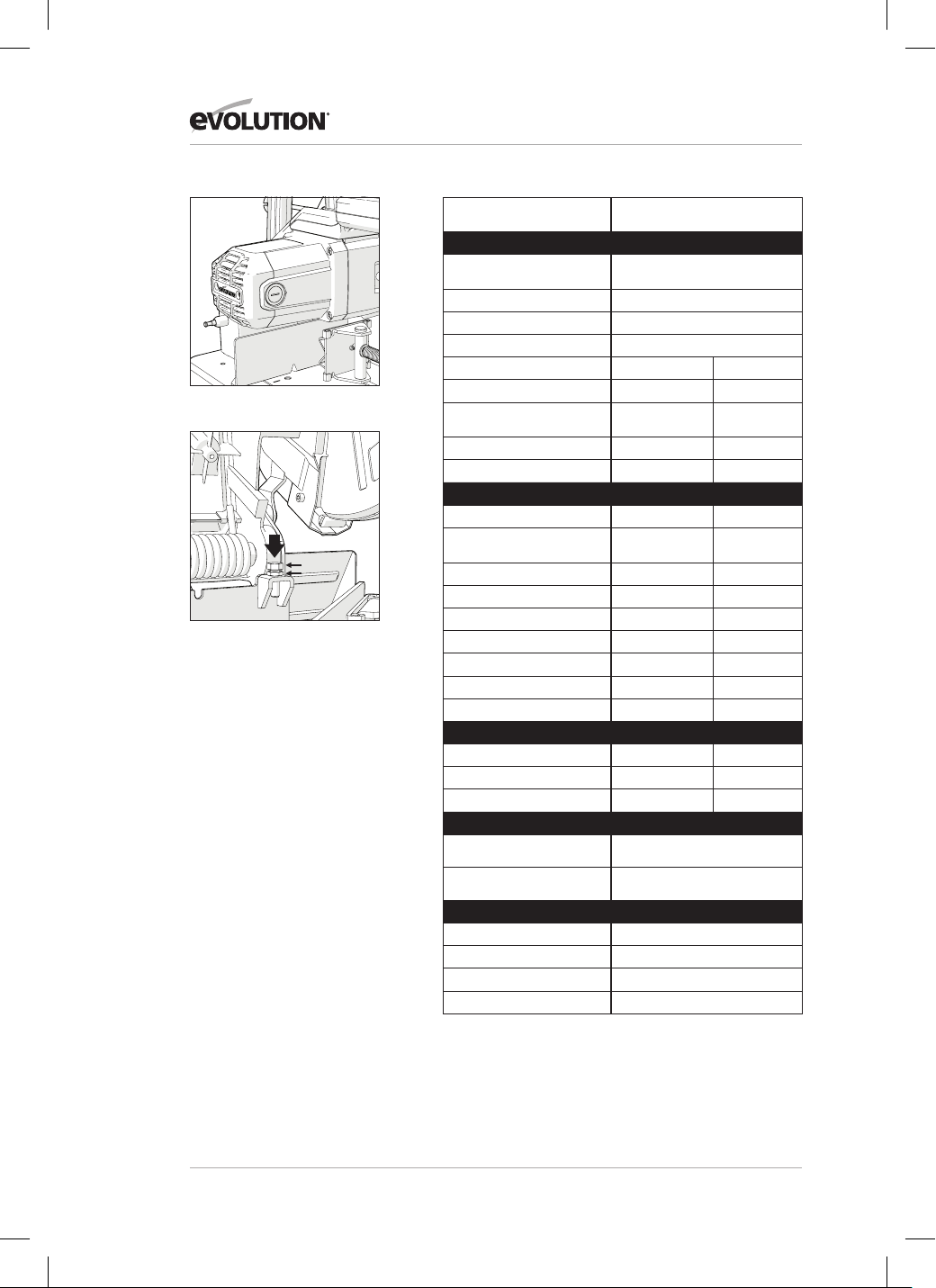

SPECIFICATIONS R355CPS

MACHINE METRIC IMPERIAL

Motor (UK/EU) 220V-240V ~ 50Hz 2200W

Motor (UK) 110V ~ 50Hz 1600W

Motor (USA) 120V ~ 60Hz 15A

Motor (AUS) 240V ~ 50Hz 2200W

Speed (No Load) @ 110V 1550 min

-1

1550 rpm

Speed (No Load) @ 120V 1450 min

-1

1450 rpm

Speed (No Load) @ 220-240V 1550 min

-1

1550 rpm

Weight (With Blade) 21.5 kg 47 lbs

Power Cord 2 m 6 feet

CUTTING CAPACITY

Mild Steel Plate (Max. Thickness) 6mm 1/4”

Square Tube at 90˚ 120 x 120mm 4-3/4” x 4-3/4”

Square Tube at 45˚ 89 x 89mm 3-1/2” x 3-1/2”

Rectangle Tube at 90° 95 x 180mm 3-3/4” x 7-1/8”

Rectangle Tube at 45° 78 x 110mm 3-1/8” x 4-3/8”

Round Tube at 90° Ø 130mm Ø 5-1/8”

Round Tube at 45° Ø 105mm Ø 4-1/8”

Minimum Cut Off Piece Length 8mm 5/16”

BLADE

Model No.

RAGEBLADE355MULTI (UK/EU)

RAGE355BLADE (USA)

Diameter 355mm 14”

Bore 25.4mm 1”

Kerf 2.2mm 0-3/32”

NOISE EMISSION DATA*

Sound Pressure Level L

110V: 100,5dB(A), K=3dB(A) /

220-240V: 97,3dB(A), K=3dB(A)

110V: 111,5dB(A), K=3dB(A) /

220-240V: 108,3dB(A), K=3dB(A)

Sound Power Level L

MODELS

United Kingdom (230V) 083-0001, (110v) 083-0002

United States (120V) 083-0004

Europe (230V) 083-0003

Australia (230V) 083-0006

WARNING: Due to the power input of this product on start up, voltage drops

may occur and this can influence other equipment (e.g. dimming lights). So for

technical reasons we advise, if the mains-impedance is Zmax< 0.264Ω, these

disturbances are not expected. If you require further clarification, you may

contact your local power supply authority.

Fig. 13

Fig. 14

www.evolutionpowertools.com

POLARIZED PLUG

WARNING (USA ONLY): To reduce the risk of electric

shock, this equipment has a polarized plug (one blade

is wider than the other). This plug will fit in a polarized

outlet only one way. If the plug does not fit fully in the

outlet, reverse the plug. If it still does not fit, contact a

qualified electrician to install the proper outlet. Do not

change the plug in any way.

(1.6) VIBRATION

Note: The vibration measurement was made under

standard conditions in accordance with:

EN 62841-1: 2015 & EN 62841-3-10:2015.

• The declared vibration total value(s) and the

declared noise emission value(s) have been

measured in accordance with a standard test

method and may be used for comparing one tool

with another;

• The declared vibration total value(s) and the

declared noise emission value(s) may also be used

in a preliminary assessment of exposure.

WARNING:

• that the vibration and noise emissions during

actual use of the power tool can differ from the

declared values depending on the ways in which

the tool is used especially what kind of workpiece

is processed; and

• of the need to identify safety measures to protect

the operator that are based on an estimation of

exposure in the actual conditions of use (taking

account of all parts of the operating cycle such as

the times when the tool is switched off and when it

is running idle in addition to the trigger time).

(1.7) WARNING: When using this machine the

operator can be exposed to high levels of vibration

transmitted to the hand and arm. It is possible that

the operator could develop “Vibration white finger

disease” (Raynaud syndrome). This condition can

reduce the sensitivity of the hand to temperature

as well as producing general numbness. Prolonged

or regular users of this machine should monitor the

condition of their hands and fingers closely. If any

of the symptoms become evident, seek immediate

medical advice.

• The measurement and assessment of human

exposure to hand-transmitted vibration in the

workplace is given in: BS EN ISO 5349-1:2001 and

BS EN ISO 5349-2:2002.

• Many factors can influence the actual vibration

level during operation e.g. the work surfaces

condition and orientation and the type and

condition of the machine being used. Before

each use, such factors should be assessed, and

where possible appropriate working practices

adopted.

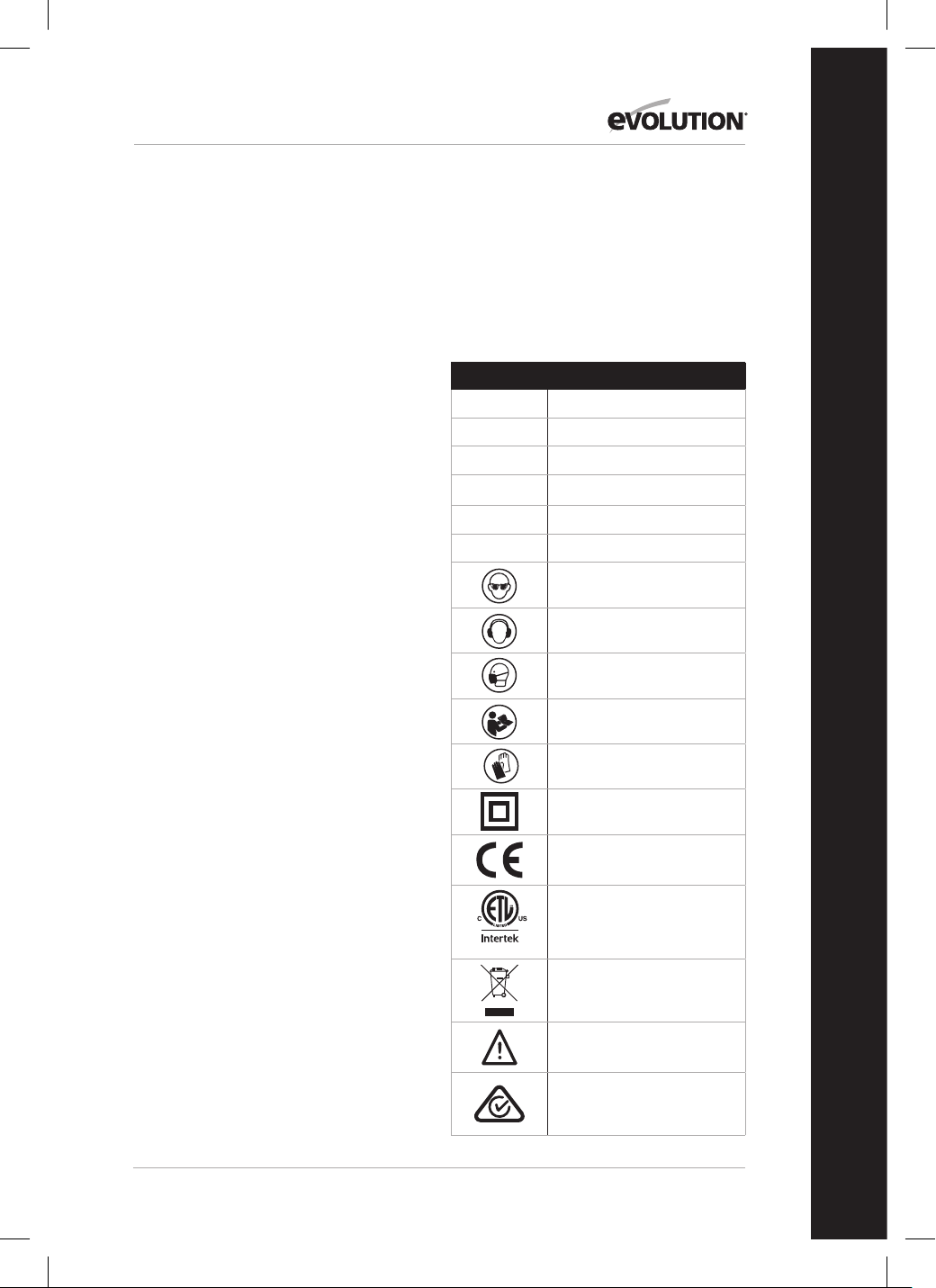

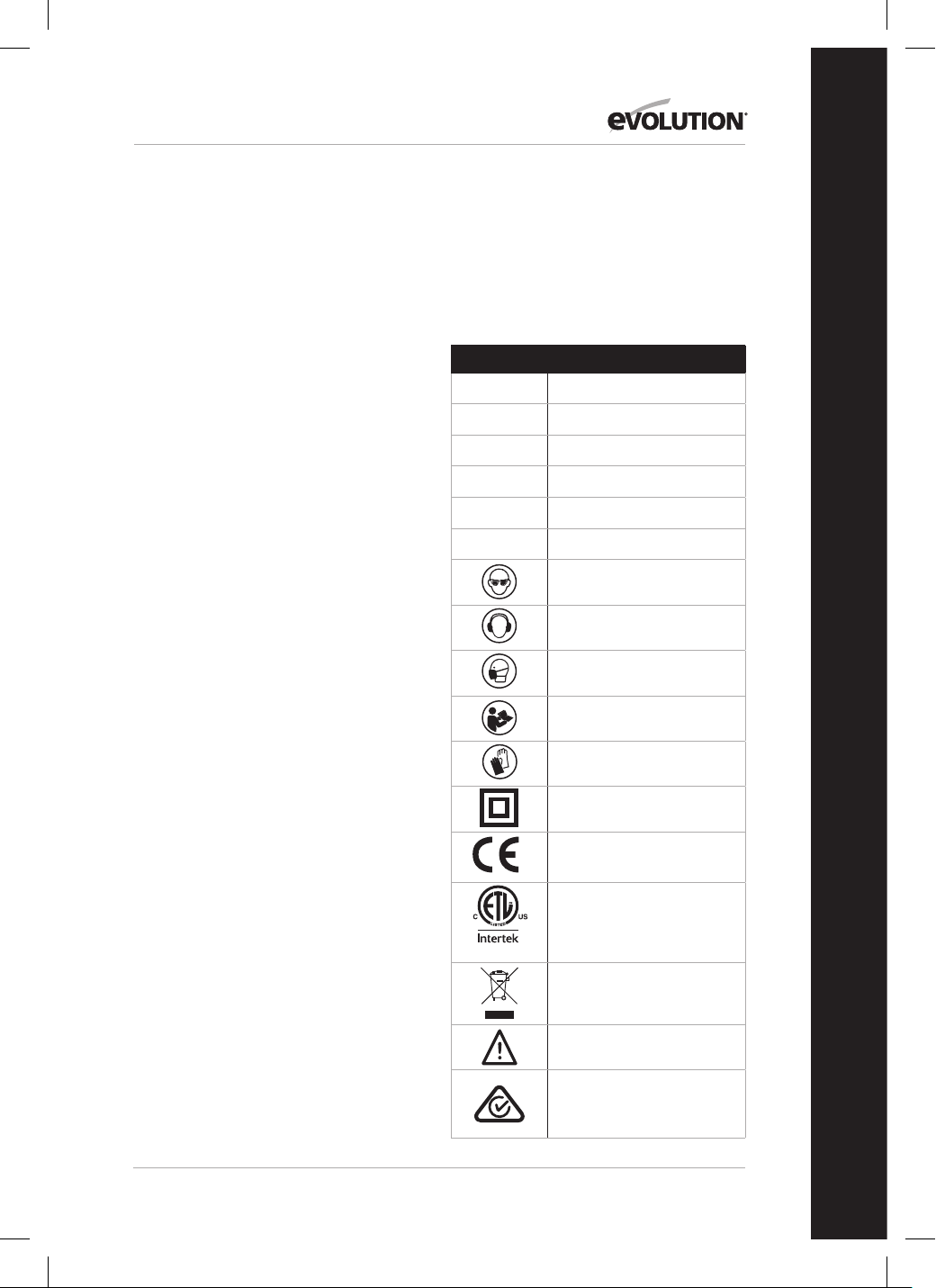

(1.8) LABELS & SYMBOLS

WARNING: Do not operate this machine

if warning and/or instruction labels are missing

or damaged. Contact Evolution Power Tools for

replacement labels.

Note: All or some of the following symbols may

appear in the manual or on the product.

(1.9)

Symbol Description

Volts

Amperes

Hertz

Min

-1

/ RPM

Speed

Alternating Current

No Load Speed

Wear Safety Goggles

Wear Ear Protection

Wear Dust Protection

Read Instructions

Wear Protective Gloves

Double Insulation Protection

CE Certification

UKCA Certification

ETL Intertek Certification

Waste electrical and

electronic equipment

Warning

(RCM) Regulatory Compliance Mark

for electrical and electronic equipment.

Australian/New Zealand Standard

5012207

www.evolutionpowertools.com

(1.10) INTENDED USE OF THIS

POWER TOOL

WARNING: This product has been designed to

be used with special Evolution blades. Only use

accessories designed for use in this machine

and/or those recommended specifically

by Evolution Power Tools Ltd.

When fitted with an appropriate blade

this machine can be used to cut:

Mild Steel

Thin Steel

Stainless Steel

Aluminium

Wood

Masonry

Note: Cutting galvanised steel may reduce

blade life.

(1.15) OUTDOOR USE

WARNING: For your protection if this tool is to

be used outdoors it should not be exposed to

rain, or used in damp locations. Do not place

the tool on damp surfaces. Use a clean, dry

workbench if available. For added protection

use a residual current device (R.C.D.) that will

interrupt the supply if the leakage current to

earth exceeds 30mA for 30ms. Always check the

operation of the residual current device (R.C.D.)

before using the machine.

If an extension cable is required it must be a

suitable type for use outdoors and so labelled.

The manufacturers instructions should be

followed when using an extension cable.

(2.1) GENERAL POWER TOOL

SAFETY INSTRUCTIONS

(These General Power Tool Safety Instructions are

as specified in EN 62841-1: 2015 &

EN 62841-3-10:2015.

WARNING: Read all safety warnings and

instructions. Failure to follow the warnings

and instructions may result in electric shock, fire

and/ or serious injury.

Save all warnings and instructions for future

reference. The term “power tool” in the warnings

refers to your mains-operated (corded) power

tool or battery-operated (cordless) power tool.

(2.2) 1) General Power Tool

Safety Warnings [Work area safety]

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive

atmospheres, such as in the presence of

flammable liquids, gasses or dust. Power

tools create sparks which may ignite the

dust or fumes.

c) Keep children and bystanders away while

operating power tool. Distractions can cause

you to lose control.

(2.3) 2) General Power Tool Safety Warnings

[Electrical Safety]

a) Power tool plugs must match the outlet.

Never modify the plug in any way. Do not use

any adapter plugs with earthed (grounded)

power tools. Unmodified plugs and matching

outlets will reduce the risk of electric shock.

b) Avoid body contact with earthed or

grounded surfaces, such as pipes, radiators,

ranges and refrigerators. There is an increased

risk of electric shock if your body is earthed or

grounded.

c) Do not expose power tools to rain or wet

conditions. Water entering a power tool will

increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord

for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges

or moving parts. Damaged or entangled cords

increase the risk of electric shock.

e) When operating a power tool outdoors, use

an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces

the risk of electric shock.

f) If operating a power tool in a damp location

is unavoidable, use a residual current device

(RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

(2.4) 3) General Power Tool Safety Warnings

[Personal Safety].

a) Stay alert, watch what you are doing and use

common sense when operating a power tool. Do

not use a power tool while you are tired or under the

influence of drugs, alcohol or medication. A moment

of inattention while operating power tools may result

in serious personal injury.

b) Use personal protective equipment. Always

wear eye protection. Protective equipment

such as dust masks, non-skid safety shoes, hard

hat or hearing protection used for appropriate

conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the

switch is in the off-position before connecting to

power source and or battery pack, picking up or

carrying the tool. Carrying power tools with your

finger on the switch or energising the power

tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench

before turning the power tool on. A wrench

or key left attached to a rotating part of a power

tool may result in personal injury.

e) Do not overreach. Keep proper footing and

balance at all times. This enables better control

of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing

or jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewellery

or long hair can be caught in moving parts.

g) If devices are provided for the connection

of dust extraction and collection facilities,

ensure that these are connected and properly

www.evolutionpowertools.com

used. Use of dust collection can reduce

dust-related hazards.

h) Do not let familiarity gained from frequent

use of tools allow you to become complacent

and ignore tool safety principles. A careless

action can cause severe injury within a fraction

of a second.

(2.5) 4) General Power Tool Safety Warnings

[Power tool use and care].

a) Do not force the power tool. Use the correct

power tool for your application. The correct

power tool will do the job better and safer at a

rate for which it was designed.

b) Do not use the power tool if the switch

does not turn it on or off. Any power tool

that cannot be controlled with the switch

is dangerous and must be repaired.

c) Disconnect the power tool from the

power source and/or battery pack from the

power tool before making any adjustments,

changing accessories, or storing power tools.

Such preventative safety measures reduce the

risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of

children and do not allow persons unfamiliar

with the power tool or these Instructions

to operate the power tool. Power tools are

dangerous in the hands of untrained users.

e) Maintain power tools. Check for

misalignment or binding of moving parts,

breakage of moving parts and any other

condition that may affect the power tools

operation. If damaged, have the power tool

repaired before use. Many accidents are caused

by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with

sharp cutting edges are less likely to bind

and are easier to control.

g) Use the power tool, accessories and tool

bits etc. in accordance with these instructions,

taking into account the working conditions

and the work to be performed. Use of the

power tool for operations different fromthose

intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry,

clean and free from oil and grease. Slippery

handles and grasping surfaces do not allow

for safe handling and control of the tool in

unexpected situations.

(2.6) 5) General Power Tool

Safety Warnings [Service]

a) Have your power tool serviced by a

qualified repair person using only identical

replacement parts. This will ensure that the

safety of the power tool is maintained.

(2.7) HEALTH ADVICE

WARNING: When using this machine,

dust particles may be produced. In some

instances, depending on the materials you

are working with, this dust can be particularly

harmful. If you suspect that paint on the surface

of material you wish to cut contains lead, seek

professional advice. Lead based paints should

only be removed by a professional and you

should not attempt to remove it yourself.

Once the dust has been deposited on surfaces,

hand to mouth contact can result in the

ingestion of lead. Exposure to even low levels

of lead can cause irreversible brain and nervous

system damage. The young and unborn children

are particularly vulnerable.

You are advised to consider the risks associated

with the materials you are working with and to

reduce the risk of exposure.

As some materials can produce dust that may be

hazardous to your health, we recommend the

use of an approved face mask with replaceable

filters when using this machine.

You should always:

• Work in a well-ventilated area.

• Work with approved safety equipment, such

as dust masks that are specially designed to

filter microscopic particles.

(2.8) WARNING: The operation of any power

tool can result in foreign objects being thrown

towards your eyes, which could result in severe

eye damage. Before beginning power tool

operation, always wear safety goggles or safety

glasses with side shield or a full face shield where

necessary.

(3.0) Cut-off machine safety warnings

a) Position yourself and bystanders away

from the plane of the rotating wheel. The

guard helps to protect the operator from broken

wheel fragments and accidental contact with

wheel.

b) Use only bonded reinforced or diamond

cut-off wheels for your power tool. Just

because an accessory can be attached to your

power tool, it does not assure safe operation.

Use only Evolution carbide tipped blades when

cutting woods, metals and plastics or Evolution

diamond blades when cutting stone or masonry

with your power tool.

NOTE: The wording “bonded reinforced” or

“diamond” is used as applicable depending on

the designation of the tool.

c) The rated speed of the accessory must be

at least equal to the maximum speed

marked on the power tool. Accessories

running faster than their rated speed can

break and fly apart.

d) Wheels must be used only for

recommended applications. For example:

do not grind with the side of a cut-off

wheel. Abrasive cut-off wheels are intended for

peripheral grinding, side forces applied to these

wheels may cause them to shatter.

e) Always use undamaged wheel flanges

that are of correct diameter for your

selected wheel. Proper wheel flanges support

www.evolutionpowertools.com

the wheel thus reducing the possibility

of wheel breakage.

f) The outside diameter and the thickness of

your accessory must be within the capacity

rating of your power tool. Incorrectly sized

accessories cannot be adequately guarded or

controlled.

g) The arbour size of wheels and flanges

must properly fit the spindle of the power

tool. Wheels and flanges with arbour holes that

do not match the mounting hardware

of the power tool will run out of balance, vibrate

excessively and may cause loss of control.

h) Do not use damaged wheels. Before each

use, inspect the wheels for chips and cracks. If

the power tool or wheel is dropped, inspect for

damage or install an undamaged wheel. After

inspecting and installing the wheel, position

yourself and bystanders away from the plane

of the rotating wheel and run the power tool

at maximum no load speed for one minute.

Damaged wheels will normally break apart

during this test time.

i) Wear personal protective equipment.

Depending on application, use face shield,

safety goggles or safety glasses. As appropriate,

wear dust mask, hearing protectors, gloves

and shop apron capable of stopping small

abrasive or workpiece fragments. The eye

protection must be capable of stopping flying

debris generated by various operations. The

dust mask or respirator must be capable of

filtrating particles generated by your operation.

Prolonged exposure to high intensity noise may

cause hearing loss.

j) Keep bystanders a safe distance away from

work area. Anyone entering the work

area must wear personal protective equipment.

Fragments of workpiece or of a broken

wheel may fly away and cause injury beyond

immediate area of operation.

k) Position the cord clear of the spinning

accessory. If you lose control, the cord may

be cut or snagged and your hand or arm may be

pulled into the spinning wheel.

l) Regularly clean the power tool’s air

vents. The motor’s fan can draw the dust inside

the housing and excessive accumulation of

powdered metal may cause electrical hazards.

m) Do not operate the power tool near

flammable materials. Do not operate the

power tool while placed on a combustible

surface such as wood. Sparks could ignite these

materials.

n) Do not use accessories that require liquid

coolants. Using water or other liquid coolants

may result in electrocution or shock.

(3.1) Maintain a firm grip on the power tool

and position your body and arm to allow

you to resist kickback forces. The operator

can control upward kickback forces, if proper

precautions are taken.

b) Do not position your body in line with the

rotating wheel. If kickback occurs, it will

propel the cutting unit upwards toward the

operator.

c) Do not attach a saw chain, woodcarving

blade, segmented diamond wheel with a

peripheral gap greater than 10mm or

toothed saw blade. Such blades create

frequent kickback and loss of control.

d) Do not “jam” the wheel or apply excessive

pressure. Do not attempt to make an excessive

depth of cut. Overstressing the wheel increases

the loading and susceptibility to twisting

or binding of the wheel in the cut and the

possibility of kickback or wheel breakage.

e) When the wheel is binding or when

interrupting a cut for any reason, switch

off the power tool and hold the cutting unit

motionless until the wheel comes to a

complete stop. Never attempt to remove the

wheel from the cut while the wheel is in motion

otherwise kickback may occur. Investigate and

take corrective action to eliminate the cause of

wheel binding.

f) Do not restart the cutting operation in the

workpiece. Let the wheel reach full speed and

carefully re-enter the cut. The wheel may bind,

walk up or kickback if the power tool is restarted

in the workpiece.

g) Support any oversized workpiece to

minimize the risk of wheel pinching and

kickback. Large workpieces tend to sag under

their own weight. Supports must be placed

under the workpiece near the line of cut and

near the edge of the workpiece on

both sides of the wheel.

(3.2) Causes and operator

prevention of kickback:

Kickback is a sudden reaction to a pinched,

bound or misaligned saw blade, causing an

uncontrolled saw to lift up and out of the

workpiece toward the operator:

1. When the blade is pinched or bound

tightly by the kerf closing down, the blade

stalls and the motor reaction drives the unit

rapidly back toward the operator;

2. If the blade becomes twisted or

misaligned in the cut, the teeth at the

back edge of the blade can dig into the top

surface of the workpiece causing the blade

to climb out of the kerf and jump back

towards the operator.

(3.3) Kickback and related warnings

Kickback is a sudden reaction to a pinched or

snagged rotating wheel. Pinching or snagging

causes rapid stalling of the rotating wheel which

in turn causes the uncontrolled cutting unit to be

forced upwards toward the operator.

For example, if an abrasive wheel is snagged or

pinched by the workpiece, the edge of the

wheel that is entering into the pinch point can

dig into the surface of the material causing

www.evolutionpowertools.com

the wheel to climb out or kick out. Abrasive

wheels may also break under these conditions.

Kickback is the result of power tool misuse and/

or incorrect operating procedures or

conditions and can be avoided by taking proper

precautions as given below.

a)Maintain a firm grip on the power tool and

position your body and arm to allow you to

resist kickback forces. The operator can control

upward kickback forces, if proper precautions

are taken.

b)Do not position your body in line with the

rotating wheel. If kickback occurs, it will propel

the cutting unit upwards toward the operator.

c)Do not attach a saw chain, woodcarving

blade, segmented diamond wheel with

a peripheral gap greater than 10mm or

toothed saw blade. Such blades create frequent

kickback and loss of control.

d)Do not “jam” the wheel or apply excessive

pressure. Do not attempt to make an excessive

depth of cut. Overstressing the wheel increases

the loading and susceptibility to twisting

or binding of the wheel in the cut and the

possibility of kickback or wheel breakage.

e)When the wheel is binding or when

interrupting a cut for any reason, switch off

the power tool and hold the cutting unit

motionless until the wheel comes to a

complete stop. Never attempt to remove the

wheel from the cut while the wheel is in motion

otherwise kickback may occur. Investigate and

take corrective action to eliminate the cause of

wheel binding.

f)Do not restart the cutting operation in the

workpiece. Let the wheel reach full speed and

carefully re-enter the cut. The wheel may bind,

walk up or kickback if the power tool is restarted

in the workpiece.

g)Support any oversized workpiece to

minimize the risk of wheel pinching and

kickback. Large workpieces tend to sag under

their own weight. Supports must be placed

under the workpiece near the line of cut and

near the edge of the workpiece on both sides of

the wheel.

(3.4) WARNING: If any parts are missing, do not

operate your machine until the missing parts are

replaced. Failure to follow this rule could result in

serious personal injury.

ADDITIONAL WARNINGS

1. Keep guards in place and in working order.

2. Remove adjusting keys and wrenches.

Form habit of checking to see that keys and

adjusting wrenches are removed from tool

before turning it on.

3. Keep work area clean. Cluttered areas and

benches invite accidents.

4. Don’t use in dangerous environment. Don’t

use power tools in damp or wet locations, or

expose them to rain. Keep work area well lit.

5. Keep children away. All visitors should be

kept safe distance from work area.

6. Make workshop child proof with padlocks,

master switches, or by removing starter keys.

7. Don’t force the tool. It will do the job better

and safer at the rate for which it was designed.

8. Use the right tool. Don’t force the tool or

attachment to do a job for which it was not

designed.

9. Use proper extension cord. Make sure

your extension cord is in good condition. When

using an extension cord, be sure to use one

heavy enough to carry the current your product

will draw. An undersized cord will cause a drop

in line voltage resulting in loss of power and

overheating. The table on the next page shows

the correct size to use depending on cord length

and nameplate ampere rating. If in doubt, use

the next heavier gauge. The smaller the gauge

number, the heavier the cord.

10. Wear proper apparel do not wear loose

clothing, gloves, neckties, rings, bracelets, or

other jewellery which may get caught in moving

parts. Nonslip footwear is recommended. Wear

protective hair covering to contain long hair.

11. Always use safety glasses. Also use face or

dust mask if cutting operation is dusty. Everyday

eyeglasses only have impact resistant lenses,

they are not safety glasses.

12. Secure work. Use clamps or a vise to hold

work when practical. It’s safer than using your

hand and it frees both hands to operate tool.

13. Don’t overreach. Keep proper footing and

balance at all times.

14. Maintain tools with care. Keep tools

sharp and clean for best and safest performance.

Follow instructions for lubricating and changing

accessories.

15. Disconnect tools before servicing; when

changing accessories, such as blades, bits,

cutters, and the like.

16. Reduce the risk of unintentional stating.

Make sure switch is in off position before

plugging in.

17. Use recommended accessories. Consult

the owner’s manual for recommended

accessories. The use of improper accessories may

cause risk of injury to persons.

18. Never stand on the tool serious injury

could occur if the tool is tipped or if the cutting

tool is unintentionally contacted.

19. Check damaged parts. Before further use

of the tool, a guard or other part that is damaged

should be carefully checked to determine that it

will operate properly and perform its intended

function - check for alignment of moving parts,

binding of moving parts, breakage of parts,

mounting, and any other conditions that may

affect its operation. A guard or other part that

is damaged should be properly repaired or

replaced.

20. Direction of feed. Feed work into a blade

or cutter against the direction of rotation of the

blade or cutter only.

www.evolutionpowertools.com

21. Never leave tool running unattended.

Turn power off. Don’t leave the tool until it

comes to a complete stop.

(4.1) GETTING STARTED - UNPACKING

Caution: This packaging contains sharp

objects. Take care when unpacking. Remove

the machine, together with the accessories

supplied from the packaging. Check carefully

to ensure that the machine is in good condition

and account for all the accessories listed in this

manual. Also make sure that all the accessories

are complete.

If any parts are found to be missing, the machine

and its accessories should be returned together

in their original packaging to the retailer.

Do not throw the packaging away;

keep it safe throughout the guarantee period.

Dispose of the packaging in an environmentally

responsible manner.

Recycle if possible.

Do not let children play with empty plastic bags

due to the risk of suffocation.

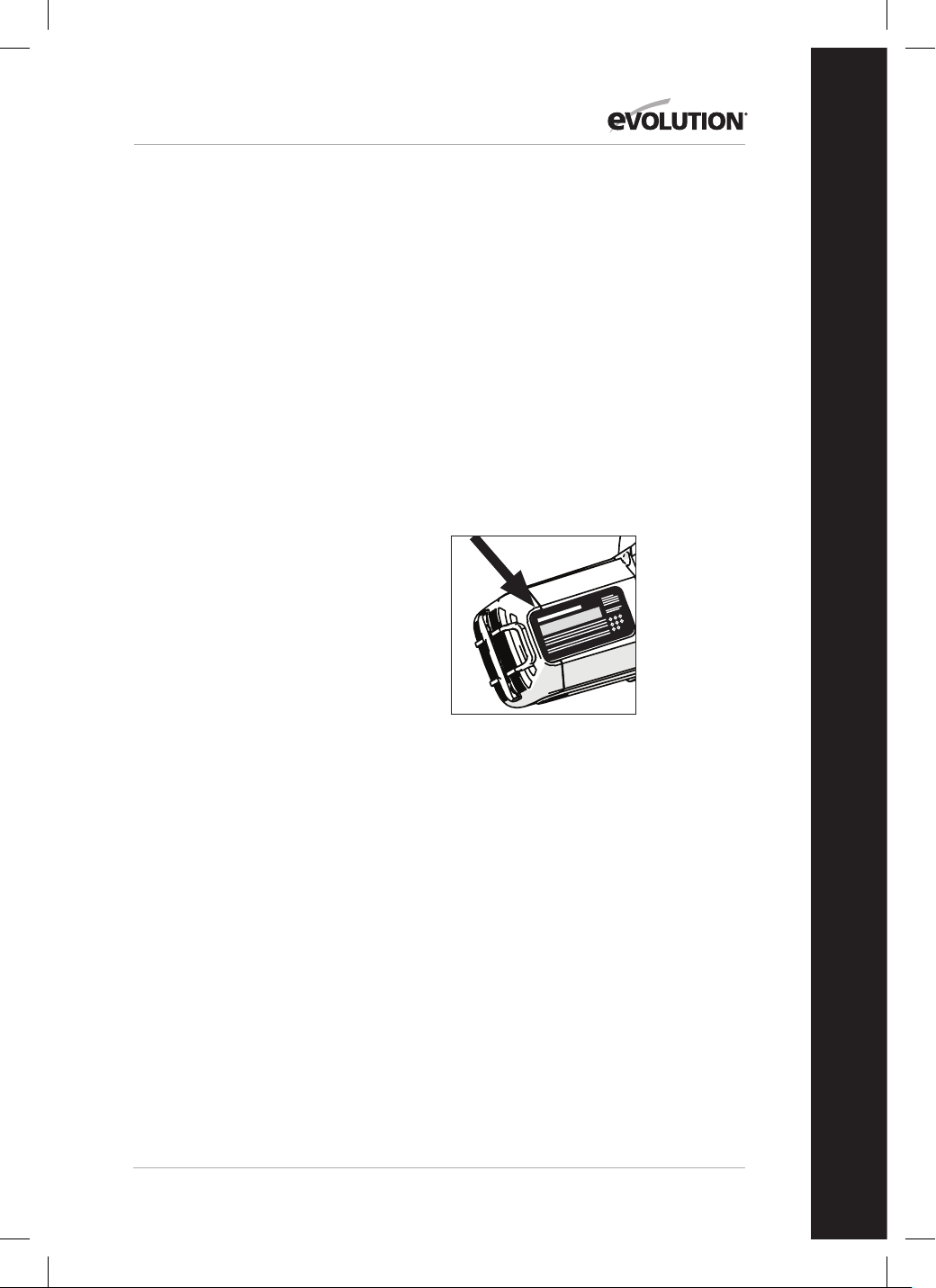

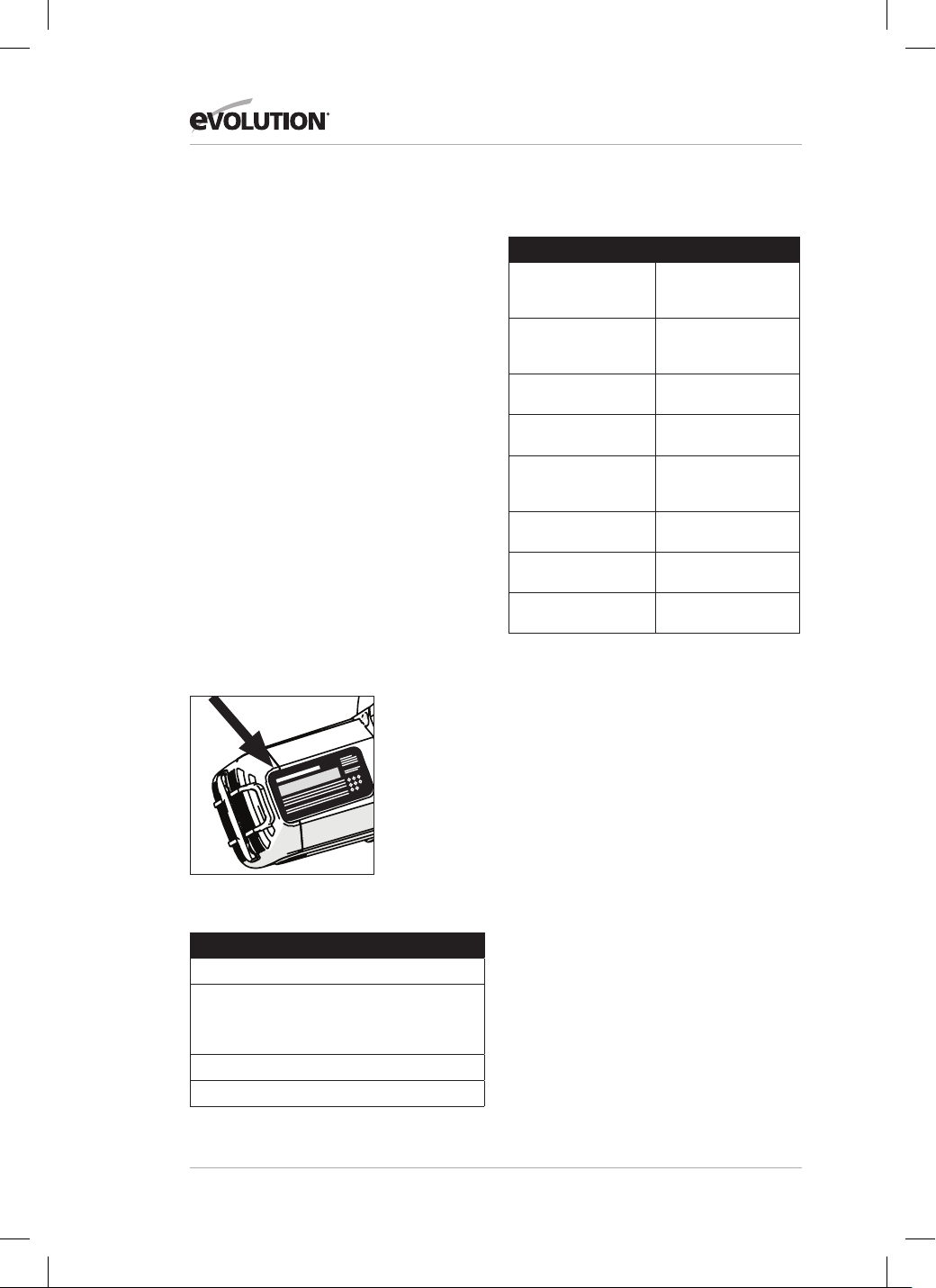

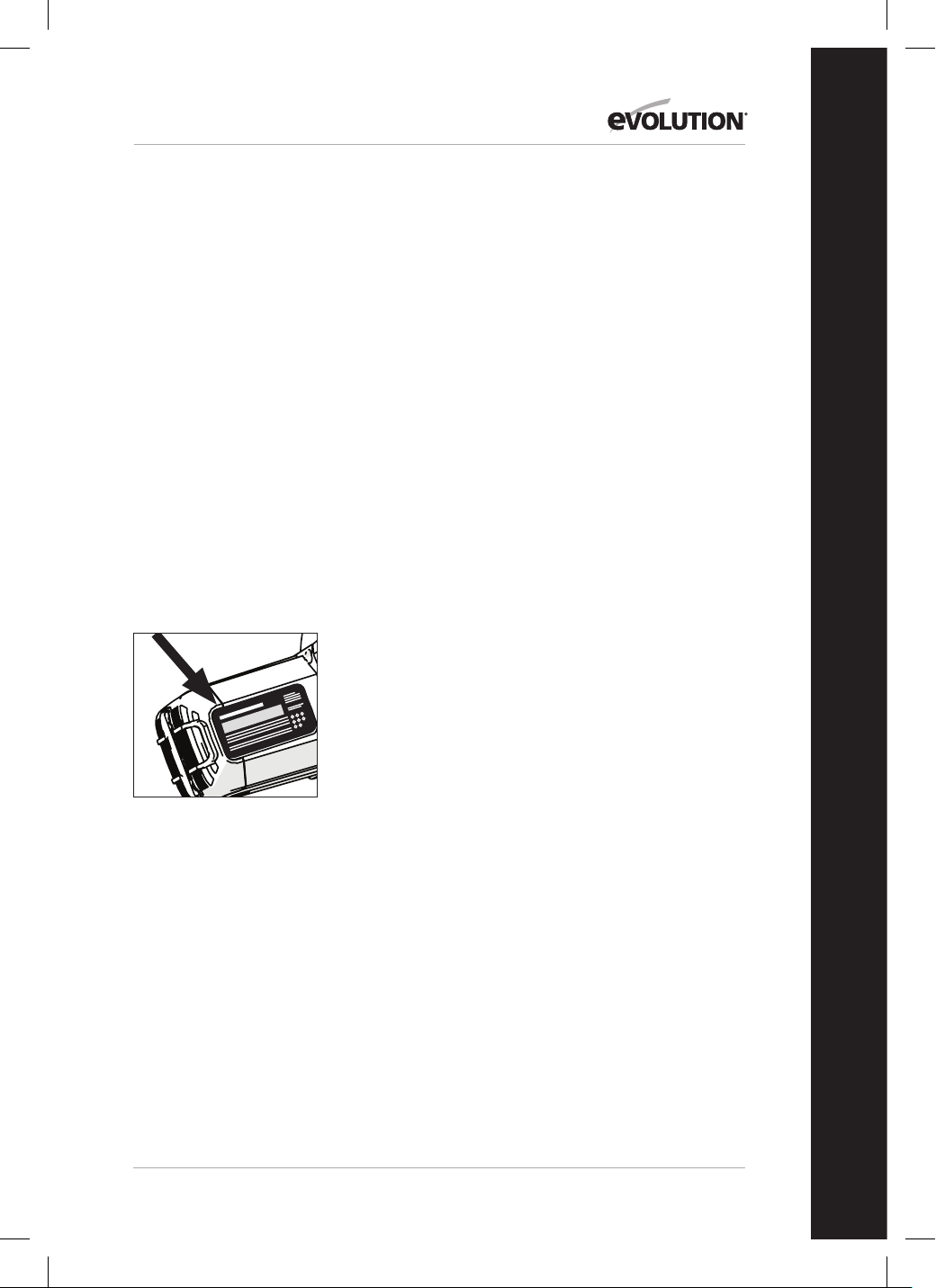

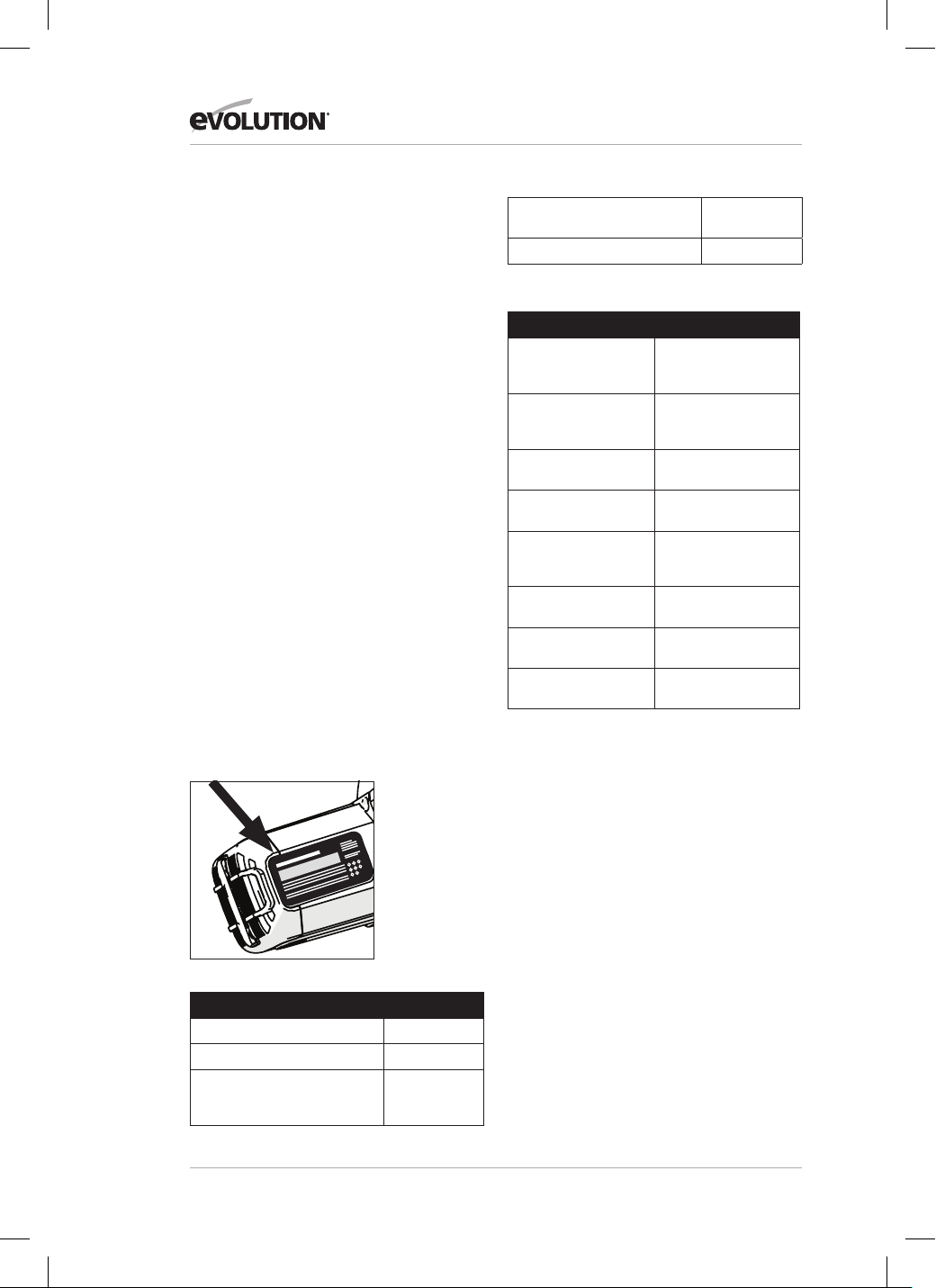

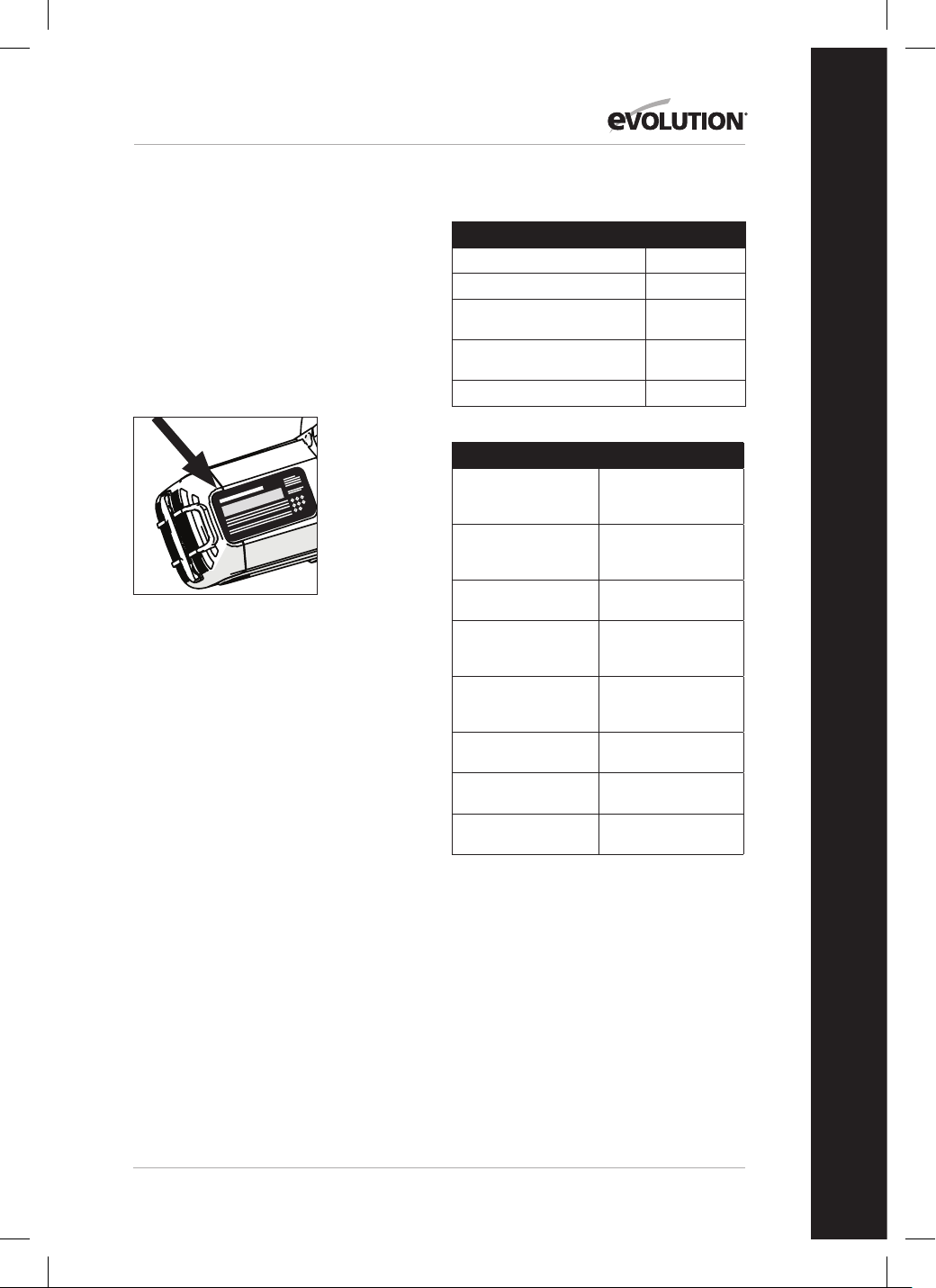

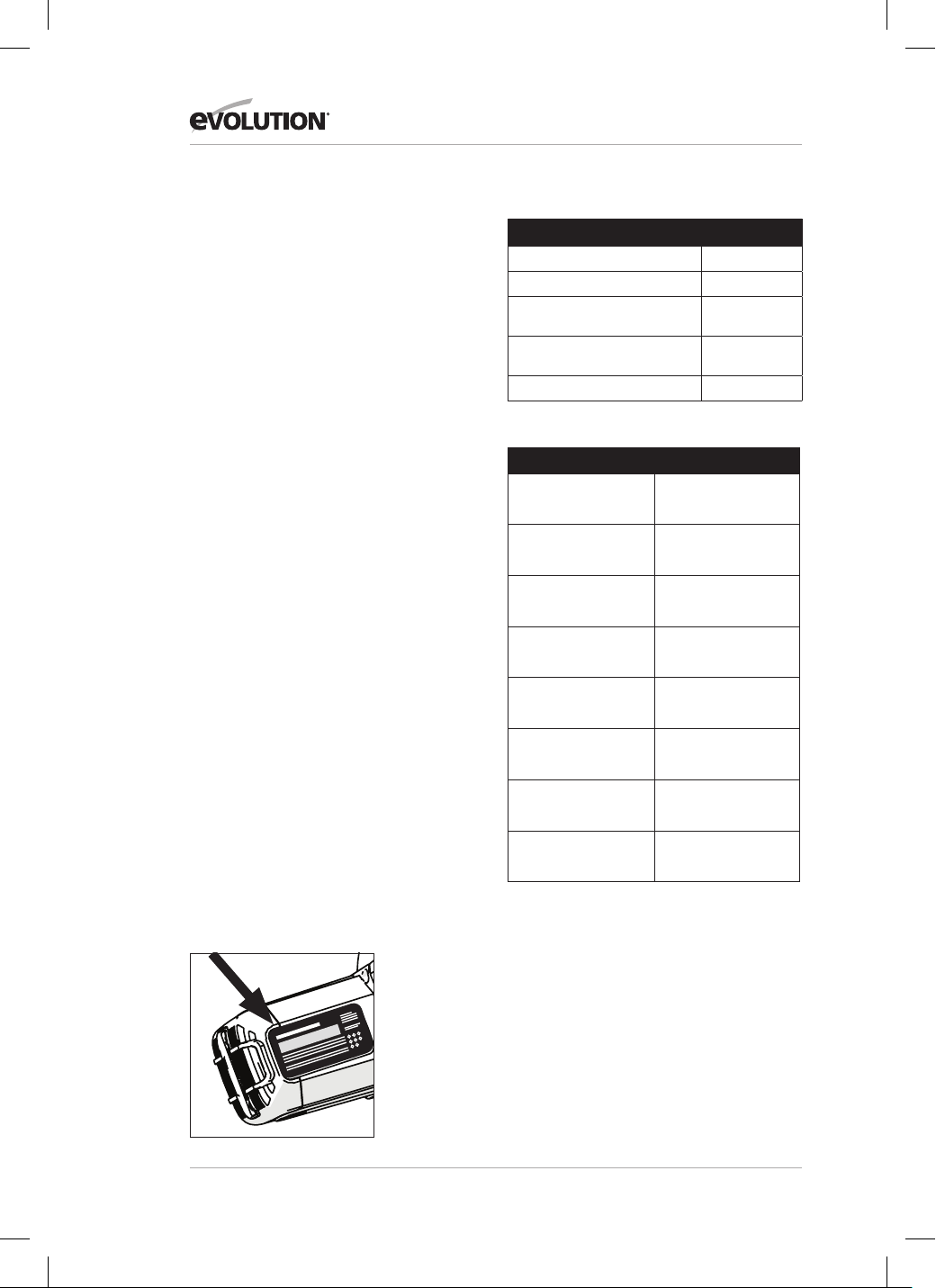

SERIAL NO. / BATCH CODE

The serial number can be found on the motor

housing of the machine.

For instructions on how to identify the batch

code, please contact the Evolution Power Tools

helpline or go to:

www.evolutionpowertools.com

(4.2) ITEMS SUPPLIED

R355CPS

Instruction Manual x 1

14” (355mm)

Multi-Material TCT Blade x 1

UK/EU: (RAGEBLADE355MULTI)

USA: (RAGEBLADE355)

Hex Key 8mm x 1 (Blade Change)

V-Block x 1

(4.4) REPLACEMENT BLADES

Description Part No

14” (355mm)

Multi-Material Cutting

TCT Blade

(UK/EU) RAGEBLADE-

355MULTI

(USA) RAGE355BLADE

14” (355mm)

Diamond Blade

(UK/EU) RAGEBLADE-

355DIAMOND

(USA) 14BLADEDM

14” (355mm) Mild Steel

Cutting Blade

(UK/EU) 66TBLADE

(USA) 14BLADEST

14” (355mm) Stainless

Steel Cutting Blade

(UK/EU) 90TBLADE

(USA) 14BLADESS

14” (355mm) Thin Steel

Cutting Blade

(UK/EU) EVO-

BLADE355TS

(USA) 14BLADETS

14” (355mm) Aluminium/

Aluminum Cutting Blade

(UK/EU) 80TBLADE14

(USA) 14BLADEAL

14” (355mm) Wood Cut-

ting Blade

(USA) 14BLADEWD

15” (380mm) Mild Steel

Cutting Blade

(USA) 15BLADEST

NOTE: This machine is supplied with 2 accessories.

The 8mm hex key should be kept in the dedicated

tool storage located in the front of the base when

not in use. The V-block adaptor should be used

where possible, and kept safely away from the

machine when not in use.

www.evolutionpowertools.com

MACHINE OVERVIEW

1. LOWER BLADE GUARD

2. UPPER BLADE GUARD

3. FRONT SWIVELLING VICE JAW

4. REPOSITIONABLE REAR VICE JAW

5. CUTTING HANDLE

6. CUTTING HEAD HOLD DOWN PIN

7. TRAVEL STOP ADJUSTMENT SCREW

8. WORK BENCH MOUNTING HOLES X4

9. BLADE CHANGE HEX KEY

10. BLADE ARBOR GUARD

11. ARBOR LOCK BUTTON

12. VICE HANDLE

13. CARBON BRUSHES ACCESS CAP

14. ON/OFF TRIGGER SWITCH

15. CARRY HANDLE

www.evolutionpowertools.com

(5.5) ASSEMBLY & PREPARATION

PERMANENTLY MOUNTING A

CHOP SAW

WARNING: Only attempt the following

procedures with the machine disconnected

from the mains power supply.

The base on this chop saw has four mounting

holes (in the corners) through which suitable

bolts (not supplied) can be placed to secure the

machine.

Site the machine giving consideration to the

following guidelines:

• To avoid injury from flying debris, position

the saw so that other people or bystanders

cannot stand too close (or behind) it.

• Locate the saw on a firm, level surface where

there is plenty of room for handling and

properly supporting the workpiece.

• Ensure that the workbench or other

supporting structure is firm and stable and

does not ‘rock’.

• Ensure that the power cord cannot become

entangled with any part of the machine

during cutting operations.

• Ensure that the power cord is routed in such

a way that it does not pose a trip (or any

other type) of hazard to the operator or

any bystanders.

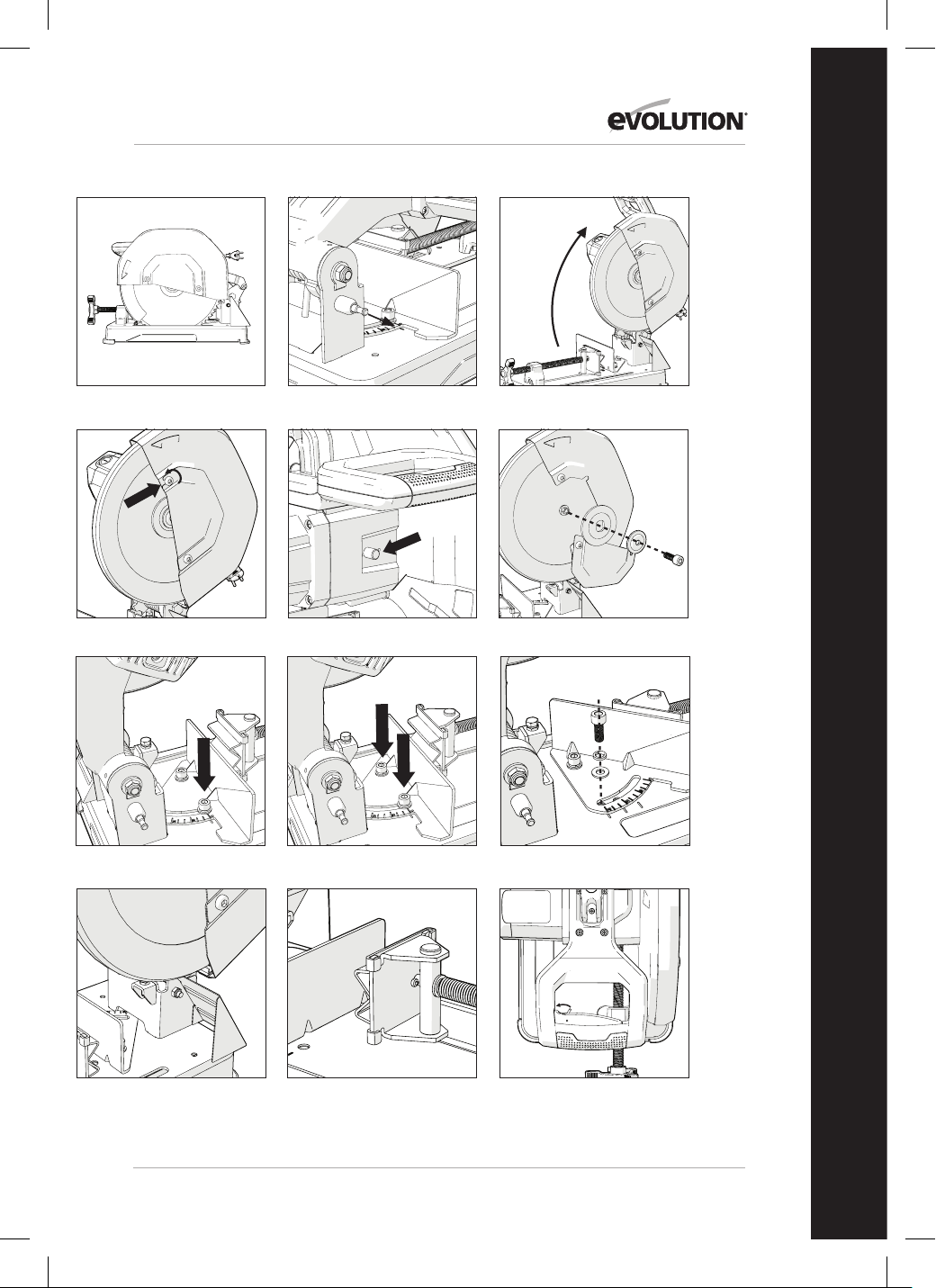

TRANSPORTING THE SAW

Only transport these machines with the Cutting

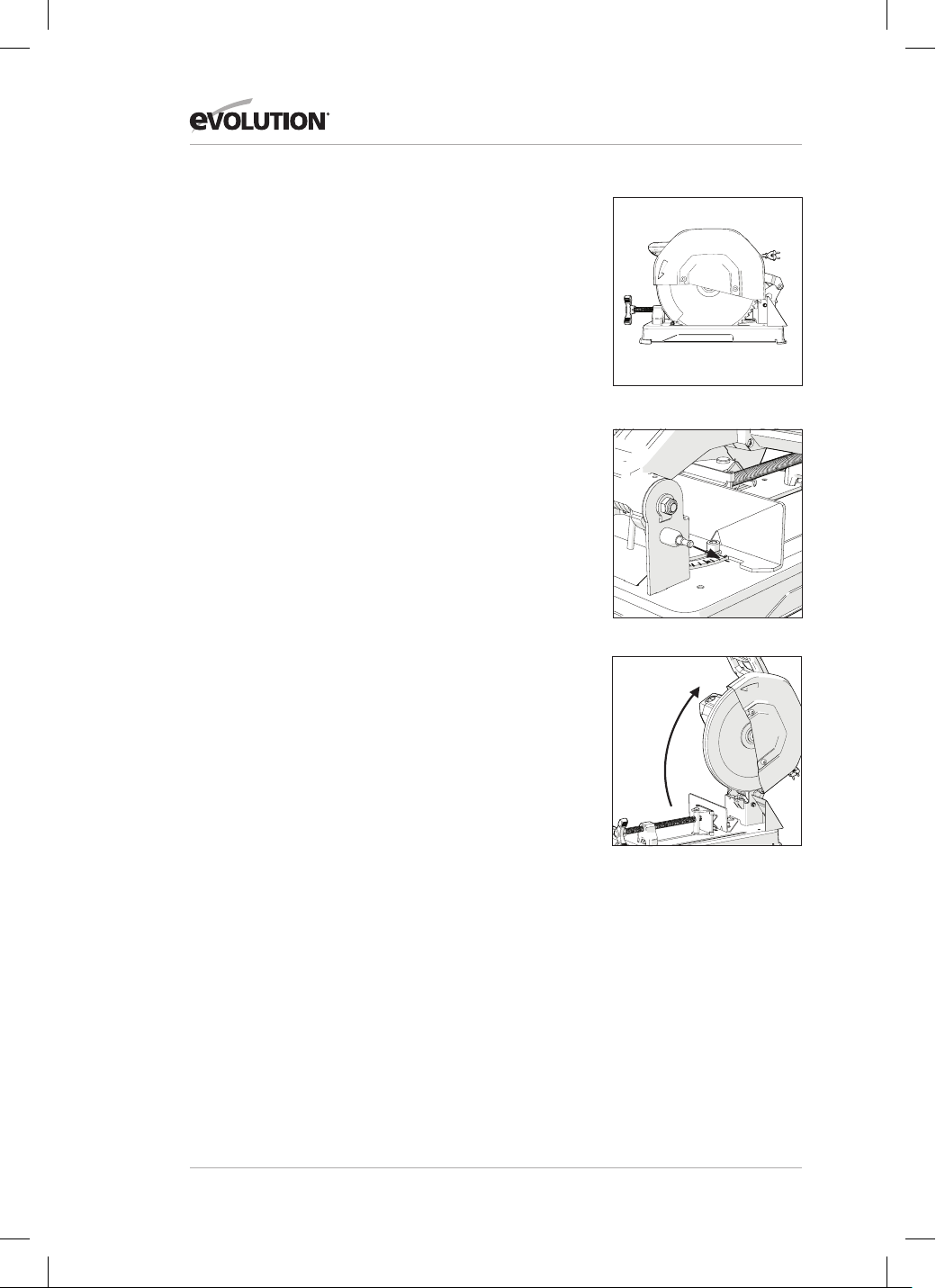

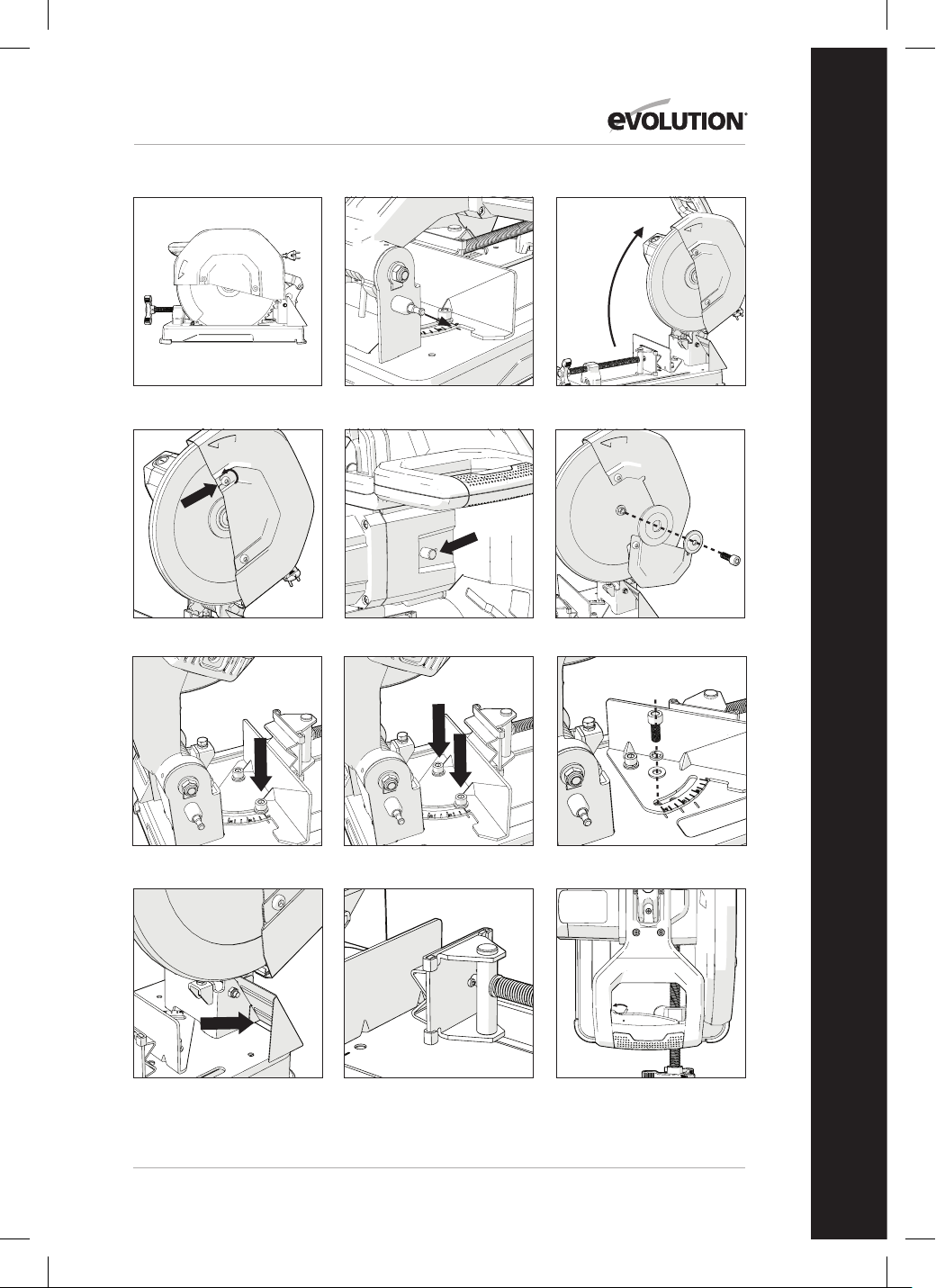

Head in the locked down position (Fig. 1) and

the Locking Pin fully engaged in its socket.

UNLOCKING THE CUTTING HEAD

NOTE: We recommend that the operator keep

hold of the cutting handle throughout this

process to ensure a controlled transition of the

cutting head to the upper position.

• Gently press down on the Cutting Handle.

Pull out the Locking Pin. (Fig. 2) Allow the

Cutting Head to rise to its upper position

(Fig. 3).

REMOVING OR INSTALLING A BLADE

WARNING: Only use genuine Evolution blades

designed for this machine - see page 10

It is recommended that the operator considers

wearing protective gloves when handling the

blade during installation or when changing the

machines blade.

REMOVING A BLADE:

• Ensure that the Cutting Head is in its upper

position.

• Using the Hex Key supplied, loosen the front

arbor cover bolt and rotate the arbor cover out

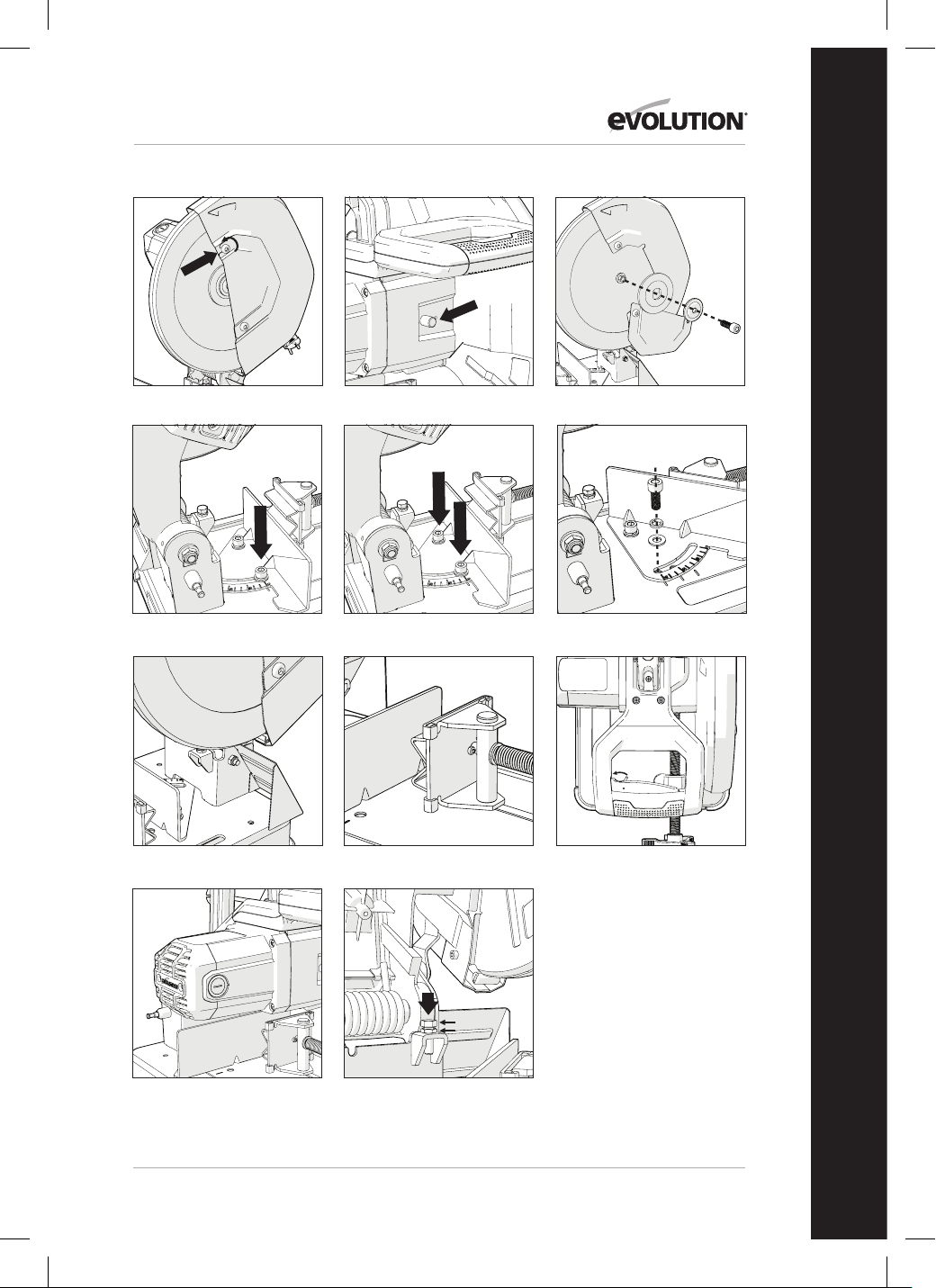

of the way. (Fig. 4).

• Press the arbor lock button (labelled) (Fig. 5)

and use the supplied hex key to remove the

blade bolt. The blade may rotate slightly until

the arbor lock engages.

• Remove the arbor bolt, washer and outer

blade flange. (Fig. 6).

• Open the blade guard and carefully remove

the old blade. Leave the inner blade flange

in place.

INSTALLING A BLADE:

• Install the new blade, ensuring the directional

arrow on the blade matches the direction of

the arrow on the upper blade guard.

• Allow the blade guard to close and refit the

outer blade flange and washer.

• Partially refit the arbor bolt, press the arbor

lock button and fully tighten with the supplied

hex key.

After replacing a blade, always run the machine,

without load to ensure the blade is seated correctly.

CUTTING ANGLE ADJUSTMENT

TO ANGLE THE REAR VICE JAW:

• Loosen the fence securing bolt (Fig. 7)

• Rotate the fence to the desired angle and

retighten the bolt.

TO REMOVE THE REAR VICE JAW:

Completely remove fence securing bolts and

washers. (Fig. 8)

• Completely remove both fence securing bolts,

washer and spacer (Fig. 9) that secure the rear

vice jaw to the machines base.

• Place the vice jaw into its new service position.

• Refit the fence securing bolts, washers and

spacer.

CHIP COLLECTION

A specially shaped steel shield (Fig. 10)

prevents the cut debris from being expelled

forcefully from the machine.

www.evolutionpowertools.com

The accumulated chippings behind the machine

will need to be removed from on a regular basis.

WARNING: Some of the chippings may be sharp, or

in other ways pose a hazard to the operator. It may

be necessary for the operator to wear suitable PPE.

Dispose of the collected chippings in an

environmentally responsible way.

WARNING: Only clear chippings from the

machine with the machine disconnected from the

mains power supply.

OPERATING ADVICE

(PRE OPERATION CHECKS)

NOTE: As all operating environments are unique

and diverse, Evolution Power Tools offers the

following general advice on safe operational

procedures and practices for consideration by the

operator.

This advice cannot be exhaustive as Evolution

has no influence on the type of workshops or

working environments in which these machines

may be used.

We recommend that the operator seeks advice

from a competent authority or the workshop

supervisor if they are at unsure about any aspect

of using these machines.

It is important that routine safety checks are

carried out (at each time of usage) before the

operator uses the machine.

WARNING: These pre-use safety checks should

be carried out with the machine disconnected

from the mains power supply.

• Check that all safety guards are operating

correctly, and that all adjustment handles/

screws are securely tightened.

• Check that the blade is secure and installed

correctly. Also check that it is the correct blade

for the material being cut.

• Check the security of the workpiece in

the machine.

• Check the integrity of the power cord and its

position and routing.

PPE

The operator should wear all relevant PPE

(Personal Protection Equipment) necessary for

the task ahead. This could include safety glasses,

dust masks, safety shoes etc.

PREPARING TO MAKE A CUT

WARNING: Do not overreach. Keep good footing

and balance. Stand to one side so that your face

and body are out of line of a possible kickback.

WARNING: Freehand cutting is a major cause of

accidents and should not be attempted.

• Open the vice and position the workpiece as

required. Rotate the vice handle clockwise

until the workpiece is securely clamped.

Check that the workpiece cannot move before

making the cut.

• The machines base should be clean and free

from any ‘swarf’ or sawdust etc. before the

workpiece is clamped into position.

• Ensure that the workpiece is firmly secured

in the vice.

• Ensure that the ‘cut-off’ material is free to

move sideways away from the blade when the

cut is completed.

• Ensure that the ‘cut-off’ piece cannot become

‘jammed’ in any other part of the machine.

• Do not use these saws to cut small pieces.

If the workpiece being cut could cause your hand

or fingers to come within 150mm of the saw

blade, the workpiece is too small.

Angles should be clamped in an inverted position.

The supplied ‘V’ block (Fig. 11) can be attached to

a vice jaw to provide increased clamping contact

of (particulary tubular) round, angle and some

square or rectangular section workpieces.

THE ON/OFF TRIGGER SWITCH

These models are equipped with a none latching

safety start trigger switch.

TO START THE MOTOR:

• Push in the safety lock on the left side of the

trigger switch to the left (Fig. 12).

• Depress the main trigger switch.

WARNING: Never start the saw with the cutting

edge of the saw blade in contact with the

workpiece surface.

MAKING A CUT

• With the Cutting Head in the upper position,

switch on the motor and allow it to reach full

operational speed.

• Gently lower the Cutting Head to the material

and use light pressure at first to prevent

the blade from grabbing. Do not ‘force’ the

machine. Let the saw blade do the work.

• Cutting performance will not improve by

applying undue pressure on the machine, and

doing so may cause blade and motor life to

be reduced.

www.evolutionpowertools.com

• Reduce the pressure as the blade begins to

exit the material.

On completion of a cut release the ON/OFF

trigger switch to turn off the motor.

• Allow the Cutting Head to return to its

upper position.

• Only remove your hands, or the workpiece

from the machine, after the motor has

completely stopped and the stationary blade

is covered by the lower blade guard.

WARNING: These machines must never be used

to cut Asbestos or any material that contains, or is

suspected to contain, Asbestos.

Consult/inform the relevant authorities, and seek

additional guidance if Asbestos contamination

is suspected.

MAINTENANCE & ADJUSTMENTS

NOTE: Any maintenance must be carried out

with the machine switched off and disconnected

from the mains power supply.

• Check on a regular basis that all safety features

and guards etc are operating correctly.

• All motor bearings in this machine are

lubricated for life. No further lubrication is

required.

• Use a clean, slightly damp cloth to clean

the plastic parts of the machine. Do not use

solvents or similar products which could

damage the plastic parts.

• The machines air vents should be cleaned

using compressed dry air only.

CHECKING/REPLACING

THE CARBON BRUSHES

Excessive sparking may indicate the presence of

dirt in the motor or worn out carbon brushes.

Disconnect the machine from the power supply

before attempting to check or replace the Carbon

Brushes.

Replace both carbon brushes if either has less than

6mm length of carbon remaining, or if the spring

or wire is damaged or burned.

TO REMOVE THE BRUSHES:

• Unscrew the plastic caps found at the back of

the motor (Fig. 13). Be careful as the caps are

spring-loaded.

• Withdraw the brushes with their springs.

• If replacement is necessary renew the brushes

and replace the caps.

Used but serviceable brushes can be replaced,

but only as long as they are returned to the same

position, and inserted the same way round, as they

were removed from the machine.

• Run new brushes without load for

approximately 5 minutes. This will help the

bedding-in process.

CUTTING HEAD TRAVEL ADJUSTMENT

To prevent the blade from contacting any part of

the machines metal base, the downward travel

of the Cutting Head can be adjusted.

Lower the Cutting Head and check for any blade

contact with the machines base.

If the downward travel of the Cutting Head needs

to be adjusted:

• Loosen the locknut on the downward travel

stop screw. (Fig 14a)

• Turn the adjusting screw (Fig 14b) out

(counter-clockwise) to decrease the downwards

travel of the Cutting Head.

• Turn the adjusting screw in (clockwise) to

increase the downwards travel of the Cutting

Head.

• Tighten the adjustment screw locknut when

satisfactory downward travel of the Cutting

Head is achieved.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed

of with household waste. Please recycle where

facilities exist.

Check with your Local Authority or retailer for

recycling advice.

www.evolutionpowertools.com

EC DECLARATION OF CONFORMITY

The manufacturer of the product covered by this Declaration is:

UK: Evolution Power Tools Ltd. Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR.

FR: Evolution Power Tools SAS. 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France.

The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the

relevant provisions of the Machinery Directive and other appropriate directives as detailed below.

The manufacture further declares that the machine as detailed in this declaration, where

applicable, fulfils the relevant provisions of the Essential Health and Safety requirements.

The Directives covered by this Declaration are as detailed below:

2006/42/EC. Machinery Directive.

2014/30/EU. Electromagnetic Compatibility Directive.

The Restriction of the Use of certain Hazardous Substances in Electrical

Equipment (RoHS) Directive.

2012/19/EU The Waste Electrical and Electronic Equipment (WEEE) Directive.

And is in conformity with the applicable requirements of the following documents:

EN 62841-1:2015 • EN 62841-3-10:2015/A11:2017 • EN ISO 12100:2010 •

EN IEC 55014-1:2021 • EN IEC 55014-2:2021 • EN IEC 61000-3-2-2019+A1:2021 •

EN IEC 61000-3-11:2019

Product Details

Description: R355CPS 355mm (14”) MULTI-MATERIAL CHOP SAW

Evolution Model No: R355CPS: UK 230V: 083-0001, UK 110V: 083-0002, EU 230V: 083-0003

Brand Name: EVOLUTION

Voltage: 110v, 220 - 240v ~ 50Hz

Input: 110v - 1800W, 220-240v - 2200W

The technical documentation required to demonstrate that the product meets the requirements

of directive has been compiled and is available for inspection by the relevant enforcement

authorities, and verifies that our technical file contains the documents listed above

and that they are the correct standards for the product as detailed above.

Name and address of technical documentation holder.

Signed: Print: Barry Bloomer - Supply Chain & Procurement Director

Date: 31/07/2023

UK: Evolution Power Tools Ltd. Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR.

FR: Evolution Power Tools SAS. 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France.

2011/65/EU &

(EU)2015/863
