PORTABLE ELECTRIC
WOOD CHIPPER & SHREDDER
Instruction Manual
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
MODEL 41130
2
WELCOME 3
Introduction ......................................................................................................3
Specifications ....................................................................................................3
SAFETY 4
General Safety Rules .........................................................................................4
Wood Chipper & Shredder Safety Warnings .....................................................6
Electrical Information ........................................................................................8
BEFORE OPERATING 9

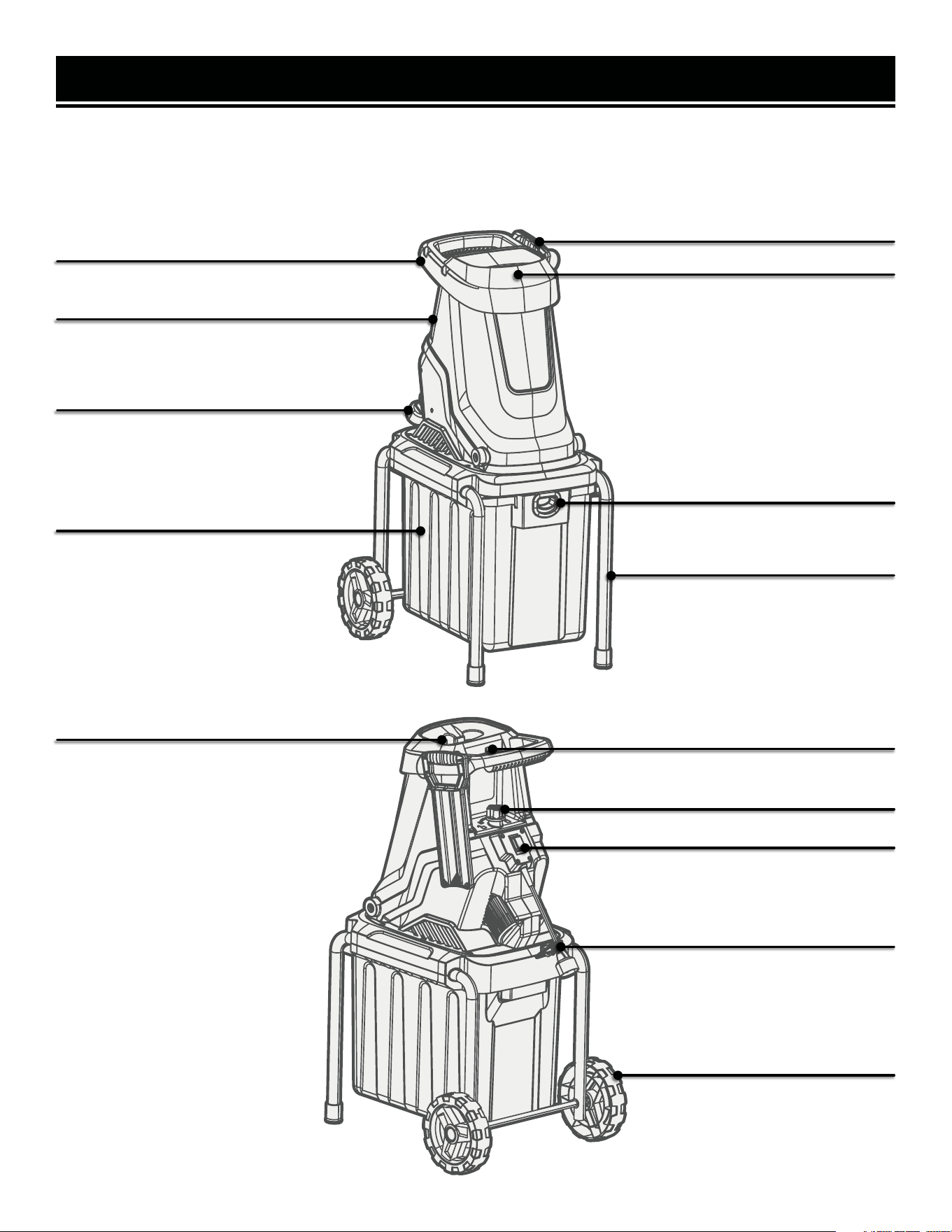

Know Your Wood Chipper & Shredder ..............................................................9

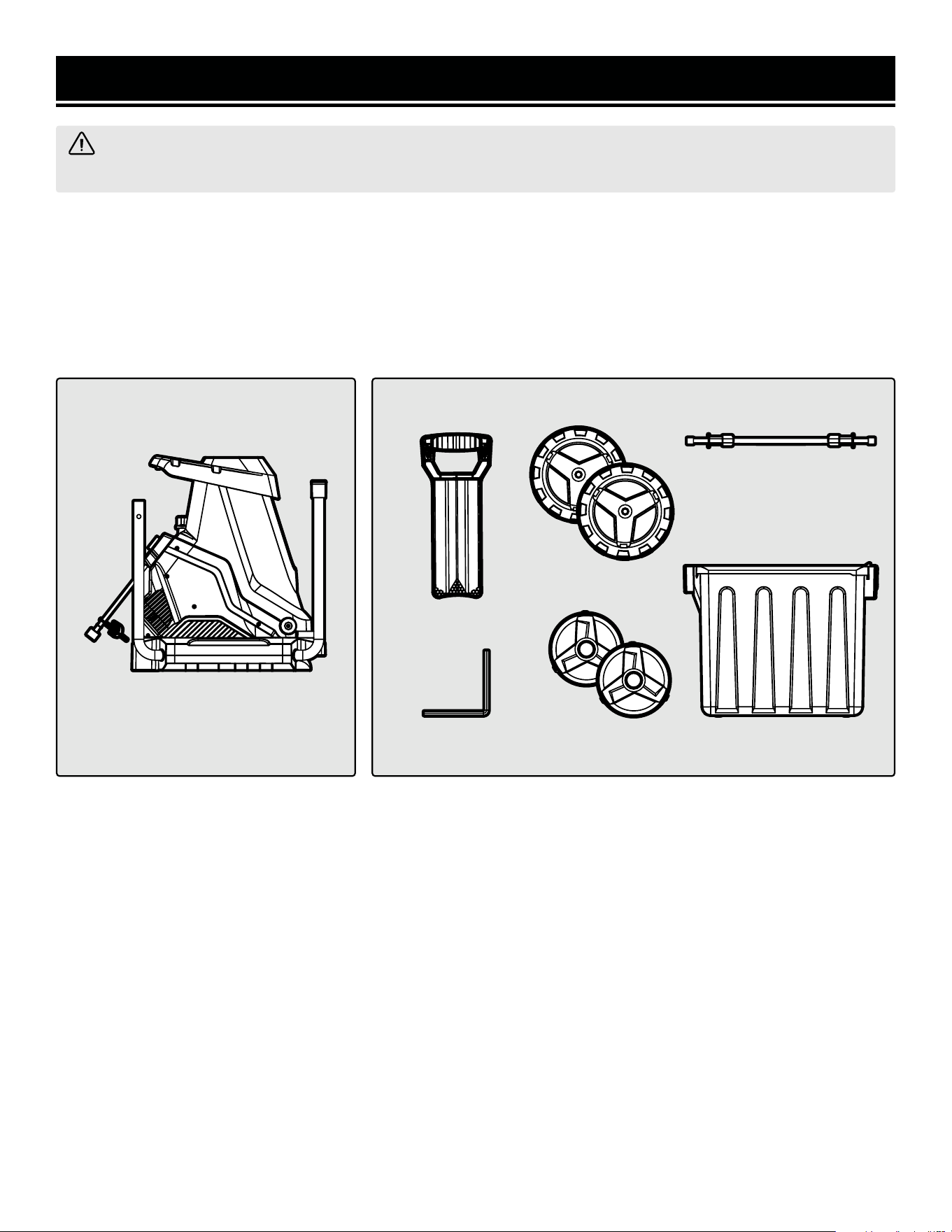

Unpacking & Packing List ...............................................................................10

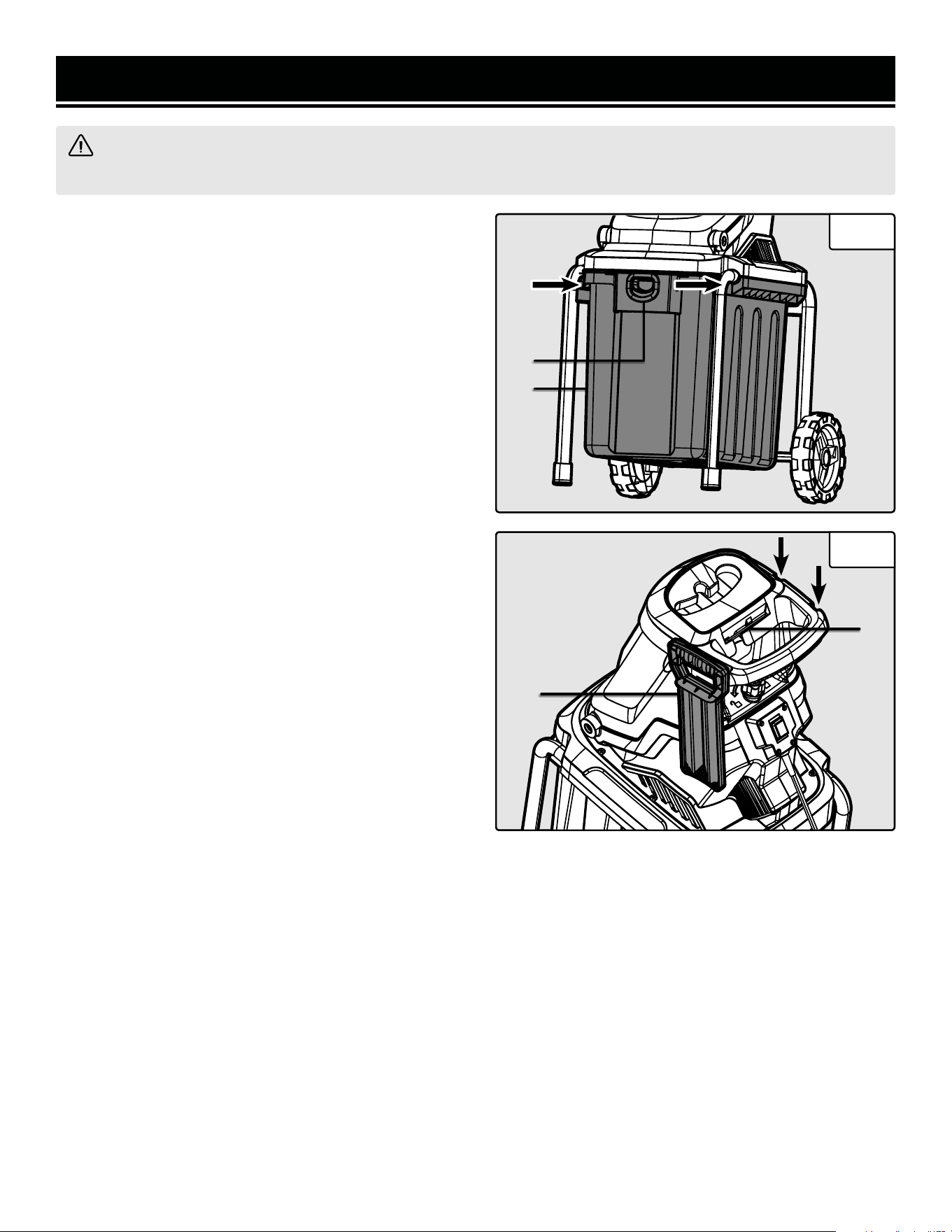

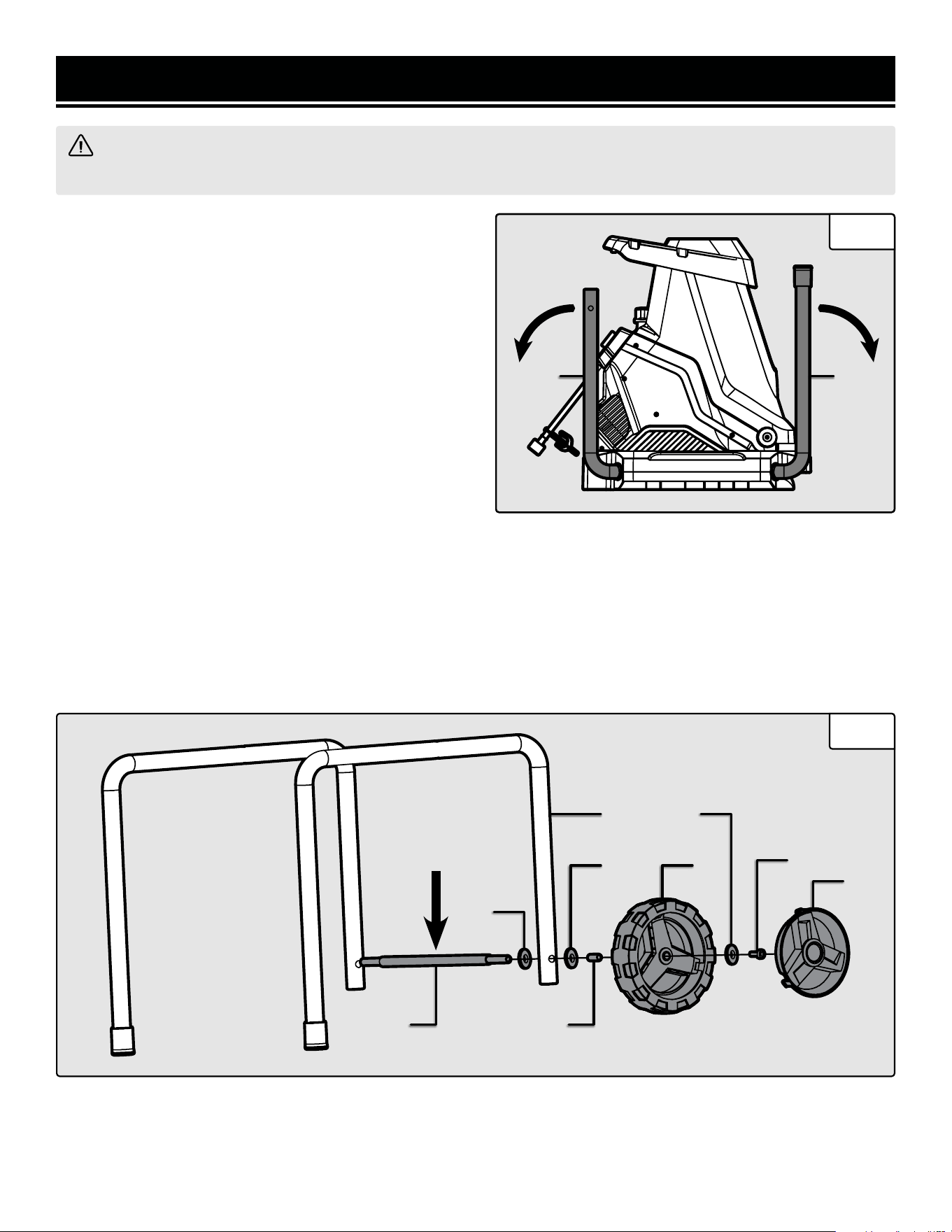

Assembly & Adjustment ..................................................................................11
OPERATION & MAINTENANCE 13

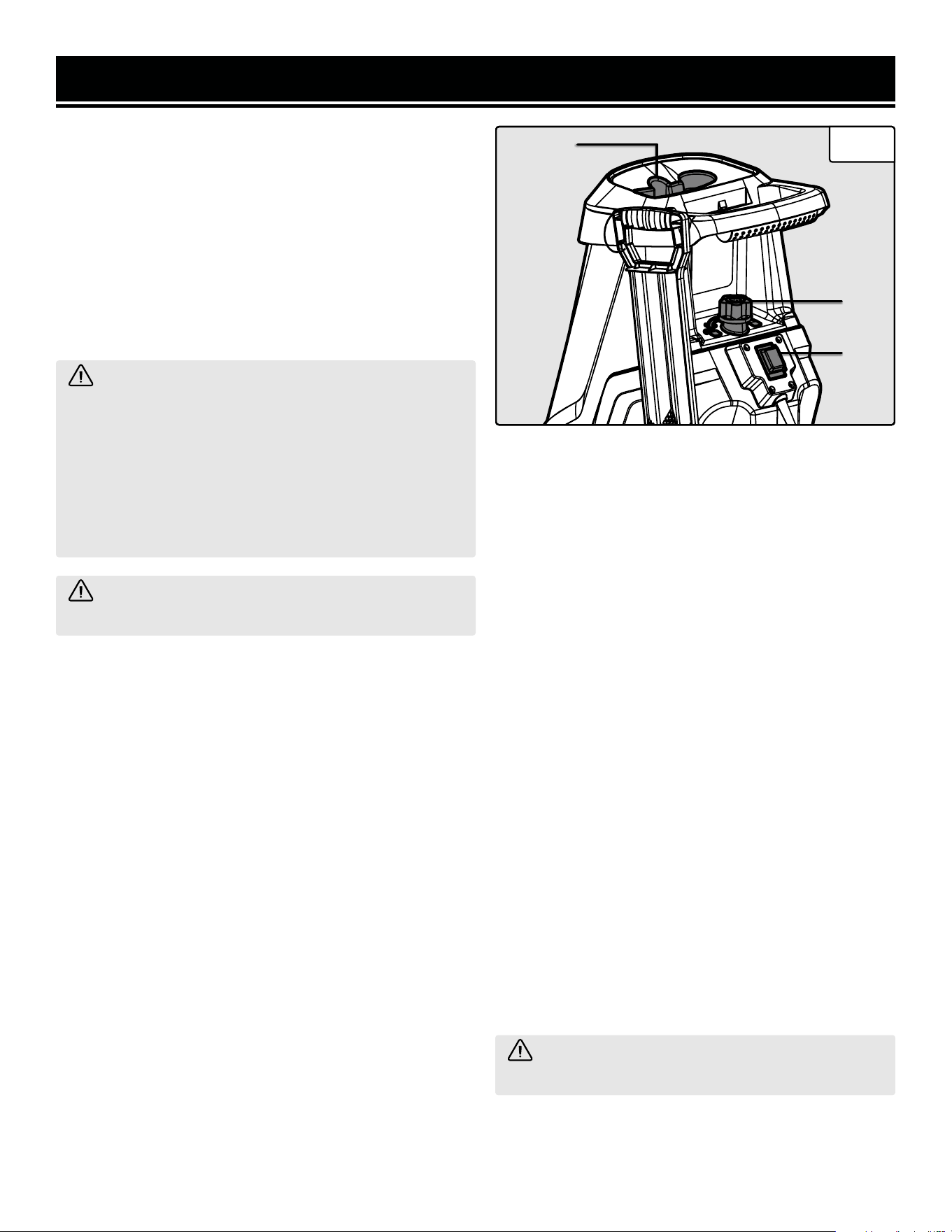

Operation ........................................................................................................13
Maintenance ....................................................................................................14
Troubleshooting Guide ....................................................................................15

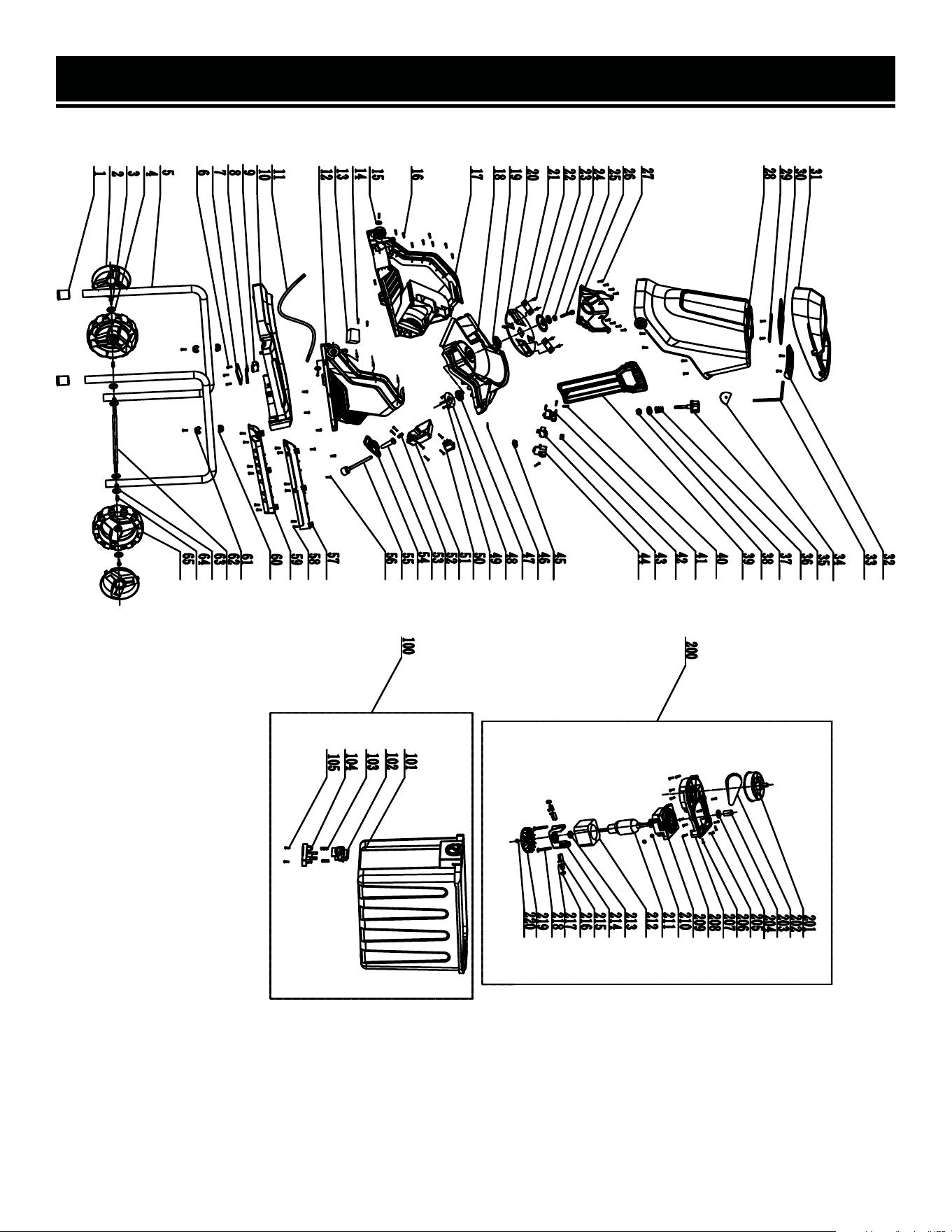

Exploded View & Parts List .............................................................................16
Warranty Statement ........................................................................................19
CONTENTS
To purchase accessories and replacement parts for your tool, visit WENPRODUCTS.COM
3
Model Number 41130
Motor 120V AC, 60 Hz, 15A
No Load Speed 4000 RPM
Maximum Cutting Diameter 1-3/4 in. (45mm)
Bin Capacity 13 gal (50 L)
Product Weight 25.8 lbs
Product Dimensions 22.1 in. x 17.5 in. x 36.8 in.
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing the WEN Wood Chipper & Shredder. We know you are excited to put your tool to work, but
first, please take a moment to read through the manual. Safe operation of this tool requires that you read and un-
derstand this operator’s manual and all the labels affixed to the tool. This manual provides information regarding
potential safety concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-847-429-9263.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.

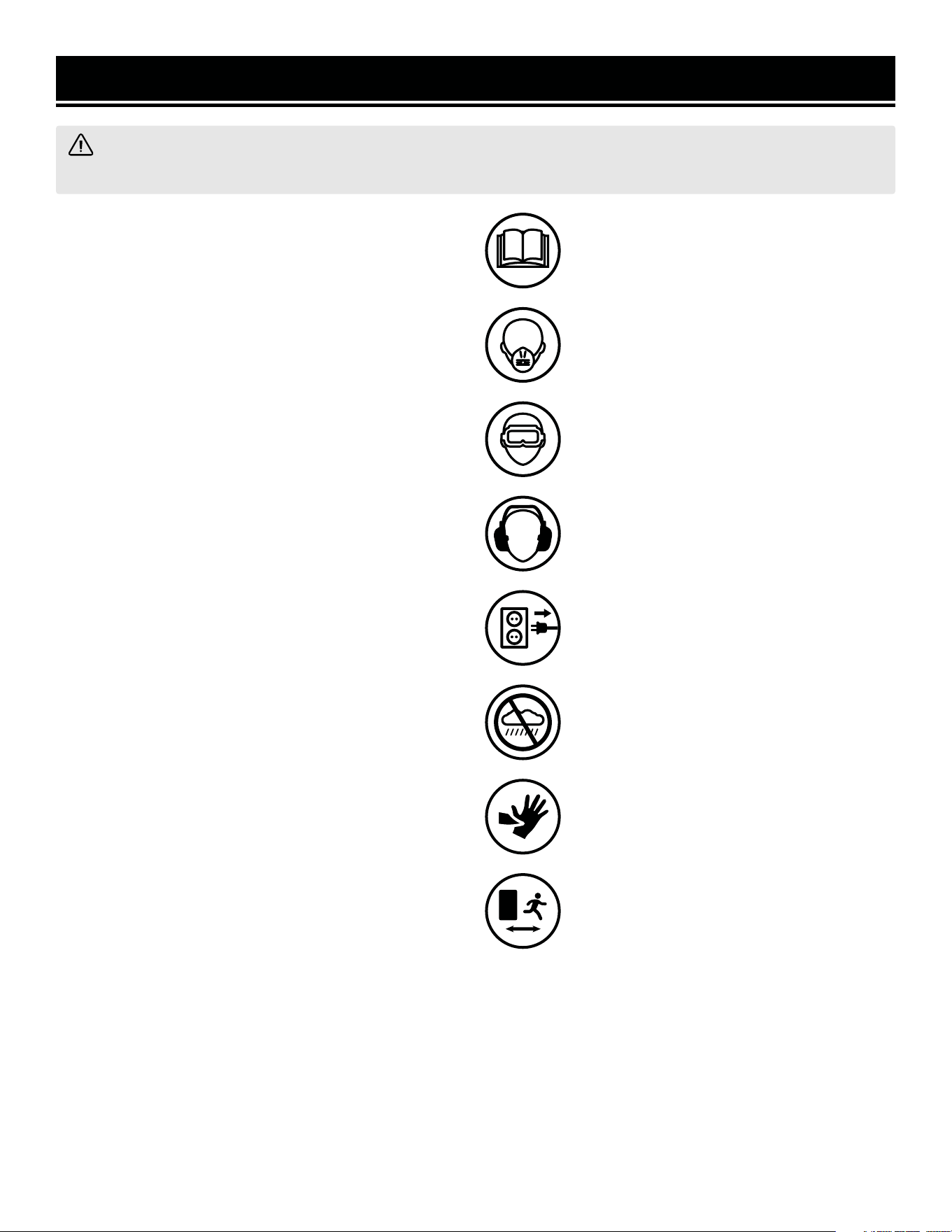

Indicates danger, warning, or caution. The safety symbols and the explanations with them deserve your
careful attention and understanding. Always follow the safety precautions to reduce the risk of fire, electric shock
or personal injury. However, please note that these instructions and warnings are not substitutes for proper ac-
cident prevention measures.
GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts. Dam-
aged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious per-
sonal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
4
GENERAL SAFETY RULES
8. Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore tool
safety principles. A careless action can cause severe in-
jury within a fraction of a second.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do
the job better and safer at the rate for which it was de-
signed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Keep handles and grips dry, clean, and free from
oil and grease. Slippery handles and grasping surfaces
do not allow for safe handling and control of the tool in
unexpected situations.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
5
WOOD CHIPPER & SHREDDER SAFETY WARNINGS
WOOD CHIPPER & SHREDDER SAFETY
1. Tool Purpose. This shredder is designed for cutting
up small branches. Shredding other materials may result
in serious injuries, machine damage, and voiding of the
warranty.
2. Keep all parts of the body away from the hopper,
blades, and discharge chute when operating the shred-
der. Before starting the shredder, make sure that nothing
is in contact with the blades.
3. Preventing accidental startups. Make sure the power
switch is in the OFF position prior to plugging in the ma-
chine. Always make sure the power switch is in the OFF
position and the machine is unplugged when doing any
cleaning, adjustments, assembly, setup operations, or
when the machine is not in use.
PERSONAL SAFETY
1. Do not use the shredder in rainy or wet locations.
Do not operate in gaseous or explosive atmospheres or
near flammable or combustible liquids. The motor may
spark and ignite fumes.
2. The shredder must be used in the upright position
only. Do not operate the shredder with it lying on its
side. Do not tilt the shredder while it is running.
3. Wear ANSI Z87.1-approved safety goggles to pro-
tect your eyes. Use hearing protection to protect your-
self from hearing loss.
4. DO NOT wear loose clothing or jewelry as they might
get drawn in by the tool. Tie back long hair. Wear rubber
gloves and non-slip footwear.
5. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in close
proximity to pacemakers could cause pacemaker inter-
ference or pacemaker failure.
6. Chips are harmful to your health. Use NIOSH-ap-
proved dust masks or other respiratory protection dur-
ing operation and cleaning.
PREPARING THE SHREDDER
1. Use the wheels and handle to transport the shred-
der. Never carry the device by its guards or its acces-
sories.
2. Examine the shredder for any damaged or missing
parts. Replace or repair damaged parts before operation.
Periodically check that all nuts, bolts and other fasteners
are properly tightened.
3. Do not operate this tool until it is completely as-
sembled and installed according to the instructions.
Make sure all adjustments are correct and all connec-
tions are tight. Keep all guards in place. Make sure that
the hopper inlet is empty before starting the shredder.
DURING OPERATION
1. Examine materials before feeding them into the
shredder. Make sure to remove pieces of metal, rocks,
bottles, cans or other foreign objects. Before you shred
roots, remove any remaining soil and stones from them.
Do not shred soft, damp material such as kitchen waste.
2. Feed materials slowly. Always use the paddle sup-
plied with your shredder to push items into the hopper.
Do not force materials into the hopper. Do not feed ma-
terials larger than the recommended diameter of 1-3/4
inches, otherwise you may clog the shredder and dam-
age the machine.
3. Keep clear of moving parts and openings. Keep
arms, hands, and other vital appendages away from the
hopper, blades, and discharge chute. Never put your
hands into the hopper while the shredder is running.
Always stand clear of the discharge zone when operat-
ing the shredder. Never reach under the hopper until the
shredder has come to a complete stop and has been dis-
connected from the power supply. Never attempt to cut
anything with the grinding wheel.
4. Do not use the shredder unless all guards are in
place. Do not operate with any guard disabled, dam-
aged, or removed. Moving guards must move freely and
close instantly.
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
6
These safety instructions can’t possibly warn of every scenario that may arise with this tool,
always make sure to stay alert and use common sense during operation.
7
WOOD CHIPPER & SHREDDER SAFETY WARNINGS
PREPARING THE SHREDDER (CONT.)
5. Regularly turn off the machine and clear processed
material from the discharge zone. Buildup near the
discharge zone may prevent proper discharge and can
result in kickback of material through the hopper.
6. Turn off the shredder and disconnect it from the
power supply before you leave the work area. The
blades will continue to rotate for a few seconds after the
unit is turned off.
7. If the cutting mechanism strikes a foreign object
or if the shredder starts making any unusual noise or
vibration, turn the unit off and allow it to come to a
complete stop. Disconnect from the power supply and
inspect the unit for damage. Check for any loose parts
and tighten them as necessary.
8. Should any component of your shredder be missing/
damaged or fail in any way, shut off the switch and
remove the plug from power supply outlet. Have a cer-
tified technician replace the missing, damaged, or failed
parts using only identical replacement parts before re-
suming operation.
9. If the shredder becomes clogged, turn off the shred-
der and disconnect it from power supply. Wait for the
blades to come to a complete stop before clearing de-
bris.
10. Maintain the shredder with care. Keep the cutting
edges sharp and clean to ensure optimal performance
and reduce the risk of injury.
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
Always make sure the power switch is in the
OFF position and the machine is unplugged
when doing any cleaning, adjustments, as-
sembly, setup operations, or when the ma-
chine is not in use.
Always stand clear of the discharge zone
when operating the shredder. Be cautious of
bystanders.
Keep all parts of the body away from the
hopper, blades, and discharge chute when
operating the shredder.
DO NOT use the shredder in wet or damp
conditions.
Use personal protective equipment. Always
wear eye protection. Further protective
equipment for hearing, head, hands, legs,
and feet is recommended. Adequate protec-
tive equipment will reduce personal injury
from flying debris or accidental contact with
the blades.
Read and fully understand the user manual
before beginning operation.
ELECTRICAL INFORMATION
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
15A 14 Gauge 12 Gauge Not Recommended
IMPORTANT: Servicing a double-insulated product requires extreme care and knowledge of the system, and
should be done only by qualified service personnel using identical replacement parts. Always use original factory
replacement parts when servicing.
1. Polarized Plugs. To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not modify the machine
plug or the extension cord in any way.
2. Ground fault circuit interrupter protection (GFCI) should be provided on the circuit or outlet used for this power
tool to reduce the risk of electric shock.
3. Service and repair. To avoid danger, electrical appliances must only be repaired by a qualified service technician
using original replacement parts.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. The table below shows
the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
DOUBLE-INSULATED TOOLS
The tool’s electrical system is double-insulated where two systems of insulation are provided. This
eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need
to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are
isolated from the internal metal motor components with protecting insulation.
1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on
plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should be
protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in
the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running
at a lower voltage will damage the motor.
8
9
TOOL PURPOSE
Your shredder is designed to cut up small branches and yard waste. Refer to the following diagrams to become
familiarized with all the parts and controls of your shredder. The components will be referred to later in the manual
for assembly and operation instructions.
KNOW YOUR WOOD CHIPPER & SHREDDER
Handle
Paddle
Housing Cover
Cable Clip
Power Cord
Collection Bin Latch
Collection Bin
Wrench Storage
Hopper Lock Knob
Power Switch
Wheels
Leg Brackets
Feeding Chute
Hopper
10
Components
UNPACKING & PACKING LIST
UNPACKING
With the help of a friend or trustworthy foe, carefully remove the shredder from the packaging. Make sure to take
out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing list
below to make sure you have all of the parts and accessories. If any part is missing or broken, please contact our
customer service at 1-847-429-9263 (M-F 8-5 CST), or email [email protected].
PACKING LIST
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure
to follow the safety instructions may result in serious personal injury.
Tools & Accessories
Wheels (2)
Wheel Covers (2)
Wheel Axle & Mounting
Hardware (1)
Paddle (1)
Hex Wrench (1)
Shredder (1)
Collection Bin (1)
11
ASSEMBLY & ADJUSTMENTS
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure
to follow the safety instructions may result in serious personal injury.
Fig. 2
7
9
8
5
6
3
Fig. 1
1
1
4
1
2
INSTALLING THE WHEELS
1. Flip the leg brackets (Fig. 1 - 1) down as shown in
Fig. 1.
2. Remove the wheel mounting hardware from the wheel
axle (Fig. 2 - 1) using the included hex wrench. The
wheel mounting hardware includes two hex nuts, two
6mm washers, two bushings, and four 9mm washers.
3. Place one 9mm washer (Fig. 2 - 2) onto the end of
wheel axle and slide the axle through the hole in the leg
bracket (Fig. 2 - 3) as shown in Fig. 2.
4. Place a second 9mm washer (Fig. 2 - 4) and bushing
(Fig. 2 - 5) onto the axle and then install the wheel (Fig.
2 - 6).
5. Secure the wheel onto the axle using one 6mm washer (Fig. 2 - 7) and one hex nut (Fig. 2 - 8). The included
hex wrench can be used to tighten the hardware. To stop the axle from turning while tightening the hardware, fit a
screwdriver (not included) into the hole in the middle of the axle (Fig. 2 - Arrow).
6. Snap the wheel cover (Fig. 2 - 9) into place on the wheel to cover the end of the wheel axle. It is okay if there is
some clearance between the wheel and the wheel cover.
7. Repeat steps 3 - 6 for the other wheel.
12
ASSEMBLY & ADJUSTMENTS
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure
to follow the safety instructions may result in serious personal injury.
INSTALLING THE COLLECTION BIN
1. Install the collection bin (Fig. 3 - 1) into the brackets
under the shredder housing.
2. Make sure that the collection bin latch (Fig. 3 - 2) is
properly locked.
NOTE: The shredder will only power ON when the collec-
tion bin is installed.
INSTALLING THE ACCESSORIES
1. Hang the paddle (Fig. 4 - 1) on either side of the hopper
(Fig. 4 - Arrows). Use the wrench storage (Fig. 4 - 2) to
store the included hex wrench for any future adjustments.
Fig. 3
1
2
Fig. 4
1
2
13
OPERATION
Fig. 5
STARTING & STOPPING THE SHREDDER
1. Press the power switch (Fig. 5 - 1) to the ON position to
start the motor. Let the motor run for a couple of seconds
before starting to shred.
2. Turn the power switch to the OFF position to stop the
motor. The shredder will stop within 5 seconds of switch-
ing it off. Unplug the shredder from the power source
when it is not being operated.
OVERLOAD PROTECTION
WARNING! The overload protection will activate
in the following circumstances:
• A build up of debris around the cutting plate.
• The material being shredded is greater than the mo-
tor capacity.
• There is too much resistance against the cutting
blade.
1. If the overload protection has been activated, switch
the shredder OFF and unplug it from the power supply.
2. Unscrew the hopper lock knob (Fig. 5 - 2) to open the
housing of the shredder.
3. Carefully remove any debris from the cutting area.
4. Close the shredder housing and lock the hopper lock
knob.
FEEDING MATERIAL
• Only insert as much material as needed to prevent block-
age of the feeding chute.
• Feed wilted and damp materials alternately with dry
branches to prevent cutting blades from blocking up.
• Branches with leaves must be completely processed
before new material is fed. Make sure that the chopped
material can fall freely from the discharge chute.
• Maintain the working speed of the shredder and do not
overload it.
• Keep a few dry branches to be shredded at the end, as
they will help clean your shredder.
2
WARNING! Never stick your hands into the
feeding chute.
WARNING! Wear protective gloves when handling
blades.
USING THE PADDLE
Use the included paddle to help feed less bulky material
such as small twigs, leaves, and other garden waste
into the feeding chute.
1. Load the material into the feeding chute (Fig. 5 - 3).
2. Insert the paddle into the feeding chute and push the
material into the blade plate.
3. Wait for all the material to be shredded before adding
more material.
Inappropriate materials may damage the machine and
cutting blades. Examine all materials before feeding
them into the shredder:
• Remove pieces of metal, rocks or other foreign ob-
jects that may damage the blades.
• Do not feed wooden sticks with a diameter larger than
1-3/4 inch (45mm).
• Before shredding roots, remove any remaining soil
and stones.
• Do not shred damp material such as kitchen waste.
• Do not feed the chipper after midnight. No, its not a
gremlin, but it might cause your neighbors some con-
cern.
1
3
14
MAINTENANCE

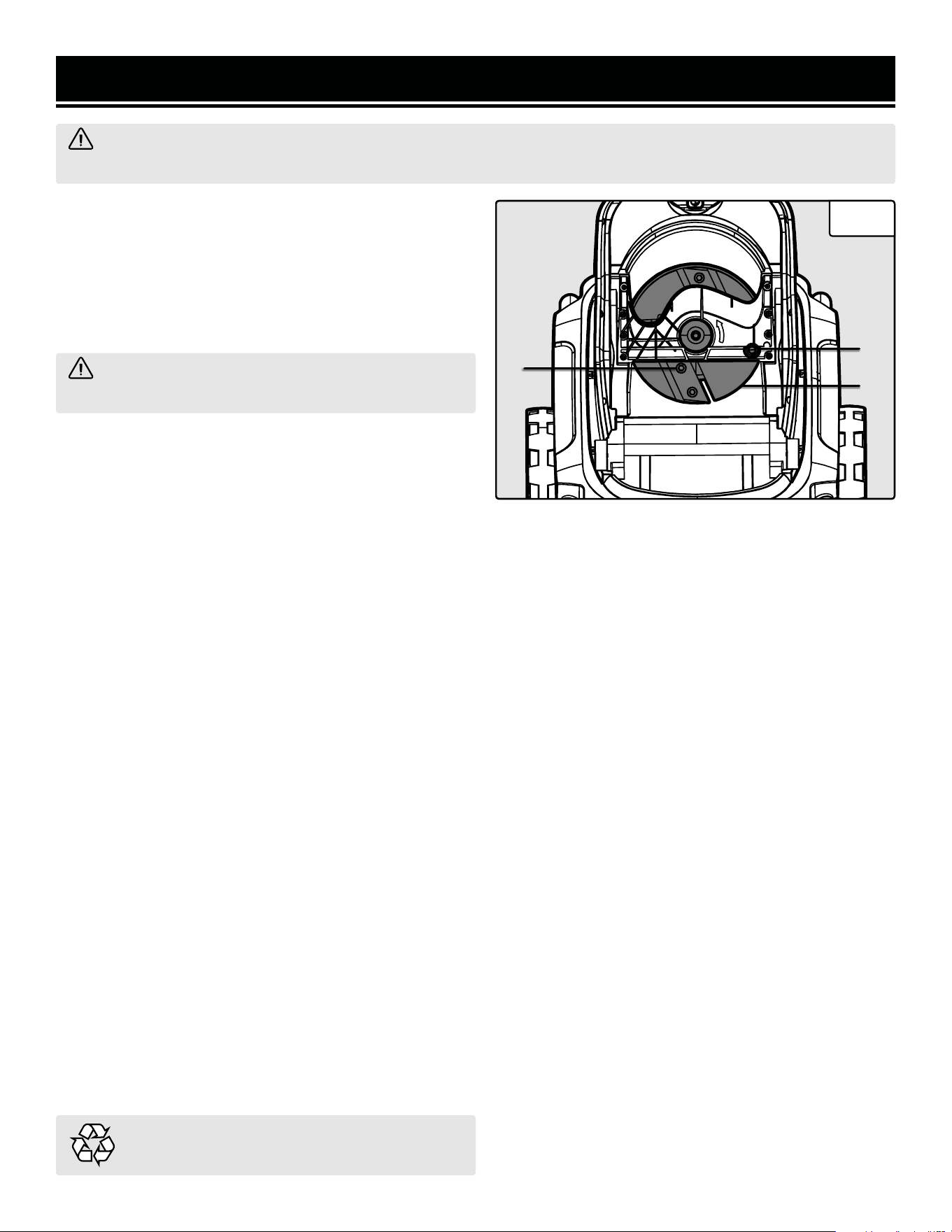

Fig. 6
REPLACING THE BLADES
1. Make sure that the shredder is switched OFF and un-
plugged from the power supply before performing any
maintenance.
2. Unscrew the hopper lock knob to open the housing of
the shredder.
1
WARNING! Wear protective gloves when handling
blades.
3. To stop the blade plate (Fig. 6 - 1) from spinning while
changing the blades, fit a screwdriver (not included) into
the access hole (Fig. 6 - 2). Carefully rotate the blade plate
until one of the two holes in the blade plate aligns with the
access hole. Fit the screwdriver into the hole to lock the
blade plate in place.
4. Use the included hex wrench to remove the two blade
screws (Fig. 6 - 3) from the blade.
5. The blades have two cutting edges. When one edge
of the blade becomes worn, it can be flipped to use the
second cutting edge.
6. Repeat steps 4 - 5 for the other blade. Once both of the
cutting edges of the blades have become worn, the blades
must be replaced as a pair.
7. Reinstall the blade screws, carefully remove the screw-
driver, close the shredder housing, and lock the hopper
lock knob.
ROUTINE INSPECTION
Before each use, inspect the general condition of the tool.
If any of these following conditions exist, do not use until
parts are replaced or the tool is properly repaired.
Check for:
• Loose hardware
• Misalignment or binding of moving parts
• Damaged cord/electrical wiring
• Cracked or broken parts
• Any other condition that may affect its safe operation
3
WARNING! To avoid accidents, turn OFF and unplug the tool from the electrical outlet before cleaning, ad-
justing, or performing any maintenance work.
CLEANING & STORAGE
1. Keep the ventilation openings free from dust and de-
bris to prevent the motor from overheating.
2. Use a vacuum or low-pressure compressed air to
remove dust and debris from the tool surfaces, motor
housing and work area.
3. Wipe the tool surfaces clean with a soft cloth or
brush. Make sure water does not get into the tool.
To clean the inside of the unit, unlock the hopper lock
knob and open the shredder housing. Clean the cut-
ting blades and the discharge area. Remove debris that
may clog the blades. Check the blades for damage and
replace if they show signs of wear. Close the housing
and lock the hopper lock knob.
Store the tool in a clean and dry place away from the
reach of children. Store in temperatures between 41°
to 86°F.
Cover the tool in order to protect it from dust and mois-
ture. It is preferable to store it in its original packaging
with the instruction manual and all accessories.
PRODUCT DISPOSAL
Used power tools should not be disposed of together
with household waste. This product contains electronic
components that should be recycled. Please take this
product to your local recycling facility for responsible
disposal and to minimize its environmental impact.
Please recycle the packaging and electronic
components where facilities exist.
2
15
TROUBLESHOOTING GUIDE
WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replace-
ments should only be performed by an authorized technician. For any questions, please contact our customer
service at 1-847-429-9263, M-F 8-5 CST or email us at [email protected].
PROBLEM POSSIBLE CAUSE SOLUTION
The motor does
not start.
1. The power cord or
extension cord is damaged or
not properly plugged in.
1. Check the power cord, extension cord, power plug,
and the power outlet. Make sure the tool is properly
plugged in. Do not use the tool if any cord is damaged.
2. The motor has overloaded.
The material may be too much or too hard for the
shredder to handle. Wait for motor to cool down, reduce
the material load, and restart the shredder.
3. The housing is open.
3. Check that the housing is closed and the hopper lock
knob is tightened.
4. Theres a ghost in your
shredder
4. Persuade the ghost to leave.
Material cannot
be fed into the
shredder.
1. The material is jammed in
the feed inlet.
1. Turn OFF and unplug the machine. Open the housing
and carefully remove blocked or jammed materials.
2. The cutting blades are
blocked.
2. Turn OFF and unplug the machine. Open the housing
and carefully remove blocked or jammed materials.
3. The discharge chute is
blocked.
3. Turn OFF and unplug the machine. Open the housing
and the plate of the discharge chute to clear the blocked
material. Replace the plate and housing.
Inefficient cutting.
1. The cutting blade edges are
worn.
1. Flip the blades or replace them with new blades.
16
EXPLODED VIEW & PARTS LIST
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
17
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 41130-001 Foot Cover 2
2 41130-002
Wheel Cover φ180
2
3 41130-003
Cylindrical Head Hex
Head Screw M6x18
2
4 41130-004
Washer φ6.5
2
5 41130-005 Leg 2
6 41130-006
Cross Recessed
Countersunk Head
Screw ST4x16
3
7 41130-007 Switch Cover Plate 1
8 41130-008 Switch Plate 1
9 41130-009 Switch 1
10 41130-010 Base 1
11 41130-011
Connecting Wire Flat
Wire
1
12 41130-012 Left Housing 1
13 41130-013 PCB Board 1
14 41130-014
Cross Recessed Pan
Head Tapping Screw
ST4x16
7
15 41130-015
Washer φ4
2
16 41130-016
Cross Recessed
Pan Head Tapping
Screws ST4x20
27
17 41130-017 Right Housing 1
18 41130-018 Lower Housing 1
19 41119-009 Blade Plate Base 1
20 41119-010 Blade Plate 1
21 41119-011 Blade 2
22 41119-012
Hexagonal
Countersunk Head
Screw M10x12
4
23 41119-013
Blade Plate Pressure
Plate
1
24 41119-014
Spring Pad φ8
1
25 41119-015
Hex Socket Screw
M8x30
1
26 41119-016
Blade Protection
Plate
1
No. Part No. Description Qty.
27 41119-017
Cross Recessed Pan
Head Tapping Screw
ST5x30
8
28 41119-018 Upper Housing 1
29 41119-019
Dust-Proof Strip
Clamp Plate
1
30 41119-020 Dust-Proof Strip 1
31 41119-021 Up Housing Cover 1
32 41119-022 Handle Cover 1
33 41119-023 Hex Wrench S5, S6 1
34 41130-019
Dustproof Cotton for
Shredders
1
35 41130-020 Knob 1
36 41119-025 Spring 1
37 41119-026
Washer φ8
2
38 41119-027 Lock Nut M8 1
39 41119-028 Paddle 1
40 41130-021
Cross Recessed
Flange Face Screws
ST4x20
2
41 41119-029 Right Switch Box 1
42 41119-030 Square Nut M8x9.5 1
43 41130-022 Switch 1
44 41119-032 Left Switch Box 1
45 41130-023 Cable Harness 1
46 41130-024 Internal Wiring 1
47 41119-034
Single Row Radial
Ball Bearings 6003
2RS
1
48 41119-035 Bearing Clamp 1
49 41119-036
Cross Recessed Pan
Head Tapping Screw
ST4.8x14
5
50 41119-037 Power Switch 1
51 41130-025 Switch Cover 1
52 41119-038 Cord Clamp Plate 1
53 41119-003 Cord Cover 1
54 41119-041 Cable Strain Relief 1
55 41130-026 Power Cord 1
EXPLODED VIEW & PARTS LIST
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
18
No. Part No. Description Qty.
56 41130-027
Cross Recessed Flat
Head Flat Tail
Tapping Screws
ST5x30
6
57 41130-028
Collection Box Chute
Right
1
58 41130-029
Cross Recessed
Pan Head Tapping
Screws ST4x25
12
59 41130-030
Collection Box Chute
Left
1
60 41130-031 Left Pipe Sleeve 2
61 41130-032 Right Pipe Sleeve 2
62 41130-033 Axle 1
63 41130-034
Washer φ10
4
64 41130-035 Bushing 2
65 41119-206
Wheel φ180
2
100 41130-035
Collection Box
Assembly
1
101 41130-036 Collection Box 1
102 41130-037
Collection Box
Locking Button
1
103 41130-038
Open Handle Button
Spring
2
104 41130-039
Collection Box
Locking Button
Covers
1
105 41119-043
Cross Recessed Pan
Head Tapping Screw
ST4x20
2
200 41130-040 Motor Assembly 1
201 41119-105 Large Pulley 1
No. Part No. Description Qty.
202 41119-104 Belt 1
203 41130-041 Small Pulley 1
204 41119-103
Red Steel Paper
Gasket
2
205 41119-108
Cross Slot Flange
ST5x16
4
206 41119-106
Cylindrical Head Hex
Head Screw M6x16
2
207 41119-107
Center Bearing
Bracket
1
208 41119-112
Cross Recessed Pan
Head Tapping Screw
ST5x30
7
209 41130-042 Motor Front Cover 1
210 41130-043
Outer Hexagon Nut
M6
2
211 41130-044 Rotor Assembly 1
212 41130-045 Stator Assembly 1
213 41119-115
Single Row Radial
Ball Bearings 608RS
1
214 41119-116
Motor Rear End
Cover
1
215 41119-117 Carbon Brush Holder 2
216 41130-046 Carbon Brush 726 2
217 41130-047
Cross Recessed Pan
Head Tapping Screw
ST3x8
2
218 41119-120
Cross Recessed Pan
Head Tapping Screw
ST4x82
2
219 41130-048 Impeller 1
220 41130-049
φ8 Circlip
1
EXPLODED VIEW & PARTS LIST
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to quality.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power
tools will be free from defects in material or workmanship during personal use for a period of two (2) years from date
of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for pro-
fessional or commercial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are
defective in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepair, abuse, neglect, normal wear and tear, improper maintenance, or other conditions adversely affecting the
Product or the component of the Product, whether by accident or intentionally, by persons other than Seller. To make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that clearly defines
the Date of Purchase (month and year) and the Place of Purchase. Place of Purchase must be a direct vendor of Great
Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage sales, pawn
shops, resale shops, or any other secondhand merchant, voids the warranty included with this product. Contact tech-
[email protected] or 1-847-429-9263 with the following information to make arrangements: your shipping
address, phone number, serial number, required part numbers, and proof of purchase. Damaged or defective parts and
products may need to be sent to WEN before the replacements can be shipped out.
Upon the confirmation of a WEN representative, your product may qualify for repairs and service work. When returning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must be shipped
in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The product must be
fully insured with a copy of the proof of purchase enclosed. There must also be a description of the problem in order
to help our repairs department diagnose and fix the issue. Repairs will be made and the product will be returned and
shipped back to the purchaser at no charge for addresses within the contiguous United States.
THIS LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME, IN-
CLUDING BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURA-
TION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME
STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN-
CIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUN-
TRY.
THIS LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT
THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WARRANTY
SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING CHARGES MAY
APPLY.
19
THANKS FOR
REMEMBERING
V. 2025.02.21
