SMART MOTORIZED MINI ELLIPTICAL
WITH 18-LEVELS SPEED
SF-E324028
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
1

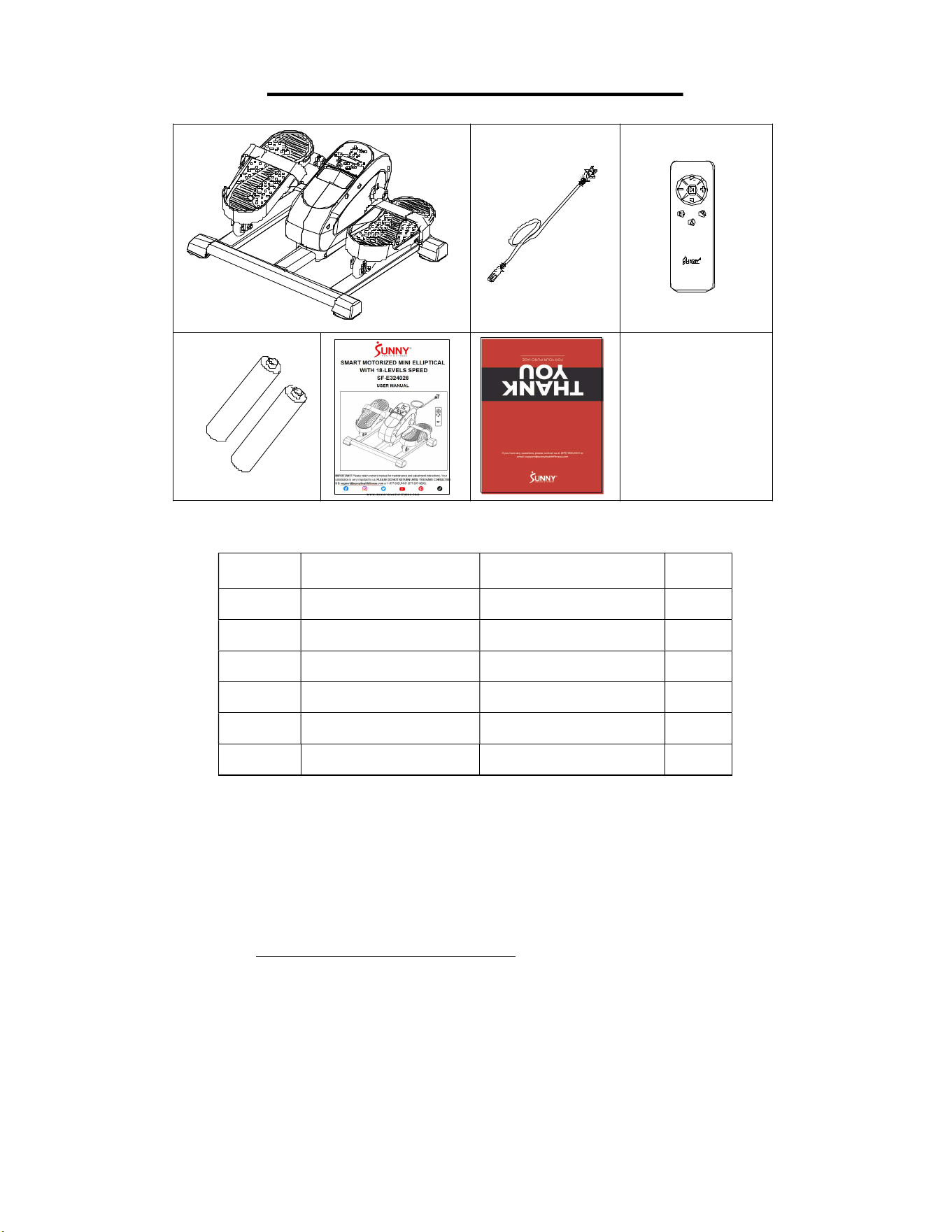

PRE-ASSEMBLY CHECK LIST
1
38 42
A
B
C
No. Description Spec. Qty.
1 Main Frame 1
38 Power Cord 1
42 Remote Control 1
A Battery
AAA
2
B User Manual User Manual 1
C Thank You Card 1
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” (page 11) and “PARTS LIST” (page
10).
Please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
2
IMPORTANT SAFETY INFORMATION
Thank you for purchasing the Smart Motorized Mini Elliptical with 18-levels Speed. Please read the
operating instructions carefully before use. Safe and effective use can only be achieved if the
equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all
users of the equipment are informed of all warnings and precautions.
When using an electrical appliance, basic precautions should always be followed, including the
following:
DANGER – To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to person(s):
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. The equipment is not suitable for therapeutic use.
4. Keep children and pet away from this machine. The equipment is designed for adult use only.
5. Do not place fingers or objects into the moving parts of the equipment.
6. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
7. An appliance should never be left unattended when plugged in. Unplug from outlet when not in
use, cleaning and before putting on or taking off parts.
8. Do not stand on the elliptical, only use the elliptical while sitting.
9. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, damages or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
10. Never operate the appliance with the air openings blocked. Keep the air openings free of lint,
hair, and other objects.
11. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
12. Keep the appliance dry. Do not expose appliance to wet, moisture and humid environment.
13. Use this appliance only for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer. If a product is modified or altered, it may void the
warranty.
SAVE THESE INSTRUCTIONS
3

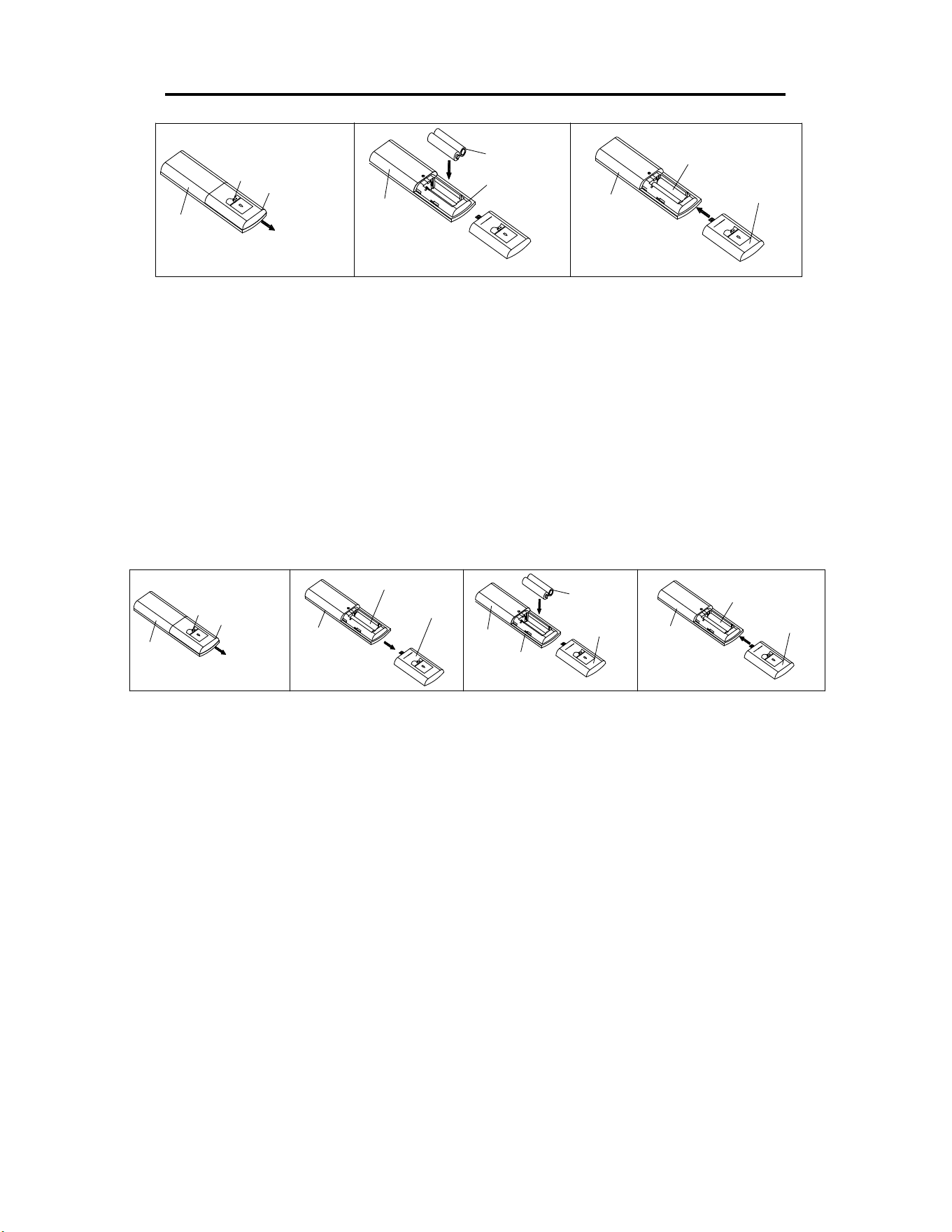

BATTERY INSTALLATION & REPLACEMENT
42
1
①
②
Battery Cover
a
42
3
①
②
Battery Cover
Battery Seat
2
①
②
Battery Seat
Battery
b
42
BATTERY INSTALLATION:
1. Press point a, then push down the battery cover on the back of the Remote Control (No. 42) to
remove the battery cover. (as shown by the arrow b)
2. Take out 2 AAA batteries from the manual bag. Install 2 AAA batteries into the battery case on
the back of the Remote Control (No. 42). Pay attention to the battery + and – ends before
installing.
3. Put the battery cover back to the Remote Control (No. 42) and push the cover up to tighten it
on the back of the Remote Control (No. 42) (show as arrow c).
The installation is complete!
42
1
①
②
Battery Cover
a
42
4
①
②
Battery Cover
Battery
3
①
②
Battery Cover
New Battery
42
2
①
②
Battery Cover
O ld Battery
b
42
Battery Seat
BATTERY REPLACEMENT:
1. 1.Press point a, then push down the battery cover on the back of the Remote Control (No. 42)
to remove the battery cover. (as shown by the arrow b)
2. Take out the old batteries from the battery seat.
3. Install 2 AAA batteries into the battery case on the back of the Remote Control (No. 42).
Pay attention to the battery + and – ends before installing.
4. Put the battery cover back to the Remote Control (No. 42) and push the cover up to tighten it
on the back of the Remote Control (No. 42) (show as arrow c).
The replacement is complete!
Dispose the old battery according to your regional guidelines.
4

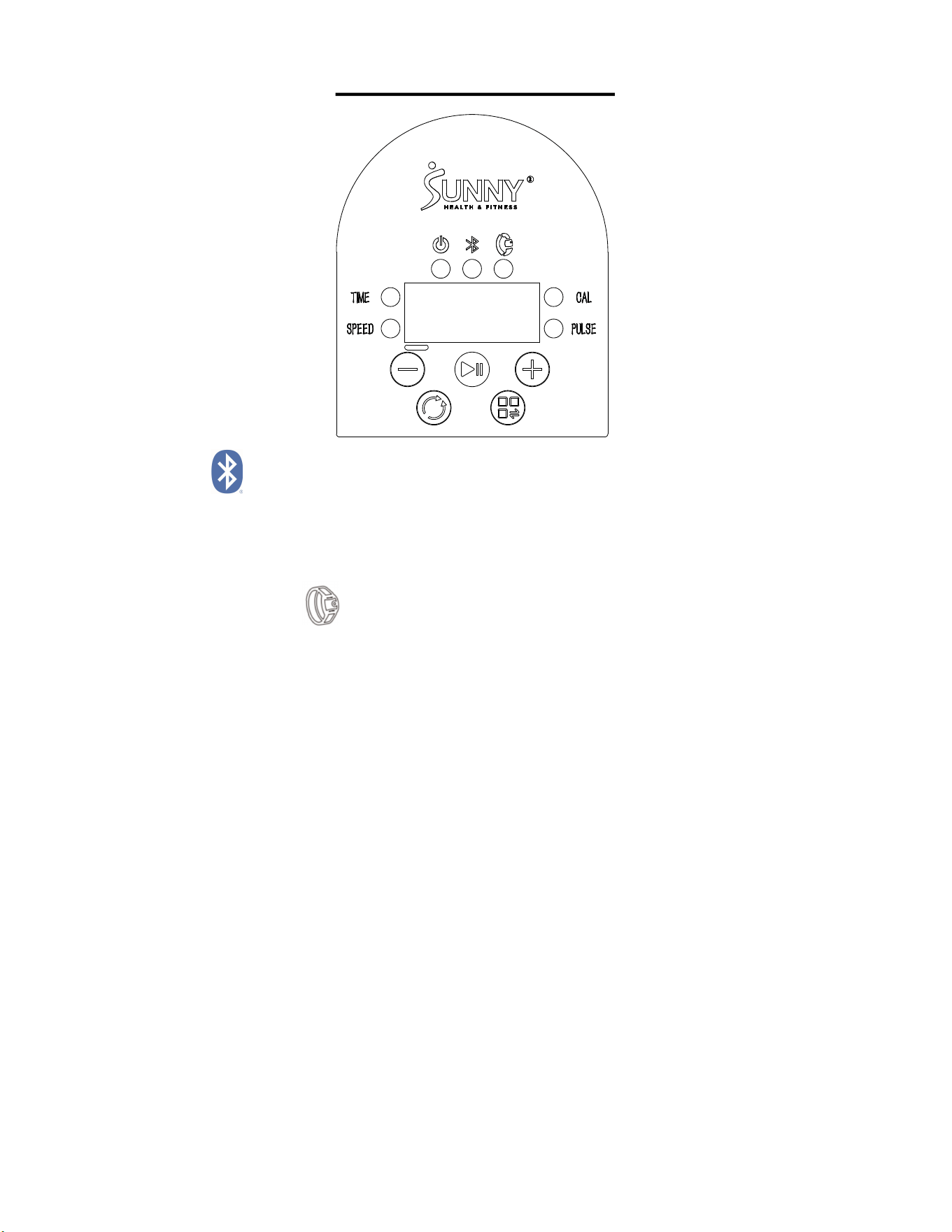

DISPLAY CONSOLE
BLUETOOTH
1. The Bluetooth icon will flash when the console is on. If no Bluetooth connection is established
within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE :
1. The wireless heart rate icon will always light up when the heart rate monitor is connected.
2. The wireless heart rate icon will flash when the console is on. If the heart rate monitor is not
connected within 3 minutes, the wireless heart rate icon will turn off. But the heart rate monitor
can also be connected.
3. The heart rate monitor will disconnect when the console power off. The heart rate icon will turn
off and the heart rate function will temporary failure.
4. The heart rate monitor and bluetooth will disconnect with the console when press and hold the
START/PAUSE button for 3 seconds or more. The heart rate icon will turn off and the heart rate
function will temporary failure.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit
Heart Rate Monitor HR200.
5

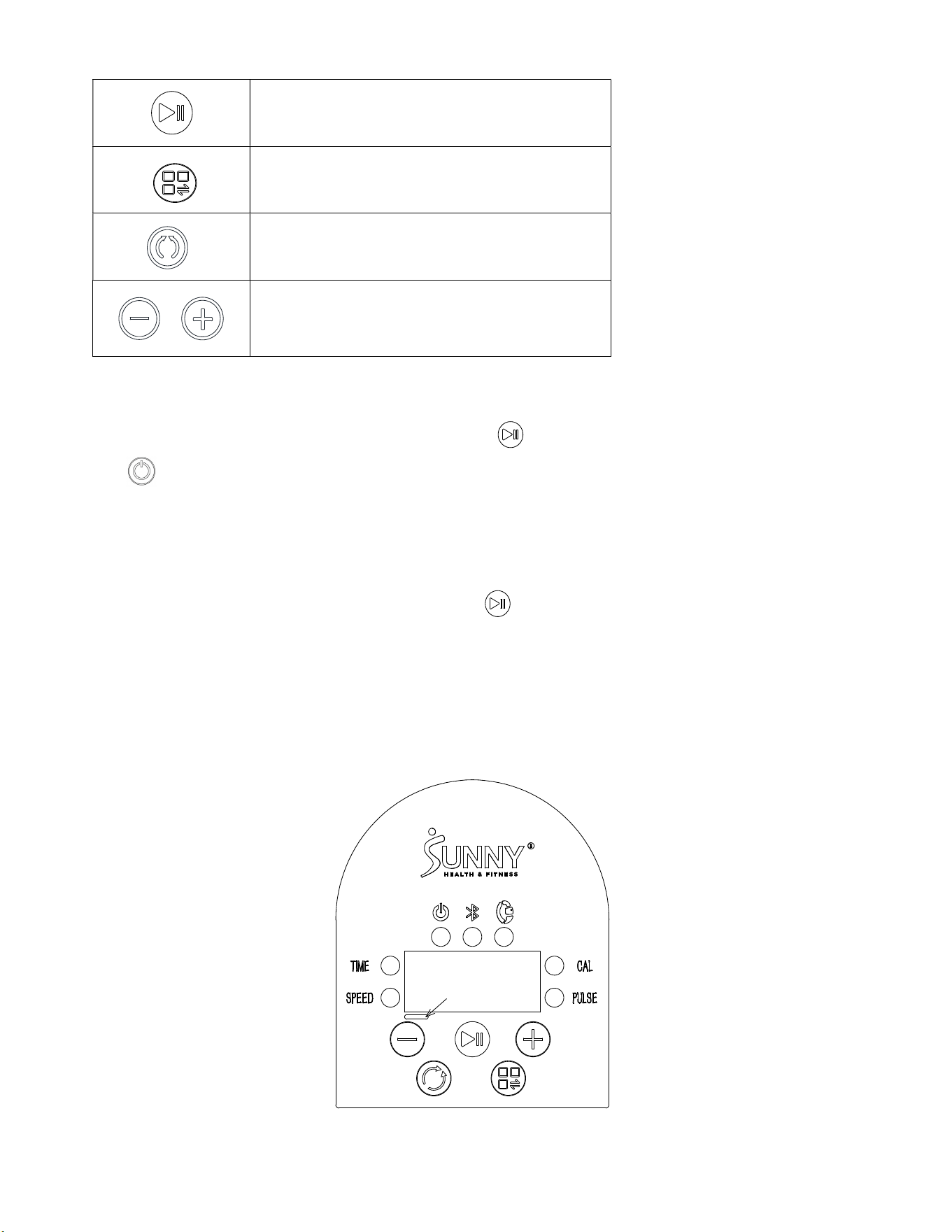

CONSOLE FUNCTION KEYS
Start/Pause: Start or pause elliptical (
Press 3
Seconds to turn on or turn off the elliptical)
MODE: Changes between automatic and
manual
Direction: Changes the direction forward or
backward
Speed: Select + key for increasing or – key
for decreasing speed (18 speed levels)
WARNINGS AND INSTRUCTIONS
1. After the machine is powered on, you need press key on the console 3 seconds or press
the on the remote control to turn on the machine, then you can use the machine.
2. Do not stand on the elliptical. Only use while seated in a chair.
3. If elliptical detects problems during exercise, it will auto stop within 10 seconds.
When the display console shows “ERR”, press the button to reset automatically. If the “ERR” no
longer appears, continue to use normally. If the code continues to appear, please contact customer
service.
NOTE: When using the remote control, aim it at the receiver on the elliptical (a) and keep it within a
maximum distance of 16 inches.
a
6

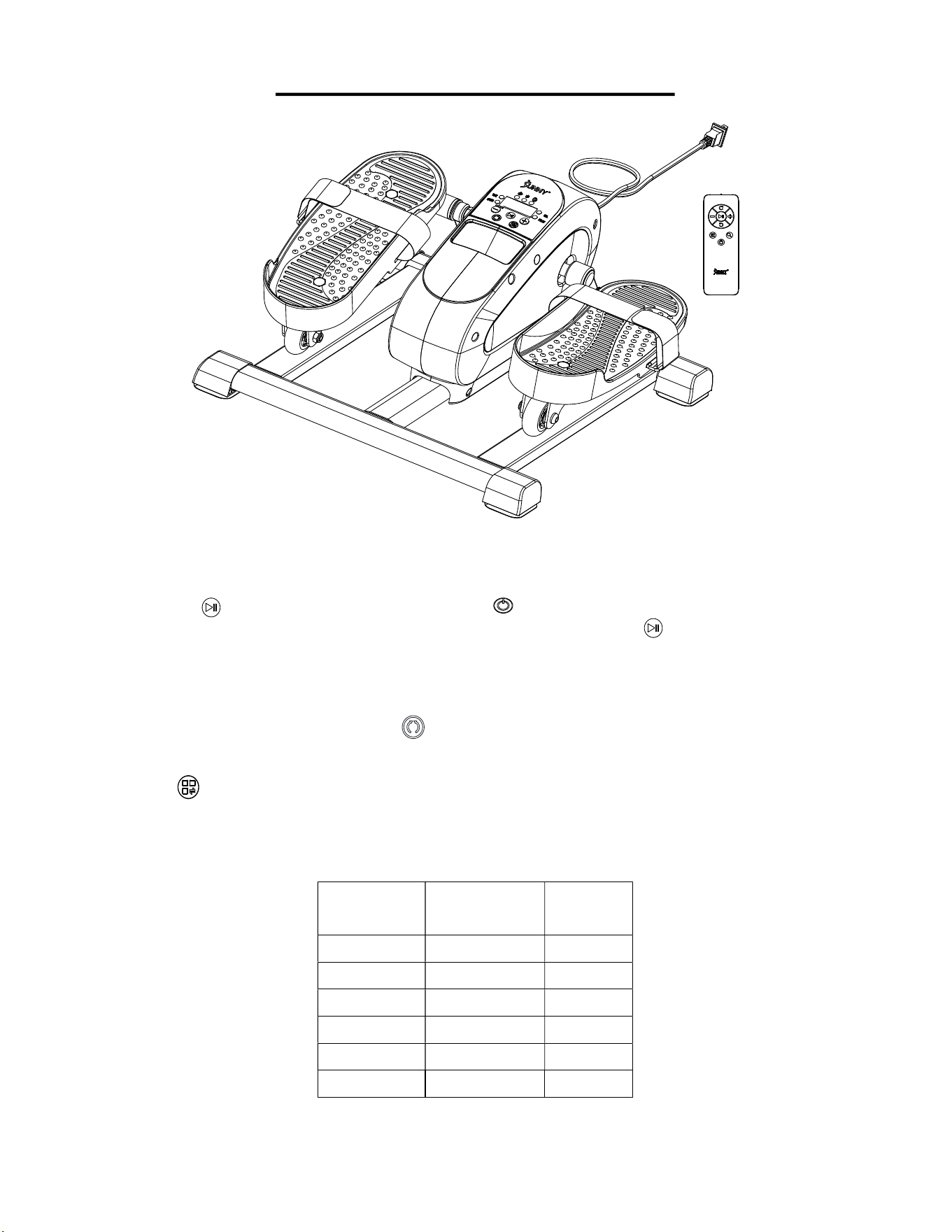

OPERATING INSTRUCTIONS
1. Plug in the Power Cable (No. 38). The elliptical will beep and LED display will show “----“. LED
will turn on for 1 second then turn off. This is standby mode.
2. Press the key on the console 3 seconds or key on the remote control to turn on the
machine, the elliptical will beep and the LED shows -U-, now press key to start the elliptical.
LED shows L1.
3. Under the manual mode, press the Speed “+” button to increase the speed from L1 to L18. Or
press the Speed “–” button to decrease the speed from L18 to L1.
4. Under the manual mode, press the button to change the direction forward or backward.
5. Under the manual mode, the LED display will alternate display between TIME, SPEED, CAL,
and PULSE.
6. Press the button on the console or the remote control to change the mode from manual
mode to pre-program mode P1. Mode P1-P2-P3-P4-P5-P6-U (manual mode)
7. They are 6 pre-program modes, P1.P2.P3.P4.P5.P6 Different modes have different speeds
and working directions, see below details. It can’t be changed speeds or working directions
under mode.
PROGRAM
TIME (MIN)
SPEED
LEVEL
P1 60 1-9
P2 60 1-9
P3 120 1-18
P4 30 10-18
P5 30 10-18
P6 60 1-18
NOTE: After finish using, please turn off the elliptical and disconnect the power cable.
7

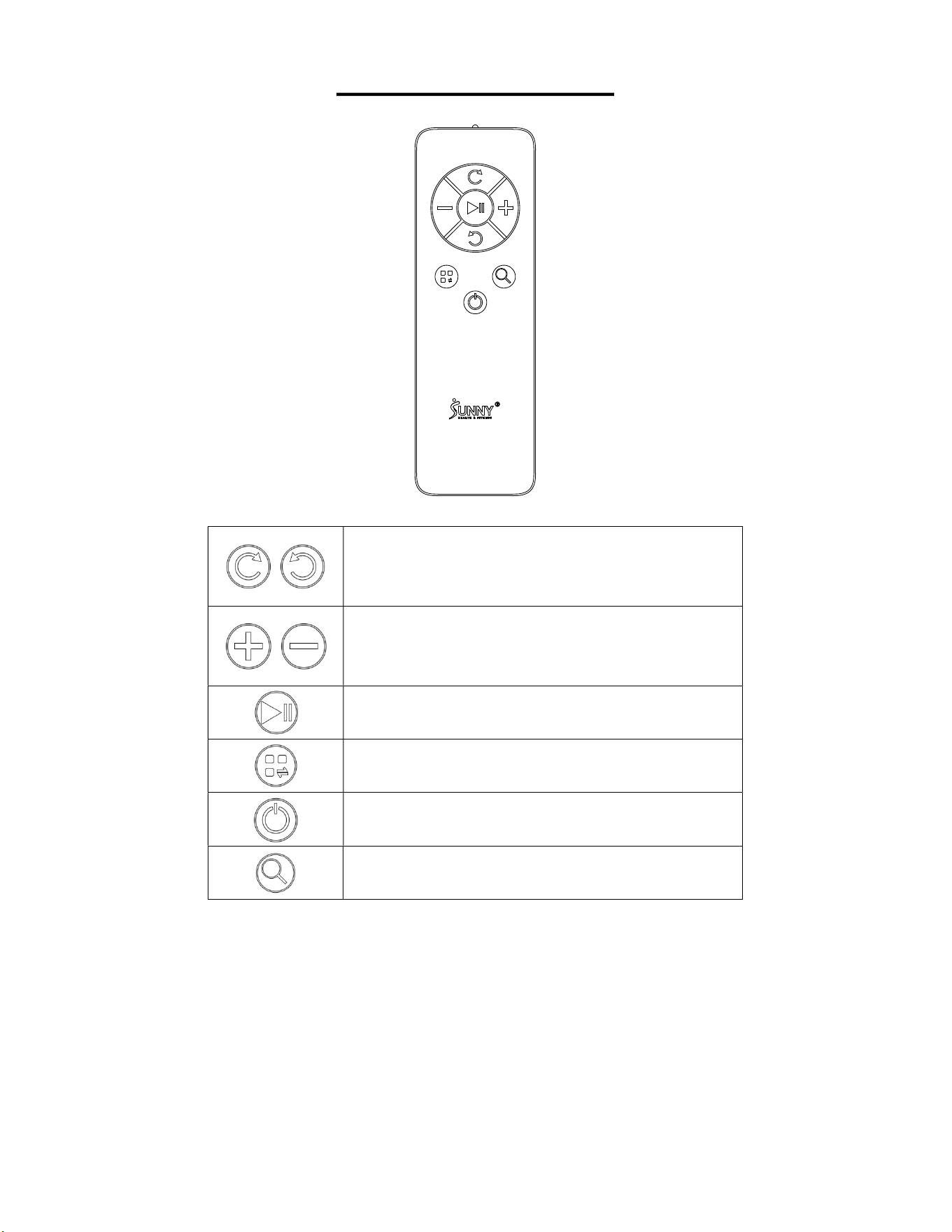

REMOTE CONTROL
Direction: Changes the direction forward or
backward
Speed: Select + key for increasing or – for
decreasing speed (18 speed levels)
Start/Pause
MODE: Changes between automatic and manual
Power on/off key
SCAN, TIME, SPEED, CAL, PULSE, SPEED
LEVEL, DISTANCE, ODO, MODE, DIRECTION.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
8
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
USER-MAINTENANCE INSTRUCTION
Caution: There are no serviceable parts in the appliance, any servicing should be performed by an
authorized service person.
When the appliance is not in use, disconnect the power supply, store the power cable and the total
appliance in a dry location where children cannot touch or in play area(s).

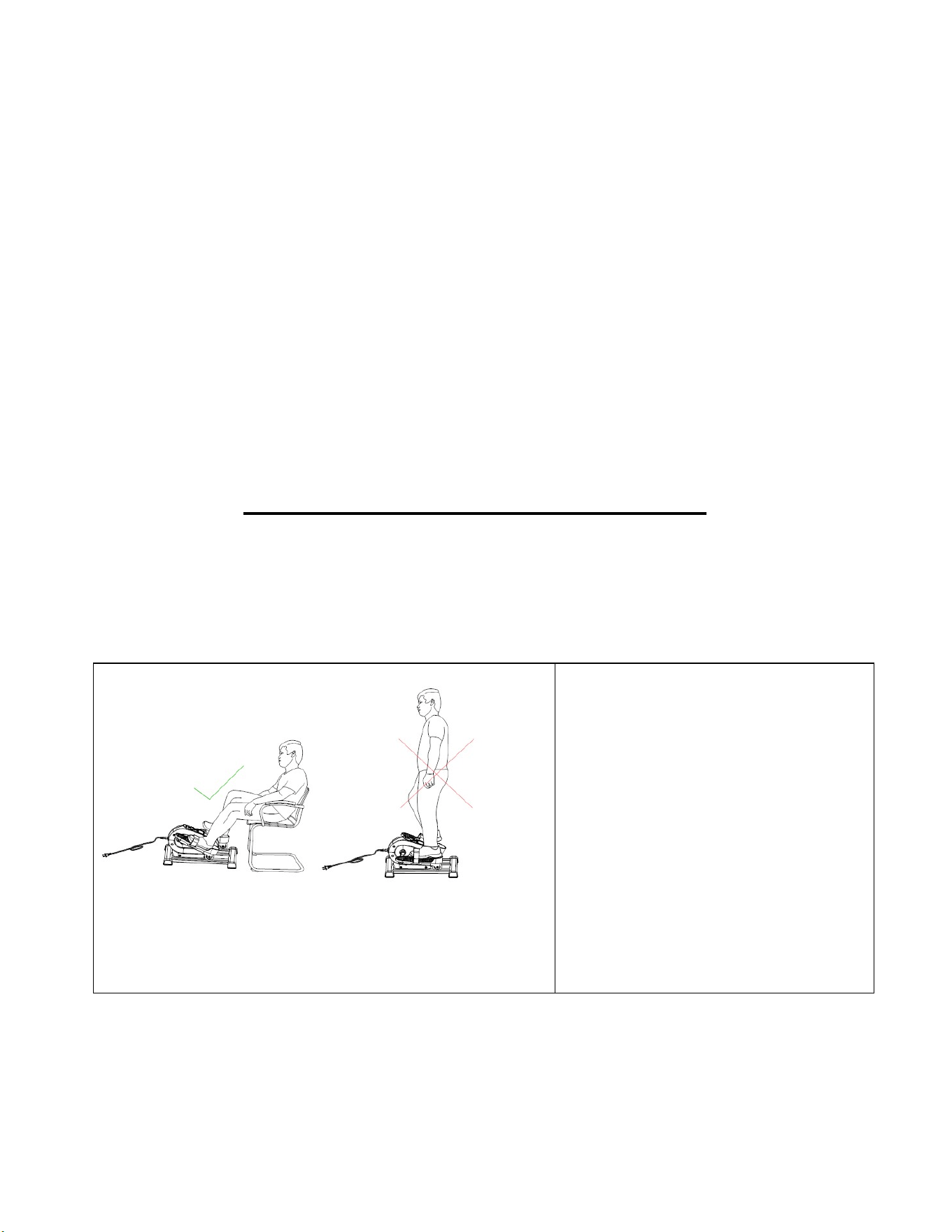

USE ONLY WHILE SITTING.
DO NOT STAND ON THE ELLIPTICAL!
WARNING
The elliptical is intended to use in a
sitting position only, do not stand on
the elliptical.
Failure to follow all warnings and
instructions could result in serious
injury or death.
9
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for
your free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session,
and recorded in your account profile!
Troubleshooting:
If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or
scan the QR code below:
If you require additional support, please contact [email protected].
10

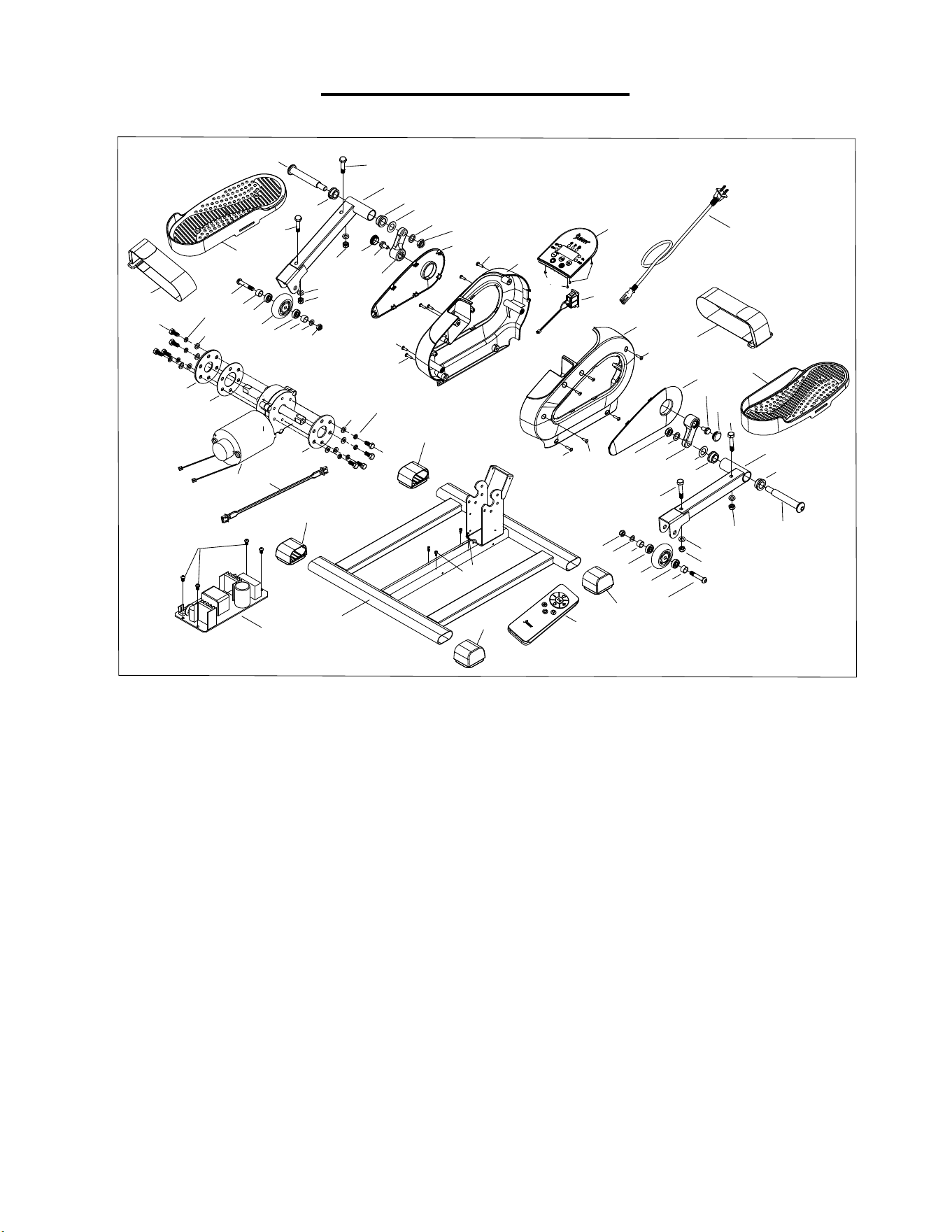

EXPLODED DIAGRAM
No. Description Spec. Qty.
No. Description Spec. Qty.
1 Main Frame 1 19 Hex Bolt M8*16 2
2 End Cap 4 20L Plastic Cover 1
3L Left Pedal 1 20R Plastic Cover 1
3R Right Pedal 1 21L Left Belt Cover 1
4L Pedal Tube 1 21R Right Belt Cover 1
4R Pedal Tube 1 22 Screw ST4.2*19 6
5 Hex Bolt M8*45 4 23 Screw ST4.2*16 6
6 Flat Washer φ8.2*φ16*1.5 6 24 Fixing Bolt M3*6 4
7 Nylon Nut M8 6 25 Controller 1
8 Slide Wheel φ64*24 2 26 Screw M3*5 4
9 Bearing 4 27 Motor DC24V 110RPM 1
10 Sleeve φ10*φ8.2*6 4 28 Big Washer φ70*φ30*1.0 1
11 Bolt M8*45 2 29 Rubber Washer φ70*φ30*2.5 2
12L Bolt 1 30 Flat Washer φ6.4*φ12*1.2 8
12R Bolt 1 31 Spring Washer D6 8
13 Bearing Sleeve PA6/φ28*18 4 32 Screw M6*15 8
14 Flat Washer φ16.25*φ28*1 2 33 Remote Control 1
15L Crank 1/2" 1 34 Console 1
15R Crank 1/2" 1 35 Screw ST2.2*6 4
16 Spring Washer φ13×B2 2 36 Outlet 1
17L Nylon Nut 1/2"*20 1 37 Pedal Strap 2
17R Nylon Nut 1/2"*20 1 38 Power Cord 1
18 Hole Plug 2 39 3P Data Line 1
11
EXPLODED DIAGRAM
1
4L
2
3L
3R
4R
2
5
5
5
5
7
7
7
7
8
8
9
9
9
9
11
11
12R
12L
13
13
13
13
14
14
15R
16
16
17R
17L
18
18
19
19
20L
20R
21L
21R
22
22
23
22
22
23
24
25
26
27
29
29
34
35
35
36
38
33
37
37
10
10
10
10
28
39
7
7
32
32
31
30
30
31
6
6
6
6
15L
2
2
Version
1.0
