ONE HAND RIVETER
Item # NHR958
MANUAL OF INSTRUCTIONS
WARNING: READ INSTRUCTIONS MANUAL BEFORE USING PRODUCT.
TECHNICAL DATA
Product Name
Hand Riveter
Model
NHR958
Weight
470g
Length
200mm (9”)
Nozzle Sizes
2.4mm(3/32”)
3.2mm(1/8”)
4.0mm(5/32”)
4.8mm(3/16”)

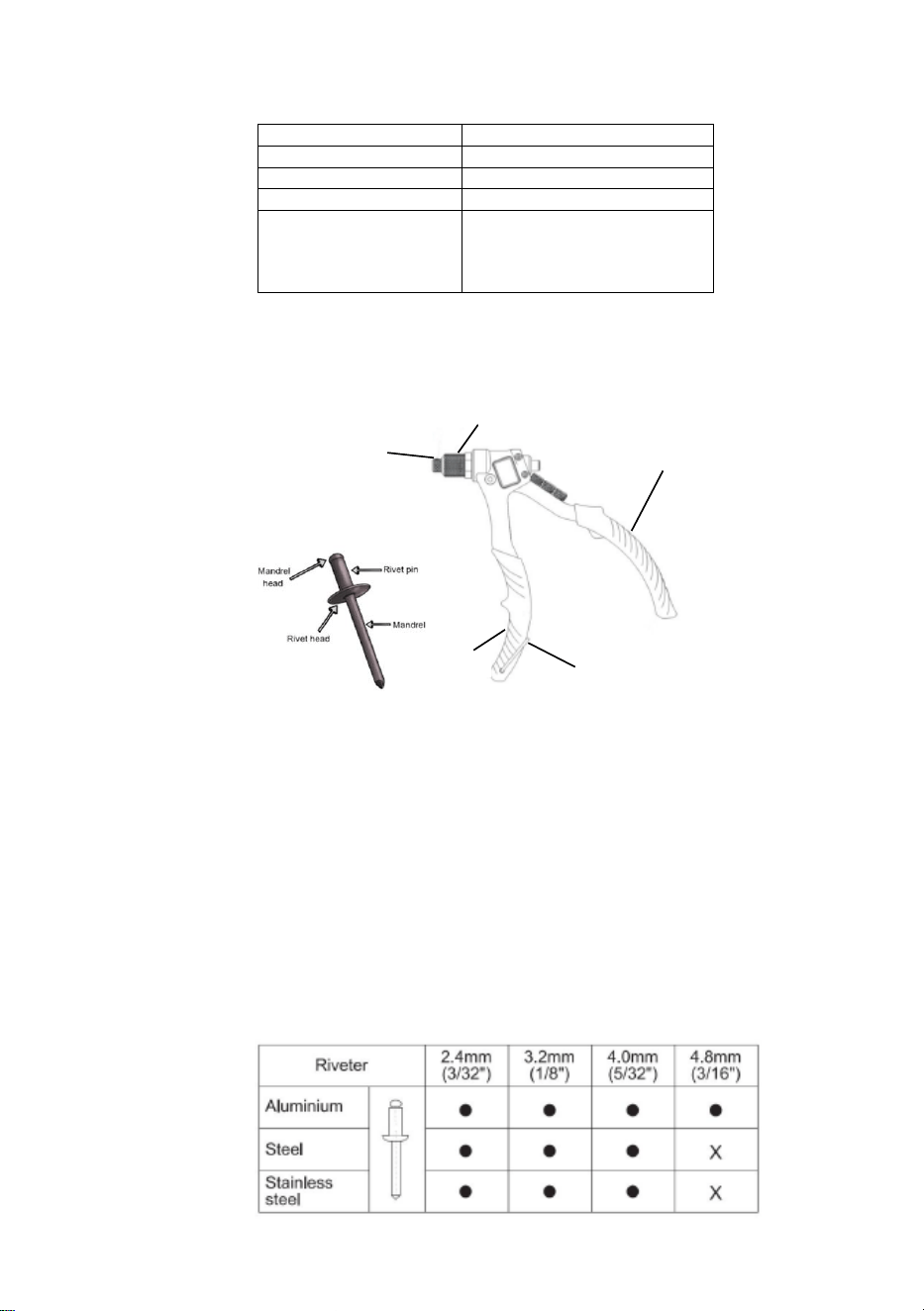

PRODUCT DESCRIPTION
1. Nozzles ( three more store on handle)
2. Sleeve
3. Handle
4. Handle Grip
5. Hook
PRECAUTIONS
1. Please check if all accessories are there and no missing, no broken before use.
2. Please check is there is foreign objects in the through hole before use.
3. Do not place the riveter in a damp or oil area.
4. Make sure use only the rivets which corresponding to the specifications in manual
5. When pull riveter for riveting, please keep it out of reach of children.
RECOMMENDED RIVET MATERIAL vs SIZE
This hand rivet tool can handle below size diameter rivet with three type of material.
1
2
3
4
5
RIVETING USAGE
Tube Sheet Metal Plastic Wood Aluminum Profile
OPERATION INSTRUCTIONS
1. Prepare rivet hole
Hole size can be important in blind riveting. Too small a hole will, of course, make rivet
insertion difficult. Too large a hole will reduce the shear and tensile strengths. It may
also cause bulging or separation of the members by allowing the rivet to expand
between them instead of only on the blind side. (Best practice is to follow the hole size
recommendations provided).

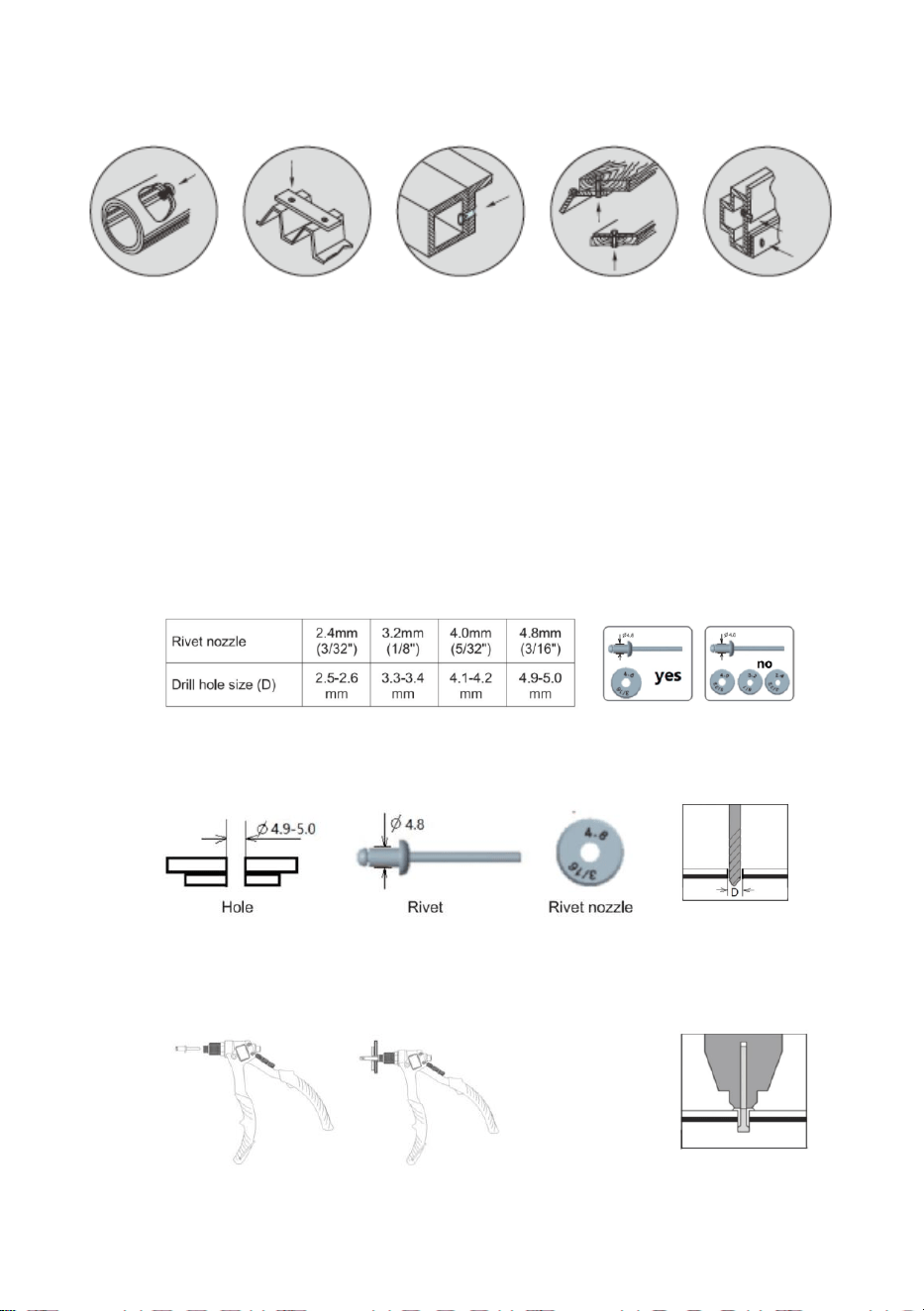

Please refer to below table for the recommended drill hole size against rivet nozzle size
Note: Avoid burrs in and around the holes.
For better understanding, take 4.8 mm (3/16”) nozzle for example, below are the key
dimensions your reference
2. Insert rivet: Open the riveter handle to its maximum position, insert correct size rivet
into the rivet nozzle, Squeeze rivet handle a little so that it holds the rivet. Insert the
rivet pin into the hole.

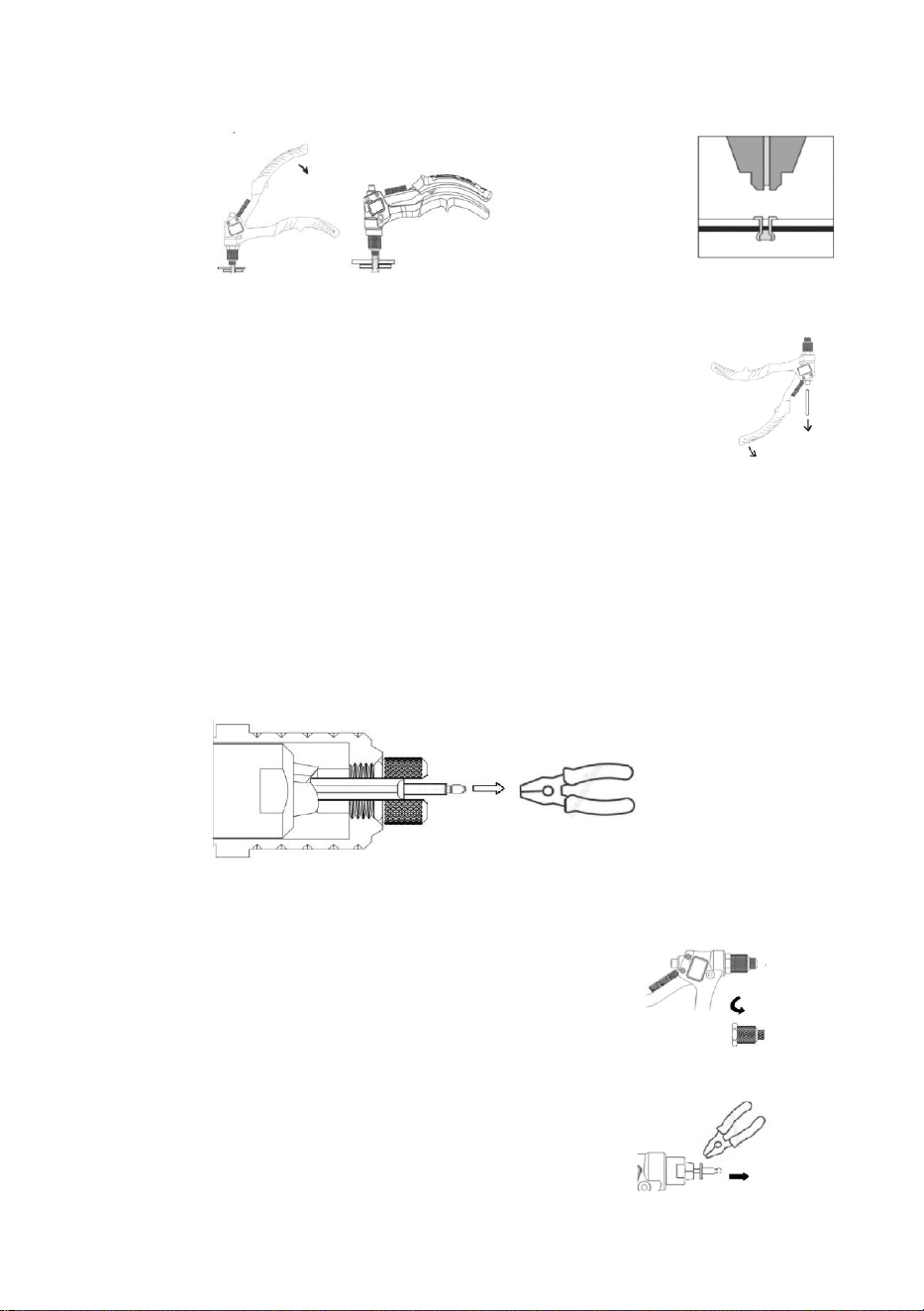

3. Riveting: Squeeze the riveter handle back and forth as below image shown. It might
takes 2-5 times squeeze until the rivet mandrel broken.
4. Removing the rivet mandrel: Open riveter handle so that the broken rivet mandrel will
fall down.
TROUBLE SHOOTING
1. Rivet mandrel remaining in rivet won’t falling:
A. Wrong rivet nozzle used. Replace with correct size nozzle and screw in all the
way. Then the rivet mandrel will falling
B. If not above, then we need clear the rivet nozzle hole to remove the burrs, debris,
foreign objects, etc.
2. Too small rivet jam in nozzle:
A. If a small size rivet is mistakenly used, Jam will likely happen. Please widely open
the handle and pull the small rivet out with pliers as below image shown
B. If above solution does not work out. Please follow below steps to clean the jam.
Remove the knurled sleeve
Open handle and pull the jam rivet out with pliers
