THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Hampton Bay!
Questions, problems, missing parts?
Before returning to the store, call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Item #1011 954 848
Model # 59065
Basic Model # 52-FERN-REV2-08022024
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found
in the top right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link
in the “Product Overview” section.
Scan for text based
customer support
Scan for online product
warranty information
USE AND CARE GUIDE
FERNBROOKE 52-INCH CEILING FAN
2
1. To reduce the risk of electric shock, ensure the electricity
has been turned off at the circuit breaker or fuse box before
you begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum
of 35 lb (15.9 kg). Use only UL Listed outlet boxes marked
“Acceptable for Fan Support of 35 lb (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft. (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, use caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into
the outlet box. The wires should be spread apart with
the grounded conductor and the equipment-grounding
conductor on one side of the outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
9. Suitable for wet location.
10. Use only with light kits marked suitable for use in wet
locations.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to
as anges) during assembly or after installation.
Do not insert objects in the path of the blades.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light
kit instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL Listed and marked suitable for use with this
fan.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box
before wiring. If you feel you do not have enough
electrical wiring knowledge or experience,
contact a licensed electrician.
Safety Information
Table of Contents
WARNING: To reduce the risk of re, electric
shock or personal injury, mount to outlet box
marked “Acceptable for fan support of 35 lb
(15.9 kg) or less”, and use screws provided with
the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan
speed control part no. MLS-FL36-1L.
WARNING: To reduce the risk of electric shock,
this fan must be installed with an isolating wall
switch.
WARNING: To reduce the risk of re, electric shock
or injury to persons, do not use replacement
parts that have not been recommended by the
manufacturer (e.g. parts made at home using a
3D printer).
Safety Information ....................................2
Warranty ............................................3
Pre-Installation .......................................3
Tools Required ......................................3
Hardware Included ...................................4
Installation ..........................................6
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Care and Cleaning ...................................18
Troubleshooting .....................................18
3
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory
for a lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase
by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from
defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the
product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and
reinstalling the product are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass
nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected
from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by
unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims
any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty.
Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer
shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance
except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the
above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which
vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the
warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com.
Pre-Installation
Warranty

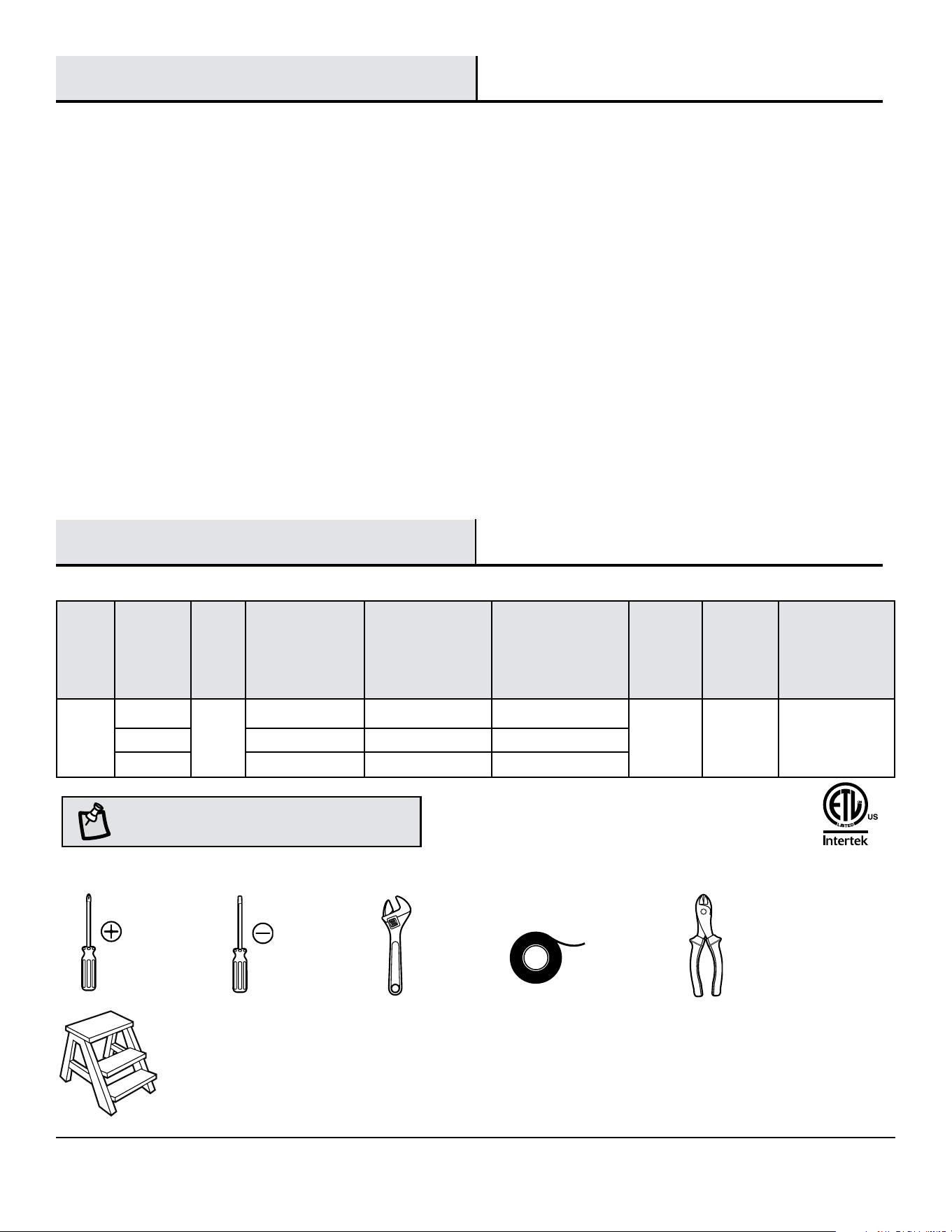

SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the amps and wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without
lights)
WATT
Airflow
CFM
Airflow Effi-
ciency
(higher is better)
CFM/WATT
Net
Weight
Gross
Weight
Cubic Feet
52 in.
Low
120
6 1,954 325
15.98 lb
(7.2 kg)
23.26 lb
(10.55 kg)
2.47 cu. ft.
Medium 17 3,753 220
High 33 4,988 151
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter/
stripper
Step ladder
4

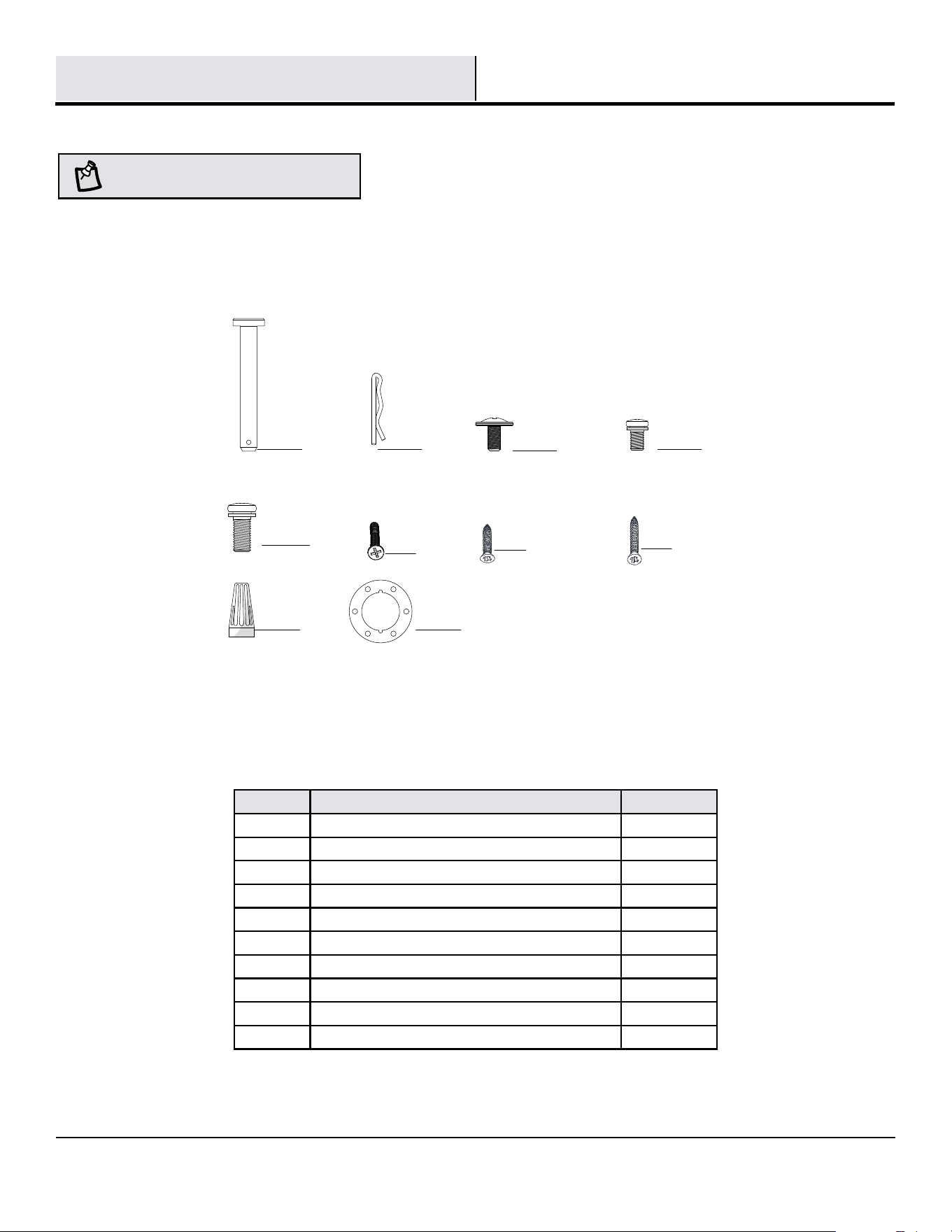

Part Description Quantity
AA Hanger pin 1
BB Locking pin 1
CC Upper housing screw 4
DD Top blade screw 5
EE Bottom blade screw 9
FF Machine screw (remote control wall cradle) 2
GG Short tapered screw (remote control wall cradle) 2
HH Long tapered screw (remote control wall cradle) 2
II Plastic wire connecting nut 4
VV Rubber gasket 1
AA
BB
EE
CC
DD
FF
GG
HH
II VV
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
5
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

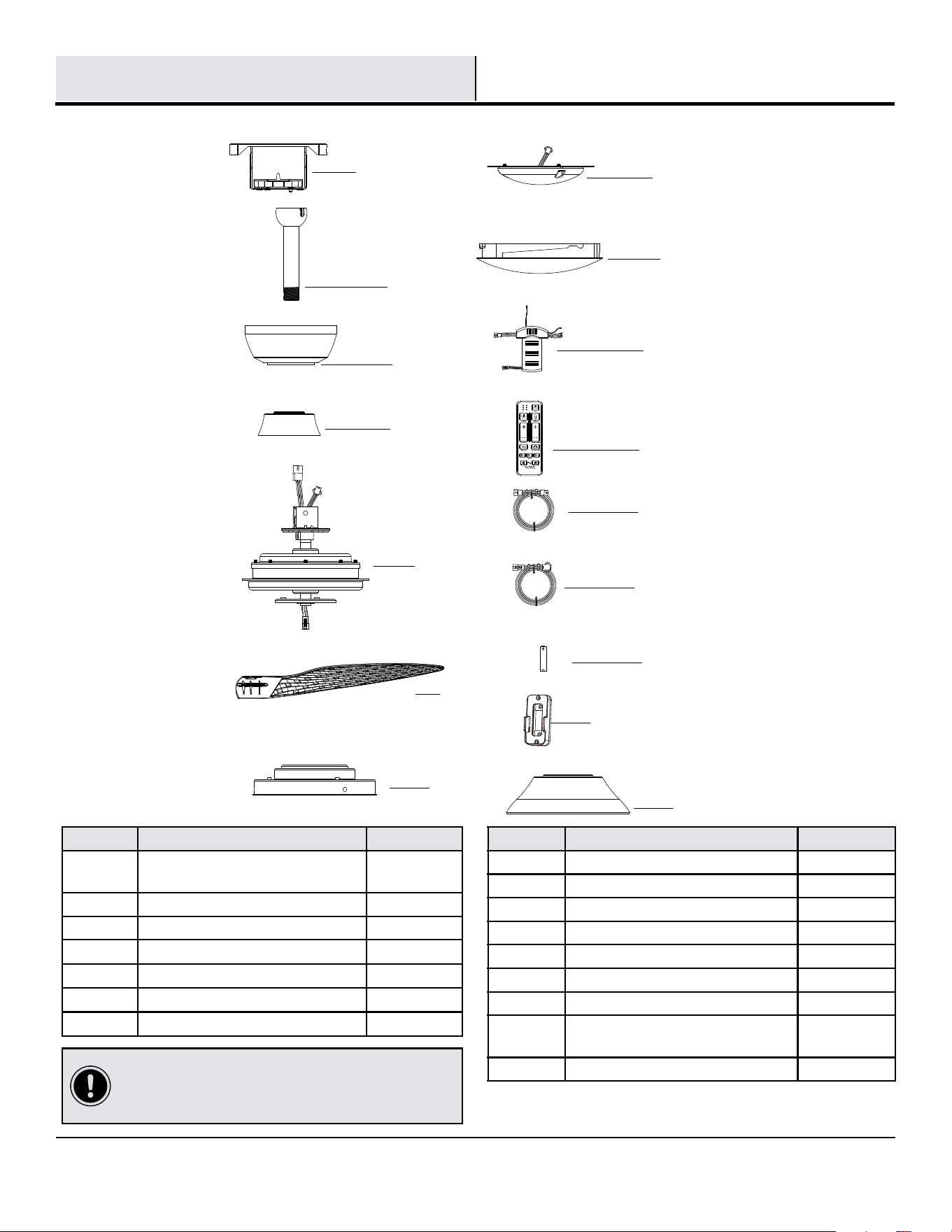

Part Description Quantity
A
Slide-on mounting bracket
(inside canopy)
1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan motor assembly 1
F Blade 4
G Light kit pan 1
Part Description Quantity
H Light kit tter assembly 1
I Shatter resistant shade 1
J Receiver 1
K Remote control 1
L 3-pin extension wire (motor) 1
M 3-pin extension wire (light) 1
N Battery 2
O
Remote control wall cradle with
toggle switch spacer included
1
P Upper Housing 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416; 6,210,117
and other patents pending.
A
B
C
D
E
F
G
H
I
J
L
K
P
M
N
O
Pre-Installation (continued)
PACKAGE CONTENTS
6
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

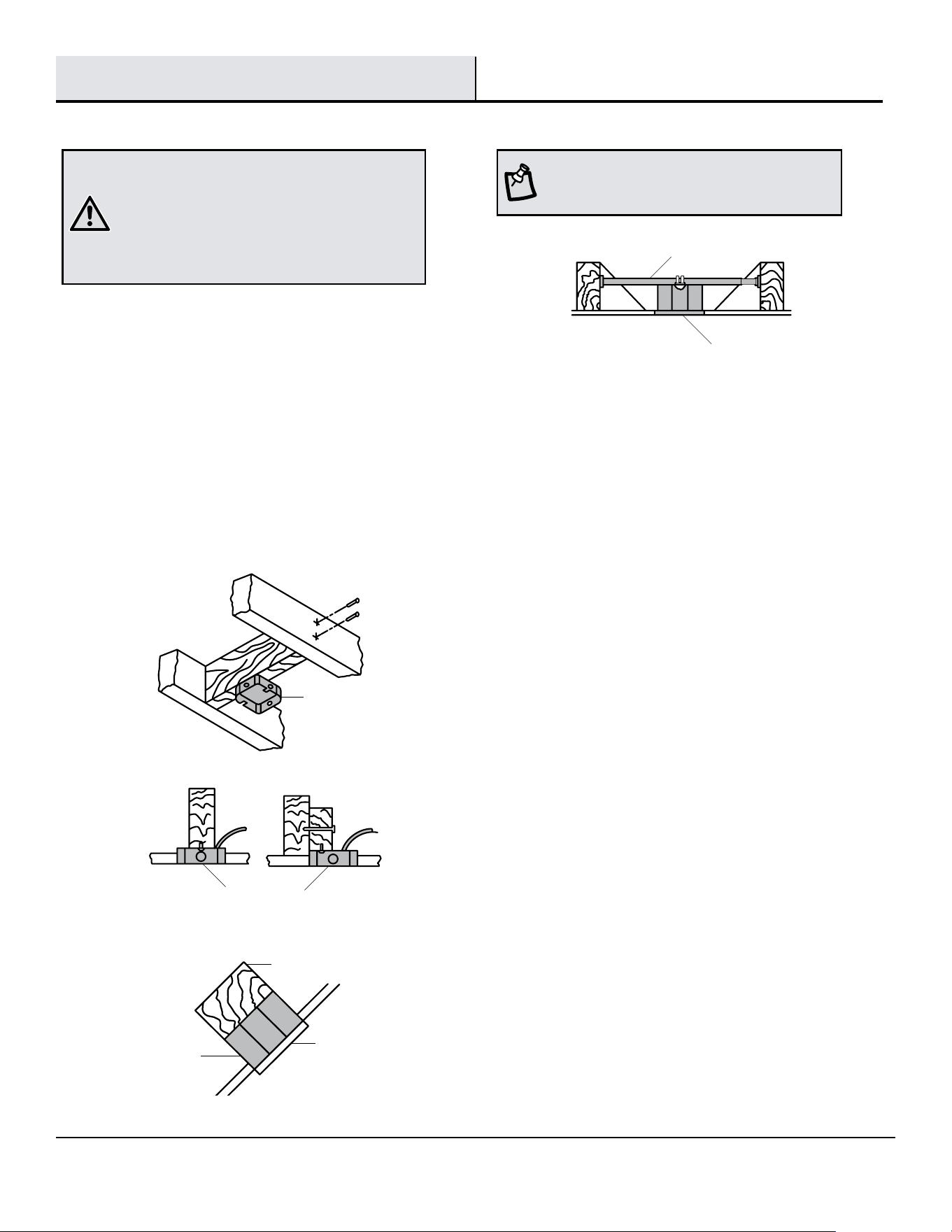

MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to an outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or
less”, and use screws provided with the outlet
box. An outlet box commonly used for the support
of lighting xtures may not be acceptable for fan
support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL Listed
mounting box, then install one using the following
instructions:
□ Disconnect the power by removing the fuses or turning
off the circuit breakers.
□ Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet
box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35
lb (15.9 kg). Use only UL Listed outlet boxes marked
“Acceptable for fan support of 35 lb (15.9 kg) or less.”
Do not use a plastic outlet box.
The illustrations below show three different ways to mount
the outlet box.
If the canopy (C) touches the ball/downrod assembly (B), then
remove the decorative motor collar cover (D), and turn the canopy
(C) 180° before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep,
sloped ceiling. The maximum angle allowable is 15°
away from horizontal.
Installation
7
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

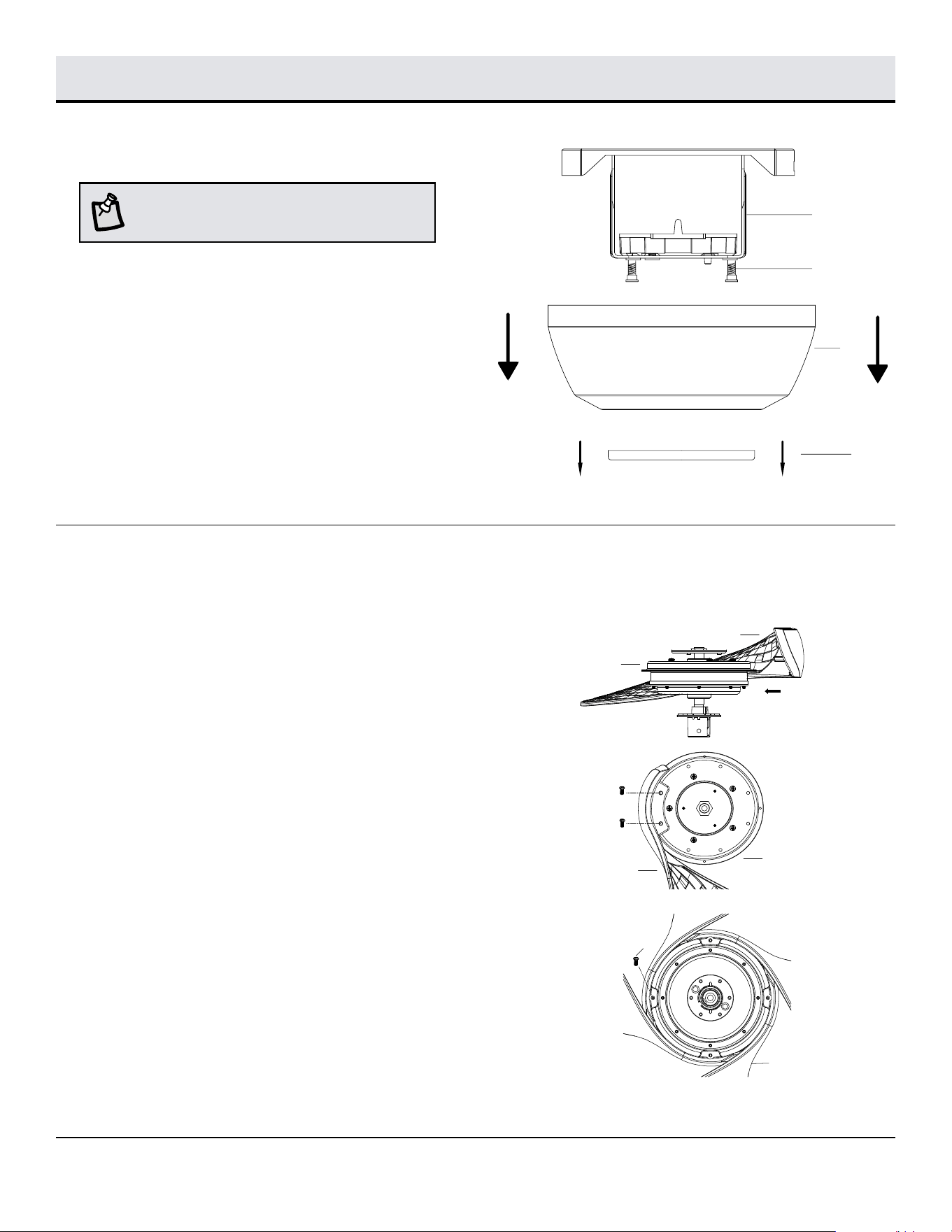

□ Remove the magnetic canopy bottom cover (JJ) from the
canopy (C) by pulling it off.
□ Loosen the two canopy screws (SS) located in the bottom
of the slide-on mounting bracket (A).
□ Turn the slide-on mounting bracket (A) counterclockwise
and lift it up to remove the slide-on mounting bracket
from the canopy (C).

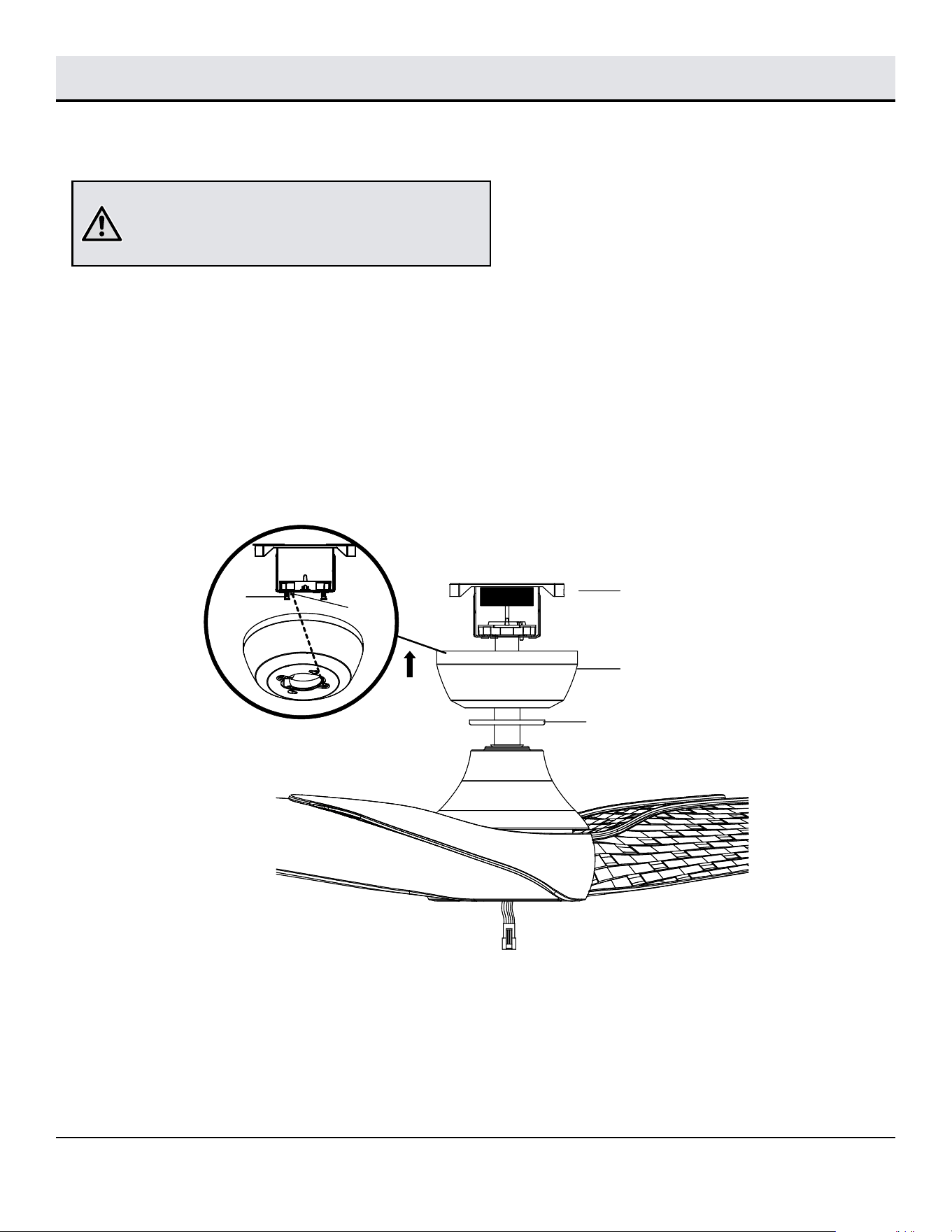

□ Flip over the fan motor assembly (E). insert the blade (F) to the
ywheel, align the two holes in the blades (F) with the two holes
on the ywheel and secure the blade (F) using the bottom blade
screws (EE). Repeat this step for the remaining blades (F).
□ Flip the fan motor assembly (E) with blades (F) over. Aligning four
holes on the blade (F) with the holes on the side of ywheel and
secure with top blade screw (DD).
□ Make sure all the screws are rmly tightened.
Attaching the fan blades to the motor assembly
2
NOTE: The magnet is pre-attached on the
canopy bottom cover for you to remove and
install easily.
F
E
F
E
EE
DD
F
C
A
SS
JJ
Assembly - Standard Ceiling Mount
Preparing for mounting
1
8
Assembly - Standard Ceiling Mount (continued)
Attaching the upper housing to the
motor assembly

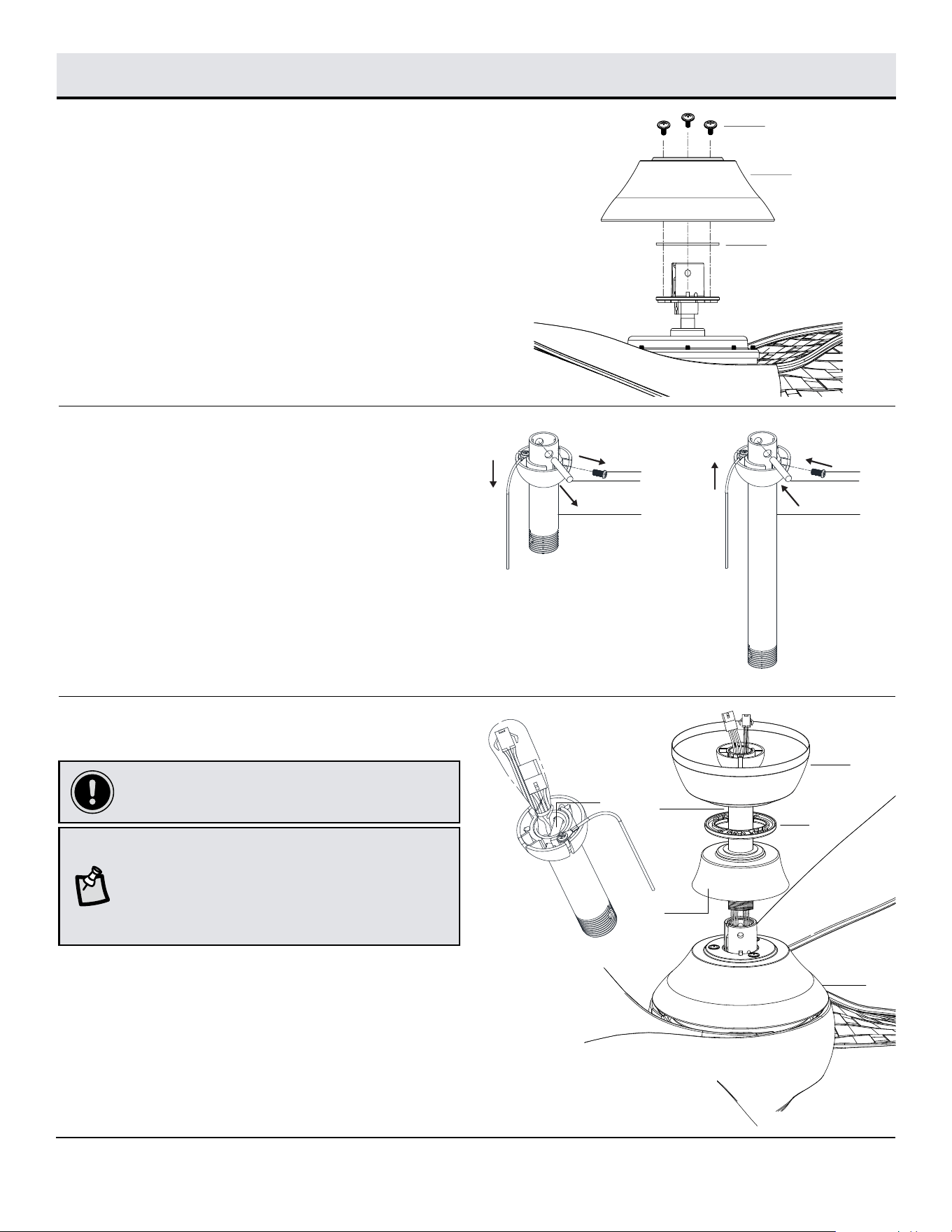

□ Attach the upper housing (P) and rubber gasket (VV) to the
fan motor assembly (E), align the three screw holes in the
upper housing (P) and rubber gasket (VV) with the screw
holes above the coupler on motor assembly (E), and secure
the upper housing with screws (CC).
3
Routing the wires

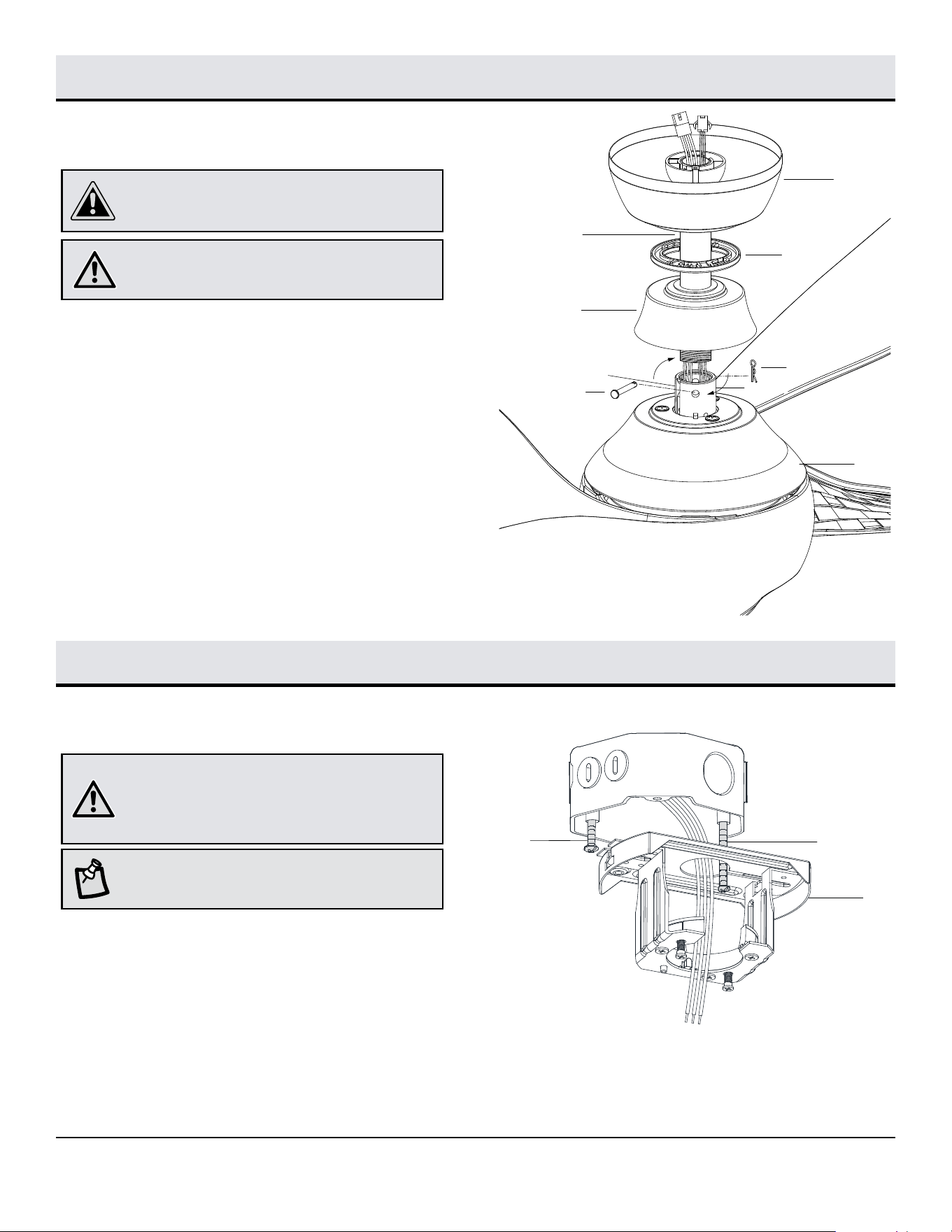

□ Insert the ball/downrod (B) through the large opening of the
canopy (C). Next, slide the canopy bottom cover (JJ) over
the ball/downrod (B) with the magnets facing the canopy.
Finally, slide the decorative motor collar cover (D) on the ball/
downrod (B) as shown in the illustration.
□ Route the wires exiting the top of the fan motor assembly
(E)through the ball/downrod (B). Ensure that both wire
connectors exit the ball/downrod (B) on the same side of the
hanger ball pin (OO).
4
NOTE: The fan comes with 8 in. lead wires for use
with the provided 6 in. ball downrod assembly (B). If
you wish to use a longer downrod, attach the 3-pin
extension wire (L) and 3-pin extension wire (M) to the
fan by connecting the molded adaptor plugs from the
extension wires to the 3-pin adaptor plugs from the
fan.
IMPORTANT: DO NOT remove the wires from the
plastic bag before routing the wires the to the
downrod and fan.
Installing with an Extension Downrod
(sold separately)
□ Disassemble the hanger ball from the downrod by removing
the set screw (MM) slide the hanger ball down the downrod
and remove the pin (OO), keep parts.
□ Place the hanger ball on the new downrod and insert the pin
(OO) through the holes at top of downrod and slide the hanger
ball up the downrod until the pin (OO) is set in the slots of
hanger ball.
□ Re-install the set screw (MM) tighten it so the set screw is
secured against the downrod.
□ Then route the wires according to step 5 “routing the wires”.
5
C
JJ
D
OO
B
E
OO
B
MM
OO
B
MM
CC
VV
P
9
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Attaching the fan to the electrical box
□ Loosen the two mounting screws (LL) in the outlet box.
□ Pass the 120-Volt supply wires through the center hole in the
slide-on mounting bracket (A).
□ Slide the slide-on mounting bracket (A) on to the mounting
screws (LL) and center the slide-on mounting bracket (A) in
relation to the outlet box. If necessary, use leveling washers
(not included) between the slide-on mounting bracket (A) and
the outlet box. The at side of the slide-on mounting bracket (A)
should face toward the outlet box, as shown.
□ Securely tighten the two mounting screws (LL).
1
WARNING: To reduce the risk of re, electric
shock or personal injury, mount to an outlet box
marked “Acceptable for fan support of 35 lb
(15.9 kg) or less”, and use screws provided with
the outlet box.
NOTE: The slide-on mounting bracket (A) is
designed to slide into place on an outlet box with
the outlet box screws (LL) installed.
Assembly - Standard Ceiling Mount (continued)
Assembling the fan
□ Loosen, but do not remove, the setscrew (KK) on the collar
(PP) on top of the fan motor assembly (E).
□ Install the downrod (B) by inserting it into the motor collar
(PP), and turning it clockwise until the holes at the bottom
of the ball/ downrod assembly (B) align with the holes in the
collar on top of the fan-motor assembly (E).
□ Carefully insert the hanger pin (AA) through the holes in
the collar and ball/downrod assembly (B). Be careful not to
jam the hanger pin (AA) against the wiring inside the ball/
downrod assembly (B).
□ Insert the locking pin (BB) through the hole near the end of
the hanger pin (AA) until it snaps into its locked position.
□ Re-tighten the setscrew (KK) on the collar (PP) on top of the
fan-motor assembly (E).
WARNING: Failure to properly install the locking
pin (BB) could result in the fan becoming loose
and possibly falling.
CAUTION: To ensure wobble-free operation and to
avoid damage to the fan, the downrod (B) and the
setscrew (KK) must be completely tightened.
Assembly - Hanging the Fan
6
C
JJ
D
B
E
AA
PP
BB
KK
A
LL
LL
10
Assembly - Hanging the Fan (continued)
Hanging the fan
□ Carefully lift the fan motor assembly (E) up to the slide-on
mounting bracket (A).
□ Insert the ball portion of the ball/downrod assembly (B) into
the socket of the slide-on mounting bracket (A).
□ Turn the ball/downrod assembly (B) clockwise until it is
seated with the tab of the slide-on mounting bracket (A)
aligned with the slot in the ball.
2
□ Position the house supply wires (AAA) to one side of the
slide-on mounting bracket (A). Position the fan wires to the
opposite side.

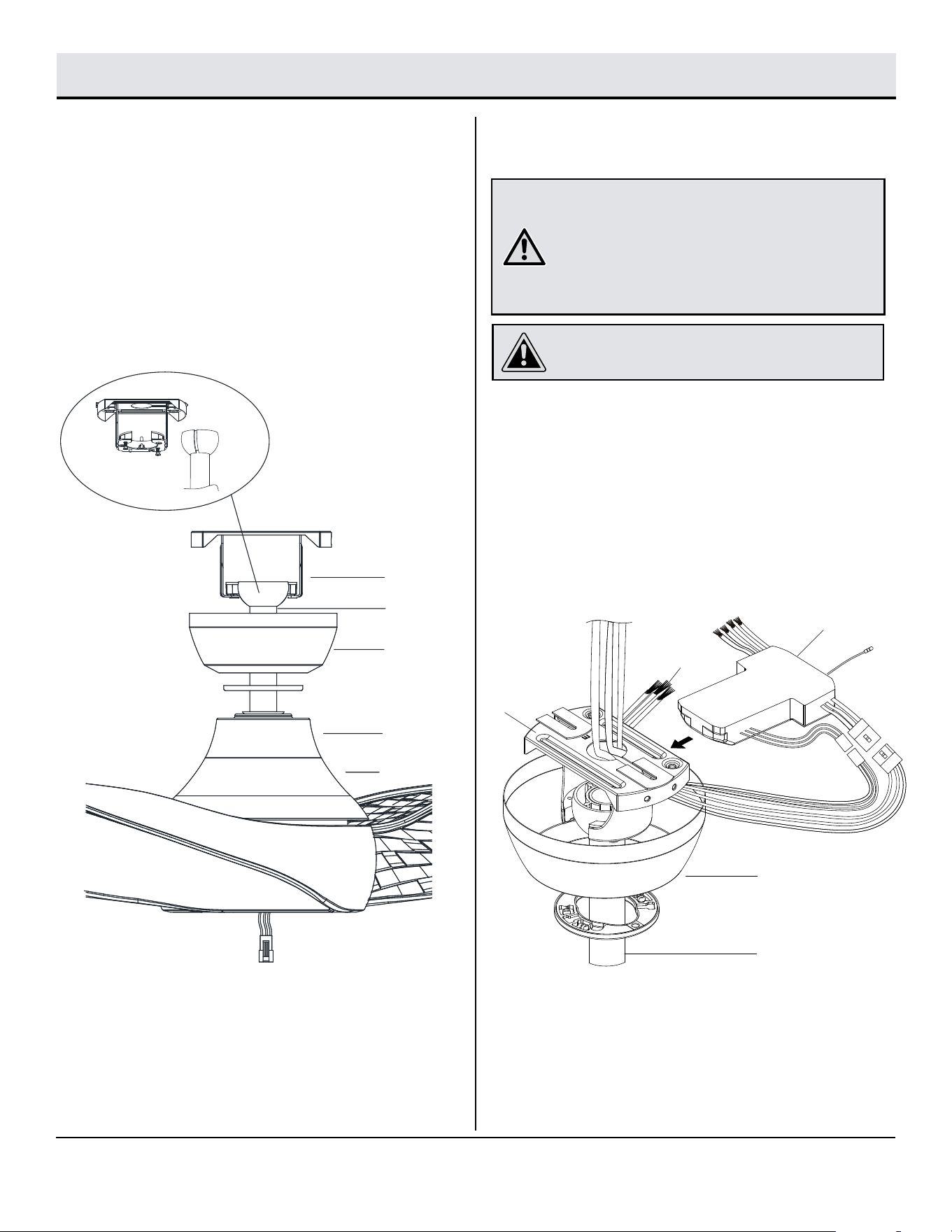

□ Insert the narrow end of the receiver (J) (as shown, at side
towards the ceiling) into the slide-on mounting bracket (A)
until it rests on top of the ball/downrod assembly (B).
Installing the receiver
3
WARNING: To reduce the risk of re or electric
shock, remember to disconnect power. The
electrical wiring must meet all local and national
electrical code requirements. The electrical source
and fan must be 110/120 volts, 60Hz. Do not use
this product in conjunction with any variable wall
control. Incorrect wire connection can damage this
receiver.
CAUTION: If other fan wires are a different color,
have this unit installed by a household licensed
electrician.
J
AAA
A
C
B
A
B
C
D
E
11
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Hanging the Fan (continued)
Making electrical connections
4
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
WARNING: Each wire nut supplied with this fan is designed
to accept up to one 12-gauge house wire and two wires
from the fan. If you have larger than 12-gauge house wiring
or more than one house wire to connect to the fan wiring,
consult an electrician for the proper size wire nuts to use.
IMPORTANT: Use the wire connecting nuts (II) supplied
with your fan. Secure the connectors with electrical tape
and ensure there are no loose strands or connections.
NOTE: If your house wiring does not have a red switch wire,
please connect the receiver black wire and receiver red
wire to the house black wire and secure using a plastic
wire nut.
NOTE: If the light and/or fan is turned off using the remote
and you want to turn it back on using the wall switch
(with the wall switch already in the “on” position), simply
toggle the light wall switch off and then back on within one
second to activate the light/fan.

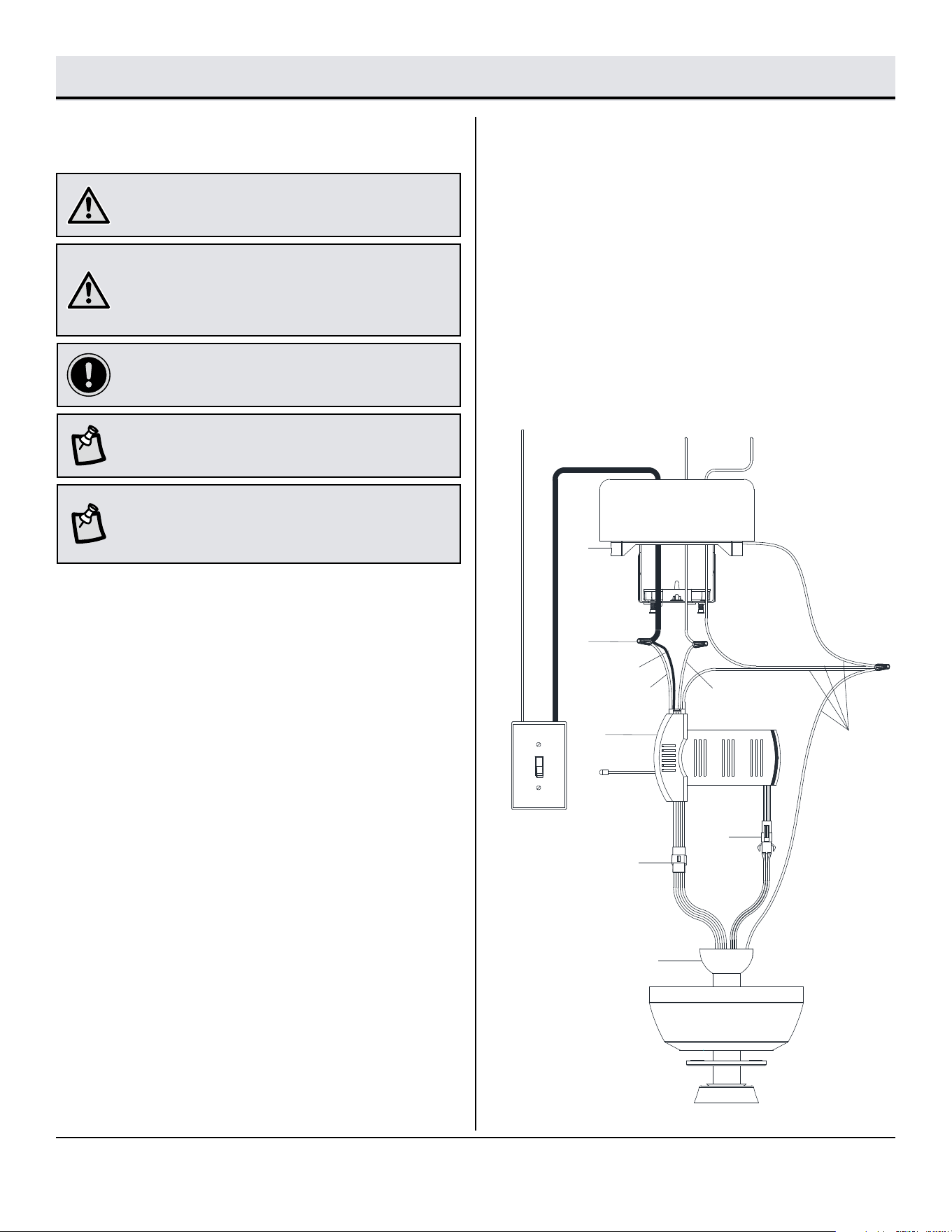

□ On a single switch the fan and light can be turned on or off
together. Make wire connections as follows, using the wire
nuts (II). Wall switch not included.
From Fan To Outlet Box
Black + Red Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
Wire Connections
Single Wall Switch
4a
□ If using the 6 in. ball downrod assembly (B) provided, wire the
receiver to the fan wires by connecting the molded adaptor
plug from the receiver (J) with the molded adaptor of the fan
motor assembly (E) together.
□ If you wish to use longer downrod, you can use the extension
leadwire (42 in.) (L) and (M) provided by connecting the
molded adaptor together.
□ Remove the hanger ball from the downrod (B) by loosening the
set screw and removing the pin as shown in illustration. and
using the long extension dowrod (not provided) for your desire
option.
AC IN
Black
White
3-pin
connector
B
A
II
J
SINGLE SWITCH
3-pin
connector
Outlet Box
White
Ground
conductor
Black
Red
Green
12
Assembly - Hanging the Fan (optional)
From Fan To Receiver
3-pin connector--------------- 3-pin connector
□ Make wire connections from the receiver (J) and fan to
the outlet box as follows, using the wire nuts (II).
From Receiver To Outlet Box
Black “AC in L” + Red wire “for Light” ---------- Black
wire (Hot)
White wire “AC in N” --------- White wire (Neutral)
From Receiver To Outlet Box
Green wires* ----------------- Green or bare wire (Ground)
□ Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box and the black wire will be on
the other side. Carefully tuck the connections up into the
outlet box.

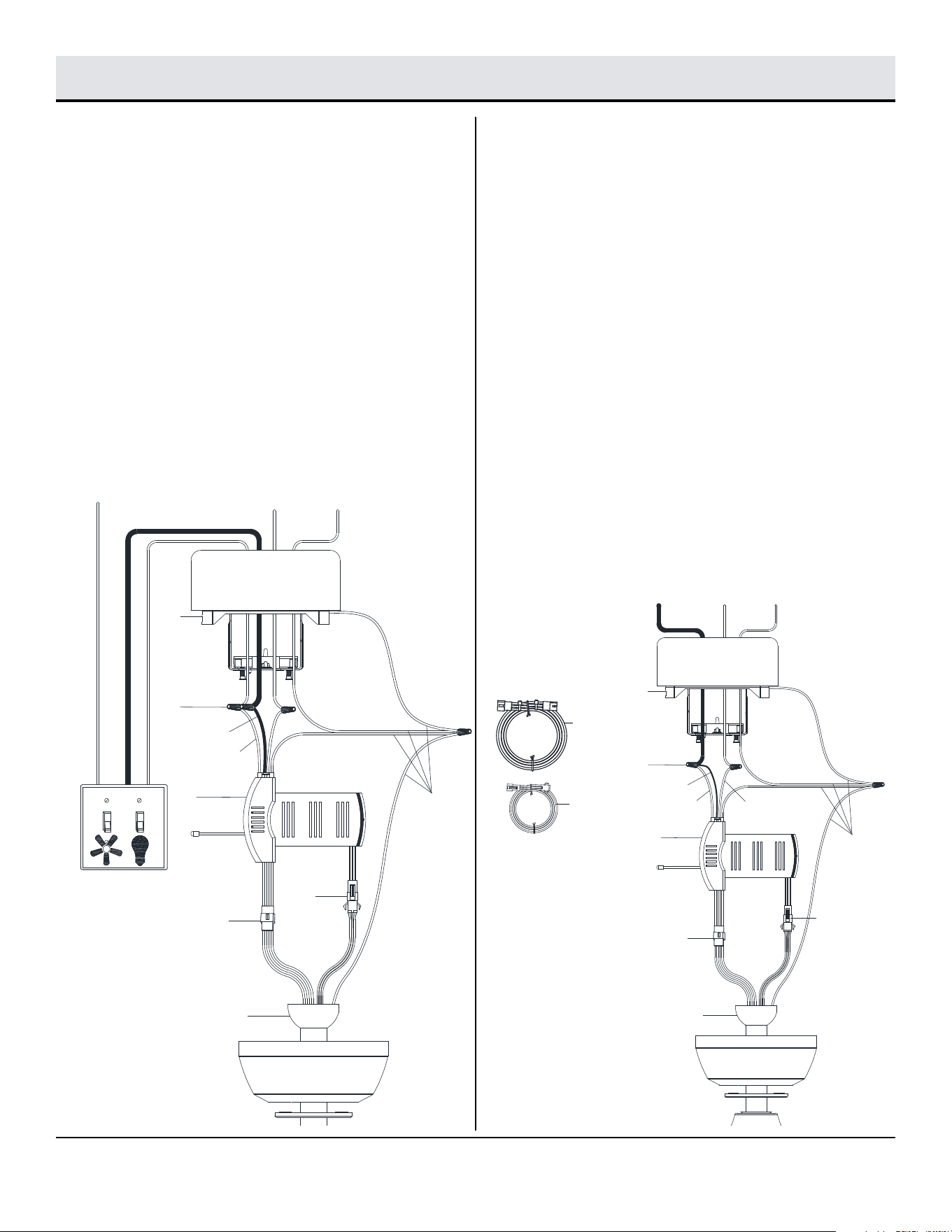

□ On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the
wire nuts (II). Wall switch not included.
From Fan To Outlet Box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Red Wire (for Light) --------- Red Wire (Hot #2 but may
be in a color other than black,
white or green)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
Wire Connections
Dual Wall Switch
Wire Connections
No Wall Switch
4c4b
M
L
Outlet Box
White
Ground
conductor
Black
Red
Green
Black
White
3-pin
connector
B
A
II
J
3-pin
connector
White
Red
Ground
conductor
DUAL SWITCH
Red
Green
Black
3-pin
connector
A
II
J
3-pin
connector
B
Outlet Box
Black
AC IN
13
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Hanging the Fan (continued)
Mounting the fan motor assembly
(standard mount)
5
WARNING: When using the standard ball/downrod
mounting, the tab in the ring at the bottom of the
slide-on mounting bracket (A) must rest in the groove
of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
□ Align the locking slots of the canopy (C) with the two screws (SS) and alignment post (QQ) in the slide-on mounting
bracket (A).
□ Push up the canopy (C) and turn it clockwise until the alignment post (QQ) engages to the round hole and the screws (SS)
engage to the key slots.
□ Firmly tighten the two mounting screws (SS).
□ Align the oval shape on the canopy (C) with canopy bottom cover (JJ).
□ Align the oval shape on the canopy (C) with the canopy bottom cover (JJ). Push up the canopy bottom cover (JJ) until the
screw (HH) heads engage with the slots on the canopy bottom cover (JJ) so that it attaches magnetically.
C
JJ
A
QQ
SS
14

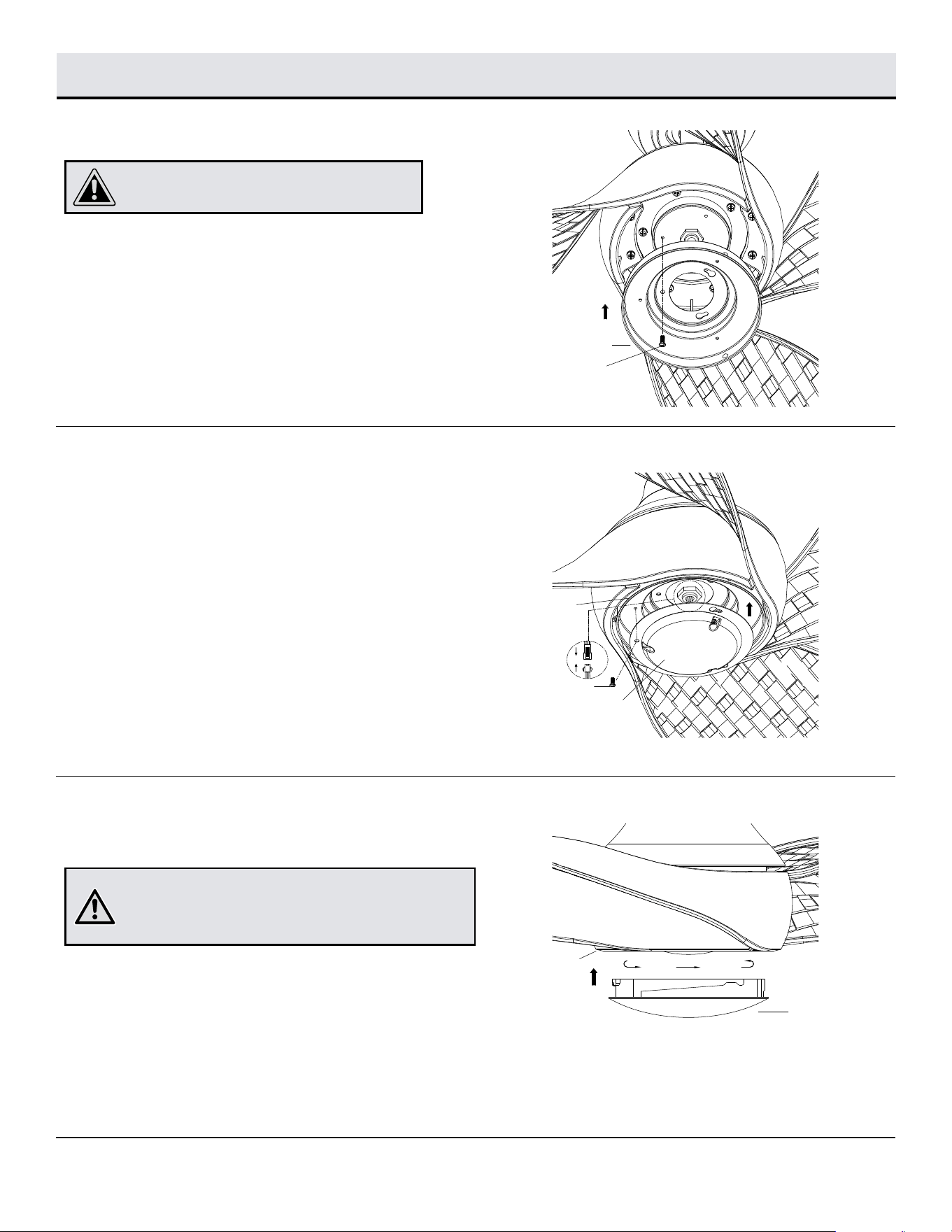

Installing the light kit pan
1
□ Remove one screw (NN) from the black bracket below the fan
motor assembly and loosen but do not remove the other two
screws.
□ Push the light kit pan (G) up to the fan motor assembly so that
the two loosened screw heads t into the keyhole slots. Turn
the light kit pan (G) clockwise.
□ Pull the light kit wire through the center of the light kit pan (G).
□ Re-install the screw (NN) that was removed in the rst step.
□ Make sure all the screws are rmly tightened.
Assembly - Attaching the Light Kit
CAUTION: To reduce the risk of electric shock,
disconnect the electrical supply circuit to the
fan before installing the light xture.
Attaching the light kit tter assembly
2
□ Remove one screw (TT) from the light kit pan (G), and
loosen, but do not remove, the other two screws.
□ Connect the wires from the light kit tter assembly (H) to
the wires from the fan motor assembly by connecting the
molded adaptor plugs together. Carefully tuck all wires and
splices into the light kit pan.
□ Push the light kit tter assembly (H) up to the light kit
pan (G) so that the two loosened screw heads t into
the keyhole slots. Turn the light kit tter assembly (H)
clockwise to secure.
□ Re-install the screw that was removed in the rst step.
□ Make sure all the screws are rmly tightened.
Installing the shatter resistant shade
3
□ Place the shatter resistant shade (I) into the light kit pan
(G), aligning the three at areas on the top of the ange
of the shatter resistant shade (I) with the three raised
dimples in the light kit pan (G). Turn the shade clockwise
until it stops.
WARNING: Do not overtighten when installing the
shatter resistant shade into the light kit. Allow the
shatter resistant shade to cool completely before
removing.
G
NN
H
TT
G
I
G
15
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

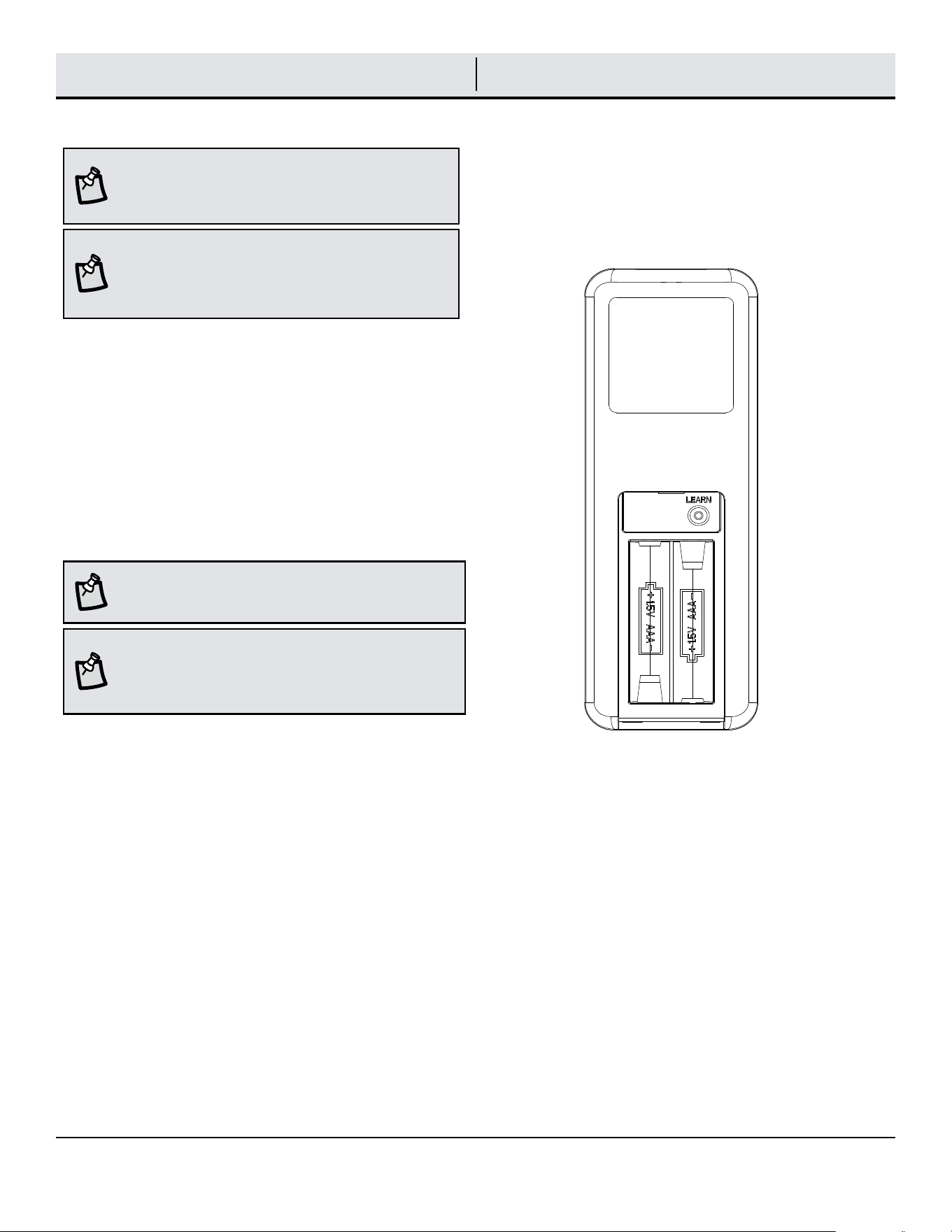

Preparing the remote control
□ Conrm that the power to the fan is off at either the wall switch
or breaker box.
□ Return power to the fan and, within 30 seconds, press and hold
the learn button for 1-2 seconds and release.
□ If pairing is successful, the blades will begin to spin and the
light will also ash.
NOTE: The remote control has already been paired
to the ceiling fan for your convenience. If the remote
control does not communicate with the fan, follow the
pairing instructions below.
NOTE: The remote control battery will weaken with age
and should be replaced before leaking takes place, as
this will damage the remote control. Dispose of used
battery properly and keep the battery out of the reach
of children.
Assembly - Preparing the Remote Control
Pairing one remote to one ceiling fan
□ Conrm that the power to the fan is off at either the wall switch
or breaker box.
□ Turn the power to the fan on at the breaker box or wall switch
and, within 30 seconds, press and hold the “Learn” button for
10 seconds and release. Once pairing is successful, the blades
will begin to spin and the light will also ash.
□ Repeat the above process for the remote controls you want to
work with this fan.
Pairing multiple remote controls to one ceiling fan
NOTE: The fan can be controlled by up to three remote
controls. To order extra remote controls, please call
customer service 1-855-HD-HAMPTON
NOTE: The fan can only be controlled by 3 remote
controls maximum at the same time after “Learning”.
If you pair a fourth remote control to the fan, the rst
remote control will be erased from the receiver memory.
16

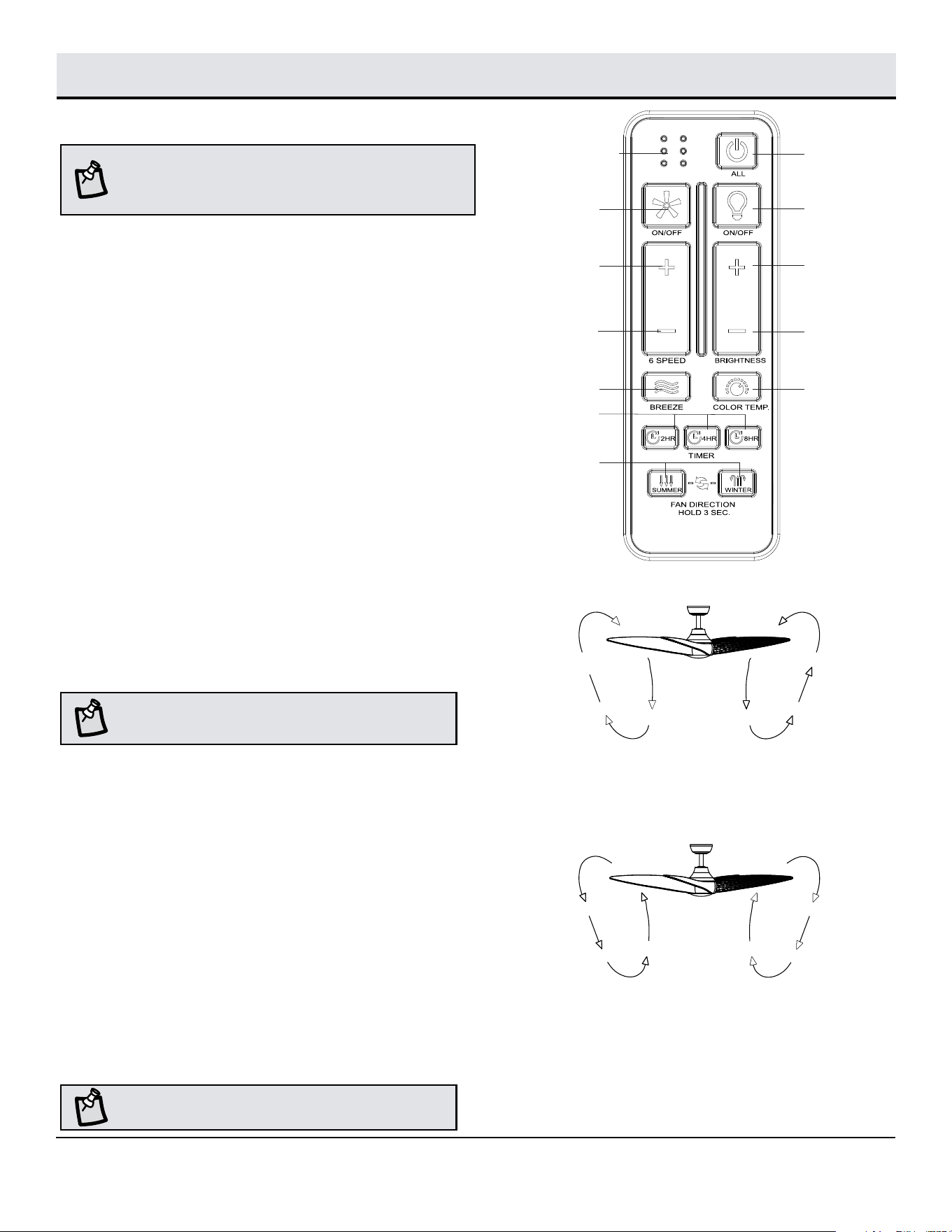

ALL ON/OFF
Press and release the ALL button to turn the fan and light on or off.
LIGHT ON/OFF
Press and release the button to turn the light on or off.
DIMMING
Press and hold the (+) button to brighten light to the desired
level.
Press and hold the (-) button to dim light to the desired level.
COLOR TEMPERATURE ADJUSTMENT
Push and release the button to cycle through the six color
temperature options.
Option 1: 2700K (Warm White).
Option 2: 3000K (Soft White).
Option 3: 3500K (Neutral White).
Option 4: 4000K (Cool White).
Option 5: 5000K (Daylight).
Option 6: 6500K (Daylight Deluxe).
NOTE: The default temperature of the ceiling fan light
is 3000K (Soft White).
FAN SPEED
Press and release the + button to increase the fan speed.
Press and release the - button to decrease the fan speed.
FAN ON/OFF
Press and release the fan button to turn the fan on or off.
Operating Your Fan and Remote Control
LED SPEED INDICATOR
LEDs will illuminate to the corresponding speed:
1 Light - Lowest speed
6 Lights - Highest speed
Comfort Breeze
TM
Press and release the Comfort Breeze
TM
button to simulate an outdoor
breeze.
To cancel this feature press the Comfort Breeze button or other
speed button or holding the Comfort BreezeTM button for 3 seconds.
TIMER
Pressing the timer button will automatically turn the fan off after
2, 4, or 8 hours (depending on button pressed.
Holding the timer button for 3 seconds will cancel this function.
FAN DIRECTION
Hold the SUMMER button for 3 seconds to rotate fan forward.
Hold the WINTER button for 3 seconds to rotate fan in reverse.
NOTE: On start up your ceiling fan will oscillate back and
forth. This is NORMAL OPERATION for DC ceiling fans
as it goes through its calibration cycle. The fan is NOT
DEFECTIVE.
NOTE: The fan must be on and rotating prior to
pressing the winter or summer button. The fan will
not reverse direction if the fan is not moving.
Summer button - (Forward)
A downward airflow creates a cooling effect. This
allows you to set your air conditioner on a higher
setting without affecting your comfort.
Winter button - (Reverse)
An upward airflow moves warm air off of the
ceiling. This allows you to set your heating unit on
a lower setting without affecting your comfort.
Color
temperature
adjustment
Fan On/Off
Increases fan
speed
Decreases fan
speed
Comfort
Breeze
TM
Timer
Fan direction
All On/Off
Light On/Off
Increases light
level (dimmer)
Decreases light
level (dimmer)
LED speed
indicator
17
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

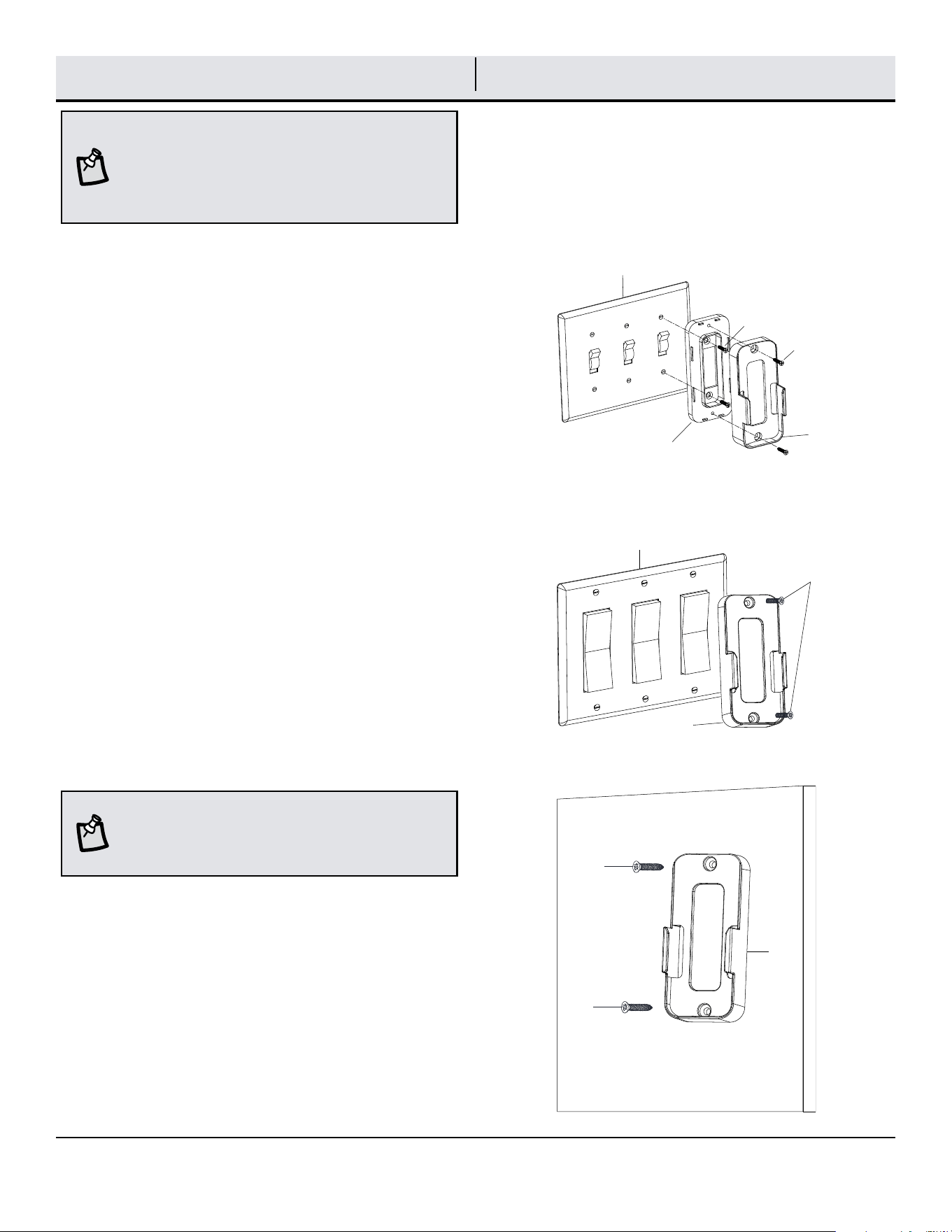

Assembly - Mounting the remote wall cradle
1a. Attaching over a standard toggle switch
□ Remove the two screws from the toggle switch face
plate.
□ Place the toggle switch spacer over the toggle switch
face plate and align the two large holes of the toggle
switch spacer with the holes in the face plate. Secure
the toggle switch spacer to the face plate using the two
included machine screws (FF).
□ Attach the remote wall cradle (O) to the toggle switch
spacer using the included two short tapered screws (GG).
Screw a short tapered screw (GG) into the top hole and
bottom hole of the wall cradle and into the toggle switch
spacer until tight.
NOTE: Screw wall anchors are included for extra
support. The included screws are designed to
screw easily into the wall. If you would like a more
permanent or secure hold, install the wall anchors
prior to attaching the wall cradle to the wall.
1b. Attaching over a paddle switch
□ Remove the two screws from the paddle switch face plate.
□ Place the remote wall cradle (O) over the paddle switch and
align the two holes of the remote wall cradle (O) with the
holes in the face plate. Secure the remote wall cradle (O) to
the face plate using the two included machine screws (FF).
1c. Attaching to the wall
□ Position the remote wall cradle (O) in the desired
position and attach to the wall using the included two
long tapered screws (HH).
NOTE: The remote wall cradle is designed to allow
you to access an existing switch. The remote wall
cradle can be mounted on the wall or to the face
plate of a standard toggle switch or a paddle switch.
Follow the instructions below for the option that best
suits your needs.
HH
HH
O
Toggle switch spacer
Toggle switch face plate
GG
FF
O
FF
O
Paddle switch face plate
18
Troubleshooting
□ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□ Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could
damage the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the
nish.
□ You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with
a light application of shoe polish.
□ You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before
cleaning your fan.
Care and Cleaning
Problem Solution
The fan will not start. □ Check the main and branch circuit fuses or breakers.
□ Check to make sure the wall switch is in the on position if applicable.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
□ Check the battery in the transmitter.
□ Ensure you are in the normal range of 10-20 feet.
□ Remember to turn off the power supply before checking the dip switches settings.
The fan is noisy. □ Ensure all motor housing screws are snug.
□ Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□ Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□ Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□ If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light bulbs are also
secure.
□ Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□ Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □ Check that all blade and blade arm screws are secure.
□ Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above
the tip of one of the blades. Measure from a point on the center of each blade to the point on the ceiling. Rotate the fan until
the next blade is positioned for measurement. Repeat for each blade. Any measurement deviation should be within 1/8 inch.
Run the fan for ten minutes. If the fan continues to wobble please contact customer service and a balancing kit will be sent to
you at no charge.
The fan moves backwards and
forwards when turned on.
□ This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result of the DC motor align-
ing the internal magnetic poles for proper motor operation. This design saves electricity and allows the fan to operate much
more quietly than standard AC motor fans
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
□ Reorient or relocate the receiving antenna.
□ Increase the separation between the equipment and receiver.
□ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
□ Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Responsible Party - U.S. Contact Information: King of Fans, Inc 1951 NW 22nd Street, Fort Lauderdale, FL 33311, (954) 484-7500
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
Basic Model # 52-FERN-REV2-08022024
