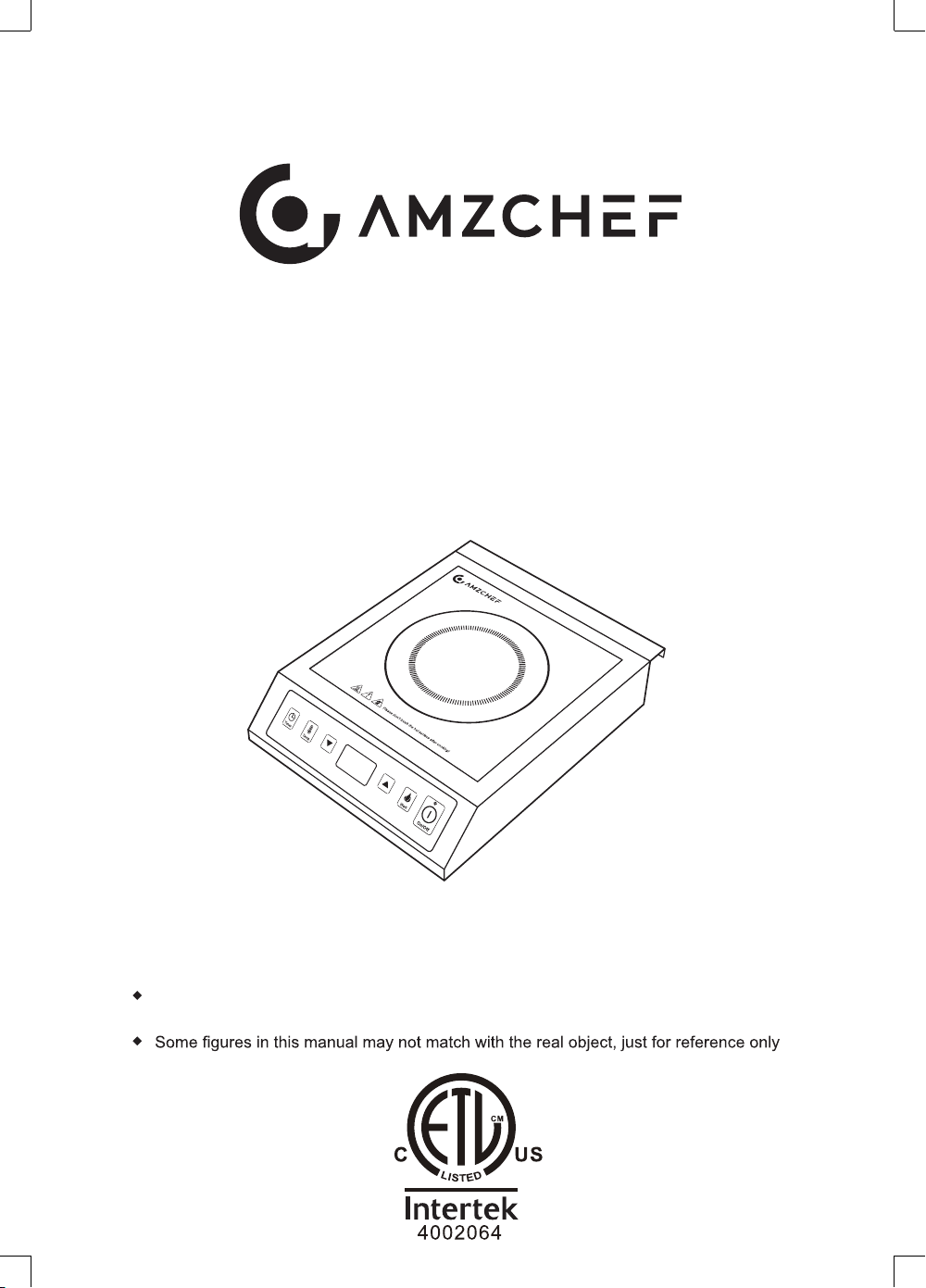

Commercial Induction Cooktop
Model No.:JDL-C18D1
Instuction Manual
Please read the operation manual carefully before using and well keep this in a safe
place for future reference.
.
Contents
Safety Cautions
Product Structure
Selecting The Proper Cookware
Product Operating Instructions
Maintenance and Daily Care
Error Code
Trouble Shooting
Page 3
Page 4
Page 4
Page 5
Page 5-6
Page 6
Page 7
Page 8

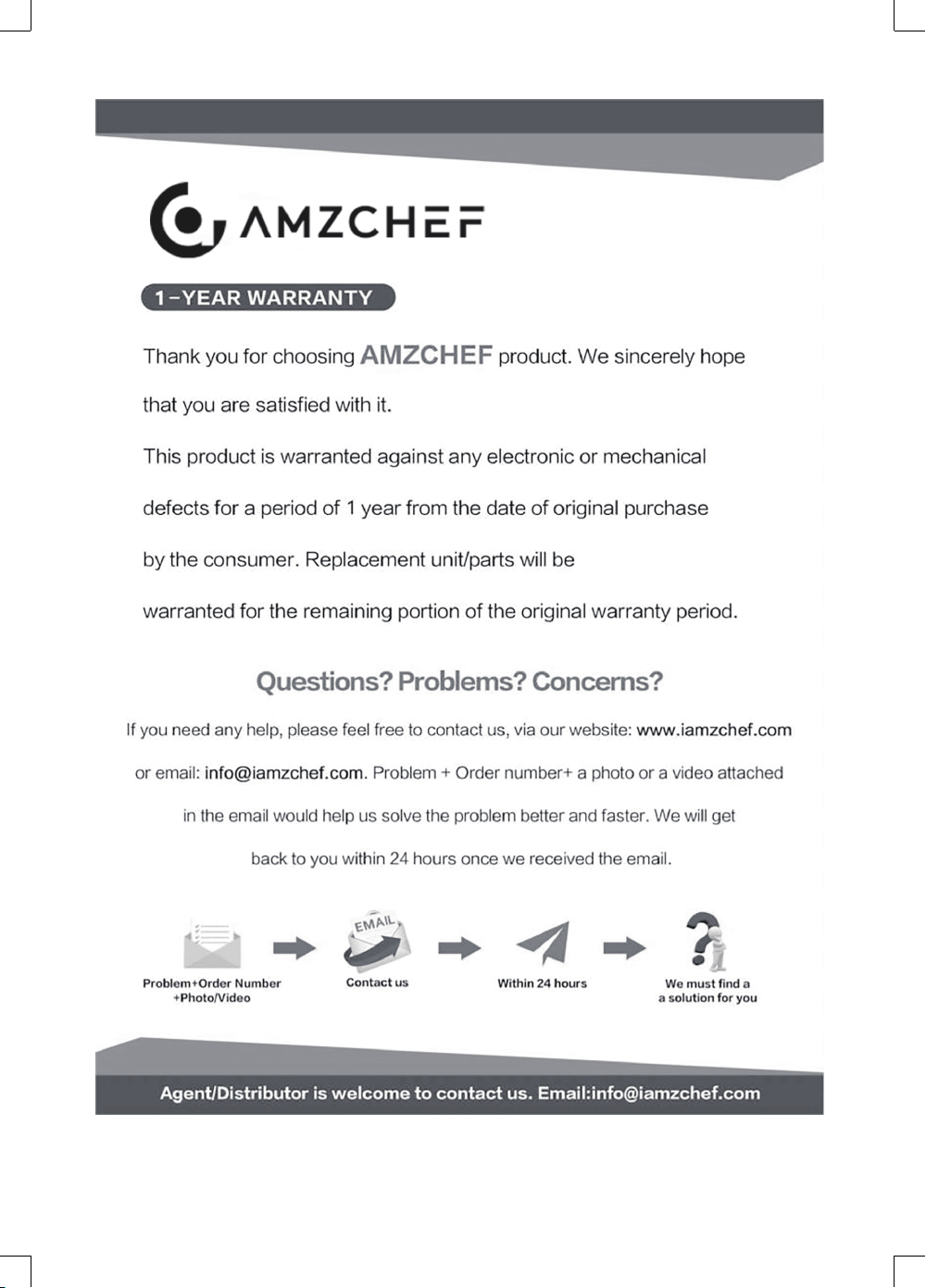

Warranty
Page 9
Manufacturer:
GETROM Home Appliance Co., Ltd
Dongfubei Road 74#, Nantou Town, Zhongshan, Guangdong 528427
Contact: Emily Tel:+1(838)9108317 E-Mail:[email protected]
3
Ⅰ. Warning :
Note: We advise that you exercise caution using or standing near an induction
hob while it is in operation, if you wear a pacemaker or a similar medical
device. Consult your doctor or the device manufacturer concerning its conformity
or any possible incompatibilities.
Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance
certificate in a safe place for later use or for subsequent owners.
■ This appliance is intended for private domestic use and the household environment only. The appliance must
only be used for the preparation of food and beverages. The cooking process must be supervised. A short
cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.
■ This appliance is intended for use up to a maximum height of 2000 meters above sea level.
■ Do not use covers. These can cause accidents, due to overheating, catching fire or materials shattering, for
example. Do not use inappropriate child safety shields or hob guards. These can cause accidents.
■ This appliance may be used by children over the age of 8 years old and by persons with reduced physical,
sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or
instructed by a person responsible for their safety how to use the appliance safely and have understood the
associated hazards.Cleaning and user maintenance shall not be made by children without supervision.
■ Warnings and important instructions appearing in this guide are not meant to cover all possible conditions
and situations that may occur. Common sense, caution, and care must be exercised when installing,
maintaining, or operating your appliance.
■ This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments.
Risk of fire!
■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out
burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something
similar.
■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.
■ The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the
hob.
Risk of burns!
■ The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch
hot surfaces. Keep children at a safe distance.
■ The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact
the after-sales service.
■ Metal objects on the hob quickly become very hot. Never place metal objects (such as knives, forks, spoons
and lids) on the hob.
■ Never placing metal objects with a diameter or length of less than 80 mm on the hob.
Risk of electric shock!
■ Incorrect repairs are dangerous. Repairs may only be carried out by trained engineers. If the appliance is
faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.
■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the
appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
■ Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse
box. Contact the after-sales service.
■ When the appliance is not in use and before cleaning, unplug the appliance from the outlet firstly.
CAUTION! HOT SURFACE.
4
Power / Temperature and Timer LCD Display
Power buttonTemp. buttonTimer button Up/Down Adjustment button
Model JDL-C18D1
Rated Voltage 120V~ 60HZ
Power 1800W
Control Panel
Ⅱ.Product Configuration
Ⅲ.Product Specifications
Power Cord
Exhaust Vent
Ceramic Plate
Control Panel
Risk of injury!
■ Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always breaker in the
fuse box. Contact the after-sales service.
Causes of damage
■ Rough pot and pan bases scratch the ceramic.
■ Avoid boiling pots dry. This may cause damage.
■ Never place hot pots or pans on the control panel, the display area or the surround. This may cause
damage.
■ Damage can occur if hard or pointed objects fall on the hob.
■ Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob.
■ Appliances are not intended to be operated by means of an external timer or separate remote-control
system.
5

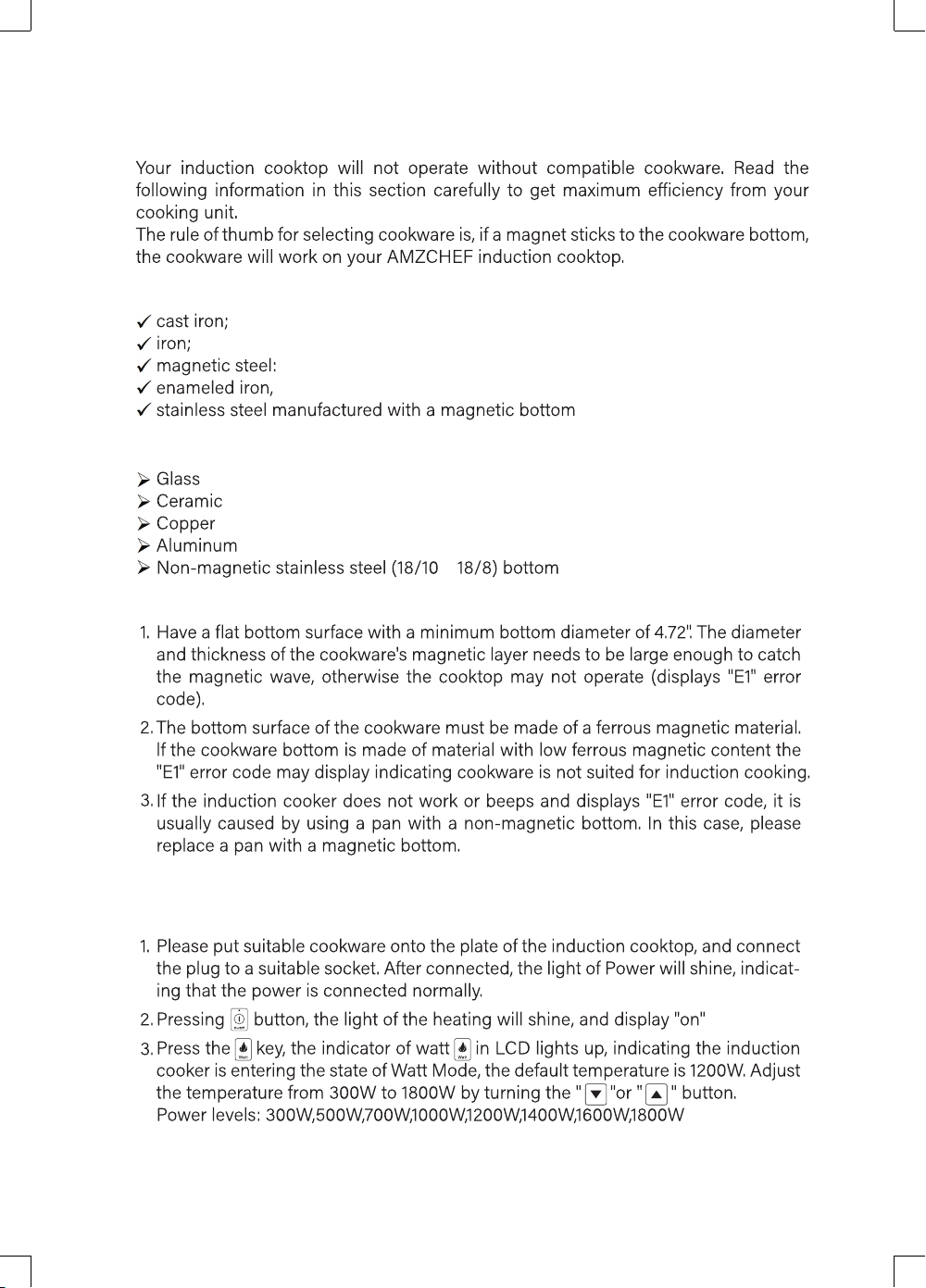

SUITABLE COOKWARE MATERIAL
Ⅳ.Selecting The Proper Cookware
NOTE:
DO NOT use cookware made out of
，
Ⅴ.Product Operating Instructions
6

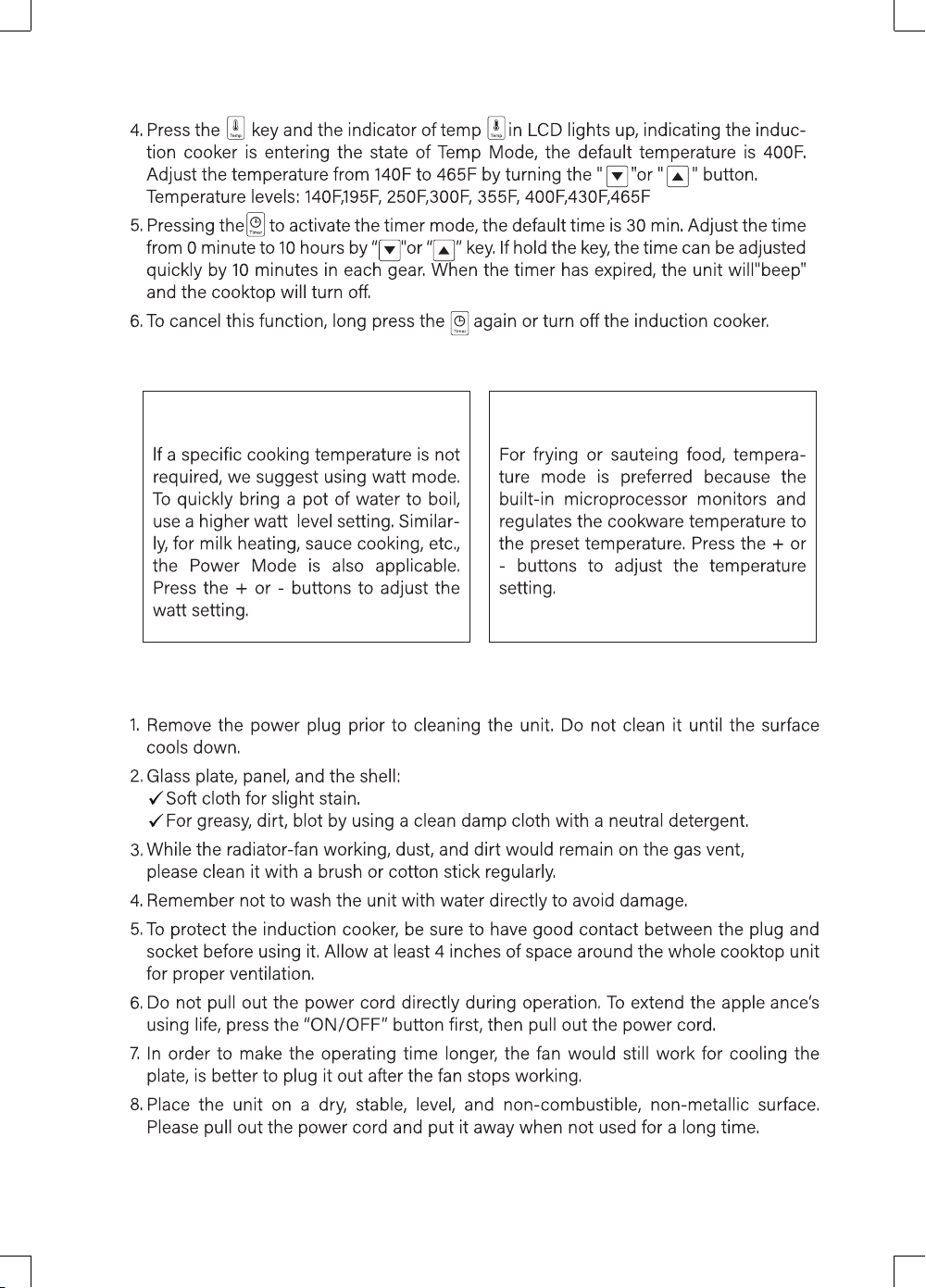

Ⅵ.Maintenance and Daily Care
Choose Cooking Mode
Watt Mode
Temperature Mode
IGBT sensor open
circuit/short circuit
7
Ⅶ.Error Code
Symptoms Check points Remedy
E0 Internal circuit error
E2
Internal overheat
E3
Over-voltage
E4 Under-Voltage
E7 Top plate overheat
E1
Without cookware or
Incompatible cookware
used
When showing error signal
E1,E2 and E7, please check
whether the cookware is not
suitable, or switch on the
appliance again after it is cooled
down naturally.
When showing E0, E3-E6,
please contact Service Center
for checking and repairing.
E5
Top plate sensor open/short
circuit
E6
8
Ⅷ. Trouble Shooting:
During operations, if any error occurred, please check the following table before
calling for service. Below are common errors and the checks to perform.
Symptoms Check points Remedy
After connecting the
power and pressing the
“power” key, the appli-
ance has no response.
Is the electricity in suspen-
sion?
Use after resuming the electricity.
Is the fuse broken down? Check the root causes carefully.
please contact Service Center for
checking and repairing.
Heating being inter-
rupted in normal use
and a “Beep” will be
heard.
Incompatible cookware or
no cookware is used?
Replace compatible cookware for
the induction cooker.
Is the cookware not con-
siderably placed form the
center of the heating zone?
Place the cookware at the center
Is the cookware being
heated but continually being
removed?
Place a cookware inside the heat-
ing zone.
No operation during
the heating being in
use.
Is the cookware empty or
the temperature too high?
Please check whether the appli-
ance is being misused.
Is the air intake/exhaust vent
clogged or dirt has accumu-
lated?
air intake/exhaust vent. Operate
the appliance again after cooling
down.
Is the cooker working over 2
hours without any external
instruction?
Reset cooking modes or use timer
function.
-
mediately, contact service Center for inspection and repairing, note the error code
and report it to Service Center Ltd. To avoid any danger and damage to the appli-
ance, do not disassemble or repair it by yourself.
9
