ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0681 / T0682
T
W
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ
AND SAVE THESE INSTRUCTIONS.

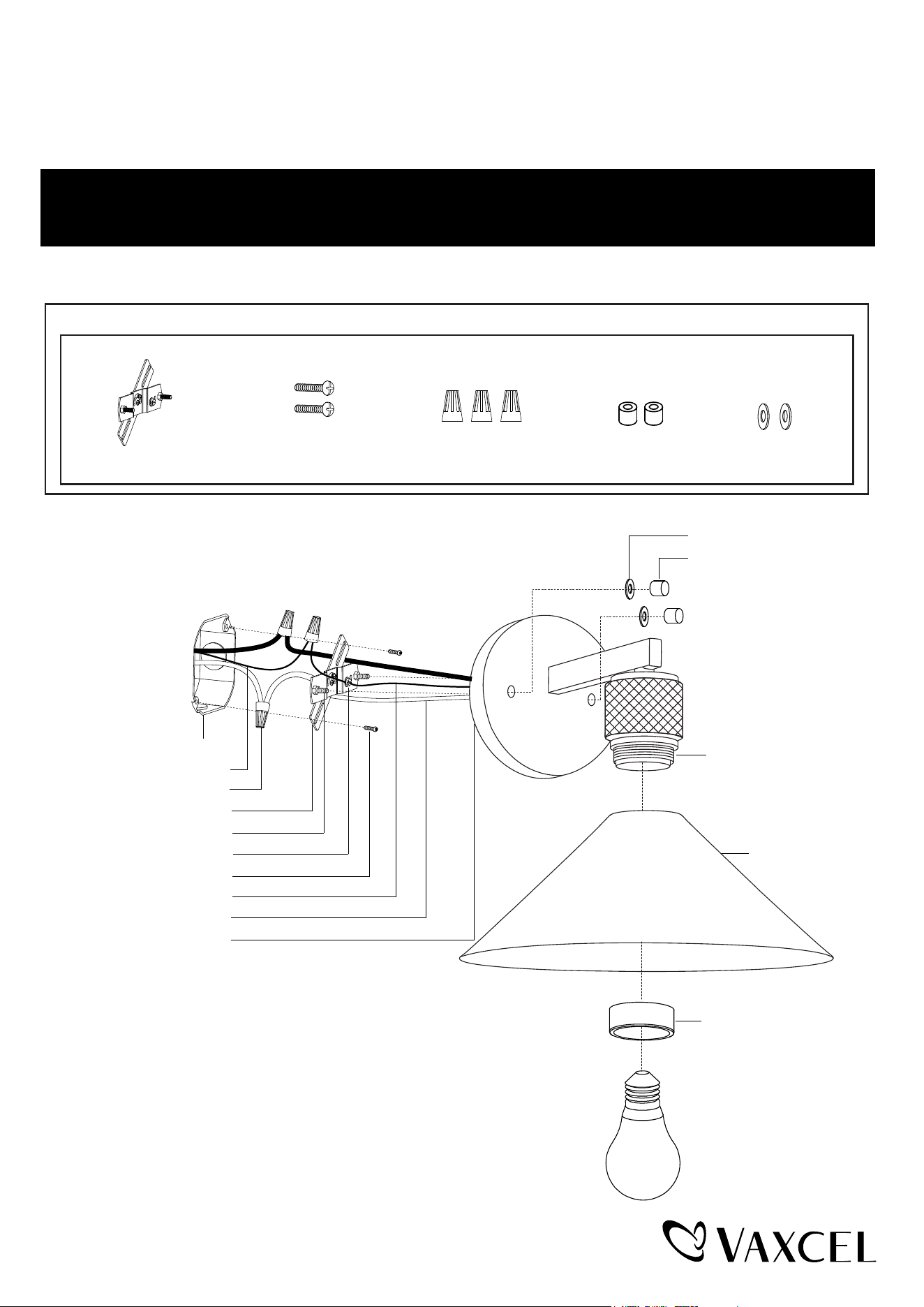

Hardware Package (included):
Mounting Screw (B) Wire Connector (C) Bolt Nut (D)
Rubber Pad (E)
Crossbar Unit (A)
Page 1 / 2
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Fixture Mounting Screw
Green Ground Screw
Crossbar Unit (A)
Fixture Wire
Backplate
Fixture Ground Wire
Rubber Pad (E)
Bolt Nut (D)
Socket Ring
Shade
Socket
Max.60W Type A Bulb
(not included)
220920
Turn off the power at fuse or circuit box.
Installation Steps
Turn on the power at fuse or circuit box.
Page 2 / 2

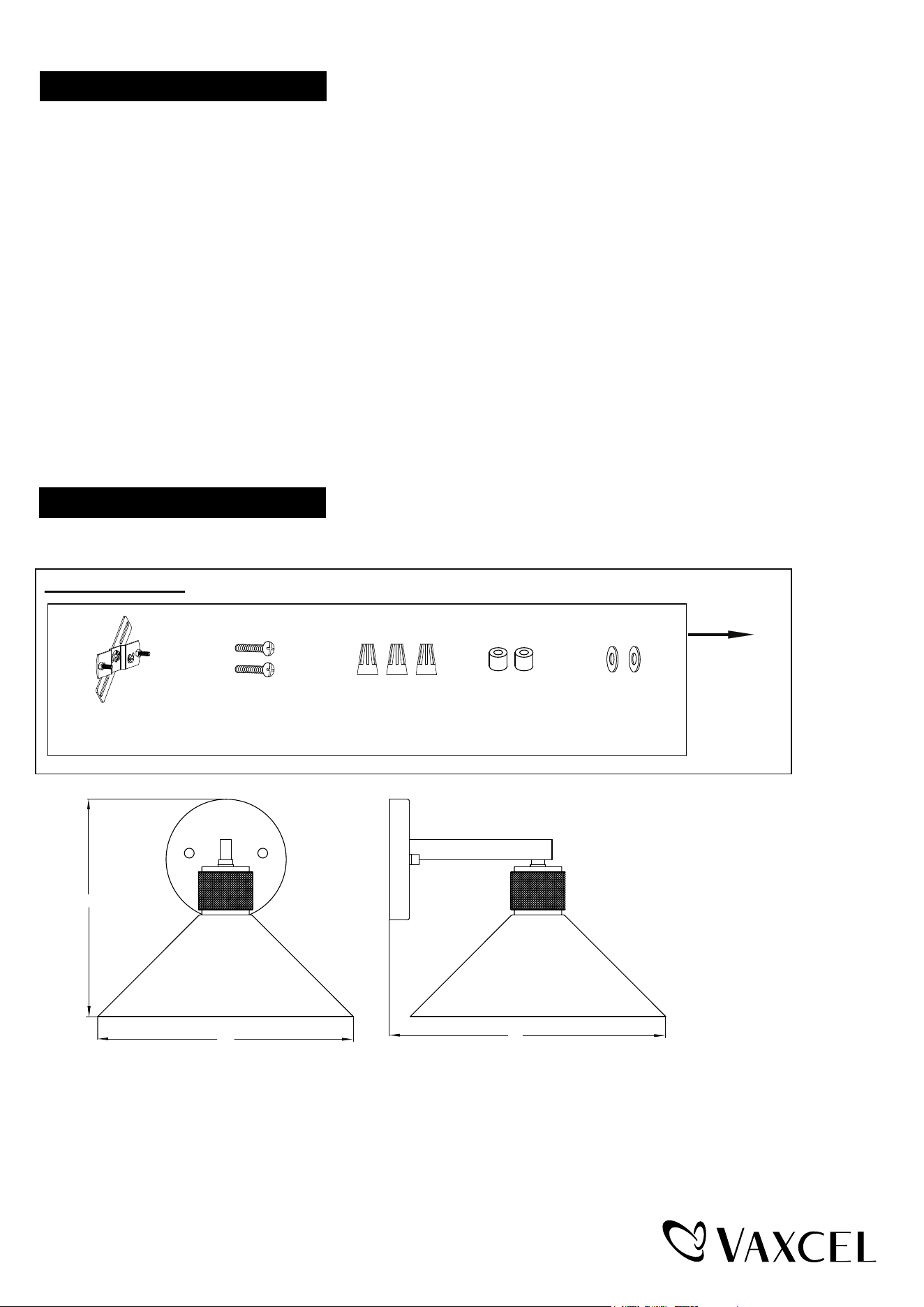

The following parts are available for re-order if damaged or missing.
Spare Parts List:
Assembly Kit
6557MM (1 SET)
Mounting Screw (B) Wire Connector (C) Bolt Nut (D)
Rubber Pad (E)
Crossbar Unit (A)
220920
1. Attach the crossbar unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
2. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the crossbar unit (A) with the green ground screw. Then,
depending on local code, then connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
3. Attach the backplate of the fixture to the crossbar unit (A) by inserting fixture mounting screws into open holes on the
backplate, then secure it with two rubber pads (E) and two bolt nuts (D).
Note: With silicone caulk compound, caulk completely around where the backplate meets with the wall
surface to prevent water from seeping into the outlet box.
4. Attach the shade to the socket, then secure it with the socket ring.
5. Install the bulb (not included). Check relamping label at socket area or packaging for maximum wattage allowed.
C
A
B
T0681
A: 8-1/2"
B: 10"
C: 10-3/4"
T0682
A: 9-1/2"
B: 12"
C: 12-3/4"
