USE AND CARE GUIDE
MORLAND 52-INCH CEILING FAN
Item #1011 954 844,
1011 954 853
Model #59080, 59083
52-MORL-RV4-07182024
To view an instructional video on how to install this product:
1. Go to www. homedepot.com and enter either the item
or model number, found in the top right corner of the cover of
this instruction manual, in the search eld.
2. Click on your product from the list of search results and
click on the video link in the “Product Overview” section.
Scan for text based
customer support
Scan for online product
warranty information
2
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lb (15.9
kg). Use only UL Listed outlet boxes marked “Acceptable for Fan
Support of 35 lb (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft. (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
9. Suitable for damp location.
10. Use only with light kits marked Suitable for use in damp
locations.
READ AND SAVE THESE INSTRUCTIONS.
Safety Information ....................................2
Warranty ............................................2
Pre-Installation .......................................3
Planning Installation .................................3
Tools Required ......................................3
Hardware Included ...................................4
Installation ..........................................6
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Care and Cleaning ...................................20
Troubleshooting .....................................20
Table of Contents
WARNING: To reduce the risk of personal injury, do not
bend the blade brackets (also referred to as anges) during
assembly or after installation. Do not insert objects in the
path of the blades.
WARNING: Electrical diagrams are for reference only. If
you are using a light kit, refer to the light kit instructions
manual to make the electrical connections. Optional use of
any light kit shall be UL Listed and marked suitable for use
with this fan.
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you feel
you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lbs (15.9 kg) or less”, and use screws
provided with the outlet box.
WARNING: To reduce the risk of re or electric shock,
this fan should only be used with fan speed control part
no. LDDP40-L3620, manufactured by DawnSun Electronic
Technology Co., Ltd. Zhongshan.
WARNING:To reduce the risk of electric shock, this fan
must be installed with an isolating wall switch.
WARNING: To reduce the risk of re, electric shock or
injury to persons, do not use replacement parts that have
not been recommended by the manufacturer (e.g. parts
made at home using a 3D printer).
Safety Information
3
HOMEDEPOT.COM/HUBSPACE
1-877-592-5233
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory
for a lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase
by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects
in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product
is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling
the product are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by afxing any accessories,
is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including
rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized
persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all
warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The
duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some
states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not
be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may
otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion
or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary from state to
state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be
paid by the customer.
Contact the Customer Service Team at 1-877-592-5233 or visit www.HOMEDEPOT.COM/HUBSPACE.
Warranty
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the amps and wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow
Efciency
(higher is better)
CFM/WATT
Net
Weight
Gross
Weight
Cubic Feet
54 in.
Low
120
2.2 1652 750.9
13.23 lb
(6 kg)
18.63 lb
(8.45 kg)
1.59 cu. ft.
Medium 11.14 3263 292.9
High 28.55 4401 154.15

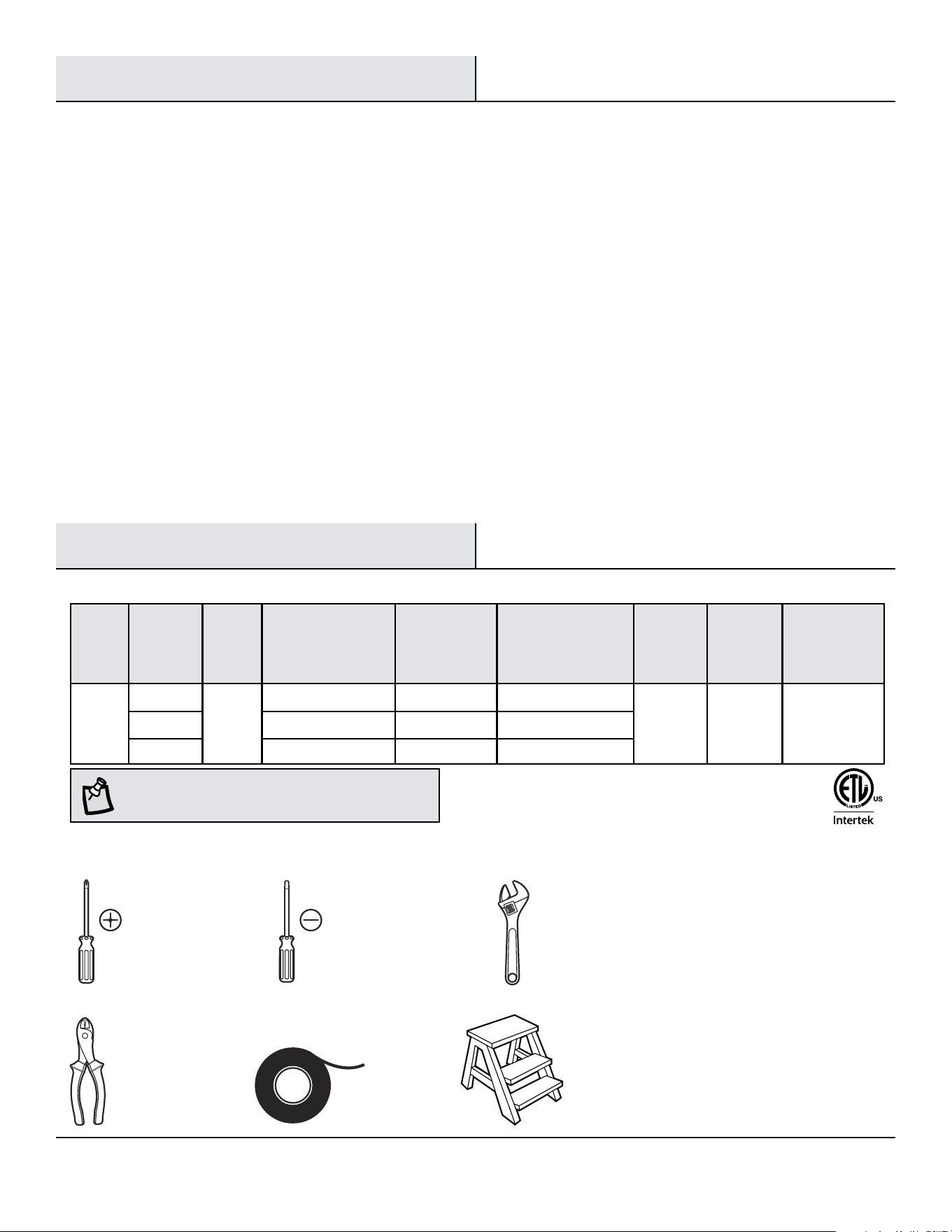

TOOLS REQUIRED
Pre-Installation
Phillips
screwdriver
Flat head
screwdriver
Adjustable
wrench
Electrical
tape
Wire cutter/
stripper
Step
ladder
4
Part Description Quantity
AA Hanger pin 1
BB Locking pin 1
CC Machine screw (remote control wall cradle) 2
DD Short tapered screw (remote control wall cradle) 2
EE Long tapered screw (remote control wall cradle) 2
AA
BB
CC
DD
EE

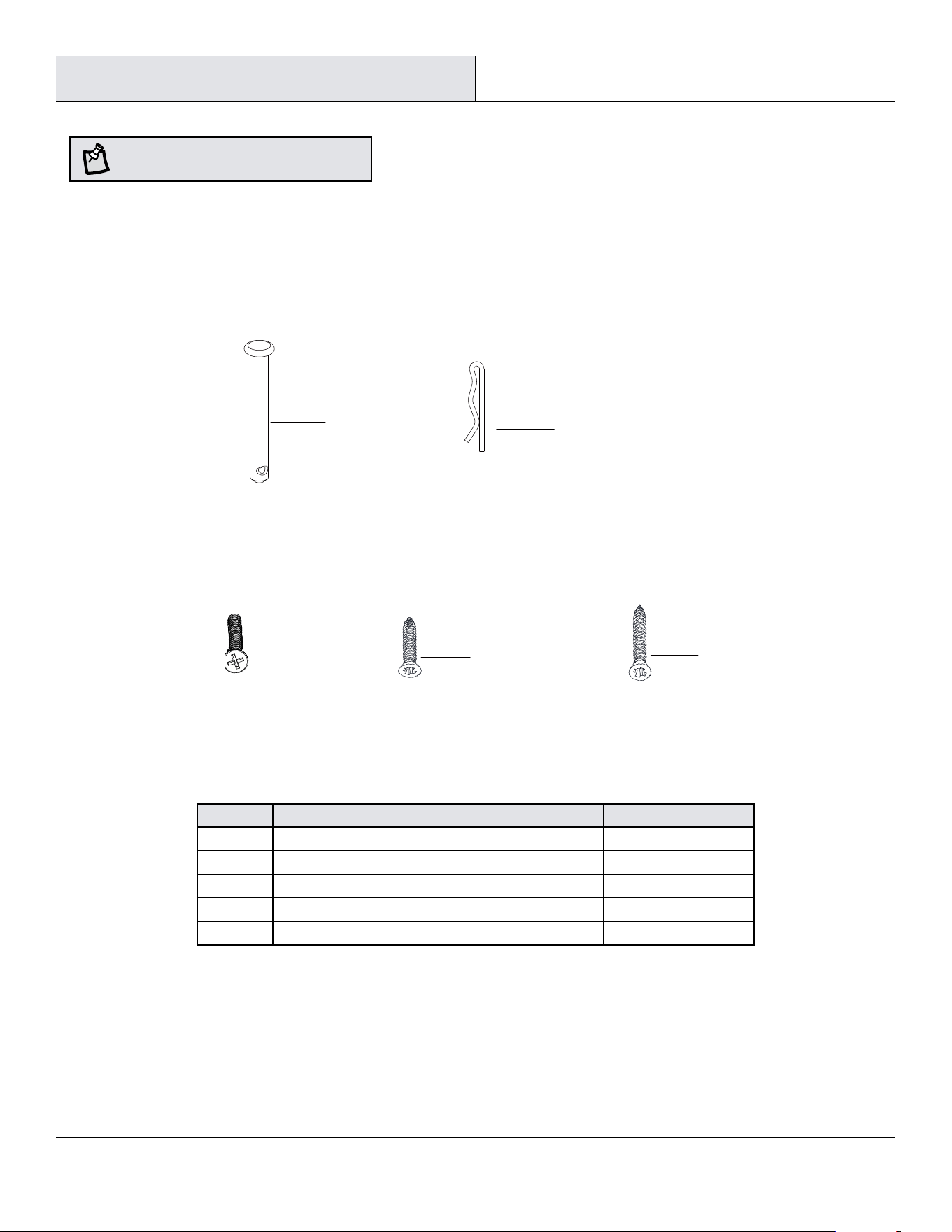

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Pre-Installation (continued)
5
HOMEDEPOT.COM/HUBSPACE
1-877-592-5233
Part Description Quantity
A
Slide-on mounting bracket
(inside canopy)
1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan motor assembly 1
F Light kit tter assembly 1
Part Description Quantity
G Blade 5
H Receiver 1
I Remote control 1
J 3-pin extension wire (motor) 1
K 3-pin extension wire (light) 1
L Battery 2
M
Remote control wall cradle with
toggle switch spacer included
1
IMPORTANT: This product and/or components are governed
by one or more of the following U.S. Patents: 5,947,436; 5,988,580;
6,010,110; 6,046,416; 6,210,117 and other patents pending.
Pre-Installation (continued)

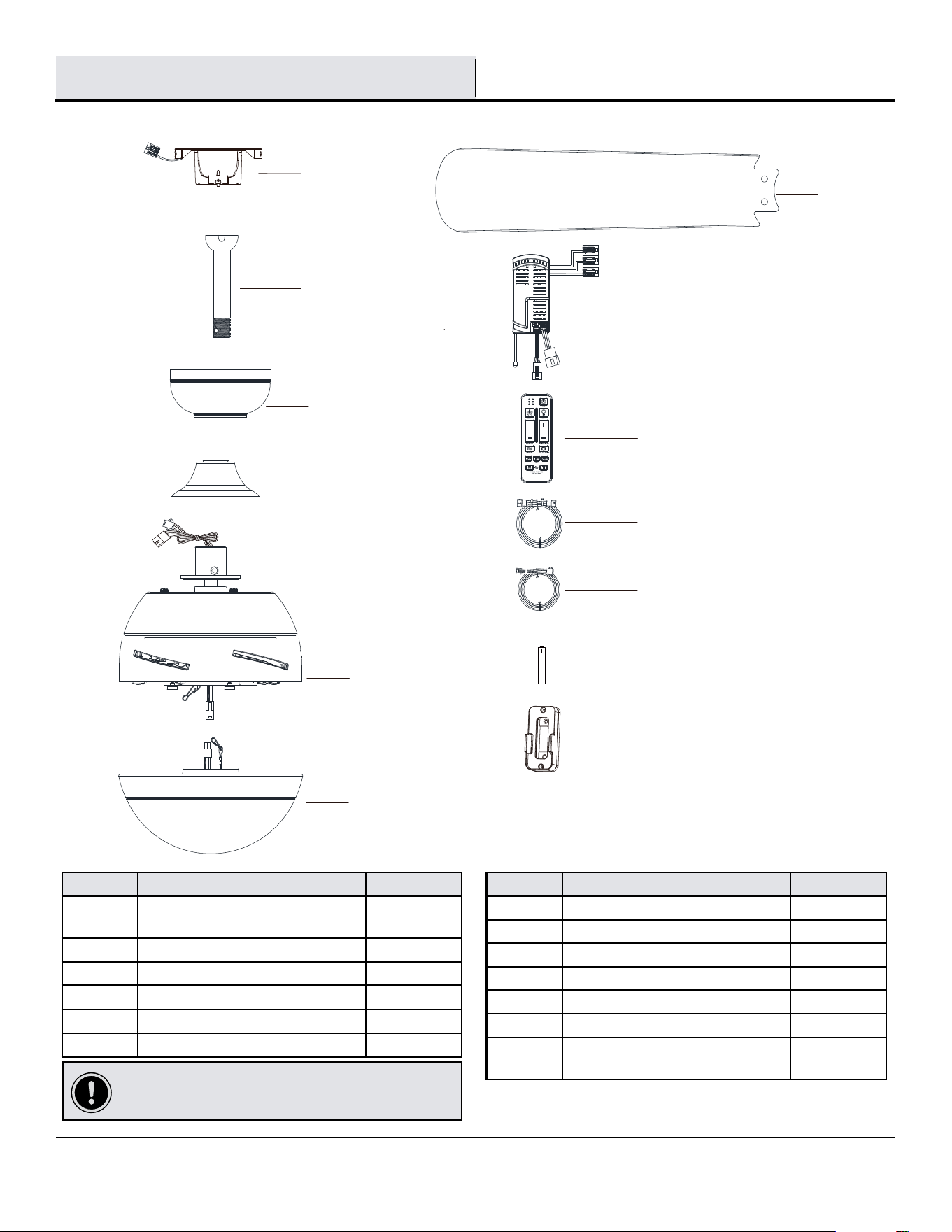

PACKAGE CONTENTS
A
C
I
H
G
E
J
K
L
M
B
D
F
6
If the canopy (C) touches the ball/downrod assembly (B), then
remove the decorative motor collar cover (D), and turn the canopy
(C) 180° before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep,
sloped ceiling. The maximum angle allowable is 15°
away from horizontal.
MOUNTING OPTIONS
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.
□ Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lbs (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for fan support of
35 lbs (15.9 kg) or less.” Do not use a plastic outlet box.

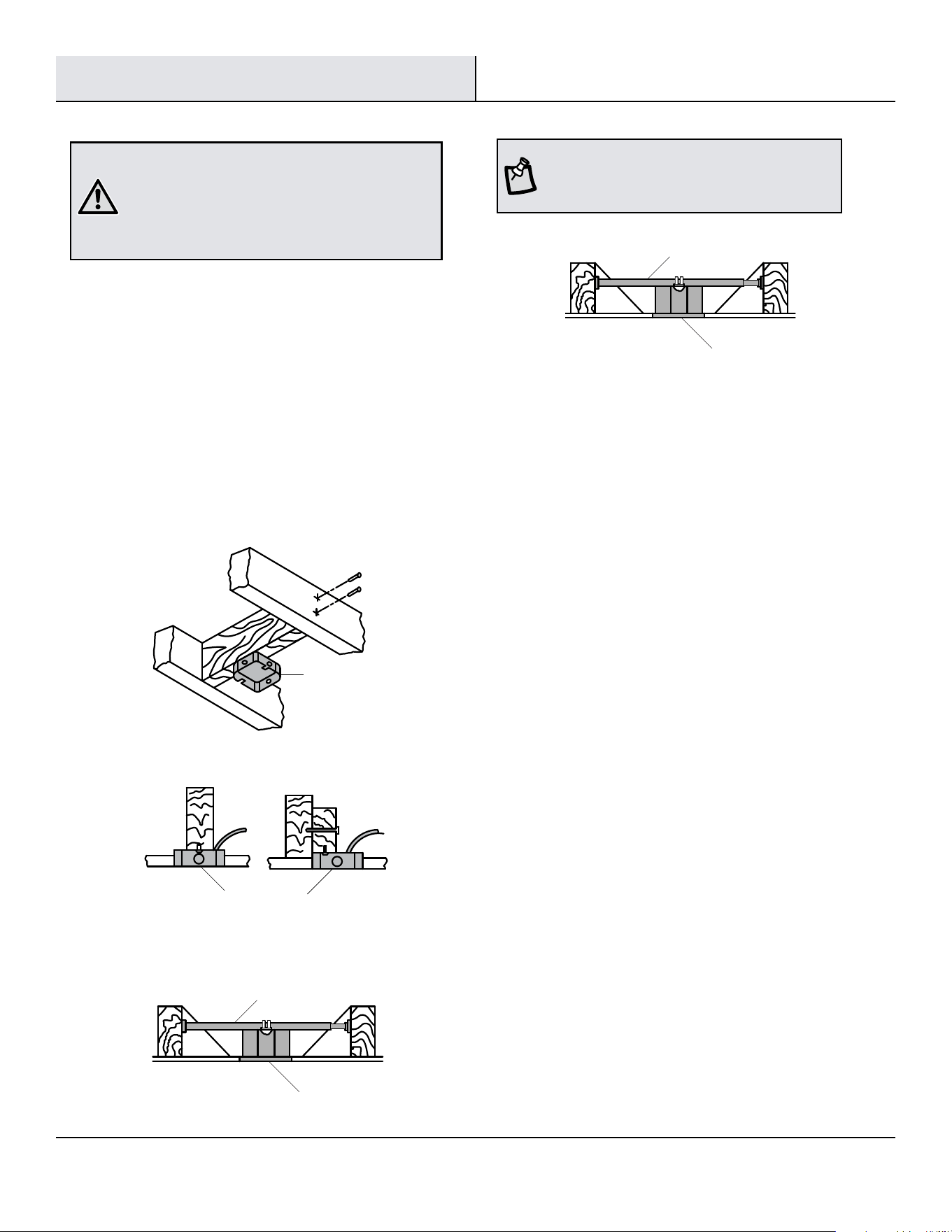

The illustrations below show three different ways to mount the
outlet box.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lb (15.9 kg) or less”, and use screws
provided with the outlet box. An outlet box commonly
used for the support of lighting xtures may not be
acceptable for fan support and may need to be replaced.
If in doubt, consult a qualied electrician.
Installation
Outlet Box
Hanger Bar
Outlet Box
Outlet Box
Outlet Box
Hanger Bar
7
HOMEDEPOT.COM/HUBSPACE
1-877-592-5233

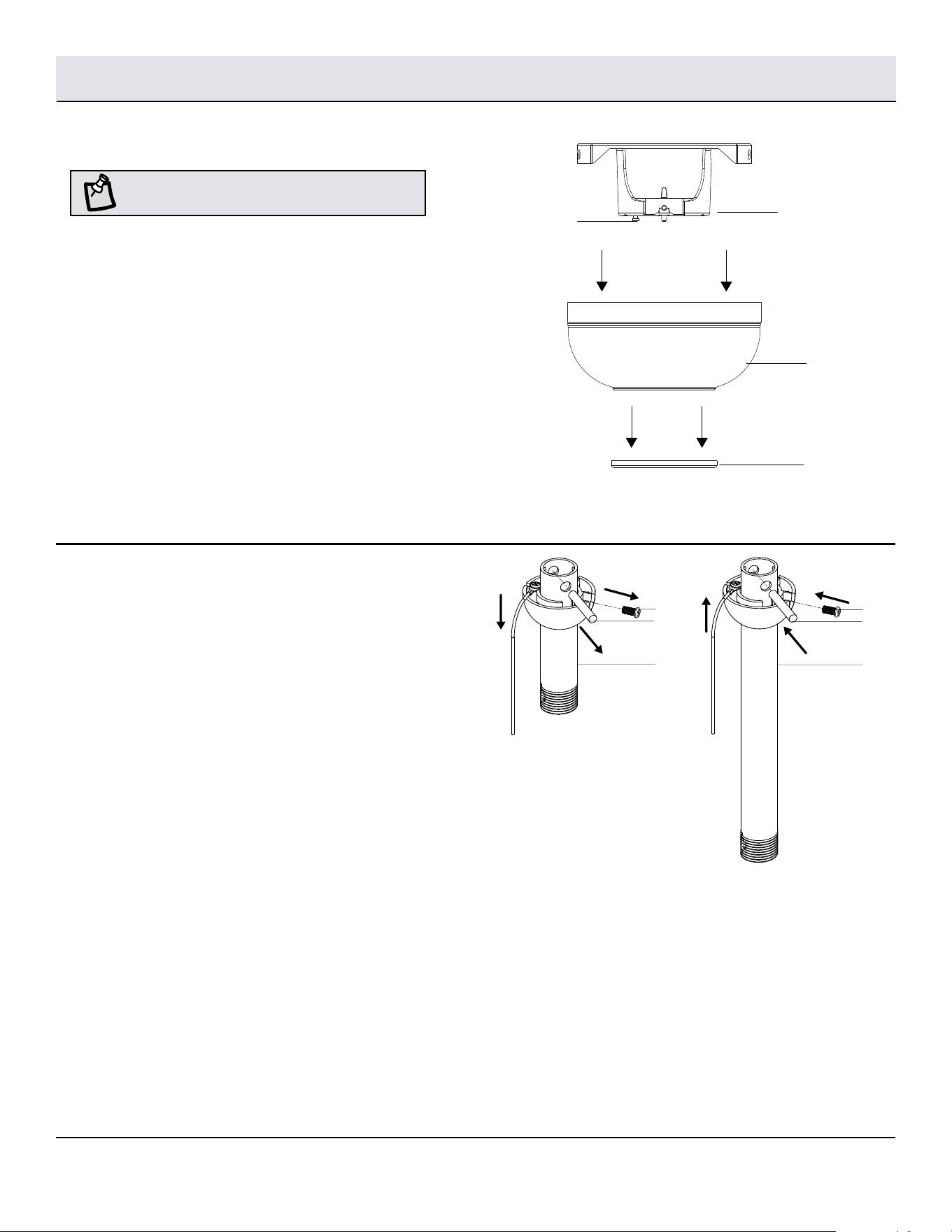

Preparing for mounting
□ Remove the magnetic canopy bottom cover (JJ) from the
canopy (C) by pulling it off.
□ Loosen the two canopy screws (SS) located in the bottom
of the slide-on mounting bracket (A).
□ Turn the slide-on mounting bracket (A) counterclockwise
and lift it up to remove the slide-on mounting bracket from
the canopy (C).
2
NOTE: The magnet is pre-attached on the canopy
bottom cover for you to remove and install easily.
A
C
JJ
SS
Installing with an Extension Downrod
(sold separately)
□ Disassemble the hanger ball from the downrod by
removing the set screw (MM) slide the hanger ball down
the downrod and remove the pin (OO),keep parts.
□ Place the hanger ball on the new downrod and insert the
in (OO) through the holes at top of downrod and slide the
hanger ball up to the downrod until the pin (OO) locked into
the slots of hanger ball.
□ Re-install the set screw (MM) tighten it so the set screw is
secured against the downrod.
Assembly - Standard Ceililng Mount
1
OO
B
MM
OO
B
MM
8

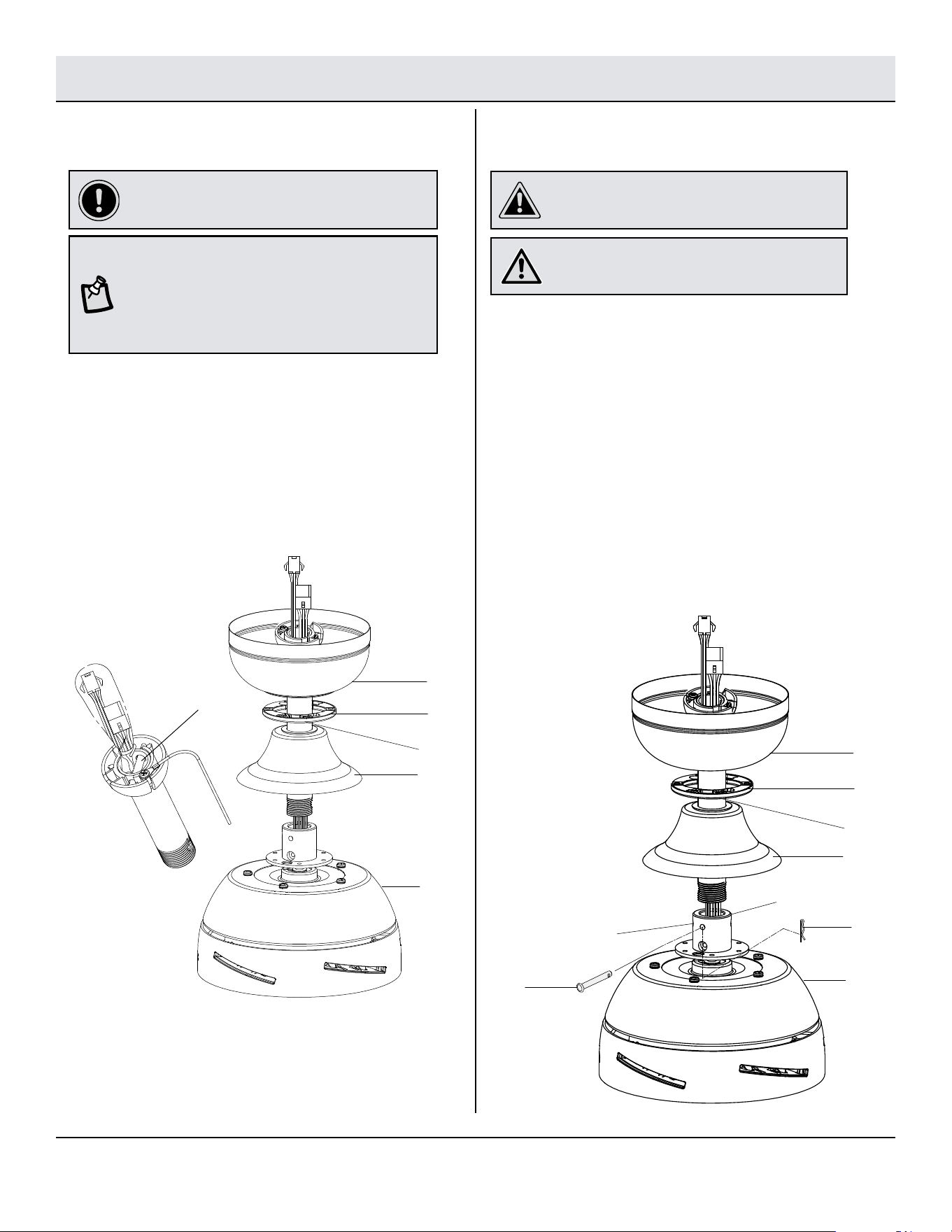

Assembling the fan
□ Loosen, but do not remove, the setscrew (KK) on the collar
(PP) on top of the fan motor assembly (E).
□ Install the downrod (B) by inserting it into the motor collar
(PP), and turning it clockwise until the holes at the bottom
of the ball/ downrod assembly (B) align with the holes in
the collar on top of the fan-motor assembly (E).
□ Carefully insert the hanger pin (AA) through the holes in
the collar and ball/downrod assembly (B). Be careful not
to jam the hanger pin (AA) against the wiring inside the
ball/ downrod assembly (B).
□ Insert the locking pin (BB) through the hole near the
end of the hanger pin (AA) until it snaps into its locked
position.
□ Re-tighten the setscrew (KK) on the collar (PP) on top of
the fan-motor assembly (E).
WARNING: Failure to properly install the locking
pin (BB) could result in the fan becoming loose
and possibly falling.
CAUTION: To ensure wobble-free operation and to
avoid damage to the fan, the downrod (B) and the
setscrew (KK) must be completely tightened.
4
3
Routing the wires
□ Insert the ball/downrod (B) through the large opening of
the canopy (C). Next, slide the canopy bottom cover (JJ)
over the ball/downrod (B) with the magnets facing the
canopy. Finally,slide the decorative motor collar cover (D)
on the ball/downrod(B) as shown in the illustration.
□ Route the wires exiting the top of the fan motor
assembly (E)through the ball/downrod (B). Ensure that
both wire connectors exit the ball/downrod (B) on the
same side of the hanger ball pin (OO).
NOTE: The fan comes with 8 in. lead wires for use
with the provided 6 in. ball downrod assembly (B). If
you wish to use a longer downrod, attach the 3-pin
extension wire (M) and 3-pin extension wire (N) to the
fan by connecting the molded adaptor plugs from the
extension wires to the 3-pin and 3-pin adaptor plugs
from the fan.
IMPORTANT: DO NOT remove the wires from the
plastic bag before routing the wires to the downrod
and fan.
C
D
E
JJ
B
OO
Assembly - Standard Ceililng Mount (continued)
C
D
E
JJ
B
BB
AA
KK
PP
9
HOMEDEPOT.COM/HUBSPACE
1-877-592-5233

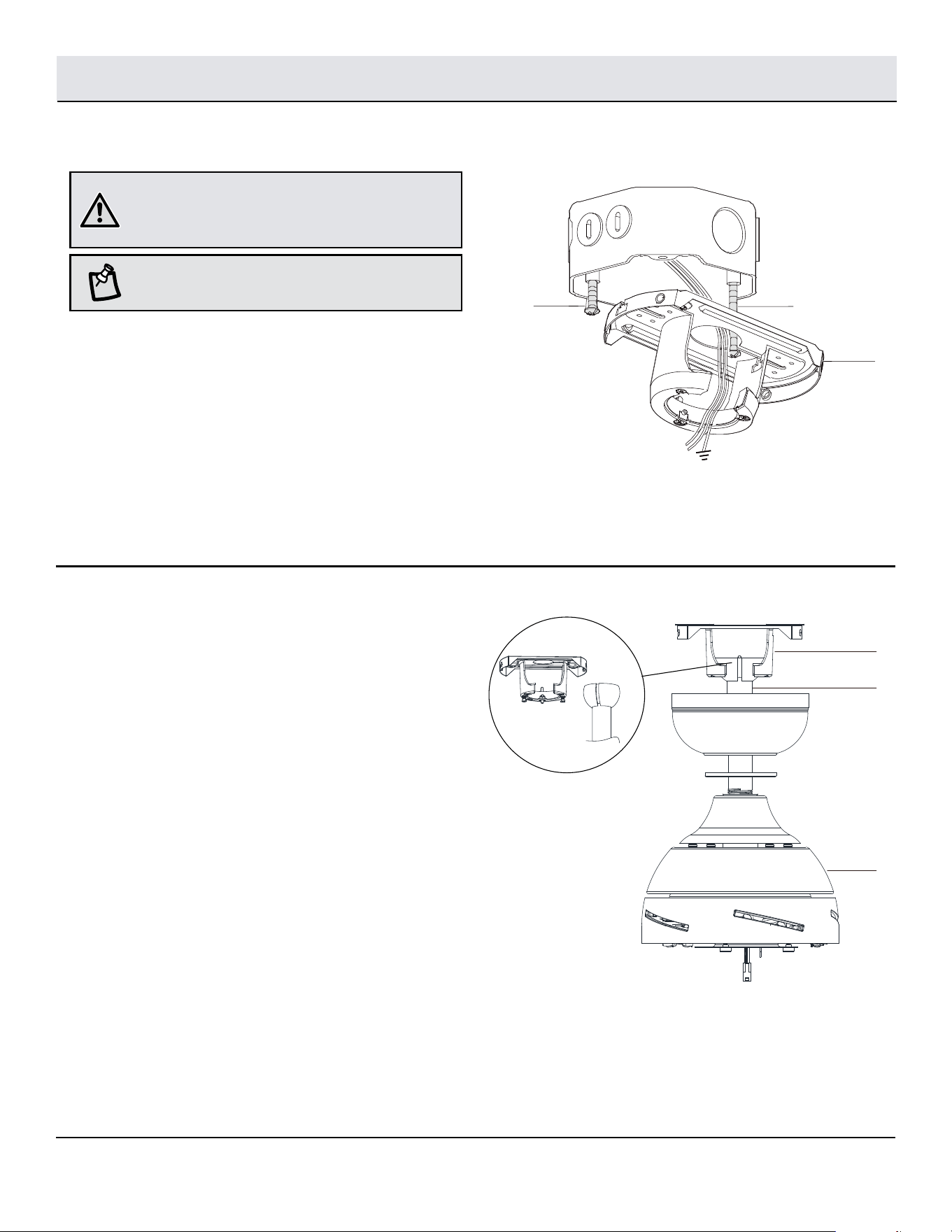

Attaching the fan to the electrical box
Hanging the fan
□ Loosen the two mounting screws (HH) in the outlet box.
□ Pass the 120-Volt supply wires through the center hole in
the slide-on mounting bracket (A).
□ Slide the slide-on mounting bracket (A) on to the mounting
screws (HH) and center the slide-on mounting bracket (A) in
relation to the outlet box. If necessary, use leveling washers
(not included) between the slide-on mounting bracket (A)
and the outlet box. The at side of the slide-on mounting
bracket (A) should face toward the outlet box, as shown.
□ Securely tighten the two mounting screws (HH).
□ Carefully lift the fan motor assembly (E) up to the slide-on
mounting bracket (A).
□ Insert the ball portion of the ball/downrod assembly (B)
into the socket of the slide-on mounting bracket (A).
□ Turn the ball/downrod assembly (B) clockwise until it is
seated with the tab of the slide-on mounting bracket (A)
aligned with the slot in the ball.
1
2
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to an outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or less”,
and use screws provided with the outlet box.
NOTE: The slide-on mounting bracket (A) is designed
to slide into place on an outlet box with the outlet box
screws (HH) installed.
A
HH
HH
A
B
E
Assembly - Hanging the Fan
10
4

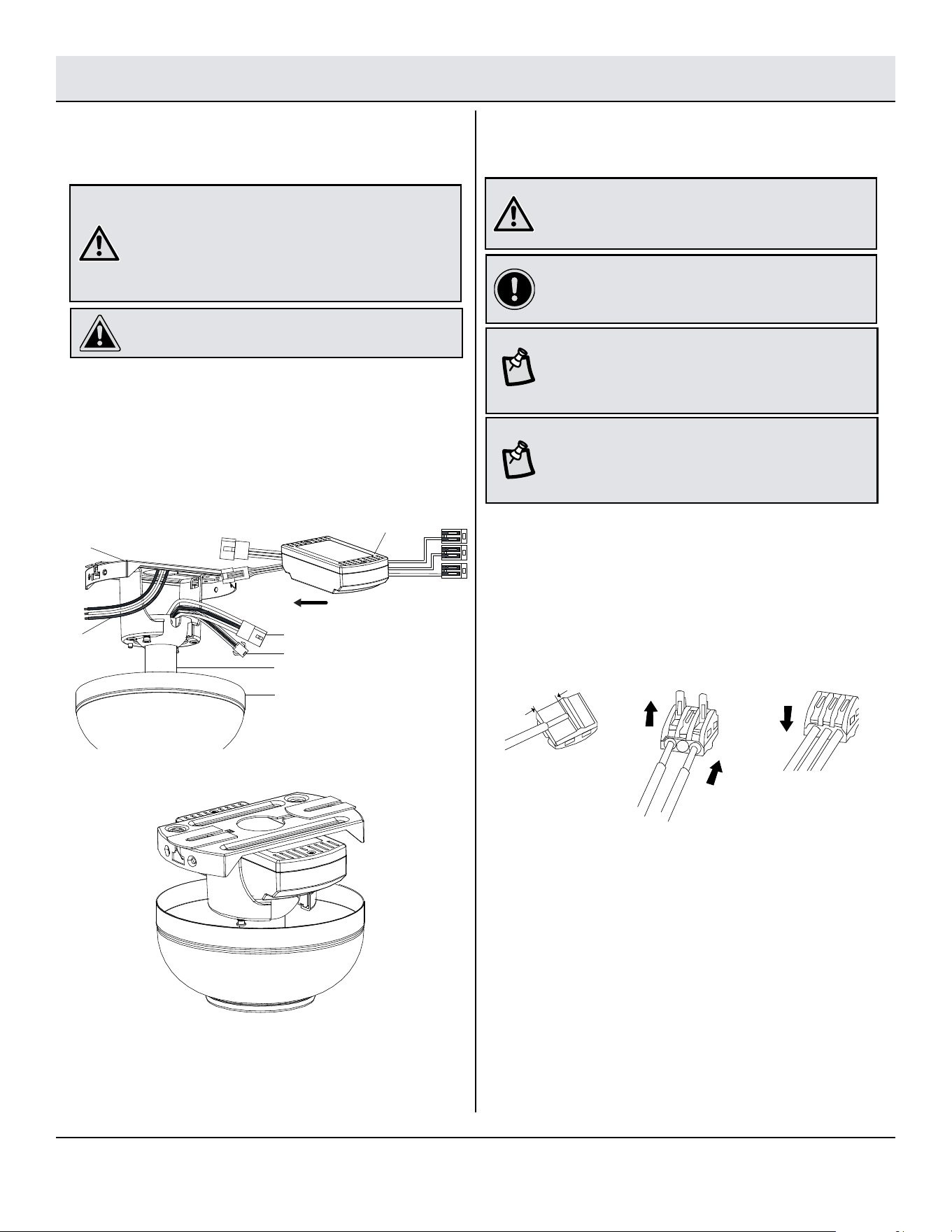

Using the quick connector
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge
or experience, contact a licensed electrician.
IMPORTANT: Use quick connector (VV) and (UU)
attached on the fan wires and receiver wires for wiring
connecting. Ensure there are no loose strands or
connections.
□ If using the 6 in. ball downrod assembly (B) provided, wire
the receiver to the fan wires by connecting the molded
adaptor plugs from the receiver (H) with the molded
adaptor of the fan motor assembly (A) together.
NOTE: If your house wiring does not have a red switch
wire, please remove the red wire and black wire on
receiver from the quick connector and attached these two
wires to the house black wire and secure using a extra
quick connector (VV) attached in the fan.
NOTE: If the light and/or fan is turned off using the
remote and you want to turn it back on using the wall
switch (with the wall switch already in the “on” position),
simply toggle the light wall switch off and then back on
within one second to activate the light/fan.
Installing the receiver
□ Position the house supply wires (AAA) to one side of the
slide-on mounting bracket (A). Position the fan wires to
the opposite side.
□ Insert the narrow end of the receiver (H) (as shown, at
side towards the ceiling) into the slide-on mounting
bracket (A) until it rests on top of the ball/downrod
assembly (B).
WARNING: To reduce the risk of re or electric
shock, remember to disconnect power. The electrical
wiring must meet all local and national electrical code
requirements. The electrical source and fan must
be 110/120 volts, 60Hz. Do not use this product in
conjunction with any variable wall control. Incorrect
wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have this
unit installed by household a licensed electrician.
3
□ Using a solid and/or stranded copper conductors, strip wire
approx. 10 mm /0.39 inches.
□ Lift the lever to 90° and insert stripped conductor fully.
Only one wire can be used in each hole.
□ Lower the lever to close the clamp and complete your
connection.
□ Test through the test slot on the top of the housing with a
voltage tester.
□ To remove, lift the lever and pull out the conductor.
*600V Max. building wiring, 1000V Max. signs and luminaires
DOWN
UP
IN
10mm
Making the electrical connections
Assembly - Hanging the Fan (continued)
B
C
AAA
BBB
A
H
CCC
11
HOMEDEPOT.COM/HUBSPACE
1-877-592-5233

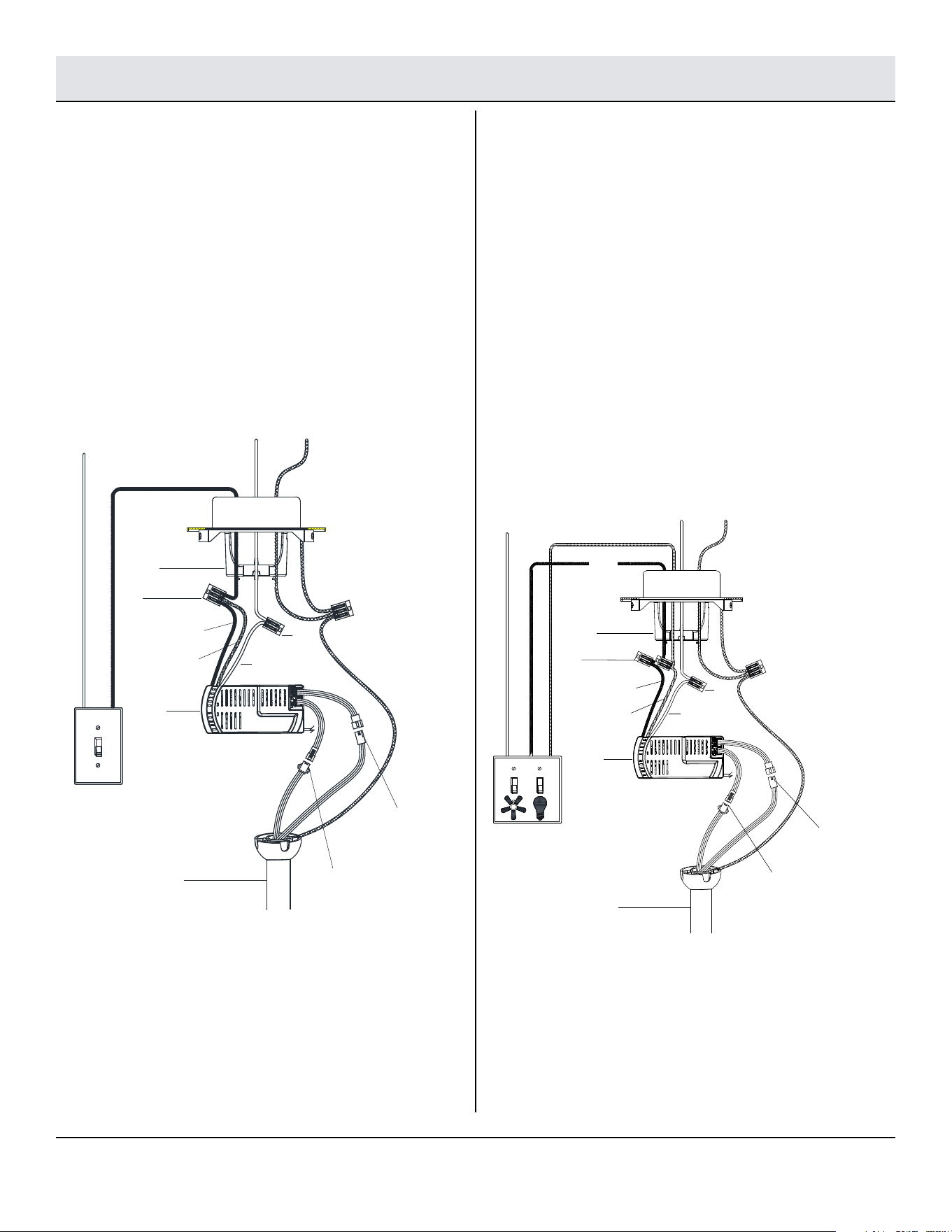

4a
Assembly - Hanging the Fan (continued)
□ On a single switch the fan and light can be turned on or off
together. Make wire connections as follows, using the wire
nuts (AA). Wall switch not included.
Black + Red Wires ----------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ----------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (E)
if installed.
Wire connections -
Single wall switch
Green
Outlet box
White
Black
Red
Black
White
Green
3-pin connecto
r
(for motor)
3-pin connector
(for light)
B
H
A
VV
Black
A
C IN
SINGLE
SWITCH
UU
4b
Wire connections -
Dual wall switch
□ On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the wire
nuts (AA). Wall switch not included.
From fan To outlet box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Red Wire (for Light) ---------
Red Wire (Hot #2 but may be in
a color other than black, white
or green)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (E)
if installed.
Outlet box
White
Red
Black
White
Green
3-pin connecto
r
(for motor)
3-pin connector
(for light)
B
H
A
VV
AC IN
D
UAL SWITCH
Green
Red
UU
Black
12
4c

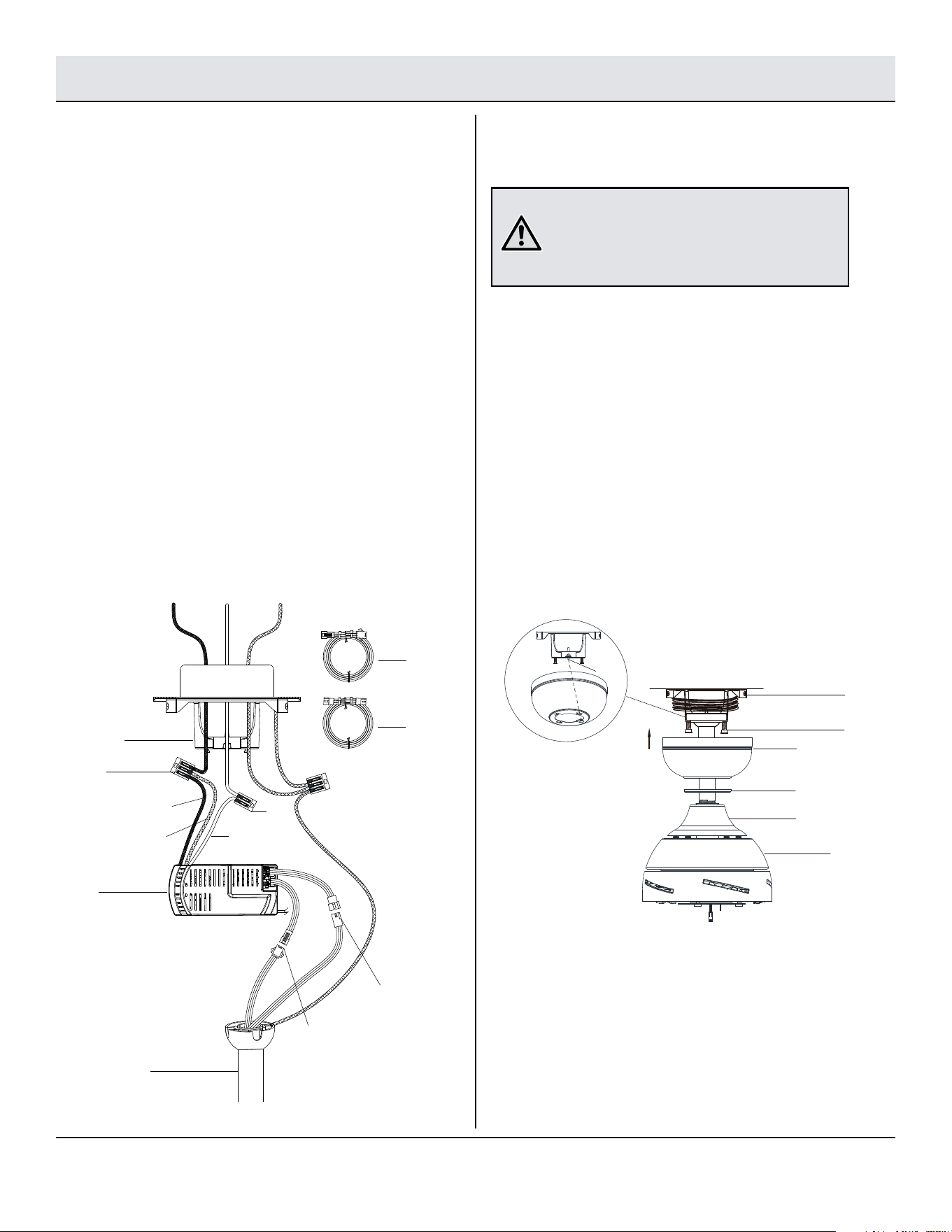

Mounting the fan motor assembly
(standard mount)
5
WARNING: When using the standard ball/
downrod mounting, the tab in the ring at the bottom
of the slide-on mounting bracket (A) must rest in
the groove of the hanger ball. Failure to properly
seat the tab in the groove could cause damage to
the wiring.
□ Align the locking slots of the canopy (C) with the two
screws (SS) and alignment post (QQ) in the slide-on
mounting bracket (A).
□ Push up the canopy (C) and turn it clockwise until the
alignment post (QQ) engages to the round hole and the
screws (SS) engage to the key slots.
□ Firmly tighten the two mounting screws (SS).
□ Align the oval shape on the canopy (C) with canopy
bottom cover (JJ).
□ Push up the canopy bottom cover (JJ) until the canopy
screw (SS) heads engage to the slots on the canopy
bottom cover (JJ) so that the magnetic canopy bottom
cover (JJ) can be attached to the bottom of the canopy
(C) properly.
QQ
A
SS
C
JJ
D
E
From Fan To Receiver
3-pin connector------------------ 3-pin connector
□ Make wire connections from the receiver (H) and fan to
the outlet box as follows, using the quick connector (UU)
and (VV).
Outlet box
White
Black
Red
Black
White
Green
3-pin connector
(for motor)
3-pin connector
(for light)
K
J
B
H
A
VV
Green
UU
Assembly - Hanging the Fan (continued)
Wire connections -
No wall switch
From receiver To outlet box
Black “AC in L” + Red wire “for Light” --Black wire (Hot)
White wire “AC in N” --------------------White wire (Neutral)
From fan To outlet box
Green wires* -------------------------- Green or bare wire (Ground)
□ Turn the wire nut connections upward, spreading them apart
so the green (ground) and white wires will be on one side of
the outlet box and the black wire will be on the other side.
Carefully tuck the connections up into the outlet box.
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (E)
if installed.
13
HOMEDEPOT.COM/HUBSPACE
1-877-592-5233
NOTE: Blade installation must be properly
completed before attaching the light kit.

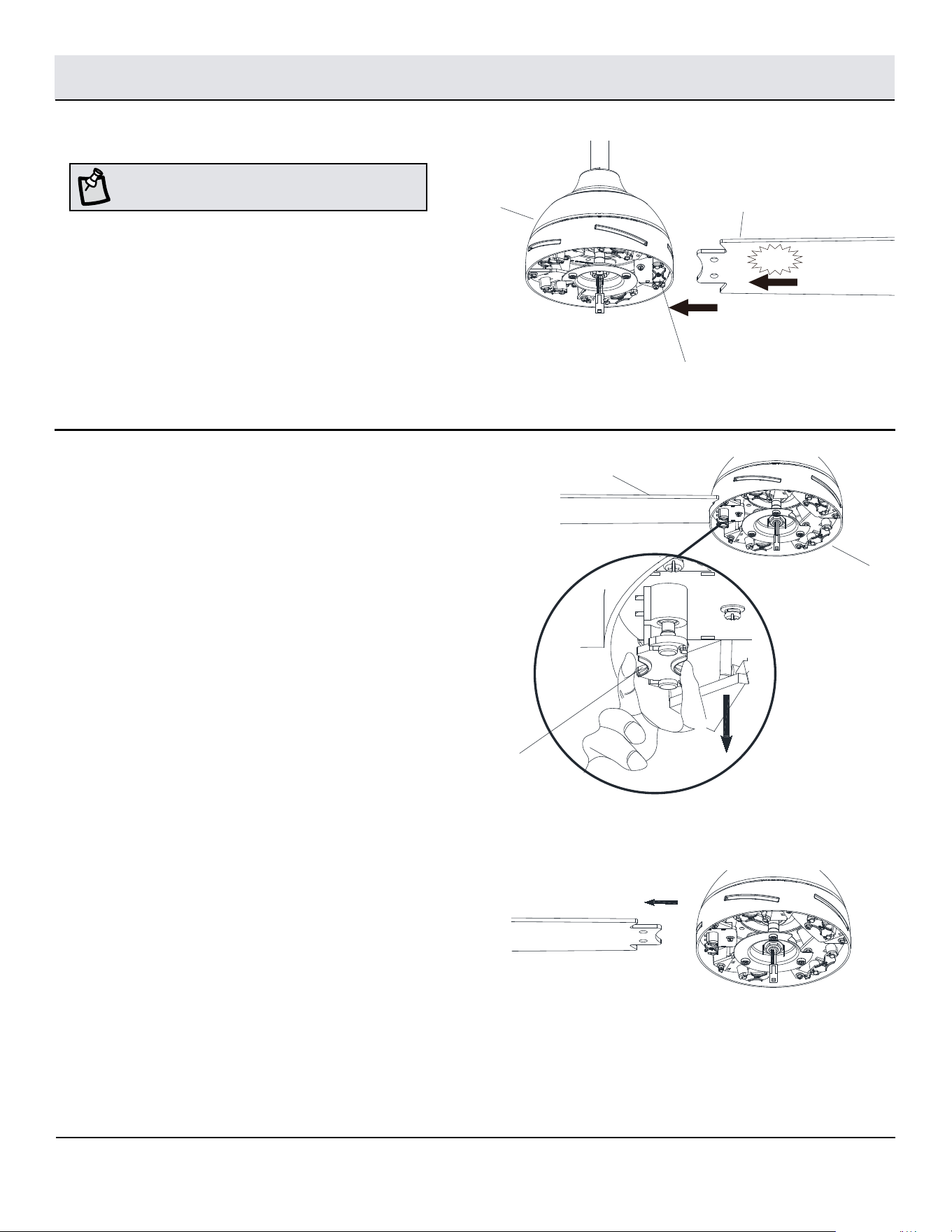

Fastening the blade to the motor
□ Attach a blade (G) to the fan motor assembly (E) by
inserting the blade (G) into the slot in the side of
the fan motor housing (E) until it stops. The locking
clip (LL) will click when the blade is correctly
installed. Ensure the blade is snapped into locking
clip (LL) completely by pulling the fan blade away
from the motor housing.
□ Repeat these steps for the remaining blades (G).
CLICK
LL
GE
Assembly - Attaching the Fan Blades
Removing the blades from the motor
□ To remove the blade (G) from the fan motor assembly (E),
pull down the tab of the locking clip (LL) to release the
blade and pull the fan blade away from the motor housing.
□ Repeat these steps for the remaining blades (G).
UP
LL
G
E
14

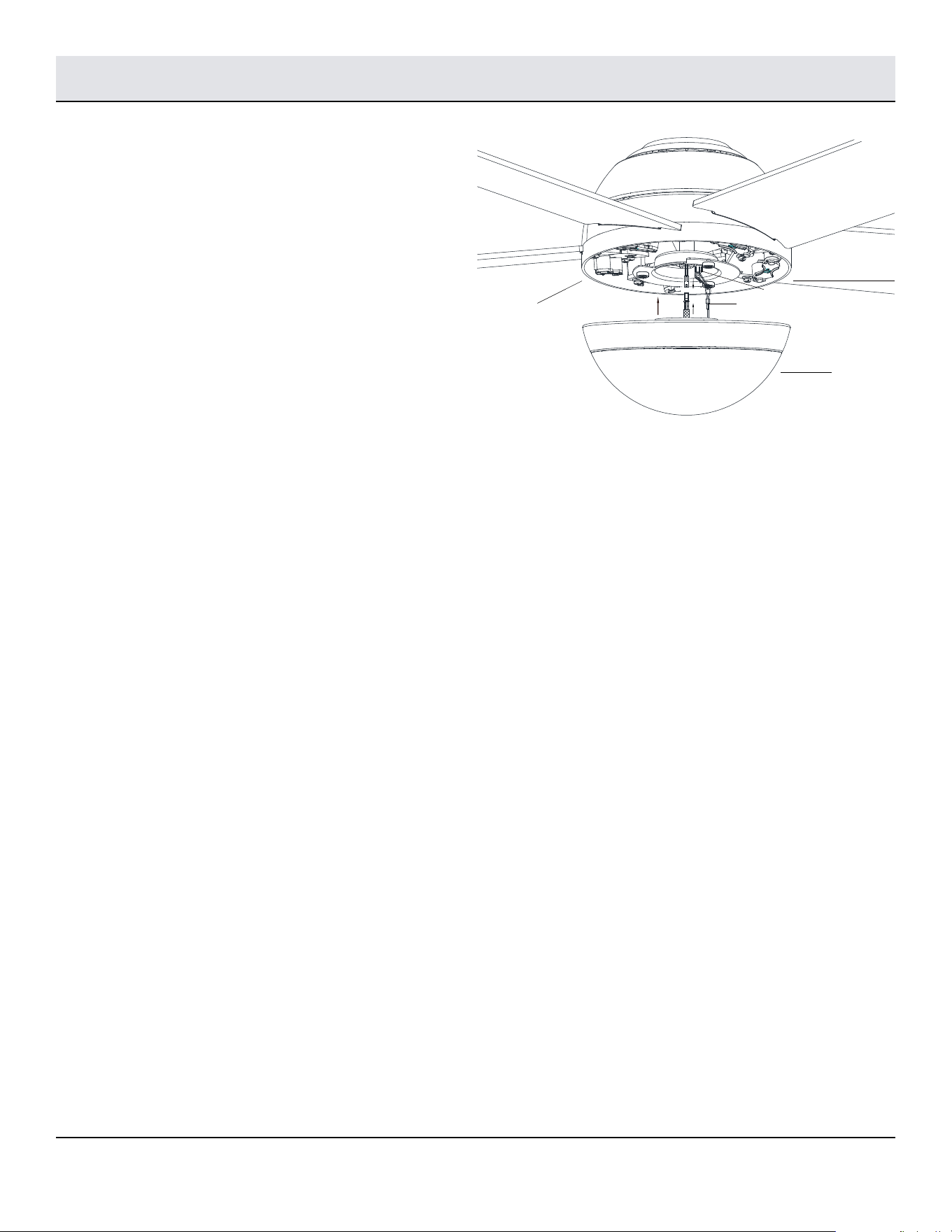

Attaching the light kit tter assembly
□ Connect the wires from the light kit assembly (F) to the
wires from the fan motor assembly (E) by connecting
the 3-pin connector plugs together. Carefully tuck all
wires and splices into the switch cup and connect the
safety cable (WW) from the light kit assembly (F) to the
hook from motor assembly (E).
□ Push the light kit assembly (F) up to the motor
assembly (E) by aligning the magnet part of the motor
assembly (E) until it is secure
WW
Hook
E
F
Assembly - Attaching the Light Kit
15
HOMEDEPOT.COM/HUBSPACE
1-877-592-5233

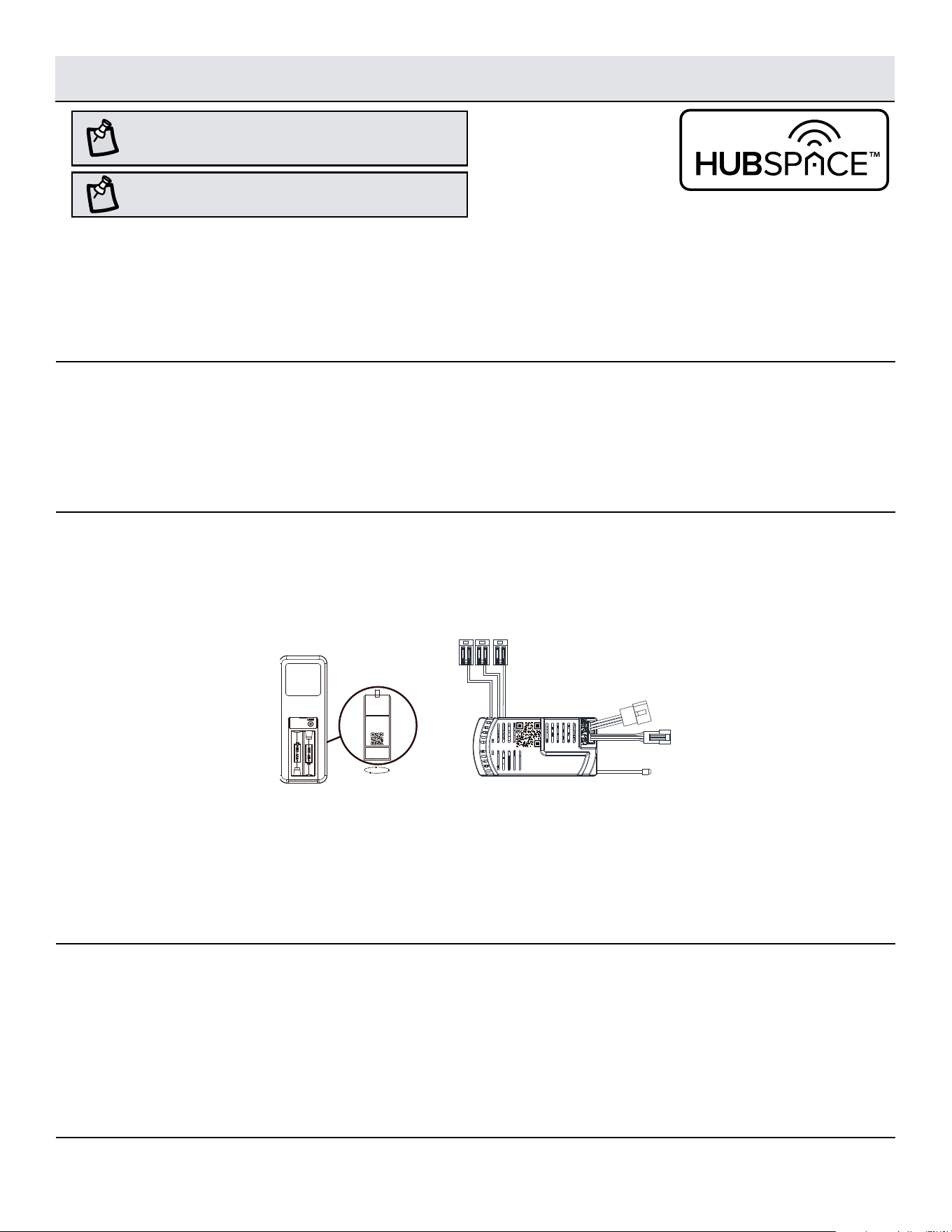

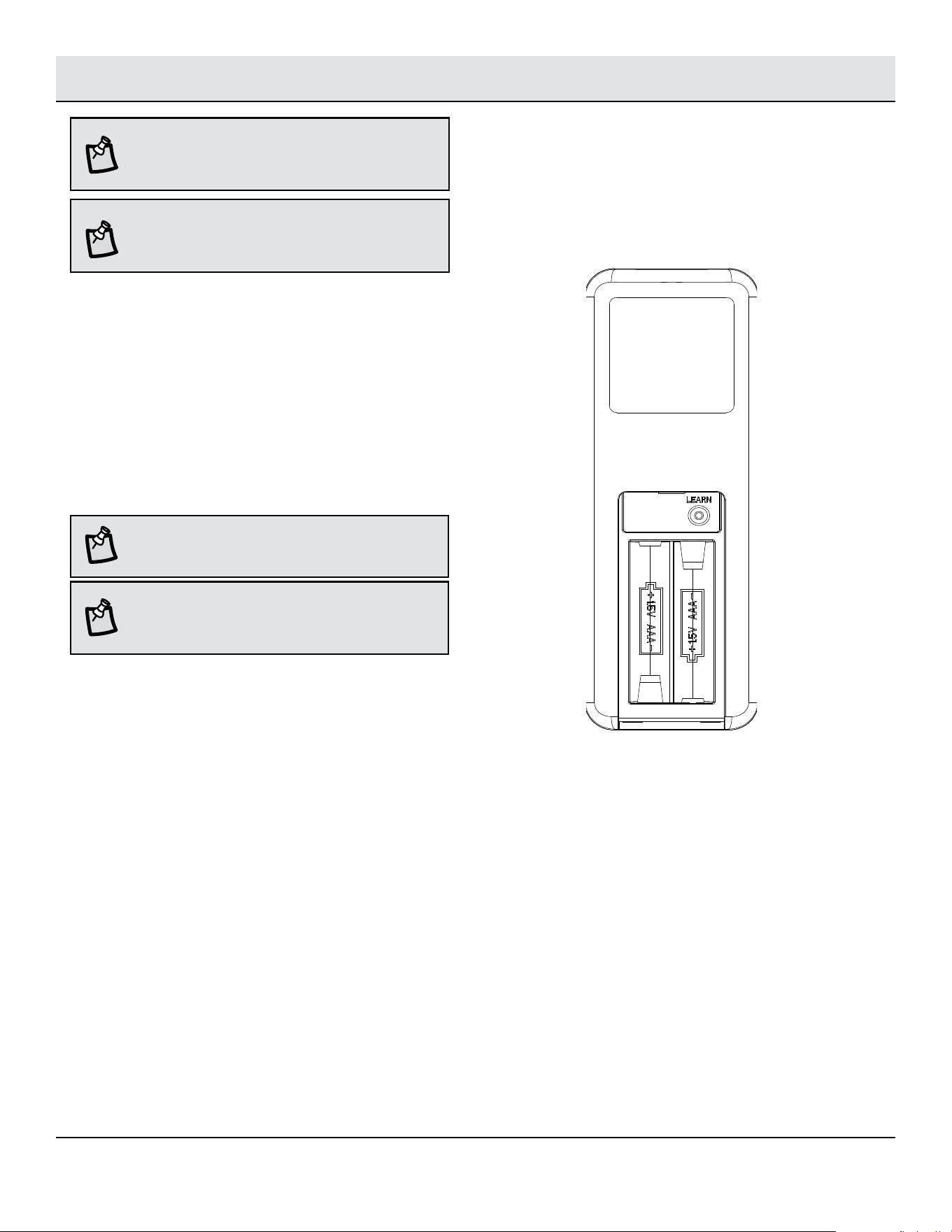

□ Conrm that the power to the fan is off at either the wall
switch or breaker box.
□ Return power to the fan and, within 30 seconds, press and
hold the learn button for 1-2 seconds and release.
□ If pairing is successful, the blades will begin to spin and the
light will also ash.

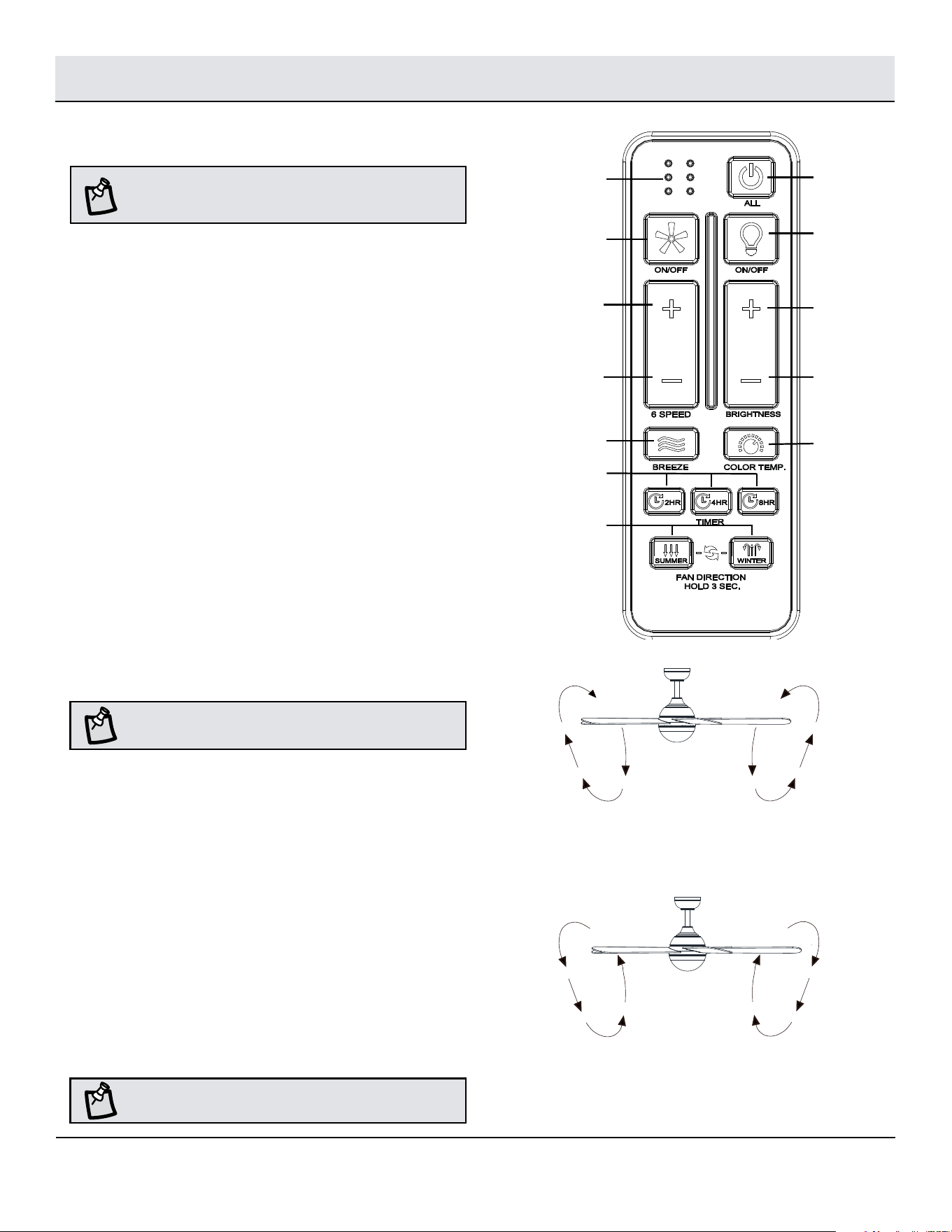

NOTE: The remote control has already been paired to
the ceiling fan for your convenience. If the remote control
does not communicate with the fan, follow the pairing
instructions below.
NOTE: The remote control battery will weaken with age
and should be replaced before leaking takes place, as this
will damage the remote control. Dispose of used battery
properly and keep the battery out of the reach of children.
Pairing one remote to one ceiling fan
□ Conrm that the power to the fan is off at either the wall
switch or breaker box.
□ Turn the power to the fan on at the breaker box or wall
switch and, within 30 seconds, press and hold the
“Learn” button for 10 seconds and release. Once pairing
is successful, the blades will begin to spin and the light
will also ash.
□ Repeat the above process for the remote controls you
want to work with this fan.
Pairing multiple remote controls
to one ceiling fan
NOTE: The fan can be controlled by up to three remote
controls. To order extra remote controls, please call
customer service 1-855-HD-HAMPTON.
NOTE: The fan can only be controlled by 3 remote
controls maximum at the same time after “Learning”. If
you pair a fourth remote control to the fan, the rst remote
control will be erased from the receiver memory.
Preparing the Remote Control
16
Color
temperature
adjustment
Fan On/Off
Increases
fan speed
Decreases
fan speed
Comfort
Breeze
TM
Timer
Fan direction
All On/Off
Light On/Off
Increases
light level
(dimmer)
Decreases
light level
(dimmer)
LED speed
indicator
ALL ON/OFF
Press and release the ALL button to turn the fan and light on or off.
LIGHT ON/OFF
Press and release the button to turn the light on or off.
DIMMING
Press and hold the (+) button to brighten light to the desired level.
Press and hold the (-) button to dim light to the desired level.
COLOR TEMPERATURE ADJUSTMENT
Push and release the button to cycle through the six color
temperature options.
Option 1: 2700K (Warm White).
Option 2: 3000K (Soft White).
Option 3: 3500K (Neutral White).
Option 4: 4000/4100K (Cool White).
Option 5: 5000K (Daylight).
Option 6: 6500K (Daylight Deluxe).
NOTE: The default temperature of the ceiling fan light is
3000K (Soft White).
FAN SPEED
Press and release the + button to increase the fan speed.
Press and release the - button to decrease the fan speed.
FAN ON/OFF
Press and release the fan button to turn the fan on or off.
LED SPEED INDICATOR
LEDs will illuminate to the corresponding speed:
1 Light - Lowest speed
6 Lights - Highest speed
Comfort Breeze
TM
Press and release the Comfort Breeze
TM
button to simulate an
outdoor breeze.
To cancel this feature press the Comfort Breeze button or other
speed button.
TIMER
Pressing the timer button will automatically turn the fan off after
2, 4, or 8 hours (depending on button pressed.
Holding the timer button for 3 seconds will cancel this function.
FAN DIRECTION
Hold the SUMMER button for 3 seconds to rotate fan forward.
Hold the WINTER button for 3 seconds to rotate fan in reverse.
NOTE: On start up your ceiling fan will oscillate back and
forth. This is NORMAL OPERATION for DC ceiling fans as it
goes through its calibration cycle. The fan is NOT DEFECTIVE.
NOTE: The fan must be on and rotating prior to pressing the
winter or summer button. The fan will not reverse direction if
the fan is not moving.
Operating - Your Fan and Remote Control
Cool Weather - (Reverse)
An upward airow moves warm air off of the ceiling.
This allows you to set your heating unit on a lower
setting without affecting your comfort.
Warm Weather - (Reverse)
A downward airow creates a cooling effect.
This allows you to set your air conditioner on a
higher setting without affecting your comfort.
17
HOMEDEPOT.COM/HUBSPACE
1-877-592-5233

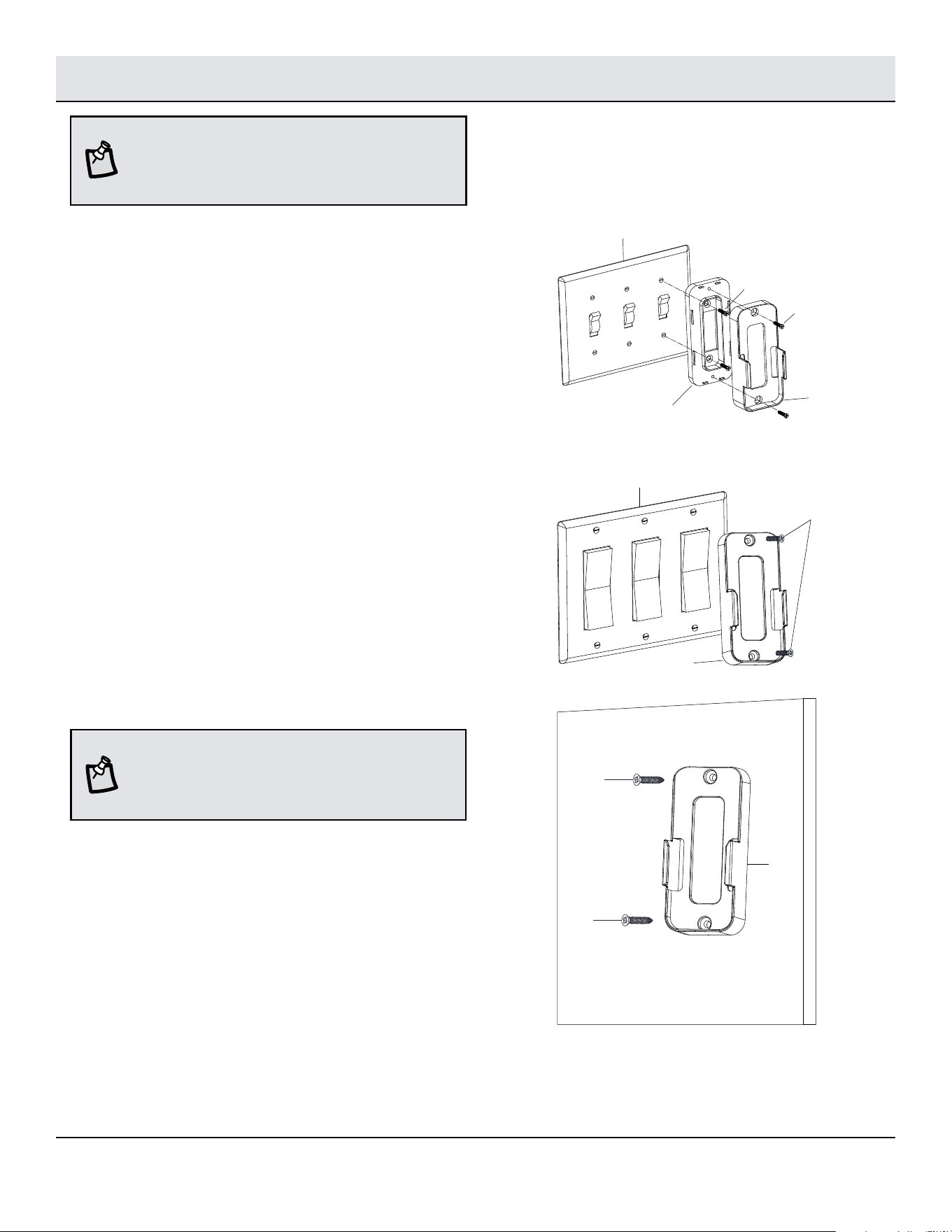

1a. Attaching over a standard toggle switch
□ Remove the two screws from the toggle switch face plate.
□ Place the toggle switch spacer over the toggle switch face
plate and align the two large holes of the toggle switch
spacer with the holes in the face plate. Secure the toggle
switch spacer to the face plate using the two included
machine screws (CC).
□ Attach the remote wall cradle (M) to the toggle switch
spacer using the included two short tapered screws (DD).
Screw a short tapered screw (DD) into the top hole and
bottom hole of the wall cradle and into the toggle switch
spacer until tight.
NOTE: Screw wall anchors are included for extra support.
The included screws are designed to screw easily into the
wall. If you would like a more permanent or secure hold,
install the wall anchors prior to attaching the wall cradle to
the wall.
1b. Attaching over a paddle switch
□ Remove the two screws from the paddle switch face plate.
□ Place the remote wall cradle (M) over the paddle switch and
align the two holes of the remote wall cradle (M) with the
holes in the face plate. Secure the remote wall cradle (M) to
the face plate using the two included machine screws (CC).
1c. Attaching to the wall
□ Position the remote wall cradle (M) in the desired
position and attach to the wall using the included two
long tapered screws (EE).
EE
EE
M
Toggle switch spacer
Toggle switch face plate
DD
CC
M
CC
M
Paddle switch face plate
NOTE: The remote wall cradle is designed to allow you to
access an existing switch. The remote wall cradle can be
mounted on the wall or to the face plate of a standard toggle
switch or a paddle switch. Follow the instructions below for
the option that best suits your needs.
Assembly - Mounting the remote wall cradle
18
□ Download the Hubspace™ app from the App Store or the Google Play Store to your mobile device.
□ Launch the app.
□ To register, enter your email address and a password. Or, login if you already have an account.
□ Bluetooth access is required for device setup.
□ Hubspace only shows Wi-Fi networks that your device can use. Check your network only if an option does not appear during set up.
□ This Hubspace device requires a 2.4GHz Wi-Fi channel.
□ Most routers provide a 2.4 GHz Wi-Fi channel.
□ If you do not see your Wi-Fi network name when you attempt to connect your device, please check your router settings.
□ In the Hubspace app, tap the plus sign in the upper right corner.
□ Scan your product’s QR code. You can nd the QR code on the remote receiver, inside the battery compartment cover of the remote, and
on the Quick Start Guide paper included with the fan.
Scan problem?
If the QR code cannot be scanned for some reason, you can enter the code manually. Tap Enter Code and follow the instructions.
□ Connect your device to power and follow the instructions on screen.
(For lighting and fan products only)
If you are unable to access the QR code for your light, you can put it into discovery mode with the following sequence:
□ Switch the device off and on 5 times. The light will pulse to show that it can now be discovered.
□ In the Hubspace app, tap the plus sign in the upper right corner and follow the instructions to discover devices. More than one device
can be added at a time using this method.
□ In the Hubspace app, tap the Hubspace button.
□ Select the Integrations tab, choose your voice assistant and follow the instructions.
Problems connecting to Hubspace device, see “troubleshooting” on page 20.
NOTE: For more information on smart remote set up,
please refer to the quick start guide located in the remote
pack.
NOTE: To use Alexa to change the color temperature of the
light, please make sure the light is turned on rst.
Getting started
Verify your network
Add a device
Set up your voice assistant
1
2
3
4
Questions, problems missing parts?
Please call Hubspace Customer service
8 a.m. - 7 p.m. EST, Monday - Friday;
9 a.m. - 6 p.m., EST, Saturday
(877) 592-5233
Application Set-up
19
HOMEDEPOT.COM/HUBSPACE
1-877-592-5233
The Morland 52 in. LED Indoor/Cover outdoor Smart Color Changing Ceiling Fan works with Alexa and Google Assistant.
This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com.
Voice Commands
ALEXA GOOGLE
When you want to... Ask Alexa to...
Turn on the fan only. … turn on <device name> fan power.
Turn off the fan only. … turn off <device name> fan power.
Turn on the light only. … turn on <device name> light power.
Turn off the light only. … turn off <device name> light power.
Change the brightness. ... Set <device name> brightness to 75%.
… Set <device name> light to 25%.
… Make <device name> dimmer.
… Make <device name> brighter.
… Dim <device name>.
… Brighten <device name>.
… Dim <group name>.
… Brighten <group name>.
Change the color
temperature.
… Change <device name> to Cool White.
… Change <device name> to Warm
White.
… Change <device name> to Daylight
White.
… Change <device name> to White.
Change the fan speed. … Set <device name> speed to fastest.
… Set <device name> speed to fast.
… Set <device name> speed to medium.
… Set <device name> speed to slow.
… Increase <device name> speed.
… Decrease <device name> speed.
When you want to... Ask Google to...
Turn on the fan only. … turn on <device name> fan power.
Turn off the fan only. … turn off <device name> fan power.
Turn on the light only. … turn on <device name> light
power.
Turn off the light only. … turn off <device name> light
power.
Change the brightness. ... Set <device name> brightness to
75%.
… Set <device name> light to 25%.
… Make <device name> dimmer.
… Make <device name> brighter.
… Dim <device name>.
… Brighten <device name>.
… Dim <group name>.
… Brighten <group name>.
Change the color
temperature.
… Change <device name> to Cool
White.
… Change <device name> to Warm
White.
… Change <device name> to Daylight
White.
… Change <device name> to White.
Change the fan speed. … Set <device name> speed to
fastest.
… Set <device name> speed to fast.
… Set <device name> speed to
medium.
… Set <device name> speed to slow.
… Increase <device name> speed.
… Decrease <device name> speed.
20
Troubleshooting
□ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments
twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□ Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage the motor, or
the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□ You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a light
application of shoe polish.
□ You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before
cleaning your fan.
Care and Cleaning
Problem Solution
The fan will not start. □ Check the main and branch circuit fuses or breakers.
□ Check to make sure the wall switch is in the on position if applicable.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
□ Check the battery in the transmitter.
□ Ensure you are in the normal range of 10-20 feet.
□ Remember to turn off the power supply before checking the dip switches settings.
The fan is noisy. □ Ensure all motor housing screws are snug.
□ Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□ Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□ Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□ If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light bulbs are also
secure.
□ Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□ Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □ Check that all blade and blade arm screws are secure.
□ Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above
the tip of one of the blades. Measure from a point on the center of each blade to the point on the ceiling. Rotate the fan until
the next blade is positioned for measurement. Repeat for each blade. Any measurement deviation should be within 1/8 inch.
Run the fan for ten minutes. If the fan continues to wobble please contact customer service and a balancing kit will be sent to
you at no charge.
The fan moves backwards and
forwards when turned on.
□ This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result of the DC motor align-
ing the internal magnetic poles for proper motor operation. This design saves electricity and allows the fan to operate much
more quietly than standard AC motor fans
Hubspace
TM
Troubleshooting
My hubspace device is not
connecting to Wi-Fi.
□ Make sure your device is connected to a power source.
□ Your Internet connection or Wi-Fi network may be down.
My device cannot nd any Wi-Fi
networks.
□ Make sure you have a 2.4GHz capable Wi-Fi network within range of the device you are trying to add.
My device is in a location that
does not have Wi-Fi. Can I still
use it with the Hubspace app?
Yes:
□ Use the app on a phone with an Internet connection like LTE.
□ The phone must be within Bluetooth range of your Hubspace device.
I cannot nd the QR code. □ Look for it where other stickers are on the product. A copy of the QR code is also included in your device’s documentation.
The QR code has become
damaged. How do I add the
device?
□ Under the QR code are numbers. You can enter those in manually instead of scanning the code.
How do I reset the device? □ Remove the device from your account, then add it back. Devices also reset when they transfer to a new account.
A device is on another account.
How do I transfer it?
□ Scan the QR code and it will transfer to your account.
My device is ofine for long
periods of time.
□ Make sure your Wi-Fi signal strength is sufcient. You may need to move your router, use mesh Wi-Fi, or Wi-Fi extenders.
The device is on and I scanned
the QR code, but the app cannot
connect to it.
□ Turn off Bluetooth on your phone and turn it back on. Then, scan the QR code.
Can I scan the same QR code to
add multiple products?
□ No. Each product has a unique QR code.
52-MORL-RV4-07182024
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Responsible Party - U.S. Contact Information: King of Fans, Inc 1951 NW 22nd Street, Fort Lauderdale, FL 33311, (954) 484-7500
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
