THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this re pit. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
USE AND CARE GUIDE
OUTDOOR FIRE PIT
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Item #1004 379 432
Model #118023
2
Table of Contents
Safety Information ..................................2
Warranty ..........................................3
Pre-Installation .....................................3
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Care and Cleaning ..................................6
Safety Information
PRECAUTION
Use caution and common sense when using your outdoor re pit.
Failure to adhere to the safety warnings and guidelines in this
manual could result in bodily injury or property damage. Save this
manual for future reference.
WARNING: This outdoor re pit is for outdoor use only.
WARNING: Use only on brick, concrete, stone, or other
masonry surfaces.
WARNING: Do not use on lawns, wooden decks, articial
wood decking, or asphalt.
WARNING: Keep the outdoor re pit a minimum of 10 ft.
away from buildings, structures, any ammable items, and
vehicles.
WARNING: Never use under low hanging tree branches,
trellises, or overhangs of any kind including covered
porches.
WARNING: For longer product life, keep res to a
respectable size, do not overload.
WARNING: The outdoor re pit is for adult use only.
WARNING: Do not leave unattended at any time during
use.
WARNING: Do not move the re pit during use.
WARNING: Do not use in windy conditions.
WARNING: Use caution when tending the re, as surfaces
will become very hot while in use.
WARNING: Keep the spark guard in place while using as
a re pit.
WARNING: Use mittens or gloves with the poker to remove
the spark guard. The spark guard will become very hot.
WARNING: Before each use make sure the outdoor re
pit is in good working condition.
WARNING: Use caution after the re has been
extinguished. Surfaces will remain hot for some time.
WARNING: The outdoor re pit must be completely
cooled off and all embers must be extinguished before any
cover can be used.
WARNING: CARBON MONOXIDE HAZARD!
Burning wood or charcoal produces carbon monoxide,
which has no odor and can cause death if burned in
enclosed areas. Never burn wood or charcoal inside homes,
vehicles, tents or any other enclosed areas.
WARNING: FUELS USED IN WOOD OR CHARCOAL
BURNING APPLIANCES, AND THE PRODUCTS OF
COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO
CHEMICALS INCLUDING CARBON BLACK, WHICH IS KNOWN
TO THE STATE OF CALIFORNIA TO CAUSE CANCER, AND
CARBON MONOXIDE, WHICH IS KNOWN TO THE STATE
OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM.
For more information go to: www.P65Warnings.ca.gov
3 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Warranty
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HAMPTONBAY.com.
Pre-Installation

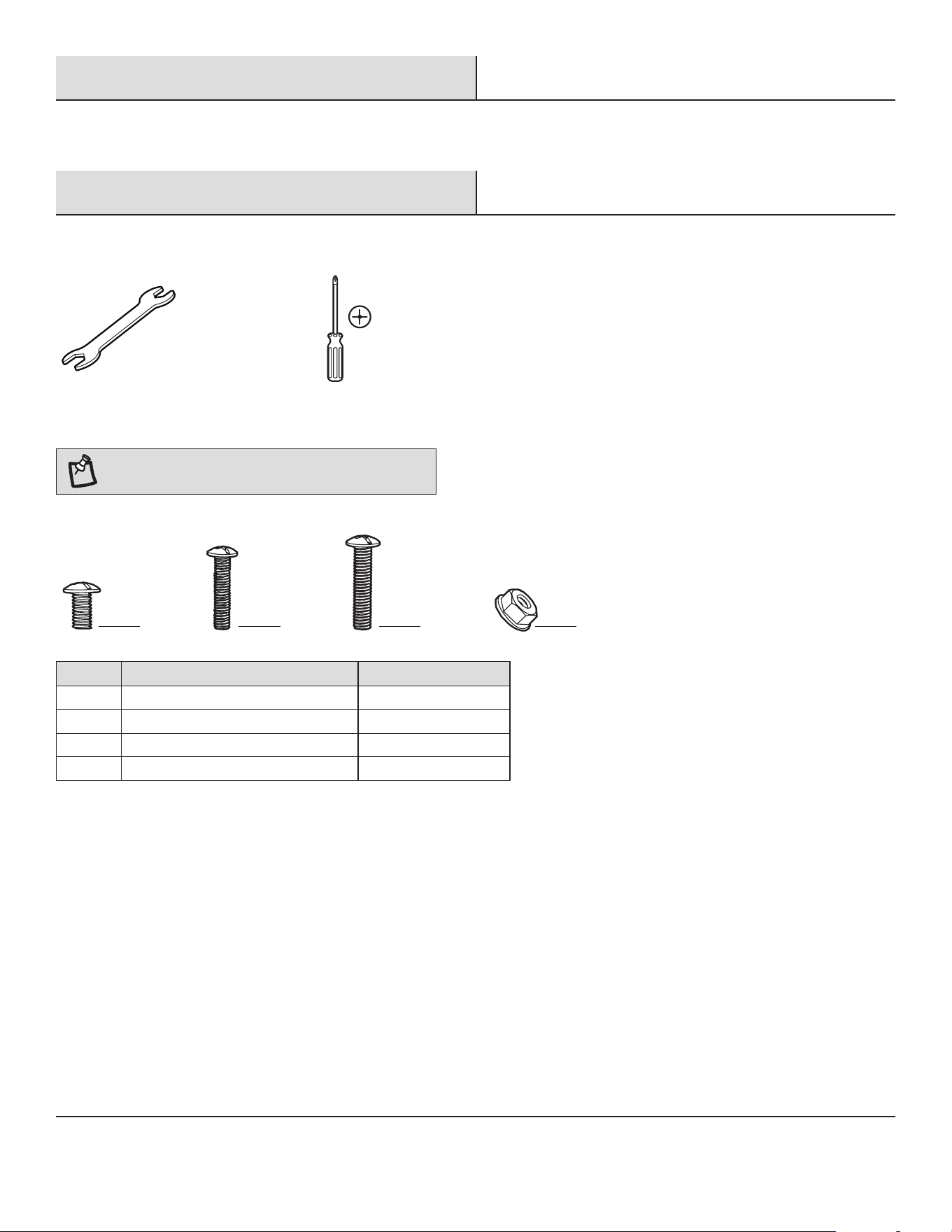

TOOLS REQUIRED
Wrench
Phillips
screwdriver
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
DDAA BB CC
Part Description Quantity
AA 12 MM Bolt 27
BB 16 MM Bolt 4
CC 35 MM Bolt 2
DD Hexnut 45
4
Pre-Installation (continued)

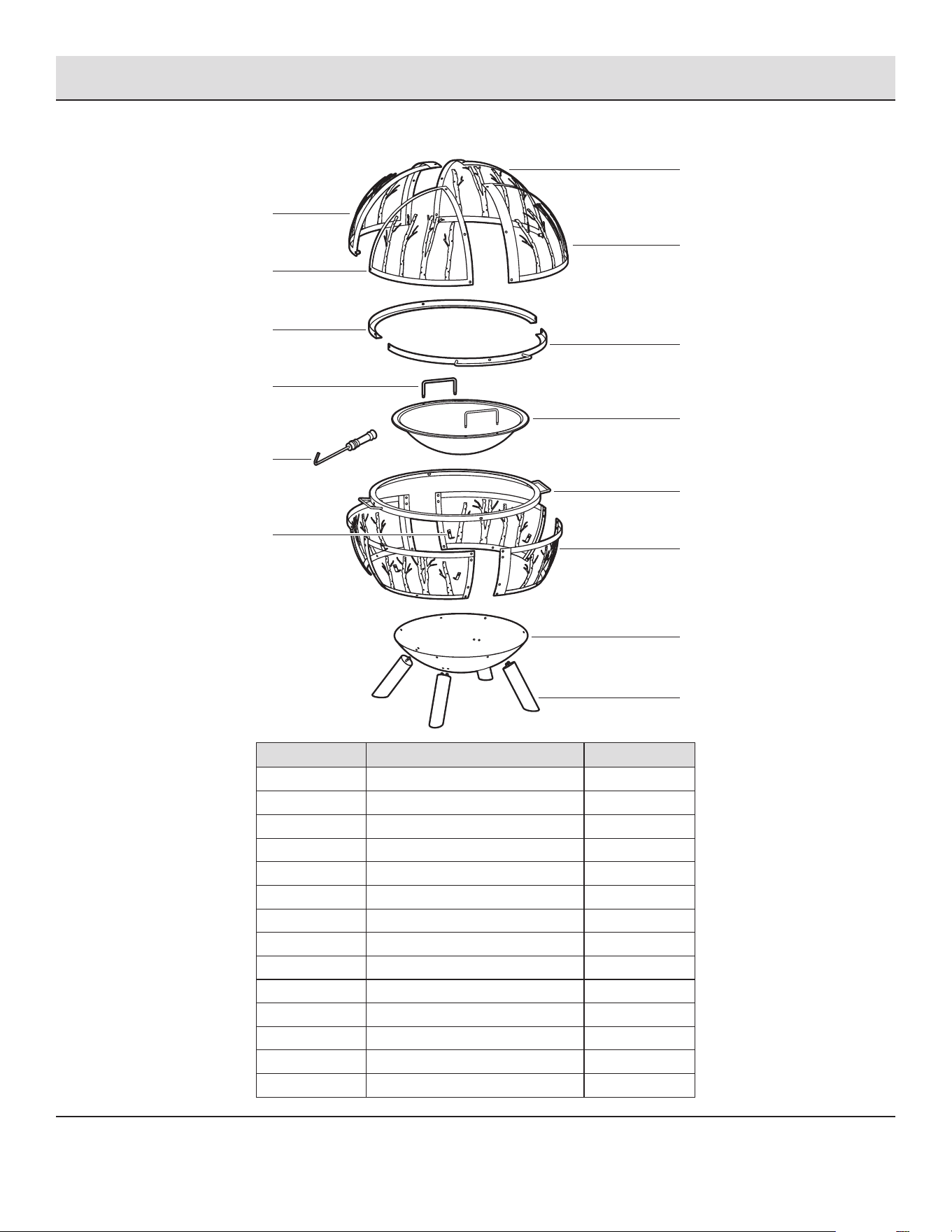

PACKAGE CONTENTS
A
C
D
G
F
L
J
H
K
M
N
I
B
E
Part Description Quantity
A Metal base 1
B Legs 4
C Bottom screen section 4
D Center ring 1
E Connecting ring 1
F Connecting ring with handle 1
G Fire bowl 1
H Fire bowl handle 2
I Fire bowl pins 4
J Right top section 1
K Left top section 1
L Right door section 1
M Left door section 1
N Poker 1
5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly
1
Attaching the legs
□ Attach the legs (B) to the metal base (A) using the hexnuts
(DD).
A
DD
B
2
Assembling the bottom screen
sections
□ Assemble the bottom screen sections (C) and re bowl pins
(I) using four 12 MM bolts (AA) through the upper holes
and four 16 MM bolts (BB) through the lower holes and re
bowl pins (I). Secure using eight hexnuts (DD).
□ Attach the assembled bottom screen sections (C) to the
metal base (A) using 12 MM bolts (AA) and hexnuts (DD).
BB
AA
DD
I
C
DD
C
A
AA
3
Installing the re bowl
□ Attach the re bowl handles (H) to the re bowl (G) using
the hexnuts (DD).
□ Place the re bowl (G) on the re bowl pins (I).
H
G
DD
I
4
Attaching the center ring
□ Attach the center ring (D) to the bottom screen sections (C)
using the 12 MM bolts (AA) and hexnuts (DD).
AA
D
DD
C
6
Assembly (continued)
5

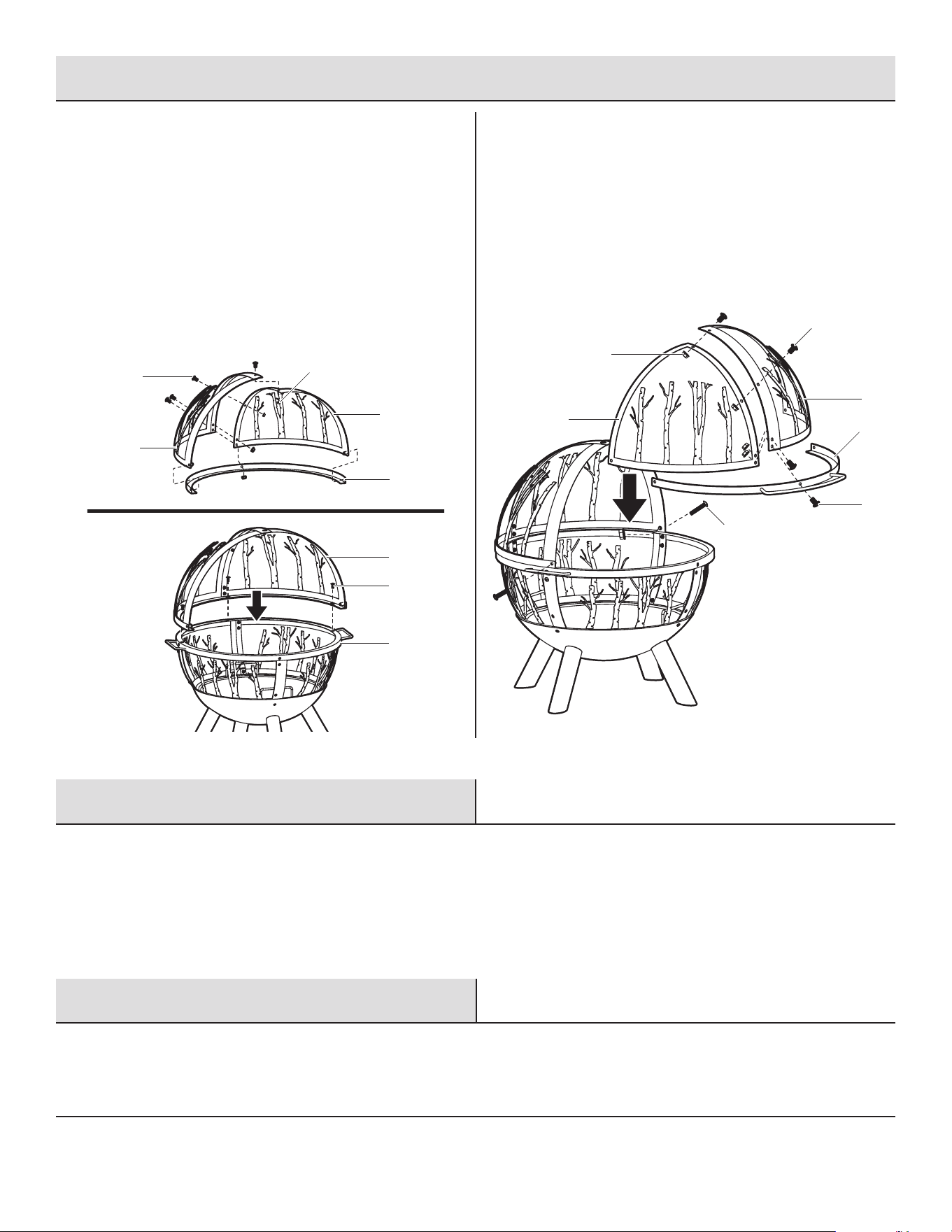

Assembling the top screen
□ Attach the right top section (J) to the left top section (K)
using the 12 MM bolts (AA) and hexnuts (DD).
□ Attach the top sections (J, K) to the connecting ring (E)
using the 12 MM bolts (AA) and hexnuts (DD).
□ Attach the top screen to the center ring (D).
□ Attach the top section to the bottom, using the 12 MM bolts
(AA) and hexnuts (DD).
D
J
AA
E
J
DD
K
AA
6
Assembling the door screen
□ Attach the right door section (L) to the left door section (M)
using the 12 MM bolts (AA) and hexnuts (DD).
□ Attach the door sections to the connecting ring with handle
(F) using the 12 MM bolts (AA) and hexnuts (DD).
□ Attach the door screen to the top screen using the 35 MM
bolts (CC) and hexnuts (DD).
A
A
L
AA
CC
F
DD
M
Operation
□ Add up to 5 lbs. of kindling and rewood to the rebowl. Use paper or restarter under the kindling and light with a match. Add
more rewood as needed. The capacity of the re pit is 5 lbs. of fuel.
□ Close the door screen. Always keep the door screen closed during use.
Care and Cleaning
□ Clean out ashes after each use only after the re pit is completely cooled.
□ Do not attempt to clean while hot.
□ Store the re pit in a dry place out of the weather.
□ Clean cooking grate with soap and water. Dry with a clean rag.
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
