Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 25V332-0003-F1
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Air Cleaner Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Blower Housing Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Carburetor Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controls Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Crankcase Cover/Sump and Lubrication Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Crankshaft Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cylinder Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cylinder Head Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

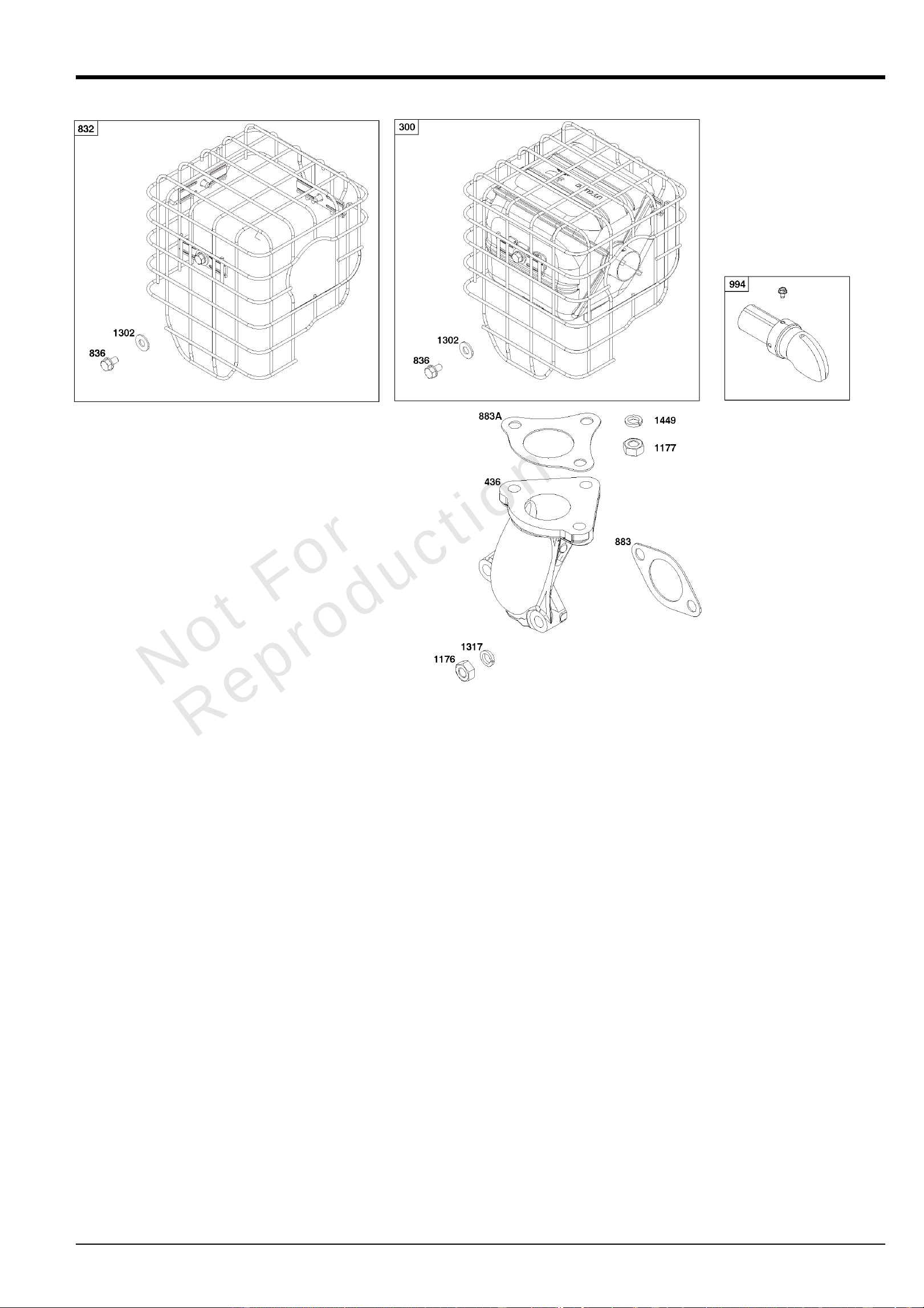

Exhaust Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

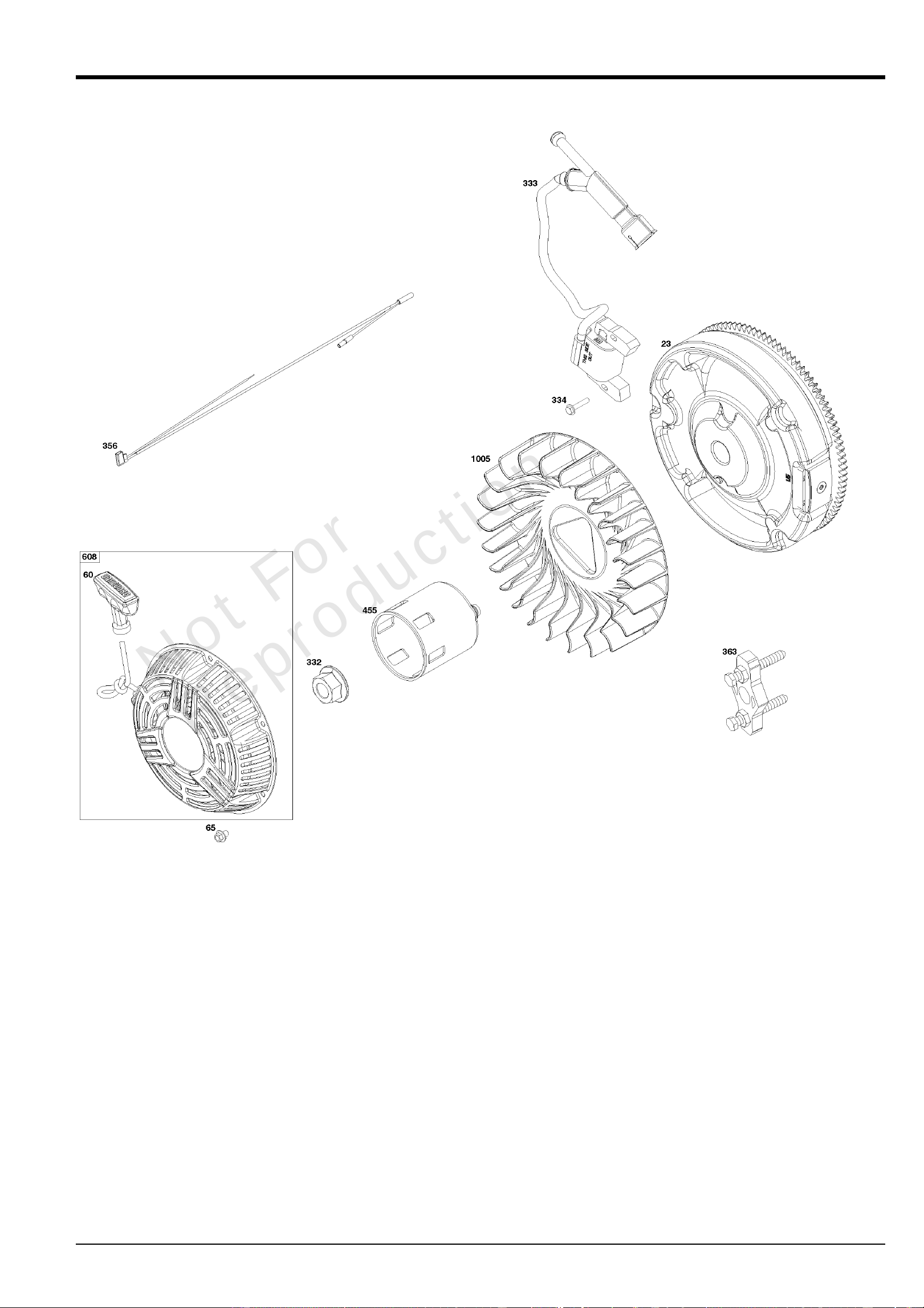

Flywheel, Ignition, and Starter Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

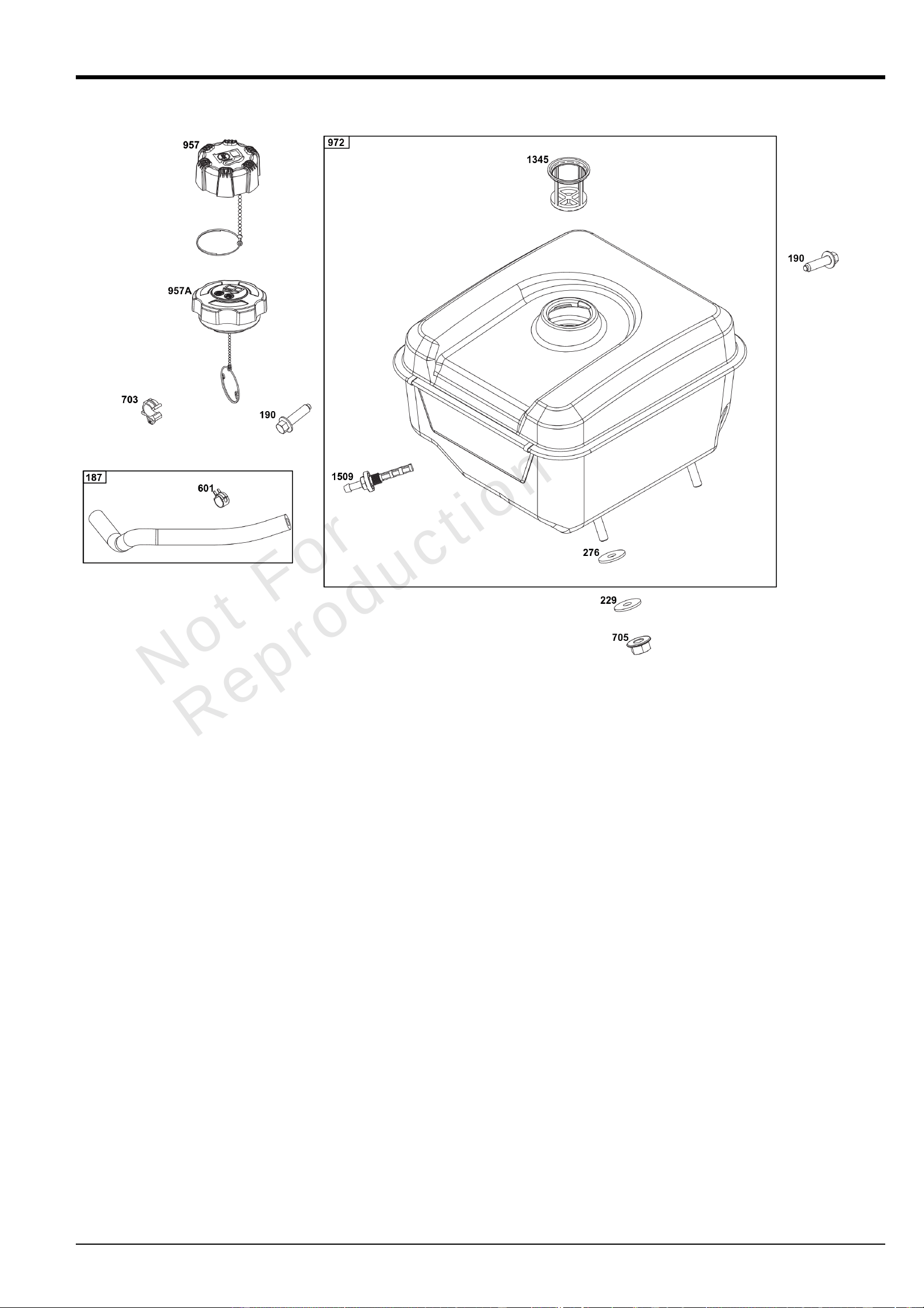

Fuel Supply Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Replacement Engine - US & Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 04-Sep-2025

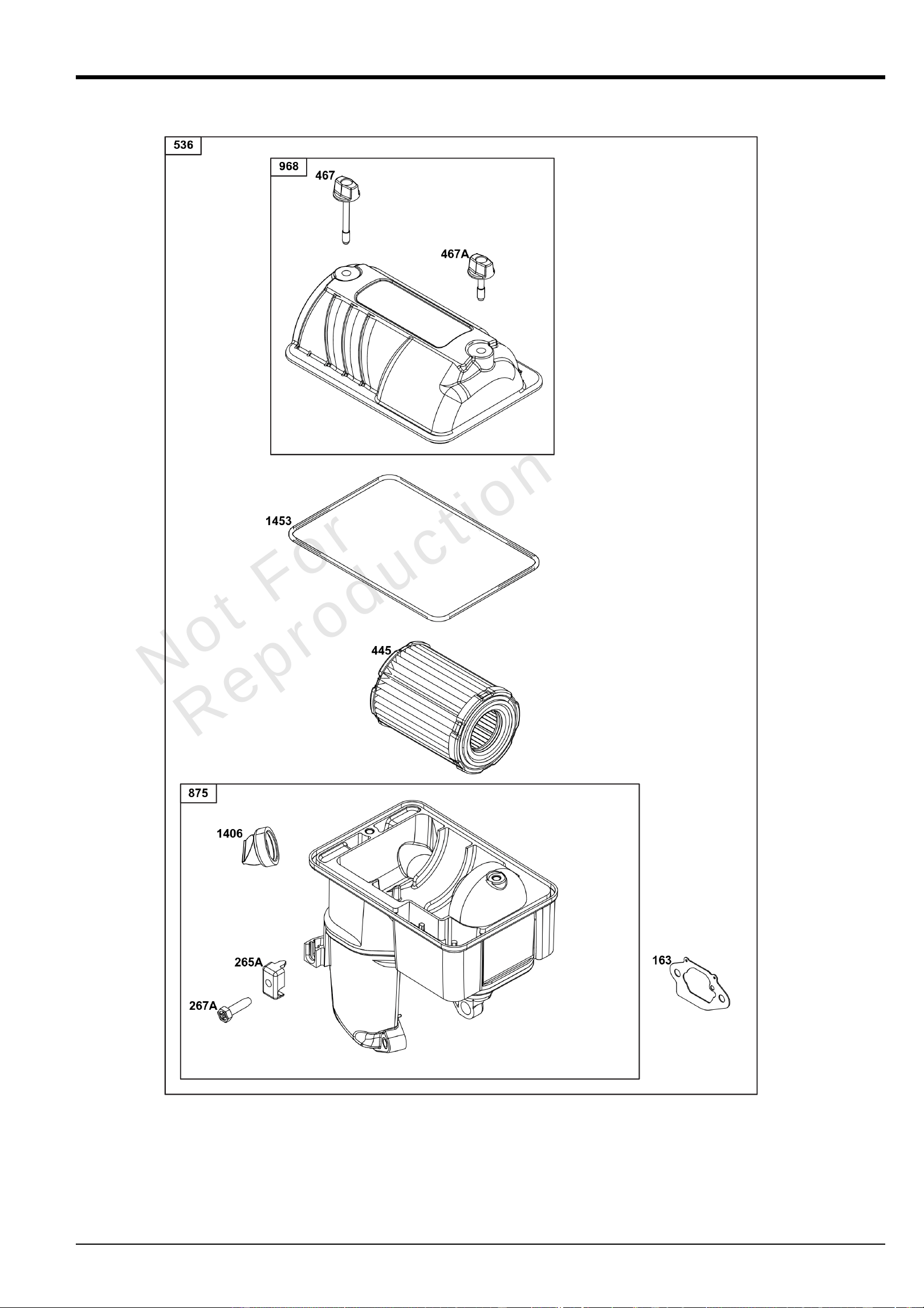

Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 04-Sep-2025
Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
163 ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor Group.)
265A ----- 1 CLAMP, Casing
-(Part information located in Controls Group.)
267A ----- 1 SCREW
-(Part information located in Controls Group.)
445 84002310 1 FILTER, A/C Cartridge
467 84004159 1 KNOB, Air Cleaner Cover
467A 596759 1 KNOB, Air Cleaner Cover
536 84004266 1 CLEANER, Air
875 84004267 1 BASE, Air Cleaner
968 84004278 1 COVER, Air Cleaner
1406 84007679 1 VALVE, Debris
1453 84004276 1 SEAL, Air Cleaner Cover
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 04-Sep-2025

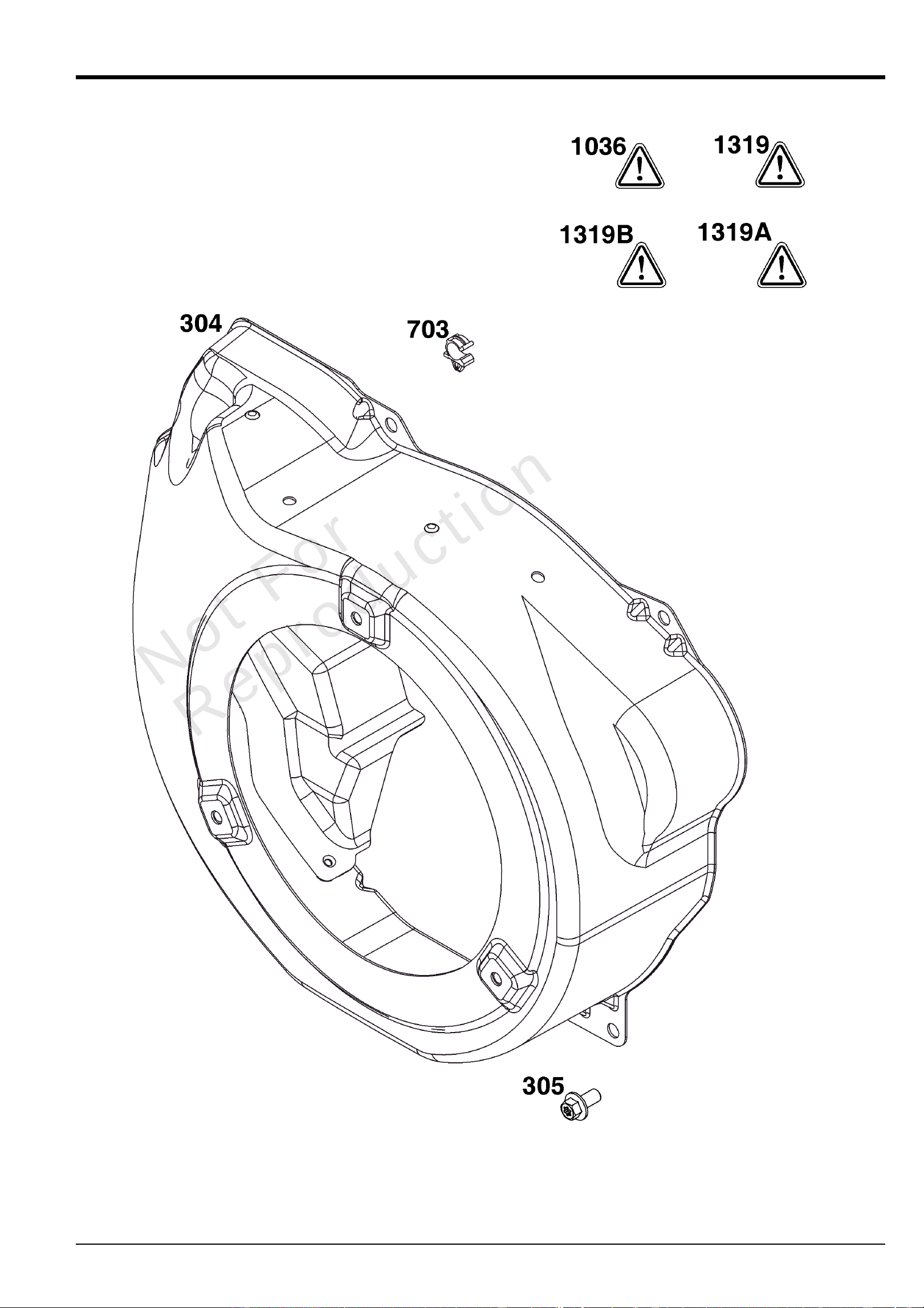

Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 04-Sep-2025
Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
304 84004566 1 HOUSING, Blower
305 597078 5 SCREW
-(Blower Housing)
703 ----- 1 CLIP
-(Part information located in Fuel Supply Group.)
1036 ----- 1 LABEL, Emissions
-(Available from a Briggs & Stratton Authorized Dealer)
1319 794467 1 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1319A 797669 1 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1319B 278911GS 1 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 04-Sep-2025

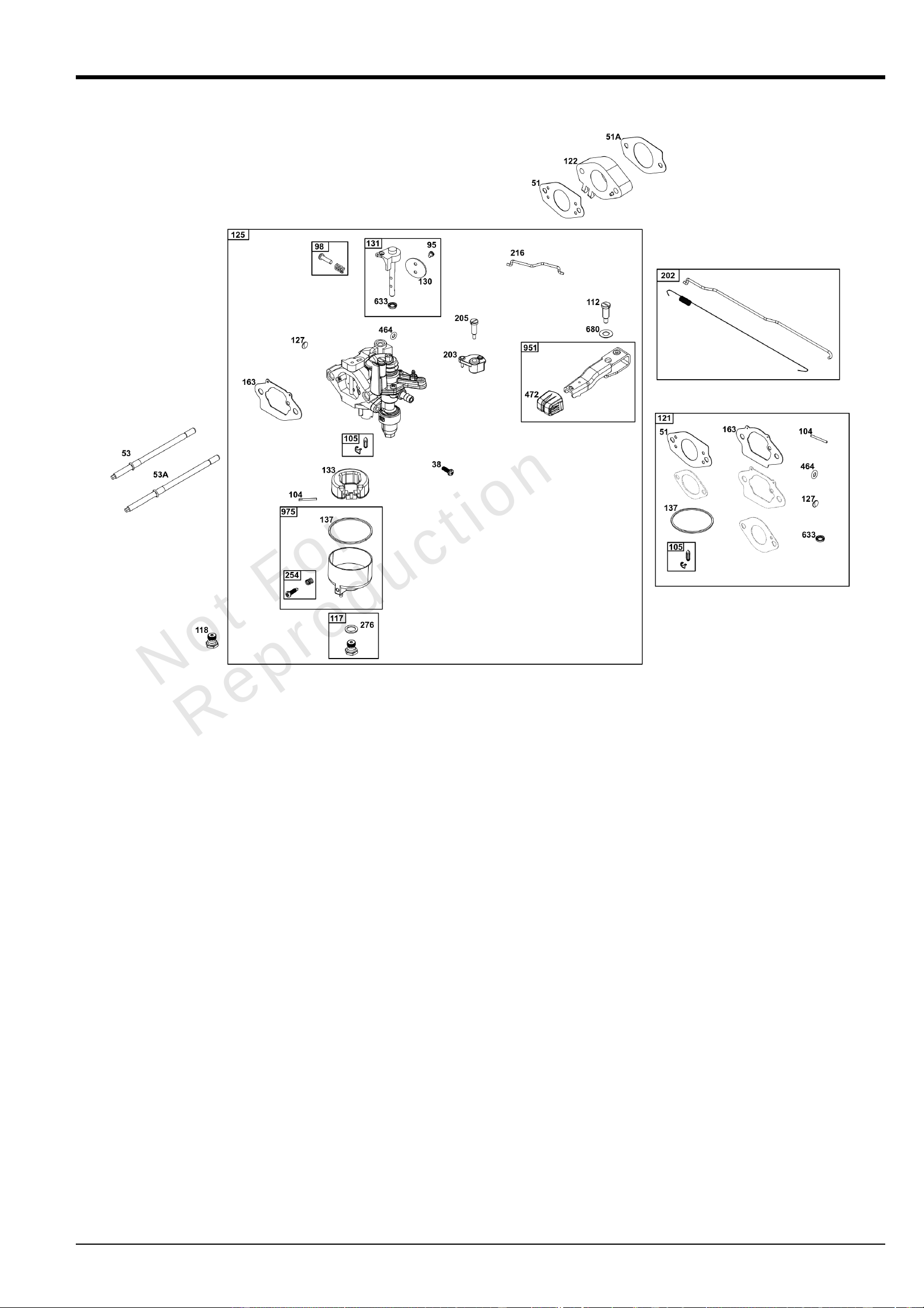

Carburetor GroupCarburetor GroupCarburetor GroupCarburetor Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 04-Sep-2025
Carburetor GroupCarburetor GroupCarburetor GroupCarburetor Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
38 84004585 2 SCREW
-(Fuel Shut Off Valve)
51 ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
51A ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
53 84004315 1 STUD
-(Carburetor) (Short)
53A 84004311 1 STUD
-(Carburetor) (Long)
95 797161 2 SCREW
-(Throttle Valve)
98 847139 1 KIT, Idle Speed
98 847139 1 KIT, Idle Speed
104 597533 1 PIN, Float Hinge
105 84004840 1 VALVE, Float Needle
105 84004840 1 VALVE, Float Needle
112 84003640 1 SCREW
-(Choke Lever)
117 84004827 1 JET, Main
-(Standard)
118 84004163 1 JET, Main
-(High Altitude)
121 84004975 1 KIT, Carburetor Overhaul
-(Service Kits may include extra parts not specific to this engine.)
122 84004306 1 SPACER, Carburetor
125 84004367 1 CARBURETOR
127 84004841 1 PLUG, Welch
130 84004397 1 VALVE, Throttle
131 84004396 1 SEAL, Choke/Throttle Shaft
133 84004822 1 FLOAT, Carburetor
137 84004205 1 GASKET, Float Bowl
163 84004165 1 GASKET, Air Cleaner
202 ----- 1 LINK, Mechanical Governor
-(Part information located in Controls Group.)
203 597045 1 CRANK, Bell
205 84005081 1 SCREW
-(Bell Crank)
216 84005080 1 LINK, Choke
254 595322 1 DRAIN, Carburetor Bowl
254 595322 1 DRAIN, Carburetor Bowl
276 797632 1 WASHER, Sealing
464 595320 1 SEAL, O-Ring
-(Fuel Shut-off Valve)
472 84002963 1 KNOB, Control
633 84004398 1 SEAL, Choke/Throttle Shaft
680 84005074 1 WASHER
-(Choke Lever)
951 84004369 1 LEVER, Choke
975 84004204 1 BOWL, Float
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 04-Sep-2025

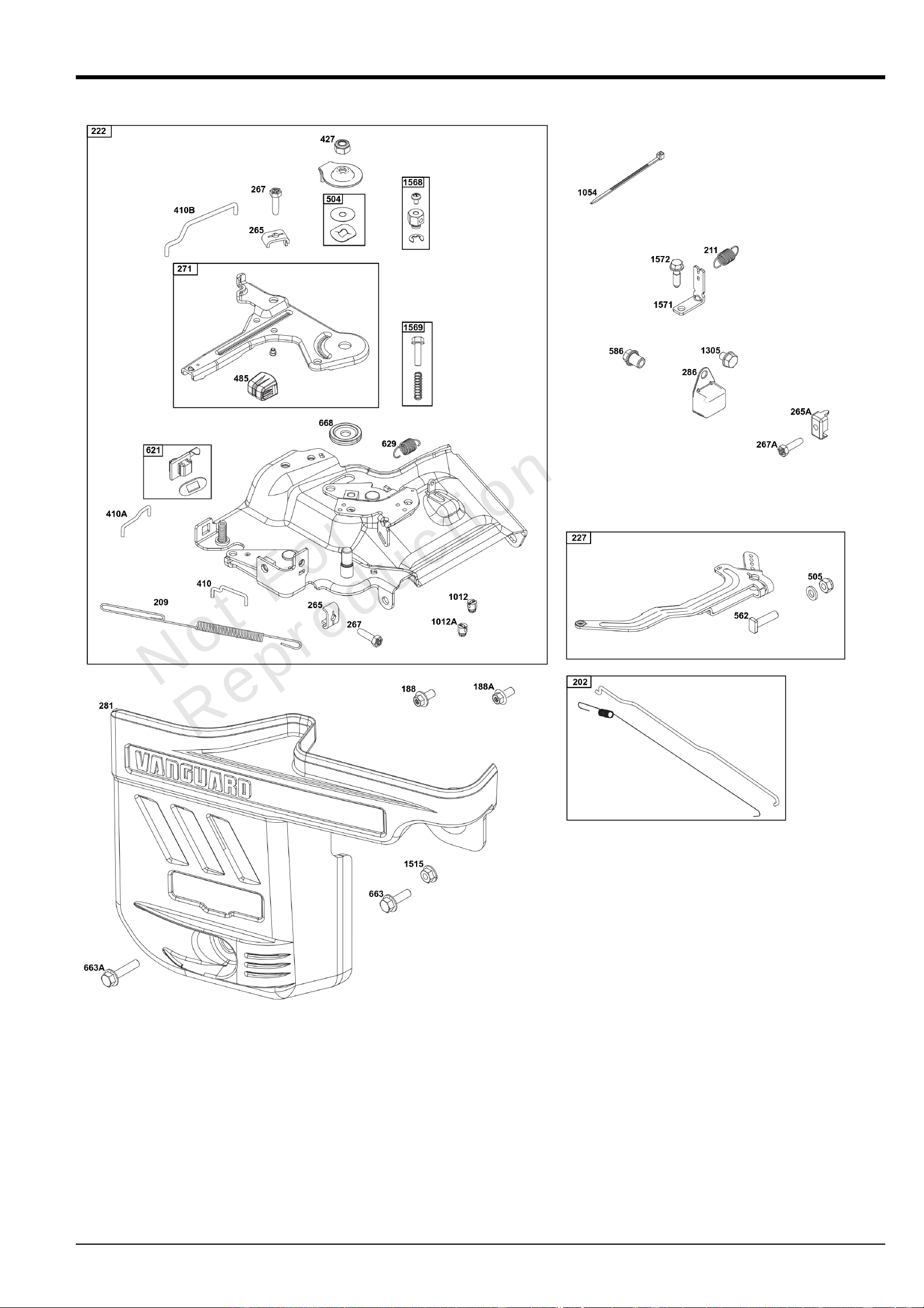

Controls GroupControls GroupControls GroupControls Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 04-Sep-2025
Controls GroupControls GroupControls GroupControls Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
188 590850 1 SCREW
-(Control Bracket)
188A 597078 2 SCREW
-(Control Bracket)
202 84004199 1 LINK, Mechanical Governor
209 84004151 1 SPRING, Governor
-(Use Before Date Code 21091500)
209 84007291 1 SPRING, Governor
-(Use After Date Code 21091400) For 3500 RPM or Faster
211 691278 1 SPRING, Governor
222 84007292 1 BRACKET, Control
-For 3500 RPM or Faster
227 84004195 1 LEVER, Governor Control
265 691024 2 CLAMP, Casing
265A 84004472 1 CLAMP, Casing
267 597027 2 SCREW
-(Casing Clamp)
267A 84004279 1 SCREW
-(Casing Clamp)
271 84005003 1 LEVER, Control
281 84004262 1 PANEL, Control
286 84002122 1 MODULE, Oil Sensor
410 84004137 1 LINK, Control
410A 84004131 1 LINK, Control
410B 84004149 1 LINK, Control
-(Use Before Date Code 21091500)
410B 84007289 1 LINK, Control
-(Use After Date Code 21091400)
427 84004395 1 NUT
-(Control Bracket)
485 84002965 1 KNOB, Control
504 84004943 1 SET, Friction Washer
505 590641 1 NUT
-(Governor Control Lever)
562 597121 1 BOLT
-(Governor Control Lever)
586 ----- 1 NUT
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
621 84007989 1 SWITCH, Stop
629 84004146 1 SPRING, Throttle Return
663 84004256 1 SCREW
-(Control Panel)
663A 597460 1 SCREW
-(Control Panel)
668 84004140 1 SPACER
1012 84004145 3 RETAINER, Link
1012A 84004144 2 RETAINER, Link
1054 280275 1 TIE, Cable
1305 590850 1 SCREW
-(Oil Sensor Module)
1515 590692 3 NUT
-(Control Panel)
1568 84005001 2 RETAINER, Wire
1569 84005002 1 KIT, Fixed Speed
1571 84004201 1 BRACKET, Governed Idle Spring
1572 597036 1 SCREW
-(Governed Idle Spring Bracket)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 04-Sep-2025

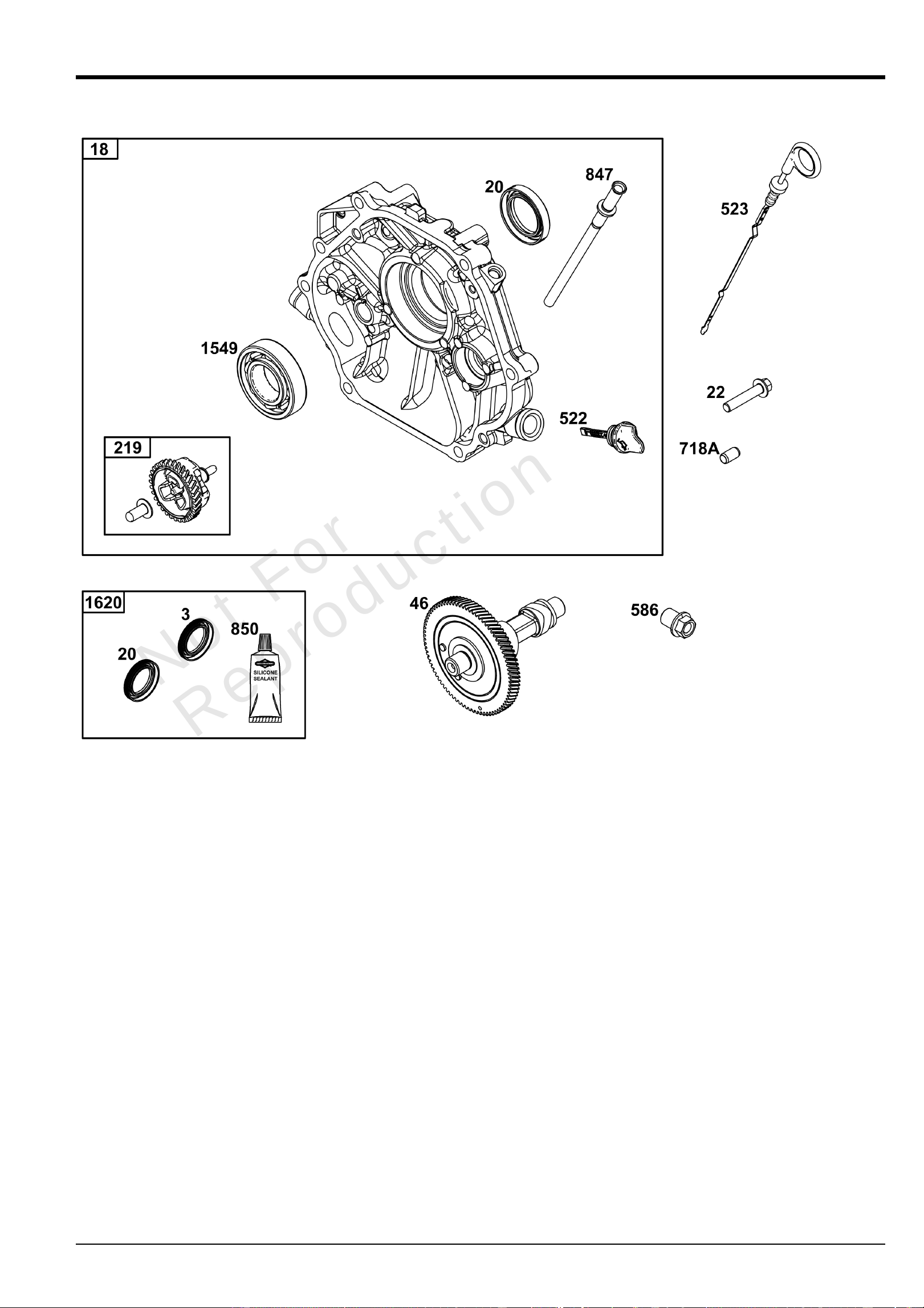

Crankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 04-Sep-2025
Crankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
18 84004477 1 COVER, Crankcase
20 84004101 1 SEAL, Oil
-(PTO Side)
22 84004103 7 SCREW
-(Crankcase Cover/Sump)
46 ----- 1 CAMSHAFT
-(Part information located in Crankshaft Group.)
219 84004200 1 GEAR, Governor
522 84004104 2 PLUG, Dipstick/Fill
523 84004105 1 DIPSTICK
586 84004724 1 NUT
-(Oil Sensor)
718A ----- 2 PIN, Locating
-(Part information located in Cylinder Group.)
847 84004831 1 TUBE, Dipstick
850 ----- 1 SEALANT, Liquid
-(Part information located in Cylinder Group.)
1549 ----- 1 BEARING, Ball
-(Part information located in Crankshaft Group.)
1620 84008367 1 GASKET SET, Crankcase
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 04-Sep-2025

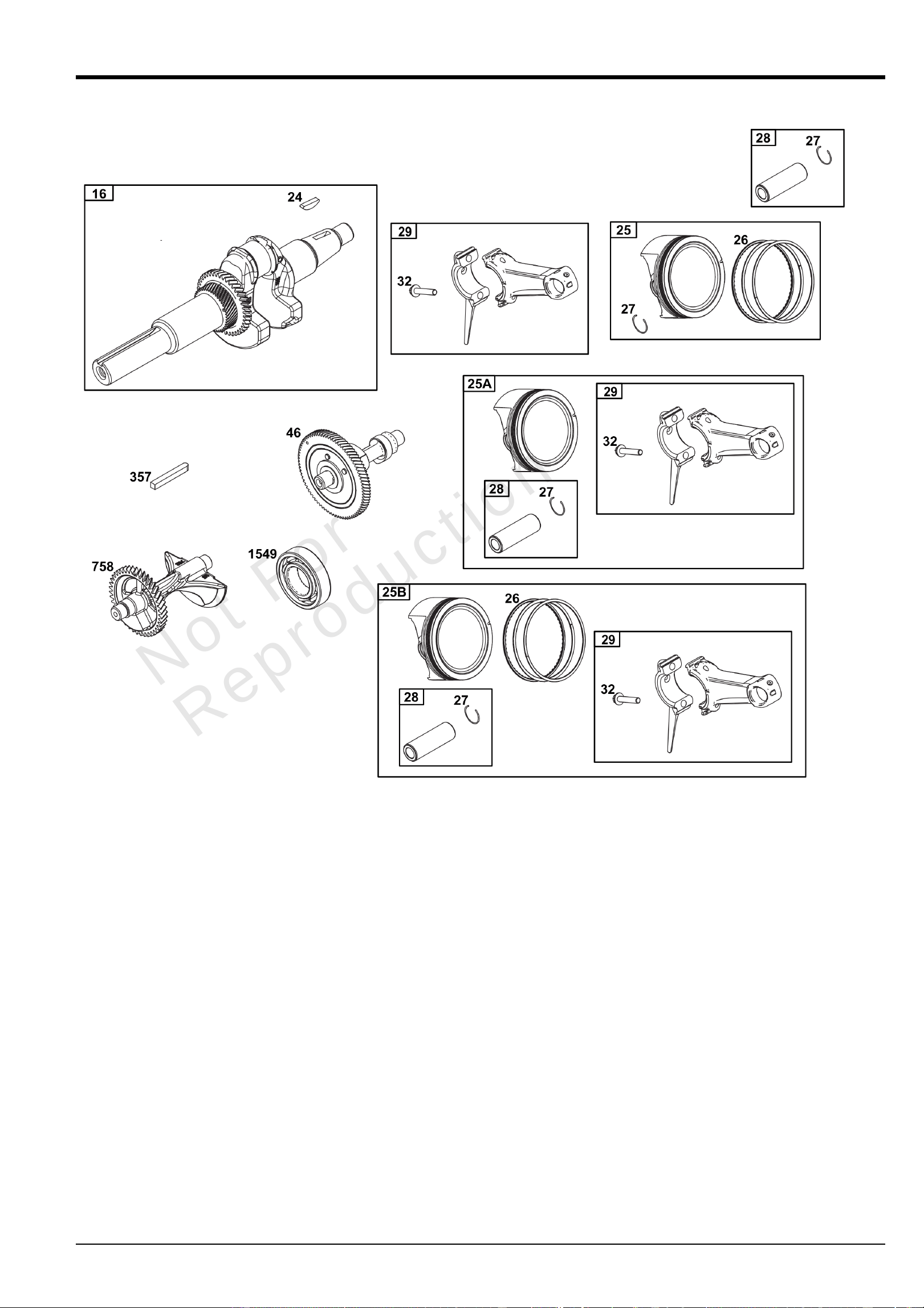

Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 04-Sep-2025
Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
16 84003577 1 CRANKSHAFT
24 596976 1 KEY, Flywheel
25 84005038 1 PISTON ASSEMBLY
-(Use After Date Code 20120700)
25 84005037 1 PISTON ASSEMBLY
-(.020" Oversize) (Use After Date Code 20120700)
25A 84006577 1 PISTON ASSEMBLY
-(Use Before Date Code 20120800)
25B 84006578 1 PISTON ASSEMBLY
-(.020" Oversize) (Use Before Date Code 20120800)
26 84004091 1 SET, Ring
26 84004097 1 SET, Ring
-(.020" Oversize)
27 84005040 2 LOCK, Piston Pin
28 84005039 1 PIN, Piston
-(Use After Date Code 20120700)
29 84005041 1 ROD, Connecting
-(Use After Date Code 20120700)
32 596984 2 SCREW
-(Connecting Rod)
46 84005044 1 CAMSHAFT
357 590960 1 KEY, Drive Pulley
758 84004464 1 COUNTERWEIGHT
1549 84003459 1 BEARING, Ball
-(Crankshaft)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 04-Sep-2025

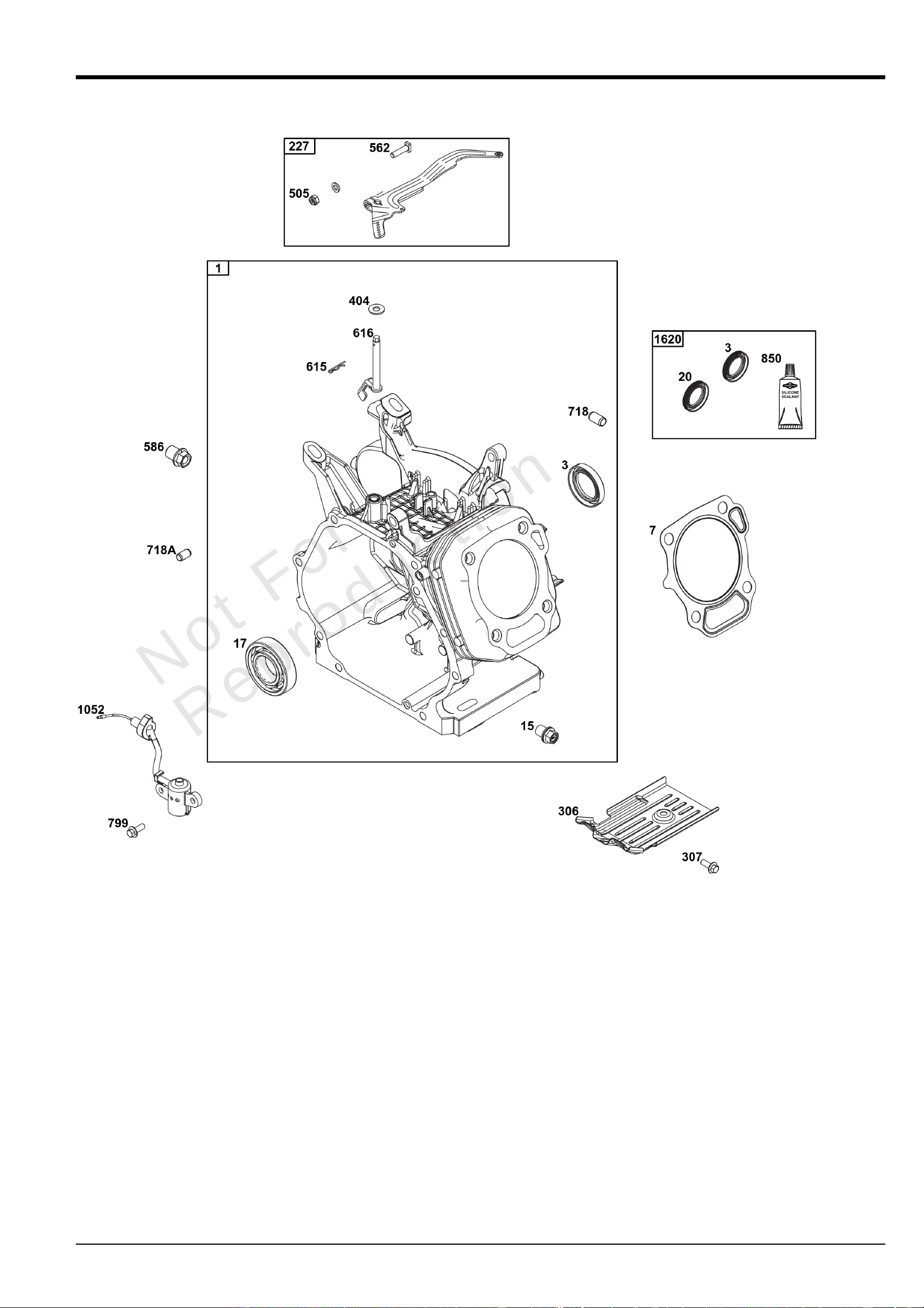

Cylinder GroupCylinder GroupCylinder GroupCylinder Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 04-Sep-2025
Cylinder GroupCylinder GroupCylinder GroupCylinder Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1 84004371 1 CYLINDER ASSEMBLY
3 84004101 1 SEAL, Oil
-(Magneto Side)
7 ----- 1 GASKET, Cylinder Head
-(Part information located in Cylinder Head Group.)
15 84004108 2 PLUG, Oil Drain
17 84004100 1 BEARING, Ball
-(Cylinder)
20 ----- 1 SEAL, Oil
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
227 ----- 1 LEVER, Governor Control
-(Part information located in Controls Group.)
306 84004123 1 SHIELD, Cylinder
307 590850 1 SCREW
-(Cylinder Shield)
404 84004197 1 WASHER
-(Governor Crank)
505 ----- 1 NUT
-(Part information located in Controls Group.)
562 ----- 1 BOLT
-(Part information located in Controls Group.)
586 ----- 1 NUT
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
615 84004198 1 RETAINER, Governor Shaft
616 84004196 1 CRANK, Governor
718 84004120 2 PIN, Locating
718A 590713 2 PIN, Locating
799 590703 2 SCREW
-(Oil Sensor)
850 100106 1 SEALANT, Liquid
1052 590671 1 SENSOR, Oil
1620 ----- 1 GASKET SET, Crankcase
-(Part information located in Crankcase Cover/Sump Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 04-Sep-2025

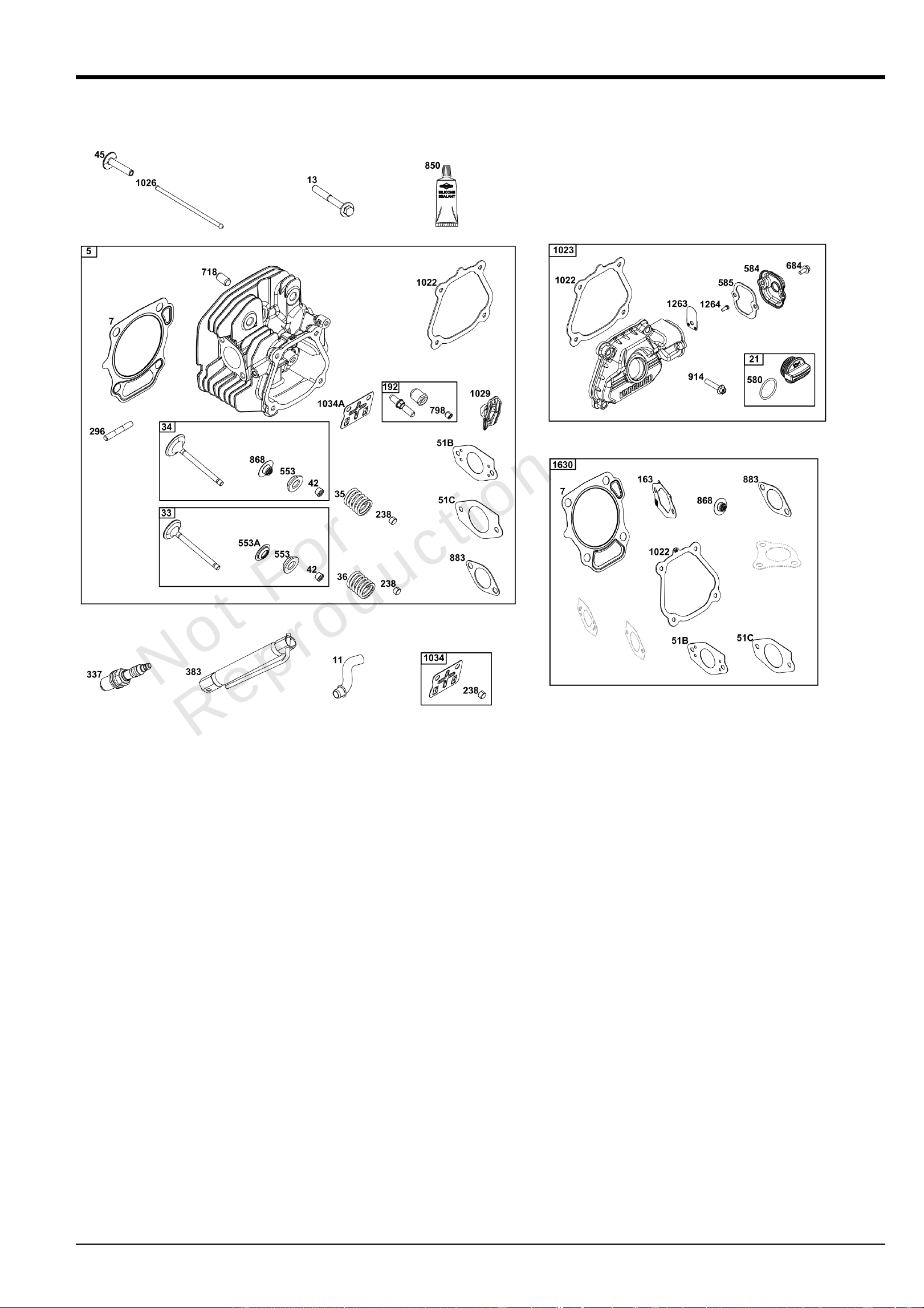

Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
5 84005042 1 HEAD, Cylinder
7 84004760 1 GASKET, Cylinder Head
11 84004125 1 TUBE, Breather
13 84004122 4 SCREW
-(Cylinder Head)
21 597014 1 CAP, Oil Fill
33 84004114 1 VALVE, Exhaust
34 84004113 1 VALVE, Intake
35 84004112 2 SPRING, Valve
-(Intake)
36 84004112 2 SPRING, Valve
-(Exhaust)
42 84004116 4 KEEPER, Valve
45 84004130 2 TAPPET, Valve
51B 84004164 1 GASKET, Intake
51C 84004166 1 GASKET, Intake
163 ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor Group.)
192 84006535 2 ADJUSTER, Rocker Arm
238 84004109 2 CAP, Valve
296 84004119 2 STUD
-(Muffler)
337 597383 1 PLUG, Spark
383 19576S 1 WRENCH, Spark Plug
553 84004117 2 RETAINER, Valve Spring
553A 84004118 1 RETAINER, Valve Spring
580 809894 1 SEAL, O-Ring
-(Oil Fill Cap)
584 597011 1 COVER, Breather Passage
585 597010 1 GASKET, Breather Passage
684 597012 2 SCREW
-(Breather Passage Cover)
718 ----- 2 PIN, Locating
-(Part information located in Cylinder Group.)
798 597000 2 SCREW
-(Rocker Arm)
850 ----- 1 SEALANT, Liquid
-(Part information located in Cylinder Group.)
868 84004111 1 SEAL, Valve
883 ----- 1 GASKET, Exhaust
-(Part information located in Exhaust Group.)
914 597016 4 SCREW
-(Rocker Cover)
1022 84004126 1 GASKET, Rocker Cover
1023 84004124 1 COVER, Rocker
1026 84004129 2 ROD, Push
1029 84004110 2 ARM, Rocker
1034 84006550 1 GUIDE, Push Rod
-Used Before Code Date 20092400
1034A 84005043 1 GUIDE, Push Rod
-Used After Code Date 20092300
1263 697124 1 REED, Breather
1264 793453 1 SCREW
-(Breather Reed)
1630 84012627 1 GASKET SET, Valve
-(Service Kits can include parts not for this engine.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 04-Sep-2025
Exhaust GroupExhaust GroupExhaust GroupExhaust Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 04-Sep-2025
Exhaust GroupExhaust GroupExhaust GroupExhaust Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 84004467 1 MUFFLER
436 84004461 1 MANIFOLD, Exhaust
832 84004465 1 GUARD, Muffler
836 699491 3 SCREW
-(Muffler Guard)
883A 84004280 1 GASKET, Exhaust
883 84004409 1 GASKET, Exhaust
994 593207 1 ARRESTOR, Spark
1176 590632 2 NUT
-(Exhaust Manifold)
1177 590632 3 NUT
-(Muffler)
1302 84004197 3 WASHER
-(Muffler Guard)
1317 590633 2 WASHER
-(Exhaust Manifold)
1449 590633 3 WASHER
-(Muffler)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 04-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 04-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
23 84004284 1 FLYWHEEL
60 597080 1 GRIP, Starter Rope
65 590683 3 SCREW
-(Rewind Starter)
332 591988 1 NUT
-(Flywheel)
333 84004162 1 ARMATURE, Magneto
334 699477 2 SCREW
-(Magneto Armature)
356 84004209 1 WIRE, Stop
363 19203 1 PULLER, Flywheel
455 84004287 1 CUP, Flywheel
608 84004174 1 STARTER, Rewind
1005 84004286 1 FAN, Flywheel
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
23 04-Sep-2025
Fuel Supply GroupFuel Supply GroupFuel Supply GroupFuel Supply Group
Mfg. No: 25V332-0003-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 04-Sep-2025
Fuel Supply GroupFuel Supply GroupFuel Supply GroupFuel Supply Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
187 84004224 1 LINE, Fuel
190 84004226 2 SCREW
-(Fuel Tank)
229 84004227 2 WASHER
-(Fuel Tank)
276 84004253 2 WASHER, Sealing
601 791850 2 CLAMP, Hose
703 590967 1 CLIP
705 707919 2 NUT
-(Fuel Tank)
957 596765 1 CAP, Fuel Tank
-Used Before Code Date 22010100
957A 84007570 1 CAP, Fuel Tank
-Used After Code Date 21123100
972 84004212 1 TANK, Fuel
1345 792917 1 FILTER, Filler Neck
1509 797346 1 OUTLET, Tank
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 04-Sep-2025
Replacement Engine - US & CanadaReplacement Engine - US & CanadaReplacement Engine - US & CanadaReplacement Engine - US & Canada
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
25V3320005F1 1 Replacement Engine
----- Idle Speed: 1450
----- Top No-Load Speed: 3600
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
26 04-Sep-2025
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
