Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 61G877-0001-J1
Copyright © Briggs & Stratton. All Rights reserved
05-Sep-2025
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Air Cleaner Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Alternator Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Blower Housing Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controls Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Crankcase Cover/Sump and Lubrication Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Crankshaft Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cylinder Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

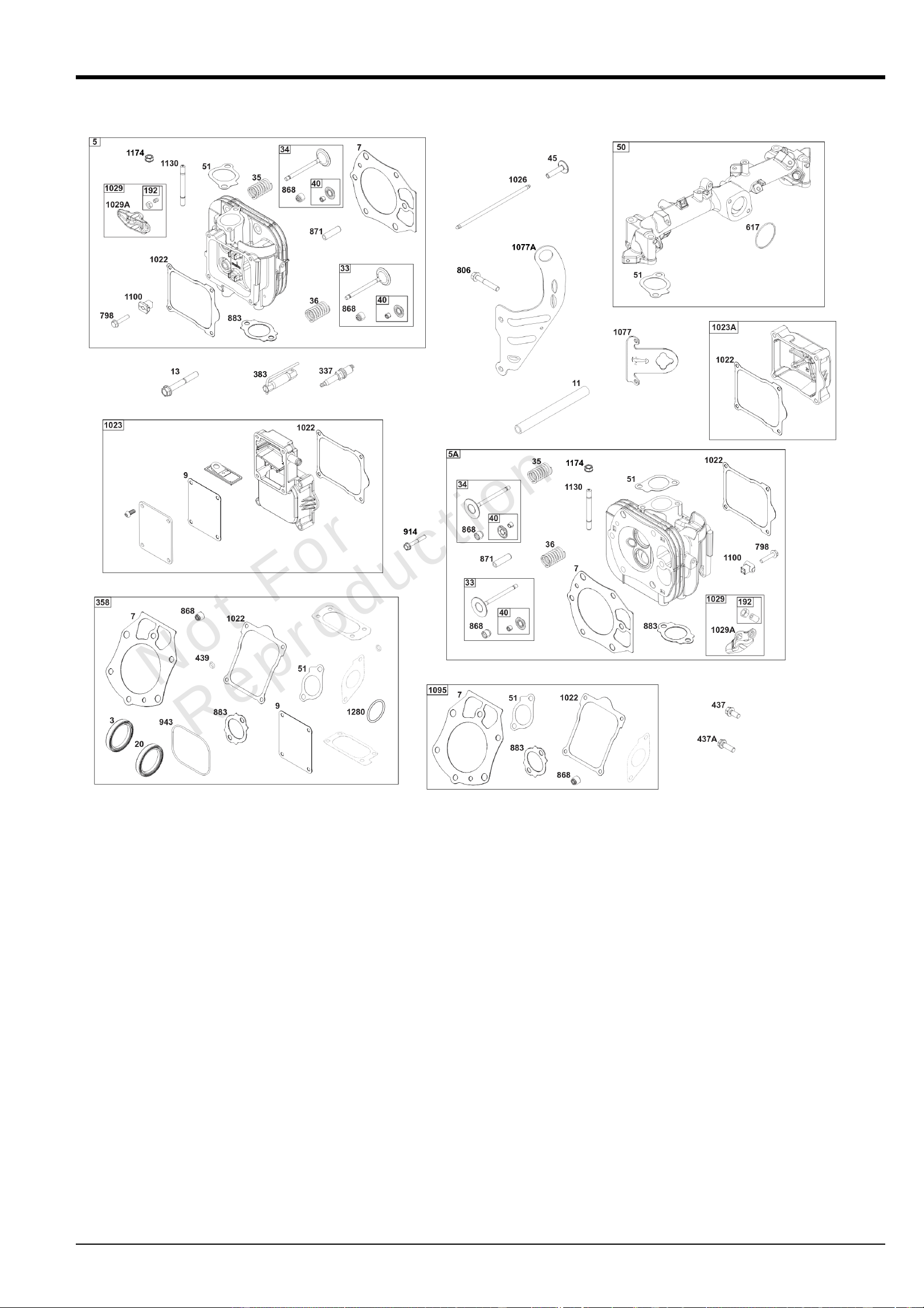

Cylinder Head Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

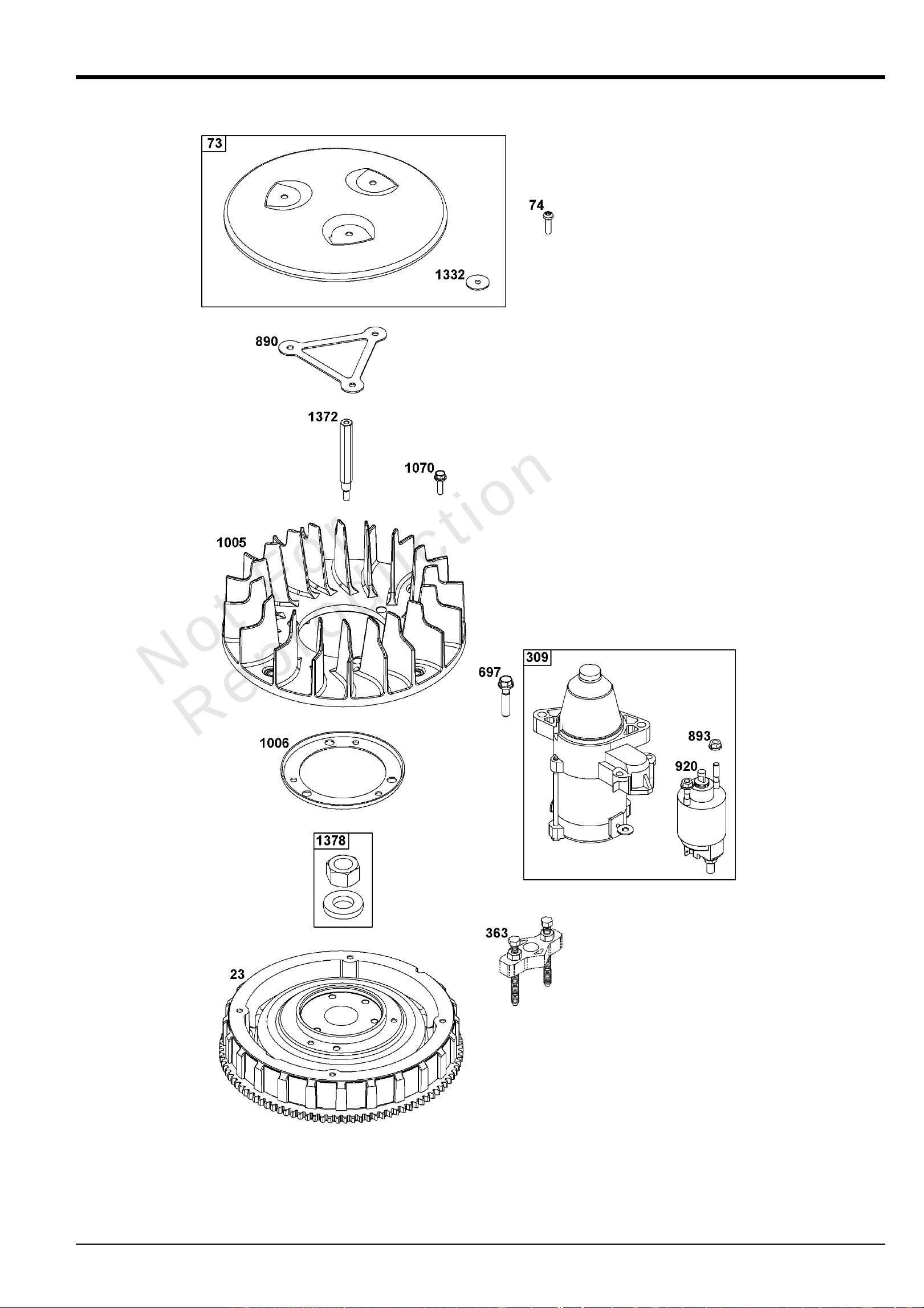

Flywheel, Ignition, and Starter Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Oil Guard Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Replacement Engine US & Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

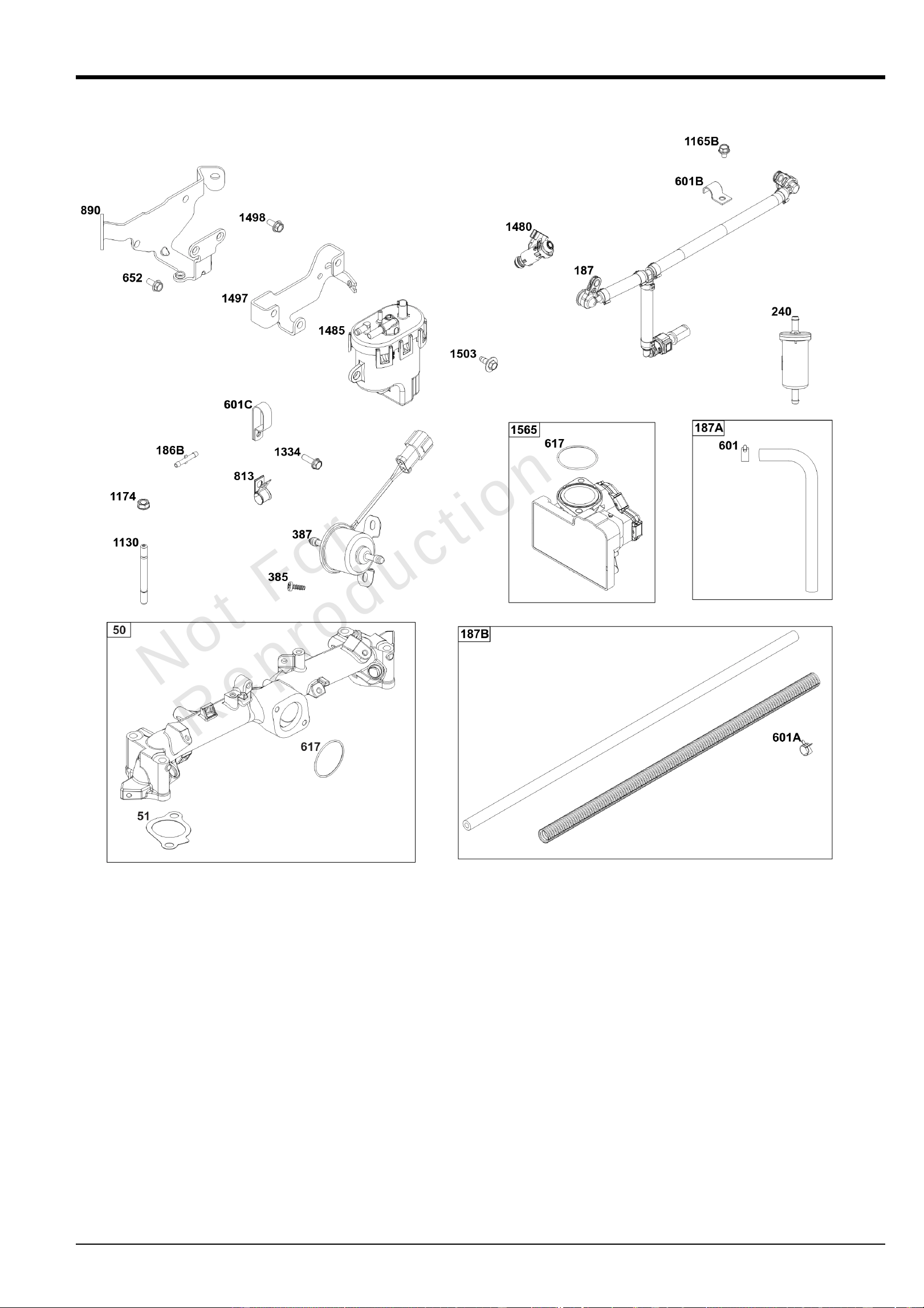

Throttle Body and Fuel Supply Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Model 54-61 Engine Accessories Catalog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

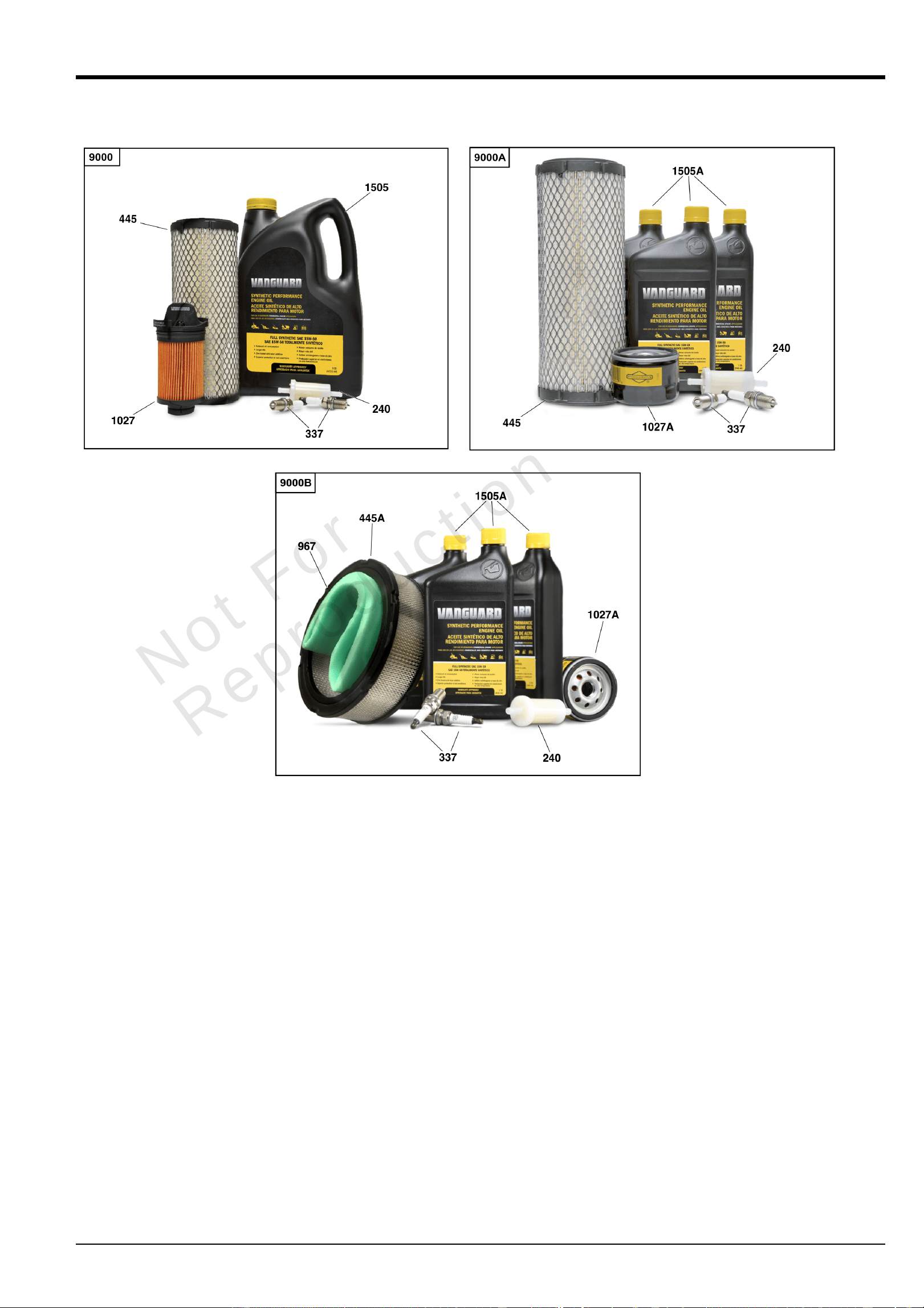

Maintenance Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

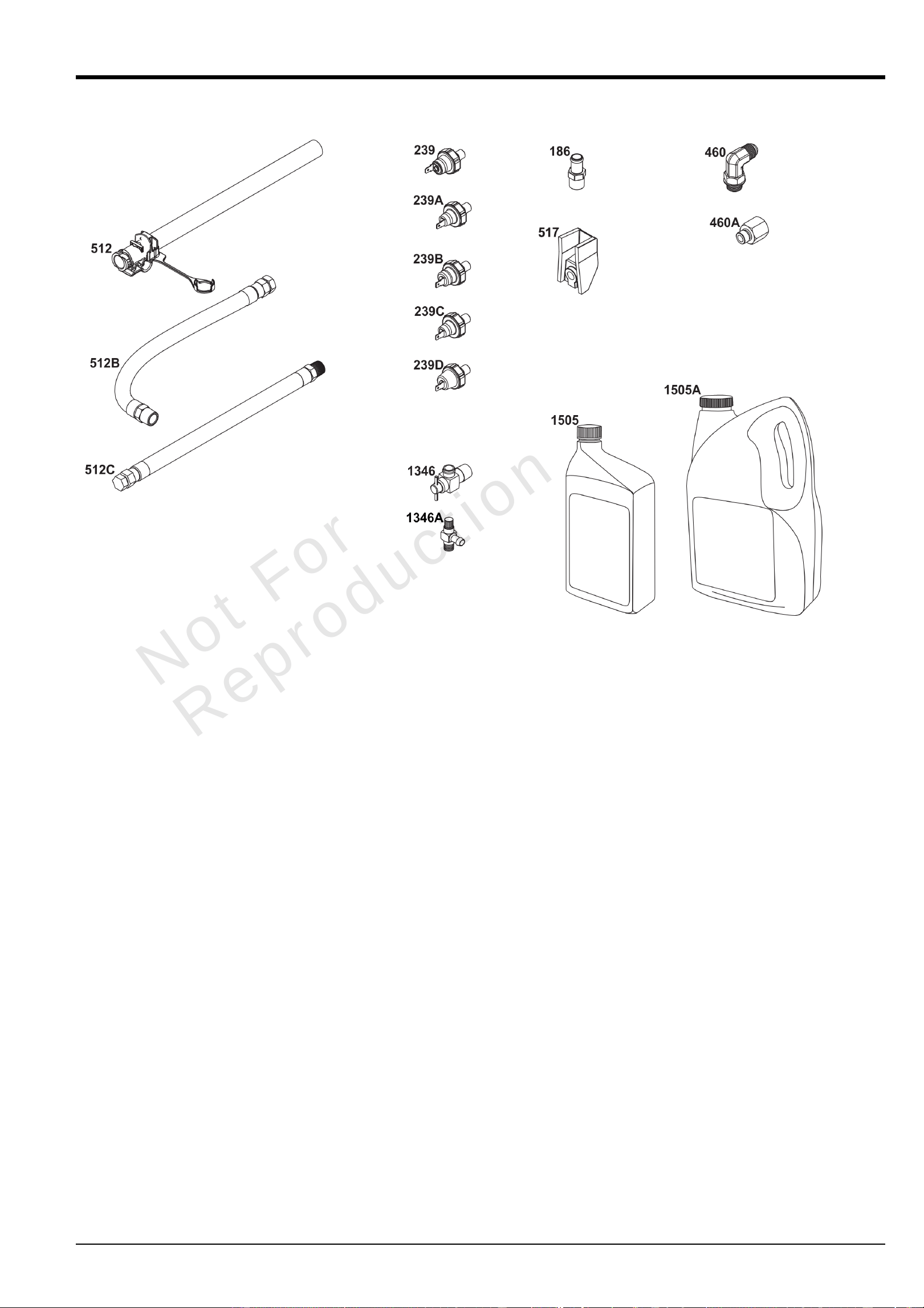

Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

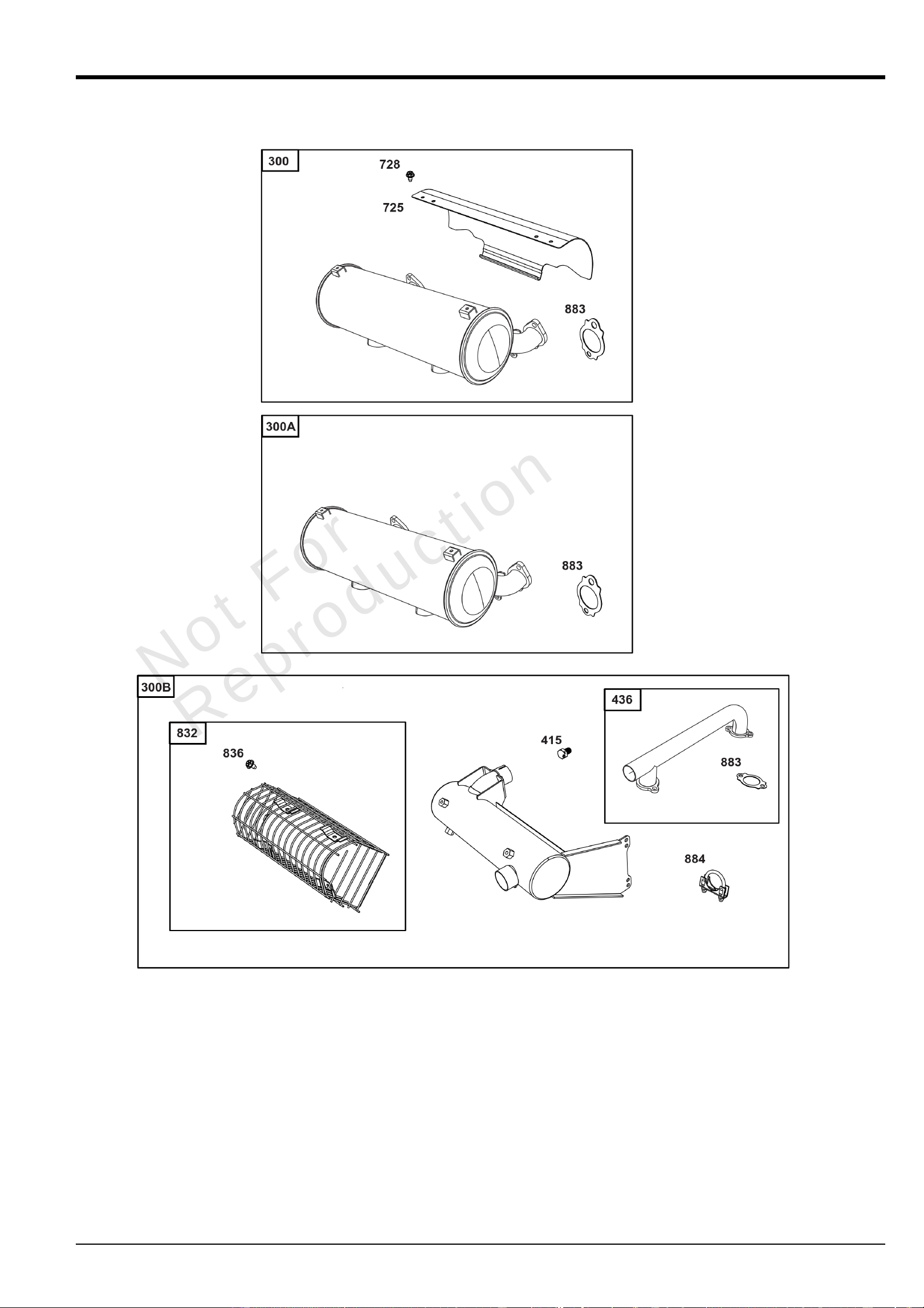

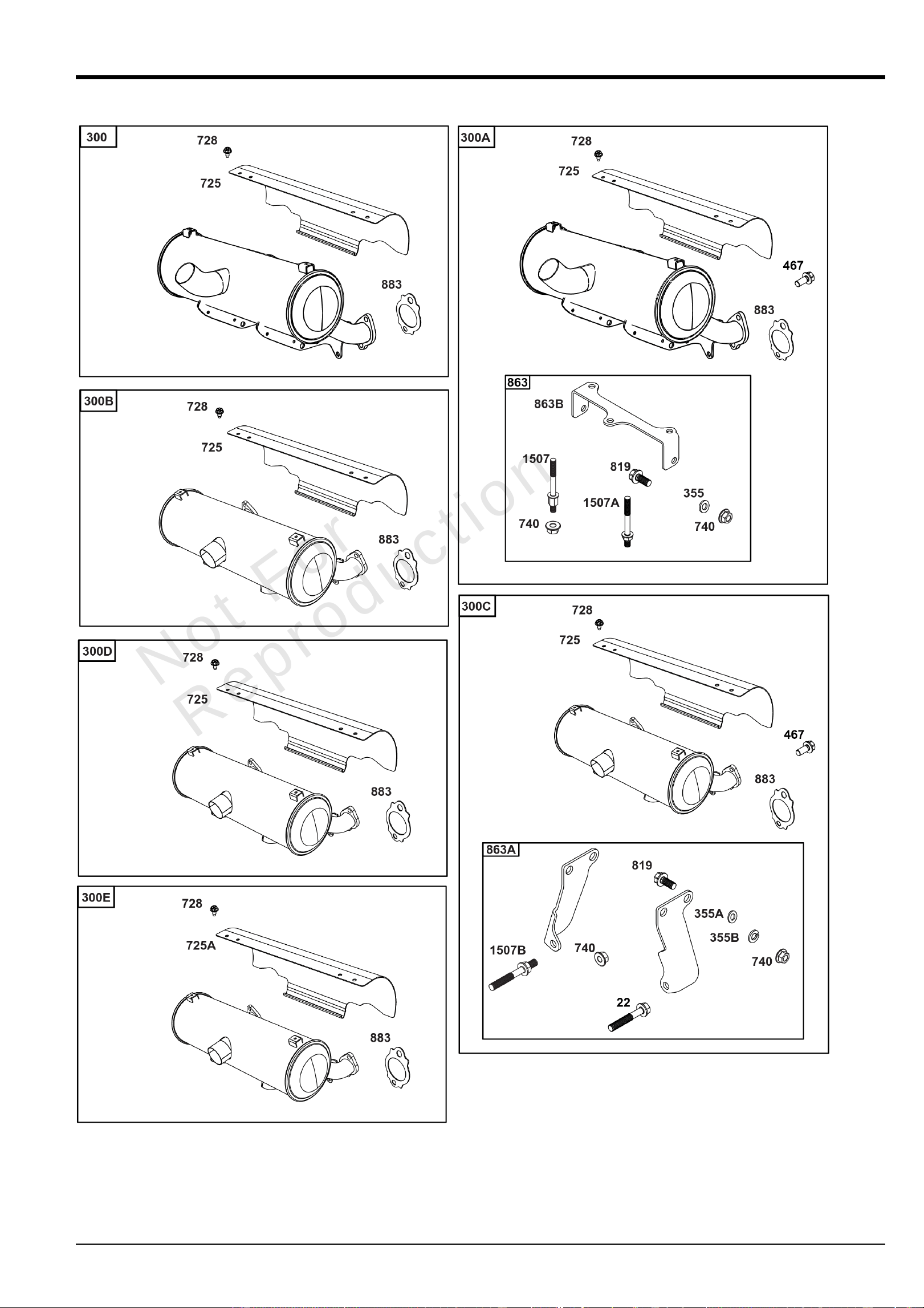

Oil Filter Side Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Center Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Starter Side Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

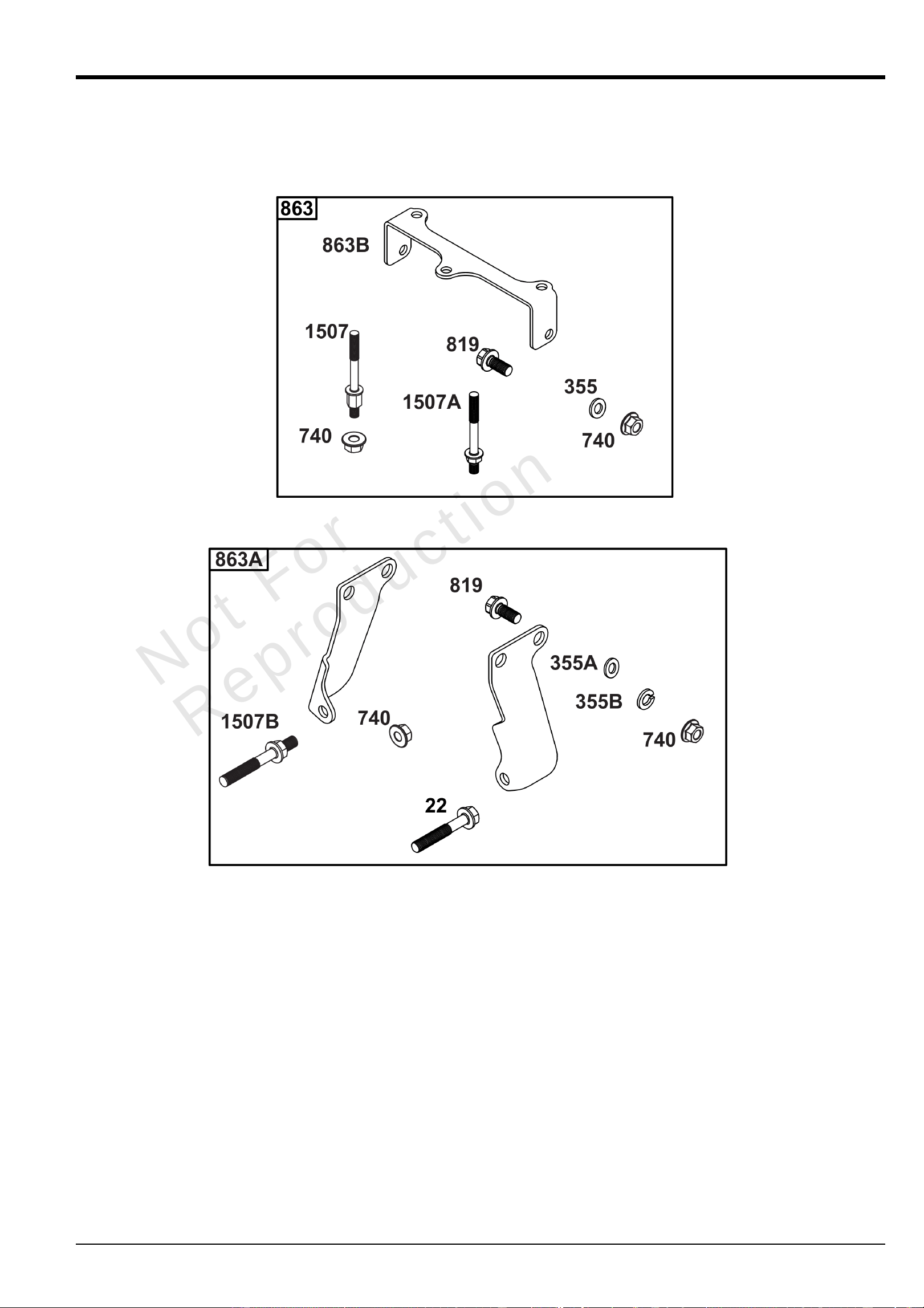

Muffler Bracket Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

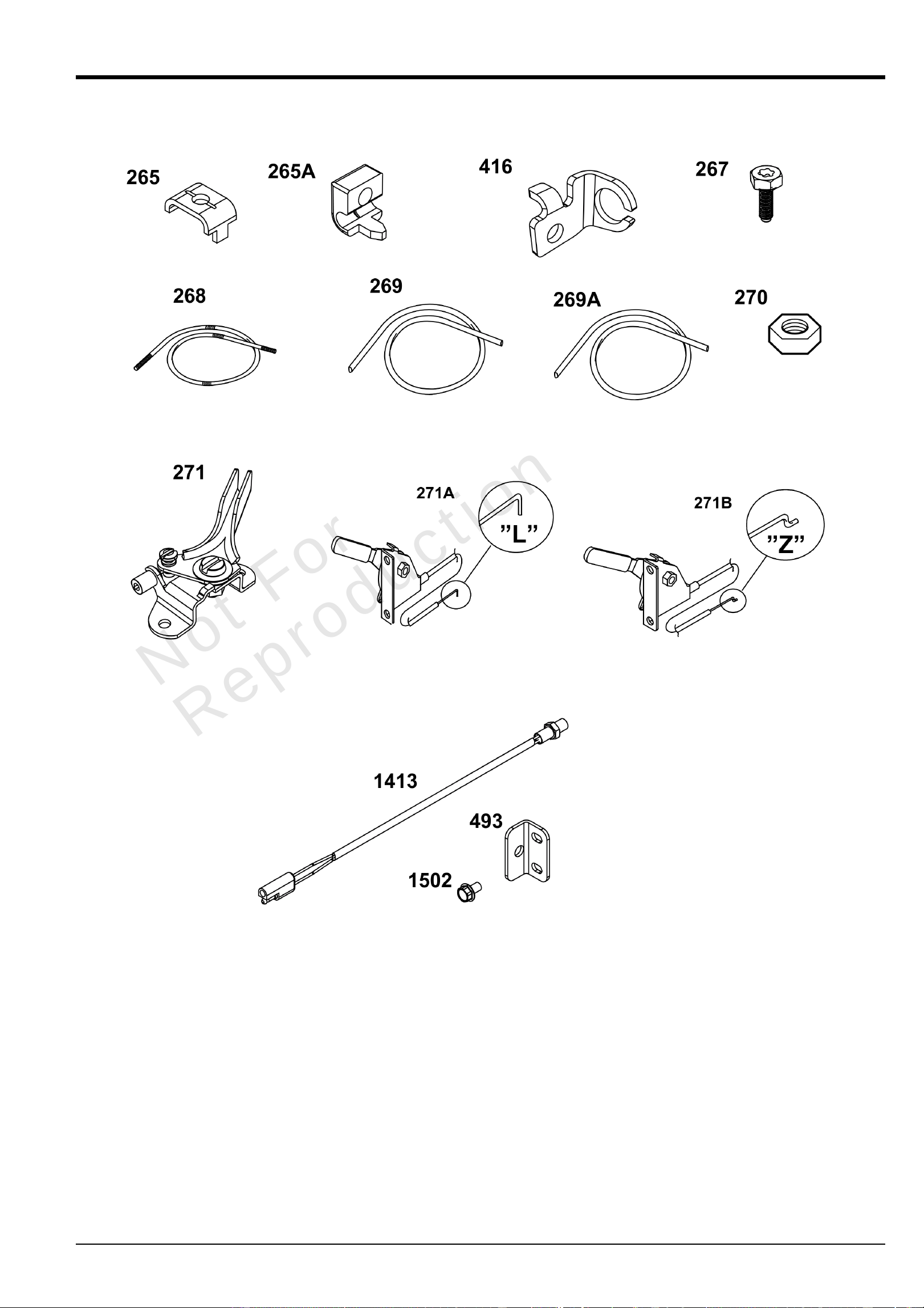

Speed Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

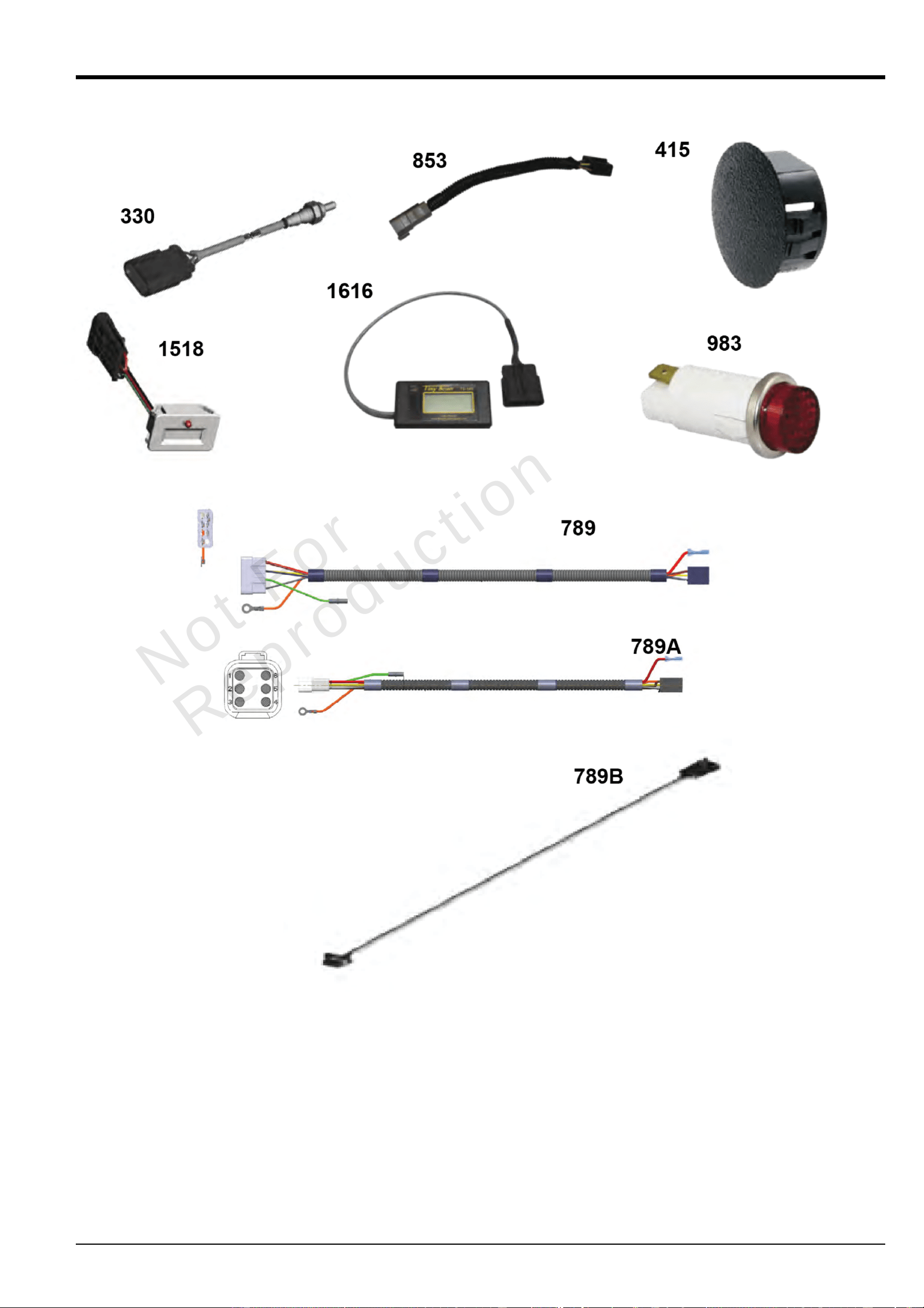

Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Stub Shafts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Spark Arrester/Deflector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Air Intake. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Guarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

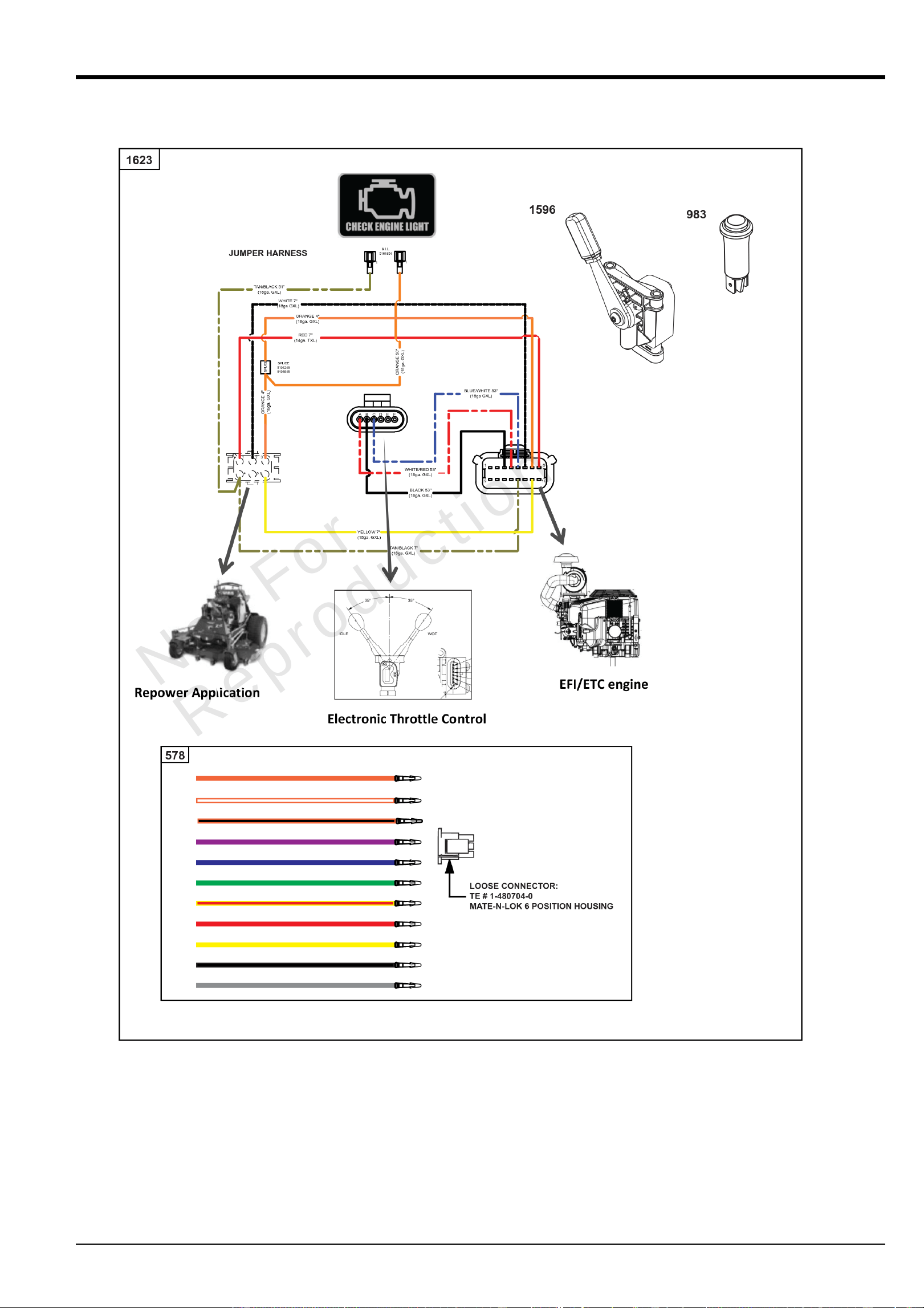

Electronic Throttle Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 05-Sep-2025
Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 05-Sep-2025

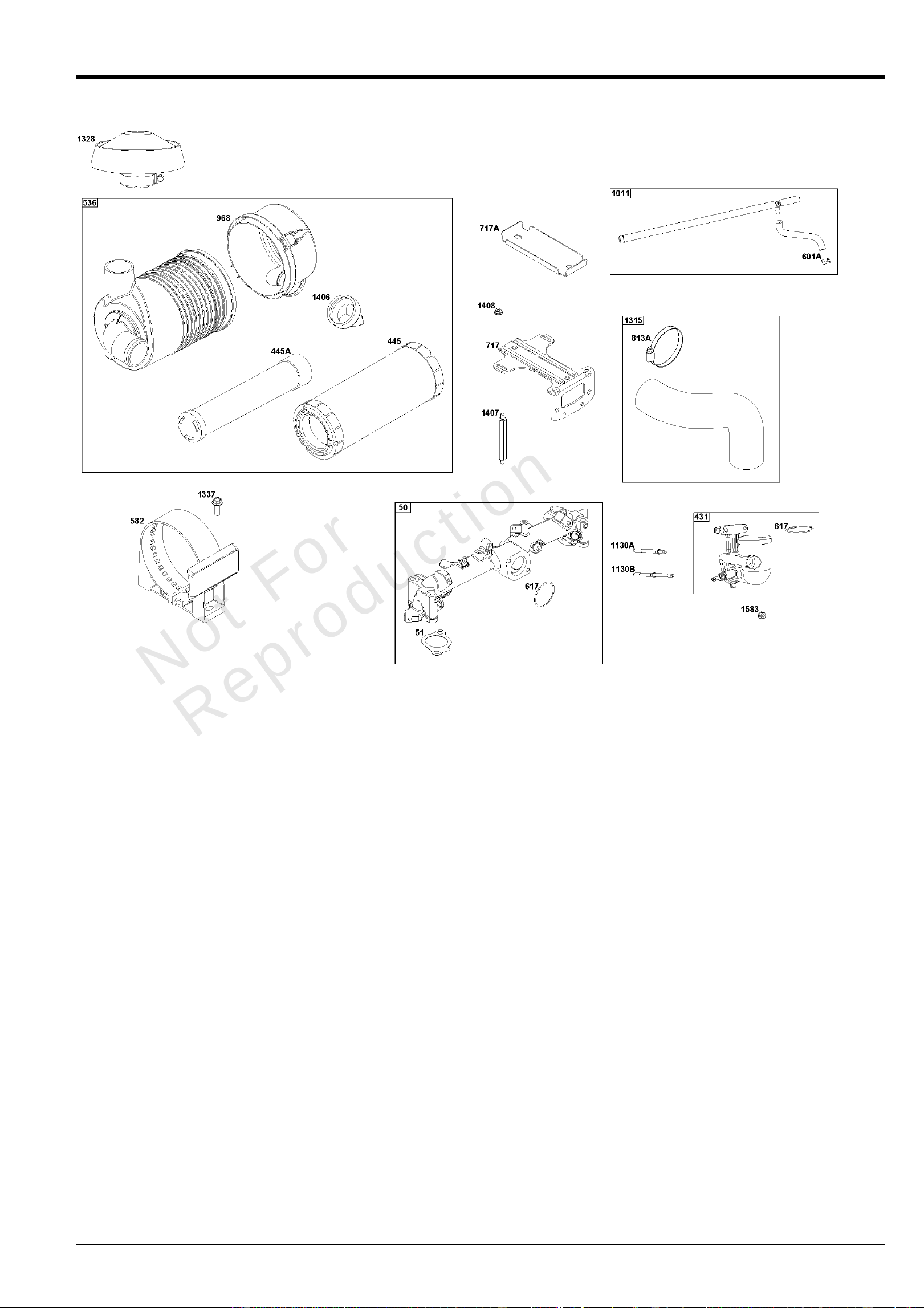

Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
50 ----- 1 MANIFOLD, Intake
-(Part information located in Cylinder Head Group.)
51 ----- 2 GASKET, Intake
-(Part information located in Cylinder Head Group.)
431 84004258 1 ELBOW, Intake
445 841497 1 FILTER, A/C Cartridge
445A 821136 1 FILTER, A/C Cartridge
536 809670 1 CLEANER, Air
582 809878 1 CLAMP, Air Cleaner
601A 846483 1 CLAMP, Hose
617 ----- 2 SEAL, O-Ring
-(Part information located in Cylinder Head Group.)
717 84004231 1 BRACKET, Air Cleaner
717A 841886 1 BRACKET, Air Cleaner
813A 593625 2 CLAMP
968 842621 1 COVER, Air Cleaner
1011 846830 1 TUBE, Vent
1130A 84004225 1 STUD
-(Intake Manifold)
1130B 84004223 1 STUD
-(Intake Manifold)
1315 84004254 1 HOSE, Air Cleaner
1328 809907 1 CAP, A/C Rain
1337 807382 2 SCREW
-(Air Cleaner Clamp)
1406 842623 1 VALVE, Debris
1407 846831 2 STUD
-(Air Cleaner Bracket)
1408 690939 2 NUT
-(Air Cleaner Bracket)
1583 84004437 2 NUT
-(Intake Elbow)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 05-Sep-2025
Alternator GroupAlternator GroupAlternator GroupAlternator Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 05-Sep-2025

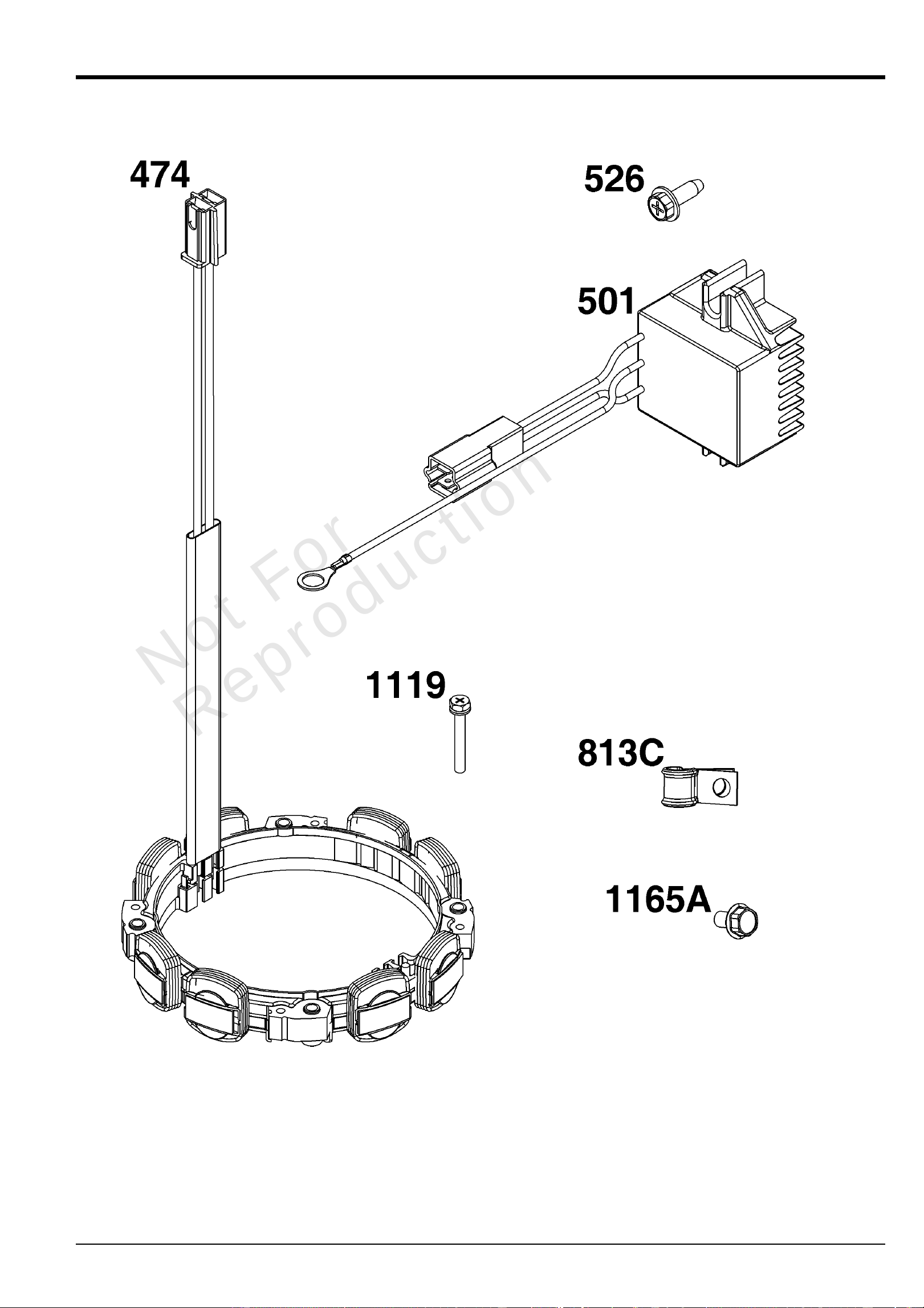

Alternator GroupAlternator GroupAlternator GroupAlternator Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
474 846882 1 ALTERNATOR
501 847385 1 REGULATOR
526 690717 2 SCREW
-(Regulator)
813C 846866 1 CLAMP, Cable
1119 691552 4 SCREW
-(Alternator)
1165A 841233 1 SCREW
-(Clamp)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 05-Sep-2025
Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 05-Sep-2025

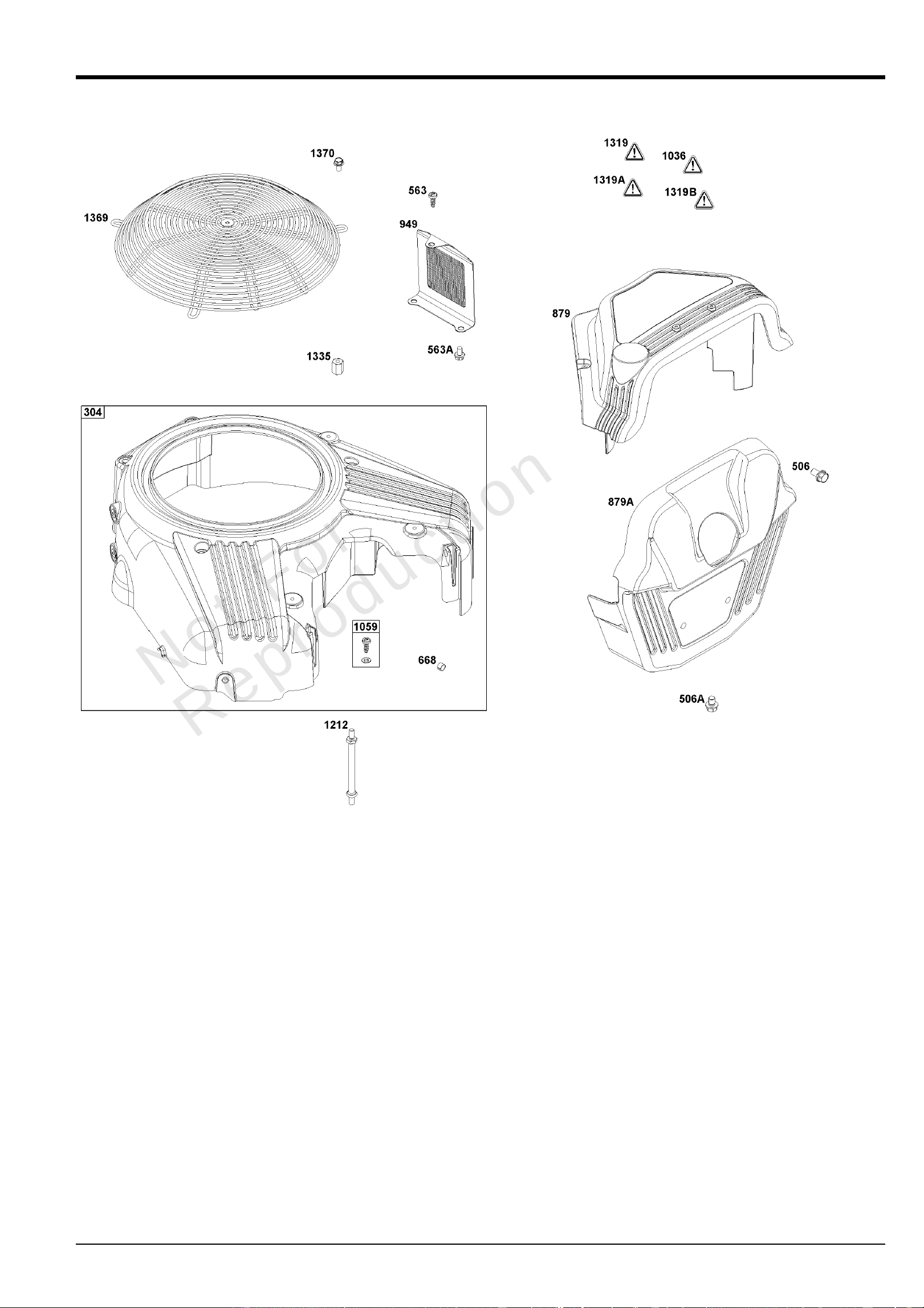

Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
304 846964 1 HOUSING, Blower
506 692056 2 SCREW
-(Carburetor/EFI Cover)
506A 845964 2 SCREW
-(Carburetor/EFI Cover)
563 846250 1 SCREW
-(Debris Screen Guard)
563A 841233 2 SCREW
-(Debris Screen Guard)
668 841974 6 SPACER
879 846883 1 COVER, Carburetor/EFI
879A 84004259 1 COVER, Carburetor/EFI
949 847397 1 GUARD, Debris Screen
1036 ----- 1 LABEL, Emissions
-(Available from a Briggs & Stratton Authorized Dealer)
1059 845300 2 KIT, Screw/Washer
1212 809958 4 STUD
-(Blower Housing)
1319 794467 1 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1319A 797669 1 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1319B 278911GS 1 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1335 841537 4 NUT
-(Blower Housing)
1369 842858 1 GUARD, Flywheel Fan
1370 841233 4 SCREW
-(Flywheel Fan Guard)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 05-Sep-2025
Controls GroupControls GroupControls GroupControls Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 05-Sep-2025

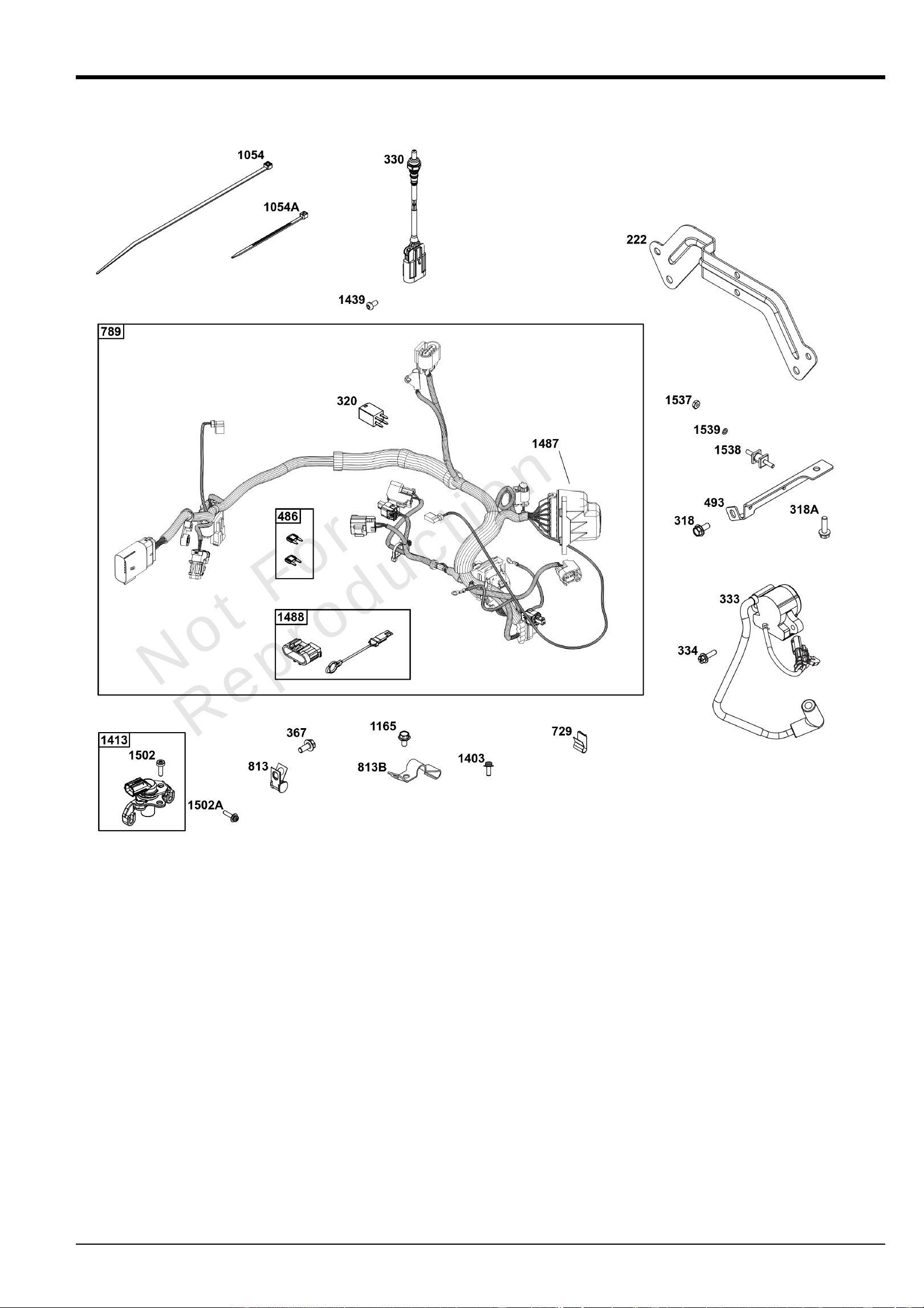

Controls GroupControls GroupControls GroupControls Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
222 84007086 1 BRACKET, Control
318 807084 1 SCREW
-(Mounting Bracket)
318A 807435 1 SCREW
-(Mounting Bracket)
320 593902 1 RELAY(S)
330 593870 1 SENSOR, Oxygen
333 84004206 2 ARMATURE, Magneto
334 841552 4 SCREW
-(Magneto Armature)
367 807084 1 SCREW
-(Wire Clip)
486 593901 1 FUSE
493 84004219 1 BRACKET, Mounting
729 846826 1 CLIP, Wire
-(Oxygen Sensor)
789 84004216 1 HARNESS, Wiring
813 807116 3 CLAMP, Tube
813B 84004221 1 CLAMP
1054 280275 1 TIE, Cable
1054A 84004732 1 TIE, Cable
1165 841233 1 SCREW
-(Clamp)
1403 690677 2 SCREW
-(Wire Assembly)
1413 846457 1 SENSOR, Speed
1439 846459 1 SCREW
-(Thermistor Wire Assembly)
1487 847334 1 COVER, Fuse
1488 593899 1 COVER, Diagnostic
1502 592577 1 SCREW
-(Speed Sensor)
1502A 846868 2 SCREW
-(Speed Sensor)
1537 703460 4 NUT, Hex #8-32
-(Fuse Cover)
1538 847332 2 STUD
-(Fuse Cover)
1539 847333 4 WASHER
-(Fuse Cover)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 05-Sep-2025
Crankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 05-Sep-2025

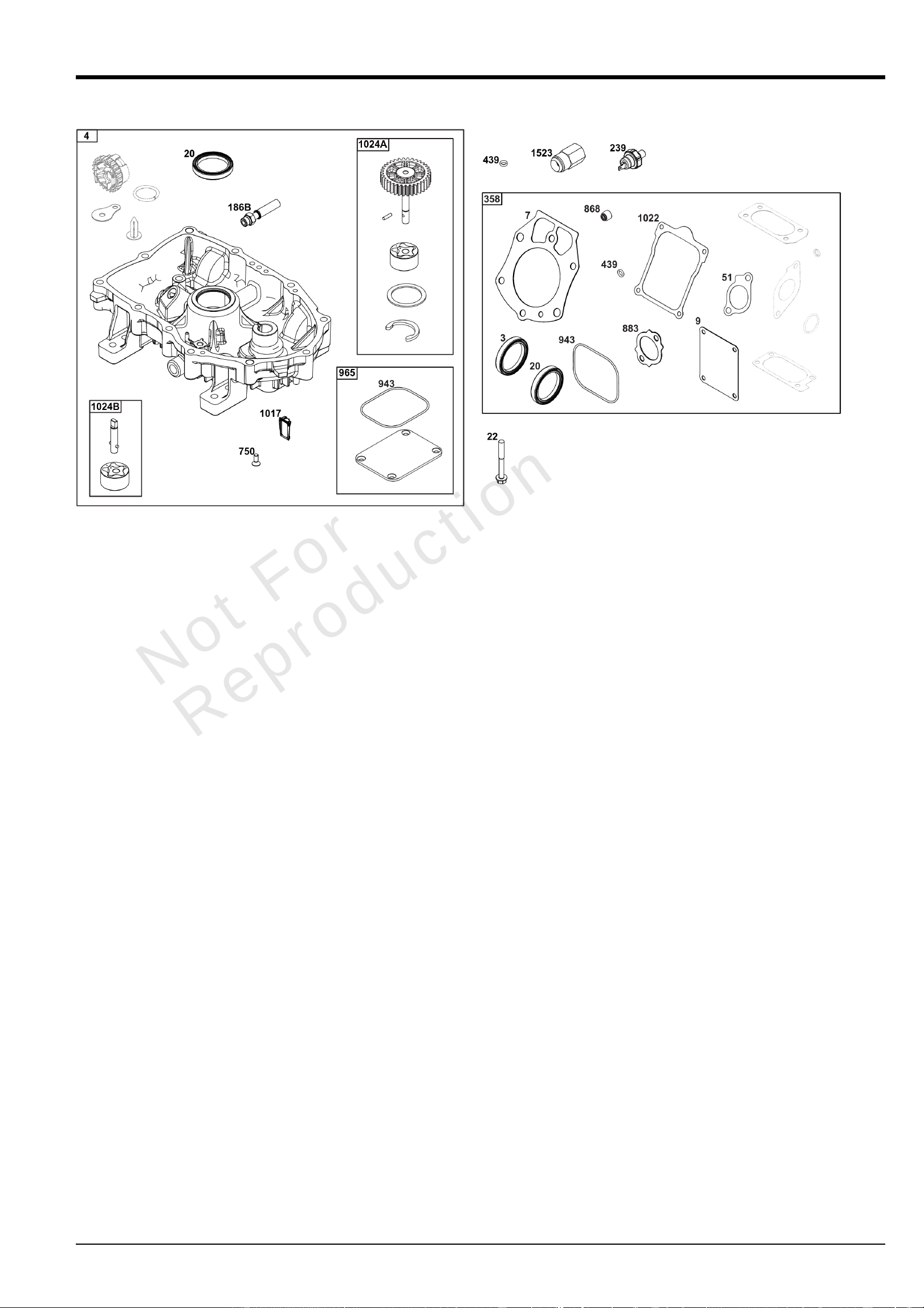

Crankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
4 848355 1 SUMP, Engine
7 ----- 2 GASKET, Cylinder Head
-(Part information located in Cylinder Head Group.)
9 ----- 1 GASKET, Breather
-(Part information located in Cylinder Head Group.)
20 841596 1 SEAL, Oil
-(PTO Side)
22 690676 11 SCREW
-(Crankcase Cover/Sump)
51 ----- 2 GASKET, Intake
-(Part information located in Cylinder Head Group.)
186B ----- 1 CONNECTOR, Hose
-(Part information located in Oil Guard Group.)
239 841281 1 SWITCH, Oil Pressure
358 ----- 1 GASKET SET, Engine
-(Part information located in Cylinder Head Group.)
439 692154 2 O-RING, Oil Gallery
-(Crankcase Cover/Sump or Cylinder Assembly)
750 842537 8 SCREW
-(Oil Pump Cover)
868 ----- 4 SEAL, Valve
-(Part information located in Cylinder Head Group.)
883 ----- 2 GASKET, Exhaust
-(Part information located in Cylinder Head Group.)
943 842538 2 SEAL, O-Ring
-(Oil Pump Cover)
965 842536 2 COVER, Oil Pump
1017 796214 2 SCREEN, Oil Pump
1022 ----- 2 GASKET, Rocker Cover
-(Part information located in Cylinder Head Group.)
1024A 847388 1 PUMP, Oil
1024B 847355 1 PUMP, Oil
1523 847341 1 VALVE, Check
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 05-Sep-2025
Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 05-Sep-2025

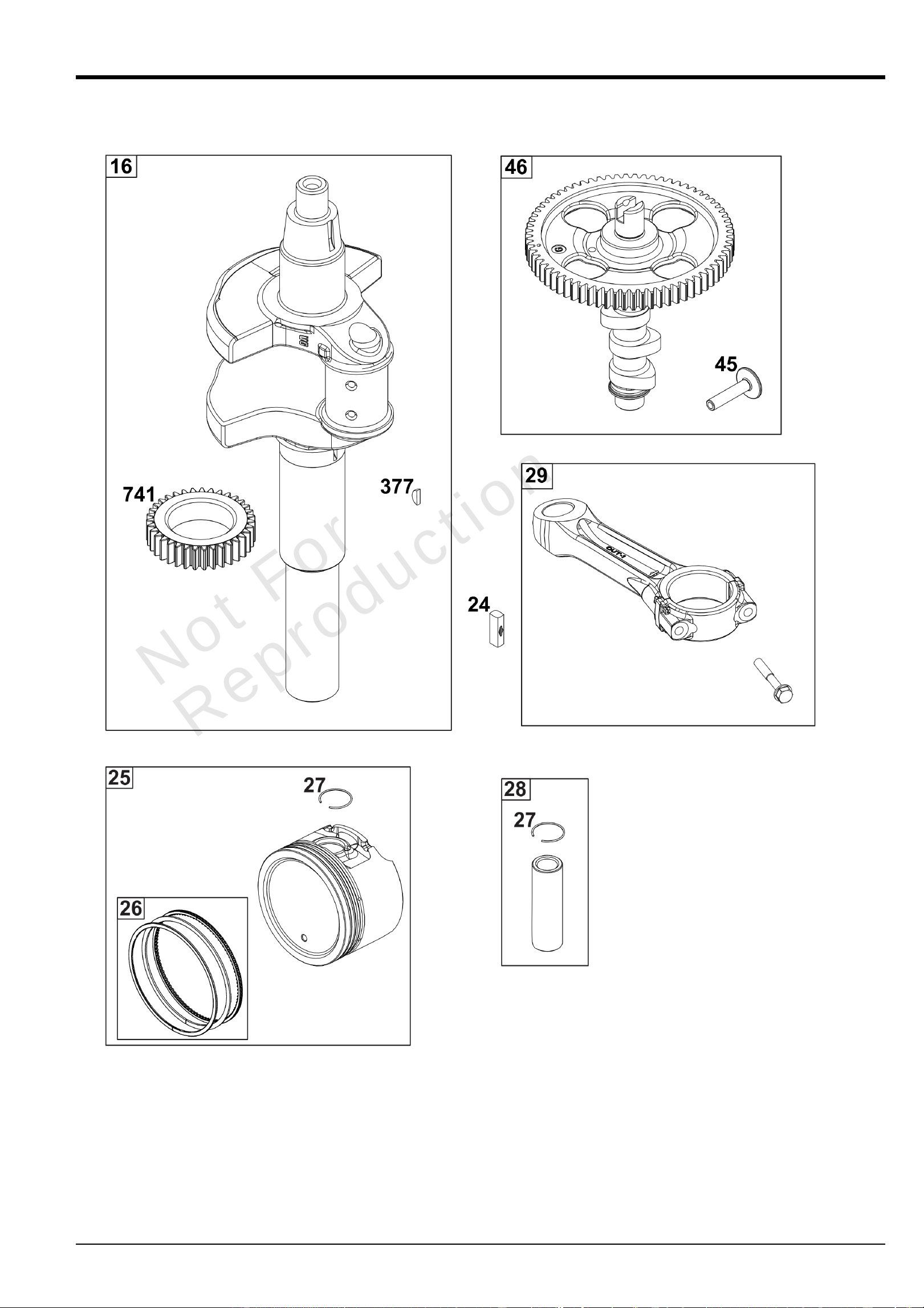

Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
16 848314 1 CRANKSHAFT
24 796335 1 KEY, Flywheel
25 848277 2 PISTON ASSEMBLY
-(Standard)
25 848278 2 PISTON ASSEMBLY
-(.020" Oversize)
26 809972 2 SET, Ring
-(Standard)
27 807351 4 LOCK, Piston Pin
28 807361 2 PIN, Piston
29 848061 2 ROD, Connecting
45 ----- 4 TAPPET, Valve
-(Part information located in Cylinder Head Group.)
46 847411 1 CAMSHAFT
377 691639 1 KEY, Woodruff
741 809432 1 GEAR, Timing
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 05-Sep-2025
Cylinder GroupCylinder GroupCylinder GroupCylinder Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 05-Sep-2025

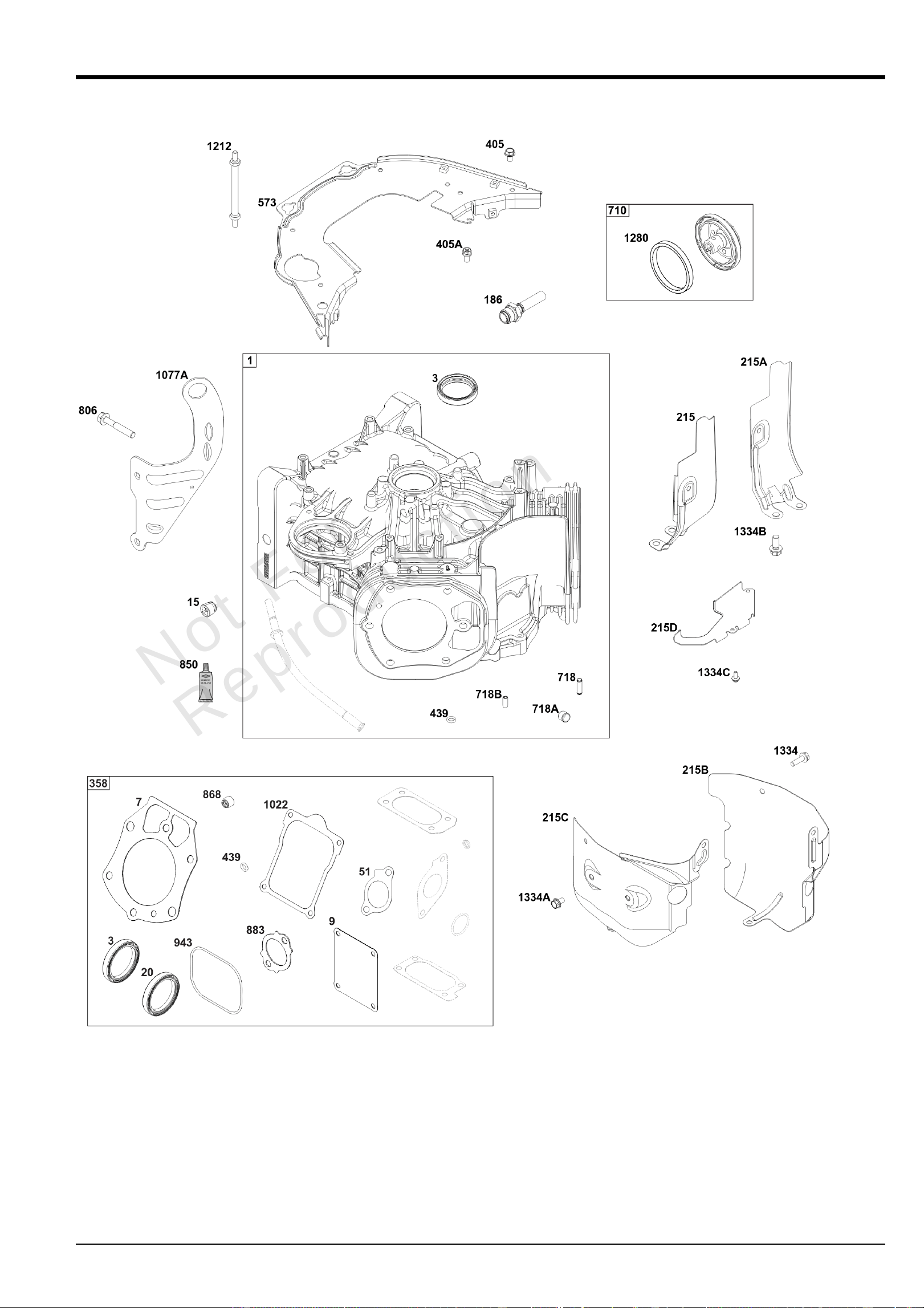

Cylinder GroupCylinder GroupCylinder GroupCylinder Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1 848371 1 CYLINDER ASSEMBLY
3 841596 1 SEAL, Oil
-(Magneto Side)
7 ----- 2 GASKET, Cylinder Head
-(Part information located in Cylinder Head Group.)
9 ----- 1 GASKET, Breather
-(Part information located in Cylinder Head Group.)
15 691680 1 PLUG, Oil Drain
20 ----- 1 SEAL, Oil
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
51 ----- 2 GASKET, Intake
-(Part information located in Cylinder Head Group.)
186A 847343 1 CONNECTOR, Hose
215 846455 1 GUIDE, Air
215A 846460 1 GUIDE, Air
215B 809897 1 GUIDE, Air
215C 809738 1 GUIDE, Air
215D 846458 1 GUIDE, Air
358 ----- 1 GASKET SET, Engine
-(Part information located in Cylinder Head Group.)
405 841233 5 SCREW
-(Back Plate)
405A 841735 1 SCREW
-(Back Plate)
439 ----- 2 O-RING, Oil Gallery
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
573 846840 1 PLATE, Back
710 847356 1 COVER, Oil Filter
718 690959 2 PIN, Locating
718A 809508 4 PIN, Locating
718B 845925 1 PIN, Locating
806 807362 2 SCREW
-(Lifting Bracket)
850 100106 SEALANT, Liquid
868 ----- 4 SEAL, Valve
-(Part information located in Cylinder Head Group.)
883 ----- 2 GASKET, Exhaust
-(Part information located in Cylinder Head Group.)
943 ----- 2 SEAL, O-Ring
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
1022 ----- 2 GASKET, Rocker Cover
-(Part information located in Cylinder Head Group.)
1077A 847280 1 BRACKET, Lifting
1212 ----- 4 STUD
-(Part information located in Blower Housing Group.)
1280 84006579 1 SEAL, Ring
1334 807435 2 SCREW
-(Air Guide)
1334A 841233 4 SCREW
-(Air Guide)
1334B 692062 4 SCREW
-(Air Guide)
1334C 690677 2 SCREW
-(Air Guide)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 05-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 05-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
5A 848343 1 HEAD, Cylinder
5 848342 1 HEAD, Cylinder
7 809730 2 GASKET, Cylinder Head
9 842545 1 GASKET, Breather
11 842541 1 TUBE, Breather
13 809784 12 SCREW
-(Cylinder Head)
20 ----- 1 SEAL, Oil
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
33 843729 2 VALVE, Exhaust
34 846469 2 VALVE, Intake
35 845589 2 SPRING, Valve
-(Intake)
36 845589 2 SPRING, Valve
-(Exhaust)
40 844788 4 RETAINER, Valve
45 809785 4 TAPPET, Valve
50 84004426 1 MANIFOLD, Intake
51 847671 2 GASKET, Intake
192 84005276 4 ADJUSTER. Rocker Arm
337 792015 2 PLUG, Spark
358 846498 1 GASKET SET, Engine
-(Service Kits may include extra parts not specific to this engine.)
383 19576S 1 WRENCH, Spark Plug
437 692062 2 SCREW
-(Exhaust Manifold)
437A 846149 4 SCREW
-(Exhaust Manifold)
439 ----- 2 O-RING, Oil Gallery
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
617 84003965 2 SEAL, O-Ring
-(Intake Manifold)
798 691492 4 SCREW
-(Rocker Arm)
806 ----- 2 SCREW
-(Part information located in Cylinder Group.)
868 691963 4 SEAL, Valve
871 692057 4 BUSHING, Valve Guide
883 809872 2 GASKET, Exhaust
914 807357 8 SCREW
-(Rocker Cover)
943 ----- 2 SEAL, O-Ring
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
1022 809732 2 GASKET, Rocker Cover
1023 842543 1 COVER, Rocker
1023A 847384 1 COVER, Rocker
1026 809783 4 ROD, Push
1029 690972 4 ARM, Rocker
1029A 807323 4 ARM, Rocker
1077 809729 1 BRACKET, Lifting
1077A ----- 1 BRACKET, Lifting
-(Part information located in Cylinder Group.)
1095 846672 1 GASKET SET, Valve
-(Service Kits may include extra parts not specific to this engine.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 05-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 05-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1100 791959 4 PIVOT, Rocker Arm
1130 841590 4 STUD
-(Intake Manifold)
1174 842067 4 NUT
-(Intake Manifold)
1280 ----- 1 SEAL, O-Ring
-(Part information located in Cylinder Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 05-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 05-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
23 846836 1 FLYWHEEL
73 841840 1 SCREEN, Rotating
74 809947 3 SCREW
-(Rotating Screen)
309 845761 1 MOTOR, Starter
363 19203 1 PULLER, Flywheel
697 690711 2 SCREW
-(Starter Motor) (Drive Cap)
890 809987 1 BRACKET, Support
893 845758 2 NUT
-(Starter Solenoid)
920 847694 1 SOLENOID, Starter
1005 846996 1 FAN, Flywheel
1006 847198 1 RETAINER, Fan
1070 807435 4 SCREW
-(Flywheel Fan)
1332 809948 3 WASHER
-(Rotating Screen)
1372 809946 3 STUD
-(Rotating Screen)
1378 844795 1 SET, Washer/Nut
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
23 05-Sep-2025

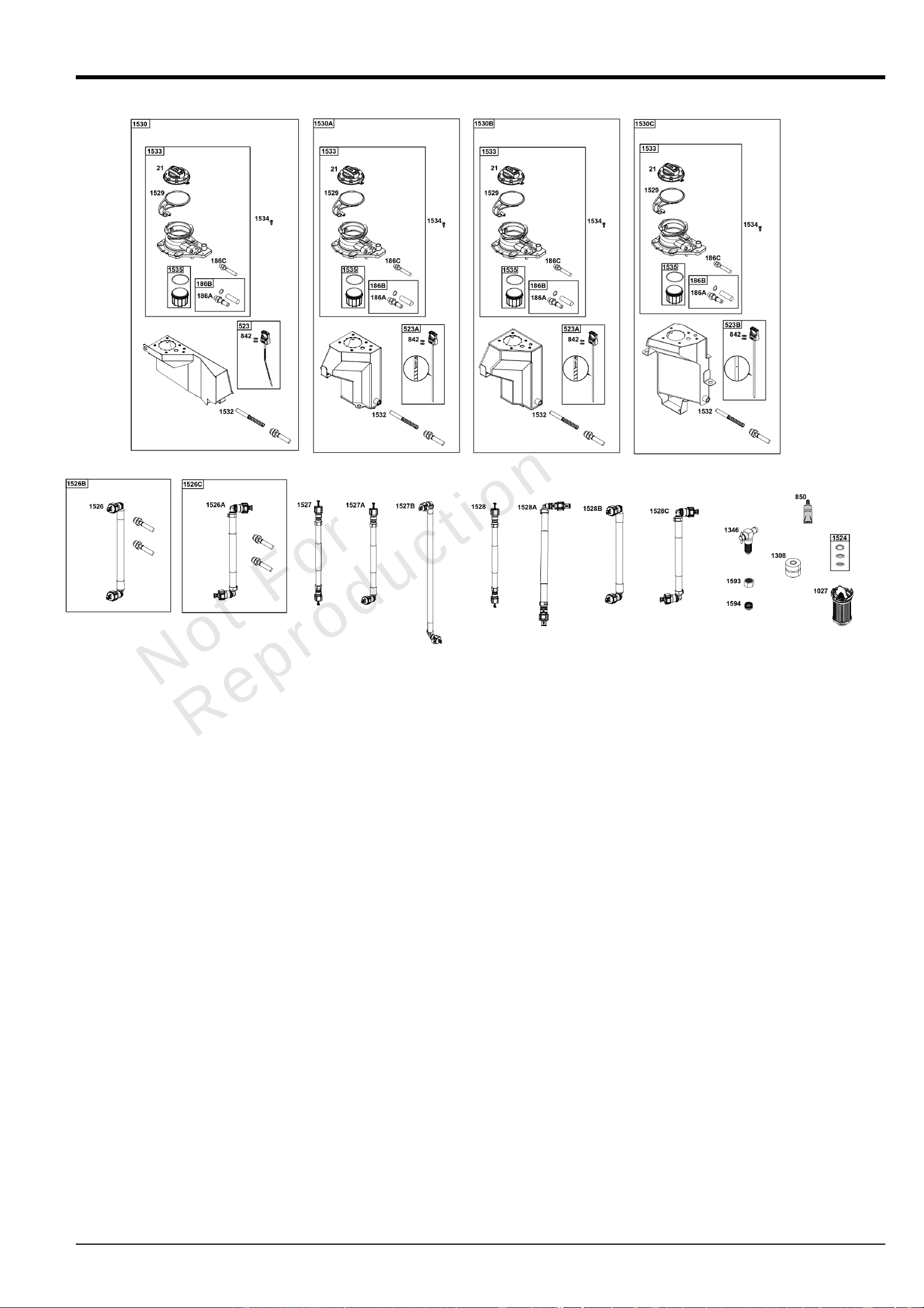

Oil Guard GroupOil Guard GroupOil Guard GroupOil Guard Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 05-Sep-2025
Oil Guard GroupOil Guard GroupOil Guard GroupOil Guard Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
21 595931 1 CAP, Oil Fill
186A 847667 1 CONNECTOR, Hose
-(Scavenge)
186B 847344 1 CONNECTOR, Hose
-(Scavenge)
186C 847353 1 CONNECTOR, Hose
-(Vent)
523 595602 1 DIPSTICK
523A 595603 1 DIPSTICK
-(Long)
523B 84006989 1 DIPSTICK
-(Long)
842 595935 2 SEAL, O-Ring
-(Dipstick Cap)
850 100106 SEALANT, Liquid
1027 84007094 1 FILTER, Oil
1308 597784 1 ISOLATOR
1346 ----- 1 VALVE, Oil Drain Shut Off
-(See Product Parts Manual for servicing.)
1524 847342 1 KIT, O-Ring
1526 84006651 1 HOSE, Oil Supply
-(11.89 Inch) (302mm)
1526A 84006649 1 HOSE, Oil Supply
-(13.31 Inch) (338mm)
1526A 84006648 1 HOSE, Oil Supply
-(15.04 Inch) (382mm)
1526A 84006653 1 HOSE, Oil Supply
-(19.02 Inch ) (483mm)
1526B 84006652 1 HOSE, OIL SUPPLY
-(11.89 Inch) (302mm)
1526C 84006650 1 HOSE, OIL SUPPLY
-(13.31 Inch) (338mm)
1526C 84006594 1 HOSE, OIL SUPPLY
-(15.04 Inch) (382mm)
1526C 84006654 1 HOSE, OIL SUPPLY
-(19.02 Inch ) (483mm)
1527 84006660 1 HOSE, Oil Scavenge
-(32.28 Inch) (820mm)
1527A 84006661 1 HOSE, Oil Scavenge
-(21.42 Inch) (544mm)
1527A 84006597 1 HOSE, Oil Scavenge
-(25.31 Inch) (643mm)
1527B 84006658 1 HOSE, Oil Scavenge
-(19.65 Inch) (499mm)
1527B 84006659 1 HOSE, Oil Scavenge
-(21.61 Inch) (549mm)
1528 595942 1 HOSE, Oil Vent
-(26.42 Inch) (671mm)
1528A 847351 1 HOSE, Oil Vent
-(18.27 Inch) (464mm)
1528A 595943 1 HOSE, Oil Vent
-(35.51 Inch) (902mm)
1528B 84006529 1 HOSE, Oil Vent
-(27.59 Inch) (700.8mm)
1528C 84007351 1 HOSE, Oil Vent
-(34.58 Inch) (878.4mm)
1529 595932 1 TETHER
1530 595944 1 TANK, Oil
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 05-Sep-2025
Oil Guard GroupOil Guard GroupOil Guard GroupOil Guard Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
26 05-Sep-2025
Oil Guard GroupOil Guard GroupOil Guard GroupOil Guard Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1530A 595945 1 TANK, Oil
1530B 597788 1 TANK, OIL
-(Small Mounting Bracket On Bottom Of Tank)
1530C 84006532 1 TANK, Oil
1532 847398 1 SCREEN, Oil
1533 595986 1 HOUSING, Oil Filter
1534 593637 5 SCREW
-(Oil Filter Housing)
1535 84003825 1 CUP, Oil Filter
1593 ----- 1 NUT
-(Oil Drain Shut Off Valve) (See Product Parts Manual for servicing.)
1594 ----- 1 COVER, Oil Drain
-(See Product Parts Manual for servicing.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
27 05-Sep-2025
Replacement Engine US & CanadaReplacement Engine US & CanadaReplacement Engine US & CanadaReplacement Engine US & Canada
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
61G8770014J1 Replacement Engine
80091826 SHORT BLOCK (MDL 61) ASSY
----- Idle Speed: 1750
----- Top No-Load Speed: 3600
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
28 05-Sep-2025
Throttle Body and Fuel Supply GroupThrottle Body and Fuel Supply GroupThrottle Body and Fuel Supply GroupThrottle Body and Fuel Supply Group
Mfg. No: 61G877-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
29 05-Sep-2025
Throttle Body and Fuel Supply GroupThrottle Body and Fuel Supply GroupThrottle Body and Fuel Supply GroupThrottle Body and Fuel Supply Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
50 ----- 1 MANIFOLD, Intake
-(Part information located in Cylinder Head Group.)
51 ----- 2 GASKET, Intake
-(Part information located in Cylinder Head Group.)
186B 845121 1 CONNECTOR, Hose
187 846500 1 LINE, Fuel
187A 847406 1 LINE, Fuel
187B 846823 1 LINE, Fuel
240 845125 1 FILTER, Fuel
385 846250 2 SCREW
-(Fuel Pump)
387 846824 1 PUMP, Fuel
601 691038 2 CLAMP, Hose
601A 691038 2 CLAMP, Hose
601B 690423 1 CLAMP, Tube
601C 594364 1 CLIP
617 ----- 2 SEAL, O-Ring
-(Part information located in Cylinder Head Group.)
652 807084 4 SCREW
-(Support Bracket)
813 ----- 1 CLAMP
890 846492 1 BRACKET, Support
1130 ----- 4 STUD
-(Part information located in Cylinder Head Group.)
1165B 843345 2 SCREW
-(Clamp)
1174 ----- 4 NUT
-(Part information located in Cylinder Head Group.)
1334 ----- 1 SCREW
-(Part information located in Cylinder Group.)
1480 593852 2 INJECTOR, Fuel
1485 593890 1 MODULE, Fuel
1497 846486 1 BRACKET, Fuel Module
1498 807084 2 SCREW
-(Fuel Module Bracket)
1503 594618 3 SCREW
-(Fuel Module)
1565 84006022 1 CONTROL, Electronic Throttle
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
30 05-Sep-2025
Model 54-61 EngineModel 54-61 EngineModel 54-61 EngineModel 54-61 Engine
Accessories CatalogAccessories CatalogAccessories CatalogAccessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
05-Sep-2025
Maintenance KitsMaintenance KitsMaintenance KitsMaintenance Kits
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
32 05-Sep-2025
Maintenance KitsMaintenance KitsMaintenance KitsMaintenance Kits
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
9000 84002318 KIT, Maintenance
-(Oil Guard™ Engines)
9000A 84002315 KIT, Maintenance
-(Non-Oil Guard™ Engines)
9000B 84004936 KIT, Maintenance
-(Non-Oil Guard™ Engines) (20 - 40 HP)
240 845125 1 FILTER, Fuel
337 491055S 2 PLUG, Spark
445 841497 1 FILTER, A/C Cartridge
-"Professional / PXi" & "Commercial / CXi".
445A 692519 1 FILTER, A/C Cartridge
-"Professional / PXi" & "Commercial / CXi".
967 692520 1 FILTER, Pre Cleaner
1027 595930 1 FILTER, Oil
-(Oil Guard™)
1027A 842921 1 FILTER, Oil
-(Vanguard®)
1505 100170 OIL-5QT VANGUARD (CASE)
-(5 qt Bottle)
1505A 100169 OIL-1QT VANGUARD (CASE)
-(1 qt Bottle)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
33 05-Sep-2025
LubricationLubricationLubricationLubrication
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
34 05-Sep-2025
LubricationLubricationLubricationLubrication
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
186 796532 1 CONNECTOR, Hose
-(Threaded Engine Block Connector for EZ-Oil Drain Hose)(Order hose
separate)
239 690233 1 SWITCH, Oil Pressure
-(2-4 PSI Normally-Closed Switch)
239A 491657S 1 SWITCH, Oil Pressure
-(3-5 PSI Normally-Closed Switch)
239B 841281 1 SWITCH, Oil Pressure
-(7-10 PSI Normally-Closed Switch)
239C 694115 1 SWITCH, Oil Pressure
-(9-13 PSI Normally-Closed Switch)
239D 697049 1 SWITCH, Oil Pressure
-(3-6 PSI Normally-Open Switch)
460 1761386YP 1 CONNECTOR, Filter Adapter
-(Oil Drain Valve) (Fitting M14, 90 Degree 9/16 JIC)
460A 5100366SM 1 METRIC ADAPTER, M14-1
-(Threaded engine block adapter M14 to 3/8 for EZ-Oil Drain connector) (order
796532 separate)
512 594200 1 HOSE, Oil Drain
-(EZ-Oil Drain Hose, 10.5") (Order threaded engine block connector separate)
512 593635 1 HOSE, Oil Drain
-(EZ-Oil Drain Hose, 13.75") (Order threaded engine block connector separate)
512B 1723165SM 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings
-(10.5")
512C 5048681SM 1 HOSE, OIL DRAIN
-(12.5")
517 593633 1 RETAINER, Oil Drain
1346 844802 1 VALVE, Oil Drain Shut Off
1346A 492031 1 VALVE, Oil Drain Shut Off
1505 100169 OIL-1QT VANGUARD (CASE)
-(1 qt. Bottle)
1505A 100170 OIL-5QT VANGUARD (CASE)
-(5 qt. Bottle)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
35 05-Sep-2025

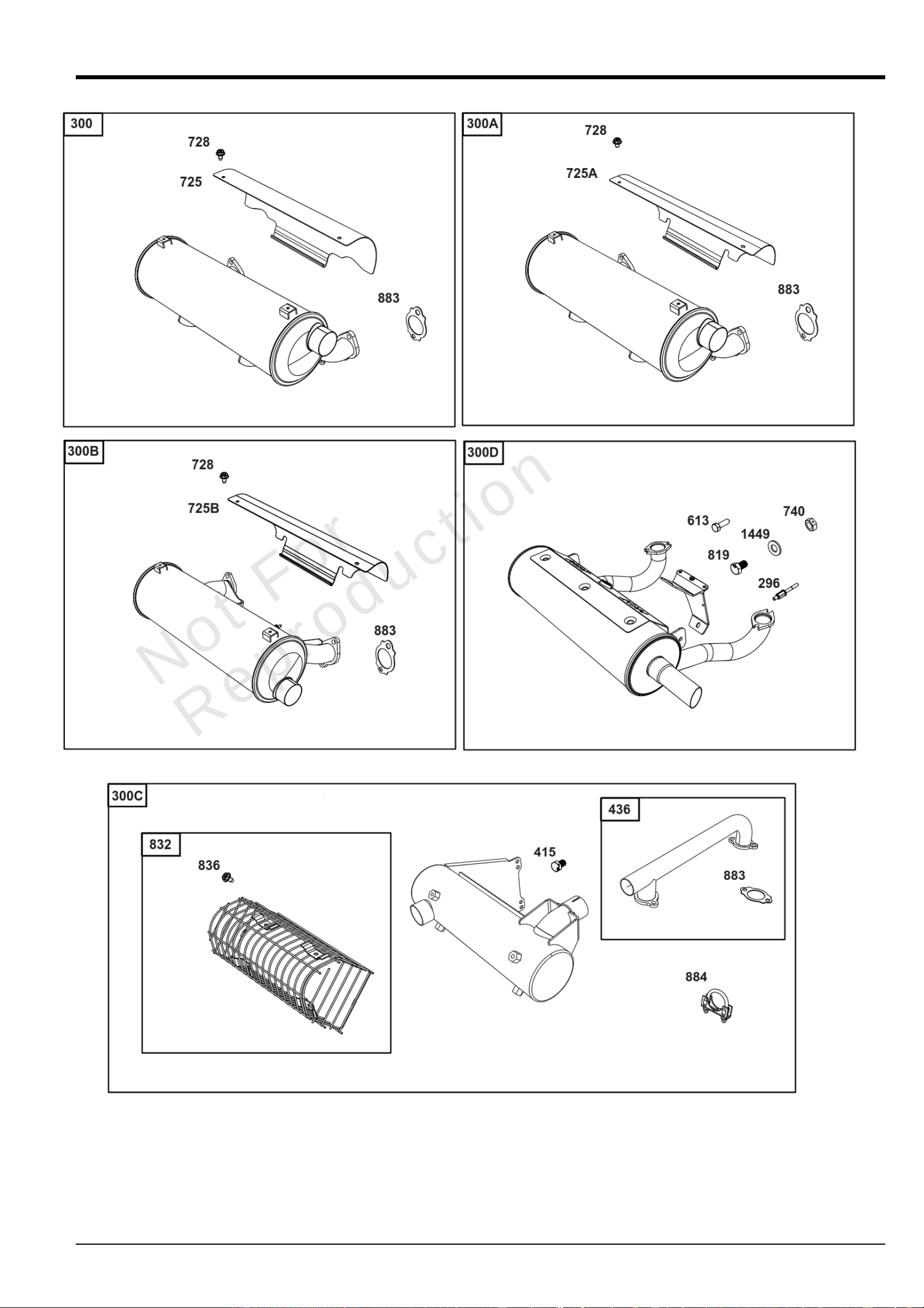

Oil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet Mufflers
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
36 05-Sep-2025
Oil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
296 844813 4 STUD
-(Muffler)
300 846819 1 MUFFLER
-(High Mount) (Oil Filter Side Outlet) (EFI)
300A 846246 1 MUFFLER
-(Mid Mount) (Oil Filter Side Outlet)
300B 847486 1 MUFFLER
-(Mid Mount) (Oil Filter Side Outlet) (EFI)
300C 847278 1 MUFFLER
-(Side Mount) (Oil Filter Side Outlet) (EFI)
300D 84007299 1 MUFFLER
-(Vertical Shaft)(Oil Filter Side Outlet)
415 596859 1 PLUG
436 841681 1 MANIFOLD, Exhaust
613 596859 PLUG
-(Muffler)
725 847229 1 SHIELD, Heat
725A 844338 1 SHIELD, Heat
725B 847487 1 SHIELD, Heat
728 692067 2 SCREW
-(Heat Shield)
740 703164 2 NUT
-Muffler Bracket
819 5025011X8SM 2 CAPSCREW, Hex Head, 5/16-18 X 1
-(Muffler Bracket)
832 841682 1 GUARD, Muffler
836 841233 4 SCREW
-(Muffler Guard)
883 809872 2 GASKET, Exhaust
884 841968 1 CLAMP, Muffler
1449 703350 4 WASHER
-(Muffler)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
37 05-Sep-2025
Center Outlet MufflersCenter Outlet MufflersCenter Outlet MufflersCenter Outlet Mufflers
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
38 05-Sep-2025
Center Outlet MufflersCenter Outlet MufflersCenter Outlet MufflersCenter Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
22 807362 2 SCREW
-(Muffler Bracket)
300 846443 1 MUFFLER
-(Vertical Shaft) (Center Outlet) (304 Stainless Steel)
300A 847940 1 MUFFLER
-(Vertical Shaft) (Center Outlet) (304 Stainless Steel) (Performance Muffler for
40 HP)
300B 846154 1 MUFFLER
-(Horizontal Shaft) (High Mount) (Center Outlet)
300C 847922 1 MUFFLER
-(Horizontal Shaft) (High Mount) (Center Outlet) (304 Stainless Steel)
(Performance Muffler for 40 HP)
300D 846444 1 MUFFLER
-(Horizontal Shaft) (High Mount) (Center Outlet) (304 Stainless Steel)
300E 847478 1 MUFFLER
-(Horizontal Shaft) (High Mount) (Center Outlet) (O2 Sensor Port) (EFI)
355 844035 2 WASHER
-(Muffler Bracket)
355A 691261 2 WASHER
-(Muffler Bracket)
355B 691075 8 WASHER
-(Muffler Bracket)
467 846149 4 SCREW
-(Exhaust Manifold)
725 841132 1 SHIELD, Heat
725A 847229 1 SHIELD, Heat
728 692067 2 SCREW
-(Heat Shield)
740 690941 5 NUT
819 692062 2 SCREW
-(Muffler Bracket)
863 848296 1 BRACKET, Muffler
863A 843487 1 BRACKET, Muffler
863B 848296 1 BRACKET, Muffler
883 809872 2 GASKET, Exhaust
1507 848297 1 STUD
-(Muffler Bracket)
1507A 848298 2 STUD
-(Muffler Bracket)
1507B 846324 2 STUD
-(Muffler Bracket)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
39 05-Sep-2025
Starter Side Outlet MufflersStarter Side Outlet MufflersStarter Side Outlet MufflersStarter Side Outlet Mufflers
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
40 05-Sep-2025
Starter Side Outlet MufflersStarter Side Outlet MufflersStarter Side Outlet MufflersStarter Side Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 845741 1 MUFFLER
-(High Mount) (Starter Side Outlet)
300A 847083 1 MUFFLER
-(Starter Side Outlet) (EFI)
300B 847279 MUFFLER
-(Side Mount) (Starter Side Outlet) (EFI)
415 596859 1 PLUG
436 842263 1 MANIFOLD, Exhaust
725 841132 1 SHIELD, Heat
728 692067 2 SCREW
-(Heat Shield)
832 841682 1 GUARD, Muffler
836 841233 4 SCREW
-(Muffler Guard)
883 809872 2 GASKET, Exhaust
884 841968 1 CLAMP, Muffler
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
41 05-Sep-2025
Muffler Bracket KitsMuffler Bracket KitsMuffler Bracket KitsMuffler Bracket Kits
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
42 05-Sep-2025
Muffler Bracket KitsMuffler Bracket KitsMuffler Bracket KitsMuffler Bracket Kits
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
22 807362 2 SCREW
-(Muffler Bracket)
355 844035 2 WASHER
-(Muffler Bracket)
355A 691261 2 WASHER
-(Muffler Bracket)
355B 691075 8 WASHER
-(Muffler Bracket)
740 690941 6 NUT
-(Muffler Bracket)
819 692062 2 SCREW
-(Muffler Bracket)
863 848316 1 BRACKET, Muffler
-(Vertical)
863A 843487 1 BRACKET, Muffler
-(Horizontal)
863B 848296 1 BRACKET, Muffler
-(Vertical)
1507 848297 1 STUD
-(Muffler Bracket)
1507A 848298 2 STUD
-(Muffler Bracket)
1507B 846324 2 STUD
-(Muffler Bracket)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
43 05-Sep-2025
Speed ControlSpeed ControlSpeed ControlSpeed Control
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
44 05-Sep-2025
Speed ControlSpeed ControlSpeed ControlSpeed Control
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
265 691024 1 CLAMP, Casing
-(Casing Clamp for Hard Casing)
265A 690798 1 CLAMP, Casing
-(Casing Clamp for Soft Casing)
267 792629 1 SCREW
-(Screw for Casing Clamp)
268 691025 1 CASING, Control Wire
-(Wire Casing 72")
269 691026 1 WIRE, Control
-(Control Wire 78")
269A 93907 1 WIRE, Control
-(Control Wire 100")
270 691027 1 NUT
-(Nut for Wire Casing)
271 691028 1 LEVER, Control
271A 692105 1 LEVER, Control
-(Wire with “L” formed end)
271B 692541 1 LEVER, Control
-(Wire with “Z” formed end)
416 595196 1 BRACKET, Throttle Cable
-(Casing Clamp for Snap-In Casing)
493 842713 1 BRACKET, Mounting
-(Speed Sensor)
1413 844449 1 SENSOR, Speed
-(Requires 842713 Bracket and two 841233 screws)
1502 841233 2 SCREW
-(Speed Sensor)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
45 05-Sep-2025
ElectricalElectricalElectricalElectrical
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
46 05-Sep-2025
ElectricalElectricalElectricalElectrical
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
330 847476 1 SENSOR, Oxygen
-(Extended Length O2 Sensor 23.5")
415 1714480SM 1 PLUG
-(Plug for Ignition Switch Removal)
789 809967 1 HARNESS, Wiring
-(Wire Harness Extension 8 Pin – 22”) (Use with standard key switch 692318 or
water/dust resistant key switch 847448)
789A 846776 1 HARNESS, Wiring
-(Wire Harness Extension 6 Pin – 22”) (Use with standard key<BR/>switch
692318 or water/dust<BR/>resistant key switch 847448)
789B 847017 1 WIRE ASSEMBLY
-(Wire Harness Extension for 847016 Tach 32")
853 80028618 1 ADAPTER, Wire
-(Wire Harness Adapter 6 Pin to 8 Pin)
983 5103809YP 1 LIGHT, Indicator
-(MIL Light Indicator, LED Red)
1518 847016 1 TACHOMETER
-(Tach, Hour Meter with MIL Light for EFI Engines)
1616 19626 1 CODE READER
-(Tiny Scan)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
47 05-Sep-2025

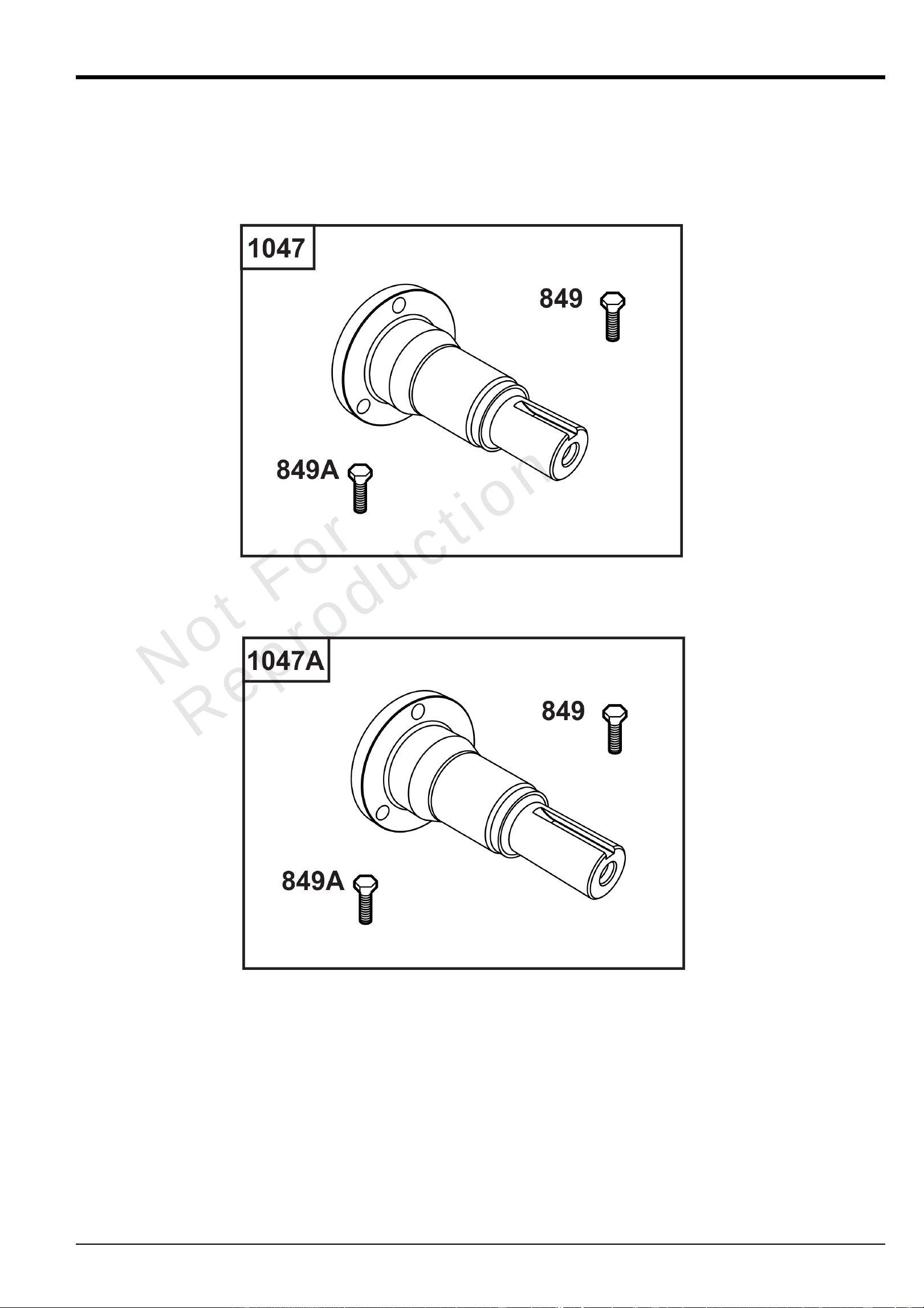

Stub ShaftsStub ShaftsStub ShaftsStub Shafts
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
48 05-Sep-2025
Stub ShaftsStub ShaftsStub ShaftsStub Shafts
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
849 596370 3 SCREW
-(Stub Shaft)
849A 846235 3 SCREW
-(Stub Shaft)
1047 841304 1 SHAFT, Stub
-(Flywheel Mounted) (1-1/8" diameter, 148 mm length)
1047A 843342 1 SHAFT, Stub
-(Flywheel Mounted) (1-1/8" diameter, 176 mm length)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
49 05-Sep-2025

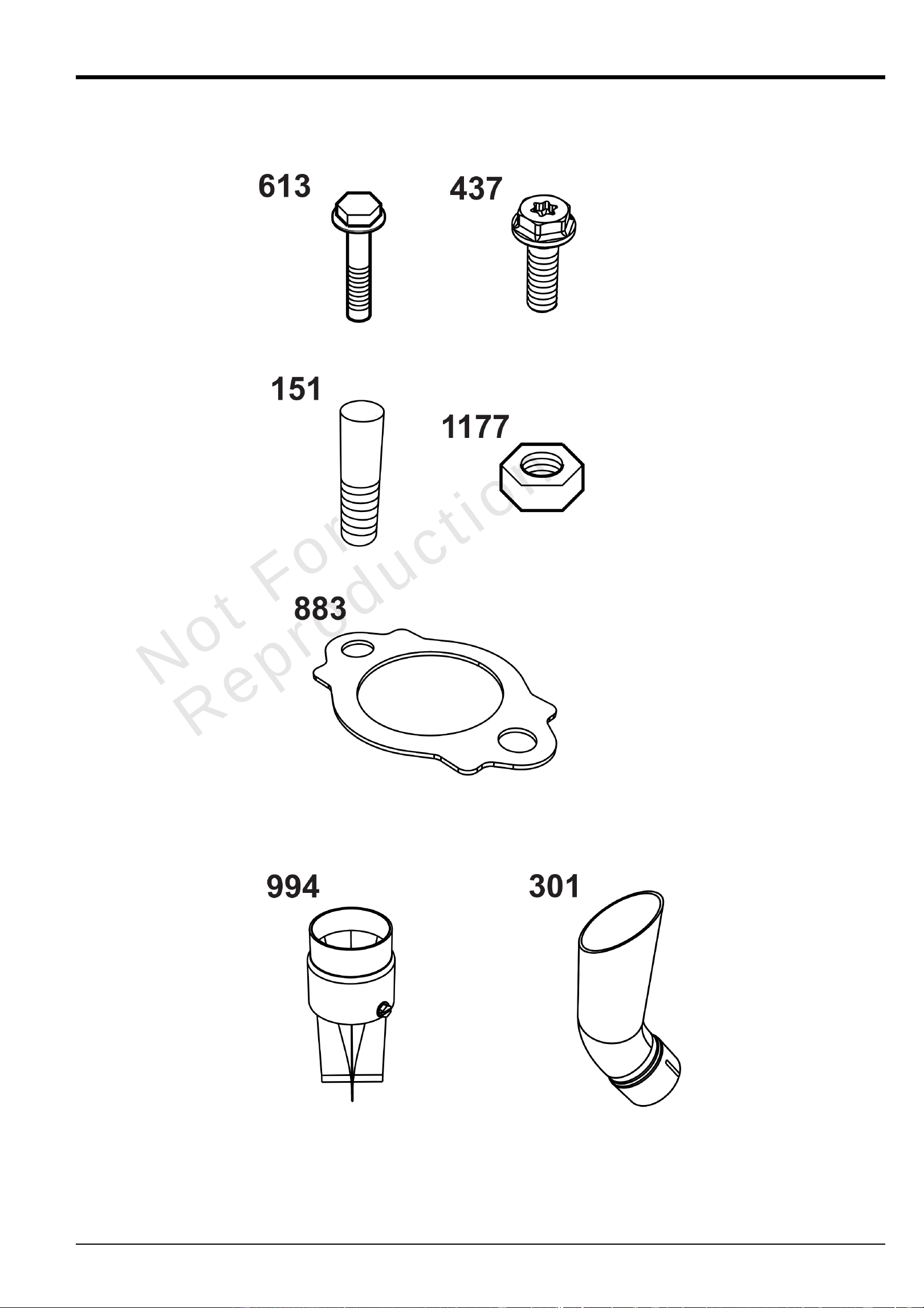

Spark Arrester/DeflectorSpark Arrester/DeflectorSpark Arrester/DeflectorSpark Arrester/Deflector
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
50 05-Sep-2025
Spark Arrester/DeflectorSpark Arrester/DeflectorSpark Arrester/DeflectorSpark Arrester/Deflector
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
151 841185 4 STUD
-(4 per engine)
301 841518 1 PIPE, Exhaust
-(For 44.7 O.D. muffler outlet pipe) (Requires clamp 843624)
437 809743 4 SCREW
-(M8 x 25 for Mounting Mufflers) (4 per engine)
613 692062 4 SCREW
-(M8 x 18 for Mounting Mufflers) (4 per engine)
883 809872 2 GASKET, Exhaust
-(2 per engine)
994 843204 1 ARRESTOR, Spark
-(1.75") (44.7 mm) (O.D. Outlet Tube)
1177 842067 4 NUT
-(Required if using 841185 stud)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
51 05-Sep-2025

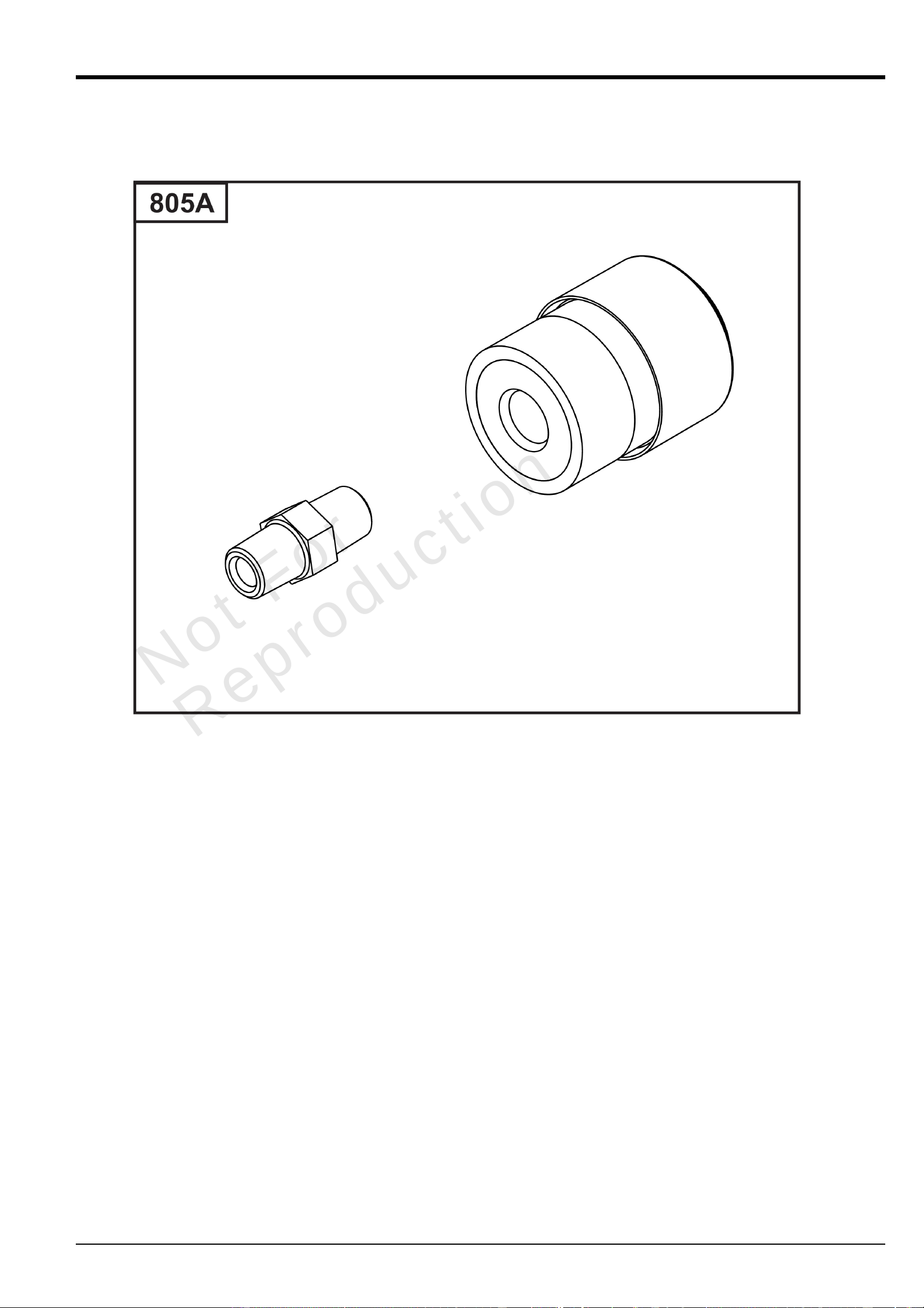

Air IntakeAir IntakeAir IntakeAir Intake
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
52 05-Sep-2025
Air IntakeAir IntakeAir IntakeAir Intake
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
805A 843024 1 MINDER, Filter
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
53 05-Sep-2025

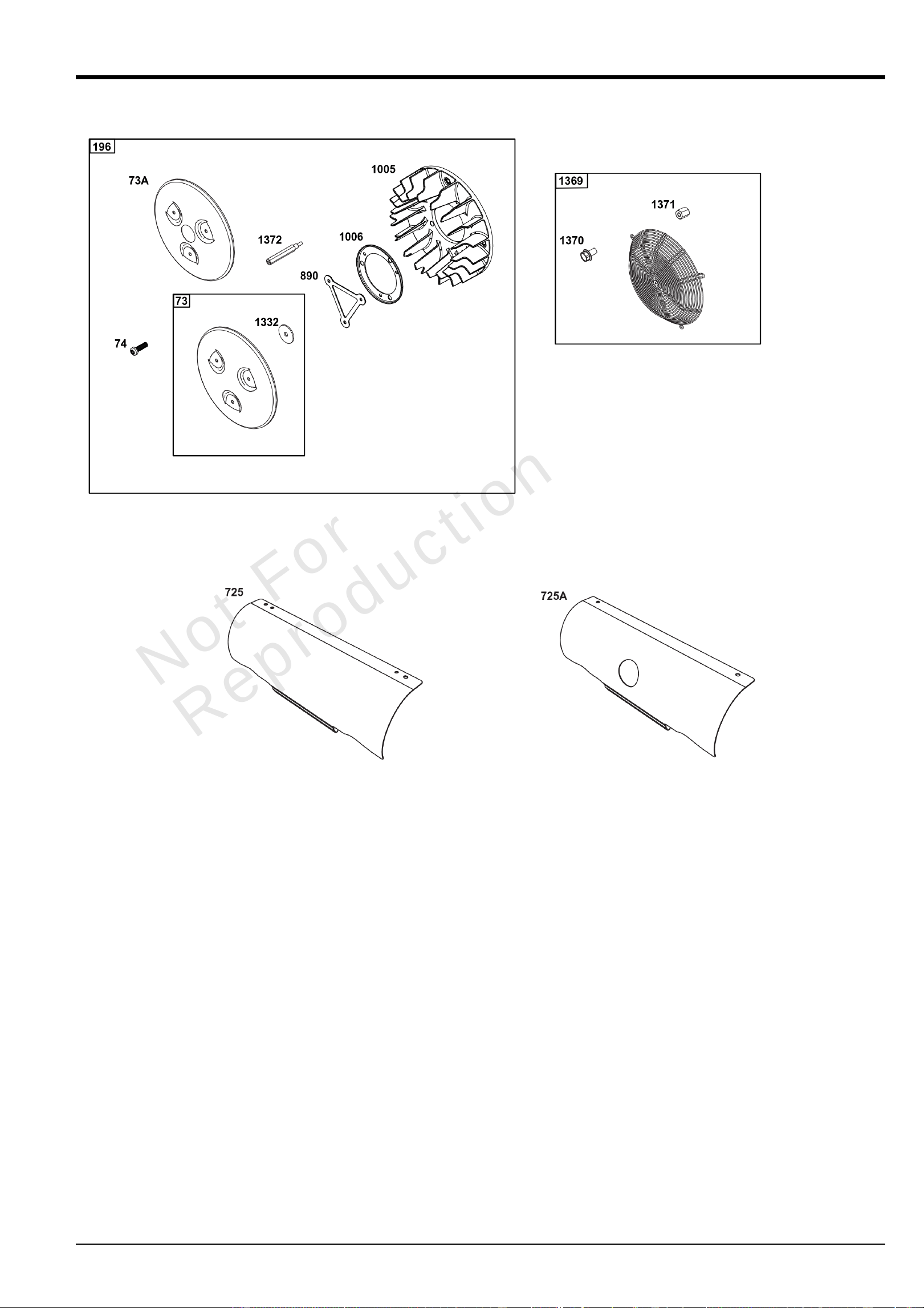

GuardingGuardingGuardingGuarding
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
54 05-Sep-2025
GuardingGuardingGuardingGuarding
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
73 841840 1 SCREEN, Rotating
73A 842248 1 SCREEN, Rotating
74 809947 3 SCREW
-(Rotating Screen) (M6x20mm)
196 847200 1 GUARD, Flywheel Fan
725 841132 1 SHIELD, Heat
-(Requires 2 x 692067 Screw)
725A 847229 1 SHIELD, Heat
-(With 02 Sensor Hole) (EFI)
890 809987 1 BRACKET, Support
1005 846996 1 FAN, Flywheel
1006 847198 1 RETAINER, Fan
1332 809948 3 WASHER
1369 995019 1 FAN/SCREEN ASSEMBLY
1370 841233 4 SCREW
-(Flywheel Fan Guard)
1371 841537 4 NUT
-(Flywheel Fan Guard)
1372 809946 3 STUD
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
55 05-Sep-2025
Electronic Throttle KitElectronic Throttle KitElectronic Throttle KitElectronic Throttle Kit
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
56 05-Sep-2025
Electronic Throttle KitElectronic Throttle KitElectronic Throttle KitElectronic Throttle Kit
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
578 84007350 1 WIRE ASSEMBLY
983 5103809YP 1 LIGHT, Indicator
1596 84007271 1 LEVER, Electronic Throttle
1623 84008670 1 KIT, Throttle Assembly
-(Analog Electronic Throttle Control)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
57 05-Sep-2025
Copyright © Briggs & Stratton. All Rights reserved
05-Sep-2025
