Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 61G477-0001-J1
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Air Cleaner Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Alternator Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Blower Housing Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controls Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Crankcase Cover/Sump Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Crankshaft Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cylinder Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

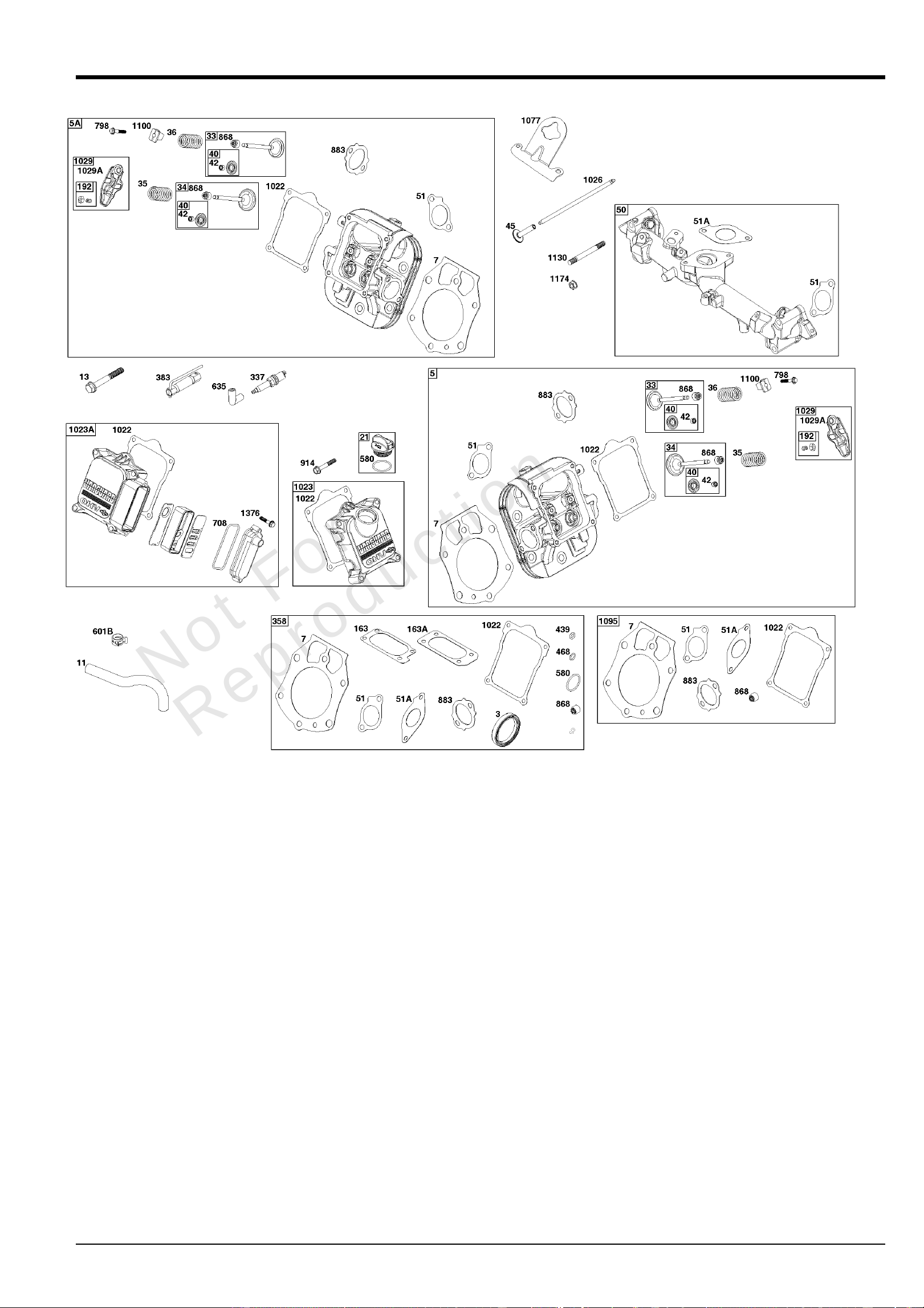

Cylinder Head Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

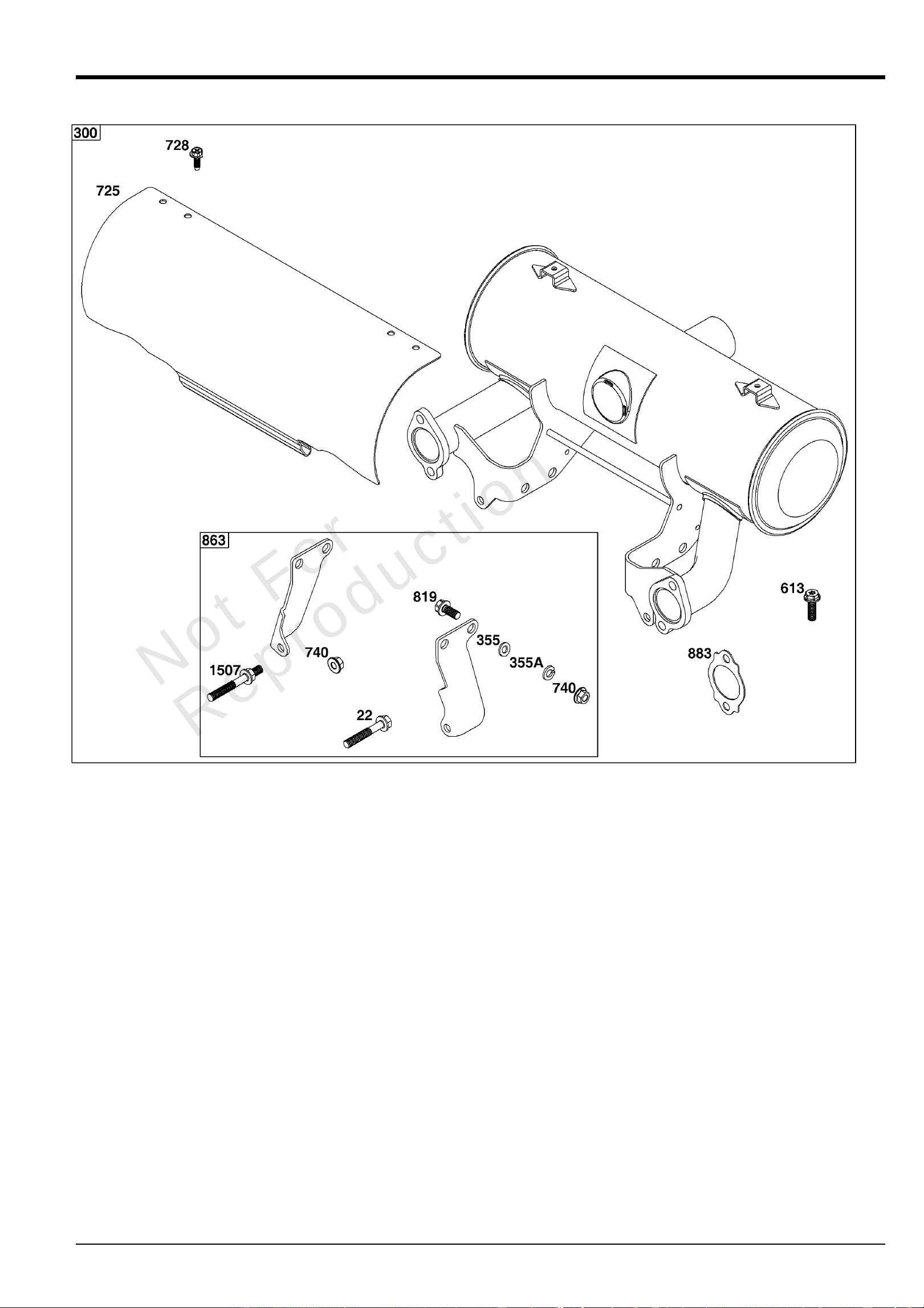

Exhaust Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

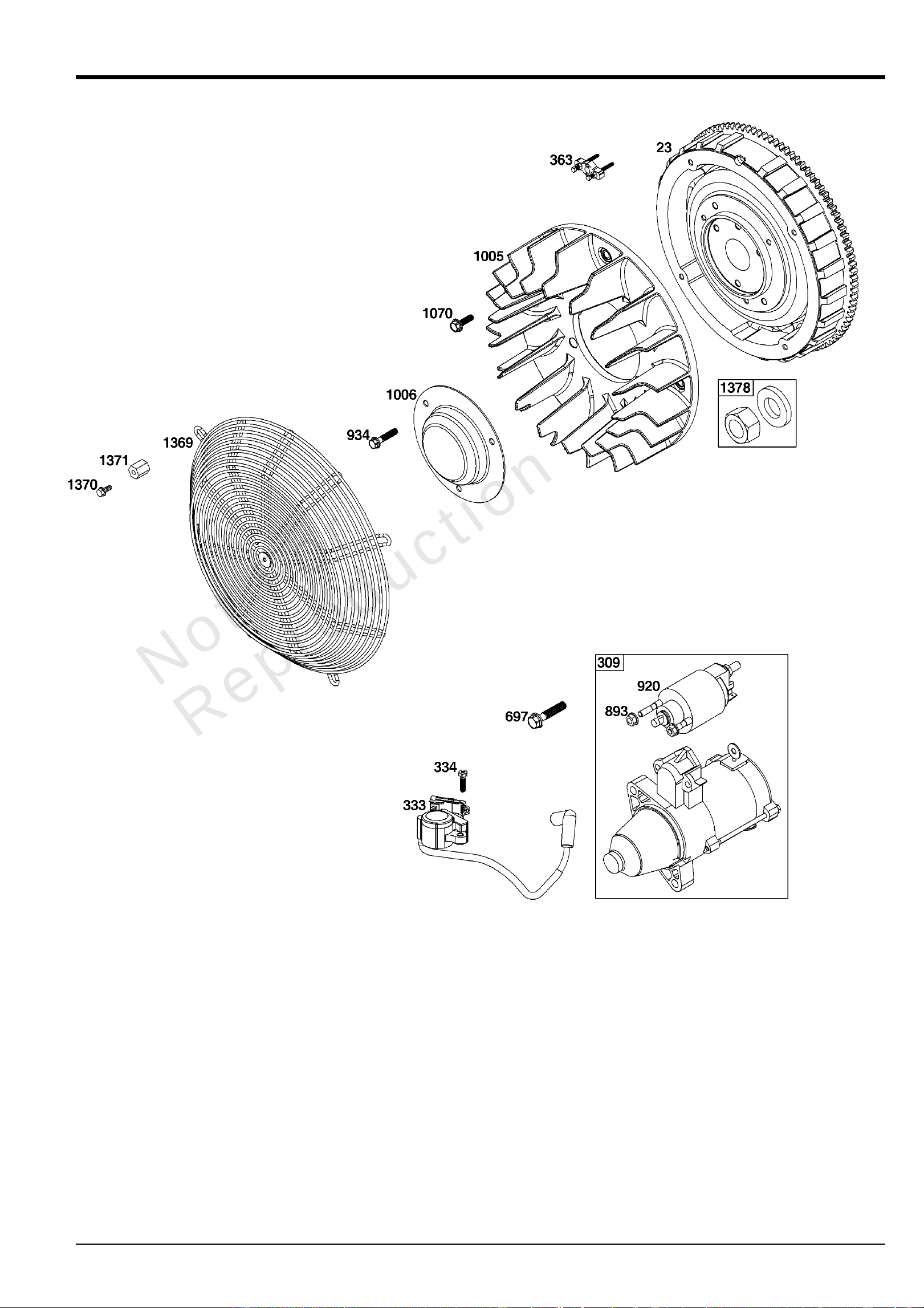

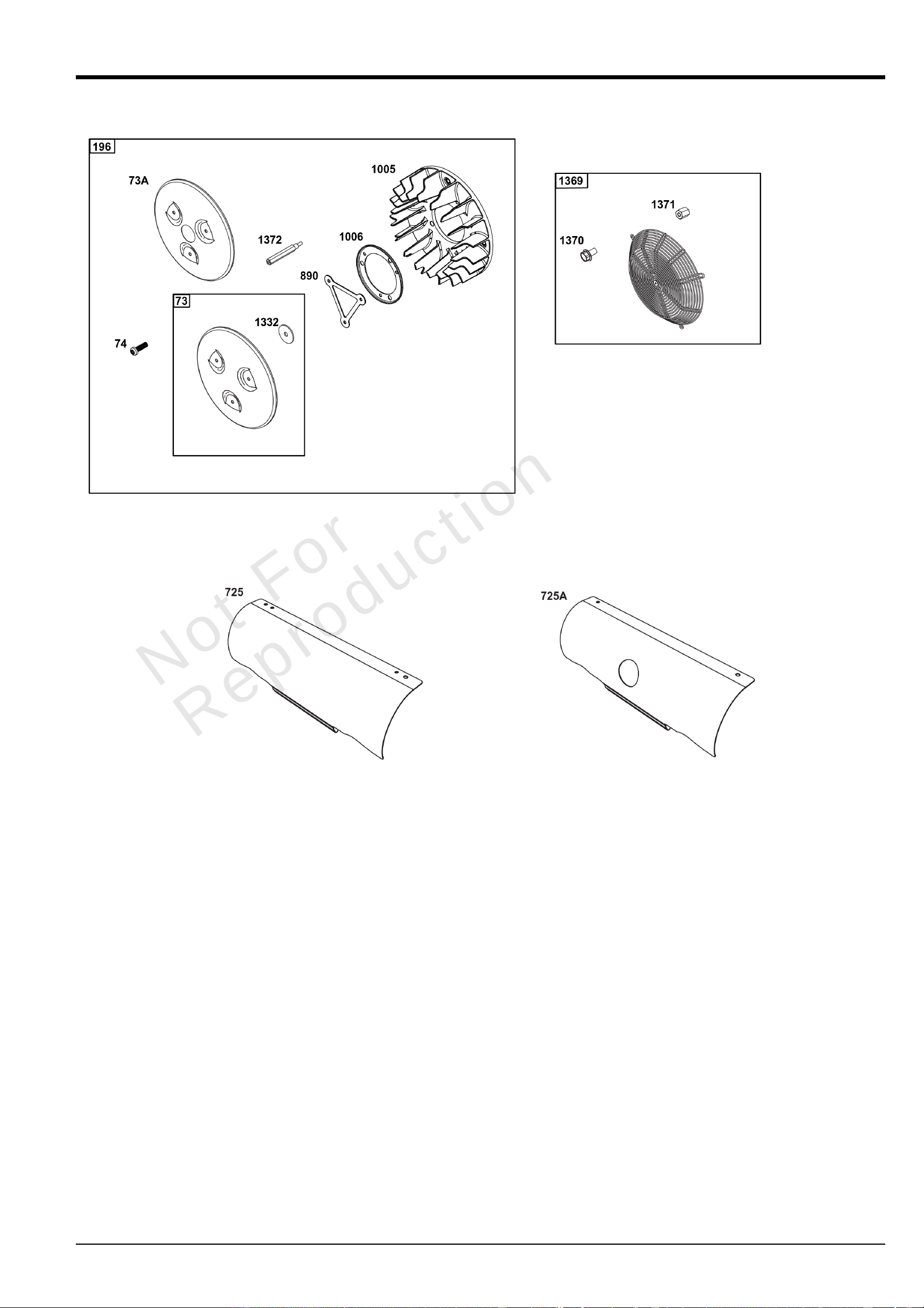

Flywheel, Ignition, and Starter Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lubrication Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Replacement Engine - US & Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

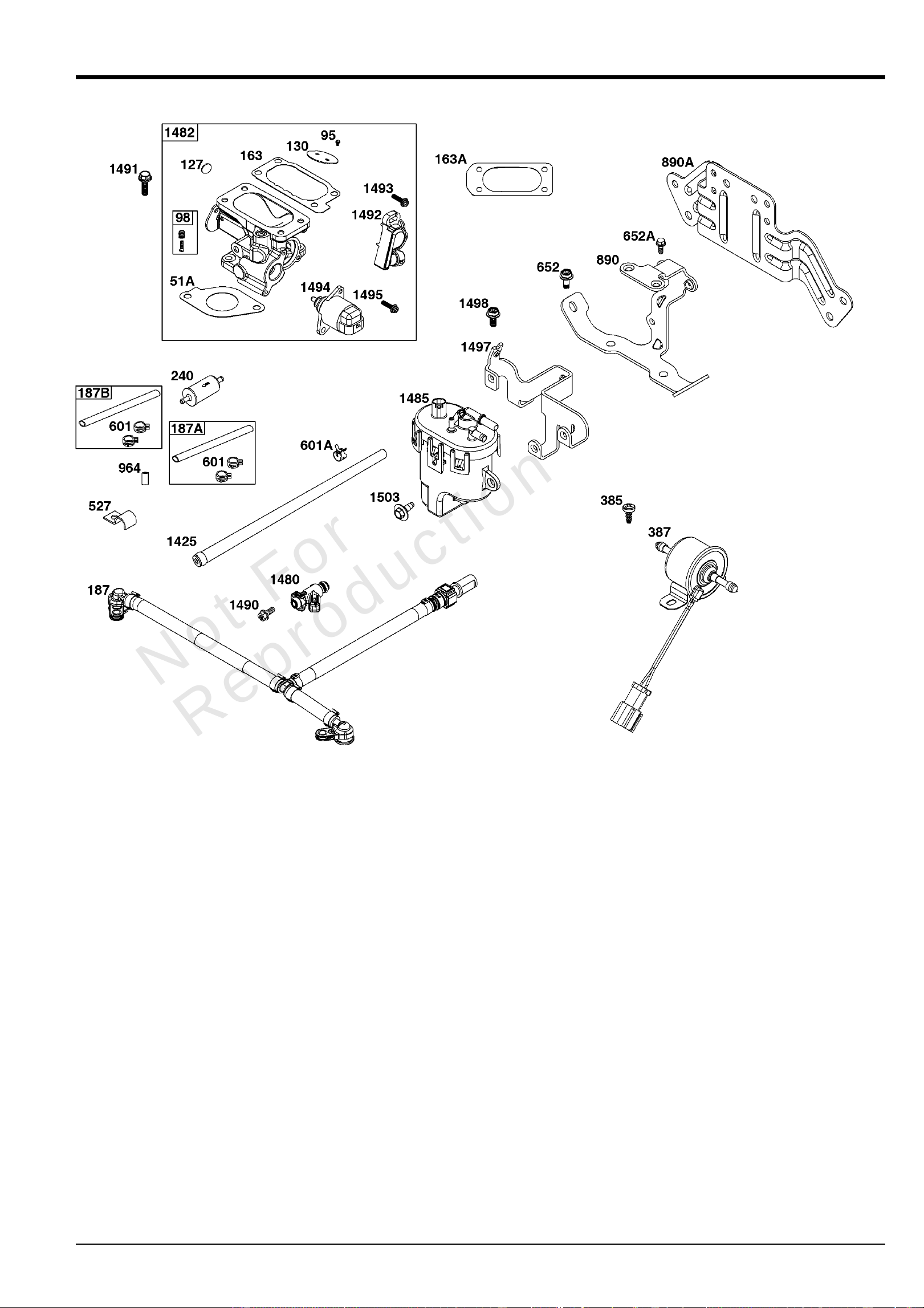

Throttle Body and Fuel Supply Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Model 54-61 Engine Accessories Catalog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

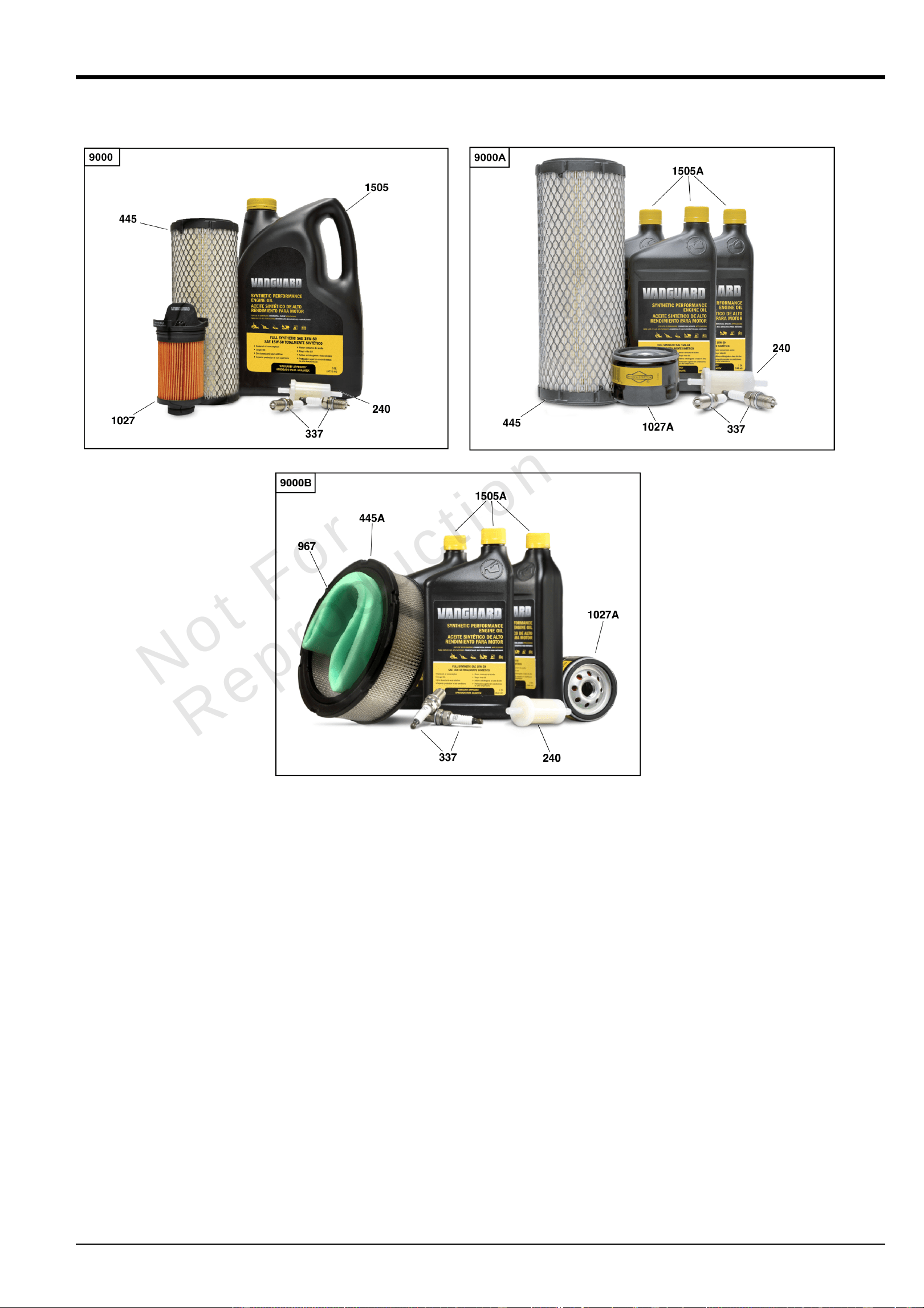

Maintenance Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

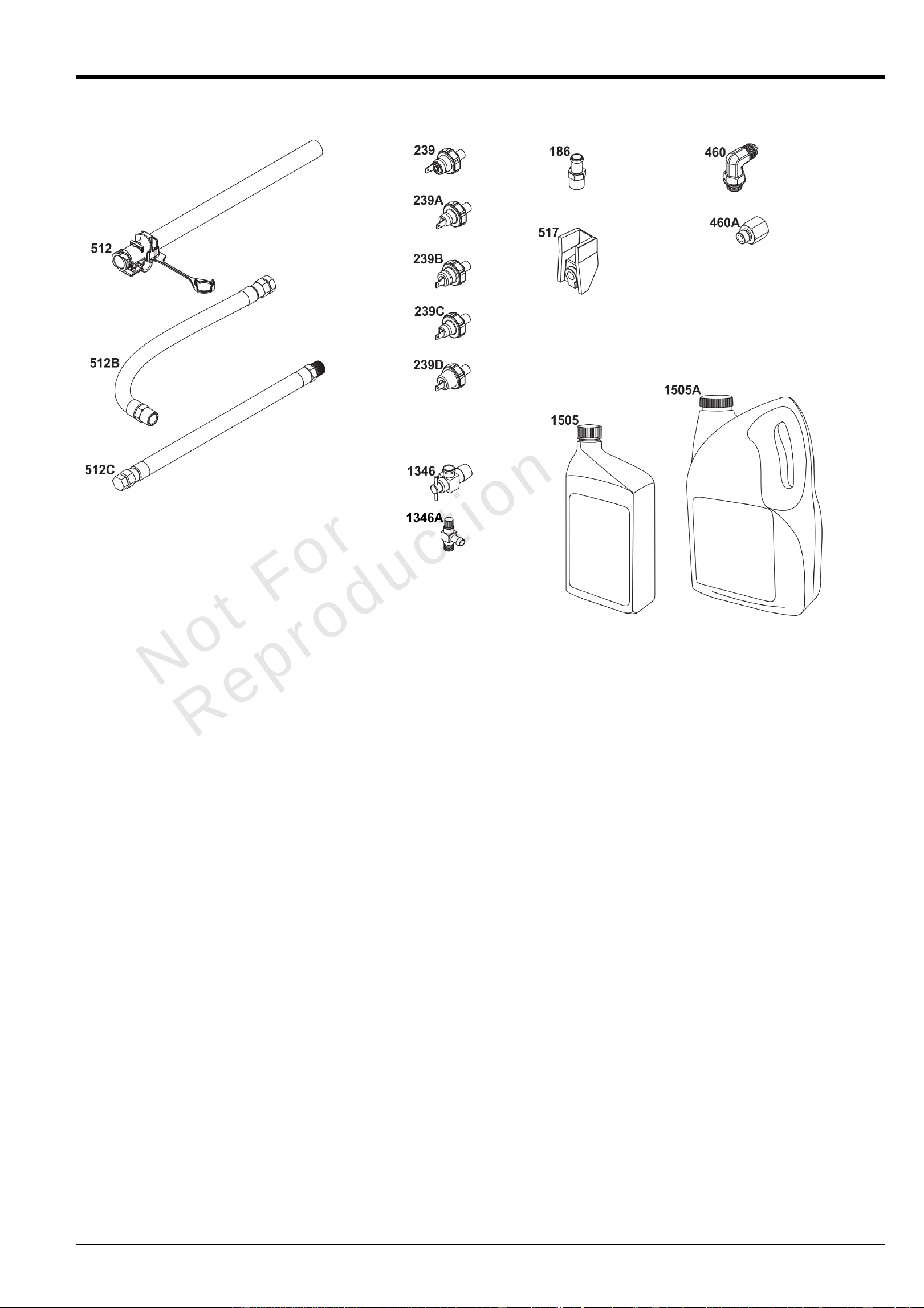

Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

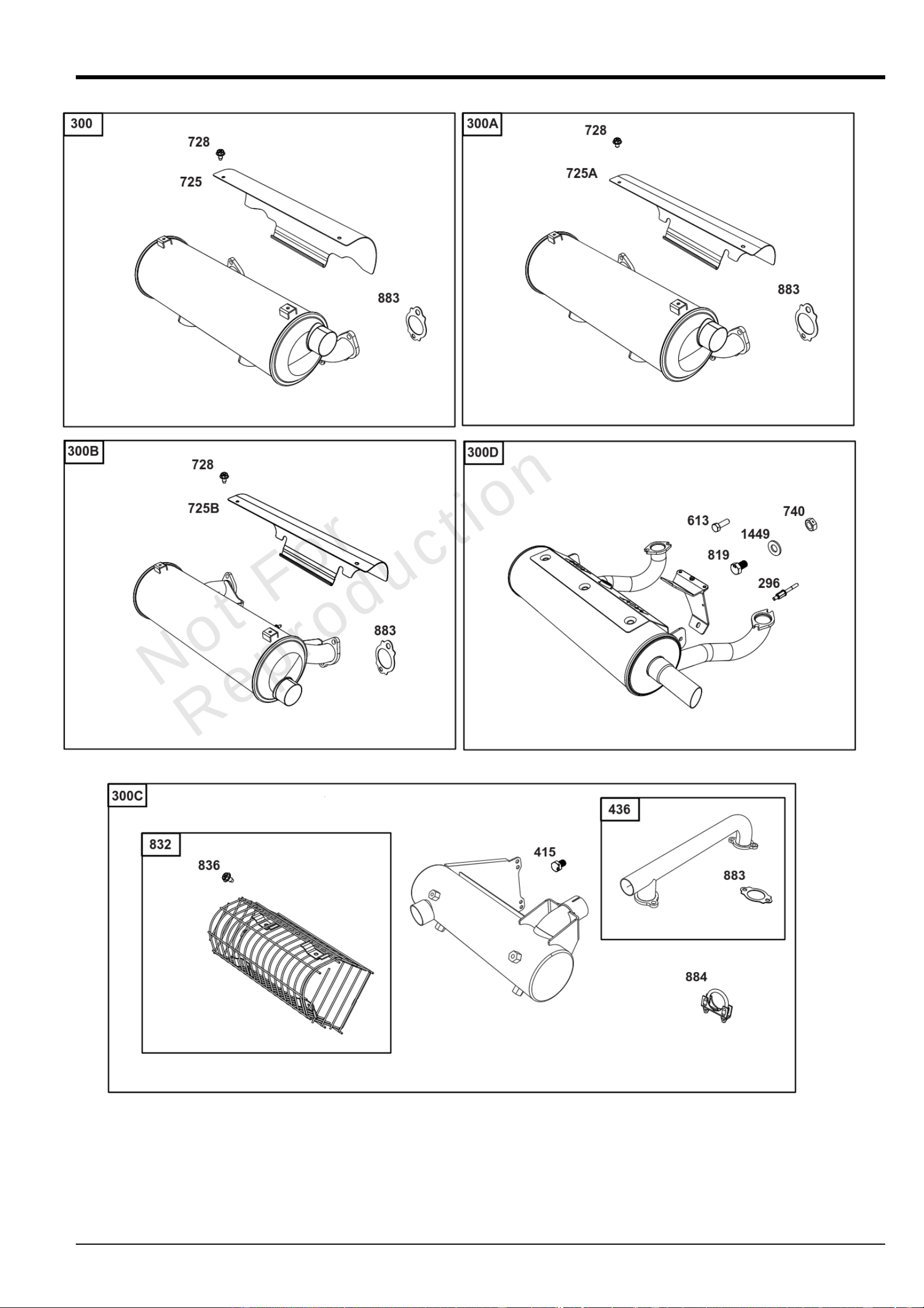

Oil Filter Side Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

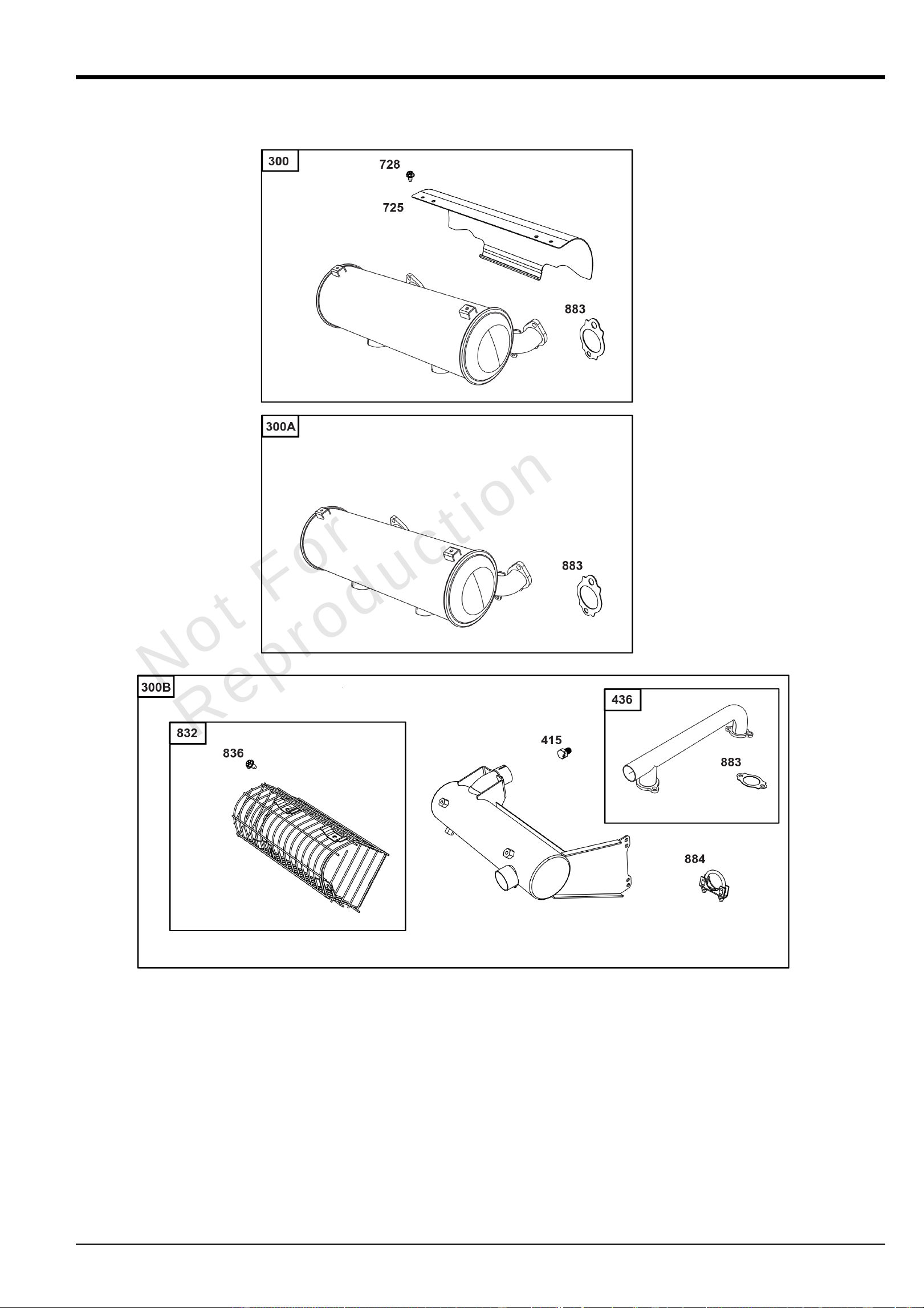

Center Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Starter Side Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

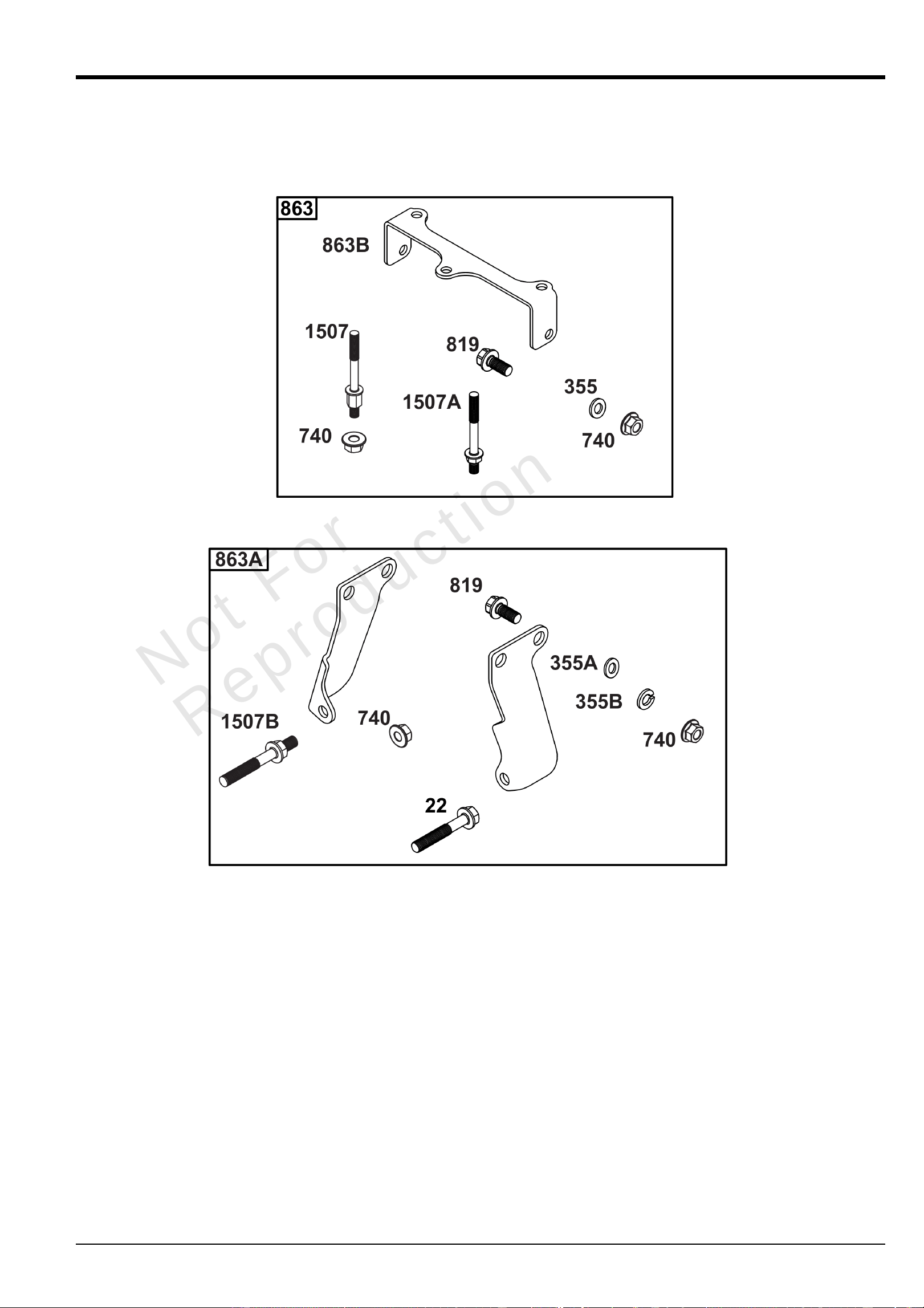

Muffler Bracket Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

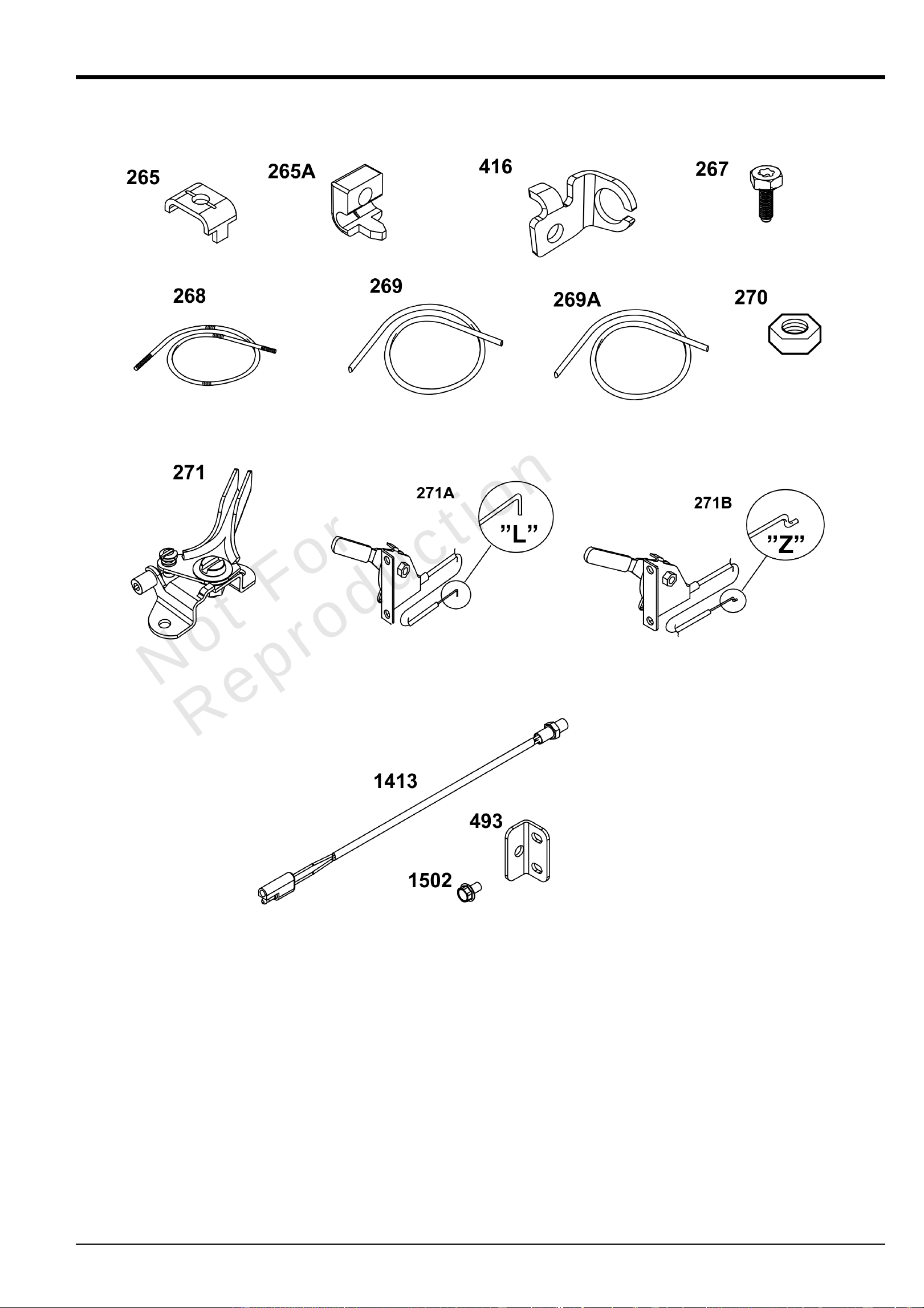

Speed Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

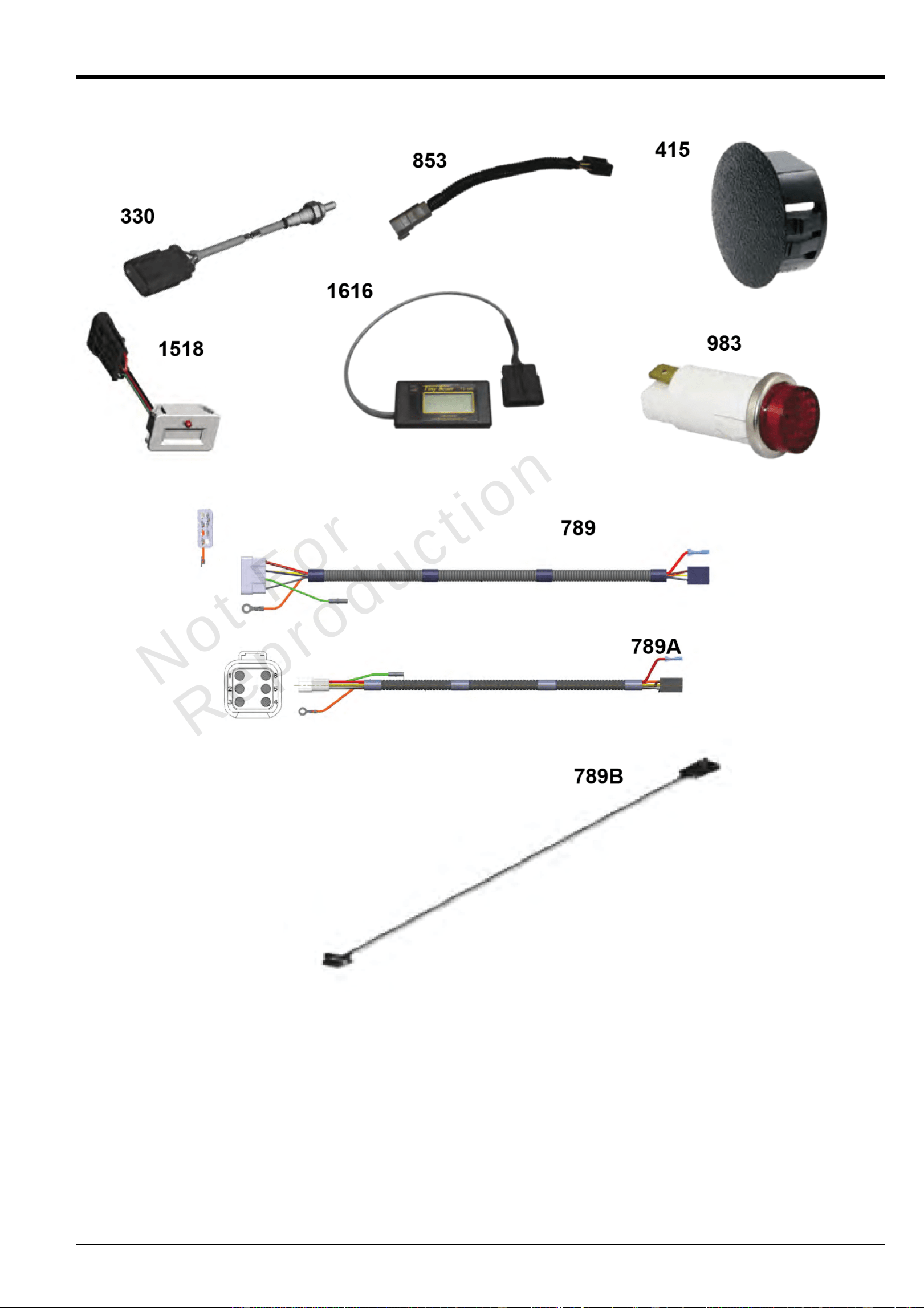

Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

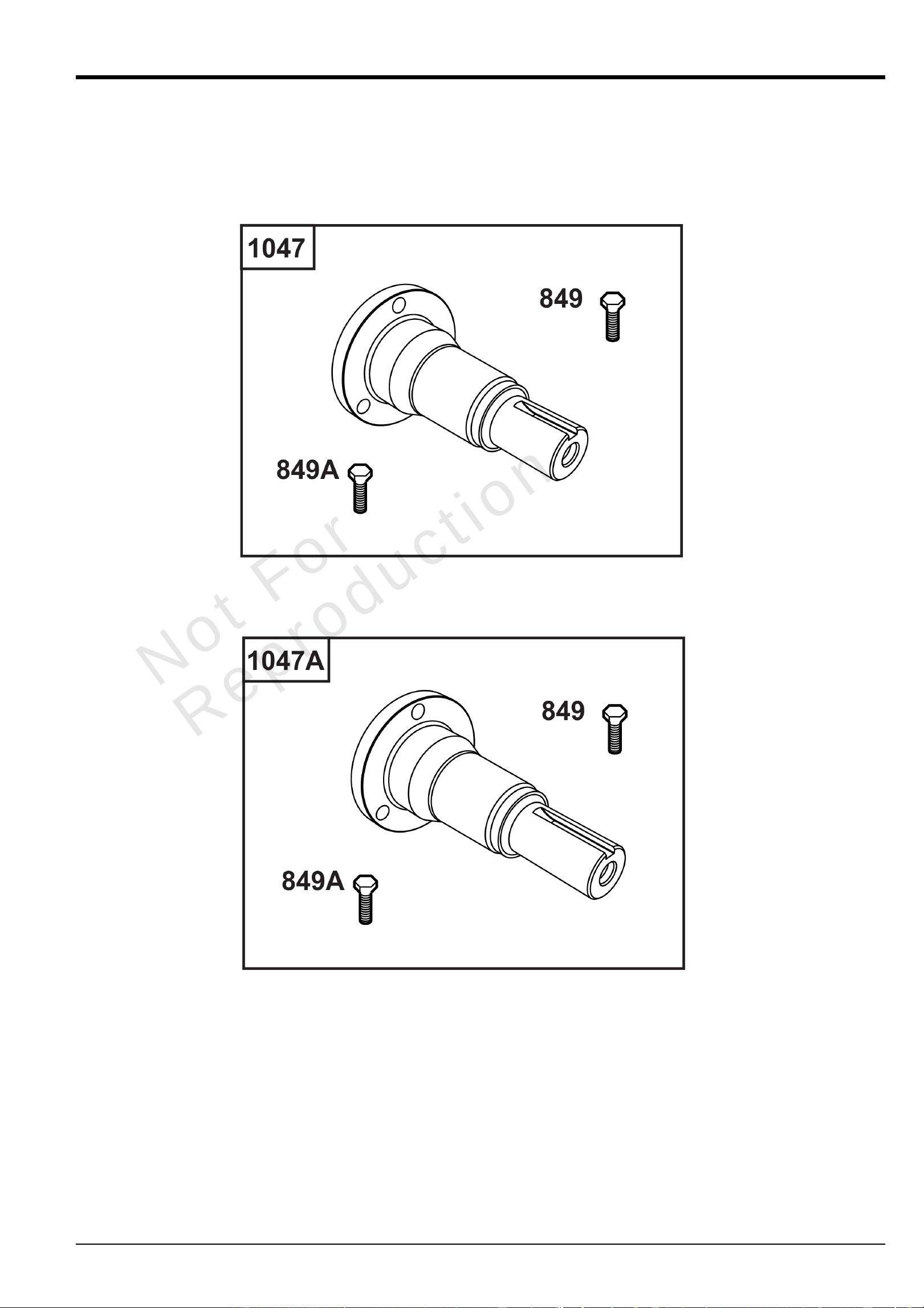

Stub Shafts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Spark Arrester/Deflector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Air Intake. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Guarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Electronic Throttle Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 04-Sep-2025

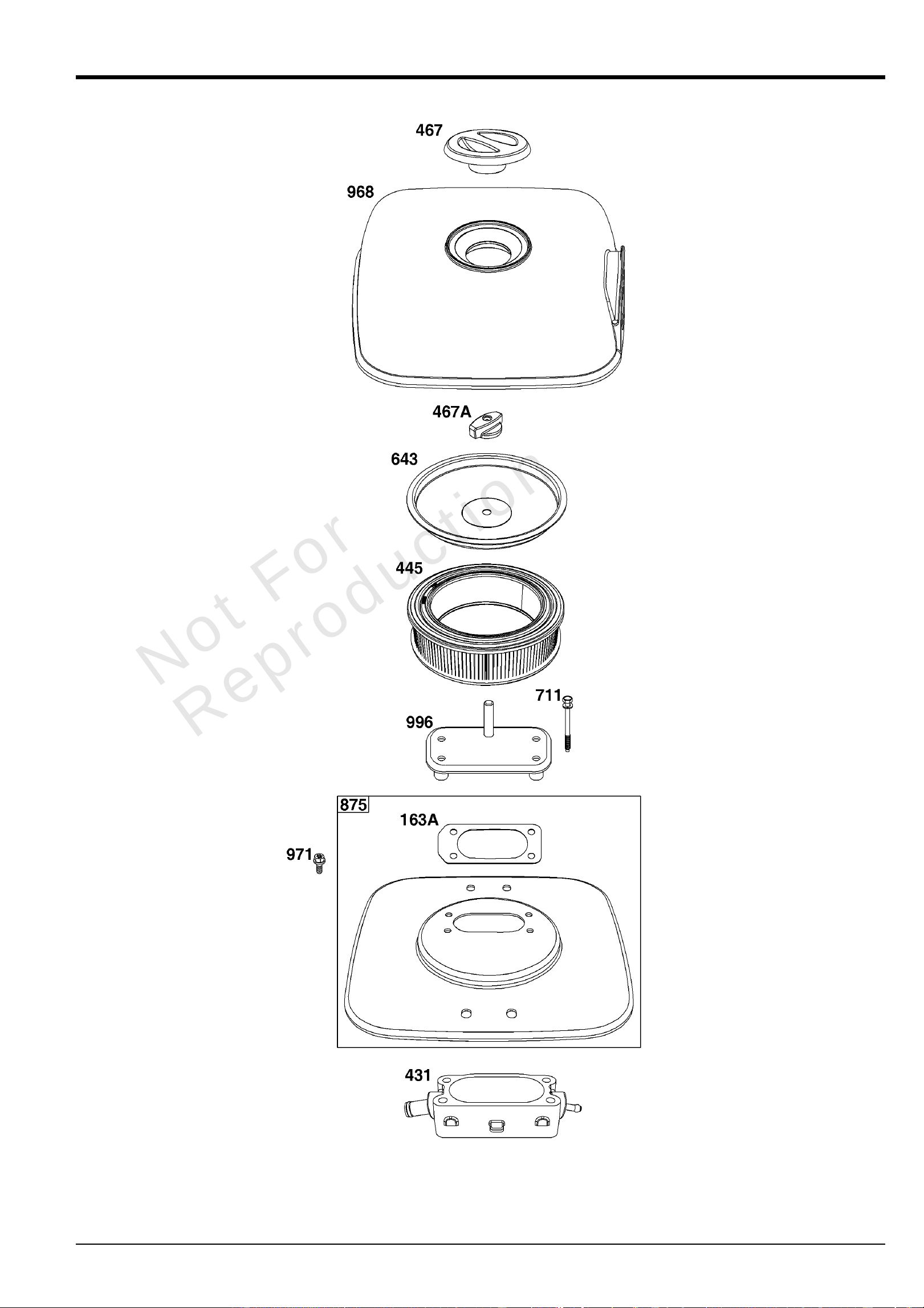

Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 04-Sep-2025
Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
163A ----- 1 GASKET, Air Cleaner
-(Part information located in Throttle Body and Fuel Supply Group.)
431 846507 1 ELBOW, Intake
445 692519 1 FILTER, A/C Cartridge
467 846008 1 KNOB, Air Cleaner Cover
467A 846432 1 KNOB, Air Cleaner Cover
643 844932 1 RETAINER, Air Cleaner
711 806444 4 SCREW
-(Carburetor Shield) (M6x68mm)
875 843118 1 BASE, Air Cleaner
968 846323 1 COVER, Air Cleaner
971 692062 4 SCREW
-(Air Cleaner Base to Carburetor/Throttle Body) (M8x18mm)
996 846006 1 SHIELD, Carburetor
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 04-Sep-2025

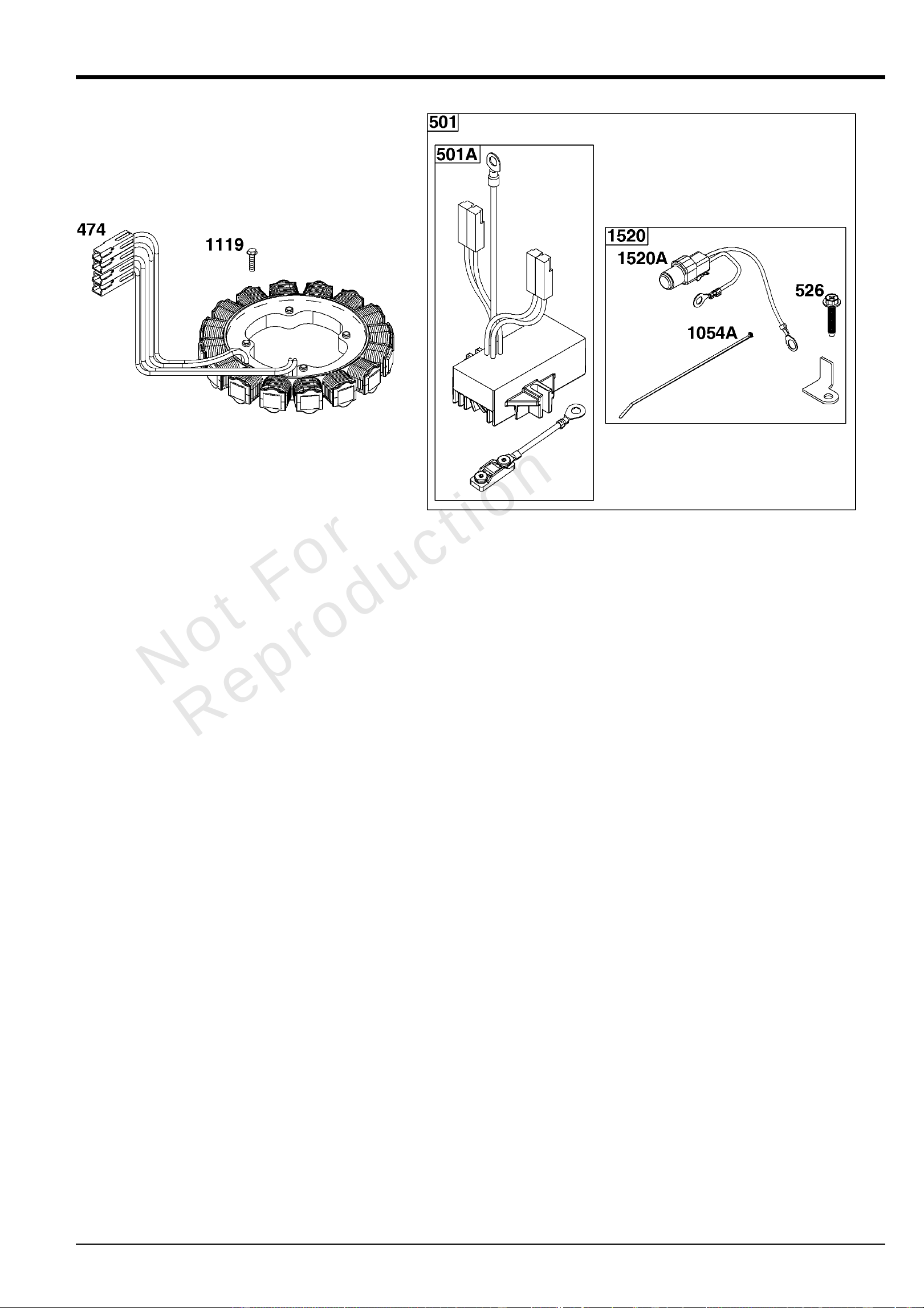

Alternator GroupAlternator GroupAlternator GroupAlternator Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 04-Sep-2025
Alternator GroupAlternator GroupAlternator GroupAlternator Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
474 841178 1 ALTERNATOR
501 848221 1 REGULATOR
-Used Before Code Date 18021200
501A 848187 1 REGULATOR
-Used After Code Date 18021100
526 847149 2 SCREW
-(Regulator)
1054A ----- TIE, Cable
-(Part information located in Controls Group.)
1119 691552 4 SCREW
-(Alternator) (M4x30mm)
1520 ----- 1 CAPACITOR
-(Part information located in Controls Group.)
1520A ----- 1 CAPACITOR
-(Part information located in Controls Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 04-Sep-2025

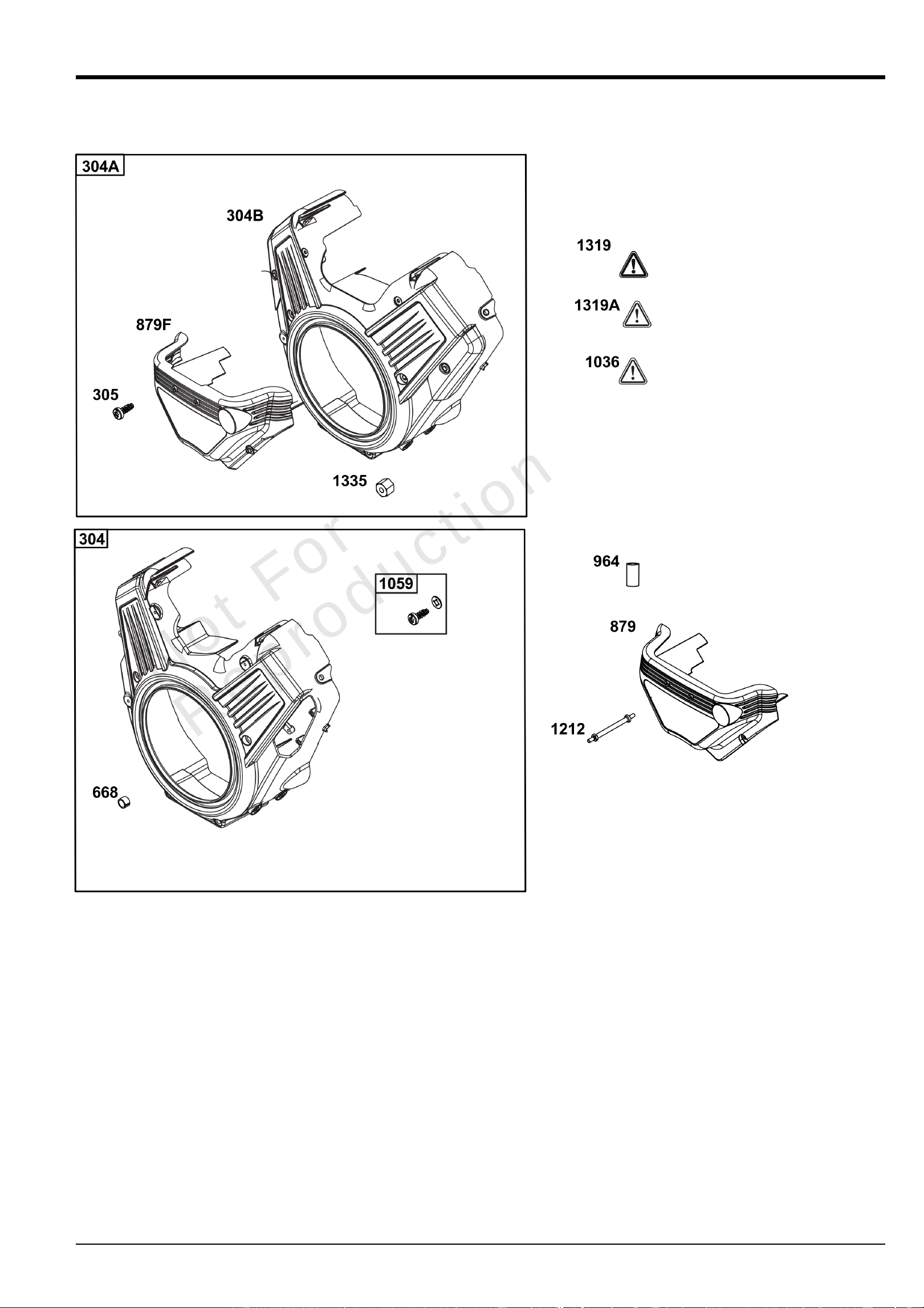

Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 04-Sep-2025
Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
304 846481 1 HOUSING, Blower
304A 84013453 1 KIT, Blower Housing
304B 84011458 1 HOUSING, Blower
-(
-Used After Code Date 23123000)
305 807435 2 SCREW
-(Blower Housing)
668 841974 6 SPACER
879 847019 1 COVER, Carburetor/EFI
879F 84011177 1 COVER, Carburetor/EFI
-(
-Used After Code Date 23123000)
964 590799 1 CAP, Connector
1036 ----- LABEL, Emissions
-(Available from a Briggs & Stratton Authorized Dealer)
1059 845300 2 KIT, Screw/Washer
1212 809958 4 STUD
-(Blower Housing)
1319 794467 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1319A 797669 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1335 841537 4 NUT
-(Blower Housing)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 04-Sep-2025
Controls GroupControls GroupControls GroupControls Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 04-Sep-2025

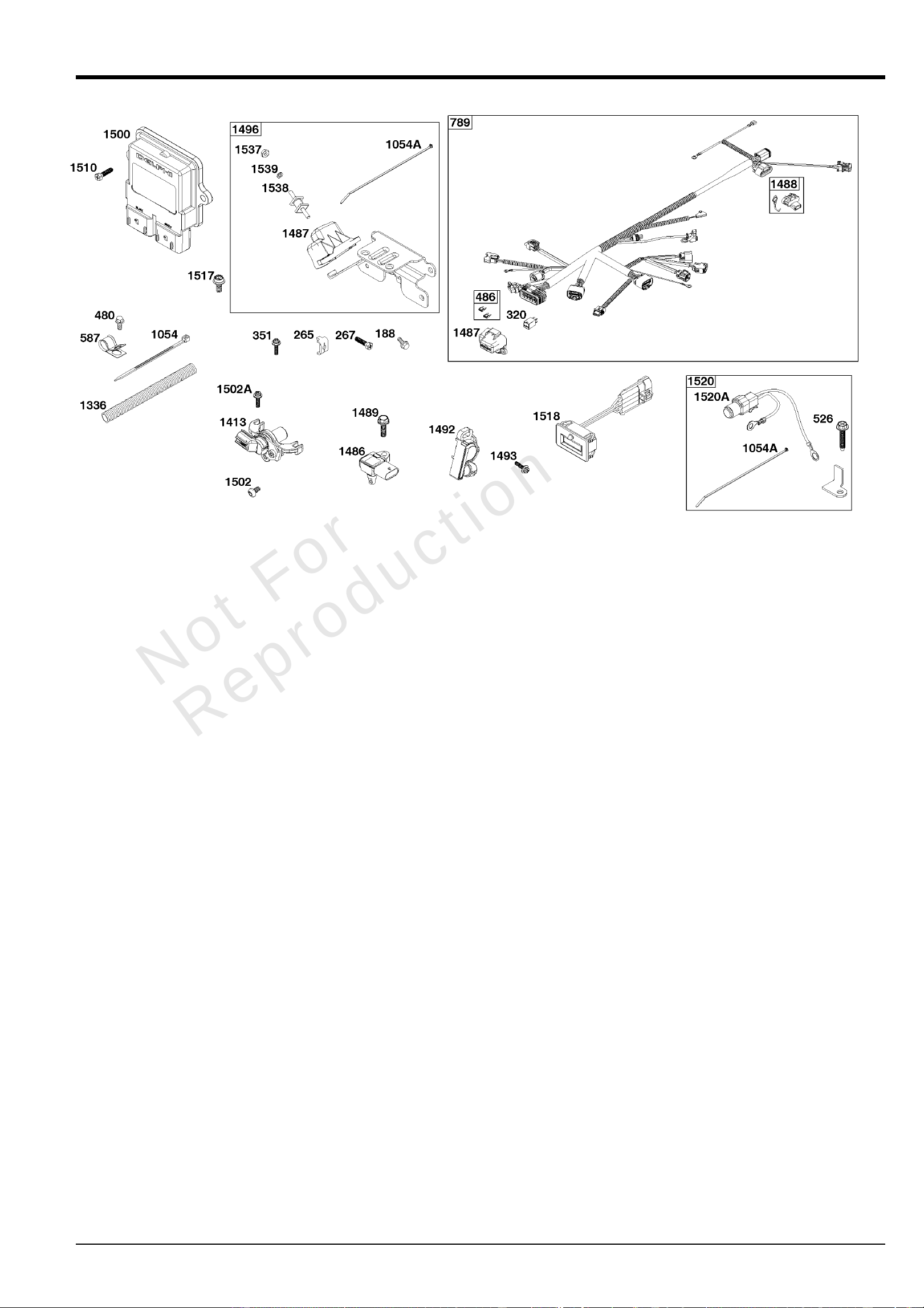

Controls GroupControls GroupControls GroupControls Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
188 692062 5 SCREW
-(Control Bracket) (M8x18mm)
265 691024 1 CLAMP, Casing
267 841552 1 SCREW
-(Casing Clamp) (M5x20mm)
320 593902 1 RELAY(S)
351 690677 1 SCREW
-(Ground Terminal) (M4x12mm)
480 841233 2 SCREW
-(Tube Clamp) (M6x10mm)
486 593901 1 FUSE
526 ----- 2 SCREW
-(Part information located in Alternator Group.)
587 807116 2 CLAMP, Tube
789 847409 1 HARNESS, Wiring
1054 280275 6 TIE, Cable
1054A 861206 TIE, Cable
1336 841015 1 SHIELD, Wire Protective
1413 846457 1 SENSOR, Speed
1486 593905 1 SENSOR, Temperature/Manifold Absolute Pressure (MAP)
1487 847334 1 COVER, Fuse
1488 593899 1 COVER, Diagnostic
1489 807435 1 SCREW
-(TEMP/MAP Sensor) (M6x20mm)
1492 846478 1 SENSOR, Throttle
1493 847169 2 SCREW
-(Throttle Sensor)
1496 847337 1 COVER, Fuse Kit
1500 846484 1 MODULE, Electronic Control
-(Not Programmed)
1502 846459 1 SCREW
-(Speed Sensor) (M5x10mm)
1502A 846868 2 SCREW
-(Speed Sensor) (M4x18mm)
1510 841552 2 SCREW
-(Electronic Control Module) (M5x20mm)
1517 807084 1 SCREW
-(ECU Bracket) (M6x14mm)
1518 847016 1 TACHOMETER
1520 847148 1 CAPACITOR
1520A 847147 1 CAPACITOR
1537 703460 4 NUT, Hex #8-32
-(Fuse Cover)
1538 847332 2 STUD
-(Fuse Cover)
1539 847333 4 WASHER
-(Fuse Cover)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 04-Sep-2025
Crankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 04-Sep-2025

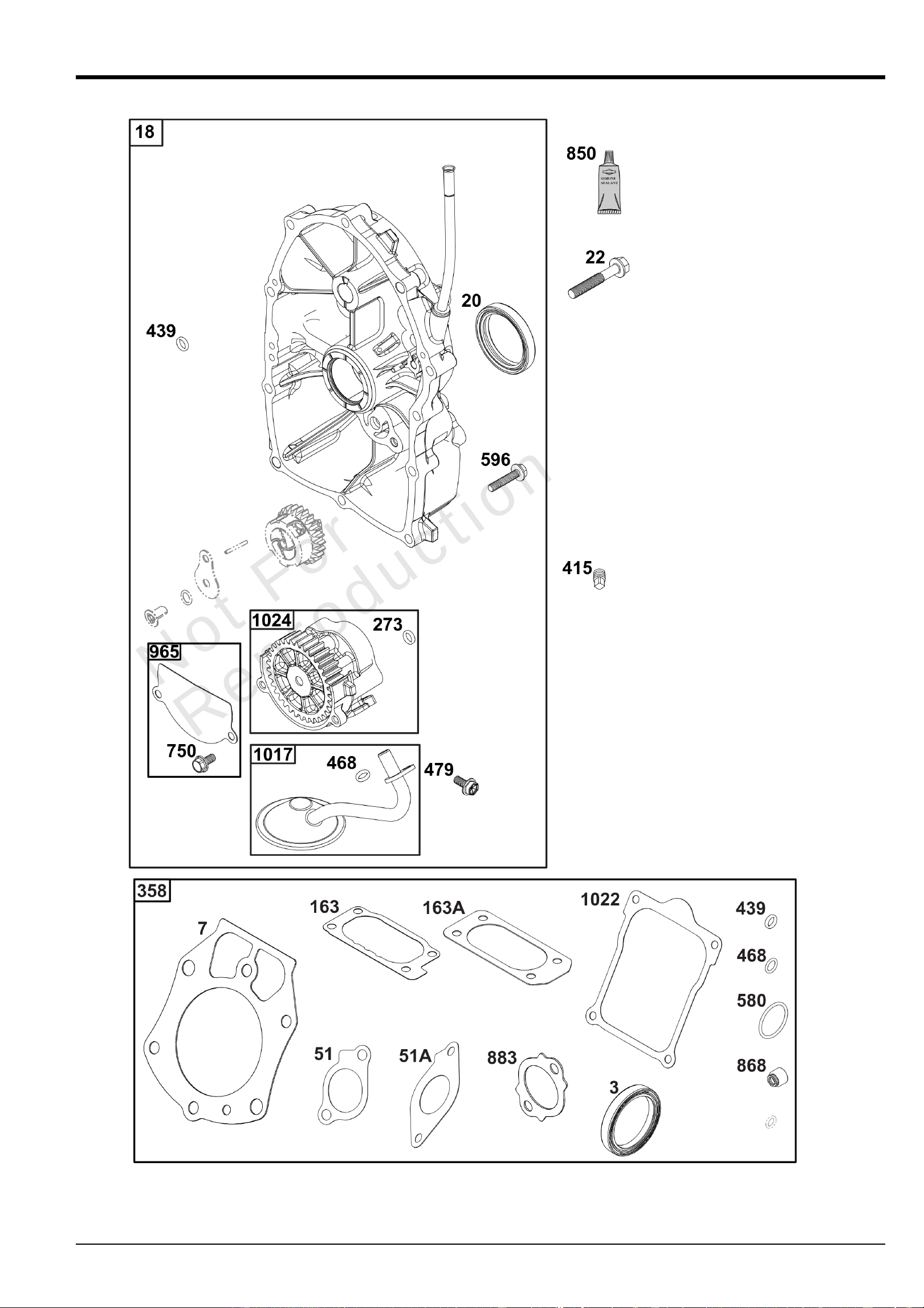

Crankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
7 ----- 2 GASKET, Cylinder Head
-(Part information located in Cylinder Head Group.)
18 846942 1 COVER, Crankcase
20 841596 1 SEAL, Oil
-(PTO Side)
22 807362 9 SCREW
-(Crankcase Cover/Sump) (M8x50mm)
51 ----- 2 GASKET, Intake
-(Part information located in Cylinder Head Group.)
51A ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
163 ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor and Fuel Supply Group.)
163A ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor and Fuel Supply Group.)
273 ----- 2 SEAL, O-Ring
-(Part information located in Lubrication Group.)
358 ----- GASKET SET, Engine
-(Part information located in Cylinder Group.)
415 794903 1 PLUG
439 692154 2 O-RING, Oil Gallery
-(Crankcase Cover/Sump or Cylinder Assembly)
468 ----- 1 SEAL, O-Ring
-(Part information located in Lubrication Group.)
479 ----- 1 SCREW
-(Part information located in Lubrication Group.)
580 ----- 1 SEAL, O-Ring
-(Part information located in Cylinder Head Group.)
596 ----- 2 SCREW
-(Part information located in Lubrication Group.)
750 ----- 2 SCREW
-(Part information located in Lubrication Group.)
850 100106 SEALANT, Liquid
868 ----- 2 SEAL, Valve
-(Part information located in Cylinder Head Group.)
883 ----- 2 GASKET, Exhaust
-(Part information located in Exhaust Group.)
965 ----- 1 COVER, Oil Pump
-(Part information located in Lubrication Group.)
1017 ----- 1 SCREEN, Oil Pump
-(Part information located in Lubrication Group.)
1022 ----- 2 GASKET, Rocker Cover
-(Part information located in Cylinder Head Group.)
1024 ----- 1 PUMP, Oil
-(Part information located in Lubrication Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 04-Sep-2025
Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 04-Sep-2025

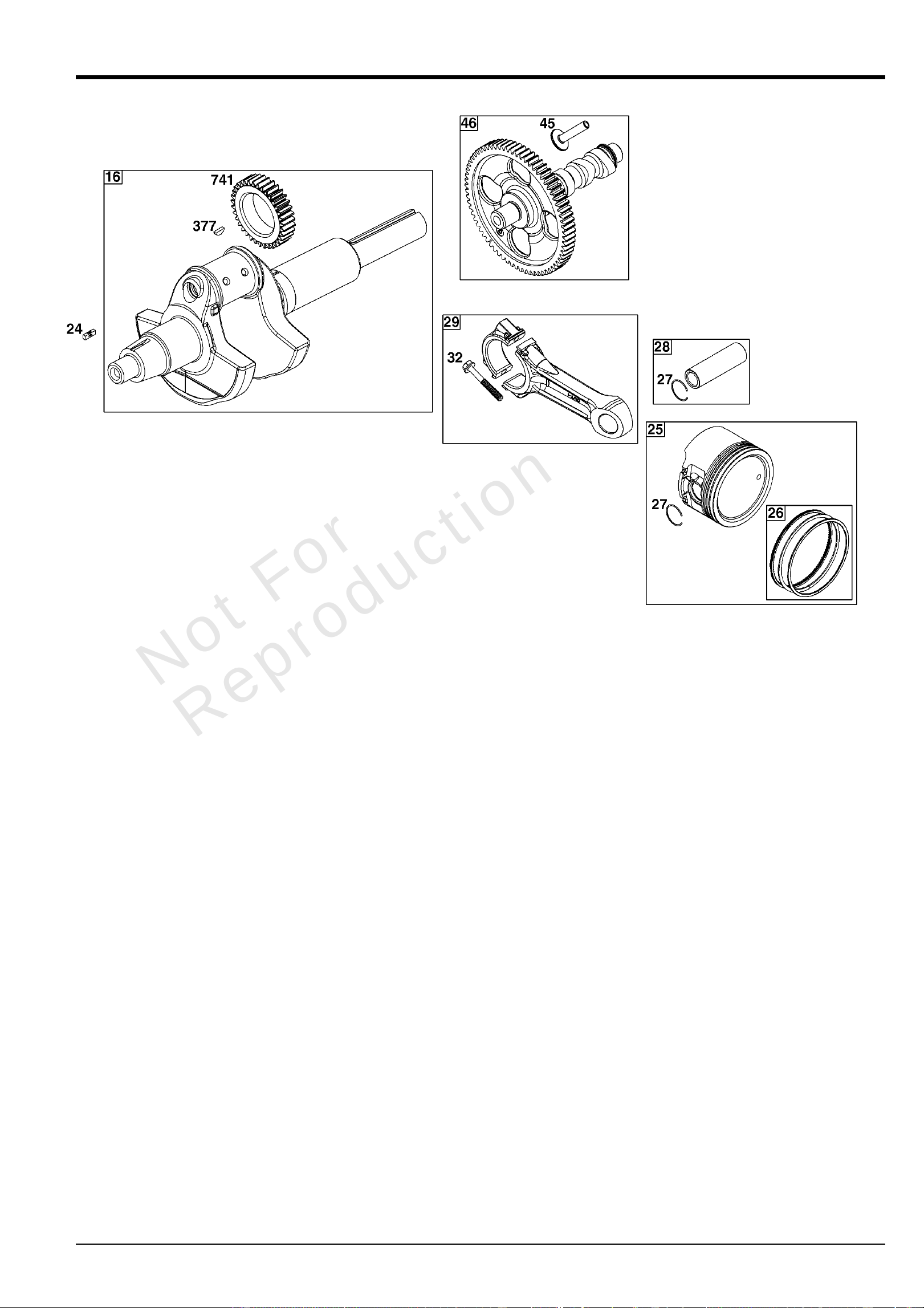

Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
16 848063 1 CRANKSHAFT
24 796335 1 KEY, Flywheel
25 848277 2 PISTON ASSEMBLY
-(Standard)
25 848278 2 PISTON ASSEMBLY
-(.020" Oversize)
26 809972 2 SET, Ring
-(Standard)
27 807351 4 LOCK, Piston Pin
28 807361 2 PIN, Piston
29 848061 2 ROD, Connecting
32 848294 2 SCREW
-(Connecting Rod)
45 ----- 4 TAPPET, Valve
-(Part information located in Cylinder Head Group.)
46 847411 1 CAMSHAFT
377 691639 1 KEY, Woodruff
741 809432 1 GEAR, Timing
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 04-Sep-2025

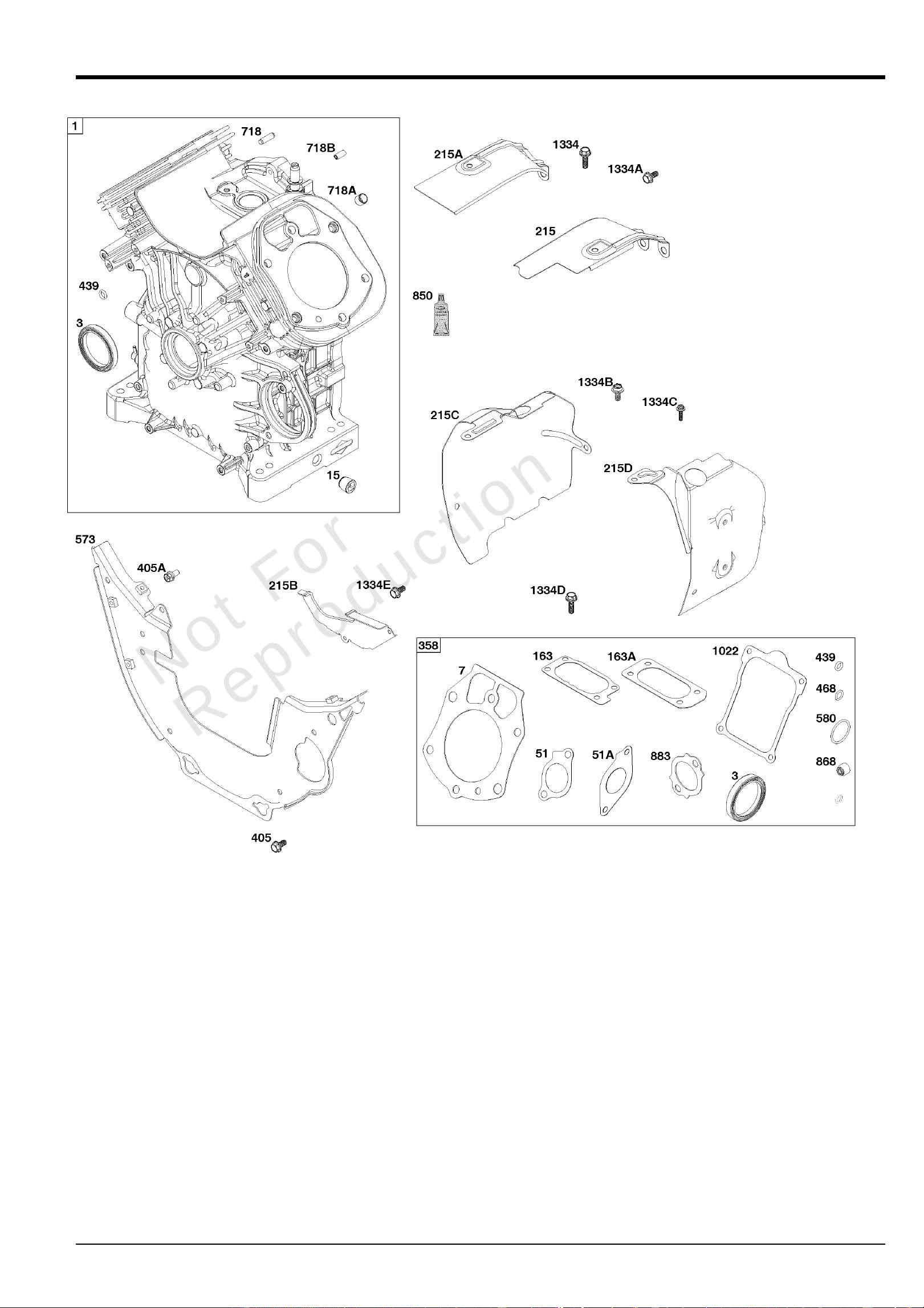

Cylinder GroupCylinder GroupCylinder GroupCylinder Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 04-Sep-2025
Cylinder GroupCylinder GroupCylinder GroupCylinder Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1 846429 1 CYLINDER ASSEMBLY
3 841596 1 SEAL, Oil
-(Magneto Side)
7 ----- 2 GASKET, Cylinder Head
-(Part information located in Cylinder Head Group.)
15 691680 2 PLUG, Oil Drain
51 ----- 2 GASKET, Intake
-(Part information located in Cylinder Head Group.)
51A ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
163 ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor and Fuel Supply Group.)
163A ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor and Fuel Supply Group.)
215 846455 1 GUIDE, Air
215A 846456 1 GUIDE, Air
215B 846458 1 GUIDE, Air
215C 809738 1 GUIDE, Air
215D 809897 1 GUIDE, Air
358 846671 GASKET SET, Engine
-(Service Kits may include extra parts not specific to this engine.)
405 841233 3 SCREW
-(Back Plate) (M6x10mm)
405A 841735 1 SCREW
-(Back Plate) (M6x14mm)
439 ----- 2 O-RING, Oil Gallery
-(Part information located in Crankcase Cover/Sump Group.)
468 ----- 1 SEAL, O-Ring
-(Part information located in Lubrication Group.)
573 846840 1 PLATE, Back
580 ----- 1 SEAL, O-Ring
-(Part information located in Cylinder Head Group.)
718 690959 2 PIN, Locating
718A 809508 4 PIN, Locating
718B 845925 1 PIN, Locating
850 ----- SEALANT, Liquid
-(Part information located in Crankcase Cover/Sump Group.)
868 ----- 2 SEAL, Valve
-(Part information located in Cylinder Head Group.)
883 ----- 2 GASKET, Exhaust
-(Part information located in Exhaust Group.)
1022 ----- 2 GASKET, Rocker Cover
-(Part information located in Cylinder Head Group.)
1334 807435 4 SCREW
-(Air Guide) (M6x20mm)
1334A 841233 4 SCREW
-(Air Guide) (M6x10mm)
1334B 807084 1 SCREW
-(Air Guide) (M6x14mm)
1334C 690677 2 SCREW
-(Air Guide) (M4x12mm)
1334D 692062 4 SCREW
-(Air Guide) (M8x14mm)
1334E 692056 1 SCREW
-(Air Guide) (M8x14mm)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
5 847920 1 HEAD, Cylinder
5A 847921 1 HEAD, Cylinder
7 809730 2 GASKET, Cylinder Head
11 846502 1 TUBE, Breather
13 809784 12 SCREW
-(Cylinder Head) (M9x70mm)
21 843464 1 CAP, Oil Fill
33 844787 1 VALVE, Exhaust
34 846469 1 VALVE, Intake
35 845589 2 SPRING, Valve
-(Intake)
36 845589 2 SPRING, Valve
-(Exhaust)
40 844788 2 RETAINER, Valve
42 807683 4 KEEPER, Valve
45 809785 4 TAPPET, Valve
50 846503 1 MANIFOLD, Intake
51 847671 2 GASKET, Intake
51A 846473 1 GASKET, Intake
163 ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor and Fuel Supply Group.)
163A ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor and Fuel Supply Group.)
192 690083 1 ADJUSTER. Rocker Arm
337 491055S 2 PLUG, Spark
337 84007216 PLUG, SPARK
-(China Only)
358 ----- GASKET SET, Engine
-(Part information located in Cylinder Group.)
383 19576S WRENCH, Spark Plug
439 ----- 2 O-RING, Oil Gallery
-(Part information located in Crankcase Cover/Sump Group.)
468 ----- 1 SEAL, O-Ring
-(Part information located in Lubrication Group.)
580 809894 1 SEAL, O-Ring
-(Oil Fill Cap)
601B 844405 1 CLAMP, Hose
635 692076 2 BOOT, Spark Plug
708 841301 1 SEAL, O-Ring
-(Breather Reed)
798 691492 4 SCREW
-(Rocker Arm) (M6x18mm)
868 691963 2 SEAL, Valve
883 ----- 2 GASKET, Exhaust
-(Part information located in Exhaust Group.)
914 807357 8 SCREW
-(Rocker Cover) (M6x40mm)
1022 809732 2 GASKET, Rocker Cover
1023 809731 1 COVER, Rocker
1023A 809789 1 COVER, Rocker
1026 809783 4 ROD, Push
1029 690972 4 ARM, Rocker
1029A 807323 1 ARM, Rocker
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1077 809729 2 BRACKET, Lifting
1095 846672 GASKET SET, Valve
-(Service Kits may include extra parts not specific to this engine.)
1100 791959 4 PIVOT, Rocker Arm
1130 841590 4 STUD
-(Intake Manifold)
1174 842067 4 NUT
-(Intake Manifold)
1376 806421 2 SCREW
-(Breather Reed Cover) (M5x25mm)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 04-Sep-2025
Exhaust GroupExhaust GroupExhaust GroupExhaust Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 04-Sep-2025

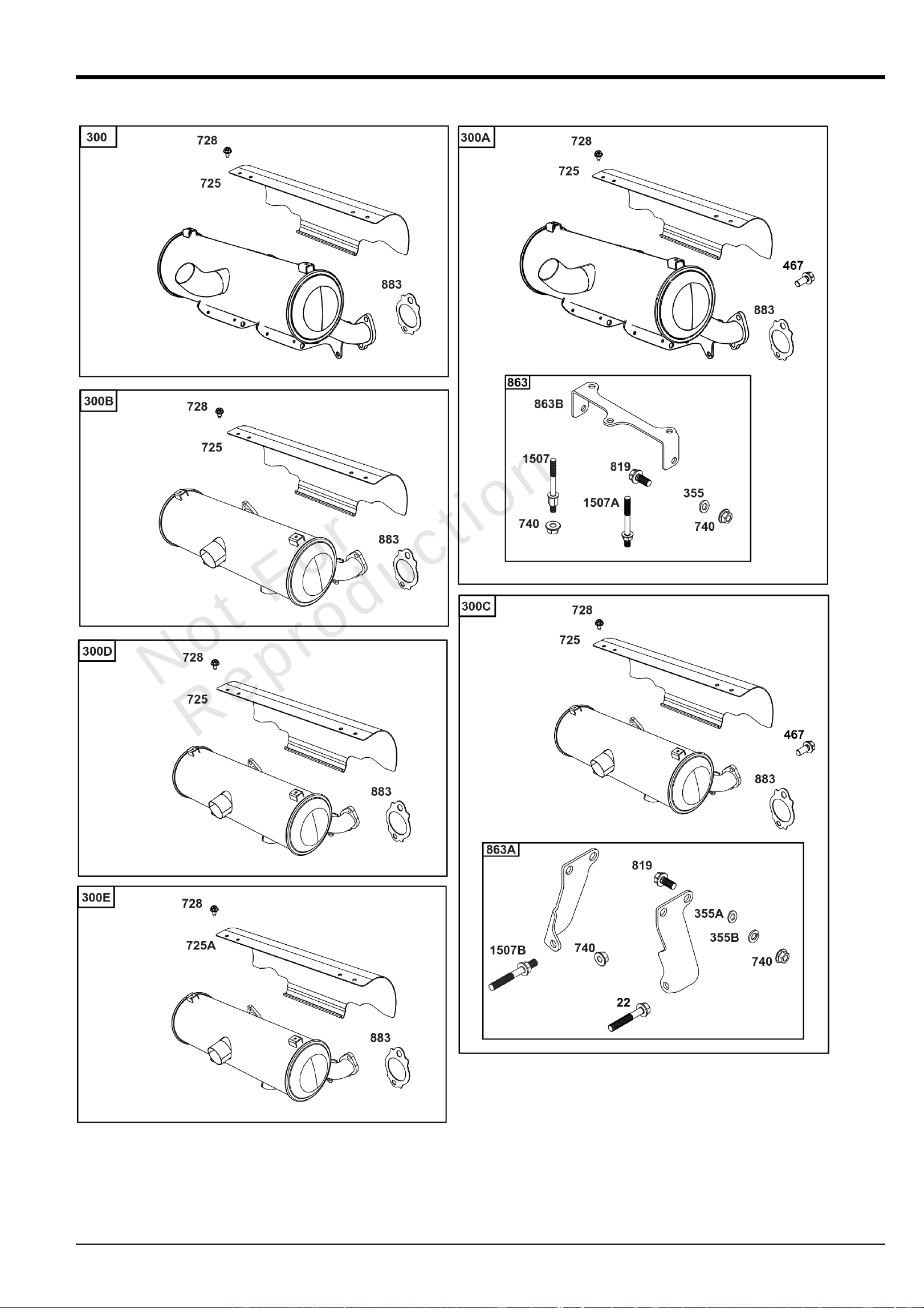

Exhaust GroupExhaust GroupExhaust GroupExhaust Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
22 ----- 9 SCREW
-(Part information located in Crankcase Cover/Sump Group.)
300 847922 1 MUFFLER
355 844035 4 WASHER
-(Muffler Bracket)
355A 691075 4 WASHER
-(Muffler Bracket)
613 846149 4 SCREW
-(Muffler) (M8x25mm)
725 841132 1 SHIELD, Heat
728 692067 2 SCREW
-(Heat Shield) (M6x12mm)
740 690941 6 NUT
-(Muffler Bracket)
819 692062 4 SCREW
-(Muffler Bracket) (M8x18mm)
863 843487 1 BRACKET, Muffler
883 809872 2 GASKET, Exhaust
1507 846324 2 STUD
-(Muffler Bracket)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
23 04-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 04-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
23 846461 1 FLYWHEEL
309 845760 1 MOTOR, Starter
333 84005190 2 ARMATURE, Magneto
334 841552 4 SCREW
-(Magneto Armature) (M5x20mm)
363 19203 PULLER, Flywheel
697 690711 2 SCREW
-(Starter Motor) (Drive Cap) (M8x38mm)
893 845758 2 NUT
-(Starter Solenoid)
920 846737 1 SOLENOID, Starter
934 807421 3 SCREW
-(Fan Retainer)
1005 846995 1 FAN, Flywheel
1006 846495 1 RETAINER, Fan
1070 807435 4 SCREW
-(Flywheel Fan)
1369 842858 1 GUARD, Flywheel Fan
1370 841233 4 SCREW
-(Flywheel Fan Guard) (M6x10mm)
1371 841537 4 NUT
-(Flywheel Fan Guard)
1378 844795 1 SET, Washer/Nut
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 04-Sep-2025
Lubrication GroupLubrication GroupLubrication GroupLubrication Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
26 04-Sep-2025

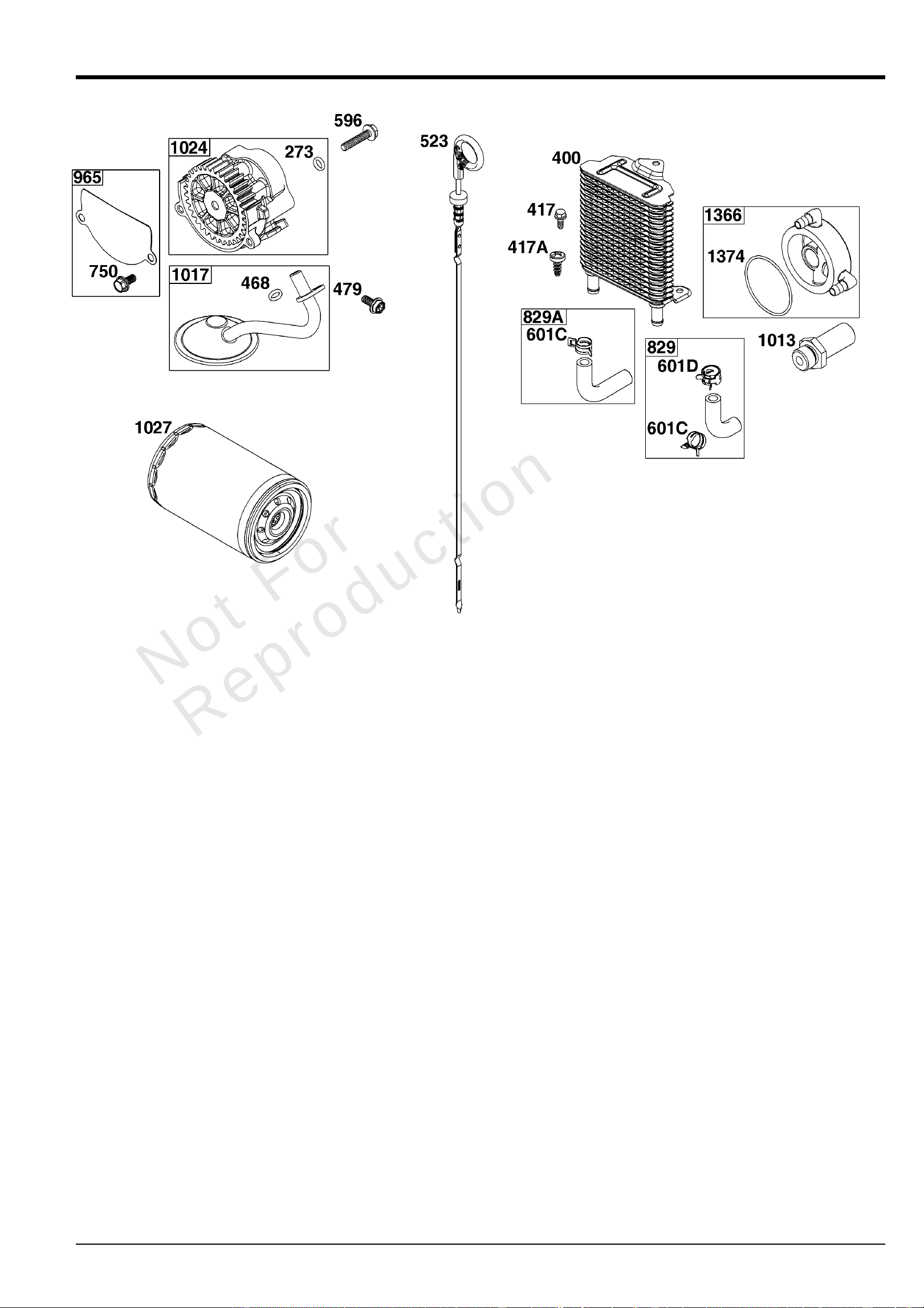

Lubrication GroupLubrication GroupLubrication GroupLubrication Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
273 690681 2 SEAL, O-Ring
-(Oil Pump)
400 846249 1 COOLER, Oil
417 841233 2 SCREW
-(Oil Cooler) (M6x10mm)
417A 846250 1 SCREW
-(Oil Cooler) (M6x16mm)
468 690690 1 SEAL, O-Ring
-(Oil Pump Screen)
479 807084 1 SCREW
-(Oil Pump Screen) (M6x14mm)
523 841007 1 DIPSTICK
596 691492 2 SCREW
-(Oil Pump) (M6x20mm)
601C 841597 1 CLAMP, Hose
601D 845209 1 CLAMP, Hose
750 841233 2 SCREW
-(Oil Pump Cover) (M6x10mm)
829 846247 1 HOSE, Oil Cooler
829A 846248 1 HOSE, Oil Cooler
965 809422 1 COVER, Oil Pump
1013 841602 1 NIPPLE, Oil Filter
1017 809421 1 SCREEN, Oil Pump
1024 845983 1 PUMP, Oil
1027 842921 1 FILTER, Oil
1366 841510 1 DIVERTER, Oil Cooler
1374 796863 1 SEAL, O-Ring
-(Oil Cooler Diverter)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
27 04-Sep-2025
Replacement Engine - US & CanadaReplacement Engine - US & CanadaReplacement Engine - US & CanadaReplacement Engine - US & Canada
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
61G4770007J1 1 Replacement Engine
----- Top No-Load Speed: 4800
----- Idle Speed: 800
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
28 04-Sep-2025
Throttle Body and Fuel Supply GroupThrottle Body and Fuel Supply GroupThrottle Body and Fuel Supply GroupThrottle Body and Fuel Supply Group
Mfg. No: 61G477-0001-J1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
29 04-Sep-2025
Throttle Body and Fuel Supply GroupThrottle Body and Fuel Supply GroupThrottle Body and Fuel Supply GroupThrottle Body and Fuel Supply Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
51A ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
95 593897 2 SCREW
-(Throttle Valve)
98 846477 1 KIT, Idle Speed
127 691742 4 PLUG, Welch
130 846476 1 VALVE, Throttle
163 807375 1 GASKET, Air Cleaner
163A 843117 1 GASKET, Air Cleaner
187 846475 1 LINE, Fuel
187A 791745 1 LINE, Fuel
-(Cut To Required Length)
187B 791766 1 LINE, Fuel
240 845125 1 FILTER, Fuel
385 846250 2 SCREW
-(Fuel Pump) (M6x16mm)
387 846470 1 PUMP, Fuel
527 690423 2 CLAMP, Tube
601 691038 2 CLAMP, Hose
601A 846483 2 CLAMP, Hose
652 807084 2 SCREW
-(Support Bracket) (M6x14mm)
652A 845964 2 SCREW
-(Support Bracket)
890 846506 1 BRACKET, Support
890A 846493 1 BRACKET, Support
964 ----- 1 CAP, Connector
-(Part information located in Blower Housing Group.)
1425 846514 1 HOSE, Purge Line
1480 593852 2 INJECTOR, Fuel
1482 846474 1 BODY, Throttle
1485 593890 1 MODULE, Fuel
1490 807084 2 SCREW
-(Fuel Injector) (M6x14mm)
1491 807435 2 SCREW
-(Throttle Body) (M6x20mm)
1492 ----- 1 SENSOR, Throttle
-(Part information located in Controls Group.)
1493 847169 2 SCREW
-(Throttle Sensor)
1494 846479 1 VALVE, Idle Air
1495 847169 2 SCREW
-(Idle Air Valve)
1497 846505 1 BRACKET, Fuel Module
1498 807084 3 SCREW
-(Fuel Module Bracket) (M6x14mm)
1503 594618 3 SCREW
-(Fuel Module) (1/4-20x.5)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
30 04-Sep-2025
Model 54-61 EngineModel 54-61 EngineModel 54-61 EngineModel 54-61 Engine
Accessories CatalogAccessories CatalogAccessories CatalogAccessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
Maintenance KitsMaintenance KitsMaintenance KitsMaintenance Kits
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
32 04-Sep-2025
Maintenance KitsMaintenance KitsMaintenance KitsMaintenance Kits
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
9000 84002318 KIT, Maintenance
-(Oil Guard™ Engines)
9000A 84002315 KIT, Maintenance
-(Non-Oil Guard™ Engines)
9000B 84004936 KIT, Maintenance
-(Non-Oil Guard™ Engines) (20 - 40 HP)
240 845125 1 FILTER, Fuel
337 491055S 2 PLUG, Spark
445 841497 1 FILTER, A/C Cartridge
-"Professional / PXi" & "Commercial / CXi".
445A 692519 1 FILTER, A/C Cartridge
-"Professional / PXi" & "Commercial / CXi".
967 692520 1 FILTER, Pre Cleaner
1027 595930 1 FILTER, Oil
-(Oil Guard™)
1027A 842921 1 FILTER, Oil
-(Vanguard®)
1505 100170 OIL-5QT VANGUARD (CASE)
-(5 qt Bottle)
1505A 100169 OIL-1QT VANGUARD (CASE)
-(1 qt Bottle)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
33 04-Sep-2025
LubricationLubricationLubricationLubrication
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
34 04-Sep-2025
LubricationLubricationLubricationLubrication
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
186 796532 1 CONNECTOR, Hose
-(Threaded Engine Block Connector for EZ-Oil Drain Hose)(Order hose
separate)
239 690233 1 SWITCH, Oil Pressure
-(2-4 PSI Normally-Closed Switch)
239A 491657S 1 SWITCH, Oil Pressure
-(3-5 PSI Normally-Closed Switch)
239B 841281 1 SWITCH, Oil Pressure
-(7-10 PSI Normally-Closed Switch)
239C 694115 1 SWITCH, Oil Pressure
-(9-13 PSI Normally-Closed Switch)
239D 697049 1 SWITCH, Oil Pressure
-(3-6 PSI Normally-Open Switch)
460 1761386YP 1 CONNECTOR, Filter Adapter
-(Oil Drain Valve) (Fitting M14, 90 Degree 9/16 JIC)
460A 5100366SM 1 METRIC ADAPTER, M14-1
-(Threaded engine block adapter M14 to 3/8 for EZ-Oil Drain connector) (order
796532 separate)
512 594200 1 HOSE, Oil Drain
-(EZ-Oil Drain Hose, 10.5") (Order threaded engine block connector separate)
512 593635 1 HOSE, Oil Drain
-(EZ-Oil Drain Hose, 13.75") (Order threaded engine block connector separate)
512B 1723165SM 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings
-(10.5")
512C 5048681SM 1 HOSE, OIL DRAIN
-(12.5")
517 593633 1 RETAINER, Oil Drain
1346 844802 1 VALVE, Oil Drain Shut Off
1346A 492031 1 VALVE, Oil Drain Shut Off
1505 100169 OIL-1QT VANGUARD (CASE)
-(1 qt. Bottle)
1505A 100170 OIL-5QT VANGUARD (CASE)
-(5 qt. Bottle)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
35 04-Sep-2025
Oil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet Mufflers
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
36 04-Sep-2025
Oil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
296 844813 4 STUD
-(Muffler)
300 846819 1 MUFFLER
-(High Mount) (Oil Filter Side Outlet) (EFI)
300A 846246 1 MUFFLER
-(Mid Mount) (Oil Filter Side Outlet)
300B 847486 1 MUFFLER
-(Mid Mount) (Oil Filter Side Outlet) (EFI)
300C 847278 1 MUFFLER
-(Side Mount) (Oil Filter Side Outlet) (EFI)
300D 84007299 1 MUFFLER
-(Vertical Shaft)(Oil Filter Side Outlet)
415 596859 1 PLUG
436 841681 1 MANIFOLD, Exhaust
613 596859 PLUG
-(Muffler)
725 847229 1 SHIELD, Heat
725A 844338 1 SHIELD, Heat
725B 847487 1 SHIELD, Heat
728 692067 2 SCREW
-(Heat Shield)
740 703164 2 NUT
-Muffler Bracket
819 5025011X8SM 2 CAPSCREW, Hex Head, 5/16-18 X 1
-(Muffler Bracket)
832 841682 1 GUARD, Muffler
836 841233 4 SCREW
-(Muffler Guard)
883 809872 2 GASKET, Exhaust
884 841968 1 CLAMP, Muffler
1449 703350 4 WASHER
-(Muffler)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
37 04-Sep-2025
Center Outlet MufflersCenter Outlet MufflersCenter Outlet MufflersCenter Outlet Mufflers
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
38 04-Sep-2025
Center Outlet MufflersCenter Outlet MufflersCenter Outlet MufflersCenter Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
22 807362 2 SCREW
-(Muffler Bracket)
300 846443 1 MUFFLER
-(Vertical Shaft) (Center Outlet) (304 Stainless Steel)
300A 847940 1 MUFFLER
-(Vertical Shaft) (Center Outlet) (304 Stainless Steel) (Performance Muffler for
40 HP)
300B 846154 1 MUFFLER
-(Horizontal Shaft) (High Mount) (Center Outlet)
300C 847922 1 MUFFLER
-(Horizontal Shaft) (High Mount) (Center Outlet) (304 Stainless Steel)
(Performance Muffler for 40 HP)
300D 846444 1 MUFFLER
-(Horizontal Shaft) (High Mount) (Center Outlet) (304 Stainless Steel)
300E 847478 1 MUFFLER
-(Horizontal Shaft) (High Mount) (Center Outlet) (O2 Sensor Port) (EFI)
355 844035 2 WASHER
-(Muffler Bracket)
355A 691261 2 WASHER
-(Muffler Bracket)
355B 691075 8 WASHER
-(Muffler Bracket)
467 846149 4 SCREW
-(Exhaust Manifold)
725 841132 1 SHIELD, Heat
725A 847229 1 SHIELD, Heat
728 692067 2 SCREW
-(Heat Shield)
740 690941 5 NUT
819 692062 2 SCREW
-(Muffler Bracket)
863 848296 1 BRACKET, Muffler
863A 843487 1 BRACKET, Muffler
863B 848296 1 BRACKET, Muffler
883 809872 2 GASKET, Exhaust
1507 848297 1 STUD
-(Muffler Bracket)
1507A 848298 2 STUD
-(Muffler Bracket)
1507B 846324 2 STUD
-(Muffler Bracket)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
39 04-Sep-2025
Starter Side Outlet MufflersStarter Side Outlet MufflersStarter Side Outlet MufflersStarter Side Outlet Mufflers
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
40 04-Sep-2025
Starter Side Outlet MufflersStarter Side Outlet MufflersStarter Side Outlet MufflersStarter Side Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 845741 1 MUFFLER
-(High Mount) (Starter Side Outlet)
300A 847083 1 MUFFLER
-(Starter Side Outlet) (EFI)
300B 847279 MUFFLER
-(Side Mount) (Starter Side Outlet) (EFI)
415 596859 1 PLUG
436 842263 1 MANIFOLD, Exhaust
725 841132 1 SHIELD, Heat
728 692067 2 SCREW
-(Heat Shield)
832 841682 1 GUARD, Muffler
836 841233 4 SCREW
-(Muffler Guard)
883 809872 2 GASKET, Exhaust
884 841968 1 CLAMP, Muffler
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
41 04-Sep-2025
Muffler Bracket KitsMuffler Bracket KitsMuffler Bracket KitsMuffler Bracket Kits
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
42 04-Sep-2025
Muffler Bracket KitsMuffler Bracket KitsMuffler Bracket KitsMuffler Bracket Kits
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
22 807362 2 SCREW
-(Muffler Bracket)
355 844035 2 WASHER
-(Muffler Bracket)
355A 691261 2 WASHER
-(Muffler Bracket)
355B 691075 8 WASHER
-(Muffler Bracket)
740 690941 6 NUT
-(Muffler Bracket)
819 692062 2 SCREW
-(Muffler Bracket)
863 848316 1 BRACKET, Muffler
-(Vertical)
863A 843487 1 BRACKET, Muffler
-(Horizontal)
863B 848296 1 BRACKET, Muffler
-(Vertical)
1507 848297 1 STUD
-(Muffler Bracket)
1507A 848298 2 STUD
-(Muffler Bracket)
1507B 846324 2 STUD
-(Muffler Bracket)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
43 04-Sep-2025
Speed ControlSpeed ControlSpeed ControlSpeed Control
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
44 04-Sep-2025
Speed ControlSpeed ControlSpeed ControlSpeed Control
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
265 691024 1 CLAMP, Casing
-(Casing Clamp for Hard Casing)
265A 690798 1 CLAMP, Casing
-(Casing Clamp for Soft Casing)
267 792629 1 SCREW
-(Screw for Casing Clamp)
268 691025 1 CASING, Control Wire
-(Wire Casing 72")
269 691026 1 WIRE, Control
-(Control Wire 78")
269A 93907 1 WIRE, Control
-(Control Wire 100")
270 691027 1 NUT
-(Nut for Wire Casing)
271 691028 1 LEVER, Control
271A 692105 1 LEVER, Control
-(Wire with “L” formed end)
271B 692541 1 LEVER, Control
-(Wire with “Z” formed end)
416 595196 1 BRACKET, Throttle Cable
-(Casing Clamp for Snap-In Casing)
493 842713 1 BRACKET, Mounting
-(Speed Sensor)
1413 844449 1 SENSOR, Speed
-(Requires 842713 Bracket and two 841233 screws)
1502 841233 2 SCREW
-(Speed Sensor)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
45 04-Sep-2025
ElectricalElectricalElectricalElectrical
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
46 04-Sep-2025
ElectricalElectricalElectricalElectrical
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
330 847476 1 SENSOR, Oxygen
-(Extended Length O2 Sensor 23.5")
415 1714480SM 1 PLUG
-(Plug for Ignition Switch Removal)
789 809967 1 HARNESS, Wiring
-(Wire Harness Extension 8 Pin – 22”) (Use with standard key switch 692318 or
water/dust resistant key switch 847448)
789A 846776 1 HARNESS, Wiring
-(Wire Harness Extension 6 Pin – 22”) (Use with standard key<BR/>switch
692318 or water/dust<BR/>resistant key switch 847448)
789B 847017 1 WIRE ASSEMBLY
-(Wire Harness Extension for 847016 Tach 32")
853 80028618 1 ADAPTER, Wire
-(Wire Harness Adapter 6 Pin to 8 Pin)
983 5103809YP 1 LIGHT, Indicator
-(MIL Light Indicator, LED Red)
1518 847016 1 TACHOMETER
-(Tach, Hour Meter with MIL Light for EFI Engines)
1616 19626 1 CODE READER
-(Tiny Scan)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
47 04-Sep-2025
Stub ShaftsStub ShaftsStub ShaftsStub Shafts
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
48 04-Sep-2025
Stub ShaftsStub ShaftsStub ShaftsStub Shafts
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
849 596370 3 SCREW
-(Stub Shaft)
849A 846235 3 SCREW
-(Stub Shaft)
1047 841304 1 SHAFT, Stub
-(Flywheel Mounted) (1-1/8" diameter, 148 mm length)
1047A 843342 1 SHAFT, Stub
-(Flywheel Mounted) (1-1/8" diameter, 176 mm length)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
49 04-Sep-2025
Spark Arrester/DeflectorSpark Arrester/DeflectorSpark Arrester/DeflectorSpark Arrester/Deflector
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
50 04-Sep-2025

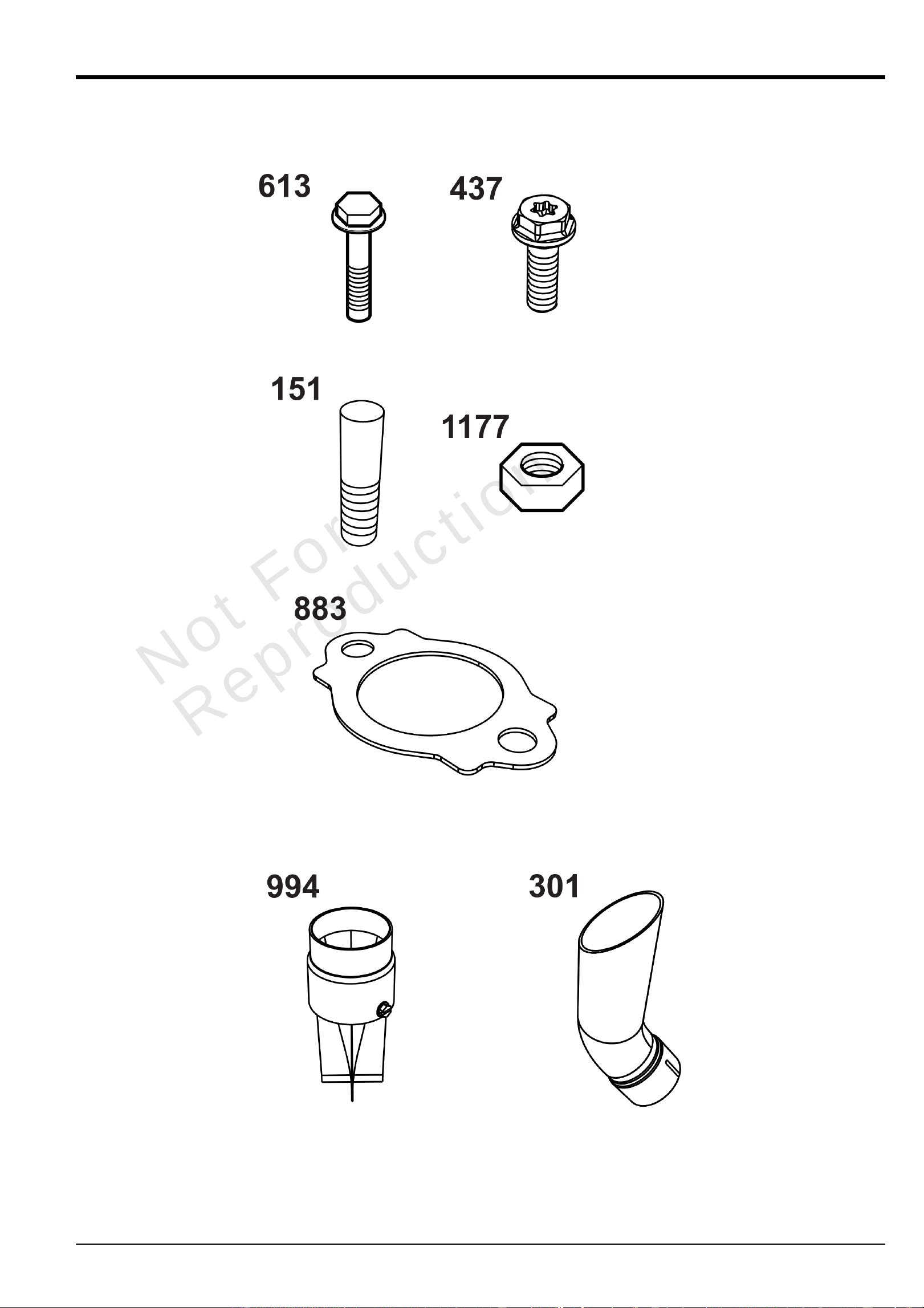

Spark Arrester/DeflectorSpark Arrester/DeflectorSpark Arrester/DeflectorSpark Arrester/Deflector
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
151 841185 4 STUD
-(4 per engine)
301 841518 1 PIPE, Exhaust
-(For 44.7 O.D. muffler outlet pipe) (Requires clamp 843624)
437 809743 4 SCREW
-(M8 x 25 for Mounting Mufflers) (4 per engine)
613 692062 4 SCREW
-(M8 x 18 for Mounting Mufflers) (4 per engine)
883 809872 2 GASKET, Exhaust
-(2 per engine)
994 843204 1 ARRESTOR, Spark
-(1.75") (44.7 mm) (O.D. Outlet Tube)
1177 842067 4 NUT
-(Required if using 841185 stud)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
51 04-Sep-2025
Air IntakeAir IntakeAir IntakeAir Intake
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
52 04-Sep-2025

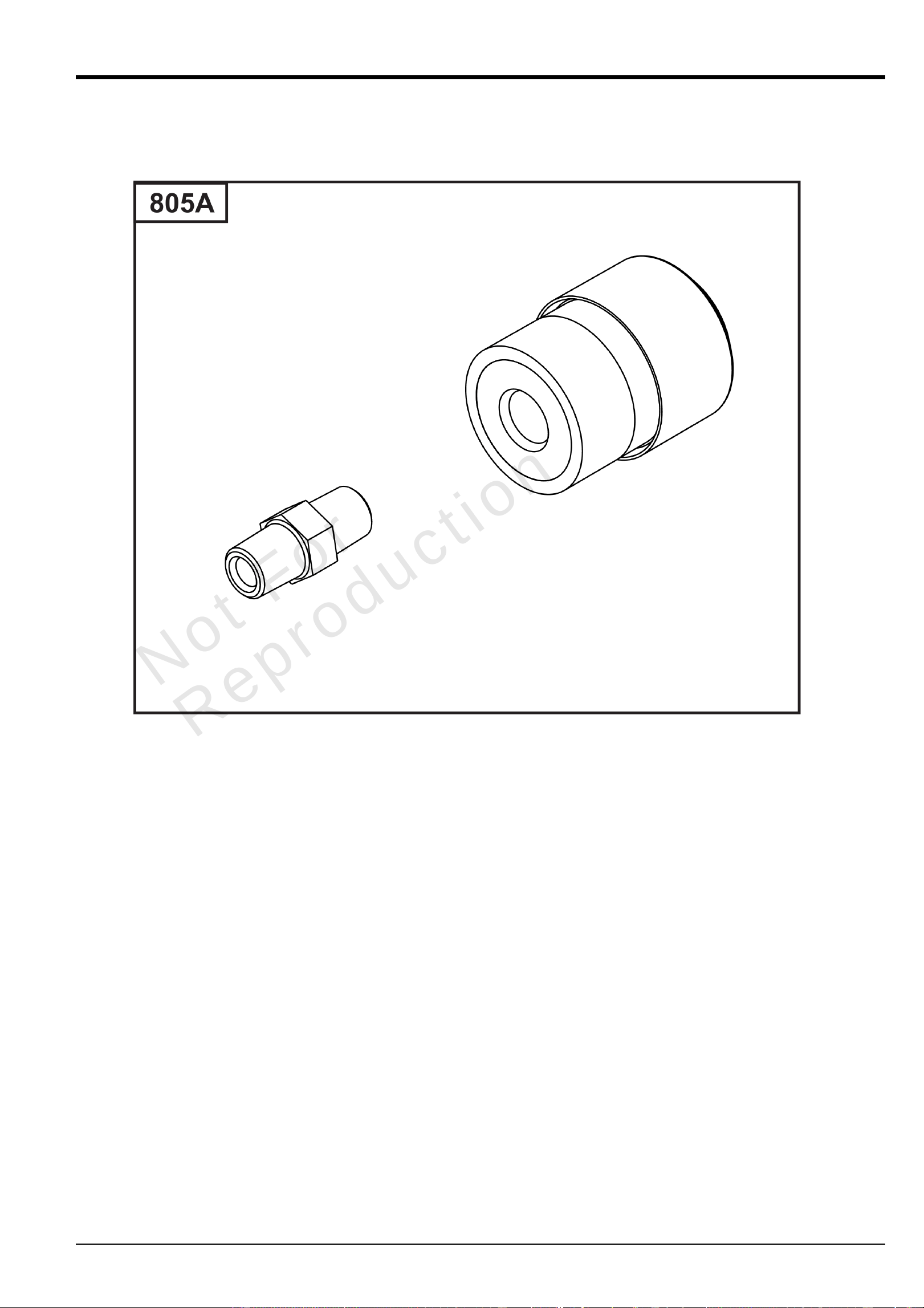

Air IntakeAir IntakeAir IntakeAir Intake
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
805A 843024 1 MINDER, Filter
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
53 04-Sep-2025
GuardingGuardingGuardingGuarding
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
54 04-Sep-2025
GuardingGuardingGuardingGuarding
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
73 841840 1 SCREEN, Rotating
73A 842248 1 SCREEN, Rotating
74 809947 3 SCREW
-(Rotating Screen) (M6x20mm)
196 847200 1 GUARD, Flywheel Fan
725 841132 1 SHIELD, Heat
-(Requires 2 x 692067 Screw)
725A 847229 1 SHIELD, Heat
-(With 02 Sensor Hole) (EFI)
890 809987 1 BRACKET, Support
1005 846996 1 FAN, Flywheel
1006 847198 1 RETAINER, Fan
1332 809948 3 WASHER
1369 995019 1 FAN/SCREEN ASSEMBLY
1370 841233 4 SCREW
-(Flywheel Fan Guard)
1371 841537 4 NUT
-(Flywheel Fan Guard)
1372 809946 3 STUD
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
55 04-Sep-2025
Electronic Throttle KitElectronic Throttle KitElectronic Throttle KitElectronic Throttle Kit
Model 54-61 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
56 04-Sep-2025

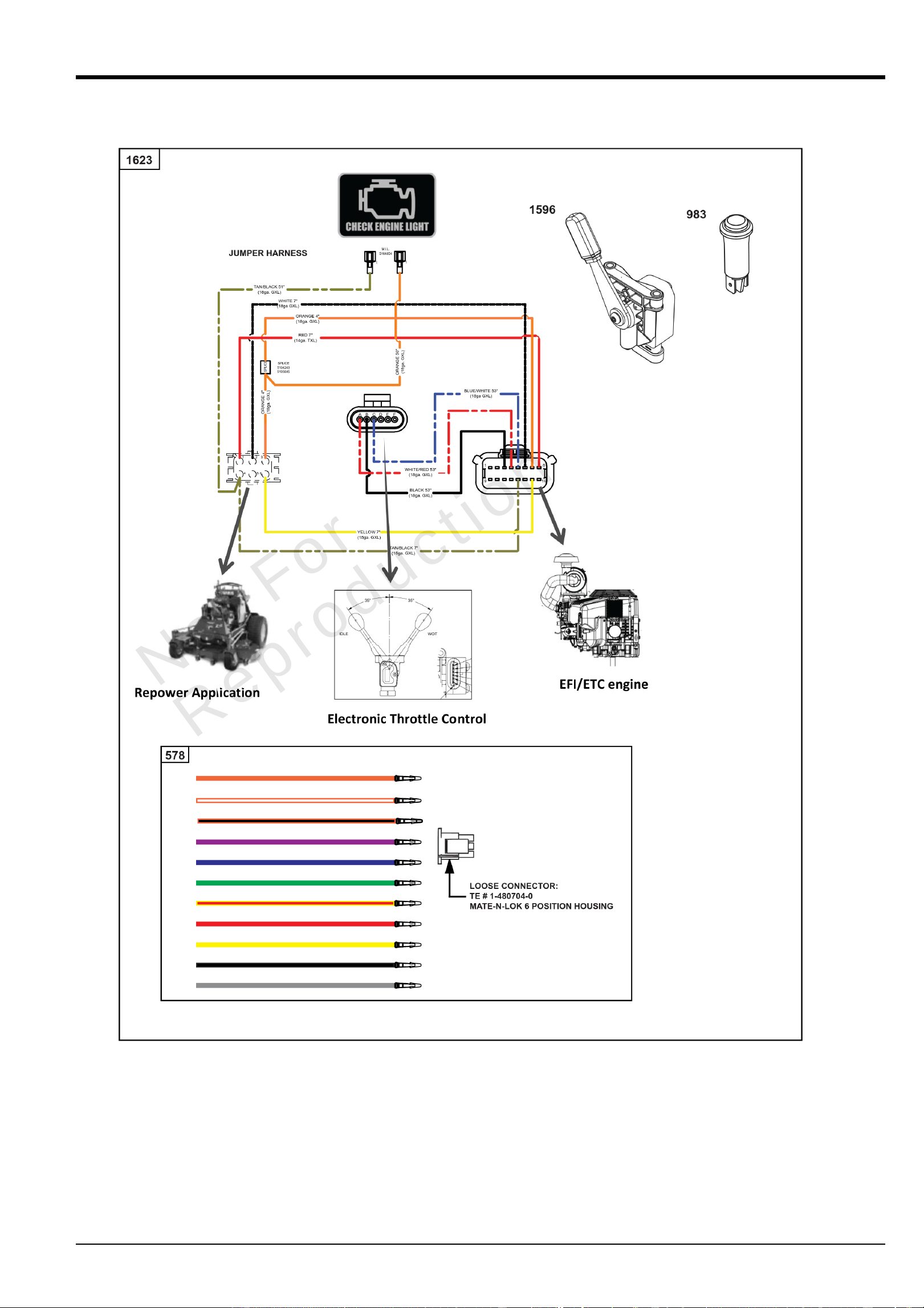

Electronic Throttle KitElectronic Throttle KitElectronic Throttle KitElectronic Throttle Kit
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
578 84007350 1 WIRE ASSEMBLY
983 5103809YP 1 LIGHT, Indicator
1596 84007271 1 LEVER, Electronic Throttle
1623 84008670 1 KIT, Throttle Assembly
-(Analog Electronic Throttle Control)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
57 04-Sep-2025
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
