Illustrated Parts List - English

This is the main product document for model 25E3. Additionally, the document applies to other Vanguard models: 202110120125

The file format is pdf, 28 pages, you can download this manual here .

background
Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 25E330-0027-G1
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
background
background
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Air Cleaner Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Blower Housing Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Controls Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Crankcase Cover/Sump Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Crankshaft Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cylinder Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cylinder Head Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Exhaust Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Flywheel, Ignition, and Starter Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fuel Supply Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Lubrication Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Throttle Body Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 04-Sep-2025
background
Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 04-Sep-2025
background

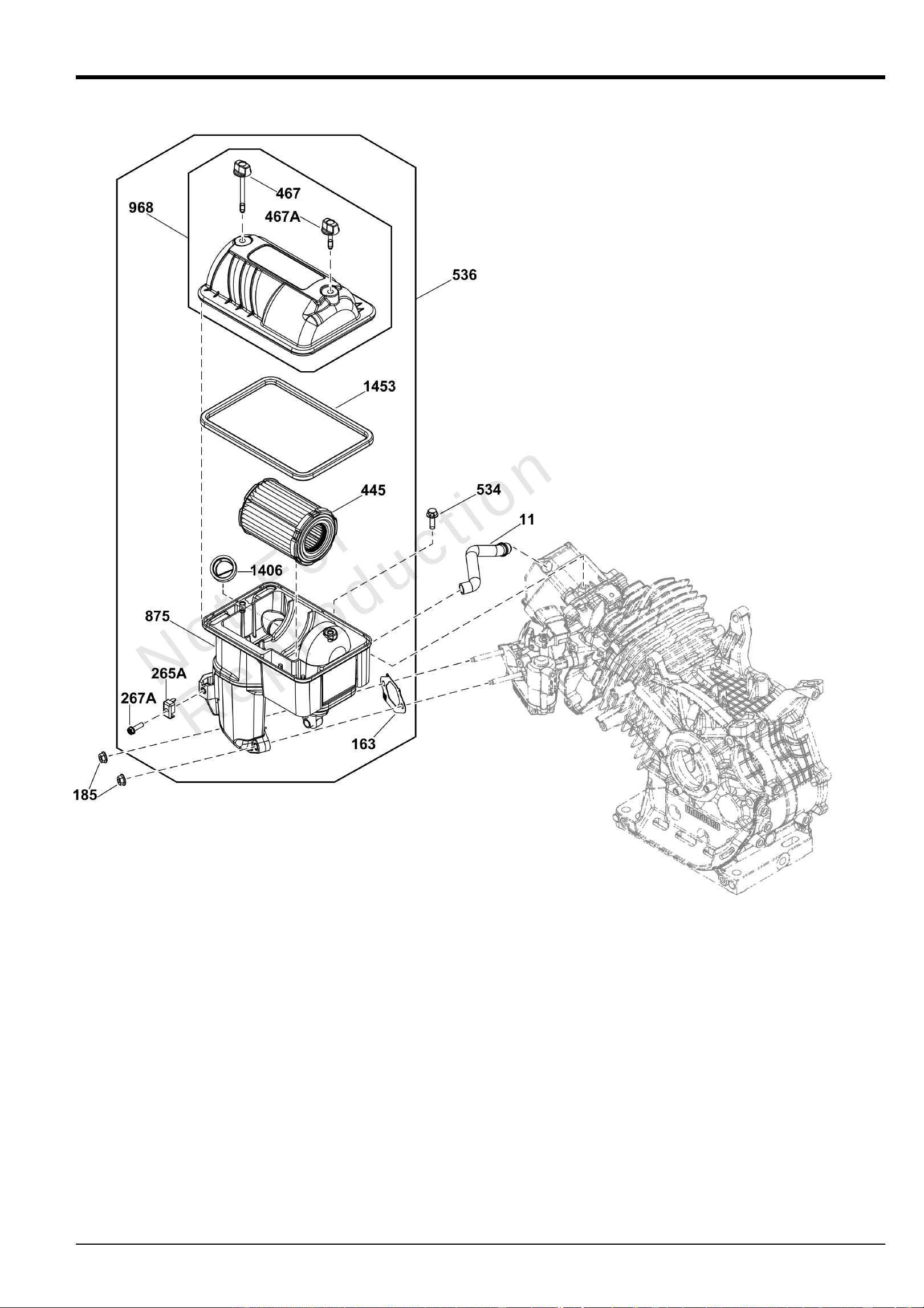

Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
11 84008291 1 TUBE, Breather
163 84008016 1 GASKET, Air Cleaner
185 590692 2 NUT
-(Air Cleaner Base)
265A ----- 1 CLAMP, Casing
-(Part information located in Controls Group.)
267A ----- 1 SCREW
-(Part information located in Controls Group.)
445 84002310 1 FILTER, A/C Cartridge
467 84004159 1 KNOB, Air Cleaner Cover
467A 596759 1 KNOB, Air Cleaner Cover
534 84004256 1 SCREW
-(Air Cleaner)
536 84004266 1 CLEANER, Air
875 84004267 1 BASE, Air Cleaner
968 84004278 1 COVER, Air Cleaner
1406 84007679 1 VALVE, Debris
1453 84004276 1 SEAL, Air Cleaner Cover
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 04-Sep-2025
background
Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 04-Sep-2025
background

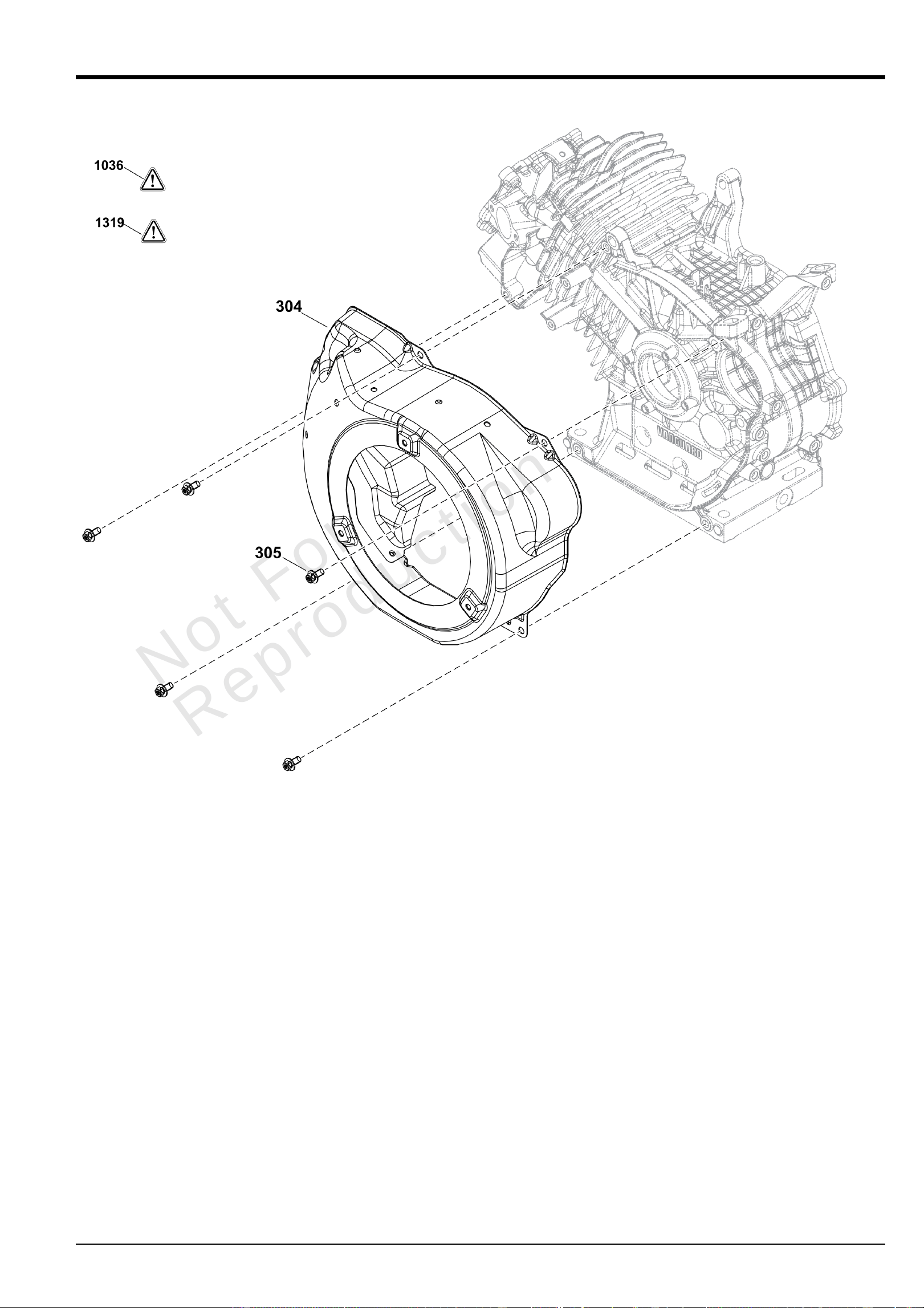

Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
304 84004566 1 HOUSING, Blower
305 597078 5 SCREW
-(Blower Housing)
1036 ----- 1 LABEL, Emissions
-(Available From A Briggs & Stratton Authorized Service Dealer)
1319 278911GS 1 LABEL, Warning
-(Required When Replacing Parts With Warning Labels Affixed)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 04-Sep-2025
background
Controls GroupControls GroupControls GroupControls Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 04-Sep-2025
background

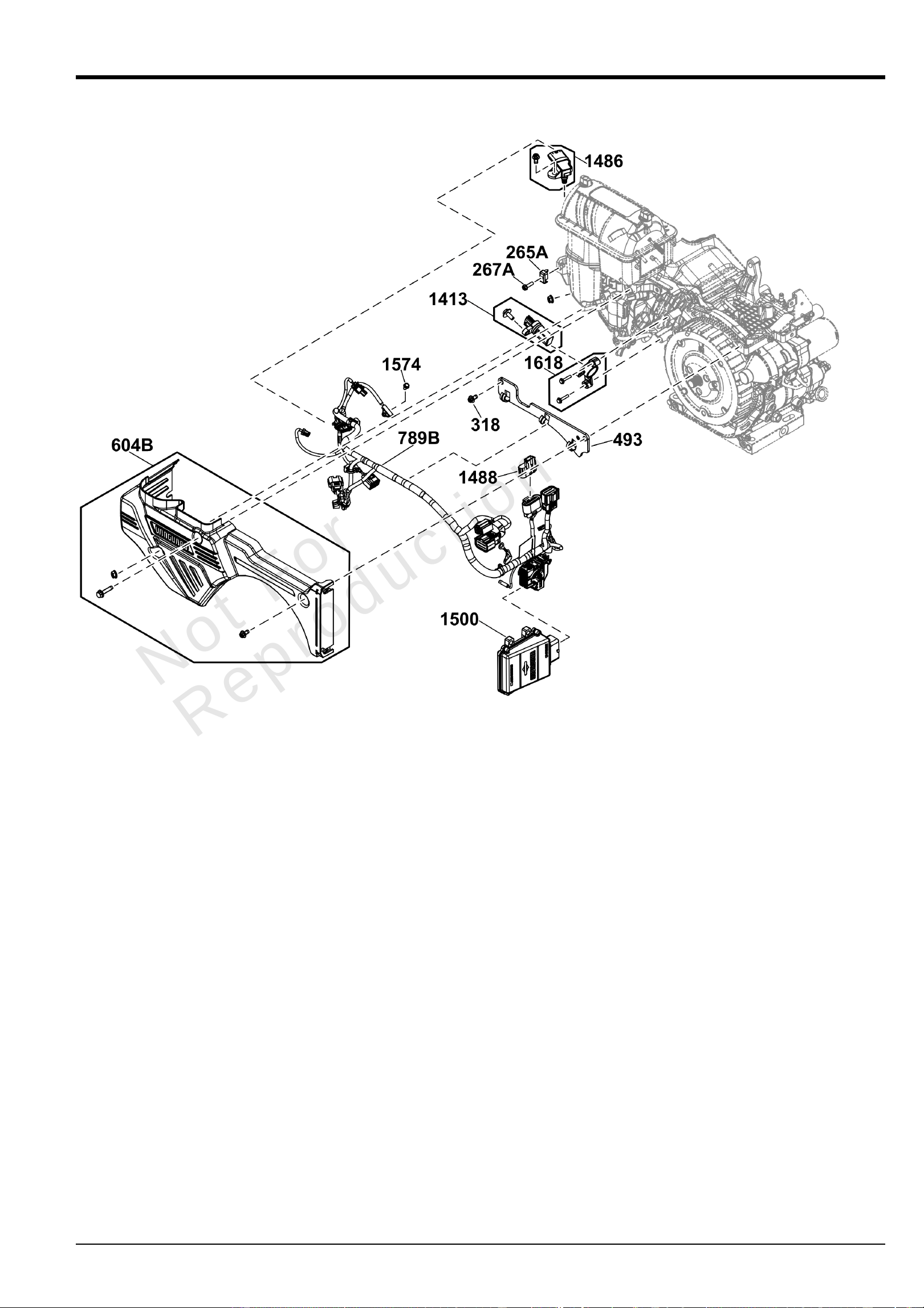

Controls GroupControls GroupControls GroupControls Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
265A 84004472 1 CLAMP, Casing
267A 84004279 1 SCREW
-(Casing Clamp)
318 597078 2 SCREW
-(Mounting Bracket)
493 84007705 1 BRACKET, Mounting
604B 84007702 1 COVER, Control
789B 84007636 1 HARNESS, Wiring
1413 84008017 1 SENSOR, Speed
1486 84008320 1 SENSOR, Temperature/Manifold Absolute
1488 593899 1 COVER, Diagnostic
1500 84007771 1 MODULE, Electronic Control
-(Not Programmed)
1574 84007703 1 SCREW
-(Ground Wire)
1618 84008018 1 BRACKET, Speed Sensor
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 04-Sep-2025
background
Crankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 04-Sep-2025
background

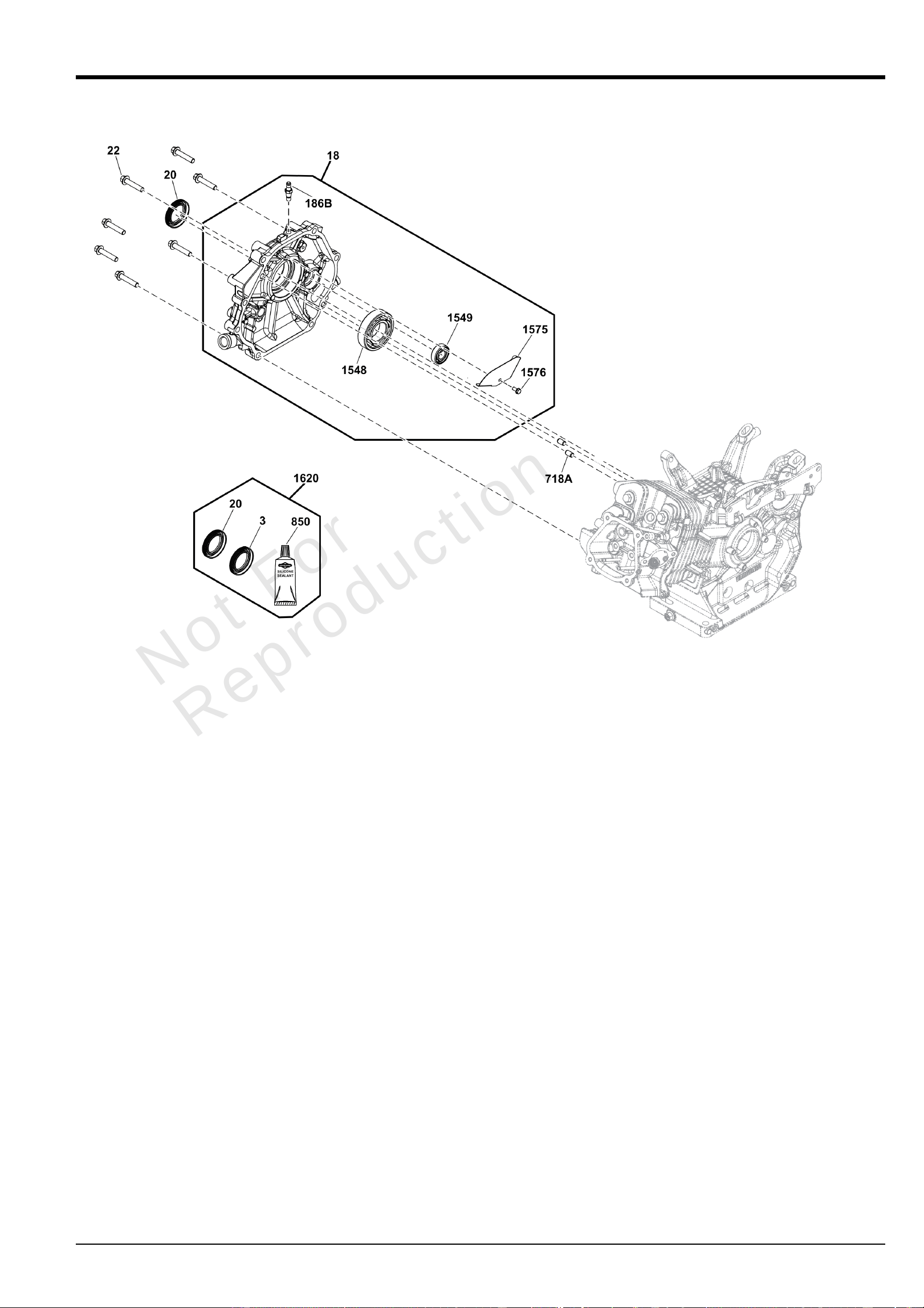

Crankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
18 84007688 1 COVER, Crankcase
20 84004101 1 SEAL, Oil
-(PTO Side)
22 84004103 7 SCREW
-(Crankcase Cover/Sump)
186B 84007494 1 CONNECTOR, Hose
718A ----- 2 PIN, Locating
-(Part information located in Cylinder Group.)
850 ----- 1 SEALANT, Liquid
-(Part information located in Cylinder Group.)
1548 84004100 1 BEARING, Ball
-(Crankcase Cover/Sump)
1549 ----- 1 BEARING, Ball
-(Part information located in Crankshaft Group.)
1575 ----- 1 SHIELD, Oil
-(Part information located in Lubrication Group.)
1576 ----- 1 SCREW
-(Part information located in Lubrication Group.)
1620 84008367 1 GASKET SET, Crankcase
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 04-Sep-2025
background
Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 04-Sep-2025
background

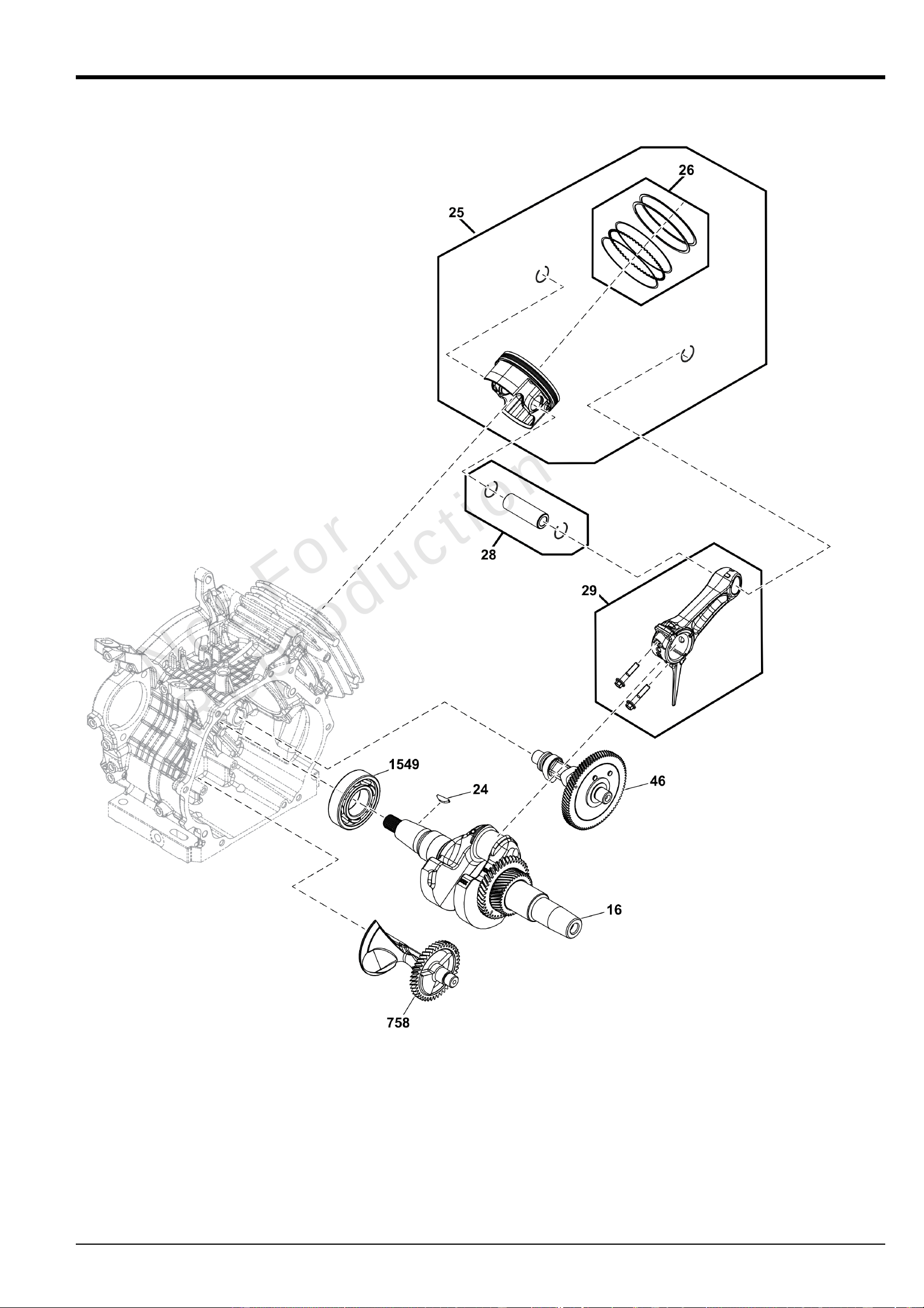

Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
16 84007656 1 CRANKSHAFT
24 596976 1 KEY, Flywheel
25 84005038 1 PISTON ASSEMBLY
-(Standard)
25 84005037 1 PISTON ASSEMBLY
-(.020" Oversize)
26 84004091 1 SET, Ring
-(Standard)
26 84004097 1 SET, Ring
-(.020" Oversize)
28 84005039 1 PIN, Piston
29 84005041 1 ROD, Connecting
46 84005044 1 CAMSHAFT
758 84006678 1 COUNTERWEIGHT
1549 84003459 1 BEARING, Ball
-(Crankshaft)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 04-Sep-2025
background
Cylinder GroupCylinder GroupCylinder GroupCylinder Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 04-Sep-2025
background

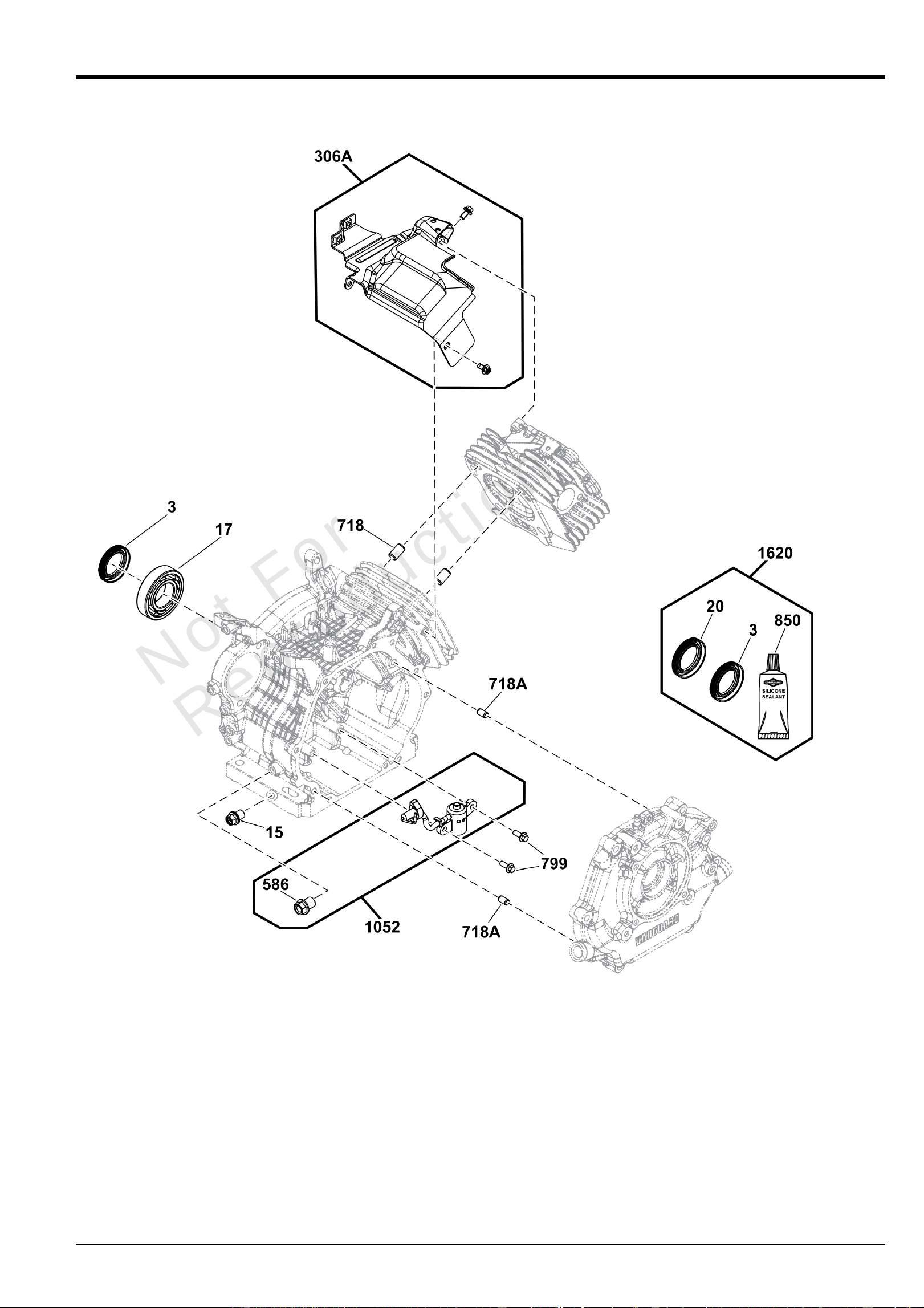

Cylinder GroupCylinder GroupCylinder GroupCylinder Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 84004101 1 SEAL, Oil
-(Magneto Side)
15 84004108 2 PLUG, Oil Drain
17 84004100 1 BEARING, Ball
-(Cylinder)
20 ----- 1 SEAL, Oil
-(Part information located in Crankcase Cover/Sump Group.)
306A 84007704 1 SHIELD, Cylinder
586 ----- 1 NUT
-(Part information located in Lubrication Group.)
718 84004120 2 PIN, Locating
718A 590713 2 PIN, Locating
799 ----- 2 SCREW
-(Part information located in Lubrication Group.)
850 100106 1 SEALANT, Liquid
1052 ----- 1 SENSOR, Oil
-(Part information located in Lubrication Group.)
1620 ----- 1 GASKET SET, Crankcase
-(Part information located in Crankcase Cover/Sump Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 04-Sep-2025
background
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 04-Sep-2025
background

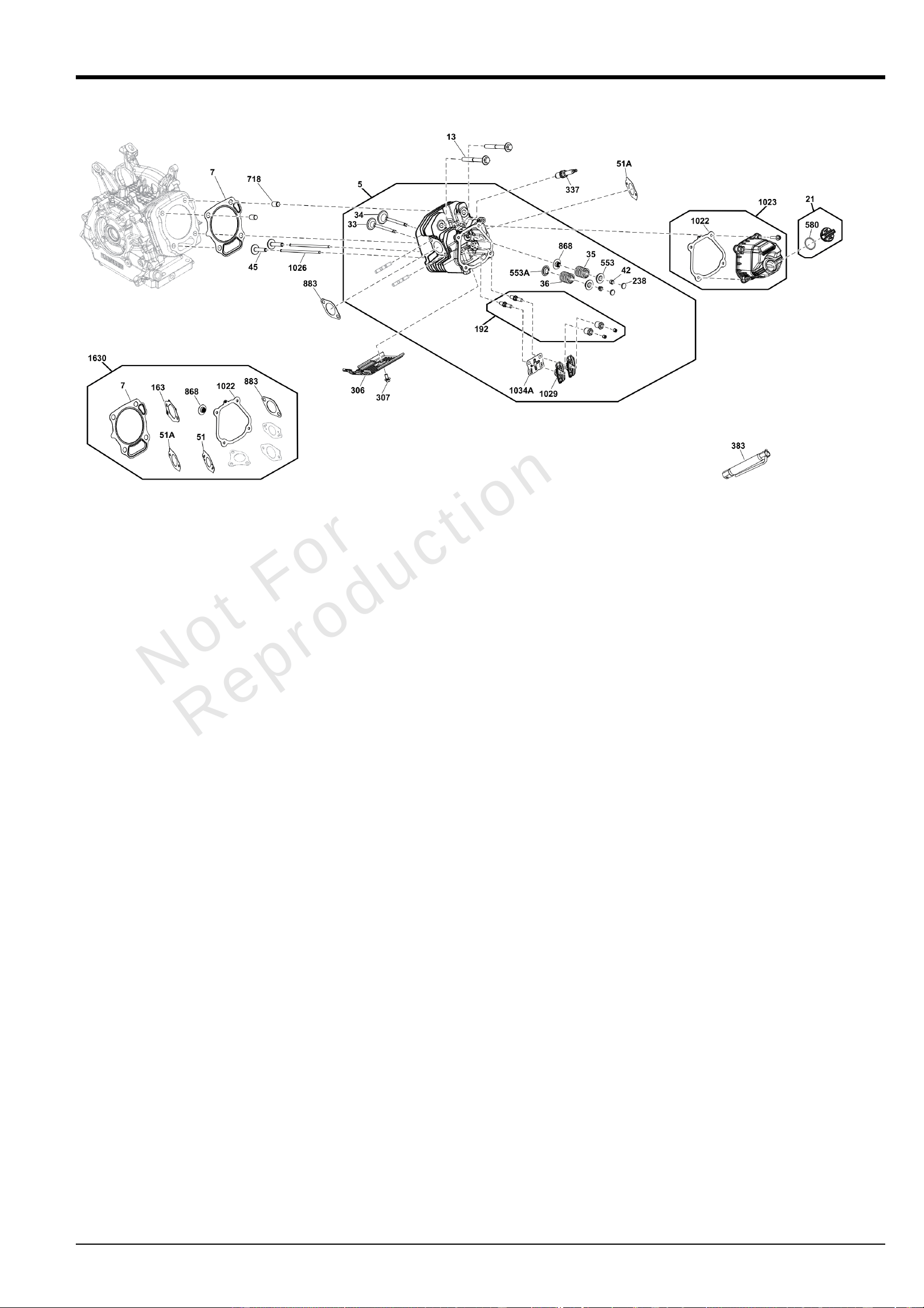

Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
5 84005042 1 HEAD, Cylinder
7 84008086 1 GASKET, Cylinder Head
13 84004122 4 SCREW
-(Cylinder Head)
21 84006593 1 CAP, Oil Fill
33 84004114 1 VALVE, Exhaust
34 84004113 1 VALVE, Intake
35 84004112 2 SPRING, Valve
-(Intake)
36 84004112 2 SPRING, Valve
-(Exhaust)
42 84004116 4 KEEPER, Valve
45 84004130 2 TAPPET, Valve
51 84008015 1 GASKET, Intake
51A 84008014 1 GASKET, Intake
163 ----- 1 GASKET, Air Cleaner
-(Part information located in Air Cleaner Group.)
192 84006535 2 ADJUSTER, Rocker Arm
238 84006534 2 CAP, Valve
306 84004123 1 SHIELD, Cylinder
307 597078 1 SCREW
-(Cylinder Shield)
337 792015 1 PLUG, Spark
383 19576S 1 WRENCH, Spark Plug
553 84004117 2 RETAINER, Valve Spring
553A 84004118 1 RETAINER, Valve Spring
580 809894 1 SEAL, O-Ring
-(Oil Fill Cap)
718 ----- 2 PIN, Locating
-(Part information located in Cylinder Group.)
868 84004111 1 SEAL, Valve
883 ----- 1 GASKET, Exhaust
-(Part information located in Exhaust Group.)
1022 84004126 1 GASKET, Rocker Cover
1023 84007696 1 COVER, Rocker
1026 84004129 2 ROD, Push
1029 84004110 2 ARM, Rocker
1034A 84005043 1 GUIDE, Push Rod
1630 84008366 1 GASKET SET, Valve
-(Service Kits can include parts not for this engine.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 04-Sep-2025
background
Exhaust GroupExhaust GroupExhaust GroupExhaust Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 04-Sep-2025
background

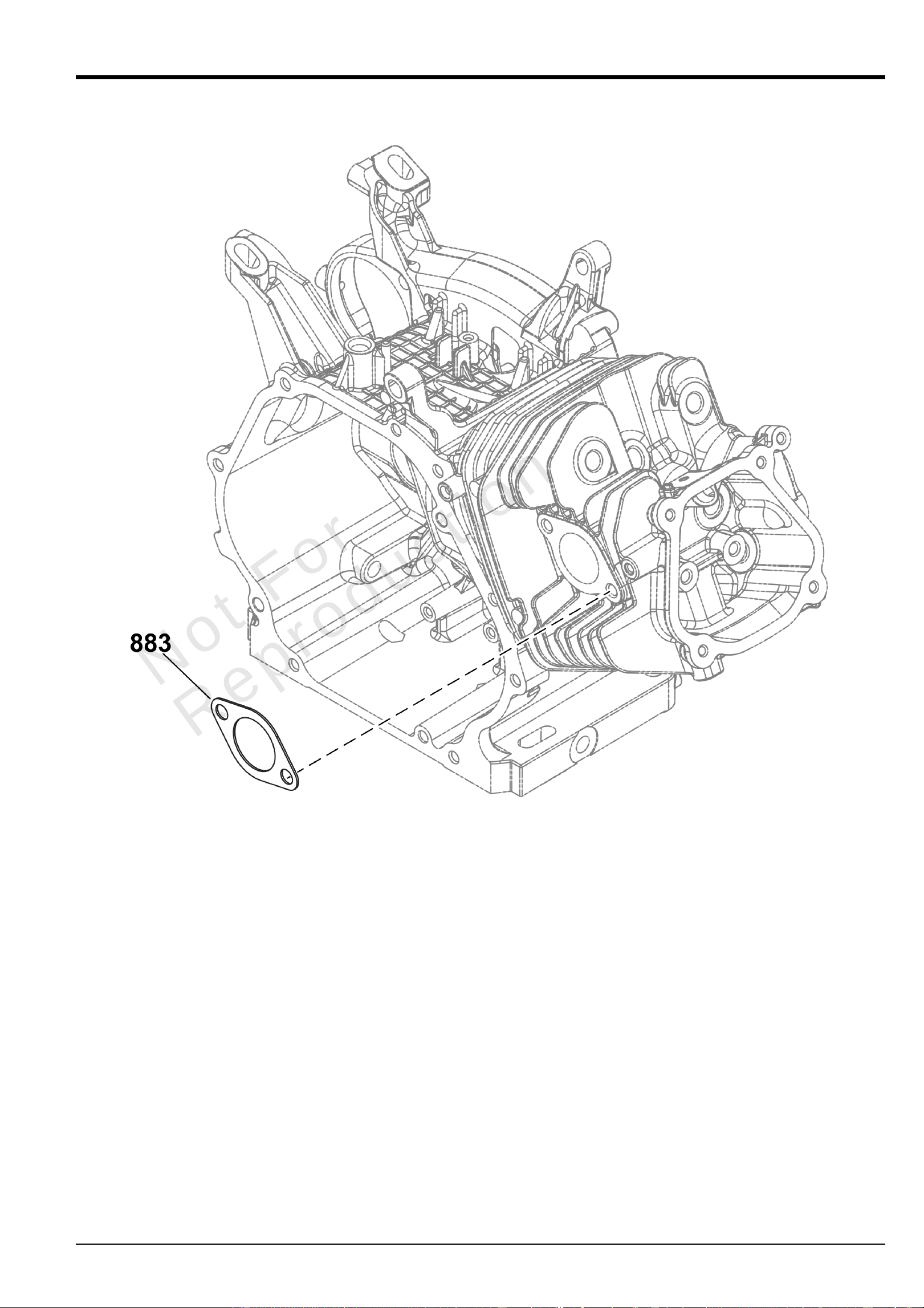

Exhaust GroupExhaust GroupExhaust GroupExhaust Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
883 84004409 1 GASKET, Exhaust
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 04-Sep-2025
background
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 04-Sep-2025
background

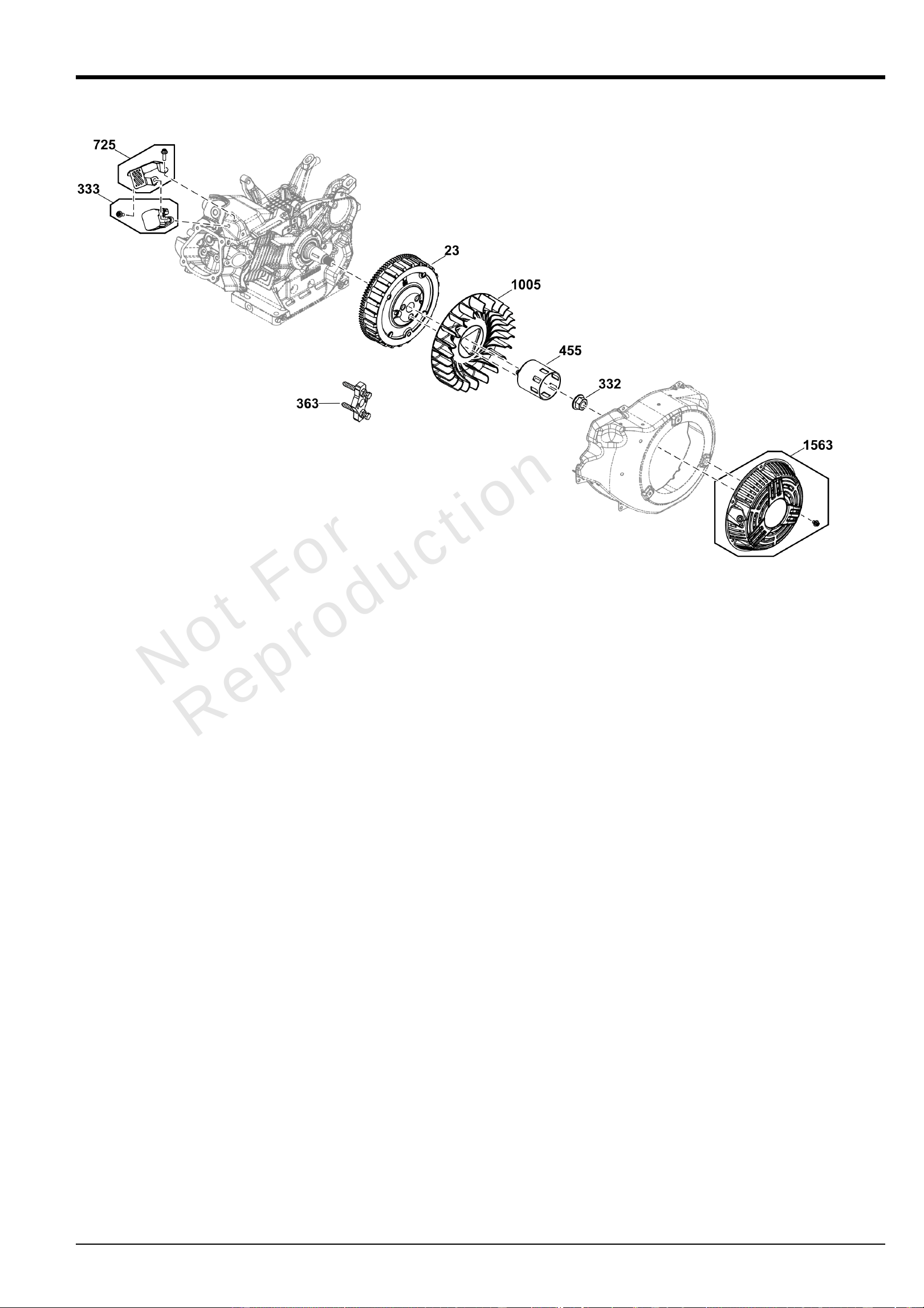

Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
23 84007698 1 FLYWHEEL
332 591988 1 NUT
-(Flywheel)
333 84008011 1 ARMATURE, Magneto
363 19203 1 PULLER, Flywheel
455 84007699 1 CUP, Flywheel
725 84007700 1 SHIELD, Heat
1005 84004286 1 FAN, Flywheel
1563 ----- 1 COVER, Flywheel
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 04-Sep-2025
background
Fuel Supply GroupFuel Supply GroupFuel Supply GroupFuel Supply Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 04-Sep-2025
background

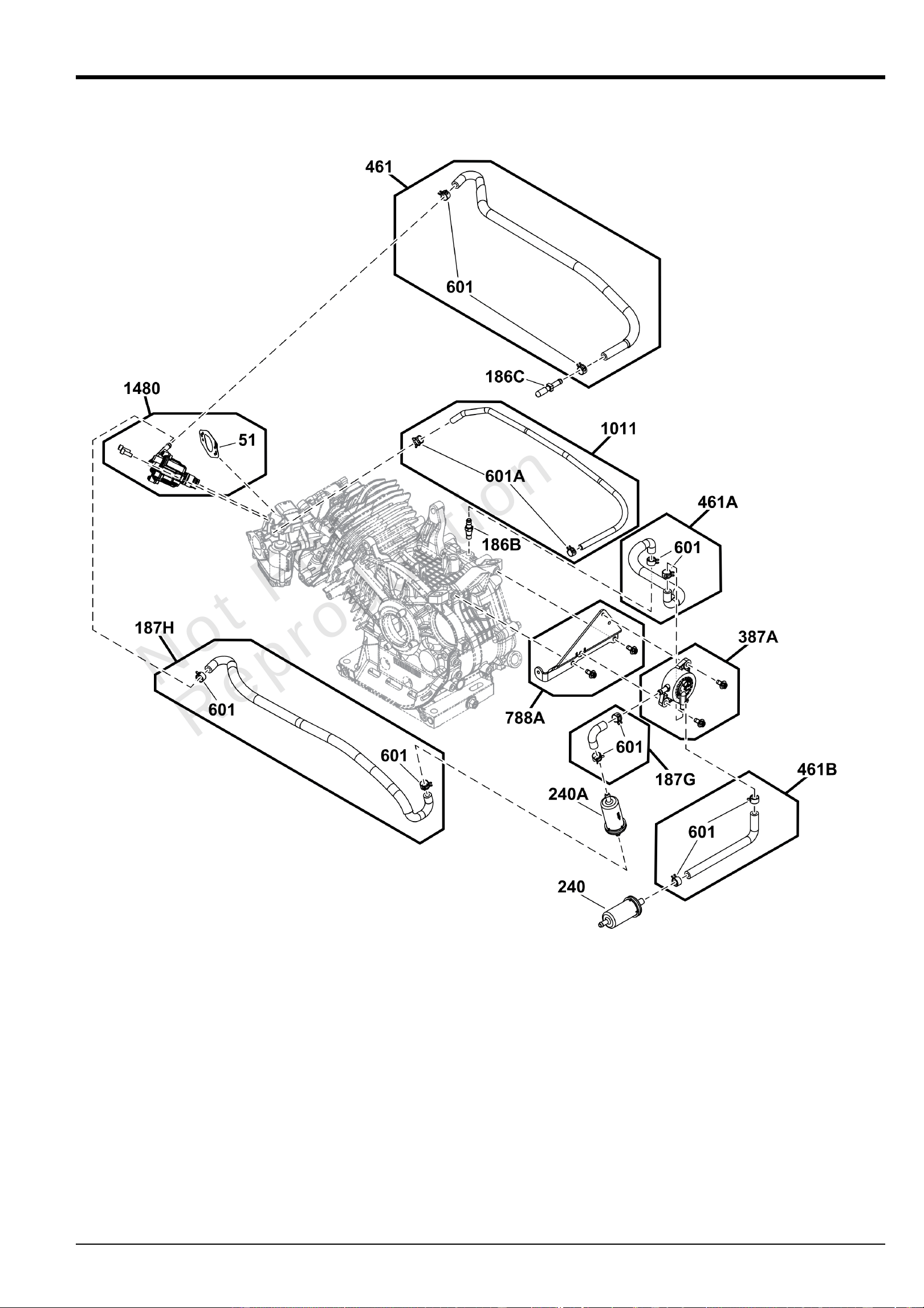

Fuel Supply GroupFuel Supply GroupFuel Supply GroupFuel Supply Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
51 ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
186B 84007494 1 CONNECTOR, Hose
186C 84008314 1 CONNECTOR, Hose
187G 84008310 1 LINE, Fuel
187H 84008311 1 LINE, Fuel
240 845125 1 FILTER, Fuel
240A 84007607 1 FILTER, Fuel
387A 597338 1 PUMP, Fuel
461 84008313 1 HOSE, Gaseous Fuel
461A 84008316 1 HOSE, Gaseous Fuel
461B 84008309 1 HOSE, Gaseous Fuel
601 791850 2 CLAMP, Hose
601A 593879 1 CLAMP, Hose
788A 84008317 1 BRACKET, Fuel Pump
1011 84008315 1 TUBE, Vent
1480 84007731 1 INJECTOR, Fuel
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
23 04-Sep-2025
background
Lubrication GroupLubrication GroupLubrication GroupLubrication Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 04-Sep-2025
background

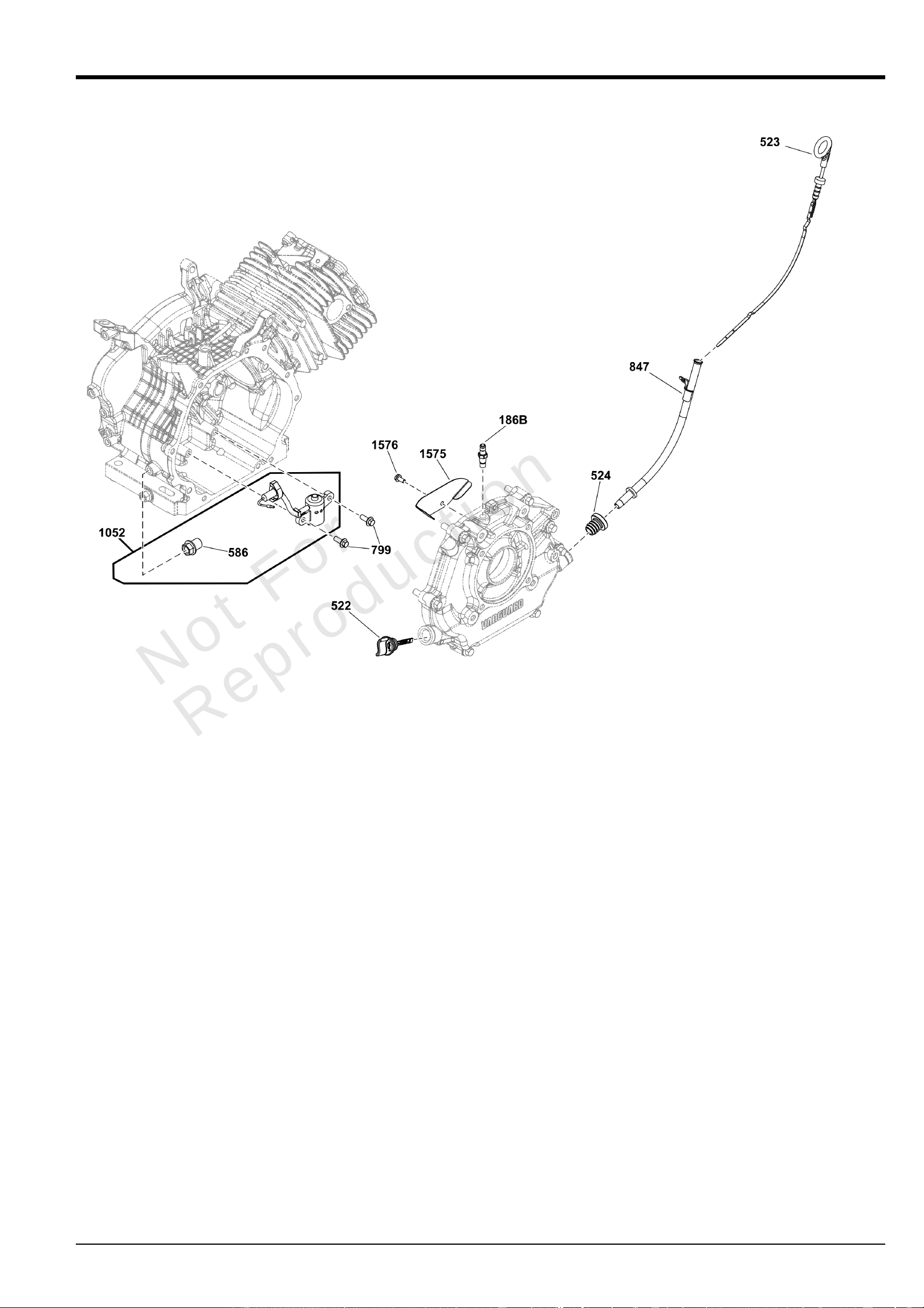

Lubrication GroupLubrication GroupLubrication GroupLubrication Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
186B 84007494 1 CONNECTOR, Hose
522 84004104 1 PLUG, Dipstick/Fill
523 84007691 1 DIPSTICK
524 84007689 1 SEAL, O-Ring
-(Dipstick Tube)
586 84004724 1 NUT
-(Oil Sensor)
799 84004128 2 SCREW
-(Oil Sensor)
847 84007690 1 DIPSTICK/TUBE ASSEMBLY
1052 84004948 1 SENSOR, Oil
1575 84004192 1 SHIELD, Oil
1576 597036 1 SCREW
-(Oil Shield)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 04-Sep-2025
background
Throttle Body GroupThrottle Body GroupThrottle Body GroupThrottle Body Group
Mfg. No: 25E330-0027-G1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
26 04-Sep-2025
background

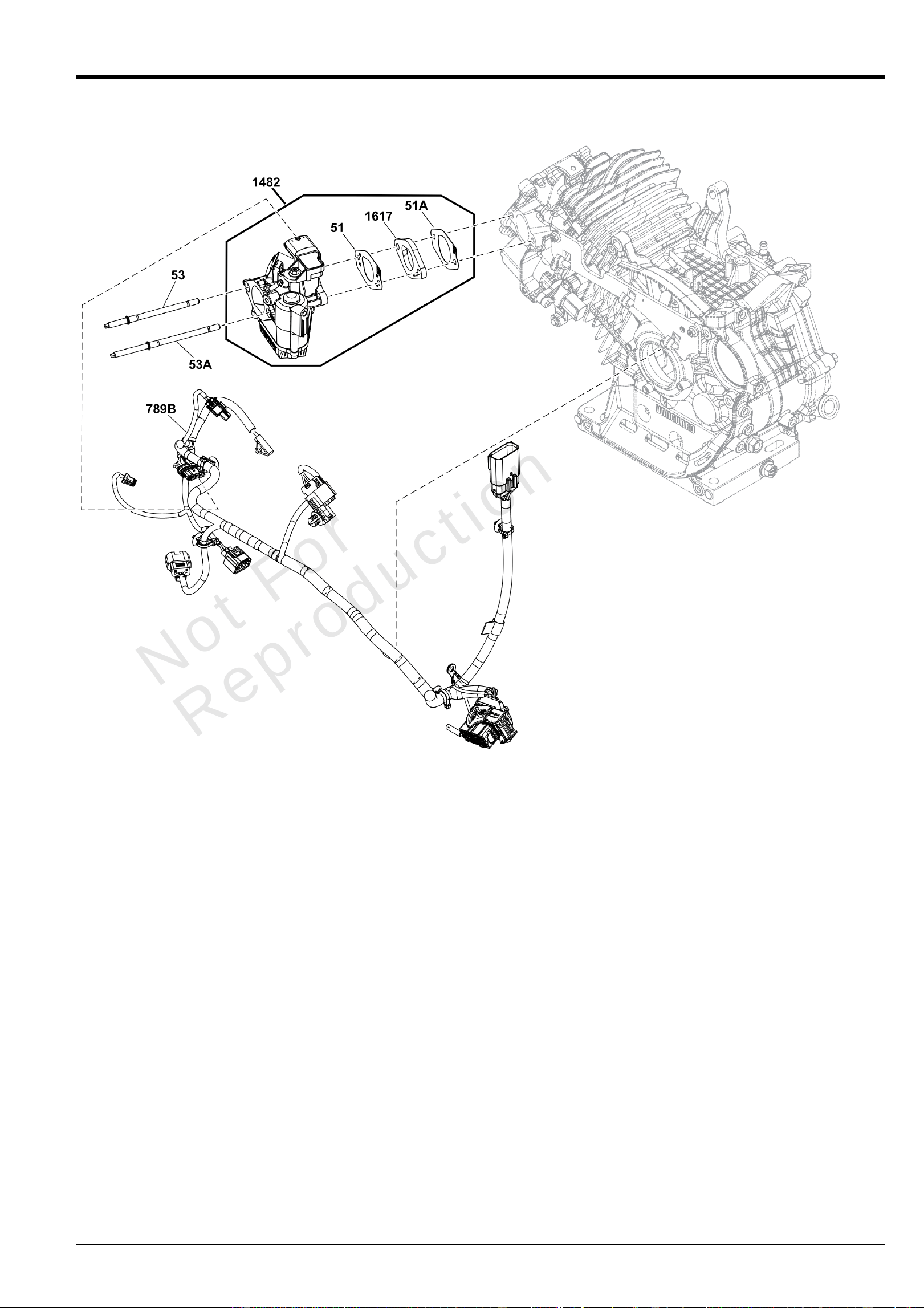

Throttle Body GroupThrottle Body GroupThrottle Body GroupThrottle Body Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
51 ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
51A ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
53 84004315 1 STUD
-(Carburetor) (Short)
53A 84004311 1 STUD
-(Carburetor) (Long)
789B ----- 1 HARNESS, Wire
-(Part information located in Controls Group.)
1482 84008319 1 BODY, Throttle
1617 84008318 1 SPACER, Throttle Body
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
27 04-Sep-2025
background
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025

Specifications

Vanguard 25E3 Questions and Answers

Find answers or ask new question.
See other models: 10V3 12V3
Questions and Answers
