Operating and Installation
Instructions
Gas cooktop
It is essential to read the operating and installation instructions be-
fore setup, installation, and commissioning. This prevents both per-
sonal injury and damage to the appliance.
en-US M.-Nr. 11 880 120
IMPORTANT SAFETY INSTRUCTIONS
2
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or death.
- Do not use or store gasoline or other combustible liquids or vapors in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electric switches.
– Do not use any phones inside your building.
– Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
– If you are unable to reach your gas provider, call the fire department.
- Installation and service must be performed by a qualified installer, qualified ser-
vice agency or your gas provider.
(In Massachusetts, installation must be performed by a licensed installer / gas
fitter.)
- Note to the installer:
Please give these installation instructions to the consumer for the local electri-
cal/gas inspector.
WARNING: Never Operate the Top Surface Cooking Section of this Appli-
ance Unattended.
- Failure to follow this warning statement could result in fire, explosion, or burn
hazard that could cause property damage, personal injury, or death.
- If a fire sould occur, keep away from the appliance and immediately call your fire
department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
®
®
Contents
3
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 2
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 5
Caring for the environment .............................................................................. 15
Overview............................................................................................................. 16
Cooktop............................................................................................................... 16
KM3054-1...................................................................................................... 16
Control knobs...................................................................................................... 17
Burner.................................................................................................................. 19
Kitchen timer control elements/indicators........................................................... 20
Included accessories........................................................................................... 21
Before first use .................................................................................................. 22
Cleaning the cooktop for the first time................................................................ 22
Turning on the cooktop for the first time ............................................................. 22
Cookware ........................................................................................................... 23
Energy saving tips ............................................................................................ 25
Operation............................................................................................................ 26
Rapid ignition system.......................................................................................... 26
Turning the appliance on ..................................................................................... 26
Adjusting the flame.............................................................................................. 27
Switching off........................................................................................................ 28
In-operation/residual-heat indicators .................................................................. 28
Kitchen timer ..................................................................................................... 29
Timer ................................................................................................................... 29
Setting the timer for a burner .............................................................................. 30
System lock, kitchen timer .................................................................................. 30
Safety features................................................................................................... 31
Cleaning and care ............................................................................................. 32
Cleaning the ceramic surface.............................................................................. 33
Cleaning the grates ............................................................................................. 34
Cleaning the knobs ............................................................................................. 34
Cleaning the burner............................................................................................. 35
Assembling the burner ........................................................................................ 36
Frequently asked questions ............................................................................. 38
Optional accessories ........................................................................................ 41
Contents
4
Customer Service.............................................................................................. 42
Contact in the event of a fault ............................................................................. 42
Appliance warranty and product registration ...................................................... 42
Installation.......................................................................................................... 43
IMPORTANT SAFETY INSTRUCTIONS - INSTALLATION ................................... 43
Safety distances.................................................................................................. 45
Installation notes ................................................................................................. 46
Installation dimensions........................................................................................ 47
KM3054-1...................................................................................................... 47
Installation ........................................................................................................... 48
Gas connection ................................................................................................... 50
Burner ratings...................................................................................................... 53
Electrical connection ........................................................................................... 54
IMPORTANT SAFETY INSTRUCTIONS
5
This cooktop complies with all relevant local and national safety
requirements. Inappropriate use can, however, lead to personal in-
jury and material damage.
Read the operating and installation instructions carefully before
using the cooktop. They contain important information on safety,
installation, use and maintenance. This prevents both personal in-
jury and damage to the cooktop.
When installing the cooktop, Miele expressly and strongly advises
that you read and follow the instructions under “Installation”, as
well as in the “IMPORTANT SAFETY INSTRUCTIONS”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Appropriate use
This cooktop is intended for domestic use and use in other similar
environments.
This cooktop is not intended for outdoor use.
The cooktop is intended for domestic use only to prepare food
and keep it warm. Any other use may be dangerous.
Persons (including children) who lack physical, sensory or mental
abilities, or experience with the appliance should not use it without
supervision or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
6
Safety with children
Do not leave children unattended: Children should not be alone or
unsupervised in the area where the appliance is installed. Do not al-
low them to sit or stand on the appliance.
Be sure to supervise any children in the vicinity of the cooktop,
and do not let them play with it.
The cooktop gets hot when in use and remains hot for some time
after being turned off. Keep children away from the appliance until it
has cooled down and is no longer a burn hazard.
Danger of burning. Do not store anything which might arouse a
child’s interest in storage areas above or behind the cooktop. Other-
wise they could be tempted to climb onto the cooktop.
Risk of burning or scalding. Turn pot and pan handles inward, so
children cannot pull them down and be burned.
Danger of suffocation. While playing, children may become entan-
gled in packaging material (such as plastic wrapping) or pull it over
their head, presenting the risk of suffocation. Keep packaging mate-
rial away from children.
IMPORTANT SAFETY INSTRUCTIONS
7
Technical safety
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and re-
pairs must only be carried out by a Miele authorized technician.
Maintenance by the user: Never repair or replace any part of the
appliance unless the instructions specifically recommend doing so.
Service work should only be performed by a qualified technician.
Damage to the cooktop can compromise your safety. Check the
cooktop for visible signs of damage. Do not use the cooktop if it is
damaged.
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronized with
the grid power supply (e.g., island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply sys-
tem complies with national and local codes.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronized with the grid power supply, or these measures must be
replaced by equivalent measures in the installation.
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this appli-
ance, continuity must exist between the appliance and an effective
grounding system. It is imperative that this basic safety requirement
be met. If there is any doubt, have the electrical system of the house
checked by a qualified electrician.
Proper installation: Make sure that your appliance has been in-
stalled correctly and that it has been grounded by a qualified techni-
cian.
IMPORTANT SAFETY INSTRUCTIONS
8
To avoid damaging the cooktop, make sure that the connection
data (voltage and frequency) on the data plate correspond to the
building's power supply before connecting the appliance.
When in doubt, consult a qualified electrician.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
For safety reasons, the cooktop may only be used when it has
been fully installed.
This appliance must not be used in a non-stationary location (e.g.
on a ship).
Any contact with live connections or tampering with the electrical
or mechanical components of the cooktop will endanger your safety
and may lead to appliance malfunctions.
Do not open the casing of the cooktop under any circumstances.
Any repairs not performed by a Miele authorized service techni-
cian will void the warranty.
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
The appliance is not intended for use with an external timer switch
or a remote control system.
The connection to the gas supply must be carried out by a quali-
fied service technician in accordance with current local and national
safety regulations (see “Installation–Gas connection”). If the plug
has been removed or the power cord is not supplied with a plug, the
cooktop must be connected to the power supply by a qualified ser-
vice technician (see “Installation–Electrical connection”).
If the power cord is damaged, it must only be replaced by a quali-
fied service technician (see “Installation–Electrical connection”).
IMPORTANT SAFETY INSTRUCTIONS
9
During installation, maintenance, and repair work, the appliance
must be completely disconnected from the household electricity
supply. The gas supply must be shut off. Ensure that this is the case
by:
- removing the fuse
- “tripping” the circuit breaker, or
- unplugging the unit. Pull the plug not the cord.
- Shut off the gas supply.
Danger of electric shock. Do not use the cooktop if it is faulty, or if
the ceramic surface is cracked, chipped, or damaged in any way.
Switch it off immediately. Disconnect it from the electricity and gas
supply. Contact Miele Service.
If the cooktop is installed behind a cabinet door, do not close the
door while the cooktop is in operation. Heat and moisture can build
up behind the closed door and cause damage to the cooktop, cabi-
netry, and flooring. Do not close the door until the residual heat indi-
cators go out.
Ask your installer to show you the location of your gas shutoff
valve and fuses or circuit breaker panel in your apartment or home.
Be sure that you know how and where to disconnect the gas and
power supply to your cooktop.
IMPORTANT SAFETY INSTRUCTIONS
10
Correct use
The cooktop gets hot when in use and remains hot for a while af-
ter being turned off. There is a potential hazard until the residual heat
indicator goes out.
WARNING
NEVER use this cooktop as a space heater to heat or warm the
room. Doing so may result in carbon monoxide poisoning and
overheating of the appliance.
Never leave the appliance unattended at high heat settings–
Boilover causes smoking and greasy spillovers that may ignite.
Oil and fat can catch fire if overheated. Never leave the appliance
unattended when cooking with oil and fat. If the oil or fat catches
fire, do not attempt to put the flames out with water.
Turn off the cooktop and smother the flames using a lid or a suitable
fire blanket.
Do Not Use Water on Grease Fires–Smother fire or flame or use
dry chemical or foam-type extinguisher.
The flames could set the grease filters of a ventilation hood on fire.
Do not flambé under a ventilation hood.
Spray canisters, aerosols and other inflammable substances can
ignite when heated. Therefore do not store such items or substances
in a drawer under the appliance. Cutlery inserts must be heat-resis-
tant.
Never heat empty cookware.
Do not heat or can food in closed containers, such as tins or
sealed jars, on the cooktop, as pressure will build up in the container
and cause it to explode.
IMPORTANT SAFETY INSTRUCTIONS
11
If the cooktop is covered, there is a risk that the material of the
cover will ignite, explode or melt if the cooktop is still hot or if turned
on inadvertently. Never cover the cooktop with a board, cloth or pro-
tective sheet.
When the appliance is turned on inadvertently or by mistake, or
when there is residual heat present, there is a risk of the metal items
heating up. Other materials can melt or catch fire when the appliance
is switched on. Do not store items on the cooktop.
You can burn yourself on a hot cooktop. When cooking on the ap-
pliance, protect your hands by using heat-resistant pot holders or
oven mitts. Only use dry pot holders or gloves. Wet or damp textiles
conduct heat more effectively and produce steam, which poses a
burn hazard. Be sure to keep all textiles away from the gas flames.
Do not use oversized cloths, dish towels or other similar materials.
When using an electrical appliance, e.g. a hand mixer, near the
cooktop, make sure that the power cable does not come into con-
tact with the hot cooktop. The cable's insulation could become dam-
aged.
Even a light object can cause damage to the ceramic cooktop in
certain circumstances. Do not drop anything on the ceramic surface.
Cookware made of plastic or aluminum foil will melt at high tem-
peratures. Do not use any plastic or aluminum foil cookware.
Pressing the knob generates a spark on the ignitor. Do not press
the knob while you are cleaning or touching the cooktop or a burner
in the vicinity of an ignitor.
A ventilation hood installed above the cooktop can become dam-
aged or catch fire as a result of intense heat. Do not use the burners
without cookware.
Only light the burners after all burner parts have been properly as-
sembled.
IMPORTANT SAFETY INSTRUCTIONS
12
If the cookware is too small, it will not sit properly on the burner
grate. If the cookware is too large, heat emitted from the bottom of
the cookware may damage the countertop, walls with poor heat-re-
sistance (e.g. paneled walls) or portions of the cooktop.
Make sure that the burner flames do not extend beyond the bot-
tom of the cookware and rise up its sides.
Only use cookware with a thick enough bottom. Failure to do so
may result in damage to the cooktop.
Always use the burner grates supplied with the cooktop. Never
place cookware directly on the burner.
Install the burner grates in an upright position to avoid scratching
the cooktop.
Storage in or on the appliance: Flammable materials should not be
stored in an oven or in the vicinity of the appliance.
Remove all grease splatters and other flammable (food) residues
on the cooktop. They are a fire hazard.
Using of a gas cooktop causes heat, moisture and products of
combustion to build up in the room in which it is installed. Make sure
that your kitchen is well ventilated, especially when the appliance is
in use: keep any natural means of ventilation open or install a me-
chanical ventilation system (e.g. a ventilation hood).
If the cooktop is used for very long periods of time, additional
ventilation of the room may be necessary, e.g. by opening windows
or doors, or running the ventilation on the highest setting.
Do not use pots or pans that are large enough to cover several
burners. The resulting heat buildup can damage the appliance.
If the cooktop has not been used for a long period of time, be sure
to thoroughly clean it and have it inspected by an authorized techni-
cian before using it again.
IMPORTANT SAFETY INSTRUCTIONS
13
Ensure that the igniters are clean and dry to allow the burners to
ignite and burn properly.
Fire hazard! Loose-fitting or hanging garments can catch fire. Be
sure to wear appropriately fitting clothing when cooking. Never allow
loose clothing or flammable materials to come into contact with the
burners while the burners are in use.
When you have finished cooking, make sure that the burners are
turned off by checking the position of the knobs.
The grates, burner cap, bottom parts of the burner, and any other
parts located near the burner flame, can still be very hot after cook-
ing and cause burns. Do not touch these components when using
the cooktop.
Wind can blow curtains over the cooktop, causing them to catch
fire. If the cooktop is installed near a window, do not use long cur-
tains.
Only certain types of glass, ceramic or other enamel cookware
can be used on a gas cooktop without breaking as a result of sud-
den temperature changes.
Wet sponges or cloths can cause burns due to hot steam if they
are used to wipe spilled food off a hot cooktop. Some cleansers can
emit hazardous vapors if they are applied to a hot surface. Be careful
when cleaning the cooktop.
IMPORTANT SAFETY INSTRUCTIONS
14
Cleaning and maintenance
Do not use a steam cleaner to clean the cooktop.
The steam may reach electrical components and cause a short cir-
cuit.
Miele will guarantee to supply functional parts for a minimum of
10years and up to 15years following the discontinuation of your
cooktop.
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY
Caring for the environment
15
Disposal of the packing mate-
rial
The cardboard box and packing materi-
als protect the appliance during ship-
ping. They have been designed to be
biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Dan-
ger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please en-
sure that your old appliance is kept
away from children until removal. Ob-
serve safety requirements for appli-
ances that may tip over or pose an en-
trapment hazard.
Overview
16

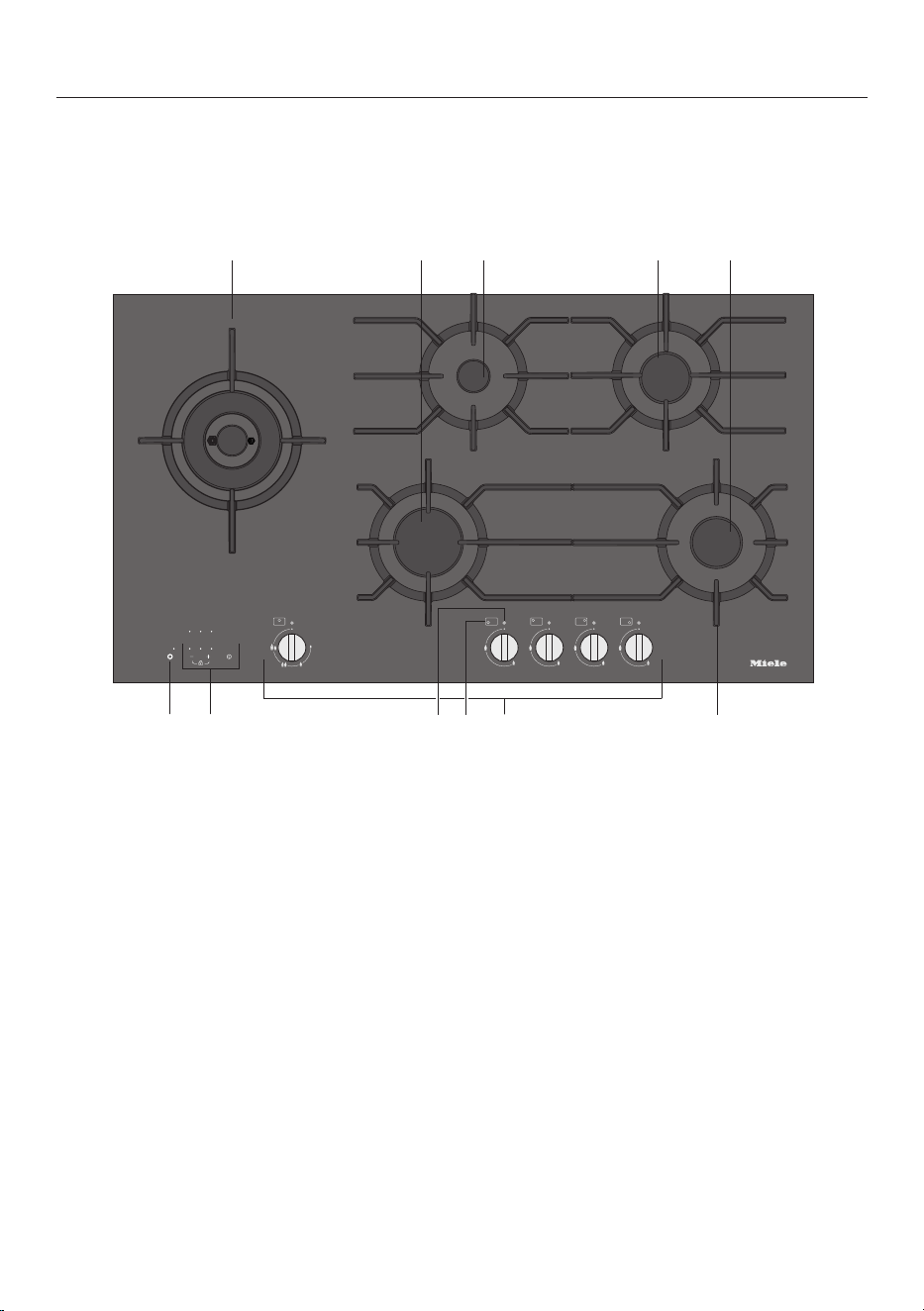

Cooktop
KM3054-1
g
hi
8.8.
a
c
k j
b d e
f
a
Wok burner
b
Power burner
c
Economy burner
d
Normal burner
e
Normal burner
f
Grates
g
Symbols for allocation of knobs
h
In-operation/residual heat indicator
i
Kitchen timer control elements/indicators
j
Delete kitchen timer durations
k
Knobs for burners
Overview
17
Control knobs
Wok burner
a
b
d
c
e
a
Burner off
The gas supply is turned off
b
Strongest flame
The outer and inner burners are on the highest setting
c
Strong flame
The outer burner is on the lowest setting, the inner burner on the highest setting
d
Weak flame
The outer burner is off, the inner burner is on the highest setting
e
Weakest flame
The outer burner is off, the inner burner is on the lowest setting
Overview
18
Economy, normal, and power burners
&
'
(
a
Burner off
The gas supply is turned off
b
Strong flame
The burner is on the highest setting
c
Weak flame
The burner is on the lowest setting
Overview
19

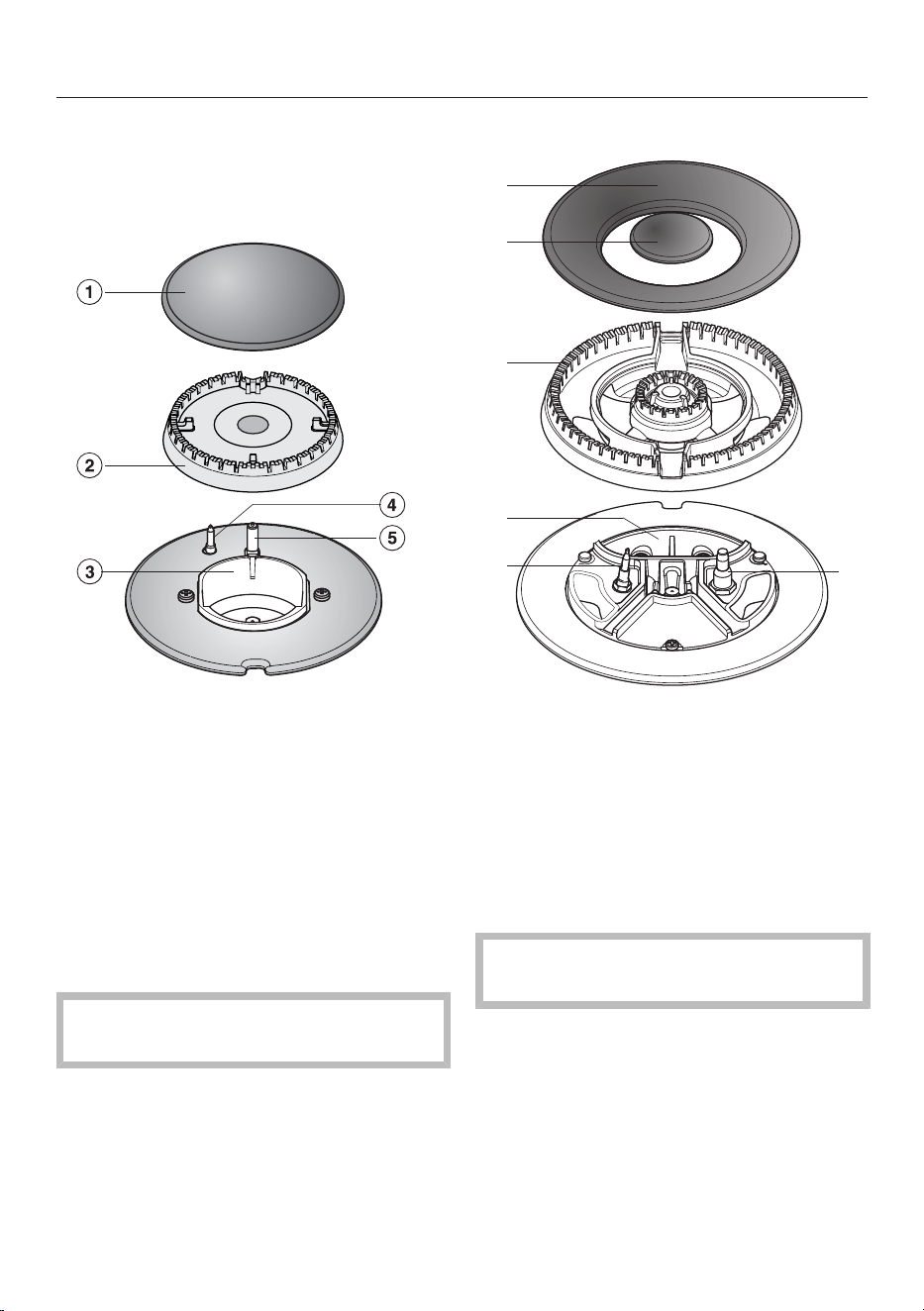

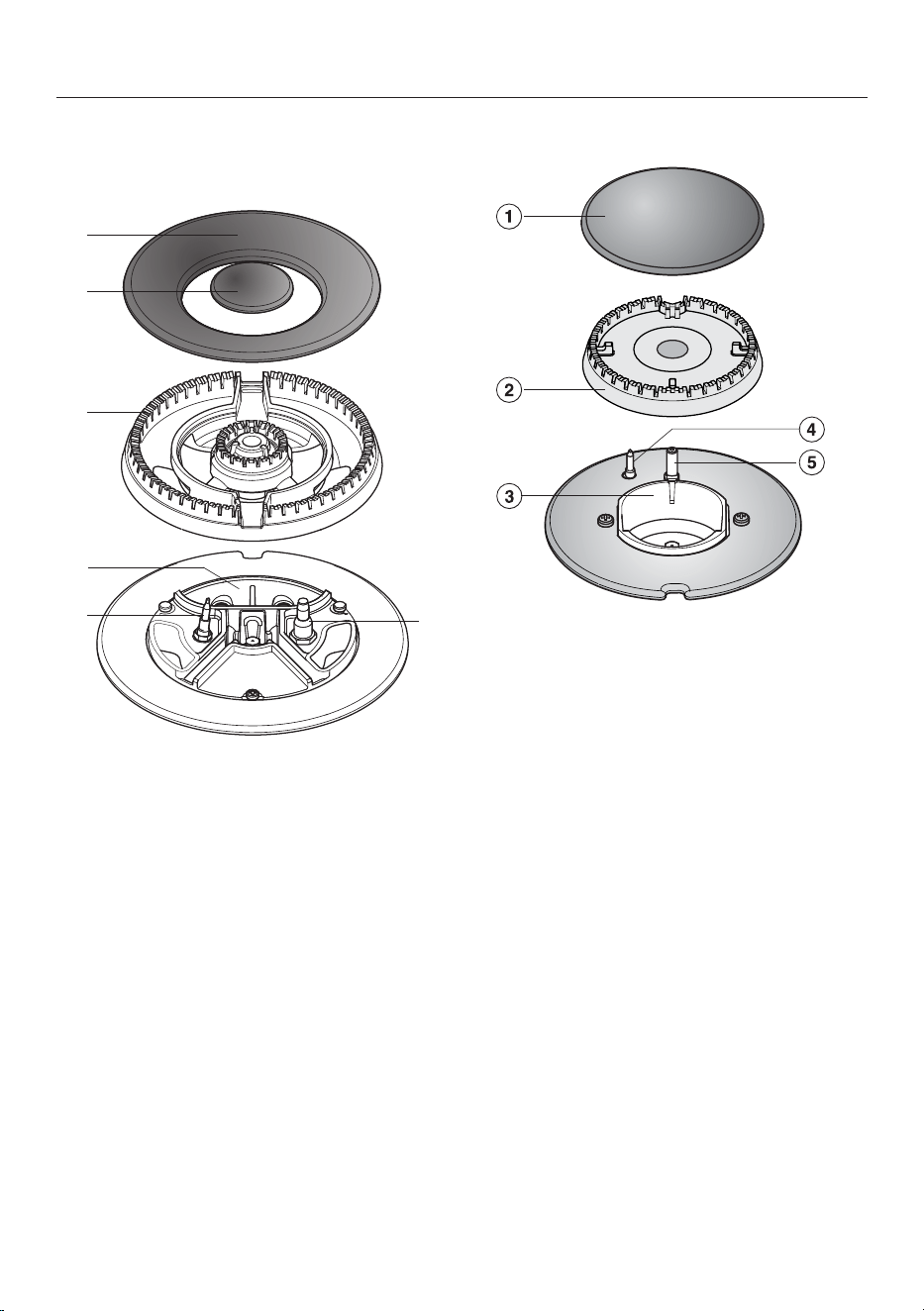

Burner
Wok burner
a
b
c
e
f
d
a
Outer burner cap
b
Inner burner cap
c
Burner head
d
Burner base
e
Thermocouple
f
Ignitor
Economy, normal, and power burners
a
Burner cap
b
Burner head
c
Burner base
d
Thermocouple
e
Ignitor
Overview
20
Kitchen timer control elements/indicators
Sensor controls
a
Activate system lock/set the time
b
Kitchen timer
- On/Off
- Switch between timer functions
- Select a burner
Displays/Indicator lights
c
Timer indicator
d
Burner timer indicator
A timer has been set for the burner
e
Time display
to Time in minutes
.to. Time in hours
f
Indicator light for half hours if the timer setting exceeds 99minutes
Overview
21
Included accessories
The accessories supplied with your ap-
pliance, as well as a range of optional
ones, are available to order from Miele
(see “Optional accessories”).
Wok ring
The Wok ring supplied with your appli-
ance can be used in instances where
extra stability is required. It is particu-
larly suitable for wok pans with rounded
bases.
Combi-trivet
For small cookware (see “Cookware”).
Before first use
22
Cleaning the cooktop for the
first time
Before first use, wipe down the appli-
ance with a damp cloth and dry it.
Using a soft sponge, clean all remov-
able burner parts with a solution of
warm water and a small amount of
liquid dish soap. Dry the parts thor-
oughly after cleaning and reassemble
the burners (see “Cleaning and
care”).
Turning on the cooktop for the
first time
The metal components have a protec-
tive coating. When the cooktop is used
for the first time, this causes a smell
and possibly also vapor.
The smell and any vapors do not indi-
cate a faulty connection or a defective
appliance and are not harmful to your
health.
Cookware
23
- Select cookware that fits the size of
the burner:
Large diameter = large burner
Small diameter = small burner
- A wok burner is particularly suitable
for wok pans. Do not allow the base
of the wok pan to come into contact
with the burner. There must be a gap
of at least 3/8" (1cm) between the
burner and the base of the pan.
- Unlike cookware that is used on an
electric cooktop, the bottom of cook-
ware used on a gas cooktop does not
have to be flat to deliver effective
cooking performance.
- When purchasing cookware, keep in
mind that the diameter indicated is
typically the top diameter, not the
base diameter.
- All heat-resistant cookware is suitable
for use.
- Cookware with a thick base is prefer-
able, as it distributes heat more
evenly. Cookware with a thin base
may cause food to overheat in certain
spots. To avoid this, stir the food fre-
quently.
- Always place the cookware on the
grates supplied. Do not place cook-
ware directly on the burner.
- Position the cookware on the grates
so that it cannot tip. Even when
cookware is positioned correctly,
there is always a possibility of a slight
tilt.
- Do not use cookware with bases with
pronounced edges.
Cookware
24
Combi-trivet
Use the combi-trivet supplied for small
items of cookware. The cookware will
then be stable on the burner and not tip
over.
Wok ring
Use the wok ring supplied to give ad-
ditional stability to cookware, espe-
cially to woks with a rounded base.
Place the wok ring on the pan sup-
port so that it sits securely in position
and cannot move (see diagram).
Energy saving tips
25
- Whenever possible, keep pots and
pans covered while cooking. Doing
so will prevent unnecessary heat loss.
- Wide, shallow cookware heats up
faster and is therefore preferable to
tall, narrow cookware.
- Cook with as little water as possible.
- Reduce the power setting once the
water has come to a boil or the oil/fat
is hot enough for frying.
- Use a pressure cooker to reduce the
cooking time.
Operation
26
Fire hazard due to overheated
food.
Unattended food can overheat and
ignite.
Do not leave the cooktop unattended
while it is being used.
Rapid ignition system
The cooktop is supplied with a rapid ig-
nition system with the following fea-
tures:
- Rapid ignition without the need to
hold the knob.
- Automatic re-ignition
If the flame is extinguished by a draft,
for example, the burner is automati-
cally relit. If re-ignition is unsuccess-
ful, the gas supply is automatically
cut off (see “Safety features” – “Igni-
tion safety”).
If there has been a power outage, the
automatic re-ignition feature will not
work properly.
Turning the appliance on
Press the knob lightly and turn it
counterclockwise to the large flame
symbol.
Then press it down firmly to open the
gas supply and let it go.
The ignitor “clicks” and ignites the gas.
When a knob is activated, a spark is
developed automatically on all burn-
ers. This is normal and does not indi-
cate a fault.
If the burner does not ignite, turn the
knob to the position. Ventilate the
room or wait for at least 1minute be-
fore trying again.
If the burner does not ignite the sec-
ond time, turn the knob back to the
position and see “Frequently asked
questions”.
Brief re-ignition may occur during
switch-on (1–2x clicks), e.g., if there is
a draft.
Operation
27
Switching on during a power outage
In case of a power outage, the flame
can be ignited manually.
Press in the relevant control knob and
turn it counterclockwise to the large
flame symbol.
Hold the control knob pressed down
and light the gas at the burner with a
match.
Keep the control knob pressed down
for an additional 5–10seconds and
then release it.
Adjusting the flame
The burners can be variably adjusted
between the lowest and highest flame
settings.
Because the edges of the flame are
much hotter than its center, the flame
tips should stay beneath the bottom of
the cookware. Flame tips which ex-
tend beyond the sides of the cook-
ware emit unnecessary heat into the
room and can also damage cookware
handles, which increases the risk of
injury.
Adjust the flame so that it never ex-
tends up the sides of the cookware.
Wok burner
Depending on the knob design, there
may be a stopper at the 6 o’clock posi-
tion to prevent you turning the knob to
the high or low setting unintentionally.
Press the knob down lightly to move
past this stopper.
Visual features of gas flames
Yellow flames
Call Customer
Service.
Yellow tips on
the outer cone
Normal for LP gas
Pale blue flames
possibly with yel-
low tips on the in-
ner cone
Normal for natural
gas
Operation
28
Switching off
Turn the knob clockwise to burner
off.
This stops the flow of gas and the flame
goes out.
In-operation/residual-heat indi-
cators
The in-operation/residual heat indicator
lights up when a burner is ignited. They
go out when the cooktop is switched
off. If a burner is hot, the indicator will
light up as long as residual heat is still
present.
If the residual heat indicator lights are
flashing, there is a fault (see “Fre-
quently asked questions”).
Danger of burning due to hot
surfaces.
The grates, burners, and cooktop will
be hot after use.
Do not touch the grates, burners, or
the cooktop itself while the residual-
heat indicators are on.
Kitchen timer
29
A duration of between 1minute ()
and 6hours (.) can be set.
Use the - sensor to reduce the time
from . to , and the + sensor to in-
crease the time from to .. The se-
lection stops at . and . To continue
making the setting, briefly remove your
finder from the sensor button and then
touch it again.
In the case of times exceeding 99min-
utes, the setting value is entered in in-
crements of half an hour. Half hours are
indicated by a dot after the number.
Timer
Setting
Touch the sensor button.
and the indicator light for the timer
flash in the timer display.
Select the time you want with the - or
+ sensor button.
Changing
Touch the sensor button.
Select the time you want with the - or
+ sensor button.
Deleting
Touch the sensor button.
Touch and hold the - and + sensor
buttons at the same time until ap-
pears in the timer display.
Kitchen timer
30
Setting the timer for a burner
A timer can be allocated for any burner
that is switched on. This function can
be used on all burners at the same
time.
Turn on the burner you wish to use.
Keep touching the sensor control
until the indicator light for this burner
starts to flash.
If several burners are switched on, the
indicator lights for the burners being
used will flash in a counterclockwise
direction, starting with the front right.
Set the required time.
To set a timer for another burner, fol-
low the steps described above.
If more than one timer is programmed,
the shortest time left will be displayed
and the corresponding indicator light
will flash. The other indicator lights will
light up constantly.
To show the time left for another
burner which is counting down in the
background, touch the sensor
control repeatedly until the indicator
light for the burner you require starts
to flash.
Easy switch-off function
Touch thesensor control if you
have set a timer for several burners
and want to delete them all.
System lock, kitchen timer
The system lock cannot be activated if
a timer duration has been set. The sys-
tem lock can be used to prevent a timer
being switched on by accident during
cleaning.
If a sensor button is touched when the
system lock is active, the indicator
light illuminates and appears in the
time display.
Activating
Touch the+ and -sensor buttons un-
til appears in the time display and
a tone sounds.
will go out after a short while.
Deactivating
Touch the+ and -sensor buttons un-
til goes out in the time display and
a tone sounds.
Safety features
31
Ignition safety
The cooktop is equipped with an igni-
tion safety device. If a gas flame is ex-
tinguished (e.g., by food boiling over or
by a draft) and re-ignition does not
work, the gas supply is switched off.
This prevents the release of gas. If you
turn the knob to burner off, the burner
is ready for use again.
The flame failure device operates inde-
pendently from the power supply. This
means that it will still work if the cook-
top is used during a power outage.
Cleaning and care
32
Danger of burning due to hot
surfaces.
The cooktop surface, grates, and
burners will be hot after use.
Allow the cooktop to cool down be-
fore cleaning it.
Risk of damage due to moisture
ingress.
The steam from a steam cleaning ap-
pliance could reach electrical com-
ponents and cause a short circuit.
Do not use a steam cleaner to clean
the cooktop.
All surfaces could be discolored or
damaged if unsuitable cleaning
agents are used. All surfaces are
susceptible to scratching.
Remove all cleaning agent residues
immediately.
Do not clean with any abrasive or
sharp pointed objects.
Food boiling over can cause discol-
oration of the burner components.
Remove any soiling and salt and
sugar splashes immediately.
Pressing the knob generates a spark
on the ignitor. Do not press the knob
while you are cleaning or touching
the cooktop or a burner in the vicinity
of an ignitor.
Unsuitable cleaning agents
To avoid damaging the surfaces of the
appliance, do not use:
- cleaning agents containing soda, al-
kalines, ammonia, acids, or chlorides,
- cleaning agents containing lime scale
remover
- stain or rust removers
- abrasive cleaning agents, such as
scouring powder, scouring liquid, or
pumice stones
- cleaning agents containing solvents
- dishwasher cleaner
- grill and oven sprays
- glass cleaners
- hard, abrasive brushes or sponges
(e.g., pot scourers), or sponges which
have been previously used and still
contain abrasive cleaning agents
- eraser sponges
Cleaning and care
33
The entire cooktop should be cleaned
after each use.
Soften any stubborn soiling before-
hand.
Dry the cooktop after using water to
clean it. This helps prevent lime de-
posits.
Cleaning the ceramic surface
Risk of damage caused by
pointed objects.
The seal between the cooktop and
the countertop could be damaged.
The seal between the ceramic sur-
face and the frame could be dam-
aged.
Do not use pointed objects for clean-
ing.
When cleaning with liquid dish soap,
not all contaminants and residues
are removed. An invisible film forms,
which causes discoloration of the ce-
ramic surface. This discoloration
cannot be removed.
Clean the ceramic surface regularly
with a suitable cleaning agent for ce-
ramic cooktops.
First wipe down the surface with a
damp cloth to loosen soiling, then re-
move stubborn crusting with a glass
scraper.
Then clean the ceramic surface with
the Miele ceramic and stainless steel
cleaner (see “Optional accessories”)
or with a proprietary ceramic cleaner
applied with paper towels or a clean
cloth. Do not apply the
cleaning agent while the cooktop is
still hot, as this could result in stains.
Please follow the cleaning-agent
manufacturer’s instructions.
Stains caused by limescale or water
can be removed using Miele’s ce-
ramic and stainless steel cooktop
cleaner.
Wipe the surface afterwards with a
damp cloth to remove any cleaning
agent residues.
Residues can burn on the next time
the appliance is used and cause dam-
age to the ceramic glass surface. En-
sure that all cleaning-agent residues
are removed.
Dry the ceramic surface with a clean,
soft cloth.
Cleaning and care
34
Cleaning the grates
Remove the grates.
Clean the grates in a dishwasher or
with a solution of warm water and a
little liquid dish soap applied with a
soft sponge. Soften any stubborn
soiling beforehand.
Dry the the grates thoroughly with a
clean cloth.
Cleaning the knobs
The knobs are not dishwasher-safe.
The knobs should only be cleaned by
hand.
The knobs may become discolored if
they are not cleaned regularly.
Clean the knobs after each use.
Clean the knobs with a soft sponge,
warm water, and a small amount of
liquid dish soap.
Cleaning and care
35
Cleaning the burner
Do not clean any parts of the burner
in a dishwasher.
The surface of the burner cap will be-
come more matte with time. This is
quite normal and does not indicate
damage to the burner cap.
The burner should be dismantled and
then cleaned only by hand using a
solution of warm water and a small
amount of liquid dish soap applied
with a soft sponge.
Clean any soiling from the flame
openings.
Risk of explosion.
Blocked flame openings can cause a
dangerous build-up of gas in the
base of the cooktop which could ig-
nite and cause an explosion. This
can lead to damage to the appliance
and injury.
Ensure the flame openings are kept
clean at all times.
Parts of the burner that cannot be re-
moved should be wiped clean with a
damp cloth only.
The ignitor and thermocouple should
be very carefully wiped clean using a
well wrung out cloth.
Do not let the ignitor get wet. If it gets
wet, it will not spark.
Finally dry everything thoroughly with
a clean cloth. Make sure that the
flame openings are completely dry.
Cleaning and care
36
Assembling the burner
Assembling the economy, normal,
and power burners
Place the burner head onto the
burner base so that the thermo-
couple and the ignitor extend
through their respective holes in the
burner head. The burner head must
click into place correctly.
Place the burner cap flat over the
burner head. When correctly posi-
tioned, the burner cap should not
slide around.
Ensure that all parts of the burner are
reassembled in the correct order.
Assembling the wok burner
a
b
c
e
f
d
Place the burner head onto the
burner base so that the thermo-
couple and the ignitor extend
through their respective holes in the
burner head. The burner head must
click into place correctly.
Then place the burner caps and
in position.
Ensure that all parts of the burner are
reassembled in the correct order.
Cleaning and care
37
Checking burning properties
Ignite all burners to check that they
are operating correctly:
- The flame must not go out on the
lowest setting, or when the knob is
turned quickly from the highest to the
lowest setting.
- On the highest setting, the flame
must have a distinctive and visible
core.
Frequently asked questions
38
Many malfunctions and faults that can occur in daily operation can be easily reme-
died. You can save time and money in many cases, as you do not need to contact
Miele Customer Service.
Information to help you rectify faults yourself can be found at www.miele.com/ser-
vice.
The following tables are designed to help you to find the cause of a malfunction or
a fault and to resolve it.
Problem Possible cause and solution
The burners do not ig-
nite when the cooktop
is being used for the
first time or after it has
been out of use for a
longer period.
There may be air in the gas line.
Try to light the burner again, making several at-
tempts if necessary.
The burner does not
light after several at-
tempts.
There is a technical fault.
Turn all the knobs clockwise to burner off and
disconnect cooktop from the power supply for a
few seconds.
The burner is not properly assembled.
Assemble the burner correctly.
The gas shut-off valve is closed.
Open the gas shut-off valve.
The burner is wet and/or dirty.
Clean and dry the burner.
The flame holes are clogged and/or wet.
Clean and dry the flame holes.
The gas flame goes out
after being lit.
The flames do not touch the thermocouple and the
burner does not get hot enough:
The burner parts are not positioned correctly.
Assemble the burner components correctly.
The ignition safety device is dirty.
Remove any dirt or grime.
Frequently asked questions
39
Problem Possible cause and solution
The shape/color of the
gas flame changes.
The burner parts are not in the proper position.
Position the burner parts correctly.
The burner cap itself or the holes in the burner cap
are dirty.
Remove any dirt or grime.
The gas flame goes out
during use.
The burner parts are not in the proper position.
Assemble the burner components correctly.
The ignitor does not
function properly.
The circuit breaker in the building’s wiring system
was tripped.
If necessary, contact a qualified service technician
or Technical Service for assistance.
There is food residue stuck between the ignitor and
the burner cap.
The thermocouple is dirty.
Remove any soiling (See “Cleaning and care”).
The in-operation/resid-
ual-heat indicator for a
burner is flashing.
There has been a power outage.
Turn all knobs clockwise to burner off. When the
power supply is restored, the cooktop can be op-
erated again as usual.
appears in the
kitchen timer dis-
play.
The kitchen timer system lock has been activated.
You need to deactivate the system lock (see
“Kitchen timer”).
appears in the
kitchen timer dis-
play.
A sensor fault has occurred.
Start by ensuring that no direct light (from the sun
or from an artificial source) is falling onto the cook-
top. The area surrounding the cooktop must not
be too dark.
Check that there is nothing covering the sensor
controls or the cooktop. Take any cookware off the
cooktop and wipe away any food deposits.
Disconnect the power supply to the cooktop for
approx. 1minute.
If the problem persists after the power supply has
been restored, please contact Miele Service.
Frequently asked questions
40
Problem Possible cause and solution
The in-operation/resid-
ual heat indicators flash
and appears in the
kitchen timer display.
Overheating protection has been triggered.
Turn all knobs clockwise to the “” position. You
can operate the burners again oncehas disap-
peared.
Optional accessories
41
Miele offers a range of useful acces-
sories, as well as cleaning and condi-
tioning products for your appliance.
These products can be easily ordered
from the Miele webshop or your Miele
dealer.
Ceramic and stainless steel
cleaner 250mL
Removes heavy soiling, lime scale, and
aluminum residue.
Customer Service
42
Contact in the event of a fault
In the event of a fault which you cannot remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call online at www.miele.com/service.
Contact information for Miele Customer Service can be found at the end of this
document.
Please quote the model identifier and serial number of your appliance (SN) when
contacting Miele Customer Service. Both pieces of information can be found on
the data plate.
Appliance warranty and product registration
You can register your product and/or view the manufacturer´s warranty terms and
conditions for Miele appliances and vacuum cleaners at www.mieleusa.com.
Installation
*INSTALLATION*
43
IMPORTANT SAFETY INSTRUCTIONS - INSTALLATION
Risk of damage caused by incorrect installation.
Incorrect installation can damage the cooktop.
The cooktop must only be installed by a qualified specialist.
Damage from falling objects.
Take care not to damage the cooktop when installing cabinetry or a ventilation
hood above it.
Install the cabinetry and ventilation hood before installing the cooktop.
The room in which the cooktop is installed must conform to all rel-
evant local and national building regulations and safety regulations.
The countertop must be heat-resistant (up to 212°F / 100°C), so
that it does not become deformed or the veneer detached. The wall
strips must be heat-resistant as well.
The cooktop must not be installed above refrigerators/freezers,
dishwashers, or washer/dryers.
A gas cooktop must not be installed directly next to a deep fat
fryer as the gas flames could ignite the fat in the fryer. It is essential
to maintain a distance of at least 12" (300mm) between these two
appliances.
When installing the cooktop, make sure that the gas pipe and
power cord cannot come into contact with hot appliance parts.
The power cord and any flexible gas connection pipes must be in-
stalled in such a way so that they do not come into contact with any
moving kitchen parts (e.g. a drawer), and cannot become trapped.
The cooktop should not be installed with a ventilation system that
blows air downward toward the appliance. This type of ventilation
system may cause ignition and combustion problems with the cook-
top resulting in personal injury or unintended operation.
Installation
*INSTALLATION*
44
An air curtain or other overhead range hood, which operates by
blowing a downward airflow onto a cooktop, shall not be used in
conjunction with the cooktop unless the hood and cooktop have
been designed and tested in accordance with the Standard for Do-
mestic Gas Ranges, ANSIZ21.1•CSA1.1, and listed by an indepen-
dent testing laboratory for combination use. An air curtain or over-
head range hood is permitted to be used in conjunction with the
cooktop, if the cooktop and air curtain range hood have been de-
signed and tested in accordance with the Standard for Domestic
Gas Ranges, ANSIZ21.1•CSA1.1, and listed by an independent test-
ing laboratory for combination use.
Observe carefully the safety clearances listed on the following
pages.
Installation
*INSTALLATION*
45
Safety distances
Position Dimensions Description
13" (330mm) Maximum depth of wall cabinet
2" (50mm) Minimum distance to back wall
18" (457mm) Minimum safety distance to bottom
edge of adjacent wall cabinet
≥cooktop width See “Installation –
Installation dimensions”
30" (762mm)
1
Minimum safety distance between the
top of the cooktop surface and the bot-
tom of an unprotected combustible
surface.
5 7/8" (150mm) Minimum distance to a side wall
1
The minimum safety distance given by the hood manufacturer must be maintained be-
tween the cooktop and the hood above it. See the installation instructions supplied with the
hood for these safety measurements.
If there is more than one appliance beneath a hood (e.g., gas cooktop and electric cooktop)
and they have different minimum safety distances, always observe the greater distance.
Installation
*INSTALLATION*
46

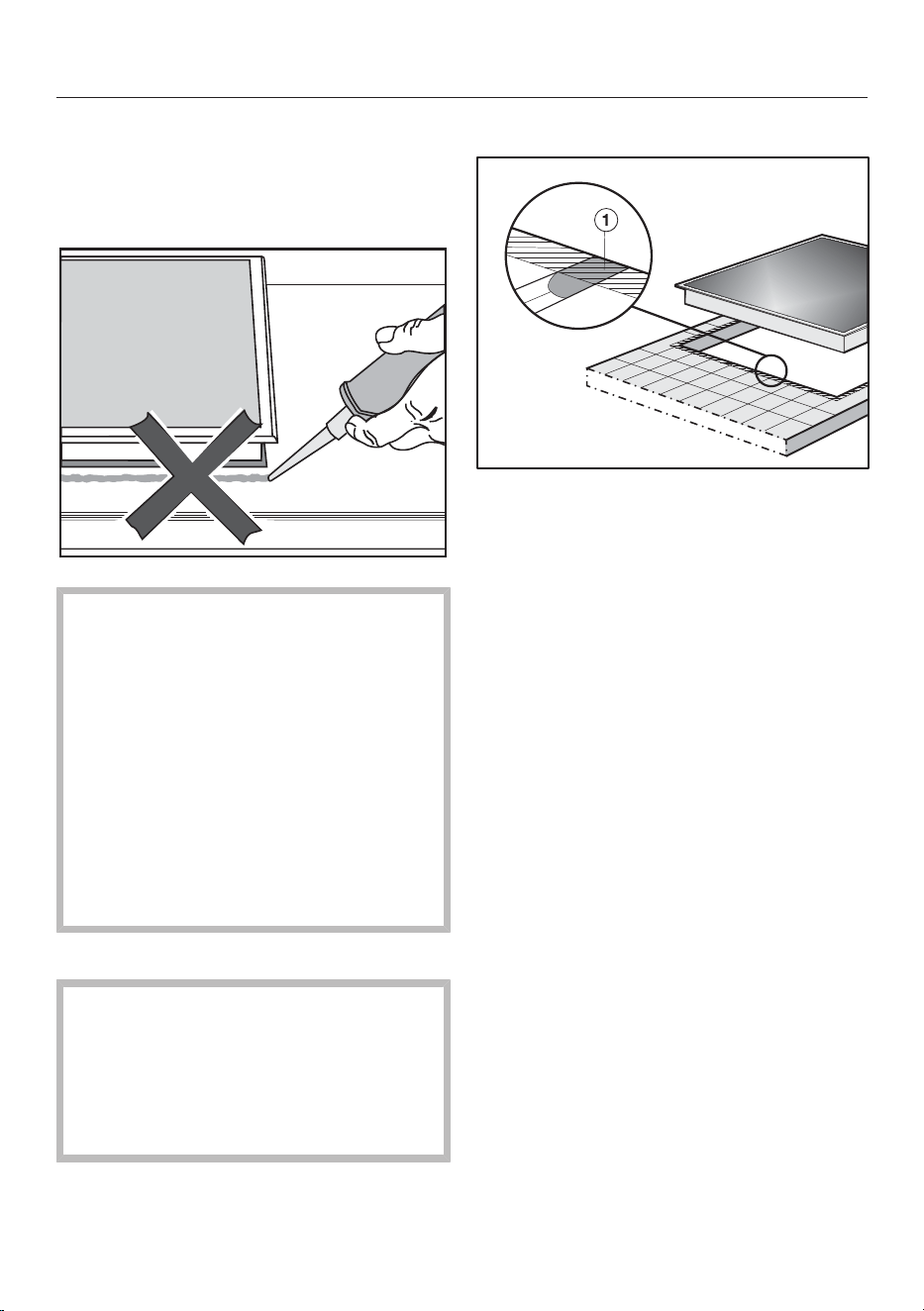

Installation notes
Seal between cooktop and counter-
top
Damage caused by incorrect in-
stallation.
Using sealant under the cooktop
could result in damage to the cook-
top and the countertop if the cook-
top ever needs to be removed for
servicing.
Do not use sealant between the
cooktop and the countertop.
The sealing strip under the edge of
the cooktop provides a sufficient seal
for the countertop.
Sealing strip
Dismantling the cooktop for service
purposes may damage the sealing
strip underneath the edge of the
cooktop.
Always replace the sealing strip be-
fore reinstalling the cooktop.
Tiled countertop
Grout lines and the shaded area un-
der the cooktop frame must be smooth
and even. If they are not, the cooktop
will not sit flush with the countertop and
the sealing strip underneath the cook-
top will not provide a good seal be-
tween the cooktop and the countertop.
Installation
*INSTALLATION*
47

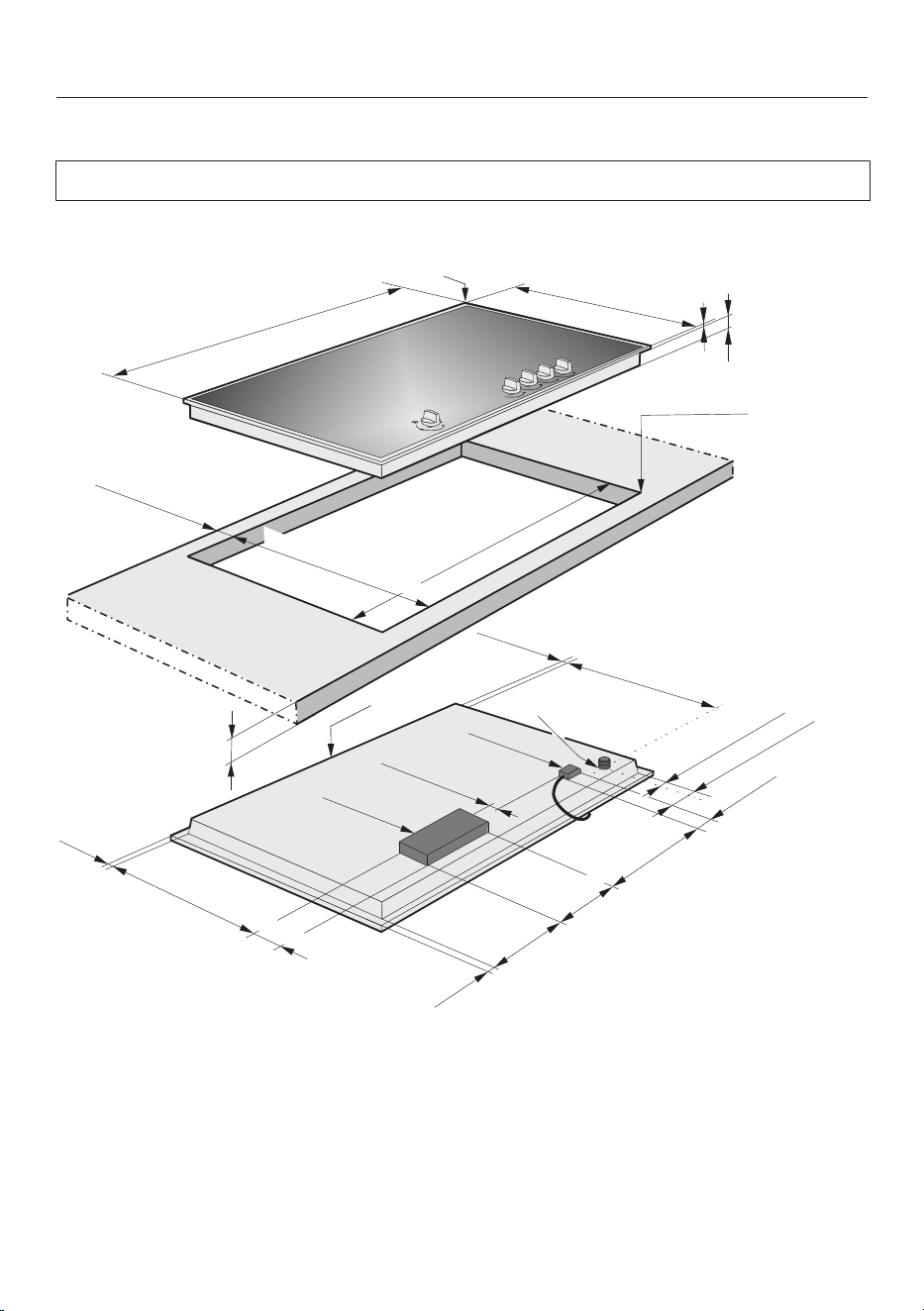

Installation dimensions
All dimensions in this instruction booklet are given in mm and inches.
KM3054-1
d
(916 mm)
20 11/16"
(526mm)
37 1/16"
(7mm)
(46mm)
b
ß 3/16"
( 29mm)0
(379mm)
(14mm)
(14mm)
2 1/2"
e
16 15/16"
d
8 7/8"
5/8"
c
a
+
-
1
0
2"
3 3/8" (86mm)
1 1/4" (32mm)
2 3/8"
(86mm)
1 9/16"
3 1/16"
12 7/8"
8 1/8"
1 13/16"
1/4"
( R4mm)ß
(942mm)
(0
50mm)
(490-500mm)
19 5/16"-19 11/16"
36 1/16"
0 1 1/8"
14 15/16"
9/16"
3 3/8"
(226mm)
(16mm)
(61mm)
(327mm)
(207mm)
(78mm)
(39mm)
(63mm)
2 13/16"
(71mm)
(431mm)
9/16"
a
Front
b
Cooktop height
c
Electrical supply connection box with power cord
Power cord L=4' (1,200mm)
d
Gas connection R½" ISO 7-1 (DINEN10226)
e
Electronics housing
Installation
*INSTALLATION*
48
Installation
Preparing the countertop
Create the countertop cut-out. Re-
member to maintain the minimum
safety distances (see “Installation” –
“Safety distances”).
Seal any cut surfaces on wooden
countertops with a special varnish,
silicone rubber, or resin to prevent the
wood from swelling as a result of
moisture. The sealant must be tem-
perature-resistant.
Ensure that the sealant does not get
on the top surface of the countertop.
The sealing strip ensures that the
cooktop will sit securely in the cut-out
without slipping. Any gap between the
frame and countertop will become
smaller over time.
Installing the cooktop
Attach the sealing strip provided un-
derneath the edge of the cooktop.
Feed the cooktop power cord down
through the countertop cut-out.
Place the cooktop in the center of the
cut-out. When doing this, make sure
that the seal of the appliance sits
flush with the countertop on all sides.
This is important to ensure an effec-
tive seal all round.
If during installation the seal around
the frame does not sit flush with the
countertop in the corners, the corner
radius (≤R4) can be carefully filed
down to fit.
Do not use any additional sealant
(e.g.,silicone) on the cooktop.
Connect the cooktop to the power
supply (see “Installation – Electrical
connection”).
Connect the cooktop to the gas sup-
ply (see “Installation – Gas connec-
tion”).
Installation
*INSTALLATION*
49
Securing the cooktop
Secure the cooktop using the brack-
ets supplied.
Checking for proper function
After installing the appliance, ignite all
burners to check that they are operat-
ing correctly:
- The flame must not go out on the
lowest setting, or when the knob is
turned quickly from the highest to the
lowest setting.
- On the highest setting, the flame
must have a distinctive and visible
core.
Installation
*INSTALLATION*
50
Gas connection
Connection to the gas supply
may only be performed by a duly au-
thorized technician. This technician is
responsible for proper function at the
installation site.
In Massachusetts, the gas connec-
tion may be performed only by a cer-
tified gas installer.
The appliance must be connected
with its own shut-off valve.
The shut-off valve must be accessi-
ble and visible, after the opening of a
cabinet door, if necessary.
The gas connection can be to natural
gas or propane gas according to the
model.
Ask your gas company what kind of
gas is used and compare it with the
specifications on the data plate.
The appliance is not connected to an
exhaust vent.
During the setup and connection of
the appliance, observe the applica-
ble installation conditions, especially
suitable ventilation measures.
Arrange the gas connections in such
a way that they are not heated and
damaged by the operation of the ap-
pliance.
In particular, make sure that the gas
hose lines and connection fittings on
the applinace do not come into con-
tact with hot exhaust gases
The gas hose and power cord could
be damaged by hot spots on the ap-
pliance.
Make sure that the gas hose and
power cord do not come into contact
with hot spots on the appliance.
Flexible connection lines can be
damaged by incorrect routing.
Attach flexible connecting lines in
such a way so that they do not come
into contact with any moving kitchen
parts (e.g., a drawer) and are not ex-
posed to mechanical stress.
Disconnect the appliance and the
shut-off valve from the gas supply
before performing a gas pressure
test at a pressure of more than ½psi
(3.5kPA). Close the shut-off valve of
the gas supply before performing a
gas pressure test at a pressure of
less than or equal to ½psi (3.5kPA).
Incorrectly sealed gas lines can lead
to a gas leak and thus to an explo-
sion.
Seal all gas lines with a suitable
thread sealant.
Leak testing of the appliance shall be
conducted according to the manu-
facturer's instructions.
Installation
*INSTALLATION*
51
The gas connection must be made in
accordance with local codes or, in
the absence of local codes, with:
National Fuel Gas Code
ANSIZ223.1 / NFPANo.54 for the
United States or the current Natural
Gas and Propane Installation Code,
CSAB149.l. for Canada.
The gas pressure may not under-
shoot or exceed certain values.
Make sure that the maximum gas
pressure upstream of the gas pres-
sure controller does not amount to
more than ½psi (3.5kPA) for natural
and propane gas.
Make sure that the minimum gas
supply pressure amounts to 6"w.c.
for natural gas and 10"w.c. for
propane gas.
The gas connection of the appliance is
designed for natural gas or propane gas
according to the ordered model (see
adhesive label on the appliance).
If the appliance is not equipped with the
correct connection for the gas type in
your household, contact your Miele
dealer.
After conversion to a different type of
gas, save the jets removed from the
cooktop for future use.
Installation
*INSTALLATION*
52
Gas pressure regulator
The included pressure regulator corre-
sponds with the gas type of the appli-
ance. Verify before installing.
The adjusted pressure is:
Natural gas 4“w.c.
LP gas 10”w.c.
a
Appliance
b
½" NPT gas connection
c
Regulator
The regulator must be installed as
shown in the diagram when you con-
nect the Miele appliance to your gas
connection. The regulator has been
adapted by Miele to meet all statutory
safety requirements. The regulator must
be easily accessible after the appliance
has been installed.
A flexible steel hose approved by the
AGA or CGA can be used between the
gas connection and the regulator. This
flexible hose enables the appliance to
be lifted out of the cut-out for mainte-
nance or repair work. Check to make
sure that no drawers, doors, or similar
come into contact with this flexible
hose.
Gas leak due to unsuitable regulator.
Only use the regulator supplied by
Miele.
If you are in any doubt, contact Miele
Customer Service.
Leakage test
Leak testing of the appliance shall be
conducted according to the manu-
facturer's instructions.
After connecting the appliance check
all fittings for gas leaks e.g. with
soapy water.
Installation
*INSTALLATION*
53
Burner ratings
Nominal ratings
Burner Gas type kW BTU/hr
Economy burner Natural gas
Liquid propane
1.11
0.97
3,750
3,300
Normal burner Natural gas
Liquid propane
1.70
1.88
5,800
6,400
Power burner Natural gas
Liquid propane
2.73
2.87
9,300
9,800
Wok Natural gas
Liquid propane
4.84
4.00
16,500
15,000
Total Natural gas
Liquid propane
12.1
12.0
41,150
40,900
Installation
*INSTALLATION*
54
Electrical connection
ATTENTION:
During installation, maintenance and
repair work, the appliance must be
disconnected from the electricity
supply. It is only completely isolated
from the electricity supply if the plug
fuses have been fully unscrewed
(where applicable), the main circuit
breaker has been tripped or the
power cable has been unplugged
from the wall outlet.
Do not cut off the plug on the power
cord. If the plug does not fit in the
outlet, have an electrician install an
appropriate outlet.
The socket must be easily accessible
after the appliance has been in-
stalled.
Work by unqualified persons can
cause considerable danger to users.
Miele cannot be held liable for any
damage arising as a result of such
work.
Installation, repair and maintenance
work should only be performed by a
Miele authorized service technician.
To avoid damaging the appliance,
the information (voltage and fre-
quency) on the data plate must cor-
respond to the building's power sup-
ply.
Compare these informations before
connecting the appliance. When in
doubt, consult a qualified electrician.
The plug must be inserted into a suit-
able outlet that has been installed
and grounded in compliance with all
applicable local regulations.
To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effec-
tive grounding system. It is impera-
tive that this basic safety require-
ment be met. If there is any doubt,
have the electrical system of the
house checked by a qualified electri-
cian.
Installation, repair and maintenance
work should only be performed by a
Miele-authorized qualified electrician
in compliance with local regulations
and the ANSI National Electrical
Code / NFPA 70 in the United States
or the Canadian Electric Code, CSA
C22.1-02. in Canada.
Installation
*INSTALLATION*
55
Power cord and plug
The appliance is equipped with a flexi-
ble power cord and a 3-prong ground-
ing plug for your protection against
shock hazard. The plug must be in-
serted into a properly grounded outlet.
Do not cut or remove the grounding
prong from this plug.
Total output
See data plate
Connection data
The connection data is given on the
data plate. Please ensure these match
the household electrical supply.
Important –Save these instructions
for the local electrical inspector’s use.
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
1-800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 11 880 120 / 01en-US
KM 3054-1
