Sealey WCR02 Motorcycle Roll-in Wheel Clamp, Bolt Down User Manual

MOTORCYCLE ROLL-IN WHEEL CLAMP -

BOLT DOWN

MODEL NO: WCR02

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these

instructions, and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

 WARNING! Before use, ensure that there is nothing attached to the motorcycle, that will foul on the clamp.

9 Maintain the clamp in good condition (use an authorised service agent).

9 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.

9 Locate the clamp in a suitable area. Keep area clean and tidy and free from unrelated materials and ensure that there is adequate lighting.

Also ensure that the floor/ground is level and strong enough (preferably concrete) to take the weight of the clamp and the motorcycle.

8 DO NOT mount the clamp on tarmacadam, as the surface may be unstable.

9 Ensure that the clamps are free from oil and grease before positioning a motorcycle in the clamp.

9 Keep the clamp clean for the best and safest performance.

9 Maintain correct balance and footing whilst positioning the motorcycle in the clamp.

9 Ensure that the floor is not slippery and wear non-slip shoes.

9 Ensure that the motorcycle is adequately secured to the clamp if to be used for transportation purposes.

9 Keep children and unauthorised persons away from the work area.

8 DO NOT use the clamp for a purpose it is not designed to perform.

8 DO NOT operate the clamp if it is damaged.

8 DO NOT use the clamp when you are tired or under the influence of alcohol, drugs or intoxicating medication.

8 DO NOT allow untrained persons to use the clamp.

8 DO NOT make any modifications to the clamp.

9 Before removing a motorcycle from the clamp, ensure that there are no obstructions or persons in the path of the motorcycle.

 WARNING: The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that

may occur.

9 It must be understood that common sense and caution are factors which cannot be built into this product, but must be

applied by the operator.

2. INTRODUCTION

Increases the stability of the motorcycle by clamping the bottom and front of the tyre. Features a pivot clamp which locks the front

 wheelsecurelybythemotorcycleweight.Suitableforttingontrailers,invansortomotorcyclelifts(Requiressuitablexings).Fully

 adjustabletotwheelsØ15”-21”(380-535mm).Minimum/Maximumtyrewidth:50-130mm.Pleasenote:Motorcyclemustalsobe

secured using tie-down straps. Fittings not included.

3. SPECIFICATION

Model No.:.................................................................WCR02

Applications:

MC365,MC365A,MC401,MC401A,MC454,MC455,MCW360,MT400,MT700

4. ASSEMBLY

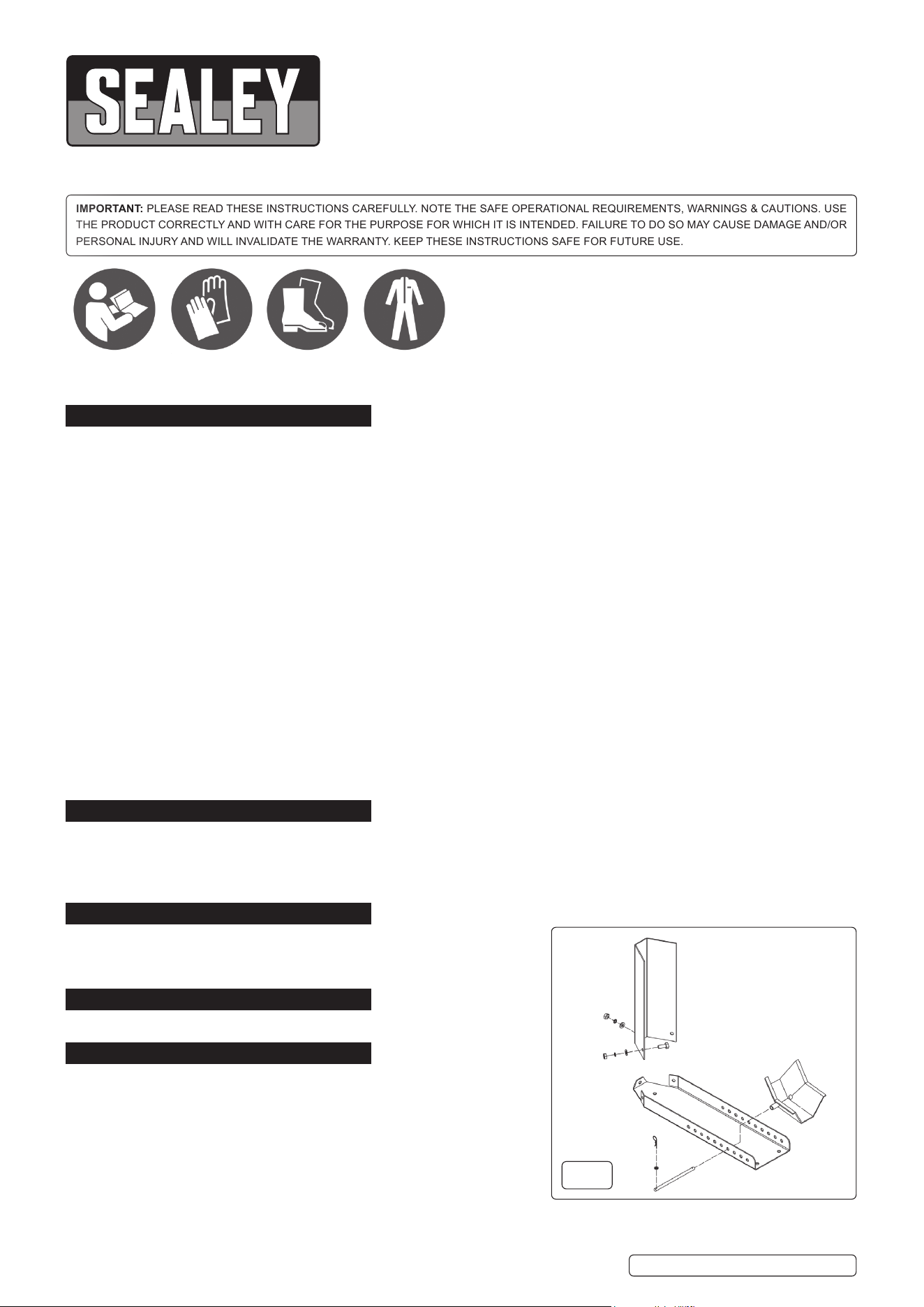

4.1. Bolttyrestopinplace(g.1)usingsuppliedxings.

5. INSTALLATION

5.1. Identify the mounting holes in the base.

5.2. PERMANENT INSTALLATION.

5.2.1. Choose the installation site carefully so that there is good access to both

insert and extract the motorcycle from the clamp..

5.2.2. Ensure that the motorcycle and clamp DO NOT become a hazard.

5.2.3. Use anchor bolt fixings (not supplied) to secure the chock to a solid

concrete surface.

5.3. INSTALLATION FOR TRANSPORTATION.

5.3.1. Whenusedforthetransportationofmotorcycles,theclampmustbefirmlyboltedtothefloorofthevehicleusingsuitablefixings.

5.3.2. Check the underside of the floor panel before drilling any holes. Make sure that you DO NOT strike any important vehicle parts.

WCR02Issue107/09/20

Original Language Version

Refer to

instructions

Wearprotective

gloves

Wearsafety

footwear

Wearprotective

clothing

g.1

6. OPERATION

6.1. ADJUSTING THE CLAMP (FIG.1)

6.1.1. Thepivotclamphas10lockingpositions.Toadjusttheclamp,extractthe‘R’clipandwithdrawthepin.Movethepivotclamptothe 

 desiredposition,insertthepinandretainwiththe‘R’clip.

6.1.2. Toobtaintheoptimumfitfordifferingsizesofmotorcyclewheel,adjustthepositionofthepivotclampandthentestasnecessary.

6.2. POSITIONING MOTORCYCLE IN THE CLAMP

6.2.1. Withthepivotclampintheopenposition,alignthemotorcyclewiththeclamp.

6.2.2. Pushthemotorcyclefirmlyintotheclampsothatthetyrerunsthroughthetaperedpartofthepivotclamp.

6.2.3. Astheweightofthewheelpassesoverthepivotclamp,itwillcausetheclamptoflipover.Thefrontofthetyrewillbesupportedby

the tyre stop and the rear of the tyre by the pivot clamp.

6.2.4. Check that the motorcycle is stable within the clamp before leaving it. If the wheel is loose, or too high in the clamp, extract the

motorcycle from the clamp and adjust the positions of the clamp until the optimum fit is achieved.

6.3. REMOVING MOTORCYCLE FROM THE CHOCK.

6.3.1. More effort will be required to remove the motorcycle from the clamp. Ensure that the space into which the motorcycle will move is free

from obstructions and people.

6.3.2. Takeafirmstanceandholdthemotorcyclehandlebargrips.

6.3.3. Pullbackthemotorcyclewithsufficientforcetoovercometheholdofthepivotclampandreleasethemotorcyclefromtheclamp.

7. MAINTENANCE

7.1. Keep the chock clean and wipe off any oil or grease.

7.2. Before each use check all parts. If any part of the chock is damaged or defective, remove the chock from service and take the

necessary action to remedy the problem.

Original Language Version

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to

arecyclingcentreanddisposedofinamannerwhichiscompatiblewiththeenvironment.Whentheproductbecomescompletely

unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids

according to local regulations.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.

Partssupportisavailableforthisproduct.Pleaseemailsales@sealey.co.ukortelephone01284757500

WCR02Issue107/09/20
