MCGSLG00A photo

Product manual

This is the main product document for model MCGSLG00A.

The file format is pdf, 39 pages, you can download this manual here .

background
IMPORTANT!

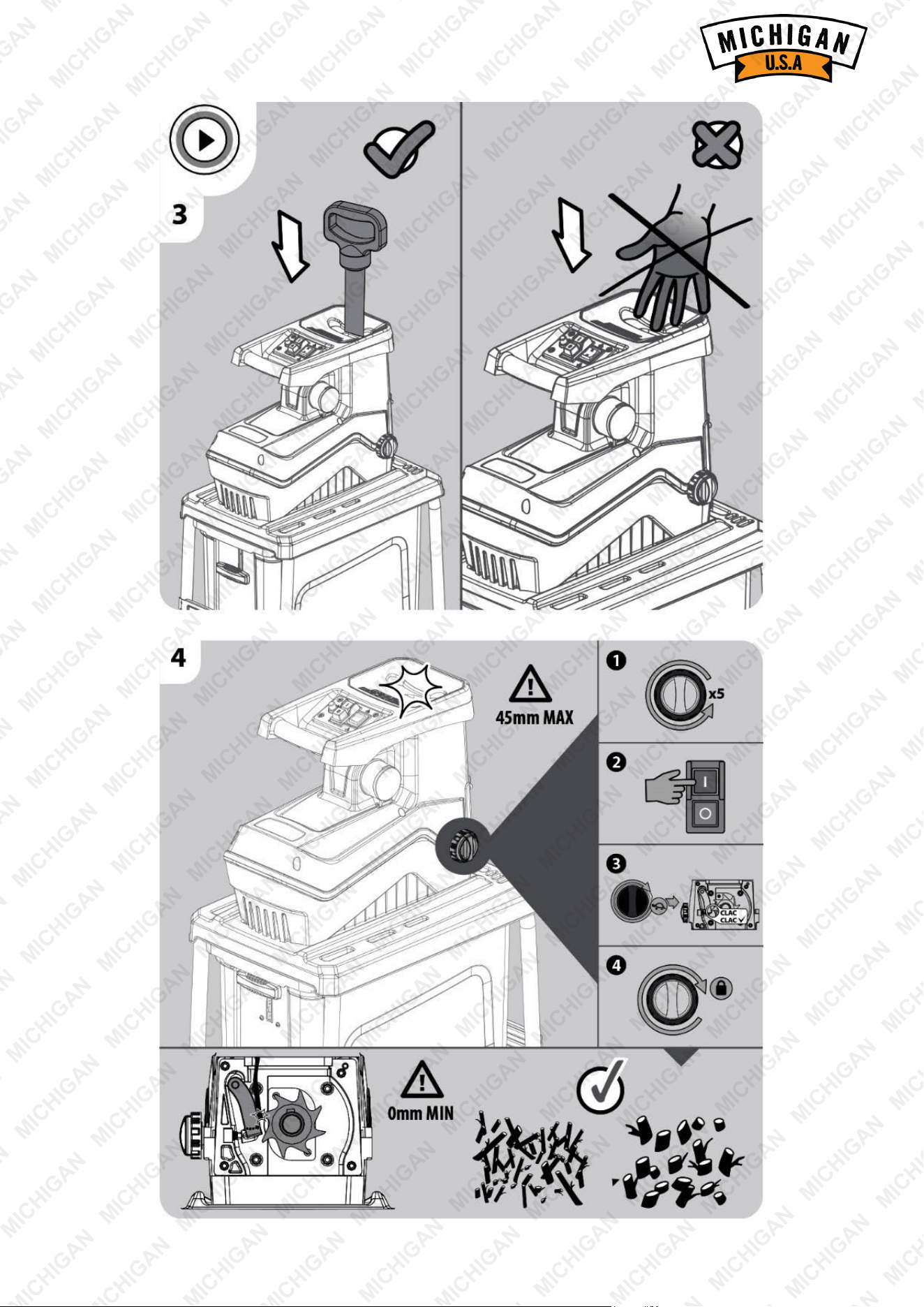

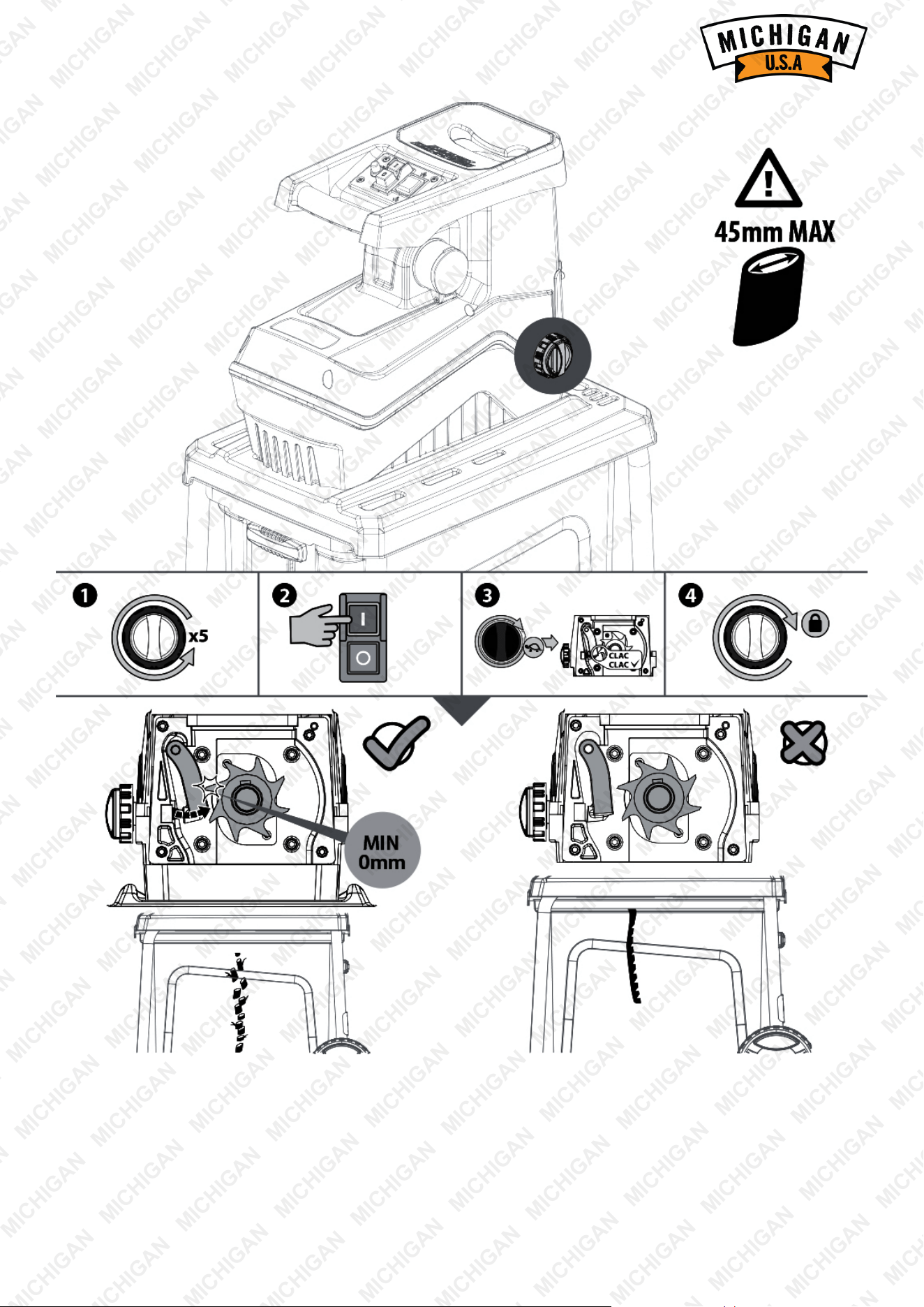

Max. branch diameter
of 45mm ONLY.
Max. branch diameter
may vary depending
on the freshness and
condition of the wood.
User Manual
[Revision 1.0 August 2022]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY
VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,
assembly, inclusions, specifications, description, and packaging.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 2
Safety
Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or
equipment or property damage if not understood or followed. Safety messages have the following symbols:
You WILL be KILLED or
SERIOUSLY INJURED if you do
not follow instructions.
You CAN be KILLED or
SERIOUSLY INJURED if you do
not follow instructions.
You CAN be INJURED if you do
not follow instructions or equipment
damage may occur.
It is vital that you read and understand this
user manual before using the product,
including safety warnings, and any assembly
and operating instructions. Keep the manual
for future reference.
Safety precautions and recommendations
detailed here must be fully understood and
followed to reduce the risk of injury, fire,
explosion, electrical hazard, and/or property
damage.
Safety information presented here is generic
in nature – some advice may not be
applicable to every product. The term
"equipment" refers to the product, be it
electrical mains powered, battery powered or
combustion engine powered.
• Before Use - If you are not familiar with the
safe operation/handling of the equipment or
are in any way unsure of any aspect of
suitability or correct use for your
application, you should complete training
conducted by a person or organization
qualified in safe use and operation of this
equipment, including fuel/electrical handling
and safety.
• Do NOT operate the equipment in
flammable or explosive environments, such
as in the presence of flammable liquids,
gases, or dust. The equipment may create
sparks or heat that may ignite flammable
substances.
• Keep clear of moving parts.
• Equipment may be a potential source of
electric shock or injury if misused.
• Do NOT operate the equipment if it is
damaged, malfunctioning or is in an
excessively worn state.
• Do NOT allow others to use the equipment
unless they have read this manual and are
adequately trained.
• Keep packaging away from children - risk
of suffocation! Operators must use the
equipment correctly. When using the
equipment, consider conditions and pay
due care to persons and property.
General Work Area Safety
• Work areas should be clean and well it.
• Do not operate the equipment if
bystanders, animals etc are within
operating range of the equipment or the
general work area.
• If devices are provided for connecting dust
extraction / collection facilities, ensure
these are connected and used properly.
Dust collection can reduce dust-related
hazards.
General Personal Safety
• Wear appropriate protective equipment
when operating, servicing, or when in the
operating area of the equipment to help
protect from eye and ear injury, poisoning,
burns, cutting and crush injuries. Protective
equipment such as safety goggles,
respirators, non-slip safety footwear, hard
hat, hearing protection etc should be used
for appropriate equipment / conditions.
Other people nearby should also wear
appropriate personal protective equipment.
Do not wear loose clothing or jewellery,
which can be caught in moving parts. Keep
hair and clothing away from the equipment.
• Stay alert and use common sense when
operating the equipment. Do not over-
reach. Always maintain secure footing and
balance.
• Do not use the equipment if tired or under
the influence of drugs, alcohol, or
medication.
• This equipment is not intended for use by
persons with reduced physical, sensory, or
mental capabilities.
General Fuel Safety
• Petrol/fuel/gasoline is extremely flammable
– keep clear of naked flames or other
ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off
the equipment immediately – if fuel gets on
your clothing, change clothing.
• Do NOT smoke near fuel or when
refuelling.
• Always shut off the engine before
refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any
pressure build-up in the tank to release
slowly.
• Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel
leakage is found, do not start, or run the
engine until all leaks are fixed.
General Carbon-Monoxide Safety
• Using a combustion engine indoors CAN
KILL IN MINUTES. Engine exhaust
contains carbon-monoxide – a poison you
cannot smell or see.
• Use combustion engines OUTSIDE only,
and far away from windows, doors, and
vents.
General Equipment Use and Care
• The equipment is designed for domestic
use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for
misalignment or binding of moving parts,
loose components, damage, or any other
condition that may affect its operation. If
damaged, have the equipment repaired by
an authorised service centre or technician
before use.
• Prevent unintentional starting of the
equipment - ensure equipment and power
switches are in the OFF position before
connecting or moving equipment. Do not
carry equipment with hands or fingers
touching any controls. Remove any tools or
other items that are not a part of the
equipment from it before starting or
switching on.
• Do not force the equipment. Use the
correct equipment for your application.
Equipment will perform better and be safer
when used within its design and usage
parameters.
• Use the equipment and accessories etc. in
accordance with these instructions,
considering working conditions and the
work to be performed. Using the equipment
for operations different from those intended
could result in hazardous situations.
• Always keep equipment components
(engines, hoses, handles, controls, frames,
housings, guards etc) and accessories
(cutting tools, nozzles, bits etc) properly
maintained. Keep the equipment clean and,
where applicable, properly lubricated.
• Store the equipment out of reach of
children or untrained persons. To avoid
burns or fire hazards, let the equipment
cool completely before transporting or
storing. Never place or store the equipment
near flammable materials, combustible
gases, or liquids etc.
• The equipment is not weather-proof, and
should not be stored in direct sunlight, at
high ambient temperatures or locations that
are damp or humid.
• Do not clean equipment with solvents,
flammable liquids, or harsh abrasives.
• For specific equipment safety use and care,
see Equipment Safety.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 3
General Electrical Safety
• Inspect electrical equipment, extension
cords, power bars, and electrical fittings for
damage or wear before each use. Repair or
replace damaged equipment immediately.
• Ensure all power sources conform to
equipment voltage requirements and are
disconnected before connecting or
disconnecting equipment.
• When wiring electrically powered
equipment, follow all electrical and safety
codes.
• Wherever possible, use a residual current
device (RCD).
• High voltage / high current power lines may
be present. Use extreme caution to avoid
contact or interference with power lines.
Electrical shock can be fatal.
General Electrical Safety
• Electrically grounded equipment must have
an approved cord and plug and be
connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and
operate equipment by connecting and
disconnecting the electrical cord.
• Do NOT use equipment that has exposed
wiring, damaged switches, covers or
guards.
• Do NOT use electrical equipment in wet
conditions or in damp locations.
• Do NOT use electrical cords to lift, move or
carry equipment.
• Do NOT coil or knot electrical cords, and
ensure electrical cords are not trip hazards.
General Service Information
• The equipment must be serviced or
repaired at authorised service centres by
qualified personnel only.
• Replacement parts must be original
equipment manufacturer (OEM) to ensure
equipment safety is maintained.
• Do NOT attempt any maintenance or repair
work not described in this manual.
• After use, the equipment and components
may still be hot – allow the equipment to
cool and disconnect spark plugs and/or
electrical power sources and/or batteries
from it before adjusting, changing
accessories, or performing repair or
maintenance.
• Do NOT adjust while the equipment is
running.
• Perform service-related activities in suitable
conditions, such as a workshop.
• Replace worn, damaged or missing
warning/safety labels immediately.
Intended Use
• This product is intended for reducing biodegradable, garden organic waste materials to smaller pieces such as leaves, small branches, and
grass, and used in a stationary position by an operator standing on the ground.
• This product is not intended for shredding pieces of metal, rocks, bottles, cans, etc. or soft waste such as kitchen rubbish.
• This product is for private light domestic use only in small spaces; it is not suitable for commercial applications or for larger open spaces and
should not be used for any purpose other than described.
Safety Instructions
• BE AWARE THAT THE EQUIPMENT MAY INCLUDE HAZARDOUS COMPONENTS, SUCH AS BLADES, HOT SURFACES AND MOVING
PARTS.
• MOVING BLADES CAN CAUSE SERIOUS INJURY AND EVEN DEATH IF USED IMPROPERLY OR WITHOUT SUFFICIENT PPE.
• DO NOT USE THIS EQUIPMENT ON UNEVEN SURFACES AND ALWAYS MAINTAIN GOOD BALANCE WHEN USING THIS EQUIPMENT.
FAILURE TO DO SO MAY CAUSE SERIOUS INJURY.
• MAINTAIN A SECURE GRIP OF THE TRIGGER ASSEMBLY AT ALL TIMES.
• WARNING! NEVER ALLOW CHILDREN, PERSONS WITH REDUCED PHYSICAL, SENSORY, OR MENTAL CAPABILITIES OR LACK OF
EXPERIENCE AND KNOWLEDGE OR PEOPLE UNFAMILIAR WITH THESE INSTRUCTIONS TO USE THE MACHINE.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.
• Keep children and pets at a safe distance away from the device. Local regulations or bylaws may determine the minimum age for using the
shredder.
Training
• Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
• Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.
• Keep in mind, that the operator or user is responsible for accidents or hazards occurring to other people or their property.
Preparation

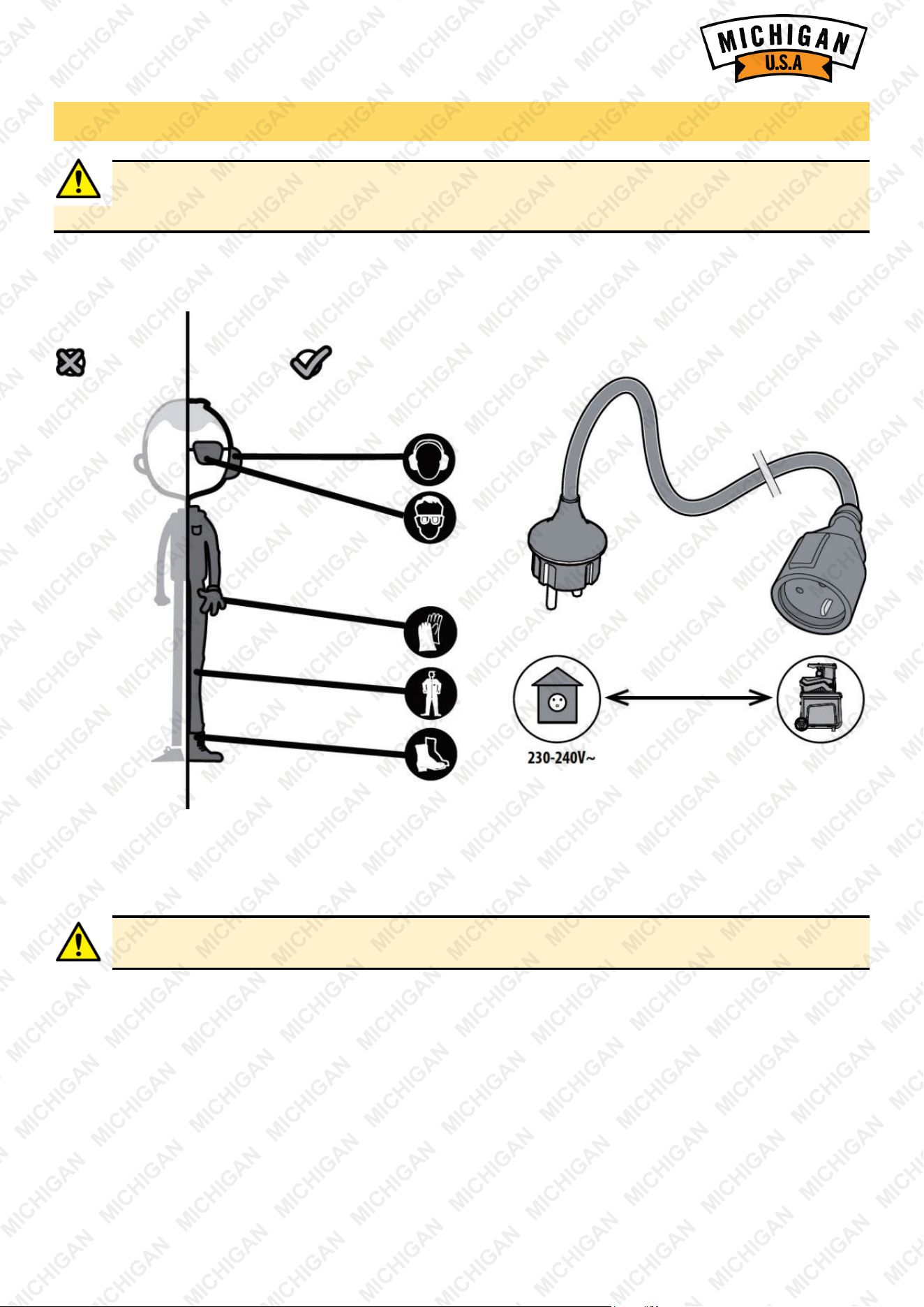

• Obtain ear protection and safety glasses. Always wear them while operating the machine.
• While operating the machine always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open
sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
• Operate the machine in a recommended position and only on a firm, level surface.
• Do not operate the machine on a paved or gravel surface where ejected material could cause injury.
• Before using, always visually inspect to see, that the shredding means, shredding means bolts and other fasteners are secure, the housing is
undamaged, and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or
unreadable labels.
• Before use check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord
from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the machine if the cord is
damaged or worn.
• Never operate the machine while people, especially children, or pets are nearby.
Operation
• Before starting the machine, make certain that the feeding chamber is empty.
• Keep your face and body away from the feed intake opening.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 4
• Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.
• Always keep proper balance and footing. Do not overreach. Never stand at a higher level than the base of the machine when feeding material
into it.
• Always stand clear of the discharge zone when operating this machine.
• When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.
• If the cutting mechanism strikes any foreign objects or if the machine should start making any unusual noise or vibration, immediately shut off the
power source and allow the machine to stop. Disconnect the machine from the supply and take the following steps before restarting and
operating the machine:
• inspect for damage.
• replace or repair any damaged parts.
• check for and tighten any loose parts.
• Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material
through the feed intake opening.

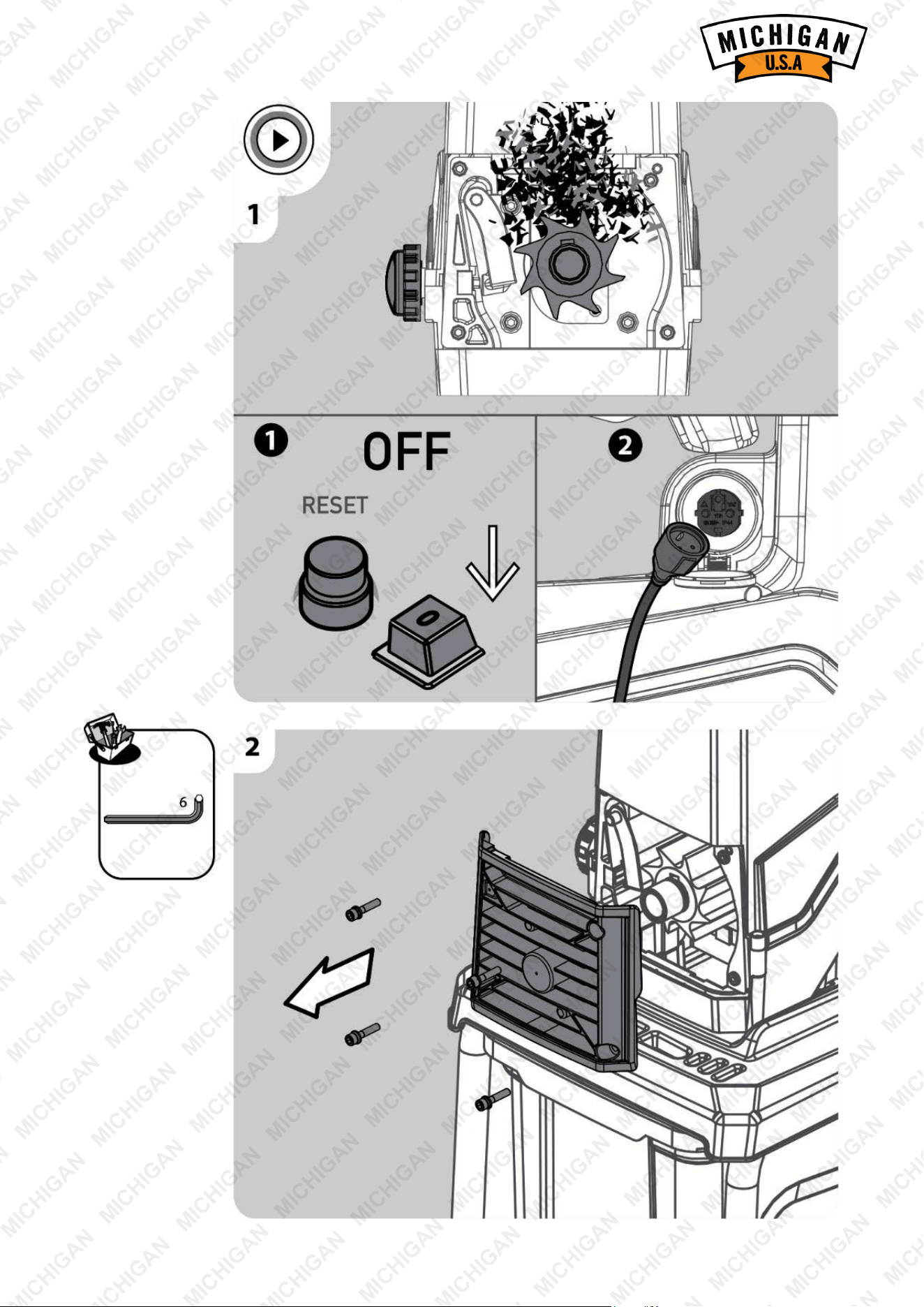

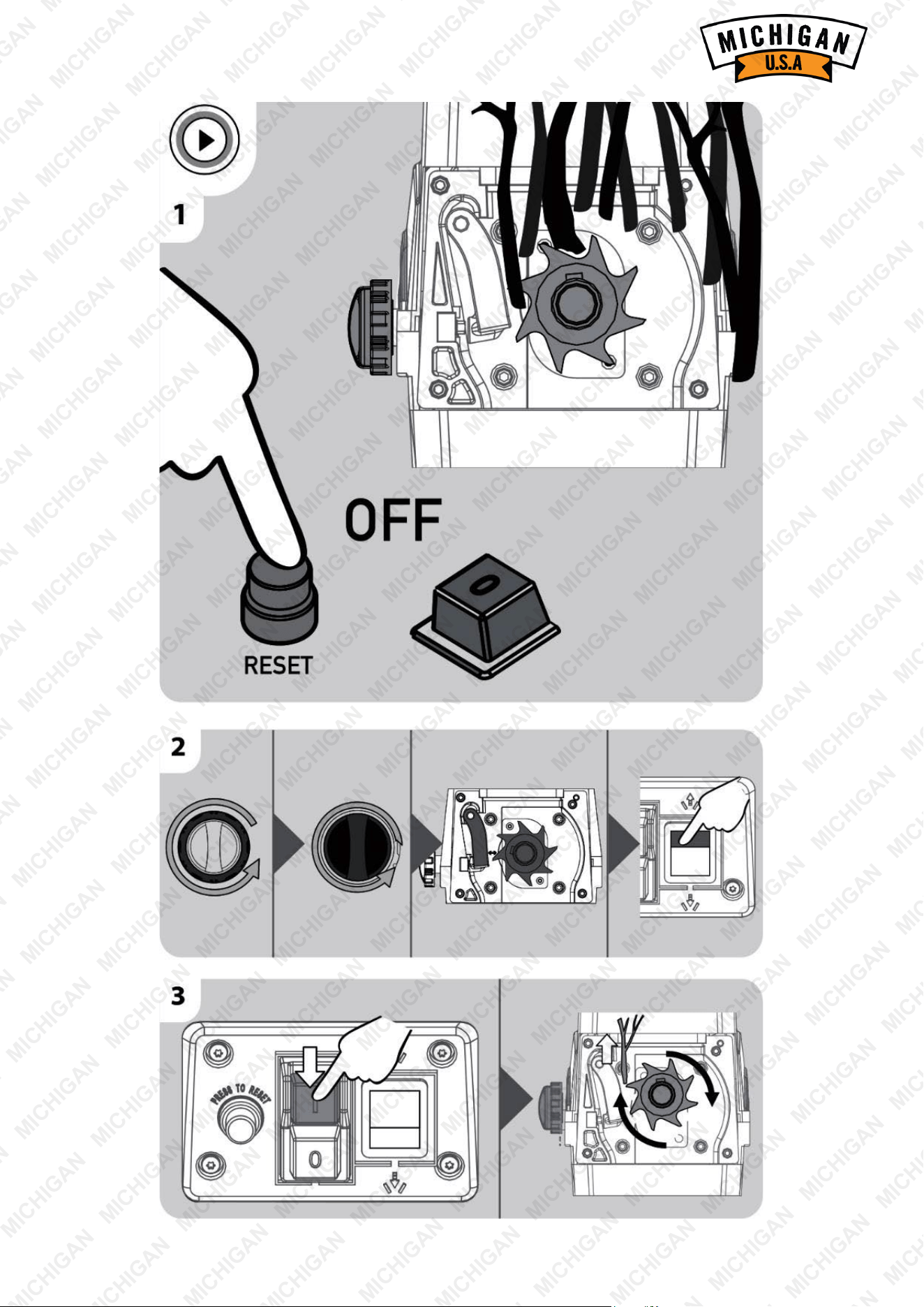

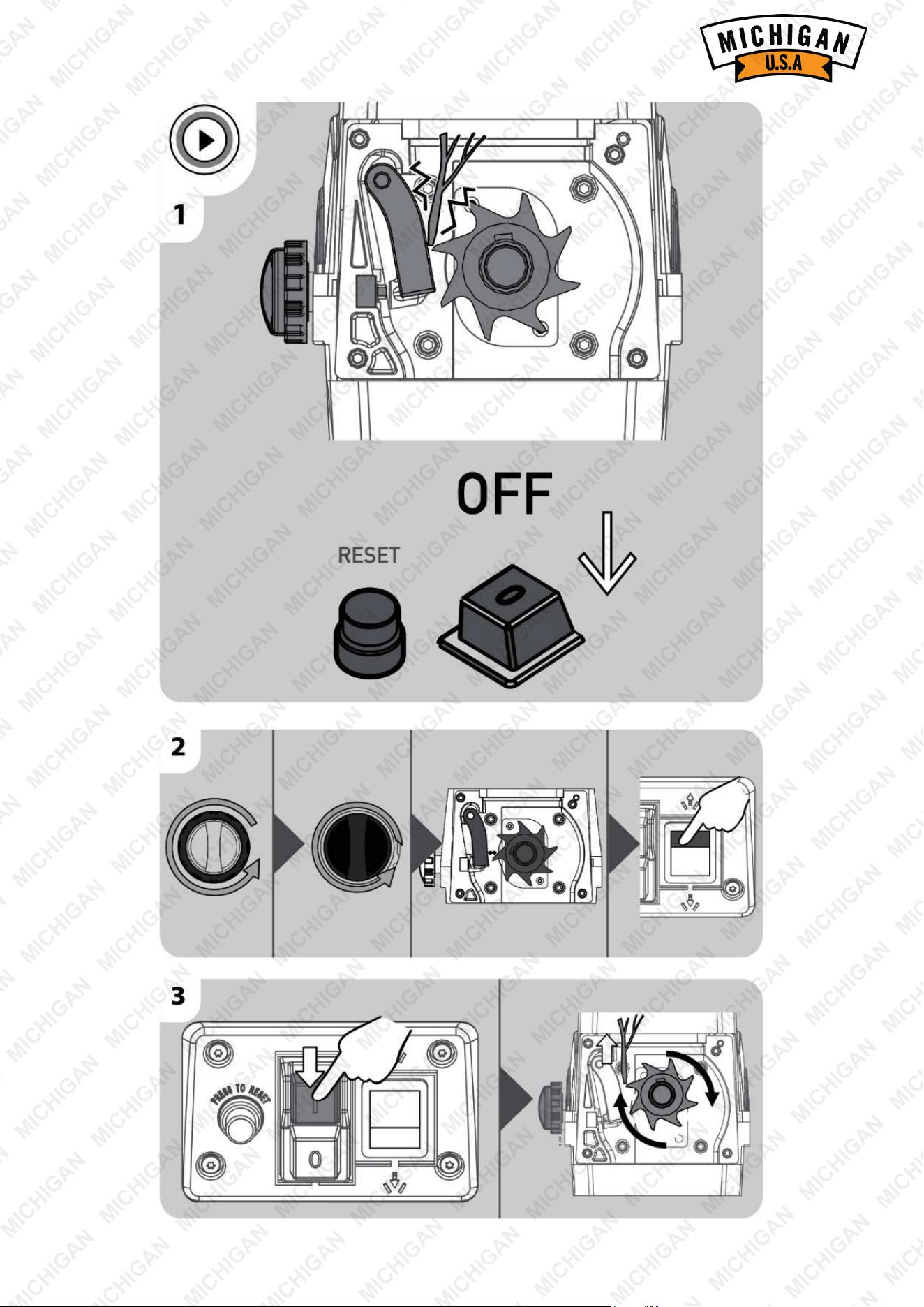

• If the machine becomes clogged, shut-off the power source and disconnect the machine from supply before cleaning debris.
• Never operate the machine with defective guards or shields, or without safety devices, for example debris collector in place.
• Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
• Do not transport this machine while the power source is running.
• Stop the machine and remove plug from the socket. Make sure that all moving parts have come to a complete stop
• whenever you leave the machine,
• before clearing blockages or unclogging chute,
• before checking, cleaning, or working on the machine.
• if the machine starts to vibrate abnormally, for immediate check
• Do not tilt the machine while the power source is running.
Maintenance and Storage
• When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine
from the supply and make sure that all moving parts are come to a complete stop. Allow the machine to cool before making any inspections,

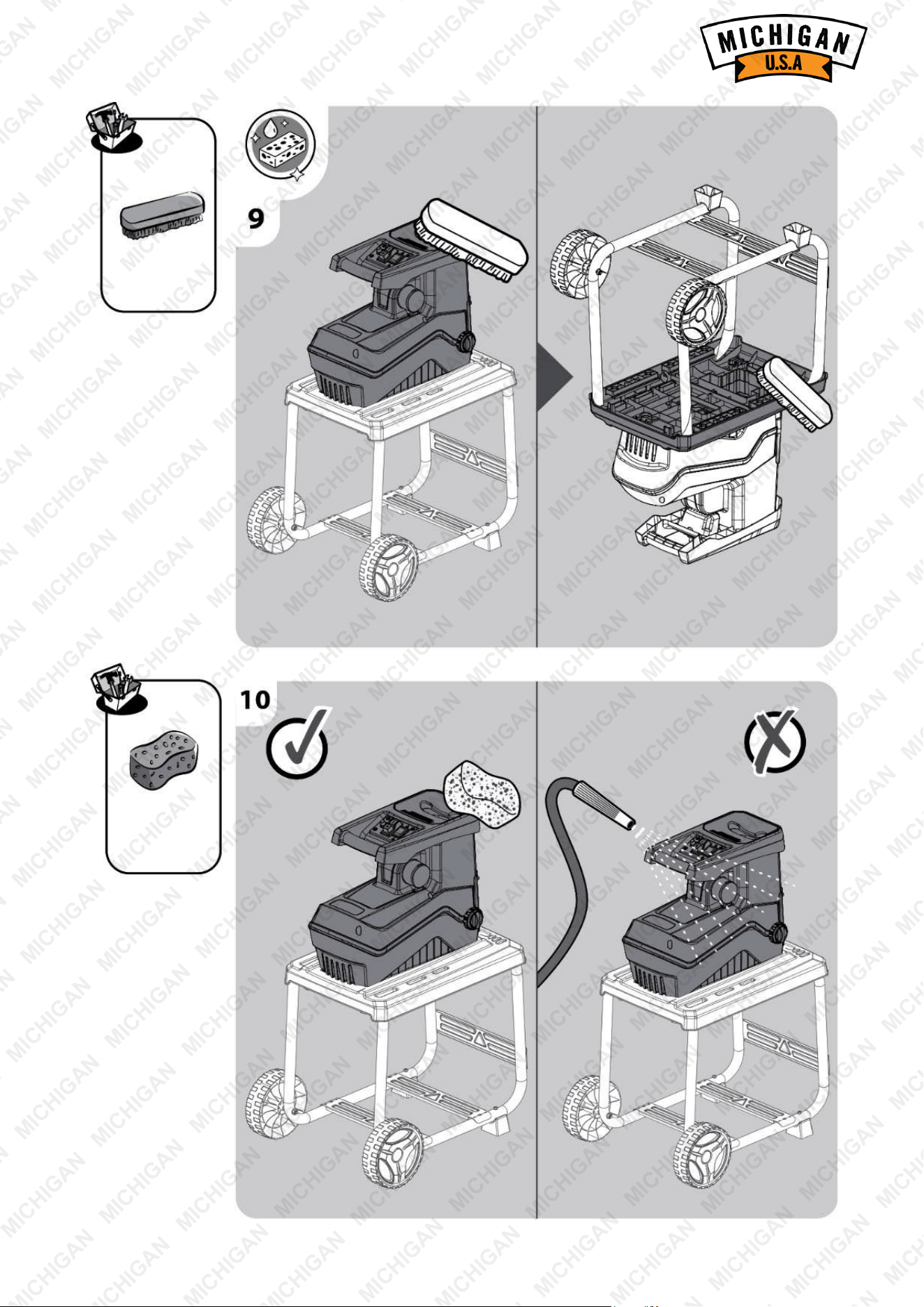

adjustments, etc. Maintain the machine with care and keep it clean.

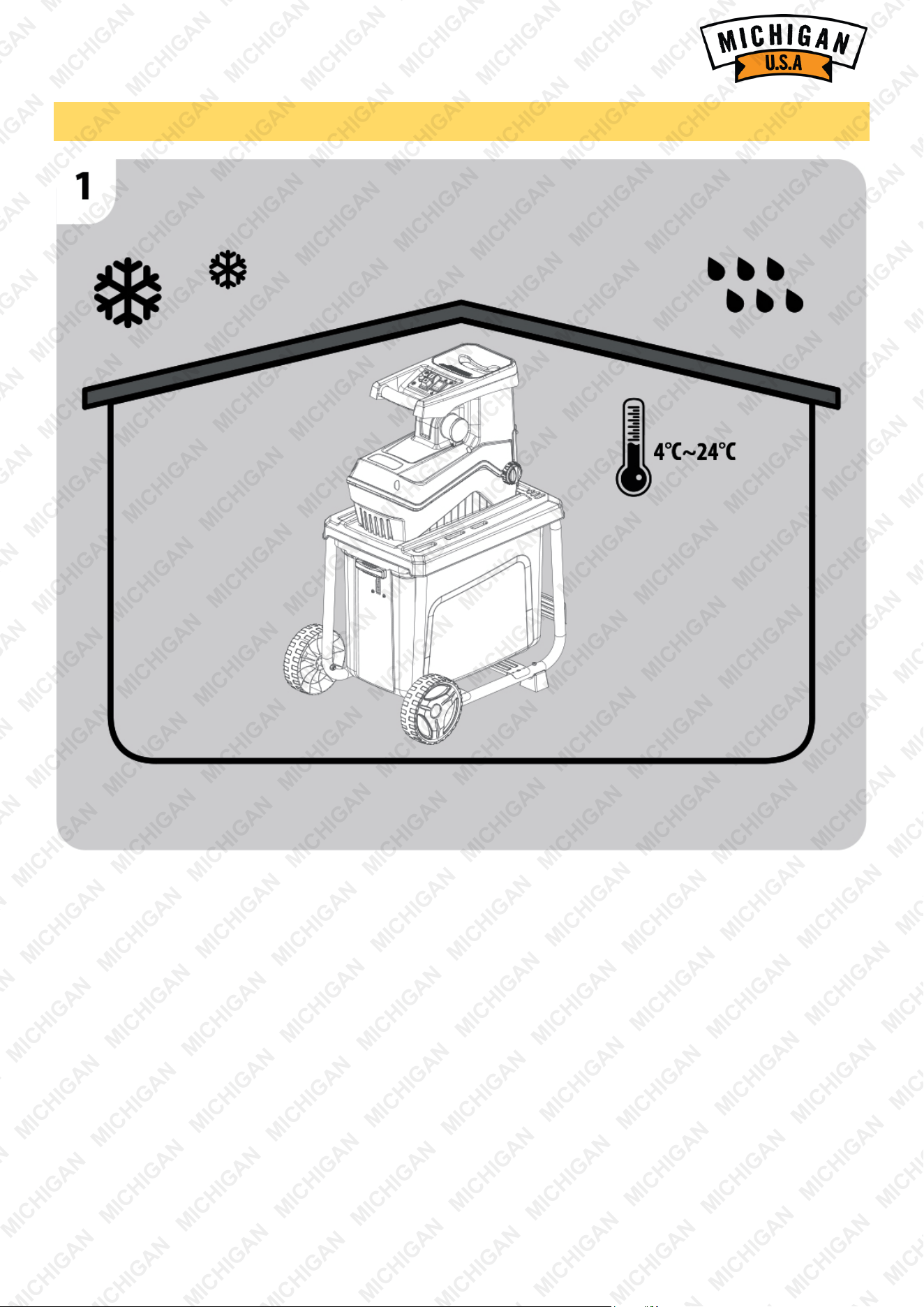

• Store the machine in a dry place out of the reach of children.
• Always allow the machine to cool before storing.
• When servicing the shredding means be aware that, even though the power source is switched off due to the interlock feature of the guard, the
shredding means can still be moved.
• Replace worn or damaged parts for safety. Use only genuine replacement parts and accessorises.
• Never attempt to override the interlocked feature of the guard. Additional safety instructions for units with bagging attachments Switch-off the
machine before attaching or removing the bag.
Recommendation
The machine should be supplied via a residual current device (RCD) with a tripping current of not more than 30 mA.
Service
• Have your garden power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the
garden power tool is maintained.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent to avoid a hazard.
• If the carbon brushes need to be replaced, have this done by a qualified repair person (always replace the two brushes at the same time).
Vibration and Noise Reduction
• To reduce the impact of noise and vibration emission, limit the operating time, use low-vibration and low-noise operating modes, and wear
personal protective equipment.
• Take the following points into account to minimise the vibration and noise exposure risks:
• Only use the product as intended by its design and these instructions.
• Ensure that the product is in good condition and well maintained.
• Use correct attachments for the product and ensure they are in good condition.
• Keep tight grip on the handles/grip surface.
• Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
• Plan your work schedule to spread any high vibration tool use across a longer period of time.
• Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following
dangers can arise in connection with the structure and design of this product:
• Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly
maintained.
• Injuries and damage to property due to broken application tools or the sudden impact of hidden objects during use.
• Danger of injury and property damage caused by flying objects.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 5
• Before operating the shredder, you must check whether the screw is firmed, if the screws are loose, stop the machine to tighten the screws.
Otherwise, the vibration will cause personal injury by the operation of the machine.
Emergency
• Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them scrupulously.
This will help to prevent risks and hazards.
• Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and
damage to property.
• Switch off and disconnect from the power supply if there are malfunctions. Have the product checked by a qualified professional and repaired,
if necessary, before you operate it again.
Residual Risks
• Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following
dangers can arise in connection with the structure and design of this product:
• Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly
maintained.
• Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use.
• Danger of injury and property damage caused by flying objects.
• Prolonged use of this product exposes the operator to vibrations and may produce ‘whitefinger’ disease. To reduce the risk, please wear
gloves and keep your hands warm. If any of the ‘whitefinger’ symptoms appear, seek medical advice immediately. ‘Whitefinger’ symptoms
include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally
appear in the fingers, hands, or wrists. The risk increases at low temperatures.
Additional Safety Instructions for Electric Shredder
• Do not use appliance for a use other than the intended use.
• Maintain labels and nameplates on the appliance. These carry important safety information. If unreadable or missing, contact the point of
purchase for a replacement.
• The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may
occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be
supplied by the operator.
• Before starting, ensure that the feed inlet is empty.
• Always wear ear and eye protection and wear gloves during operation.
• Longer material standing out from the shredder could lash out when being pulled in by the blades. Keep a safe distance.
• Ensure the ventilation slots are not covered.
• Always wear substantial footwear and long trousers while operating the machine.
Advice
• Do not overreach. Always keep balance, to always be sure of the footing on slopes. Walk, never run.
• Do not connect a damaged cord to the supply or touch a damaged cord before it is disconnected from the supply for the reason that damaged
cords can lead to contact with live parts.
• Keep extension cords away from moving hazardous parts to avoid damages to the cords which can lead to contact with live parts.
• WARNING! DO NOT TOUCH MOVING HAZARDOUS PARTS BEFORE THE MACHINE IS DISCONNECTED FROM THE MAINS AND THE
MOVING HAZARDOUS PARTS HAVE COME TO A COMPLETE STOP.
• NEVER OPERATE THE MACHINE WITH DEFECTIVE GUARDS OR SHIELDS, OR WITHOUT SAFETY DEVICES, OR IF THE CORD IS
DAMAGED OR WORN.
Recommendation
• Avoid using the machine in bad weather conditions especially when there is a risk of lightning.
Maintenance
• Before and after each use, check the product and accessories (or attachments) for wear and damage. If required, exchange them for new ones
as described in this instruction manual. Observe the technical requirements.
• Be aware of the danger of moving hazardous parts.
• Never use caustic agents to clean plastic parts.
• Never disassemble the tool or carry out any repairs. Always have the product maintained or repaired by a competent person at an authorised
service centre.
• The following part of this product may be replaced by the consumer.
• Spare parts are available at an authorised dealer or through our customer service.
• Keep hands and feet out of openings while machine is running. When hands touch the rotating blades ,the hands might be cut, it will cause
serious personal injury hazards.
• WARNING! FOR YOUR SAFETY, IT IS REQUIRED THAT THE PLUG ATTACHED TO THIS PRODUCT IS ALWAYS CONNECTED TO AN
EXTENSION CORD! THE EXTENSION CORD MUST BE SUITABLE FOR OUTDOOR USE WITH SOCKETS PROTECTED AGAINST WATER
SPLASHING! ENSURE THE EXTENSION CORD IS OF THE PROPER SIZE AND TYPE FOR YOUR PRODUCT (≥ 1.5MM2),WHICH SHALL
NOT LESS RUBBER INSULATED, ORDINARY POLYCHLOROPRENE SHEATHED FLEXIBLE CORD(CODE DESIGNATION (H05VV-F) AND
LENGTH SHOULD MORE THAN 10M.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 6
• The maximum permissible system impedance is Zmax < 0.136Ω at the interface point of the user’s supply. The user should determine in
consultation with the supply authority, if necessary, that the equipment is connected only to a supply of that impedance or less.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 7

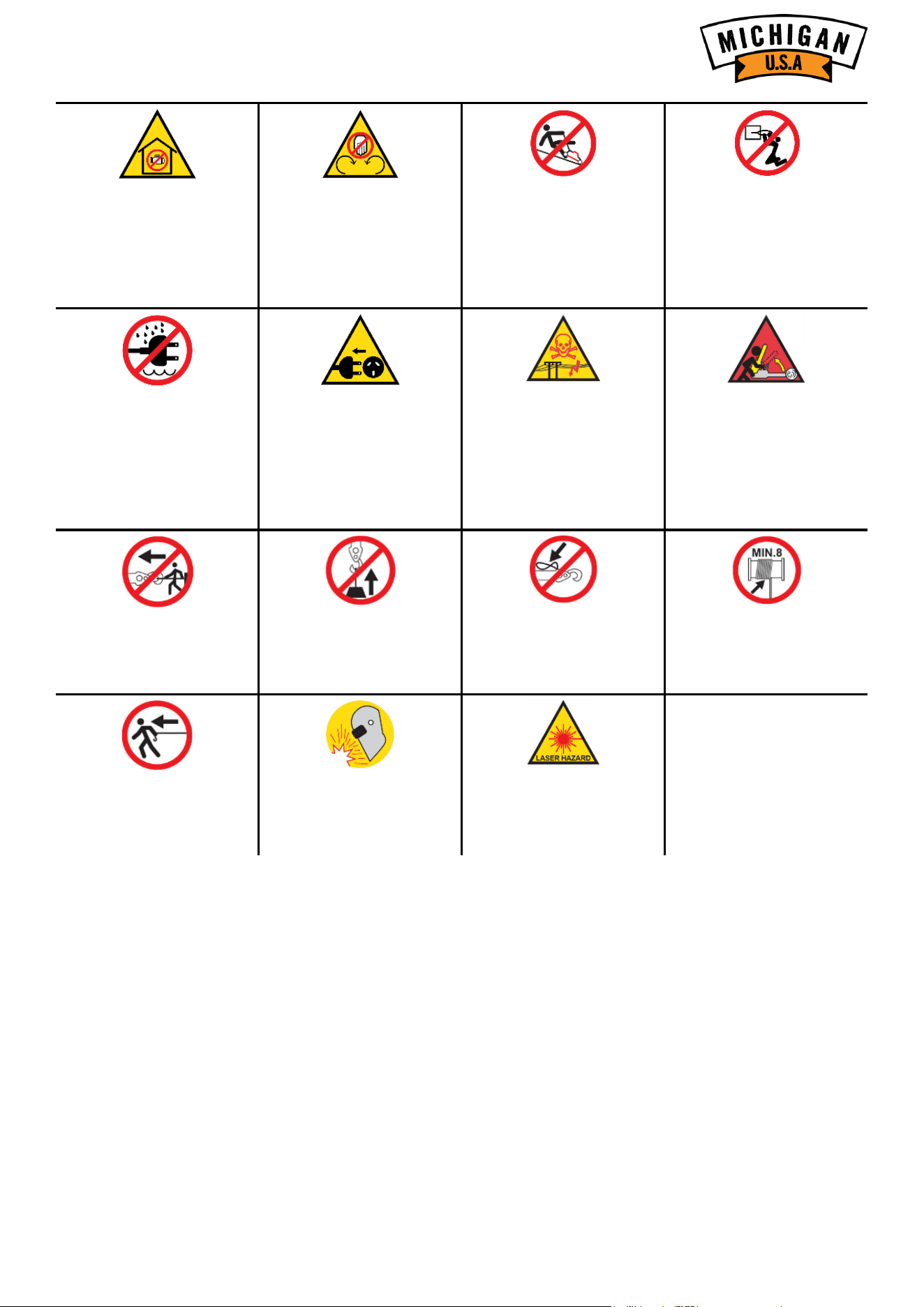

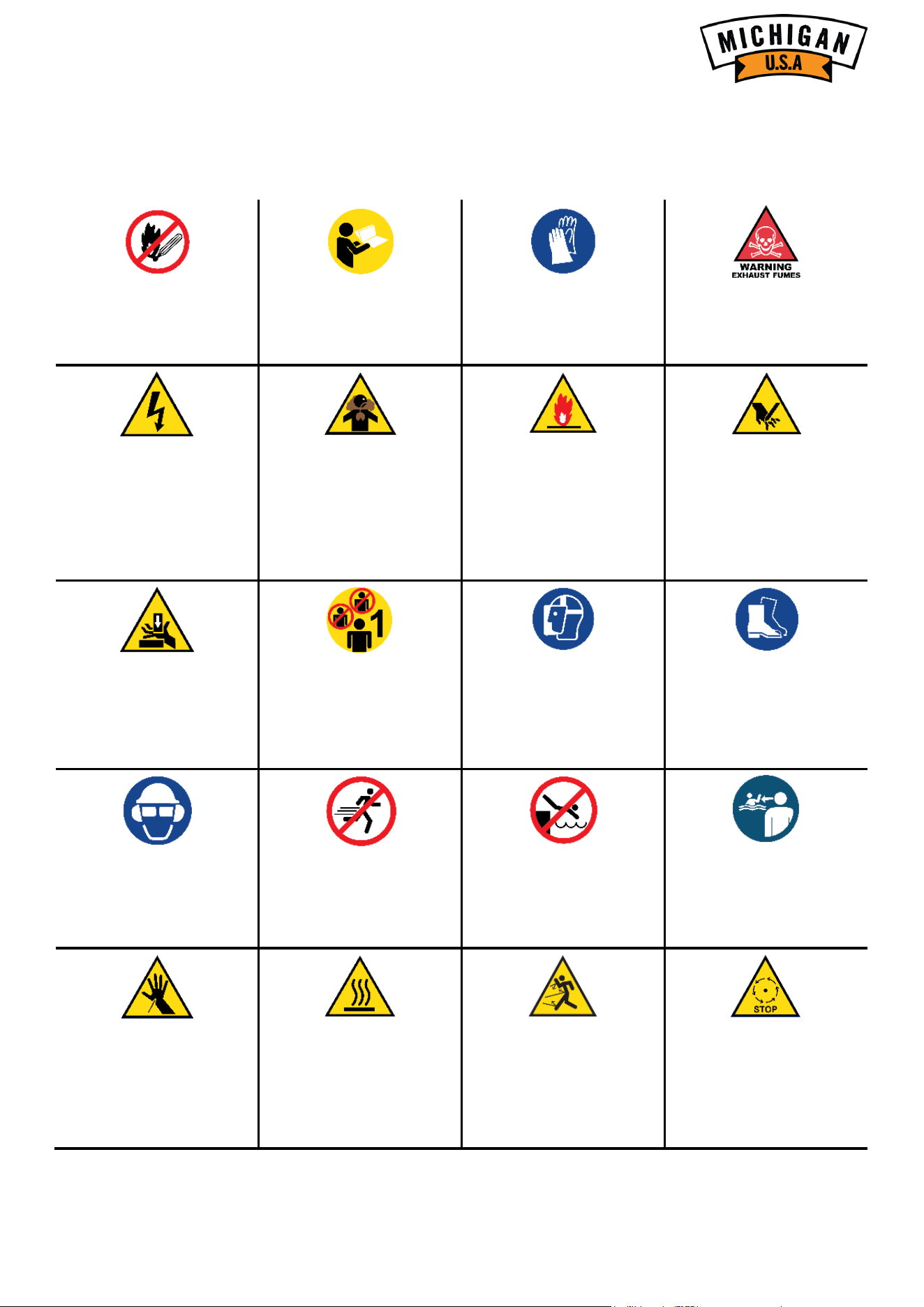

Safety Symbols
The product may have safety warning labels attached to it, explained below. Understand the symbols on your
product and their meanings. If any stickers become unreadable, unattached etc., replace them.
Flammable Material Hazard
Flammable liquids, gases, or
substances etc may present.
Avoid ignition sources and open
flames. Danger of fire.
Read User Manual
Read and fully understand
product safety warnings,
operation, procedures etc before
using the product.
Use Hand Protection
Wear appropriate hand protection
and take due care as the product
or use of the product may present
hand hazards.
Carbon-Monoxide Hazard
Do not use the product in
confined areas or without
adequate ventilation. Carbon-
monoxide poisoning can be fatal.
Electrocution / Electrical Shock
Hazard
High voltage or high current
electricity may be present or
required by the product. Take
due care when handling electrical
products, cables, plugs and
leads. Electrical shock can be
fatal.
Toxic Fumes / Dust Hazard
Using the product or by-products
from use may produce fumes,
smoke or particles that could be
harmful if inhaled. Wear
appropriate breathing protection
and have adequate ventilation.
Explosive Material Hazard
Combustible liquids, gases, or
substances etc may be present.
Avoid ignition sources and open
flames. Danger of explosion.
Cutting / Amputation Hazard
The product may have blades,
edges or mechanical devices that
can cause severe cut injury to
fingers, limbs etc. Take due care
when handling and using the
product.
Crush Hazard
The product may have blades,
edges or mechanical devices that
can cause severe crush injury to
fingers, limbs etc. Take due care
when handling and using the
product.
Single Operator Only
The product must be operated by
a single person only. More than
one person operating the product
may introduce additional hazards.
Use Face Protection
Wear appropriate full-face
protection and take due care as
the product or use of the product
may present face and eye
hazards.
Use Foot Protection
Wear appropriate foot protection
and take due care as the product
or use of the product may present
foot hazards.
Use Eye / Ear / Head Protection
Wear appropriate eye and / or
ear and / or head protection and
take due care as the product or
use of the product may present
eye, hearing, and head hazards.
Running Hazard
Do not run on or near the product
as doing so may present a fall
hazard.
Diving Hazard
Do not dive into the product as
doing so may present a neck /
head injury hazard.
Adult Supervision Required
Always supervise children and
other users of a product to
prevent drowning or injury.
Skin Penetration / Puncture
Hazard
The product may produce
pressure, emit liquids or objects
that can cause severe injury to
fingers, limbs, blood etc. Take
due care when handling and
using the product.
Hot Surface Hazard
Be aware that the product may
produce high temperatures and
hot surfaces that can cause burn
injuries.
Flying Debris Hazard
Be aware that the product or use
of the product may present
hazards produced by flying
debris. Wear appropriate clothing
and protective devices.
Moving Parts Hazard
Be aware that the product
contains or uses mechanical
devices that move or rotate.
Always wait for moving parts to
stop fully before handling the
product, adjusting, maintenance
etc.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 8
Carbon-Monoxide Hazard
Do not use the product in
confined areas or without
adequate ventilation. Carbon-
monoxide poisoning can be fatal.
Pull Hazard
Be aware that the product
contains or uses mechanical
devices that can pull in objects
and can cause severe injury to
fingers, limbs etc. Take due care
when handling and using the
product.
Slope / Fall Injury Hazard
Be aware that using the product
on sloping surfaces or in slippery
conditions may present additional
dangers from falls and contact
with blades, moving parts, hot
surfaces etc.
"Slam Dunk" Warning
Do NOT attempt "slam dunk"
manoeuvres as this may result in
severe injury due to falling,
product breakage or collapse etc.
Electrocution / Electrical Shock
Hazard - Outdoor
High voltage or high current
electricity may be present or
required by the product. Do NOT
use in rain, damp, or wet
conditions. Electrical shock can
be fatal.
Electrocution / Electrical Shock
Hazard - Disconnect
High voltage or high current
electricity may be present or
required by the product. Always
disconnect the product from the
electrical supply before handling
the product, adjusting,
maintenance etc.
Power Line Electrocution
Hazard
High voltage / high current power
lines may be present. Use
extreme caution to avoid contact
or interference with power lines.
Electrical shock can be fatal.
"Kick-Back" Hazard
High level of "kick-back" hazard
that can cause the machine to
suddenly rotate towards operator.
Kick-back injury can be fatal.
Winch Operator Position
Hazard
Do NOT stand between winch
and load. Do NOT use winch to
move people.
Winch Lift Hazard
Do NOT LIFT load vertically. Use
machine to PULL only.
Cable Hazard
Ensure that load bearing cable is
not kinked or knotted.
Winch Cable Hazard
Ensure that there is a minimum
number of cable coils on
winching mechanism.
Winch Hook Hazard
Carry hook to load – do NOT
throw or run.
Flash / Blinding Hazard
Wear appropriate eye protection
for welding. Direct exposure to
weld arcs may cause permanent
eye injury.
Laser Hazard
Laser may be in use – do NOT
look directly at laser or allow
others to.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 9
Table of Contents
Safety ............................................................................................................................................................. 2
Safety Symbols ........................................................................................................................................................... 7
Parts Identification ..................................................................................................................................... 10
Key Features ............................................................................................................................................................ 10
Parts Diagram ........................................................................................................................................................... 11
Assembly ..................................................................................................................................................... 13
Functions ..................................................................................................................................................... 17
Preparation ............................................................................................................................................................... 17
Power Switch ............................................................................................................................................................ 17
Press to Reset .......................................................................................................................................................... 17
Forward / Reverse Switch ........................................................................................................................................ 18
Retaining Basket ....................................................................................................................................................... 18
Lock Lever ................................................................................................................................................................ 18
Blade Cover .............................................................................................................................................................. 19
Operation ..................................................................................................................................................... 20
Set Up the Product ................................................................................................................................................... 20
Operation Tips .......................................................................................................................................................... 22
Adjusting the Blade Clearance ................................................................................................................................. 22
Setting the Clearance ............................................................................................................................................... 23
Reverse Switch ......................................................................................................................................................... 23
Operational Diagrams ............................................................................................................................................... 24
Maintenance Diagram ................................................................................................................................. 32
Winter Storage ............................................................................................................................................ 36
Troubleshooting ......................................................................................................................................... 37
Specifications ............................................................................................................................................. 38
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 10

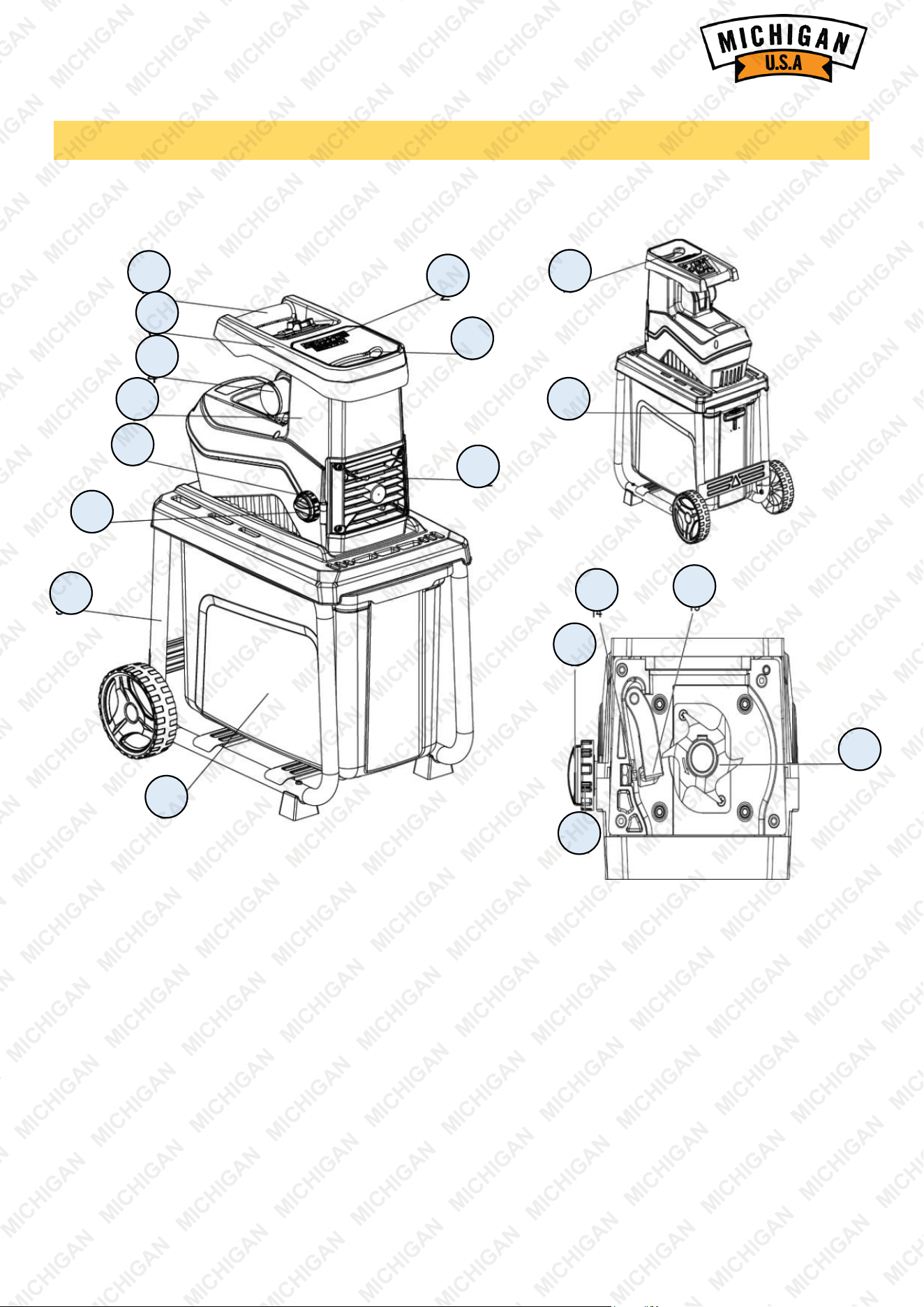

Parts Identification
Key Features
3
2
1
6
4
7
11
12
10
9
5
13
5
10
16
15
14
11
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 11
No. Name No. Name
1 Filling hopper 9 Base frame
2 Power switch 10 Adjusting knob
3 Handle 11 Fixing knob
4
Power supply plug
12
Blade cover
5
Lock lever
13
Feed side
6
Forward/reverse switch
14
Screw
7
Upper housing
15
Counter blade
8
Retaining basket
16
Cutting roller

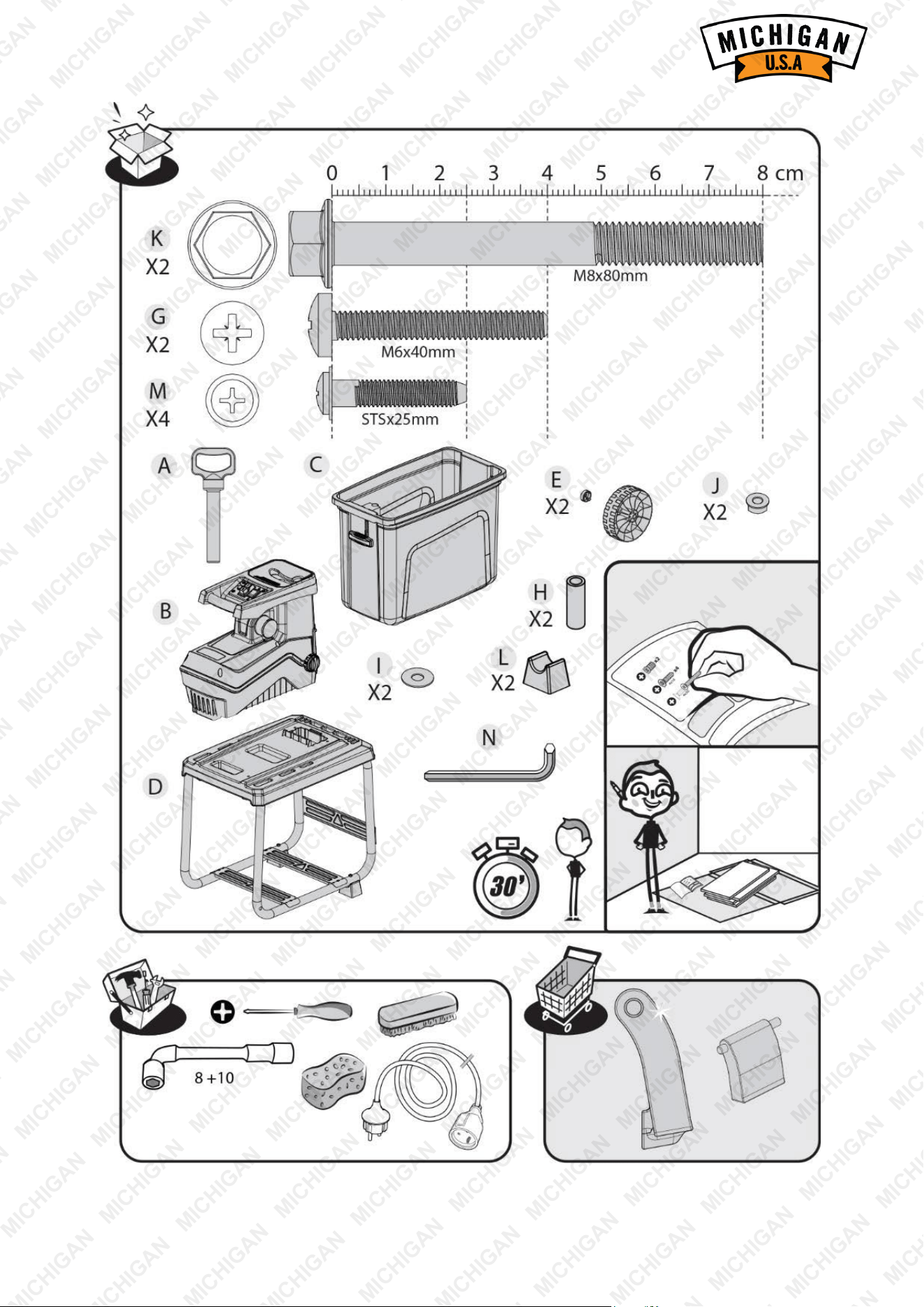

Parts Diagram
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 12
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 13
Assembly
CAUTION: Always be sure that the product is switched off and unplugged before carrying out
any work on the tool.

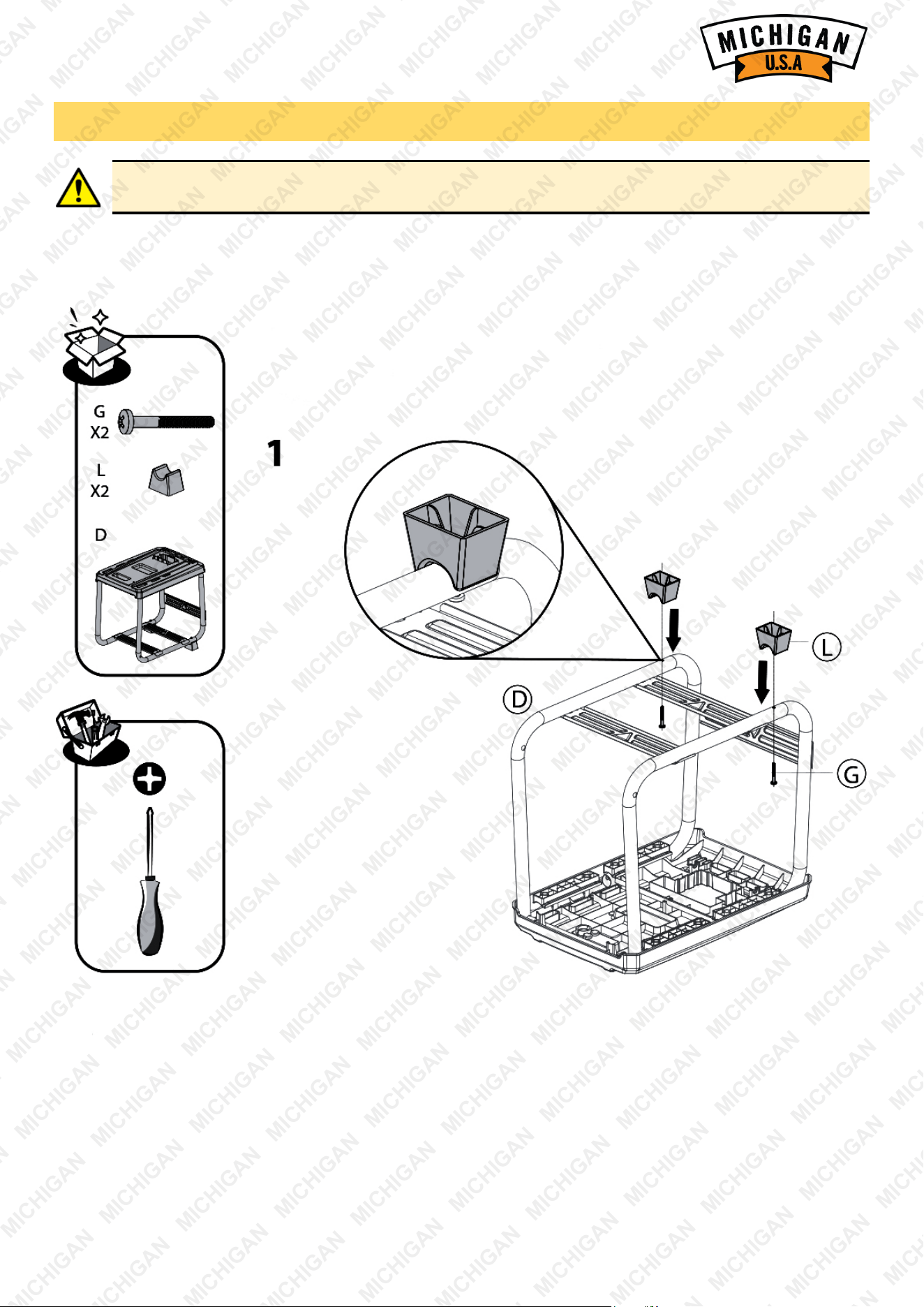

1. Place the upper housing upside down on a flat surface. Then align the base frame on to it. Make sure the
base frame is the right way around.
2. Attach the feet using the 2 screws. Make sure they are fastened tightly.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 14

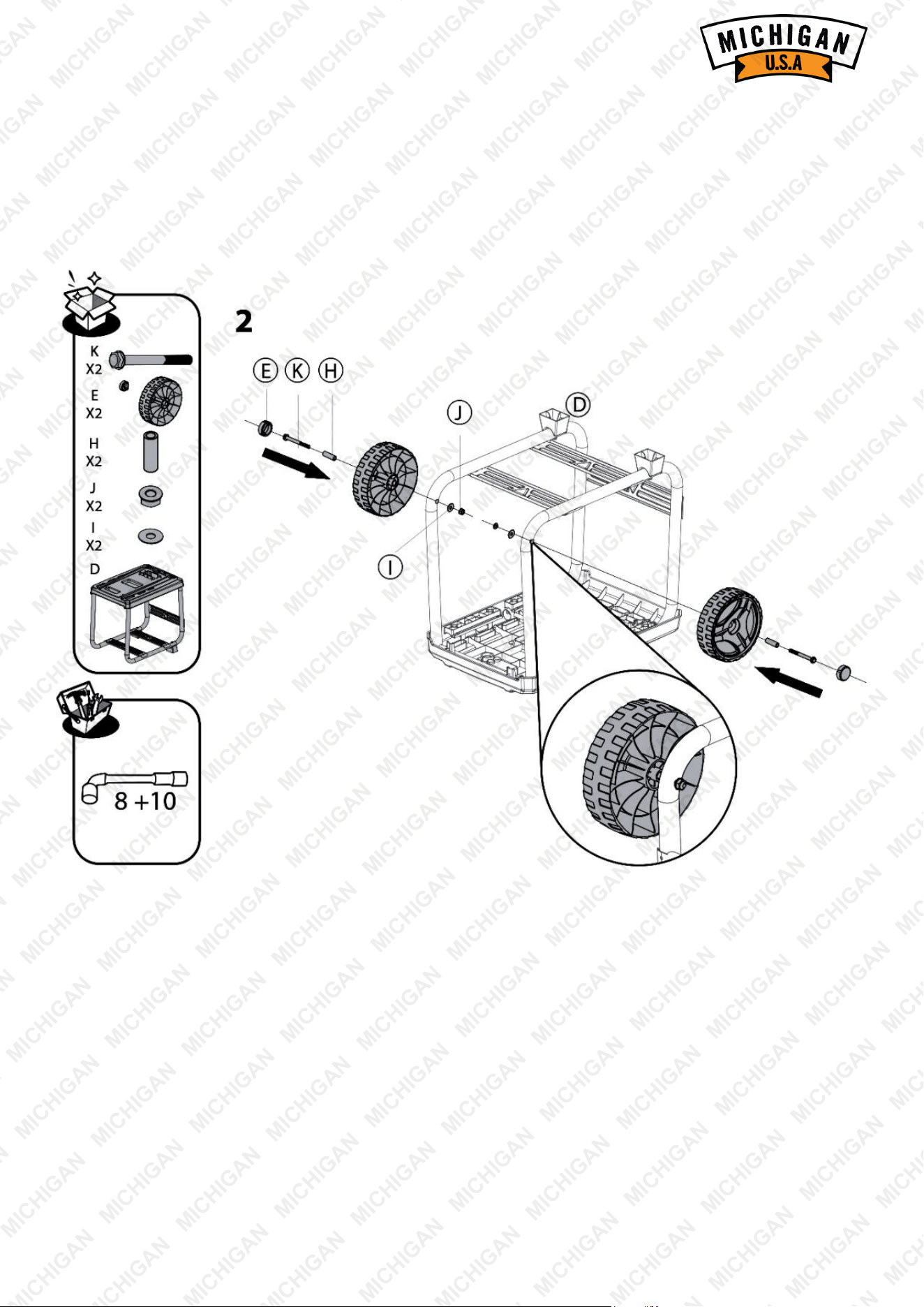

3. Attach the wheels:
a. Put the wheel bolt through the spindle sleeve.
b. Place the wheel bolt and spindle sleeve through the wheel.
c. Place a washer on the wheel bolt before inserting the bolt through the base leg. Secure it with a nut.
Make sure the nut is tight, but the wheel still rotates.
d. Repeat on the other side.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 15

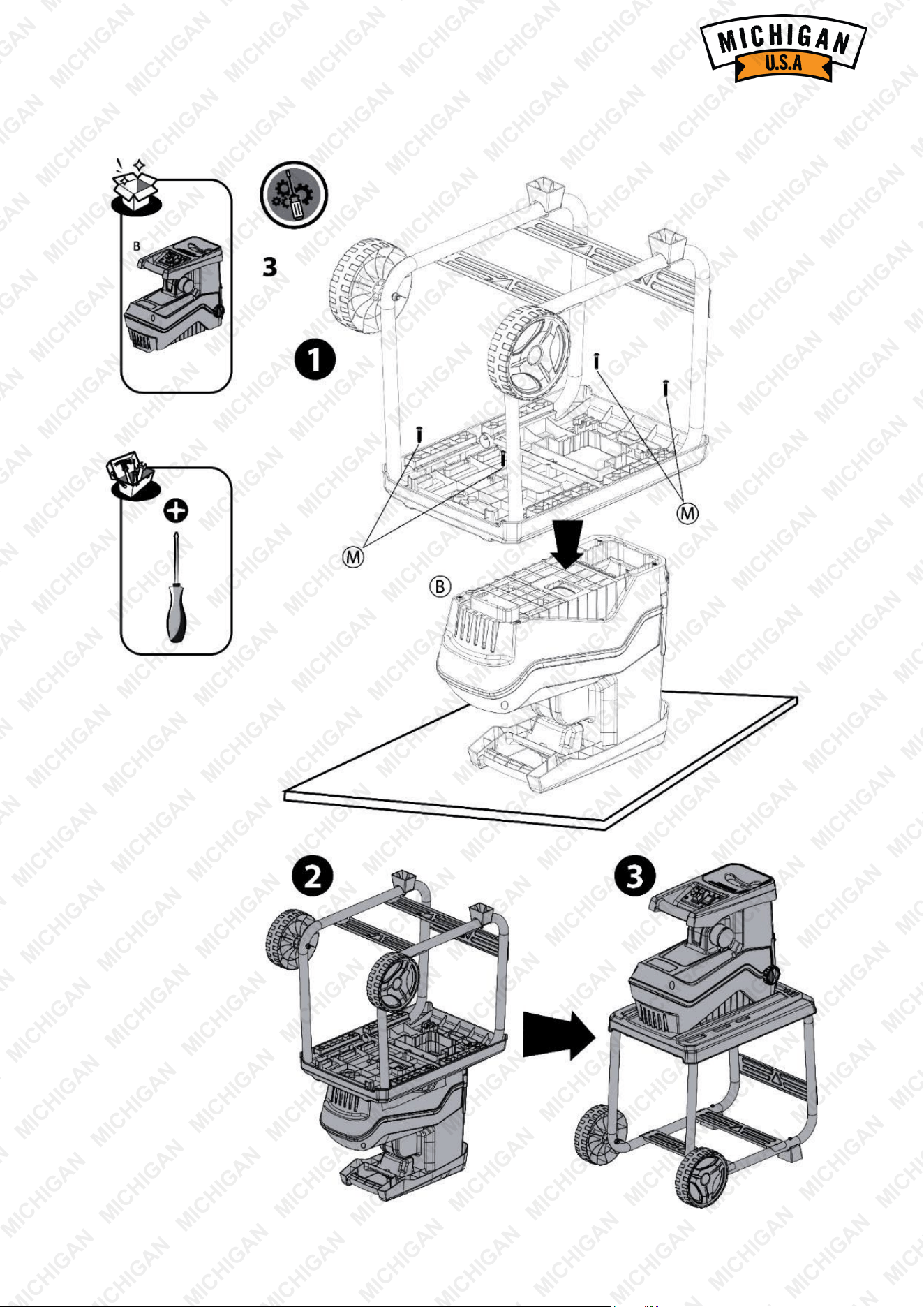

4. Fasten the base frame to the upper housing with the 4 screws. Make sure all parts are perfectly stable and
tightened sufficiently.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 16

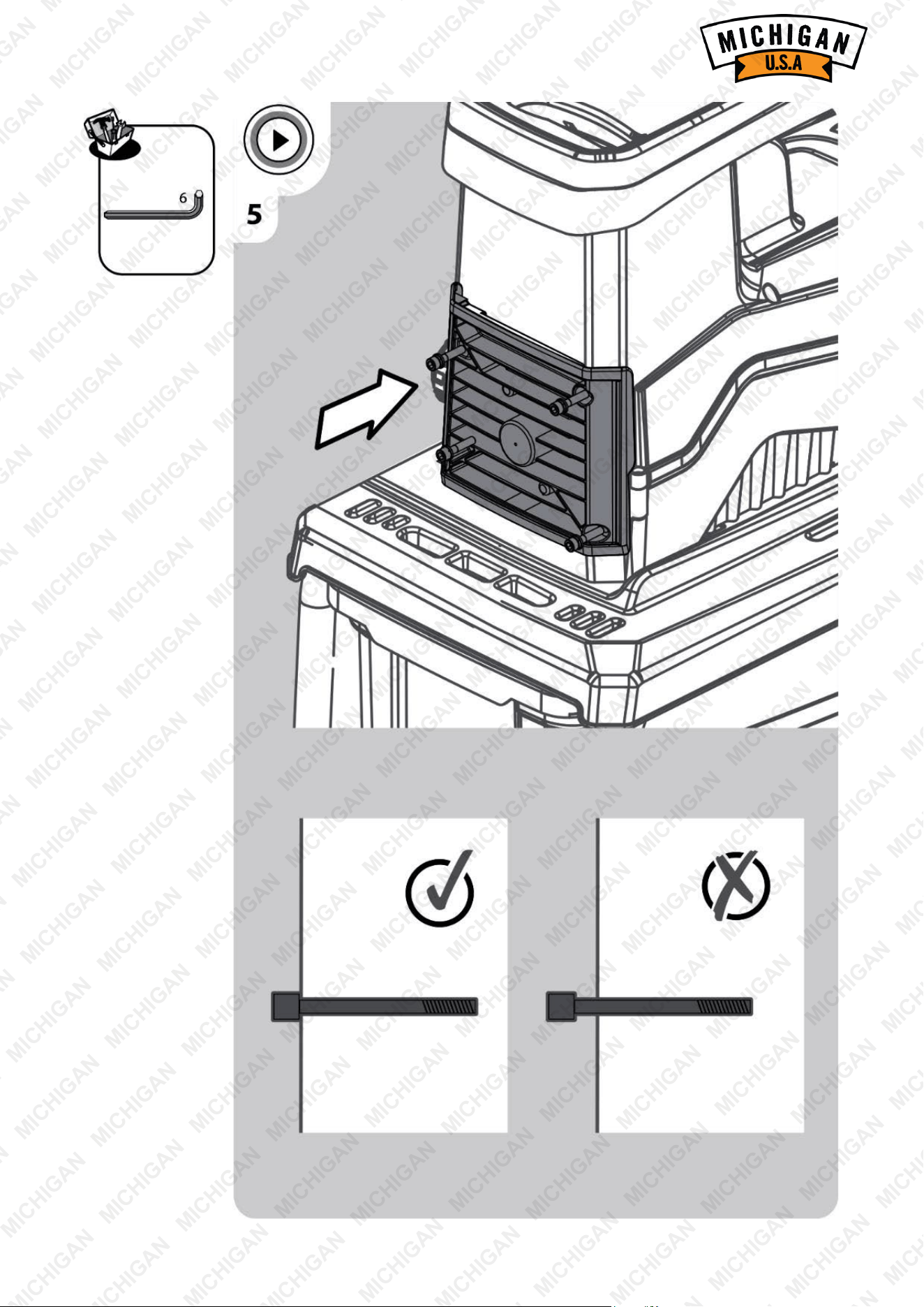

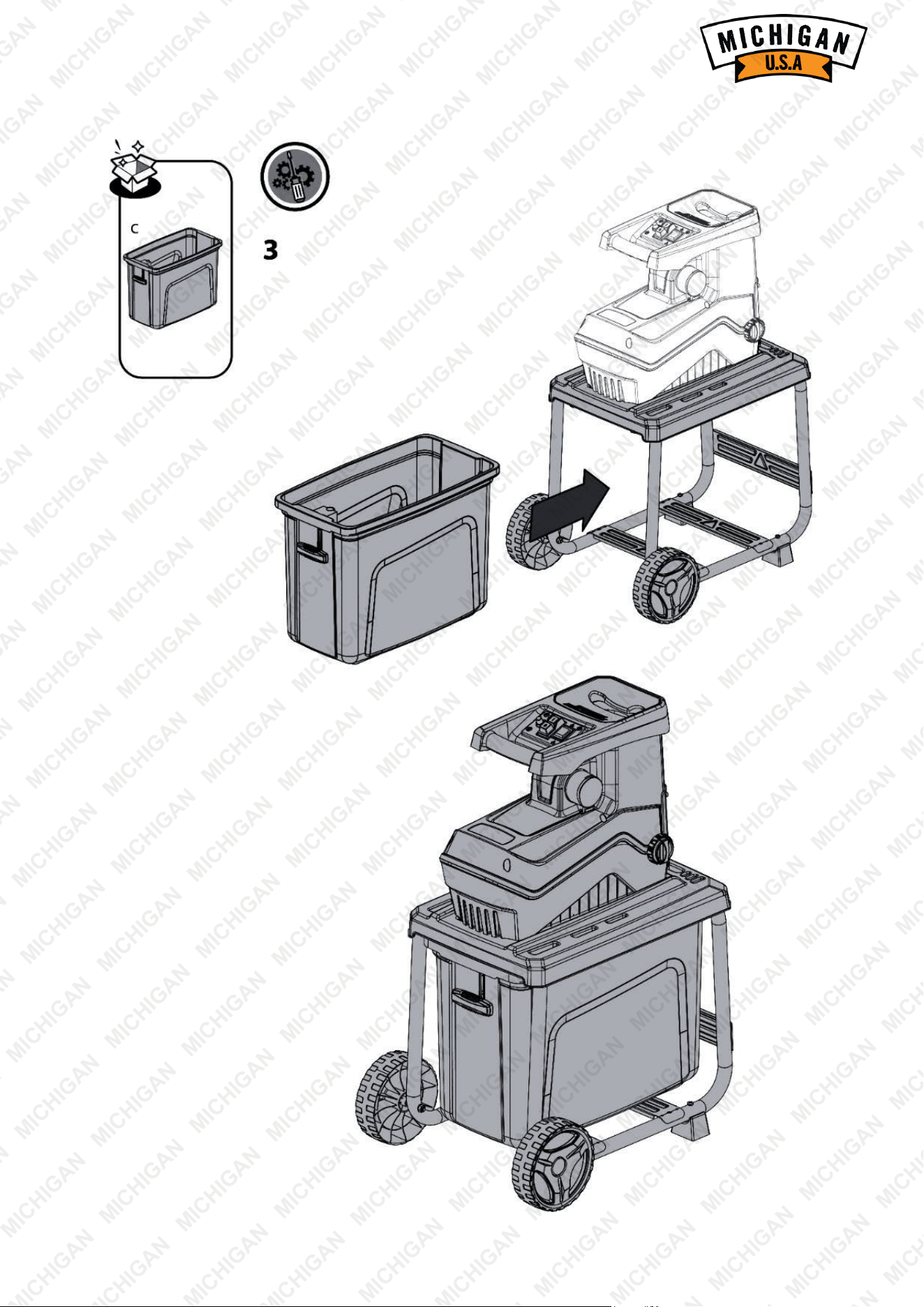

5. Insert the retaining basket.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 17
Functions
WARNING: Before plugging the product in, always make sure that the product is switched off.
Plugging the product in with the switch on, may cause an unexpected start resulting in serious
personal injury.
Preparation
Power Switch
CAUTION: Do not use the product if the switch does not turn it on and off. Defective switches
must be replaced by authorised service dealers.
•
To turn ON the product, push the (I) Green on button.
•
To turn OFF the product, push the (O) Red off button.
Press to Reset
•
The motor is equipped with an overload protection. When overloaded, the product switches off automatically.
•
To turn on the product after 3 or 5 minutes, press the reset button manually.
•
Push the (I) Green on button to restart the product.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 18
Forward / Reverse Switch
CAUTION: Switch off the shredder before changing the forward / reverse switch.
Forward Position
•
The blades rotate in the forward direction.
Reverse Position
•
The blades rotate in the reverse direction to release jammed material.
When you change the direction into reverse, hold the green power switch to rotate the blades. The shredder
automatically stops when you release the power switch.
NOTE: Several repetitions of reverse and forward operations may be required to shred a large object.
CAUTION: Always use plunge rod supplied to remove jammed objects to prevent accidents. Always wait
until the shredder stops completely before restarting.

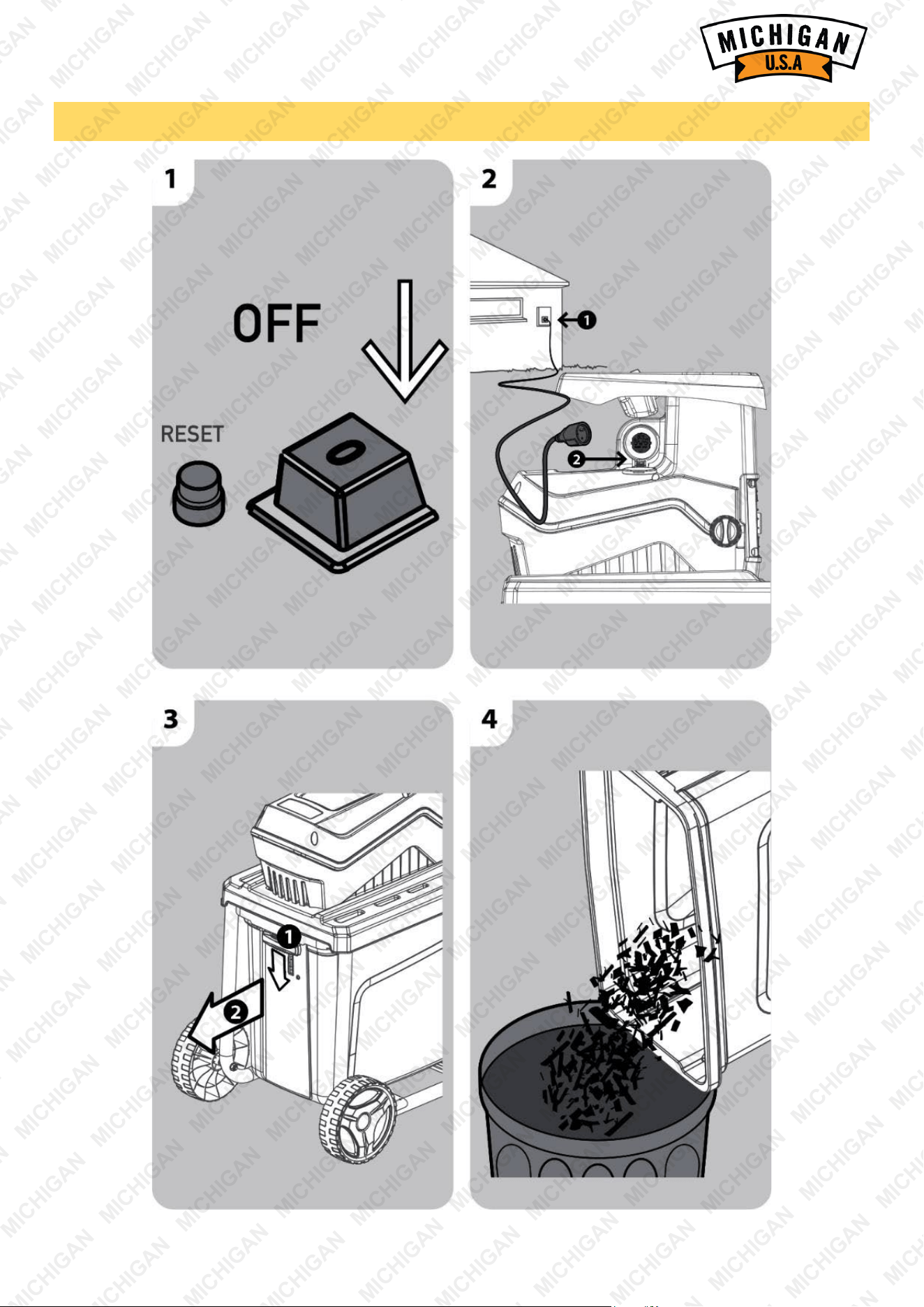

Retaining Basket
CAUTION: Switch off and unplug the product before attaching or removing the retaining basket.
•
Check the functionality of the interlock feature every two hours for safe operation.
•
Never attempt to override the interlock feature.

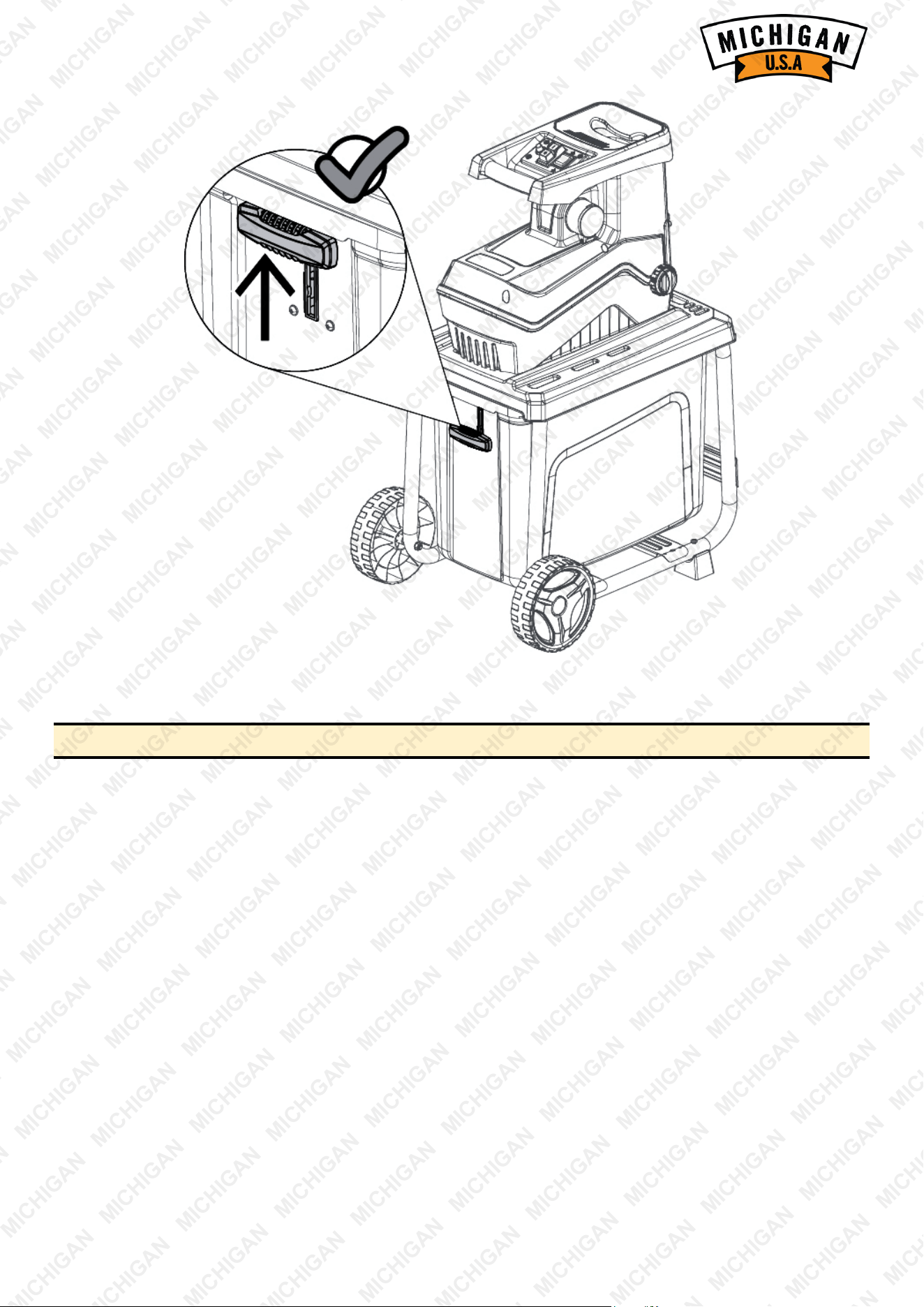

Lock Lever
•
Upper Position: The retaining basket is locked.
•
Lower Position: The retaining basket is unlocked.
The product cannot be switched on if the lock lever is in the unlock position. The product automatically stops if
the retaining basket is unlocked during operation.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 19
Blade Cover
CAUTION: Make sure that the product is switched off and unplugged before opening the blade cover.
•
Wear protective gloves before opening the blade cover. The cutter does not stop immediately after switching
off. Wait until all the parts stop.
•
If the material clogs badly in the upper housing, remove it by opening the blade cover.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 20
Operation
CAUTION: Before starting the product, make certain the feeding chamber is empty. Keep your
face and body away from the feed intake opening. Do not allow hands, or any other part of the
body or clothing inside the feeding chamber, discharge chute, or any moving part. If the cutting
mechanism strikes any foreign objects or if the product should start making any unusual noise or
vibration, immediately shut off the power source and allow the product to stop. Disconnect the power
source and inspect for damage or faults. Before operation, adjust the adjusting knob to release any
foreign objects which may interfere with the cutting roller and counter blade. Switch on the tool, then
adjust the adjusting knob, you should hear the cutting roller touching the counter blade. The shredder
should produce small metal filings. Tighten the fixing knob, make sure the counter blade is tight.
Set Up the Product
•
On a flat, level surface. Do not place the product on graveled ground.
•
Work at a safe distance (at least 2 meters) away from walls or other objects.
Before starting, make sure that:
•
The connection cables are not damaged. If there are cuts or tears, stop operation and replace it immediately.
•
There is no damage on the product, and all screws are tight.
•
The product is assembled completely and correctly.
Check the mains connection:
•
Make sure that the mains voltage matches the rated voltage on the nameplate and the product is properly
grounded.
•
Use only extension cords with sufficient core cross-section.
The shredder can process the following types of material:
•
All types of branches up to the product’s maximum diameter capacity of 45mm, depending on type and
condition of the wood.
•
Dry garden refuse such as plants, which should be dried before shredding and fed alternately with branches
to avoid blocking the shredder.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 21
The shredder can NOT process the following types of material:
•
Glass, metal, plastic, stone, ceramics, thicker branches, hard wood, thick wood plates, cloth, plastic bags,
roots with soil.
•
Do not use with kitchen waste.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 22
Operation Tips
•

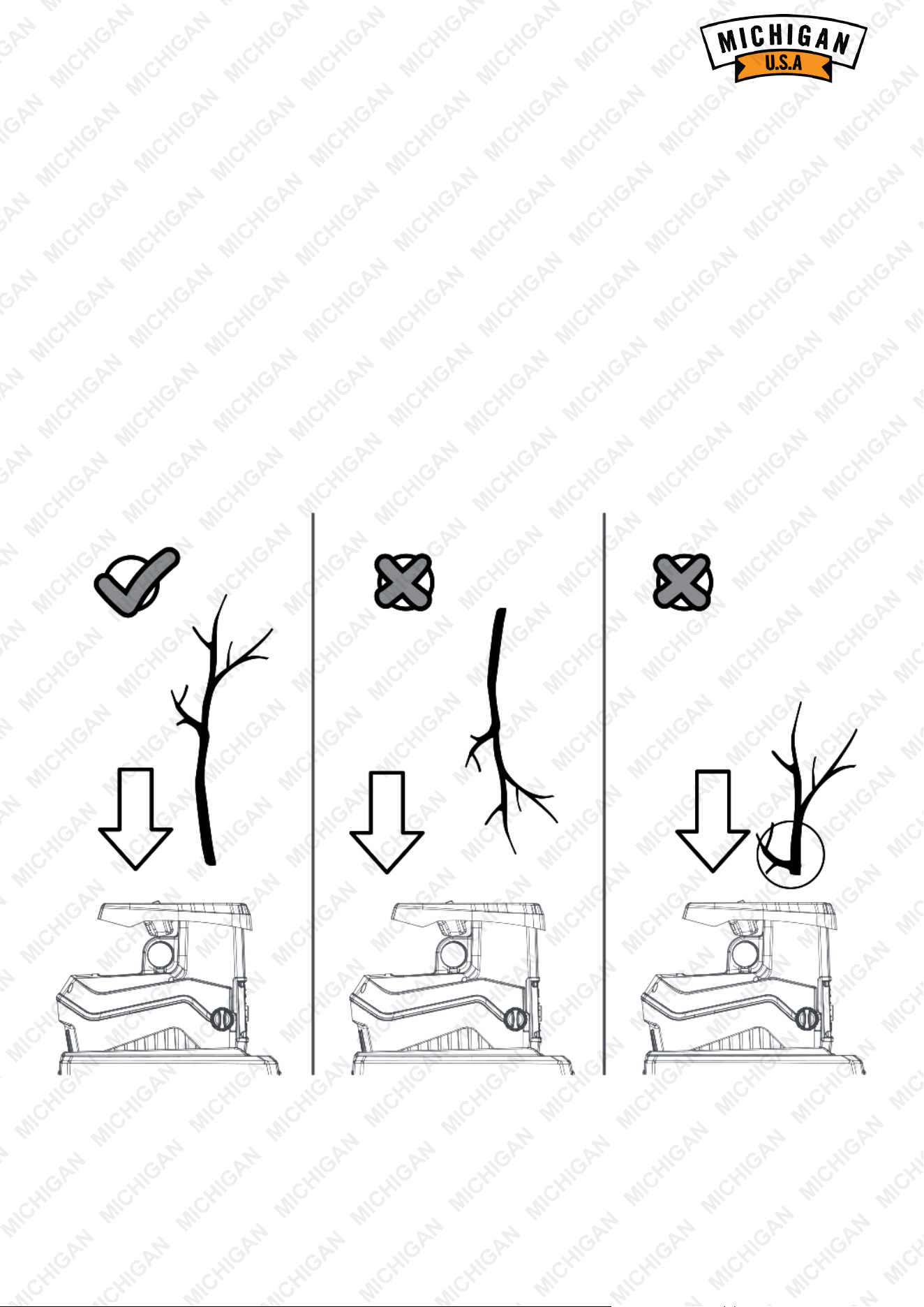

Feed the material into the filling hopper from the right side.
•
In case of branches, twigs, and wood, shred them just after they are cut. They may become very hard as
they become dry.
•
Remove any side shoots from branches if they are not easy to feed.
•
Turn off the motor & disconnect the product from the power supply, before cleaning the ejection opening.
•
Do not let the shredded material accumulate in the ejection opening.
•
Shredded material may block the ejection opening. Empty the collection box regularly.
•
Do not shred material which is more than the maximum branch diameter of 45mm.
•
The maximum branch diameter may vary depending on the freshness and condition of the wood.
•
Shredding wet garden waste may clog the shredder. To reduce the chance of the product clogging, alternate
waste with wood.
•
Soft material or wet branches may be torn instead of cut. A worn counter blade may also cause this problem.
Adjusting the Blade Clearance
For an effective operation, adjust the clearance between the counter blade and cutting roller.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 23

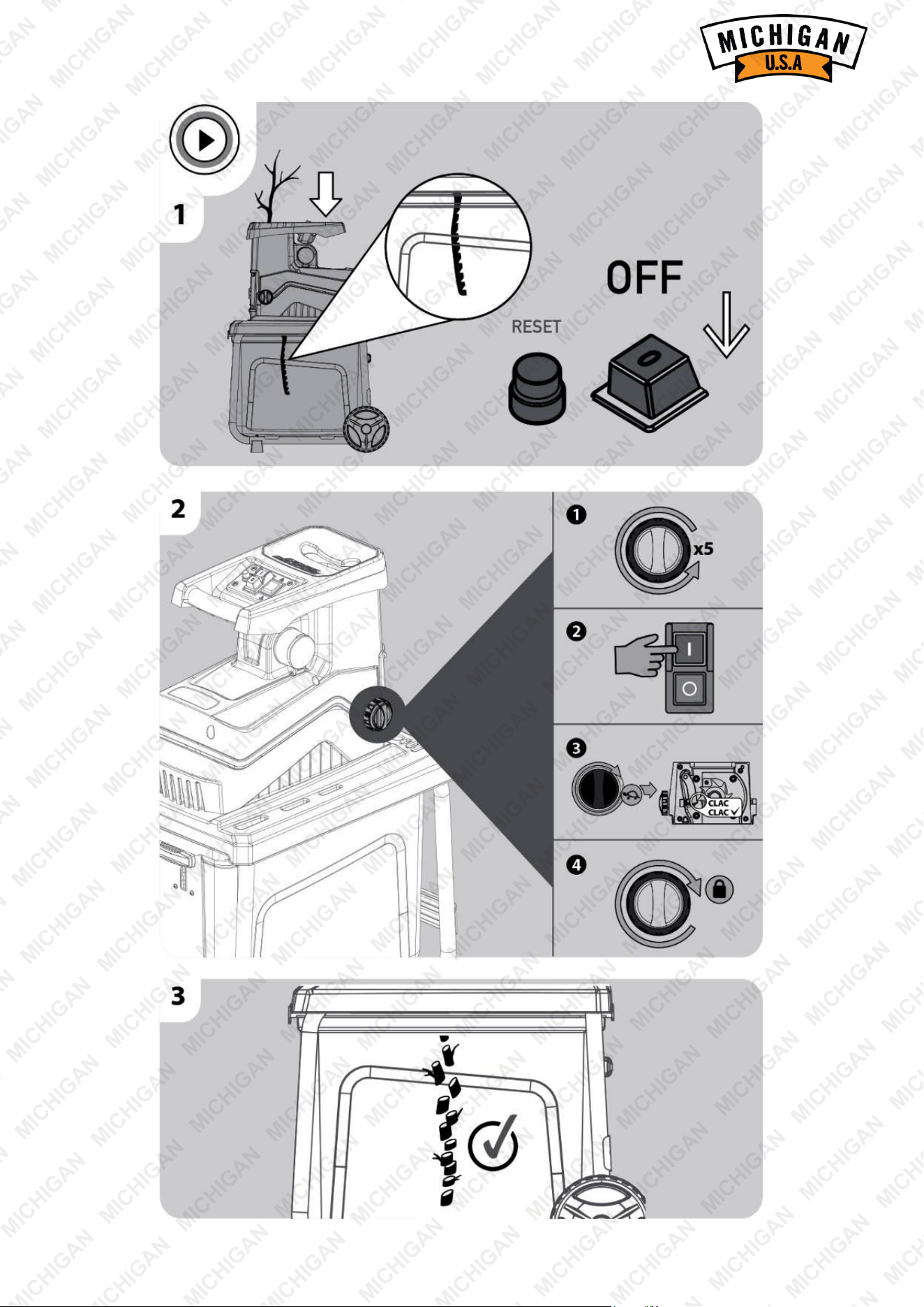

Setting the Clearance
1. Switch on the product.
2. Turn the fixing knob counterclockwise to release the adjusting knob.
3. Turn the adjusting knob clockwise slowly to place the counter blade closer to the cutting roller. Turn it until
fine aluminum chips are falling from the ejection opening.
4. Turn the fixing knob clockwise to lock the adjusting knob.
Reverse Switch
•
The shredder is fitted with a reverse switch to enable the removal of jammed material. If material becomes
jammed stop the product by pressing the Red (O) off button.
•
When the product has come to a complete stop, change the direction of rotation by pressing the reverse
arrow on the reverse switch and pressing the Green (I) on button (Note: The product will not stay Green (I)
on while in reverse, the button must be held down).
•
When the blockage has cleared, stop the product, and return the reverse switch to its original position. Do
not continue to run the product in reverse mode as this could cause injury to the operator or damage to the
product.
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 24

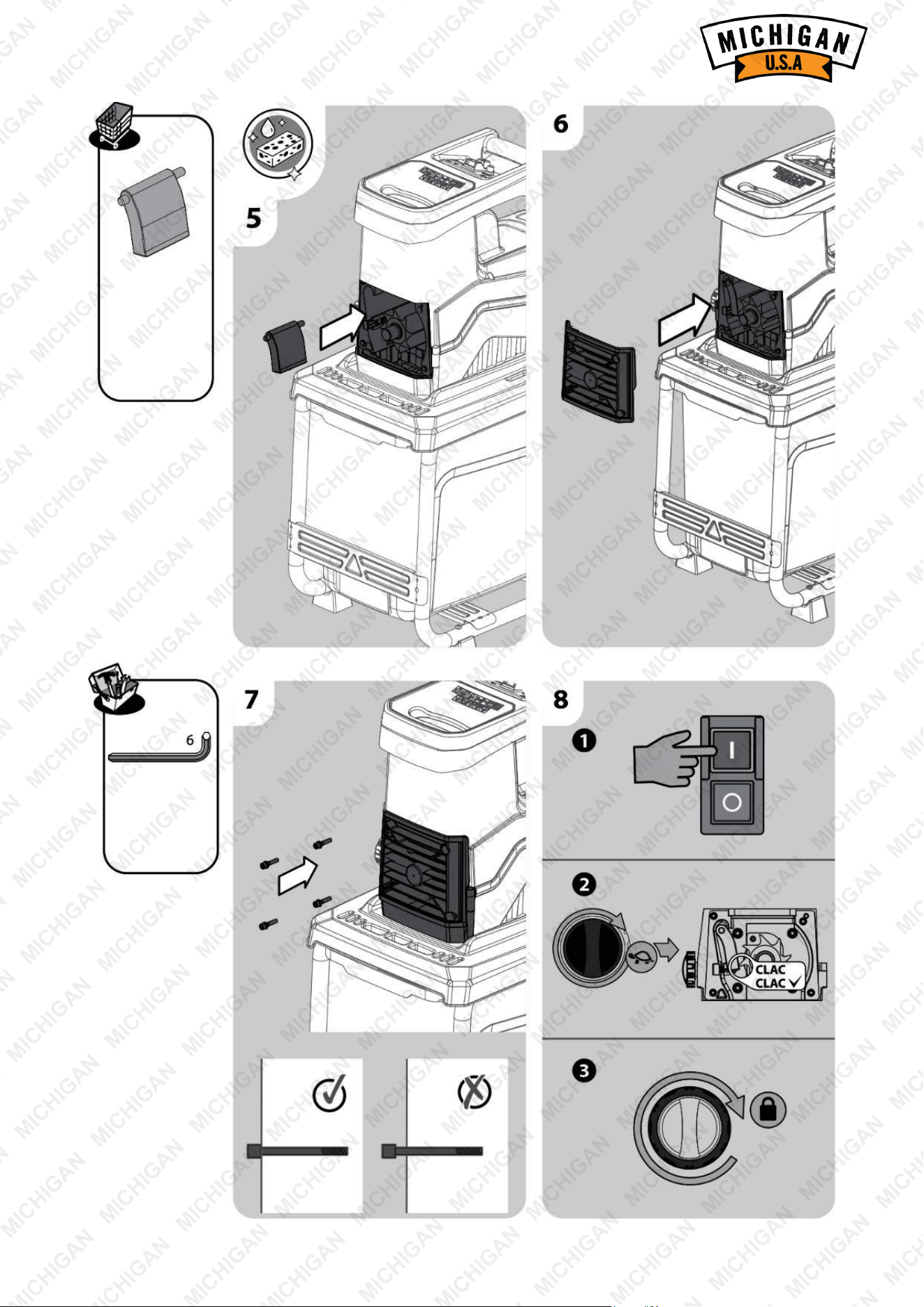

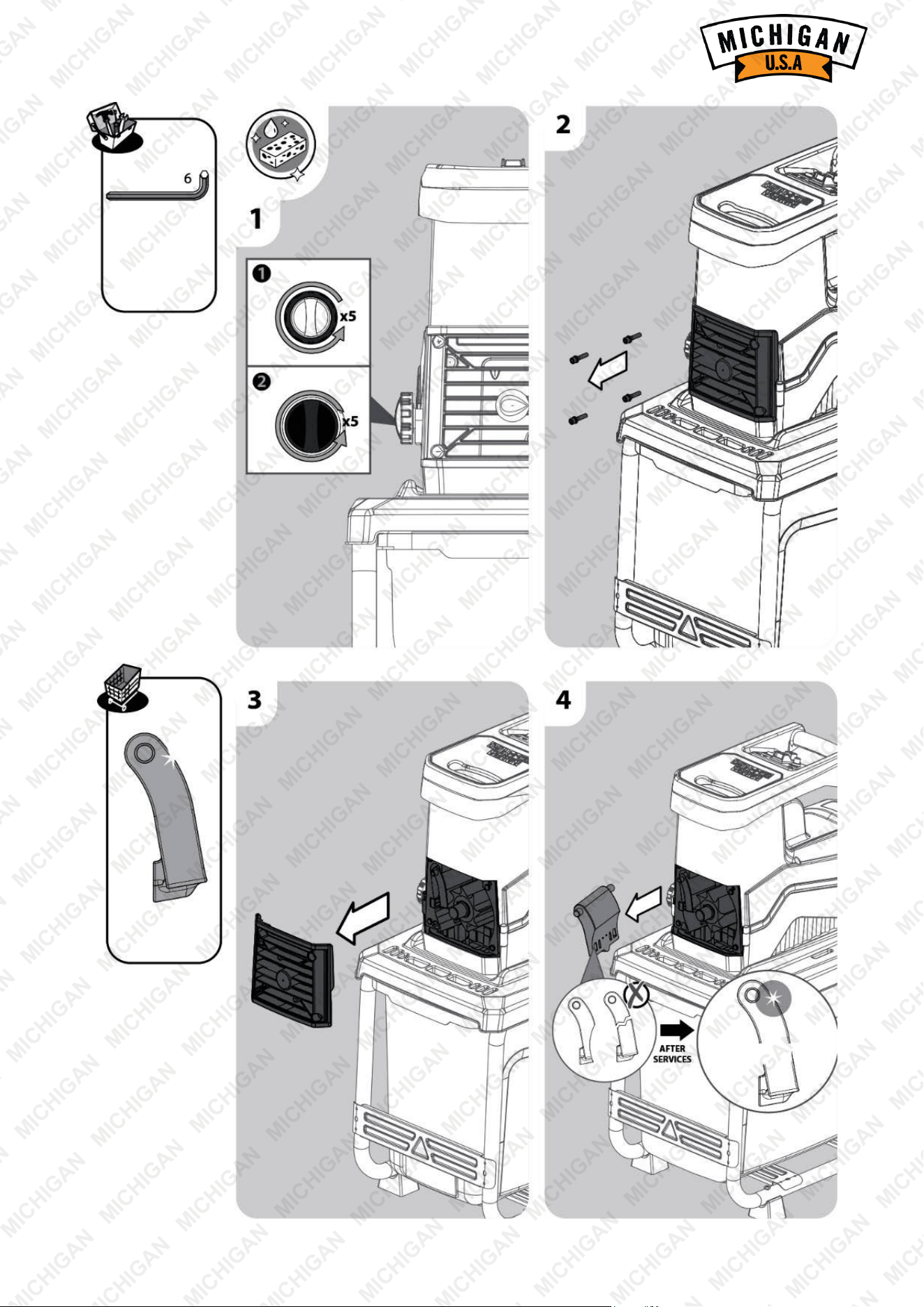

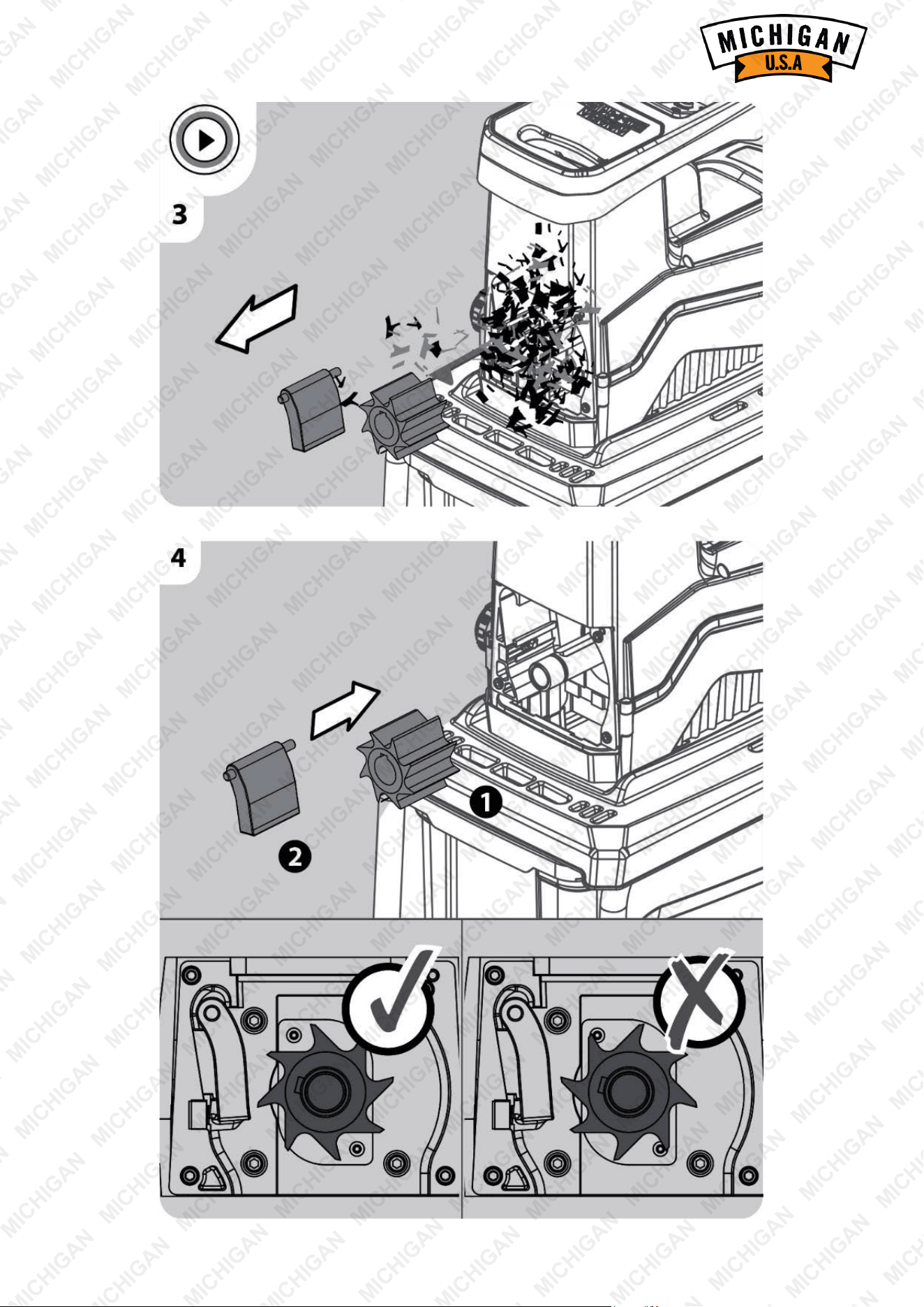

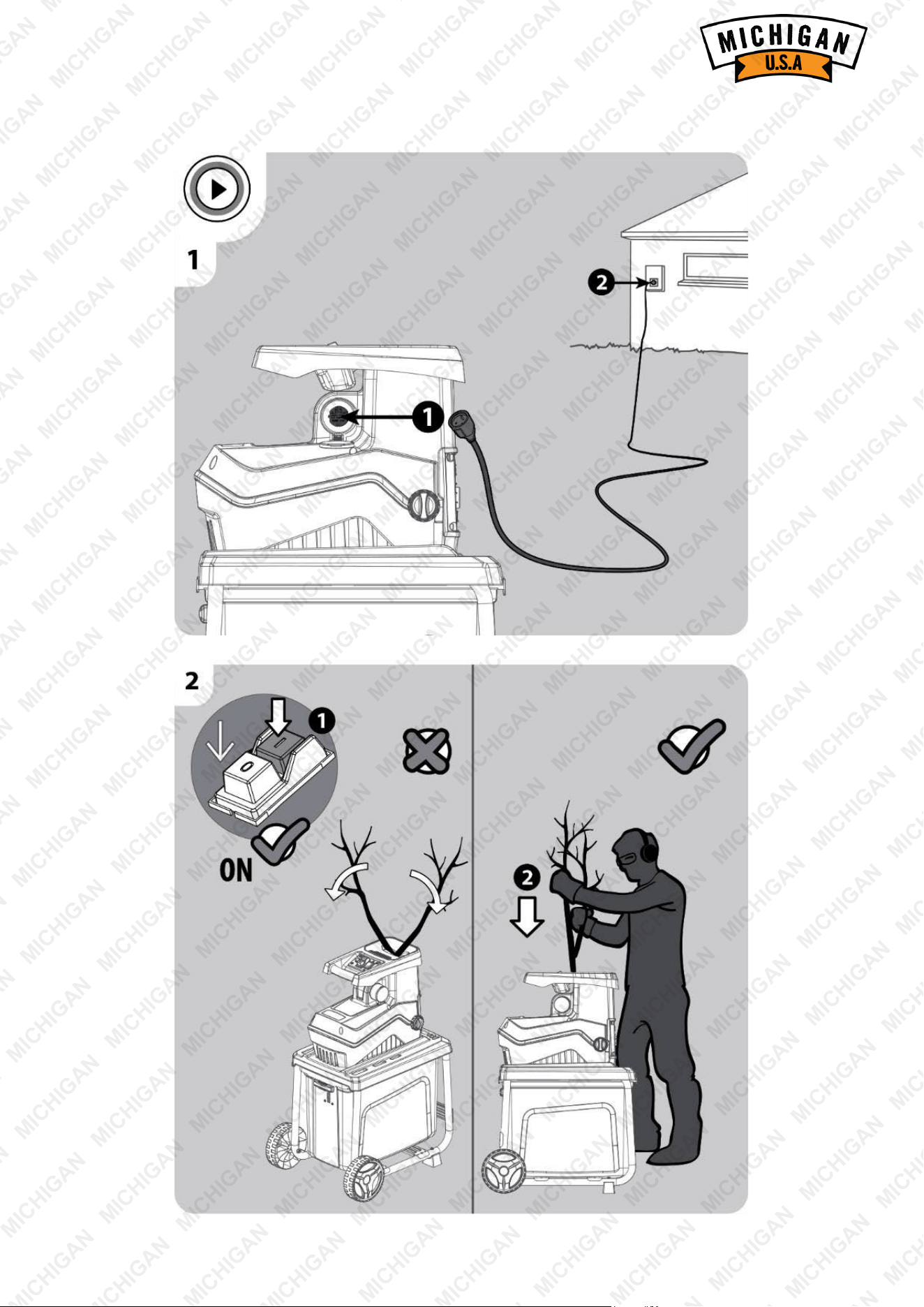

Operational Diagrams
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 25
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 26
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 27
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 28
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 29
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 30
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 31
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 32
Maintenance Diagram
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 33
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 34
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 35
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 36
Winter Storage
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 37
Troubleshooting
Problem Possible cause Solution
Product does not start Not connected to power supply Connect to power supply
Power cord or plug is defective Check by a specialist electrician
Other electrical defect to the product Check by a specialist electrician
Overload protection is activated
Wait until the product cools down and
press the “ON” button.
The blade guard is not fixed properly. Fix the guard correctly
Shredding material is not cut
cleanly
Counter blade is not properly adjusted Adjust the counter blade
Excessive vibration or noise
Blade is damaged
Have the blade replaced by a certified
agent
Blade blocked Remove the blockage
Bolts/knobs are loose Tighten the bolts/knobs
background
Electric Garden Shredder
E&OE © 2022 Michigan USA 38
Specifications
Rated Power 2500W
Input voltage 240V AC
Max branch diameter 45mm
No-Load Speed 50 RPM
Collection Box Capacity 50L
Transmission System Gear Drive
Automatic Feed Yes
Power Cable Length 25cm
Power Plug Australian Standard
Noise Level 95dB
Note: Minimal Assembly
background
Some experts believe that the incorrect or prolonged use of almost any
product may cause serious injury or death. To help reduce your risk of
serious injury or death, refer to the information below. For more information,
see www.datastreamserver.com/safety
Consult all documentation, packaging,
and product labelling before use. Note
that some products feature
documentation available online. It is
recommended to print and retain the
documentation.
Before each use, check the product for
loose/broken/damaged/missing parts,
wear, or leaks (if applicable). Never use a
product with
loose/broken/damaged/missing parts,
wear, or leaks.
Products must be inspected and serviced
(if applicable) by a qualified technician
every 6 months. This is based on
average residential use by persons of
average size and strength, and on a
property of average metropolitan size.
Use beyond these recommendations may
require more frequent
inspections/servicing.
Ensure that all users of the product have
completed a suitable industry recognised
training course before being allowed
access to the product.
The product has been supplied by a general merchandise
retailer that may not be familiar with your specific
application or description of application. Be sure to attain
third-party approval from a qualified specialist for your
application before use, regardless of any assurances from
the retailer or its representatives.
This product is not intended for use where fail-safe
operation is required. As with any product (for example,
automobile, computer, toaster), there is the possibility of
technical issues that may require the repair or
replacement of parts, or the product itself. If the possibility
of such failure and the associated time it may take to
rectify could in any way inconvenience the user, business,
or employee, or financially affect the user, business, or
employee, then the product is not suitable for your
requirements. This product is not intended for use where
incorrect operation or a failure of any kind, including but
not limited to, a condition requiring product return,
replacement, parts replacement, or service by a
technician may cause financial loss, loss of employee
time or an inconvenience requiring compensation.
If this product has been purchased in error when
considering the information presented here, contact the
retailer directly for details of their returns policy, if
required.
©2022 Michigan USA. All rights reserved. No part of this document, including descriptive content, concepts,
ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system,
without express permission or consent from the publisher.

Specifications

Indexed Terms: Chipper Shredder

MICHIGAN MCGSLG00A Questions and Answers

Find answers or ask new question.
Questions and Answers
