PREMIUM SMART TREADMILL
WITH AUTO INCLINE
SF-T7515 SMART
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US:
support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 8 feet (240 CM) of free space behind it
and 2 feet (60 CM) on each side. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment
during exercise, discontinue use of the equipment immediately and do not use until the
problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 240 lbs (110 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 6 for instructions on
how to properly apply lubricant.
2

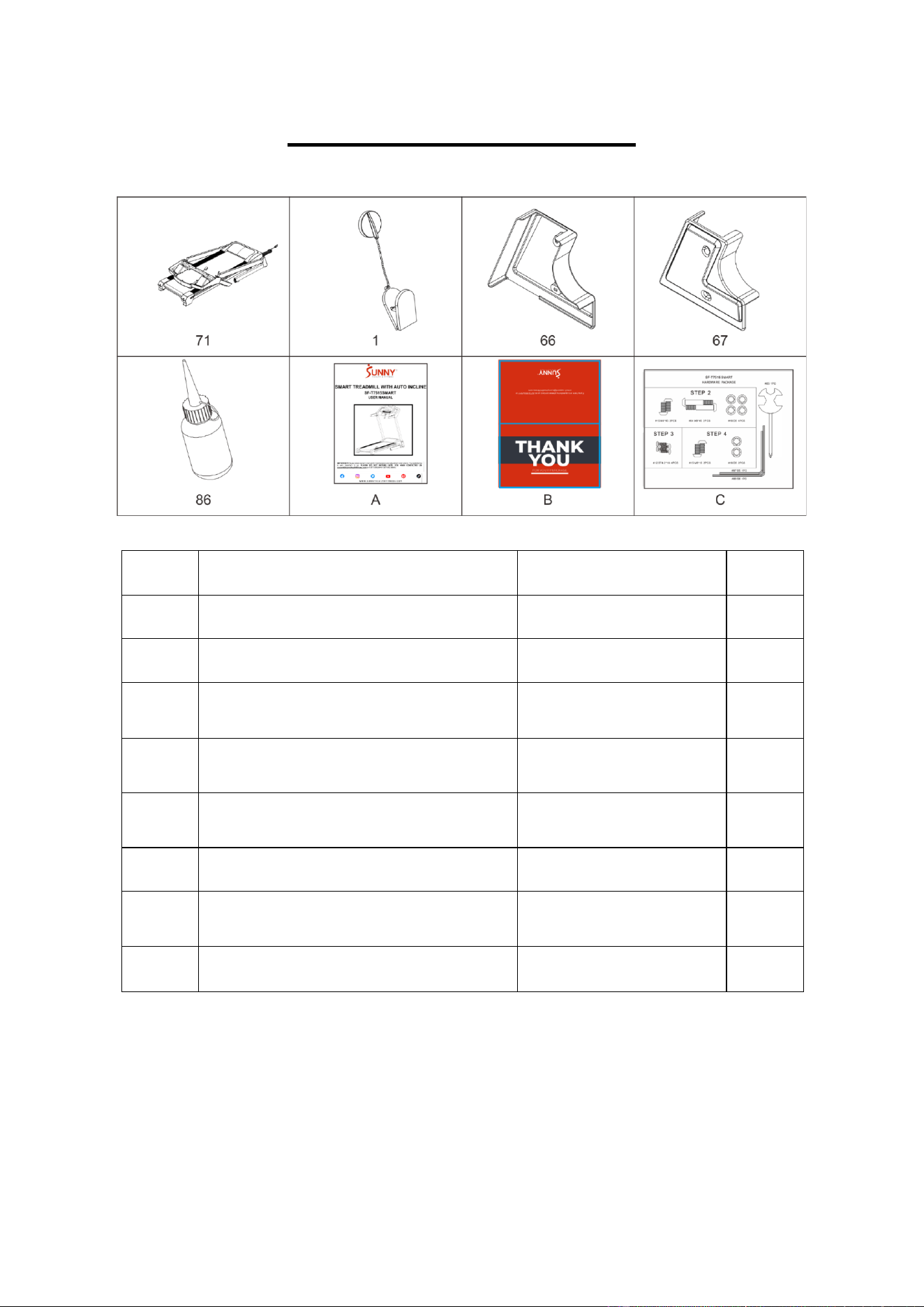

ASSEMBLY CONTENTS
WHEN YOU OPEN THE CARTON, YOU WILL FIND THE FOLLOWING PARTS:
No.
Description
Spec.
Qty.
71
Main Frame
1
1
Safety Key
1
66
Right Side Cover
225*183*52
1
67
Left Side Cover
225*183*52
1
86
Silicone Oil
1
A
Manual
1
B
Thank You Card
1
C
Hardware package
1
3

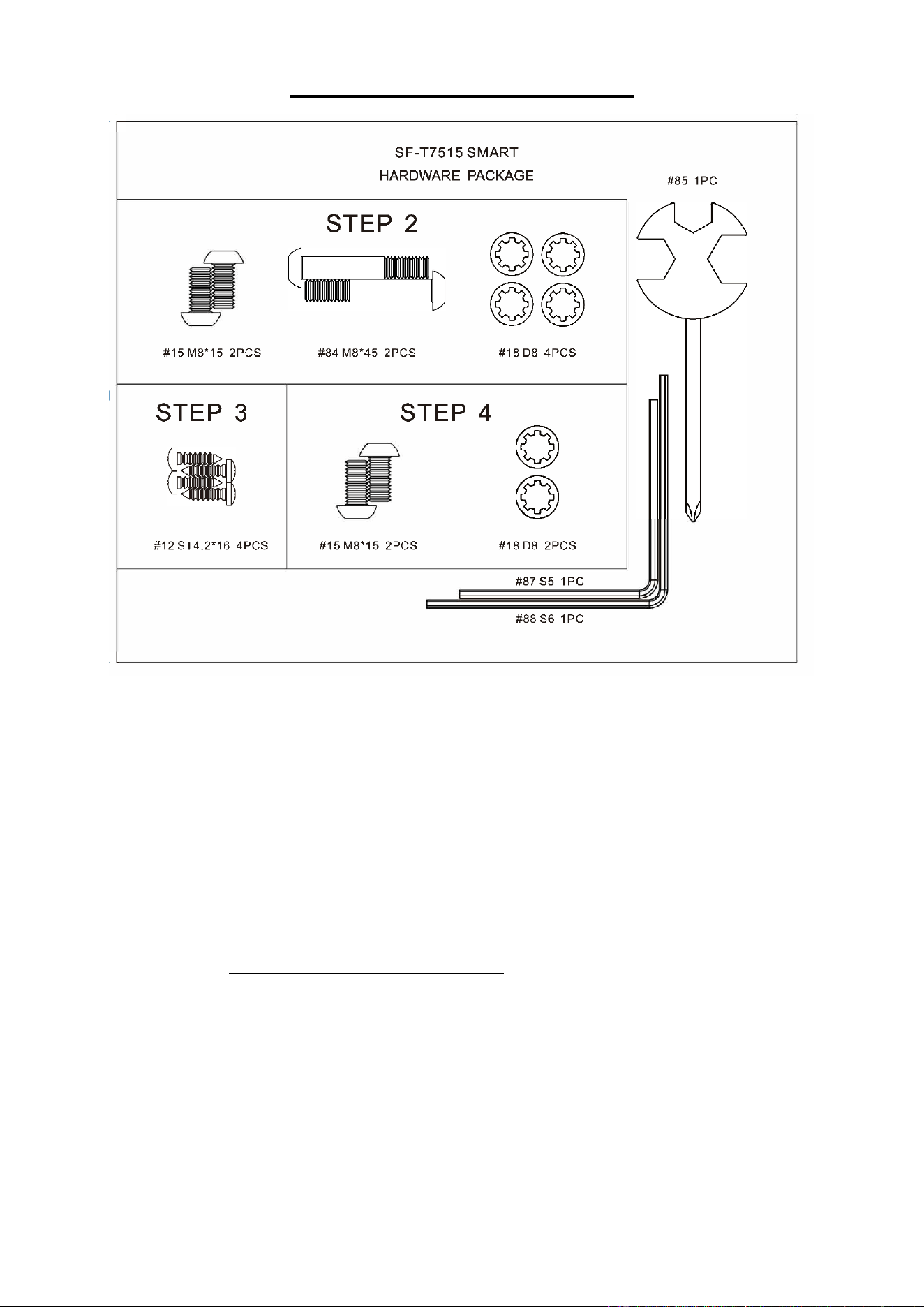

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)

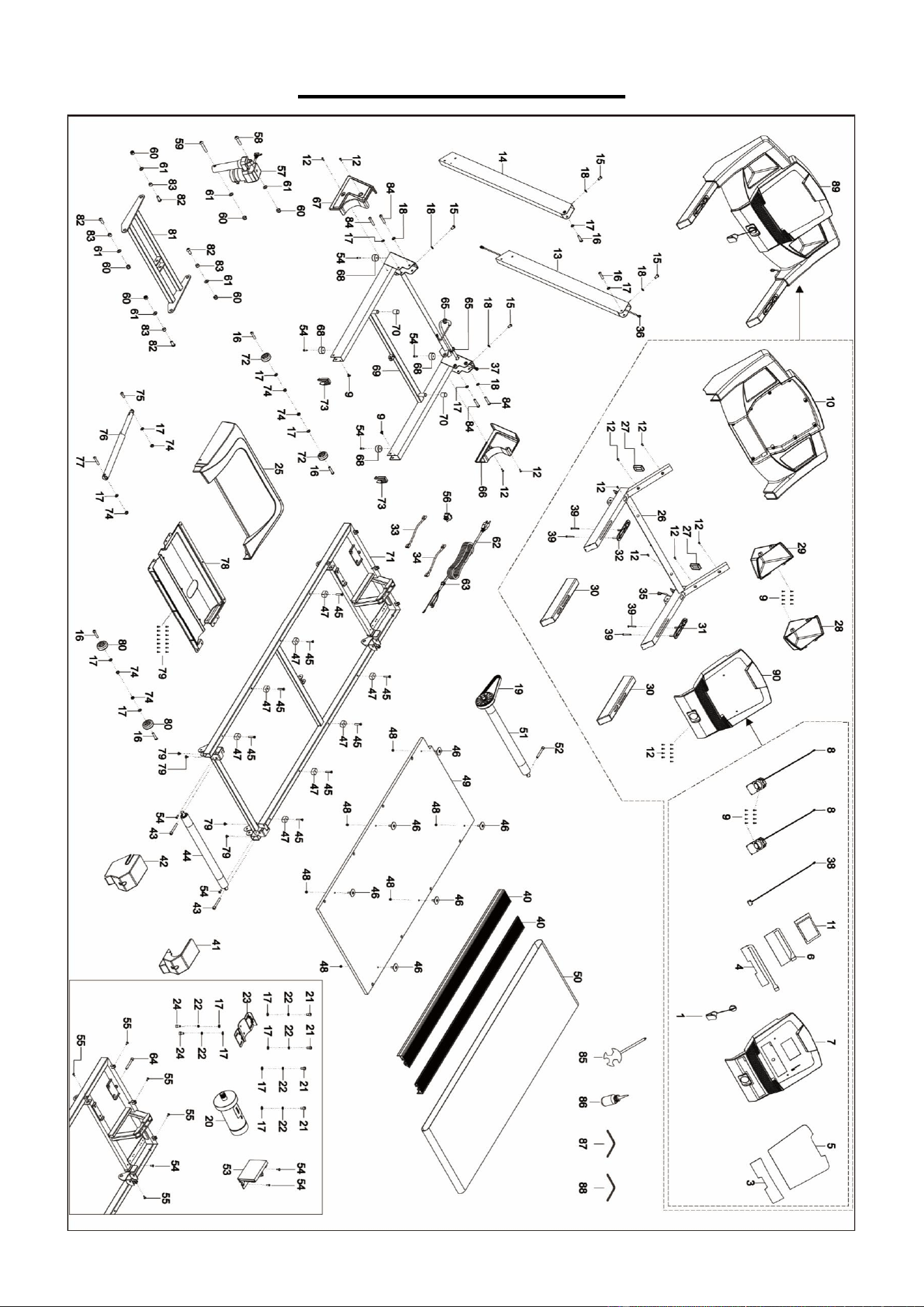

✓ The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the end
of the manual)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
907-8669).

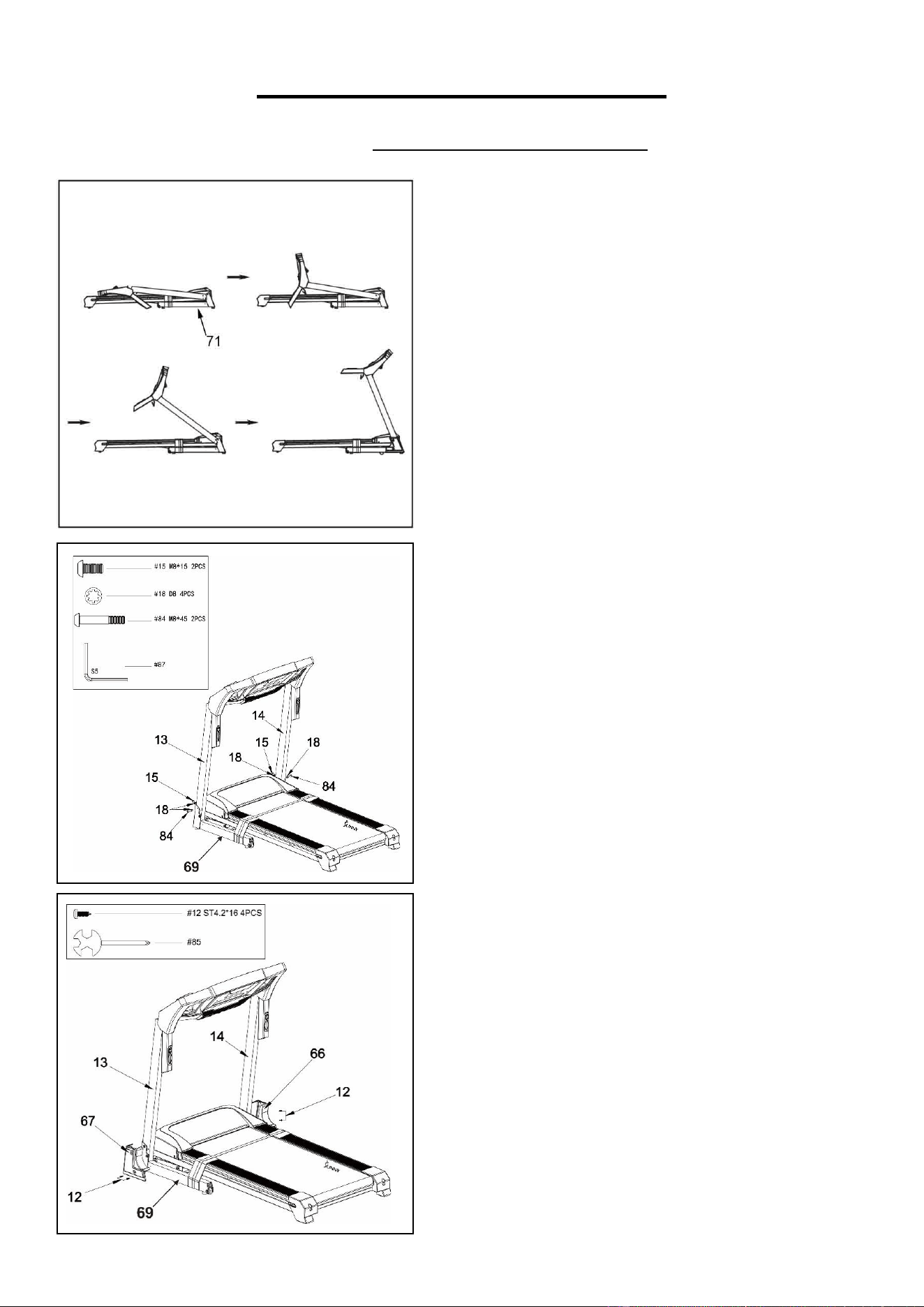

STEP 1:
Open the carton and take out all the contents.
Place the Main Frame (No. 71) on level ground
and ensure that you have a clean, adequate
workspace. Follow the diagram on the left to lift
the top console upright.
NOTE: Be careful not to puncture the wires when
unfolding! Do not remove the packing belt now.
STEP 2:
Secure the Left & Right Support Tubes (No. 13
& No. 14) to the Base Frame (No. 69) using 2
Half-roundhead Hex Bolts (No. 15), 2 Half-
roundhead Hex Bolts (No. 84), and 4 Serrated
Gaskets (No. 18). Tighten and secure with Allen
Wrench (No. 87).
STEP 3:
Attach the Left & Right Side Covers (No. 67 &
No. 66) to the Base Frame (No. 69) of the Left &
Right Support Tubes (No. 13 & No. 14) using 4
Cross Recessed Pan Head Tapping Screws (No.
12). Tighten and secure with Spanner with
Screwdriver (No. 85).
5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
907-8669).

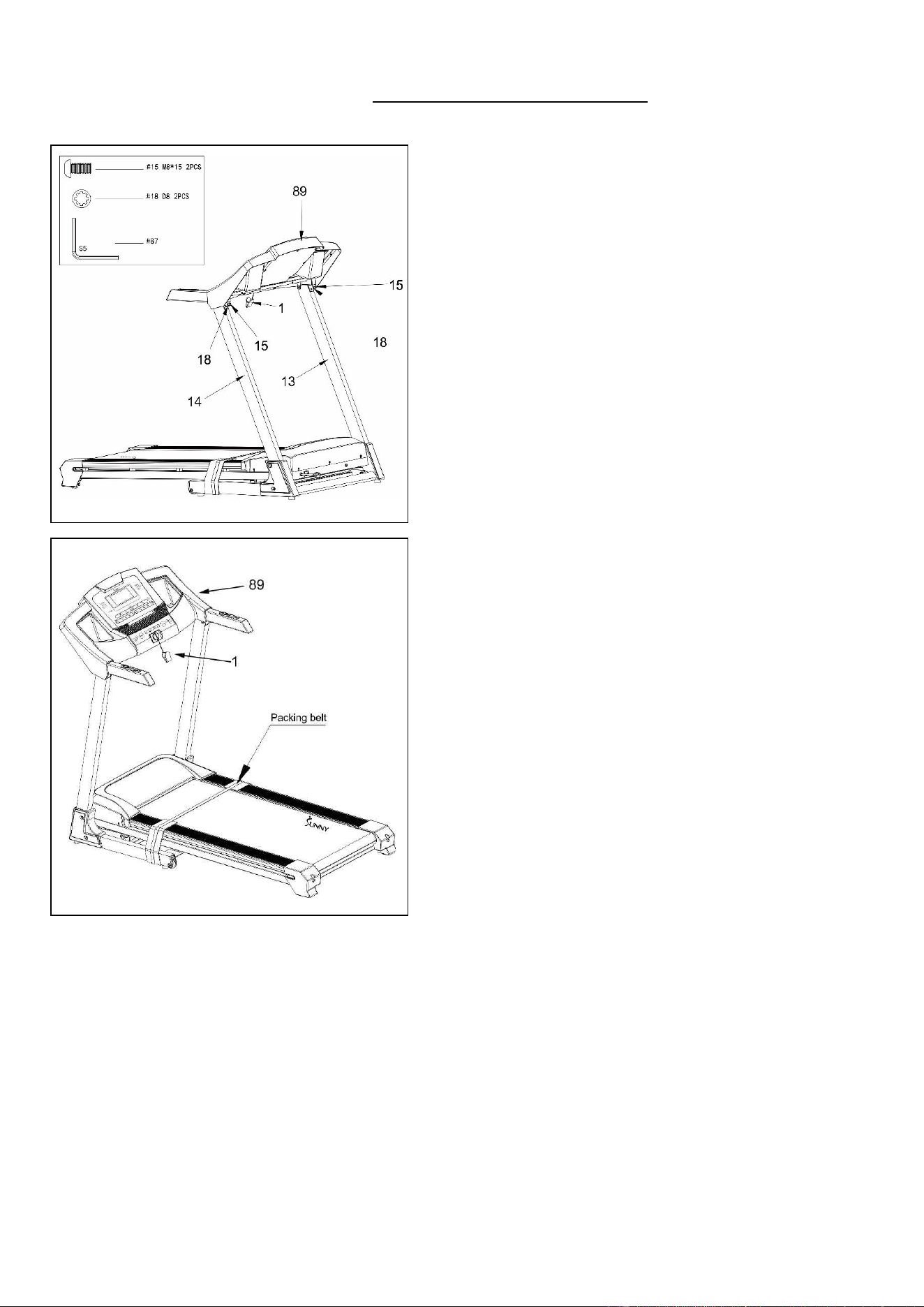

STEP 4:
Secure the Top Console (No. 89) to Left & Right
Support Tubes (No. 13 & No. 14) using 2 Half-
roundhead Hex Bolts (No. 15) and 2 Serrated
Gaskets (No. 18). Tighten and secure with Allen
Wrench (No. 87). Next, insert the Safety Key (No.
1) into the Top Console (No. 89).
STEP 5:
You may now remove the packing belt.
The assembly is complete!
STEP 5:
You may now remove the packing belt.
Next, insert the Safety Key (No. 1) into the Top
Console (No. 89).
IMPORTANT NOTE: The running belt must be
lubricated before the first use! Please see Page 6
for instructions on how to properly apply lubricant.
The assembly is complete!
The assembly is complete!
6
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use!
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the Running Belt (No. 50) and Running Board (No. 49) is essential as the friction
affects the life span and operations of the treadmill. Inspect the Running Belt (No. 50) regularly. If
you find any wear on the Running Board (No. 49), please contact us at
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating,
or repairing the unit.

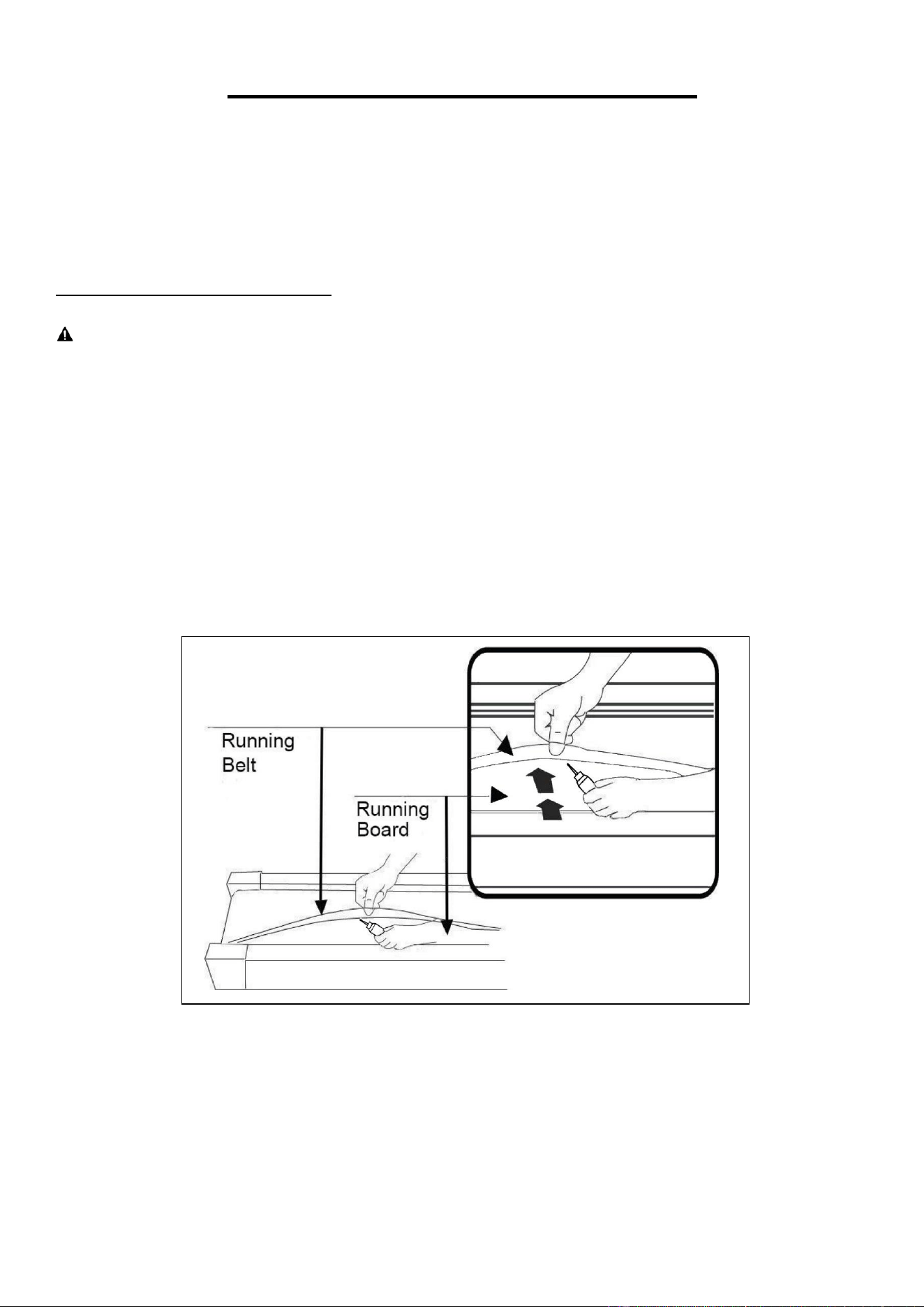

HOW TO LUBRICATE:
Raise the Running Belt (No. 50) up on one side and apply lubricant to the Running Board (No.
49). Use a rag to thoroughly wipe the lubricant over the Running Board (No. 49). Repeat this
process for the other side.
The following timetable is recommended:
Light user (less than 3 hours/ week) every 2 months
Medium user (3-5 hours/ week) every 45 days
Heavy user (more than 5 hours/ week) every month
NOTE:
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.
DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. 50) will result in the runner sliding off when in use, while
too tight of a Running Belt (No. 50) will negatively affect the motor’s performance and create
more friction between the roller and Running Belt (No. 50). The most suitable tightness for the
Running Belt (No. 50) is when it is pulled out 50-75 mm from the Running Board (No. 49).
7
MAINTENANCE GUIDE
General cleaning will help to prolong the life and improve the performance of your treadmill. Keep
the unit clean and maintained by dusting the components on a regular basis. Cleaning the two
exposed sides of the Running Belt (No. 50) will prevent dust from accumulating underneath.
Keep your running shoes clean so no dirts will stay on the Running Board (No. 49) and Running
Belt (No. 50). Clean the surface of the Running Belt (No. 50) by using a clean damp cloth. Keep
liquids away from electrical parts and Running Belt (No. 50).

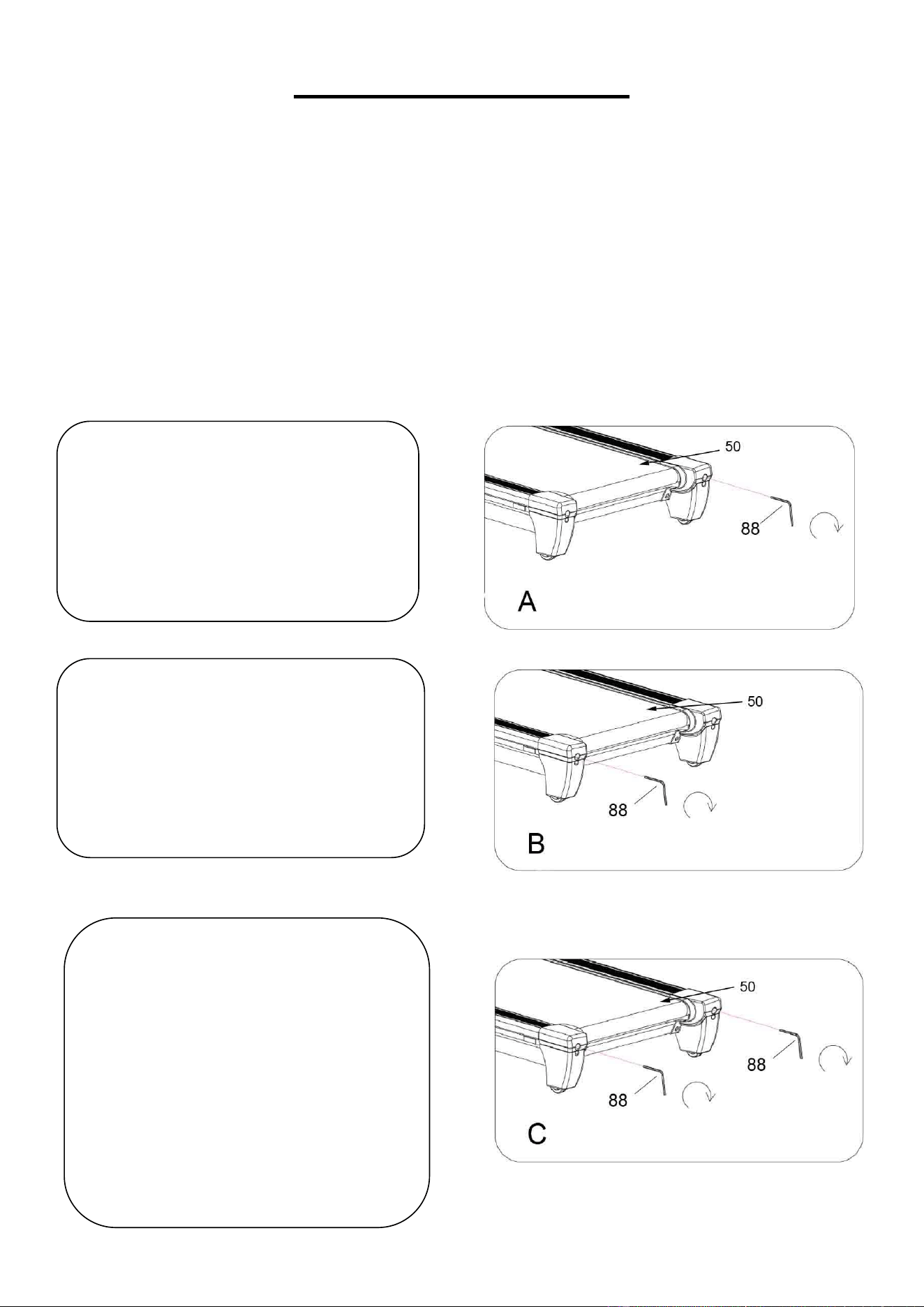

ADJUSTING THE RUNNING BELT
Place the treadmill on level ground and set it at 3-5 MPH (5-8 KM/H) to check and see if the
Running Belt (No. 50) drifts from the center. Adjust the Running Belt (No. 50) according to
instructions below with Allen Wrench (No. 88)
1. If the Running Belt (No. 50) drifts
to the right, turn the right adjusting bolt
¼ turn clockwise, then turn the left
adjusting bolt ¼ turn counter-
clockwise. If the Running Belt (No.
50) does not move, repeat this step
until it centers. Refer to image A.
2. If the Running Belt (No. 50) drifts to
the left, turn the left adjusting bolt ¼
turn clockwise, then turn the right
adjusting bolt ¼ turn counter-
clockwise. If the Running Belt (No.
50) does not move, repeat this step
until it centers. Refer to image B.
3. Over time, the Running Belt (No.
50) will loosen. To tighten the
Running Belt (No. 50), turn both the
left & right sides adjusting bolts one
full turn clockwise. Check the
tension of the Running Belt (No. 50).
Continue this process until Running
Belt (No. 50) is at the correct tension.
Make sure to adjust both sides
equally to ensure even alignment.
Refer to image C.
8

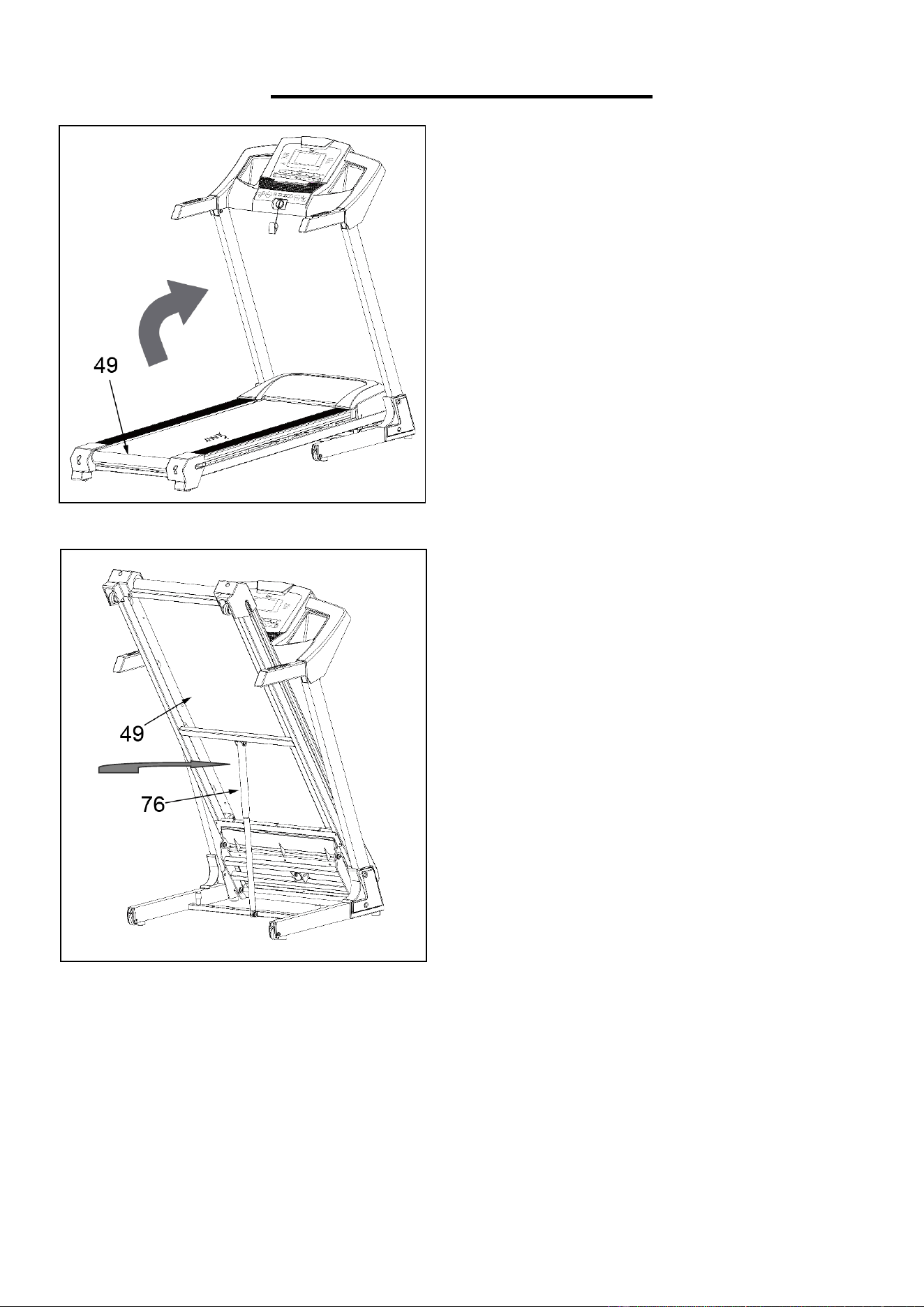

FOLDING INSTRUCTIONS
NOTE: Please make sure the incline is at
ZERO when folding and unfolding.
FOLDING:
To fold the treadmill, place your hands at the
end of the Running Board (No.49) and lift the
Running Board (No.49) all the way up until you
hear the safety lock ‘Click’ from the safety
cylinder.
UNFOLDING:
To unfold the treadmill, simply give the
Cylinder (No.76) a light kick and pull down the
Running Board (No.49) at the same time. With
its soft drop system, the treadmill will unfold
slowly.
(Please keep everyone and all pets away
from the treadmill when unfolding the
treadmill.)
9

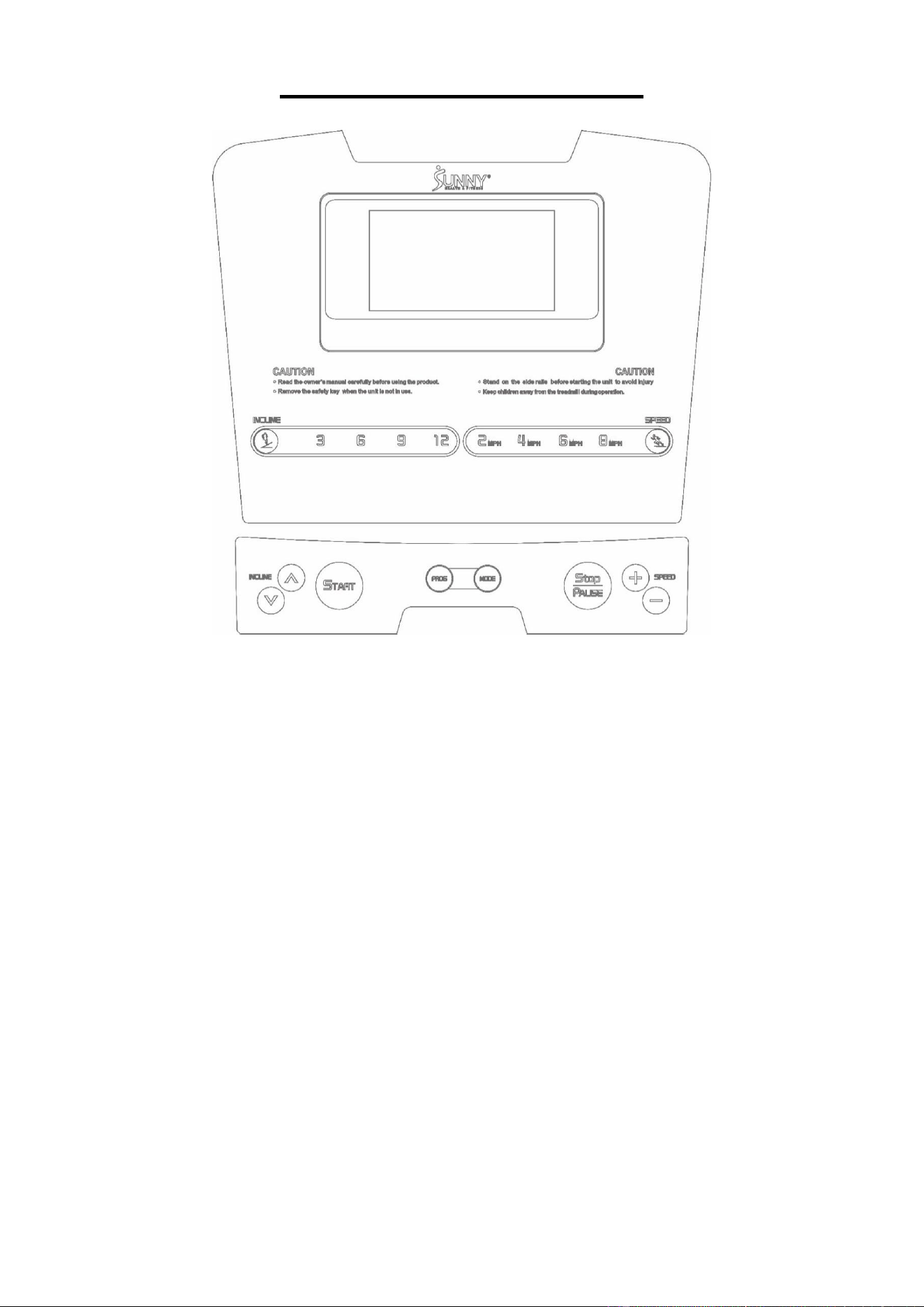

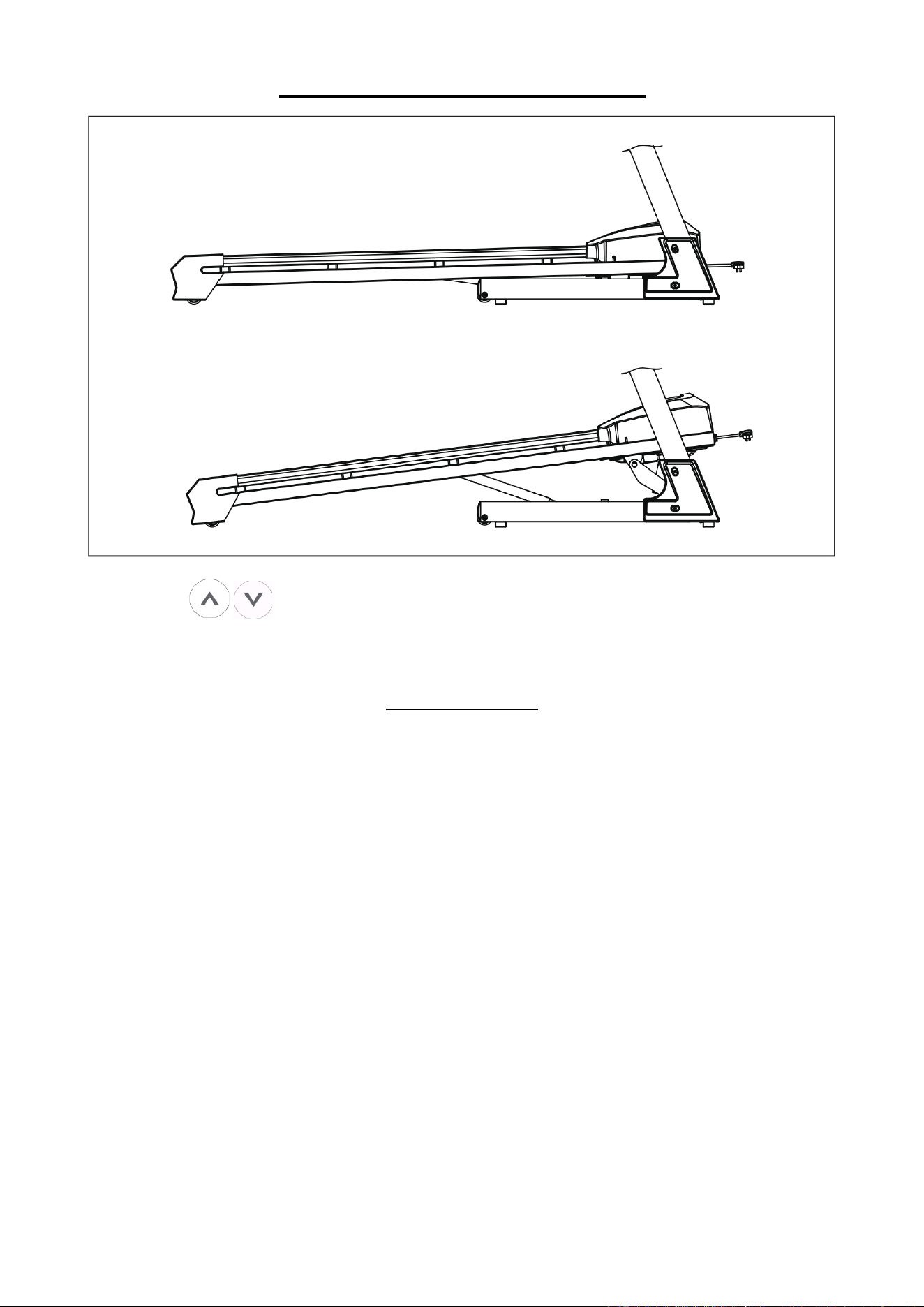

INCLINE INSTRUCTIONS
Console Keys and + - INCLINE Handrail Keys are used to control the incline level.
Increase or decrease the incline level by pressing the incline buttons once per level or holding an
incline key down to skip through to the desired level.
INCLINE LEVELS
Quick 3, 6, 9, 12 INCLINE Keys give you the ability to instantly program a specific incline level
with the push of a button.
(0) = 1.45° (2.5%)
(1) = 1.7° (3.0%)
(2) = 2.05° (3.6%)
(3) = 2.4° (4.2%)
(4) = 2.75° (4.8%)
(5) = 3.15° (5.5%)
(6) = 3.5° (6.1%)
(7) = 4.0° (7.0%)
(8) = 4.55° (8.0%)
(9) = 5.05° (8.8%)
(10) = 5.65° (9.9%)
(11) = 6.25° (11.0 %)
(12) = 6.85° (12.0%)
10

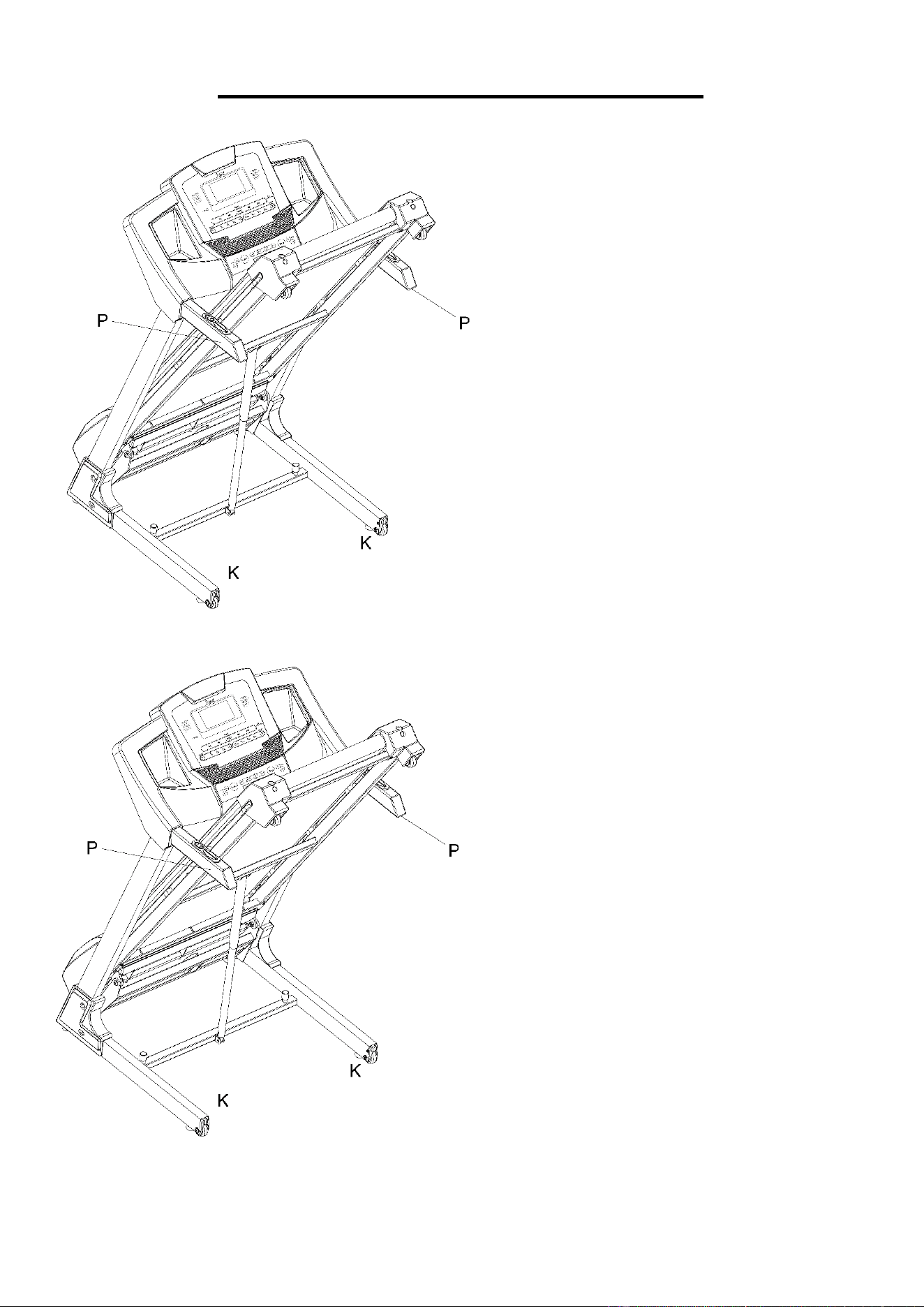

HOW TO MOVE THE TREADMILL
Before attempting to move the treadmill,
make sure that it has been properly folded.
Then, unplug the power cord.
To tilt, start by placing one hand at position
"P" to support the top end of the treadmill.
Next, place one foot at position "K" to hold
the bottom end of the treadmill steady. With
your foot at "K", slowly tilt the top of the
treadmill downward towards the ground.
Once the Main Frame "P" reaches a low
enough point, the wheels of the treadmill will
touch the ground.
To transport, hold the treadmill from position
"P" and tilt until the wheel’s "K" are able to
move on the ground.
11
IMPORTANT ELECTRICAL INFORMATION
IMPORTANT NOTE: This treadmill requires a power source of 110 Volts in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is
correct before powering the equipment. Any power supply source above or below this level could
cause significant damage to the equipment and/or user.

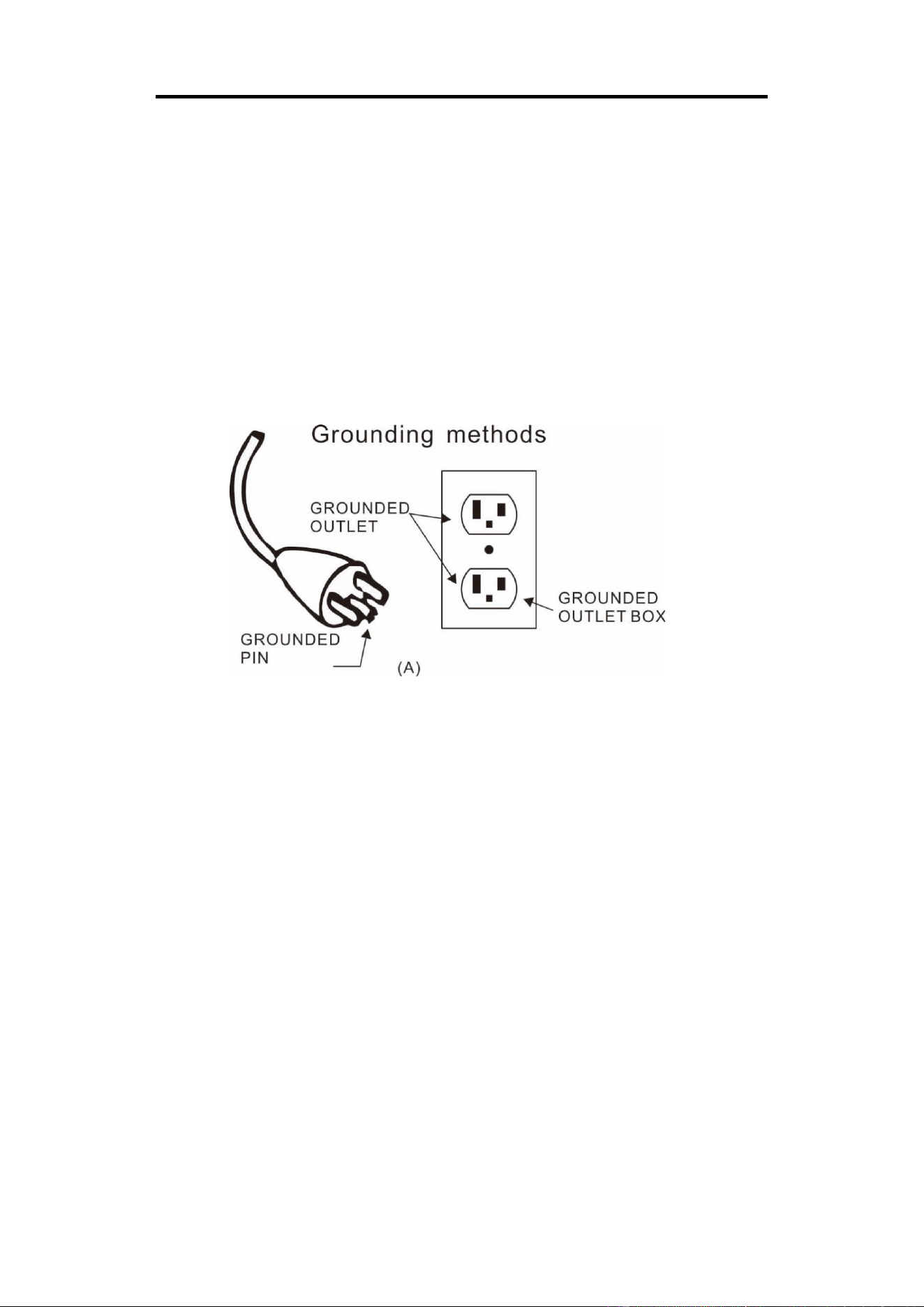

GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock. This
product is equipped with a plug that has an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
CAUTION:
Improper connection of the equipment can result in risk of electric shock. Check with a qualified
electrician or serviceman if you are unsure whether the product has been properly grounded. Do
not modify the plug provided with this product. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician. Ensure that the product is connected to an outlet with the same
configuration as the plug. Do not use an adaptor for this product.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) outlet with this treadmill. Route the power
cord away from all moving parts of the treadmill, including the Air Pressure Cylinder and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on this treadmill without first disconnecting the power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use
or use in any high humidity environment.
12
THE DISPLAY CONSOLE
DISPLAY
The treadmill will start after a 3 seconds countdown.
1. PROGRAM: In addition to manual mode, there are 12 preset programs and 3 countdown
functions.
2. SPEED: The speed range is 1- 8 MPH (1-12 KM/H). The initial default speed is 1 MPH (1
KM/H).
3. TIME: Displays the time elapsed (0:00-99:59 MINS). If the time reaches 99:59, the treadmill will
stop smoothly and display “End” then automatically reset to 0:00 after 10 seconds. When in
Countdown Mode, it will count from the set time to 0:00. When the clock reaches 0:00, the
treadmill will stop smoothly and display “End” then automatically reset itself after 10 seconds.
4. DISTANCE: Displays the total distance traveled or distance countdown (0.00- 99.9 MILES) /
(0.00-99.9 KM). Displayed every 5 seconds.
5. CALORIES: Displays total calories burned or calories countdown (0.0-999 KCAL). Displayed
every 5 seconds.
6. INCLINE: Displays the current incline (0-12 INCLINE).
7. PULSE: Displays your pulse data when hands are placed on the sensors (50-200 BPM).
8. SAFETY KEY: The safety key lock acts as an emergency stop function. In case of emergency,
simply remove the Safety Key (No. 1) from the top console and the top console will beep twice
and bring the running belt to a complete stop.
13
9. STEP: Displays the total steps (1-99999 steps). Displayed every 5 seconds.
Convert from Imperial System to Metric System
First, remove the Safety Key (No. 1) from Top Console (No. 89) then press “PROG” and MODE”
buttons together for 5 seconds. The display will show “8” or “12”. For Imperial System, insert the
Safety Key (No. 1) to Top Console (No. 89) when “12” is displayed”. For Metric system, insert the
Safety Key (No. 1) to Top Console (No. 89) when “8” is displayed”.
Note: If treadmill is converted to Metric System, speed and distance will be measured in
Kilometers and Kilometers/Hour.
FUNCTION KEYS/MANUAL MODE
1. START: Insert the Safety Key (No. 1) into the top console and press START to start the
treadmill. The treadmill will initiate at the default running speed of 1 MPH (1 KM/H).
2. STOP/PAUSE: This button has functions of PAUSE and STOP. When in use, press this button
once to PAUSE your workout and the current workout data will still be shown. Press STOP
again to terminate your workout session completely and all data will be deleted and reset to the
initial setting.
3. SPEED +/- BUTTONS: During use, press these +/- keys to increase or decrease your speed.
The speed will adjust 0.1 MPH (0.1 KM/H) at a time.
4. PROG (PROGRAM) BUTTON: Press the PROG button while the treadmill is not running to
manually cycle through and choose a program. Programs range from P1-P12, 3 personalized
user programs U1-U3 and FAT calculation.
5. MODE BUTTON: Press this button to choose which Countdown Mode to preset before starting
the treadmill. H-1 is the TIME Countdown, H-2 is the DISTANCE Countdown, and H-3 is the
CALORIES Countdown. Press the SPEED +/- keys to increase or decrease from the set data
and/or press the START button to start this exercise.
6. 2MPH, 4MPH, 6MPH, 8MPH (QUICK SPEED KEYS): Use these quick speed keys to instantly
bring the running belt to the desired speed of 2MPH, 4MPH, 6MPH, or 8MPH. If the treadmill is
converted to Metric System, the quick speed buttons will display 3 KM/H, 6 KM/H, 9 KM/H, 12
KM/H.
7. 3, 6, 9, 12 (QUICK INCLINE KEYS): Use these quick incline keys to instantly bring the treadmill
to an incline of 3, 6, 9, or 12.
COUNTDOWN MODE
1. Press the MODE button to select H-1 (TIME), H-2 (DISTANCE), or H-3 (CALORIES) Countdown.
2. Set the desired TIME, DISTANCE, or CALORIES setting to countdown from.
3. Press START to begin this exercise.
H-1 (TIME): Countdown is set at the initial time setting of 30:00 MINS. You may increase or
decrease the set time by pressing the SPEED +/- keys. The TIME setting range is from 5:00-99:00
MINS.
H-2 (DISTANCE): Countdown is set at the initial distance setting of 1.00 MILE (1.00 KM). You may
increase or decrease the set distance by pressing the SPEED +/- keys. The DISTANCE setting
range is from 1.00-99.0 MILES (1.00-99.0 KM).
H-3 (CALORIES): Countdown is set at the initial calories setting of 50.0 KCAL. You may increase
or decrease the set calories by pressing the SPEED +/- keys. The CALORIES setting range is
14
from 20.0-990 KCAL.
NOTE: Once the Countdown Mode program is complete, the treadmill will stop, then return to
Manual Mode.
PROGRAMS
Each program is divided into 10 exercise segments in an equal time division. Please use below
chart for Imperial or Metric system.
Program in Imperial System (Miles/ Hour)
TIME
PROGRAM
SET TIME/10
1
2
3
4
5
6
7
8
9
10
P1
SPEED
1.8
1.8
3.6
3.0
3.0
2.4
2.4
2.4
2.4
1.8
INCLINE
0
3
3
3
4
4
4
1
1
0
P2
SPEED
1.8
1.8
2.4
2.4
3.0
3.0
3.0
3.6
3.6
2.4
INCLINE
2
2
2
3
3
3
3
4
4
2
P3
SPEED
1.2
2.4
3.6
4.8
4.2
4.8
3.6
1.2
1.8
1.2
INCLINE
3
5
4
4
3
4
4
3
4
2
P4
SPEED
1.8
1.8
3.0
3.6
4.2
3.6
3.0
2.4
1.8
1.8
INCLINE
0
3
3
2
2
5
5
3
3
2
P5
SPEED
1.8
3.6
3.6
3.6
4.8
4.2
4.2
3.0
3.0
2.4
INCLINE
3
5
3
4
2
3
4
2
3
2
P6
SPEED
1.2
3.6
3.0
2.4
4.8
4.2
3.0
1.8
1.8
1.2
INCLINE
3
4
5
6
3
5
5
6
4
3
P7
SPEED
1.2
5.4
5.4
4.2
4.2
4.2
3.0
1.8
1.2
1.2
INCLINE
0
3
3
3
4
4
4
1
1
0
P8
SPEED
1.2
2.4
2.4
2.4
3.0
3.6
4.8
4.8
3.6
1.2
INCLINE
1
1
4
4
4
5
5
4
3
2
P9
SPEED
1.2
2.4
3.0
3.0
3.6
3.0
3.0
1.8
1.8
1.2
INCLINE
3
5
3
4
2
3
4
2
3
2
P10
SPEED
1.2
3.0
4.2
3.0
4.8
3.6
3.0
1.2
2.4
1.8
INCLINE
1
5
6
8
12
9
10
9
5
3
P11
SPEED
1.2
3.0
3.6
4.2
4.8
5.4
6.0
3.0
1.8
1.2
INCLINE
3
5
6
8
6
5
8
7
5
2
P12
SPEED
1.2
1.8
3.0
3.6
4.8
3.6
5.4
3.6
3.0
1.8
INCLINE
5
7
5
8
6
5
9
10
6
2
15
Program in Metric System (Kilometers/ Hour)
TIME
MODE
SET TIME/10
1
2
3
4
5
6
7
8
9
10
P1
SPEED
3
3
6
5
5
4
4
4
4
3
INCLINE
0
3
3
3
4
4
4
1
1
0
P2
SPEED
3
3
4
4
5
5
5
6
6
4
INCLINE
2
2
2
3
3
3
3
4
4
2
P3
SPEED
2
4
6
8
7
8
6
2
3
2
INCLINE
3
5
4
4
3
4
4
3
4
2
P4
SPEED
3
3
5
6
7
6
5
4
3
3
INCLINE
0
3
3
2
2
5
5
3
3
2
P5
SPEED
3
6
6
6
8
7
7
5
5
4
INCLINE
3
5
3
4
2
3
4
2
3
2
P6
SPEED
2
6
5
4
8
7
5
3
3
2
INCLINE
3
4
5
6
3
5
5
6
4
3
P7
SPEED
2
9
9
7
7
6
5
3
2
2
INCLINE
0
3
3
3
4
4
4
1
1
0
P8
SPEED
2
4
4
4
5
6
8
8
6
2
INCLINE
1
1
4
4
4
5
5
4
3
2
P9
SPEED
2
4
5
5
6
5
6
3
3
2
INCLINE
3
5
3
4
2
3
4
2
3
2
P10
SPEED
2
5
7
5
8
6
5
2
4
3
INCLINE
1
5
6
8
12
9
10
9
5
3
P11
SPEED
2
5
6
7
8
9
10
5
3
2
INCLINE
3
5
6
8
6
5
8
7
5
2
P12
SPEED
2
3
5
6
8
6
9
6
5
3
INCLINE
5
7
5
8
6
5
9
10
6
2
16
USER PROGRAMS (U1-U3):
Each program is made up of 10 segments. User Programs allow you to personalize each segment
of your exercise program by programming each individual segment’s time duration, desired speed,
and incline.
To begin, press the PROG button to select U1, U2, or U3 then press MODE to enter the setting
mode and set the TIME of the 1
st
segment. Next, set the desired SPEED of the 1
st
segment by
pressing the SPEED +/- keys and set the INCLINE by pressing the INCLINE +/- keys. Press
MODE and your 1
st
segment is set.
The next workout segment will flash. Repeat the instructions above until you’ve completed
programming all 10 segments.
FAT CALCULATION:
Press the PROGRAM button until the window displays FAT. Press MODE to enter your (F1)
Gender, (F2) Age, (F3) Height, and (F4) Weight. Press the SPEED +/- keys to set the data
accordingly. After you’ve set up F1~F4, F5 will display on the screen. Hold the hand pulse sensors
and the BMI calculator will display your FAT.
NOTE: Average Body Mass Index score is 20-25%
Underweight: Below 19.0
Normal: 20.0 – 25.0
Overweight: 26.0 – 29.0
Obesity: 30.0 – and above
BODY MASS INDEX CHART:
F-1
Sex
01 MALE
02 FEMALE
F-2
Age
10 to 99 YEARS OLD
F-3
Height
40----80 INCHES (100-220 CM)
F-4
Weight
44----330 LBS (20-150 KG)
F-5
FAT
≤19
Underweight
FAT
=(20---25)
Normal Weight
FAT
=(26---29)
Overweight
FAT
≥30
Obesity
17
APP CONNECTION
1. Scan the QR code below to download the SunnyFit app to your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for
your free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
a. From the “Workout” tab, press on the “Search” button to search for your equipment.
b. Once your equipment appears on the list, tap the “Select” button to confirm.
c. Note: If your equipment does not appear on the "Searching for Equipment" list, check the
EXERCISE CONSOLE on your equipment to ensure that it is not in sleep mode and your
phone's Bluetooth function is on, then tap "Retry" to search again.
d. Once your equipment shows up on the “Workout” tab as “Currently Selected”, your
equipment is now ready to display, track, and record your equipment’s workout stats on
the app!
5. If you are unable to replicate these steps, or have any other issues with the SunnyFit app,
please contact SunnyFit support at [email protected], or use the in-app “Contact Us”
form to request support (“Me” tab -> “Contact Us”).
18
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise programs, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Be aware of your body’s signals. Incorrect or excessive exercise can
damage your health. Stop exercising immediately if you experience any of the following symptoms:
pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, lightheadedness,
dizziness, or feelings of nausea.
Turn on the power switch located next to the power cord. Get to know your treadmill. Before
attempting to use the treadmill take some time to stand alongside it and familiarize yourself with
the controls. Once you feel comfortable get on, you can stand with your feet on the foot rails and
balance yourself by putting your hands on the handrails.
Next, attach the clip end of the Safety Key (No. 1) to your clothing and insert the magnetic end of
the key into the top console. Press the START button to start the treadmill. The treadmill will start
at the default speed of 1 MPH (1 KM/H). Once you feel comfortable, you may slowly increase the
speed. When you are finished with your exercise, press the STOP button or remove the magnetic
end of Safety Key (No. 1) to stop the treadmill.
SAFETY LOCK:
Remove the Safety Key (No. 1) from the top console to stop the treadmill immediately. Once the
treadmill reaches a full stop, the window display on the top console will show “---“and the treadmill
will beep. To start the treadmill again, insert the magnetic end of Safety Key (No. 1) into the top
console and press START.
POWER SAVE FUNCTION:
Once the treadmill has been inactive for 10 minutes, it will adjust to Power Saving Mode. When the
treadmill is in Power Saving Mode, the window display on the top console will shut off. To
reactivate, press any key.
POWER OFF:
Power to the treadmill can be turned off at any time without risk during or after an exercise.
CAUTION!
1. We recommend that you maintain a slow speed at the beginning of a session and hold the
handrails until you become comfortable and familiar with the treadmill.
2. Insert the magnetic end of the safety key into the top console and attach the opposite end with
the safety clip to your clothing before beginning your workout. To end your workout, press the
STOP button or remove the safety key. The treadmill will stop immediately.
19
TROUBLESHOOTING
Code
Description
How to Troubleshoot
-----
Safety key fault.
1. Insert the safety key properly.
2. Replace the safety key sensor or safety key. If
there’s still a problem, replace the top console.
E01
Communication abnormality: no
communication from the top
console to the control board.
Possible Reasons: Communication obstructed
between control board and top console, please check
to make sure the wires are connected properly, and
the wires are without any punctures or damage.
If this does not resolve the issue, check the control
board and PCB IC to see if there’s any damage,
replace if necessary.
E02
Motor fault or control board
fault.
1. Check if the motor cable is well connected.
Reconnect the wire and restart.
2. Check the motor or the control board for any
damage. Replace if necessary.
E04
Incline failure: the incline motor
sensor wire is damaged or the
wire for the incline motor is not
properly connected.
Check incline motor sensor wire and AC wire to see if
they are properly connected. Make sure the incline
motor wire does not have any punctures or damage.
E05
Current overload protection.
Possible Reasons: Excessive current load, the
incoming voltage is too low or too high. The control
board is damaged. A moving part of the treadmill is
stuck, and the motor is unable to function properly.
Try to restart the treadmill. Also, check if there’s any
burnt odors around the motor and control board. Make
sure the power and voltage comply with the standard.
Inspect moving parts to ensure they are operating
correctly. Listen for unfamiliar noises from the motors.
E06
Burst clash protection.
Possible Reasons: The power voltage is less than
normal by 50% or the controller has problems. Make
sure the motor wires are connected. Check the control
board for any damage or burnt odors. Replace if
necessary.
No display in
console
Control board abnormality.
1. Check if the overload button switch is off, if so,
press to turn it on.
2. Check the wire on the power switch, overload
button, and control board to see if it is connected
properly.
3. Check the top console wires and all cables between
the top console and control board.
4. Check the transformer and replace if necessary.
20
EXPLODED DIAGRAM
21
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Safety Key
1
46
Side Rail Support
6
2
NA
47
Cushion
Φ30*20*16
8
3
Key Panel Sticker
1
48
Lock Nut
M6
6
4
Lower Metal Dome Array
1
49
Running Board
1210*574*15
1
5
Overlay
1
50
Running Belt
2720*420*1.6
1
6
Upper Metal Dome Array
1
51
Front Roller
42*533
1
7
Console Panel
413*356*52
1
52
Roundhead Hex Bolt
M8*50
1
8
Speaker
2
53
Controller
1
9
Cross Recessed Pan Head
Tapping Screw
ST4.2*8
18
54
Cross Roundhead Screw
M5*15
9
10
Top Cover
715*435*130
1
55
Cross Roundhead Screw
M5*10
5
11
Console Chip
1
56
Power Switch
1
12
Cross Recessed Pan Head
Tapping Screw
ST4.2*16
19
57
Incline Motor
1
13
Left Support Tube
1
58
Half-roundhead Hex Bolt
M10*45 thread L25
1
14
Right Support Tube
1
59
Half-roundhead Hex Bolt
M10*60 thread L15
1
15
Half-roundhead Hex Bolt
M8*15
4
60
Lock Nut
M10
6
16
Roundhead Hex Bolt
M8*40 thread L15
6
61
Flat Washer
Φ20*Φ10.5*2
6
17
Flat Washer
Φ16*Φ8.5*1.2
16
62
Power Line
2100mm
1
18
Serrated Gasket
D8
6
63
Power Line Plug
N3
1
19
Motor Belt
190J6
1
64
Roundhead Hex Bolt
M8*15 thread L15
1
20
DC Motor
1
65
Cable Protector
Φ24*Φ18*Φ12*9
2
21
Roundhead Hex Bolt
M8*15
4
66
Right Side Cover
225*183*52
1
22
Spring Washer
M8
6
67
Left Side Cover
225*183*52
1
23
Motor Bracket
159*90*3
1
68
Flat Foot Pad
Φ31.5*Φ6*16
4
24
Roundhead Hex Bolt
M8*12
2
69
Base Frame
1
25
Motor Cover
592*343*121
1
70
Round Cushion
Φ20*Φ16*17.5
2
26
Console Bracket
1
71
Main Frame
1
27
Pipe Plug
50*30*10
2
72
Transportation Wheel
Φ45*Φ8.2*20
2
28
Bottle Holder (R)
191*135*154
1
73
Transportation Wheel Cover
60*30*18.8
2
29
Bottle Holder (L)
191*135*154
1
74
Lock Nut
M8
6
30
Handrail Bushing
300*50*30
2
75
Half-roundhead Hex Bolt
M8*25 thread L15
1
31
Speed Hand Pulse
1
76
Cylinder
1
32
Incline Hand Pulse
1
77
Half-roundhead Hex Bolt
M8*45 thread L10
1
33
Single Brown Wire
250mm
1
78
Motor Bottom Cover
570*340*48
1
34
Single Blue Wire
250mm
1
79
Screw
ST4.2*16
18
35
Upper Console Wire
800mm
1
80
Moving Wheel
Φ45*Φ8.2*20
2
36
Middle Console Wire
1000mm
1
81
Incline Bracket
1
37
Lower Console Wire
500mm
1
82
Half-roundhead Hex Bolt
M10*25 thread L20
4
38
Safety Key Sensor
1
83
Incline Bushing
Φ15*Φ9*8.2
4
39
Cross Recessed Pan Head
Tapping Screw
ST4.2*45
4
84
Half-roundhead Hex Bolt
M8*45 thread L15
4
40
Side Rail
1160*80*34
2
85
Spanner with Screwdriver
1
41
End Cap (R)
156*94*155
1
86
Silicone Oil
1
42
End Cap (L)
156*94*155
1
87
Allen Wrench
S5
1
43
Roundhead Hex Bolt
M8*55
2
88
Allen Wrench
S6
1
44
Rear Roller
42*517
1
89
Top Console
1421SS3
1
45
Cross Recessed Sunk Head
Screw
M6*40 thread L10
8
90
Console
1
Version 1.0
22
