FOLDABLE AUTO INCLINE
TREADMILL WITH 20'' RUNNING BELT
& BRUSHLESS MOTOR
SF-T723030
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using (this appliance).
DANGER – To reduce the risk of electric shock and the injury from moving parts:
Always unplug this appliance from the electrical outlet immediately after using and before cleaning
or serving.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not
in use, and before putting on or taking off parts.
2. This appliance is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep
children under the age of 13 away from this machine.
3. Use this appliance only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Return the appliance to a service
center for examination and repair.
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings free of lint,
hair, and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors. Household use only.
10. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
11. To disconnect, turn all controls to the off position, then remove plug from outlet.
12. CAUTION: Risk of Injury to Persons – To Avoid Injury, use extreme caution when stepping
onto or off of a moving belt. Read Instruction Manual Before Using.

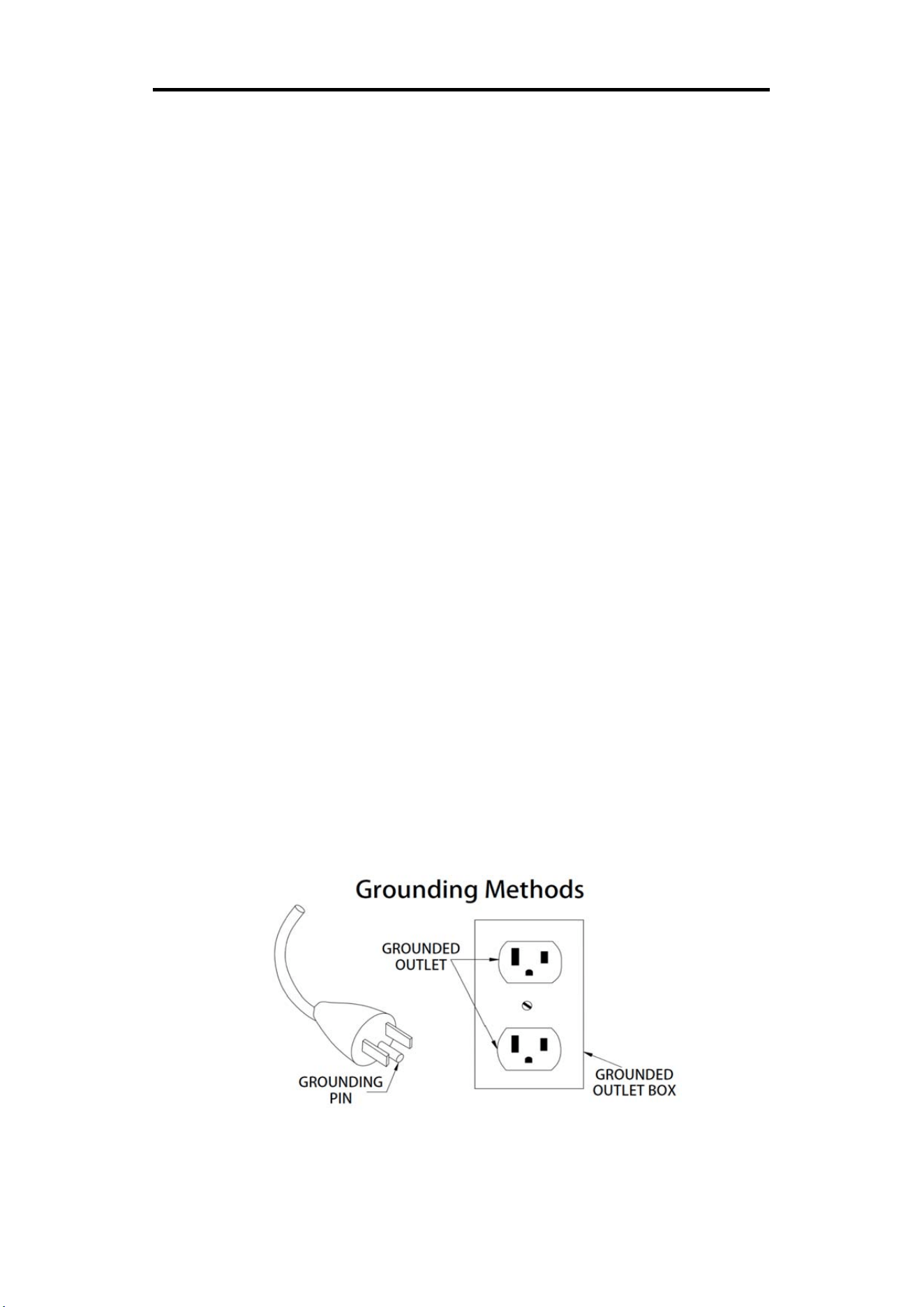

13. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
14. REMOVE CONTROL BOX (OR KEY, OR SAFETY PIN, AS APPLICABLE) WHEN NOT IN
USE, AND STORE OUT OF REACH OF CHILDREN.
SAVE THESE INSTRUCTIONS
2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the equipment are
informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk, or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 8 feet (240cm) of free space behind it
and 2 feet (60cm) on each side. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment
during exercise, discontinue use of the equipment immediately and do not use until the
problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 lbs (135 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use!
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 7 for instructions on how
to properly apply lubricant.
3
PRE-ASSEMBLY CHECK LIST

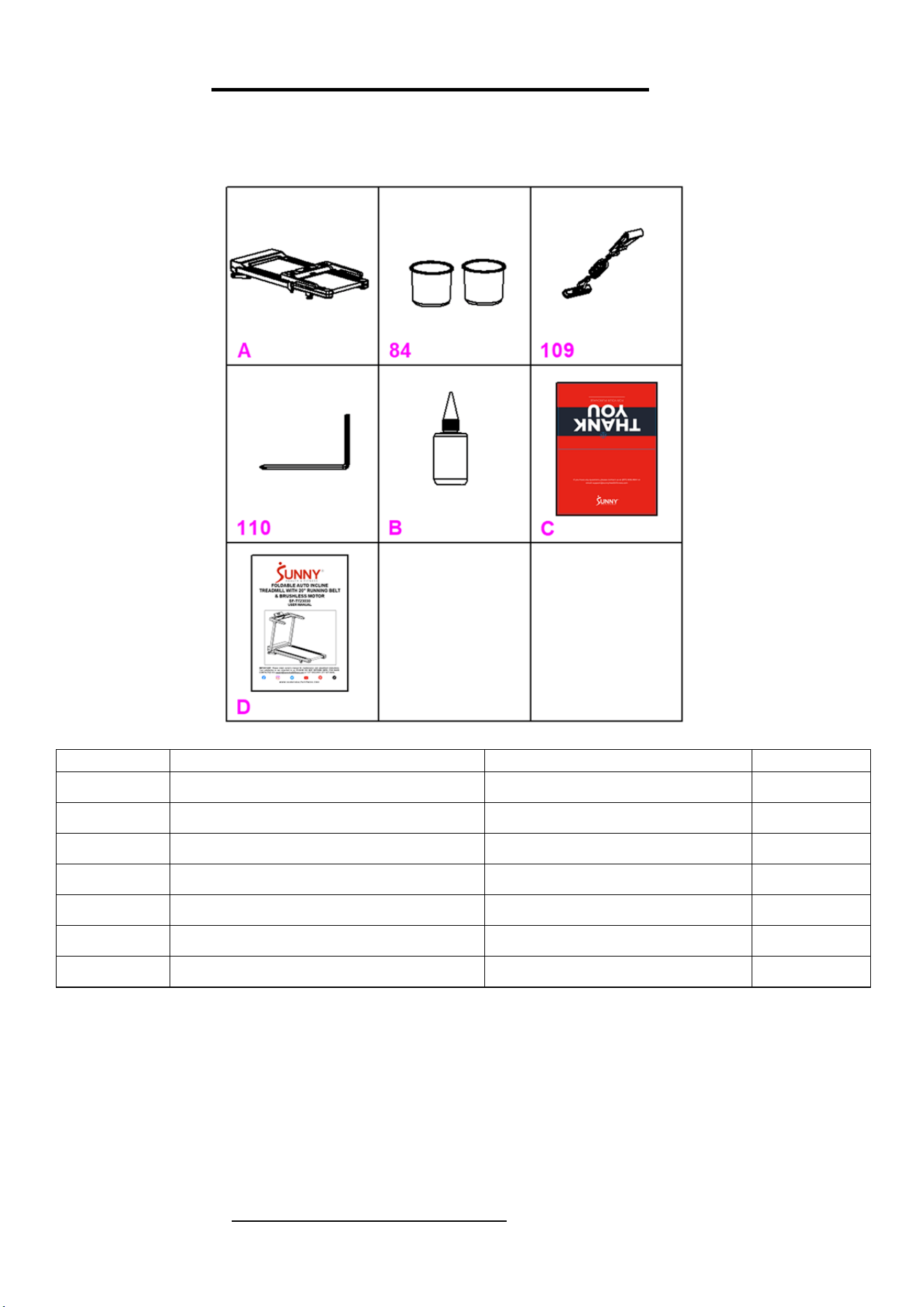

Before you start to assemble, please make sure all parts are included.
No. Description Spec. Qt
y
.
A Frame Assembly 1
84 Bottle Holder 2
109 Safety Key 1
110 Allen wrench 6mm*80mml*130mml 1
B Lubricant Oil 1
C
Thank You Card
1
D Manual 1
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)

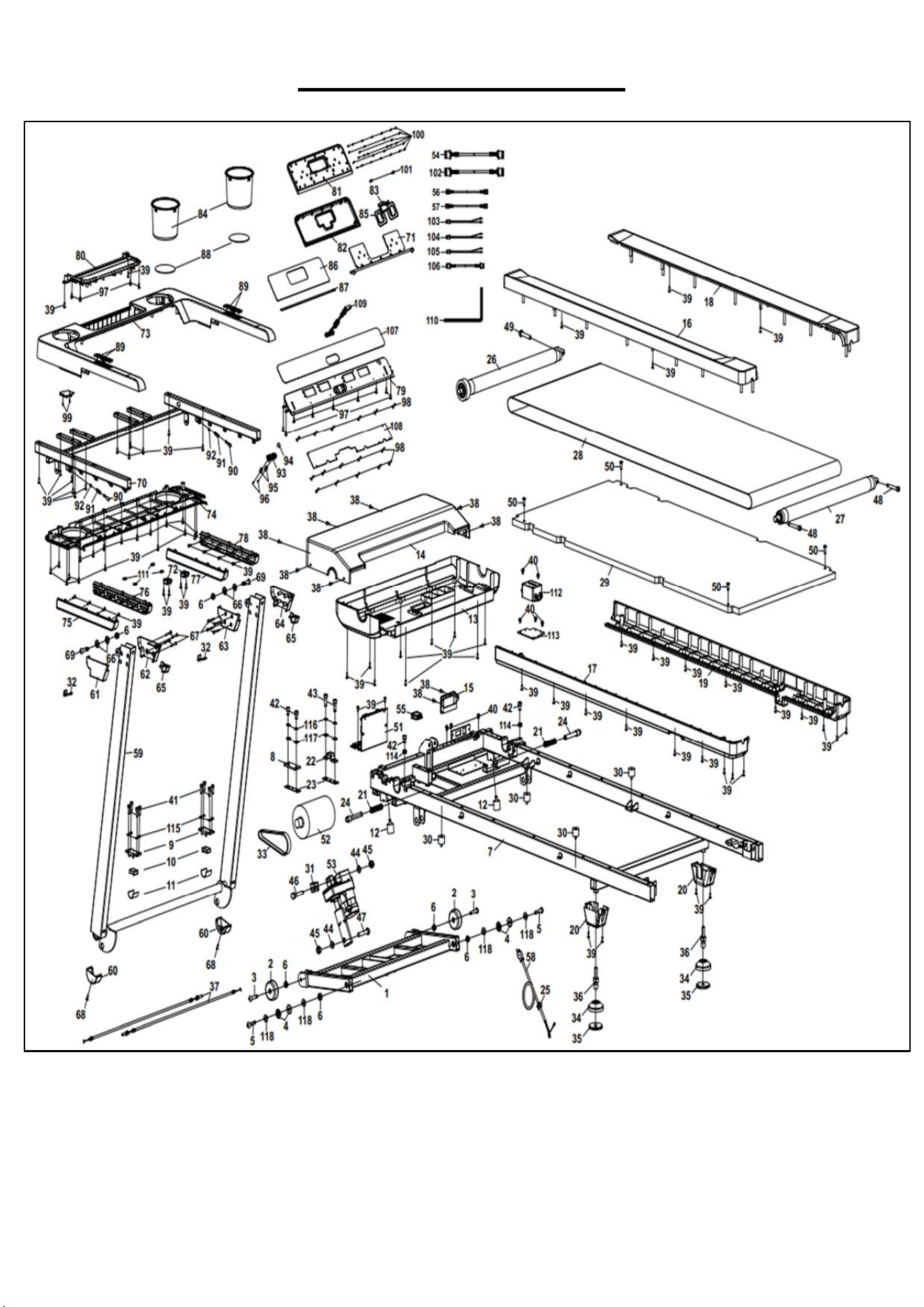

The part number found on the “EXPLODED DIAGRAM” (page 17) and “PARTS LIST” (page 18)
Please contact us at support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).
A

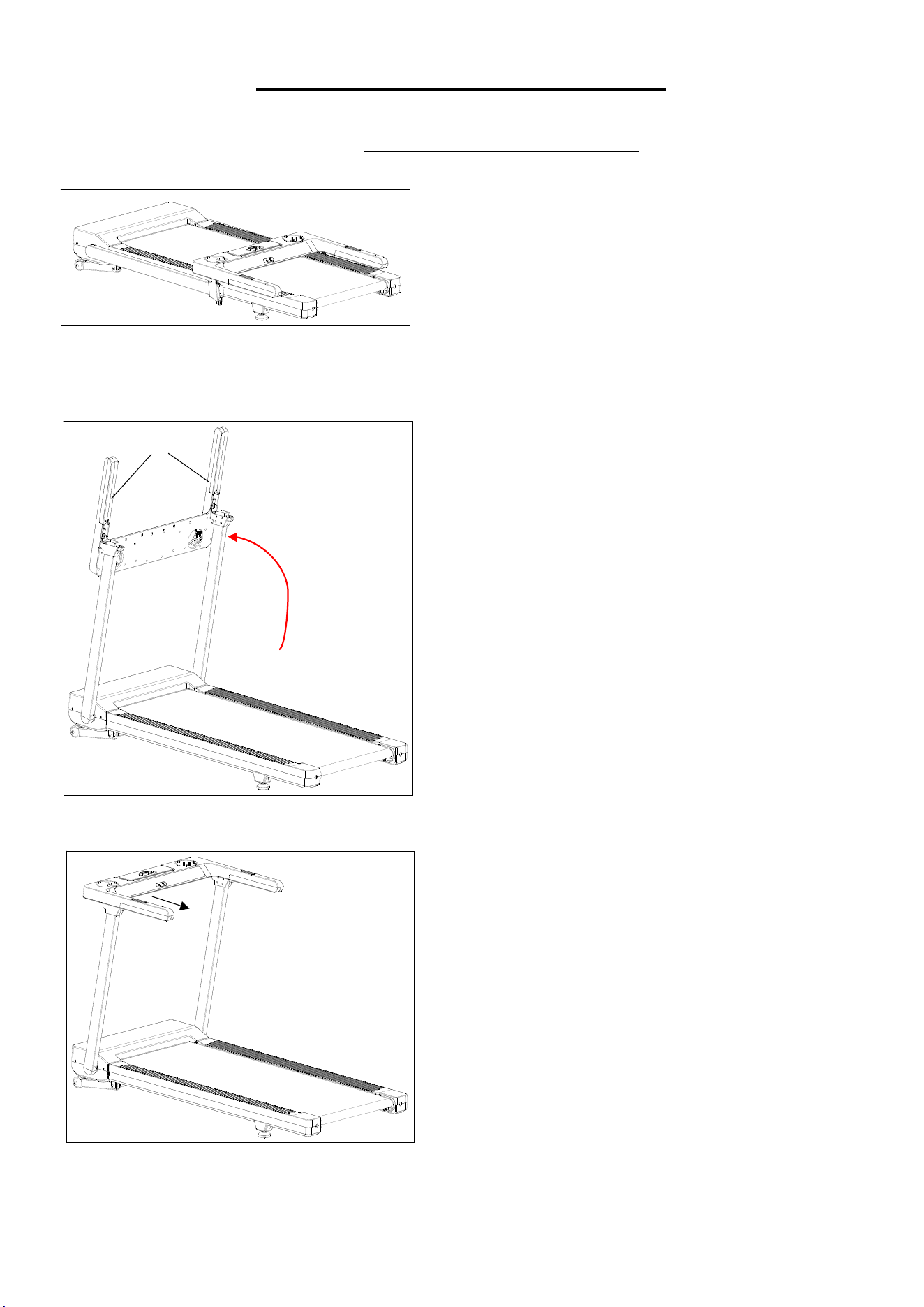

STEP 1:
We recommend having two people to remove the
product from the carton.
Open the carton and take out the contents.
Place the product on a level surface in a clean,
spacious work area.
STEP 2:
Lift the Handlebar (No. H) and upright frames
fully upward.
Then, pull down the Handlebar (No. H) towards
Direction A until the pin locks.
Note: Be careful not to pinch your fingers when
pulling down the Handlebar (No. H) and locking
it. Also, ensure the tension cable that connects
Handlebar (No. H) and upright frames doesn’t
get jammed.
Locking System:
Please ensure the upright frames are fully flipped
upward. Then, keep them in that position and pull
down the Handlebar (No. H) until you hear a
click to lock the upright frames in place.
H
5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).
STEP 3:

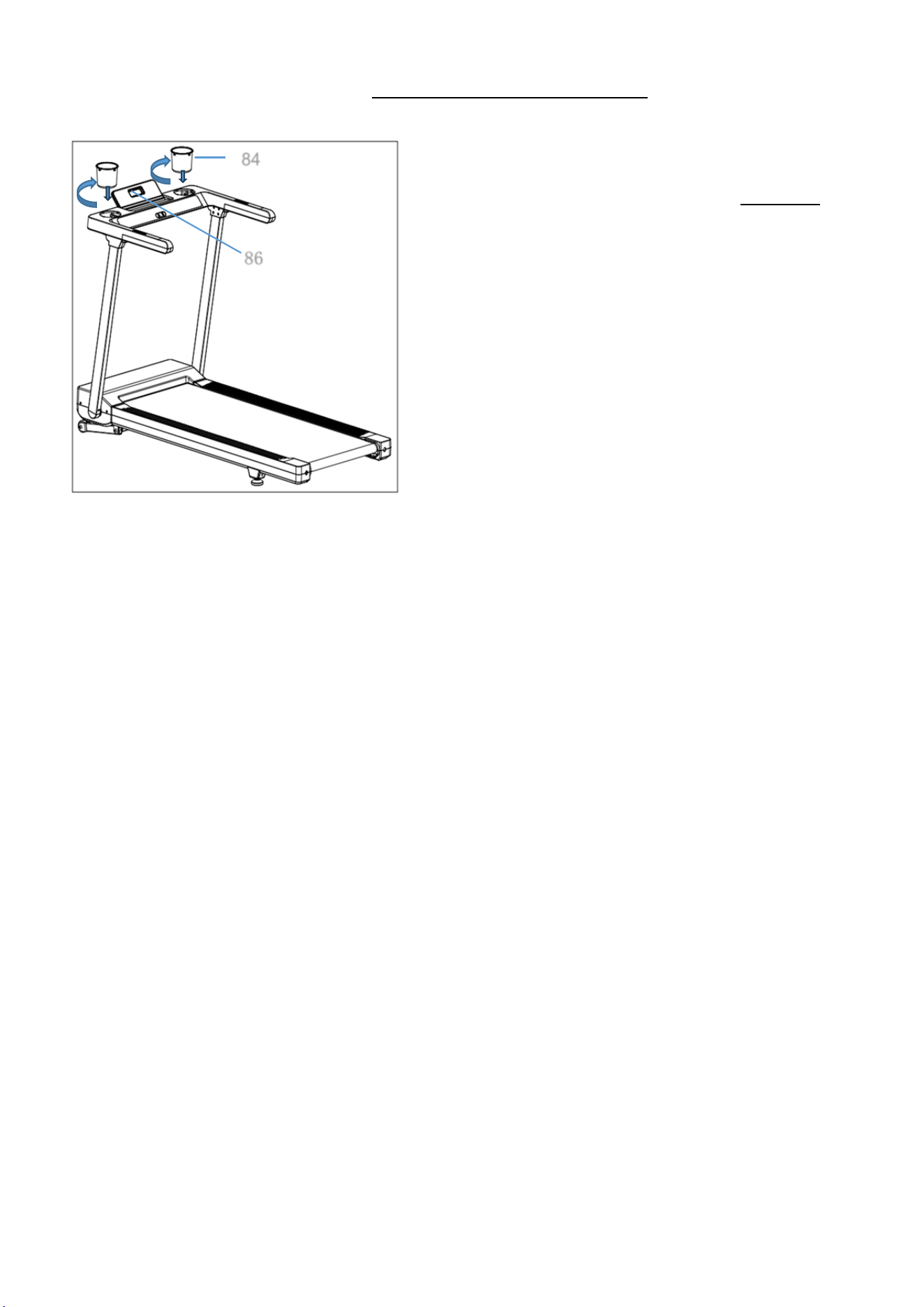

Insert the Bottle Holders (No. 84) into the place.
Tighten the Bottle Holders (No. 84) clockwise.
Open the Tablet Holder 1(No. 86) to use. Insert
the Safety Key (No. 109) before starting to use.
IMPORTANT NOTE: The Running Belt (No. 28)
must be lubricated before the first use! Please see
the Page 7 for instructions on how to properly
apply lubricant.
84
86
6
MAINTENANCE & CARE
General cleaning will help prolong the life and improve the performance of your treadmill. Keep the
treadmill clean and maintained by dusting the components on a regular basis. Cleaning the two
exposed sides both sides of the Running Belt (No. 28) will prevent dust from accumulating
underneath. Keep your running shoes clean so that dirt from your shoes does not wear out the
Running Board (No. 29) and Running Belt (No. 28). Clean the surface of the Running Belt (No.
28) with a clean damp cloth. Keep liquids away from electrical parts and Running Belt (No. 28).
To better maintain the treadmill and prolong its life, it is suggested that the treadmill is powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.
CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5mph to check if the Running Belt (No. 28)
drifts from the center. Adjust the Running Belt (No. 28) according to below instructions with Allen
Wrench (No. 110).

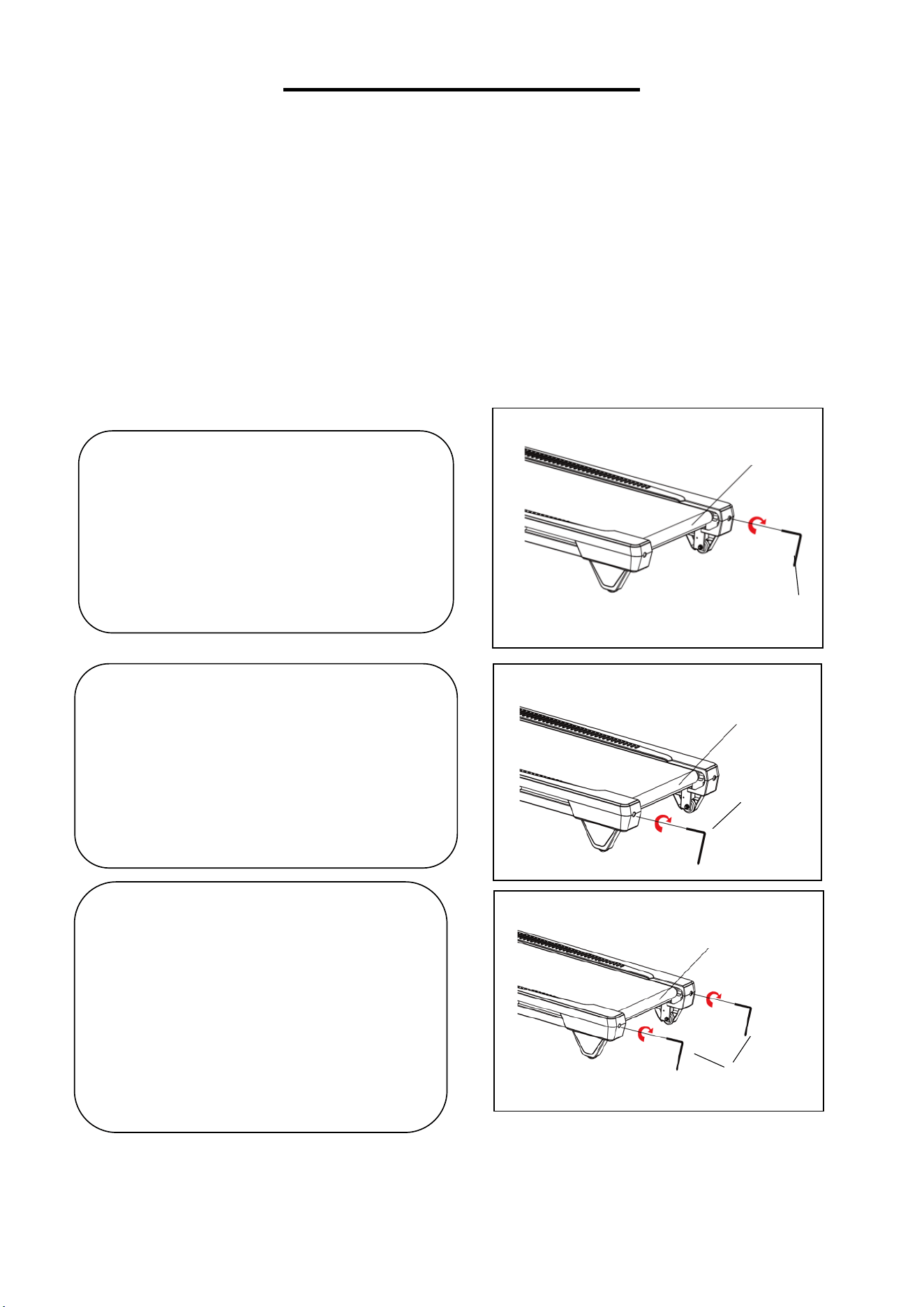

1. If the Running Belt (No. 28) moves
to the right, turn the Right adjustment
bolt ¼ turn clockwise, then turn the left
adjustment bolt ¼ turn counter-
clockwise. If the Running Belt (No. 28)
does not move, keep adjusting ¼ turn at
a time until it centers. Refer to Fig. A.
2. If the Running Belt (No. 28) moves to
the left, turn the Left adjustment bolt ¼
turn clockwise, then turn the right
adjustment bolt ¼ turn counter-
clockwise. If the Running Belt (No. 28)
does not move, keep adjusting ¼ turn at
a time until it centers. Refer to Fig. B.
3. Over time the Running Belt (No. 28)
will loosen. To tighten the running belt,
turn the Left & Right adjustment bolts
one full turn clockwise, check the
tension of the Running Belt (No. 28).
Continue this process until the Running
Belt (No. 28) is at the correct tension.
Make sure to adjust both sides equally
to ensure correct Running Belt (No.
28
)
ali
g
nment. Refer to Fi
g
. C.
Fig. A
Fig. B
Fig. C
110
110
110
28
28
28
7
LUBRICATING THE TREADMILL
*IMPORTANT NOTE:
This treadmill does come pre-lubricated, but it is recommended to lubricate your treadmill before
the first use.
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Board (No. 29) and Running Belt (No. 28) is essential as the friction
affects the life span and operation of the treadmill. Inspect the Running Board (No. 29) and
Running Belt (No. 28) regularly. If you find any wear on the Running Board (No. 29), please
contact us at: [email protected].
WARNING:
Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or repairing the
unit.
HOW TO LUBRICATE:

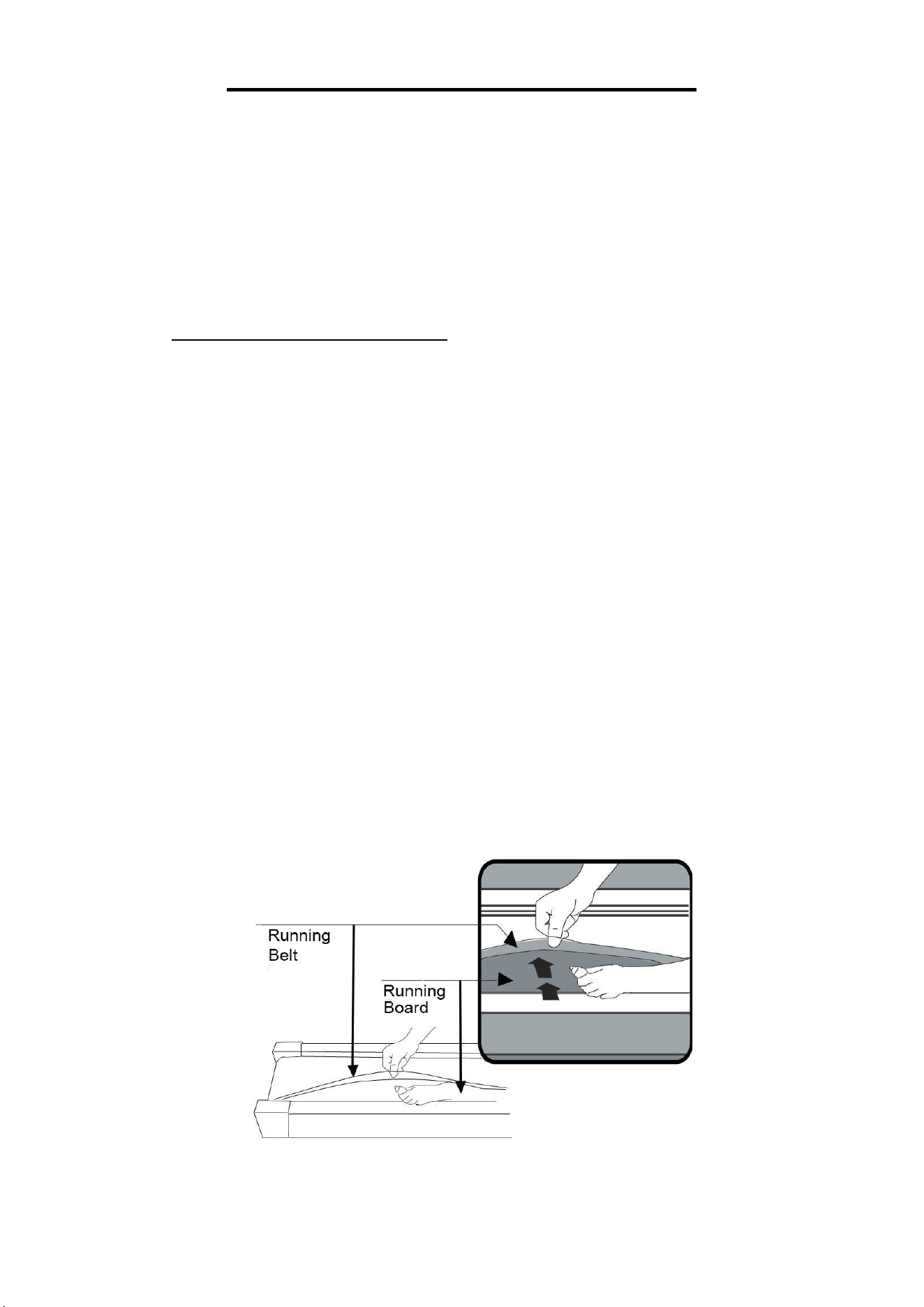

1. Raise the Running Belt (No. 28) up on one side and apply lubricant to the Running Board
(No. 29). Use a rag to thoroughly wipe the lubricant over the running board. Repeat this
process for the other side.
2. The moving parts should turn freely and quietly. Abnormality of moving parts will affect the
safety of the equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be
done on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE
APPLYING LUBRICANT. A loose Running Belt (No. 28) will result in the runner sliding off
during use, while too tight of a Running Belt (No. 28) will negatively affect the motor’s
performance and also create more friction between the roller and Running Belt (No. 28). The
most suitable tightness for the Running Belt (No. 28) is when it is pulled out 50-75mm from
the Running Board (No. 29).
The following time table is recommended:
Light user (less than 3 hours/ week) every five months
Medium user (4-7 hours/ week) every two months
Heavy user (more than 7 hours/ week) every month
8

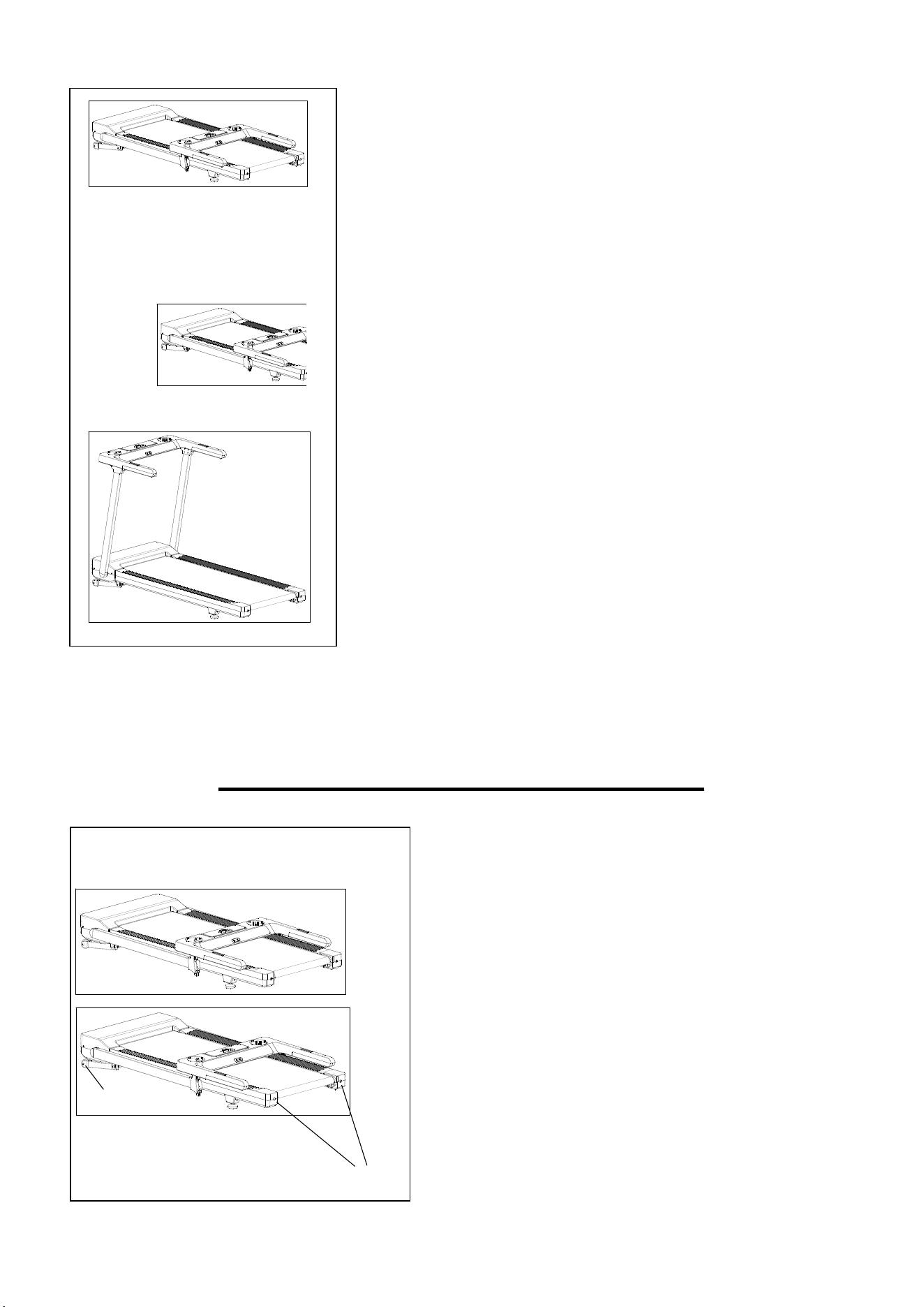

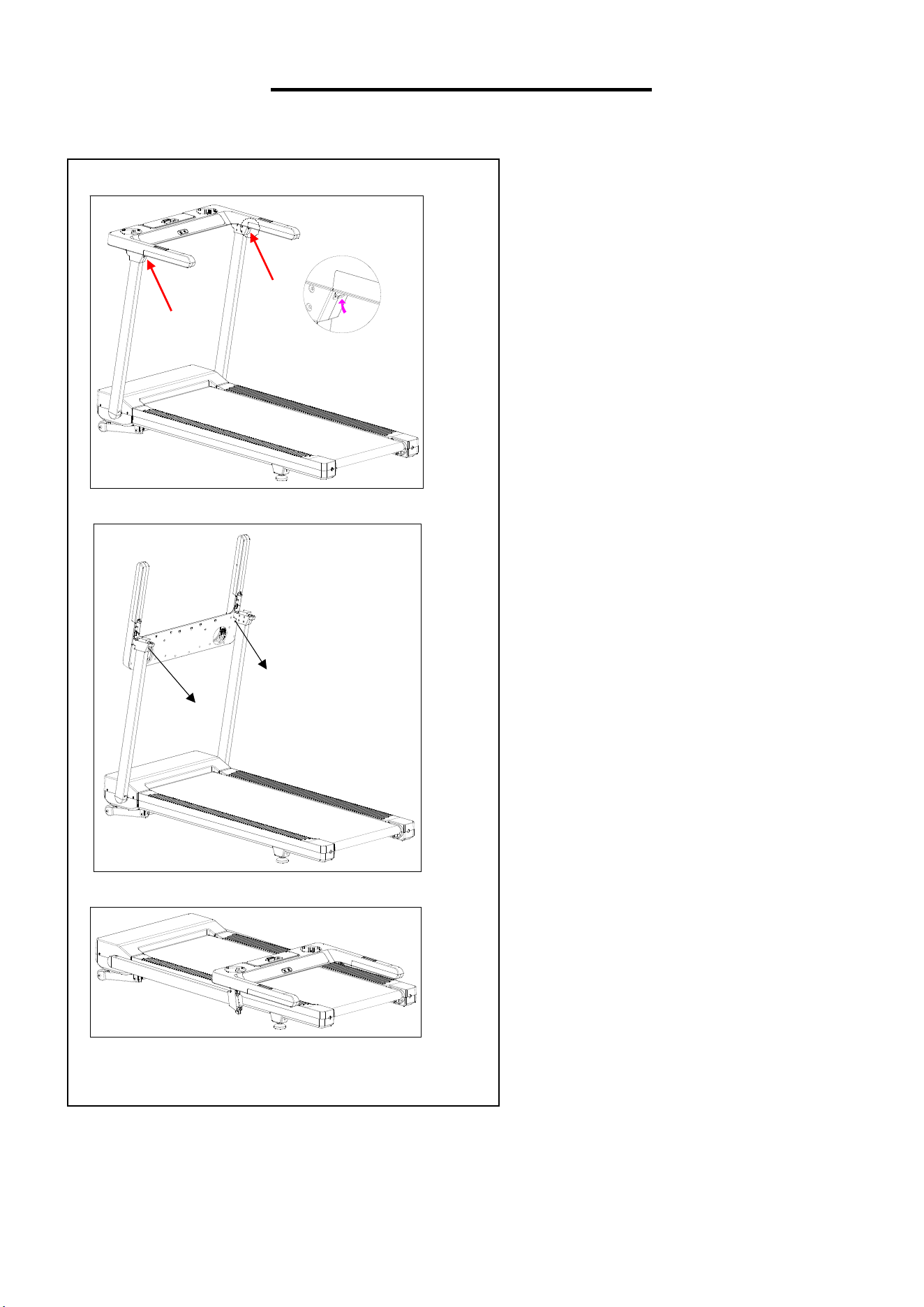

FOLDING INSTRUCTIONS
FOLDING
STEP 1:
Set the incline to flat (Incline Level
0) and turn off the power.
STEP 2:
Press both triggers on each side
of “A,” then lift the handlebar fully
upward to unlock the upright
frames.
Step 3:
Hold the handlebar and laydown
the upright frames.
A
9
UNFOLDING:
HOW TO MOVE THE TREADMILL
Note: Before attempting to move the
treadmill, make sure that it has been
properly folded. Unplug the power cord.
To transport, place two hands at the end of
foot rails, hold position “P” and lift up, the
treadmill and move the treadmill with
Transportation Wheels (No. 2) in front.
P
2
STEP 1:
Lift the handlebar and upright frames fully upward.
STEP 2:
Then, pull down the handlebar until the pin locks.
Note: Be careful not to pinch your fingers when pulling
down the handlebar and locking it. Also, ensure the
tension cable that connects handlebar and upright
frames doesn’t get jammed.
Locking System:
Please ensure the upright frames are fully flipped
upward. Then, keep them in that position and pull down
the handlebar until you hear a click to lock the upright
frames in place.
A
10
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 15 amps (100-120V) in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is
correct before powering the equipment. Any power source above or below this level could cause
significant damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. Ensure that the product is connected to an outlet with the same configuration
as the plug. Do not use an adaptor for this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the
plug illustrated in sketch A.
DANGER:
Improper connection of the equipment can result in risk of electric shock. Check with a qualified
electrician or serviceman if you are unsure whether the product has been properly grounded. Do
not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from all moving parts of the treadmill, including the elevation mechanism and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on this treadmill without first disconnecting the power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use
or use in any high humidity environment.
(A)
11
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise program, you should consult with your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent you
from using the equipment properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising immediately if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to stand alongside
and familiarize yourself with the controls.
1. Turn on the power switch.
2. Once you get on, you can stand with your feet on the side rails and stabilize yourself by
holding onto the handlebars.
3. Next, attach the clip end of the Safety Key (No. 109) to your clothes and insert the magnetic
end of the Safety Key (No. 109) into the Film of Console and Console Set (No. 107 and
108).
4. Press the START key to start the treadmill.
5. The treadmill will start at the system default setting speed of 0.6 MPH. When you feel
comfortable, you may slowly increase this speed.
6. When you are finished with your exercise, press the STOP key to stop the treadmill or you
can remove the magnetic end of the Safety Key (No. 109) to stop the treadmill.
12

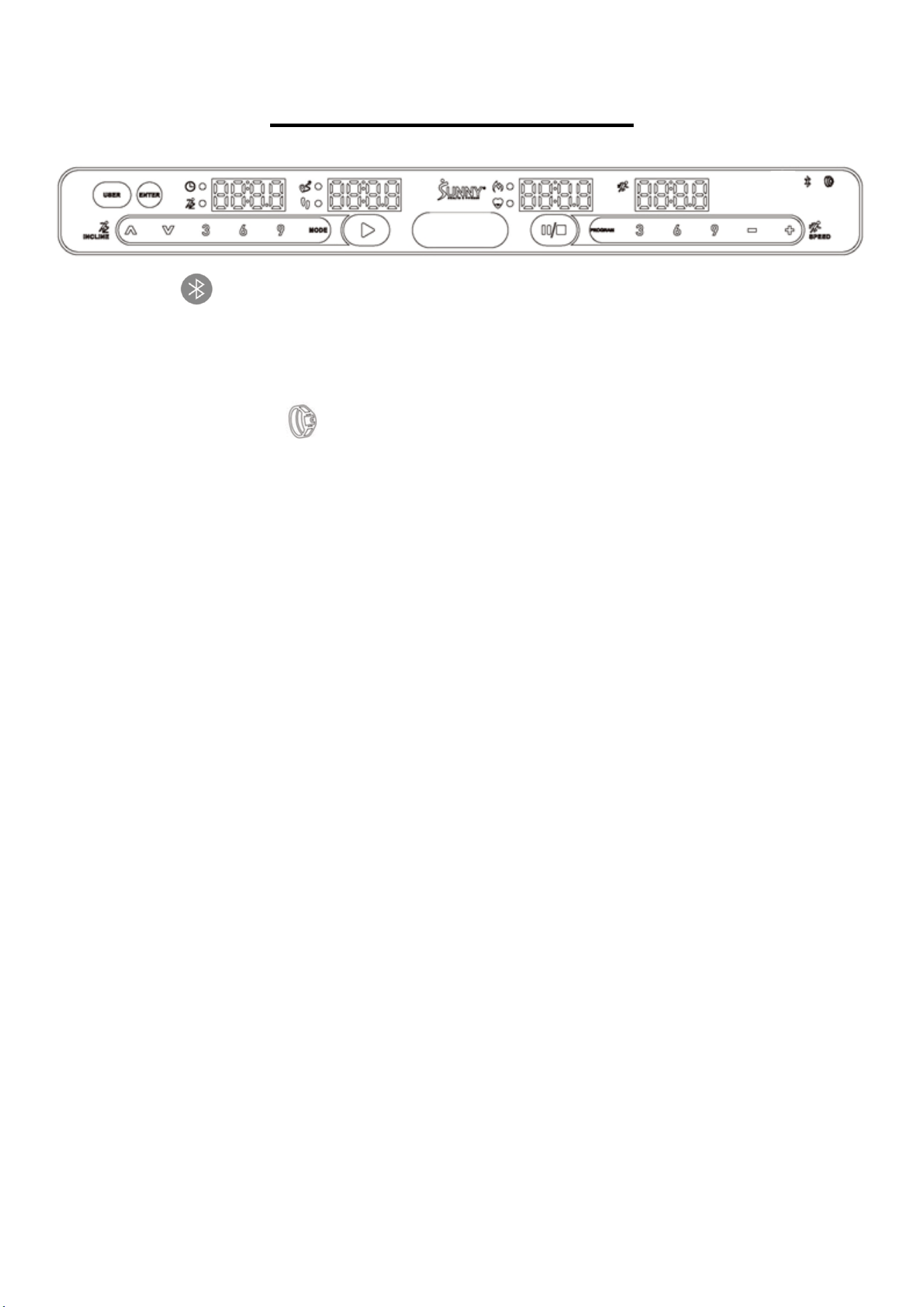

THE DISPLAY CONSOLE
BLUETOOTH
:
1. The Bluetooth icon will flash when the console is on or wakes from power saving mode. If no
Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE :
1. The wireless heart rate icon will stay on when the heart rate monitor is connected.
2. The console can be connected to the heart rate monitor at any time except manual disconnect
the heart rate monitor or in SLEEP MODE.
3. The wireless heart rate icon will flash when the console is on. If the heart rate monitor is not
connected within 3 minutes, the wireless heart rate icon will turn off.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit
Heart Rate Monitor HR200.
DISPLAY FUNCTION
1. Incline / Time display window shows the incline value and the time count-down and count-up
when in running state.
2. Distance /Steps display window shows distance count-down and count-up when in running
state and the steps number.
3. Calories / Heart rate display window shows calories count-down and count-up when in running
state and heart rate.
4. Speed display window showing current speed value.
KEY FUNCTION
1. START:
Press to start up the treadmill in the stop state. The default speed displayed is 0.6 MPH.
2. PAUSE / STOP:
When the treadmill is running, press PAUSE / STOP once to pause the treadmill. When the
treadmill is paused, press PAUSE / STOP to stop the treadmill, and all values will be cleared.
In the STOP state, press and hold this button for 6 seconds to disconnect the heart rate monitor.
To reconnect the heart rate monitor, press and hold this button for 6 seconds again.
3. INCLINE + / INCLINE -:
When the treadmill is running, press to increase or decrease the incline. Value increases or
decreases in increments of 1%. When setting program parameters, press to increase or
decrease the set value. If you press and hold for 0.5 seconds, values will increase or decrease
quickly.
4. SPEED+ / SPEED -:
In setting state, press to increase or decrease the set value. When the treadmill is running, press
to increase or decrease the speed. Value increases or decreases in increments of 0.1 MPH.
After holding for more than 0.5 seconds, automatic continuous acceleration and deceleration
will occur.
13
5. MODE:
In standby mode to switch 3 count-down mode: time countdown, distance countdown, calories
countdown.
6. PROGRAM:
Press to choose Program.
7. USER:
Press to choose User 1 or User 2 or User 3.
8. SPEED SHORTCUT KEYS:
Press to select 3/6/9 MPH when the treadmill is running.
9. INCLINE SHORTCUT KEYS:
Press to select 3/6/9 incline level when the treadmill is running.
DATA DISPLAY RANGE AND SETTING RANGE OF VARIOUS PARAMETERS:
DISPLAY
RANGE
PROGRAM
DEFAULT
MODE
DEFAULT
SET RANGE
SPEED(MPH)
0.6~10.0
┈ ┈ ┈
TIME(MIN)
0:00~99:59
30：00 30：00
1:00~99:00
DISTANCE(ML)
0~99.9
┈
1.0 1.0~99.9
CALORIES（CAL）
0-999
┈
50 10-990
INCLINE（INCL）
0-15
┈ ┈
0-15
STEPS
0-9999
┈ ┈ ┈
HEART RATE
50-195
┈ ┈ ┈
MANUAL MODE:
1. Press START, and the treadmill will start operating. The speed window will display “3,2,1” at the
same time. The initial speed is 0.6 MPH.
2. Press SPEED + / SPEED – or speed shortcut keys to adjust speed.
3. Press INCLINE +/ INCLINE – or incline shortcut keys to adjust the incline.
4. When the treadmill is running, press PAUSE / STOP to pause / stop the treadmill.
5. To stop the treadmill immediately, remove the Safety Key (No. 109).
SET UP COUNTDOWN MODE
1. Turn on the treadmill. The treadmill will be in standby mode. Press MODE key to select time
countdown mode, distance countdown mode, or calories countdown mode. Press START to
start the treadmill.
2. To set countdown mode:
a. In manual mode, press MODE key to enter time countdown mode. The initial time is 30:00.
Set countdown time by pressing SPEED + / SPEED - or INCLINE + / INCLINE -. Time setting
range: 1:00 - 99:00. Value is in increment of 1 min. Press START to start the treadmill. If you
do not press START key and you press MODE key again, the time value you set will be
cleared and treadmill will go into distance countdown mode.
b. Press MODE key to enter distance countdown mode. The initial distance is 1.0 MI. Set the
distance by pressing SPEED + / SPEED – or INCLINE + / INCLINE –. Distance setting range:
1.0 – 99.9 MI. Value is in increment of 0.1 mile. Press START to start the treadmill. If you do
not press START key and you press MODE key again, the distance value you set will be
cleared and treadmill will go into calories countdown mode.
c. Press MODE key to enter calories countdown mode. The initial calories will be displayed as
50.0 kcal. Set the calories by pressing SPEED + / SPEED – or INCLINE + / INCLINE –.
Calories setting range: 10 - 990 kcal. Value increases in increment of 10 kcal. Press START to
start the treadmill. If you do not press START and you press MODE key again, the calories
value you set will be cleared and treadmill will go into standby mode.
14
SET UP PROGRAM:
(Speed is in MPH)
Press "P"（program） key to select a mode from P01 to P24, and use the SPEED+ / -or INCLINE + / - key to
set the time (time range: 1:00 ~ 99:00, default: 30: 00), press the START key to execute the program, the
treadmill moves according to the fixed program preset value, the Time changes once every interval (Time/10)
*60 seconds, the speed can be adjusted through the SPEED+ / SPEED- keys, shortcut keys, the INCLINE can
also be adjusted through the INCLINE +./ INCLINE- or incline shortcut keys.but the program default value is
restored in the next section of the program. Each program changes 10 paragraphs (see fixed program table for
fixed program values). Press START to start, or STOP to exit.
Section
Program
SET UP TIME / 10 = RUNNING TIME FOR EACH SECTION
1 23 4567 8 9 10
P1
SPEED 2 2 3 4 5 3 4 5 5 3
INCLINE 0 7 7 6 6 5 5 4 4 3
P2
SPEED 2 3 4 5 6 4 6 6 6 4
INCLINE 0 3 3 5 5 7 7 9 9 7
P3
SPEED 2 4 4 6 6 4 7 7 7 4
INCLINE 0 5 5 5 6 8 5 5 5 3
P4
SPEED 2 5 5 6 6 6 6 4 4 2
INCLINE 3 2 3 4 5 6 3 3 2 1
P5
SPEED 3 3 5 7 6 6 8 5 5 8
INCLINE 2 2 3 4 5 6 4 4 6 5
P6
SPEED 3 8 8 7 8 6 8 6 4 2
INCLINE 1 2 3 4 5 6 2 5 6 5
P7
SPEED 3 4 6 6 8 6 8 7 5 6
INCLINE 2 3 4 5 6 7 8 7 3 4
P8
SPEED 3 5 6 7 8 8 7 8 4 7
INCLINE 0 3 3 5 5 7 7 9 9 7
P9
SPEED 4 7 3 7 7 7 8 8 5 8
INCLINE 0 2 2 3 3 2 2 3 4 2
P10
SPEED 4 5 3 8 8 8 8 8 4 8
INCLINE 1 3 5 6 5 4 3 3 4 5
P11
SPEED 4 8 6 8 7 6 6 8 5 8
INCLINE 9 8 7 6 5 4 3 3 4 5
P12
SPEED 4 4 7 8 2 8 8 8 8 8
INCLINE 4 4 2 2 3 2 2 2 1 3
P13
SPEED 2 4 4 6 6 4 7 7 7 4
INCLINE 5 5 8 7 5 5 6 9 3 5
P14
SPEED 2 5 5 6 6 6 6 4 4 2
INCLINE 1 1 2 3 4 5 5 4 3 2
P15
SPEED 3 3 5 7 6 6 8 5 5 8
INCLINE 4 5 6 7 7 6 5 4 3 2
P16
SPEED 3 8 8 7 8 6 8 6 4 2
INCLINE 5 4 3 2 1 1 2 3 4 5
P17
SPEED 3 4 6 6 8 6 8 7 5 6
INCLINE 4 5 6 7 7 6 5 4 3 2
P18
SPEED 3 5 6 7 8 8 7 8 4 7
INCLINE 3 5 5 7 5 5 3 3 2 0
P19
SPEED 4 7 3 7 7 7 8 8 5 8
INCLINE 2 2 2 2 3 3 3 2 2 2
P20
SPEED 4 5 3 8 8 8 8 8 4 8
INCLINE 3 3 4 5 6 7 8 5 5 0
P21
SPEED 4 8 6 8 7 6 6 8 5 8
INCLINE 3 4 5 5 4 3 3 4 5 0
P22
SPEED 4 4 7 8 2 8 8 8 8 8
INCLINE 3 3 3 3 4 4 4 5 3 0
P23
SPEED 2 2 3 4 5 3 4 5 5 3
INCLINE 0 4 4 3 3 2 2 5 2 1
P24
SPEED 2 3 4 5 6 4 6 6 6 4
INCLINE 0 5 5 3 3 5 5 3 3 4
15
USER MODE
1. In standby mode, press USER key to enter USER mode.
2. Press USER key to choose U1 U2 or U3. Press ENTER key to confirm.
3. Press UP/DOWN keys to set time value. Press ENTER key to confirm.
4. Press SPEED + / SPEED – to set speed for each section. Press INCLINE + / INCLINE – to set
incline for each section and press enter key to confirm.
5. Press START key to exercise.
SLEEP MODE
If there is no operation for 10 minutes in standby mode, the console will enter Sleep Mode. And the
heart rate monitor will disconnect with the console. Press any button to wake up the console, then
the console will enter standby mode.
SAFETY KEY FUNCTION
Safety key is for emergency stop. Remove the Safety Key (No. 109) in any mode, and the treadmill
will slow down rapidly until it stops. The console will display E0 in speed window.
USB CHARGING FUNCTION
The USB connection port of the electronic watch can charge the mobile phone through the data
cable. (5V---2A)
TECHNICAL DATA
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5Mhz
Transmitting Power: 0dBm
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen prompts
to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session, and
recorded in your account profile!
16
TROUBLE SHOOTING
Error code Explanation Trouble shootin
g
E0
Safety key
drop off
Please check whether the safety key is well connected or
not.
E01
Communication
fault.
Please check whether the signal connecting wire are in
g
ood condition or well connected.
E02
Overcurrent
protection.
1. Please keep the treadmill running and check whether
the motor is blocking.
2. Please keep the treadmill running and check whether
the load wei
g
ht is too heav
y
, such as user's wei
g
ht.
E03 Overload protection.
1. Please keep the treadmill running and check whether
the motor is blocking.
2. Please keep the treadmill running and check whether
the load wei
g
ht is too heav
y
, such as user's wei
g
ht.
E06
Incline self-checking
fault.
Please check if the Incline motor is in good condition or the
wires of the motor are well connected
E08
Speed signal
missin
g
Pls Check speed sensor connection or change speed
senso
r
or check motor is in
g
ood condition.
E11
Low voltage
protection
Please check the voltage of the socket.
E12
Over voltage
protection
Please check the voltage of the socket.
E13 Motor protection Please check the volta
g
e of the socket.
E14
Motor stuck
protection
Please check if anything blocks the motor.
E15 Incline sensor fault Please chan
g
e the incline moto
r
.
E16 Motor error.
Please check whether the motor is well connected to the
Controller. If it is well connected, please check if the motor
is broken. Suggest to use multi-meter to measure the
internal resistance of the moto
r
.
E17
Motor over current
protection
Check if anything blocks the motor.
E18 Motor over heat Check if an
y
thin
g
blocks the motor.
E19 Stall
1. Wait 3 minutes after the power is off, and then check
whether the power is restored.
2. After the power off, push off the running belt with your
feet to see if you want to use a lot of force, if so, please
add lubricating oil to the running belt maintenance, or
adjust the tightness of the running belt until you can easily
push off the running belt after the power is used.
3. Contact the after-sales service to replace the controller.
4. Contact the afte
r
-sales service to replace the motor.
NOTE:
If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide
or scan the QR code below:
If you require additional support, please contact support@sunnyfit.com.
17
EXPLODED DIAGRAM
18
PARTS LIST
No. Description Spec. Qty.
No. Description Spec. Qty.
1 Incline Frame 1
60 Column Lower Cover 2
2 Transportation Wheel 2
61 Column Outer Cover Left 1
3 Screw M8*P1.25*45L*S15 2
62 Column Inner Cover Left 1
4 Sleeve Φ25*Φ15*5.8 4
63 Column Inner Cover Right 1
5 Screw M8*P1.25*42L*S12 2
64 Column Outer Cover Right 1
6 Nut M8*P1.25*7T 6
65 Handle Bar Folding Switch 2
7 Main Frame 1
66 Isolate Pad 4
8 Motor Fixing Plate 31*64*4T 1
67
Umbrella Head Cross Self-
tappin
g
Screw
ST3.9*25L 8
9 Column Fixing Plate 42.5*62*4T 2
68 Umbrella Head Cross Screw
M4*P0.7*12L,
Umbrella Head Φ8
2
10 Upper Column Fixing Pad Rubber 2
11 Lower Column Fixing Pad Rubber 2
69
Umbrella Head Hexagon Socket
Screw
M8*P1.25*23L*S10 2
12 Running Board Cushion Pad Rubber 2
70 Console Set 1
13 Motor Lower Cover 1
71 Tablet Holder 1
72 Cable Fixing Base 2
14 Motor Upper Cover 1
73 Console Upper Cover 1
15 Power Switch Box 1
74 Console Lower Cover 1
16 Upper Foot Rail Left 1
75 Left Handle Bar External Cover 1
17 Lower Foot Rail Left 1
76 Left Handle Bar Inner Cover 1
18 Upper Foot Rail Right 1
77 Right Handlebar Inner Cover 1
19 Lower Foot Rail Right 1
78 Right Handlebar External Cover 1
20 Foot Pad Cover 2
79 Console Board Frame 1
21 Spring Φ15*Φ12*Φ1.5*60 2
80 Tablet Holder Cover 1
22 Motor Fixing Plate 91*18*4T 1
81 Tablet Holder Upper Cover 1
23 Motor Cushion Pad 74*18*2T 2
82 Tablet Holder Lower Cover 1
24 Fixing Pin Φ15.9*Φ11.5*M6*86 2
83 Tablet Holder Clip 1
25 Square Wire Buckle 1
84 Bottle Holder 2
26 Front Roller Φ60*Φ42*Φ17*552(592) 1
85 Tablet Holder Elastic Thread Φ2.2*950L 1
27 Rear Roller Φ42*Φ17*530(680) 1
86 Tablet Holder 1 299*85.6*1.5T 1
28 Running Belt 2810*510*1.4T 1
87 Tablet Holder 2 308*9*1.5T 1
29 Running Board 584*1283*18T 1
88 Bottle Holder Pad Φ80*1.5T 2
30 Cylinder Cushion Pad Φ25*M6*28 4
89 Heart Rate Sensor 85.5*8.3*0.3T 4
31 Pad For Incline Frame 1
90 Handle Bar Fixing Pin Φ8*10*Φ5*27.5 2
32 Wire rope holder 150*23*15 2
91 Handle Bar Fixing Pin Spring Φ7.5*Φ5.9*Φ0.8*18 2
33 Driving Belt 1
92 Circlip Φ4.7*0.6T 2
34 Foot Supporting Pad 2
93 Safety Key Fixing Base 1
35 Foot Supporting Pad Spacer 2
94 Magnet For Safety Key Φ10*7 1
36 Foot Supporting Pad Axle 2
95 Copper Sheet 33*7*0.3T 2
37 Metal Cable 1460L, 70L 2
96
Cross Half Round Head Self-
tappin
g
Screw
ST2*5L 2
38 Screw M4*P0.7*8L 9
97
Umbrella Head Cross Self-
tappin
g
Tail Screw
ST3.9*8L 13
39 Screw ST3.9*14L 81
98
Umbrella Head Cross Self-
tappin
g
Tail Screw
ST2.9*8L 16
40 Screw M4*P0.7*10L 8
99
Umbrella Head Cross Self-
tappin
g
Screw
ST2.5*8L 2
41 Hexagonal Socket Head Screw M6*P1.0*10L 8
100
Cross Recessed Countersunk
Head Tappin
g
Screws
ST2.0*6L 30
42 Hexagonal Socket Head Screw M8*P1.25*14L 4
101
Cross Recessed Countersunk
Head Screw
M4*P0.7*10L 2
43 Hexagonal Socket Head Screw M8*P1.25*55L*S20 2
102 Console Communication Cable Length 350mm 1
44 Flat Spacer Φ10*Φ20*2T 2
103 Safety Key Cable Length: 300mm 1
45 Nylon Nut M10*P1.5*9T 2
104
Hear Rate Sensor Cable Left
Side
Length: 600mm 1
46 Hexagon Headed Bolt M10*P1.5*45L*S15 1
105
Hear Rate Sensor Cable Right
Side
Length 900mm 1
47 Hexagon Headed Bolt M10*P1.5*60L*S15 1
106 USB Charger Cable Length 300mm 1
48 Hexagonal Socket Head Screw M8*P1.25*55L 2
107 Film Of Console 579*62 1
49 Hexagon Headed Bolt M8*P1.25*30L 1
108 Console Set 1
50
Umbrella Head Hexagon Socket
Screw
M8*P1.25*25L*S12 4
109 Safety Key 1
51 Motor Controller 1
110 Allen Wrench 6mm*80mml*130mml 1
52 Brushless Motor 1
111 U-Cap 4
53 Incline Motor 1
112 Filter 1
54 Frame Communication Cable Length: 1300mm 1
113 Filter Fixing Plate 1
55 Rocker Switch 1
114 Hexagon Nut 2
56 Black Connection Cable Two Ends 1 115 Spring Washer 8
57 White Connection Cable Two Ends 1 116 Spring Washer 4
58 Power Cord Length 2000mm 1 117 Flat Washer 4
59 Side Column 1 118 Flat Washer 4
Version 1.1
19
