easy cooking&healthy eating
HYS-AFO-01A
USER MANUAL
2
TABLE OF CONTENTS
USER MANUAL
Important Safeguards..................................3-5
Know Your Air Fryer Oven.........................6-7
Before First Use................................................8
Using Your Air Fryer Oven.......................9-10
Convection Tips................................................11
Troubleshooting.............................................12
Cleaning&Maintenance................................13
How To Set..................................................14-16
Accessories Instructions.........................17-22
Accessories Combination.....................23-24
About HYSapientia Air Fryer Oven...........
QUICK GUIDE
25
Frequently Asked Questions......................26
1. Read all instructions.
2.
3
This appliance is not intended
for use by persons (including
children younger than 8) with
reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge,
unless they have supervision.
3. Check if the voltage indicated
on the appliance corresponds
to the local main voltage before
you connect the appliance.
4. Do not use the appliance if
the plug, the main cord or the
appliance itself is damaged.
Always make sure that the plug
is inserted properly into a wall
outlet.
5. Do not operate any appliance
with a damaged cord or
plug, after the appliance
malfunctions, or has been
damaged in any manner.
Return appliance to the nearest
authorized service facility
for examination, repair, or
adjustment.
6. Close supervision is necessary
when any appliance is used
near children. Children should
be supervised to ensure that
they do not play with the
appliance. Cleaning and user
maintenance shall not be done
by children unless they are
older than 8 and supervised.
7. Do not let the cord hang over
the edge of the table or counter
or touch hot surfaces.
8. To protect against electric
shock, do not immerse cord,
plugs, or appliance in water or
other liquid. Do not plug in the
appliance or operate the control
panel with wet hands.
9. Never connect this appliance
to an external timer switch or
separate remote-control system
in order to avoid a hazardous
situation. To disconnect, turn o
the appliance, then remove plug
from wall outlet.
10.Do not place the appliance on
or near combustible materials
such as a tablecloth or curtain.
The accessible surfaces may
become hot during use. Do not
place on or near a hot gas or
electric burner, or in a heated
oven.
11. Do not place the appliance
against a wall or against other
appliances. Leave at least 4
inches of free space on the
back and sides and 4 inches of
free space above the appliance.
Do not place anything on top of
the appliance.
12.Do not use the appliance
for any other purpose than
described in this manual. The
use of accessory attachments
not recommended by the
appliance manufacturer may
cause injuries.
13. Do not let the appliance operate
unattended. Extreme caution
must be used when moving an
appliance containing hot oil or
other hot liquids.
14.Do not use outdoors.
15.Do not touch hot surfaces and
IMPORTANT SAFEGUARDS
When using electric appliances, basic safety precautions should always
be followed:
IMPORTANT SAFEGUARDS
4
IMPORTANT SAFEGUARDS
the air outlet on the back; use
the handle. During air frying,
hot steam is released through
the air outlet. Keep your hands
and face a safe distance from
steam and vents. Also be aware
of hot steam and air when
removing the air conditioner.
SAVE THESE INSTRUCTIONS
Pan from device.
16.After using the appliance, avoid
contact with the hot metal
not in use and before cleaning.
Allow to cool before cleaning
the appliance.
17. Immediately unplug the
than intended use.
19.
appliance if you see dark
smoke coming out of the
appliance. Wait for the smoke
emission to stop before you
remove the pan from the
appliance.
18. Do not use appliance for other
Use extreme caution when
removing tray or disposing of
hot grease.
20. Do not clean with metal
appliance when in operation.
inside. Unplug from outlet when
be exercised when using
containers constructed of
anything other than metal or
glass.
24. Do not store any materials,
other than manufacturers
recommended accessories, in
this oven when not in use.
25. Do not place any of the
following materials in the oven:
paper, cardboard, plastic, and
the like.
26. Turn o the appliance by
wear oven mitts and use the
pressing START/STOP.
27. For household use only.
28. It is recommended that you
included tray handles to remove
cooked food.
29. After the oven is finished, the fan
will continue to work to achieve
the effect of heat dissipation.
When the oven door is opened
after cooking, please do not put
your face close to the oven to
avoid being
burned by the hot air.
30. Choose suitable accessories
according to different cooking
purposes.
Please remove the grill pan, grill
or air fryer basket when all
accessories are cool.
31. Do not heat plastic, wood glass,
glazed china, beverage cans and
nonfood items in the oven.
scouring pads. Pieces can
break o the pad and touch
electrical parts, creating a risk
of electric shock.
21. Oversize foods or metal
shock.
22. A fire may occur if the toaster-
oven is covered or touching
flammable material,
utensils must not be inserted
in a toaster-oven as they may
create a fire or risk of electric
including
curtains, draperies, walls, and
the like, when in operation. Do
not store any item on top of the
23. Extreme caution should
5
32. The air fryer does not have a microwave function, so if you want to
heat food, you can wrap it in tin foil and heat it at 210°F.
33. Do not use this product near showers, bathtubs, washbasins,
swimming pools, etc. Do not rinse this product with water.
IMPORTANT SAFEGUARDS
Power:
• A short power-supply cord is provided to reduce risk of becoming
entangled in or tripping over a longer cord.
• Extension cords may be used if care is exercised in their use.
• If an extension cord is used:
a. The marked electrical rating of the extension cord should be at least
equal to the electrical rating of the appliance; and
b.The longer cord should be arranged so that it will not drape over
the countertop or tabletop where it can be pulled on by children or
tripped over.
CORD SAFETY
* Attention
120V 60HZ 1800W
:
When used for the first time, white smoke and odor are normal.
6
FOR CUSTOMER SERVICE VISIT WWW.GOURMIA.COM OR CALL 888.552.0033
KNOW YOUR AIR FRYER O
VEN
KNOW YOUR AIR FRYER OVEN
7.Bake Tray
8.Oven Rack
9.Air Fryer basket
1. Key Panel
2. Glass Door
3. Door Handle
4. Power Cord
5. Fetch Rack
6. Crumb Tray
10.Rotisserie
ControlPanel
7
KNOW YOUR AIR FRYER OVEN
1.Power ON/OFF Button
3.LED display
5.Time Control Button
7.Light Button
2. Start/Pause
4.Adjusting knob
6.Temperature Control Button
8.Fan Speed Button
8
FOR CUSTOMER SERVICE VISIT WWW.GOURMIA.COM OR CALL 888.552.0033
BEFORE FIRST USE
BEFORE USING FOR THE FIRST TIME
1. Remove all packaging stickers, and labels from the unit.
2. Wash the Fry Basket, Oven Rack, Baking Pan, and Crumb
Tray with hot water, some dishwashing liquid, and a non-
abrasive sponge. Dry before placing trays into Air Fryer Oven.
3. Place the Crumb Tray in the bottom of the Air Fryer Oven.
CAUTION:
• Do not place the Air Fryer Oven against a wall or against
other appliances. It is important to leave at least 4 inches of
free space on the back and sides, and 4 inches of free space
above the Air Fryer Oven to allow for proper ventilation.
• Do not put anything on top of the Air Fryer Oven.
BEFORE FIRST USE
The Air Fryer Oven preset function is only for the reference, the actual cooking
time & temperature can be setted according to the specific food
9
USING YOUR AIR FRYER OVEN
Operating Instructions
1.
Press the light button throughout the cooking process to observe cooking if
desired. Press the light button again to turn it off. The light will turn off after
4. Power ON/OFF Button
Use to start or stop the oven after set well.
one minute.
The oven has two speed fan working: low or high. One fan
speed light is on when fan works at low speed, while two fan
Product Features
1.The adjusting knob can be rotated clockwise or anticlockwise to
quickly switch modes and adjust time and temperature.
2.Highlight LED display, clear operation, real-time display of
temperature and remaining time.
3. Fan Speed Button
speed lights on under high fan speed works
Power on (power on initialization), standby mode The control panel is plugged
into the standby mode: the buzzer will give a beep.The Temperature LED
Display shows “OFF”.
2.power on
Short press the POWER button to start the machine, and the LED screen will
light up.The default mode is bread mode.It is shown as follows:
The bread symbol flashes, all other symbols are on, and the
duration, temperature and fan speed (Low speed shows small
blade symbol and High speed shows strong wind blade symbol) are
shown in the table below. The above process is defined as the
boot screen. When the adjusting knob is turned anticlockwise, the
flashing icon will move to the left, and when the adjusting knob is
turned clockwise, the flashing icon will move to the right. Press
start when mode is selected, and press again to enter the
pause process.
USING YOUR AIR FRYER OVEN
5. Light Button
10
FOR CUSTOMER SERVICE VISIT WWW.GOURMIA.COM OR CALL 888.552.0033
USING YOUR AIR FRYER OVEN
During Mode Operation：
1.Temperature display set temperature, time display minutes countdown.
Return to the boot screen when returning to zero.
2.Press the fan speed button to switch the wind speed. The preset program
of High wind is not allowed to adjust to Low wind speed.
3.Press the light button to turn the halogen lamp on or off. After forgetting
to turn OFF the halogen lamp for 60s, it will automatically turn OFF.
4.Press the time button to adjust the duration in the preset program,
clockwise rotation +5min, the maximum 60min, counterclockwise rotation
-5min, the minimum 5min. Every time you adjust the buzzer drop short tone.
5.After pressing the temperature button , the temperature control
temperature in the preset program can be adjusted by clockwise rotation of +
40
The process of running and pausing after pressing the mode: the time screen
flashes and the buzzer drops three times every 1min to remind the user.
°F, the maximum is 450°F, counterclockwise rotation of -40°F, the minimum is
140°F.Each adjustment of a buzzer drop short tone; Cake, dry, thaw mode, only
allowed in the program set temperature down.
Smart Programs
The oven designed several smart programs as bellow chart show. Smart programs
control cooking times and temperatures automatically. Select a smart program,
with function select knob, display show the time and temperature accordingly,
the icon will be light on. Press start button, oven work according selected smart
program.
When intelligent function,the power light is White breath flash;
When Toast function,the light will be Blue breath flash;
Function
Default Temp/Time
Adjusted
Temperature
/Time Range
Default Fan Speed
Adjustable
Fan Speed
Synchronous Motor
Toast
Bake
Fish
Dehydrate
Grill/Broil
Air Fry
Unfreeze
Steak
Pizza
Rotisserie
45０°F／５ｍｉｎ
280°F／４０ｍｉｎ
450°F／２５ｍｉｎ
160°F／２４０ｍｉｎ
450°F
450°F／２０ｍｉｎ
370°F／２０ｍｉｎ
140°F／３０ｍｉｎ
／１２ｍｉｎ
450°F／７ｍｉｎ
360°F／４５ｍｉｎ
140－450°F／５－６０ｍｉｎ
140－280°F／５－６０ｍｉｎ
140－160°F
140－450°F／５－６０ｍｉｎ
／５－９００ｍｉｎ
140－450°F
140－450°F／５－６０ｍｉｎ
／５－６０ｍｉｎ
140－450°F／５－６０ｍｉｎ
140－450°F
140－450°F／５－６０ｍｉｎ
／５－６０ｍｉｎ
100－160°F／５－６０ｍｉｎ
High
High
High
High
High
High
High
High
Low
Low
NO
NO
NO
NO
NO
NO
NO
NO
YES
YES
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
11
CONVECTION TIPS
CONVECTION TIPS
TIPS ON USING THE CONVECTION SETTING
Because convection cooks foods faster and is hotter, you can
reduce the cooking temperature by 25°, and check for doneness
three quarters of the way through the cook time.
Foods that are covered benefit from the convection's even heat and
will cook faster without any moisture loss.
The high temperature air circulation produces roasted foods that
are golden brown on the outside and juicy and tender on the inside.
Even cooking means that you can use more than one rack and you
do not have to turn foods or rotate baking trays.
Below are foods that benefit from the convection setting and
when to use it:
Convection roast:
Meat, vegetables, whole fish
Convection Bake:
Pies, pastries, cookies, biscuits
Convection Broil:
Meat, fish, for melting cheese, for browning the top of casseroles
Pizza:
• Use the lower rack position and check often so the cheese
does not burn.
• Start with no convection and then turn on convection for the
last few minutes to brown cheese.
Additional tips:
•
•
Make sure air can circulate around food and pans.
Use trays, roasting pans, and baking pans with lower sides.
12
TROUBLESHOOTING
TROUBLESHOOTING
Problem Solution
The Air Fryer Oven
does not work
Ensure the unit is plugged into a dedicated
power outlet.
Food is not cooked
Use smaller batches for more even cooking
Raise temperature and continue cooking
Food is not fried
evenly
Turn over food halfway through cooking
process
Cook similar sized foods together
French Fries are not
cooking evenly
Fry less potatoes at a time
Blanch potatoes before frying
Use firm, fresh potatoes cut into sticks
Fries are not crispy
Remove excess water from potatoes
Cut potatoes into more narrow strips
Mist with a little more oil
White smoke is
coming out of the
Air Fryer Oven
Clean the Air Fryer Oven and accessories
after each use to remove greasy residue
13
CLEANING & MAINTENANCE
CLEANING & MAINTENANCE
WARNING: Never immerse cord, plugs, or appliance in water or other
liquid.Do not plug in the appliance or operate the control panel with
wet hands.
• Clean the appliance after every use.
• Always unplug the appliance and let it cool down completely
before
cleaning.
• Never clean with abrasives or caustic products appliance.
STORAGE
• Unplug the appliance and let it cool down.
• Make sure all parts are clean and dry.
• Store the appliance in a clean and dry place.
ENVIRONMENT
Do not throw away the appliance with the normal household waste
at the end of its life, but hand it in at an ocial collection point for
recycling. By doing this, you help to preserve the environment.
• Dishwasher clean accessories, or hand wash with nylon Score pad or
brush in warm soapy water.
• Before first use, wash all accessories in hot water,detergent and a
non-abrasive sponge, then wipe the interior and exterior
Wipe the air fryer with a damp cloth.
• Always place the crumb tray on the bottom of the cooking
Collects oil from fried food and cleans easily.
• For easier cleanup, it is recommended to line the baking sheet with
crumbs Tray with aluminum foil.
• For a deep clean, soak accessories in warm soapy water overnight
And scrub with a non-abrasive brush or sponge.
• For cleaning the
inside
and outside of the oven, it is recommended to
use an oven cleaner and wipe with a damp cloth or non-abrasive
sponge.
1. To start the oven, hard press turn on the switch.
2.
14
HOW TO SET
HOW TO SET
To turn off the oven, hard press the switch three seconds.
FREE SETTING
Adjust freely according to your needs
FREE SELECTION MODE 1
Step 1: Plug in the power supply and turn on the use switch.
Step 2: Select the toaster (first icon on the LED screen).
Step 3: Press the time button then set up the cooking time via
turning the knob.
Step 4: Press the temperature button, then set up the cooking
temperature via turning the knob.
Step 5: Press the start button.
HOW TO SET
15
HOW TO SET
FREE SETTING
FREE SELECTION MODE 2
Step 1: Plug in the power supply and turn on the use switch.
Step 2: Select the bake. (second icon on the LED screen)
Step 3: Press the time button then set up the cooking time via
turning the knob.
Step 4: Press the temperature button then set up the cooking
temperature via turning the knob.
Step 5: Press the fan button you can choose the high/low speed fan.
(mainly for bake function)
Step 6: Press the start button.
16
HOW TO SET
HOW TO SET
PRESET MODE
Settings to quickly cook your favorite meals
Step 1: Plug in the power supply and turn on the use switch.
Step 2: Turn the knob to select the cooking mode via the LED
screen.(toast/cake/fish/dehydration/chicken/ chips/warm/steak/
pizza/Rotisserie)
Step 3: Press the start button.
Note:
Please close the glass door after pressing the power button.
Instructions for use included in the package.
During operation, do not directly touch the outside of the oven
with your hands.
Please wash in time after use.
ACCESSORIES INSTRUCTIONS
COMPLIMENTARY ACCESSORIES
Oven Cavity Diagram
Crumb Tray
12.8×11.7inch
Function:
Intercepts grease and crumbs
that fall out during food
cooking.
Installation Method:
Place the Crumb Tray under
the bottom heating tube as
shown in the picture.
Cooking advise:
No food contact
Position: 4
Bake Tray
12.9×11.2inch
Function:
Pans have depth to better
hold food and receive hot air
from the top.
Installation Method:
Place the Bake Tray on level 1.
2.3
Cooking advise:
Pie/Cake/Pizza/
Whole Chicken
Position: 1 2 3
17
ACCESSORIES INSTRUCTIONS
ACCESSORIES INSTRUCTIONS
COMPLIMENTARY ACCESSORIES
Oven Rack
12.9×10.9inch
Function:
Use an Oven Rack to allow
hot air to heat food evenly
from the top fan and bottom
heat pipes.
Installation Method:
Place the Oven Rack on level
1.2.3
Cooking advise:
Steak/Chicken/Fish/Toast/
Potato/Sausage
Position: 1 2 3
Oven Cavity Diagram
Air Fryer Basket
13.1×10.6×1.2inch
Function:
Air Fryer Basket can hold
more small and large
quantities of food.
Installation Method:
Place the Air Fryer Basket on
level 1.2.3
Cooking advise:
Fries/Chicken Nuggets/
Potato Wedges/Doritos
Position: 1 2 3
ACCESSORIES INSTRUCTIO
18
NS
ACCESSORIES INSTRUCTIONS
COMPLIMENTARY ACCESSORIES
Oven Cavity Diagram

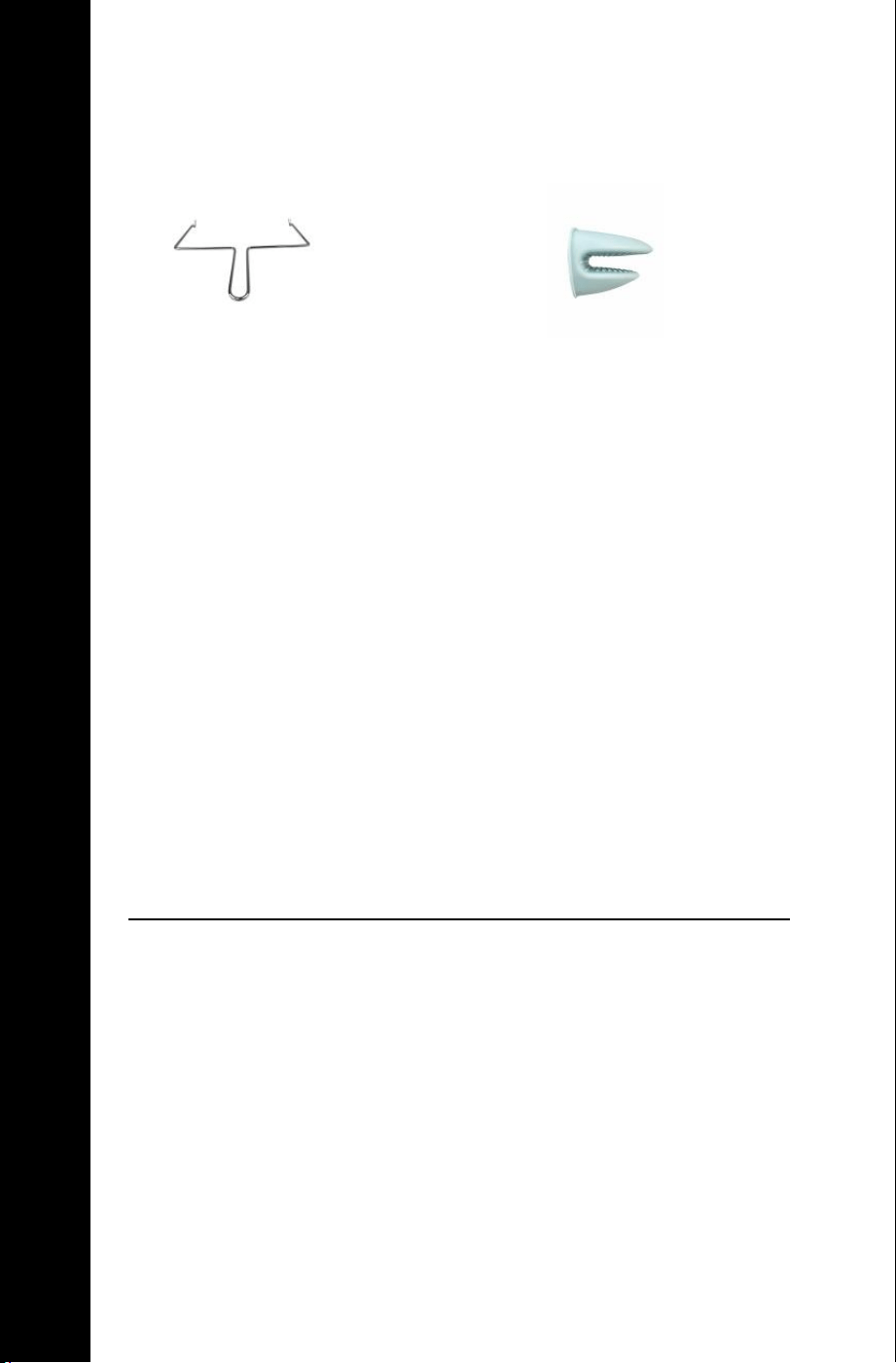

Fetch Rack
10.9×5.5inch
Function:
Use Fetch Rack to install and
remove the rotisserie rack.
Installation Method:
1.When installing, align both ends
of the same letter, first align the
B end, and then install the A end.
2.When taking out, lift end A first,
and pull out end B outwards.
Cooking advise:
No food contact
Gloves
Function:
Use Gloves to remove all
accessories after cooking to
prevent burns.
Installation Method:
Wear gloves and move hot
accessories.
Cooking advise:
No food contact
19
ACCESSORIES INSTRUCTIONS
ACCESSORIES INSTRUCTIONS
COMPLIMENTARY ACCESSORIES
Rotisserie Rack
Oven Cavity Diagram
12.5×2inch
Function:
Rotisserie Rack can fix larger food and the synchronous motor in
the oven makes the food rotate 360 degrees in the oven to
achieve the best cooking effect.
Installation Method:
1.Pass the shaft through the fork, adjusting the distance of the fork
according to the size of the food.
2.Pass the screw through the hole above the fork and tighten to
secure the fork.
3.When installing, align the two ends of the same letter, first align
the B end, and then install the A end.
Cooking advise: Position: 5
Whole Chicken/Pork Knuckle
ACCESSORIES INSTRUCTIO
20
NS
ACCESSORIES INSTRUCTIONS
OPTIONAL ACCESSORIES
Panini Maker Mold Kebab Rotary Rack
10×6.5inch
Cooking advise:
Panini/Sandwich
Rolling Grill Basket
7.1×4.7×4.7inch
Cooking advise:
Fries/Chicken Nuggets
7.1×5.5inch
Cooking advise:
Chicken Kebabs/
Mutton Kebabs
Air Fryer Basket

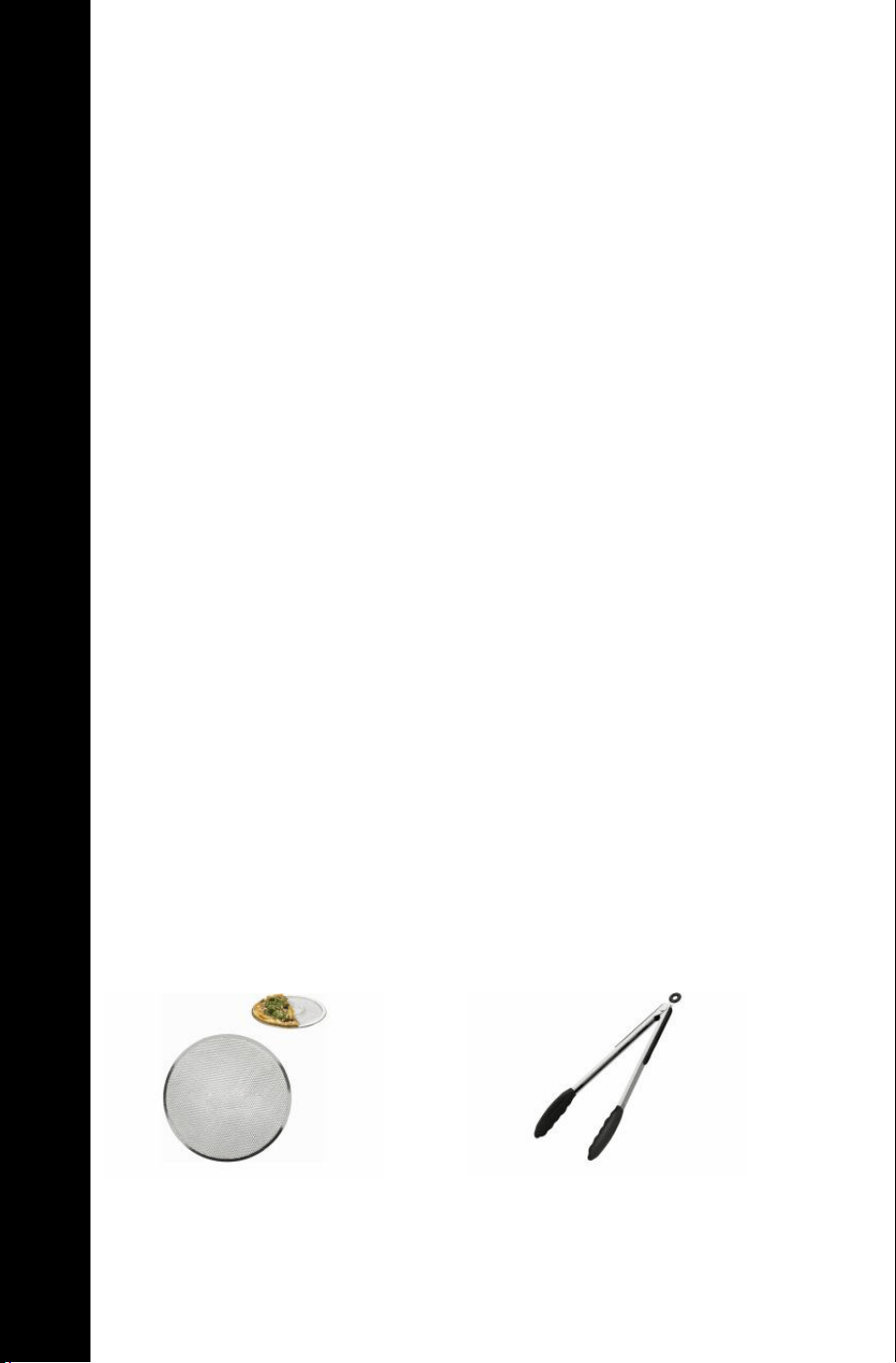

Pizza Baking Sieve
11.9×9.7×1.7inch
Cooking advise:
Fries/Chicken Nuggets
Kitchen Tongs
d:10inch
Cooking advise:
Pizza
10.6×1.5inch
21
ACCESSORIES INSTRUCTIONS
ACCESSORIES INSTRUCTIONS
WARNING&TIPS
1. Optional accessories need to be purchased separately.
2. Be careful not to reverse the ends of the Rotisserie, otherwise it will
cause motor failure.
3. The Crumb Tray must be placed in the designated position - under
the bottom heating tube.
4. All accessories are dishwasher safe.(except gloves)
5. Please refrain from touching the items with your hands until they
have cooled.
6. Place a foil-wrapped tray under the grill to reduce cooking fumes.
7. Please put the chicken rack out of the reach of children to avoid
accidentally swallowing the screws.
8. Please do not heat the gloves in the oven.
9. Some special foods may cause the accessories to be stained after
heating, but the accessories themselves will not fade.
10. When cooking with multiple accessories at the same time place the
tray on the bottom (third level) to avoid blocking the hot air from the
top.
ACCESSORIES INSTRUCTIO
22
NS
ACCESSORIES COMBINATION
COMPLIMENTARY ACCESSORIES
Combination 2
Air Fryer Basket
Combination 1
Oven Rack
Bake Tray Bake Tray
Combination 3
Air Fryer Basket
Oven Rack
Combination 4
Air Fryer Basket
Oven Rack Bake Tray
Combination 5
Rotisserie Rack
23
ACCESSORIES COMBINATION
ACCESSORIES COMBINATION
OPTIONAL ACCESSORIES
Combination 1
Three Oven Racks
Combination 2
Three Air Fryer Baskets
Combination 4
Two Oven Racks
Combination 3
Two Oven Racks
Air Fryer Basket Bake Tray
Combination 5
Rolling Grill Basket
24
ACCESSORIES COMBINATION
ABOUT HYSAPIENTIA AIR FRYER OVEN
How HYSapientia Air Fryer Oven works?
HYSapientia Air Fryer Oven is combined with both normal oven and air
fryer function. It has upper and lower heating tubes + high-speed fan
structure, when the fan and heating tube operating together, it is
equivalent to having functions such as air frying, fast grilling/ baking/
roasting/dehydration etc...
How HYSapientia Air Fryer Oven differentiates from the Normal
Convection Oven?
1. HYSapientia Air Fryer Oven has high speed fan with the speed between
2000rpm. But Normal Convection Oven has low speed fan with the speed
only about 1000rpm.
2. HYSapientia Air Fryer Oven has the special air duct which can absorb
the air from two sides of the oven and generate 360°thermal cyclone on
the top of oven, then powerful hot wind causes the air fryer effect.
How HYSapientia Air Fryer Oven differentiates from the Normal Air Fryer?
1. HYSapientia Air Fryer Oven is made of the stainless steel, but most Air
Fryer is made of the plastic.
2. HYSapientia Air Fryer Oven has large capacity compare with most Air
Fryer Oven.
25
ABOUT HYSAPIENTIA AIR FRYER OVEN
FREQUENTLY ASKED QUESTIONS
Q1: Why can't I adjust the fan speed?
A1: The fan cannot be switched off, it can only be adjusted in bake or
unfreeze mode to adjust the speed of the fan.
Q2: How can I switch the air fryer oven to the oven function?
A2: You can select the Bake(cake) mode, which is an oven function with
temperature range of 140-280°F and time of 5-60 minutes.Also adjustable for
high and low speed fan.
Q3: What if my food is not cooked or over cooked when it's in preset mode?
A3: If the food is not cooked or over cooked in the certain preset mode, so
for next cooking you can slight adjust the temperature and time in this mode,
as the preset mode just for the reference.
Q4: Does the Air Fryer Oven have the microwave function?
A4: The air fryer oven does not have microwave function, if you want to
heat up the food, you can wrap it with aluminum foil and set the temperature
around 210°F.
Q5: What if the Air Fryer Oven fill with oily smoke when cooking?
A5: There is not just the heat tube on the top but also at the bottom of air
fryer oven, also the oven inner temperature could reach over 390°F when
operation. So if you cook the meat with rich fat, such as pork or lamb, the fat
burns become the oil and drip on the heat tube could cause the smoke,
because the smoke point of meat fat is around 450°F, so we strongly
recommended to place the bake tray cover with aluminum foil on the lower
level in the oven in order to intercepts grease that fall out. alternatively, you
can lower the cooking temperature under 390°F.
Q6: Why does the fan keep operating when the oven stop working?
A6: When the oven stopped and the temperature is above 180°F, the oven
heater will turn off and the fan will continue to run for a minute to help
dissipate the hot air inside and cool down the oven.
Q7: Why does moisture appear above the oven door frame?
A7: When cooking food with high water content, such as frozen food with
ice shards, the water vaporizes into water vapor due to temperature rise.
When the temperature is lowered, the water vapor on the surface will liquefy
into water droplets, which is a normal phenomenon.
26
FREQUENTLY ASKED QUESTIONS
