HYS-AFO-02A
easy cooking & healthy eating
Important Safeguards................................................3-5
Know Your Air Fryer Oven....................................6-7
Before First Use................................................................8
Using Your Air Fryer Oven...................................9-11
Convection Tips...............................................................12
Troubleshooting..................................................................13
Cleaning&Maintenance................................................14
How To Set........................................................................15
Accessories HYSapientia Air Fryer Oven....16
Accessories Instructions.................................17-22
Accessories Combination.............................23-24
Frequently Asked Questions...............................25
supervised to ensure that they do
not play with the appliance.
11. Do not let the cord hang over the
edge of the table or counter or
touch hot surfaces.
12.To protect against electric shock,
do not immerse cord, plugs, or
appliance in water or other liquid.
Do not plug in the appliance or
operate the control panel with wet
hands.
13. Never connect this appliance to
an external timer switch or
separate remote-control system
in order to avoid a hazardous
situation. To disconnect, turn off
the appliance, then remove plug
from wall outlet.
14. Do not place the appliance on
or near combustible materials
such as a tablecloth or curtain.
The accessible surfaces may
become hot during use. Do not
place on or near a hot gas or
electric burner, or in a heated oven.
15. Do not place the appliance against
a wall or against other appliances.
Leave at least 5cm of free space on
the back and sides and 5cm of free
space above the appliance. Do not
place anything on top of the
appliance.
16. Do not use the appliance for any
other purpose than described in
this manual. The use of accessory
attachments not recommended by
the appliance manufacturer may
cause injuries.
17. Do not let the appliance operate
unattended. Extreme caution must
be used when moving an
appliance containing hot oil or
other hot liquids.
1. Read all instructions.
2. The appliances are not intended
to be operated by means ofan
external timer or separate
remote-control system.
3. Hot surface.
4. If the supply cord is damaged,
it must be replaced by a special
cord or assembly available from
the manufacturer or its service
agent.
5. cleaning and user maintenance
shall not be made by children
without supervision.
6. This appliance is not intended
for use by persons (including
children younger than 8) with
reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge,
unless they have supervision.
7. Check if the voltage indicated
on the appliance corresponds
to the local main voltage before
you connect the appliance.
8. Do not use the appliance if
the plug, the main cord or the
appliance itself is damaged.
Always make sure that the plug
is inserted properly into a wall
outlet.
9. Do not operate any appliance
with a damaged cord or plug,
after the appliance malfunctions,
or has been damaged in any
manner.
Return appliance to the nearest
authorized service facility for
examination, repair, or
adjustment.
10. Close supervision is necessary
when any appliance is used near
children. Children should be
When using electric appliances, basic safety precautions should
always be followed:
18. Do not use outdoors.
19. Do not touch hot surfaces and
the air outlet on the back; use
the handle. During air frying,
hot steam is released through
the air outlet. Keep your hands
and face a safe distance from
steam and vents. Also be aware
of hot steam and air when
removing the accessories from
device.
20. After using the appliance, avoid
contact with the hot metal
inside. Unplug from outlet
when not in use and before
cleaning. Allow to cool before
cleaning the appliance.
21. Immediately unplug the
appliance if you see dark
smoke coming out of the
appliance. Wait for the smoke
emission to stop before you
remove the pan from the
appliance.
22. Do not use appliance for other
than intended use.
23. Use extreme caution when
removing tray or disposing of
hot grease.
24. Do not clean with metal
scouring pads. Pieces can break
off the pad and touch electrical
parts, creating a risk of electric
shock.
25. Oversize foods or metal utensils
must not be inserted in a
toaster-oven as they may create
a fire or risk of electric shock.
26. A fire may occur if the air fryer
oven is covered or touching
flammable material, including
curtains, draperies, walls, and
the like, when in operation. Do
not store any item on top of the
appliance when in operation.
27. Extreme caution should be
exercised when using
containers constructed of
anything other than metal or
glass.
28. Do not store any materials,
other than manufacturers
recommended accessories, in
this oven when not in use.
29. Do not place any of the
following materials in the oven:
paper, cardboard, plastic, and
the like.
30. Turn off the appliance by
pressing START/STOP.
31. For household use only.
32. It is recommended that you
wear oven mitts to remove
cooked food.
33. After the oven is finished, the
fan will continue to work to
achieve the effect of heat
dissipation.When the oven door
is opened after cooking, please
do not put your face close to
the oven to avoid being burned
by the hot air.
34. Choose suitable accessories
according to different cooking
purposes.Please remove the
bake tray, oven rack or air fryer
basket when all accessories are
cool.
35. Do not heat plastic, wood
glass,glazed china, beverage cans
and nonfood items in the oven.
36. The air fryer does not have a microwave function, so if you want to
heat food, you can wrap it in aluminium foil and heat it at 100°C.
37. Do not use this product near showers, bathtubs, washbasins,
swimming pools, etc. Do not rinse this product with water.
38. In order to ensure your safety and the stability of the product's
performance, we strongly advise against attempting to
disassemble the product without authorization. Product
disassembly may result in severe damage and void the warranty.
We do not take responsibility for any injuries or malfunctions
caused by unauthorized disassembly.
If you need to clean or repair the internal components of the
product, please follow these steps:
Wear gloves: Before engaging in any cleaning or maintenance
operations, ensure that you wear appropriate gloves.
Contact customer support: Before proceeding with any
disassembly, cleaning, or maintenance operations, please get in
touch with our customer support team. Our professional team will
provide you with detailed operational guidelines and advice.
By following the above steps, you can ensure not only safety but
also maximize the product's lifespan during maintenance.
39. Do not operate simultaneously with other high-power appliances to
prevent voltage overload and potential power interruption.
CORD SAFETY
• A short power-supply cord is provided to reduce risk of
becoming entangled in or tripping over a longer cord.
• Extension cords may be used if care is exercised in their use.
• If an extension cord is used:
a. The marked electrical rating of the extension cord should be at
least equal to the electrical rating of the appliance; and
b. The longer cord should be arranged so that it will not drape
over the countertop or tabletop where it can be pulled on by
children or tripped over.
:
When used for the first time, white smoke and odor are
normal.
Power:
220-240V 50/60HZ 1700W

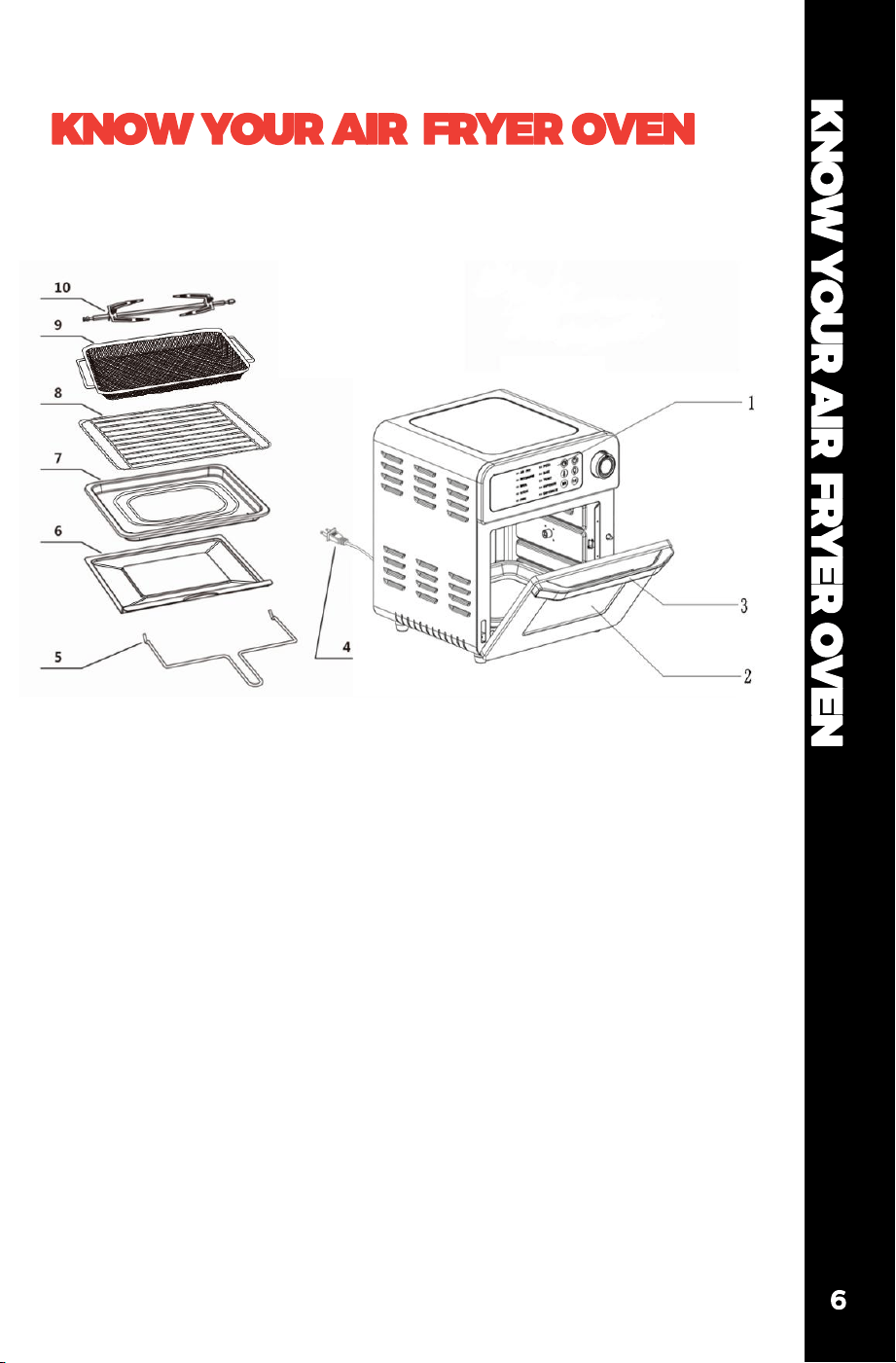

1. Control Panel
2. Glass Door
3. Door Handle
4. Power Cord
5. Fetch Rack
6. Crumb Tray
7. Bake Tray
8. Oven Rack
9. Air Fryer basket
10. Rotisserie

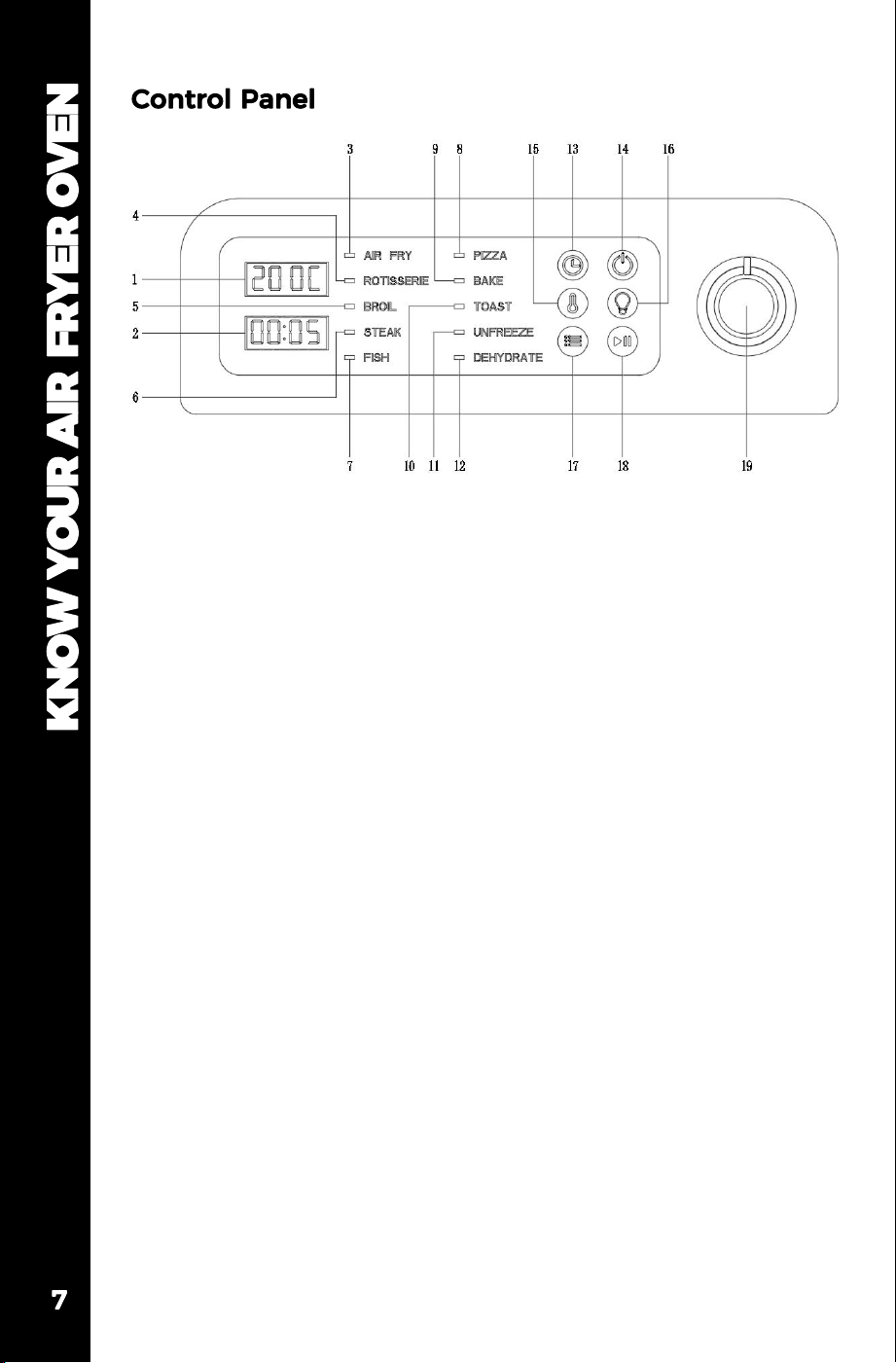

1.Temperature Display
2.Time Display
3.AIR FRY
4.ROTISSERIE
5.BROIL
6.STEAK
7.FISH
8.PIZZA
9.BAKE
10.TOAST
11.UNFREEZE
12.DEHYDRATE
13.Time Control
14.Power ON/OFF
15.Temperature Control
16.Light Switch
17.Menu Selection
18.Program START/STOP
19.Adjusting Knob
1. Remove all packaging materials before first use.
2. Wash the Air Fryer Basket, Oven Rack, Bake Tray, and Crumb
Tray with hot water, some dishwashing liquid, and a non-
abrasive sponge. Dry before placing trays into Air Fryer Oven.
3. Place the Crumb Tray in the bottom of the Air Fryer Oven.
• Do not place the Air Fryer Oven against a wall or against
other appliances. It is important to leave at least 5cm of free
space on the back and sides, and 5cm of free space above
the Air Fryer Oven to allow for proper ventilation.
• Do not put anything on top of the Air Fryer Oven.
2. Starting up
Press to start the machine, the program will be self-check, two rows
of menu indicators from top to bottom, from left to right turn on 0.1s;
Then the nixie tube lights up , displaying the default mode AIR FRY of
the program. The above process is defined as the boot interface.The
following information is displayed:
USING YOUR AIR FRYER OVEN
The Air Fryer Oven preset function is only for the reference, the actual
cooking time & temperature can be setted according to the specific food
Product Features
1. Full touch screen control, even wet hands can operate, do not
worry about oil/liquid entering.
2. Double layer cavity design, constant temperature baking.
3. Power ON/OFF
Start or stop the oven.
4. Program START/STOP
Start or stop the baking procedure.
5. Light Switch
During the whole cooking process, you can turn on the light by
pressing the light switch when you need to observe the cooking.Press
the light switch again to turn it off. The indicator will automatically
turn off after one minute of forgetting to turn it off manually.
Operating Instructions
1. Power on (power on initialization), standby mode
Plug the control board into the power supply and enter the standby
mode:
the buzzer rings once. Power switch display
USING YOUR AIR FRYER OVEN
9
3. Program Settings
a.After entering the boot interface, if you do not adjust the Settings,
press to directly start the program running, the will be on, and
press again after the program is running to enter the pause
process, and the will blink alternately.
b.Menu Settings
In the boot interface,press the ,it will be on.Turn the knob for menu
selection operation, and the 10 menu indicators beat circulatively with
the knob rotation.
After selecting the cooking mode, the screen indicator blinks for
five seconds. If no preset mode is chosen within this time, the
screen will be locked, and you must select the cooking mode again
before being able to choose a preset mode.

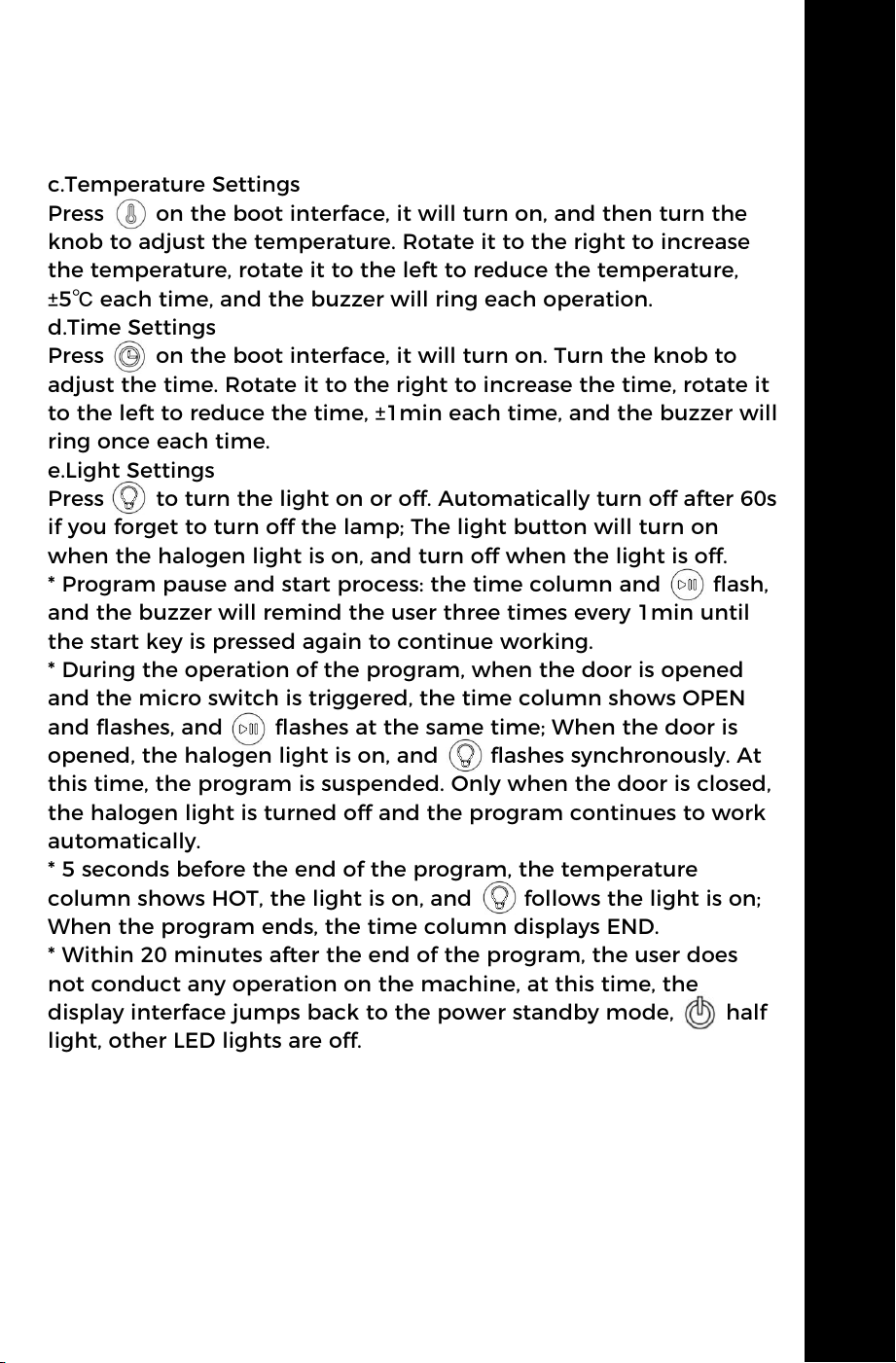

c.Temperature Settings
Press on the boot interface, it will turn on, and then turn the
knob to adjust the temperature. Rotate it to the right to increase
the temperature, rotate it to the left to reduce the temperature,
±5℃ each time, and the buzzer will ring each operation.
d.Time Settings
Press on the boot interface, it will turn on. Turn the knob to
adjust the time. Rotate it to the right to increase the time, rotate it
to the left to reduce the time, ±1min each time, and the buzzer will
ring once each time.
e.Light Settings
Press to turn the light on or off. Automatically turn off after 60s
if you forget to turn off the lamp; The light button will turn on
when the halogen light is on, and turn off when the light is off.
* Program pause and start process: the time column and flash,
and the buzzer will remind the user three times every 1min until
the start key is pressed again to continue working.
* During the operation of the program, when the door is opened
and the micro switch is triggered, the time column shows OPEN
and flashes, and flashes at the same time; When the door is
opened, the halogen light is on, and flashes synchronously. At
this time, the program is suspended. Only when the door is closed,
the halogen light is turned off and the program continues to work
automatically.
* 5 seconds before the end of the program, the temperature
column shows HOT, the light is on, and follows the light is on;
When the program ends, the time column displays END.
* Within 20 minutes after the end of the program, the user does
not conduct any operation on the machine, at this time, the
display interface jumps back to the power standby mode, half
light, other LED lights are off.
USING YOUR AIR FRYER OVEN
10
USING YOUR AIR FRYER OVEN
11
Preset Programs
As shown below, the oven comes with ten function options, as
well as default time, temperature status for each function. Select a
program, the display will show the time and temperature, and the
icon will light up. Press the start icon and the oven works
according to the preset program of your choice.
*The above parameters are only for reference. In order to improve
the cooking effect, the above parameters can be adjusted.
Function
Default
Temp
Default
Time
Temp
Range
Time
Range
Air Fry 190℃ 20min 60-230℃ 5min-1h
Rotisserie 180℃ 45min 60-230℃ 5min-1h
Broil 180℃ 20min 60-230℃ 5min-1h
Steak 190℃ 12min 60-230℃ 5min-1h
Fish 180℃ 25min 60-230℃ 5min-1h
Pizza 200℃ 7min 60-230℃ 5min-1h
Bake 140℃ 40min 60-140℃ 5min-1h
Toast 200℃ 5min 60-230℃ 5min-1h
Unfreeze 60℃ 30min 40-70℃ 5min-1h
Dehydrate 70℃ 240min 60-70℃ 5min-8h
12
AIR FRY TIPS
TIPS ON USING THE AIR FRY SETTING
The air fryer oven boasts excellent cooking speed. To achieve optimal
results, pay attention to the varying temperature requirements for
different foods, and it is advisable to avoid using excessively high
temperatures to ensure that the food retains its ideal texture and
nutritional value. You can check for doneness three quarters of the
way through the cook time.
Foods that are covered benefit from the air fry's even heat and will
cook faster without any moisture loss.
The high temperature air circulation produces roasted foods that are
golden brown on the outside and juicy and tender on the inside.
Even cooking means that you can use more than one rack and you
do not have to turn foods or rotate bake trays.
Below are foods that benefit from this air fryer oven and when to
use it:
Roast:
Meat, vegetables, whole fish, etc.
Bake:
Cake,pastries, cookies, biscuits, etc.
Broil:
Meat, pies,fish, for melting cheese, etc. for browning the top of
casseroles.
Pizza:
Use the lower rack position and check often so the cheesedoes not
burn.
Additional tips:
• Make sure air can circulate around food and trays.
13
TROUBLESHOOTING
Ensure the unit is plugged into a
dedicated power outlet.
The Air Fryer Oven
does not work
Food didn't get
crispy
Solution
Problem
Food is not
cooked
Use smaller batches for more even
cooking
Raise temperature and continue cooking
Food is not fried
evenly
Turn over food halfway through cooking
process
Cook similar sized foods together
White smoke is
coming out of the
Air Fryer Oven
Clean the Air Fryer Oven and accessories
after each use to remove greasy residue
Ensure that the food is evenly placed in the oven,
avoiding overlapping or overcrowding. This will
ensure smooth air circulation, leading to even
heating of the food.
Excessive moisture can make the food soft
instead of crispy. Before cooking, try to dry the
food as much as possible or remove any excess
moisture.
Make sure to place the food in the oven for a
sufficient amount of time as indicated in the
cook book, allowing it to fry to crispiness
completely.
French Fries are
not cooking evenly
Air Fry less potatoes at a time
Use firm, fresh potatoes cut into sticks
Synchronous
motor(Rotary) not
working
Make sure rotary rack is correctly installed
Select one of these five modes: AIR FRY,
ROTISSERIE,BROIL,FISH,DEHYDRATE
CLEANING & MAINTENANCE
14
CLEANING & MAINTENANCE
WARNING: Never immerse cord, plugs, or appliance in water or other
liquid.Do not plug in the appliance or operate the control panel with
wet hands.
• Clean the appliance after every use.
• Always unplug the appliance and let it cool down completely before
cleaning.
• Never use abrasive or corrosive products to clean the appliance.
• Utensils are dishwasher safe.
• Before the first use, clean all components with hot water,detergent,
and a non-abrasive sponge, then wipe the interior and exterior. Wipe
the air fryer with a damp cloth.
• Use a damp soapy cloth or sponge to clean the interior walls and
bottom of the oven. Avoid using acidic or abrasive cleaning products
as they may harm the oven's surface. It is recommended to use an
oven-specific cleaning agent. Also, do not use steel wool pads on the
air fryer oven or its accessories.
• Make sure to clean the bake tray every time you use it. Excess
food particles may smoke at high temperatures and can be difficult to
remove from the tray. To remove grease or burnt food particles from
the tray, you can soak it in hot soapy water or use a non-abrasive
cleaning tool. Do not operate the oven without the bake tray in place.
• Regularly clean the air fryer oven's air outlet to remove any excess
grease that may accumulate after cooking, preventing it from smoking
during subsequent use. Make sure the cleaning methods used adhere
to the manufacturer's recommendations and avoid using cleaning
agents containing acidic components.
STORAGE
• Unplug the appliance and let it cool down.
• Make sure all parts are clean and dry.
• Store the appliance in a clean and dry place.
ENVIRONMENT
Do not throw away the appliance with the normal household waste
at the end of its life, but hand it in at an official collection point for
recycling. By doing this, you help to preserve the environment.
Step 1: Plug in the power supply and turn on the use switch.
Step 2: Press the mode icon and use the knob to select the
mode.
(Air Fry/Pizza/Roast/Bake/Broil/Toast/Steak/Unfreeze/Fish/
Dehydrate)
Step 3: Press the Start icon.
Note:
· Please close the glass door after pressing the power button.
· During operation, do not directly touch the outside of the
oven with your hands.
· Please wash in time after use.
Settings to quickly cook your favorite meals
How HYS-AFO-02A works?
HYS-AFO-02A is combined with both normal oven and air
fryer function. It has upper and lower heating tubes + high-
speed fan structure, when the fan and heating tube
operating together, it is equivalent to having functions such
as air frying, fast grilling/ baking/roasting/dehydration etc...
How HYS-AFO-02A differentiates from the Normal
Convection Oven?
1. HYS-AFO-02A is equipped with a high-speed fan with a
speed exceeding 2000rpm. But Normal Convection Oven has
low speed fan with the speed only about 1000rpm.
2. HYS-AFO-02A has the special air duct which can absorb
the air from two sides of the oven and generate 360°thermal
cyclone on the top of oven, then powerful hot wind causes
the air fryer effect.
How HYS-AFO-02A differentiates from the Normal Air Fryer?
1. HYS-AFO-02A is made of the stainless steel, but most Air
Fryer is made of the plastic.
2. HYS-AFO-02A has large capacity compare with most Air
Fryer Oven.
ABOUT HYS-AFO-02A
Function:
Intercepts grease and crumbs
that fall out during food
cooking.
Installation Method:
Place the Crumb Tray under
the bottom heating tube as
shown in the picture.
Cooking advise:
No food contact
Position: 4
COMPLIMENTARY ACCESSORIES
Oven Cavity Diagram
Crumb Tray
Bake Tray
Function:
Bake Trays have depth to
better hold food and receive
hot air from the top.
Installation Method:
Place the Bake Tray on level
1.2.3
Cooking advise:
Pie/Cake/Pizza/
Whole Chicken
Position: 1 2 3
Function:
Use an Oven Rack to allow
hot air to heat food evenly
from the top fan and bottom
heat pipes.
Installation Method:
Place the Oven Rack on level
1.2.3
Cooking advise:
Steak/Chicken/Fish/Toast/
Potato/Sausage
Position: 1 2 3
COMPLIMENTARY ACCESSORIES
Oven Cavity Diagram
Air Fryer Basket
Oven Rack
Function:
Air Fryer Basket Holds More
Small, Larger Foods.
Installation Method:
Place the Air Fryer Basket on
level 1.2.3
Cooking advise:
Fries/Chicken Nuggets/
Potato Wedges/Doritos
Position: 1 2 3
Function:
Use Fetch Rack to install and
remove the rotisserie rack.
Installation Method:
1.When installing, align both
ends of the same letter, first
align the B end, and then
install the A end.
2.When taking out, lift end A
first, and pull out end B
outwards.
Cooking advise:
No food contact
COMPLIMENTARY ACCESSORIES
Fetch Rack
Oven Cavity Diagram
Function:
Use Gloves to remove all
accessories after cooking to
prevent burns.
Installation Method:
Wear gloves and move hot
accessories.
Cooking advise:
No food contact
Gloves
ACCESSORIES INSTRUCTIONS
Function:
Rotisserie Rack can fix larger food and the synchronous motor in
the oven makes the food rotate 360 degrees in the oven to achieve
the best cooking effect.
Installation Method:
1.Pass the shaft through the fork, adjusting the distance of the
fork according to the size of the food.
2.Pass the screw through the hole above the fork and tighten to
secure the fork.
3.When installing, align the two ends of the same letter, first align
the B end, and then install the A end.
Cooking advise:
Whole Chicken/Pork Knuckle
Cooking advise: 5
COMPLIMENTARY ACCESSORIES
Oven Cavity Diagram
Rotisserie Rack
OPTIONAL ACCESSORIES
Rolling Grill Basket Kebab Rotary Rack
Cooking advise:
Fries/Chicken Nuggets
Cooking advise:
Chicken Kebabs
/Mutton Kebabs
Pizza Baking Sieve Kitchen Tongs
Cooking advise:
Pizza
1. Optional accessories need to be purchased separately.
2. Be careful not to reverse the ends of the Rotisserie, otherwise it
will cause motor failure.
3. The Crumb Tray must be placed in the designated position -
under the bottom heating tube.
4. All accessories are dishwasher safe.(except gloves)
5. Please refrain from touching the items with your hands until they
have cooled.
6.Place a foil-wrapped tray under the grill to reduce cooking fumes.
7.Please put the chicken rack out of the reach of children to avoid
accidentally swallowing the screws.
8.Please do not heat the gloves in the oven.
9.Some special foods may cause the accessories to be stained after
heating, but the accessories themselves will not fade.
10.When cooking with multiple accessories at the same time place
the tray on the bottom (third level) to avoid blocking the hot air
from the top.
ACCESSORIES INSTRUCTIONS
ACCESSORIES INSTRUCTIONS
WARNING&TIPS
ACCESSORIES COMBINATION
ACCESSORIES COMBINATION
COMPLIMENTARY ACCESSORIES
Combination 1
Oven Rack
Bake Tray
Combination 2
Air Fryer Basket
Bake Tray
Combination 3
Air Fryer Basket
Oven Rack
Combination 4
Air Fryer Basket
Oven Rack
Bake Tray
Combination 5
Rotisserie Rack
ACCESSORIES COMBINATION
COMPLIMENTARY ACCESSORIES
ACCESSORIES COMBINATION
Combination 1
Three Oven Racks
Combination 2
Three Air Fryer Baskets
Combination 3
Two Oven Racks
Air Fryer Basket
Combination 4
Two Oven Racks
Bake Tray
Combination 5
Rolling Grill Basket
FREQUENTLY ASKED QUESTIONS
FREQUENTLY ASKED
QUESTIONS
Q1: Why can't I adjust the fan speed?
A1: The fan cannot be switched off, it can only be adjusted in bake or
unfreeze mode to adjust the speed of the fan.
Q2: How can I switch the air fryer oven to the oven function?
A2: You can select the Bake(cake) mode, which is an oven function
with temperature range of 60-140 degrees and time of 5-60
minutes.Also adjustable for high and low speed fan.
Q3: What if my food is not cooked or over cooked when it's in preset
mode?
A3: If the food is not cooked or over cooked in the certain preset
mode, so for next cooking you can slight adjust the temperature and
time in this mode, as the preset mode just for the reference.
Q4: Does the Air Fryer Oven have the microwave function?
A4: The air fryer oven does not have microwave function, if you want
to heat up the food, you can wrap it with aluminum foil and set the
temperature around 100℃.
Q5: What if the Air Fryer Oven fill with oily smoke when cooking?
A5: There is not just the heat tube on the top but also at the bottom of
air fryer oven, also the oven inner temperature can rise rapidly when
operation with the high speed fan. So when you cook the meat with
rich fat, such as pork or lamb, carefully adjusting the temperature a bit
lower if the smoke generated, also we strongly remind to place the
crumb tray underneath to collect the oil.
Q6: Why does the fan keep operating when the oven stop working?
A6: When the oven stopped and the temperature is above 80℃,the
oven heater will turn off and the fan will continue to run for a minute
to help dissipate the hot air inside and cool down the oven.
Q7: Why does moisture appear above the oven door frame?
A7: When cooking food with high water content, such as frozen food
with ice shards, the water vaporizes into water vapor due to
temperature rise. When the temperature is lowered, the water vapor
on the surface will liquefy into water droplets, which is a normal
phenomenon.
Support Web:www.hysapientia.com
Support E-mail:service@hysapientia.com
easy cooking & healthy eating
Web
Cook
Book
