Read Safety Precautions Before Operation and Installation
To prevent death or injury to the user or other people and property damage, the
following instructions must be followed. Incorrect operation due to ignoring of
instructions may cause death, harm or damage.
Your air conditioner should be used in such a way that it is protected from moisture.
e.g. condensation, splashed water, etc. Do not place or store your air conditioner
where it can fall or be pulled into water or any other liquid. Unplug immediately if it
occurs.
Installation must be performed according to the installation instructions. Improper
installation can cause water leakage, electrical shock, or fire.
Use only the included accessories and parts, and specified tools for the installation.
Using non- standard parts can cause water leakage, electrical shock, fire, and injury
or property damage.
Make sure that the outlet you are using is grounded and has the appropriate voltage.
The power cord is equipped with a three-prong grounding plug to protect against
shock. Voltage information can be found on the nameplate of the unit.
Your unit must be used in a properly grounded wall receptacle. If the wall receptacle
you intend to use is not adequately grounded or protected by a time delay fuse or
circuit breaker (the fuse or circuit breaker needed is determined by the maximum
current of the unit. The maximum current is indicated on the nameplate located on
unit), have a qualified electrician install the proper receptacle.
Install the unit on a flat, sturdy surface. Failure to do so could result in damage or
excessive noise and vibration.
The unit must be kept free from obstruction to ensure proper function and to
mitigate safety hazards.
Do not modify the length of the power cord or use an extension cord to power the
unit.
Do not share a single outlet with other electrical appliances. Improper power supply
can cause fire or electrical shock.
Do not install your air conditioner in a wet room such as a bathroom or laundry room.
Too much exposure to water can cause electrical components to short circuit.
Do not install the unit in a location that may be exposed to combustible gas, as this
could cause fire.
The unit has wheels to facilitate moving. Make sure not to use the wheels on thick
carpet or to roll over objects, as these could cause tipping.
Do not operate a unit that it has been dropped or damaged.
The appliance with electric heater shall have at least 1 meter space to the combustible
materials.
Do not touch the unit with wet or damp hands or when barefoot.
If the air conditioner is knocked over during use, turn off the unit and unplug it from
the main power supply immediately. Visually inspect the unit to ensure there is no
damage. If you suspect the unit has been damaged, contact a technician or customer
service for assistance.
In a thunderstorm, the power must be cut off to avoid damage to the machine due to
lightning.
WARNING
3
WARNING
CAUTION
This symbol indicates the possibility of
property damage or serious consequences.
This symbol indicates the possibility
of personnel injury or loss of life.
All wiring must be performed strictly in accordance with the wiring diagram located
inside of the unit.
The unit's circuit board(PCB) is designed with a fuse to provide overcurrent
protection. The specifications of the fuse are printed on the circuit board, such as:
T 3.15A/250V, etc.
When the water drainage function is not in use, keep the upper and the lower drain
plug firmly to the unit to get rid of choking. When the drain plug is not in use, keep
it carefully to prevent children from choking.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
Children must be supervised around the unit at all times.(be applicable for other
countries except the European Countries )
If the supply cord is damaged, it must be replaced by the manufacturer,its service
agent or similarly qualified persons in order to avoid a hazard.
Prior to cleaning or other maintenance, the appliance must be disconnected from
the supply mains.
Do not remove any fixed covers. Never use this appliance if it is not working
properly, or if it has been dropped or damaged.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away from traffic area and where it will not be tripped over.
Do not operate unit with a damaged cord, plug, power fuse or circuit breaker.
Discard unit or return to an authorized service facility for examination and/or repair.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state
speed control device.
The appliance shall be installed in accordance with national wiring regulations.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
Do not cover or obstruct the inlet or outlet grilles.
Do not use this product for functions other than those described in this instruction
manual.
Before cleaning, turn off the power and unplug the unit.
Disconnect the power if strange sounds, smell, or smoke comes from it.
Do not press the buttons on the control panel with anything other than your fingers.
Do not remove any fixed covers. Never use this appliance if it is not working properly,
or if it has been dropped or damaged.
Do not operate or stop the unit by inserting or pulling out the power cord plug.
Do not use hazardous chemicals to clean or come into contact with the unit. Do not
use the unit in the presence of inflammable substances or vapour such as alcohol,
insecticides, petrol,etc.
Always transport your air conditioner in a vertical position and stand on a stable,
level surface during use.
Always contact a qualified person to carry out repairs. If the damaged power supply
cord must be replaced with a new power supply cord obtained from the product
manufacturer and not repaired.
Hold the plug by the head of the power plug when taking it out.
Turn off the product when not in use.
4
CAUTION
5
WARNING for Using R32 Refrigerant
Electronic Work
WARNING:
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating
electric heater).
Do not pierce or burn.
Be aware that the refrigerants may not contain an odour.
Appliance should be installed, operated and stored in a room with a floor area
according to the amount of refrigerant to be charged. For specific information on
the type of gas and the amount, please refer to the relevant label on the unit itself.
When there are differences between the lable and the manual on the Min. room
area description, the description on label shall prevail.
Appliance shall be installed, operated and stored in a room with a floor area larger
than 4 m
2
.
Appliance shall not be installed in an unvertilated space, if that space is smaller than
4 m
2
.
No any open fire or device like switch which may generate spark/arcing shall be
around appliance to avoid causing ignition of the flammable refrigerant used.
Please follow the instructions carefully when storing or maintaining the appliance to
prevent mechanical damage from occurring.
DISPLAY
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE
MAIN POWER TO THE SYSTEM.
MAIN
CONTROL
POWER
NOTE: The cographs are for
explanation purpose only. Your
machine may be slightly different.
The actual shape shall prevail.
SUPPLY
CORD
6
WARNING
- Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be
carried out under the supervision of the person competent in the use of flammable
refrigerants.
- DO NOT modify the length of the power cord or use an extension cord to power the unit.
- DO NOT share a single outlet with other electrical appliances. Improper power supply
can cause fire or electrical shock.
- Please follow the instruction carefully to handle, install, clear, service the appliance to
avoid any damage or hazard.
- When maintaining or disposing the appliance, the refrigerant shall be recovered
properly, shall not discharge to air directly.
- Compliance with national gas regulations shall be observed.
- Keep ventilation openings clear of obstruction.
- The appliance shall be stored so as to prevent mechanical damage from occurring.
- A warning that the appliance shall be stored in a well-ventilated area where the room
size corresponds to the room area as specified for operation.
- Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certificate from an industry-accredited assessment
authority, which authorises their competence to handle refrigerants safely in
accordance with an industry recognised assessment specification. All
training shall follow the ANNEX HH requirements of UL 60335-2-40.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
• opening of ventilated enclosures.
CAUTION:
Risk of fire
flammable materials

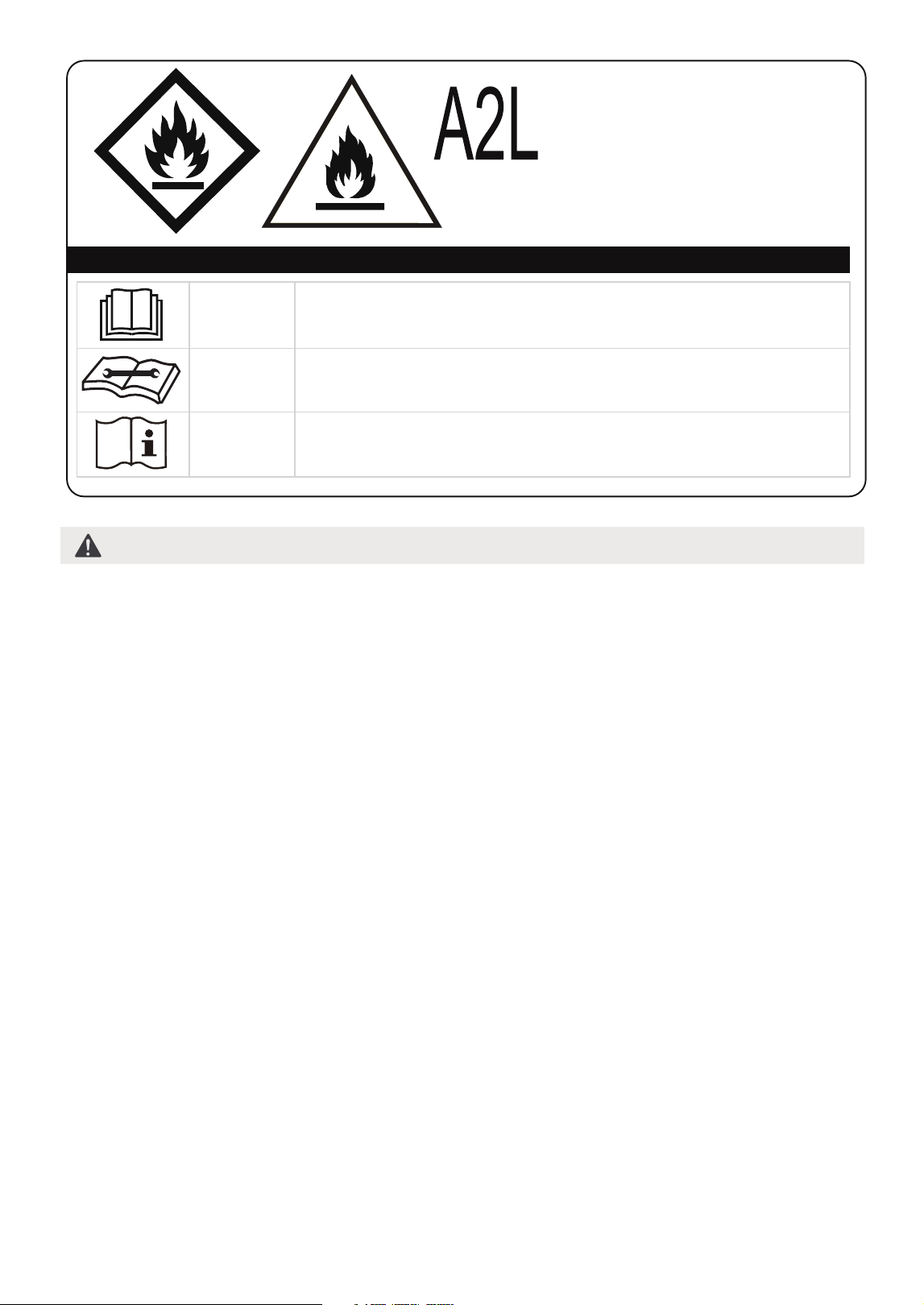

Explanation of symbols displayed on the unit
CAUTION
CAUTION
CAUTION
This symbol shows that the operation manual should be
read carefully.
This symbol shows that a service personnel should be
handling this equipment with reference to the installation
manual.
This symbol shows that information is available such as
the operating manual or installation manual.
See transport regulations.
7
1.Transport of equipment containing flammable refrigerants
See local regulations.
2.Marking of equipment using signs
See national regulations.
3.Disposal of equipment using flammable refrigerants
The storage of equipment should be in accordance with the manufacturer's
instructions.
4.Storage of equipment/appliances
Storage package protection should be constructed such that mechanical damage
to the equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will
be determined by local regulations.
Prior to beginning work on systems containing flammable refrigerants, safety
checks are necessary to ensure that the risk of ignition is minimised. For repair to
the refrigerating system, the following precautions shall be complied with prior to
conducting work on the system.
5.Storage of packed (unsold) equipment
1)Checks to the area
Work shall be undertaken under a controlled procedure so as to minimise the risk of
a flammable gas or vapour being present while the work is being performed.
2)Work procedure
All maintenance staff and others working in the local area shall be instructed on the
nature of work being carried out. Work in confined spaces shall be avoided. The
area around the workspace shall be sectioned off. Ensure that the conditions within
the area have been made safe by control of flammable material.
3)General work area
The area shall be checked with an appropriate refrigerating detector prior to and
during work, to ensure the technician is aware of potentially flammable atmospheres.
Ensure that the leak detection equipment being used is suitable for use with
flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
4)Checking for presence of refrigerant
If any hot work is to be conducted on the refrigeration equipment or any
associated parts, appropriate fire extinguishing equipment shall be available to
hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.
5)Presence of fire extinguisher
No person carrying out work in relation to a refrigerating system which involves
exposing any pipe work that contains or has contained flammable refrigerant shall
use any sources of ignition in such a manner that it may lead to the risk of fire or
explosion. All possible ignition sources, including cigarette smoking, should be kept
sufficiently far away from the site of installation, repairing, removing and disposal,
during which flammable refrigerant can possibly be released to the surrounding
space. Prior to work taking place, the area around the equipment is to be surveyed
to make sure that there are no flammable hazards or ignition risks. No Smoking
signs shall be displayed.
6)No ignition sources
Ensure that the area is in the open or that it is adequately ventilated before
breaking into the system or conducting any hot work. A degree of ventilation shall
continue during the period that the work is carried out. The ventilation should safely
disperse any released refrigerant and preferably expel it externally into the
atmosphere.
7)ventilated area
6.Information on servicing
1)During repairs to sealed components, all electrical supplies shall be disconnected
from the equipment being worked upon prior to any removal of sealed covers, etc.
If it is absolutely necessary to have an electrical supply to equipment during
servicing, then a permanently operating form of leak detection shall be located at
the most critical point to warn of a potentially hazardous situation.
2)Particular attention shall be paid to the following to ensure that by working on
electrical components, the casing is not altered in such a way that the level of
protection is affected. Check for damage to cables, excessive number of
connections, terminals not made to original specification, damage to seals, incorrect
fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or
sealing materials have not degraded such that they no longer serve the purpose of
preventing the ingress of flammable atmospheres. Replacement parts shall be in
accordance with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak
detection equipment. Intrinsically safe components do not have to be isolated prior
to working on them.
7.Sealed electrical components shall be replaced.
Do not apply any permanent inductive or capacitance loads to the circuit without
ensuring that this will not exceed the permissible voltage and current permitted for
the equipment in use. Intrinsically safe components are the only types that can be
worked on while live in the presence of a flammable atmosphere. The test apparatus
shall be at the correct rating. Replace components only with parts specified by the
manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere
from a leak.
8. Intrinsically safe components must be replaced.
Where electrical components are being changed, they shall be fit for the purpose
and to the correct specifications. At all times the manufacturer's maintenance and
service guidelines shall be followed. If in doubt consult the manufacturer's technical
department for assistance. The following checks shall be applied to installations
using flammable refrigerants: the actual refrigerant charge is in accordance with the
room size within which the refrigerant containing parts are installed; the ventilation
machinery and outlets are operating adequately and are not obstructed; if an
indirect refrigerating circuit is being used, the secondary circuit shall be checked
for the presence of refrigerant; marking to the equipment continues to be visible
and legible.
Markings and signs that are illegible shall be corrected; and refrigerating pipe or
components are installed in a position where they are unlikely to be exposed to any
substance which may corrode refrigerant containing components, unless the
components are constructed of materials which are inherently resistant to being
corroded or are suitably protected against being so corroded.
8)Checks to the refrigerating equipment
Repair and maintenance to electrical components shall include initial safety checks
and component inspection procedures. If a fault exists that could compromise
safety, then no electrical supply shall be connected to the circuit until it is
satisfactorily dealt with. If the fault cannot be corrected immediately but it is
necessary to continue operation, an adequate temporary solution shall be used.
This shall be reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include: That capacitors are discharged: this shall be done
in a safe manner to avoid possibility of sparking; that there no live electrical
components and wiring are exposed while charging, recovering or purging the
system; that there is continuity of earth bonding.
9)Checks to electrical devices
8
9
Check that cabling will not be subject to wear, corrosion, excessive pressure,
vibration, sharp edges or any other adverse environmental effects. The check
shall also take into account the effects of aging or continual vibration from
sources such as compressors or fans.
9. Cabling
Under no circumstances shall potential sources of ignition be used in the searching
for or detection of refrigerant leaks. A halide torch (or any other detector using a
naked flame) shall not be used.
The following leak detection methods are deemed acceptable for systems
containing flammable refrigerants. Electronic leak detectors shall be used to detect
flammable refrigerants, but the sensitivity may not be adequate, or may need
re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.)
Ensure that the detector is not a potential source of ignition and is suitable for
the refrigerant used. Leak detection equipment shall be set at a percentage of the
LFL of the refrigerant and shall be calibrated to the refrigerant employed and the
appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids
are suitable for use with most refrigerants but the use of detergents containing
chlorine shall be avoided as the chlorine may react with the refrigerant and
corrode the copper pipe-work. If a leak is suspected, all naked flames shall be
removed/ extinguished. If a leakage of refrigerant is found which requires brazing,
all of the refrigerant shall be recovered from the system, or isolated (by means of
shut off valves) in a part of the system remote from the leak.
Removal of refrigerant shall be according to Removal and evacuation.
10.Detection of flammable refrigerants
When breaking into the refrigerant circuit to make repairs—or for any other purpose
- conventional procedures shall be used. However, for flammable refrigerants it is
important that best practice be followed, since flammability is a consideration.
The following procedure shall be adhered to:
-Safely remove refrigerant following local and national regulations;
-Evacuate;
-Purge the circuit with inert gas (optional for A2L);
-Evacuate (optional for A2L);
-continuously flush or purge with inert gas when using flame to open circuit; and
-open the circuit.
The refrigerant charge shall be recovered into the correct recovery cylinders if
venting is not allowed by local and national codes. For appliances containing
flammable refrigerants, the system shall be purged with oxygen-free n flammable
refrigerants. This process might compressed air or oxygen shall not be used for
purging refrigerant systems.
For appliances containing flammable refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the system with oxygen-free nitrogen and
continuing to fill until the working pressure is achieved, then venting to atmosphere,
and finally pulling down to a vacuum (optional for A2L). This process shall be
repeated until no refrigerant is within the system (optional for A2L). When the final
oxygen-free nitrogen charge is used. the system shall be vented down to
atmospheric pressure to enable work to take place. The outlet for the vacuum
pump shall not be close to any potential ignition sources, and ventilation shall
be available.
11.Removal and evacuation
In addition to conventional charging procedures, the following requirements shall be
followed. Ensure that contamination of different refrigerants does not occur when
using charging equipment. Hoses or lines shall be as short as possible to minimise
the amount of refrigerant contained in them. Cylinders shall be kept in an appropriate
position according to the instructions. Ensure that the refrigeration system is earthed
prior to charging the system with refrigerant. Label the system when charging is
complete (if not already). Extreme care shall be taken not to overfill the refrigeration
system. Prior to recharging the system it shall be pressure tested with OFN. The
system shall be leak tested on completion of charging but prior to commissioning.
A follow up leak test shall be carried out prior to leaving the site.
12.Charging procedures
10
Before carrying out this procedure, it is essential that the technician is completely
familiar with the equipment and all its detail. It is recommended good practice that
all refrigerants are recovered safely.
Prior to the task being carried out, an oil and refrigerant sample shall be taken in
case analysis is required prior to re-use of reclaimed refrigerant. It is essential that
electrical power is available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that: Mechanical handling equipment is
available, if required, for handling refrigerant cylinders;all personal protective
equipment is available and being used correctly; the recovery process is
supervised at all times by a competent person; recovery equipment and cylinders
conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed
from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's
instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make
sure that the cylinders and the equipment are removed from site promptly and
all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system
unless it has been cleaned and checked.
13.Decommissioning
Equipment shall be labelled stating that it has been de-commissioned and
emptied of refrigerant. The label shall be dated and signed. Ensure that there are
labels on the equipment stating the equipment contains flammable refrigerant.
14.Labelling
When removing refrigerant from a system, either for servicing or decommissioning,
it is recommended good practice that all refrigerants are removed safely. When
transferring refrigerant into cylinders, ensure that only appropriate refrigerant
recovery cylinders are employed. Ensure that the correct number of cylinders for
holding the total system charge is available. All cylinders to be used are designated
for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders
for the recovery of refrigerant). Cylinders shall be complete with pressure relief
valve and associated shut-off valves in good working order. Empty recovery
cylinders are evacuated and, if possible, cooled before recovery occurs. The
recovery equipment shall be in good working order with a set of instructions
concerning the equipment that is at hand and shall be suitable for the recovery of
the flammable refrigerant. If in doubt, the manufacturer should be consulted. In
addition, a set of calibrated weighing scales shall be available and in good working
order. Hoses shall be complete with leak-free disconnect couplings and in good
condition.
The recovered refrigerant shall be processed according to local legislation in the
correct recovery cylinder, and the relevant waste transfer note arranged. Do not
mix refrigerants in recovery units and especially not in cylinders. If compressors or
compressor oils are to be removed, ensure that they have been evacuated to an
acceptable level to make certain that flammable refrigerant does not remain within
the lubricant. The compressor body shall not be heated by an open flame or other
ignition sources to accelerate this process. When oil is drained from a system, it shall
be carried out safely.
15.Recovery

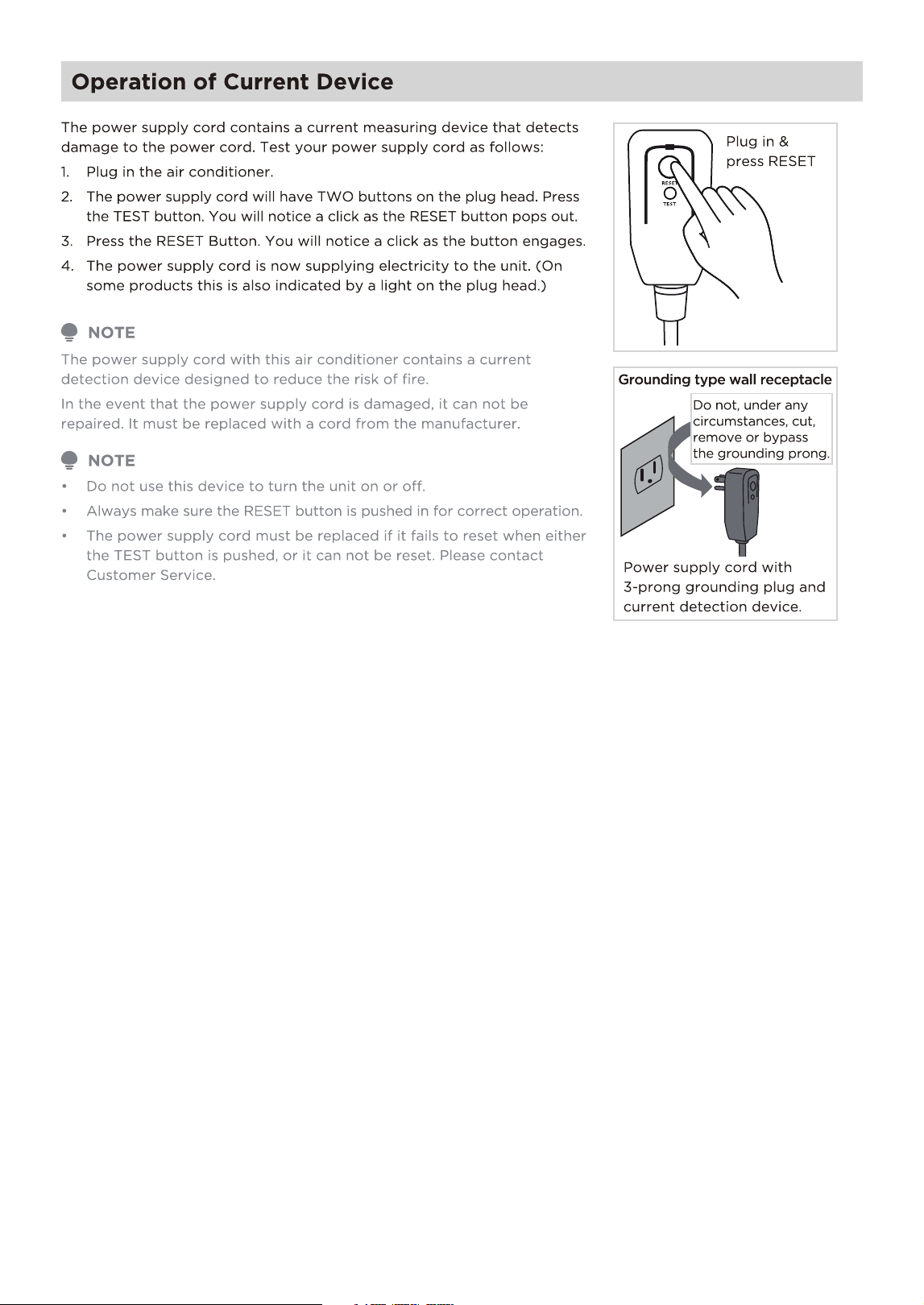

11

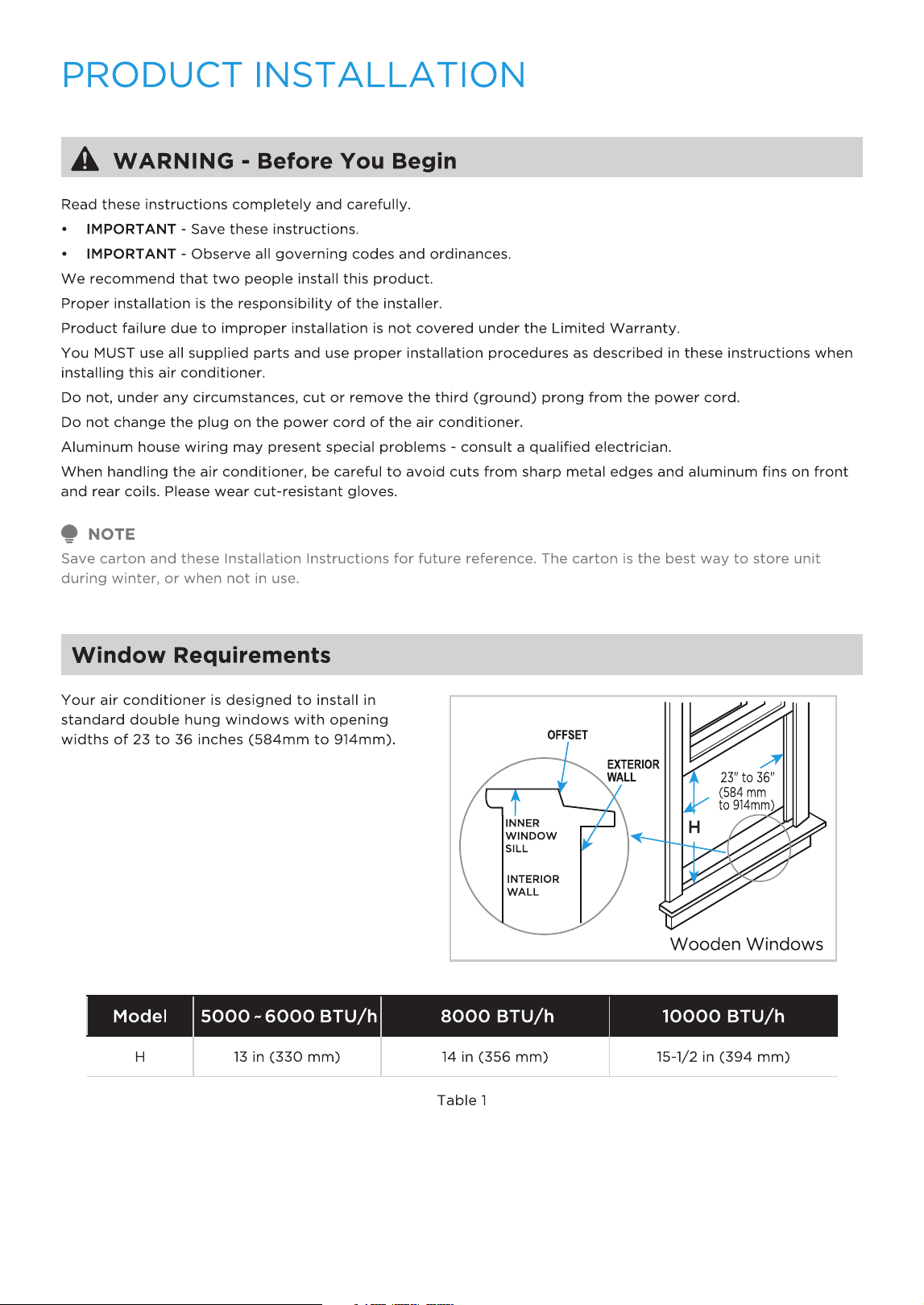

12

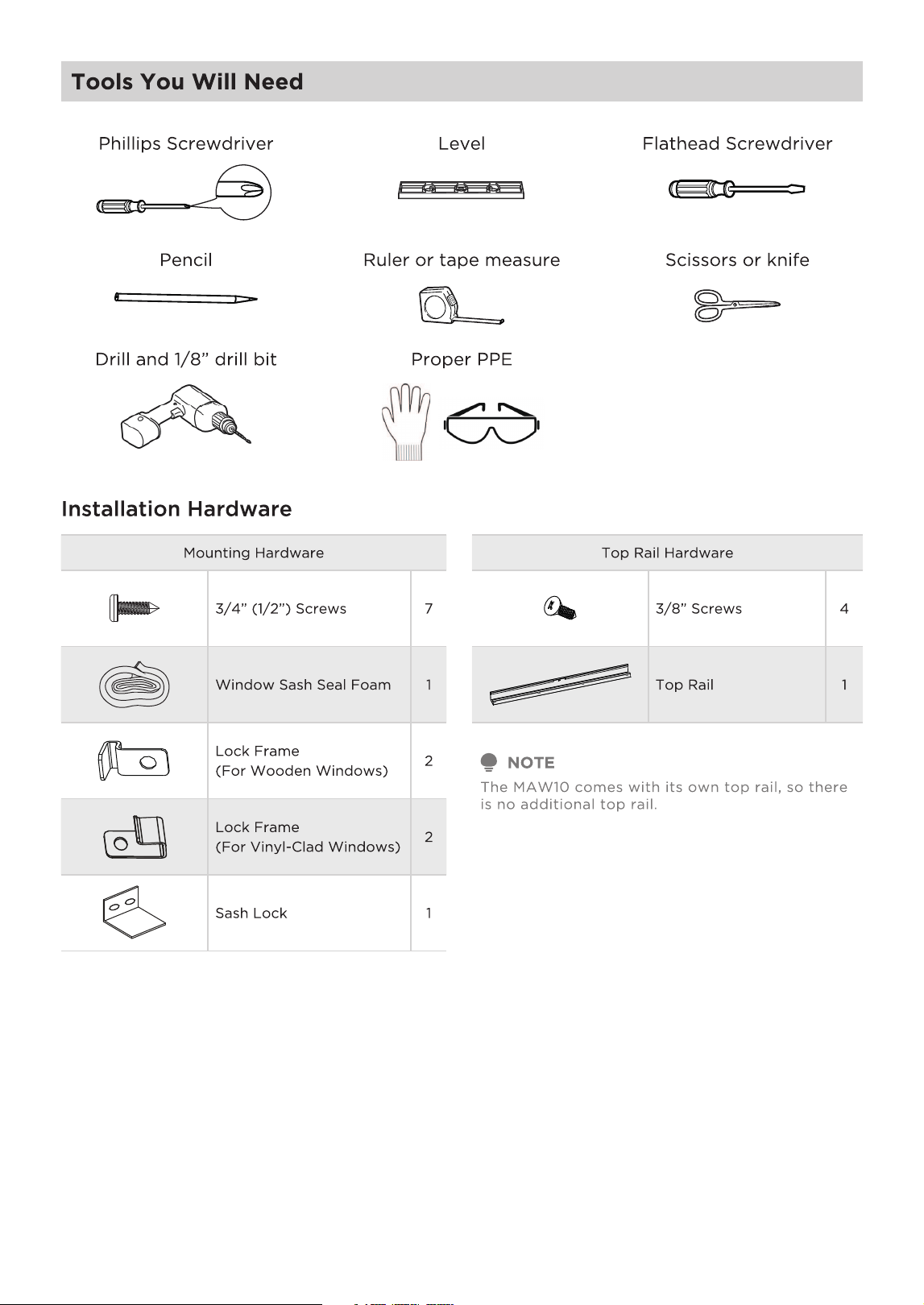

13

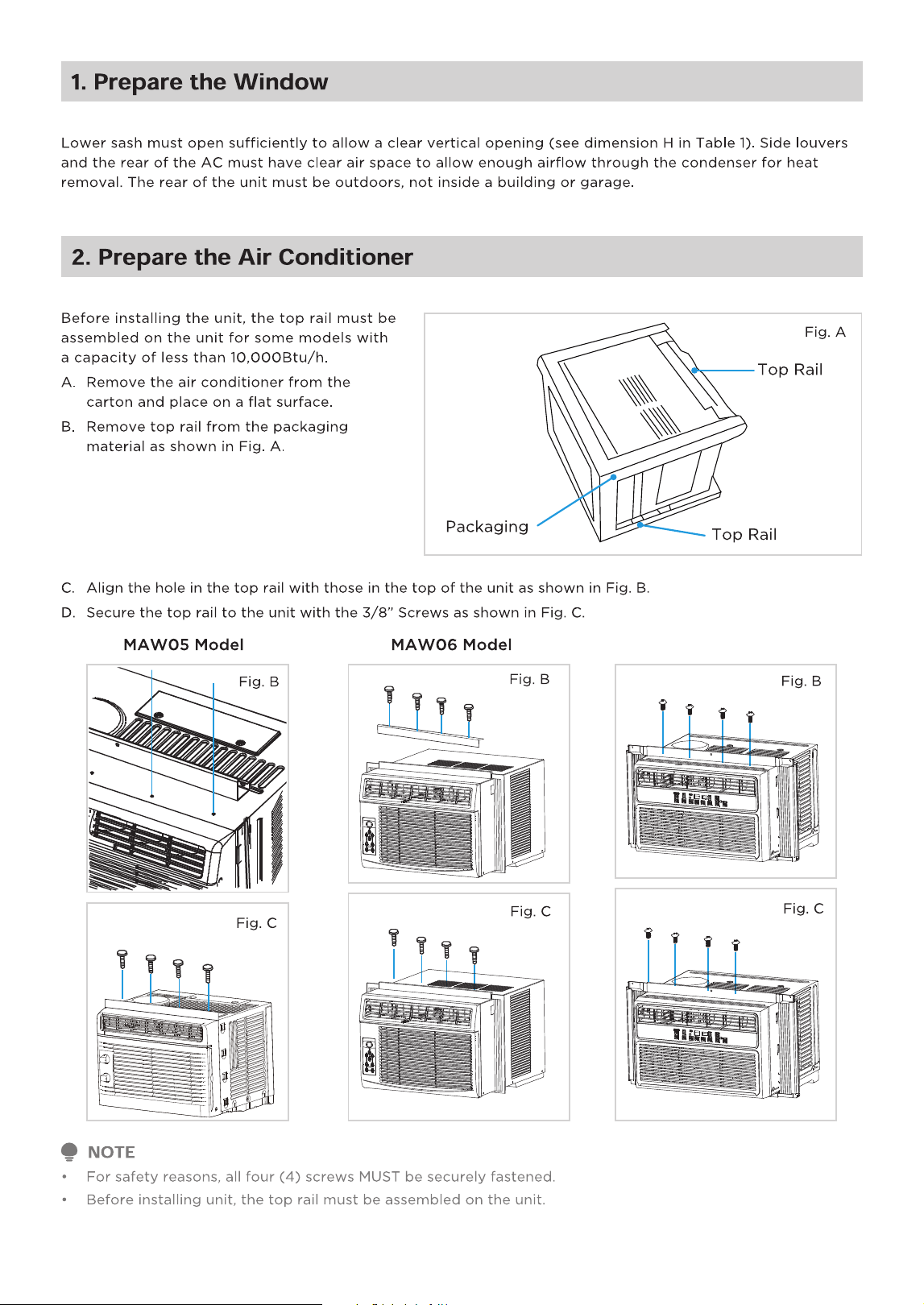

MAW08/10/12 Model
14

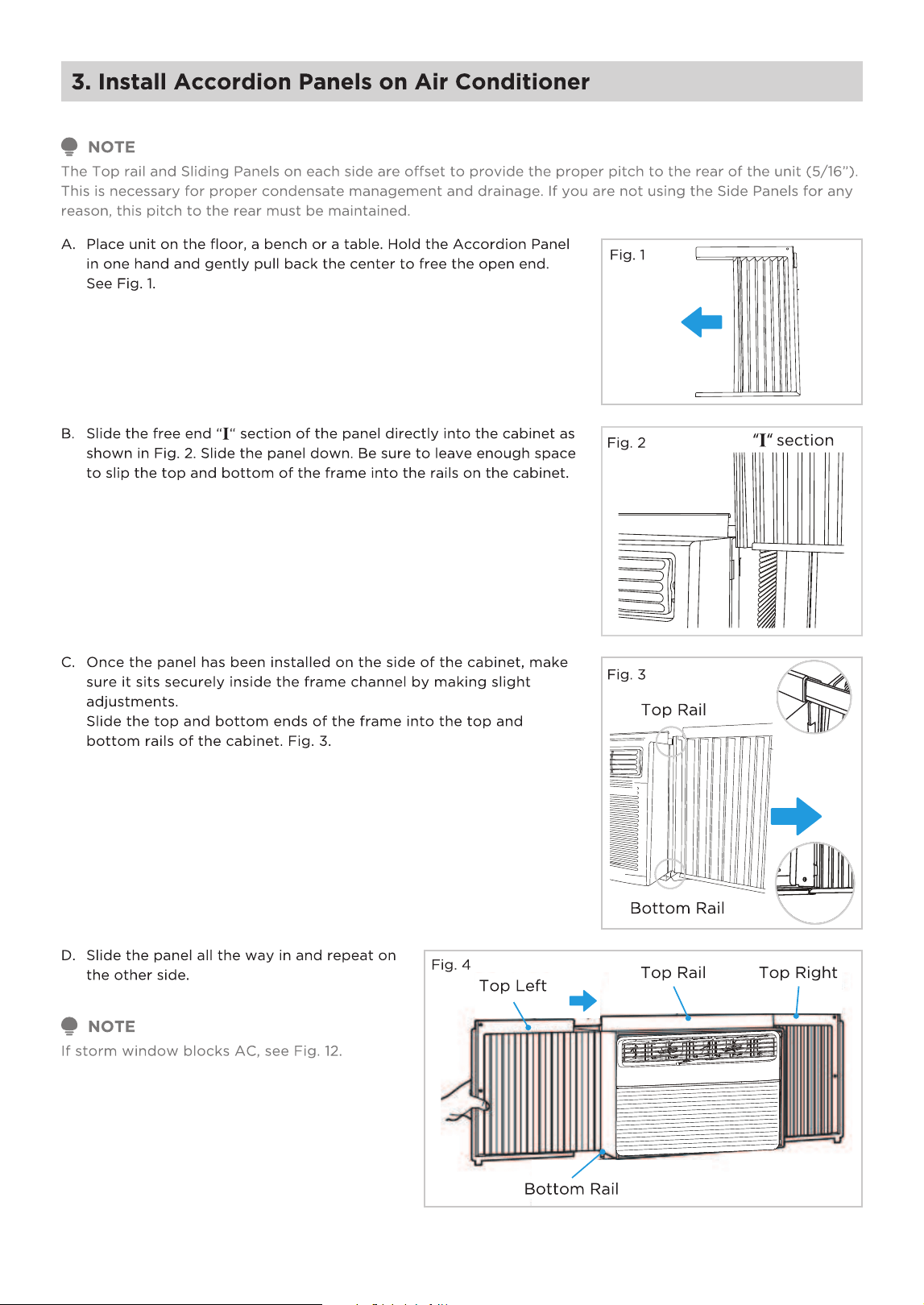

15

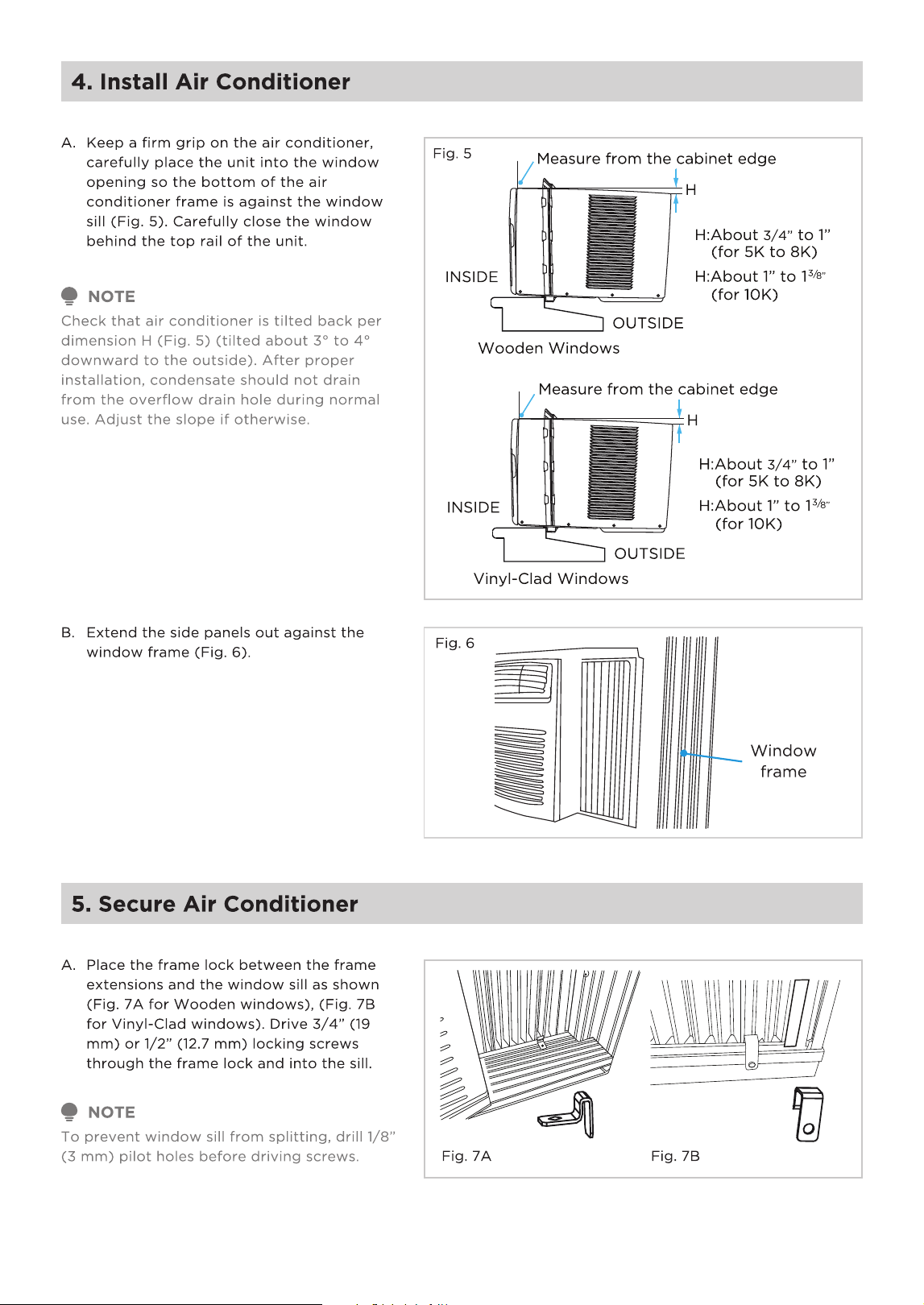

16

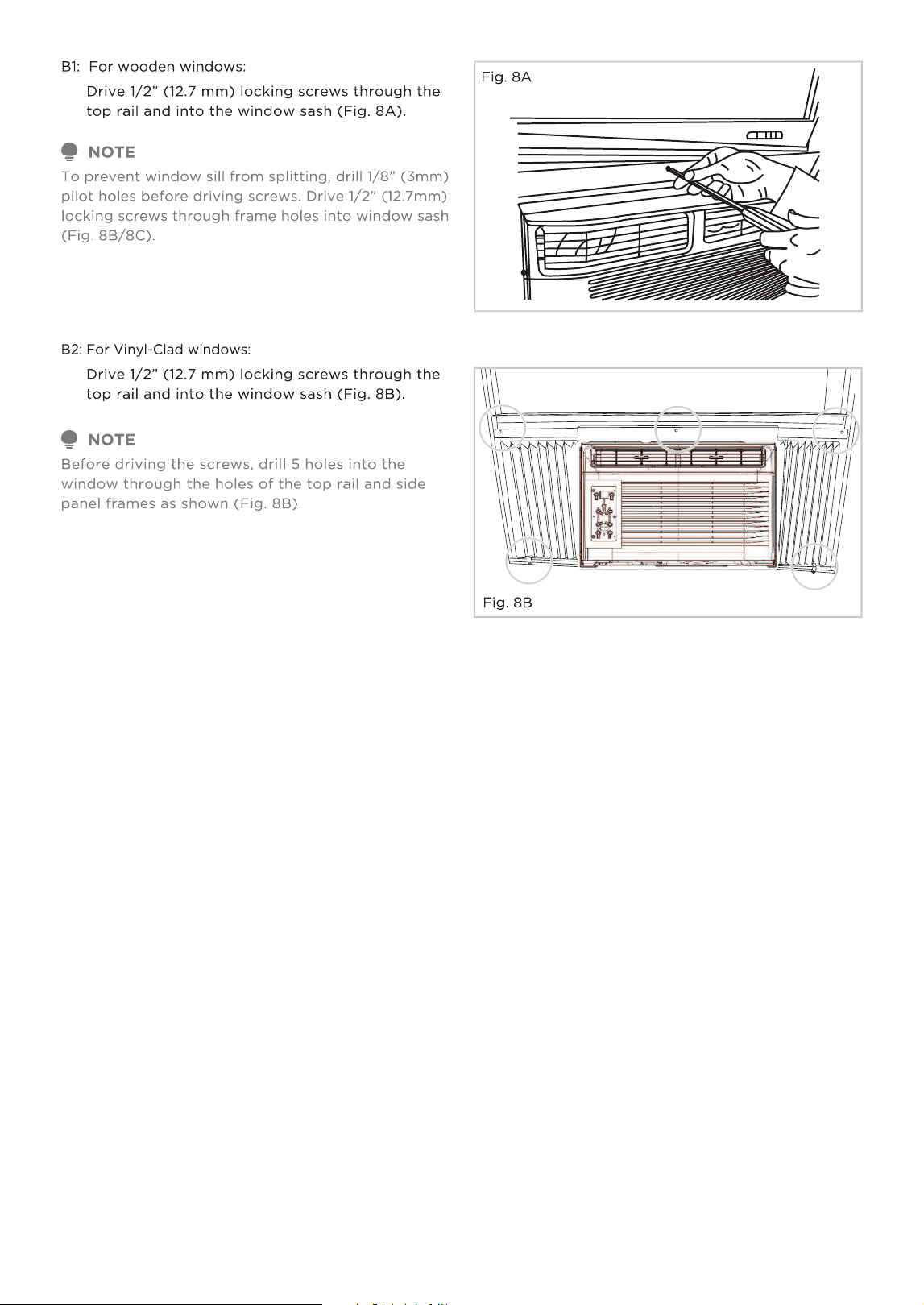

17

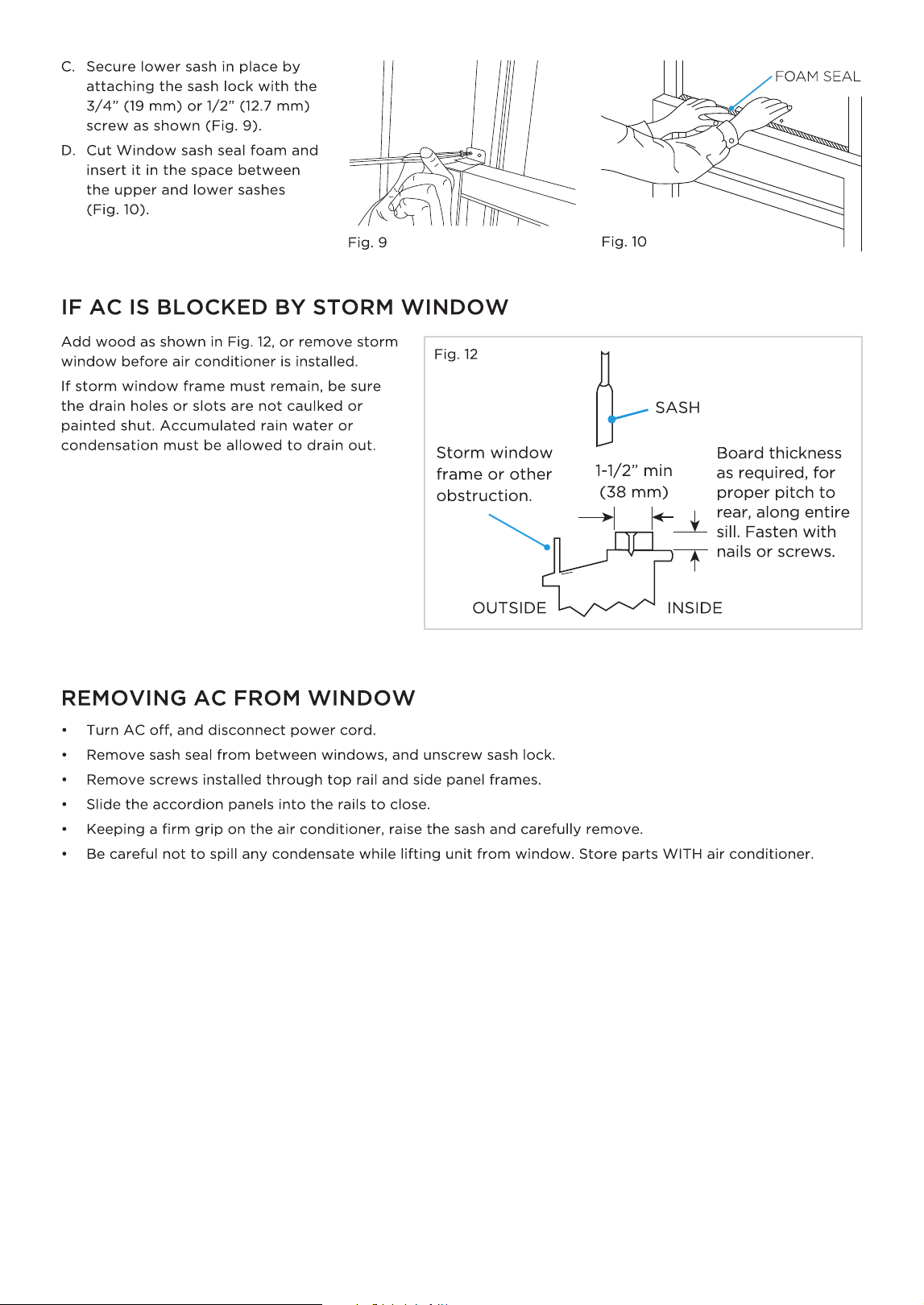

18
19

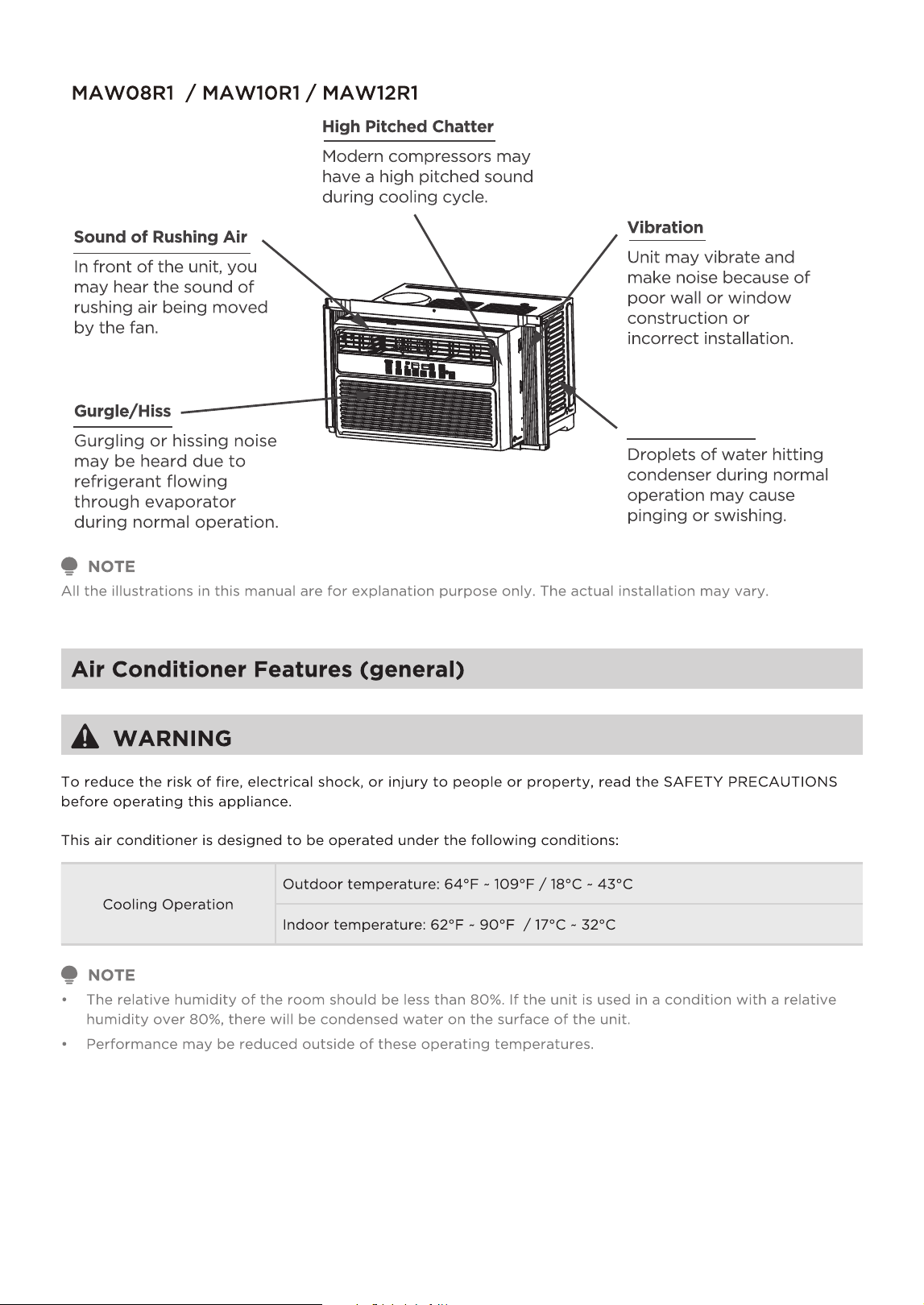

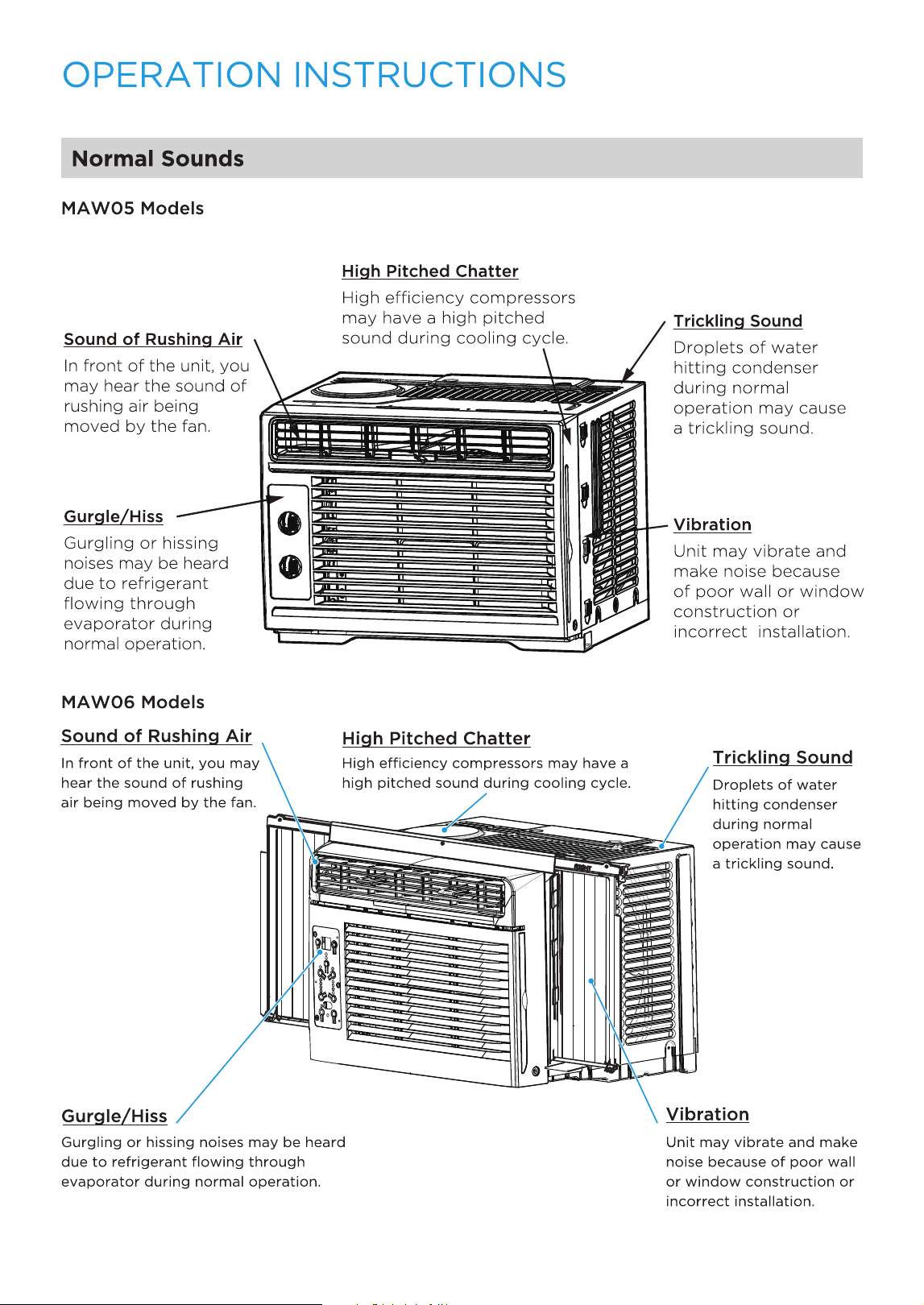

Trickling Sound
20

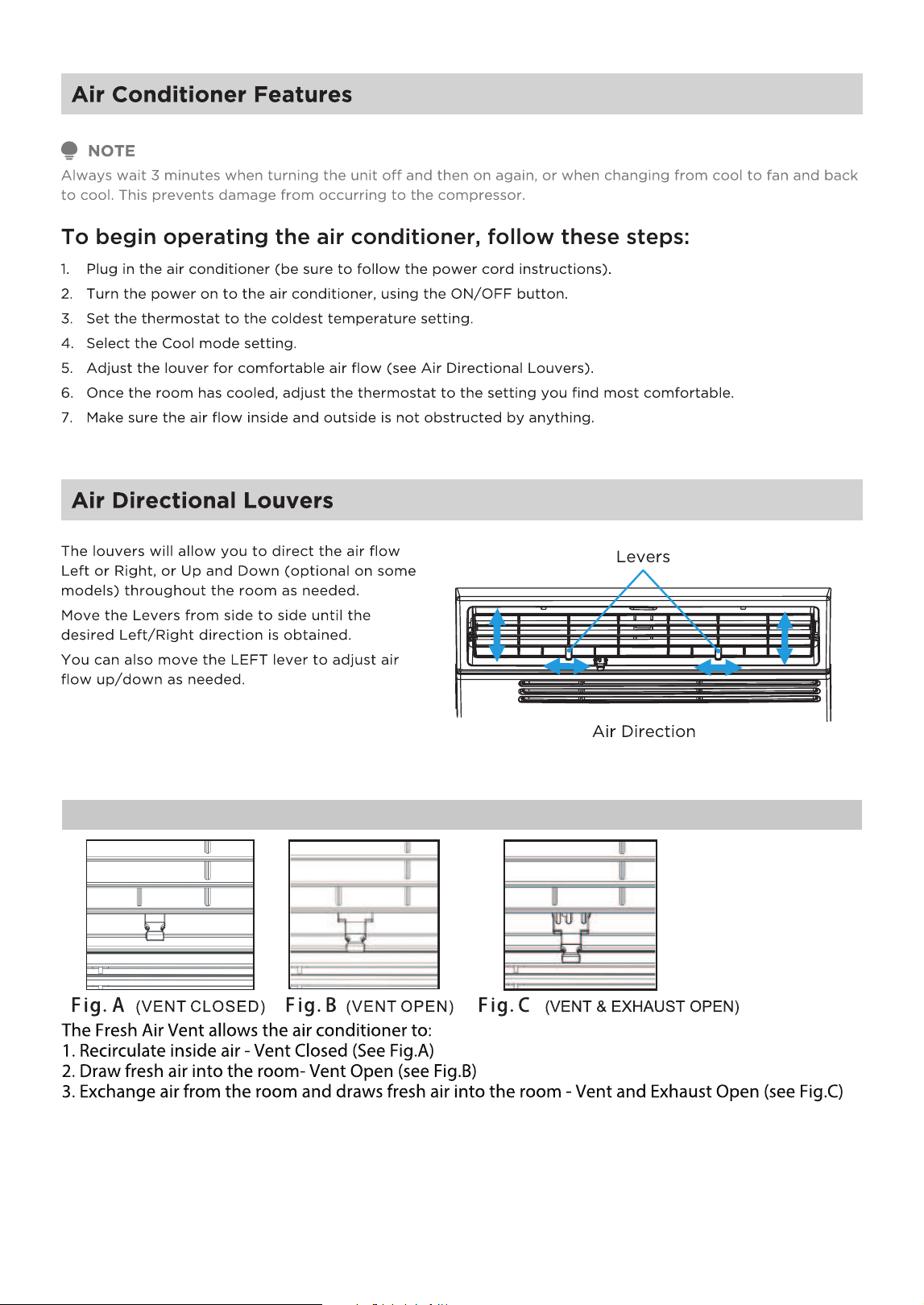

(MAW05 Models only)
Fresh Air Vent Control(on 10-12 K MODELS)
21
22
MECHA NICA L CONTROL OPERA TING INSTRUCTIONS
NOTE:
Co ol Mo d e
Fan Mo d e
Therm ost at

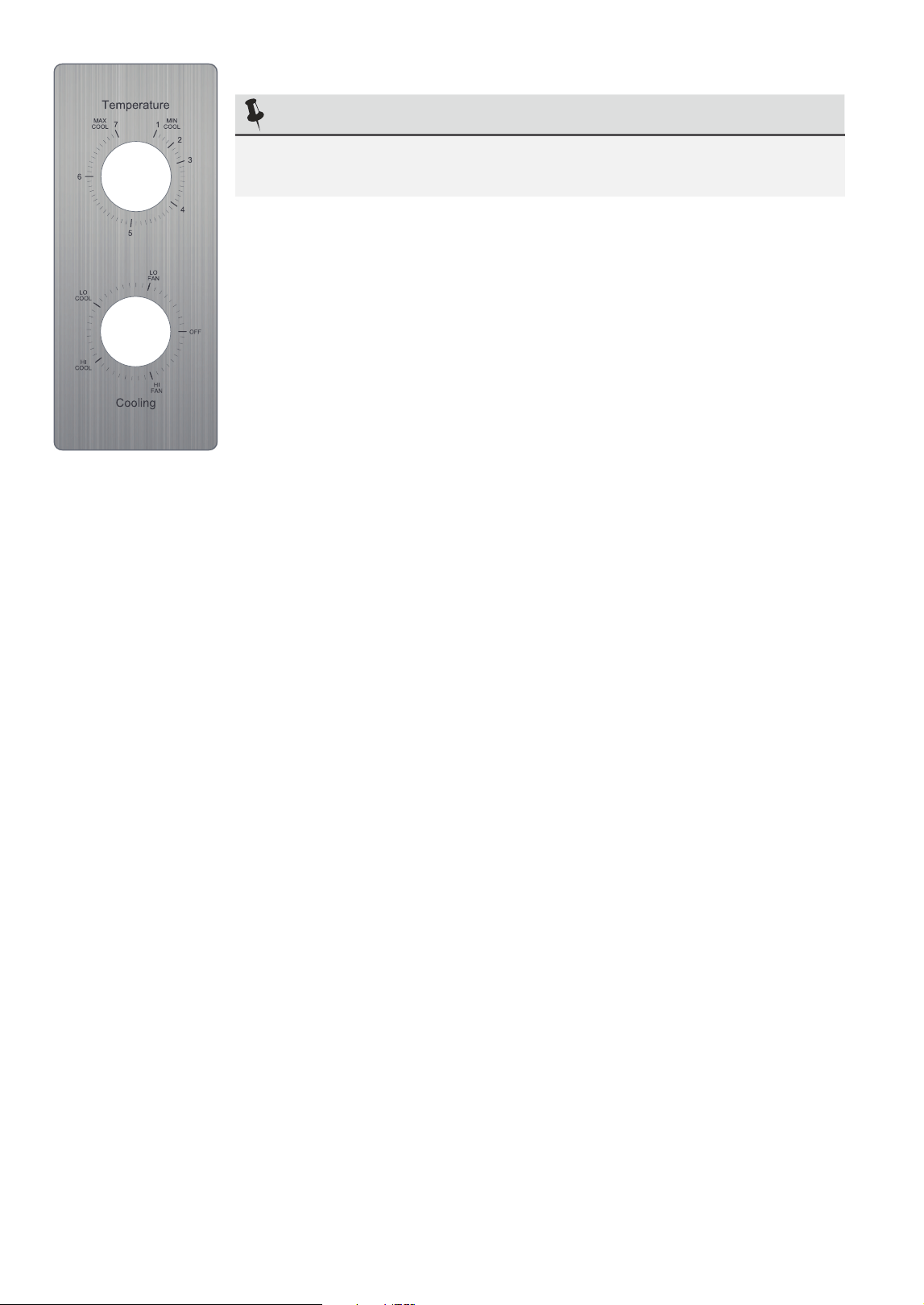

The controls featured in this manual are representative of many available models.
Your model may offer slightly different features.
The desired cool setting is selected by rotating the knob to the right to the
appropriate location.
HI COOL has maximum cooling effect and airflow.
LO COOL has minimum cooling effect and airflow.
MED COOL has the intermediate cooling effect and airflow(on some models).
OFF will completely shut off the unit.
NOTE: lf your unit is equipped with a vent handle, keep it closed for maximum
efficiency.
Rotate the knob to the left to select your choice of fan speeds for air circulation.
NOTE: When selecting a fan speed, the compressor will not run. On models with a
vent control, this mode can be used to remove stale air from the room, or to draw
fresh air into the room. Check the section "Fresh Air Vent Control”.
The thermostat is used to set the desired room temperature when the unit is being
operated in the COOL MODE.To set the desired room temperature, rotate the
thermostat switch to the desired setting. After the set temperature is achieved the
thermostat will automatically start and stop the compressor in order to maintain
the desired set temperature.
Rotate the thermostat selector clockwise for higher cool settings. Higher cool
settings will provide lower room temperature. Rotate the thermostat selector
counter clockwise for lower cool settings. Lower cool settings will provide higher
room temperature.
23
Press Sleep button to initiate the sleep mode. In
this mode the selected temperature will increase
by 2°F (1°C) 30 minutes after the mode is selected.
The temperature will then increase by another 2°F
(1°C) after an additional 30 minutes.
This new temperature will be maintained
for 7 hours before it returns to the originally mode
and the unit will continue to operate as originally
programmed. The Sleep mode program can be
canceled at any time during operation by pressing
the Sleep button again
Press Fan button to select the Fan Speed in four
steps-Auto, Low, Med or High. Each time the
button is pressed, the fan speed mode is shifted.
For some models, the fan speed can not
be adjusted.
NOTE: Different models have diferent control buttons and indicator lights. Not all the control buttons and
indicator lights describing below are available for the unit you purchased. Please check the control panel of
the unit you purchased. The unit can be controlled by the unit control alone or with the remote.

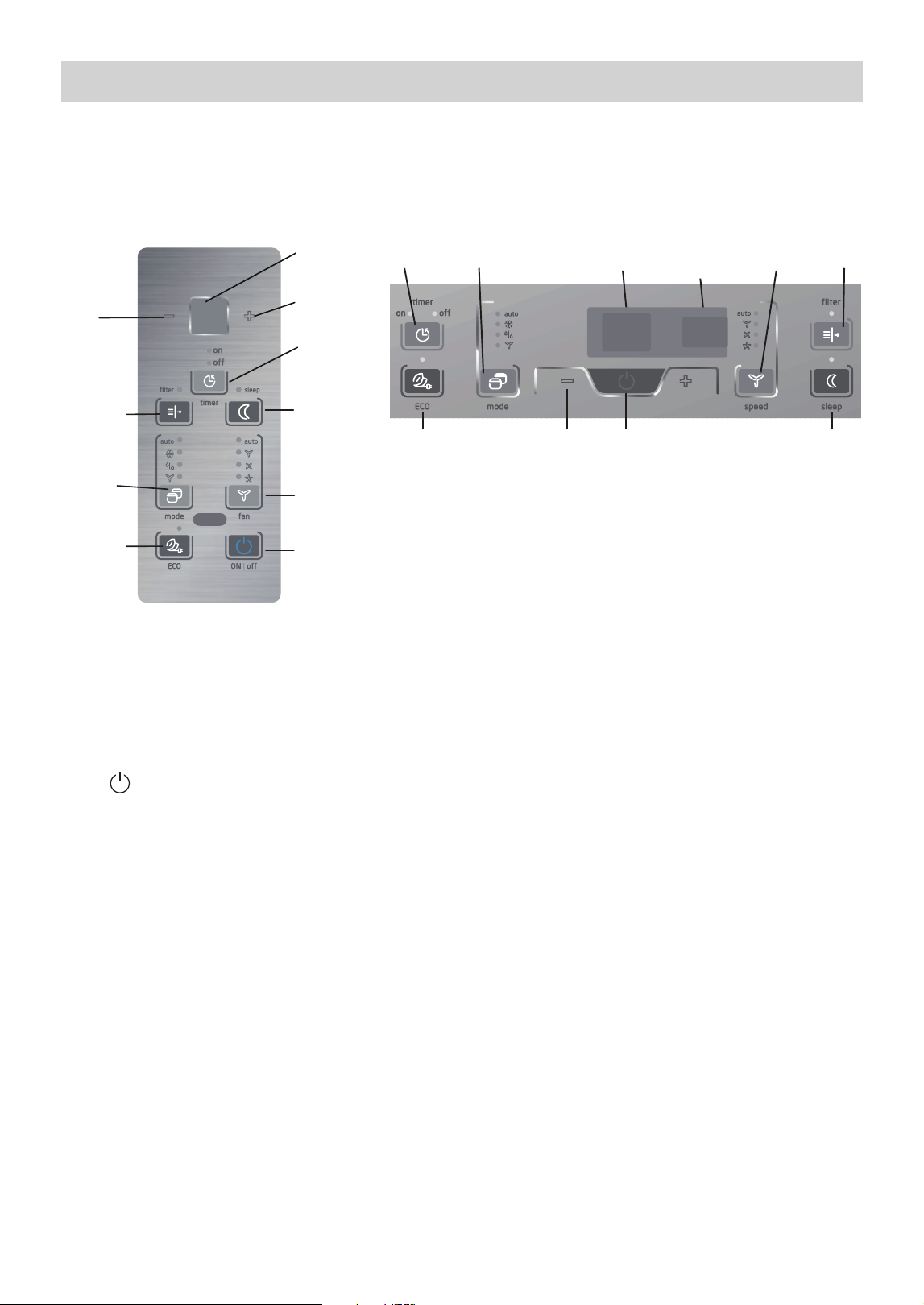

ELECTRONIC CONTROL OPERATING INSTRUCTIONS
Adjusts
Temperature
Or Time
Check Filter
Reset
Button
Sets Mode
Energy
Saver Mode
Displays
Temperature
Or Time Or
Error Codes
Auto
Timer
Mode
Selector
LED
Display
Remote Signal
Receptor
Fan
Speed
Check
Filter
Energy
Saver
Temp/Timer
Control
Power
Button
Temp/Timer
Control
Sleep
Mode
Adjusts
Temperature
Or Time
Activates
Timer
Sleep Mode
Sets Fan
Speed
Turns Unit
On Or Off
NOTE: The controls featured in this manual are representative of many available models. Your model may
offer slightly different features.
TO TURN UNIT ON OR OFF:
Press POWER button to turn unit on or off.
TO CHANGE TEMPERATURE SETTING:
Press UP/DOWN button to change
temperature setting.
NOTE: Press or hold either UP or DOWN
button until the desired temperature is
shown on the display.
This temperature will be automatically
maintained anywhere between 62°F(17°C)
and 86°F(30°C). lf you want the display to
read the actual room temperature, see
"To Operate on Fan Only section".
SLEEP FEATURE:
TO ADJUST FAN SPEEDS:
24
This feature can be activated from the remote
control ONLY. The remote control serves as a
remote thermostat allowing for the precise
temperature control at its location.
To activate the Comfort Sense feature, point the
remote control towards the unit and press the
Comfort Sense button. The remote displays actual
temperature at its location. The remote control
will send this signal to the air conditioner every 3
minutes until the Comfort Sense button is pressed
again. If the unit does not receive the Comfort
Sense signal during any 7 minute interval, the unit
will beep to indicate the Comfort Sense mode has
ended.
To operate on Auto feature:
• When you set the air conditioner in AUTO mode,
it will automatically select cooling, heating
(cooling only models without), or fan only
operation depending on what temperature you
have selected and the room temperature.
• The air conditioner will control room temperature
automatically round the temperature point set
by you.
• In this mode, the fan speed cannot be adjusted,
it starts automatically at a speed according to the
room temperature.
To operate on Fan Only:
• Use this function only when cooling is not
desired,such as for room air circulation or to
exhaust stale air(on some models). (Remember
to open the vent during this function, but keep it
closed during cooling for maximum cooling
efficiency.) You can choose any fan speed you
prefer.
• During this function, the display will show the
actual room temperature, not the set temperature
as in the cooling mode.
• In Fan only mode ,the temperature is not
adjusted.
To operate on Dry mode:
• In this mode, the air conditioner will generally
operate in the form of a dehumidifier. Since the
conditioned space is a closed or sealed area,
some degree of cooling will continue. On Dry
mode,the fan speed is controlled at Low
automatically.
To choose operating mode, press Mode button.
Each time you press the button, a mode is selected
in a sequence that goes from Auto, Cool, Dry and
Fan. The indicator light adjacent will be illuminated
and remain on once the mode is selected. When
the unit is turned off and back on via the power
button, the unit will automatically switch on the
Energy Saver function for the following modes:
Cool, Dry, Auto.
To operate on AUTO feature:
• When you set the air conditioner to AUTO mode,
it will automatically select cooling or fan only
operation depending on what temperature you
have selected and the current room temperature.
• The air conditioner will control room temperature
automatically according to temperature you’ve
set.
• In this mode, the fan speed cannot be adjusted as
it’s automatically controlled according to
temperature setting and room temperature.
To operate on Fan Only:
• Use this function only when cooling is not desired,
such as for room air circulation or to exhaust stale
air (on some models). (Remember to open the
vent during this function, but keep it closed during
cooling for maximum cooling efficiency.) You can
choose any fan speed you prefer.
• During this function, the display will show the
actual room temperature, not the set temperature
as in the cooling mode. In Fan Only mode, the
temperature is not adjusted.
To operate on DRY mode:
• In this mode, the air conditioner will generally
function as a dehumidifier. Since the conditioned
space is a closed or sealed area, some degree of
cooling will occur.
Press Check Filter button to initiate this feature.
This feature is a reminder to clean the Air Filter
for more efficient operation. The LED(light) will
illuminate after 250 hours of operation. To reset
after cleaning the filter, press the Check Filter
button and the light will go off.
CHECK FILTER FEATURE:
Press Energy saver button to initiate this function.
This function is available on COOL, DRY, AUTO
(only AUTO-COOLING and AUTO-FAN) modes.
The fan will continue to run for 3 minutes after
the compressor shuts off. The fan then cycles on
for 2 minutes at 10 minute intervals until the
room temperature is above the set temperature,
at which time the compressor turns back on and
Cooling Starts.
NOTE: In COOL, DRY, and AUTO modes, the
energy saver feature will automatically be on.
Press the energy saver button to turn it off.
ENERGY SAVER FEATURE:
COMFORT SENSE FEATURE: (on some models)
MODE SELECTOR:

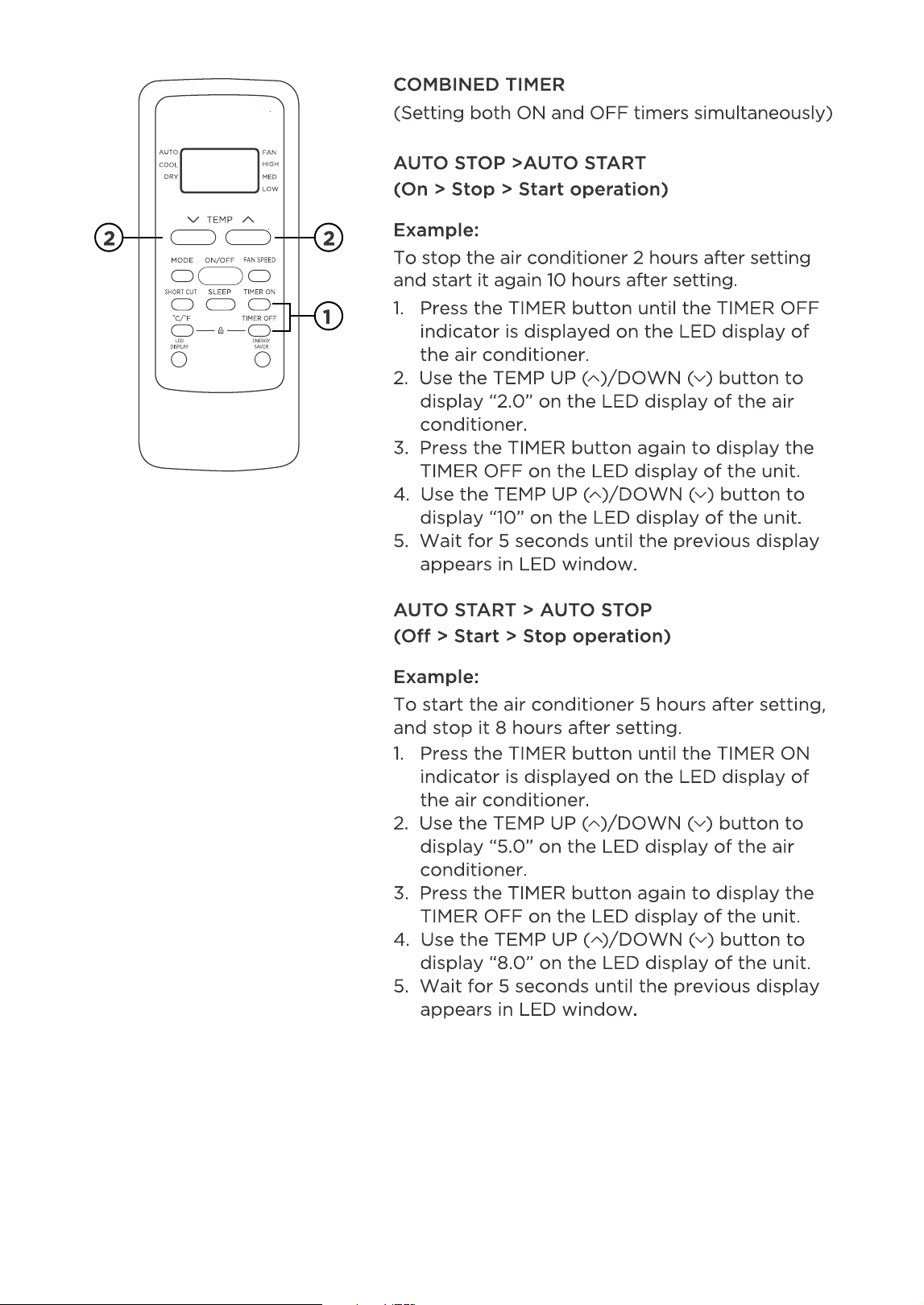

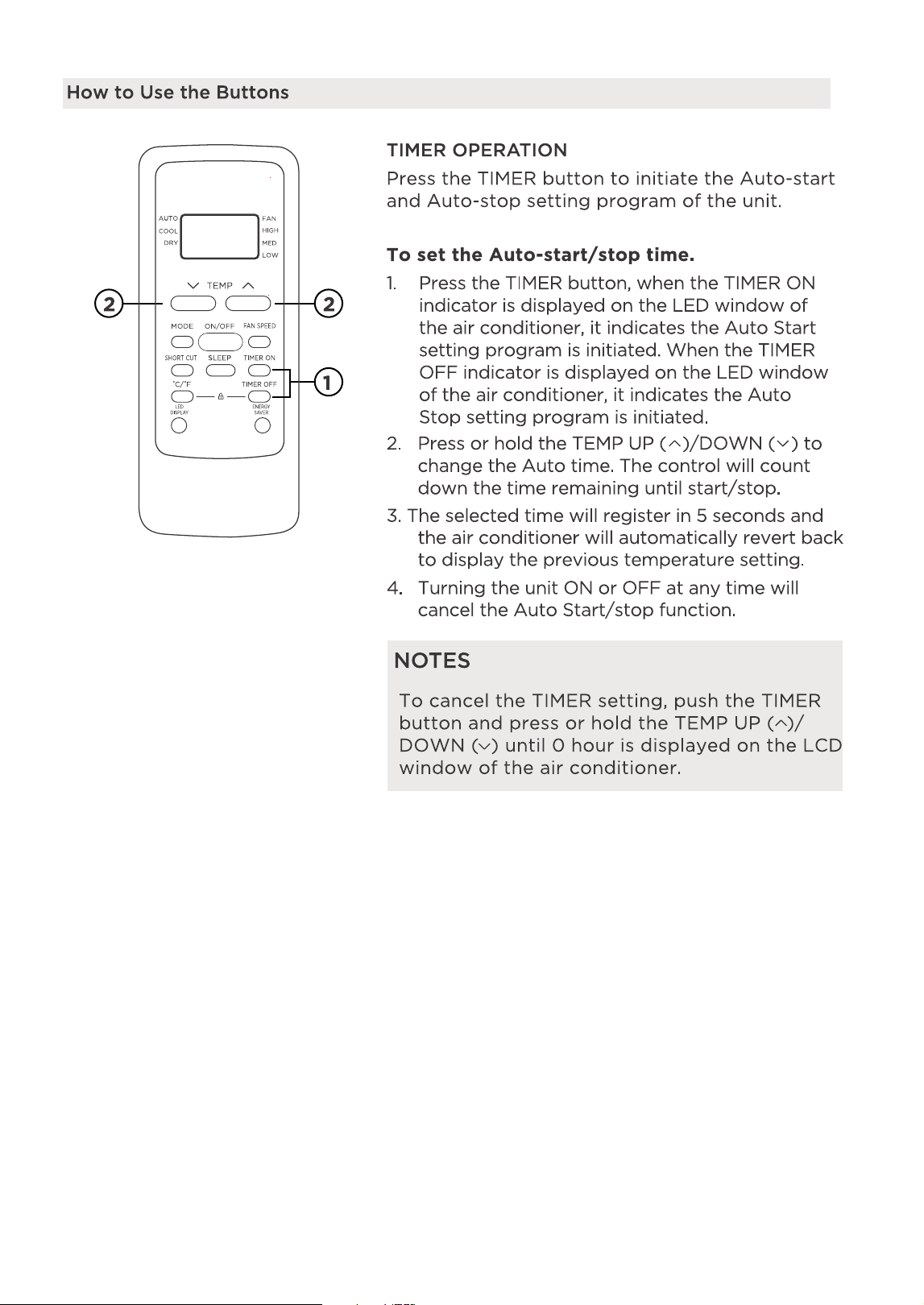

TIMER: AUTO START/STOP FEATURE:
Light flashes or
illuminates
• When the unit is on, press the Timer button.
The “Timer off ” LED indicator light will
illuminate indicating the Auto stop feature
has been activated. - When the unit is off,
press the Timer button. The “Timer on” LED
indicator light will illuminate indicating the
Auto start feature has been activated.
• When the time of TIMER ON is displayed,
press the Timer button again. The TIMER
OFF indicator light illuminates. It indicates
the Auto Stop program has initiated.
• Press or hold the UP or DOWN button
to change the Auto time by 0.5 hour
increments, up to 10 hours, then at 1 hour
increments up to 24 hours. The control will
count down the time remaining until start.
25
NOTE:
Shows the set temperature in ” °C" or ” °F" and
the Auto-timer settings.While on Fan only mode,
it shows the room temperature. If the room
temperature is too high or low, it will display
" HI" or " LO".
Error codes:
AS - Room temperature sensor error
ES -Evaporator temperature sensor error
NOTE: " • " is displayed as shown in the above
picture.
HS -Electric heating sensor error(on some models);
CS -Condenser temperature sensor error
(on some models);
OS -Outside temperature sensor error
(on some models);
E7 -Unit malfunction(on some models).
NOTE:When error occurs, unplug the unit and
plug it back in. If error repeats, call for service.
Displays
If the unit breaks off unexpectedly due to loss
of power, it will restart with the previous
function setting automatically when the power
resumes.
Now that you have mastered the operating
procedure, here are more features in your
control that you should become familiar with.
• The Cool circuit has an automatic 3 minutes
time delayed start if the unit is turned off and
on quickly.
This prevents overheating of the compressor
and possible circuit breaker tripping.The fan
will continue to run during this time.
• The control is capable of displaying
temperature in degrees Fahrenheit or degrees
Celsius.
To convert from one to the other, press and
hold the Up and Down buttons at the same
time for 3 seconds.
• The selected time will register in 5 seconds,
and the system will automatically revert back
to display the previous temperature setting
or room temperature when the unit is on.
(when the unit is off , there is no display.)
The selected time indicates the amount of
time after the current time which you want
the unit to turn on or off. If you select Timer
On and adjust the time to 2.0h, the unit will
turn on 2 hours after the current time.
Turning the unit ON or OFF at any time
or adjusting the timer setting to 0.0 will
cancel the Auto Start/Stop timed program.
NOTE: To cancel timer operation, press and
hold the timer button for 2 seconds until
the beep/buzzer is heard.
DISPLAYS:
ADDITIONAL THINGS YOU SHOULD KNOW

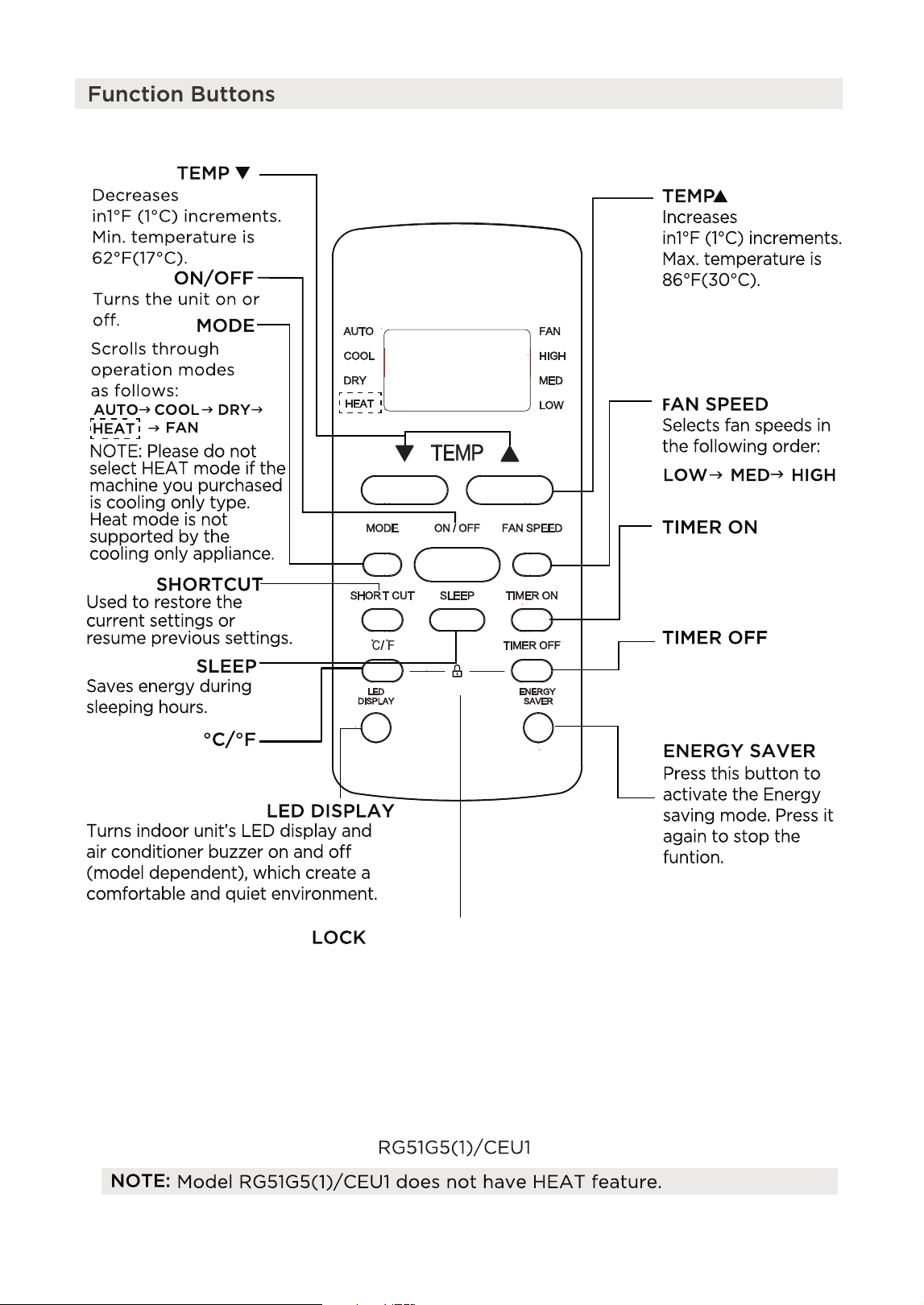

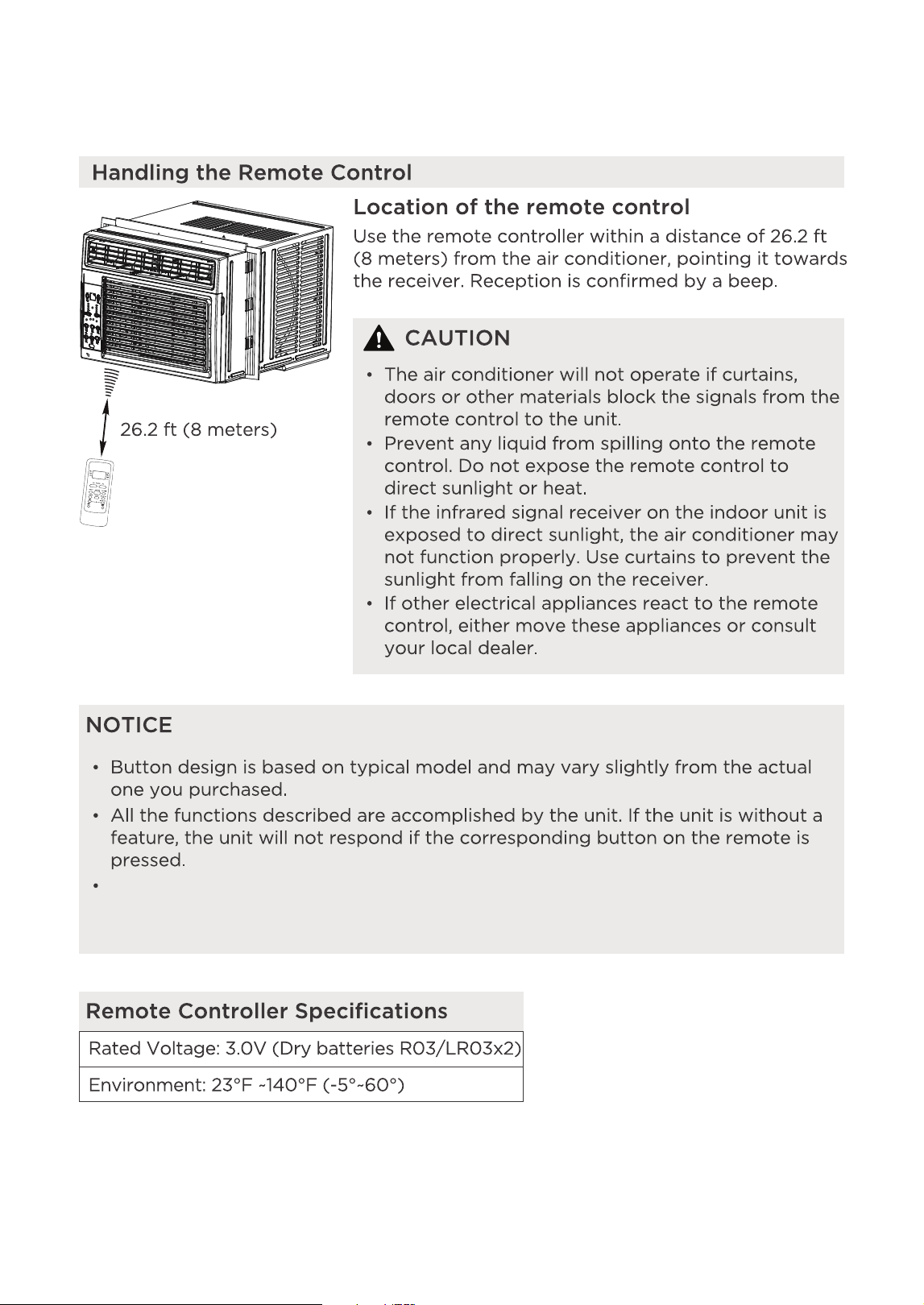

REMOTE CONTROL INSTRUCTIONS
When there are significant differences between features or operation implied by
the remote control illustration and the actual functions described in the User
Manual, refer to the descriptions in the user manual.
26
temperature
temperature
Sets timer to turn unit
on. (see How to Use
Basic Functions for
instructions).
Sets timer to turn unit
off. (see How to Use
Basic Functions for
instructions).
Switches the temperature
display between °C & °F
Press and hold the °C & °F & TIMER OFF buttons
simultaneously for 5 seconds to lock the remote
keypad. Press together for 2 seconds to unlock
the remote keypad.
27

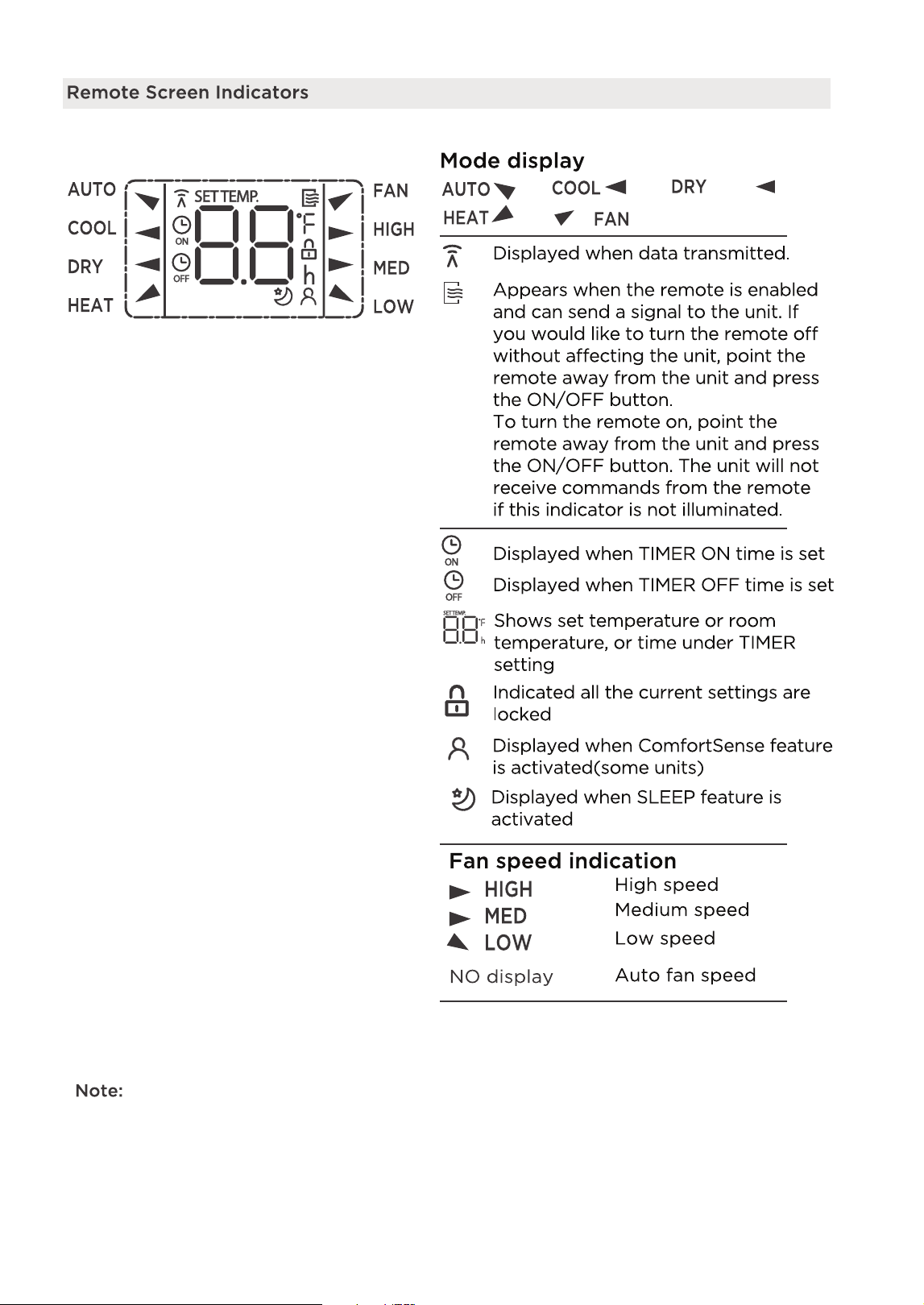

Information is displayed when the remote control is powered up.
All indicators shown in the figure are for the purpose of clear presentation.
But during the actual operation, only the relative function signs are shown on
the display window.
28
29
30
31

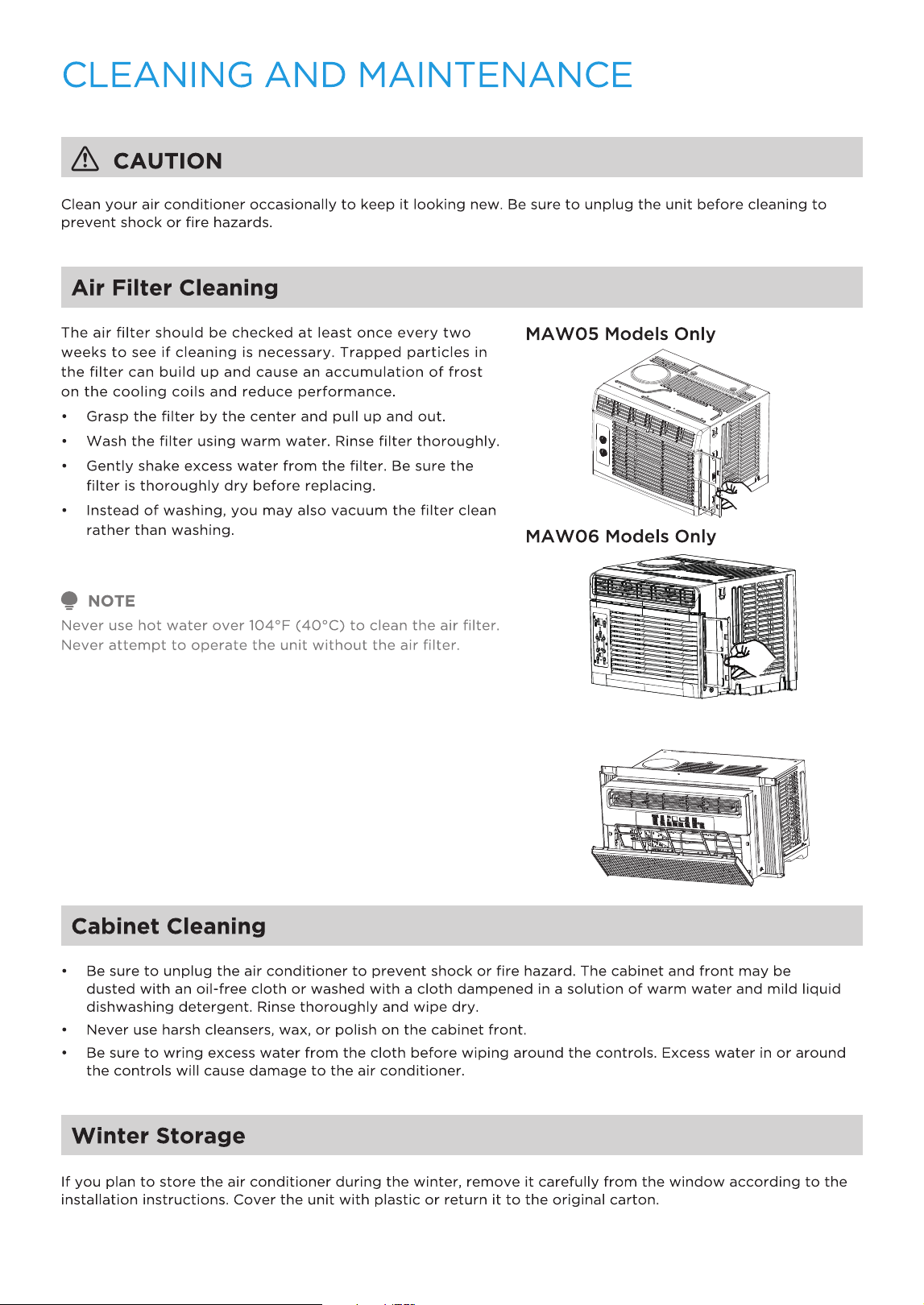

MAW08/10/12 Models
32

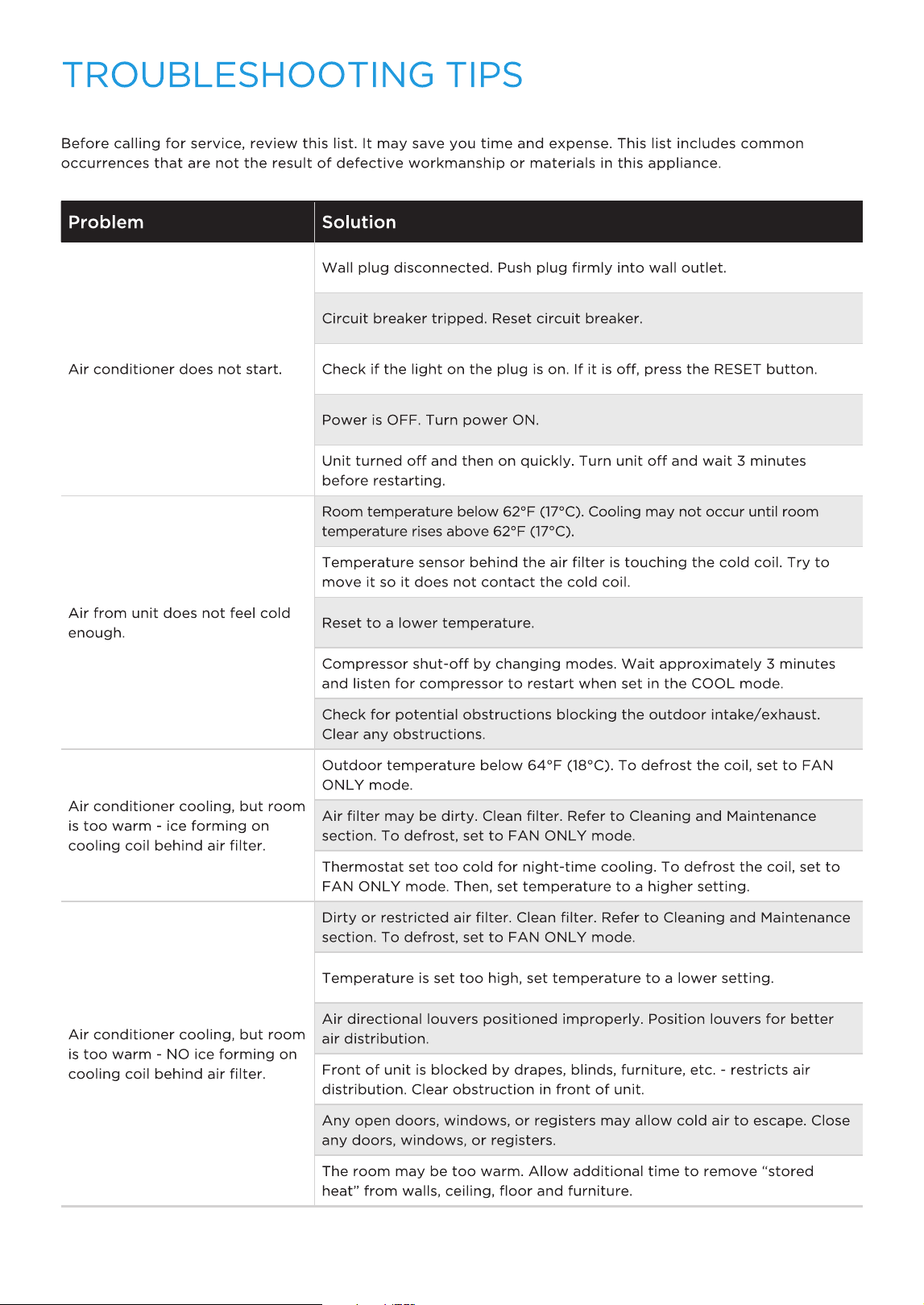

33

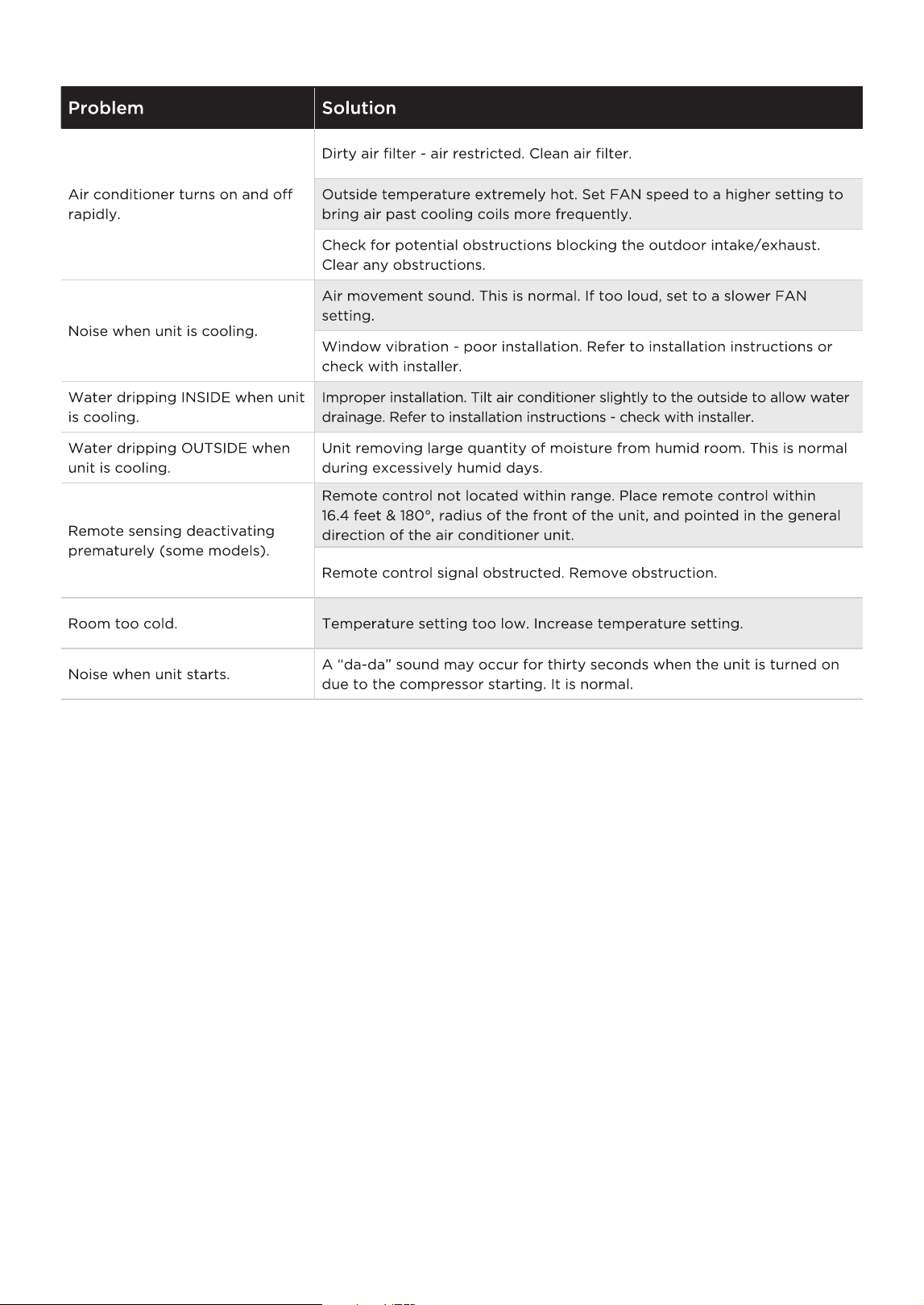

34
One
35
16120300A31760
20231221
