MAW05M1BWT
MAW05R1BWT-A
MAW06R1CWT
MAW08R1BWT
MAW10R1BWT
MAW12R1BWT
the
27
33
34
36
13
20
THANK YOU FOR CHOOSING MIDEA!
Before using your new Midea product, please review this manual thoroughly to ensure safe and
effective operation of its features and functions.
CONTENTS
Read safety precautions before operation and installation:
To prevent death or injury to the user, other people and property damage, the
following instructions must be followed. Incorrect operation due to ignoring of
instructions may cause damage, harm or death.
The air conditioner should be used in such a way that it is protected from moisture.
(i.e. condensation, splashed water, etc.) Do not place or store the air conditioner
where it can fall or be pulled into water or any other liquid. Unplug immediately if it
occurs.
Installation must be performed according to the installation instructions. Improper
installation can cause water leakage, electrical shock, or fire.
Use only the included accessories and parts, and specified tools for the installation.
Using non-standard parts can cause water leakage, electrical shock, fire, and injury
or property damage.
Ensure the outlet is grounded and matches the required voltage. The power cord
features a three-prong grounding plug for shock protection. Voltage details are on
the unit's nameplate.
The unit must be used with a properly grounded wall receptacle. If the receptacle is
not adequately grounded or protected by the correct fuse or circuit breaker (as
specified by the unit's maximum current on the nameplate), have a qualified
electrician install the appropriate receptacle.
Install the unit on a flat, sturdy surface. Failure to do so could result in damage or
excessive noise and vibration.
The unit must be kept free from obstruction to ensure proper function and to
mitigate safety hazards.
Do not modify the length of the power cord or use an extension cord to power the
unit.
Do not share a single outlet with other electrical appliances. Improper power supply
can cause fire or electrical shock.
Do not install the air conditioner in a wet room, such as a bathroom or laundry room.
Excessive exposure to water can cause electrical components to short circuit.
Do not operate a unit that it has been dropped or damaged.
The appliance with electric heater shall have at least 1 meter space to the combustible
materials.
Do not touch the unit with wet or damp hands or when barefoot.
If the air conditioner is knocked over during use, turn o the unit and unplug it from
the main power supply immediately. Visually inspect the unit to ensure there is no
damage. If damage is suspected on the unit, contact a technician or customer
service for assistance.
In a thunderstorm, the power must be cut o to avoid damage to the unit due to
lightning.
WARNING
3
WARNING CAUTION
This symbol indicates a risk of property
damage or serious consequences.
This symbol indicates a risk of
personal injury or serious harm.
All wiring must be performed strictly in accordance with the wiring diagram located
inside of the unit.
The unit's circuit board(PCB) is designed with a fuse to provide overcurrent
protection. The specifications of the fuse are printed on the circuit board, such as:
T 3.15A/250V, etc.
When the water drainage function is not in use, keep the upper and the lower drain
plug firmly to the unit to get rid of choking. When the drain plug is not in use, keep
it carefully to prevent children from choking.
This unit is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
Children must be supervised around the unit at all times.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Prior to cleaning or other maintenance, the appliance must be disconnected from
the supply mains.
Do not remove any fixed covers. Never use this appliance if it is not working
properly, or if it has been dropped or damaged.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away from trac area and where it will not be tripped over.
Do not operate unit with a damaged cord, plug, power fuse or circuit breaker.
Discard unit or return to an authorized service facility for examination and/or repair.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state
speed control device.
The appliance shall be installed in accordance with national wiring regulations.
Contact the authorized service technician for repair or maintenance of this unit.
Contact the authorized installer for installation of this unit.
Do not cover or obstruct the inlet or outlet grilles.
Do not use this product for functions other than those described in this instruction
manual.
Before cleaning, turn o the power and unplug the unit.
Disconnect the power if strange sounds, smell, or smoke are present.
Do not press the control panel buttons with anything other than fingers.
Do not remove any fixed covers. Never use this appliance if it is not working properly,
or if it has been dropped or damaged.
Do not operate or stop the unit by inserting or pulling out the power cord plug.
Do not use hazardous chemicals to clean or come into contact with the unit. Do not
use the unit in the presence of inflammable substances or vapour such as alcohol,
insecticides, petrol, etc.
Always transport the air conditioner in a vertical position and stand on a stable,
level surface during use.
Always contact a qualified person to carry out repairs. If the damaged power supply
cord must be replaced with a new power supply cord obtained from the product
manufacturer and not repaired.
Hold the plug by the head of the power plug when taking it out.
Turn o the product when not in use.
4
CAUTION
Electronic Work
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN
OFF THE MAIN POWER TO THE SYSTEM.
Main Control
Compressor
Fan Motor
Display
Power
Supply
L/AC L/L1/L-IN
N/AC N/L2/N-IN
Other
Electronic Type
NOTICE:
Please strictly follow the wiring label attached to the unit for all wiring connections.
The wiring diagram may vary for dierent unit. Please refer to the wiring diagram on
the unit. The above wiring diagram is a simplified version for preliminary illustration
purposes only.
5
Switch
Capacitor
Fan Motor
L
0
N
Power
Supply
Other
Mechanical Type
Compressor
WARNING for Using R32 Refrigerant
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition
sources (i.e. open flames, an operating gas appliance or an operating electric
heater).
Do not pierce or burn.
Be aware that the refrigerants may not contain an odor.
WARNING for Using R32 Refrigerant
- Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be
carried out under the supervision of the person competent in the use of flammable
refrigerants.
- DO NOT modify the length of the power cord or use an extension cord to power the
unit.
- DO NOT share a single outlet with other electrical appliances. Improper power
supply can cause fire or electrical shock.
- Please follow the instruction carefully to handle, install, clear, service the appliance
to avoid any damage or hazard.
- When maintaining or disposing the appliance, the refrigerant shall be recovered
properly, shall not discharge to air directly.
CAUTION:
Risk of fire
flammable materials
Explanation of symbols displayed on the unit
CAUTION
This symbol indicates that the operation manual should
be read carefully.
CAUTION
This symbol indicates that a service personnel should be
handling this equipment with reference to the
installation manual.
CAUTION
This symbol indicates that information is available such
as the operating manual or installation manual.
The unit should be installed, operated and stored in a room with a floor area
according to the amount of refrigerant to be charged. For specific information on
the type of gas and the amount, please refer to the relevant label on the unit itself.
When there are differences between the label and the manual on the Min. room area
description, the description on the label shall prevail.
The unit shall be installed, operated and stored in a room with a floor area larger
than 4 m
2
.
The unit shall not be installed in an unvertilated space, if that space is smaller
than 4 m
2
.
No open fire or device like switch which may generate spark/arcing shall be around
appliance to avoid causing ignition of the flammable refrigerant used.
Please follow the instructions carefully when storing or maintaining the appliance
to prevent mechanical damage from occurring.
6
1) Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety
checks are necessary to ensure that the risk of ignition is minimized. For repair
to the refrigerating system, the following precautions shall be complied with
prior to conducting work on the system.
2) Work procedure
Work shall be undertaken under a controlled procedure so as to minimize the risk
of a flammable gas or vapor being present while the work is being performed.
3) General work area
All maintenance sta and others working in the local area shall be instructed on
the nature of work being carried out. Work in confined spaces shall be avoided.
The area around the workspace shall be sectioned o. Ensure that the conditions
within the area have been made safe by control of flammable material.
4) Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerating detector prior to and
during work, to ensure the technician is aware of potentially flammable
atmospheres. Ensure that the leak detection equipment being used is suitable
for use with flammable refrigerants. (i.e. non-sparking, adequately sealed or
intrinsically safe)
6. Information on servicing
See transport regulations.
1. Transport of equipment containing flammable refrigerants
See local regulations.
2. Marking of equipment using signs
See national regulations.
3. Disposal of equipment using flammable refrigerants
4. Storage of equipment
Storage package protection should be constructed such that mechanical
damage to the equipment inside the package will not cause a leak of the
refrigerant charge. The maximum number of pieces of equipment permitted to
be stored together will be determined by local regulations.
5. Storage of packed (unsold) equipment
The storage of the unit should be in accordance with the applicable regulations
or instructions, whichever is more stringent.
- Compliance with national gas regulations shall be observed.
- Keep ventilation openings clear of obstruction.
- The appliance shall be stored so as to prevent mechanical damage from occurring.
- A warning that the appliance shall be stored in a well-ventilated area where the
room size corresponds to the room area as specified for operation.
- Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certificate from an industry-accredited assessment
authority, which authorises their competence to handle refrigerants safely in
accordance with an industry recognised assessment specification. All training shall
follow the ANNEX HH requirements of UL 60335-2-40 4th Edition.
Examples for such working procedures are:
• Breaking into the refrigerating circuit;
• Opening of sealed components;
• Opening of ventilated enclosures.
7
7) Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before
breaking into the system or conducting any hot work. A degree of ventilation
shall continue during the period that the work is carried out. The ventilation
should safely disperse any released refrigerant and preferably expel it externally
into the atmosphere.
8) Checks to the refrigerating equipment
Where electrical components are being changed, they shall be fit for the purpose
and to the correct specifications. At all times the manufacturer's maintenance
and service guidelines shall be followed. If in doubt consult the manufacturer's
technical department for assistance. The following checks shall be applied to
installations using flammable refrigerants: the actual refrigerant charge is in
accordance with the room size within which the refrigerant containing parts are
installed; the ventilation machinery and outlets are operating adequately and are
not obstructed; if an indirect refrigerating circuit is being used, the secondary
circuit shall be checked for the presence of refrigerant; marking to the
equipment continues to be visible and legible.
Markings and signs that are illegible shall be corrected; and refrigerating pipe or
components are installed in a position where they are unlikely to be exposed to
any substance which may corrode refrigerant containing components, unless the
components are constructed of materials which are inherently resistant to being
corroded or are suitably protected against being so corroded.
9) Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety
checks and component inspection procedures. If a fault exists that could
compromise safety, then no electrical supply shall be connected to the circuit
until it is satisfactorily dealt with. If the fault cannot be corrected immediately
but it is necessary to continue operation, an adequate temporary solution shall
be used.
This shall be reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include: That capacitors are discharged: this shall be
done in a safe manner to avoid possibility of sparking; that there no live electrical
components and wiring are exposed while charging, recovering or purging the
system; that there is continuity of earth bonding.
5) Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any
associated parts, appropriate fire extinguishing equipment shall be available to
hand. Have a dry powder or CO
2
fire extinguisher adjacent to the charging area.
6) No ignition sources
No person carrying out work in relation to a refrigerating system which involves
exposing any pipe work that contains or has contained flammable refrigerant
shall use any sources of ignition in such a manner that it may lead to the risk of
fire or explosion. All possible ignition sources, including smoking, should be kept
suciently far away from the site of installation, repairing, removing and disposal,
during which flammable refrigerant can possibly be released to the surrounding
space. Prior to work taking place, the area around the equipment is to be surveyed
to make sure that there are no flammable hazards or ignition risks. "No Smoking"
signs shall be displayed.
8
7. Sealed electrical components shall be replaced.
8. Intrinsically safe components must be replaced.
and the appropriate percentage of gas (25 % maximum) is confirmed. Leak
detection fluids are suitable for use with most refrigerants but the use of
detergents containing chlorine shall be avoided as the chlorine may react with
the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked
flames shall be removed/ extinguished. If a leakage of refrigerant is found which
requires brazing, all of the refrigerant shall be recovered from the system, or
isolated (by means of shut o valves) in a part of the system remote from the
leak. Removal of refrigerant shall be according to Removal and evacuation.
When breaking into the refrigerant circuit to make repairs—or for any other
purpose - conventional procedures shall be used. However, for flammable
refrigerants it is important that best practice be followed, since flammability is
a consideration. The following procedure shall be adhered to:
-Safely remove refrigerant following local and national regulations;
-Evacuate;
-Purge the circuit with inert gas (optional for A2L);
-Evacuate (optional for A2L);
-Continuously flush or purge with inert gas when using flame to open circuit; and
-Open the circuit.
The refrigerant charge shall be recovered into the correct recovery cylinders if
venting is not allowed by local and national codes. For units containing
flammable refrigerants, the system shall be purged with oxygen-free nitrogen to
render the appliance safe for flammable refrigerants. This process may need to
be repeated several times. Do not use compressed air or oxygen to purge
refrigerant systems.
For units containing flammable refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the system with oxygen-free nitrogen and
continuing to fill until the working pressure is achieved, then venting to
atmosphere, and finally pulling down to a vacuum (optional for A2L).
This process shall be repeated until no refrigerant is within the system (optional
for A2L). When the final oxygen-free nitrogen charge is used. the system shall be
vented down to atmospheric pressure to enable work to take place. The outlet
for the vacuum pump shall not be close to any potential ignition sources, and
ventilation shall be available.
11. Removal and evacuation
Check that cabling will not be subject to wear, corrosion, excessive pressure,
vibration, sharp edges or any other adverse environmental eects. The check
shall also take into account the eects of aging or continual vibration from
sources such as compressors or fans.
9. Cabling
Under no circumstances shall potential sources of ignition be used in the
searching for or detection of refrigerant leaks. A halide torch (or any other
detector using a naked flame) shall not be used.
The following leak detection methods are deemed acceptable for systems
containing flammable refrigerants. Electronic leak detectors shall be used to
detect flammable refrigerants, but the sensitivity may not be adequate, or may
need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free
area.) Ensure that the detector is not a potential source of ignition and is suitable
for the refrigerant used. Leak detection equipment shall be set at a percentage
of the LFL of the refrigerant and shall be calibrated to the refrigerant employed
10. Detection of flammable refrigerants
9
Prior to the task being carried out, an oil and refrigerant sample shall be taken in
case analysis is required prior to re-use of reclaimed refrigerant. It is essential
that electrical power is available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that: Mechanical handling equipment
is available, if required, for handling refrigerant cylinders; all personal protective
equipment is available and being used correctly; the recovery process is
supervised at all times by a competent person; recovery equipment and
cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be
removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery unit and operate in accordance with manufacturer's
instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make
sure that the cylinders and the equipment are removed from site promptly and
all isolation valves on the equipment are closed o.
k) Recovered refrigerant shall not be charged into another refrigeration system
unless it has been cleaned and checked.
Before carrying out this procedure, it is essential that the technician is completely
familiar with the equipment and all its detail. It is recommended good practice
that all refrigerants are recovered safely.
In addition to conventional charging procedures, the following requirements shall
be followed.
Ensure that contamination of dierent refrigerants does not occur when using
charging equipment.
Hoses or lines shall be as short as possible to minimize the amount of refrigerant
contained in them.
Cylinders shall be kept in an appropriate position according to the instructions.
Ensure that the refrigeration system is earthed prior to charging the system with
refrigerant. Label the system when charging is complete (if not already). Extreme
care shall be taken not to overfill the refrigeration system. Prior to recharging the
system it shall be pressure tested with OFN. The system shall be leak tested on
completion of charging but prior to commissioning. A follow up leak test shall be
carried out prior to leaving the site.
12. Charging procedures
13. Decommissioning
10
Equipment shall be labelled stating that it has been de-commissioned and
emptied of refrigerant. The label shall be dated and signed. Ensure that there are
labels on the equipment stating the equipment contains flammable refrigerant.
14. Labeling
11
When removing refrigerant from a system, either for servicing or decommissioning,
it is recommended good practice that all refrigerants are removed safely. When
transferring refrigerant into cylinders, ensure that only appropriate refrigerant
recovery cylinders are employed. Ensure that the correct number of cylinders for
holding the total system charge is available. All cylinders to be used are designated
for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders
for the recovery of refrigerant). Cylinders shall be complete with pressure relief
valve and associated shut-o valves in good working order. Empty recovery
cylinders are evacuated and, if possible, cooled before recovery occurs. The
recovery equipment shall be in good working order with a set of instructions
concerning the equipment that is at hand and shall be suitable for the recovery of
the flammable refrigerant. If in doubt, the manufacturer should be consulted. In
addition, a set of calibrated weighing scales shall be available and in good working
order. Hoses shall be complete with leak-free disconnect couplings and in good
condition.
The recovered refrigerant shall be processed according to local legislation in the
correct recovery cylinder, and the relevant waste transfer note arranged. Do not
mix refrigerants in recovery units and especially not in cylinders. If compressors or
compressor oils are to be removed, ensure that they have been evacuated to an
acceptable level to make certain that flammable refrigerant does not remain within
the lubricant. The compressor body shall not be heated by an open flame or other
ignition sources to accelerate this process. When oil is drained from a system, it
shall be carried out safely.
15. Recovery
12

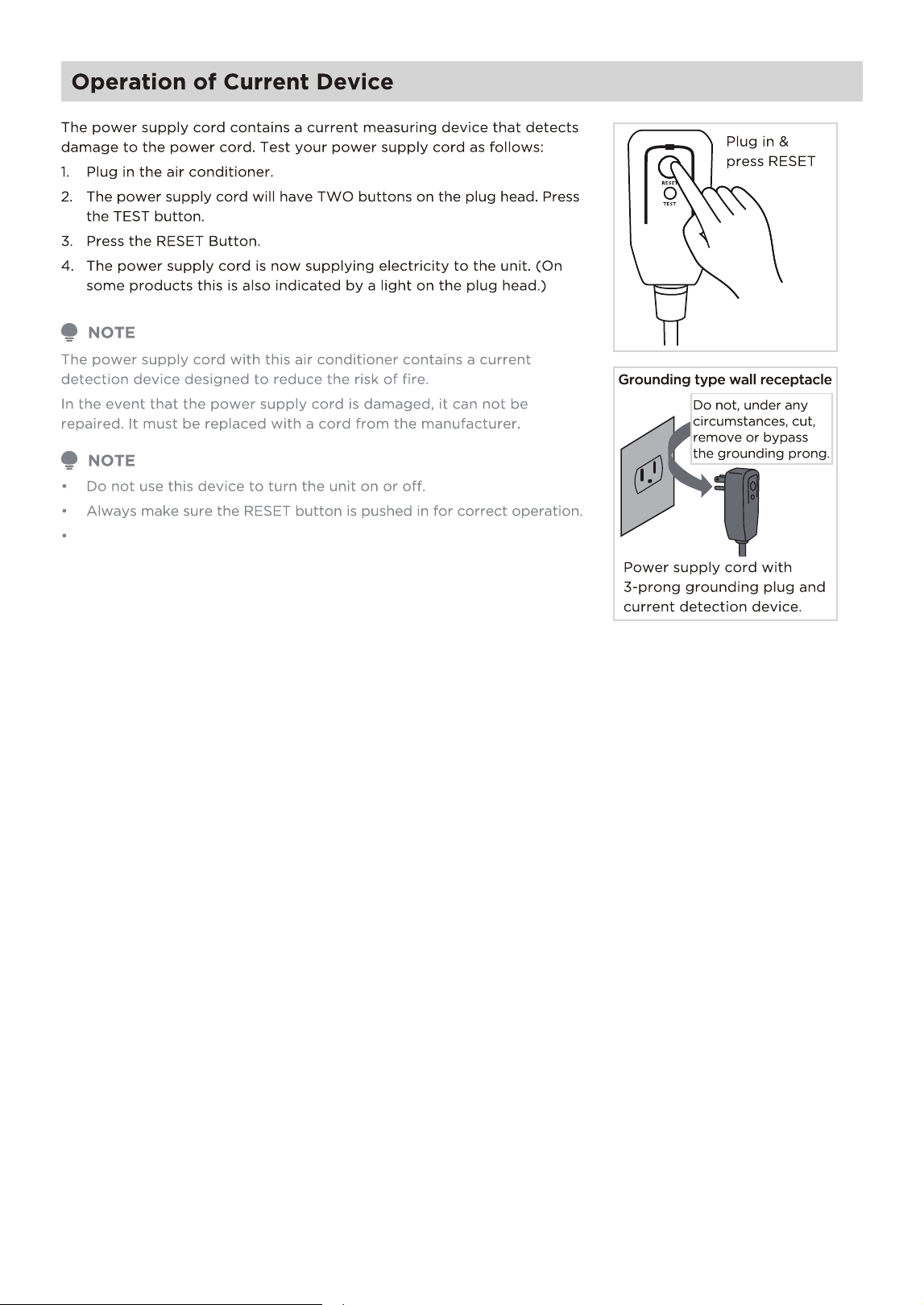

A click will be heard as the RESET button pops out.
A click will be heard as the button engages.
If the power supply cord does not reset when the TEST button is
pressed or cannot be reset, it must be replaced. Please contact
customer service for assistance.
13

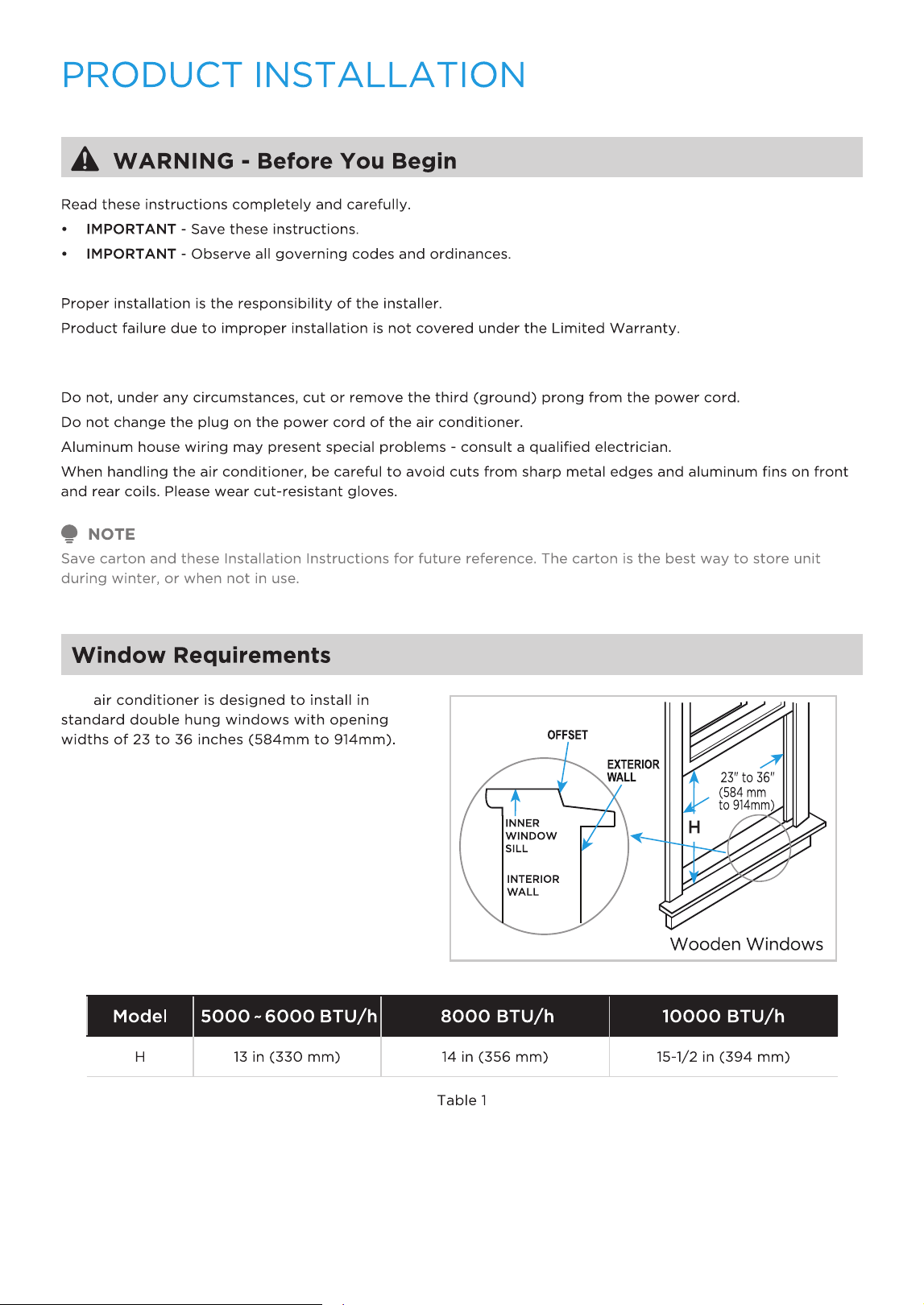

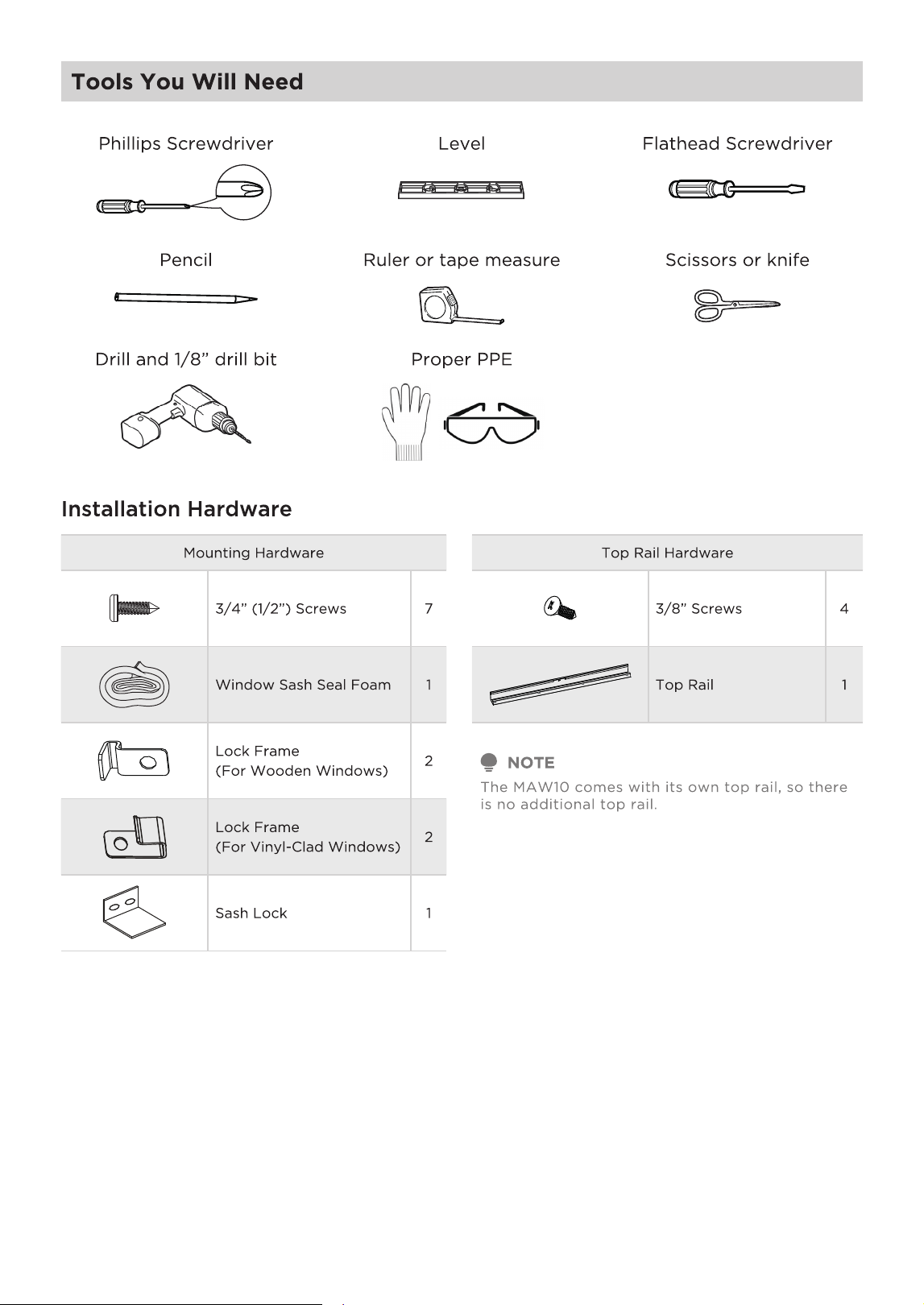

It is recommended that two people install this unit.
All supplied parts must be used, and proper installation procedures outlined in these instructions must be
followed when installing this air conditioner.
The
14
15

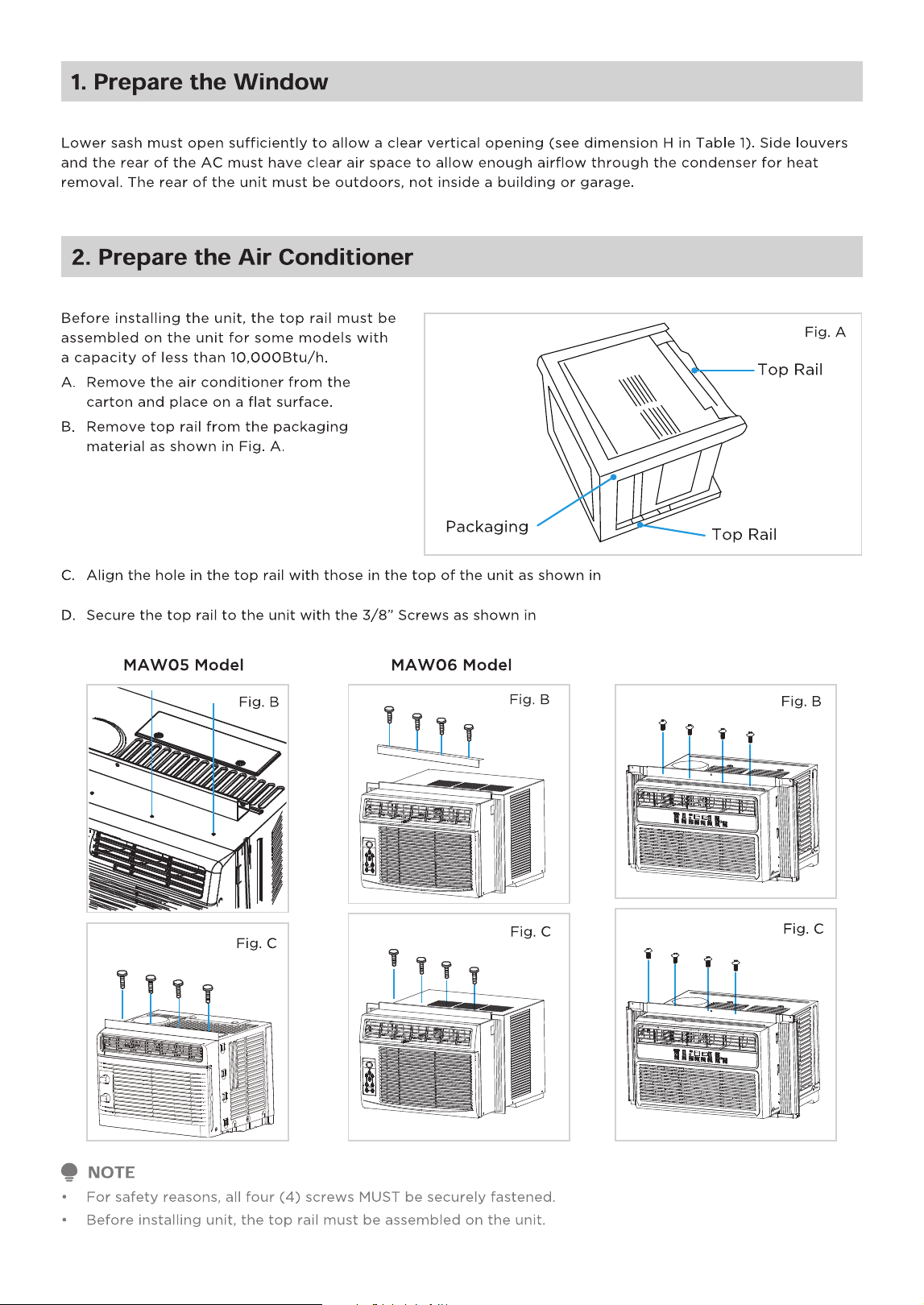

MAW08/10/12 Model
Fig. B, depending on the model
number of the personal unit.
Fig. C, depending on the model number of
the personal unit.
16

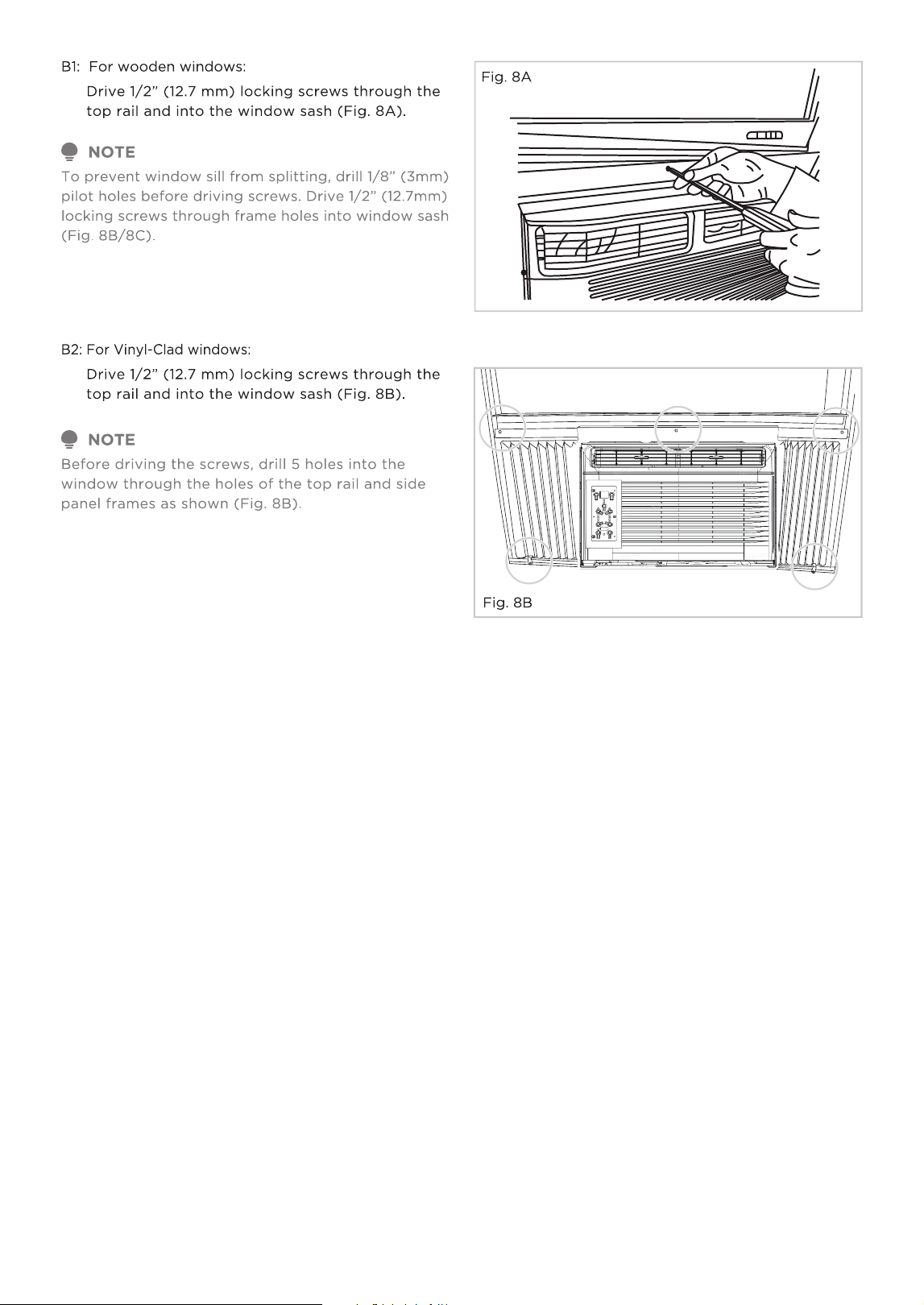

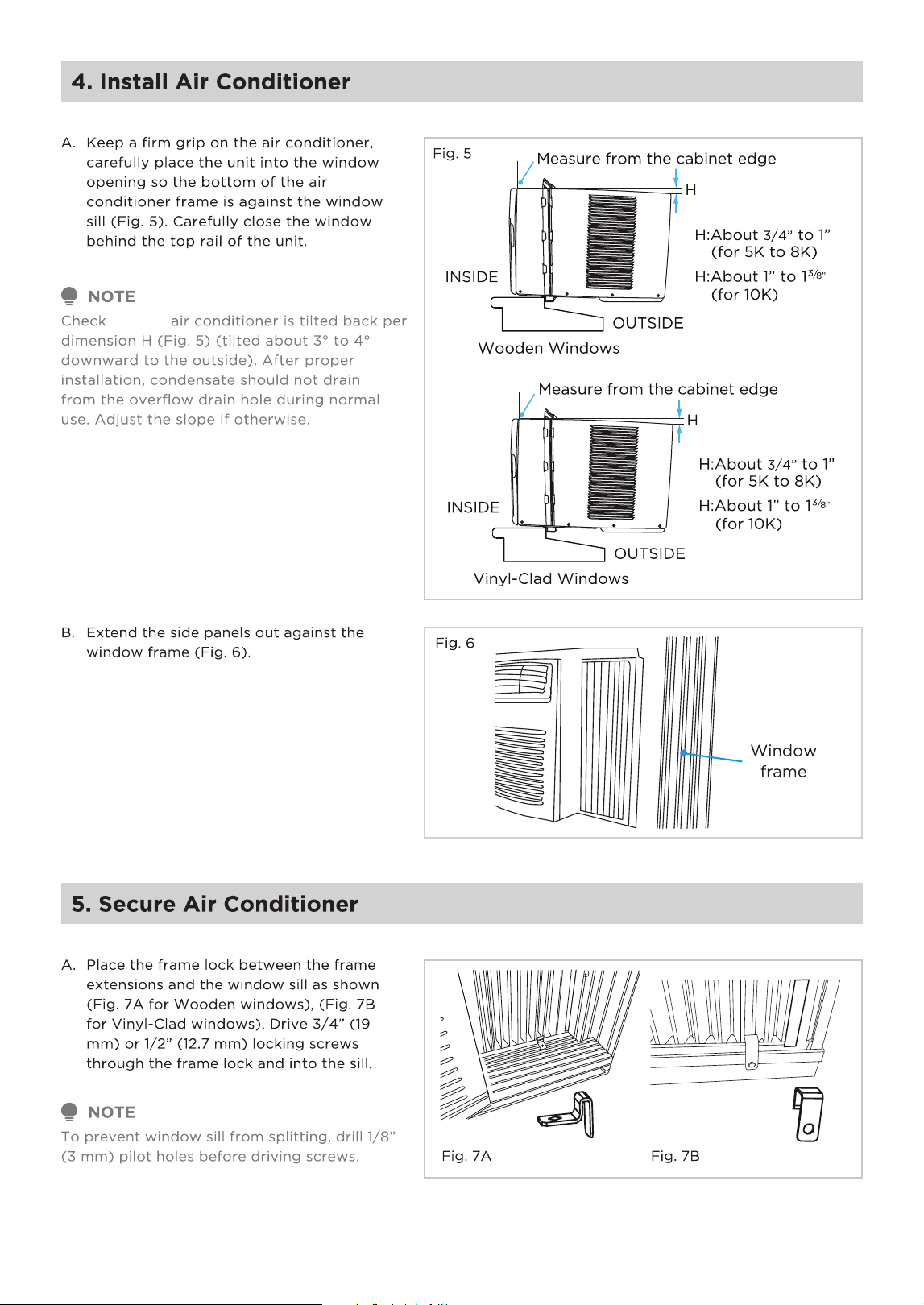

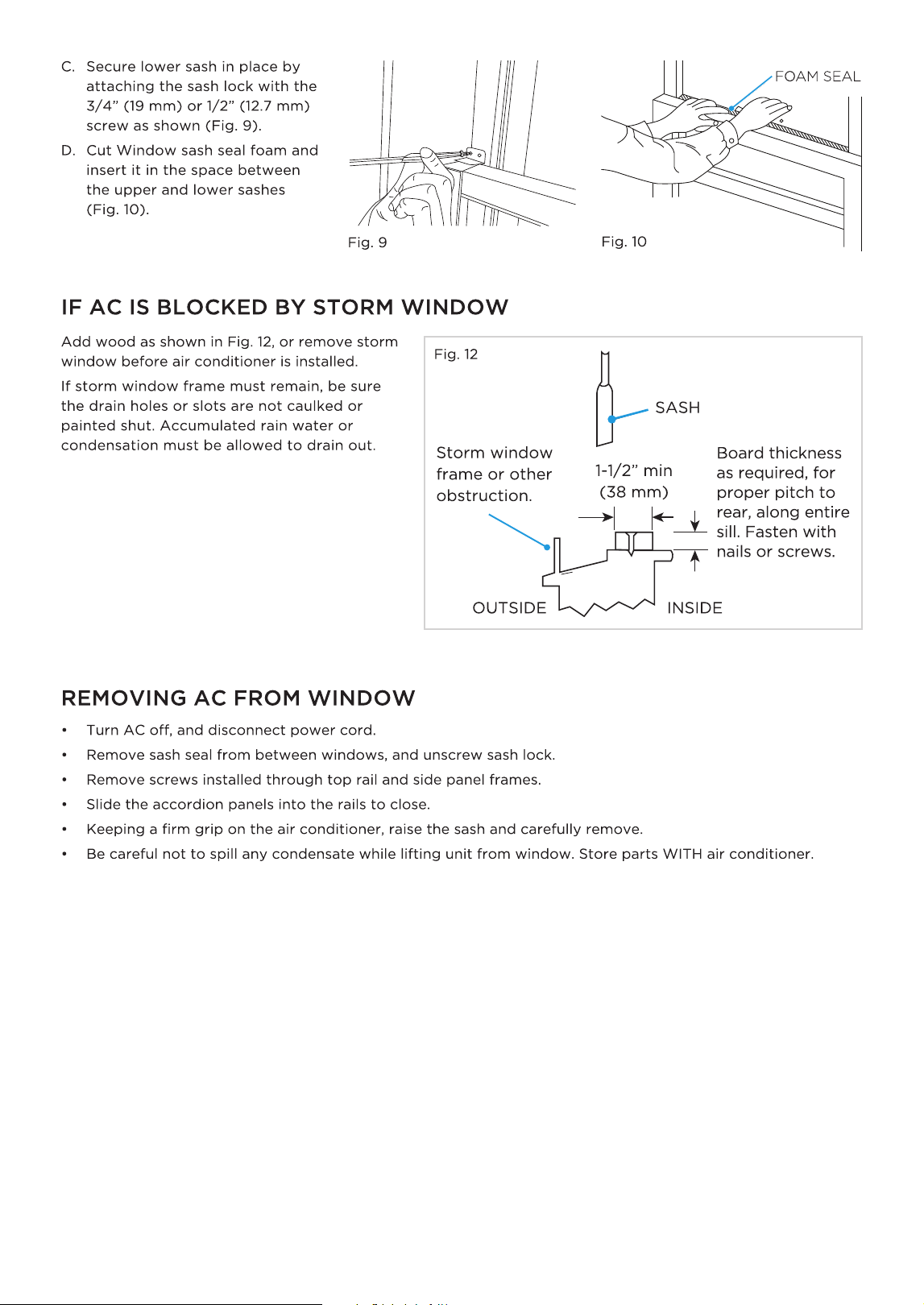

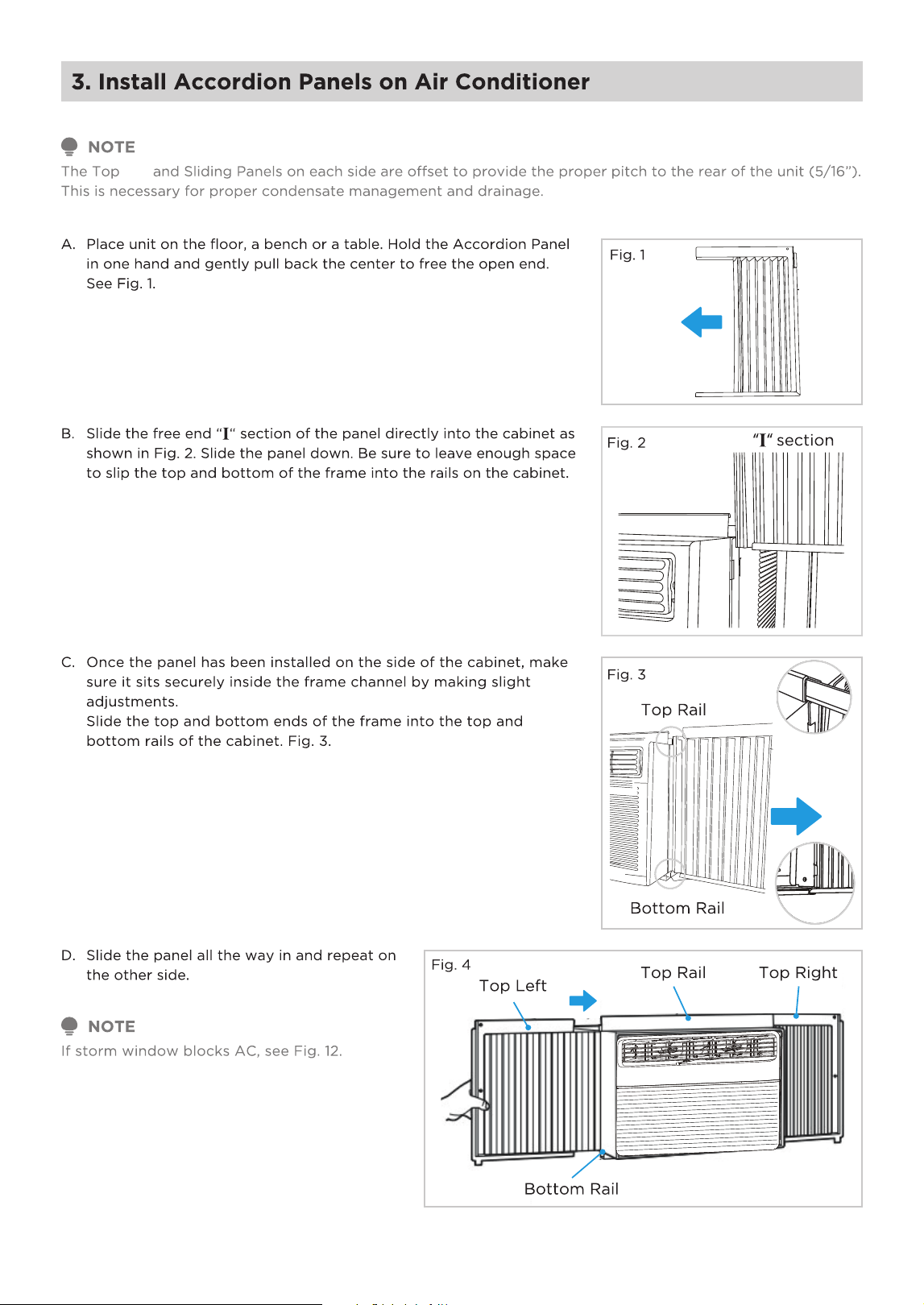

Rail
If the side panels are not used, ensure the
unit remains pitched to the rear.
17

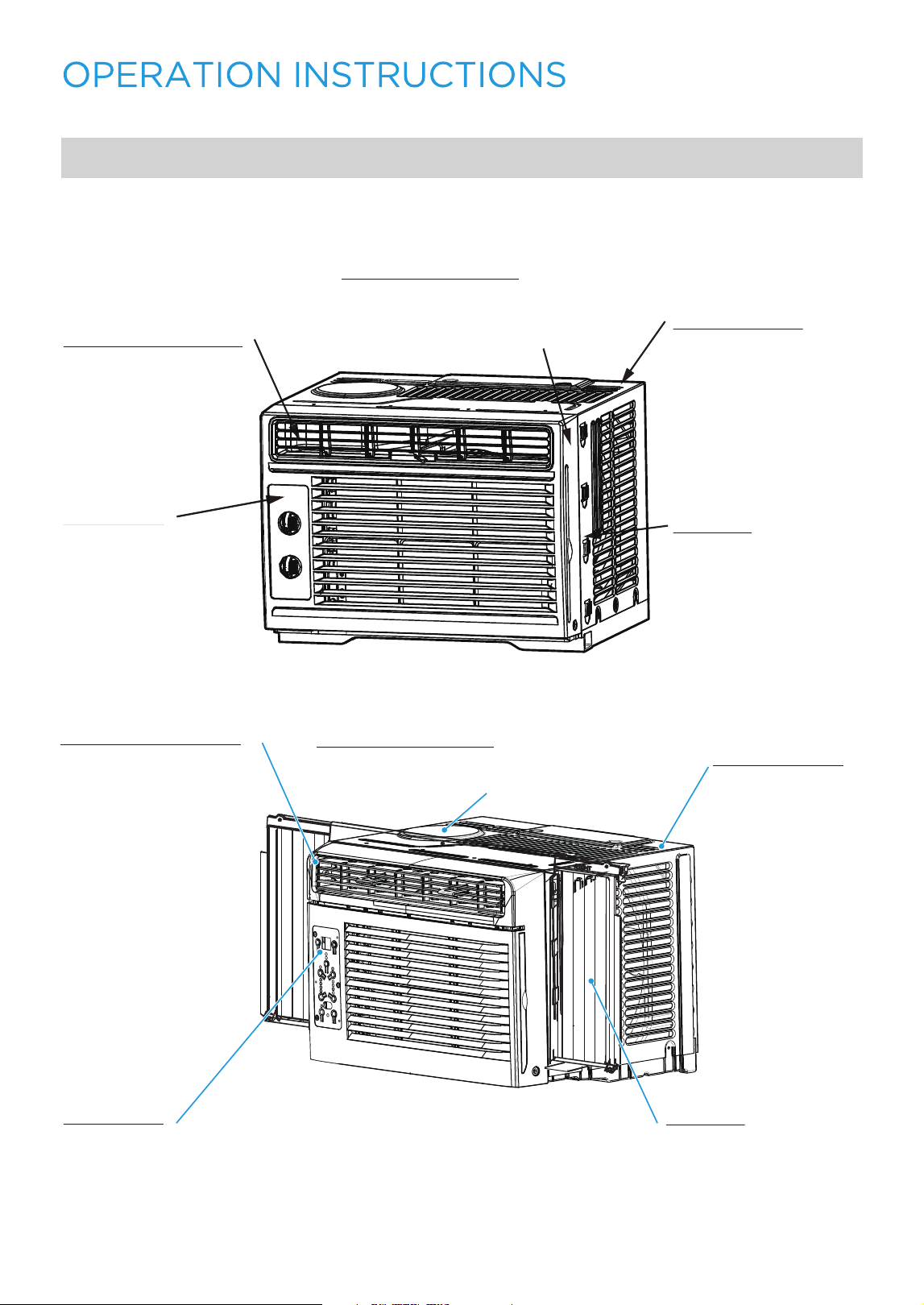

that the
18

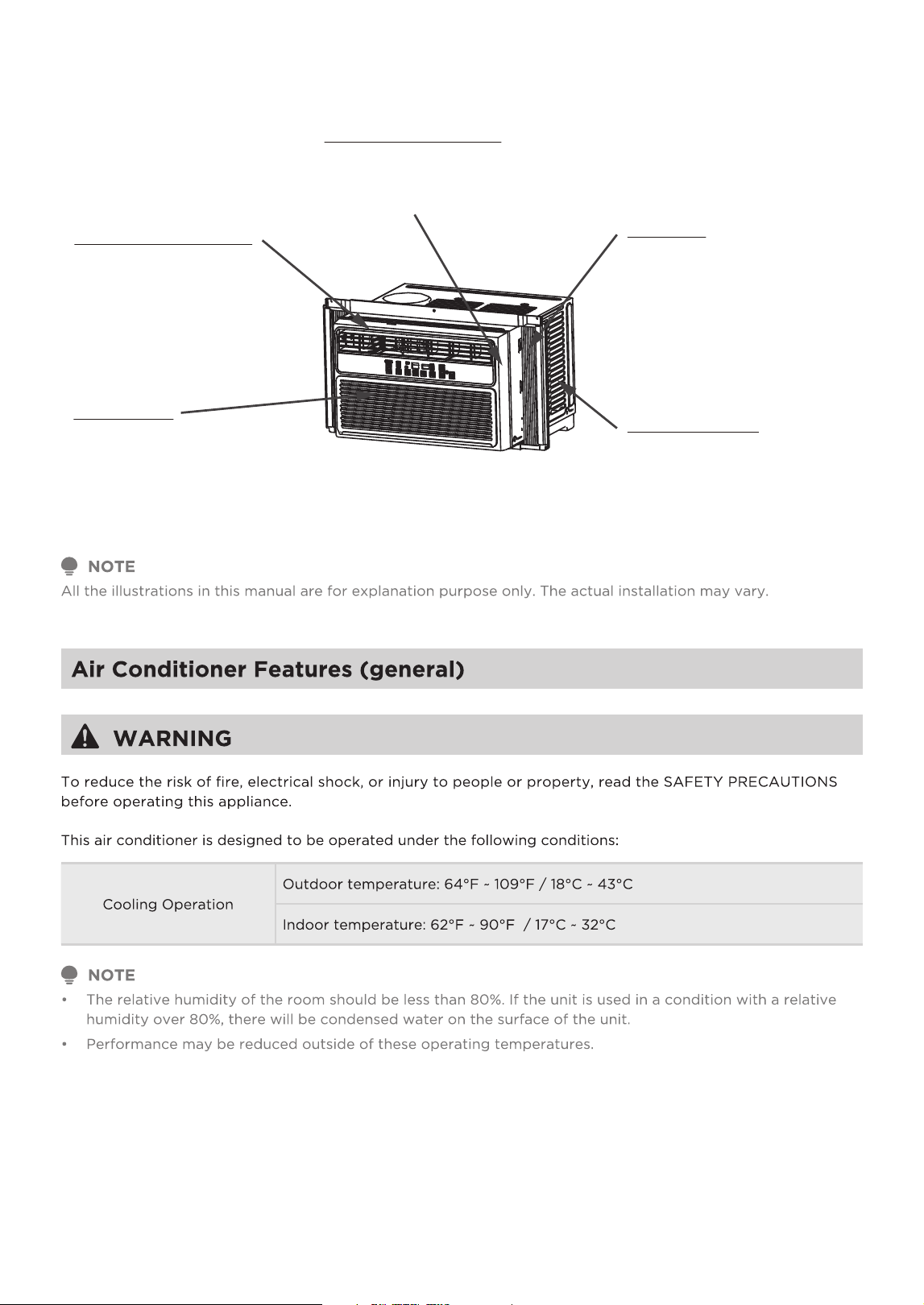

19
20
Typical Operating Noises
In front of the unit, a
rushing air sound from
the fan may be audible.
High efficiency compressors
may have a high pitched
sound during cooling cycle.
High Pitched Chatter
High efficiency compressors may have a
high pitched sound during cooling cycle.
High Pitched Chatter
MAW05 Models
MAWO6 Models
Droplets of water
hitting condenser
during normal
operation may cause
a trickling sound.
Trickling Sound
Droplets of water
hitting condenser
during normal
operation may cause
a trickling sound.
Trickling Sound
Unit may vibrate and
make noise because
of poor wall or window
construction or
incorrect installation.
Vibration
Unit may vibrate and
make noise because
of poor wall or window
construction or
incorrect installation.
Vibration
In front of the unit, a
rushing air sound from
the fan may be audible.
Sound of Rushing Air
Sound of Rushing Air
Gurgling or hissing
noises may be heard
due to refrigerant
flowing through
evaporator during
normal operation.
Gurgle/Hiss
Gurgling or hissing noises may
be heard due to refrigerant
flowing through evaporator
during normal operation.
Gurgle/Hiss
21
MAW08R1 / MAW10R1 / MAW12R1
Modern compressors may
have a high pitched sound
during cooling cycle.
High Pitched Chatter
In front of the unit, a
rushing air sound from
the fan may be audible.
Sound of Rushing Air
Unit may vibrate and
make noise because
of poor wall or window
construction or
incorrect installation.
Vibration
Droplets of water hitting
condenser during normal
operation may cause
pinging or swishing.
Trickling Sound
Gurgling or hissing noise
may be heard due to
refrigerant flowing
through evaporator
during normal operation.
Gurgle/Hiss
22
(MAW05 Models only)
Fresh Air Vent Control(on 10-12 K MODELS)
Once the room is cool, adjust the thermostat to the most comfortable setting.

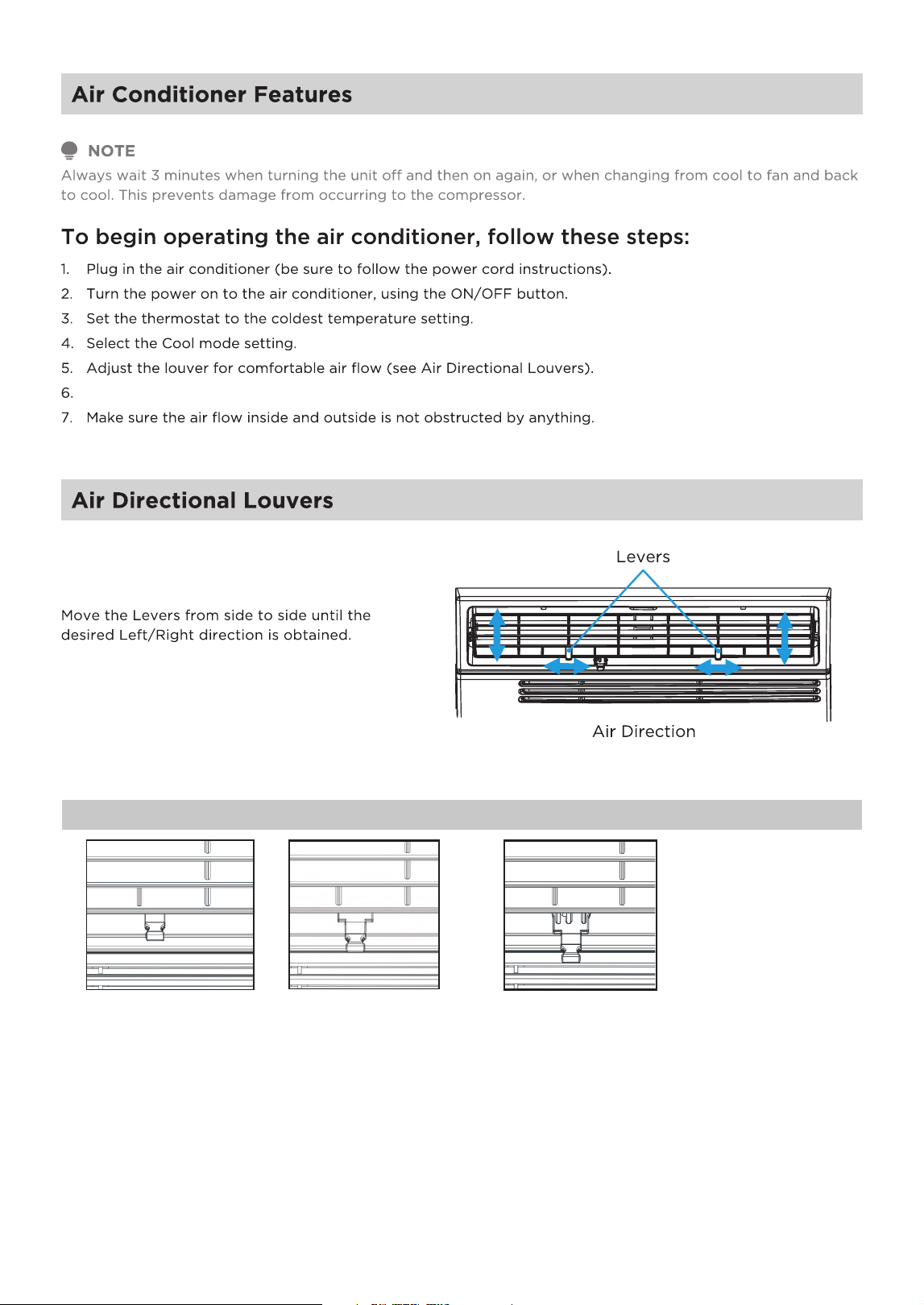

The louvers will allow the air to be directed left
or right and up or down (on some models)
throughout the room as needed.
The left lever can also be used to adjust the air
flow up or down as needed.
Fig.A (VENT CLOSED)
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (See Fig.A)
2. Draw fresh air into the room - Vent Open (see Fig.B)
3. Exchange air from the room and draws fresh air into the room - Vent and Exhaust Open (see Fig.C)
Fig.B (VENT OPEN) Fig.C (VENT & EXHAUST OPEN)
23

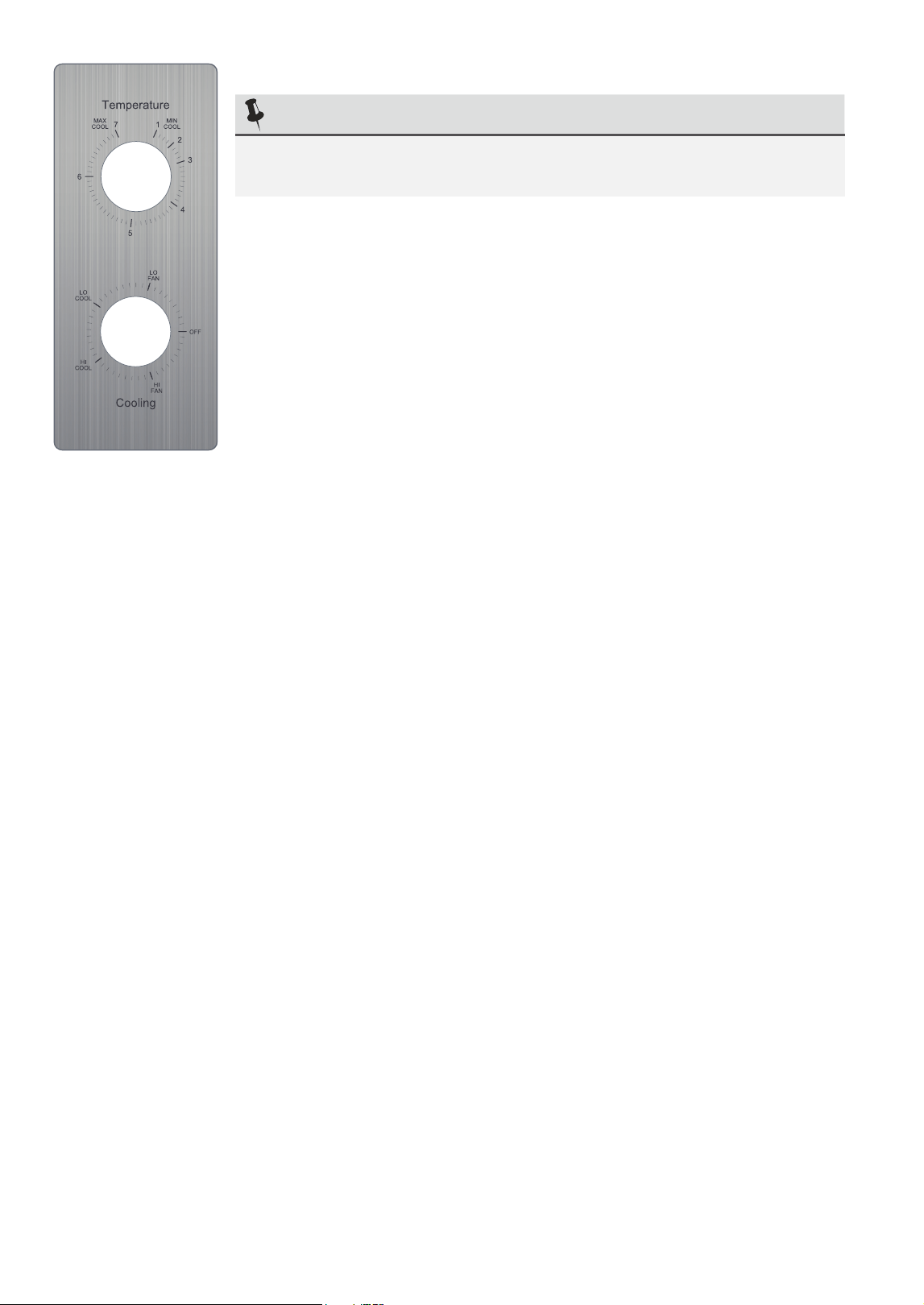

MECHANICAL CONTROL OPERATING INSTRUCTIONS
NOTE:
Cool Mode
Fan Mode
Thermostat
The controls featured in this manual are representative of many available models.
Model may oer slightly dierent features.
The desired cool setting is selected by rotating the knob to the right to the
appropriate location.
HI COOL has maximum cooling eect and airflow.
MED COOL has the intermediate cooling eect and airflow(on some models).
LO COOL has minimum cooling eect and airflow.
OFF will completely shut o the unit.
NOTE: lf the unit is equipped with a vent handle, keep it closed for maximum
eciency.
Rotate the knob to the left to select the fan speeds for air circulation.
NOTE: When selecting a fan speed, the compressor will not run. On models with a
vent control, this mode can be used to remove stale air from the room, or to draw
fresh air into the room. Check the section "Fresh Air Vent Control”.
The thermostat is used to set the desired room temperature when the unit is being
operated in the COOL MODE. To set the desired room temperature, rotate the
thermostat switch to the desired setting. After the set temperature is achieved the
thermostat will automatically start and stop the compressor in order to maintain
the desired set temperature.
Rotate the thermostat selector clockwise for higher cool settings. Higher cool
settings will provide lower room temperature. Rotate the thermostat selector
counter clockwise for lower cool settings. Lower cool settings will provide higher
room temperature.
In front of the unit,
a rushing air sound
from the fan may
be audible.
24
Press Sleep button to initiate the sleep mode. In
this mode the selected temperature will increase by
2°F (1°C) 30 minutes after the mode is selected.
The temperature will then increase by another 2°F
(1°C) after an additional 30 minutes.
This new temperature will be maintained
for 7 hours before it returns to the originally mode
and the unit will continue to operate as originally
programmed. The Sleep mode program can be
canceled at any time during operation by pressing
the Sleep button again
Press Fan button to select the Fan Speed in four
steps-Auto, Low, Med or High. Each time the
button is pressed, the fan speed mode is shifted.
For some models, the fan speed can not
be adjusted.
NOTE: Dierent models have diferent control buttons and indicator lights. Not all the control buttons and
indicator lights describing below are available for the purchased unit. Please check the control panel of
the purchased unit. The unit can be controlled by the unit control alone or with the remote.

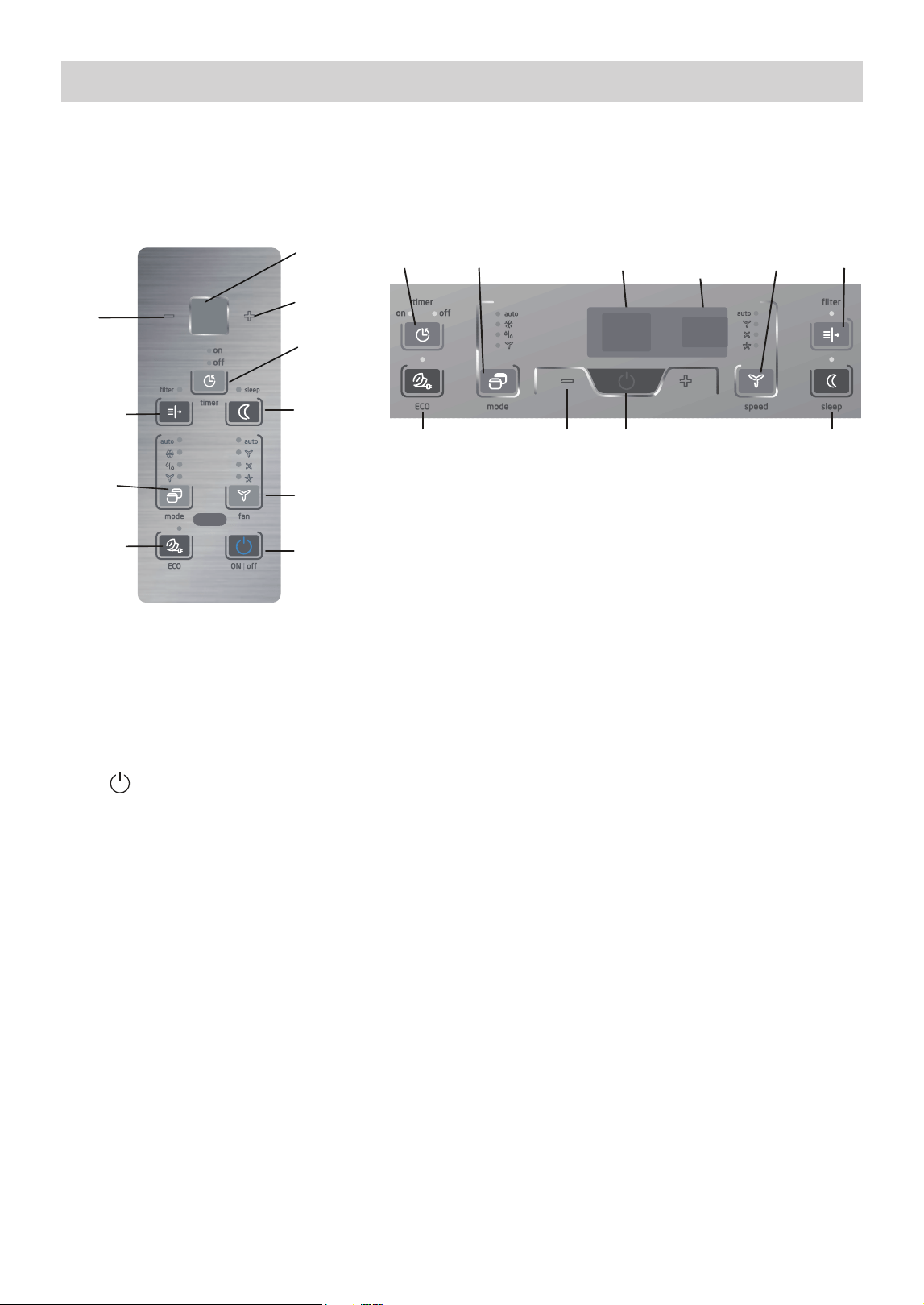

ELECTRONIC CONTROL OPERATING INSTRUCTIONS
Adjusts
Temperature
Or Time
Check Filter
Reset
Button
Sets Mode
Energy
Saver Mode
Displays
Temperature
Or Time Or
Error Codes
Auto
Timer
Mode
Selector
LED
Display
Remote Signal
Receptor
Fan
Speed
Check
Filter
Energy
Saver
Temp/Timer
Control
Power
Button
Temp/Timer
Control
Sleep
Mode
Adjusts
Temperature
Or Time
Activates
Timer
Sleep Mode
Sets Fan
Speed
Turns Unit
On Or O
NOTE: The controls shown in this manual represent many available models. The specific features of the model
may vary.
TO TURN UNIT ON OR OFF:
Press POWER button to turn unit on or o.
TO CHANGE TEMPERATURE SETTING:
Press UP/DOWN button to change
temperature setting.
NOTE: Press or hold either UP or DOWN
button until the desired temperature is
shown on the display.
This temperature will be automatically
maintained anywhere between 62°F(17°C)
and 86°F(30°C). For the display to show
the actual room temperature, refer to the
"To Operate on Fan Only" section.
SLEEP FEATURE:
TO ADJUST FAN SPEEDS:
25
This feature can be activated from the remote
control ONLY. The remote control serves as a
remote thermostat allowing for the precise
temperature control at its location.
To activate the Comfort Sense feature, point the
remote control towards the unit and press the
Comfort Sense button. The remote displays actual
temperature at its location. The remote control
will send this signal to the air conditioner every 3
minutes until the Comfort Sense button is pressed
again. If the unit does not receive the Comfort
Sense signal during any 7 minute interval, the unit
will beep to indicate the Comfort Sense mode has
ended.
To operate on Fan Only:
• Use this function only when cooling is not
desired, such as for room air circulation or to
exhaust stale air (on some models). (Remember
to open the vent during this function, but keep it
closed during cooling for maximum cooling
eciency.)
• During this function, the display will show the
actual room temperature, not the set temperature
as in the cooling mode.
• In Fan only mode, the temperature is not adjusted.
To choose operating mode, press Mode button.
Each time the button is pressed, a mode is selected
in a sequence that goes from Auto, Cool, Dry and
Fan. The indicator light adjacent will be illuminated
and remain on once the mode is selected. When
the unit is turned o and back on via the power
button, the unit will automatically switch on the
Energy Saver function for the following modes:
Cool, Dry, Auto.
To operate on AUTO feature:
• When the unit is set to AUTO mode, it will
automatically select Cool or Fan only depending
on the selected temperature and the temperature
of the room.
• In this mode, the fan speed cannot be adjusted as
it’s automatically controlled according to
temperature setting and room temperature.
To operate on COOL mode:
• Choose Cool Mode to set the cooling function. Use
the Up and Down buttons to choose the desired
temperature.
• In this mode, the fan speed can be adjusted by
pressing the fan button.
To operate on DRY mode:
• In this mode, the air conditioner will generally
function as a dehumidifier. Since the conditioned
space is a closed or sealed area, some degree of
cooling will occur.
Press Check Filter button to initiate this feature.
This feature is a reminder to clean the Air Filter
for more ecient operation. The LED(light) will
illuminate after 250 hours of operation. To reset
after cleaning the filter, press the Check Filter
button and the light will go o.
CHECK FILTER FEATURE:
Press Energy saver button to initiate this function.
This function is available on COOL, DRY, AUTO
(only AUTO-COOLING and AUTO-FAN) modes.
The fan will continue to run for 3 minutes after
the compressor shuts o. The fan then cycles on
for 2 minutes at 10 minute intervals until the
room temperature is above the set temperature,
at which time the compressor turns back on and
cooling starts.
NOTE: In COOL, DRY, and AUTO modes, the
energy saver feature will automatically be on.
Press the energy saver button to turn it o.
ENERGY SAVER FEATURE:
COMFORT SENSE FEATURE: (on some models)
MODE SELECTOR:

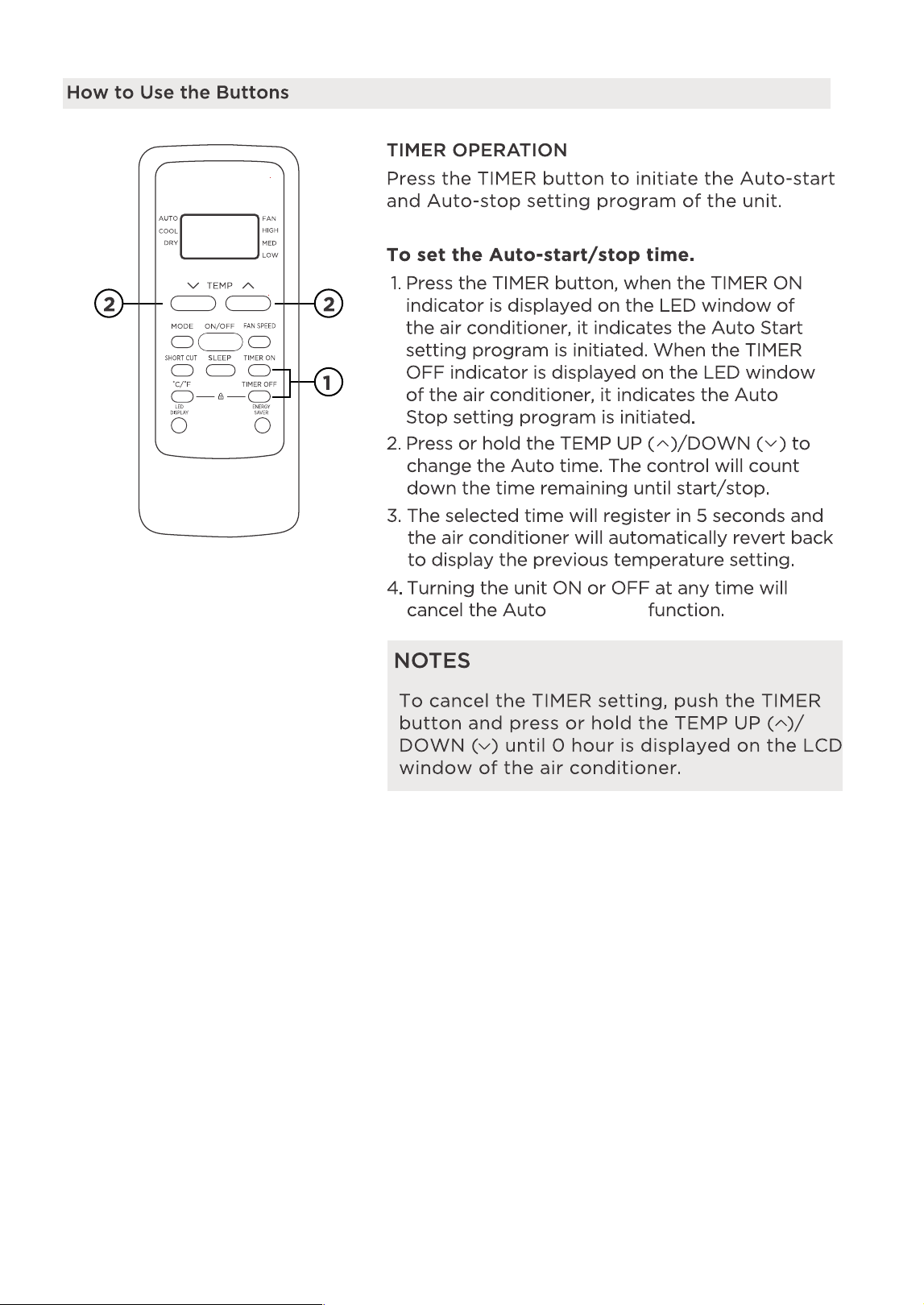

TIMER: AUTO START/STOP FEATURE:
Light flashes or
illuminates
• When the unit is on, press the Timer button.
The "Timer o" LED indicator light will
illuminate indicating the Auto stop feature
has been activated. - When the unit is o,
press the Timer button. The “Timer on” LED
indicator light will illuminate indicating the
Auto start feature has been activated.
• When the time of TIMER ON is displayed,
press the Timer button again. The TIMER
OFF indicator light illuminates. It indicates
the Auto Stop program has initiated.
• Press or hold the UP or DOWN button
to change the Auto time by 0.5 hour
increments, up to 10 hours, then at 1 hour
increments up to 24 hours. The control will
count down the time remaining until start.
26
NOTE:
Shows the set temperature in "°C" or "°F" and
the Auto-timer settings. While on Fan only mode,
it shows the room temperature. If the room
temperature is too high or low, it will display
"HI" or "LO".
Error codes:
AS - Room temperature sensor error
ES -Evaporator temperature sensor error
NOTE: " • " is displayed as shown in the above
picture.
HS -Electric heating sensor error(on some models);
CS -Condenser temperature sensor error
(on some models);
OS -Outside temperature sensor error
(on some models);
E7 -Unit malfunction(on some models).
NOTE: When error occurs, unplug the unit and
plug it back in. If error repeats, call for service.
Displays
If the unit breaks o unexpectedly due to loss
of power, it will restart with the previous
function setting automatically when the power
resumes.
• The Cool circuit has an automatic 3 minutes
time delayed start if the unit is turned o and
on quickly.
This prevents overheating of the compressor
and possible circuit breaker tripping. The fan
will continue to run during this time.
• The control is capable of displaying
temperature in degrees Fahrenheit or Celsius.
To convert from one to the other, press and
hold the Up and Down buttons at the same
time for 3 seconds.
• The selected time will register in 5 seconds,
and the system will automatically revert back
to display the previous temperature setting
or room temperature when the unit is on.
(when the unit is o, there is no display.)
The selected time indicates how long after
the current time the unit will turn on or o.
For example, setting Timer On to 2.0h means
the unit will activate 2 hours after the current
time.
Turning the unit ON or OFF at any time
or adjusting the timer setting to 0.0 will
cancel the Auto Start/Stop timed program.
NOTE: To cancel timer operation, press and
hold the timer button for 2 seconds until
the beep/buzzer is heard.
DISPLAYS:
ADDITIONAL THINGS TO KNOW
27

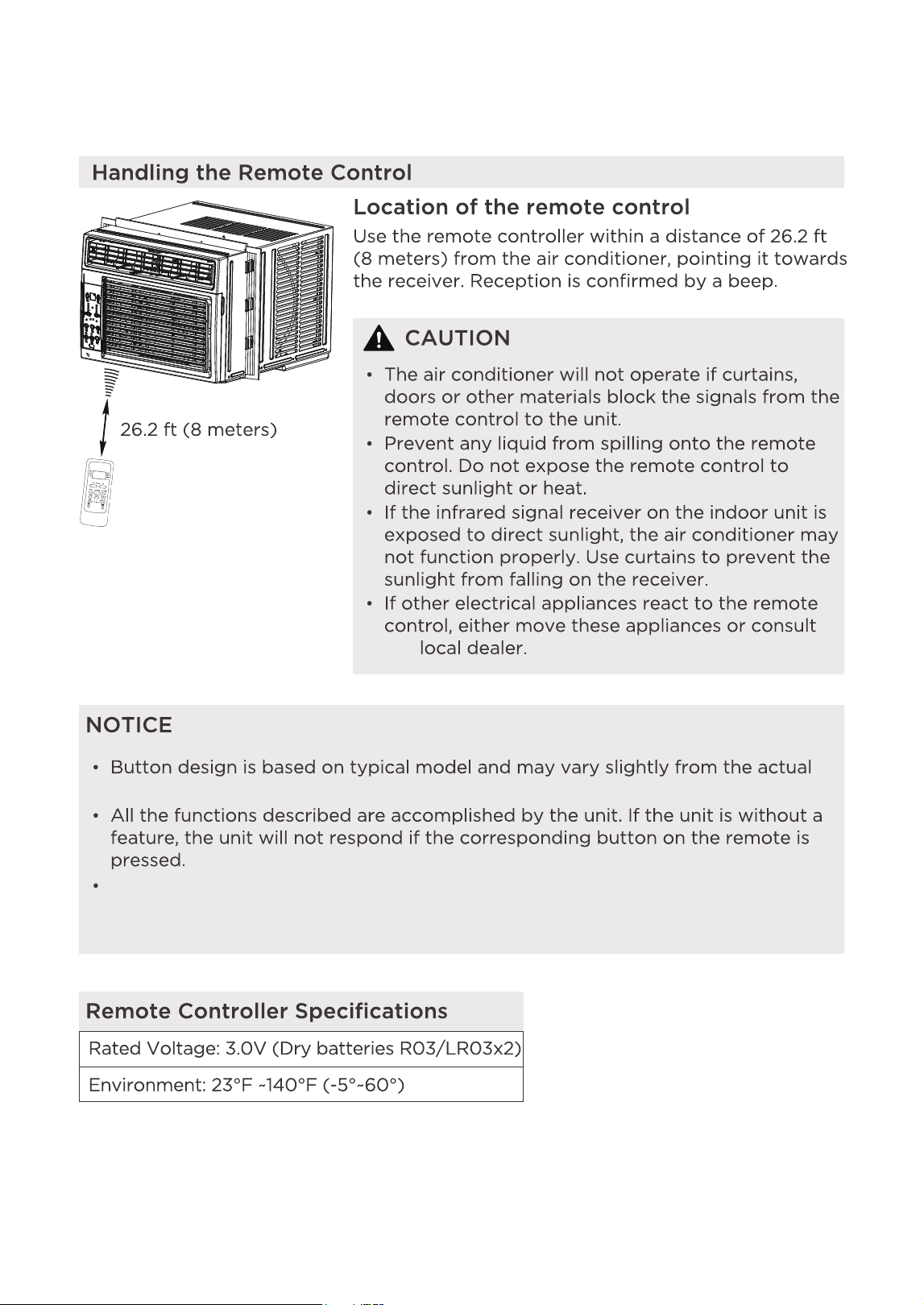

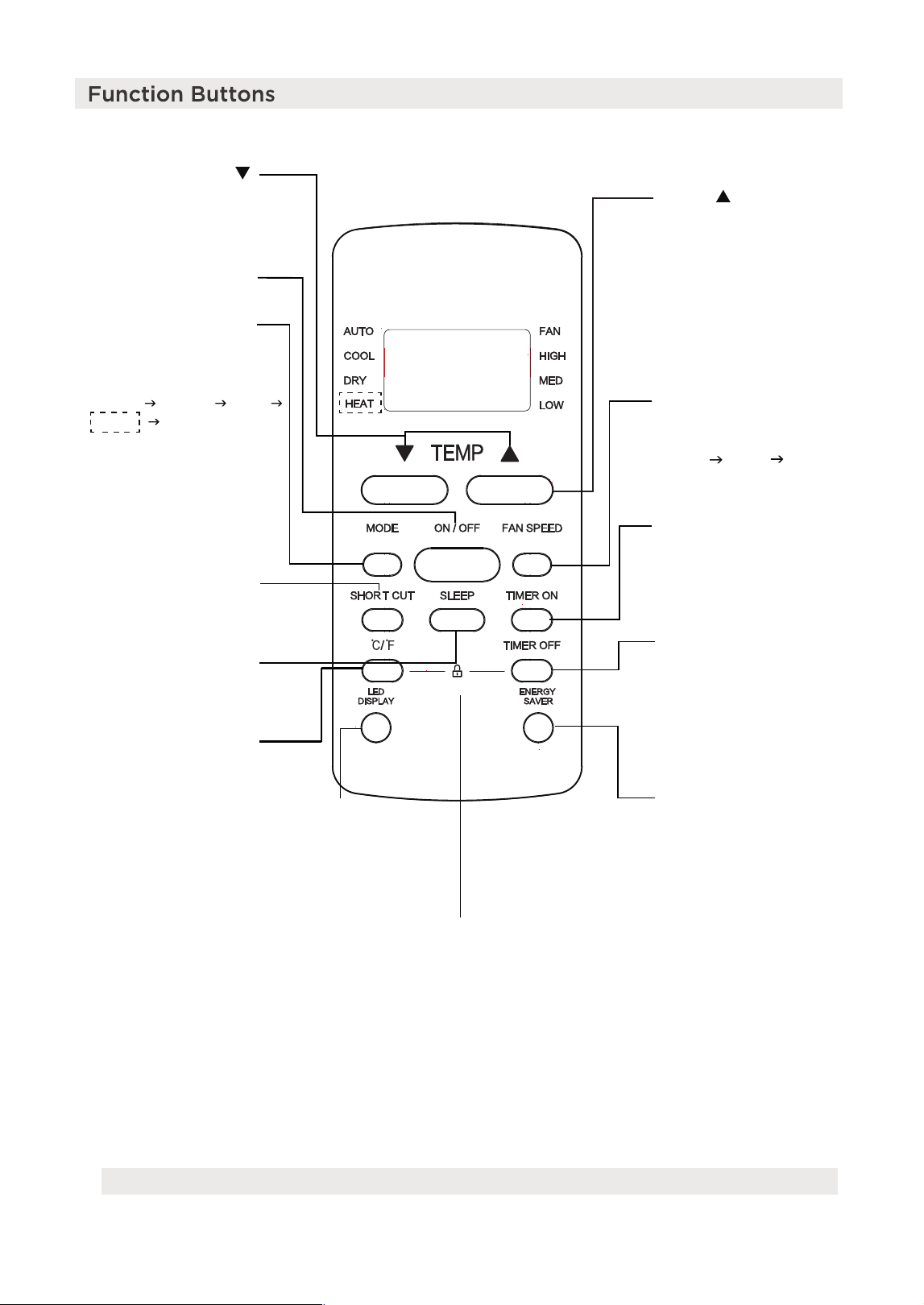

REMOTE CONTROL INSTRUCTIONS
When there are significant dierences between features or operation implied by
the remote control illustration and the actual functions described in the User
Manual, refer to the descriptions in the user manual.
the
purchased unit.
AUTO COOL DRY
HEAT FAN
28
Press and hold the °C & °F & TIMER OFF buttons
simultaneously for 5 seconds to lock the remote
keypad. Press together for 2 seconds to unlock
the remote keypad.
RG51G5(1)/CEU1
NOTE: Model RG51G5(1)/CEU1 does not have HEAT feature.
Decreases temperature
in 1°C increments. Min.
temperature is 62°F(17°C).
Increases temperature
in 1°C increments. Max.
temperature is
86°F(30°C).
Selects fan speeds in
the following order:
Turns the unit on or off.
Scrolls through
operation modes as
follows:
NOTE: Please do not
select HEAT mode if
the unit purchased is
cooling only type. Heat
mode is not supported
by the cooling only
appliance.
Used to restore the
current settings or
resume previous settings.
Saves energy during
sleeping hours.
Switches the temperature
display between °C &°F
Turns indoor unit's LED display and
air conditioner buzzer on and off
(model dependent), which create a
comfortable and quiet environment.
TEMP
TEMP
FAN SPEED
Sets timer to turn unit
on. (see How to Use
the Buttons on page
30-31 for instructions).
TIMER ON
Sets timer to turn unit
off. (see How to Use
the Buttons on page
30-31 for instructions).
TIMER OFF
Press this button to
activate the Energy
saving mode. Press
it again to stop the
funtion.
ENERGY SAVER
LOCK
ON/OFF
MODE
SHORTCUTU
SLEEP
°C/F
LED DISPLAY
LOW MED HIGH
29

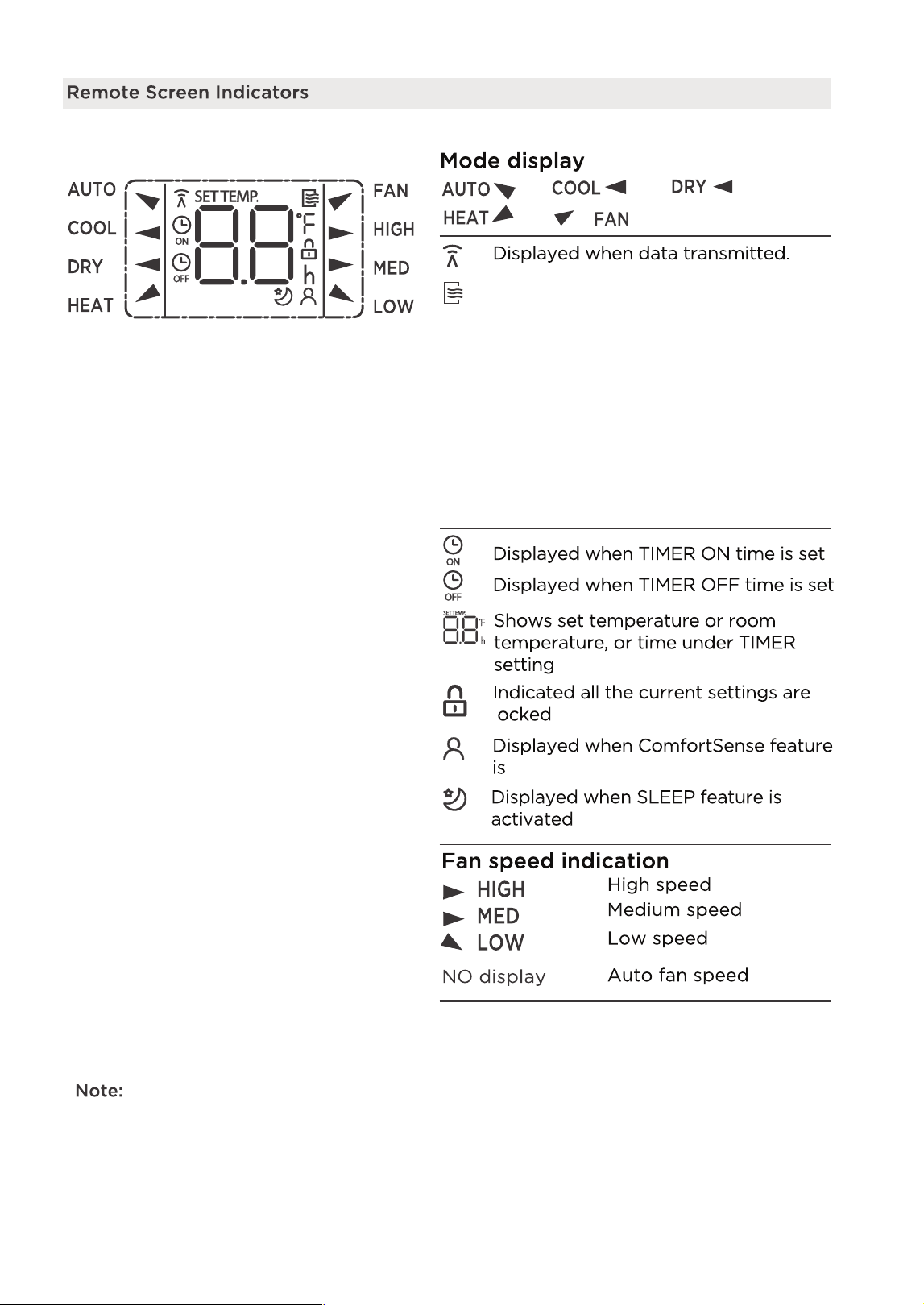

Information is displayed when the remote control is powered up.
All indicators shown in the figure are for the purpose of clear presentation.
But during the actual operation, only the relative function signs are shown on
the display window.
This indicator shows when the
remote is enabled and can send
signals to the unit. To turn off
the remote without affecting the
unit, point the remote away from
the unit and press the ON/OFF
button. To turn the remote back
on, point it away from the unit
and press the ON/OFF button.
The unit will not receive
commands if this indicator is not
illuminated.
activated (on some models)
30

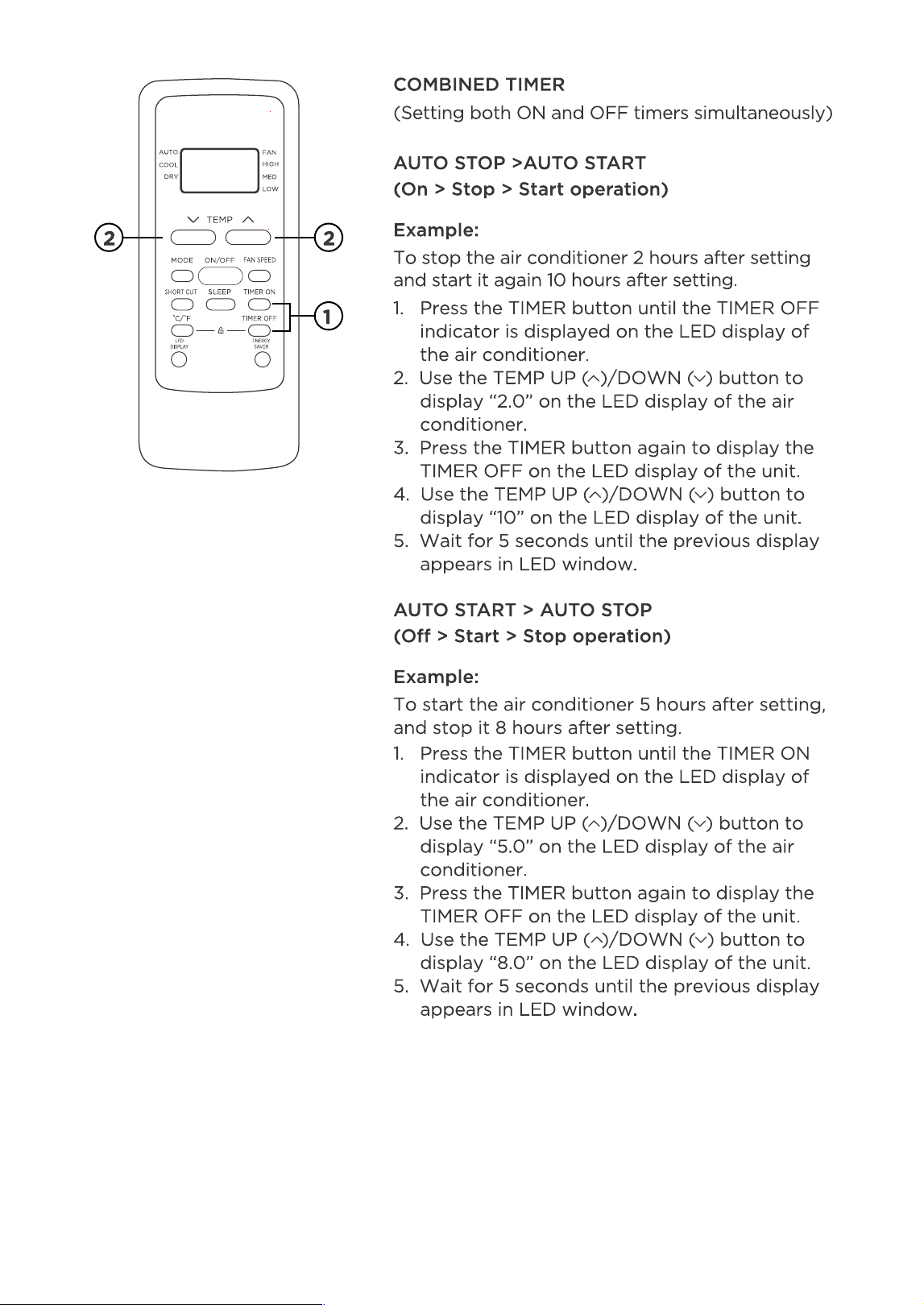

start/stop
31
32
;
;

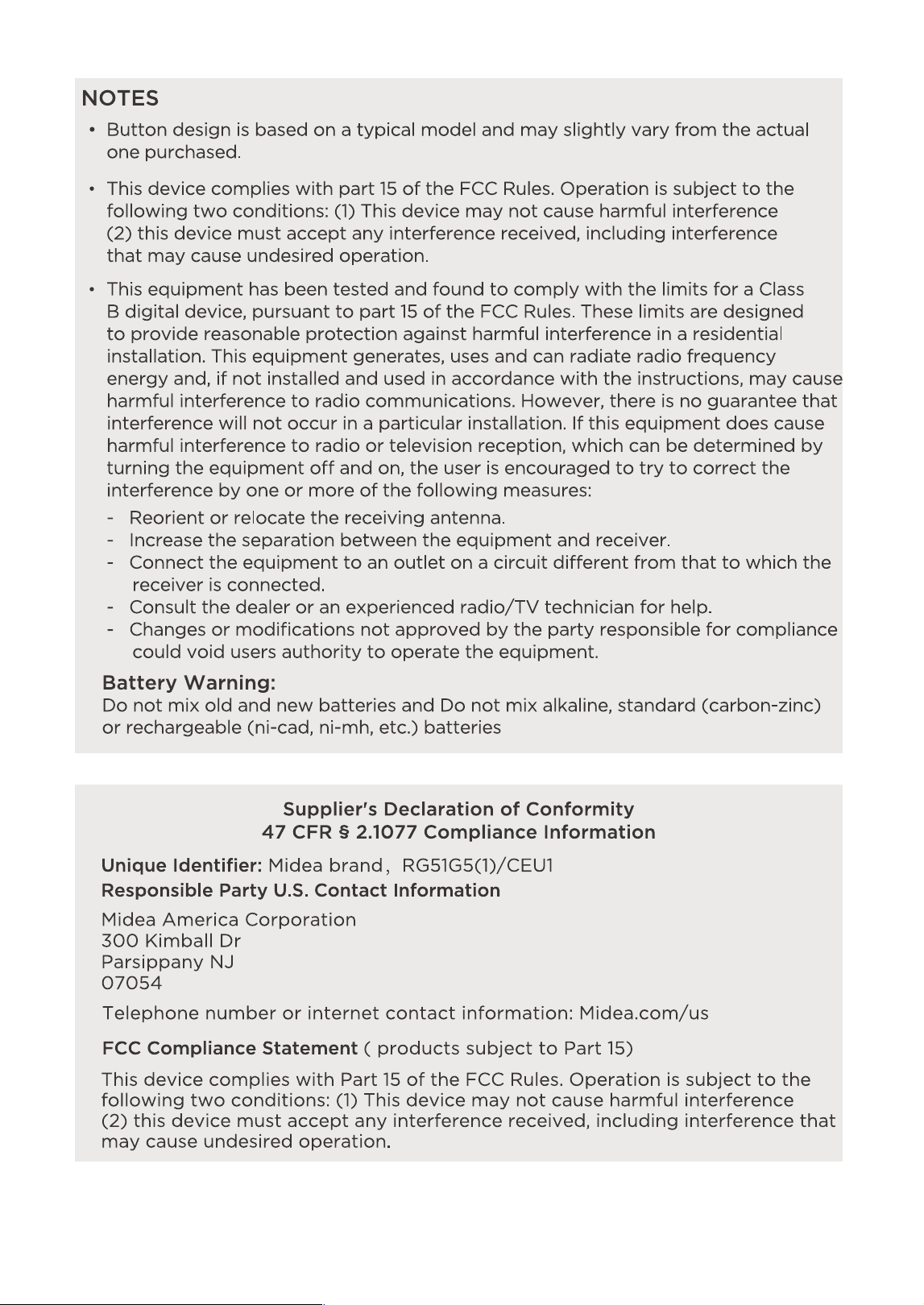

33
MAW08/10/12 Models
the

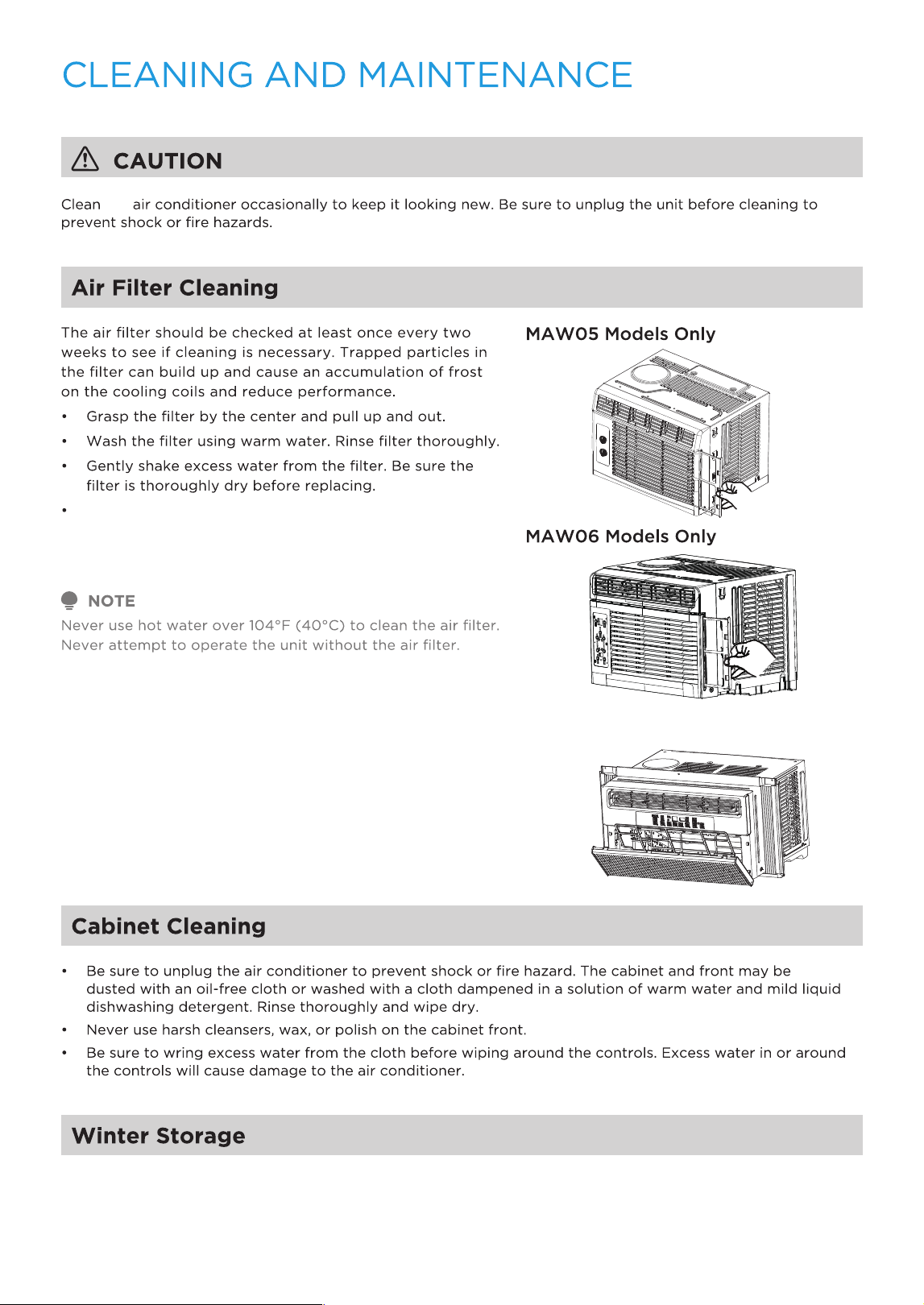

Filter can be cleaned with a vacuum rather than washing.
If the air conditioner is to be stored during the winter, carefully uninstall the unit from the window according
to the installation instructions. Store the unit in the original carton or cover it with plastic.
34

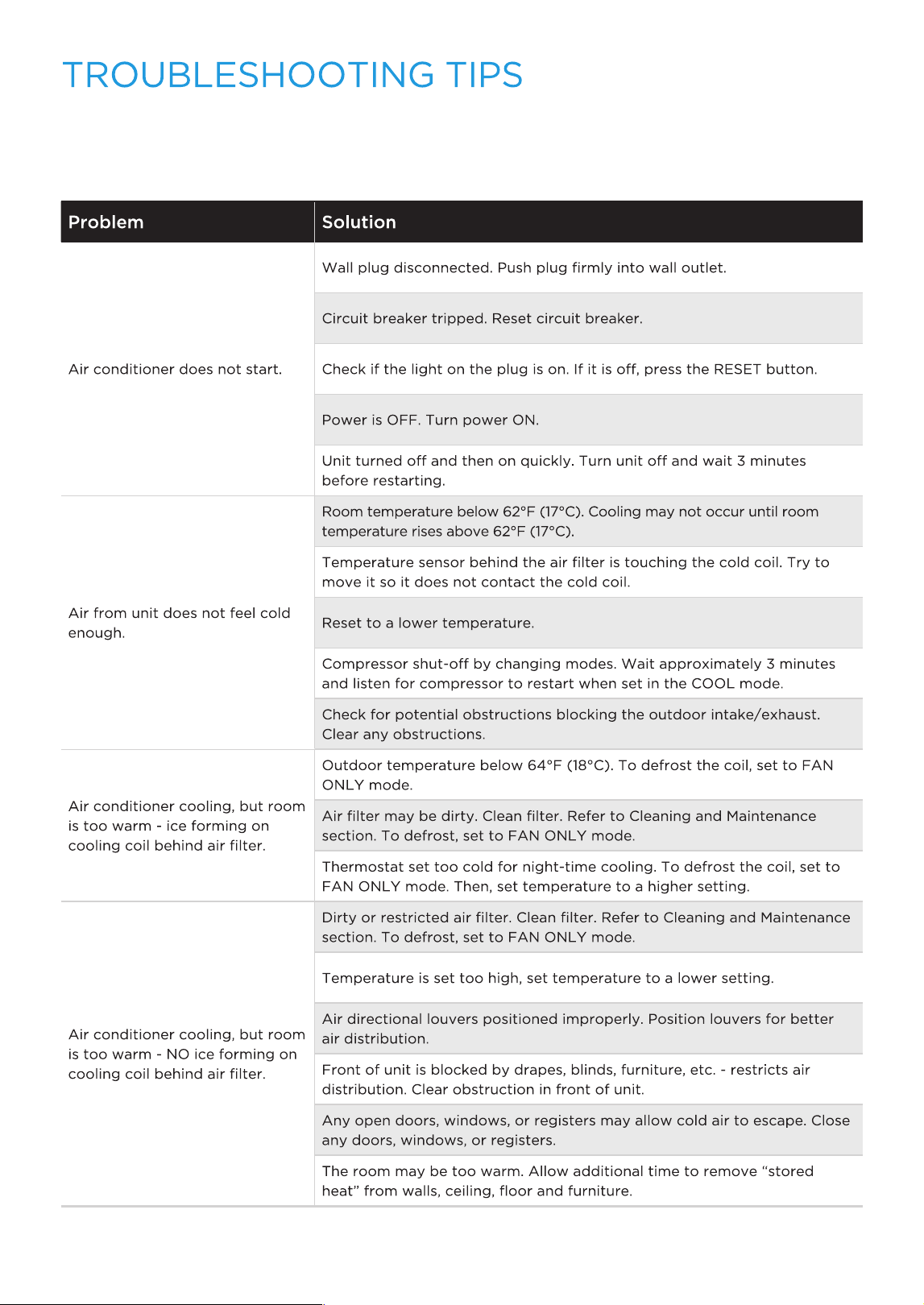

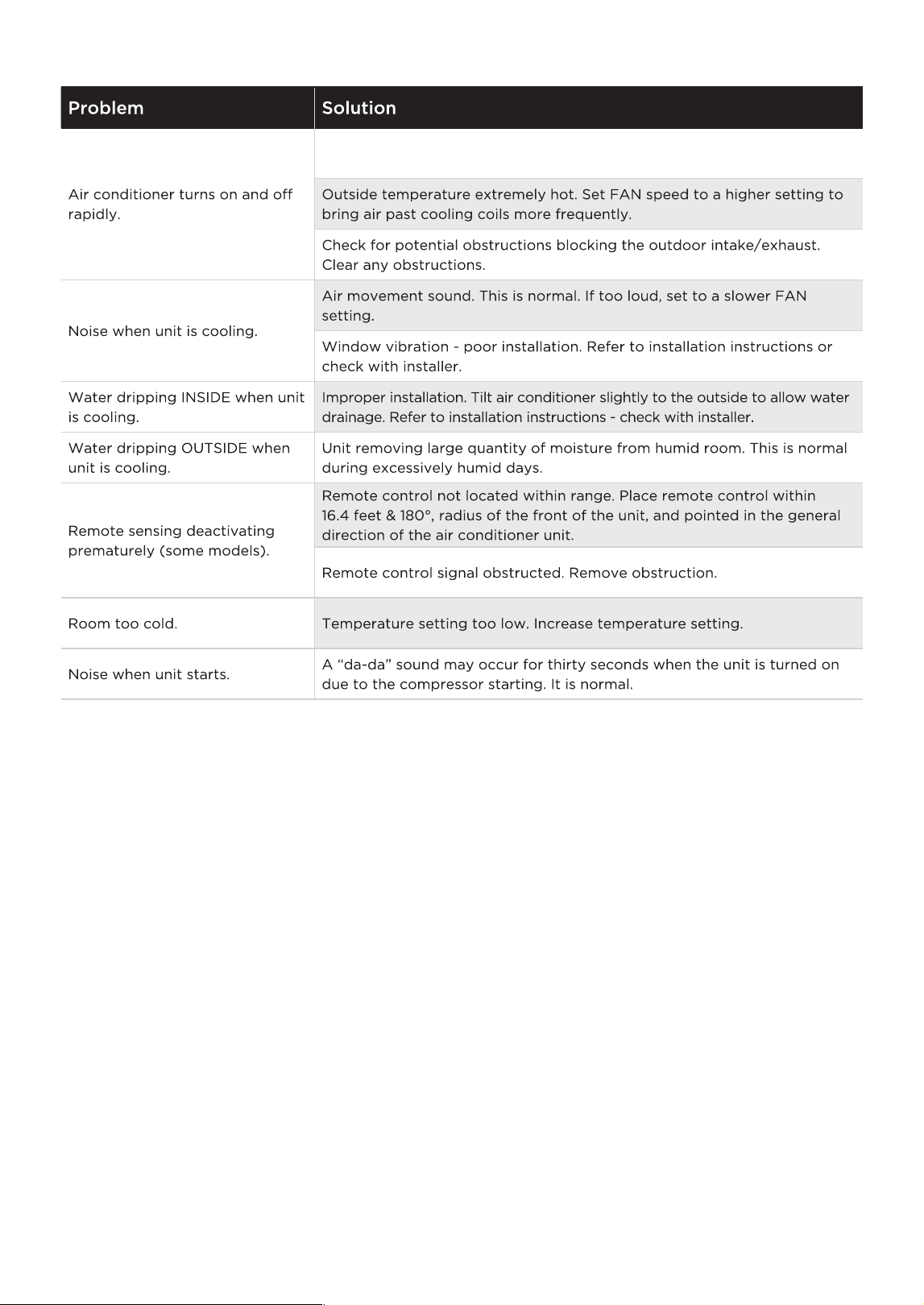

Before scheduling a service call, please consult the chart below. It is designed to help identify common issues
that are not attributable to defects in workmanship or materials. Reviewing this chart may assist in resolving
problems more efficiently and cost-effectively.
35
Dirty or restricted air filter. Clean air filter.
36
One Year Limited Warranty from the date of delivery or the purchase date, whichever is later.
The date of delivery establishes the warranty period, should service be required.
This unit
accordance
unit
unit
Failures resulting from damage to the unit while in possession (excluding damage due to defects or malfunctions),
improper installation, or unreasonable use of the unit are not covered. This includes, but is not limited to, failure to
perform necessary maintenance or to adhere to the provided "Installation and Operating Instructions."
If the unit is utilized for commercial, business, rental, or any application beyond consumer use, no warranties are
provided, whether express or implied. This includes, but is not limited to, any implied warranty of merchantability
or fitness for a particular use or purpose.
IF SERVICE IS NEEDED...
the
If service is performed, it is best to obtain and keep record of all receipts.
This written warranty does not confer any specific legal rights. Rights may vary depending on the state or jurisdiction.
16120300A33854
20240903
2024
