MAW08H1ZWT
MAW12H2ZWT
Cleaning & maintenance
Troubleshooting
0 1
06
26
27
2 1
23
Warranty
29
CONTENTS
Operation instructions
Installation instructions
Safety precautions
What is in the box
07
08
Before you get start

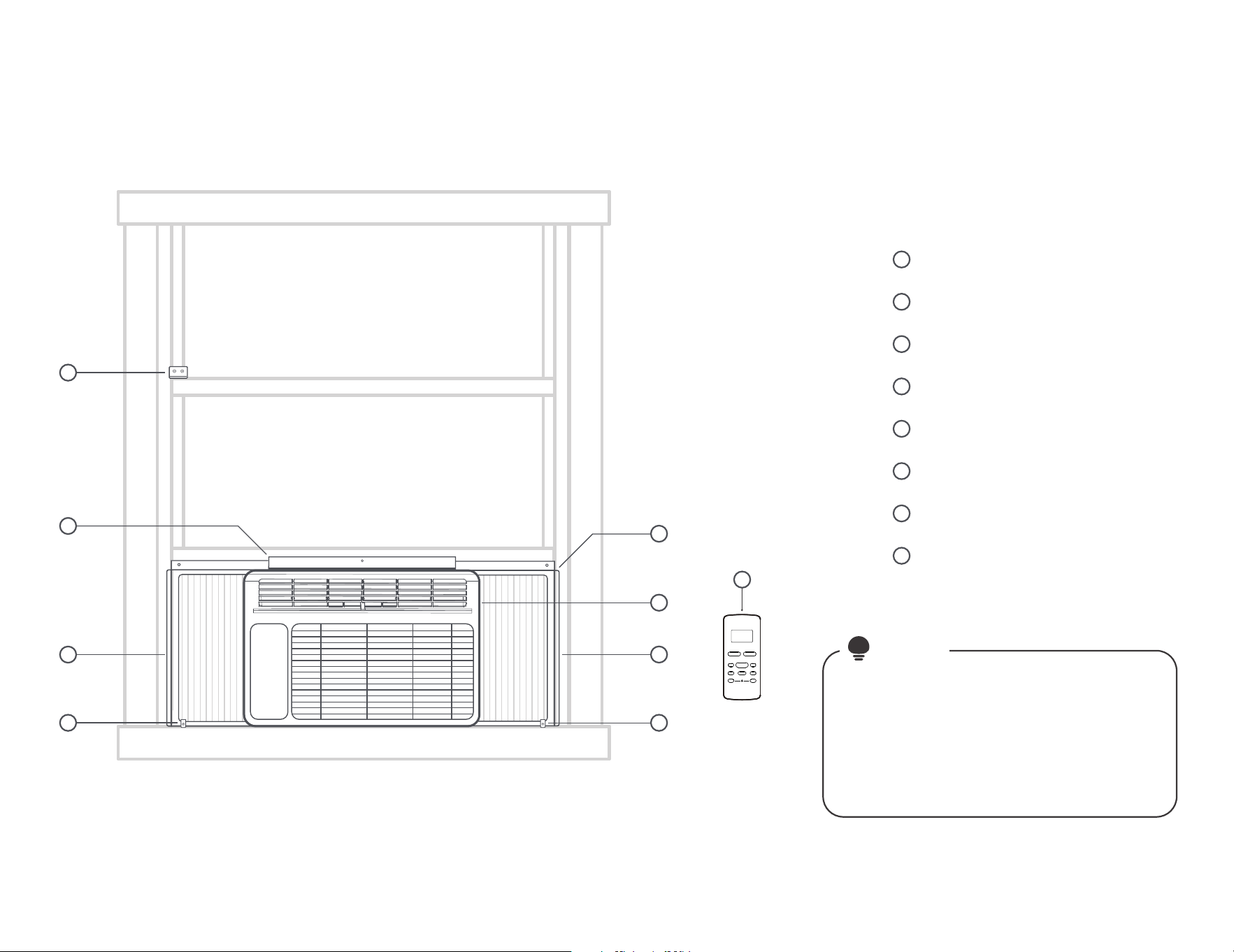

Installation overview.

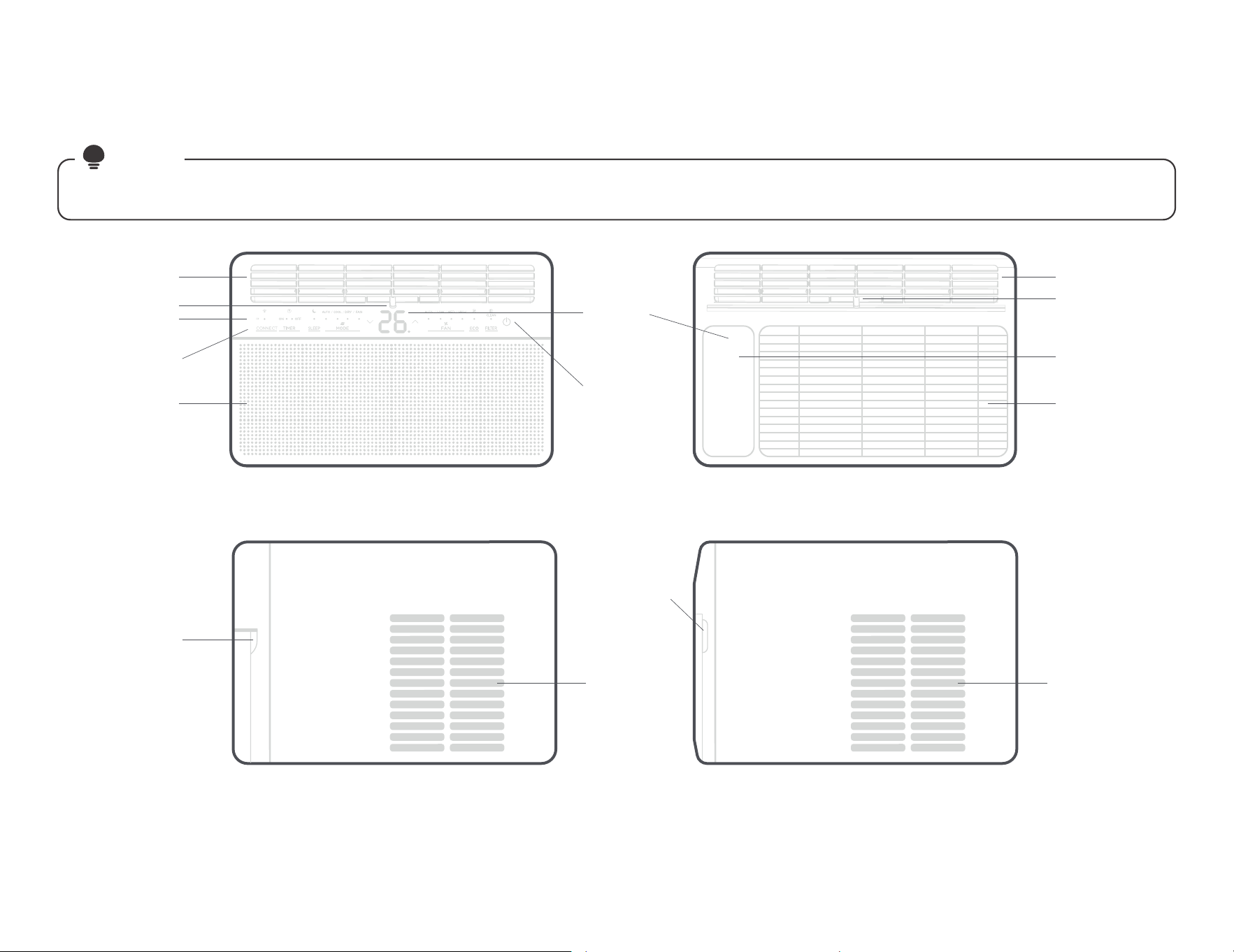

Get to know your AC.
Get to know the features.
01
Inside you will find many helpful hints on how to use and maintain
your air conditioner properly. Just a little preventive care on your
part can save you a great deal of time and money over the life of
your air conditioner. You'll find many answers to common problems
in the chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for service at all.
To prevent injury to the user or other people and property
damage, the following instructions must be followed.
Incorrect operation due to ignoring of instructions may
cause harm or damage. The seriousness is classified by the
following indications.
Safety Precautions
Warning
The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
Explanation of Symbols
Must read the warning message.
02
Plug in power plug properly. Otherwise, it may cause electric shock
or fire due to excess heat generation. Do not operate or stop the unit
by inserting or pulling out the power plug.It may cause electric shock
or fire due to heat generation. Do not damage or use an unspecified
power cord.It may cause electric shock or fire. If the power cord is
damaged, it must be replaced by the manufacturer or an authorised
service centre or a similarly qualified person in order to avoid a hazard.
Always install circuit breaker and a dedicated power circuit. Incorrect
installation may cause fire and electric shock. Do not operate with wet
hands or in damp environment. It may cause electric shock . Do not
direct airflow at room occupants only. This could damage your health.
Always ensure eective grounding.Incorrect grounding may cause
electric shock. Do not allow water to run into electric parts.It may
cause failure of machine of electric shock. Do not modify power cord
length or share the outlet with other appliances. It may cause electric
shock or fire due to heat generation.
WARNING
Unplug the unit if strange sounds, smell, or smoke
comes from it. It may cause fire and electric shock.
Do not use the socket if it is loose or damaged. It
may cause fire and electric shock. Do not open the
unit during operation. It may cause electric shock.
Keep firearms away. It may cause fire. Do not use
the power cord close to heating appliances.It may
cause fire and electric shock. Do not use the power
cord near flammable gas or combustibles, such as
gasoline, benzene, thinner, etc. It may cause an
explosion or fire.
Ventilate room before operating air conditioner if
there is a gas leakage from another appliance. It may
cause explosion, fire and, burns. Do not disassemble
or modify unit. It may cause failure and electric shock.

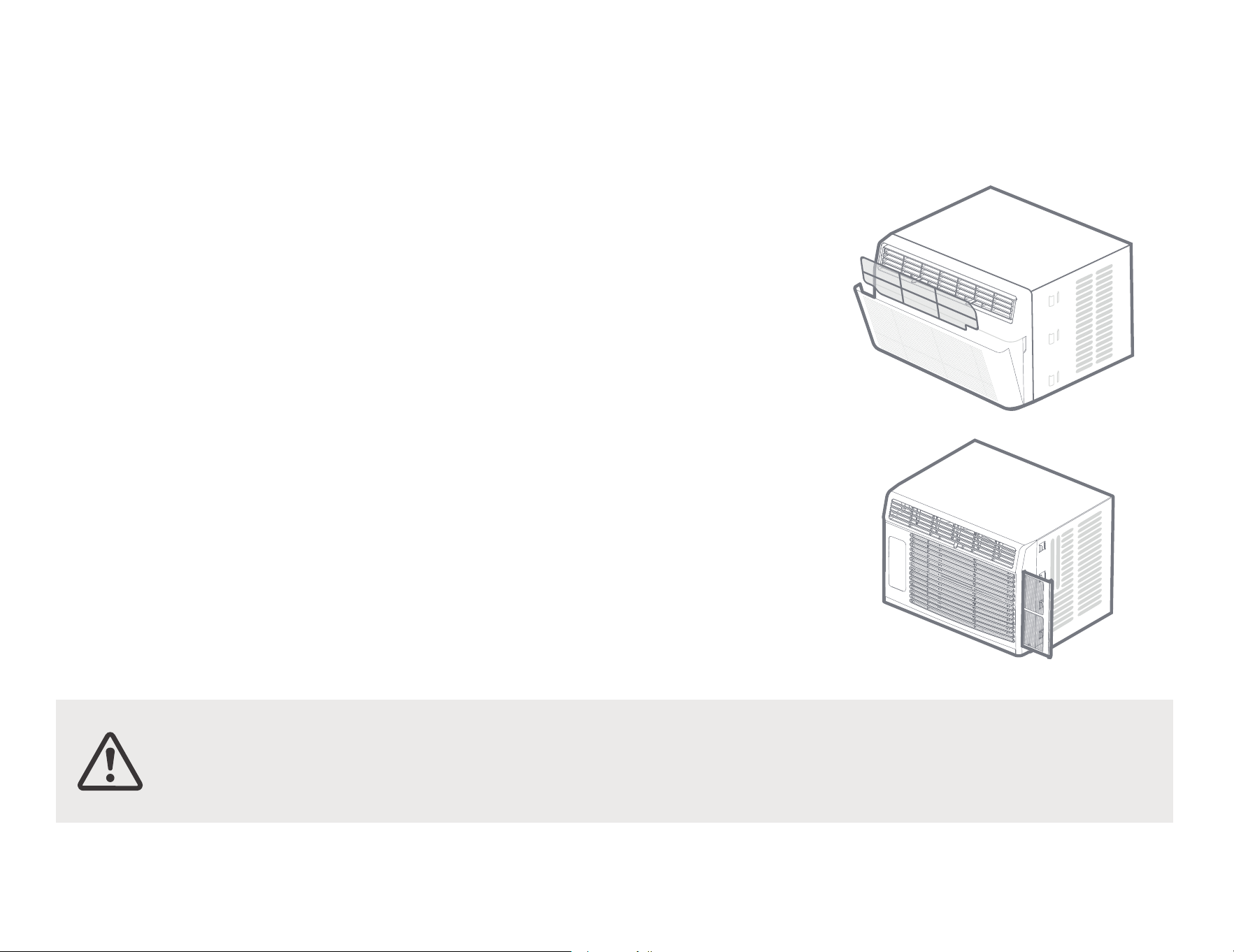

When the air filter is to be removed, do not touch the metal parts of
the unit. It may cause an injury.
Ventilate the room well when used together with a stove, etc. An
oxygen shortage may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth.
Appearance may be deteriorated due to change of product color or
scratching of its surface. Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation. It may cause an
electric shock. Do not use for special purposes. Do not use this air
conditioner to preserve precision devices, food, pets, plants, and art
objects.lt may cause deterioration of quality, etc.
CAUTION
Stop operation and close the window in storm or
hurricane. Operation with windows opened may cause
wetting of indoor and soaking of household furniture.
When the unit is to be cleaned, switch o, and turn o
the circuit breaker.
Do not clean unit when power is on as it may cause fire
and electric shock, it may cause an injury.
Always insert the filters securely. It can be caused
failure if operated without filters. Please clean filter
once every two weeks.
03
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
O
O
23-76 F/ C-5-24
Indoor temp:
O
32-80 F/
O
0-27 C
O O O O
64-109 F/18-43 C (64-125 F/18-52 C
for special tropical models)
O
62-90 F/
O
17-32 C
NOTE
Note:Performance may be
reduced outside of these
operating temperatures.
This air conditioner is designed to be operated under the following conditions:
Do not place obstacles around air-inlets or inside of air-outlet.
It may cause failure of appliance or accident. Do not place
heavy object on the power cord and ensure that the cord is
not compressed. There is danger of fire or electric shock. Don’t
drink water drained from air conditioner. It contains
contaminants and could make you sick.
Use caution when unpacking and installing. Sharp edges could
cause injury.
If water enters the unit, turn the unit o at the power outlet
and switch o the circuit breaker. Isolate supply by taking the
power-plug out and contact a qualified service technician.
This appliance is not intended for use by persons(including
children) with reduced physical ,sensory or mental capabilities
or lack of experience and knowledge,
CAUTION
Hold the plug by the head of the power plug when taking
it out. It may cause electric shock and damage. Turn o the
main power switch when not using the unit for a long time.
It may cause failure of product or fire.
Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel only.
Do not operate your air conditioner in a wet room such as a
bathroom or laundry room.
The appliance with electric heater shall have at least 1 meter
space to the combustible materials.
Contact the authorised service technician for repair or
maintenance of this unit.
Contact the authorised installer for installation of this unit.
unless they have been given super vision or instruction
concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play
with the appliance.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
The appliance shall be installed in accordance with national
wiring regulations.
04
NOTE
Operation of Current Device
The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord do
the following:
Plug in the Air Conditioner.
The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a click as the
RESET button pops out.
Press the RESET button again, you will notice a click as the button engages.
The power supply cord is now supplying electricity to the unit. (On some products this is also indicated by a light on the plug head).
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prongs.

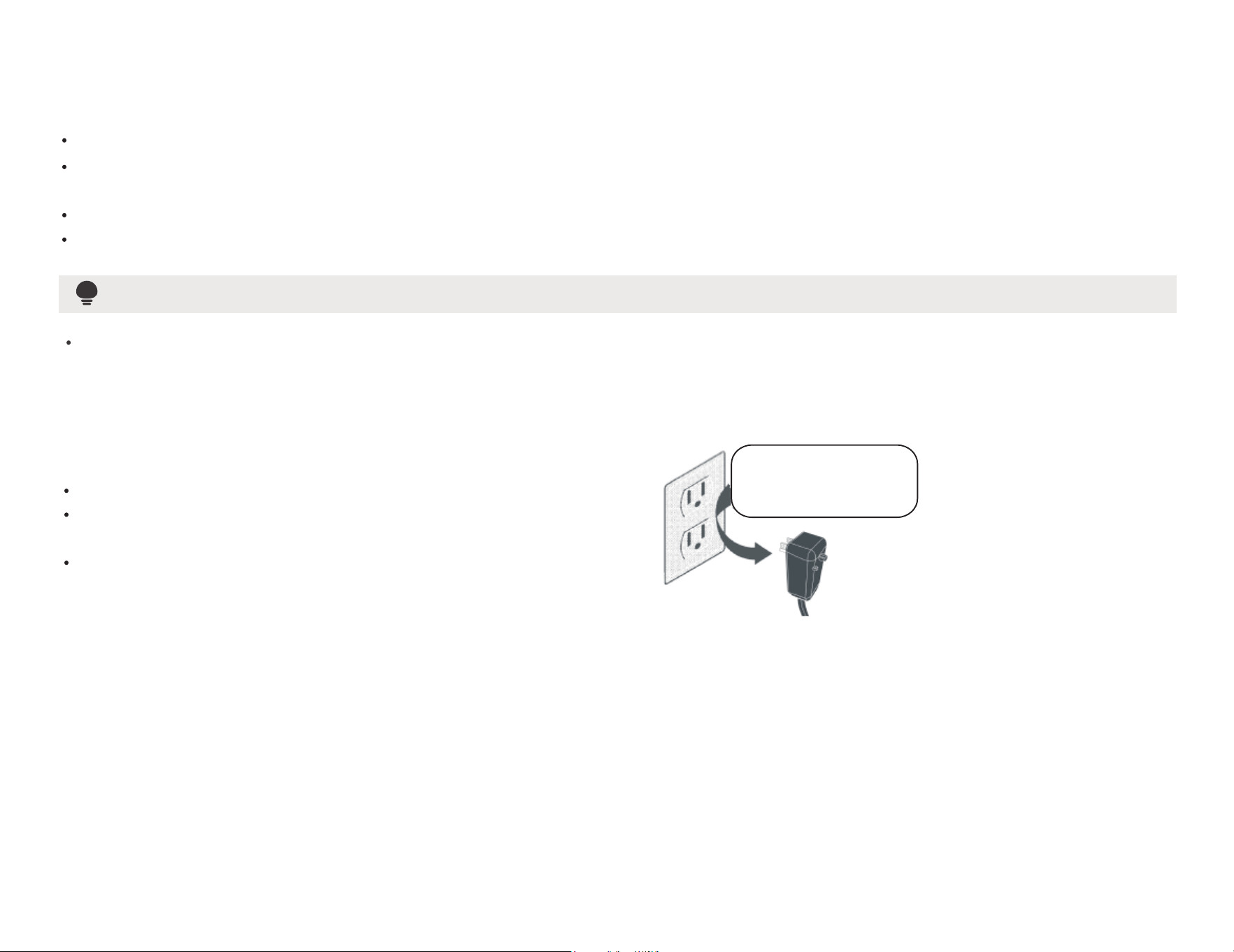

Grounding type wall receptacle
Power supply cord with
3-prong grounding plug
and current detection
device.
Do not use this device to turn the unit on or o.
Always make sure the RESET button is pushed in for
correct operation.
The power supply cord must be replaced if it fails to
reset when either the TEST button is pushed or if it
cannot be reset. A new one can be obtained from the
product manufacturer.
The power supply cord with this air conditioner
contains a current detection device designed to reduce
the risk of fire.
In the event that the power cord is damaged, it cannot
be repaired – it must be replaced with a cord from the
product manufacturer.
05
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
To reduce the risk of fire, electrical shock, or injury to persons
when using your air conditioner, follow basic precautions,
including the following:
Be sure the electrical service is adequate for the model you
have chosen. This information can be found on the serial
plate, which is located on the side of the the cabinet and
behind the grille.
For Your Safety
Prevent Accidents
If the air conditioner is to be installed in a window,you will
probably want to clean both sides of the glass first. If the
window is a triple-trackty pew it has creen panel included,
remove the screen completely before installation.
Be sure the air conditioner has been securely and correctly in
stalled according to the installation instructions in this manual.
Save this manual for possible future use in removing or
installing this unit. When handling the air conditioner, be
careful to avoid cuts from sharp metal fins on front and rear
coils.
WARNING
The complete electical rating of your new room air conditioner
is stated on the serial plate. Refer to the rating when checking
the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The
power cord is equipped with a three-prong grounding plug
for protection against shock hazards.
Your air conditioner must be used in a properly grounded
wall receptacle. If the wall receptacle you intend to use is not
adequately grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install the proper
receptacle. Ensure the receptacle is accessible after the unit
installation.
Do not run air conditioner without side protective cover in
place.This could result in mechanical damage within the air
conditioner.
Do not use an extension cord or an adapter plug.
Electrical Information
Avoid fire hazard or electric shock. Do not use an extension
cord or an adapter plug. Do not remove any prongs from
the power cord.
Electronic Work
NOTE: The cographs are for
explanation purpose only. Your
machine may be slightly dierent.
The actual shape shall prevail.
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING
WORK, TURN OFF THE MAIN POWER TO THE SYSTEM.
DISPLAY
MAIN
CONTROL
POWER
SUPPLY
CORD

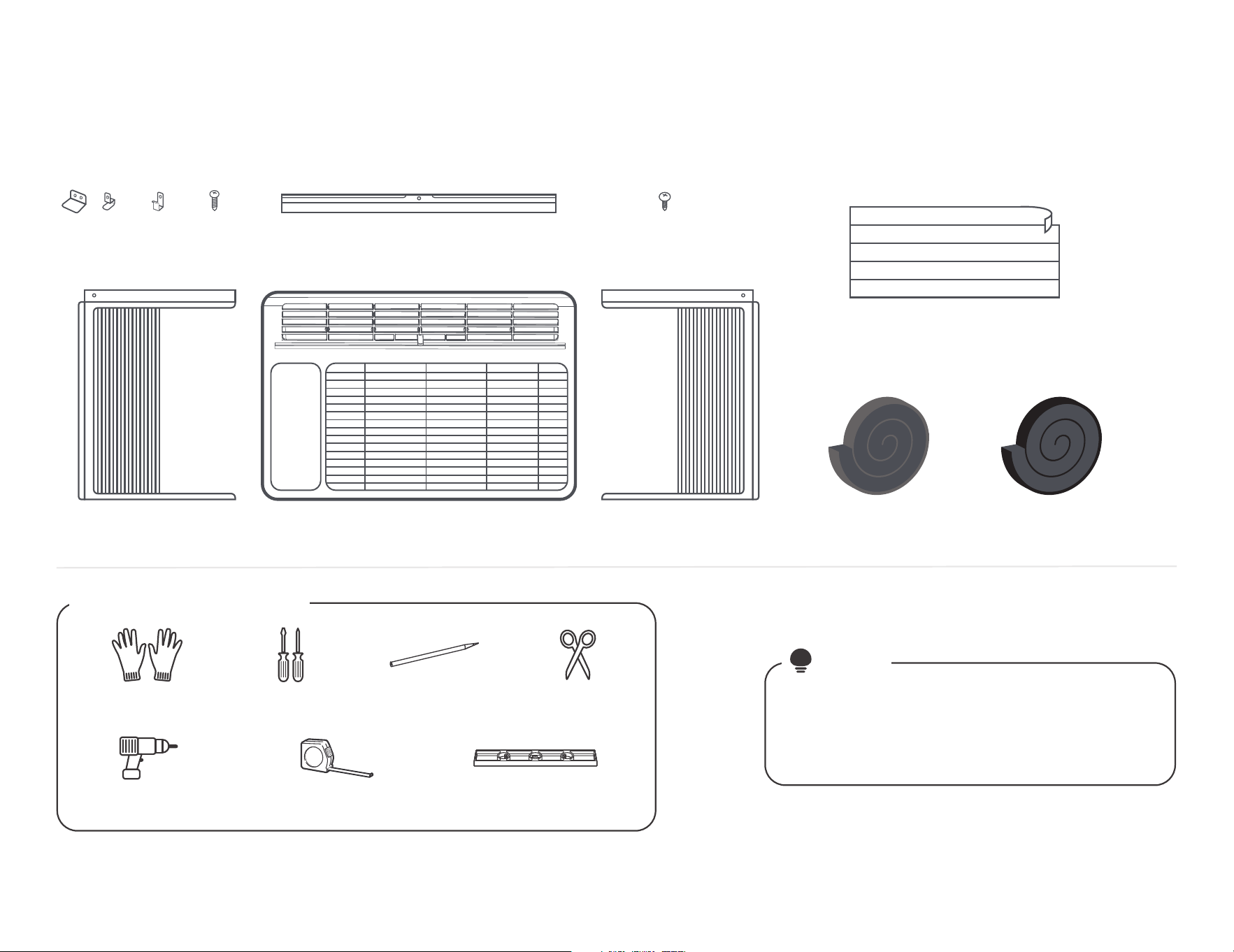

What is in the Box.
Package content
06
The unit you purchased may be look like
something dierent, please refer to the
material in kind.
ＬＥＦＴ
ＲＩＧＨＴ
X4
X2
X2
X7
Top Rail 3/8in Screws
5/8in Screws and
Safety Lock(3 Types)
Frame Assembly(Left)
Frame Assembly(Right)
Foam insert(E-Star model only)

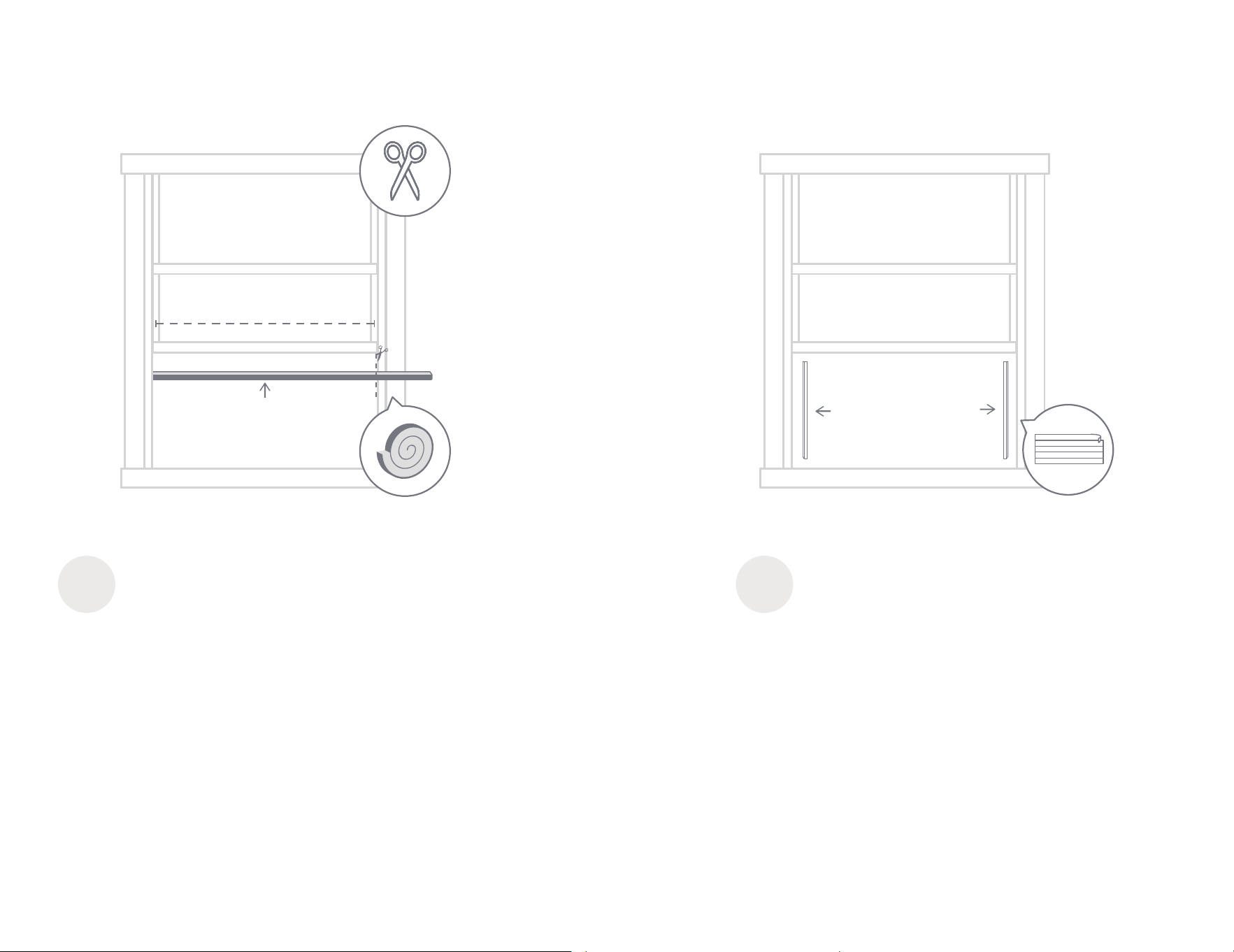

Window Sash Seal
Foam (with glue)
Window Sash Seal
Foam (non glue)
Window Type Room
Air Conditioner unit
NOTE
Level
Ruler or tape measureDrill
*Not Included
PencilGloves Screwdriver Scissors

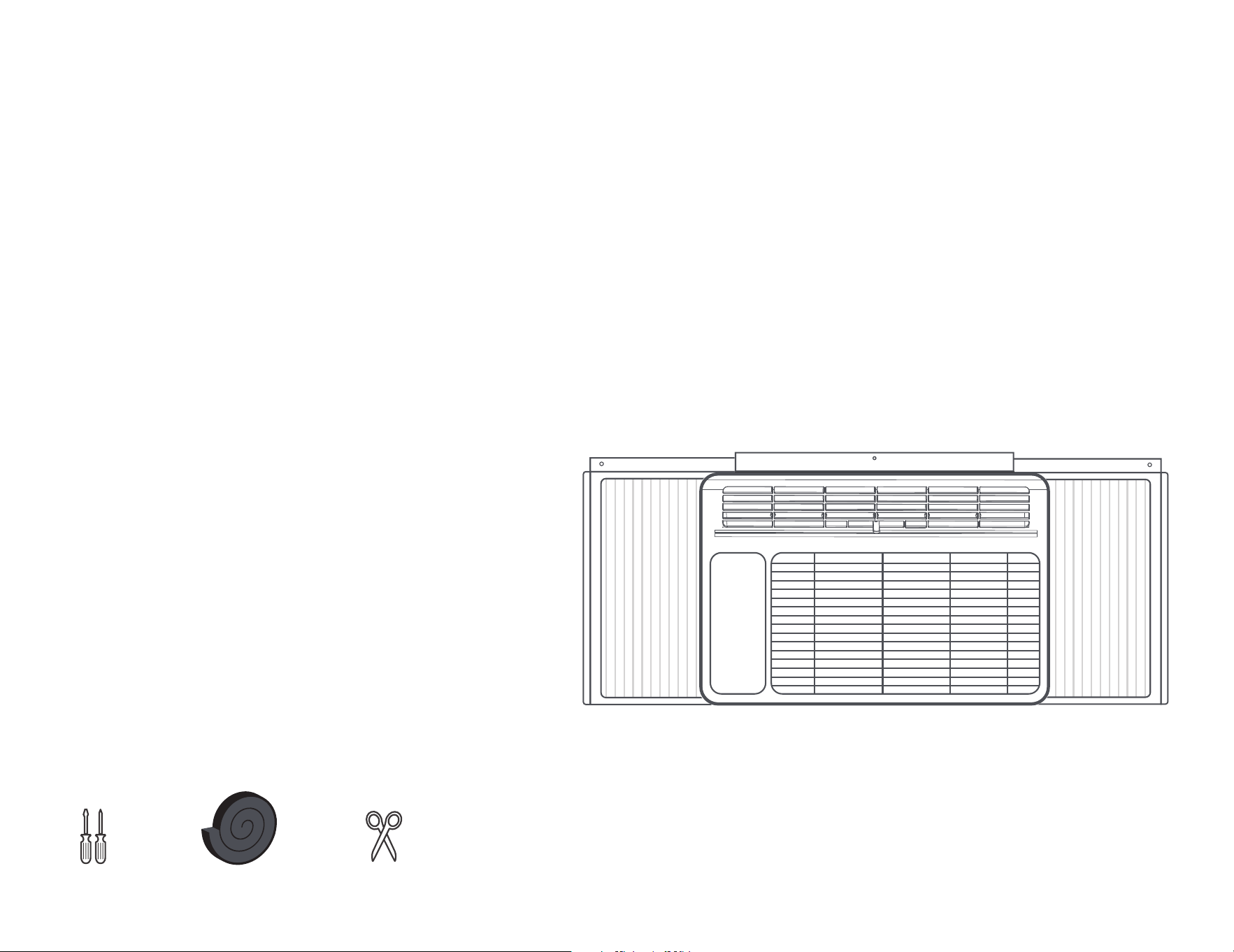

Prepare the following tools
Before you get started.
NOTE
Installing your AC should take about
60 minutes.
The installation must be carried out
in strict accordance with the instructions
in this manual.
Manual
We recommend doing this with a helper.
We’re here if you need us, please contact
your local distributor for assistance.
Save Carton and these Installation
Instructions for future reference.
The carton is the best way to
store unit during winter, or when
not in use.
Preparations before installation
07

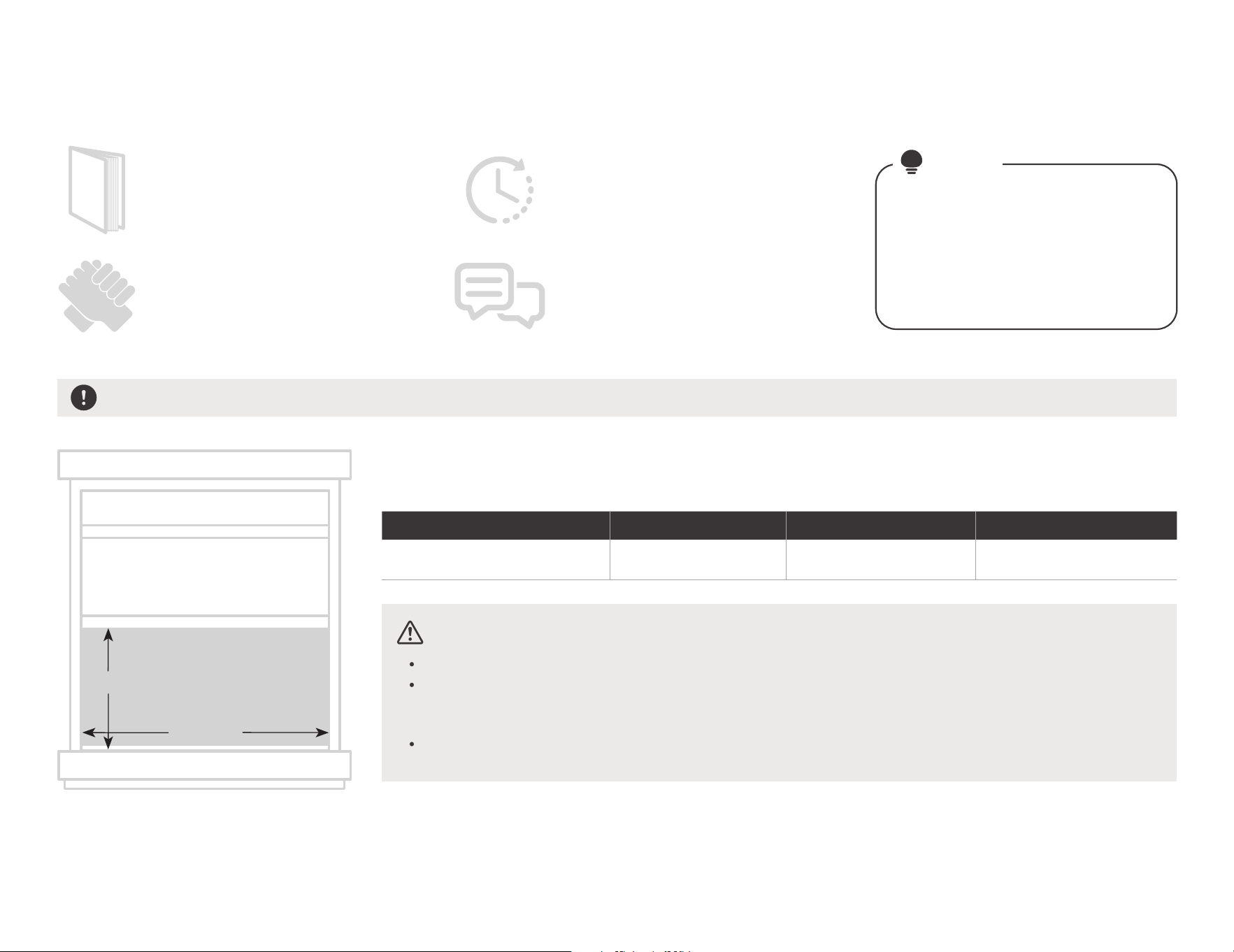

WINDOW REQUIREMENTS
23in to 36in
(584mm to 914mm)
H
Your air conditioner is designed to install in standard double hung windows with opening widths of
23 to 36 inches (584mm to 914mm).
13in(330mm) 14in(356mm) 15-1/2in(394mm)
Window opening height 5000~6000Btu/h 6000~8000Btu/h 10000~14500Btu/h
H
CAUTION
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Do not change the plug on the power cord of the air conditioner. Aluminum house wiring may
present special problems- consult a qualified electircian.When handling unit, be careful to avoid
cuts from sharp metal edges and aluminum fins on front and rear coils.
The rear of the unit must be outdoors, not inside a building or garage.
08
Installation overview.
ＲＩＧＨＴ
ＬＥＦＴ
1
2
3
4 4
5
6
7
8
Top Rail and 3/8in Screws
Air Conditioner unit
1
2
3
4
5
6
7
8
Safety Lock and 5/8in Screws
Safety Lock and 5/8in Screw
Frame Assembly(Left)
Frame Assembly(Right)
Window Sash Seal Foam
Remote controller
Illustrations in this manual are for
explanatory purposes. The actual
shape of your indoor unit may be
slightly dierent. The actual shape
shall prevail.
NOTE
Installation Completion Display
09
1Step
Install
your AC unit.
What you need.
ＲＩＧＨＴ
ＬＥＦＴ
10
Install your AC.
*The top rail must be assembled on
the unit for <10000Btu/h models only.

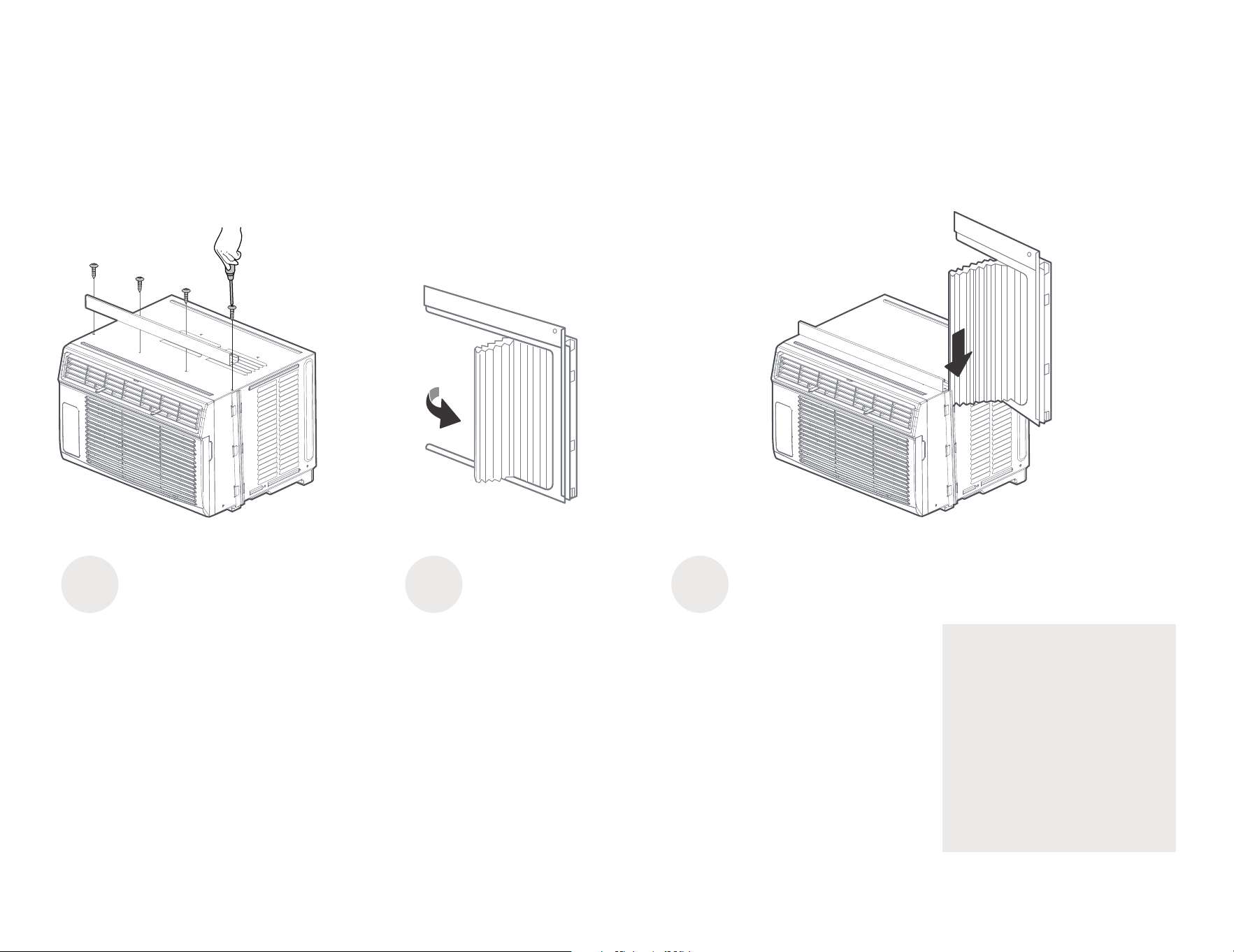

Install the top rail
on the AC.
Install the Top Rail on the AC with 4
Screws(3/8in), For safety reasons, all
4 screws MUST be securely fastened.
1
ＲＩＧＨＴ
Pull the panels
out around.
2
Install the
accordion panels.
3
Pull the Left&Right Panels
out half way around.
Insert the card slot on the side
of the AC, pay attention to the
left and right dierences of
the Panel.
ＲＩＧＨＴ
NOTE: Top rail and Sliding
Panels at each side are
oset to provide the proper
pitch to the rear of (5/16 ").
This is necessary for proper
condensed water utilization
and drainage. If you are not
using the Side Panels for
any reason, this pitch to the
rear must be maintained.
11
ＲＩＧＨＴ
ＬＥＦＴ
4 5

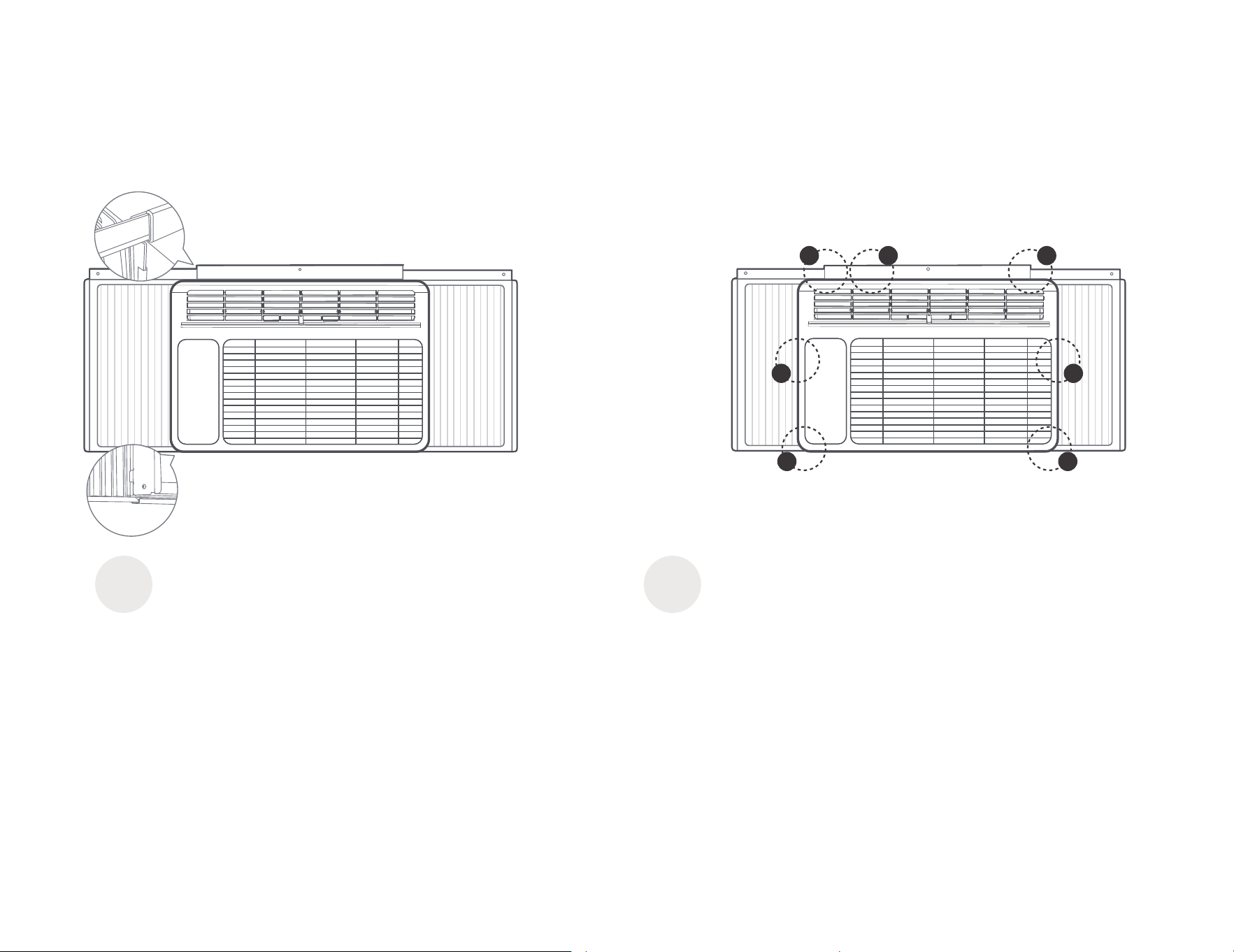

Fasten the panels to the AC.
Stretch the wind screen outward and insert the upper
and lower frame strips of the Panels into the AC
card slot.
ＲＩＧＨＴ
ＬＥＦＴ
A
A
C C
B
A
A
The AC unit is done.
Before you rush to the
next installation phase,
please first confirm the
following installation is
in place.
A. the upper and lower frame strips of the
Panels into the AC card slot.
B. Top Rail on the AC with 4 Screws.
C. Insert the card slot on the side of the AC.
Install your AC.
12
2Step
Insulate
your window.
What you need.
13
1 2

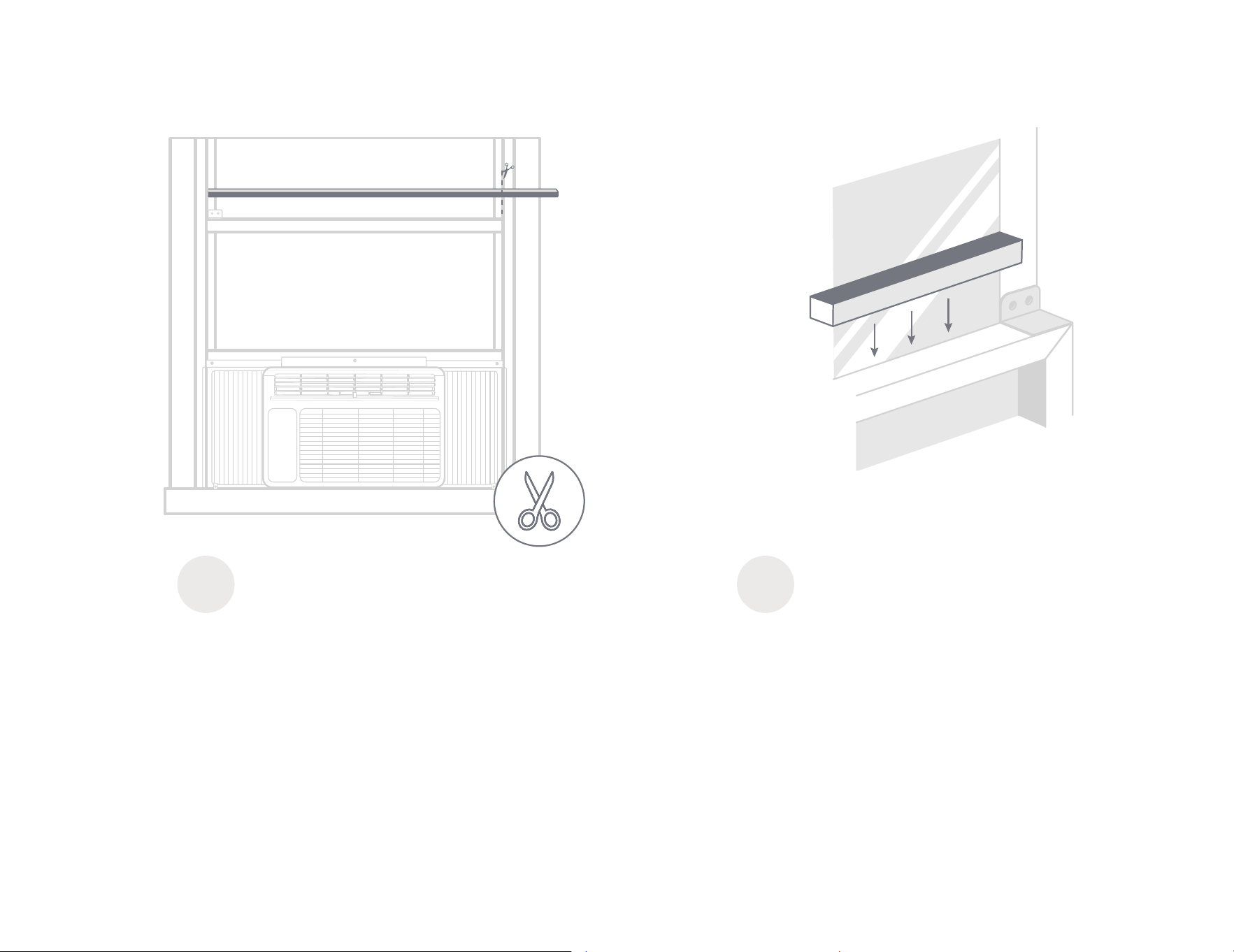

Cut the seal foam to the
width of your window,
and stick it of the underside.
You should cut the foam to be the width of your window
from the left to the right side. Make sure you’re cutting the
foam with the adhesive, and stick it of the underside.
In order to improve the operation of the equipment and
reduce the noise generated during operation, you need
to foam seal the gaps.
Insert the foam to the gaps.
*If your window already has a liner or insulation strip,
you can skip the above steps.
Insulate your window.
14
ＲＩＧＨＴ
ＬＥＦＴ
3Step
Lift the AC into
the window.
What you need.
15
ＲＩＧＨＴ
ＬＥＦＴ
1

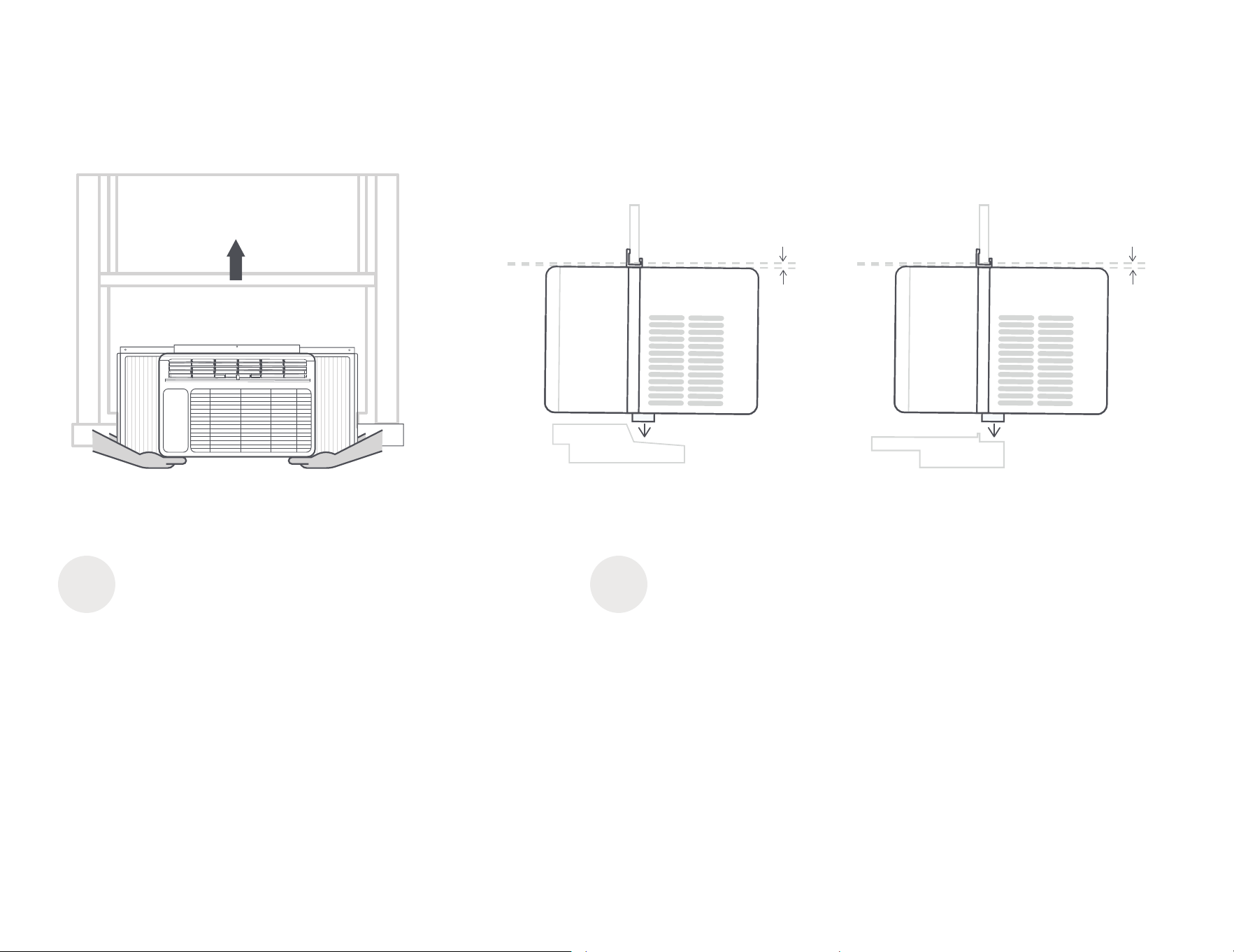

Together with your helper,
lift the assembled AC into
the window frame.
Make sure you do this step with a helper. Very carefully, lift
the assembled AC into the window frame. Make sure someone
is holding the back of the unit securely.
*It’s helpful to rest the unit on the inside window sill until you’re
ready to reposition it correctly. Injury (to you and others) and
property damage can occur if not done correctly.
*Check that air conditioner is tilted back about 3°to 4°downward to the
outside. After proper installation, condensate should not drain from the
overflow drain hole during normalu se,correct the slope otherwise.
2
Properly position the bottom bar
BEHIND the inside window sill.
Properly position the bottom bar behind the inside window sill and into the
bottom horizontal channel of the window frame. The front of the bottom bar
should be pressing up against the back edge of the sill.
Wooden Windows
Angle：3-4°
Outside
Outside
Inside
Inside
Vinyl-Clad Windows
Angle：3-4°
Lift the AC into the window.
16
ＲＩＧＨＴ
ＬＥＦＴ
Storm window
frame or other
obstruction.
SASH
1-1/2"min
(38 mm)
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
CAUTION: If storm window blocks AC,
Please install according to the figure above.
3
Once the AC is centered and the bottom bar is successfully
positioned, close the window down onto the AC, behind
the top bar. See diagram above. Pull the panels to the side
of the window.
Close the window down onto
the AC, and pull the panels to
the side of the window.
Lift the AC into the window.
17
ＲＩＧＨＴ
ＬＥＦＴ
4Step
What you need.
Secure the AC.
18
Follow the above instructions
and drive the screws.
ＲＩＧＨＴ
ＬＥＦＴ
Secure the AC.
or
DRIVE LOCKING
SCREWS.
1

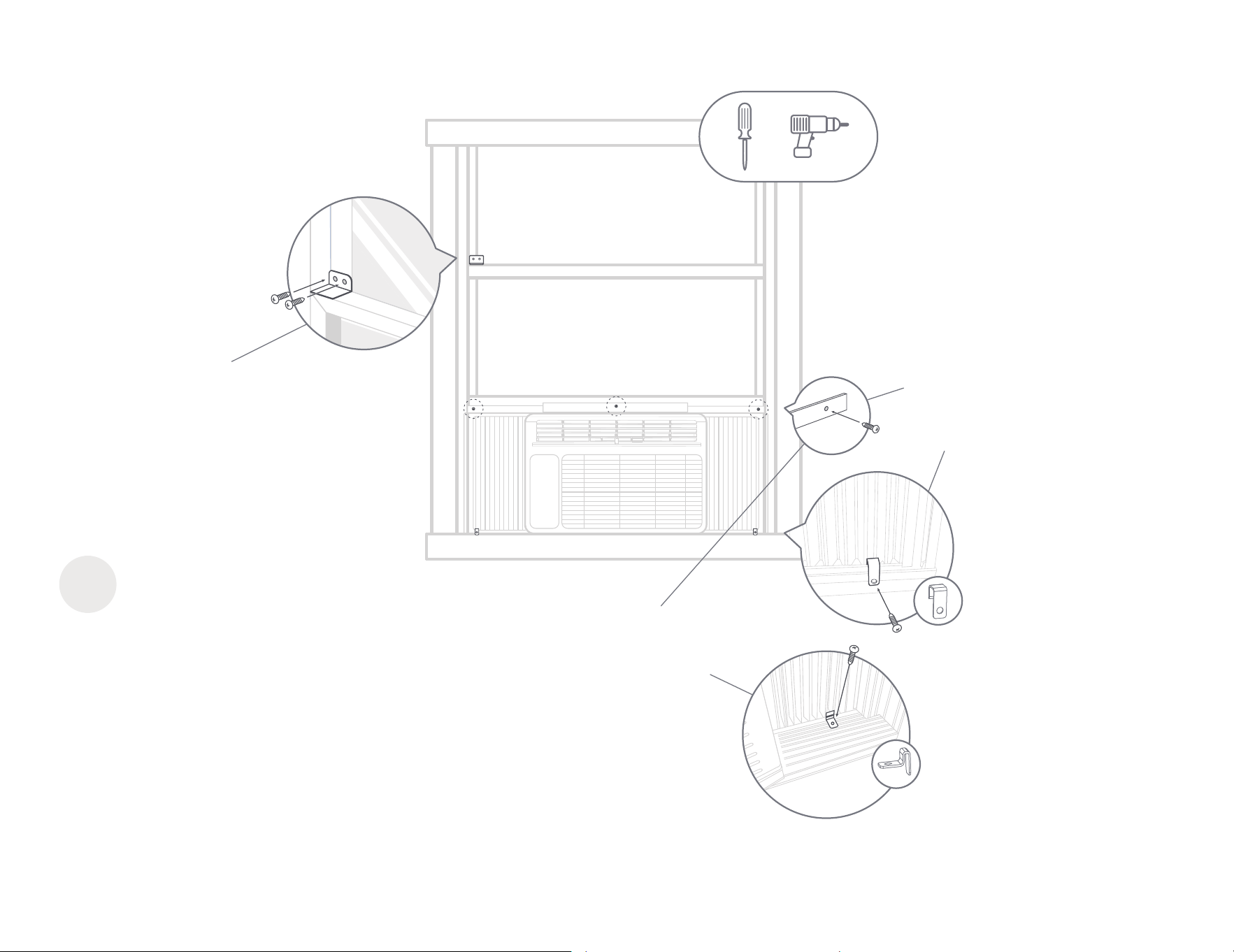

Drive 1/ 2" (12.7 mm) locking
screws through the frame lock
and into the sill(Only wooden
windows).
NOTE:To prevent window sill
from splitting, drill 1/8 " (3mm)
pilot holes before driving
screws.
1/8 " (3mm) pilot holes before
driving screws. Drive 1/ 2" (12.7mm)
locking screws through frame holes
into window sash(Only wooden
windows:).
Drive 1/ 2" (12.7 mm) locking screws
through the frame lock and into the
window sashl(Only Vinyl-Clad windows).
NOTE: Before driving the screws, use
a drill to drill 5 holes through the holes
in the frame lock and frame extensions
into the windows sash as
shown.
19
Make sure you are cutting the foam with the
non-adhesive sides. Measure and cut the foam
to be the width of your window from the left
to right side.
Cut the non-adhesive
insulation foam to fit the
width of your window.
1
Stu it between the gap of the upper and lower sashes of
your window.
This will plug any air gaps and help keep out bugs
and draft.
Use the nonadhesive foam
to fill the gaps in your window.
2
ＲＩＧＨＴ
ＬＥＦＴ
The final details
20
1 2
One more thing
Add wood as shown in Caution illustration on page 16, or remove
storm window before air conditioner is installed. If Storm Window
Frame must remain, be sure the drain holes or slots are not caulked
or painted shut. Accumulated Rain Water or Condensation must be
allowed to drain out.
Removing AC From Window
Turn AC o, and disconnect power
cord. Remove sash seal from between windows, and unscrew safety
sash lock. Remove screws installed through frame and frame- lock.
Keeping a firm grip on air conditioner, raise sash and carefully
remove. Be carefully not to spill any remaining water while lifting
unit from window. Store parts with air conditioner.
High Pitched Chatter
High eciency compressors may have a high pitched chatter during the
cooling cycle.
Sound of Rushing Air
At the front of the unit, you may hear the sound of rushing air being
moved by the fan.
Gurgle/Hiss
“Gurgling or hissing”noise may be heard due to refrigerant passing
through evaporator during normal operation.
Vibration
Unit may vibrate and make noise because of poor wall or window
construction or incorrect installation.
Pinging or Switching
Droplets of water hitting condenser during normal operation may cause
“pinging or swishing” sounds. This noise can be reduce by removing the
water plug at the bottom of unit’s rear as shown below. Removing this
plug will lower the Energy Eciency of your unit.
Note: Don’t try to drill any holes on the base pan to eliminate the normal
sounds, otherwise it will void the warranty.
If AC is Blocked by Storm Window. Normal Sounds
Additional Notes
21
Get to know your AC.
AC unit overview
Display
(Electronic
control panel
only)
Air Direction
Status display
Feature selection
(Electronic control
panel only)
Feature selection
(Electronic control
panel only)
Strainer
disassemble
buckle
Levers
Air Direction
Levers
Power key
Front Intake
Grille
(The filter is
behind this)
Front Intake
Grille
(The filter is
behind this)
Rear
Condenser
Vents
Strainer
disassemble
buckle
Rear
Condenser
Vents
The following two types of product appearance for reference only, The machine you purchase may be a little dierent.
NOTE
22
Lever

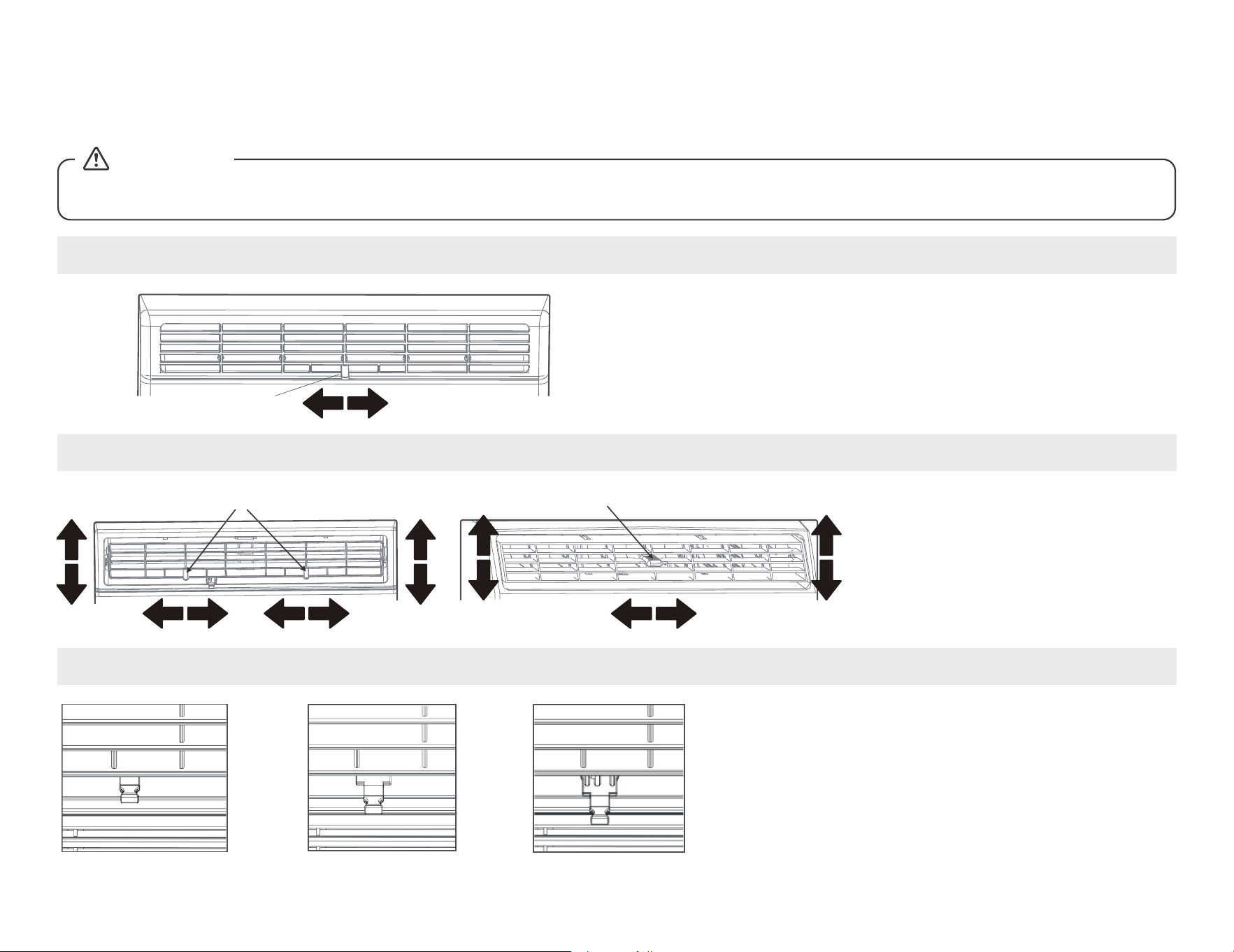

Adjust your air conditioning direction.
Air conditioning louvers
Do not stick your fingers in the air outlet, it may cause an injury.
CAUTION
Bidirectional adjustment (left or right) - For 05K/06K
Four-way adjustment (up or down, left or right) - For 06K/08K/10K/12K/14.5K
Fresh air vent control - For 14.5K
The louver will allow you to direct the air flow Left or Right
throughout the room as needed.
Move the Lever from side to side until the desired Left/Right
direction is obtained.
The louvers will allow you to direct the
air flow Up or Down(on some models)
and Left or Right throughout the room
as needed. Pivot horizontal louvers until
the desired Up/Down direction is
obtained. Move the Lever(s) from side
to side until the desired Left/Right
direction is obtained.
Lever Lever
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (See Fig.A)
2. Draw fresh air into the room- Vent Open (see Fig.B)
3. Exchange air from the room and draws fresh air
into the room - Vent and Exhaust Open (see Fig.C)
Fig.B (VENT OPEN)
cord.
Fig.A (VENT CLOSED)
Fig.C (VENT & EXHAUST OPEN)
23
Get to know the features.
Air conditioner features
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
Please always wait 3 minutes when turning unit o then on again, and when changing from cool to fan and back to cool. This prevents
compressor from overheating & possible circuit breaker tripping.

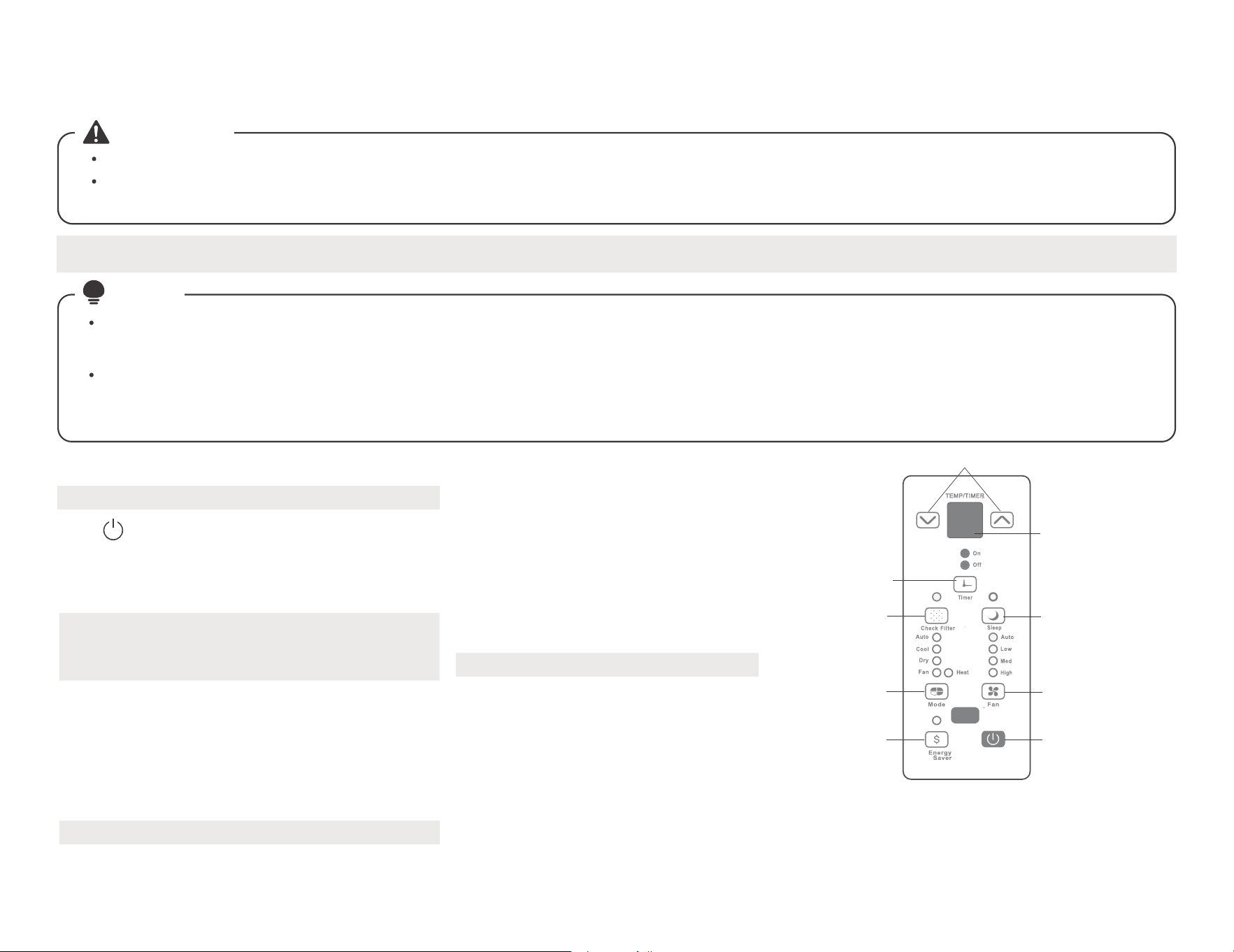

Electronic control operating instructions
Dierent models have dierent control buttons and indicator lights. Not all the control buttons and indicator lights describing below are
available for the unit you purchased. Please check the control panel of the unit you purchased. The unit can be controlled by the unit
control alone or with the remote.
Ion or clear air may be instead of SMART or WIRELESS or CONNECT for some models. Heat, clean air, ion, smart, Wireless, Connect and
follow me features are optional.Ion, clean air is not applicable for R32/R290 units. These features may not be available on some models.
The outline of the operation panel is based on typical model, the function is thesame with your air conditioner while some dierence may
exist in appearance.
NOTE
1. TO TURN UNIT ON OR OFF:
NOTE: The unit will initiate automatically the
Energy Saver function under Cool, Dry and Auto
modes.
Press POWER button to turn unit on or o.
2. CLEAN AIR(ION)/SMART(WIRELESS
or CONNECT)FEATURE(Optional):
Press Clean Air(ION) button,the ion generator is
energized and will help to remove pollen and
impurities from the air, and trap them in the filter.
Press SMART(WIRELESS or connect) button for 3
seconds to turn o the unit and initiate SMART
(WIRELESS or connect)connection mode.
3. TO CHANGE TEMPERATURE SETTING:
NOTE: Press or hold either UP or DOWN
button until the desired temperature is
shown on the display. This temperature
will be automatically maintained
anywhere between 62°F(17°C) and
86°F (30°C). If you want the display to
read the actual room temperature,
see“ To Operate on Fan Only ’’section.
4. SLEEP FEATURE:
Press Sleep button to initiate the sleep
mode. In this mode the selected
temperature will increase (cooling)
or decrease (heating) by 2°F/1°C
30 minutes after the mode is selected.
The temperature will then
increase (cooling) or decrease (heating)
by another 2°F/1°C after an additional
30 minutes. This new temperature will
be maintained for 6 or 7 hours before
Press UP/DOWN button to change temperature
setting.
it returns to theoriginally selected temperature.
This ends the Sleep mode and the unit will continue
to operate as originally programmed. The Sleep
mode program can be cancelled at any time during
operation by pressing the Sleep button again.
6
7
9
10
3
1
5
4
11
24
5. TO ADJUST FAN SPEEDS:
Press Fan button to select the Fan Speed in four
steps-Auto, Low, Med or High. Each time the
button is pressed, the fan speed mode is shifted.
For some models, the fan speed can’t
be adjusted.
Electronic control operating instructions
Press Check filter button to initiate theis feature.
This feature is a reminder to clean the Air Filter
for more ecient operation. The LED(light) will
illuminate after 250 hours of operation. To reset
after cleaning the filter, press the Check Filter
button and the light will go o.
6. CHECK FILTER FEATURE:
Press Energy saver button to initiate this function.
This function is available on COOL, DRY, AUTO
(only AUTO-COOLING and AUTO-FAN) modes.
The fan will continue to run for 3 minutes after
the compressor shuts o.The fan then cycles on
for 2 minutes at 10 minute intervals until the
room temperature is above the set temperature,
at which time the compressor turns back on and
Cooling Starts.
7. ENERGY SAVER FEATURE:
8. FOLLOW ME FEATURE:(Optional)
This feature can be activated from the remote
control ONLY. The remote control serves as a
remote thermostat allowing for the precise
temperature control at its location.
Follow
Me
Light flashes
or illuminates
9. TO SELECT THE OPERATING MODE:
To choose operating mode, press Mode button.
Each time you press the button, a mode is
selected in a sequence that goes from Auto,
Cool, Dry ,heat(cooling only models without)and
Fan. The indicator light beside will be illuminated
and remained on once the mode is selected.
The unit will initiate automatically the Energy
Saver function under Cool, Dry, Auto(only
Auto-Cooling and Auto-Fan) modes.
To operate on COOL mode :
• Choose Cool Mode to set the cooling function.
Use the Up and Down buttons to choose the
desired temperature. When Cool Mode is
selected, the fan speed can be adjusted by
pressing the fan button.
To operate on HEAT mode(cooling only
models without):
• Choose Heat Mode to set the heating function.
Use the Up and Down buttons to choose the
desired temperature .When heat Mode is selected,
the fan speed can be adjusted by pressing the
fan button.
NOTE: For some models, the fan speed can
not be adjusted under HEAT mode.
To operate on Auto feature:
• When you set the air conditioner in AUTO
mode, it will automatically select cooling,
heating(cooling only models without), or fan
only operation depending on what
temperature you have selected and the
room temperature.
• The air conditioner will control room
temperature automatically round the
temperature point set by you.
• In this mode, the fan speed cannot be
adjusted, it starts automatically at a speed
according to the room temperature.
To operate on Fan Only:
• Use this function only when cooling is not
desired,such as for room air circulation or to
exhaust stale air(on some models).
(Remember to open the vent during this
function, but keep it closed during cooling
for maximum cooling eciency.) You can
choose any fan speed you prefer.
• During this function, the display will show
the actual room temperature, not the set
temperature as in the cooling mode.
• In Fan only mode ,the temperature is
not adjusted.
To operate on Dry mode:
• In this mode, the air conditioner will
generally operate in the form of a
dehumidifier. Since the conditioned space is
a closed or sealed area, some degree of
cooling will continue. On Dry mode,the fan
speed is controlled at Low automatically.
To activate the Follow Me feature, point the
remote control towards the unit and press the
Follow Me button. The remote display is actual
temperature at its location. The remote control
will send this signal to the air conditioner every
3 minutes interval until press the Follow Me
button again.If the unit does not receive the
Follow Me signal during any 7 minutes interval,
the unit will beep to indicate the Follow Me
mode has ended.
25
10. TIMER: AUTO START/STOP FEATURE:
• Press Timer button, the TIMER ON or TIMER OFF indicator light
illuminates. It indicates the Auto Start or Auto Stop program is
initiated. For some units, keep pressing the Timer button will cancel
the timer settings.
• Press or hold the UP or DOWN button to change the Auto time
by 0.5 hour increments, up to 10 hours,then at 1 hour increments up
to 24 hours. The control will count down the time remaining
until start.
• The selected time will register in 5 seconds, and the system will
automatically revert back to display the previous temperature
setting or room temperature when the unit is on. (when the unit is
o,there is no display.)
• Turning the unit ON or OFF at any time or a djusting the timer
setting to 0.0 will cancel the Auto Start/Stop timed program.
Electronic control operating instructions
11. DISPLAYS:
Shows the set temperature in ” °C" or ” °F" and the Auto-timer
settings.While on Fan only mode, it shows the room temperature.
If the room temperature is too high or low, it will display " HI" or
" LO".
Displays
NOTICE
If the unit breaks o unexpectedly due to the power cut, it will restart
with the previous function setting automatically when the
power resumes.
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features
in your control that you should become familiar with.
• The Cool circuit has an automatic 3 minutes time delayed start if the unit is
turned o and on quickly.
This prevents overheating of the compressor and possible circuit breaker
tripping.The fan will continue to run during this time.
• The control is capable of displaying temperature in degrees Fahrenheit or
degrees Celsius. To convert from one to the other, press and hold the Up and
Down buttons at the same time for 3 seconds.
Error codes:
AS - Room temperature sensor error
ES -Evaporator temperature sensor error
HS -Electric heating sensor error;
CS -Condenser temperature sensor error;
OS -Outside temperature sensor error;
E7 -Unit malfunction.
NOTE:When error occurs,unplug the unit and plug it back in.If error repeats,
call for service.
26
How to clean & change your filter.
Cleaning & maintenance
Check the air filter once a month
to see if cleaning is necessary.
CAUTION: Clean your air conditioner occasionally to
keep it looking new. Be sure to unplug the unit before
cleaning to prevent chock or fire hazards.
CAUTION: If you plan to store the air conditioner during the winter,
remove it carefully from the window according to the installation
instructions. Cover it with plastic or return it to the original carton.
The air filter should be checked at least once a
month to see if cleaning is necessary. Trapped
particles in the filter can build up and cause an
accumulation of frost on the cooling coils.
• Push the vent handle to the Vent Closed position
(where applicable). Open the front panel.
• Take the filter by the center and pull up and out.
• Wash the filter using l iquid dishwashing
detergent and warm water. Rinse filter
thoroughly. Gently shake excess water from the
filter. Be sure the filter is thoroughly dry before
replacing. Instead of washing, you may vacuum
the filter clean.
Note: Never use hot water over 40°C(104°F) to
clean the air filter. Never attempt to operate
the unit without the air filter.
Cabinet Cleaning
• Be sure to unplug the air conditioner to
prevent shock or fire hazard. The cabinet
and front may be dusted with an oil-free
cloth or washed with a cloth dampened in
a solution of warm water and mild liquid
dishwashing detergent. Rinse thoroughly
and wipe dry.
• Never use harsh cleaners, wax or polish
on the cabinet front.
• Be sure to wring excess water from the
cloth before wiping around the controls.
Excess water in or around the controls may
cause damage to the air conditioner.
• Plug in air conditioner.
Problem Solving
TROUBLESHOOTING
Before calling for service, review this list. It may save your time and expense. This list includes common occurrences that are not the result of
defective workman-ship or materials in this appliance.
Air conditioner
does not start.
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
Power is OFF. Turn power ON.
Air from unit does
not feel cold
enough.
Room temperature below 62°F(17°C). Cooling may not occur until room temperature rises above 62°F(17°C).
Temperature sensing behind air filter element touching cold coil. Keep it from the cold coil.
Set to a Lower temperature.
Compressor stopped when changing modes. Wait for 3 minutes after set to the COOL mode.
Air conditioner
cooling, but room
is too warm- ice
forming on cooling
coil behind
decorative front.
Outdoor temperature below 64°F(18°C). To defrost the coil, set FAN ONLY mode.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY mode. Then, set temperature to a
Higher setting.
Problem Solution
The design and specifications are subject to change without prior notice for product improvement. Any updates to the manual will be uploaded to
the Midea website (www.midea.com/us), please check for the current version.
27
28
Problem Solution
Problem Solving
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front.
Air conditioner
turns on and o
rapidly
Noise when unit is
cooling
Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section.
Temperature is set too High, set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit.
An open doors, windows,or register may allow cold air to escape. Close any doors, winows, or registers.
The room may be too warm. Allow additional time to remove “Stored heat” from walls, ceiling, floor and furniture.
Dirty air filter- air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring air past
cooling coils more frequently.
Air movement sound. This is normal . If too loud, set to a slower FAN setting.
Window vibration - poor installation. Refer to installation instructions or check with installer.
Water dripping
INSIDE when unit
is cooling.
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer to installation
instructions - check with installer.
Water dripping
OUTSIDE when
unit is cooling.
Unit removing large quantity of moisture from humid room. This is normal during excessively humid days.
Remote Sensing
Deactivating
Prematurely (Only
remote models)
Remote control not located within range. Place remote control within 20 feet and pointed in the general direction of
the air conditioner unit.
Remote control signal obstructed. Remove obstruction.
Room too cold
Set temperature too low. Increase set temperatur.
29
Air Conditioner Limited Warranty
Your product is protected by this Limited Warranty:
Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.
Warranty
• One year full warranty from original purchase date.
Midea, through its authorized servicers will:
• Pay all costs for reparing or replacing parts of this appliance which prove to be defective in materials or workmanship.
Consumer will be responsible for:
• Diagnostics, removal, transportation and reinstallation cost required because of service.
• Costs of service calls that are a result of items listed under NORMAL RESPONSABILITIES OF THE CONSUMER**
Midea replacement parts shall be used and will be warranted only for the original warranty.
NORMAL RESPONSABILITIES OF THE CONSUMER**
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:
1. Proper use of the appliance in acordance with instructions provided with the product.
2. Routine maintenance and cleaning necessary to keep the good working condition.
3. Proper installation by an authorized service professional in accordance with instructions provided with the appliance and in accordance with all local
4. Proper connection to a grouded power supply of sufficient voltage, replacement of blown fuses, repair of loosen connections or defects in house wiring.
5. Expenses for making the appliance accessible for servicing.
6. Damages to finish after intallation.
EXCLUSIONS
This warranty does not cover the following:
1) Failure caused by damage to the unit while in your possesion (other than damage caused by defect or malfunction), by its improper installation, or by
unreasonable use of the unit, including without limitation, failure to provide reasonable and necessary maintenance or to follow the written installation
and Operating Instructions.
2) Damages caused by services performed by persons other than authorized Midea costumer service; or external causes such as abuse, misuse, inadequate
power supply or acts of God.
3) If the unit is put to commercial, business, rental, or other use or application other than for consumer use, we make no warranties, express or implied,
including but not limited to, any implied warranty of merchantability or fitness for use or purpose.
4) Products without original serial numbers or products that have serial numbers which have been altered or cannot be readily determined.
Warranty
plumbing, electrical and/or gas codes.
NOTE: Some states do not allow the exclusions or limitation of incidental or consequential damages. So this
limitation or exclusion may not apply to you.
IF YOU NEED SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment Record.
The date on the bill establishes the warranty period, should service be required.
If service is performed, its your best interest to obtain and keep all receipts.
This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.
Service under this warranty must be obtained by following these steps, in order:
1) Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332.
2) If there is a question as to where to obtain service, contact our consumer relations Departament.
30
make
yourself
at
home
