1.1 Overview
The Mass Deployment Tool provides a configuration interface to help you manage a variety of Brother device
settings, and allows users to install and manage multiple USB-connected or network-connected devices, without
having to install any additional software. The tool has two independent interfaces:
● Graphical User Interface (GUI)
● Command Line Interface (CLI)
The main functions of this tool are:
● Manage multiple devices using a deployment profile that consists of device information or settings
● Deploy settings files to the target devices
● Retrieve settings from target devices
If you are also using BRAdmin Professional 4, you can link the Mass Deployment Tool to BRAdmin
Professional 4 and use its device information and application settings:
- During the first launch of the Mass Deployment Tool

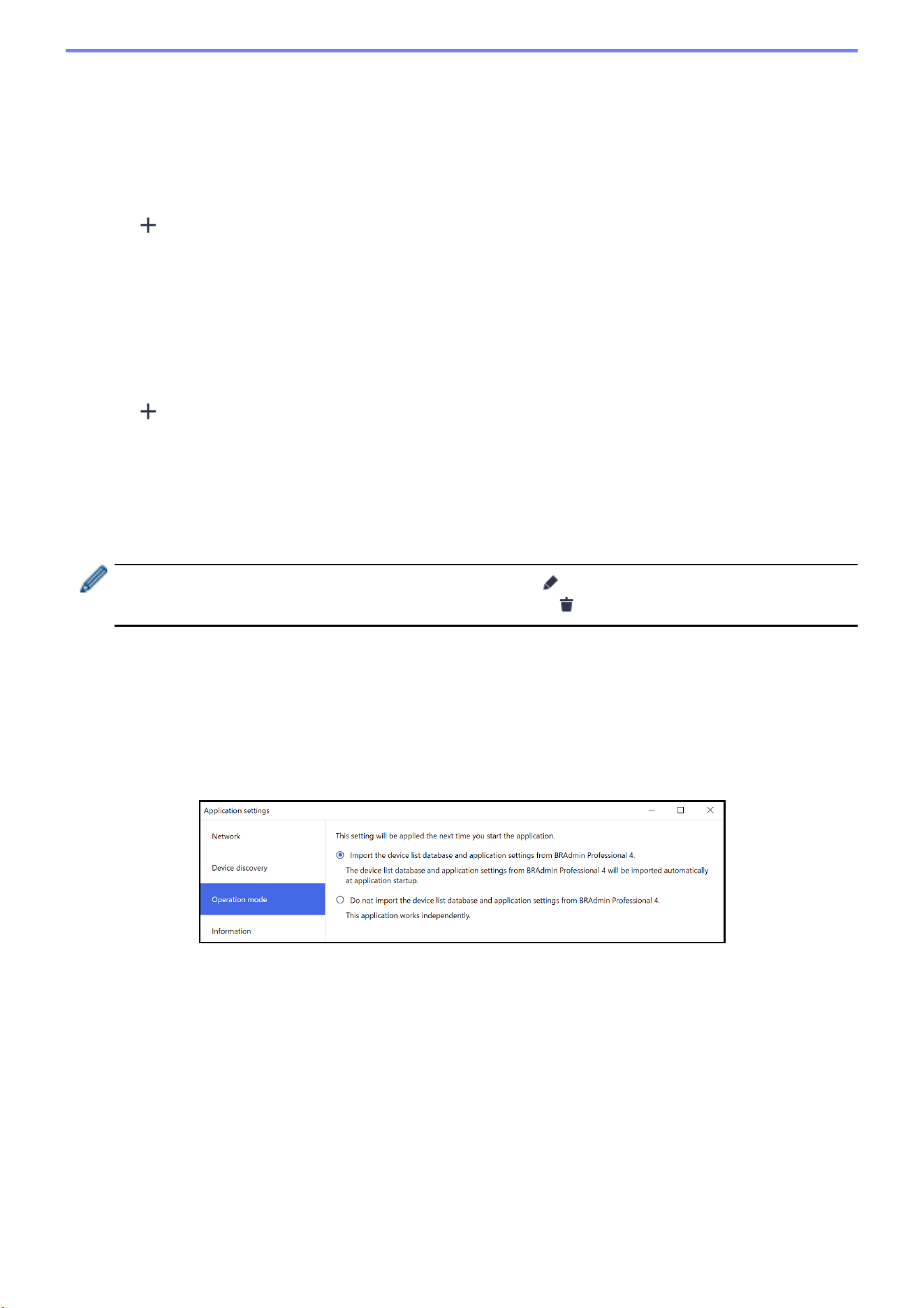

- In the Mass Deployment Tool's Application settings > Operation mode
For more information, see 3.1 Application Settings.
The intended users of this tool are:
● Pre-sales and post-sales engineers
● Installation engineers who install devices in customer environments
● Channel engineers who manage customer devices remotely
● IT administrators at end-user companies with their own device administration systems
1 Introduction
2
1.2 System Requirements
1.3 Preparation
1. Download the latest version of the Mass Deployment Tool from the Brother support website at
support.brother.com
.
2. Copy the contents of the downloaded file into the folder you want.
Make sure you know which schema file is supported by your Brother model. For a list of available schema
files and applicable models, double-click the README.url file in the “Schema” folder to open the README
website. You will need this information later.
3. To run the tool, do one of the following:
● For the Graphical User Interface (GUI)
Double-click the MassDeploymentTool.exe file in the “MassDeploymentTool” folder.
For BRAdmin Professional 4 users
- To link the Mass Deployment Tool to BRAdmin and use its device information and application settings,
select Import the device list database and application settings from BRAdmin Professional 4. in the
dialog box that appears when you first launch the Mass Deployment Tool. To link it later, go to
Application settings > Operation mode.
- If your BRAdmin application is password-protected, you must type the password.
● For the Command Line Interface (CLI)
At your Command Prompt, run the settingcmd.exe file in the “SettingCommand” folder.
We recommend changing the default login password to protect your machine from unauthorized access and
to use the Mass Deployment Tool securely.
For more information about changing your password, see 2.7 Set Password.
Operating Systems
Windows 10 (32-bit and 64-bit)
Windows 11 (64-bit)
Windows Server 2012 or later (64-bit)
Additional Software .NET Framework 4.8 or later
3
Use the Mass Deployment Tool's Graphical User Interface (GUI) to:
- Prepare and manage deployment profiles for multiple Brother devices.
- Deploy settings or send instructions to multiple Brother devices using deployment profiles.
- Change the Mass Deployment Tool's settings.
2.1 Update the Device List
No devices are displayed upon startup. Search for target devices first, and then add them to the list:

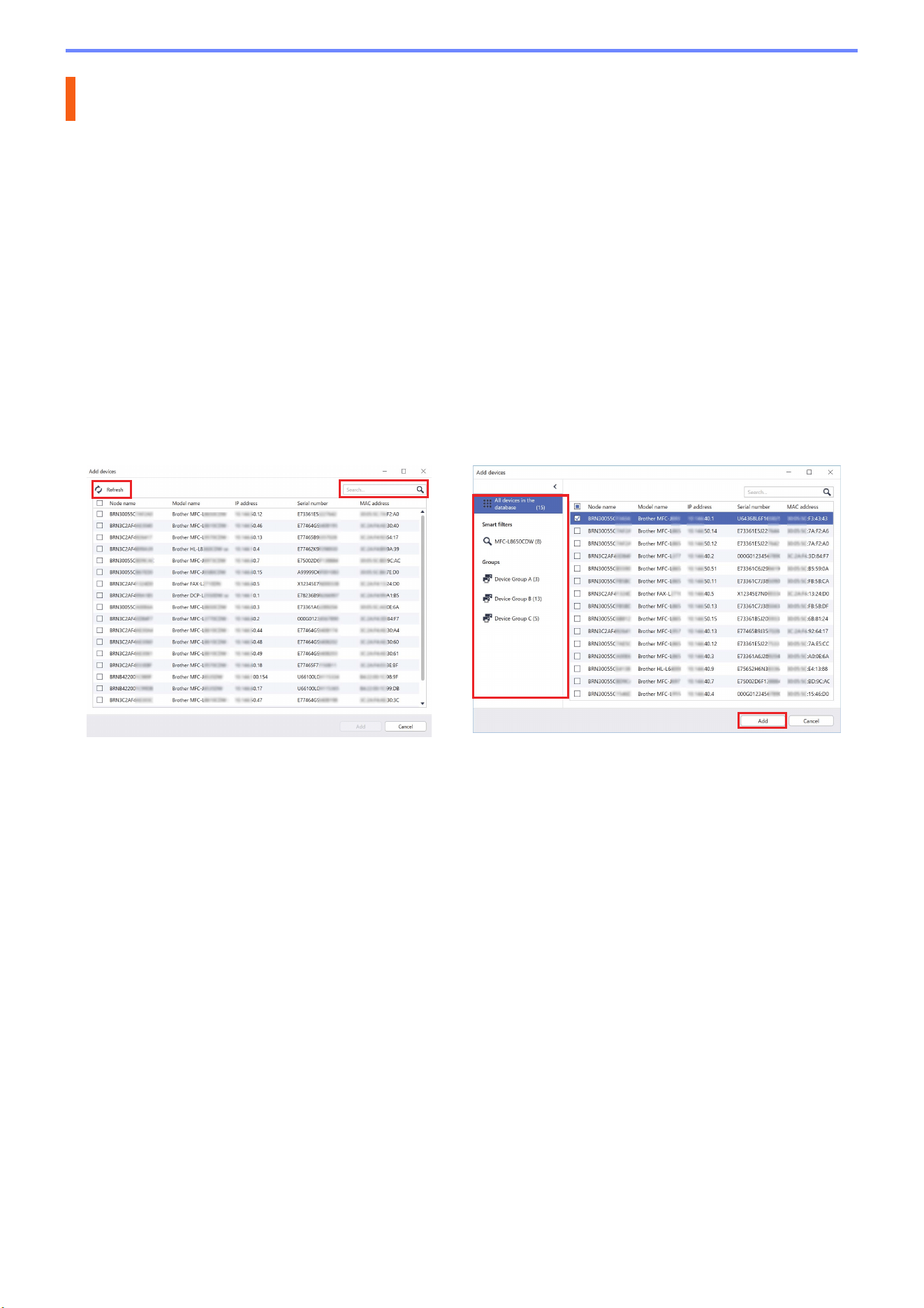

1. Click the Add devices button to display the list of devices on the Add devices screen.
If you are using the BRAdmin database, its Device list appears with Smart filters (containing the devices that
meet your filtering criteria) and Groups (containing the devices you specified) in the left pane. For more
information about Smart filters, see the BRAdmin Professional 4 User's Guide.
2. Type a keyword in the search box or click the Refresh button, if needed.
(The Refresh button is not available if you are using the BRAdmin database.)
3. Select the check boxes of the devices you want to add. If you are using the BRAdmin database, you can also
select the target Smart filter or Group in the left pane.
4. Click the Add button. The list of devices you selected appears in the tool’s main window.
2 Main Functions of the Mass Deployment Tool (GUI)
Without using the BRAdmin database Using the BRAdmin database
4
The following functions are available in the tool’s main window.
- Select the Setting File
Select one or more devices, click the Set file button, and then select the file you want.
- Enter a Password for Password-Protected Devices
Select one or more devices that use the same password, click the Input device password button, type the
password, and then click OK.
- Refresh the Device List
Select one or more devices and then click the Refresh button.
- Delete Devices from the Device List
Select one or more devices and click the Delete devices button.
- Sort the Device List
Click the column heading containing the sort criteria you want.
To select multiple devices, press and hold the Shift or Ctrl key on your keyboard, and left-click the devices
you want.
5
2.2 Check Device Notifications

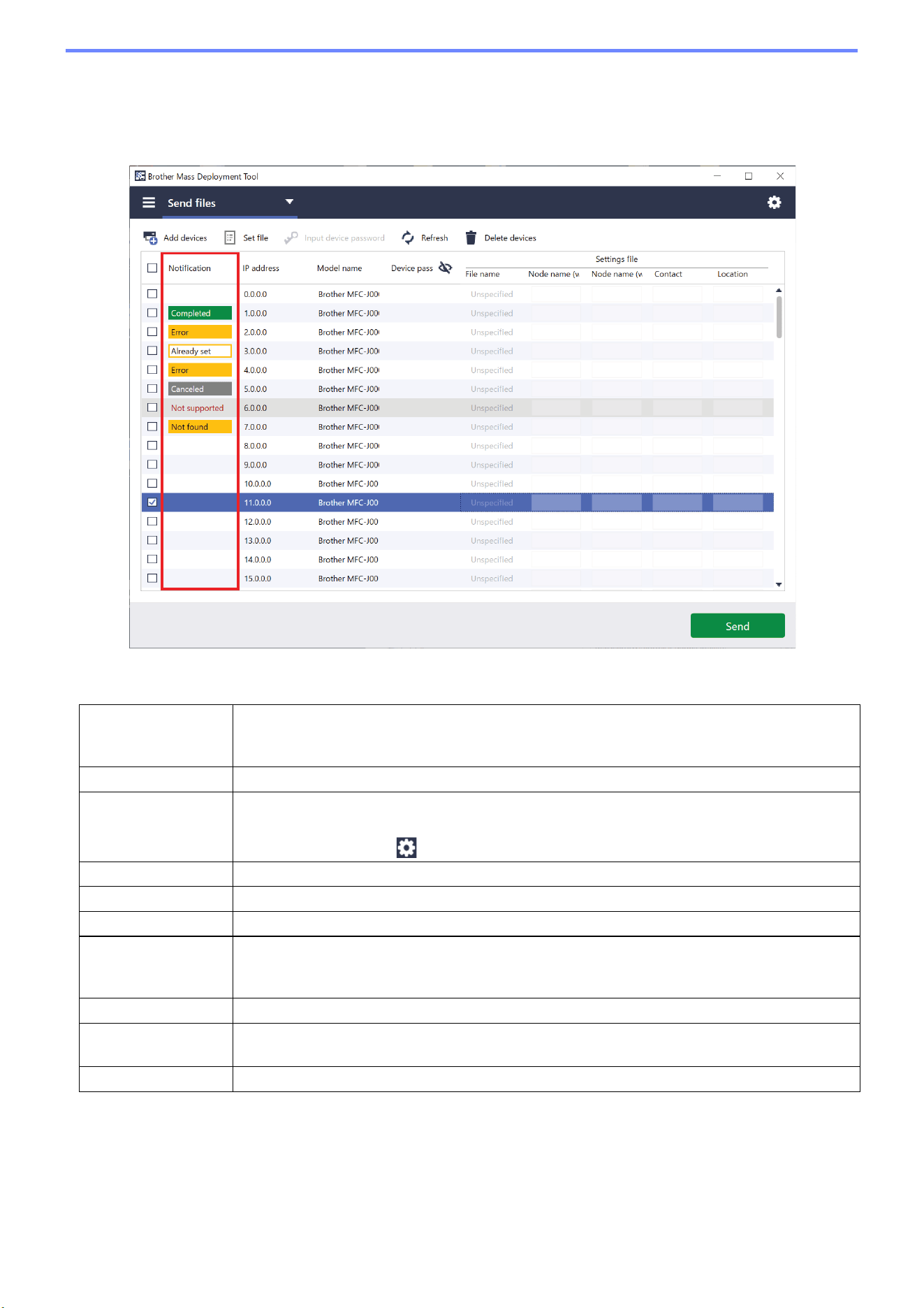

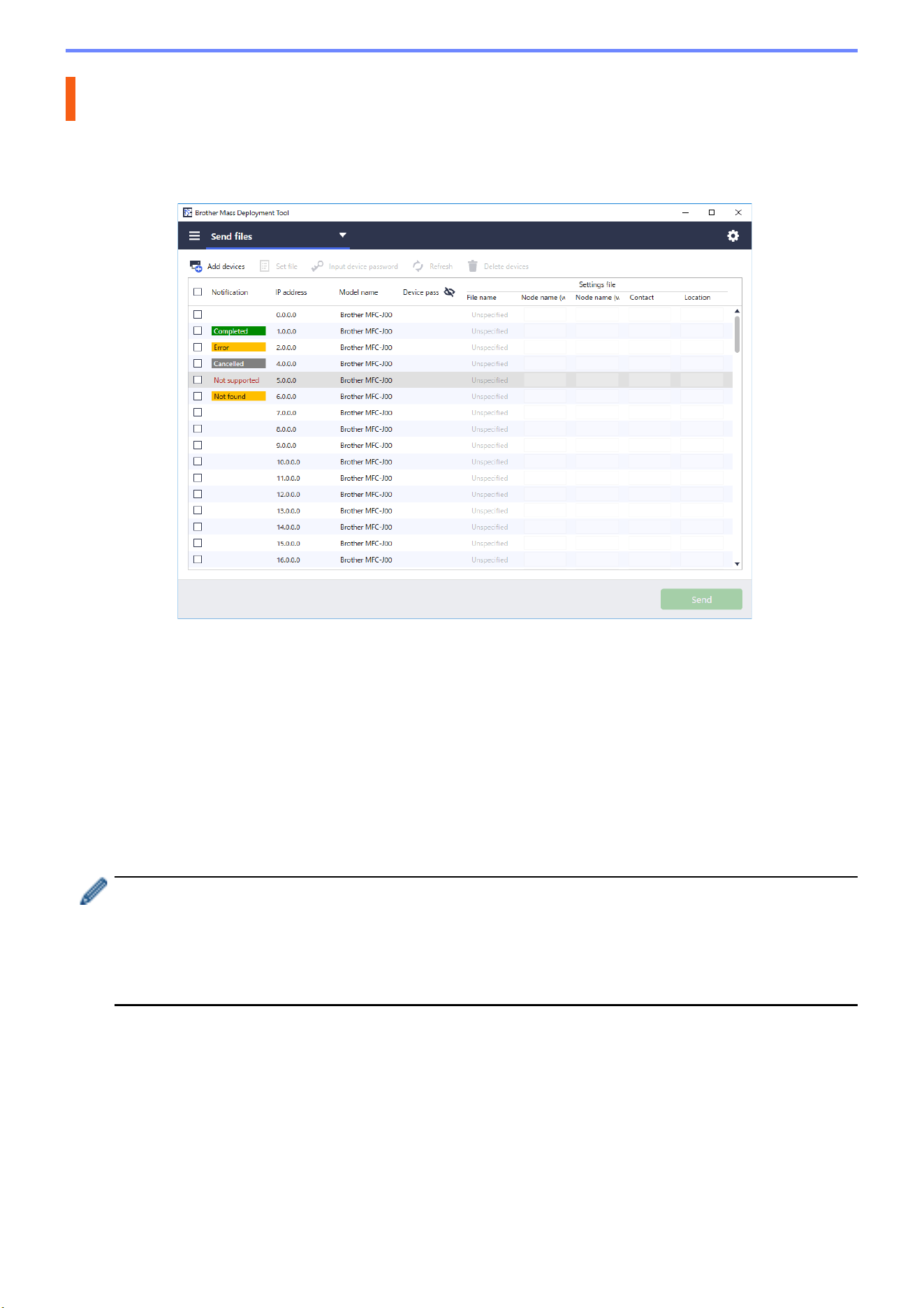

The Notification column of the Device List notifies you of the results of the last-performed task of the listed
devices.
The following notifications are available:
* Available only for Activate Solutions. For more information, see 3.2 Activate Solutions.
Not found
This device was offline when the deployment profile was imported into the tool. Check the
device's connection status.
(For more information, see 2.3.1 Import Deployment Profiles.)
Completed This device completed the last-performed task successfully.
Error
This device did not complete the last-performed task successfully. See the log details, and
perform the function again if needed.
To check the log, click > Information > click the Open button under Application log:.
Not supported This device does not support this function.
Cancelled The last-performed function has been cancelled in this device.
Already set The default login password has already been changed.
Solution not
supported/
already activated
All the last-performed functions have been enabled. *
Partially complete The last-performed functions have been partially activated. *
Solution not
supported
The last-performed function has not been activated as it is not supported. *
(blank) There are no notifications for this device.
6
2.3 Use Deployment Profiles
Deployment profiles contain paths to settings files, such as JSON files, and let you assign specific settings files to
multiple Brother devices. This feature allows you to:
- Import deployment profiles to restore specific settings files for specific devices.
- Export and save deployment profiles to let others use them to import settings from multiple Brother devices and
then send them to other devices.
Deployment profiles contain only the relative paths for settings files. To pass a set of deployment profiles and
settings files to others, you must copy both the deployment profile and any necessary settings files to ensure
that the relative path is correct.
2.3.1 Import Deployment Profiles
Import customized deployments and use them to manage multiple devices.

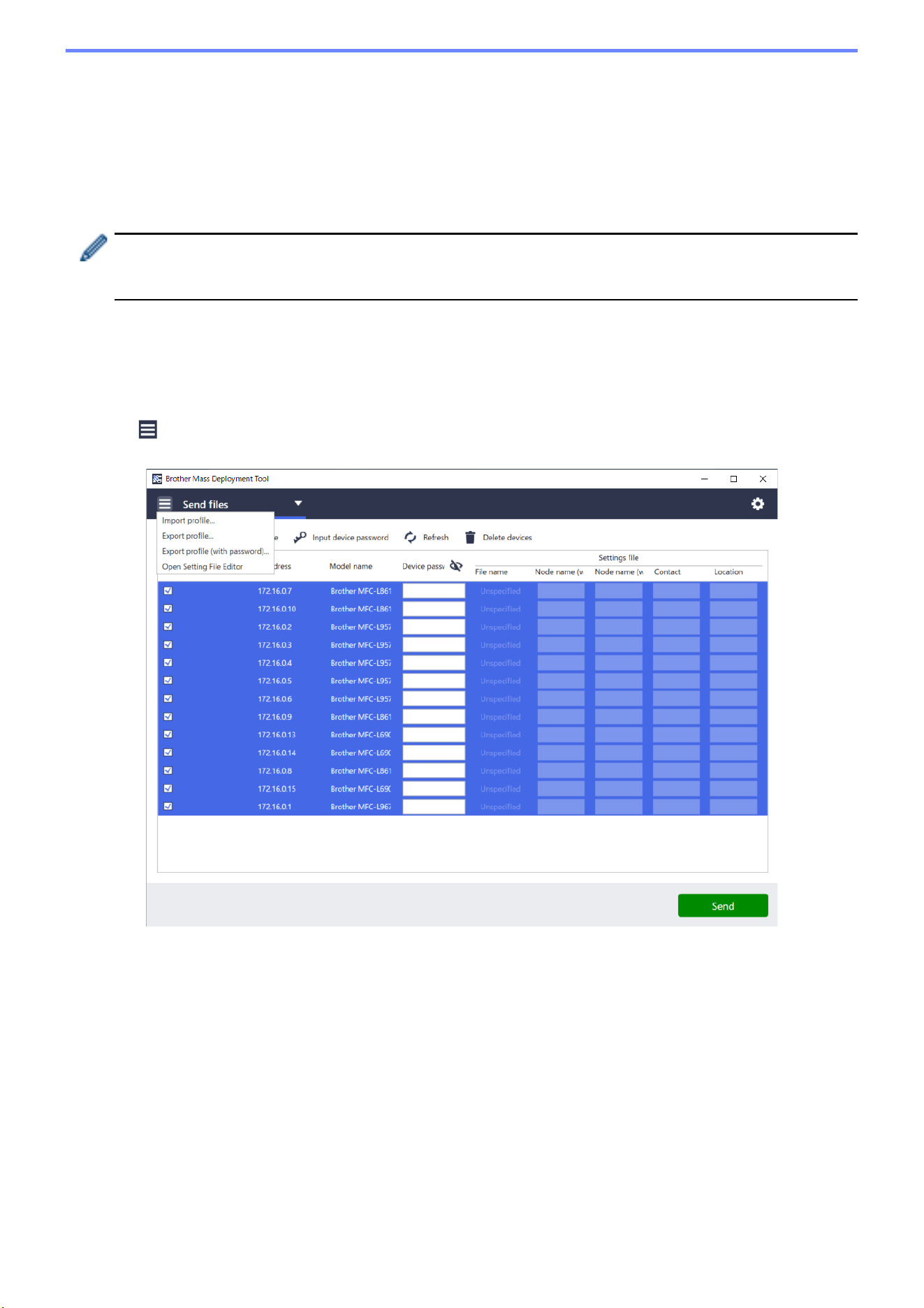

1. Click in the upper left and select Import profile…
2. Select the CSV file or the encrypted ZIP archive you want.
3. The tool imports the selected file and deploys the profiles it contains.
4. Make sure the device list contains all the devices you want. Add more devices if needed.
7
2.3.2 Export Deployment Profiles
Create and export customized deployments and use them to manage multiple devices.
1. Make sure the device list contains all the devices you want. Add more devices if needed.
2. Click and select Export profile…, or Export profile (with password)…
If you select Export Profile… and any of the target devices is password-protected, the tool notifies you that
the profile will be saved without encryption.
Click OK to continue, or click Cancel to go back and select Export profile (with password)…
3. Select the destination folder, enter the file name, and then click the Save button.
If prompted, enter the password and click the OK button.
4. The tool exports the file and saves it in CSV format.
2.4 Open the Setting File Editor
Adjust the backed-up setting files.
1. Click and select Open Setting File Editor.
To launch the Setting File Editor successfully, make sure both MassDeploymentTool.exe and
SettingFileEditor.exe have not been moved from the installation folder.
For more information, see 6 Setting File Editor.
2.5 Send Files

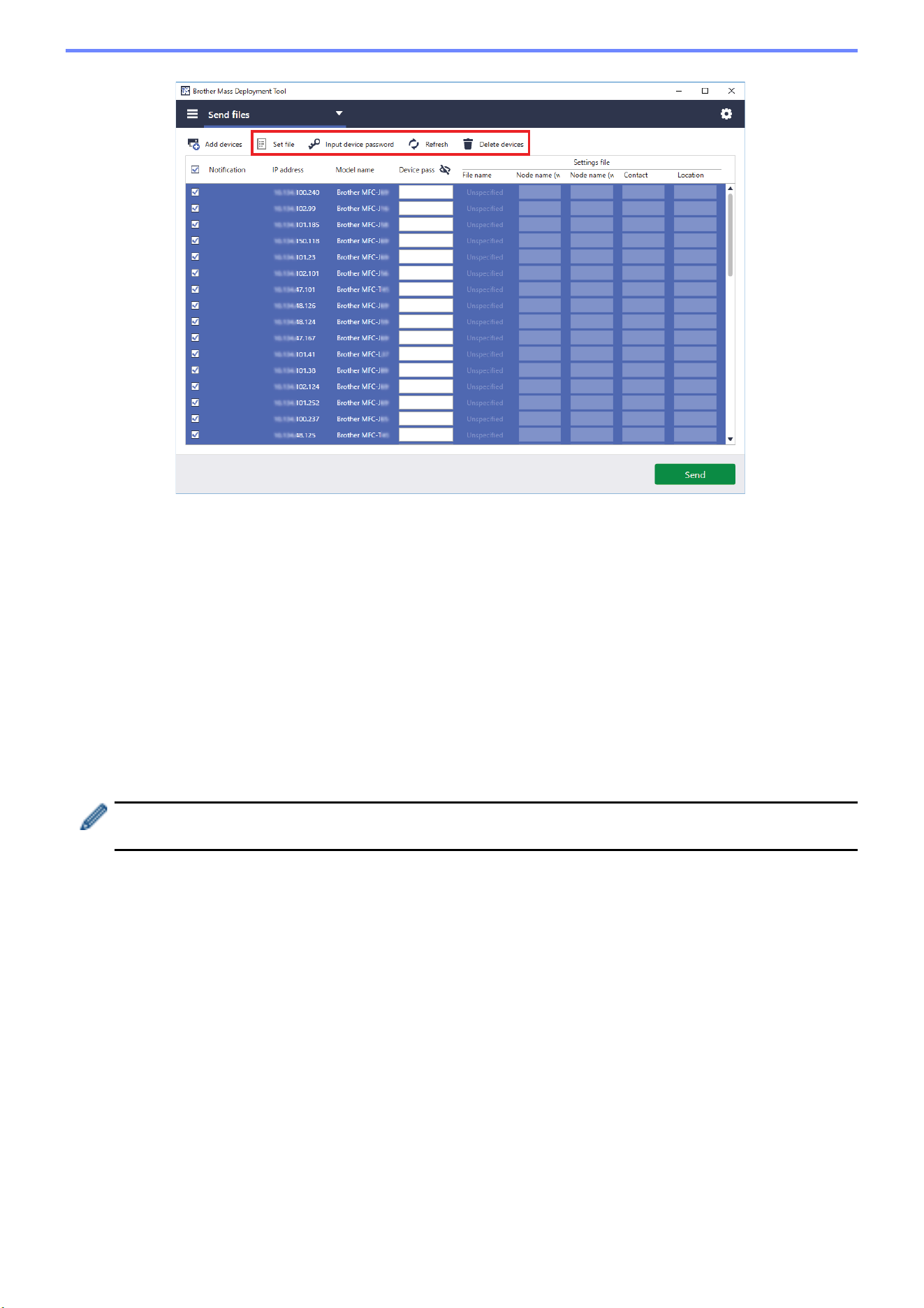

To send specific files (PJL, DJF, PRN files) or to deploy settings files (DPK, EDPK, JSON files) for managing
multiple target devices, do the following:
(For more information about creating settings files, see 5.3 Create JSON Files.)
1. Make sure the device list contains all the devices you want.
2. Select Send files from the drop-down list.
3. Set the file you want to send to the target devices:
a) Click the Set file button, or right-click one of the target devices
and select Set file.
b) Select the file you want and click the Open button.
(When you select a file from a USB flash drive, or if you select an
EDPK file, you must enter the password for the file.)
The selected file is set, and the name of the file appears in the File
name column.
While a settings file (JSON, DPK, or EDPK) is set and its details appear on the Send files screen, you can
enter or edit the information in the text boxes of the Node name (wired), Node name (wireless), Contact,
or Location column.
4. Click the Send button in the lower right corner of the screen.
Alternatively, you can use a USB flash drive to deploy settings to a device.
1. Rename your file: “write_xxxx.edpk”, where xxxx is your original file’s name.
The EDPK file password and the device password must be the same.
2. Copy it onto a USB flash drive.
3. Insert the USB flash drive into the Brother device’s USB port.
- HL/DCP/MFC devices
aSelect Direct Print.
b The USB flash drive details appear. Select the “write_xxx.edpk” file.
8
c * For monochrome devices: Press Start.
* For color devices: Press either Black Start or Color Start.
- Scanners
aSelect Program Update.
b The USB flash drive details appear. Select the “write_xxx.edpk” file.
4. Your selected settings will be applied to the device. The output log file will be automatically created.

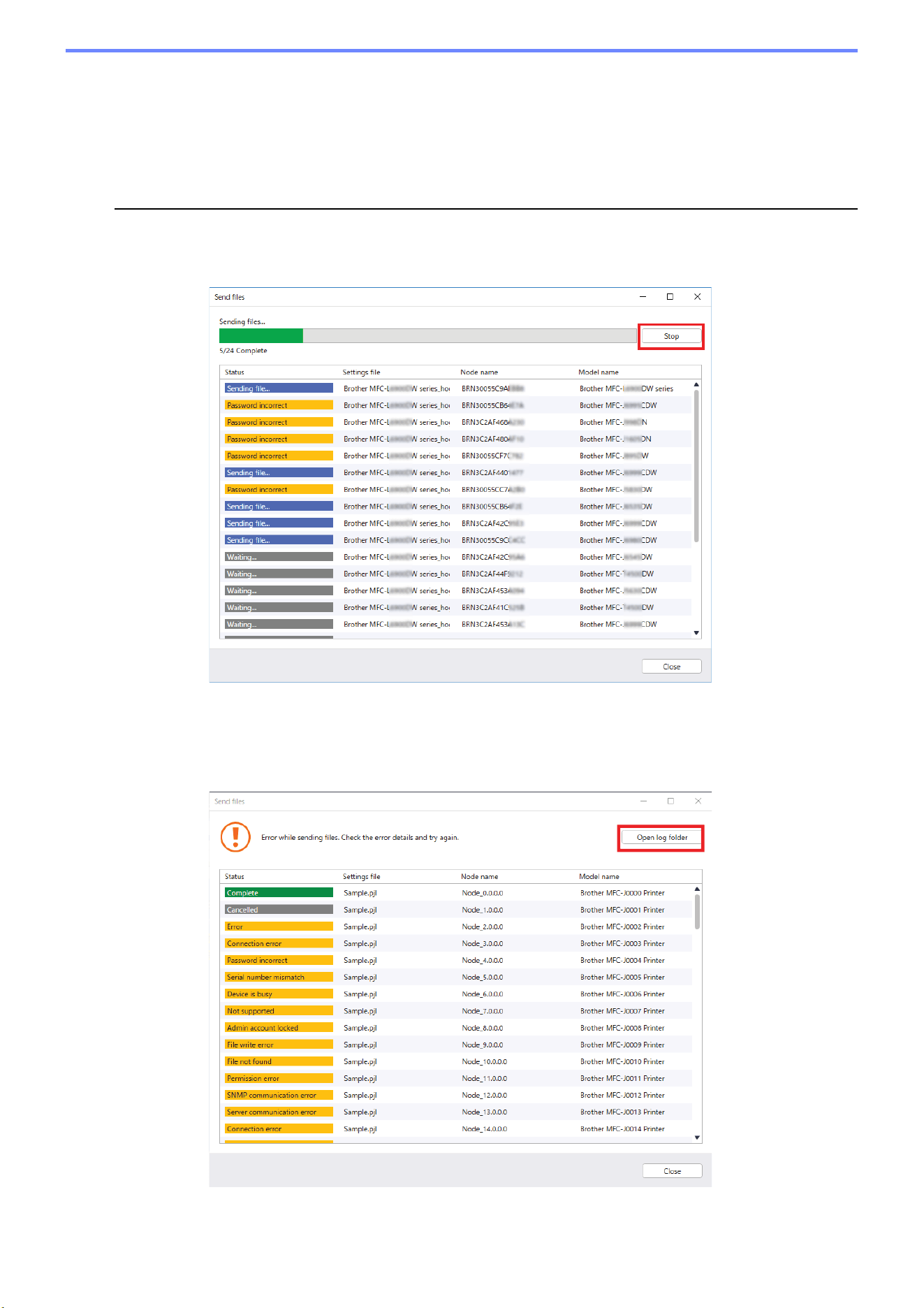

5. The Send files dialog box shows the sending progress.
To stop this operation, click the Stop button.
6. When completed, the summary results appear.
If unsuccessful, the error status is also listed in the results. Click the Open log folder button, check the log
details, and try again.
9
2.6 Back Up Settings
You can retrieve Brother device settings to back them up and use them later for applying the same settings to
a different device.
1. Make sure the device list contains all the devices you want.
2. Select Back up settings from the drop-down list on the upper left.

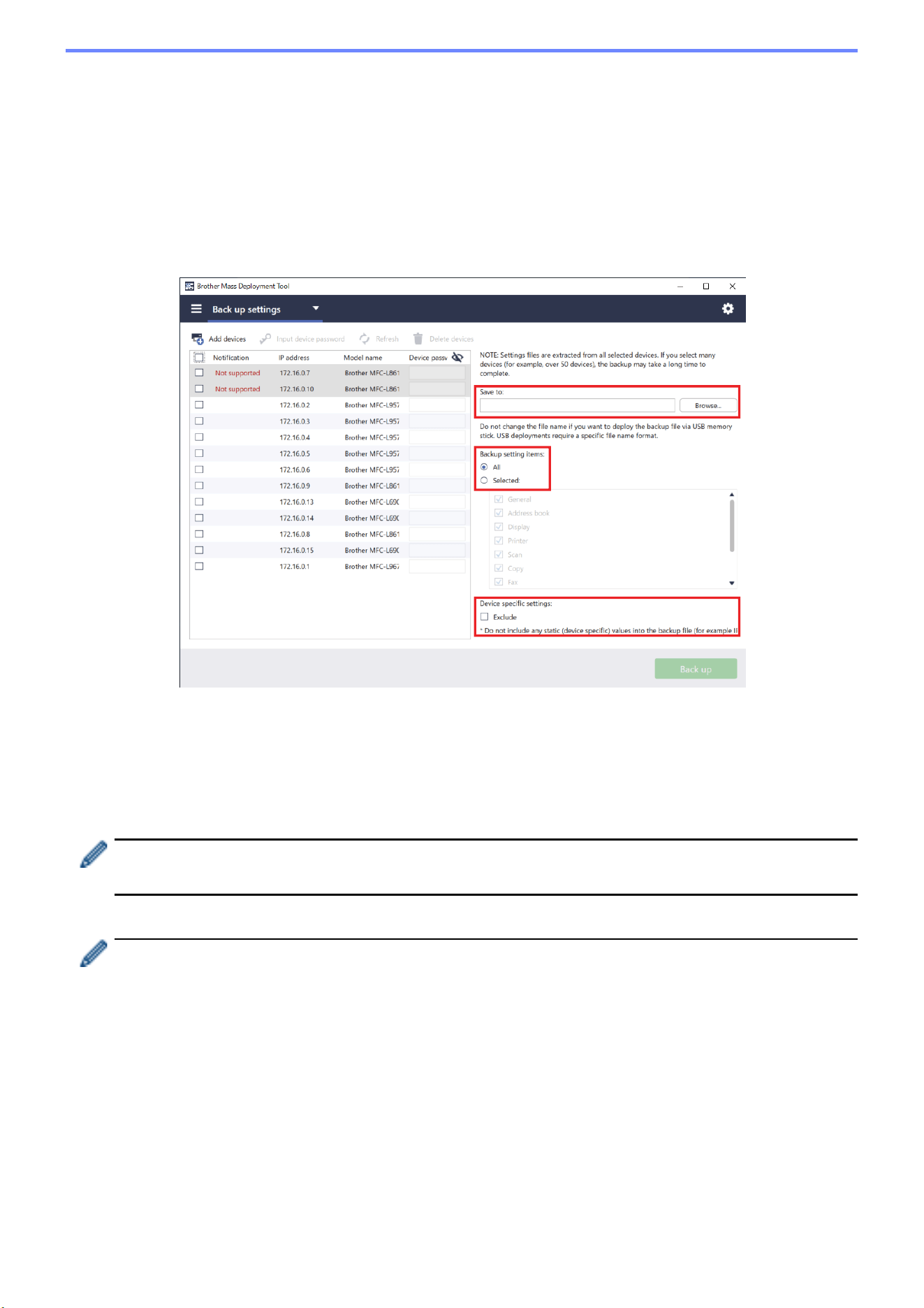

3. The Back up settings screen appears. The devices whose settings cannot be retrieved are shown as
“Not supported”.
4. Enter the device password in the Device password column, if needed.
5. Enter the path into the Save to: field or click the Browse… button to select the destination folder of the
backed-up settings file.
6. In the Backup setting items: field, select either All or Selected: to specify the necessary items.
7. Select the Exclude check box to not include the device-specific settings, such as the IP address, node name,
in the backed-up file if needed.

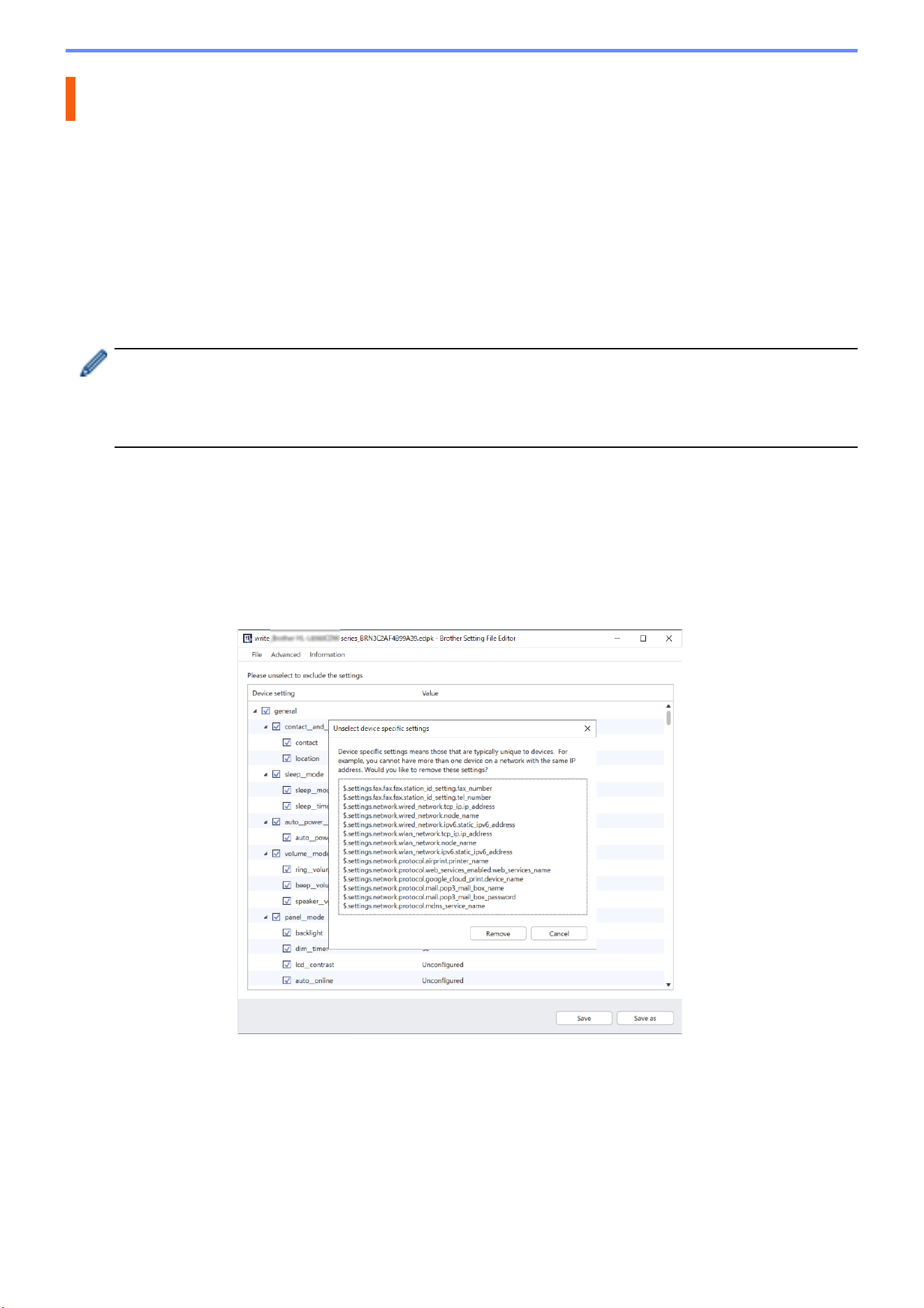

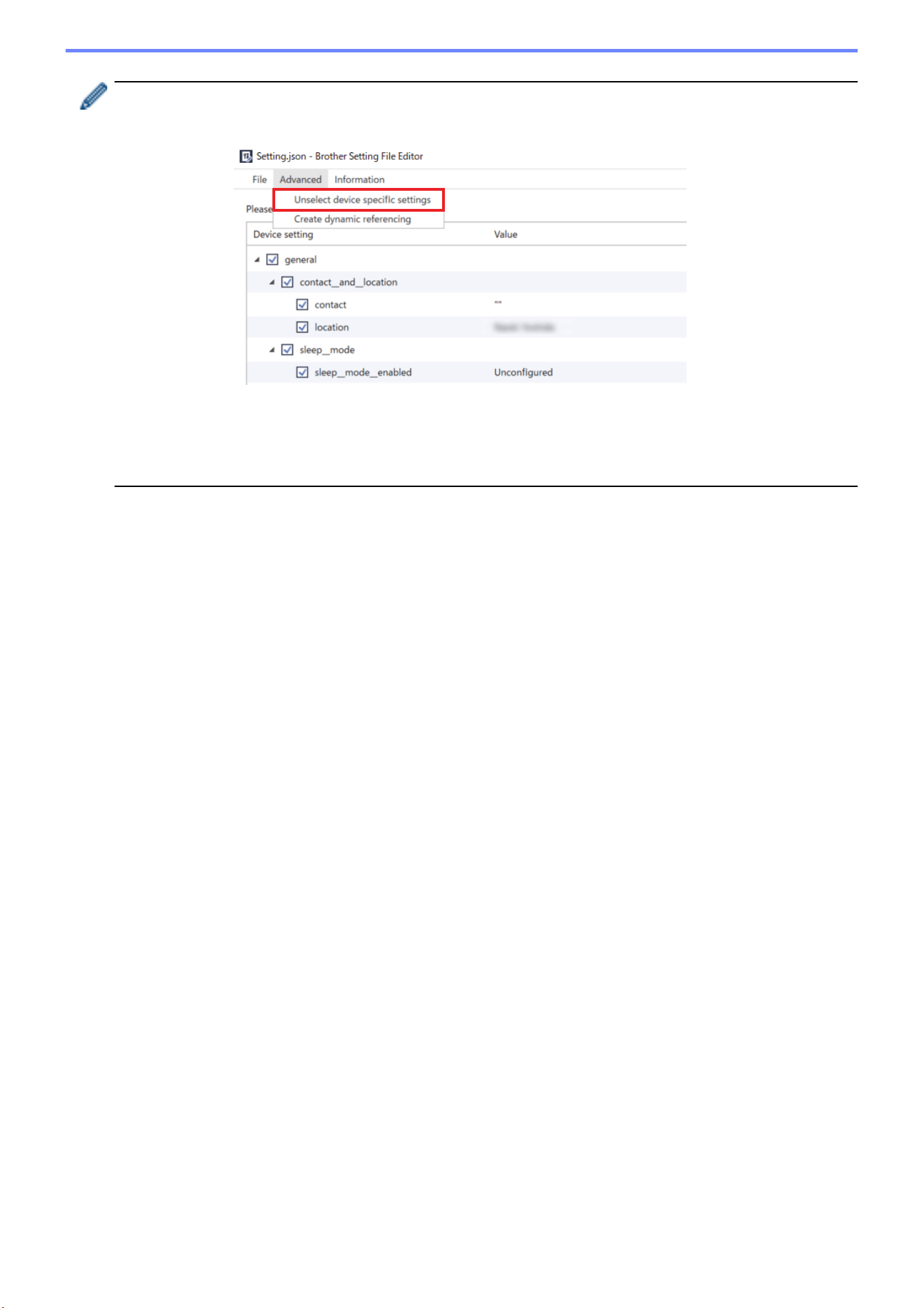

To remove the device-specific setting items, you can also use the Setting File Editor.
For more information, see 6 Setting File Editor.
8. Click the Back up button.
Alternatively, you can use a USB flash drive to back up device settings.
1. Prepare an EDPK file that contains the settings you want to back up.
For instructions on how to create an EDPK file, see 5 Create Settings Files.
2. Rename your file: “read_xxxx.edpk”, where xxxx is your original file’s name.
The EDPK file password and the device password must be the same.
3. Copy the renamed file onto a USB flash drive.
4. Insert the USB flash drive into the Brother device’s USB port.
- HL/DCP/MFC devices
aSelect Direct Print.
b The USB flash drive details appear. Select the “read_xxx.edpk” file.
c * For monochrome devices: Press Start.
* For color devices: Press either Black Start or Color Start.
10
- Scanners
aSelect Program Update.
b The USB flash drive details appear. Select the “read_xxx.edpk” file.
5. The settings you want will be extracted from the device and saved as a new file in the following format:
[settings file name]_[model name]_[serial number]_[index].edpk
The output log file will be automatically created.
9. The Back up Settings dialog box shows the backup progress.
To stop this operation, click the Stop button.
10. When completed, the summary results appear.
To check the destination folder of the backup file, click the Open folder button.
If unsuccessful, the error status is also listed in the results. Click the Open log folder button, check the backup
log details, and then try again.
2.7 Set Password
To change your default login password or current password.

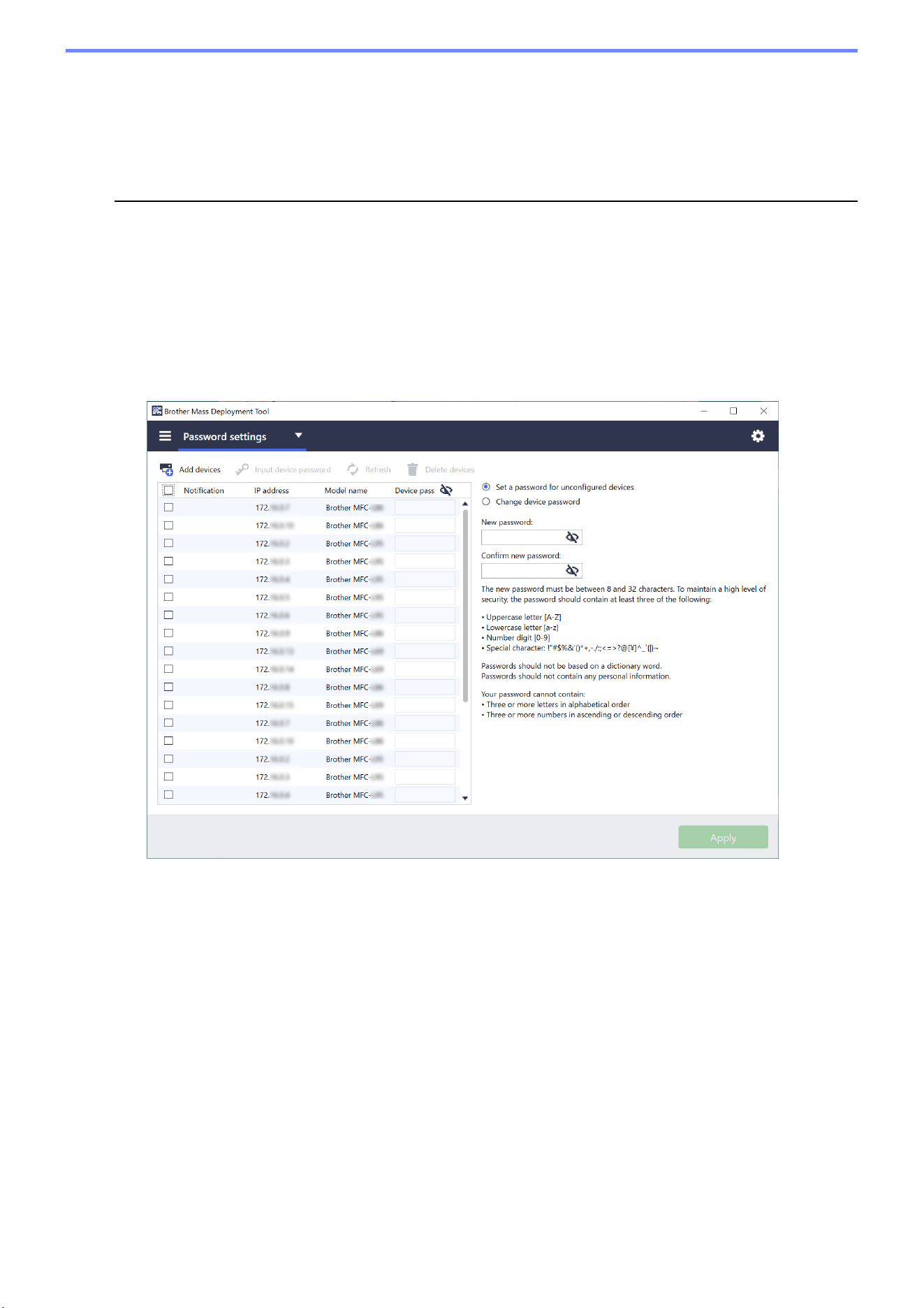

1. Select Password settings from the drop-down list on the upper left.
2. Do one of the following:
- Change the default login password
a) Select the target devices in the list, and then select the Set a password for unconfigured devices radio button.
b) Type the password you want in the New password: and Confirm new password: fields.
c) Click Apply.
- Change the current password
a) Select the target devices in the list, and then select the Change device password radio button.
b) Click Input device password and type the current password in the Password: field.
OR
Type the current password directly in the Device password field in the list.
c) Type the new password in the New password: and Confirm new password: fields.
11
d) Click Apply.
- When you select the Set a password for unconfigured devices menu, the Input device password
button and the Device password fields are disabled.
- Avoid using the following passwords as your administrator password:
• access
•initpass
•The “Pwd” located on the back of your machine
- It can also be used with USB-connected devices.
3. The Password settings dialog box shows the password setting progress.
To stop this operation, click the Stop button.
4. When completed, the summary results appear.
If unsuccessful, the error status is also listed in the results. Click the Open log folder button, check the
password setting result log details, and then try again.
2.8 Send Custom User Interface (UI) File
The Custom UI file (DJF file) is a customized home screen file created using the Brother Custom UI Tool.
For more information, see the Custom UI Tool User’s Guide.
To send customized home screens to multiple Brother devices, follow these steps.
1. Make sure the device list contains all target devices.
2. Select the Send Custom UI file option from the drop-down list in the top left corner.
3. The Send Custom UI file screen appears.
4. Type the device password in the Device password column, if needed.
5. Type the path into the Custom UI file: field or click the Browse… button to select the Custom UI file (DJF file)'s
destination folder.
6. Type the Custom UI write lock password in the Custom UI write lock password column.
Make sure you set a write lock password for the customized data, to restrict access to the data and prevent
unauthorized editing of home screens.
7. Click the Send button.
8. When finished, the device will automatically reboot to display your customized home screens.
• Before sending the updated Custom UI file to the devices, the Custom UI write lock must be unlocked.
• Make sure the Custom UI software solution is activated on the target devices.
2.9 Lock or Unlock the Custom UI Write Lock
1. Make sure the device list contains all the devices you want.
2. Select the Custom UI write lock/unlock option from the drop-down list in the top left corner.
3. The Custom UI write lock/unlock screen appears.
4. Type the device password in the Device password column, if needed.
5. Select the Lock or Unlock radio button and type the Custom UI write lock password in the Custom UI write
lock password column.
6. Click the Apply button.
12
Additional advanced functions are available to help you manage your devices.
3.1 Application Settings

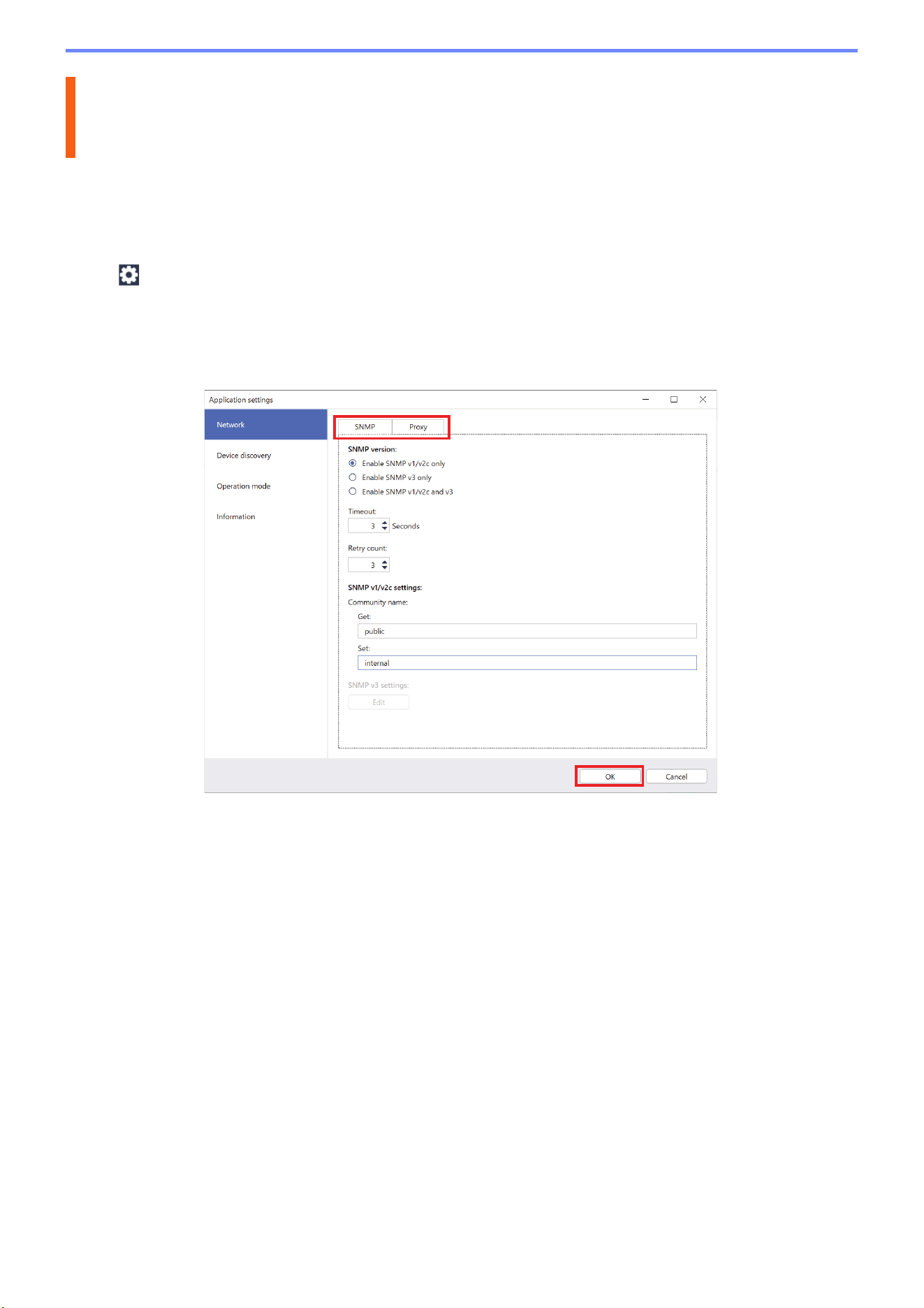

Click in the top bar to configure the tool's settings.
3.1.1 Configure the Network Settings
To configure the device’s Network settings, do the following:
1. Click Network.
2. Click the SNMP tab.
3. Select the settings you want.
4. (Optional) Click the Proxy tab and configure proxy settings.
- The default setting is Auto.
- If you select Manual:, specify the items in the Server name:, Port:, User name:, and Password: fields.
5. When finished, click the OK button.
3 Additional Functions of the Mass Deployment Tool
(GUI)
13
3.1.2 Configure the Device Discovery Settings
To discover the target devices you want, configure the Device discovery settings below:
To search for devices on your network
1. Select Device discovery.
2. Select the IP broadcast: check box or the IP unicast: check box in the Network: tab.
3. Click to add a new address.
4. When finished, click the OK button.
To search for devices on a different local network
1. Select Device discovery.
2. Select the Agent broadcast: check box.
The Agent Broadcast feature uses the software called BRAgent. BRAgent runs on a computer on a different
LAN from your computer, discovers devices, and then passes the discovery results to your Mass Deployment
Tool.
3. Click to enter the Agent’s IP address: or Agent’s node name: field, and then click the OK button.
4. Specify the Agent server port.
5. When finished, click the OK button.
To search for USB-connected devices
1. Select the USB: check box.
2. Click the OK button.
- To edit the specified setting items, select the item and click .
- To delete the specified setting items, select the item and click .
3.1.3 Link the Mass Deployment Tool to BRAdmin Professional 4
From the main screen, go to Application settings > Operation mode, and select Import the device list
database and application settings from BRAdmin Professional 4 to link the Mass Deployment Tool to
BRAdmin and use its device information and application settings. When this setting is enabled, you cannot change
the Network and Device discovery settings from the Mass Deployment Tool.
3.1.4 Application Information
The following Mass Deployment Tool information is available:
- To check the tool's Application log in the case of errors, click the Open button from the Application log: menu.
- To view the version information, click the Version button from the About this application: menu.
- To check the application version, click the Check for software updates button. You can update the software if
a newer version is available.
- To check the license information, click the License button.
14

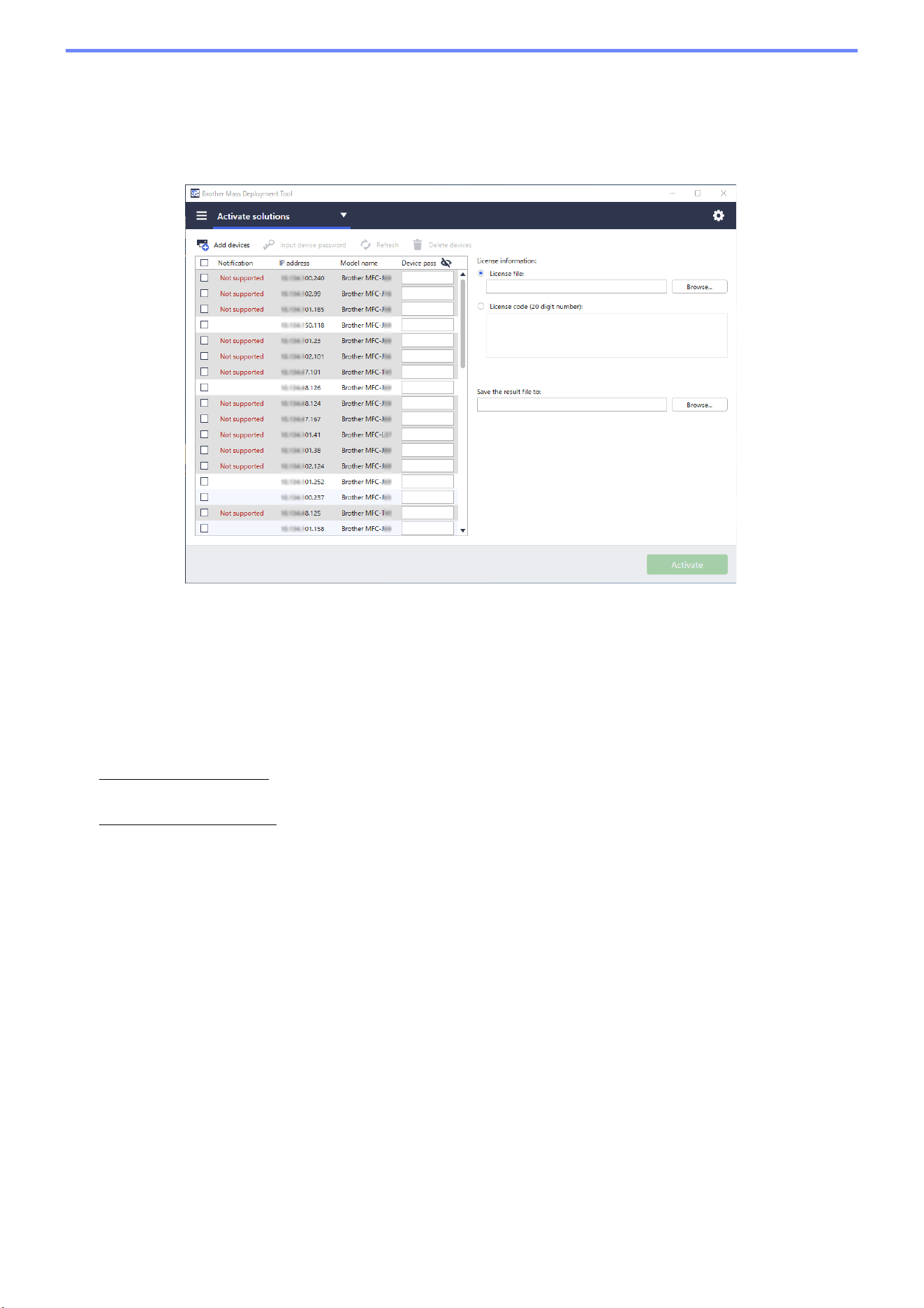

3.2 Activate Solutions
You can send license files to activate custom software solutions on the target devices.
A valid license file is necessary for this task. A license file can contain many activation codes, allowing solutions to
be activated on many devices simultaneously. If you do not have one, contact your local Brother office.
1. Make sure the device list contains all the devices you want.
2. Select Activate solutions from the drop-down list in the top bar.
3. The Activate solutions screen appears. The devices you cannot send the license to are shown as
“Not supported”.
4. Enter the device password in the Device password column, if needed.
5. Do one of the following:
- If you have a license file:
Select the License file: radio button, and then type the file name in the field below,
or click the Browse… button to select the license file.
- If you have license codes:
Select the License code (20 digit number): radio button, and then type the license
codes in the field below.
Multiple codes can be entered, one license code per line.
6. Click the Browse… button next to the Save the result file to: field and specify where to save the result file.
You can also copy and paste folder paths into this field.
7. Click the Activate button.
8. The Activate solutions dialog box shows the activation progress.
You can also stop the operation by clicking the Stop button.
9. When completed, the summary results appear.
If unsuccessful, the error status is also listed in the results. Click the Open log folder button, check the log
details, and then try again.
15
The tool’s Command Line Interface (CLI) allows you to configure devices remotely using the Command Prompt.
The CLI automatically converts settings files to an appropriate format and sends them to the device you want.
It then retrieves the settings data and verifies whether the settings have been applied correctly.
4.1 Use CLI in the Mass Deployment Tool
To use the tool’s CLI, you must run the Command Prompt in Windows, and then enter the correct commands and
options to execute specific instructions. The CLI uses the following syntax:
settingcmd.exe command option option
Where:
Command: performs a specific task and displays the result
Option: modifies the operation of a command
Examples
Applying settings files:
settingcmd.exe apply --ip IP_address --file your_file_name.json
--password your_password
Retrieving settings files:
settingcmd.exe retrieve --ip IP_address --file your_file_name.json
--output your_file_name.edpk --password your_password
Only English can be used in the Command Line Interface.
The Settingcmd.exe file is stored in the “SettingCommand” folder.
4 Command Line Interface (CLI)
16
4.2 Commands and Options
4.2.1 Commands
The following commands can be combined with one or more options to perform specific device configuration
tasks.
Command Option Description
send Either “Device identifier”*
or “profile” is required.
1
● Device identifier
Required:
● file
Optional:
● password
● profile
Required:
● result
Optional:
● profilepassword
● csvdelim
Available in both, if needed:
● networksettingpath
● dkeypassword
● dkeyfile
● log
● communitynameset
● communitynameget
* For more information, see
4.2.2 Device Identifiers.
Allows you to send the specified file to the device. PRN,
PJL, DJF, PJLF, and PCLF files are supported.
PJFL and PCLF are filter files used by filter functions
supported by some devices.
Example:
settingcmd.exe send --ip IP_address
--file your_file_name.prn
settingcmd.exe send --profile
your_profile_name.csv --result
your_filename.csv
Confirm the result for each device in the results file (CSV).
The results file contains all items in your deployment
profile along with the following items:
- Result
- Detail
- Start time
- Finish time
read Required:
● Device identifier
● file
Optional:
● output
● password
● networksettingpath
● dkeypassword
● dkeyfile
● log
● communitynameset
● communitynameget
Allows you to send the specified file to the device and to
read the response. Only PJL files are supported.
Example:
settingcmd.exe read --ip IP_address
--file your_file_name.pjl
--output our_file_name.txt
17
apply Either “Device identifier”
or “profile” is required.
1
● Device identifier
Required:
● file
Optional:
● password
● skipvalidate
● profile
Required:
● result
Optional:
● profilepassword
● csvdelim
● createfileonly
● outputdir (*)
Available in both, if needed:
● schema
● pjltable
● enumtable
● ignorepjlerror
● skipverify
● networksettingpath
● dkeypassword
● dkeyfile
●log
● communitynameset
● communitynameget
● forcehttps
*If you use “--createfileonly”,
you must also use “--
outputdir”.
Allows you to send and apply the specified settings file
and confirms the result. JSON, DPK, and EDPK files are
supported.
If used with the “--outputdir” option, the tool will save each
device's intermediate files to the designated folder.
If used with both the “--createfileonly” and the “--outputdir”
options, the tool will only save each device's intermediate
files to the designated folder and will not apply the files to
each device.
Example:
settingcmd.exe apply --ip IP_address --file
your_file_name.json –-password
your_password
settingcmd.exe apply --profile
your_profile_name.csv --result
your_filename.csv
Confirm the result for each device in the results file (CSV).
The results file contains all items in your deployment
profile along with the following items:
- Result
- Detail
- Start time
- Finish time
- (Optional) Output: If you use the “apply” command with
the “--outputdir” option, the path for saving the
intermediate file appears here.
retrieve Required:
● Device identifier
● output
Optional:
● file
● password
● networksettingpath
●log
● communitynameset
● communitynameget
● forcehttps
Allows you to retrieve specific settings data from the
specified device.
The tool sends a request to the specified target device and
stores the retrieved settings data, which includes all the
settings in the JSON schema based on the specified file
path.
To download only specific settings, use the “--file” option
to specify the settings file that includes the items you want.
Example:
settingcmd.exe retrieve --ip IP_address
--file your_file_name.json
--output your_file_name.edpk
--password your_password
Command Option Description
18
activate Either “Device identifier”
or “profile” is required.
1
● Device identifier
Required:
● networksettingpath
● activateresult
● licensecode
Optional:
●password
● profile
Required:
● networksettingpath
● activateresult
Optional:
● profilepassword
● csvdelim
Available in both, if needed:
● dkeypassword
● dkeyfile
●log
● communitynameset
● communitynameget
Allows you to activate a custom software solution for the
specified target device.
Example:
settingcmd.exe activate --ip IP_address
--networksettingpath (network communications
settings file name)
--licensecode your_license_code
--activateresult your_result_path
settingcmd.exe activate --profile
your_profile_name.csv --networksettingpath
(network communications settings file name)
--activateresult your_result_path
setpassword Either “Device identifier”
or “profile” is required.
1
● Device identifier
Optional:
● newpassword
● profile
Required:
● result
Optional:
● profilepassword
● csvdelim
Available in both, if needed:
● networksettingpath
● dkeypassword
● dkeyfile
●log
● communitynameset
● communitynameget
Allows you to change the administrator password from the
default login password to a different password.
Example:
settingcmd.exe setpassword --ip IP_address
--newpassword your_new_password
settingcmd.exe setpassword --profile
your_profile_name.csv --result
your_filename.csv
Confirm the result for each device in the results file (CSV).
The results file contains all items in your deployment
profile along with the following items:
- Result
- Detail
- Start time
- Finish time
pack Required:
● output
● packfiles
Optional:
● password
●log
Creates a settings package file from JSON settings files
and their resource files or certificate files. If you use the
“—password” option, the package file will be encrypted.
Example:
settingcmd.exe pack --packfiles
your_file_name.json
your_file_name.xml
your_file_name_2.cer
--output your_file_name.edpk
--password your_password
Command Option Description
19
unpack Required:
● file
● unpackdir
Optional:
● password
●log
Extracts the settings file from the specified settings
package file. If the package file is password-protected, it is
decrypted with the password specified by the “--password”
option and the setting file is extracted.
Example:
settingcmd.exe unpack --file
your_file_name.edpk
--unpackdir your_output_folder
--password your_password
convertsetting Required:
● source
● destination
Optional:
● password
●version
Converts schema files created in an earlier version to a
format compatible with the specified version.
If you do not specify the version, the tool uses the latest
one.
Example:
settingcmd.exe convertsetting --source
your_file_name --destination your_file_name
--version schema_revision_version_number
license Displays the license information about Open Source
Software.
Example:
settingcmd.exe license
version Displays the tool’s version information.
Example:
settingcmd.exe version
eula Optional:
● agree
An agreement to the EULA (End-user license agreement)
is required to use this tool. When the tool is run for the first
time, the user will be prompted to agree to the EULA.
By running the “eula” command, the tool will display the
EULA confirmation message. If commands other than
“eula” are included, this tool will instruct you to run it with
the “eula” command first.
If the “eula” command is used with the “--agree” option, the
tool will automatically accept the EULA without displaying
any prompt. (This option is intended for silent execution of
this tool.)
Example:
settingcmd.exe eula --agree
Command Option Description
20
listactivefunc Either “Device identifier”
or “profile” is required.
1
● Device identifier
● profile
Required:
● result
Optional:
● profilepassword
● csvdelim
Available in both, if needed:
● networksettingpath
●log
● communitynameset
● communitynameget
Displays all solutions enabled for the specified device.
Example:
settingcmd.exe listactivefunc --ip
IP_address --result your_filename.csv
settingcmd.exe listactivefunc --profile
your_profile_name.csv --result
your_filename.csv --networksettingpath
(network communications settings file name)
Confirm the result for each device in the results file (CSV).
The results file contains all items in your deployment
profile along with the following items:
- Result
- Detail
- Start time
- Finish time
exportprofile Required:
● output
Optional:
● file
● profilepassword
● networksettingpath
●log
● csvdelim
Search for target devices and generate the discovery
results as a deployment profile. The search criteria can be
specified with an export profile settings file (TXT).
The settings for each section in the export profile settings
file are as follows:
[ip]: IP Address or IP Address Range
[nodename]: Node Name
[mac]: MAC Address
[serial_number]: Serial Number
If either [ip] or [nodename] is specified, devices are
searched for in IP unicast. If [ip] or [nodename] is not
specified, the devices are searched for in IP broadcast.
If either [mac] or [serial_number] is specified, devices that
do not match them are removed from the search results.
Output:
- Screen display (Standard output)
If the devices specified by [nodename], [mac],
[serial_number] are not found, the number of devices
that match the search criteria and notfound_list file
(TXT) path are displayed.
- Deployment profile (CSV file)
Output file name specified after the “--output” option.
If the “--password” option is specified, zip the file with
the specified password.
- notfound_list.txt
Output to the same folder as the file specified after
the “--output” option.
Generate only those factors that do not match the
search results among all factors in the specified
section.
Example:
settingcmd.exe exportprofile --file
export_profile_settings.txt --output
result_profile.csv
Command Option Description
21
applyup Required:
● profile
● result
Optional:
● networksettingpath
● dkeypassword
● dkeyfile
●log
● communitynameset
● communitynameget
● profilepassword
● csvdelim
Allows you to register the target devices specified using
a deployment profile for Microsoft Universal Print. When
you set Microsoft Universal Print registration, the device
connects to the Microsoft Azure Portal and registers itself
for Microsoft Universal Print. The deployment profile must
contain the path to the ETKN file and its password.
Only ETKN files are supported.
For more information about creating the ETKN file, see
4.2.6 Create the ETKN File.
After registration, assign the printer permissions and share
the printer in Azure Active Directory (Azure AD).
You can
also use the Azure API commands to assign printer
permissions and share the printers. Firmware Application
ID must be allowed once per tenant in Azure AD. For more
information, see Microsoft’s website.
Example:
settingcmd.exe applyup --profile your
profile_name.csv --result your_filename.csv
--csvdelim semicolon
Confirm the result for each device in the results file (CSV).
The results file contains all items in your deployment
profile along with the following items:
- Result
- Detail
- Start time
- Finish time
confirmup Required:
● profile
● result
Optional:
● networksettingpath
●log
● communitynameset
● communitynameget
● profilepassword
● csvdelim
Allows you to confirm the Microsoft Universal Print
registration status for each device using the
deployment profile.
Example:
settingcmd.exe confirmup --profile your
profile_name.csv --result your_filename.csv
--csvdelim semicolon
Confirm the result for each device in the results file (CSV).
The results file contains all items in your deployment
profile along with the following items:
- Result
- Detail
- Start time
- Finish time
dkeycreate Required:
● output
● devicepassword
● dkeypassword
Optional:
● edpkpassword
Creates a DKEY file that contains the device password
and the password for the package file (EDPK).
The DKEY file is encrypted with the DKEY password.
Example:
settingcmd.exe dkeycreate --devicepassword
initpass --edpkpassword your_password
--dkeypassword your_password --output
our_file_name.dkey
Command Option Description
22
listfilter Either “Device identifier” or
“profile” is required.
1
● Device identifier
● profile
Required:
● result
Optional:
● profilepassword
● csvdelim
Available in both, if needed:
● networksettingpath
● communitynameset
● communitynameget
Allows you to display the registered filter names for the
specified device.
Example:
settingcmd.exe listfilter --ip IP_address
--networksettingpath (network communications
settings file name)
settingcmd.exe listfilter --profile
your_profile_name.csv --networksettingpath
(network communications settings file name)
Confirm the result for each device in the results file (CSV).
The results file contains all items in your deployment
profile along with the following items:
- Result
- Detail
- Start time
- Finish time
cuilock Either “Device identifier” or
“profile” is required.
1
● Device identifier
Required:
● cuilockpassword
Optional:
●password
● profile
Required:
● result
Optional:
● profilepassword
● csvdelim
Available in both, if needed:
● networksettingpath
● dkeypassword
● dkeyfile
●log
● communitynameset
● communitynameget
Locks writing Custom UI to the specified device.
Example:
settingcmd.exe cuilock --ip IP_address
--networksettingpath setting.ini --password
your_password –-cuilockpassword
your_Custom_UI_lock_password
Confirm the result for each device in the results file (CSV).
The results file contains all items in your deployment
profile along with the following items:
- Result
- Detail
- Start time
- Finish time
cuiunlock Either “Device identifier” or
“profile” is required.
1
● Device identifier
Required:
● cuilockpassword
Optional:
●password
● profile
Required:
● result
Optional:
● profilepassword
● csvdelim
Available in both, if needed:
● networksettingpath
● dkeypassword
● dkeyfile
●log
● communitynameset
● communitynameget
Unlocks writing Custom UI to the specified device.
Example:
settingcmd.exe cuiunlock –-profile
your_profile_name.csv –-result
your_filename.csv --networksettingpath
setting.ini --password your_password
Confirm the result for each device in the results file (CSV).
The results file contains all items in your deployment
profile along with the following items:
- Result
- Detail
- Start time
- Finish time
Command Option Description
23
1
The “Device identifier” option can only run on a single device, while the “--profile” option can run on multiple
devices, or a single device.
The results appear as follows:
- If execution is successful: “Result: Success”
- If executions fails: “Error and error details”
If a solution is not supported, the activation status reads “LsSolutionNotSupported”.
managecacertificate Either “listonly” or “inputdir”
is required.
● listonly
● inputdir
Required:
● result
● period
● password
Available in both, if needed:
● file
● networksettingpath
●log
● communitynameset
● communitynameget
● csvdelim
● emailresult (*)
● emailto
● emailfrom
● emailtitle
● addnewcertificate
*If you use "--emailresult",
you must also use
"--emailto" and
"--emailfrom".
Allows you to retrieve a CA certificate list from the
specified devices, or to distribute CA certificates from a
specified folder to the specified devices. CA Certificate
matching is checked by "CommonName".
Example:
● Retrieve only CA certificate list
settingcmd.exe managecacertificate
--listonly --period number --password
your_password --result result.csv --file
export_profile_settings.txt --emailresult
--networksettingpath setting.ini --emailto
email_address1 email_adress2 --emailfrom
email_address --emailtitle email_title
● Update installed CA certificates
settingcmd.exe managecacertificate
--inputdir ca_certificatedir --period
number --password your_password --result
result.csv --file
export_profile_settings.txt --emailresult
--networksettingpath setting.ini --emailto
email_address1 email_adress2 --emailfrom
email_address --emailtitle email_title
● Distribute all CA certificates in the CA certificate
folder
settingcmd.exe managecacertificate
--inputdir ca_certificatedir --period
number --password your_password --result
result.csv -–file
export_profile_settings.txt --emailresult
--networksettingpath setting.ini --emailto
email_address1 email_adress2 --emailfrom
email_address --emailtitle email_title
--addnewcertificate
Confirm the result for each CA certificate in the results file
(CSV).
Result items:
- IP Address: IP addresses of devices with CA certificates
- Node Name: Node names of devices with CA certificates
- Common Name: CA certificate common name
- Action Needed: Action required on your part
- Current Expiry Date: CA certificate expiration date
before distribution
- New Expiry Date: CA certificate expiration date after
distribution
No results will be available for the devices that cannot
communicate or do not have CA certificates.
Command Option Description
24
4.2.2 Device Identifiers
Device identifiers specify the device you want to send the commands to.
4.2.3 Options
Options can be used together with commands to modify their operation. See each command description in section
4.2.1 Commands to learn which options you can use.
Device Identifier Description
--ip address The IP address of the target device (Network-connected devices only).
--mac address The MAC address of the target device (Network-connected devices only).
--node name The node name of the target device (Network-connected devices only).
--usb Specifying a USB-connected device (Multiple USB-connected devices not supported).
--model name The model name of the target device (USB-connected devices only).
--serial number The serial number of the target device (Network-connected devices only).
Option Description
--file filename Specify the file you want to use.
--output filename Specify the path to save the acquired settings file.
--password password Specify the administrator password for the target device.
--newpassword password Specify a new administrator password for the target device.
--schema filename Specify an external JSON schema file.
--pjltable filename Specify an external PJL conversion table.
--enumtable filename Specify an external Enum conversion table.
--ignorepjlerror Skip PJL conversion warnings even if no conversion definition is stated in the
PJL conversion table.
--skipvalidate Skip verifying the validity for the settings using schema file before sending
setting file.
--skipverify Skip verifying if the settings are applied to printer correctly after applying
settings.
--packfiles filename filename
filename
Specify the files you want to pack (separated with spaces or commas).
--unpackdir destination Specify the path to extract the package contents to.
--log filename Specify the path to the log output file.
--communitynameget community
name
Community name set in “GET” in SNMP communication.
--communitynameset community
name
Community name set in “SET” in SNMP communication.
--agree Specify the agreement to EULA.
--networksettingpath
networksettingpath
Specify the reference destination to the external file that contains the
network communication settings (SNMP v3, proxy). Use the setting.INI file
as an external file after you configure the network settings by using the GUI.
--source filename Specify the file before conversion using the “convertsetting” command.
--destination filename Specify the destination for saving the file after conversion using the
“convertsetting” command.
--version Specify the version after conversion using the “convertsetting” command.
--licensecode license code Specify a 20-digit license code to activate a custom software solution.
--activateresult activate result
folder path
Specify the destination for saving the activation results of the “activate”
command.
25
--forcehttps Force the https communication.
--profile Specify the deployment profile's file path.
The relative path to the settingcmd.exe is also supported.
The devices in the file are network connection only.
--csvdelim Specify one of the following as a CSV delimiter:
- colon
- comma
- equal
- semicolon
- space
- tab
If you do not specify a delimiter, the delimiter will be based on your region
or location.
--createfileonly Create the intermediate file without applying it to the target device when
using the “apply” command with the profile.
If you use this option, you must also use the “--outputdir” option.
--result Specify the path for saving the executing result.
--outputdir Specify the output path for the files created when executing the command.
--devicepassword password Specify the device password to include in the DKEY file.
--edpkpassword password Specify the EDPK file password to include in the DKEY file.
--dkeypassword password Specify the DKEY file encryption and decryption password.
--dkeyfile filename Specify the path to save the DKEY file.
--profilepassword password Specify the password for the zipped deployment profile.
--listonly Retrieve only the device CA certificate list without distributing CA certificates
using the "managecacertificate" command.
--inputdir Specify the path to the CA certificate folder using the "managecacertificate"
command. Not required if you use the "--listonly" option.
--period Specify the number of days considered close to expiration retrieving the CA
certificate list using the "managecacertificate" command.
--emailresult Email the results file after execution using the "managecacertificate"
command.
Use values from the SMTPSettings section of the setting.INI file for server
settings. If you use this option, you must also use the "--emailto" and
"--emailfrom" option.
--emailto Specify the destination address when emailing the results file of the
"managecacertificate" command. Specify multiple addresses separated by
spaces.
--emailfrom Specify the source address when emailing the results
file of the
"managecacertificate" command.
--emailtitle Specify the title when emailing the results file of the "managecacertificate"
command.
--addnewcertificate Distribute all CA certificates in the folder specified by "--inputdir" option using
the "managecacertificate" command.
--cuilockpassword custom ui lock
password
Specify the Custom UI write lock password.
Option Description
26
4.2.4 Deployment Profile
A deployment profile contains device information, setting files, and the unique setting value for each device,
if needed.
The first line of a deployment profile file (CSV) must list the following items (these can be in any order):
○ Required item △ Optional item – Unsupported item
1
You must specify the target device's IP Address or Node Name to discover the device.
2
Required with the specified EDPK in the File Path. When a Deploy KEY file is specified, the “Package Password”
is not required.
3
When a Deploy KEY file is specified, the “New Password” or “Password” is not required.
4
If the license file is not the same for all lines, an error will occur.
Item send apply applyup activate setpassword listactivefunc confirmup listfilter
cuilock/
cuiunlock
Model Name –
Serial Number
△
Interface (USB/
NETWORK_IPV4)
–
MAC Address/
Vendor ID
△
Node Name/
Product ID
○
1
IP Address
○
1
Protected by
password
–
Password
○
3
– ○
3
Json Schema –
File Path
○
○
4
–
Package
Password
–
△
2
○
–
Json File –
Extra LAN Node
Name
–
Extra WLAN Node
Name
–
Extra Location –
Extra Contact –
New Password –
○
3
–
CUI Lock
Password
–
○
User Defined
Value
–
△
–
27
Deployment Item Definitions:
Any items that are neither required nor optional are ignored and do not result in an error.
Examples of files used by the apply command:
- Deployment profile
A CSV file containing the following information:
IP Address,Serial Number,Password,File Path,Package Password,#CONTACT#,#LOCATION#,#AUTO_POWER_OFF#
10.1.2.146,E75868F7F173334,initpass,C:\tmp\brother.edpk,package1,Brother A,5F,hour8
10.1.4.146,A99999A7H000511,initpass,C:\tmp\brother.edpk,package1,Brother B,4F,hour4
10.1.7.179,C25312A1G553212,initpass,C:\tmp\brother.edpk,package1,Brother C,3F,off
Delimiter (“,”) in the above example you can specify a using the “--csvdelim” option.
Item Definition
Serial Number
The serial number of the device.
If the number you type into this field does not match the serial number identified using
the IP Address or Node Name, the “Serial number mismatch error” occurs.
Interface (USB/
NETWORK_IPV4)
Connection Interface.
This is generated by the “exportprofile” command, and is ignored if you use any
command other than the “exportprofile” command with a profile that contains this item.
Its value is “USB” or “NETWORK_IPV4”.
MAC Address/
Vendor ID
MAC address (Network connected devices) or Vendor ID (USB connected devices).
This is generated by the “exportprofile” command, and is ignored if you use any
command other than the “exportprofile” command with a profile that contains this item.
IP Address The device's IP Address.
Node Name/Product ID
The device's Node Name (Network connected devices) or Product ID (USB connected
devices).
Protected by password
If a password is set on the devices.
Its value is “TRUE” or “FALSE”.
Password The device administrator password.
File Path The file's path (relative or absolute).
Json Schema
The version of the device's JSON schema.
Its value is a number.
Package Password The password for the file specified in the File Path.
Json File
If the file specified in the File Path is a setting file (JSON, DPK, EDPK).
Its value is “TRUE” or “FALSE”.
Extra LAN Node Name/
Extra WLAN Node
Name/Extra Location/
Extra Contact
The value to rewrite the node name (LAN/WLAN/Location/Contact) in the JSON file.
New Password The new device administrator password.
CUI Lock Password The Custom UI write lock password.
User Defined Value
You can define a unique value for a certain device by using your own item in
“#XXXXXXX#” format. Any characters except “#” can be used in XXXXXXX.
This allows you to set different values for each device within a single profile.
This also applies to the “--createfileonly” option.
28

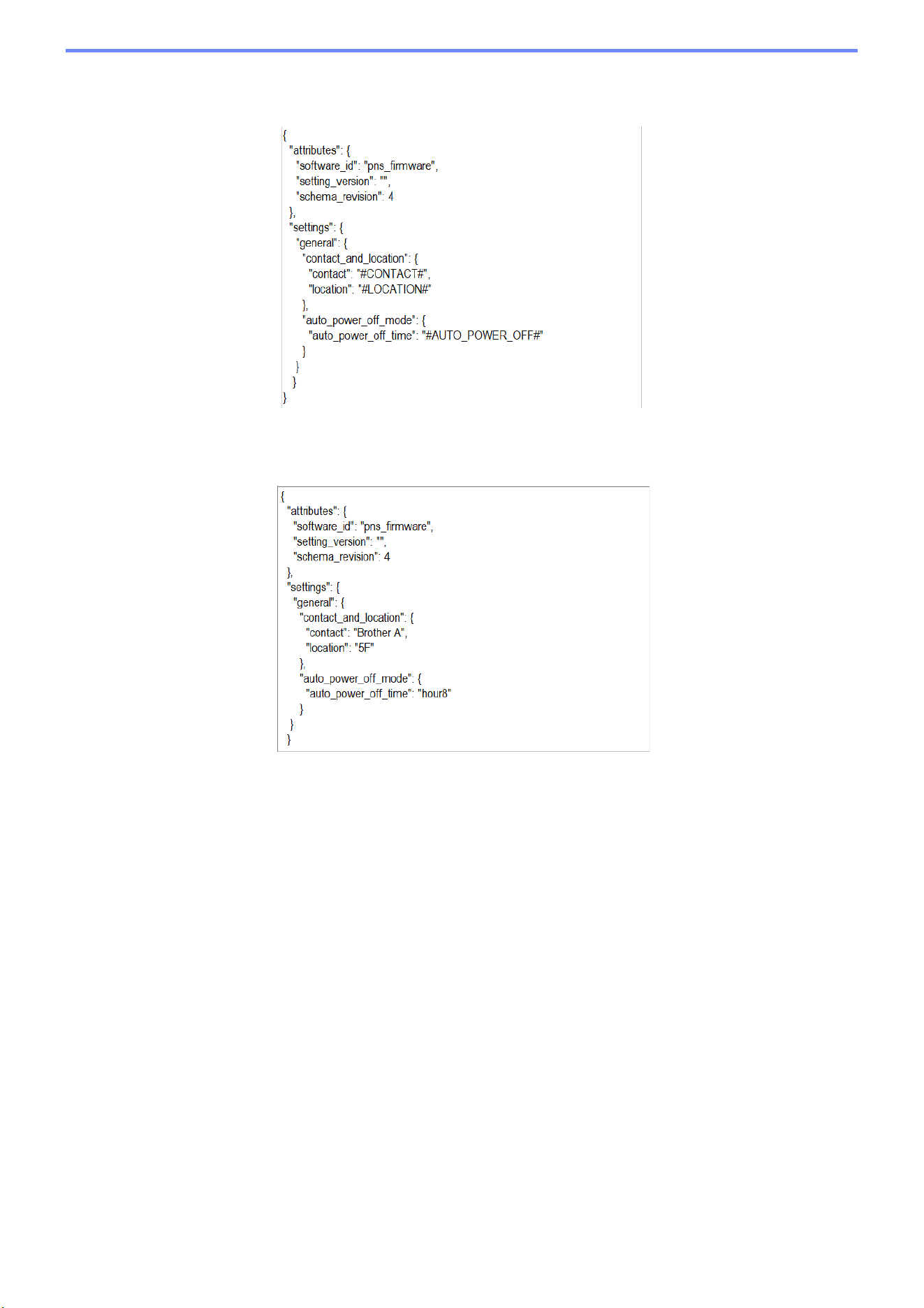

- Setting file
A JSON file located in C:\tmp\brother.edpk:
- Intermediate file
The 00001_10.1.2.146.json file for the device 10.1.2.146, where 00001 is the line number in your CSV file
where the target device is listed with one subtracted (five digits, zero padding):
4.2.5 Deploy Key File
A Deploy KEY file (DKEY file) is used for encrypting and using passwords related to device settings.
DKEY file contains the encrypted device password and the EDPK file password (the EDPK file password is
optional).
When you use each command with the “--dkeyfile” option:
• The device password in the DKEY file is passed to the target device.
• If the “--password” option is specified at the same time, it will be ignored.
• For “apply” command:
- If an EDPK file is specified, the EDPK file password in the DKEY file is used to derypt the EDPK file.
- Password and package password in deployment profile specified in “--profile” option are ignored.
• For “setpassword” command:
- The device password in the DKEY file is used to set on the target device as the new device password.
- New password in the deployment profile that is specified with the “--profile” option will be ignored.
29
4.2.6 Create the ETKN File
Create an ETKN file from the Microsoft Azure portal, using the UniversalPrintTokenGenerator.exe file.
At your Command Prompt, run the UniversalPrintTokenGenerator.exe file in the
“UniversalPrintTokenGenerator” folder.
The ETKN file is encrypted with the password specified in the “--filepass” option and saved to the file specified
in the “--output” option. You can specify if you want to sign out of the Microsoft Azure Portal after getting the token.
Example:
UniversalPrintTokenGenerator.exe --output your_file_name.edpk --filepass
your_file_password --signout
• The ETKN files generated expires after one hour. To extend the deadline, see Microsoft’s website.
• Make sure permission is granted for UniversalPrintTokenGenerator.exe
in the Microsoft Azure AD.
• One of the following permissions (in the Microsoft Azure AD) is required to generate the ETKN file:
- Global administrator
- Printer administrator
- Printer technician
Option Description
Required:
● output File path to save the ETKN file acquired from Microsoft Azure.
● filepass The password for the ETKN file to save.
Optional:
● signout Sign out after running this command.
30
Refer to this section when creating settings files used by this tool.
5.1 Settings Files
The settings files are model-independent. If a customer replaces an existing device, settings files may be reused
if they are compatible with the new device. The tool uses the following file types and extensions to store device
settings:
● JSON Files
JSON (JavaScript Object Notation) files allow you to configure device settings without having to understand PCL
or PJL commands. For more information, see 5.2 JSON Files and 5.3 Create JSON Files.
● Package Files
Package files can include a JSON-based settings file and any required external resources.
● Settings Files
Settings files consist of one or more JSON-based settings.

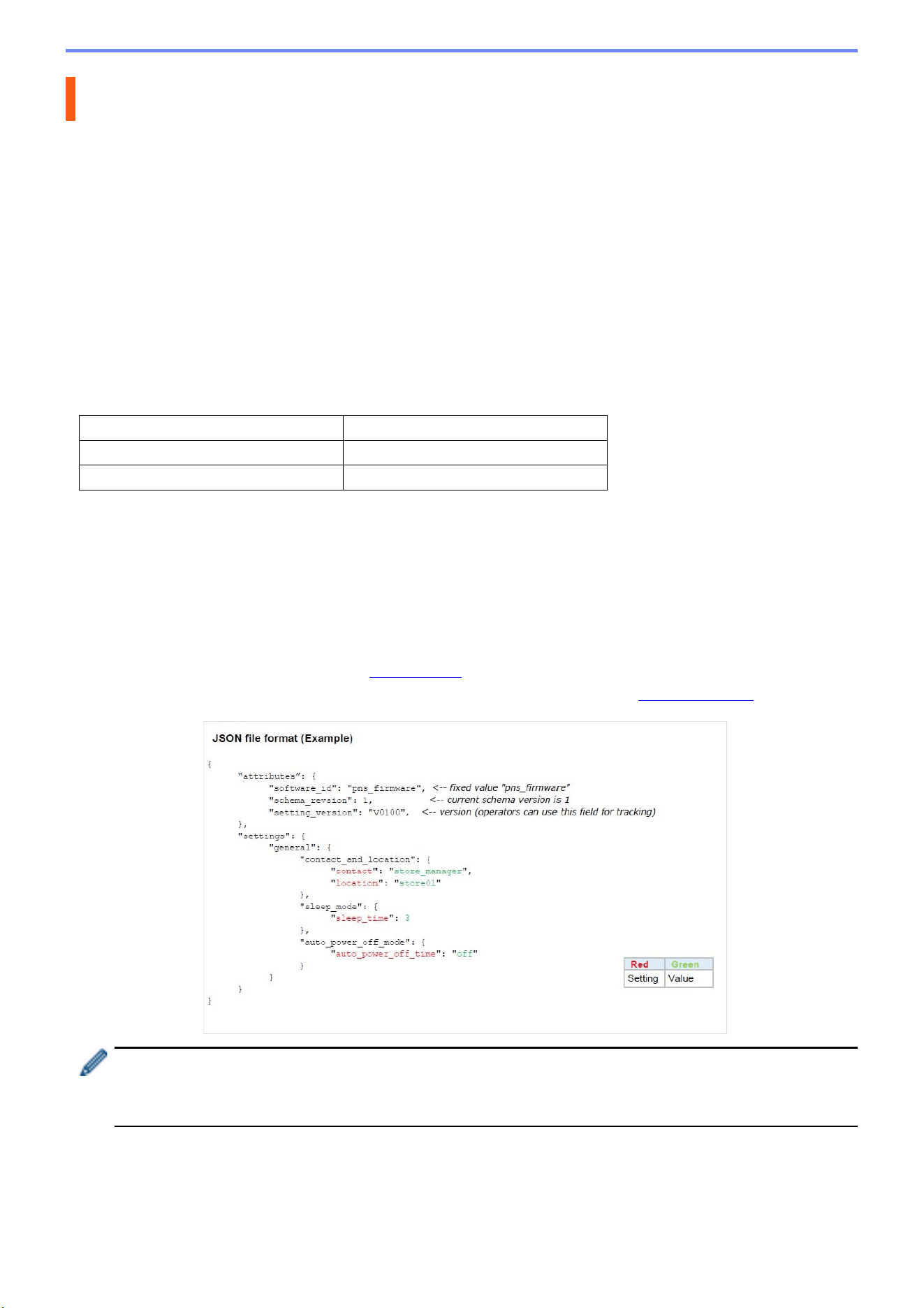

5.2 JSON Files
JSON (JavaScript Object Notation) files are used to configure device settings. JSON is an open standard that
allows you to specify your own settings using a JSON editor, without having to understand PCL or PJL commands.
- For more information about JSON, see www.json.org
.
- For more information about JSON schema file structure and setting types, see json-schema.org
.
The structure of JSON settings files and the placement of individual setting entries are described in JSON
schema files. For example, the “sleep_time” setting must be located at
$.settings.general.sleep_mode.sleep_time and will accept only numerical values.
5 Create Settings Files
Package File Type Encryption
DPK No
EDPK Yes
31
There are three ways to create and edit JSON settings files:
5.3 Create JSON Files
Any JSON-supported text editor can be used to create and edit settings files. To use JSON settings files, you need
a JSON schema file containing all the configurable elements on Brother devices.
1. Prepare the JSON schema file.
Default schema files can be found in the “Schema” folder in the Mass Deployment Tool’s folder on your
computer.
Before you proceed, make sure you have the correct schema file for your model. For a list of available
schema files and applicable models, double-click the README.url file in the “Schema” folder to open the
README website. You will need this information later.
2. Edit the JSON settings file in a text editor file.
3. You can now use the Mass Deployment Tool to apply the settings remotely or use a USB flash drive to apply
the settings on the device.
Creating and editing settings files using an online JSON editor (example)
1. In your web browser, go to www.jeremydorn.com/json-editor
.
2. Open the Brother JSON schema file in a text editor file and copy and paste its contents into the “Schema” field
on the web page.
The attributes section appears at the top of the page.
3. Scroll down to the settings section, and select “object” from the general drop-down list.
The General settings options appear.
4. Select “object” from the contact_and_location drop-down list.
5. Enter the contact and location details you want.
6. Scroll up to the JSON Output area at the top of the page, and then click the Update Form button.
7. The updated code appears in the preview field. Copy the JSON output and paste it into the text editor.
8. Use the Mass Deployment Tool to apply the settings remotely or use a USB flash drive to apply the settings on
the device.
Method Description
Using text editors
Edit the settings files you want in a text editor. We recommend using JSON-supported
text editors such as Notepad++, because they allow for greater control when viewing,
editing, and formatting JSON files.
Using JSON-schema
supported JSON editors
Edit settings files using a third-party editor that supports JSON-schemas. The
interface of such editors allows changing setting values based on a schema-defined
structure.
Using scripts/programs
Create settings files using scripts or other software. You can construct a JSON file
from scratch, or parse the base JSON file and then modify its setting values.
32
Use the Setting File Editor to:
● Remove all device-specific settings from the settings file (.json, .dpk, .edpk) at once, or remove only
unnecessary device settings, and save them.
● Create the setting files (.json, .dpk, .edpk) and profiles (.csv) necessary to run the "apply" command with
profile.
- Add dynamic (Mapply) keywords to the settings file (.json, .dpk, .edpk) and save them.
- Use an existing profile or create a new profile (.csv) with a field for the dynamic (Mapply) keywords added
to the currently open setting file.
1. Open the Setting File Editor.
- Double-click SettingFileEditor.exe in the “MassDeploymentTool” folder.
OR
Select Open Setting File Editor on the Mass Deployment Tool’s interface.
- When using the Setting File Editor for the first time after installation, launch the Mass Deployment Tool first.
2. To open the settings file, do one of the following:
- Click the File menu and then select Open file.
- Click the Open file button in the center of the screen, and then click the settings file.
- Navigate to the folder with the settings file, and then drag and drop the settings file directly into the
designated area.
3. A dialog box appears, to confirm if you want to remove the device-specific settings.
Click Remove to deselect all the settings listed in the dialog box, if required.
6 Setting File Editor
33

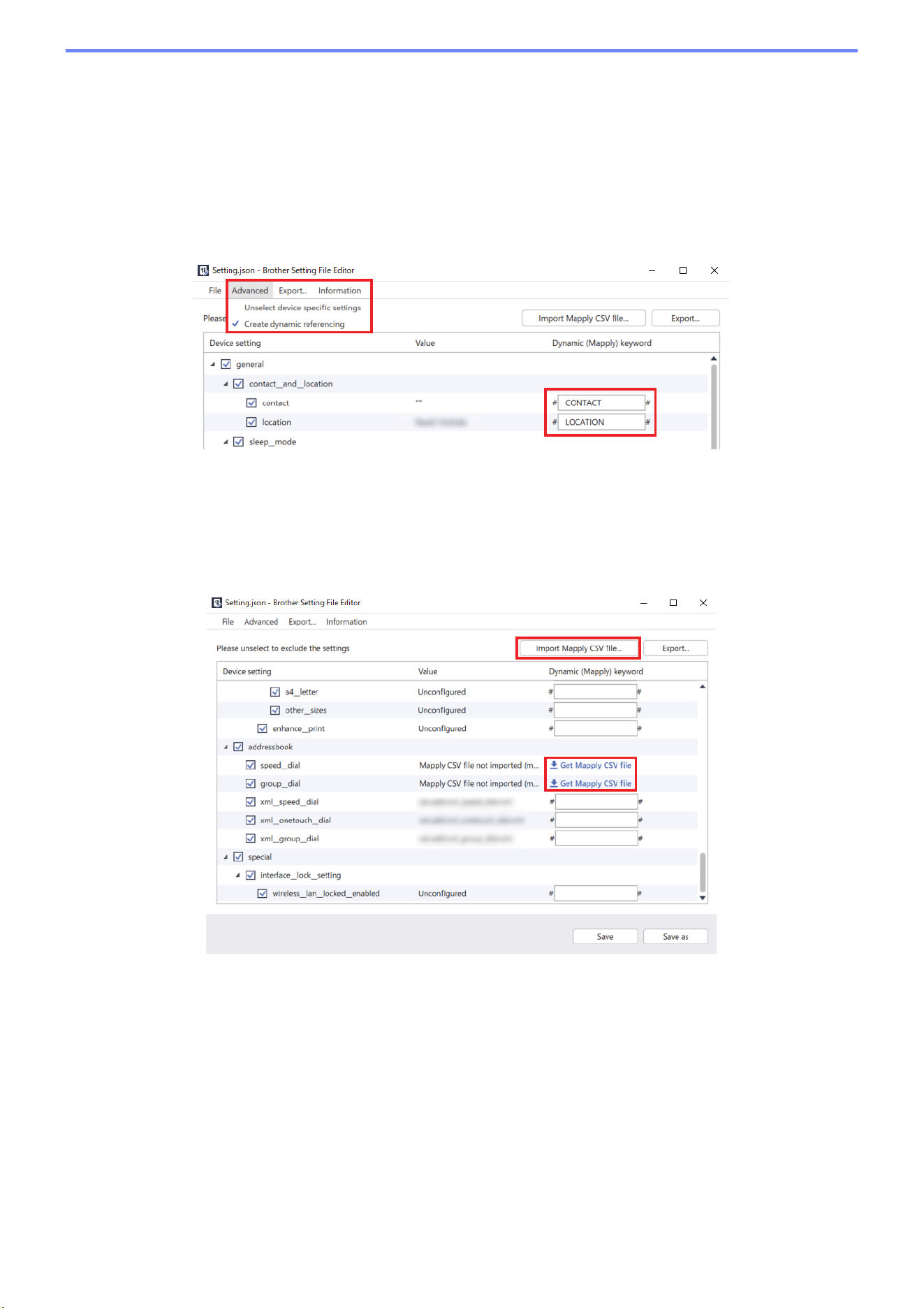

4. Do one of the following:
a) Remove items from the settings tree.
After saving the settings file, the deselected items are deleted from the file and are no longer displayed on
the settings tree.
b) Use dynamic (Mapply) keywords.
Change or add a value in the settings file to a dynamic (mapply) keyword by selecting Create dynamic
referencing in the Advanced menu.
Type the keyword in the Dynamic (Mapply) keyword field.
c) Set a dynamic (Mapply) keyword for keys in an array.
1. Click the Get Mapply CSV file button to download the Mapply CSV template.
2. Edit the downloaded Mapply CSV template and add the dynamic keyword.
3. Import the Mapply CSV file that you have created.
Click Import Mapply CSV file… button, and then click Save.
d) Export dynamic keywords using the Export… menu or the Export… button in the upper right corner of the
screen.
-Select Apply dynamic (Mapply) keywords to the deployment profile to add the dynamic keywords to
an existing deployment profile (CSV or ZIP file).
- Select Create a new deployment (Mapply) profile template to create a new deployment profile (CSV file).
34
• Remove all device-specific settings at once by selecting Unselect device specific settings in the
Advanced menu.
• A settings file with the Mapply keywords can be used only with the "apply" command with profile.
For more information, see 4.2 Commands and Options.
•The Export… menu and button appear when Create dynamic referencing is selected.
For more information about deployment profiles, see 4.2.4 Deployment Profile.
35
If you have any problems using the Mass Deployment Tool, check the table below. If the problem persists, contact
your local Brother office’s technical support team.
7 Troubleshooting
Error Solution
Admin account locked
The admin password for the target device was entered incorrectly too many
times. Wait until the password lock of the target device is released.
Already activated The function you want to activate on the device has already been activated.
Already set
The device password has already been changed from the default login
password. Make sure that the password is the default login password.
Cannot convert to PJL Make sure you use a PJL conversion table compatible with the input data.
Cannot convert to Setting file
Make sure you use a PJL conversion table compatible with the settings file you
want.
Connection error Make sure the target device is connected and available to transfer the data.
Deploy results mismatch
One or more settings in the settings file have not been applied. Check the log
file for more information.
Sleep time and auto power off settings: if you want to set a value that exceeds
20 minutes, or to change the setting to OFF, try changing it from your
machine's control panel.
Device internal error Reboot the target device and try again.
Device is busy Wait until the target device finishes its current job.
File not found Make sure you specify the file path correctly, and then try again.
File write error
Make sure that there is enough space in the destination folder, or that the files
in the destination folder can be overwritten.
Firmware Update required
The schema version of the target device is older than the schema version of
the JSON settings file. Update the device’s firmware.
Internal error Make sure all settings are correct and then try again.
Invalid deploy setting file
Make sure the content and structure of the settings file are correct, and then try
again.
Invalid file error Make sure you select the correct DJF file or the correct target device.
License error Make sure you enter the correct license code (20 digits).
New version schema required
The schema version of the JSON settings file is older than the schema version
of the target device. Execute the “convertsetting” command in the tool's
Command Line Interface (CLI).
Not supported
Make sure all the target devices support the function/command you want, or
select the target devices that support that function/command.
Partially complete
Some of the deployed solutions have been activated, and some are either
already activated or not supported by the target devices. Check the CSV file
stored at the path specified in Save the result file to: on the Activate
solutions screen for more information.
Password incorrect Make sure you enter the correct password.
Permission error
Make sure you have the permission to access the specified folder or output
folder.
Serial number mismatch
When specifying the device identifier, make sure you specify the serial number
that matches the serial number of the target device.
Server communication error
Make sure your network connection is active so that you can update the tool to
the latest version.
Session timeout
This activation session has expired after more than 24 hours of inactivity. Try
to activate the solution or function you want again.
SNMP communication error Make sure you specify the SNMP settings correctly.
36
SNMP v3 security error
Make sure your SNMP settings are correct. Try again when the target device is
unlocked.
Solution not supported Make sure the target devices support the solutions you want to deploy.
Solution not supported/already
activated
Some of the deployed solutions are either not supported or are already
activated. Check the CSV file stored at the path specified in Save the result
file to: on the Activate solutions screen for more information.
Unauthorized access error
The license code was entered incorrectly too many times.
Wait until the lock of the license server is released.
Make sure your license code is in the correct format (20 digits) and has not
been used yet.
Error Solution
37
The exit codes provided by the Mass Deployment Tool (CLI) allow you to identify deployment errors.
GUI/CLI Errors
For more information and help, see section 7 Troubleshooting.
Appendix
GUI: Error CLI: Exit Code Description
Admin account locked 80009
The administrator password for the target device was
entered incorrectly too many times.
Already activated 80023 The device has already been activated.
Already set 80054 The password has already been changed.
Cannot convert to PJL 80030 Cannot convert the setting file to the PJL file.
Cannot convert to Setting file 80031 Cannot convert the PJL file to the setting file.
Connection error 80015 Connection error.
Deploy results mismatch 80032 The setting file deployment results do not match.
Device internal error 80035 Device internal error.
Device is busy 80007 Device is busy.
File not found 80011 File not found.
File write error 80010 File write error.
Firmware Update required 80033 Firmware update required.
Internal error 80052 Internal error in the application.
Invalid deploy setting file 80029 Invalid deploy setting file.
Invalid file error 80026 Invalid file error.
License error 80022 License error.
New version schema required 80034 New version schema required.
Not supported 80008 Not supported.
Package password incorrect 80071 Incorrect package password.
Partially complete 80067 The license activation is only partially complete.
Password incorrect 80005 Incorrect password.
Permission error 80012 Access denied.
Serial number mismatch 80006
The serial number entered does not match the serial
number identified.
Server communication error 80014 Server communication error.
Session timeout 80021 Session timeout.
SNMP communication error 80013 SNMP communication error.
SNMP v3 security error 80055 SNMP v3 security error.
Solution not supported 80068 Not all features are supported by this license.
Unauthorized access error 80020
The maximum number of password attempts has been
exceeded.
Universal Print Internal error 80203 Microsoft Universal Print Internal error.
Universal Print Internal error –
Length excess
80205 The token size exceeds the limit.
Universal Print Internal error –
Unready
80201
The device is not yet ready to register for
Microsoft Universal Print.
38
CLI Errors
Universal Print Token Generator Errors
Universal Print Internal error –
Unsupported
80204 The device is not supported by Microsoft Universal Print.
Universal Print Registration
Refused
80202
The device is unable to register for Microsoft Universal
Print.
Initial Password Error 80071
You must change the default password to change the
device settings.
Initial Password Reboot Error 80083
Failed to reboot after resetting back to the default
password.
Write lock error 80027 Custom UI write lock failure.
Write lock password error 80028 The Custom UI write lock password is incorrect.
Exit Code Description
70001 Agreement to the EULA is required.
70002 Failed to convert due to the wrong file or version.
70003 Failed to create the package.
70004 Failed to extract the package.
70007 Failed to read the network setting file.
70009 Invalid parameter.
70010
Failed to execute the functions using the deployment profile in one or more
devices.
70011 Wrong deployment profile.
70012 Wrong delimiter.
70013 The new administrator password has fewer than eight characters.
70014 The new administrator password is weak.
70015 Failed to decrypt the DKEY file.
70016 Failed to decrypt the deployment profile.
70017 Failed to apply filter.
Exit Code Description
70001 Incorrect user account.
70004 “--output” option is not specified.
70005 “--filepass” option is not specified.
70006 Failed to save the ETKN file.
70007 Connection error
70008 Session timeout
70009 Not authenticated by the Microsoft Azure AD.
70010 Invalid parameter.
70011 Internal error
70012 The account does not have permission to register printers.
GUI: Error CLI: Exit Code Description
