EVAPORATIVE
COOLER
INSTRUCTION MANUAL
5 LITRE
Model:EAC-C-BT-18J-WH
2
IMPORTANT
SAFEGUARDS
When using electrical appliances, in
order to reduce the risk of fire, electric
shock and/or injury, these basic safety
precautions should always be followed:
FOR YOUR SAFETY
Read all instructions carefully, even if you are
quite familiar with the appliance.
• To protect against the risk of electric shock,
DO NOT IMMERSE power cord or plug in water
or any other liquid.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory and mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
• Always unplug the unit when not in use.
• Do not operate unit with a damaged power
cord or plug, or after a malfunction, has been
dropped or is damaged in any manner. Return
the unit to an authorised service facility for
examination.
• This unit is not intended for use in bathrooms,
laundry areas or similar moist indoor locations.
Never locate the unit where it may fall into a
bathtub or other water container.
• Do not run the power cord under carpeting or
cover the power cord with throw rugs, runners
or the like. Arrange the power cord away from
trac areas and where it will not be tripped
over.
• Do not place the power cord over any part of
the unit.
• Do not plug this unit into an extension lead,
double adapter or power board.
• To disconnect the unit set main switch to OFF
then remove the plug from the outlet.
• This unit has hot electrical parts inside. DO
NOT use it in areas where gasoline, paint or
flammable liquids are used or stored.
• Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may
cause an electric shock, fire or could damage
the unit.
• Use the unit only as described in this booklet
Any other use not recommended by the
manufacturer may cause fire, electric shock or
injury to persons.
• Fully remove the power cord from the power
cord tidy before use. Always uncoil the power
cord before applying power.
• This product must always be used AND
STORED in the upright position.
• Do not use this unit with a programmer, timer
or any other device that switches the unit on
automatically, since a fire risk exists if the unit
is covered or positioned incorrectly.
• Use indoor only.
• If it is necessary to move the unit after the
water has been added, roll gently to the
required position.
• Do not move the machine when it is in use.
• Always ensure that there is water in the tank
when in use for cooling.
• Do not block air circulation
• Do not use hot water.
• Place the machine on a level surface.
• Unplug the appliance during filling and
cleaning.
WARNING
If the supply power cord is damaged, the power
cord must be replaced by the manufacturer, its
service agent or similarly qualified persons in order
to avoid a hazard.
This product has not been designed for any uses
other than those specified in this booklet.
SAVE THESE
INSTRUCTIONS
3

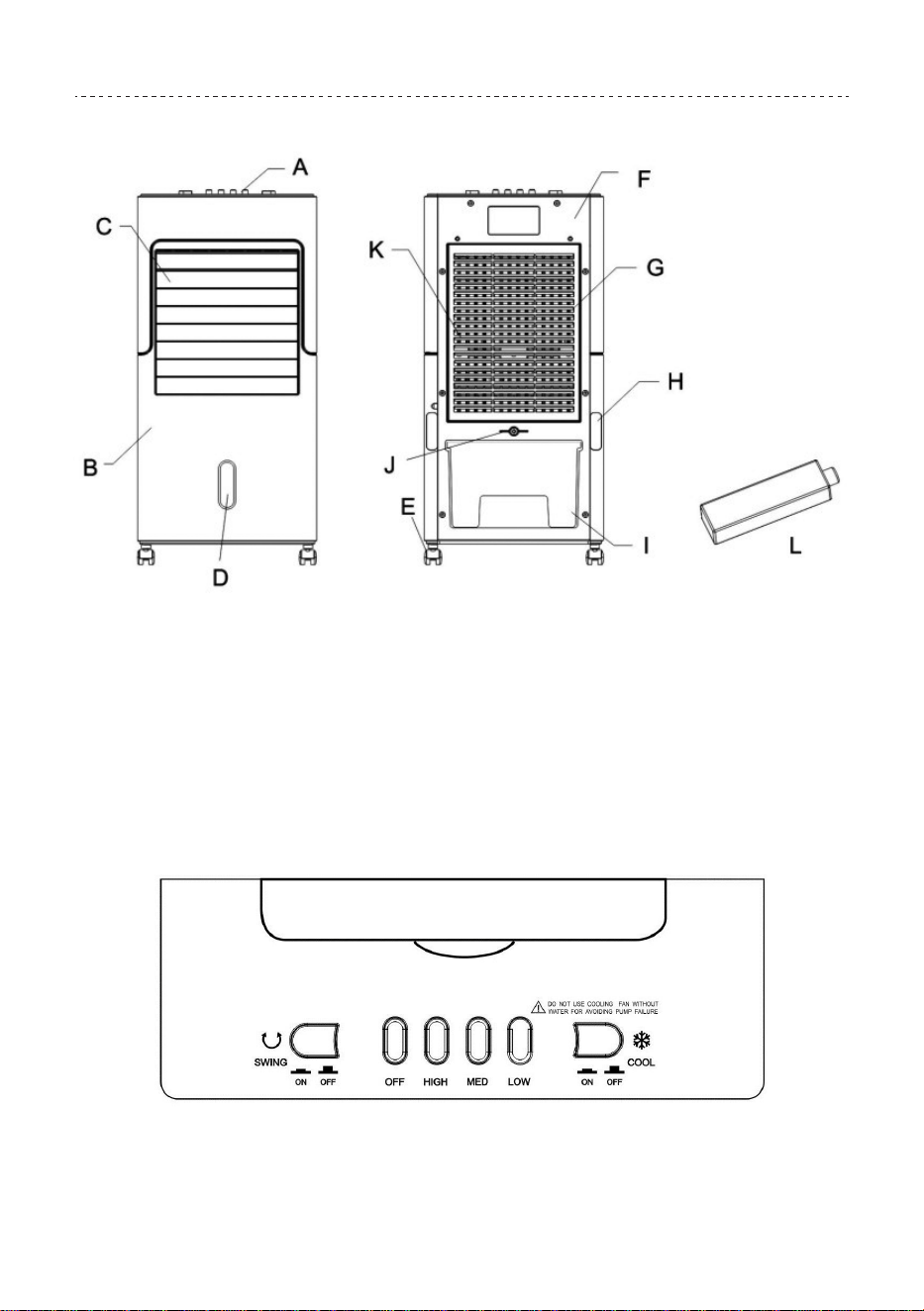

A-Control panel B-Front board C-Louver frame
D- Water indicate window E-Castor wheel F- Rear board
G- Dust-proof bracket H- Cord bobbin I- Water tank
J- Small knob K-Filter L- Ice crystals box
Control Panel:
FEATURES OF YOUR EVAPORATIVE COOLER
4
YOUR 5L
EVAPORATIVE
COOLER
Congratulations on the purchase of your new
5L Evaporative Cooler.
Before first using your 5L Evaporative Cooler it
is most important that you read and follow the
instructions in this use and care booklet, even if
you feel you are quite familiar with this type of
appliance.
Your attention is drawn particularly to the section
dealing with IMPORTANT SAFEGUARDS. Find
a place and keep this booklet handy for future
reference.
Your 5L Evaporative Cooler is safe and easy to use.
It has been designed to function quietly and safely
under normal circumstances.
TECHNICAL
SPECIFICATION
Voltage: 220-240V~
Frequency: 50Hz
Wattage: 65W
Water Tank Capacity: 5L
NOTE: As a result of continual
improvements, the design and
specications of the product within may
differ slightly to the unit illustrated on the
packaging.
HINTS FOR BETTER
COOLING
1. Your cooler requires a supply of fresh air.
Place the cooler near an open window or leave
the door to the room open. Then open another
outside window or door on the opposite side
of the room so that you create “flow through”
ventilation. The cooler will not work properly
in a closed room.
2. As an addition place the cooler near the
entrance to the room. The cooler will draw
cool air from other parts of the house and
further bring down temperature.
3. Start your cooler when the room is still cool.
You may leave it running all day. You will find
that this system works best and keeps the room
cooler.
4. Add cold water and ice to the water tank.
Turn on the cool switch and the filter pad will
become damp. The air is drawn in through back
panel and across the filter pad to release cool
clean air. It may take a few minutes for the pad
to become saturated.
5. Since humidity changes from hour-to-hour and
day-to-day, when it is too humid, you may use
your cooler as a fan. Just turn cooler on but do
not turn on cool button.
Model:EAC-C-BT- J-WH
18
5
OPERATION
OPERATION (Do NOT connect the
power plug as yet)
1. When using the unit make sure that it is on
a flat and stable surface. Damage may occur
if it is placed on an incline or decline.Ensure
that Drain Plug on the Water drainage outlet
of the unit is tight. Pour clean cold water into
the water-filling compartment, observing the
water level indicator in the bottom front panel.
CAUTION: DO NOT SPILL OR ALLOW WATER TO
COME IN CONTACT WITH THE CONTROL PANEL
Do not overfill past the MAX water indicator mark.
If desired, place ice in the ice tray in the top of the
unit.
CAUTION:
When moving the unit, do so with extreme
caution, so as not to spill any water in the
reservoir. The unit should be moved slowly and in
a sideways direction. Always keep the unit upright.
2. Place the unit on a level surface in a stable,
upright position. Make certain the power
switch is in the ‘OFF’ position.
Insert the plug into a suitable outlet.
3. The unit has 3 speed settings. Turn the unit ON
by pressing the HIGH/MED/LOW button. When
you press the OFF button, it will stop working.
If you want to enlarge the range, you can press
the “SWING” button, automatic horizontal swing,
When you press the button again, it will stop swing
working.
Move the horizontal louvers for the air outlet to
blow up or down to suit.
Press the “COOLING” button. the water pump start
to work,the wind will be cooler and wet. It will take
approximately 2 minutes for the air to cool. When
you press the “COOLING” button again, it will stop
Cooling working.
Note: Before operating the unit in Cool
mode, make sure the drain plug for
the water tank is properly fixed. Then
proceed to add clean water into the
water tank. While adding the water,
make sure that you keep an eye on the
water level indicator to make sure that
you do not OVER or UNDER FILL the
tank.
Note: don’t use this button without
water,to avoid damage to parts.
Note: If this button is not depressed
the unit will only circulate “room
temperature” air.
If you find that the air after Step 1) is still not cool
enough, you can add additional ice cubes into the
Ice Tray directly by opening the Ice Tray cover. Be
sure not to exceed the Ice Tray capacity otherwise
damage to the unit or electric shock may occur.
The two ice packs can be used to achieve
additional cooling, they should be
left to freeze for some hours before use, place
them into the water tank before it has been filled
with water.
If you wish to use an Ice pack instead of ice cubes,
just place it directly into the tank by opening
the water tank compartment door. It will be
better cooling eciency if you place it in your
refrigerator and let the ice pack freeze for 1 to 2
hours and replace regularly .

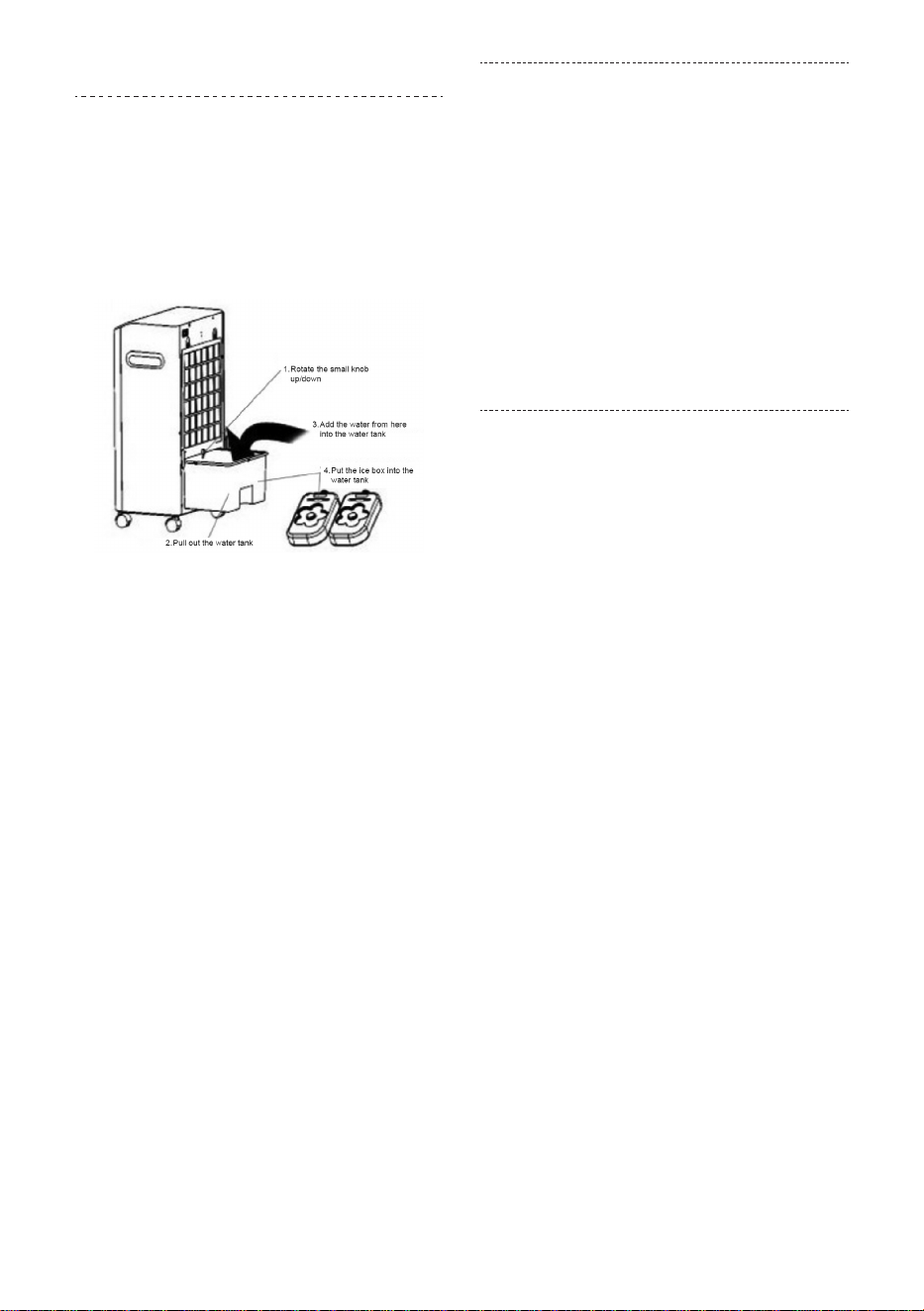

You can remove the water tank completely to fill it
or to clean the tank.
After use, turn o the switch and pull out the
power cord.
6
HOW TO CLEAN
To ensure eective humidifying and filtering, it
is recommended that the filter be cleaned once
every two weeks.
Disconnect the unit from the mains supply before
cleaning.
To clean the exterior surfaces simply wipe over
with a soft damp cloth. Should it be necessary,
greasy marks may be removed from the surfaces
by using mild soap and a cloth dampened in
hot water. Avoid all other types of detergents,
cleaners, solvents that may contain chemicals,
which could damage parts of the unit. Thoroughly
dry all parts before storage or further use.
Water Tank

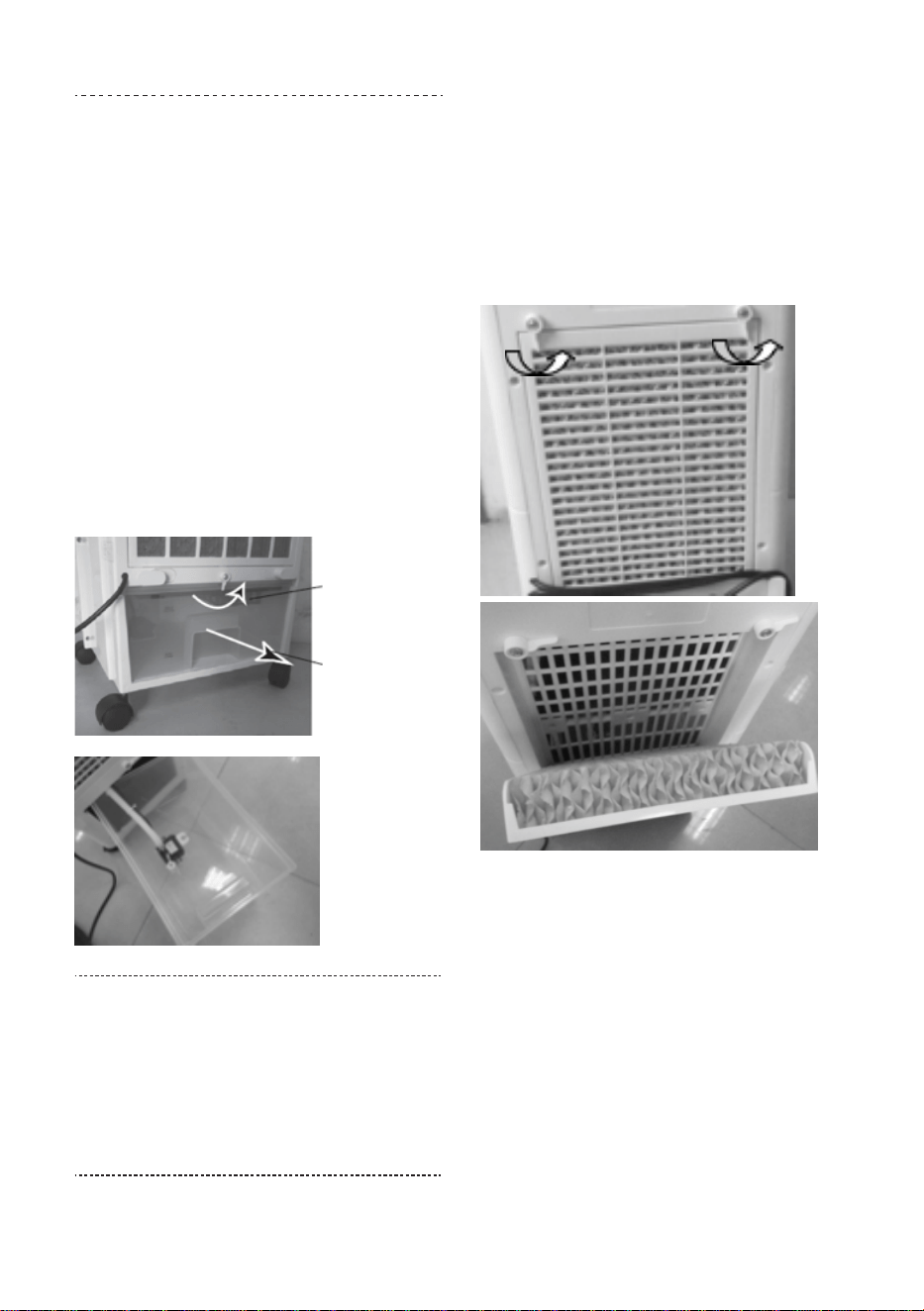

1. Unplug the power plug, draw out the water
tank,(. Refer to Fig. 1.) Use soft brush clean it.
Use neutral detergent and soft cloth rub inside
of the tank.
Rotate the
locker up
Take out the
water tank
from the unit
Fig. 1
Note: if you need to clean the tank
completely, you should unscrew the
screw under the base, also should
unscrew the screw of water pump inside
the tank.
Note: Do not put this cooler directly
under a water tap, use a proper
container to fill water to avoid splashing
and damaging to the electric appliance.
Air Filter
Clean the air filter at least once every two weeks
to prevent inferior fan operation due to dust
accumulation.
Take out the Air filter. Refer to Fig.2. Wash the air
filter by immersing it gently in warm water with
a neutral detergent. Rinse the filter and dry it in a
shady place.
Put the Air filter and Filter cover back into the unit.
Fig. 2
7
TROUBLE SHOOTING
Always check full product operation as detailed
above before calling for assistance, unless there
is damage to the power cord or plug - in this
situation, stop using the product immediately.
On humid days the unit may not appear to be
cooling correctly. This is due to the air already
being saturated with water. Adding more water to
the air will not result in pulling the air
temperature down. In these conditions, it is
advisable to operate the unit as a fan only to
circulate room air.
FOR YOUR SAFETY
• Always operate the unit as detailed below.
• If the plug and supply power cord are
damaged, it must be replaced by the
manufacturer, its service agent or a suitable
qualified person in order to avoid a hazard.
• CAUTION: To reduce the risk of electric shock,
DO NOT remove the cover (or back) whilst the
unit is in operation or connected to the mains
supply.
• This product operates with water - operate and
move the product with extreme care.
• Do not operate the unit with a damaged power
cord or plug, or after the unit malfunctions,
or is damaged in any manner. Return the
complete unit to the place of purchase for
in-warranty replacement, or inspection and
repair.
DISPOSAL
Do not dispose of packaging or the product
through your household waste! The product and
packaging are made from recyclable materials
(plastics, metals, paper).
If the product is no longer suitable for use dispose
of it in an environmentally friendly manner in
accordance with your local council.
