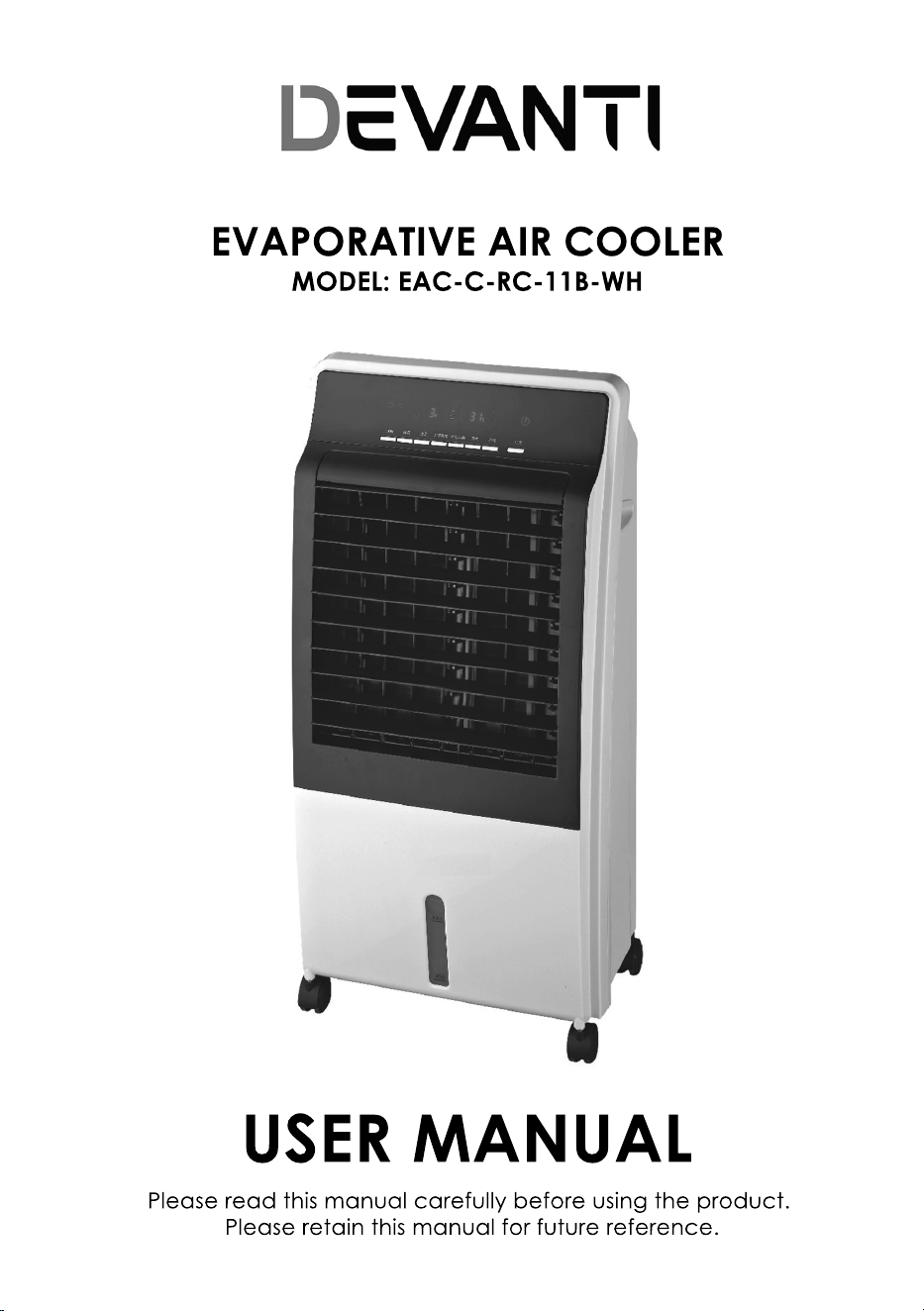

EVAPORATIVE AIR COOLER
MODEL: EAC-C-RC-11B-WH
USER MANUAL
Please read this manual carefully before using the product.
Please retain this manual for future reference.

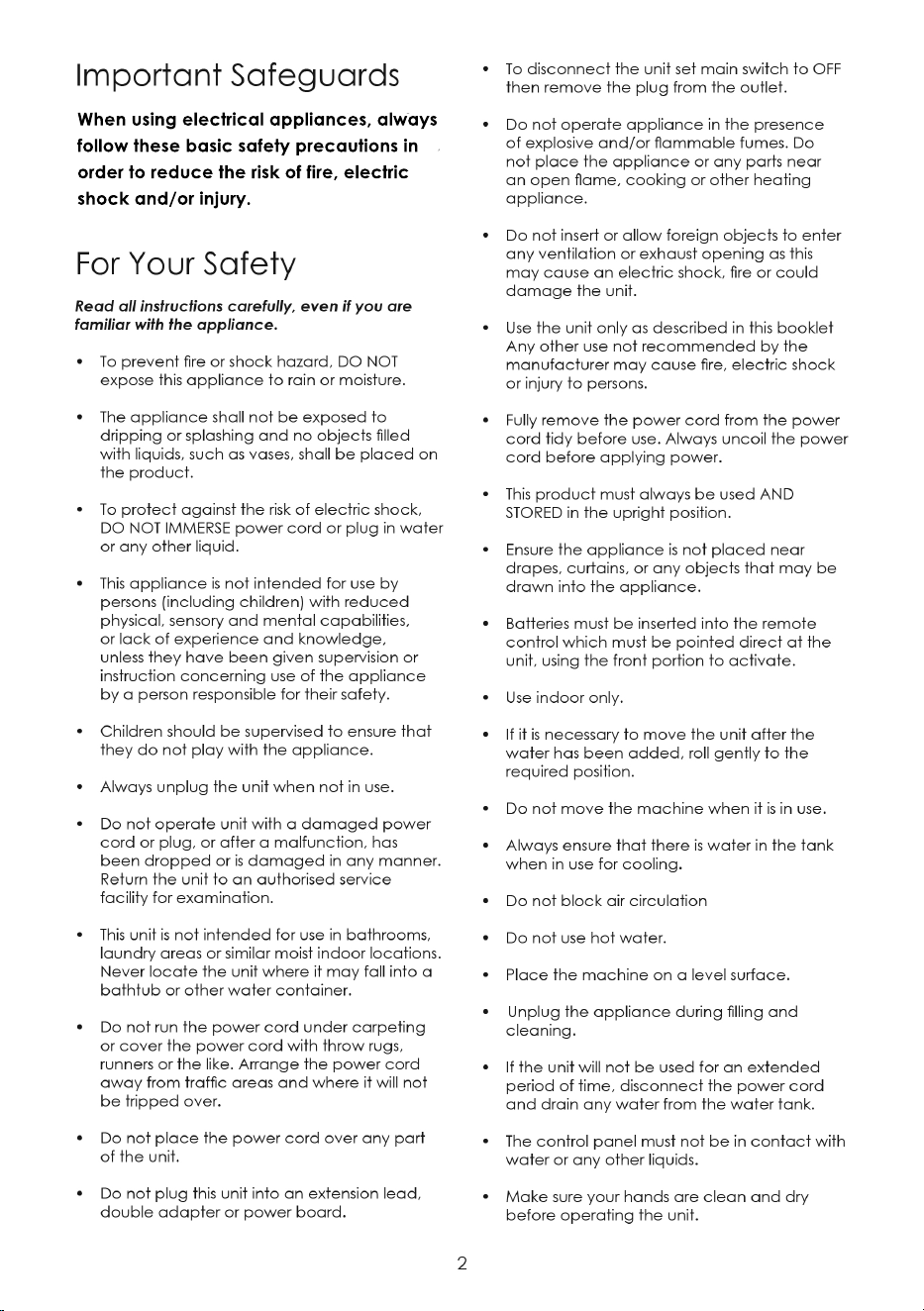

When using electrical appliances, always
follow these basic safety precautions in
order to reduce the risk of fire, electric
shock and/or injury.

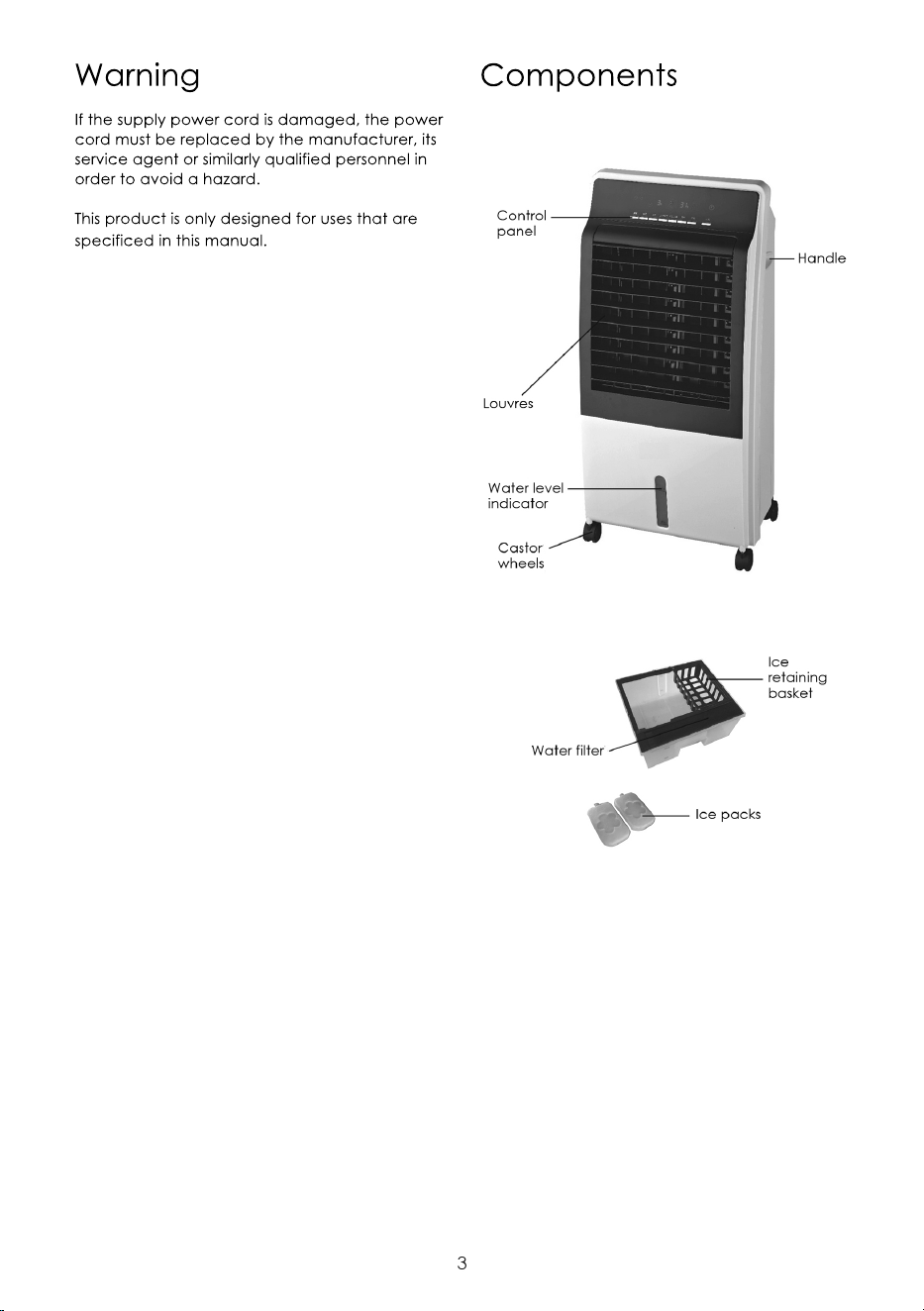

Warning Components
If the supply power cord is damaged, the power
cord must be replaced by the manufacturer, its
service agent or similarly qualified personnel in
order to avoid a hazard.
This product is only designed for uses that are
specificed in this manual.

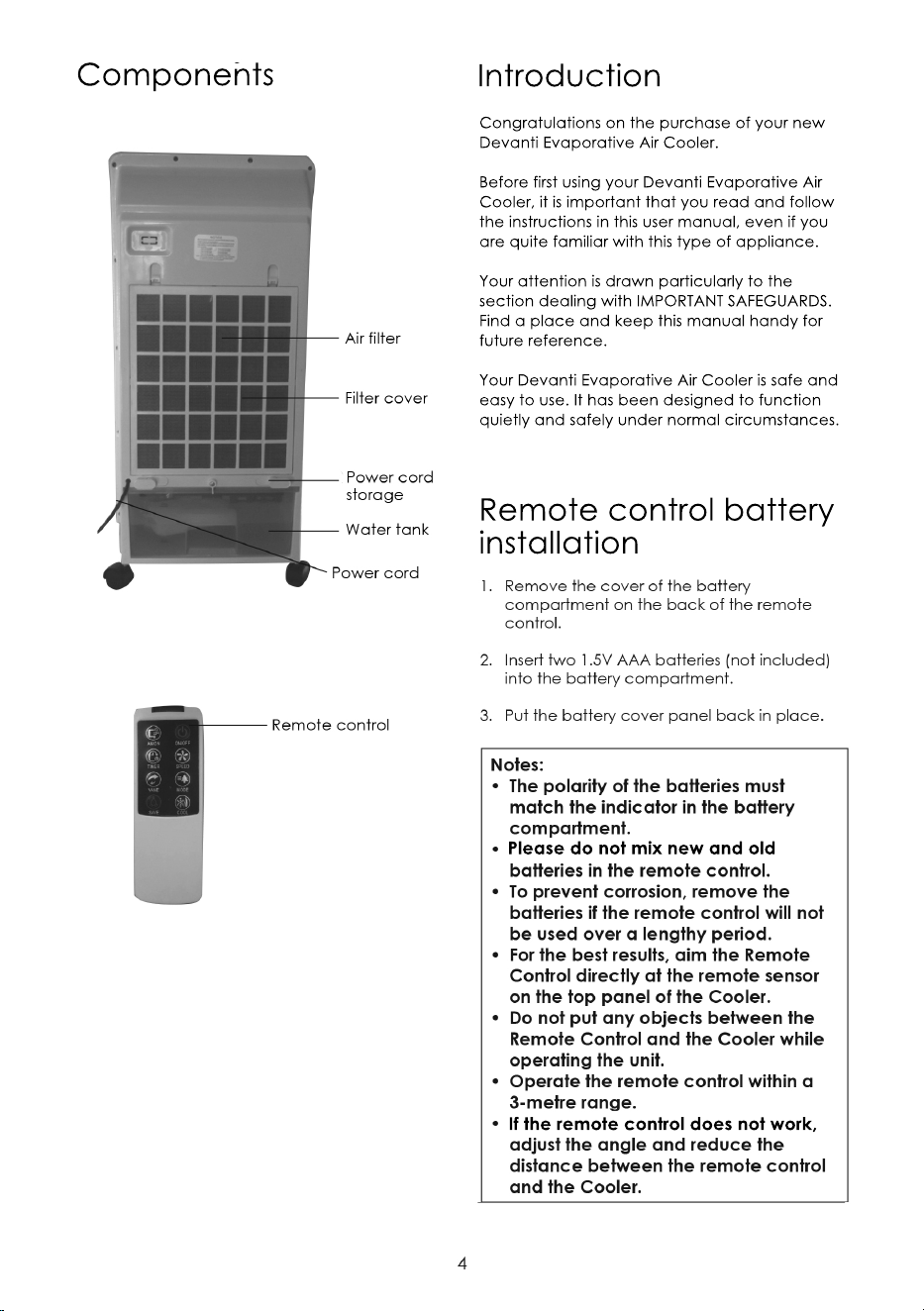

Components
Introduction
Remote control battery
installation
Congratulations on the purchase of your new
Devanti Evaporative Air Cooler.
Before first using your Devanti Evaporative Air
Cooler, it is important that you read and follow
the instructions in this user manual, even if you
are quite familiar with this type of appliance.
Your attention is drawn particularly to theYour attention is drawn particularly to the
section dealing with IMPORTANT SAFEGUARDS.
Find a place and keep this manual handy for
future reference.
Your Devanti Evaporative Air Cooler is safe and
easy to use. It has been designed to function
quietly and safely under normal circumstances.
Please do not mix new and old
If the remote control does not work,

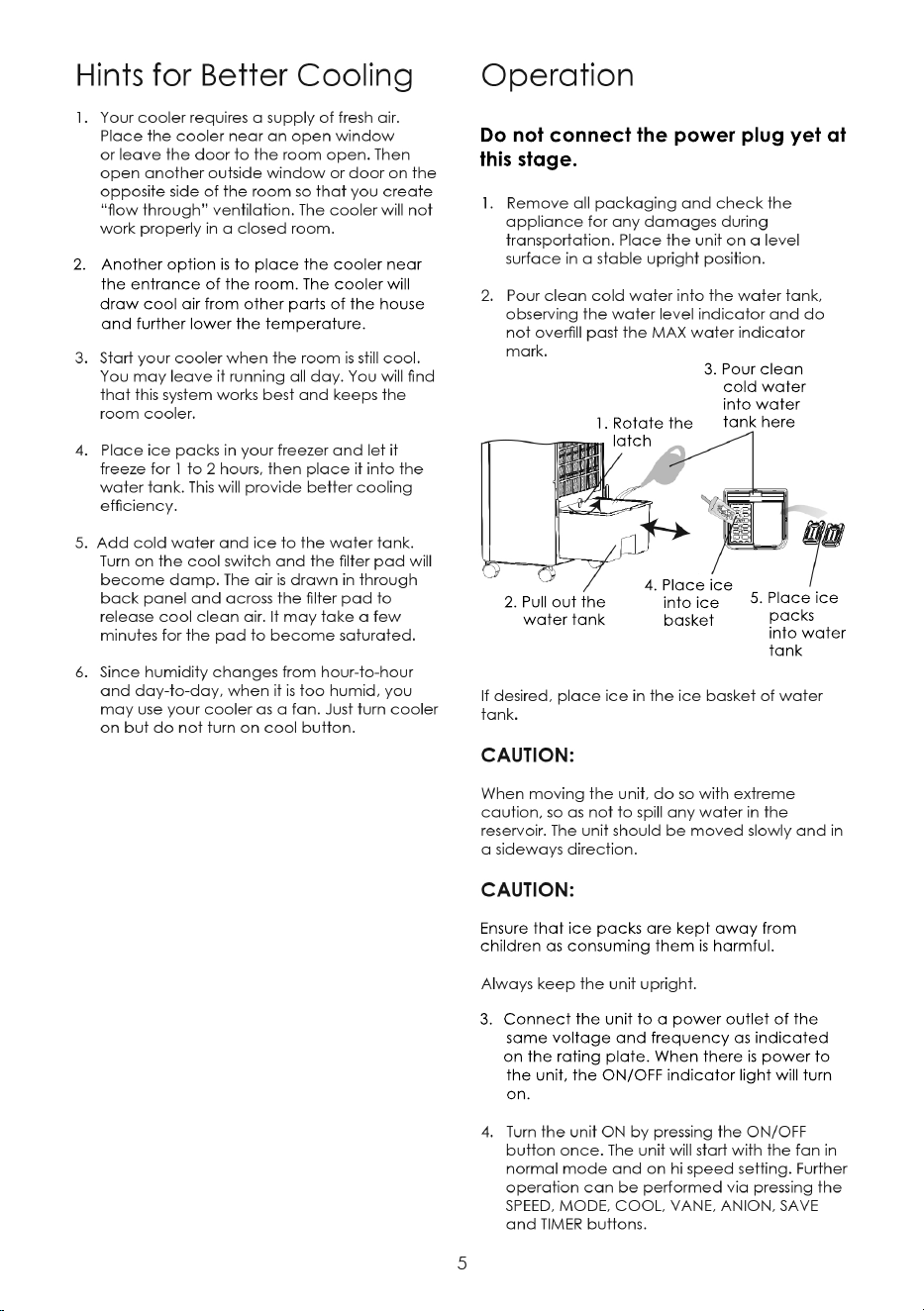

2. Another option is to place the cooler near
the entrance of the room. The cooler will
draw cool air from other parts of the house
and further lower the temperature.
Do not connect the power plug yet at
this stage.
1. Rotate the
latch
4. Place ice
into ice
basket
5. Place ice
packs
into water
tank
2. Pull out the
water tank
3. Pour clean
cold water
into water
tank here
Ensure that ice packs are kept away from
children as consuming them is harmful.
3. Connect the unit to a power outlet of the
same voltage and frequency as indicated
on the rating plate. When there is power to
the unit, the ON/OFF indicator light will turn
on.
Note: Under Cooling mode, the appliance
will delay shutting down for five minutes
when the appliance is turned off or the timer
has lapsed. During this extended period, the
timer pilot lamp will flash.
Note: After operating the air cooler for the
first time, the water in the water tank may
appear dirty and contain foreign particles.
These particles come from the surface of the
honeycomb filter when water initially washes
over it. Replace with clean water and this
discolouration will disappear with subsequentdiscolouration will disappear with subsequent
use.
Note: The COOL light will flash when you
press the COOL button if there is not enough
water in the water tank.
Note: All the above can be operated via the
remote control as outlined on Page 4.
Note: The initial setting is Normal mode and
Mid fan speed.
Note: If the COOL button is not pressed, the
appliance will only circulate ambient
room-temperature air.
There are three modes: Normal,
two

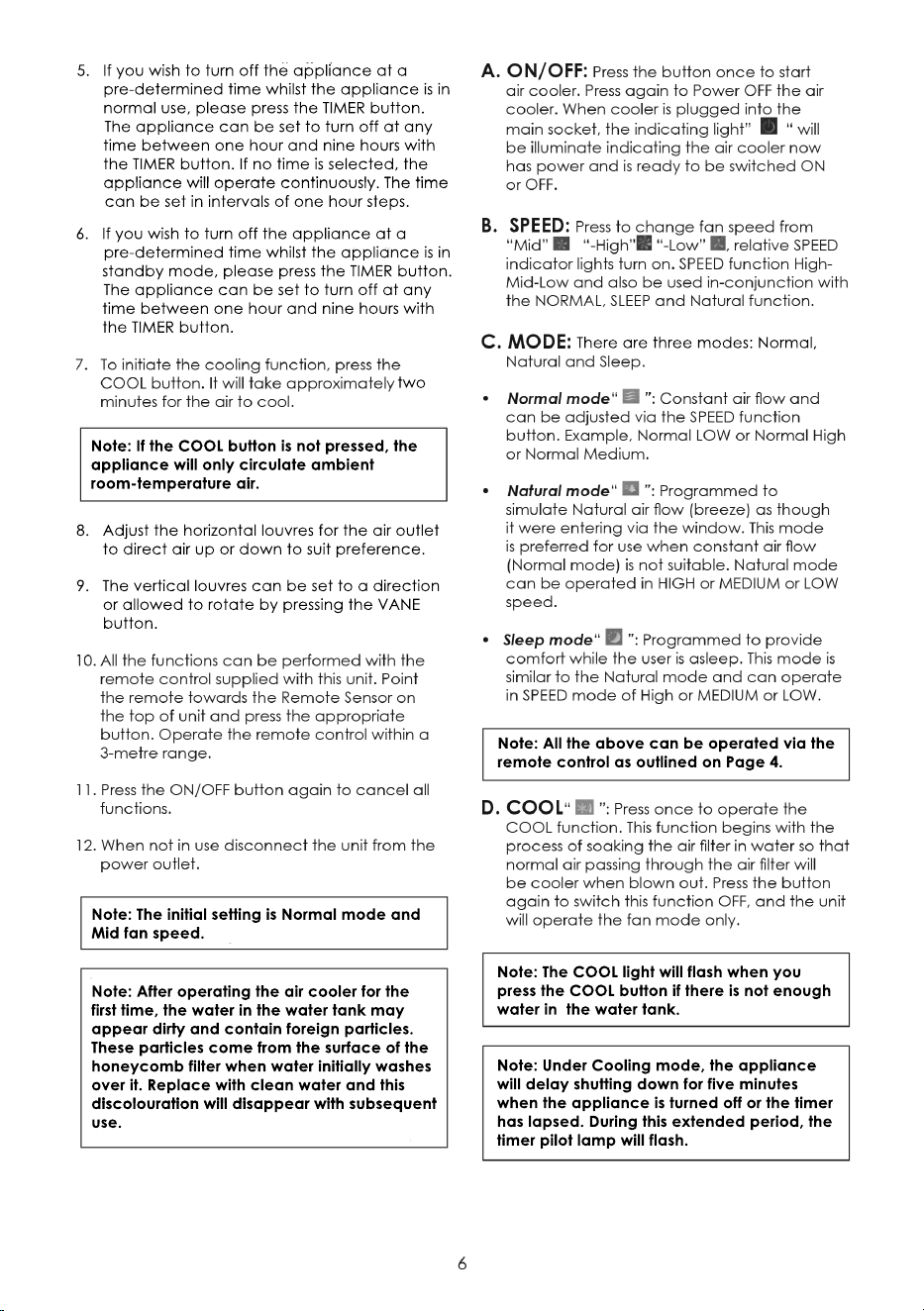

5. If you wish to turn off the appliance at a
pre-determined time whilst the appliance is in
normal use, please press the TIMER button.
The appliance can be set to turn off at any
time between one hour and nine hours with
the TIMER button. If no time is selected, the
appliance will operate continuously. The time appliance will operate continuously. The time
can be set in intervals of one hour steps.
6. If you wish to turn off the appliance at a
pre-determined time whilst the appliance is in
standby mode, please press the TIMER button.
The appliance can be set to turn off at any
time between one hour and nine hours with
the TIMER button.
8. Adjust the horizontal louvres for the air outlet
to direct air up or down to suit preference.
9. The vertical louvres can be set to a direction
or allowed to rotate by pressing the VANE
button.
Water Consumption
Rate
EAC-C-RC-11B-WH
While the unit is on standby mode, press the
TIMER button. The unit can be set to turn on
at any time between one and nine hours in
standby mode. For example, if the unit shows
three hours, this means that the unit will
automatically switch on after three hours.

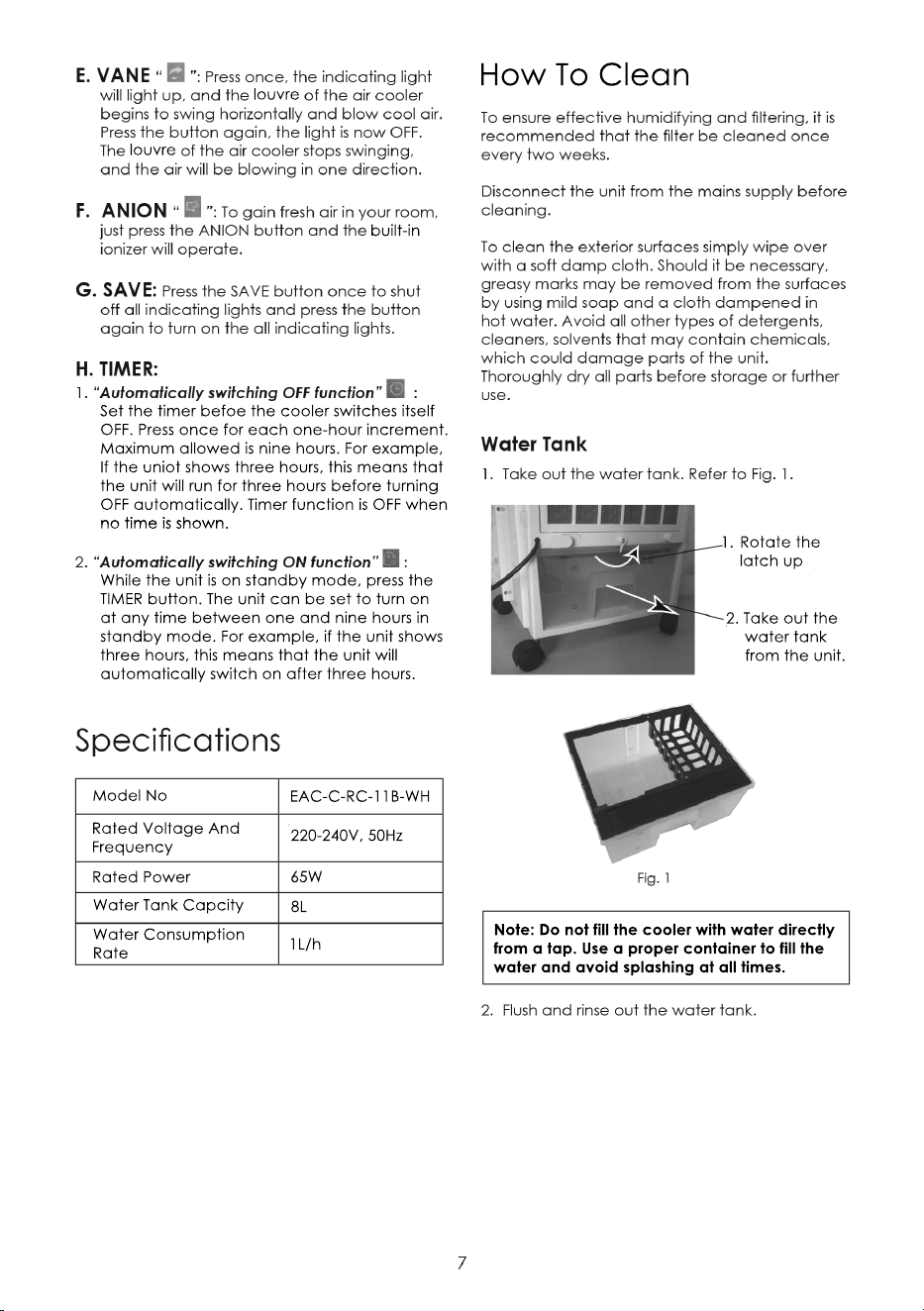

How To Clean
1. Rotate the
latch up
2. Take out the
water tank
from the unit.
louvre
louvre
built-in
Set the timer befoe the cooler switches itself
OFF. Press once for each one-hour increment.
Maximum allowed is nine hours. For example,
If the uniot shows three hours, this means that
the unit will run for three hours before turning
OFF automatically. Timer function is OFF when
no time is shown.no time is shown.
Rated Voltage And
Frequency
Water Tank Capcity
Model No
Rated Power
220-240V, 50Hz
65W
8L
1L/h
Note: Do not fill the cooler with water directly
from a tap. Use a proper container to fill the
water and avoid splashing at all times.
