User Manual
Full Frame License Plate Camera
CAM-LF1
Introduction
Key Features
u 1/4” CMOS Sensor
u Operates at 0 LUX
u 2 LEDs
u IP67 Rated
u 170 Degree Viewing Angle
u Selectable Image (mirrored/non-mirrored)
Box Contents

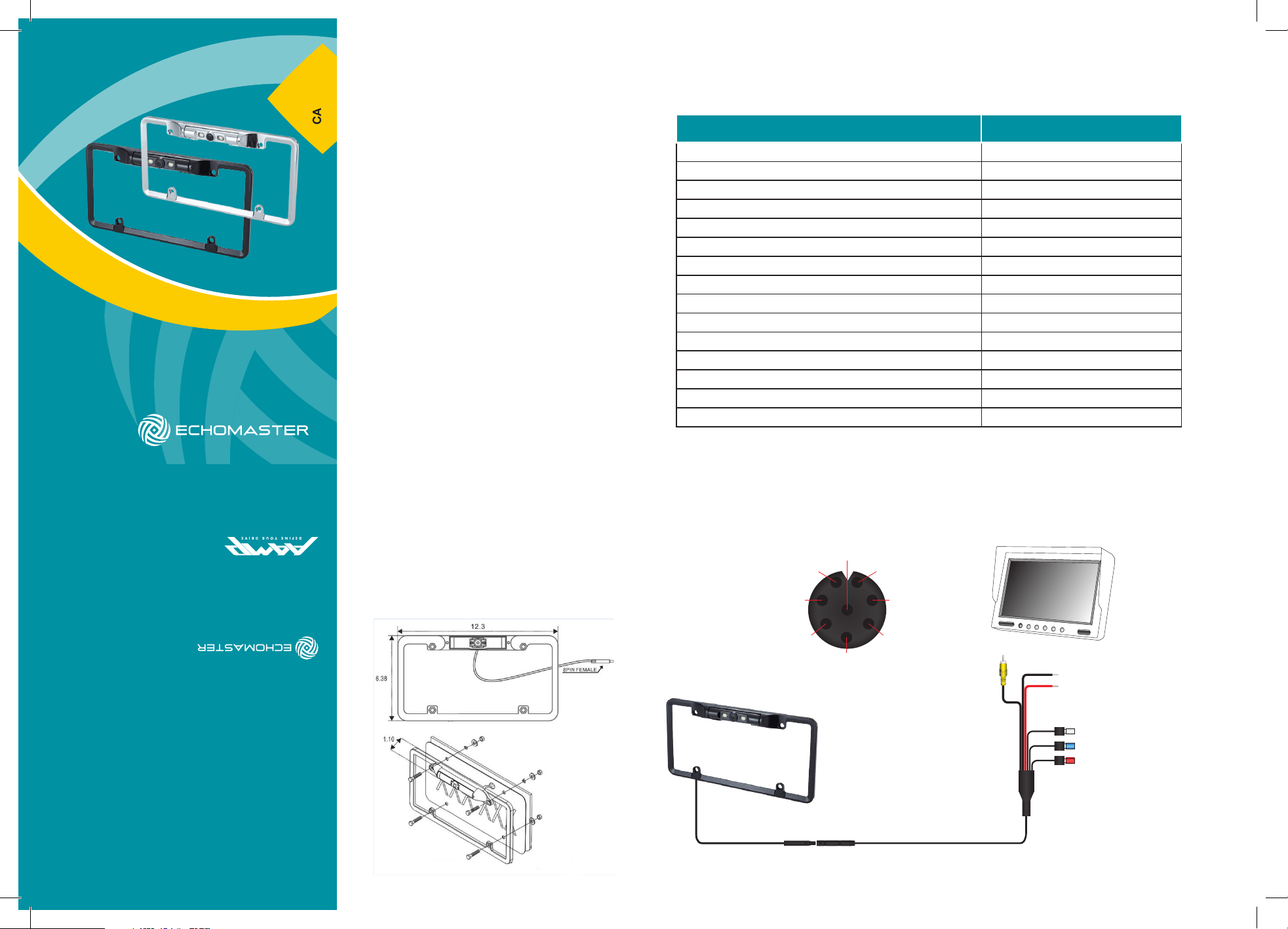

Wiring Diagram & Pin Out
Specications
Dimensions
CAM-LF1B-N / CAM-LF1C-N
Sensor ¼” CMOS
LEDs 2
Illumination 0 LUX
Viewing Angle 170 degrees
Mirror Image YES
Normal Image YES
Water/Debris-Proof IP67
Audio NO
Power Supply 7-12V DC
Current <390mA
Working Temperature -20ºC - +50ºC
Dimensions (mm) D (21) x W (310) x H (167)
System NTSC
TV Lines 420
Resolution (HxV) 640 X 480
u Camera
u Manual
u Wiring Harness
u Mounting Hardware
Thank you for purchasing your EchoMaster
automotive camera.
The following part numbers are supported:
u CAM-LF1B-N u CAM-LF1C-N
EchoMaster cameras are designed to improve safety during
driving by providing high quality images of surrounding areas
and obstacles in the vicinity of the vehicle. They will also
improve vehicle maneuvering capability by displaying blind
spots not normally visible to the driver.
Please ensure you read and understand all aspects of this
manual before tting or using your EchoMaster Camera.
Choose a suitable mounting place dependent on the
application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
VIDEO
GND (Black)
(White)
(Blue)
(Red)
+12V (Red)
LED On/O
Parking Lines On/O
Mirror Image On/O
Mirror
N/C
Parking
Lines
Shield
LED
+12V
GND
Video
