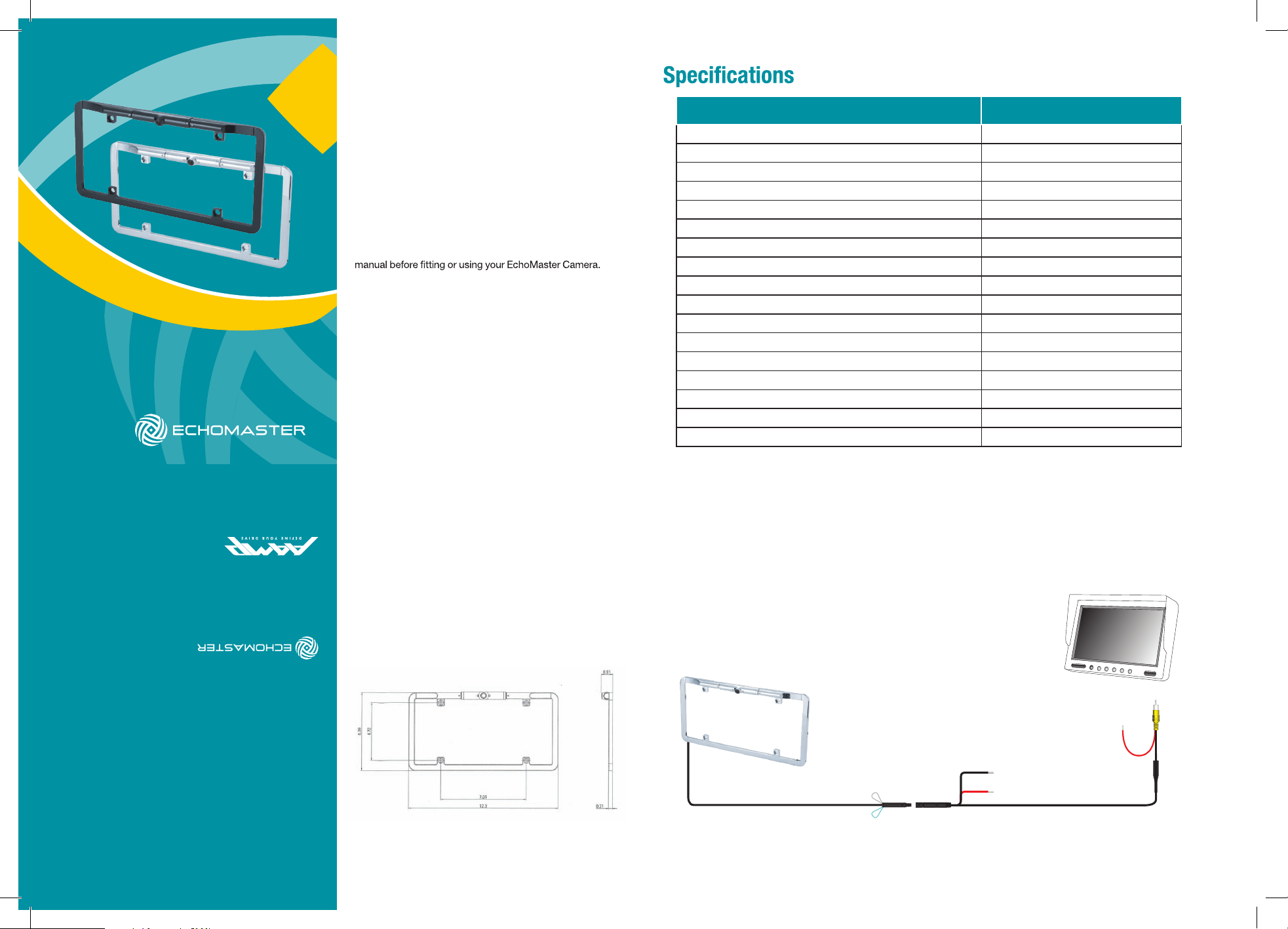

User Manual
Ultra Slim Full Frame License Plate Camera
with Selectable Dynamic Parking Lines
CAM-LFDPL
Introduction
Key Features
1/3” CMOS Sensor
Operates at .1 LUX
IP67 Rated
170 degree Viewing Angle
Selectable Image (mirrored/non-mirrored)
Dynamic Parking Lines (selectable on/off)
Box Contents
Wiring Diagram & Pin Out
Dimensions
CAM-LF3C-N
Sensor 1/3” CMOS
LEDs 0
Illumination .1 LUX
Viewing Angle 170 degrees
Mirror Image YES (selectable)
Normal Image YES (selectable)
Water/Debris Rating IP67
Audio No
Power Supply 9VDC – 16VDC
Current (operating) 70 mA
Working Temperature -20 C - +60 C
Dimensions (mm) D (27) x W (330) x H (160)
System NTSC
TV Lines 520
Resolution 768(H) x 494(V)
Parking Lines Dynamic (selectable)
White Balance Auto
Camera
Manual
Wiring Harness
Mounting Hardware
Thank you for purchasing your EchoMaster
automotive camera.
The following part numbers are supported:
CAM-LFDPLB-N CAM-LFDPLC-N
EchoMaster cameras are designed to improve safety during
driving by providing high quality images of surrounding areas
and obstacles in the vicinity of the vehicle. They will also
improve vehicle maneuvering capability by displaying blind
spots not normally visible to the driver.
Please ensure you read and understand all aspects of this
Choose a suitable mounting place dependent on the
application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
email - [email protected] (US)
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
Parking Lines (Blue)
ON/JOINED - OFF/CUT
Mirror Image (White)
ON/JOINED - OFF/CUT
GND (Black)
RCA VIDEO
SWITCHED
+12V (Red)
54”
57”
247.5” / 20’ 7.5”
REVERSE TRIGGER
when switched +12V is connected
