User Manual
9” Full View Universal Mount
Mirror Monitor and AHD Camera
PMK-UN02
2
Installation Guide
email - [email protected]
tel - 1-727-592-5991
PMK-UN02
9” Full View Universal Mount Mirror
Monitor and AHD Camera
Introduction
Thank you for purchasing your EchoMaster Pro automotive monitor and
camera.
Your monitor displays a clear, high resolution image of the area surrounding
your vehicle, meaning your maneuvering and vehicle awareness will be greatly
improved.
Please ensure you read and understand all aspects of this manual before fitting
or using your EchoMaster monitor and camera.
Box Contents Key Features
u HD Display
u Adjustable vertical view
u Adjustable brightness
u Auto-dimming display
u 720p 60fps AHD Camera
u Install / User Guide QR Insert
u Mirror Monitor
u Camera
u Camera Extension Harness
u Main Harness
3
email - [email protected]
tel - 1-727-592-5991
Installation Guide
PMK-UN02
9” Full View Universal Mount Mirror
Monitor and AHD Camera
Fitting Instructions
The PMM-UN02 will replace your factory fitted rearview mirror. Remove the
original mirror from the vehicle and replace with the PMM-UN02.
Once the unit is in place, run the cable across the headliner of the vehicle and
down the A pillar.
Please ensure that you do not impede the operation of any airbags that may be
located in the A pillar of the vehicle. Any cable passing these airbags should be
run behind the airbag and not in front of it.
Determine a mounting location for the camera and mount it to the vehicle. It is
recommended to choose a mounting location that is as central as possible on
the rear of the vehicle. Then, connect it to the Camera Extension Harness and
route the harness through the vehicle back to the Main Harness.
Once the cables for the mirror and camera have been routed, connect the
camera input and power connections as shown in the wiring diagram section of
this manual.
4
Installation Guide
email - [email protected]
tel - 1-727-592-5991
PMK-UN02
9” Full View Universal Mount Mirror
Monitor and AHD Camera
Operating Instructions
The vehicle ignition is required to be on for the unit to operate.
The mirror will turn on and off with the key of the vehicle. When the mirror is on,
pressing the “MENU” button will turn the display off and on.
Pressing either of the arrow keys on each side of the “MENU” button while the
display is on will adjust the brightness. There are 20 levels of brightness, from 0
to 100, available to adjust the display to your preference.
The vertical view of the camera can be adjusted in the mirror by pressing and
holding the “MENU” button for 3 seconds and then pressing either of the arrow
keys. There are 10 levels of adjustment, from 1 to 10, available to choose from.
5
email - [email protected]
tel - 1-727-592-5991
Installation Guide

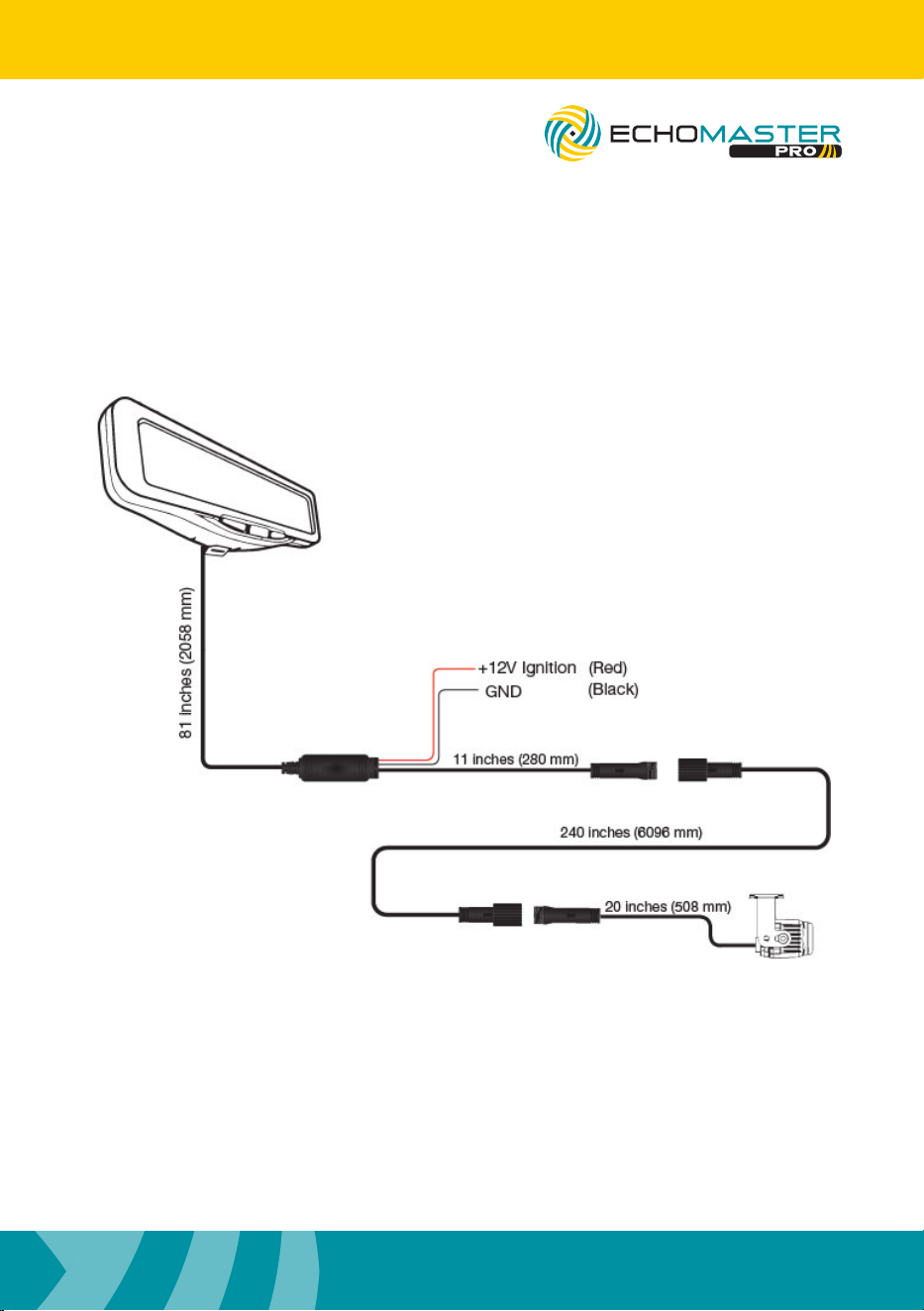

Wiring Diagram
PMK-UN02
9” Full View Universal Mount Mirror
Monitor and AHD Camera
6
Installation Guide
email - [email protected]
tel - 1-727-592-5991
PMK-UN02
9” Full View Universal Mount Mirror
Monitor and AHD Camera

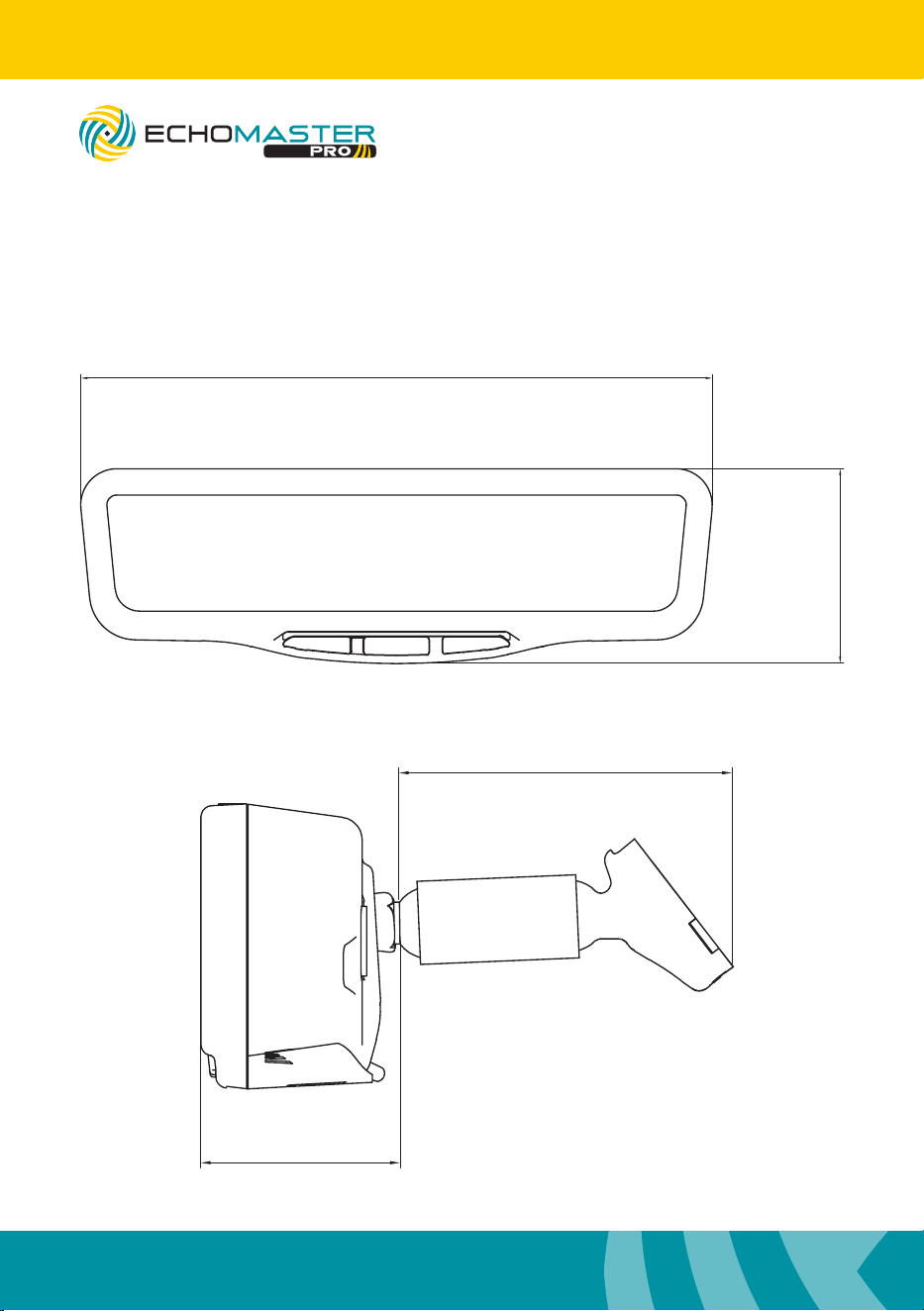

Dimensions (in)
9.5 inches (241.5 mm)
2.8 inches (70.8 mm)
3.5 inches (88.22 mm)
2.1 inches (52.64 mm)
7
email - [email protected]
tel - 1-727-592-5991
Installation Guide
PMK-UN02
Screen Size 9"
Aspect Ratio 16:9
Power Supply 9-18V DC
Mirror Video Resolution 1920 x 384
Sensor Size 1/3” CMOS
Video Input Analog 720p HDTVI
Video Framerate 60 fps
Audio Inputs N/A
Camera Operating Temperature -30°C - +85°C
Camera IP Rating IP68
Dimensions (in)
Dimensions (mm)
(L) 9.5 x (H) 2.8 x (D) 2.1
(L) 242 x (H) 71 x (D) 53
Connection Type Power & Mini Din
Specification
PMK-UN02
9” Full View Universal Mount Mirror
Monitor and AHD Camera
EchoMaster is a Power Brand of AAMP Global.
EchoMaster.com
email - [email protected] (US)
tel - 1-727-592-5991
15500 Lightwave Drive, Suite 202, Clearwater, Florida 33760
Rev. A DC092723
