BAUMR-AG MOWSFPBMRA214 21" Self-Propelled Electric Start User Manual

E&OE © Baumr-AG

User Manual

[Revision 13.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to

add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory or

mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

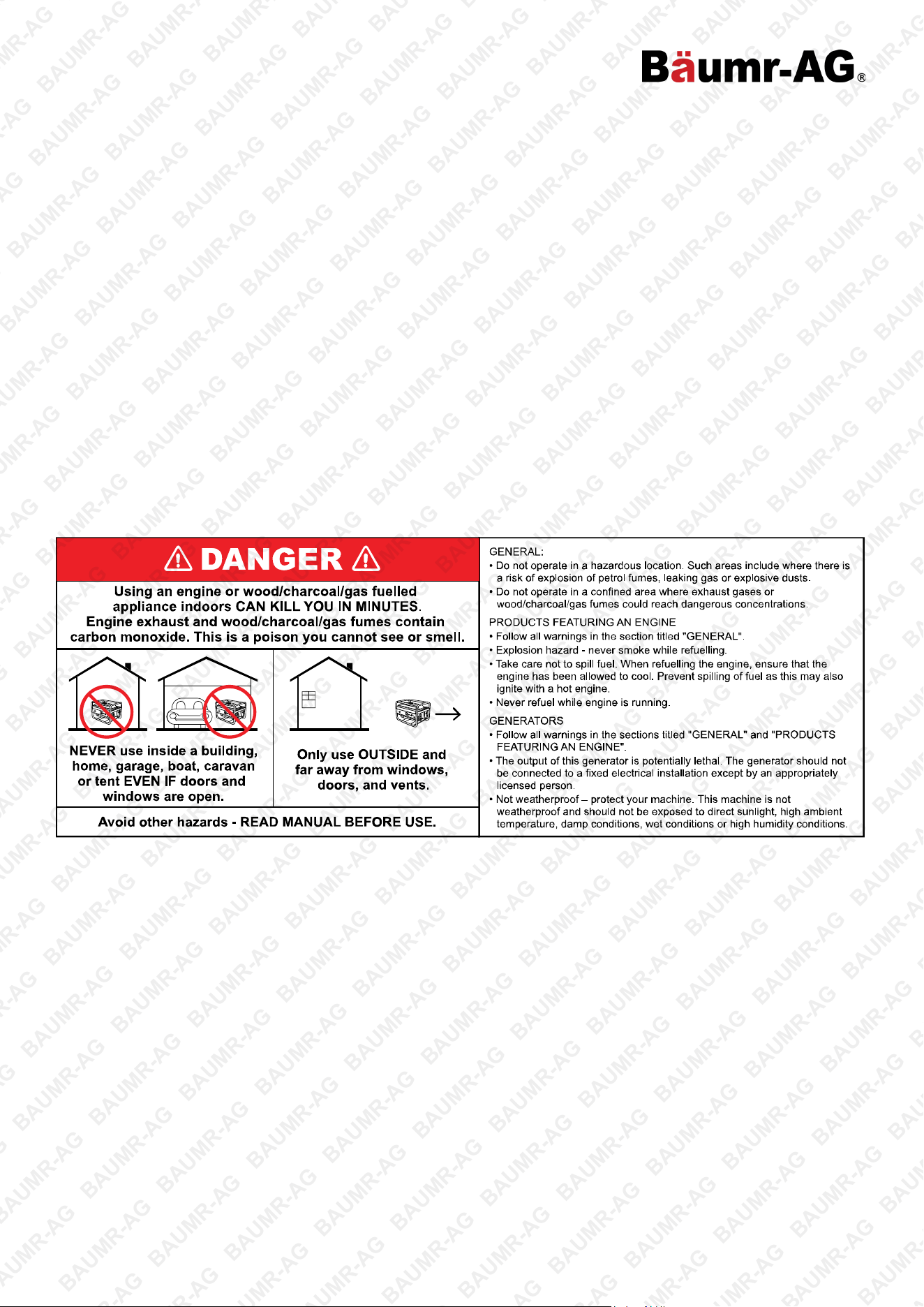

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors and

vents.

General Equipment Use and Care

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 3

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

This petrol lawn mower has been designed for cutting lawn areas in private houses and hobby gardens.

The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the

manuafacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that this equipment has not been designed for use in commercial, trade or industrial applications. Warranty will be voided if the

machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Training

• Read the instructions carefully. Be familiar with the controls and the proper use of the equipment;

• Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations can restrict the age of the operator;

• Never mow while people, especially children, or pets are nearby;

• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

• While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals;

• Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown by the machine;

• Warning - petrol is highly flammable.

• Store fuel in containers specifically designed for this purpose.

• Refuel outdoors only and do not smoke while refuelling.

• Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the engine is hot.

• If petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of

ignition until petrol vapours have dissipated.

• Replace all fuel tank and container caps securely.

• Replace faulty silencers.

• Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or

damaged blades and bolts in sets to preserve balance.

• On multi-bladed machines, take care as rotating one blade can cause other blades to rotate.

Operation

• Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect;

• Mow only in daylight or in good artificial light;

• Avoid operating the equipment in wet grass, where feasible;

• Always be sure of your footing on slopes;

• Walk, never run;

• For wheeled rotary machines, mow across the face of slopes, never up and down;

• Exercise extreme caution when changing direction on slopes;

• Do not mow excessively steep slopes;

• Use extreme caution when reversing or pulling the lawnmower towards you;

• Stop the blade(s) if the lawnmower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the

lawnmower to and from the area to be mowed;

• Never operate the lawnmower with defective guards, or without safety devices, for example deflectors and/or grass catchers, in place;

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 4

• Do not change the engine governor settings or over speed the engine;

• Disengage all blade and drive clutches before starting the engine;

• Start the engine or switch on the motor carefully according to instructions and with feet well away from the blade(s);

• Do not tilt the lawnmower when starting the engine or switching on the motor, except if the lawnmower has to be tilted for starting. In this case, do

not tilt it more than absolutely necessary and lift only the part which is away from the operator;

• Do not start the engine when standing in front of the discharge chute;

• Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times;

• Never pick up or carry a lawnmower while the engine is running;

• Stop the engine and disconnect the spark plug wire, make sure that all moving parts have come to a complete stop and, where a key is fitted

remove the key:

• Before clearing blockages or unclogging chute.

• Before checking, cleaning or working on the lawnmower.

• After striking a foreign object. Inspect the lawnmower for damage and make repairs before restarting and operating the lawnmower;

• If lawnmower starts to vibrate abnormally (check immediately).

• Stop the engine and disconnect the spark plug wire, make sure that all moving parts have come to a complete stop and, where a key is fitted

remove the key:

• Whenever you leave the lawnmower.

• Before refuelling.

• Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of

mowing.

• Go slow when using a trailing seat.

Maintenance and Storage

• Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.

• Never store the equipment with petrol in the tank inside a building where fumes can reach an open flame or spark.

• Allow the engine to cool before storing in any enclosure.

• To reduce the fire hazard, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease.

• Check the grass catcher frequently for wear or deterioration.

• Replace worn or damaged parts for safety.

• If the fuel tank has to be drained, this should be done outdoors.

Battery Usage Precautions

• Please use according to the specification.

• Please note that wrong usage may lead to electric shocks, smoke emissions, glowing lights and damage.

• When using the battery, the input voltage/temperature range must conform to specifications, otherwise it can cause damage.

• Do not place in environments with high temperatures, humidity, dust or corrosive elements.

• Do not cover-up the battery while charging it. Otherwise, it can cause damage/deformation/scalding, etc.

• When the battery is fully-charged, please remove it from the charger and remove the charger plug from the power socket.

• Under the stipulated storage conditions, if the storage time is greater than 6 months, it will need to be charged at least 2 hours, otherwise, it may

shorten the service life.

Battery Safety

• Activation: Activate every three months, Activate with charger and machine (charge-discharge-charge).

• Storage and transportation: If the battery pack is stored for more than three months, Battery packs should be stored at low temperatures, in a dry

place. The transportation process should avoid any violent vibrations, impacts, exposure to sun and rain, etc.

• When the battery is not in use, please remove it from the device.

• Keep the battery clean and dry.

• The two-cell battery can perform better when used at room temperature.

• If there is stain on the surface of the battery, wipe it with a dry, clean cloth.

• After a long storage period, the battery needs to be activated several times to ensure maximum efficiency.

• When dealing with a secondary battery, please separate it from other electrochemical systems products.

• Waste battery should be disposed of by the relevant disposing unit.

• The improper use of a lithium ion battery can cause battery damage and even endanger personal safety. Please read carefully, use correctly and

take precautions.

• Electrical performance abuse:

• Charge and use according to specifications.

• Use Lithium - ion specific charger.

• Ensure that the polarities are correct when charging. The battery cannot be charged in reversed polarities.

• Do not plug in the battery on the charger when it is not in use.

• Environmental abuse:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 5

• Do not throw the battery on a fire, and do not expose the battery to water.

• Do not place the battery core under direct sunlight, which may cause the core to produce heat, smoke, fire, and can also cause bad

performance and shorten the service life.

• The battery cannot be dismantled, opened, and decomposed without permission. It can only be dismantled by professionals. The enclosure must

be designed so that professionals can only use tools to disassemble it.

• Do not leave the battery in hostile environments: extreme temperatures, deep cycles, overcharge or over discharge.

• Do not short-circuit the battery, it would permanently damage it.

• The battery cannot bear mechanical shock.

• Do not burn or damage the battery, which may lead to toxic gases release or explosion.

• When using a new battery or a battery that was stored for a long time, please charge the battery before using it.

• Do not reverse-charge the battery! Correctly connect the positive and negative polarity of the battery. If the positive and negative polarity cannot

charge the core, the reverse charge will reduce the charging and discharging performance and safety of the battery core and will cause high

temperature and electric leakage.

• Do not mix old and new batteries or different types of batteries’ this may cause over-discharge.

• If there is an abnormal noise, abnormal temperature or leakage, please stop using immediately.

• If the battery is hot, do not touch it until it has cooled down.

• Do not remove the shell of the battery.

• If the battery is hot after use, please cool in a ventilated environment before recharging.

• Do not try to separate, squeeze or hit the battery. Otherwise, the battery will heat-up or catch fire and the lye in the battery will be harmful to the

skin and eyes and will damage clothing.

• Keep the battery away from children. If swallowed, contact your local doctor immediately.

• When the battery leaks, your skin and eyes must not make contact with the liquid. Upon contact, immediately flush the affected area with water

and immediately see your local doctor.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 6

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 7

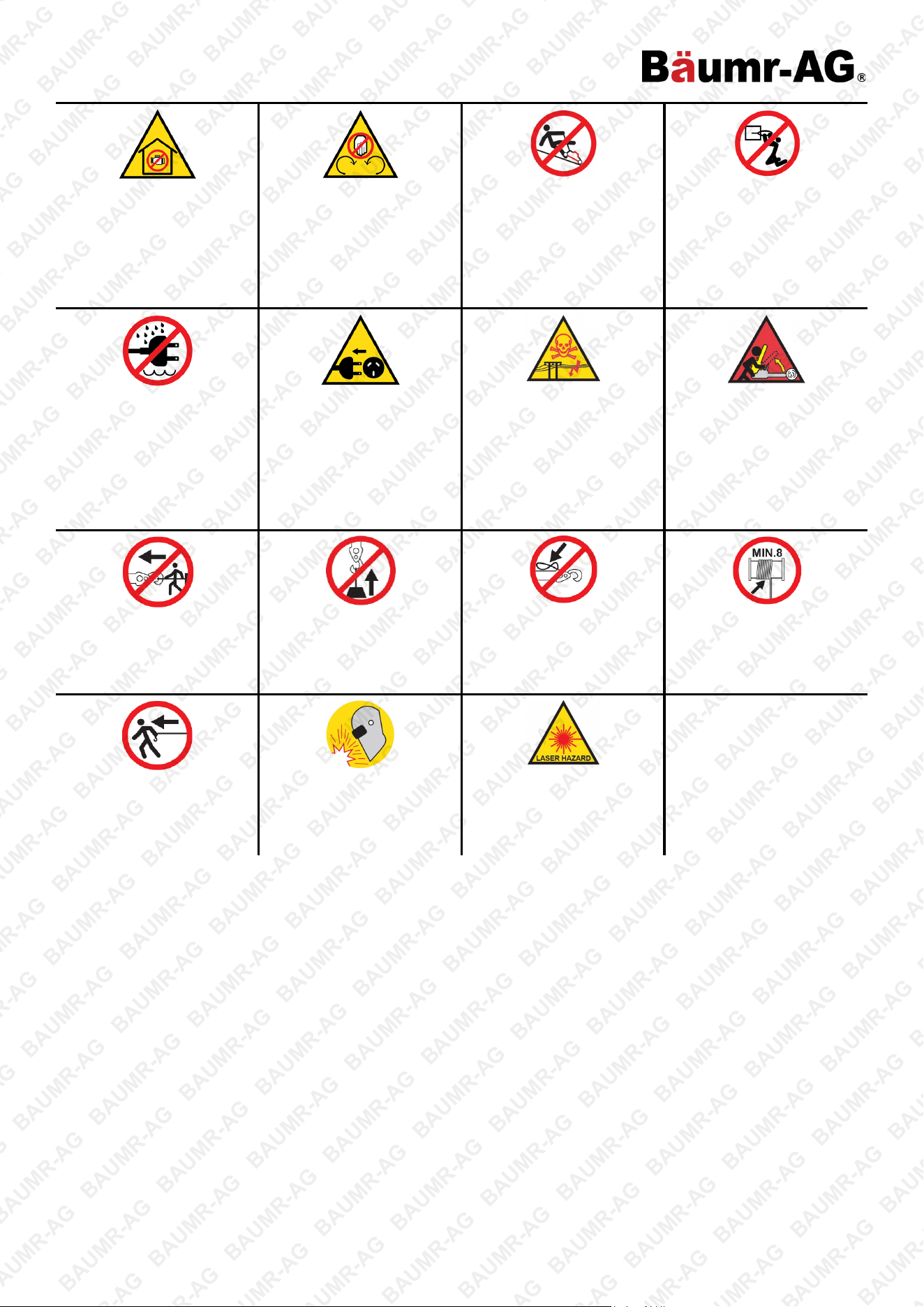

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 8

Table of Contents

Safety .................................................................................................................................................... 2

Safety Symbols .................................................................................................................................................... 6

Parts Identification .............................................................................................................................. 10

Assembly ............................................................................................................................................ 11

Assembling the Handle ...................................................................................................................................... 11

Fixing the Connection Cord ................................................................................................................................ 12

Assembling the Grass Catcher ........................................................................................................................... 12

Assembling the Grass Catcher to the Mower ...................................................................................................... 13

Assembling the Mulching Plug ........................................................................................................................... 13

Assembling the Side Discharge Chute ............................................................................................................... 14

Checking the Engine Oil Level and Filling with Engine Oil .................................................................................. 15

Filling with Engine Fuel ...................................................................................................................................... 16

Routing the Throttle and Choke Lever Cables .................................................................................................... 17

Adjustments ........................................................................................................................................ 18

Setting the Cutting Height .................................................................................................................................. 18

Setting the Required Functions .......................................................................................................................... 19

Operation ............................................................................................................................................ 20

Starting the Engine ............................................................................................................................................ 20

Stopping the Engine........................................................................................................................................... 20

Battery Charging ................................................................................................................................................ 21

Installing the Battery .......................................................................................................................................... 21

Start-Up Operation ............................................................................................................................................. 22

Removing the Battery ........................................................................................................................................ 22

Installing the Control Panel ................................................................................................................................ 22

Mowing Tips ...................................................................................................................................................... 22

Cleaning a Flooded Engine ................................................................................................................................ 23

Using the Self-Propelled Function ...................................................................................................................... 23

Mowing .............................................................................................................................................................. 23

Emptying the Grass Catcher .............................................................................................................................. 24

Lithium Battery Care and Maintenance............................................................................................... 26

Top 3 Battery Care Requirements ...................................................................................................................... 26

Maintenance, Storage and Transportation ......................................................................................... 28

General Cleaning ............................................................................................................................................... 28

Spark Plug Maintenance .................................................................................................................................... 28

Air Filter Servicing .............................................................................................................................................. 28

Maintenance Schedule – Petrol Engine / Machine .............................................................................................. 29

Engine Oil Replacement .................................................................................................................................... 30

Replacing the Blades ......................................................................................................................................... 30

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 9

Storing the Lawnmower for Short Periods .......................................................................................................... 31

Storing the Lawnmower for Extended Periods .................................................................................................... 31

Maintenance Schedule ...................................................................................................................................... 32

Transport ........................................................................................................................................................... 32

Troubleshooting .................................................................................................................................. 33

Specifications ..................................................................................................................................... 34

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 10

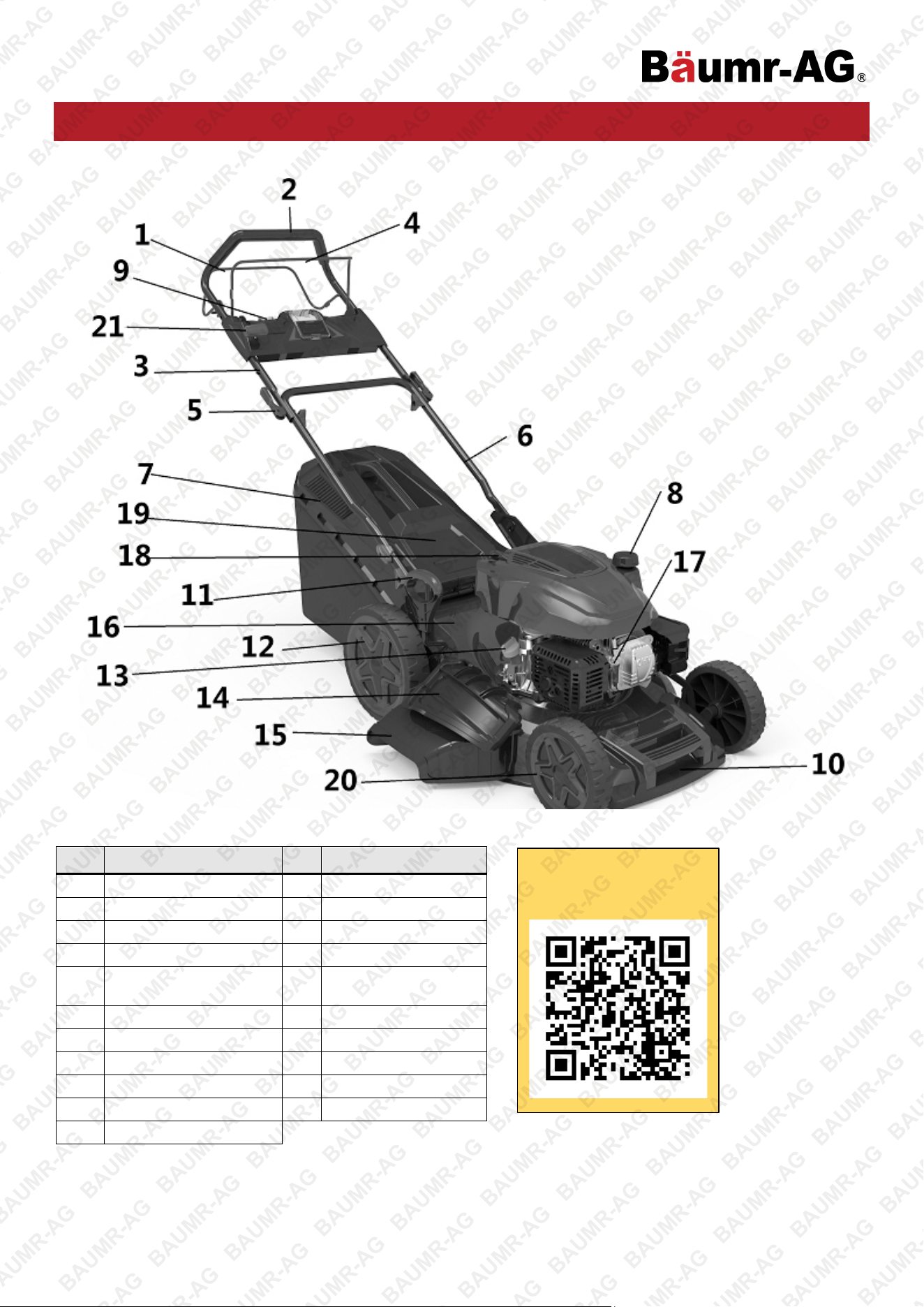

Parts Identification

No. Name No. Name

1 Drive lever (clutch lever) 12 Rear wheel

2

Soft grip

13

Engine oil cap

3

Upper handle

14

Side discharge cover

4

N/A

15

Side discharge chute

5

Fixing knob with square

neck blot

16 Deck

6

Lower handle

17

Spark plug boot

7 Grass box 18 Starter handle

8

Fuel tank cap

19

Rear discharge cover

9 E-start button 20 Front wheel

10 Front decorative cover 21 Throttle control

11

Height adjusting handle

Spare parts available

for purchase, scan QR

code below:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 11

Assembly

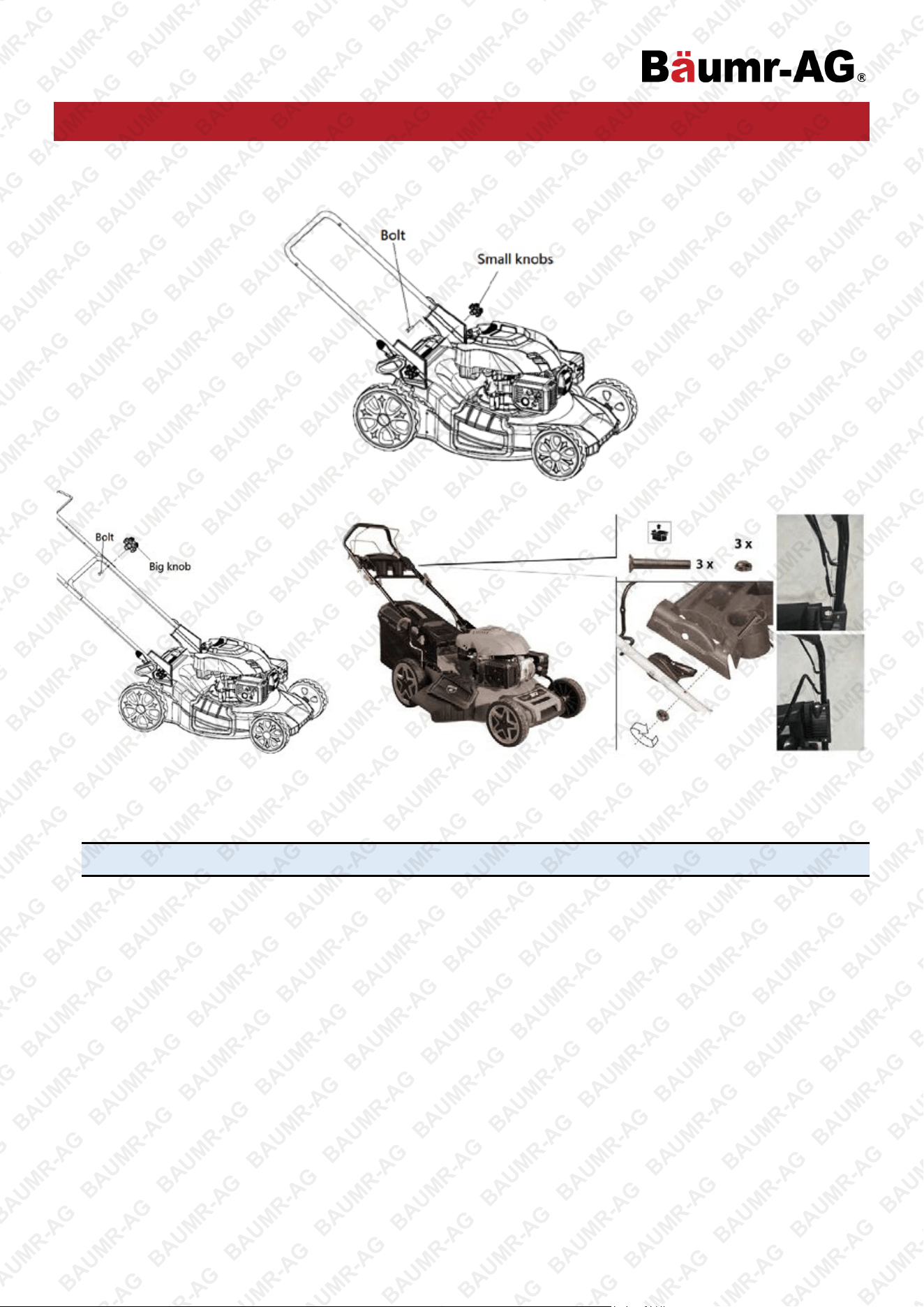

Assembling the Handle

1. Fasten the lower handle to the device by using two bolts and two small knobs on each side.

2. Unfold the upper handle and fix it to lower handle by using the big knobs and the bolts on each side.

NOTE: Make sure the rope guide is on the right handle, when you stand behind the mower.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 12

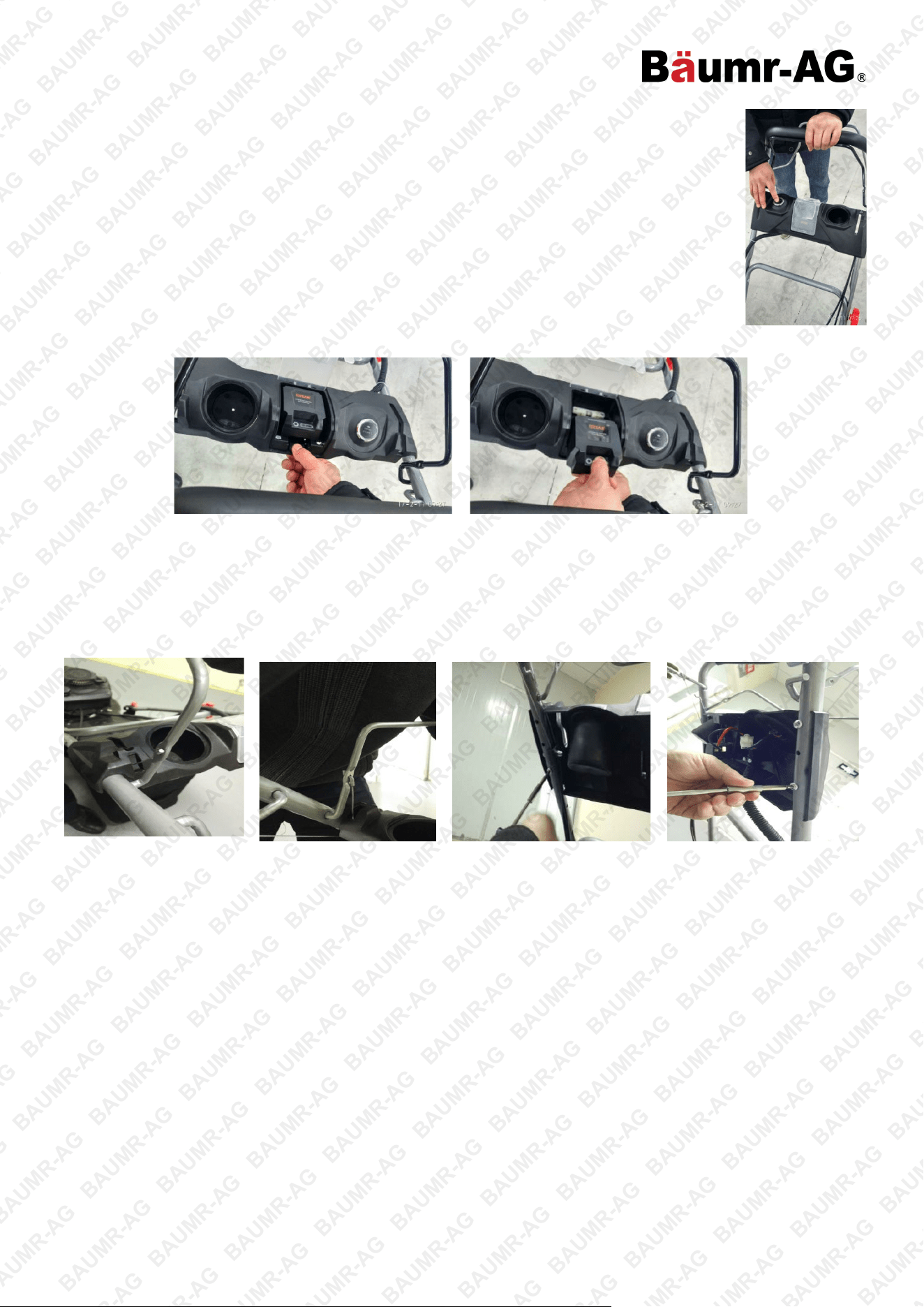

Fixing the Connection Cord

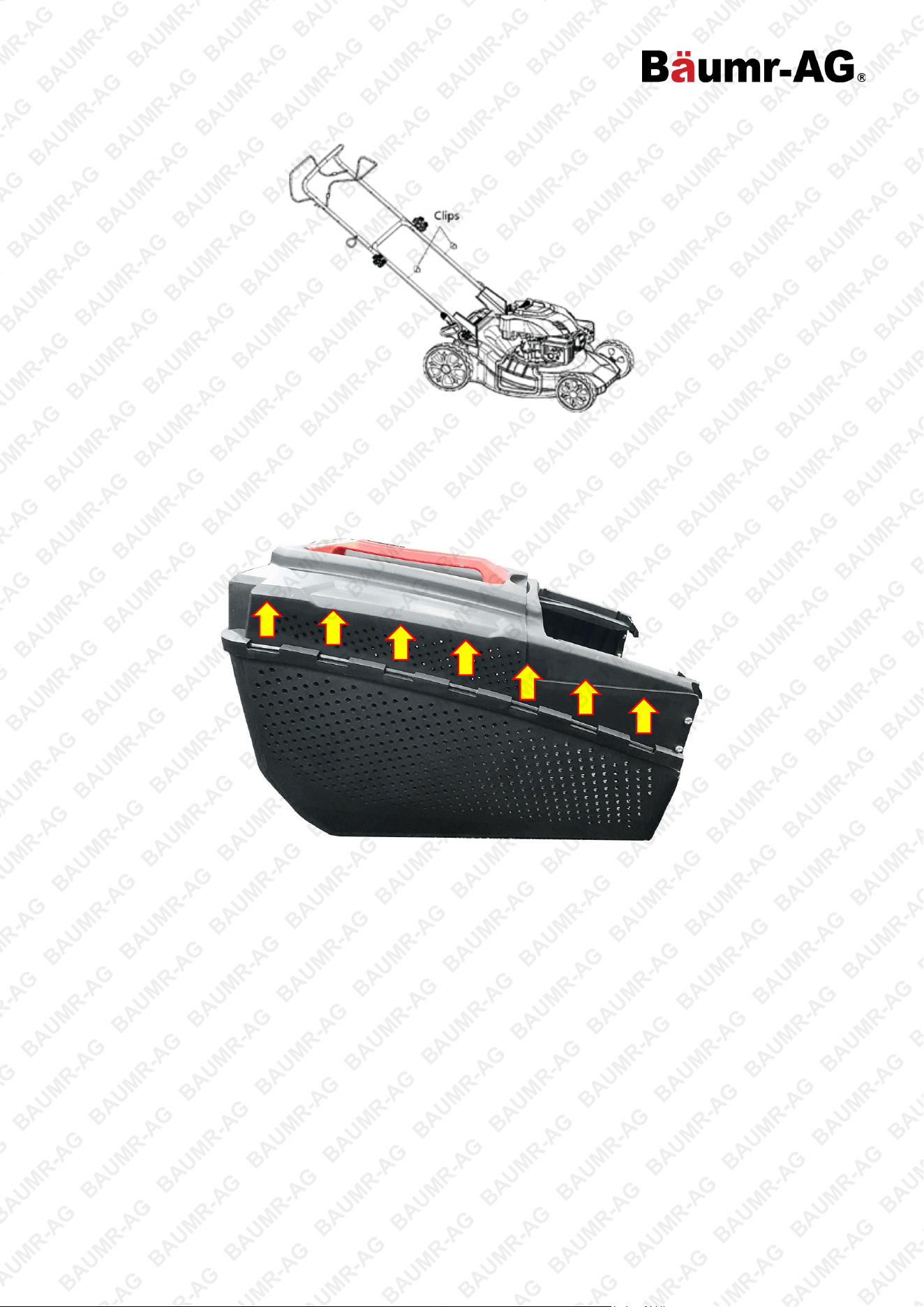

Fix the connection cord to the handle with the cord clips (supplied).

Assembling the Grass Catcher

Push the bottom section into the top section until you feel it snap into place, the bottom section is a little stiff so

you will need to bend it into place. Once it has been locked into place the bottom section will not come apart

from the top section.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 13

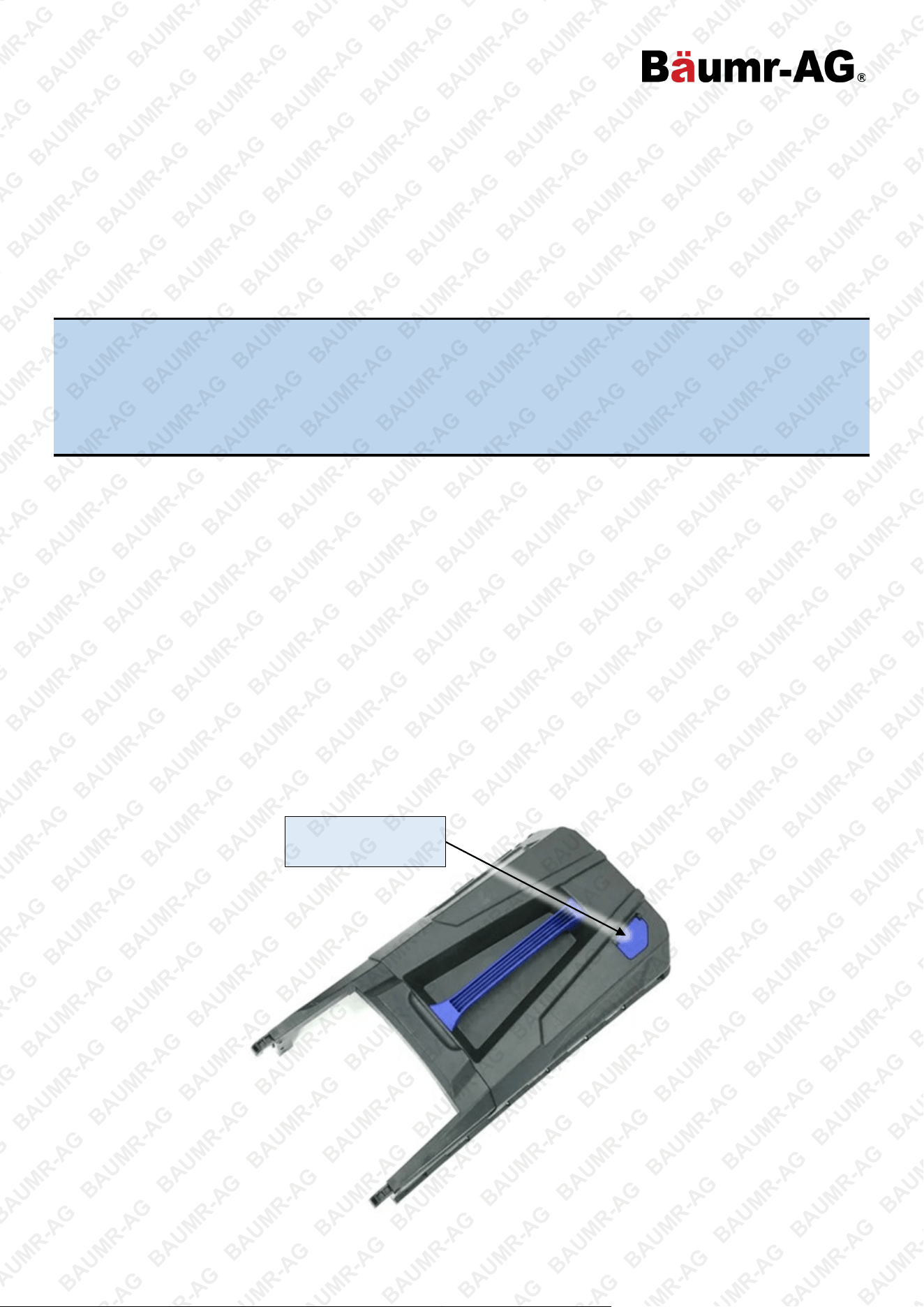

Assembling the Grass Catcher to the Mower

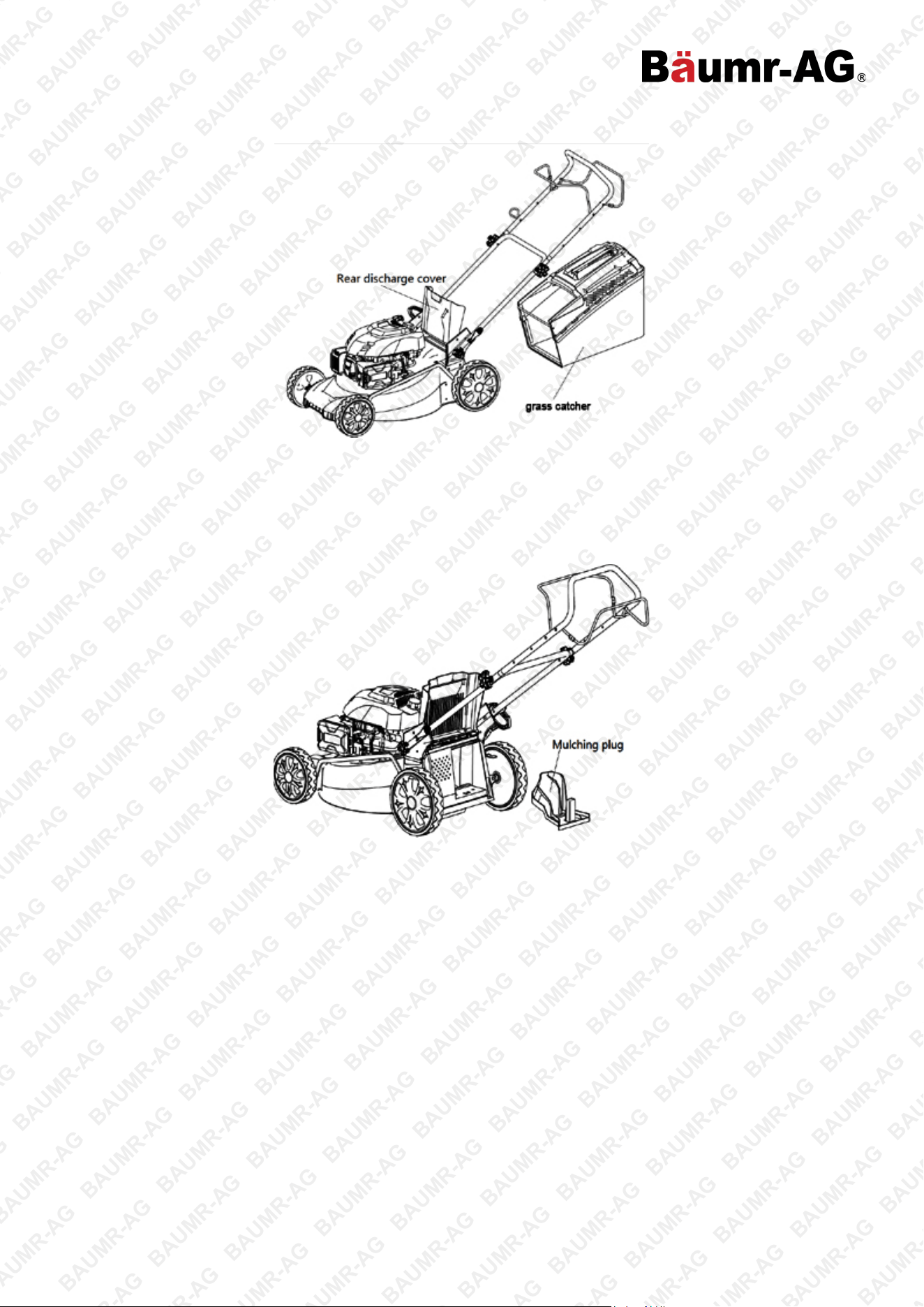

1. Lift the rear discharge cover with one hand and hook in the grass catcher.

2. Release the rear discharge cover to secure the grass catcher in position.

Assembling the Mulching Plug

1. Remove the grass catcher.

2. Push the plastic mulching plug into the discharge chute until it is locked in place.

3. Then release the flap, it will close back to cover the mulching plug.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 14

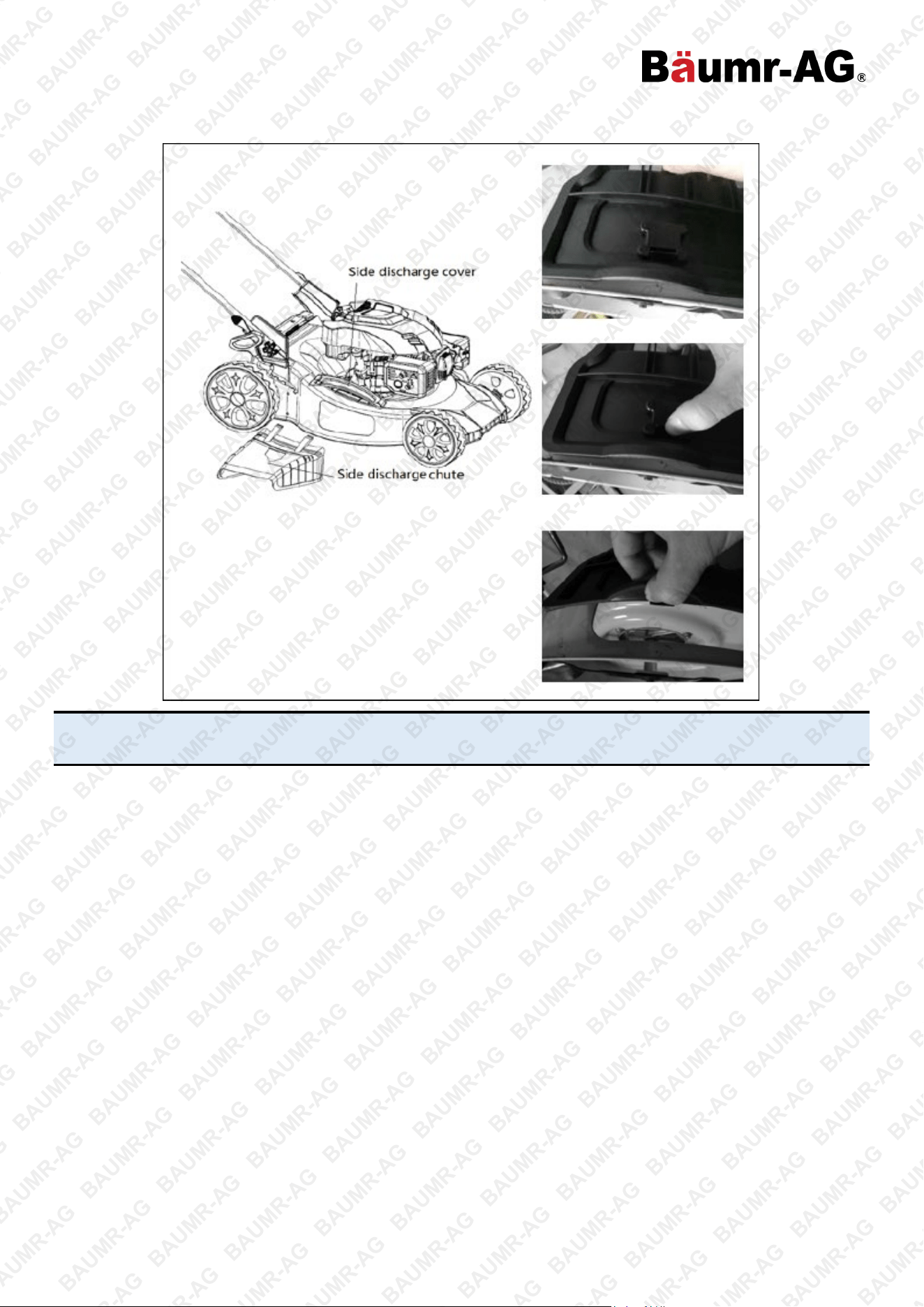

Assembling the Side Discharge Chute

NOTE: When you’re going to use the side discharge function, you first need to remove the grass catcher and

plug-in the mulching plug.

1. As shown in the images above, lift the side discharge cover with one hand and hook in the side discharge

duct with the other hand.

2. Release the side discharge cover to secure the duct in position.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 15

Checking the Engine Oil Level and Filling with Engine Oil

CAUTION! The following procedures and adjustments must be performed before the engine is

started. • Do not attempt to make any of these adjustments while the engine is running. • To

prevent engine damage, the engine is shipped without oil or petrol. The engine must be filled with the correct

grade of oil and petrol before starting the engine. • Running the engine with a low oil level will cause engine

damage. It is recommended that high detergent, premium quality 4-stroke engine oil used. Using non-detergent

oil can shorten the engine’s service life and using 2-stroke oil will damage the engine. • Always use high quality

detergent oil classified SAE30 oil (or equivalent e. g SAE 10W/30, often termed as 4 Stroke lawn mower oil). •

Never use additives with recommended oil. To prolong the life of your engine it is important that the oil is hanged

after the first 5 hours of use. • To Check the engine oil level, stop engine and place the mower on a level

surface.

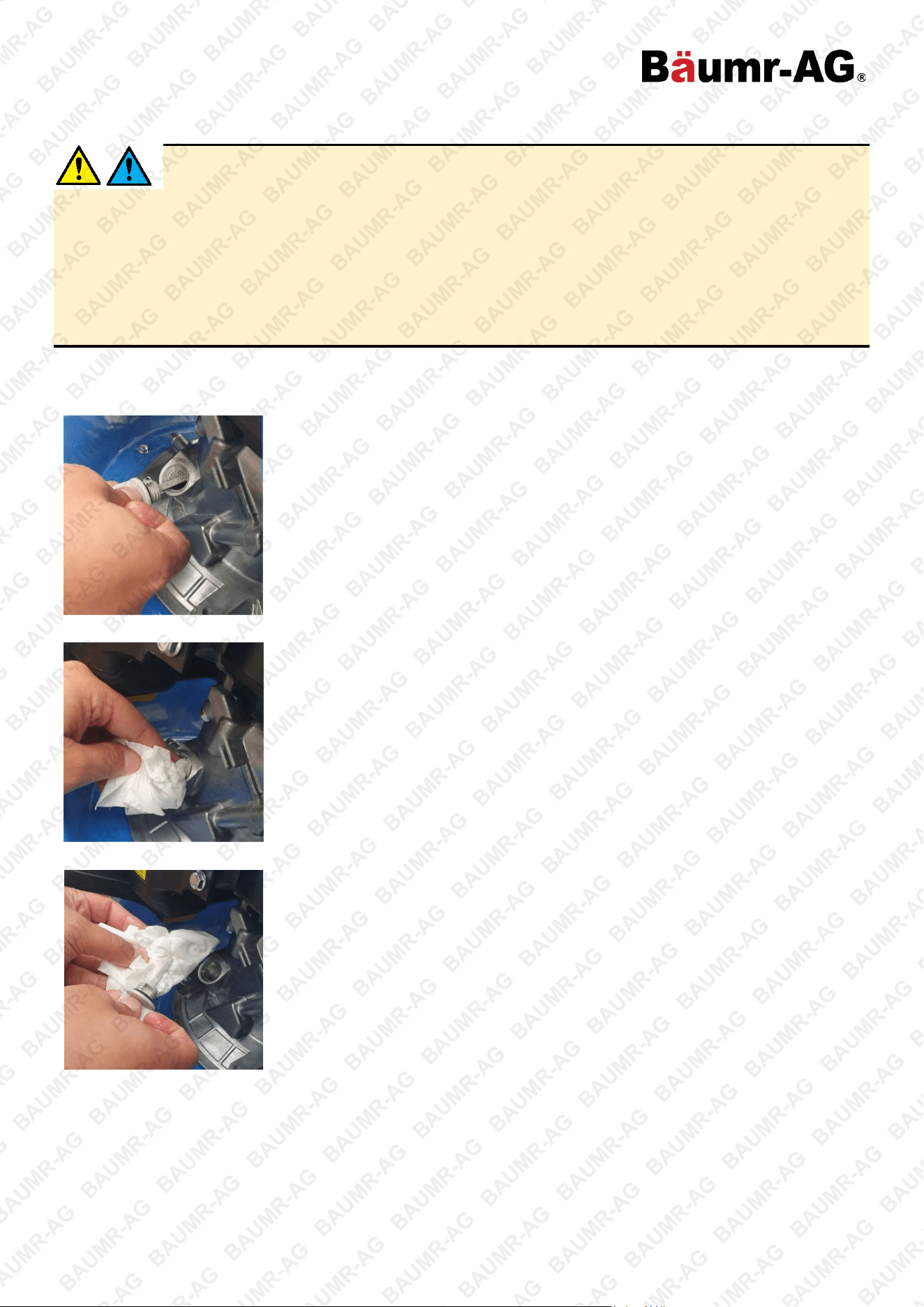

To Check Engine Oil Level

Step 1: Locate the oil fill cap on the crankcase to start. Fill cap locations

vary, depending on the make and model of your engine.

Step 2: Clean the Crankcase: To prevent dirt and debris from falling into

the crankcase, use a clean cloth to wipe the area clean before removing

the cap.

Step 3: Inspect the Oil Dipstick and wipe it with a clean cloth.

•

To ensure an accurate reading, reinsert the dipstick completely. If

the dipstick cap is a screw-in type, ensure an accurate reading by

screwing in all the way before removing it to check the level.

•

Then, remove it again and check the oil level.

Oil should be filled to the H marked on the dipstick.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 16

Step 4: Never fill over the H (full) mark on the dipstick.

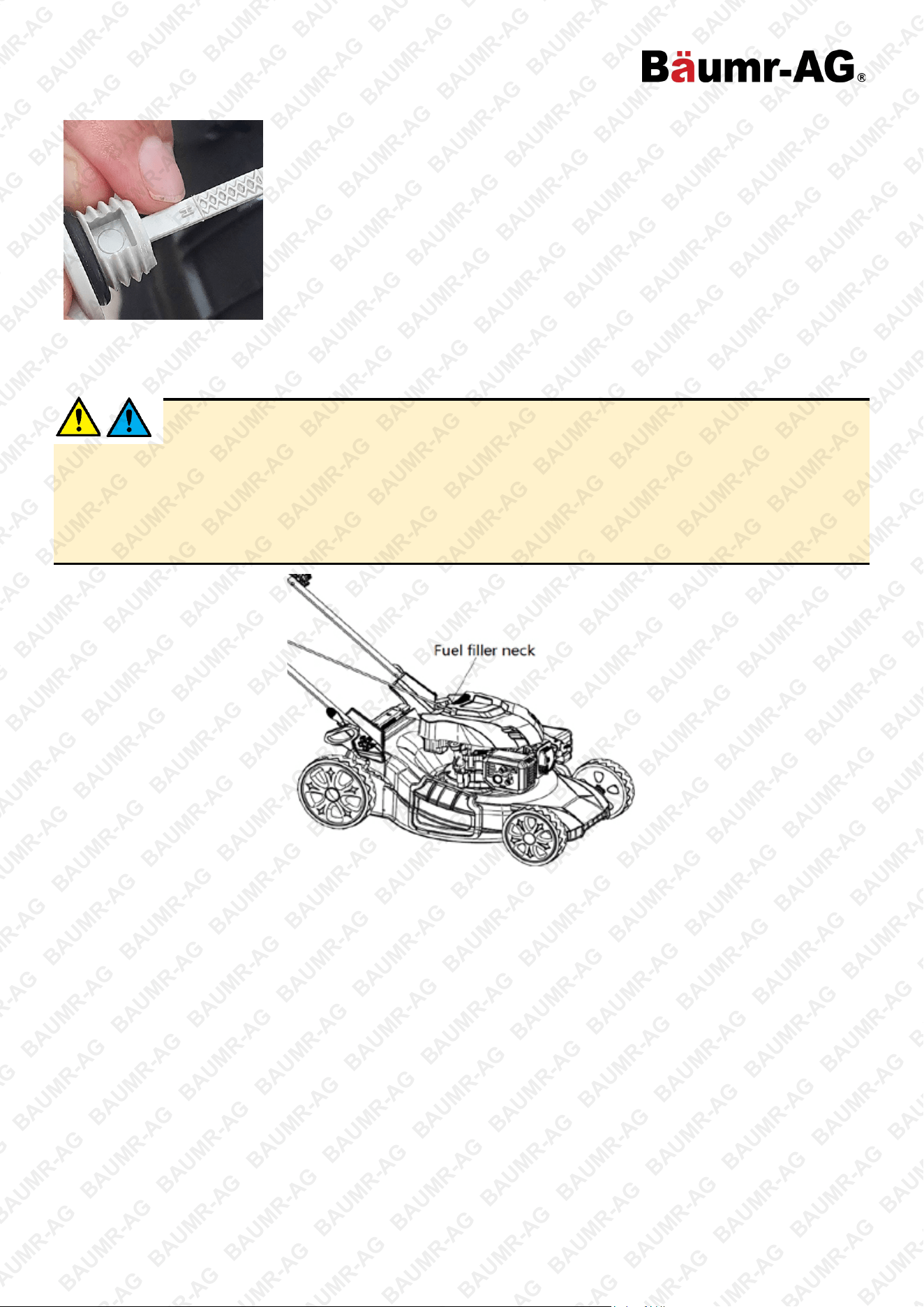

Filling with Engine Fuel

CAUTION! • Always use clean, fresh unleaded petrol. Purchase fuel in quantities that can be

used within 30 days. Never mix oil with petrol. • Do not fill into the base of neck to allow for fuel

expansion. Do not overfill the fuel tank. • Petrol is highly flammable and extreme precaution must be taken when

handling or working with it. Keep out of reach of children. • To prevent engine damage the engine is shipped

without oil or petrol. The engine must be filled with the correct grade of oil and petrol before starting the engine. •

Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flame or sparks in the area

where the engine is refuelled or where petrol is stored. Avoid repeated or prolonged contact with skin or

inhalation of vapour.

1. Clean the area around the petrol filler cap before removing the cap. Remove the warning tag, check the fuel

level.

2. Refill the tank if the fuel level is low.

3. Refuel carefully to avoid overfilling or spilling fuel. There should be no fuel in the filler neck.

4. Clean up any overflow or splashes of petrol before starting the engine.

5. Tighten the filler cap after filling, finger tight on.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 17

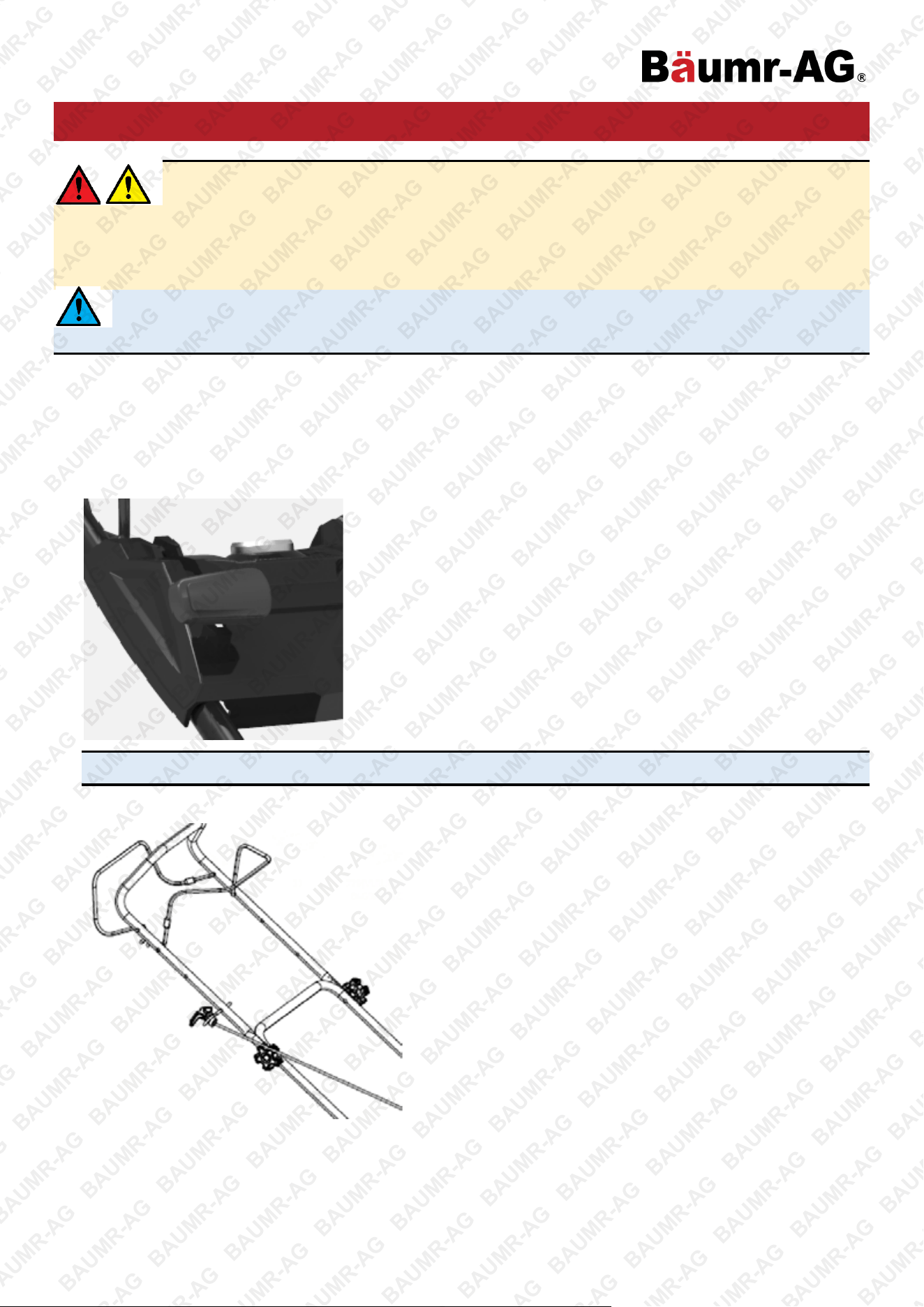

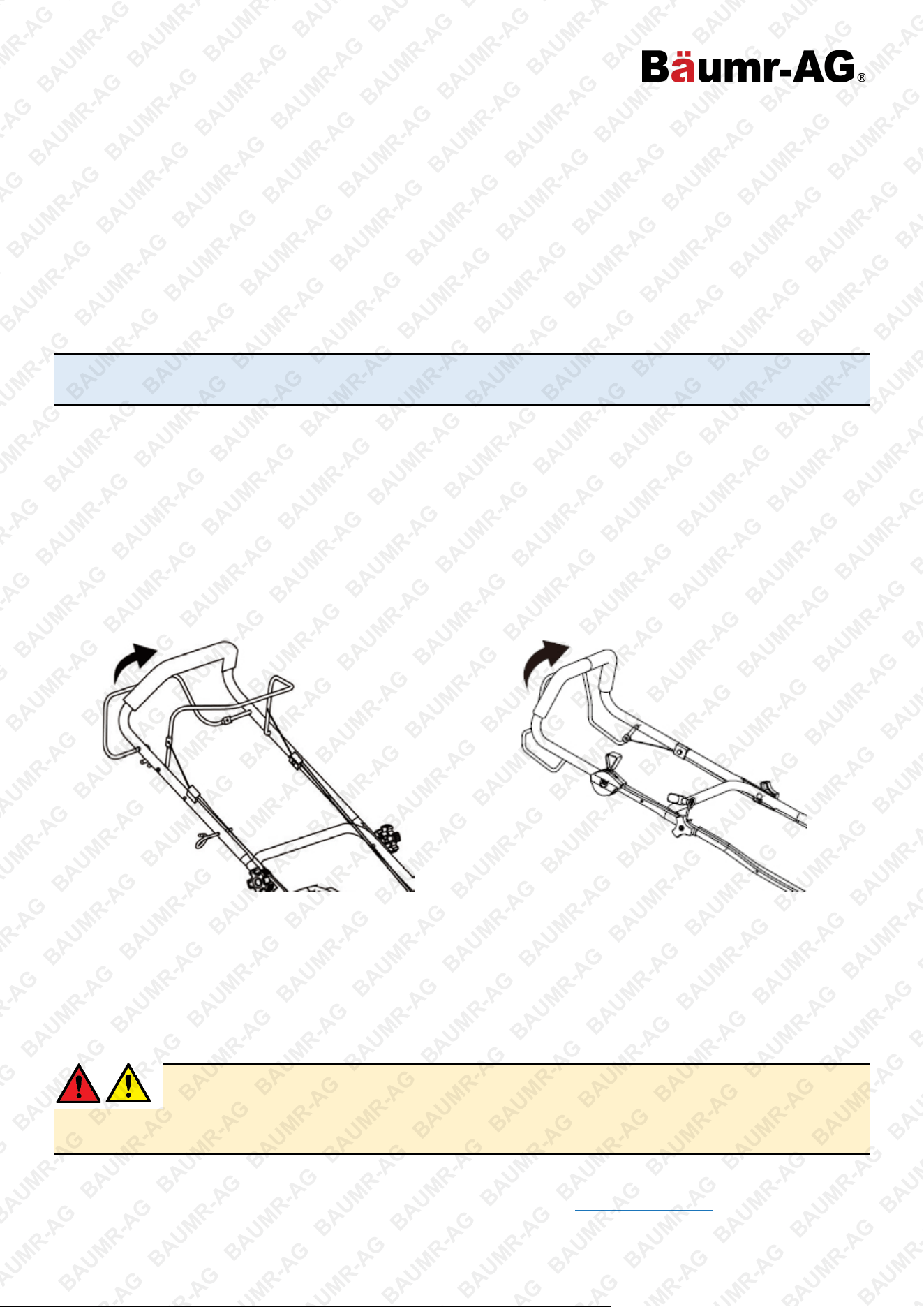

Routing the Throttle and Choke Lever Cables

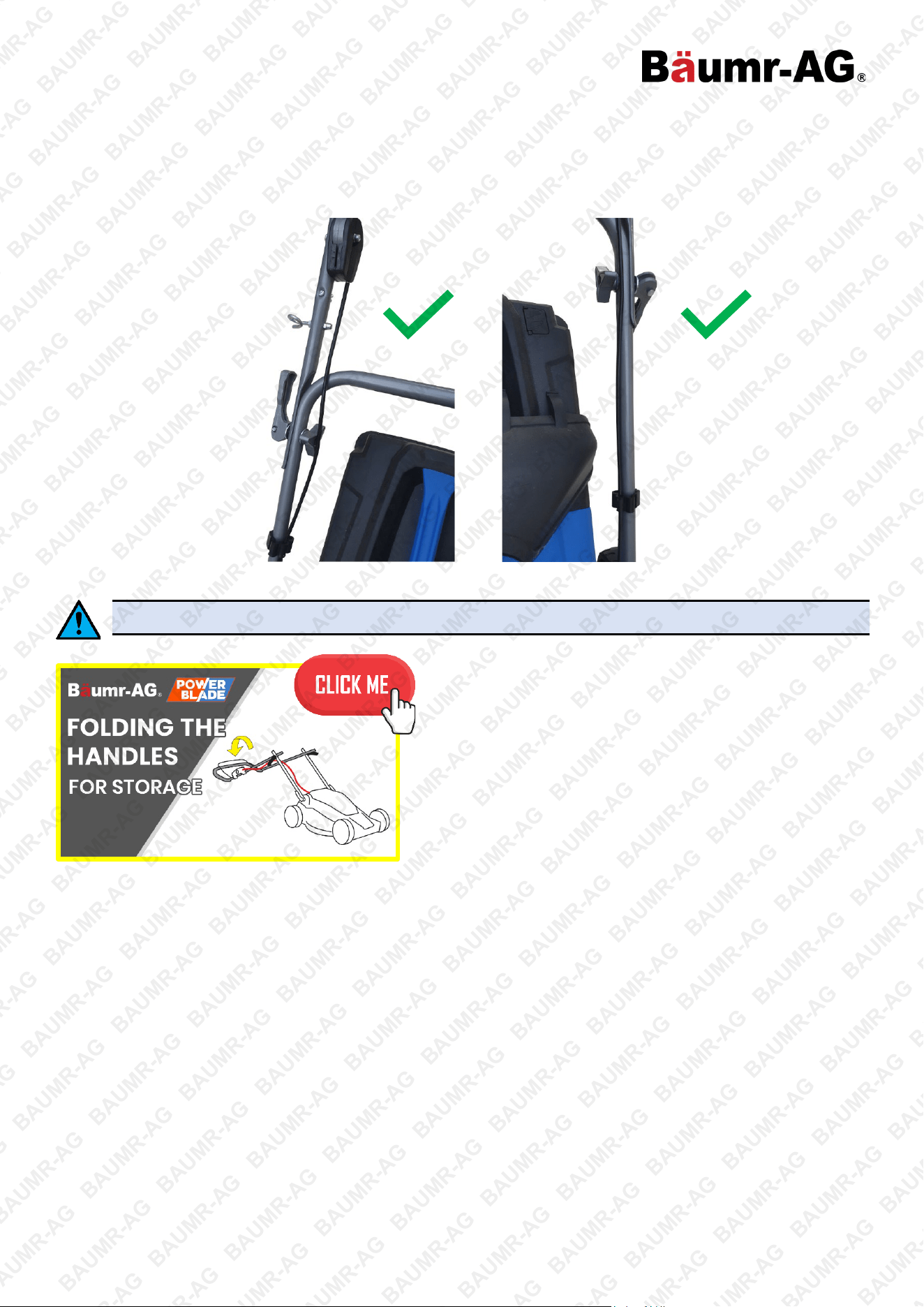

The images below show how to correctly route the cables. They must be routed on the inside of the handles if

you intend on regularly folding them for storage. If routed underneath the handles or in any other way than

shown, you will risk pinching and damaging the cables.

VIDEO TUTORIAL: FOLDING THE HANDLES FOR STORAGE

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 18

Adjustments

Setting the Cutting Height

CAUTION! Adjust the cutting height only when the engine is switch OFF and the spark plug boot

has been pulled out.

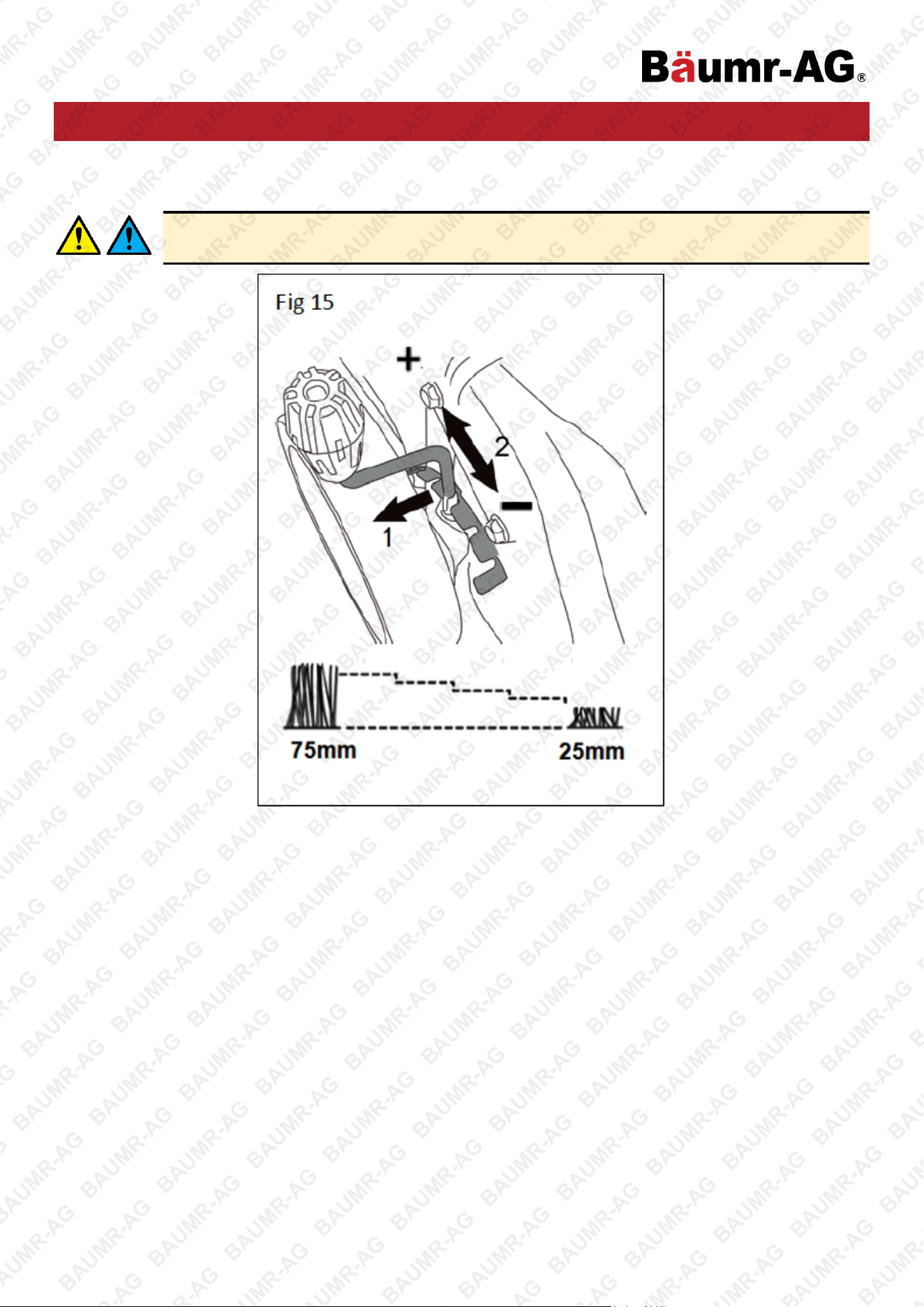

The cutting height is centrally adjusted with the cutting height adjusting handle. Different cutting heights can be

selected.

Pull the adjusting handle out and select the desired cutting height. The handle snaps into the desired position.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 19

Setting the Required Functions

NOTE: This lawn mower has three functions. These functions can be converted by changing the accessory

settings. Please see the following table for details.

Mulching

plug

Grass

catcher

Side discharge

duct

For rear discharging

X X X

For rear bagging

X

✔

X

For mulching

✔

X X

For side discharging

✔

X

✔

✔: install X: remove

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 20

Operation

WARNING! • The blade begins to rotate as soon as the engine has been started. • Do not

operate the machine in enclosed or poorly ventilated areas as the exhaust gas contains toxic

substances. • Keep hands, feet, hair and clothing away from all moving parts of the machine. • The exhaust and

other parts of the machine will become hot during use. • Make sure that the blade is securely fastened before

starting the engine. • To start the engine, make sure that the spark plug boot is located on the plug and the

machine is filled with sufficient oil and petrol.

Please note: Before using the mower, you must apply air filter oil to the foam air filter element. This

prevents dust ingress into the motor, thus preventing potential engine damage or failure. This should

also be done after cleaning the air filter.

Starting the Engine

1. When starting a cold engine, you need to turn the throttle control at the START position first before starting.

2. Stand behind the mower, then pull the starter handle out approx. 10-15cm until you feel a resistance and

then start the engine with a sharp pull.

NOTE: If the engine fails to start after three pulls, repeat the process.

3. Once the engine is running, put the starter rope into the rope guide.

Stopping the Engine

Turn the throttle control towards the Stop position, the engine will automatically switch OFF.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 21

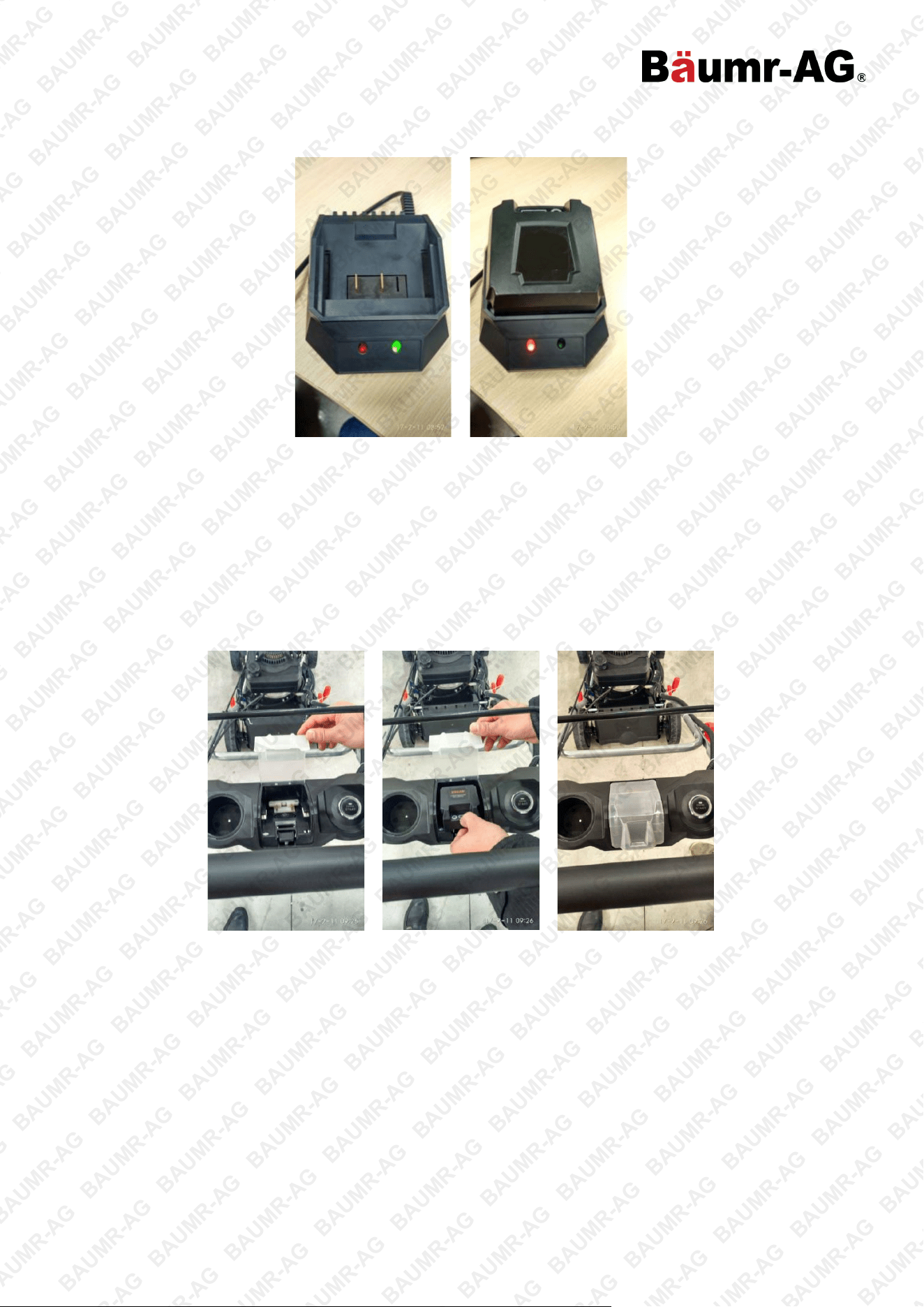

Battery Charging

1. Plug the charger input wire into the power socket and the power indicator light will turn on (green light).

2. Plug the battery into the charger slot and put it on a stable surface. When the battery is charging, the

charging indicator light will have a red light, and the green indicator light will turn off.

3. When the battery is fully charged, the red indicator light will turn off and the green indicator light will turn on.

4. Remove the battery and the charger input wire from the socket.

Installing the Battery

1. Open the battery case.

2. Insert the battery into the slot and push it in place.

3. Close the battery compartment cover.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 22

Start-Up Operation

1. First, check the lawn mower and add fuel and lubricating oil, if needed.

2. When starting with a cold engine, you need to turn the throttle control towards the START

position. Then, press the START button. When the gasoline engine starts, release the

START button.

3. To stop the engine, you need to turn the throttle control towards the STOP position. The

engine will automatically switch OFF.

Removing the Battery

1. Open the battery compartment, then press the battery button.

2. Remove the battery, release the battery buckle and close the battery compartment.

Installing the Control Panel

1. Install the panel onto the push rod and fit it through the mounting hole.

2. Pull the wire through the slot in the panel, then attach the wire to the push rod.

3. Secure the panel on the upper push rod with screws.

Mowing Tips

•

The speed of the motor is set to a factory speed setting and the motor will try and maintain this speed during

operation. If the speed of the engine slows down, this could indicate that the mower is being overloaded by

trying to cut too much grass or the catcher may already be full. Try mowing a narrower strip, mowing slower,

raising the cutting height or emptying the catcher.

•

Before mowing, always check and clear the grassy areas for all foreign objects, especially those that are

solid and semi-concealed in the ground such as rocks, stumps and garden stakes.

•

Sharp blades cut cleanly and efficiently, if the blade is dull, it will tear the grass. This will result in the blade

edges turning brown. When the blades no longer cut cleanly, either sharpen them or replace them.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 23

•

To safely operate the mower, ensure all four wheels are on the ground and be careful not to lose your

footing or control of the mower. Be very careful when mowing uneven or rough ground. Keep a firm grip on

the handlebar at all times. Always walk, never run with the mower.

•

For healthy growth, grass should not be cut too short. The grass will remain healthier, greener and require

less watering.

•

Vary your cutting pattern from week to week, this will help to prevent matting and graining of the grass.

Cleaning a Flooded Engine

NOTE: if the engine won’t start after you have operated the starter several times, the engine may be flooded with

excess fuel. Use following procedure to clear and start a flooded engine.

1. Release the engine start/stop lever to stop the engine.

2. Remove the spark plug, dry it, and then reinstall it.

NOTE: Install the spark plug carefully by hand, to avoid cross-threading. After the plug is seated, tighten 1/8

to 1/4 turn with socket spanner of spark plug to compress the washer.

3. Pull the engine start/stop lever toward the upper handle.

4. Operate the starter as described above.

Using the Self-Propelled Function

This unit equipped with a self-propelled system. If you press the drive lever (clutch lever), the clutch for the drive

will be closed and the lawnmower will start to move with the engine running.

To stop the moving lawnmower, just simply release the drive lever.

Mowing

WARNING: • Always observe the strictest safety procedures when using the lawnmower.

Carefully read the safety instructions of this manual before using the lawnmower. • Never open

the ejector flap when the grass catcher has been detached (to be emptied) and the engine is still running. The

rotating blade can cause serious injuries!

1. Select your required setting.

2. Start the engine and allow it to run and set it to required speed. See Starting the Engine.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 24

3. Keep a firm grip on the upper handle with engine stop/start lever and drive lever (clutch lever) closed and

walk along with its self-propelling to start mowing.

When Mowing

•

Walk, never run with the mower, be very careful when mowing uneven or rough ground.

•

Mow across slopes, never up and down.

•

Be careful when changing the direction of the mower on a slope.

•

Do not mow excessively steep slopes.

Note: Grass clippings can clog underneath the mower deck, preventing the blades from turning. This can

overheat the engine, causing excessive wear to engine components, reducing the lawn mower's overall lifespan

or catastrophic failure of engine bearings and pistons.

Clogging occurs if you mow wet, long, or lush grass. For the best result, mow when the grass is dry and use a

whipper snipper to reduce the height of grass longer than 15cm (6”) before mowing on the highest cutting

setting.

•

Grass grows at different rates at different time of the year. Never use the lowest cutting height for the first cut

of the season or in drought conditions.

•

Only about one thirds of the grass height should be cut.

•

When mowing with the mulching function, do not cut high or wet grass to ensure that the cut grass can be

scattered efficiently. When you have been cutting for several minutes, please stop the mower, and clean the

blade and the deck.

•

Do not remove grass debris in the mower casing or on the blade by hand or with your feet. Instead use

suitable tools such as a brush or broom.

Emptying the Grass Catcher

A lawn mower generates significant airflow when it moves the grass into the catcher. The catcher is fitted with a

full indicator flap, which stays up if there is space inside. When the space inside the catcher is filled with grass,

the airflow is no longer enough to raise the flap. The flap will drop at this point, indicating it is time to empty the

catcher.

Grass catcher full

indicator flap

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

E&OE © Baumr-AG 25

As soon as grass clippings start to trail the lawn mower, it is time to empty the grass catcher.

NOTE: Before taking off the grass catcher, switch off the engine and wait until the blade has come to a stop.

1. To take off the grass catcher, use one hand to lift up the ejector flap and the other to grab onto the carry

handle. The ejector flap automatically falls down after removing the grass catcher and closes off the rear

chute opening.

2. Empty the grass catcher of grass debris and then refit grass catcher.

NOTE: If any grass residue is caught in the discharge chute, clean it using a brush. Do not remove grass debris

in the mower casing or on the blade with your hand or feet. Instead, use suitable tools such as a brush or broom.

To ensure that the cut grass can be collected into the grass catcher, the discharge opening and interior of the

mower casing must be cleared of any blockage.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

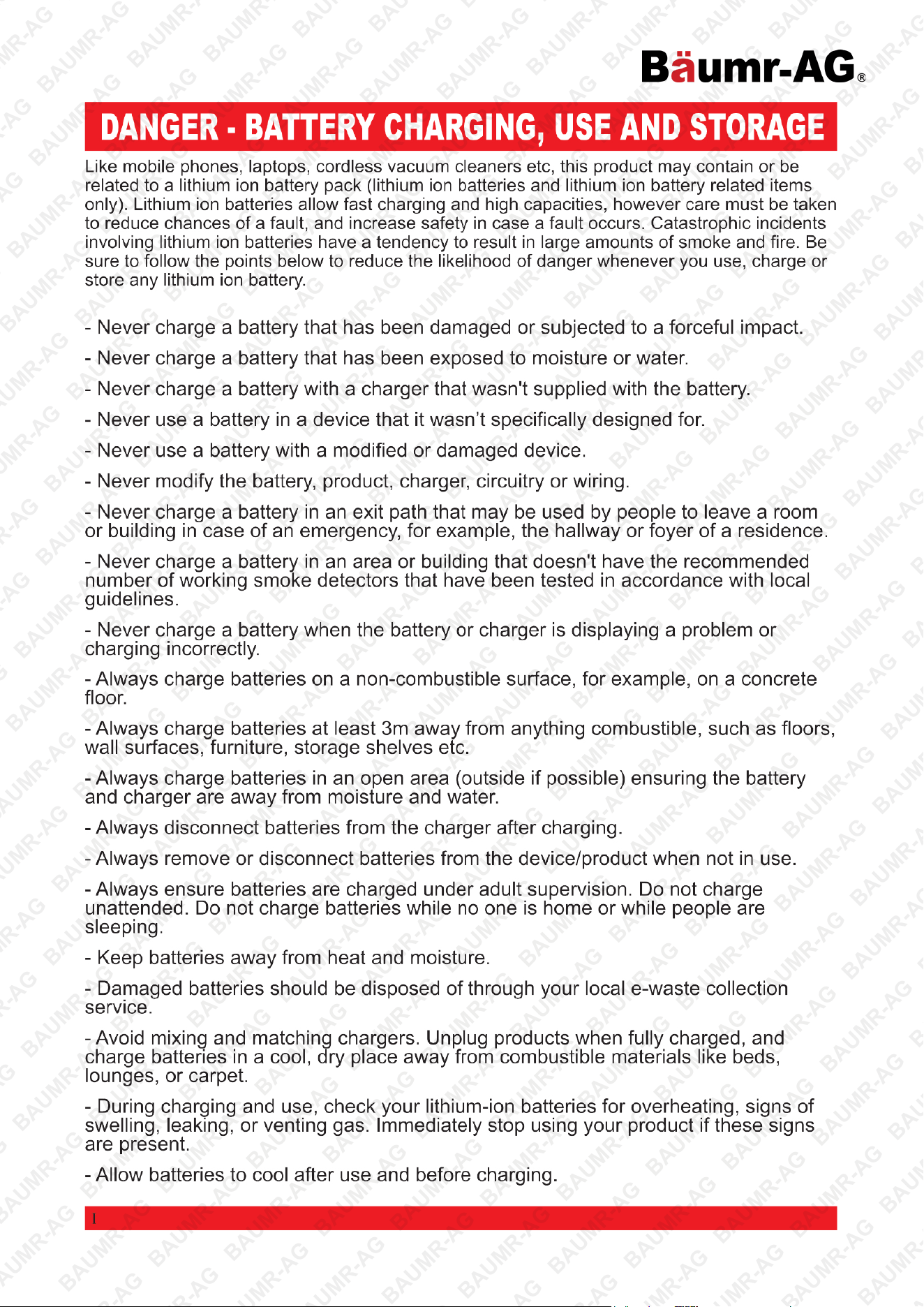

Lithium Battery Care and Maintenance

Top 3 Battery Care Requirements

1. Charge battery before first use. The battery may arrive with some charge, regardless of this the

battery must be charged for 2 hours on the initial charge and 2 hours for each subsequent charge.

2. Charge battery immediately when it is depleted. Do not store a depleted battery. This will

permanently impact the life of the battery. If the battery is going to be stored for a period of time, fully

charge the battery before storing.

3. Disconnect battery when not in use. To prolong the life of a battery, disconnect it from the unit

when not in use. Disconnect chargers from the battery once charged.

To ensure the battery maintains optimum performance, follow the guidelines outlined below.

•

For best results, charge batteries in temperatures between 10°C and 30°C

•

When battery is charged, disconnect the charger from the power supply and remove the battery from the

charger.

•

If a battery is stored or otherwise unused for an extended period, and the battery has no charge remaining

when you check it, consider it to be damaged. Do not attempt to recharge it or to use it. Replace it with a

new battery.

•

Use only with the battery charger specified by the manufacturer.

•

Ensure that the battery charger electrical cord is not subjected to damage or stress. Do not operate the

battery charger if it has a damaged electrical cord or plug.

•

Do not use the charger in wet areas or expose it to rain or water.

•

The typical estimated life of a Lithium-Ion battery is about two to three years or 300 to 500 charge cycles,

whichever occurs first. One charge cycle is a period of use from fully charged, to fully discharged, and fully

recharged again

•

Explosion hazard – protect the battery against heat; for example, direct sunlight and fire. Do not store

batteries in vehicles or locations subject to heat.

•

Batteries can explode in the presence of an ignition source, such as a pilot light. To reduce the risk of

serious personal injury, never use any cordless product in the presence of open ﬂame. Exploding batteries

can propel debris and chemicals.

•

Do not open the battery – danger of short-circuiting and/or explosion.

•

Do not attempt to destroy or disassemble the battery pack or remove any of its components.

•

Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury

may result.

•

Explosion hazard – do not open and/or short-circuit the battery.

•

Poison hazard – battery leakage (liquid ejection). Under extreme conditions, liquid may be ejected from the

battery – avoid contact. If contact accidentally occurs, immediately seek medical attention, and flush with

water. If liquid contacts eyes, immediately seek medical attention, flush with clean water for at least 10

minutes. Liquid ejected from the battery may cause irritation or burns.

•

Dispose of non-serviceable batteries in an environmentally responsible manner and according to local

regulations.

Failure to adhere to the requirements above may result in the battery becoming inoperative or battery life being

reduced. In extreme cases or abuse, battery overheating or fire may result.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

Maintenance, Storage and Transportation

WARNING! Before performing any maintenance or cleaning work, switch OFF the engine

and wait until the blade has come to a stop.

General Cleaning

•

The lawn mower should be cleaned thoroughly every time after it has been used.

•

Always clean your lawnmower immediately after use.

•

Do not allow grass cuttings and other debris to become dry and hard on any of the mower surfaces.

•

Dried grass remnants and dirt may impair the mowing operation.

•

Check that the grass chute is free of any residual grass. Remove any such residue.

•

Check the underside of the lawn mower and the blade mount. for this purpose, tilt the lawn mower onto its

left side (opposite the oil filler neck).

NOTE: Before placing the lawn mower on its side, drain the fuel tank fully using a petrol extraction pump. Do

not tilt the lawn mower by more than 90 degrees.

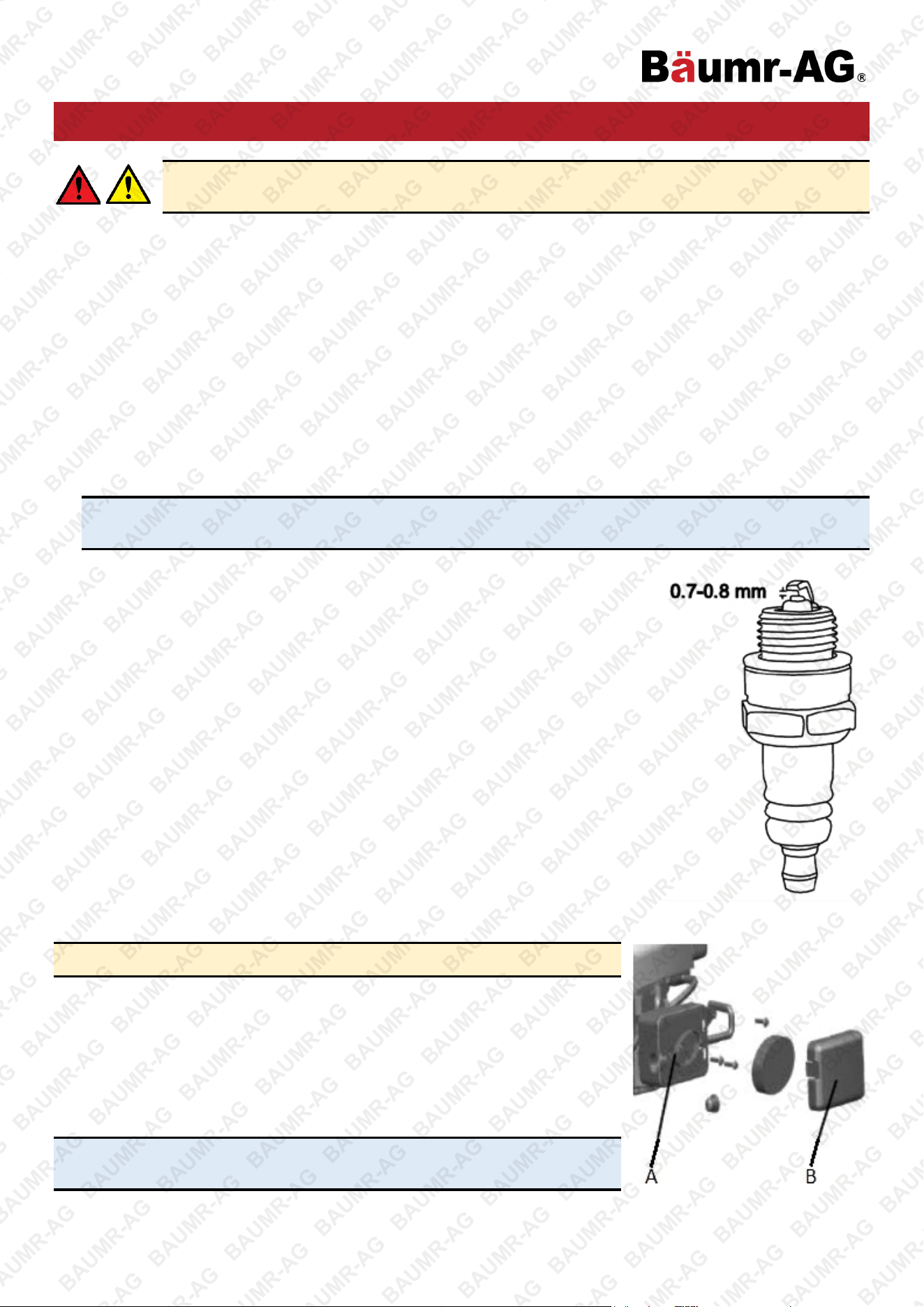

Spark Plug Maintenance

1. Once the engine has cooled down, pull off the spark plug with a twist.

2. Remove the spark plug using a spark plug wrench.

3. Clean the spark plug with a wire brush (not supplied).

4. Using a feeler gauge, set the gap to 0.75mm

5. Install the spark plug carefully by hand to avoid cross-threading.

6. After the spark plug is seated, tighten with the spanner to compress the

washer.

Air Filter Servicing

Soiled air filters reduce the engine output by supplying too little air to the

carburettor. if the air contains a lot of dust, the air filter should be checked more

frequently.

WARNING! Never run the engine without the air filter element installed.

1. Remove the air cleaner outside cover (A). Be careful to prevent dirt and

debris from falling into the air cleaner assembly.

2. Separate the Air Filter (A) from the Air Filter Housing (B).

3. Inspect the air filter. Clean dirty air filter with warm water and mild soap.

Allow air filter to dry thoroughly before re-installation

4. Install the air filter assembly onto the carburettor and secure with screw.

NOTE: Do not use pressurized air or solvents to clean the filter. Pressurized

air can damage the filter and solvents will dissolve the filter.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

Maintenance Schedule – Petrol Engine / Machine

Major Service

–

Heavy

-Duty Use

Every 200

Hours Use

Replace

Check. Tighten as necessary

Replace

Clean

Replace as necessary

Check. Clean

Flush and clean

Check. Adjust as necessary

Check. Tighten as necessary

Check. Clean / de

-coke as necessary

Check level. Adjust as necessary

Perform

Sharpen. Replace as necessary

Replace

Check. Replace as necessary

Major Service

–

Normal Use

24 Months / 200

Hours Use

12 Months /

100 Hours

Use

Clean, Oil and Replace

as necessary.

Clean. Replace as necessary

6 Months / 50

Hours Use

Clean. Replace as necessary

3 Months / 25

Hours Use

Check

After First 5

Hours Use

Every Use

Check level. Adjust

as necessary

Check

Check level. Adjust

as necessary

Check level. Adjust

as necessary

Check tension

.

Clean & adjust as

necessary.

How to

remove the cover.

Component / Task

Engine Oil

****

Engine Oil Filter

*

Loose Engine / Machine

Fasteners

Air Filter

Spark Plug

Spark Arrestor

*

Fuel Filter

*

Fuel Strainer

*

Float Bowl

*

Fuel Lines / Hoses

Fuel injector

*

Fuel Pump

*

Fuel Tank

Idle Speed

Valve Clearance

Cylinder Head Fasteners

Combustion Chamber

Battery Electrolyte

*

Major Service

Cutting Blade / Chain

*

Water Pump Oil

**

Hydraulic Fluid

***

Drive Belt

Maintenance *

* Where applicable. ** Pressure washers with non-sealed water pumps. *** Log splitters only.

**** Briggs & Stratton "EXi" engines do NOT require engine oil changes; just ensure that oil level is correct.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

Engine Oil Replacement

1. Tilt the lawnmower towards the oil filler, have a container ready to catch the oil and remove the dipstick.

Once the oil has been emptied, replace the dipstick and wipe clean any spillages.

2. Refill with 500ml SAE30 oil or equivalent i.e. SAE5W/30, SAE10W/30. When the dipstick is rested on the

filler pipe (i.e. not turn in pace), the oil level must be between the min and H marks on the dipstick. See

Checking the Engine Oil Level and Filling with Engine Oil.

3. Start the engine and allow it to run briefly.

4. Stop the engine, wait one minute and check the oil level. Top up, if necessary.

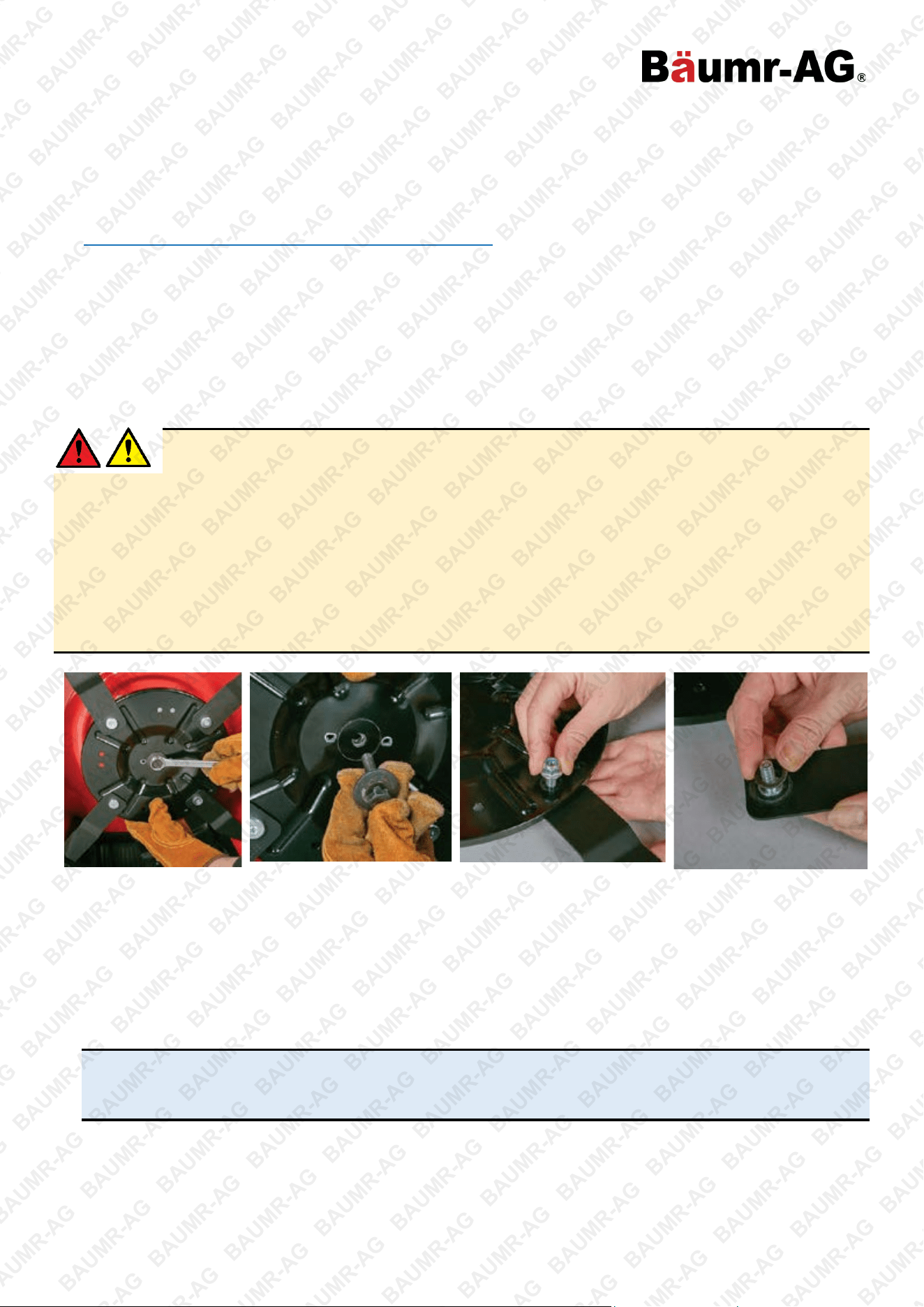

Replacing the Blades

For safety reasons you should only ever have your blade sharpened, balanced and mounted by an authorised

service workshop. For optimum results it is recommended that the blade should be inspected once a year.

WARNING! • Before you remove the grass catcher, stop the engine and wait until the blade stops

completely. • You will need garden gloves (not provided) and a spanner wrench (not provided) to

remove the blade. • Don’t invert the mower. Tip it slightly towards the oil filler pipe and reach under the deck. •

Always handle the blade with care, sharp edges could cause serious injuries. ALWAYS USE GLOVES. Renew

your metal blade after 50Hrs of mowing or 2yrs, whichever is sooner regardless of condition. • If the blade is

cracked or damaged, replace it with a new one. • Don’t hold the blade by hand directly. • Maintain the sharpness

of the blade when cutting grass. If the blade has worn excessively and become pitted and blunt, it should be

replaced or sharpened. The sharpness of the blade will affect the performance of the lawnmower. • For safety

reasons, we recommend that the blade should be changed only by someone qualified and authorised to do so. •

Before making any adjustment or maintenance procedures to the lawn mower, ensure it is turned OFF and the

spark plug lead is removed. Wear heavy gloves to protect your hands.

1. With the engine switched OFF, remove the hard catcher and lift the front of the lawn mower upwards so the

upper handlebar sits on the ground and the spark plug faces upwards.

2. Remove the blade bolt using a 17mm spanner (not supplied) by turning in an anti-clockwise direction, then

remove the outer flange and washer. This allows you to be able to remove the blade mounting plate from the

lawn mower.

3. To remove a single blade from the blade mounting plate, again use a 17mm spanner (not supplied) to loosen

and remove the nut, screw and washers.

NOTE: There is one washer located under the screw on the outer side of the blade mounting plate, and one

on the underside of the blade mounting plate in between the blade and blade mounting plate. Be careful not

to lose these.

4. Repeat the process to remove the other 3 blades.

5. Clean the dirt and grass from around the blade mounting area.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

6. Replace all 4 blades to ensure a smooth even cut and re-fit them on the mower in the reverse direction they

were removed.

7. Lastly, secure the nuts firmly, (20-25Nm) repeating this for the other 3 blades.

8. Replace the blade mounting plate (37) with new blades attached, then the outer flange (32), followed by the

blade bolt (31). Retighten the blade bolt tightly (50 – 59Nm).

NOTE: Use a wooden block to stop the blade from turning. The four blades should be tightened fully but check

to ensure they can still swing back if they were to hit a solid object. Where required, tighten the bolts with a

torque wrench, the centre disc blade bolt torque: 50 – 59Nm and the four blades torque: 20-25Nm. If you do not

have a torque wrench, ask a mower service dealer to tighten the blade bolts before you use the mower.

Blades should be replaced when they become worn and no longer cut the grass cleanly. The performance of

grass catching can also reduce if the blades become worn.

Storing the Lawnmower for Short Periods

The lawnmower can be stored for short periods of time (less than 15 days) without performing any storage

maintenance. Before placing the lawnmower into storage, always carry out the following:

1. Allow the engine to fully cool.

2. Ensure the grass catcher is empty.

3. Clean all debris from under the mower deck.

4. Store the lawnmower on flat and level surface with the mower upright.

5. Store in a safe place which is not accessible by children or people who are not familiar with operation.

Storing the Lawnmower for Extended Periods

If the lawnmower is to be place into storage for more than 15 days, storage maintenance must be performed on

the lawnmower. If the following steps are not carried out, when you next operate the lawnmower it may not start

correctly and may need to be serviced.

CAUTION! Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol

fumes can cause explosions and fire.

1. Empty the petrol tank with a petrol suction pump if available.

2. Start the engine and let it run until any remaining petrol has been used up.

3. Change the oil at the end of every season. To do so, remove the used engine oil from a warm engine and

refill with fresh oil.

4. Clean the cooling fins of the cylinder and the housing.

5. Be sure to clean the entire machine to protect the paint.

6. Store the machine in a well-ventilated place.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

Maintenance Schedule

Performing routine maintenance correctly on your lawnmower will ensure you get years of trouble free use.

Please keep this manual safe for future reference.

It is recommended that the following maintenance schedule is adhered to. This will ensure the lawn mower

operates correctly and is safe to use.

12 hours of use 24 hours of use 36 hours of use

Air filter Clean Clean Replace

Spark plug Check Clean Replace

Engine oil Check Replace Check

The Engine oil should be changed after the first 8 hours.

Transport

1. Empty the petrol tank.

2. Always let the engine run until it has used up the remainder of petrol in the tank.

3. Empty the engine oil from the warm engine.

4. Remove the spark plug boot from the spark plug.

5. Clean the cooling fins of the cylinder and the housing.

6. Use the original packaging to ship whenever possible.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

Troubleshooting

WARNING! Before performing any maintenance or cleaning work, switch off the engine and wait

until the blade has come to a stop.

CAUTION! • Improper repairs can result in the product functioning unsafely. This endangers yourself

and your environment. • Faults which cannot be rectified with the aid of following table may be rectified

by a specialist company only (customer service centre). • Please be aware that any improper repairs will

also invalidate the warranty and additional costs may be incurred. • Use only genuine spare parts. Only these

spare parts are designed and suitable for the product. The use of other spare parts not only voids the warranty,

you can also endanger yourself and your environment.

Fault/Malfunction Cause Remedy

Loud while running, machine

vibrates heavily

Screws are loose Check screws

Blade fasteners are loose Check blade fasteners

Blade is unbalanced Replace blade

Engine does not start

Spark plug is defective Replace spark plug

Cutting blade worn or

damaged

Replace blade

Fuel tank is empty Refill with fuel

Engine may be flooded Remove plug and dry

Engine runs unsteadily

Air filter is soiled Clean the air filter

Spark plug is soiled Clean the spark plug

Uneven mowing results

Blade is blunt Sharpen the blade

Cutting height is too low Set correct height

Grass catcher is not filled

sufficiently

Blade is worn Replace the blade

Grass catcher is clogged Empty the grass catcher

Lawn / Grass is wet Allow the lawn to dry

Discharge

channel/housing blocked

Clear the discharge channel/housing

Underside of the mower

deck clogged

Clean the underside of the mower deck

Self-propel function no

longer works

Excessive grass build-up.

Remove drive belt cover plate from the underside of

the mower and remove all clumps of grass build-up.

Drive belt has become

dislodged.

Remove drive belt cover plate from the underside of

the mower and reseat the drive belt.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

21" Self-Propelled Petrol Key Start Lawn Mower – 890SXe

Specifications

Engine Type

4 Stroke

Displacement

248cc

Starting System

Push Button (Electric)

Battery (for starting)

12V Lithium

Charger (for starting)

240V

Self-Propelled

Yes

Deck

Steel

Blade Type

CrossCut

Cutting Width

530mm; 21 inches

Cutting Height

25-75mm

Wheels

Front 8”, Back 10”

Adjustment System

Central, 7 Positions

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business

or employee, or financially affect the user, business or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement or service by a technician

may cause financial loss, loss of employee time or an

inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

BAUMR-AG MOWSFPBMRA214 21" Self-Propelled Electric Start 4in1 Lawnmower

Product's Documents

Product manual

Specifications

BAUMR-AG MOWSFPBMRA214 Questions and Answers
