T-REX ATOMCBTRXAXX1 Chain Breaker Tool 3in1 Riveter Presser User Manual

User Manual

[Revision 5.0 October 2021]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

Chain Breaker and Riveting Tool

Table of Contents

Safety Reminders ....................................................................................................................................... 1

Item Details .................................................................................................................................................. 1

Breaking Chains .......................................................................................................................................... 2

Riveting Chain Pins .................................................................................................................................... 2

Pressing Side Plate .................................................................................................................................... 3

Chain Breaker and Riveting Tool

Safety Reminders

1. Read all instructions for each procedure before beginning. Improper use of the tool can cause breakage.

2. Ensure handle is attached, fastened and secured before using

3. Ensure 14mm socket or wrench is used when turning the Push Bolt.

4. Make sure the tool is clean and apply a liberal amount of grease to all threads before assembling and using for

improved functionality and feel.

5. When breaking #520 or larger drive chain, it is recommended to grind off the rivet heads first. This will significantly

reduce the load on the tool and help prevent premature wear or damage to the breaking tips.

6. All tightening procedures are recommended to be performed by hand only, using a 14mm or 22mm wrench. Using

power tools of any kind offers a higher likelihood of damaging the tool.

Item Details

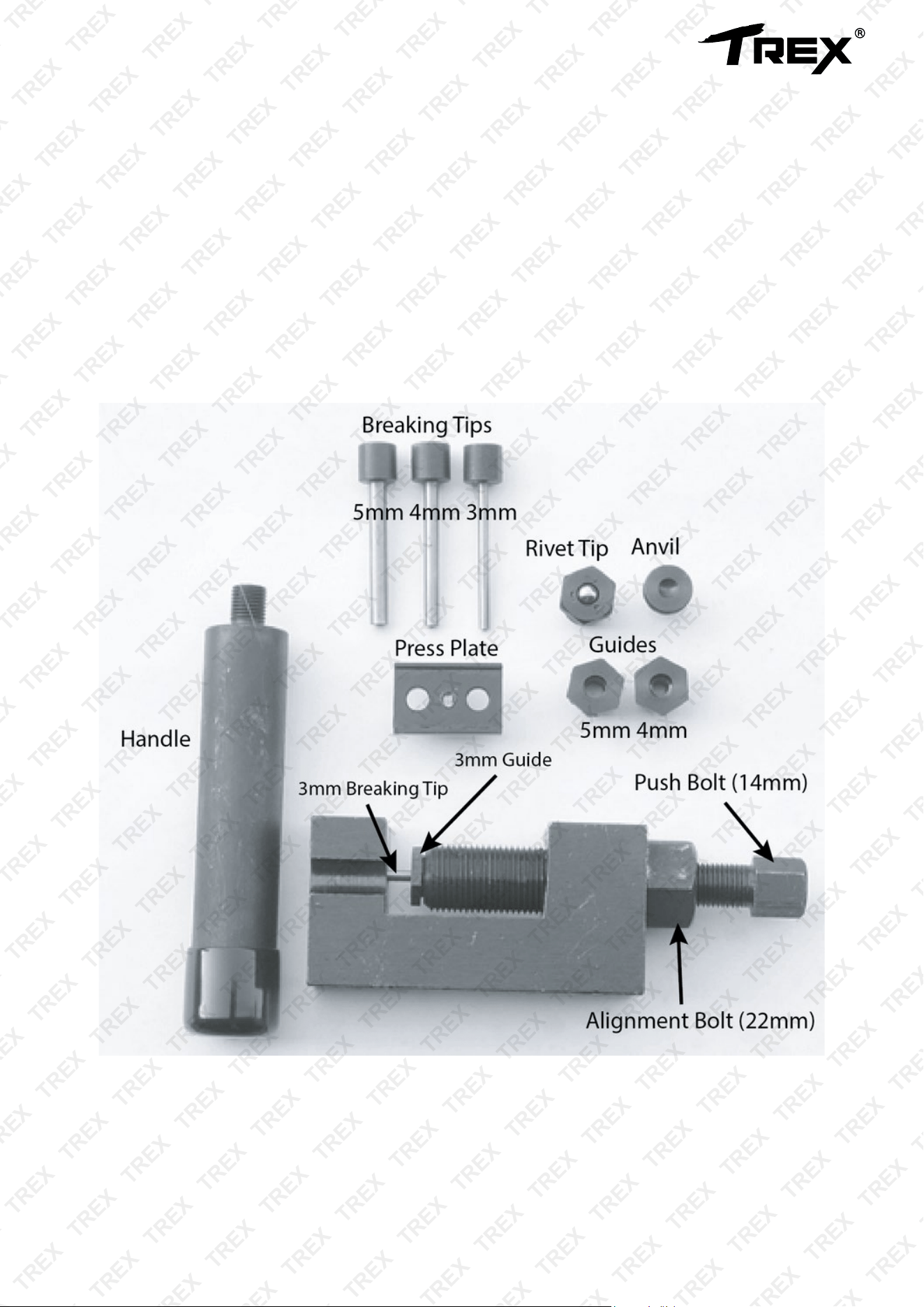

TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX `

TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX

Chain Breaker and Riveting Tool

Breaking Chains

Use only the correct size breaking tip for your application, or it can be damaged.

The tip that is closest to the chain link pin size, only slightly smaller is the correct one.

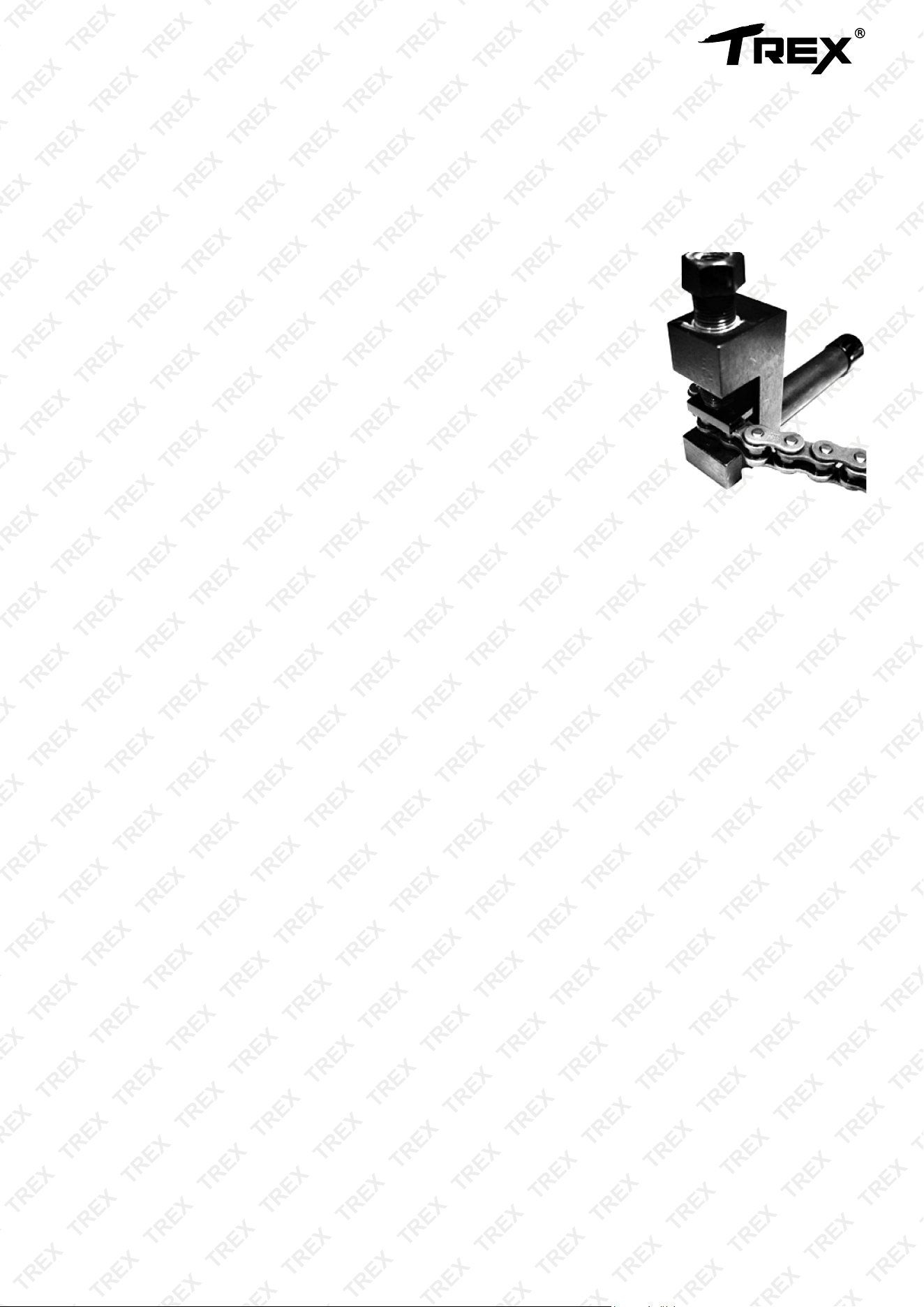

1. Place the tool over the chain with one end of the chain pin held in position by the

hole in the body and the other end held by the alignment bolt guide. Be

sure the breaking tip is adjusted slightly back into the guide for proper clearance

during installation.

2. Tighten the alignment bolt by hand securing the guide against the side plate of the

chain, be sure not to overtighten. It is not necessary to use a wrench, as just

using your hand will give sufficient tension. It is important to be sure the

alignment bolt is secured to the side plate as it keeps the breaking pin

aligned and supported. Attempting to tighten the press pin while alignment

bolt is backed away from side plate can cause damage to the tool.

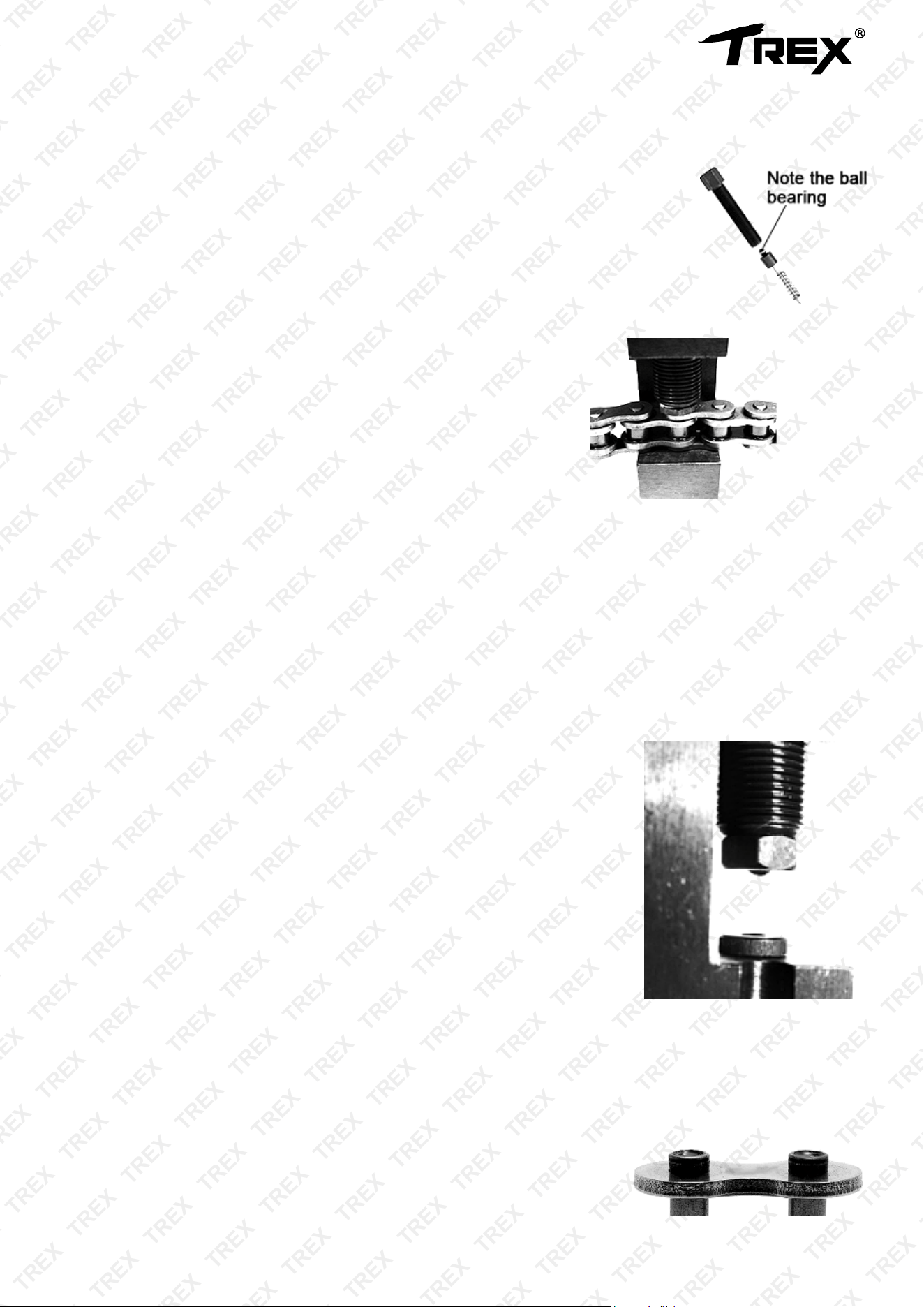

3. Tighten the push bolt using a 14mm wrench until the chain pin is pushed

If the pin does not begin to break free, or you don’t feel the tip pressing into the chain link smoothly, back out

the alignment bolt enough to confirm that the breaking tip is lined up with the chain pin. Once proper

alignment is confirmed, adjust the alignment bolt back down to press on the side plate and begin again. Do

not use power tools or you may damage the tool.

Riveting Chain Pins

Prepare the tool for riveting by threading the rivet tip into the alignment bolt and inserting the anvil into the hole in the

tool body. You will not use the push bolt, or any other accessories for this

procedure.

1. The new master link side plates should already be pressed according to the

“pressing side plates” instructions and specs. Do not re-use broken master

links, or a clip on type master link. Position the tool with the hollow end of

the chain pin facing the rivet tip, and the solid end facing the anvil in the body.

2. Make sure the alignment bolt is withdrawn enough for the rivet tip to clear the

end of the chain pin.

3. Using a 22mm wrench, tighten the alignment bolt tightly until the rivet tip

spreads the hollow nose of the chain pin. The end of the chain pin should be

flared over the side plate just enough so that the side plate is solidly held in

place. Repeat this procedure on the other chain pin. The amount of flare of a

rivet –type master link can vary from as little as 0.006” to no more than

0.028” but please get the specifics from your particular chain

manufacturer. This is a very small amount of flare. Attempting to flare the pin

too much can crack and weaken it as well as potentially damaging the tool. Use a calliper to measure the pin

before flaring and check it often to ensure you are achieving the proper amount when finished. One rotation of the

push bolt equals one millimetre of travel, or 0.039, so a typical finished flare will require less than a full revolution.

It is very important that chain master links be clipped or riveted properly. Improper installation can lead to

bodily harm or even death. If you are unfamiliar or uncomfortable with this procedure, please have your

work supervised by a qualified technician or bring your vehicle to a qualified facility for repair.

4. After removing the tool from the chain, check to be sure both chain pins

show the same size flares. Check that the riveted-on side plate is in line

with adjacent links.

TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX `

TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX

Chain Breaker and Riveting Tool

Pressing Side Plate

The tool will be assembled using the body, alignment bolt, large guide and press plate. You will not use the push bolt,

breaking tip, ball bearing or spring. The press plate will be installed in the guide in the alignment bolt. The base of the

tool will support the other side of the chain, but there is no alignment guide, so be sure to visually inspect that you

have it straight.

1. Assemble the new chain master link, side plate and O-rings (if applicable) as

specified by the chain manufacturer. Place the assembled master link in the tool

with the side plate with pins resting on the base of the tool body, and chain link

side plate with holes will be placed against the press plate.

2. Tighten by hand only, the alignment bolt until the press plate rests against the

master-link side plate. Ensure the master link pins are properly aligned with the

groove as well as the holes in the press plates before tightening. The holes in

the press plate will help you verify alignment.

3. Measure the width of the chain on a link using a calliper if possible. This will give

you the correct dimension for your finished master link side plates and should be

confirmed with the link you are working on, to ensure it is correct. Use a 22mm

wrench and tighten the alignment bolt until the master link pins protrude past the

face of the side plate. For clip-type master links, the pins should protrude enough

to install the clip into the grooves in the chain pin. For rivet type master links, the

chain pins should protrude enough to be properly flared over the side plate.

Please refer to the chain manufacturer’s specifications for the measurements of chain pin protrusion, as well

as installation of master link clips. We cannot provide this information as they can all be different.

TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX `

TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX TREX
