EN
User Manual
Freezer/Refrigerator
HVF325DW
HVF325DS
HVF325DC
Thank You
EN
2
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.

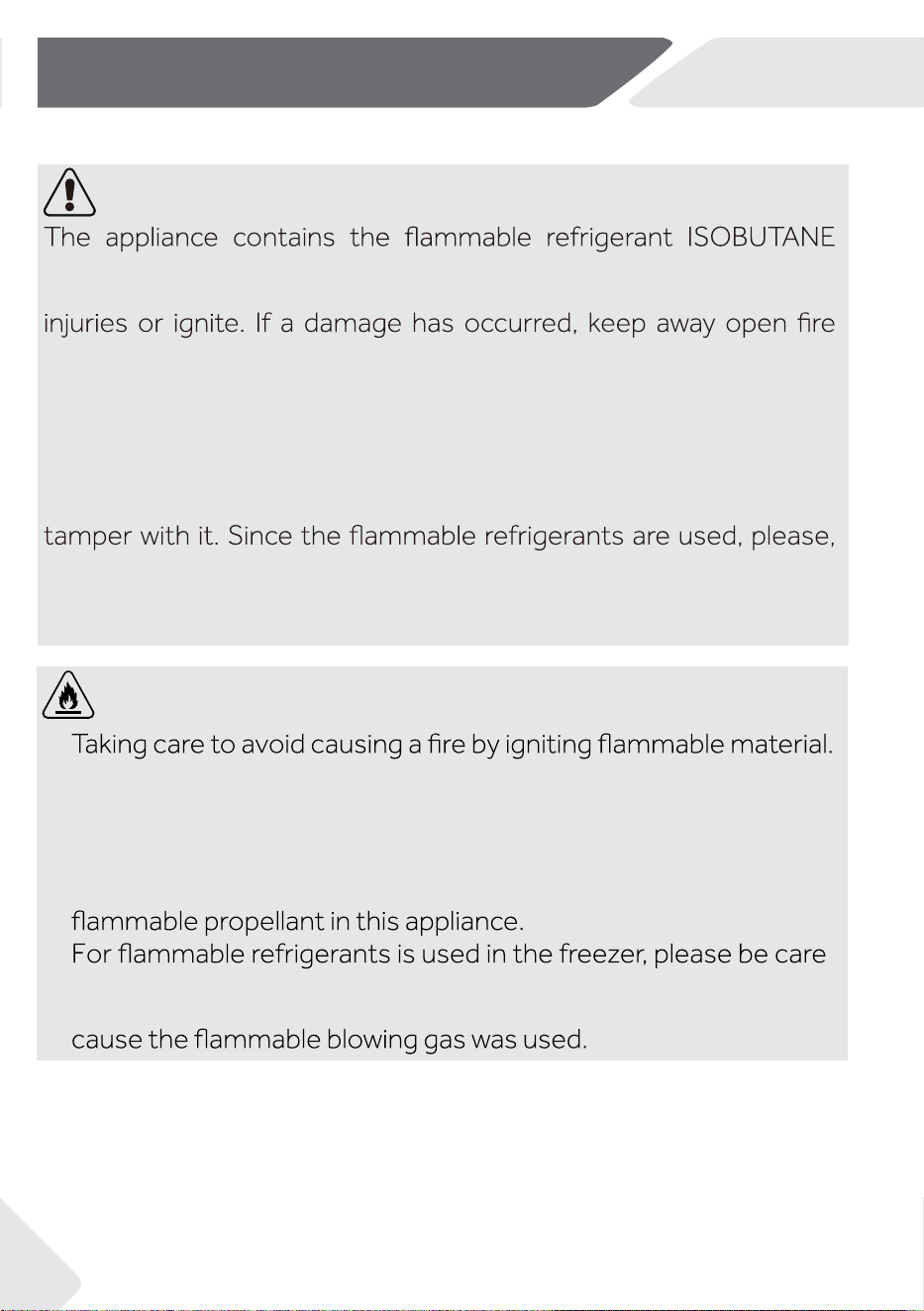

The symbol indicates there is a risk of fire
WARNING: Risk of fire/flammable material.
since flammable materials are used. Take care to avoid causing a fire by ingniting flamm-
able material.
Manufacture: Qingdao Haier Special Icebox Co., Ltd.
Address : Haier Garden, Qianwangang Road,Economic
Development Zone, Qingdao 266555, Shandong, P.R.China
www.haier.com.au
www.haier.co.nz
EN
Content
3
1 - Safety .................................................................................................................................................4
2 - Intended Use ....................................................................................................................................11
3 - Product Description .......................................................................................................................12
4 - Control panel ................................................................................................................................. 13
5 - Use ................................................................................................................................................... 14
6 - Energy saving ................................................................................................................................ 17
7 - Equipment ..................................................................................................................................... 17
8 - Care and Cleaning ........................................................................................................................ 18
9 - Troubleshooting ........................................................................................................................... 20
10 - Installation ................................................................................................................................... 23
11 - Technical Data ............................................................................................................................ 27
1 - Safety
EN
Ensure that the power cable is not trapped by the freezer. Do not step
on the power cable.
▶
4
Before switching on the appliance for the rst time, read the following safety
hints!
WARNING!
Before first use
▶ Make sure there is no transport damage.
▶ Remove all packaging and keep out of children´s reach.
▶ Wait at least six hours before installing the appliance in order to ens-
ure the refrigerant circuit is fully efcient.
▶ Handle the appliance always with at least two persons because it is
heavy.
Do not cover air vent openings.
▶
Installation
The appliance should be placed in a well-ventilated place. Ensure a
space of at least 10 cm above and around the appliance.
▶ WARNING: Keep ventilation openings, in the appliance or in the in-
built structure, clear of obstruction.
▶ Never place the appliance in a damp area or location where it mi-
ght be splashed with water. Clean and dry water splashes and stains
with a soft clean cloth.
▶ Do not install the appliance in direct sunlight or in the near of heat sou-
-rces (e.g. stoves, heaters).
▶ Install and level the appliance in an area suitable for its size and use.
▶ Make sure that the electrical information on the rating plate agr-
ees with the power supply. If it does not, contact an electrician.
▶
The appliance is operated by a 220-240 VAC/50 Hz power supply.
Abnormal voltage fuctuation may cause the appliance to fail to start,
or damage to the temperature control or compressor, or there may be
an abnormal noise when operating. In such case, an automatic regular
or shall be mounted.
▶ Do not use multi-plug adapters and extension cables.
▶ WARNING: Do not locate multiple portable socket outlets or por-
table power supplies at the rear of the appliance.
▶ WARNING:When positioning the appliance, ensure the supply cord
is not trapped or damaged.
▶ Do not step on the power cable.
▶
▶ Use a separate earthed socket for the power supply which is easy acc-
essible. The appliance must be earthed.
EN
1 - Safety
5
Do not store or use infammable, explosive or corrosive materials in the
appliance or in the vicinity.
WARNING!
Daily use
▶
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and under-
stand the hazards involved.
▶ Children shall not play with the appliance.
▶ Children aged from 3 to 8 years are allowed to load and unload refrige-
rating appliances, but not allowed to clean and install the refrigerating
appliances.
▶ Keep away children under 3 years of age from the appliance unless
they are constantly supervised.
▶ Cleaning and user maintenance shall not be made by children without
supervision.
▶ The appliance must be positioned so that the plug is accessible.
▶ lf coal gas or other inflammable gas is leaking into vicinity of the applia-
nce, turn off the valve of the leaking gas, open the doors and windows
and do not unplug the power cable of the freezer or any other applia-
nce.
▶ Notice that the appliance is set for operation at the specific ambient
range between 16 and 38°C. The appliance may not work properly if it
is left for a long period at a temperature above or below the indicated
range.
▶ Do not place unstable articals (heavy objects, containers filled with water)
on top of the freezer,to avoid personal injury caused by falling or electric
shock caused by contact with water.
▶
▶
Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.
▶
▶
Before any operation, frst unplug the appliance from the mains.
▶
Do not tilt the appliance more than 45 ° to prevent damage of the cool-
ing system.
▶
Unplug the appliance in the event of a power interruption or before
cleaning. Allow at least 7 minutes before restarting the appliance, as
frequent starting may damage the compressor.
▶ Check the condition of food if a warming in the freezer has taken place.
▶
WARNING:
Do not damage the refrigerant circuit.
1 - Safety
EN
6
WARNING!
▶ Do not pull on the door shelves. The door may be pulled slant, the bot-
tle rack, may be pulled away, or the appliance may topple.
▶ Open and close the door only with the handles. The gap between the
door and the cabinet is very narrow. Do not put your hands in these
areas to avoid pinching your fngers. Open or close the appliance doors
only when there are no children standing within the range of door mo-
vement.
▶ Never store bottled beer or beverages in the freezer, as these will burst
during freezing.
▶ Do not store explosive substances such as aerosol cans with a flam-
mable propellant in this appliance.
▶ Do not store medicines, bacteria or chemical agents in the appliance
This appliance is a household appliance. It is not recommended to st-
ore materials that require strict temperatures.
▶ Never store liquids in bottles or cans (besides high percentage spir-
its) especially carbonated beverages in the freezer as these will burst
during freezing.
▶ Do not set unnecessarily low temperature in the freezer compartment.
Minus temperatures may occur at high settings. Attention: Bottles can
burst.
▶ Do not touch frozen goods with wet hands (wear gloves). Especially
partment. There is the risk to freeze or the formation of frost blister.
FIRST aid: keep immediately under running cold water. Do not pull
away!
▶ Do not touch the inside surface of the freezer storage compartment
when in operation, especially with wet hands, as your hands may freeze
onto the surface.
▶ WARNING: Do not use electrical devices inside the food storage co-
mpartments of the appliance, unless they are of the type recomme-
nded by the manufacturer.
WARNING: The lamps can only be replaced by manufacturer, togeth-
er with a part of the appliance.
do not eat ice lollies immediately after removal from the freezer com-
▶
:If you are unsure of the refrigerant type check the rating
▶
plate on the back of the unit. It is hazardous for anyone other than an
Authorized Service Person to service this appliance. In
– the authorized Service Person MUST hold a Gas Work Authorization
for hydrocarbon refrigerants, to carry out Servicing or repairs which
involve the removal of covers.
WARNING
Queensland
Authorized Service Person to service this appliance. In
EN
1 - Safety
WARNING!
Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and
maintenance.
▶ Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance. Allow at least 7 minutes be-
fore restarting the appliance, as frequent starting may damage
the compressor.
▶ Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, de-
tergent powder, petrol, amyl acetate, acetone and similar organ-
ic solutions, acid or alkaline solutions. Please clean with special
freezer detergent to avoid damage.
▶ Do not scrape o frost and ice with a sharp objects. Do not use
sprays, electric heaters like heater, hair dryer, steam cleaners or
other sources of heat in order to avoid damage to the plastic
parts.
▶ WARNING: Do not use mechanical devices or other means to ac-
celerate the defrosting process, other than those recommended
by the manufacturer.
▶ If the supply cord is damaged, it must be replaced by the manu-
facturer, its service agent or similarly qualied persons in order to
avoid a hazard.
▶ Do not try to repair, disassemble or modify the appliance by your-
self. In case of repair please contact our customer service.
▶ Eliminate the dust on the back of the unit at least once in the year
to avoid hazard by re, as well as increased energy consumption.
7
▶ Do not spray or ush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves or glass door with hot water.
Sudden temperature change may cause the glass to break.
Disconnect the appliance from the power supply before cleaning.
▶
▶
▶ In case of heating check the condition of frozen goods.
▶ Before maintenance, deactivate the appliance and disconnect
the mains plug from the mains socket.
▶ Electrical equipment should be serviced only by qualifed electri-
cal experts, because improper repairs can cause considerable
consequential damages.
Refrigerant gas information
WARNING!
▶
▶ WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
▶ WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
▶ Do not store explosive substances such as aerosol cans with a
▶ -
ful when installing, handling, serving and recycling the appliance.
▶ Please contact to the service agent to dispose the appliance be-
WARNING!
(R600a). Make sure the refrigerant circuit is not damaged during
transportation or installation. Leaking refrigerant may cause eye
sources, thoroughly ventilate the room, do not plug or unplug the
power cords of the appliance or any other appliance. Inform the
customer service.
In case of eyes get into contact with the refrigerant, rinse it imme-
diately under running water and call immediately the eye specialist.
WARNING: The refrigeration system is under high pressure. Do not
install, handle and service the appliance strictly according to the in-
struction and contact the professional agent or our after-sales ser-
vice to dispose of the appliance.
8
1 - Safety
EN
EN
1 - Safety
9
Intended use
This appliance is intended to be used in household and similar ap-
plications such as
- sta kitchen areas in shops, oces and other working environ-
ments;
- farm houses and by clients in hotels, motels and other residen-
tial type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
▶ If the appliance is not used for an extended period of time,and
you will not use only the fridge off function for the freezer;
- Take out the food.
- Unplug the power cord.
- Clean the appliance as described above.
- Keep the doors open to prevent the creation of bad odours inside.
▶ To ensure the safe preservation of foodstuffs, please comply
with this instruction for use.
▶ The details on the most appropriate part in the compartment of
the appliance where specic types of food shall be stored, con-
sidering the distribution of temperature that can be present in
the dierent compartments of the appliance are in the other part
of the manual.
▶ To avoid contamination of food, please respect the following in-
structions:
- Opening the door for long periods can cause a signicant in-
crease of the temperature in the compartments of the appli-
ance.
- Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
- Clean water tanks if they have not been used for 48 h; ush the
water system connected to a water supply if water has not been
drawn for 5 days.
- Store raw meat and sh in suitable containers in the freezer, so
that it is not in contact with or drip onto other food.
- Two-star frozen-food compartments are suitable for storing
pre-frozen food, storing or making ice cream and making
ice cubes.
1 - Safety
EN
10
- One-, two- and three-star compartments are not
suitable for the freezing of fresh food.
- If the refrigerating appliance is left empty for long periods,
switch off, defrost, clean, dry, and leave the door open to pre-
vent mould developing within the appliance.
Disposal
The
symbol on the product or on its packaging indicates that
this product may not be treated as household waste. Instead it shall
be handed over to the appliacable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative con-
sequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this prod-
uct. For more detailed information about recycling of this product,
please contact your local city oce, your household waste disposal
service or the shop where you purchased the product.
Since the ammable insulation blowing gases are used, please con-
tact the professional agent or our after-sale service to dispose of
the appliance.
WARNING!
Risk of injury of suffocation!
Refrigerants and gases must be disposed of professionally. Ensure
that the tubing of the refrigerant circuit is not damaged before be-
ing properly disposed of. Disconnect the appliance from the mains
supply. Cut o the mains cable and dispose of it. Remove the trays
and drawers as well as the door catch and seals to prevent children
and pets to get closed in the appliance.
2.1 Intended Use
“This appliance is intended to be used in household and similar applications such as
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
This appliance is intended for freezing food. It has been designed exclusively for use in dry-
interior house-holds. It is not intended for commercial or industrial use. On demand this
appliance can be used as fresh food compartment.
-
ards and loss of warranty claims.

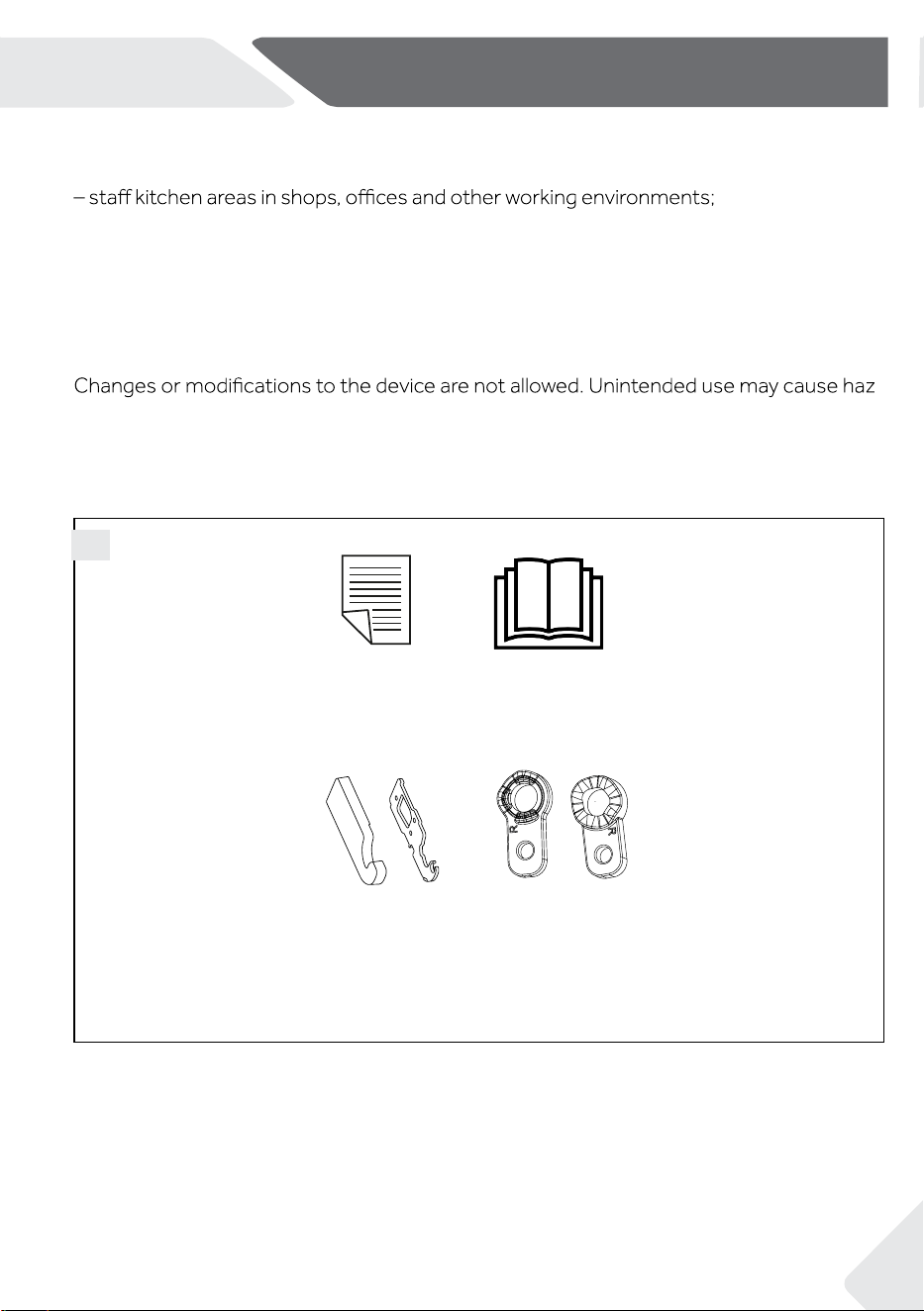

2.2 Accessories
Check the accessories and literature in accordance with this list:
User manualWarranty card
Axe covers
Upper right
hinge for door
reversibility
Upper right
hinge cover
2.2
EN
2-Intended use
11

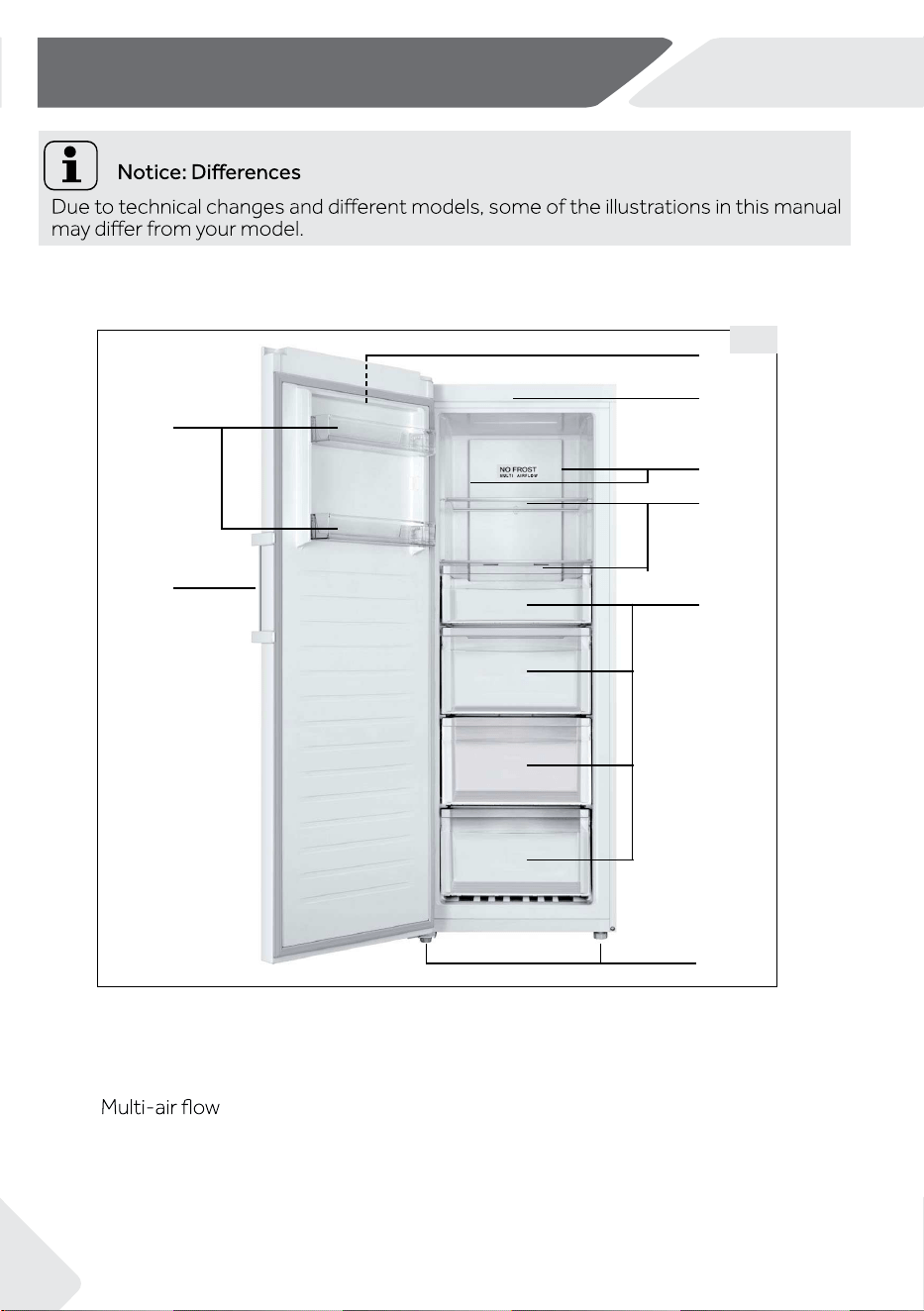

Picture of appliance (Fig. 3)
1 Control panel
2 LED light
3
4 Glass shelves
5 Drawers
6 Adjustable feet
7 Removable door racks
8 Door handle
3
7
2
3
4
5
6
1
8
3-Product description
EN
12
Control panel (Fig. 4)
A Fridge temperature adjustment key: press to select
between 2, 4 and 6
Freezer and fridge convertible function: Press the
‘Freezer and fridge convertible’ key(B) for 3 seconds
to achieve freezer and fridge convertible function
Freezer temperature adjustment key: press to sel-
ect the temperature between - 16, - 18, - 20, - 24/
press and hold 3 seconds to enter or exit super
freezer function
Display lock and unlock key: Press and hold 3 seco-
nds to enter or exit the lock mode
Key description
Control panel description
B
C
D
g
c
d
e
f
h
b
a 6℃: the freezer is currently at 6℃ fridge
4℃: the freezer is currently at 4℃ fridge
2℃: the refrigerator is currently at 2℃ fridge
- 16℃: the freezer is currently at - 16℃ freezer
- 18℃: the freezer is currently at - 18℃ freezer
- 20℃: the freezer is currently at - 20℃ freezer
- 24℃: the freezer is currently at - 24℃ freezer
Lock mode: the freezer is currently locked
4
13
EN
4-Control panel
A
a
d
C
c
B
b
D
g
h
e
f

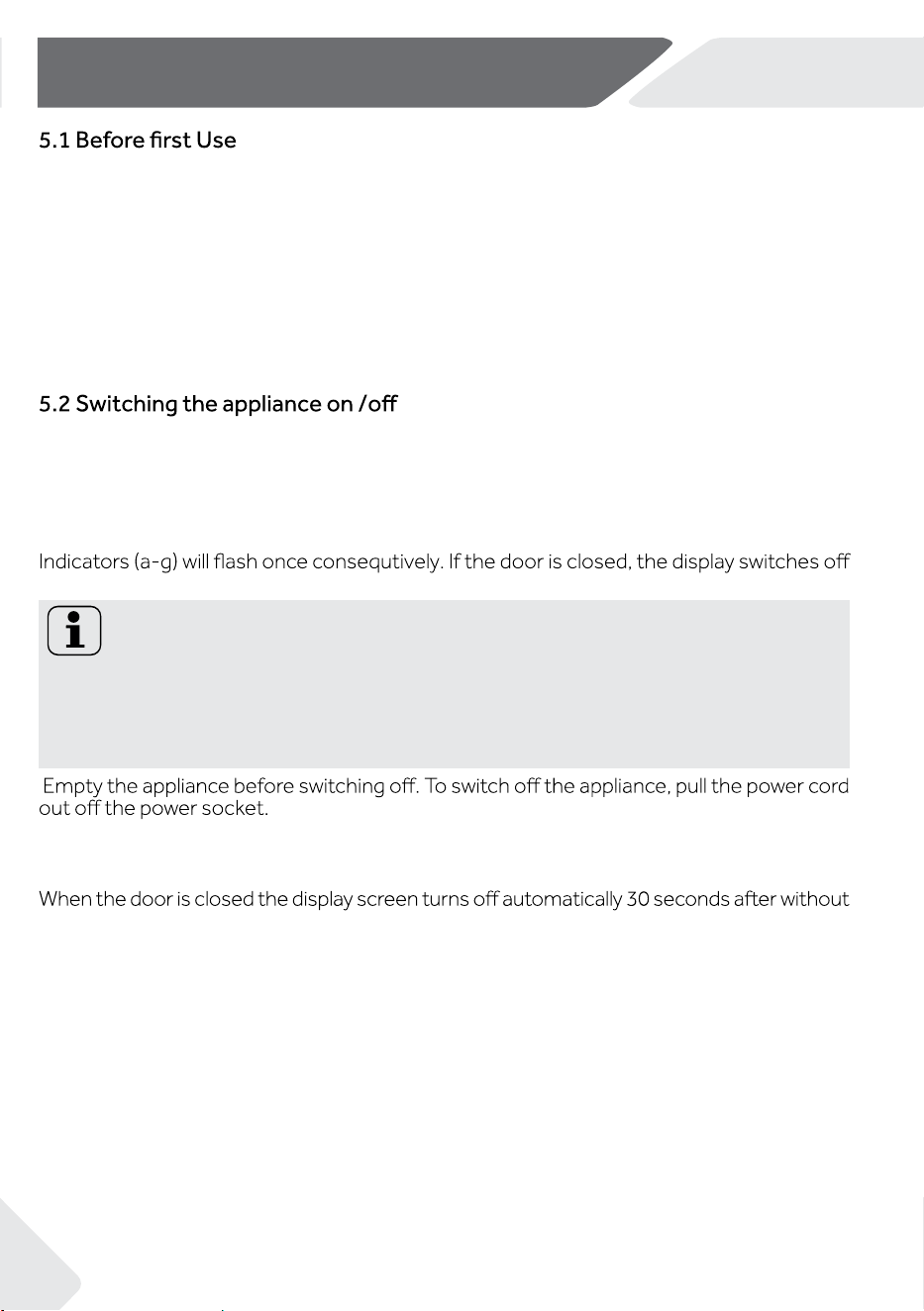

▶ Remove all packaging materials, keep them out of children reach and dispose them
in an environmentally friendly manner.
▶ Clean the inside and outside of the appliance with water and a mild detergent before
putting any food in it.
▶ After the appliance has been levelled and cleaned, wait for at least 6 hours before
connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartment for 2 hours at high settings before loading with food. To
do so, please set the temperature to -20 °C or -24 °C.
The appliance is in operation as soon as it is connected to the power supply.
▶ The freezer temperature is automatically set to -18 °C. This is the recommended
setting and the ideal temperature for frozen goods. If desired, you can change the
temperatures manually. Please see ADJUSTING THE TEMPERATURE.
after 30 seconds. The panel lock might be active.
Notice: Presettings
▶ The appliance is preset to the recommended temperature of -18 °C. Under normal
ambient condition you don´t need to set a temperature.
▶ When the appliance is switched on after being disconnected from the main power
supply, it may take up to 12 hours for the correct temperature to be reached.
5.3 Standby-mode of display
operation. The display locks automatically. It lights up automatically when touching any but-
ton or opening the door.
5.4 Display lock and unlock
Automatic locking
The display panel can automatically enter the lock mode. The display panel is automatica-
lly locked after 30 seconds without operation.
Manual lock
When the display panel is unlocked, press the ‘Lock’ key(D) for 3 seconds. After a ‘beep’,
the ‘Lock’ (D) indicator lights up, then the display panel enters the lock mode. When the
display panel is locked, press the ‘Lock’(D) for 3 seconds. After a ‘beep’, ‘Lock’(D) indicator
is off. Display panel is unlocked.
5 - Use
EN
14
Notice: Display lock
When display is locked, functions such as temperature setting or super freeze are di-
sabled. When above operation is attempted, The lock indicator will blink for 3 times, to
remind that the display is locked.
5.6 Temperature setting
Fridge temperature adjustment (A)
When the display is unlocked, enter the fridge function by pressing the ‘Freezer and fridge
convertible’ key(B). After entering the fridge function, the temperature is at 4℃ by default.
Pressing the ‘Fridge Temp’ key(A) then the user can select different fridge temperatures
at 4℃/ 2℃/ 6℃/ 4℃ cyclically.
When the display is unlocked, press the ‘Freezer and fridge convertible’ key(B) for 3 seco-
nds to achieve freezer and fridge convertible function.
The freezer temperature is very different from fridge function mode, which is suitable for dif-
ferent food storage. If there is any mode change about the freezer and fridge, please change
the food stored in the freezer to avoid damage to the stored food because of the change of
function mode.
Freezer temperature adjustment (C)
5.5 Freezer and fridge convertible function (B)
When the display is unlocked, press the ‘Freezer and fridge convertible’ key(B) for 3 seco-
nds to enter freezer mode. After entering the freezer mode, the temperature is at - 18℃
by default. Pressing the ‘Freezer Temp’ key(C) then the user can select different freezer
temperatures at - 18℃/ - 20℃/ - 24℃/ - 16℃/ - 18℃ cyclically.
5.7 Super freeze mode
The super freeze mode is designed to preserve the nutritional value of frozen food better,
which can freeze the food thoroughly in a shorter time. Please activating the super freeze m-
ode 24 hours before putting lots of food inside the freezer. The frozen effect is better when
the temperature reaches a lower temperature.
When the display is unlocked, press the ‘Freezer and fridge convertible’ key(B) to enter
freezer mode. Then press the ‘Freezer Temp’ key(C) for 3 seconds, indicators (d-g) will
be lighted all, indicating that the freezer works in super freeze mode. Repeat steps above
can deactivate super freeze mode manually. If does not deactivated the super freezer fu-
nction manually, it will be deactivated automatically after 50 hours.
Notice: Super freeze
In super freeze mode, temperature could not be adjusted. If you do so, super freeze
indicator will blink for 3 times to remind that the freezer is in super freeze mode.
EN
5 - Use
15
5.9 Eco mode (-16°C) (C)
When display is unlocked, by touching (‘Freezer Temp’ key) (C) the appliance is set into Eco
mode. In this mode the energy consumption is lower, while appropriate freezing performance
is still guaranteed. To exit the Eco mode select other temperature.
5.10 Power-of memory
-
tion. The lock is not memorized, after power back on, display is unlocked.
5.11 Door open alarm
When freezer is kept open for more than 1 minute, beeper will make 3 beeps with interval
of 0.5 second. The beeps will be repeated every 30 seconds if door is kept open. The
beeps will stop until door is closed or after 7 mins of door opening. The beeper stops
5.12 High temperature alarm
This freezer is equipped with high temperature alarm. In freeze mode or super freeze
mode, if current temperature setting indicator blinks with beeps, touch any button, the
beep will stop, but current temperature setting indicator keeps blinking, that means tem-
perature in the freezer is too high. Please check if freezer door is tightly closed or if large
amount of warm food is put inside the freezer. After a period, current temperature in-
dicator will stop blinking. If it does not stop blinking for a long period, and beeps that are
manually cancelled come back, please contact aftersales service.
5.13 Error indication
This freezer is equipped with error indication. When an error is encountered, display will
could still freeze but user should contact aftersales service as soon as possible for opti-
mal control of the freezer.
5 - Use
EN
16
Energy saving tips
▶ Make sure the appliance is properly ventilated (see INSTALLATION).
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g.
stoves, heaters).
▶ Avoid unnecessarily low temperature in the appliance. The energy consumption in-
creases the lower the temperature in the appliance is set.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and as briey as possible.
▶ Make sure the door always closes correctly and unimpaired by food position. Keep
door seals clean.
▶ Defreeze frozen food in a fridge.
▶ Clean the rear of the appliance regularly. Dust increases energy consumption.

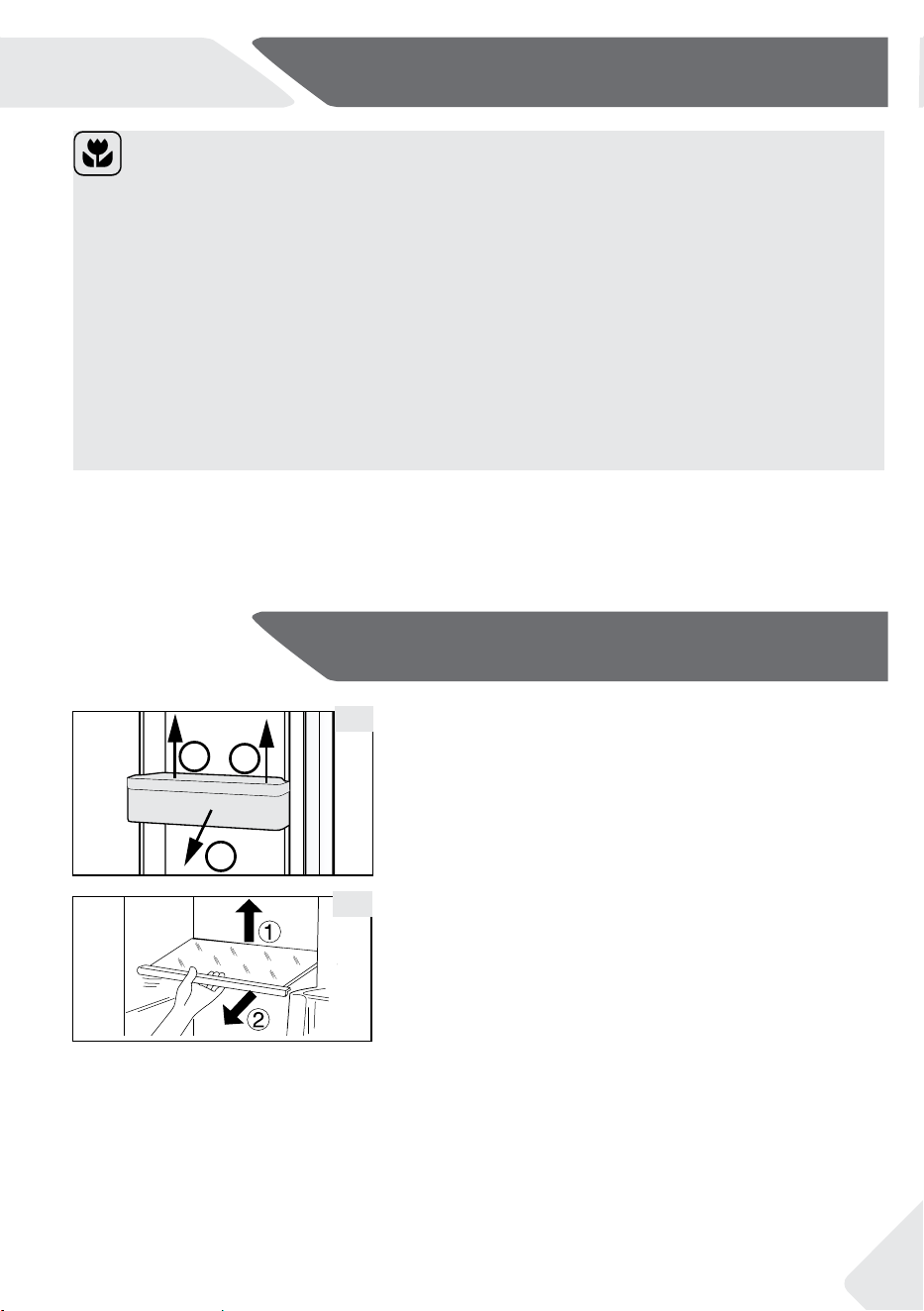

7.1 Removable door racks
The door rack can be removed for cleaning:
Place hands on each side of the rack, lift it upwards (1)
and pull it out (2) (Fig. 7.3).
In order to insert the door rack, the above steps are
carried out in reverse order.
7.2 Glass shelves
1. To take out a shelf, remove it rst by uplifting its hind
edge (1) and pulling it out (2) (Fig. 7.2).
2. To reinstall it, put it on the lugs on both sides and
push it to the most rearward position until the rear
of the shelf is xed inside the slots in the sides
1
2
1
7.1
7.2
6-Energy saving tips
7-Equipment
17
EN
8.1 General
Clean the appliance when only little or no food is stored.
8.1
▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance with
a sponge damped in warm water and neutral det-
ergent.

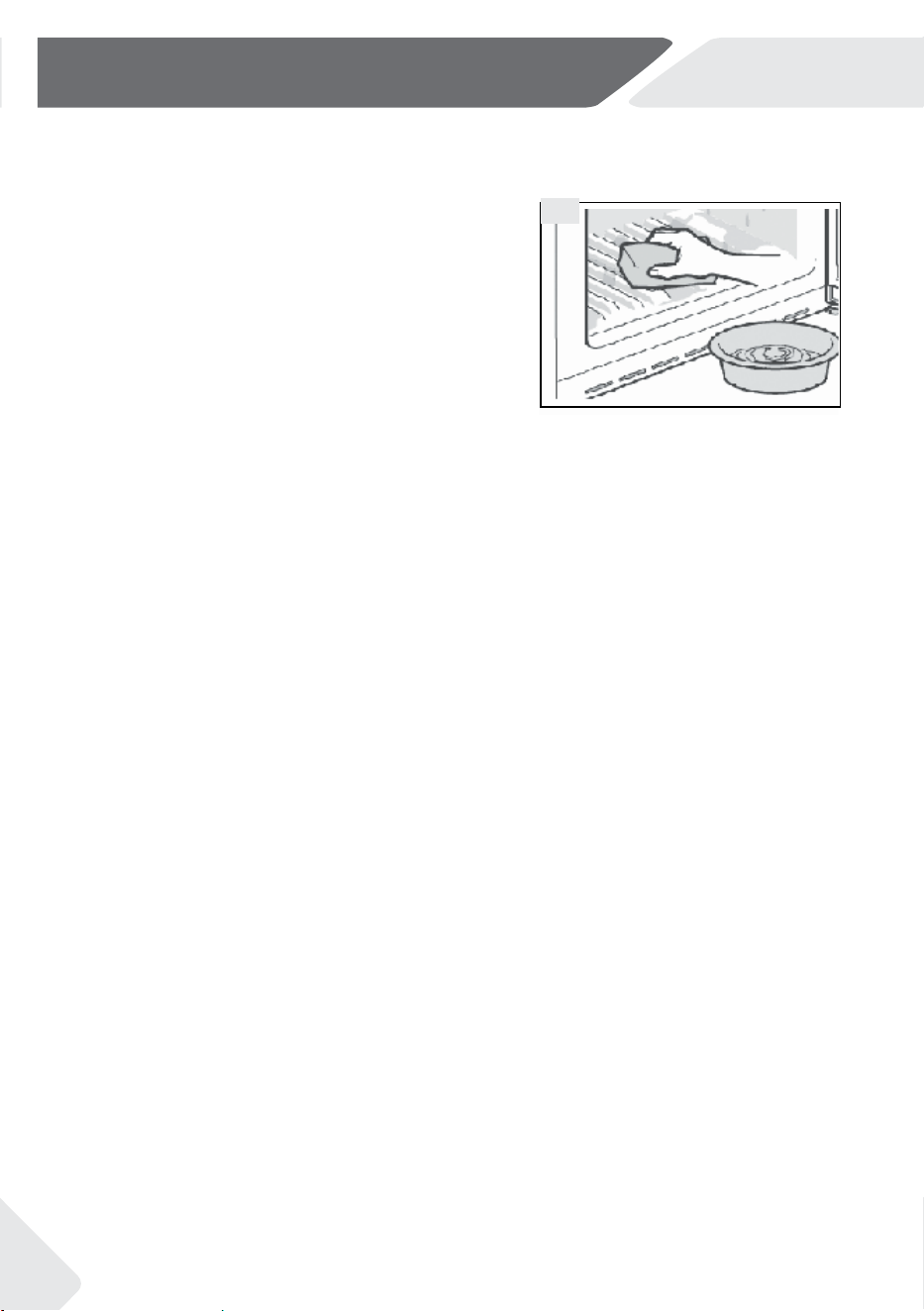

1. Please scrub the interior and exterior of the
refrigerator, including door sealing, door rack,
glass shelves, boxes ans so on,with a sofe
towel or sponge dipped in warm water (you may add neutral detergent into the
warm water).
2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the
flow water, dry and place it back into the fridge.
3. If there is spilled cream (such as the cream, melting ice cream), please remove
time, then rinse with the flow water, dry and place it back into the fridge.
4. In case some small part or component gets stucked inside of the fridge (bet-
ween shelves or drawers), use small soft brush to release it. If you could not re-
ach the part, please contact Haier service.
all the contaminated parts, put into the warm water with about 40 °C for some
8-Care and Cleaning
EN
18
8- Care and Cleaning
8.2 Non-use for a longer period
If the appliance is not used for an extended period of time:
▶ Take out the food.
▶ Unplug the power cord.
▶ Clean the appliance as described above.
▶ Keep the door and freezer drawers open to prevent the creation of bad odours inside.
Remove the door of the appliance (open the door and hold it before removing the screws)
to avoid children entering into the appliance and getting locked in.
Notice: Switch o
To ensure the service life of the appliance, only turn it o only if strictly necessary.
8.3 Moving the appliance
1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the freezer with adhesive tape.
3. Close the door and secure it with tape.
4. Do not tilt the freezer more than 45° to avoid damaging the refrigerating system.
5. Wrap the feet of the freezer to avoid scratching the oor. Never move the freezer
forcefully.
EN
8-Care and Cleaning
19
Many occuring problems could be solved by yourself without specic expertise. In case
of a problem please check all shown possibilities and follow below instructions before you
contact an after sales service. See CUSTOMER SERVICE.
The acoustic alarm can be switched of by pressing any button.
9.1 Troubleshooting
Problem Possible Cause Possible Solution
The compressor
does not work.
• Mains plug is not connected in the
mains socket.
• Connect the mains plug.
The appliance runs
frequently or for a
too long period of
time.
• The indoor or outdoor tempera-
ture is too high.
• The appliance has been o power
for a period of time.
• The door of the appliance is not
tightly closed.
• The door has been opened too
frequently or for too long.
• The temperature setting is too low.
• The door gasket is dirty, worn,
cracked or mis-matched.
• The required air circulation is not
guaranteed.
• The interior is covered in ice.
• In this case, it is normal for the
appliance to run longer.
• Normally, it takes 8 to 12 hours
for the appliance to cool down
completely.
• Close the door and ensure the
appliance is located on a level
ground and there is no food or
container jarring the door.
• Do not open the door too fre-
quently.
• Set the temperature higher un-
til a satisfactory temperature is
obtained. It takes 24 hours for
the temperature to become
stable.
• Clean the door gasket or re-
place them by the customer
service.
• Ensure adequate ventilation.
• Defrost the appliance.
The appliance
makes abnormal
sounds.
• The appliance is not located on
level ground.
• The appliance touches an object
close to it.
• The appliance stands on a wooden
oor or near wooden walls.
• Level the appliance.
• Remove objects around the
appliance.
• Wood amplies the sound. Set
the appliance somewhere else.
The appliance
makes a clicking
sound
• This is normal. It is caused by the
refrigeration unit switching on or
o.
• -
A slight sound is to
be heard similar to
that of owing wa
-
ter.
•
This is normal. •
-
•
•
9-Troubleshooting
EN
20
Problem Possible Cause Possible Solution
•
The appliance makes a
motor sound
• The refrigeration unit has just
turned itself on. This is normal
• -
It is not cold enough
inside the appli-
ance.
• The temperature is set too high.
• Goods that are too warm have
been stored.
• Too much food has been stored at
a time.
• The goods are too close to each
other.
• The door is not tightly closed.
• The door has been opened too
frequently or for too long.
• Reset the temperature.
• Always cool down goods be-
fore storing them.
• Always store small quantities of
food.
• Leave a gap between several
foods allowing air owing.
• Close the door.
• Do not open the door too fre-
quently.
It is too cold
inside
the appliance.
• The temperature is set too low.
• The Fast-freezing function is ac-
tivated or has been running too
long.
• Reset the temperature.
• Switch o the Fast-freezing
function.
Moisture accumu-
lates on the surface
of the appliance
.
• The climate is too warm and too
damp.
• This is normal in damp climate
and will change when the hu-
midity decreases. Wipe dry with
a cloth.
Strong ice and frost
in the freezer com-
partment.
• The goods were not adequately
packaged .
• The door is not tightly closed.
• The door has been opened too
frequently or for too long.
• The door gasket is dirty, worn,
cracked or mis-matched.
• Something on the inside prevents
the door from closing properly.
• Always pack the goods well.
• Close the door.
• Do not open the door too fre-
quently.
• Clean the door gasket or re-
place them by the customer
service.
• Reposition the shelves, door
racks, or internal containers to
allow the door to close.
The cooling system
does n
ot work.
• Mains plug is not connected to the
mains socket.
• The power supply is not intact.
• Connect the mains plug.
• Check the electrical supply to
the room. Call the local elec-
tricity company!
The sides of the
cabinet and door
strip get warm.
• This is normal. • -
You hear an alarm
signal.
• The door is open
• The temperature inside product is
too high
• Close the door or silence the
alarm manually.
EN
9 - Troubleshooting
21
Problem Possible Cause Possible Solution
•
The door is diucult
to open.
• Once the appliance runs, it has an
internal vacuum.
• Open the door seal gently to let
air enter the appliacne.
The door can’t be
closed properly. It
always leaves a gap.
• Because of the appliances’s low
temperature, the door seal can
easily get hard and deformed.
• Use a hair dryer or put a hot
towel on the spot where the
gasket is deformed.
• When the gasket is soft once
again, close the door and com-
press it tightly.
9.2 Power Interruption
In the event of a power cut, food should remain safely cold for about 18 hours. Follow
these tips during a prolonged power interruption, especially in summer:
▶ Open the door as few times as possible.
▶ Do not put additional food into the freezer during a power interruption.
▶ If prior notice of a power interruption is given and the interruption duration is longer
than 15 hours, make some ice and put it in a container in the top of the freezer com-
partment.
▶ As temperature in the freezer will rise during a power interruption or other failure,
the storage period and edible quality of food will be reduced. Any food that defrosts
should be either consumed, or cooked and refrozen (where suitable) soon after-
wards in order to prevent health risks.
Notice: Memory function during power interruption
After restoration of power the appliance continues with the settings that were set be-
fore the power failure.
9-Troubleshooting
EN
22
10.1 Unpacking
▶ Take the appliance out of the packaging.
▶ Remove all packaging materials.
10.2 Environmental conditions
The room temperature should always be between 18 °C and 43 °C, since it can inuence
the temperature inside the appliance and its energy consumption. Do not install the appli-
ance near other heat-emitting appliances (ovens, refrigerators) without isolation.
10.3 Space requirements

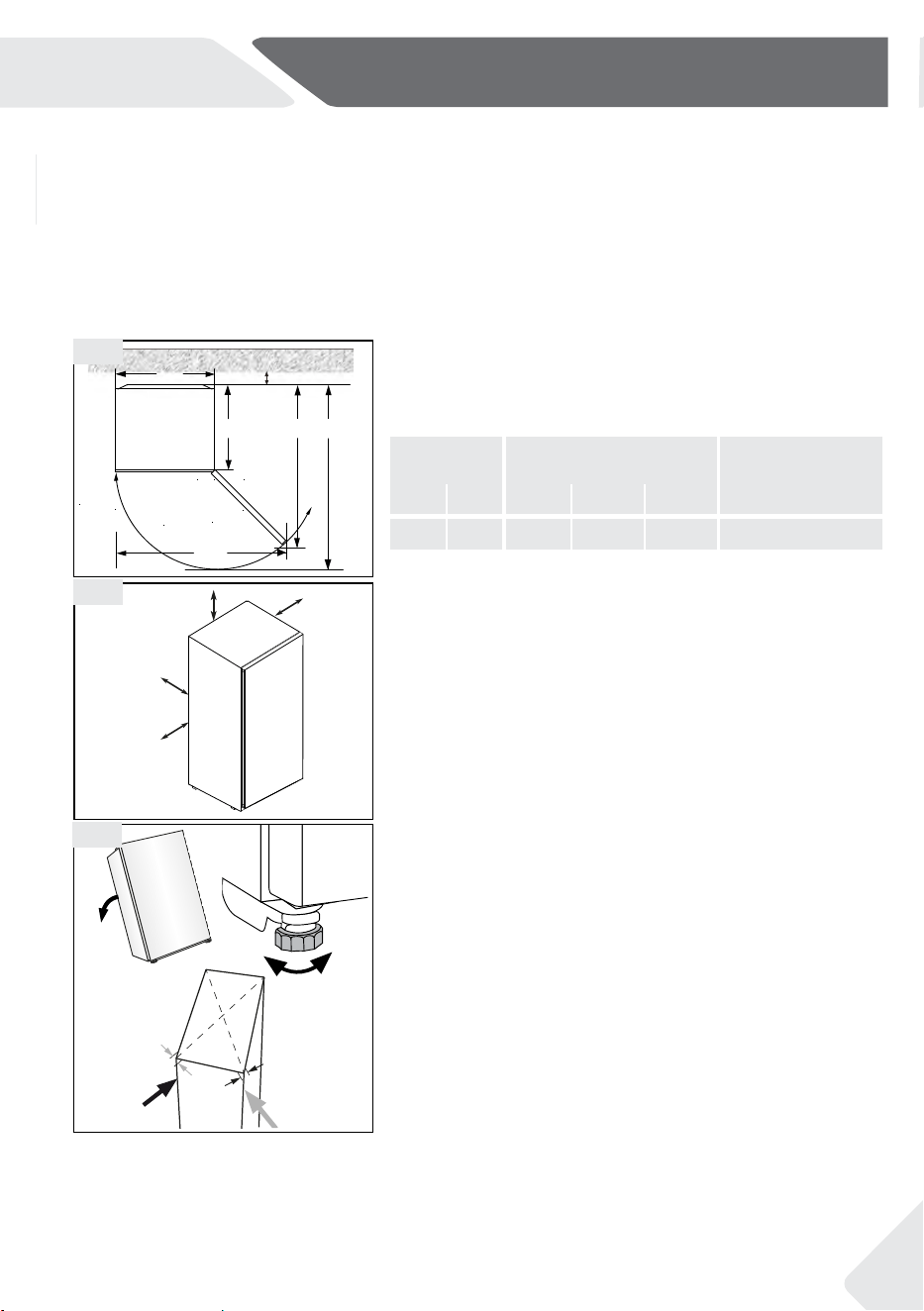

Required space to open the door (Fig. 10.3):
Width
in mm
Depth
in mm
Distance to wall
in mm
W1 W2 D1 D2 D3 D4
595 955 592 1105 1215 100
10.4 Ventilaton cross-section
To achieve sucient ventilation of the appliance for
safety reasons, the information of the required ventila-
tion cross sections must be observed (Fig. 10.4).
10.5 Aligning the appliance
The appliance should be placed on a at and solid sur-
face. If the appliance is placed on a pedestal, strong and
re-resistant materials must be used. Never use the
foam packing material as a pedestal.
1. Tilt the appliance slightly backwards (Fig. 10.5).
2. Set the feet to the desired level.
3. The stability can be checked by alternately bump-
ing on the diagonals. The slight swaying should be
the same in both directions. Otherwise the frame
can warp; possible leaking door seals are the result.
A low tendency to the rear eases the closing of the
door.
W2
D1
D3
D2
W1
D4
10.3
10 cm
10 cm
10 cm
10 cm
10.4
max 45°
1.
2.
3.
10.5
23
EN
10 - Installation
10.6 Using adjustable feet
If the freezer is unstable, the feet can be adjusted: Ro-
tate the adjustable feet according to the direction of
arrow (Fig. 10.6) to turn them up or down:
▶ Turning the feet clockwise raises the appliance.
▶ Turning the feet counterclockwise lowers it.

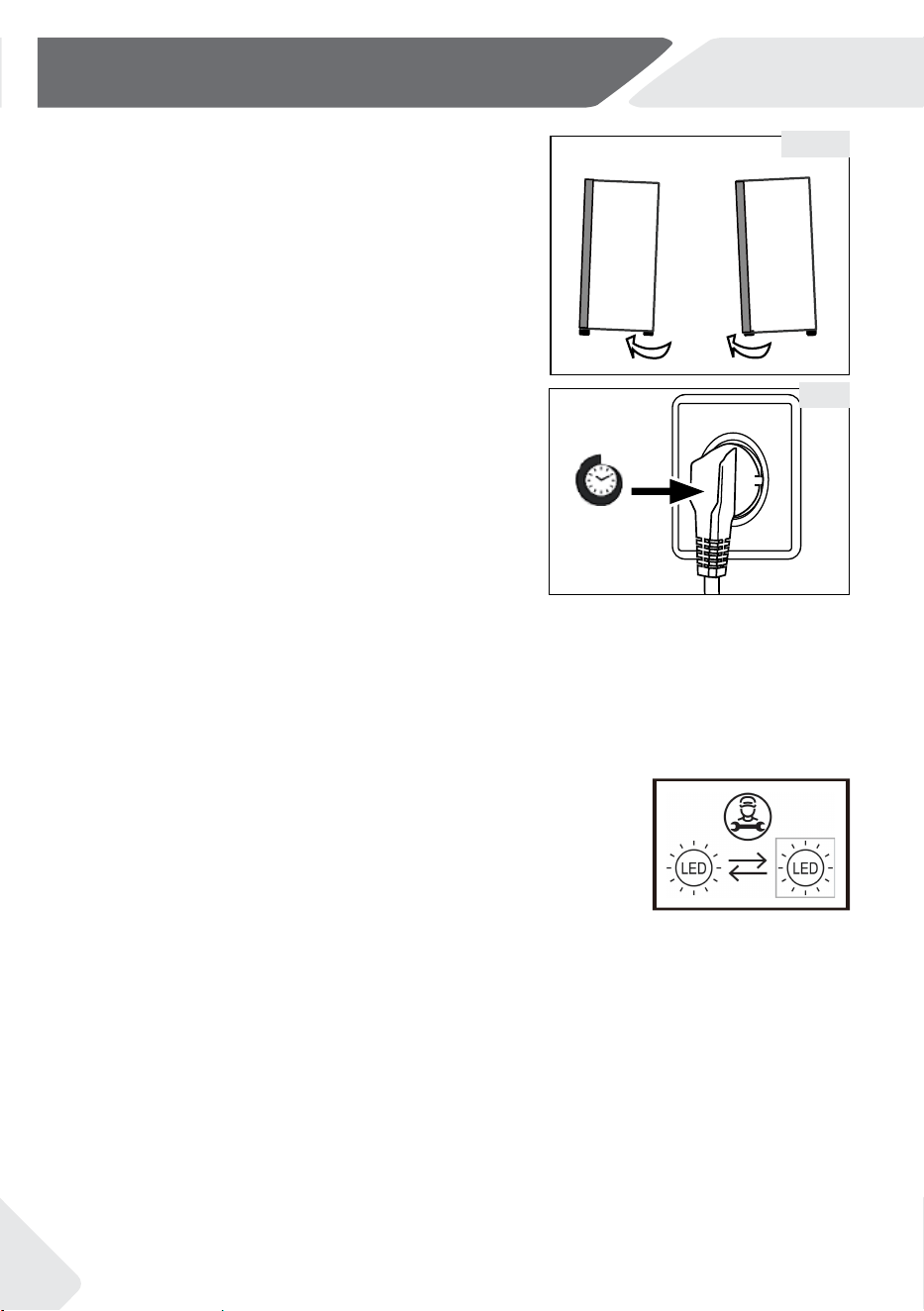

10.7 Waiting time
To the maintenance-free lubrication oil is located in the
capsule of the compressor. This oil can get through the
closed pipe system during slanting transport. Before
connecting the appliance to the power supply you have
to wait 6 hours (Fig. 10.7) so that the oil runs back into
the capsule.
10.8 Electrical connection
Before each connection check if:
▶ power supply, socket and fusing are appropriate to the rating plate.
▶ the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are strictly according.
Connect the plug to a properly installed household socket.
LED Lamp parameter: DC 12V, 1.5W
The is LED lamp, which has low energy consumption and long
10.6
6 h
10.7
24
10 - Installation
EN
10.9 LED Lamp parameters and replacement
service life. If there is any abnormity, please do not disassemble
by yourself. Please contact the after-sales staff for door-to-door service.
1
2
10
3
4
6
5
7
8
9
13
11
12
14

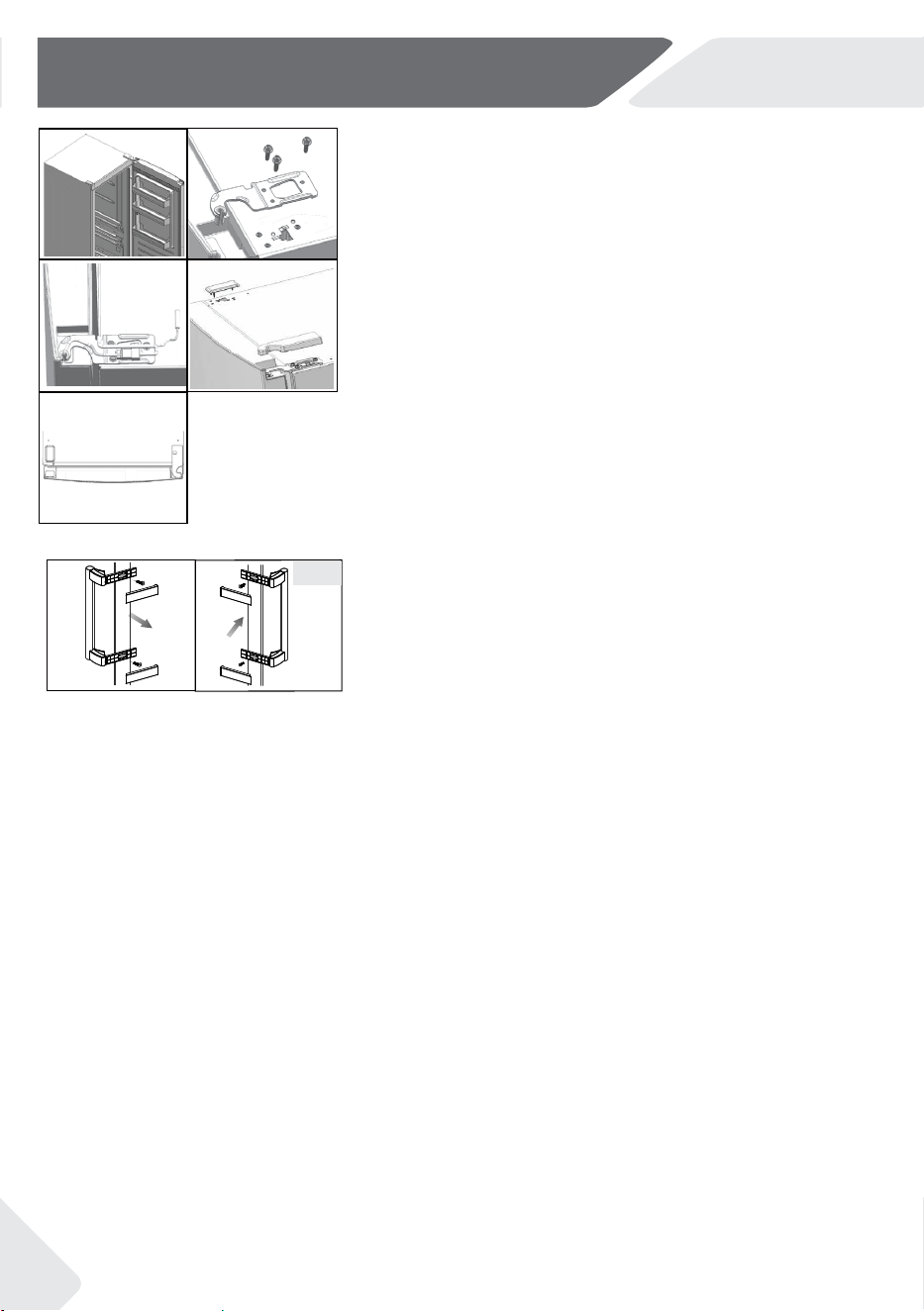

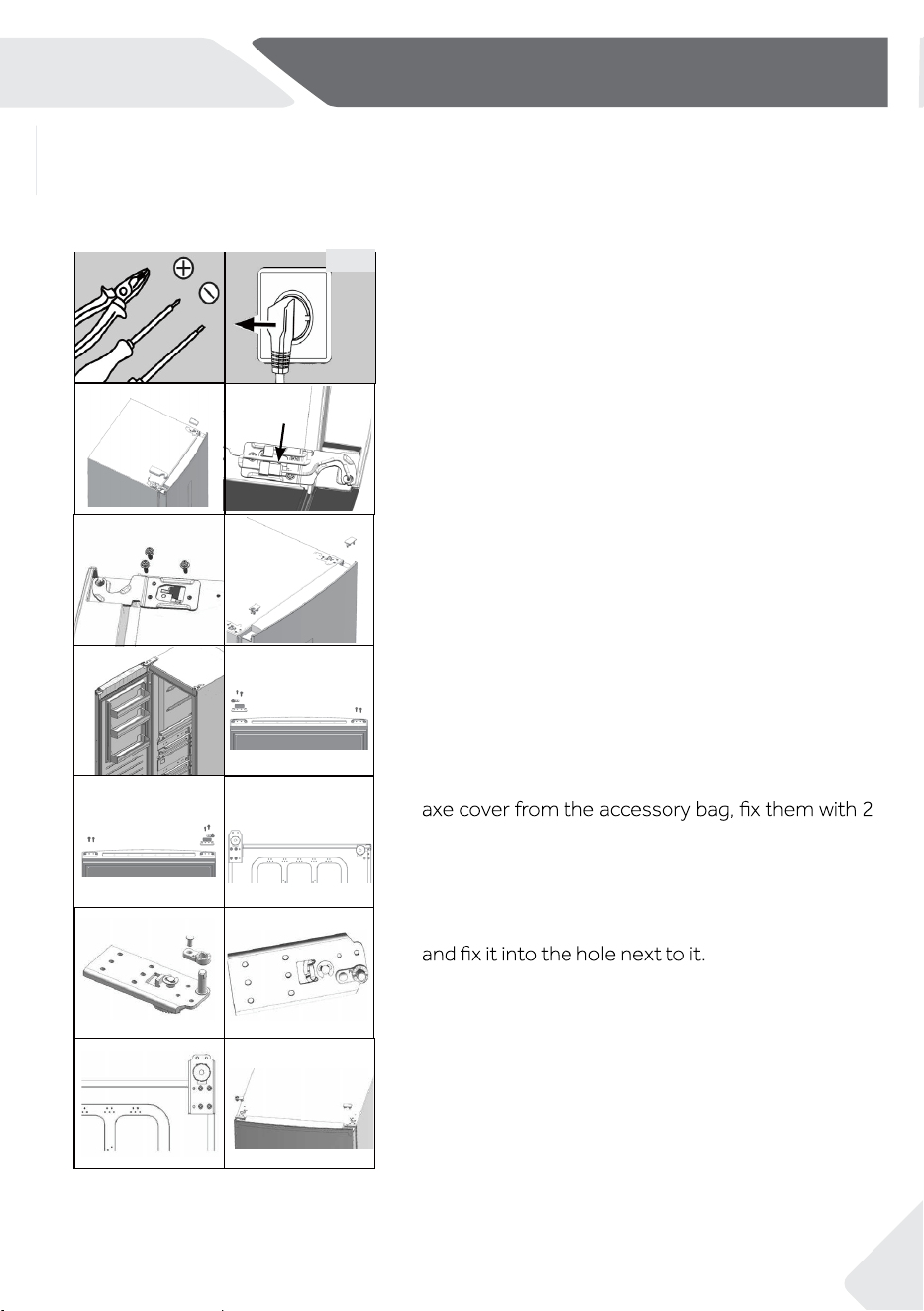

10.9 Door Reversibility
Before connecting the appliance to the power supply you should check, whether the door
swing must changed from left (as delivered) to right, if this is required by the installation
location and the usability.
1. Provide necessary tool.
2. Unplug the appliance.
3. Remove hinge hole cover and hinge cover.
4. Unplug the connection cable.
5. Removes screws and hinge
6. Remove cover on door. Remove axe cover on
door
7. Open and remove the door.
8. Turn the door upside down, remove 2 screws on
the bottom of the door. Remove 2 screws, door
stopper and axe cover on the bottom of the door
9. Take door stopper from last step and the thinner
screws. Fix 2 screws also on the other side of the
door.
10. Tilt slightly backwards the cabinet, remove 4
screws and then the lower hinge.
Assembly steps (Fig. 10.9):
10.9
11. Remove screw and axe cover. Remove hinge axe
12. Take the thicker axe cover from the accessory
bag. Fix it with screw from last step.
13. Fix the hinge to the opposite position of the cabinet
with 4 screws.
14. On opposit side of the door, pull out left side
connection cable and put it through the axe
cover from step 5, mount axe cover. Mount the
hole cover on the right side.
25
EN
10 - Installation
15. Mount the door.
10.10 Handel Reversibility
16. Fix upper right upper hinge with 3 screws.
17. Connect the cable connectors:
18. Fix hinge hole cover and upper left hinge cover.
19. Finished.
26
10 - Installation
EN
15
18
17
19
16
1.
1.
Use a flat-headed screwdriver to prise off the
handle upper cover. Remove the two screws
and then remove the handle
2.
2.
Use a flat-headed screwdriver to pry off the
screw plug on the right of the door body. Move
the screw plug to the lefts side and plug the screw
hole. Fix the handle on the left side and have it
covered
Assembly steps (Fig. 10.10):
10.10
27
EN
11-Technical Data
Trade mark
Haier
HVF325DW
Category of the model
Energy Star
Model No.
Freezer/Refrigerator
Product group
7/1
Storage volume Cooling /Freezing (L) */*** 285
Frostfree system yes
Climate class
T
Voltage / Frequency 220-240V ~/ 50Hz
Rated Current (A)
1.5
Refrigerant R600a 44g
Dimensions (H/W/D in cm)
Protection Class
171/59.5/67.5
I
Freezer:3.5 star/Fefrigerator:5.0 star
HVF325DW
0060533303
