Safety wire
(Accessory)
Mounting base
Ceiling board
Roof space
Ns0522-0
Printed in China
Ceiling Mount Bracket
Model No. WV-QED100
Operating Instructions
• Before attempting to connect or install this product, please read these instructions carefully and
save this manual for future use.
• The external appearance and other parts shown in this manual may differ from the actual product
within the scope that will not interfere with normal use due to improvement of the product.
Preface
About notations
This product is a ceiling mount bracket that is designed to mount the indoor PTZ type camera on a
ceiling. This bracket can be used for an area with weak pull-out strength such as plasterboard in a
double ceiling, and the embedded type makes the visible part of the camera smaller.
The latest information about the supported cameras
<Control No.: C0501>
Some functions are expressed with the following notations in this document.
C
Clear dome cover
G
Smoke dome cover
Do not use this product except with suitable cameras.
Failure to observe this may cause a drop resulting in injury or accidents.
Refer installation work to the dealer.
Installation work requires technique and experience. Failure to observe this may cause fire, electric
shock, injury, or damage to the product.
Be sure to consult the dealer.
The measures of protection against a fall of this product shall be taken.
Failure to observe this may cause a drop resulting in injury or accidents. Be sure to install the safety
wire.
The screws and bolts must be tightened to the specied torque.
Failure to observe this may cause a drop resulting in injury or accidents.
Install the product securely on a ceiling in accordance with the installation instructions.
Failure to observe this may cause injury or accidents.
Do not rub the edges of metal parts with your hand.
Failure to observe this may cause injury.
When using this product, also read the “Precautions” described in the operating
instructions for the camera to be attached.
Precautions
Installation
i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting
from failures arising out of improper installation or operation inconsistent with this
documentation.
Caution:
• Before attempting to connect or operate this
product, please read these instructions care-
fully.
Notice:
• This product is not suitable for use in loca-
tions where children are likely to be present.
• Do not install this product in locations where
ordinary persons can easily reach.
• For information about screws and other parts
required for installation, refer to the corre-
sponding section of this document.
Included Installation Instructions
Specifications
Standard Accessories
Refer to the operating instructions of the camera for details on the camera installation
(including the camera mounting, cable connection and adjustment).
Ambient temperature: –10 °C to +50 °C {14 °F to 122 °F}
Dimensions: Maximum diameter ø190 mm x 212 mm (H)
{ø7-15/32 inches x 8-11/32 inches (H)}
Mass:
Approx. 800 g {1.77 lbs.}
Finish: Main body: Surface treatment steel sheet
Decorative cover: ABS resin i-PRO white
Dome cover: Acrylic resin
C
G
(Transmittance: approx. 50 %)
“<Control No.: C****>” used in these documents should be used to search for
information on our technical information website (https://i-pro.com/global/en/
surveillance/training-support/support/technical-information) and will guide you to
the right information.
© i-PRO Co., Ltd. 2022
i-PRO Co., Ltd.
https://www.i-pro.com/
Parts and functions
①Make 4 holes of 12 mm {15/32 inches} in
diameter.
②Remove the center part from the template.
③Make a hole of 160 mm {6-5/16 inches} in
diameter.
* The hole shape is shown below.
①Determine the anchor bolt length (for mounting base) by use of Template B (accessory).
②Position the nut (locally procured) by use of Template B. (The distance between the bottom
surfaces of the ceiling board and nut shall be 136 mm {5-11/32 inches}.)

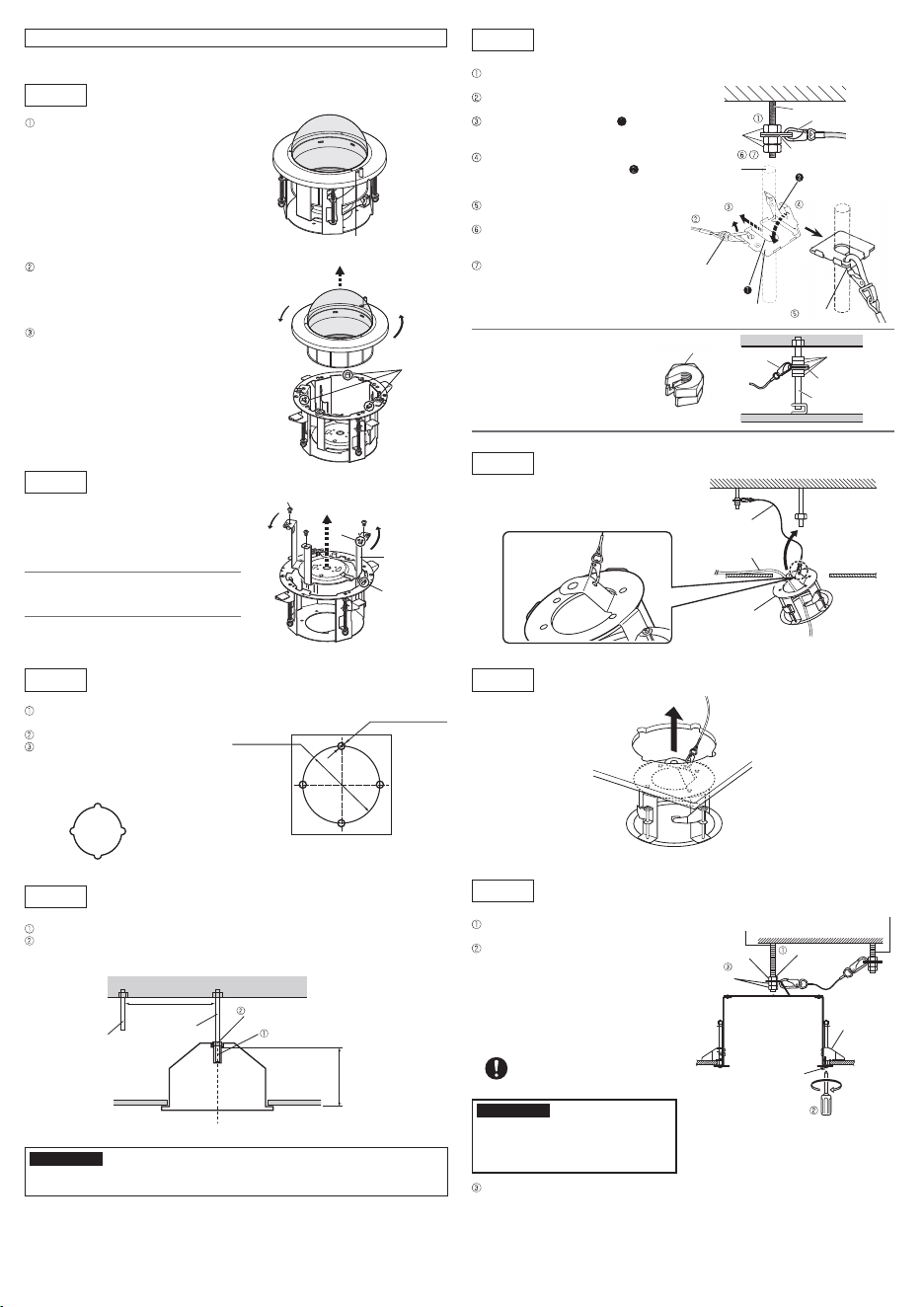

Step 2
Step 4
Step 1
Remove the decorative cover.
Remove the camera mounting plate.
Install two anchor bolts (M10 recommended) into the concrete
ceiling.
Step 5
Step 6
Step 7
Step 8
Mount the safety wire angle (accessory) on the anchor bolt for the
safety wire and connect the safety wire (accessory) to the angle.
Attach the safety wire.
Insert the mounting base into the hole made in Step 3.
Secure the mounting base.
Step 3
Put Template A (accessory) against the ceiling and make a hole.
In order to prevent injury, the product must be securely mounted to the ceiling
according to the Installation Guide of this product.
This product is designed to be used indoors.
This product is not operable outdoors. Do not expose this product to direct sunlight for hours and
do not install the product near a heater or an air conditioner. Otherwise, it may cause deformation,
discoloration and malfunction. Keep this product away from water and moisture.
Installation area for this product
Make sure that the installation area is strong enough to hold the total
weight of the camera assembly before installation.
The installation area shall have 180 mm {7-3/32 inches} or more
space behind the ceiling.
The thickness of the ceiling board for installation can range between
9mm {11/32inches} and 40mm {1-9/16inches}.
Make sure to remove this product if it will no longer be used.
Precautions for installation
180 mm
{7-3/32 inches}
or more
Ceiling board: between
9mm {11/32inches} and
40mm {1-9/16inches}
Operating Instructions (this document) ....... 1 pc.
The following are for installation
Safety wire* ............................................... 1 pc.
Safety wire angle* ...................................... 1 pc.
Template A ................................................ 1 pc.
Template B ................................................ 1 pc.
Inner cover (WV-QAT100) .......................... 1 pc.
Decorative cover
Rubber-made
microphone stand*
Fixing screw to be used
for cover fall prevention
Camera mounting
plate
Mounting base
Hole for microphone cable
Dome cover
* If a tiepin type microphone is used, mount the microphone on the rubber-made microphone
stand. Unless the microphone is used, cut the rubber with a nipper or conduct another treatment.
①Loosen the fixing screw (unremovable) to be
used for cover fall prevention.
②Turn the decorative cover counterclockwise to
unhook it from the hooks (3 positions) of the
camera mounting bracket, and remove it from
this bracket.
③Take the inner cover out.
FR O NT
LOCK
FR O NT
Fixing screw to be used for
cover fall prevention
Hook

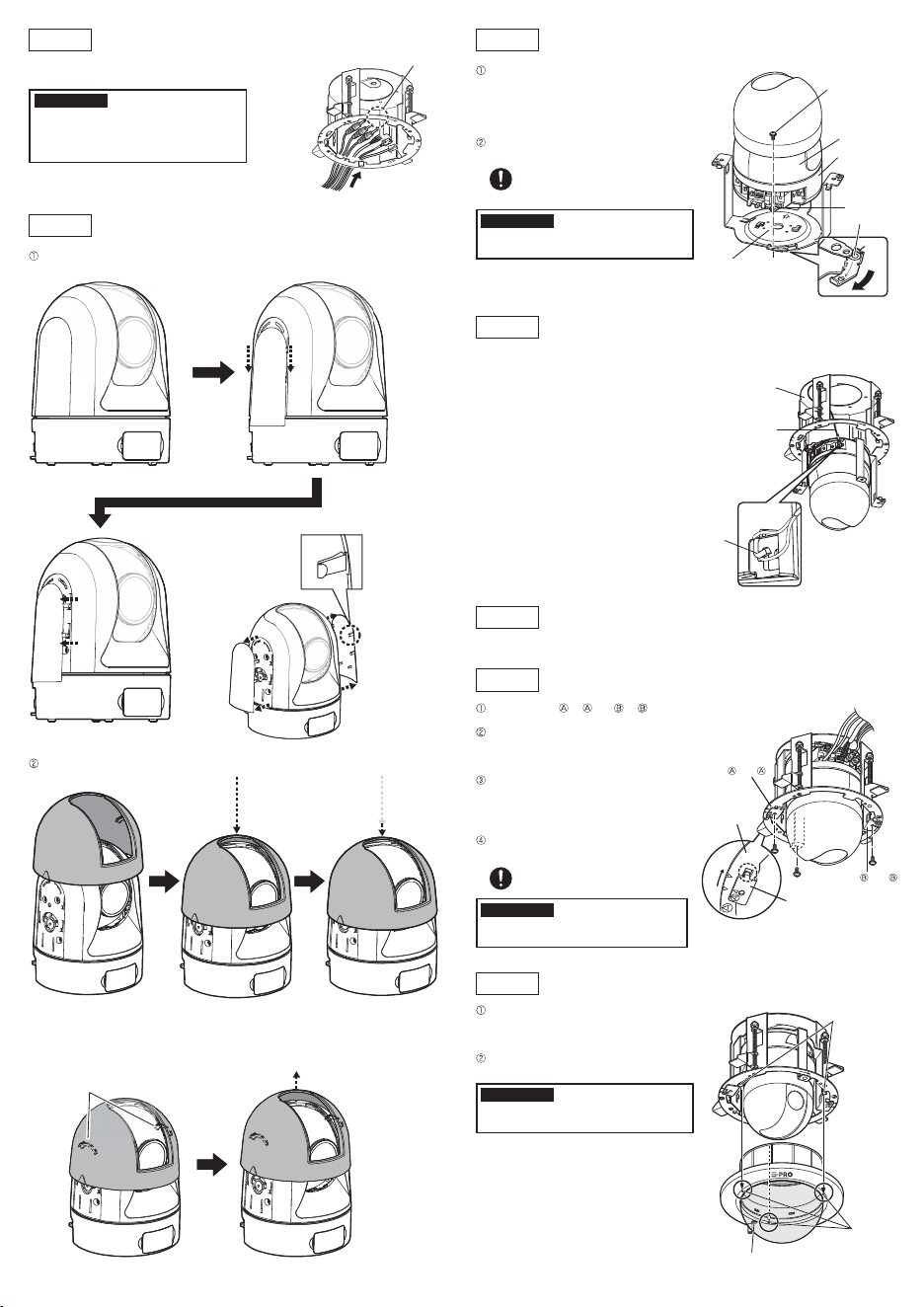

Remove the screws (M4, 3 pcs.) and remove the
camera mounting plate by turning it counterclock-
wise.
Remove the tab of the camera mounting plate (a)
from the hole of the mounting base (b) (2 positions).
Note:
• Keep the removed screws until using them in
Step 14.
IMPORTANT:
• When the existing anchor bolt is used as an anchor bolt for connecting the safety wire, make sure
that the distance between the anchor bolt and camera mounting position is 1 m {3.28 feet} or less.
ø12 mm {15/32 inches}
(4 positions)
Ceiling face
ø160 mm
{6-5/16 inches}
Template A
Template B
Ceiling board
Install the anchor bolt in the center of the hole
①Determine the anchor bolt length
136 mm {5-11/32 inches}
②Use a nut
Anchor bolt for
safety wire
Anchor bolt for
mounting base
①Mount a nut so that the safety wire
angle is secured on the anchor bolt.
②Remove the safety wire from the safety
wire angle.
③Insert the groove of the portion ❶ of
the safety wire angle into the anchor
bolt.
④Close the safety wire angle while
inserting the groove of the portion ❷ of
the safety wire angle into the anchor
bolt.
⑤Connect the safety wire to the safety
wire angle again.
⑥Engage the nut from beneath, and
secure the safety wire angle with top
and bottom nuts.
⑦Engage another nut from beneath to
tighten and secure the nut that was
engaged from beneath in y in a
double nut fashion
Note:
• When the existing anchor bolt that
has been installed is used for con-
necting the safety wire, the use of 2
spacer nuts is helpful.
Spacer nuts
Spacer nuts
Safety wire angle
Existing anchor bolt
Safety wire
Ceiling board
fixing screw
(4 places)
Ceiling board
fixing bracket
(4 places)
①
Insert the anchor bolt
Nut (locally procured)
③
Double nuts
(locally procured)
②
Turn clockwise
Anchor bolt for the mounting base
Anchor bolt for safety wire
Ceiling board
①Engage the top of the mounting base with
the anchor bolt for the mounting base.
②Secure the mounting base by turning the
ceiling board fixing screws (4 places)
clockwise.
Turning the ceiling board fixing screws
clockwise provides ceiling board
tightening between the bottom of the
mounting base and ceiling board fixing
bracket resulting in mounting base
securing.
Recommended tigtening torque:
0.78N·m {0.58 lbf·ft}
IMPORTANT:
• When securing the mounting base on the
ceiling, make sure that the four ceiling
board fixing brackets are open as shown
in the figure.
③Secure the top of the mounting base with
double nuts (locally procured).
Other items that are needed (not included)
* One anchor is used for securing the mounting base, and the other anchor is used for connecting
the safety wire. (See Step 4)
IMPORTANT
• Prepare anchor bolts according to the material and strength of the area where the product is
to be installed. The pull-out strength of the anchor bolt shall be more than 5 times of the total
weight of the installed devices (including the camera body, ceiling mount bracket, anchor
bolts, and all other parts).
Anchor bolt (M10)* ....................................2 pcs. Nut (M10) ................................................ 6 pcs.
* The product is shipped in a state where the safety wire is attached to the safety wire angle.
FR O NT
FR O NT
LOCK
(b)
Camera
mounting plate
Screw (M4, 3 pcs.)
(a)
less than 1 m {3.28 feet}
Attach the safety wire to the mounting base as
shown in the illustration below.
Cables
Fix the hook of the
safety wire to this
product.
Upper side
Lower
side
Safety wire
③Insert
②Remove
④Close
❷
❶
⑤Connect
Safety wire angle
Anchor bolt
<Image of safety wire connection>
Existing anchor bolt
Safety wire
Safety wire angle
Nut
(locally procured)
⑥⑦
①
