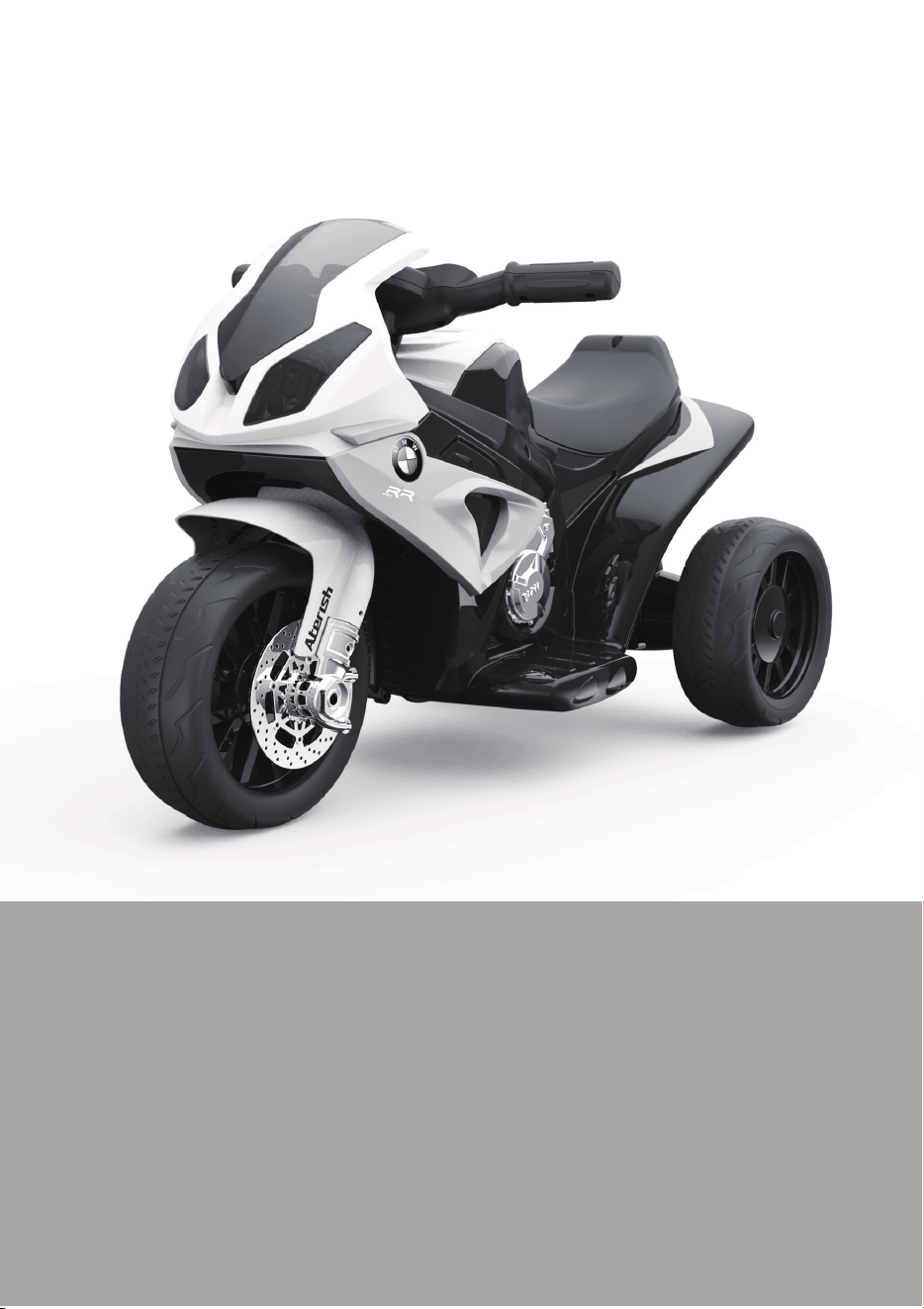

BMW S1000 RR
Owner’s Manual
with Assembly Instructions
Styles and colo(u)rs may vary.
Made in China.
The owner’s manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
Children Battery Powered Trike
On the purchase of your new Trike
This ride-on car will provide your child with many miles of riding of
enjoyment. To help assure you and your rider a safe ride we ask you to
please read this manual carefully, and keep it for future reference.
Follow the recommendations in this manual, they are designed to improve
the safety and operation of your ride-on car and rider.
Battery
Charger
6V4Ah x 1
6V500mA
Suitable age:
Load Capacity:
Speed:
Size of car:
Power way:
Charge time:
18-36 Months
Under 20 kgs
3km/h
66 x 37 x 44 CM
Charging type
8 ~ 12 hours
About Your New Ride-On │ 1
VER: SMS-JT5188(smaller packing)-EN-181112
BMW S1000RR Children Battery Powered Trike manufactured by
Zhejiang Jiajia Ride-On Co., Ltd. (Xincang Industrial Zone, Pinghu City,
Zhejiang Province, P.R.China). The BMW logo and the BMW word mark
are trademarks of BMW AG and are used under license.
1
2
3
4
5
6
7
8
9
10
11
12
1
1
1
1
1
1
1
2
3
2
1
2
PART
NO.
REMARKS
PART NAME
Q’ty (pcs)
Vehicle body
Faceguard
Handle bar
M5x35 machine screw
Ø5 nut
Charger
Gear box
Rear wheel
Ø8 washer
Lock nut
Front wheel assembly
Spanner
Parts List │ 2
1
7
8
9
9
9
10
2
11
3
6
4
5
8
12
10
NOTE: Some parts shown are assembled on both sides of vehicle
Parts Diagram │ 3
Spanner
Before Assembly │ 4
• Make sure that the power switch is turned “OFF” before assembling the ride-
on.
• Before first time use, charge the battery for at least 4 to 6 hours.
• Assembly tools required:
WARNING!
Screwdriver
(not included)
● Non-rechargeable batteries are not to be recharged.
● Rechargeable batteries are to be removed from the toy before being charged.
● Rechargeable batteries are only to be charged under adult supervision.
● Different types of batteries or new and used batteries are not to be mixed.
● Batteries are to be inserted with the correct polarity.
● Exhausted batteries are to be removed from the toy.
● The supply terminals are not to be short-circuited.
BATTERY INFORMATION
• ADULT ASSEMBLY REQUIRED.
• Always remove protective material and poly bags and dispose before assembly.
6
7
8
1
2
4
5
3
7
8
9
10
Attach the Rear Wheels │ 5
7. Slide a Ø8 washer onto the front axle.
8. Slide a rear wheel onto the front alxe.
9. Slide another Ø8 washer onto the front axle.
10. Tighten a lock nut to the end of the front axle with a spanner.
HINT: An extra spanner has been provided to hold the Lock Nut on the
other side of the rear alxe while tightening the Lock Nut on the other side.
Remove all the parts from the rear axle. Turn the vehice body downside up.
1. Insert the rear axle into the hole located on the rear of the vehicle.
2,3. Slide a gear box onto the rear axle, and plug the connector on the vehicle
into the connector on the motor.
4. Slide a wheel onto the rear axle.
5. Slide a Ø8 washer onto the rear axle.
6. Tighten a lock nut to the end of the front axle with a spanner.
Vehicle
connector
Motor
connector
2
3
4
1
Attach the Handle Bar │ 6
Remove the M5x35 machine screw and Ø5 nut from
the end of the front fork.
1. Insert the front fork into the opening on the front of the
vehicle body from the bottom side, and out through
the hole on the top side of the vehicle.
2. Place the handle bar over the the end of the fork.
End of front fork
Front fork
3. Align the holes on each side of
handle bar with the holes at the end
of the fork.
4. Fasten a nut on the opposite end of
the
screw to secure the handle bar.
1
6
5
1
4
2
3
Attach the Faceguard │ 7
5. Plug the light wire connector on the faceguard
into the connector on the vehicle.
6. Insert the tabs on the faceguard into the slots on
the vehicle.
1. With a small screwdriver remove the screw on the battery cover on the
faceguard.
2. Remove the battery cover from the top of the battery compartment.
3. Insert two AAA batteries in their correct polarities.
4. Replace the battery cover over the battery compartment and fasten with the
screw you removed in step one.
If you your vehicle with the sound function, follow the steps 1-4
to add the batteries (not included). Refer to the battery information on
page 3.
1
2
3
Connect the Power Supply │ 8
1. Using a screwdriver to remove the screw on the seat back.
2. Remove the seat.
3. Plug the red connector into the terminal on battery as shown.
4. Replace the seat.
Safety │ 9
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS
REQUIRED. Always keep child in view when child is in vehicle.
• This toy should be used with caution since skill is required to avoid falls or
collisions causing injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 18 months due to its maximum
speed; Maximum user weight is 20 kgs.
• This toy has no brake.
Rules for Safe Riding
• Keep Children within Safe Riding Areas:
- Never use in roadway, near motor vehicles, on lawn space, on or near steep
inclines or steps, swimming pools or other bodies of water;
• Use the toy only on flat surfaces. Such as inside your house, garden or
playground.
• Never use in the dark. A child could encounter unexpected obstacles and have
an accident. Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving .
WARNING!
Use the vehicle on generally level ground ONLY!
DO NOT Use the vehicle on Lawn space!
2
1
1. Sounds buttons(if equipped): Press for sounds playing.
2. Foot pedal: Applies power (speed) to the vehicle.
Use Your Trike │ 10
Charging │ 11
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
• PREVENT FIRE AND ELECTRIC SHOCK:
- Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery
or the charger with another brand. Using another battery or charger may cause a fire or explosion.
- Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
- NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or
explosion or may permanently damage the system.
- Do not allow direct contact between battery terminals. Fire or explosion can occur.
- Do not allow any type of liquid on the battery or its components.
- Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge
the battery in a well-ventilated area ONLY.
- NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a
fire. Pick up the battery by the case ONLY.
- Charge the battery in a dry area ONLY.
• Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm. Wash hands after
handling.
• Do not open the battery. Battery contains lead acid and other materials that are toxic and
corrosive.
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.
• Only adults may handle or charge the battery. NEVER allow child to handle or charge the
battery. Battery is heavy and contains lead acid (electrolyte).
• Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord
and the connectors. DO NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a
month if not used regularly.
• Do not charge battery upside down.
• Always secure the battery with the bracket. Battery can fall out and injure a child if vehicle tips
over.
WARNING!
• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge
the battery for more than 10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, less
than 20 hours at most.
2
1
Charging │ 12
1. Plug the charger port into the input socket. (the socket is at the back of the
vehicle)
2. Plug the charger plug into a wall outlet. The battery will begin charging.
WARNING!
This product with Charging Protection: when charging, all functions will be cut
off! Only an adult can charge and recharge the battery!
Battery Replacement & Fuse │ 13
The battery features a thermal fuse with a rest fuse that will automatically trip and cut all
power to the vehicle if the motor, electric system or battery is overloaded. The fuse will
reset and power will be restored after the unit is turned OFF for 20 seconds and then turned
ON again. If the thermal fuse trips repeatedly during normal use, the vehicle may need
repair. Contact your distributor please.
To avoid losing power, follow these guidelines:
● Do not overload the vehicle.
● Do not tow anything behind the vehicle.
● Do not drive up steep slopes.
● Do not drive into fixed objects, which may cause the wheels to spin, causing the motor to
overheat.
● Do not drive in very hot weather, components may overheat.
● Do not allow water or other liquids to come in contact with the battery or other electric
components.
● Do not tamper with the electric system. Doing so may create a short, causing the fuse to
trip.
Battery Replacement and Disposal
The battery will eventually lose the ability to hold a charge. Depending on the amount of
use, and varying conditions, the battery should operate for one to three years. Follow these
steps to replace and dispose the battery:
1. Remove the car seat.
2. Disconnect the battery connectors.
3. Remove the battery bracket.
4. Remove the battery cover.
5. Carefully lift the battery.
● Depending on the condition of the battery (i.e.: leakage) you may want to wear
protective gloves before removal.
● Do not lift the battery by its connectors or cables.
6. Place the dead battery in a plastic bag.
Important! Recycle the dead battery responsibly. The battery contains lead acid
(electrolyte) and must be disposed of properly and legally. It is illegal in most areas to
incinerate lead acid batteries or dispose of them in landfills. Take it to a federal or
state-approved lead acid battery recycler, such as local automotive battery retailer.
Do not throw the battery away with your regular household waste!
7. Replace the battery and reconnect the connectors.
8. Replace the metal battery bracket.
9. Replace the seat.
Troubleshooting Guide │ 14
.
Problem Possible Cause Solution
Vehicle does not run
Vehicle does not run
very long
Vehicle runs sluggishly
Vehicle needs a push
to go forward
Difficult shifting from
forward to reverse or
vice-versa
Loud grinding or clicking
noises coming from
motor or gear box
Battery low on power
Thermal fuse has tripped
Battery connector or wires
are loose
Battery is dead
Electrical system is damaged
Motor is damaged
Battery is under charged
Battery is old
Battery is old
Vehicle is overload
Vehicle is being used in harsh
conditions
Poor contact of wires or
connectors
“Dead Spot” on motor
Motor or gears are damaged
Battery low on power
Recharge battery.
Reset fuse, see <Fuse>
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor
contact your distributor please.
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor,
contact your distributor please.
A dead spot means the electric power is not being
delivered to the terminal connection and the vehicle
needs repair. Contact your distributor please.
Attempting to shift while the
vehicle is motion
Completely stop the vehicle and shift, see <Use Your
Ride-On>
Check that the battery connectors are firmly plugged
into each other when recharging
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Reduce weight on vehicle. Maximum user weight is
20 kgs.
Avoid using vehicle in harsh conditions ,see <Safety>.
Recharge battery, contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Battery will not
recharge
Charger feels warm
when recharging
Battery connector or adapter
connector is loose
Charger not plugged in
Charger is not working
This is normal and not a
cause for concern
Check that the battery connectors are firmly plugged
into each other.
Check that the battery charger is plugged into a
working wall outlet.
Completely read through this manual and the troubleshooting guide table before calling. If you
still need help resolving the problem Contact your distributor please.
Maintaining │ 15
Our products are suitable for
ASTM F963; GB6675; EN71 and EN62115 standard.
• It is parents' responsibility to check main parts of the toy before using, Must
regularly examine for potential hazard, such as the battery, charge,cable or
cord, plug, screws are fastening enclosure of other parts and that in the event
of such damage, the toy must not be used until that damage had been properly
removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters.
Plastic parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery.
Recharge the battery at least once a month when the vehicle Raider is not
being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and
water. Do not drive the vehicle in rainy or snowy weather. Water will damage
the motor, electric system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a
non-wax furniture polish. Do not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage
the moving parts, motors or the electric system.
• When not using, all the electrical source should be turn off. Turn off the power
switch and disconnect the battery connection.
