Congratulations on your purchase of a Boss Audio Systems
R
Specifications....................................................................................................1
Safety Notice.....................................................................................................2
Accessories.......................................................................................................3
Unit Installation..................................................................................................3

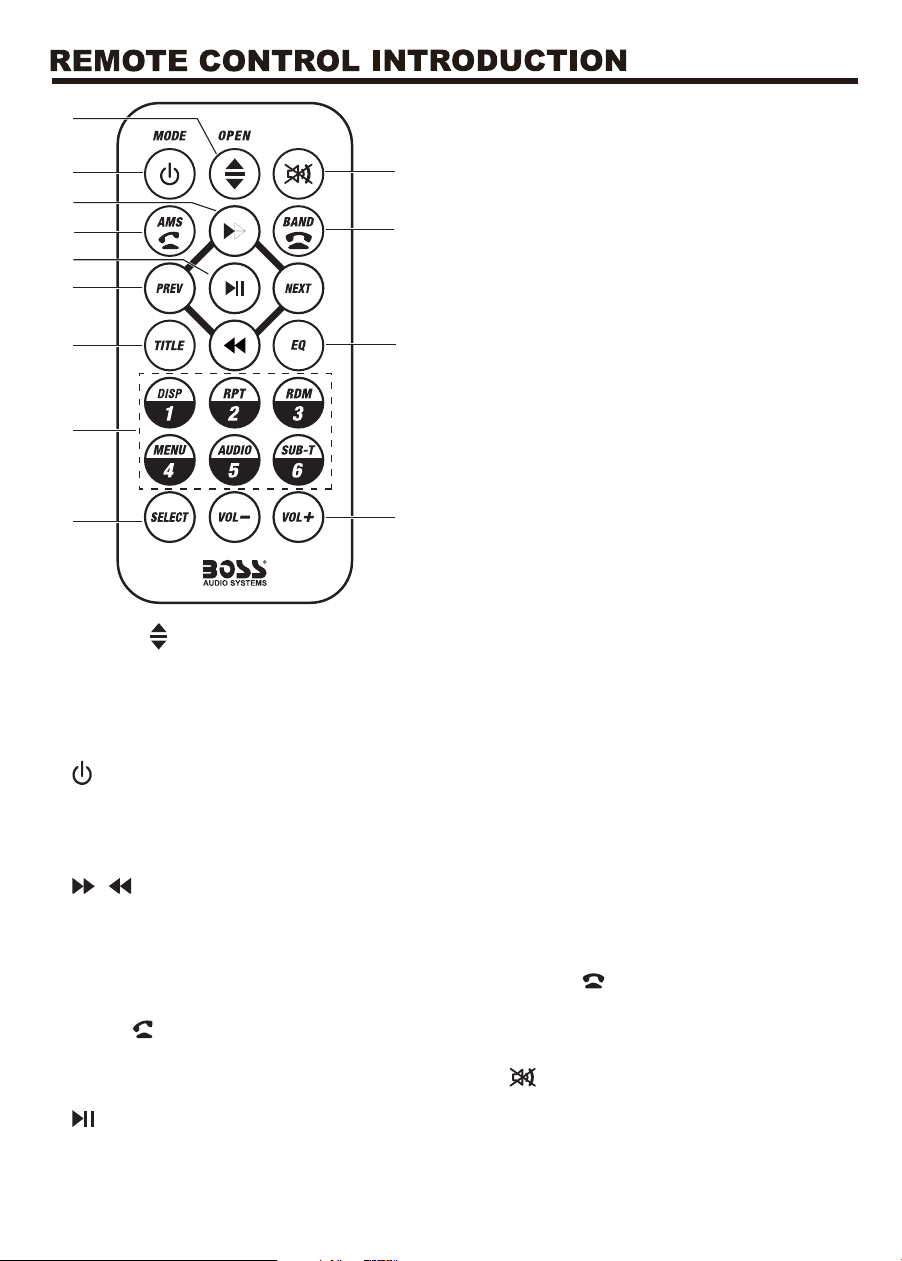

Remote Control Introduction.............................................................................
Wire Connection Description.............................................................................4
Main Menu Operation Instruction......................................................................

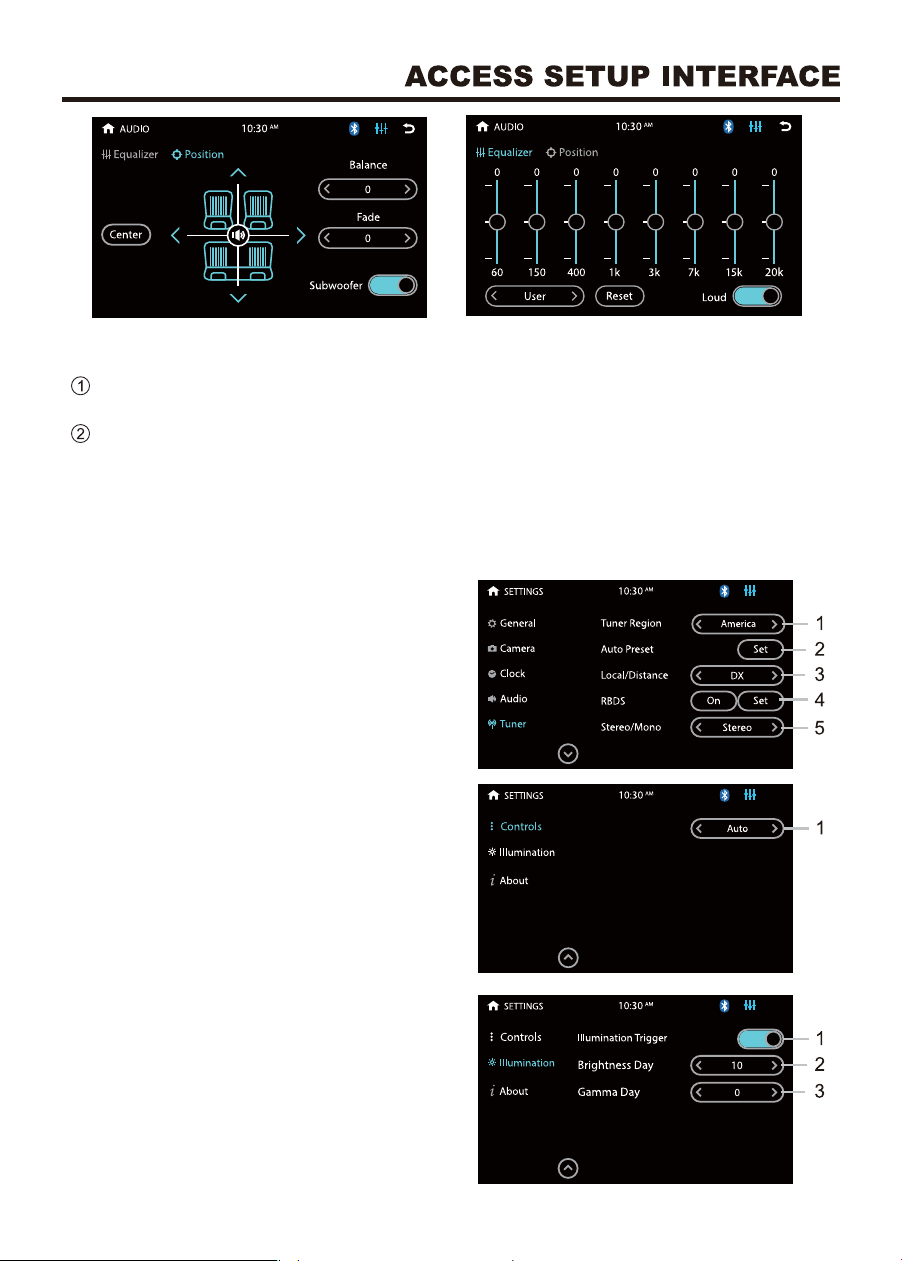

Access Setup Interface.....................................................................................
General Settings........................................................................................
Camera Settings........................................................................................
Clock Settings............................................................................................
Audio Settings............................................................................................
Controls Color Settings..............................................................................
IIIumination Settings...................................................................................
About Settings..........................................................................................
Tuner Operation..............................................................................................
USB/Micro SD Playback..................................................................................11
USB/Micro SD Video/Music/Picture Operation.........................................11
Video Operation...................................................................................
Music Operation...................................................................................
Photo Operation...................................................................................

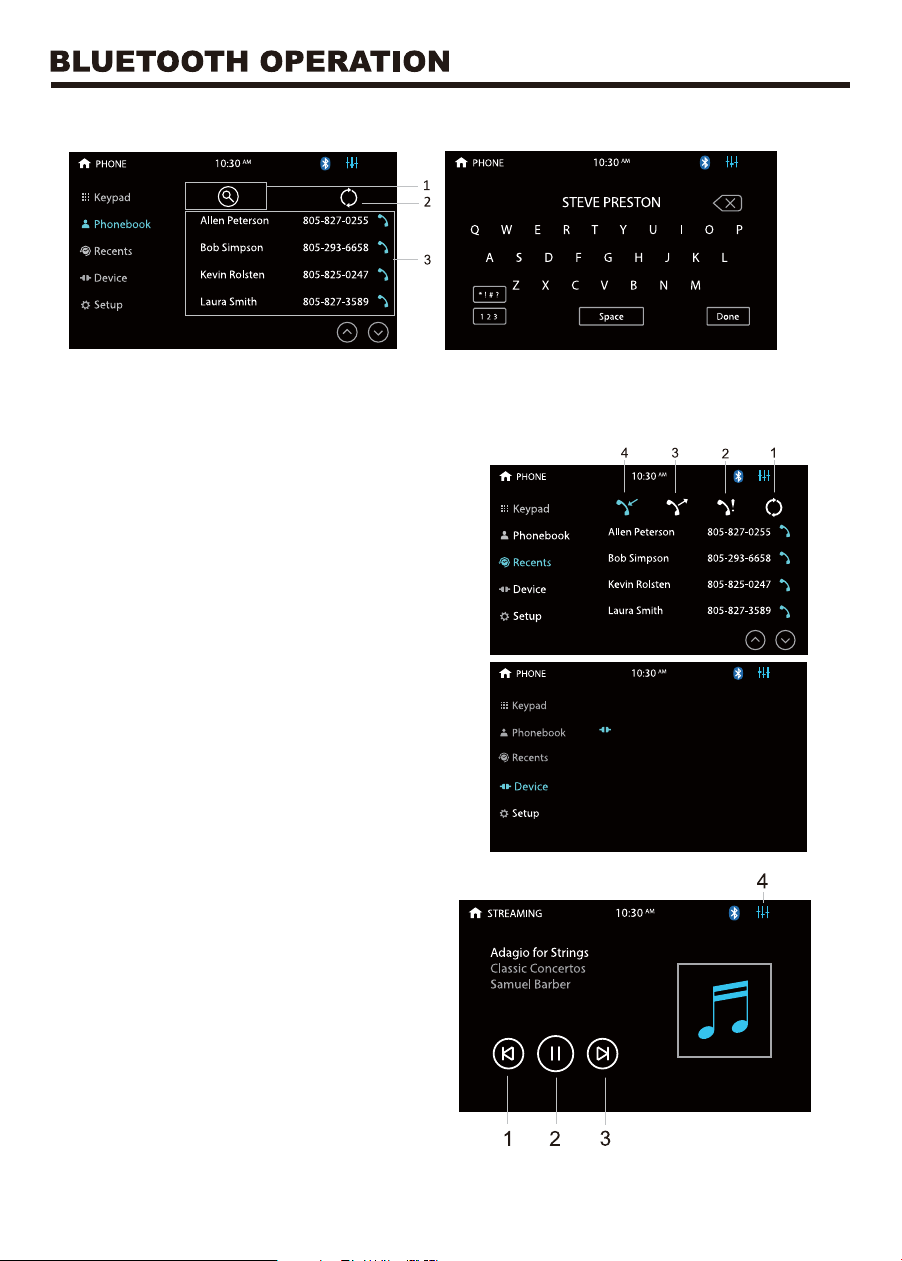

Bluetooth Operation........................................................................................
A-LINK(Screen Mirroring) Operation...............................................................15

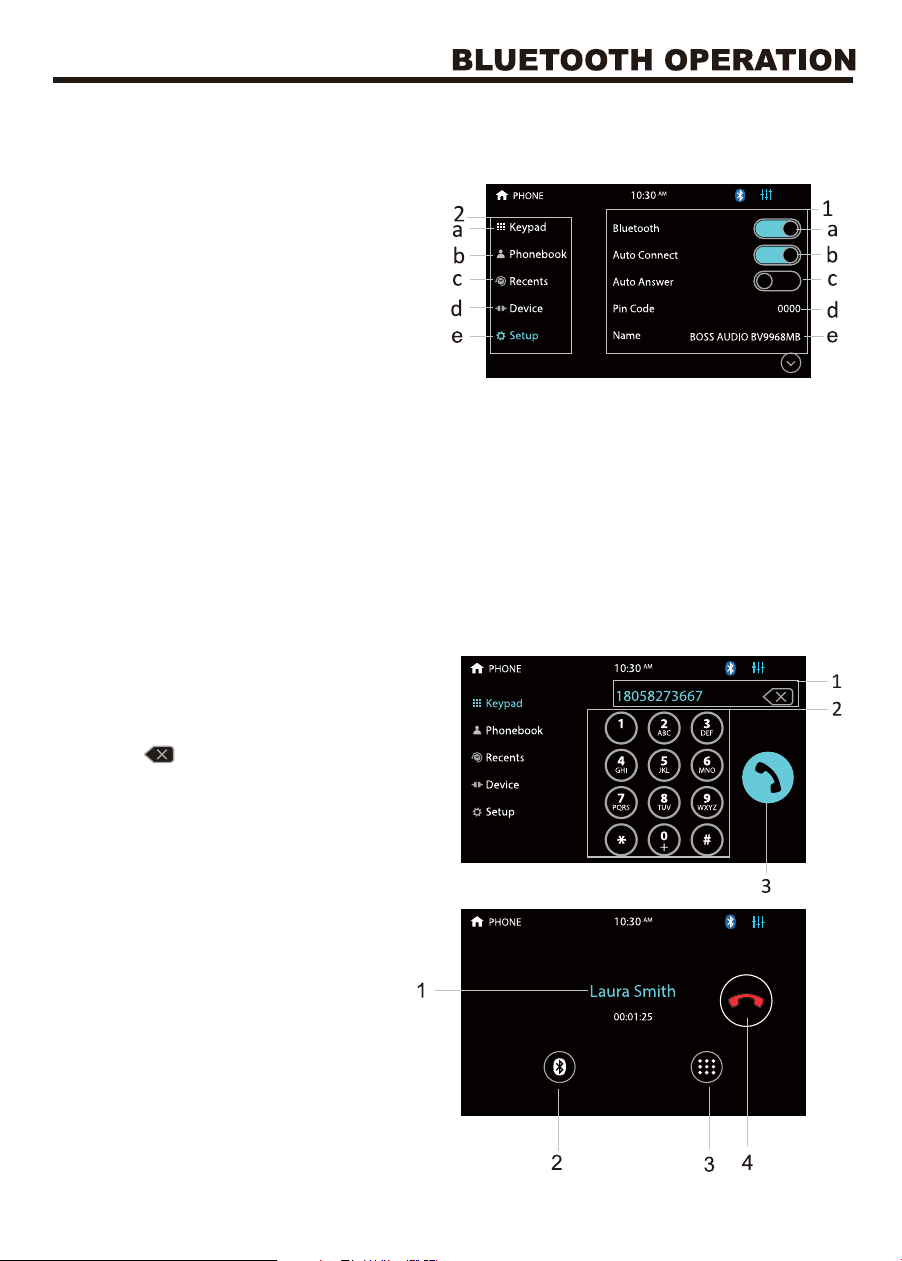

Bluetooth Operation Menu.......................................................................
Bluetooth Dialing......................................................................................
Bluetooth Call...........................................................................................13
Bluetooth Phone Book.............................................................................
Bluetooth Phone Call History...................................................................
Bluetooth Paired Device...........................................................................14
Bluetooth Music Steaming........................................................................
Multimedia Receiver.
It has been designed, engineered and manufactured to bring you
the highest level of performance and quality, and will offer you
years of entertainment pleasure.
PTT(Push-To-Talk) Operation.........................................................................15
Steering Wheel Control (SWC)........................................................................16
Troubleshooting...............................................................................................
Panel Introduction.............................................................................................
5
6
7
8
7
8
8
8
9
Tuner Settings............................................................................................
9
9
10
10
11
12
12
13
13
13
14
14
17
14
Model No.
General
features
BV9968MB
Fixed front panel with 7” motorized TFT screen
FM/AM Radio
RBDS
A-Link (Screen Mirroring)
USB Charging (1A)
Front USB and Micro SD support
Bluetooth audio stream and hands-free phone call
AUX input
AV input
Video output
Front/Rear view camera support
4V Front and subwoofer pre-amp outputs
Max. 4 x 85W power output
Steering wheel control (SWC) input
800 x 480 pixelTFT screen
USB/Micro SD
Working power
Max Output
Working Temperature
Size
Weight
Compatible Media
Audio file
MP3/WAV/WMA/FLAC
3.53 lbs / 1.60 kg
7.01” x 7.36” x 1.97” / 178 x 187 x 50 mm
-20°Cd70°C/-4°Fd158°F
4 x 85W
12V
64G
Picture JPG/JPEG/BMP
Format
.MPEG1
.MPG
MPEG1
MPEG2
MP2
MP2
Video file
Video code
Audio code
Push-To-Talk (PTT)
Please read and understand the following safety information before operating this unit.
The unit is suitable for 12V power supply (requires grounding). Do not connect
it to 24V power supply in trucks or buses, or else it will be damaged.
Do not replace the fuse without the guidance of qualified personnel or the unit
may be damaged and/or catch fire.
Please follow the traffic laws and regulations and do not watch programs or
operate the unit when you are driving to avoid accidents (excluding passengers
watching through rear monitor).
To ensure safety and normal unit operation, please ask qualified personnel to
install the unit. Do not disassemble or repair the unit without authorization.
To avoid damage and accidents, please contact a local car audio distributor for
details.
Do not put the unit in a moist environment or water to avoid electric shock,
damage, and/or fire due to a short circuit.
The mechanical drive part of the monitor uses an automatic precision transmission
component. Do not pull, push or rotate the unit by force or impact the TFT screen
to avoid damaging the unit.
Do not insert the audio plug of the vehicle into the master unit directly. Please
convert with the dedicated end cable provided by our company.
When installing the unit, prevent metal objects from falling into the master unit
from the vents to avoid a short circuit and damaging the unit.
Safety Statement
For the safety of yourself and others, do not watch programs or operate the unit
when you are driving. It is prohibited by law.
The back up camera function should be used as an auxiliary view only. We are not
responsible for any accidents occurred during backing.
WARNING!
To ensure safety while driving and to comply with laws, drivers should not watch video
or operate the video device while driving.
Notes for Battery
Replace only with the same type
battery (CR2025). Observe correct polarity while
inserting the battery.
Remove the battery from the remote control if not used for a long time.
The remote control contains a coin/button type battery, which can be swallowed.
Keep the battery out of reach of children at all times!
Batteries contain chemical substances, so they should be disposed of properly.
INSTALLATION
ACCESSORIES
1x Remote control
1x Wire hanress
1x Hands-free microphone
Microphone mount kit
1x Sticker
1x Clip
Make sure your dash opening has the correct size shown.
Disconnect the negative battery terminal of your vehicle.
Complete the electrical connections.
1x Plain washer
1x Spring washer
2x Release keys
Head unit mounting kit
1x Mounting sleeve
1x Mounting strap
1x Tapping screw
1x Hex bolt
1x Hex nut
Hex Bolt
Spring Washer
Plain Washer
Tapping Screw
Screwdriver
Tabs
Hex Nut
Dash Board
Release Key
Release Key
Plastic Trim Out
Metal Mounting Strap
Console
Mounting Sleeve
Before you start
1. Remove the plastic trim ring. Use a screwdriver to pry open the trim ring then pull it out.
2. Remove the mounting sleeve from the unit. Insert two supplied release keys into the
lock position on both sides of the mounting sleeve, then pull the sleeve out of the unit.
3. Correctly insert the mounting sleeve in the dash opening. Then bend the tabs on the
mounting sleeve with a screwdriver to secure the mounting sleeve.
4. Insert the unit into the dash opening/mounting sleeve.
5. Use the supplied mounting strap to secure the rear part of the unit.
6. Connect all wirings to the head unit. Replace the plastic trim ring.
Mount the unit
ACCESSORIES/INSTALLATION
2.05”
7.20”
WIRE CONNECTION DESCRIPTION
Description of the Input/Output Interface
4
Fuse (10A)
Wire Harness Connector
(connects to the supplied wire harness)
Microphone Input
(connects to the supplied hands-free microphone)
AV Inputs and Outputs
FM/AM Antenna Jack
Power
Yellow................................. Constant (+12v)
Audio/Video Inputs and Outputs
Wire Harness
1. R.CAM ......... Rear Camera Input (Yellow)
2. F.CAM......... Front Camera Input (Yellow)
3. SUB ........... Sub Pre-amp Output (Green)
4. V-IN..........................Video Input (Yellow)
5. L-IN.....................Left Audio Input (White)
6. R-IN.....................Right Audio Input (Red)
7.V-OUT ..................... Video Output (Yellow)
8. L-OUT........... Left Pre-amp Output (White)
9. R-OUT.......... Right Pre-amp Output (Red)
Red................................... Accessory (+12v)
Black............................................ Ground (-)
Orange................... Illumination Input (+12v)
Violet/Wht................... Reverse Input (+12v)
Blue.................. Ant. Output (+12v, 500 mA)
Blue/Wht......... Rem. Output (+12v, 500 mA)
Lt.Green....................... Parking Brake Input
Control
3.5mm........................................ SWC Input
Speaker Outputs
White....................................... Left Front (+)
White/Blk.................................. Left Front (-)
Gray...................................... Right Front (+)
Gray/Blk................................. Right Front (-)
Green....................................... Left Rear (+)
Green/Blk.................................. Left Rear (-)
Purple.................................... Right Rear (+)
Purple/Blk............................... Right Rear (-)
Camera Power
Red/Blue.........
(+12v, 500 mA)
Red/White.........
(+12v, 500 mA)
/
5
1
2
3
4
5 6 7 8 10 11
12
13
14
9
1 OPEN
/ CH1-6
2
Start, pause or resume playback.
/
In radio mode, press briefly to tune
to a station; press and hold to enter
manual seeking mode to fine tune
frequencies.
Press to slide the screen out.
Hold down to slide the screen in.
Repeatedly press to tilt the screen up
or down.
In radio mode, select a radio station.
MODE
3
Press to switch the unit on; hold
down to switch the unit to standby.
/
Select a source.
5
6
Volume knob / (Push To Talk)
Rotate to adjust volume.
Press to access smartphone voice
assistant capability via Bluetooth
.
4
Mute or restore volume.
During media play, press to skip to
the previous or next track; hold down
to fast search forward or backward.
7
/
Eject or end a Bluetooth phone call.
BAND
Select a tuner band.
8
Dial or answer a Bluetooth phone call.
9 Display
Show current status.
10 Remote sensor
Receive signal from the remote control.
11 AUX jack (3.5mm)
Connect to an external audio device for
audio input.
12 USB port
Connect to a USB flash drive for media
play.
13 Reset button
Press the reset button if the unit fails to
operate properly.
14 SD card slot
Connect to a Micro SD card for media
play.
1
2
3
4
5
6
7
8
1 OPEN
MODE
2
Press to switch the unit on; hold
down to switch the unit to standby.
3 /
/
/
/
/
In radio mode, select a preset station.
During media playback, search
Press to slide the screen out.
Hold down to slide the screen in.
Repeatedly press to tilt the screen up
or down.
forward and backward with x2, x4,
x8, x16 speed.
During media playback, skip to the
previous or next track.
4 AMS
Auto search and store radio stations.
Select a source.
5
Start, pause or resume playback.
6
PREV
/
NEXT
7
Dial or answer a Bluetooth phone call.
8
Numeric buttons: In radio mode,
select a radio station (1-6).
TITLE
DISP: During video play, hold down
to display the menu bar.
RDM: During media playback, hold
down to turn on or off random play
RPT: During media playback, hold
down to set repeat play.
MENU: During video playback, hold
down to enter root menu.
AUDIO: During video playback, hold
down to select audio language.
SUB-T: During video playback, hold
down to select subtitle language.
During video playback, enter title list.
In radio mode, press briefly to tune to
a station; press and hold to to enter
manual seeking mode to fine tune
frequencies.
9
SELECT
EQ
Enter sound balance settings.
10
VO
L +/-
Adjust volume.
1
1
Enter sound equalizer settings.
Eject or end a Bluetooth phone call.
12
BAND
Select a tuner band.
13
Mute or restore volume.
9
10
11
12
13
6
SD
TUNER STREAMING
PHONE
CAMERAS
USB
AV INPUT
AM
10:30
AUX IN
7
MAIN MENU OPERATION INSTRUCTION
General SETTINGS-Menu 1
There are eight Setting Menus
1. Tuner Interface
2.
Bluetooth Streaming Interface
3. Bluetooth Phone Interface
4. USB Interface
5. Micro SD Interface
6. Front/Rear Camera Interface
7. AV INPUT Interface
8. AUX IN Interface
9. Setting Interface
10. A-LINK(Autolink) Interface
MAIN MENU 1
MAIN MENU 2
2. Retain ACC Power: select how many seconds to delay shut down of the unit
after the vehicle powers down.
3. When turned on, an audible beep tone confirms each function selection.
4. Touch to select Spanish or English.
5. Touch to set a screen angle from four options.
1. Touch to set wall paper for the home menu background.
SETTINGS
AM
10:30
A-LINK
8
Clock SETTINGS-Menu 3
Camera SETTINGS-Menu 2
Audio SETTINGS-Menu 4
1. Camera Trigger: Touch to select Front/Rear/Off. Select to display the front or
rear camera view, or no camera view when reversing.
2. Rear Camera: Touch to enable or disable the rear camera input.
3. Rear Cam Pwr: Touch to enable or disable power output to the rear camera.
4. Front Camera: Touch to enable or disable the front camera input.
5. Front Cam Pwr: Touch to enable or disable power output to the front camera.
6. Rear Camera Delay / Front Camera Delay: Touch to delay trigger of the camera
view by a set time (1/2/3 seconds or off) when shifting the gear to the reverse
position. Due to varying vehicle configuration, the camera view trigger can be
delayed to suit the vehicle.
a. Touch to set clock mode: 12/24 hour.
b. Touch to set hours.
c. Touch to set minutes.
d. Touch to set AM/PM at 12 hour mode.
Mode
12 Hour
10
30
AM
Hour
Min
AM/PM
Rear Camera Delay
Camera Trigger
Rear
Rear Camera
Rear Cam Pwr
Front Camera
Front Cam Pwr
Internal AMP
15
0
0
15Startup Volume
Startup Voice
TUNER Level
USB Level
12
Phone Level
0
0
0
0
0
STREAMING Level
AUX IN Level
AV INPUT Level
12
10
SD Level
11
15Voice Level
9
Tuner SETTINGS –Menu 5
Illumination SETTINGS –Menu 7
Controls Color SETTINGS –Menu 6
2. 3. Startup volume & Starup voice: Set a default volume.
If the volume at the last shutdown is less than this volume, the volume at the
last shutdown will be used when rebooting;
If the volume at the last shutdown is greater than this volume, this default
volume will be used when rebooting.
1. Touch to select whether to output sound from an external amplifier.
4-11. Touch to set a particular volume level for each source.
12. Slide up or down to enter the previous or next menu interface.
Position: Touch to access setup of balance, fader and subwoofer.
Equalizer: Touch to access setup of equalizer and loudness.
1. Select America or EU region you are
in to receive radio stations.
2. Perform radio search and store radio
stations in each radio band.
3. Select “Local” to receive strong signal
only. Select “Distance” to receive both
strong and weak signals
4. Turn on or off RBDS function. Select
“Set” to access RBDS setting options.
5. Select “Stereo” or “Mono” sound effect.
1. Touch to turn on the illumination
1. Touch to set illumination color for the
control panel backlights: Auto, Green,
Blue, Red,Yellow, Cyan, Purple, White.
detection function.
2. Touch to set screen brightness.
3. Touch to set gamma brightness.
Controls Color
01 News
02 Affairs
03 Info
04 Sport
05 Educ ate
1. Touch to go back to the home
page.
2. Show PS, PTY and RT messages
from RBDS
3. Short press to seek backwards, long
press to enter manual mode.
4. Short press to seek forward, long
press to enter manual mode.
5. Short press to select the preset station,
long press to save the current station.
Touch Setting >Tuner > RBDS > Set to enter the RBDS setup menu.
Choose what program type you'd like to listen to: news, sports, information, etc.
TUNER OPERATION
TUNER OPERATION
About SETTINGS –Menu 8
a. CT (Clock Time)
Turn on to automatically correct the
current time every time the RBDS is
enabled.
b. TA (Traffic Announcement)
ON: When turned on, the radio will
OFF: TA function is turned off.
automatically search for traffic stations.
The unit will automatically switch to radio
mode to broadcast traffic announcement,
even if the unit is in other mode. Once the traffic announcements are complete,
the unit will automatically switch back to the previous mode.
c. AF (Alternative Frequencies)
When the AF function is turned on, the radio will automatically fine tune to other
frequencies when the received station becomes weak. A warning message will be
displayed on the screen when receiving emergency announcements.
1. Calibrate the touch screen to improve
responsiveness and accuracy. Touch
the crosshair on the screen each time
it appears to calibrate the screen.
2. View version numbers of this product
3. Restore the product to factory settings.
4. Enable/disable display of the End User
License Agreement when booting up.
USB
/D://
Demo.avi
Movie_720x480.rmvb
11
VIDEO OPERATION
Touch the USB/SD icon in the main menu to enter the USB or Micro SD playback
interface.
USB/MICRO SD MUSIC/VIDEO/PICTURE OPERATION
9. Touch to change random play mode.
10. Touch to enter video adjust page to adjust
Gamma and contrast of video.
11. Touch to enter video title list.
12. Touch to select the subtitle language.
13. Touch to switch aspect ratio of video
between 4:3 and 16:9
14. Touch to select audio language for video.
15. View the Music files
16. View the Photo files
17. View the Video files
18. Enter the previous or next page of list.
1. Keypad: Enter the number to select video.
2. Short press to move to the previous
video, long press to rewind quickly.
3. Touch to playback/pause.
4. Short press to move to the next video,
long press to fast forward quickly.
5. List: Touch to enter root menu.
6. Go to the next page of the menu bar.
7. Go to the previous page of the menu bar.
8. Touch to change the repeat mode in
the following sequence:
repeat track, repeat all, repeat cancel.
d. PTY (Programming Type)
NOTE: If RBDS is turned OFF, CT/TA/AF/PTY will not function.
Touch an on-screen button to select a program type. The unit will search for
the selected program and broadcast it.
NOTE: When properly installed, a video
cannot be displayed unless the
parking brake is applied.
If the parking brake wire is not
installed correctly, a warning
message will appear.
USB/MICRO SD PLAYBACK
USB
/D://
Another Way.mp3
Avenue.mp3
Gill In the Mirror.mp3
All By Myself.mp3
USB
/D://
Blue Coast.jpg
Rural Scenery.jpg
08/29
12
MUSIC OPERATION
PHOTO OPERATION
1. Show the music’s ID3 information.
3. Change play mode: repeat all, repeat single, sequential play and shuffle play.
2. Skip to the previous song.
5. Time bar: show the elapsed time and total time of the current song/track number.
4. Play/Pause.
6. Skip to the next song.
7. List: Touch to enter song file list.
8. View the Music/Photo/Video files.
9. Go to the previous or next page of list.
1. Keypad: Enter the number to select photo.
2. Skip to the previous photo.
3. Play/Pause.
4. Skip to the next photo.
5. List: Touch to enter photo file list.
6. Go to the next page of the menu bar.
7. Go to the previous page of the menu bar.
8. Repeat single, repeat all, repeat cancel.
9. Sequential play and shuffle play.
10. Touch to enter photo adjust page to
adjust Gamma and contrast of image.
11. Turn right 90 degree.
12. Zoom In / Out.
13. View the Music/Photo/Video files.
14. Go to the previous or next page of list.
USB/MICRO SD PLAYBACK
1
2
3
4
5
13
1. Show the number dialed in.
Press to delete input numbers.
2. Key area.
3. Touch to call out.
Touch the “PHONE” icon on the home screen to enter the Bluetooth function interface.
a.Turn Bluetooth on and off.
When Bluetooth is not connected,
the Bluetooth icon on the screen
flashes. When Bluetooth is connected,
the icon turns to steady from flashing.
b.Connect automatically.
c.Answer automatically.
d.PIN code: 0000. When prompted for
password, input 0000 on your mobile
phone for Bluetooth connection.
e.Bluetooth name for this unit: BOSS AUDIO BV9968MB
BLUETOOTH OPERATION MENU
BLUETOOTH DIALING
BLUETOOTH CALL
1. Bluetooth setting menu:
a.Touch to see the dialing keypad. Users can dial phone numbers and make calls.
b.Touch to see the Bluetooth phonebook menu.
c.Touch to see the Bluetooth call history.
d.View Bluetooth connected devices.
e.Access Bluetooth settings menu.
1. Show contact name being called.
2. Touch to select talk through
phone or through this unit.
3. Keypad area.
4. Touch to hang up the phone call.
2. Function area:
iPhone 8
14
BLUETOOTH PAIRED DEVICE
1. Touch to view the device connected to
this unit.
2. Touch the device name to disconnect
the device.
BLUETOOTH MUSIC STREAMING
When Bluetooth is connected, touch
the “STREAMING” icon on the home
screen for music streaming.
1. Skip to the previous song.
2. Play/pause.
3. Skip to the next song.
4. Enter the sound settings menu.
BLUETOOTH PHONE BOOK
1. Touch to search for a name or phone number.
2. Touch to sync phonebook.
3. Contact list.
BLUETOOTH PHONE CALL HISTORY
1. Touch to sync phone call history.
2. Touch to show missed calls.
3. Touch to show the dialed phone
numbers.
4. Touch to show the received phone
numbers.
15
A-LINK(SCREEN MIRRORING) OPERATION
A-LINK App allows you to mirror the screen of certain Android smartphones on the
screen of this unit.
Scan either of the QR codes to download the “A-LINK”
App in Amazone App Store or Google Play Store and
install it to your smartphone.
Simply connect your smartphone to the USB port on the
front panel using the original cable of your smartphone.
You will see the favorite smartphone apps directly on the
screen of this unit.
Note:
1. Supports 2 way control for Android device.
2. Supports Android 8.0+ or higher, not all apps are supported.
PTT(PUSH-TO-TALK) OPERATION
Amazon
App Store
Google
Play Store
This Push-To-Talk feature allows direct access to Android and IOS smart-phones
voice assistant capability when you establish the Bluetooth connection between
your smartphone and this unit. Press the button on the front panel to use the
function when Bluetooth connection is made.
Note:
● Before using the Push-To-Talk, you must enable the mobile data on your
smartphone.
● To use the navigation feature, switch to the BT Audio source to hear voice
commands over the speakers of your vehicle.
Voice Assistant
AM
10:30
16
SWC INTRODUCTION
Steering Wheel Control (SWC) function allows you to operate this unit via an external
device (steering wheel control).
A third-party adapter must be used in order for this unit to be compatible with your
OEM steering wheel controls. We recommend PAC SWC series.
This unit has a built-in 3.5mm SWC interface that is compatible with many popular 3rd
party SWC control modules, such as PAC, METRA, and others.
PROGRAMMABLE CONTROLS
The following radio / audio function controls are available to be programmed.
SWC INSTALLATION / PROGRAMMING
Contact your local installation expert for the correct SWC adapter for your specific
vehicle.
1. For most SWC adapters, select program using "Pioneer/Sony/Other" mapping
order as described in “PROGRAMMABLE CONTROLS”.
2. When programming, if a function is not supported (or not desired), then the function
MUST be skipped as per the SWC module instructions.
3. The SWC function MUST be programmed in the correct order as per the function
mapping order instructions.
STEERING WHEEL CONTROL (SWC)
10A
* Your product design may differ.
3.5mm SWC port is located on the supplied wire harness
which is plugged into the rear panel of the unit.
SWC Input
Wire harness
Source
Mute
Home
Seek + / Next Track
Seek - / Previous Track
Volume +
Volume -
Band
Phone Menu
Bluetooth Talk
Bluetooth End Call
Voice Assistant / PTT
T
Note
Not all OEM steering wheel functions may be supported.
For SWC programming technical assistance, call the number in your SWC instruction
manual.
17
Problem
Unit not
powered on
Insensitive
screen touch
No audio output
Low audio output
Cause
Unit’s fuse is blown.
Install a new fuse with right rating.
Install a new fuse with right rating.
Press the Reset button to reset.
Car battery fuse is blown.
Illegal operation.
Place of touch screen is offset.
Improper audio connection.
VOLUME 0
Volume set too low.
Increase the volume.
Heavily biased volume balance.
Check and adjust audio balance
to the center position
Turn up the volume.
Check wiring and correct it.
Calibrate the screen (SETTINGS
> About > Screen Calibration)
Corrective Action
Problem
Poor reception
Casue
Auto antenna is not connected.
Connect and extend the auto
antenna properly.
Activate Distance (DX) function.
Local function is activated.
Corrective Action
Problem
No image
Casue
Parking wire is not connected.
Connect and check the wiring.
Stop the vehicle in a safe place
and engage the parking brake.
Parking brake is not engaged.
Corrective Action
Bad sound or
distortion
Speaker power rating is not
compatible with the unit.
Connect proper speakers.
Speaker is shorted.
Check speaker wiring.
General
Tuner
Image flashing
or interference
occurring
Video signal connection is not
properly made.
Check and correct the wiring.
Improper image
height/width
display
Image aspect ratio is not properly
set up.
Change the aspect ratio to
correct one.
