User Manual
Versatile 2.4G Wireless USB Microphone
Foreword
Main Features
Notice
Thanks for purchasing Comica VDLive10 MI
●
Dual-channel 2.4G Wireless USB Microphone, Global Free
Frequency
●
Switchable Simplex / Duplex Transmission, Support Two-way
Monitoring and Interaction
●
Wide Compatibility for Phone, Computer, Camera, etc.
●
Intelligent Noise Reduction, Working Distance Up to 50m (Open
Area)
●
3.5mm Analog and USB Digital Two Output Modes
●
Support Stereo Mode for all Compatible Devices
●
Rechargeable Storage Case
●
IPS Screen for Intuitive Operation and Usage
●
Mono/Stereo Switch, Volume Adjustment and Mute Functions,etc.
●
Internal and External MIC Two Input Modes
●
Low Latency<20ms, Stable Transmission
Some cameras are not compatible with 3.5mm TRRS-TRRS
audio cable, it's necessary to purchase 3.5mm TRS-TRS
audio cable by yourself
The receiver's screen may flick while receiver's battery is low
in overloaded audio condition
Don't block the antenna position to avoid any poor signal
generated when using
Please power the transmitter and receiver o when charging
1
Packing List
① Transmitter(TX)
② Receiver (RX)
③ Cold Shoe Mount
④ Wind Mu
⑤ Charging Cable
⑥ 3.5mm TRRS-TRRS Audio Cable
⑦ Charging Case
⑧ Carry Case
⑨ User Manual
⑩ Warranty Card
①x2 ② ③ ④x2 ⑤
⑥ ⑦ ⑧
⑩
⑨
User Manual
Multi-functional 2.4G Wireless USB Microphone
2
Components and Instruction
Transmitter(TX):
①
②
③
④
⑤
⑥
⑦
⑧
Built-in Antenna
Working Status Indicator Light (Orange light on: paired;
Orange light flashing: unpaired; Red light on: MIC mute)
3.5mm TRS External Mic Port（Simplex Mode）
Monitoring Port（Duplex Mode）
S↑/ OFF / D↑↓ Switch Button ( S↑: Simplex mode;
OFF: Power o；D↑↓: Duplex mode)
Volume / Mute Adjustment Button (Short press to adjust 4-level
volume; long press to mute)
Charging Metal Contact
Reset Hole
Internal Mic
⑦
②
①
⑥
③
④
⑤
⑧
3
Simplex mode monitoring: audio of transmitter
Duplex mode monitoring: audio of transmitter + audio of the
platform on the device connected by the receiver
The transmitter audio is transmitted to the receiver unidirectionally,
audio can only be monitored in receiver
Two way transmission of audio between transmitter and receiver,
audio can be monitored in transmitter and receiver
Simplex mode：
Duplex mode：
Device Audio
4
Receiver (RX)
①
②
③
④
⑤
⑥
⑦
3.5mm Audio Output Port ( 3.5mm analog output mode)
Monitoring Port ( USB digital output mode)
Built-in Antenna
Lightning Plug
Charging Metal Contact
Reset Hole
ON/OFF Switch Button (ON: Power on; OFF: Power o )
M/S Switch Button (M: mono mode; S: stereo mode; Short
press to switch)
③
②
⑦
⑥
④
⑤
①
5
Charging Case
⑧
⑥
③
②
①
⑦
⑤
④
Please power the transmitter and receiver o when charging
①
②
③
④
⑤
⑥
⑦
⑧
Power Indicator Light (There are four power indicator lights,
one of which represents 25% of the power)
Switch Button (Press it to open the charging case)
Pairing Button (Long press to pair)
Transmitter Charging Status Indicator Light (Red light on:
charging; Blue light on: fully charged)
Receiver Charging Status Indicator Light (Red light on:
charging; Blue light on: fully charged)
Charging Metal Contact
USB-C Charging Port
Reset Hole
6
Pairing Method
① ②

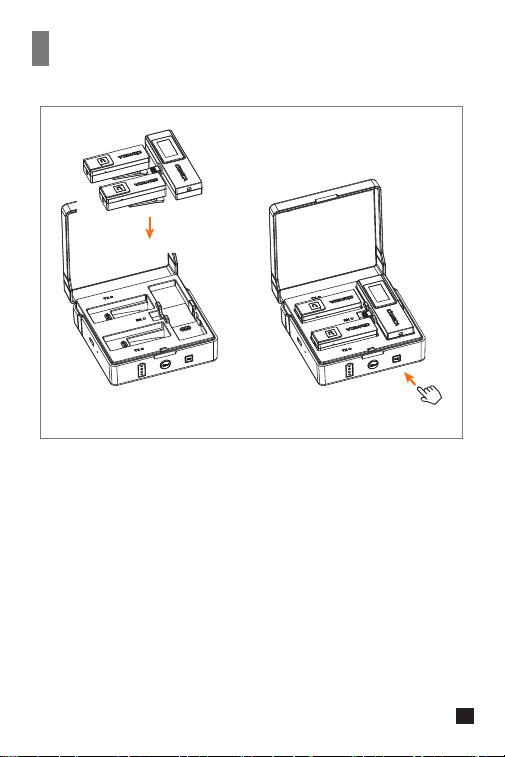

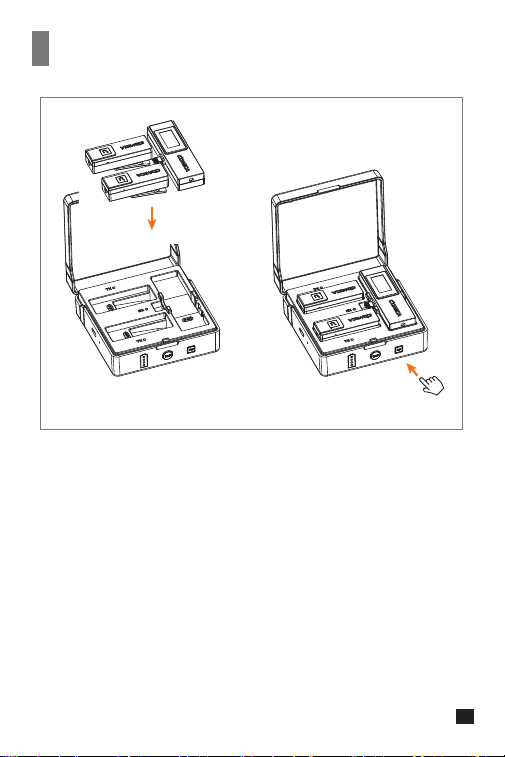

① Put the transmitter and receiver into the charging case
② Long press the pairing button to pair
7
TX A
TX B
RX
TX A
Pair...
Pair...
Pair...
TX B
RX
Screen Display Instruction of Receiver (RX)
Group A paired
Group A unpaired
Receiver power
Transmitter A power
Group B paired
Group B unpaired
Transmitter B power
Transmitter A
is pairing
Transmitter B
is pairing
8
A
A
A
Vol 3
M
M
S
B
Vol 3
Lightning digital output mode
3.5mm analog output mode
Stereo
Mono
Receiver power
Transmitter power
Transmitter
signal strength
Transmitter volume
Group A paired
Group A unpaired
Transmitter audio
dynamic bar
B
B
Group B paired
Group B unpaired
Group A is left channel and group B is right channel
9
Installation
1.In Simplex Mode
① Switch the S↑/OFF/D↑↓ switch button to S↑
（Simplex mode)
② You can choose to use internal mic or external mic to satisfy
your recording demands
When using an external mic, the internal mic is
automatically turned o
2.In Duplex Mode
① Switch the S↑/OFF/D↑↓ switch button to D↑↓
（Duplex mode)
② Install the transmitter on the collar so that the internal mic
points to the sound source
③ Insert the headphone into the monitoring port to monitor
Transmitter(TX)
① ②
10
1. Lightning Digital Output Mode
.Insert the receiver to the Lightning device
.You can choose to whether insert the headphone to monitor or
not based on your needs
Receiver (RX)
① ②
11
① ②
2. 3.5mm Analog Output Mode
① 3.5mm TRS camera
Some cameras are not compatible with 3.5mm
TRRS-TRRS audio cable, it's necessary to purchase
3.5mm TRS-TRS audio cable by yourself
. Mount the receiver to the camera through the cold shoe mount
. Connect the receiver and camera via 3.5mm TRRS-TRRS audio
cable or 3.5mm TRS-TRS audio cable (Please purchase 3.5mm
TRS-TRS audio cable by yourself)
12
② USB devices
. Work with USB devices via corresponding adapter
(Please purchase adapter by yourself)
13
Specification
Wireless Type
Antenna
Polar Pattern
Frequency Response
S/N
Equivalent Noise
SPL
Dynamic Range
Sound Delay
Sensitivity
Interface
Battery
Charging Time
Standby Time
Net Weight
Dimension
Operating Temperature
Storage Temperature
2.4GHz
Built-in Antenna
Omnidirectional
80Hz ~ 20kHz
70dB
24dBA
Internal Mic: 110dB
Internal Mic: 86dB
<20ms
Internal Mic: -30±2dB
TX: 3.5mm
RX: Lightning & 3.5mm
Charging Case: USB-C
TX: 95mAh 3.8V
RX: 90mAh 3.7V
Charging Case: 1000mAh 3.7V
TX: 2 Hours
RX: 2 Hours
Charging Case: 4 Hours
TX: 5 Hours
RX: 5 Hours
Charging Case: 3 times for two transmitters and
one receiver charged simultaneously
TX: 14g
RX: 20g
Charging Case: 167g
TX: 20x53x21 mm
RX: 33x76x13 mm
Charging Case: 96x99x37 mm
0℃ ~ 50℃
-20℃ ~ 60℃
14
