FOR SMARTPHONE
CVM-WS50
USER MANUAL
Multi-channels Smartphone Wireless Microphone
Specification
6
520.00MHz ~ 526.00MHz
15dBm
Channels
Wireless Frequency
Transmitting Power
Lavalier Transmitter (TX) :
6
520.00MHz ~ 526.00MHz
15dBm
Channels
Wireless Frequency
Transmitting Power
6
520.00MHz ~ 526.00MHz
Channels
Wireless Frequency
Receiver:
Hand-held Transmitter (HTX) :
Foreword
Thank you for purchasing Comica WS50 multi-channels smartphone wireless
microphone.
WS50 is a creative wireless microphone for smartphone with built-in mobile phones
holders. With built-in lithium polymer batteries, it uses UHF wireless technology and
high-resolution LCD code screen, stepless adjustable volume at receiving end, and
integrated into power monitoring, audio dynamic display bar, real-time monitoring and
other functions; the working distance is up to 60 meters (30 meters in barrier area), it
can assist your phone for video recording and achieve professional sound effects.
To ensure the smooth use and safety of the products, please read this user manual
carefully before using and properly assemble and operate.
1
Main Features
. Working Distance Up to 60m (In Open Area, 30m in Barrier Area) ；
. Built-in Metal Material Smartphone Holder；
. LCD Screen for Displaying Channels and Audio Status；
. Stepless Volume Adjustment；
. Real-time Audio Monitor；
. Extendable for Connection with LED Light, Grip, Tripod, Cold-shoe, etc；
. Built-in Rechargeable Lithium Batteries；
. Portable and Light；
Working Distance
Up to 60m
Built-in
Smartphone Holder
Stepless Volume
Adjustment
Real-time
Audio Monitor
Lithium Batteries
LCD Screen
60M
2
. This product is compatible with both IOS and Android system, and when used with the
iphone 7 or above, you need to use the original adapter cable;
. For smart phones with IOS system (Iphones), this Mic works well either in Audio or
Video mode;
. For the smart phones with Android system, this Mic works well in audio mode, it may not
be compatible with partial smart phones in video mode (Then we suggest you to try the
3rd party APP);
. To avoid signal interference during usage, please set the phone to flight mode;
. The working distance will be affected by the surrounding environment. In the process,
please try to make sure the environment is barrier free and turn off the WIFI of your
smart phone;
. During usage, the receiver should not be close to other UHF transmitters, radio stations
and other devices which may cause interference;
. Please keep this product in dry environment;
. Do not expose the device in rain or humid environment, or there will be a danger of
short circuit;
Notice
3

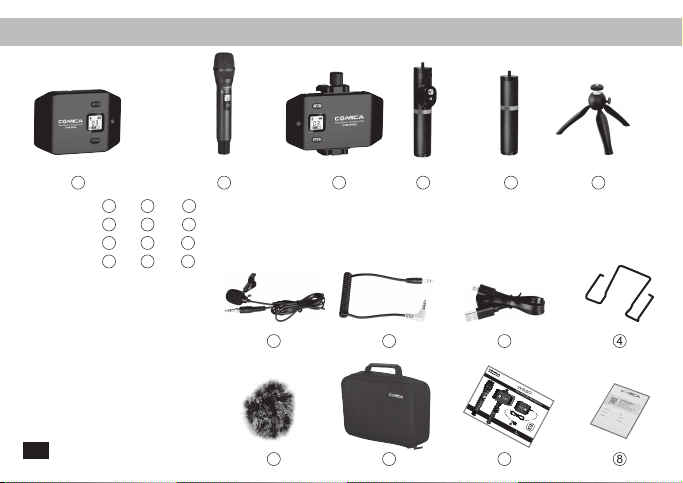

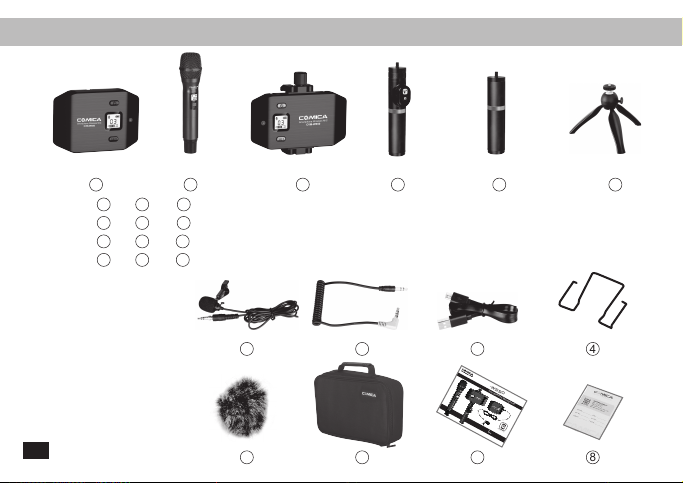

Packing List
Main Body:
Accessories:
Lavalier Transmitter (TX)
WS50(A)=
WS50(B)=
WS50(C)=
WS50(H)=
ReceiverHand-held Transmitter (HTX) Ordinary Grip Electronic Grip Tripod on Table
1. 3.5mm Audio Mic
2.TRRS Audio Output Cable
3. USB Charging Cable
4. Belt Clip
5. Wind Muff
6. Portable Case
7. User Manual
8. Warranty Card
1
1 2 3 4 5 6
1 3 4
2 3 4
5 6 7 8
FOR SMARTPHONE
CVM-WS50
USER MANUAL
Multi-channels Smartphone Wireless Microphone
+
1
3 5
+
1
3 6
+
2
3 5
+
+
+
+
+
4
Components

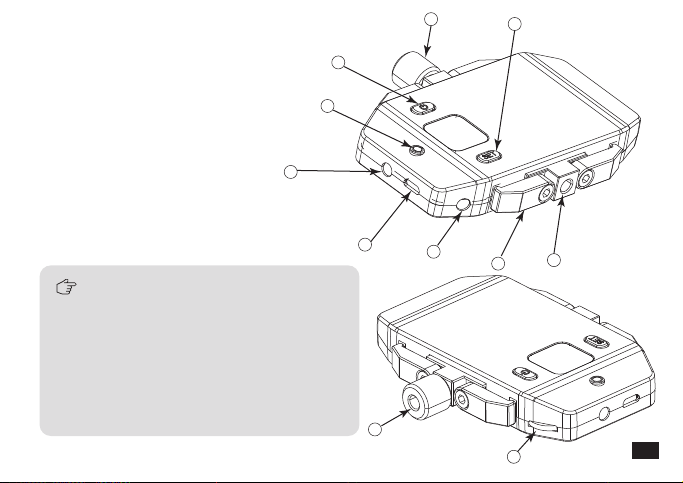

Lavalier Transmitter(TX)
1.Set Button for Channel Selection
2.On-off/Muting Button
3.Working Status Indicator Light
4.Mic / LINE Input Socket/ Reset Hole
5.Micro USB Charging Socket
6.Belt Clip Hole
7.1/4 Thread at the Back
Components and Instruction
2
1
3
4
5
7
6
The function of reset hole：When function
program of the product is disorganized and
unable to make normal adjustment or even
shutdown, you can use an appropriate
taper tool to insert the reset hole to realize
the function reset.
5

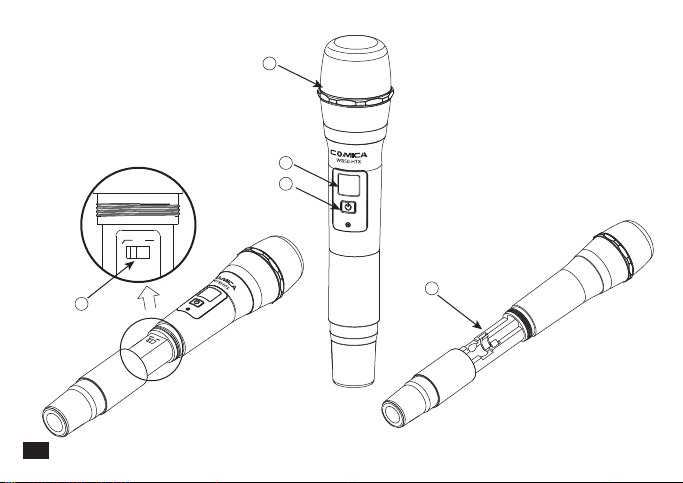

Hand-held Transmitter(HTX)
1. Microphone
2. LCD Display
3. Power /CH Setting Button
4. ‘Low Cut/Normal’ Audio Switch
5. AA Battery Holder
1
2
3
5
4
6
3
4
5
6
7
1
2
9
8
10
11

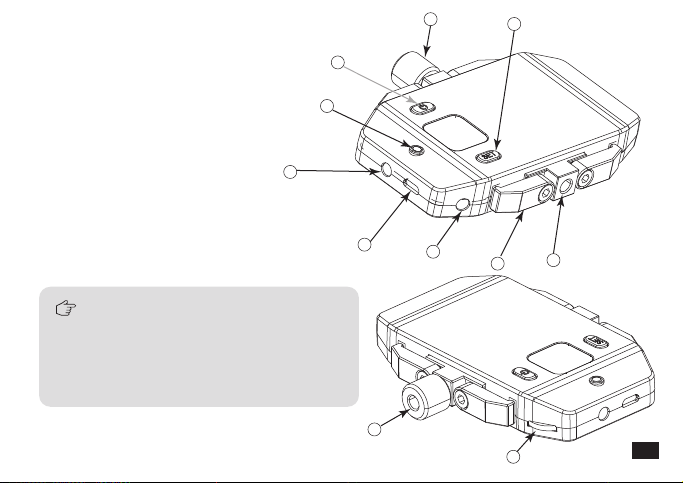

Receiver
1.Set Button for Channel Selection
2.Adjusting Screw
3.On/Off Button
4.Working Status Indicator Light
5.3.5mm Audio Output Socket/ Reset Hole
6.Micro USB Charging Socket
7.3.5mm Monitoring Socket
8.Smartphone Clamp
9.1/4 Thread at the bottom
10.1/4 Thread at the top
11.Volume Adjusting Button
External light and other equipment can be
used on 1/4 thread at the top; Grip can be
used for 1/4 thread at the bottom.
The function of reset hole：When function
program of the product is disorganized and
unable to make normal adjustment or even
shutdown, you can use an appropriate
taper tool to insert the reset hole to realize
the function reset.
7
1
2
Ordinary Grip
1. 1/4 Screw Thread
2. 1/4 Thread at the Bottom
8

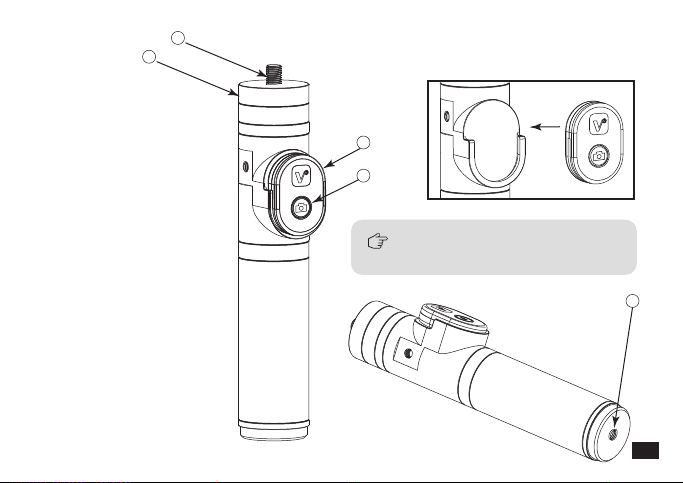

Electronic Grip
1. 1/4 Screw Thread
2. Adjustable Screw
3. 1/4 Thread at the Bottom
4. Bluetooth Remote Controller
5. On-off/Function Button of the Remote Controller
1
2
3
4
5
The bluetooth remote controller can be taken down for remote control；
Bluetooth remote controller supports both IOS and Android system；
9
1
2
4
3

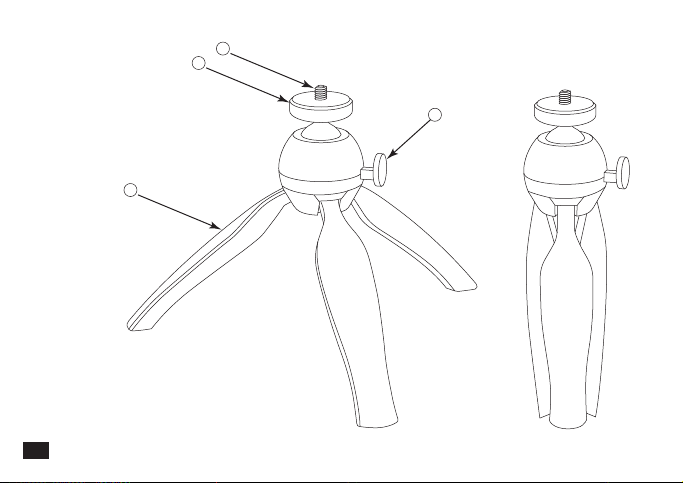

Tripod on Table
1. 1/4 Screw Thread
2. Adjustable Screw
3. Stretchable Tripods
4. Direction Control Switch
10
Screen Display Instruction
Lavalier Transmitter(TX):
Normal Recording
Muting
Power Indication
Channel
Audio Dynamic Display Bar
Hand-held Transmitter:
Normal Recording
Power Indication
Channel
11
Receiver:
Normal recording
Power Indication
Channel
Audio Dynamic Display Bar
12
Function Button Instruction
Insert the Mic line for audio recording /
Insert a small object like a pin for reset
Channel Selection
（Take effect when the screen is lighted up）
Audio Recording /
Reset
Lavalier
Transmitter
On-off//Muting Button
Long Press
Short Press
Short Press
Power On/Off
Muting Mode (Take effect when the screen is
lighted up）
Set Button
MIC / LINE Reset
MIC/LINE Input /
Reset Hole
Long Press
Short Press
Left
Right
Power On/Off
Channel Sequence Switch
Low-cut
Normal
Power /CH Setting Button
“Low Cut/ Normal” Audio
Switch
Hand-held
Transmitter
13
Dial the wheel to
the left/ right
Volume Adjustment
Insert the Mic line for audio output /
Insert a small object like a pin for reset
Short Press
Power On/Off
Channel Selection
(Take effect when the screen is lighted up)
Audio Output /
Reset
Long PressOn-off Button
Set Button
OUTPUT Reset
Audio Output /
Reset Hole
Volume Adjustment Wheel
Receiver
Long Press for 2
Seconds
Long Press for 6
Seconds
10 minutes later
In photo mode, press for photo shooting; In
video recording mode, first press to start,
press again to finish
Continuous Capture for 3 Seconds
Reset to default, can be matched with
different smartphone
Auto Power-Off
Long Press for 2
Seconds
Short Press
Power On
On-off Button
Matched with the Smartphone
No Operation
Electronic
Grip
14
Indicator Light Instruction
Lavalier
Transmitter
Green Light Keeps On
Receiver
Electronic Grip
Red Light Keeps On
Red Light Flickers
Green Light Flickers
Green Light Keeps On
Red Light Flickers
Blue Light Flickers
(After the grip turned on)
Green Light Flickers
Normal Working Status
Muting Mode
Low-power reminder
Channel doesn’t match with the transmitter
Channels matches
Low-power reminder
Grip doesn’t match with the smartphone
Taking pictures/Video Recording
15
1.Connect the belt clip to the connection hole
2.Long press the power button to turn on the Lavalier Transmitter
According to different environment you could short
press ‘Power/Muting Button’ to enter the MUTE mode.
Installation and Usage
Lavalier Transmitter(TX):
Power / Muting Button
16
Audio Dynamic Display Bar
3.Insert the 3.5mm audio input line into the “Mic”socket
4.Target the Mic to the audio source and check whether the Lavalier Transmitter is
working properly according to the audio display bar on the screen
“Mic”socket
17
Channel
5. Short press set button to select the channel
“set”button
18
1. Install two AA batteries into the battery tray according to the positive and negative
electrode;
Hand-held Transmitter (HTX) :
AA
AA
19
2. Long Press the power button switch to turn on the hand-held transmitter;
20
When the receiver channel matches the hand-held transmitter, the green light keeps on
Green light
3. Short press the power button to make channel match the receiver;
21

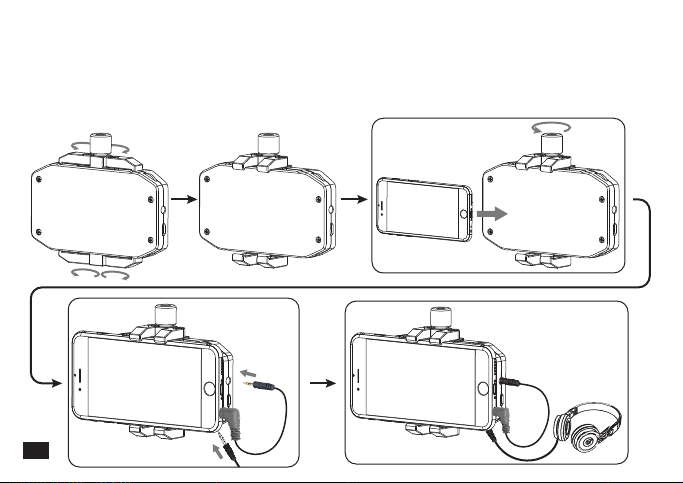

1.Rotate the four clamps, then adjust the screw to appropriate height, install the phone
in the neutral position; connect one end (black) of the audio output line to OUTPUT
socket, the other end (gray TRRS) to mobile phone audio input socket; A 3.5mm
headset can be inserted in real-time monitoring socket according to the need.
Receiver:
22
When the receiver channel
matches the transmitter, the
green light keeps on.
Power Button
2.Long press the power button to turn on the receiver；
3.Short press set button to make channel consistent with the transmitter, and adjust the
volume to the optimal status through the volume adjusting wheel；
“set” Button
volume adjusting wheel
Receiver ChannelTransmitter Channel
23
5.Go for the normal audio recording;

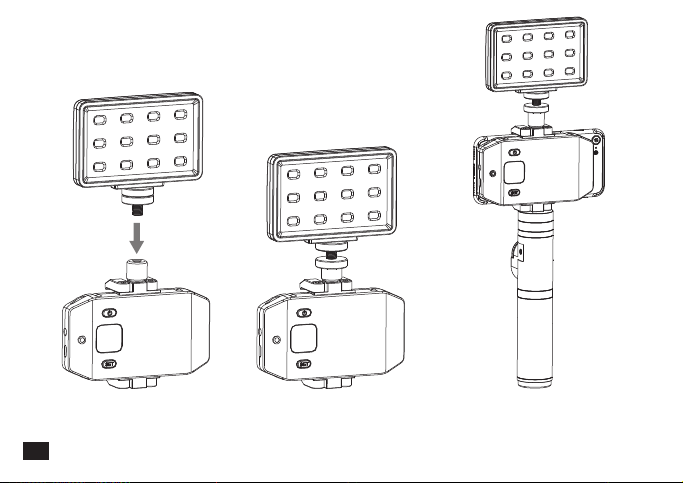

4.Can be extendable for connection with LED light or other auxiliary equipment;
24
fix the receiver through
the adjusting screw

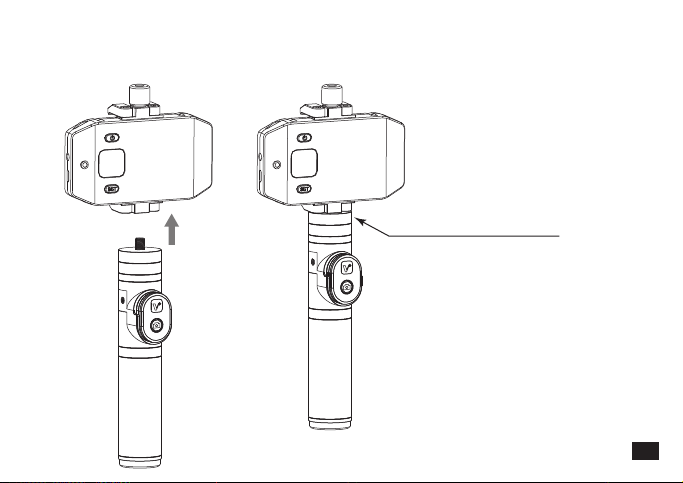

1.Connect the 1/4 screw thread of the electronic grip to the 1/4 thread of the receiver,
then fix the receiver through the adjusting screw;
Electronic Grip:
25
In photo shooting mode, press the remote controller for photo
taking;In video mode, press the remote controller to start video, and
press again to finish.
Power Button
2.Long press the power button to turn on the grip;
3.Turn on the bluetooth of the phone, match with the bluetooth named 'Viewflex - H',
then you can use your smartphone for recording.
China Mobile
26
fix the receiver through
the adjusting screw
press the direction control
switch to adjust the direction

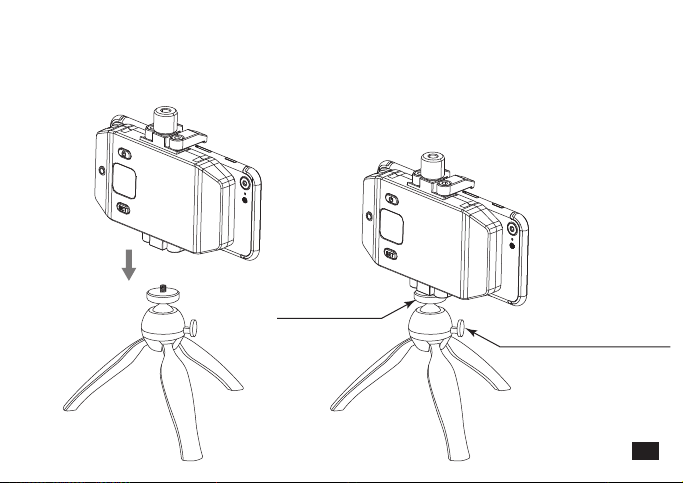

1. Connect the receiver with the tripod through the 1/4 screw thread, fix the receiver by
adjusting the adjustable screw, press the direction control switch to adjust the
direction;
Tripod on Table:
27
Specification
＞65dB
1/4 Wavelength Wire Antenna
＜-60dBc
＜20ms
＜0.5%
3.5mm socket
Polymer Lithium Battery 3.7V 1150mAH
8 Hours
Micro USB
85 x 59 x 16.3 mm
0℃ ~ +50℃
-20℃ ~ +60℃
Signal / Noise
Antenna
Stray Radiation
Sound Delay
Audio Distortion
Audio Input Socket
Batteries
Endurance
Charging Socket
Dimension
Operating Temperature
Storage Temperature
Lavalier Transmitter (TX) :
28
＞65dB
PCB Antenna
＜-60dBc
＜20ms
＜0.5%
2pcs AA Battery
Φ 53.5 (MAX) x 248mm
0℃ ~ 50℃
-20℃ ~ 60℃
Signal/Noise
Antenna
Stray Radiation
Sound Delay
Audio Distortion
Battery
Dimension
Operating Temperature
Storage temperature
Hand-held Transmitter (HTX):
29
＞65dB
1/4Wavelength Wire Antenna
-95dBm
＜20ms
＜0.5%
20Hz ~ 18KHz
3.5mmSocket
Polymer Lithium Battery 3.7V 1150mAH
8 Hours
Micro USB
104 x 57.6 x 16.3mm
0℃ ~ +50℃
-20℃ ~ +60℃
Signal / Noise
Antenna
Receiving Sensitivity
Sound Delay
Audio Distortion
Frequency Response
Audio Input Socket
Batteries
Endurance
Charging Socket
Dimension
Charging Socket
Storage Temperature
Receiver:
30
3.0
10m
CR2032 x 1
10 minutes
35 x 25 x 8.4mm
Bluetooth Version
Effective Distance
Battery
Auto power-off time with no operation
Dimension
Bluetooth Electronic Grip:
31
FOR SMARTPHONE
CVM-WS50
用户使用说明书
CVM-WS50 多频手机专用无线麦克风
接收器:
手持发射器HTX:
6
520.00MHz 526.00MHz
15dBm
频道数
载波频率
发射功率
领夹发射器:
~
6
520.00MHz 526.00MHz
15dBm
频道数
载波频率
发射功率
~
6
520.00MHz 526.00MHz
频道数
载波频率
~
前言
感谢您购买Comica/科唛WS50手机专用无线麦克风。
WS50是一款创意型内置手机夹手机专用无线麦克风，此款麦克风内置聚合物锂电池，采用
UHF无线调频技术及LCD高清段码屏，接收端无级可调音量，并融入了电量检测、拾音动态显示
、实时监听等多种功能，工作距离高达60米（有障碍的地方30米），辅助您手机进行视频录制
并达到专业级视听效果。
为保证产品的顺畅使用及安全，请在使用前严格阅读本说明书，并正确组装及操作。
11
产品主要功能
.工作距离可达60m（空旷距离，有障碍距离可达30m）；
.一体式金属材质手机夹；
.LCD 显示屏可显示频道及声音动态；
.无级音量可调；
.可实时监听；
.可延展外接LED灯、手柄、脚架、冷靴等；
.内置可充电锂电池；
.轻便方便携带；
无级音量可调
实时监听
锂电池LCD段码屏
一体式金属
材质手机夹
工作距离
高达60m
60M
22
.本产品兼容IOS和Android系统，搭配iPhone7以上手机使用时，需使用原厂转接线；
.该麦克风配合IOS系统（Iphone）的手机使用时，在录音及视频模式下均可正常工作；
.该麦克风配合Android（安卓）系统的手机使用时，录音模式下均可正常工作，视频模
式下部分手机会出现不兼容情况；（此时建议使用第三方视频软件，如：乐秀，美拍,
小影等）
.为了避免使用过程中出现信号干扰，请将手机设置为飞行模式；
.工作距离会受到周围环境的影响，使用过程中请尽量保持环境空旷无干扰，并关闭机
身自身的WIFI；
.使用时接收器不要靠近其它的UHF频段发射器、无线电台等干扰设备；
.请在干燥环境中对该产品进行储存；
.不要在雨中或潮湿环境中使用该设备，否则会有短路的危险；
注意事项
33
包装清单
主体:
配件:
领夹式发射器 接收器手持发射器 普通手柄 桌面三角架 电子手柄
1. 3.5Mic音频输入线
2. TRRS音频输出线
3. USB 充电线
4. 腰带夹
5. 防风毛
6. 便携包
7. 说明书
8. 保修卡
1 2 3 4
5 6 7 8
FOR SMARTPHONE
CVM-WS50
USER MANUAL
Multi-channels Smartphone Wireless Microphone
WS50(A)=
WS50(B)=
WS50(C)=
WS50(H)=
1
2 3 4 5 6
1 3 4
+
1
3 5
+
1
3 6
+
2
3 5
+
+
+
+
+
44
部件介绍
领夹式发射器
1.Set调频按键
2.开关/静音按键
3.工作状态指示灯
4.Mic/LINE音频输入接口/复位孔
5.Micro USB充电接口
6.腰带夹插孔
7.1/4螺口
部件介绍及说明
2
1
3
4
5
7
6
复位孔作用：当产品功能程序出现紊乱无
法进行正常调节甚至无法关机时，可使用
适当的锥形工具插入复位孔下按进行功能
复位。
55
手持发射器
1.麦克风拾音筒
2.液晶显示屏
3.开关/调频按键
4.“低切/普通”音频切换开关
5.AA电池仓
1
2
3
5
4
66
3
4
5
6
7
1
2
9
8
10
11
接收器
1.Set调频按键
2.调节螺母
3.开/关按键
4.工作状态指示灯
5.3.5mm音频输出接口/复位孔
6.Micro USB充电接口
7.3.5mm监听接口
8.手机固定夹
9.底部1/4螺口
10.顶部1/4螺口
11.音量调节旋钮
顶部1/4螺口可外接补光灯等其他设备;
底部1/4螺口可用来接手柄方便拍摄;
复位孔作用：当产品功能程序出现紊乱无
法进行正常调节甚至无法关机时，可使用
适当的锥形工具插入复位孔下按进行功能
复位。
77
1
2
普通手柄
1.1/4螺牙
2.底部1/4螺孔
88
电子手柄
1.1/4螺牙
2.调节螺盘
3.蓝牙遥控器
4.遥控器开关/功能按键
5.底部1/4螺口
1
2
3
4
5
蓝牙遥控器可以取下来进行远程操控；
蓝牙遥控器支持IOS 和 Android 系统；
99
1
2
4
3
桌面三角架
1.1/4螺牙
2.调节螺盘
3.可张缩脚架
4.方向调节开关
1010
屏显说明
领夹式发射器:
正常收音模式
静音模式
电量
频道
音量动态显示条
手持发射器:
正常录音
电量
频道
1111
接收器:
收音模式
电量
频道
音量动态显示条
1212
按键说明
领夹式
发射器
开关/静音按键
长按
短按
短按
插入MIC LINE输入进行录音/
插入复位细针进行复位
长按
短按
插入音频输出线进行音频输出/
插入复位细针进行复位
左右轮播
开机/关机
静音（开背景灯后生效）
调频（开背景灯后生效）
录音/功能复位
开机/关机
调频 （开背景灯后生效）
音频输出/
功能复位
调节音量大小
开关按键
Set按键
Set按键
MIC/LINE输入/
复位孔
音频输出孔/
复位孔
音量调节按键
接收器
MIC / LINE Reset
OUTPUT Reset
长按
短按
左推
右推
开机/关机
频道切换
低切
普通
开关/调频按键
“低切/普通”音频切换开关
手持发射
器
1313
长按2秒
短按
长按2秒
长按6秒
10分钟后
开机
拍照模式下按一下拍照；视频录制模式
下按一下开始录制，再按停止
连拍3秒
恢复出厂设置，可重新连接不同的手机
自动关机
开关按键
与手机配对成功后
无操作
电子手柄
1414
指示灯定义
领夹式
发射器
接收器
电子手柄
正常工作
静音
电池低电
未与发射器连接
与发射器链接成功
电池低电
没有与手机配对成功
拍照/录像
绿灯常亮
红灯常亮
红灯闪烁
绿灯闪烁
绿灯常亮
红灯闪烁
蓝灯闪烁（开机后）
绿灯闪烁
15
1. 将腰带夹安装到领夹式发射器背部
2. 长按电源开关打开领夹式发射器
安装及使用
领夹式发射器:
电源/静音开关
因环境需要如需静音，可短按”电源/静音开关”按键，
进入静音模式
1616
音量动态显示条
3. 将3.5mm音频输入线插入“Mic”接口
4. 将Mic对准音源，根据屏幕上的音量指示条检测发射器是否正常工作
“Mic”接口
1717
频道
5. 短按set按键选择频道
“set”按键
1818
1. 将电池按正负极指示装入发射器电池仓;
手持发射器:
AA
AA
1919
2. 长按电源开关打开手持发射器;
20
接收器频道与手持发射器频道匹配成功时，绿灯长亮。
绿灯
3. 短按电源键切换频道，将手持发射器与接收器设置成同一频道;
21
1.旋转手机夹的四个卡爪，逆时针旋转调整螺母至合适高度，将手机安装在卡槽内，将
音频输出线一端（黑色）接入OUTPUT接口，另一端（灰色TRRS）端接入手机音频输入
接口；根据需要可将3.5mm耳机接入监听口进行实时监听；
接收器:
22
接收器频道与发射器匹配成功
时，绿灯常亮。
电源开关
2.长按电源开关打开接收器；
3.短按set设置频道与发射器一致，并通过音量调节按键VOL将音量调至最佳状态；
“set”按键
音量调节旋钮“VOL”
发射器频道接收器频道
23
5. 进行视频拍摄中的音频录制；
4. 可外接LED补光灯等辅助设备；
24
调整螺盘对
接收器进行固定
1.将电子手柄的1/4螺牙与接收器的螺口相连，通过调整螺盘对接收器进行固定；
电子手柄:
25
拍照模式下，按遥控器开关按钮进行拍照；
视频模式下，按一下开启视频录制，再按关闭视频录制；
开关按键
2.长按2秒开关按键开机；
3.打开手机蓝牙，找到对应名称为“Viewflex-H”的蓝牙进行配对，蓝牙匹配成功后，
打开手机上的视频进行录制；
26
按下方向调节
开关可调整合适的角度
调整螺盘对
接收器进行固定
1.将接收器的1/4螺口与桌面三脚架的螺牙相连，通过调整螺盘对接收器进行固定，按
下方向调节开关可调整合适的角度；
桌面三脚架:
27
产品规格
＞65dB
1/4波长导线天线
＜-60dBc
＜20ms
＜0.5%
3.5mm接口
内置聚合物锂电3.7V 1150mAH
8小时
Micro USB
85 x 59 x 16.3 mm
0℃ +50℃
-20℃ +60℃
信噪比
天线
杂散辐射
声音延迟
音频失真
音频输入接口
电池
续航时间
充电接口
尺寸
工作温度
存储温度
领夹发射器:
~
~
28
3.0
10米
CR2032 x 1
10分钟
35 x 25 x 8.4mm
蓝牙版本
有效距离
电池
无操作自动关机时间
尺寸
蓝牙电子手柄:
＞65dB
PCB天线
＜-60dBc
＜20ms
＜0.5%
两节AA电池
Φ 53.5 (MAX) x 248mm
0℃ 50℃
-20℃ 60℃
信噪比
天线
杂散辐射
声音延迟
音频失真
电池
尺寸
工作温度
存储温度
手持发射器:
~
~
~
29
＞65dB
1/4波长导线天线
＜20ms
＜0.5%
20Hz 18KHz
3.5mm接口
内置聚合物锂电3.7V 1150mAH
8小时
Micro USB
104 x 57.6 x 16.3mm
0℃ +50℃
-20℃ +60℃
信噪比
天线
声音延迟
音频失真
频率响应
音频输入接口
电池
续航时间
充电接口
尺寸
工作温度
存储温度
接收器:
~
~
~
30
Email: [email protected]
