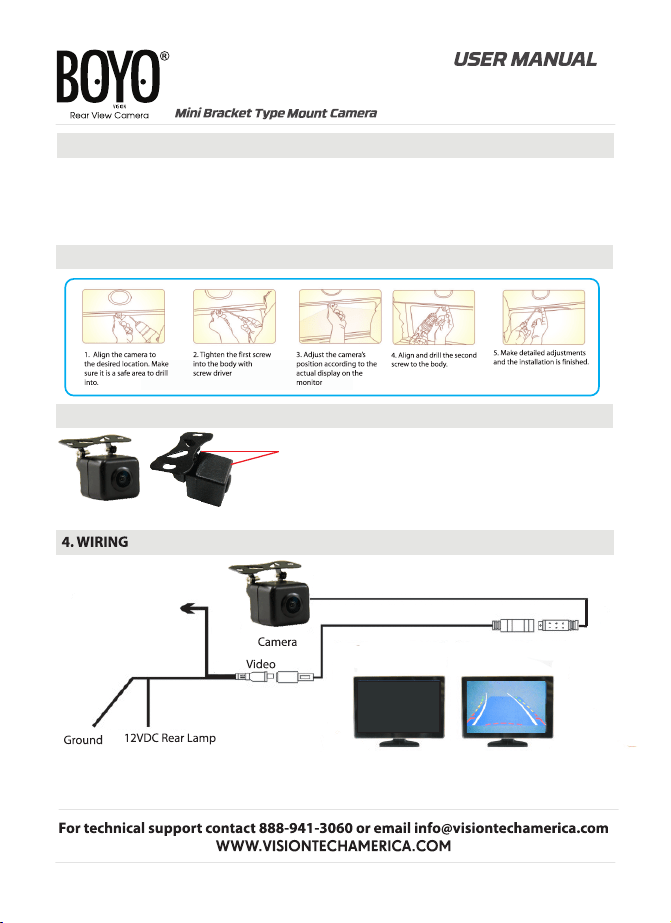

MODEL:VTB100TJ
﹡Waterproof Rating: IP68
﹡Dynamic Guidance Trajectory: Embedded
﹡Image Sensors: 3089 Color CMD
﹡HD Mini Dual Mount Car Rear View Camera
﹡PAL/NTSC Compatible
﹡Resolution: 600 TV Lines
﹡Min.Illumination: 0.5 LUX
When placing the vehicle in reverse, the monitor will power on automatically and display
the image and the intelligent reversing trajectory scale line from the camera. The scale
line will move with the car. When ending reverse, the monitor will power off automatically.
Monitor
with
Trajectory Parking Guide Lines
1.SPECIFICATION
﹡Lens Angle: 170°
﹡Auto Image Adjustment
﹡Video Output: 1.0 Vpp-75 Ohm
﹡Power Supply: DC 12V
﹡Operating Temperature: -20℃- 70℃
﹡Storage Temperature: -30℃- 80℃
﹡Application: Universal
2.Installation Tip
2.Installation NOTES
Incorrect
30°
40°
-
Correct
Caution: The smart rear view camera must be mounted
at angle(30°- 40°). It must not be mounted
horizontally straight. Otherwise the sensitivity
and accuracy will be affected accordingly.
