Power
Audio
Video
Ground
NC
Ground
Shell
Weatherproof and water resistant IP69K approved
Image device: 1/3" SHARP CCD
Mirror / Normal image switch
360 deg. adjustable mounting angle
Integrated microphone
Minimum illumination: 0 Lux Infrared lamps on
Nightvision distance: approx. 49.2ft infrared lights
Wider viewing angle up to 120 deg.
Day / night sensor for automatic adjustment
( )
( )
(4 )
1. 2.
3.
1.System Overview
2.Installation
3.Normal / Mirror Selector
4.Specifications
Image Device
1/3" SHARP SENSOR CCD
TV System
NTSC
Effective Pixels
976*494 pixels
Pixel Pitch
5.0μm*7.4μm
Sync. System
Internal
Resolution
600TV lines
Minimum Illumination
0 Lux
Microphone
Yes
Video Output
1.0vp-p, 75Ohm
AGC
Auto
S/N Ratio
Better than 48dB
Current Consumption
Max. 300mA

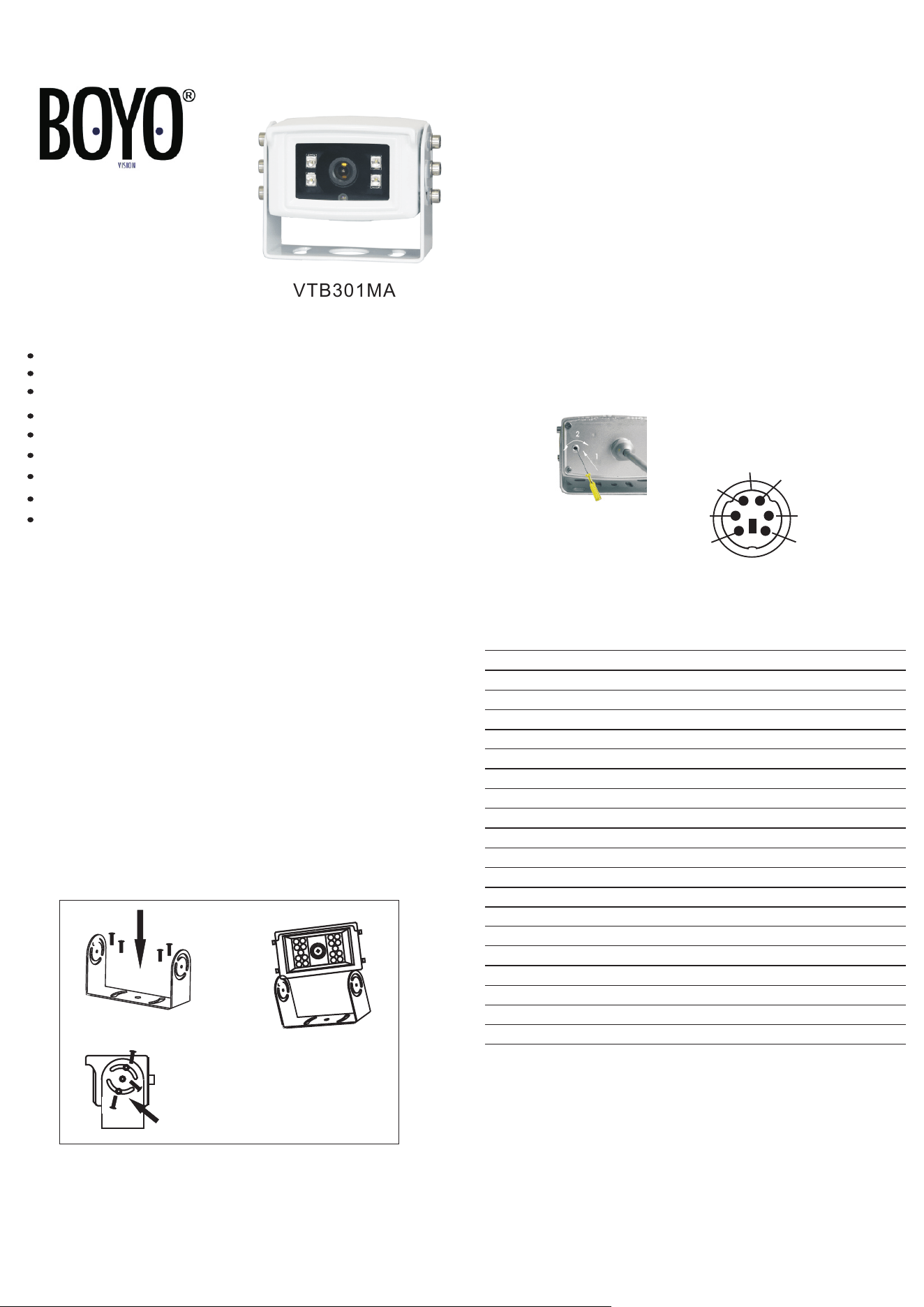

1. Fasten the camera mounting bracket, using 4
2. Position the camera in the camera mounting bracket,
3. Adjust the camera to the proper angle, and then attach the
A.Install the VTB301camera in the desired location,
as follows:
B. Route the extension cable from the camera location to
C. Insert the male connector of the extension cable into
the appropriate female audio/video port of the output
device (not supplied), such as a monitor or switcher.
A. Put a screw-driver into the hole on the back of the camera
B. Rotate the screw-driver to shift between normal and mirror.
.
White Balance
Auto
Electronic Shutter
1/60～1/100,000 second
Power Supply
DC12V
Lens
f= 2.8mm/F = 2.0
Lens Angle
120°
BLC
Auto
Operating Temperature
–22℉ ~ 158℉, Rh95% max.
Storage Temperature
–40 ~ 176 , Rh95% max.℉ ℉
self-tapping Philips screws, to the desired mounting
surface, as shown in Picture 1.
as shown in Picture 2.
camera to the camera mounting bracket using the supplied
hex-head machine screws (with washers) as shown in Picture 3.
VTB301MA
the location of the output device (not supplied),such as
a monitor or switcher.
5. Accessories
Screws, allen wrench, 65.6ft cable (6pin mini din to RCA),
manual, warranty card and registration card
