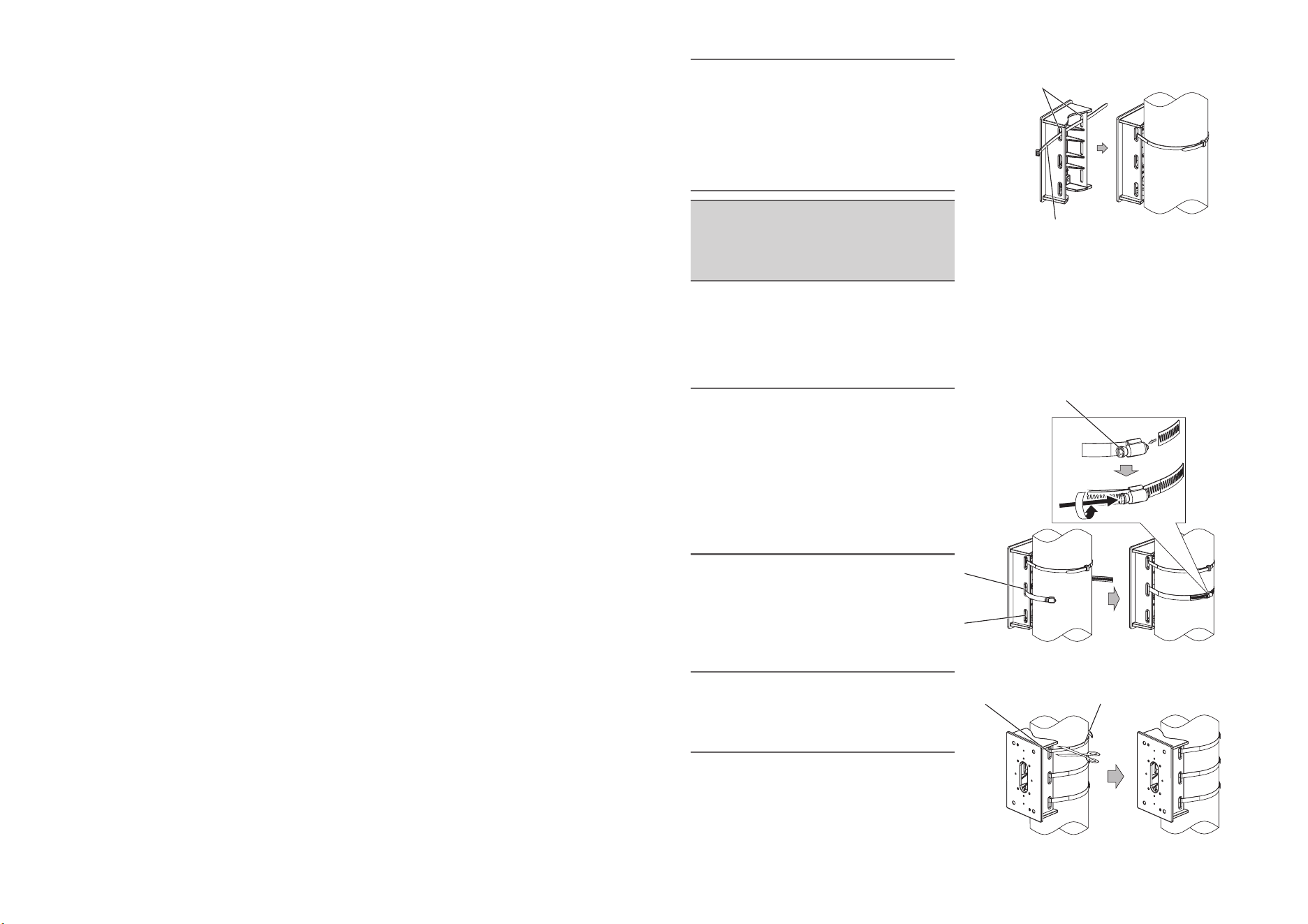

② Pass the support band (accessory) through the access hole of fixing band (upper) to temporarily
fix WV-Q188 onto the pole to be installed.
IMPORTANT:
•
To prevent WV-Q188 sliding down,
please pull the support band tightly to
temporarily fix it.
Note:
• During installation, please note that the
cable is not placed between WV-Q188
and the pole.
• Please confirm the installation height
after considering the height of install-
ing camera onto WV-Q188.
③ Take out one fixing band and pass it through access hole of fixing band (middle), then use a torque
wrench (locally procured) to tighten the fixing band lock screw in a clockwise direction to completely
fix WV-Q188. Then take out another fixing band and pass it through access hole of fixing band
(lower), and fix it in the same way.
Recommended tightening torque of fixing band: (5 N·m {3.69 lbf·ft})
Note:
• During installation, please rotate fixing
band to adjust its position and make
sure the fixing band lock screw is
located on the surface of the pole.
• When passing through the access hole
of fixing band of WV-Q188, please pay
attention not to pinch the cable in the
middle of fixing band and pole.
Standard accessories
<WV-Q188>
Operating Instructions (this document) .........................................................................................1 pc.
Fixing bands .............................................................................................................................. 3 pcs.
Support band ..............................................................................................................................1 pc.
Use the following accessories as the installation requires (use of all accessories together will likely not
be necessary):
Safety wire fixing bracket .............................................................................................................1 pc.
M10 × 30 mm {1-3/16 inches} hexagon screws ........................................................................ 5 pcs.
M6 × 16 mm {5/8 inches} hexagon screws ................................................................................ 2 pcs.
M5 × 20 mm {25/32 inches} screws .......................................................................................... 5 pcs.
M4 × 16 mm {5/8 inches} screws .............................................................................................. 4 pcs.
M3 × 10 mm {13/32 inches} screws .......................................................................................... 2 pcs.
<WV-Q182>
Operating Instructions (this document) .........................................................................................1 pc.
Fixing bands .............................................................................................................................. 3 pcs.
Support band ..............................................................................................................................1 pc.
M10 × 30 mm {1-3/16 inches} hexagon screws ..........................................................5 pcs. (1 spare)
Note:
• One spare is provided for each type of screw.
• In order to tighten the fixing bands during installation, it's necessary to use torque wrench (locally
procured).
• A Hexagon wrench (procured locally) is needed when M10 or M6 hexagon screw is used.
(In this manual, hexagon socket head cap screw is described as hexagon screw.)
Please wear gloves during installation. Cutting off fixing bands may cut your fingers.

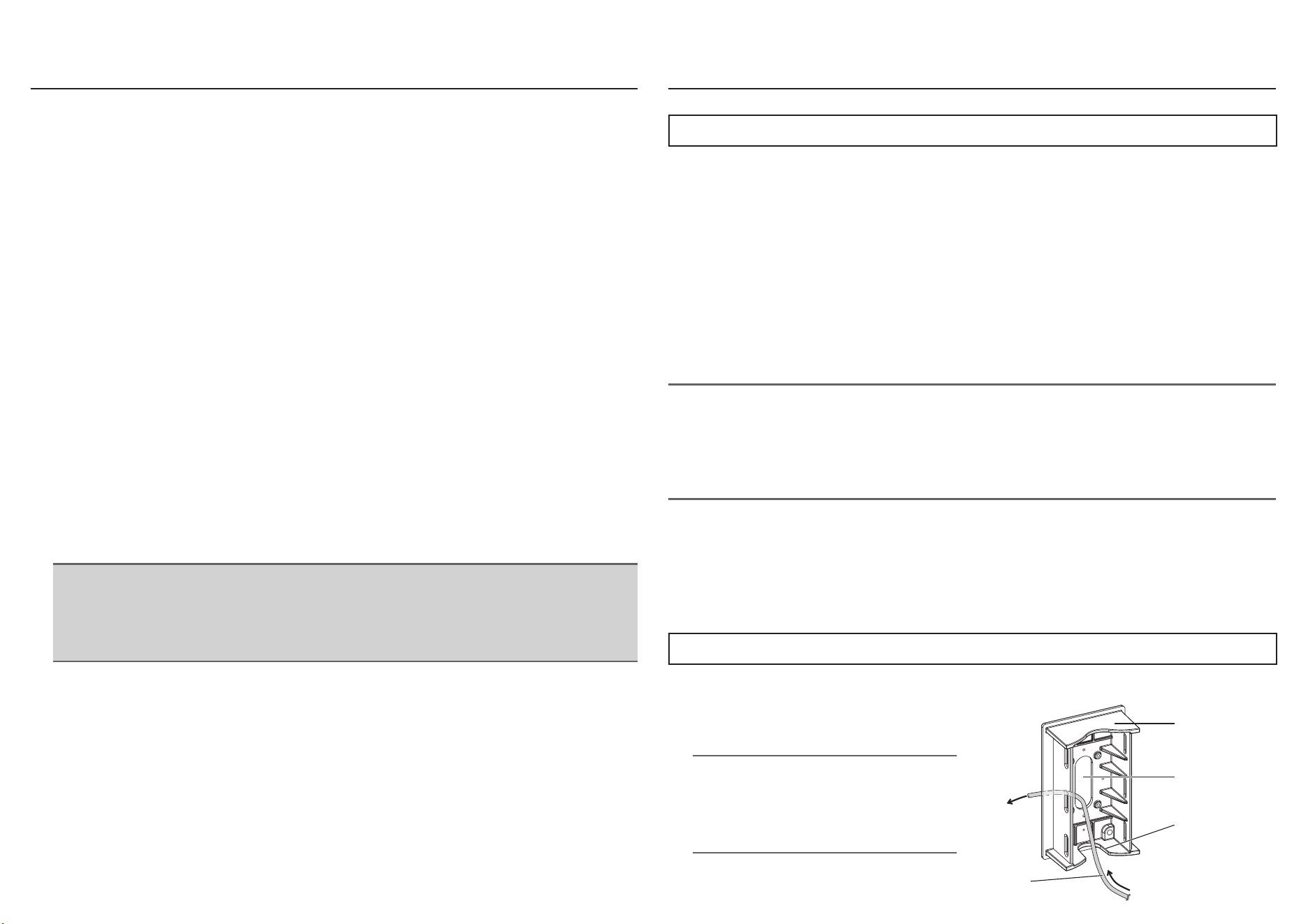

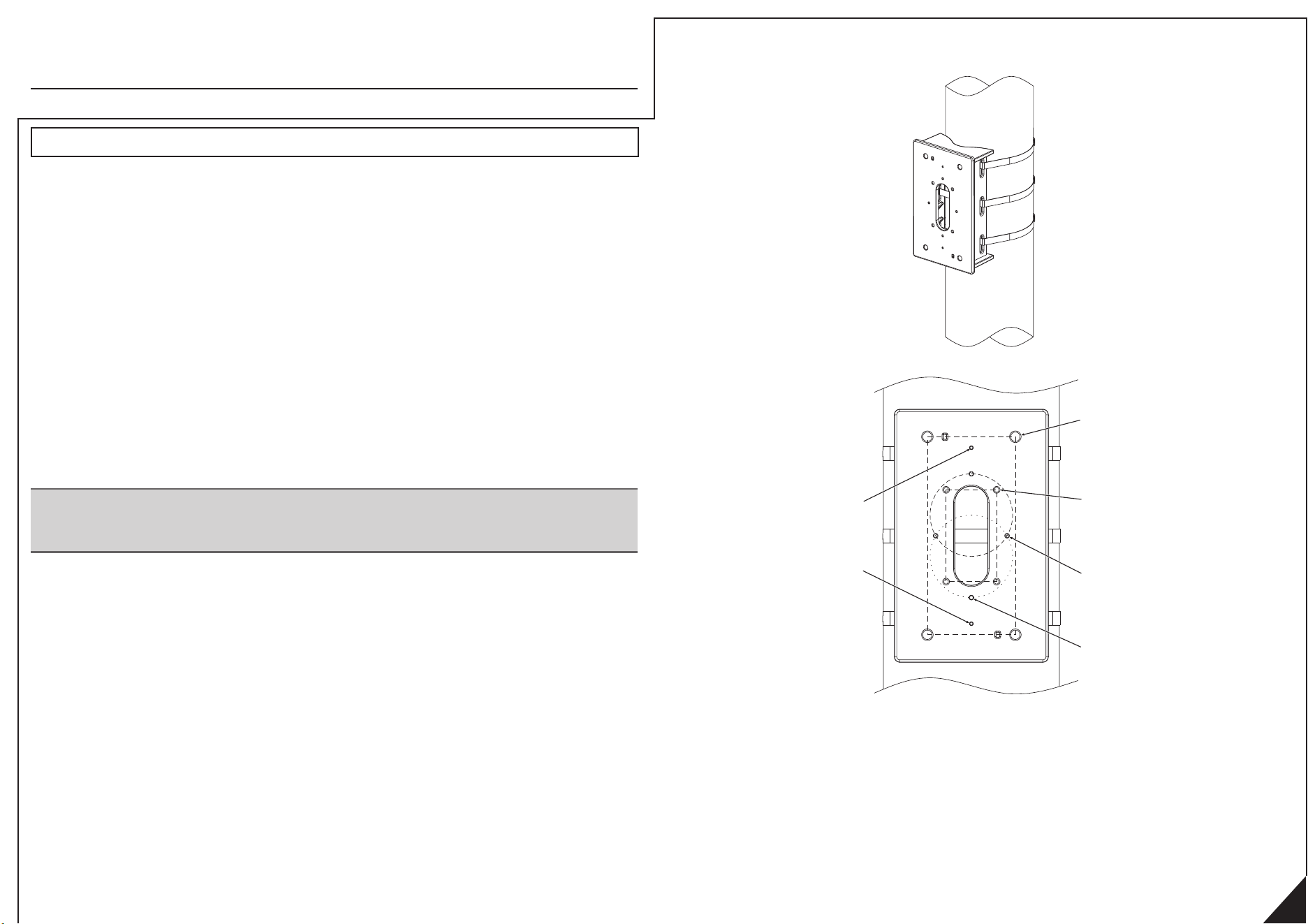

Install the mount bracket onto a vertical pole
①
Pass the cable to be connected with camera
through the cable access hole and pull out an
adequate length as needed for the camera.
Note:
• Please choose to wring port upward
or downward as per the site situation.
This manual illustrates the example
with the wiring port downward.
⑤ For the remaining part of fixing bands, leave approximate 70 mm in the part of fixing band lock
screw and use a tool (locally procured) to cut off the remaining part. Please treat the cut-off part to
prevent injury.
From the pole to be
installed
Access hole of fixing
band (lower)
Access hole of fixing
band (middle)
④ Cut and remove the support band. Fix the last access hole of fixing band (upper) in the same way.
Note:
•
After finishing the installation, please
confirm there is no looseness or inclina-
tion for fixing bands.
Access hole of fixing
band (upper)
Support band
(accessory)
Operating Instructions
Included Installation Instructions
Pole Mount Bracket
Model No. WV-Q182 / WV-Q188
(Light Gray) (Fine Silver)
Before attempting to connect or install this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Preface
WV-Q182/WV-Q188 (hereinafter, bracket) is designed to be used to install a camera or mount bracket
for camera to a vertical round pole with diameter from 80 mm to 200 mm.
• WV-Q182 is different with WV-Q188 in color, and same in structure. This manual takes WV-Q188
as an example for explanation.

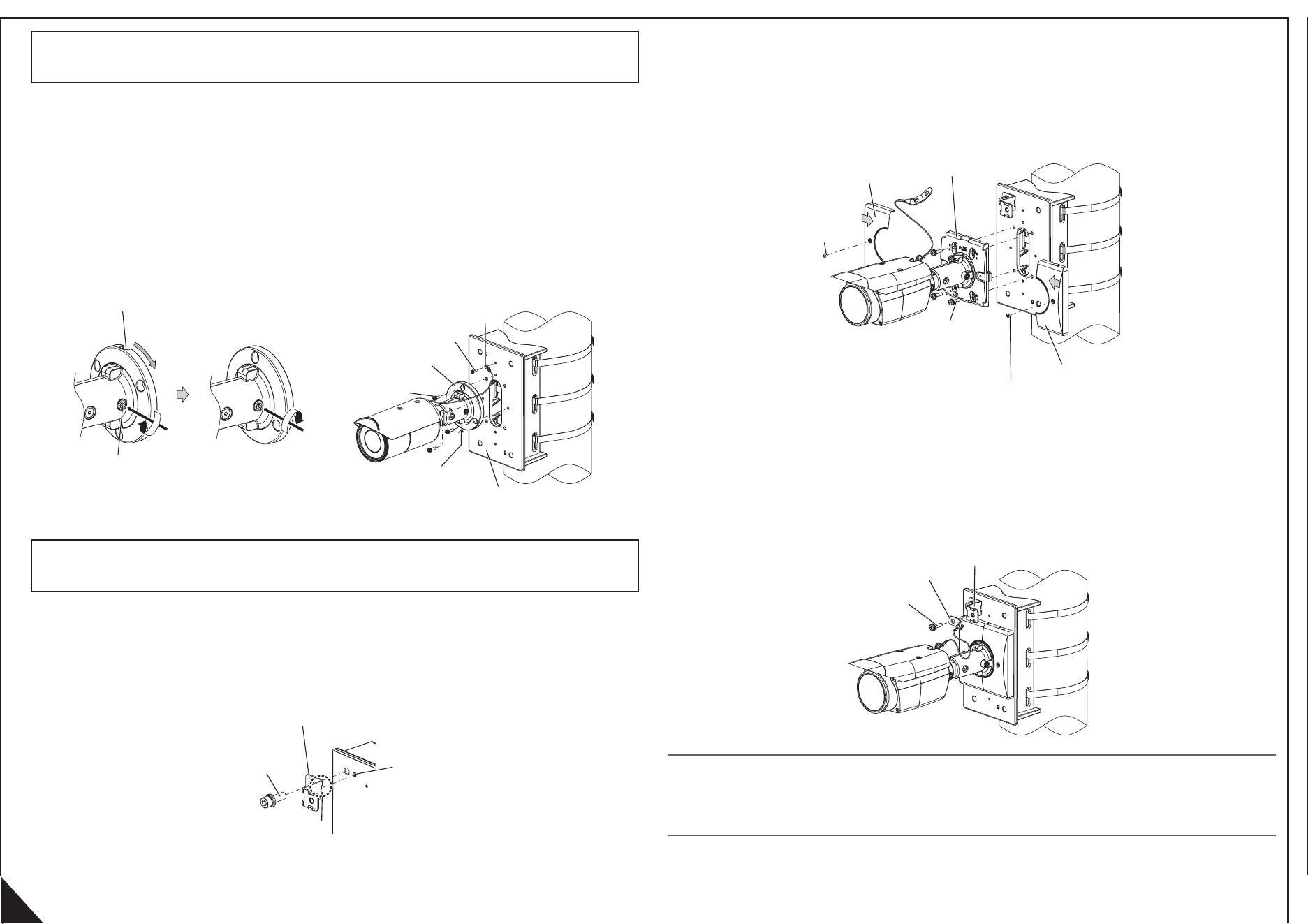

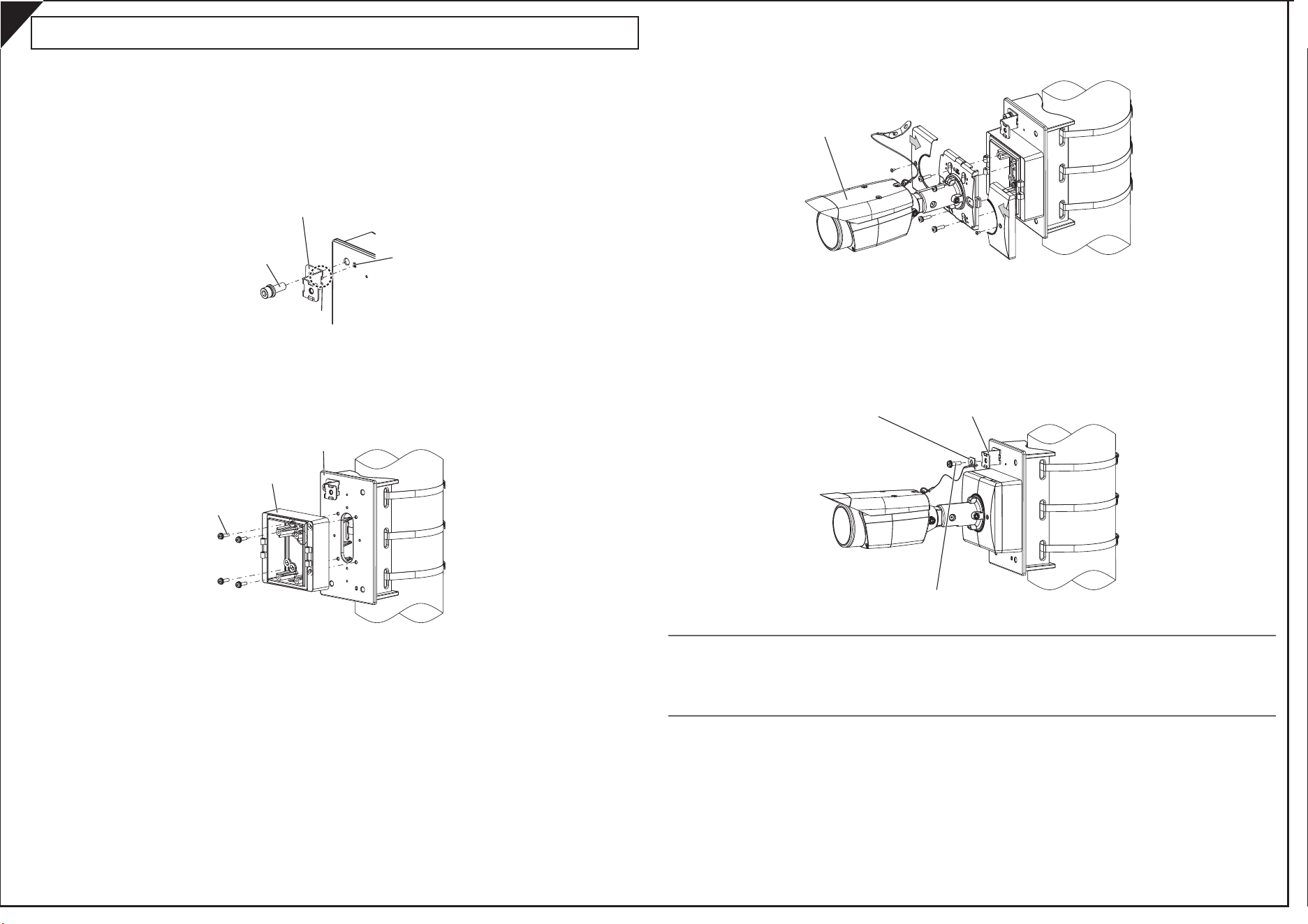

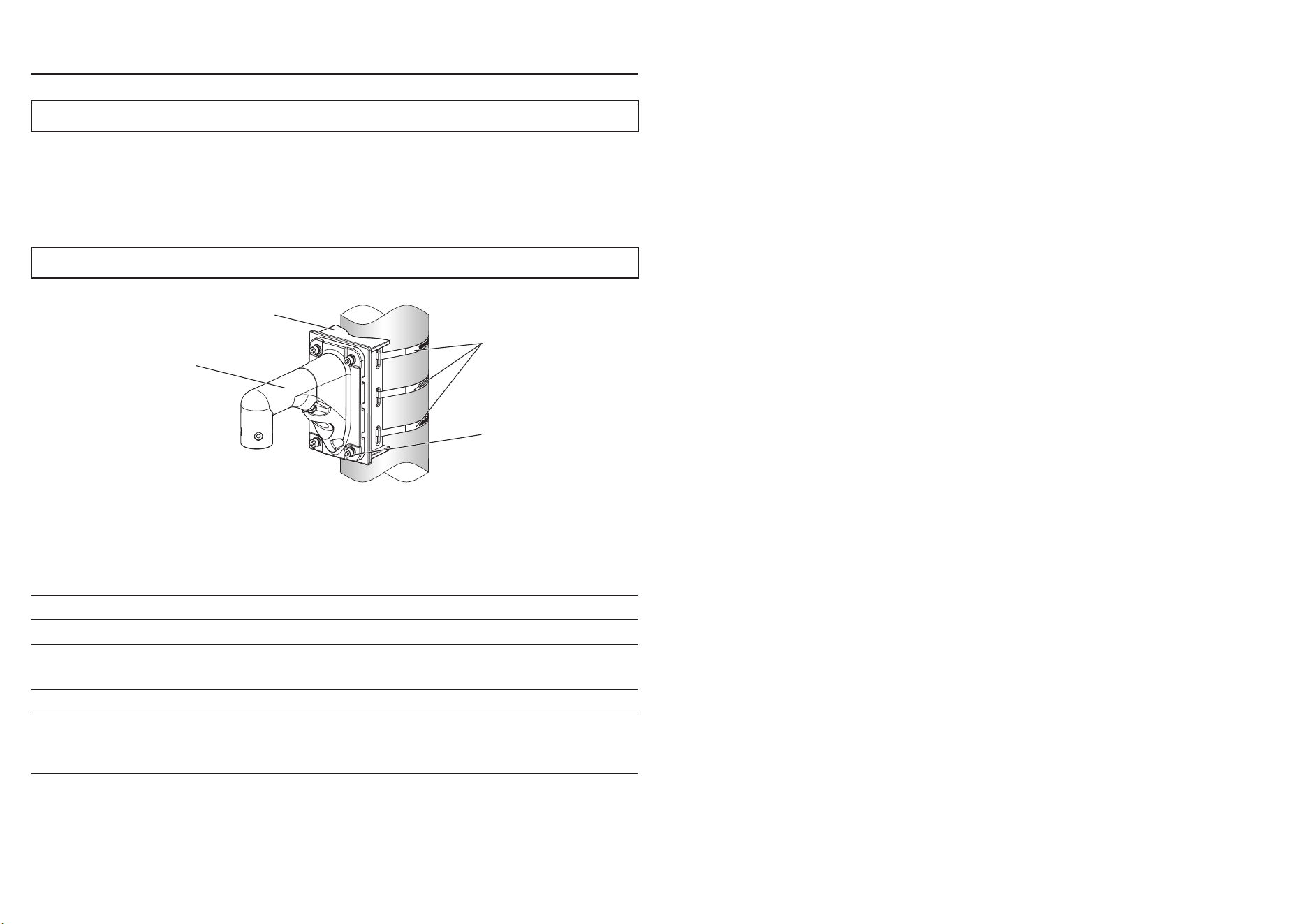

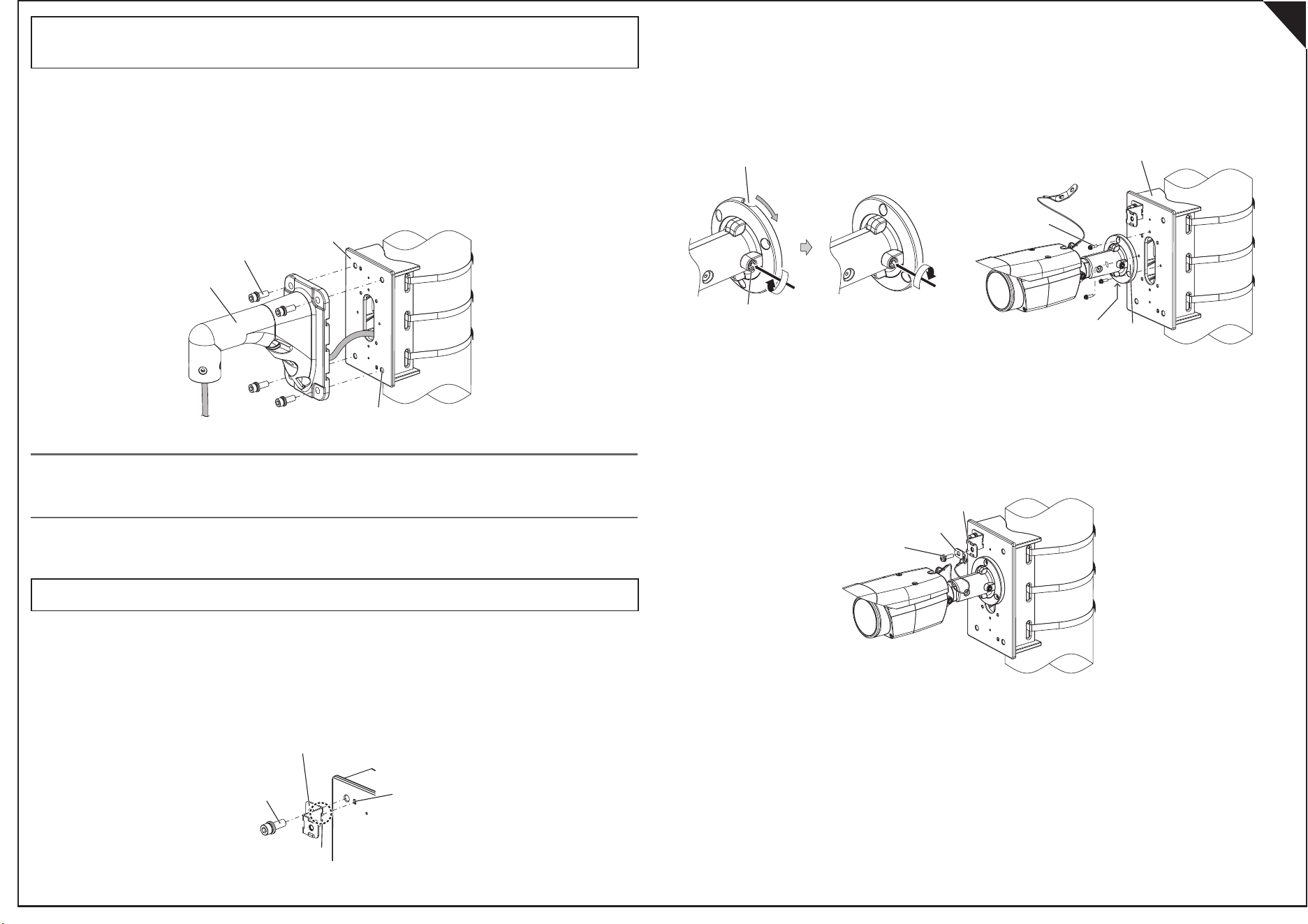

(In this illustration, fixing WV-Q122A to a pole by using WV-Q188 is taken as an example.)
Specifications
Ambient operating temperature: –50 °C to +60 °C {–58 °F to 140 °F}
Dimensions: 140 mm (W) × 230 mm (H) × 70 mm (D)
{5-1/2 inches (W) × 9-1/16 inches (H) × 2-3/4 inches (D)}
Mass:
Approx. 1.2 kg {2.65 lbs}
Finish: Aluminum die cast
Light gray <WV-Q182>
Fine silver <WV-Q188>
Precautions
Refer installation work to the dealer.
Installation work requires technique and experiences. Failure to observe this may cause fire, electric
shock, injury, or damage to the product.
Be sure to consult the dealer.
The exclusively designed mount bracket shall be used.
Failure to observe this may cause a drop resulting in injury or accidents.
Use the exclusively designed mount bracket for installation.
Do not install this product in locations subject to vibration.
Loosening of mounting screws or bolts may cause a fall of the product resulting in injury or accidents.
Install this product in a location high enough to avoid people and objects from
bumping the product.
Failure to observe this may cause injury.
The measures of protection against a fall of this product shall be taken.
Failure to observe this may cause a drop resulting in injury.
If there is specified safety wire, please make sure to install it.
The screws and bolts must be tightened to the specified torque.
Failure to observe this may cause a drop resulting in injury or accidents.
Select an installation area that can support the total weight.
Selecting an inappropriate installation surface may cause this product to fall down or topple over,
resulting in injury or accidents.
Installation work shall be started after sufficient reinforcement.
Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause a fall of the product resulting in injury or accidents.
Consult the dealer for the inspections.
Do not hang down from this product or use this product as a pedestal.
Failure to observe this may cause injury or accidents.
Do not use this bracket except with specified cameras or mount brackets.
Failure to observe this may cause a drop resulting in injury or accidents.
Avoid installing this bracket in the locations where salt damage occurs or corro-
sive gas is produced.
Otherwise, the mounting portions will deteriorate and accidents such as a fall of this product may occur.
Do not install this product on a place that is greatly influenced by wind.
Installation on a place where the wind speed is 60 m/s {approx. 134 mph} or more may cause a fall
of the product resulting in injury or accidents.
Do not attempt to disassemble or modify this product.
Failure to observe this may cause a fall of the product resulting in injury or accidents.
Consult the dealer for the repair or inspections.
Do not rub the edges of metal parts with your hand.
Strong rubbing may cause injury.
Precautions for installation Installations/Connections
Features
Parts and functions
i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resul-
ting from failures arising out of improper installation or operation inconsistent
with this documentation.
In order to prevent injury, the product must be securely mounted to the pole
according to Operating Instructions.
About installable pole
• Please consider the influence of vibration and wind at the installation site and mount the bracket
onto the poles with appropriate strength.
Installable pole: round (ø80 mm ~ ø200 mm {ø3-5/32 inches ~ ø7-7/8 inches})
• Please do not mount it onto a pole made of wood or resin with low endurance or quality having
changed after experiencing years' time.
• After the bracket is mounted, please verify the following content once a year. In the event of
abnormality, please inform the dealer or the constructor.
• Do not allow any slanting, distortion or offset in installation.
• Bracket and fixing band should not have any serious rust or damage.
• Please refer to our support website (https://i-pro.com/global/en/surveillance/training_support/
support/technical_information) for installation information of the bracket.
About the installation methods
• The bracket is specifically designed for installation onto a round pole.
• Fix the bracket to a pole by tightening the screws of three fixing bands. Please make sure to fix
firmly with the following tightening torque.
Recommended tightening torque: 5 N·m {3.69 lbf·ft}
IMPORTANT:
• Please do not exceed the torque limit when tightening the screw. Excessive tightening may
damage the screw of the fixing band. Please do not use a fixing band with damaged tight-
ening screws.
Limited tightening torque: 7.5 N·m {5.53 lbf·ft}
• For the pole, install the fixing band vertically. An slanted installation of the fixing band will result in
excessive slack which could lead to a fall.
• When installing, please pay attention to not damage any part that influences the strength of the
fixing band.
• When the pole mount bracket is installed to a pole with easy gliding painting or coating, please
pay attention to rotating and sliding down.
• After the installation is finished, please check if there are deviations related to slackness, fitting
and rotation of the fixing band.
In the event of abnormality, please tighten again.
Check before the installation.
Once the bracket is installed with a deformed mount bracket and/or damaged part, it could poten-
tially fall. Before the installation, please make sure to check the appearance of the bracket and the
fixing band.
Do not place this product in the following places:
• Locations where a chemical agent is used such as a swimming pool.
• Locations that have a specific environment that is subject to an inflammable atmosphere or sol-
vents.
• In areas by the sea or the seashore, regions with snow melt agent scattered and locations that
produce a corrosive gas such as volcanic areas and hot springs.
• Locations where the ambient operating temperature of camera is not within the specified range.
• Locations subject to vibrations, such as on vehicles, marine vessels, or above product lines.
(This bracket is not designed for on-vehicle use.)
Screw tightening
• Make sure to tighten the screws (accessory) that fix camera or mount bracket onto WV-Q182/
WV-Q188.
• Do not use an impact driver. Use of an impact driver may damage the screws or cause tightening
excessively.
• When a screw is tightened, make the screw at a right angle to the surface. After tightening the
screws or bolts, perform checks to ensure that the tightening is sufficient enough so that there is
no movement or looseness.
Make sure to remove this product if it will no longer be used.
WV-Q188
WV-Q122A
(Other optional
accessory)
Fixing bands
(accessory)
M10 hexagon screws
(4 pcs. accessory)
WV-Q188
Cable access hole
Wiring port
Cable
Access hole of fixing
band (upper)
Support band
Fixing band lock screw
