Operating Instructions
Included Installation Instructions
Mount Bracket
Model No. WV-Q186
LOCK
OPEN
Before attempting to connect or install this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Specifications
Ambient operating temperature: –50 °C to +60 °C {–58 °F to 140 °F}
Dimensions: Maximum diameter: ø176 mm {6-15/16 inches}
Height: 131 mm {5-5/32 inches}
Mass:
Approx. 480 g {1.06 lbs}
Finish:
Main body: Aluminum die cast Light grey
Preface
WV-Q186 (mount bracket) is designed to be used to install a fisheye camera or a dome camera for
outdoor use in the following ways.
• When installing on a wall using together with WV-Q185 (wall mount bracket)
Precautions
Refer installation work to the dealer.
Installation work requires technique and experiences. Failure to observe this may cause fire, electric
shock, injury, or damage to the product.
Be sure to consult the dealer.
Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause a fall of the product resulting in injury or accidents.
Consult the dealer for the inspections.
The exclusively designed mount bracket shall be used.
Failure to observe this may cause a drop resulting in injury or accidents.
Use the exclusively designed mount bracket for installation.
The screws and bolts must be tightened to the specified torque.
Failure to observe this may cause a drop resulting in injury or accidents.
Select an installation area that can support the total weight.
Selecting an inappropriate installation surface may cause this product to fall down or topple over,
resulting in injury or accidents.
Installation work shall be started after sufficient reinforcement.
Do not install this product in locations subject to vibration.
Loosening of mounting screws or bolts may cause a fall of the product resulting in injury or accidents.
Install this product in a location high enough to avoid people and objects from
bumping the product.
Failure to observe this may cause injury.
The measures of protection against snowfall shall be taken.
Weight of snow may cause a fall of the product resulting in injury or accidents.
Protect the product against snowfall by installing under eaves.
Avoid installing this bracket in the locations where salt damage occurs or corro-
sive gas is produced.
Otherwise, the mounting portions will deteriorate and accidents such as a fall of this product may occur.
Do not hang down from this product or use this product as a pedestal.
Failure to observe this may cause injury or accidents.
Do not install this product on a place that is greatly influenced by wind.
Installation on a place where the wind speed is 60 m/s {approx. 134 mph} or more may cause a fall
of the product resulting in injury or accidents.
Do not use this bracket except with specified cameras.
Failure to observe this may cause a drop resulting in injury or accidents.
Do not rub the edges of metal parts with your hand.
Strong rubbing may cause injury.
Precautions for installation
i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resul-
ting from failures arising out of improper installation or operation inconsistent
with this documentation.
Take notice of humidity.
Install this product when the humidity is low. If installation is performed when it is raining or in very
humid conditions, the inside may be affected by humidity, causing mist-over inside the camera.
Mounting method for this product
This product is designed to be used as a pendant mount camera. If the product is mounted on a
desktop or at a slant, it may not work correctly and its lifetime may be shortened.
Do not place this product in the following places:
• Locations where a chemical agent is used such as a swimming pool
• Locations subject to moisture or oil smoke such as a kitchen
• Locations that have a specific environment that is subject to an inflammable atmosphere or sol-
vents
• Locations where radiation, an x-ray, a strong radio wave, or a strong magnetic field is generated
• Locations near coasts directly subjected to sea breezes, or locations subject to corrosive gases
such as from hot springs, volcanic regions, etc.
• Locations where the temperature is not within the specified range (The ambient operating tem-
perature of the installed camera.)
• Locations subject to condensation as the result of severe changes in temperature
(In case of installing the product in such locations, the inside of camera may become foggy or
condensation may be caused in the camera.)
• Locations subject to vibrations, such as on vehicles, marine vessels, or above product lines
(This product is not designed for on-vehicle use.)
Screw tightening
• Do not use an impact driver. Use of an impact driver may damage the screws or cause tightening
excessively.
• When a screw is tightened, make the screw at a right angle to the surface. After tightening the
screws or bolts, perform checks to ensure that the tightening is sufficient enough so that there is
no movement or looseness.
Protection from lightning
When cables are used outdoors, there is a chance that they may be affected by lightning. In such a
case, install a lightning arrestor close to the camera, and make the length of the network cable
between the camera and lightning arrestor as short as possible to prevent the camera from being
damaged by lightning.
Make sure to remove this product if it will no longer be used.
<Mountable models>
The following cameras for outdoor use can be mounted on WV-Q186.
For the latest information about the mountable models, refer to our support web site
(https://i-pro.com/global/en/surveillance/training_support/support/technical_information).
Network Camera: WV-SFV631LT, WV-SFV631L, WV-SFV611L, WV-SFV531, WV-SFV311A,
WV-SFV310A, WV-S2531LTN, WV-S2531LN, WV-S2511LN, WV-SFV481, WV-SW458
CCTV Camera: WV-CW634S, WV-CW634SE, WV-CW634F, WV-CW630S/G, WV-CW364SE,
WV-CW334SE
Features
For U.S. and Canada:
i-PRO Americas Inc.
For Europe and other countries:
i-PRO EMEA B.V.
https://www.i-pro.com/
sL1017-2042 PGQX2198XA Printed in China© i-PRO Co., Ltd. 2022

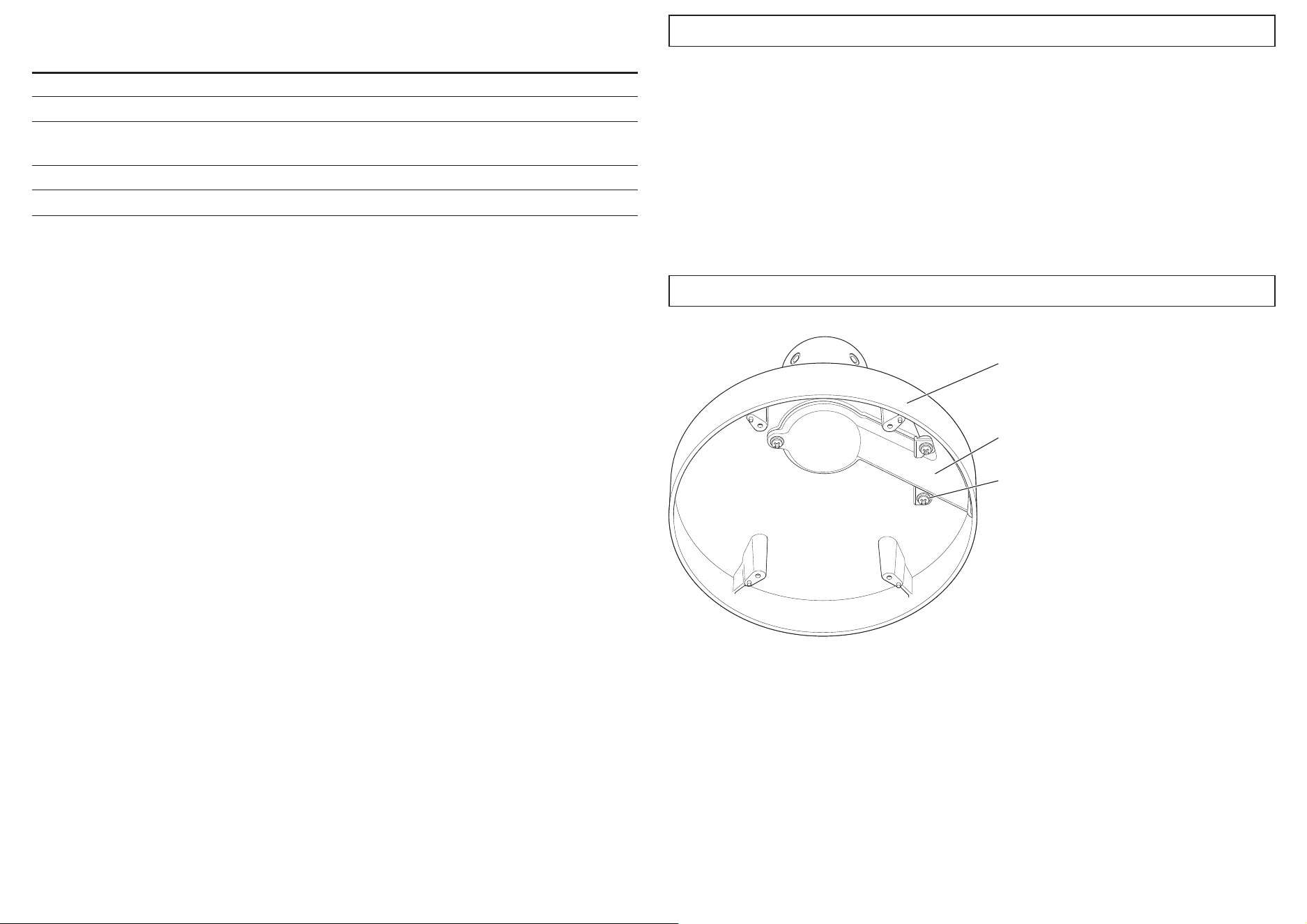

Cover part of WV-Q186
Ⓐ Inner cover
Ⓑ Screw ×3
(Fixing screw for the inner cover: M3)
WV-Q185
WV-Q186
Camera
Standard accessories
Operating Instructions (this document) ......................................................................................... 1 set
Ⓐ Inner cover ..............................................................................................................................1 pc.
Ⓑ Screw (Fixing screw for the inner cover: M3) ........................................ 4 pcs. (of them, 1 for spare)
Required parts other than the above
• Accessories provided with the camera to be installed
Attachment plate ...................................................................................................................1 pc.
Fixing screws for attachment plate (M4 × 8 mm {5/16 inches}) ............................................ 5 pcs.
(of them, 1 for spare)

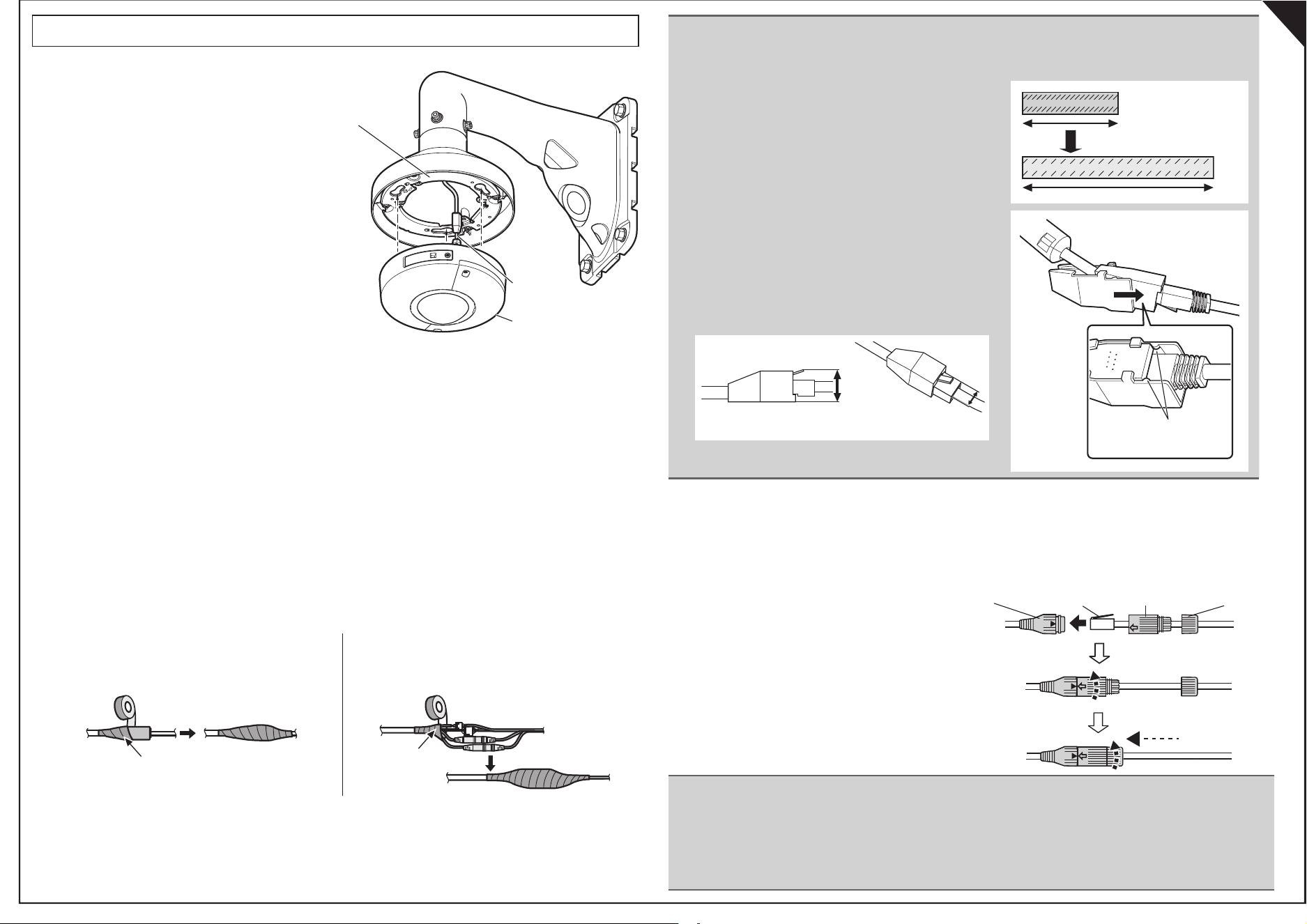

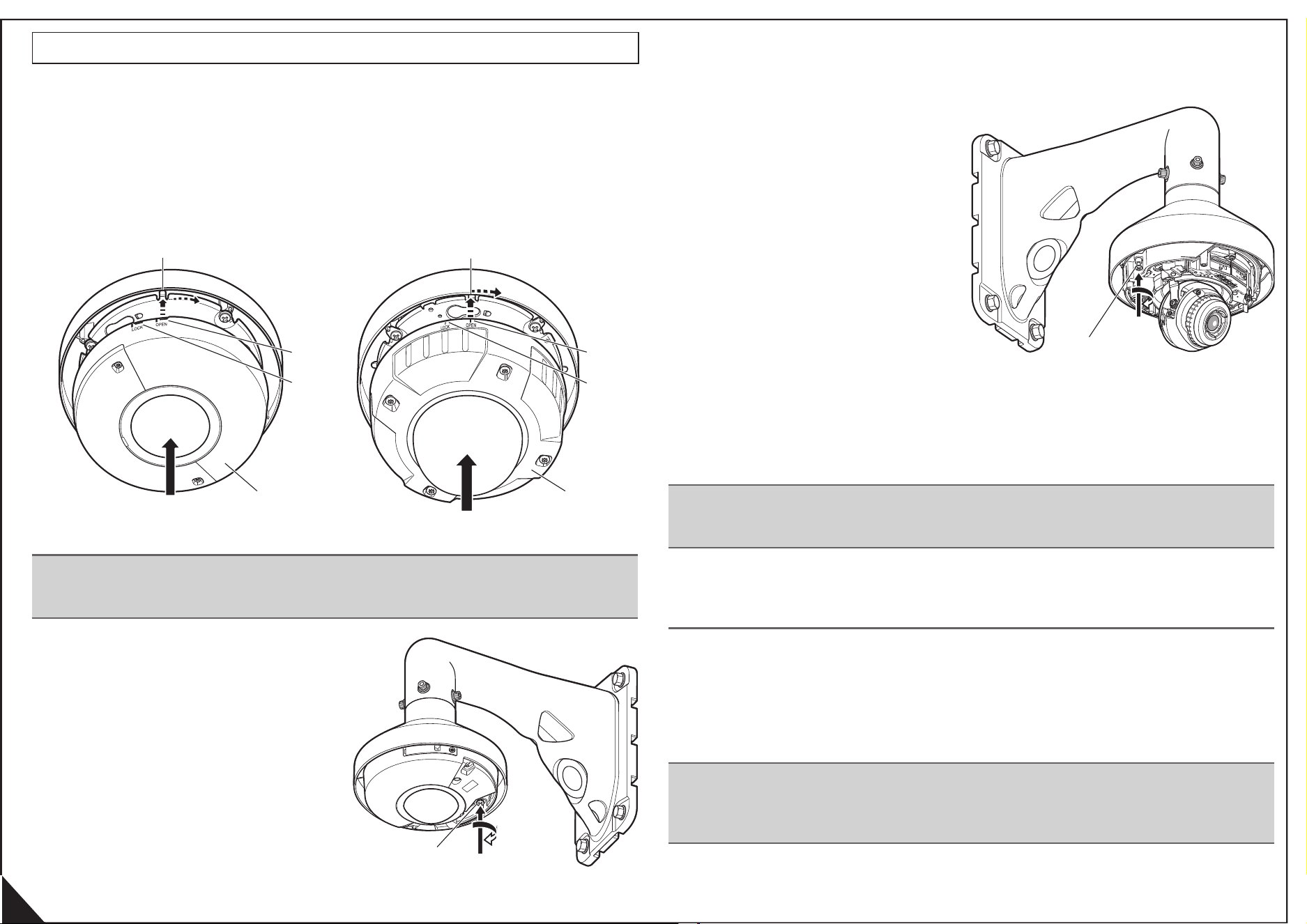

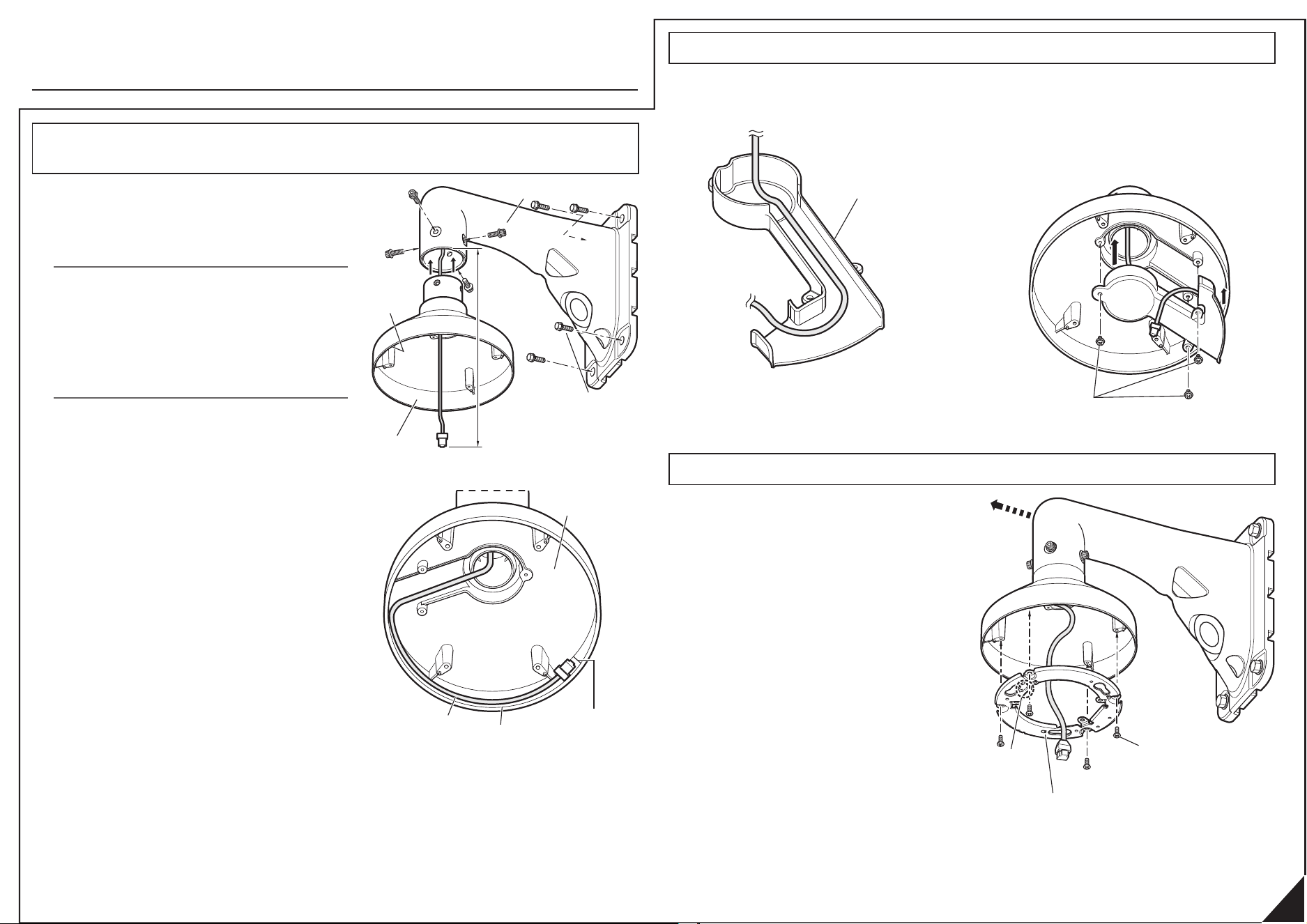

Parts and functions
Wall
