Caution:
Before attempting to connect or operate this product, please read these instructions carefully.
Notice:
This equipment is not suitable for use in locations where children are likely to be present.
Do not install this product in locations where ordinary persons can easily reach.
For information about screws and brackets required for installation, refer to the
corresponding section of this document.
Standard accessories
Operating Instructions (this document)
....
1 pc. Fixing screws for attachment plate ........5 pcs.
(M4 x 8 mm {5/16 inches}) (of them, 1 for spare)
Other items that are needed (not included)
Fixing screws (M4) ............................................................................................................. 4 pcs.
IMPORTANT
Minimum pullout strength: 196 N {44 lbf} (per 1 pc.)
This value indicates the minimum pull-out strength required value per screw. For information
about the minimum pull-out strength, refer to our support website <Control No.: C0120>.
Select screws according to the material of the location that the camera will be mounted to.
In this case, wood screws and nails should not be used.
Precautions for installation
In order to prevent injury, the product must be securely mounted to the wall
according to the Installation Guide of this bracket.
Mounting method for this product
This product is for attaching to a wall. If the product is mounted on a desktop or at a slant, the
camera may not work correctly and its lifetime may be shortened.
Make sure to remove this product if it will no longer be used.
Compact dome type
WV-S31xx, S35xx series
Indoor 360-degree panoramic type
WV-S41xx series
Outdoor dome type
WV-S25xx series
NOTE
When an outdoor 360-degree panoramic type camera is attached using this product, it
will be close to the wall surface, so the infra-red light built into the camera will have an
effect on the images taken. Additional information on omnidirectional shooting using an
IR LED is available at the Website below.
https://i-pro.com/global/en/surveillance/training_support/support/technical_information
<Control No.: C0109>
<Installation example>

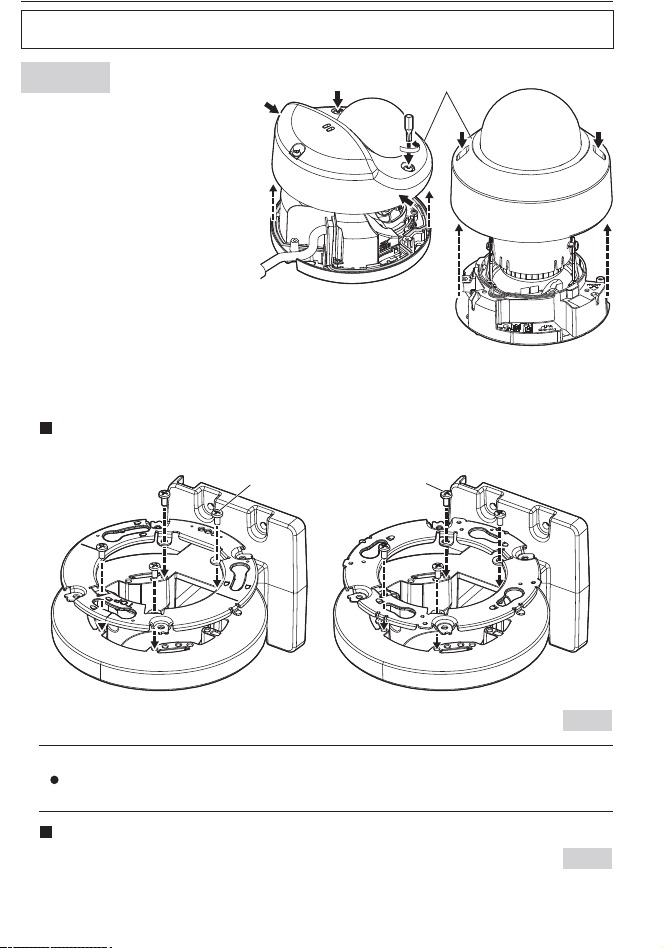

Installation
Step 1
1 Remove the enclosure from the
camera body.
For compact dome types and indoor
dome types of cameras, the
enclosure is removed before
installation.
Refer to the parts describing
installation in the Installation Guide
for each camera for information on
how to remove the enclosure.
2
For models other than the compact dome type WV-S31xx, S35xx series, attach the attachment
plate (camera accessory) to this product using the fixing screws for attachment plate.
■ When attaching using the attachment plate included with the camera
(Recommended tightening torque: 0.78 N·m {0.58 lbf·ft})
<Installation example>
NOTE
When attaching an indoor 360-degree panoramic type camera, the “TOP” mark direction on
the attachment plate will be in the direction of the i-PRO logo after the camera is installed.
■
When attaching the camera directly to this product
(Compact dome type WV-S31xx, S35xx series)
The attachment plate is not used.
Enclosure
<Compact dome type> <Indoor dome type>
Fixing screws for attachment plate
(4 pcs.) (M4: accessories)
Indoor 360-degree panoramic type
WV-S41xx series
Outdoor dome type
WV-S25xx series
.

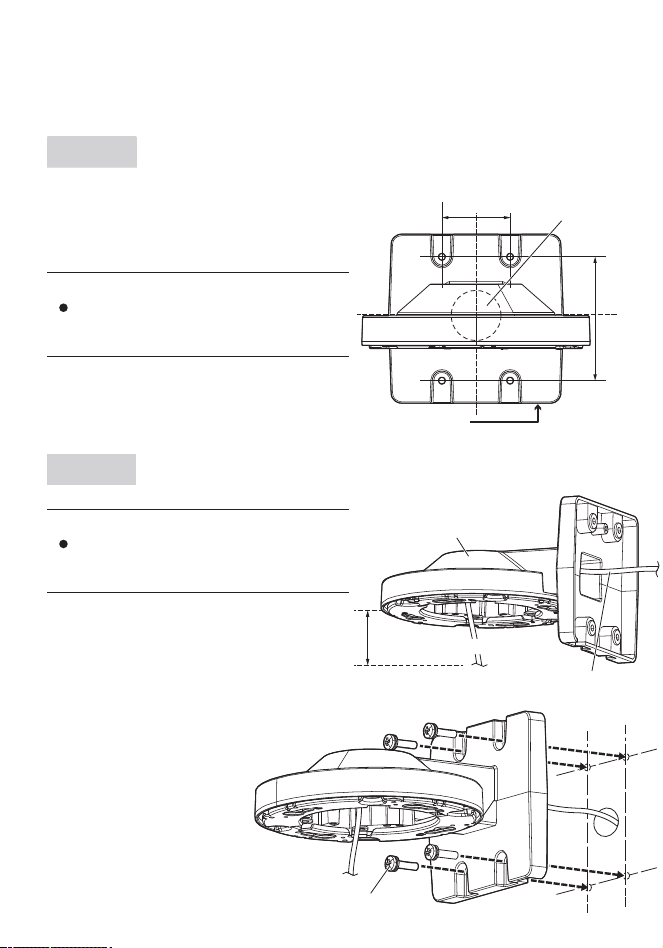

Step 2
.

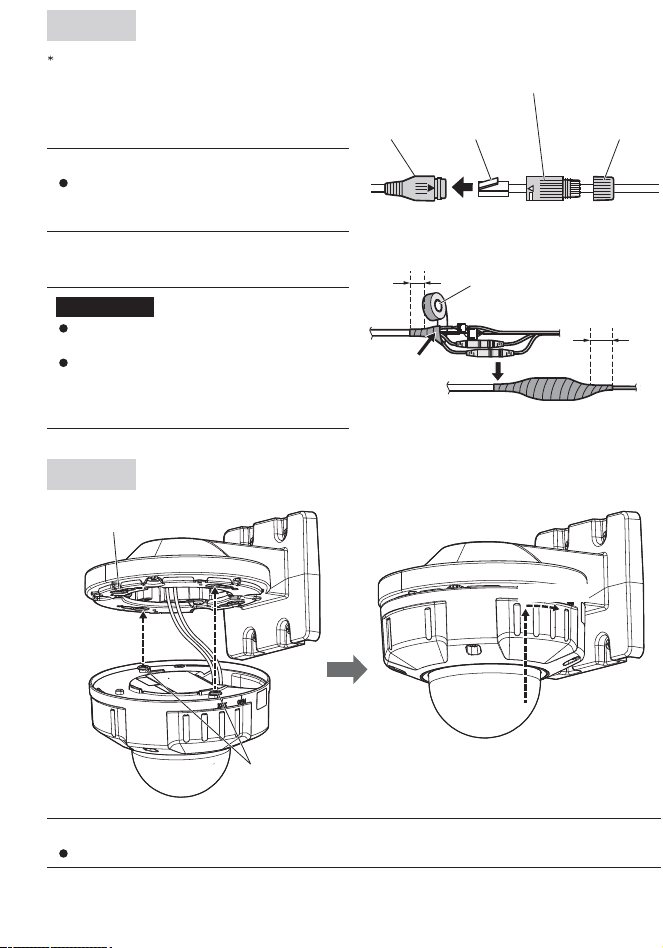

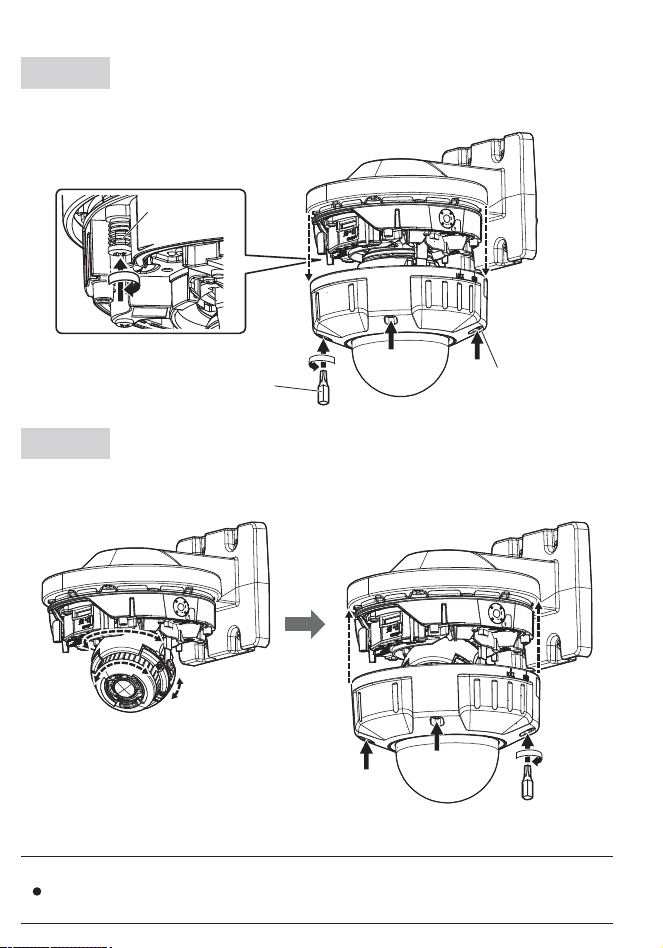

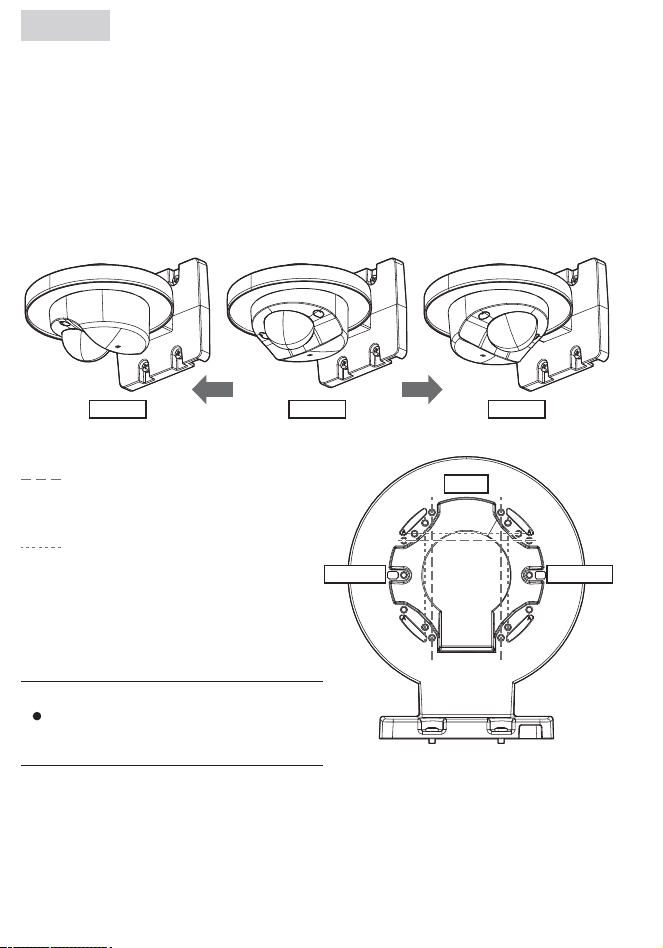

Step 8
Preface
This product is used to attach dome-type cameras facing down on a wall.
For the latest information about the supported cameras, refer to our support website
(https://i-pro.com/global/en/surveillance/training_support/support/technical_information
<Control No.: C0501, C0502, C0112>).
Specifications
Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}
Dimensions: 158 mm (W) × 112 mm (H) × 188 mm (D)
{6-7/32 inches (W) × 4-13/32 inches (H) × 7-13/32 inches (D)}
Mass: Approx. 520 g {1.15 lbs}
Finish: Aluminum die cast WV-QWL500-W : i-PRO white
WV-QWL500-G : Light gray
Precaution
Refer installation work to the dealer.
Installation work requires technique and experience. Failure to observe this may cause fire,
electric shock, injury, or damage to the product.
Be sure to consult the dealer.
Install the product securely on a wall in accordance with the installation instructions.
Failure to observe this may cause injury or accidents.
Do not use this bracket except with suitable cameras.
Failure to observe this may cause a drop resulting in injury or accidents.
Do not install this product on a place that is greatly influenced by wind.
Installation on a place where the wind speed is 60 m/s {approx. 134 mph} or more may cause a
fall of the product resulting in injury or accidents.
The measures of protection against snowfall shall be taken.
Weight of snow may cause a fall of the product resulting in injury or accidents.
Protect the product against snowfall by installing it under eaves.
When using this product, also read the “Precautions” described in the operating
instructions for the camera to be attached.
Operating Instructions
Included Installation Instructions
Wall Mount Bracket
Model No.
WV-QWL500-W
WV-QWL500-G
Before attempting to connect or install this product,
please read these instructions carefully
and save this manual for future use.
The external appearance and other parts shown in this manual may differ from the actual
product within the scope that will not interfere with normal use due to improvement of the
product.
i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting
from failures arising out of improper installation or operation inconsistent with this
documentation.
Fs0320-1042
Printed in China
For U.S. and Canada:
i-PRO Americas Inc.
For Europe and other countries:
i-PRO EMEA B.V.
https://www.i-pro.com/
© i-PRO Co., Ltd. 2022
