8W RECHARGEABLE LITHIUM-ION SOLDERING
IRON
MODEL NO: SDL7.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY FOR USE OF CHARGER
USE ONLY THE SUPPLIED CHARGER PLUG AND LEAD FOR CONNECTING CHARGER TO THE IRON .
WARNING ! It is the user’s responsibility to read, understand and comply with the following electrical instructions:
You must ensure the risk of electric shock is minimised by the installation of appropriate safety devices.
An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an
RCD (Residual Current Device, Sealey model RCD981) is used with all electrical products, particularly portable equipment which is
plugged into an electrical supply not protected by an RCCB.
You must also read and understand the following instructions concerning electrical safety.
1.1.1. TheElectricityAtWorkAct1989requiresallportableelectricalappliances,ifusedonbusinesspremises,tobetestedbyaqualied
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance and
thesafetyoftheapplianceoperator.Ifinanydoubtaboutelectricalsafety,contactaqualiedelectrician.
1.1.3. You must ensure that you:
Inspect the charger plug, cable and connector for wear and damage to ensure items are safe before connecting to the mains power
supply. If worn or damaged DO NOT use.
1.1.4. Uncoil the cable between charger and the iron.
8 DO NOT pull the charger plug from the mains socket by the lead.
WARNING ! DO NOT use any other type of charger with this product, other than the supplied one. Failure to observe this warning
couldresultininjuryandorreandwillinvalidatethewarranty.
8 DO NOT try to take the charger plug apart.
8 DO NOT use the charger plug to charge or power any other electrical item.
8 DO NOT get the charger plug wet, or use in wet, damp conditions (for indoor use only).
1.2. BATTERY SAFETY
WARNING ! Toreducetheriskofburnsorre:
8 DO NOT attempt to open, disassemble, modify or service the battery pack.
8 DO NOTcrush,puncture,shortexternalcontactsordisposeofinreorwater.
8 DO NOT expose to temperatures above 60°C (140°F).
Recycle or dispose of used equipment as stipulated by local regulation.
1.3. GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop
practise regulations are adhered to when using this equipment.
9 Familiarise yourself with the application, limitations and potential hazards of the soldering station.
9 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Locate soldering station in a suitable working area, keep area clean and tidy and free from unrelated materials.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the soldering iron clean for best and safest performance.
9 Ensure there are no flammable or combustible materials near the work area.
9 Wear approved safety eye protection (standard spectacles are not adequate).
9 Wear appropriate protective clothing.
9 Ensure the workpiece is adequately held before operating the soldering iron. See Sealey model number SD150.
9 Always replace the soldering iron in its holder when not in use.
9 Remove excess solder from the soldering iron by wiping the tip on a damp, natural sponge; not by abrupt force.
8 DO NOT attempt to remove excess solder from the soldering iron by shaking it. Hot solder may become airborne and land on skin
causing burns and blisters.
8 DO NOT allow children or pets into the area where the soldering is taking place.
8 DO NOT attempt to cool the gun with water.
NOTE: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not
be carried out by children without supervision.
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Hot surfaces Indoor use
only
Warning Wear eye
protection
SDL7.V2 Issue 2 (4) 25/03/2021
2. INTRODUCTION
Professional Lithium-ion cordless soldering iron. Ideal for multiple applications including automotive soldering in-and-around engine
bays.Heatsuptoworkingtemperaturein25seconds.IntegralLEDworklights(x2).Autoshut-oafter10mins.Unitfeaturesasturdy
base stand and is supplied with a mains charger. Maximum Temperature: 450°C.
3. SPECIFICATION
Model No:.....................................................................SDL7
Battery: ..........................................................4V 1.5Ah Li-ion
Charging time:...................................................................3hr
Maximum temperature ................................................. 450
o
C
Operating time ............................................................. 50min
Power rating ...................................................................... 8W
IMPORTANT WARRANTY INFORMATION
Thebatteryttedtothisironisconsideredtobeaconsumableitemanditsabilitytoacceptachargewillreduceovertime.
We will provide warranty against mechanical and electrical defect for a period of one year - this does not cover fair wear and tear.
Ifthebatteryisnotproperlychargedbeforerstuse,orregularlyconditioned,itscapacitywilldiminish.Underthesecircumstanceswewill
not replace the battery regardless of whether it is less than one year old.
NOTE:Thelithiumbatterydoesnotsuerfrommemoryeectandoncefullychargedmaybestoredforuptosixmonthswithoutanother
charge.
4. OPERATION

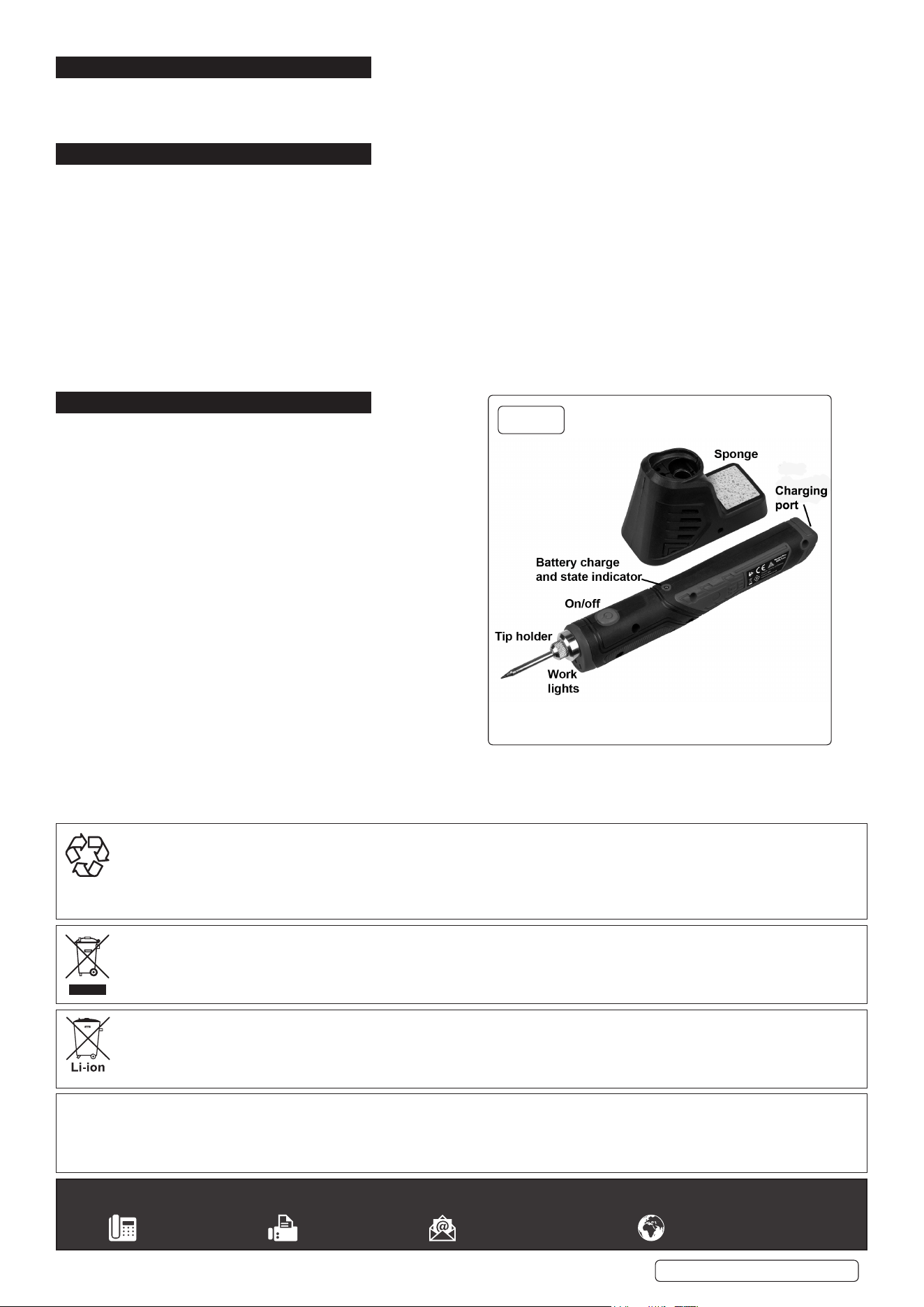

4.1. Plug in charger and ensure that the soldering iron is fully
chargedbeforerstuse.Thebatterychargeindicator(g.1)is
red when charging and green once fully charged.
4.2. To switch on, remove the soldering iron from the stand and press
theOn/Obutton(g.1).Thetwoworklightswillilluminate.
4.3. HolddowntheOn/Obutton,thesolderingtipwarmsupand
the battery charge / state indicator will glow red until the tip
is up to temperature. When the tip reaches the working
temperature the light will glow green.
4.4. The tip will maintain the working temperature for 10 minutes
and the green light will show in the state indicator after which
itwillturno.
4.5. To recommence soldering, after a brief period, repeat
4.2, 4.3 and 4.4.
Original Language Version
© Jack Sealey Limited
g.1
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
