USER’S MANUAL
Kids Ride On Car
TY327676
Please read all instructions carefully and keep it for future reference.
Warnings:
Attention! Use it with protective equipment.
Attention! Not use it in the traffic.
Attention! The product is not suitable for the children under 3 years.
General Warnings:
The product must be installed and used under the supervision of an adult.
Read through each step carefully and follow the proper order.
Remove all packaging, separate and count all parts and hardware.
Please ensure that all parts are correctly installed, incorrect installation can lead to a danger.
We recommend that, where possible, all items are assembled near to the area in which they
will be placed in use, to avoid moving the product unnecessarily once assembled.
Ensure a secure surface during construction, und place the product always on a flat, steady
and stable surface.
Please use the product carefully, as the product requires great skill, avoid accidents by the
user or others, by fall or collision.
Please wear suitable protective equipment during use, e.g. protective helmet, gloves, knee
pads, elbow pads etc.
02
Parts List:(Name and Quantity)
Name
www.costway.com
03
CB
D
A
E G
H I
F
JJ
A B C D E F G H I
Ｊ
Quantity
1 1 2 1 1 2 2 1 2 1
Body Windshield Mirror Seat Steering wheel Front wheel Rear wheel
Remote contro
Gasket
Charger
www.costway.com

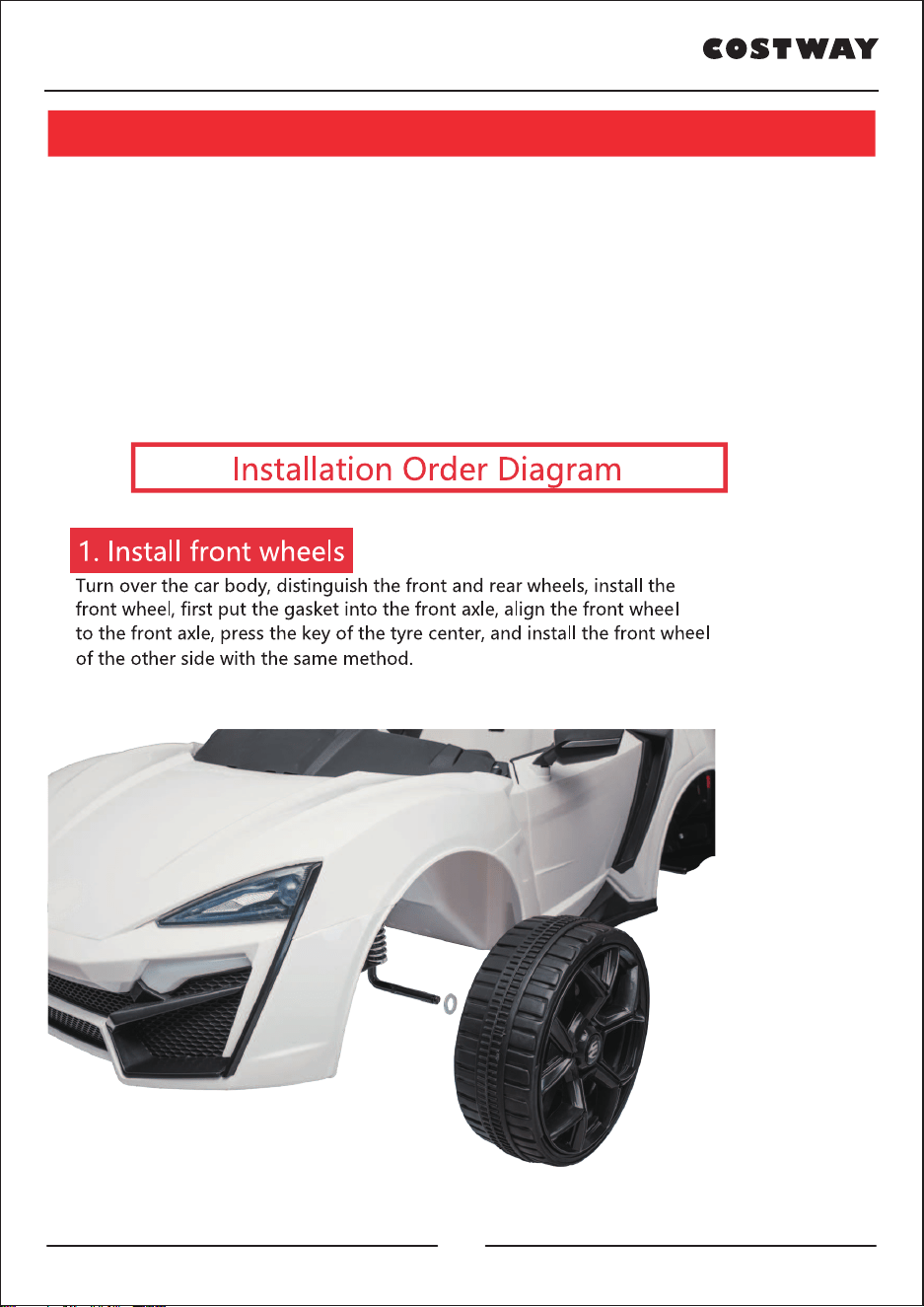

Front Wheel
Gasket

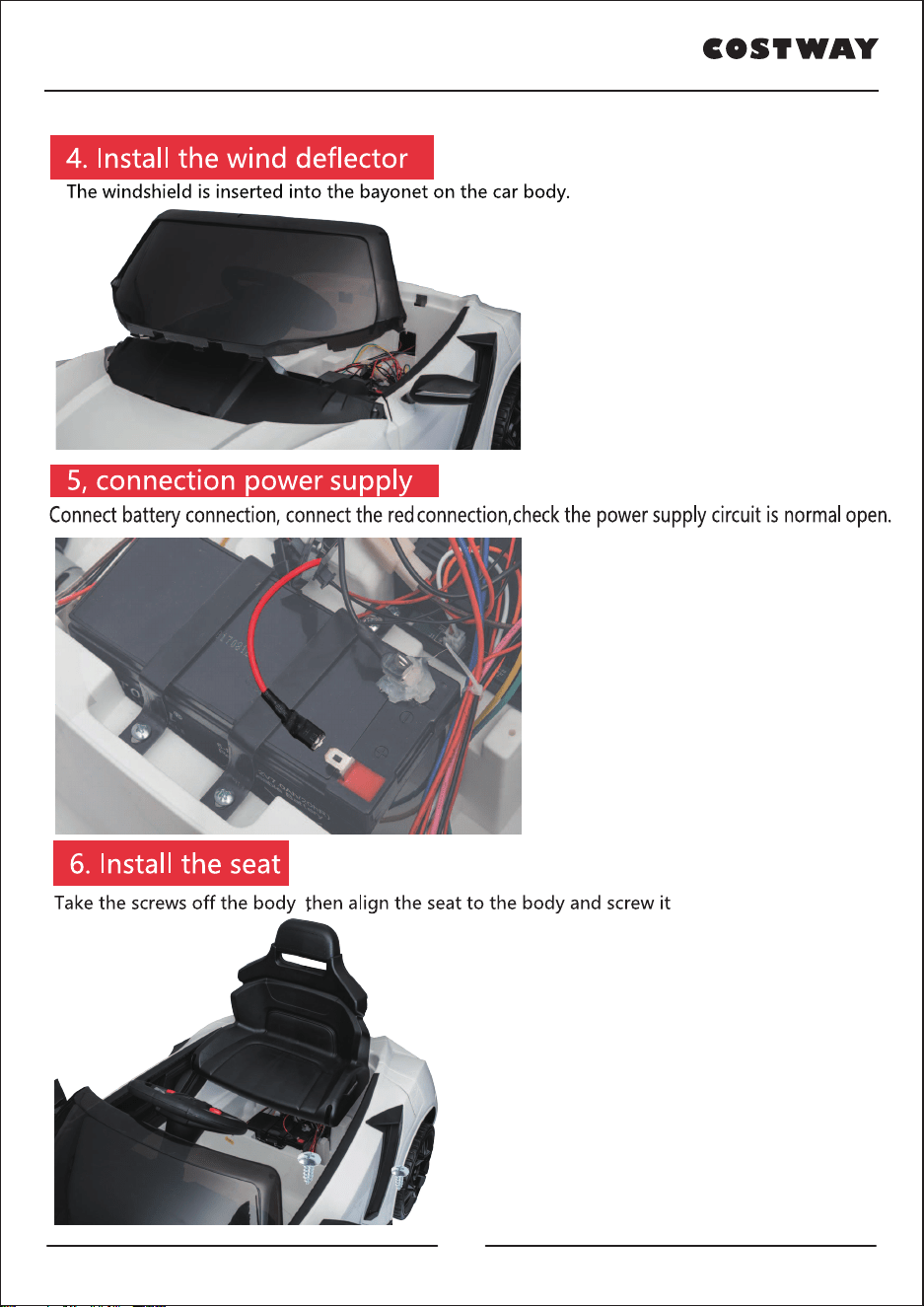

Windshield
Steering Wheel
Seat
Product Specifications:
ParametersName
Battery
Motor
Applicable Age Range
Maximum load
Physical Dimension
Speed
Hours of Use
Charging
Remote Control Battery
12V4.5AH
Drive Motor 1 *093V2 2(12000RPM)
Steering Motor 12V380*1(5000RPM)
Using 1-2 hours after Charging 8-10 hours
37-95 months
Under 55lbs
46” x 28.5” x 19”
3-5 /mk h
Input: 100V-120VAC Output: 12V1000MA
AAA1.5 2*V (not provide)
04

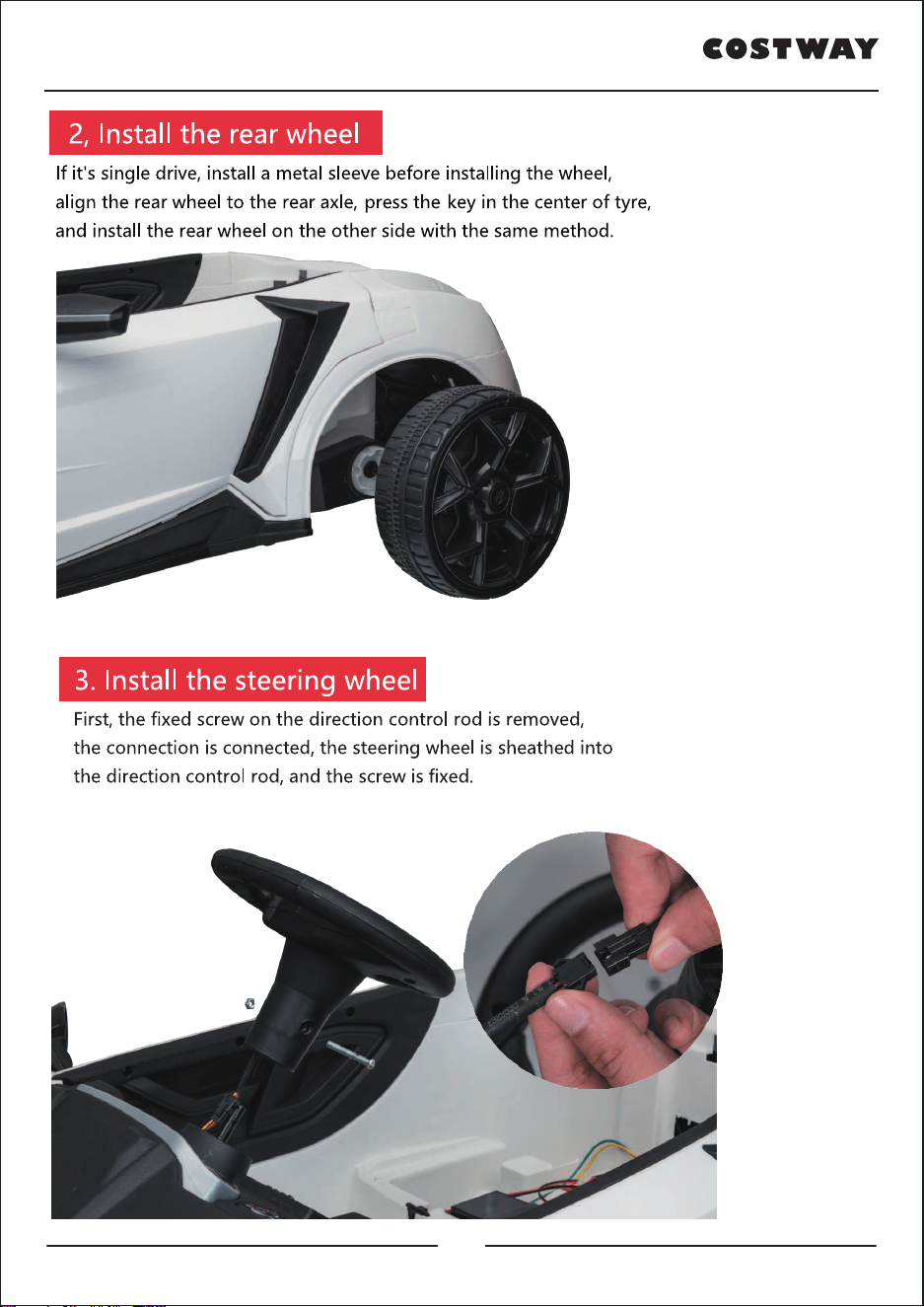

Rear wheel
www.costway.com
⑧
⑨
TF Card Interface
MP3 Interface
①
②
③
④
⑤
⑥
⑦
⑧
⑨
Function
HIGH SPEED
LOW SPEED
③
Stimulated Instrument Panel
④
High speed and low speed
⑤
Light Button
⑥
Forward, Stop, Backward
⑦
Power Switch
Indicator:
①
USB Interface
②
Power Display
Forward
Backward
Speed
Indicator Light
Stop
Left Right
Remote Control Function and Instructions
•Never switch forward and backward operations in the moving,
or the gear box and motor will be damaged
•Use the remote control with battery
•Only the baby’ s legal guardian can use the remote control.
•The product is operated mainly by remote control
Code Method:
Press UP&DOWN Buttons to see that the
indicator light is constant on, and turn on
the power.
05
www.costway.com
Battery Operating Specifications:
Never mix new and old baeries, or different kinds of baeries. Never mistake posive
and negave electrode of baery,
or short circuit will happen.
Non-rechargeable baeries are not to be recharged
Install baeries in a right polarity.
Only adults can recharge or change baeries.
Never make power port’ s short circuit happen.
Recharge the baery only when it is taken out of the toy car. Take exhausted baery
out of the toy car and keep it out of Children’ s reach.
Remove baery screws with a screwdriver, open baery cap, and in the 2.4G remote
control model install two AAA 1.5V baeries in a right polarity.
06
www.costway.com
07
www.costway.com
08
www.costway.com
55lbs
55lbs
09
www.costway.com
10
55 lbs
www.costway.com
Children Electric Car
Children electric car
Installation and Operation Instructions
Stimulation car model
System driven by remote control
Forward, backward and steering operations by remote control
Forward and backward operations by manual shift
Steering wheel’ s music function
Techniques of volume regulation and MP3’ amplification function
Battery power display
WARNING: The toy is to be assembled by an adult.
In unassembled state contain potentially hazardous sharp points,
sharp edges and small part,so please keep out of baby’s reach
Warning： Not to be used in traffic.
11
