EB-L570U/EB-L770U/EB-L775U
User's Guide
3
Contents
EB-L570U/EB-L770U/EB-L775U User's Guide......................................................................................... 11
Introduction to Your Projector ................................................................................................................. 12
Projector Features.............................................................................................................................. 12

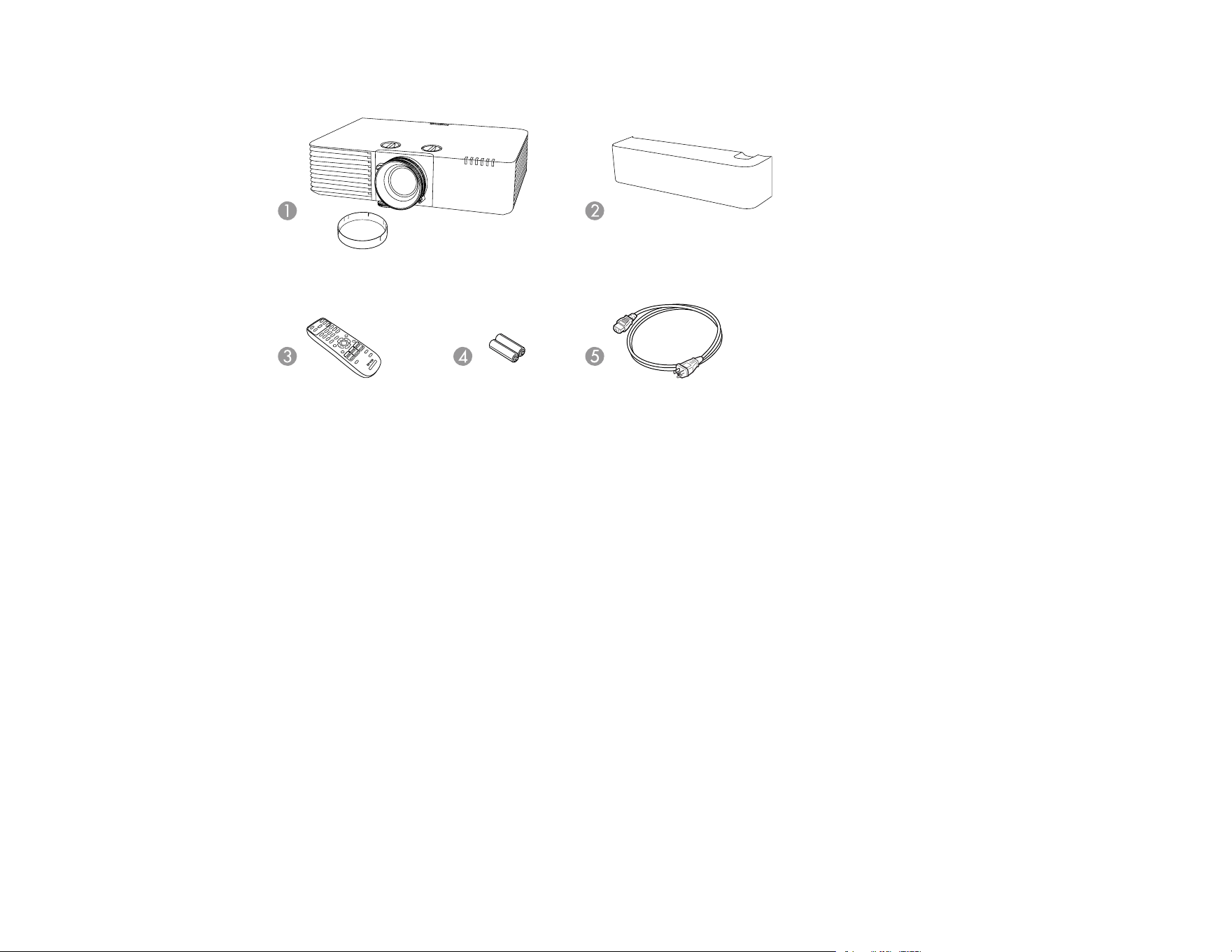

Product Box Contents.................................................................................................................... 13
Additional Components ................................................................................................................ 14
Additional Projector Software and Manuals................................................................................... 15
Optional Equipment and Replacement Parts (U.S. and Canada) .................................................. 17
Optional Equipment and Replacement Parts (Latin America)........................................................ 18
Warranty and Registration Information (U.S. and Canada) ........................................................... 18
Warranty and Registration Information (Latin America)................................................................. 19
Notations Used in the Documentation ................................................................................................ 19
Where to Go for Additional Information .............................................................................................. 19
Projector Part Locations ..................................................................................................................... 19

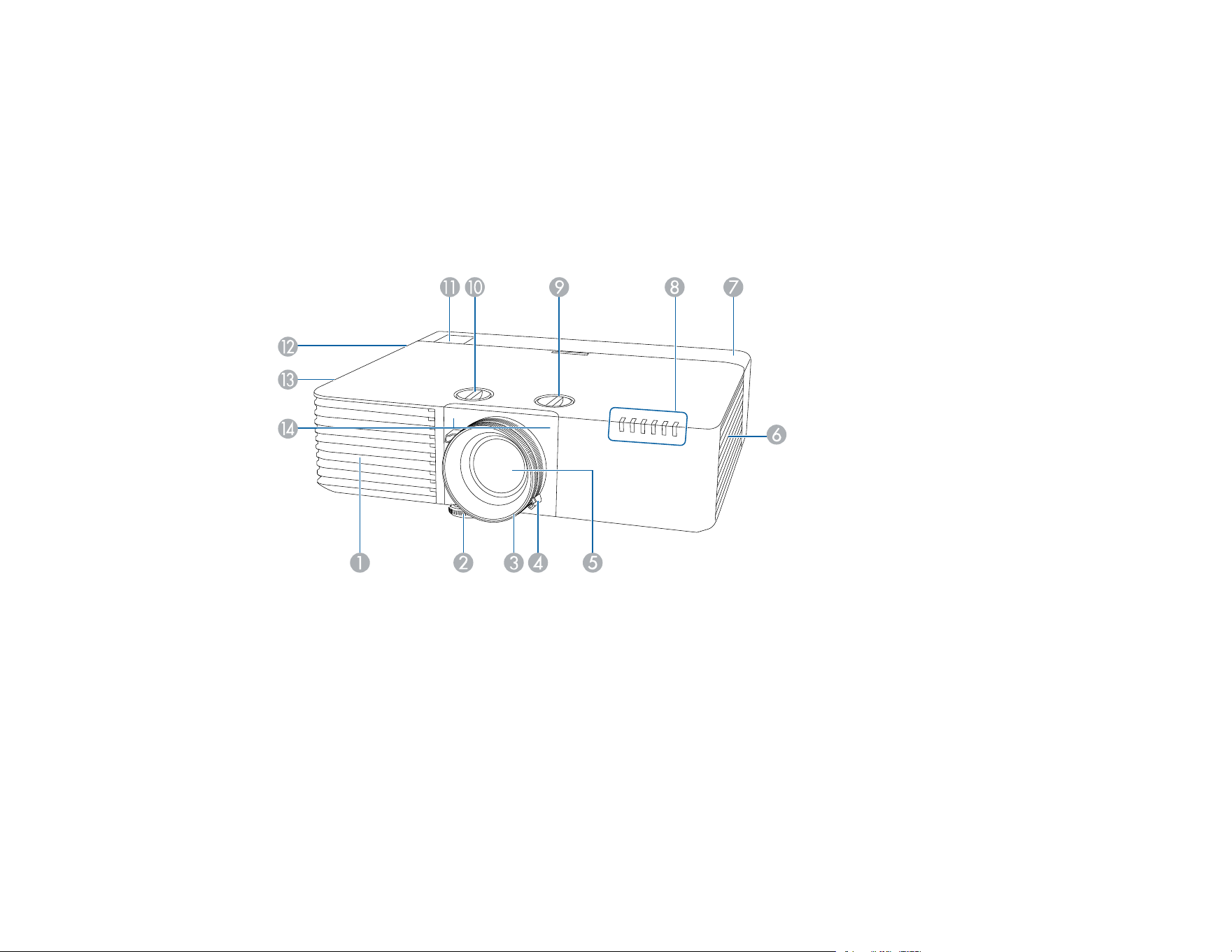

Projector Parts - Front/Top ............................................................................................................ 20
Projector Parts - Rear.................................................................................................................... 21

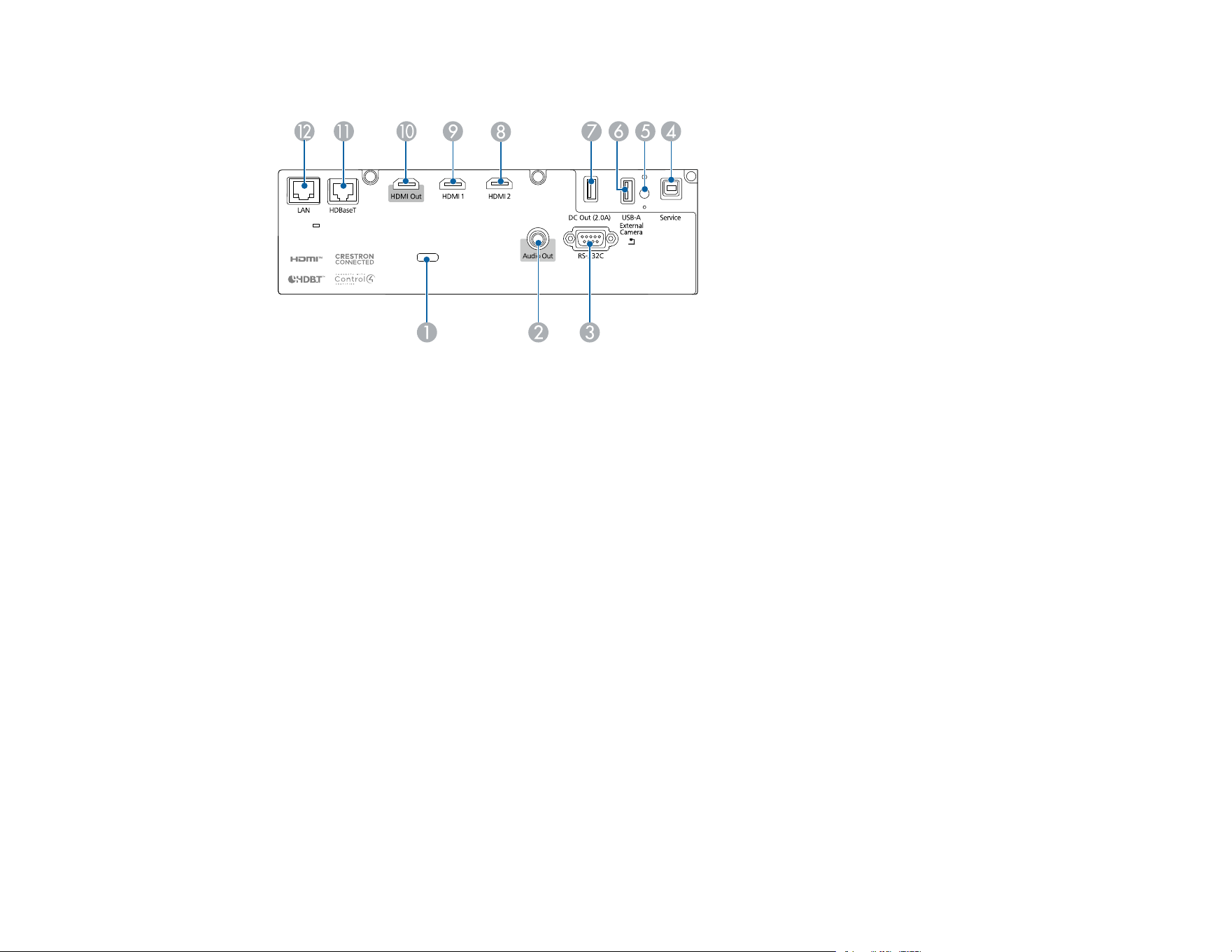

Projector Parts - Interface Ports .................................................................................................... 22

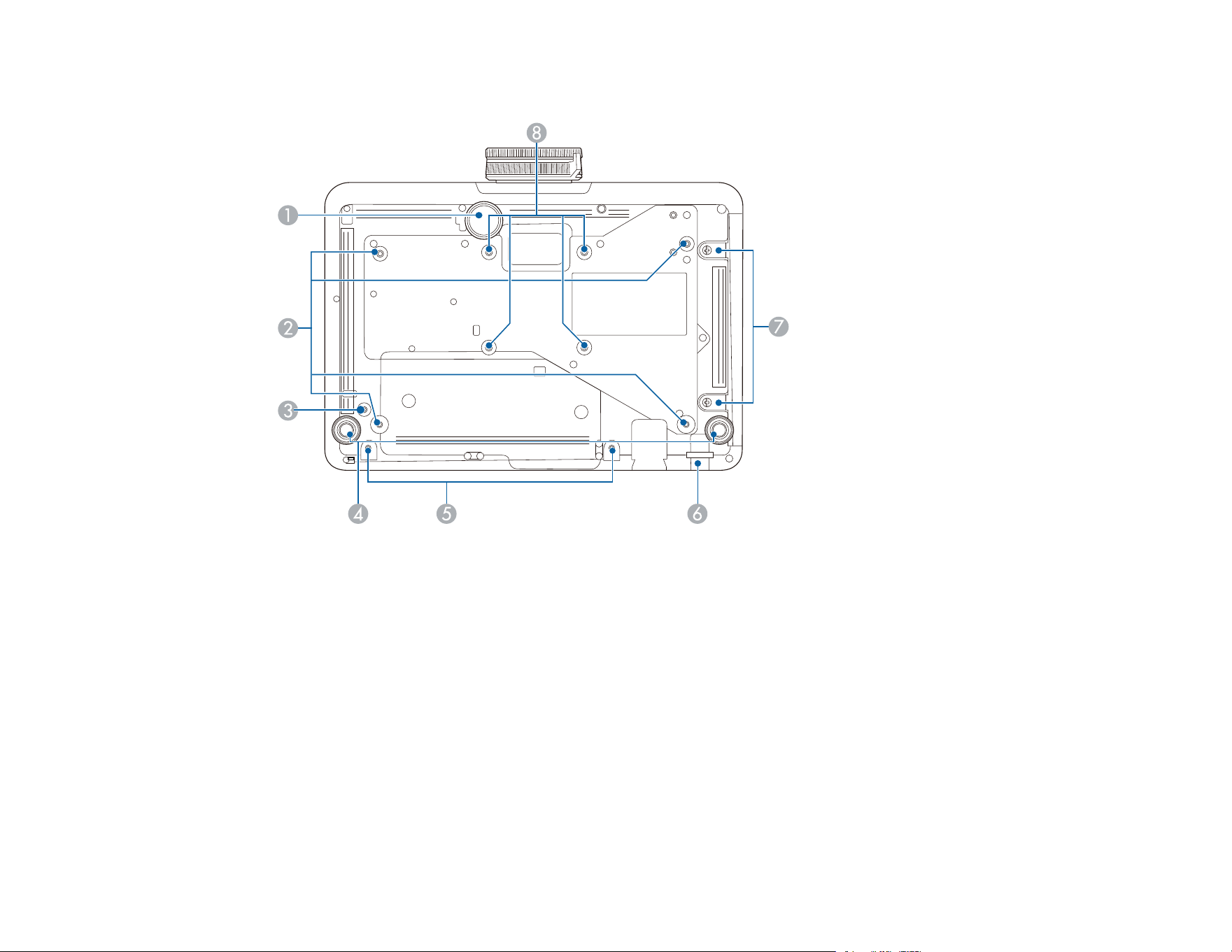

Projector Parts - Base.................................................................................................................... 23
Projector Parts - Control Panel ...................................................................................................... 24

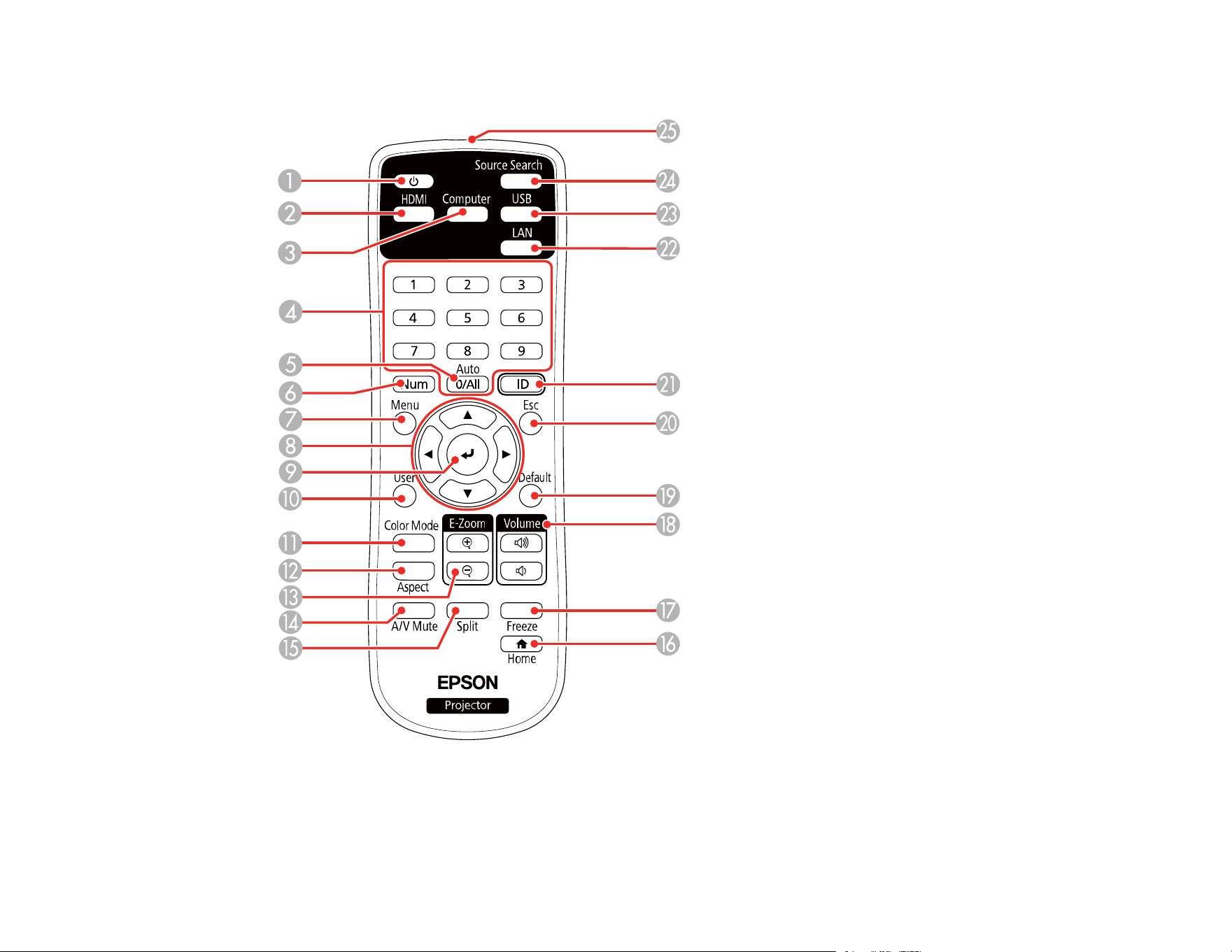

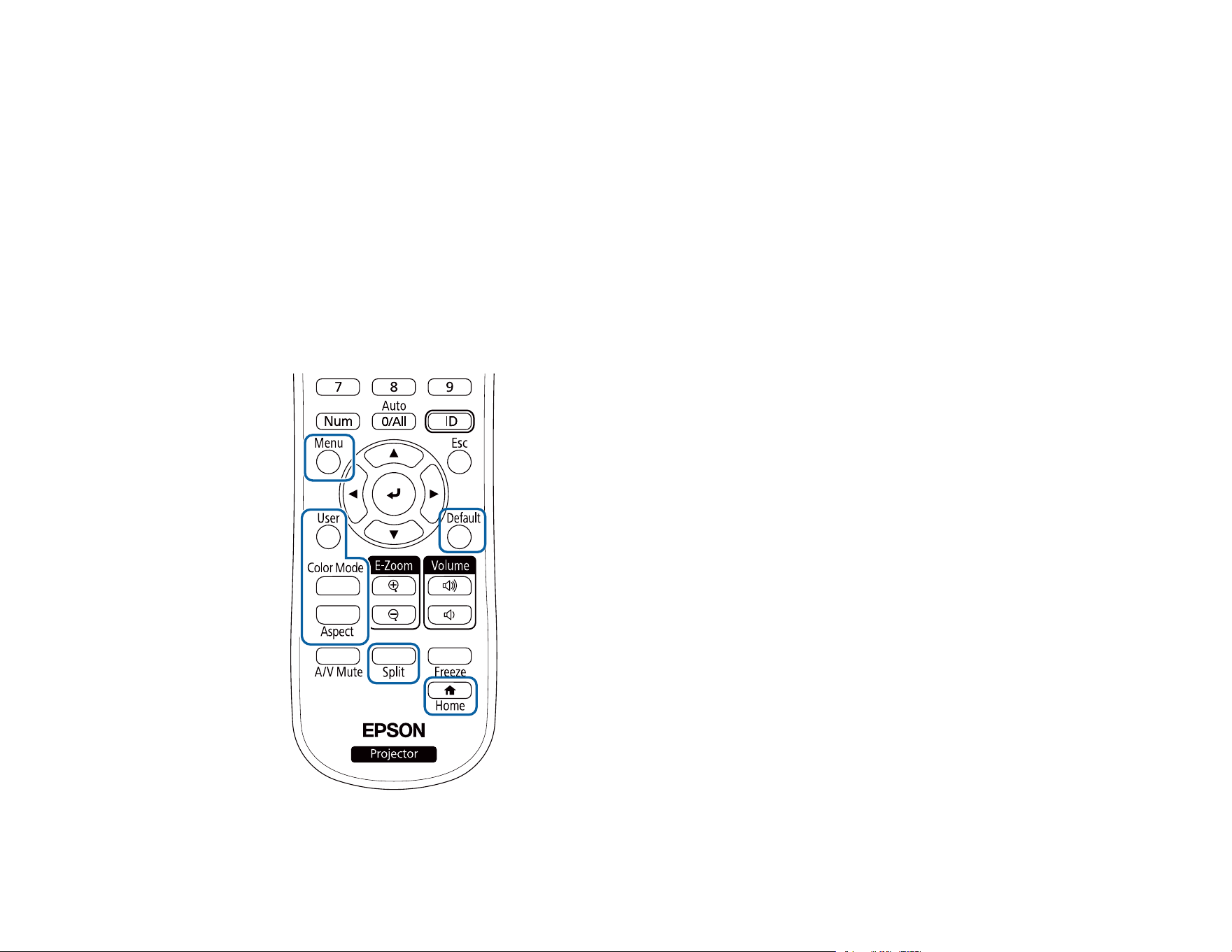

Projector Parts - Remote Control................................................................................................... 25
Setting Up the Projector ........................................................................................................................... 27

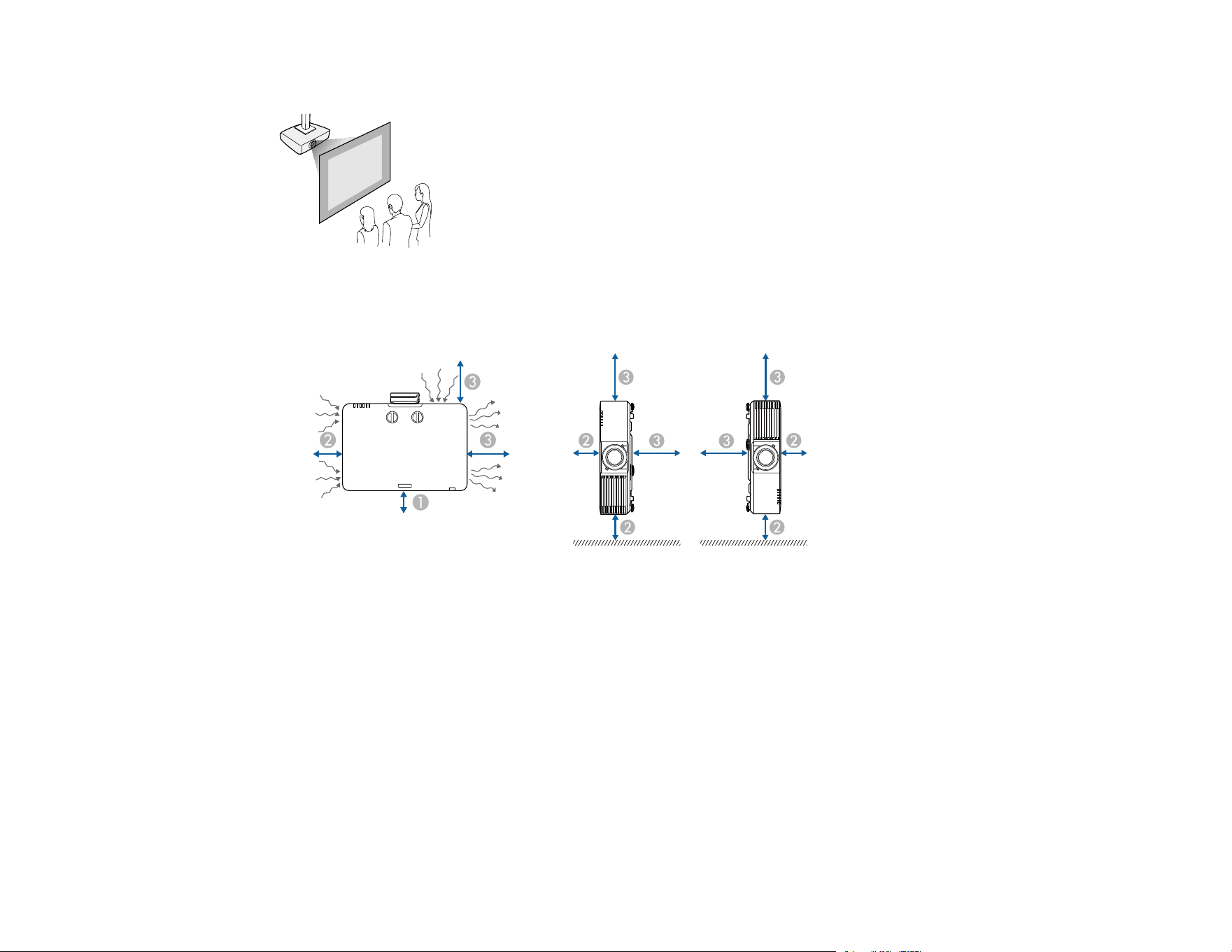

Projector Placement........................................................................................................................... 27

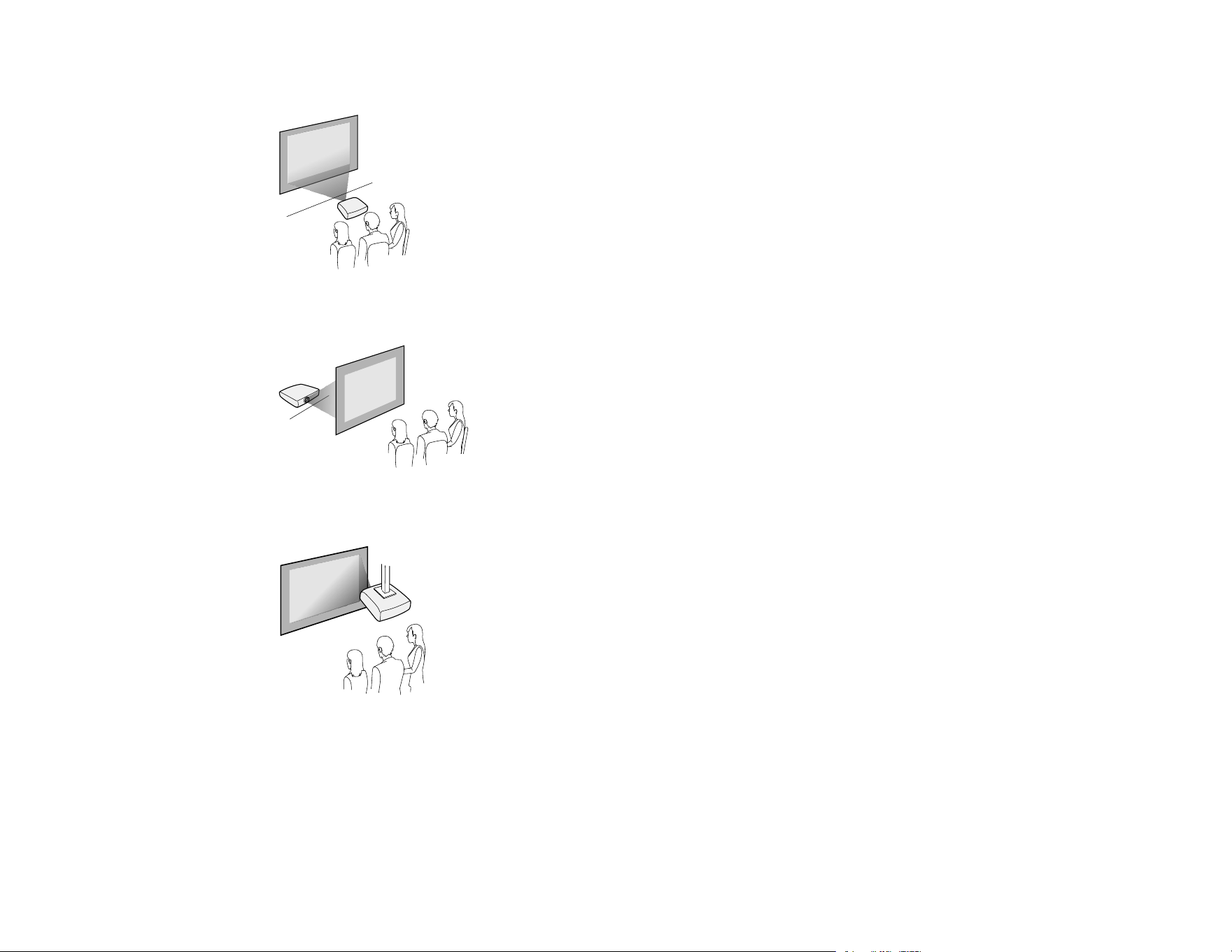

Projector Setup and Installation Options ....................................................................................... 27

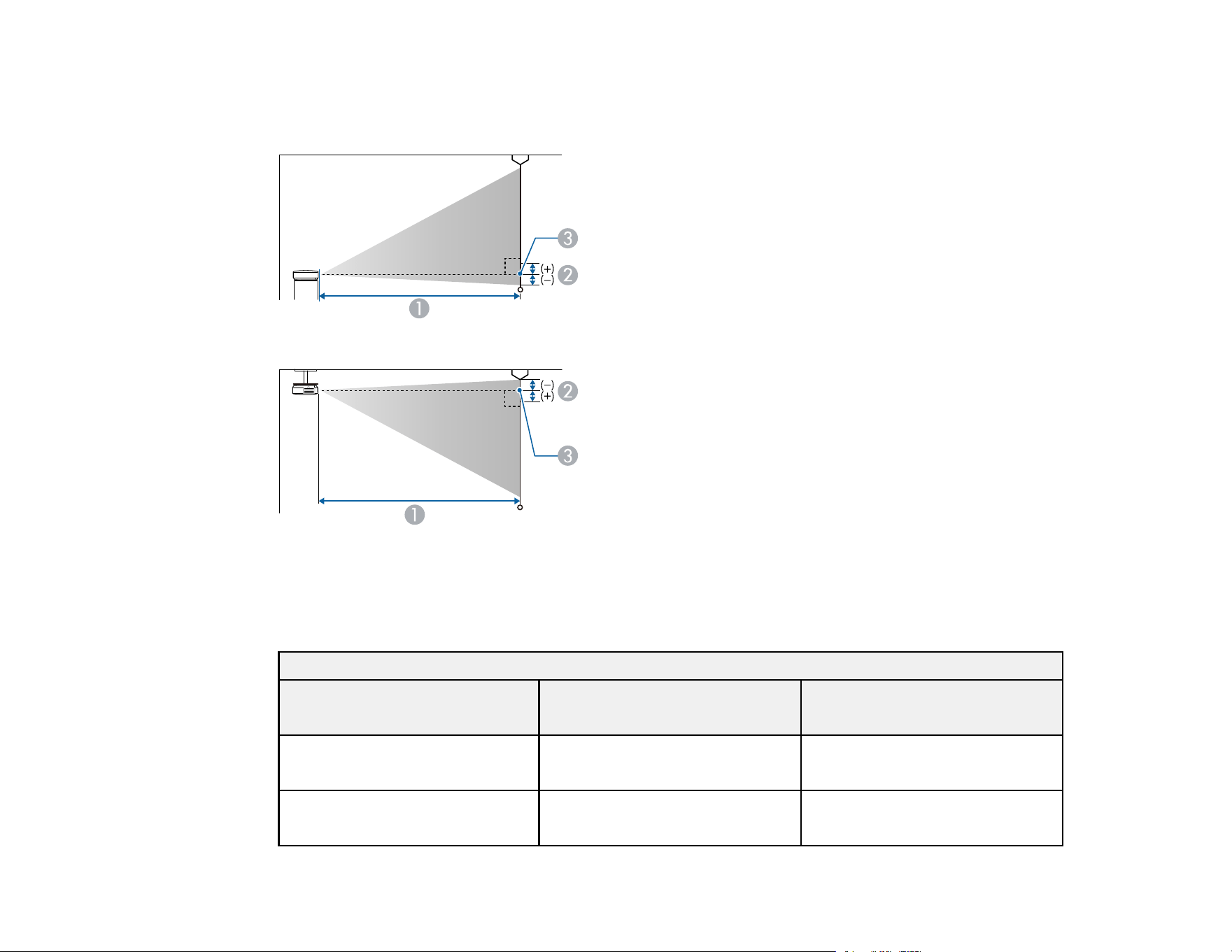

Projection Distance........................................................................................................................ 30
Projector Connections........................................................................................................................ 32
Connecting to Computer Sources.................................................................................................. 33

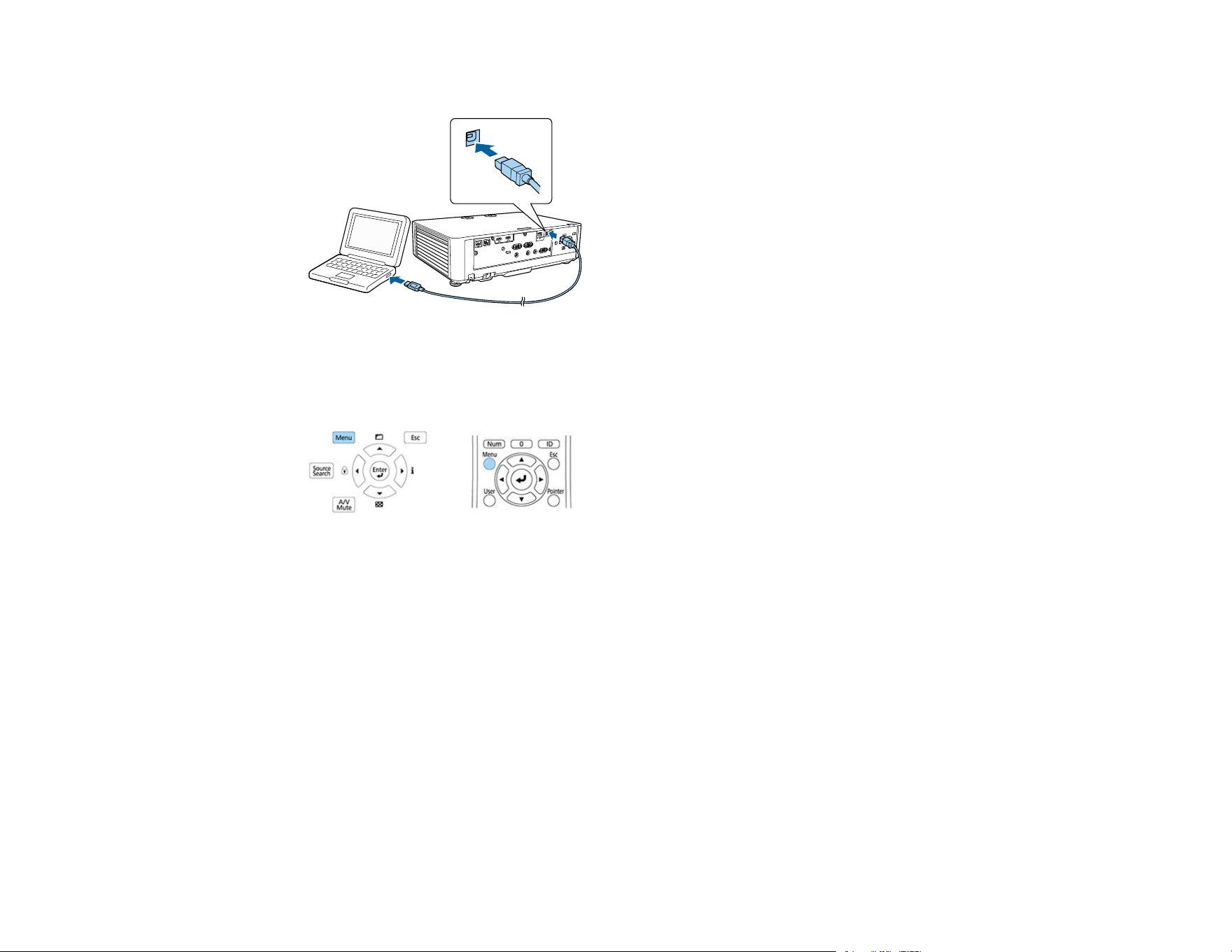

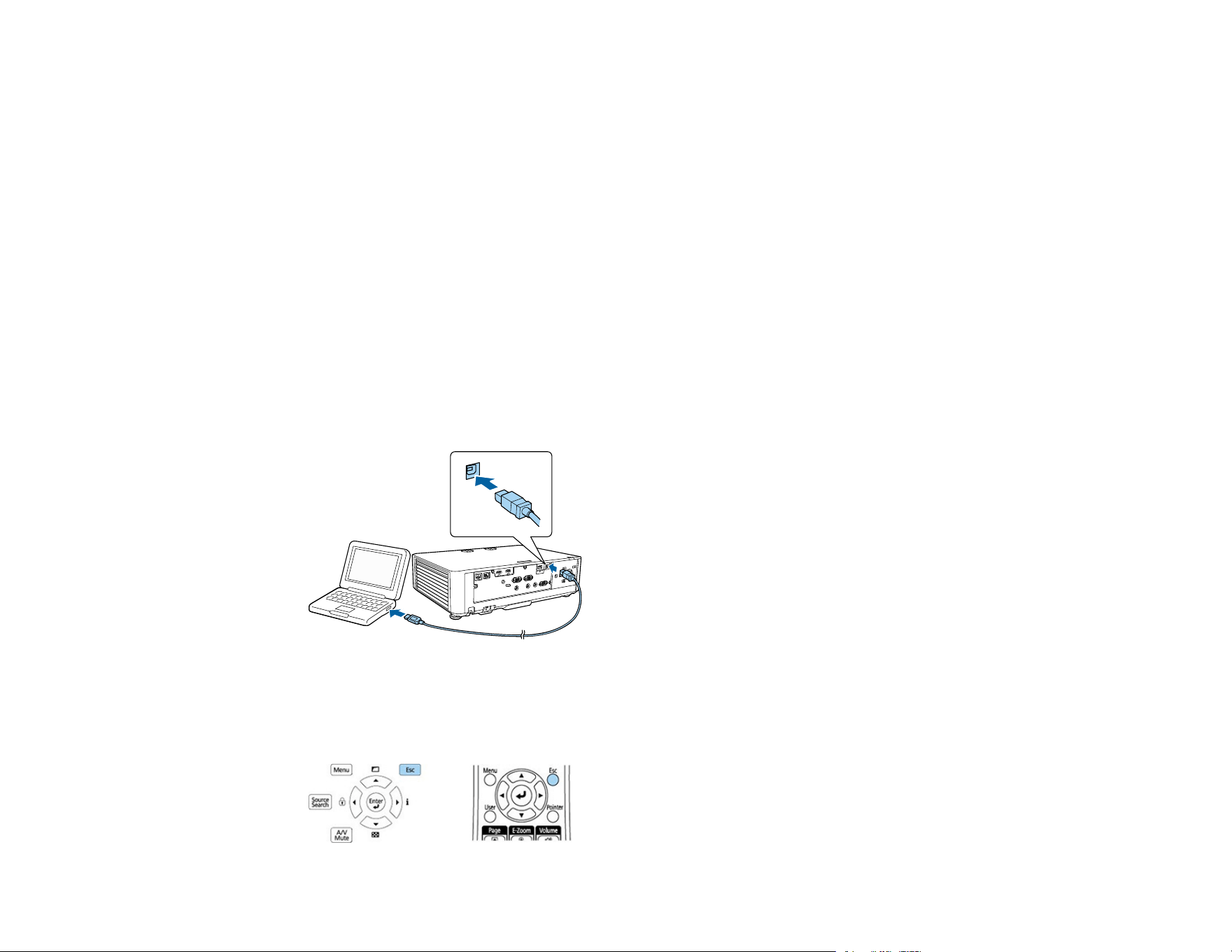

Connecting to a Computer for HDMI Video and Audio .............................................................. 33
Connecting to Video Sources ........................................................................................................ 34
Connecting to an HDMI Video Source ...................................................................................... 34

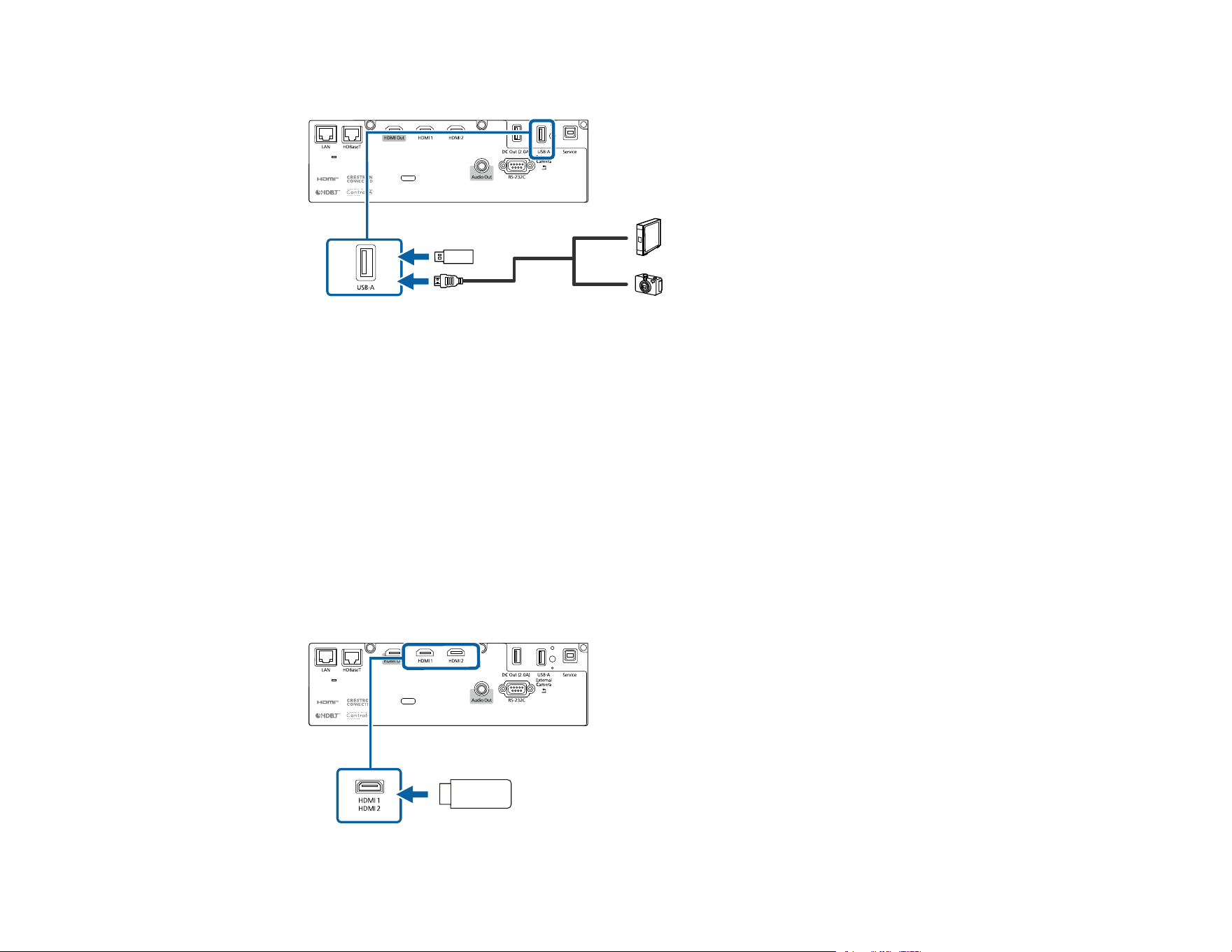

Connecting to a USB Device ......................................................................................................... 35
Connecting to a Streaming Media Player ...................................................................................... 36
4
Connecting to a Document Camera .............................................................................................. 37

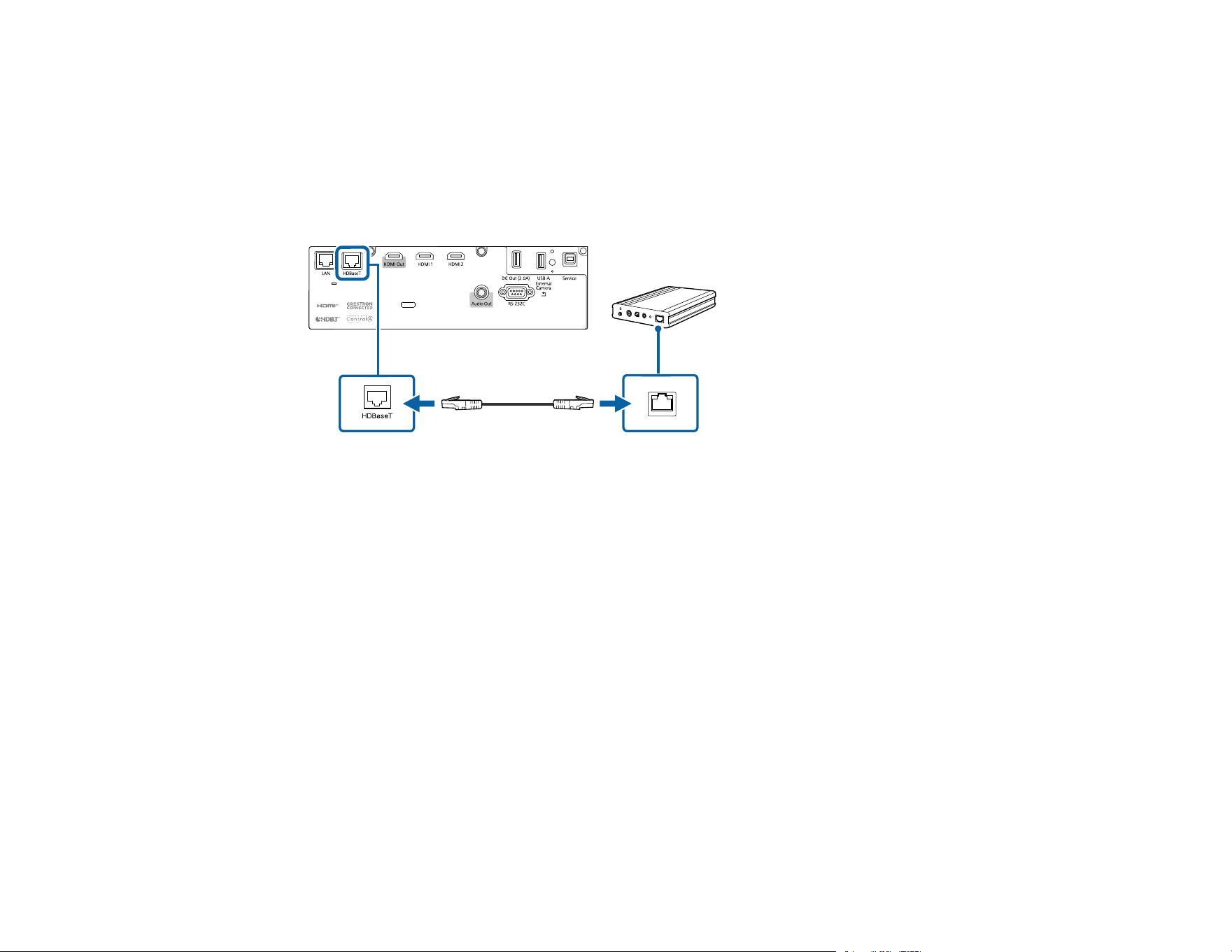

Connecting to an HDBaseT Transmitter ....................................................................................... 37

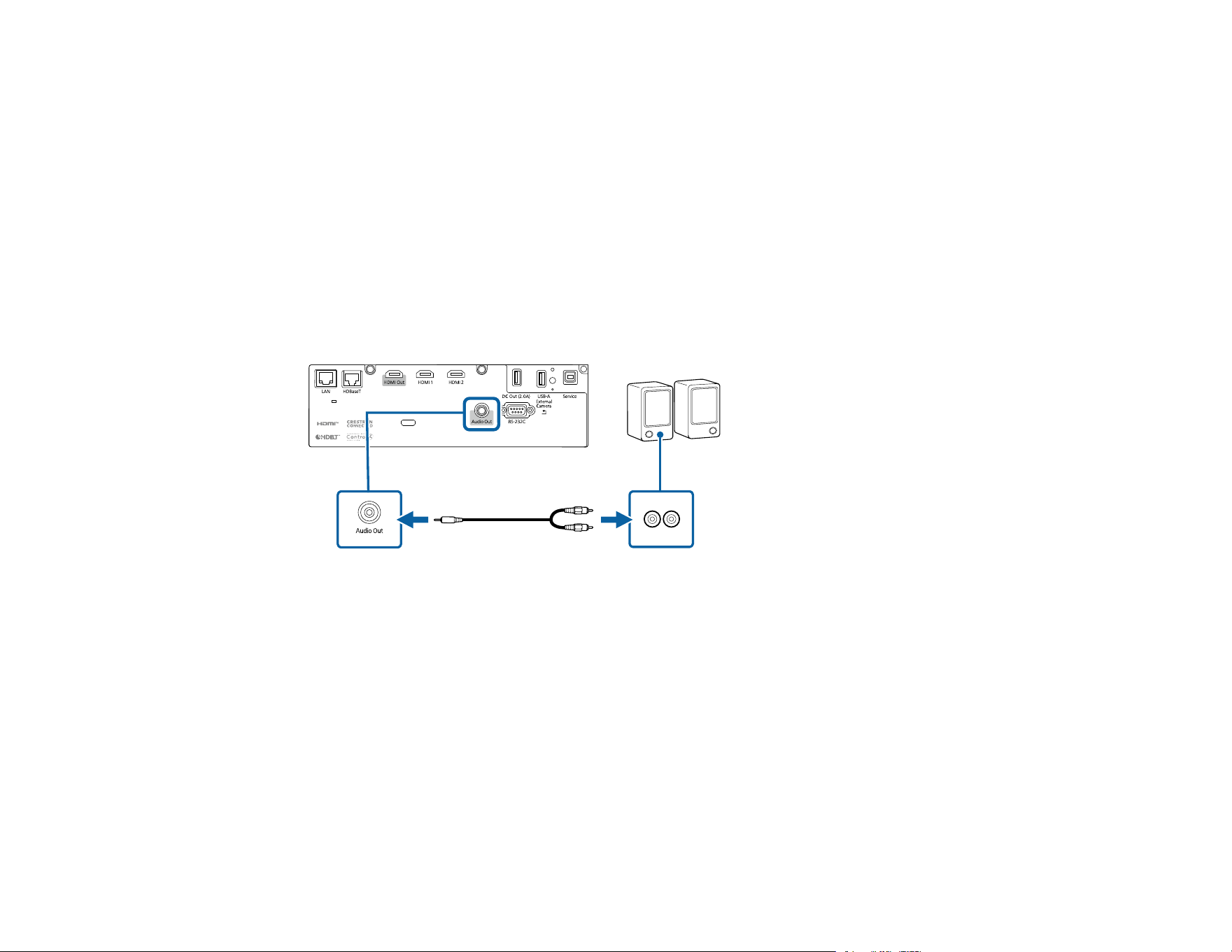

Connecting to External Speakers .................................................................................................. 38

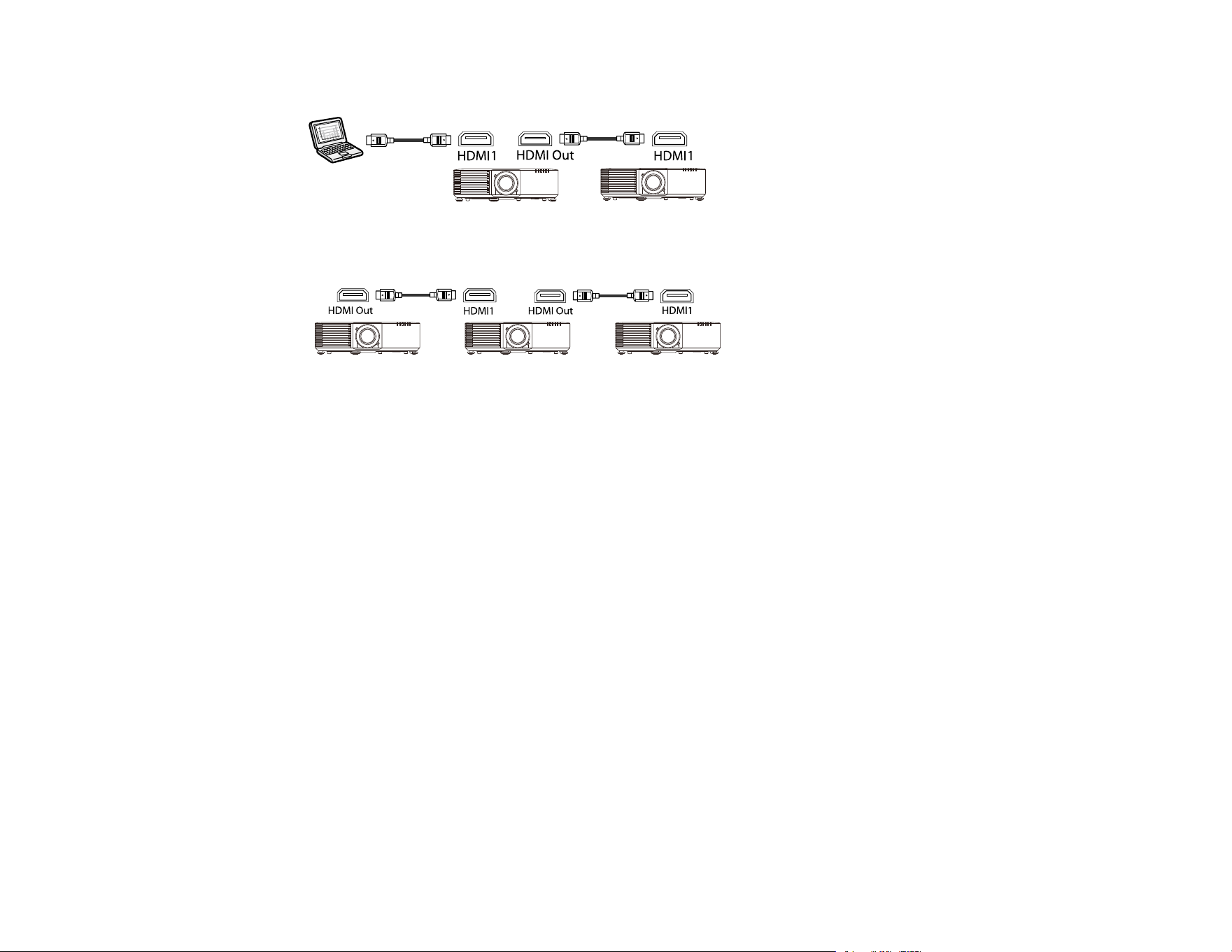

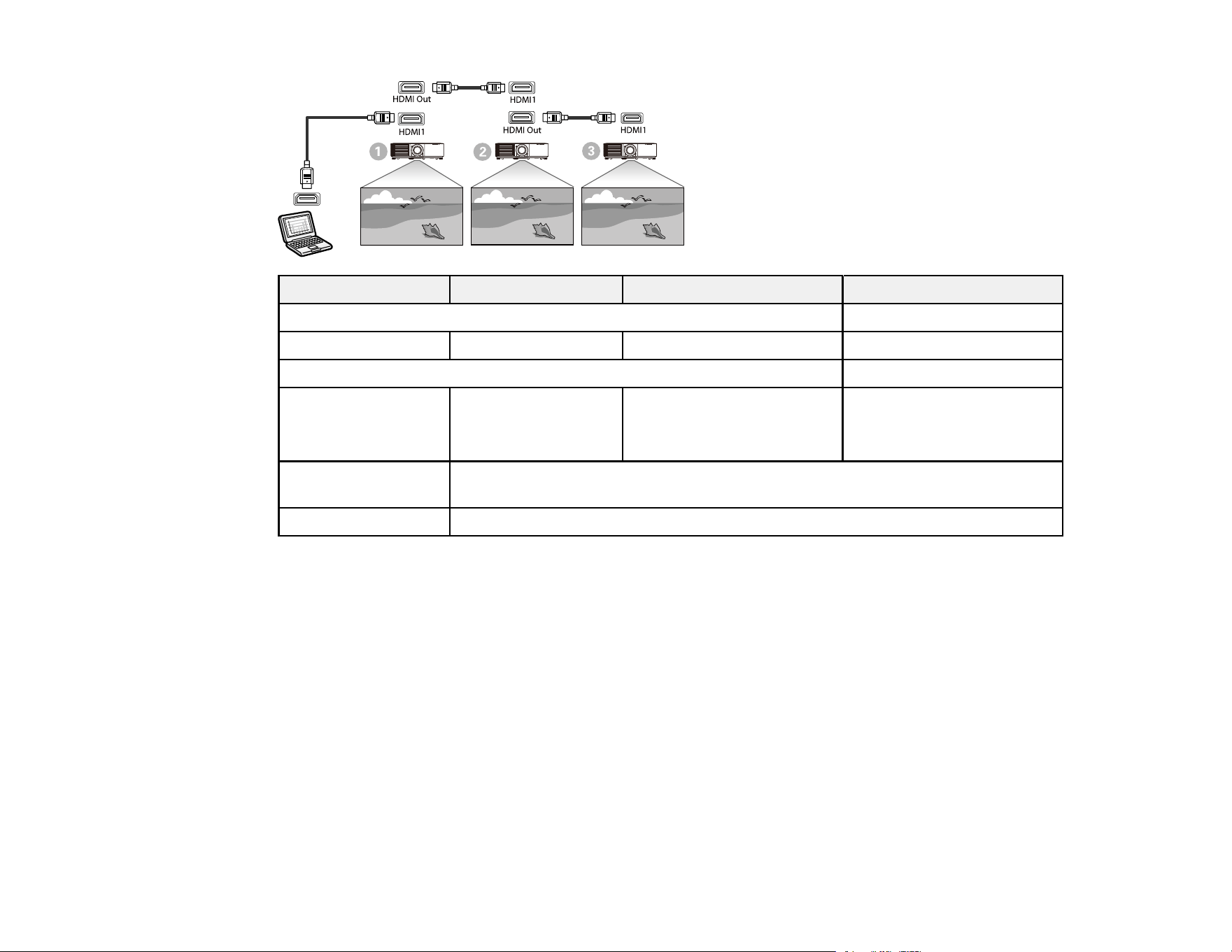

Connecting Multiple Projectors of the Same Model............................................................................ 39
Multiple Projector Connection Menu Settings................................................................................ 40

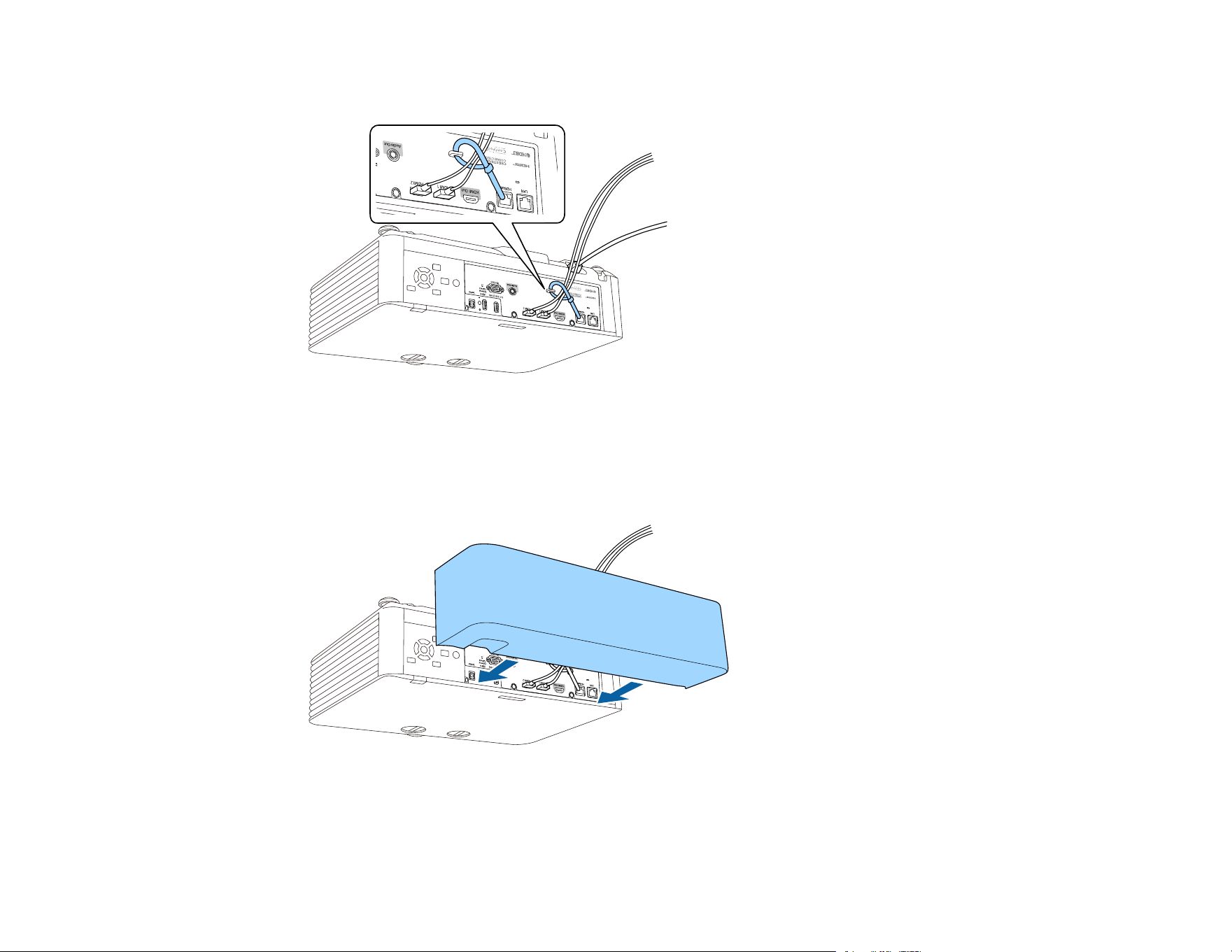

Attaching and Removing the Cable Cover.......................................................................................... 41
Installing Batteries in the Remote Control .......................................................................................... 43
Using the Projector on a Network ............................................................................................................ 46
Wired Network Projection................................................................................................................... 46
Connecting to a Wired Network ..................................................................................................... 47

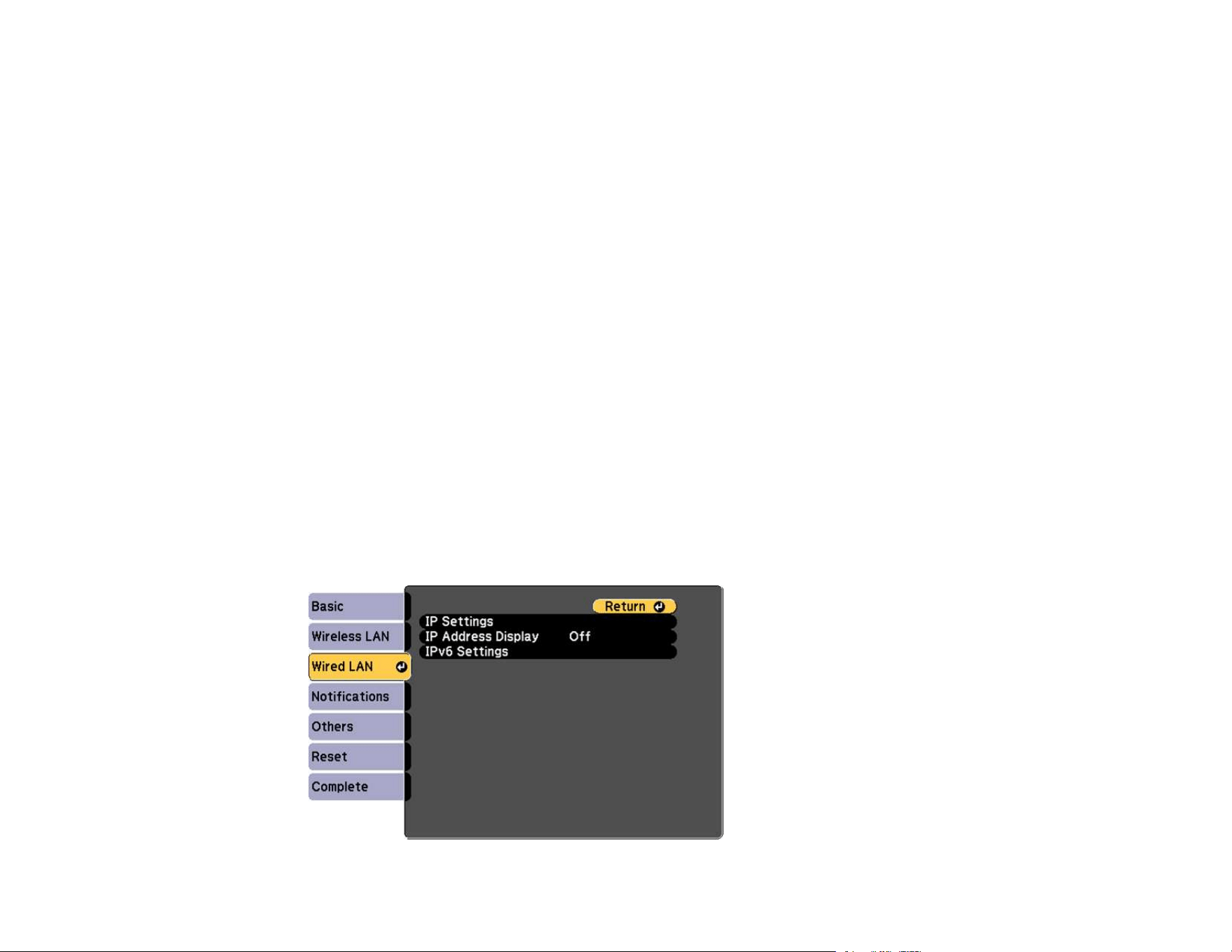

Selecting Wired Network Settings ................................................................................................. 47
Wireless Network Projection .............................................................................................................. 50

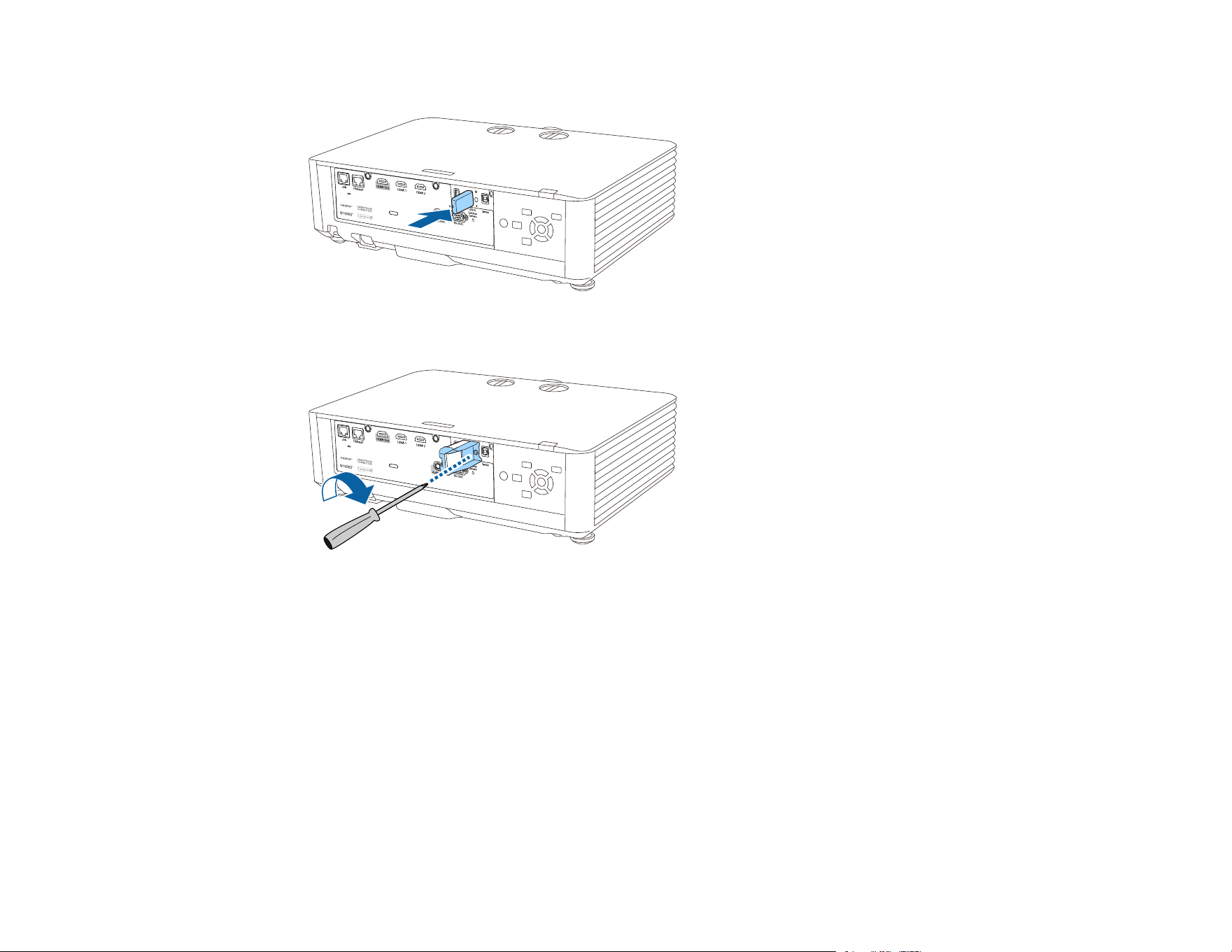

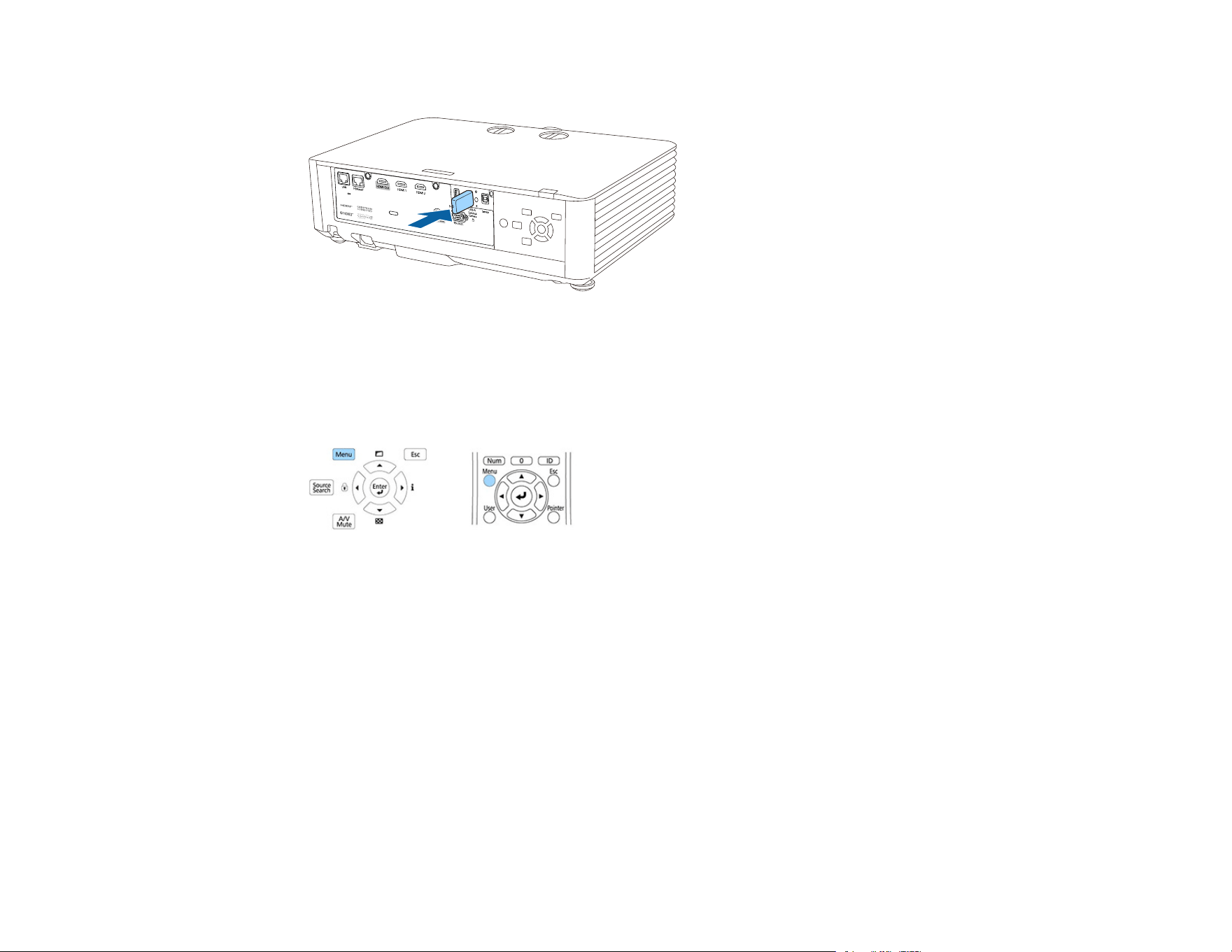

Installing the Wireless LAN Module ............................................................................................... 51
Using Quick Wireless Connection (Windows)................................................................................ 52
Selecting Wireless Network Settings Manually.............................................................................. 54

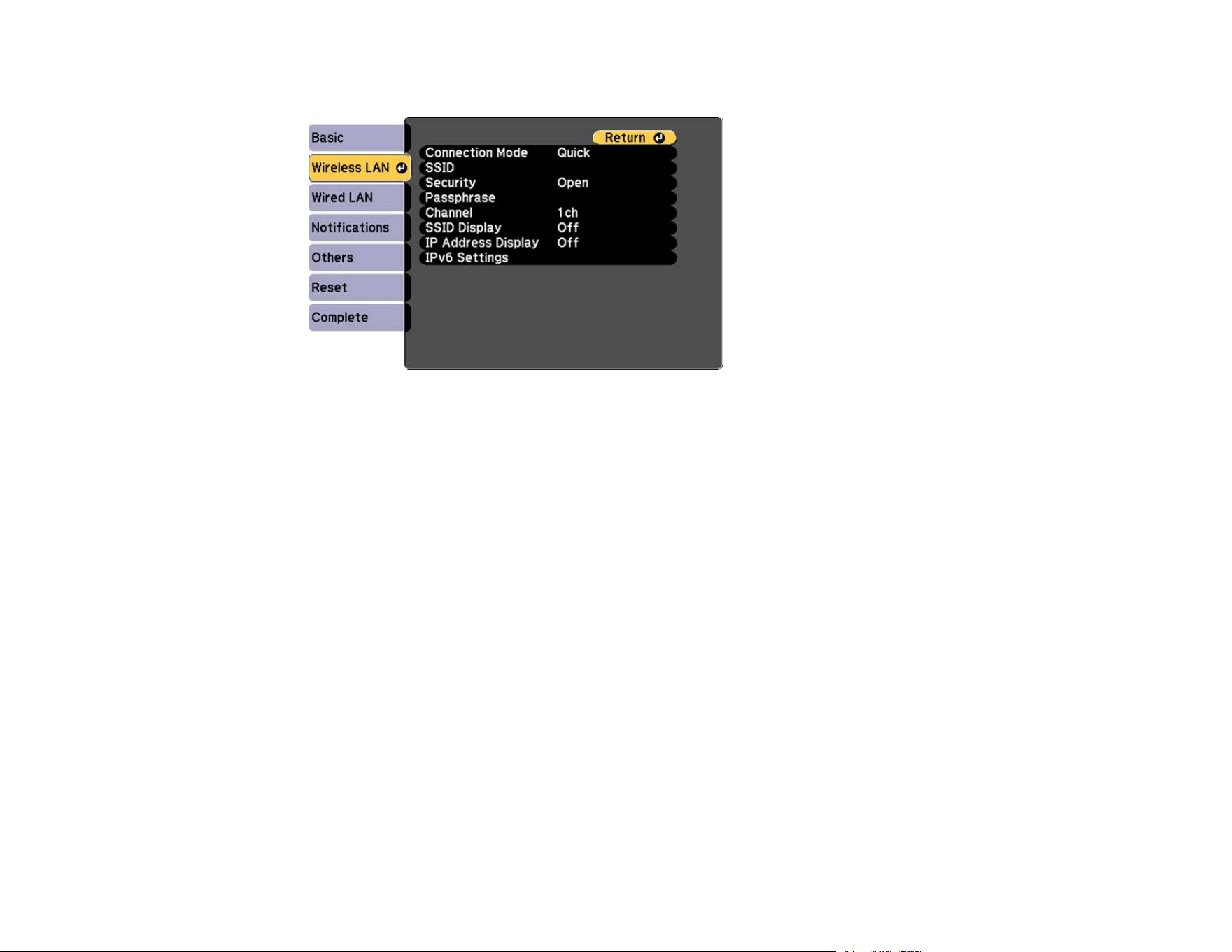

Wireless LAN Menu Settings .................................................................................................... 57
Selecting Wireless Network Settings in Windows.......................................................................... 59
Selecting Wireless Network Settings on Mac ................................................................................ 59
Setting Up Wireless Network Security ........................................................................................... 59
Using a QR Code to Connect a Mobile Device .............................................................................. 61
Setting Up Projector Network E-Mail Alerts ........................................................................................ 62
Network Projector E-mail Alert Messages ..................................................................................... 64
Setting Up Monitoring Using SNMP ................................................................................................... 64

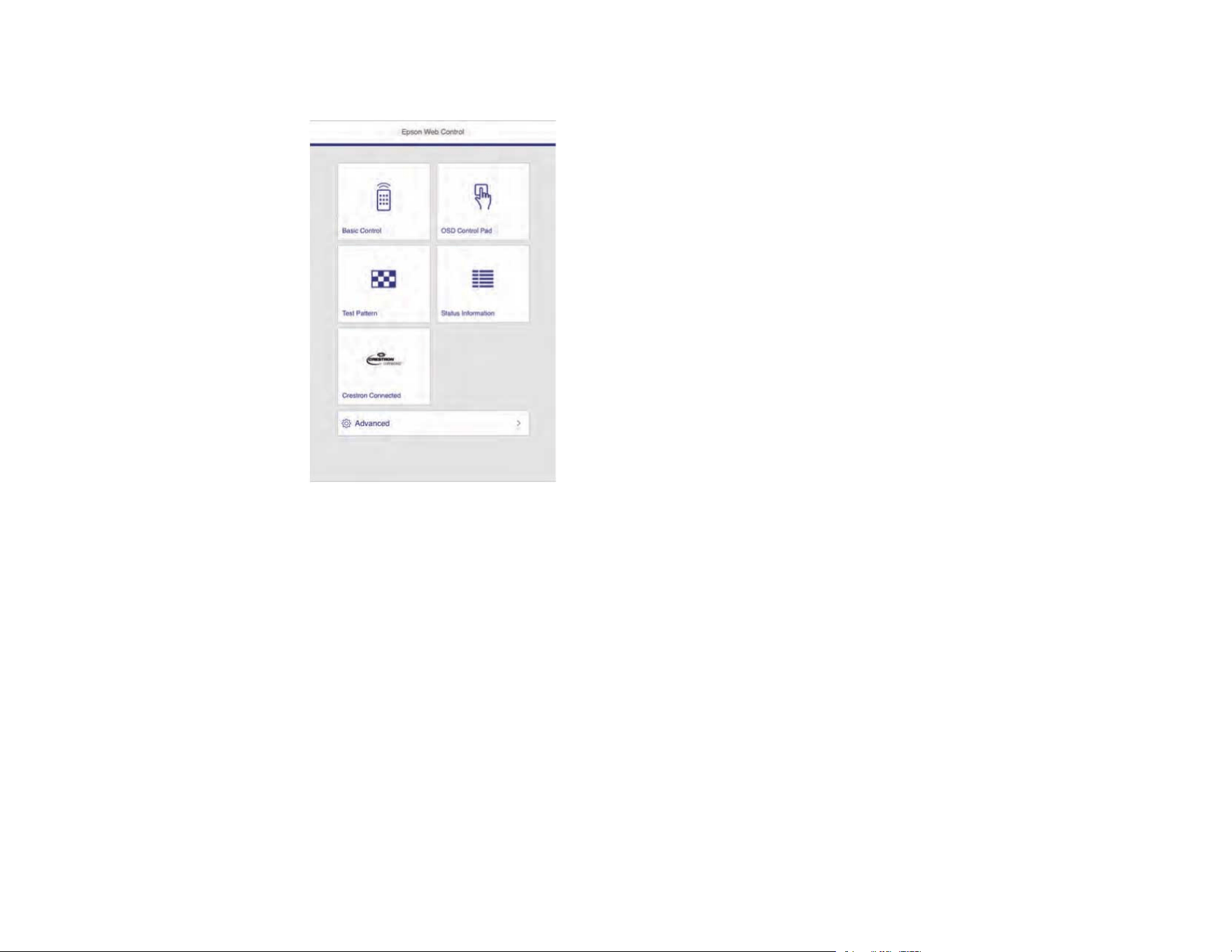

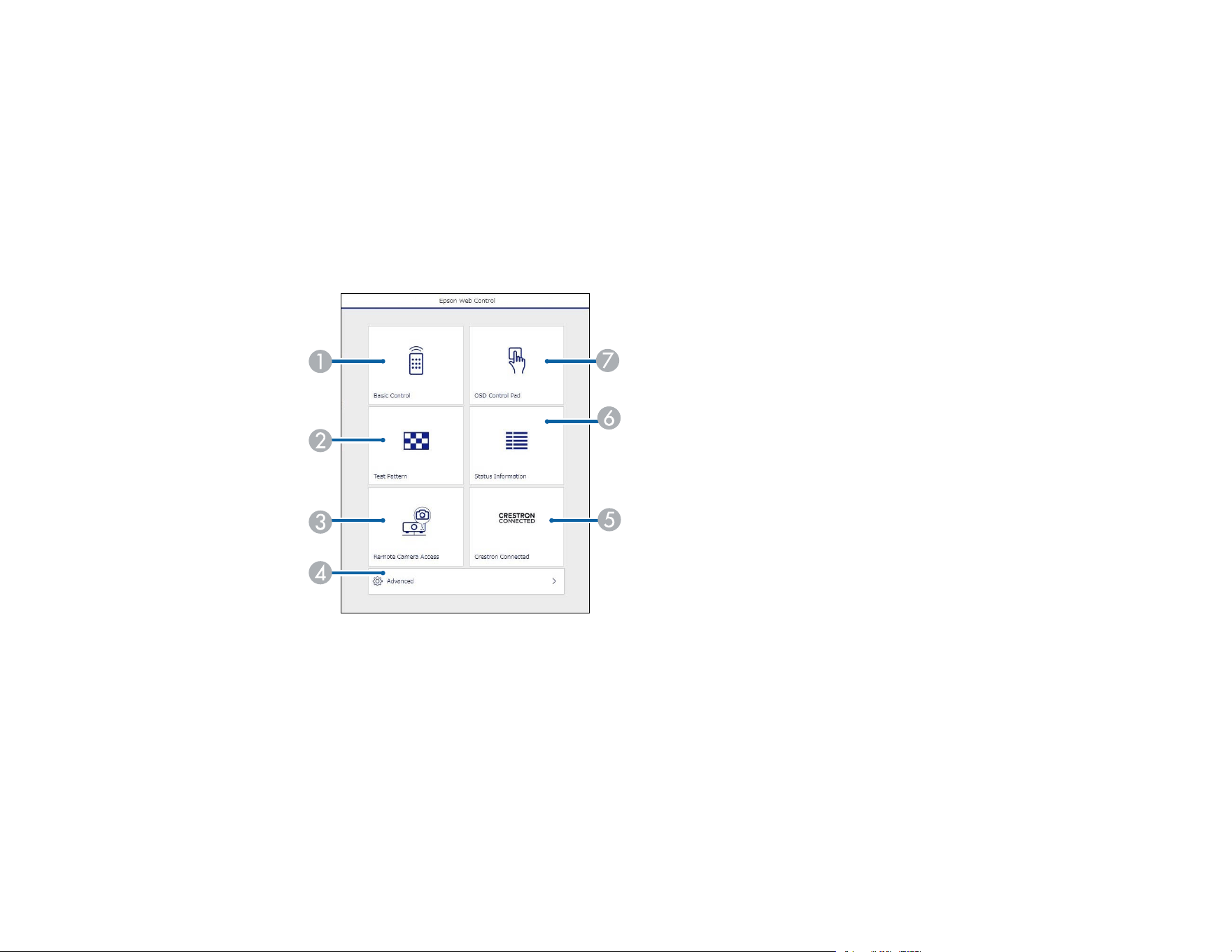

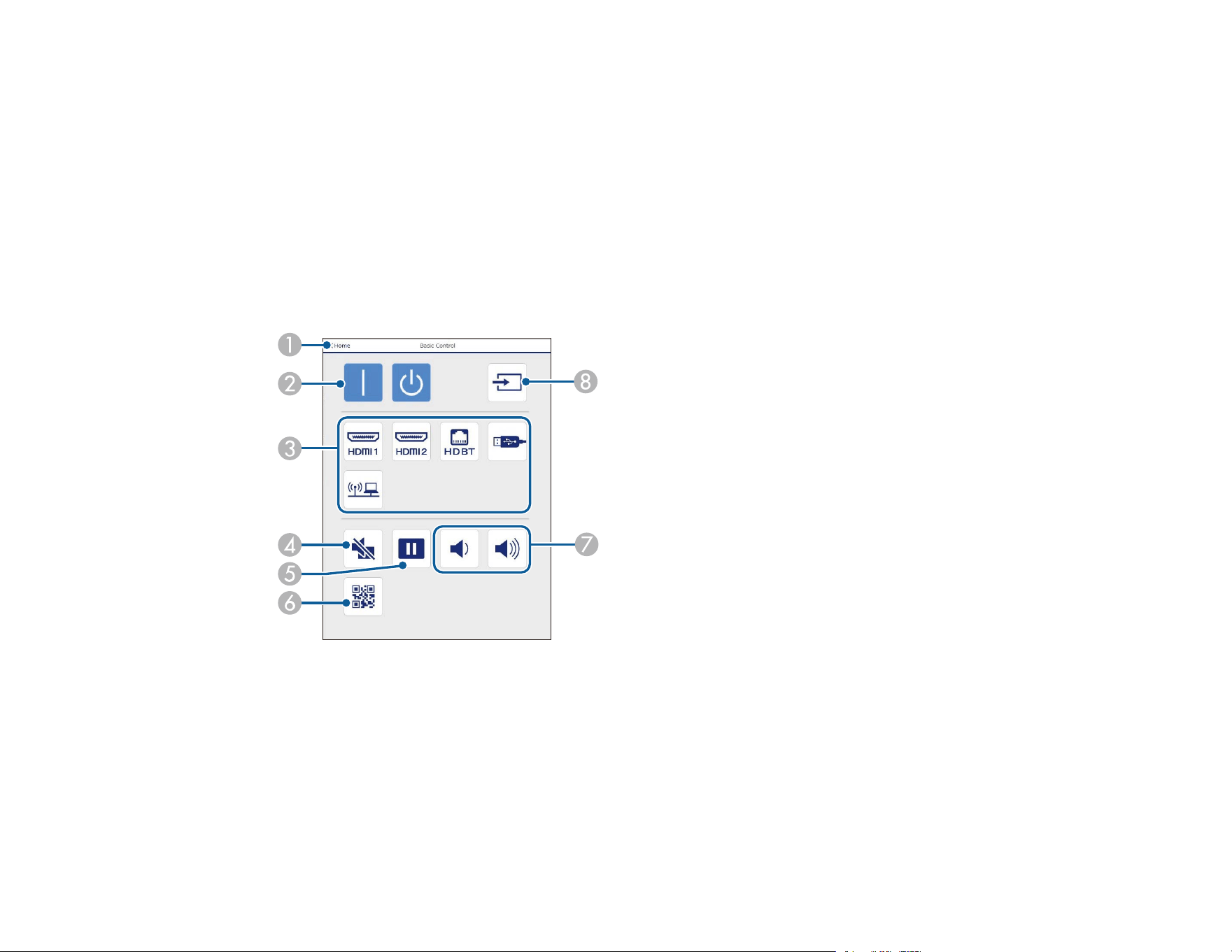

Controlling a Networked Projector Using a Web Browser .................................................................. 65
Web Control Options ..................................................................................................................... 67
Controlling a Networked Projector in Content Playback Mode ........................................................... 72
Web Control Options in Content Playback Mode........................................................................... 75
Using Crestron Connected ................................................................................................................. 80
Setting Up Crestron Connected..................................................................................................... 81
Controlling a Networked Projector Using Crestron Connected...................................................... 82
Setting Up Web API ........................................................................................................................... 83

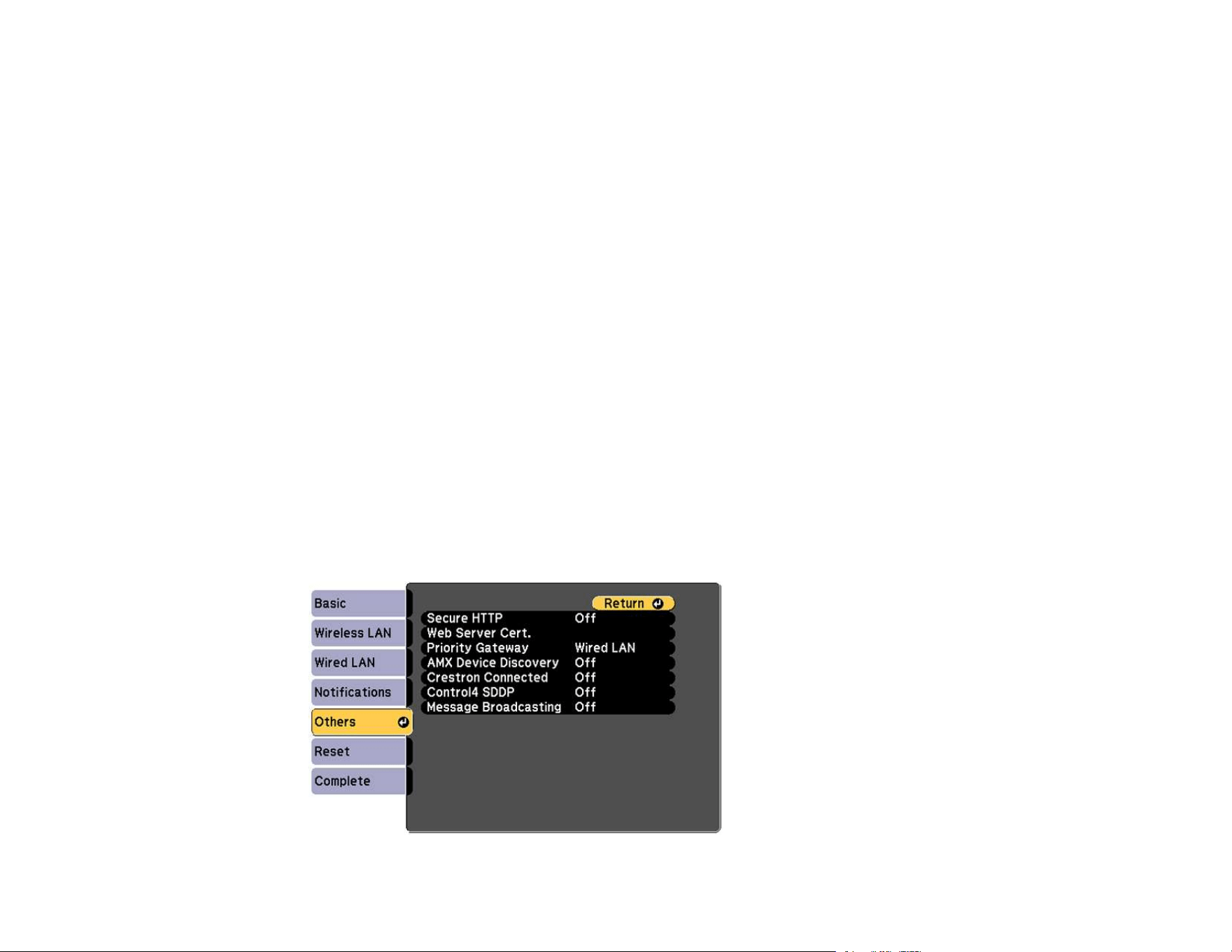

Secure HTTP ..................................................................................................................................... 84
Importing a Web Server Certificate Using the Projector Menus..................................................... 85
5
Registering a Digital Certificate on the Projector ................................................................................ 86

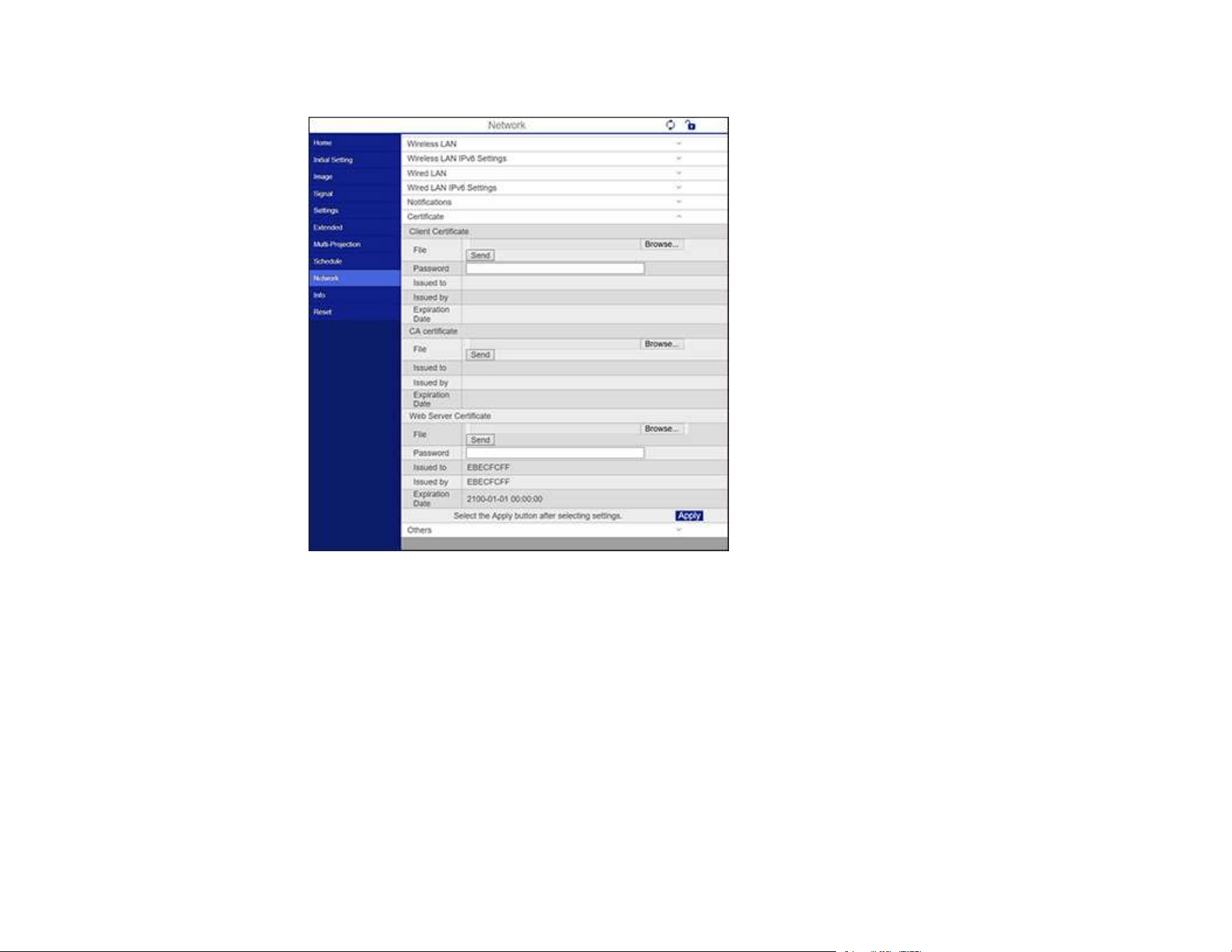

Registering Digital Certificates from a Web Browser ..................................................................... 86
Digital Certificate Types................................................................................................................. 87
Using Basic Projector Features ............................................................................................................... 90

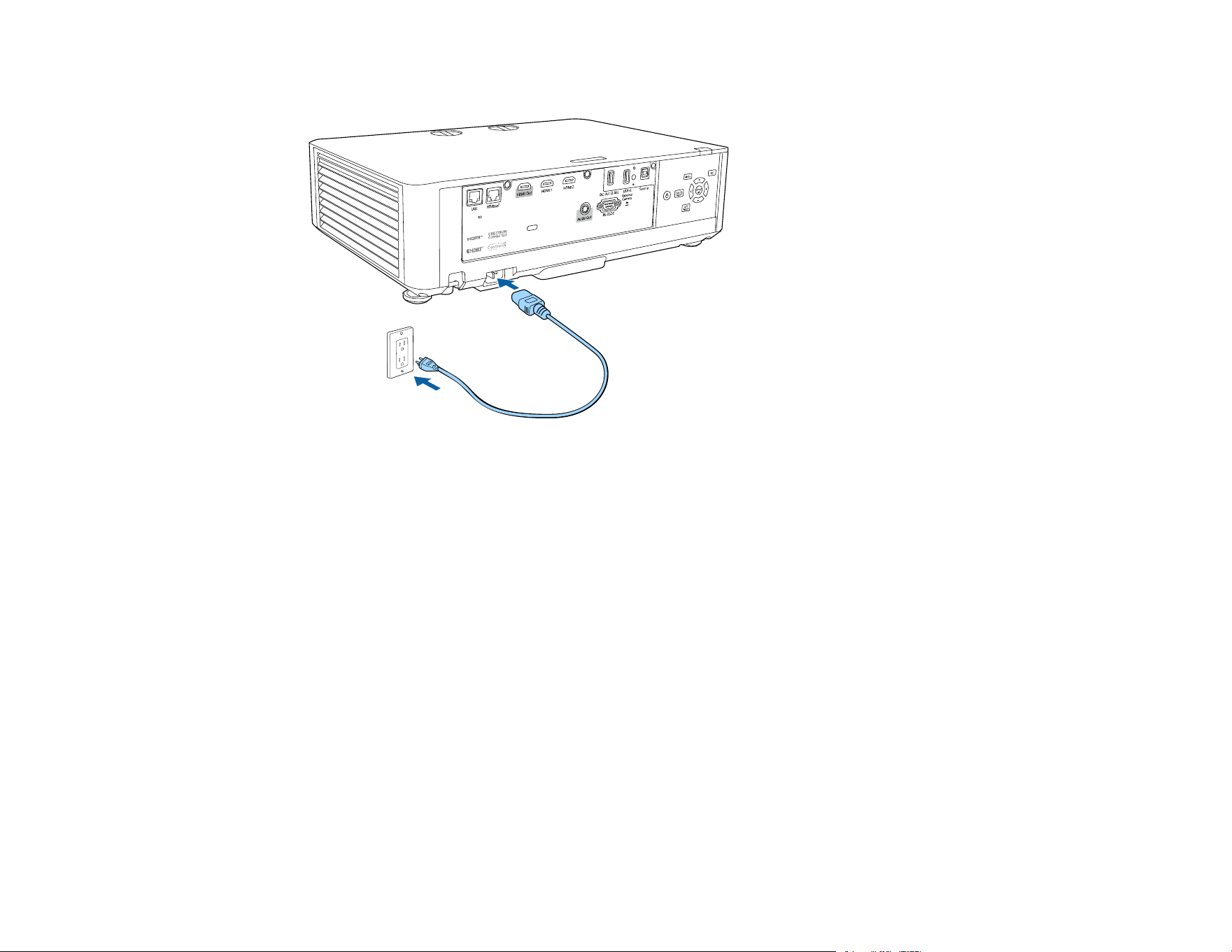

Turning On the Projector .................................................................................................................... 90

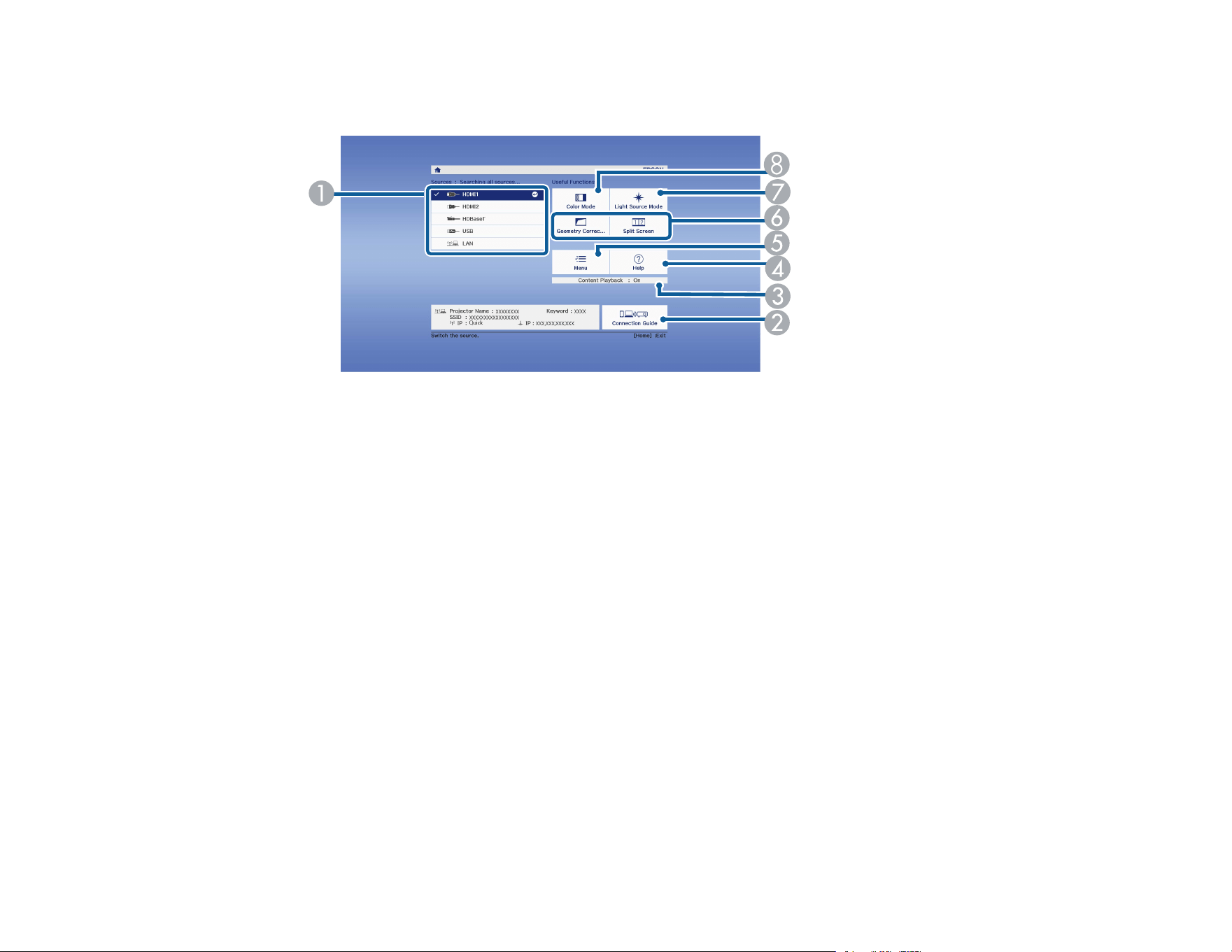

Using the Home Screen................................................................................................................. 92

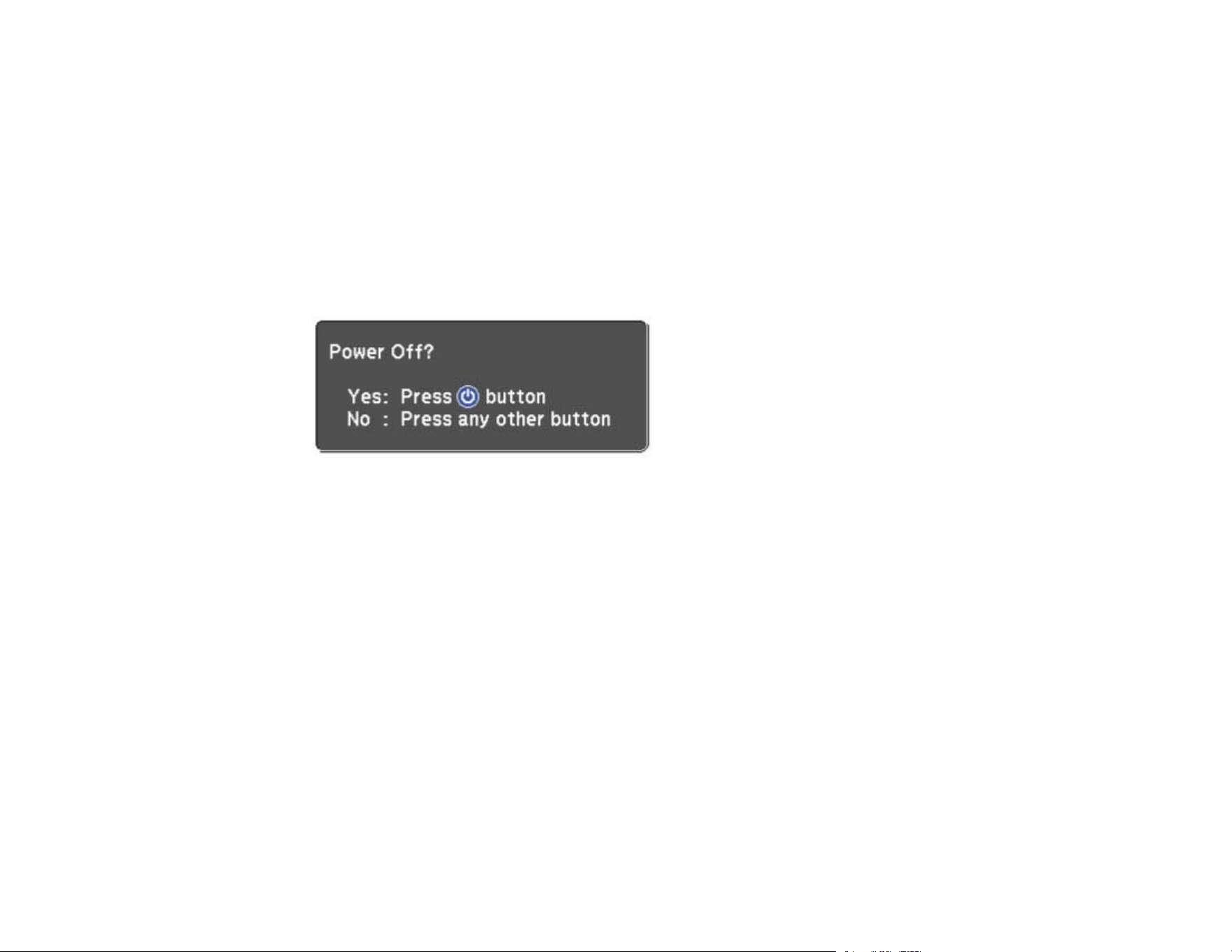

Turning Off the Projector .................................................................................................................... 94
Selecting the Language for the Projector Menus................................................................................ 95
Setting the Date and Time.................................................................................................................. 95

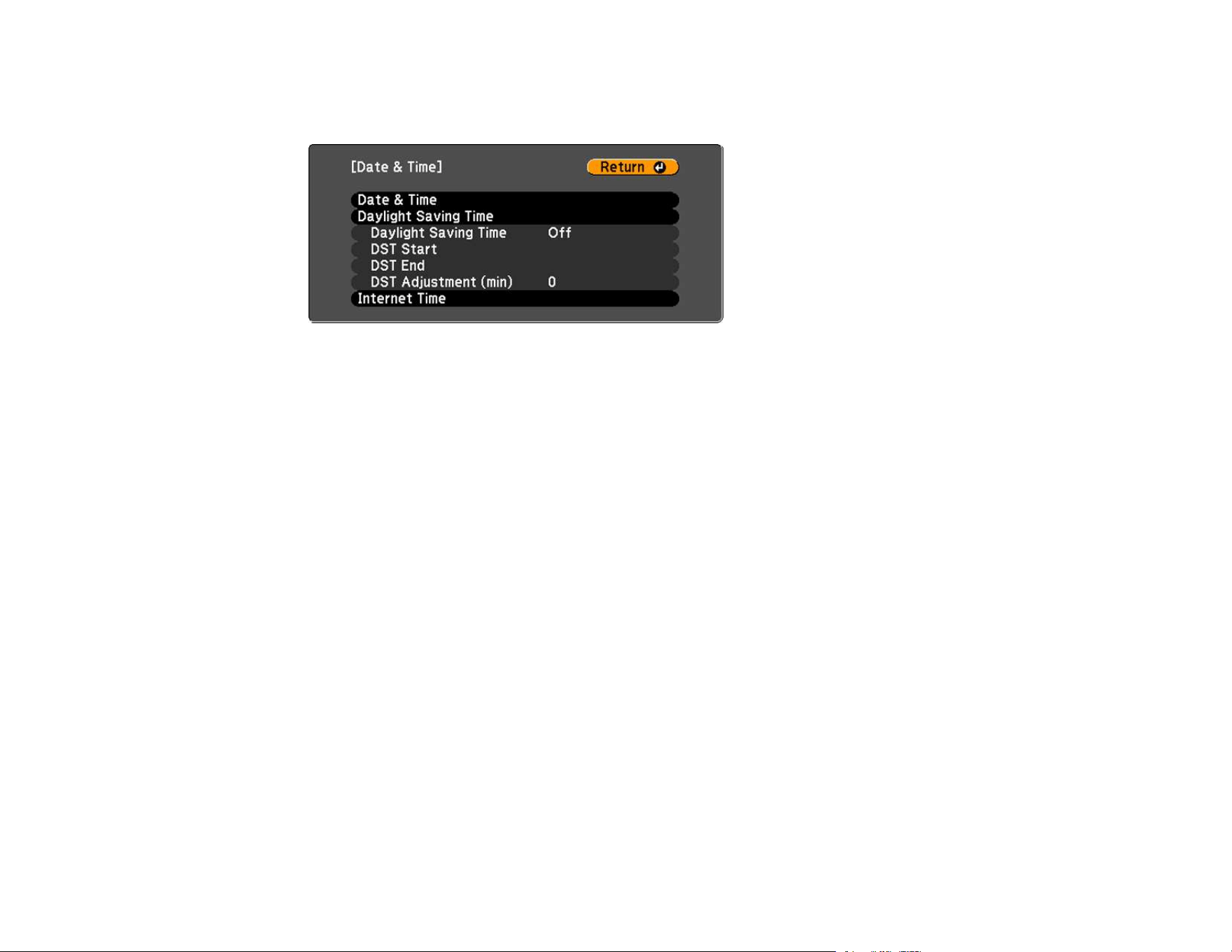

Date and Time Settings ................................................................................................................. 97

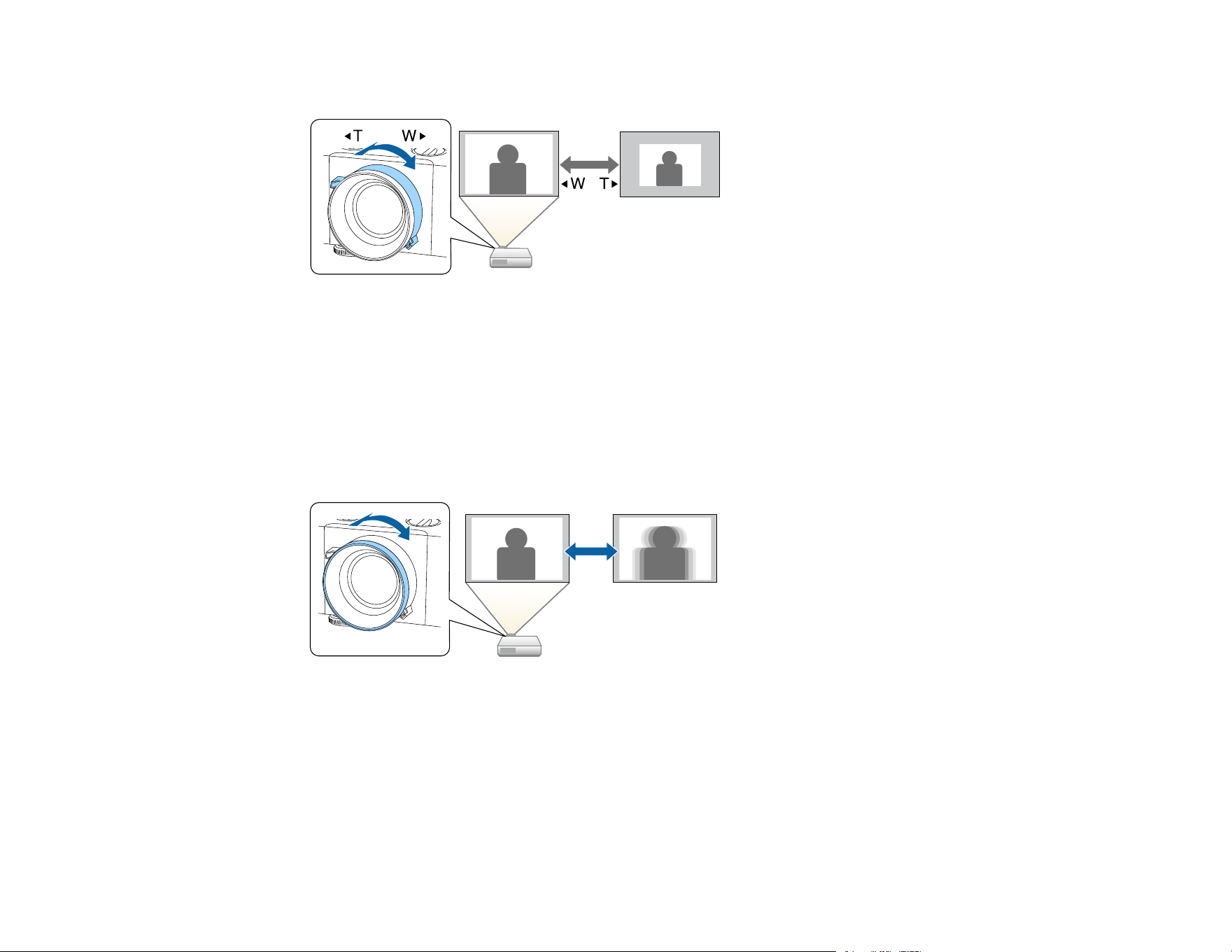

Resizing the Image with the Zoom Ring ............................................................................................. 97
Focusing the Image Using the Focus Ring......................................................................................... 98

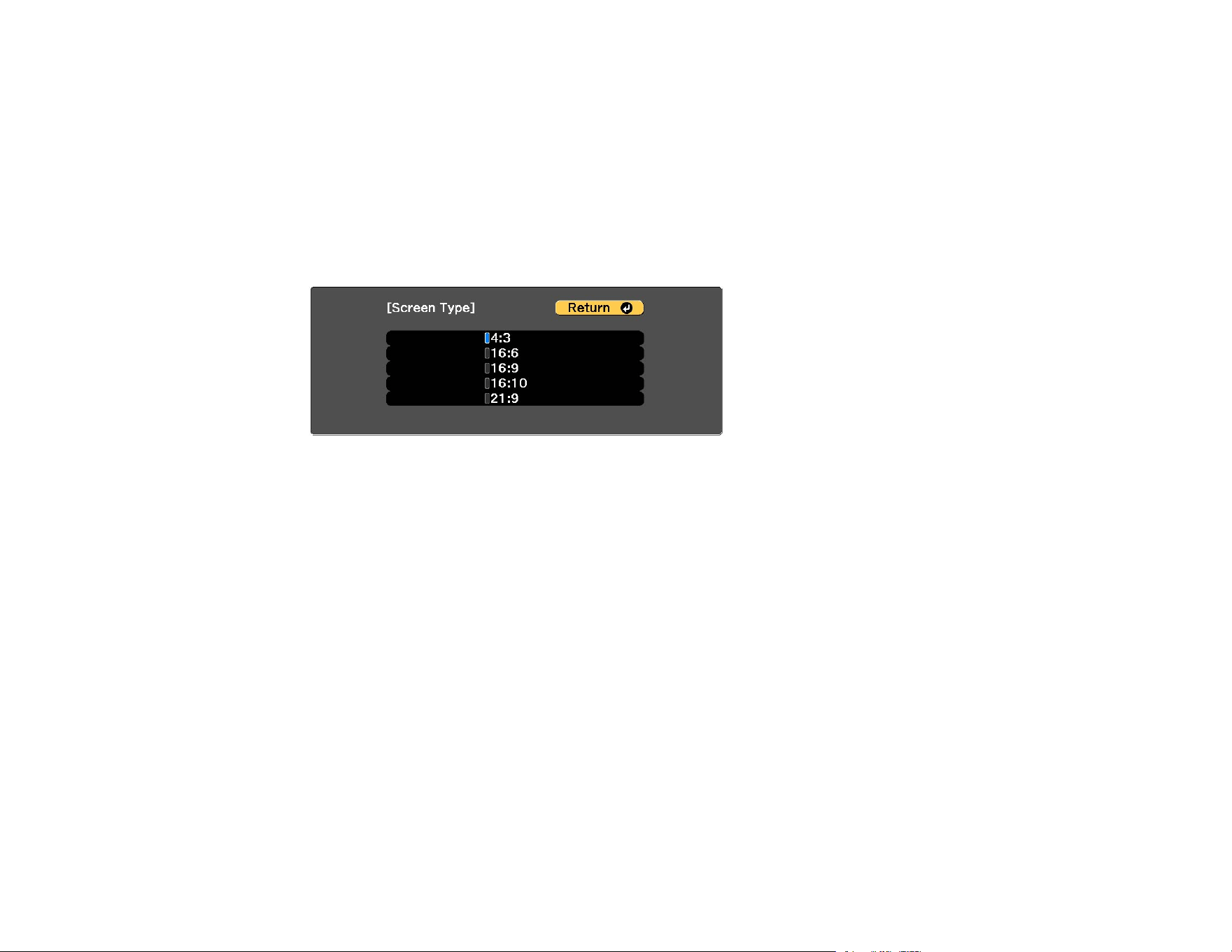

Setting the Screen Type..................................................................................................................... 98

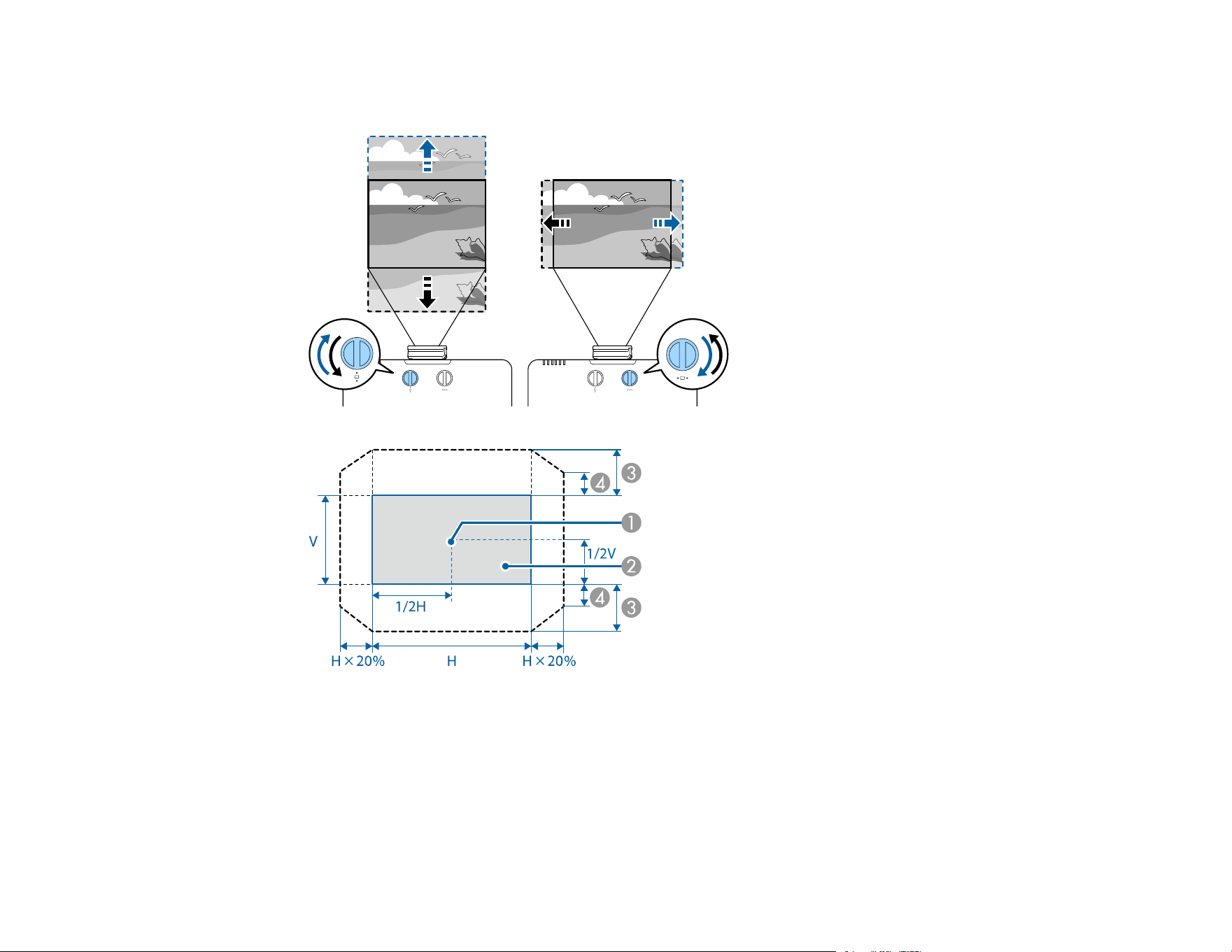

Adjusting the Image Position Using Lens Shift ................................................................................... 99

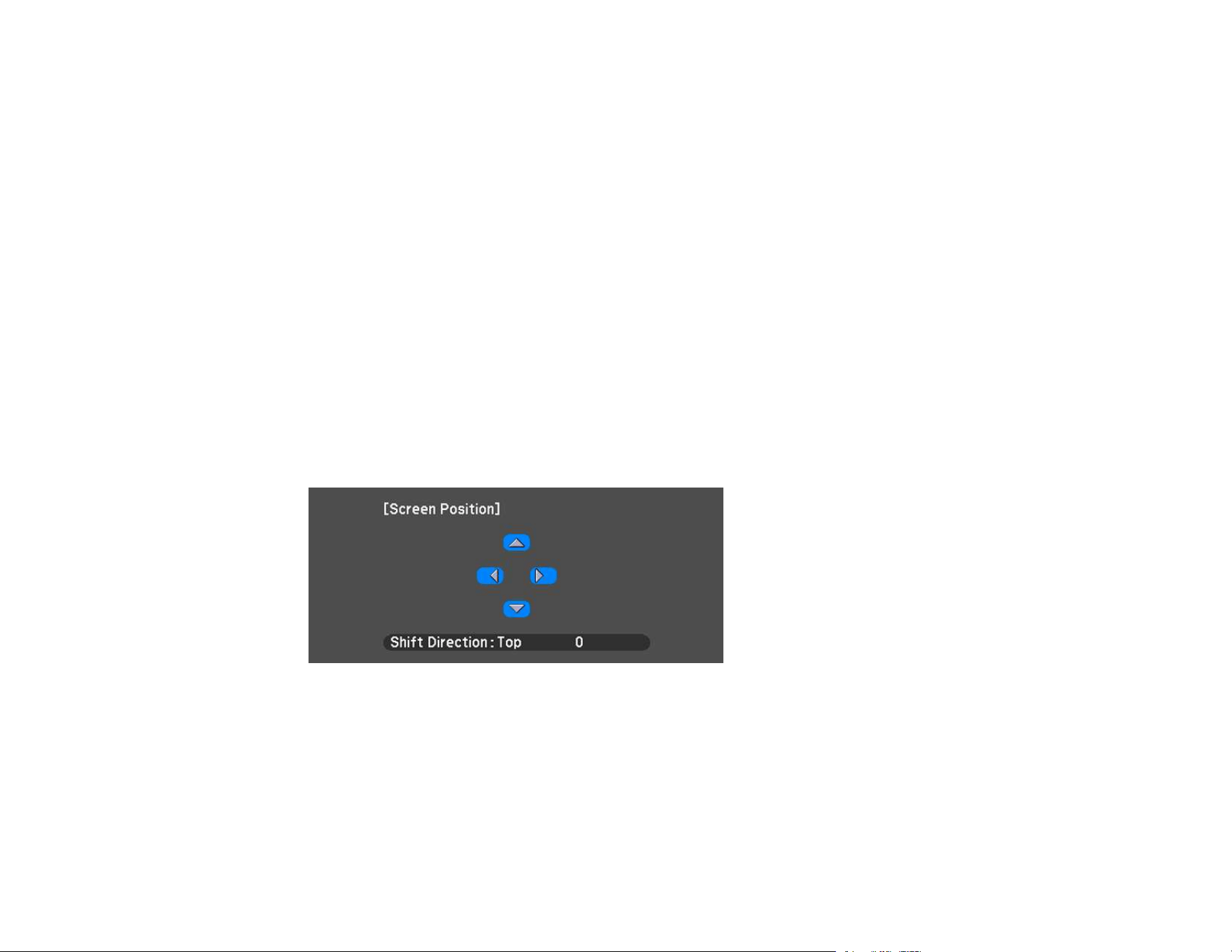

Adjusting the Image Position Using Screen Position........................................................................ 102

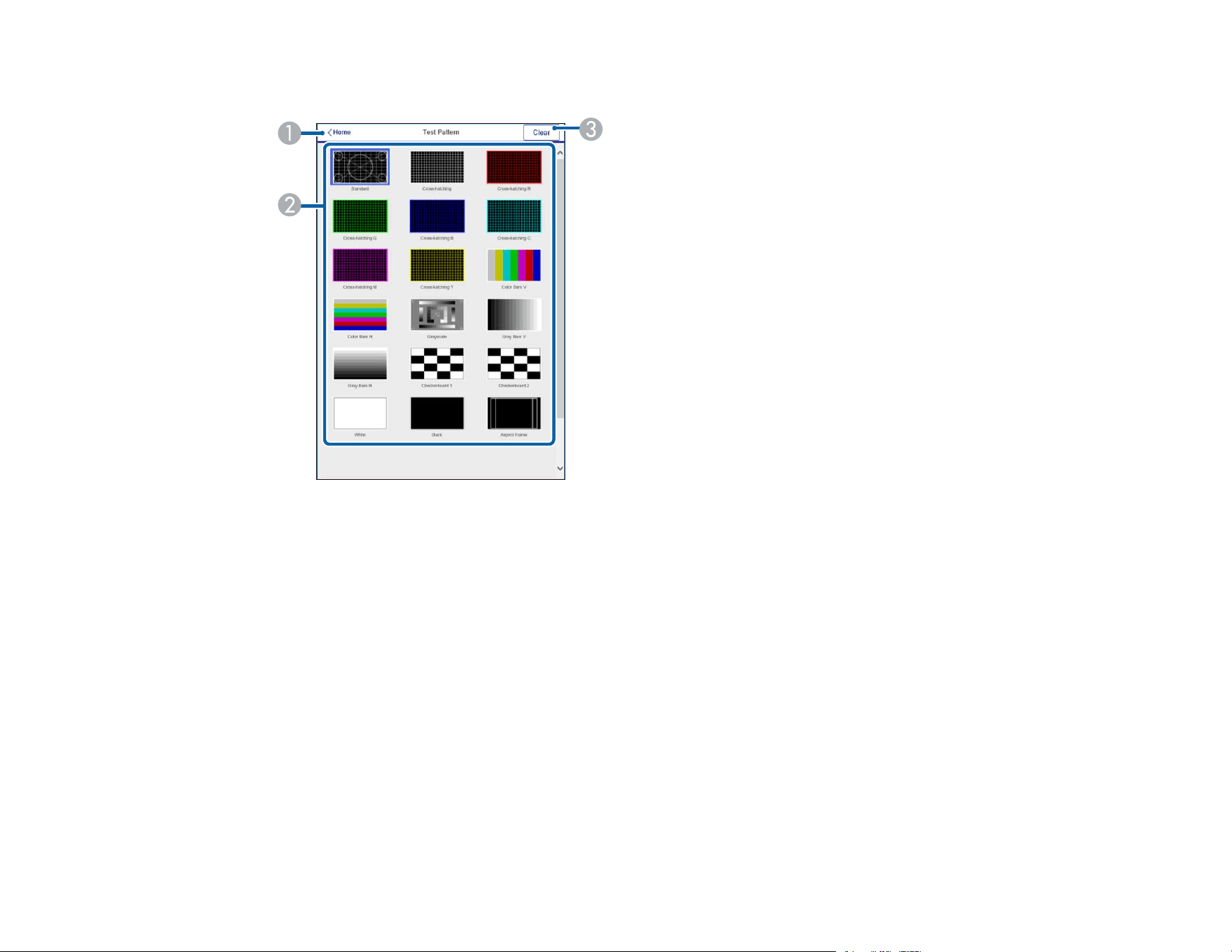

Displaying a Test Pattern ................................................................................................................. 102

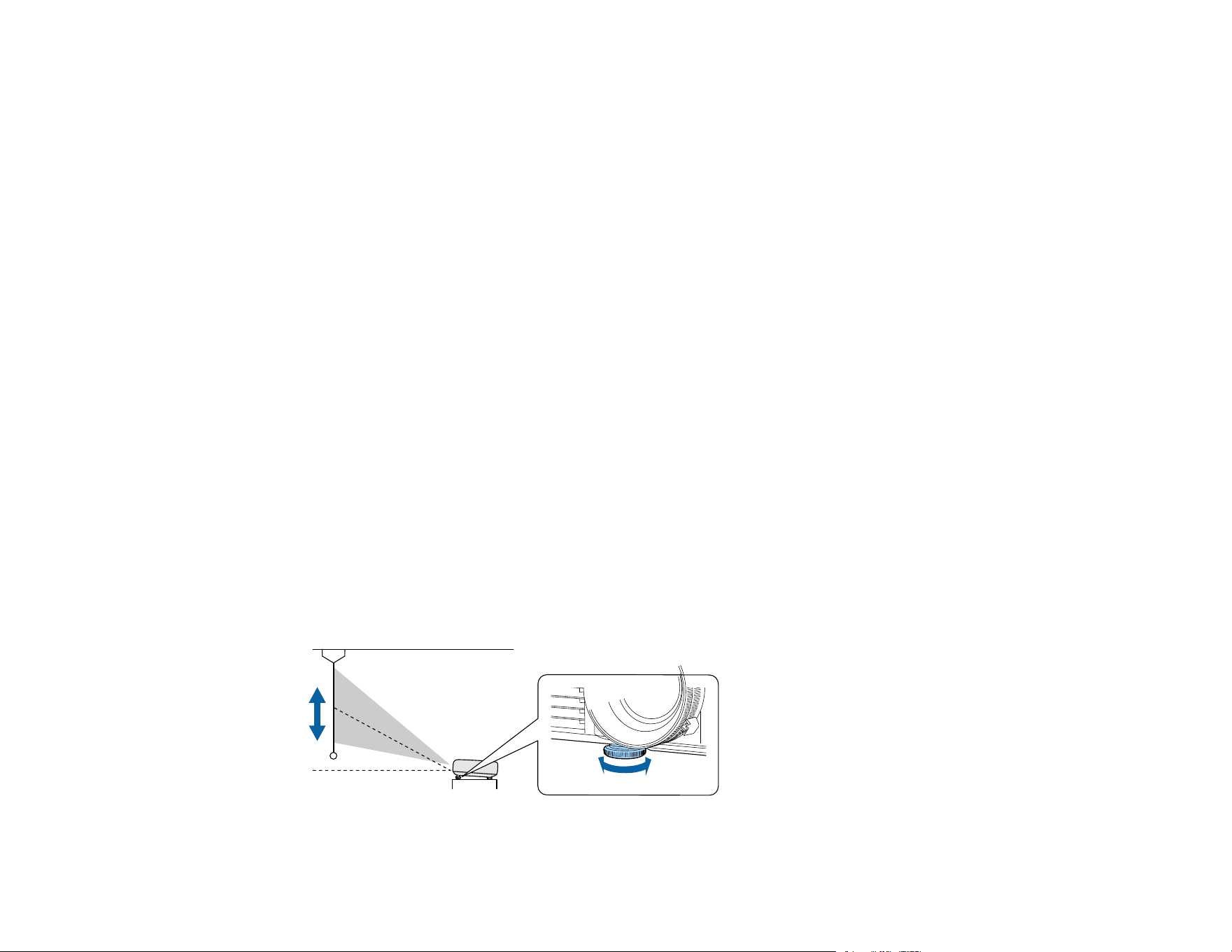

Adjusting the Image Height .............................................................................................................. 103
Image Shape.................................................................................................................................... 104

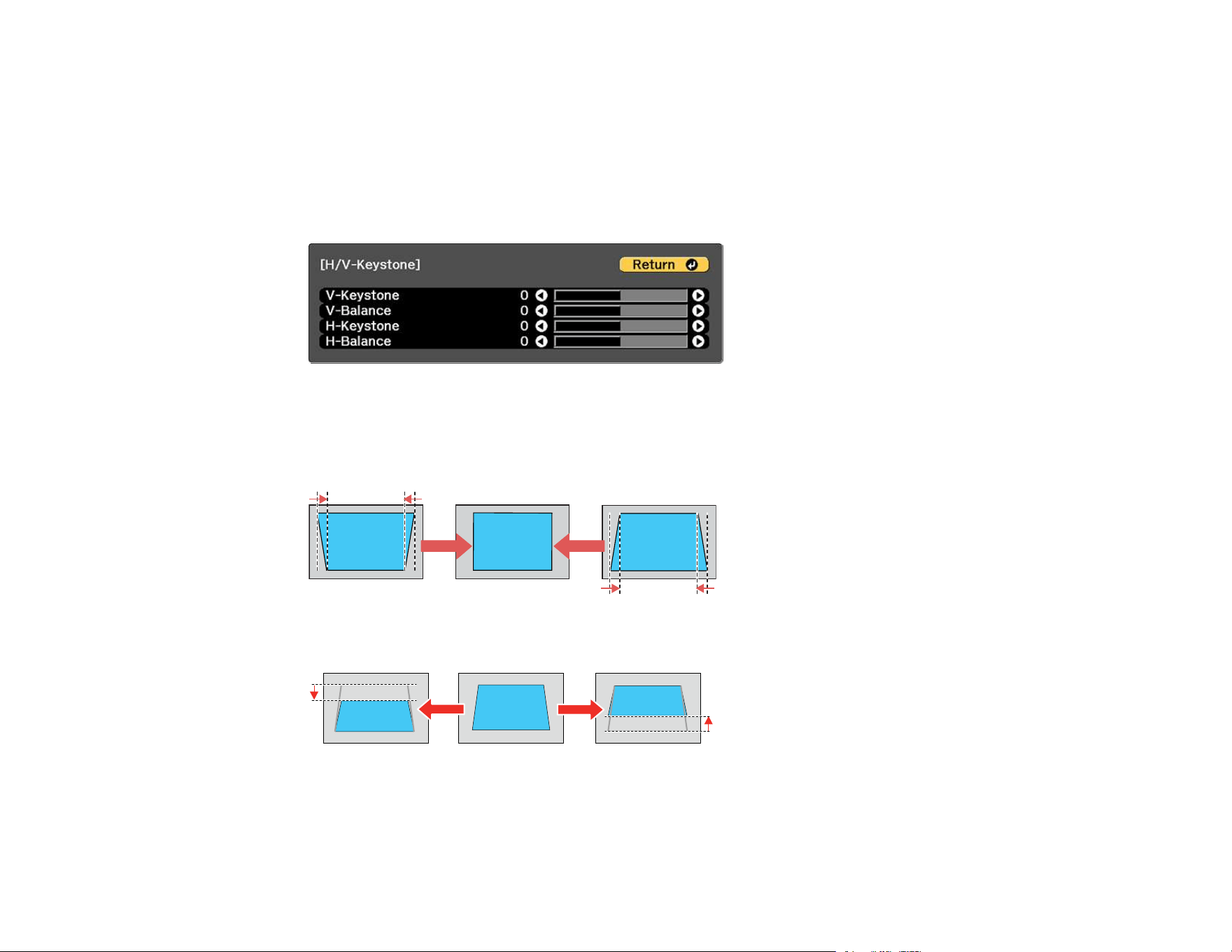

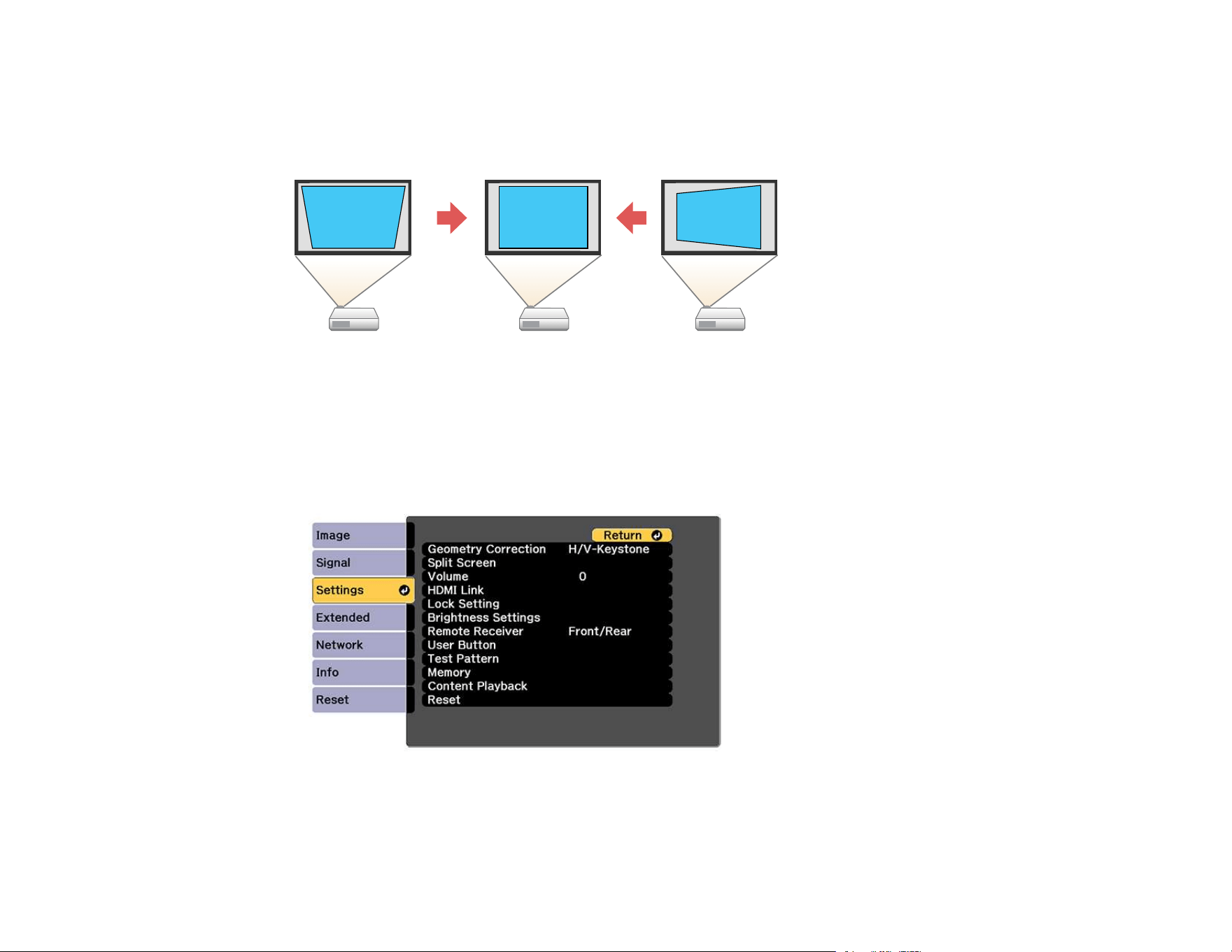

Correcting Image Shape with H/V-Keystone ............................................................................... 105

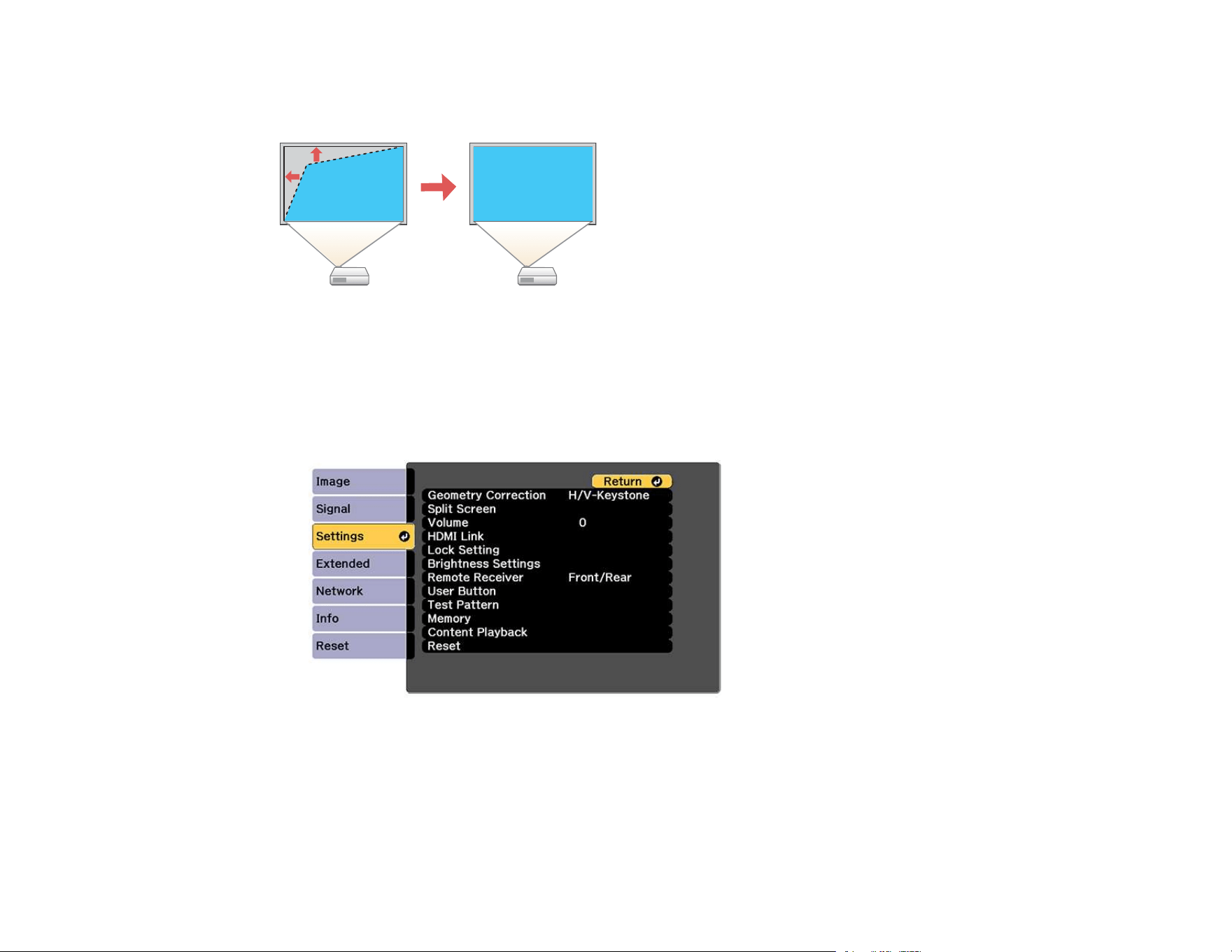

Correcting Image Shape with Quick Corner ................................................................................ 107

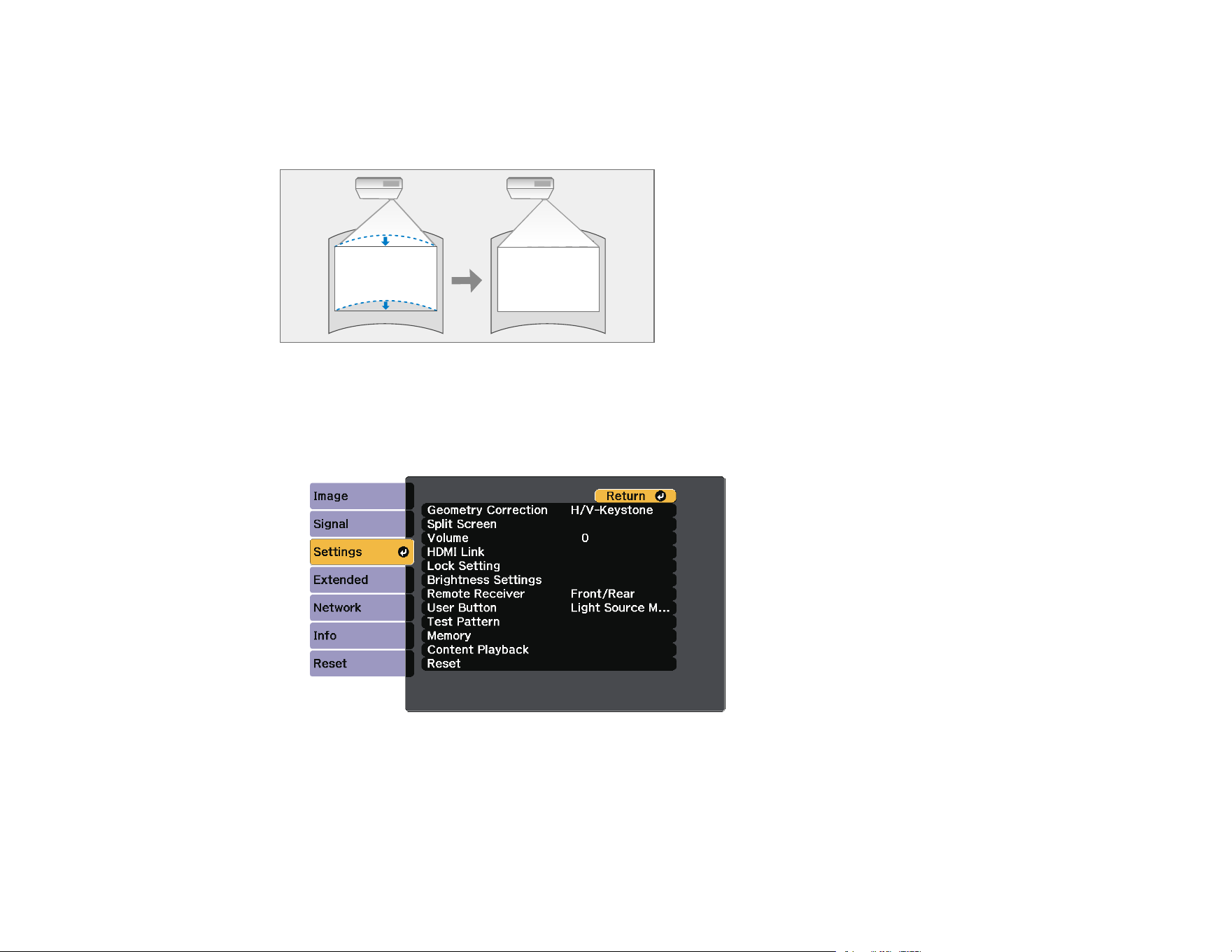

Correcting Image Shape with Correct Shape .............................................................................. 110

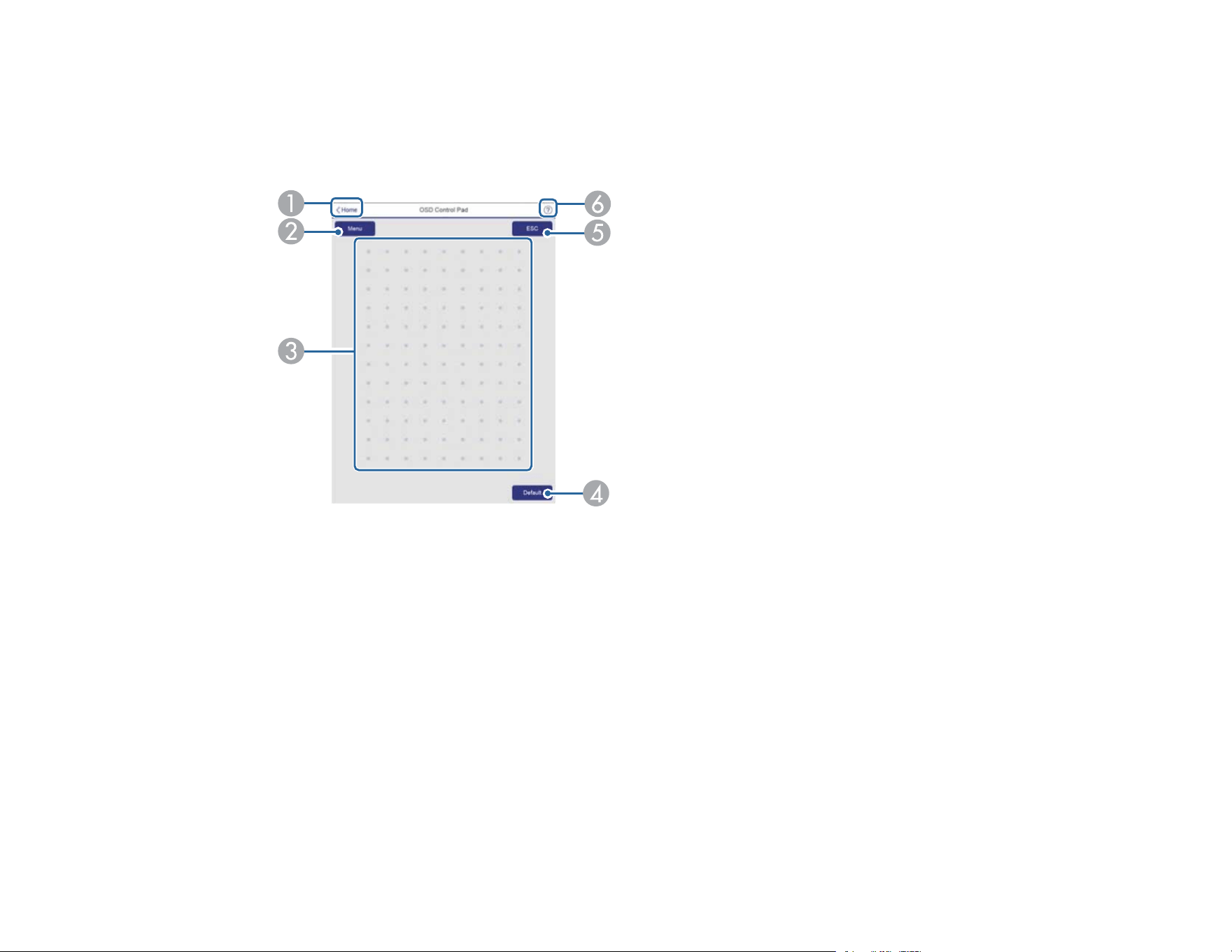

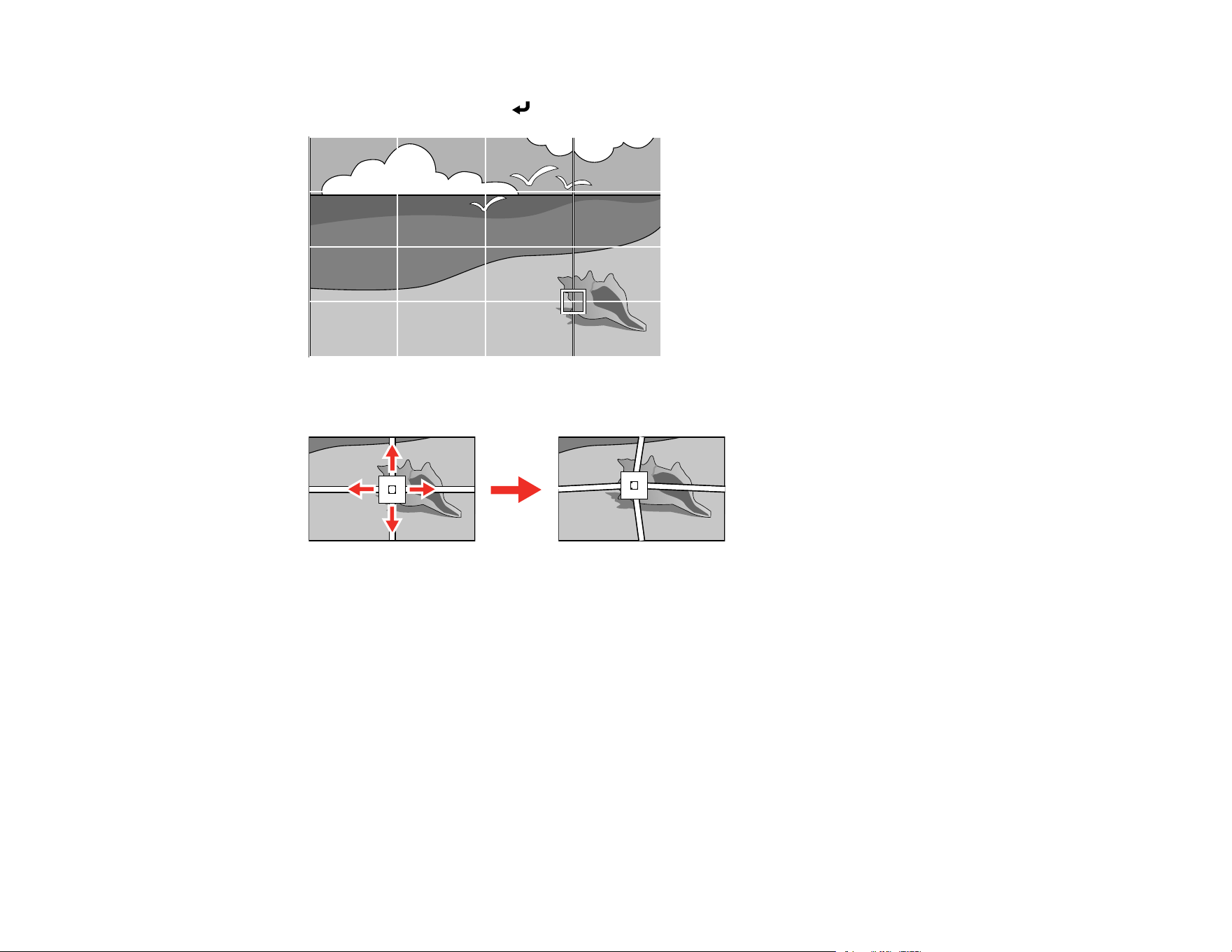

Correcting Image Shape with Point Correction............................................................................ 112
Applying Saved Image Shape Settings ....................................................................................... 113
Selecting an Image Source .............................................................................................................. 114

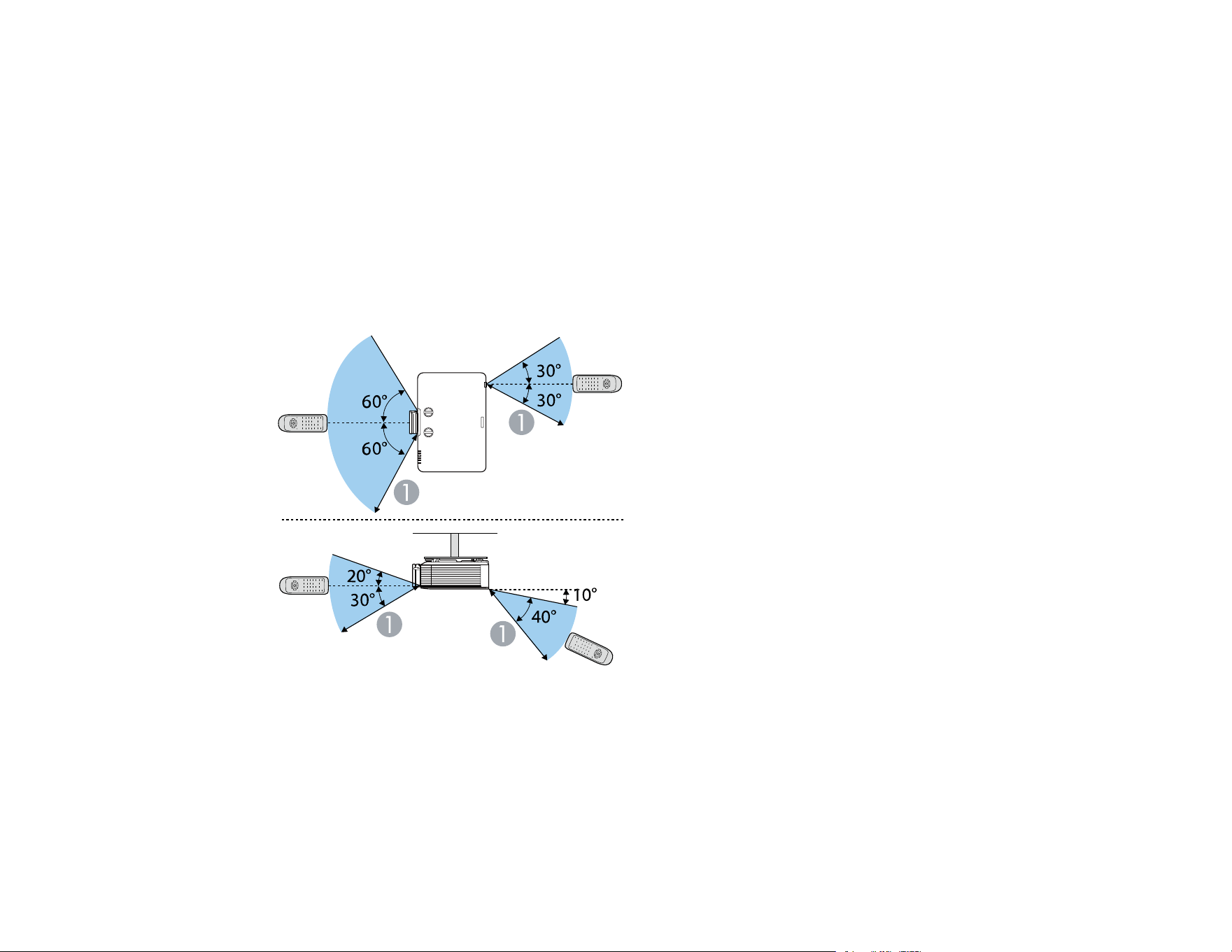

Remote Control Operation ............................................................................................................... 116
Projection Modes ............................................................................................................................. 117
Changing the Projection Mode Using the Remote Control .......................................................... 117
Changing the Projection Mode Using the Menus......................................................................... 118
Image Aspect Ratio .......................................................................................................................... 119
Changing the Image Aspect Ratio ............................................................................................... 119
Available Image Aspect Ratios.................................................................................................... 120
Color Mode....................................................................................................................................... 121
Changing the Color Mode............................................................................................................ 122
6
Available Color Modes................................................................................................................. 122
Turning On Dynamic Contrast.......................................................................................................... 123
Adjusting the Hue, Saturation, and Brightness ................................................................................ 124

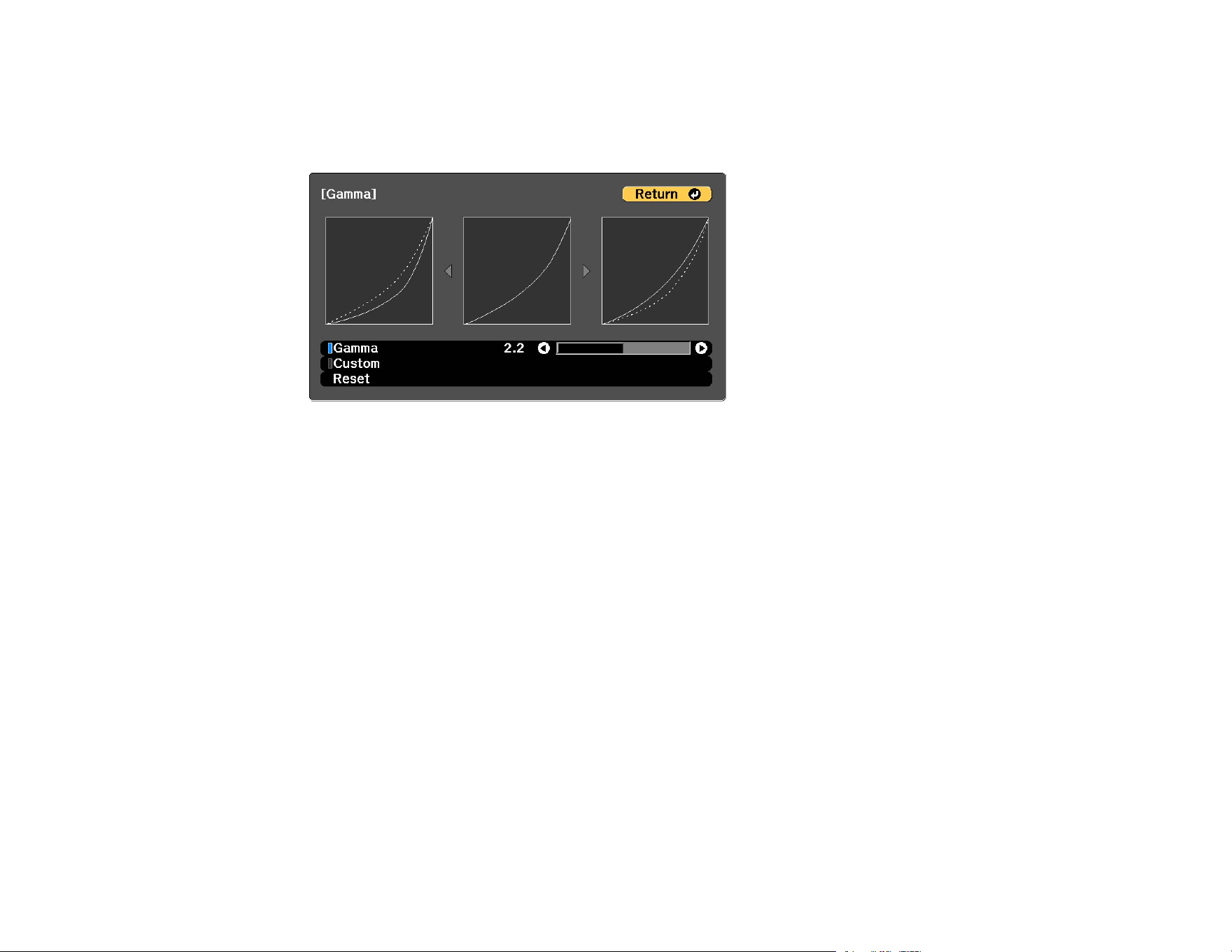

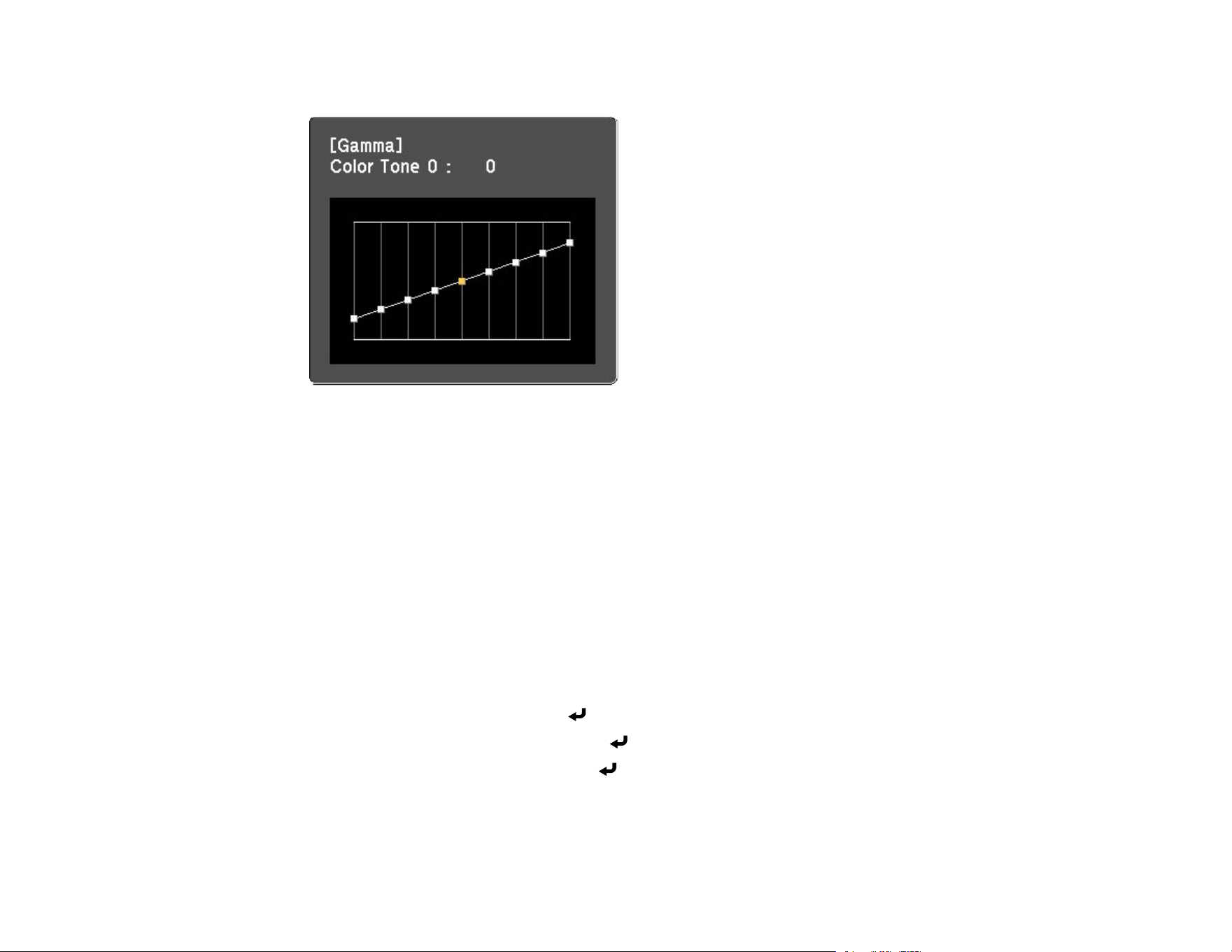

Adjusting Gamma............................................................................................................................. 125
Adjusting the Image Resolution........................................................................................................ 127
Adjusting the Brightness................................................................................................................... 128
Constant Brightness Usage Hours .............................................................................................. 130
Controlling the Volume with the Volume Buttons.............................................................................. 131
Projecting a PC Free Presentation ................................................................................................... 132
PC Free Precautions ................................................................................................................... 133
Supported PC Free File Types .................................................................................................... 133

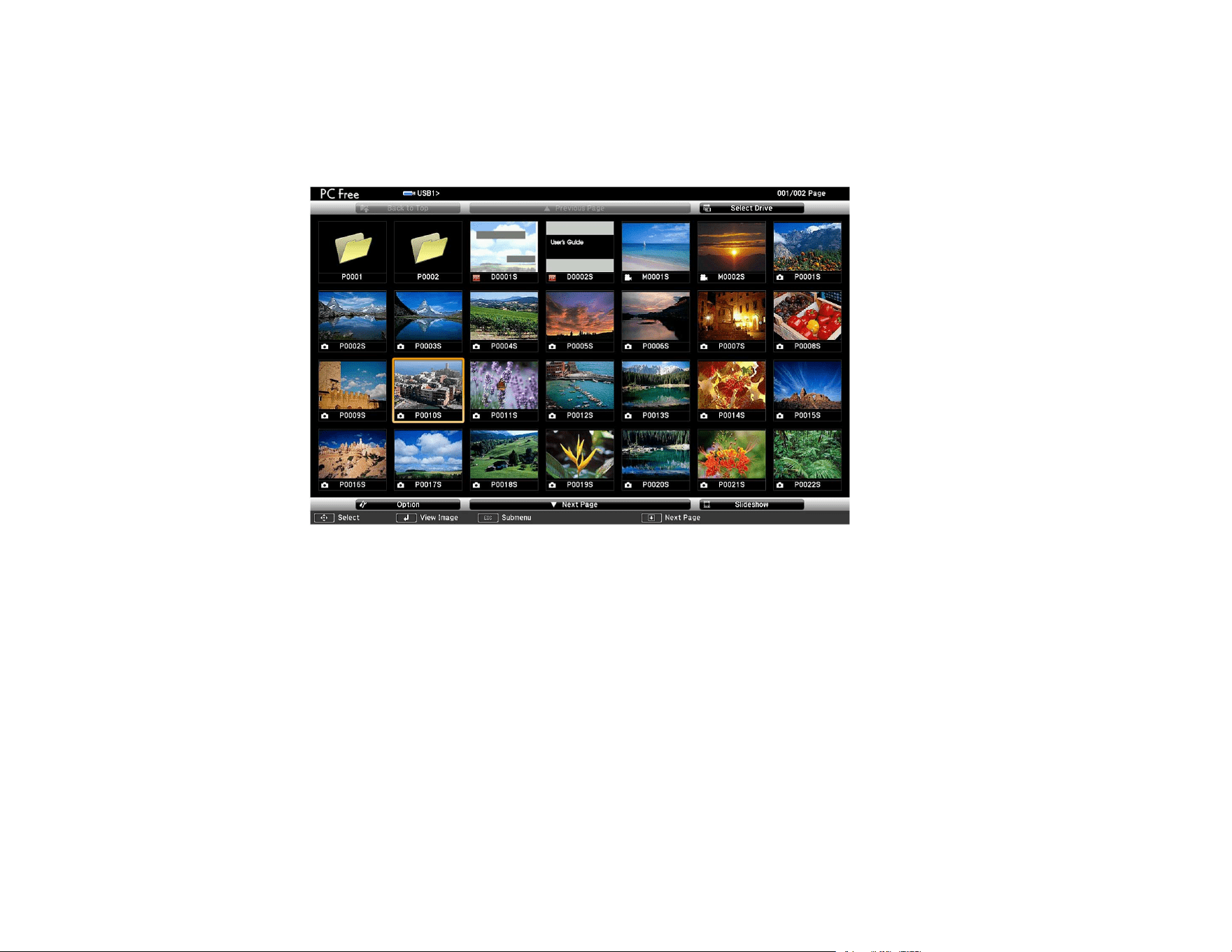

Starting a PC Free Slideshow...................................................................................................... 134
Starting a PC Free Movie Presentation ....................................................................................... 136
PC Free Display Options ............................................................................................................. 138
Projecting in Content Playback Mode............................................................................................... 139
Switching to Content Playback Mode .......................................................................................... 139

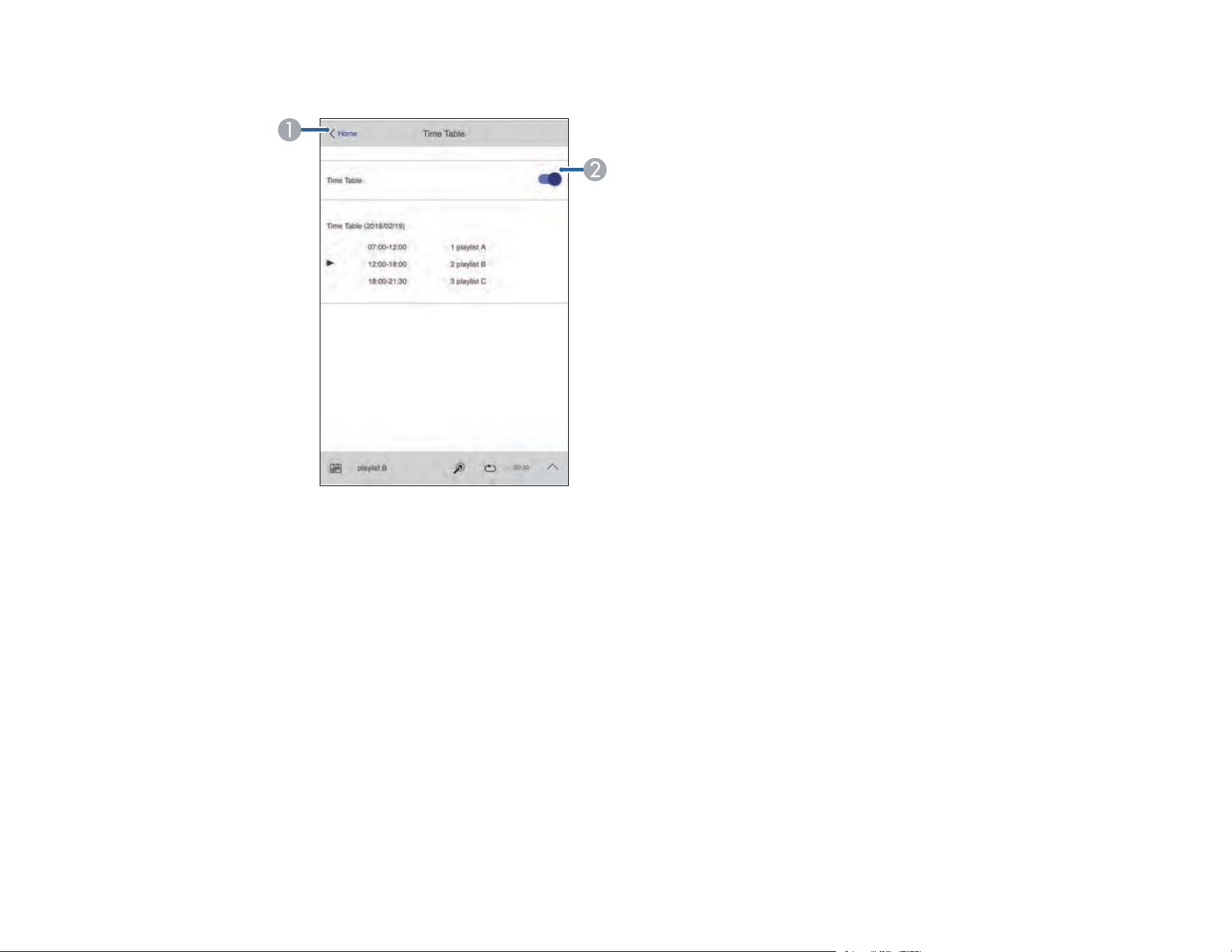

Projecting a Playlist in Content Playback Mode........................................................................... 141

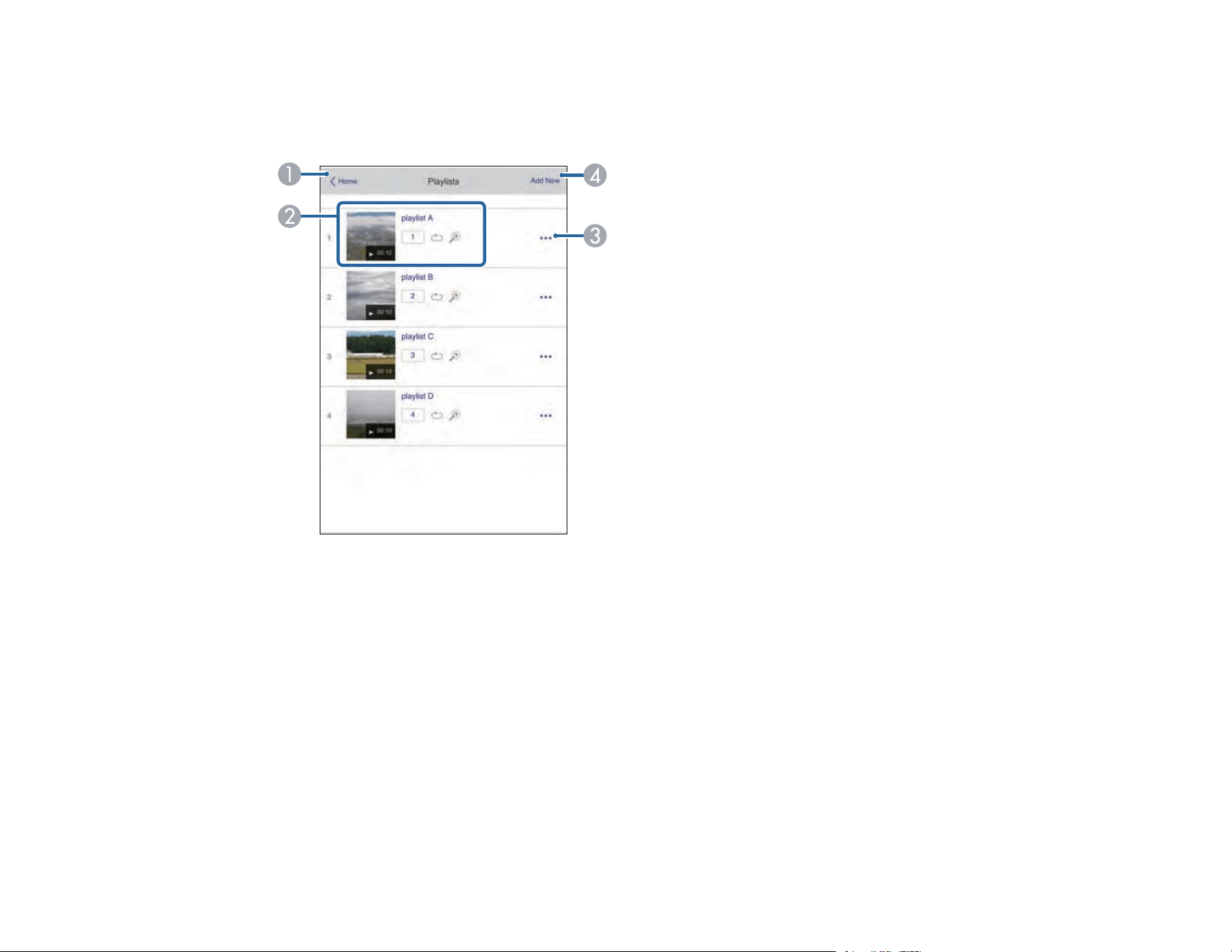

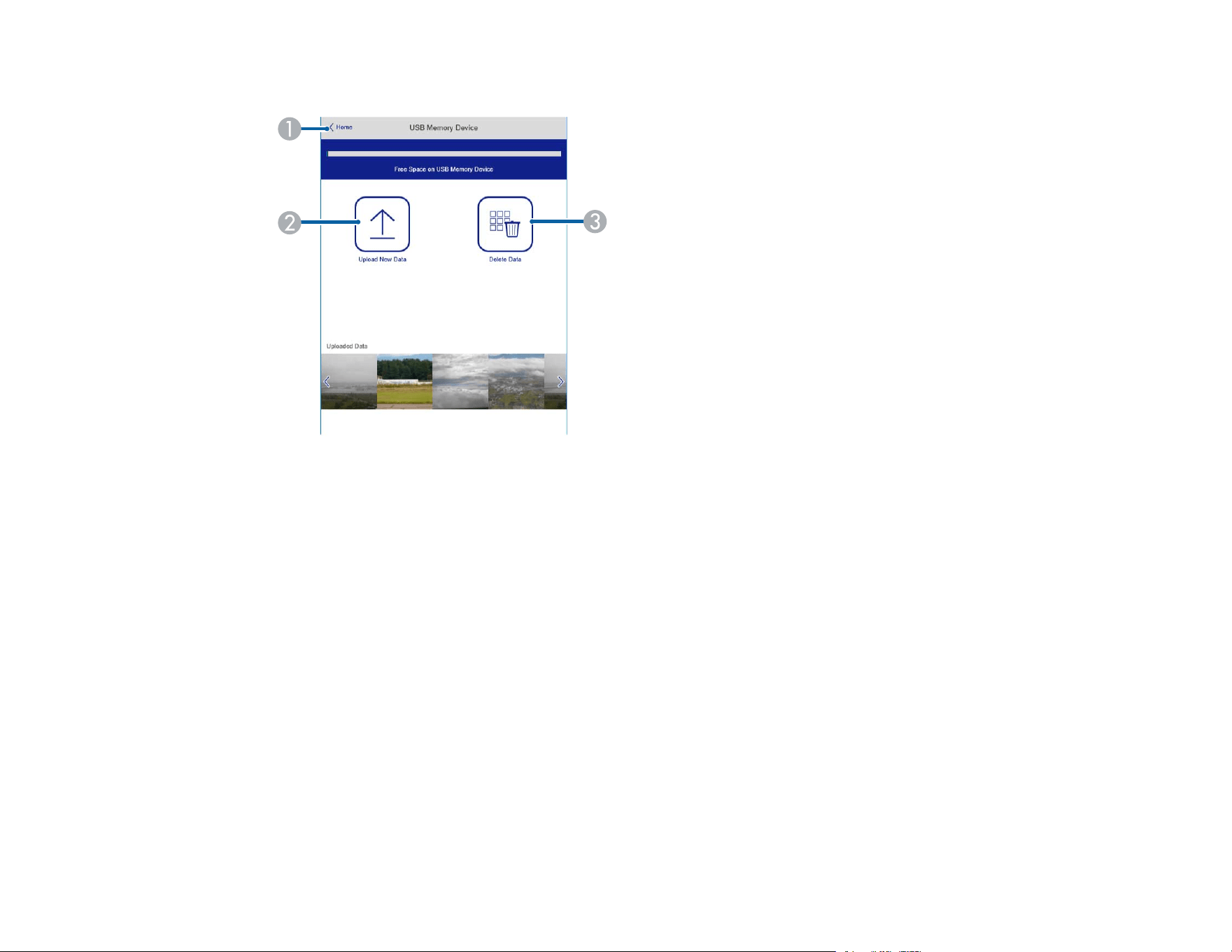

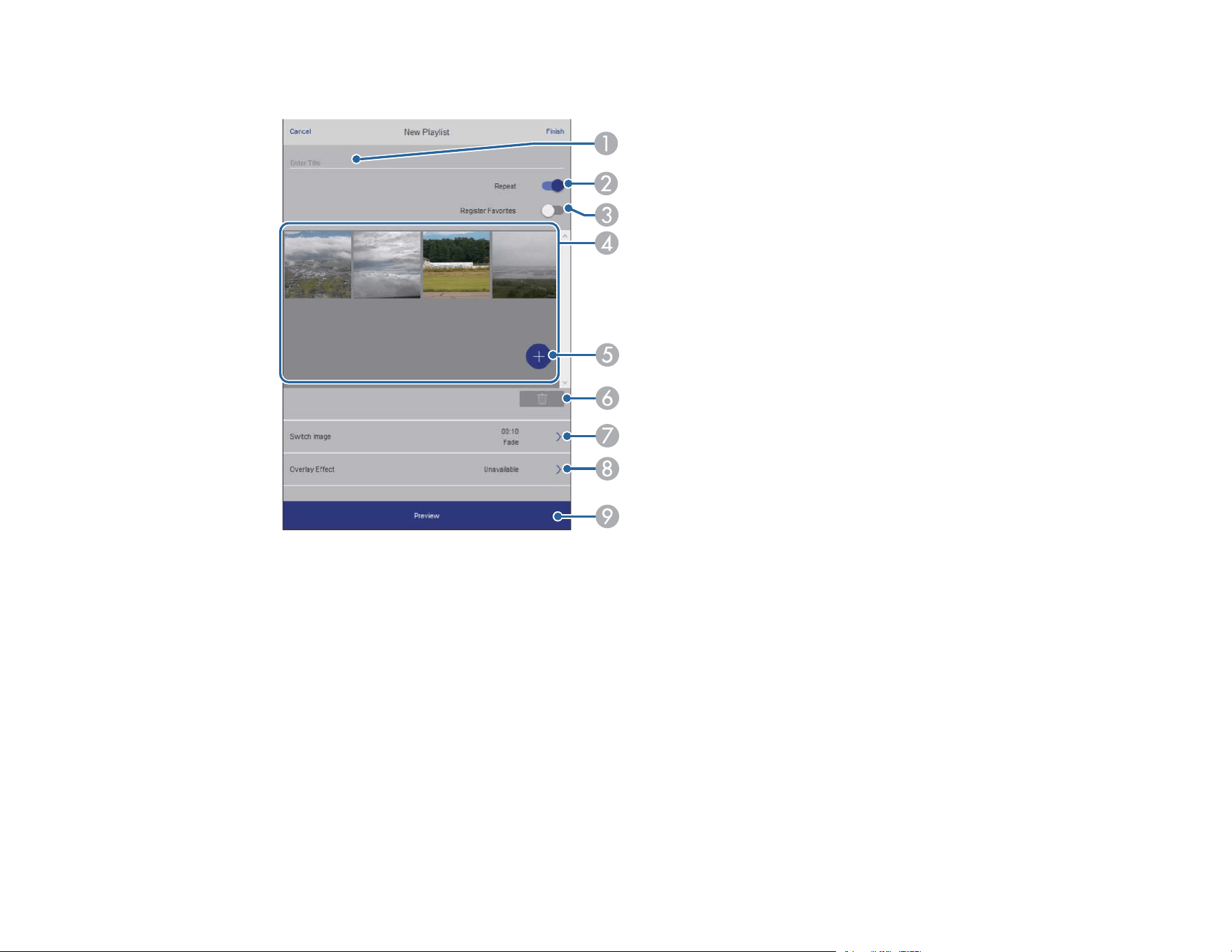

Creating a Playlist Using Epson Web Control.............................................................................. 142

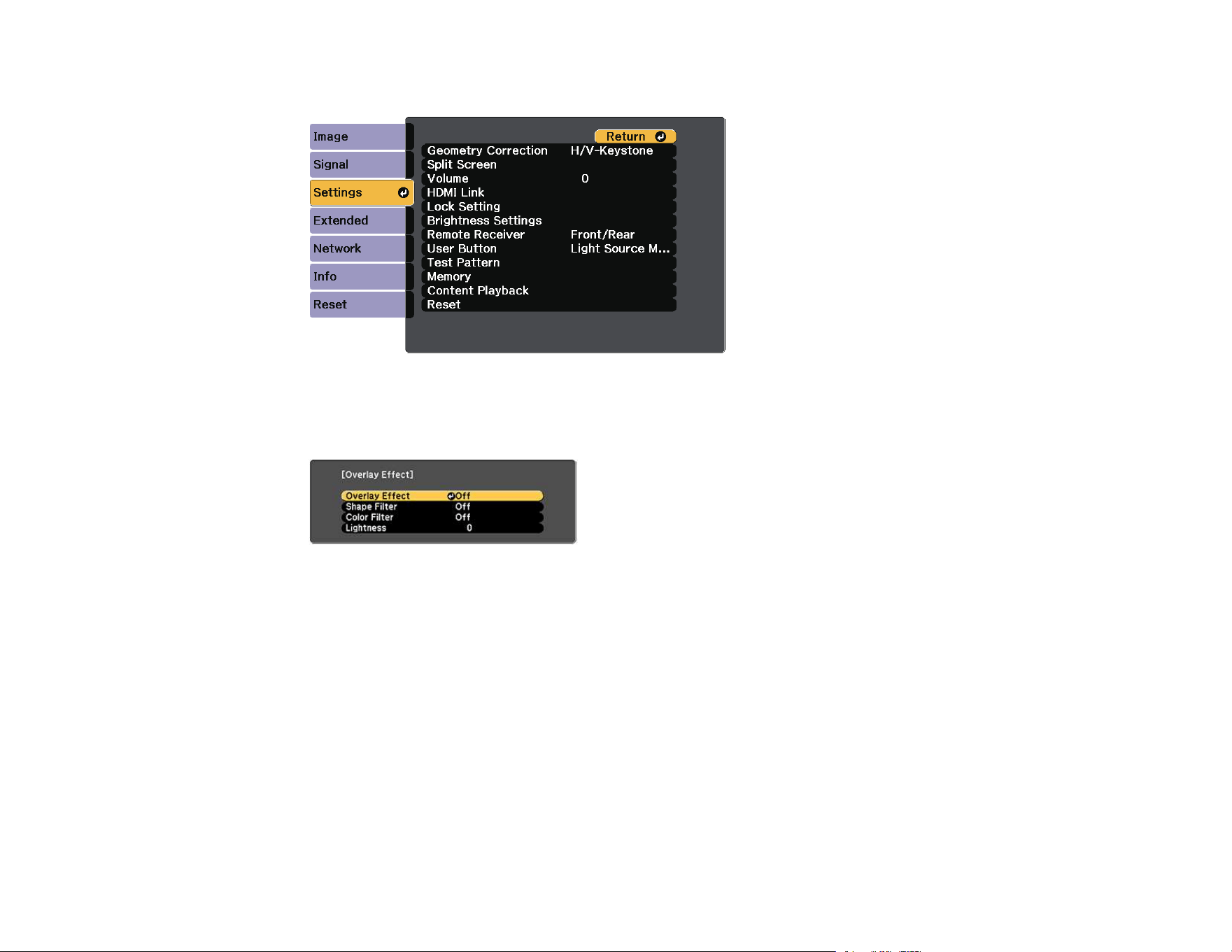

Adding Effects to the Projected Image......................................................................................... 143
Adjusting Projector Features ................................................................................................................. 146
Shutting Off the Picture and Sound Temporarily .............................................................................. 146
Stopping Video Action Temporarily .................................................................................................. 147
Zooming Into and Out of Images ...................................................................................................... 147
Projector Security Features.............................................................................................................. 148
Password Security Types ............................................................................................................ 149

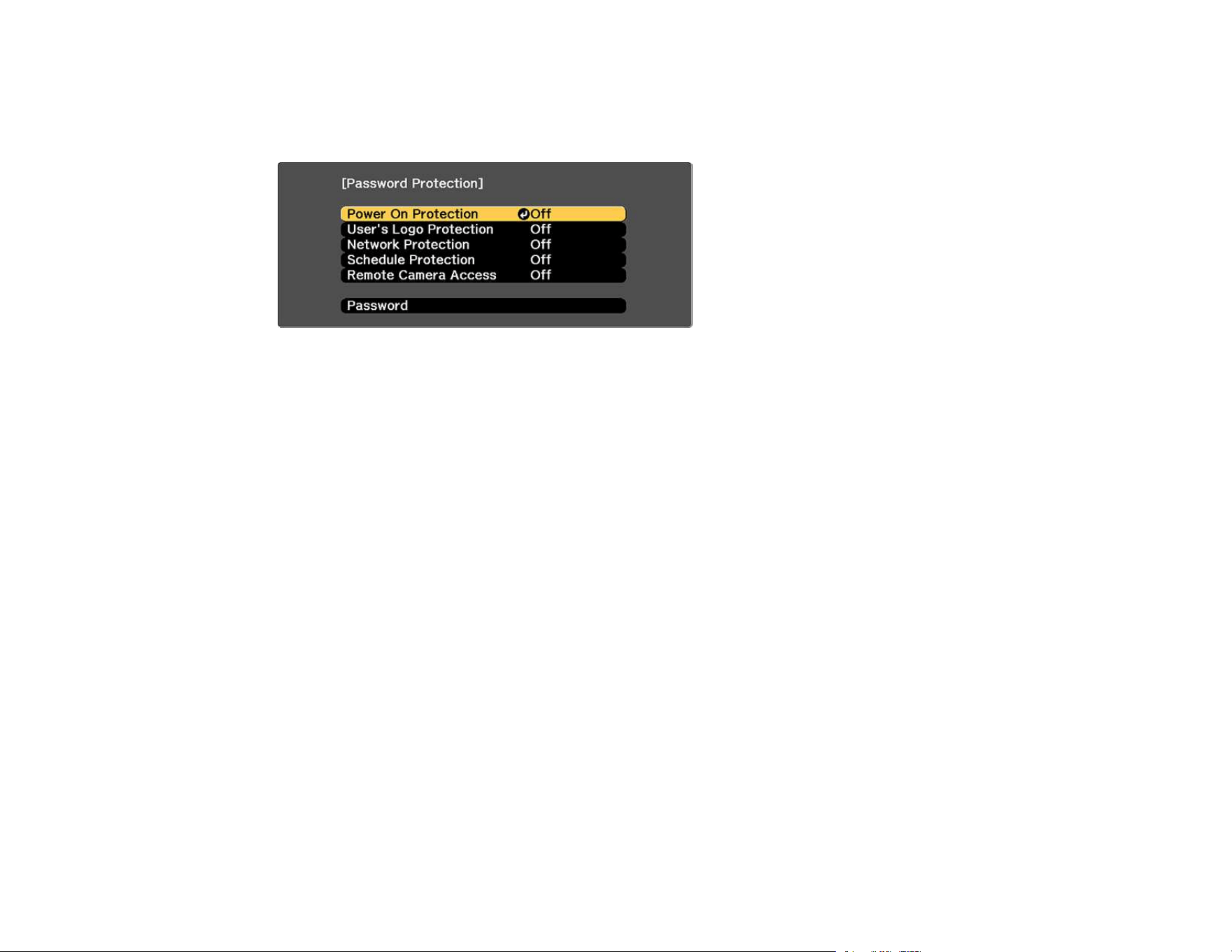

Setting a Password ................................................................................................................. 149
Selecting Password Security Types........................................................................................ 151

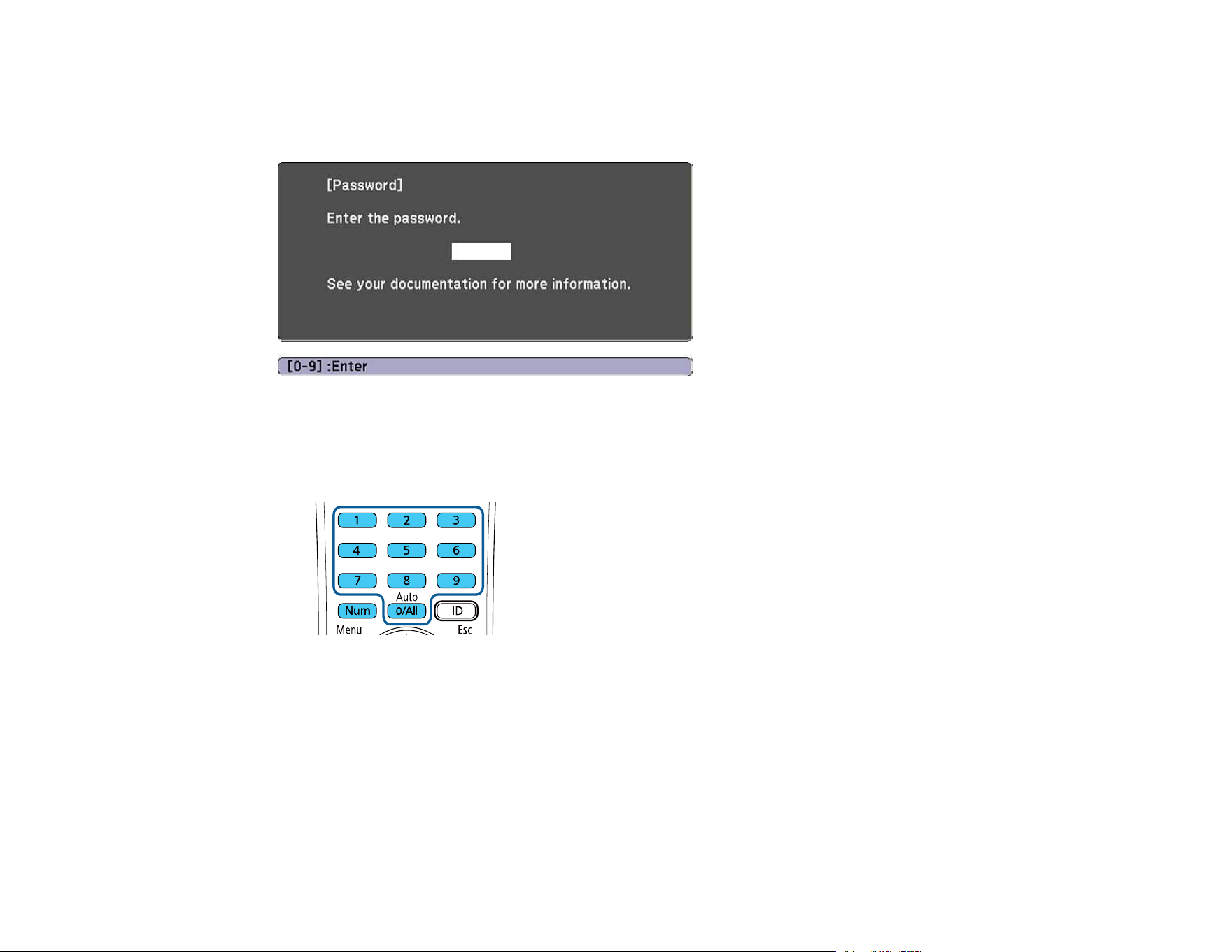

Entering a Password to Use the Projector............................................................................... 152
Saving a User's Logo Image to Display................................................................................... 153
Locking the Projector's Buttons ................................................................................................... 155
Unlocking the Projector's Buttons ........................................................................................... 156
Locking the Remote Control Buttons .......................................................................................... 156
Installing a Security Cable ........................................................................................................... 157
7

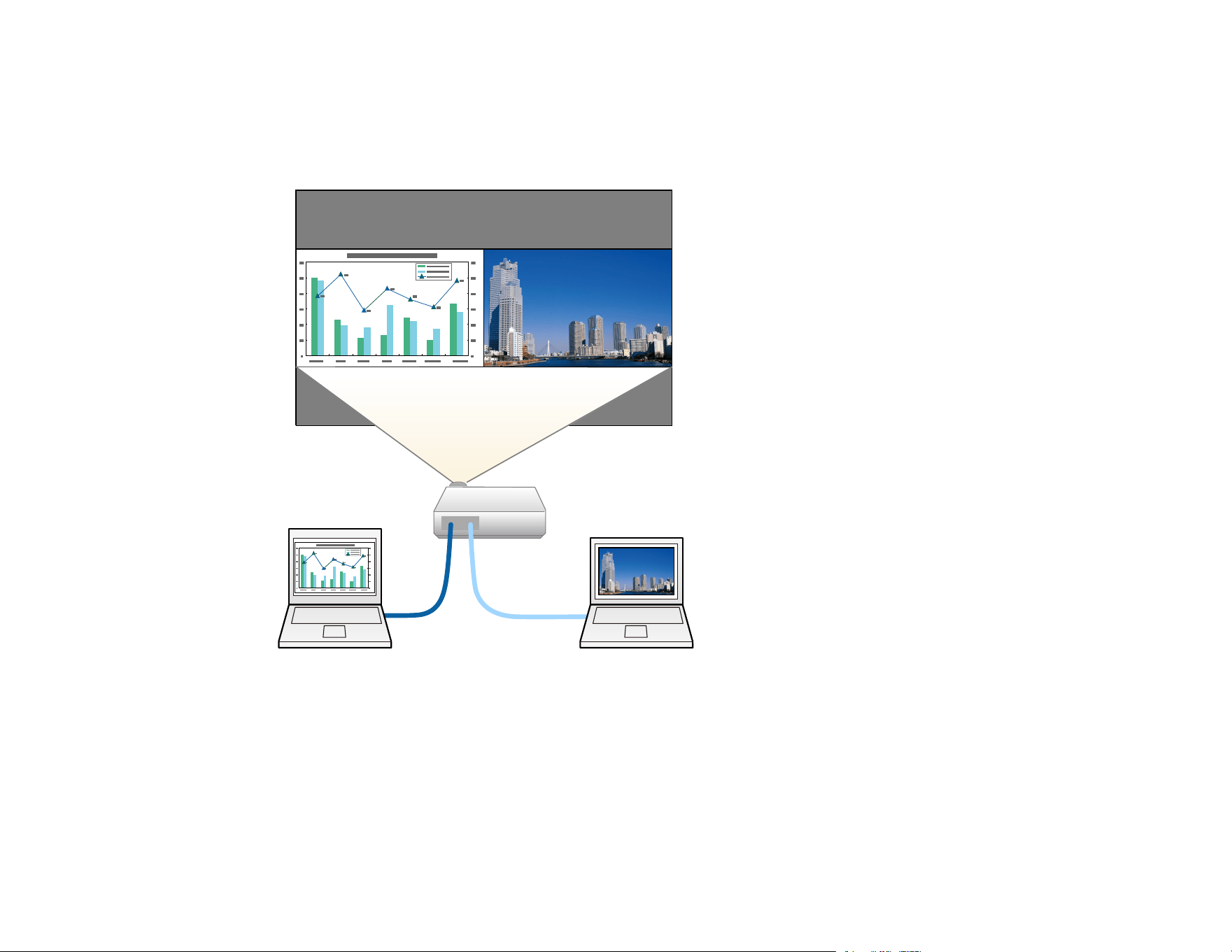

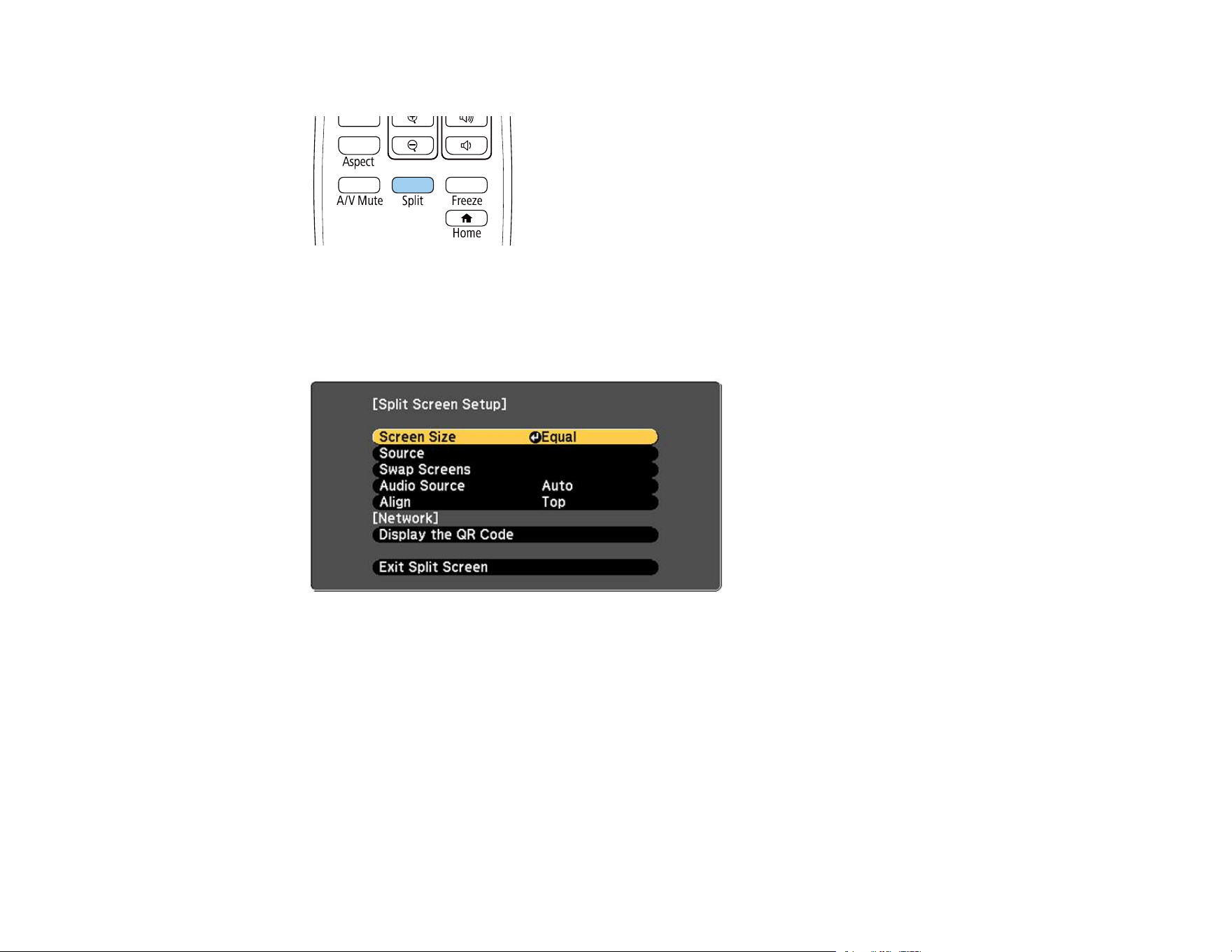

Projecting Two Images Simultaneously............................................................................................ 158
Using Multiple Projectors ................................................................................................................. 160
Multiple Projector Adjustment Overview...................................................................................... 160
Projector Identification System for Multiple Projector Control ...................................................... 161

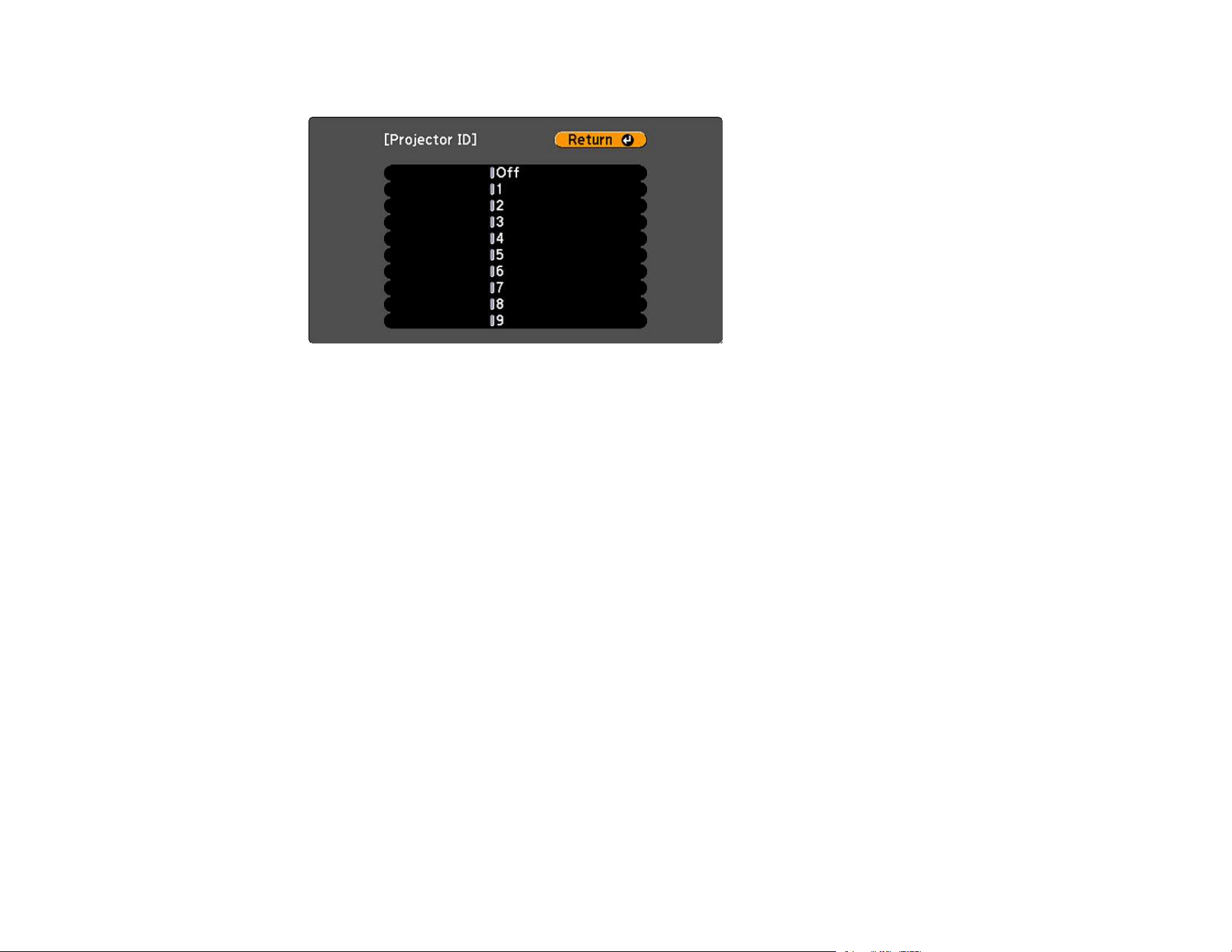

Setting the Projector ID........................................................................................................... 161
Setting the Remote Control ID ................................................................................................ 162
Adjusting the Color Tone (Color Uniformity) ................................................................................ 163

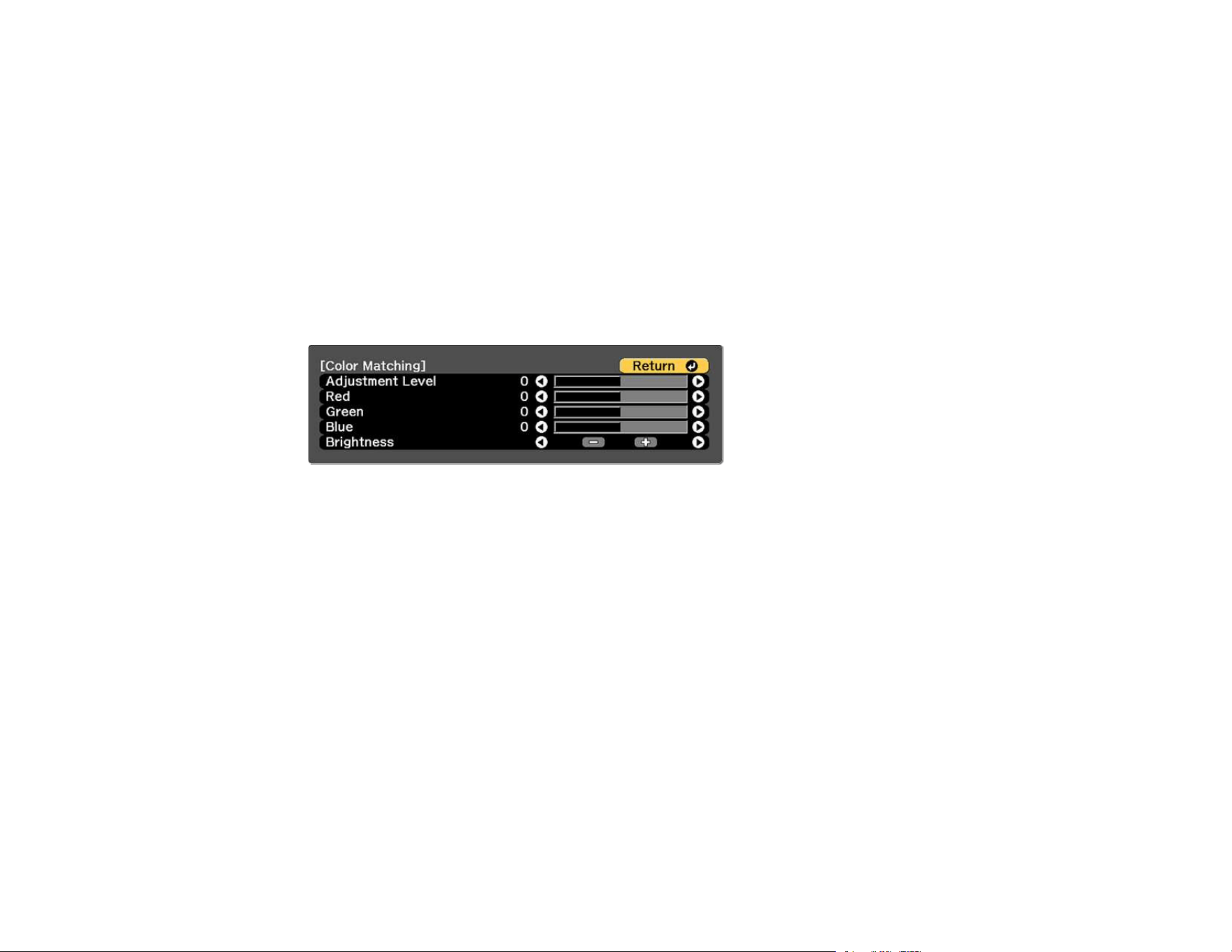

Matching the Screens Manually .................................................................................................. 165

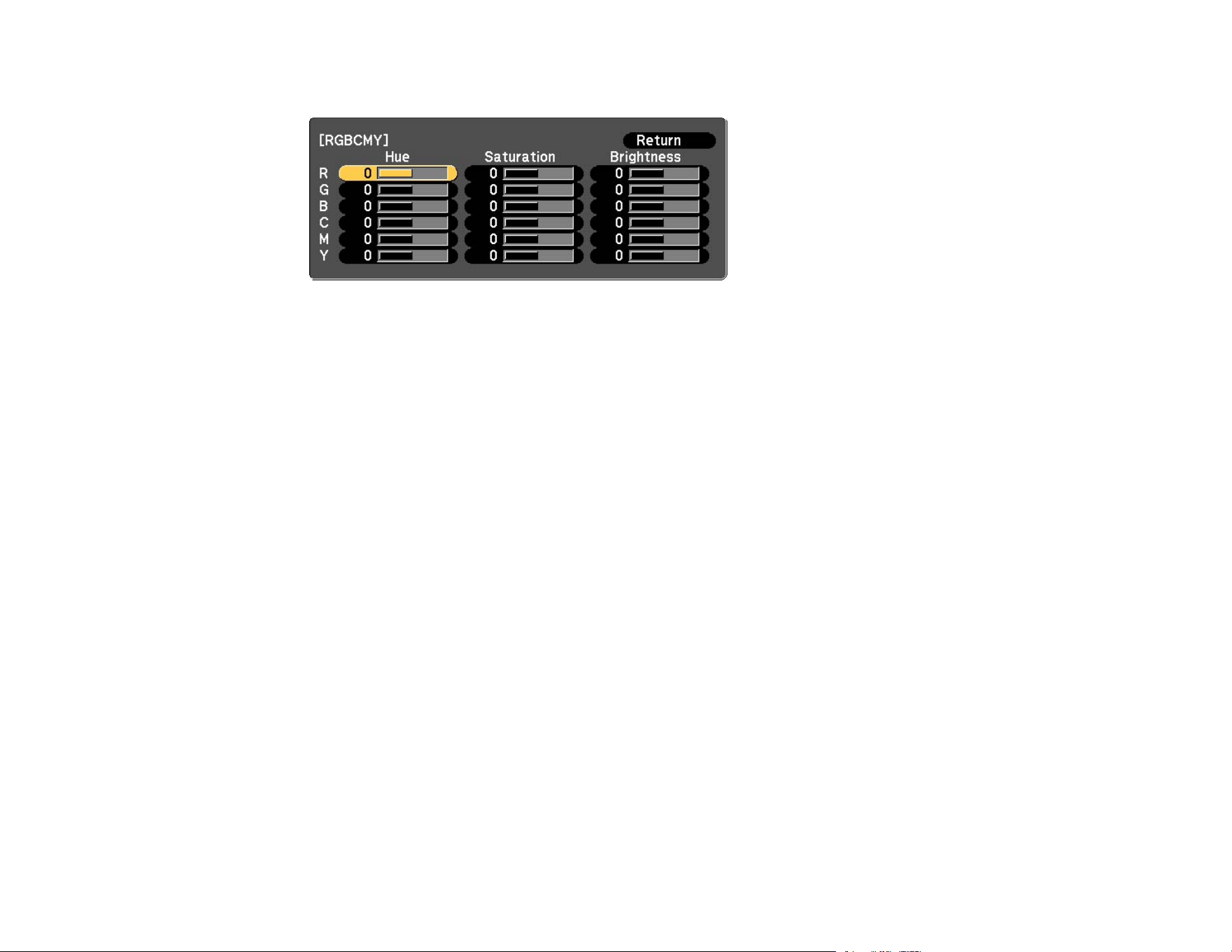

Adjusting RGBCMY .................................................................................................................... 166

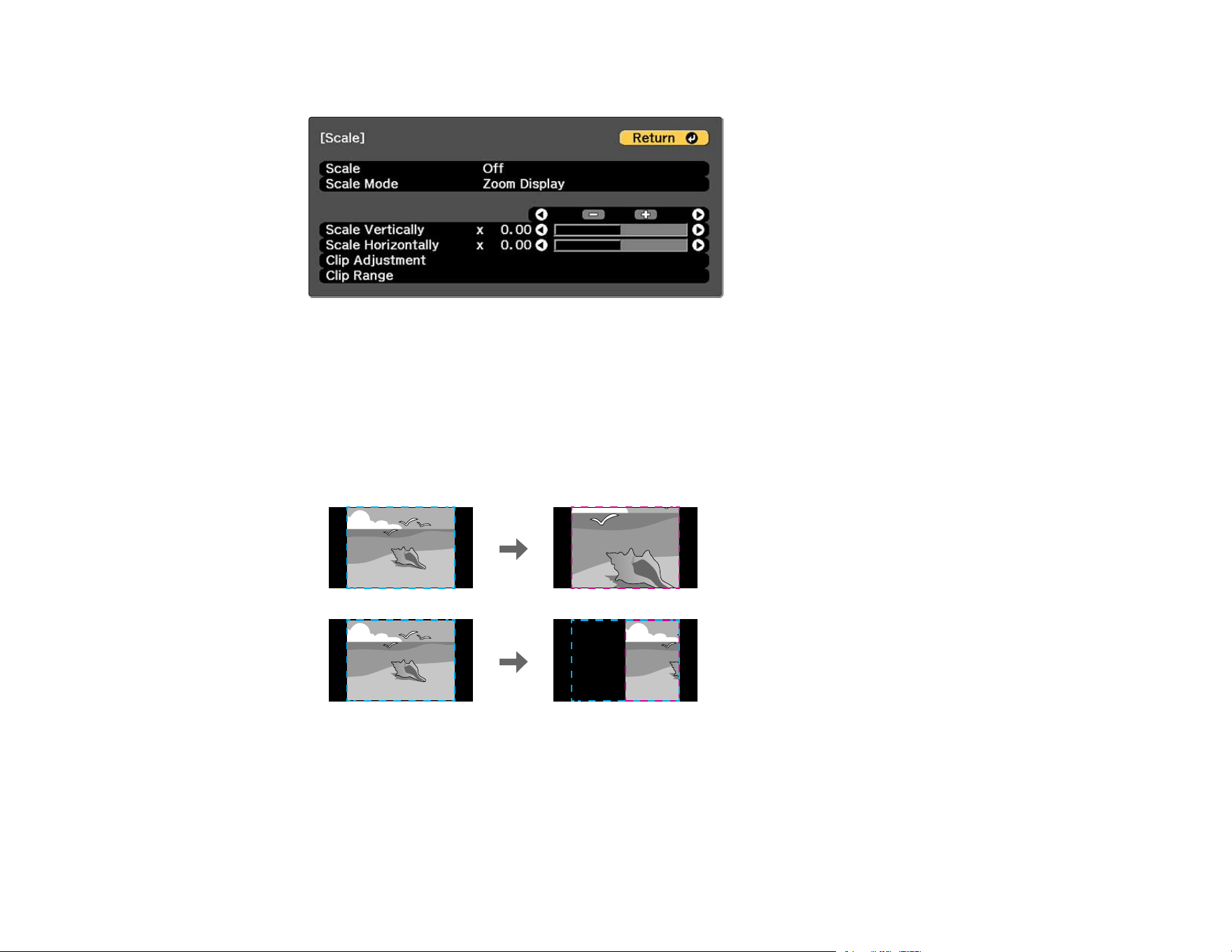

Scaling an Image......................................................................................................................... 167
Running Light Source Calibration..................................................................................................... 169

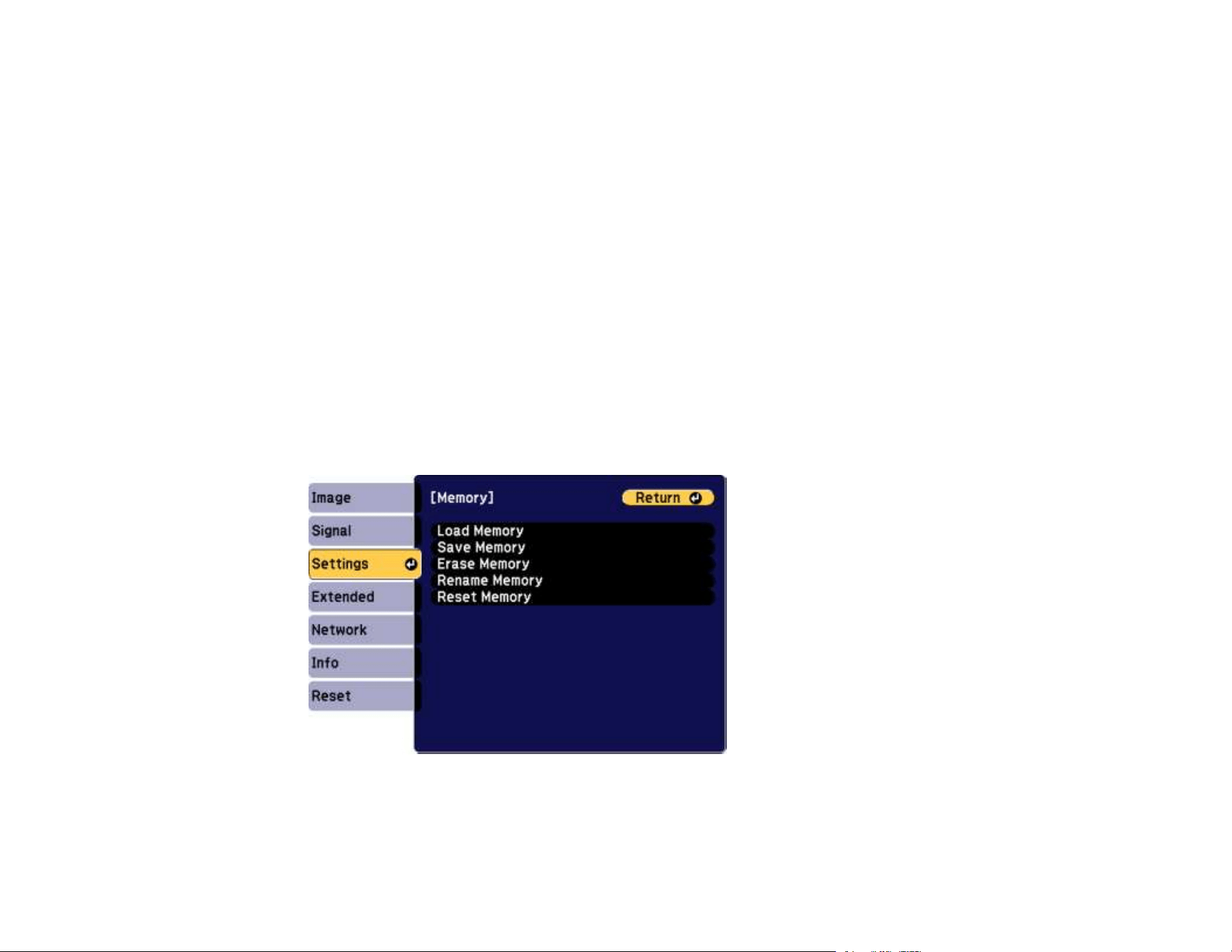

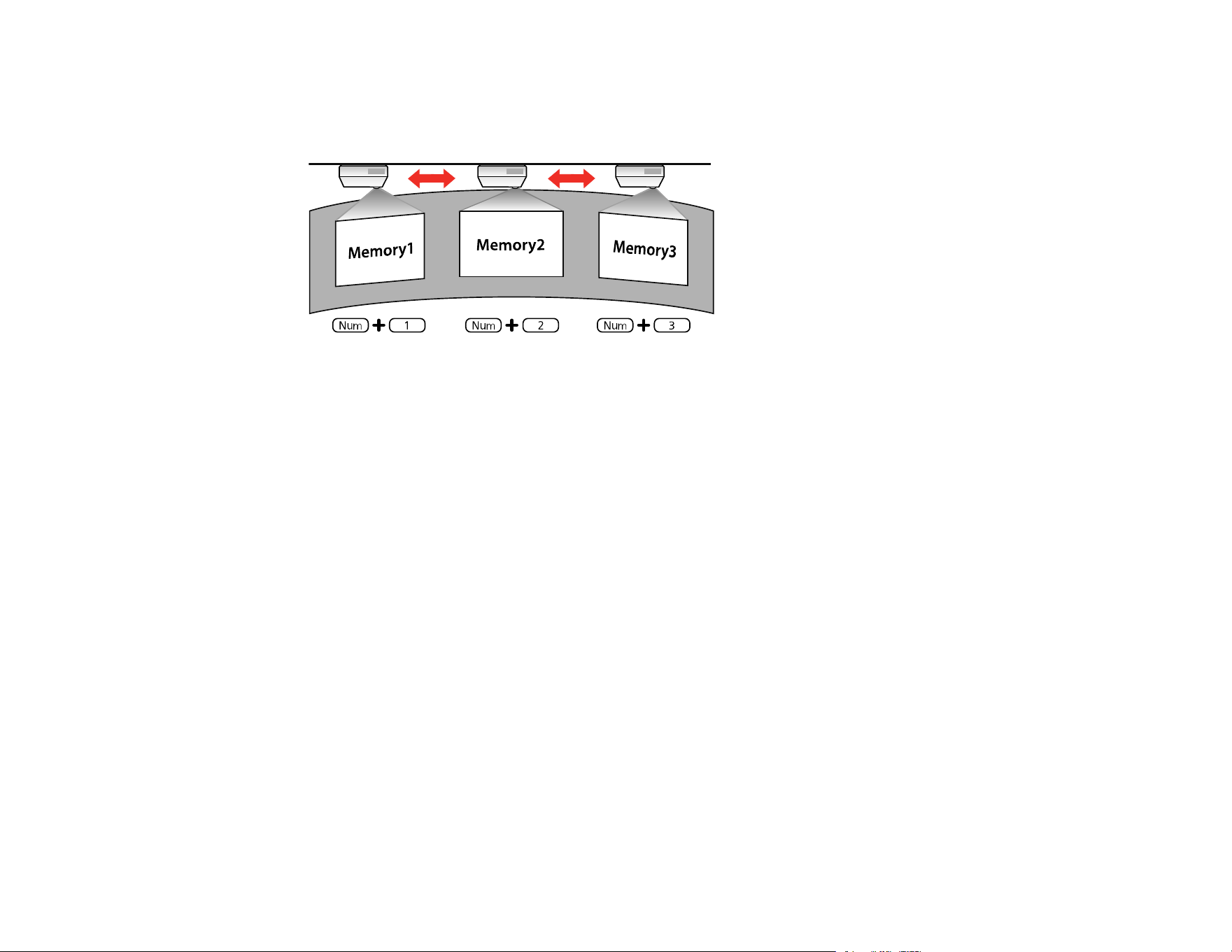

Saving Settings to Memory and Using Saved Settings .................................................................... 171

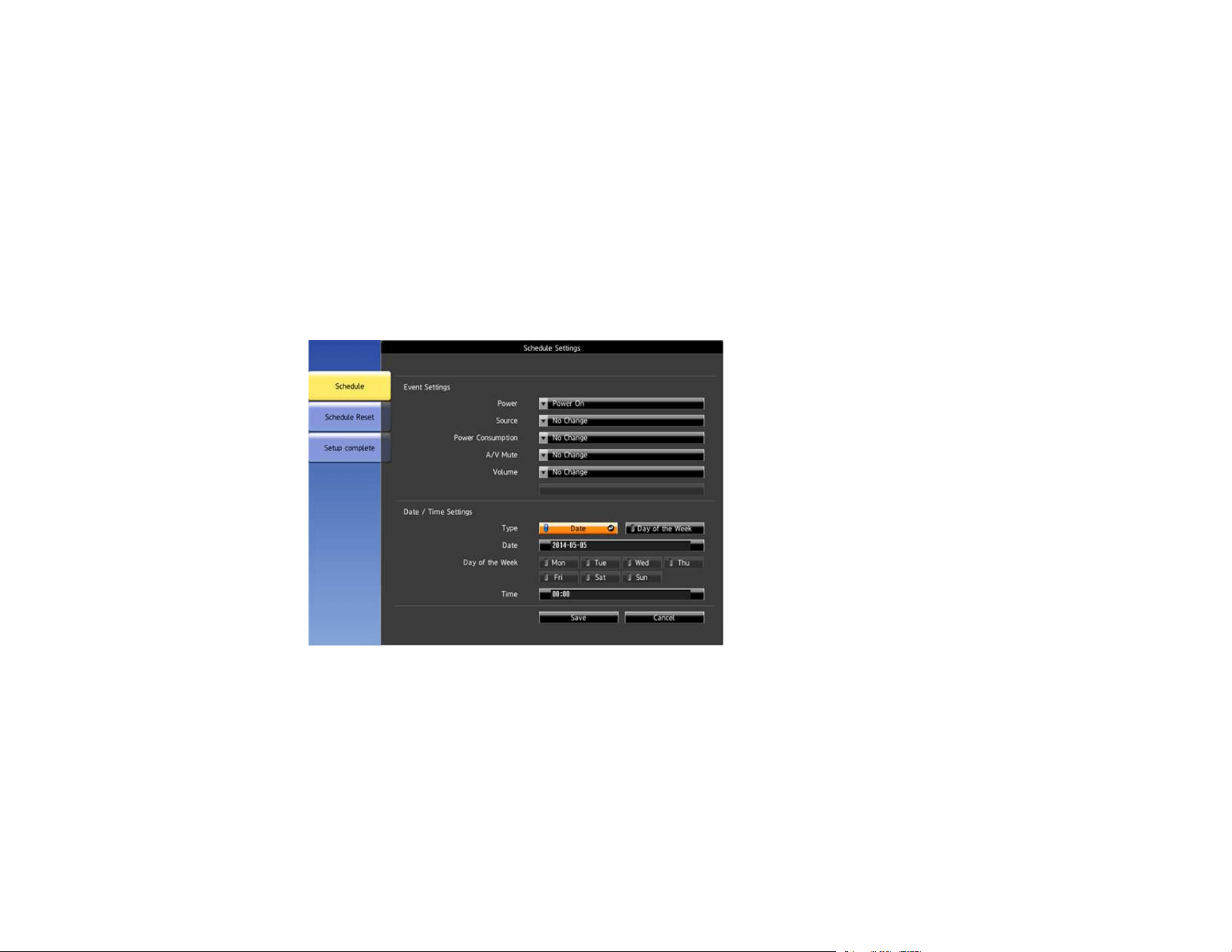

Scheduling Projector Events ............................................................................................................ 172
Saving a Scheduled Event........................................................................................................... 172
Viewing Scheduled Events .......................................................................................................... 174
Editing a Scheduled Event........................................................................................................... 175
Copying Menu Settings Between Projectors .................................................................................... 176
Saving Settings to a USB Flash Drive.......................................................................................... 177
Transferring Settings from a USB Flash Drive ............................................................................. 178
Saving Settings to a Computer .................................................................................................... 180
Transferring Settings from a Computer ....................................................................................... 181
Adjusting the Menu Settings .................................................................................................................. 184
Using the Projector's Menus............................................................................................................. 184

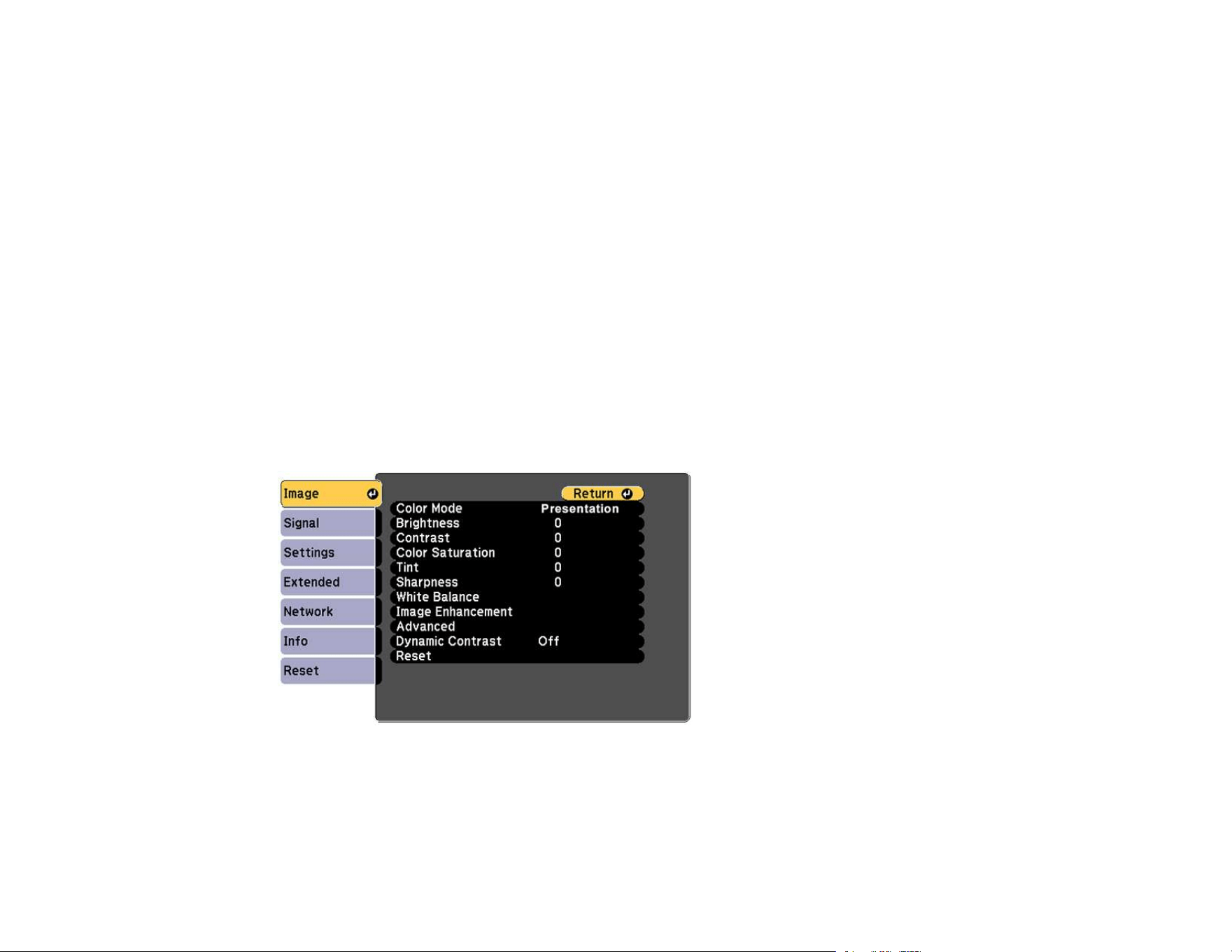

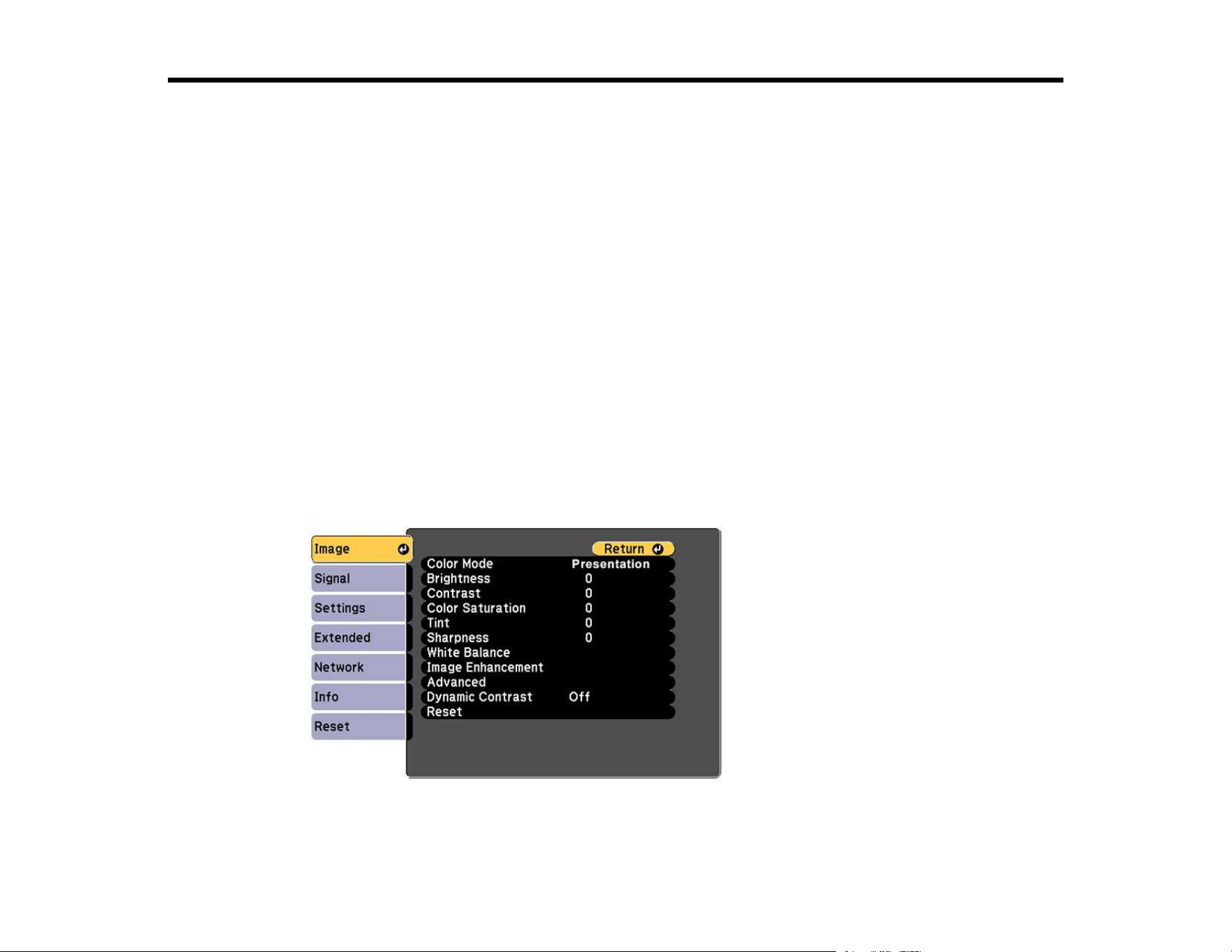

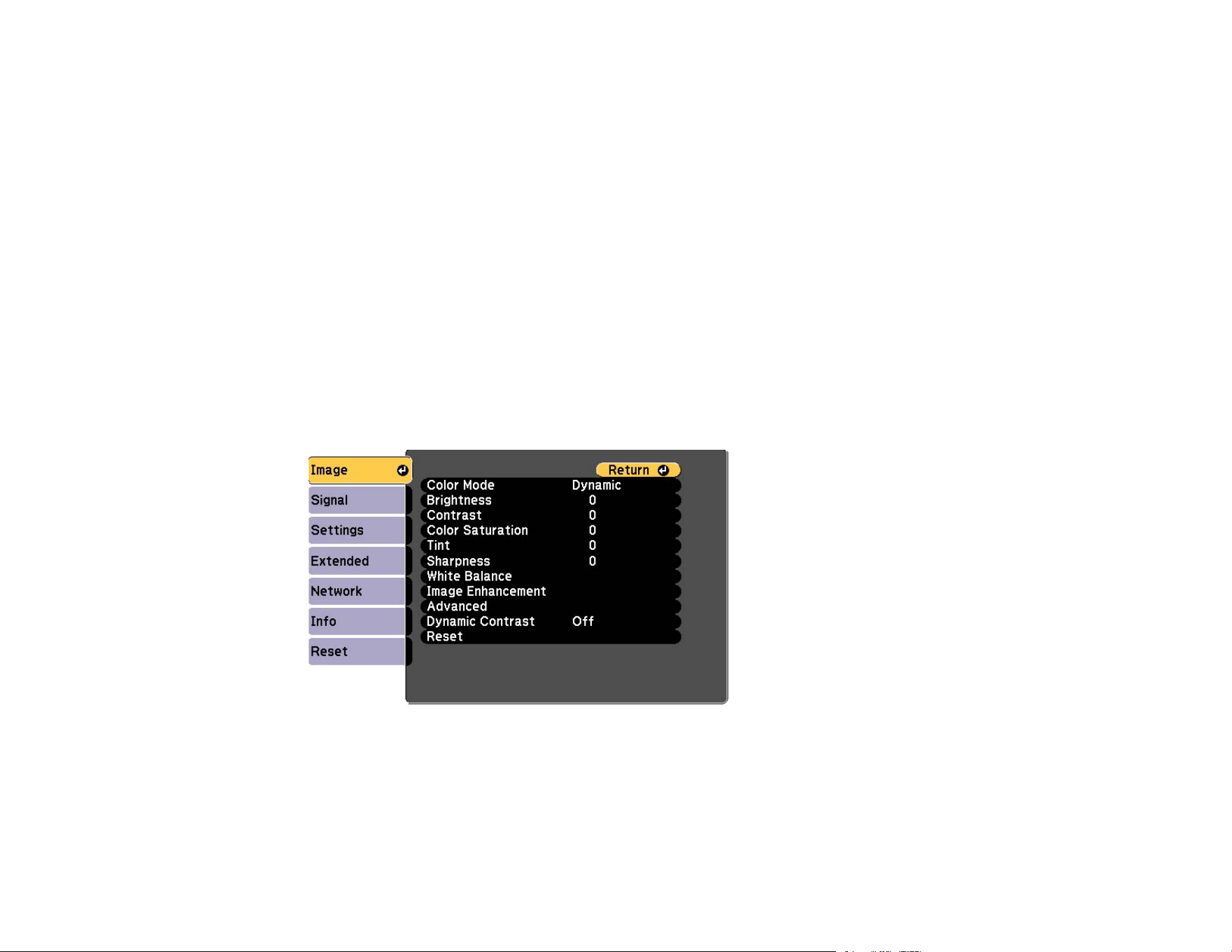

Image Quality Settings - Image Menu .............................................................................................. 185

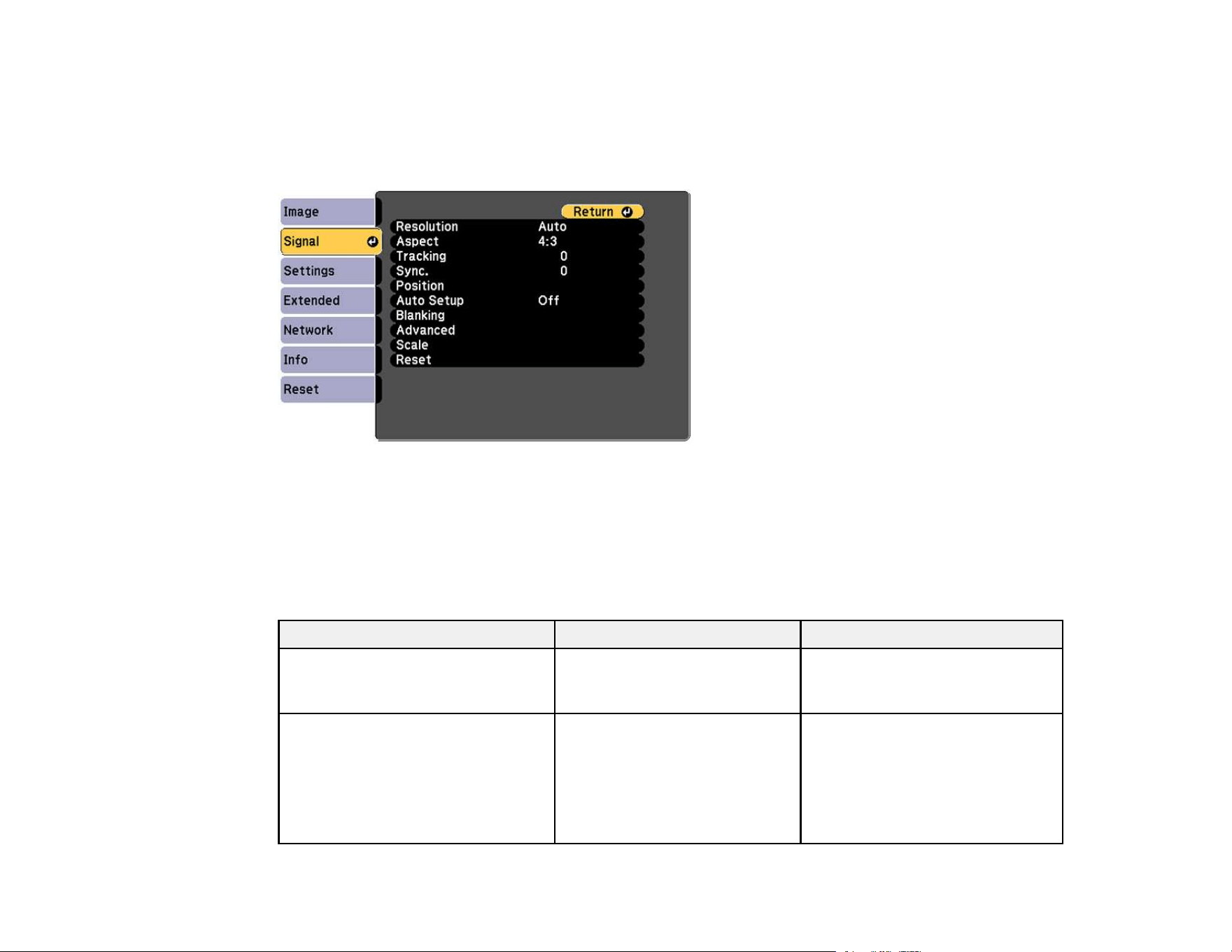

Input Signal Settings - Signal Menu.................................................................................................. 189
Projector Feature Settings - Settings Menu...................................................................................... 192

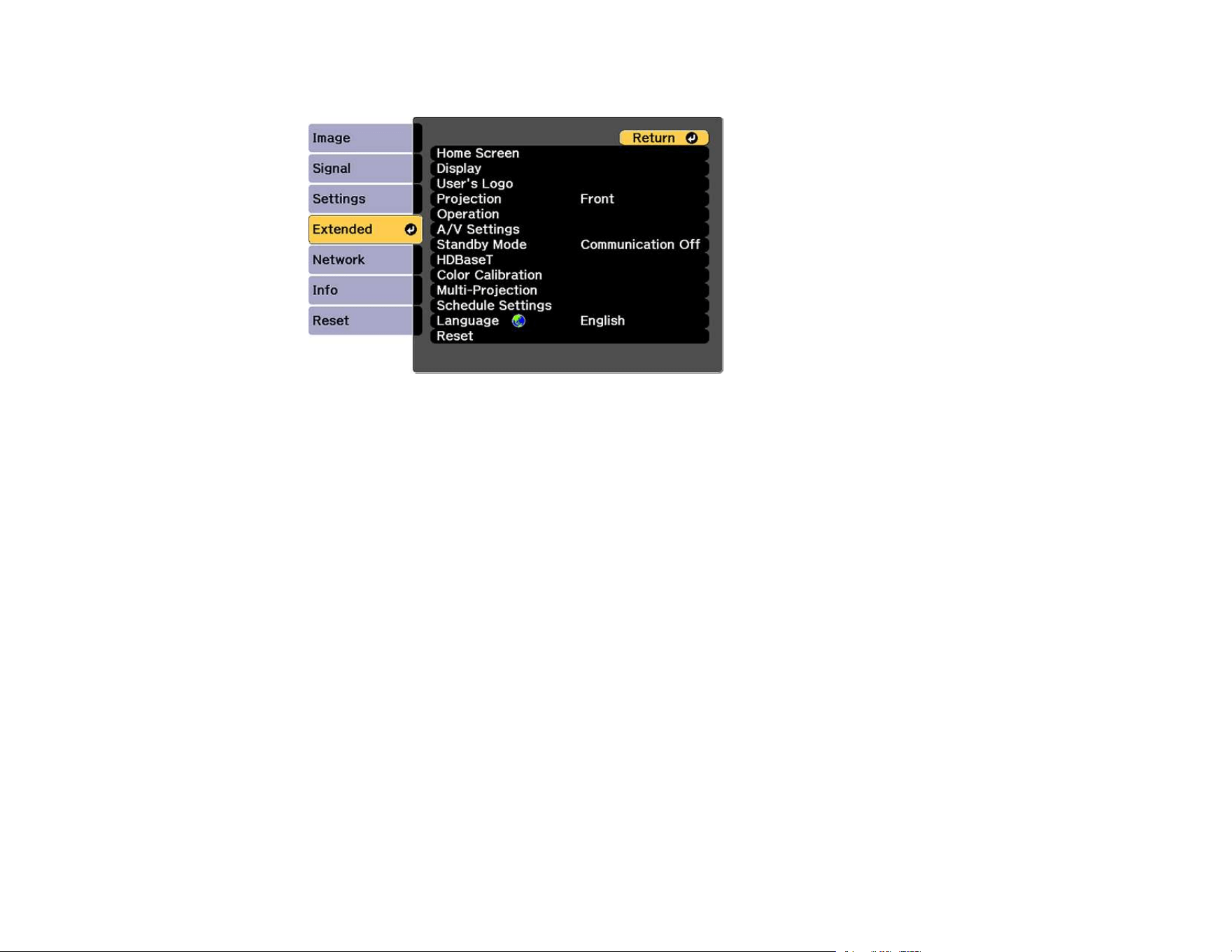

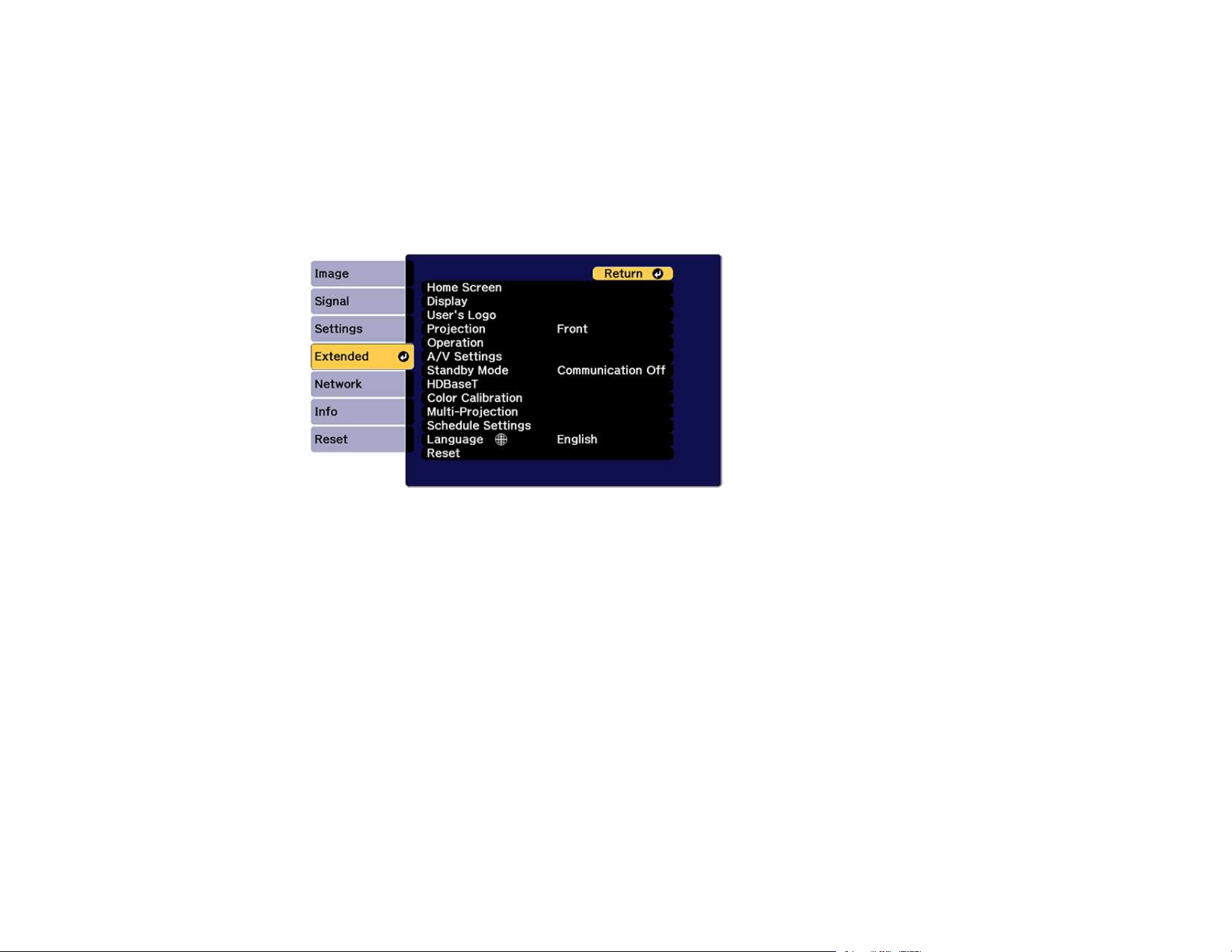

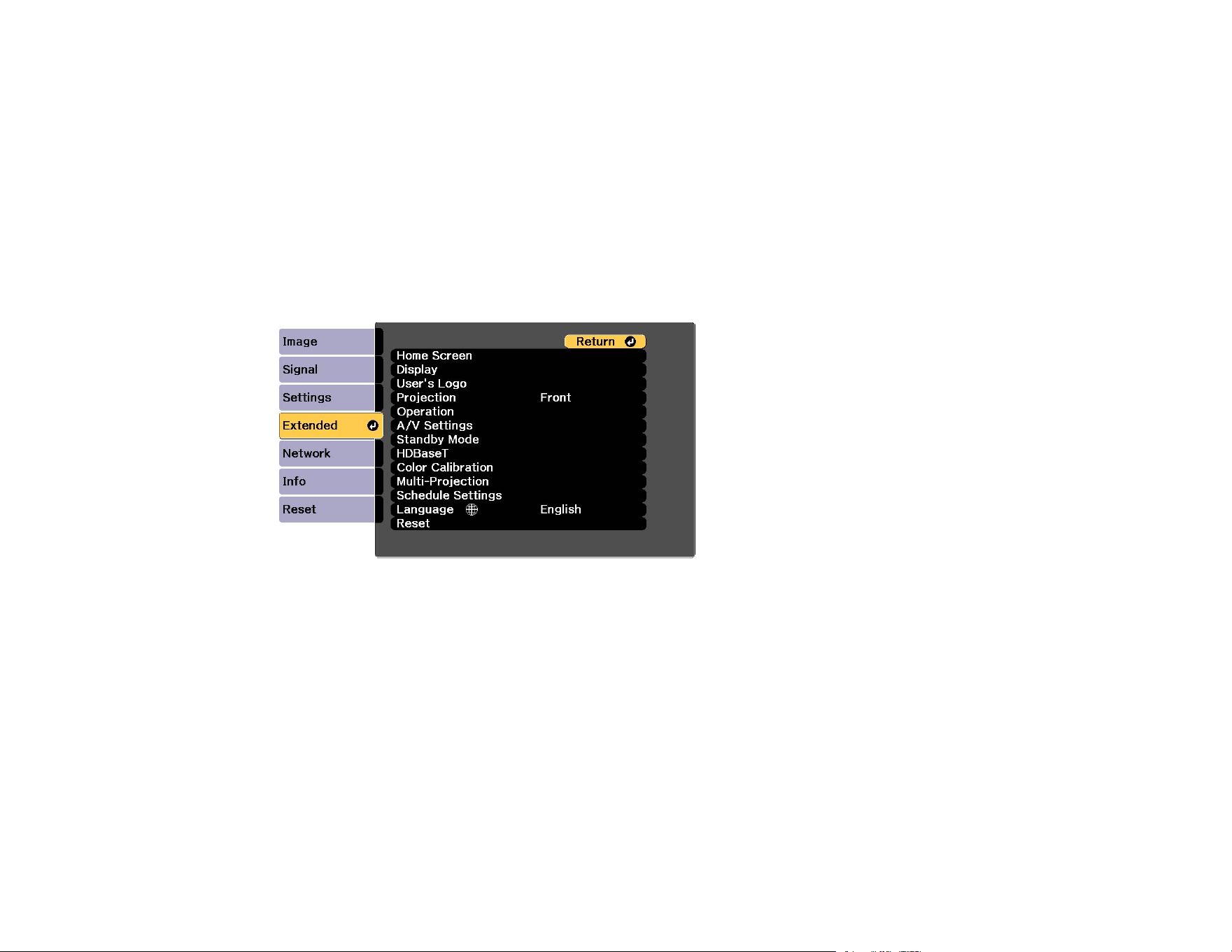

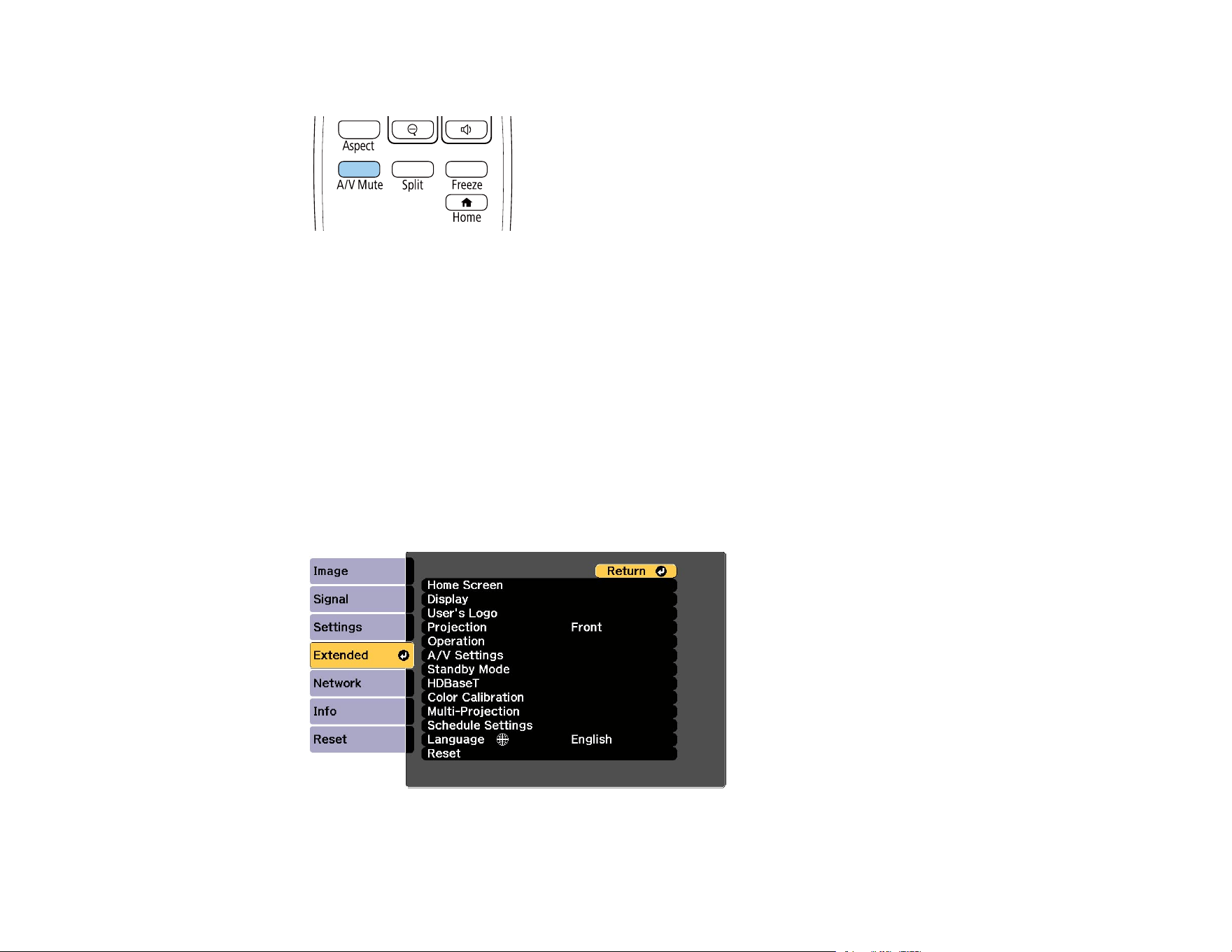

Projector Setup Settings - Extended Menu....................................................................................... 197

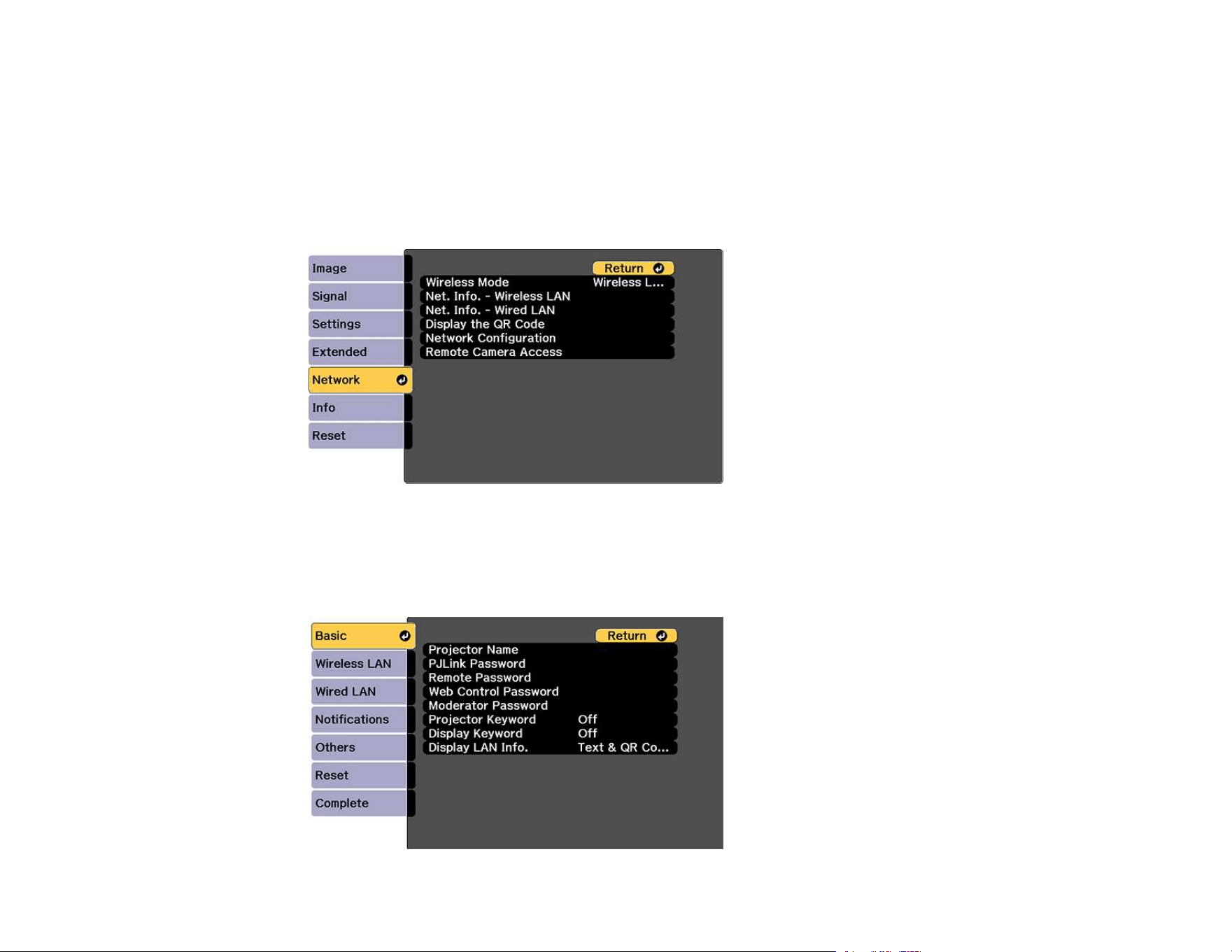

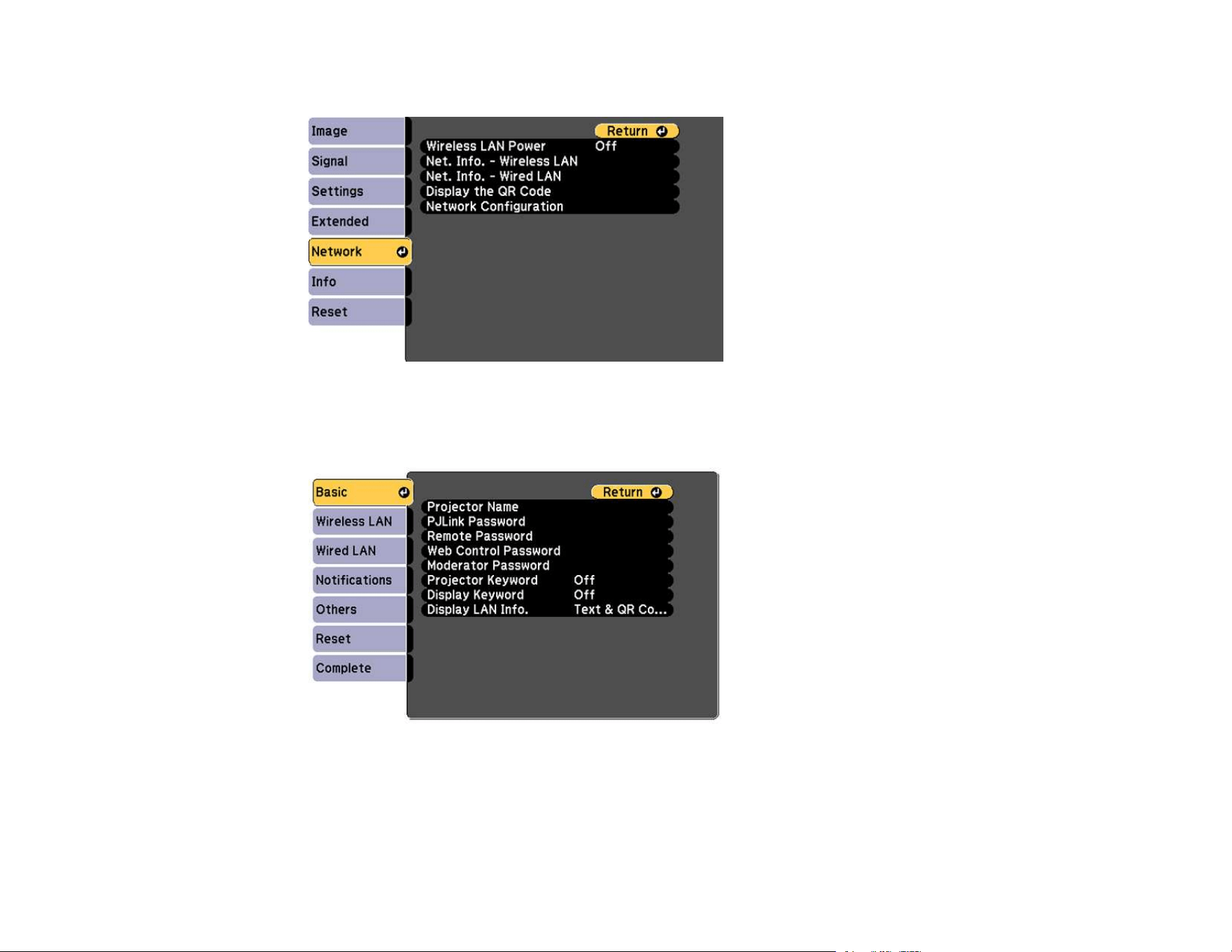

Projector Network Settings - Network Menu..................................................................................... 205

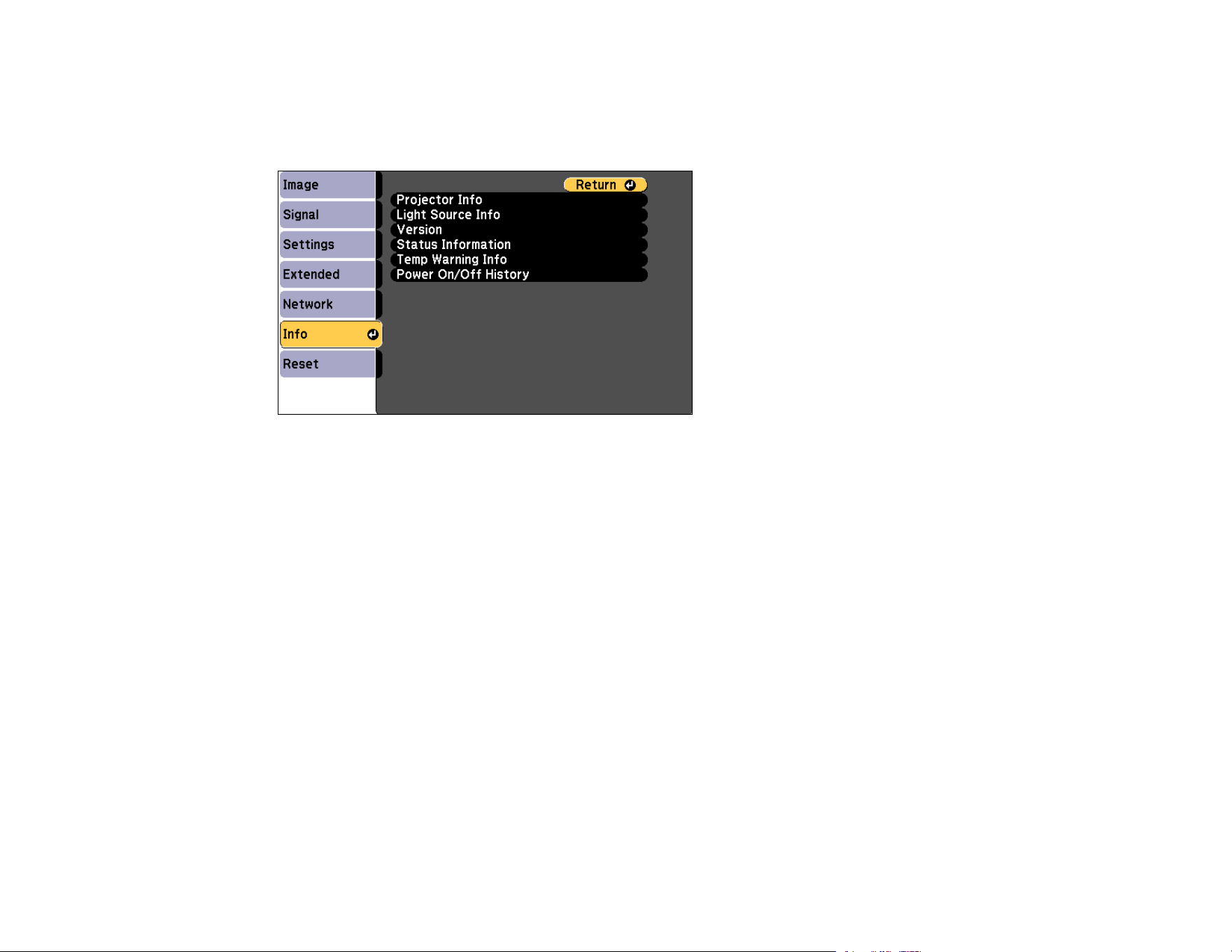

Projector Information Display - Info Menu ........................................................................................ 208
Event ID Code List....................................................................................................................... 210

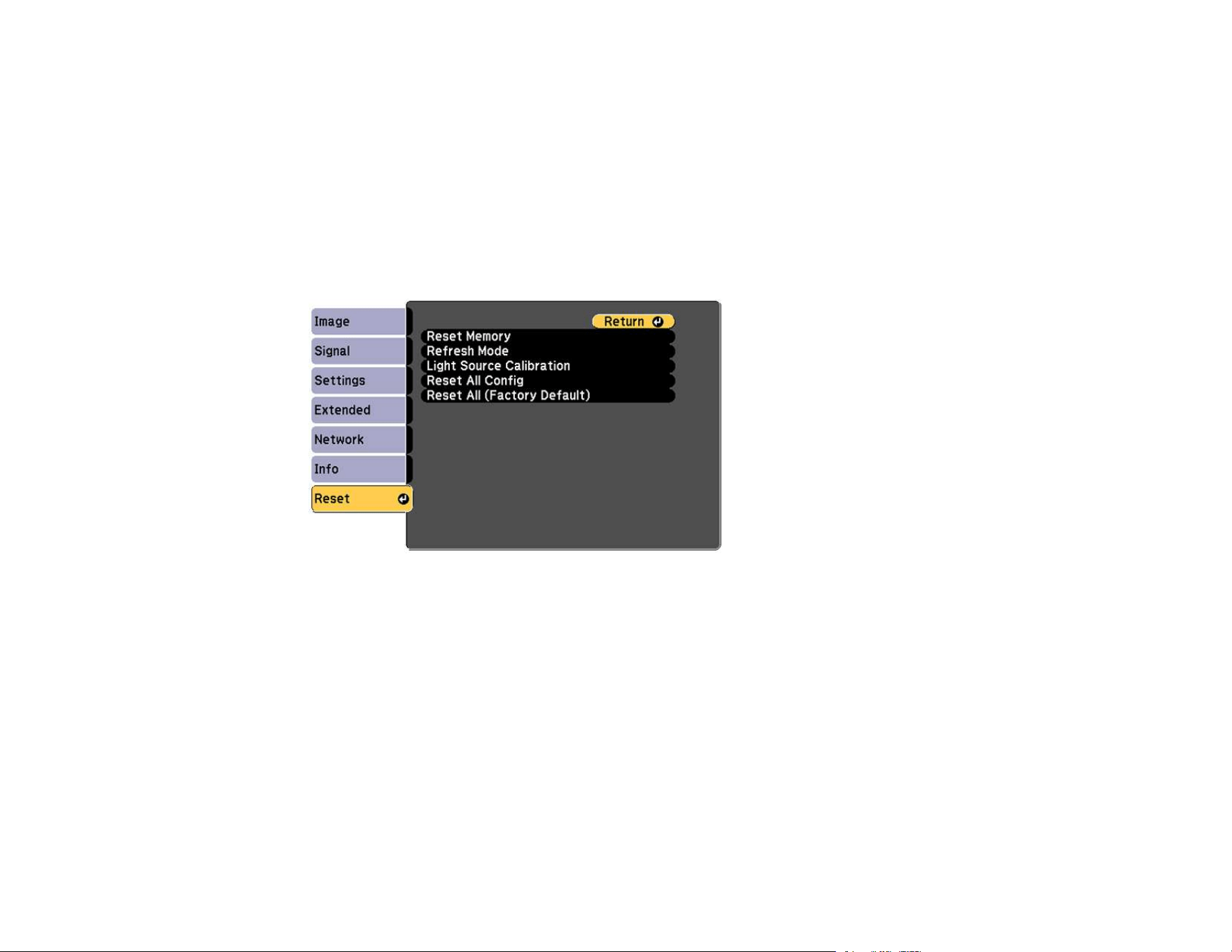

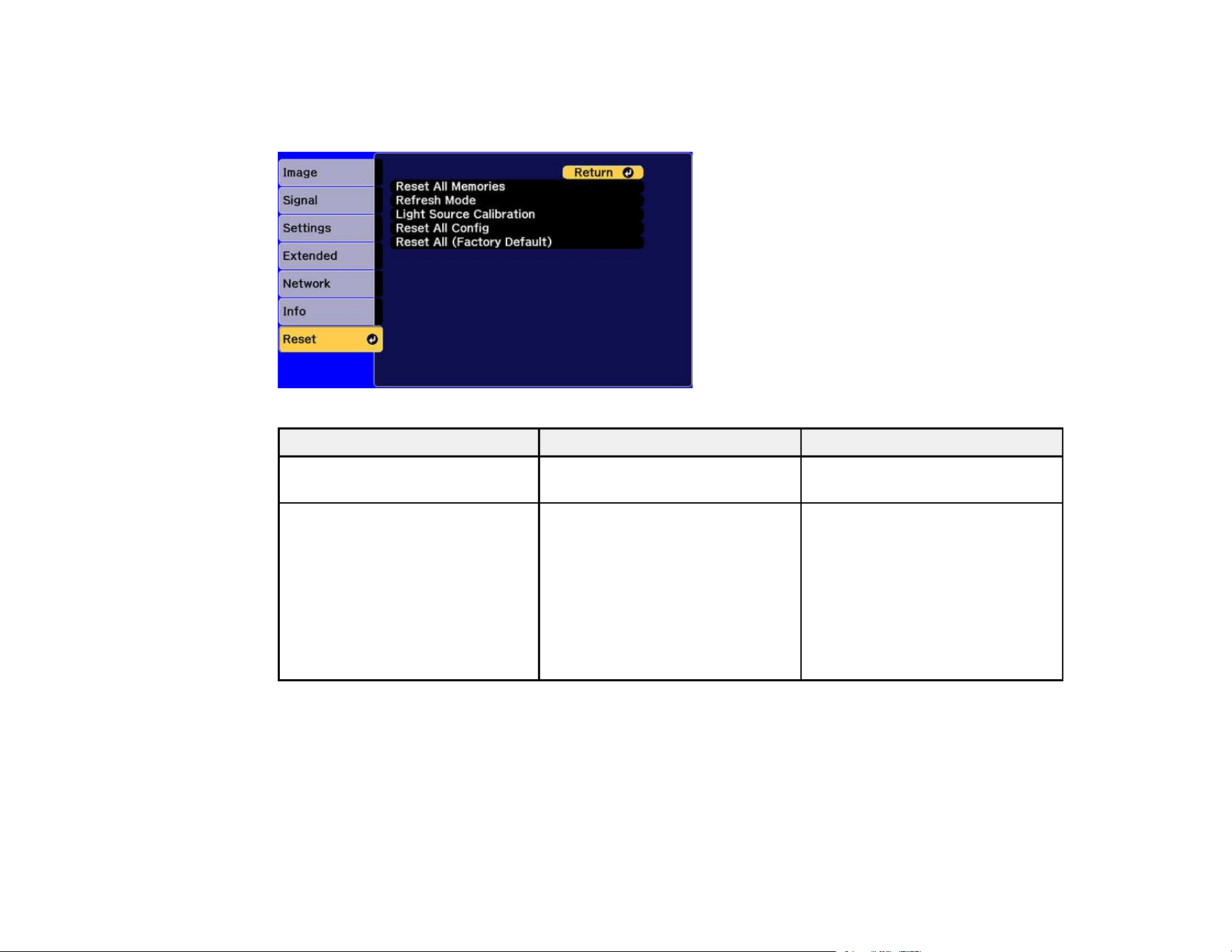

Projector Reset Options - Reset Menu ............................................................................................. 212

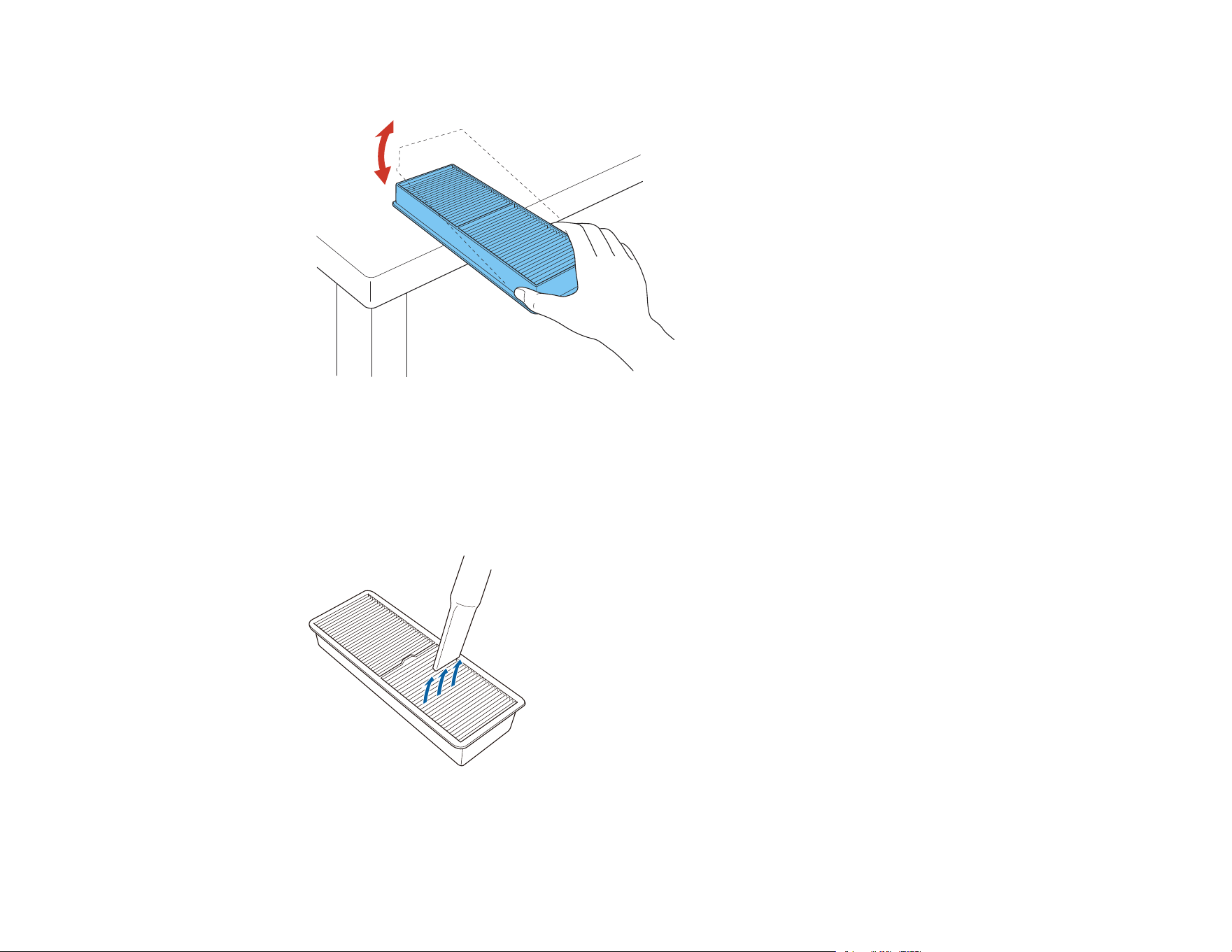

Maintaining and Transporting the Projector ......................................................................................... 215
Projector Maintenance ..................................................................................................................... 215
8
Cleaning the Lens........................................................................................................................ 215
Cleaning the Projector Case........................................................................................................ 216
Air Filter and Vent Maintenance .................................................................................................. 216
Cleaning the Air Filter.............................................................................................................. 217

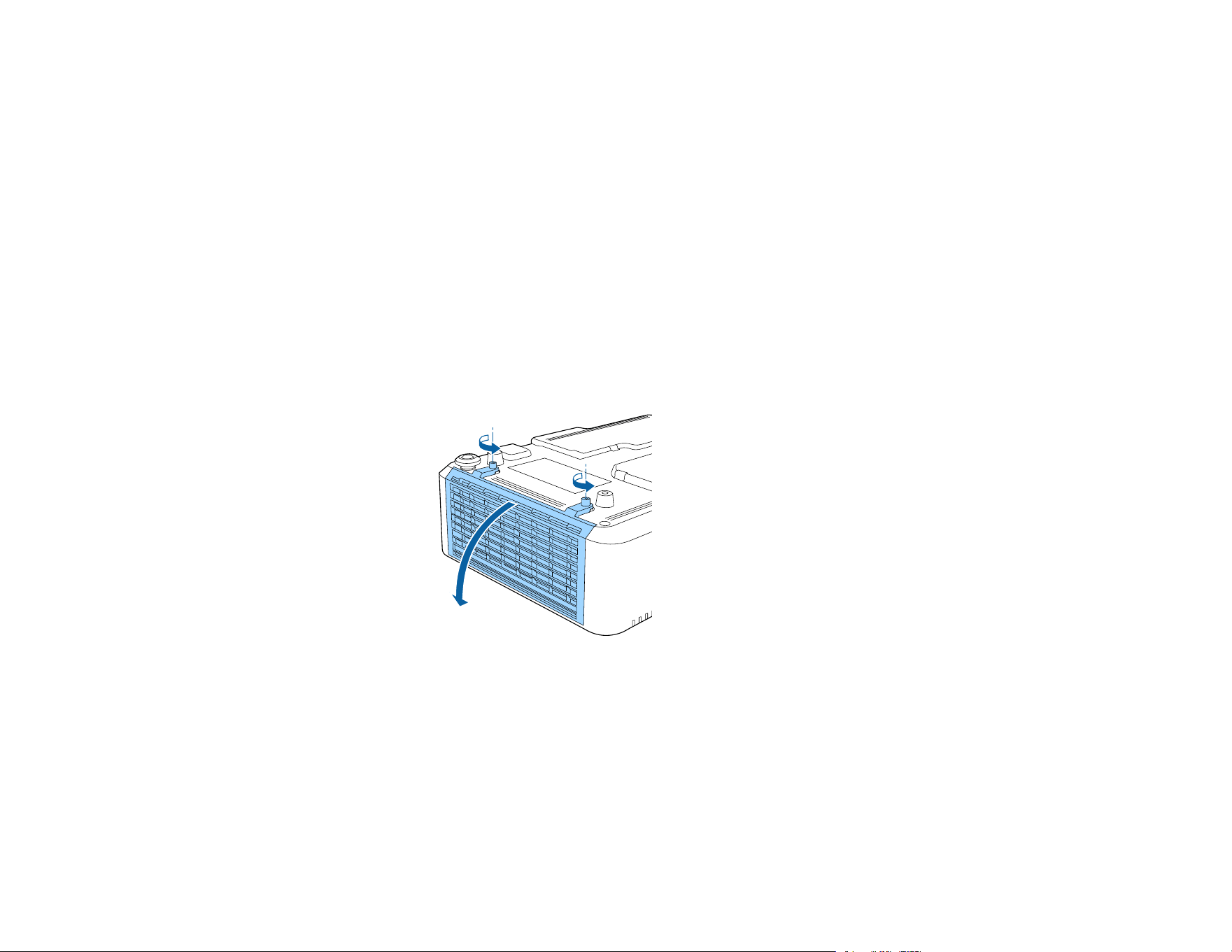

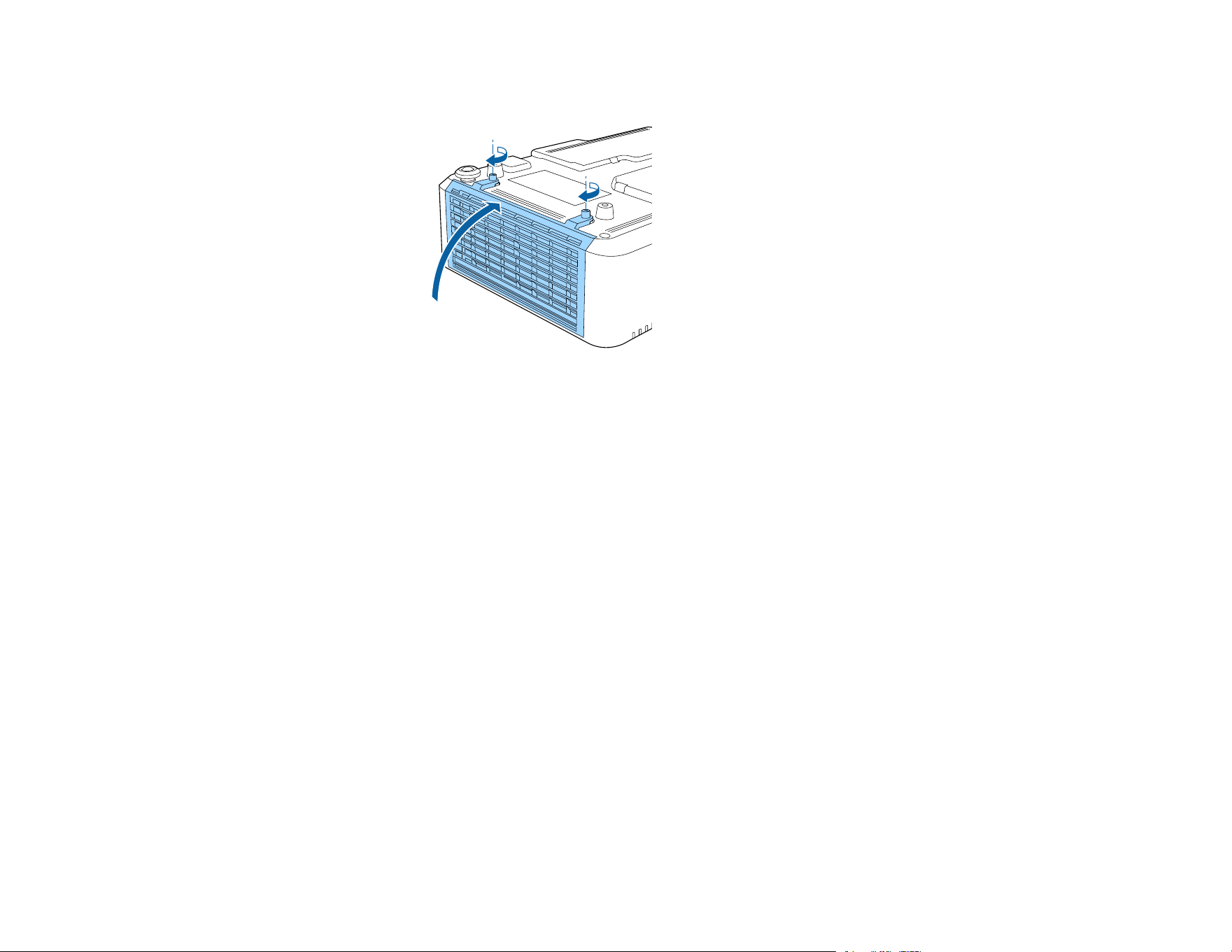

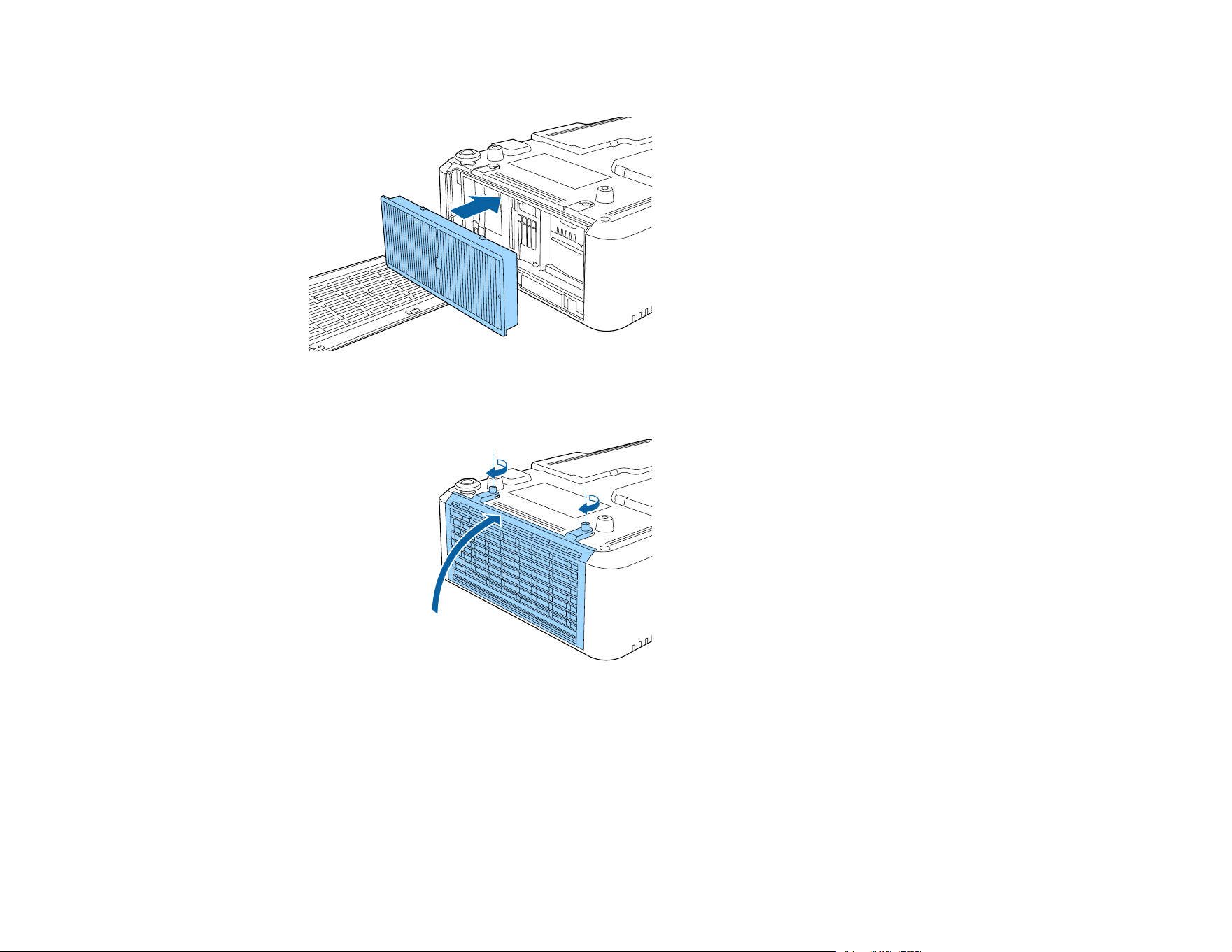

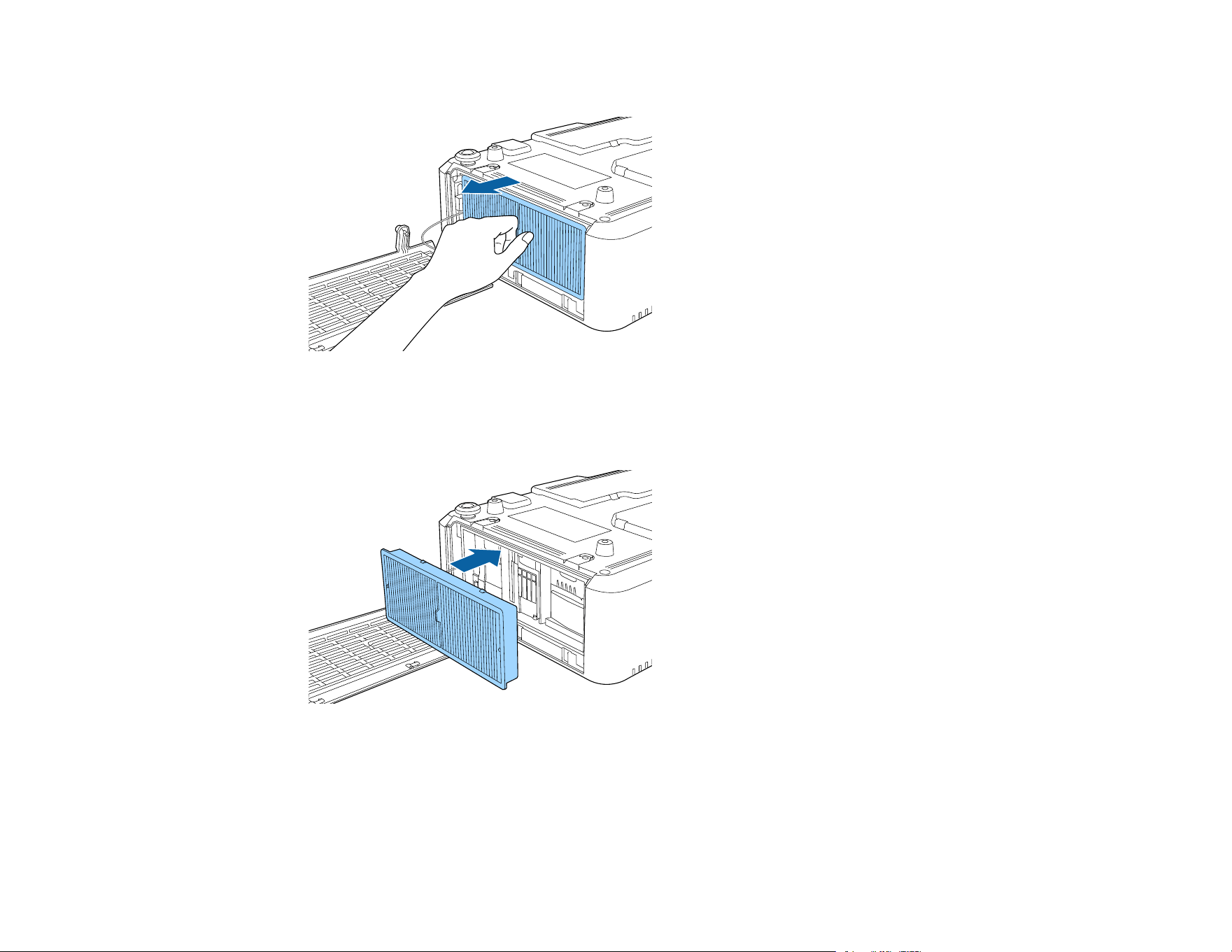

Replacing the Air Filter............................................................................................................ 221
Replacing the Remote Control Batteries ..................................................................................... 223
Transporting the Projector................................................................................................................ 225
Solving Problems .................................................................................................................................... 226
Projection Problem Tips ................................................................................................................... 226
Projector Light Status ....................................................................................................................... 227

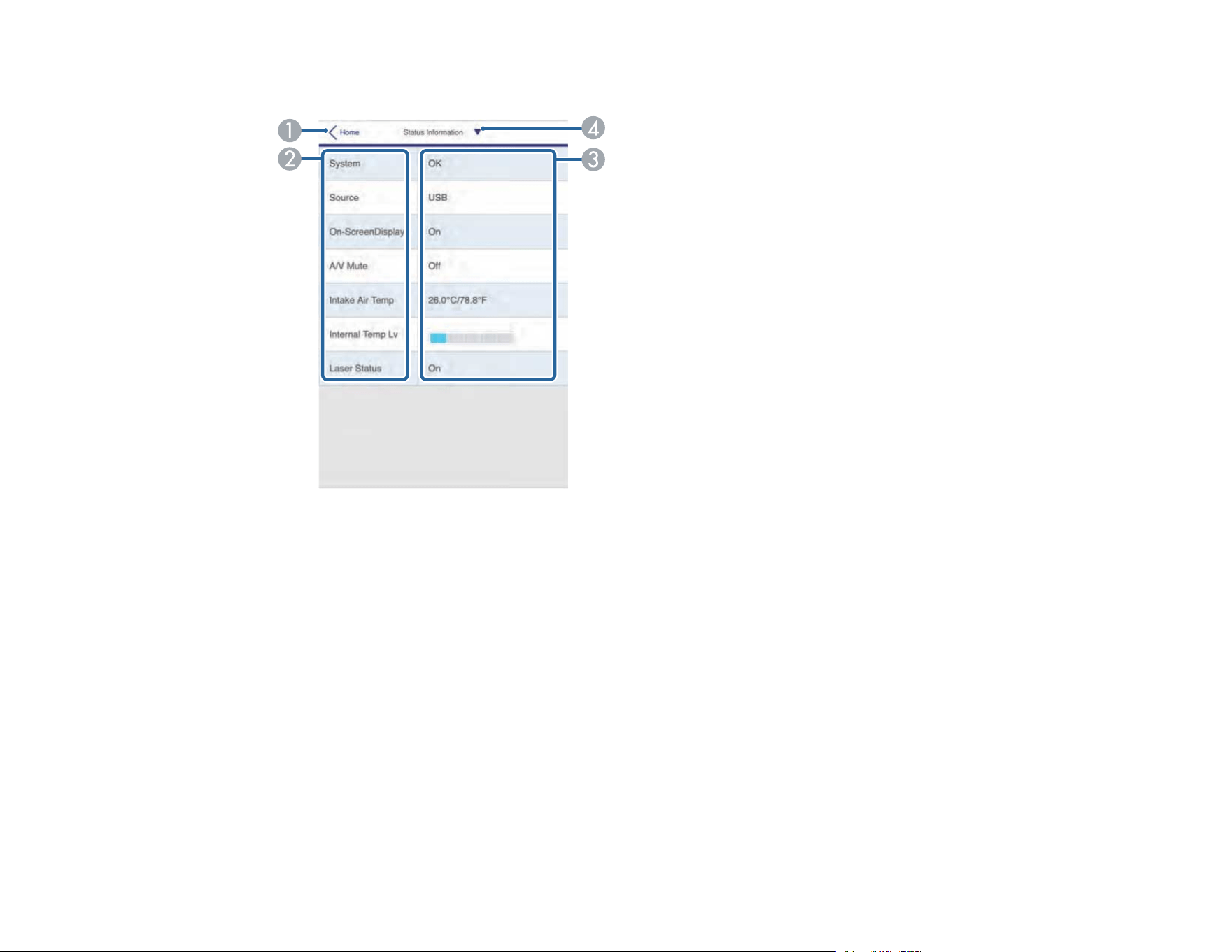

Viewing Projector Status Information ............................................................................................... 231
Projector Status Display Messages............................................................................................. 231
Using the Projector Help Displays .................................................................................................... 236
Solving Image or Sound Problems ................................................................................................... 236
Solutions When No Image Appears............................................................................................. 237
Solutions When "No Signal" Message Appears........................................................................... 238
Displaying From a PC Laptop ................................................................................................. 238
Displaying From a Mac Laptop ............................................................................................... 239
Solutions When "Not Supported" Message Appears ................................................................... 239
Solutions When Only a Partial Image Appears............................................................................ 240
Solutions When the Image is Not Rectangular ............................................................................ 241
Solutions When the Image Contains Noise or Static ................................................................... 241
Solutions When the Image is Fuzzy or Blurry .............................................................................. 242
Solutions When the Image Brightness or Colors are Incorrect .................................................... 242
Solutions When Automatic Adjustments are not Applied Correctly.............................................. 243
Solutions to Simple Stacking Problems ....................................................................................... 244
Solutions to Simple Blending Problems....................................................................................... 245
Solutions When an Afterimage Remains On the Projected Image............................................... 245
Solutions to Sound Problems ...................................................................................................... 246
Solutions to PC Free Problems ................................................................................................... 247
Solving Projector or Remote Control Operation Problems ............................................................... 247
Solutions to Projector Power or Shut-Off Problems ..................................................................... 247
Solutions to Remote Control Problems........................................................................................ 248
9

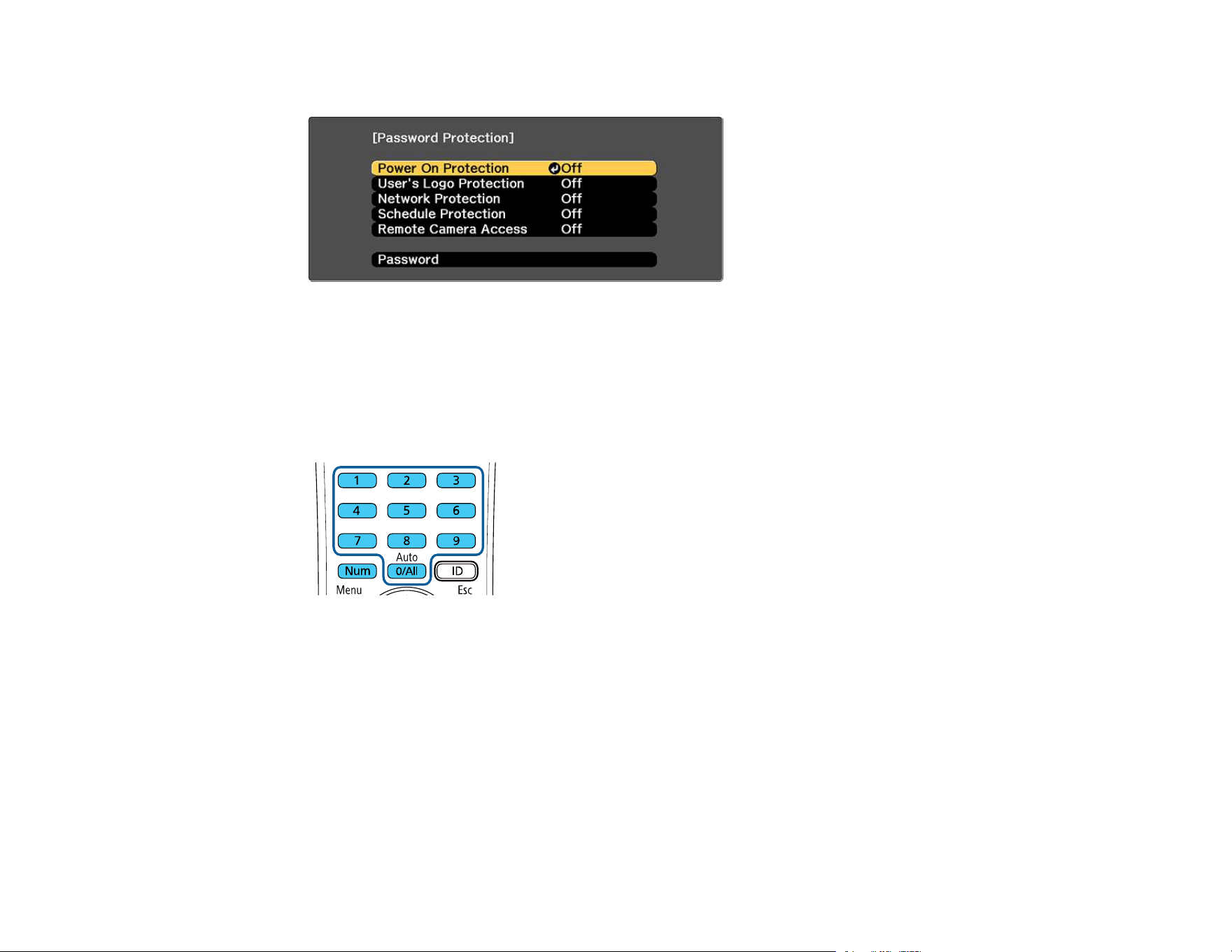

Solutions to Password Problems................................................................................................. 249
Solutions When a Battery Message Appears .............................................................................. 249
Solving Network Problems ............................................................................................................... 250
Solutions When Wireless Authentication Fails ............................................................................ 250
Solutions When You Cannot Access the Projector Through the Web ......................................... 250
Solutions When Network Alert E-Mails are Not Received............................................................ 251
Solutions When the Image Contains Static During Network Projection ....................................... 251
Solutions to Problems Using Content Playback ............................................................................... 252
Solutions to HDMI Link Problems..................................................................................................... 252
Where to Get Help (U.S. and Canada) ............................................................................................. 253
Where to Get Help (Latin America)................................................................................................... 254
Technical Specifications ........................................................................................................................ 257
General Projector Specifications ...................................................................................................... 257
Projector Light Source Specifications............................................................................................... 259
Remote Control Specifications ......................................................................................................... 260
Projector Dimension Specifications.................................................................................................. 260
Projector Electrical Specifications .................................................................................................... 260
Projector Environmental Specifications............................................................................................ 263
Projector Safety and Approvals Specifications................................................................................. 263
Supported Video Display Formats.................................................................................................... 264
Notices ..................................................................................................................................................... 266
Recycling (U.S. and Canada)........................................................................................................... 266
Important Safety Information ............................................................................................................ 266

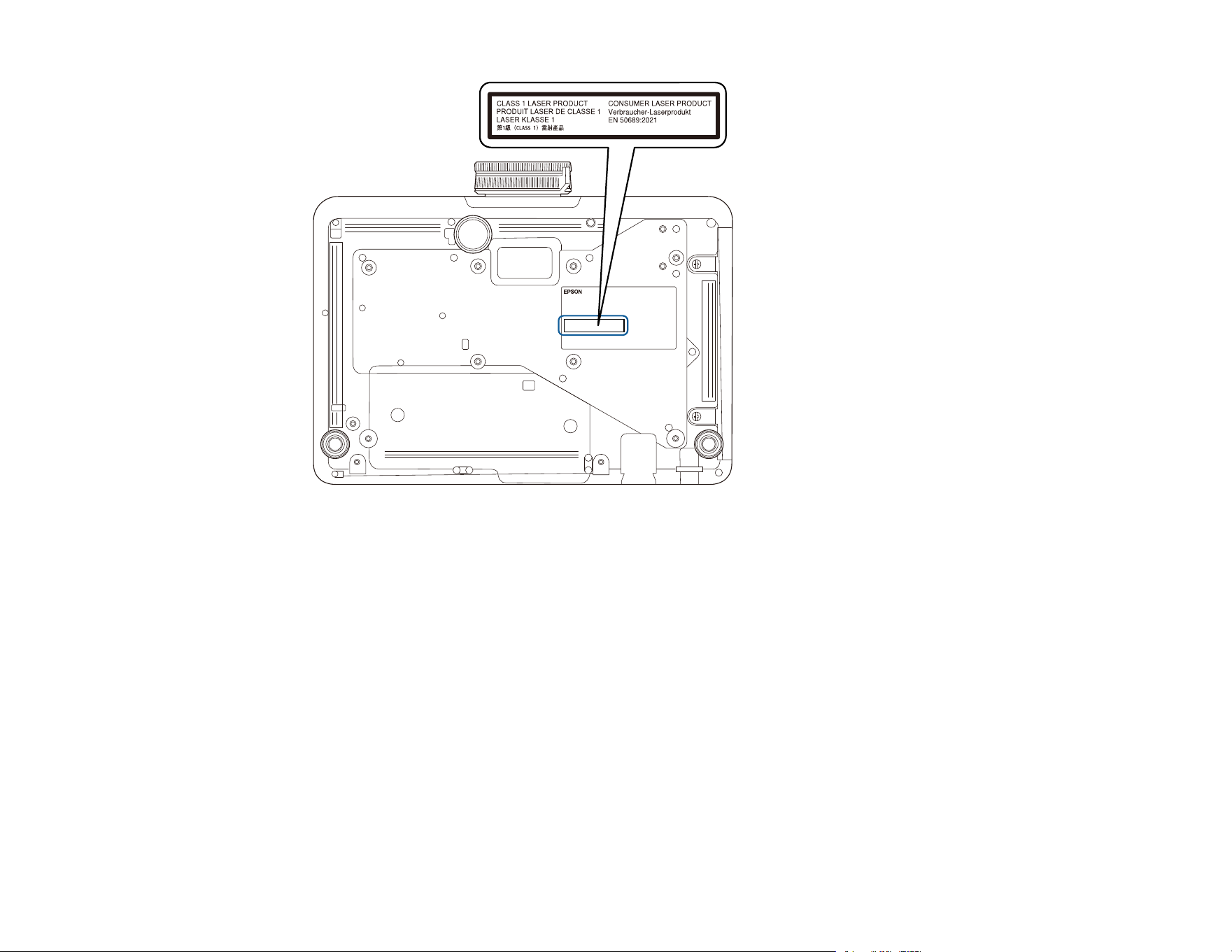

Laser Safety Information .................................................................................................................. 266
Important Safety Instructions............................................................................................................ 269
Restriction of Use ........................................................................................................................ 273
List of Safety Symbols (corresponding to IEC60950-1 A2)............................................................... 273
FCC Compliance Statement............................................................................................................. 277
Binding Arbitration and Class Waiver ............................................................................................... 278
Trademarks...................................................................................................................................... 281
Copyright Notice............................................................................................................................... 282
A Note Concerning Responsible Use of Copyrighted Materials................................................... 283
Copyright Attribution.................................................................................................................... 283
12
Introduction to Your Projector
Refer to these sections to learn more about your projector and this manual.
Projector Features
Notations Used in the Documentation
Where to Go for Additional Information
Projector Part Locations
Projector Features
The EB-L570U, EB-L770U, and EB-L775U projectors includes these special features:
Bright, high-resolution projection system
• EB-L570U: Up to 5200 lumens of brightness (white light output and color light output)
• EB-L770U and EB-L775U: Up to 7000 lumens of brightness (white light output and color light output)
Note: Color brightness (color light output) and white brightness (white light output) will vary depending
on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output
measured in accordance with ISO 21118.
• Native resolution of 1920 × 1200 pixels (WUXGA)
• 4K Enhancement
Flexible connectivity
• Wired and wireless (optional) network support for projection, monitoring, and control via remote
network computer
• Projection from iOS or Android devices with free Epson iProjection app
• Two HDMI ports for multiple high-definition input devices
• Connection methods to computer or video devices including HDMI and HDBaseT
• Ports for connecting an external monitor, external speakers, and streaming media players
Easy-to-use setup and operation features
• Epson's quick-connect on-screen QR code feature for easy wireless setup (optional wireless LAN
module required)
• Project images side by side from two separate input sources
13
• Epson's Instant Off and Direct Power On features for quick setup and shut down
• Support for Crestron Connected network monitoring systems
• Network message broadcast system to project timely messages to all networked projectors (Windows
only)
Product Box Contents
Additional Components
Additional Projector Software and Manuals
Optional Equipment and Replacement Parts (U.S. and Canada)
Optional Equipment and Replacement Parts (Latin America)
Warranty and Registration Information (U.S. and Canada)
Warranty and Registration Information (Latin America)
Parent topic: Introduction to Your Projector
Related concepts
Projector Connections
Related tasks
Using a QR Code to Connect a Mobile Device
Projecting Two Images Simultaneously
Setting Up Crestron Connected
Product Box Contents
Save all the packaging in case you need to ship the projector. Always use the original packaging (or
equivalent) when shipping.
14
Make sure your projector box included all of these parts:
1 Projector with lens cap
2 Cable cover
3 Remote control
4 Remote control batteries (two AA)
5 Power cord
Parent topic: Projector Features
Additional Components
Depending on how you plan to use the projector, you may need to obtain additional components.
Note: To connect a Mac that does not include a compatible video output port, you need to obtain an
adapter that allows you to connect to an input port on the projector. Contact Apple for compatible
adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you
to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies,
and more. Contact your device manufacturer for compatible adapter options.
Unless listed as available from Epson in this table, see your local computer or electronics dealer for
purchase information.
15
Signal or connection
type
Additional component necessary

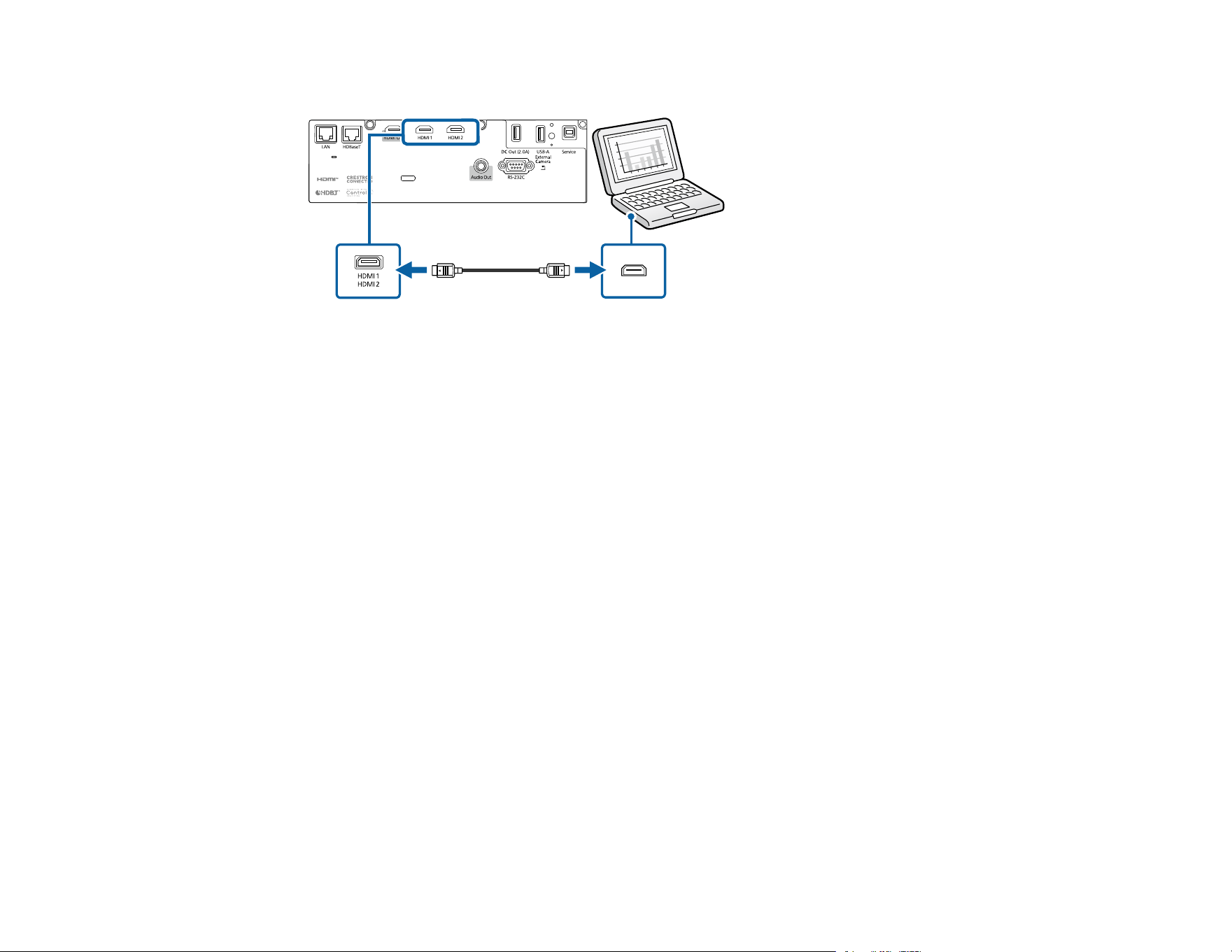

HDMI Compatible HDMI cable
Available for purchase from Epson or an authorized Epson reseller.
Note: Older Mac computers (2009 and earlier) may not support HDMI
audio.
Audio Commercially available audio cable compatible with your device
USB Compatible USB cable
HDBaseT Compatible 100Base-TX LAN cable
Parent topic: Projector Features
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Additional Projector Software and Manuals
After connecting and setting up the projector, install the projector software as necessary. You may need
to install it from a software CD, if included, or download the software and manuals as necessary.
You can install the projector software programs listed here and view their manuals for instructions on
using them.
Note: If you still need help after checking this manual and the sources listed here, you can use the
Epson PrivateLine Support service to get help fast (U.S. and Canada only). For details, see "Where to
Get Help."
Projector software Manual Description
Epson Projector
Management (Windows
only)
Epson Projector
Management Operation
Guide
Lets you monitor and control your projector
through the network.
You can download the latest software and
documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support
(Caribbean) and select your projector.
16
Projector software Manual Description
Epson iProjection
(Windows/Mac)
Epson iProjection
Operation Guide
(Windows/Mac)
Lets you project the computer screens of
users over a network.
You can download the latest software and
documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support
(Caribbean) and select your projector.
Epson iProjection app Instructions are included
with the app
Lets you project from an iOS or Android device
if your projector is connected to a network that
includes a wireless access point.
Visit epson.com/support (U.S.),
epson.ca/support (Canada), or
latin.epson.com/support (Caribbean) for more
information.
Epson Projector
Professional Tool
(Windows/Mac)
Epson Projector
Professional Tool
Operation Guide
Lets you manage multiple Epson projectors
simultaneously
You can download the latest software and
documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support
(Caribbean) and select your projector.
— Open Source Software
License
You can download this document from the
Epson web site. Go to epson.com/support
(U.S.), epson.ca/support (Canada), or
latin.epson.com/support (Caribbean) and
select your projector.
Epson Projector Content
Manager
Epson Projector Content
Manager Operation Guide
You can download the latest software and
documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support
(Caribbean) and select your projector.
17
Projector software Manual Description
Epson Creative Projection
(iOS only)
Instructions are included
with the app
Lets you create custom content using built-in
templates and stamps, and wirelessly transfer
it to the projector if it is connected to a network
that includes a wireless access point.
You can download the latest software and
documentation from the Apple App Store.
Note: Epson iProjection is not recommended for use with streaming video.
Parent topic: Projector Features
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Optional Equipment and Replacement Parts (U.S. and Canada)
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in
Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).
Epson offers the following optional accessories and replacement parts for your projector:
Option or part Part number
Replacement air filter (ELPAF56) V13H134A56
Wireless LAN module (ELPAP11) V12H731P02
Safety wire (ELPWR01) V12H003W01
External speakers (ELPSP02) V12H467020
Epson DC-07 document camera (ELPDC07) V12H759020
Epson DC-13 document camera (ELPDC13) V12H757020
Epson DC-21 document camera (ELPDC21) V12H758020
Universal mount (ELPMBPJG) V12H808001
Custom Micro-Adjustable Projector Mount (ELPMBPRH) V12H809001
Pixalign Camera (ELPEC01) V12HA46010
18
In addition to the accessories listed above, 1-year and 2-year extended service plans are available.
Parent topic: Projector Features
Related references
Where to Get Help (U.S. and Canada)
Optional Equipment and Replacement Parts (Latin America)
You can purchase optional accessories and replacement parts from an Epson authorized reseller. To
find the nearest reseller, go to Or you can contact your nearest sales office as described in "Where to
Get Help".
Note: Availability of accessories varies by country.
Epson offers the following optional accessories and replacement parts for your projector:
Option or part Part number
Replacement air filter (ELPAF56) V13H134A56
Wireless LAN module (ELPAP11) V12H731P02
Pixalign Camera (ELPEC01) V12HA46010
Safety wire (ELPWR01) V12H003W01
Parent topic: Projector Features
Related references
Where to Get Help (Latin America)
Warranty and Registration Information (U.S. and Canada)
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty that came with your projector.
Register your product online at this site: epson.com/webreg
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
19
Warranty and Registration Information (Latin America)
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty that came with your projector.
Register your product online at latin.epson.com/support, search for your product, and select Register.
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Notations Used in the Documentation
Follow the guidelines in these notations as you read your documentation:
• Warnings must be followed carefully to avoid bodily injury.
• Cautions must be observed to avoid damage to your equipment.
• Notes contain important information about your projector.
• Tips contain additional projection information.
Parent topic: Introduction to Your Projector
Where to Go for Additional Information
Need quick help on using your projector? Here's where to look for help:
• epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Caribbean)
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24
hours a day.
• If you still need help after checking this manual and any other sources listed here, you can use the
Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."
Parent topic: Introduction to Your Projector
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Projector Part Locations
Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front/Top
20
Projector Parts - Rear
Projector Parts - Interface Ports
Projector Parts - Base
Projector Parts - Control Panel
Projector Parts - Remote Control
Parent topic: Introduction to Your Projector
Projector Parts - Front/Top
1 Air intake vent
2 Front adjustable foot
3 Focus ring
4 Zoom ring
5 Projection lens
6 Air intake vent (air filter)
7 Cable cover
8 Status lights
21
9 Vertical lens shift dial
10 Horizontal lens shift dial
11 Remote receiver
12 Speaker
13 Air exhaust vent
14 Remote receiver
Parent topic: Projector Part Locations
Related references
Projector Light Status
Projector Parts - Rear
1 Kensington security slot
2 AC inlet
3 Interface ports
4 Control panel
5 Remote receiver
Parent topic: Projector Part Locations
22
Projector Parts - Interface Ports
1 Cable holder
2 Audio Out port
3 RS-232 port
4 Service port

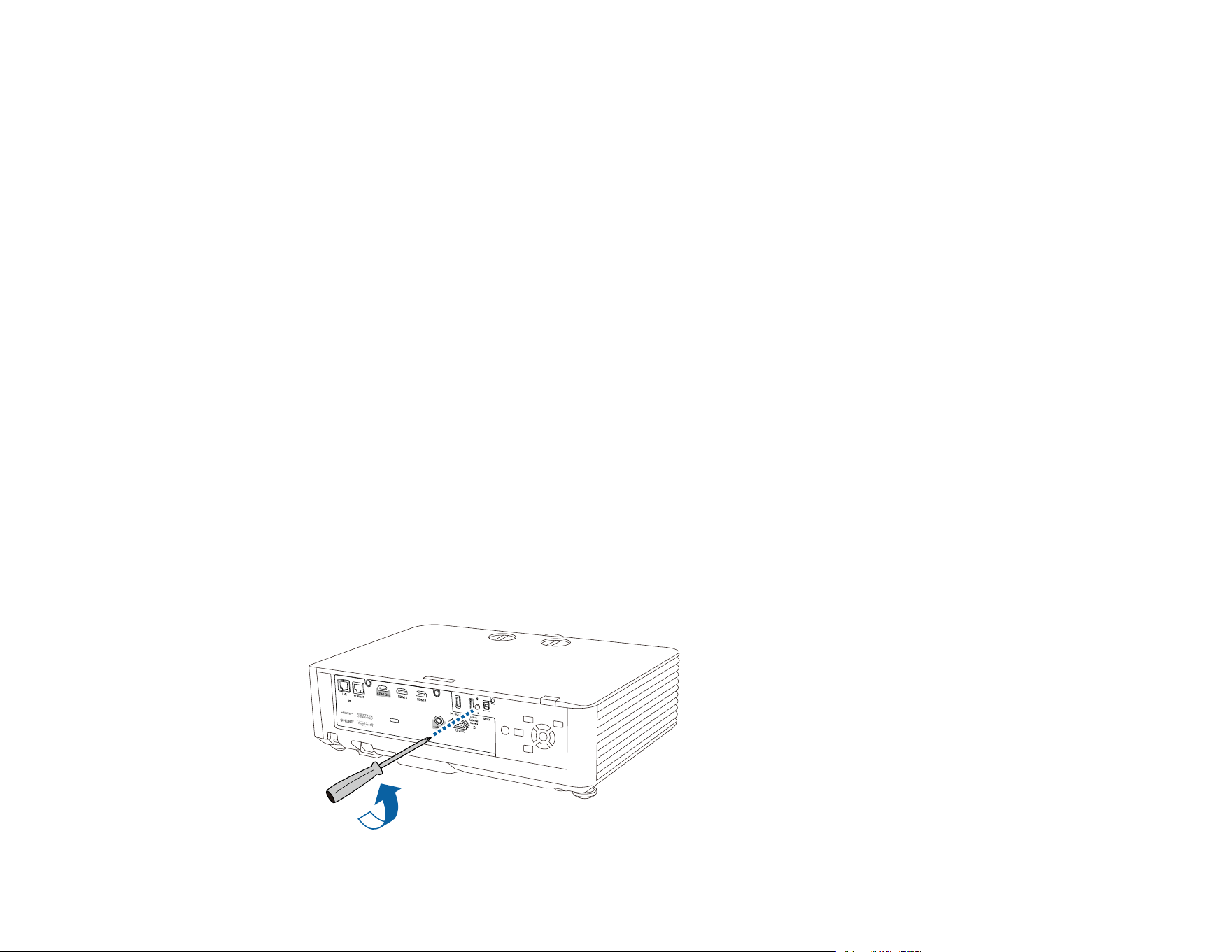

5 Wireless LAN module fixing screw
6 USB-A port
7 DC Out (2.0A) port
8 HDMI2 port
9 HMDI1 port
10 HDMI Out port
12 HDBaseT port
13 Network LAN port
Parent topic: Projector Part Locations
Related tasks
Attaching and Removing the Cable Cover
23
Projector Parts - Base
1 Front adjustable foot
2 Ceiling mount attachment points (4)
3 Safety wire carabiner attachment point
4 Rear feet
5 Cable cover screw points (2)
6 Security cable attachment point
Note: Do not attach the optional safety wire to this point.
7 Air filter cover screws (2)
8 VESA-compliant mount attachment points (4)
24
Parent topic: Projector Part Locations
Projector Parts - Control Panel
1 Power button (turns on the projector)
2 Source Search button (searches for connected sources)
3 A/V Mute button (turns the video and audio on or off)
4 Left arrow button and displays the Control Panel Lock screen
5 Down arrow button and displays a test pattern
6 Enter button (selects options)
7 Right arrow button and displays the Info menu
8 Esc button (cancels/exits functions)
9 Up arrow button and displays screen adjustment options
10 Menu button (accesses projector menu system)
Parent topic: Projector Part Locations
25
Projector Parts - Remote Control
1 Power button
2 HDMI button (cycles through connected HDMI sources)
26
3 Computer button (button is not used with these projectors)
4 Numeric buttons
5 Auto button (button is not used with these projectors)
6 Num button (when held down, switches numeric buttons to number function)
7 Menu button (accesses projector menu system)
8 Arrow buttons (move through on-screen options)
9 Enter button (selects options)
10 User button (customizable for different functions)
11 Color Mode button (selects display modes)
12 Aspect button (selects the image aspect ratio)
13 E-Zoom +/– buttons (zoom into and out of the image)
14 A/V Mute button (turns off picture and sound)
15 Split button (splits the screen between two image sources)
16
Home button (accesses projector Home screen)
17 Freeze button (stops video action)
18 Volume up/down buttons (adjust speaker volume)
19 Default button (resets the selected setting to its default value)
20 Esc button (cancels/exits function)
21 ID button (selects a projector to use with the remote control)
22 LAN button (connects to a network source)
23 USB button (cycles through connected USB sources)
24 Source Search button (searches for connected sources)
25 Remote control emitter
Parent topic: Projector Part Locations
27
Setting Up the Projector
Follow the instructions in these sections to set up your projector for use.
Projector Placement
Projector Connections
Connecting Multiple Projectors of the Same Model
Attaching and Removing the Cable Cover
Installing Batteries in the Remote Control
Projector Placement
You can place the projector on almost any flat surface to project an image.
You can also install the projector in a ceiling mount if you want to use it in a fixed location.
You can also use a commercially available mount compatible with the VESA Mounting Interface
Standard (3.95 × 3.95 inches [100 × 100 mm]).
When using a ceiling mount, use commercially available M4 screws (up to a depth of 0.35 inches [9
mm]) to attach the mount to the projector.
There is no vertical or horizontal limit to how the projector can be installed.
Keep these considerations in mind as you select a projector location:
• Place the projector on a sturdy, level surface or install it using a compatible mount.
• Place the projector parallel to the screen.
• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or
next to anything that could block the vents.
• Position the projector within reach of a grounded electrical outlet or extension cord.
Projector Setup and Installation Options
Projection Distance
Parent topic: Setting Up the Projector
Related references
Important Safety Instructions
Projector Setup and Installation Options
You can set up or install your projector in the following ways:
28
Front
Rear
Front ceiling
29
Rear ceiling
Note: Be sure to leave the following amount of space around the projector to avoid blocking the air
exhaust and intake vents.
1 3.94 inches (10 cm)
2 7.87 inches (20 cm)
3 15.75 inches (40 cm)
Note: When setting up multiple projectors, be sure to leave the following amount of space between the
projectors.
30
Without a partition
1 59.05 inches (150 cm)
With a partition
* Partition
1 7.87 inches (20 cm)
2 15.75 inches (40 cm)
If you project from the ceiling or from the rear, be sure to select the correct Projection setting in the
Extended menu. If necessary, enable the Inv Direction Button setting in the Extended > Operation >
Advanced menu and adjust the OSD Rotation setting in the Extended > Display menu.
Parent topic: Projector Placement
Related references
Projector Setup Settings - Extended Menu
Important Safety Instructions
Projection Distance
The distance at which you place the projector from the screen determines the approximate size of the
image. The image size increases the farther the projector is from the screen, but can vary depending on
the zoom factor, aspect ratio, and other settings.
31
Use the tables here to determine approximately how far to place the projector from the screen based on
the size of the projected image. (Conversion figures may have been rounded up or down.) You can also
use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).
1 Projection distance
2 Distance from the center of the lens to the base of the screen
3 Center of lens
16:10 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Distance from center of lens to
base of screen (2)
50 inches 57 to 93 inches
(144 to 235 cm)
0 to 26.5 inches (0 to 67 cm)
60 inches 68 to 111 inches
(174 to 283 cm)
0 to 31.8 inches (0 to 81 cm)
32
16:10 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Distance from center of lens to
base of screen (2)
70 inches 80 to 130 inches
(204 to 331 cm)
0 to 37.1 inches (0 to 94 cm)
80 inches 92 to 149 inches
(233 to 378 cm)
0 to 42.4 inches (0 to 108 cm)
100 inches 115 to 187 inches
(292 to 474 cm)
0 to 53 inches (0 to 135 cm)
120 inches 138 to 224 inches
(351 to 569 cm)
0 to 63.6 inches (0 to 162 cm)
150 inches 173 to 281 inches
(440 to 713 cm)
0 to 79.5 inches (0 to 202 cm)
200 inches 232 to 375 inches
(588 to 951 cm)
0 to 106 inches (0 to 269 cm)
300 inches 348 to 563 inches
(884 to 1429 cm)
0 to 159 inches (0 to 404 cm)
500 inches 581 to 938 inches
(1476 to 2384 cm)
0 to 265 inches (0 to 673 cm)
Parent topic: Projector Placement
Projector Connections
See these sections to connect the projector to a variety of projection sources.
Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode
to ensure the projector's internal temperature is regulated properly.
Caution: Check the shape and orientation of the connectors on any cable you plan to connect. Do not
force a connector into a port if it does not fit. The device or your projector could be damaged or could
malfunction.
33
Connecting to Computer Sources
Connecting to Video Sources
Connecting to a USB Device
Connecting to a Streaming Media Player
Connecting to a Document Camera
Connecting to an HDBaseT Transmitter
Connecting to External Speakers
Parent topic: Setting Up the Projector
Related references
Projector Setup Settings - Extended Menu
Connecting to Computer Sources
Follow the instructions in these sections to connect a computer to the projector.
Connecting to a Computer for HDMI Video and Audio
Parent topic: Projector Connections
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using an HDMI cable (not
included).
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port.
Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support
audio through the HDMI port.
1. Connect the HDMI cable to your computer's HDMI output port.
34
2. Connect the other end to one of the projector's HDMI ports.
Parent topic: Connecting to Computer Sources
Related references
Projector Setup Settings - Extended Menu
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the projector.
Connecting to an HDMI Video Source
Parent topic: Projector Connections
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector using an HDMI cable (not
included). The HDMI connection provides the best image quality.
Caution: Do not turn on the video source before connecting it to the projector. Doing so could damage
the projector.
1. Connect the HDMI cable to your video source's HDMI output port.
35
2. Connect the other end to one of the projector's HDMI ports.
Parent topic: Connecting to Video Sources
Related references
Projector Setup Settings - Extended Menu
Connecting to a USB Device
You can connect a USB device or cable to the projector's USB-A port to project images from the device.
Use the USB cable supplied with the device.
Note: Do not connect a USB hub or a USB cable longer than 9.8 feet (3 m), or the device may not
operate correctly.
Make sure the USB device meets the following requirements:
• The device must be a USB flash drive, USB hard drive, or a digital camera or smartphone.
• Digital cameras and smartphones must be USB-mounted devices (not TWAIN-compliant) and must be
USB Mass Storage Class compliant.
• USB hard drives must be USB Mass Storage Class compliant (not all compliant devices are
supported), formatted in FAT16/32, self-powered by their own AC power supplies (bus-powered drives
are not recommended), and should not have multiple partitions.
1. If your USB device came with an AC adapter, plug the device into an electrical outlet.
36
2. Connect the USB device or cable to the projector's USB-A port.
3. If you connected a USB cable, connect the other end to the USB device as necessary.
The projector displays images stored on the USB device.
If you turned on the Content Playback setting in the Settings menu, you can only view images that have
been added to a playlist created in Epson Projector Content Manager.
Parent topic: Projector Connections
Related references
Projector Feature Settings - Settings Menu
Connecting to a Streaming Media Player
You can connect a streaming media player to the projector. By connecting the streaming media player's
power supply USB cable, you can power the streaming media player from the projector.
1. Connect the streaming media player to an HDMI port.
37
2. If necessary, connect the streaming media player's power supply USB cable to the DC Out (2.0A)
port. Connect the other end of the cable to the USB port on the streaming media player.
Note: To keep supplying power to the optional streaming media player when the projector is not
projecting images, select Always On as the USB Power setting in the projector's Extended menu.
Parent topic: Projector Connections
Connecting to a Document Camera
You can connect a document camera to your projector to project images from the camera.
Note: The connection method varies depending on your document camera model. For additional
features supported by software, connect your document camera to your computer using the camera's
USB port instead of connecting the camera to the projector. See the document camera manual for
details.
Parent topic: Projector Connections
Connecting to an HDBaseT Transmitter
To send an HDMI or RS-232C signal over a long distance, you can connect the projector to an optional
HDBaseT transmitter using a 100Base-TX network cable. This is useful when you want to send a signal
to or control the projector from a remote location, such as in a hall or event site, since you can use a
network cable up to 328 feet (100 m) in length. To ensure proper data transmission, use a Category 5e
STP cable or better.
38
1. Turn off the projector and HDBaseT transmitter.
Note: Make sure the projector and HDBaseT transmitter are turned off when connecting or
disconnecting a network cable between the two devices.
2. Connect one end of the network cable to the HDBaseT port on the transmitter.
3. Connect the other end to the projector's HDBaseT port.
Note: See the documentation that came with the HDBaseT transmitter for instructions on connecting
it to your video device or computer.
4. Turn on the projector and HDBaseT transmitter.
Note: To enable communication from the Ethernet and serial ports on the transmitter, select On as the
Control Communications setting in the projector's Extended menu. Turning on this setting disables the
projector's LAN and RS-232C ports. If you connected an Extron XTP transmitter or switcher to the
projector's HDBaseT port, select On as the Extron XTP setting in the projector's Extended menu.
Parent topic: Projector Connections
Related references
Projector Setup Settings - Extended Menu
Connecting to External Speakers
You can connect the projector to external self-powered speakers and control the volume using the
projector's remote control.
39
You can also connect the projector to an amplifier with speakers.
If you want to output audio from the external speakers when the projector is turned off, you need to
select Always On as the A/V Output setting in the projector's Extended menu.
Note: The projector's built-in speaker system is disabled when you connect external speakers.
1. Make sure your computer or video source is connected to the projector with both audio and video
cables as necessary.
2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin-
jack cable, or another type of cable or adapter.
3. Connect one end of the cable to your external speakers as necessary.
4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.
Parent topic: Projector Connections
Related references
Projector Setup Settings - Extended Menu
Connecting Multiple Projectors of the Same Model
You can connect up to four projectors of the same model in the same room to project a single unified
image. If you are creating one large image vertically or connecting four projectors, use the Tiling setting
in the projector's Multi-Projection menu.
40
1. Connect the computer and the projectors using HDMI cables as shown.
Note: If you are connecting three or four projectors, connect the projectors in a chain as shown.
2. After making the appropriate connections, you need to adjust the necessary projector menu settings
accordingly. Click the link below.
Multiple Projector Connection Menu Settings
Parent topic: Setting Up the Projector
Multiple Projector Connection Menu Settings
After connecting multiple projectors to project a unified image, see the tables below to select the correct
projector menu settings. Make sure your computer is connected to Projector 1 (the left-most projector in
your setup).
Note: You may need to restart the projector during the process. Follow any on-screen instructions.
Setup (2-4 Projectors)
41
Setting Projector 1 Projector 2 Projectors 3-4
Image Menu
Color Mode Multi-Projection Multi-Projection Multi-Projection
Multi-Projection Menu
HDMI Out Setting Power On/Off Link:
On
Terminal End: Off
Power On/Off Link: On
Terminal End: Off
Power On/Off Link: On
Terminal End: On
Number of
Projectors
Specify the number of projectors connected in a series
Order Specify the position of the projectors in number order from left to right
Note: This may not work if five or more projectors are connected or if the settings are not correct.
Parent topic: Connecting Multiple Projectors of the Same Model
Attaching and Removing the Cable Cover
You can attach the cable cover that came with your projector to hide the attached cables from view.
42
1. Bundle the cables together using a band or other fastener (not provided).
Caution: Do not bundle the power cord to the other cables. Otherwise, a fire may occur.
2. Place the cable cover on the projector as shown, guiding the cables through the notch on the base of
the cable cover.
43
3. Tighten both cable cover screws.
To remove the cover, loosen both screws and pull the cover off of the projector.
Parent topic: Setting Up the Projector
Installing Batteries in the Remote Control
The remote control uses the two AA batteries that came with the projector.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
44
1. Remove the battery cover.
2. Insert the batteries with the + and – ends facing as shown.
Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not
inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.
45
3. Replace the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Setting Up the Projector
46
Using the Projector on a Network
Follow the instructions in these sections to set up your projector for use on a network.
Note: Epson iProjection is not recommended for use with streaming video.
Wired Network Projection
Wireless Network Projection
Setting Up Projector Network E-Mail Alerts
Setting Up Monitoring Using SNMP
Controlling a Networked Projector Using a Web Browser
Controlling a Networked Projector in Content Playback Mode
Using Crestron Connected
Setting Up Web API
Secure HTTP
Registering a Digital Certificate on the Projector
Wired Network Projection
You can project through a wired network. To do this, you connect the projector to your network with an
Ethernet cable, and then set up your projector and computer for network projection.
You can use Epson iProjection to project static images and presentations over a wired network.
Note: Epson iProjection is not recommended for use with streaming video.
After connecting and setting up the projector, install the projector software. You may need to install it
from a software CD, if included, or download the software and manuals as necessary.
Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless
access point, you can connect to the projector wirelessly through the access point using the Epson
network software.
Connecting to a Wired Network
Selecting Wired Network Settings
Parent topic: Using the Projector on a Network
47
Connecting to a Wired Network
To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network
cable. To ensure proper data transmission, use a Category 5 shielded cable or higher.
1. Connect one end of the network cable to your network hub, switch, or router.
2. Connect the other end of the cable to the projector's LAN port.
Parent topic: Wired Network Projection
Selecting Wired Network Settings
Before you can project from computers on your network, you must select the network settings for the
projector using its menu system.
Note: Make sure you already connected the projector to your wired network using the LAN port.
1. Turn on the projector.
2. Press the Menu button.
48
3. Select the Network menu and press Enter.
4. Select Network Configuration and press Enter.
5. Select the Basic menu and press Enter.
6. Select the following basic options as necessary:
• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the
projector over the network.
49
• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the
PJLink protocol for projector control.
• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing
the Remote or Basic Control screen in Epson Web Control. (Default user name is
EPSONREMOTE; default password is guest.)
• Web Control Password lets you enter a password up to 8 alphanumeric characters long for
accessing the projector over the web.
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.
(No default password.)
• Projector Keyword lets you turn on a security password to prevent access to the projector by
anyone not in the room with it. You must enter a displayed, randomized keyword from a computer
using the Epson iProjection (Windows/Mac) software to access the projector.
• Display Keyword lets you select whether or not to display a projector keyword on the projected
image when using the Epson iProjection (Windows/Mac) software to access the projector.
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices using the
Epson iProjection app.
Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow
buttons on the remote control to highlight characters and press Enter to select them.
7. Select the Wired LAN menu and press Enter.
50
8. If necessary, select IP Settings and press Enter.
9. Select your IP Settings as necessary:
• If your network assigns addresses automatically, turn on the DHCP setting.
• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet
Mask, and Gateway Address as needed.
Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on
the remote control. To select a highlighted number, press Enter.
10. To prevent display of the IP address on the standby screen, turn off IP Address Display.
11. To connect the projector to the network using IPv6, select On as the IPv6 Settings option. Then
select the Auto Configuration and Use Temporary Address settings as necessary.
12. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Parent topic: Wired Network Projection
Related references
Projector Network Settings - Network Menu
Wireless Network Projection
You can project over a wireless network. To do this, you must set up your projector and computer for
wireless projection.
Note: The Epson 802.11b/g/n wireless LAN module is not included with your projector and is optional.
There are two ways to connect to your projector wirelessly:
• Creating a Quick Wireless Connection USB Key (Windows only) using the Epson iProjection software
• Configuring the connection manually using the projector's Network menus
After connecting and setting up the projector, install the projector software as necessary. You may need
to install it from a software CD, if included, or download the software and manuals as necessary.
You can use Epson iProjection to project static images and presentations over a wireless network.
Note: Epson iProjection is not recommended for use with streaming video.
Installing the Wireless LAN Module
51
Using Quick Wireless Connection (Windows)
Selecting Wireless Network Settings Manually
Selecting Wireless Network Settings in Windows
Selecting Wireless Network Settings on Mac
Setting Up Wireless Network Security
Using a QR Code to Connect a Mobile Device
Parent topic: Using the Projector on a Network
Related references
Projector Network Settings - Network Menu
Additional Projector Software and Manuals
Installing the Wireless LAN Module
To use the projector over a wireless network, install the optional Epson wireless LAN module. Do not
install any other type of wireless LAN module.
Caution: Never remove the module while its indicator light is blue or flashing, or while you are projecting
wirelessly. You may damage the module or lose data.
Note: The indicator on the wireless LAN module does not operate. See the wireless LAN indicator on the
projector to check the wireless LAN status.
1. Turn off the projector and unplug the power cord.
2. Use a Phillips-head screwdriver to remove the screw securing the wireless LAN module cover, then
remove the cover.
52
3. Insert the wireless LAN module into the USB-A port.
4. Replace the wireless LAN module cover and secure it using the screw you removed.
5. Plug in and turn on the projector.
Parent topic: Wireless Network Projection
Related references
Projector Light Status
Using Quick Wireless Connection (Windows)
You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows
computer wirelessly. Then you can project your presentation and remove the key when you are done.
Note: A USB flash drive is not included with your projector.
53
1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection
(Windows/Mac) software.
Note: See the Epson iProjection Operation Guide (Windows/Mac) for instructions.
2. Turn on the projector.

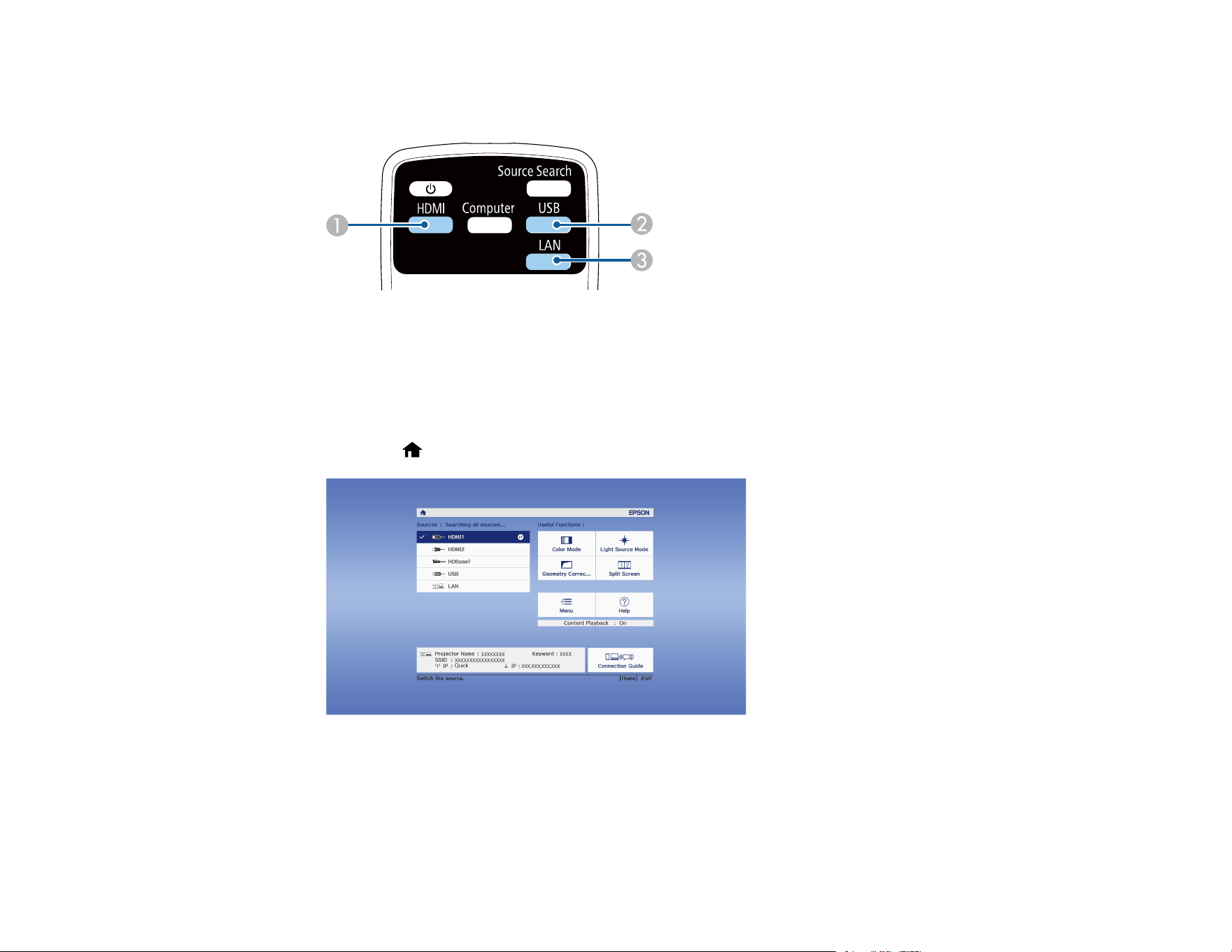

3. Press the LAN button on the remote control.
You see the LAN standby screen.
4. Verify that an SSID and IP address are displayed.
5. Remove the wireless LAN module from the projector's USB-A port (if installed) and insert the USB
key into the same port.
You see a projected message that the network information update is complete.
6. Remove the USB key.
7. Reinsert the wireless LAN module into the projector, if necessary
8. Insert the USB key into a USB port on your computer.
9. Follow the on-screen instructions to install the Epson iProjection (Windows/Mac) software.
Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need
administrator authority to install the software. If it is not installed automatically, double-click
MPPLaunch.exe in the USB key.
After a few minutes, your computer image is displayed by the projector. If it does not appear, press
the LAN or Source Search button on your remote control or restart your computer.
10. Run your presentation as necessary.
11. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows
taskbar, then remove the USB key from your computer.
Note: You can share the USB key with other computers without disconnecting your computer. You
may need to restart your computer to reactivate your wireless LAN connection.
Parent topic: Wireless Network Projection
54
Selecting Wireless Network Settings Manually
Before you can project from your wireless network, you must select the network settings for the projector
using its menu system.
1. Turn on the projector.
2. Press the Menu button.
3. Select the Network menu and press Enter.
4. Select Wireless LAN On as the Wireless Mode setting.
5. Select Network Configuration and press Enter.
6. Select the Basic menu and press Enter.
55
7. Select the following basic options as necessary:
• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the
projector over the network.
• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the
PJLink protocol for projector control.
• Remote Password lets you enter a password up to 32 alphanumeric characters long for
accessing the projector using Basic Control. (Default user name is EPSONREMOTE; default
password is the projector's serial number.)
• Web Control Password lets you enter a password up to 32 alphanumeric characters long for
accessing the projector over the web. (Default user name is EPSONWEB; default password is the
projector's serial number.)
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.
• Projector Keyword lets you turn on a security password to prevent access to the projector by
anyone not in the room with it. The projector displays a random keyword that you must enter from
a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device, or
on a Chromebook, using the Epson iProjection app.
• Display Keyword lets you display a keyword on the projected image when accessing the
projector from a computer using the Epson iProjection (Windows/Mac) software or an iOS or
Android device, or on a Chromebook, using the Epson iProjection app.
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices with the
Epson iProjection app.
Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow
buttons on the remote control to highlight characters and press Enter to select them.
56
8. Select the Wireless LAN menu and press Enter.
9. Select the settings on the Wireless LAN menu as necessary for your network.
10. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
After you complete the wireless settings for your projector, you need to select the wireless network on
your computer, Chromebook, or iOS or Android device.
Wireless LAN Menu Settings
Parent topic: Wireless Network Projection
Related references
Projector Network Settings - Network Menu
57
Wireless LAN Menu Settings
Setting Options Description
Connection Mode Quick
Advanced
Selects the type of wireless
connection:
Quick: lets you connect to
multiple smartphones, tablets, or
computers directly
Advanced: lets you connect to
multiple smartphones, tablets, or
computers via a wireless network
access point
Search Access Point To Search View Search for available wireless
network access points in
Advanced connection mode
SSID Up 32 alphanumeric characters Sets the SSID (network name) of
the wireless LAN system the
projector is connecting to
Security Open
WPA2-PSK
WPA3-PSK
WPA2/WPA3-PSK
WPA3-EAP
WPA2/WPA3-EAP
Selects the type of wireless
security used in the wireless
network (some options are only
available when the Connection
Mode setting is set to
Advanced)
Passphrase Between 8 to 63 alphanumeric
characters
Enter a passphrase for the
wireless network
58
Setting Options Description
EAP Method EAP Type
User name
Password
Client Certificate
Verify Server Cert.
CA certificate
RADIUS Serv.Name
Sets the EAP settings for WPA3-
EAP and WPA2/WPA3-EAP
security
Channel 1ch
6ch
11ch
In Quick connection mode,
selects the frequency band
(channel) used by the wireless
LAN
IP Settings DHCP
IP Address
Subnet Mask
Gateway Address
DNS Server 1
DNS Server 2
Turns on DHCP if your network
assigns addresses automatically;
set to Off to manually enter the
network's IP Address, Subnet
Mask, and Gateway Address
(some options are only available
when the Connection Mode
setting is set to Advanced)
DNS Server 1/DNS Server 2:
enter the IP address for the DNS
server
SSID Display On
Off
Selects whether to display the
SSID on the network standby
screen
IP Address Display On
Off
Selects whether to display the IP
address on the network standby
screen
IPv6 Settings IPv6
Auto Configuration
Use Temporary Address
Selects the IPv6 settings when
you connect the projector to the
network using IPv6
The Epson Web Control and
PJLink functions support IPv6.
59
Parent topic: Selecting Wireless Network Settings Manually
Selecting Wireless Network Settings in Windows
Before connecting to the projector, select the correct wireless network on your computer.
1. To access your wireless utility software, access the Desktop and double-click the network icon on
the Windows taskbar.
2. Do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
3. Click Connect.
Parent topic: Wireless Network Projection
Selecting Wireless Network Settings on Mac
Before connecting to the projector, select the correct wireless network on your Mac.
1. Click the AirPort or Wi-Fi icon on the menu bar at the top of the screen.
2. Make sure AirPort or Wi-Fi is turned on, then do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
Parent topic: Wireless Network Projection
Setting Up Wireless Network Security
You can set up security for your projector to use on a wireless network. Set up one of the following
security options to match the settings used on your network:
• WPA2-PSK (Quick connection mode)
• WPA3-PSK (Advanced connection mode)
• WPA3-EAP (Advanced connection mode)
• WPA2/WPA3-PSK (Advanced connection mode)
• WPA2/WPA3-EAP (Advanced connection mode)
60
Note: Contact your network administrator for guidance on entering the correct information.
1. If you want to set up WPA3-EAP or WPA2/WPA3-EAP security, make sure your digital certificate file
is compatible with projector registration and placed directly on the USB storage device.
2. Press the Menu button.
3. Select the Network menu and press Enter.
4. Select Network Configuration and press Enter.
5. Select the Wireless LAN menu and press Enter.
6. Set the Security setting to match your network settings.
7. Do one of the following depending on the network security setting you selected:
• WPA2-PSK, WPA3-PSK, or WPA2/WPA3-PSK: Select Complete and follow the on-screen
instructions to save your settings and exit the menus. Skip the remaining steps.
• WPA3-EAP or WPA2/WPA3-EAP: Select EAP Method and press Enter.
8. Select your authentication protocol as the EAP Type setting.
9. To import your certification, select the certificate type (either Client Certificate or CA certificate)
and press Enter.
Note: You can also register a digital certificate from your web browser. Make sure to register just
once or the certificate may not install correctly.
61
10. Select Register and press Enter.
11. Follow the on-screen instructions to connect a USB storage device to the projector's USB-A port.
12. Press Enter to display the certificate list.
13. Select the certificate to import from the displayed list.
You see a message to enter the certificate password.
14. Enter a password and press Enter.
You see a completion message after the certificate is imported.
15. Set the following EAP settings as necessary:
• User name lets you enter a user name up to 64 alphanumeric characters long. To enter more than
32 characters, use your web browser.
• Password lets you enter a password up to 64 alphanumeric characters long when using the
PEAP or EAP-FAST protocols. To enter more than 32 characters, use your web browser.
• Verify Server Cert. lets you select whether or not to verify the server certificate when a CA
certificate has been set.
• RADIUS Serv.Name lets you enter the server name to be verified.
16. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Parent topic: Wireless Network Projection
Related tasks
Registering Digital Certificates from a Web Browser
Using a QR Code to Connect a Mobile Device
After you select the wireless network settings for your projector, you can display a QR code on the
screen and use it to connect a mobile device using the Epson iProjection app.
Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit
epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection (Caribbean)
for more information.
If you are using Epson iProjection in Quick connection mode, it is recommended that you enable
wireless security, such as a moderator password.
1. Press the LAN button on the remote control.
62
Your projector displays the QR code on the projection surface.
Note: If you do not see the QR code after pressing the LAN button, press Enter to display it.
2. Start Epson iProjection on your mobile device.
3. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit
epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection
(Caribbean) for instructions.
If you do not see the QR code, press the Menu button on the remote control and select the Network >
Network Configuration > Basic > Display LAN Info. menu. Set the Display LAN Info. setting to Text
& QR Code.
Parent topic: Wireless Network Projection
Related references
Projector Network Settings - Network Menu
Additional Projector Software and Manuals
Additional Projector Software and Manuals
Setting Up Projector Network E-Mail Alerts
You can set up the projector to send you an e-mail alert over the network if there is a problem with the
projector.
Note: If the Standby Mode setting is set to Communication On in the Extended menu, you can receive
e-mail alerts even if the projector is in standby mode (the power is off). The projector must be connected
to a wired LAN or a wireless LAN with the Connection Mode setting set to Advanced.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
63
4. Select the Notifications menu and press Enter.
5. Turn on Mail Notification.
6. Enter the IP address for the SMTP Server setting.
Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a
number from 0 to 255).
7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).
8. Enter the sender's email address as the From setting.
9. Choose an Address Setting field, enter the e-mail address, and select or deselect the alerts you
want to receive there. Your e-mail address can be up to 32 alphanumeric characters long. Repeat
for up to three addresses.
10. If you are using the PJLink protocol for projector control, turn on the PJLink Notification setting and
enter the IP address where you want to receive PJLink notifications as the Notified IP Address
setting.
11. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Network Projector E-mail Alert Messages
64
Parent topic: Using the Projector on a Network
Related references
Projector Setup Settings - Extended Menu
Network Projector E-mail Alert Messages
When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you
receive an e-mail containing the following information:
• The email address entered as the From setting
• Epson Projector on the subject line
• The name of the projector experiencing a problem
• The IP address of the affected projector
• Detailed information about the problem
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Parent topic: Setting Up Projector Network E-Mail Alerts
Setting Up Monitoring Using SNMP
Network administrators can install SNMP (Simple Network Management Protocol) software on network
computers so they can monitor projectors. If your network uses this software, you can set up the
projector for SNMP monitoring.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
4. Select the Notifications menu and press Enter.
5. Turn on the SNMP setting.
6. Enter up to two IP addresses to receive SNMP notifications as the Trap IP Address setting, using 0
to 255 for each address field.
Note: To enter the IP address using the numeric keys on the remote control, press and hold the
Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x
is a number from 0 to 255).
65

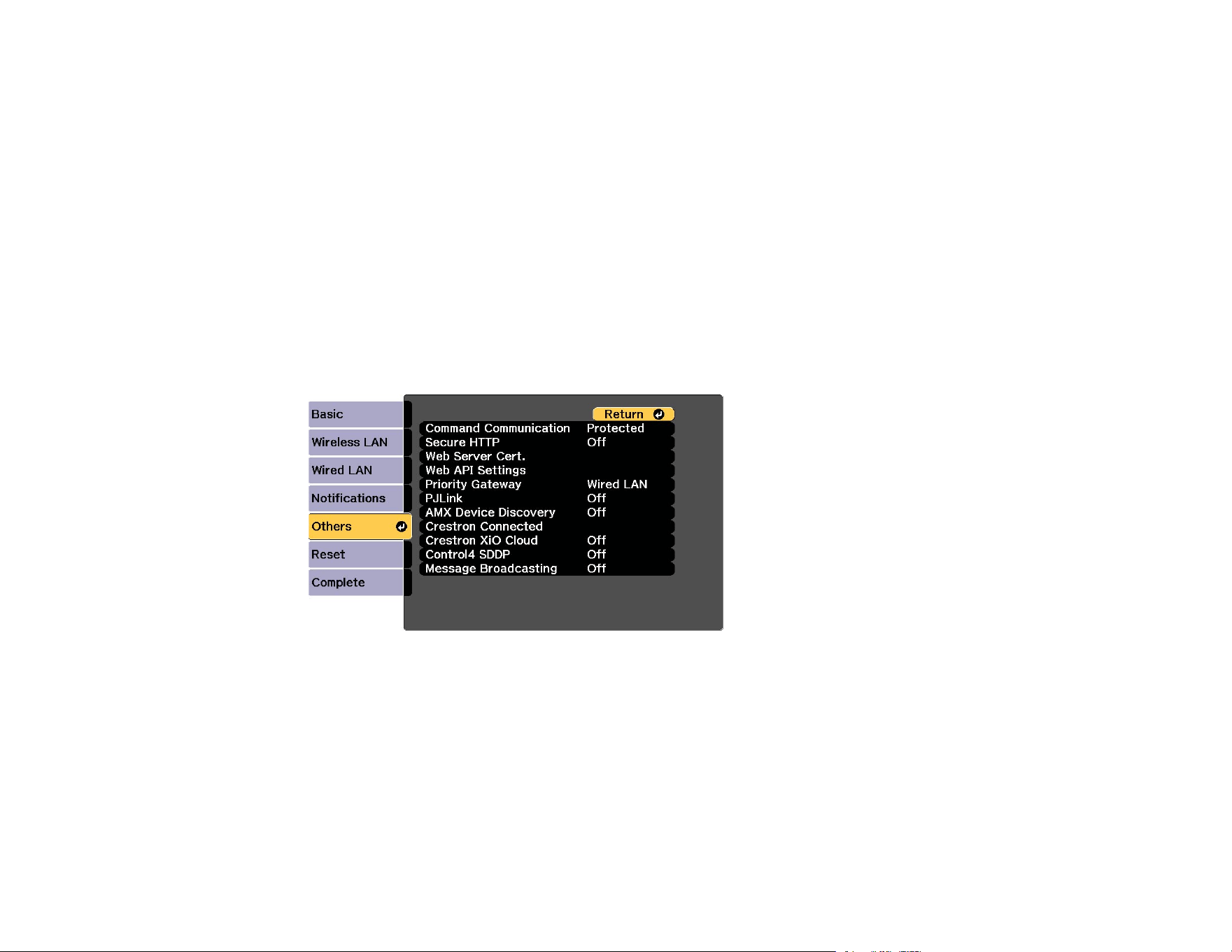

7. Select the Others menu and press Enter.
8. If you want to use the Secure HTTP protocol to encrypt communication when using Web Control,
turn on the Secure HTTP setting and import the web server certificate using the Web Server Cert.
setting.
9. If available, select the Priority Gateway setting for your network.
10. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to
allow the projector to be detected.
11. If your network environment uses a Crestron RoomView controller, turn on the Crestron Connected
setting to allow the projector to be detected.
12. If you are using the projector with a Control 4 Simple Device Discovery Protocol (SDDP) automation
system, turn on the Control4 SDDP setting.
13. If you want this projector to receive broadcast messages over the network, turn on the Message
Broadcasting setting. Administrators can broadcast messages over the network using the Epson
Projector Management software.
14. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Parent topic: Using the Projector on a Network
Related references
Projector Network Settings - Network Menu
Controlling a Networked Projector Using a Web Browser
Once you have connected your projector to your network, you can select projector settings and control
projection using a compatible web browser. This lets you access the projector remotely. You can also
control the projector using a web browser through the Epson iProjection app on iOS or Android.
Note: The web setup and control features support Microsoft Internet Explorer 11.0 or later (Windows),
Microsoft Edge (Windows), Safari (Mac), and Chrome (Android) on networks that do not use a proxy
server for connection. You cannot select all of the projector menu settings or control all projector
functions using a web browser.
1. Make sure the projector is turned on.
2. Start your web browser on a computer or device connected to the network.
66
3. Type the projector's IP address into the browser's address box and press the computer's Enter key.
Note: You may need to log in to access some of the options on the Web Control screen. If you see a
log in window, enter your user name and password. (For the Basic Control option, the default user
name is EPSONREMOTE and the default password is the projector's serial number in upper case.
For all other options, the default user name is EPSONWEB and the default password is the
projector's serial number in upper case.) After the first time you enter the password, you will be
prompted to change it.
You see the Epson Web Control screen.
1 Select Basic Control to control the projector remotely.
2 Select Test Pattern to display a test pattern.
3 Select Remote Camera Access to capture an image from a remote location.
4 Select Advanced to open the advanced menu screen.
5 Select Crestron Connected to open the menu.
6 Select Status Information to view the projector's status.
7 Select OSD Control Pad to change the projector's menu settings.
67
4. Select the option corresponding to the projector function you want to control.
Web Control Options
Parent topic: Using the Projector on a Network
Web Control Options

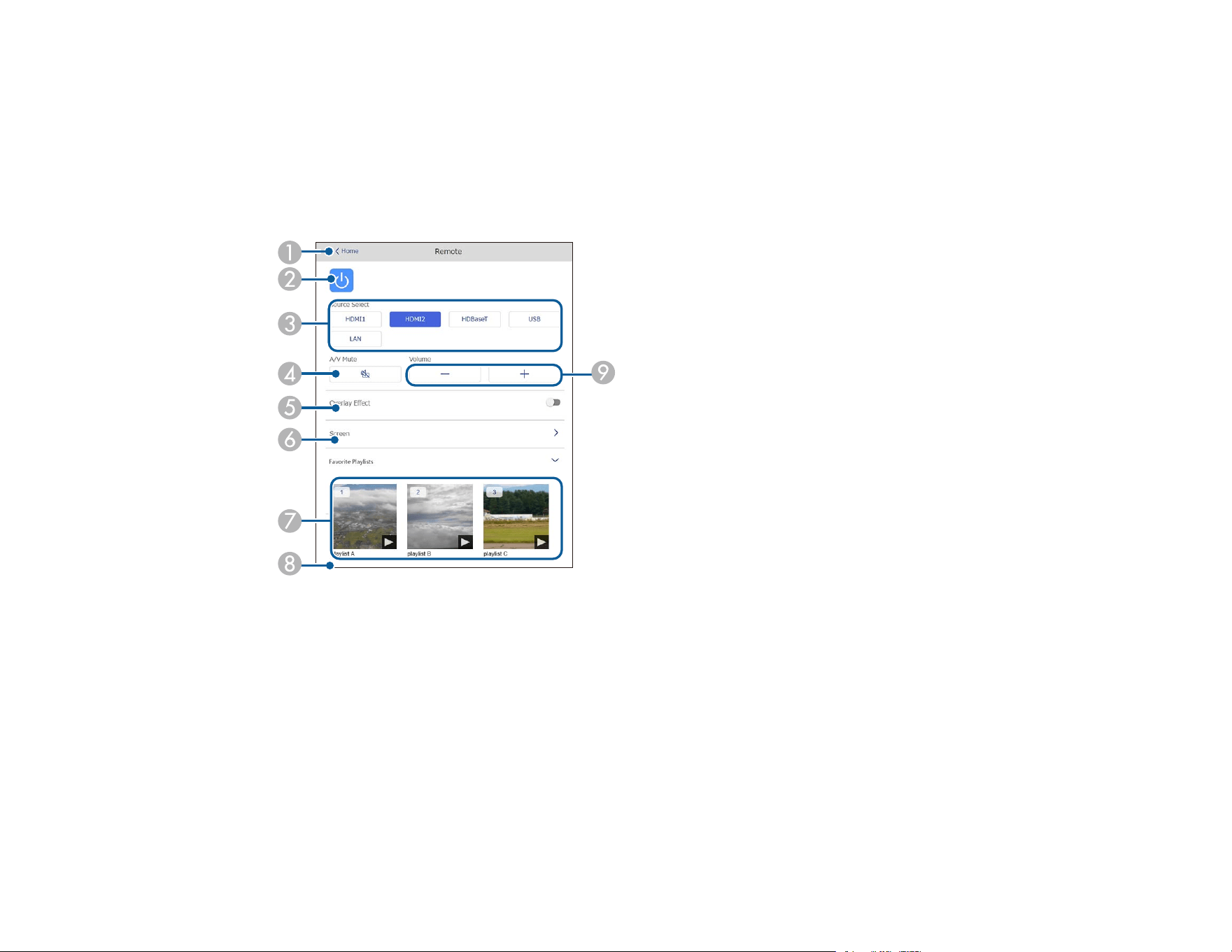

Basic Control
Note: If the Remote Password is set to On, you need to enter your user name and password. (The
default username is EPSONREMOTE and the default password is the projector's serial number. Enter
the serial number with uppercase letters.).
1 Returns to the Home screen
2 Turns the projector on or off
3 Input source selection controls
4 A/V Mute button control
5 Pauses or resumes images
6 Displays the QR code
68
7 Volume button controls
8 Searches for sources

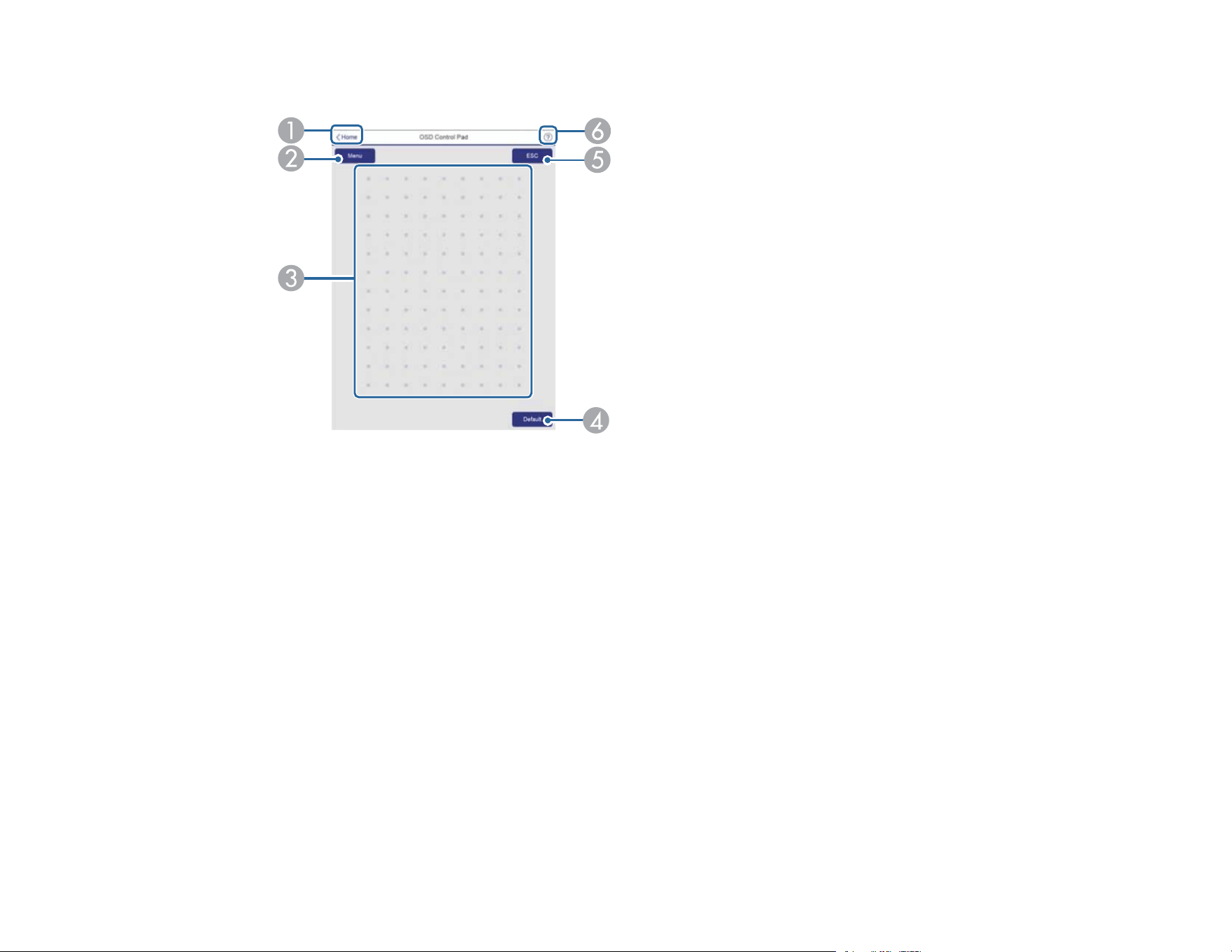

OSD Control Pad
1 Returns to the Epson Web Control screen
2 Displays the projector's setting menus
3 Use your finger or mouse to navigate the menus
4 Returns the projector to its default settings
5 Returns to the previous menu
6 Displays help topics
Note: You cannot change some settings using Epson Web Control.
69
Test Pattern screen
1 Returns to the Home screen
2 Displays available test patterns; select to project a test pattern
3 Turns off test pattern display
70
Status Information screen
1 Returns to the Home screen
2 Displays a list of monitored settings
3 Displays the setting status
4 Select to view different status information
71

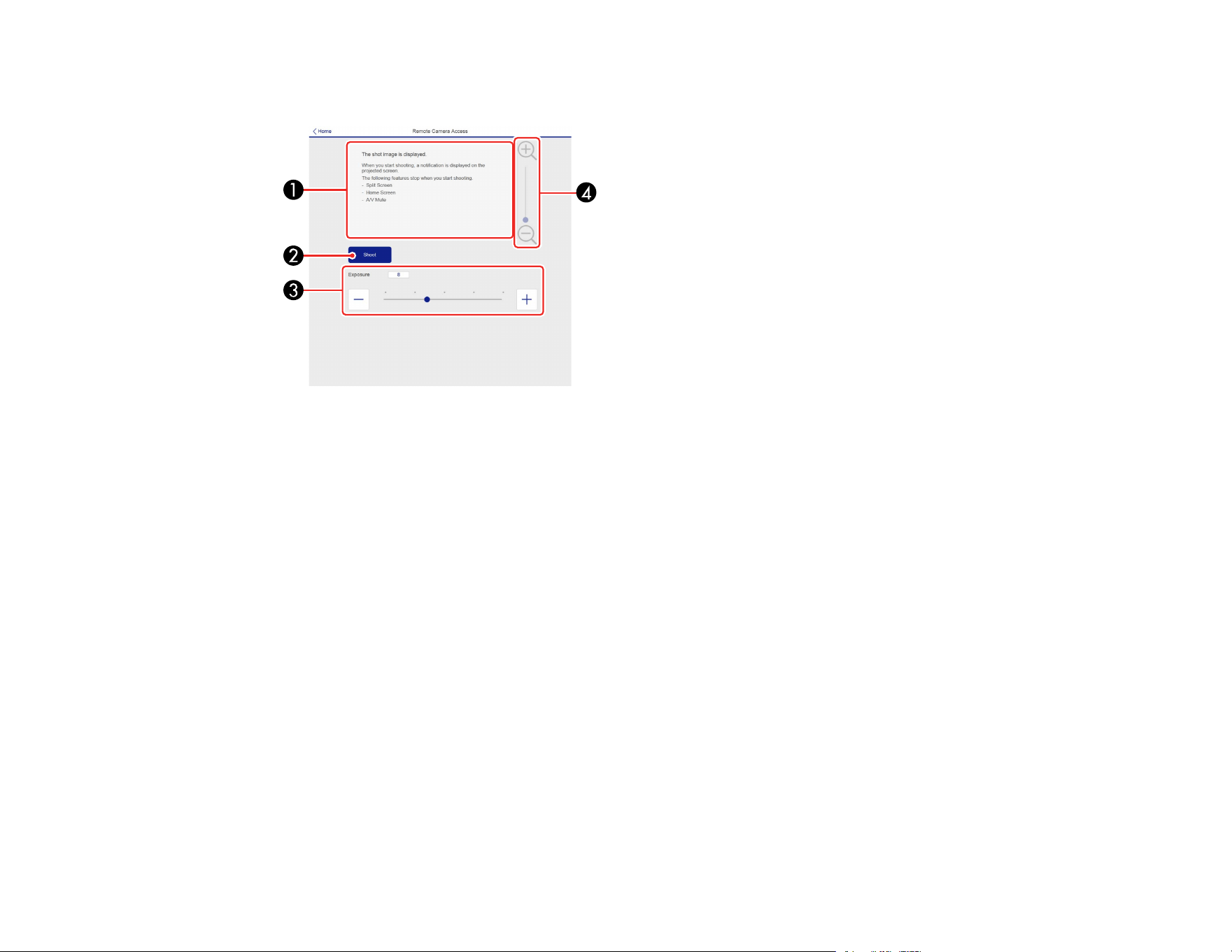

Remote Camera Access screen
1 Displays the image you captured using the Shoot button
2 Takes a picture of the projected image using the optional external camera on the front of the
projector
3 Adjusts the image exposure
4 Zooms in or out on the image you captured
Advanced
If the default Web Control Password is set, a screen prompting you to change the password appears
before you can view the Advanced screen. It is strongly recommended that you change the password
regularly to prevent unauthorized access to your projector.
Note: Not all settings can be changed through Web Control. The following settings can only be set using
Web Control:
• Monitor Password (up to 16 alphanumeric characters)
• IPv6 Settings (manual)
72
• HTTP port (used for Web Control; cannot use 80 [default], 843, 3620, 3621, 3625, 3629, 4352, 4649,
5357, 10000, 10001, or 41794)
1 Opens the menus
2 Displays the selected menu name
3 Contains the selected projector settings
4 Locks or unlocks the projector settings
5 Updates the projector settings
Parent topic: Controlling a Networked Projector Using a Web Browser
Controlling a Networked Projector in Content Playback Mode
When Content Playback mode is turned on in the Settings menu, you can select projector settings,
control projection, and edit playlists using a web browser.
73
Note: You can also control the projector using a web browser through the Epson iProjection app.
Note: Do not remove any USB device connected to the projector or unplug the power cord when the
Playlists or USB Memory Device screen is displayed; data saved on the USB device may be damaged.
1. Make sure the projector is turned on and your computer or device is connected to the same network
as the projector.
2. Start your web browser on the computer or device.
3. Type the projector's IP address into the browser's address box and press the computer's Enter key.
You see the Epson Web Control screen.
1 Controls the projector remotely
2 Edits playlists for Content Playback mode
3 Opens the Time Table screen
4 Operates the projector's menus with your finger or a mouse
5 Displays the projector's status
6 Opens the Crestron Connected window (available when Crestron Connected is turned on)
7 Opens detailed projector settings
8 Opens the Developer's Menu screen
74
9 Displays a test pattern
10 Registers or deletes playlist data on the USB device
4. Select the option corresponding to the projector function you want to control.
Note: You may need to log in to access some of the options on the Web Control screen. If you see a
login window, enter your user name and password. (The default user name is EPSONWEB and the
default password is the projector's serial number. Enter the serial number with uppercase letters.)
Web Control Options in Content Playback Mode
Parent topic: Using the Projector on a Network
Related references
Additional Projector Software and Manuals
Related tasks
Switching to Content Playback Mode
Creating a Playlist Using Epson Web Control
Adding Effects to the Projected Image
Projecting a Playlist in Content Playback Mode
Displaying a Test Pattern
75
Web Control Options in Content Playback Mode
Remote
Note: If the Remote Password is set to On, you need to enter your user name and password. (The
default username is EPSONREMOTE and the default password is the projector's serial number. Enter
the serial number with uppercase letters.)
1 Returns to the Epson Web Control screen
2 Turns the projector on or off
3 Selects the input source
4 A/V Mute button control
5 Turns Overlay Effect on or off
6 Displays the screen settings
7 Selects your favorite playlists
8 Displays playlist information
76
9 Adjusts the speaker volume
Playlists
1 Returns to the Epson Web Control screen
2 Controls playback of the playlist
3 Edits, copies, or deletes the playlist
4 Creates a new playlist
77
Create or Edit Playlist
1 Edits the playlist name
2 Enables repeat playback
3 Adds the playlist to your favorites list
4 Displays the images or movies in the order that they will be played
5 Adds items to the playlist
6 Deletes items from the playlist
7 Opens the Switch Image screen (specifies the time before the projector switches to the next item
in the playlist)
8 Opens the Effects screen
9 Previews the playlist
78
USB Memory Device
1 Returns to the Epson Web Control screen
2 Uploads images or videos to add to playlists on a USB device
3 Deletes images or videos on the USB device
Note: You can upload .avi, .jpeg (.jpg), .png, .bmp, or .gif files using Epson Web Control. If you want to
add .mp4 or .mov files to the playlist, use the Epson Projector Content Manager software or the Epson
Creative Projection app.
79
Time Table
1 Returns to the Epson Web Control screen
2 Turns the time table on or off (see the online Epson Projector Content Manager Operation Guide
for more information)
80
OSD Control Pad
1 Returns to the Epson Web Control screen
2 Displays the projector's setting menus
3 Use your finger or mouse to navigate the menus
4 Returns projector to default settings
5 Returns to the previous menu
6 Displays help topics
Note: You cannot change some settings using Epson Web Control.
Parent topic: Controlling a Networked Projector in Content Playback Mode
Using Crestron Connected
If you are using the Crestron Connected network monitoring and control system, you can set up your
projector for use on the system. Crestron Connected lets you control and monitor your projector using a
web browser.
81
Note: You cannot use the Message Broadcasting feature in the Epson Projector Management software
when you use Crestron Connected.
For additional information on Crestron Connected, contact Crestron.
Setting Up Crestron Connected
Controlling a Networked Projector Using Crestron Connected
Parent topic: Using the Projector on a Network
Setting Up Crestron Connected
To set up your projector for monitoring and control using a Crestron Connected system, make sure your
computer and projector are connected to the network.
Note: If you want to use the Crestron Connected system when the projector is turned off, you need to
adjust the Standby Mode settings in the Extended menu.
Note: If you are connecting wirelessly, set up the projector using the Advanced network connection
mode.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
4. Select the Others menu and press Enter.
82
5. Set the Crestron Connected setting to On to allow the projector to be detected.
Note: Enabling Crestron Connected disables the Message Broadcasting feature in the Epson
Projector Management software.
6. Start your Web browser on a computer or device connected to the network.
7. Go to the Epson Web Control screen by entering the projector's IP address into the browser's
address box.
8. Select the Crestron Connected settings. See the Crestron Web site for details.
Parent topic: Using Crestron Connected
Related references
Projector Setup Settings - Extended Menu
Projector Network Settings - Network Menu
Controlling a Networked Projector Using Crestron Connected
Once you have set up your projector to use Crestron Connected, you can control and monitor projection
using a compatible web browser.
1. Start your web browser on a computer connected to the network.
2. Type the projector's IP address into the browser's address box and press the computer's Enter key.
83
You see the Epson Web Control screen:
Note: You may need to log in to access some of the options on the Web Control screen. If you see a
log in window, enter your user name and password. (The default user name is EPSONWEB and the
default password is the projector's serial number.)
3. Select Crestron Connected.
4. When you finish selecting settings, select Set and then select Yes to save the network settings.
Parent topic: Using Crestron Connected
Setting Up Web API
You can setup Web API from a Web browser and operate the projector using Web API.
Note: You can authenticate Web API communications using API authentication (Digest authentication).
The user name for API authentication is EPSONWEB; use the password that is set for Web Control
Password.
84
1. Open the Epson Web Control from your Web browser.
2. Select Developer's Menu.
3. Set the Enable API setting to On.
4. Enter one of the following Web APIs to operate the projector:
URL Supported methods Description
http://<ip>/api/v01/contentmgr/remote/power/on GET/POST/PUT Turns the projector on
(WebAPI may not
respond immediately)
http://<ip>/api/v01/contentmgr/remote/power/off 0 to 63 (default is 128)
http://<ip>/api/v01/contentmgr/playlist/play/:id 0 to 7 (default is 0)
http://<ip>/api/v01/contentmgr/playlist/stop 0 to 31 (default is 128)
Note: In the above URLs, enter the IP address for the projector in the <ip> field. For example, a URL
instructing a projector with the IP address 192.168.0.2 to playback playlist ID 3 would look like this:
http://192.168.0.2/api/v01/contentmgr/playlist/play/3
If secure HTTP is enabled, change the http in the URL to https.
Parent topic: Using the Projector on a Network
Related tasks
Controlling a Networked Projector Using a Web Browser
Secure HTTP
You can use the HTTPS protocol to increase security between the projector and a web browser
communicating with it. To do this, you create a server certificate, install it on the projector, and turn on
the Secure HTTP setting in the projector menus to verify the reliability of the web browser.
Even if you do not install a server certificate, the projector automatically creates a self-signed certificate
and allows communication. However, because the self-signed certificate cannot verify reliability from a
web browser, you see a warning about the server's reliability when you access the projector from a web
browser. This warning does not prevent communication.
Importing a Web Server Certificate Using the Projector Menus
Parent topic: Using the Projector on a Network
85
Importing a Web Server Certificate Using the Projector Menus
You can create your web server certificate and import it using the projector menus and a USB flash
drive.
Note: You can also register digital certificates from your web browser. Make sure to only register once,
or the certificate may not install correctly.
1. Make sure your digital certificate file is compatible with projector registration and saved in the root
directory of the USB flash drive.
2. Press the Menu button on the remote control.
3. Select the Network menu and press Enter.
4. Select the Network Configuration setting and press Enter.
5. Select the Others menu and press Enter.
6. Select On as the Secure HTTP setting.
7. Select the Web Server Cert. setting and press Enter.
8. Select Register and press Enter.
9. Insert a USB flash drive into the projector's USB-A port. If the wireless LAN module is installed,
remove it before inserting the USB flash drive.
10. Press Enter to display the certificate list.
11. Select the certificate you want to import from the displayed list.
86
A message is displayed prompting you to enter the password for the certificate.
12. Enter the password and press Enter.
The certificate is imported and a completion message appears.
Parent topic: Secure HTTP
Related references
Projector Network Settings - Network Menu
Registering a Digital Certificate on the Projector
Follow the instructions here if you need to install a digital certificate on the projector to provide security
for your presentation files.
Note: You can register a digital certificate using a web browser or through the projector's Network menu.
However, be sure to register just once, or the certificate may not install correctly.
Registering Digital Certificates from a Web Browser
Digital Certificate Types
Parent topic: Using the Projector on a Network
Registering Digital Certificates from a Web Browser
You can register the digital certificates on the projector for wireless LAN authentication.
1. Make sure your digital certificate file is compatible with projector registration.
2. Make sure the projector is turned on.
3. Start your web browser on a computer or mobile device connected to the network.
4. Type the projector's IP address into the browser's address box and press the computer's Enter key.
You see the Web Control screen and a prompt to enter a user ID and password.
5. Enter the following information exactly as shown:
• For the user ID, enter EPSONWEB. (You cannot change the user ID.)
• For the password, enter the projector's serial number. Enter the serial number with uppercase
letters. (You can change the Web Control password using the projector's Network menu.)
6. Select Advanced.
7. Under Network, select Certificate.
87
You see a screen like this:
8. Click the Browse button, select the certificate file, and click Open.
9. Enter a password in the Password box, and click Send.
10. When you finish registering the certificate, click Apply to finalize your changes and complete the
registration.
Parent topic: Registering a Digital Certificate on the Projector
Related references
Digital Certificate Types
Digital Certificate Types
You can register these types of digital certificates.
88
Client Certificate (PEAP-TLS/EAP-TLS)
Specification Description
Format PKCS#12
Extension PFX, P12
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Password Up to 32 alphanumeric characters; required
CA Certificate (PEAP/PEAP-TLS/EAP-TLS/EAP-FAST)
Specification Description
Format X509v3
Extension DER/CER/PEM
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Encoding BASE64/Binary
Web Server Certificate (Secure HTTP)
Specification Description
Format PKCS#12
Extension PFX, P12
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Common name Network host name
Organization Optional
89
Specification Description
Password Up to 32 alphanumeric characters; required
Note: You can set a password of up to 64 characters if you use a web browser to enter the text.
Parent topic: Registering a Digital Certificate on the Projector
Related tasks
Registering Digital Certificates from a Web Browser
90
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
Turning On the Projector
Turning Off the Projector
Selecting the Language for the Projector Menus
Setting the Date and Time
Resizing the Image with the Zoom Ring
Focusing the Image Using the Focus Ring
Setting the Screen Type
Adjusting the Image Position Using Lens Shift
Adjusting the Image Position Using Screen Position
Displaying a Test Pattern
Adjusting the Image Height
Image Shape
Selecting an Image Source
Remote Control Operation
Projection Modes
Image Aspect Ratio
Color Mode
Turning On Dynamic Contrast

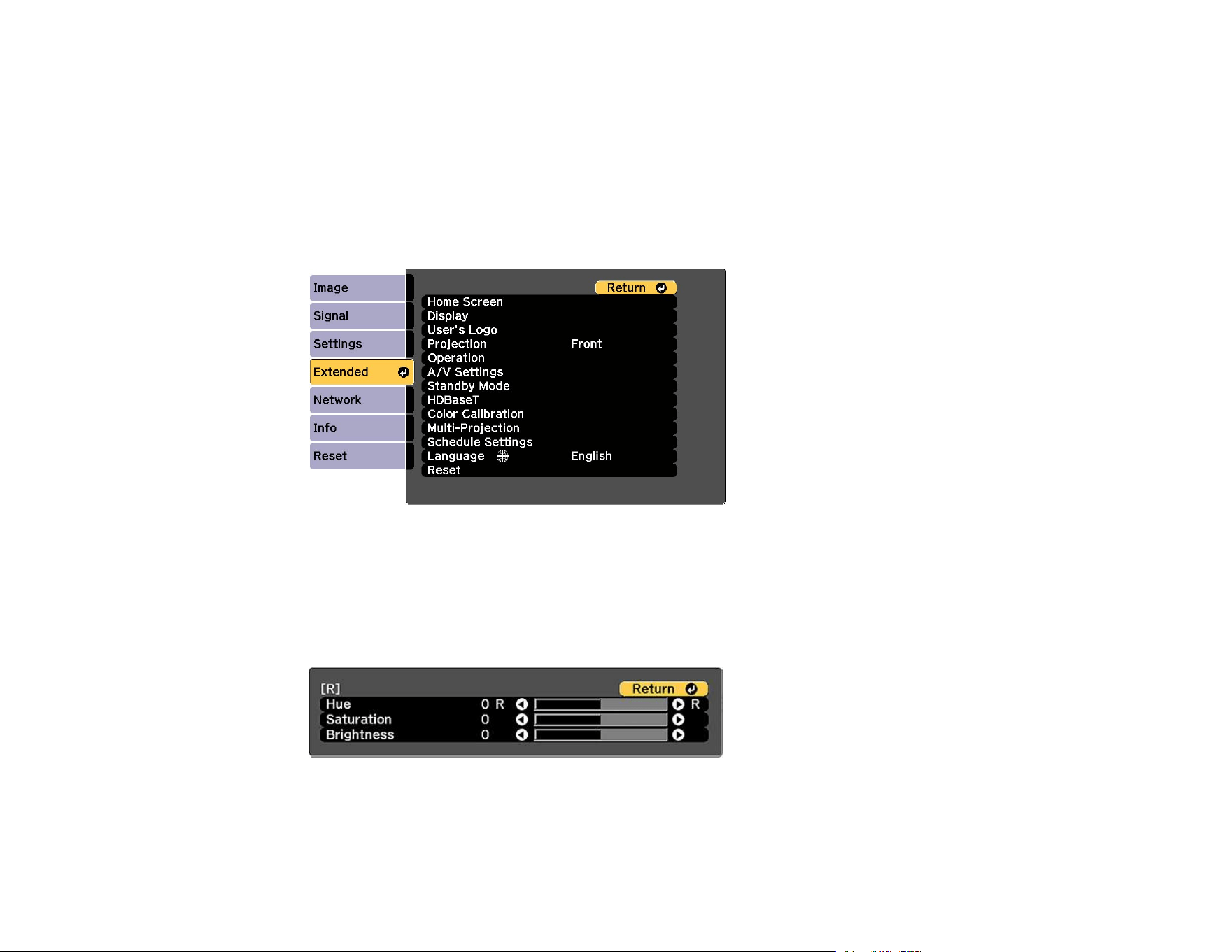

Adjusting the Hue, Saturation, and Brightness
Adjusting Gamma
Adjusting the Image Resolution
Adjusting the Brightness
Controlling the Volume with the Volume Buttons
Projecting a PC Free Presentation
Projecting in Content Playback Mode
Turning On the Projector
Turn on the computer or video equipment you want to use before you turn on the projector so it can
display the image source.
91
1. Connect the power cord to the projector's power inlet.
2. Plug the power cord into an electrical outlet.
The projector's On/Standby light turns blue. This indicates that the projector is receiving power, but
is not yet turned on (it is in standby mode).
Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.
3. Remove the lens cover, if necessary.
4. Press the power button on the projector or the remote control to turn on the projector.
The projector beeps and the Status light flashes blue as the projector warms up. After about 30
seconds, the Status light stops flashing and turns blue.
Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is
especially dangerous for children and pets. When turning on the projector at a distance using the
remote control, make sure there is no one looking into the lens. Make sure no objects are blocking
the light from the projector lens. Objects blocking the lens for an extended time can melt and light
that is reflected back into the lens can cause the projector to malfunction.
92
Note: When Quick Startup is enabled in the projector's Extended menu, the projector becomes
ready for use in several seconds the next time you press the power button.
Note: If the Auto Source Search setting in the Extended menu is enabled, the projector
automatically detects the input signal when you turn it on. This setting is disabled if the Quick
Startup or Content Playback setting is enabled.
Note: If the Auto Power On setting in the Extended menu is enabled, the projector automatically
detects the input signal for the HDMI1 port when you turn it on.
If you do not see a projected image right away, try the following:
• Turn on the connected computer or video device.
• Insert a DVD or other video media, and press the play button (if necessary).
• Change the screen output from the computer if you are using a laptop computer.
• Press the Source Search button on the projector or remote control to detect the video source.
• Press the Home button and select the source you want to project on the Home screen.
Using the Home Screen
Parent topic: Using Basic Projector Features
Related references
Projector Light Status
Projector Setup Settings - Extended Menu
Using the Home Screen
You can select input sources and other frequently used options from the Home screen.
1. To display the Home screen, do one of the following:
• Press the Home button on the remote control.
• Turn on the projector with the Home Screen Auto Disp setting enabled.
• Turn on the projector when no signal is received from the selected input source.
93
2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press
Enter to select an option.
1 Select the video source you want to project
2 Display the Connection Guide
3 Indicates the Content Playback mode
4 Display the Help screen
5 Display the projector's menus
6 Select customizable menu options
7 Select to change the Light Source Mode
8 Select to change the Color Mode
3. Press the Home button to hide the Home screen.
Parent topic: Turning On the Projector
Related tasks
Switching to Content Playback Mode
Using the Projector Help Displays
Changing the Color Mode
Selecting an Image Source
Adjusting the Brightness
94
Turning Off the Projector
Before turning off the projector, shut down any computer connected to it so you can see the computer
display during shutdown.
Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
1. Press the power button on the projector or the remote control.
2. If you see a shutdown confirmation screen, press the power button on the projector or the remote
control again. (To leave the projector on, press any other button.)
The projector beeps twice, the laser turns off, and the Status light turns off.
Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the
projector for transport right away (if necessary).
Note: If the Light Source Calibration setting is set to Run Periodically in the projector's Reset
menu, light source calibration starts automatically if you turn off the projector and the following
conditions are present:
• 100 hours have passed since the last light source calibration.
• You have used the projector continuously for at least 20 minutes.
3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.
4. Attach the lens cover.
Parent topic: Using Basic Projector Features
95
Selecting the Language for the Projector Menus
If you want to view the projector's menus and messages in another language, you can change the
Language setting.
1. Turn on the projector.
2. Press the Menu button.

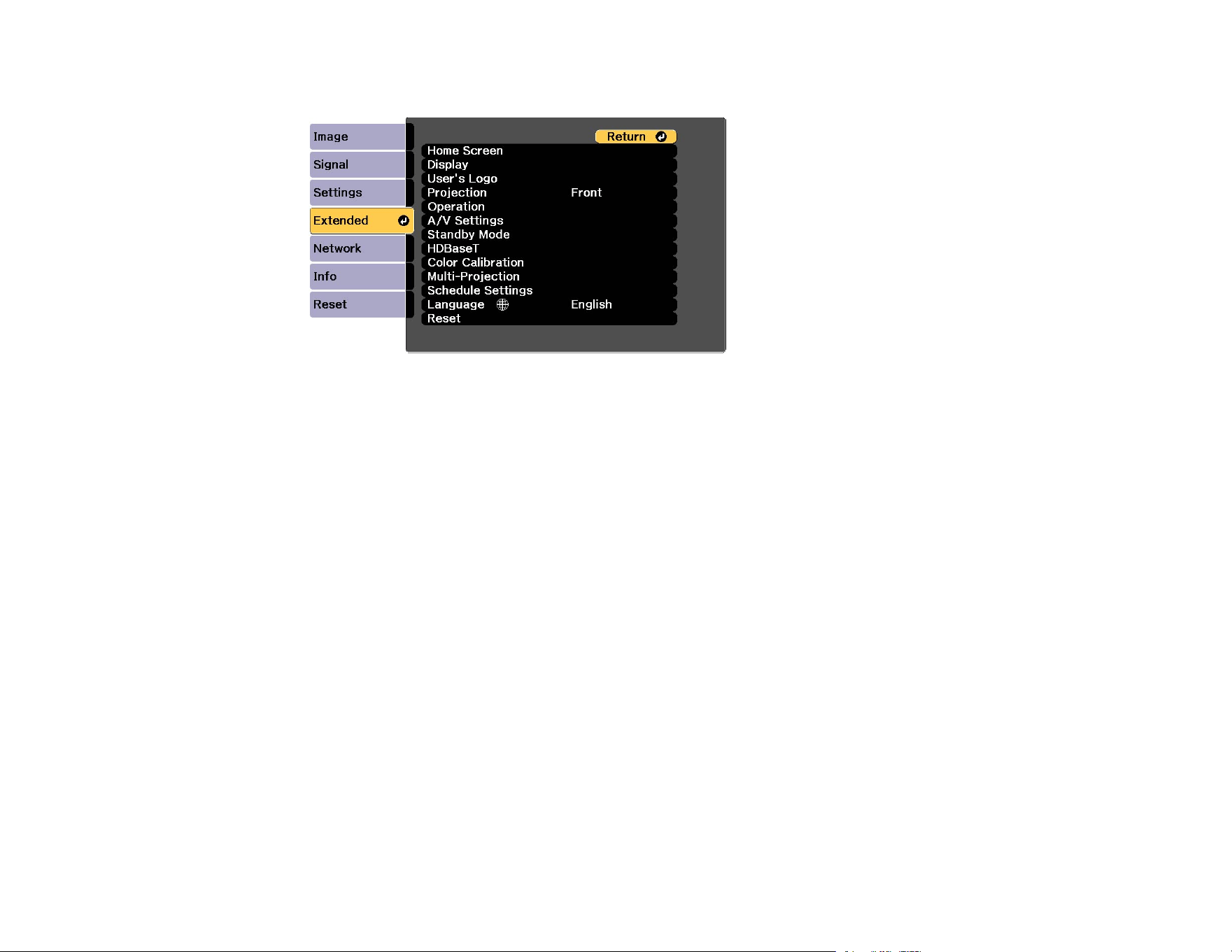

3. Select the Extended menu and press Enter.
4. Select the Language setting and press Enter.
5. Select the language you want to use and press Enter.
6. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Related references
Projector Setup Settings - Extended Menu
Setting the Date and Time
You can set the date and time for the projector.
1. Press the Menu button.
2. Select the Extended menu and press Enter.
3. Select the Operation setting and press Enter.
96
4. Select the Date & Time setting and press Enter.
You see a screen like this:
5. Select the Date & Time setting and press Enter.
6. Select Date, press Enter, and use the displayed keyboard to enter today's date.
7. Select Time, press Enter, and use the displayed keyboard to enter the current time.
8. Adjust the Time Difference (UTC) settings to set the time difference from the Coordinated Universal
Time.
9. When you are finished, select Set and press Enter.
10. To activate daylight savings time, select the Daylight Saving Time setting and press Enter.
11. Select the Daylight Saving Time setting and set it to On. Select your daylight saving settings. Then
select Set and press Enter to confirm your changes.
12. To update the time automatically from an internet time server, select the Internet Time setting and
press Enter.
13. Select the Internet Time setting and set it to On.
14. Enter the IP address of the internet time server. Select Set and press Enter to confirm your
changes.
15. When you are finished, press the Menu button to exit.
Date and Time Settings
Parent topic: Using Basic Projector Features
97
Date and Time Settings
Settings Options Description
Date & Time Date
Time
Time Difference (UTC)
Adjusts the projector's date and time
settings
Date and Time: sets the date and time
Time Difference (UTC): sets the time
difference from Coordinated Universal
Time
Daylight Saving Time Daylight Saving Time
DST Start
DST End
DST Adjustment (min)
Adjusts the daylight saving time
settings
Daylight Saving Time: enables or
disables daylight saving time
DST Start and DST End: set the date
and time to start or end daylight saving
time
DST Adjustment (min): sets the
difference between standard and
daylight saving time
Internet Time Internet Time
Internet Time Server
Automatically adjusts the time through
an Internet connection
Internet Time: turn on this setting to
update the date and time automatically
through an Internet time server
Internet Time Server: sets the IP
address for the Internet time server
Parent topic: Setting the Date and Time
Resizing the Image with the Zoom Ring
You can resize the image using the projector's zoom ring.
1. Turn on the projector and display an image. Wait 20 minutes after turning on the projector before
setting the focus, zoom, and lens shift for maximum accuracy.
98
2. To enlarge or reduce the image size, rotate the projector's zoom ring.
Parent topic: Using Basic Projector Features
Focusing the Image Using the Focus Ring
You can correct the focus using the projector's focus ring.
1. Turn on the projector and display an image. Wait 20 minutes after turning on the projector before
setting the focus, zoom, and lens shift for maximum accuracy.
2. To sharpen the image focus, rotate the projector’s focus ring.
Parent topic: Using Basic Projector Features
Setting the Screen Type
You can use the Screen Type setting to match the aspect ratio of the displayed image to the screen you
are using.
Note: This setting is unavailable when using the USB or LAN input source.
99
Note: You cannot change the Screen Type setting when the Content Playback setting is enabled. If
you change the Screen Type setting, the Geometry Correction settings are initialized.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Extended menu and press Enter.
4. Select Display > Screen > Screen Type.
You see this screen:
5. Select your screen's aspect ratio and press Enter.
6. Press the Menu button to exit.
7. Adjust the aspect ratio for the projected image, if necessary.
Note: When the Screen Typesetting changes, the EDID settings are automatically adjusted.
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Adjusting the Image Position Using Lens Shift
If you cannot install the projector directly in front of the screen, you can adjust the position of the
projected image using the lens shift feature.
100
Follow these guidelines when using lens shift to adjust your images:
• When adjusting the image height, position the image lower than where you want it to be and then
move it up using the vertical lens shift dial. This helps prevent the image from moving down after
adjustment.
• Keep the vertical and horizontal lens shift dials in their center positions for the clearest picture.
Note: Wait 20 minutes after turning on the projector before setting the focus, zoom, and lens shift for
maximum accuracy.
1. Turn on the projector and display an image.
101
2. Turn the vertical and horizontal lens shift dials on the projector to adjust the position of the projected
image as necessary.
1 Center of lens
2 Projected image when the lens is set to the home position
3 Maximum range: V × 50%
102
4 When the horizontal direction is at the maximum value: V × 12%
Note: You cannot move the image horizontally when the lens is shifted vertically all the way
Parent topic: Using Basic Projector Features
Adjusting the Image Position Using Screen Position
You can adjust the image position if there are margins between the edge of the image and the projected
screen frame.
Note: You cannot adjust the screen position if the Screen Type setting is set to 16:10.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Extended menu and press Enter.
4. Select Display > Screen > Screen Position.
5. Use the arrow buttons on the remote control or projector to adjust the position of the image.
6. When you are finished, press the Menu button.
Parent topic: Using Basic Projector Features
Displaying a Test Pattern
You can display a test pattern to adjust the projected image without connecting a computer or video
device.
103
Note: The test pattern's shape is determined by the Screen Type setting. Be sure to set the correct
screen type before adjusting with the test pattern.
1. Turn on the projector.
2. Press the down arrow button on the control panel.
Note: You can also display a test pattern from the menu using the remote control.
3. Press the left or right arrow button on the remote control, or press Enter on the control panel to cycle
through the available test patterns.
4. Adjust the image as necessary.
5. Press the Esc button to clear the test pattern.
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Related tasks
Setting the Screen Type
Adjusting the Image Height
If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust
the image height using the projector's adjustable feet. The larger the angle of the tilt, the harder it will
become to focus. Place the projector so that is only needs to be tilted at a low angle.
1. Turn on the projector and display an image.
2. To adjust the image height, rotate the front foot to extend or retract it.
104

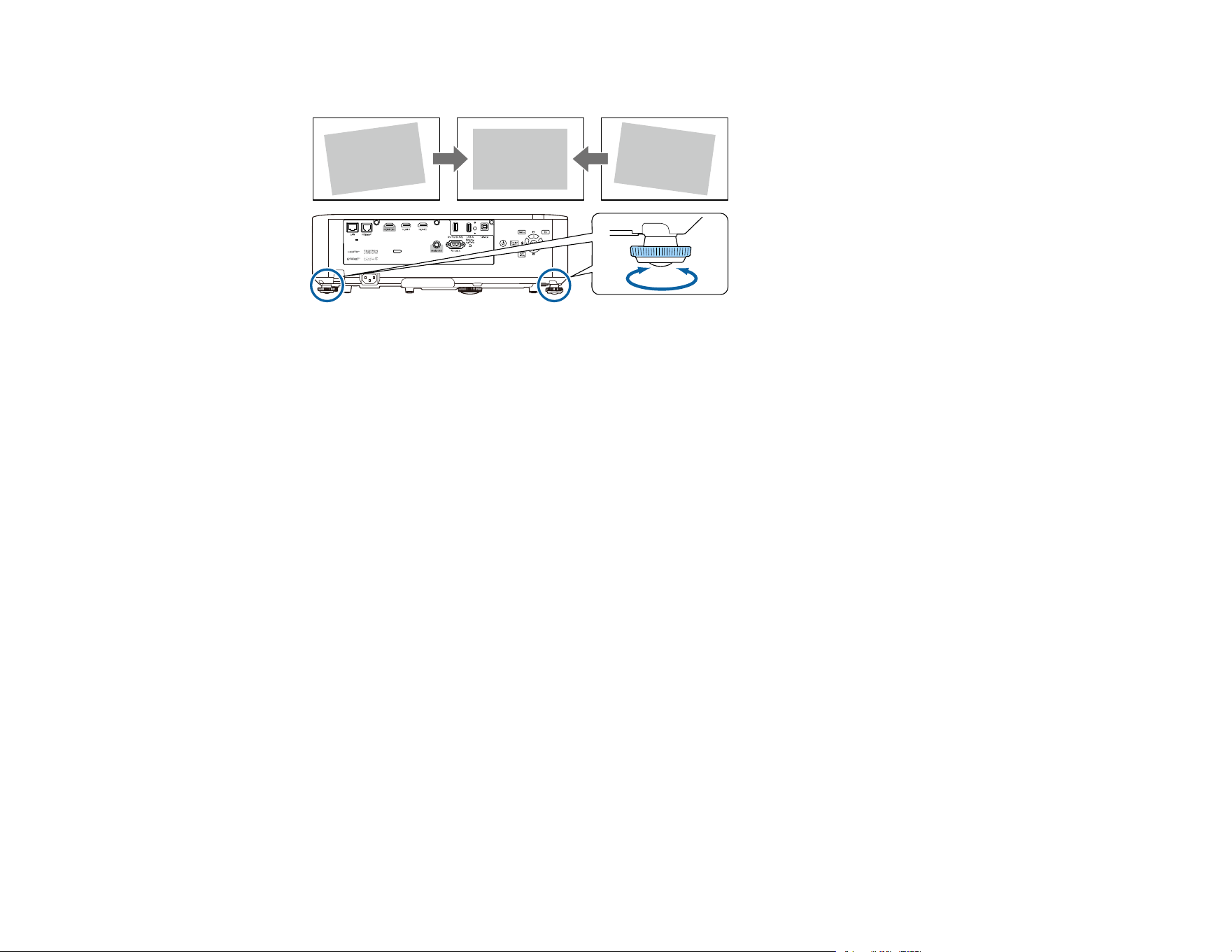

3. If the image is tilted, rotate the rear feet to adjust their height.
If the projected image is unevenly rectangular, you need to adjust the image shape.
Parent topic: Using Basic Projector Features
Related concepts
Image Shape
Image Shape
You can project an evenly rectangular image by placing the projector directly in front of the center of the
screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off
to the side, you may need to correct the image shape for the best display quality.
Note: After correction, your image is slightly smaller. For the best quality images, try to adjust the
projector's position to achieve the correct image size and shape. After you have corrected the position of
the projector, you can use the adjustments in this section to correct the image shape. You cannot
combine the H/V-Keystone setting with other correction methods.
Correcting Image Shape with H/V-Keystone
Correcting Image Shape with Quick Corner
Correcting Image Shape with Correct Shape
Correcting Image Shape with Point Correction
Applying Saved Image Shape Settings
Parent topic: Using Basic Projector Features
105
Correcting Image Shape with H/V-Keystone
You can use the projector's H/V-Keystone setting to correct the shape of an image that is unevenly
rectangular on the sides.
Note: You cannot combine H/V-Keystone correction with other image shape correction methods.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Settings menu and press Enter.
106
4. Select the Geometry Correction setting and press Enter.
Note: You can also access the geometric adjustment screen by pressing the up arrow button on the
control panel.
5. Select the H/V-Keystone setting and press Enter. Then press Enter again.
You see the H/V-Keystone adjustment screen:
6. Use the arrow buttons on the projector or the remote control to select between vertical and
horizontal keystone or balance correction and to adjust the image shape as necessary.
V-Keystone
V-Balance
107
H-Keystone
H-Balance
Note: To save the current image shape, select Save Memory. You can save up to three image
shapes in the projector's memory.
7. When you are finished, press Esc.
After correction, your image is slightly smaller.
Parent topic: Image Shape
Related references
Projector Feature Settings - Settings Menu
Correcting Image Shape with Quick Corner
You can use the projector's Quick Corner setting to correct the shape and size of an image that is
unevenly rectangular on all sides.
108
Note: To provide the best possible image quality, adjust the projector's position to correct the image
shape. If this isn't possible, use the Quick Corner setting to correct the image shape.
Note: If you change the Screen Type or Screen Position settings, your image adjustments are reset.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Settings menu and press Enter.
4. Select the Geometry Correction setting and press Enter.
5. Select the Quick Corner setting and press Enter.
109

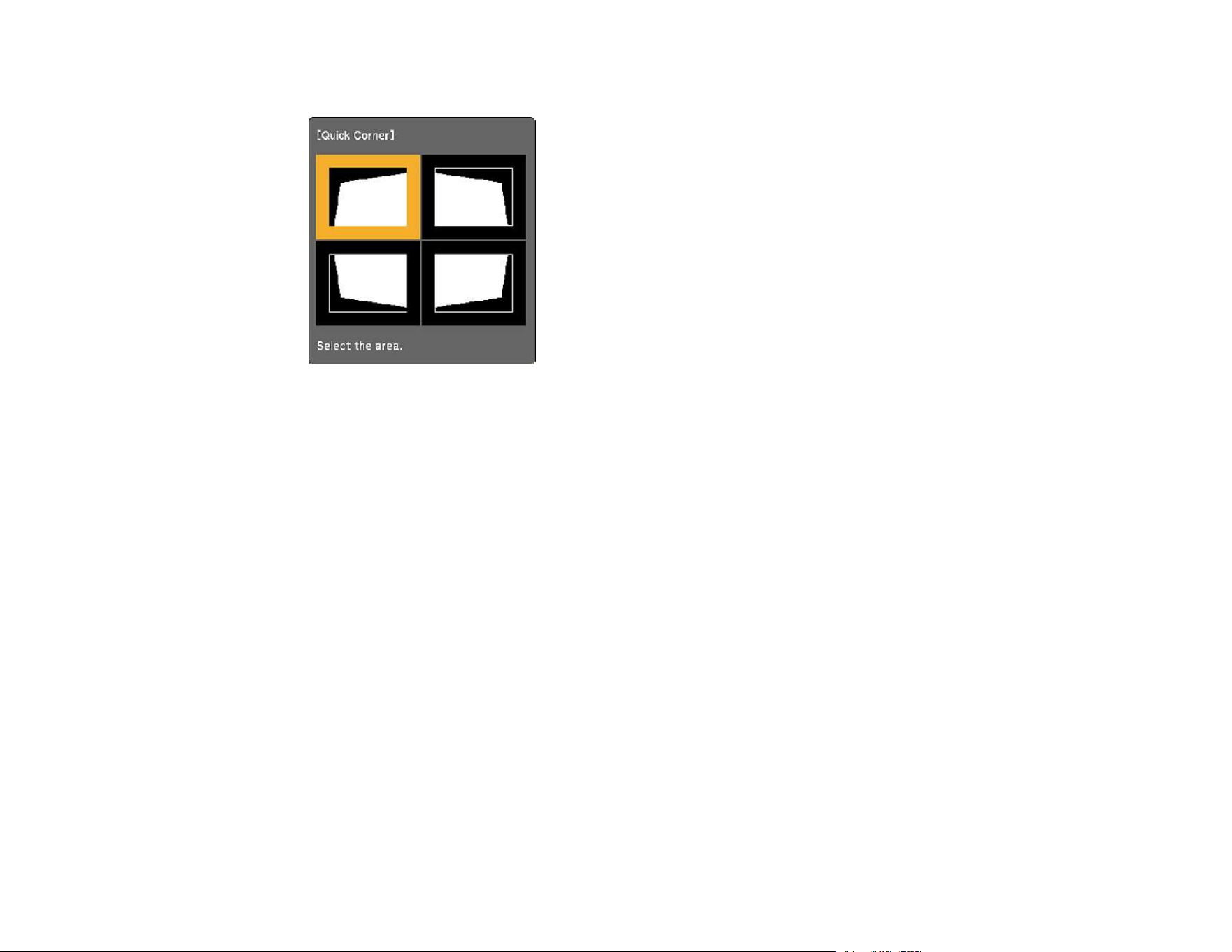

You see the Quick Corner adjustment screen:
6. Use the arrow buttons on the projector or remote control to select the corner of the image you want
to adjust. Then press Enter.
Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a
reset screen. Then select Yes.
7. Press the arrow buttons to adjust the image shape as necessary. Press Enter to return to the area
selection screen.
Note: You can also use the numeric buttons on the remote control to adjust the image shape. If one
of the directional arrows on the screen turns gray, you cannot adjust the shape any further in that
direction.
8. When you are finished, press Esc.
Note: To save the current image shape, select Save Memory. You can save up to three image shapes
in the projector's memory.
Parent topic: Image Shape
Related references
Projector Feature Settings - Settings Menu
110
Correcting Image Shape with Correct Shape
You can use the projector's Curved Surface setting to correct the shape of an image that is projected on
a curved or spherical surface.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Settings menu and press Enter.
4. Select the Geometry Correction setting and press Enter.
5. Select the Curved Surface setting and press Enter. Then press Enter again if necessary.
6. Select the Curved Surface setting and press Enter.
111
7. Select the Correct Shape setting and press Enter.
You see the Correct Shape adjustment screen:
8. Use the arrow buttons on the remote control to select the area of the image you want to adjust. Then
press Enter.
Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a
reset screen. Then select Yes.
9. Press the arrow buttons to adjust the image shape as necessary. Press Enter to return to the area
selection screen.
10. Repeat steps 7 and 8 as needed.
11. When you are finished, press Esc.
Note: To save the current image shape, select Save Memory. You can save up to three image
shapes in the projector's memory.
Parent topic: Image Shape
Related references
Projector Feature Settings - Settings Menu
112
Correcting Image Shape with Point Correction
You can use the projector's Point Correction feature to fine-tune the image shape using points on a grid.
This is useful for adjusting overlapping areas in multiple projected images that do not line up correctly.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select Settings > Geometry Correction > Point Correction.
Note: If you see a confirmation message, select Yes and press Enter.
4. Select the Point Correction setting again and press Enter.
Note: For fine tuning, select Quick Corner to roughly correct the shape and size of an image and
then select Point Correction to adjust them more precisely.
5. Select the number of grid lines to display and press Enter.
You see a grid on the projected image.
Note: If you need to change the color of the grid lines, press Esc, select the Pattern Color setting,
and select a suitable color.
113
6. Press the arrow buttons on the projector or remote control to move to the point on the grid that you
want to adjust. Then press Enter.
7. Press the arrow buttons as necessary to correct the image shape.
8. Press Esc to return to the previous screen and select another point to correct, if necessary.
9. When you are finished, press the Esc button.
Note: If necessary, you can fine-tune your image adjustments using the Quick Corner setting.
Parent topic: Image Shape
Related references
Projector Feature Settings - Settings Menu
Applying Saved Image Shape Settings
You can load the image shape settings you selected and saved to the projector's memory and apply
them to the current image.
114
1. Turn on the projector and display an image.
2. Hold down the Num button on the remote control and press the number button (1, 2, or 3) that
matches the number of the saved image shape setting.
The saved image shape setting is applied and you are prompted to calibrate the screen.
3. Follow the on-screen instructions to calibrate the screen.
Parent topic: Image Shape
Selecting an Image Source
If you connected multiple image sources to the projector, such as a computer and DVD player, you may
want to switch from one image source to the other.
1. Make sure the connected image source you want to use is turned on.
2. For video image sources, insert a DVD or other video media and press its play button, if necessary.
3. Do one of the following:
• Press the Source Search button on the projector or remote control until you see the image from
the source you want.
115
• Press the button for the source you want on the remote control. If there is more than one port for
that source, press the button again to cycle through the sources.
1 HDMI and HDBaseT sources
2 USB port sources (computer display or external devices)
3 Network sources
• Press the Home button on the remote control or projector and select your image source.
Note: Your Home screen may look different from the illustration shown here. A checkmark
appears on the image from the current input source. You can see thumbnail previews of most
input sources.
116
Parent topic: Using Basic Projector Features
Related references
Projector Setup Settings - Extended Menu
Related tasks
Using the Home Screen
Remote Control Operation
The remote control lets you control the projector from almost anywhere in the room, up to 26 feet (8 m)
away. You can point it at the front or rear of the projector.
Make sure that you aim the remote control at the projector's receivers within the angles listed here.
1 26 feet (8 m)
Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or
the projector may not respond to commands. If you will not use the remote control for a long time,
remove the batteries.
117
Parent topic: Using Basic Projector Features
Related references
Solutions to Remote Control Problems
Related tasks
Replacing the Remote Control Batteries
Projection Modes
Depending on how you positioned the projector, you may need to change the projection mode so your
images project correctly.
• Front (default setting) lets you project from a table in front of the screen.
• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.
• Rear flips the image horizontally to project from behind a translucent screen.
• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind
a translucent screen.
Note: You can change the projection mode using the remote control or by changing the Projection
setting in the Extended menu.
Changing the Projection Mode Using the Remote Control
Changing the Projection Mode Using the Menus
Parent topic: Using Basic Projector Features
Related references
Projector Setup Settings - Extended Menu
Changing the Projection Mode Using the Remote Control
You can change the projection mode to flip the image over top-to-bottom.
1. Turn on the projector and display an image.
118
2. Hold down the A/V Mute button on the remote control for 5 to 10 seconds.
The image disappears briefly and reappears flipped top-to-bottom.
3. To change projection back to the original mode, hold down the A/V Mute button for 5 to 10 seconds
again.
Parent topic: Projection Modes
Changing the Projection Mode Using the Menus
You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the
projector menus.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Extended menu and press Enter.
4. Select the Projection setting and press Enter.
119
5. Select a projection mode and press Enter.
6. Press Menu or Esc to exit the menus.
Parent topic: Projection Modes
Related references
Projector Setup Settings - Extended Menu
Image Aspect Ratio
The projector can display images in different width-to-height ratios called aspect ratios. Normally the
input signal from your video source determines the image's aspect ratio setting. However, for certain
images you can change the aspect ratio to fit your screen.
If you always want to use a particular aspect ratio for a certain video input source, you can select it using
the projector's menus.
Changing the Image Aspect Ratio
Available Image Aspect Ratios
Parent topic: Using Basic Projector Features
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image to resize it.
Note: Set the Screen Type setting in the projector's Extended menu before changing the aspect ratio.
This setting is available only when the Scale setting is set to Full Display. You may not be able to set
the aspect ratio for all sources.
Note: The image for Native varies depending on the input signal. The available aspect ratio setting
varies depending on the input signal. If there are margins between the edge of the image and the
projected screen frame, you can adjust the position of the image using the Screen Position setting in
the projector's Extended menu .
1. Turn on the projector and switch to the image source you want to use.
120
2. Press the Aspect button on the remote control.
The shape and size of the displayed image changes, and the name of the aspect ratio appears
briefly on the screen.
3. To cycle through the available aspect ratios for your input signal, press the Aspect button
repeatedly.
Note: To remove black bars when projecting from a computer, set the Resolution setting to Wide or
Normal in the Signal menu, depending on your computer's resolution.
Parent topic: Image Aspect Ratio
Related references
Projector Setup Settings - Extended Menu
Input Signal Settings - Signal Menu
Available Image Aspect Ratios
You can select the following image aspect ratios, depending on the selected Screen Type setting and
the input signal from your image source.
Note: Black bands and cropped or stretched images may project in certain aspect ratios, depending on
the aspect ratio and resolution of your input signal.
Note: Using the aspect ratio of the projector to reduce, enlarge, or split the projected image for
commercial purposes or for public viewing may infringe on the rights of the copyright holder of that image
based on copyright law.
Aspect ratio setting Description
Auto Automatically sets the aspect ratio according to the input signal.
121
Aspect ratio setting Description
4:3 Displays images at a 4:3 aspect ratio.
16:9 Displays images at a 16:9 aspect ratio.
Full Displays images using the full size of the projection area, but does
not maintain the aspect ratio.
H-Zoom
V-Zoom
(Available only when Screen
Type is set to 4:3, 16:9, 16:10, or
21:9
Displays images using the full width (H-Zoom) or full height (V-
Zoom) of the projection area and maintains the aspect ratio of the
image. Areas that exceed the edges of the projected screen are not
projected.
Native
(Available only when Screen
Type is set to 4:3, 16:9, 16:10, or
21:9
Displays images as is (aspect ratio and resolution are maintained).
Areas that exceed the edges of the projected screen are not
projected.
Note: The appearance of the Native image aspect ratio setting varies depending on the input signal.
If there are margins between the image edges and the screen, you can adjust the position of the
projected image using the Screen Position setting in the Extended > Display > Screen menu.
Parent topic: Image Aspect Ratio
Related references
Input Signal Settings - Signal Menu
Color Mode
The projector offers different Color Modes to provide optimum brightness, contrast, and color for a
variety of viewing environments and image types. You can select a mode designed to match your image
and environment, or experiment with the available modes.
If you always want to use a particular color mode for a certain video input source, you can select it using
the projector menus.
Changing the Color Mode
Available Color Modes
Parent topic: Using Basic Projector Features
122
Changing the Color Mode
You can change the projector's Color Mode using the remote control to optimize the image for your
viewing environment.
1. Turn on the projector and switch to the image source you want to use.
2. If you are projecting from a DVD player or other video source, insert a disc or other video media and
press the play button, if necessary.
3. Press the Color Mode button on the remote control to change the Color Mode.
A list of available Color Modes appears. Can also change by going through the menu.
4. To cycle through all the available Color Modes for your input signal, keep pressing the Color Mode
button.
5. Press Enter to select a Color Mode.
Parent topic: Color Mode
Related tasks
Selecting an Image Source
Available Color Modes
You can set the projector to use these Color Modes, depending on the input source you are using:
Color Mode Description
Dynamic Best for projecting in a bright room
Presentation Best for color presentations in a bright room
Natural Best for projecting still pictures such as photos
Cinema Best for movies projected in a dark room
123
Color Mode Description
BT.709 Best for watching digital TV or Blu-ray discs; produces images that
conform to the ITU-R BT.709 standard
DICOM SIM Best for projecting X-ray photographs and other medical images
Multi-Projection Best for projecting from multiple projectors (reduces the color tone
difference between images)
Note: The DICOM SIM Color Mode is for reference purposes only and should not be used to make
medical diagnoses.
Parent topic: Color Mode
Turning On Dynamic Contrast
You can turn on the Dynamic Contrast setting to automatically optimize the image luminance. This
improves the image contrast based on the brightness of the content you project.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
3. Select the Image menu and press Enter.
4. Select the Dynamic Contrast setting and press Enter.
124
5. Choose one of the following options and press Enter:
• Normal to adjust brightness at the standard speed.
• High Speed to adjust brightness as soon as the scene changes.
6. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Related references
Image Quality Settings - Image Menu
Adjusting the Hue, Saturation, and Brightness
You can adjust the Hue, Saturation, and Brightness settings for R (red), G (green), B (blue), C (cyan),
M (magenta), and Y (yellow) color components.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
3. Select the Image menu and press Enter.
4. Select the Advanced > RGBCMY setting and press Enter.
125
5. Select the color you want to adjust and press Enter.
• To adjust the overall hue of the color, adjust the Hue setting.
• To adjust the overall vividness of the color, adjust the Saturation setting.
• To adjust the overall brightness of the color, adjust the Brightness setting.
6. Press the left or right arrow buttons to adjust the Hue, Saturation, and Brightness settings.
7. Repeat the previous three steps as necessary to adjust each color.
8. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Related references
Image Quality Settings - Image Menu
Adjusting Gamma
You can adjust the gamma to improve differences in halftone brightness that vary depending on the
connected device.
Note: To optimize the color tone according to the scene, and to obtain a more vivid image. Correct the
image by adjusting the Scene Adaptive Gamma setting.
Note: Project a still image to adjust the gamma; you cannot adjust it properly when projecting a movie or
other moving video. Medical images may not reproduce correctly depending on your operating
environment and screen.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
126
3. Select the Image > Advanced menu and press Enter.
4. Select the Gamma setting and press Enter.
You see a screen like this:
5. Select and adjust the correction value.
Note: If you set the Color Mode to DICOM SIM in the projector's Image menu, select the adjustment
value according to the projection size. When you select a smaller value, you can reduce the overall
brightness of the image to make the image sharper. When you select a larger value, the dark areas
of images become brighter, but the color saturation for lighter areas may become weaker.
6. If you want to make finer adjustments, select Custom and press Enter.
127
You see a screen like this:
7. Press the left or right arrow button to select the tone you want to change, then press the up or down
arrow button to adjust the tone and press Enter.
8. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Related references
Image Quality Settings - Image Menu
Adjusting the Image Resolution
You can adjust the image resolution to project a clear image with an emphatic texture and material feel.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
3. Select the Image menu and press Enter.
4. Select Image Enhancement and press Enter.
5. Select Image Preset Mode and press Enter.
128
6. Select the preset option and press Enter.
Note: The following settings saved in the preset option are applied to the image:
• Noise Reduction
• MPEG Noise Reduction
• Deinterlacing
• Super-resolution
• Detail Enhancement
7. Adjust each setting in the projector's Image menu individually as necessary.
• Adjust the Noise Reduction setting to reduce flickering in images.
• Adjust the MPEG Noise Reduction setting to reduce the noise or artifacts seen in MPEG video.
• Adjust the Deinterlacing setting to convert interlaced-to-progressive signals for certain video
image types (only displayed when the current signal is interlaced 1080i).
• Adjust the Super-resolution setting to reduce blurring when projecting low-resolution images.
• Adjust the Detail Enhancement setting to create a more emphatic texture and material feel of the
image.
The setting values in the preset option are overwritten as you make changes.
8. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Adjusting the Brightness
You can adjust the brightness of your projector's light source.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
129
3. Select the Settings menu and press Enter.
4. Select the Brightness Settings setting and press Enter.
5. Select the Light Source Mode setting and press Enter.
6. Select one of the following options:
• Normal: Sets brightness to the maximum level (ideal for conference rooms, auditoriums, and
lecture halls)
• Quiet: Sets brightness to 70% and reduces fan noise (ideal for libraries, theaters, museums, and
art galleries)
• Extended: Sets brightness to 70% and extends the life expectancy of the light source (ideal for
darker environments with ambient light, such as museums and art galleries, where a reduced
maintenance cycle is desired)
• Custom: Allows you to select a custom brightness level between 70 to 100%
7. If you selected Custom, select Brightness Level from the Brightness Settings screen and use the
left and right arrow buttons to select the brightness.
8. If you selected Custom and want to maintain consistent brightness, turn on the Constant
Brightness setting.
Note: If you turn on Constant Brightness, you cannot change the Light Source Mode and
Brightness Level settings. If you turn off Constant Brightness, the Brightness Level setting
changes according to the status of the light source.
130
9. Press Menu or Esc to exit the menus.
Note: If you use the projector continuously for more than 24 hours, or regularly turn it off by shutting off
the power outlet, schedule periodic Light Source Calibration events from the Extended menu.
Otherwise, the Constant Brightness setting may not work properly.
Constant Brightness Usage Hours
Parent topic: Using Basic Projector Features
Related references
Projector Setup Settings - Extended Menu
Projector Feature Settings - Settings Menu
Related topics
Scheduling Projector Events
Constant Brightness Usage Hours
Light source life span
The estimated life span of the light source varies depending on the Brightness Level setting and
whether the Constant Brightness setting is on or off.
Constant Brightness off
Brightness Level setting Hours
100% 20000 hours
90% 21000 hours
80% 24000 hours
70% 30000 hours
Constant Brightness on
131
1 Brightness level
2 Time the projector can maintain constant brightness (approximate)
Brightness Level setting Hours
85% 6000 hours
80% 10000 hours
75% 14000 hours
70% 19000 hours
Note: The light source usage hours vary depending upon environmental conditions and usage. The
hours listed here are an approximate and are not guaranteed. You may need to replace parts in the
projector sooner than the estimated light source operation time. If Constant Brightness is turned on,
and you have exceeded the usage hours listed here, you may not be able to select a high Brightness
Level setting.
Parent topic: Adjusting the Brightness
Controlling the Volume with the Volume Buttons
You can use the Volume buttons on the remote control to adjust the volume as you project a
presentation with audio. The volume buttons control the projector’s internal speaker system or any
external speakers you connected to the projector.
You must adjust the volume separately for each connected input source.
Warning: Do not start playback at a high volume. Sudden loud noises may cause hearing loss. Always
lower the volume before turning off the projector. Gradually increase the volume after turning the
projector on.
1. Turn on the projector and start a presentation that includes audio.
132
2. To lower or raise the volume, press the Volume buttons on the remote control.
A volume gauge appears on the screen.
Note: You can also adjust the Volume setting in the projector's Settings menu.
3. To set the volume to a specific level for an input source, use the projector menus.
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Projecting a PC Free Presentation
You can use your projector's PC Free feature whenever you connect a USB device that contains
compatible files. This lets you quickly and easily display the contents of the files and control their display
using the projector's remote control.
Note: Make sure Content Playback is disabled in the projector's Settings menu.
PC Free Precautions
Supported PC Free File Types
Starting a PC Free Slideshow
Starting a PC Free Movie Presentation
PC Free Display Options
Parent topic: Using Basic Projector Features
Related tasks
Connecting to a USB Device
133
PC Free Precautions
Note the following precautions when using PC Free features:
• You cannot use a USB key for quick wireless connection for PC Free features.
• Do not disconnect the USB device while it is being accessed; otherwise, PC Free may not operate
correctly.
• You may not be able to use the security features on certain USB devices with PC Free features.
• When connecting a USB device that includes an AC adapter, connect the AC adapter to an electrical
outlet when you use the USB device with your projector.
• Some commercially available USB card readers may not be compatible with your projector.
• The projector can recognize up to five cards inserted into a connected card reader at a time.
• You cannot correct keystone distortion while projecting in PC Free, so correct the image shape before
you begin your presentation.
• You can use the following features while projecting in PC Free:
• Freeze
• A/V Mute
Parent topic: Projecting a PC Free Presentation
Supported PC Free File Types
You can project these types of files using the projector's PC Free feature.
Note: For best results, place your files on media that is formatted in FAT16/32. If you have trouble
projecting from media formatted for non-Windows file systems, try formatting the media for Windows
instead. You may not be able to use the security features on certain USB storage devices with PC Free
features. When connecting a USB-compatible hard drive, connect the AC adapter supplied with the
drive. PC Free may not work with USB device security features.
134
File type and
extension
Details
Image (.jpg) Make sure the file is not:
• CMYK format
• Progressive format
• Highly compressed
• Above 8192 × 8192 resolution
Image (.bmp) Make sure the file resolution is not above 1280 × 800
Image (.gif ) Make sure the file is not:
• Above 1280 × 800 resolution
• Animated
• Interlaced
Image (.png) Make sure the file resolution is not:
• Above 1920 × 1200 resolution
• Interlaced
Motion JPEG
movie (.avi)
Supports only AVI 1.0
Make sure the file is not:
• Saved with a video codec other than Motion JPEG
• Saved with an audio codec other than PCM or ADPCM
• Above 1280 × 720 resolution
• Larger than 2GB
Parent topic: Projecting a PC Free Presentation
Starting a PC Free Slideshow
After connecting a USB device or digital camera to the projector, you can switch to the USB input source
and start your slideshow.
Note: You can change the slideshow operation options or add special effects by highlighting Option at
the bottom of the screen and pressing Enter.
135
Note: Make sure Content Playback is disabled in the projector's Settings menu.
1. Press the USB button on the projector remote control.
The PC Free screen appears.
2. Do the following as necessary to locate your files:
• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight
the folder and press Enter.
• To move back up a folder level on your device, highlight Back to Top and press Enter.
• To view additional files in a folder, highlight Next Page or Previous Page and press Enter.
3. Do one of the following:
• To display an individual image, press the arrow buttons to highlight the image and press Enter.
(Press the Esc button to return to the file list screen.)
136
• To display a slide show of all the images in a folder, press the arrow buttons to highlight the
Slideshow option at the bottom of the screen and press Enter.
Note: If any file names are longer than the display area or include unsupported symbols, the file
names may be shortened or changed only in the screen display.
4. While projecting, use the following commands to control the display as necessary:
• To rotate a displayed image, press the up or down arrow button.
• To move to the next or previous image, press the left or right arrow button.
5. To stop the display, follow the on-screen instructions or press the Esc button.
6. Turn off the USB device, if necessary, and then disconnect the device from the projector.
Parent topic: Projecting a PC Free Presentation
Related references
Projector Setup Settings - Extended Menu
Related tasks
Connecting to a USB Device
Starting a PC Free Movie Presentation
After connecting a USB device or digital camera to the projector, you can switch to the USB input source
and start your movie.
Note: You can change the operation options by highlighting Option at the bottom of the screen and
pressing Enter.
1. Press the USB button on the projector remote control.
137
The PC Free screen appears.
2. Do the following as necessary to locate your files:
• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight
the folder and press Enter.
• To move back up a folder level on your device, highlight Back to Top and press Enter.
• To view additional files in a folder, highlight Next Page or Previous Page and press Enter.
3. To play back a movie, press the arrow buttons to highlight the file and press Enter.
Note: If any file names are longer than the display area or include unsupported symbols, the file
names may be shortened or changed only in the screen display. If you want to play back all the
movies in a folder in sequence, select the Slideshow option at the bottom of the screen.
4. To stop movie playback, press the Esc button, highlight Exit, and press Enter.
5. Turn off the USB device, if necessary, and then disconnect the device from the projector.
Parent topic: Projecting a PC Free Presentation
138
Related tasks
Connecting to a USB Device

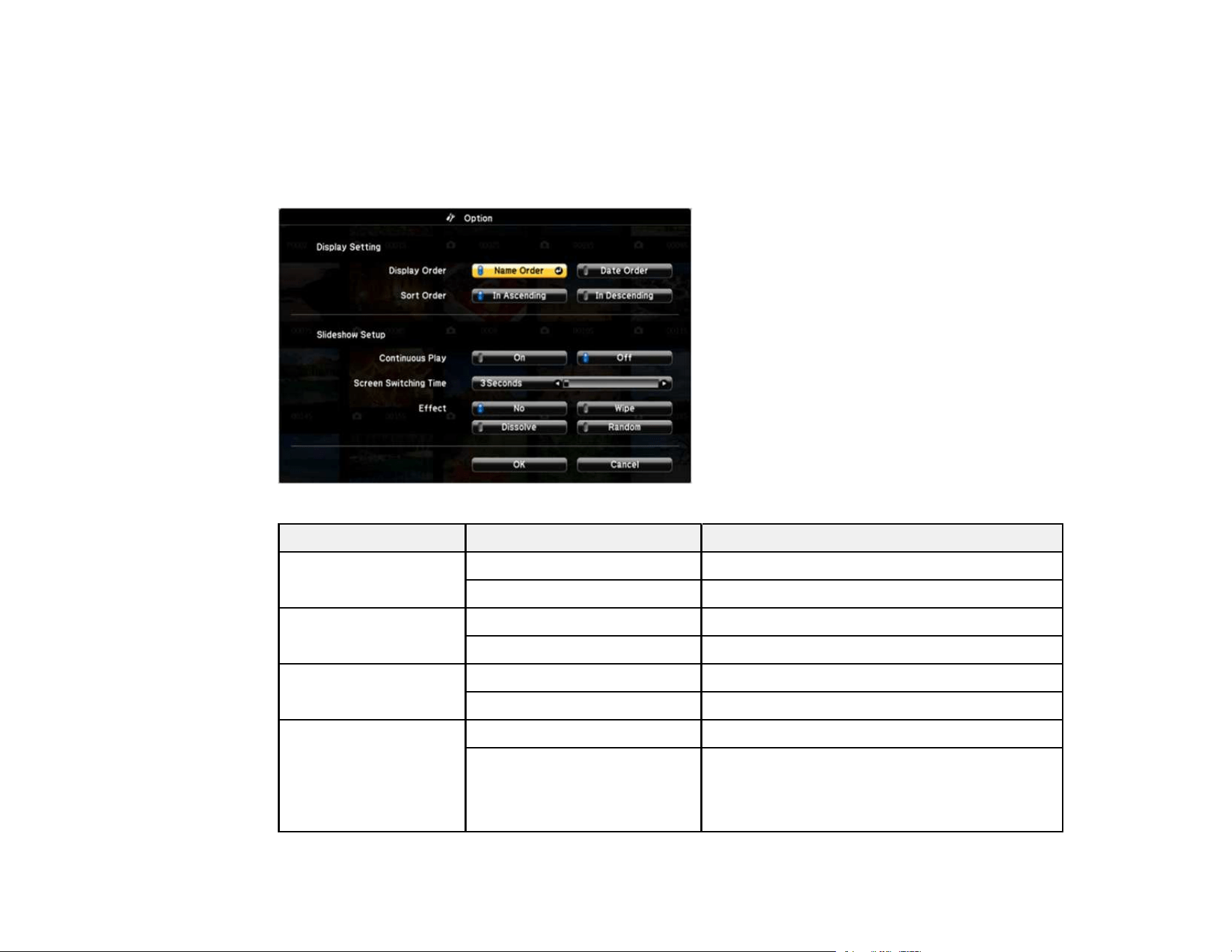

PC Free Display Options
You can select these display options when using the projector's PC Free feature.
Setting Options Description
Display Order Name Order Displays files in name order
Date Order Displays files in date order
Sort Order In Ascending Sorts files in first-to-last order
In Descending Sorts files in last-to-first order
Continuous Play On Displays a slideshow continuously
Off Displays a slideshow one time through
Screen Switching
Time
No Does not display the next file automatically
1 Second to 60 Seconds Displays files for the selected time and
switches to the next file automatically; high
resolution images may switch at a slightly
slower rate
139
Setting Options Description
Effect No No effect
Wipe Transitions between images with a wipe effect
Dissolve Transitions between images with a dissolve
effect
Random Transitions between images using a random
variety of effects
Parent topic: Projecting a PC Free Presentation
Projecting in Content Playback Mode
You can project images or other content from an external storage device using Content Playback mode.
You can also add color or effects to the projected image.
Switching to Content Playback Mode
Projecting a Playlist in Content Playback Mode
Creating a Playlist Using Epson Web Control
Adding Effects to the Projected Image
Parent topic: Using Basic Projector Features
Switching to Content Playback Mode
Make sure Content Playback mode is enabled before projecting images or playlists.
1. Turn on the projector.
2. Press the Menu button.
140
3. Select the Settings menu and press Enter.
4. Select Content Playback and press Enter.
5. Select On, if necessary, and press Enter.
You see a confirmation prompt.
6. Turn off the projector.
7. Turn on the projector again to enable Content Playback mode.
You can press the Home button to make sure Content Playback mode is enabled.
Note: You cannot perform the following operations in Content Playback mode:
• Color Temp. (when Warm White or Cool White is selected as Color Filter)
• Split Screen
• Blanking
• Screen Type
• Display background
• Screen
• Log Save Destination
• Detecting the input signal automatically
• Remote Password
141
• PC Free
• Document camera
• Screen delivery function using the Epson iProjection software
Parent topic: Projecting in Content Playback Mode
Related references
Projector Feature Settings - Settings Menu
Related tasks
Using the Home Screen
Projecting a Playlist in Content Playback Mode
You can project playlists that contain images and movies in Content Playback mode.
1. Create a playlist and export it to a USB device using the Epson Projector Content Manager software,
Epson Web Control, and Epson Creative Projection App.
Note: See the Epson Projector Content Manager Operation Guide for more information.
2. Turn on the projector.
3. Make sure the projector is in Content Playback mode.
4. Insert the USB device containing the playlist to the projector's USB-A port.
5. Press the USB button on the remote control to project the playlist.
The playlist that was played last is projected. If a timetable is assigned, the playlist will play back
according to the schedule in the timetable.
142
Note: You can also hold down the Num and numeric buttons to project your playlist. You can set a
remote control shortcut key using the software you used to create the playlists.
Note: To select a specific playlist, select the USB Viewer setting in the Settings menu and use the arrow
buttons to select your playlist.
Parent topic: Projecting in Content Playback Mode
Related references
Projector Feature Settings - Settings Menu
Related tasks
Using the Home Screen
Creating a Playlist Using Epson Web Control
You can create playlists using a web browser and save them to a USB flash drive connected to a
projector on a network when the projector is in Content Playback mode.
Caution: Do not remove the USB flash drive from the projector or disconnect the projector's power cord
while creating playlists. Data saved on the USB flash drive may be damaged.
1. Make sure the projector is in Content Playback mode.
2. Make sure your computer or device is connected to the same network as the projector.
3. Connect a USB device to the projector's USB-A port.
4. Start your web browser on your computer or device.
5. Enter the projector's IP address into the browser's address box and press the computer's Enter key.
Note: When entering an IPv6 address, wrap the address with [ and ].
You see the Epson Web Control screen.
6. Select USB Memory Device.
7. Select Upload New Data.
8. Select the images or movies you want to add to the playlist.
Note: You cannot upload .mp4 or .mov files. If you want to add .mp4 or .mov files to the playlist, use
Epson Projector Content Manager software or the Epson Creative Projection app.
143
The selected files are copied to the USB device that is connected to the projector.
9. Do one of the following:
• Select Create New Playlist to create a new playlist and add the files to it.
• Select Add to Playlist and select the existing playlist you want to add the files to.
10. Edit the playlist.
11. Select Finish when you are done editing the playlist.
You can play the playlist from the Remote or Playlist screen. If you want to specify when the playlist
starts and finishes, schedule the playlist using the Epson Projector Content Manager software. See the
Epson Projector Content Manager Operation Guide for details.
Parent topic: Projecting in Content Playback Mode
Related references
Projector Feature Settings - Settings Menu
Related tasks
Controlling a Networked Projector in Content Playback Mode
Adding Effects to the Projected Image
You can add color and effects to the projected image in Content Playback mode.
Note: When you use the effects feature, select Refresh Mode > Start on the Reset menu periodically.
1. Press the Menu button.
144
2. Select the Settings menu and press Enter.
3. Select the Content Playback setting and press Enter.
4. Select the Overlay Effect setting and press Enter.
5. Select the Overlay Effect setting again and select On.
6. Select the Shape Filter setting and adjust the options as necessary.
• Shape: select a circle, rectangle, or other shape effect
Note: You can add images as customized shapes using the Epson Projector Content Manager
software. See the Epson Projector Content Manger Operation Guide for details.
• Filter Effect: select an option to mask the inside or outside of the shape
• Size: set the shape size
145
• Position: set the shape position
Note: When you use a customized shape, you cannot change the Size and Position settings.
7. Select the Color Filter setting and adjust the options as necessary.
• Color Filter: select the color
• Custom: adjust red, green, or blue individually
8. Select the Lightness setting and adjust the brightness level.
9. Press the Menu button to exit.
Parent topic: Projecting in Content Playback Mode
Related references
Projector Feature Settings - Settings Menu
Projector Reset Options - Reset Menu
Related tasks
Using the Home Screen
146
Adjusting Projector Features
Follow the instructions in these sections to use your projector's feature adjustments.
Shutting Off the Picture and Sound Temporarily
Stopping Video Action Temporarily
Zooming Into and Out of Images
Projector Security Features
Projecting Two Images Simultaneously
Using Multiple Projectors
Running Light Source Calibration
Saving Settings to Memory and Using Saved Settings
Scheduling Projector Events
Copying Menu Settings Between Projectors
Shutting Off the Picture and Sound Temporarily
You can temporarily turn off the projected picture and sound if you want to redirect your audience's
attention during a presentation. Any sound or video action continues to run, however, so you cannot
resume projection at the point that you stopped it.
Note: If the picture and sound are off for more than 30 minutes , the power automatically turns off. You
can disable the A/V Mute Timer setting in the Extended Menu to turn off this feature.
1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.
2. To turn the picture and sound back on, press the A/V Mute button again.
Note: You can also stop projection using the A/V Mute button on the projector.
147
Note: If you selected A/V Mute as the Release A/V Mute setting in the Extended menu, you can still
control the projector while A/V Mute is enabled.
Parent topic: Adjusting Projector Features
Related references
Projector Setup Settings - Extended Menu
Stopping Video Action Temporarily
You can temporarily stop the action in a video or computer presentation and keep the current image on
the screen. Any sound or video action continues to run, however, so you cannot resume projection at the
point that you stopped it.
1. Press the Freeze button on the remote control to stop the video action.
2. To restart the video action in progress, press Freeze again.
Parent topic: Adjusting Projector Features
Zooming Into and Out of Images
You can draw attention to parts of a presentation by zooming into a portion of the image and enlarging it
on the screen.
148
Note: This feature is unavailable if the Scale setting in the Image menu is enabled.
1. Press the E-Zoom + button on the remote control.
2. Use the following buttons on the remote control to adjust the zoomed image:
• Use the arrow buttons to position the image area you want to zoom into.
• Press the E-Zoom + button repeatedly to zoom into the image area, enlarging it as necessary.
• To pan around the zoomed image area, use the arrow buttons.
• To zoom out of the image, press the E-Zoom – button as necessary.
• To return to the original image size, press the Default button.
Parent topic: Adjusting Projector Features
Related references
Image Quality Settings - Image Menu
Projector Security Features
You can secure your projector to deter theft or prevent unintended use by setting up the following
security features:
• Password security to prevent the projector from being turned on, and prevent changes to the startup
screen and other settings.
• Button lock security to block operation of the projector using the buttons on the control panel.
• Security cabling to physically cable the projector in place.
Password Security Types
Locking the Projector's Buttons
Locking the Remote Control Buttons
Installing a Security Cable
149
Parent topic: Adjusting Projector Features
Password Security Types
You can set up these types of password security using one shared password:
• Power On Protection password prevents anyone from using the projector without first entering a
password.
• User's Logo Protection password prevents anyone from changing the custom screen the projector
can display when it turns on. The presence of the custom screen discourages theft by identifying the
projector’s owner.
• Network Protection password prevents anyone from changing the network settings in the projector
menus.
• Schedule Protection password prevents anyone from changing the projector's time or schedule
settings.
• Remote Camera Access password prevents anyone from changing the projector's Remote Camera
Access settings in the Network menu.
Note: Additional security measures are available for the Remote Camera Access feature. Contact
Epson for details.
Setting a Password
Selecting Password Security Types
Entering a Password to Use the Projector
Saving a User's Logo Image to Display
Parent topic: Projector Security Features
Related references
Projector Network Settings - Network Menu
Related topics
Scheduling Projector Events
Setting a Password
To use password security, you must set a password.
Note: The default password is set to 0000.
150
1. Hold down the Freeze button on the remote control for about 5 seconds or until you see this menu.
2. Press the down arrow to select Password and press Enter.
You see the prompt "Change the password?".
3. Select Yes and press Enter.
4. Press and hold down the Num button on the remote control and use the numeric buttons to set a
four-digit password.
The password displays as **** as you enter it. Then you see the confirmation prompt.
5. Enter the password again.
You see the message "Password accepted."
6. Press Esc to return to the menu.
7. Make a note of the password and keep it in a safe place in case you forget it.
Parent topic: Password Security Types
Related references
Solutions to Password Problems
151
Selecting Password Security Types
After setting a password, you see this menu, allowing you to select the password security types you want
to use.
If you do not see this menu, hold down the Freeze button on the remote control for about 5 seconds or
until the menu appears.
• To prevent unauthorized use of the projector, select Power On Protection, press Enter, select On,
press Enter again, and press Esc.
• To prevent changes to the User's Logo screen or related display settings, select User's Logo
Protection, press Enter, select On, press Enter again, and press Esc.
• To prevent changes to network settings, select Network Protection, press Enter, select On, press
Enter again, and press Esc.
• To prevent changes to the projector's time or schedule settings, select Schedule Protection, press
Enter, select On, press Enter again, and press Esc.
Note: Be sure to keep the remote control in a safe place; if you lose it, you will not be able to enter the
password required to use the projector.
Parent topic: Password Security Types
Related topics
Scheduling Projector Events
152
Entering a Password to Use the Projector
If a password is set up and a Power On Protection password is enabled, you see a prompt to enter a
password whenever you turn on the projector.
You must enter the correct password to use the projector.
1. Press and hold down the Num button on the remote control while you enter the password using the
numeric buttons.
Note: The default password is 0000.
The password screen closes.
2. If the password is incorrect, the following may happen:
• You see a "wrong password" message and a prompt to try again. Enter the correct password to
proceed.
153
• If you have forgotten the password, make note of the Request Code: xxxxx number that appears
on the screen and contact Epson Support.
• If you enter an incorrect password three times in succession, you see a message telling you that
the projector is locked. After the message is displayed for 5 minutes, the projector enters standby
mode. Unplug the projector, plug in the power cord, and turn on the projector. You see a prompt to
enter the password.
• If you continue to enter an incorrect password many times in succession, the projector displays a
request code and a message to contact Epson Support. Do not attempt to enter the password
again. When you contact Epson Support, provide the displayed request code and proof of
ownership for assistance in unlocking the projector.
Parent topic: Password Security Types
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Solutions to Password Problems
Saving a User's Logo Image to Display
You can transfer an image to the projector and then display it whenever the projector turns on. You can
also display the image when the projector is not receiving an input signal or when you temporarily stop
projection (using the A/V Mute feature). This transferred image is called the User's Logo screen.
The image you select as the User's Logo can be a photo, graphic, or company logo, which is useful in
identifying the projector's owner to help deter theft. You can prevent changes to the User's Logo by
setting up password protection for it.
Note: When you copy the menu settings from one projector to another using the batch setup feature, the
user logo is also copied. Do not include any information in the user logo that you do not want to share
between multiple projectors.
1. Display the image you want to project as the User's Logo.
154
2. Press the Menu button, select the Extended menu, and press Enter.
3. Select the User's Logo setting and press Enter.
4. Select Start Setting and press Enter.
5. A prompt appears asking if you want to use the displayed image as the user's logo. Select Yes and
press Enter.
6. A prompt appears again asking if you want to use the displayed image as the user's logo. Select Yes
and press Enter.
You see a completion message.
7. Press Esc to return to the Extended menu.
8. Select Display and press Enter.
9. Select when you want to display the User's Logo screen:
• To display it whenever there is no input signal, select Display Background and set it to Logo.
• To display it whenever you turn the projector on, select Startup Screen and set it to On.
To prevent anyone from changing the User's Logo settings without first entering a password, set a
password and enable User's Logo security.
Parent topic: Password Security Types
Related tasks
Setting a Password
Selecting Password Security Types
155
Locking the Projector's Buttons
You can lock the buttons on the projector's control panel to prevent anyone from using the projector. You
can lock all the buttons or all the buttons except the power button.
Note: The projector can still be operated using the remote control.
1. Press the Menu button.
2. Select the Settings menu and press Enter.
3. Select Lock Setting and press Enter.
4. Select the Control Panel Lock setting and press Enter.
5. Select one of these lock types and press Enter:
• To lock all of the projector's buttons, select Full Lock.
• To lock all buttons except the power button, select Partial Lock.
You see a confirmation prompt.
6. Select Yes and press Enter.
Unlocking the Projector's Buttons
Parent topic: Projector Security Features
156
Unlocking the Projector's Buttons
If the projector's buttons have been locked, hold the Enter button on the projector's control panel for 7
seconds to unlock them. You can also set the Control Panel Lock setting to Off in the Settings menu.
Parent topic: Locking the Projector's Buttons
Related references
Projector Feature Settings - Settings Menu
Locking the Remote Control Buttons
You can lock some of the buttons on the remote control.
To lock the remote control buttons shown here, press and hold the Home button on the remote control
for approximately 5 seconds. (To unlock the buttons, press and hold the Home button again for
approximately 5 seconds.)
157
Note: If you lock the remote control buttons, you can still reset the Remote Receiver setting in the
Settings menu to the default settings.
Parent topic: Projector Security Features
Related references
Projector Feature Settings - Settings Menu
Installing a Security Cable
You can install two types of security cables on the projector to deter theft.
• Use the security slot on the projector to attach a Kensington lock. See your local computer or
electronics dealer for purchase information.
• Use the security cable attachment point on the projector to attach a wire cable and secure it to a room
fixture or heavy furniture.
Note: Do not pass drop-prevention cables through the security cable attachment point when mounting
the projector on a wall or ceiling.
Parent topic: Projector Security Features
158
Projecting Two Images Simultaneously
You can use the split screen feature to simultaneously project two images from different image sources
next to each other. You can control the split screen feature using the remote control or the projector
menus.
Note: While you use the split screen feature, other projector features may not be available and some
settings may be automatically applied to both images.
Note: You cannot use split screen with the following input source combinations:
• HDMI1 and HDMI2
• USB and LAN
159
1. Press the Split button on the remote control.
The currently selected input source moves to the left side of the screen.
2. Press the Menu button.
You see this screen:
3. To select an input source for the other image, select the Source setting, press Enter, select the
input source, select Execute, and press Enter. (You can also change image sources, if necessary.)
4. To switch the images, select the Swap Screens setting and press Enter.
5. To change the image sizes, select the Screen Size setting, press Enter, select a sizing option,
press Enter, and press Menu to exit.
Note: Depending on the video input signals, the images may not appear at the same size even if you
choose the Equal setting.
160
6. To choose the audio you want to hear, select the Audio Source setting, press Enter, select an
audio option, press Enter, and press Menu to exit.
Note: Select Auto to hear audio from the largest screen or the left screen.
7. To align the projected images, select the Align setting, press Enter, select the setting, press Enter,
and press Menu to exit.
8. To exit the split screen feature, press the Split or Esc button.
Parent topic: Adjusting Projector Features
Using Multiple Projectors
You can combine the projected images from two or more projectors to create one large image. Follow
the instructions in these sections to set up and project from multiple projectors.
Note: Wait at least 20 minutes after you start projecting before adjusting the image.
Multiple Projector Adjustment Overview
Projector Identification System for Multiple Projector Control
Adjusting the Color Tone (Color Uniformity)
Matching the Screens Manually
Adjusting RGBCMY
Scaling an Image
Parent topic: Adjusting Projector Features
Multiple Projector Adjustment Overview
If you are combining images from multiple projectors, you can adjust the brightness and color tone
difference between each image.
Note: You can display a pattern to aid in adjusting the projected image. Wait 20 minutes after turning on
the projector before setting the focus, zoom, and lens shift for maximum accuracy.
1. Set an ID for the remote control and projectors.
2. Select Multi-Projection as the Color Mode setting on each projector.
3. Adjust the color tone for each screen using the Color Uniformity setting.
161
4. Adjust the color balance and brightness for each screen using the Color Matching setting.
5. Adjust the Hue, Saturation, and Brightness settings for RBGCMY color components.
6. Crop and combine each projector's image area using the Scale setting.
Parent topic: Using Multiple Projectors
Related tasks
Setting the Projector ID
Setting the Remote Control ID
Adjusting the Color Tone (Color Uniformity)
Matching the Screens Manually
Adjusting RGBCMY
Scaling an Image
Projector Identification System for Multiple Projector Control
You can operate multiple projectors using one remote control for more elaborate presentations. To do
this, you assign an identification number to each projector and to the remote control. Then you can
operate all the projectors at once or individually.
Setting the Projector ID
Setting the Remote Control ID
Parent topic: Using Multiple Projectors
Setting the Projector ID
If you want to control multiple projectors from a remote control, give each projector a unique ID.
1. Press the Menu button.
2. Select the Extended menu and press Enter.
3. Select the Multi-Projection menu and press Enter.
162
4. Select Projector ID and press Enter.
5. Press the arrow buttons on the remote control to select the identification number you want to use for
the projector. Then press Enter.
Repeat these steps for all the other projectors you want to operate from one remote control.
Note: If you don't know the projector's ID, aim the remote control at the projector and press the ID button
to temporarily display the projector's ID on the screen.
Parent topic: Projector Identification System for Multiple Projector Control
Setting the Remote Control ID
The remote control's ID is set to zero by default so it can operate any compatible projector. If you want to
set the remote control to operate only a particular projector, you need to set the remote control's ID to
match the projector's ID.
1. Turn on the projector you want the remote control to operate with exclusively.
2. Aim the remote control at that projector and press the ID button on the remote control.
The current projector ID is displayed on the screen for about 3 seconds.
163
3. Hold down the ID button on the remote control while you press the numeric button that matches the
projector's ID. Then release the buttons.
Note: If you select 0/All on the remote control, you can operate all projectors regardless of the
Projector ID setting.
The remote control's ID is set.
Note: If the batteries are left out of the remote control for an extended period, the remote control ID
returns to its default setting. If you use multiple remote controls at the same time, you may not be able to
operate the projectors as intended due to infrared interference.
Parent topic: Projector Identification System for Multiple Projector Control
Related tasks
Replacing the Remote Control Batteries
Adjusting the Color Tone (Color Uniformity)
You can use the Color Uniformity feature to manually adjust the color tone balance in the projected
image.
1. Press the Menu button.
164
2. Select the Extended menu and press Enter.
3. Select the Display or Multi-Projection setting and press Enter.
4. Select the Color Uniformity setting and press Enter.
5. Press Enter and select On.
6. Press Esc.
7. Select the Adjustment Level setting and press Enter.
There are eight adjustment levels from white through gray, and you can adjust them individually.
8. Press the right and left arrow buttons to adjust the level, and press Esc.
9. Select the Start Adjustments setting and press Enter.
10. Select the area of the screen that you want to adjust and press Enter.
11. Select the color (Red, Green, or Blue) you want to adjust, and use the left arrow button to weaken
the color tone and the right arrow button to strengthen the color tone.
12. Press Esc.
13. Repeat steps 10 and 11 for each area you want to adjust.
14. When you are finished, press the Menu button.
Parent topic: Using Multiple Projectors
165
Related references
Projector Setup Settings - Extended Menu
Matching the Screens Manually
You can manually correct the brightness and tint for multiple projectors.
1. Press the Menu button.
2. Select the Extended menu and press Enter.
3. Select the Multi-Projection setting and press Enter.
4. Select the Color Matching setting and press Enter.
You see this screen:
5. Press the left or right arrow buttons to select a value for the Adjustment Level setting. To start, set
the Adjustment Level to 8.
Note: There are eight adjustment levels ranging from white to black and you can adjust each level
individually.
6. Press the left or right arrow buttons to adjust the color tone for the Red, Green, and Blue settings.
7. Press the left or right arrow buttons to adjust the Brightness setting.
8. Repeat the previous three steps as necessary to adjust each adjustment level in descending order.
9. When you are finished, press the Menu button.
Parent topic: Using Multiple Projectors
Related references
Projector Setup Settings - Extended Menu
166
Adjusting RGBCMY
You can adjust the Hue, Saturation, and Brightness settings for R (red), G (green), B (blue), C (cyan),
M (magenta), and Y (yellow) color components.
Turn on all the projectors and select the RGBCMY setting in each projector's Extended menu so that the
color tone on the combined screen becomes entirely even.
1. Press the Menu button.
2. Select the Extended menu and press Enter.
3. Select the Multi-Projection setting and press Enter.
4. Select the RGBCMY setting and press Enter.
5. Select the color you want to adjust and press Enter.
You see this screen:
• To adjust the overall hue of the color, adjust the Hue setting.
• To adjust the overall vividness of the color, adjust the Saturation setting.
167
• To adjust the overall brightness of the color, adjust the Brightness setting.
6. Press the left or right arrow buttons to adjust the Hue, Saturation, and Brightness settings.
7. Repeat the previous three steps as necessary to adjust each color.
8. Press Menu or Esc to exit the menus.
Parent topic: Using Multiple Projectors
Related references
Projector Setup Settings - Extended Menu
Scaling an Image
You can project the same image from multiple projectors and use the Scale feature to crop and combine
them into one large image.
1. Press the Menu button.
2. Select the Signal menu and press Enter.
3. Select the Scale setting and press Enter.
168
You see this screen:
4. Select one of the following as the Scale setting:
• Auto to automatically adjust the clipped areas according to the Edge Blending and Tiling
settings you selected
• Manual to adjust the clipped areas manually
5. Select the Scale Mode setting and select one of these options:
• Zoom Display to maintain the image aspect ratio as you scale the image
169
• Full Display to adjust the image to the projector's screen size as you scale the image
6. Use the arrow buttons to adjust each of the following scale options as necessary:
• Select – or + to scale the image horizontally and vertically at the same time
• Select Scale Vertically to scale the image vertically only
• Select Scale Horizontally to scale the image horizontally only
7. Select the Clip Adjustment setting and use the arrow buttons to adjust the coordinates and size of
each image as you view the screen.
8. Select the Clip Range setting to preview the area you just selected.
9. Press the Menu button to exit.
Parent topic: Using Multiple Projectors
Related references
Input Signal Settings - Signal Menu
Running Light Source Calibration
Light source calibration automatically adjusts any difference between the white balance and the
brightness level of the light source. You should perform light source calibration every 100 hours of
projector usage. You can also schedule automatic calibration or run the light source calibration manually
using the menus.
Automatic light source calibration may not start in the following conditions:
• Within 20 minutes of turning on the projector.
• When using direct power shutdown.
170
• When you have used the projector continuously for over 24 hours.
• When the brightness is automatically dimmed due to high temperatures.
Note: To perform a light source calibration, the projector must have been on for at least 20 minutes and
the projector brightness must not be automatically dimmed due to high temperatures.
1. Press the Menu button.
2. Select the Reset menu and press Enter.
You see a screen like this:
3. Select Light Source Calibration and press Enter.
4. Select any of the following:
• To run the light source calibration now, select Run Now.
• To automatically run the light source calibration every 100 hours of projector usage, select Run
Periodically.
• To schedule automatic calibration, select Schedule Settings.
• To see the last time the projector performed a calibration, select Last Run.
Note: If you use the projector continuously for more than 24 hours or use direct shutdown regularly,
select Schedule Settings to schedule calibration of the light source periodically.
171
5. When you are finished, press the Menu button to exit the menus.
Parent topic: Adjusting Projector Features
Related references
Projector Reset Options - Reset Menu
Saving Settings to Memory and Using Saved Settings
You can save customized settings for each of your video inputs and then select the saved settings
whenever you want to use them.
Note: You can save the Image settings and the Color Matching settings in the Extended menu.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Settings menu and press Enter.
4. Select the Memory menu and press Enter.
You see a screen like this:
5. Select one of the following options:
• Load Memory: Overwrites your current settings with saved settings
172
• Save Memory: Saves your current settings to memory (10 memories with different names are
available)
Note: A memory name that has already been used is indicated by a blue mark. Saving over a
previously saved memory overwrites the settings with your current settings.
• Erase Memory: Erases the selected memory settings
• Rename Memory: Renames a saved memory
• Reset Memory: Delete all saved memory
6. Press Esc to exit.
Parent topic: Adjusting Projector Features
Scheduling Projector Events
You can save a projector command, such as turning the projector on or off or switching input sources, as
an "event." You can schedule when you want the projector to automatically execute the command.
Warning: Do not place flammable objects in front of the lens. If you schedule the projector to turn on
automatically, flammable objects in front of the lens could catch on fire.
Note: The Schedule Protection setting in the menu must be turned off to schedule an event.
Saving a Scheduled Event
Viewing Scheduled Events
Editing a Scheduled Event
Parent topic: Adjusting Projector Features
Related tasks
Selecting Password Security Types
Setting the Date and Time
Saving a Scheduled Event
You can select projector commands you want to perform and schedule them as an event.
Note: Light Source Calibration events do not start if the projector is not used continuously for at least 20
minutes, if the projector has been running for more than 24 hours, or if the projector is regularly turned
173
off by shutting off the power outlet. Set Light Source Calibration events to occur only after 100 hours of
usage.
1. Set the date and time in the Date & Time menu.
2. Press the Menu button.
3. Select the Extended menu and press Enter.
4. Select the Schedule Settings setting and press Enter.
5. Select the Schedule menu and press Enter.
6. Select Add New and press Enter.
You see a screen like this:
7. In the Event Settings section, select the events you want to have occur. (Select No Change for
events that you do not want to occur.)
8. In the Date/Time Settings section, set the date and time for the scheduled events to occur.
9. When you are finished, select Save and press Enter.
10. To schedule more events, repeat the previous steps as necessary.
11. Select Setup complete and select Yes to save your changes.
174
Parent topic: Scheduling Projector Events
Related tasks
Selecting Password Security Types
Setting the Date and Time
Running Light Source Calibration
Viewing Scheduled Events
You can view your scheduled events on the calendar displayed on the Schedule Settings screen.
1. Press the Menu button.
2. Select the Extended menu and press Enter.
3. Select Schedule Settings and press Enter.
4. Select Schedule and press Enter.
You see a screen like this:
Colored boxes on the calendar indicate the following:
One-time event
Repeating event
Communication is on or off
Event is invalid
5. To view an event, press the left and right arrow buttons on the remote to select a day.
175
The screen displays the details of the events scheduled for that day. A blue icon indicates an
enabled event, a gray icon indicates a disabled event, and the icon indicates a repeating event.
Parent topic: Scheduling Projector Events
Editing a Scheduled Event
You can edit any currently scheduled event.
1. Press the Menu button.
2. Select the Extended menu and press Enter.
3. Select the Schedule Settings setting and press Enter.
You see a screen like this:
4. Press the left or right arrow buttons to highlight the date on the calendar containing the scheduled
event you want to edit.
5. Press the up or down arrow buttons to highlight the event you want to edit, and press Esc.
6. Select one of the following:
• On/Off to enable or disable the selected event.
• Edit to edit the settings for the selected event.
• Clear to delete the selected event.
• Add New to add a new scheduled event.
7. When you are finished, select Return and press Enter.
176
8. Select Setup complete and select Yes to save your changes.
Note: To delete all scheduled events, select Schedule Reset and select Yes.
Parent topic: Scheduling Projector Events
Copying Menu Settings Between Projectors
After you select menu settings for your projector, you can transfer them to another projector of the same
model.
Note: Copy the projector's settings before you adjust the projected image using the projector's image
adjustment settings. Any saved User's Logo setting on the projector will transfer to the other projector.
Caution: If the copy process fails due to a power failure, communication error, or for any other reason,
Epson will not be responsible for any repair costs incurred.
The following settings will not transfer between projectors:
• Light Source Info in the Info menu
• Status Information in the Info menu
The following settings will not transfer between projectors if you set the Batch Setup Range setting to
Limited:
• Password Protection settings
• EDID settings in the Signal menu
• Network menu settings other than those in the Notifications and Others menus
Note: In addition to the methods covered in this section, you can also copy and transfer settings to
multiple projectors over a network using the Epson Projector Management software. See the online
Epson Projector Management Operation Guide for instructions. You can download the latest software
and documentation from the Epson website.
Saving Settings to a USB Flash Drive
Transferring Settings from a USB Flash Drive
Saving Settings to a Computer
Transferring Settings from a Computer
Parent topic: Adjusting Projector Features
177
Related references
Projector Setup Settings - Extended Menu
Projector Information Display - Info Menu
Saving Settings to a USB Flash Drive
You can save the projector settings you want to transfer to a USB flash drive.
Note: Use an empty flash drive. If the drive contains other files, the transfer may not complete correctly.
The flash drive must use the FAT format and cannot have any security features.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Insert the flash drive into the USB-A port.
Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be
saved correctly.
3. Press and hold the Esc button on the control panel or remote control as you connect the power cord
to the projector's power inlet.
4. When all of the projector lights turn on, release the Esc button.
178
The lights flash to indicate that settings are transferring to the flash drive. When the lights stop
flashing, the On/Standby light turns blue and the projector enters standby mode.
Caution: Do not unplug the power cord or remove the flash drive while the lights are flashing. This
could damage the projector.
5. Once the projector enters standby mode, remove the flash drive.
Note: If the projector does not enter standby mode and the lights continue flashing, see the link
below for a solution.
Parent topic: Copying Menu Settings Between Projectors
Related references
Projector Light Status
Related tasks
Connecting to a USB Device
Transferring Settings from a USB Flash Drive
After saving projector settings to a USB flash drive, you can transfer them to another projector of the
same model.
Note: Make sure the USB flash drive contains only a single settings transfer from another projector of
the same model. The settings are contained in a file called pjconfdata.bin. If the drive contains other
files, the transfer may not complete correctly.
Do not adjust image settings on a projector until after you transfer settings to it. Otherwise, you may have
to repeat your adjustments.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
179
2. Insert the flash drive into the USB-A port.
Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be
saved correctly.
3. Press and hold the Menu button on the control panel or remote control as you connect the power
cord to the projector's power inlet.
4. When all of the projector lights turn on, release the Menu button.
The lights flash to indicate that settings are transferring to the projector. When the lights stop
flashing, the On/Standby light turns blue and the projector enters standby mode.
Caution: Do not unplug the power cord or remove the flash drive while the lights are flashing. This
could damage the projector.
5. Once the projector enters standby mode, remove the flash drive.
Note: If the projector does not enter standby mode and the lights continue flashing, see the link
below for a solution.
Parent topic: Copying Menu Settings Between Projectors
180
Related references
Projector Light Status
Related tasks
Connecting to a USB Device
Saving Settings to a Computer
You can save the projector settings you want to transfer to a computer.
Your computer must be running one of the following operating systems:
• Windows 8.x
• Windows 10
• Windows 11
• macOS 10.13.x or later
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Connect a USB Type-A to Type-B cable to your projector's Service port.
3. Connect the other end to any available USB port on your computer.
4. Press and hold the Esc button on the control panel or remote control as you connect the power cord
to the projector's power inlet.
181
5. When all of the projector lights turn on, release the Esc button.
The projector shows up as a removable disk on your computer.
6. Open the removable disk and copy the pjconfdata.bin file to your computer.
7. Once the file has copied, do one of the following:
• Windows: Open the My Computer, Computer, Windows Explorer, or File Explorer utility.
Right-click the name of your projector (listed as a removable disk) and select Eject.
• Mac: Drag the removable disk icon for your projector from the desktop into the trash.
The projector turns off when you disconnect the USB cable.
Note: If the projector does not turn off and the lights continue flashing, see the link below for a
solution.
Parent topic: Copying Menu Settings Between Projectors
Related references
Projector Light Status
Related tasks
Connecting to a USB Device
Transferring Settings from a Computer
After saving projector settings to a computer, you can transfer them to another projector of the same
model.
Your computer must be running one of the following operating systems:
• Windows 8.x
• Windows 10
• Windows 11
• macOS 10.13.x or later
Do not adjust image settings on a projector until after you transfer settings to it. Otherwise, you may have
to repeat your adjustments.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
182
2. Connect a USB cable to your projector's Service port.
3. Connect the other end to any available USB port on your computer.
4. Press and hold the Menu button on the control panel or remote control as you connect the power
cord to the projector's power inlet.
5. When all of the projector lights turn on, release the Menu button.
The projector shows up as a removable disk on your computer.
6. Copy the pjconfdata.bin file from your computer to the removable disk.
Note: Do not copy any other files to the removable disk.
7. Once the file has copied, do one of the following:
• Windows: Open the My Computer, Computer, Windows Explorer, or File Explorer utility.
Right-click the name of your projector (listed as a removable disk) and select Eject.
• Mac: Drag the removable disk icon for your projector from the desktop into the trash.
All the lights start flashing to indicate that the projector's settings are being updated. Disconnect the
USB cable. When all of the indicators stop flashing, the projector turns off.
183
Caution: Do not unplug the power cord while the lights are flashing. This could damage the
projector.
Note: If the projector does not turn off and the lights continue flashing, see the link below for a
solution.
Parent topic: Copying Menu Settings Between Projectors
Related references
Projector Light Status
Related tasks
Connecting to a USB Device
184
Adjusting the Menu Settings
Follow the instructions in these sections to access the projector menu system and change projector
settings.
Using the Projector's Menus
Image Quality Settings - Image Menu
Input Signal Settings - Signal Menu
Projector Feature Settings - Settings Menu
Projector Setup Settings - Extended Menu
Projector Network Settings - Network Menu
Projector Information Display - Info Menu
Projector Reset Options - Reset Menu
Using the Projector's Menus
You can use the projector's menus to adjust the settings that control how your projector works. The
projector displays the menus on the screen.
1. Press the Menu button on the control panel or remote control.
You see the menu screen.
185
2. Press the up or down arrow button to move through the menus listed on the left. The settings for
each menu are displayed on the right.
Note: The available settings depend on the current input source, resolution, or other menu settings.
3. To change settings in the displayed menu, press Enter.
4. Press the up or down arrow button to move through the settings.
5. Change the settings using the buttons listed on the bottom of the menu screens.
6. To return all the menu settings to their default values, select the Reset menu.
7. When you finish changing settings on a menu, press Esc.
8. Press Menu or Esc to exit the menus.
Parent topic: Adjusting the Menu Settings
Image Quality Settings - Image Menu
Settings on the Image menu let you adjust the quality of your image for the input source you are currently
using. The available settings depend on the currently selected input source.
Note: Available settings depend on the current input source.
To change settings for an input source, make sure the source is connected and select that source.
186
Setting Options Description
Color Mode Various options available Adjusts the vividness of image
colors for various image types
and environments
Brightness Varying levels available Lightens or darkens the overall
Contrast Varying levels available Adjusts the difference between
light and dark areas of the image
Color Saturation Varying levels available Adjusts the intensity of the image
colors
Tint Varying levels available Adjusts the balance of green to
magenta tones in the image
Sharpness Varying levels available Adjusts the sharpness of image
details
White Balance Color Temp.
G-M Correction
Customized
Adjusts the overall tint of the
Color Temp.: sets the color tone
based on color temperature
G-M Correction: higher values
tint the image blue and lower
values tint the image red
Customized: lets you adjust the
offset and gain of each color R
(red), G (green), and B (blue)
individually
187
Setting Options Description
Image Enhancement 4K Enhancement You can project an image at a
doubled resolution by diagonally
shifting pixels
Image Preset Mode Selects the settings prepared in
advance as the settings for
Noise Reduction , MPEG Noise
Reduction, and Detail
Enhancement
Deinterlacing Sets whether to convert
interlaced-to-progressive signals
for certain video image types
Off: for fast-moving video images
Video: for most video images
Film/Auto: for movies, computer
graphics, and animation
Noise Reduction Reduces flickering in analog
images
MPEG Noise Reduction Reduces the noise or artifacts
seen in MPEG video
Super-resolution Reduces blurring when projecting
low resolution images. This
feature is disabled when the
Image Preset Mode is set to Off
Detail Enhancement Enhances the image details
giving it a more empathic texture
and material feel. This feature is
disabled when the Image Preset
Mode is set to Off
Reset (Image Enhancement) Reset the settings on the Image
Enhancement setting to their
default
188
Setting Options Description
Advanced Scene Adaptive Gamma Adjust the coloring according to
the scene
Gamma Adjusts the gamma levels of the
image; select Customized to
adjust the gamma while viewing
the image or a graph
RGBCMY Adjusts the hue, saturation, and
brightness for each color
Dynamic Contrast Off
Normal
High Speed
Adjusts the projected luminance
based on the image brightness
when certain Color Modes are
selected
Normal: for standard brightness
adjustment
High Speed: to adjust brightness
as soon as the scene changes
Reset (Image menu)
Reset all adjustment values on
the Image menu
Note: The Noise Reduction setting is not available if you have selected an interlaced (480i/576i/1080i)
input signal.
Parent topic: Adjusting the Menu Settings
Related tasks
Turning On Dynamic Contrast
Adjusting Gamma
Adjusting the Hue, Saturation, and Brightness
Zooming Into and Out of Images
189
Input Signal Settings - Signal Menu
Normally the projector detects and optimizes the input signal settings automatically. If you need to
customize the settings, you can use the Signal menu. The available settings depend on the currently
selected input source.
Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the
Auto button on the remote control.
Note: Available settings depend on the current input source.
To change settings for an input source, make sure the source is connected and select that source.
Setting Options Description
Aspect See the list of available aspect
ratios
Sets the aspect ratio (width-to-
height ratio) for the selected input
source
Overscan Auto
Off
4%
8%
Changes the projected image
ratio to make the edges visible by
a selectable percentage or
automatically.
Auto is available only when the
input signal is HDMI.
190
Setting Options Description
Blanking Top
Bottom
Left
Right
Hides an area of the projected
image that you select using the
arrow buttons
Available when Content
Playback is set to Off in the
projector's Settings menu.
Color Space Auto
BT.709
BT.2020
Sets the conversion system for
the color space. Not available
when Color Mode setting is set to
BT.709 or DICOM SIM
Dynamic Range Dynamic Range Changes the range of dark and
bright areas in images; choose
from Auto (recommended), SDR,
HDR10, or HLG.
Signal Status Displays the detected input
image signal.
HDR10 Setting Changes the PQ (Perceptual
Quantizer) curve of the dynamic
range using the HDR PQ
method. This setting is only
displayed when Dynamic Range
is set to Auto and Signal Status
is set to HDR10, or when
Dynamic Range is set to
HDR10.
HLG Setting Changes the HLG (Hybrid Log
Gamma) curve of the dynamic
range using the HDR HLG
method. This setting is only
displayed when Dynamic Range
is set to Auto and Signal Status
is set to HLG, or when Dynamic
Range is set to HLG.
191
Setting Options Description
Advanced Video Range Sets the video range to match
the settings of the input source
EDID Describes the display capabilities
of the projector to HDMI or
HDBaseT video sources
Scale Varying levels available Adjusts the scale of the image
displayed by each projector when
using multiple projectors to
display one image
HDMI IN EQ Level HDMI1
HDMI2
Adjusts the HDMI input signal
level depending on the devices
connected to the HDMI port.
HDMI Out Intensity Off
Low
Medium
High
Adjusts the signal intensity input
from the HDMI Out port.
Reset Resets all adjustment values on
the Signal menu to their default
settings
Parent topic: Adjusting the Menu Settings
Related tasks
Changing the Image Aspect Ratio
Scaling an Image
192
Projector Feature Settings - Settings Menu
Options on the Settings menu let you customize various projector features.
Note: Available settings depend on the current input source.
193
Setting Options Description
Geometry Correction Off Temporarily cancels the geometry
correction
H/V-Keystone Lets you manually correct the angles
of the horizontal and vertical sides
Quick Corner Select to adjust image shape and
alignment
Curved Surface Select to adjust image on a curved
surface
Corner Wall Select to adjust image on a curved
surface with right angles
Point Correction Select to adjust image projected on
a curved surface
Memory Save customized sets of settings to
memory.
• Load Memory: You can load a
saved memory
• Save Memory: Saves the current
shape of the image you adjusted
• Erase Memory: Deletes saved
memory
• Rename Memory: Renames a
saved memory
• Reset Memory: Reset all saved
memories
Split Screen — Divides the viewing area horizontally
and displays two images side-by-
side
Volume Varying levels available Adjusts the volume of the projector’s
speaker system. You can also adjust
the volume of the external speakers
194
Setting Options Description
HDMI Link Device Connections
HDMI Link
Audio Out Device
Power On Link
Power Off Link
HDMI Out Settings
Adjusts the HDMI Link options that
allow the projector remote to control
HDMI-connected devices that
support the CEC standard
Device Connections: lists the
devices connected to the HDMI
ports
HDMI Link: enables or disables the
HDMI Link function
Audio Out Device: selects whether
to output audio from the internal
speakers or a connected
audio/video system
Power On Link: controls the
projector or a linked device
• PJ -> Device or Bidirectional:
turns on the linked device when
the projector is turned on
• Device -> PJ or Bidirectional:
turns on the projector when the
linked device is turned on
Power Off Link: control whether
linked devices are turned off when
the projector is turned off
HDMI Out Settings: set when
connecting multiple projectors of the
same model
• Power On/Off Link: Set to On to
synchronize the power on/off
operation of all projectors
projectors
• Terminal End: Set to On only for
the projector at the end of the
daisy chain
195
Setting Options Description
Lock Setting Control Panel Lock Controls projector button locking to
secure the projector
Full Lock: locks all buttons
Partial Lock: locks all buttons
except the power button
Off: no buttons locked
Brightness Settings Light Source Mode
Brightness Level
Constant Brightness
Selects the brightness mode of the
projector
Light Source Mode: sets a
brightness level (Normal, Quiet,
Extended, Custom)
Brightness Level: adjusts the
brightness when Light Source
Mode is set to Custom
Constant Brightness: maintains a
constant brightness level when
Light Source Mode is set to
Custom
Remote Receiver Front/Rear
Front
Rear
Off
Limits reception of remote control
signals by the selected receiver; Off
turns off all receivers
User Button Various options available Assigns a menu option to the User
button on the remote control for one-
touch access
Test Pattern — Displays a test pattern to assist in
adjusting the image
Memory Memory
Geometry Correction
Memory: Selects various memory
options on the customized settings
Geometry Correction: select
various memory options on the
image shape settings
196
Setting Options Description
Content Playback Content Playback
Overlay Effect
USB Viewer
Plays back a playlist created in the
Epson Projector Content Manager
software
Content Playback: turns Content
Playback on or off
Overlay Effect: adds color and
effects to the projected image when
Content Playback is set to On (not
available when Edge Blending is
set to On)
USB Viewer: selects a specific
playlist from a USB device
connected to the projector when
Content Playback is set to On
Reset — Resets all the Settings menu
settings to their defaults except the
following:
• Audio Out Device
• Power On Link
• Power Off Link
• User Button
• Memory
• Content Playback
• Power On/Off Link
• Terminal End
Parent topic: Adjusting the Menu Settings
Related tasks
Setting the Screen Type
Correcting Image Shape with H/V-Keystone
Correcting Image Shape with Quick Corner
Correcting Image Shape with Correct Shape
197
Correcting Image Shape with Point Correction
Displaying a Test Pattern
Adjusting the Brightness
Controlling the Volume with the Volume Buttons
Switching to Content Playback Mode
Locking the Remote Control Buttons
Projector Setup Settings - Extended Menu
Settings on the Extended menu let you customize various projector setup features that control its
operation.
Note: Available settings depend on the current input source.
198
Setting Options Description
Home Screen Home Screen Auto Disp.
Custom Function 1
Custom Function 2
Select various options for the
projector's Home screen
Home Screen Auto Disp.:
controls whether the Home
Screen displays automatically
when the projector is turned on
Custom Function 1/Custom
Function 2: lets you customize
the options displayed on the
Home Screen and save your
settings as a preset
Display — See the Display settings table in
this topic
User's Logo — Creates a screen that the
projector displays to identify itself
and enhance security
Projection Front
Front/Ceiling
Rear
Rear Ceiling
Selects the way the projector
faces the screen so the image is
oriented correctly
Operation — See the Operation settings table
in this topic
A/V Settings A/V Output A/V Output: select to output
audio and video to an external
device when the projector is in
standby mode (disable Quick
Startup to use this setting)
199
Setting Options Description
Standby Mode Standby Mode
Port
Enable this setting to allow the
following operations to occur
when the projector is in standby
mode:
• Monitor and control the
projector over a network
• When monitoring or controlling
the projector using wireless
LAN, set Connection mode to
Advanced
Port: selects the port to use from
Wired LAN or Wireless LAN
when Standby Mode is set to
Communication On
HDBaseT Control Communications
Extron XTP
Selects the communication
settings for connections to an
HDBaseT transmitter or switcher
Control Communications:
enables or disables
communication from the Ethernet
and serial ports on the
transmitter; turning on this setting
disables the projector's LAN, RS-
232C, and Remote ports (Extron
XTP must be turned off to use
this setting)
Extron XTP: set to On when you
connect an Extron XTP
transmitter or switcher to the
HDBaseT port
200
Setting Options Description
Color Calibration Color Calibration
Start Auto Adjustment
Undo
Redo
Color Uniformity
Reset
Color Calibration: enables color
calibration when set to to On
Start Auto Adjustment: starts
auto adjustment
Undo: undo the auto
adjustments
Redo: corrects the difference
between the tint and brightness
of each projected image
Color Uniformity: adjusts the
color tone balance
Reset: reset all adjustments on
the Color Calibration menu
201
Setting Options Description
Multi-Projection Projector ID
Group Tiling
Geometry Correction
Edge Blending
Black Level
Reset
Screen Matching
Simple Stacking
Simple Blending
Select various options when
projecting from multiple
projectors
Projector ID: sets the projector
to a particular ID number which
allows you to use a remote
control to individually control
projectors
Group Tiling: creates a group of
projectors that you can control
simultaneously to create one
image and adjust the scale of
each projector
Geometry Correction: corrects
image distortion
Edge Blending: blend the border
between multiple images to
create a seamless image
Black Level: adjusts the black
color
Reset: resets all adjustments
values for the Multi-Projection
menu
Screen Matching: adjust the tint,
brightness, black level and blend
curve of multiple projectors
Simple Stacking: create image
by overlapping images from two
projectors connected by wired
LAN
Simple Blending: create image
by compositing several images
from two projectors connected by
wired LAN
202
Setting Options Description
Schedule Settings Various scheduling options Lets you schedule various
projector tasks
Language Various languages available Selects the language for
projector menu and message
displays (not changed by Reset
option)
Selecting the Reset option resets all adjustment values on the Extended menu to their default values,
except for the following settings: Screen, Color Uniformity, User's Logo, Display Background*,
Startup Screen*, Projection, High Altitude Mode, Auto Source Search, Monitor Out Port, Release
A/V Mute*, Inv Direction Button, Date & Time, A/V Output, Standby Mode, HDBaseT, Multi-
Projection, Schedule Settings, and Language.
* If you enable the User's Logo Protection setting, you cannot change or reset this setting.
Display settings
Setting Description
Menu Position Selects the position of the projector menu displayed on the
screen
Message Position Selects the position of messages displayed on the screen
Messages Controls whether messages are displayed on the screen
Display Background Selects the screen color or logo to display when no signal is
received
Startup Screen Controls whether a special screen appears when the projector
starts up
Air Filter Notice Displays a message when a clog in the air filter is detected
Screen Sets the aspect ratio and position of the projected image
according to the type of screen being used (this setting is
unavailable when projecting images from a computer over a
network)
Color Uniformity Adjusts the color tone balance
OSD Rotation Rotates the menu display 90°
Operation settings
203
Setting Description
Direct Power On Turns on the projector when you plug it in
Sleep Mode Automatically places the projector in standby mode after an
interval of inactivity
Sleep Mode Timer Sets the time before the projector automatically turns off (Sleep
Mode must be turned on). If there is no active signal for a
certain amount of time, the projector will dim the light source
before the projector turns off.
High Altitude Mode Regulates the projector’s operating temperature at altitudes
above 4921 feet (1500 m)
Auto Source Search Automatically select an input source
Auto Power On If Computer1 or HDMI1 is selected, the projector turns on
when an input signal is detected from those ports
Startup Source Selects the image source to project when the projector is
turned on in Content Playback mode
Quick Startup Selects the time period in which you want to use Quick Start
mode, which lets you restart the projector within five seconds of
turning it off. You can select 20, 60, or 90 minutes of Quick
Start time. Press the power button to quickly restart the
projector in this mode.
USB Power Set to Always On to continue supplying power to the
commercially available streaming media player when the
projector is not projecting images.
A/V Mute Settings Adjusts the A/V Mute settings
A/V Mute Timer: turns off the projector automatically if A/V
Mute is enabled and 30 minutes of inactivity have passed
A/V Mute Release: select A/V Mute if you want to use only the
A/V Mute button to turn off A/V mute, or select Any Button to
use any button to turn it off
204
Setting Description
Advanced Remote Control Type: select Normal to use the remote
control that came with the projector, or Simple to use a
different Epson projector remote control and disable the remote
control that came with the projector
Beep: controls the beep that sounds when you turn the
projector on or off
Indicators: select Off to turn off projector lights, except
warning lights
Inv Direction Button: enable this setting if you installed the
projector on a ceiling and want to invert the direction of the
arrow buttons on the control panel
Log Save Destination: select where you want to save
projector operation log files
Batch Setup Range: select which projector menu settings to
copy using the batch setup feature; select All or select Limited
to not copy the EDID settings, all Network menu settings, or the
Password Protection settings
Date & Time Adjusts the projector's time and date settings
Parent topic: Adjusting the Menu Settings
Related tasks
Changing the Projection Mode Using the Menus
Setting Up Projector Network E-Mail Alerts
Setting Up Crestron Connected
Selecting the Language for the Projector Menus
Selecting an Image Source
Changing the Image Aspect Ratio
Adjusting the Brightness
Starting a PC Free Slideshow
Shutting Off the Picture and Sound Temporarily
Adjusting the Color Tone (Color Uniformity)
Matching the Screens Manually
Adjusting RGBCMY
205
Setting the Date and Time
Related topics
Copying Menu Settings Between Projectors
Projector Network Settings - Network Menu
Settings on the Network menu let you view network information and set up the projector for monitoring
and control over a network.
Note: Available settings depend on the current input source.
Setting Options Description
Wireless Mode Wireless LAN On
Off
Turns on wireless LAN mode
206
Setting Options Description
Net. Info - Wireless LAN Connection mode
Wireless LAN Sys.
Antenna Level
Projector Name
SSID
DHCP
IP Address
Subnet Mask
Gateway Address
MAC Address
Region Code
IPv6
Displays wireless network status
and details
Net. Info - Wired LAN Projector Name
DHCP
IP Address
Subnet Mask
Gateway Address
MAC Address
IPv6 Address (Manual)
IPv6 Address (Auto)
Displays wired network status
and details
Display the QR Code — Displays a QR code for
connecting with iOS or Android
devices using the Epson
iProjection app
Network Configuration Accesses additional network
menus
Configures your network settings
207
Setting Options Description
Remote Camera Access Remote Camera Access
Password
Displays the image taken by the
optional external camera using
the Epson Web Control
Password: enter a password up
to 32 alphanumeric characters
long. (Do not use * : spaces.)
Parent topic: Adjusting the Menu Settings
Related concepts
Wireless Network Projection
Password Security Types
Related tasks
Selecting Wired Network Settings
Selecting Wireless Network Settings Manually
Setting Up Monitoring Using SNMP
Using a QR Code to Connect a Mobile Device
Setting Up Crestron Connected
Importing a Web Server Certificate Using the Projector Menus
208
Projector Information Display - Info Menu
You can display information about the projector and input sources by viewing the Info menu. However,
you cannot change any settings in the menu.
Note: Available information depends on the current input source.
209
Setting Options Description
Projector Info Operation Hours Displays the number of hours the
projector has been used since it
was turned on
Source Displays the name of the port to
which the current input source is
connected
Input Signal Displays the input signal setting of
the current input source
Resolution Displays the resolution of the
current input source
Refresh Rate Displays the refresh rate of the
current input source
Sync Info Displays information that may be
needed by a service technician
Color Format Displays information on the Color
Space and Dynamic Range
Status Displays information about projector
problems that may be needed by a
service technician
Serial Number Displays the projector's serial
number
Event ID Displays the Event ID number
corresponding to a specific projector
problem; see the list of Event ID
codes
HDBaseT Signal Level Displays the image signal
information from the HDBaseT port
Light Source Info Light Source Hours Displays the number of hours (H)
the light source has been used in
various modes
Version Main Displays the projector's firmware
information
210
Setting Options Description
Status Information — Displays basic status information
Temp Warning Info — Displays various high temperature
warning information
Power On/Off History — Displays the projector's power on
and power off history
Event ID Code List
Parent topic: Adjusting the Menu Settings
Related topics
Copying Menu Settings Between Projectors
Event ID Code List
If the Event ID option on the Info menu displays a code number, check this list of Event ID codes for the
solution to the projector problem associated with the code.
Event ID code Cause and solution
0432 The network software did not start. Turn the projector off and then on again.
0435
0433 Cannot display the transferred images. Restart the network software.
0434 Unstable network communication. Check the network communication status, wait a
few moments, and try connecting to the network again.
0481
0482
0485
0483 The network software quit unexpectedly. Check the network communication status,
then turn the projector off and then on again.
04FE
0484 Communication with computer was disconnected. Restart the network software.
211
Event ID code Cause and solution
0479 A projector system error has occurred. Turn the projector off and then on again.
01FF
02FF
04FF
06FF
07FF
0891 Cannot find an access point with the same SSID. Set your computer, access point,
and projector to the same SSID.
0892 The WPA/WPA2/WPA3 authentication type does not match. Make sure the wireless
network security settings are correct.
0893 The TKIP/AES encryption type does not match. Make sure the wireless network
security settings are correct.
0894 Communication with unauthorized access point was disconnected. Contact your
network administrator.
0895 Communication with a connected device was disconnected. Check your device
connection status.
0898 Failed to acquire DHCP address. Make sure the DHCP server is operating correctly.
If you are not using DHCP, turn off the DHCP setting in the Network menus.
0899 A communication error has occurred. Contact Epson for help.
089A The EAP authentication type does not match the network. Check the wireless LAN
security settings and make sure that the security certificate is installed correctly.
089B EAP server authentication failed. Check the wireless LAN security settings and
make sure that the security certificate is installed correctly.
089C EAP client authentication failed. Check the wireless LAN security settings and make
sure that the security certificate is installed correctly.
089D Key exchange failed. Check the wireless LAN security settings and make sure that
the security certificate is installed correctly.
0920 The internal battery that saves the projector's date and time settings is running low.
Contact Epson support.
Parent topic: Projector Information Display - Info Menu
212
Projector Reset Options - Reset Menu
You can reset most of the projector settings if necessary.
Setting Options Description
Reset All Memories — Resets the saved names and
settings in the Save Memory list
Refresh Mode Timer
Messages
Start
Select Start to clear an
afterimage that remains in the
projected image and turn off the
projector after the time specified
in the Timer screen. Press any
button to cancel Refresh Mode.
Set Messages to On to display a
message that the projector is in
Refresh Mode.
213
Setting Options Description
Light Source Calibration Run Now
Run Periodically
Schedule Settings
Last Run
Selects options to perform light
source calibration to maintain the
color balance of the projected
Run Now: Select On to start light
source calibration now. Make
sure the projector has been
turned on for at least 20 minutes
for maximum accuracy.
Note: You may not be able to
start calibration depending on the
environmental temperature.
Run Periodically: Select On to
perform calibration every 100
hours of usage
Schedule Settings: Goes to the
Schedule Settings screen
Last Run: Displays the date and
time of the last light source
calibration
Reset All Config — Resets most of the projector
settings to their defaults
Reset All (Factory Default) — Resets all projector settings to
their defaults. You may need to
enter your password.
You cannot reset the following settings using the Reset All Config option:
• Memory
• User's Logo
• Display Background *
• Startup Screen *
• Color Uniformity
214
• Color Matching
• Schedule Settings
• Language
• Except for the following Network menus items:
• Wireless LAN Power
• Wireless Mode
• Password
• Password Protection settings
Only when you set the User's Logo Protection setting to On in the Password Protection setting menu
You cannot reset the following settings using the Reset All (Factory Default) option:
• Date & Time
• Light Source Hours
• Password
• Password Protection settings
Parent topic: Adjusting the Menu Settings
Related tasks
Adding Effects to the Projected Image
Running Light Source Calibration
215
Maintaining and Transporting the Projector
Follow the instructions in these sections to maintain your projector and transport it from place to place.
Projector Maintenance
Transporting the Projector
Projector Maintenance
Your projector needs little maintenance to keep working at its best.
You may need to clean the lens periodically, and clean the air filter and air vents to prevent the projector
from overheating due to blocked ventilation.
The only parts you should replace are the air filter and remote control batteries. If any other part needs
replacing, contact Epson or an authorized Epson servicer.
This projector uses a sealed laser light source which does not need servicing and cannot be replaced.
Warning: Before cleaning any part of the projector, turn it off, unplug the power cord, and let it cool
down. Never open any cover on the projector, except as specifically explained in this manual.
Dangerous electrical voltages in the projector can injure you severely.
Warning: Do not try to service this product yourself, except as specifically explained in this manual.
Refer all other servicing to Epson qualified servicers.
Cleaning the Lens
Cleaning the Projector Case
Air Filter and Vent Maintenance
Replacing the Remote Control Batteries
Parent topic: Maintaining and Transporting the Projector
Cleaning the Lens
Clean the projector's lens periodically, or whenever you notice dust or smudges on the surface. Make
sure you turn off the projector and unplug the power cord before cleaning the lens.
• To remove dust or smudges, gently wipe the lens with lens-cleaning paper.
216
• To remove stubborn smudges, moisten a soft, lint-free cloth with lens cleaner and gently wipe the
lens. Do not spray any liquid directly on the lens.
Warning: Do not use a lens cleaner that contains flammable gas. The high heat generated by the
projector lamp may cause a fire.
Caution: Do not wipe the lens immediately after turning off the projector; otherwise, the lens could be
damaged. Do not use glass cleaner or any harsh materials to clean the lens and do not subject the
lens to any impacts; you may damage it. Do not use canned air, or the gases may leave a residue.
Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.
Parent topic: Projector Maintenance
Cleaning the Projector Case
Before cleaning the projector case, turn off the projector and unplug the power cord.
• To remove dust or dirt, use a soft, dry, lint-free cloth.
• To remove stubborn dirt, use a soft cloth moistened with water and mild soap. Do not spray liquid
directly on the projector.
Caution: Do not use wax, alcohol, benzine, paint thinner, or other chemicals to clean the projector
case. These can damage the case. Do not use canned air, or the gases may leave a flammable
residue.
Parent topic: Projector Maintenance
Air Filter and Vent Maintenance
Regular filter maintenance is important to maintaining your projector. Your Epson projector is designed
with an easily accessible, user-replaceable filter to protect your projector and make regular maintenance
simple. Filter maintenance intervals will depend on the environment.
If regular maintenance is not performed, your Epson projector will notify you when the temperature
inside the projector has reached a high level. Do not wait until this warning appears to maintain your
projector filter as prolonged exposure to high temperatures may reduce the life of your projector or laser.
Damage due to the failure to properly maintain the projector or its filter may not be covered by the
projector's Limited Warranty.
Cleaning the Air Filter
Replacing the Air Filter
217
Parent topic: Projector Maintenance
Related references
Optional Equipment and Replacement Parts (U.S. and Canada)
Optional Equipment and Replacement Parts (Latin America)
Cleaning the Air Filter
You need to clean the projector's air filter in the following situations:
• The filter or vents get dusty.
• You see a message telling you to clean it.
• The projector's Filter light flashes orange.
Note: It is recommended that you clean the air filter every 20,000 hours. Clean it more often if the
projector is in a dusty environment.
1. Turn off the projector and unplug the power cord.
2. Carefully remove the dust from the air filter cover with a vacuum or brush.
3. Turn the projector upside down.
218
4. Loosen the screws and remove the air filter cover.
5. Pull the air filter out of the projector.
219
6. Tap each side of the air filter 4 to 5 times to shake off any excess dust.
Caution: Do not use excessive force when tapping the air filter, or it may crack and become
unusable. Do not rinse the air filter in water, or use any detergent or solvent to clean it. Do not use
canned air; the gases may leave a residue, or push dust and debris into the projector's optics or
other sensitive areas.
7. Vacuum the front of the air filter (the side with the tabs) to remove any remaining dust.
Note: If dust is difficult to remove or the air filter is damaged, replace the air filter.
220
8. Place the air filter back in the projector as shown.
9. Replace the air filter cover and tighten the screws as shown.
Parent topic: Air Filter and Vent Maintenance
Related references
Optional Equipment and Replacement Parts (U.S. and Canada)
Optional Equipment and Replacement Parts (Latin America)
Projector Light Status
221
Related tasks
Replacing the Air Filter
Replacing the Air Filter
You need to replace the air filter in the following situations:
• After cleaning the air filter, you see a message telling you to clean or replace it
• After cleaning the air filter, the projector's Filter light continues to flash orange
• The air filter is torn or damaged
You can replace the air filter while the projector is mounted to the ceiling or placed upside-down on a
table.
1. Turn off the projector and unplug the power cord.
2. Turn the projector upside-down.
3. Loosen the screws and remove the air filter cover.
222
4. Pull the air filter out of the projector.
Note: Air filters contain polypropylene. Dispose of used air filters according to local regulations.
5. Place the new air filter in the projector as shown.
223
6. Replace the air filter cover and tighten the screws as shown.
Parent topic: Air Filter and Vent Maintenance
Related references
Optional Equipment and Replacement Parts (U.S. and Canada)
Optional Equipment and Replacement Parts (Latin America)
Projector Light Status
Related tasks
Cleaning the Air Filter
Replacing the Remote Control Batteries
The remote control uses two AA manganese or alkaline batteries. Replace the batteries as soon as they
run out.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
224
1. Remove the battery cover as shown.
2. Remove the old batteries.
Warning: If the battery fluid has leaked, wipe it away with a soft cloth and avoid getting the fluid on
your hands. If it gets on your hands, wash them immediately to avoid injury.
3. Insert the batteries with the + and – ends facing as shown.
Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not
inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.
225
4. Replace the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Projector Maintenance
Transporting the Projector
The projector contains precision parts, some of which are glass. Follow these guidelines to transport,
ship, or store the projector safely:
• Remove any equipment connected to the projector.
• Attach the protective lens cover that was included with the projector.
• When transporting the projector a long distance or as checked luggage, pack it in a firm box with
cushioning around it and mark the box "Fragile."
• When shipping the projector for repairs, place it in its original packing materials, if possible, or use
equivalent materials with cushioning around the projector. Mark the box "Fragile."
Note: Epson shall not be liable for any damages incurred during transportation.
Parent topic: Maintaining and Transporting the Projector
226
Solving Problems
Check the solutions in these sections if you have any problems using the projector.
Projection Problem Tips
Projector Light Status
Viewing Projector Status Information
Using the Projector Help Displays
Solving Image or Sound Problems
Solving Projector or Remote Control Operation Problems
Solving Network Problems
Solutions to Problems Using Content Playback
Solutions to HDMI Link Problems
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Projection Problem Tips
If the projector is not working properly, try turning it off and unplugging it. Then plug it back in and turn it
on.
If this does not solve the problem, check the following:
• The lights on the projector may indicate what the problem is.
• The Help option on the Home screen can display information about common problems, if the projector
is operating.
• The solutions in this manual can help you solve many problems.
If none of these solutions help, you can contact Epson for technical support.
Parent topic: Solving Problems
Related tasks
Using the Projector Help Displays
Using the Home Screen
227
Projector Light Status
The lights on the projector indicate the projector status and let you know when a problem occurs. Check
the status and color of the lights and look for a solution in the table here.
1 WLAN (wireless LAN) light
2 Filter light
3 Temp (temperature) light
4 Laser light
5 Status light
6 On/Standby (power) light
On/Standby
(power) light
Status light Laser
light
Temp
light
Filter light Status and solution
Blue Off Off Off Off Standby, sleep mode, or network
monitoring and control
Blue Flashing
blue
Off Off Off Warming up or cooling down. Wait
for about 30 seconds for an image
to appear. All control panel
buttons are disabled.
228
On/Standby
(power) light
Status light Laser
light
Temp
light
Filter light Status and solution
Blue Blue Off Off Off Normal operation.
Flashing blue Off Off Off Off Preparing for network monitoring
or quick startup mode. All features
are disabled.
Off Flashing
blue
Flashing
orange
Off Off Internal error. Turn off the
projector, unplug it from the
electrical outlet, and contact
Epson for help.
Off Flashing
blue
Off Flashing
orange
Off A fan or sensor has a problem.
Turn the projector off, unplug it,
and contact Epson for help.
Off Flashing
blue
Off Orange Off Projector has overheated and
turned off. Leave it turned off to
cool down for five minutes.
• Make sure that the vents and air
filter are not clogged with dust
or obstructed by nearby objects.
• Make sure the room
temperature is not too hot.
• Clean or replace the air filter.
• If operating the projector at high
altitude, turn on High Altitude
Mode.
• If the problem persists, unplug
the projector and contact Epson
for help.
229
On/Standby
(power) light
Status light Laser
light
Temp
light
Filter light Status and solution
Off Flashing
blue
Orange Off Off Laser has a problem.
• Make sure that the vents and air
filter are not clogged with dust
or obstructed by nearby objects.
• Clean or replace the air filter.
• If the problem persists, unplug
the projector and contact Epson
for help.
Off Flashing
blue
Off Off Orange Low air flow through the projector.
• Make sure that the vents and air
filter are not clogged with dust
or obstructed by nearby objects.
• Clean or replace the air filter.
• If the problem persists, unplug
the projector and contact Epson
for help.
Varies Varies Flashing
orange
Varies Varies The projector is unable to maintain
constant brightness. The
Constant Brightness setting is
disabled.
Varies Flashing
blue
Flashing
orange
Varies Varies Refresh mode is in progress.
Flashing blue Varies Varies Flashing
orange
Varies High temperature warning. If the
temperature gets too high,
projection automatically stops.
• Make sure that the vents and air
filter are not clogged with dust
or obstructed by nearby objects.
• Make sure the room
temperature is not too hot.
• Clean or replace the air filter.
230
On/Standby
(power) light
Status light Laser
light
Temp
light
Filter light Status and solution
Flashing blue Varies Flashing
orange
Varies Varies Laser warning. Turn the projector
off, unplug it, and contact Epson
for help.
Flashing blue Varies Varies Varies Orange Low air flow through the air filter.
• Make sure that the vents and air
filter are not clogged with dust
or obstructed by nearby objects.
• Clean or replace the air filter.
• If the problem persists, unplug
the projector and contact Epson
for help.
Varies Varies Varies Varies Flashing
orange
It is time to clean the air filter.
Note: If the lights display a pattern not listed in the table above, turn the projector off, unplug it, and
contact Epson for help.
Wireless LAN status
WLAN light Status and solution
Blue Wireless LAN is available
Flashing blue (fast) Connecting to a device
Flashing blue (slow) An error occurred. Turn off the projector, then restart it.
Off Wireless LAN is not available. Make sure the wireless LAN settings
are correct.
Parent topic: Solving Problems
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
231
Related tasks
Saving Settings to a USB Flash Drive
Transferring Settings from a USB Flash Drive
Saving Settings to a Computer
Transferring Settings from a Computer
Replacing the Air Filter
Cleaning the Air Filter
Viewing Projector Status Information
You can monitor the projector's status and view error information on the projected screen.
1. Turn on the projector.
2. Press the right arrow button on the control panel.
3. Press the left or right arrow button to view different categories of information.
• Status Information: the projector's operating status
• Source: input signal information
• Signal Information: input digital signal information
• Network Wired: wired LAN settings
• Network Wireless: wireless LAN settings
• Maintenance: operating time for the projector and light source
• Version: projector's firmware version
Projector Status Display Messages
Parent topic: Solving Problems
Projector Status Display Messages
Categories on the status display screens let you view information about the projector and its operation.
Status Information category
Information Description
System See the System status information table at the end
of this topic
232
Information Description
Source Displays the source currently being used
On-Screen Display Displays the settings for on-screen displays. When
turned off, menus or messages are not displayed
on the projected images
A/V Mute Displays the A/V Mute status
Intake Air Temp Displays the air intake temperature
Internal Temp Lv Displays the projector's internal temperature
Laser Status Displays the operating status of the light source
ExtCam Status Displays the operating status of the optional
external camera
Source category
Information Description
Source Displays the source currently being used
Resolution Displays the resolution of the current input signal
Color Space Displays the color space of the current input signal
H-Frequency Displays the horizontal frequency of the current
input signal
V-Frequency Displays the vertical frequency of the current input
signal
Video Range Displays the video range of the projector
Signal Information category
Information Description
5V Detect Displays the detection results of 5V signals
TMDS Clock Displays the TMDS frequency of the current input
signal
H-Frequency Displays the horizontal frequency of the current
input signal
233
Information Description
V-Frequency Displays the vertical frequency of the current input
signal
Stable Time Displays the amount of operating time since the
input source was determined
HDCP Status Displays the HDCP status
HDCP Ver Displays the HDCP version
AVI VIC Displays the VIC information (AVI) of the current
input signal
AVI Checksum Displays the checksum result for AVI
AVI Sampling Str Displays the color sampling for AVI
Signal Mode Displays the signal mode
HDR Mode Display the HDR mode
EDID Mode Display the EDID mode
HDBaseT Level Displays the image signal from the HDBaseT port
Network Wired category
Information Description
Projector Name Displays the name used to identify the projector
when connected to a network
Connection Mode Displays the connection path for the LAN
DHCP Displays the DHCP display settings
IP Display Displays the IP address display settings
IP Address Displays the IP address
MAC Address Displays the MAC address
Network Wireless category
234
Information Description
Projector Name Displays the name used to identify the projector
when connected to a network
Connection Mode Displays the connection mode to use when
connecting the projector and a computer over a
wireless LAN
SSID Display Displays the SSID display settings
SSID Displays the SSID
DHCP Displays the DHCP settings
IP Display Displays the IP address display settings
IP Address Displays the IP address
MAC Address Displays the MAC address
Security Displays the security settings
Antenna Level Displays the reception status for Wi-Fi
Maintenance category
Information Description
Operation Time Displays the projector's total operation time
Laser Op. Time Displays the laser operating time for each Light
Source Mode setting
Version category
Information Description
Serial No. Displays the projector's serial number
235
Information Description
Main Display the projector's firmware version
information
Video2
HDMI1
HDMI2
HDBaseT
Pixel Shift
System status information
Status Description
OK The projector is in normal operating mode
Warm-up The projector is warming up
Standby The projector is in standby mode
Cool Down The projector is cooling down
Temp Error A high temperature error occurred
Fan Error A fan error occurred
Sensor Error A sensor error occurred
Power Error A power error occurred
Internal Error An internal error occurred
Airflow Error A filter airflow error occurred
Temp Warning A high temperature warning occurred
Internal Warning A warning regarding the internal system occurred
Airflow Decline A low airflow error occurred
Power Warning A power warning occurred
Clean Filter An air filter notice occurred; clean the air filter
Laser Error A laser error has occurred
Laser Warning A laser warning has occurred
236
Status Description
Temp Error FE A laser error has occurred because the laser
temperature is too high
Temp Warning FE A laser warning has occurred because the laser
temperature is too high
Parent topic: Viewing Projector Status Information
Using the Projector Help Displays
You can display information to help you solve common problems using the projector's Help system.
1. Turn on the projector.
2. Press the Home button on the remote control.
3. Press the arrow buttons to select Help.
4. Press Enter.
You see the Help menu.
5. Press the up and down arrow buttons to highlight the problem you want to solve.
6. Press Enter to view the solutions.
7. When you are finished, do one of the following:
• To select another problem to solve, press Esc.
• To exit the help system, press Home.
Parent topic: Solving Problems
Solving Image or Sound Problems
Check the solutions in these sections if you have any problems with projected images or sound.
Solutions When No Image Appears
Solutions When "No Signal" Message Appears
Solutions When "Not Supported" Message Appears
Solutions When Only a Partial Image Appears
Solutions When the Image is Not Rectangular
Solutions When the Image Contains Noise or Static
Solutions When the Image is Fuzzy or Blurry
237
Solutions When the Image Brightness or Colors are Incorrect
Solutions When Automatic Adjustments are not Applied Correctly
Solutions to Simple Stacking Problems
Solutions to Simple Blending Problems
Solutions When an Afterimage Remains On the Projected Image
Solutions to Sound Problems
Solutions to PC Free Problems
Parent topic: Solving Problems
Solutions When No Image Appears
If no image appears, try the following solutions:
• Make sure the lens cap is off.
• Press the A/V Mute button on the remote control or projector to see if the image was temporarily
turned off.
• Check the status lights to confirm the projector is operating normally.
• Make sure all necessary cables are securely connected and the power is on for the projector and
connected video sources.
• Press the projector's power button to wake it from standby or sleep mode. Also see if your connected
computer is in sleep mode or displaying a blank screen saver.
• If the projector does not respond when you press any buttons on the projector, an internal error may
have occurred in the projector. Contact Epson for help.
• Adjust the Brightness setting on the Image menu.
• Adjust the brightness of your projector's light source.
• Check the Display menu to make sure the Messages setting is set to On.
• For images projected with Windows Media Center, reduce the screen size from full screen mode.
• For images projected from applications using Windows DirectX, turn off DirectX functions.
• The projector may not be able to project copyrighted videos that you play back on a computer. For
details, see the manual supplied with your computer.
Parent topic: Solving Image or Sound Problems
Related references
Where to Get Help (U.S. and Canada)
238
Where to Get Help (Latin America)
Projector Light Status
Projector Setup Settings - Extended Menu
Image Quality Settings - Image Menu
Solutions When "No Signal" Message Appears
If the "No Signal" message appears, try the following solutions:
• Press the Source Search button and wait a few seconds for an image to appear.
• Turn on the connected computer or video source, and press its play button to begin your presentation,
if necessary.
• Check the connection from the projector to your video sources.
• If you are projecting from a laptop computer, make sure it is set up to display on an external monitor.
• If necessary, turn the projector and the connected computer or video source off and then on again.
• If you are projecting from an HDMI source, replace the HDMI cable with a shorter one.
• Try a different video cable.
• If the other solutions do not solve the problem, reset all of the projector settings using the options on
the Reset menu.
Displaying From a PC Laptop
Displaying From a Mac Laptop
Parent topic: Solving Image or Sound Problems
Related references
Projector Reset Options - Reset Menu
Related tasks
Connecting to a Computer for HDMI Video and Audio
Displaying From a PC Laptop
If you see the "No Signal" message when you display from a PC laptop, you need to set up the laptop to
display on an external monitor.
239
1. Hold down the laptop's Fn key and press the key labeled with a monitor icon or CRT/LCD. (See your
laptop manual for details.) Wait a few seconds for an image to appear. To display on both the
laptop's monitor and the projector, try pressing the same keys again.
Note: On Windows 7 or later, hold down the Windows key and press P at the same time, then click
Duplicate.
2. If the same image is not displayed by the laptop and projector, check the Windows Display utility to
make sure the external monitor port is enabled and extended desktop mode is disabled. (See your
computer or Windows manual for instructions.)
3. If necessary, check your video card settings and set the multiple display option to Clone, Mirror, or
Duplicate.
Parent topic: Solutions When "No Signal" Message Appears
Displaying From a Mac Laptop
If you see the "No Signal" message when you display from a Mac laptop, you need to set up the laptop
for mirrored display. (See your laptop manual for details.)
1. Open the System Preferences utility and select Displays, Display, or Color LCD.
2. Click the Arrange or Arrangement tab.
3. Select the Mirror Displays checkbox.
Parent topic: Solutions When "No Signal" Message Appears
Solutions When "Not Supported" Message Appears
If the "Not Supported" message appears, try the following solutions:
• Make sure the correct input signal is selected on the Signal menu.
• Make sure the computer's display resolution does not exceed the projector's resolution and frequency
limit. If necessary, select a different display resolution for your computer. (See your computer manual
for details.)
• If you are projecting from an HDMI source, change the HDMI IN EQ Level setting in the projector's
Signal I/O menu. Follow the on-screen instructions. You may need to restart the projector.
• If you are projecting using a thumb-sized media streaming device, set the HDMI IN EQ Level to Auto
in the projector's Signal I/O menu.
Parent topic: Solving Image or Sound Problems
240
Related references
Input Signal Settings - Signal Menu
Supported Video Display Formats
Solutions When Only a Partial Image Appears
If only a partial computer image appears, try the following solutions:
• Make sure you selected the correct Screen Type setting for the screen you are using.
• Make sure the Scale setting in the Signal menu is turned off.
• Try adjusting the image position using the Screen Position menu setting.
• Press the Aspect button on the remote control to select a different image aspect ratio.
• Check the Blanking setting in the Signal menu.
• If you zoomed into or out of the image using the E-Zoom buttons, press the Esc button until the
projector returns to a full display.
• Check your computer display settings to disable dual display and set the resolution within the
projector's limits. (See your computer manual for details.)
• Check the resolution assigned to your presentation files to see if they are created for a different
resolution than you are projecting in. (See your software help for details.)
• Make sure you selected the correct Projection setting in the Extended menu.
• If you are projecting in Content Playback mode, make sure you are using the correct Overlay Effect
setting in the Settings menu.
Parent topic: Solving Image or Sound Problems
Related references
Projector Setup Settings - Extended Menu
Input Signal Settings - Signal Menu
Supported Video Display Formats
Related tasks
Adjusting the Brightness
Unlocking the Projector's Buttons
241
Solutions When the Image is Not Rectangular
If the projected image is not evenly rectangular, try the following solutions:
• Place the projector directly in front of the center of the screen, facing it squarely, if possible.
• If you are mounting the projector from the ceiling, use the adjustment controls on the mount at the time
of installation.
• Adjust the image shape using the Geometry Correction menu settings.
• Adjust the Quick Corner setting to correct the image shape.
• Adjust the Curved Surface setting to adjust the corners and sides of an image projected on a curved
surface.
• Adjust the Point Correction setting to correct slight distortion that affects a portion of the screen.
Parent topic: Solving Image or Sound Problems
Related references
Supported Video Display Formats
Related tasks
Correcting Image Shape with H/V-Keystone
Correcting Image Shape with Quick Corner
Solutions When the Image Contains Noise or Static
If the projected image seems to contain electronic interference (noise) or static, try the following
solutions:
• Check the cables connecting your computer or video source to the projector. They should be:
• Separated from the power cord to prevent interference
• Securely connected at both ends
• Not connected to an extension cable
• If you adjusted the image shape, adjust the Sharpness setting in the Image menu.
• Adjust the Noise Reduction, MPEG Noise Reduction, and Deinterlacing settings in the projector's
Image menu.
• Select a computer video resolution and refresh rate that are compatible with the projector.
• Make sure the correct Video Range or EDID settings are selected in the Signal menu.
Parent topic: Solving Image or Sound Problems
242
Related references
Image Quality Settings - Image Menu
Input Signal Settings - Signal Menu
Supported Video Display Formats
Solutions When the Image is Fuzzy or Blurry
If the projected image is fuzzy or blurry, try the following solutions:
• Adjust the image focus.
• Clean the projector lens.
Note: To avoid condensation on the lens after bringing the projector in from a cold environment, let the
projector warm up to room temperature before using it.
• Position the projector close enough to the screen.
• Position the projector so the keystone adjustment angle is not so wide that it distorts the image.
• Adjust the Sharpness setting to improve image quality.
• If you are projecting from a computer, use a lower resolution or adjust the computer's resolution to
match the projector's native resolution, if possible.
Parent topic: Solving Image or Sound Problems
Related references
Image Quality Settings - Image Menu
Input Signal Settings - Signal Menu
Supported Video Display Formats
Related tasks
Correcting Image Shape with H/V-Keystone
Correcting Image Shape with Quick Corner
Cleaning the Lens
Focusing the Image Using the Focus Ring
Solutions When the Image Brightness or Colors are Incorrect
If the projected image is too dark or light, or the colors are incorrect, try the following solutions:
• Press the Color Mode button on the remote control to try different color modes for the image and
environment.
243
• Check your video source settings.
• Adjust the available settings on the Image menu for the current input source, such as Brightness,
Contrast, Tint, Color Saturation, and RGBCMY. RGBCMY should be set by a professional color
calibrator using specialized color calibration tools in a controlled lighting environment.
• Make sure you selected the correct Video Range or EDID setting on the Signal menu, if available for
your image source.
• Make sure all the cables are securely connected to the projector and your video device. If you
connected long cables, try connecting shorter cables.
• Make sure the Brightness Settings options in the Settings menu are set correctly.
• Position the projector close enough to the screen.
• When using multiple projectors, make sure Light Source Calibration in the Reset menu is set
correctly in all of the projectors. If light source calibration is performed only in some of the projectors,
the white balance and the brightness level of the projected image may differ between the projectors.
Parent topic: Solving Image or Sound Problems
Related references
Projector Setup Settings - Extended Menu
Image Quality Settings - Image Menu
Input Signal Settings - Signal Menu
Related tasks
Changing the Color Mode
Solutions When Automatic Adjustments are not Applied Correctly
If you have problems with automatic adjustments not being applied correctly, try the following solutions:
• Wait 20 minutes after turning on the projector before performing the automatic adjustments. This
allows the projector temperature to stabilize.
• Make sure there is no dirt or obstacles around the optional external camera.
• Make sure the cable for the optional external camera is securely connected to the projector.
• The optional external camera may be defective. Contact Epson for help.
• If projecting from a analog input source, the changing color and brightness of the image may cause
automatic adjustments to not be applied correctly.
• Make sure that a powerful spotlight or source of strong natural light is not shining into the projection
environment and interfering with automatic adjustments.
244
• Check that your image correction and image blending settings are within reasonable ranges. If the
projection angle is very large, try turning off the Geometry Correction setting or reduce the projection
angle. If you are using the Edge Blending setting, make sure the blending width is between 15 to
43%.
• If you see an error message during automatic adjustments, check the error codes in the message.
During Screen Matching:
• 0101: Measurement value error
• 0102: Measurement failure
• 0103: Switch camera failure
• 0104/0105: Model mismatch
• 0108: Camera error
During Color Matching:
• 0201: Measurement value error
• 0202: Measurement failure
• 0203: Switch camera failure
• 0208: Camera error
Contact Epson support for details.
Parent topic: Solving Image or Sound Problems
Solutions to Simple Stacking Problems
If you have problems with the simple stacking feature, try the following solutions:
• Make sure all of the projectors are the same model and they are all set to the same resolution and
projection mode.
• Make sure the projectors are placed squarely facing the screen and connected using a LAN cable.
• Make sure the optional camera is installed correctly and the cable is securely connected to the
projector.
• Make sure nothing is blocking the optional camera and the projected image.
• If you think the optional camera is defective, contact Epson for help.
• Make sure that a powerful spotlight or source of strong natural light is not shining into the projection
environment and interfering with simple stacking.
245
• Resize the projection size.
• If you see an error message during simple stacking, make a note of the error codes and contact Epson
for support.
• 0302: Measurement failure
• 0306: Geometry correction error
• 0307/0308: The optional camera may be defective, or a communication error has occurred.
Parent topic: Solving Image or Sound Problems
Solutions to Simple Blending Problems
If you have problems with the simple blending feature, try the following solutions:
• Make sure all of the projectors are the same model and they are all set to the same resolution and
projection mode.
• Make sure the projectors are placed squarely facing the screen and connected using a LAN cable.
• Make sure the optional camera is installed correctly and the cable is securely connected to the
projector.
• Make sure nothing is blocking the optional camera and the projected image.
• If you think the optional camera is defective, contact Epson for help.
• Make sure that a powerful spotlight or source of strong natural light is not shining into the projection
environment and interfering with simple stacking.
• Resize the projection size.
• If you see an error message during simple blending, make a note of the error codes and contact
Epson for support.
• 0402: Measurement failure
• 0406: Geometry correction error
• 0407/0408: The optional camera may be defective, or a communication error has occurred.
Parent topic: Solving Image or Sound Problems
Solutions When an Afterimage Remains On the Projected Image
If you see an afterimage in the projected image, select Refresh Mode > Start in the Reset menu.
Parent topic: Solving Image or Sound Problems
246
Related references
Projector Reset Options - Reset Menu
Solutions to Sound Problems
If there is no sound when you expect it or the volume is too low or high, try the following solutions:
• Adjust the projector's volume settings.
• Press the A/V Mute button on the control panel or remote control to resume video and audio if they
were temporarily stopped.
• Check your computer or video source to make sure the volume is turned up and the audio output is set
for the correct source.
• If you do not hear sound from an HDMI source, set the connected device to PCM output.
• Make sure any connected audio cables are labeled "No Resistance."
• If you are using a Mac and you do not hear sound from an HDMI source, make sure your Mac
supports audio through the HDMI port. If not, you need to connect an audio cable.
• If you want to use a connected audio source when the projector is off, set the Standby Mode option to
Communication On and make sure the A/V Settings options are set correctly.
• If the volume for the computer is set to the minimum while the projector's volume is set to maximum,
the sound level may be mixed. Turn up the computer's volume and decrease the projector's volume
(when using Epson iProjection [Windows/Mac]).
• Make sure the A/V Settings options are set up correctly in the Extended menu.
• If you turn the projector on immediately after turning it off, the cooling fans may run at high speed
momentarily and cause an unexpected noise. This is normal.
Parent topic: Solving Image or Sound Problems
Related concepts
Projector Connections
Related references
Projector Setup Settings - Extended Menu
Related tasks
Controlling the Volume with the Volume Buttons
247
Solutions to PC Free Problems
If you are having problems with the PC Free feature on your projector, try the following solutions:
• If any file names are longer than the display area or include unsupported symbols, the displayed file
names are shortened or changed in PC Free. To avoid this, shorten or change the file name on the
USB drive.
• If you are using a USB device with a slow transfer speed, you may not be able to project movies
correctly.
Parent topic: Solving Image or Sound Problems
Solving Projector or Remote Control Operation Problems
Check the solutions in these sections if you have problems operating the projector or remote control.
Solutions to Projector Power or Shut-Off Problems
Solutions to Remote Control Problems
Solutions to Password Problems
Solutions When a Battery Message Appears
Parent topic: Solving Problems
Solutions to Projector Power or Shut-Off Problems
If the projector does not come on when you press the power button or it shuts off unexpectedly, try the
following solutions:
• Make sure the power cord is securely connected to the projector and to a working electrical outlet.
• The projector's buttons may be locked for security. Unlock the buttons or use the remote control to
turn on the projector.
• If the projector's laser shuts off unexpectedly, it may have entered standby mode after a period of
inactivity. Press the power button to wake the projector and adjust the Sleep Mode setting to change
the sleep interval.
• If the projector's light source turns off unexpectedly, the A/V mute timer may be enabled. Select Off as
the A/V Mute Timer setting.
• If the power button on the remote control does not turn on the projector, check its batteries and make
sure the Remote Receiver setting is turned on in the projector's menu, if available.
• The power cord may be defective. Try another power cord. If that doesn't work, disconnect the cord
and contact Epson.
248
• The cooling fans may run in standby status depending on the projector settings. Also, when the
projector wakes from standby status, the fans may cause an unexpected noise. This is not a
malfunction.
Parent topic: Solving Projector or Remote Control Operation Problems
Related references
Projector Light Status
Projector Setup Settings - Extended Menu
Projector Feature Settings - Settings Menu
Related tasks
Unlocking the Projector's Buttons
Solutions to Remote Control Problems
If the projector does not respond to remote control commands, try the following solutions:
• Check that the remote control batteries are installed correctly and have power. If necessary, replace
the batteries.
• Make sure you are operating the remote control within the reception angle and range of the projector.
• Make sure the projector is not warming up or shutting down.
• Check to see if a button on the remote control is stuck down, causing it to enter sleep mode. Release
the button to wake the remote control up.
• Strong fluorescent lighting, direct sunlight, or infrared device signals may be interfering with the
projector's remote receivers. Dim the lights or move the projector away from the sun or interfering
equipment.
• If available, turn on one of the remote receivers in the projector's menu system, or check if all the
remote receivers were turned off.
• If the remote receiver setting is off, press and hold the Menu button on the remote for at least 15
seconds to restore the default setting.
• If you assigned an ID number to the remote control to operate multiple projectors, you may need to
check or change the ID setting (feature not available with all projectors).
• If you lose the remote control, you can purchase another from an Epson parts distributor.
Parent topic: Solving Projector or Remote Control Operation Problems
Related references
Projector Setup Settings - Extended Menu
249
Projector Feature Settings - Settings Menu
Remote Control Operation
Related tasks
Setting the Projector ID
Replacing the Remote Control Batteries
Solutions to Password Problems
If you cannot enter or remember a password, try the following solutions:
• You may have turned on password protection without first setting a password. Try entering 0000 using
the remote control. If you lose the remote control, you cannot enter a password. Order a new one from
Epson.
• If you have entered an incorrect password too many times and see a message displaying a request
code, write down the code and contact Epson. Do not attempt to enter the password again. Provide
the request code and proof of ownership for assistance in unlocking the projector.
• If you set a Epson Web Control password and forgot the user ID or password, try entering the
following:
• User ID: EPSONWEB
• Default password: projector serial number
• If you set a Remote password (in Epson Web Control) and forgot the user ID or password, try entering
the following:
• User ID: EPSONREMOTE
• Default password: projector serial number
Parent topic: Solving Projector or Remote Control Operation Problems
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Solutions When a Battery Message Appears
If you see a message telling you that the battery that saves your clock settings is running low, contact
Epson for help.
Parent topic: Solving Projector or Remote Control Operation Problems
250
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Solving Network Problems
Check the solutions in these sections if you have problems using the projector on a network.
Solutions When Wireless Authentication Fails
Solutions When You Cannot Access the Projector Through the Web
Solutions When Network Alert E-Mails are Not Received
Solutions When the Image Contains Static During Network Projection
Parent topic: Solving Problems
Solutions When Wireless Authentication Fails
If you cannot authenticate a wireless connection, try the following solutions:
• If the wireless settings are correct, but authentication fails, you may need to update the Date & Time
settings in the Extended menu, if available.
• Check the Security settings and passphrase in the Network menu.
• If the access point security is WPA3-EAP, change the access point setting to WPA2/WPA3-EAP.
Parent topic: Solving Network Problems
Related references
Projector Network Settings - Network Menu
Related tasks
Setting Up Wireless Network Security
Solutions When You Cannot Access the Projector Through the Web
If you are unable to access the projector through a web browser, make sure you are using the correct ID
and password, which are case sensitive.
• For the user ID, enter EPSONWEB. (You cannot change the user ID.)
• For the password, enter the password set in the projector's Network menu. The default password is
the projector's serial number.
• Make sure you have access to the network the projector is on.
251
• If your Web browser is set up to connect via a proxy server, the Epson Web Control screen cannot
be displayed. Make settings for a connection without using a proxy server.
• If you set Standby Mode to Communication On in the projector's Extended menu, make sure the
network device is turned on. After turning on the network device, turn on the projector.
• Connect to a wired LAN, or to a wireless LAN with the Connection Mode setting set to Advanced.
Note: The user ID and password are case sensitive.
Parent topic: Solving Network Problems
Related references
Projector Network Settings - Network Menu
Solutions When Network Alert E-Mails are Not Received
If you do not receive an e-mail alerting you to problems with a projector over the network, try the
following solutions:
• Make sure the projector is turned on and connected to the network correctly. (If an error shut down the
projector, it cannot send an e-mail.)
• Make sure you set up the projector e-mail alert settings correctly on the projector's Network
Notifications menu or in the network software.
• Set the Standby Mode setting to Communication On so the network software can monitor the
projector in standby mode. Connect to a wired LAN, or to a wireless LAN with the Connection Mode
setting set to Advanced.Change the Port setting according to your network environment.
Parent topic: Solving Network Problems
Related references
Projector Network Settings - Network Menu
Solutions When the Image Contains Static During Network Projection
If the projected image contains static during network projection, try the following solutions:
• Check for any obstacles between the access point, the computer, the mobile device, and the projector.
If necessary, change their positions to improve communication. Also make sure that they are not too
far apart; move them closer together and try to connect again.
• If the wireless connection is slow or your projected image contains noise, check for interference from
other equipment, such as a Bluetooth device or microwave. Move the interfering device farther away
or expand your wireless bandwidth.
252
• If the connection speed declines, reduce the number of connected devices.
Parent topic: Solving Network Problems
Solutions to Problems Using Content Playback
If you cannot play back a playlist correctly, try the following solutions:
• Check the following on all projectors:
• All projectors are the same model. If any of the projectors are a different model or have a different
resolution, synchronized playback may not be performed properly.
• Make sure the name, date, and time settings are correct.
• Make sure all projectors are connected to the same network.
• Make sure the Content Playback setting is turned on in the Settings menu.
• Make sure your USB device contains a playlist.
• Make sure your USB device is connected directly to the projector and not through a USB hub or card
reader.
• If the USB device is partitioned, you may not be able to play back playlists. Delete all of the partitions
before saving the playlists on your USB device.
• Do not share a playlist between projectors that are different in resolution. Color and shape effects
added by using the Overlay Effect setting may not be reproduced correctly.
Parent topic: Solving Problems
Related tasks
Creating a Playlist Using Epson Web Control
Projecting a Playlist in Content Playback Mode
Adding Effects to the Projected Image
Switching to Content Playback Mode
Solutions to HDMI Link Problems
If you cannot control an HDMI device using the HDMI Link feature, try the following solutions:
• Make sure all necessary cables are securely connected and the power is on for the projector and
connected video sources.
• Make sure the cables meet the HDMI CEC standard.
253
• Make sure the connected device meets the HDMI CEC standard. See the documentation supplied
with the device for more information.
• Check if the device is available in the Device Connections list in the Settings menu. If the device
does not appear, it does not meet the HDMI CEC standards. Connect a different device.
• Make sure the connected devices are turned on and in standby status. See the documentation
supplied with the device for more information.
• If you connected a new device or changed any connections, make sure the CEC function is set for the
connected device. You may need to restart the device.
• Connect no more than four devices that support HDMI Link or 3 devices that support HDMI CEC at the
same time.
• If you have connected a speaker or receiver, set the output to PCM.
Parent topic: Solving Problems
Where to Get Help (U.S. and Canada)
If you need to contact Epson for technical support services, use the following support options.
Internet Support
Visit Epson's support website at epson.com/support (U.S.) or epson.ca/support (Canada) and select
your product for solutions to common problems with your projector. You can download utilities and
documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions.
Speak to a Support Representative
To use the Epson PrivateLine Support service, call (800) 637-7661. This service is available for the
duration of your warranty period. You may also speak with a projector support specialist by dialing
(562) 276-4394 (U.S.) or (905) 709-3839 (Canada).
Support hours are Monday through Friday, 7 a.m. to 4 p.m., Pacific Time.
Days and hours of support are subject to change without notice. Toll or long distance charges may
apply.
Before you call, have the following information ready:
• Product name
• Product serial number (located on the bottom or rear of the projector, or in the menu system)
• Proof of purchase (such as a store receipt) and date of purchase
• Computer or video configuration
254
• Description of the problem
Purchase Supplies and Accessories
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in
Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).
You can purchase a replacement remote control from an Epson parts distributor here (U.S. sales) or
here (Canadian sales).
Parent topic: Solving Problems
Where to Get Help (Latin America)
If you need to contact Epson for technical support services, use the following support options.
Internet Support
Visit Epson's support website at latin.epson.com/support and select your product for solutions to
common problems with your projector. You can download utilities and documentation, get FAQs and
troubleshooting advice, or e-mail Epson with your questions.
Speak to a Support Representative
Before you call for support, please have the following information ready:
• Product name
• Product serial number (located on the bottom or rear of the projector, or in menu system)
• Proof of purchase (such as a store receipt) and date of purchase
• Computer or video configuration
• Description of the problem
Then call:
Country Telephone
Argentina (54 11) 5167-0300
0800-288-37766
Bolivia* 800-100-116
255
Country Telephone
Brazil State capitals and metropolitan areas: 3004-6627
Other areas: 0800-377-6627 / 0800-EPSONBR
Chile (56 2) 2484-3400
Colombia Bogota: (57 1) 602-4751
Other cities: 01-8000-915235
Costa Rica 800-377-6627
Dominican Republic* 1-888-760-0068
Ecuador* 1-800-000-044
El Salvador* 800-6570
Guatemala* 1-800-835-0358
Mexico Mexico City: (52 55) 1323-2052
Other cities: 01-800-087-1080
Nicaragua* 00-1-800-226-0368
Panama* 00-800-052-1376
Paraguay 009-800-521-0019
Peru Lima: (51 1) 418-0210
Other cities: 0800-10126
Uruguay 00040-5210067
Venezuela (58 212) 240-1111
*Contact your local phone company to call this toll-free number from a mobile phone.
Note: Toll or long distance charges may apply. If your country does not appear on the list, contact the
sales office in the nearest country.
Purchase Supplies and Accessories
You can purchase optional accessories and replacement parts from an Epson authorized reseller. To
find the nearest reseller, go to latin.epson.com. Or you can contact your nearest sales office as
described in "Where to Get Help."
257
Technical Specifications
These sections list the technical specifications of your projector.
General Projector Specifications
Projector Light Source Specifications
Remote Control Specifications
Projector Dimension Specifications
Projector Electrical Specifications
Projector Environmental Specifications
Projector Safety and Approvals Specifications
Supported Video Display Formats
General Projector Specifications
Type of display Poly-silicon TFT active matrix
Resolution 1920 × 1200 pixels (WUXGA) x 3
Lens F=1.5 to 1.7
Focal length: 20 to 31.8 mm
Color reproduction Up to 1.07 billion colors
258
Brightness EB-L570U: Normal (High) power consumption mode:
White light output 5200 lumens (ISO 21118 standard)
Color light output 5200 lumens
Quiet/Extended power consumption mode:
White light output 3640 lumens (ISO 21118 standard)
EB-L770U/EB-L775U:
Normal (High) power consumption mode:
White light output 7000 lumens (ISO 21118 standard)
Color light output 7000 lumens
Quiet/Extended power consumption mode:
White light output 4900 lumens (ISO 21118 standard)
Note: Color brightness (color light output) and white brightness
(white light output) will vary depending on usage conditions. Color
light output measured in accordance with IDMS 15.4; white light
output measured in accordance with ISO 21118.
Contrast ratio Over 2,500,000:1 with Dynamic Contrast on
Image size
(in native aspect ratio)
50 inches (1.27 m) to 500 inches (12.7 m)
Projection distance
(in native aspect ratio)
56.6 inches (1.44 m) to 581.1 inches (14.76 m) (Zoom: Wide)
92.5 inches (2.35 m) to 938.5 inches (23.84 m) (Zoom: Tele)
Projection methods 360°
Optical aspect ratio
(width-to-height)
16:10
Focus adjustment Manual
Zoom adjustment
(Tele-to-Wide)
1.0 to 1.6 (Optical Zoom)
Internal sound system 10 W monaural
259
Noise level EB-L570U:
31 dB (Normal power consumption mode)
23 dB (Quiet power consumption mode)
EB-L770U/EB-L775U:
38 dB (Normal power consumption mode)
27 dB (Quiet power consumption mode)
Keystone correction angle Vertical: ± 30°
Horizontal: ± 30°
USB Type B port compatibility USB 2.0 compliant port for service
USB Type A port compatibility USB 1.1 and 2.0 compliant port for USB device input, Epson
document camera display, batch settings, or wireless LAN unit
DC Out (2.0A) port USB 2.0 port for powering a streaming media player.
Note: This port is for supplying power only, no data transfer.
Parent topic: Technical Specifications
Projector Light Source Specifications
Type Laser diode
Light source output power EB-L570U:
88 W
EB-L770U/EB-L775U:
124 W
Wavelength 449 to 461 nm
Light source life
(approximate)
Normal/Quiet Light Source Mode:
Up to about 20000 hours
Extended Light Source Mode:
Up to about 30000 hours
260
Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
Parent topic: Technical Specifications
Remote Control Specifications
Reception range 26 feet (8 m)
Batteries Two alkaline or manganese AA
Parent topic: Technical Specifications
Projector Dimension Specifications
Height (excluding feet) 4.8 inches (122 mm)
Width 17.3 inches (440 mm)
Depth 12.0 inches (304 mm)
Weight
(approximate)
EB-L570U:
18.3 lb (8.3 kg)
EB-L770U/EB-L775U:
18.7 lb (8.56 kg)
Parent topic: Technical Specifications
Projector Electrical Specifications
Rated frequency 50/60 Hz
Power supply 100 to 240 V AC ±10%
EB-L570U: 3.3 to 1.5 A
EB-L770U/EB-L775U: 3.9 to 1.8 A
261
Power consumption
(100 to 120 V)
Operating:
Normal power consumption mode:
EB-L570U :
323 W
EB-L770U/EB-L775U :
382 W
Quiet power consumption mode:
EB-L570U:
250 W
EB-L770U/EB-L775U:
285 W
Extended power consumption mode:
EB-L570U:
242 W
EB-L770U/EB-L775U :
275 W
Standby:
0.5 W (Communication Off), 2.0 W (Communication On)
262
Power consumption
(220 to 240 V)
Operating:
Normal power consumption mode:
EB-L570U :
312 W
EB-L770U/EB-L775U :
366 W
Quiet power consumption mode:
EB-L570U:
242 W
EB-L770U/EB-L775U:
277 W
Extended power consumption mode:
EB-L570U:
234 W
EB-L770U/EB-L775U:
268 W
Standby:
0.5 W (Communication Off), 2.0 W (Communication On)
Parent topic: Technical Specifications
263
Projector Environmental Specifications
Temperature Single projector (up to 7500 feet [2286 m]):
Operating: 32 to 113 °F (0 to 45 °C)
Single projector (over 7500 feet [2286 m]):
Operating: 32 to 104 °F (0 to 40 °C)
Multiple projectors (up to 7500 feet [2286 m]):
Operating: 32 to 104 °F (0 to 40 °C)
Multiple projectors (over 7500 feet [2286 m]):
Operating: 32 to 95 °F (0 to 35 °C)
Storage: 14 to 140 °F (-10 to 60 °C)
Light source brightness automatically dims if the surrounding
temperature gets too high — approximately 95 °F (35 °C) at an
altitude of 0 to 7,500 feet (2,286 m), and approximately 86 °F (30 °C)
at an altitude above 7,500 feet (2,286 m). This may vary depending
on the surrounding environment.
Humidity (relative, non-
condensing)
Operating: 20 to 80%
Storage: 10 to 90%
Operating altitude Up to 4921 feet (1500 m)
Up to 10,000 feet (3048 m) with High Altitude Mode enabled
Parent topic: Technical Specifications
Projector Safety and Approvals Specifications
United States FCC Part 15 Class B (DoC)
UL60950-1 2nd edition
UL62368-1 2nd/3rd edition
(cTUVus Mark)
264
Canada ICES-003 Class B
CSA C22.2 No.60950-1-07
CSA C22.2 No.62368-1-14
(cTUVus Mark)
Parent topic: Technical Specifications
Supported Video Display Formats
For best results, your computer's monitor port or video card resolution should be set to display in the
projector's native resolution. However, your projector includes Epson's SizeWise chip that supports other
computer display resolutions, so your image will be resized to fit automatically.
Your computer's monitor port or video card refresh rate (vertical frequency) must be compatible with the
projector. (See your computer or video card manual for details.)
The table here lists the compatible refresh rate and resolution for each compatible video display format.
Display format Refresh rate (in Hz) Resolution (in pixels)
HDMI/HDBaseT Control input signals
VGA 59.94 640 × 480
SVGA 60.32 800 × 600
XGA 60 1024 × 768
WXGA 59.81/60 1280 × 800
59.79 1366 × 768
WXGA+ 59.89 1440 × 900
WXGA++ 60 1600 × 900
WSXGA+ 59.95 1680 × 1050
WUXGA 59.95 1920 × 1200
SXGA2 60 1280 × 960
SXGA3 60 1280 × 1024
SXGA+ 59.98 1400 × 1050
UXGA 60 1600 × 1200
265
Display format Refresh rate (in Hz) Resolution (in pixels)
QXGA 59.95 2048 × 1536
WQHD 59.95 2560 × 1440
WQXGA 59.97 2560 × 1600
UWFHD 60 1920 × 720
UWQHD 30 3440 × 1440
SDTV (480i/480p) 59.94 720 × 480
SDTV (576i/576p) 50 720 × 576
HDTV (720p) 50/59.94/60 1280 × 720
HDTV (1080i) 50/59.94/60 1920 × 1080
HDTV (1080p) 23.98/24/29.97/30/50/59.94/60 1920 × 1080
WFHD 60 2650 × 1080
WQUXGA 23.98/24/25/29.97/30/50/59.94/6
0
3840 × 2160
4K 23.98/24/50/59.94/60 4096 × 2160
Parent topic: Technical Specifications
266
Notices
Check these sections for important notices about your projector.
Recycling (U.S. and Canada)
Important Safety Information
Laser Safety Information
Important Safety Instructions
List of Safety Symbols (corresponding to IEC60950-1 A2)
FCC Compliance Statement
Binding Arbitration and Class Waiver
Trademarks
Copyright Notice
Recycling (U.S. and Canada)
Epson offers a recycling program for end of life products. Please go to this site for information on how to
return your products for proper disposal.
Parent topic: Notices
Important Safety Information
Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is
especially dangerous for children and pets. Before cleaning any part of the projector, turn it off and
unplug the power cord. Never open any cover on the projector, except as specifically explained in this
manual. Dangerous electrical voltages in the projector can injure you severely.
Warning: The projector and its accessories come packaged in plastic bags. Keep plastic bags away
from small children to avoid any risk of suffocation.
Parent topic: Notices
Laser Safety Information
This projector is a Class 1 laser product that complies with the IEC/EN60825-1:2014 international
standard for lasers. Follow these safety instructions when using the projector.
267
Warning: Possibly hazardous optical radiation emitted from this product. Do not look at operating light
source. Eye injury may result.
• If an error occurs in the projector, turn off the power and unplug the projector immediately. Continuing
to use the projector could result in an electric shock, fire, or visual impairment. Contact Epson support.
• Do not attempt to disassemble or modify the projector. The projector contains a high-power laser
component. Serious injury could result.
• Do not look into the lens during projection. Also, do not look into the lens using optical devices, such
as a magnifying glass or telescope. This could cause visual impairment.
• Do not place flammable objects in front of the lens. Objects could catch fire.
• When turning on the projector at a distance using the remote control, make sure no one is looking into
the lens.
• Do not allow small children to operate the projector. Children must be accompanied by an adult.
• Do not apply optical devices, such as a magnifying glass or reflector, to the projected image. Using the
projector may result in physical harm, fire, or an accident.
• Do not block the light from the lens during projection. The high temperature in this area could cause
burns, fire, or other damage. The lens may overheat due to the reflected light and could cause the
projector to malfunction.
• Before using the projector, make sure there is nothing in the area that could reflect the projected
image.
• When disposing of the projector, do not disassemble it. Dispose of the projector in accordance with
your local or national laws and regulations.
Laser warning labels are attached to the projector.
• Inside
268
• Top
As with any bright source, do not stare into the beam (RG2 IEC/EN 62471-5:2015).
• Bottom
The label attached on the projector varies depending on the countries and regions.
269
Warning: MOUNT ABOVE THE HEADS OF CHILDREN. The use of a ceiling mount is recommended
with this product to place it above the eyes of children.
Complies with FDA performance standards for laser products except for conformance as a Risk Group 2
LIP as defined in IEC 62471-5: Ed. 1.0. For more information see Laser Notice No. 57, dated May 8,
2019.
Parent topic: Notices
Important Safety Instructions
Follow these safety instructions when setting up and using the projector:
• Do not look into the lens when the projector is on. The bright light can damage your eyes. Avoid
standing in front of the projector so the bright light does not shine into your eyes.
• When turning on the projector at a distance using the remote control, make sure there is no one
looking into the lens.
270
• Do not place the projector on an unstable cart, stand, or table or on a surface that is unable to support
its weight. Otherwise, it could fall or topple causing an accident and injury.
• You must install a ceiling mount when suspending the projector from a ceiling. If you do not install the
projector correctly, it could fall and cause damage or injury. Special expertise is required to suspend
the projector from a ceiling.
• Failure to install the ceiling mount and projector correctly may cause the projector to fall. After
installing the specific Epson mount that supports your projector, make sure you secure the mount to all
of the projector's ceiling mount fixing points. Also, secure the projector and the mounts using wire that
is strong enough to hold their weight.
• When installing the projector in a high position, take measures to prevent it from falling by using wires
to ensure safety in an emergency, such as an earthquake, and to prevent accidents. If the projector is
not installed correctly, the projector could fall. This may result in injury or accidents. Contact your
dealer to carry out the installation work.
• Do not install in locations where salt damage could occur, or in locations subject to corrosive gas such
as sulphuric gas from hot springs. Otherwise, corrosion could cause the projector to fall. It could also
cause the projector to malfunction.
• When installing or adjusting a ceiling or wall mount, do not use adhesives to prevent the screws from
loosening and do not use oils or lubricants. This may cause the projector case to crack and the
projector to fall from its ceiling mount. This could cause serious injury to anyone under the mount and
could damage the projector.
• Do not install the projector in locations exposed to high humidity and dust, such as on a kitchen
counter, in the kitchen, or near a humidifier, or in locations exposed to oil smoke or steam. Doing so
could cause fire or electric shock. The projector's case could also deteriorate and be damaged
causing the projector to fall from the mount.
Examples of environments that could cause the projector to fall due to case deterioration:
• Locations subject to excessive smoke or airborne oil particles, such as factories or kitchens
• Locations containing volatile solvents or chemicals, such as factories or laboratories
• Locations where the projector could be subjected to detergents or chemicals, such as factories or
kitchens
• Locations in which aroma oils are often used, such as relaxation rooms
• Near devices that produce excessive smoke, airborne oil particles, or foam at events
• Locations where the projector could be subjected to ultraviolet rays, such as a sunny room
• Locations near humidifiers
271
• Do not use the projector near water, sources of heat, high-voltage electrical wires, or sources of
magnetic fields.
• Use the type of power source indicated on the projector. Use of a different power source may result in
fire or electric shock. If you are not sure of the power available, consult your dealer or power company.
• Place the projector near a wall outlet where the plug can be easily unplugged.
• Take the following precautions when handling the plug: Do not hold the plug with wet hands. Do not
insert the plug into a dusty outlet. Insert the plug firmly into the outlet. Do not pull the power cord when
disconnecting the plug; always be sure to hold the plug when disconnecting it. Do not overload wall
outlets, extension cords, or power strips. Failure to comply with these precautions could result in fire or
electric shock.
• Do not place the projector where the cord can be walked on. This may result in fraying or damage to
the plug.
• Unplug the projector from the wall outlet and allow to cool before cleaning. Use a dry cloth (or, for
stubborn dirt or stains, a moist cloth that has been wrung dry) for cleaning. Do not use liquid or aerosol
cleaners, any sprays containing flammable gas, or solvents such as alcohol, paint thinner, or benzine.
• Do not block the slots and openings in the projector case. They provide ventilation and prevent the
projector from overheating. If the vents are covered, the internal temperature could rise and cause a
fire. Do not place the projector in locations subject to high temperatures, such as near heating
equipment. Do not operate the projector on a sofa, rug, or other soft surface, or set it on top of loose
papers. Do not cover the projector with a blanket, curtain, or tablecloth. If you are setting up the
projector near a wall, leave at least 7.9 inches (20 cm) of space between the wall and the projector.
• Do not operate the projector in a closed-in cabinet unless proper ventilation is provided.
• Never allow objects of any kind to enter any openings in the projector. Do not leave objects, especially
flammable objects, near the projector. Never spill liquid of any kind into the projector.
• If you are using two or more projectors side-by-side, leave at least 59 inches (150 cm) of space
between the projectors to allow for proper ventilation.
• You may need to clean the air filter and vent. A clogged air filter or vent can block ventilation needed
to cool the projector. Do not use canned air, or the gases may leave a residue.
• Do not use or store the projector in locations where it will be subject to dust or dirt. Otherwise, the
quality of the projected image may decline, or the air filter may become clogged, resulting in a
malfunction or fire.
• Do not store the projector outdoors for an extended length of time.
• Except as specifically explained in this manual, do not attempt to service this product yourself. Refer
all servicing to qualified personnel. Opening or removing covers may expose you to dangerous
voltages and other hazards.
272
• Never open any covers on the projector except as specifically explained in this manual. Never attempt
to disassemble or modify the projector. Refer all repairs to qualified service personnel.
• Unplug the projector from the wall outlet and refer servicing to qualified service personnel under the
following conditions: if it does not operate normally when you follow the operating instructions, or
exhibits a distinct change in performance; if smoke, strange odors, or strange noises come from the
projector; if the power cord or plug is damaged or frayed; if liquid or foreign objects get inside the
projector, or if it has been exposed to rain or water; if it has been dropped or the housing has been
damaged.
• Do not touch the plug during an electrical storm. Otherwise, you may receive an electric shock.
• Unplug the projector when it will not be used for extended periods.
• Do not use the projector where it may be exposed to rain, water, or excessive humidity.
• Do not use or store the projector where it may be exposed to smoke, steam, corrosive gases,
excessive dust, vibration, or shock.
• Do not use the projector where flammable or explosive gases may be present.
• Do not use or store the projector or remote control in a hot location, such as near a heater, in direct
sunlight, or in a closed vehicle.
• If you use the projector in a country other than where you purchased it, use the correct power cord for
that country.
• Do not stand on the projector or place heavy objects on it.
• Do not use the projector outside of the required temperature range below (20 to 80% humidity, no
condensation):
32 to 113 °F (0 to 45 °C) at an altitude of 7500 feet (2286 m) or less, or 32 to 104 °F (0 to 40 °C) at an
altitude of 7500 to 10000 feet (2286 to 3048 m)
When using multiple projectors at the same time:
32 to 104 °F (0 to 40 °C) at an altitude of 7500 feet (2286 m) or less, or 32 to 95 °F (0 to 35 °C) at an
altitude of 7500 to 10000 feet (2286 m to 3048 m)
Doing so may cause an unstable display and could lead to projector damage. Do not use or store the
projector where it may be exposed to sudden changes in temperature.
• Do not store the projector outside of the required temperature range of 14 to 140 °F (–10 to 60 °C) or
in direct sunlight for long periods of time. Doing so may cause damage to the case.
• Do not place anything that can become warped or damaged by heat near the exhaust vents. Do not
bring your hands or face close to the vents while projection is in progress. Do not bring your face close
to the projector while it is in use.
273
• Before you move the projector, make sure its power is turned off, the plug is disconnected from the
outlet, and all cables are disconnected.
• Do not place the source of an open flame, such as a lit candle, on or near the projector.
• Do not modify the power cord. Do not place heavy objects on top of the power cord or bend, twist, or
pull it excessively. Keep the power cord away from hot electrical appliances. Do not tie the power cord
to other cables.
Restriction of Use
Parent topic: Notices
Restriction of Use
When this product is used for applications requiring high reliability/safety such as transportation devices
related to aviation, rail, marine, automotive; disaster prevention devices; various safety devices; or
functional/precision devices, you should use this product only after giving consideration to including fail-
safes and redundancies into your design to maintain safety and total system reliability.
Because this product was not intended for use in applications requiring extremely high reliability/safety
such as aerospace equipment, main communication equipment, nuclear power control equipment, or
medical equipment related to direct medical care, please make your own judgment on this product's
suitability after a full evaluation.
Parent topic: Important Safety Instructions
List of Safety Symbols (corresponding to IEC60950-1 A2)
The following table lists the meaning of the safety symbols labeled on the equipment.
No. Symbol Approved Standards Description
1 IEC60417
No.5007
"ON" (power)
To indicate connection to the mains.
2 IEC60417
No.5008
"OFF" (power)
To indicate disconnection from the
mains.
274
No. Symbol Approved Standards Description
3 IEC60417
No.5009
Stand-by
To identify the switch or switch position
by means of which part of the equipment
is switched on in order to bring it into the
stand-by condition.
4 ISO7000
No.0434B,
IEC3864-B3.1
Caution
To identify general caution when using
the product.
5 IEC60417
No.5041
Caution, hot surface
To indicate that the marked item can be
hot and should not be touched without
taking care.
6 IEC60417
No.6042
ISO3864-B3.6
Caution, risk of electric shock
To identify equipment that has risk of
electric shock.
7 IEC60417
No.5957
For indoor use only
To identify electrical equipment designed
primarily for indoor use.
8 IEC60417
No.5926
Polarity of DC power connector
To identify the positive and negative
connections (the polarity) on a piece of
equipment to which a DC power supply
may be connected.
9 — Polarity of DC power connector
To identify the positive and negative
connections (the polarity) on a piece of
equipment to which a DC. power supply
may be connected.
275
No. Symbol Approved Standards Description
10 IEC60417
No.5001B
Battery, general
On battery powered equipment. To
identify a device for instance a cover for
the battery compartment, or the
connector terminals.
11 IEC60417
No.5002
Positioning of cell
To identify the battery holder itself and to
identify the positioning of the cell(s)
inside the battery holder.
12 — Positioning of cell
To identify the battery holder itself and to
identify the positioning of the cell(s)
inside the battery holder.
13 IEC60417
No.5019
Protective earth
To identify any terminal which is intended
for connection to an external conductor
for protection against electric shock in
case of a fault, or the terminal of a
protective earth electrode.
14 IEC60417
No.5017
Earth
To identify an earth (ground) terminal in
cases where neither the symbol No.13 is
explicitly required.
15 IEC60417
No.5032
Alternating current
To indicate on the rating plate that the
equipment is suitable for alternating
current only; to identify relevant
terminals.
16 IEC60417
No.5031
Direct current
To indicate on the rating plate that the
equipment is suitable for direct current
only; to identify relevant terminals.
276
No. Symbol Approved Standards Description
17 IEC60417
No.5172
Class II equipment
To identify equipment meeting the safety
requirements specified for Class II
equipment according to IEC 61140.
18 ISO 3864 General prohibition
To identify actions or operations that are
prohibited.
19 ISO 3864 Contact prohibition
To indicate injury that could occur due to
touching a specific part of the equipment.
20 — Never look into the optical lens while the
projector is on.
21 — To indicate that the marked item don’t
place anything on projector.
22 ISO3864
IEC60825-1
Caution, laser radiation
To indicate the equipment has a laser
radiation part.
23 ISO 3864 Disassembly prohibition
To indicate a risk of injury, such as
electric shock, if the equipment is
disassembled.
24 IEC60417
No. 5266
Standby, partial standby
To indicate that part of the equipment is
in the ready status.
277
No. Symbol Approved Standards Description
25 ISO3864
IEC60417
No. 5057
Caution, movable parts
To indicate that you must keep away
from movable parts according to
protection standards.
27 IEC 60417-6056 Caution (movable fan blades)
To indicate that you must keep away
from the blades of the movable fan
according to protection standards.
28 IEC 60417-6043 Caution (sharp corners)
To indicate that you must not touch the
sharp corners of the product according to
protection standards.
29 — Never look into the projection lens while
the projector is on.
30 ISO7010
No. W027
ISO 3864
Warning, light emission (UV, visible light,
IR and so on)
To indicate that you must be careful not
to injure your eyes or skin when near light
emitting sections.
31 IEC60417
No. 5109
Not to be used in residential areas
To indicate that the electrical
equipment/device is not suitable for use
in residential area.
Parent topic: Notices
FCC Compliance Statement
For United States Users
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
278
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause interference to radio and television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING
The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification or Declaration of this device and may cause interference levels which exceed the limits
established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded
equipment interface cable with this device. If this equipment has more than one interface connector, do
not leave cables connected to unused interfaces. Changes or modifications not expressly approved by
the manufacturer could void the user’s authority to operate the equipment.
For Canadian Users
CAN ICES-003(B)/NMB-003(B)
Parent topic: Notices
Binding Arbitration and Class Waiver
1. DISPUTES, BINDING INDIVIDUAL ARBITRATION, AND WAIVER OF CLASS ACTIONS AND
CLASS ARBITRATIONS
1.1 Disputes. The terms of this Section 1 shall apply to all Disputes between you and Epson. The term
"Dispute" is meant to have the broadest meaning permissible under law and includes any dispute, claim,
controversy or action between you and Epson arising out of or relating to this Agreement, Epson
branded products (hardware and including any related software), or other transaction involving you and
Epson, whether in contract, warranty, misrepresentation, fraud, tort, intentional tort, statute, regulation,
ordinance, or any other legal or equitable basis. "DISPUTE" DOES NOT INCLUDE IP CLAIMS, or more
specifically, a claim or cause of action for (a) trademark infringement or dilution, (b) patent infringement,
(c) copyright infringement or misuse, or (d) trade secret misappropriation (an "IP Claim"). You and Epson
279
also agree, notwithstanding Section 1.6,that a court, not an arbitrator, may decide if a claim or cause of
action is for an IP Claim.
1.2 Binding Arbitration. You and Epson agree that all Disputes shall be resolved by binding arbitration
according to this Agreement. ARBITRATION MEANS THAT YOU WAIVE YOUR RIGHT TO A JUDGE
OR JURY IN A COURT PROCEEDING AND YOUR GROUNDS FOR APPEAL ARE LIMITED.
Pursuant to this Agreement, binding arbitration shall be administered by JAMS, a nationally recognized
arbitration authority, pursuant to its code of procedures then in effect for consumer related disputes, but
excluding any rules that permit joinder or class actions in arbitration (for more detail on procedure, see
Section 1.6 below). You and Epson understand and agree that (a) the Federal Arbitration Act (9 U.S.C.
§1, et seq.) governs the interpretation and enforcement of this Section 1, (b) this Agreement
memorializes a transaction in interstate commerce, and (c) this Section 1 shall survive termination of this
Agreement.
1.3 Pre-Arbitration Steps and Notice. Before submitting a claim for arbitration, you and Epson agree to
try, for sixty (60) days, to resolve any Dispute informally. If Epson and you do not reach an agreement to
resolve the Dispute within the sixty (60) days), you or Epson may commence an arbitration. Notice to
Epson must be addressed to: Epson America, Inc., ATTN: Legal Department, 3131 Katella Ave., Los
Alamitos, CA 90720 (the "Epson Address"). The Dispute Notice to you will be sent to the most recent
address Epson has in its records for you. For this reason, it is important to notify us if your address
the Dispute shall include the sender's name, address and contact information, the facts giving rise to the
Dispute, and the relief requested (the "Dispute Notice"). Following receipt of the Dispute Notice, Epson
and you agree to act in good faith to resolve the Dispute before commencing arbitration.
1.4 Small Claims Court. Notwithstanding the foregoing, you may bring an individual action in the small
claims court of your state or municipality if the action is within that court's jurisdiction and is pending only
in that court.
1.5 WAIVER OF CLASS ACTIONS AND CLASS ARBITRATIONS. YOU AND EPSON AGREE THAT
EACH PARTY MAY BRING DISPUTES AGAINST THE OTHER PARTY ONLY IN AN INDIVIDUAL
CAPACITY, AND NOT AS A PLAINTIFF OR CLASS MEMBER IN ANY CLASS OR
REPRESENTATIVE PROCEEDING, INCLUDING WITHOUT LIMITATION FEDERAL OR STATE
CLASS ACTIONS, OR CLASS ARBITRATIONS. CLASS ACTION LAWSUITS, CLASS-WIDE
ARBITRATIONS, PRIVATE ATTORNEY-GENERAL ACTIONS, AND ANY OTHER PROCEEDING
WHERE SOMEONE ACTS IN A REPRESENTATIVE CAPACITY ARE NOT ALLOWED.
ACCORDINGLY, UNDER THE ARBITRATION PROCEDURES OUTLINED IN THIS SECTION, AN
ARBITRATOR SHALL NOT COMBINE OR CONSOLIDATE MORE THAN ONE PARTY'S CLAIMS
WITHOUT THE WRITTEN CONSENT OF ALL AFFECTED PARTIES TO AN ARBITRATION
PROCEEDING.
1.6 Arbitration Procedure. If you or Epson commences arbitration, the arbitration shall be governed by
the rules of JAMS that are in effect when the arbitration is filed, excluding any rules that permit arbitration
on a class or representative basis (the "JAMS Rules"), available at http://www.jamsadr.com or by calling
280
1-800-352-5267 (U.S. or Canada), or https://www.jamsadr.com/about/ or by calling +1-949-224-1810
(Latin America), and under the rules set forth in this Agreement. All Disputes shall be resolved by a
single neutral arbitrator, and both parties shall have a reasonable opportunity to participate in the
selection of the arbitrator. The arbitrator is bound by the terms of this Agreement. The arbitrator, and not
any federal, state or local court or agency, shall have exclusive authority to resolve all disputes arising
out of or relating to the interpretation, applicability, enforceability or formation of this Agreement,
including any claim that all or any part of this Agreement is void or voidable. Notwithstanding this broad
delegation of authority to the arbitrator, a court may determine the limited question of whether a claim or
cause of action is for an IP Claim, which is excluded from the definition of "Disputes" in Section 1.1
above. The arbitrator shall be empowered to grant whatever relief would be available in a court under
law or in equity. The arbitrator may award you the same damages as a court could, and may award
declaratory or injunctive relief only in favor of the individual party seeking relief and only to the extent
necessary to provide relief warranted by that party's individual claim. In some instances, the costs of
arbitration can exceed the costs of litigation and the right to discovery may be more limited in arbitration
than in court. The arbitrator's award is binding and may be entered as a judgment in any court of
competent jurisdiction.
You may choose to engage in arbitration hearings by telephone. Arbitration hearings not conducted by
telephone shall take place in a location reasonably accessible from your primary residence, or in Orange
County, California, at your option.
a) Initiation of Arbitration Proceeding. If either you or Epson decides to arbitrate a Dispute, both parties
agree to the following procedure:
(i) Write a Demand for Arbitration. The demand must include a description of the Dispute and the amount
of damages sought to be recovered. You can find a copy of a Demand for Arbitration at
http://www.jamsadr.com ("Demand for Arbitration").
(ii) Send three copies of the Demand for Arbitration, plus the appropriate filing fee, to: JAMS, 500 North
State College Blvd., Suite 600 Orange, CA 92868, U.S.A.
(iii) Send one copy of the Demand for Arbitration to the other party (same address as the Dispute
Notice), or as otherwise agreed by the parties.
b) Hearing Format. During the arbitration, the amount of any settlement offer made shall not be disclosed
to the arbitrator until after the arbitrator determines the amount, if any, to which you or Epson is entitled.
The discovery or exchange of non-privileged information relevant to the Dispute may be allowed during
the arbitration.
c) Arbitration Fees. Epson shall pay, or (if applicable) reimburse you for, all JAMS filings and arbitrator
fees for any arbitration commenced (by you or Epson) pursuant to provisions of this Agreement.
d) Award in Your Favor. For Disputes in which you or Epson seeks $75,000 or less in damages exclusive
of attorney's fees and costs, if the arbitrator's decision results in an award to you in an amount greater
than Epson's last written offer, if any, to settle the Dispute, Epson will: (i) pay you $1,000 or the amount
281
of the award, whichever is greater; (ii) pay you twice the amount of your reasonable attorney's fees, if
any; and (iii) reimburse you for any expenses (including expert witness fees and costs) that your attorney
reasonably accrues for investigating, preparing, and pursuing the Dispute in arbitration. Except as
agreed upon by you and Epson in writing, the arbitrator shall determine the amount of fees, costs, and
expenses to be paid by Epson pursuant to this Section 1.6d).
e) Attorney's Fees. Epson will not seek its attorney's fees and expenses for any arbitration commenced
involving a Dispute under this Agreement. Your right to attorney's fees and expenses under Section
1.6d) above does not limit your rights to attorney's fees and expenses under applicable law;
notwithstanding the foregoing, the arbitrator may not award duplicative awards of attorney's fees and
expenses.
1.7 Opt-out. You may elect to opt-out (exclude yourself) from the final, binding, individual
arbitration procedure and waiver of class and representative proceedings specified in this
Agreement by sending a written letter to the Epson Address within thirty (30) days of your assent
to this Agreement (including without limitation the purchase, download, installation of the
Software or other applicable use of Epson Hardware, products and services) that specifies (i)
your name, (ii) your mailing address, and (iii) your request to be excluded from the final, binding
individual arbitration procedure and waiver of class and representative proceedings specified in
this Section 1. In the event that you opt-out consistent with the procedure set forth above, all
other terms shall continue to apply, including the requirement to provide notice prior to litigation.
1.8 Amendments to Section 1. Notwithstanding any provision in this Agreement to the contrary, you
and Epson agree that if Epson makes any future amendments to the dispute resolution procedure and
class action waiver provisions (other than a change to Epson's address) in this Agreement, Epson will
obtain your affirmative assent to the applicable amendment. If you do not affirmatively assent to the
applicable amendment, you are agreeing that you will arbitrate any Dispute between the parties in
accordance with the language of this Section 1 (or resolve disputes as provided for in Section 1.7, if you
timely elected to opt-out when you first assented to this Agreement).
1.9 Severability. If any provision in this Section 1 is found to be unenforceable, that provision shall be
severed with the remainder of this Agreement remaining in full force and effect. The foregoing shall not
apply to the prohibition against class or representative actions as provided in Section 1.5. This
means that if Section 1.5 is found to be unenforceable, the entire Section 1 (but only Section 1)
shall be null and void.
Parent topic: Notices
Trademarks
EPSON
®
, and Quick Corner
®
are registered trademarks, is a registered logomark, and Epson iProjection
is a trademark of Seiko Epson Corporation.
PrivateLine
®
is a registered trademark and SizeWise
TM
is a trademark of Epson America, Inc.
282
Mac, macOS, and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
App Store is a service mark of Apple Inc.
Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.
Google
®
is a registered trademark and Android
TM
, Google Chrome
TM
, Chromebook
TM
, Android TV
TM
, and
Google Play
TM
are trademarks of Google LLC.
Wi-Fi
®
, WPA2
®
, and WPA3
®
are trademarks of Wi-Fi Alliance
®
.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc.
"QR Code" is a registered trademark of DENSO WAVE INCORPORATED.
Crestron
®
and Crestron Connected
®
are registered trademarks of Crestron Electronics, Inc.
Extron
®
and XTP
®
are registered trademarks of RGB Systems Incorporated.
HDBaseT
TM
and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
The PJLink trademark is a trademark applied for registration or is already registered in Japan, the United
States of America and other countries and areas.
General Notice: Other product names used herein are for identification purposes only and may be
trademarks of their respective owners. Epson disclaims any and all rights in those marks.
Parent topic: Notices
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written permission of Seiko Epson Corporation. The information contained herein is
designed only for use with this Epson product. Epson is not responsible for any use of this information as
applied to other products.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:
accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this
product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and
maintenance instructions.
283
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original Epson Products or Epson
Approved Products by Seiko Epson Corporation.
This information is subject to change without notice.
A Note Concerning Responsible Use of Copyrighted Materials
Copyright Attribution
Parent topic: Notices
A Note Concerning Responsible Use of Copyrighted Materials
Epson encourages each user to be responsible and respectful of the copyright laws when using any
Epson product. While some countries' laws permit limited copying or reuse of copyrighted material in
certain circumstances, those circumstances may not be as broad as some people assume. Contact your
legal advisor for any questions regarding copyright law.
Parent topic: Copyright Notice
Copyright Attribution
© 2023 Epson America, Inc.
3/23
CPD-63066
Parent topic: Copyright Notice
