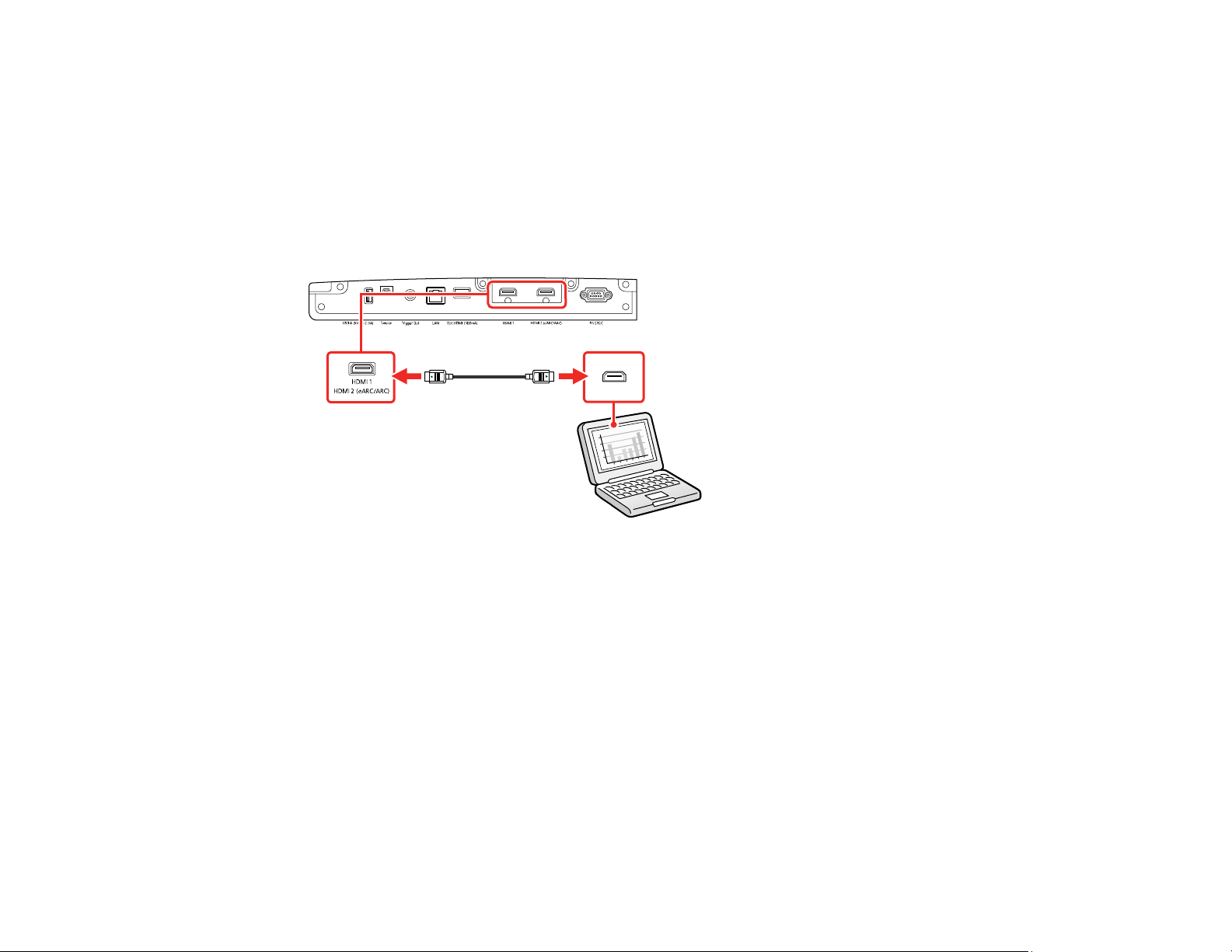

Connecting to a Computer for HDMI Video.................................................................................... 28

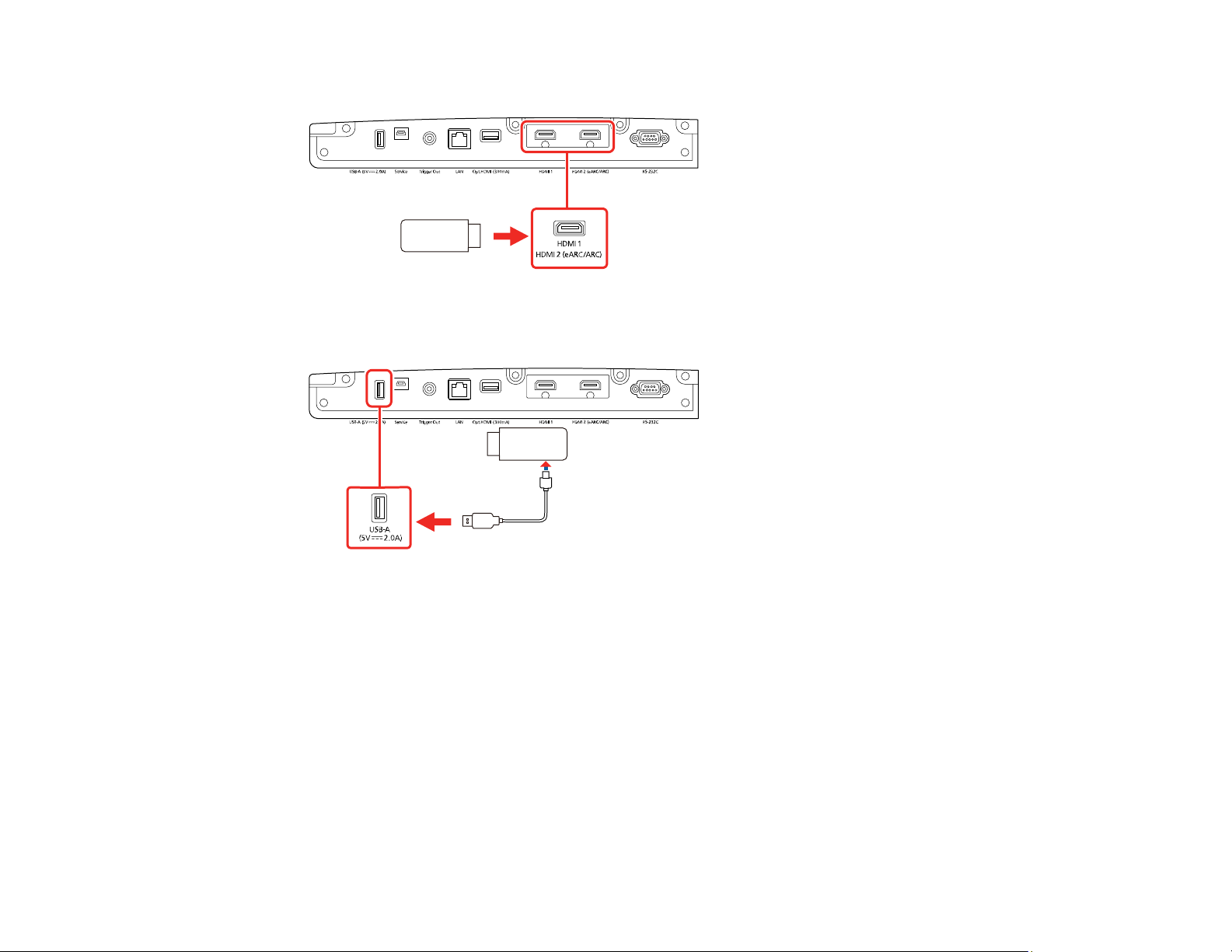

Connecting to a Streaming Media Player ...................................................................................... 29
Connecting External Output Devices............................................................................................. 30
Connecting an A/V System or External Speakers Using HDMI ARC ........................................ 30
Connecting to a Trigger Out Port .............................................................................................. 31

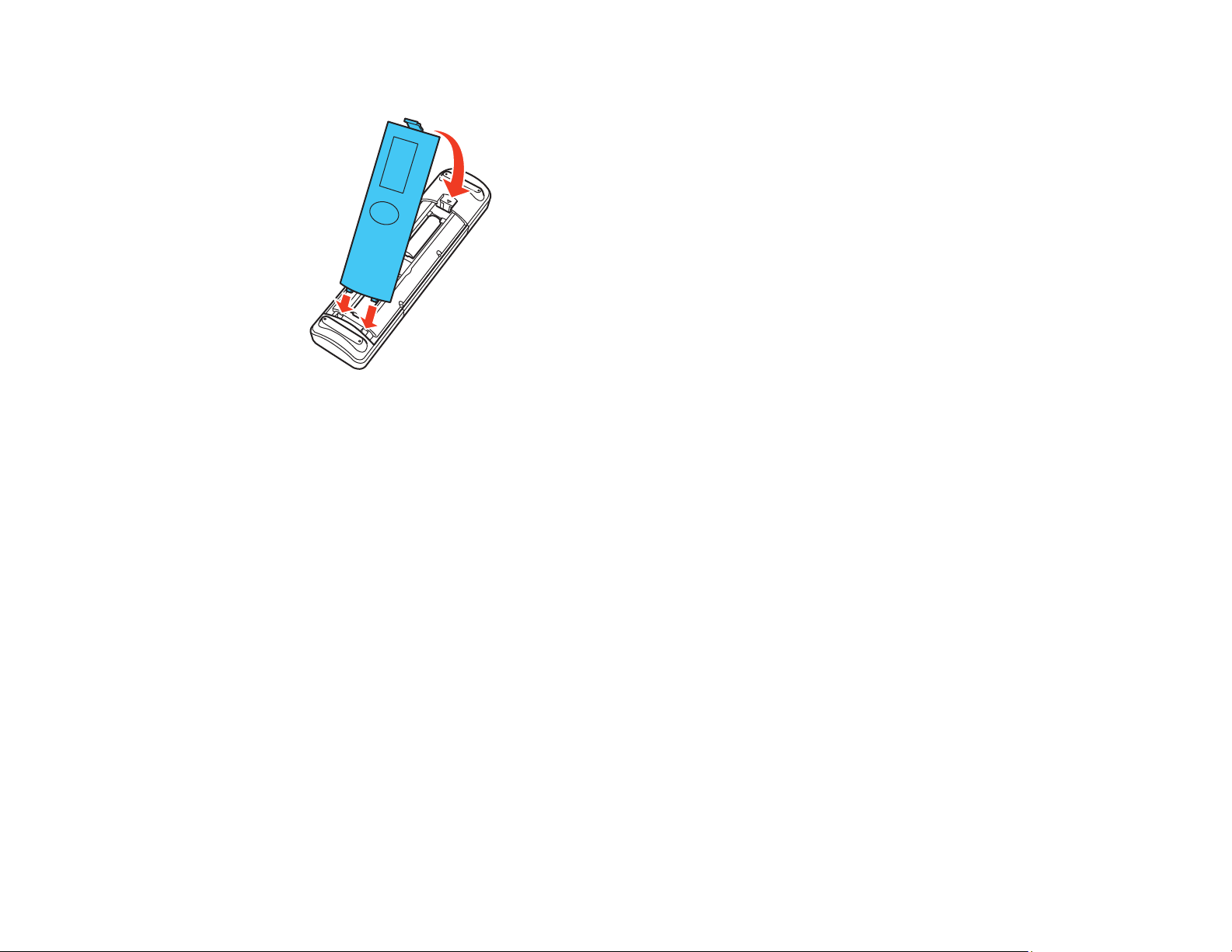

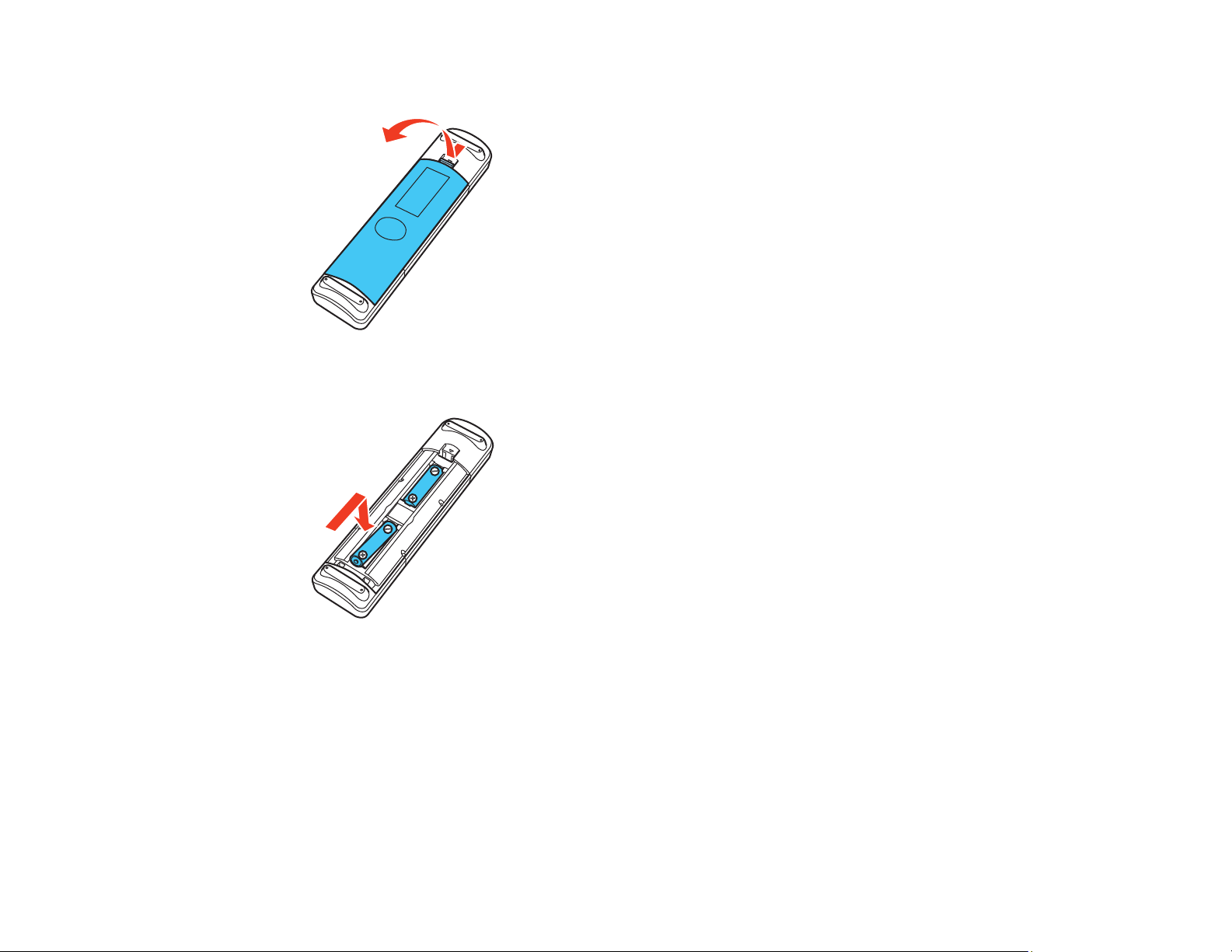

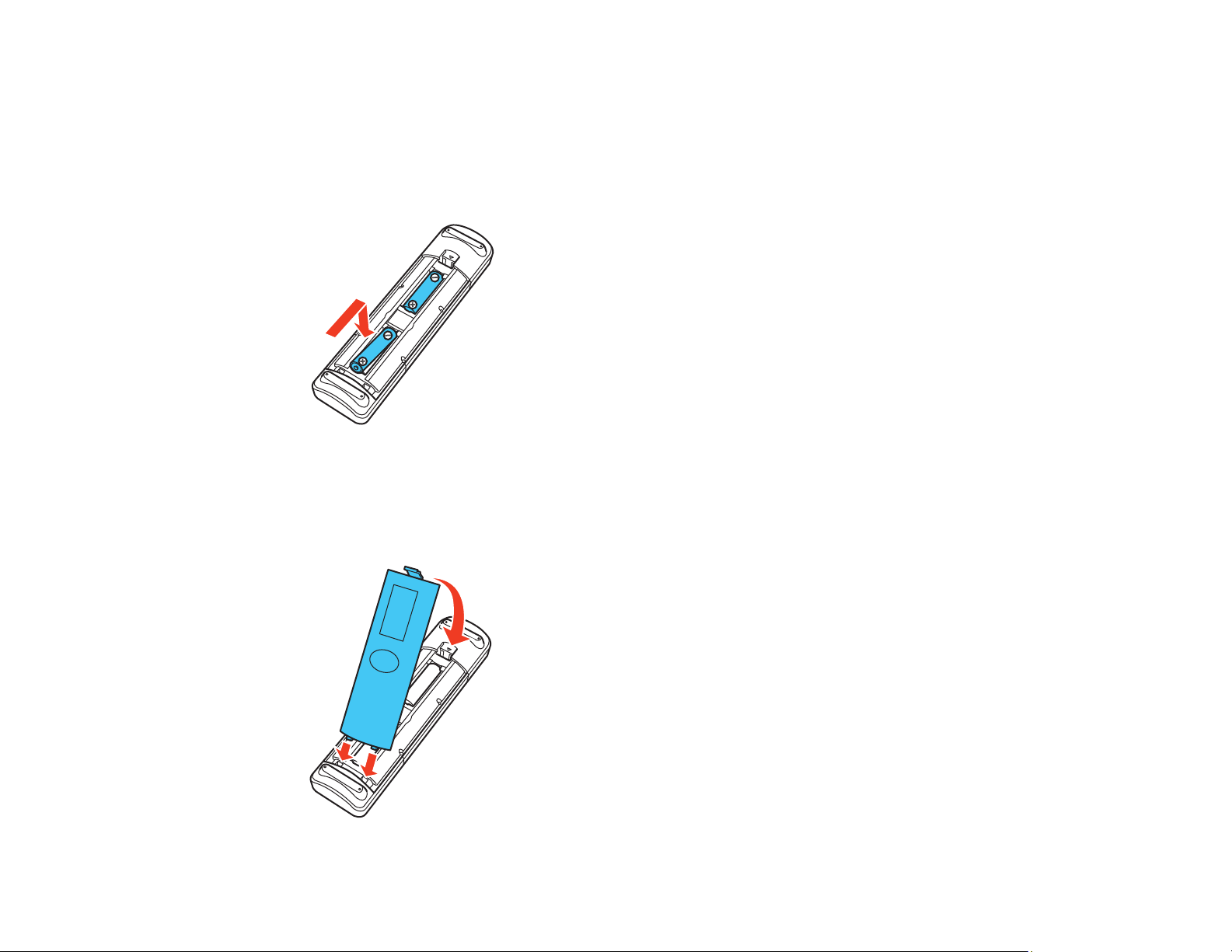

Installing Batteries in the Remote Control .......................................................................................... 32
Monitoring and Controlling the Projector ............................................................................................... 35
Connecting to a Wired Network.......................................................................................................... 35

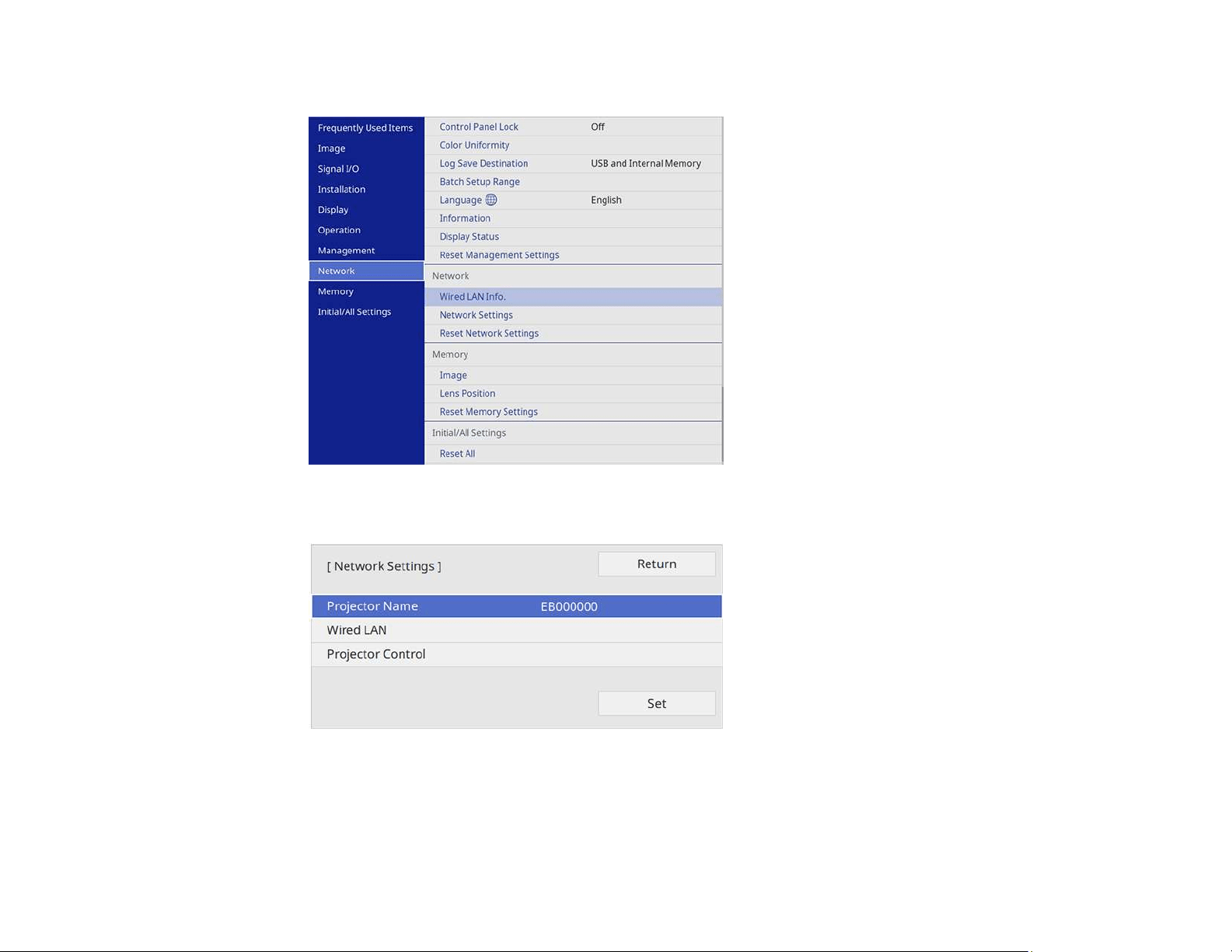

Selecting Wired Network Settings ...................................................................................................... 35
4
Projector Control Settings.............................................................................................................. 37
Using Basic Projector Features ............................................................................................................... 39

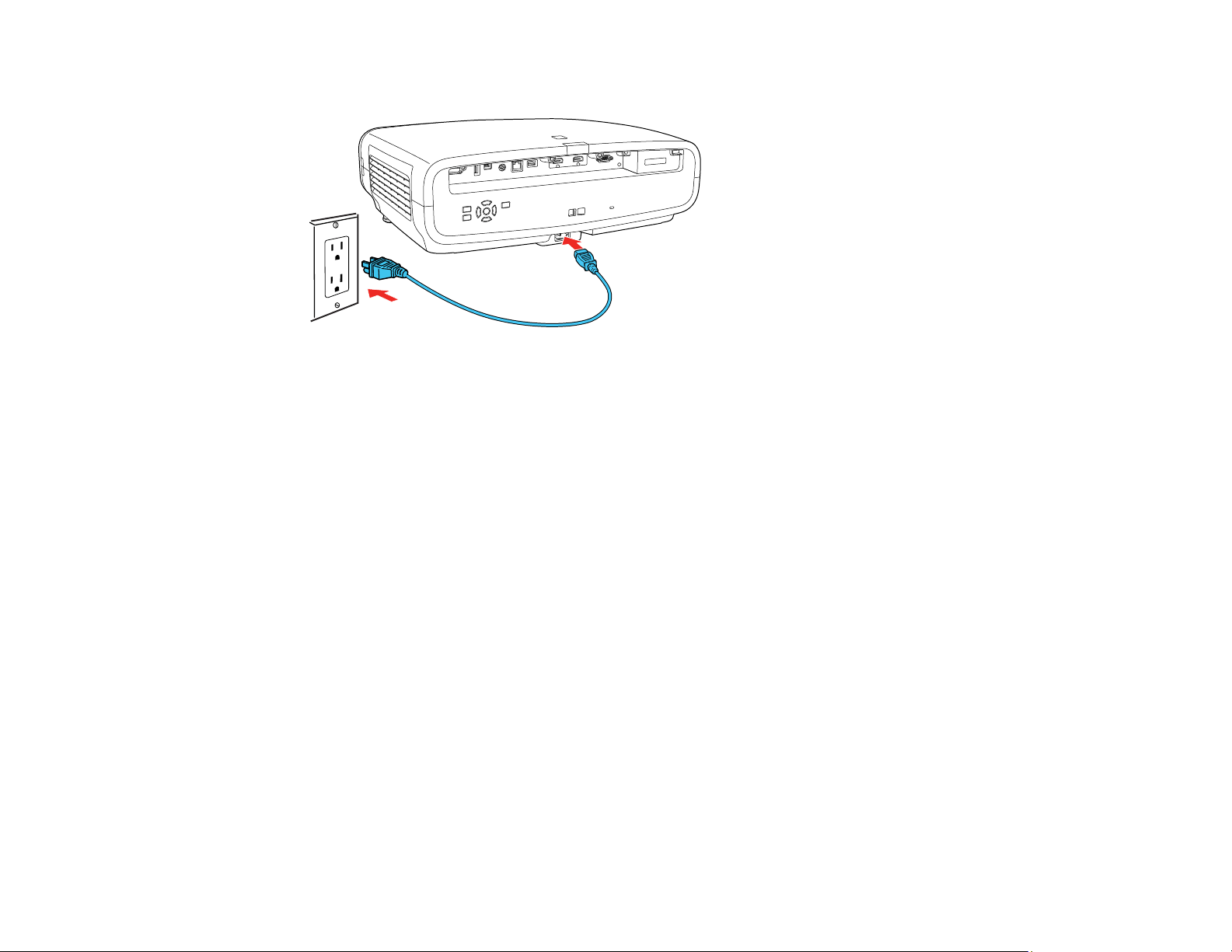

Turning On the Projector .................................................................................................................... 39

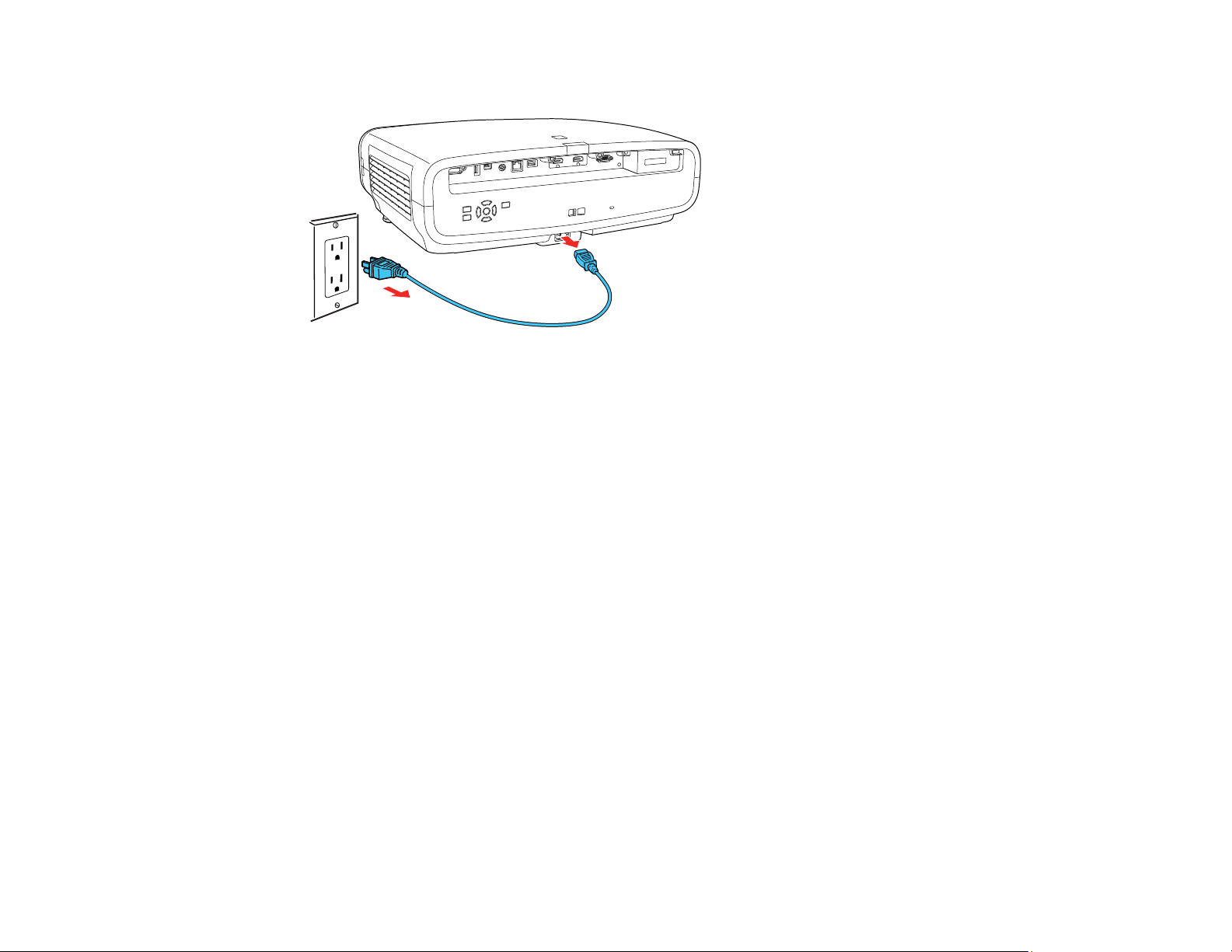

Turning Off the Projector .................................................................................................................... 41
Selecting the Language for the Projector Menus................................................................................ 42
Adjusting the Image Height ................................................................................................................ 43
Adjusting the Image Position Using Lens Shift ................................................................................... 44
Image Shape...................................................................................................................................... 46

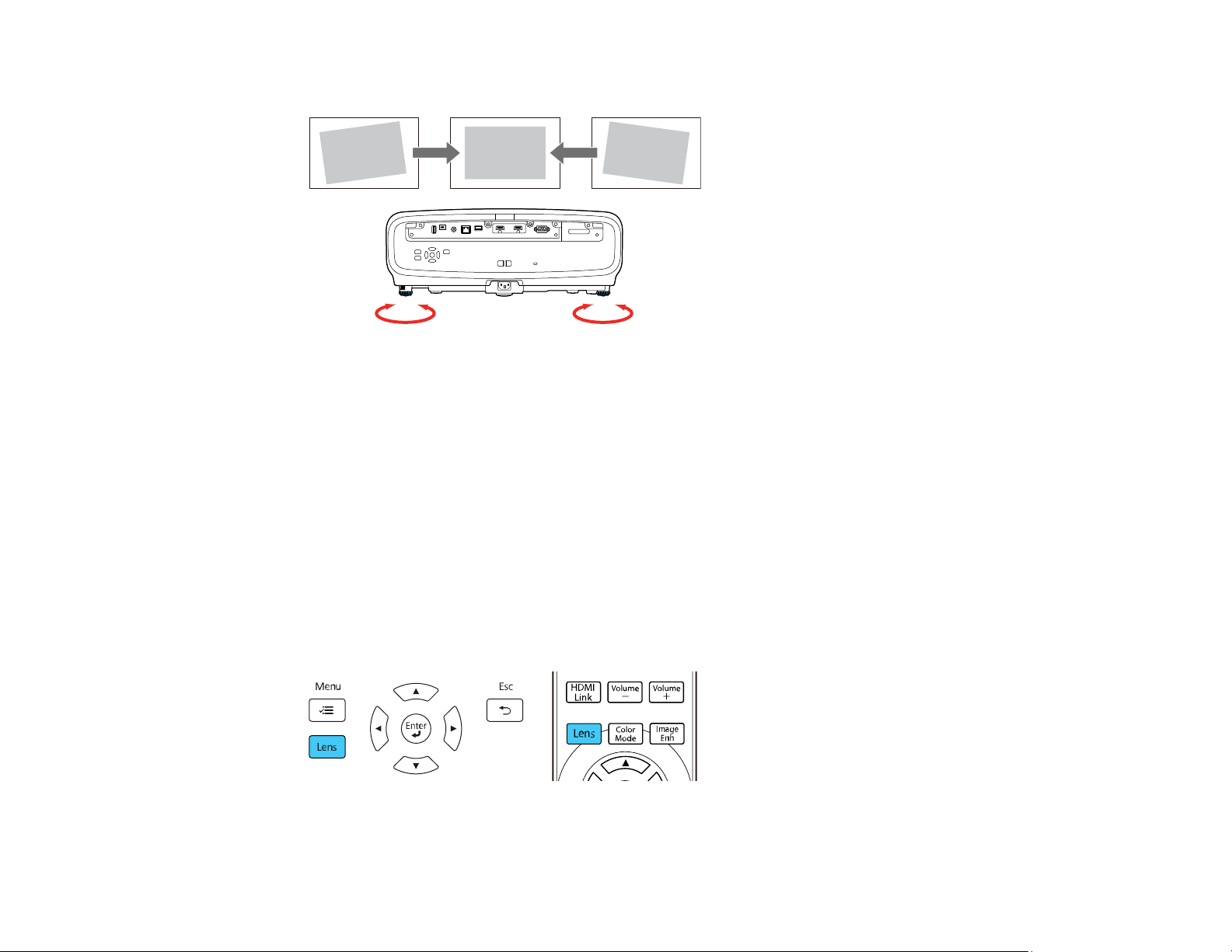

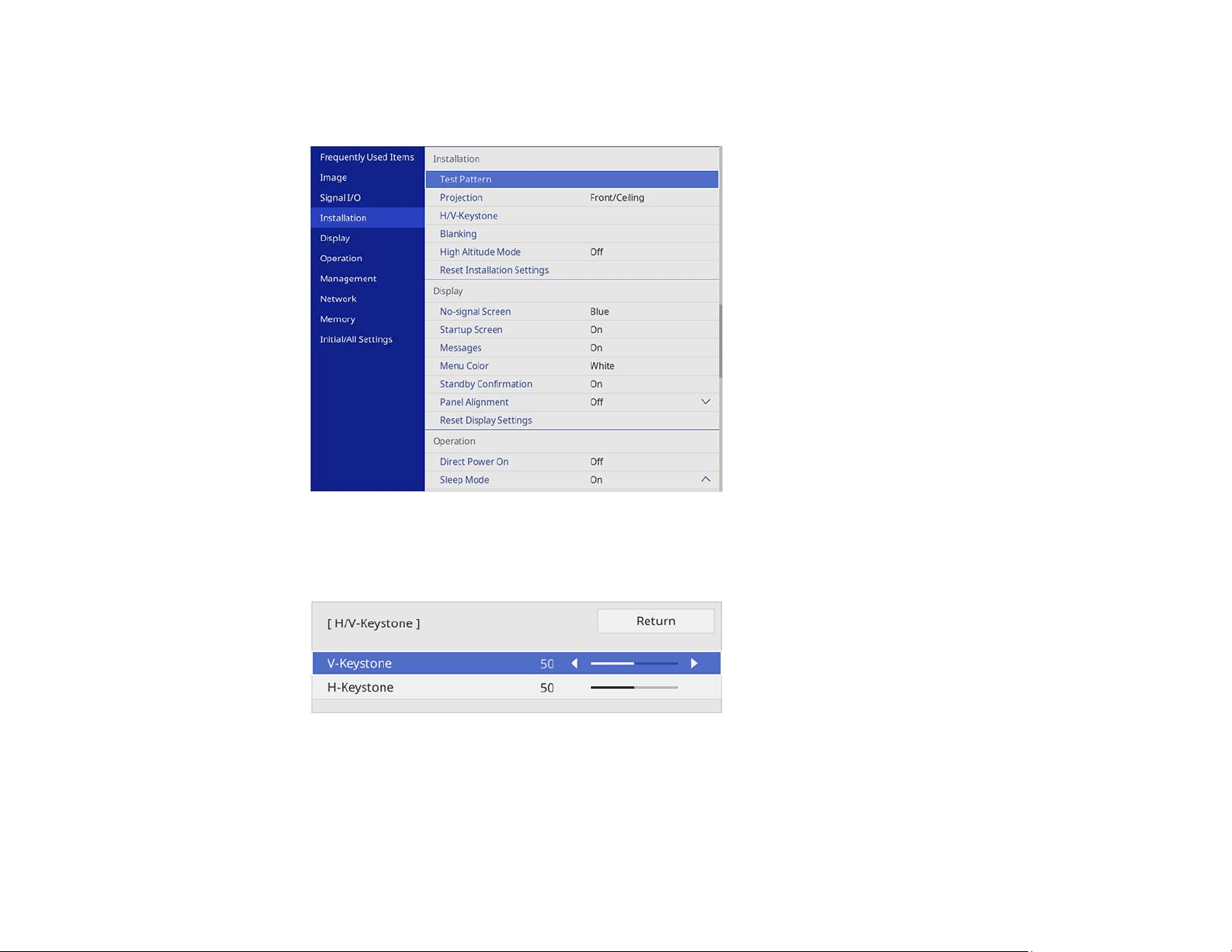

Correcting Image Shape with H/V-Keystone ................................................................................. 46
Resizing the Image with the Zoom Feature ........................................................................................ 48

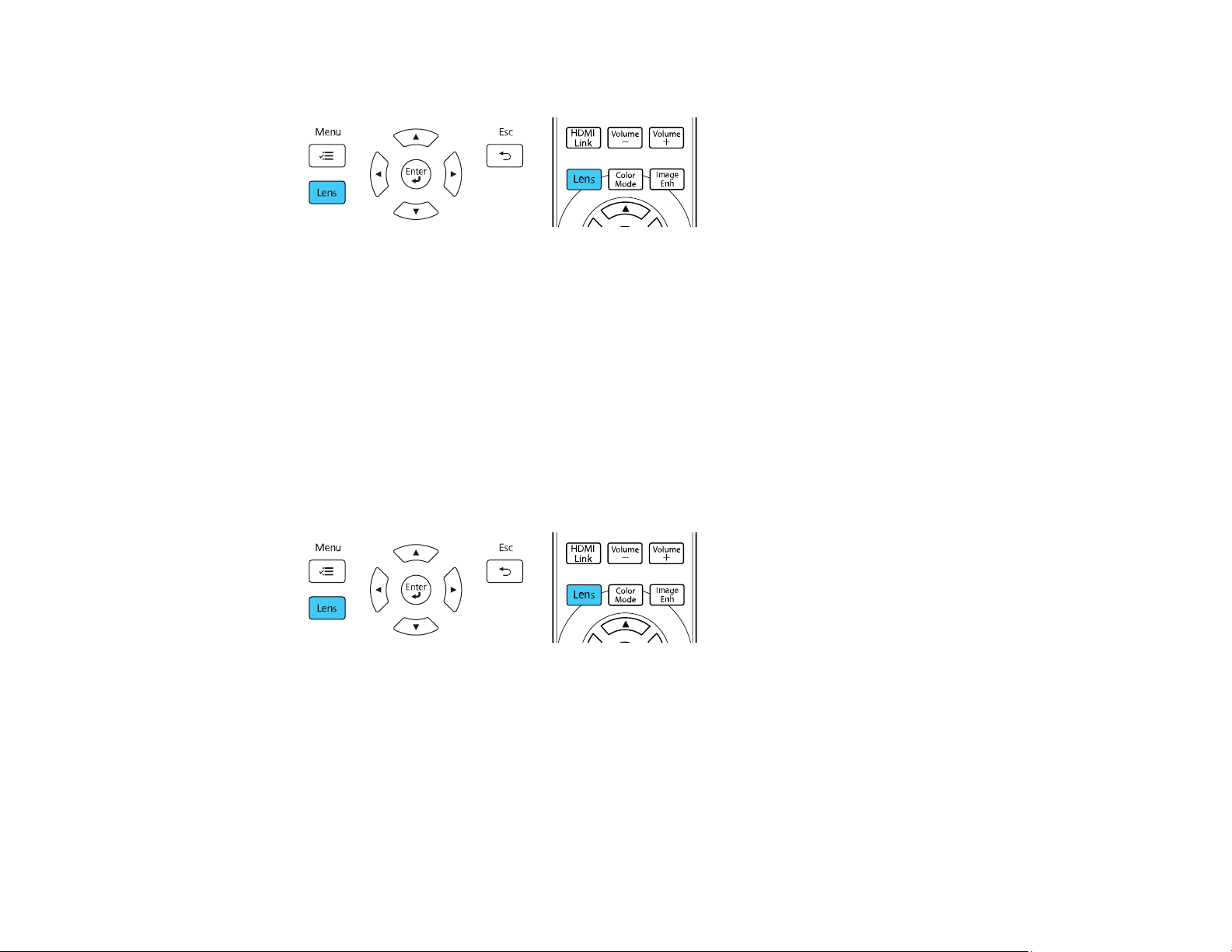

Focusing the Image with the Lens Button........................................................................................... 49
Remote Control Operation ................................................................................................................. 50

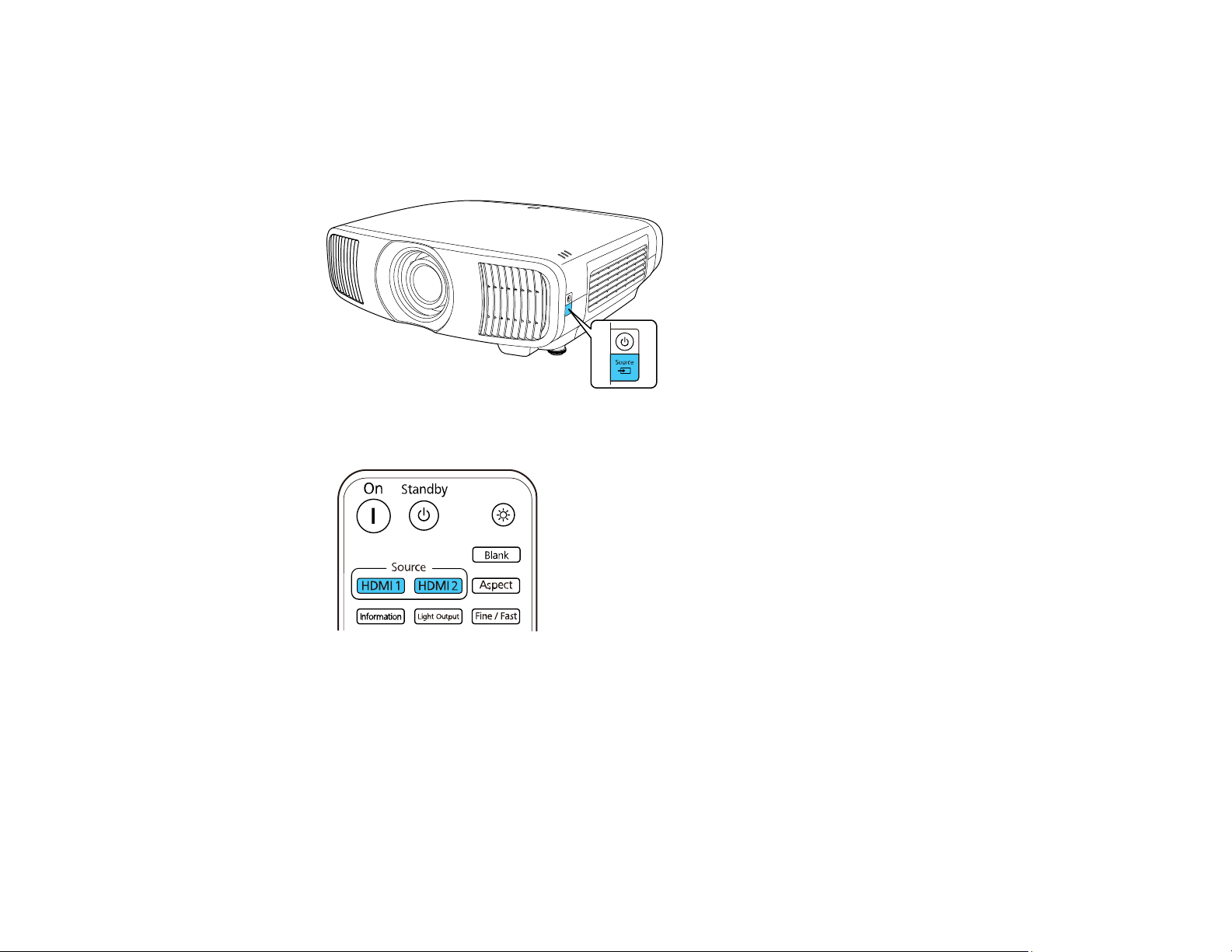

Selecting an Image Source ................................................................................................................ 50
Projection Modes ............................................................................................................................... 51
Changing the Projection Mode Using the Menus........................................................................... 52
Image Aspect Ratio............................................................................................................................ 53
Changing the Image Aspect Ratio ................................................................................................. 53
Available Image Aspect Ratios...................................................................................................... 54
Color Mode......................................................................................................................................... 54
Changing the Color Mode.............................................................................................................. 54
Available Color Modes................................................................................................................... 55
Adjusting Image Sharpness ............................................................................................................... 55

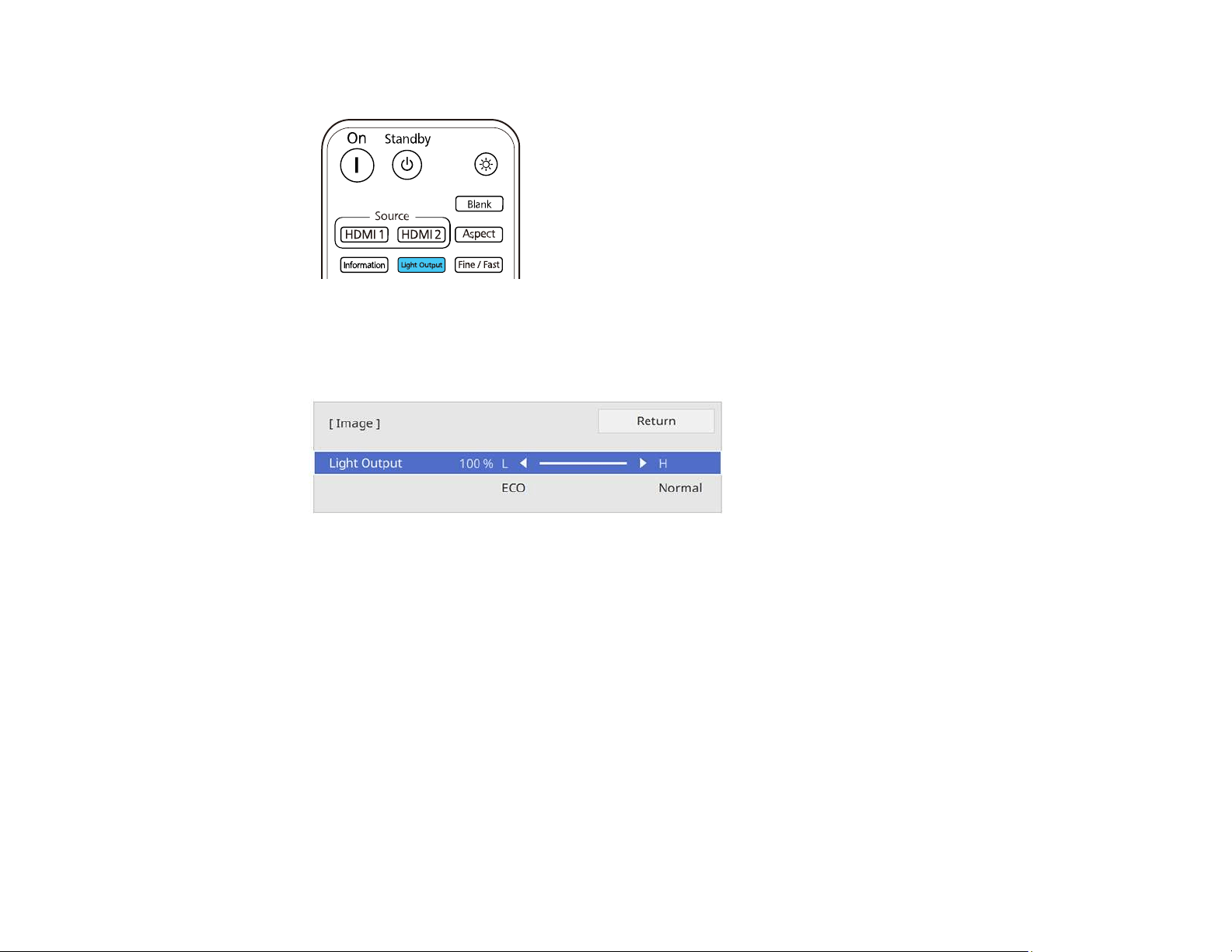

Adjusting the Projector's Brightness Level ......................................................................................... 56
Turning On Dynamic Contrast............................................................................................................ 57

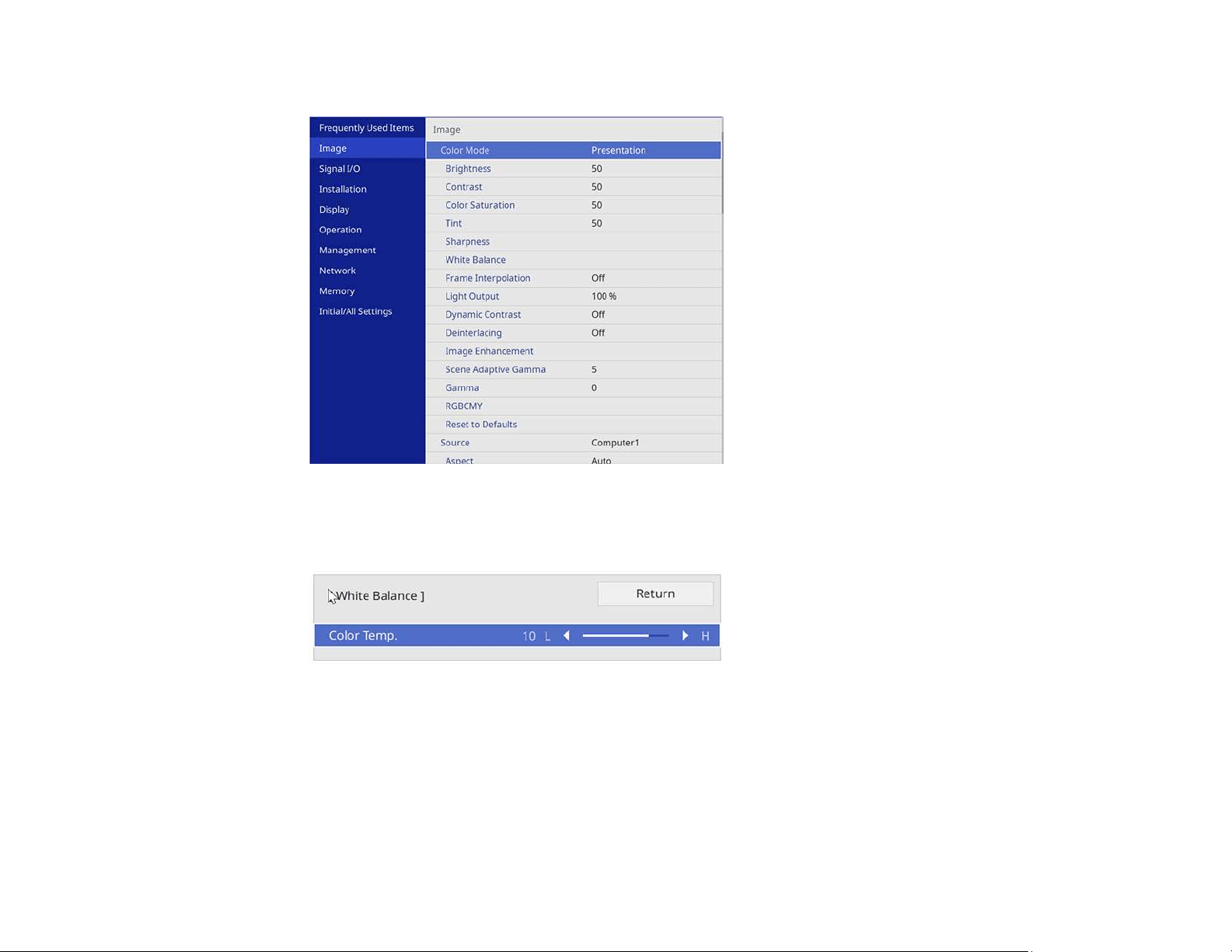

Adjusting the Color Temperature........................................................................................................ 58

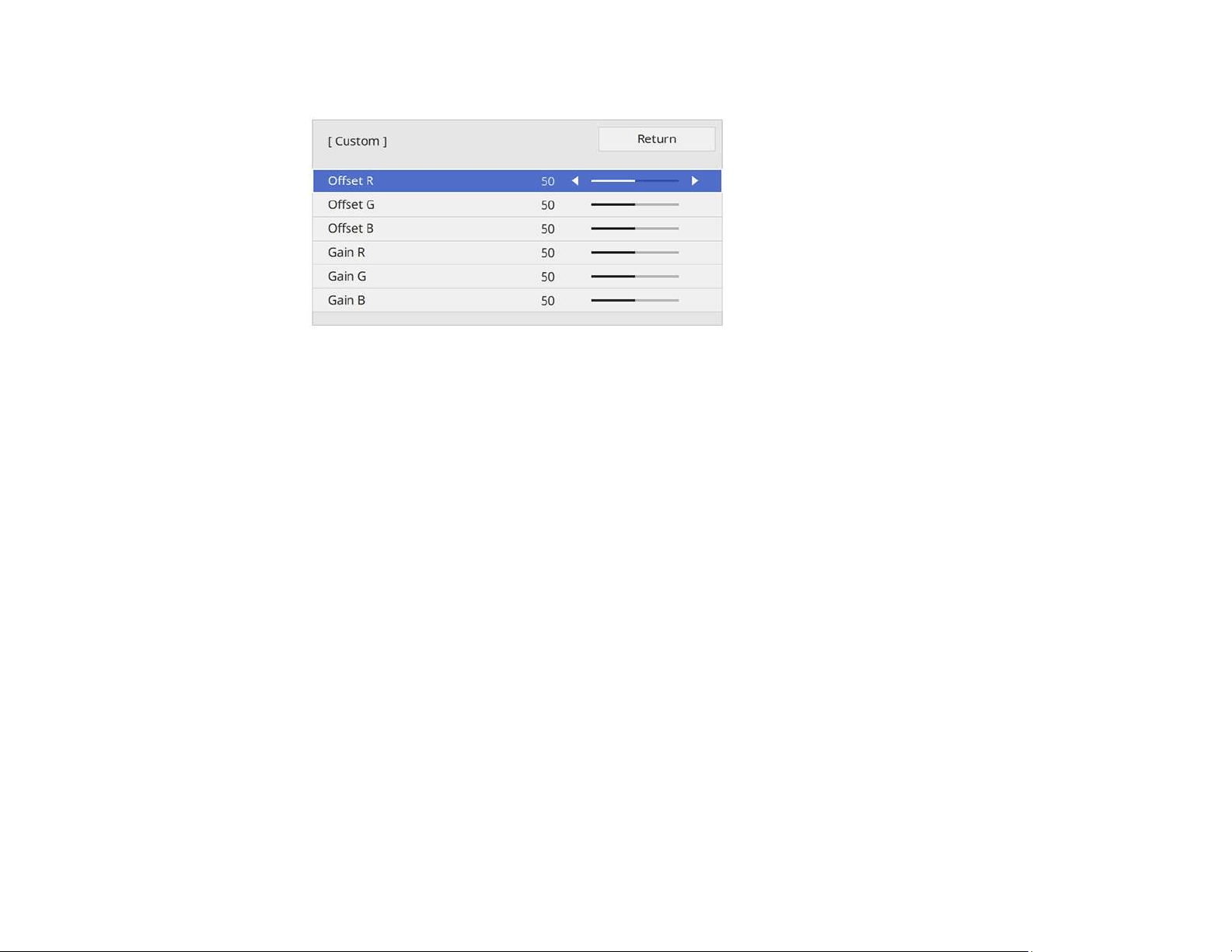

Adjusting the RGB Offset and Gain.................................................................................................... 60

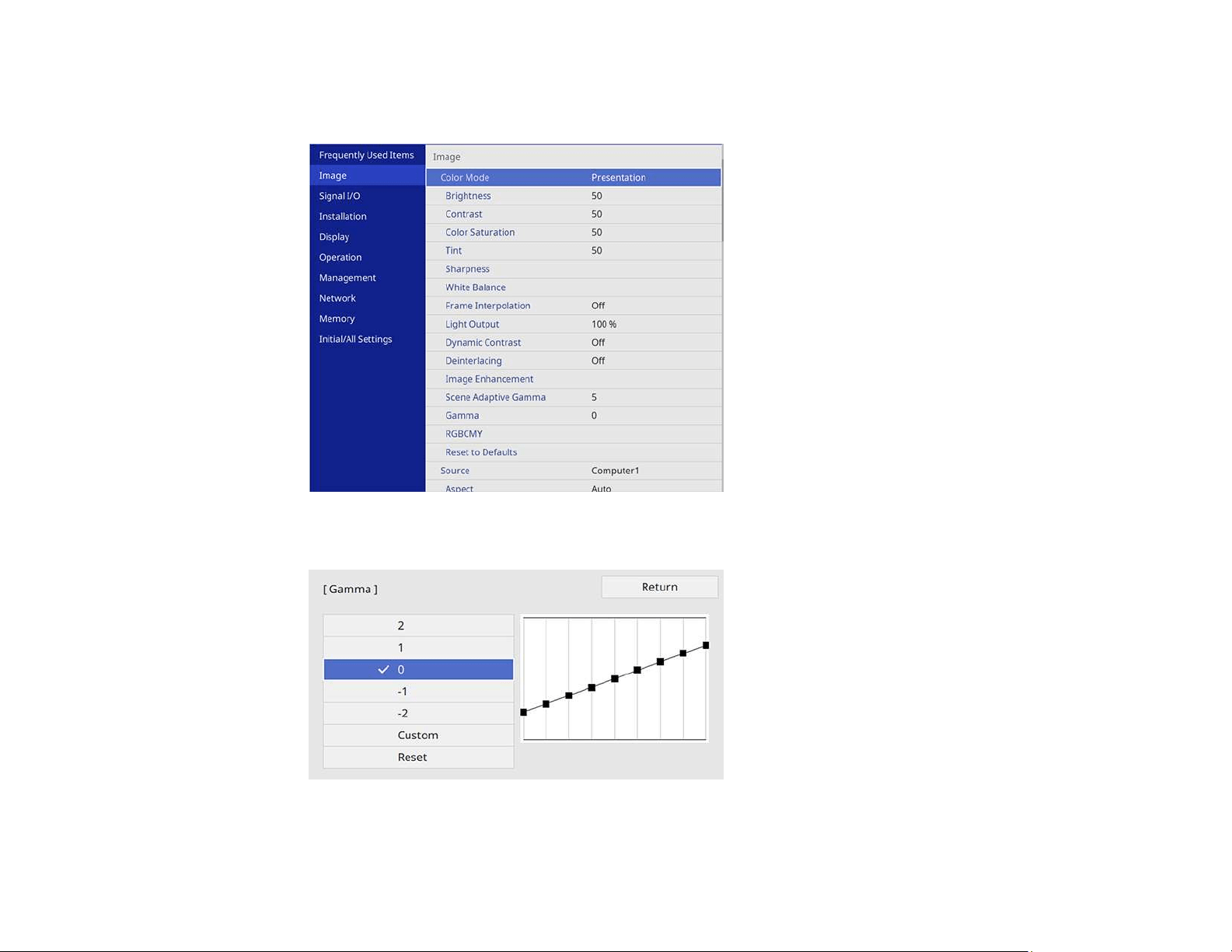

Adjusting Gamma............................................................................................................................... 61

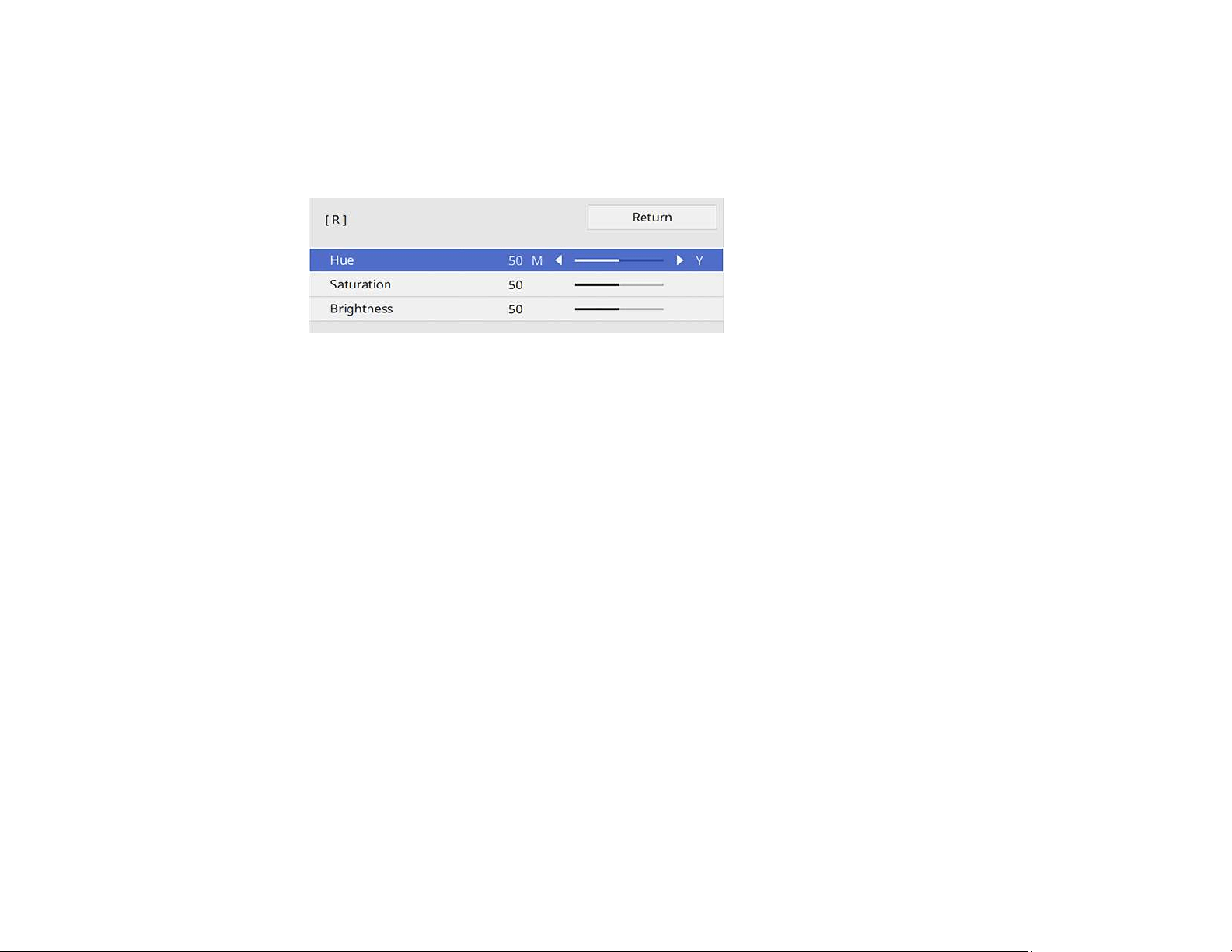

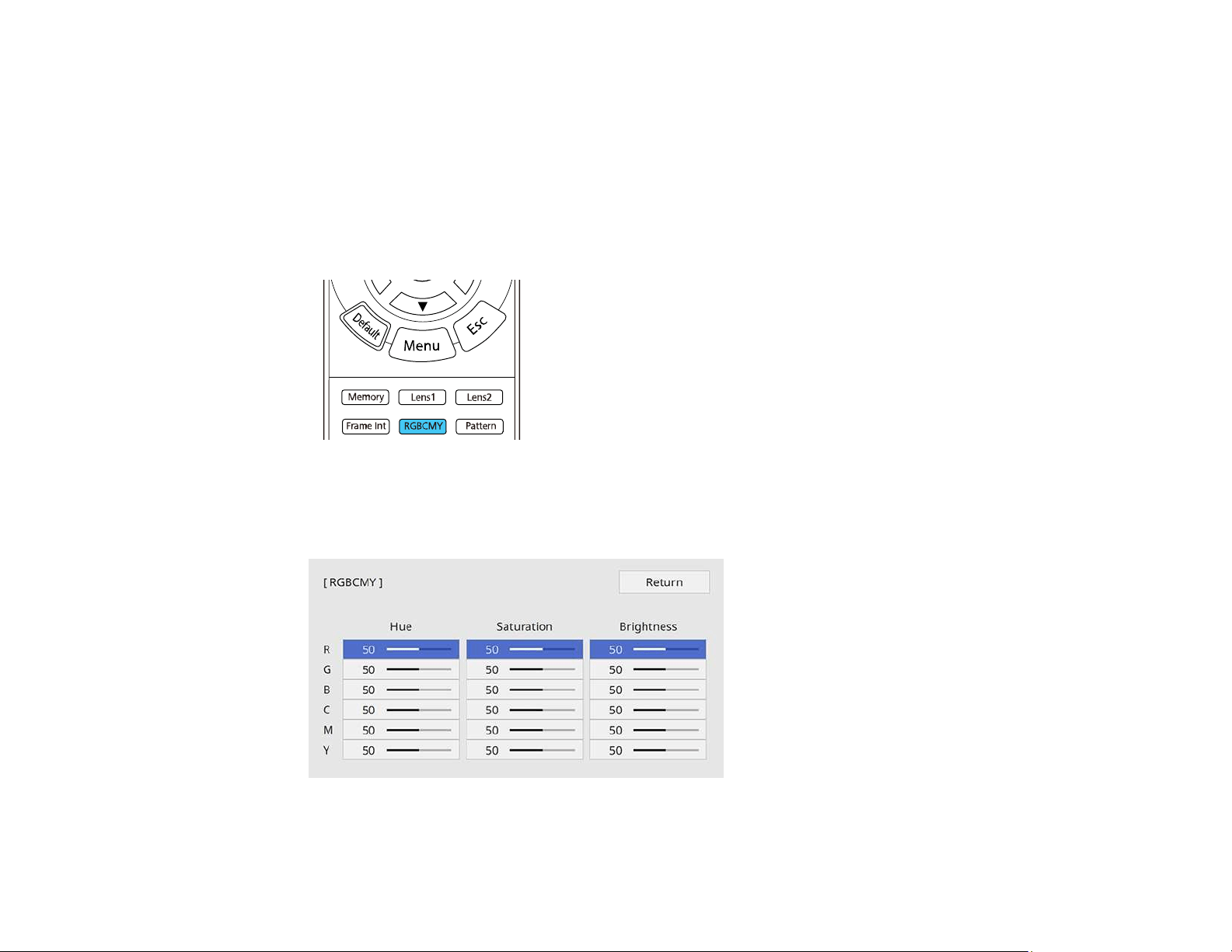

Adjusting the Hue, Saturation, and Brightness................................................................................... 64
Adjusting Projector Features ................................................................................................................... 66

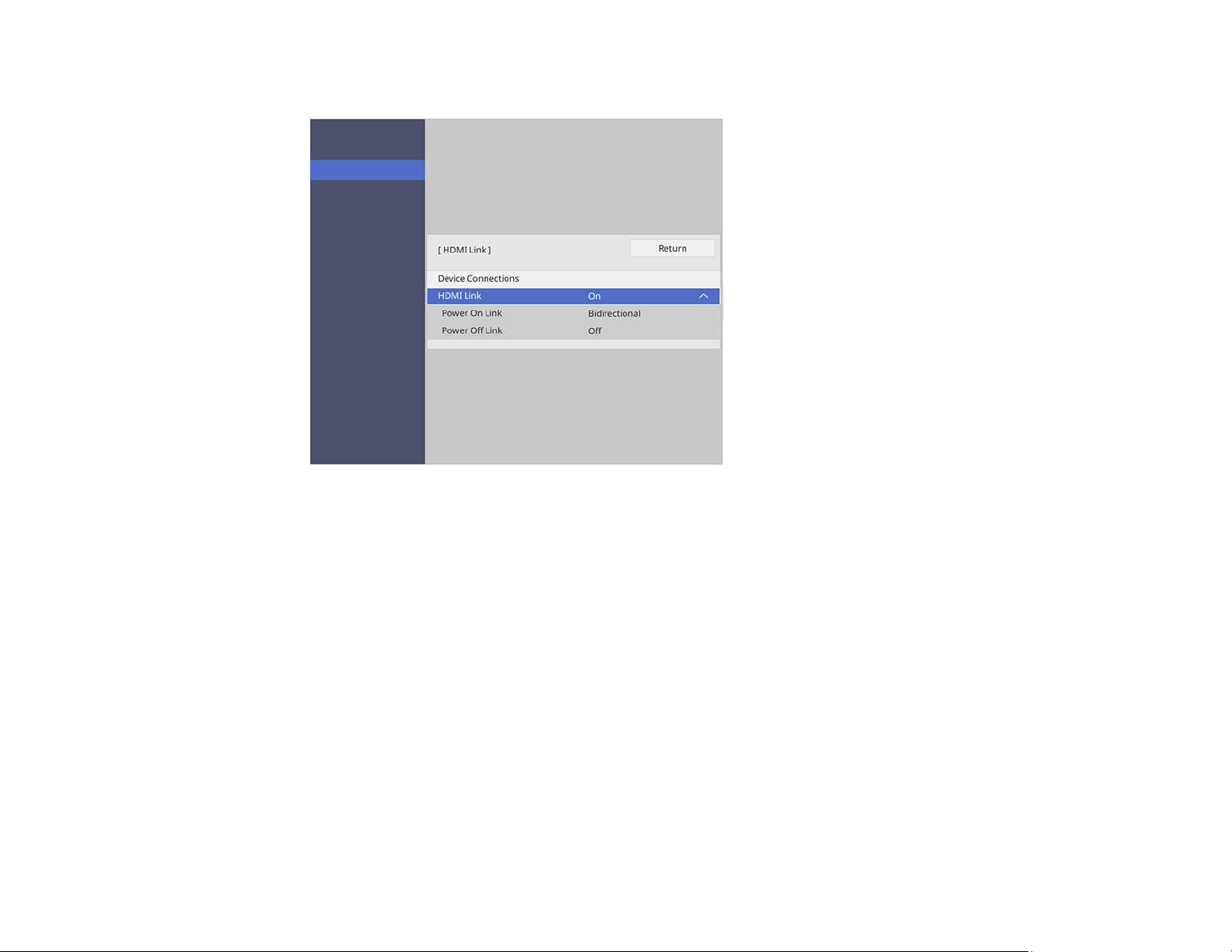

Operating Connected Devices Using the HDMI Link Features........................................................... 66
Shutting Off the Picture Temporarily .................................................................................................. 68
Projector Security Features................................................................................................................ 68
Locking the Projector's Lens Settings and Buttons........................................................................ 69
5
Unlocking the Projector's Buttons ............................................................................................. 70
Installing a Security Cable ............................................................................................................. 70
Using Advanced Image Adjustment Features .................................................................................... 71

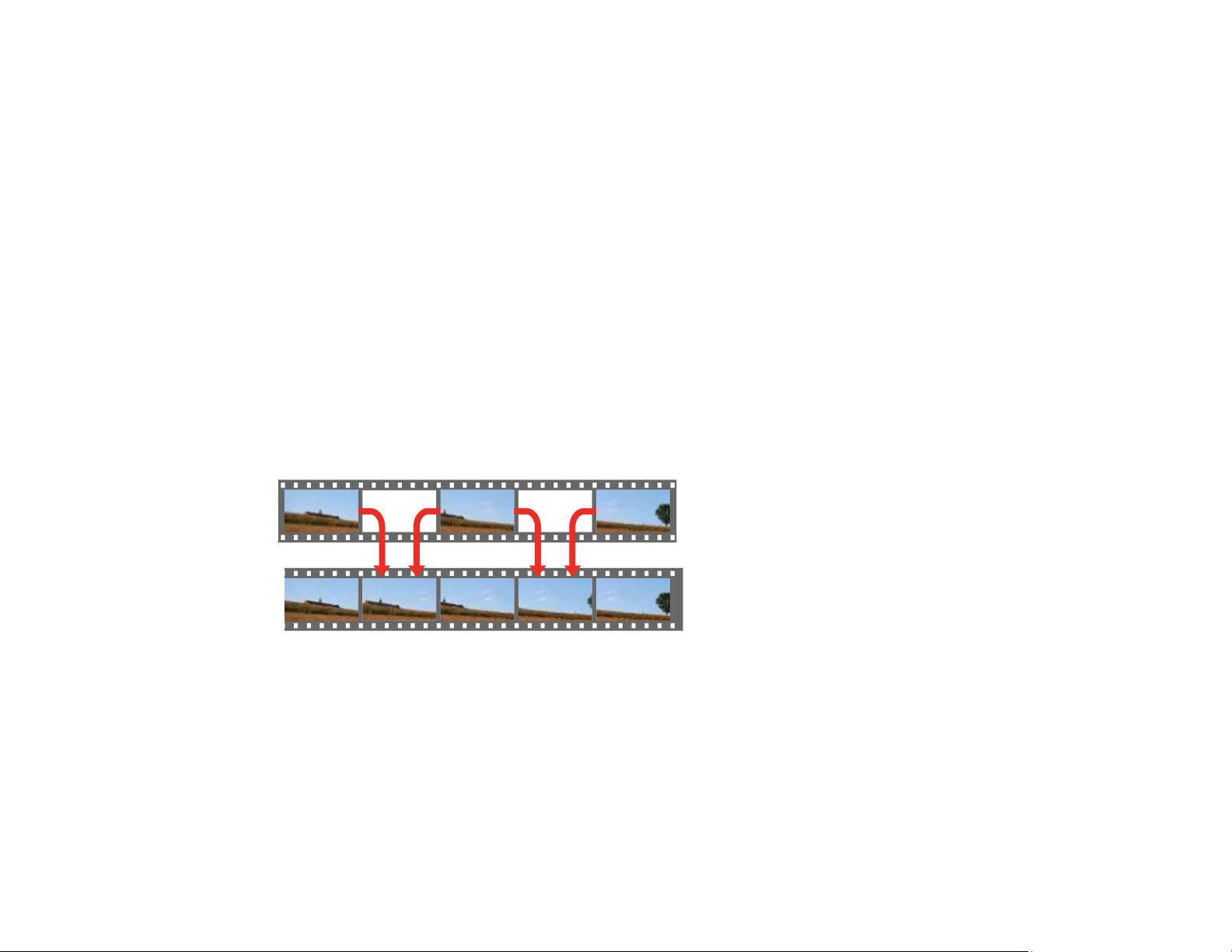

Using Frame Interpolation ............................................................................................................ 71

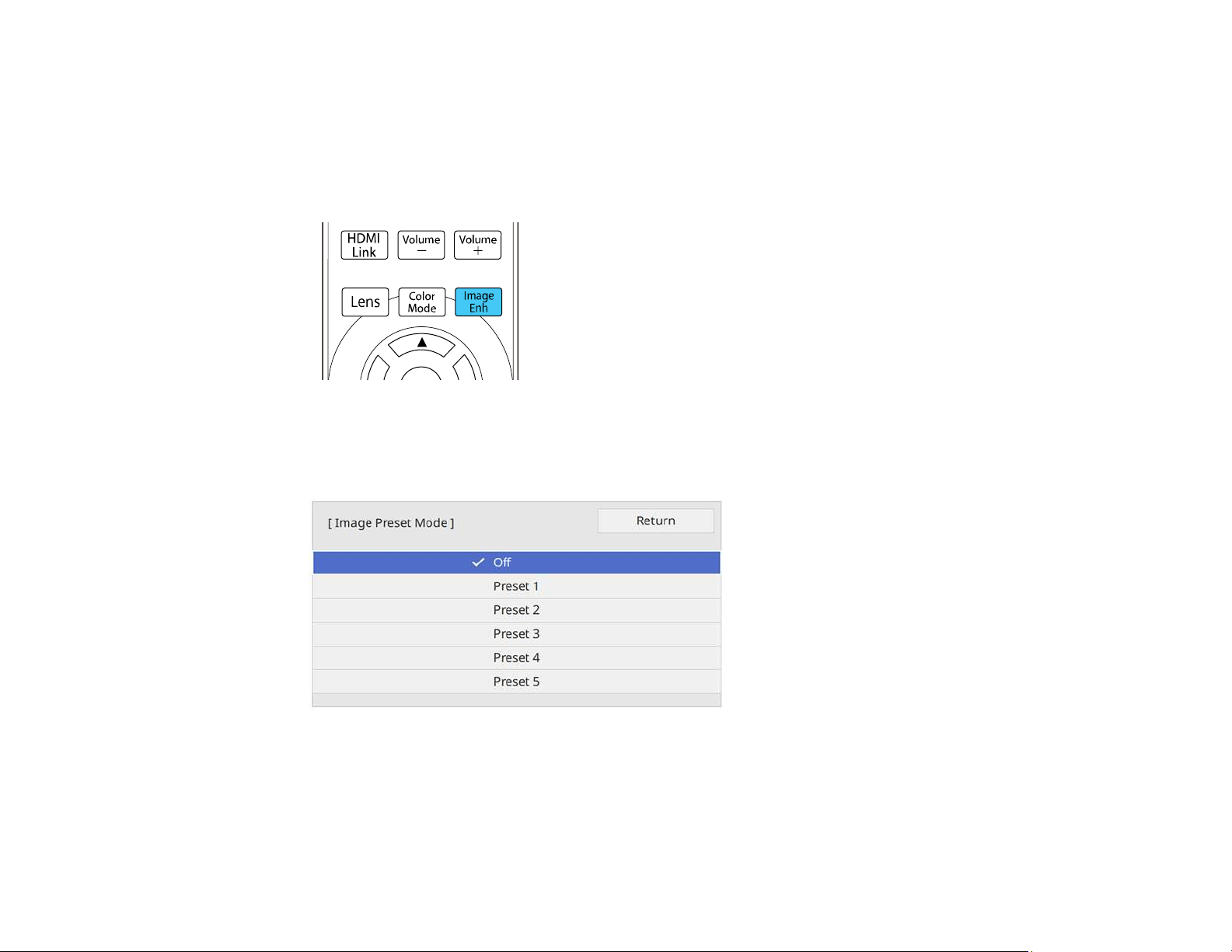

Creating Image Presets................................................................................................................. 73

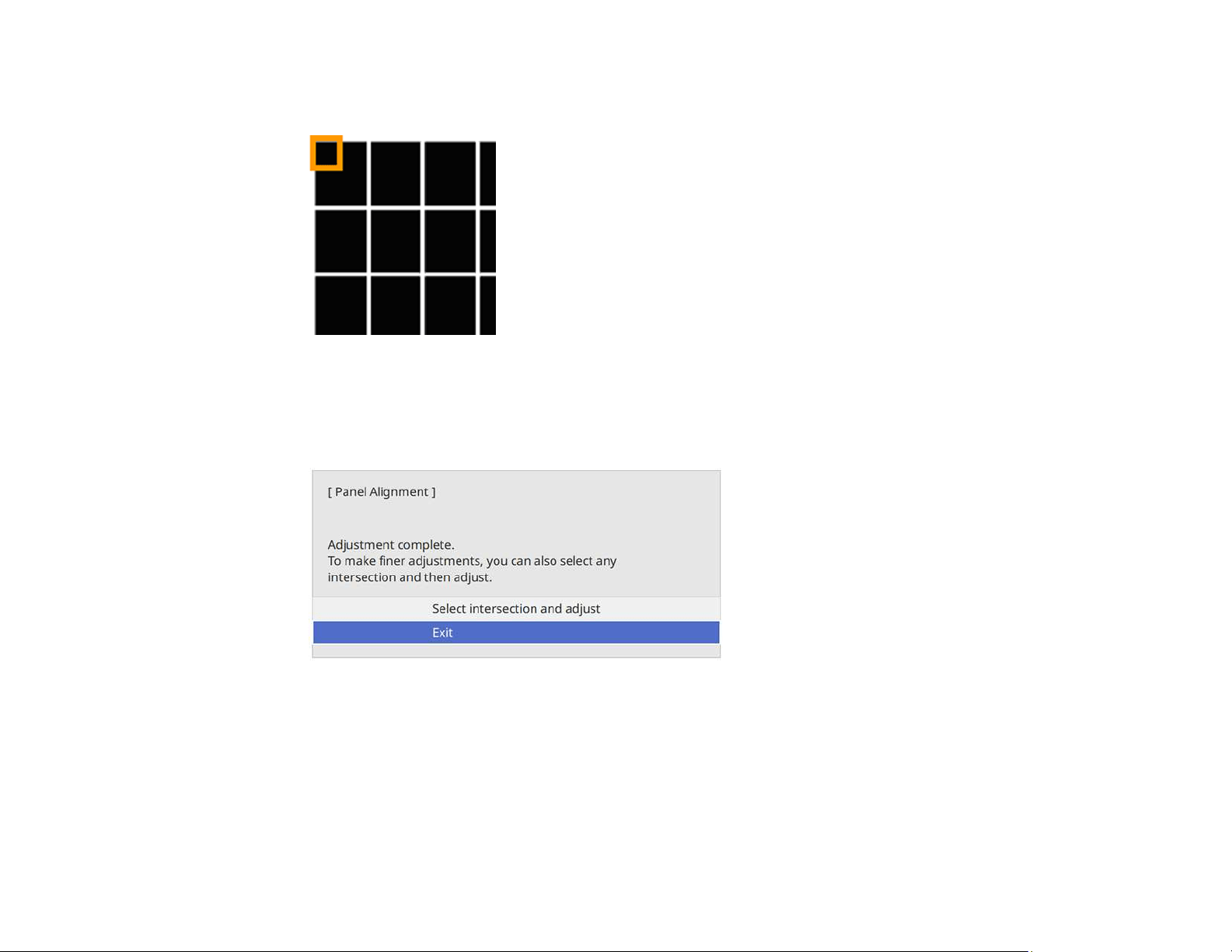

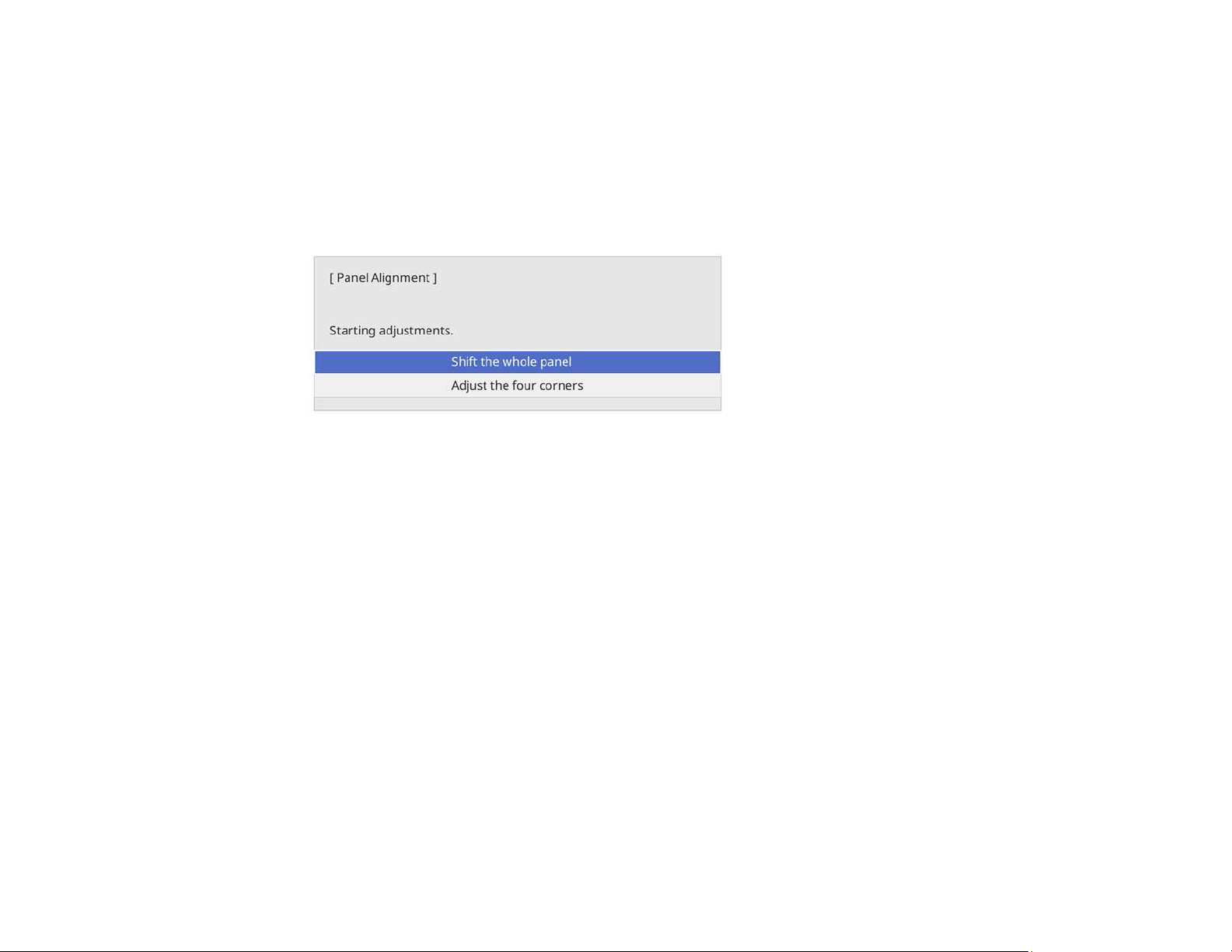

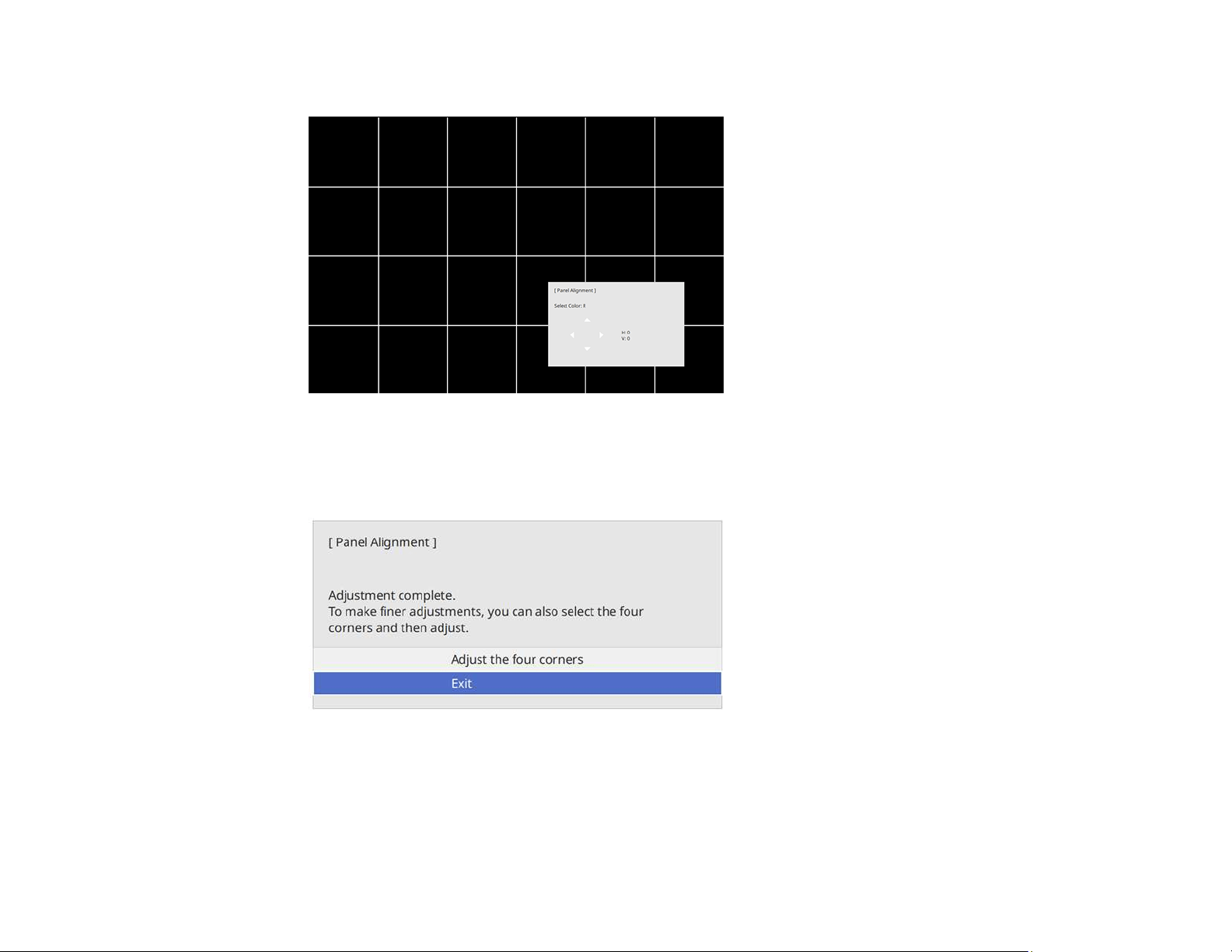

Adjusting the Color Convergence (Panel Alignment)..................................................................... 75

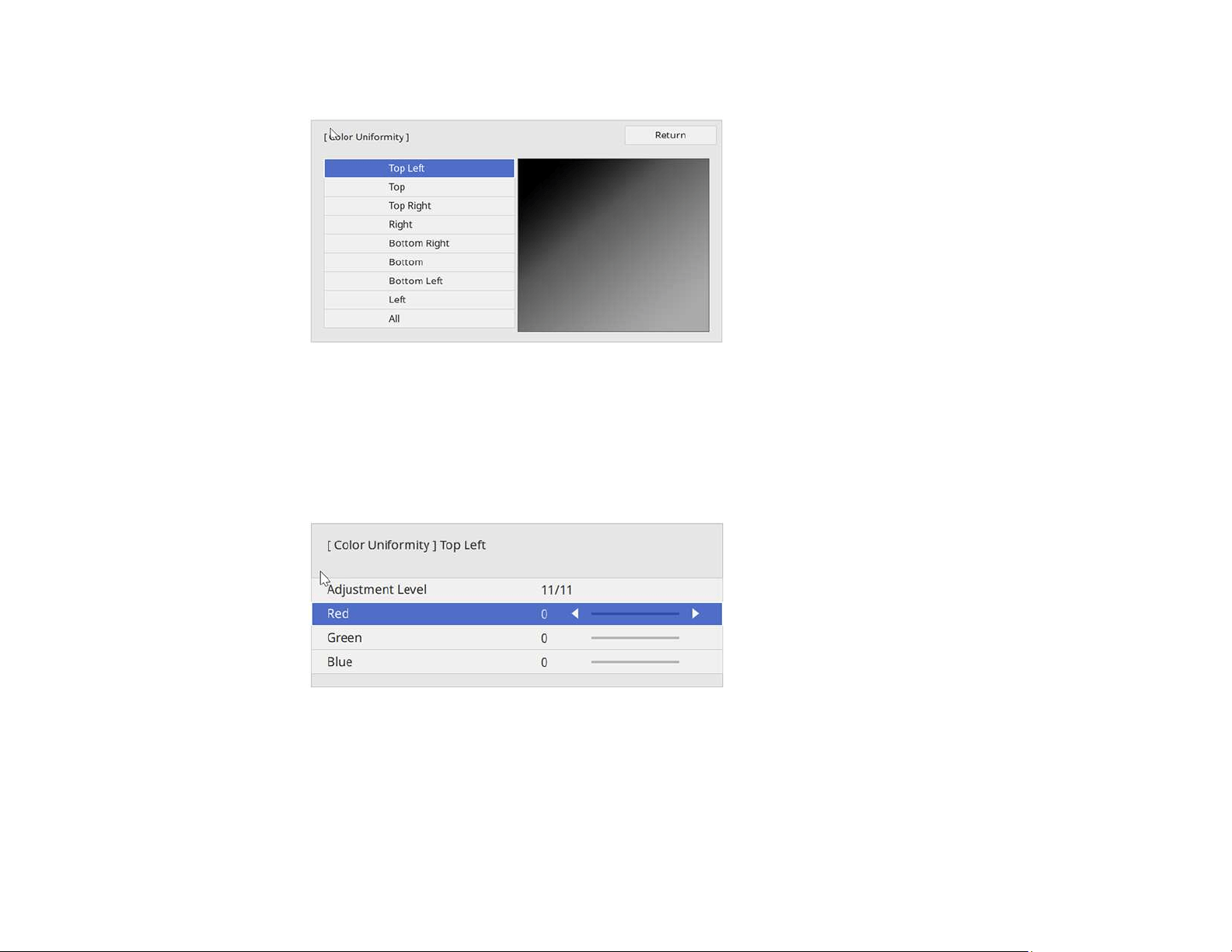

Adjusting the Color Tone (Color Uniformity) .................................................................................. 79

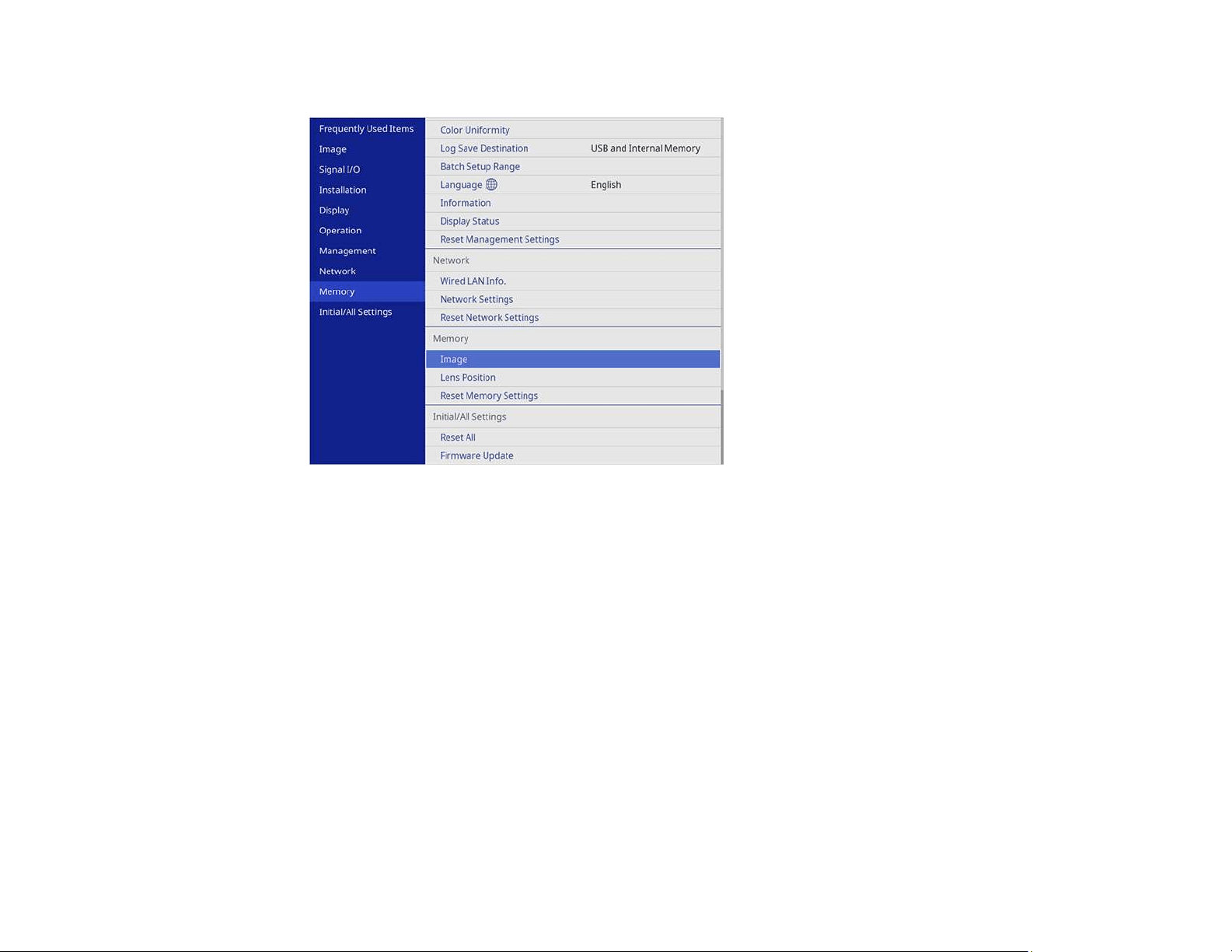

Saving Settings to Memory and Using Saved Settings ...................................................................... 82
Copying Menu Settings Between Projectors ...................................................................................... 84
Saving Settings to a USB Flash Drive............................................................................................ 84
Transferring Settings from a USB Flash Drive............................................................................... 85
Saving Settings to a Computer ...................................................................................................... 86
Transferring Settings from a Computer ......................................................................................... 87
Adjusting the Menu Settings .................................................................................................................... 89

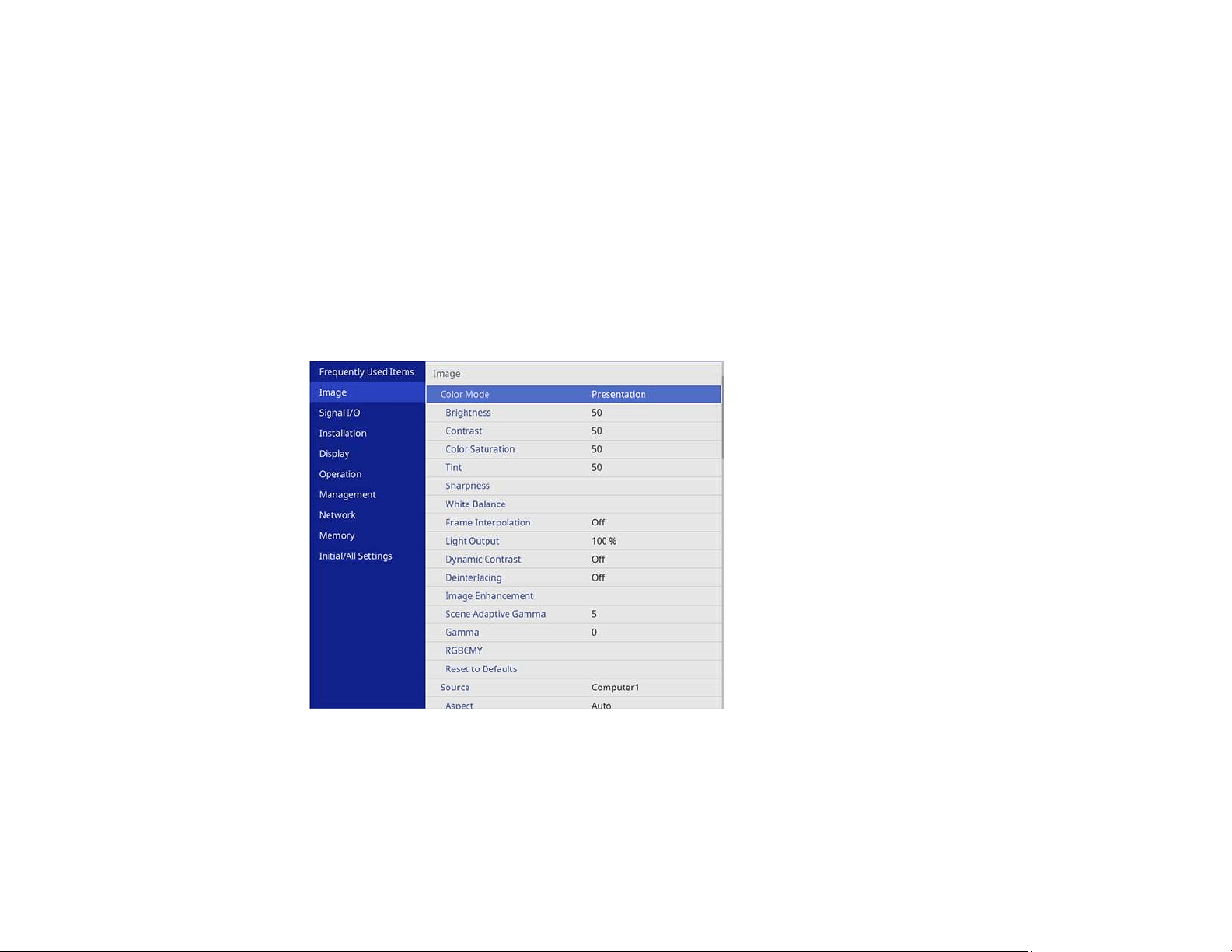

Using the Projector's Menus............................................................................................................... 89

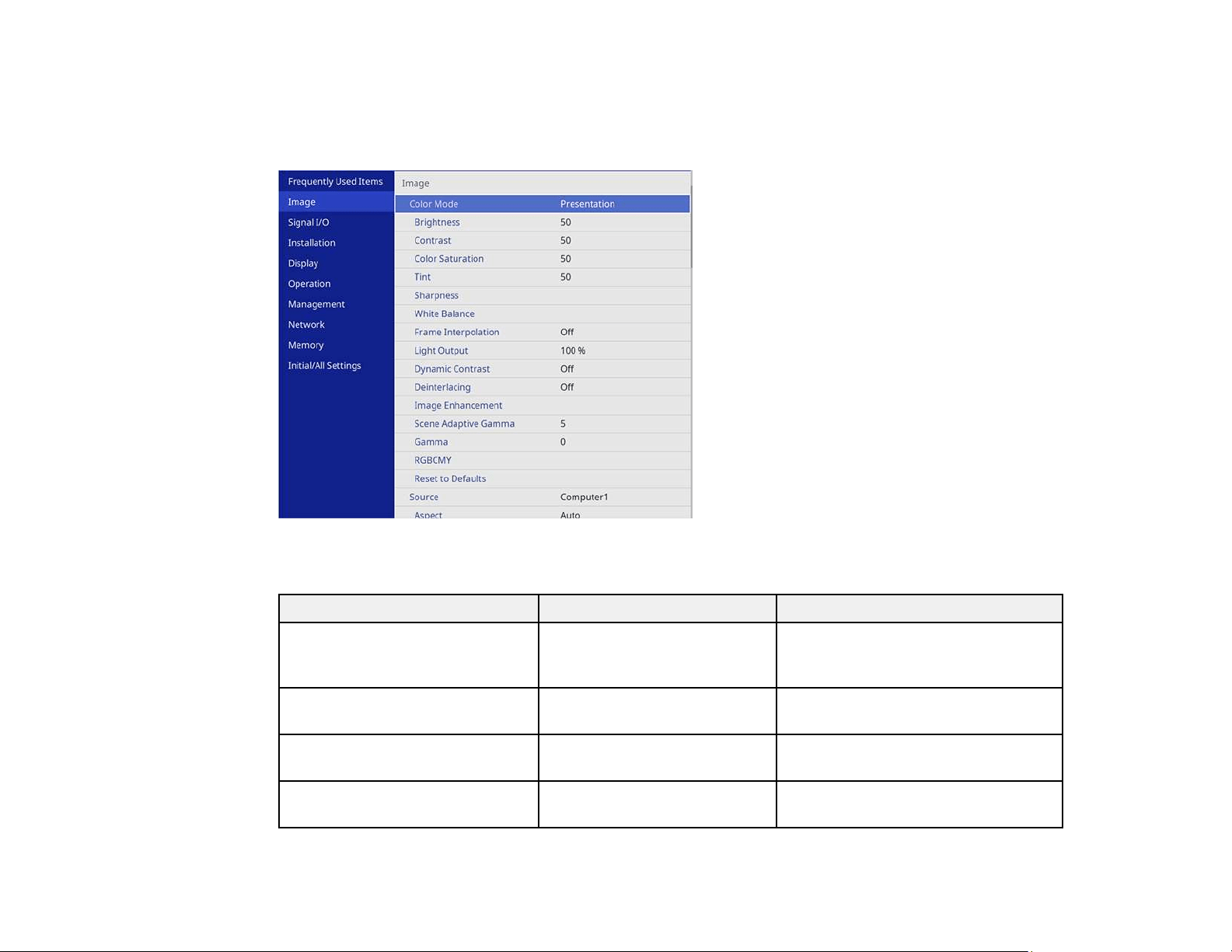

Image Quality Settings - Image Menu ................................................................................................ 91

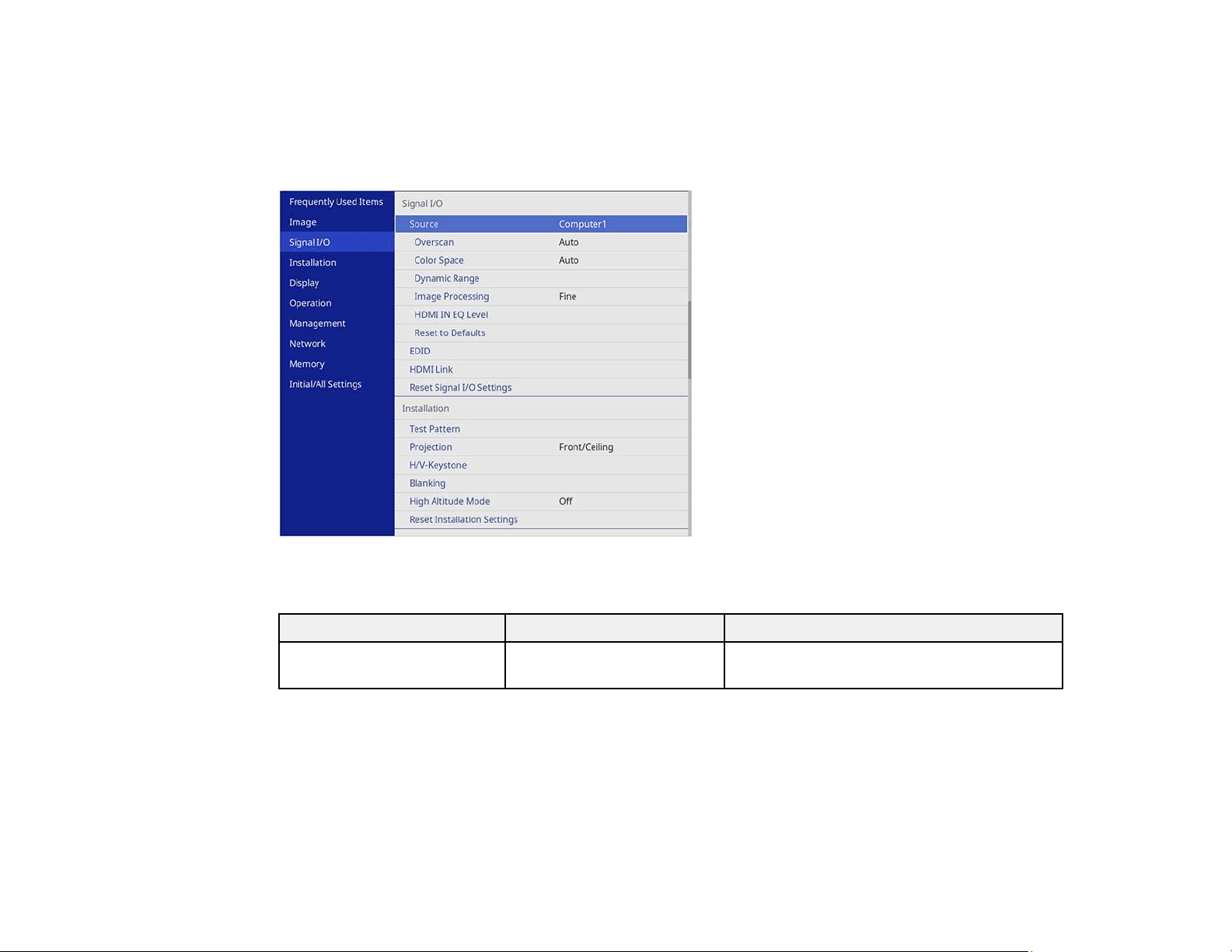

Input Signal Settings - Signal I/O Menu.............................................................................................. 96

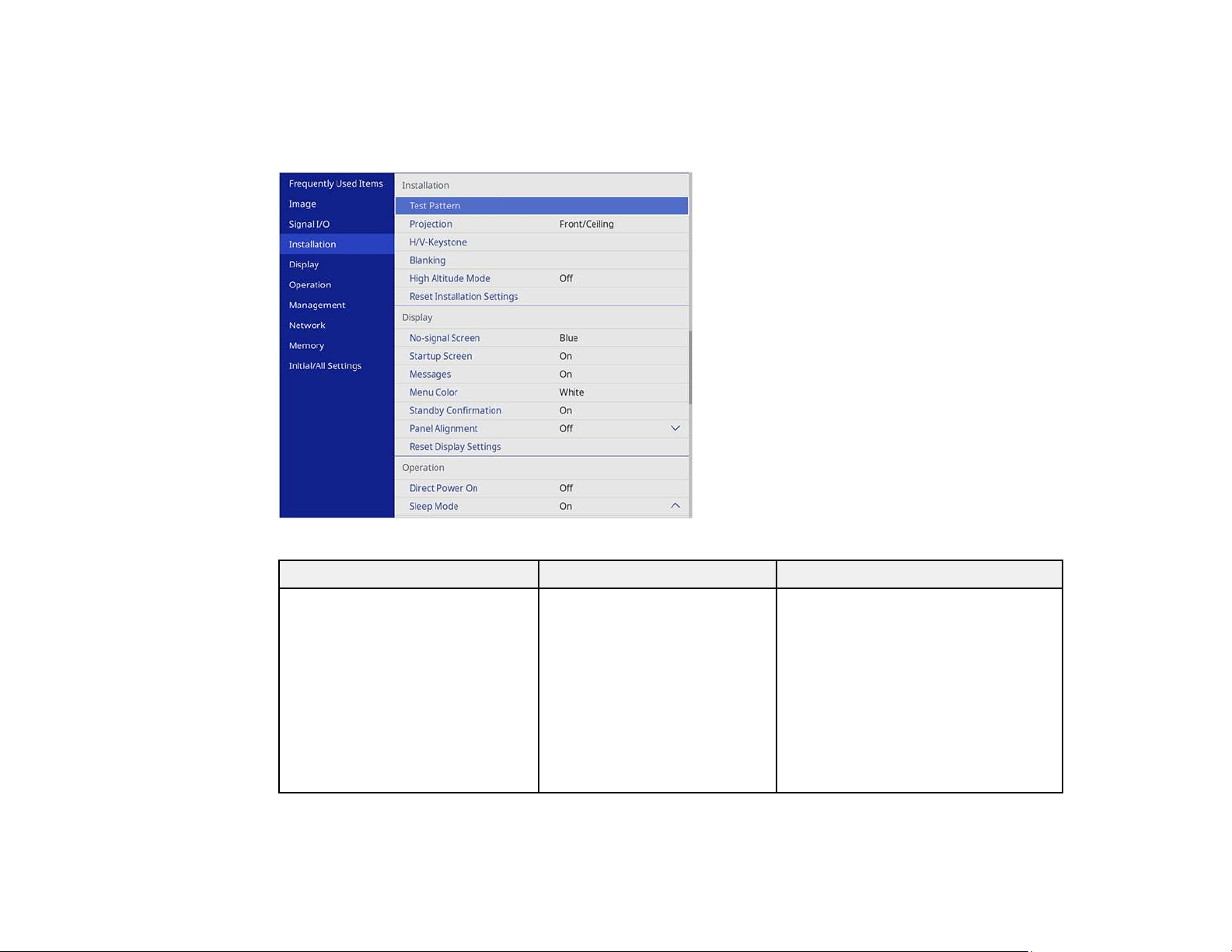

Installation Settings - Installation Menu ............................................................................................ 100

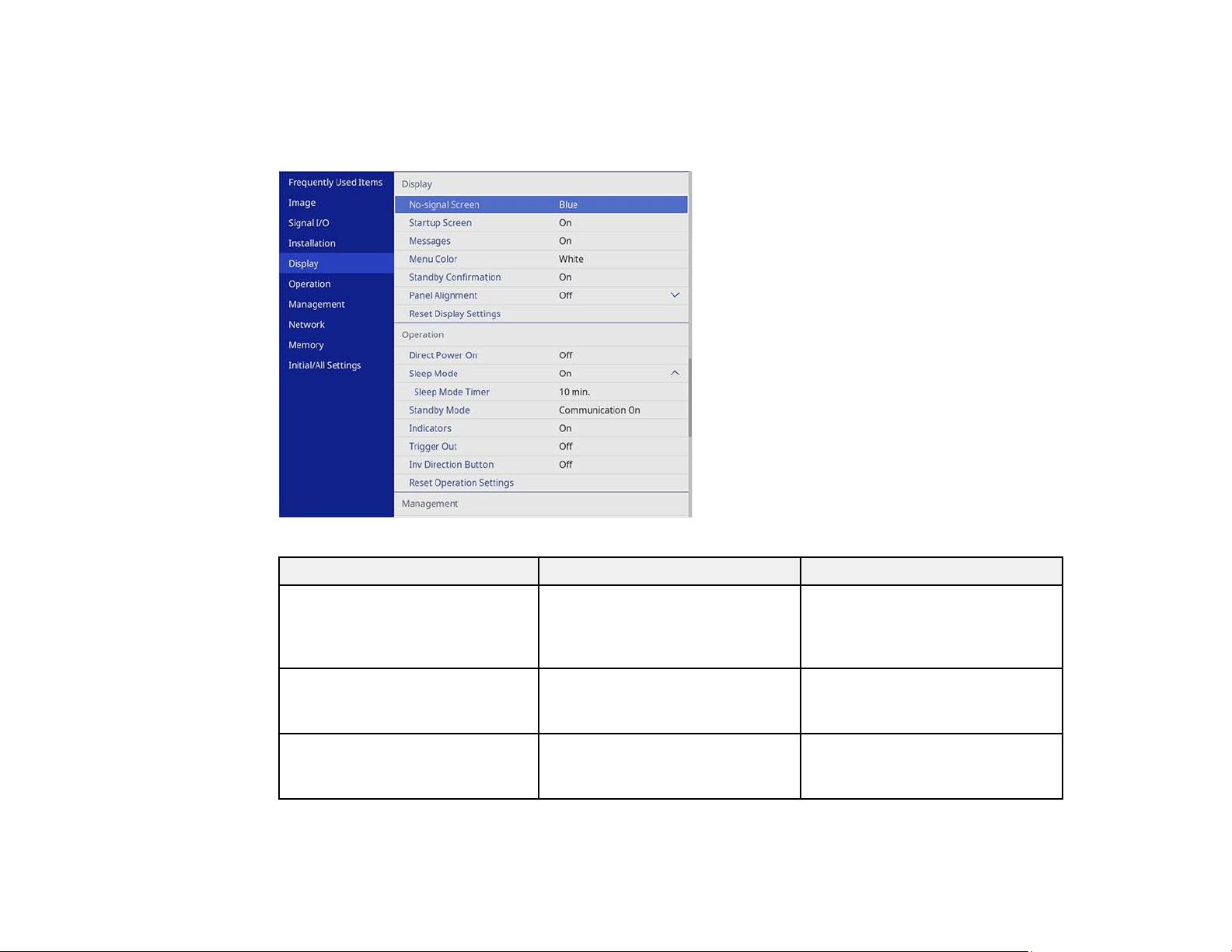

Display Settings - Display Menu....................................................................................................... 102
Feature Settings - Operation Menu .................................................................................................. 104

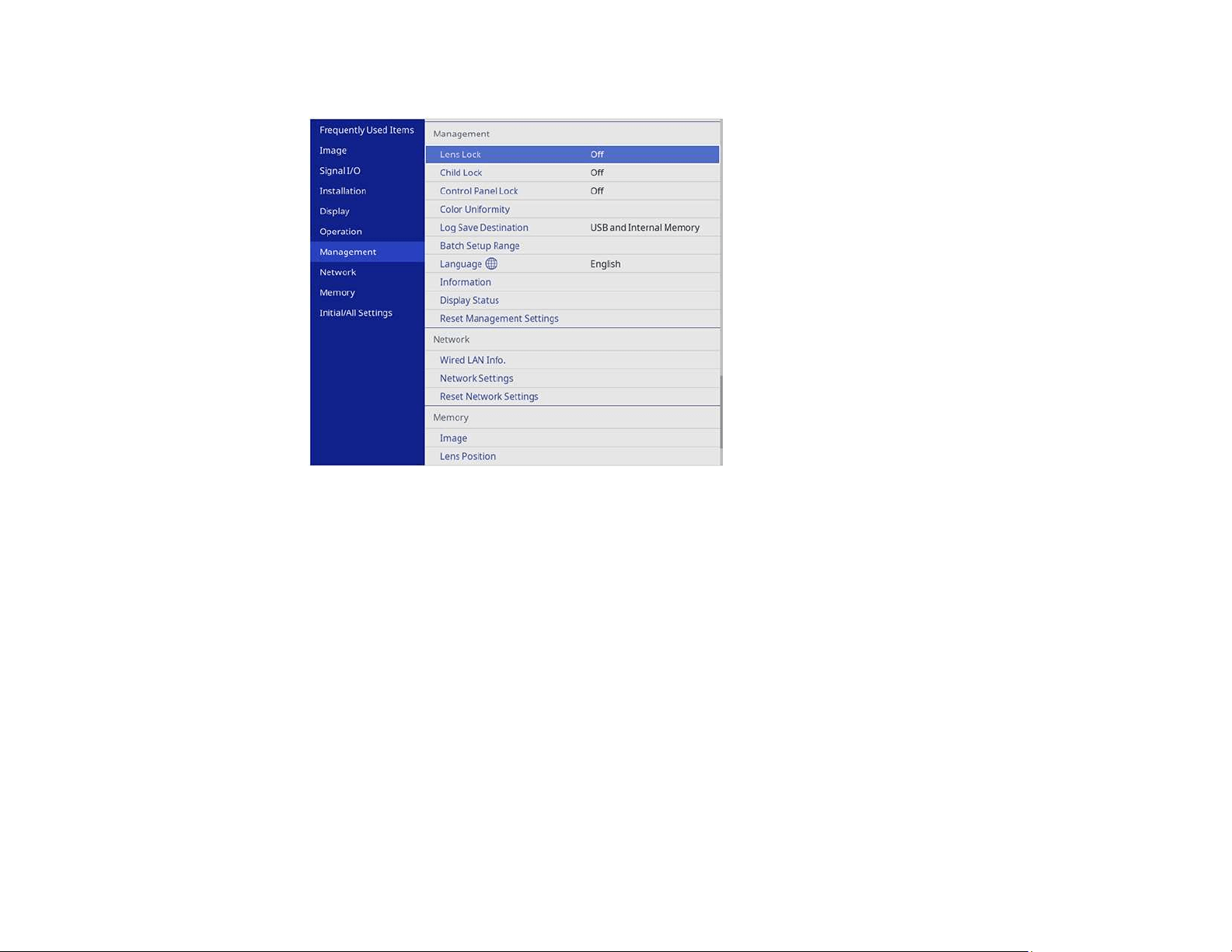

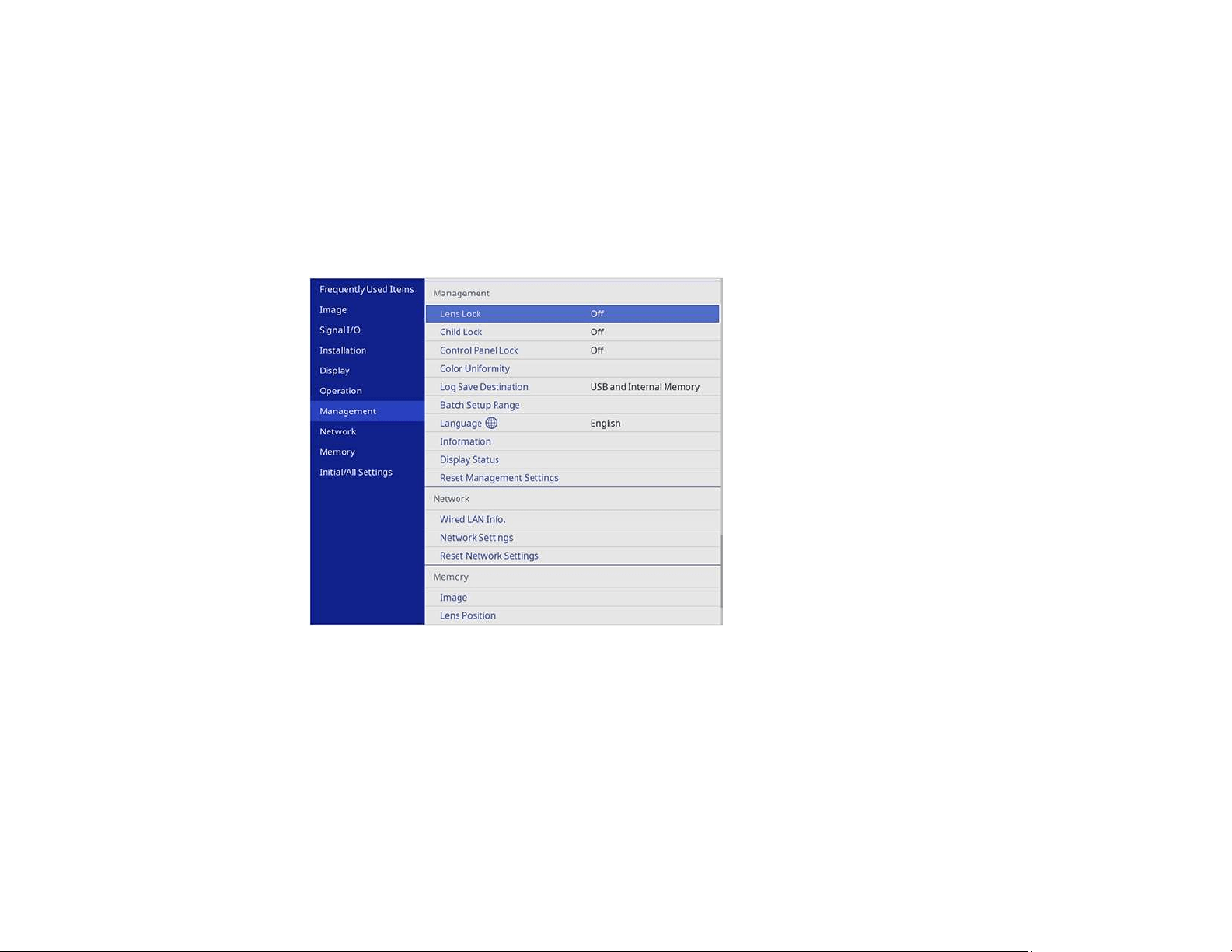

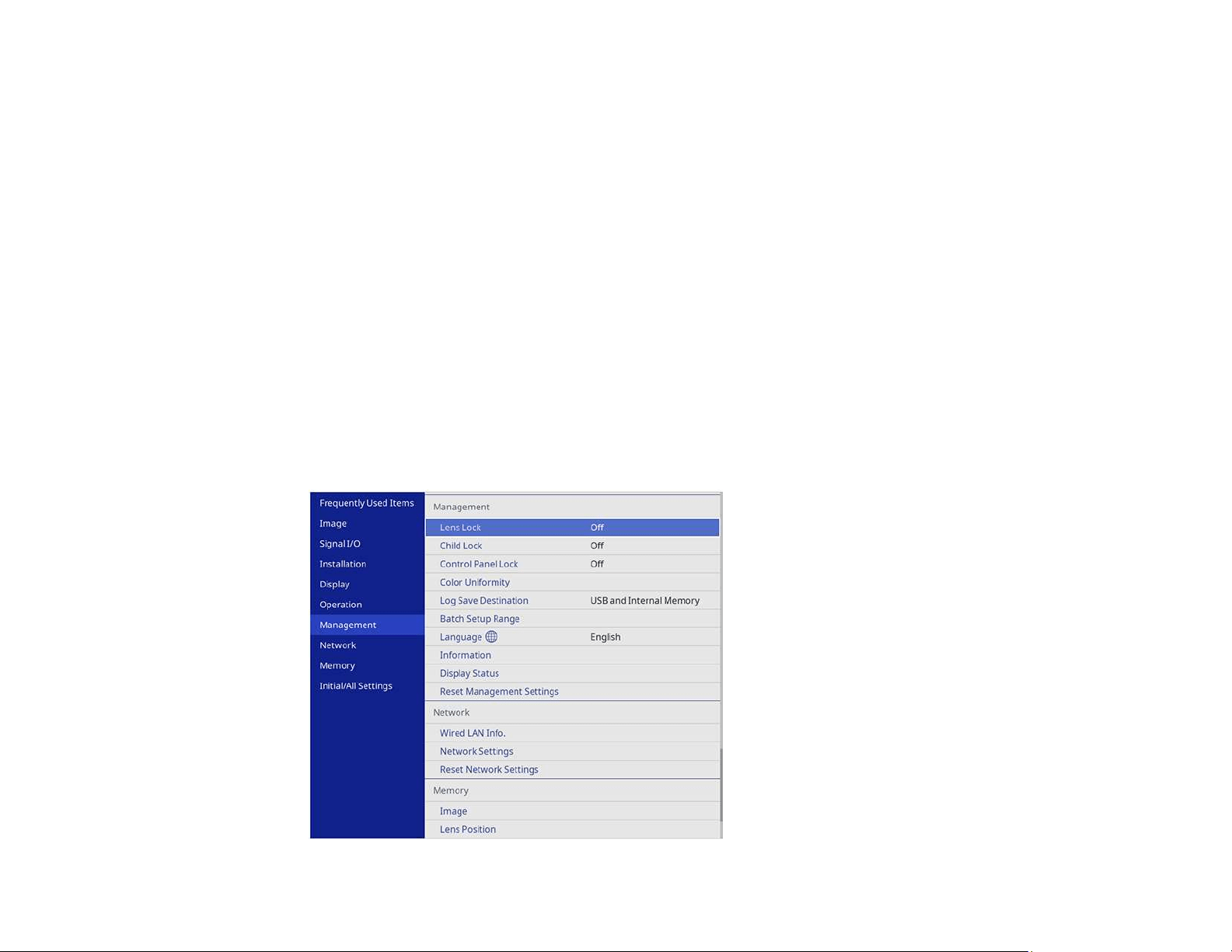

Administration Settings - Management Menu................................................................................... 106

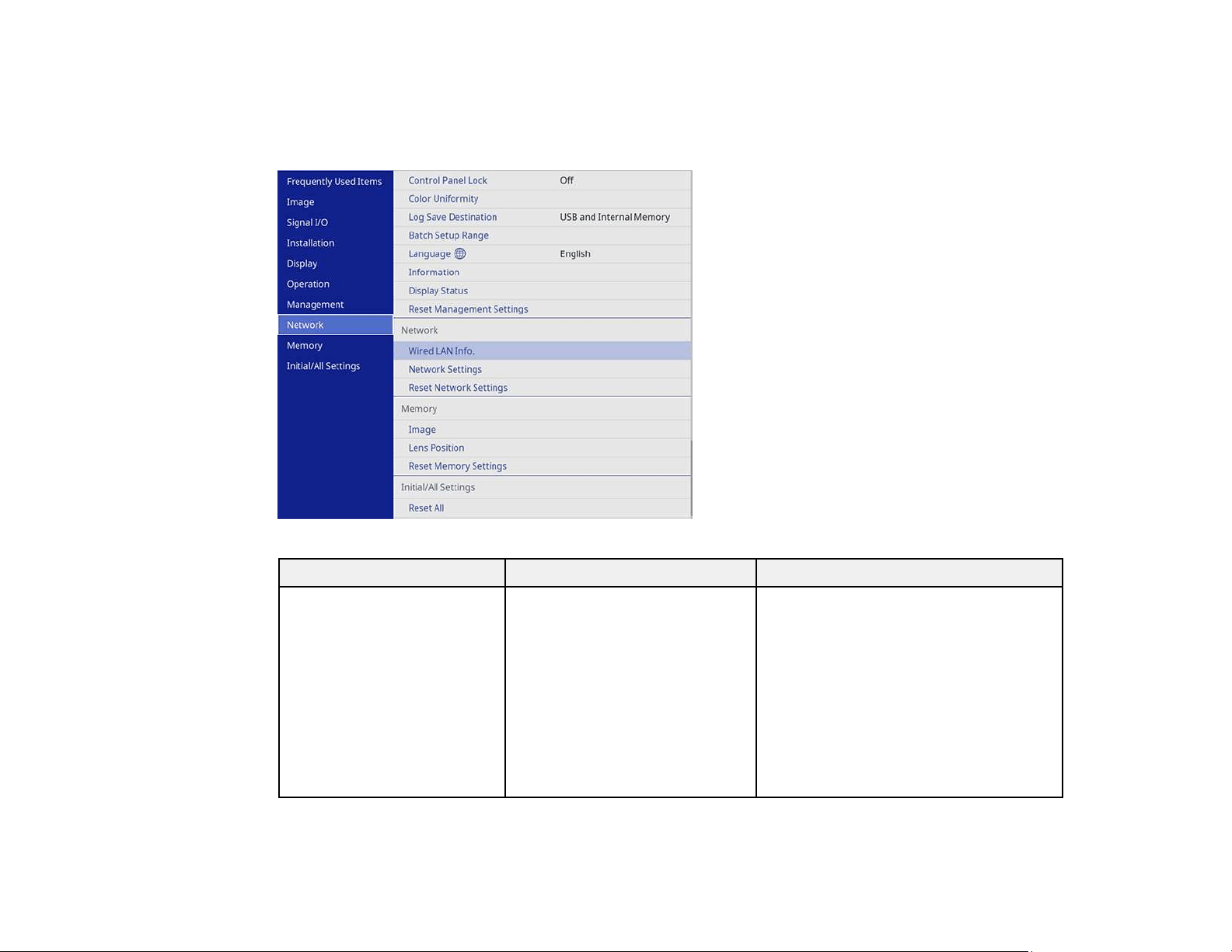

Network Settings - Network Menu .................................................................................................... 109

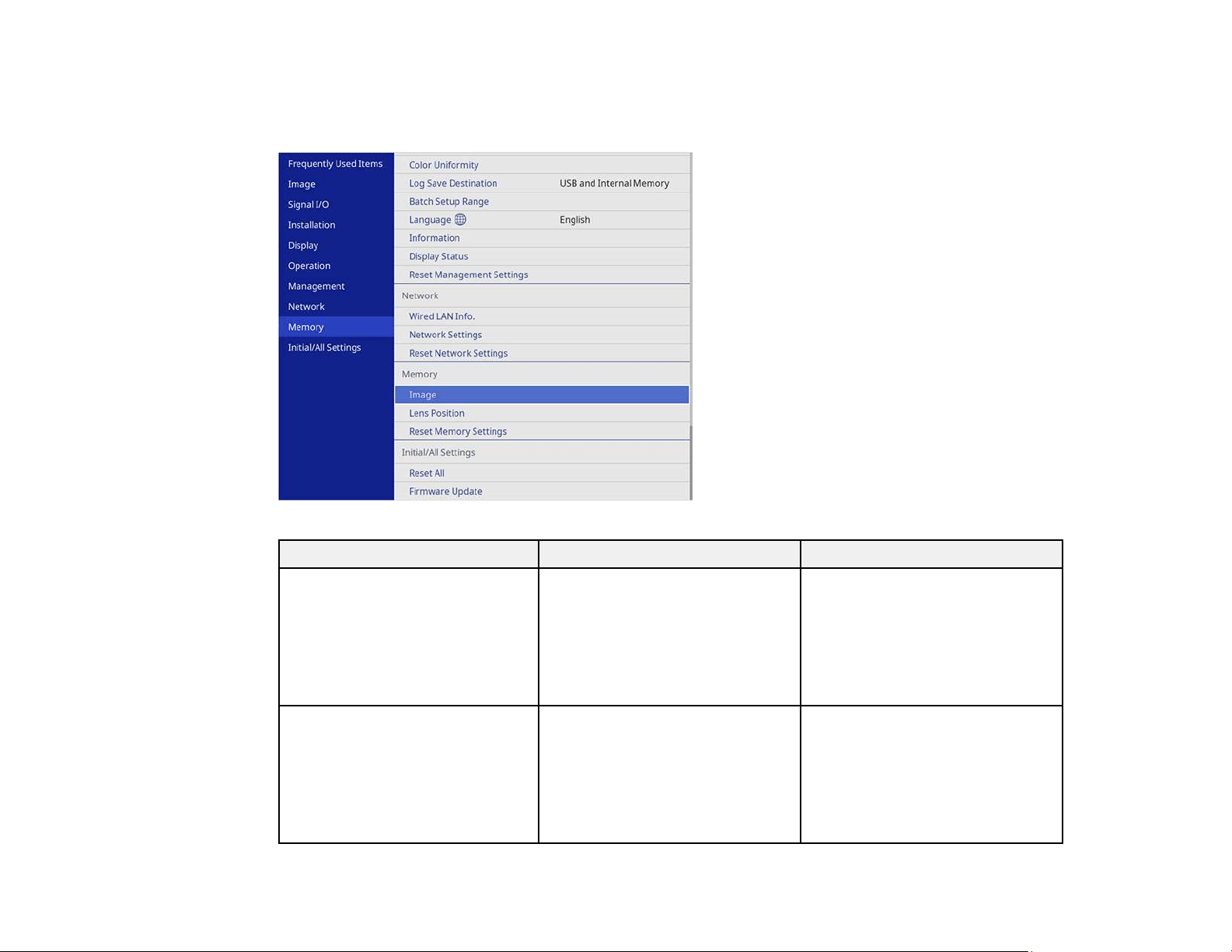

Image Quality Memory Settings - Memory Menu ............................................................................. 111

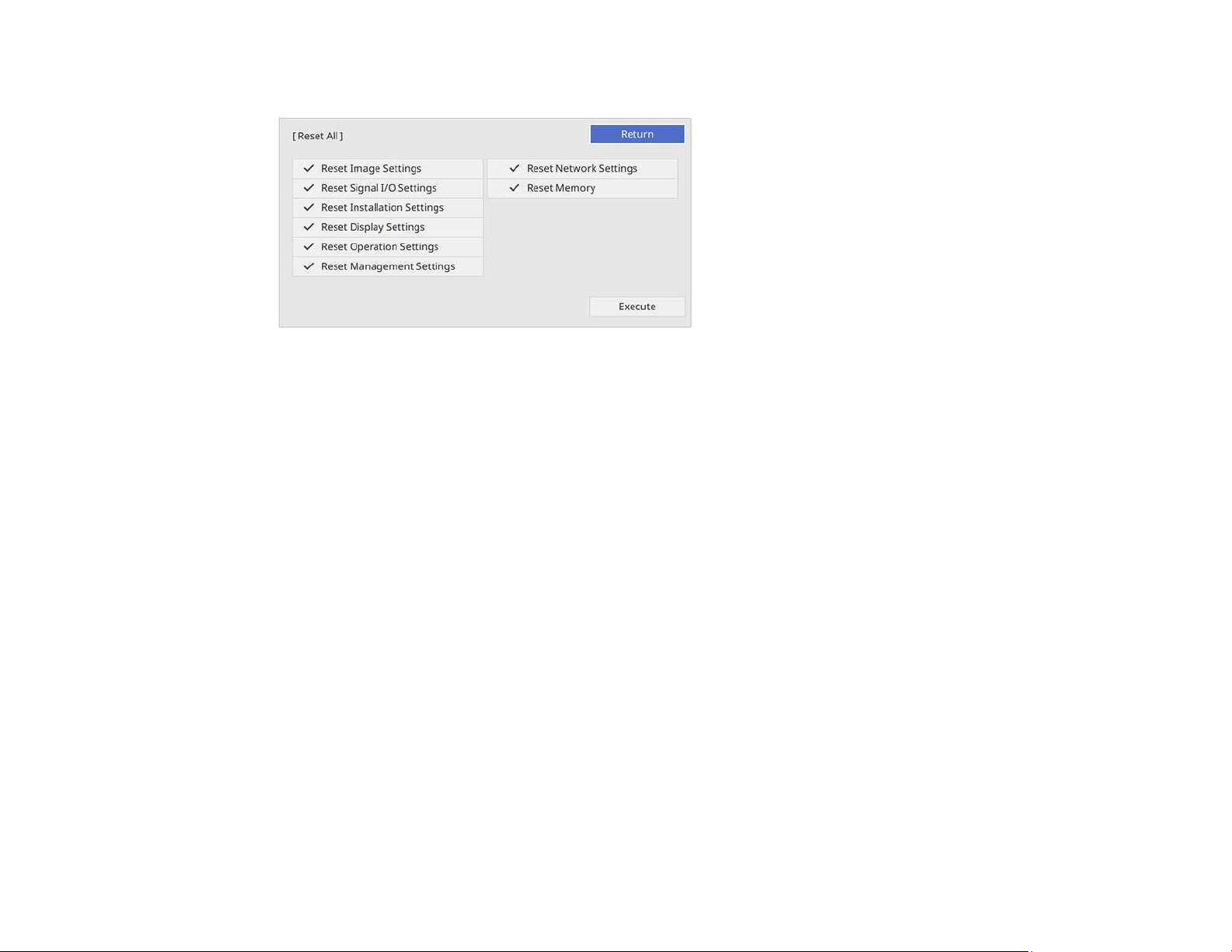

Initial Settings and Reset Options - Initial/All Settings Menu ............................................................ 112
Maintaining and Transporting the Projector ......................................................................................... 114
Projector Maintenance ..................................................................................................................... 114
Cleaning the Lens........................................................................................................................ 114
Cleaning the Projector Case........................................................................................................ 115

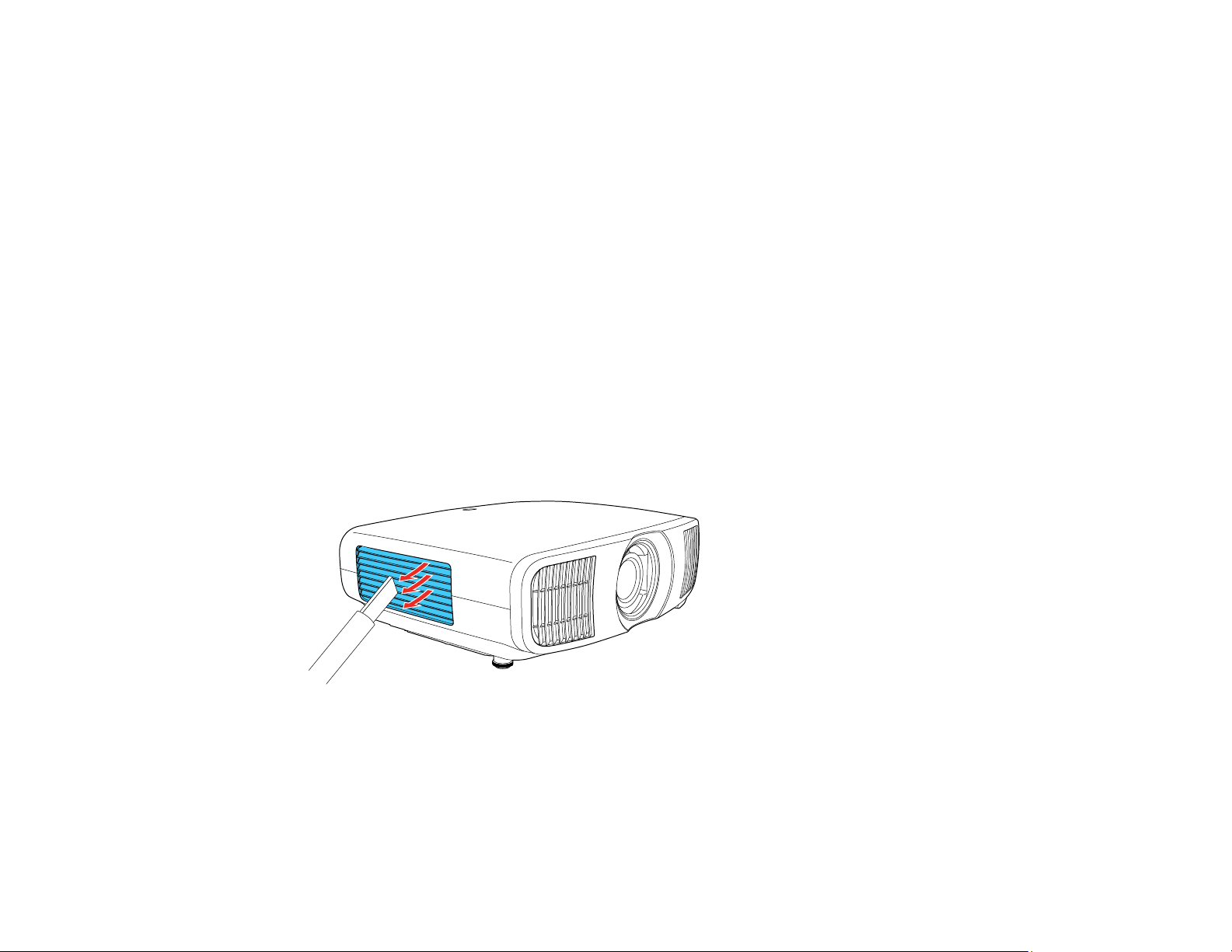

Air Filter and Vent Maintenance .................................................................................................. 115

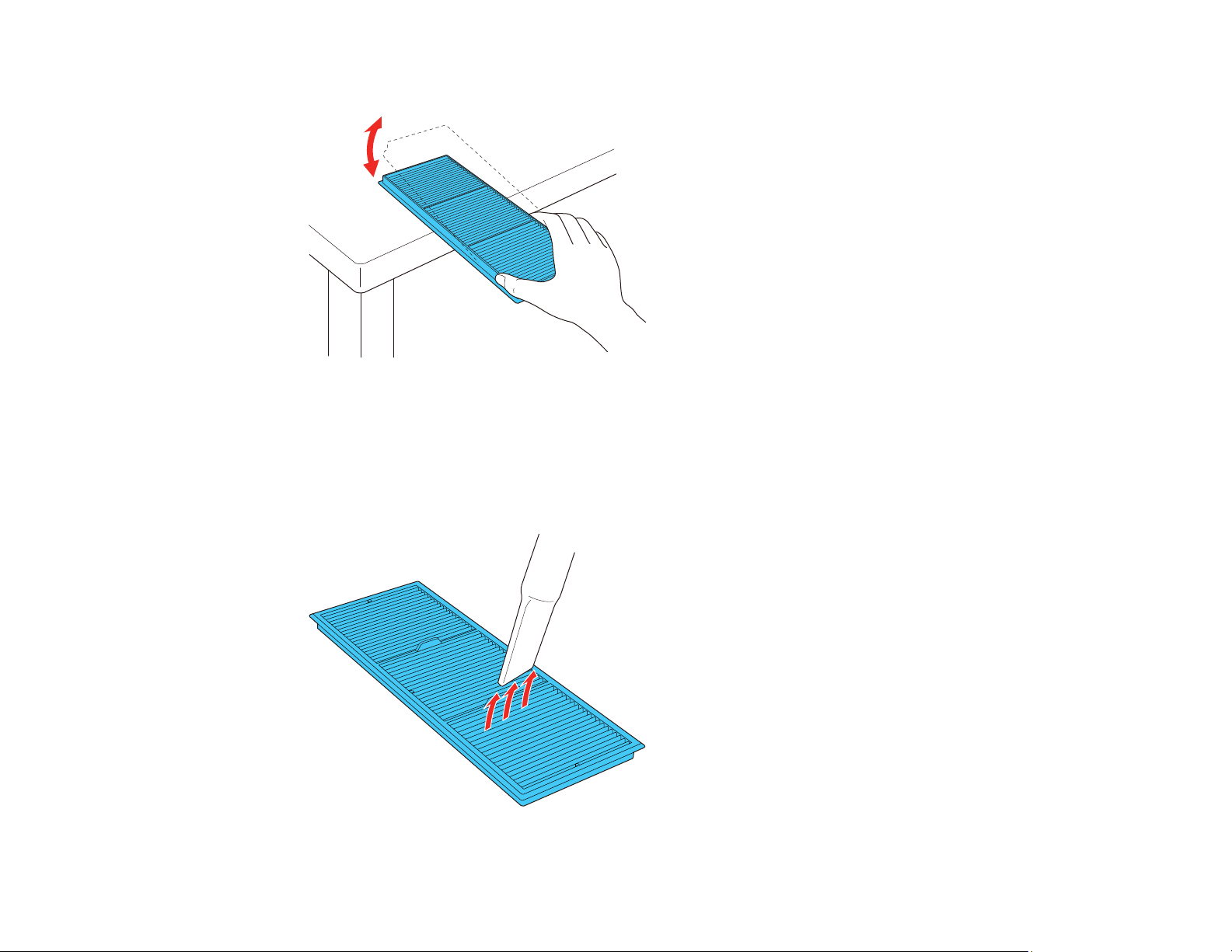

Cleaning the Air Filter.............................................................................................................. 116

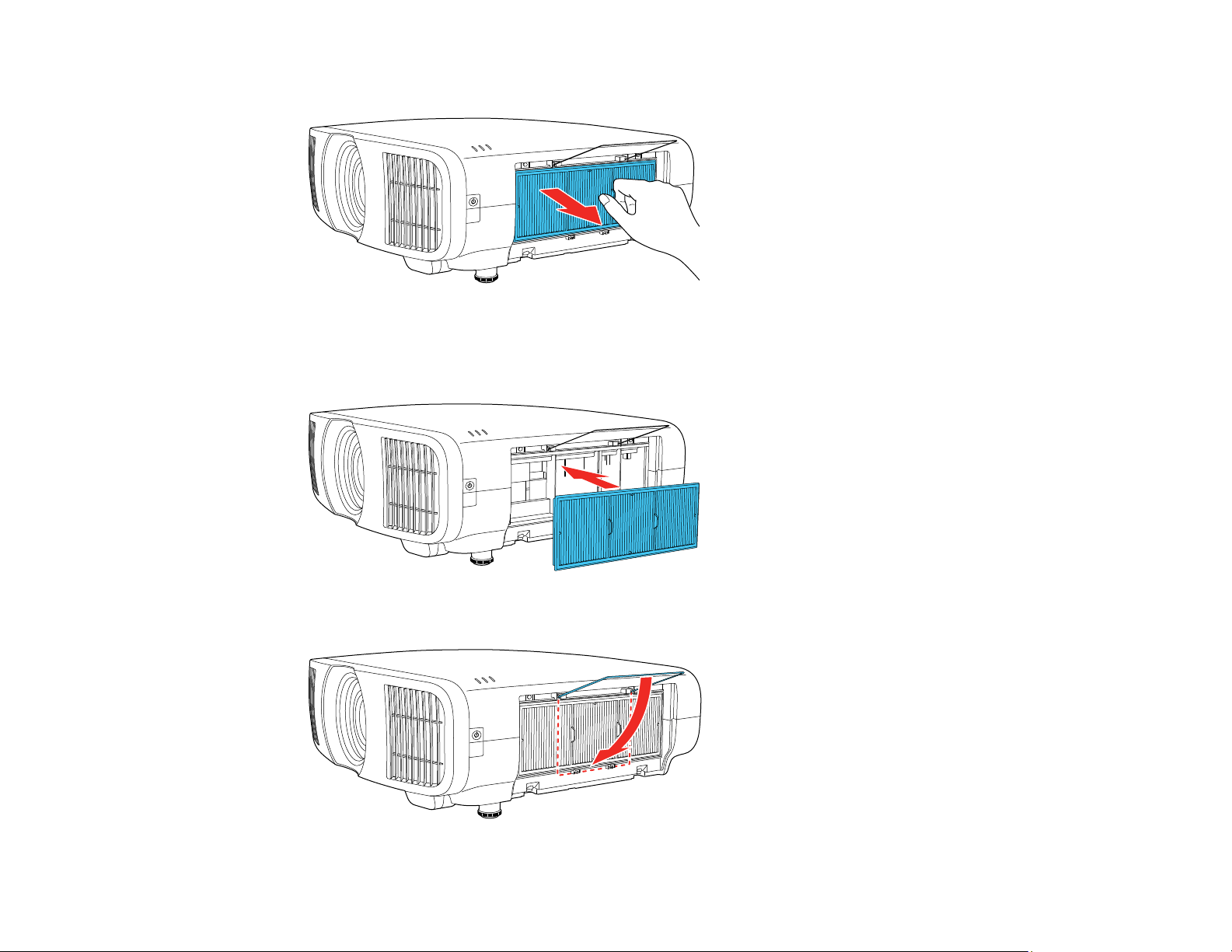

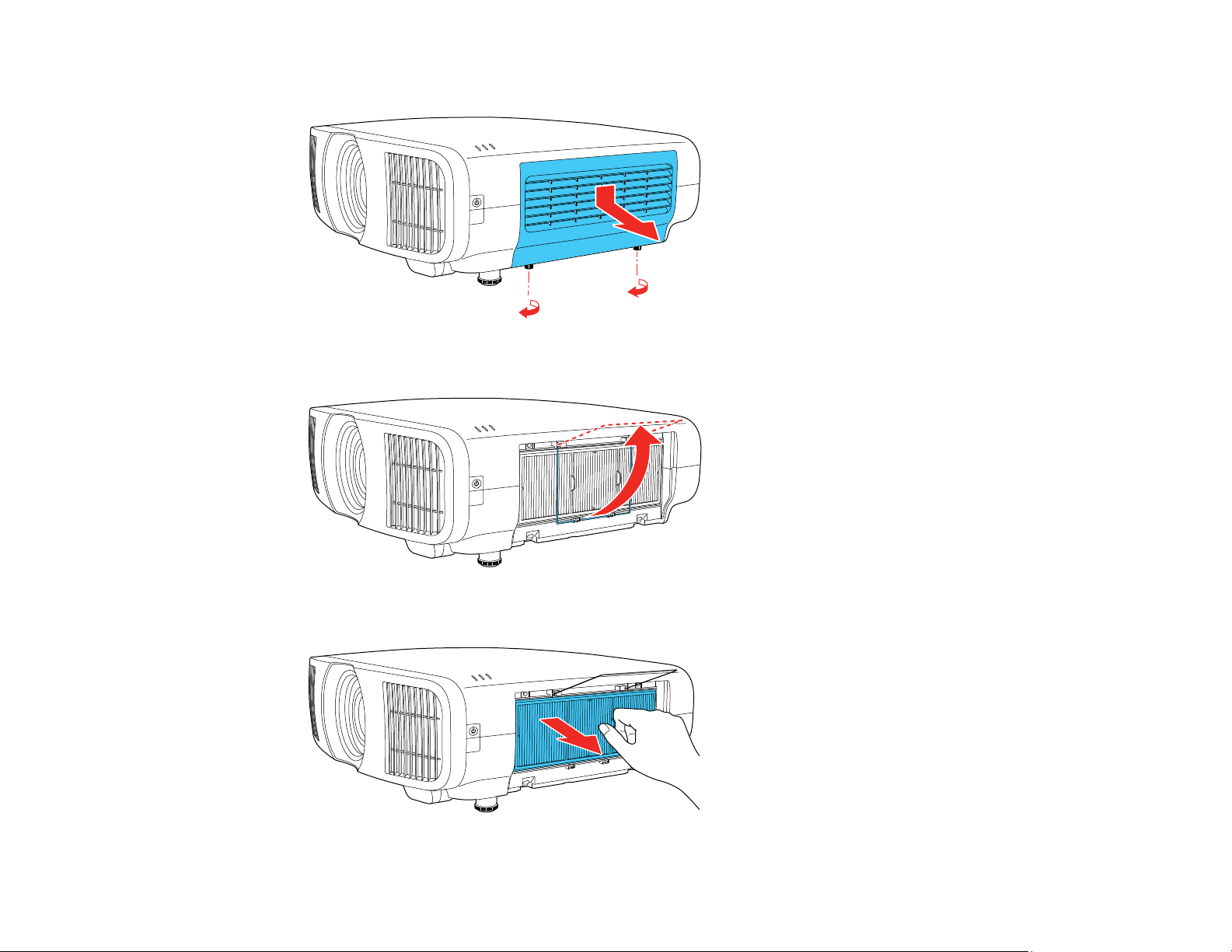

Replacing the Air Filter............................................................................................................ 120
Replacing the Remote Control Batteries .......................................................................................... 122
Updating the Firmware ..................................................................................................................... 124
6
Updating Projector Firmware Using a USB Storage Device ........................................................ 124
Updating Projector Firmware Using a Computer and USB Cable................................................ 125
Transporting the Projector................................................................................................................ 126
Solving Problems .................................................................................................................................... 127
Projection Problem Tips ................................................................................................................... 127
Projector Light Status ....................................................................................................................... 128
Solving Image or Sound Problems ................................................................................................... 130
Solutions When No Image Appears............................................................................................. 131
Solutions When "No Signal" Message Appears........................................................................... 132
Displaying From a PC Laptop ................................................................................................. 132
Displaying From a Mac Laptop ............................................................................................... 133
Solutions When Only a Partial Image Appears............................................................................ 133
Solutions When the Image is Not Rectangular ............................................................................ 134
Solutions When the Image Contains Noise or Static ................................................................... 134
Solutions When the Image is Fuzzy or Blurry .............................................................................. 135
Solutions When the Image Brightness or Colors are Incorrect .................................................... 136
Solutions to Image and Sound Syncing Problems....................................................................... 136
Solutions to Sound Problems ...................................................................................................... 137
Solving Projector or Remote Control Operation Problems ............................................................... 137
Solutions to Projector Power or Shut-Off Problems..................................................................... 137
Solutions to Remote Control Problems........................................................................................ 138
Solutions to HDMI Link Problems ................................................................................................ 139
Where to Get Help (U.S. and Canada) ............................................................................................. 140
Where to Get Help (Latin America)................................................................................................... 140
Technical Specifications ........................................................................................................................ 143
General Projector Specifications...................................................................................................... 143
Projector Light Source Specifications............................................................................................... 145
Remote Control Specifications ......................................................................................................... 145

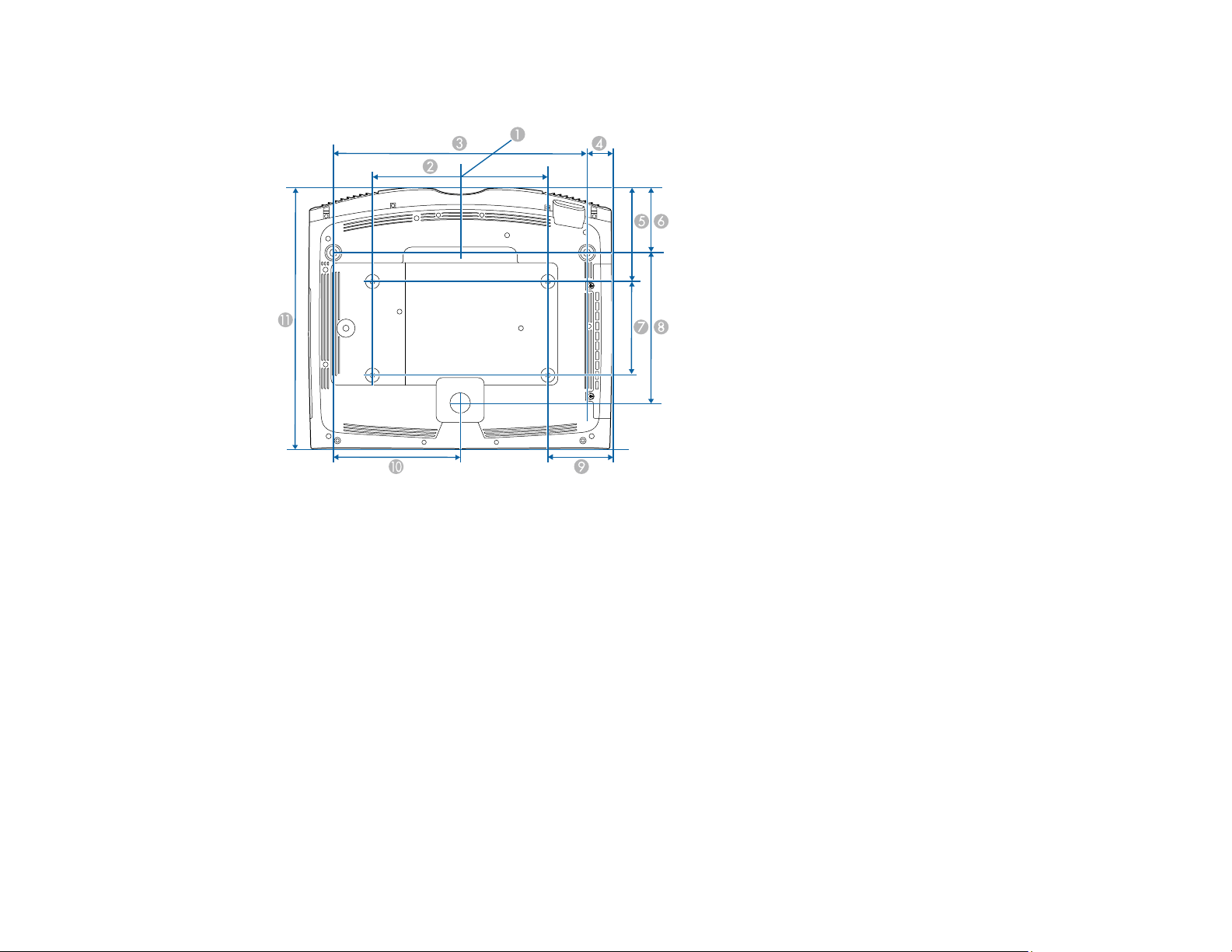

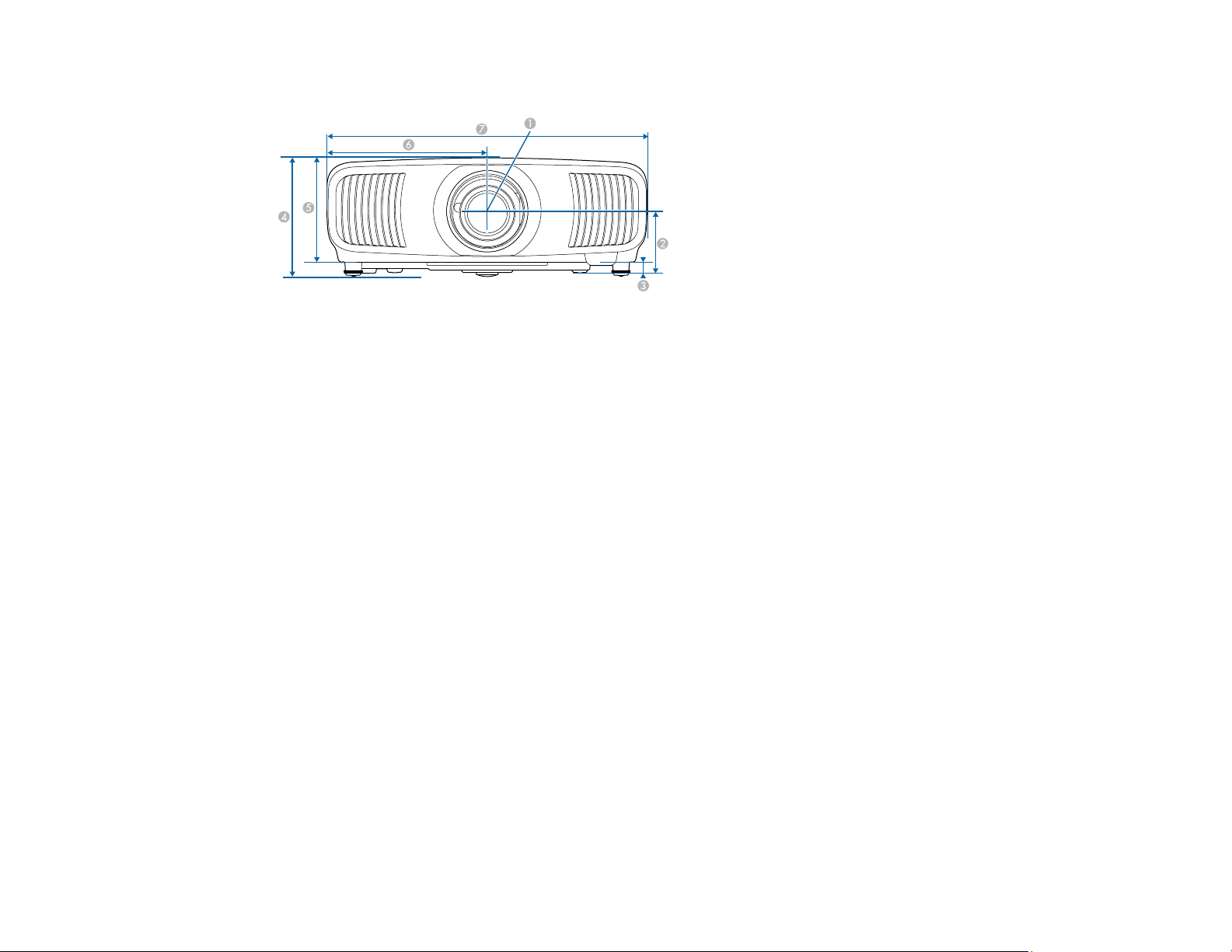

Projector Dimension Specifications.................................................................................................. 145
Projector Electrical Specifications .................................................................................................... 148
Projector Environmental Specifications............................................................................................ 148
Projector Safety and Approvals Specifications................................................................................. 149
Supported Video Display Formats.................................................................................................... 149
7
Notices ..................................................................................................................................................... 150
Recycling (U.S. and Canada)........................................................................................................... 150
Important Safety Information............................................................................................................ 150
Laser Safety Information .................................................................................................................. 150
Important Safety Instructions............................................................................................................ 153
Restriction of Use ........................................................................................................................ 156
List of Safety Symbols (corresponding to IEC60950-1 A2)............................................................... 156
FCC Compliance Statement............................................................................................................. 161
Binding Arbitration and Class Waiver ............................................................................................... 162
Trademarks...................................................................................................................................... 165
Copyright Notice............................................................................................................................... 165
A Note Concerning Responsible Use of Copyrighted Materials................................................... 166
Copyright Attribution.................................................................................................................... 166
9
Home Cinema LS11000 User's Guide
Welcome to the Home Cinema LS11000 User's Guide.
For a printable PDF copy of this
guide, click here.
10
Introduction to Your Projector
Refer to these sections to learn more about your projector and this manual.
Projector Features
Notations Used in the Documentation
Where to Go for Additional Information
Projector Part Locations
Projector Features
Your projector includes these special features:
Bright, high-resolution projection system
• Laser light source with up to 2500 lumens of color brightness (color light output) and 2500 lumens of
white brightness (white light output)
Note: Color brightness (color light output) and white brightness (white light output) will vary depending
on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output
measured in accordance with ISO 21118.
• Full HD native resolution with 4K Enhancement for exceptional brightness, color, and detail
• Scene Adaptive Gamma, Image Enhancement, and Frame Interpolation features
• Images up to 300 inches (7.62 m) for projection on any wall or screen
Flexible connectivity
• Two HDMI ports for video device or computer connections
• HDMI 2.1 support for full audio and video signal bandwidth and Enhanced Audio Return Channel
(eARC) for uncompressed audio
• Support for an optical HDMI connection
Easy-to-use setup and operation features
• Powered vertical and horizontal lens shift
• Powered 2.1× optical zoom ratio for improved zooming capability
• Powered focus adjustments
Product Box Contents
11
Additional Components
Optional Equipment and Replacement Parts
Warranty and Registration Information (U.S. and Canada)
Warranty and Registration Information (Latin America)
Parent topic: Introduction to Your Projector
Product Box Contents
Save all the packaging in case you need to ship the projector. Always use the original packaging (or
equivalent) when shipping.
Make sure your product box included all of these parts:
1 Projector
2 Remote control
3 Remote control batteries (two AA alkaline)
4 Power cord
Parent topic: Projector Features
Additional Components
Depending on how you plan to use the projector, you may need to obtain additional components.
12
Note: To connect a Mac that does not include a compatible video output port, you need to obtain an
adapter that allows you to connect to an input port on the projector. Contact Apple for compatible
adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you
to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies,
and more. Contact your device manufacturer for compatible adapter options.
Unless listed as available from Epson in this table, see your local computer or electronics dealer for
purchase information.
Signal or connection
type
Additional component necessary
HDMI Compatible HDMI cable or HDMI 2.1 certified cable (ultra high-speed)
Available for purchase from Epson or an authorized Epson reseller.
Optical HDMI Compatible optical HDMI cable
External audio Speakers, an audio video receiver, or a video source with speaker
connections, and the cables necessary for connecting them
Your projector does not have an internal speaker or audio out ports.
Parent topic: Projector Features
Optional Equipment and Replacement Parts
U.S. and Canada: You can purchase screens, other optional accessories, and replacement parts from
an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the
U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or
epsonstore.ca (Canadian sales).
Latin America: You can purchase optional accessories and replacement parts from an Epson
authorized reseller. To find the nearest reseller, go to latin.epson.com. Or you can contact your nearest
sales office as described in "Where to Get Help."
Note: Availability of accessories varies by country.
Epson offers the following optional accessories and replacement parts for your projector:
Option or part Part number
Replacement air filter (ELPAF62) V13H134AB0
13
In addition to the accessories listed above, a 1-year extended service plan is available.
Parent topic: Projector Features
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Warranty and Registration Information (U.S. and Canada)
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty brochure that came with your projector.
Note: Availability varies by region.
Register your product online at this site: epson.com/webreg
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Warranty and Registration Information (Latin America)
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty that came with your projector.
Register your product online at latin.epson.com/support, search for your product, and select Register.
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Notations Used in the Documentation
Follow the guidelines in these notations as you read your documentation:
• Warnings must be followed carefully to avoid bodily injury.
• Cautions must be observed to avoid damage to your equipment.
• Notes contain important information about your projector.
• Tips contain additional projection information.
Parent topic: Introduction to Your Projector
14
Where to Go for Additional Information
Need quick help on using your projector? Here's where to look for help:
• epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Caribbean)
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24
hours a day.
• If you still need help after checking this manual and any other sources listed here, you can use the
Epson PrivateLine Support service to get help fast (U.S. and Canada only). For details, see "Where to
Get Help."
Parent topic: Introduction to Your Projector
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Projector Part Locations
Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front/Top
Projector Parts - Rear
Projector Parts - Base
Projector Parts - Remote Control
Parent topic: Introduction to Your Projector
16
Projector Parts - Rear
1 Control panel
2 Interface ports
3 AC power inlet
4 Cable holder slot
5 Kensington security slot
6 Remote receiver
Interface ports
1 USB-A (5V---2.0A) port
2 Service port
3 Trigger Out port
17
4 LAN port
5 Opt.HDMI (300mA) port (supports power connection for optical HDMI cables)
6 HDMI1 port (supports HDCP 2.3)
7 HDMI2 port (supports HDCP 2.3 and HDMI eARC/ARC)
8 RS-232C port
Control panel
1 Menu button (accesses projector menu system)
2 Lens button (cycles through lens adjustment options)
3 Arrow buttons (navigates on-screen options, displays H/V-Keystone screen)
4 Enter button (selects options)
5 Esc button (cancels/exits functions)
Parent topic: Projector Part Locations
Related concepts
Projector Connections
Related tasks
Installing a Security Cable
18
Projector Parts - Base
1 Front adjustable feet
2 Ceiling mount bracket holes (4)
3 Safety wire clamp fixing point
4 Rear foot
5 Optional cable cover screw holes
6 Air filter cover screws
Note: Use M6×10mm screws for mounting the projector.
Parent topic: Projector Part Locations
Related references
Projector Dimension Specifications
19

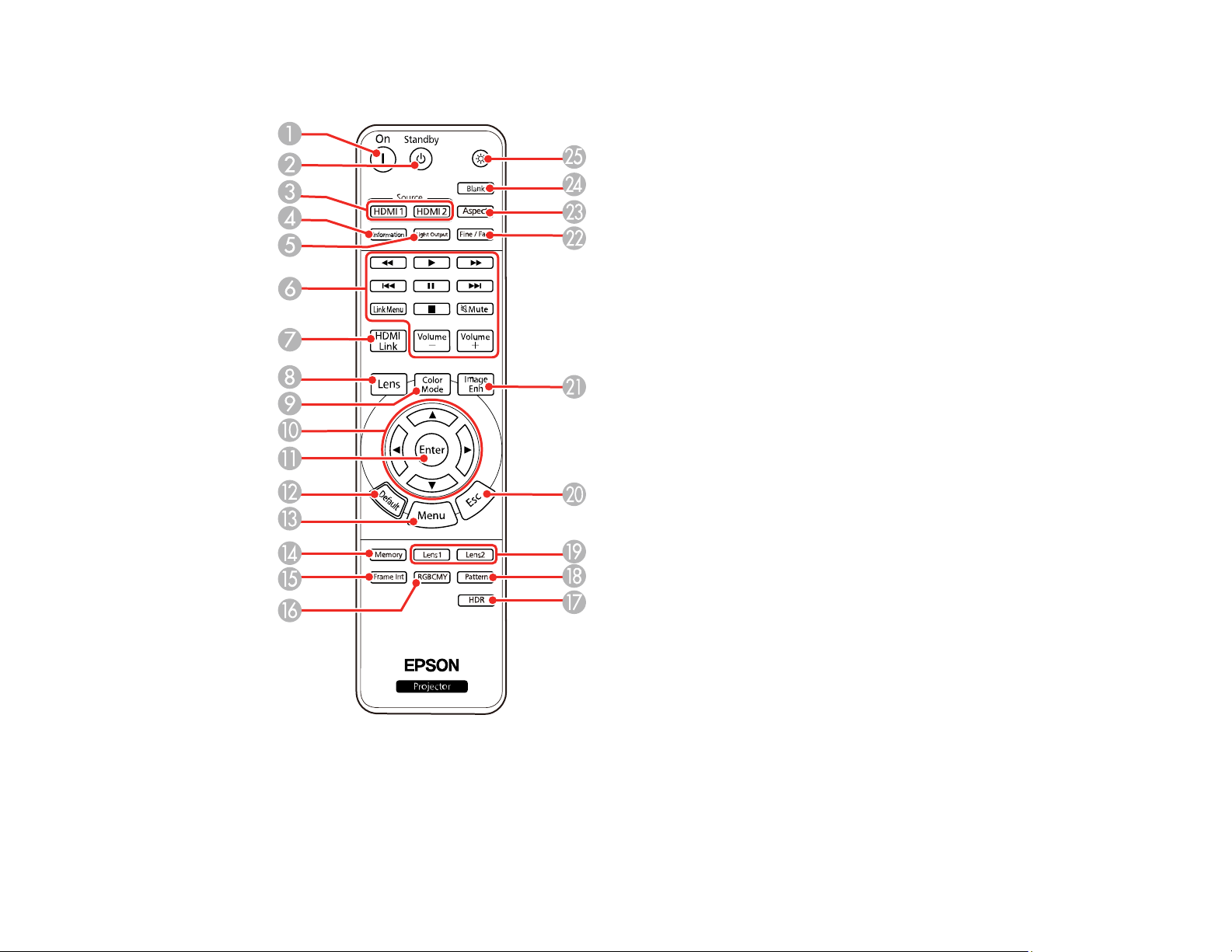

Projector Parts - Remote Control
1 On button (turns on projector)
2 Standby button (turns off the projector)
3 Source buttons (selects HDMI input sources)
20
4 Information button (displays the Information screen)
5 Light Output button (displays the Light Output menu)
6 Link Menu button (displays the main menu of the connected device)
Control buttons (control playback and other features of connected devices that support the HDMI
CEC standard)
7 HDMI Link button (displays the Device Connections screen)
8 Lens button (cycles through lens adjustment options)
9 Color Mode button (displays the Color Mode menu)
10 Arrow buttons (navigates on-screen options)
11 Enter button (selects options)
12 Default button (returns selected setting to default value)
13 Menu button (accesses projector menu system)
14 Memory button (accesses the Memory menu)

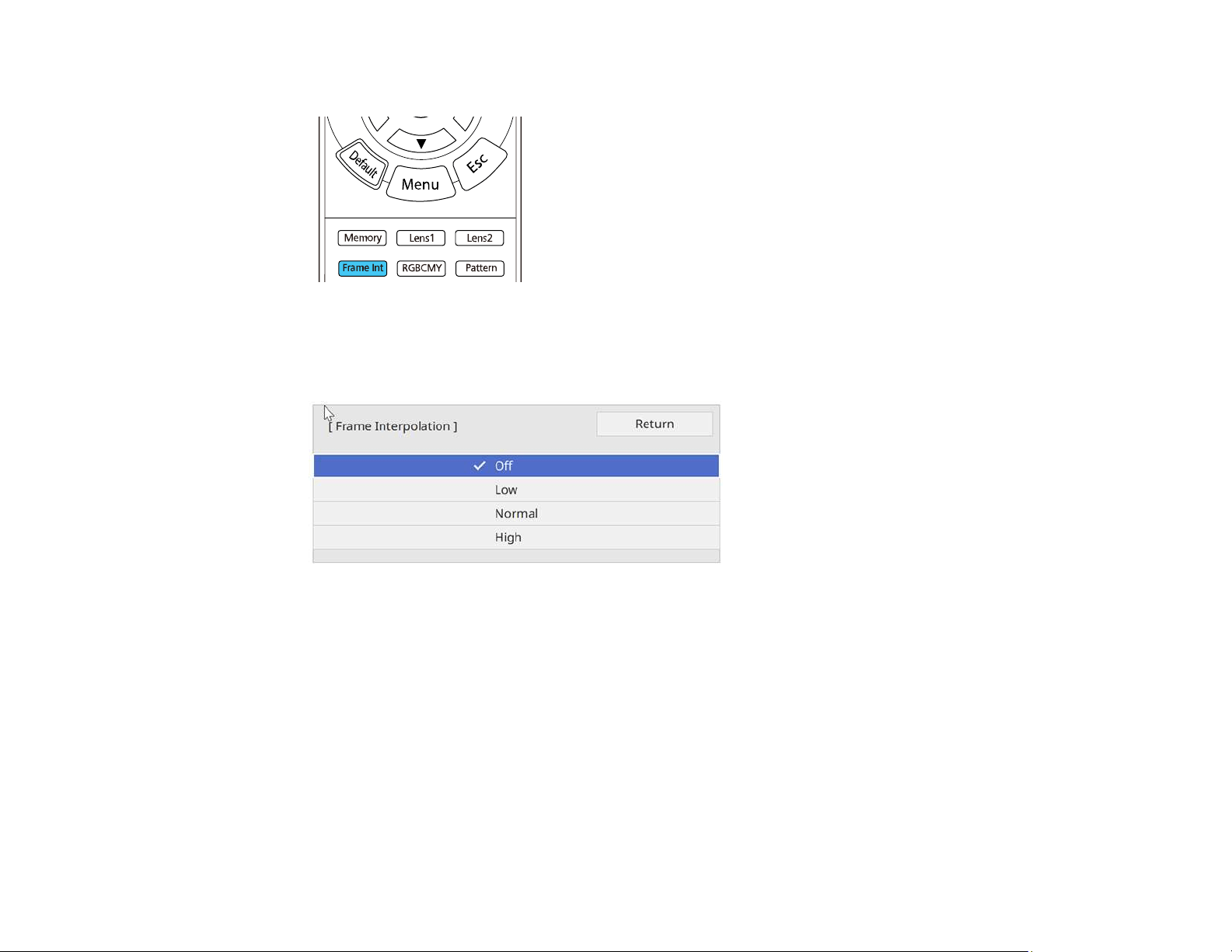

15 Frame Int button (displays the Frame Interpolation menu)
16 RGBCMY button (displays the RGBCMY menu)
17 HDR button (displays the Dynamic Range menu)
18 Pattern button (displays a test pattern)
19 Lens1 and Lens2 buttons (loads the first or second saved lens position)
20 Esc button (cancels/exits functions or returns to previous screen)
21 Image Enh button (displays the Image Preset Mode menu)
22 Fine/Fast button (displays the Image Processing menu)
23 Aspect button (displays the Aspect menu)
24 Blank button (turns off video projection)
25 Illumination button (temporarily lights the remote control buttons)
Parent topic: Projector Part Locations
21
Setting Up the Projector
Follow the instructions in these sections to set up your projector for use.
Projector Placement
Projector Connections
Installing Batteries in the Remote Control
Projector Placement
You can place the projector on almost any flat surface to project an image.
You can also install the projector in a ceiling mount if you want to use it in a fixed location.
Keep these considerations in mind as you select a projector location:
• Place the projector on a sturdy, level surface or install it using a compatible mount.
• Place the projector parallel to the screen.
• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or
next to anything that could block the vents.
• Position the projector within reach of a grounded electrical outlet or extension cord.
Projector Setup and Installation Options
Projection Distance
Parent topic: Setting Up the Projector
Related tasks
Changing the Projection Mode Using the Menus
Projector Setup and Installation Options
You can set up or install your projector in the following ways:
22
Front
Rear
Front Ceiling
23
Rear Ceiling
Wherever you set up the projector, make sure to position it squarely in front of the center of the screen,
not at an angle, if possible. If the projector cannot be centered in front of the screen, use lens shift to
reposition the image instead of using keystone correction for better image quality.
If you project from the ceiling or from the rear, be sure to select the correct Projection setting in the
projector's Installation menu.
Parent topic: Projector Placement
Related references
Installation Settings - Installation Menu
Projection Distance
The distance at which you place the projector from the screen determines the approximate size of the
image. The image size increases the farther the projector is from the screen, but can vary depending on
the zoom factor, aspect ratio, and other settings.
Note: The closer the projector is placed to the screen, the brighter the image will be.
24
Use the tables here to determine approximately how far to place the projector from the screen based on
the size of the projected image. (Conversion figures may have been rounded up or down.) You can also
use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).
1 Projection distance
2 Distance from the center of the lens to the base of the screen
3 Center of the lens
16:9 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Offset from lens center (2)
50 inches 58 to 123 inches
(148 to 313 cm)
–35.9 to 11.3 inches
(–91 to 29 cm)
25
Screen or image size Projection distance (1)
Wide to Tele
Offset from lens center (2)
60 inches 70 to 148 inches
(178 to 376 cm)
–43 to 13.6 inches
(–109 to 35 cm)
80 inches 94 to 198 inches
(239 to 503 cm)
–57.4 to 18.2 inches
(–146 to 46 cm)
100 inches 118 to 248 inches
(300 to 630 cm)
–71.7 to 22.7 inches
(–182 to 58 cm)
150 inches 178 to 373 inches
(452 to 947 cm)
–107.6 to 34 inches
(–273 to 86 cm)
200 inches 238 to 498 inches
(604 to 1264 cm)
–143.4 to 45.4 inches
(–364 to 115 cm)
250 inches 297 to 623 inches
(756 to 1582 cm)
–179.3 to 56.7 inches
(–455 to 144 cm)
300 inches 357 to 748 inches
(908 to 1899 cm)
–215.2 to 68.1 inches
(–547 to 173 cm)
4:3 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Offset from lens center (2)
50 inches 72 to 151 inches
(182 to 384 cm)
–43.9 to 13.9 inches
(–111 to 35 cm)
60 inches 86 to 182 inches
(219 to 462 cm)
–52.7 to 16.7 inches
(–134 to 42 cm)
80 inches 115 to 243 inches
(293 to 617 cm)
–70.2 to 22.2 inches
(–178 to 56 cm)
26
Screen or image size Projection distance (1)
Wide to Tele
Offset from lens center (2)
100 inches 145 to 304 inches
(368 to 772 cm)
–87.8 to 27.8 inches
(–223 to 71 cm)
120 inches 174 to 365 inches
(442 to 927 cm)
–105.3 to 33.3 inches
(–268 to 85 cm)
150 inches 218 to 457 inches
(554 to 1160 cm)
–131.7 to 41.7 inches
(–334 to 106 cm)
200 inches 291 to 610 inches
(740 to 1548 cm)
–175.6 to 55.6 inches
(–446 to 141 cm)
220 inches 321 to 671 inches
(814 to 1704 cm)
–193.1 to 61.1 inches
(–491 to 155 cm)
244.8 inches 357 to 746 inches
(906 to 1896 cm)
–214.8 to 68 inches
(–546 to 173 cm)
16:10 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Offset from lens center (2)
50 inches 63 to 133 inches
(160 to 339 cm)
–38.6 to 12.2 inches
(–98 to 31 cm)
60 inches 76 to 160 inches
(193 to 407 cm)
–46.5 to 14.6 inches
(–118 to 37 cm)
80 inches 102 to 214 inches
(259 to 544 cm)
–62.2 to 19.7 inches
(–158 to 50 cm)
100 inches 128 to 269 inches
(324 to 682 cm)
–77.6 to 24.4 inches
(–197 to 62 cm)
27
Screen or image size Projection distance (1)
Wide to Tele
Offset from lens center (2)
120 inches 154 to 322 inches
(390 to 819 cm)
–92.9 to 29.5 inches
(–236 to 75 cm)
150 inches 193 to 403 inches
(489 to 1024 cm)
–116.1 to 36.6 inches
(–295 to 93 cm)
200 inches 257 to 538 inches
(653 to 1367 cm)
–155.1 to 49.2 inches
(–394 to 125 cm)
250 inches 322 to 673 inches
(817 to 1710 cm)
–193.7 to 61.4 inches
(–492 to 156 cm)
277.2 inches 357 to 747 inches
(907 to 1897 cm)
–215 to 68.1 inches
(–546 to 173 cm)
Parent topic: Projector Placement
Projector Connections
See these sections to connect the projector to a variety of projection sources.
Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode
to ensure the projector's internal temperature is regulated properly. The cooling fans will run at a higher
speed and will be slightly louder.
Connecting to an HDMI Video Source
Connecting to a Computer for HDMI Video
Connecting to a Streaming Media Player
Connecting External Output Devices
Parent topic: Setting Up the Projector
Related references
Installation Settings - Installation Menu
28
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable.
The HDMI connection provides the best image quality.
Caution: Do not turn on the video source before connecting it to the projector. Doing so could damage
the projector.
Note: When projecting images at 4K 120Hz, use an HDMI 2.1 rated cable (ultra-high speed). If you use
an incompatible cable, images may not be displayed correctly. You can try correcting the images by
changing the EDID Mode setting in the projector's Signal I/O menu.
1. Connect the HDMI cable to your video source's HDMI output port.
2. Connect the other end to one of the projector's HDMI ports. If you are connecting an optical HDMI
cable, you must also connect the cable's USB power connector to the Opt.HDMI (300mA) port.
Note: When an audio/video source that meets the HDMI CEC standard is connected to the projector's
HDMI port, you can use the projector's remote control to control certain features of the linked device by
pressing the HDMI Link button on the remote control and setting HDMI Link to On.
Parent topic: Projector Connections
Connecting to a Computer for HDMI Video
If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.
29
Note: To connect a Mac that does not include a compatible video output port, you need to obtain an
adapter that allows you to connect to an input port on the projector. Contact Apple for compatible
adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you
to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies,
and more. Contact your device manufacturer for compatible adapter options.
1. Connect the HDMI cable to your computer's HDMI output port.
2. Connect the other end to one of the projector's HDMI ports. If you are connecting an optical HDMI
cable, you must also connect the cable's USB power connector to the Opt.HDMI (300mA) port.
Parent topic: Projector Connections
Connecting to a Streaming Media Player
You can connect a streaming media player to the projector's HDMI port. By connecting the streaming
media player's power supply USB cable, you can power the streaming media player from the projector.
30
1. Connect the streaming media player to an HDMI port.
2. If necessary, connect the streaming media player's USB power supply cable to the USB-A port.
Connect the other end of the cable to the USB port on the streaming media player.
Parent topic: Projector Connections
Connecting External Output Devices
See these sections to connect the projector to external output devices.
Connecting an A/V System or External Speakers Using HDMI ARC
Connecting to a Trigger Out Port
Parent topic: Projector Connections
Connecting an A/V System or External Speakers Using HDMI ARC
If your A/V system or external speakers are eARC/ARC-compatible, you can connect them to the
projector's HDMI2 (ARC) port using an optional HDMI cable with Ethernet.
31
Note: Make sure the HDMI Link setting is turned on in the projector's Signal I/O menu.
1. Connect the HDMI cable to the HDMI port on your A/V system or external speakers.
2. Connect the other end of the cable to the HDMI2 (eARC/ARC) port on the rear of the projector.
3. Adjust any necessary settings on the connected A/V system or external speakers. See your device's
documentation for more information.
Parent topic: Connecting External Output Devices
Connecting to a Trigger Out Port
You can connect your projector to external devices such as motorized screens that support a trigger
signal. When active, a 12V (200 mA maximum) signal is sent to the connected device while the projector
is powered on. See the link below for cable specifications.
1. Connect a 3.5 mm mono or stereo mini-jack cable to the external device's trigger port. See your
device's documentation for details.
32
2. Connect the other end to the projector's Trigger Out port.
3. Turn on the Trigger Out setting in the projector's Operation menu.
Parent topic: Connecting External Output Devices
Related references
General Projector Specifications
Feature Settings - Operation Menu
Installing Batteries in the Remote Control
The remote control uses the two AA batteries that came with the projector. Replace the batteries as soon
as they run out.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
33

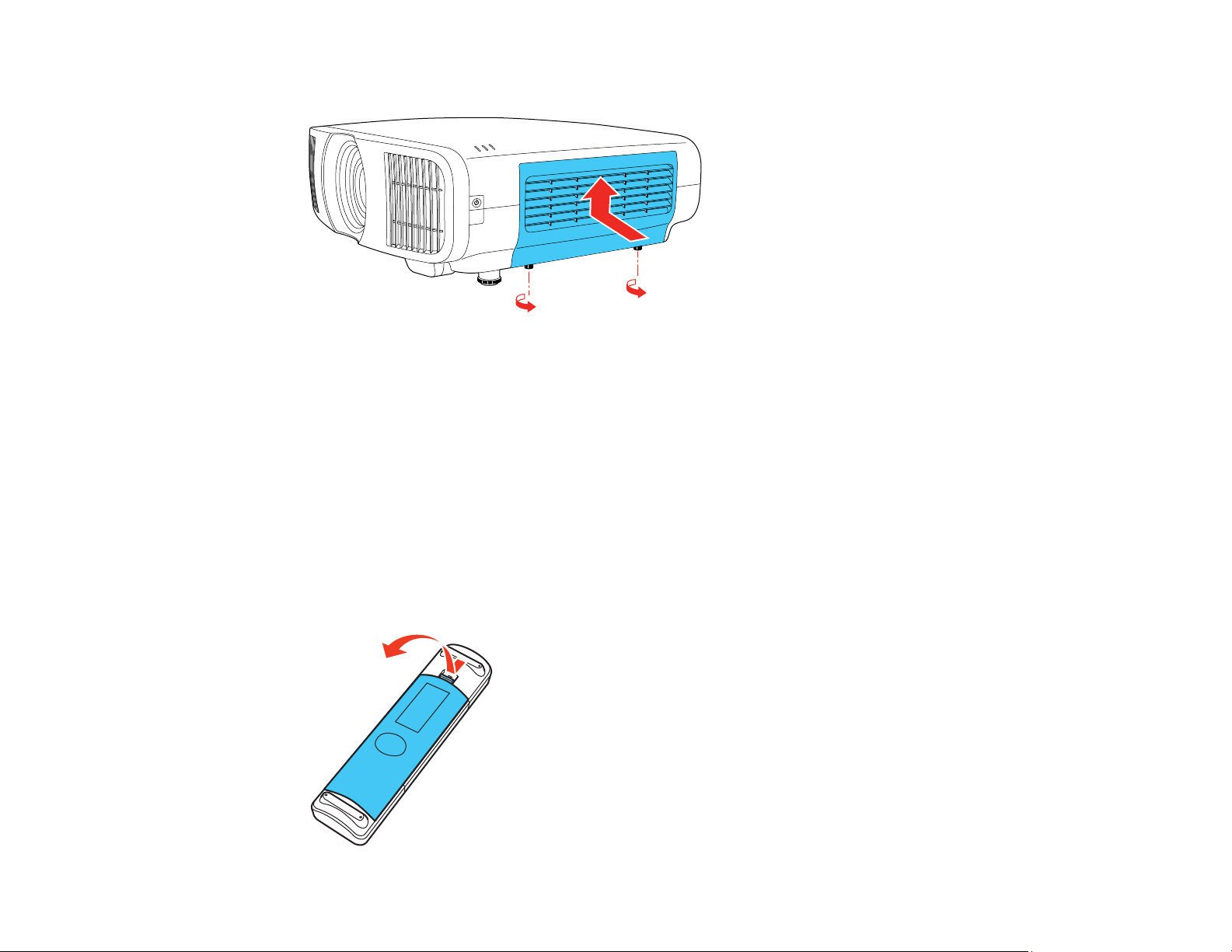

1. Remove the battery cover.
2. Insert the batteries with the + and – ends facing as shown.
Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not
inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.
34
3. Replace the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Setting Up the Projector
35
Monitoring and Controlling the Projector
Follow the instructions in these sections to monitor and control the projector over a network.
Connecting to a Wired Network
Selecting Wired Network Settings
Connecting to a Wired Network
To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network
cable. To ensure proper data transmission, use a Category 5 shielded cable or higher.
1. Connect one end of the network cable to your network hub, switch, or router.
2. Connect the other end of the cable to the projector's LAN port.
Parent topic: Monitoring and Controlling the Projector
Selecting Wired Network Settings
Before you can control the projector on your network, you must select the network settings for the
projector using its menu system.
Note: Make sure you already connected the projector to your wired network using the LAN port.
1. Turn on the projector.
2. Press the Menu button.
36
3. Select the Network menu and press Enter.
4. Select Network Settings and press Enter.
5. Select Projector Name to enter a name to identify the projector over the network
Note: Use the displayed keyboard to enter the name. Press the arrow buttons on the remote control
to highlight characters and press Enter to select them. Select OK when you are done.
37

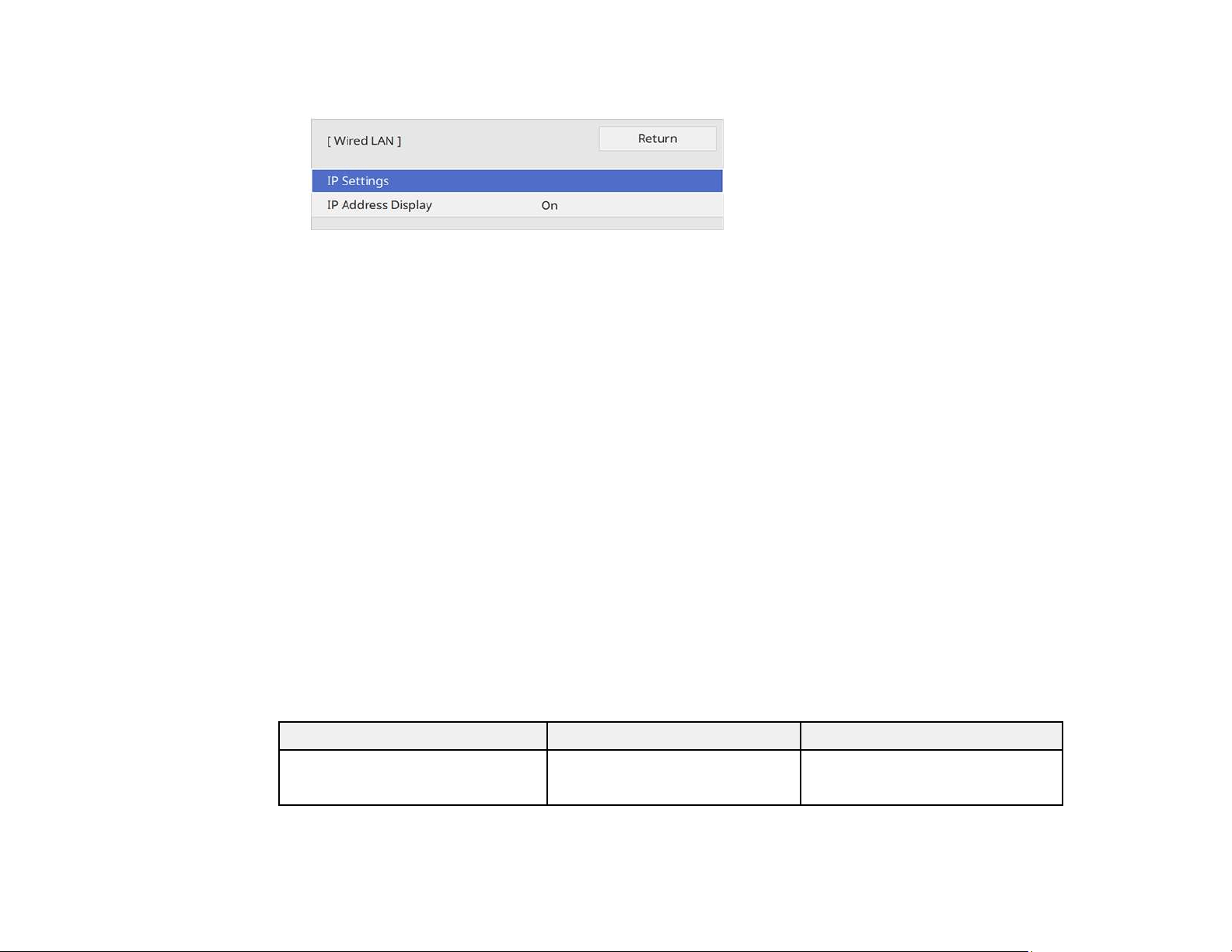

6. Select Wired LAN and press Enter.
7. Select IP Settings and press Enter.
8. Select your IP Settings as necessary:
• If your network assigns addresses automatically, select On as the DHCP setting.
• If you must set addresses manually, select Off as the DHCP setting. Enter the projector's IP
Address, Subnet Mask, and Gateway Address as needed.
Note: Use the displayed keypad to enter numbers. Press the arrow buttons on the remote control to
highlight numbers and press Enter to select them. Select OK when you are done.
9. To prevent display of the IP address on the network information screen, select Off as the IP
Address Display setting.
10. Select Projector Control and press Enter. Choose from the available options.
11. When you finish selecting settings, return to the Network Settings screen. Select Set and follow the
on-screen instructions to save your settings and exit the menus.
Projector Control Settings
Parent topic: Monitoring and Controlling the Projector
Projector Control Settings
You can select the following settings for controlling the projector over a network.
Setting Options Description
PJLink On
Off
Set to On to enable the PJLink
notification function
38
Setting Options Description
PJLink Password Up 32 alphanumeric characters Enter a password for using the
PJLink protocol for projector
control
(do not use spaces or any
symbols besides @)
Notified IP Address Various IP addresses Enter the IP address to receive
the projector's operating status
when the PJLink notification
function is enabled. Enter the
addresses using 0 to 255 for
each address field.
Do not use these addresses:
127.x.x.x or 224.0.0.0 through
255.255.255.255 (where x is a
number from 0 to 255).
AMX Device Discovery On
Off
Set to On to allow AMX Device
Discovery to detect the projector
Control4 SDDP On
Off
Set to On to allow device
information to be acquired using
Control4 Simple Device
Discovery Protocol (SDDP)
Parent topic: Selecting Wired Network Settings
39
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
Turning On the Projector
Turning Off the Projector
Selecting the Language for the Projector Menus
Adjusting the Image Height
Adjusting the Image Position Using Lens Shift
Image Shape
Resizing the Image with the Zoom Feature
Focusing the Image with the Lens Button
Remote Control Operation
Selecting an Image Source
Projection Modes
Image Aspect Ratio
Color Mode
Adjusting Image Sharpness
Adjusting the Projector's Brightness Level
Turning On Dynamic Contrast
Adjusting the Color Temperature
Adjusting the RGB Offset and Gain

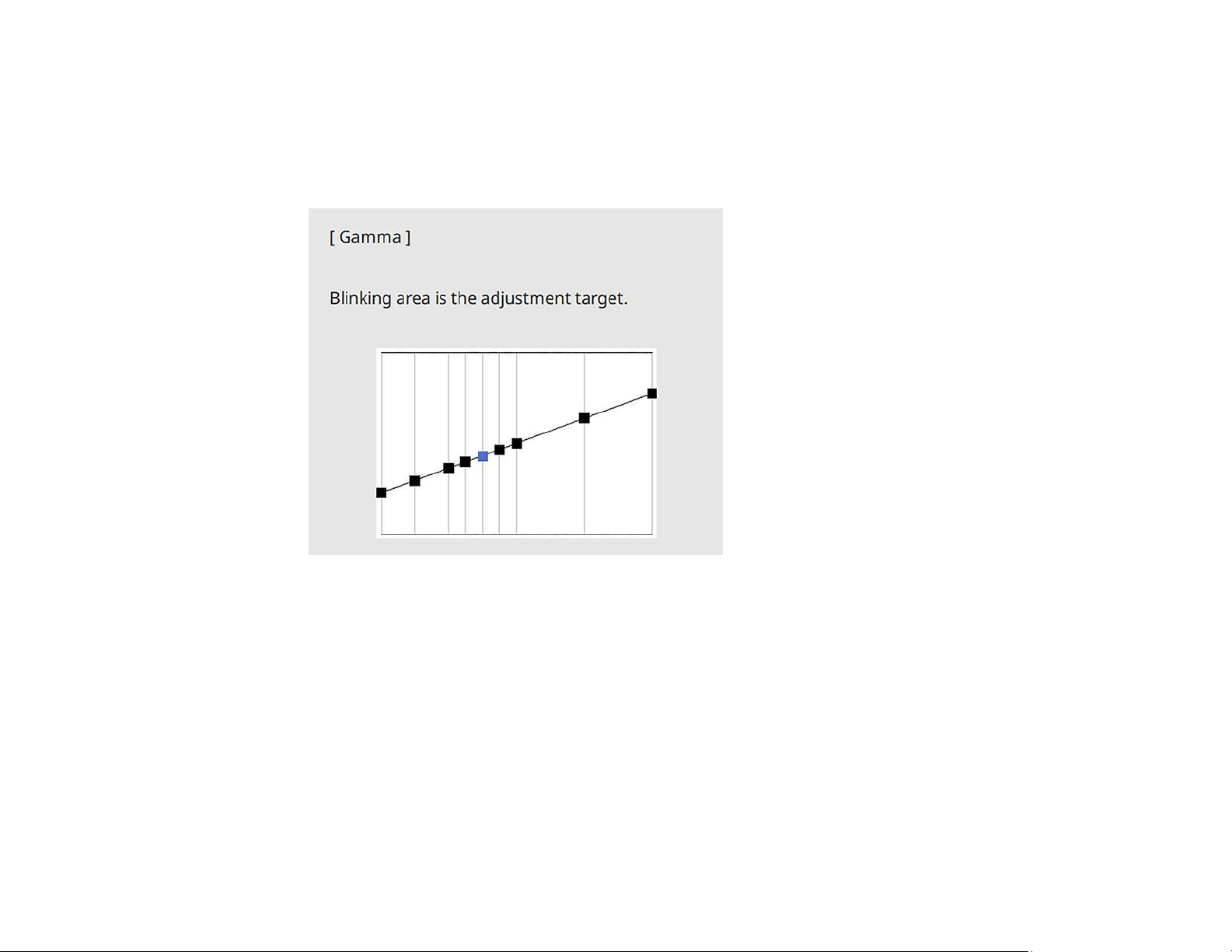

Adjusting Gamma
Adjusting the Hue, Saturation, and Brightness
Turning On the Projector
Turn on the projector before you turn on the computer or video equipment you want to use.
40
1. Connect the power cord to the projector's power inlet.
2. Plug the power cord into an electrical outlet.
Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.
3. Press the power button on the projector or the On button on the remote control to turn on the
projector.
The lens shutter opens and the Status light flashes blue as the projector warms up. Once the
projector is warmed up, the Status light stops flashing and turns blue.
Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is
especially dangerous for children and pets. If you are using the remote control to turn the projector
on, make sure no one is looking into the lens or in front of the projector before turning it on.
Caution: Make sure no objects are blocking the light from the projector lens. Objects blocking the
lens for an extended time can melt and light that is reflected back into the lens can cause the
projector to malfunction.
If you do not see a projected image right away, try the following:
• Turn on the connected computer or video device.
• Insert a DVD or other video media and press the play button, if necessary.
• Press the Source button on the projector or one of the Source buttons on the remote control.
• Change the screen output from the computer when using a laptop.
41
Parent topic: Using Basic Projector Features
Related references
Feature Settings - Operation Menu
Turning Off the Projector
Before turning off the projector, shut down any computer connected to it so you can see the computer
display during shutdown.
Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
1. Press the power button on the projector or the Standby button on the remote control.
The projector displays a shutdown confirmation screen.
Note: You can turn off the shutdown confirmation screen in the projector's Display menu.
2. Press the power button on the projector or the Standby button on the remote control again. (To
leave it on, press any other button.)
The laser turns off and the lens shutter closes. The Status light flashes and then turns off.
42
3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.
Caution: To avoid damaging the projector or laser, never unplug the power cord when the Status
light is on or flashing.
Parent topic: Using Basic Projector Features
Related references
Display Settings - Display Menu
Related tasks
Transporting the Projector
Selecting the Language for the Projector Menus
If you want to view the projector's menus and messages in another language, you can change the
Language setting.
1. Turn on the projector.
2. Press the Menu button.
43

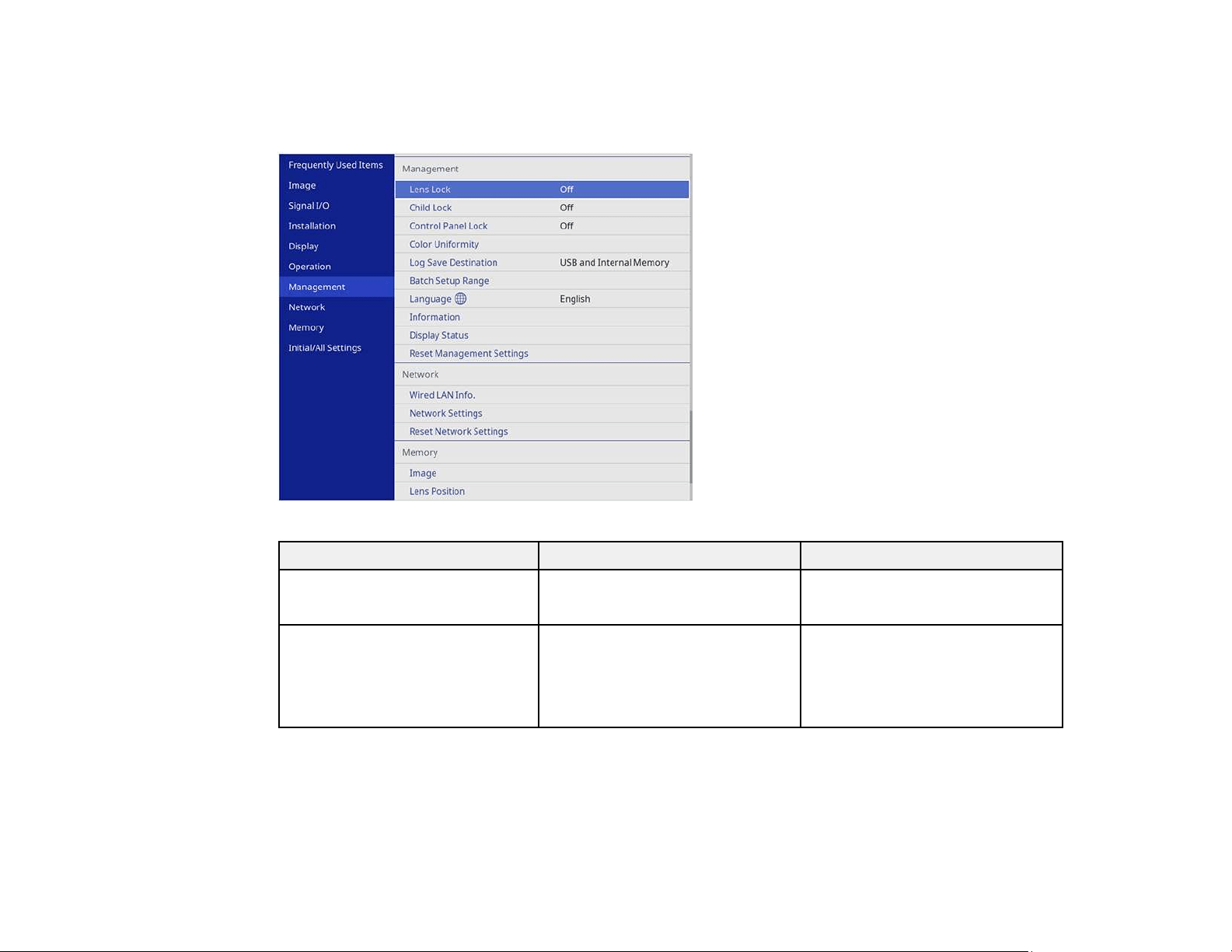

3. Select the Management menu and press Enter.
4. Select the Language setting and press Enter.
5. Select the language you want to use and press Enter.
6. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Adjusting the Image Height
If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust
the image height using the projector's adjustable feet.
1. Turn on the projector and display an image.
44
2. If the image is tilted, rotate the front feet to adjust their height.
3. To adjust the position of the projected image further, press the Lens button on the remote control or
projector until Adjust Lens Shift appears on the screen and follow the on-screen instructions.
If the projected image is unevenly rectangular, you need to adjust the image shape.
Parent topic: Using Basic Projector Features
Related concepts
Image Shape
Adjusting the Image Position Using Lens Shift
If you cannot install the projector directly in front of the screen, you can adjust the position of the
projected image using the lens shift feature.
1. Turn on the projector and display an image.
2. Press the Lens button on the control panel or remote control.
3. Press the Lens button repeatedly until Adjust Lens Shift appears on the screen.
45
4. Press the arrow buttons on the remote control or the control panel to adjust the position of the
projected image as necessary.
1 Maximum horizontal range (H × 47%)
2 Maximum vertical range (V × 96%)
3 1/2 the vertical height of the image
4 1/2 the horizontal width of the image
Note: You cannot move the image to both the horizontal and vertical maximum values.
5. When you are finished, press the Esc button on the control panel or remote control.
Note: When adjusting the image height, position the image lower than where you want it to be and then
move it up. This will help prevent the image from moving down after adjustment. The image is clearest
when the lens is at the home position. To move the lens to the home position, press and hold the Lens
button on the remote control or control panel for at least three seconds.
Parent topic: Using Basic Projector Features
46
Image Shape
You can project an evenly rectangular image by placing the projector directly in front of the center of the
screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off
to the side, you may need to correct the image shape for the best display quality.
For the best quality images, try to adjust the projector's position to achieve the correct image size and
shape before using digital correction methods.
Note: If you are mounting the projector from the ceiling, use the adjustment controls on the mount at the
time of installation.
Correcting Image Shape with H/V-Keystone
Parent topic: Using Basic Projector Features
Correcting Image Shape with H/V-Keystone
You can use the projector's H/V-Keystone setting to correct the shape of an image that is unevenly
rectangular on the sides.
Note: Try adjusting the projector's placement and lens shift before using keystone correction. Digital
image correction reduces the number of pixels in the image.
Note: You can correct images up to 30° left, right, up, or down.
1. Turn on the projector and display an image.
Note: You can also display a pattern to aid in adjusting the projected image using the Pattern button
on the remote control.
47
2. Press the Menu button.
3. Select the Installation menu and press Enter.
4. Select H/V-Keystone and press Enter. Select Yes and press Enter again.
You see the H/V-Keystone adjustment screen:
48
5. Use the arrow buttons on the projector or the remote control to select between vertical and
horizontal keystone correction and to adjust the image shape as necessary.
V-Keystone
H-Keystone
6. When you are finished, press Esc.
After correction, your image is slightly smaller.
Parent topic: Image Shape
Related concepts
Projector Placement
Related tasks
Adjusting the Image Position Using Lens Shift
Resizing the Image with the Zoom Feature
You can adjust the size of the projected image using the zoom feature.
1. Turn on the projector and display an image.
49
2. Press the Lens button on the control panel or remote control.
3. Press the Lens button repeatedly until Adjust Zoom is displayed on the screen.
4. Press and hold the left or right arrow button on the control panel or remote control to resize the
image.
5. Press the Esc button on the control panel or remote control when finished.
Parent topic: Using Basic Projector Features
Focusing the Image with the Lens Button
You can adjust the sharpness of the projected image using the focus feature.
1. Turn on the projector and display an image.
2. Press the Lens button on the control panel or remote control.
3. Press the Lens button repeatedly until Adjust Focus is displayed on the screen.
4. Press and hold the left or right arrow button on the control panel or remote control to focus the
image.
5. Press the Esc button on the control panel or remote control when finished.
Parent topic: Using Basic Projector Features
50
Remote Control Operation
The remote control lets you control the projector from almost anywhere in the room. You can point it at
the screen, or the front or back of the projector.
Make sure that you aim the remote control at the projector's receivers within the distance and angles
listed here.
1 32 feet (10 m)
2 ± 30°
3 60°
Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or
the projector may not respond to commands. If you will not use the remote control for a long time,
remove the batteries.
Parent topic: Using Basic Projector Features
Selecting an Image Source
If you connected multiple image sources to the projector, such as a computer and DVD player, you may
want to switch from one image source to the other.
51
1. Make sure the connected image source you want to use is turned on.
2. For video image sources, insert a DVD or other video media and press its play button, if necessary.
3. Do one of the following:
• Press the Source button on the projector until you see the image from the source you want.
• Press the button for the source you want on the remote control.
Parent topic: Using Basic Projector Features
Projection Modes
Depending on how you positioned the projector, you may need to change the projection mode so your
images project correctly.
• Front (default setting) lets you project from a table in front of the screen.
• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.
52
• Rear flips the image horizontally to project from behind a translucent screen.
• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind
a translucent screen.
Changing the Projection Mode Using the Menus
Parent topic: Using Basic Projector Features
Changing the Projection Mode Using the Menus
You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the
projector menus.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Installation menu and press Enter.
4. Select the Projection setting and press Enter.
5. Select a projection mode and press Enter.
6. Press Menu or Esc to exit the menus.
53
Parent topic: Projection Modes
Related concepts
Projector Placement
Image Aspect Ratio
The projector can display images in different width-to-height ratios called aspect ratios. Normally the
input signal from your video source determines the image's aspect ratio. However, for certain images
you can change the aspect ratio to fit your screen by pressing a button on the remote control.
Changing the Image Aspect Ratio
Available Image Aspect Ratios
Parent topic: Using Basic Projector Features
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image to resize it.
Note: The available aspect ratio setting varies depending on the input signal.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Aspect button on the remote control.
A list of the available aspect ratios appears.
3. Select the aspect ratio you want and press Enter.
4. Press Menu or Esc to exit the menus.
Parent topic: Image Aspect Ratio
54
Available Image Aspect Ratios
You can select the following image aspect ratios, depending on the input signal from your image source.
Note: Selecting an aspect ratio other than the ratio from the input signal may distort the projected image.
Aspect ratio setting Description
Auto Automatically sets the aspect ratio according to the input signal
(this setting is recommended in most cases).
Full Displays images using the full width of the projection area, but does
not maintain the aspect ratio and can distort the image.
Zoom Displays images using the full width of the projection area and
maintains the aspect ratio of the image, but can cut off parts of the
image.
Parent topic: Image Aspect Ratio
Color Mode
The projector offers different Color Modes to provide optimum brightness, contrast, and color for a
variety of viewing environments and image types. You can select a mode designed to match your image
and environment, or experiment with the available modes.
Changing the Color Mode
Available Color Modes
Parent topic: Using Basic Projector Features
Changing the Color Mode
You can change the projector's Color Mode using the remote control to optimize the image for your
viewing environment.
1. Turn on the projector and switch to the image source you want to use.
2. If you are projecting from a DVD player or other video source, insert a disc or other video media and
press the play button, if necessary.
55
3. Press the Color Mode button on the remote control.
A list of available Color Modes appears.
4. Select the color mode you want and press Enter.
5. Press Menu or Esc to exit the menus.
Parent topic: Color Mode
Available Color Modes
You can set the projector to use these Color Modes, depending on the input source you are using:
Color Mode Description
Dynamic Best for prioritizing brightness
Vivid Best for projecting in a bright environment
Bright Cinema Best for projecting movies in a bright environment
Cinema Best for projecting movies in a dark environment
Natural Best for adjusting the image color
Parent topic: Color Mode
Adjusting Image Sharpness
You can adjust the outline of an image by adjusting its sharpness.
1. Turn on the projector and display an image.
2. Press the Menu button.
56
3. Select the Image menu and press Enter.
4. Select the Sharpness setting and press Enter.
5. Choose from the following options:
• Standard: enhances outlines for the entire image, including the Thin Line Enhancement and
Thick Line Enhancement settings.
• Thin Line Enhancement: enhances details such as hair and clothing patterns
• Thick Line Enhancement: enhances backgrounds and larger elements
6. Use the left and right arrow buttons to adjust the sharpness values.
7. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Adjusting the Projector's Brightness Level
You can adjust the brightness of your projector's light source.
1. Turn on the projector and switch to the image source you want to use.
57
2. Press the Light Output button on the remote control.
Note: You can also access this setting from the projector's Image menu.
3. Use the left and right arrow buttons to adjust the brightness.
Note: Press the Default button on the remote control to return to the default setting.
4. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Turning On Dynamic Contrast
You can turn on the Dynamic Contrast setting to automatically optimize the image luminance. This
improves the image contrast based on the brightness of the content you project.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
58
3. Select the Image menu and press Enter.
4. Select the Dynamic Contrast setting, choose one of the following options, and press Enter:
• Normal to adjust brightness at the standard speed.
• High Speed to adjust brightness as soon as the scene changes.
5. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Adjusting the Color Temperature
You can change the overall color tone if the image contains a bluish or reddish tone.
1. Turn on the projector and display an image.
2. Press the Menu button.
59
3. Select the Image menu and press Enter.
4. Select White Balance and press Enter.
5. Select the Color Temp. setting and press Enter.
6. Use the left and right arrow buttons to adjust the color temperature. Higher values increase the blue
tint, and lower values increase the red tint.
Note: Press the Default button on the remote control to return to the default setting.
7. Press Menu or Esc to exit the menus.
60
Parent topic: Using Basic Projector Features
Adjusting the RGB Offset and Gain
You can adjust the brightness of darker and brighter areas of the image by adjusting the Offset and
Gain settings for the individual image colors.
Note: These settings should be set by a professional color calibrator using specialized color calibration
tools in a controlled lighting environment.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Image menu and press Enter.
4. Select White Balance and press Enter.
61
5. Select the Custom setting and press Enter.
6. Do the following as necessary for each color (Red, Green, and Blue):
• To adjust the brightness of dark areas, adjust the Offset setting.
• To adjust the brightness of bright areas, adjust the Gain setting.
Higher values make the image brighter but can decrease shading details, while lower values make
the image darker but can increase the visibility of details.
Note: Press the Default button on the remote control to return to the default setting.
7. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Adjusting Gamma
You can correct differences in projected image colors that occur between different image sources.
Note: These settings should be set by a professional color calibrator using specialized color calibration
tools in a controlled lighting environment.
Note: To optimize the color tone according to the scene and obtain a more vivid image, adjust the Scene
Adaptive Gamma setting in the projector's Image menu.
1. Turn on the projector and switch to the image source you want to use.
62
2. Press the Menu button.
3. Select the Image menu and press Enter.
4. Select Gamma and press Enter.
The projected image freezes.
63
5. Select and adjust the correction value.
When you select a smaller value, you can reduce the overall brightness of the image to make the
image sharper. When you select a larger value, the dark areas of images become brighter, but the
color saturation for lighter areas may become weaker.
6. If you want to make finer adjustments, select Custom and press Enter.
7. Press the left or right arrow button to select the tone you want to change, then press the up or down
arrow button to adjust the tone and press Enter.
Note: Select Reset to reset the Gamma settings.
8. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Related references
Image Quality Settings - Image Menu
64
Adjusting the Hue, Saturation, and Brightness
You can adjust the hue, saturation, and brightness settings for individual image colors.
Note: These settings should be set by a professional color calibrator using specialized color calibration
tools in a controlled lighting environment.
1. Turn on the projector and switch to the image source you want to use.
2. Press the RBGCMY button on the remote control.
Note: You can also access this setting from the projector's Image menu.
3. Select the color to adjust and press Enter.
The selected color fills the screen and the adjustment menu appears.
65
4. Do the following as necessary for each setting:
• To adjust the overall hue of the color (bluish, greenish, reddish), adjust the Hue setting.
• To adjust the overall vividness of the color, adjust the Saturation setting.
• To adjust the overall brightness of the color, adjust the Brightness setting.
5. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Related references
Image Quality Settings - Image Menu
66
Adjusting Projector Features
Follow the instructions in these sections to use your projector's feature adjustments.
Operating Connected Devices Using the HDMI Link Features
Shutting Off the Picture Temporarily
Projector Security Features
Using Advanced Image Adjustment Features
Saving Settings to Memory and Using Saved Settings
Copying Menu Settings Between Projectors
Operating Connected Devices Using the HDMI Link Features
You can use the remote control to control certain features of devices connected to the projector's HDMI
ports.
Note: The connected device and cable must meet the HDMI CEC standard. Up to three devices can be
connected at the same time.
1. Press the HDMI Link button on the remote control.
Note: You can also access this setting from the projector's Signal I/O menu.
2. Select the HDMI Link setting and press Enter.
67
3. Select On and press Enter.
4. Select Device Connections and press Enter.
5. Select the device you want to control and project images from and press Enter.
Note: A linked device is indicated with a blue mark.
6. Select the following HDMI Link options as necessary:
• Power On Link: Select what happens when you turn on the projector or linked device. Select PJ -
> Device or Bidirectional to turn the linked device on when the projector is turned on, or Device -
> PJ or Bidirectional to turn the projector on when the linked device is turned on.
• Power Off Link: Select whether linked devices are turned off when the projector is turned off. This
option only works when the connected device's CEC power link function is enabled.
Note: Some linked devices and their functions may not operate, even if they meet the HDMI CEC
standard. See the device's documentation for more information.
7. Press Menu or Esc to exit the menus.
68
Parent topic: Adjusting Projector Features
Related references
Input Signal Settings - Signal I/O Menu
Shutting Off the Picture Temporarily
You can temporarily turn off the projected picture if you want to redirect your audience's attention during
a presentation. Any video action continues to run, however, so you cannot resume projection at the point
that you stopped it.
1. Press the Blank button on the remote control to temporarily stop projection.
2. To turn the picture back on, press the Blank button again.
Parent topic: Adjusting Projector Features
Projector Security Features
You can secure your projector to deter theft or prevent unintended use by setting up the following
security features:
• Lens lock to prevent changing the zoom, focus, or lens shift settings.
• Button lock security to block operation of the projector using the buttons on the control panel.
• Security cabling to physically cable the projector in place.
Locking the Projector's Lens Settings and Buttons
Installing a Security Cable
Parent topic: Adjusting Projector Features
69
Locking the Projector's Lens Settings and Buttons
You can lock the buttons on the projector's control panel to prevent anyone from using the projector. You
can also lock the zoom, focus, and lens shift settings to prevent them from being adjusted.
Note: You can use the remote control to control the projector when the control panel buttons are locked.
1. Press the Menu button.
2. Select the Management menu and press Enter.
3. Select one of these lock types and press Enter:
• To lock the zoom, focus, and lens shift settings, select Lens Lock.
• To lock the projector's power button, select Child Lock. To turn the projector on, you must press
the power button for longer than three seconds. You must restart the projector to enable this lock
setting.
Note: Child Lock does not prevent the projector from turning on when the power cord is
connected if the Direct Power On setting is enabled in the projector's Operation menu.
70
• To lock all buttons, select Control Panel Lock > Full Lock.
• To lock all buttons except the power button, select Control Panel Lock > Except for Power.
Note: A message is displayed on the screen if any control panel buttons are pressed while this
setting is enabled.
You see a confirmation prompt.
4. Select Yes and press Enter.
Unlocking the Projector's Buttons
Parent topic: Projector Security Features
Unlocking the Projector's Buttons
If the projector's buttons have been locked, hold the Enter button on the projector's control panel for 7
seconds to unlock them. You can also set the Control Panel Lock setting to Off in the Management
menu.
Parent topic: Locking the Projector's Lens Settings and Buttons
Related references
Administration Settings - Management Menu
Installing a Security Cable
You can use the security slot on the back of the projector to attach a Kensington lock. See your local
computer or electronics dealer for purchase information.
Parent topic: Projector Security Features
71
Using Advanced Image Adjustment Features
Follow the instructions in these sections to use your projector's advanced image adjustments.
Note: Not all adjustments may be available depending on the projection mode and input signal.
Using Frame Interpolation
Creating Image Presets
Adjusting the Color Convergence (Panel Alignment)
Adjusting the Color Tone (Color Uniformity)
Parent topic: Adjusting Projector Features
Using Frame Interpolation
You can use the projector's Frame Interpolation feature to smooth fast-moving video by comparing
consecutive image frames and inserting an intermediate image frame between them.
Note: This feature is only available when Image Processing is set to Fine in the projector's Signal I/O
menu and 4K 100/120Hz signals are not being projected.
72
1. Press the Frame Int button on the remote control.
Note: You can also access this setting from the projector's Image menu.
2. Select the level of interpolation and press Enter.
3. Press Menu or Esc to exit the menus.
Note: If your resulting images contain noise, turn off the Frame Interpolation setting.
Parent topic: Using Advanced Image Adjustment Features
Related references
Input Signal Settings - Signal I/O Menu
Image Quality Settings - Image Menu
73
Creating Image Presets
You can quickly optimize your projected image by selecting image adjustment settings and saving them
as a preset you can reuse later. You can save up to five presets.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Image Enh button on the remote control.
Note: You can also access this setting from the projector's Image menu.

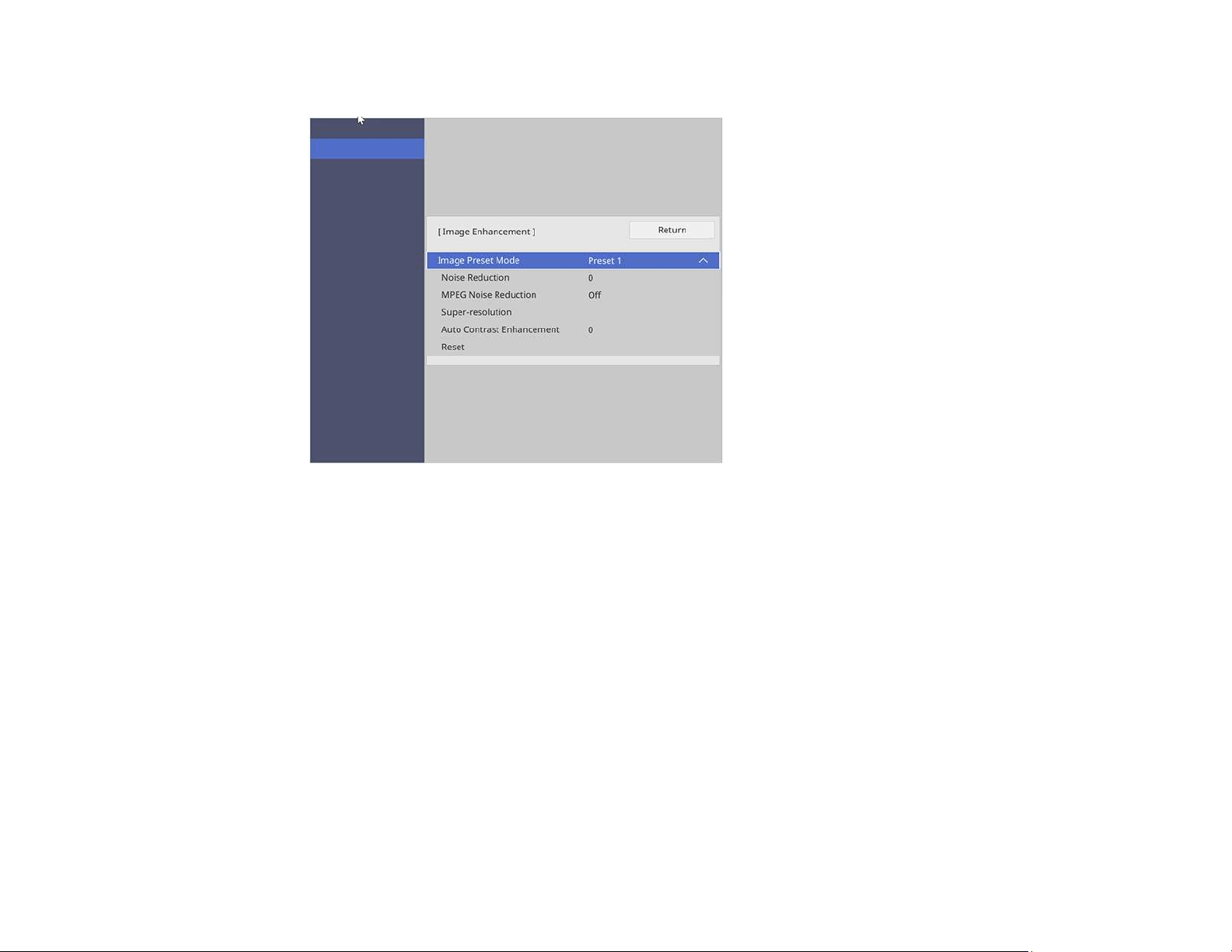

3. Select the preset you want to adjust and press Enter.
74
4. Adjust each setting for the preset as necessary.
• Adjust the Noise Reduction setting to reduce flickering in images.
• Adjust the MPEG Noise Reduction setting to reduce the noise or artifacts seen in MPEG video.
• Adjust the Super-resolution setting to reduce blurring when projecting low-resolution images.
• Adjust the Auto Contrast Enhancement setting to create a clearer and sharper image bu
automatically adjusting the contrast.
The setting values in the preset option are overwritten as you make changes.
5. Press Menu or Esc to exit the menus.
To quickly switch between image presets, press the Image Enh button on the remote control, select an
image preset to use, and press Enter.
Parent topic: Using Advanced Image Adjustment Features
Related references
Image Quality Settings - Image Menu
75
Adjusting the Color Convergence (Panel Alignment)
You can use the Panel Alignment feature to manually adjust the color convergence (the alignment of the
red and blue colors) in the projected image. You can adjust the pixels horizontally and vertically in
increments of eighths within a range of ± 3 pixels. Image quality may decline after performing Panel
Alignment.
Note: You can adjust only the red or blue color convergence. Green is the standard color panel and
cannot be adjusted.
Note: Allow your projector to warm up for at least 10 to 15 minutes and make sure the image is in focus
before you use the Panel Alignment feature. For best results, project an image sized at least 80 inches
(203 cm) diagonally in a dark room and on a projection surface that is not colored or textured.
1. Turn on the projector.
2. Press the Menu button.
3. Select the Display menu and press Enter.
4. Select the Panel Alignment setting and press Enter.
76
5. Select On and press Enter.
6. Select the Select Color setting and choose one of the following:
• R to adjust the red color convergence.
• B to adjust the blue color convergence.
7. Select the Pattern Color setting and press Enter.
8. Select Start Adjustments and press Enter.
9. Select one of the following:
• Select Shift the whole panel to adjust the whole panel at the same time. (This is not
recommended, as usually only certain areas of the panel need to be adjusted.) Go to the next
step.
• Select Adjust the four corners to adjust the corners of the panel one at a time. (This is
recommended in most cases.) Skip to step 14.
10. Press Enter.
77
You see a screen like this:
11. Use the arrow buttons on the remote control to adjust the color alignment of the color you selected
for the Select Color setting.
12. When you are finished adjusting the screen, press Enter.
Note: The Shift the whole panel option affects the grid lines in the entire screen. To fine-tune your
adjustments, continue with the next steps.
13. Select Adjust the four corners and press Enter. (Otherwise, select Exit and press Enter.)
78
14. Use the arrow buttons on the remote control to adjust the color alignment in the corner of the screen
highlighted by the orange box.
You should not see any red or blue lines after correctly making the adjustments.
15. Press Enter to move to the next corner of the screen.
16. When you are finished adjusting each corner of the screen, press Enter.
17. Do one of the following:
• If your projector's panel alignment is now correct, select Exit and press Enter to return to the
Panel Alignment menu.
• If your projector needs additional panel alignment, select Select intersection and adjust and
press Enter. Use the arrow keys on the remote control to highlight the corner of any misaligned
79
box on the screen, press Enter, make any necessary adjustments and press Enter again. Repeat
this step as necessary for the other intersections.
Note: To save the adjusted panel alignment setting after exiting, select Memory > Save Memory in
the Display menu.
Parent topic: Using Advanced Image Adjustment Features
Adjusting the Color Tone (Color Uniformity)
You can use the Color Uniformity feature to manually adjust the color tone balance in the projected
image.
Note: These settings should be set by a professional color calibrator using specialized color calibration
tools in a controlled lighting environment.
Note: The color tone may not be uniform even after adjusting the color uniformity.
1. Press the Menu button.
2. Select the Management menu and press Enter.
80
3. Select the Color Uniformity setting and press Enter.
4. Select the Color Uniformity setting again and press Enter.
5. Select On and press Esc.
6. Select the Adjustment Level setting and press Enter.
7. Press the right and left arrow buttons to adjust the level and press Esc.
81
8. Select the Start Adjustments setting and press Enter.
9. Select the area of the screen that you want to adjust and press Enter.
Note: Adjust the outer areas first, then select All to adjust the entire screen.
10. Select the color you want to adjust. Use the left arrow button to weaken the color tone and the right
arrow button to strengthen the color tone.
11. Press Esc to return to the area selection screen.
12. Repeat these steps for each area you want to adjust and for each adjustment level.
13. Press Menu or Esc to exit the menus.
Parent topic: Using Advanced Image Adjustment Features
82
Saving Settings to Memory and Using Saved Settings
You can save customized settings and select the saved settings whenever you want to use them.
1. Turn on the projector and display an image.
2. Press the Memory button on the remote control.
Note: You can also access these settings from the projector's Memory menu.
83
3. Select one of the following options:
• Image: saves your current Image menu settings for each color mode for the projected image (up
to 10 memories)
• Lens Position: saves your current focus, zoom, and lens shift settings (up to 10 memories); load
the saved settings by pressing the Lens1 or Lens2 button on the remote control
Note: Some slight adjustments may be needed after switching to a different lens position memory.
Note: To clear all saved memories, select Reset Memory Settings.
4. Select one of the following options:
• Save Memory: saves your current settings to memory (10 memories with different names are
available)
Note: A memory name that has already been used is indicated by a blue mark. Saving over a
previously saved memory overwrites the settings with your current settings.
84
• Load Memory: overwrites your current settings with saved settings
• Erase Memory: erases the selected memory settings
• Rename Memory: renames a saved memory
• Reset: resets the name and settings of a saved memory
5. Press Menu or Esc to exit the menus.
Parent topic: Adjusting Projector Features
Related references
Image Quality Memory Settings - Memory Menu
Copying Menu Settings Between Projectors
After you select menu settings for your projector, you can transfer them to another projector of the same
model.
Note: Copy the projector's settings before you adjust the projected image using the projector's image
adjustment settings.
Caution: If the copy process fails due to a power failure, communication error, or for any other reason,
Epson will not be responsible for any repair costs incurred.
The following settings will not transfer between projectors if you set the Batch Setup Range setting to
Limited:
• EDID in the Signal I/O menu
• Network menu settings
Saving Settings to a USB Flash Drive
Transferring Settings from a USB Flash Drive
Saving Settings to a Computer
Transferring Settings from a Computer
Parent topic: Adjusting Projector Features
Saving Settings to a USB Flash Drive
You can save the projector settings you want to transfer to a USB flash drive.
85
Note: Use an empty flash drive. If the drive contains other files, the transfer may not complete correctly.
The flash drive must use the FAT format and cannot have any security features.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Insert the flash drive into the USB-A port.
Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be
saved correctly.
3. Press and hold the Esc button on the control panel or remote control as you connect the power cord
to the projector's power inlet.
4. When all of the projector lights turn on, release the Esc button.
The lights flash to indicate that settings are transferring to the flash drive. When the lights stop
flashing, the power light turns blue and the projector enters standby mode.
Caution: Do not unplug the power cord or remove the flash drive while the lights are flashing. This
could damage the projector.
5. Once the projector enters standby mode, remove the flash drive.
Note: If the projector does not enter standby mode and the lights continue flashing, see the link
below for a solution.
Parent topic: Copying Menu Settings Between Projectors
Related references
Projector Light Status
Transferring Settings from a USB Flash Drive
After saving projector settings to a USB flash drive, you can transfer them to another projector of the
same model.
Note: Make sure the USB flash drive contains only a single settings transfer from another projector of
the same model. The settings are contained in a file called pjconfdata.bin. If the drive contains other
files, the transfer may not complete correctly.
Do not adjust image settings on a projector until after you transfer settings to it. Otherwise, you may have
to repeat your adjustments.
86
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Insert the flash drive into the USB-A port.
Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be
saved correctly.
3. Press and hold the Menu button on the control panel or remote control as you connect the power
cord to the projector's power inlet.
4. When all of the projector lights turn on, release the Menu button.
The lights flash to indicate that settings are transferring to the projector. When the lights stop
flashing, the power light turns blue and the projector enters standby mode.
Caution: Do not unplug the power cord or remove the flash drive while the lights are flashing. This
could damage the projector.
5. Once the projector enters standby mode, remove the flash drive.
Note: If the projector does not enter standby mode and the lights continue flashing, see the link
below for a solution.
Parent topic: Copying Menu Settings Between Projectors
Related references
Projector Light Status
Saving Settings to a Computer
You can save the projector settings you want to transfer to a computer.
Your computer must be running one of the following operating systems:
• Windows 8.x
• Windows 10
• macOS 10.13.x
• macOS 10.14.x
• macOS 10.15.x
• macOS 11.x
87
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Connect a USB cable to your projector's Service port.
3. Connect the other end to any available USB port on your computer.
4. Press and hold the Esc button on the control panel or remote control as you connect the power cord
to the projector's power inlet.
5. When all of the projector lights turn on, release the Esc button.
The projector shows up as a removable disk on your computer.
6. Open the removable disk and copy the pjconfdata.bin file to your computer.
7. Once the file has copied, do one of the following:
• Windows: Open the My Computer, Computer, Windows Explorer, or File Explorer utility.
Right-click the name of your projector (listed as a removable disk) and select Eject.
• Mac: Drag the removable disk icon for your projector from the desktop into the trash.
The projector turns off when you disconnect the USB cable.
Note: If the projector does not turn off and the lights continue flashing, see the link below for a
solution.
Parent topic: Copying Menu Settings Between Projectors
Related references
Projector Light Status
Transferring Settings from a Computer
After saving projector settings to a computer, you can transfer them to another projector of the same
model.
Your computer must be running one of the following operating systems:
• Windows 8.x
• Windows 10
• macOS 10.13.x
• macOS 10.14.x
• macOS 10.15.x
• macOS 11.x
88
Do not adjust image settings on a projector until after you transfer settings to it. Otherwise, you may have
to repeat your adjustments.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Connect a USB cable to your projector's Service port.
3. Connect the other end to any available USB port on your computer.
4. Press and hold the Menu button on the control panel or remote control as you connect the power
cord to the projector's power inlet.
5. When all of the projector lights turn on, release the Menu button.
The projector shows up as a removable disk on your computer.
6. Copy the pjconfdata.bin file from your computer to the removable disk.
Note: Do not copy any other files to the removable disk.
7. Once the file has copied, do one of the following:
• Windows: Open the My Computer, Computer, Windows Explorer, or File Explorer utility.
Right-click the name of your projector (listed as a removable disk) and select Eject.
• Mac: Drag the removable disk icon for your projector from the desktop into the trash.
All the lights start flashing to indicate that the projector's settings are being updated. When the lights
stop flashing, remove the USB cable from the projector. The projector enters standby mode.
Caution: Do not unplug the power cord while the lights are flashing. This could damage the
projector.
Note: If the projector does not turn off and the lights continue flashing, see the link below for a
solution.
Parent topic: Copying Menu Settings Between Projectors
Related references
Projector Light Status
89
Adjusting the Menu Settings
Follow the instructions in these sections to access the projector menu system and change projector
settings.
Using the Projector's Menus
Image Quality Settings - Image Menu
Input Signal Settings - Signal I/O Menu
Installation Settings - Installation Menu
Display Settings - Display Menu
Feature Settings - Operation Menu
Administration Settings - Management Menu
Network Settings - Network Menu
Image Quality Memory Settings - Memory Menu
Initial Settings and Reset Options - Initial/All Settings Menu
Using the Projector's Menus
You can use the projector's menus to adjust the settings that control how your projector works. The
projector displays the menus on the screen.
1. Press the Menu button on the control panel or remote control.
90

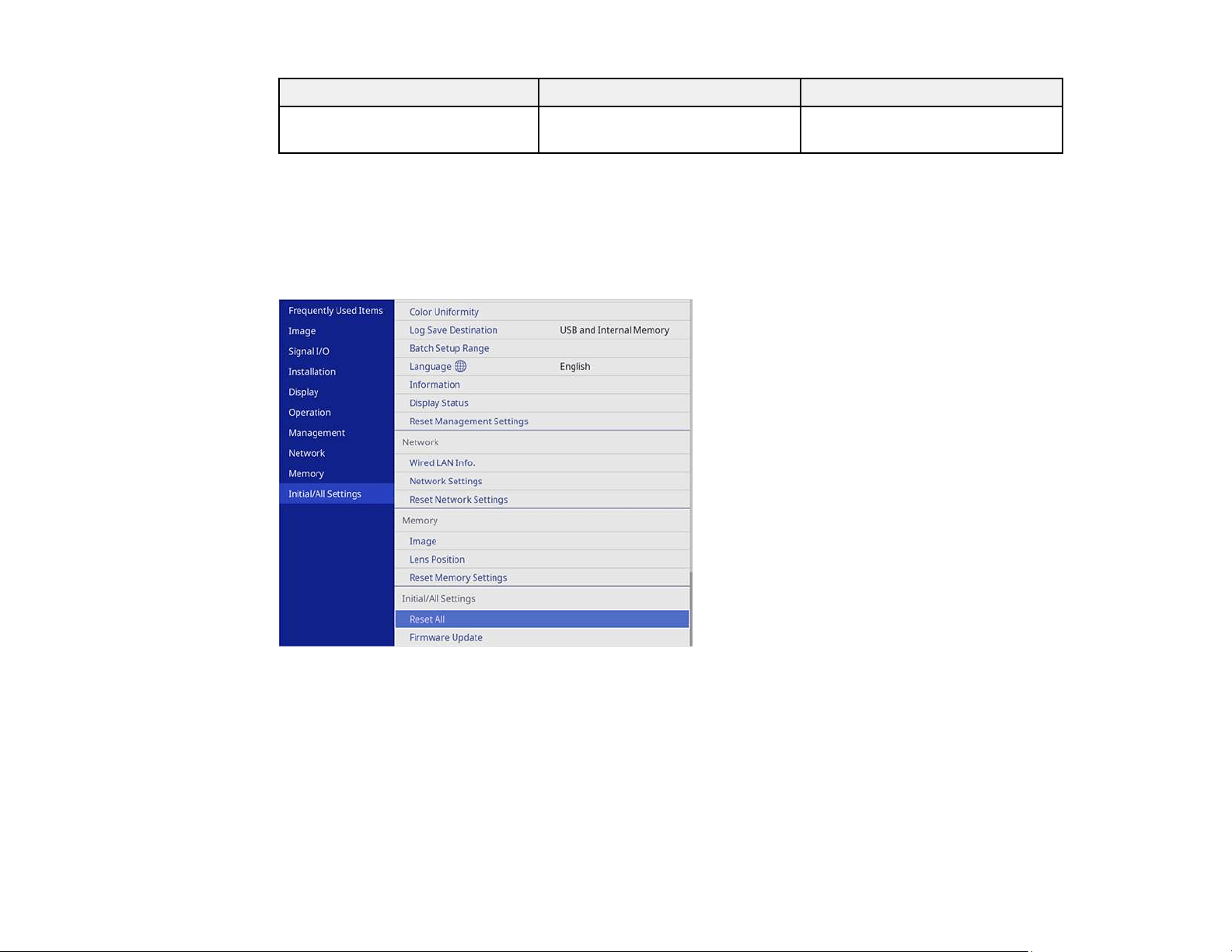

You see the menu screen.
2. Press the up or down arrow button to move through the menus listed on the left. The settings for
each menu are displayed on the right.
Note: The available settings depend on the current input source, resolution, or other menu settings.
3. To change settings in the displayed menu, press Enter.
4. Press the up or down arrow button to move through the settings.
5. To return all the menu settings to their default values, select the Initial/All Settings menu and select
Reset All.
6. When you finish changing settings on a menu, press Esc.
7. Press Menu or Esc to exit the menus.
Note: The icon indicates that a setting contains sub-settings.
Parent topic: Adjusting the Menu Settings
91
Image Quality Settings - Image Menu
Settings on the Image menu let you adjust the quality of your image for the input source you are currently
using. The available settings depend on the currently selected color mode and input source.
Color Mode Settings
Setting Options Description
Color Mode See the list of available Color
Modes
Adjusts the vividness of image
colors for various image types and
environments
Brightness Varying levels available Lightens or darkens the overall
Contrast Varying levels available Adjusts the difference between light
and dark areas of the image
Color Saturation Varying levels available Adjusts the intensity of the image
colors
92
Setting Options Description
Tint Varying levels available Adjusts the balance of green to
magenta tones in the image
Sharpness Varying levels available Adjusts the sharpness or softness of
image details
White Balance Color Temp.
G-M Correction
Custom
Grayscale
Sets the overall color tone of the
Color Temp.: sets the color
temperature according to the
selected color mode; lower values
tint the image red, and higher values
tint the image blue
G-M Correction: makes fine
adjustments to the color tone; higher
values tint the image green and
lower values tint the image red
Custom: adjusts the individual RGB
components of the offset and gain
Grayscale: adjusts the red, green,
blue, and brightness for the selected
adjustment level
Frame Interpolation Off
Low
Normal
High
Adjusts the smoothness of image
movement (only available when
Image Processing is set to Fine in
the Signal I/O menu and 4K
100/120Hz signals are not being
projected)
Light Output 50% (ECO) to 100% (Normal) Sets the brightness for the light
source
Dynamic Contrast Off
Normal
High Speed
Adjusts the projected luminance
based on the image brightness
93
Setting Options Description
Deinterlacing Off
Video
Film/Auto
Sets whether to convert interlaced-
to-progressive signals for certain
video image types (only available
when Image Processing is set to
Fine in the Signal I/O menu)
Off: for fast-moving video images
Video: for most video images
Film/Auto: for movies, computer
graphics, and animation
94
Setting Options Description
Image Enhancement Image Preset Mode Selects preset Image Enhancement
settings
Noise Reduction Reduces flickering in analog images
(only available when Image
Processing is set to Fine in the
Signal I/O menu and 4K 100/120Hz
signals are not being projected)
MPEG Noise Reduction Reduces the noise or static in
MPEG video (only available when
Image Processing is set to Fine in
the Signal I/O menu and 4K
100/120Hz signals are not being
projected)
Super-resolution Sharpens blurred images when
projecting low-resolution images
Fine Line Adjust: enhances the
contrast and outlines of complicated
images
Soft Focus Detail: enhances the
contrast and outlines of smooth
backgrounds
Auto Contrast
Enhancement
Automatically adjusts the contrast of
the projected image to create a
clearer and sharper image
Reset Resets all settings in the Image
Enhancement menu
Scene Adaptive Gamma Varying levels available Adjusts the coloring and obtains a
more vivid image depending on the
scene. Select a larger number to
enhance contrast.
Gamma –2 to 2
Custom
Adjusts the colors by selecting one
of the gamma correction values or
referring to a gamma graph
95
Setting Options Description
RGBCMY Varying levels available Adjusts the hue, saturation, and
brightness for each color
Reset to Defaults — Resets all settings for the Color
Mode currently selected
Note: The Brightness setting does not affect laser brightness. To change the laser brightness mode,
use the Light Output setting.
Input Source Settings
To change settings for an input source, make sure the source is connected and select that source.
Setting Options Description
Source — Displays the current input source
selected
Aspect See the list of available aspect
ratios
Sets the aspect ratio (width-to-
height ratio)
Reset to Defaults — Resets all settings for the currently
selected input source
Note: Select Reset Image Settings to reset all settings on the Image menu to their default values.
Parent topic: Adjusting the Menu Settings
Related references
Input Signal Settings - Signal I/O Menu
Available Image Aspect Ratios
Available Color Modes
96
Input Signal Settings - Signal I/O Menu
Normally the projector detects and optimizes the input signal settings automatically. If you need to
customize the settings, you can use the Signal I/O menu. The available settings depend on the currently
selected input source.
To change settings for an input source, make sure the source is connected and select that source.
Setting Options Description
Source — Displays settings selected for the current
input source
97
Setting Options Description
Signal Format Video Range Sets the video range to match the setting of
an input source connected to the HDMI
ports
Auto: detects the video range automatically
Limited (16–235): for brightness range
16–235
Full (0–255): for brightness range 0–255
Overscan Auto
Off
4%
8%
Changes the projected image ratio to make
the edges visible by a selectable
percentage or automatically when
projecting a component signal
Color Space Auto
BT.709
BT.2020
Sets the conversion system for the color
space (set to Auto for most cases)
Dynamic Range Dynamic Range
Signal Status
HDR10/HDR10+ Setting
HLG Setting
Dynamic Range: changes the range of
dark and bright areas in the image (set to
Auto for most cases)
Signal Status: displays the detected input
signal
HDR10/HDR10+ Setting: adjusts the PQ
curve of the dynamic range (available when
Dynamic Range or Signal Status is set to
HDR10 or HDR10+)
HLG Setting: adjusts the HLG curve of the
dynamic range (available when Dynamic
Range or Signal Status is set to HLG)
98
Setting Options Description
Image Processing Fine
Fast
Improves the response speed for images
projected at high speed
Fine: improves the response speed for
images (Frame Interpolation in the Image
menu must be turned off)
Fast: disables Frame Interpolation, Noise
Reduction, and MPEG Noise Reduction
settings
HDMI IN EQ Level HDMI1
HDMI2
Adjusts the HDMI input signal level if there
is image static or noise, depending on the
device connected to the HDMI port
Auto: this is the recommended setting for
most cases
Low: select if there is noise when using a
short HDMI cable
Medium: select if the other settings do not
reduce the noise
High: select if there is noise when using a
long HDMI cable
Reset to Defaults — Resets all settings for the current input
source
EDID EDID (HDMI1)
EDID (HDMI2)
Describes the display capabilities of your
projector (if images are not displayed
correctly, you may be able to display them
by changing this setting)
EDID Mode: change this setting as
necessary according to the resolution of the
HDR10+: set to Off to correctly display
images when the current input source does
not support HDR10+
99
Setting Options Description
HDMI Link Device Connections
HDMI Link
Power On Link
Power Off Link
Adjusts the HDMI Link options that allow
the projector or remote to control HDMI-
connected devices that support the CEC
standard
Device Connections: lists the devices
connected to the HDMI1 and HDMI2 ports
when HDMI Link is enabled
HDMI Link: enables or disables the HDMI
Link feature
Power On Link: controls what happens
when you turn on the projector or a linked
device
• Bidirectional: automatically turns on the
connected device when you turn on the
projector, and vice versa
• Device -> PJ: automatically turns on the
projector when you turn on the
connected device
• PJ -> Device: automatically turns on the
connected device when you turn on the
projector
Power Off Link: controls whether linked
devices are turned off when the projector is
turned off
Reset Signal I/O Settings Resets all settings on the Signal I/O menu
to their default values
Parent topic: Adjusting the Menu Settings
Related references
Image Quality Settings - Image Menu
100
Installation Settings - Installation Menu
Settings on the Installation menu let you set up your projector for your installation environment. The
available settings depend on the currently selected input source and other settings.
Setting Options Description
Test Pattern Display Position
Color Isolation: R
Color Isolation: G
Color Isolation: B
Displays a test pattern to assist in
focusing and zooming the image
and correcting image shape
The color isolation options let you
display the selected color
component of the projected image.
These settings should be set by a
professional color calibrator using
specialized color calibration tools in
a controlled lighting environment.
101
Setting Options Description
Projection Front
Front/Ceiling
Rear
Rear/Ceiling
Selects the way the projector faces
the screen so the image is oriented
correctly
H/V-Keystone V-Keystone
H-Keystone
Adjusts image shape to rectangular
(horizontally and vertically)
Blanking Top
Bottom
Left
Right
Hides the edges of the screen if
there is noise from the input signal
High Altitude Mode On
Off
Regulates the projector's operating
temperature at altitudes above 4921
feet (1500 m)
Note: The cooling fans inside the
projector run faster and may sound
louder when this setting is enabled;
this is normal.
Reset Installation Settings — Resets all settings on the Installation
menu to their default values
Parent topic: Adjusting the Menu Settings
102
Display Settings - Display Menu
Settings on the Display menu let you customize various projector display features. The available settings
depend on the currently selected input source and other settings.
Setting Options Description
No-signal Screen Black
Blue
Logo
Select the screen color or logo to
display when no input signal is
detected
Startup Screen On
Off
Controls whether a logo is
displayed when the projector
starts up
Messages On
Off
Controls whether projector status
and error messages are
displayed on the projected image
103
Setting Options Description
Menu Color Black
White
Sets the color theme of the
projector menus
Standby Confirmation On
Off
Displays a confirmation screen
before turning off the projector
Panel Alignment On
Off
Corrects color misalignment in
the projected image
Select Color: select the color to
correct (R or B)
Pattern Color: select the pattern
used for correction
Start Adjustments: starts panel
alignment
Memory: saves, loads, renames,
or erases panel alignment
settings
Reset: resets all panel alignment
settings to their defaults
Reset Display Settings — Resets all settings on the Display
menu to their default values
Parent topic: Adjusting the Menu Settings
104
Feature Settings - Operation Menu
Settings on the Operation menu let you customize various projector features that control its operation.
The available settings depend on the currently selected input source and other settings.
Setting Options Description
Direct Power On On
Off
Controls whether the projector
automatically turns on when you
plug it in
Sleep Mode On
Off
Automatically turns off the
projector after an interval of
inactivity
Sleep Mode Timer: sets the time
from 1 to 30 minutes before the
projector automatically turns off
105
Setting Options Description
Standby Mode Communication On
Communication Off
Enable this setting to allow
monitoring and control of the
projector over a network when
the projector is in standby mode
Indicators On
Off
Enables or disables the status
indicator lights on the projector
Trigger Out On
Off
Outputs a DC 12V signal at 200
mA maximum from the Trigger
Out port whenever the projector
is turned on
Inv Direction Button On
Off
Inverts the direction of the arrow
buttons on the control panel to
match the projector's installation
position
Reset Operation Settings — Reset all settings on the
Operation menu to their default
values
Parent topic: Adjusting the Menu Settings
Related references
Image Quality Settings - Image Menu
106
Administration Settings - Management Menu
Settings on the Management menu let you customize various projector administrative features.
Setting Options Description
Lens Lock On
Off
Locks the focus, zoom, and lens
shift settings
Child Lock On
Off
Locks the power button on the
projector's control panel (only
displayed when the Control
Panel Lock setting is set to
Except for Power or Off)
107
Setting Options Description
Control Panel Lock Full Lock
Except for Power
Off
Controls projector button locking
to secure the projector
Full Lock: locks all buttons
Except for Power: locks all
buttons except the power button
Off: no buttons locked
Color Uniformity On
Off
Adjusts the color tone balance
Adjustment Level: sets the
adjustment level
Start Adjustments: adjusts the
red, green, and blue color tones
individually for the selected area
Reset: resets all Color Uniformity
adjustment values to their
defaults
Log Save Destination Internal Memory
USB and Internal Memory
Selects where you want to save
projector error and operation log
files
Batch Setup Range All
Limited
Selects which projector menu
settings to copy using the batch
setup feature; select All to copy
all the settings, or select Limited
to copy all settings except for the
following:
• EDID setting in the Signal I/O
menu
• Network menu settings
Language Various languages available Selects the language for
projector menu and message
displays
108
Setting Options Description
Information Operation Hours
Light Source Hours
Source
Input Signal
Resolution
Refresh Rate
Sync Info
Status
Serial Number
Version
Displays information about the
projector and current input signal;
the displayed items vary
depending on the current input
source
The Version option displays
version numbers for the projector
and other components
Display Status System
Version
Network Wired
Input Signal
Displays status information for
the projector
Reset Management Settings — Resets all settings on the
Management menu to their
default values except for the
Language setting
Parent topic: Adjusting the Menu Settings
109
Network Settings - Network Menu
Settings on the Network menu let you view network information and set up the projector for control over
a network.
Setting Options Description
Wired LAN Info. — Displays wired network status and
details for the following:
• Projector Name
• DHCP
• IP Address
• Subnet Mask
• Gateway Address
• MAC Address
110
Setting Options Description
Network Settings Projector Name
Wired LAN
Projector Control
Configures your network settings
Projector Name: enters a name to
identify the projector over the network
Wired LAN: configures IP settings
Projector Control: selects settings for
controlling the projector over a network
(PJLink, AMX Device Discovery,
Control4 SDDP)
Reset Network Settings — Resets all settings on the Network
menu to their default values
Parent topic: Adjusting the Menu Settings
Related references
Projector Control Settings
111
Image Quality Memory Settings - Memory Menu
Settings on the Memory menu let you save and load image quality settings in the projector's memory.
Setting Options Description
Image Save Memory
Load Memory
Rename Memory
Erase Memory
Reset
Saves, loads, renames, erases,
or resets the current image
settings
Lens Position Save Memory
Load Memory
Rename Memory
Erase Memory
Reset
Saves, loads, renames, erases,
or resets the focus, zoom, and
lens shift adjustments
112
Setting Options Description
Reset Memory Settings — Resets all memory settings to
their defaults
Parent topic: Adjusting the Menu Settings
Initial Settings and Reset Options - Initial/All Settings Menu
Settings on the Intial/All Settings menu let you reset most projector settings to their default values. You
can also update the projector firmware from this menu.
113
When you select the Reset All option, you see this screen:
Checkmarks appear next to the menu settings that are selected to be reset. If you do not want to reset
settings in some menus, deselect them. When you are ready, select Execute and press Enter.
Note: You cannot reset the Language setting using the Reset All option.
Select Firmware Update to enter firmware update mode using the USB-A or Service port.
Note: See the link below for details on updating the projector's firmware.
Parent topic: Adjusting the Menu Settings
Related concepts
Updating the Firmware
114
Maintaining and Transporting the Projector
Follow the instructions in these sections to maintain your projector and transport it from place to place.
Projector Maintenance
Replacing the Remote Control Batteries
Updating the Firmware
Transporting the Projector
Projector Maintenance
Your projector needs little maintenance to keep working at its best.
You may need to clean the lens periodically, and clean the air filter and air vents to prevent the projector
from overheating due to blocked ventilation.
The only parts you should replace are the air filter and remote control batteries. If any other part needs
replacing, contact Epson or an authorized Epson servicer.
This projector uses a sealed laser light source which does not need servicing and cannot be replaced.
Warning: Before cleaning any part of the projector, turn it off, unplug the power cord, and let it cool
down. Never open any cover on the projector, except as specifically explained in this manual.
Dangerous electrical voltages in the projector can injure you severely.
Warning: Do not try to service this product yourself, except as specifically explained in this manual.
Refer all other servicing to Epson qualified servicers.
Cleaning the Lens
Cleaning the Projector Case
Air Filter and Vent Maintenance
Parent topic: Maintaining and Transporting the Projector
Related references
Optional Equipment and Replacement Parts
Cleaning the Lens
Clean the projector's lens periodically, or whenever you notice dust or smudges on the surface. Make
sure you unplug the projector before cleaning the lens.
115
• To remove dust or smudges, gently move the shutter to the side and wipe the lens with lens-cleaning
paper or a soft, dry lens-cleaning cloth. After cleaning, close the shutter.
• To remove stubborn smudges, moisten a soft, lint-free cloth with lens cleaner and gently wipe the
lens. Do not spray any liquid directly on the lens.
Warning: Do not use a lens cleaner that contains flammable gas. The high heat generated by the
projector may cause a fire. Use a vacuum cleaner or a hand-held air blower to remove any dust and
lint on the lens.
Caution: Do not wipe the lens immediately after turning off the light source; otherwise, it could be
damaged. Do not use glass cleaner or any harsh materials to clean the lens and do not subject the
lens to any impacts; you may damage it. Do not use canned air, or the gases may leave a residue.
Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.
Parent topic: Projector Maintenance
Cleaning the Projector Case
Before cleaning the projector case, turn off the projector and unplug the power cord.
• To remove dust or dirt, use a soft, dry, lint-free cloth.
• To remove stubborn dirt, use a soft cloth moistened with water and mild soap. Do not spray liquid
directly on the projector.
Caution: Do not use wax, alcohol, benzine, paint thinner, or other chemicals to clean the projector
case. These can damage the case. Do not use canned air, or the gases may leave a flammable
residue.
Parent topic: Projector Maintenance
Air Filter and Vent Maintenance
Regular filter maintenance is important to maintaining your projector. Your Epson projector is designed
with an easily accessible, user-replaceable filter to protect your projector and make regular maintenance
simple. Filter maintenance intervals will depend on the environment.
If regular maintenance is not performed, your Epson projector will notify you when the temperature
inside the projector has reached a high level. Do not wait until this warning appears to maintain your
projector filter as prolonged exposure to high temperatures may reduce the life of your projector or laser.
116
Damage due to the failure to properly maintain the projector or its filter may not be covered by the
projector's Limited Warranty.
Cleaning the Air Filter
Replacing the Air Filter
Parent topic: Projector Maintenance
Related references
Optional Equipment and Replacement Parts
Cleaning the Air Filter
You need to clean the projector's air filter in the following situations:
• The filter or vents get dusty.
• You see a message telling you to clean it.
Note: It is recommended that you clean the air filter every 5,000 hours. Clean it more often if the
projector is in a dusty environment.
1. Turn off the projector and unplug the power cord.
2. Carefully remove the dust from the air filter cover with a vacuum or brush.
Note: Canned or compressed air is not recommended as it can blow dust into the projector.
117

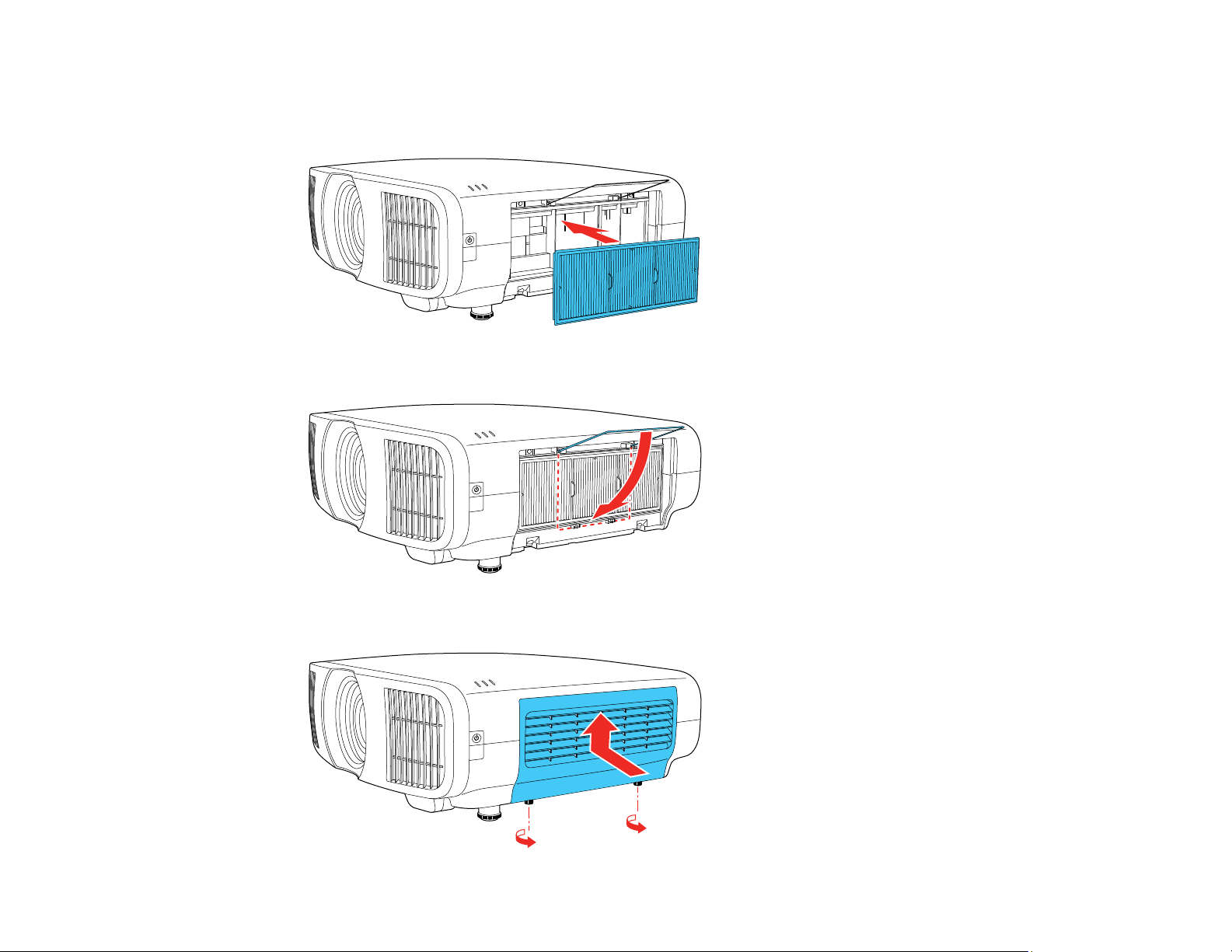

3. Loosen the screws and remove the air filter cover.
4. Raise the stopper.
5. Pull the air filter out of the projector.
118
6. Tap each side of the air filter 4 to 5 times to shake off any excess dust.
Caution: Do not use excessive force when tapping the air filter, or it may crack and become
unusable. Do not rinse the air filter in water, or use any detergent or solvent to clean it. Do not use
canned air; the gases may leave a residue, or push dust and debris into the projector's optics or
other sensitive areas.
7. Vacuum the front of the air filter (the side with the tabs) to remove any remaining dust.
119
Note: If dust is difficult to remove or the air filter is damaged, replace the air filter.
8. Place the air filter back in the projector as shown.
9. Lower the stopper and press until it clicks into place.
10. Replace the air filter cover and tighten the screws as shown.
120
Parent topic: Air Filter and Vent Maintenance
Related tasks
Replacing the Air Filter
Replacing the Air Filter
You need to replace the air filter in the following situations:
• After cleaning the air filter, you see a message telling you to clean or replace it
• The air filter is torn or damaged
You can replace the air filter while the projector is mounted to the ceiling or placed on a table.
1. Turn off the projector and unplug the power cord.
2. Loosen the screws and remove the air filter cover.
3. Raise the stopper.
121
4. Pull the air filter out of the projector.
Note: Air filters contain polypropylene. Dispose of used air filters according to local regulations.
5. Place the new air filter in the projector as shown.
6. Lower the stopper and press until it clicks into place.
122
7. Replace the air filter cover and tighten the screws as shown.
Parent topic: Air Filter and Vent Maintenance
Related references
Optional Equipment and Replacement Parts
Replacing the Remote Control Batteries
The remote control uses two AA manganese or alkaline batteries. Replace the batteries as soon as they
run out.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
1. Remove the battery cover as shown.
123
2. Remove the old batteries.
Warning: If the battery fluid has leaked, wipe it away with a soft cloth and avoid getting the fluid on
your hands. If it gets on your hands, wash them immediately to avoid injury.
3. Insert the batteries with the + and – ends facing as shown.
Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not
inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.
4. Replace the battery cover and press it down until it clicks into place.
124
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Maintaining and Transporting the Projector
Updating the Firmware
You can update the projector's firmware using a USB storage device or a computer and a USB cable.
If a firmware update is available for your product, you can select the Firmware Update option in the
projector's Initial/All Settings menu. The projector enters firmware update mode and is ready to perform
a firmware update. If a firmware update file is not found, the projector enters standby mode.
You can download your firmware update file from your product's support page or use the Epson
Projector Management software to check for firmware updates for your product.
Updating Projector Firmware Using a USB Storage Device
Updating Projector Firmware Using a Computer and USB Cable
Parent topic: Maintaining and Transporting the Projector
Updating Projector Firmware Using a USB Storage Device
You can update the projector's firmware using a USB storage device.
1. Download the projector firmware file from the Epson support website. Make sure it is the correct
firmware file for your model.
2. Copy the downloaded firmware file onto the root (top) folder of the USB storage device.
Note: Do not rename the firmware file. The USB device should be completely empty except for the
firmware file and should be formatted in FAT format.
3. Turn on the projector.
4. Connect the USB storage device to the projector's USB-A port.
5. Press the Menu button, select Initial/All Settings > Firmware Update and press Enter.
6. Select Yes to start the firmware update.
Note: Do not disconnect the power cable or remove the USB storage device while the firmware is
updating.
125
While the firmware is updating, all of the status indicators on the projector start flashing and the cooling
fans run at high speed (this is normal). After the update is complete, the projector enters standby mode.
If the Direct Power On setting is enabled, the projector restarts automatically.
After the update is complete, check the Version setting in the Management > Information menu to
confirm that the firmware was updated successfully.
Parent topic: Updating the Firmware
Updating Projector Firmware Using a Computer and USB Cable
You can update the projector firmware using a computer and a USB cable.
Note: You need a USB Type A to USB Mini-B cable.
Your computer must be running one of the following operating systems when updating firmware:
• Windows 8.1 (32- and 64-bit)
• Windows 10 (32- and 64-bit)
• macOS 10.13.x (64-bit)
• macOS 10.14.x (64-bit)
• macOS 10.15.x (64-bit)
1. Download the projector firmware file from the Epson support website. Make sure it is the correct
firmware file for your model.
2. Turn on the projector.
3. Connect the USB cable to the computer's USB port and to the projector's Service port.
4. Press the Menu button, select Initial/All Settings > Firmware Update and press Enter.
5. Select Yes to start the firmware update.
Note: Do not disconnect the power cable or remove the USB cable while the firmware is updating.
All of the status indicators on the projector start flashing, and the projector enters firmware update
mode. The projector appears as a removable drive on the connected computer.
6. Copy the downloaded firmware file onto the root (top) directory of the projector's removable drive.
Note: Do not rename the firmware file.
126
7. Safely remove the projector's removable drive from the computer, then disconnect the USB cable
from the projector.
The firmware update starts.
While the firmware is updating, the status indicators on the projector start flashing and the cooling fans
run at high speed (this is normal). After the update is complete, the projector enters standby mode. If
Direct Power On is enabled, the projector restarts automatically.
After the update is complete, check the Version setting in the Management > Information menu to
confirm that the firmware was updated successfully.
Parent topic: Updating the Firmware
Transporting the Projector
The projector contains precision parts, some of which are glass. Follow these guidelines to transport,
ship, or store the projector safely:
• Remove any equipment connected to the projector.
• Center the lens position using the Lens button.
Caution: If you transport the projector when the lens is not centered, the lens shift mechanism may be
damaged.
• Make sure the lens shutter is closed.
• When transporting the projector a long distance or as checked luggage, pack it in a firm box with
cushioning around it and mark the box "Fragile."
• When shipping the projector for repairs, place it in its original packing materials, if possible, or use
equivalent materials with cushioning around the projector. Mark the box "Fragile."
Note: Epson shall not be liable for any damages incurred during transportation.
Parent topic: Maintaining and Transporting the Projector
Related tasks
Turning Off the Projector
127
Solving Problems
Check the solutions in these sections if you have any problems using the projector.
Projection Problem Tips
Projector Light Status
Solving Image or Sound Problems
Solving Projector or Remote Control Operation Problems
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Projection Problem Tips
If the projector is not working properly, try turning it off and unplugging it. Then plug it back in and turn it
on.
If this does not solve the problem, check the following:
• The lights on the projector may indicate what the problem is.
• The solutions in this manual can help you solve many problems.
If none of these solutions help, you can contact Epson for technical support.
Parent topic: Solving Problems
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
128
Projector Light Status

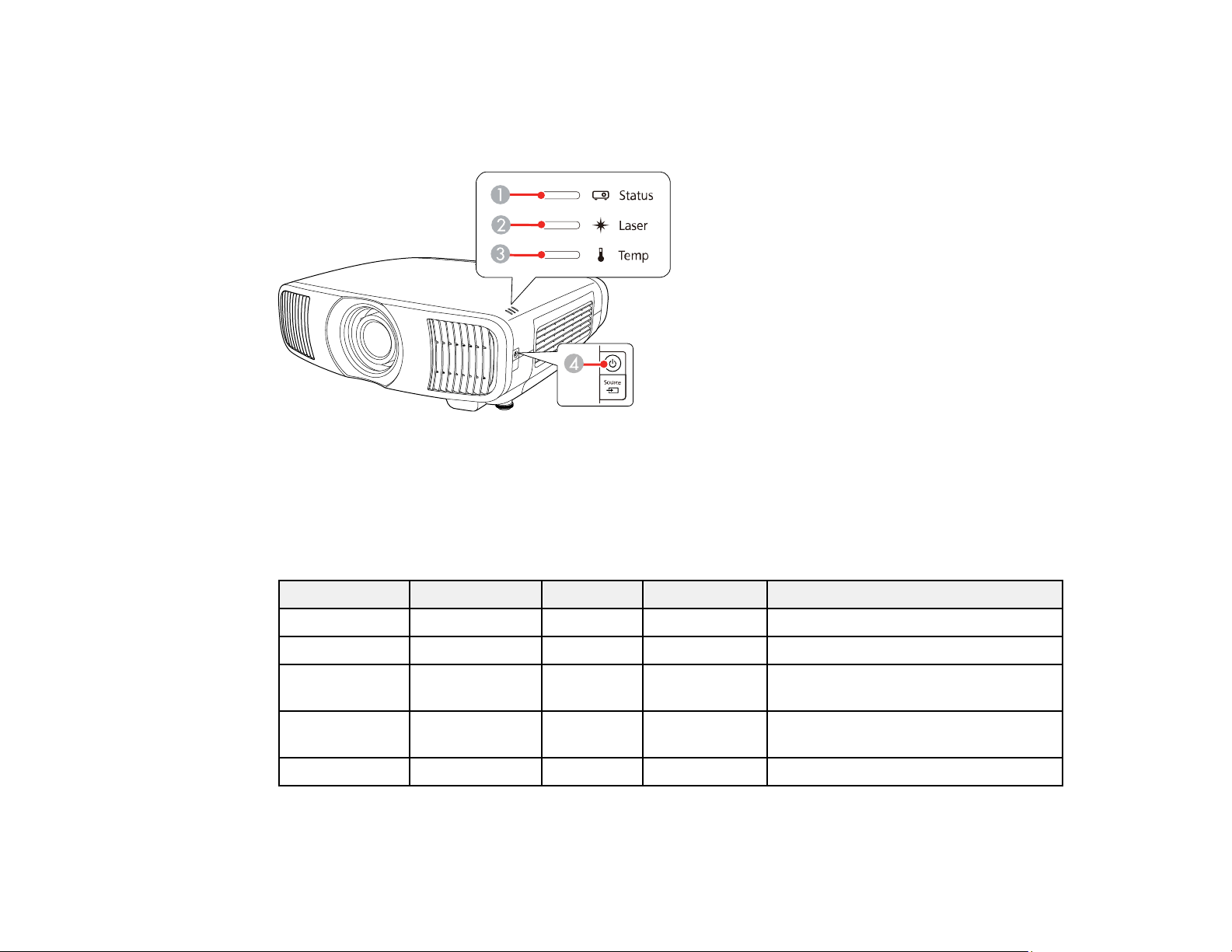

The lights on the projector indicate the projector status and let you know when a problem occurs. Check
the status and color of the lights and look for a solution in the table here.
1 Status light
2 Laser light
3 Temp (temperature) light
4 Power light
Power light Status light Laser light Temp light Status and solution
Off Off Off Off Standby or sleep mode
Blue Blue Off Off Normal operation
Blue Flashing blue Off Off Warming up; wait for an image to
appear (all buttons are disabled)
Flashing blue Off Off Off Preparing for monitoring (all features
are disabled)
Blue Off Off Off Monitoring
129
Power light Status light Laser light Temp light Status and solution
Flashing blue Varies Varies Flashing
orange
Projector is too hot
• Make sure that the vents and air
filter are not clogged with dust or
obstructed by nearby objects
• Clean or replace the air filter
• Make sure the environmental
temperature is not too hot
• If operating the projector at high
altitude, turn on High Altitude
Mode
Off Flashing blue Off Orange Projector has overheated and turned
off; leave it turned off to cool down for
about five minutes. After the fan has
stopped, do the following:
• Make sure that the vents and air
filter are not clogged with dust or
obstructed by nearby objects
• Clean or replace the air filter
• If operating the projector at high
altitude, turn on High Altitude
Mode
• If the problem persists, unplug the
projector and contact Epson for
help
Off Flashing blue Off Flashing
orange
A fan or sensor has a problem; turn
the projector off, unplug it, and
contact Epson for help
Flashing blue Varies Flashing
orange
Varies Laser warning; turn the projector off,
unplug it, and contact Epson for help
Off Flashing blue Orange Off Laser problem; turn the projector off,
unplug it, and contact Epson for help
130
Power light Status light Laser light Temp light Status and solution
Off Flashing blue Flashing
orange
Off Internal projector error; turn the
projector off, unplug it, and contact
Epson for help
Off Off Flashing
orange
Flashing
orange
When copying menu settings, the
batch setup file may be corrupt or the
USB flash drive may not be correctly
connected. Make sure the USB flash
drive is not locked or encrypted.
Disconnect the USB flash drive,
unplug the power cord, and try again.
Flashing blue Flashing blue Flashing
orange
Flashing
orange
Copying settings may have failed and
an error may have occurred in the
projector's firmware. Turn the
projector off, unplug it, and contact
Epson for help.
Note: If the lights display a pattern not listed in the table above, turn the projector off, unplug it, and
contact Epson for help.
Parent topic: Solving Problems
Related references
Installation Settings - Installation Menu
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Related tasks
Cleaning the Air Filter
Replacing the Air Filter
Solving Image or Sound Problems
Check the solutions in these sections if you have any problems with projected images or sound.
Solutions When No Image Appears
Solutions When "No Signal" Message Appears
Solutions When Only a Partial Image Appears
131
Solutions When the Image is Not Rectangular
Solutions When the Image Contains Noise or Static
Solutions When the Image is Fuzzy or Blurry
Solutions When the Image Brightness or Colors are Incorrect
Solutions to Image and Sound Syncing Problems
Solutions to Sound Problems
Parent topic: Solving Problems
Solutions When No Image Appears
If no image appears, try the following solutions:
• Press the Blank button on the remote control to see if the image was temporarily turned off.
• Make sure all necessary cables are securely connected and the power is on for the projector and
connected video sources.
• Try using a shorter HDMI cable.
• Try connecting the video source directly to the projector.
• Press the projector's power button to wake it from standby or sleep mode. Also see if your connected
computer is in sleep mode or displaying a blank screen saver.
• If you are projecting from a streaming device, make sure it is powered by the USB power cable inside
the projector. Turn on the connected streaming device or video source, and press the play button to
start a video, if necessary.
• Make sure the connected device meets the HDMI CEC standard. See the documentation supplied
with the device for more information. If necessary, set the CEC function for the connected device
again and restart the device. Turn off the projector and the connected streaming device or video
source, and then turn them back on.
• Turn off the projector and the connected streaming device or video source, and then turn them back
on.
• Check the settings on the Signal I/O menu to make sure they are correct for the current video source.
• If you are projecting from a laptop computer, make sure it is set up to display on an external monitor.
• Make sure the computer's display resolution does not exceed the projector's resolution and frequency
limits. If necessary, select a different display resolution for your computer. (See your computer manual
for details.)
• Make sure you selected the correct Signal Format or EDID setting in the projector's Signal I/O menu,
if available for your image source.
132
• If the other solutions do not solve the problem, reset all of the projector settings using the options on
the Initial/All Settings menu.
Parent topic: Solving Image or Sound Problems
Related references
Input Signal Settings - Signal I/O Menu
Solutions When "No Signal" Message Appears
If the "No Signal" message appears, try the following solutions:
• Press a source button on the remote to select an available source. Wait a few seconds for an image to
appear.
• Turn on the connected computer or video source, and press its play button to begin your presentation,
if necessary.
• Check the connection from the projector to your video sources.
• If you are projecting from a laptop computer, make sure it is set up to display on an external monitor.
• If necessary, turn the projector and the connected computer or video source off and then on again.
• Try a different video cable.
• If you connected a streaming device, try a different power cable or use external power.
• If the other solutions do not solve the problem, reset all of the projector settings using the options on
the Initial/All Settings menu.
Displaying From a PC Laptop
Displaying From a Mac Laptop
Parent topic: Solving Image or Sound Problems
Displaying From a PC Laptop
If you see the "No Signal" message when you display from a PC laptop, you need to set up the laptop to
display on an external monitor.
1. Hold down the laptop's Fn key and press the key labeled with a monitor icon or CRT/LCD. (See your
laptop manual for details.) Wait a few seconds for an image to appear. To display on both the
laptop's monitor and the projector, try pressing the same keys again.
Note: On Windows 7 or later, hold down the Windows key and press P at the same time, then click
Duplicate.
133
2. If the same image is not displayed by the laptop and projector, check the Windows Display utility to
make sure the external monitor port is enabled and extended desktop mode is disabled. (See your
computer or Windows manual for instructions.)
3. If necessary, check your video card settings and set the multiple display option to Clone, Mirror, or
Duplicate.
Parent topic: Solutions When "No Signal" Message Appears
Displaying From a Mac Laptop
If you see the "No Signal" message when you display from a Mac laptop, you need to set up the laptop
for mirrored display. (See your laptop manual for details.)
1. Open the System Preferences utility and select Displays, Display, or Color LCD.
2. Click the Arrange or Arrangement tab.
3. Select the Mirror Displays checkbox.
Parent topic: Solutions When "No Signal" Message Appears
Solutions When Only a Partial Image Appears
If only a partial computer image appears, try the following solutions:
• Try adjusting the image position using the Lens button on the remote control or control panel.
• Press the Aspect button on the remote control to select a different image aspect ratio.
• Check the Blanking setting in the Installation menu.
• Check your computer display settings to disable dual display and set the resolution within the
projector's limits. (See your computer manual for details.)
• Check the resolution assigned to your presentation files to see if they are created for a different
resolution than you are projecting in. (See your software help for details.)
• Make sure the lens shutter is fully open.
• Make sure you selected the correct Projection setting in the Installation menu.
Parent topic: Solving Image or Sound Problems
Related references
Installation Settings - Installation Menu
Available Image Aspect Ratios
134
Solutions When the Image is Not Rectangular
If the projected image is not evenly rectangular, try the following solutions:
• Place the projector directly in front of the center of the screen, facing it squarely, if possible.
• If you are mounting the projector from the ceiling, use the adjustment controls on the mount at the time
of installation.
• Try to fix the image using lens shift before adjusting the H/V-Keystone setting.
• Adjust the image shape using the H/V-Keystone menu setting.
Parent topic: Solving Image or Sound Problems
Related concepts
Projector Placement
Related tasks
Correcting Image Shape with H/V-Keystone
Solutions When the Image Contains Noise or Static
If the projected image seems to contain electronic interference (noise) or static, try the following
solutions:
• Check the cables connecting your computer or video source to the projector. They should be:
• Separated from the power cord to prevent interference
• Securely connected at both ends
• Not connected to an extension cable
• Make sure you selected the correct Signal Format or EDID settings in the projector's Signal I/O
menu, if available for your image source.
• Adjust the Noise Reduction, MPEG Noise Reduction, and Deinterlacing settings in the projector's
Image menu.
• Adjust the Blanking setting in the Installation menu to hide noise or static on the edges of the
projected image.
• Adjust the HDMI IN EQ Level setting in the projector's Signal I/O menu. Change the setting to Low if
you are using a short HDMI cable, or change the setting to High if you are using a longer HDMI cable.
• Select a computer video resolution and refresh rate that are compatible with the projector.
• If you adjusted the image shape using the projector controls, try decreasing the Sharpness setting to
improve image quality.
135
• If you connected an extension power cable, try projecting without it to see if it caused interference in
the signal.
• If you connected an A/V system that does not support eARC/ARC to the HDMI2 (eARC/ARC) port, the
image may be distorted.
Parent topic: Solving Image or Sound Problems
Related references
Input Signal Settings - Signal I/O Menu
Image Quality Settings - Image Menu
Installation Settings - Installation Menu
Related tasks
Adjusting Image Sharpness
Solutions When the Image is Fuzzy or Blurry
If the projected image is fuzzy or blurry, try the following solutions:
• Adjust the image focus.
• Clean the projector lens.
• Check the lens for condensation.
Note: To avoid condensation on the lens after bringing the projector in from a cold environment, let the
projector warm up to room temperature before using it.
• Position the projector close enough to the screen, and directly in front of it.
• Adjust the Sharpness setting to improve image quality.
• If you are projecting from a computer, adjust the computer's resolution to match the projector's native
resolution, if possible.
Parent topic: Solving Image or Sound Problems
Related concepts
Projector Placement
Related references
Image Quality Settings - Image Menu
Related tasks
Focusing the Image with the Lens Button
136
Cleaning the Lens
Adjusting Image Sharpness
Solutions When the Image Brightness or Colors are Incorrect
If the projected image is too dark or light, or the colors are incorrect, try the following solutions:
• Press the Color Mode button on the remote control to try different color modes for the image and
environment.
• Check your video source settings.
• Adjust the available settings on the Image menu for the current input source, such as Brightness,
Contrast, Tint, Color Saturation, and RGBCMY. RGBCMY should be set by a professional color
calibrator using specialized color calibration tools in a controlled lighting environment.
• Make sure you selected the correct Signal Format or EDID setting in the Signal I/O menu, if available
for your video source.
• For HDR images, set the Dynamic Range setting to Auto.
• Make sure all the cables are securely connected to the projector and your video device. If you
connected long cables, try connecting shorter cables.
• Position the projector close enough to the screen.
Parent topic: Solving Image or Sound Problems
Related concepts
Projector Placement
Related references
Image Quality Settings - Image Menu
Input Signal Settings - Signal I/O Menu
Available Color Modes
Related tasks
Adjusting the Projector's Brightness Level
Adjusting the Hue, Saturation, and Brightness
Adjusting the Color Temperature
Solutions to Image and Sound Syncing Problems
If the projected image and the output sound are not in sync, try the following solutions:
• Change the Image Processing setting to Fast in the projector's Signal I/O menu.
137
• If the Image Processing setting is set to Fine in the projector's Signal I/O menu, turn the Frame
Interpolation setting off in the Image menu.
• Adjust the sound output settings of the video devices connected to the projector. For details, see the
documentation supplied with your video device.
Parent topic: Solving Image or Sound Problems
Related references
Image Quality Settings - Image Menu
Input Signal Settings - Signal I/O Menu
Solutions to Sound Problems
If there is no sound when you expect it or the volume is too low or high, try the following solutions:
• Check your computer or video source to make sure the volume is turned up and the audio output is set
for the correct source.
• Check the cable connection between the projector and your video source.
• If you are using an eARC/ARC-compatible A/V system, try the following solutions:
• Make sure your A/V system is connected to the projector's eARC/ARC compatible HDMI port.
• Make sure the cable meets the HDMI CEC standard.
• Make sure the connected A/V system meets the HDMI CEC standard. See the documentation
supplied with the device for more information.
Parent topic: Solving Image or Sound Problems
Solving Projector or Remote Control Operation Problems
Check the solutions in these sections if you have problems operating the projector or remote control.
Solutions to Projector Power or Shut-Off Problems
Solutions to Remote Control Problems
Solutions to HDMI Link Problems
Parent topic: Solving Problems
Solutions to Projector Power or Shut-Off Problems
If the projector does not come on when you press the power button or it shuts off unexpectedly, try the
following solutions:
• Make sure the power cord is securely connected to the projector and to a working electrical outlet.
138
• The projector's buttons may be locked for security. Unlock the buttons or use the remote control to
turn on the projector.
• If the projector's light source shuts off unexpectedly, it may have entered standby mode after a period
of inactivity. Press the power button to wake the projector and adjust the Sleep Mode Timer setting to
change the sleep interval.
• Turn off the HDMI Link setting. If this resolves the issue, check the settings on connected devices and
make sure the projector is not receiving shut down requests over CEC.
• If the projector's light source shuts off, the Status light is flashing blue, and the Temp light is orange,
the projector has overheated and shut off. Check the solutions for this light status.
• If the power button on the remote control does not turn on the projector, check its batteries.
• The power cord may be defective. Try another power cord. If that doesn't work, disconnect the cord
and contact Epson.
Parent topic: Solving Projector or Remote Control Operation Problems
Related references
Feature Settings - Operation Menu
Input Signal Settings - Signal I/O Menu
Projector Light Status
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Related tasks
Unlocking the Projector's Buttons
Replacing the Remote Control Batteries
Solutions to Remote Control Problems
If the projector does not respond to remote control commands, try the following solutions:
• Check that the remote control batteries are installed correctly and have power. If necessary, replace
the batteries.
• Make sure you are operating the remote control within the reception angle and range of the projector.
• Make sure the projector is not warming up or shutting down.
• Check to see if a button on the remote control is stuck down, causing it to enter sleep mode. Release
the button to wake the remote control up.
139
• Strong fluorescent lighting, direct sunlight, or infrared device signals may be interfering with the
projector's remote receivers. Dim the lights or move the projector away from the sun or interfering
equipment.
• If you lose the remote control, you can purchase another from an Epson parts distributor.
Parent topic: Solving Projector or Remote Control Operation Problems
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Remote Control Operation
Related tasks
Replacing the Remote Control Batteries
Solutions to HDMI Link Problems
If you cannot control an HDMI device using the HDMI Link feature, try the following solutions:
• Make sure all necessary cables are securely connected and the power is on for the projector and
connected video sources.
• Make sure the cables meet the HDMI CEC standard.
• Make sure the connected device meets the HDMI CEC standard. See the documentation supplied
with the device for more information.
• Make sure the HDMI Link setting is set to On.
• Check if the device is available in the Device Connections list in the Signal I/O menu. If the device
does not appear, it does not meet the HDMI CEC standards. Connect a different device.
• Make sure the connected devices are turned on and in standby status. See the documentation
supplied with the device for more information.
• If you connected a new device or changed any connections, make sure the CEC function is set for the
connected device. You may need to restart the device.
• Connect no more than three devices that support HDMI CEC at the same time.
Parent topic: Solving Projector or Remote Control Operation Problems
Related references
Input Signal Settings - Signal I/O Menu
140
Where to Get Help (U.S. and Canada)
If you need to contact Epson for technical support services, use the following support options.
Internet Support
Visit Epson's support website at epson.com/support (U.S.) or epson.ca/support (Canada) and select
your product for solutions to common problems with your projector. You can download utilities and
documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions.
Speak to a Support Representative
To use the Epson PrivateLine Support service, call (800) 637-7661. This service is available for the
duration of your warranty period. You may also speak with a projector support specialist by dialing (562)
276-4394 (U.S.) or (905) 709-3839 (Canada).
Support hours are Monday through Friday, 7 AM to 4 PM, Pacific Time.
Days and hours of support are subject to change without notice. Toll or long distance charges may
apply.
Before you call, have the following information ready:
• Product name
• Product serial number (located on the bottom or rear of the projector, or in the menu system)
• Proof of purchase (such as a store receipt) and date of purchase
• Computer or video configuration
• Description of the problem
Purchase Supplies and Accessories
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in
Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).
You can purchase a replacement remote control from an Epson parts distributor here (U.S. sales) or
here (Canadian sales).
Parent topic: Solving Problems
Where to Get Help (Latin America)
If you need to contact Epson for technical support services, use the following support options.
141
Internet Support
Visit Epson's support website at latin.epson.com/support and select your product for solutions to
common problems with your projector. You can download utilities and documentation, get FAQs and
troubleshooting advice, or e-mail Epson with your questions.
Speak to a Support Representative
Before you call for support, please have the following information ready:
• Product name
• Product serial number (located on the bottom or rear of the projector, or in menu system)
• Proof of purchase (such as a store receipt) and date of purchase
• Computer or video configuration
• Description of the problem
Then call:
Country Telephone
Argentina (54 11) 5167-0300
0800-288-37766
Bolivia* 800-100-116
Brazil 0800-007-5000
Chile (56 2) 2484-3400
Colombia Bogota: (57 1) 592-2200
Other cities: 018000-915235
Costa Rica 800-377-6627
Dominican Republic* 1-888-760-0068
Ecuador* 1-800-000-044
El Salvador* 800-6570
Guatemala* 1-800-835-0358
Mexico Mexico City: (52 55) 1323-2052
Other cities: 01-800-087-1080
142
Country Telephone
Nicaragua* 00-1-800-226-0368
Panama* 00-800-052-1376
Paraguay 009-800-521-0019
Peru Lima: (51 1) 418-0210
Other cities: 0800-10126
Uruguay 00040-5210067
Venezuela (58 212) 240-1111
*Contact your local phone company to call this toll-free number from a mobile phone.
Note: Toll or long distance charges may apply. If your country does not appear on the list, contact the
sales office in the nearest country.
Purchase Supplies and Accessories
You can purchase optional accessories and replacement parts from an Epson authorized reseller. To
find the nearest reseller, go to latin.epson.com. Or you can contact your nearest sales office as
described in "Where to Get Help."
Parent topic: Solving Problems
143
Technical Specifications
These sections list the technical specifications of your projector.
General Projector Specifications
Projector Light Source Specifications
Remote Control Specifications
Projector Dimension Specifications
Projector Electrical Specifications
Projector Environmental Specifications
Projector Safety and Approvals Specifications
Supported Video Display Formats
General Projector Specifications
Type of display Poly-silicon TFT active matrix
Resolution 1920 × 1080 (×3) pixels (Full HD)
Lens F=2.0 to 3.0
Focal length: 22.5 to 46.7 mm
Color reproduction Full color, up to 1 billion colors
Brightness Normal Light Output:
White light output 2500 lumens (ISO 21118 standard)
Color light output 2500 lumens
ECO Light Output:
White light output 1000 lumens (ISO 21118 standard)
Color light output 1000 lumens
Note: Color brightness (color light output) and white brightness
(white light output) will vary depending on usage conditions. Color
light output measured in accordance with IDMS 15.4; white light
output measured in accordance with ISO 21118.
144
Contrast ratio 2500000:1 with Dynamic Contrast on, Normal Light Output, Dynamic
Color Mode, Wide Zoom mode, and Lens Shift Vertical: –50% or
50% and Horizontal: Centered
Image size
(in native aspect ratio)
50 inches (1.27 m) to 300 inches (7.62 m)
Projection distance
(in native aspect ratio)
58 inches (1.47 m) to 748 inches (19 m)
Projection methods Front, rear, ceiling-mounted
Optical aspect ratio
(width-to-height)
16:9
Focus adjustment Powered
Zoom adjustment Optical, powered
Zoom ratio
(Tele-to-Wide)
1 to 2.1
Noise level 30 dB (Normal Light Output)
22 dB (ECO Light Output)
Keystone correction angle ± 30º vertical/horizontal
Service port compatibility USB 1.1 and 2.0 compliant for service and firmware update (USB
Mini-B cable)
USB-A port compatibility USB 1.1 and 2.0 compliant for connecting a streaming device,
saving error log files, batch settings, and firmware update with 5V/2A
power supply
Opt.HDMI port compatibility USB 1.1 and 2.0 compliant for an optical HDMI cable with 5V/300mA
power supply only (no USB function)
Trigger Out port 12V (200mA maximum)
Mono cable: tip and sleeve (monaural 2-pin), signal tip trigger + 12V
DC, sleeve GND
Stereo (TRS) cable: signal tip trigger + 12V DC, ring not connected,
sleeve GND
Parent topic: Technical Specifications
145
Projector Light Source Specifications
Type Laser diode
Light source output power Up to 72 W
Wavelength 449 to 461 nm
Light source life Up to about 20,000 hours
Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
Parent topic: Technical Specifications
Remote Control Specifications
Reception range 32 feet (10 m)
Batteries Two (2) alkaline or manganese AA
Parent topic: Technical Specifications
Projector Dimension Specifications
Height (excluding feet) 6.7 inches (169 mm)
Width 20.5 inches (520 mm)
Depth 17.6 inches (447 mm)
Weight Approximately 28 lb (12.7 kg)
146
For mounting
1 Center of lens
2 Distance from center of lens to suspension bracket fixing point: 3.8 inches (96.1 mm)
3 0.7 inches (17.1 mm)
4 7.6 inches (192.7 mm)
5 6.7 inches (169 mm)
6 10.2 inches (260 mm)
147
7 20.5 inches (520 mm)
1 Center of lens
2 11.8 inches (300 mm)
3 17.1 inches (434 mm)
4 1.7 inches (43 mm)
5 6.3 inches (160.6 mm)
6 4.4 inches (111 mm)
7 6.3 inches (160 mm)
8 10.1 inches (257.2 mm)
9 4.3 inches (110 mm)
10 8.5 inches (217 mm)
11 17.6 inches (447 mm)
148
Parent topic: Technical Specifications
Projector Electrical Specifications
Rated frequency 50/60 Hz
Power supply 100 to 240 VAC ±10%
3.2 to 1.5 A
Power consumption
(100 to 120 V)
Operating:
Normal Light Output: 311 W
ECO Light Output: 204 W
Standby:
0.4 W (Communication Off), 2 W (Communication On)
Power consumption
(220 to 240 V)
Operating:
Normal Light Output: 302 W
ECO Light Output: 198 W
Standby:
0.4 W (Communication Off), 2 W (Communication On)
Parent topic: Technical Specifications
Projector Environmental Specifications
Temperature Operating: 41 to 95 °F (5 to 35 °C) up to 7500 ft (2286 m)
Operating: 41 to 86 °F (5 to 30 °C) above 7500 ft (2286 m)
Storage: 14 to 140 °F (–10 to 60 °C)
Humidity (relative, non-
condensing)
Operating: 20 to 80%
Storage: 10 to 90%
Operating altitude Up to 4921 feet (1500 m)
Up to 10000 feet (3048 m) with High Altitude Mode enabled
Parent topic: Technical Specifications
149
Projector Safety and Approvals Specifications
United States FCC Part 15 Class B (DoC)
UL60950-1 2nd edition (cTUVus Mark) / UL62368-1 2nd edition
(cTUVus Mark)
Canada ICES-003 Class B
CSA C22.2 No. 60950-1-07 (cTUVus Mark) / CSA C22.2 No. 62368-
1-14 (cTUVus Mark)
Parent topic: Technical Specifications
Supported Video Display Formats
For best results, your computer's monitor port or video card resolution should be set to display in the
projector's native resolution. However, your projector includes Epson's SizeWise chip that supports other
computer display resolutions, so your image will be resized to fit automatically.
Your computer's monitor port or video card refresh rate (vertical frequency) must be compatible with the
projector. (See your computer or video card manual for details.)
The table here lists the compatible refresh rate and resolution for each compatible video display format.
HDMI input signals
Display format Refresh rate (in Hz) Resolution (in pixels)
VGA 60 640 × 480
SDTV (480i/480p) 60 720 × 480
SDTV (576i/576p) 50 720 × 576
HDTV (720p) 50/60 1280 × 720
HDTV (1080i) 50/60 1920 × 1080
HDTV (1080p) 24/30/50/60 1920 × 1080
60 2560 × 1080
4K × 2K 24/25/30/50/60/100/120 3840 × 2160
24/50/60/100/120 4096 × 2160
Parent topic: Technical Specifications
150
Notices
Check these sections for important notices about your projector.
Recycling (U.S. and Canada)
Important Safety Information
Laser Safety Information
Important Safety Instructions
List of Safety Symbols (corresponding to IEC60950-1 A2)
FCC Compliance Statement
Binding Arbitration and Class Waiver
Trademarks
Copyright Notice
Recycling (U.S. and Canada)
Epson offers a recycling program for end of life products. Please go to this site for information on how to
return your products for proper disposal.
Parent topic: Notices
Important Safety Information
Caution: Never look into the projector lens when the laser is turned on; the bright light can damage your
eyes. Never let children look into the lens when it is on. Never open any cover on the projector, except
the filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as
specifically explained in this User's Guide, do not attempt to service this product yourself. Refer all
servicing to qualified service personnel.
Warning: The projector and its accessories come packaged in plastic bags. Keep plastic bags away
from small children to avoid any risk of suffocation.
Parent topic: Notices
Laser Safety Information
This projector is a Class 1 laser product that complies with the IEC/EN60825-1:2014 international
standard for lasers. Follow these safety instructions when using the projector.
151
Warning: Possibly hazardous optical radiation emitted from this product. Do not look at operating light
source. Eye injury may result.
Warning: MOUNT ABOVE THE HEADS OF CHILDREN. The use of a ceiling mount is recommended
with this product to place it above the eyes of children.
• If an error occurs in the projector, turn off the power and unplug the projector immediately. Continuing
to use the projector could result in an electric shock, fire, or visual impairment. Contact Epson support.
• Do not attempt to disassemble or modify the projector. The projector contains a high-power laser
component. Serious injury could result.
• Do not look into the lens during projection. Also, do not look into the lens using optical devices, such
as a magnifying glass or telescope. This could cause visual impairment.
• Do not place flammable objects in front of the lens. Objects could catch fire.
• When turning on the projector at a distance using the remote control, make sure no one is looking into
the lens.
• Do not allow small children to operate the projector. Children must be accompanied by an adult.
• Do not apply optical devices, such as a magnifying glass or reflector, to the projected image. Using the
projector may result in physical harm, fire, or an accident.
• Do not block the light from the lens during projection. The high temperature in this area could cause
burns, fire, or other damage. The lens may overheat due to the reflected light and could cause the
projector to malfunction.
• Before using the projector, make sure there is nothing in the area that could reflect the projected
image.
• When disposing of the projector, do not disassemble it. Dispose of the projector in accordance with
your local or national laws and regulations.
Labels are attached to the projector to indicate it is a Class 1 laser product and complies with FDA
performance standards for laser products except for conformance as a Risk Group 2 LIP as defined in
IEC 62471-5: Ed. 1.0 (for more information see Laser Notice No. 57, dated May 8, 2019):
• Top
152
As with any bright source, do not stare into the beam (RG2 IEC/EN 62471-5:2015).
• Inside
153
Parent topic: Notices
Important Safety Instructions
Follow these safety instructions when setting up and using the projector:
• Do not look into the lens when the projector is on. The bright light can damage your eyes. Avoid
standing in front of the projector so the bright light does not shine into your eyes.
• Do not place any flammable objects in front of the projector lens, otherwise, a fire may occur.
• Do not touch the lens with bare hands.
• Do not place the projector on an unstable cart, stand, or table or on a surface that is unable to support
its weight. Otherwise, it could fall or topple causing an accident and injury.
• If the projector is mounted on a ceiling or wall, it should be installed by qualified technicians using
mounting hardware designed for use with this projector. When installing the projector in a high
position, take measures to prevent it from falling by using wires to ensure safety in an emergency,
such as an earthquake, and to prevent accidents. If the projector is not installed correctly, the projector
could fall. This may result in injury or accidents. Contact your dealer to carry out the installation work.
• Failure to install the ceiling mount and projector may cause the projector to fall. After installing the
specific Epson mount that supports your projector, make sure you secure the mount to all of the
projector's ceiling mount fixing points. Also, secure the projector and the mounts using wire that is
strong enough to hold their weight.
• Do not install in locations where salt damage could occur, or in locations subject to corrosive gas such
as sulphuric gas from hot springs. Otherwise, corrosion could cause the projector to fall. It could also
cause the projector to malfunction.
• When installing or adjusting a ceiling or wall mount, do not use adhesives to prevent the screws from
loosening and do not use oils or lubricants. This may cause the projector case to crack and the
projector to fall from its ceiling mount. This could cause serious injury to anyone under the mount and
could damage the projector.
• Do not install the projector in locations exposed to high humidity and dust, such as on a kitchen
counter, in the kitchen, or near a humidifier, or in locations exposed to oil smoke or steam. Doing so
could cause fire or electric shock.
Examples of environments that could cause the projector to fall due to case deterioration:
• Locations subject to excessive smoke or airborne oil particles, such as factories or kitchens
• Locations containing volatile solvents or chemicals, such as factories or laboratories
• Locations where the projector could be subjected to detergents or chemicals, such as factories or
kitchens
154
• Locations in which aroma oils are often used, such as relaxation rooms
• Near devices that produce excessive smoke, airborne oil particles, or foam at events
• Do not use the projector near water, sources of heat, high-voltage electrical wires, or sources of
magnetic fields.
• Use the type of power source indicated on the projector. Use of a different power source may result in
fire or electric shock. If you are not sure of the power available, consult your dealer or power company.
• Place the projector near a wall outlet where the plug can be easily unplugged.
• Take the following precautions when handling the plug: Do not hold the plug with wet hands. Do not
insert the plug into a dusty outlet. Insert the plug firmly into the outlet. Do not pull the power cord when
disconnecting the plug; always be sure to hold the plug when disconnecting it. Do not overload wall
outlets, extension cords, or power strips. Failure to comply with these precautions could result in fire or
electric shock.
• Do not place the projector where the cord can be walked on. This may result in fraying or damage to
the plug.
• Unplug the projector from the wall outlet and allow to cool before cleaning. Use a dry cloth (or, for
stubborn dirt or stains, a moist cloth that has been wrung dry) for cleaning. Do not use liquid or aerosol
cleaners, any sprays containing flammable gas, or solvents such as alcohol, paint thinner, or benzine.
• Do not block the slots and openings in the projector case. They provide ventilation and prevent the
projector from overheating. If the vents are covered, the internal temperature could rise and cause a
fire. Do not place the projector in locations subject to high temperatures, such as near heating
equipment. Do not operate the projector on a sofa, rug, or other soft surface, or set it on top of loose
papers. Do not cover the projector with a blanket, curtain, or tablecloth. If you are setting up the
projector near a wall, leave at least 7.9 inches (20 cm) of space between the wall and the projector.
• Do not operate the projector in a closed-in cabinet unless proper ventilation is provided.
• Never allow objects of any kind to enter any openings in the projector. Do not leave objects, especially
flammable objects, near the projector. Never spill liquid of any kind into the projector.
• You may need to clean the air filter and vent. A clogged air filter or vent can block ventilation needed
to cool the projector. Do not use canned air, or the gases may leave a residue.
• Do not use or store the projector in locations where it will be subject to dust or dirt. Otherwise, the
quality of the projected image may decline, or the air filter may become clogged, resulting in a
malfunction or fire.
• Do not store the projector outdoors for an extended length of time.
155
• Except as specifically explained in this manual, do not attempt to service this product yourself. Refer
all servicing to qualified personnel. Opening or removing covers may expose you to dangerous
voltages and other hazards.
• Never open any covers on the projector except as specifically explained in this manual. Never attempt
to disassemble or modify the projector. Refer all repairs to qualified service personnel. Electrical
voltages inside the projector can cause serious injury.
• Unplug the projector from the wall outlet and refer servicing to qualified service personnel under the
following conditions: if it does not operate normally when you follow the operating instructions, or
exhibits a distinct change in performance; if smoke, strange odors, or strange noises come from the
projector; if the power cord or plug is damaged or frayed; if liquid or foreign objects get inside the
projector, or if it has been exposed to rain or water; if it has been dropped or the housing has been
damaged. Continuing to use the projector under these conditions may result in fire or electric shock.
• Do not touch the plug during an electrical storm. Otherwise, you may receive an electric shock.
• Unplug the projector when it will not be used for extended periods.
• Do not use the projector where it may be exposed to rain, water, or excessive humidity.
• Do not use or store the projector where it may be exposed to smoke, steam, corrosive gases,
excessive dust, vibration, or shock. Doing so may result in malfunction, electric shock, and fire.
• Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely affect the quality of the projected images.
• Do not use the projector where flammable or explosive gases may be present.
• Do not use or store the projector or remote control in a hot location, such as near a heater, in direct
sunlight, or in a closed vehicle.
• Check the specifications for the power cable. Using an inappropriate power cable could result in fire or
electric shock. The power cable supplied with the projector is intended to comply with power supply
requirements for the country of purchase. If you use the projector in the country where it was
purchased, only use the power cable that came with the projector.
• If you use the projector in a country other than where you purchased it, use the correct power cord for
that country.
• Do not stand on the projector or place heavy objects on it.
• Do not use the projector outside of the required temperature range below:
41 to 95 °F (5 to 35 °C) at an altitude of 7500 feet (2286 m) or less, or 41 to 86 °F (5 to 30 °C) at an
altitude of 7500 to 10000 feet (2286 m to 3048 m)
Doing so may cause an unstable display and could lead to projector damage. Do not use or store the
projector where it may be exposed to sudden changes in temperature.
156
• Do not store the projector outside of the required temperature range of 14 to 140 °F (–10 to 60 °C) or
in direct sunlight for long periods of time. Doing so may cause damage to the case.
• Do not place anything that can become warped or damaged by heat near the exhaust vents. Do not
bring your hands or face close to the vents while projection is in progress. Do not bring your face close
to the projector while it is in use.
• Before you move the projector, make sure its power is turned off, the plug is disconnected from the
outlet, and all cables are disconnected.
• Do not place the source of an open flame, such as a lit candle, on or near the projector.
• During projection, do not block the light from the projector with a book or other objects. If the light from
the projector is blocked, the area on which the light shines becomes hot which could cause it to melt,
burn, or start a fire. Also, the lens may get hot due to the reflected light which could cause the
projector to malfunction. To stop projection, use the A/V Mute function, or turn off the projector.
• Do not modify the power cord. Do not place heavy objects on top of the power cord or bend, twist, or
pull it excessively. Keep the power cord away from hot electrical appliances.
• Always lower the volume before turning off the projector. Turning on the projector with the volume too
high can damage your ears.
• When a still image is displayed for a long time, image retention may occur on the screen. Do not
display images in the exact same position for long periods.
Restriction of Use
Parent topic: Notices
Restriction of Use
When this product is used for applications requiring high reliability/safety such as transportation devices
related to aviation, rail, marine, automotive; disaster prevention devices; various safety devices; or
functional/precision devices, you should use this product only after giving consideration to including fail-
safes and redundancies into your design to maintain safety and total system reliability.
Because this product was not intended for use in applications requiring extremely high reliability/safety
such as aerospace equipment, main communication equipment, nuclear power control equipment, or
medical equipment related to direct medical care, please make your own judgment on this product's
suitability after a full evaluation.
Parent topic: Important Safety Instructions
List of Safety Symbols (corresponding to IEC60950-1 A2)
The following table lists the meaning of the safety symbols labeled on the equipment.
157
No. Symbol Approved Standards Description
1 IEC60417
No. 5007
"ON" (power)
To indicate connection to the mains.
2 IEC60417
No. 5008
"OFF" (power)
To indicate disconnection from the
mains.
3 IEC60417
No. 5009
Stand-by
To identify the switch or switch position
by means of which part of the equipment
is switched on in order to bring it into the
stand-by condition.
4 ISO7000
No. 0434B,
IEC3864-B3.1
Caution
To identify general caution when using
the product.
5 IEC60417
No. 5041
Caution, hot surface
To indicate that the marked item can be
hot and should not be touched without
taking care.
6 IEC60417
No. 6042
ISO3864-B3.6
Caution, risk of electric shock
To identify equipment that has risk of
electric shock.
7 IEC60417
No. 5957
For indoor use only
To identify electrical equipment designed
primarily for indoor use.
158
No. Symbol Approved Standards Description
8 IEC60417
No. 5926
Polarity of DC power connector
To identify the positive and negative
connections (the polarity) on a piece of
equipment to which a DC power supply
may be connected.
9 — Polarity of DC power connector
To identify the positive and negative
connections (the polarity) on a piece of
equipment to which a DC. power supply
may be connected.
10 IEC60417
No. 5001B
Battery, general
On battery powered equipment. To
identify a device for instance a cover for
the battery compartment, or the
connector terminals.
11 IEC60417
No. 5002
Positioning of cell
To identify the battery holder itself and to
identify the positioning of the cell(s)
inside the battery holder.
12 — Positioning of cell
To identify the battery holder itself and to
identify the positioning of the cell(s)
inside the battery holder.
13 IEC60417
No. 5019
Protective earth
To identify any terminal which is intended
for connection to an external conductor
for protection against electric shock in
case of a fault, or the terminal of a
protective earth electrode.
14 IEC60417
No. 5017
Earth
To identify an earth (ground) terminal in
cases where neither the symbol No.13 is
explicitly required.
159
No. Symbol Approved Standards Description
15 IEC60417
No. 5032
Alternating current
To indicate on the rating plate that the
equipment is suitable for alternating
current only; to identify relevant
terminals.
16 IEC60417
No. 5031
Direct current
To indicate on the rating plate that the
equipment is suitable for direct current
only; to identify relevant terminals.
17 IEC60417
No. 5172
Class II equipment
To identify equipment meeting the safety
requirements specified for Class II
equipment according to IEC 61140.
18 ISO 3864 General prohibition
To identify actions or operations that are
prohibited.
19 ISO 3864 Contact prohibition
To indicate injury that could occur due to
touching a specific part of the equipment.
20 — Never look into the optical lens while the
projector is on.
21 — To indicate don’t place anything on
projector.
22 ISO3864
IEC60825-1
Caution, laser radiation
To indicate the equipment has a laser
radiation part.
160
No. Symbol Approved Standards Description
23 ISO 3864 Disassembly prohibition
To indicate a risk of injury, such as
electric shock, if the equipment is
disassembled.
24 IEC60417
No. 5266
Standby, partial standby
To indicate that part of the equipment is
in the ready status.
25 ISO3864
IEC60417
No. 5057
Caution, movable parts
To indicate that you must keep away
from movable parts according to
protection standards.
26 IEC 60417
No. 6056
Caution (moving fan blades)
To indicate that you must keep away
from the moving fan blades.
27 IEC 60417
No. 6043
Caution (sharp corners)
To indicate sharp corners that should not
be touched.
28 — To indicate that looking into the lens
while projecting is prohibited.
29 ISO7010
No. W027
ISO 3864
Warning, optical radiation (such as UV,
visible radiation, IR)
Take care to avoid injury to eyes and skin
when in the vicinity of optical radiation.
30 IEC60417
No. 5109
Not to be used in residential areas
To identify electrical equipment which is
not suitable for a residential area.
Parent topic: Notices
161
FCC Compliance Statement
For United States Users
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause interference to radio and television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
WARNING
The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification or Declaration of this device and may cause interference levels which exceed the limits
established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded
equipment interface cable with this device. If this equipment has more than one interface connector, do
not leave cables connected to unused interfaces. Changes or modifications not expressly approved by
the manufacturer could void the user’s authority to operate the equipment.
For Canadian Users
CAN ICES-3(B)/NMB-3(B)
Parent topic: Notices
162
Binding Arbitration and Class Waiver
1. DISPUTES, BINDING INDIVIDUAL ARBITRATION, AND WAIVER OF CLASS ACTIONS AND
CLASS ARBITRATIONS
1.1 Disputes. The terms of this Section 1 shall apply to all Disputes between you and Epson. The term
"Dispute" is meant to have the broadest meaning permissible under law and includes any dispute, claim,
controversy or action between you and Epson arising out of or relating to this Agreement, Epson
branded products (hardware and including any related software), or other transaction involving you and
Epson, whether in contract, warranty, misrepresentation, fraud, tort, intentional tort, statute, regulation,
ordinance, or any other legal or equitable basis. "DISPUTE" DOES NOT INCLUDE IP CLAIMS, or more
specifically, a claim or cause of action for (a) trademark infringement or dilution, (b) patent infringement,
(c) copyright infringement or misuse, or (d) trade secret misappropriation (an "IP Claim"). You and Epson
also agree, notwithstanding Section 1.6,that a court, not an arbitrator, may decide if a claim or cause of
action is for an IP Claim.
1.2 Binding Arbitration. You and Epson agree that all Disputes shall be resolved by binding arbitration
according to this Agreement. ARBITRATION MEANS THAT YOU WAIVE YOUR RIGHT TO A JUDGE
OR JURY IN A COURT PROCEEDING AND YOUR GROUNDS FOR APPEAL ARE LIMITED.
Pursuant to this Agreement, binding arbitration shall be administered by JAMS, a nationally recognized
arbitration authority, pursuant to its code of procedures then in effect for consumer related disputes, but
excluding any rules that permit joinder or class actions in arbitration (for more detail on procedure, see
Section 1.6 below). You and Epson understand and agree that (a) the Federal Arbitration Act (9 U.S.C.
§1, et seq.) governs the interpretation and enforcement of this Section 1, (b) this Agreement
memorializes a transaction in interstate commerce, and (c) this Section 1 shall survive termination of this
Agreement.
1.3 Pre-Arbitration Steps and Notice. Before submitting a claim for arbitration, you and Epson agree to
try, for sixty (60) days, to resolve any Dispute informally. If Epson and you do not reach an agreement to
resolve the Dispute within the sixty (60) days), you or Epson may commence an arbitration. Notice to
Epson must be addressed to: Epson America, Inc., ATTN: Legal Department, 3131 Katella Ave., Los
Alamitos, CA 90720 (the "Epson Address"). The Dispute Notice to you will be sent to the most recent
address Epson has in its records for you. For this reason, it is important to notify us if your address
the Dispute shall include the sender's name, address and contact information, the facts giving rise to the
Dispute, and the relief requested (the "Dispute Notice"). Following receipt of the Dispute Notice, Epson
and you agree to act in good faith to resolve the Dispute before commencing arbitration.
1.4 Small Claims Court. Notwithstanding the foregoing, you may bring an individual action in the small
claims court of your state or municipality if the action is within that court's jurisdiction and is pending only
in that court.
163
1.5 WAIVER OF CLASS ACTIONS AND CLASS ARBITRATIONS. YOU AND EPSON AGREE THAT
EACH PARTY MAY BRING DISPUTES AGAINST THE OTHER PARTY ONLY IN AN INDIVIDUAL
CAPACITY, AND NOT AS A PLAINTIFF OR CLASS MEMBER IN ANY CLASS OR
REPRESENTATIVE PROCEEDING, INCLUDING WITHOUT LIMITATION FEDERAL OR STATE
CLASS ACTIONS, OR CLASS ARBITRATIONS. CLASS ACTION LAWSUITS, CLASS-WIDE
ARBITRATIONS, PRIVATE ATTORNEY-GENERAL ACTIONS, AND ANY OTHER PROCEEDING
WHERE SOMEONE ACTS IN A REPRESENTATIVE CAPACITY ARE NOT ALLOWED.
ACCORDINGLY, UNDER THE ARBITRATION PROCEDURES OUTLINED IN THIS SECTION, AN
ARBITRATOR SHALL NOT COMBINE OR CONSOLIDATE MORE THAN ONE PARTY'S CLAIMS
WITHOUT THE WRITTEN CONSENT OF ALL AFFECTED PARTIES TO AN ARBITRATION
PROCEEDING.
1.6 Arbitration Procedure. If you or Epson commences arbitration, the arbitration shall be governed by
the rules of JAMS that are in effect when the arbitration is filed, excluding any rules that permit arbitration
on a class or representative basis (the "JAMS Rules"), available at http://www.jamsadr.com or by calling
1-800-352-5267 (U.S. or Canada), or https://www.jamsadr.com/about/ or by calling +1-949-224-1810
(Latin America), and under the rules set forth in this Agreement. All Disputes shall be resolved by a
single neutral arbitrator, and both parties shall have a reasonable opportunity to participate in the
selection of the arbitrator. The arbitrator is bound by the terms of this Agreement. The arbitrator, and not
any federal, state or local court or agency, shall have exclusive authority to resolve all disputes arising
out of or relating to the interpretation, applicability, enforceability or formation of this Agreement,
including any claim that all or any part of this Agreement is void or voidable. Notwithstanding this broad
delegation of authority to the arbitrator, a court may determine the limited question of whether a claim or
cause of action is for an IP Claim, which is excluded from the definition of "Disputes" in Section 1.1
above. The arbitrator shall be empowered to grant whatever relief would be available in a court under
law or in equity. The arbitrator may award you the same damages as a court could, and may award
declaratory or injunctive relief only in favor of the individual party seeking relief and only to the extent
necessary to provide relief warranted by that party's individual claim. In some instances, the costs of
arbitration can exceed the costs of litigation and the right to discovery may be more limited in arbitration
than in court. The arbitrator's award is binding and may be entered as a judgment in any court of
competent jurisdiction.
You may choose to engage in arbitration hearings by telephone. Arbitration hearings not conducted by
telephone shall take place in a location reasonably accessible from your primary residence, or in Orange
County, California, at your option.
a) Initiation of Arbitration Proceeding. If either you or Epson decides to arbitrate a Dispute, both parties
agree to the following procedure:
(i) Write a Demand for Arbitration. The demand must include a description of the Dispute and the amount
of damages sought to be recovered. You can find a copy of a Demand for Arbitration at
http://www.jamsadr.com ("Demand for Arbitration").
164
(ii) Send three copies of the Demand for Arbitration, plus the appropriate filing fee, to: JAMS, 500 North
State College Blvd., Suite 600 Orange, CA 92868, U.S.A.
(iii) Send one copy of the Demand for Arbitration to the other party (same address as the Dispute
Notice), or as otherwise agreed by the parties.
b) Hearing Format. During the arbitration, the amount of any settlement offer made shall not be disclosed
to the arbitrator until after the arbitrator determines the amount, if any, to which you or Epson is entitled.
The discovery or exchange of non-privileged information relevant to the Dispute may be allowed during
the arbitration.
c) Arbitration Fees. Epson shall pay, or (if applicable) reimburse you for, all JAMS filings and arbitrator
fees for any arbitration commenced (by you or Epson) pursuant to provisions of this Agreement.
d) Award in Your Favor. For Disputes in which you or Epson seeks $75,000 or less in damages exclusive
of attorney's fees and costs, if the arbitrator's decision results in an award to you in an amount greater
than Epson's last written offer, if any, to settle the Dispute, Epson will: (i) pay you $1,000 or the amount
of the award, whichever is greater; (ii) pay you twice the amount of your reasonable attorney's fees, if
any; and (iii) reimburse you for any expenses (including expert witness fees and costs) that your attorney
reasonably accrues for investigating, preparing, and pursuing the Dispute in arbitration. Except as
agreed upon by you and Epson in writing, the arbitrator shall determine the amount of fees, costs, and
expenses to be paid by Epson pursuant to this Section 1.6d).
e) Attorney's Fees. Epson will not seek its attorney's fees and expenses for any arbitration commenced
involving a Dispute under this Agreement. Your right to attorney's fees and expenses under Section
1.6d) above does not limit your rights to attorney's fees and expenses under applicable law;
notwithstanding the foregoing, the arbitrator may not award duplicative awards of attorney's fees and
expenses.
1.7 Opt-out. You may elect to opt-out (exclude yourself) from the final, binding, individual
arbitration procedure and waiver of class and representative proceedings specified in this
Agreement by sending a written letter to the Epson Address within thirty (30) days of your assent
to this Agreement (including without limitation the purchase, download, installation of the
Software or other applicable use of Epson Hardware, products and services) that specifies (i)
your name, (ii) your mailing address, and (iii) your request to be excluded from the final, binding
individual arbitration procedure and waiver of class and representative proceedings specified in
this Section 1. In the event that you opt-out consistent with the procedure set forth above, all
other terms shall continue to apply, including the requirement to provide notice prior to litigation.
1.8 Amendments to Section 1. Notwithstanding any provision in this Agreement to the contrary, you
and Epson agree that if Epson makes any future amendments to the dispute resolution procedure and
class action waiver provisions (other than a change to Epson's address) in this Agreement, Epson will
obtain your affirmative assent to the applicable amendment. If you do not affirmatively assent to the
applicable amendment, you are agreeing that you will arbitrate any Dispute between the parties in
165
accordance with the language of this Section 1 (or resolve disputes as provided for in Section 1.7, if you
timely elected to opt-out when you first assented to this Agreement).
1.9 Severability. If any provision in this Section 1 is found to be unenforceable, that provision shall be
severed with the remainder of this Agreement remaining in full force and effect. The foregoing shall not
apply to the prohibition against class or representative actions as provided in Section 1.5. This
means that if Section 1.5 is found to be unenforceable, the entire Section 1 (but only Section 1)
shall be null and void.
Parent topic: Notices
Trademarks
EPSON
®
is a registered trademark, and EPSON Exceed Your Vision is a registered logomark of Seiko
Epson Corporation.
PrivateLine
®
is a registered trademark and SizeWise
TM
is a trademark of Epson America, Inc.
Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.
Mac, macOS, and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
HDMI and High-Definition Multimedia Interface are the trademarks or registered trademarks of HDMI
Licensing LLC.
General Notice: Other product names used herein are for identification purposes only and may be
trademarks of their respective owners. Epson disclaims any and all rights in those marks.
Parent topic: Notices
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written permission of Seiko Epson Corporation. The information contained herein is
designed only for use with this Epson product. Epson is not responsible for any use of this information as
applied to other products.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:
166
accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this
product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and
maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original Epson Products or Epson
Approved Products by Seiko Epson Corporation.
This information is subject to change without notice.
A Note Concerning Responsible Use of Copyrighted Materials
Copyright Attribution
Parent topic: Notices
A Note Concerning Responsible Use of Copyrighted Materials
Epson encourages each user to be responsible and respectful of the copyright laws when using any
Epson product. While some countries' laws permit limited copying or reuse of copyrighted material in
certain circumstances, those circumstances may not be as broad as some people assume. Contact your
legal advisor for any questions regarding copyright law.
Parent topic: Copyright Notice
Copyright Attribution
© 2021 Epson America, Inc.
11/21
CPD-61108
Parent topic: Copyright Notice
