CO-W01 User's Guide
3
Contents
CO-W01 User's Guide.................................................................................................................................. 9
Introduction to Your Projector ................................................................................................................. 10
Projector Features.............................................................................................................................. 10
Product Box Contents.................................................................................................................... 11
Additional Components ................................................................................................................ 11
Additional Projector Software and Manuals................................................................................... 12
Optional Equipment and Replacement Parts................................................................................. 13
Warranty and Registration Information (U.S. and Canada) ........................................................... 14
Warranty and Registration Information (Latin America)................................................................. 14
Notations Used in the Documentation ................................................................................................ 15
Where to Go for Additional Information .............................................................................................. 15
Projector Part Locations ..................................................................................................................... 15

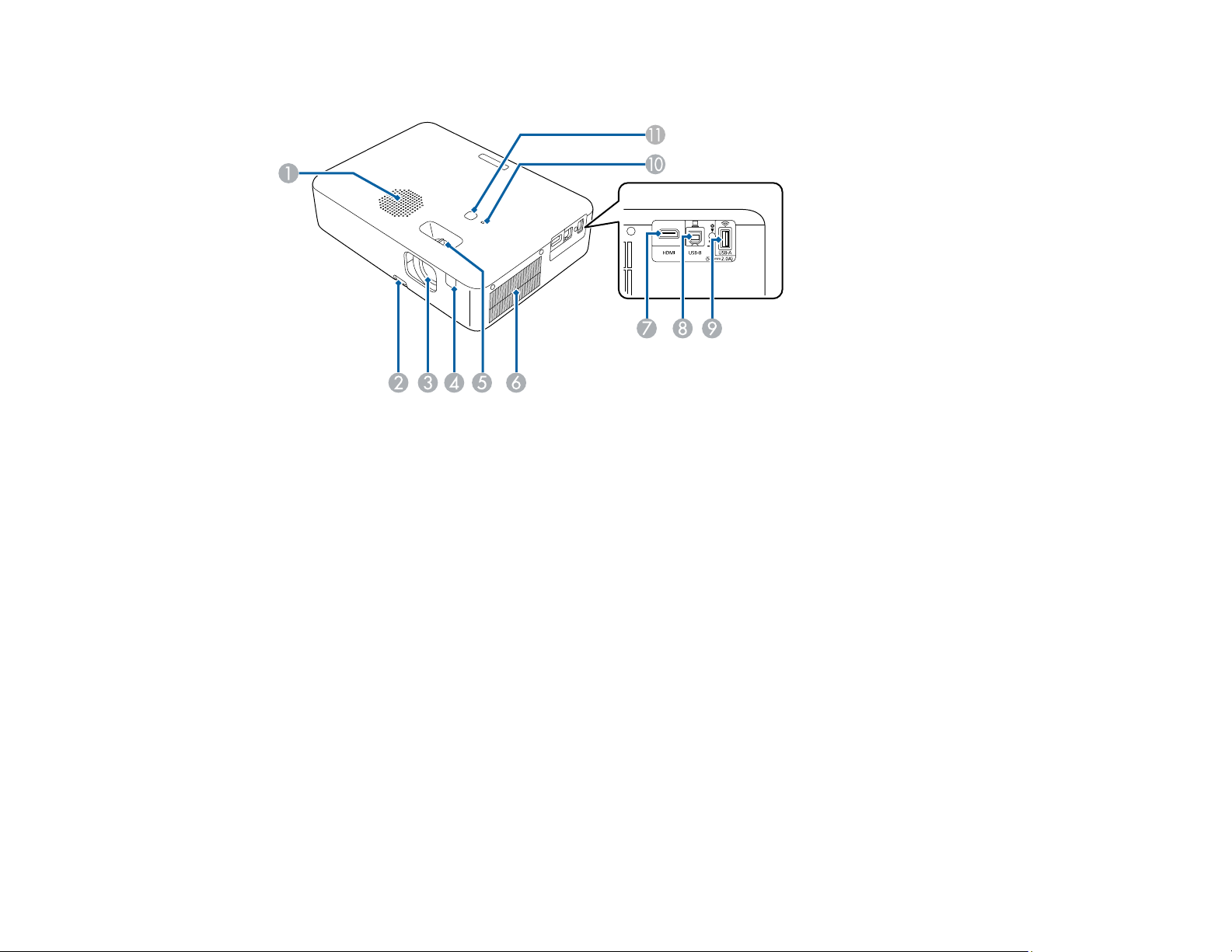

Projector Parts - Front/Top ............................................................................................................ 16
Projector Parts - Rear.................................................................................................................... 17
Projector Parts - Base.................................................................................................................... 18

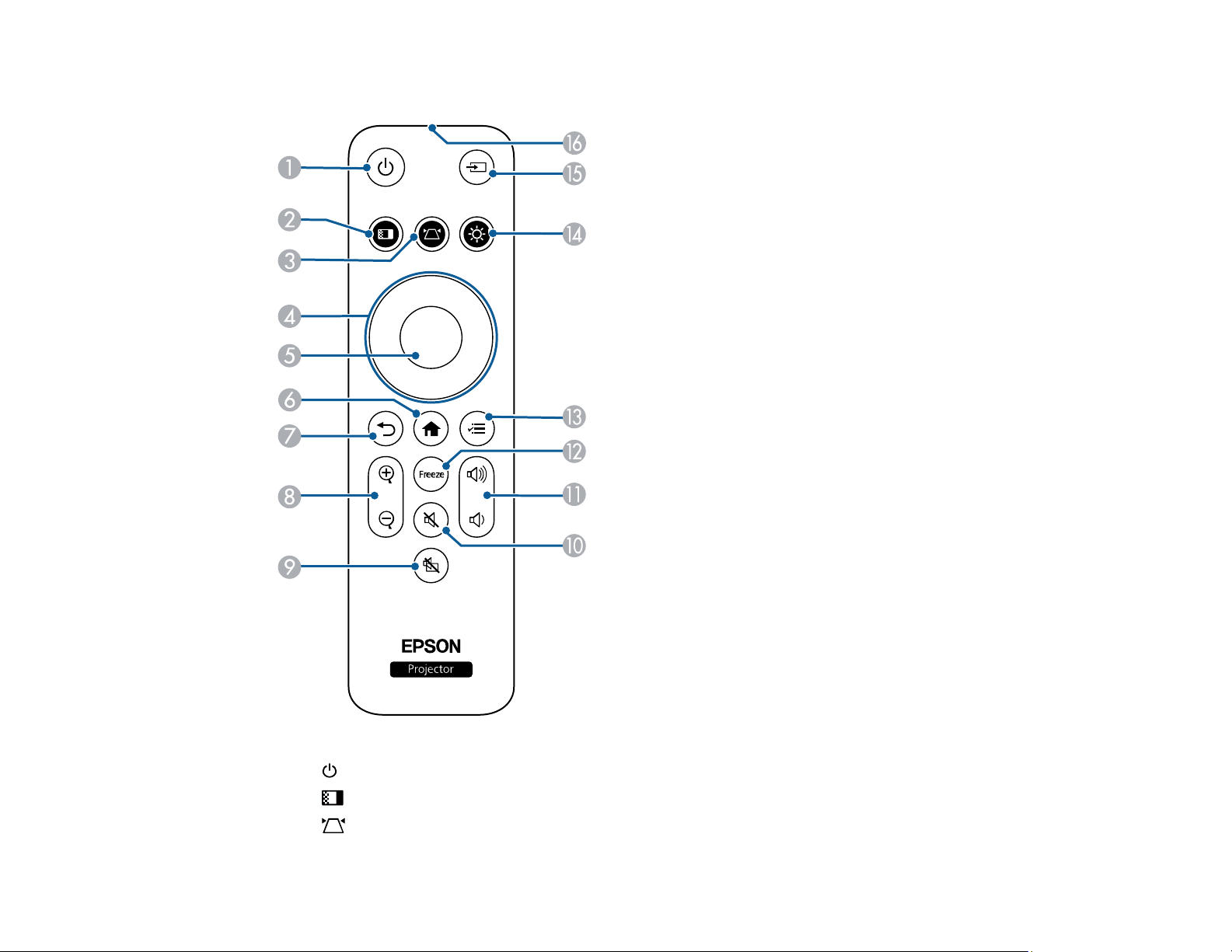

Projector Parts - Remote Control................................................................................................... 19
Setting Up the Projector ........................................................................................................................... 21
Projector Placement........................................................................................................................... 21

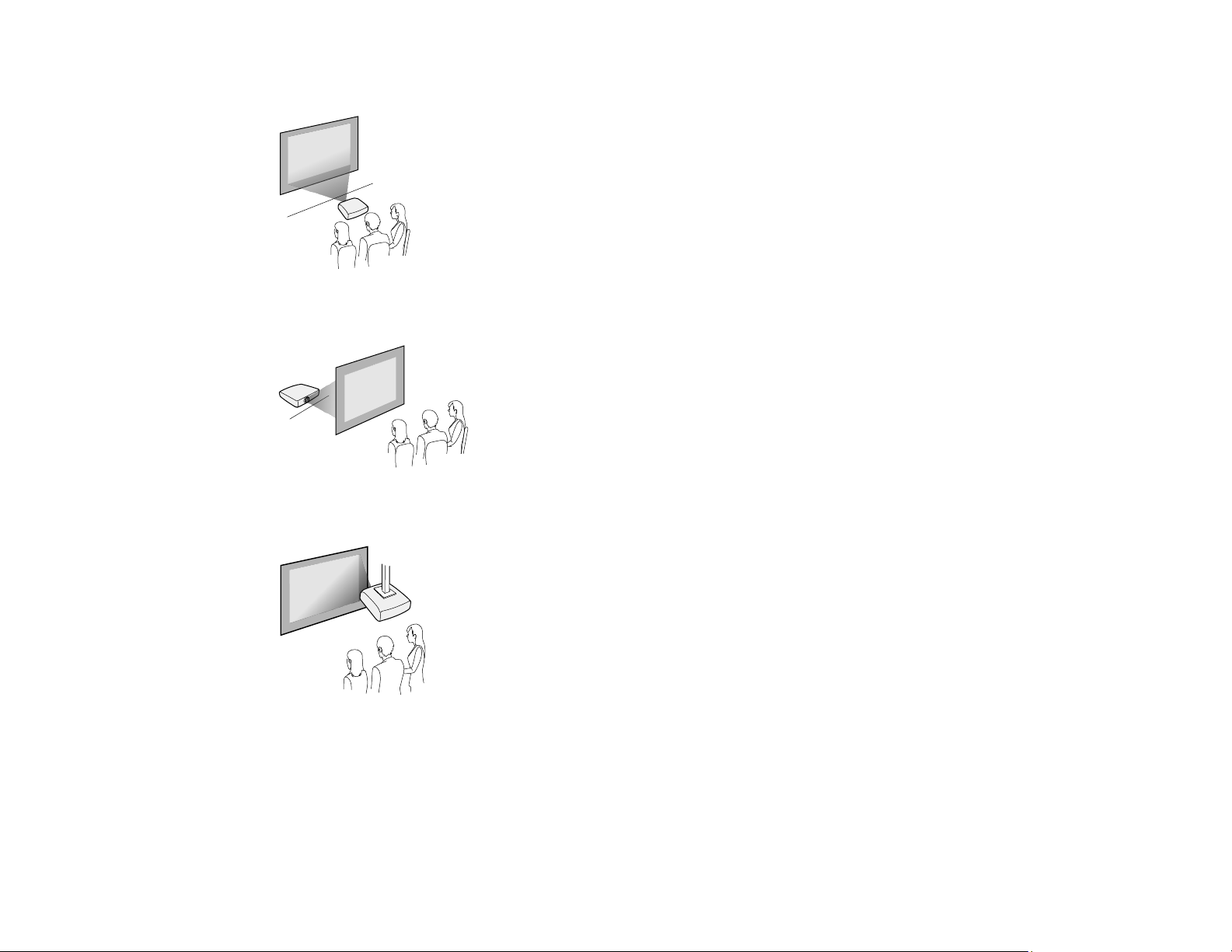

Projector Setup and Installation Options ....................................................................................... 21

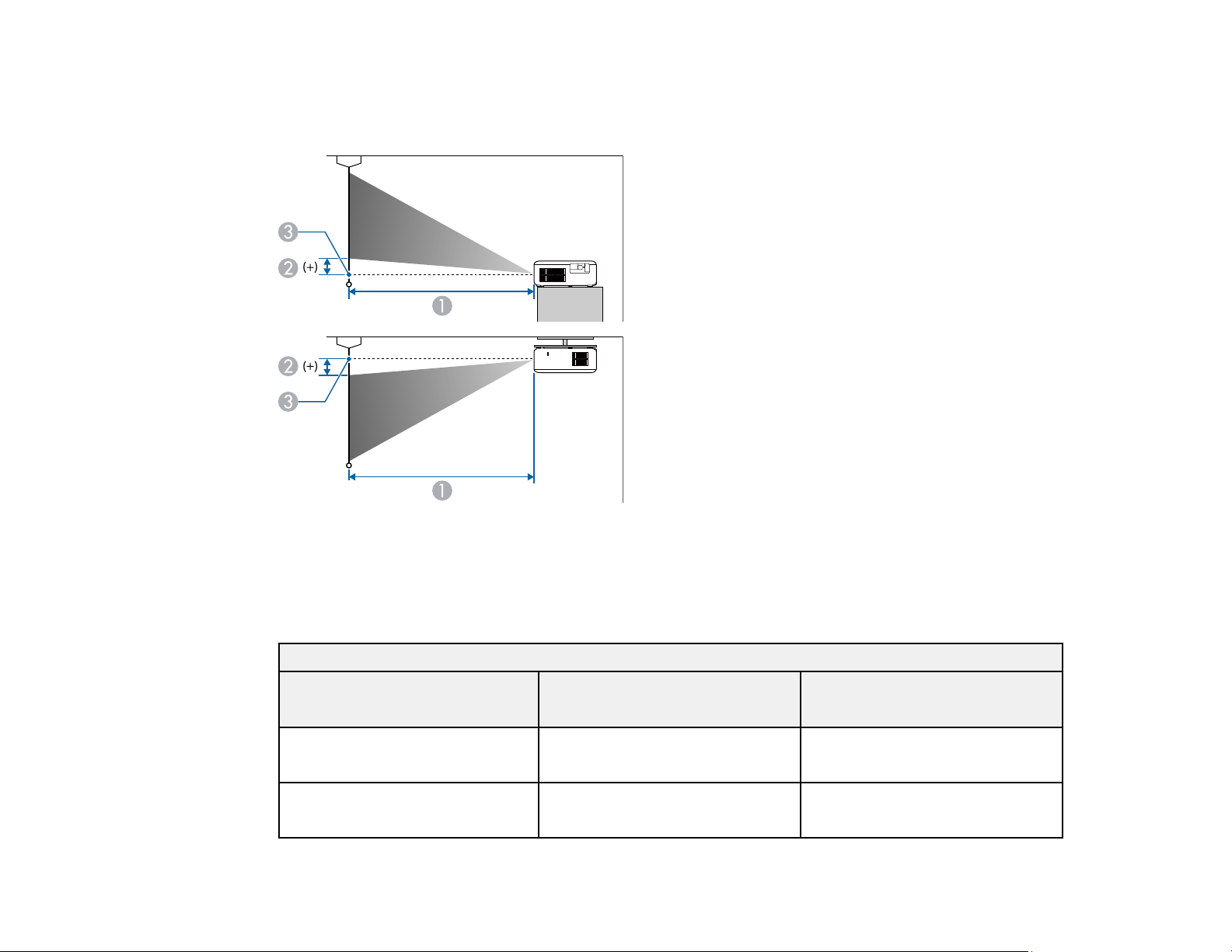

Projection Distance........................................................................................................................ 23
Installing the Safety Wire............................................................................................................... 27
Projector Connections........................................................................................................................ 28
Connecting to an HDMI Video Source ........................................................................................... 28

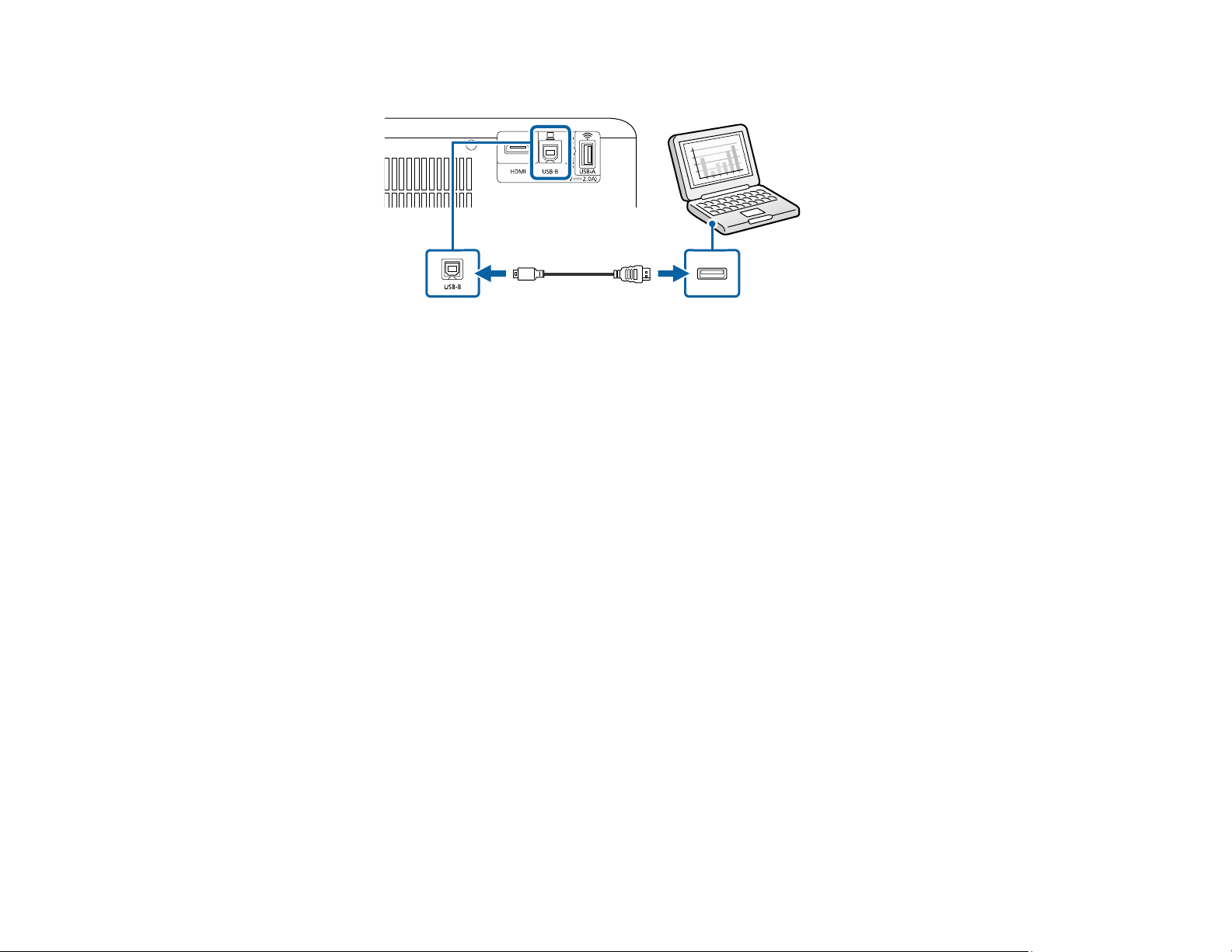

Connecting to a Computer for USB Video and Audio .................................................................... 29
Connecting to a USB Device ......................................................................................................... 30

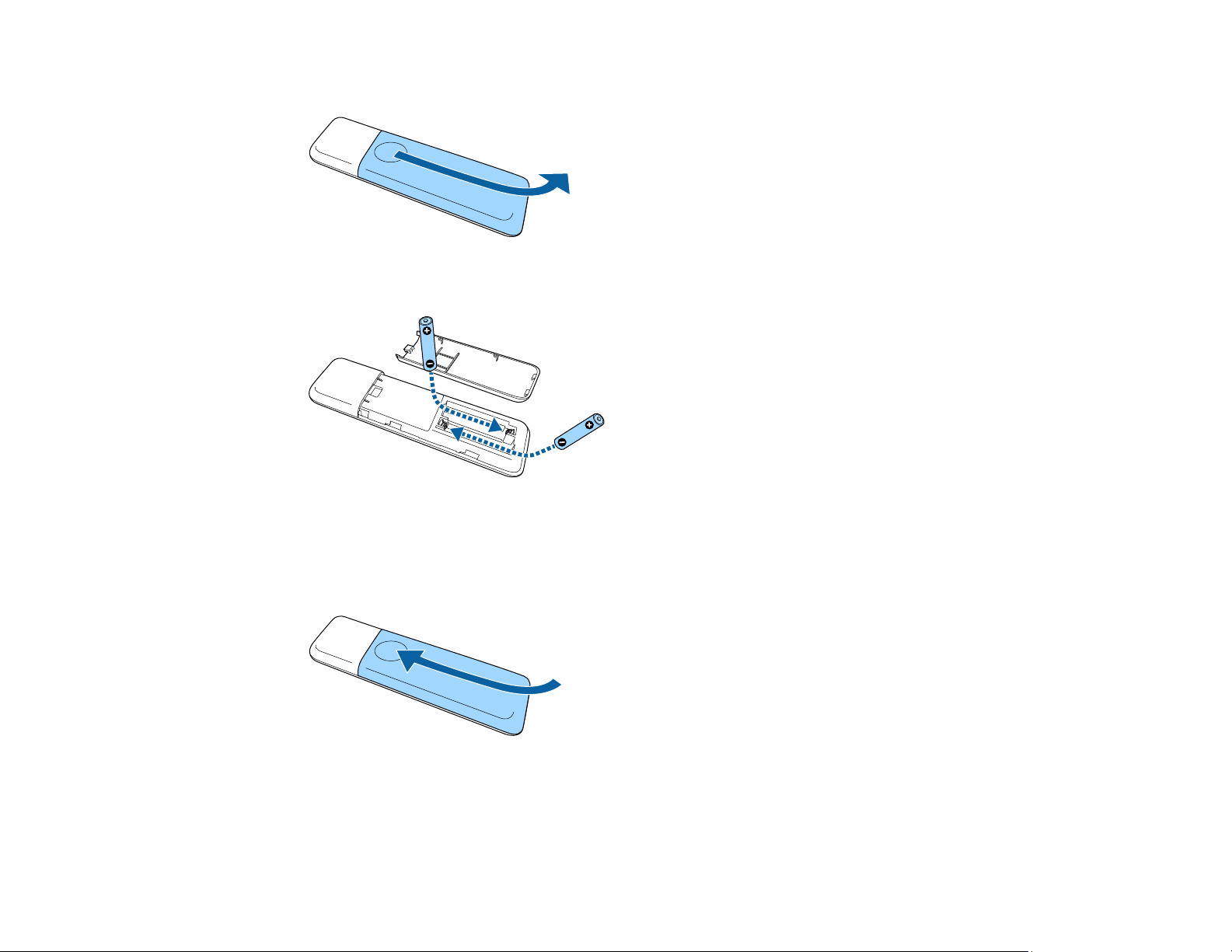

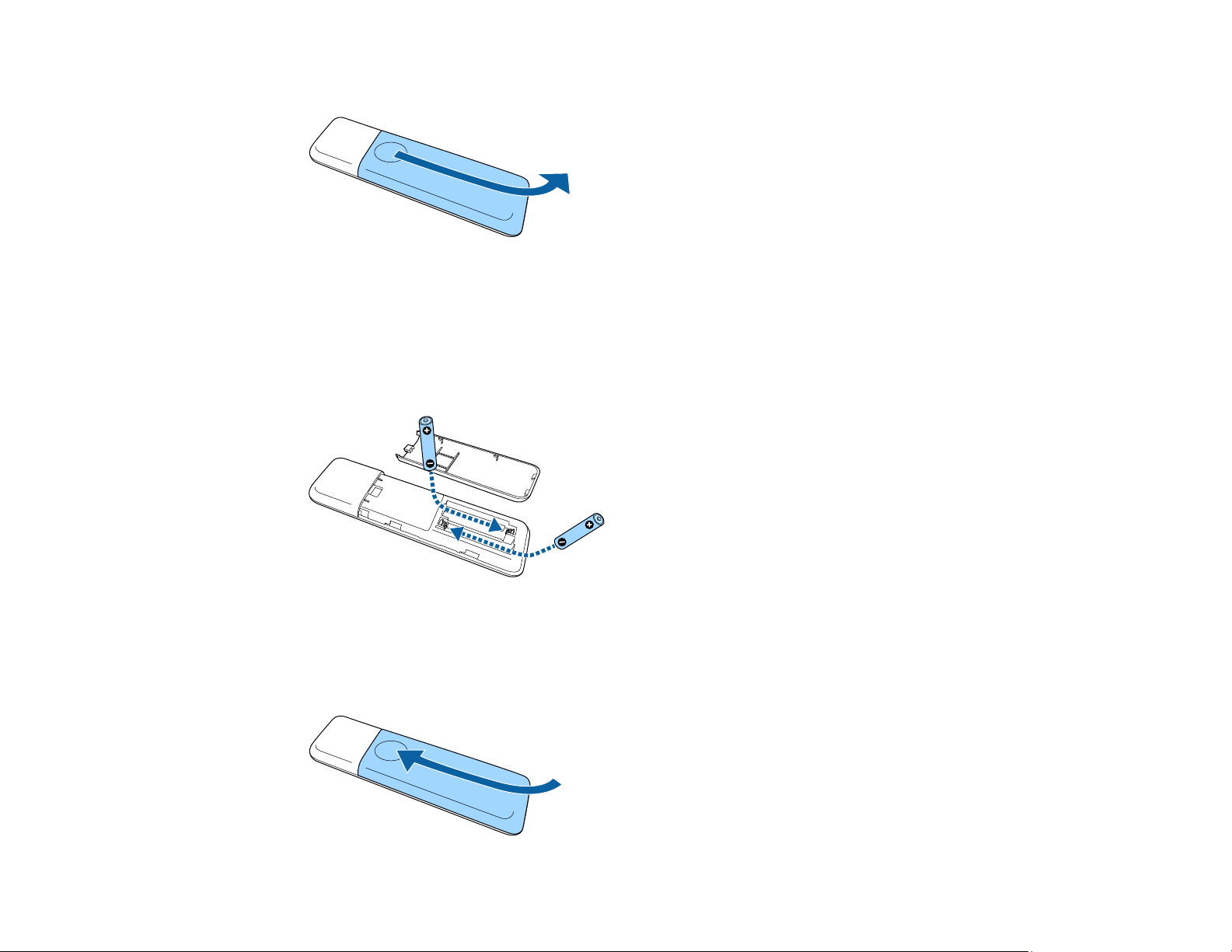

Installing Batteries in the Remote Control .......................................................................................... 31
Using the Projector on a Network ............................................................................................................ 34
Wireless Network Projection .............................................................................................................. 34
Installing the Wireless LAN Module ............................................................................................... 35
Selecting Wireless Network Settings Manually.............................................................................. 35
4
Wireless LAN Menu Settings .................................................................................................... 37
Selecting Wireless Network Settings in Windows.......................................................................... 38
Selecting Wireless Network Settings on Mac ................................................................................ 39
Setting Up Wireless Network Security ........................................................................................... 39
Using a QR Code to Connect a Mobile Device .............................................................................. 40
Setting Up Projector Network E-Mail Alerts........................................................................................ 41
Network Projector E-mail Alert Messages ..................................................................................... 42
Setting Up Monitoring Using SNMP ................................................................................................... 42
Selecting Other Network Settings....................................................................................................... 43

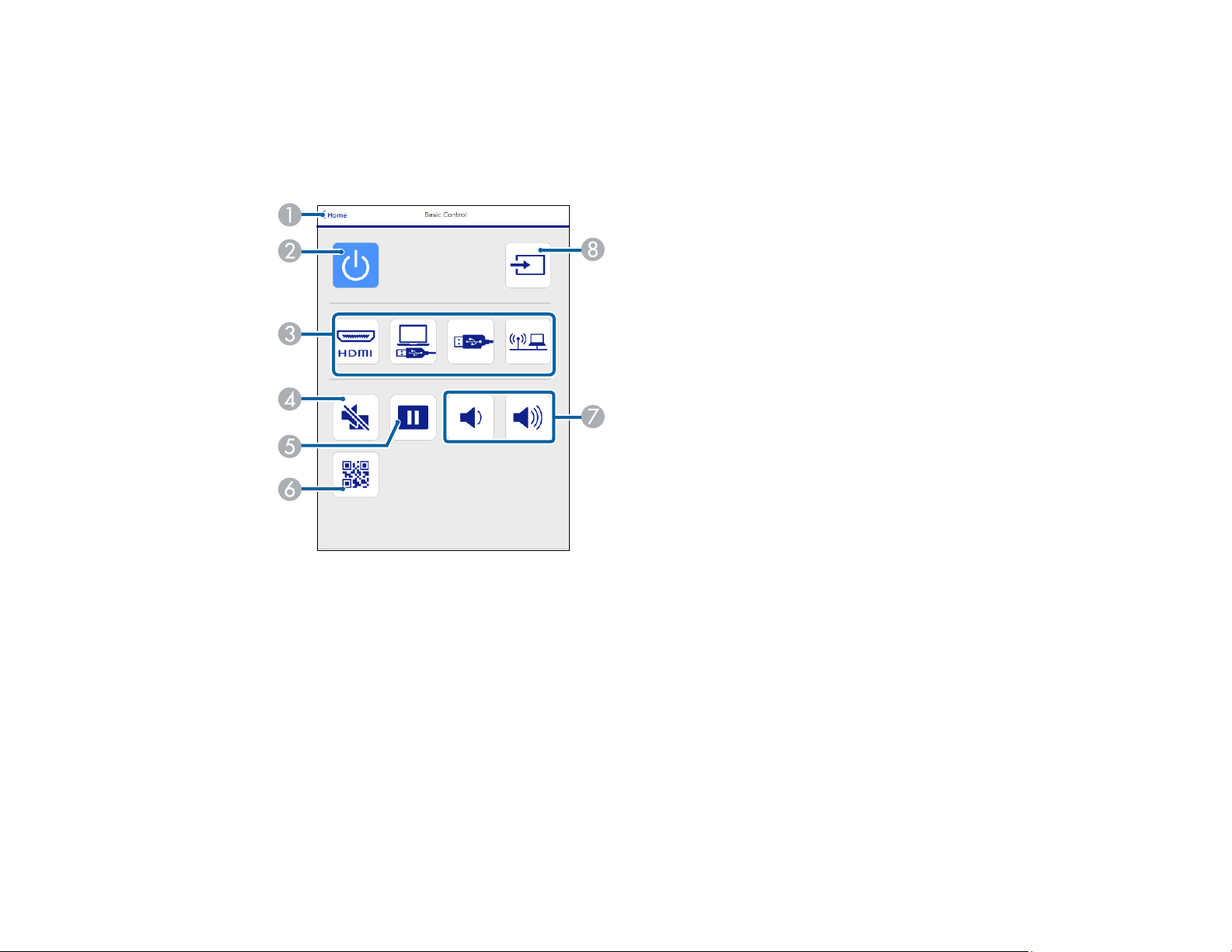

Controlling a Networked Projector Using a Web Browser .................................................................. 43

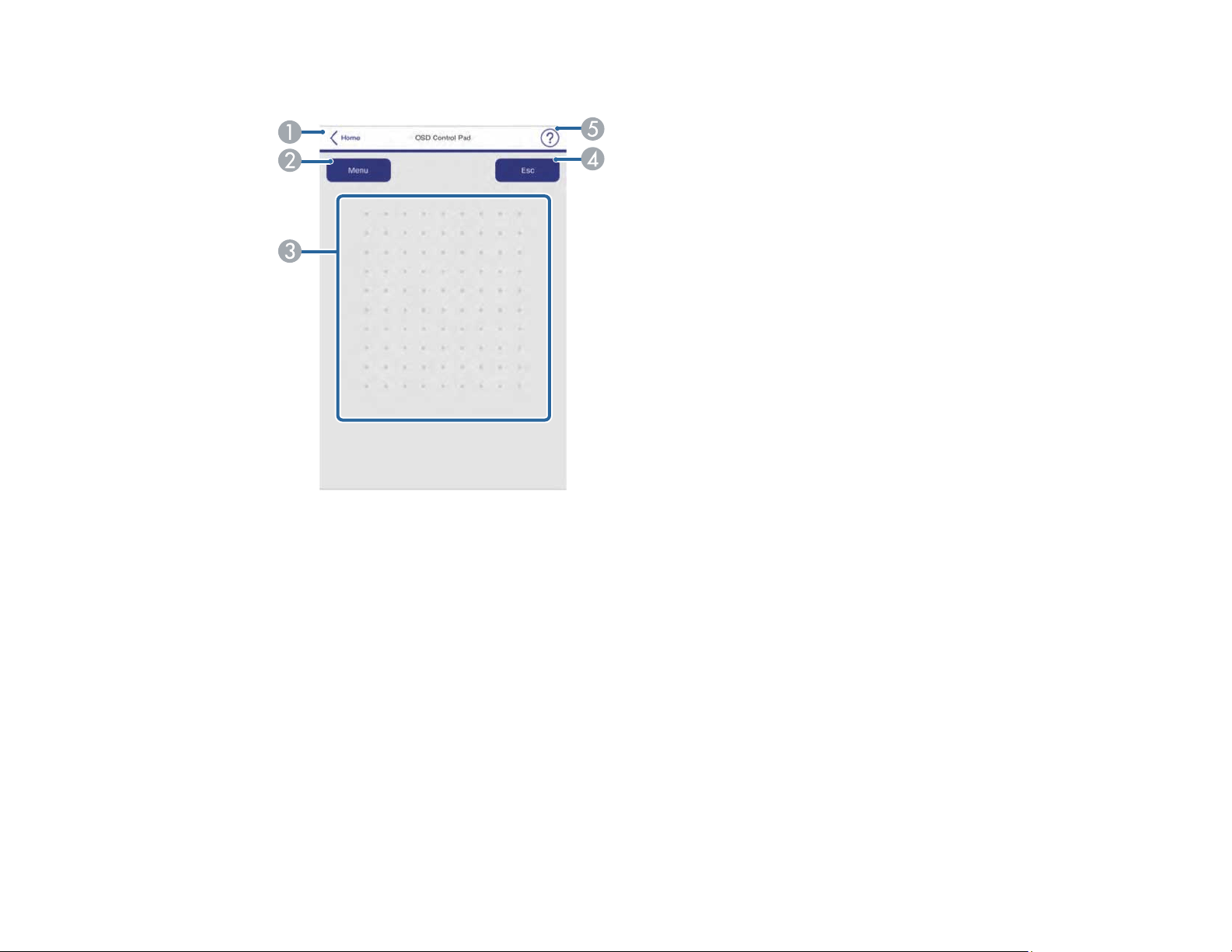

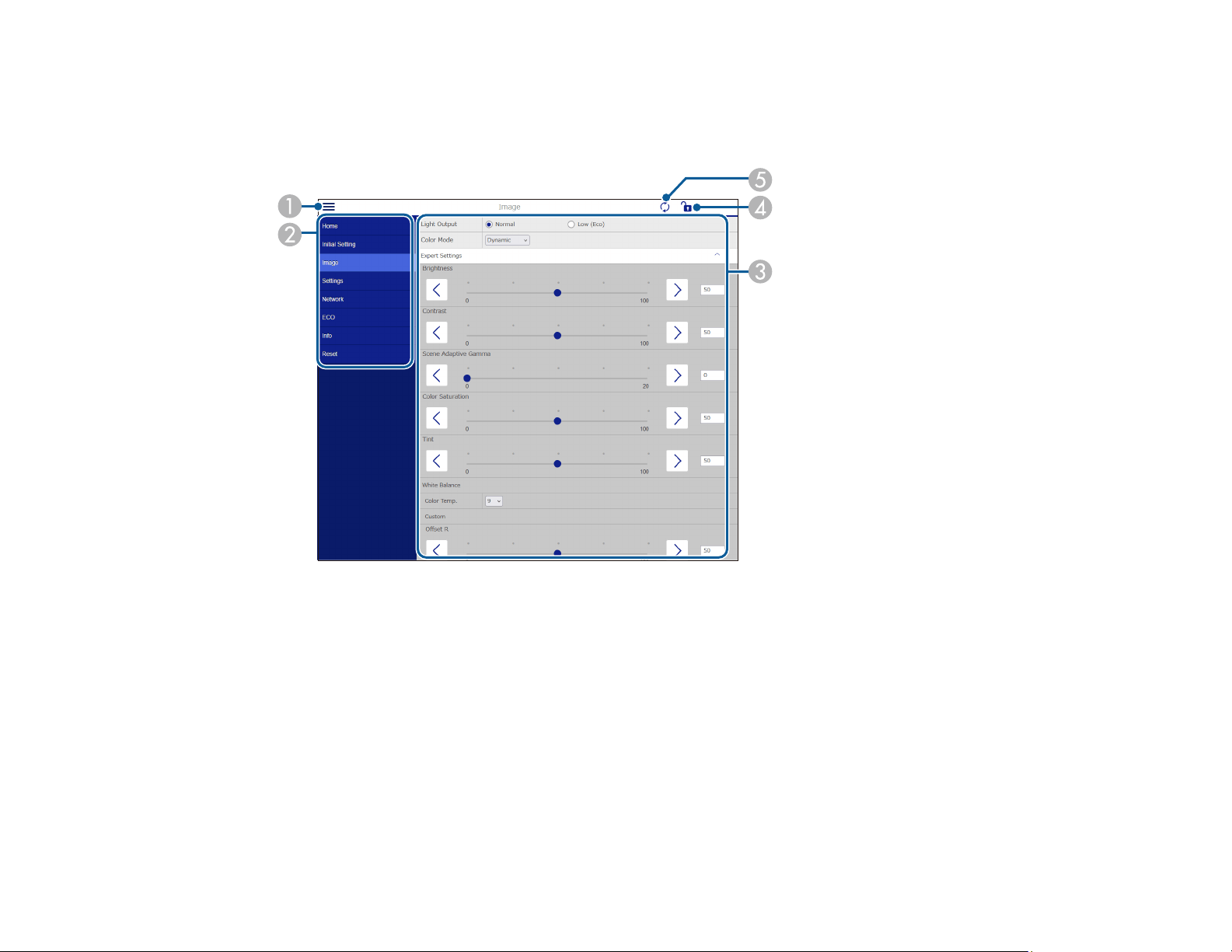

Web Control Options ..................................................................................................................... 46
Using Basic Projector Features ............................................................................................................... 50

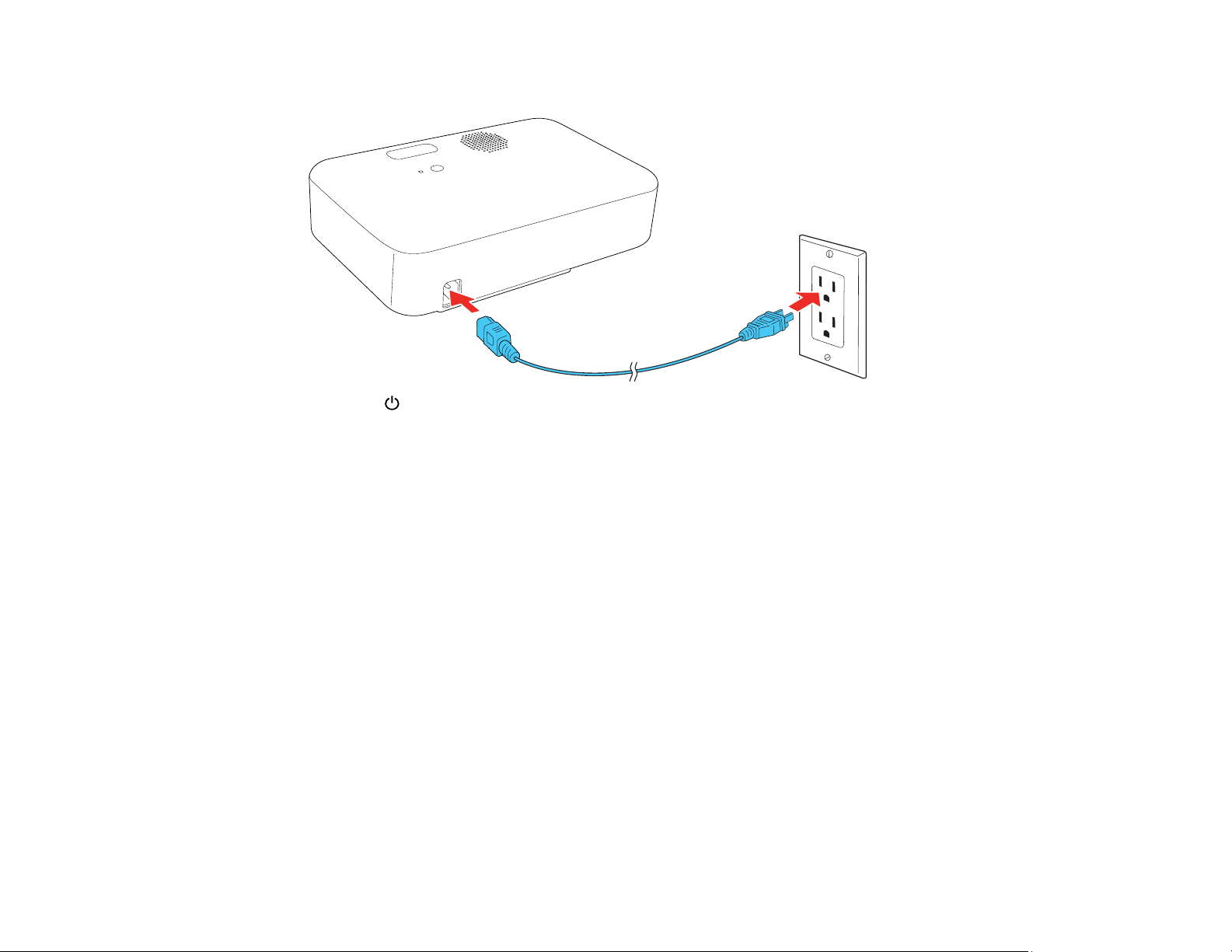

Turning On the Projector .................................................................................................................... 50

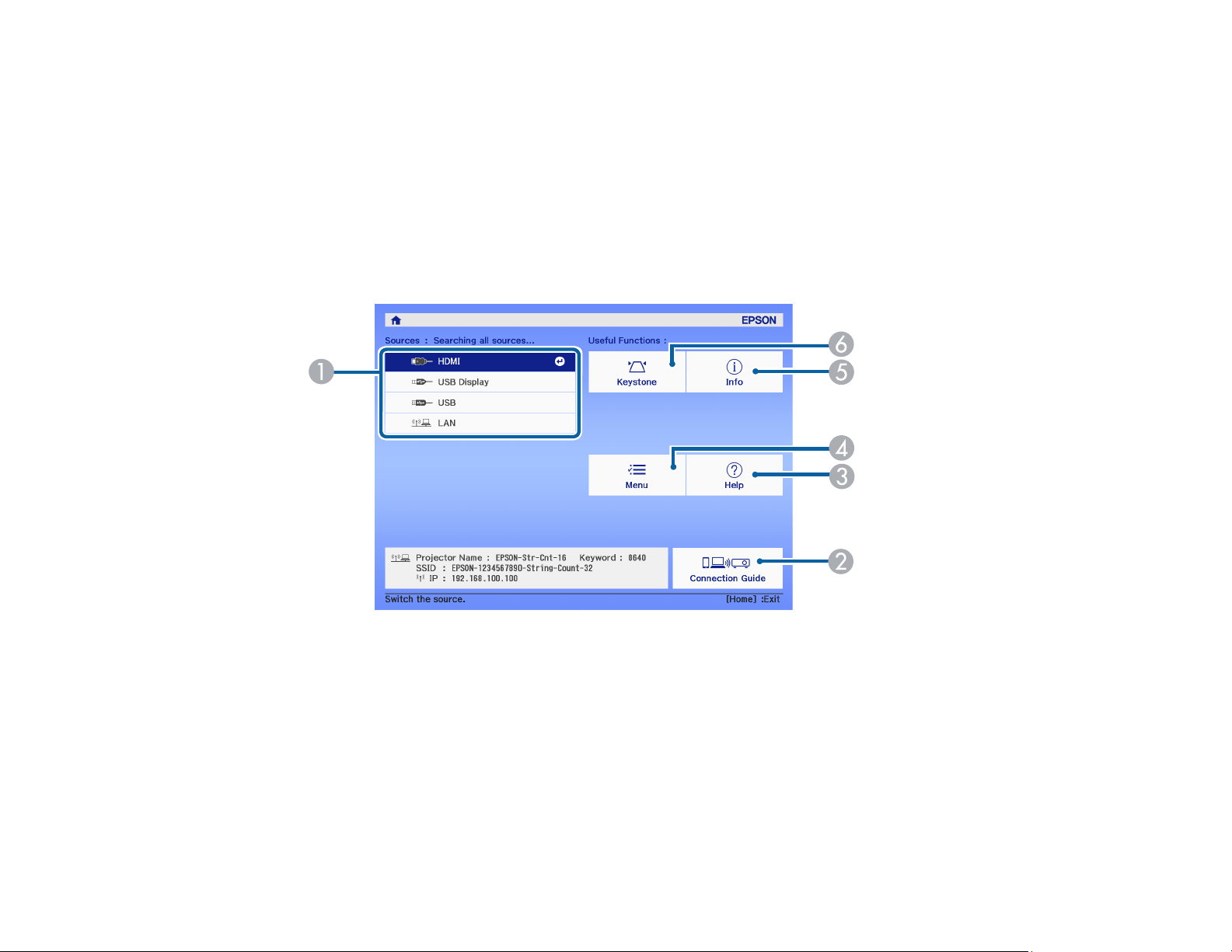

Using the Home Screen................................................................................................................. 52

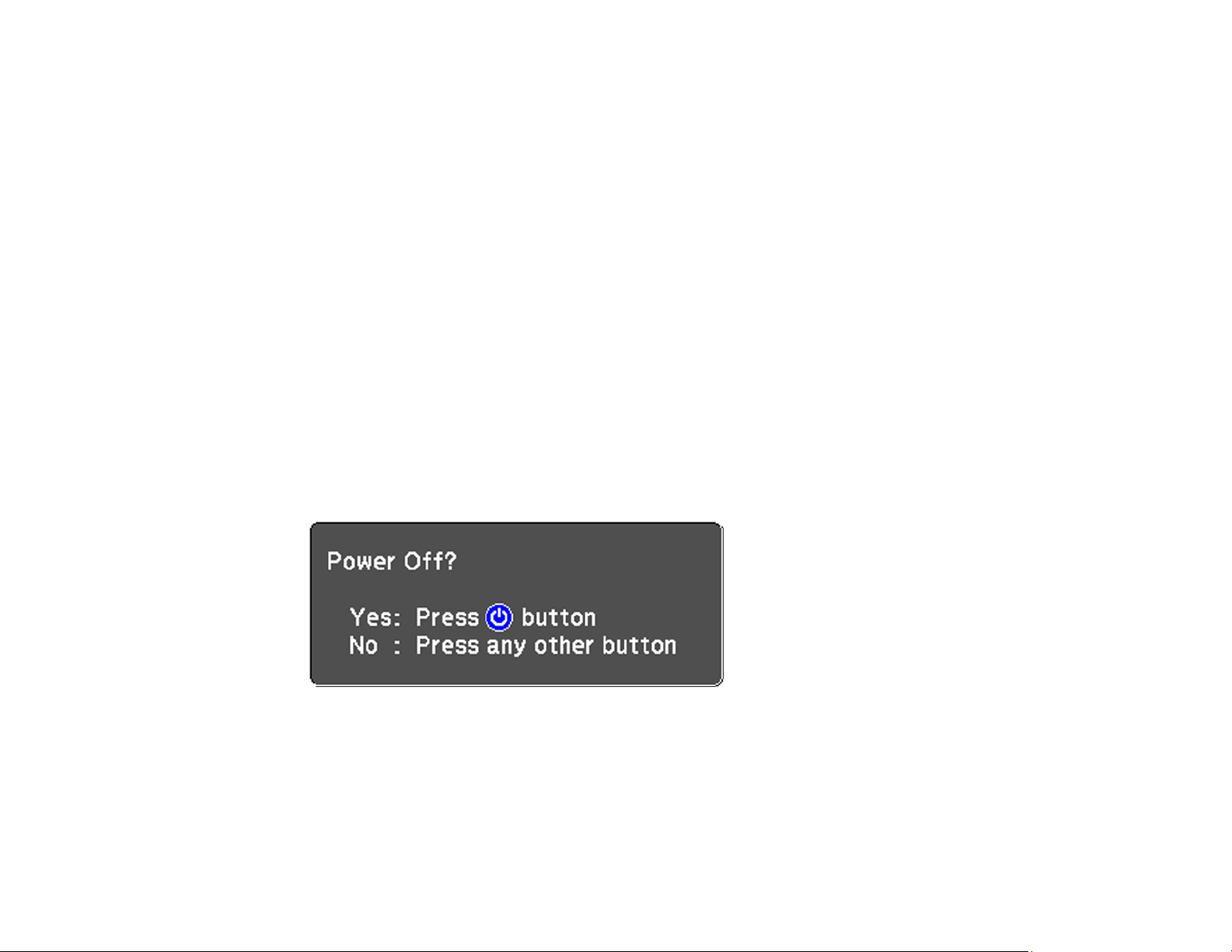

Turning Off the Projector .................................................................................................................... 53
Remote Control Operation ................................................................................................................. 54
Selecting the Language for the Projector Menus................................................................................ 55
Selecting an Image Source ................................................................................................................ 55
Projection Modes ............................................................................................................................... 55
Changing the Projection Mode Using the Menus........................................................................... 56
Adjusting the Image Height ................................................................................................................ 56
Adjusting the Image Position Using Image Shift................................................................................. 57
Setting the Screen Type..................................................................................................................... 58
Adjusting the Image Position Using Screen Position ..................................................................... 59
Image Aspect Ratio ............................................................................................................................ 59
Changing the Image Aspect Ratio ................................................................................................. 60
Available Image Aspect Ratios...................................................................................................... 60
Image Shape...................................................................................................................................... 61
Correcting Image Shape with H/V Keystone.................................................................................. 61
Correcting Image Shape with Quick Corner .................................................................................. 62
Focusing the Image Using the Focus Lever ....................................................................................... 64

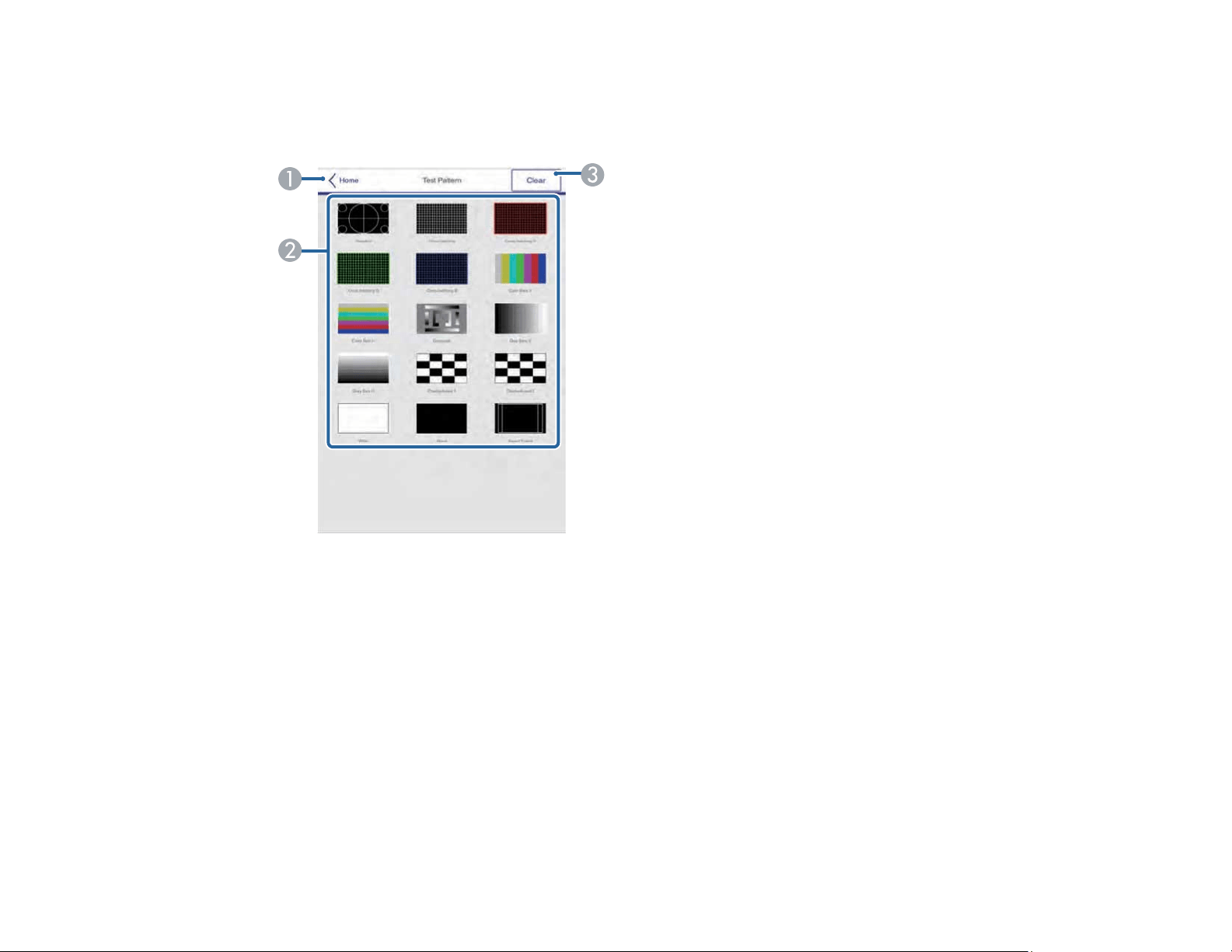

Displaying a Test Pattern ................................................................................................................... 64
Resizing the Image Using Zoom ........................................................................................................ 65
5
Color Mode......................................................................................................................................... 65
Changing the Color Mode.............................................................................................................. 66
Available Color Modes................................................................................................................... 66
Adjusting Picture Quality in Detail ...................................................................................................... 66
Controlling the Volume with the Volume Buttons................................................................................ 67
Adjusting Projector Features ................................................................................................................... 69

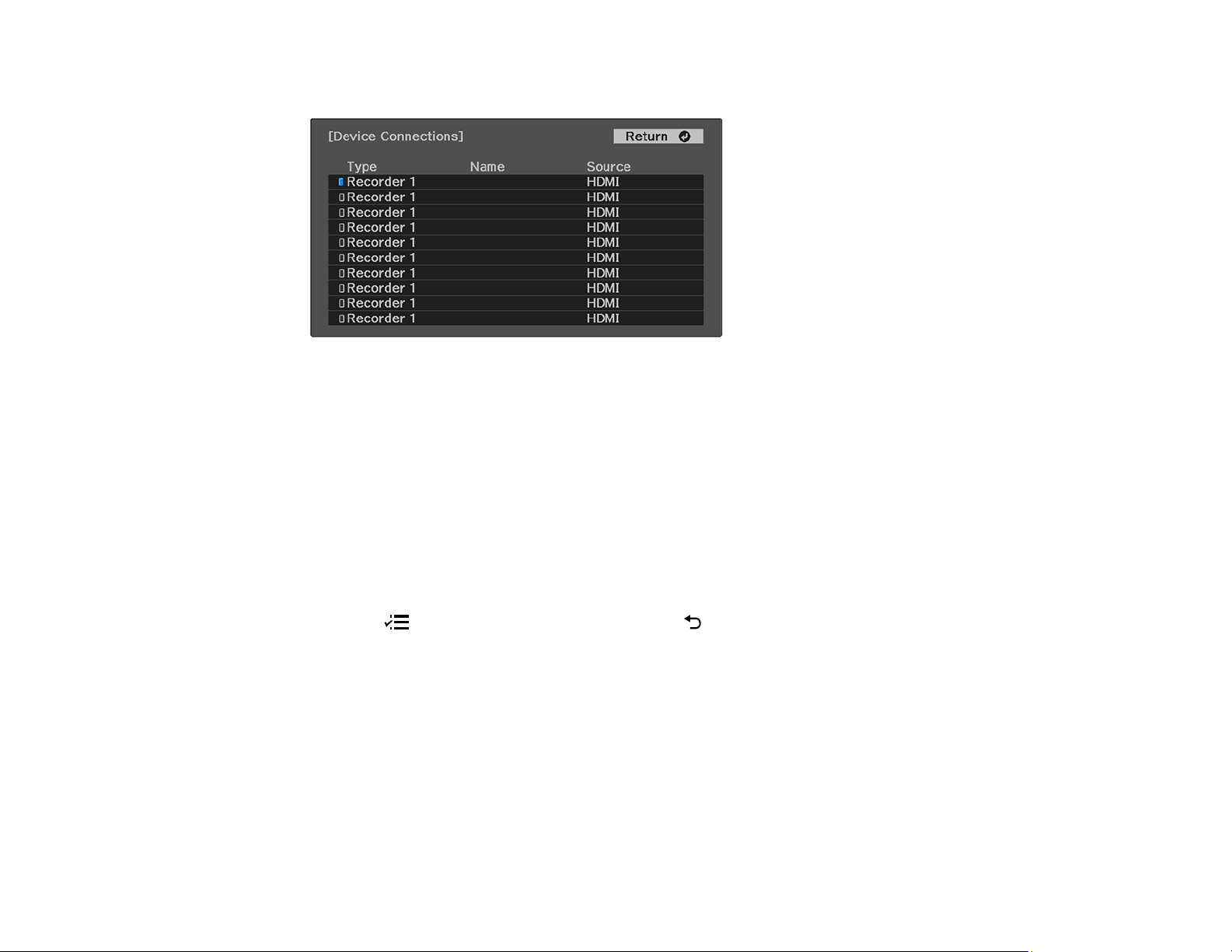

Operating Connected Devices Using the HDMI Link Features........................................................... 69
Projecting a PC Free Presentation ..................................................................................................... 70
PC Free Precautions ..................................................................................................................... 71
Supported PC Free File Types ...................................................................................................... 71

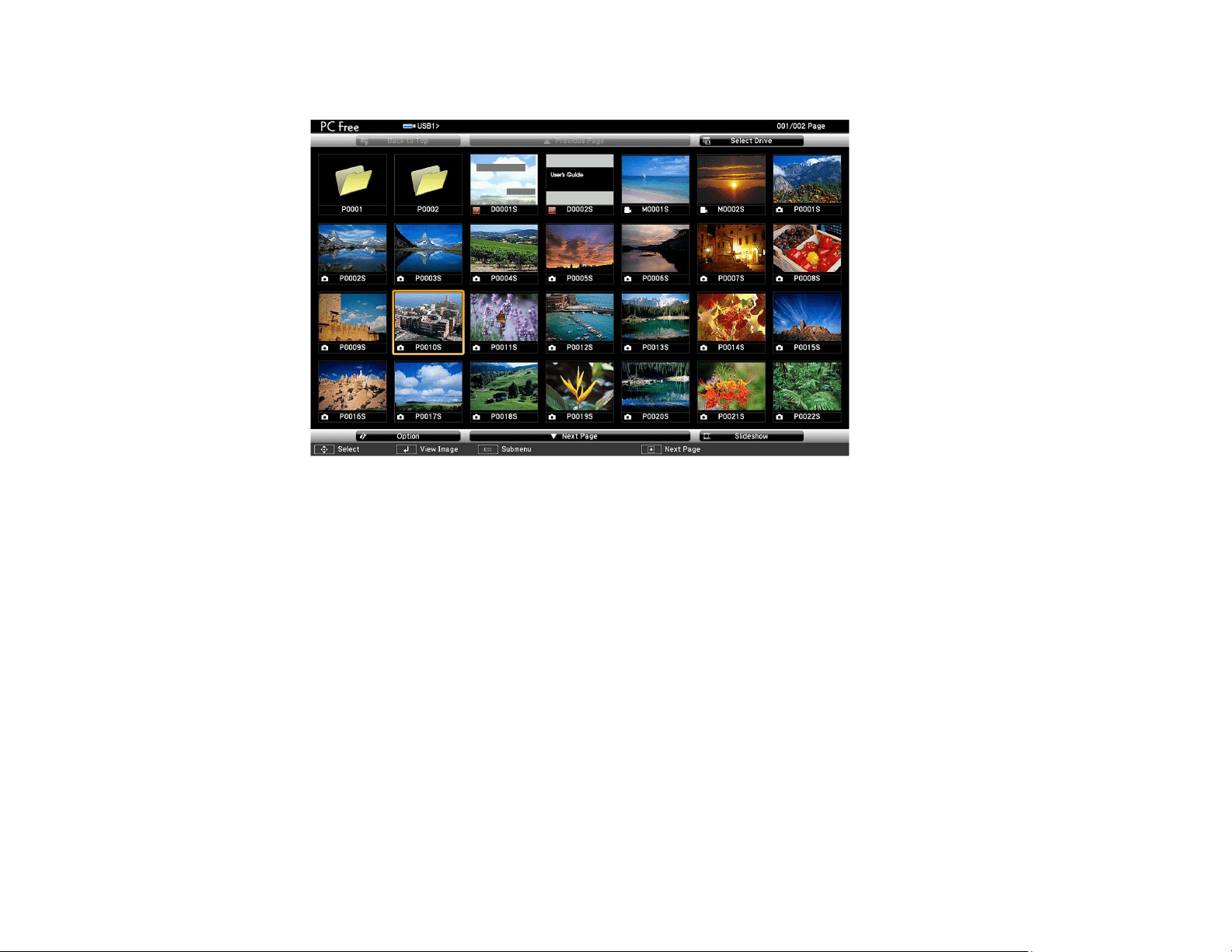

Starting a PC Free Slideshow........................................................................................................ 72
Starting a PC Free Movie Presentation ......................................................................................... 74

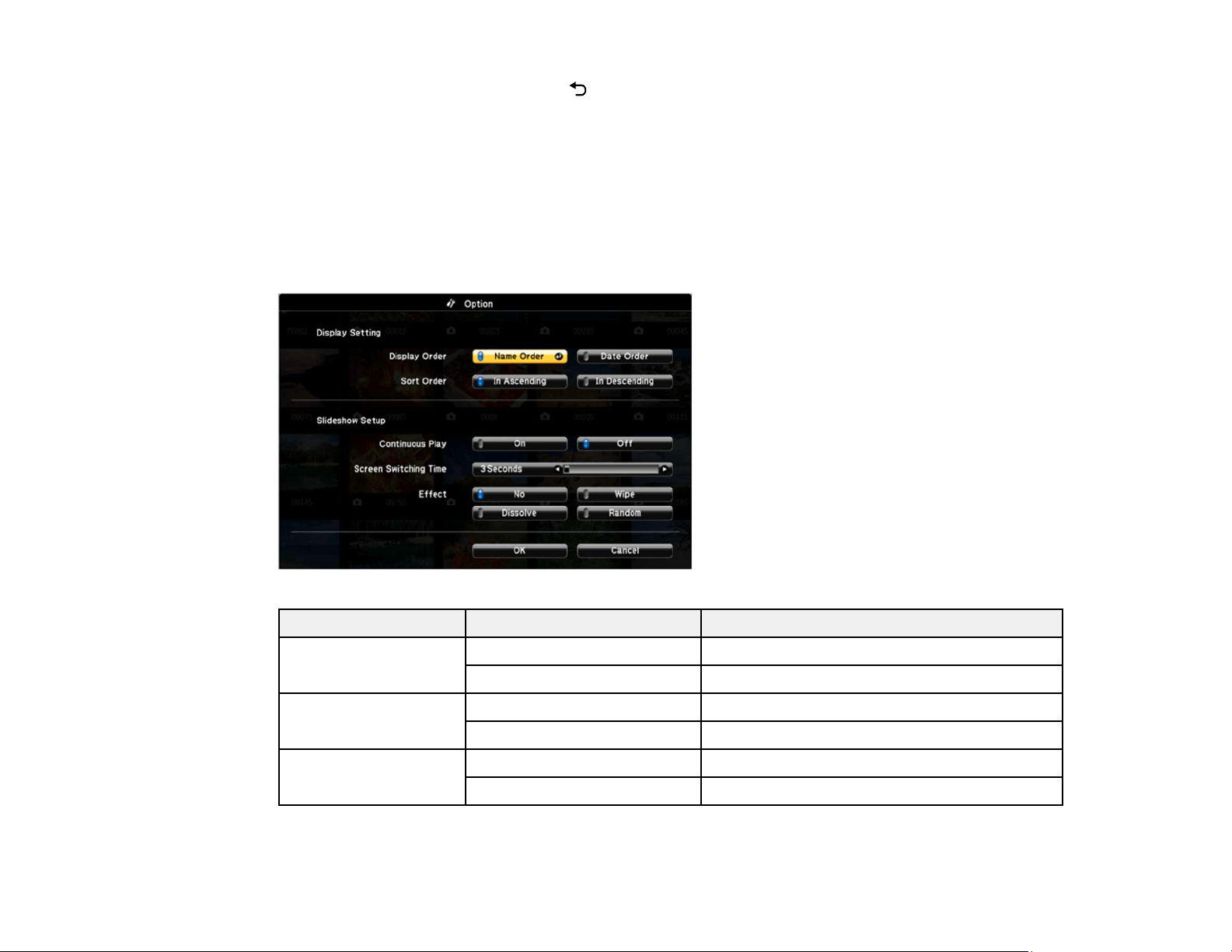

PC Free Display Options ............................................................................................................... 76
Shutting Off the Picture and Sound Temporarily ................................................................................ 77
Zooming Into and Out of Images ........................................................................................................ 78
Projector Security Features................................................................................................................ 78
Password Security Types .............................................................................................................. 79

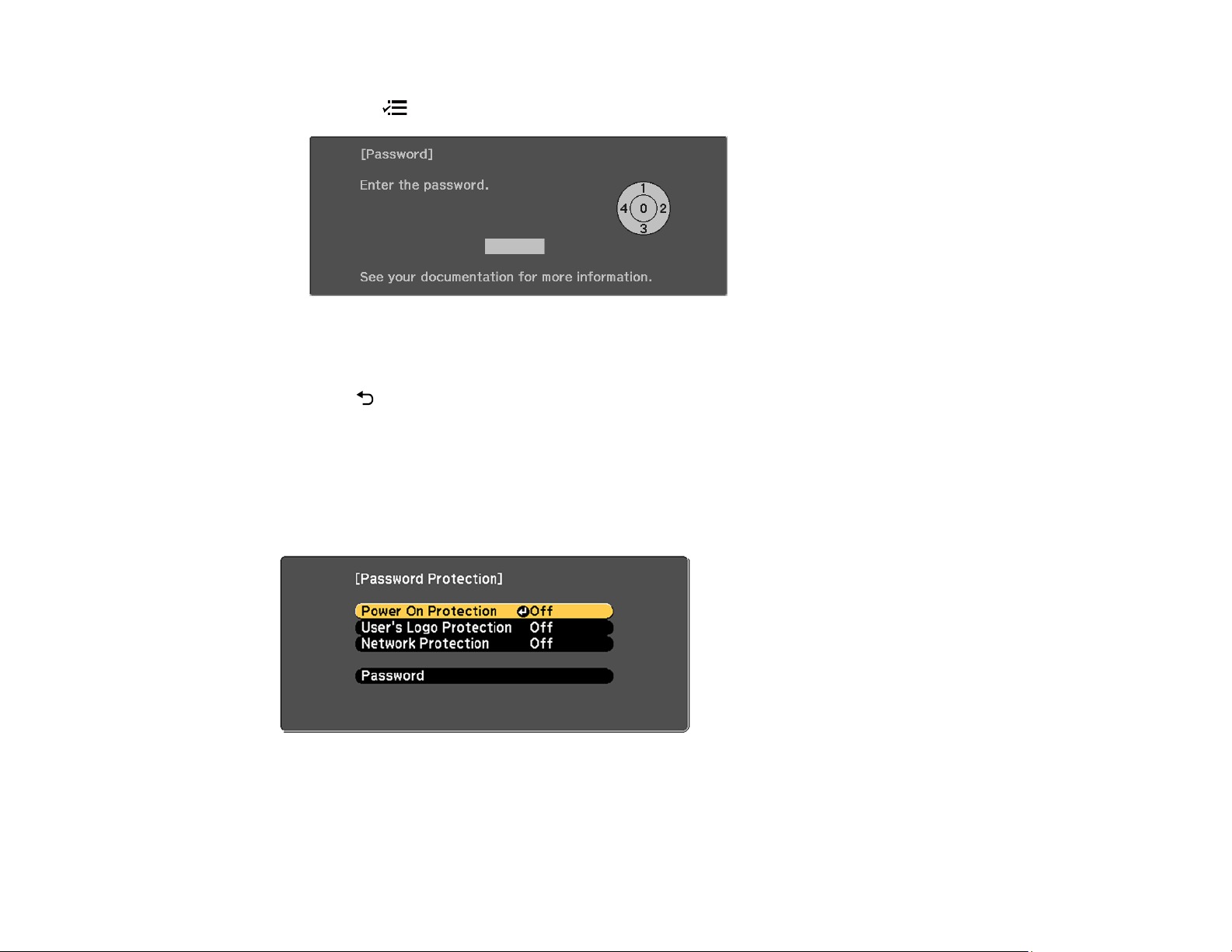

Setting a Password ................................................................................................................... 79
Selecting Password Security Types.......................................................................................... 80
Entering a Password to Use the Projector................................................................................. 81
Saving a User's Logo Image to Display..................................................................................... 82
Creating a User Pattern to Display ................................................................................................ 83
Installing a Security Cable ............................................................................................................. 84
Copying Menu Settings Between Projectors ...................................................................................... 84
Saving Settings to a USB Flash Drive............................................................................................ 85
Transferring Settings from a USB Flash Drive............................................................................... 86
Saving Settings to a Computer ...................................................................................................... 87
Transferring Settings from a Computer ......................................................................................... 88
Adjusting the Menu Settings .................................................................................................................... 89
Using the Projector's Menus............................................................................................................... 89

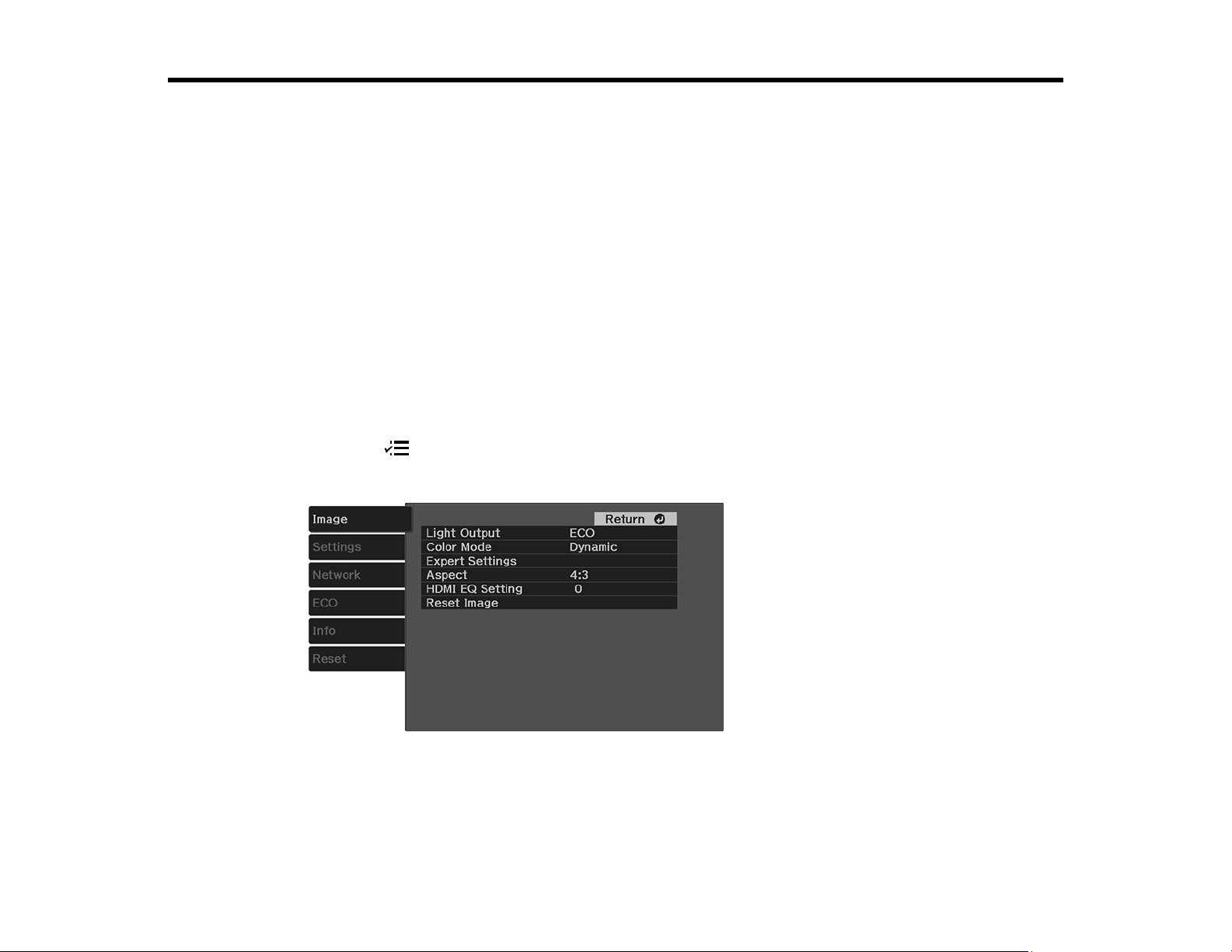

Image Quality Settings - Image Menu ................................................................................................ 90
Projector Feature Settings - Settings Menu........................................................................................ 92
Projector Network Settings - Network Menu....................................................................................... 98
6
Projector Setup Settings - ECO Menu ................................................................................................ 99
Projector Information Display - Info Menu ........................................................................................ 100
Event ID Code List....................................................................................................................... 100
Projector Reset Options - Reset Menu............................................................................................. 102
Maintaining and Transporting the Projector ......................................................................................... 103
Projector Maintenance ..................................................................................................................... 103
Cleaning the Lens........................................................................................................................ 103
Cleaning the Projector Case........................................................................................................ 104

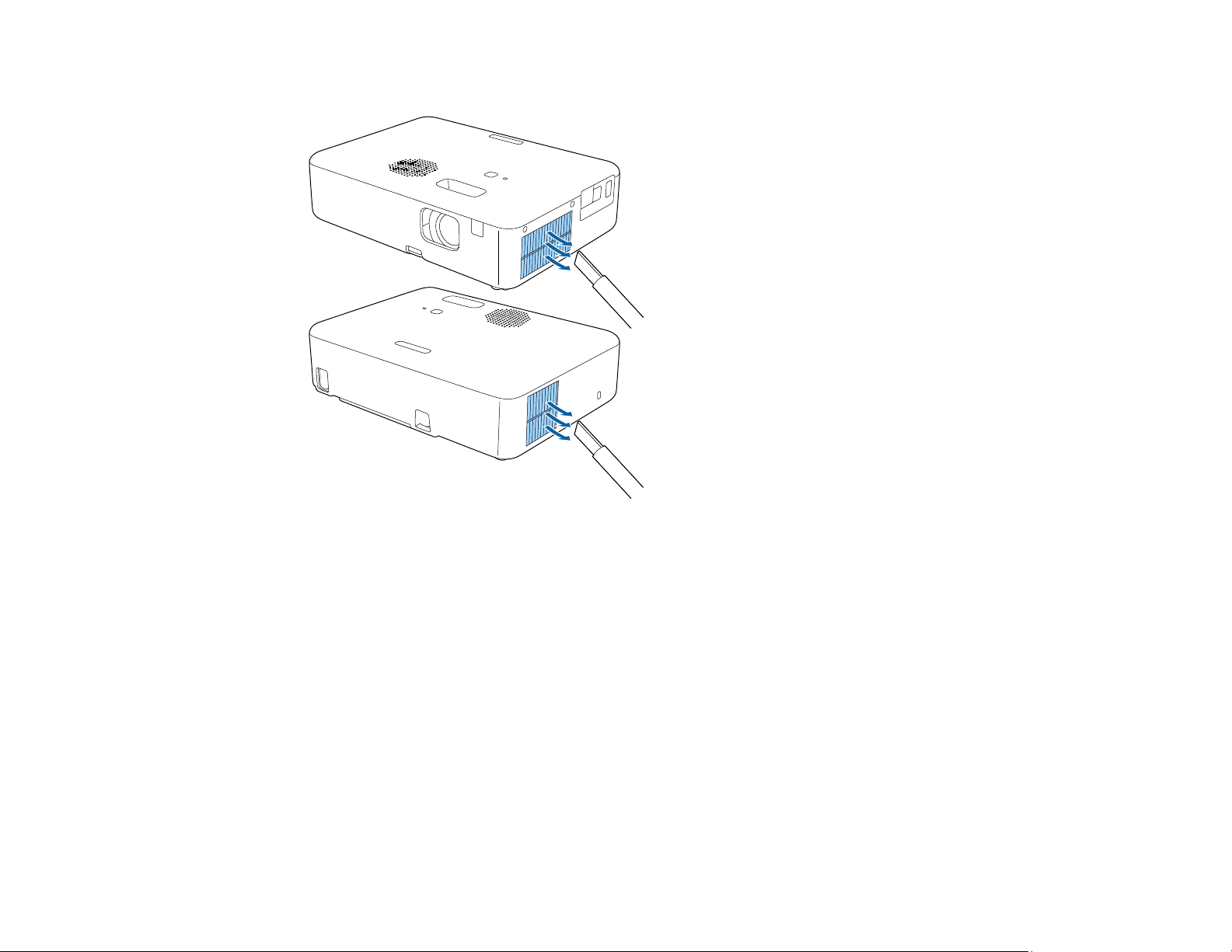

Cleaning the Air Vents................................................................................................................. 104
Replacing the Remote Control Batteries .......................................................................................... 105
Transporting the Projector................................................................................................................ 107
Solving Problems .................................................................................................................................... 108
Projection Problem Tips ................................................................................................................... 108
Projector Light Status ....................................................................................................................... 109
Solving Projector or Remote Control Operation Problems ............................................................... 110
Solutions to Projector Power or Shut-Off Problems..................................................................... 111
Solutions to Remote Control Problems........................................................................................ 111
Solving Image or Sound Problems ................................................................................................... 112
Solutions When No Image Appears............................................................................................. 113
Solutions When "No Signal" Message Appears........................................................................... 114
Displaying From a PC Laptop ................................................................................................. 114
Displaying From a Mac Laptop ............................................................................................... 114
Solutions When the Image is Not Rectangular ............................................................................ 115
Solutions When the Image is Fuzzy or Blurry .............................................................................. 115
Solutions When Only a Partial Image Appears............................................................................ 116
Solutions When the Image Contains Noise or Static ................................................................... 116
Solutions When the Image is Flickering....................................................................................... 117
Solutions When the Image Brightness or Colors are Incorrect .................................................... 117
Solutions When the Image is Upside Down................................................................................. 118
Solutions When Image is Incorrect Using the USB Display Function .......................................... 118
Solutions to Sound Problems ...................................................................................................... 118
Solutions to Password Problems...................................................................................................... 119
Solutions to HDMI Link Problems..................................................................................................... 120
7
Solutions When a Message to Replace the Projector is Displayed .................................................. 120
Where to Get Help (U.S. and Canada) ............................................................................................. 121
Where to Get Help (Latin America)................................................................................................... 122
Technical Specifications ........................................................................................................................ 124
General Projector Specifications...................................................................................................... 124
Projector Lamp Specifications.......................................................................................................... 125
Remote Control Specifications ......................................................................................................... 125
Projector Dimension Specifications.................................................................................................. 126
Projector Electrical Specifications .................................................................................................... 126
Projector Environmental Specifications............................................................................................ 127
Projector Safety and Approvals Specifications................................................................................. 127
Supported Video Display Formats.................................................................................................... 127
Notices ..................................................................................................................................................... 129
Recycling (U.S. and Canada)........................................................................................................... 129
Important Safety Information ............................................................................................................ 129
Important Safety Instructions............................................................................................................ 130
Restriction of Use ........................................................................................................................ 134

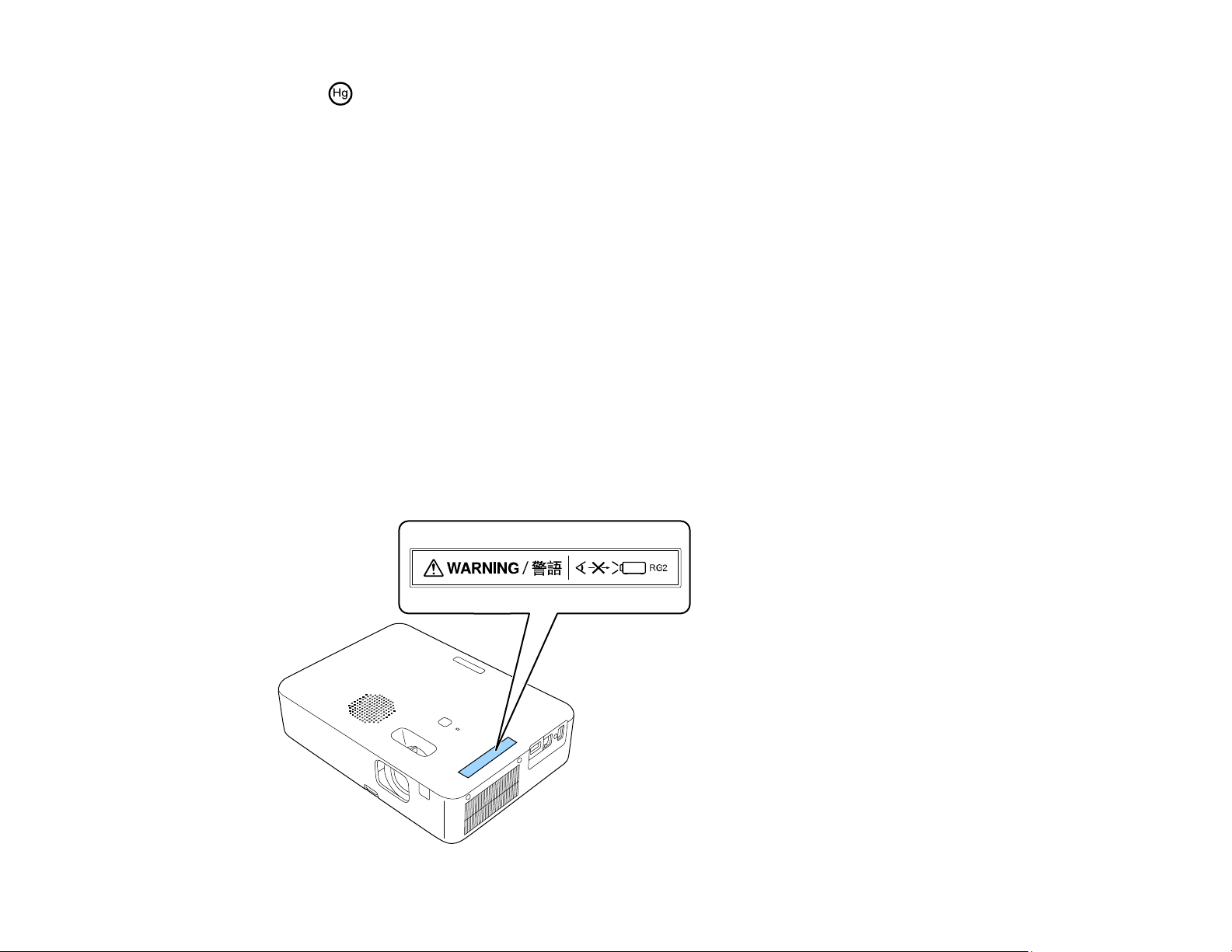

Warning Labels ................................................................................................................................ 134
List of Safety Symbols...................................................................................................................... 135
FCC Compliance Statement............................................................................................................. 139
Binding Arbitration and Class Waiver ............................................................................................... 140
Trademarks...................................................................................................................................... 143
Copyright Notice............................................................................................................................... 144
A Note Concerning Responsible Use of Copyrighted Materials................................................... 144
Copyright Attribution.................................................................................................................... 144
9
CO-W01 User's Guide
Welcome to the CO-W01 User's Guide.
For a printable PDF copy of this guide, click here.
10
Introduction to Your Projector
Refer to these sections to learn more about your projector and this manual.
Projector Features
Notations Used in the Documentation
Where to Go for Additional Information
Projector Part Locations
Projector Features
The CO-W01 projector includes these special features:
Bright, high-resolution projection system
• Up to 3000 lumens of color brightness (color light output) and white brightness (white light output)
Note: Color brightness (color light output) and white brightness (white light output) will vary depending
on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output
measured in accordance with ISO 21118.
• WXGA (1280 × 800) native resolution
• Advanced 3LCD technology
• Up to a 378-inch (960 cm) projected image size (no screen required)
Flexible connectivity
• HDMI port for video sources or streaming devices
• Small and portable, allows you to project without wires or extra cables
• PC Free projection from external USB devices
• 5V 2A USB port
Product Box Contents
Additional Components
Additional Projector Software and Manuals
Optional Equipment and Replacement Parts
Warranty and Registration Information (U.S. and Canada)
Warranty and Registration Information (Latin America)
11
Parent topic: Introduction to Your Projector
Product Box Contents
Save all the packaging in case you need to ship the projector. Always use the original packaging (or
equivalent) when shipping.
Make sure your projector box included all of these parts:
1 Projector
2 Remote control and 2 AAA batteries
3 Power cord
Parent topic: Projector Features
Additional Components
Depending on how you plan to use the projector, you may need to obtain additional components.
Note: To connect a Mac that does not include a compatible HDMI output port, you need to obtain an
adapter that allows you to connect to the HDMI port on the projector. Contact Apple for compatible HDMI
adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you
to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies,
and more. Contact your device manufacturer for compatible adapter options.
Note: The projector's HDMI port does not support MHL.
Unless listed as available from Epson in this table, see your local computer or electronics dealer for
purchase information.
12
Signal or connection
type
Additional component necessary
HDMI Compatible HDMI cable
U.S. and Canada: Available for purchase from Epson or an authorized
Epson reseller.
Latin America: Available for purchase from an authorized Epson reseller.
Note: Older Mac computers (2009 and earlier) may not support HDMI
audio.
USB Compatible USB cable
Parent topic: Projector Features
Additional Projector Software and Manuals
After connecting and setting up the projector, install the projector software as necessary. You may need
to install it from a software CD, if included, or download the software and manuals as necessary.
You can install the projector software programs listed here and view their manuals for instructions on
using them.
Note: If you still need help after checking this manual and the sources listed here, you can use the
Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."
Projector software Manual Description
Epson Projector
Management (Windows
only)
Epson Projector
Management Operation
Guide
Lets you monitor and control your projector
through the network.
You can download the latest software and
documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support
(Caribbean) and select your projector.
13
Projector software Manual Description
Epson iProjection
(Windows/Mac)
Epson iProjection
Operation Guide
(Windows/Mac)
Lets you project the computer screens of
users over a network.
You can download the latest software and
documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support
(Caribbean) and select your projector.
Epson iProjection app Instructions are included
with the app
Lets you project from an iOS or Android device
if your projector is connected to a network that
includes a wireless access point.
Visit epson.com/support (U.S.),
epson.ca/support (Canada), or
latin.epson.com/support (Caribbean) for more
information.
— Open Source Software
License
You can download this document from the
Epson web site.
Note: Epson iProjection is not recommended for use with streaming video.
Parent topic: Projector Features
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Optional Equipment and Replacement Parts
U.S. and Canada: You can purchase screens, other optional accessories, and replacement parts from
an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the
U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or
epsonstore.ca (Canadian sales).
Latin America: You can purchase optional accessories and replacement parts from an Epson
authorized reseller. To find the nearest reseller, go to latin.epson.com. Or you can click the "Where to
Get Help" link below to contact your nearest sales office.
Note: Availability of accessories varies by country.
14
Epson offers the following optional accessories and replacement parts for your projector:
U.S. and Canada:
Option or part Part number
Ceiling mount (ELPMBJG) V12H808001
Safety wire set (ELPWR01) V12H003W01
Wireless LAN unit (ELPAP11) V12H005A02
Soft carrying case (ELPKS69) V12H001K69
Document camera (ELPDC07) V12H759020
Document camera (ELPDC13) V12H757020
Document camera (ELPDC21) V12H758020
Latin America:
Option or part Part number
Safety wire set (ELPWR01) V12H003W01
Wireless LAN unit (ELPAP11) V12H005A02
Parent topic: Projector Features
Warranty and Registration Information (U.S. and Canada)
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty brochure that came with your projector.
Register your product online at this site: epson.com/webreg
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Warranty and Registration Information (Latin America)
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty that came with your projector.
Register your product online at latin.epson.com/support, search for your product, and select Register.
Registering also lets you receive special updates on new accessories, products, and services.
15
Parent topic: Projector Features
Notations Used in the Documentation
Follow the guidelines in these notations as you read your documentation:
• Warnings must be followed carefully to avoid bodily injury.
• Cautions must be observed to avoid damage to your equipment.
• Notes contain important information about your projector.
• Tips contain additional projection information.
Parent topic: Introduction to Your Projector
Where to Go for Additional Information
Need quick help on using your projector? Here's where to look for help:
• Built-in help system
Press the Home button on the remote control or projector, press the arrow buttons to select the
help icon, and press Enter to get quick solutions to common problems.
• epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Caribbean)
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24
hours a day.
• If you still need help after checking this manual and any other sources listed here, you can use the
Epson PrivateLine Support service to get help fast (U.S. and Canada only). For details, see "Where to
Get Help."
Parent topic: Introduction to Your Projector
Projector Part Locations
Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front/Top
Projector Parts - Rear
Projector Parts - Base
Projector Parts - Remote Control
Parent topic: Introduction to Your Projector
17
Projector Parts - Rear
1 AC power inlet
2 Security cable attachment point
3 Air exhaust vent
4 Kensington security slot
Warning: While projecting, do not put your face or hands near the air exhaust vents, and do not place
objects that may become warped or damaged by heat near the vents. Hot air from the air exhaust vents
could cause burns or other injuries, or warping of projector parts.
Warning: Do not look into the vents. If the lamp explodes, gases may escape and small fragments of
glass may be scattered which could cause an injury. Contact a doctor if any fragments of broken glass
are inhaled or get into the eyes or mouth.
Parent topic: Projector Part Locations
Related tasks
Installing a Security Cable
19
Projector Parts - Remote Control
1
power button
2 color mode button
3 keystone button (corrects image distortion)
20
4 Arrow buttons
5 Enter button (selects options)
6
home button (displays and closes the Home screen)
7 return button (cancels/exits function)
8
E-Zoom and buttons (zooms in and out of images)
9
A/V mute button (turns audio and video on or off temporarily)
10
mute button (turns audio on or off temporarily)
11
volume up and volume down buttons
12 Freeze button (pauses video temporarily while source continues to play)
13 menu button (accesses projector menus)
14
brightness button (adjusts image brightness)
15 source search button (changes active source)
16 Remote control emitter
Parent topic: Projector Part Locations
21
Setting Up the Projector
Follow the instructions in these sections to set up your projector for use.
Projector Placement
Projector Connections
Installing Batteries in the Remote Control
Projector Placement
You can place the projector on almost any flat surface to project an image.
You can also install the projector in a ceiling mount or on a floor stand if you want to use it in a fixed
location.
Keep these considerations in mind as you select a projector location:
• Place the projector on a sturdy, level surface or install it using a compatible mount.
• Place the projector parallel to the screen.
• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or
next to anything that could block the vents.
• Position the projector within reach of a grounded electrical outlet or extension cord.
Make sure you read the safety instructions when placing or mounting your projector. See the link below.
Projector Setup and Installation Options
Projection Distance
Installing the Safety Wire
Parent topic: Setting Up the Projector
Related references
Important Safety Instructions
Projector Setup and Installation Options
You can set up or install your projector in the following ways:
22
Front
Rear
Front ceiling
23
Rear ceiling
Note: Be sure to leave the following amount of space around the projector to avoid blocking the air
exhaust and intake vents.
1 3.94 inches (10 cm)
2 7.87 inches (20 cm)
3 11.81 inches (30 cm)
Parent topic: Projector Placement
Related tasks
Changing the Projection Mode Using the Menus
Installing the Safety Wire
Projection Distance
The distance at which you place the projector from the screen determines the approximate size of the
image. The image size increases the farther the projector is from the screen, but can vary depending on
the zoom factor, aspect ratio, and other settings.
24
Use the tables here to determine approximately how far to place the projector from the screen based on
the size of the projected image. (Conversion figures may have been rounded up or down.) You can also
use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).
1 Projection distance
2 Distance from the center of the lens to the base of the screen
3 Center of lens
16:10 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Distance from center of lens to
base of screen (2)
25 inches 26 to 36 inches
(67 to 91 cm)
-1.6 to 0 inches (-4 to 0 cm)
33 inches 35 to 48 inches
(89 to 121 cm)
-2 to 0.4 inches (-5 to 1 cm)
25
16:10 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Distance from center of lens to
base of screen (2)
40 inches 43 to 58 inches
(108 to 147 cm)
-2.3 to 0.4 inches (-6 to 1 cm)
60 inches 65 to 87 inches
(164 to 222 cm)
-3.9 to 0.4 inches (-10 to 1 cm)
80 inches 86 to 117 inches
(219 to 296 cm)
-5.1 to 0.4 inches (-13 to 1 cm)
100 inches 108 to 146 inches
(274 to 371 cm)
-6.3 to 0.8 inches (-16 to 2 cm)
200 inches 217 to 293 inches
(550 to 744 cm)
-12.6 to 1.6 inches (-32 to 4 cm)
280 inches 304 to 410 inches
(771 to 1042 cm)
-17.7 to 2 inches (-45 to 5 cm)
300 inches 325 to 439 inches
(826 to 1116 cm)
-18.9 to 2.3 inches (-48 to 6 cm)
378 inches 410 to 554 inches
(1042 to 1407 cm)
-24 to 2.8 inches (-61 to 7 cm)
16:9 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Distance from center of lens to
base of screen (2)
24 inches 26 to 35 inches
(66 to 90 cm)
-0.8 to 0.8 inches (-2 to 2 cm)
32 inches 35 to 48 inches
(89 to 121 cm)
-1.2 to 1.2 inches (-3 to 3 cm)
26
16:9 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Distance from center of lens to
base of screen (2)
40 inches 44 to 59 inches
(111 to 151 cm)
-1.6 to 1.2 inches (-4 to 3 cm)
60 inches 66 to 90 inches
(168 to 228 cm)
-2.4 to 2 inches (-6 to 5 cm)
80 inches 89 to 120 inches
(225 to 304 cm)
-3.1 to 2.8 inches (-8 to 7 cm)
100 inches 111 to 150 inches
(282 to 381 cm)
-3.9 to 3.5 inches (-10 to 9 cm)
150 inches 167 to 226 inches
(424 to 573 cm)
-5.9 to 5.1 inches (-15 to 13 cm)
200 inches 223 to 301 inches
(566 to 764 cm)
-7.5 to 6.7 inches (-19 to 17 cm)
272 inches 303 to 409 inches
(770 to 1040 cm)
-10.2 to 9.4 inches (-26 to 24 cm)
300 inches 334 to 452 inches
(849 to 1147 cm)
-11.4 to 10.2 inches (-29 to 26
cm)
367 inches 409 to 553 inches
(1040 to 1404 cm)
-14.2 to 12.6 inches (-36 to 32
cm)
4:3 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Distance from center of lens to
base of screen (2)
22 inches 26 to 36 inches
(67 to 91 cm)
-1.6 to 0 inches (-4 to 0 cm)
27
4:3 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
Distance from center of lens to
base of screen (2)
29 inches 35 to 47 inches
(89 to 120 cm)
-2 to 0.4 inches (-5 to 1 cm)
40 inches 48 to 66 inches
(123 to 167 cm)
-2.8 to 0.4 inches (-7 to 1 cm)
60 inches 73 to 99 inches
(186 to 251 cm)
-4.3 to 0.4 inches (-11 to 1 cm)
80 inches 98 to 132 inches
(248 to 336 cm)
-5.9 to 0.8 inches (-15 to 2 cm)
100 inches 122 to 165 inches
(311 to 420 cm)
-7.1 to 0.8 inches (-18 to 2 cm)
150 inches 184 to 248 inches
(467 to 631 cm)
-10.6 to 1.2 inches (-27 to 3 cm)
200 inches 245 to 331 inches
(623 to 842 cm)
-14.6 to 1.6 inches (-37 to 4 cm)
247 inches 303 to 409 inches
(770 to 1040 cm)
-17.7 to 2 inches (-45 to 5 cm)
300 inches 369 to 498 inches
(936 to 1264 cm)
-21.7 to 2.4 inches (-55 to 6 cm)
334 inches 410 to 554 inches
(1042 to 1407 cm)
-24 to 2.8 inches (-61 to 7 cm)
Parent topic: Projector Placement
Installing the Safety Wire
When installing the projector in a high location such as a ceiling or shelf, you can install the safety wire
(not included) to prevent the projector from falling.
28
1. Pass the safety wire through the security cable attachment point on the projector.
2. Attach the other end of the safety wire to a structure that is strong enough to bear the projector's
weight. If the wire is too long, loop the wire around so that there is as little slack as possible.
Parent topic: Projector Placement
Projector Connections
See these sections to connect the projector to a variety of projection sources.
Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode
to ensure the projector's internal temperature is regulated properly.
Caution: Check the shape and orientation of the connectors on any cable you plan to connect. Do not
force a connector into a port if it does not fit. The device or your projector could be damaged or could
malfunction.
Connecting to an HDMI Video Source
Connecting to a Computer for USB Video and Audio
Connecting to a USB Device
Parent topic: Setting Up the Projector
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable.
The HDMI connection provides the best image quality.
29
Caution: Do not turn on the video source before connecting it to the projector. Doing so could damage
the projector.
1. Connect the HDMI cable to your video source's HDMI output port.
2. Connect the other end to the projector's HDMI port.
Note: When an audio/video source that meets the HDMI CEC standard is connected to the projector's
HDMI port, you can use the projector's remote control to control certain features of the linked device by
accessing the Settings > Operation menu and enabling the HDMI Link setting.
Parent topic: Projector Connections
Related references
Projector Feature Settings - Settings Menu
Related tasks
Operating Connected Devices Using the HDMI Link Features
Connecting to a Computer for USB Video and Audio
If your computer meets the system requirements, you can send video and audio output to the projector
through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a
USB cable.
1. Turn on your computer.
30
2. Connect the cable to your projector's USB-B port.
3. Connect the other end to any available USB port on your computer.
4. Do one of the following:
• Windows 11/Windows 10/Windows 8.x: Click EPSON_PJ_UD when it appears on the desktop,
then select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display
software.
• Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to
install the Epson USB Display software.
• Mac: The USB Display setup folder appears on your screen. Select USB Display Installer and
follow the on-screen instructions to install the Epson USB Display software.
Follow any on-screen instructions. You need to install this software only the first time you connect
the projector to the computer.
The projector displays the image from your computer's desktop and outputs sound, if your presentation
contains audio.
Parent topic: Projector Connections
Related tasks
Changing the Projection Mode Using the Menus
Installing the Safety Wire
Connecting to a USB Device
You can connect a USB device or cable to the projector's USB-A port to project images from the device.
Use the USB cable supplied with the device.
31
Note: Do not connect a USB hub or a USB cable longer than 9.8 feet (3 m), or the device may not
operate correctly.
Make sure the USB device meets the following requirements:
• The device must be a USB flash drive, USB hard drive, or a digital camera or smartphone
• Digital cameras and smartphones must be USB-mounted devices (not TWAIN-compliant) and must be
USB Mass Storage Class compliant.
• USB hard drives must be USB Mass Storage Class compliant (not all compliant devices are
supported); formatted in FAT16/32; self-powered by their own AC power supplies (bus powered drives
are not recommended); and should not have multiple partitions.
1. If your USB device came with an AC adapter, plug the device into an electrical outlet.
2. Connect the USB device or cable to the projector's USB-A port.
3. If you connected a USB cable, connect the other end to the USB device as necessary.
The projector displays images stored on the USB device.
Parent topic: Projector Connections
Related topics
Projecting a PC Free Presentation
Installing Batteries in the Remote Control
The remote control uses the two AAA batteries that came with the projector.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
32
1. Remove the battery cover.
2. Insert the batteries with the + and – ends facing as shown.
Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not
inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.
3. Replace the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
34
Using the Projector on a Network
Follow the instructions in these sections to set up your projector for use on a network.
Note: Epson iProjection is not recommended for use with streaming video.
Wireless Network Projection
Setting Up Projector Network E-Mail Alerts
Setting Up Monitoring Using SNMP
Selecting Other Network Settings
Controlling a Networked Projector Using a Web Browser
Wireless Network Projection
You can project over a wireless network. To do this, you must set up your projector and computer for
wireless projection.
Note: The Epson 802.11b/g/n wireless LAN module is not included with your projector and is optional.
To connect wirelessly to your projector, configure the connection using the projector's Network menus.
After connecting and setting up the projector, install the projector software. You may need to install it
from a software CD, if included, or download the software and manuals as necessary.
You can use Epson iProjection to project static images and presentations over a wireless network.
Note: Epson iProjection is not recommended for use with streaming video.
Installing the Wireless LAN Module
Selecting Wireless Network Settings Manually
Selecting Wireless Network Settings in Windows
Selecting Wireless Network Settings on Mac
Setting Up Wireless Network Security
Using a QR Code to Connect a Mobile Device
Parent topic: Using the Projector on a Network
35
Installing the Wireless LAN Module
To use the projector over a wireless network, install the Epson 802.11b/g/n wireless LAN module in the
projector. Do not install any other type of wireless module.
Note: The wireless LAN module is not included with your projector and is optional.
1. Turn off the projector and unplug the power cord.
2. Insert the wireless LAN module into the USB-A port.
3. Plug in and turn on the projector.
The light on the wireless LAN module turns on when the module is installed and operating. The light
flashes when the module is communicating over the network.
Caution: Never remove the module while its indicator is blue or flashing, or while you are projecting
wirelessly. This could damage the module or lose data.
Parent topic: Wireless Network Projection
Selecting Wireless Network Settings Manually
Before you can project from your wireless network, you must select the network settings for the projector
using its menu system.
1. Turn on the projector.
2. Press the Menu button.
3. Select the Network menu and press Enter.
4. Make sure the Wireless LAN Power setting is set to On.
5. Select Network Configuration and press Enter.
6. Select the Basic menu and press Enter.
7. Select the following basic options as necessary:
• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the
projector over the network.
• Remote Password lets you enter a password up to 32 alphanumeric characters long for
accessing the projector using Basic Control. (Default user name is EPSONREMOTE; default
password is the projector's serial number.)
36
• Web Control Password lets you enter a password up to 32 alphanumeric characters long for
accessing the projector over the web. (Default user name is EPSONWEB; default password is the
projector's serial number.)
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.
• Projector Keyword lets you turn on a security password to prevent access to the projector by
anyone not in the room with it. The projector displays a random keyword that you must enter from
a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device
using the Epson iProjection app.
• Display Keyword lets you display a keyword on the projected image when accessing the
projector from a computer using the Epson iProjection (Windows/Mac) software or an iOS or
Android device using the Epson iProjection app.
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices with the
Epson iProjection app.
Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow
buttons on the remote control to highlight characters and press Enter to select them.
8. Select the Wireless LAN menu and press Enter.
9. Select the settings on the Wireless LAN menu as necessary for your network.
10. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
After you complete the wireless settings for your projector, you need to select the wireless network on
your computer, or iOS or Android device.
Wireless LAN Menu Settings
Parent topic: Wireless Network Projection
37
Wireless LAN Menu Settings
Setting Options Description
Connection Mode Quick
Advanced
Selects the type of wireless
connection:
Quick: lets you connect to
multiple smartphones, tablets, or
computers directly
Advanced: lets you connect to
multiple smartphones, tablets, or
computers via a wireless network
access point
Search Access Point To Search View Search for available wireless
network access points in
Advanced connection mode
SSID Up 32 alphanumeric characters Sets the SSID (network name) of
the wireless LAN system the
projector is connecting to
Security Open
WPA2-PSK
WPA3-PSK
WPA2/WPA3-PSK
Selects the type of wireless
security used in the wireless
network (some options are only
available when the Connection
Mode setting is set to
Advanced)
Passphrase Between 8 to 63 alphanumeric
characters
Enter a paraphrase for the
wireless network (passphrases
longer than 32 characters must
be entered using Web Config)
Channel Various channels available In Quick connection mode,
selects the frequency band
(channel) used by the wireless
LAN
38
Setting Options Description
IP Settings DHCP
IP Address
Subnet Mask
Gateway Address
Turns on DHCP if your network
assigns addresses automatically;
set to Off to manually enter the
network's IP Address, Subnet
Mask, and Gateway Address
(some options are only available
when the Connection Mode
setting is set to Advanced) See
the note after the table for
restricted addresses.
SSID Display On
Off
Selects whether to display the
SSID on the network standby
screen
IP Address Display On
Off
Selects whether to display the IP
address on the network standby
screen
IPv6 Settings IPv6
Auto Configuration
Use Temporary Address
Selects the IPv6 settings when
you connect the projector to the
network using IPv6
The Epson Web Control and
PJLink functions support IPv6.
Note: Do not use these addresses in your IP Settings:
• IP Address: 0.0.0.0, 127.x.x.x, 192.0.2.x or 224.0.0.0 through 255.255.255.255 (where x is a number
from 0 to 255)
• Subnet Mask: 255.255.255.255 or 0.0.0.0 through 254.255.255.255
• Gateway Address: 0.0.0.0,127.x.x.x or 224.0.0.0 through 255.255.255.255
Parent topic: Selecting Wireless Network Settings Manually
Selecting Wireless Network Settings in Windows
Before connecting to the projector, select the correct wireless network on your computer.
1. To access your wireless utility software, access the Desktop and double-click the network icon on
the Windows taskbar.
39
2. Do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
3. Click Connect.
Parent topic: Wireless Network Projection
Selecting Wireless Network Settings on Mac
Before connecting to the projector, select the correct wireless network on your Mac.
1. Click the AirPort or Wi-Fi icon on the menu bar at the top of the screen.
2. Make sure AirPort or Wi-Fi is turned on, then do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
Parent topic: Wireless Network Projection
Setting Up Wireless Network Security
You can set up security for your projector to use on a wireless network. Set up one of the following
security options to match the settings used on your network:
• WPA2-PSK (Quick connection mode)
• WPA3-PSK (Advanced connection mode)
• WPA2/WPA3-PSK (Advanced connection mode)
Note: Contact your network administrator for guidance on entering the correct information.
1. Press the menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
4. Select the Wireless LAN menu and press Enter.
5. Set the Security setting to match your network settings.
40
6. Select Passphrase and enter a passphrase from 8 to 63 characters long. To enter more than 32
characters, use Web Config to enter the passphrase.
7. Select Complete and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Wireless Network Projection
Using a QR Code to Connect a Mobile Device
After you select the wireless network settings for your projector, you can display a QR code on the
screen and use it to connect a mobile device using the Epson iProjection app.
Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit
epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection (Caribbean)
for more information.
1. Press the home button on the remote control.
2. The Home screen is displayed.
3. Select Connection Guide > Android/iOS > Next.
The QR code is displayed on the screen.
Note: If you do not see the QR code, set the Display LAN Info. setting to Text and QR Code in the
projector's Network menu. To hide the QR code, press the return button.
4. Start Epson iProjection on your mobile device.
5. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit
epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection
(Caribbean) for instructions.
To correctly read the QR code, make sure you face the screen squarely and are close enough so that
the projected code fits into the guide of the mobile device's QR code reader. If you are too far from the
screen, the code may not be read.
Parent topic: Wireless Network Projection
Related references
Projector Network Settings - Network Menu
41
Setting Up Projector Network E-Mail Alerts
You can set up the projector to send you an e-mail alert over the network if there is a problem with the
projector.
Note: If the Standby Mode setting is set to Communication On, you can receive e-mail alerts even if
the projector is in standby mode (the power is off). You must be connected to a network with the
Wireless LAN > Connection Mode setting set to Advanced.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
4. Select the Notifications menu and press Enter.
5. Turn on Mail Notification.
6. Enter the IP address for the SMTP Server setting.
Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a
number from 0 to 255).
7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).
8. Enter the sender's email address as the From setting.
9. Choose an Address Setting field, enter the e-mail address, and select or deselect the alerts you
want to receive there. Your e-mail address can be up to 32 alphanumeric characters long. Repeat
for up to three addresses.
Note: You can enter up to 63 characters for the email address if you use Web Config.
10. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Network Projector E-mail Alert Messages
Parent topic: Using the Projector on a Network
42
Related references
Projector Network Settings - Network Menu
Network Projector E-mail Alert Messages
When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you
receive an e-mail containing the following information:
• The email address entered as the From setting
• Epson Projector on the subject line
• The name of the projector experiencing a problem
• The IP address of the affected projector
• Detailed information about the problem
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Parent topic: Setting Up Projector Network E-Mail Alerts
Setting Up Monitoring Using SNMP
Network administrators can install SNMP (Simple Network Management Protocol) software on network
computers so they can monitor projectors. If your network uses this software, you can set up the
projector for SNMP monitoring.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
4. Select the Notifications menu and press Enter.
5. Turn on the SNMP setting.
6. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field.
Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a
number from 0 to 255).
7. Enter a community name. You can enter up to 32 single-byte alphanumeric characters.
43
8. If you want this projector to receive broadcast messages over the network, select the Others menu
and turn on the Message Broadcasting setting. Administrators can broadcast messages over the
network using Epson Projector Management (Windows only).
9. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Parent topic: Using the Projector on a Network
Related references
Projector Network Settings - Network Menu
Selecting Other Network Settings
You can select optional network settings on the Others menu.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
4. Select the Others menu and press Enter.
5. If you want to select the authentication method for command communication, select Command
Communication. Select Protected to perform Digest Authentication using the Web Control
Password setting. Select Compatible to perform plain text authentication using the Monitor
Password.
6. If you want this projector to receive broadcast messages over the network, turn on the Message
Broadcasting setting. Administrators can broadcast messages over the network using the Epson
Projector Management software (Windows only).
7. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Parent topic: Using the Projector on a Network
Related references
Projector Network Settings - Network Menu
Controlling a Networked Projector Using a Web Browser
Once you have connected your projector to your network, you can select projector settings and control
projection using a compatible web browser. This lets you access the projector remotely.
44
Note: The web setup and control features support Microsoft Edge (Windows), Safari (Mac), and Chrome
(Android) on networks that do not use a proxy server for connection. You cannot select all of the
projector menu settings or control all projector functions using a web browser.
Note: If you set Standby Mode to Communication On, you can use a web browser to select settings
and control projection even if the projector is in standby mode.
1. Make sure the projector is turned on.
2. Start your web browser on a computer or device connected to the network.
3. Type the projector's IP address into the browser's address box and press the computer's Enter key.
Note: You may need to log in to access some of the options on the Web Control screen. If you see a
log in window, enter your user name and password. (For the Basic Control option, the default user
name is EPSONREMOTE and the default password is the projector's serial number in lower case.
For all other options, the default user name is EPSONWEB and the default password is the
projector's serial number in lower case.) After the first time you enter the password, you will be
prompted to change it.
45
You see the Epson Web Control screen.
1 Select Basic Control to control the projector remotely.
2 Select Test Pattern to display a test pattern
3 Select Advanced to open the advanced menu screen.
4 Select OSD Control Pad to change the projector's menu settings.
4. Select the option corresponding to the projector function you want to control.
Web Control Options
Parent topic: Using the Projector on a Network
Related references
Projector Setup Settings - ECO Menu
Related tasks
Selecting Other Network Settings
46
Web Control Options
Basic Control
Note: If the Remote Password is set to On, you need to enter your user name and password.
1 Returns to the Home screen
2 Turns the projector on or off
3 Input source selection controls
4 A/V Mute button control
5 Pauses or resumes images
6 Displays the QR code
7 Volume button controls
8 Searches for sources
47
OSD Control Pad
1 Returns to the Home screen
2 Displays the projector's setting menus
3 Use your finger or mouse to navigate the menus
4 Returns to the previous menu
5 Displays help topics
Note: You cannot change some settings using Epson Web Control.
48
Test Pattern screen
Note: The available test patterns may differ from the ones shown here.
1 Returns to the Home screen
2 Displays available test patterns; select to project a test pattern
3 Turns off test pattern display
Advanced
If the default Web Control Password is set, a screen prompting you to change the password appears
before you can view the Advanced screen. It is strongly recommended that you change the password
regularly to prevent unauthorized access to your projector.
Note: Not all settings can be changed through Web Control. The following settings can only be set using
Web Control:
• Monitor Password (up to 16 alphanumeric characters)
49
• IPv6 Settings (manual)
• HTTP port (used for Web Control; cannot use 80 [default], 843, 3620, 3621, 3625, 3629, 4352, 4649,
5357, 10000, 10001, or 41794)
1 Opens the menus
2 Displays the selected menu name
3 Contains the selected projector settings
4 Locks or unlocks the projector settings
5 Updates the projector settings
Parent topic: Controlling a Networked Projector Using a Web Browser
50
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
Turning On the Projector
Turning Off the Projector
Remote Control Operation
Selecting the Language for the Projector Menus
Selecting an Image Source
Projection Modes
Adjusting the Image Height
Adjusting the Image Position Using Image Shift
Setting the Screen Type
Image Aspect Ratio
Image Shape
Focusing the Image Using the Focus Lever
Displaying a Test Pattern
Resizing the Image Using Zoom
Color Mode
Adjusting Picture Quality in Detail
Controlling the Volume with the Volume Buttons
Turning On the Projector
Turn on the projector before you turn on the video source you want to use.
Caution: Do not turn on the video source before connecting it to the projector; otherwise, you may
damage the projector.
51
1. Connect the power cord to the projector's power inlet and plug it in to an electrical outlet.

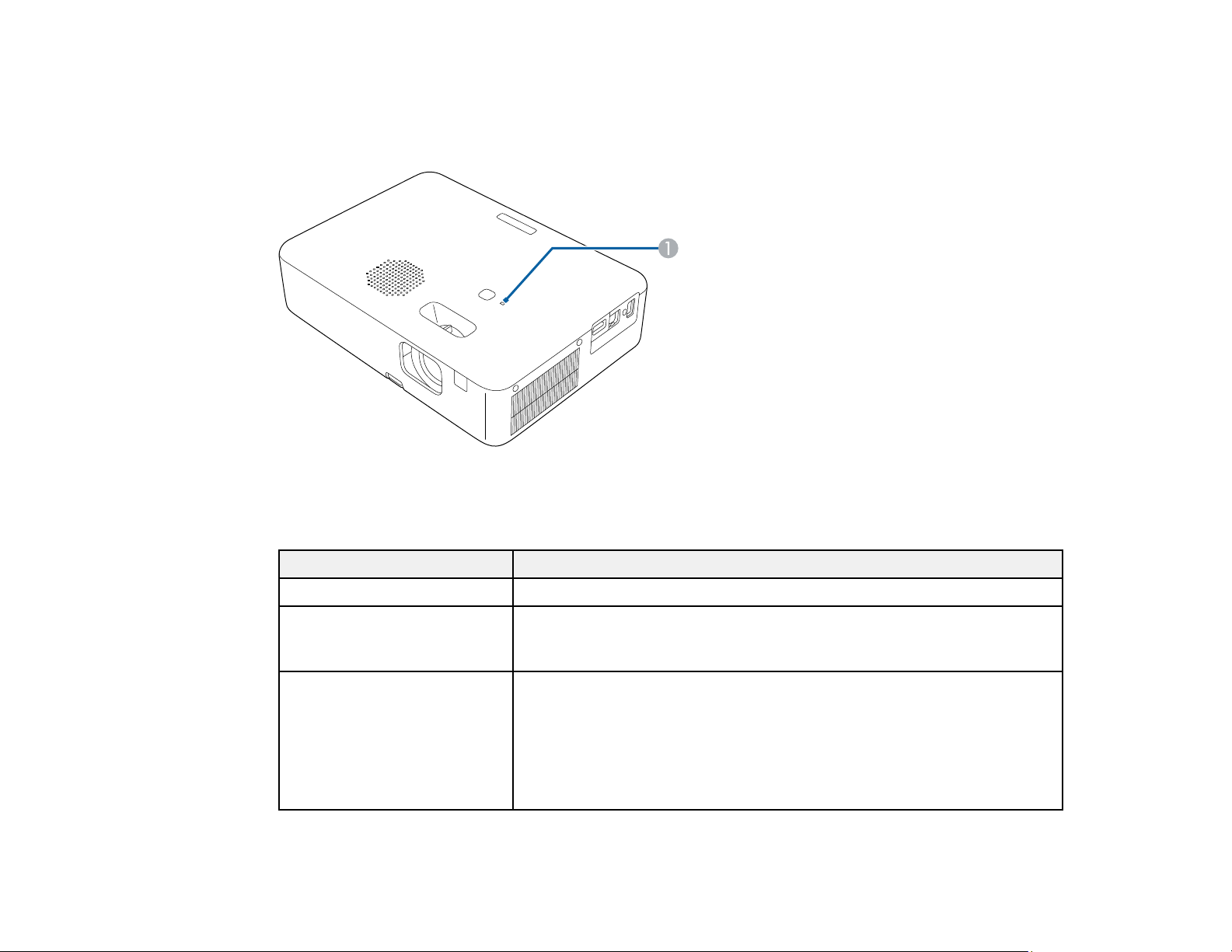

2. Press the power button on the projector or the remote control to turn on the projector.
The status indicator flashes blue as the projector warms up. After the projector is warmed up, the
status light stops flashing and turns blue.
Warning: Never look into the projector lens when the light is on. The light can damage your eyes
and is especially dangerous for children and pets.
Caution: Make sure no objects are blocking the light from the projector lens. Objects blocking the
lens for an extended time can melt and light that is reflected back into the lens can cause the
projector to malfunction.
When the Direct Power On setting is enabled in the Settings menu, the projector turns on as soon as
you plug it in. The projector also turns on automatically when power is restored after a power outage.
If you select a specific port as the Auto Power On setting in the Settings menu, the projector turns on as
soon as it detects a signal or cable connection from that port.
Using the Home Screen
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
52
Using the Home Screen
You can select input sources and other frequently used options from the Home screen.
1. To display the Home screen, do one of the following:
• Press the Home button on the remote control.
• Turn on the projector with the Home Screen Auto Disp setting enabled.
• Turn on the projector when no signal is received from the selected input source.
2. Press the arrow buttons (directional pad)on the remote control or control panel to navigate the
screen, and press Enter to select an option.
1 Select the video source you want to project
2 Display the Connection Guide
3 Display the Help screen
4 Display the projector's menus
5 Display the projector information
6 Correct the image shape
53
3. Press the Home button to hide the Home screen.
Parent topic: Turning On the Projector
Related references
Projector Feature Settings - Settings Menu
Related tasks
Selecting an Image Source
Turning Off the Projector
Before turning off the projector, shut down any computer connected to it so you can see the computer
display during shutdown.
Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
Note: When using the A/V Mute feature, the projector lamp is still on. To turn off the lamp, turn off the
projector.
1. Press the power button on the projector or the remote control.
The projector displays a shutdown confirmation screen.
2. Press the power button again. (To leave it on, press any other button.)
The lamp turns off and the status light turns off.
Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the
projector for transport right away (if necessary).
54
Caution: Do not turn the projector on immediately after turning it off. Turning the projector on and off
frequently may shorten the life of the lamp.
3. To transport or store the projector, make sure the status light is off, then unplug the power cord and
any other connected devices or cables.
Caution: To avoid damaging the projector or lamp, never unplug the power cord when the status
light is on or flashing.
Parent topic: Using Basic Projector Features
Related tasks
Shutting Off the Picture and Sound Temporarily
Remote Control Operation
The remote control lets you control the projector from almost anywhere in the room, up to 19.7 feet (6 m)
away.
Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or
the projector may not respond to commands. If you will not use the remote control for a long time,
remove the batteries.
55
Parent topic: Using Basic Projector Features
Selecting the Language for the Projector Menus
If you want to view the projector's menus and messages in another language, you can change the
Language setting.
1. Turn on the projector.
2. Press the menu button on the projector remote control.
3. Use the arrow buttons to select the Settings menu and press the Enter button.
4. Select the Language setting and press Enter.
5. Select the language you want to use and press Enter.
6. Press the menu button to exit the menu or the return button to return to the previous screen.
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Selecting an Image Source
If you connected multiple image sources to the projector, such as a USB device and DVD player, you
may want to switch from one image source to the other.
1. Make sure the connected image source you want to use is turned on.
2. For video image sources, insert a DVD or other video media and press its play button, if necessary.
3. Press the Source Search button on the remote control. Press the up or down buttons to select
the image source.
Note: If no image signal is detected, check the cable connections between the projector and the
image source.
Parent topic: Using Basic Projector Features
Projection Modes
Depending on how you positioned the projector, you may need to change the projection mode so your
images project correctly.
• Front (default setting) lets you project from a table in front of the screen.
56
• Front/Upside Down flips the image over top-to-bottom to project upside-down from a ceiling or wall
mount.
• Rear flips the image horizontally to project from behind a translucent screen.
• Rear/Upside Down flips the image over top-to-bottom and horizontally to project from the ceiling and
behind a translucent screen.
Note: You can change the projection mode using the remote control or by changing the Projection
setting in the Settings > Installation menu.
Changing the Projection Mode Using the Menus
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Changing the Projection Mode Using the Menus
You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the
projector menus.
Note: You can also press and hold the A/V mute button on the projector remote control for about 6
seconds to flip the image upside-down.
1. Turn on the projector and display an image.
2. Press the menu button on the projector remote control.
3. Press the arrow buttons to select the Settings > Installation > Projection setting and press Enter.
4. Select the projection mode you want to use and press Enter.
5. Press the menu button to exit the menu or the return button to return to the previous screen.
Parent topic: Projection Modes
Related references
Projector Feature Settings - Settings Menu
Adjusting the Image Height
If you are projecting from a table or other flat surface and the image is too high or low, you can adjust the
image height using the projector's adjustable foot.
57
1. Turn on the projector and display an image.
2. Press and hold the foot release lever to extend or retract the front adjustable foot.
Note: You can adjust the position up to 12°.
3. Release the lever to lock the foot when the image is at the position you want.
If the projected image is unevenly rectangular, you need to adjust the image shape.
Parent topic: Using Basic Projector Features
Related concepts
Image Shape
Related references
Projector Parts - Base
Adjusting the Image Position Using Image Shift
You can use the Image Shift feature to adjust the image position without moving the projector.
Note: This feature is not available if the digital zoom is set to the widest setting.
1. Turn on the projector and display an image.
2. Press the menu button.
58
3. Select Settings > Installation > Image Shift to display the Image Shift screen.
4. Use the arrow buttons on the remote control to adjust the image position.
Note: You can shift the image diagonally by pressing any pair of adjacent arrow buttons on the
remote control.
5. Press return to close the Image Shift screen.
Note: The Image Shift setting is retained even if the projector is turned off; however, you need to
readjust the image position if you change the projector's location or angle.
Parent topic: Using Basic Projector Features
Setting the Screen Type
You can use the Screen Type setting to match the aspect ratio of the displayed image to the screen you
are using.
Note: This setting is unavailable when using the USB Display, USB or LAN input source.
Note: The Screen Type setting is not supported by the Message Broadcasting feature in the Epson
Projector Management software.
1. Turn on the projector and display an image.
2. Press the menu button.
59
3. Select Settings > Installation > Screen > Screen Type.
4. Select your screen's aspect ratio and press Enter.
5. Press the menu button to exit.
6. Adjust the aspect ratio for the projected image, if necessary.
Adjusting the Image Position Using Screen Position
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Adjusting the Image Position Using Screen Position
You can adjust the image position if there are margins between the edge of the image and the projected
screen frame.
Note: You cannot adjust the screen position if the Screen Type setting is set to 16:10.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select Settings > Installation > Screen > Screen Position.
4. Use the arrow buttons on the remote control or projector to adjust the position of the image.
5. When you are finished, press the return button.
Parent topic: Setting the Screen Type
Related references
Projector Feature Settings - Settings Menu
Image Aspect Ratio
The projector can display images in different width-to-height ratios called aspect ratios. Normally the
input signal from your video source determines the image's aspect ratio setting. However, for certain
images you can change the aspect ratio to fit your screen.
If you always want to use a particular aspect ratio for a certain video input source, you can select it using
the projector's menus.
Changing the Image Aspect Ratio
Available Image Aspect Ratios
60
Parent topic: Using Basic Projector Features
Related references
Image Quality Settings - Image Menu
Changing the Image Aspect Ratio
1. Turn on the projector and switch to the image source you want to use.
2. Press the menu button on the projector remote control.
3. Select the Image menu and press Enter.
4. Select Aspect and press Enter.
5. Select the aspect ratio you want to use for your input signal and press Enter.
6. Press the menu button or the return button to exit the menus.
Parent topic: Image Aspect Ratio
Related references
Image Quality Settings - Image Menu
Available Image Aspect Ratios
You can select the following image aspect ratio settings, depending on the input signal from your image
source.
Note: Using the aspect ratio function to reduce, enlarge, or split the projected image for commercial
purposes or for public viewing may infringe upon the rights of the copyright holder of that image based
on copyright law.
Aspect ratio setting Description
Auto Automatically sets the aspect ratio according to the input signal.
16:9 Converts the aspect ratio of the image to 16:9.
Full Displays images using the full width of the projection area, but does
not maintain the aspect ratio.
Zoom Displays images using the full width of the projection area and
maintains the aspect ratio of the image.
Native Displays images as is (aspect ratio and resolution are maintained).
61
Parent topic: Image Aspect Ratio
Image Shape
You can project an evenly rectangular image by placing the projector directly in front of the center of the
screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off
to the side, you may need to correct the image shape for the best display quality.
When you turn on automatic keystone correction in your projector's Settings menu, your projector
automatically corrects vertical keystone effects when you reposition the projector.
Correcting Image Shape with H/V Keystone
Correcting Image Shape with Quick Corner
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Correcting Image Shape with H/V Keystone
You can use the projector remote control to correct the shape of an image that is unevenly rectangular
on the sides.
Note: You can also adjust the keystone settings from the Settings > Installation > Keystone > H/V
Keystone menu.
Note: You cannot combine Keystone correction with other image shape correction methods.
1. Turn on the projector and display an image.
2. Press the keystone button on the projector remote control.
62
3. Use the arrow buttons on the projector remote control to select between vertical and horizontal
keystone correction, and to adjust the image shape as necessary.
V-Keystone
H-Keystone
4. Press the return button when you are finished.
After correction, your image is slightly smaller.
Parent topic: Image Shape
Related references
Projector Feature Settings - Settings Menu
Correcting Image Shape with Quick Corner
You can use the projector's Quick Corner setting to correct the shape and size of an image that is
unevenly rectangular on all sides.
1. Turn on the projector and display an image.
2. Press the menu button.
3. Select the Settings > Installation menu and press Enter.
4. Select the Keystone setting and press Enter.
63
5. Select the Quick Corner setting and press Enter.
Note: You may see a confirmation screen. Select Yes and press Enter again.
Note: You can also press the keystone button on the remote control to display the Keystone
adjustment screen.
You see the Quick Corner adjustment screen:
6. Use the arrow buttons on the remote control to select the corner of the image you want to adjust.
Then press Enter.
Note: To reset your adjustments, press and hold the return button for at least 2 seconds to
display a reset screen. Then select Yes.
7. Press the arrow buttons to adjust the image shape as necessary. Press Enter to return to the area
selection screen.
Note: If one of the directional arrows on the screen turns gray, you cannot adjust the shape any
further in that direction.
8. When you are finished, press the return button.
Parent topic: Image Shape
64
Related references
Projector Feature Settings - Settings Menu
Focusing the Image Using the Focus Lever
You can adjust the sharpness of the projected image using the focus lever on the projector.
1. Turn on the projector and display an image.
2. Move the lever left or right to adjust the focus.
Parent topic: Using Basic Projector Features
Displaying a Test Pattern
You can display a test pattern to adjust the projected image without connecting a computer or video
device.
Note: The shape of the test pattern is determined by the Screen Type setting. Make sure you set the
screen type to match your aspect ratio before adjusting the test pattern. Some menu options may be
unavailable when displaying a test pattern and you may need to project from a connected device to
change these settings.
1. Turn on the projector.
2. Press the menu button on the remote control.
3. Select the Settings menu and press Enter.
65
4. Select the Installation > Pattern setting and press Enter.
5. Select Pattern Type to choose a pattern. You can choose one of the provided patterns or a user-
created pattern.
6. Select Pattern Display to display the selected pattern.
7. Adjust the image as necessary.
8. Press return to clear the test pattern.
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Related tasks
Setting the Screen Type
Resizing the Image Using Zoom
You can resize the displayed image.
1. Turn on the projector and display an image.
2. Press the menu button on the projector remote control.
3. Press the arrow buttons to select the Settings menu and press Enter.
4. Select the Installation setting and press Enter.
5. Select the Zoom setting and press Enter.
6. Press the left or right arrow button to adjust the zoom setting between Wide and Tele.
7. Press the menu button to exit the menu or the return button to return to the previous screen.
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Color Mode
The projector offers different Color Modes to provide optimum brightness, contrast, and color for a
variety of viewing environments and image types. You can select a mode designed to match your image
and environment, or experiment with the available modes.
Changing the Color Mode
66
Available Color Modes
Parent topic: Using Basic Projector Features
Changing the Color Mode
You can change the projector's Color Mode using the remote control to optimize the image for your
viewing environment.
Note: You can also change the Color Mode in the projector's Image menu.
1. Turn on the projector and switch to the image source you want to use.
2. Press the color mode button on the remote control to change the Color Mode.
The image appearance changes and the name of the Color Mode appears briefly on the screen.
3. To cycle through all the available Color Modes for your input signal, press the color mode button
repeatedly.
Parent topic: Color Mode
Available Color Modes
You can set the projector to use these Color Modes, depending on the input source you are using:
Color Mode Description
Dynamic Best for video games in a bright room
Vivid Best for projecting general content in a bright environment
Presentation Best for color presentations in a bright room
Cinema Best for projecting movies in a dark environment
sRGB Best for standard sRGB computer displays
Blackboard Best for presentations onto a green chalkboard (adjusts the colors
accordingly)
Parent topic: Color Mode
Adjusting Picture Quality in Detail
You can fine-tune the image details using the projector menus.
67
1. Turn on the projector and switch to the image source you want to use.
2. Press the menu button on the remote control.
3. Select the Image menu and press Enter.
4. Select the Expert Settings setting and press Enter.
5. To adjust the overall color brightness, select Brightness and adjust the following settings.
• Brightness: Adjusts overall color brightness
• Contrast: Adjusts the difference between light and dark areas of the image
• Scene Adaptive Gamma: Adjusts the coloring according to the scene to present a more vivid
image. Larger numbers increase contrast.
Note: The Brightness setting does not affect lamp brightness. To change the lamp brightness,
adjust the Image > Light Output setting.
6. To adjust the intensity of the image colors, select Color and adjust the following settings.
• Color Saturation: Adjusts the overall color density
• Tint: Adjusts the balance of green and magenta in the image
• White Balance: Color Temp: Sets the color temperature according to the color mode you
selected. Higher values tint the image blue, while lower numbers tint the image red. To adjust
individual RGB offset and gain, select Customized.
7. To adjust the overall sharpness of the image, select Sharpness and adjust the values.
8. Press the return button to exit the menus.
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Controlling the Volume with the Volume Buttons
You can use the volume buttons to adjust the volume of the projector's internal speaker or any external
speakers or headphones connected to the projector.
Note: You must adjust the volume separately for each connected input source.
1. Turn on the projector and start a video that includes audio.
69
Adjusting Projector Features
Follow the instructions in these sections to use your projector's feature adjustments.
Operating Connected Devices Using the HDMI Link Features
Projecting a PC Free Presentation
Shutting Off the Picture and Sound Temporarily
Zooming Into and Out of Images
Projector Security Features
Copying Menu Settings Between Projectors
Operating Connected Devices Using the HDMI Link Features
You can use the projector remote control to control certain features of devices connected to the
projector's HDMI port.
Note: The connected device and HDMI cable must meet the HDMI CEC standard. The device must also
be configured; see the documentation that came with the device. All devices or functions may not
operate properly.
1. Press the menu button on the projector remote control.
2. Press the arrow buttons to select the Settings menu and press Enter.
3. Select the Operation setting and press Enter.
4. Select the HDMI Link setting and press Enter.
5. Select the HDMI Link setting again and press Enter. Then select On and press the return button.
6. Select the Device Connections setting and press Enter.
70
You see a screen like this:
Note: Linked devices are indicated by a blue mark. You cannot select grayed-out devices.
7. Select the device you want to control and project images from and press Enter.
8. Select the following HDMI Link options as necessary and press Enter:
• Audio Out Device: select whether to play audio through the internal speaker or a connected
audio/video system
• Power On Link: select what happens when you turn on the projector or linked device. Select PJ -
> Device or Bidirectional to turn the linked device on when the projector is turned on, or select
Device -> PJ or Bidirectional to turn the projector on when the linked device is turned on.
• Power Off Link: select whether linked devices are turned off when the projector is turned off.
9. Press the menu button to exit the menu or the return button to return to the previous screen.
Parent topic: Adjusting Projector Features
Related references
Projector Feature Settings - Settings Menu
Projecting a PC Free Presentation
You can use your projector's PC Free feature whenever you connect a USB device that contains
compatible files. This lets you quickly and easily display the contents of the files and control their display
using the projector's remote control.
PC Free Precautions
71
Supported PC Free File Types
Starting a PC Free Slideshow
Starting a PC Free Movie Presentation
PC Free Display Options
Parent topic: Adjusting Projector Features
PC Free Precautions
Note the following precautions when using PC Free features:
• You cannot use a USB key for PC Free features.
• Do not disconnect the USB device while it is being accessed; otherwise, PC Free may not operate
correctly.
• You may not be able to use the security features on certain USB devices with PC Free features.
• When connecting a USB device that includes an AC adapter, connect the AC adapter to an electrical
outlet when you use the USB device with your projector.
• Some commercially available USB card readers may not be compatible with your projector.
• You cannot correct keystone distortion while projecting in PC Free, so correct the image shape before
you begin your presentation.
Parent topic: Projecting a PC Free Presentation
Supported PC Free File Types
You can project these types of files using the projector's PC Free feature.
Note: For best results, place your files on media that is formatted in FAT16/32. If you have trouble
projecting from media formatted for non-Windows file systems, try formatting the media for Windows
instead. You may not be able to use the security features on certain USB storage devices with PC Free
features. When connecting a USB-compatible hard drive, connect the AC adapter supplied with the
drive.
72
File type and
extension
Details
Image (.jpg) Make sure the file is not:
• CMYK format
• Progressive format
• Highly compressed
• Above 8192 × 8192 resolution
• JPEG 2000
Image (.bmp) Make sure the file resolution is not above 1280 × 800
Image (.gif ) Make sure the file is not:
• Above 1280 × 800 resolution
• Animated
• Interlaced
Image (.png) Make sure the file resolution is not:
• Above 1280 × 800
• Interlaced
Motion JPEG
movie (.avi)
Supports only AVI 1.0
Make sure the file is not:
• Saved with a video codec other than Motion JPEG
• Saved with an audio codec other than PCM or ADPCM
• Above 1280 × 720 resolution
• Larger than 2GB
Parent topic: Projecting a PC Free Presentation
Starting a PC Free Slideshow
After connecting a USB device or digital camera to the projector, you can switch to the USB input source
and start your slideshow.
73
Note: You can change the slideshow operation options or add special effects by highlighting Option at
the bottom of the screen and pressing Enter.
1. Press the Source Search button on the remote control.
2. Select the USB source.
The PC Free screen appears.
Note: If the Select Drive screen appears, press the arrow buttons to select the drive and press
Enter.
3. Do the following as necessary to locate your files:
• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight
the folder and press Enter.
• To move back up a folder level on your device, highlight Back to Top and press Enter.
• To view additional files in a folder, highlight Next page or Previous page and press Enter.
• To display images from a different USB drive, select Select Drive at the top of the PC Free screen
and press Enter.
74
4. Do one of the following:
• To display an individual image, press the arrow buttons to highlight the image and press Enter.
(Press the return button to return to the file list screen.)
• To display a slide show of all the images in a folder, press the arrow buttons to highlight the
Slideshow option at the bottom of the screen and press Enter.
Note: If any file names are longer than the display area or include unsupported symbols, the file
names may be shortened or changed only in the screen display.
5. While projecting, use the following commands to control the display as necessary:
• To rotate a displayed image, press the up or down arrow button.
• To move to the next or previous image, press the left or right arrow button.
6. To stop the display, follow the on-screen instructions or press the return button.
7. Turn off the USB device, if necessary, and then disconnect the device from the projector.
Parent topic: Projecting a PC Free Presentation
Starting a PC Free Movie Presentation
After connecting a USB device or digital camera to the projector, you can switch to the USB input source
and start your movie.
Note: You can change the operation options by highlighting Option at the bottom of the screen and
pressing Enter.
1. Press the Source Search button on the remote control.
2. Select the USB source.
75
The PC Free screen appears.
Note: If the Select Drive screen appears, press the arrow buttons to select the drive and press
Enter.
3. Do the following as necessary to locate your files:
• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight
the folder and press Enter.
• To move back up a folder level on your device, highlight Back to Top and press Enter.
• To view additional files in a folder, highlight Next page or Previous page and press Enter.
• To display movie files from a different USB drive, select Select Drive at the top of the PC Free
screen and press Enter.
4. To play back a movie, press the arrow buttons to highlight the file and press Enter.
Note: If any file names are longer than the display area or include unsupported symbols, the file
names may be shortened or changed only in the screen display. If you want to play back all the
movies in a folder in sequence, select the Slideshow option at the bottom of the screen.
76
5. To stop movie playback, press the return button, highlight Exit, and press Enter.
Note: You can use the Freeze, A/V Mute, and Zoom functions while projecting in PC Free mode.
6. Turn off the USB device, if necessary, and then disconnect the device from the projector.
Parent topic: Projecting a PC Free Presentation
PC Free Display Options
You can select these display options when using the projector's PC Free feature.
Setting Options Description
Display Order Name Order Displays files in name order
Date Order Displays files in date order
Sort Order In Ascending Sorts files in first-to-last order
In Descending Sorts files in last-to-first order
Continuous Play On Displays a slideshow continuously
Off Displays a slideshow one time through
77
Setting Options Description
Screen Switching
Time
No Does not display the next file automatically
1 Second to 60 Seconds Displays files for the selected time and
switches to the next file automatically; high
resolution images may switch at a slightly
slower rate
Effect No No effect
Wipe Transitions between images with a wipe effect
Dissolve Transitions between images with a dissolve
effect
Random Transitions between images using a random
variety of effects
Parent topic: Projecting a PC Free Presentation
Shutting Off the Picture and Sound Temporarily
You can temporarily turn off the projector's picture and sound. Any sound or video action continues to
run, however, so you cannot resume projection at the point that you stopped it.
1. Press the A/V mute button on the projector remote control to temporarily stop projection and mute
any sound.
2. To turn the picture and sound back on, press the A/V mute button again.
3. To mute the sound only, press the mute button.
4. To pause or resume projection, press the Freeze button.
While the Freeze and/or Mute features are active, projection continues in the background.
Parent topic: Adjusting Projector Features
78
Zooming Into and Out of Images
You can draw attention to parts of a presentation by zooming into a portion of the image and enlarging it
on the screen.
1. Press the button on the remote control.
You see a crosshair on the screen indicating the center of the zoom area.
2. Use the following buttons on the remote control to adjust the zoomed image:
• Use the arrow buttons to position the crosshair in the image area you want to zoom into.
• Press the button repeatedly to zoom into the image area, enlarging it as necessary. Press and
hold the button to zoom in more quickly.
• To pan around the zoomed image area, use the arrow buttons.
• To zoom out of the image, press the button as necessary.
• To return to the original image size, press the return button.
Parent topic: Adjusting Projector Features
Projector Security Features
You can secure your projector to deter theft or prevent unintended use by setting up the following
security features:
• Password security to prevent the projector from being turned on, and prevent changes to the startup
screen and other settings.
• Security cabling to physically cable the projector in place.
Password Security Types
79
Creating a User Pattern to Display
Installing a Security Cable
Parent topic: Adjusting Projector Features
Password Security Types
You can set up these types of password security using one shared password:
• Power On Protection password prevents anyone from using the projector without first entering a
password.
• User's Logo Protection password prevents anyone from changing the custom screen the projector
can display when it turns on. The presence of the custom screen discourages theft by identifying the
projector’s owner.
• Network Protection password prevents anyone from changing the network settings in the projector
menus.
Setting a Password
Selecting Password Security Types
Entering a Password to Use the Projector
Saving a User's Logo Image to Display
Parent topic: Projector Security Features
Setting a Password
To use password security, you must set a password.
Note: The default password is set to 0000.
1. Hold down the Freeze button on the remote control for about five seconds or until you see the
Password Protection menu.
2. Press the down arrow to select Password and press Enter.
You see the prompt "Change the password?".
3. Select Yes and press Enter.
80
4. Enter a four-digit password by pressing the arrow and Enter buttons. To select numbers from 5 to 9,
press the menu button.
The password displays as **** as you enter it. Then you see the confirmation prompt.
5. Enter the password again.
You see the message "Password accepted."
6. Press return to return to the menu.
7. Make a note of the password and keep it in a safe place in case you forget it.
Parent topic: Password Security Types
Selecting Password Security Types
After setting a password, you see this menu, allowing you to select the password security types you want
to use.
81
If you do not see this menu, hold down the Freeze button on the remote control for about 5 seconds or
until the menu appears.
• To prevent unauthorized use of the projector, select Power On Protection, press Enter, select On,
press Enter again, and press Esc.
• To prevent changes to the User's Logo screen or related display settings, select User's Logo
Protection, press Enter, select On, press Enter again, and press Esc.
• To prevent changes to network settings, select Network Protection, press Enter, select On, press
Enter again, and press Esc.
You can attach the Password Protect sticker to the projector as an additional theft deterrent.
Note: Be sure to keep the remote control in a safe place; if you lose it, you will not be able to enter the
password required to use the projector.
Parent topic: Password Security Types
Entering a Password to Use the Projector
If a password is set up and a Power On Protection password is enabled, you see a prompt to enter a
password whenever you turn on the projector.
You must enter the correct password to use the projector.
1. Enter a four-digit password by pressing the arrow and Enter buttons. To select numbers from 5 to 9,
press the menu button.
2. If the password is incorrect, the following may happen:
• You see a "wrong password" message and a prompt to try again. Enter the correct password to
proceed.
82
• If you have forgotten the password, make note of the Request Code: xxxxx number that appears
on the screen and contact Epson Support.
• If you enter an incorrect password five times in succession, you see a message telling you that the
projector is locked. After the message is displayed for 5 minutes, the projector enters standby
mode. Unplug the projector, plug in the power cord, and turn on the projector. You see a prompt to
enter the password.
• If you continue to enter an incorrect password 30 times in succession, the projector displays a
request code and a message to contact Epson Support. Do not attempt to enter the password
again. When you contact Epson Support, provide the displayed request code and proof of
ownership for assistance in unlocking the projector.
Parent topic: Password Security Types
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Saving a User's Logo Image to Display
You can transfer an image to the projector and then display it whenever the projector turns on. You can
also display the image when the projector is not receiving an input signal or when you temporarily stop
projection (using the A/V Mute feature). This transferred image is called the User's Logo screen.
The image you select as the User's Logo can be a photo, graphic, or company logo, which is useful in
identifying the projector's owner to help deter theft. You can prevent changes to the User's Logo by
setting up password protection for it. You cannot save images that are protected by HDCP.
Note: If the User's Logo Protection setting is enabled, make sure you disable it before saving a new
User's Logo.
Note: When you copy the menu settings from one projector to another using the batch setup feature, the
user logo is also copied. Do not include any information in the user logo that you do not want to share
between multiple projectors.
1. Display the image you want to project as the User's Logo.
2. Press the menu button and select the Settings > Display > User's Logo > Start Setting
setting.
Note: Adjustments such as Keystone, Zoom, or Aspect are temporarily canceled when selecting the
User's Logo.
83
3. A prompt appears asking if you want to use the displayed image as the user's logo. Select Yes, then
confirm your choice.
You see a completion message.
4. Press return to select when you want to display the User's Logo screen:
• To display it whenever there is no input signal, select Display Background and set it to Logo.
• To display it whenever you turn the projector on, select Startup Screen and set it to On.
• To display it whenever you press the A/V Mute button, select A/V Mute and set it to Logo.
To prevent anyone from changing the User's Logo settings without first entering a password, set a
password and enable User's Logo security.
Parent topic: Password Security Types
Related references
Projector Feature Settings - Settings Menu
Related tasks
Selecting Password Security Types
Setting a Password
Creating a User Pattern to Display
You can transfer an image to the projector and then display it as a pattern to aid in presentations when
you use the Pattern Display feature. This transferred image is called the User Pattern.
Note: Once you save a user pattern, you cannot restore the default pattern. You cannot save an image
that is protected by HDCP. If a pattern is displayed for a long time, a residual image may be visible in
projected images.
1. Display the image you want to project as the User Pattern from a connected computer or video
source.
2. Press the menu button and select the Settings > Installation > Pattern > User Pattern setting.
You see a prompt asking if you want to use the displayed image as a User Pattern.
Note: When you select User Pattern, adjustments such as Keystone, Zoom, or Aspect are
temporarily canceled.
3. Select Yes and then confirm your choice.
84
You see a completion message.
4. Press Enter to exit the message screen.
To view your user pattern, set the Pattern Type setting to User Pattern, then select the Pattern Display
setting.
Parent topic: Projector Security Features
Related references
Projector Feature Settings - Settings Menu
Installing a Security Cable
You can use the security slot on the side of the projector to attach a Kensington lock. See your local
computer or electronics dealer for purchase information.
1 Security slot
Parent topic: Projector Security Features
Copying Menu Settings Between Projectors
After you select menu settings for your projector, you can transfer them to another projector of the same
model.
Note: Copy the projector's settings before you adjust the projected image using the projector's image
adjustment settings. Any saved User's Logo setting on the projector will transfer to the other projector.
85
Caution: If the copy process fails due to a power failure, communication error, or for any other reason,
Epson will not be responsible for any repair costs incurred.
The following settings will not transfer between projectors:
• Lamp Hours
• Status
The following settings will not transfer between projectors if you set the Batch Setup Range setting to
Limited:
• Password Protection settings
• Network menu settings other than those in the Notifications and Others menus
Saving Settings to a USB Flash Drive
Transferring Settings from a USB Flash Drive
Saving Settings to a Computer
Transferring Settings from a Computer
Parent topic: Adjusting Projector Features
Related references
Projector Feature Settings - Settings Menu
Saving Settings to a USB Flash Drive
You can save the projector settings you want to transfer to a USB flash drive.
Note: Use an empty flash drive. If the drive contains other files, the transfer may not complete correctly.
The flash drive must use the FAT format and cannot have any security features.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Insert the flash drive into the USB-A port.
Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be
saved correctly.
3. Press and hold the return button on the remote control as you connect the power cord to the
projector.
4. When the status light turns on, release the return button.
86
The light flashes to indicate that settings are transferring to the flash drive. When the light stops
flashing, it turns blue and the projector enters standby mode.
Caution: Do not unplug the power cord or remove the flash drive while the light is flashing.This
could damage the projector.
Note: If the status light flashes orange, the batch setup file may be corrupt or the cable is not
connected correctly. Disconnect the USB cable, then unplug the projector and try the procedure
again. If the problem continues, unplug the projector and contact Epson for help.
5. Once the projector enters standby mode, remove the flash drive.
Parent topic: Copying Menu Settings Between Projectors
Transferring Settings from a USB Flash Drive
After saving projector settings to a USB flash drive, you can transfer them to another projector of the
same model.
Note: Make sure the USB flash drive contains only a single settings transfer from another projector of
the same model. The settings are contained in a file called pjconfdata.bin. If the drive contains other
files, the transfer may not complete correctly.
Do not adjust image settings on a projector until after you transfer settings to it. Otherwise, you may have
to repeat your adjustments.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Insert the flash drive into the USB-A port.
Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be
saved correctly.
3. Press and hold the menu button on the remote control as you connect the power cord to the
projector.
4. When the status light turns on, release the menu button.
The light flashes to indicate that settings are transferring to the projector. When the light stops
flashing, it turns blue and the projector enters standby mode.
87
Caution: Do not unplug the power cord or remove the flash drive while the light is flashing. This
could damage the projector.
Note: If the status light flashes orange, the batch setup file may be corrupt or the cable is not
connected correctly. Disconnect the USB cable, then unplug the projector and try the procedure
again. If the problem continues, unplug the projector and contact Epson for help.
5. Once the projector enters standby mode, remove the flash drive.
Parent topic: Copying Menu Settings Between Projectors
Saving Settings to a Computer
You can save the projector settings you want to transfer to a computer.
Your computer must be running one of the following operating systems:
• Windows 8.x
• Windows 10
• Windows 11
• macOS 10.12.x or later
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Connect a USB Type-A to Type-B cable to your projector's USB-B port.
3. Connect the other end to any available USB port on your computer.
4. Press and hold the return button on the remote control as you connect the power cord to the
projector.
5. When the status light turns on, release the return button.
The projector shows up as a removable disk on your computer.
6. Open the removable disk and copy the pjconfdata.bin file to your computer.
7. Once the file has copied, do one of the following:
• Windows: Open the My Computer, Computer, Windows Explorer, or File Explorer utility.
Right-click the name of your projector (listed as a removable disk) and select Eject.
• Mac: Drag the removable disk icon for your projector from the desktop into the trash.
The projector turns off when you disconnect the USB cable.
Parent topic: Copying Menu Settings Between Projectors
88
Transferring Settings from a Computer
After saving projector settings to a computer, you can transfer them to another projector of the same
model.
Your computer must be running one of the following operating systems:
• Windows 8.x
• Windows 10
• Windows 11
• macOS 10.12.x or later
Do not adjust image settings on a projector until after you transfer settings to it. Otherwise, you may have
to repeat your adjustments.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Connect a USB cable to your projector's USB-B port.
3. Connect the other end to any available USB port on your computer.
4. Press and hold the menu button on the control panel or remote control as you turn on the power
switch.
5. When the status light turns on, release the menu button.
The projector shows up as a removable disk on your computer.
6. Copy the pjconfdata.bin file from your computer to the removable disk.
Note: Do not copy any other files to the removable disk.
7. Once the file has copied, do one of the following:
• Windows: Open the My Computer, Computer, Windows Explorer, or File Explorer utility.
Right-click the name of your projector (listed as a removable disk) and select Eject.
• Mac: Drag the removable disk icon for your projector from the desktop into the trash.
Disconnect the USB cable. When the status indicator stops flashing, the projector turns off.
Caution: Do not unplug the power cord while the light is flashing. This could damage the projector.
Parent topic: Copying Menu Settings Between Projectors
89
Adjusting the Menu Settings
Follow the instructions in these sections to access the projector menu system and change projector
settings.
Using the Projector's Menus
Image Quality Settings - Image Menu
Projector Feature Settings - Settings Menu
Projector Network Settings - Network Menu
Projector Setup Settings - ECO Menu
Projector Information Display - Info Menu
Projector Reset Options - Reset Menu
Using the Projector's Menus
You can use the projector's menus to adjust the settings that control how your projector works. The
projector displays the menus on the screen.
1. Press the menu button on the projector remote control.
You see a screen like this:
2. Press the up or down arrow button to move through the menus listed on the left. The settings for
each menu are displayed on the right.
Note: The available settings depend on the current input source.
90
3. To change settings in the displayed menu, press Enter.
4. Press the up or down arrow button to move through the settings.
5. Change the settings using the buttons listed on the bottom of the menu screens.
6. To return all the menu settings to their default values, select Reset.
7. When you finish changing settings on a menu, press the return button.
8. Press the menu button to exit the menu or the return button to return to the previous screen.
Parent topic: Adjusting the Menu Settings
Image Quality Settings - Image Menu
Settings on the Image menu let you adjust the quality of your image for the input source you are currently
using. The available settings depend on the currently selected input source.
Setting Options Description
Light Output High
ECO
Adjusts lamp brightness
Color Mode See the list of available Color
Modes
Adjusts the vividness of image
colors for various image types
and environments
91
Setting Options Description
Expert Settings Brightness Brightness: lightens or darkens
the overall image
Contrast: adjusts the difference
between light and dark areas in
the image
Scene Adaptive Gamma:
adjusts the color depending on
the displayed scene; larger
numbers enhance contrast
Color Color Saturation: adjusts the
color intensity of the image
Tint: adjusts the balance of
green to magenta tones in the
White Balance: adjusts colors in
detail
Color Temp.: sets the color
temperature according to the
selected color mode; lower
values tint the image red, and
higher values tint the image blue
Customized: adjusts the
individual RGB components of
the offset and gain
Sharpness Adjusts the sharpness or
softness of image details
Aspect See the list of available aspect
ratios
Sets the aspect ratio (width-to-
height ratio) for the input source.
92
Setting Options Description
HDMI EQ Setting — Adjusts the signal level of the
HDMI input. Change the setting if
there is interference with the
signal or if there is no image.
Note: If there is no image when
using a media streaming device,
select 1 as the setting value.
Reset Image — Resets all Image menu settings
to their defaults
Note: The Brightness setting does not affect lamp brightness. To change the lamp brightness, adjust
the Light Output setting.
Parent topic: Adjusting the Menu Settings
Projector Feature Settings - Settings Menu
Options on the Settings menu let you customize various projector features.
Setting Options Description
Volume — Adjusts the volume of the
projector's speaker
93
Setting Options Description
Installation Keystone Adjusts image shape to
rectangular (horizontally and
vertically)
H/V Keystone: lets you manually
correct horizontal and vertical
sides
Quick Corner: select to correct
image shape and alignment
using an on-screen display
Zoom Adjusts the image size
Image Shift Shifts the image position
horizontally and vertically.
This feature is not available if the
Zoom option is set to the widest
setting.
Projection Selects the way the projector
faces the screen
94
Setting Options Description
Installation Pattern
Selects various pattern display
options.
Note: If a pattern is displayed for
a long time, a residual image
may be visible in projected
images
Pattern Display: lets you display
the selected pattern type on the
screen to aid in presentation.
Pattern Type: select from
available patterns or the User
Pattern.
User Pattern: captures a
projected screen and saves it as
a pattern for display.
Test Pattern: displays a test
pattern to assist in focusing and
zooming the image and
correcting image shape (press
the return button to cancel
pattern display).
Screen Screen Type: sets the aspect
ratio of the screen to fit the image
into the projection area;
unavailable when using the USB,
USB Display, or LAN input
sources.
Screen Position: shifts the
image position horizontally and
vertically; unavailable if the
Screen Type is set to 16:10
95
Setting Options Description
Display Home Screen Auto Disp. Selects whether or not to display
the Home screen if there is no
input signal when turning on the
projector.
Messages Select On to display messages
for color mode name, aspect
ratio, or high temperature
warning
Display Background Sets the screen color or logo to
display when no signal is
received
Startup Screen Select On to display Epson logo
at startup
User's Logo
Creates a screen that the
projector displays to identify itself
and enhance security.
A/V Mute Sets the screen color or logo to
display when the A/V Mute
feature is active.
Operation Various options (see table below) Various options (see table below)
Language Various languages Sets the language for the
projector menus and messages
96
Setting Options Description
Reset Settings — Resets all settings in the Settings
menu, except for the following:
• Zoom
• Image Shift
• Projection
• Screen
• Audio Out Device
• Power On Link
• Power Off Link
• Standby Mode
• High Altitude Mode
• Auto Source Search
• Language
Operation settings
97
Options Description
HDMI Link Adjusts HDMI Link options that allow the projector remote
control to control HDMI-connected devices that support the
CEC standard
Device Connections: lists the device connected to the
HDMI port
HDMI Link: turns HDMI Link on or off
Audio Out Device: selects whether to output audio from the
internal speakers or a connected audio/video system
Power On Link: controls what happens when you turn on
the projector or connected device
• Bidirectional: automatically turns on the connected
device when you turn on the projector, and vice versa
• Device -> PJ: automatically turns on the projector when
you turn on the connected device
• PJ -> Device: automatically turns on the connected
device when you turn on the projector.
Power Off Link: controls if the connected device is turned
off or not when you turn off the projector
Sleep Mode Select On to place the projector in standby mode after a
certain interval of inactivity
Sleep Mode Timer Sets the sleep mode interval between 1 and 30 minutes
AV Mute Timer Select Onto automatically turn off the projector after 30
minutes if A/V Mute is enabled
Standby Mode Select Communication On to allow the projector to be
monitored and controlled over a network when the projector
is in standby mode
Direct Power On Turns on the projector when you plug it in
Auto Power On Automatically turns on the projector when it receives an
image signal (available only when Standby Mode is set to
Communication On)
High Altitude Mode Select On to regulate the projector temperature above 4921
feet (1500 m)
98
Options Description
Auto Source Search Automatically detects the image signal that is input when the
projector is turned on
Indicators Turns off the indicator on the projector
Advanced Log Save Destination: sets the location where the
projector saves error and operation log files
Batch Setup Range: select to copy the projector menu
settings using the batch setup feature
Parent topic: Adjusting the Menu Settings
Projector Network Settings - Network Menu
.
Setting Options Description
Wireless LAN Power On
Off
Turns on wireless LAN support
Net. Info - Wireless LAN Connection Mode
Wireless LAN Sys.
Antenna Level
Projector Name
SSID
DHCP
IP Address
Subnet Mask
Gateway Address
MAC Address
Region Code
IPv6
Displays wireless network status
and details
99
Setting Options Description
Display the QR Code — Displays a QR code for
connecting with iOS or Android
devices using the Epson
iProjection app
Network Configuration Accesses additional network
menus
Configures your network settings
Parent topic: Adjusting the Menu Settings
Projector Setup Settings - ECO Menu
Settings on the ECO menu let you customize projector functions to save power. When you select a
power-saving setting, a leaf icon appears next to the menu item.
Setting Options Description
Light Output High
Low (ECO)
Selects the brightness mode of
the projector lamp
High: sets maximum lamp
brightness
Low (ECO): reduces lamp
brightness and fan noise, and
saves power and lamp life
Sleep Mode On
Off
Automatically places the
projector in standby mode after
an interval of inactivity
Sleep Mode Timer 1 to 30 minutes Sets the interval for Sleep Mode
A/V Mute Timer On
Off
Automatically turns off the
projector after 30 minutes if
A/V Mute is enabled
Standby Mode Communication On
Communication Off
Communication On indicates
that the projector can be
monitored and controlled over a
network when the projector is in
standby mode
100
Note: When the A/V Mute Timer setting is enabled, the lamp uses less power when A/V Mute is
activated.
Parent topic: Adjusting the Menu Settings
Projector Information Display - Info Menu
You can display information about the projector and input sources by viewing the Info menu. However,
you cannot change any settings in the menu.
Select Projector Info to display the settings described below. Select Version to display the projector's
firmware version.
Information item Description
Lamp Hours Displays the number of hours the projector has been used in High
and Low (Eco) modes since it was turned on
Source Displays the name of the port to which the current input source is
connected
Input Signal Displays the input signal setting of the current input source
Resolution Displays the resolution of the current input source
Refresh Rate Displays the refresh rate of the current input source
Sync Info Displays information that may be needed by a service technician
Status Displays information about projector problems that may be needed
by a service technician
Serial Number Displays the projector's serial number
Event ID Displays the Event ID number corresponding to a network problem;
see the list of Event ID codes.
Event ID Code List
Parent topic: Adjusting the Menu Settings
Event ID Code List
If the Event ID option on the Info menu displays a code number, check this list of Event ID codes for the
solution to the projector problem associated with the code.
101
Event ID code Cause and solution
0432 Turn the projector off and then on again.
0435
0434 Unstable network communication. Check the network communication status, wait a
few moments, and try connecting to the network again.
0481
0482
0485
0433 Cannot display the transferred images. Restart the network software.
0484 Communication with computer was disconnected. Restart the network software.
0483 The network software quit unexpectedly. Check the network communication status,
then turn the projector off and then on again.
04FE
0479 A projector system error has occurred. Turn the projector off and then on again.
04FF
0891 Cannot find an access point with the same SSID. Set your computer, access point,
and projector to the same SSID.
0892 The WPA/WPA2/WPA3 authentication type does not match. Make sure the wireless
network security settings are correct.
0893 The TKIP/AES encryption type does not match. Make sure the wireless network
security settings are correct.
0894 Communication with an unauthorized access point was disconnected. Contact your
network administrator.
0895 Communication with a connected device was disconnected. Check your device
connection status.
0898 Failed to acquire DHCP. Make sure the DHCP server is operating correctly. If you
are not using DHCP, turn off the DHCP setting in the Network menus.
0899 Communication error. Turn the projector off and then on again.
Parent topic: Projector Information Display - Info Menu
102
Projector Reset Options - Reset Menu
You can reset most of the projector settings to their default values using the Reset menu.
Setting Description
Reset All Config Resets most of the projector settings to their defaults, except the
Zoom, Image Shift, Network menu items, and Language settings
Parent topic: Adjusting the Menu Settings
103
Maintaining and Transporting the Projector
Follow the instructions in these sections to maintain your projector and transport it from place to place.
Projector Maintenance
Replacing the Remote Control Batteries
Transporting the Projector
Projector Maintenance
Your projector needs little maintenance to keep working at its best.
You may need to clean the lens periodically, and clean the air vents to prevent the projector from
overheating due to blocked ventilation.
The only parts you should replace are the remote control batteries. If any other part needs replacing,
contact Epson or an authorized Epson servicer.
Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open
any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages
in the projector can injure you severely.
Warning: Do not try to service this product yourself, except as specifically explained in this manual.
Refer all other servicing to qualified servicers.
Cleaning the Lens
Cleaning the Projector Case
Cleaning the Air Vents
Parent topic: Maintaining and Transporting the Projector
Cleaning the Lens
Clean the projector's lens periodically, or whenever you notice dust or smudges on the surface. Make
sure you unplug the projector before cleaning the lens.
• To remove dust or smudges, gently wipe the lens with lens-cleaning paper.
104
• To remove stubborn smudges, moisten a soft, lint-free cloth with lens cleaner and gently wipe the
lens. Do not spray any liquid directly on the lens.
Warning: Do not use a lens cleaner that contains flammable gas. The high heat generated by the
projector lamp may cause a fire.
Caution: Do not wipe the lens immediately after turning off the light source; otherwise, it could be
damaged. Do not use glass cleaner or any harsh materials to clean the lens and do not subject the
lens to any impacts; you may damage it. Do not use canned air, or the gases may leave a residue.
Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.
Parent topic: Projector Maintenance
Related tasks
Turning Off the Projector
Cleaning the Projector Case
Before cleaning the projector case, turn off the projector and unplug the power cord.
• To remove dust or dirt, use a soft, dry, lint-free cloth.
• To remove stubborn dirt, use a soft cloth moistened with water and mild soap. Do not spray liquid
directly on the projector.
Caution: Do not use wax, alcohol, benzine, paint thinner, or other chemicals to clean the projector
case. These can damage the case. Do not use canned air, or the gases may leave a flammable
residue.
Parent topic: Projector Maintenance
Related tasks
Turning Off the Projector
Cleaning the Air Vents
Clean the projector's air vents if they get dusty, or if you see a message telling you to clean them.
1. Turn off the projector and unplug the power cord.
105
2. Carefully remove the dust using a vacuum cleaner or a brush.
Caution: Do not use canned air. The gases may leave a flammable residue or push dust and debris
into the projector's optics or other sensitive areas.
Parent topic: Projector Maintenance
Related tasks
Turning Off the Projector
Replacing the Remote Control Batteries
The remote control uses two AAA manganese or alkaline batteries. Replace the batteries as soon as
they run out.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
106
1. Remove the battery cover as shown.
2. Remove the old batteries.
Warning: If the battery fluid has leaked, wipe it away with a soft cloth and avoid getting the fluid on
your hands. If it gets on your hands, wash them immediately to avoid injury.
3. Insert the batteries with the + and – ends facing as shown.
Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not
inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.
4. Replace the battery cover and slide it up until it clicks into place.
107
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Maintaining and Transporting the Projector
Transporting the Projector
The projector contains precision parts, some of which are glass. Follow the guidelines here to transport,
ship, or store the projector safely.
1. Remove any equipment connected to the projector.
2. Turn off the projector.
3. Make sure the status indicator is not lit, then unplug the power cord.
4. Do one of the following:
• When transporting the projector a long distance or as checked luggage, pack it in a firm box with
cushioning around it and mark the box "Fragile."
• When shipping the projector for repairs, place it in its original packing materials, if possible, or use
equivalent materials with cushioning around the projector. Mark the box "Fragile."
Note: Epson shall not be liable for any damages incurred during transportation.
Parent topic: Maintaining and Transporting the Projector
Related references
Projector Light Status
Related tasks
Turning Off the Projector
108
Solving Problems
Check the solutions in these sections if you have any problems using the projector.
Projection Problem Tips
Projector Light Status
Solving Projector or Remote Control Operation Problems
Solving Image or Sound Problems
Solutions to Password Problems
Solutions to HDMI Link Problems
Solutions When a Message to Replace the Projector is Displayed
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Projection Problem Tips
If the projector is not working properly, try turning it off and unplugging it. Then plug it back in and turn it
on.
If this does not solve the problem, check the following:
• The lights on the projector may indicate what the problem is.
• The Help option on the Home screen can display information about common problems, if the projector
is operating.
• The solutions in this manual can help you solve many problems.
If none of these solutions help, you can contact Epson for technical support.
Parent topic: Solving Problems
109
Projector Light Status
The light on the projector indicates the projector status and lets you know when a problem occurs. Check
the status and color of the light and look for a solution in the tables here.
1 Status light
Status light Status and solution
Blue Normal operation
Flashing blue The projector is warming up, shutting down, or initializing the projector.
The remote control may not function if the status indicator is flashing
blue.
Off The projector is in standby or sleep mode. When you press the power
button on the projector or remote, projection begins.
• Make sure that the vents are not clogged with dust or obstructed by
nearby objects.
• If the problem persists, unplug the projector and contact Epson for
help.
110
Status light Status and solution
Orange Projector is too hot and has turned off.
• Let the projector cool down for at least five minutes
• Make sure that the vents and air filter are not clogged with dust or
obstructed by nearby objects.
• Clean or replace the air filter.
• Make sure the environmental temperature is not too hot.
• If the problem persists, unplug the projector and contact Epson for
help.
Flashing orange One of the following has occurred:
• The lamp has a problem
• A fan or sensor has a problem
• An internal projector error has occurred.
• Power error (Ballast)
Turn the projector off, unplug it, and contact Epson for help.
Note: If the light displays a pattern not listed in the tables above, turn the projector off, unplug it, and
contact Epson for help.
Parent topic: Solving Problems
Related references
Projector Environmental Specifications
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Related tasks
Cleaning the Air Vents
Solving Projector or Remote Control Operation Problems
Check the solutions in these sections if you have problems operating the projector or remote control.
Solutions to Projector Power or Shut-Off Problems
Solutions to Remote Control Problems
111
Parent topic: Solving Problems
Solutions to Projector Power or Shut-Off Problems
If the projector does not come on when you press the power button or it shuts off unexpectedly, try the
following solutions:
• Make sure the power cord is securely connected to the projector and to a working electrical outlet.
• If the projector's light source turns off unexpectedly, the A/V mute timer may be enabled. Select Off as
the A/V Mute Timer setting.
• If the projector's status light is orange, the projector has overheated and shut off. Check the solutions
for this light status.
• If the power button on the remote control does not turn on the projector, check its batteries.
• The power cord may be defective. Try another power cord. If that doesn't work, disconnect the cord
and contact Epson.
• The cooling fans may run in standby status depending on the projector settings. Also, when the
projector wakes from standby status, the fans may cause an unexpected noise. This is not a
malfunction.
• HDMI Link settings on connected devices could power on or power off your projector. Adjust the
settings on connected devices accordingly.
Parent topic: Solving Projector or Remote Control Operation Problems
Related references
Projector Light Status
Projector Feature Settings - Settings Menu
Related tasks
Replacing the Remote Control Batteries
Solutions to Remote Control Problems
If the projector does not respond to remote control commands, try the following solutions:
• Check that the remote control batteries are installed correctly and have power. If necessary, replace
the batteries.
• Make sure you are operating the remote control within the reception angle and range of the projector.
• Make sure the projector is not warming up or shutting down.
112
• Check to see if a button on the remote control is stuck down, causing it to enter sleep mode. Release
the button to wake the remote control up.
• Strong fluorescent lighting, direct sunlight, or infrared device signals may be interfering with the
projector's remote receivers. Dim the lights or move the projector away from the sun or interfering
equipment.
• If you lose the remote control, you can purchase another from an Epson parts distributor.
Parent topic: Solving Projector or Remote Control Operation Problems
Related references
Remote Control Operation
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Projector Light Status
Projector Parts - Remote Control
Related tasks
Replacing the Remote Control Batteries
Solving Image or Sound Problems
Check the solutions in these sections if you have any problems with projected images or sound.
Solutions When No Image Appears
Solutions When "No Signal" Message Appears
Solutions When the Image is Not Rectangular
Solutions When the Image is Fuzzy or Blurry
Solutions When Only a Partial Image Appears
Solutions When the Image Contains Noise or Static
Solutions When the Image is Flickering
Solutions When the Image Brightness or Colors are Incorrect
Solutions When the Image is Upside Down
Solutions When Image is Incorrect Using the USB Display Function
Solutions to Sound Problems
Parent topic: Solving Problems
113
Solutions When No Image Appears
If no image appears, try the following solutions:
• Press the A/V mute button on the projector remote control to see if the image was temporarily
turned off.
• Check the status light to confirm the projector is operating normally.
• Make sure all necessary cables are securely connected and the power is on for the projector and
connected video sources.
• Try using a shorter HDMI cable.
• Use a different display adapter.
• Try connecting the video source directly to the projector.
• Press the projector's power button to wake it from standby or sleep mode. Also see if your connected
computer is in sleep mode or displaying a blank screen saver.
• Make sure the connected device meets the HDMI CEC standard. See the documentation supplied
with the device for more information. If necessary, set the CEC function for the connected device
again and restart the device. Turn off the projector and the connected streaming device or video
source, and then turn them back on.
• Turn off the projector and the connected streaming device or video source, and then turn them back
on.
• If you are projecting from a laptop computer, make sure it is set up to display on an external monitor.
• Make sure the computer's display resolution does not exceed the projector's resolution and frequency
limits. If necessary, select a different display resolution for your computer. (See your computer manual
for details.)
• If the other solutions do not solve the problem, reset all of the projector settings using the options on
the Reset menu.
Parent topic: Solving Image or Sound Problems
Related references
Projector Parts - Remote Control
Projector Light Status
Projector Reset Options - Reset Menu
Related tasks
Operating Connected Devices Using the HDMI Link Features
Turning On the Projector
114
Solutions When "No Signal" Message Appears
If the "No Signal" message appears, try the following solutions:
• Turn on the connected computer or video source, and press its play button to begin your presentation,
if necessary.
• Check the connection from the projector to your video sources.
• If you are projecting from a laptop computer, make sure it is set up to display on an external monitor.
• If necessary, turn the projector and the connected computer or video source off and then on again.
• Try a different video cable.
Displaying From a PC Laptop
Displaying From a Mac Laptop
Parent topic: Solving Image or Sound Problems
Displaying From a PC Laptop
If you see the "No Signal" message when you display from a PC laptop, you need to set up the laptop to
display on an external monitor.
1. Hold down the laptop's Fn key and press the key labeled with a monitor icon or CRT/LCD. (See your
laptop manual for details.) Wait a few seconds for an image to appear. To display on both the
laptop's monitor and the projector, try pressing the same keys again.
Note: On Windows 7 or later, hold down the Windows key and press P at the same time, then click
Duplicate.
2. If the same image is not displayed by the laptop and projector, check the Windows Display utility to
make sure the external monitor port is enabled and extended desktop mode is disabled. (See your
computer or Windows manual for instructions.)
3. If necessary, check your video card settings and set the multiple display option to Clone, Mirror, or
Duplicate.
Parent topic: Solutions When "No Signal" Message Appears
Displaying From a Mac Laptop
If you see the "No Signal" message when you display from a Mac laptop, you need to set up the laptop
for mirrored display. (See your laptop manual for details.)
1. Open the System Preferences utility and select Displays, Display, or Color LCD.
2. Click the Arrange or Arrangement tab.
115
3. Select the Mirror Displays checkbox.
Parent topic: Solutions When "No Signal" Message Appears
Solutions When the Image is Not Rectangular
If the projected image is not evenly rectangular, try the following solutions:
• Place the projector directly in front of the center of the screen, facing it squarely, if possible.
• Adjust the image shape using the keystone settings in the projector's menu.
Parent topic: Solving Image or Sound Problems
Related concepts
Projector Placement
Related tasks
Correcting Image Shape with H/V Keystone
Correcting Image Shape with Quick Corner
Solutions When the Image is Fuzzy or Blurry
If the projected image is fuzzy or blurry, try the following solutions:
• Adjust the image focus using the focus lever.
• Clean the projector lens.
• Position the projector close enough to the screen.
• Position the projector so the keystone adjustment angle is not so wide that it distorts the image.
• Adjust the Sharpness setting to improve image quality.
• If you are projecting from a computer, use a lower resolution or adjust the computer's resolution to
match the projector's native resolution, if possible.
Parent topic: Solving Image or Sound Problems
Related references
Projection Distance
Image Quality Settings - Image Menu
Supported Video Display Formats
Related tasks
Adjusting Picture Quality in Detail
Correcting Image Shape with H/V Keystone
116
Correcting Image Shape with Quick Corner
Solutions When Only a Partial Image Appears
If only a partial computer image appears, try the following solutions:
• Select Image > Aspect Ratio and set it to Auto.
• If you zoomed into or out of the image using the and buttons, press the return button until
the projector returns to a full display.
• Check your computer display settings to disable dual display and set the resolution within the
projector's limits. (See your computer manual for details.)
• Check the resolution assigned to your presentation files to see if they are created for a different
resolution than you are projecting in. (See your software help for details.)
• Make sure you selected the correct Projection setting in the Installation menu.
Parent topic: Solving Image or Sound Problems
Related references
Supported Video Display Formats
Projector Reset Options - Reset Menu
Related tasks
Changing the Image Aspect Ratio
Solutions When the Image Contains Noise or Static
If the projected image seems to contain electronic interference (noise) or static, try the following
solutions:
• Check the cables connecting your computer or video source to the projector. They should be:
• Separated from the power cord to prevent interference
• Securely connected at both ends
• Not connected to an extension cable
• Try decreasing the Sharpness setting in the Image menu.
• Select a computer video resolution and refresh rate that are compatible with the projector.
• If you connected an extension power cable, try projecting without it to see if it caused interference in
the signal.
Parent topic: Solving Image or Sound Problems
117
Related references
Supported Video Display Formats
Related tasks
Adjusting Picture Quality in Detail
Solutions When the Image is Flickering
If the projected screen flickers, try the following solutions:
• If the screen flickers only when a video signal is input, try replacing the cable connecting the projector
and video device.
• If Light Output is set to Low (Eco), change this to High and try projecting an image for about two
hours to see if it still flickers.
• Disconnect all the cables connecting the projector and video devices, confirm no signal is being input,
and then reset all the projector settings by enabling the Reset All Config setting in the projector's
Reset menu.
Parent topic: Solving Image or Sound Problems
Related references
Image Quality Settings - Image Menu
Projector Reset Options - Reset Menu
Solutions When the Image Brightness or Colors are Incorrect
If the projected image is too dark or light, or the colors are incorrect, try the following solutions:
• Try selecting a color mode that best fits the image and environment.
• Check your video source settings.
• Adjust the available settings on the Image menu for the current input source, such as Brightness,
Contrast, Tint, and/or Color Saturation.
• Make sure all the cables are securely connected to the projector and your video device. If you
connected long cables, try connecting shorter cables.
• Position the projector close enough to the screen.
Parent topic: Solving Image or Sound Problems
Related references
Image Quality Settings - Image Menu
Available Color Modes
118
Related tasks
Adjusting Picture Quality in Detail
Changing the Color Mode
Solutions When the Image is Upside Down
If the projected image is upside down, try the following solutions:
• Select the correct projection mode.
Parent topic: Solving Image or Sound Problems
Related tasks
Changing the Projection Mode Using the Menus
Solutions When Image is Incorrect Using the USB Display Function
If no image appears or if the image appears incorrectly using the USB Display function, try the following
solutions:
• Make sure the USB Display software has installed correctly. Install it manually if necessary.
• On a Mac, select the USB Display icon in the Dock or from the Applications folder.
• For images projected with Windows Media Center, reduce the screen size from full screen mode.
• For images projected from applications using Windows DirectX, turn off DirectX functions.
• If the mouse cursor flickers, select Make the movement of the mouse pointer smooth in the Epson
USB Display Settings program on your computer (feature not available with Windows 2000).
• Turn off the Transfer layered window setting in the Epson USB Display Settings program on your
computer.
• Make sure you are using the most recent version of the USB Display software. You can download the
latest version from the Epson web site. Go to epson.com/support (U.S.) or epson.ca/support (Canada)
and select your projector.
Parent topic: Solving Image or Sound Problems
Related tasks
Connecting to a Computer for USB Video and Audio
Solutions to Sound Problems
If there is no sound when you expect it or the volume is too low or high, try the following solutions:
• Adjust the projector's volume settings.
119
• Press the mute button on the remote control to resume audio if it was temporarily muted.
• Press the A/V mute button on the projector remote control to resume video and audio if they were
temporarily stopped.
• Make sure the Audio Out Device settings are correct.
• Check your computer or video source to make sure the volume is turned up and the audio output is set
for the correct source.
• If you do not hear sound from an HDMI source, set the connected device to PCM output.
• If you are using a Mac and you do not hear sound from an HDMI source, make sure your Mac
supports audio through the HDMI port. If not, you need to connect an audio cable.
Parent topic: Solving Image or Sound Problems
Related references
Projector Feature Settings - Settings Menu
Related tasks
Shutting Off the Picture and Sound Temporarily
Operating Connected Devices Using the HDMI Link Features
Controlling the Volume with the Volume Buttons
Solutions to Password Problems
If you cannot enter or remember a password, try the following solutions:
• You may have turned on password protection without first setting a password. Try entering 0000 using
the remote control. If you lose the remote control, you cannot enter a password. Order a new one from
Epson.
• If you have entered an incorrect password too many times and see a message displaying a request
code, write down the code and contact Epson. Do not attempt to enter the password again. Provide
the request code and proof of ownership for assistance in unlocking the projector.
• If you set a Epson Web Control password and forgot the user ID or password, try entering the
following:
• User ID: EPSONWEB
• Default password: projector serial number
• If you set a Remote password (in Epson Web Control) and forgot the user ID or password, try entering
the following:
• User ID: EPSONREMOTE
120
• Default password: projector serial number
Parent topic: Solving Problems
Solutions to HDMI Link Problems
If you cannot control an HDMI device using the HDMI Link feature, try the following solutions:
• Make sure all necessary cables are securely connected and the power is on for the projector and
connected video sources.
• Make sure the cables meet the HDMI CEC standard.
• Make sure the connected device meets the HDMI CEC standard. See the documentation supplied
with the device for more information.
• Replace the HDMI cable or try a shorter one.
• Check if the device is available in the Device Connections list in the Settings menu. If the device
does not appear, it does not meet the HDMI CEC standards. Connect a different device.
• Make sure the connected devices are turned on and in standby status. See the documentation
supplied with the device for more information.
• If you connected a new device or changed any connections, make sure the CEC function is set for the
connected device. You may need to restart the device.
Parent topic: Solving Problems
Related references
Projector Feature Settings - Settings Menu
Related tasks
Operating Connected Devices Using the HDMI Link Features
Solutions When a Message to Replace the Projector is Displayed
At the end of the projector lamp's life, the projector displays a message about replacing the projector.
Turn the projector off and consider replacing the projector even if the lamp continues to work.
Warning: If you continue to use the projector after the lamp's life expires, the possibility that the lamp
may explode increases.
If the lamp breaks, note the following points:
• Ventilate the area immediately.
• Do not swing or tilt the projector. Shards of glass may fall out and could cause an injury.
121
• If any shards of glass get into your eyes or mouth, contact a doctor immediately.
Parent topic: Solving Problems
Related references
Projector Lamp Specifications
Where to Get Help (U.S. and Canada)
If you need to contact Epson for technical support services, use the following support options.
Internet Support
Visit Epson's support website at epson.com/support (U.S.) or epson.ca/support (Canada) and select
your product for solutions to common problems with your projector. You can download utilities and
documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions.
Speak to a Support Representative
To use the Epson PrivateLine Support service, call (800) 637-7661. This service is available for the
duration of your warranty period. You may also speak with a projector support specialist by dialing
(562) 276-4394 (U.S.) or (905) 709-3839 (Canada).
Support hours are Monday through Friday, 7 AM to 4 PM, Pacific Time.
Days and hours of support are subject to change without notice. Toll or long distance charges may
apply.
Before you call, have the following information ready:
• Product name
• Product serial number (located on the bottom or rear of the projector, or in the menu system)
• Proof of purchase (such as a store receipt) and date of purchase
• Computer or video configuration
• Description of the problem
Purchase Supplies and Accessories
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in
Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).
You can purchase a replacement remote control from an Epson parts distributor here (U.S. sales) or
here (Canadian sales).
122
Parent topic: Solving Problems
Where to Get Help (Latin America)
If you need to contact Epson for technical support services, use the following support options.
Internet Support
Visit Epson's support website at latin.epson.com/support and select your product for solutions to
common problems with your projector. You can download utilities and documentation, get FAQs and
troubleshooting advice, or e-mail Epson with your questions.
Speak to a Support Representative
Before you call for support, please have the following information ready:
• Product name
• Product serial number (located on the bottom or rear of the projector, or in menu system)
• Proof of purchase (such as a store receipt) and date of purchase
• Computer or video configuration
• Description of the problem
Then call:
Country Telephone
Argentina (54 11) 5167-0300
0800-288-37766
Bolivia* 800-100-116
Brazil State capitals and metropolitan areas: 3004-6627
Other areas: 0800-377-6627 / 0800-EPSONBR
Chile (56 2) 2484-3400
Colombia Bogota: (57 1) 602-4751
Other cities: 01-8000-915235
Costa Rica 800-377-6627
Dominican Republic* 1-888-760-0068
Ecuador* 1-800-000-044
123
Country Telephone
El Salvador* 800-6570
Guatemala* 1-800-835-0358
Mexico Mexico City: (52 55) 1323-2052
Other cities: 01-800-087-1080
Nicaragua* 00-1-800-226-0368
Panama* 00-800-052-1376
Paraguay 009-800-521-0019
Peru Lima: (51 1) 418-0210
Other cities: 0800-10126
Uruguay 00040-5210067
Venezuela (58 212) 240-1111
*Contact your local phone company to call this toll-free number from a mobile phone.
Note: Toll or long distance charges may apply. If your country does not appear on the list, contact the
sales office in the nearest country.
Purchase Supplies and Accessories
You can purchase optional accessories and replacement parts from an Epson authorized reseller. To
find the nearest reseller, go to latin.epson.com. Or you can contact your nearest sales office as
described in "Where to Get Help."
Parent topic: Solving Problems
124
Technical Specifications
These sections list the technical specifications of your projector.
General Projector Specifications
Projector Lamp Specifications
Remote Control Specifications
Projector Dimension Specifications
Projector Electrical Specifications
Projector Environmental Specifications
Projector Safety and Approvals Specifications
Supported Video Display Formats
General Projector Specifications
Type of display Poly-silicon TFT active matrix
Resolution 1280 × 800 pixels (WXGA)
Lens F=1.44
Focal length: 16.4 mm
Color reproduction Up to 16.77 billion colors
Brightness High light source mode:
White light output 3000 lumens (ISO 21118 standard)
Color light output 3000 lumens
Note: Color brightness (color light output) and white brightness
(white light output) will vary depending on usage conditions. Color
light output measured in accordance with IDMS 15.4; white light
output measured in accordance with ISO 21118.
Image size
(in native aspect ratio)
25 inches (0.63 m) to 378 inches (9.6 m)
Projection distance
(in native aspect ratio)
60" screen: 64.6" (1.64 m)
125
Projection methods Front, Rear, Front/Ceiling, Rear/Ceiling
Optical aspect ratio
(width-to-height)
16:10
Focus adjustment Manual
Internal sound system 5 W (Monaural)
Fan noise level 38 dB (High power consumption)
29 dB (ECO power consumption)
USB Type A port compatibility One USB 2.0 compliant port for wireless LAN, firmware update,
batch setup; PC Free slideshows
USB Type B port compatibility One USB 2.0 compliant port for USB Display
Parent topic: Technical Specifications
Projector Lamp Specifications
Type UHE (Ultra High Efficiency)
Power consumption 188 W
Lamp life High Power Consumption mode:
Up to about 6000 hours
ECO Power Consumption mode:
Up to about 12000 hours
Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
Parent topic: Technical Specifications
Related references
Solutions When a Message to Replace the Projector is Displayed
Remote Control Specifications
Reception range 19.7 feet (6 m)
126
Batteries Two alkaline or manganese AAA
Parent topic: Technical Specifications
Projector Dimension Specifications
Height (excluding feet) 3.2 inches (82 mm)
Width 11.6 inches (295 mm)
Depth 8.3 inches (211 mm)
Weight Approx. 5.3 lb (2.4 kg)
Parent topic: Technical Specifications
Projector Electrical Specifications
Rated frequency 50/60 Hz
Power supply 100 to 240 V AC ±10%
2.9 - 1.3 A
Power consumption
(100 to 120 V)
Operating:
High Power Consumption mode: 284 W
ECO Power Consumption mode: 223 W
Standby: 0.5 W
Power consumption
(220 to 240 V)
Operating:
High Power Consumption mode: 270 W
ECO Power Consumption mode: 214 W
Standby: 0.5 W
Parent topic: Technical Specifications
127
Projector Environmental Specifications
Temperature Operating:
Up to 7500 feet (2286 m): 41 to 104 °F (5 to 40 °C)
7500 feet (2286 m) to 9843 feet (3000 m): 41 to 95 °F (5 to 35 °C)
Storage: 14 to 140 °F (–10 to 60 °C)
Humidity (relative, non-
condensing)
Operating: 20 to 80%
Storage: 10 to 90%
Operating altitude Up to 10000 feet (3048 m)
Parent topic: Technical Specifications
Projector Safety and Approvals Specifications
United States FCC Part 15B Class B (DoC)
UL62368-1 2nd edition (cTUVus Mark)
Canada ICES-003 Class B
CSA C22.2 No.62368-1-14 (cTUVus Mark)
Parent topic: Technical Specifications
Supported Video Display Formats
For best results, your computer's monitor port or video card resolution should be set to display in the
projector's native resolution. However, your projector includes Epson's SizeWise chip that supports other
computer display resolutions, so your image will be resized to fit automatically.
Your computer's monitor port or video card refresh rate (vertical frequency) must be compatible with the
projector. (See your computer or video card manual for details.)
The table here lists the compatible refresh rate and resolution for each compatible video display format.
Display format Refresh rate (in Hz) Resolution (in pixels)
HDMI Input Signals
VGA 60 640 × 480
128
Display format Refresh rate (in Hz) Resolution (in pixels)
SVGA 60 800 × 600
XGA 60 1024 × 768
WXGA 60 1280 × 800
60 1366 × 768
WXGA+ 60 1440 × 900
WXGA++ 60 1600 × 900
SXGA 60 1280 × 960
60 1280 × 1024
SXGA+ 60 1400 × 1050
WSXGA+ 60 1680 × 1050
UXGA 60 1600 × 1200
1920 × 1080 50/60 1920 × 1080
SDTV (480i/480p) 59.94 720 × 480
SDTV (576i/576p) 50 720 × 576
HDTV (720p) 50/59.94/60 1280 × 720
HDTV (1080i) 50/59.94/60 1920 × 1080
HDTV (1080p) 23.98/24/29.97/30/50/59.94/60 1920 × 1080
Parent topic: Technical Specifications
129
Notices
Check these sections for important notices about your projector.
Recycling (U.S. and Canada)
Important Safety Information
Important Safety Instructions
Warning Labels
List of Safety Symbols
FCC Compliance Statement
Binding Arbitration and Class Waiver
Trademarks
Copyright Notice
Recycling (U.S. and Canada)
Epson offers a recycling program for end of life products. Please go to this site for information on how to
return your products for proper disposal.
Parent topic: Notices
Important Safety Information
Caution: Never look into the projector lens when the light source is on. This can damage your eyes and
is especially dangerous for children. Before cleaning any part of the projector, turn it off and unplug the
power cord. Never open any cover on the projector, except as specifically explained in this manual.
Dangerous electrical voltages in the projector can injure you severely. Except as specifically explained in
this User's Guide, do not attempt to service this product yourself. Refer all servicing to qualified service
personnel.
Warning: The projector and its accessories come packaged in plastic bags. Keep plastic bags away
from small children to avoid any risk of suffocation.
Parent topic: Notices
130
Important Safety Instructions
Follow these safety instructions when setting up and using the projector:
• Do not look into the lens when the projector is on. The bright light can damage your eyes. Avoid
standing in front of the projector so the bright light does not shine into your eyes.
• Do not install or place the projector vertically. Doing so may cause a malfunction.
• When turning on the projector at a distance using the remote control, make sure there is no one
looking into the lens.
• Do not use the projector on a flammable surface (such as a newspaper, plastic sheet, or carpet) or an
electric carpet. The high heat generated by the projector could deform or discolor them, resulting in a
fire.
• During projection, do not touch the projector. The high heat generated by the projector lamp may
cause a burn or injury.
• Do not place the projector on an unstable cart, stand, or table or on a surface that is unable to support
its weight. Otherwise, it could fall or topple causing an accident and injury.
• Route any cords or cables so that they are out of the way; otherwise people may trip and fall or injure
themselves.
• When using the projector outdoors at night, be careful not to trip over any extension power cords you
are using. Otherwise, the projector could fall or topple causing an accident and injury.
• You must install a ceiling mount when suspending the projector from a ceiling. If you do not install the
projector correctly, it could fall and cause damage or injury. Special expertise is required to suspend
the projector from a ceiling.
• Failure to install the ceiling mount and projector correctly may cause the projector to fall. After
installing the specific Epson mount that supports your projector, make sure you secure the mount to all
of the projector's ceiling mount fixing points. Also, secure the projector and the mounts using wire that
is strong enough to hold their weight.
• When installing the projector in a high position, take measures to prevent it from falling by using wires
to ensure safety in an emergency, such as an earthquake, and to prevent accidents. If the projector is
not installed correctly, the projector could fall. This may result in injury or accidents.
• Do not install in locations where salt damage could occur, or in locations subject to corrosive gas such
as sulphuric gas from hot springs. Otherwise, corrosion could cause the projector to fall. It could also
cause the projector to malfunction.
• When installing or adjusting a ceiling mount, do not use adhesives to prevent the screws from
loosening and do not use oils or lubricants. This may cause the projector case to crack and the
131
projector to fall from its ceiling mount. This could cause serious injury to anyone under the mount and
could damage the projector.
• Do not install the projector in locations exposed to high humidity and dust, such as on a kitchen
counter, in the kitchen, or near a humidifier, or in locations exposed to oil smoke or steam. Doing so
could cause fire or electric shock. The projector's case could also deteriorate and be damaged
causing the projector to fall from the mount.
Examples of environments that could cause the projector to fall due to case deterioration:
• Locations subject to excessive smoke or airborne oil particles, such as factories or kitchens
• Locations containing volatile solvents or chemicals, such as factories or laboratories
• Locations where the projector could be subjected to detergents or chemicals, such as factories or
kitchens
• Locations in which aroma oils are often used, such as relaxation rooms
• Near devices that produce excessive smoke, airborne oil particles, or foam at events
• Locations where the projector could be subjected to ultraviolet rays, such as a sunny room
• Locations near humidifiers
• Do not use the projector near water, sources of heat, high-voltage electrical wires, or sources of
magnetic fields.
• Use the type of power source indicated on the projector. Use of a different power source may result in
fire or electric shock. If you are not sure of the power available, consult your dealer or power company.
• Place the projector near a wall outlet where the plug can be easily unplugged.
• Take the following precautions when handling the plug: Do not hold the plug with wet hands. Do not
insert the plug into a dusty outlet. Insert the plug firmly into the outlet. Do not pull the power cord when
disconnecting the plug; always be sure to hold the plug when disconnecting it. Do not overload wall
outlets, extension cords, or power strips. Failure to comply with these precautions could result in fire or
electric shock.
• Do not place the projector where the cord can be walked on. This may result in fraying or damage to
the plug.
• Unplug the projector from the wall outlet and allow to cool before cleaning. Use a dry cloth (or, for
stubborn dirt or stains, a moist cloth that has been wrung dry) for cleaning. Do not use liquid or aerosol
cleaners, any sprays containing flammable gas, or solvents such as alcohol, paint thinner, or benzine.
• Do not block the slots and openings in the projector case. They provide ventilation and prevent the
projector from overheating. Do not operate the projector on a sofa, rug, or other soft surface, or set it
on top of loose papers. Do not cover the projector with a blanket, curtain, or tablecloth. If you are
132
setting up the projector near a wall, leave at least 7.9 inches (20 cm) of space between the wall and
the projector. On the side where hot air is exhausted from the projector, leave at least 11.8 inches (30
cm) of space between the wall and the projector.
• Do not operate the projector in a closed-in cabinet unless proper ventilation is provided.
• Never allow objects of any kind to enter any openings in the projector. Do not leave objects, especially
flammable objects, near the projector. Never spill liquid of any kind into the projector.
• You may need to clean the air vents. A clogged air vent can block ventilation needed to cool the
projector. Do not use canned air, or the gases may leave a residue.
• Do not use or store the projector in locations where it will be subject to dust or dirt. Otherwise, the
quality of the projected image may decline, or the air filter may become clogged, resulting in a
malfunction or fire.
• Do not store the projector outdoors for an extended length of time.
• Except as specifically explained in this manual, do not attempt to service this product yourself. Refer
all servicing to qualified personnel. Opening or removing covers may expose you to dangerous
voltages and other hazards.
• Never open any covers on the projector except as specifically explained in this manual. Never attempt
to disassemble or modify the projector. Refer all repairs to qualified service personnel.
• Unplug the projector from the wall outlet and refer servicing to qualified service personnel under the
following conditions: if it does not operate normally when you follow the operating instructions, or
exhibits a distinct change in performance; if smoke, strange odors, or strange noises come from the
projector; if the power cord or plug is damaged or frayed; if liquid or foreign objects get inside the
projector, or if it has been exposed to rain or water; if it has been dropped or the housing has been
damaged.
• Do not touch the plug during an electrical storm. Otherwise, you may receive an electric shock.
• Unplug the projector when it will not be used for extended periods.
• Do not use the projector where it may be exposed to rain, water, or excessive humidity.
• Do not use or store the projector where it may be exposed to smoke, steam, corrosive gases,
excessive dust, vibration, or shock.
• Do not use the projector where flammable or explosive gases may be present.
• Do not use or store the projector or remote control in a hot location, such as near a heater, in direct
sunlight, or in a closed vehicle.
• If you use the projector in a country other than where you purchased it, use the correct power cord for
that country.
133
• Do not stand on the projector or place heavy objects on it.
• If you are using the projector at altitudes above 4,921 feet (1,500 m), enable the High Altitude Mode
setting in the projector's menu to ensure the projector's internal temperature is regulated properly.
• Do not use the projector outside of the required temperature range below:
Doing so may cause an unstable display and could lead to projector damage. Do not use or store the
projector where it may be exposed to sudden changes in temperature.
• Do not store the projector outside of the required temperature range of 14 to 140 °F ( –10 to 60 °C) or
in direct sunlight for long periods of time. Doing so may cause damage to the case.
• Do not place anything that can become warped or damaged by heat near the exhaust vents. Do not
bring your hands or face close to the vents while projection is in progress. Do not bring your face close
to the projector while it is in use.
• Before you move the projector, make sure its power is turned off, the plug is disconnected from the
outlet, and all cables are disconnected.
• Do not place the source of an open flame, such as a lit candle, on or near the projector.
• During projection, do not block the light from the projector with a book or other objects. If the light from
the projector is blocked, the area on which the light shines becomes hot which could cause it to melt,
burn, or start a fire. Also, the lens may get hot due to the reflected light which could cause the
projector to malfunction. To stop projection, use the A/V Mute function, or turn off the projector.
• Do not modify the power cord. Do not place heavy objects on top of the power cord or bend, twist, or
pull it excessively. Keep the power cord away from hot electrical appliances. Do not tie the power cord
to other cables.
• If the lamp breaks, ventilate the area immediately, and contact a doctor if any fragments of broken
glass are inhaled or get into the eyes or mouth
• Always lower the volume before turning off the projector. Turning on the projector with the volume too
high can damage your ears. Gradually increase the volume after turning on the projector.
• A mercury lamp with high internal pressure is used as the projector's light source. If the lamp is
subjected to vibrations or shocks, or if it is used for an overly extended length of time, the lamp may
break or it may not turn on. If the lamp explodes, gases may escape and small fragments of glass may
be scattered which could cause an injury. Be sure to observe the instructions below.
• Do not bring your face close to the projector while it is in use.
• Do not swing or tilt the projector. Shards of glass may fall out and could cause an injury. Be very
careful not to allow such pieces of glass to enter your eyes or mouth.
134
Note: The lamp(s) in this product contain mercury. Please consult your state and local regulations
regarding disposal or recycling. Do not put in the trash.
Restriction of Use
Parent topic: Notices
Restriction of Use
When this product is used for applications requiring high reliability/safety such as transportation devices
related to aviation, rail, marine, automotive; disaster prevention devices; various safety devices; or
functional/precision devices, you should use this product only after giving consideration to including fail-
safes and redundancies into your design to maintain safety and total system reliability.
Because this product was not intended for use in applications requiring extremely high reliability/safety
such as aerospace equipment, main communication equipment, nuclear power control equipment, or
medical equipment related to direct medical care, please make your own judgment on this product's
suitability after a full evaluation.
Parent topic: Important Safety Instructions
Warning Labels
The product comes with the following warning label:
135
As with any bright source, do not stare into the beam, RG2 IEC/EN 62471-5:2015.
Parent topic: Notices
List of Safety Symbols
The following table lists the meaning of the safety symbols labeled on the equipment.
No. Symbol Approved Standards Description
1 IEC60417
No.5007
"ON" (power)
To indicate connection to the mains.
2 IEC60417
No.5008
"OFF" (power)
To indicate disconnection from the
mains.
3 IEC60417
No.5009
Stand-by
To identify the switch or switch position
by means of which part of the equipment
is switched on in order to bring it into the
stand-by condition.
4 ISO7000
No.0434B,
IEC3864-B3.1
Caution
To identify general caution when using
the product.
5 IEC60417
No.5041
Caution, hot surface
To indicate that the marked item can be
hot and should not be touched without
taking care.
6 IEC60417
No.6042
ISO3864-B3.6
Caution, risk of electric shock
To identify equipment that has risk of
electric shock.
136
No. Symbol Approved Standards Description
7 IEC60417
No.5957
For indoor use only
To identify electrical equipment designed
primarily for indoor use.
8 IEC60417
No.5926
Polarity of DC power connector
To identify the positive and negative
connections (the polarity) on a piece of
equipment to which a DC power supply
may be connected.
9 — Polarity of DC power connector
To identify the positive and negative
connections (the polarity) on a piece of
equipment to which a DC power supply
may be connected.
10 IEC60417
No.5001B
Battery, general
On battery powered equipment. To
identify a device for instance a cover for
the battery compartment, or the
connector terminals.
11 IEC60417
No.5002
Positioning of cell
To identify the battery holder itself and to
identify the positioning of the cell(s)
inside the battery holder.
12 — Positioning of cell
To identify the battery holder itself and to
identify the positioning of the cell(s)
inside the battery holder.
137
No. Symbol Approved Standards Description
13 IEC60417
No.5019
Protective earth
To identify any terminal which is intended
for connection to an external conductor
for protection against electric shock in
case of a fault, or the terminal of a
protective earth electrode.
14 IEC60417
No.5017
Earth
To identify an earth (ground) terminal in
cases where neither the symbol No.13 is
explicitly required.
15 IEC60417
No.5032
Alternating current
To indicate on the rating plate that the
equipment is suitable for alternating
current only; to identify relevant
terminals.
16 IEC60417
No.5031
Direct current
To indicate on the rating plate that the
equipment is suitable for direct current
only; to identify relevant terminals.
17 IEC60417
No.5172
Class II equipment
To identify equipment meeting the safety
requirements specified for Class II
equipment according to IEC 61140.
18 ISO 3864 General prohibition
To identify actions or operations that are
prohibited.
19 ISO 3864 Contact prohibition
To indicate injury that could occur due to
touching a specific part of the equipment.
138
No. Symbol Approved Standards Description
20 — Never look into the optical lens while the
projector is on.
21 — To indicate that the marked item don’t
place anything on projector.
22 ISO3864
IEC60825-1
Caution, laser radiation
To indicate the equipment has a laser
radiation part.
23 ISO 3864 Disassembly prohibition
To indicate a risk of injury, such as
electric shock, if the equipment is
disassembled.
24 IEC60417
No. 5266
Standby, partial standby
To indicate that part of the equipment is
in the ready status.
25 ISO3864
IEC60417
No. 5057
Caution, movable parts
To indicate that you must keep away
from movable parts according to
protection standards.
26 IEC60417
No. 6056
Caution, moving fan blades
To indicate that you must keep away
from moving fan blades.
27 IEC60417
No. 6043
Caution, sharp corners
To indicate that you must not touch sharp
corners.
28 — To indicate that looking into the lens
while projecting is prohibited.
139
No. Symbol Approved Standards Description
29 ISO7010
No. W027
ISO3864
Warning, optical radiation (UV, visible
light, IR, etc.)
To indicate that you must be careful not
to injure your eyes or skin when in the
vicinity of optical radiation.
30 IEC60417
No. 5109
Not to be used in residential areas
To indicate that the electrical equipment
is not suitable for a residential area.
Parent topic: Notices
FCC Compliance Statement
For United States Users
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause interference to radio and television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING
The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification or Declaration of this device and may cause interference levels which exceed the limits
140
established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded
equipment interface cable with this device. If this equipment has more than one interface connector, do
not leave cables connected to unused interfaces. Changes or modifications not expressly approved by
the manufacturer could void the user’s authority to operate the equipment.
For Canadian Users
CAN ICES-003(B)/NMB-003(B)
Parent topic: Notices
Binding Arbitration and Class Waiver
1. DISPUTES, BINDING INDIVIDUAL ARBITRATION, AND WAIVER OF CLASS ACTIONS AND
CLASS ARBITRATIONS
1.1 Disputes. The terms of this Section 1 shall apply to all Disputes between you and Epson. The term
"Dispute" is meant to have the broadest meaning permissible under law and includes any dispute, claim,
controversy or action between you and Epson arising out of or relating to this Agreement, Epson
branded products (hardware and including any related software), or other transaction involving you and
Epson, whether in contract, warranty, misrepresentation, fraud, tort, intentional tort, statute, regulation,
ordinance, or any other legal or equitable basis. "DISPUTE" DOES NOT INCLUDE IP CLAIMS, or more
specifically, a claim or cause of action for (a) trademark infringement or dilution, (b) patent infringement,
(c) copyright infringement or misuse, or (d) trade secret misappropriation (an "IP Claim"). You and Epson
also agree, notwithstanding Section 1.6,that a court, not an arbitrator, may decide if a claim or cause of
action is for an IP Claim.
1.2 Binding Arbitration. You and Epson agree that all Disputes shall be resolved by binding arbitration
according to this Agreement. ARBITRATION MEANS THAT YOU WAIVE YOUR RIGHT TO A JUDGE
OR JURY IN A COURT PROCEEDING AND YOUR GROUNDS FOR APPEAL ARE LIMITED.
Pursuant to this Agreement, binding arbitration shall be administered by JAMS, a nationally recognized
arbitration authority, pursuant to its code of procedures then in effect for consumer related disputes, but
excluding any rules that permit joinder or class actions in arbitration (for more detail on procedure, see
Section 1.6 below). You and Epson understand and agree that (a) the Federal Arbitration Act (9 U.S.C.
§1, et seq.) governs the interpretation and enforcement of this Section 1, (b) this Agreement
memorializes a transaction in interstate commerce, and (c) this Section 1 shall survive termination of this
Agreement.
1.3 Pre-Arbitration Steps and Notice. Before submitting a claim for arbitration, you and Epson agree to
try, for sixty (60) days, to resolve any Dispute informally. If Epson and you do not reach an agreement to
resolve the Dispute within the sixty (60) days), you or Epson may commence an arbitration. Notice to
Epson must be addressed to: Epson America, Inc., ATTN: Legal Department, 3131 Katella Ave., Los
Alamitos, CA 90720 (the "Epson Address"). The Dispute Notice to you will be sent to the most recent
141
address Epson has in its records for you. For this reason, it is important to notify us if your address
the Dispute shall include the sender's name, address and contact information, the facts giving rise to the
Dispute, and the relief requested (the "Dispute Notice"). Following receipt of the Dispute Notice, Epson
and you agree to act in good faith to resolve the Dispute before commencing arbitration.
1.4 Small Claims Court. Notwithstanding the foregoing, you may bring an individual action in the small
claims court of your state or municipality if the action is within that court's jurisdiction and is pending only
in that court.
1.5 WAIVER OF CLASS ACTIONS AND CLASS ARBITRATIONS. YOU AND EPSON AGREE THAT
EACH PARTY MAY BRING DISPUTES AGAINST THE OTHER PARTY ONLY IN AN INDIVIDUAL
CAPACITY, AND NOT AS A PLAINTIFF OR CLASS MEMBER IN ANY CLASS OR
REPRESENTATIVE PROCEEDING, INCLUDING WITHOUT LIMITATION FEDERAL OR STATE
CLASS ACTIONS, OR CLASS ARBITRATIONS. CLASS ACTION LAWSUITS, CLASS-WIDE
ARBITRATIONS, PRIVATE ATTORNEY-GENERAL ACTIONS, AND ANY OTHER PROCEEDING
WHERE SOMEONE ACTS IN A REPRESENTATIVE CAPACITY ARE NOT ALLOWED.
ACCORDINGLY, UNDER THE ARBITRATION PROCEDURES OUTLINED IN THIS SECTION, AN
ARBITRATOR SHALL NOT COMBINE OR CONSOLIDATE MORE THAN ONE PARTY'S CLAIMS
WITHOUT THE WRITTEN CONSENT OF ALL AFFECTED PARTIES TO AN ARBITRATION
PROCEEDING.
1.6 Arbitration Procedure. If you or Epson commences arbitration, the arbitration shall be governed by
the rules of JAMS that are in effect when the arbitration is filed, excluding any rules that permit arbitration
on a class or representative basis (the "JAMS Rules"), available at http://www.jamsadr.com or by calling
1-800-352-5267 (U.S. or Canada), or https://www.jamsadr.com/about/ or by calling +1-949-224-1810
(Latin America), and under the rules set forth in this Agreement. All Disputes shall be resolved by a
single neutral arbitrator, and both parties shall have a reasonable opportunity to participate in the
selection of the arbitrator. The arbitrator is bound by the terms of this Agreement. The arbitrator, and not
any federal, state or local court or agency, shall have exclusive authority to resolve all disputes arising
out of or relating to the interpretation, applicability, enforceability or formation of this Agreement,
including any claim that all or any part of this Agreement is void or voidable. Notwithstanding this broad
delegation of authority to the arbitrator, a court may determine the limited question of whether a claim or
cause of action is for an IP Claim, which is excluded from the definition of "Disputes" in Section 1.1
above. The arbitrator shall be empowered to grant whatever relief would be available in a court under
law or in equity. The arbitrator may award you the same damages as a court could, and may award
declaratory or injunctive relief only in favor of the individual party seeking relief and only to the extent
necessary to provide relief warranted by that party's individual claim. In some instances, the costs of
arbitration can exceed the costs of litigation and the right to discovery may be more limited in arbitration
than in court. The arbitrator's award is binding and may be entered as a judgment in any court of
competent jurisdiction.
142
You may choose to engage in arbitration hearings by telephone. Arbitration hearings not conducted by
telephone shall take place in a location reasonably accessible from your primary residence, or in Orange
County, California, at your option.
a) Initiation of Arbitration Proceeding. If either you or Epson decides to arbitrate a Dispute, both parties
agree to the following procedure:
(i) Write a Demand for Arbitration. The demand must include a description of the Dispute and the amount
of damages sought to be recovered. You can find a copy of a Demand for Arbitration at
http://www.jamsadr.com ("Demand for Arbitration").
(ii) Send three copies of the Demand for Arbitration, plus the appropriate filing fee, to: JAMS, 500 North
State College Blvd., Suite 600 Orange, CA 92868, U.S.A.
(iii) Send one copy of the Demand for Arbitration to the other party (same address as the Dispute
Notice), or as otherwise agreed by the parties.
b) Hearing Format. During the arbitration, the amount of any settlement offer made shall not be disclosed
to the arbitrator until after the arbitrator determines the amount, if any, to which you or Epson is entitled.
The discovery or exchange of non-privileged information relevant to the Dispute may be allowed during
the arbitration.
c) Arbitration Fees. Epson shall pay, or (if applicable) reimburse you for, all JAMS filings and arbitrator
fees for any arbitration commenced (by you or Epson) pursuant to provisions of this Agreement.
d) Award in Your Favor. For Disputes in which you or Epson seeks $75,000 or less in damages exclusive
of attorney's fees and costs, if the arbitrator's decision results in an award to you in an amount greater
than Epson's last written offer, if any, to settle the Dispute, Epson will: (i) pay you $1,000 or the amount
of the award, whichever is greater; (ii) pay you twice the amount of your reasonable attorney's fees, if
any; and (iii) reimburse you for any expenses (including expert witness fees and costs) that your attorney
reasonably accrues for investigating, preparing, and pursuing the Dispute in arbitration. Except as
agreed upon by you and Epson in writing, the arbitrator shall determine the amount of fees, costs, and
expenses to be paid by Epson pursuant to this Section 1.6d).
e) Attorney's Fees. Epson will not seek its attorney's fees and expenses for any arbitration commenced
involving a Dispute under this Agreement. Your right to attorney's fees and expenses under Section
1.6d) above does not limit your rights to attorney's fees and expenses under applicable law;
notwithstanding the foregoing, the arbitrator may not award duplicative awards of attorney's fees and
expenses.
1.7 Opt-out. You may elect to opt-out (exclude yourself) from the final, binding, individual
arbitration procedure and waiver of class and representative proceedings specified in this
Agreement by sending a written letter to the Epson Address within thirty (30) days of your assent
to this Agreement (including without limitation the purchase, download, installation of the
Software or other applicable use of Epson Hardware, products and services) that specifies (i)
your name, (ii) your mailing address, and (iii) your request to be excluded from the final, binding
143
individual arbitration procedure and waiver of class and representative proceedings specified in
this Section 1. In the event that you opt-out consistent with the procedure set forth above, all
other terms shall continue to apply, including the requirement to provide notice prior to litigation.
1.8 Amendments to Section 1. Notwithstanding any provision in this Agreement to the contrary, you
and Epson agree that if Epson makes any future amendments to the dispute resolution procedure and
class action waiver provisions (other than a change to Epson's address) in this Agreement, Epson will
obtain your affirmative assent to the applicable amendment. If you do not affirmatively assent to the
applicable amendment, you are agreeing that you will arbitrate any Dispute between the parties in
accordance with the language of this Section 1 (or resolve disputes as provided for in Section 1.7, if you
timely elected to opt-out when you first assented to this Agreement).
1.9 Severability. If any provision in this Section 1 is found to be unenforceable, that provision shall be
severed with the remainder of this Agreement remaining in full force and effect. The foregoing shall not
apply to the prohibition against class or representative actions as provided in Section 1.5. This
means that if Section 1.5 is found to be unenforceable, the entire Section 1 (but only Section 1)
shall be null and void.
Parent topic: Notices
Trademarks
EPSON
®
and Quick Corner
®
are registered trademarks, Epson iProjection
TM
is a trademark, and EPSON
Exceed Your Vision is a registered logomark of Seiko Epson Corporation.
Microsoft, Windows, and the Windows logo are trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
Mac, OS X, iOS, and macOS are trademarks of Apple Inc.
Google is a trademark of Google LLC.
Intel
®
is a registered trademark of Intel Corporation in the U.S. and/or other countries.
"QR Code" is a registered trademark of DENSO WAVE INCORPORATED.
General Notice: Other product names used herein are for identification purposes only and may be
trademarks of their respective owners. Epson disclaims any and all rights in those marks.
Parent topic: Notices
144
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written permission of Seiko Epson Corporation. The information contained herein is
designed only for use with this Epson product. Epson is not responsible for any use of this information as
applied to other products.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:
accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this
product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and
maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original Epson Products or Epson
Approved Products by Seiko Epson Corporation.
This information is subject to change without notice.
A Note Concerning Responsible Use of Copyrighted Materials
Copyright Attribution
Parent topic: Notices
A Note Concerning Responsible Use of Copyrighted Materials
Epson encourages each user to be responsible and respectful of the copyright laws when using any
Epson product. While some countries' laws permit limited copying or reuse of copyrighted material in
certain circumstances, those circumstances may not be as broad as some people assume. Contact your
legal advisor for any questions regarding copyright law.
Parent topic: Copyright Notice
Copyright Attribution
© 2022 Epson America, Inc.
9/22
CPD-62244
Parent topic: Copyright Notice
