EB-810E/EB-815E User's Guide
3
Contents
EB-810E/EB-815E User's Guide ............................................................................................................... 11
Introduction to Your Projector ................................................................................................................. 12
Projector Features.............................................................................................................................. 12

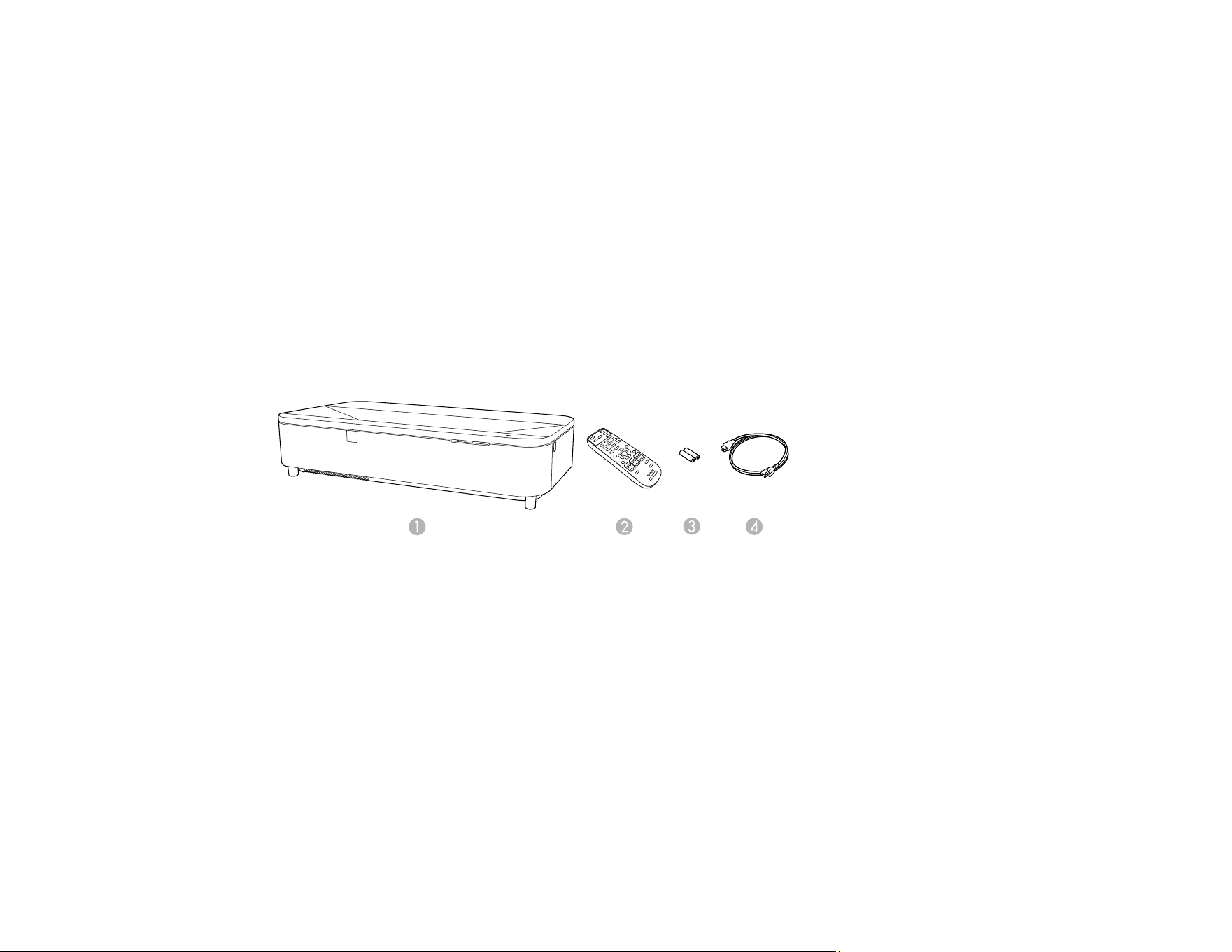

Product Box Contents.................................................................................................................... 13
Additional Components ................................................................................................................ 13
Optional Equipment and Replacement Parts................................................................................. 14
Warranty and Registration Information (U.S. and Canada) ........................................................... 15
Warranty and Registration Information (Latin America)................................................................. 16
Notations Used in the Documentation................................................................................................ 16
Where to Go for Additional Information .............................................................................................. 16
Additional Projector Software and Manuals........................................................................................ 17
Projector Part Locations ..................................................................................................................... 18
Projector Parts - Front ................................................................................................................... 19
Projector Parts - Top/Side ............................................................................................................. 20
Projector Parts - Interface Ports .................................................................................................... 21

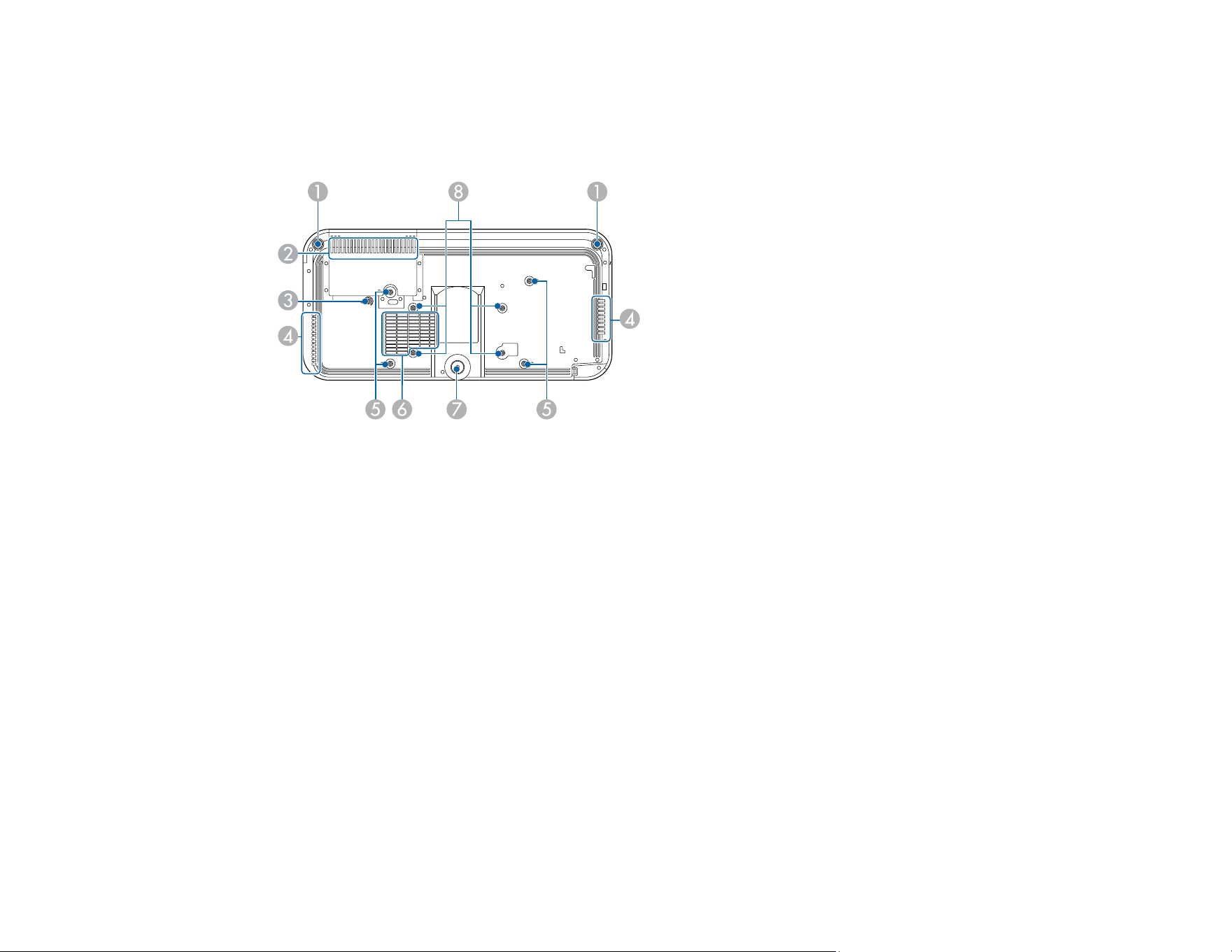

Projector Parts - Base.................................................................................................................... 22

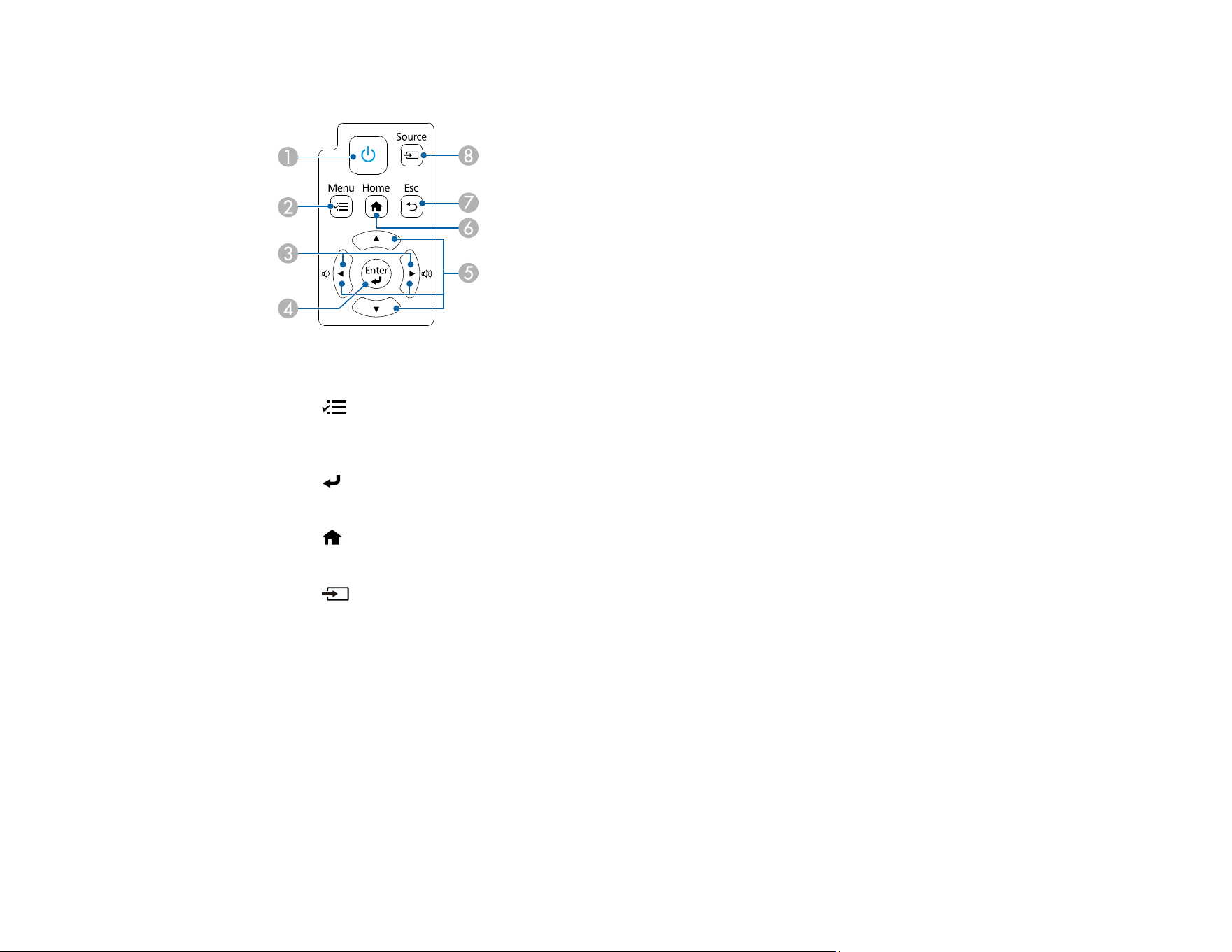

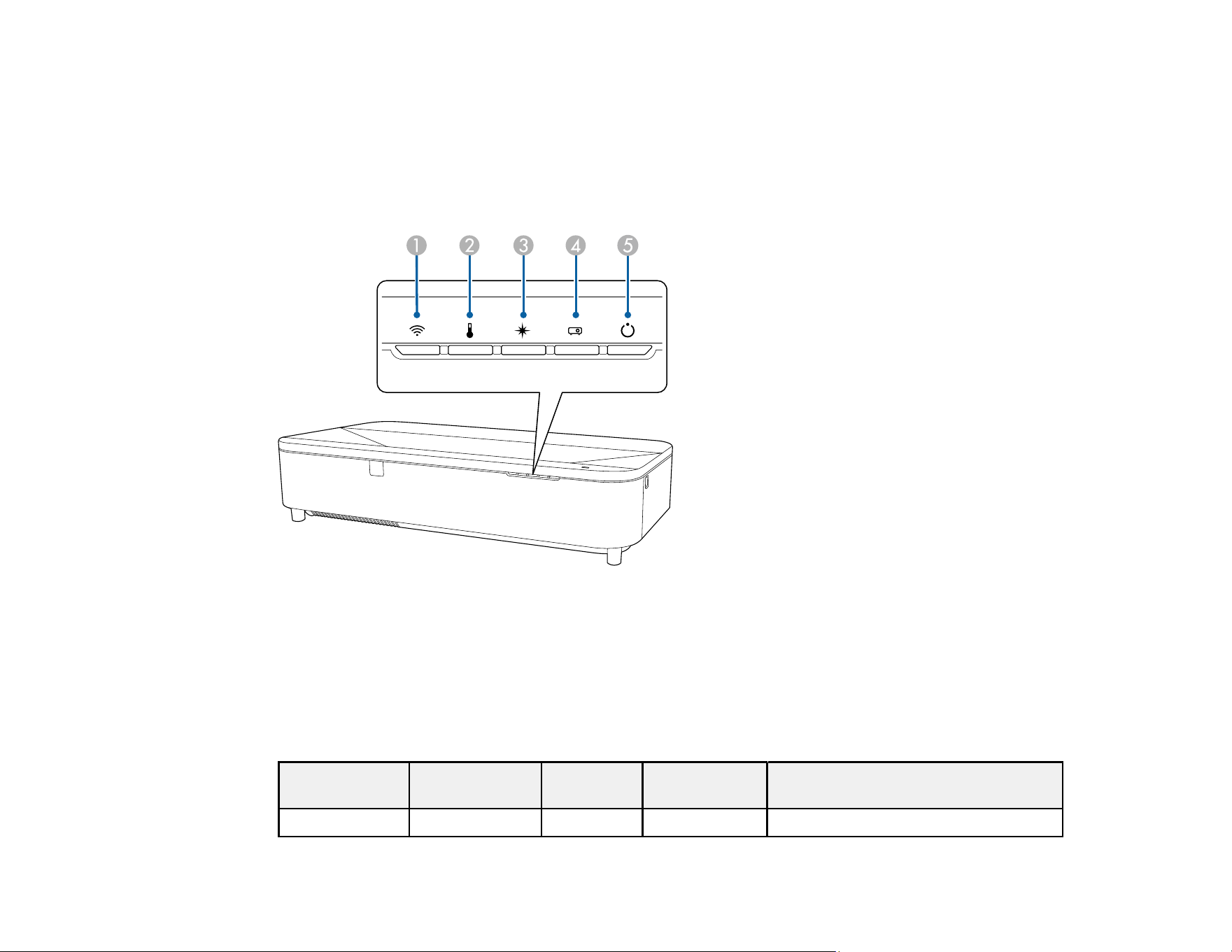

Projector Parts - Control Panel ...................................................................................................... 23

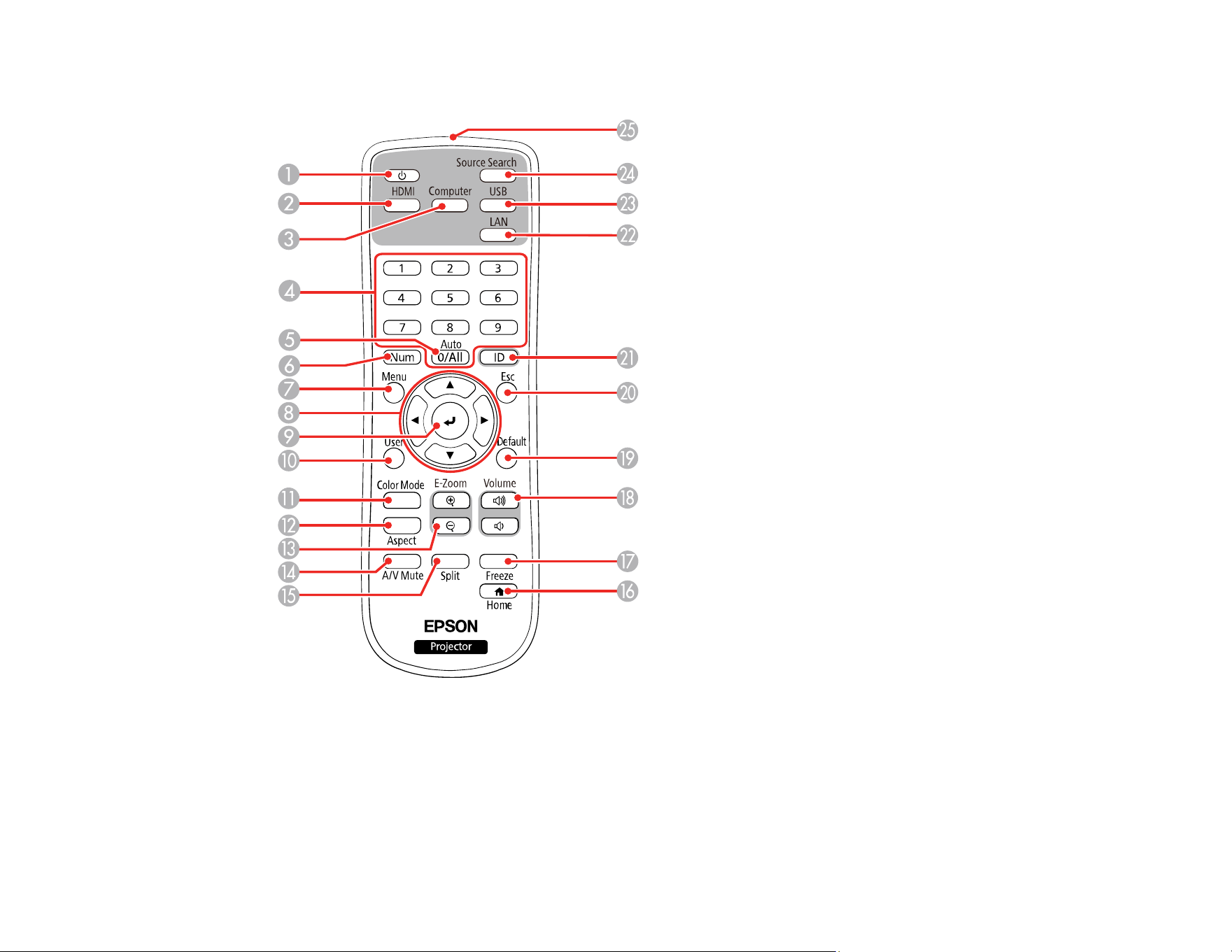

Projector Parts - Remote Control................................................................................................... 24
Setting Up the Projector ........................................................................................................................... 26
Projector Placement........................................................................................................................... 26
Projector Setup and Installation Options ....................................................................................... 27
Projection Distance........................................................................................................................ 30
Projector Connections........................................................................................................................ 32
Connecting to Computer Sources.................................................................................................. 33

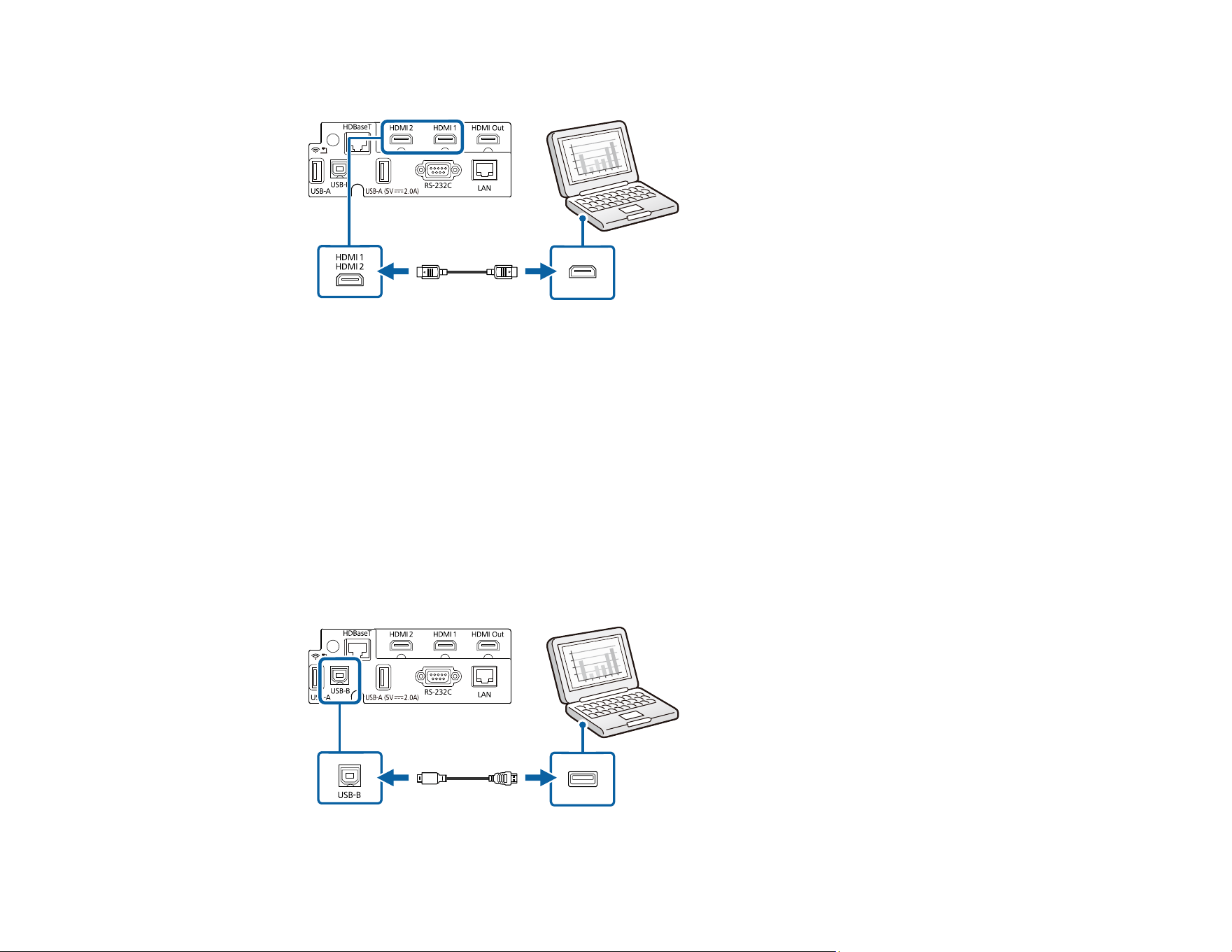

Connecting to a Computer for HDMI Video and Audio.............................................................. 33
Connecting to a Computer for USB Video and Audio................................................................ 34
Connecting to Video Sources ........................................................................................................ 35

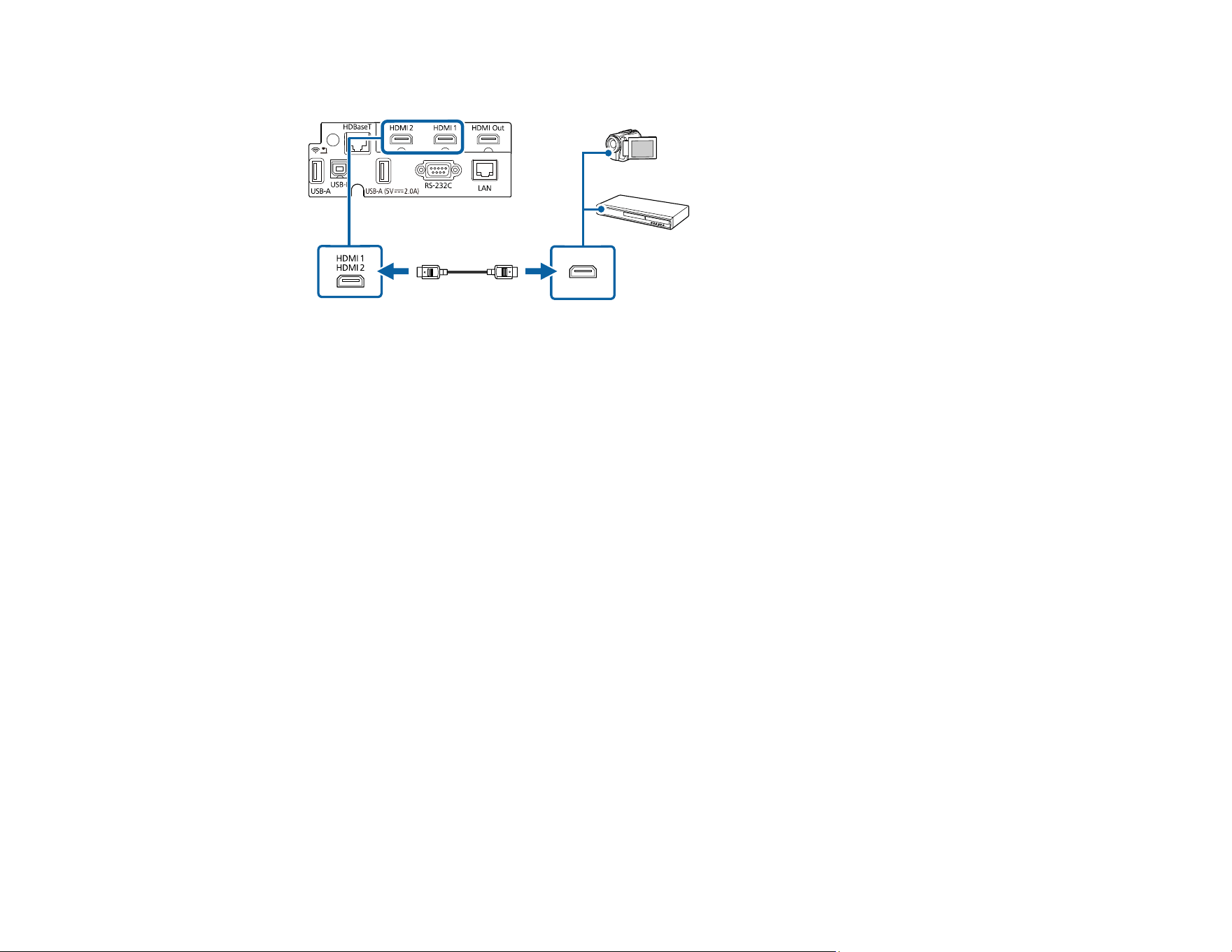

Connecting to an HDMI Video Source ...................................................................................... 35
Connecting to a Streaming Media Player.................................................................................. 36
Connecting to External USB Devices ............................................................................................ 36
4
USB Device Projection.............................................................................................................. 37
Connecting a USB Device or Camera to the Projector.............................................................. 37
Selecting the Connected USB Source ...................................................................................... 38
Disconnecting a USB Device or Camera From the Projector.................................................... 38
Connecting to a Document Camera .............................................................................................. 39

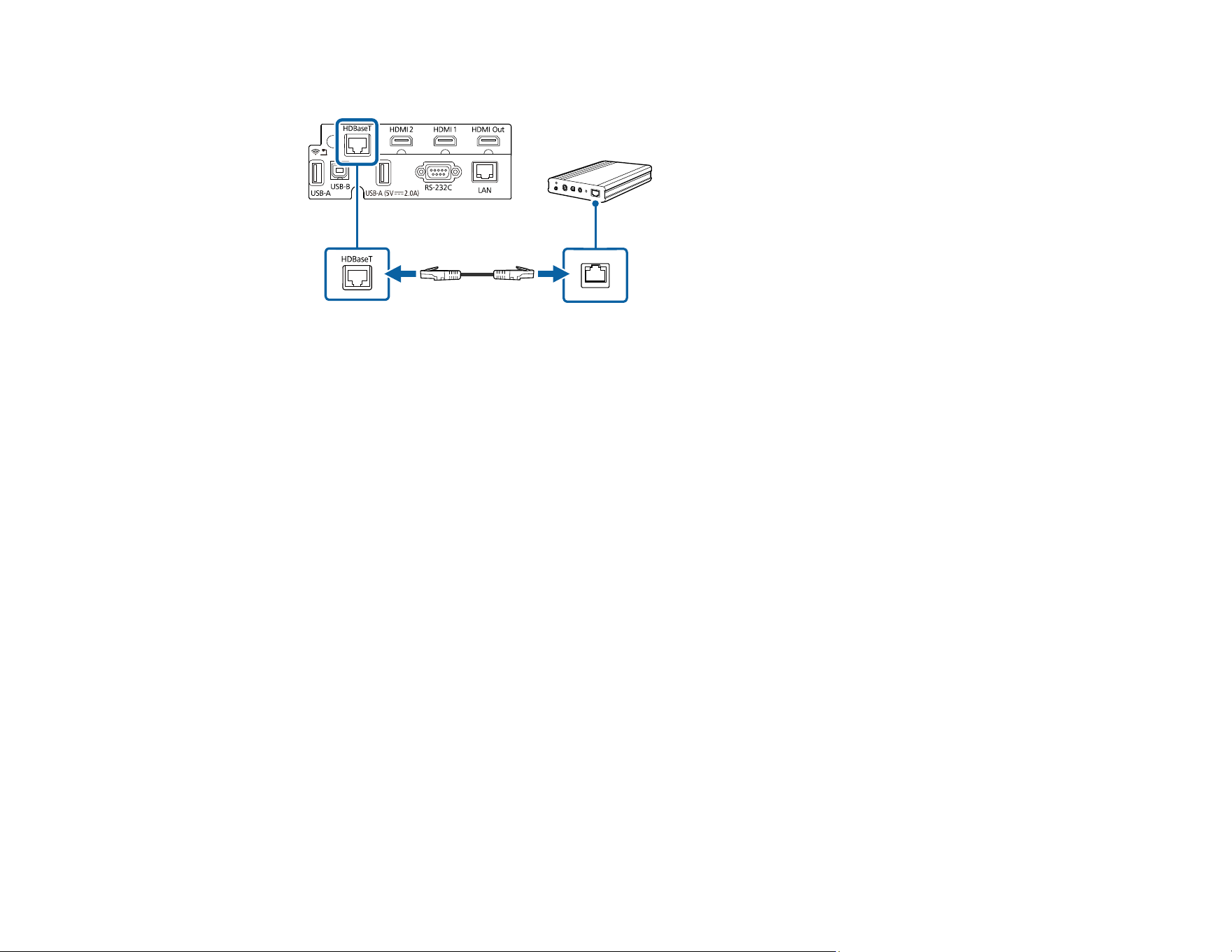

Connecting to an HDBaseT Transmitter ............................................................................................ 39

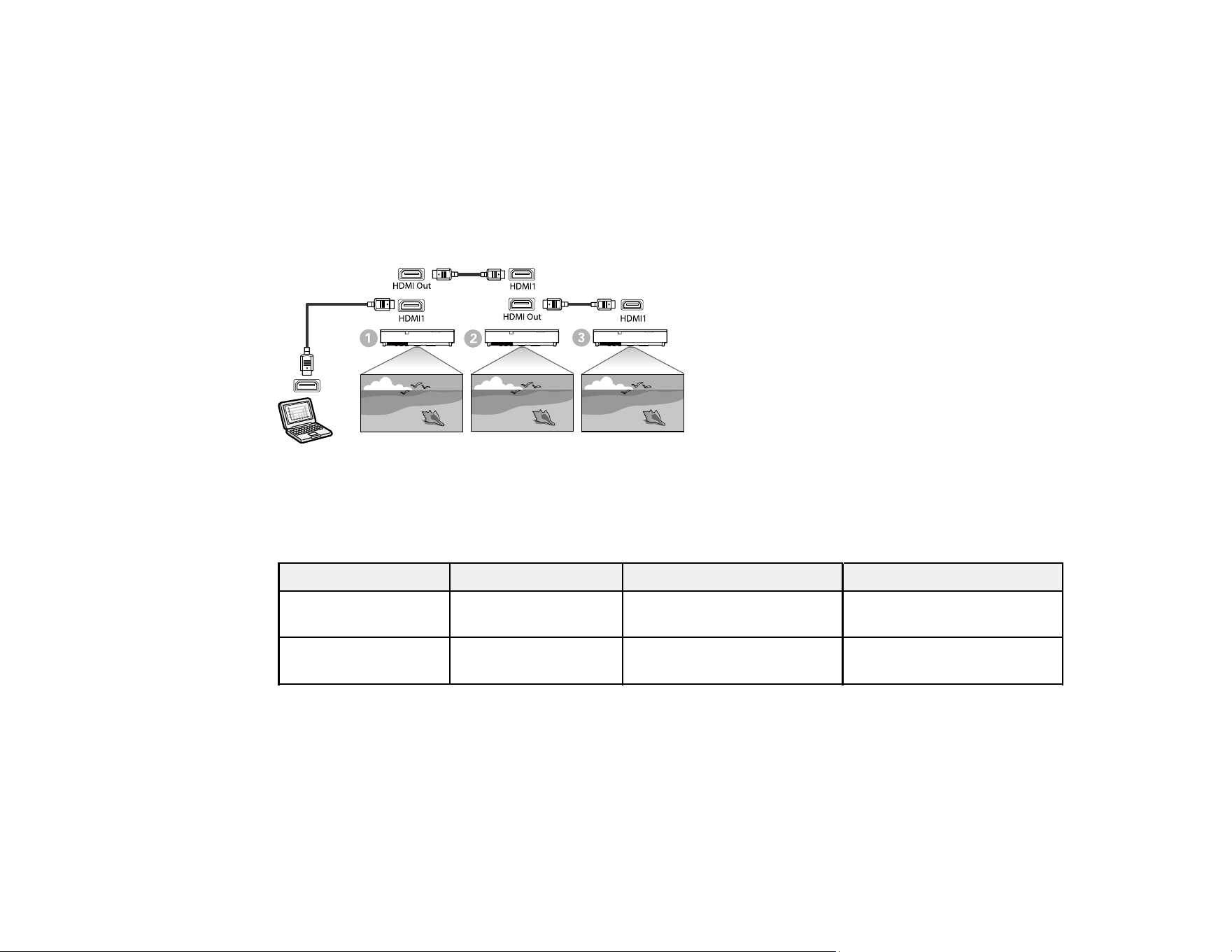

Connecting Multiple Projectors of the Same Model............................................................................ 40
Multiple Projector Connection Menu Settings................................................................................ 41

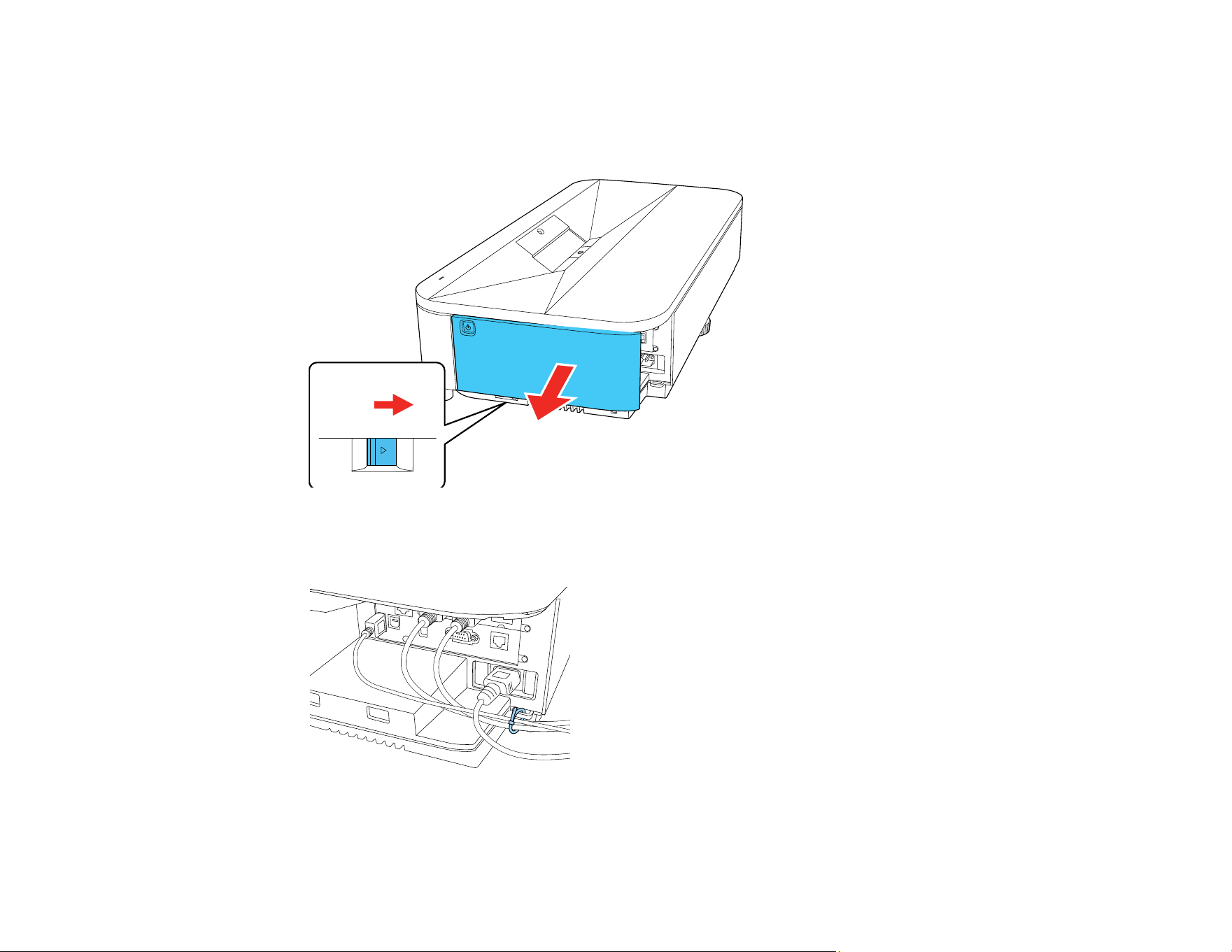

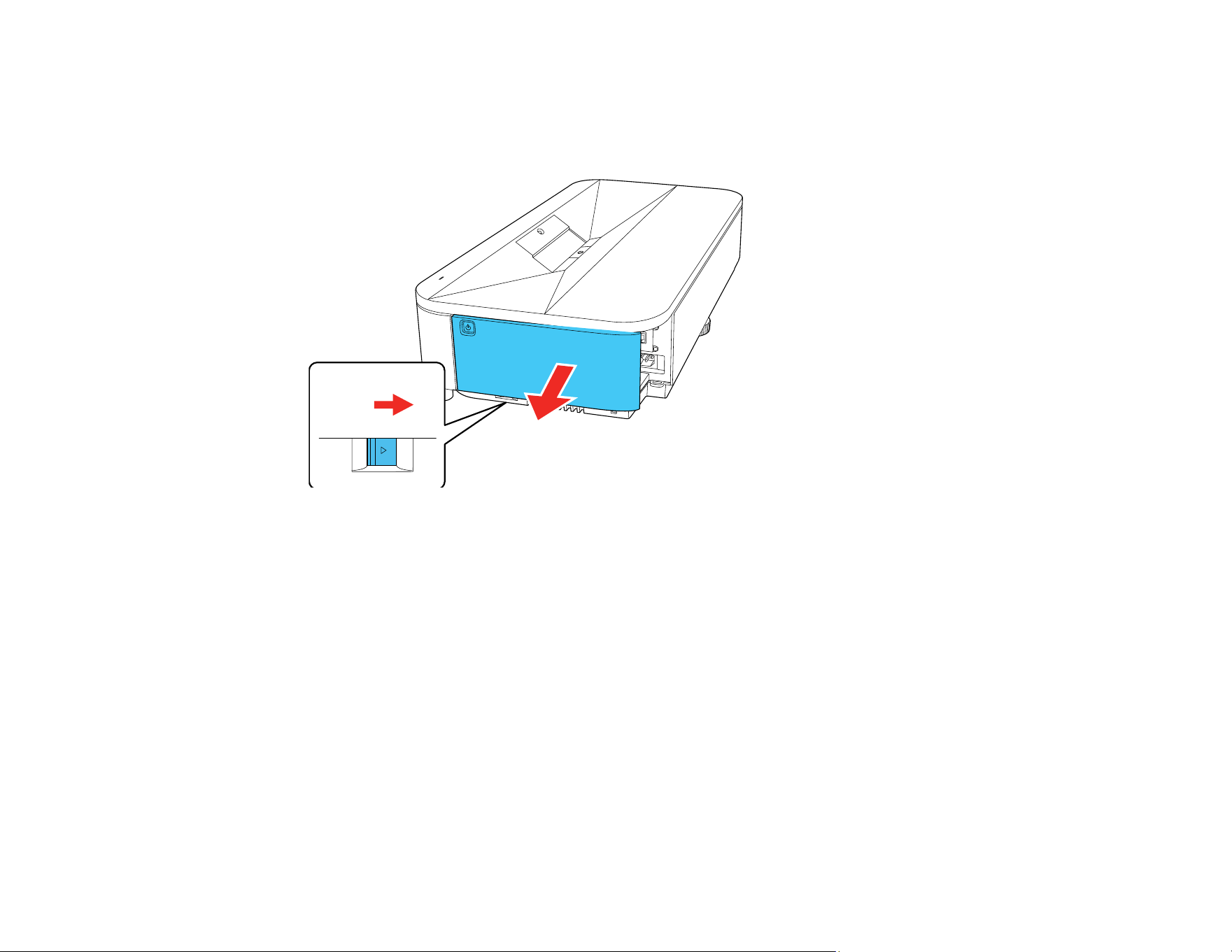

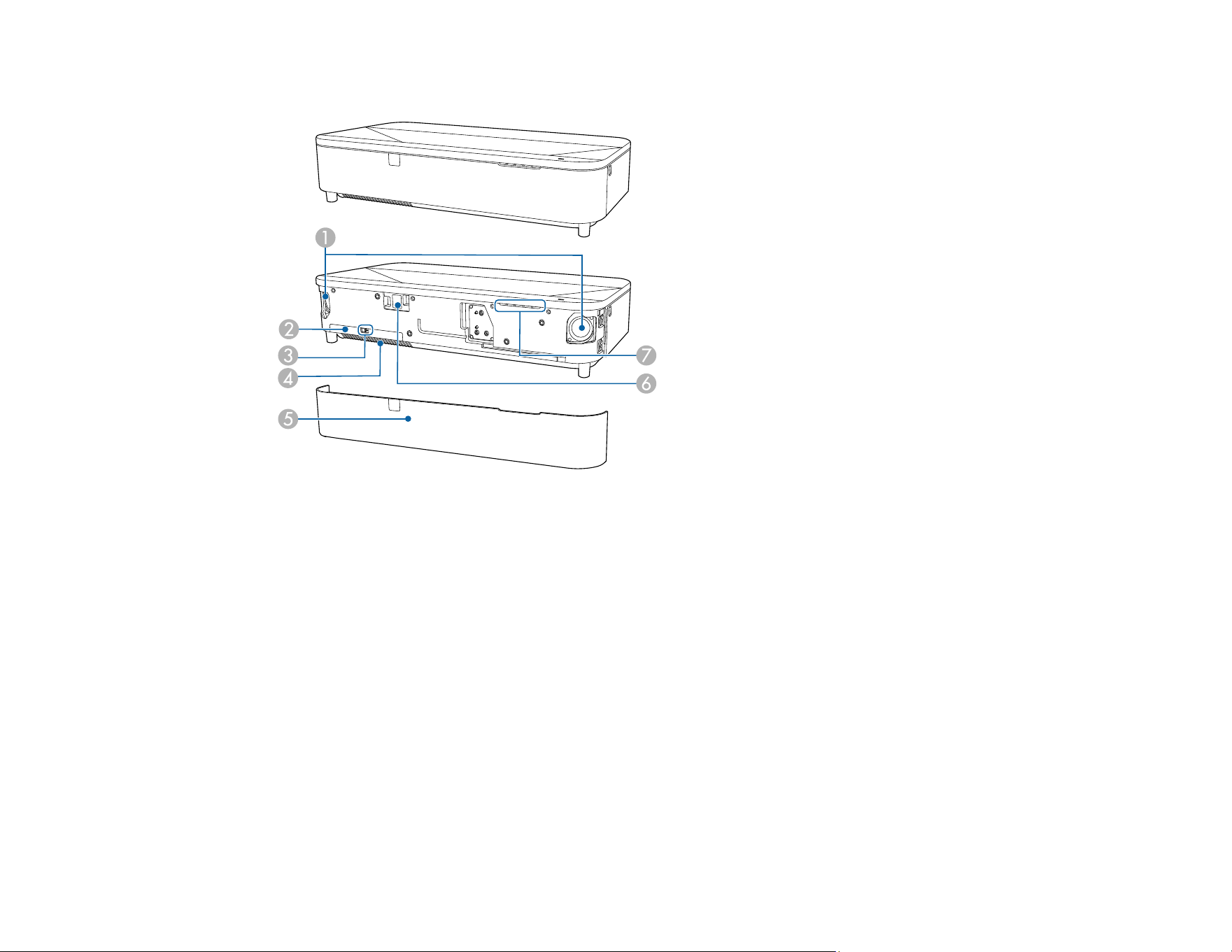

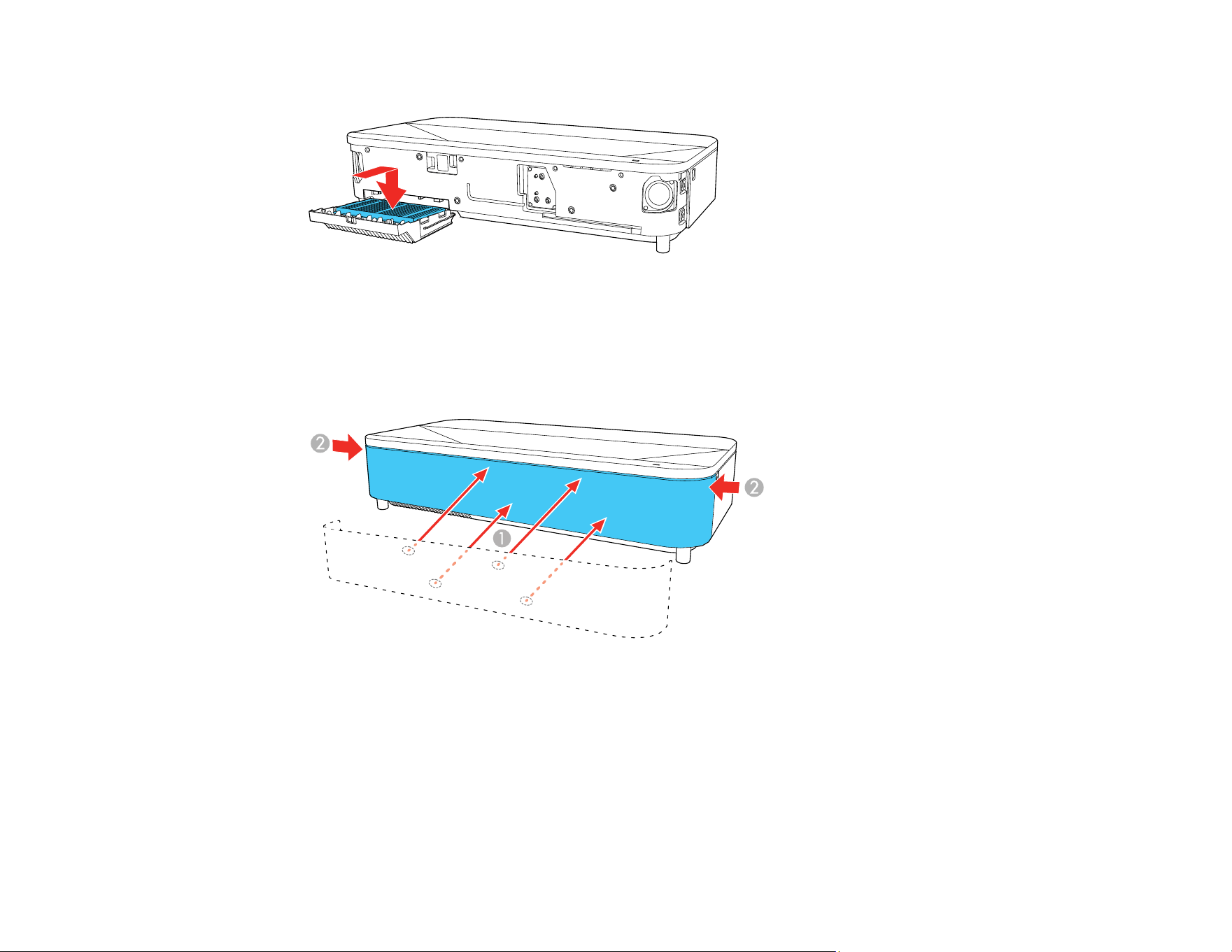

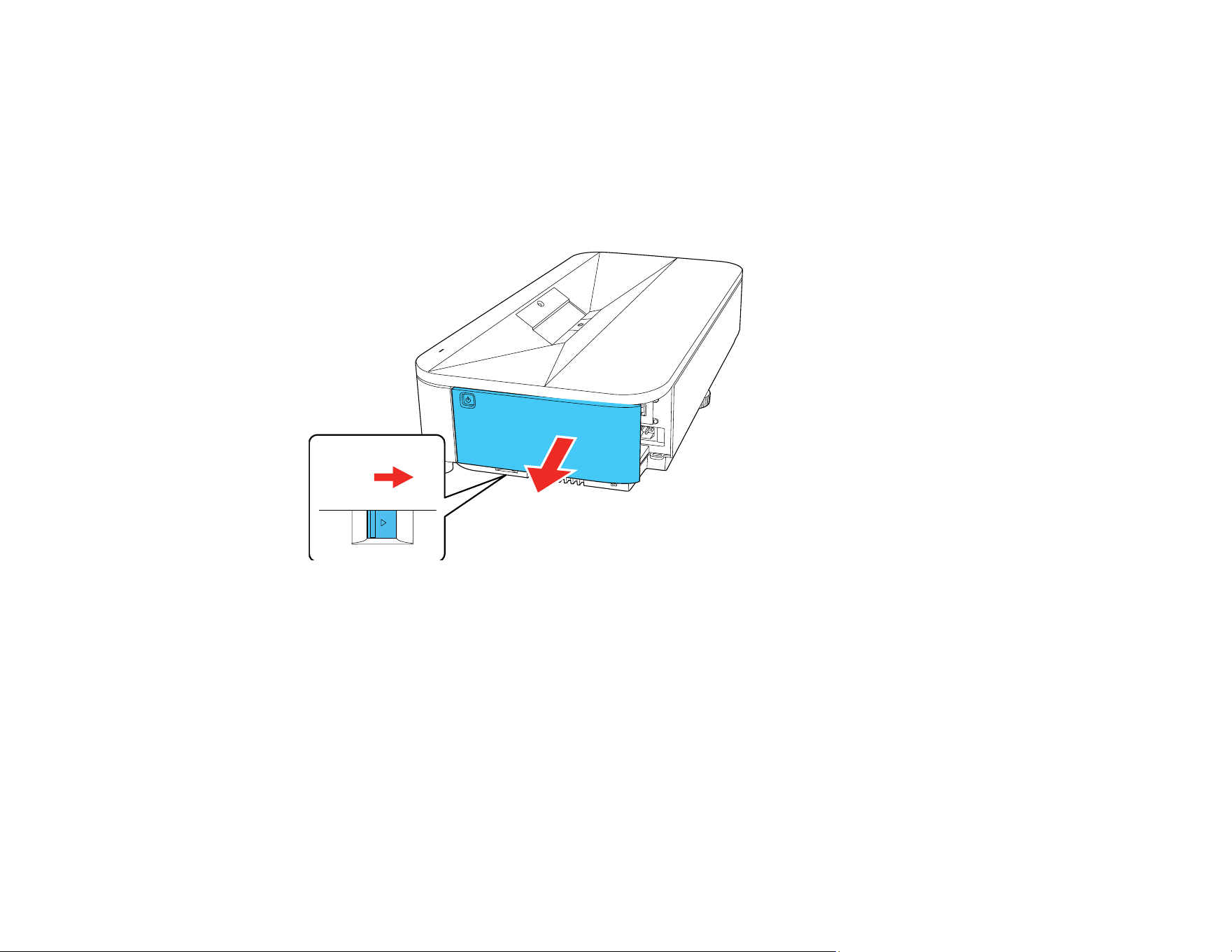

Attaching and Removing the Side Cover............................................................................................ 42

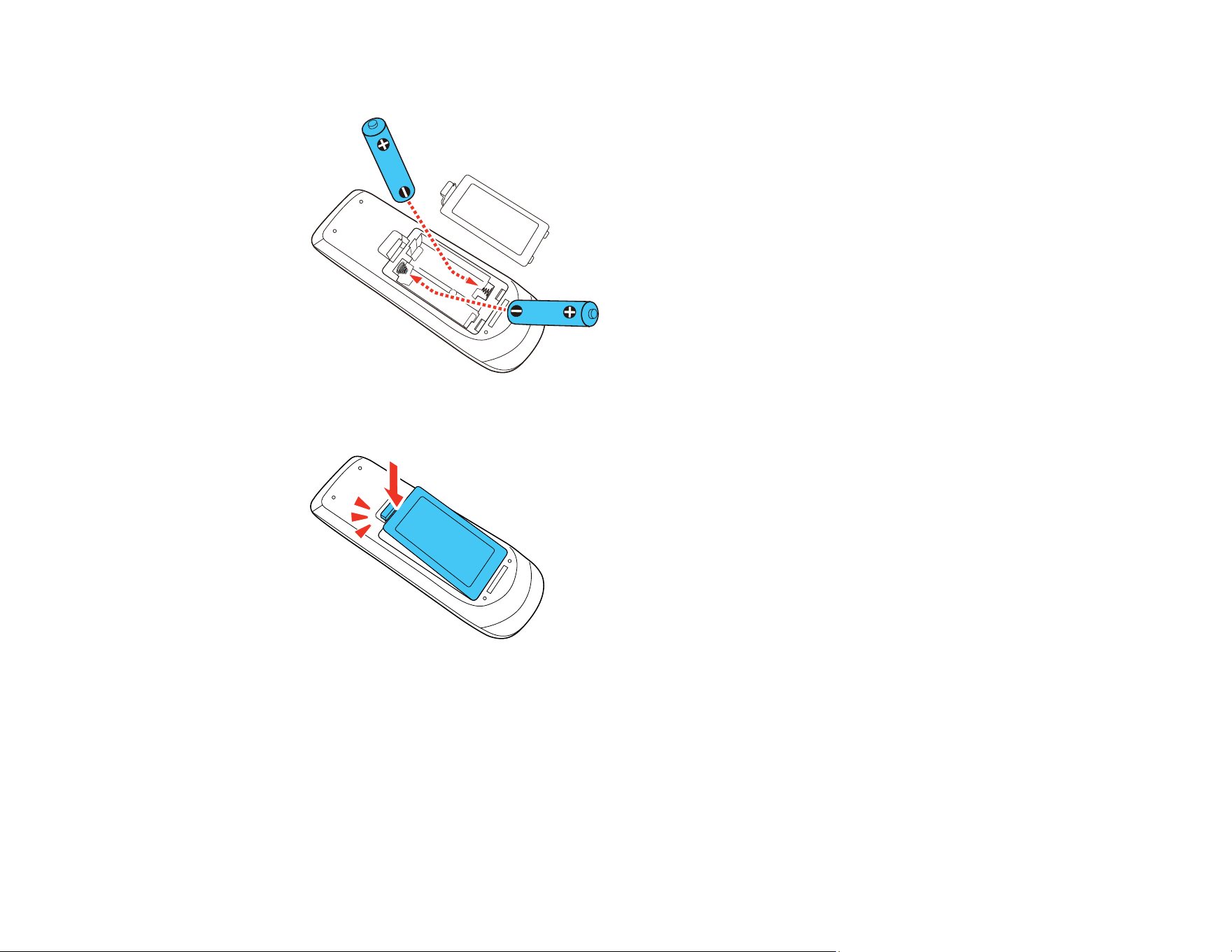

Installing Batteries in the Remote Control .......................................................................................... 43
Using the Projector on a Network ............................................................................................................ 45
Wired Network Projection................................................................................................................... 45

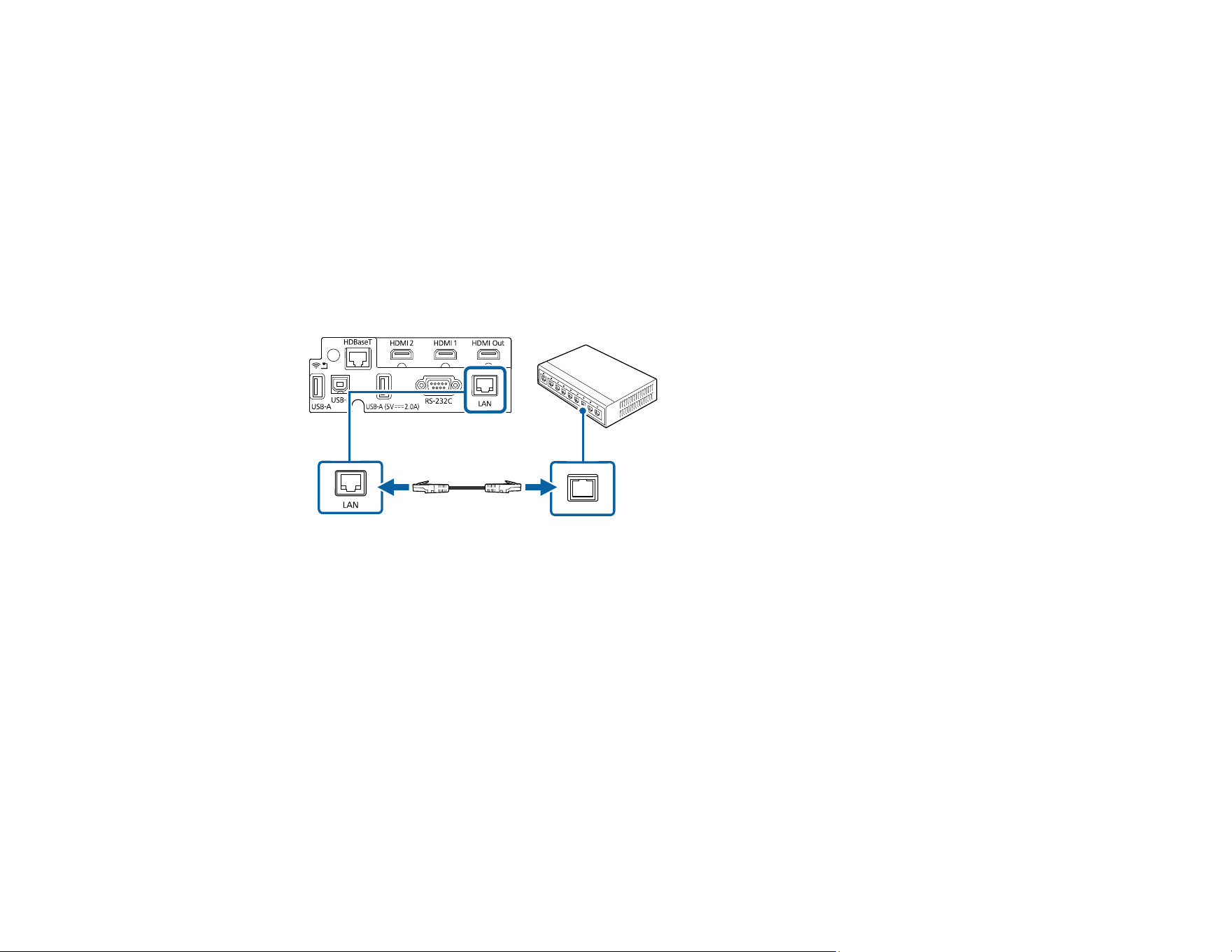

Connecting to a Wired Network ..................................................................................................... 46
Selecting Wired Network Settings ................................................................................................. 46
Wireless Network Projection .............................................................................................................. 50
Connecting Directly to a Smartphone or Tablet ............................................................................. 51
Using Quick Wireless Connection (Windows)................................................................................ 55
Selecting Wireless Network Settings Manually.............................................................................. 56

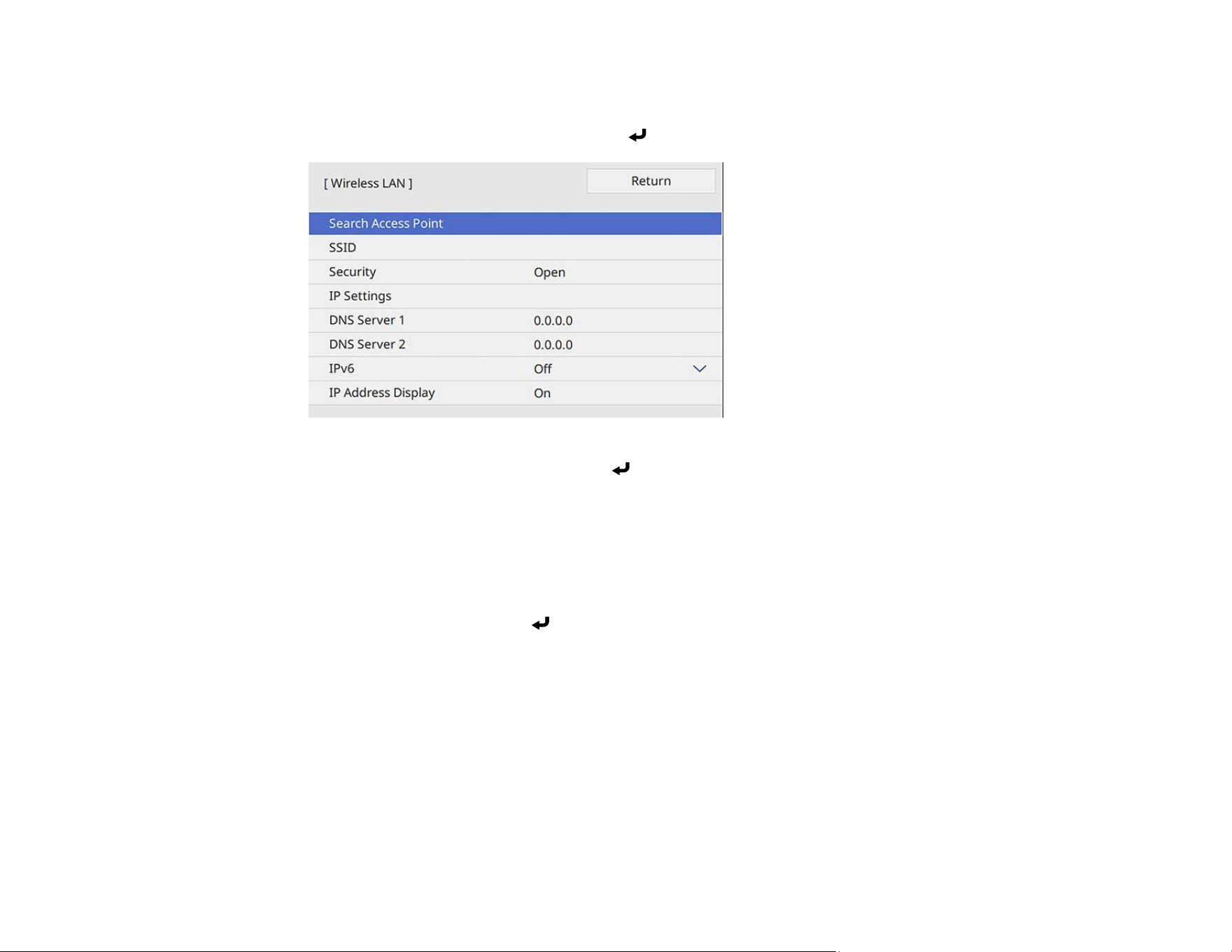

Wireless LAN Menu Settings .................................................................................................... 61
Selecting Wireless Network Settings in Windows.......................................................................... 64
Selecting Wireless Network Settings on Mac ................................................................................ 64
Setting Up Wireless Network Security ........................................................................................... 65

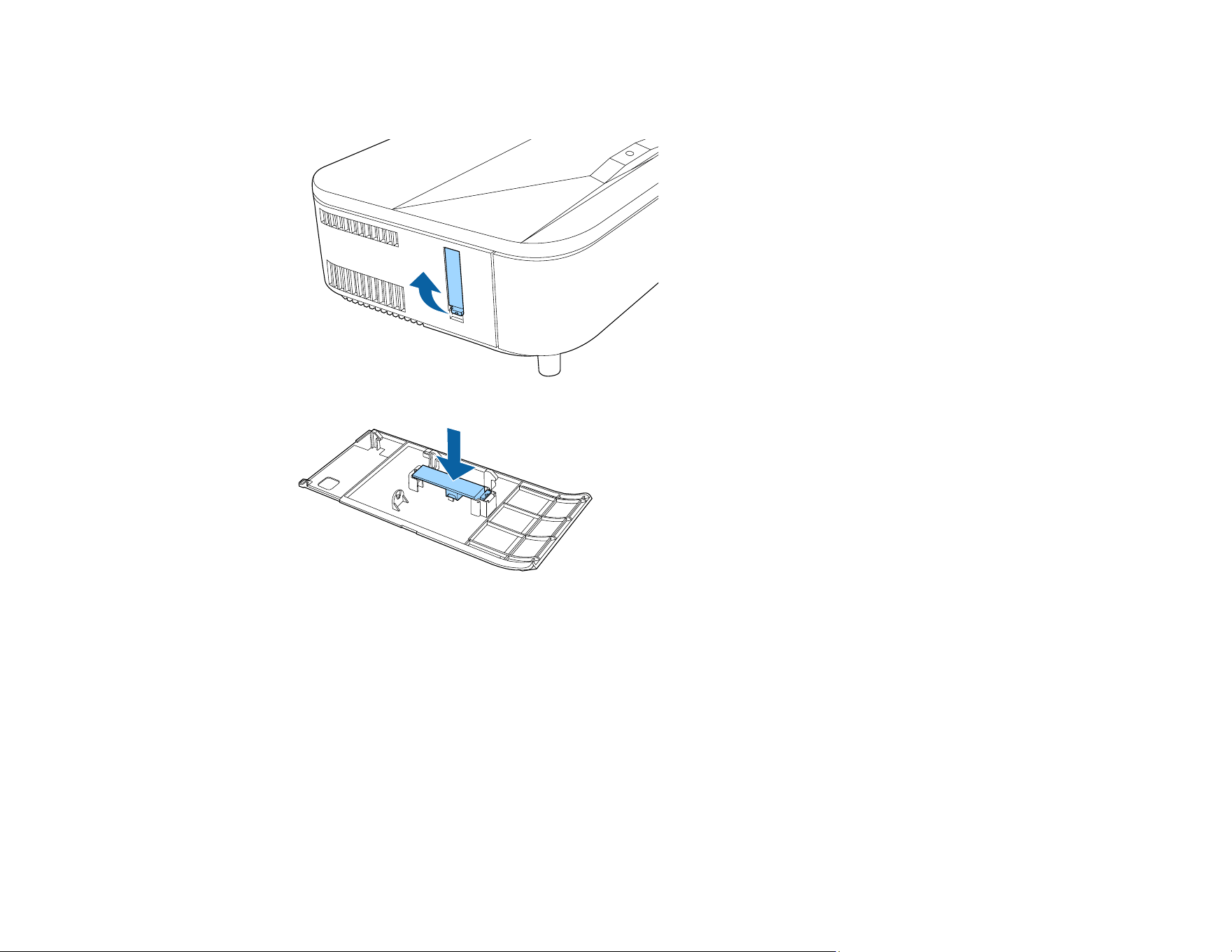

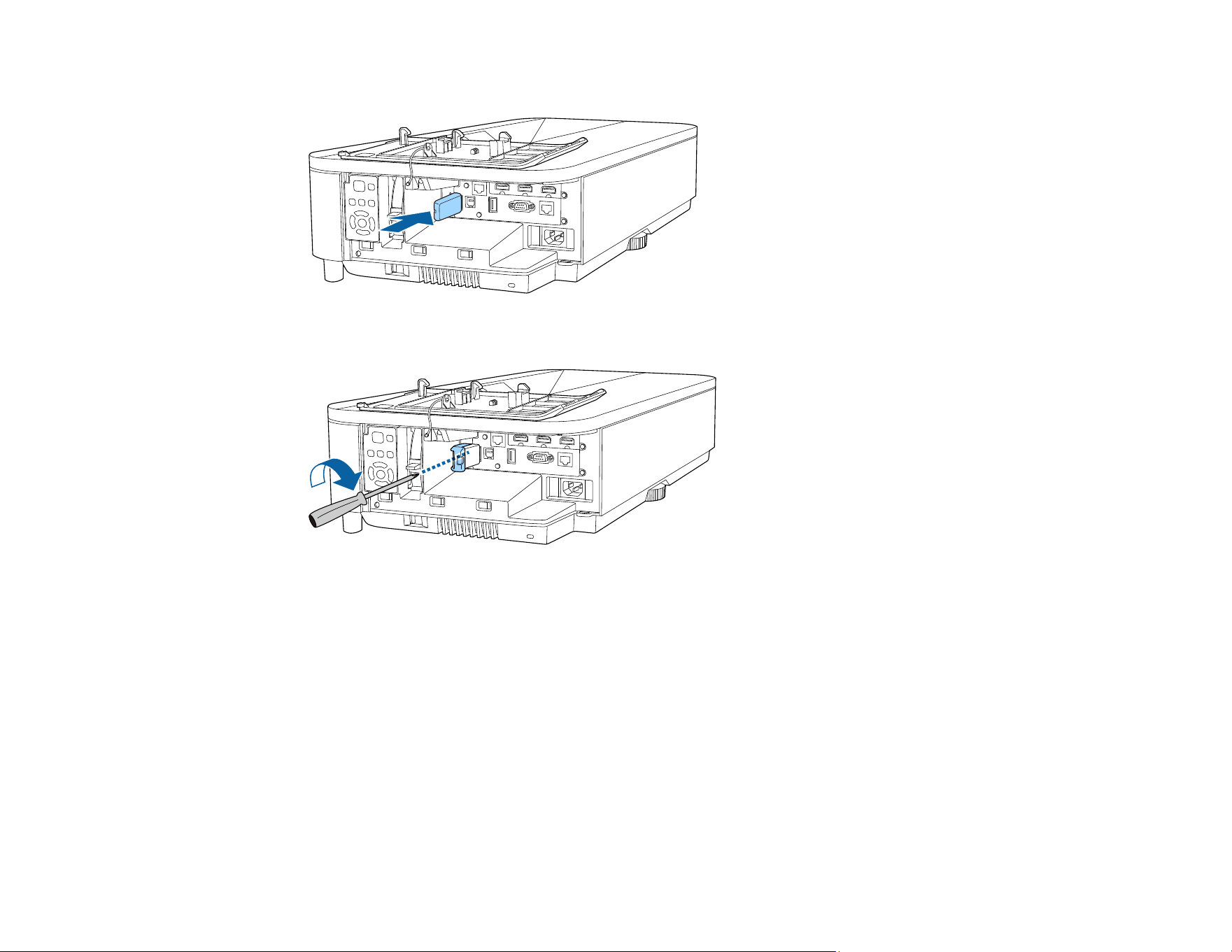

Installing the Additional Wireless LAN Module .............................................................................. 66
Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) .......... 68
Screen Mirroring Restrictions ........................................................................................................ 69

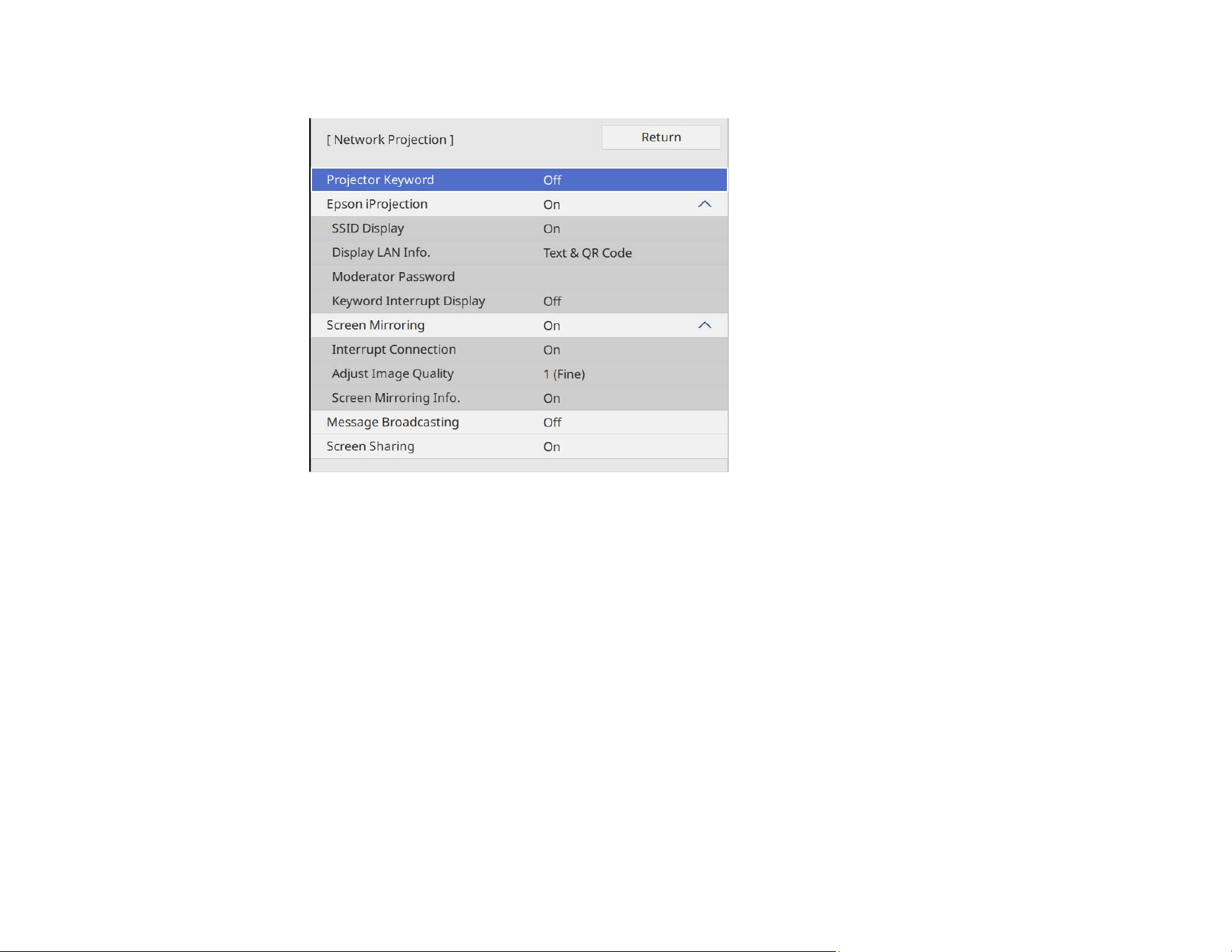

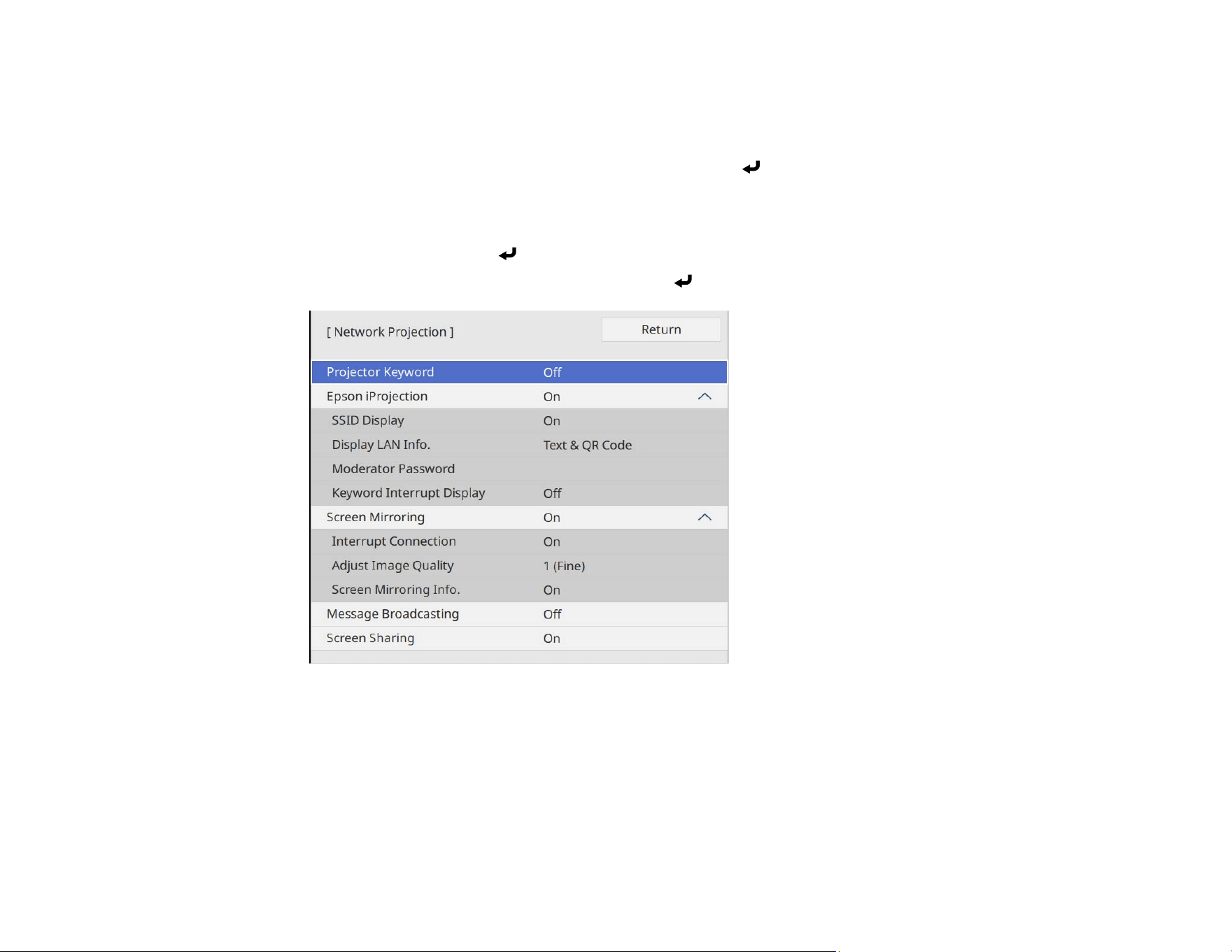

Selecting Screen Mirroring Settings .............................................................................................. 69
Connecting for Screen Mirroring with a Windows 8.x/Windows 10/Windows 11 Computer........... 72
Connecting for Screen Mirroring with Miracast .............................................................................. 73
Screen Sharing .................................................................................................................................. 74
Sharing Your Screen ..................................................................................................................... 74
Receiving Shared Screen Images ................................................................................................. 75

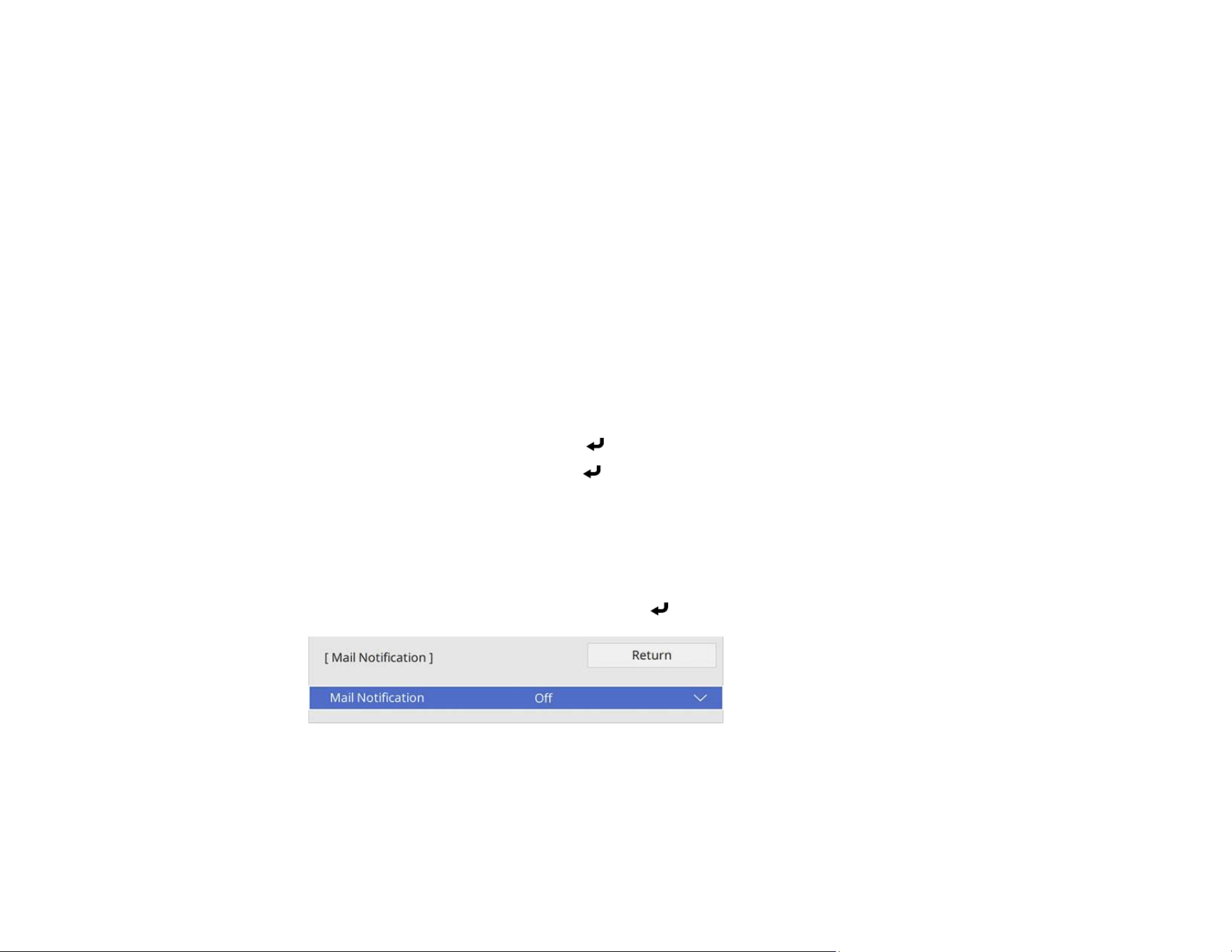

Setting Up Projector Network E-Mail Alerts........................................................................................ 76
Network Projector E-mail Alert Messages ..................................................................................... 77
5
Setting Up Monitoring Using SNMP ................................................................................................... 78

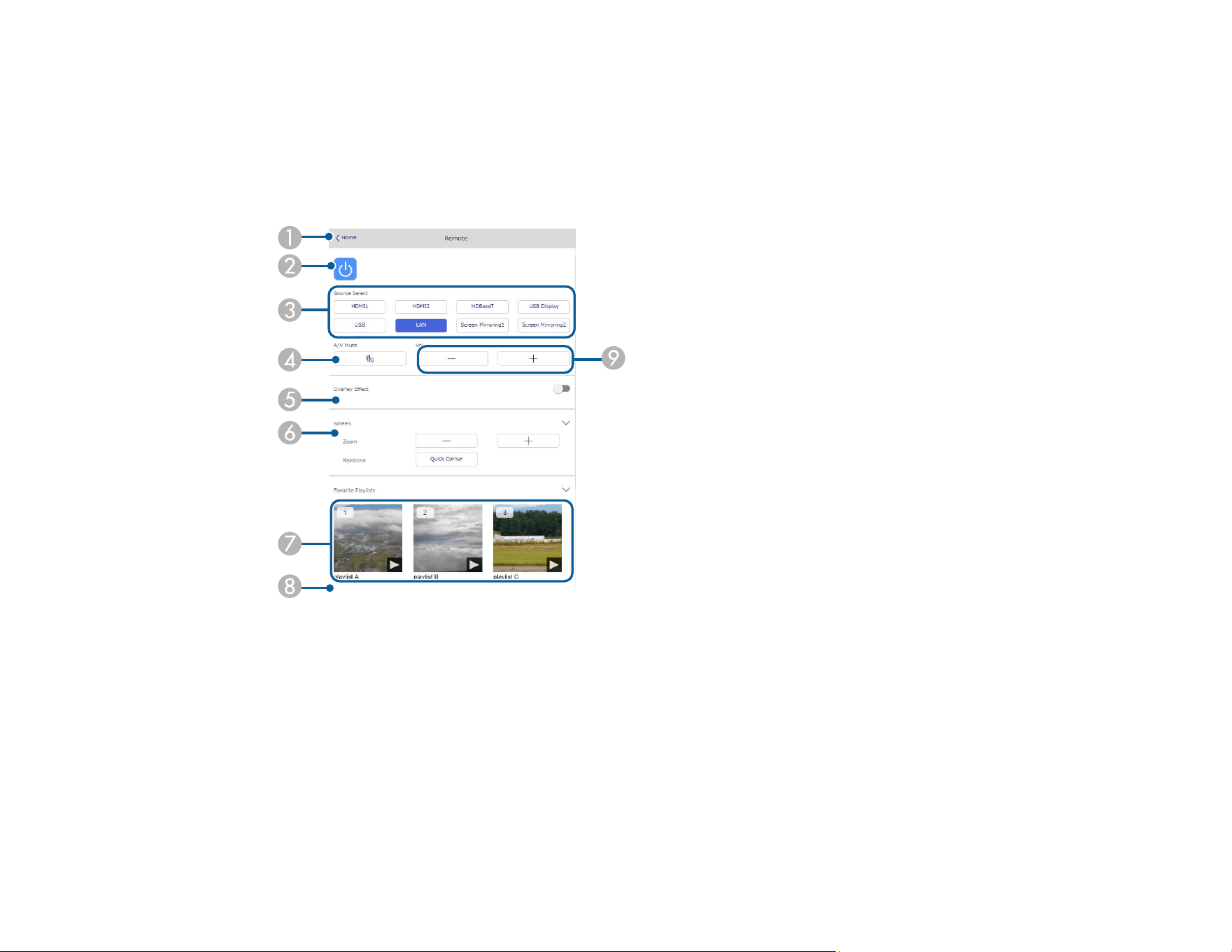

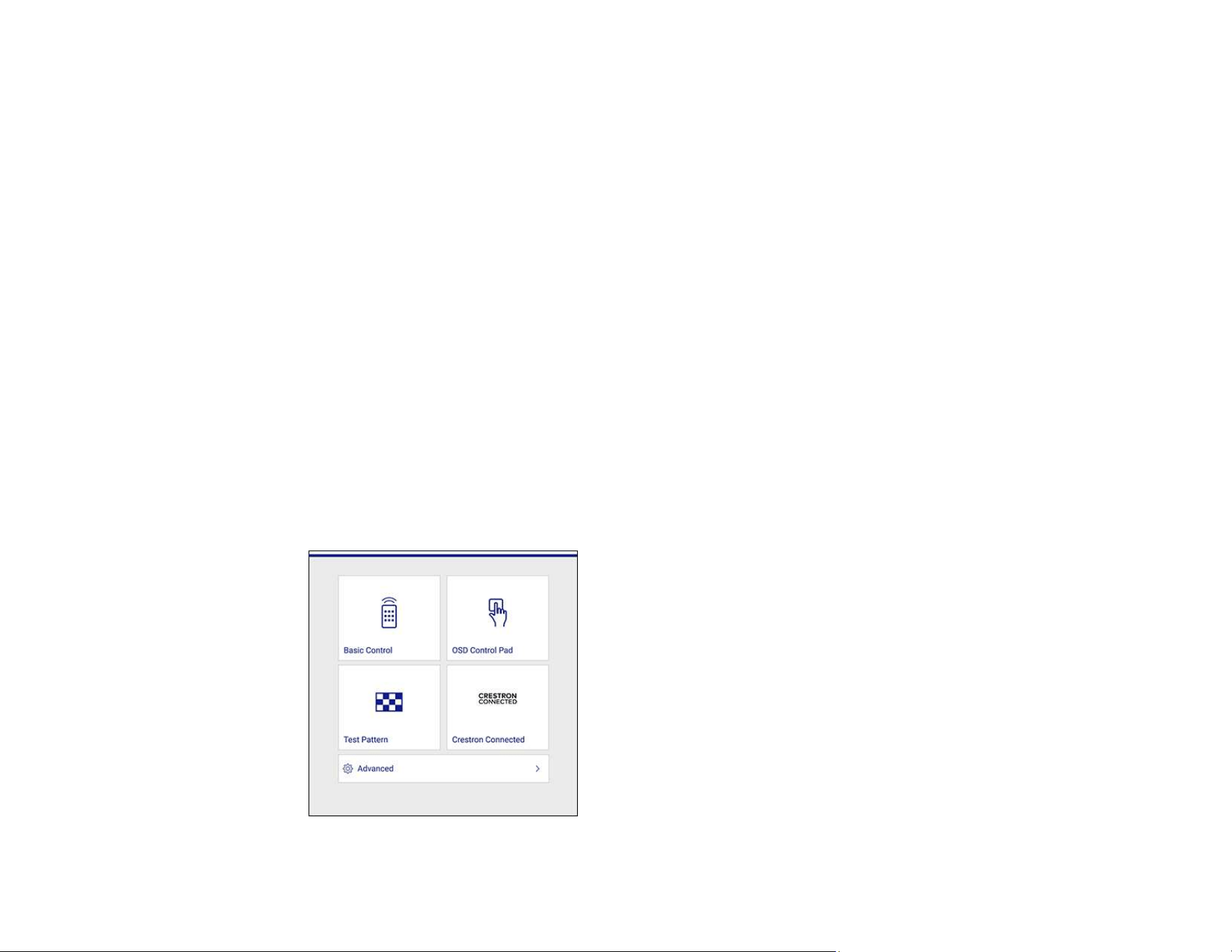

Controlling a Networked Projector Using a Web Browser .................................................................. 78

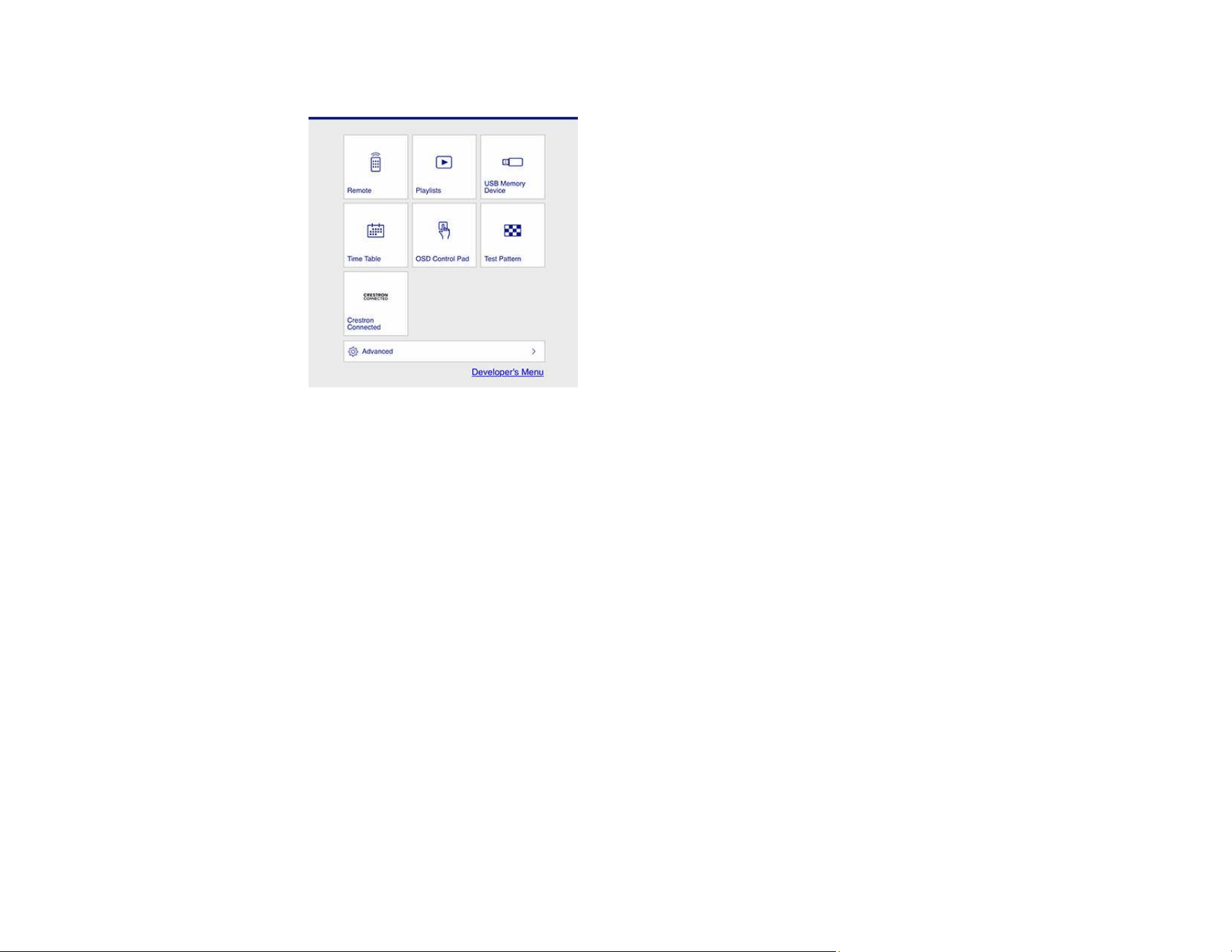

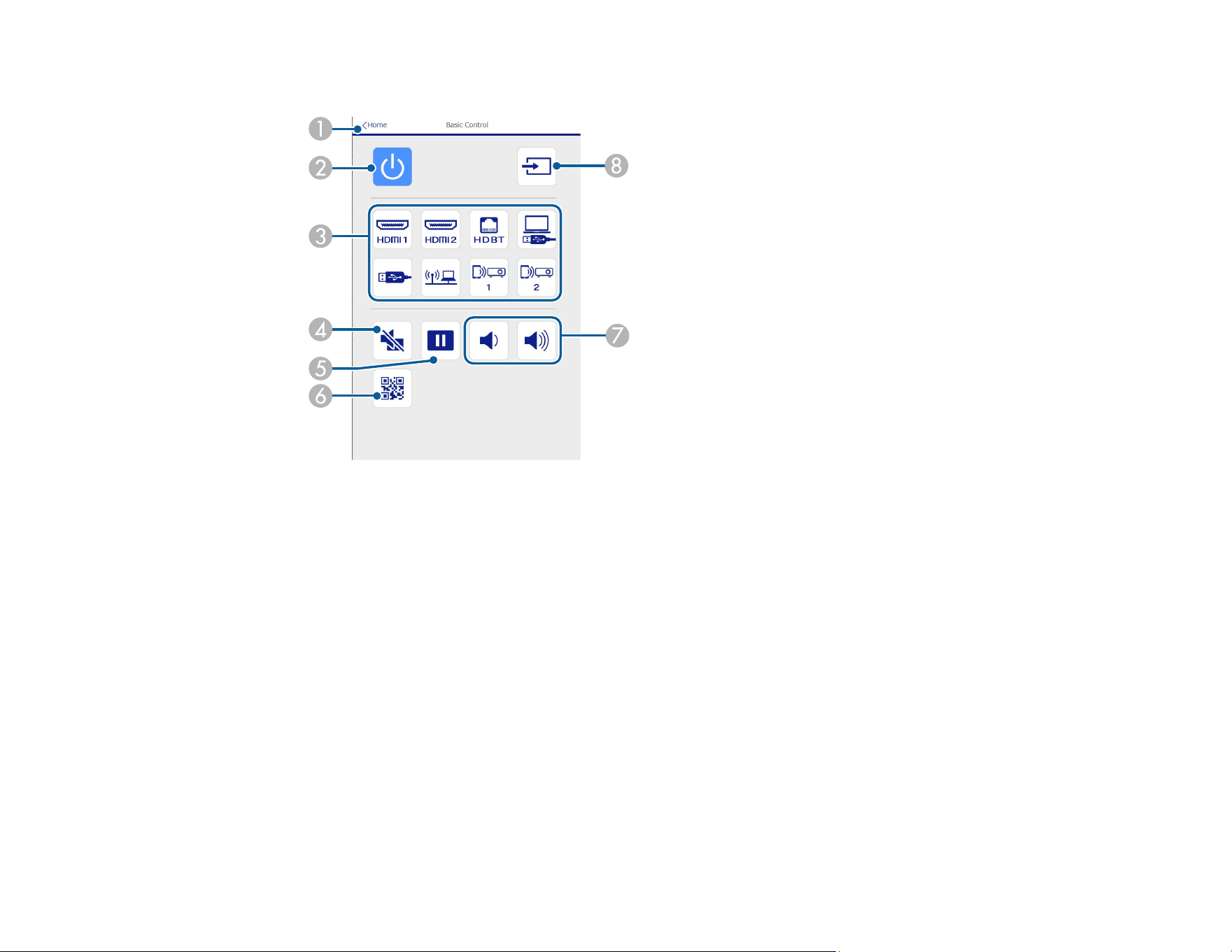

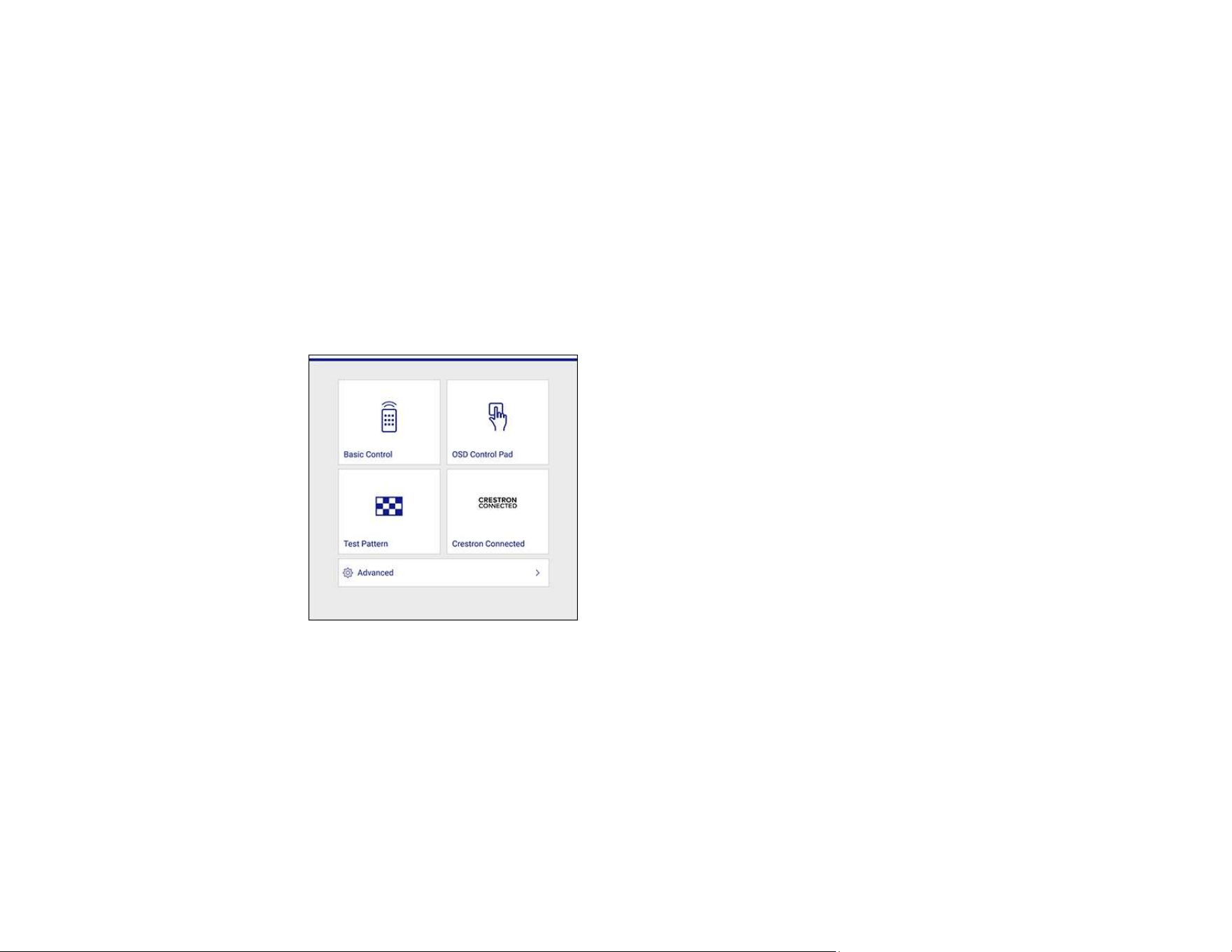

Web Control Options .......................................................................................................................... 82
Web Control Options in Content Playback Mode ............................................................................... 86
Using Crestron Connected ................................................................................................................. 91
Setting Up Crestron Connected..................................................................................................... 92
Controlling a Networked Projector Using Crestron Connected...................................................... 94
Registering a Digital Certificate on the Projector ................................................................................ 95
Importing a Web Server Certificate Using the Projector Menus..................................................... 95

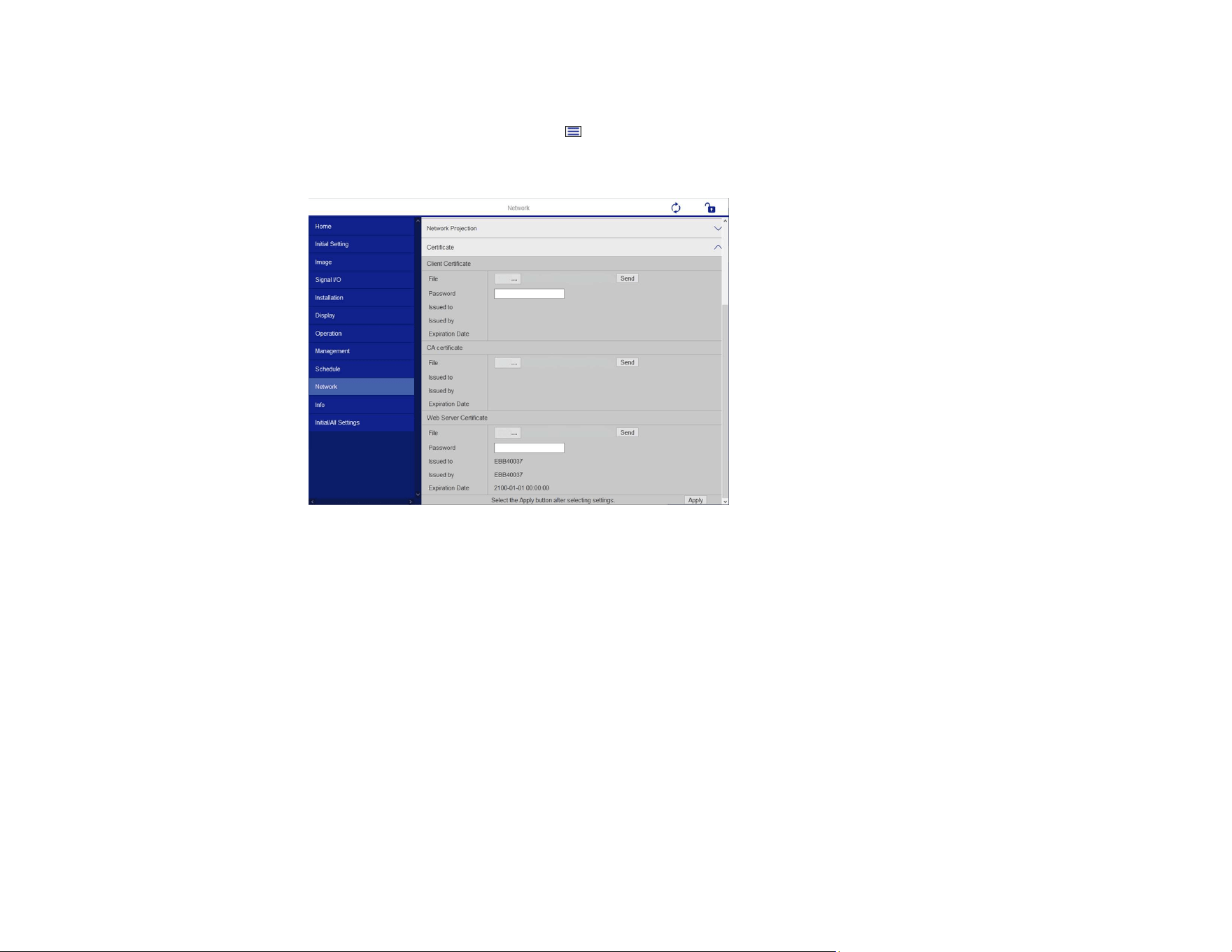

Registering Digital Certificates from a Web Browser ..................................................................... 96
Digital Certificate Types................................................................................................................. 97
Art-Net Channel Definitions................................................................................................................ 99
Setting Up Web API ......................................................................................................................... 102
Using Basic Projector Features ............................................................................................................. 104

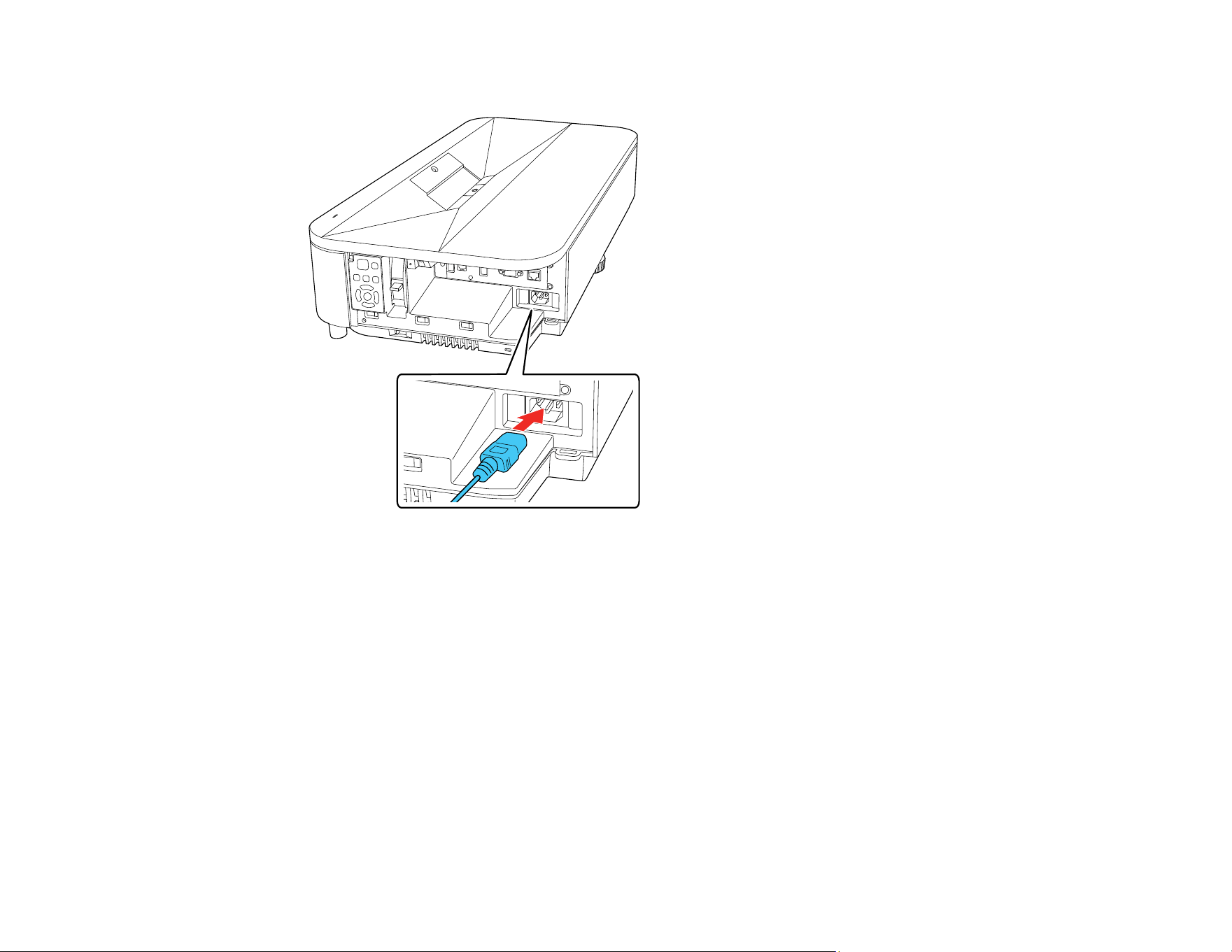

Turning On the Projector .................................................................................................................. 105

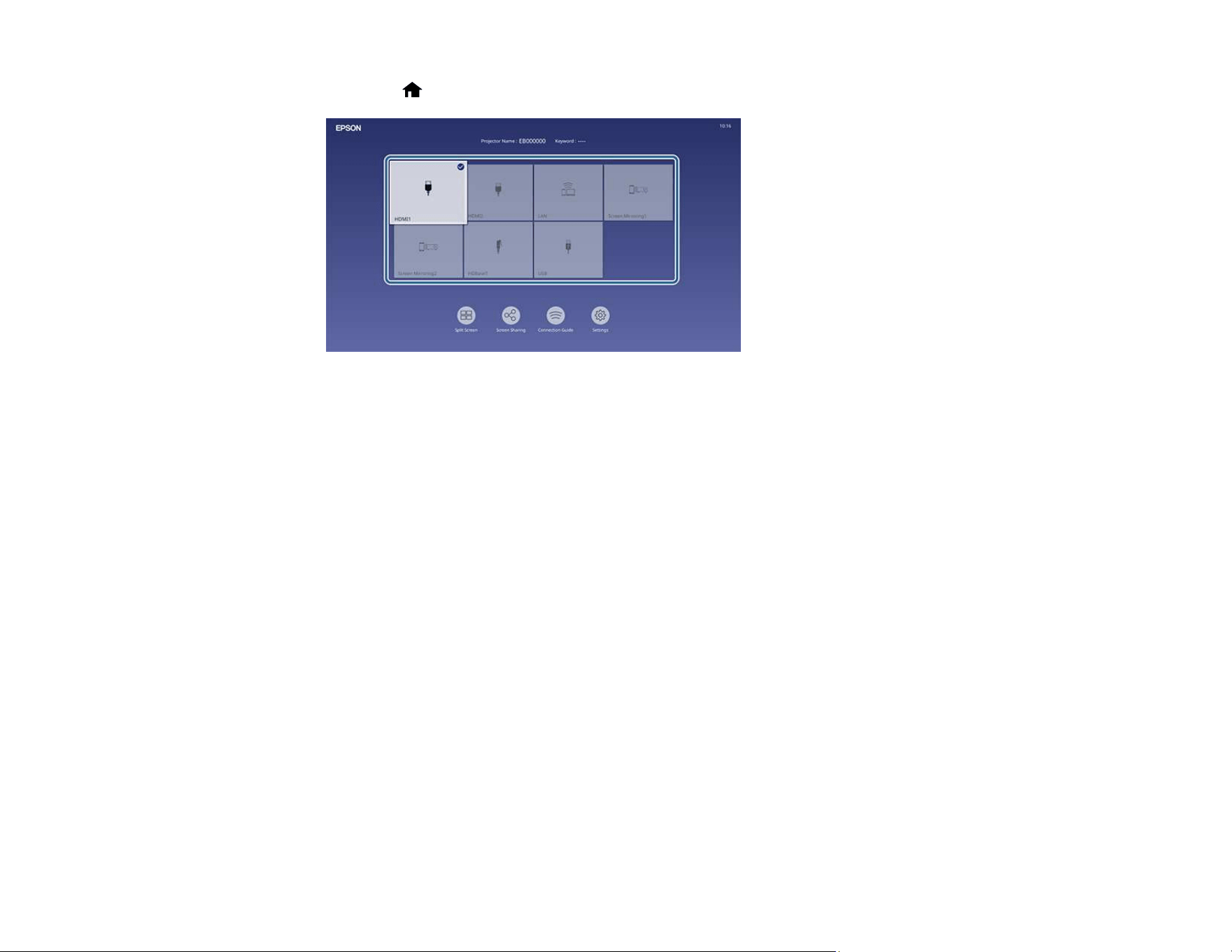

Using the Home Screen............................................................................................................... 107

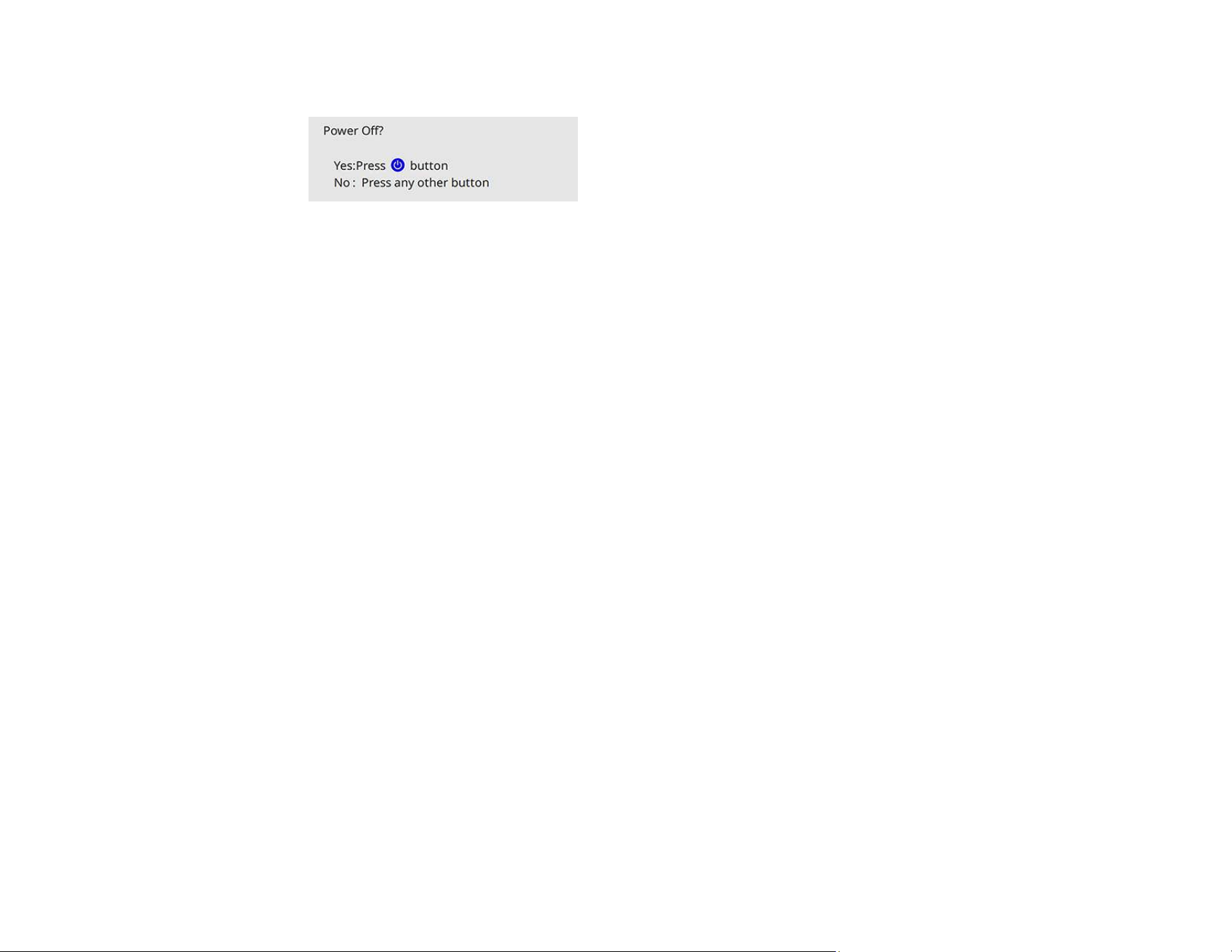

Turning Off the Projector .................................................................................................................. 109
Selecting the Language for the Projector Menus.............................................................................. 110

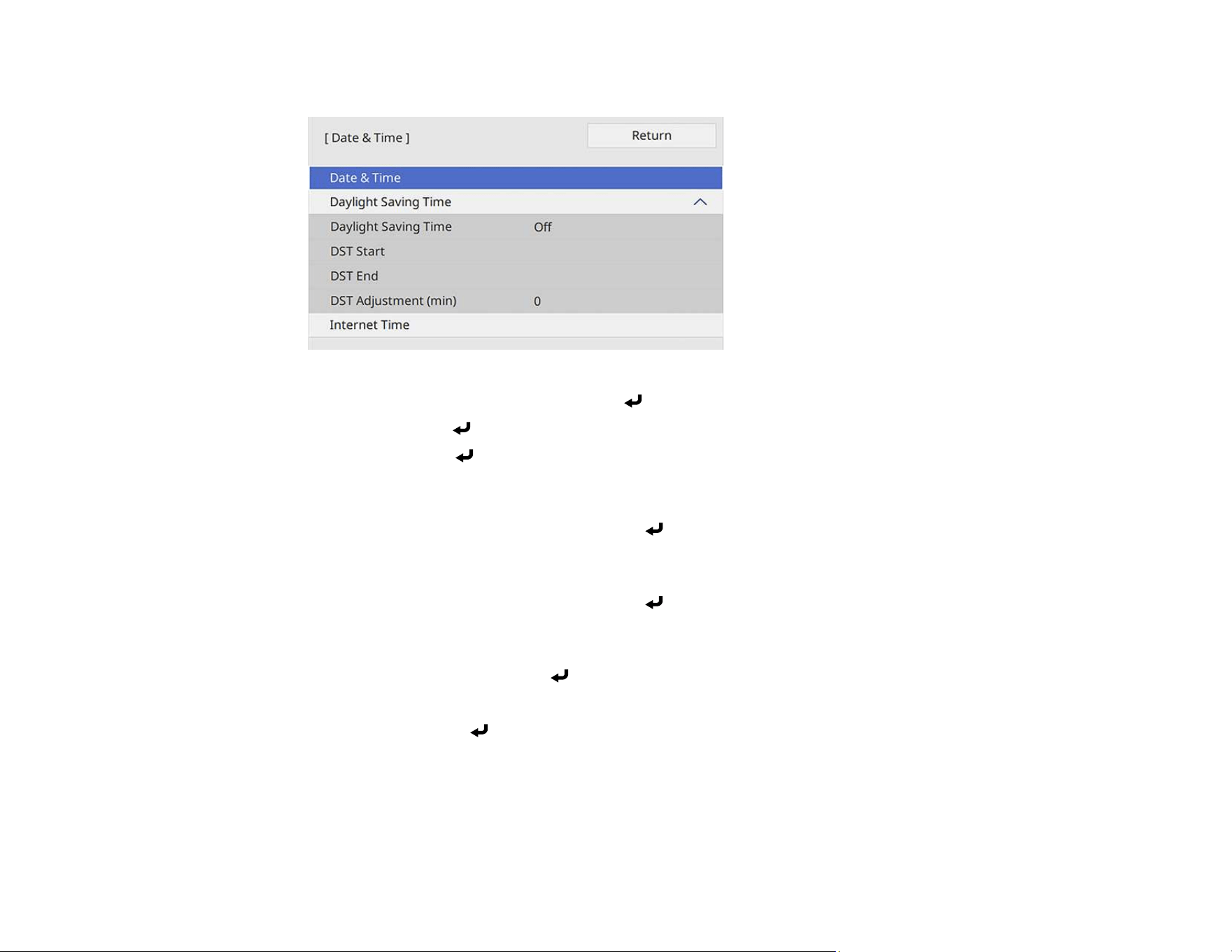

Setting the Date and Time................................................................................................................ 111
Image Shape.................................................................................................................................... 113

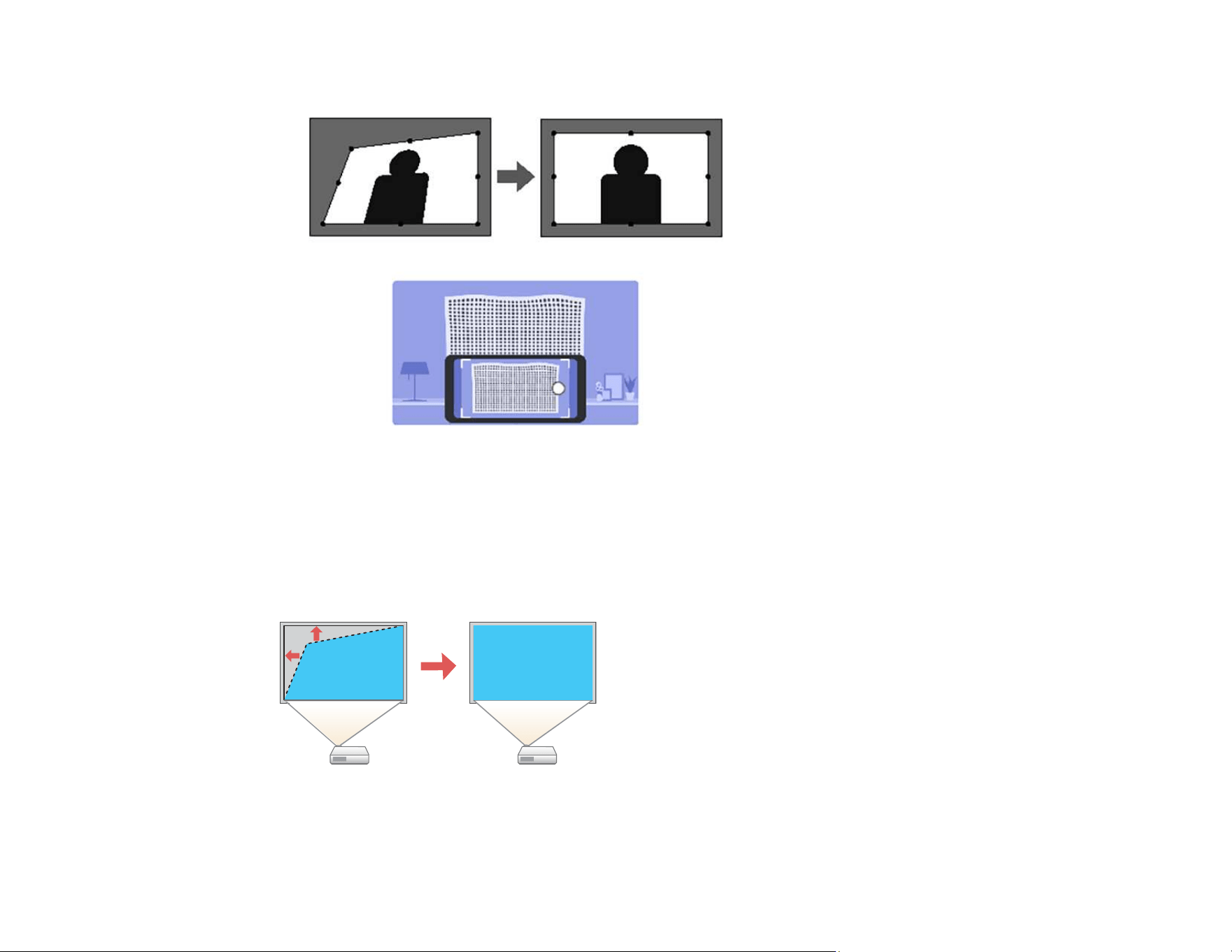

Correcting Distortion in the Image Using the Wizard ................................................................... 113

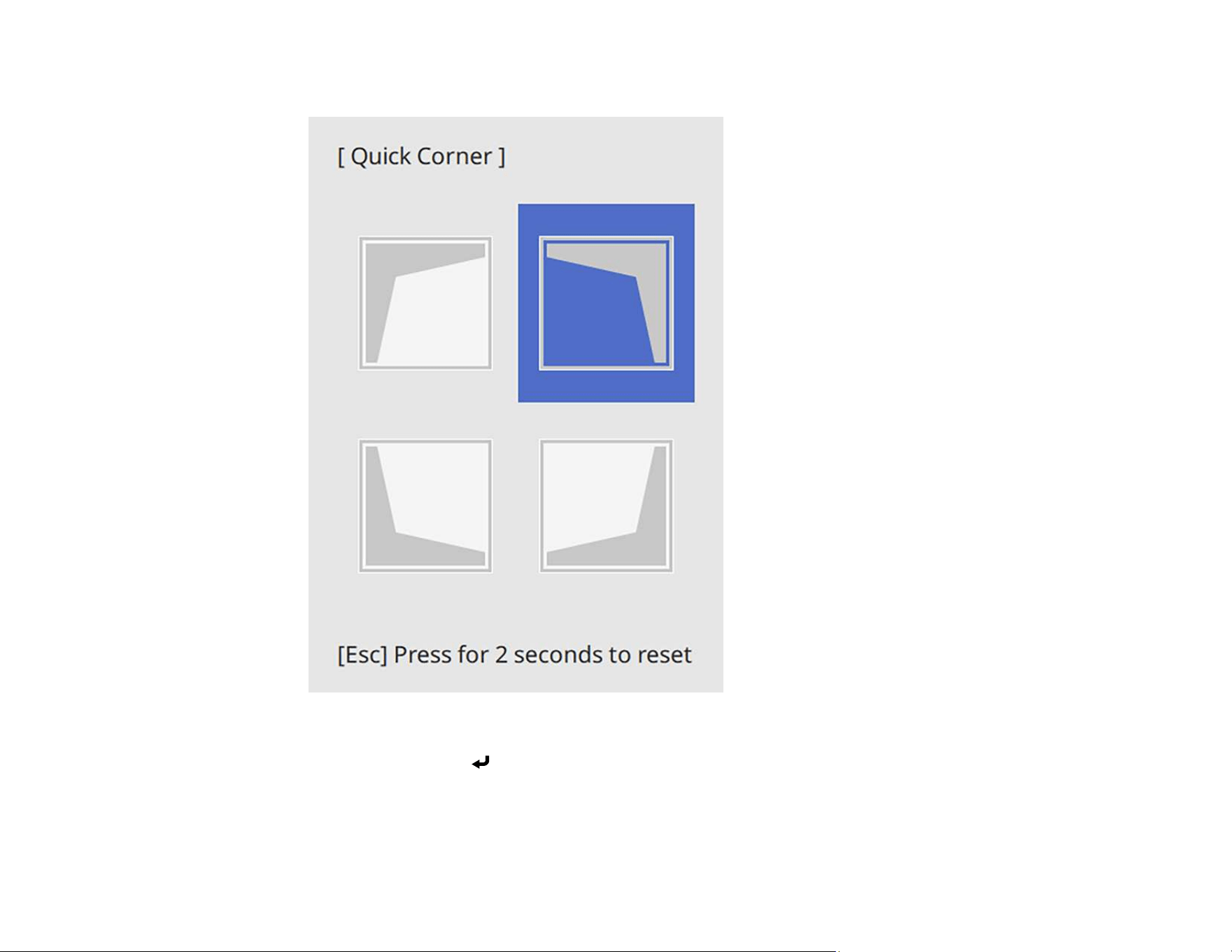

Correcting Image Shape with Quick Corner ................................................................................ 115

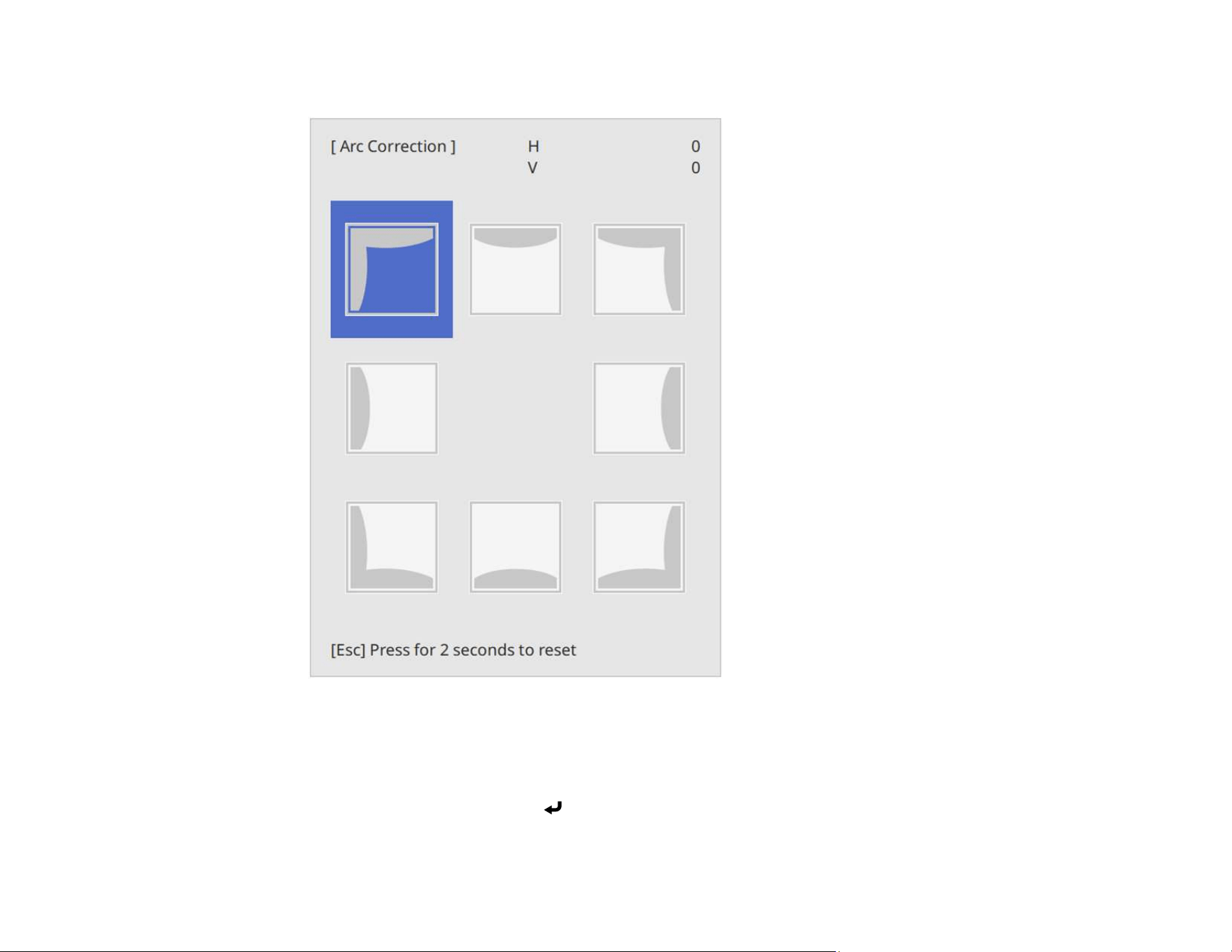

Correcting Image Shape with Arc Correction............................................................................... 118

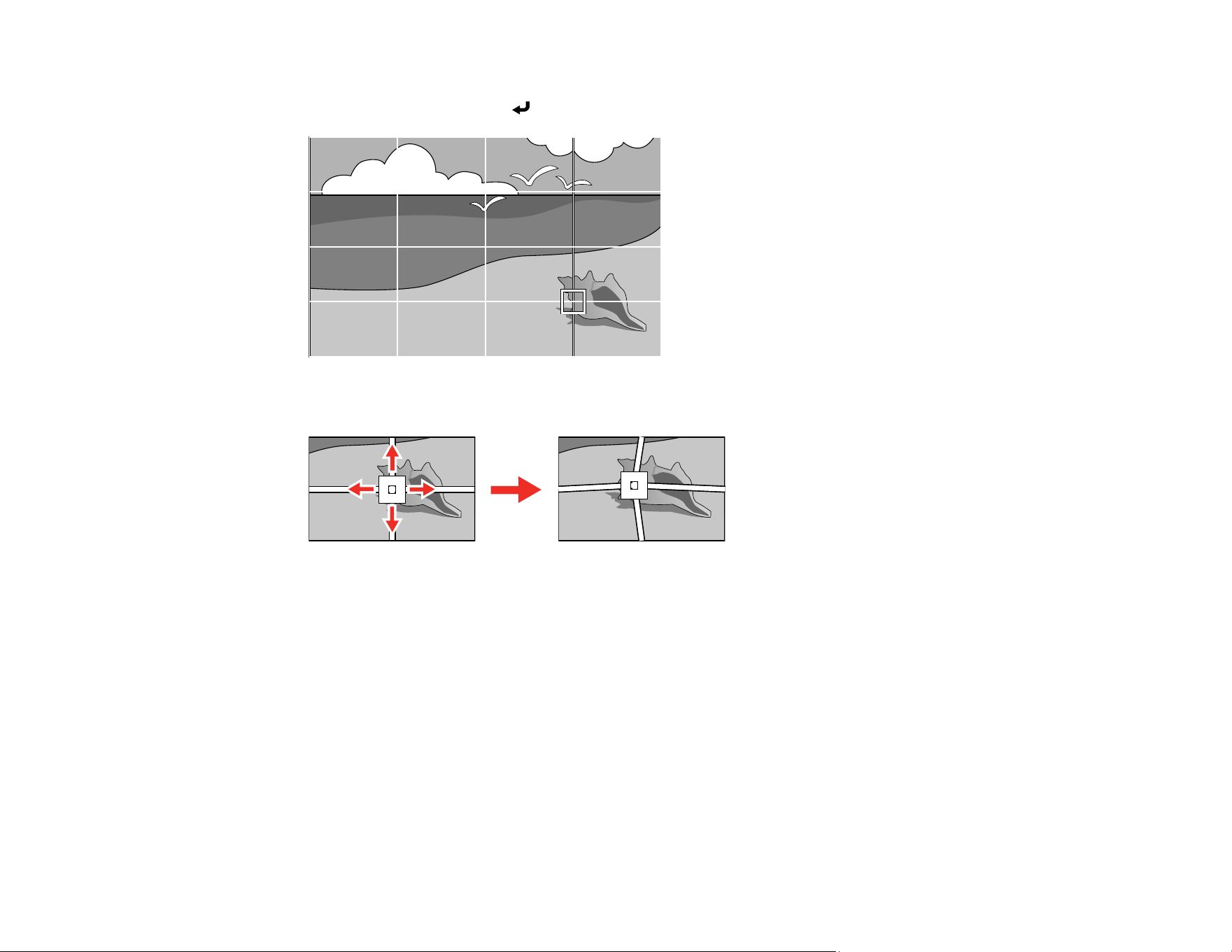

Correcting Image Shape with Point Correction............................................................................ 121
Applying Saved Image Shape Settings ....................................................................................... 123

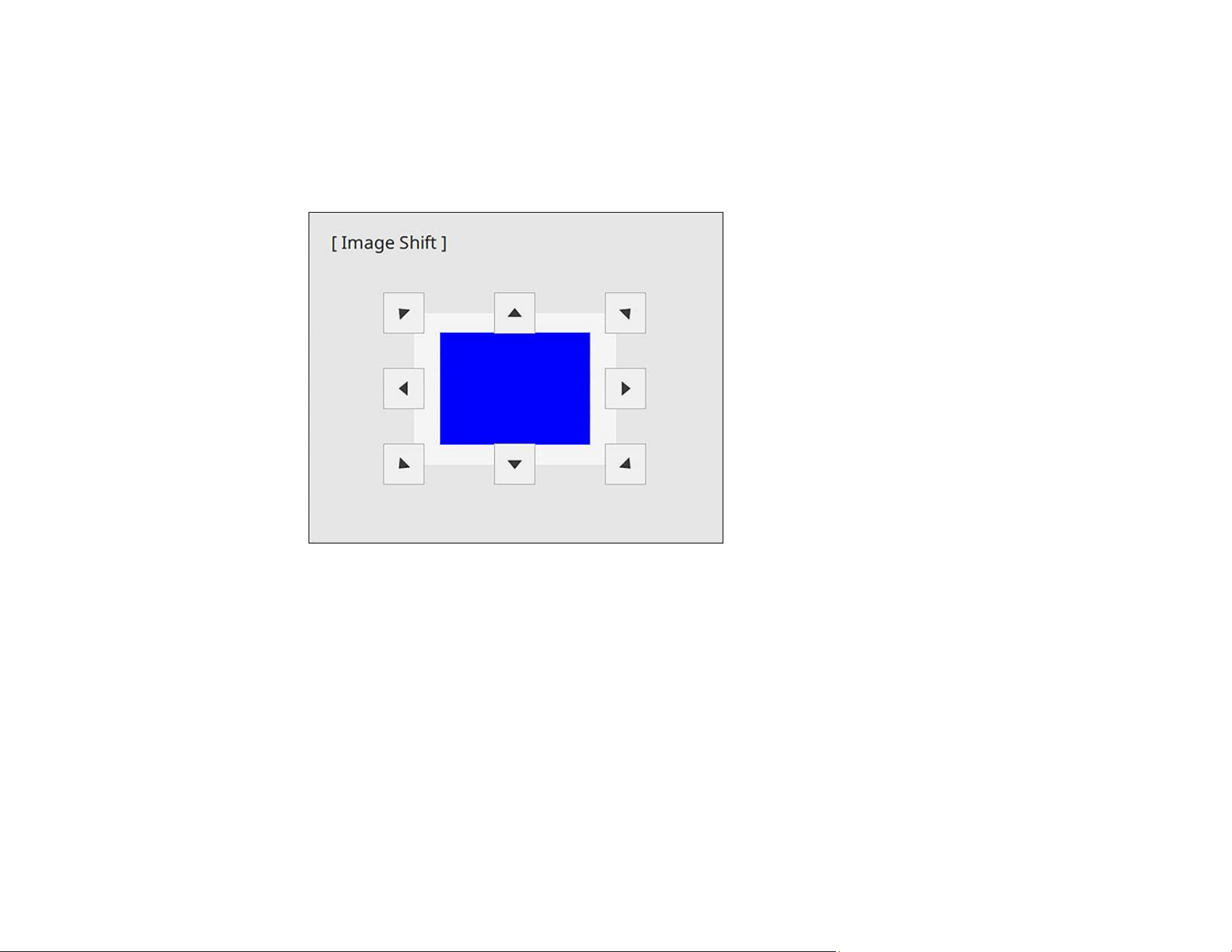

Adjusting the Image Position Using Image Shift............................................................................... 123

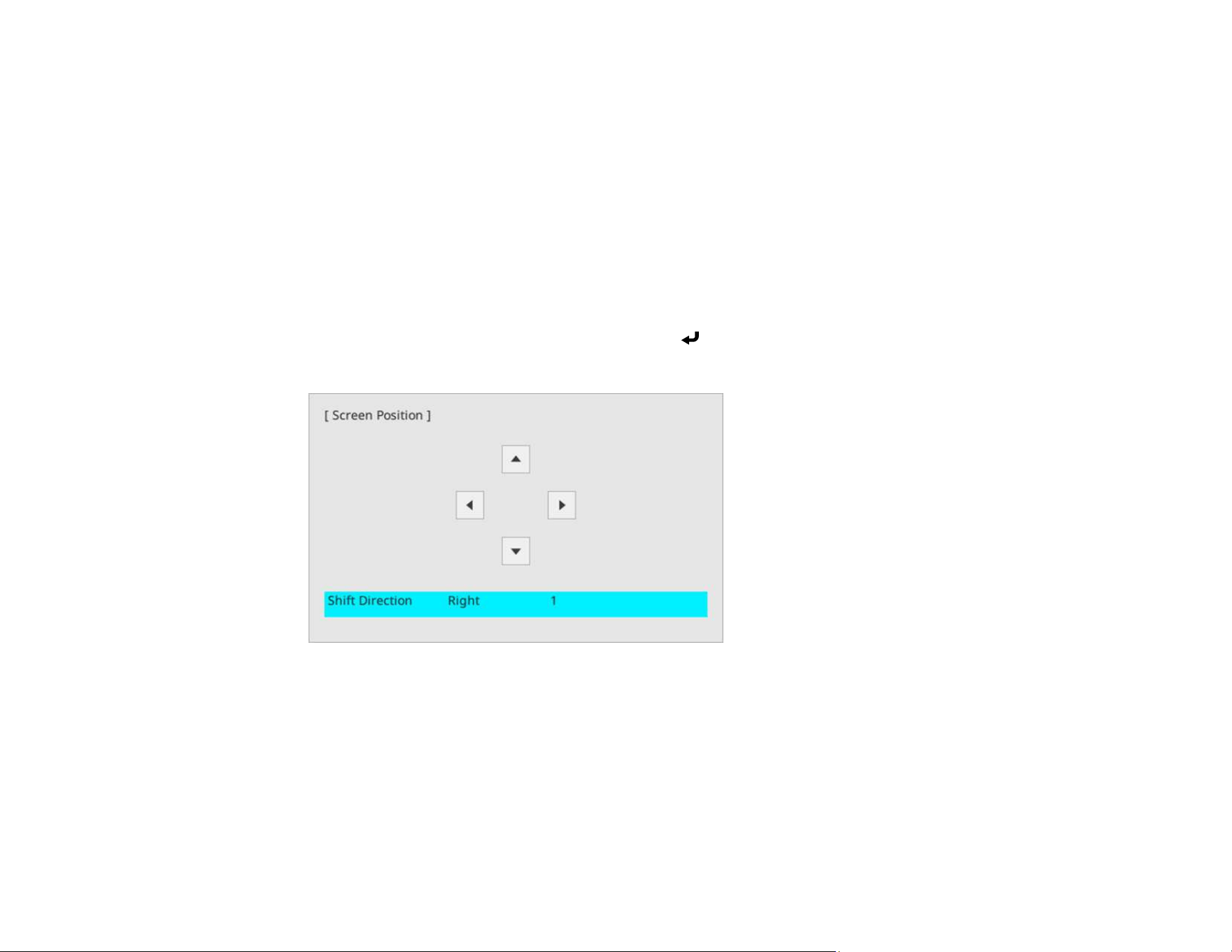

Adjusting the Image Position Using Screen Position........................................................................ 125
Adjusting the Image Height .............................................................................................................. 125

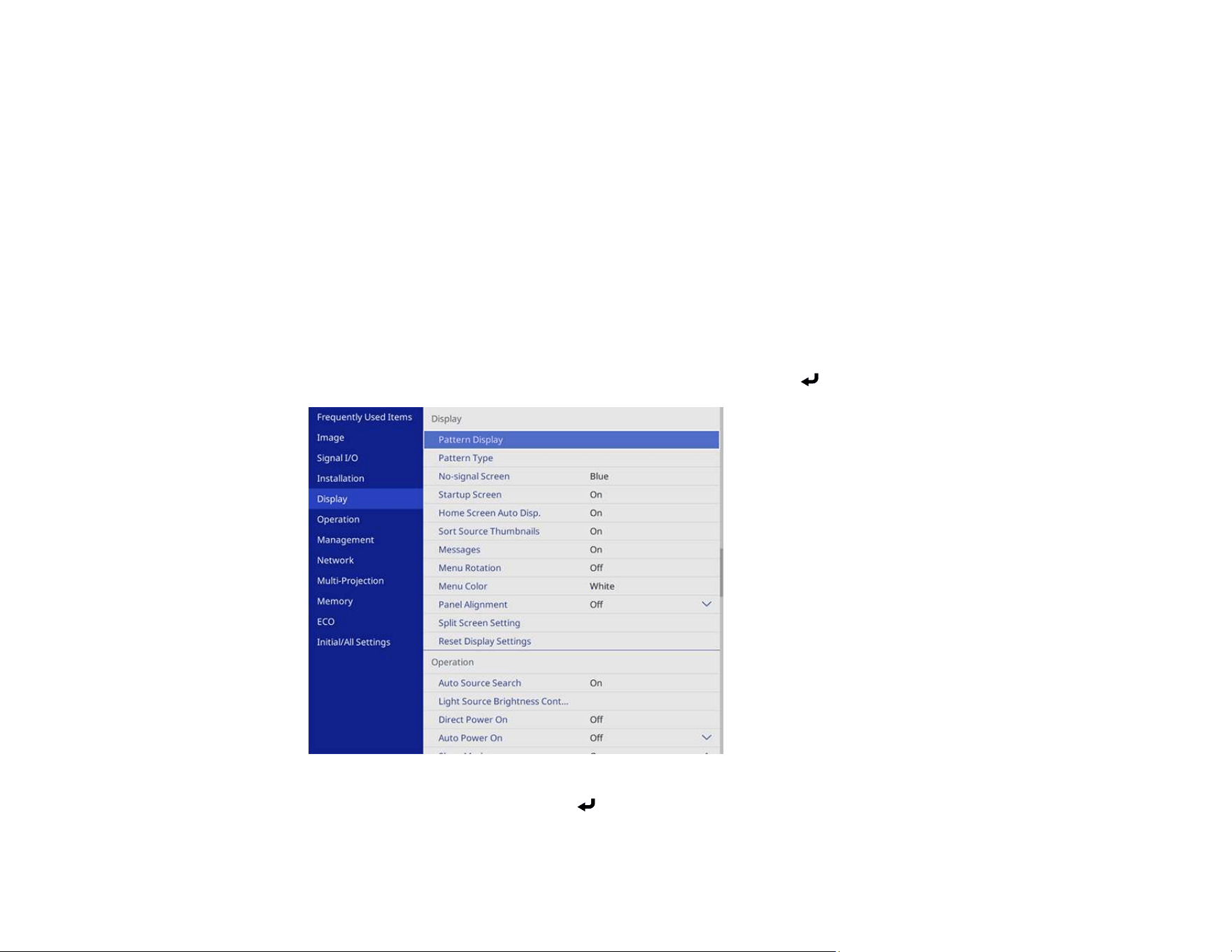

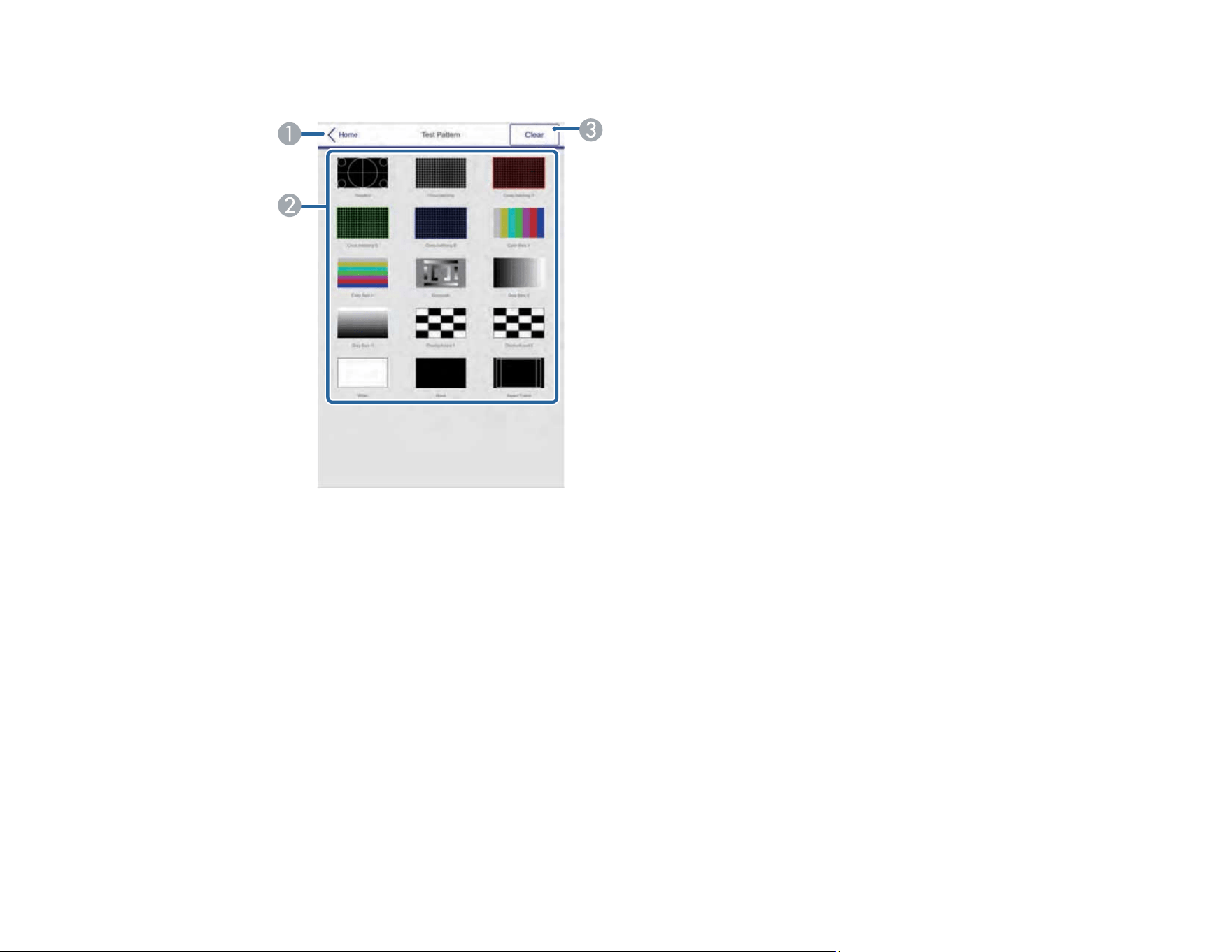

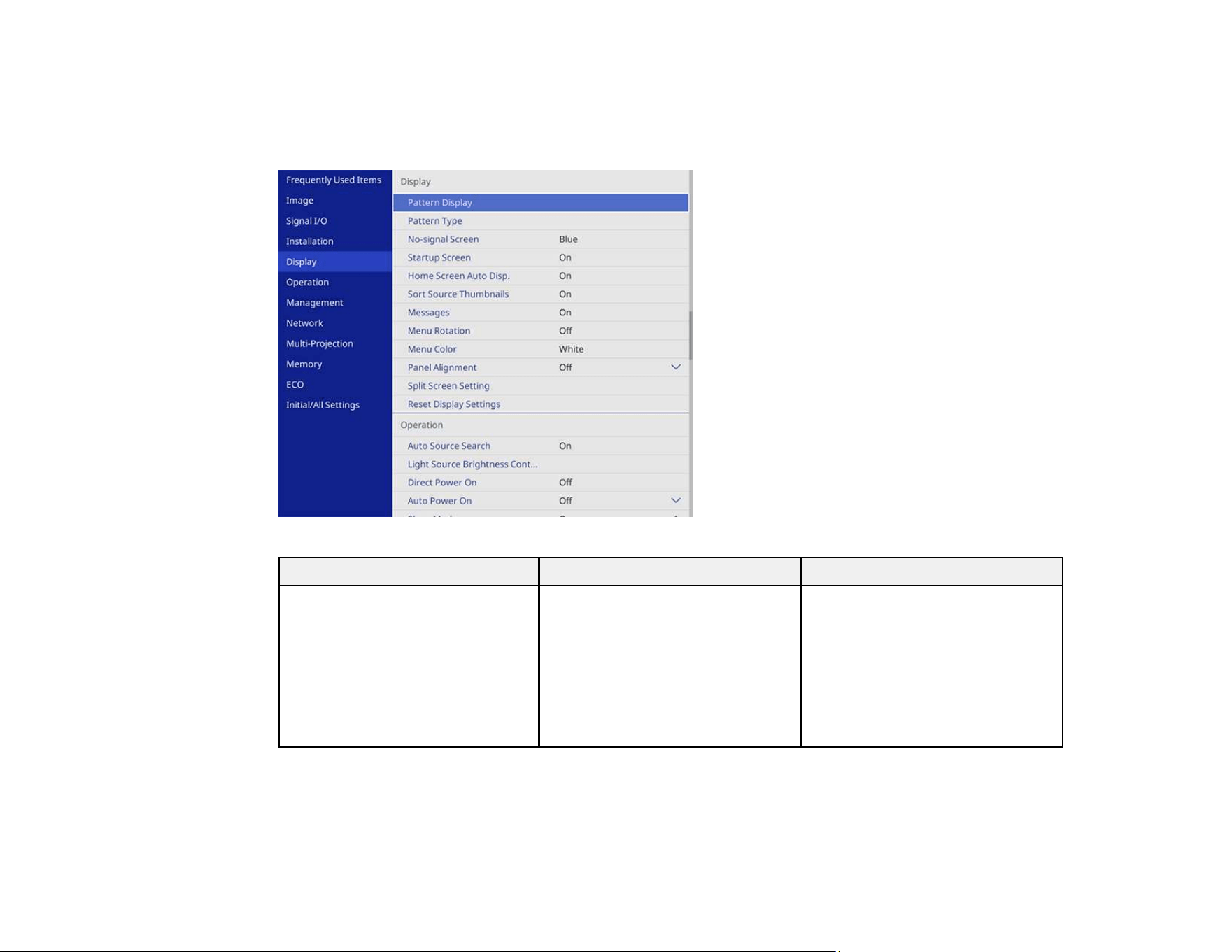

Displaying a Test Pattern ................................................................................................................. 126

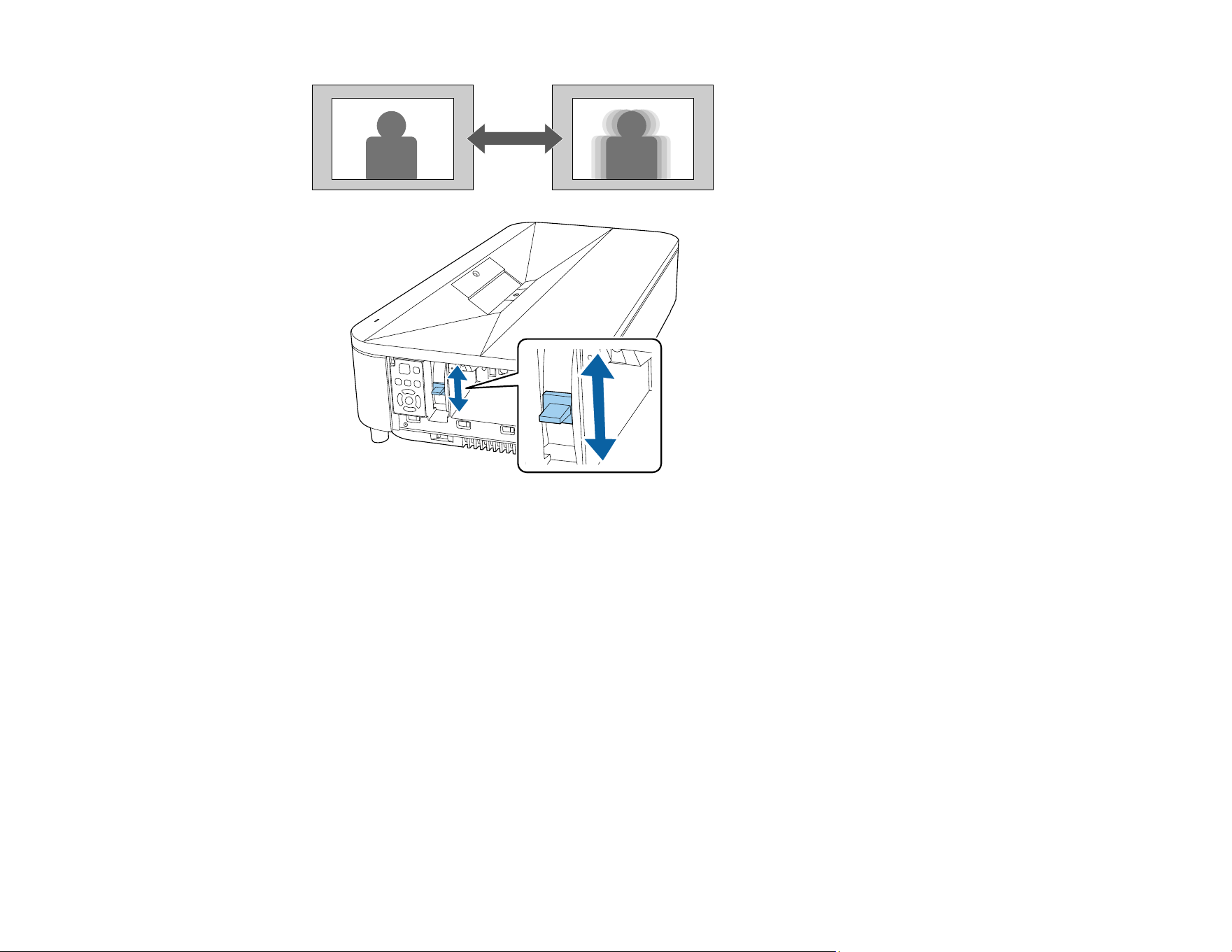

Focusing the Image.......................................................................................................................... 128
Remote Control Operation ............................................................................................................... 129

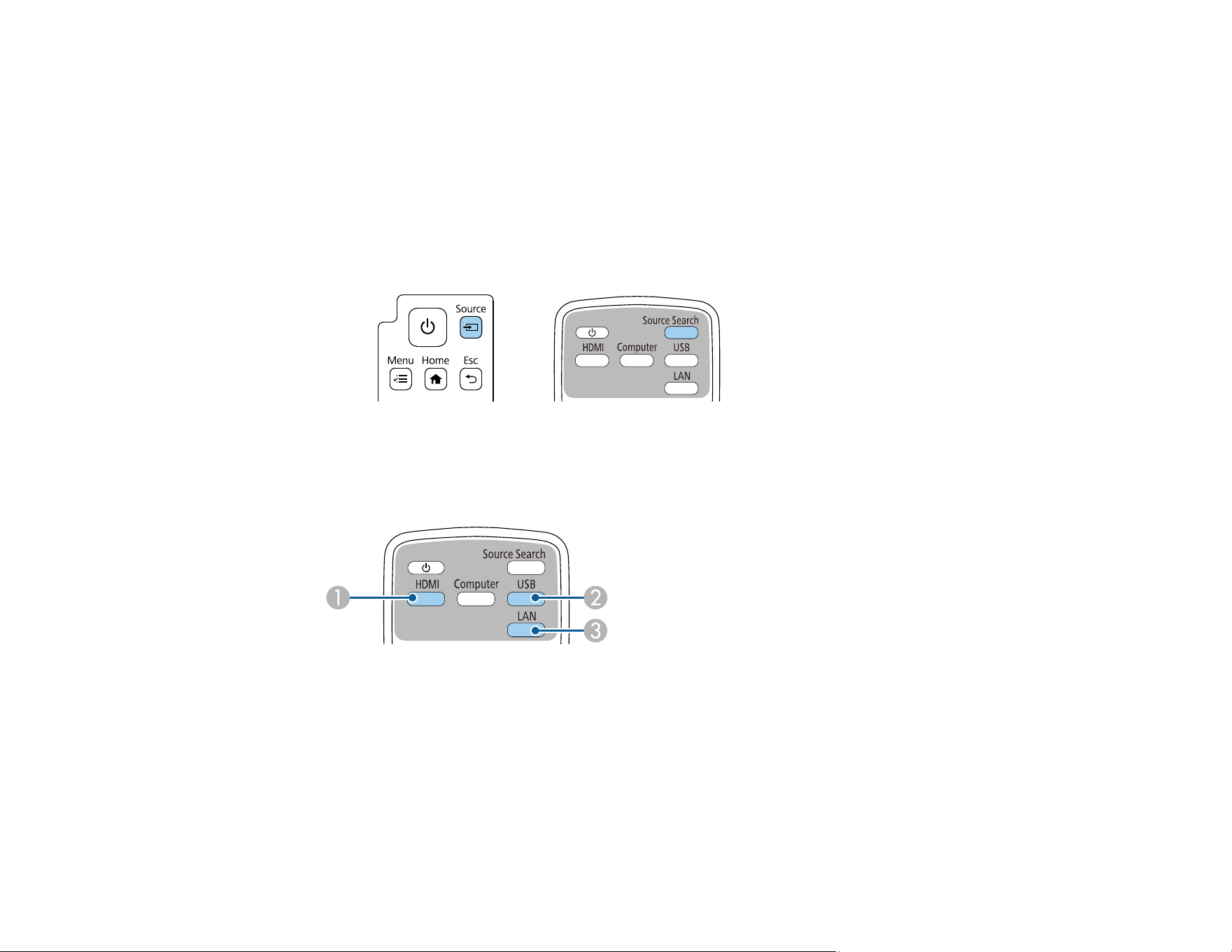

Selecting an Image Source .............................................................................................................. 130
Projection Modes ............................................................................................................................. 132
6
Changing the Projection Mode Using the Remote Control .......................................................... 133
Changing the Projection Mode Using the Menus......................................................................... 133

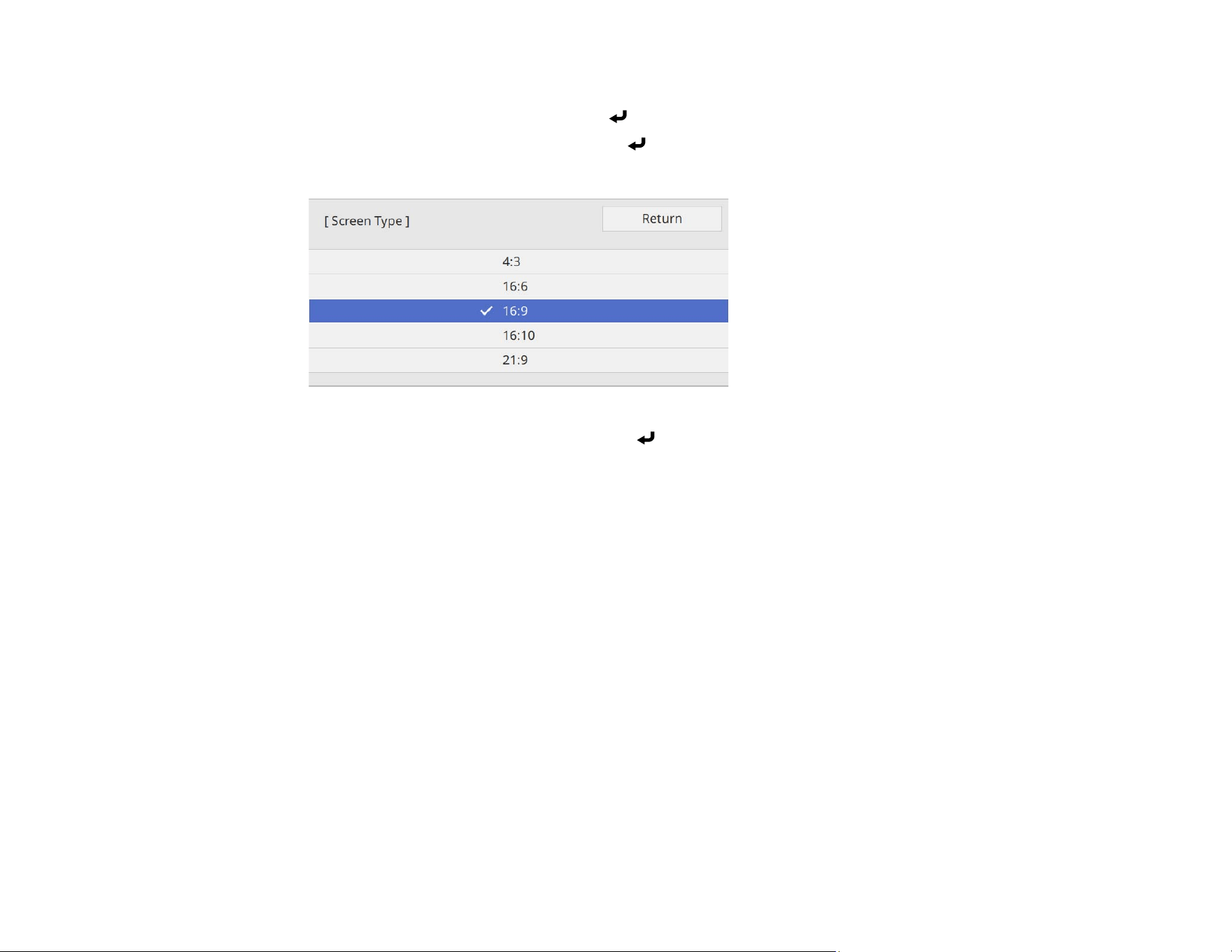

Setting the Screen Type .............................................................................................................. 134
Image Aspect Ratio .......................................................................................................................... 135
Changing the Image Aspect Ratio ............................................................................................... 136
Available Image Aspect Ratios.................................................................................................... 136

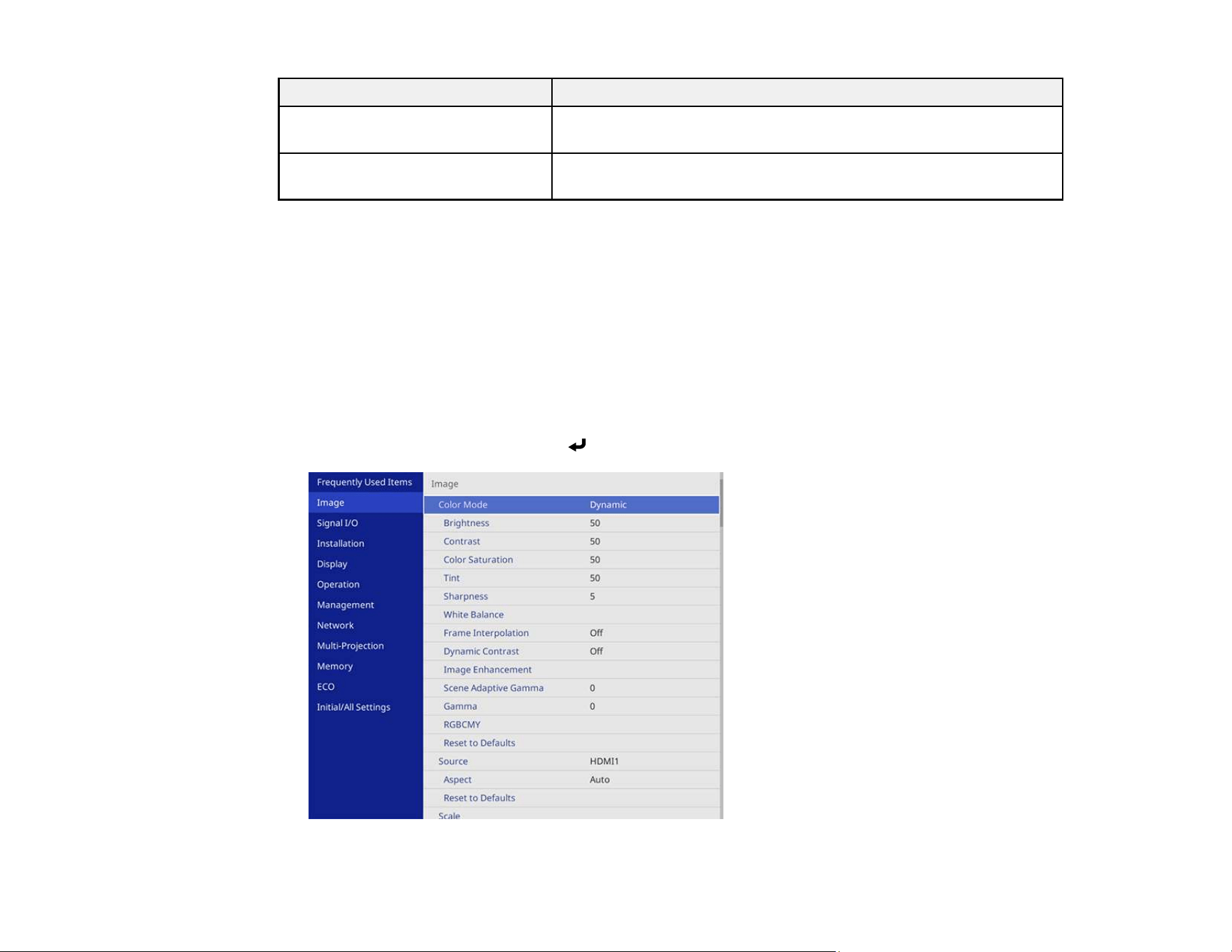

Color Mode....................................................................................................................................... 137
Changing the Color Mode............................................................................................................ 138
Available Color Modes................................................................................................................. 138
Adjusting the Hue, Saturation, and Brightness................................................................................. 139

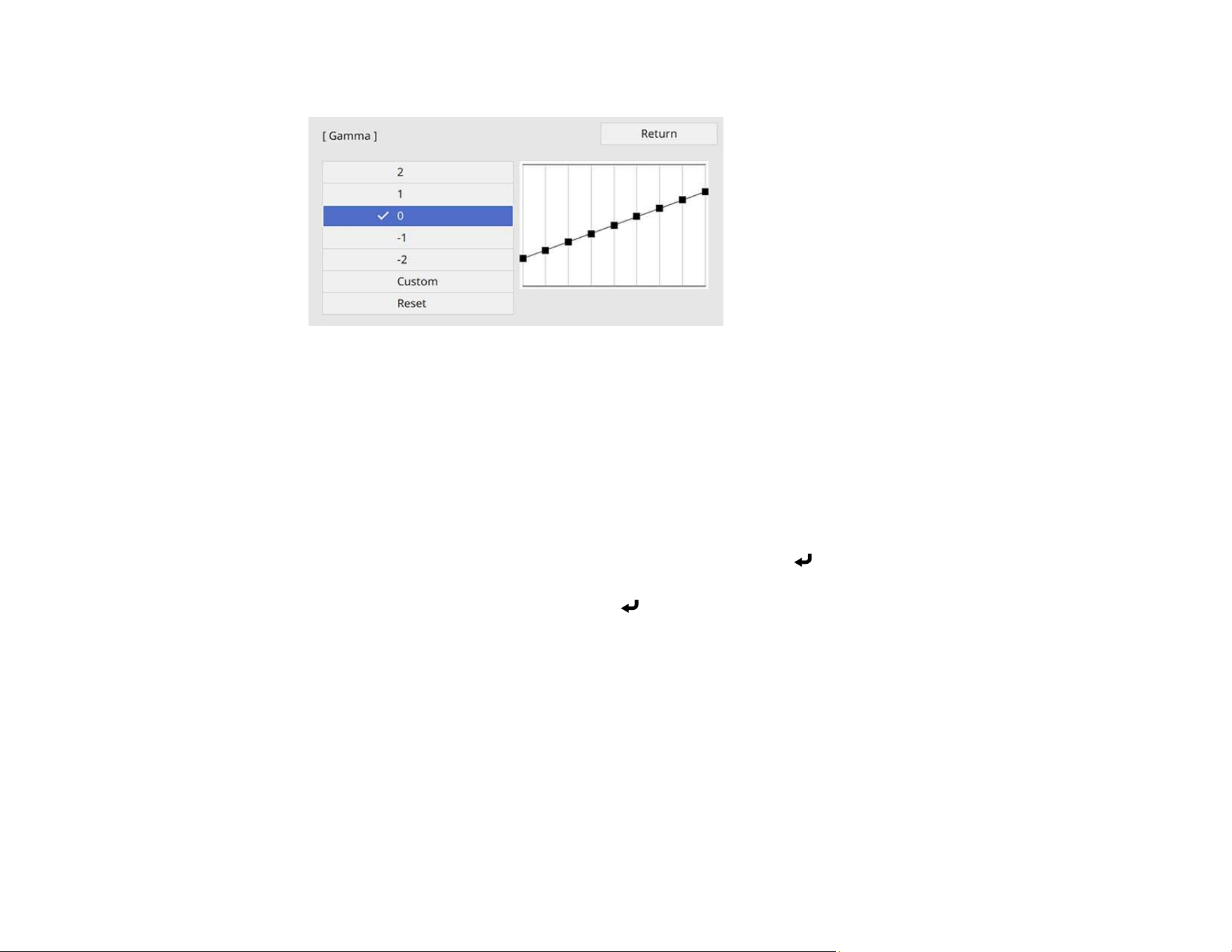

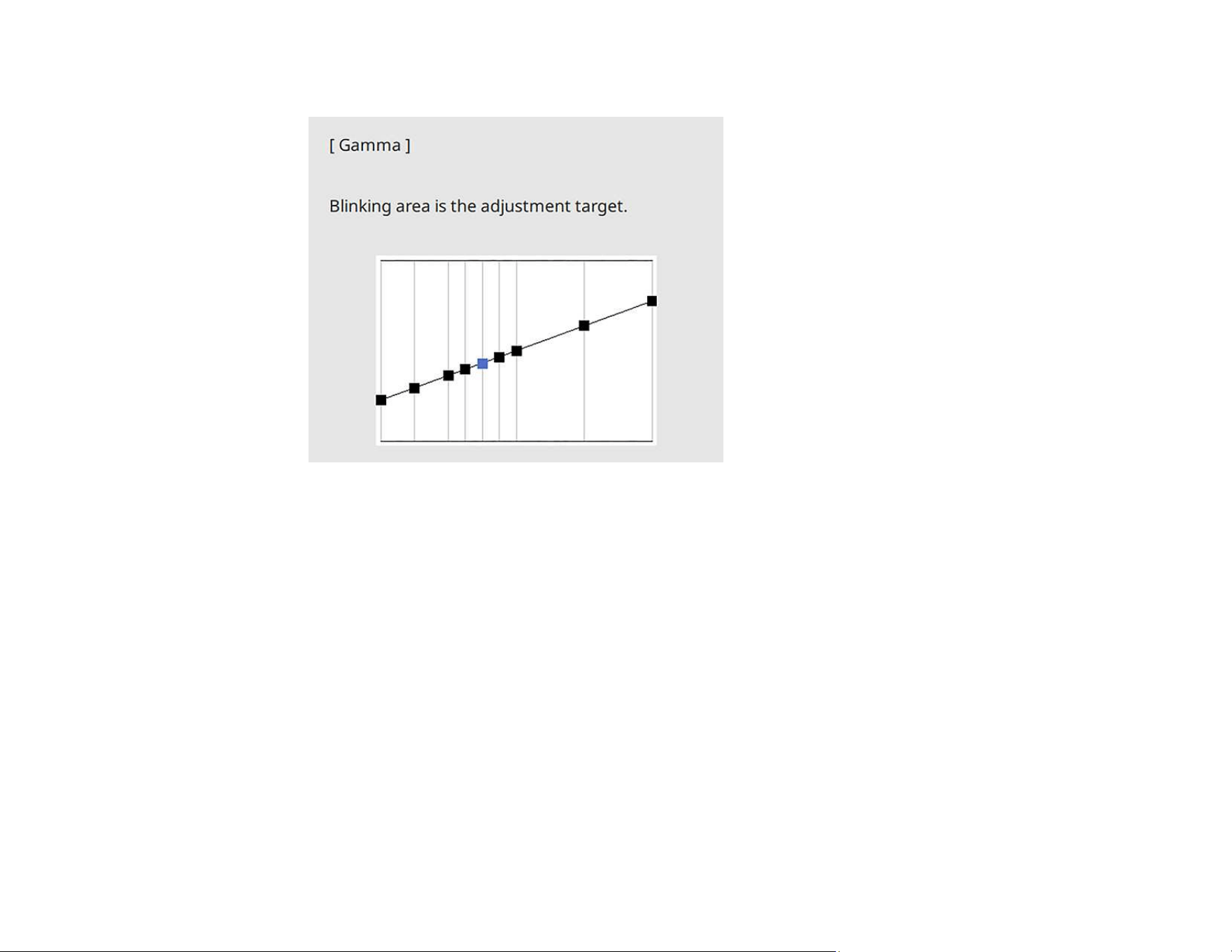

Adjusting Gamma............................................................................................................................. 140
Adjusting the Image Resolution........................................................................................................ 143

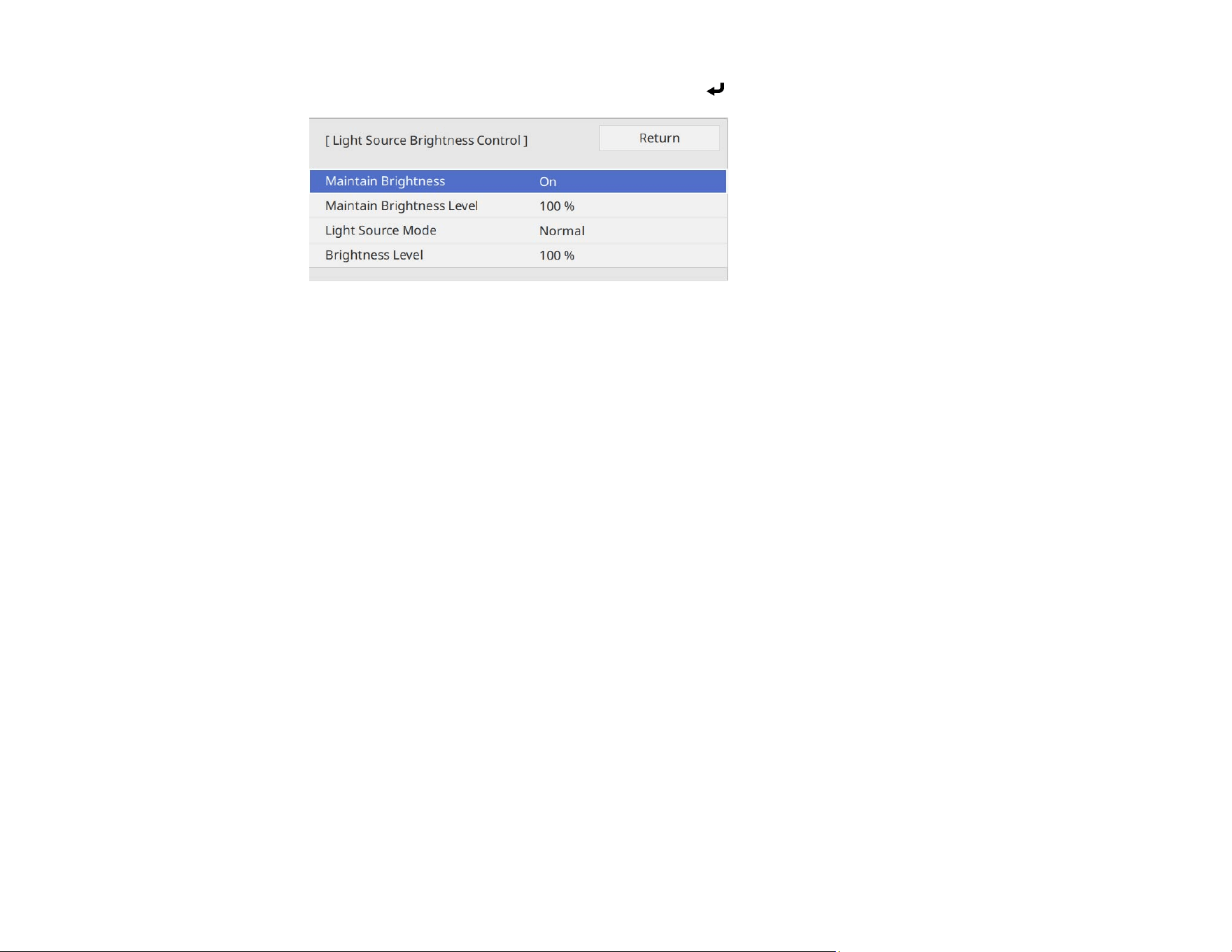

Adjusting the Projector's Brightness Level ....................................................................................... 145
Light Source Life Span ................................................................................................................ 147
Turning On Dynamic Contrast.......................................................................................................... 148

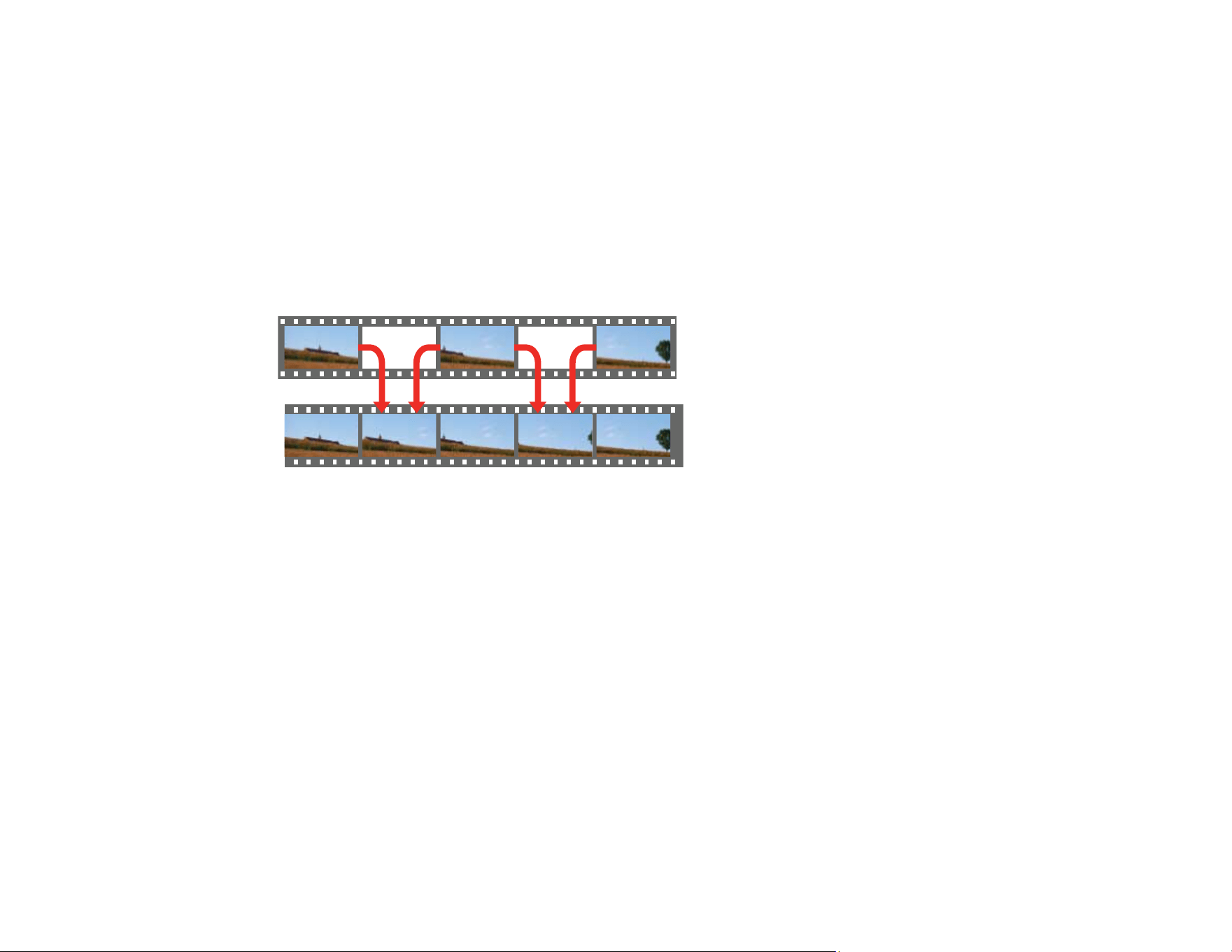

Using Frame Interpolation ............................................................................................................... 149
Controlling the Volume with the Volume Buttons.............................................................................. 151
Changing the Sound Mode............................................................................................................... 151
Inverting the Audio Channels ........................................................................................................... 152
Selecting a Quick Startup Setting..................................................................................................... 153
Projecting a PC Free Presentation................................................................................................... 155
PC Free Precautions ................................................................................................................... 155
Supported PC Free File Types .................................................................................................... 155

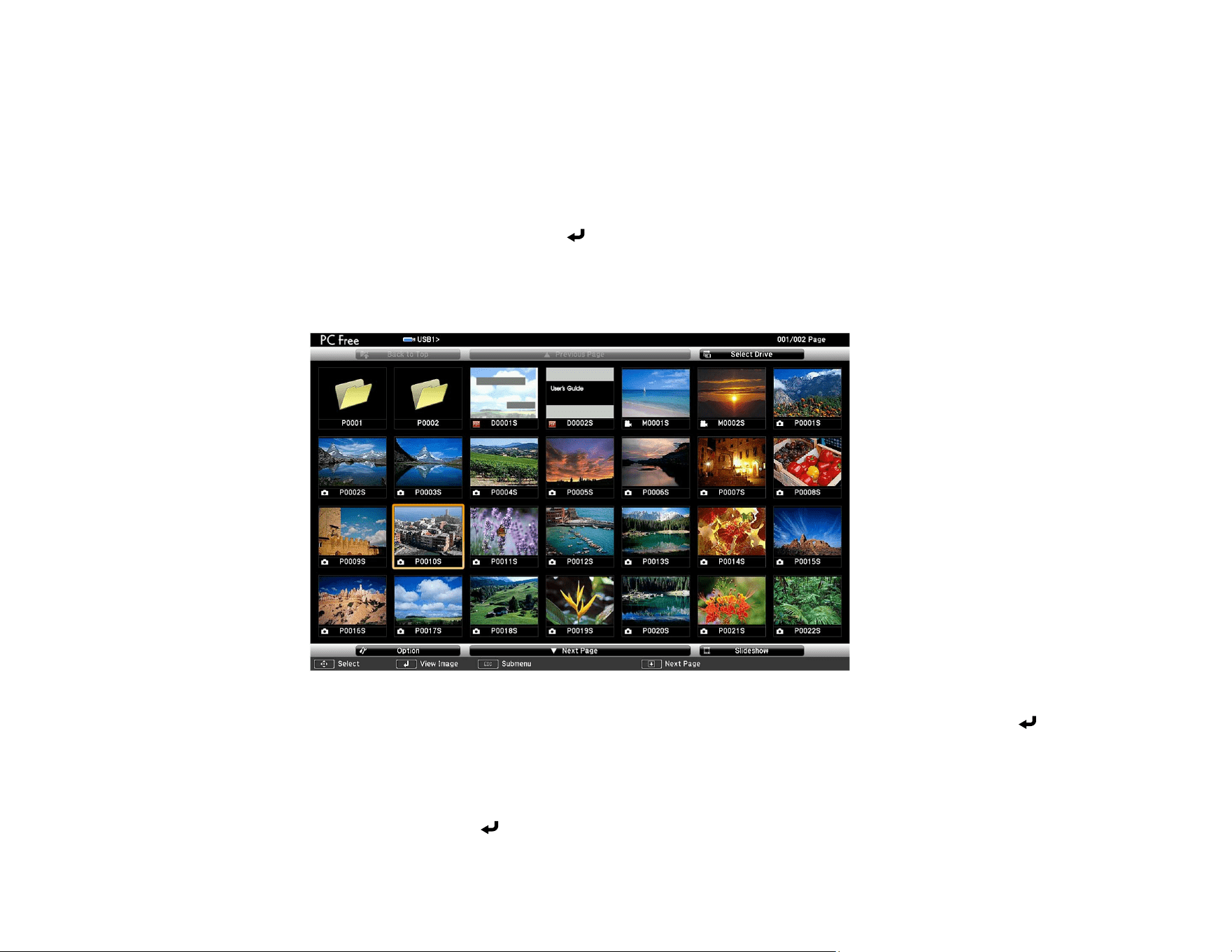

Starting a PC Free Slideshow...................................................................................................... 157
Starting a PC Free Movie Presentation ....................................................................................... 158

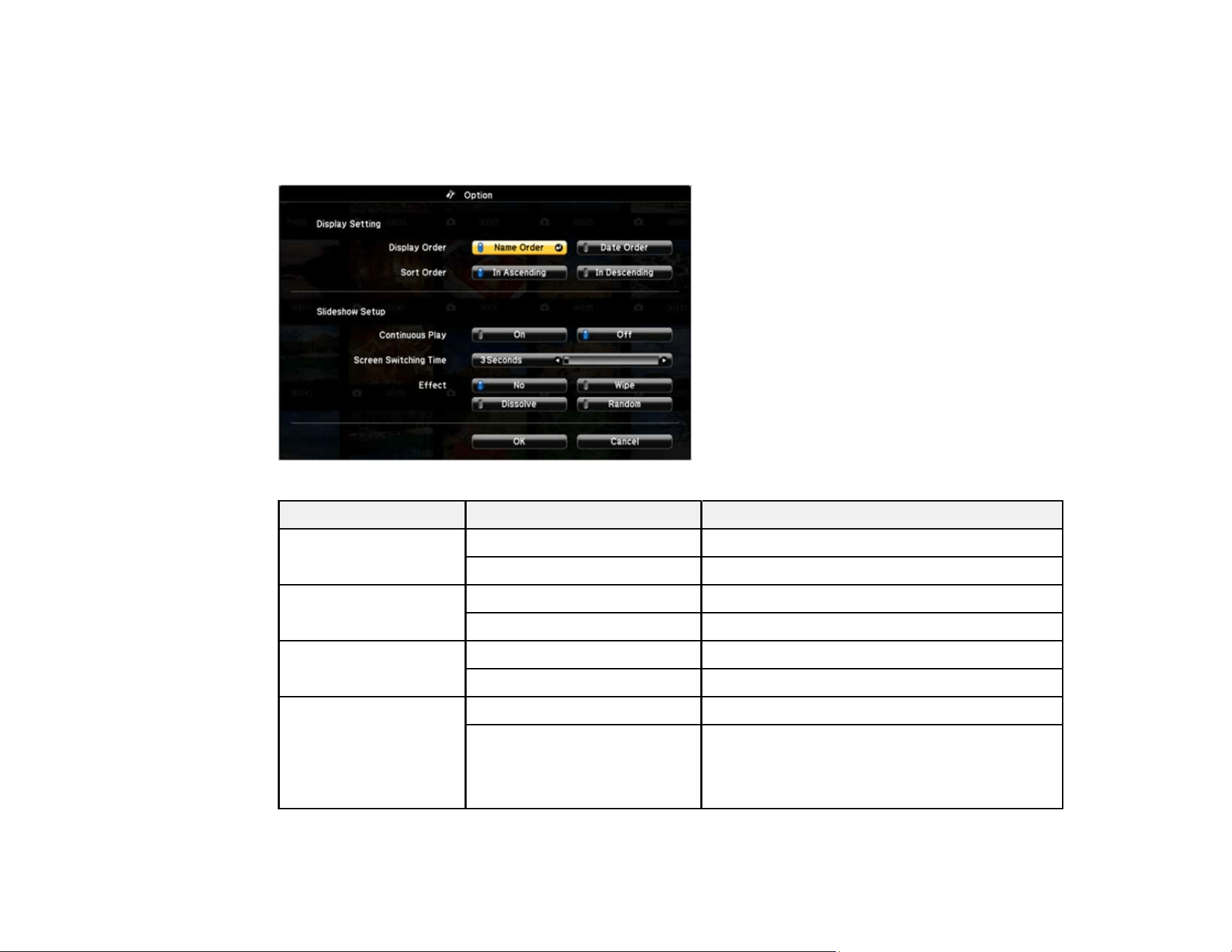

PC Free Display Options ............................................................................................................. 160
Projecting in Content Playback Mode............................................................................................... 161
Switching to Content Playback Mode .......................................................................................... 161

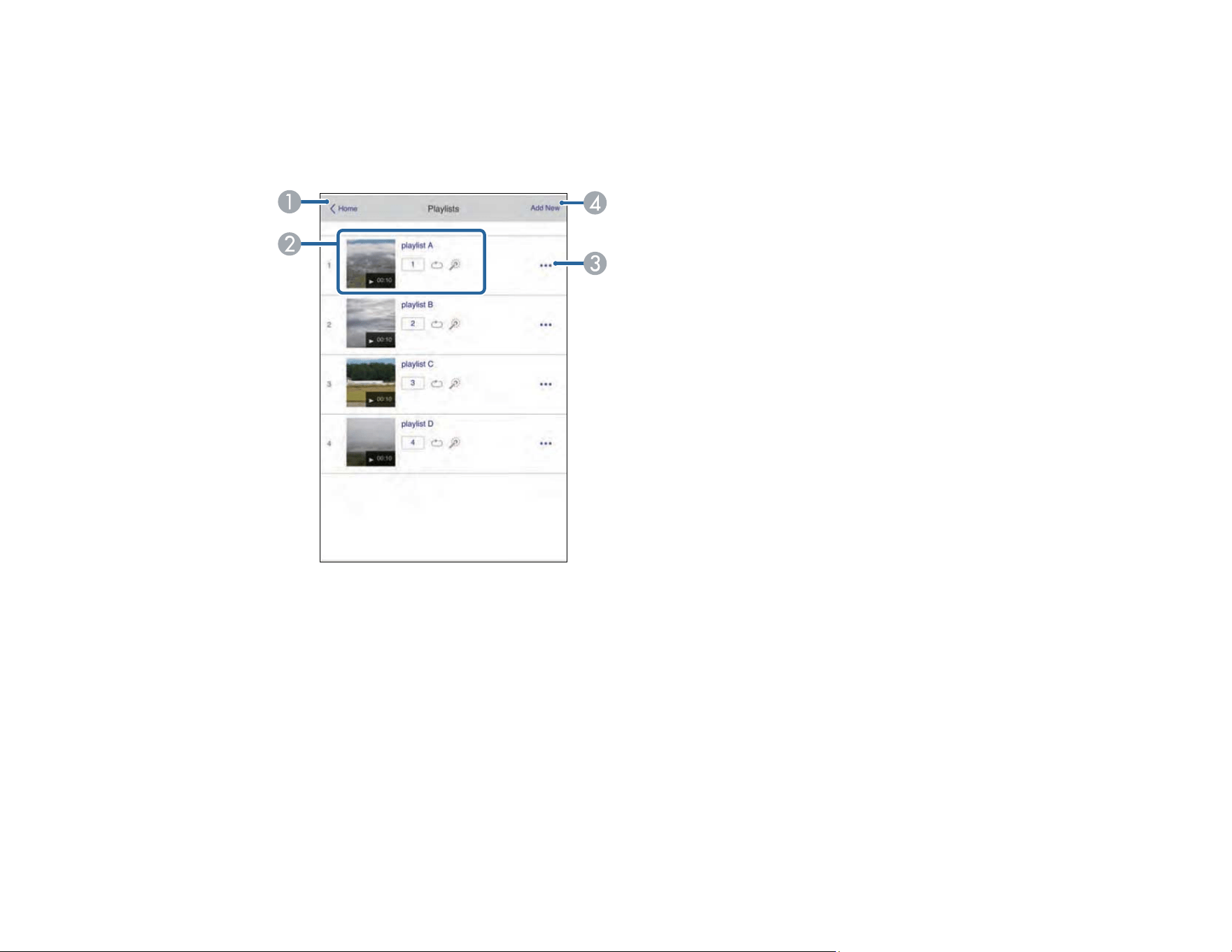

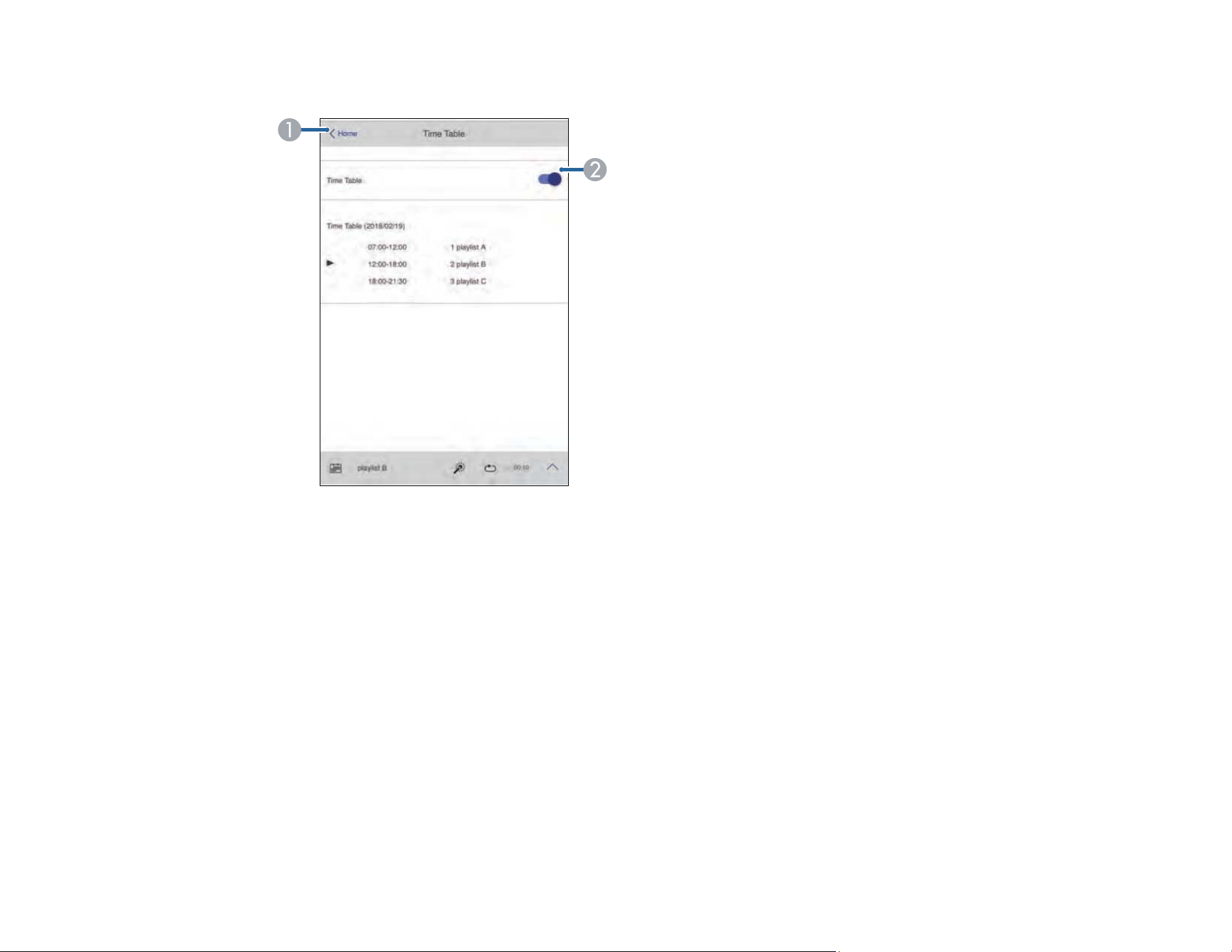

Projecting a Playlist in Content Playback Mode........................................................................... 162
Creating a Playlist Using Epson Web Control.............................................................................. 163
Adding Effects to the Projected Image......................................................................................... 164
Content Playback Mode Restrictions........................................................................................... 166
7
Adjusting Projector Features ................................................................................................................. 167
Shutting Off the Picture and Sound Temporarily .............................................................................. 167

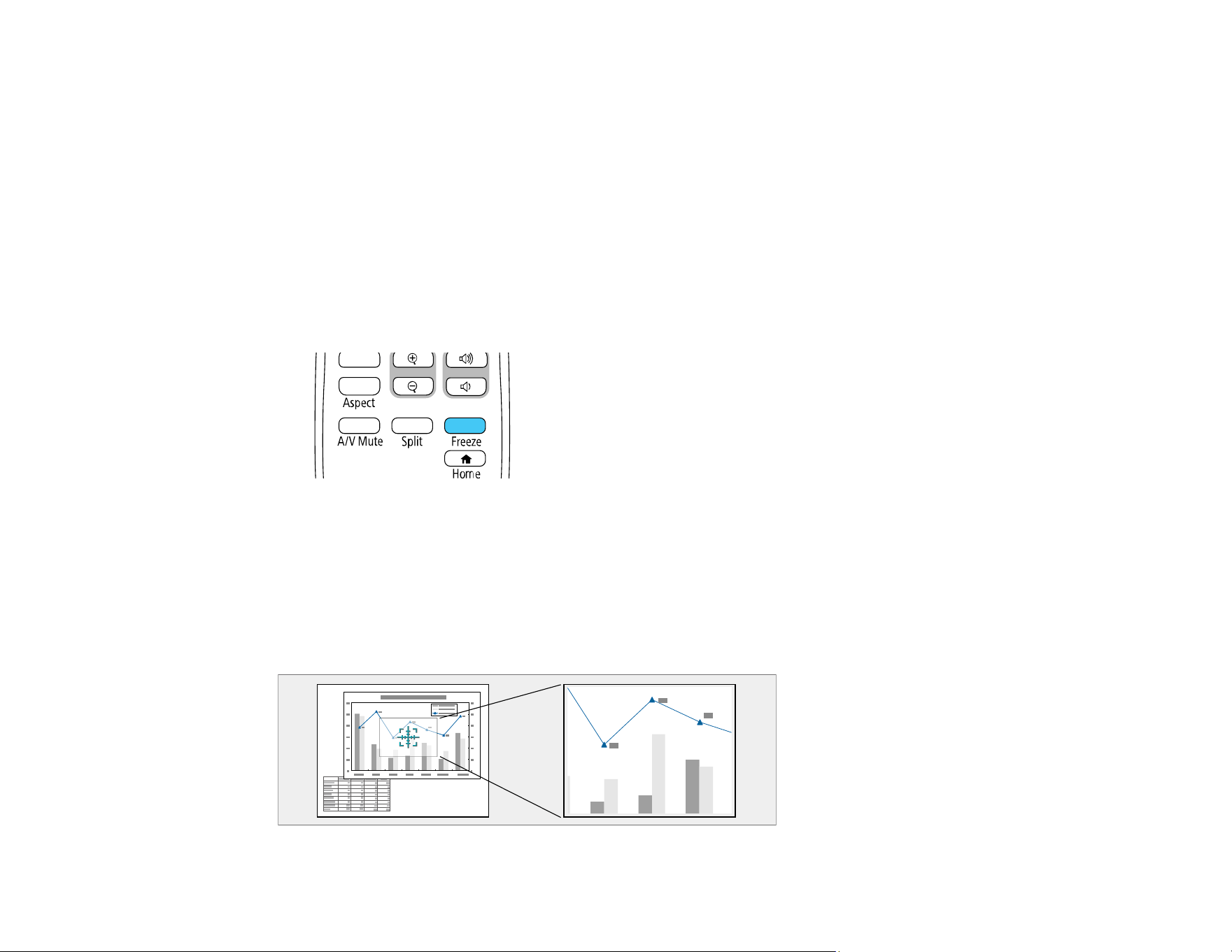

Stopping Video Action Temporarily .................................................................................................. 168
Zooming Into and Out of Images ...................................................................................................... 168

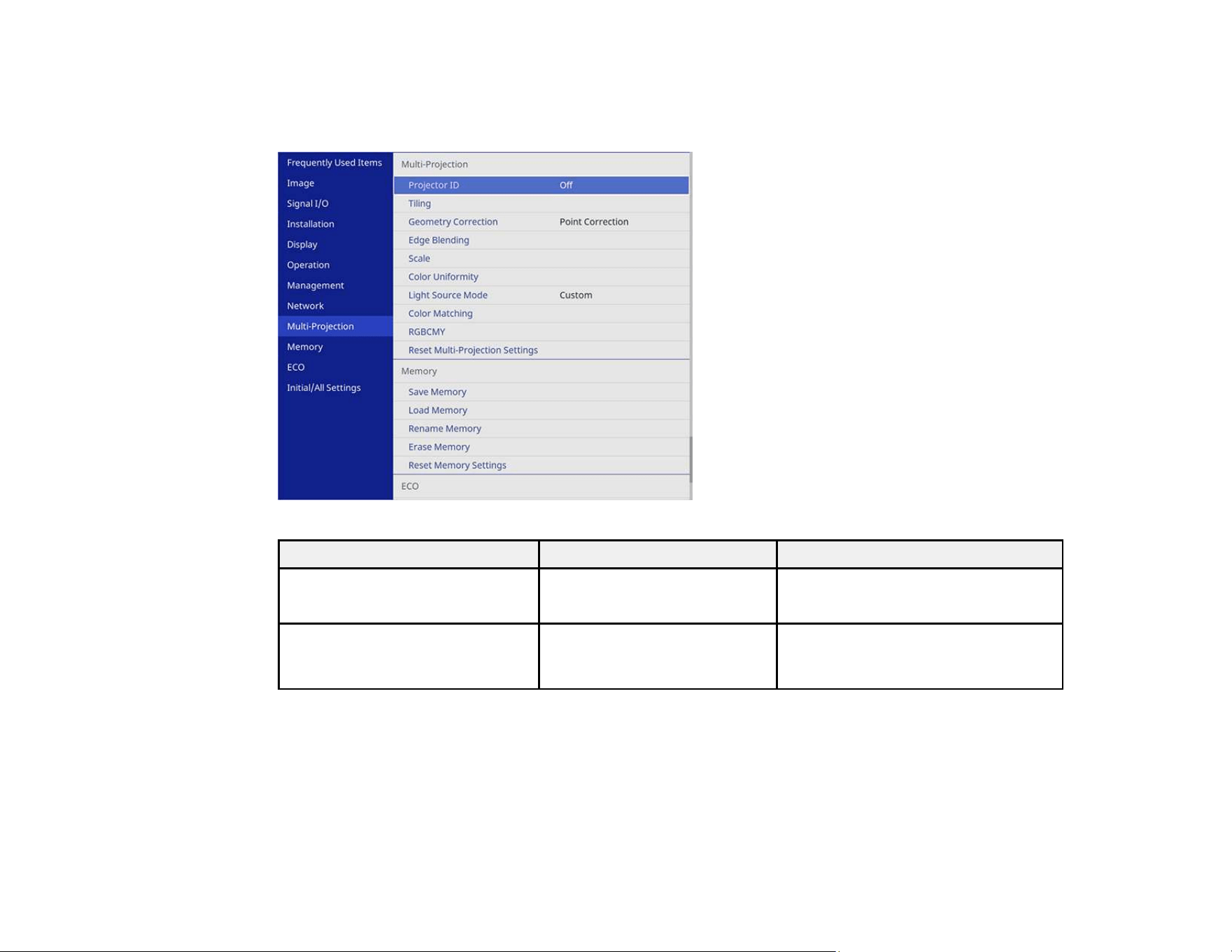

Using Multiple Projectors ................................................................................................................. 169
Projector Identification System for Multiple Projector Control ...................................................... 170

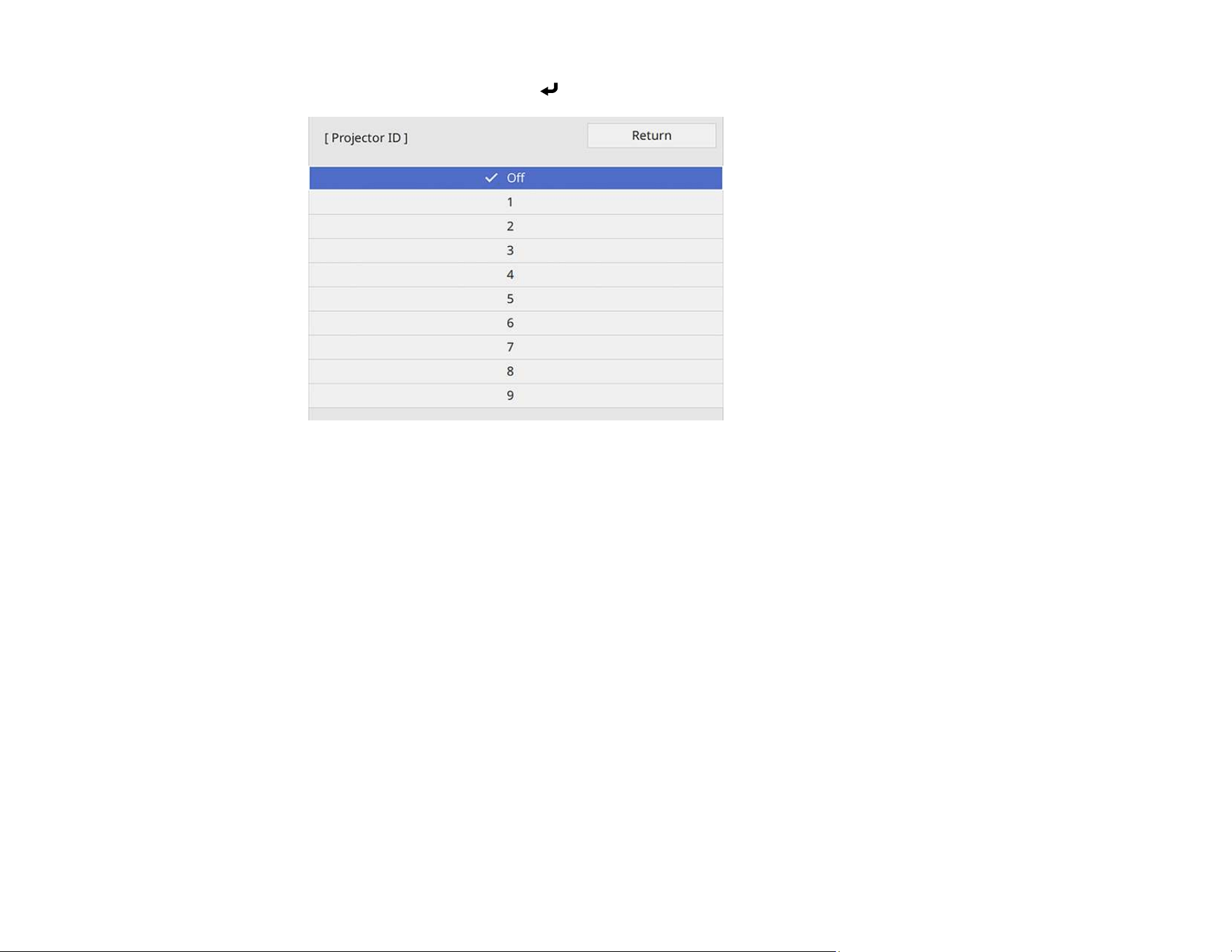

Setting the Projector ID........................................................................................................... 170
Setting the Remote Control ID ................................................................................................ 171

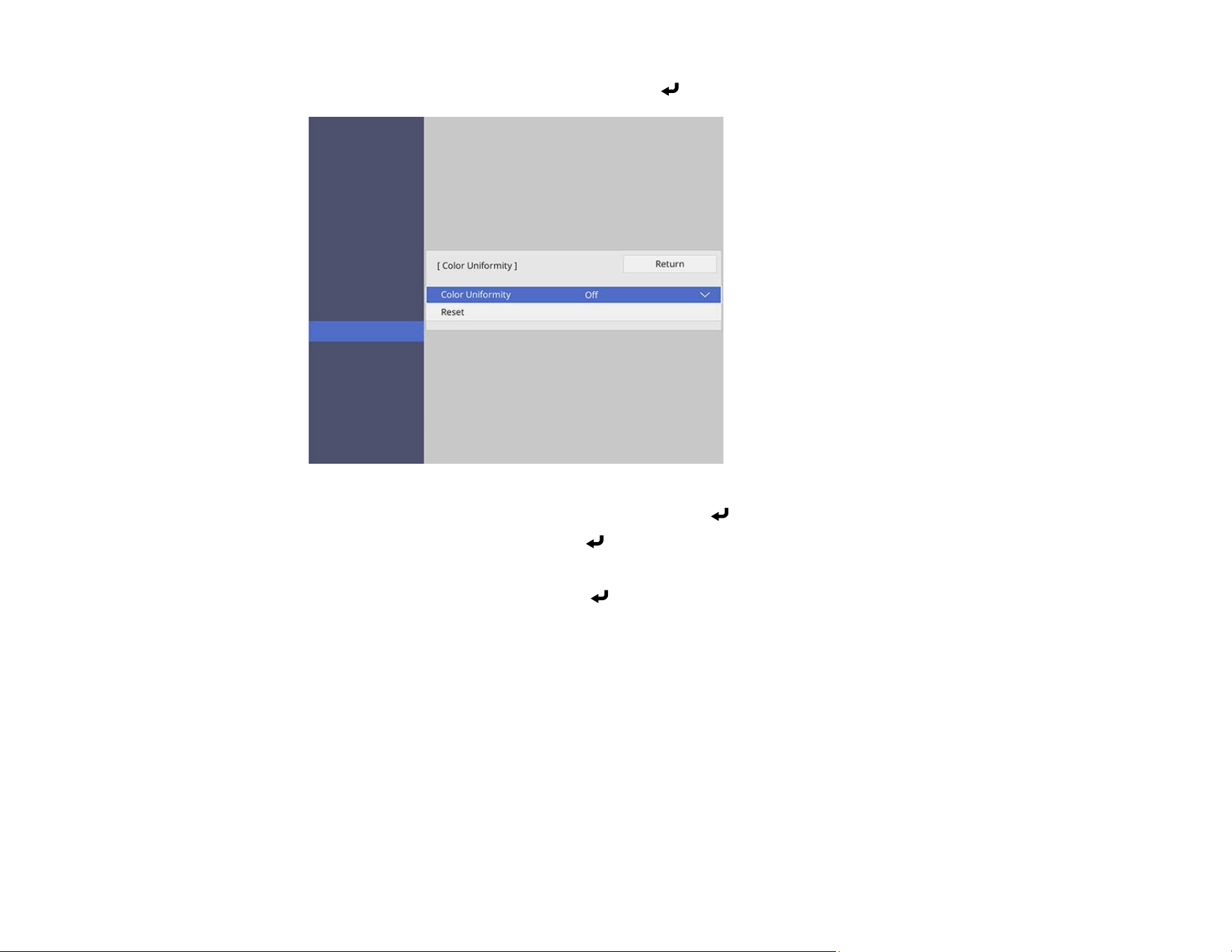

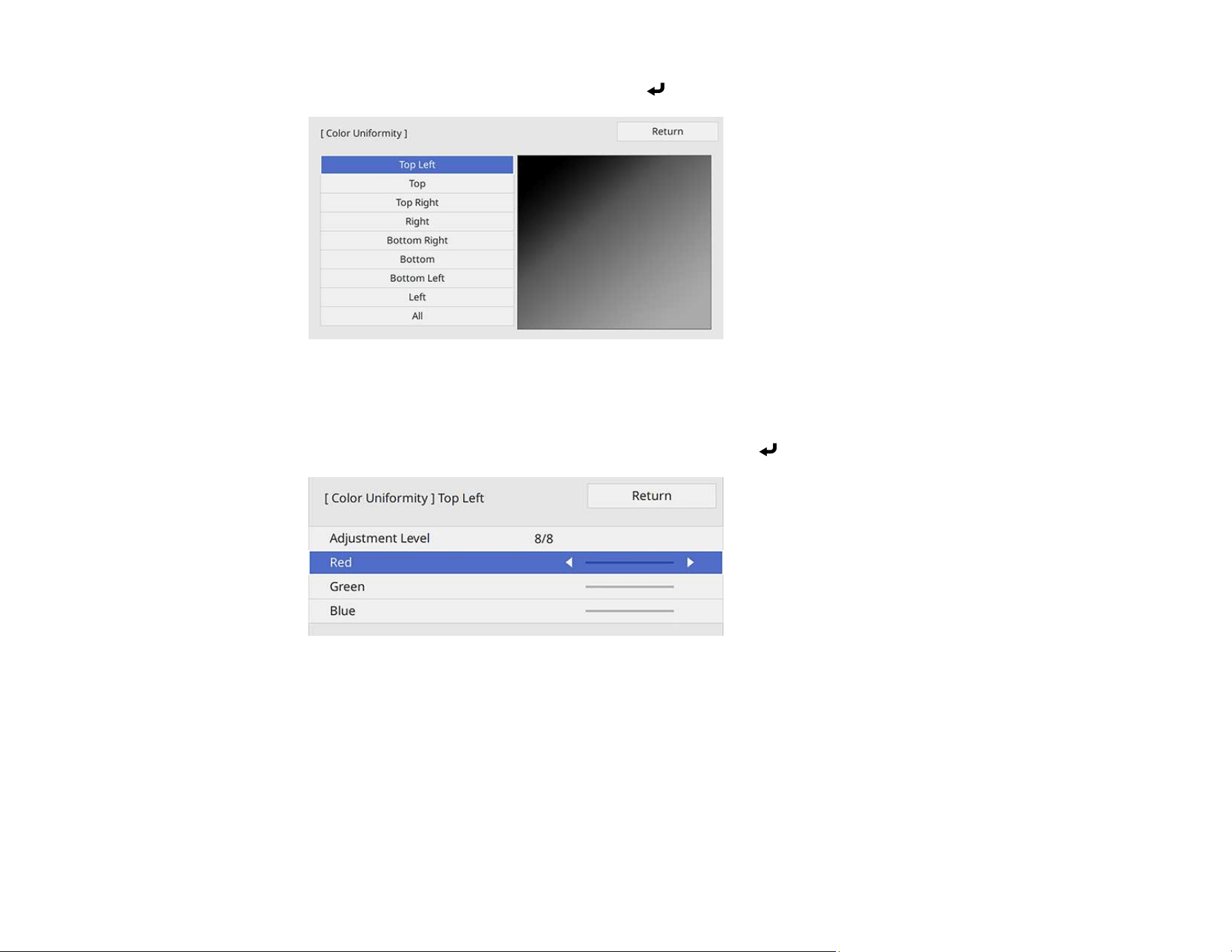

Adjusting Color Uniformity ........................................................................................................... 172

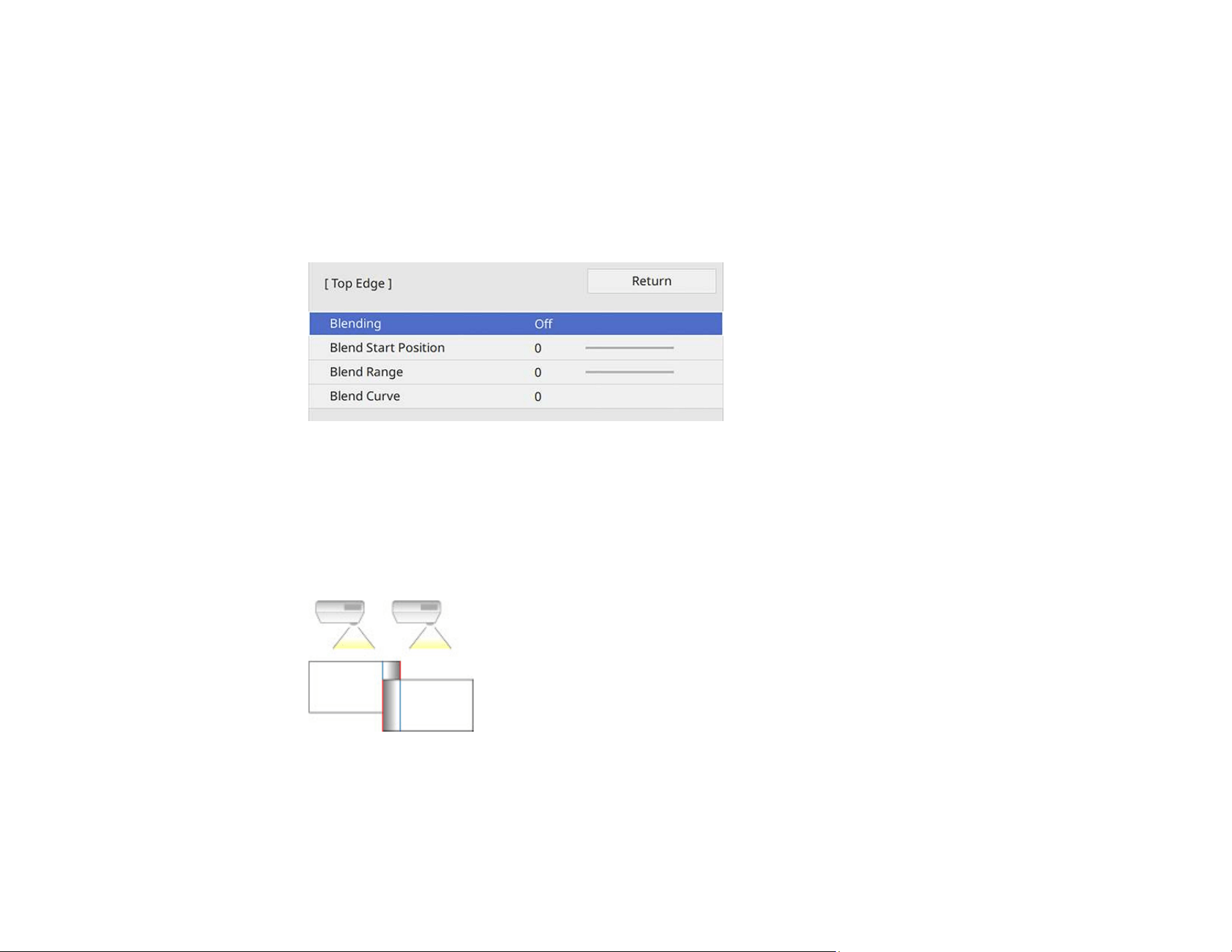

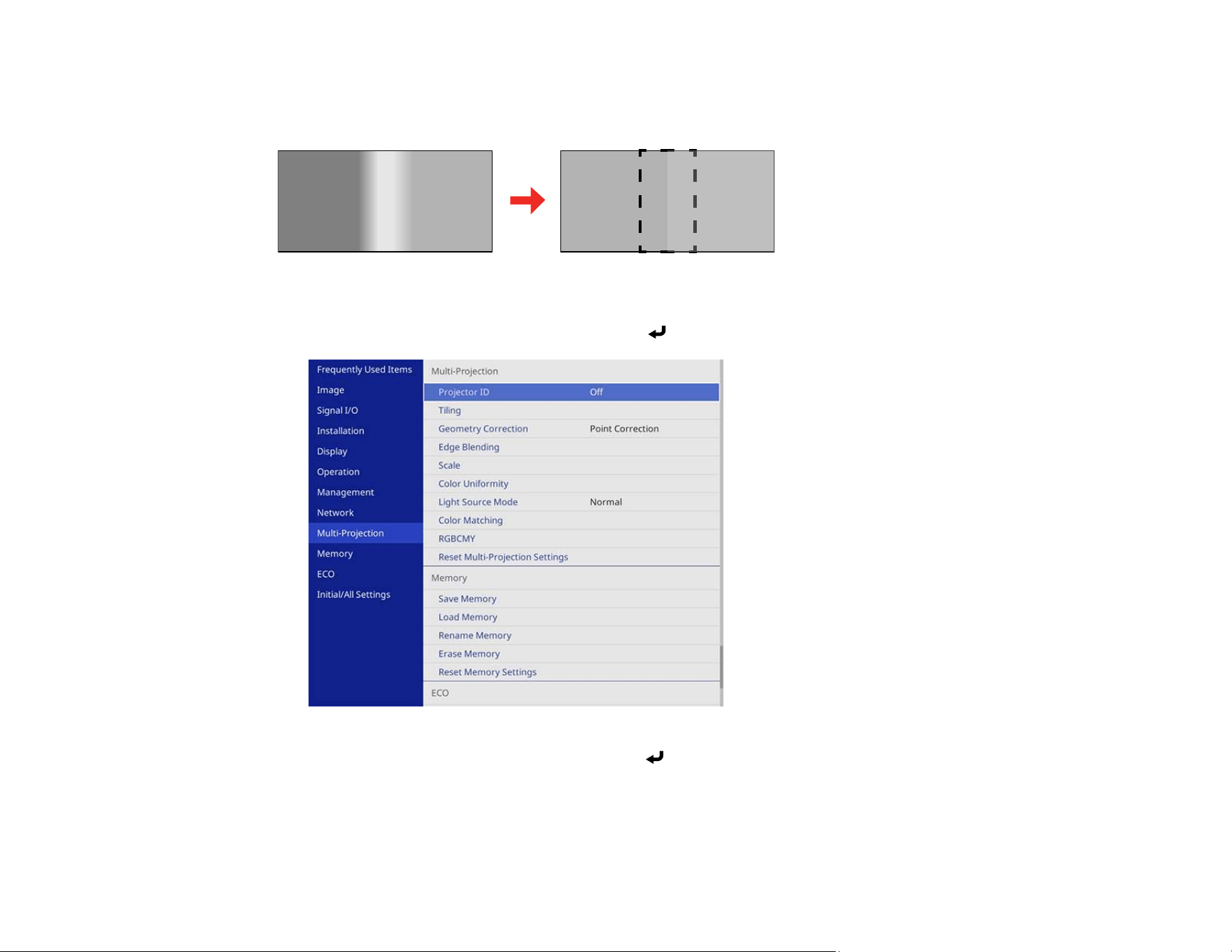

Blending the Image Edges........................................................................................................... 176

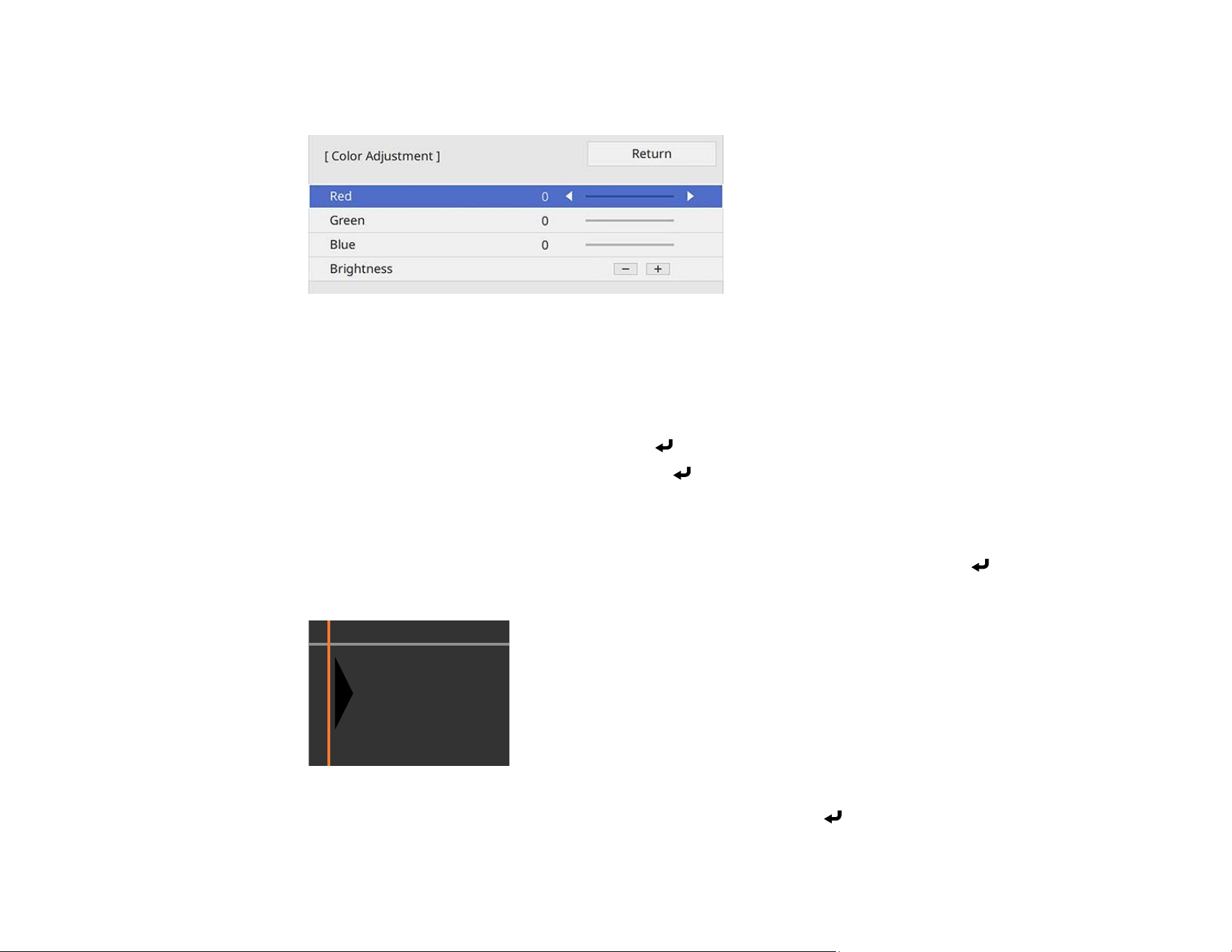

Matching the Image Colors.......................................................................................................... 178
Adjusting the Black Level............................................................................................................. 180

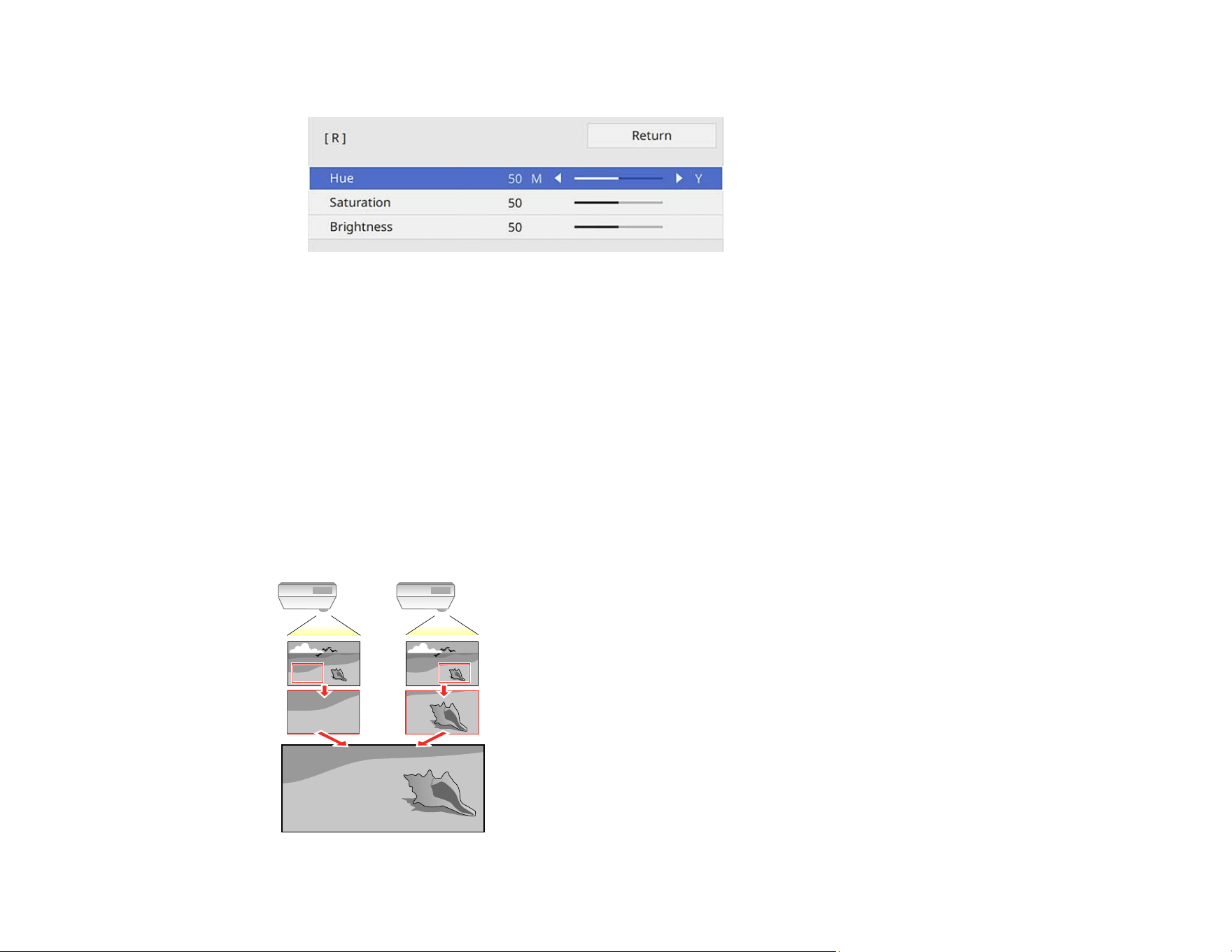

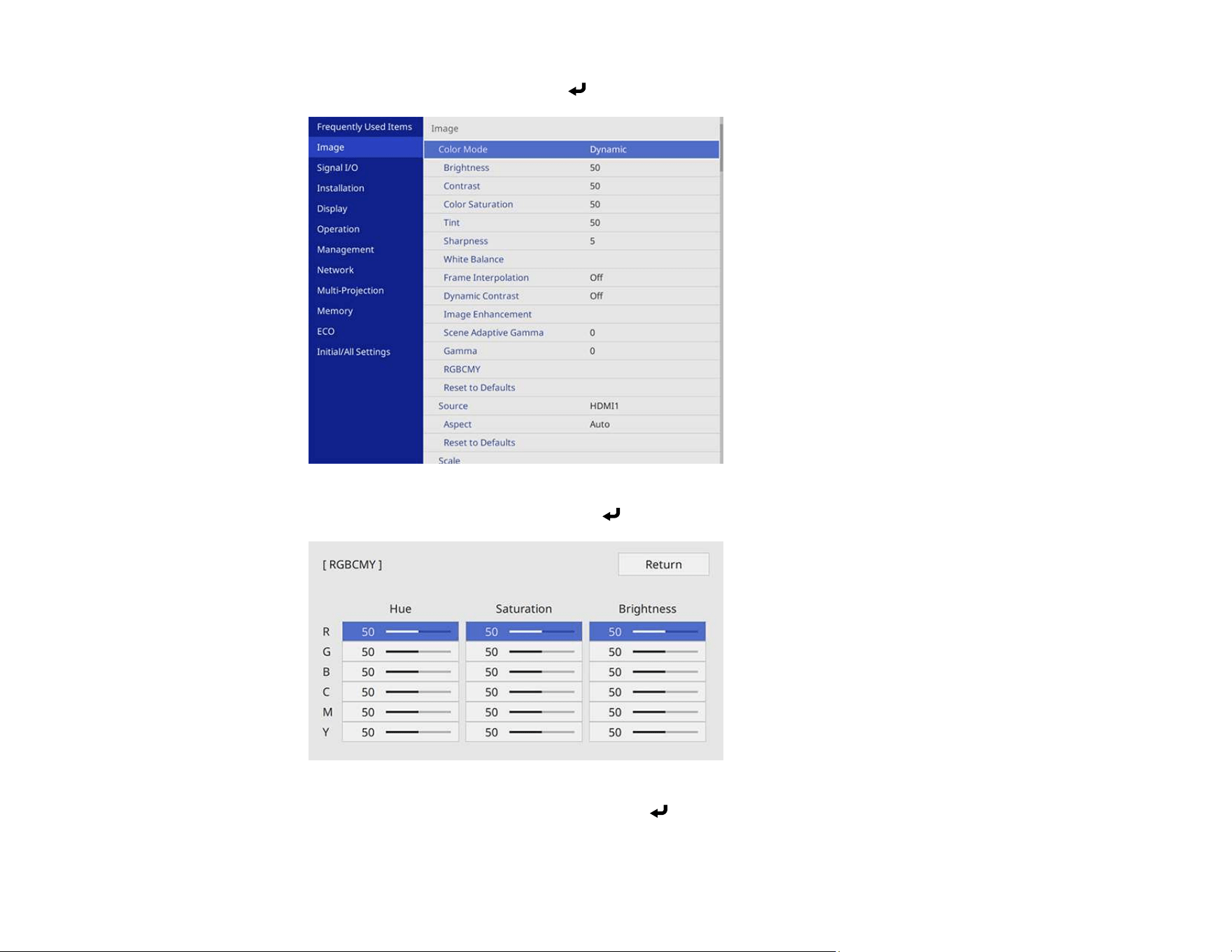

Adjusting RGBCMY..................................................................................................................... 183

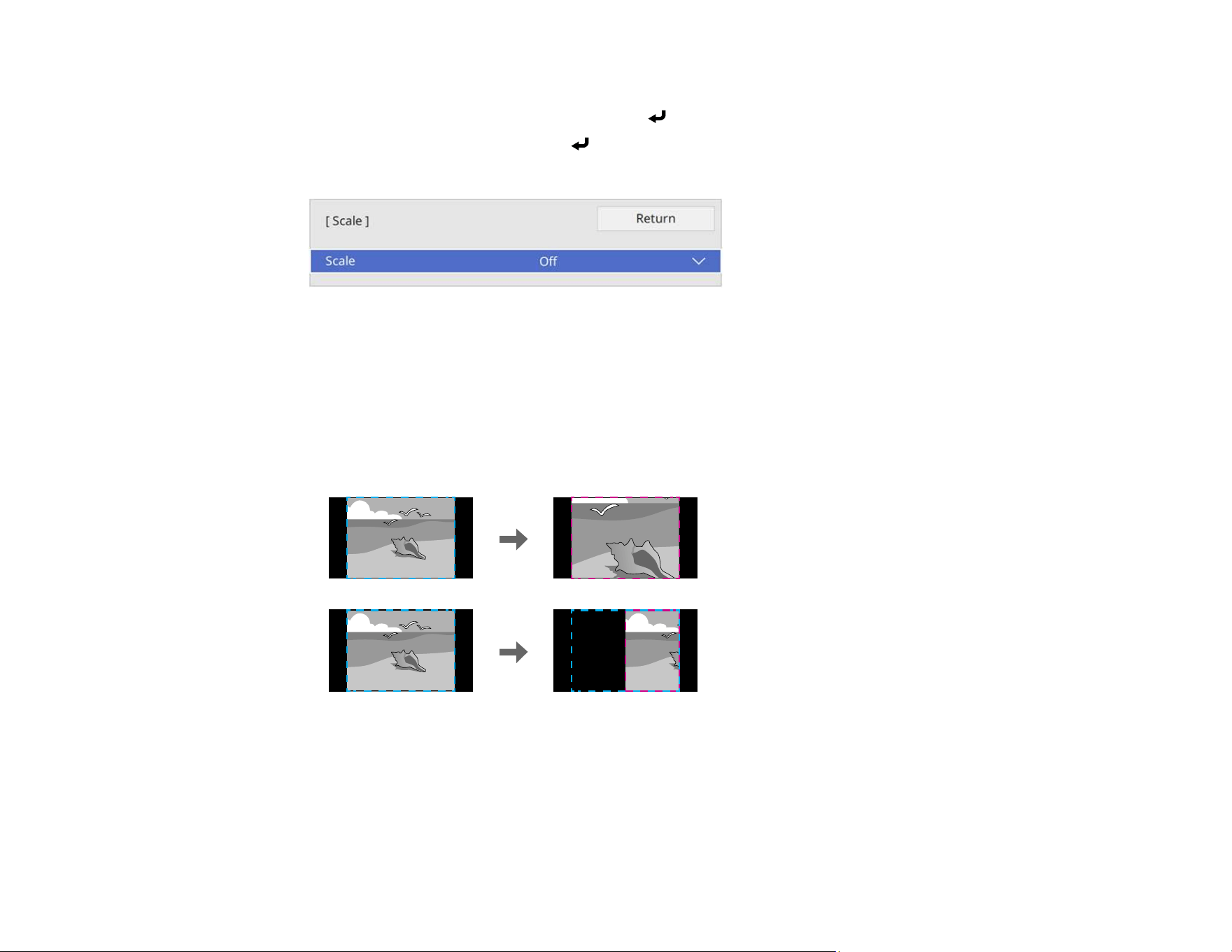

Scaling an Image......................................................................................................................... 185
Configuring Tiling Manually ......................................................................................................... 187

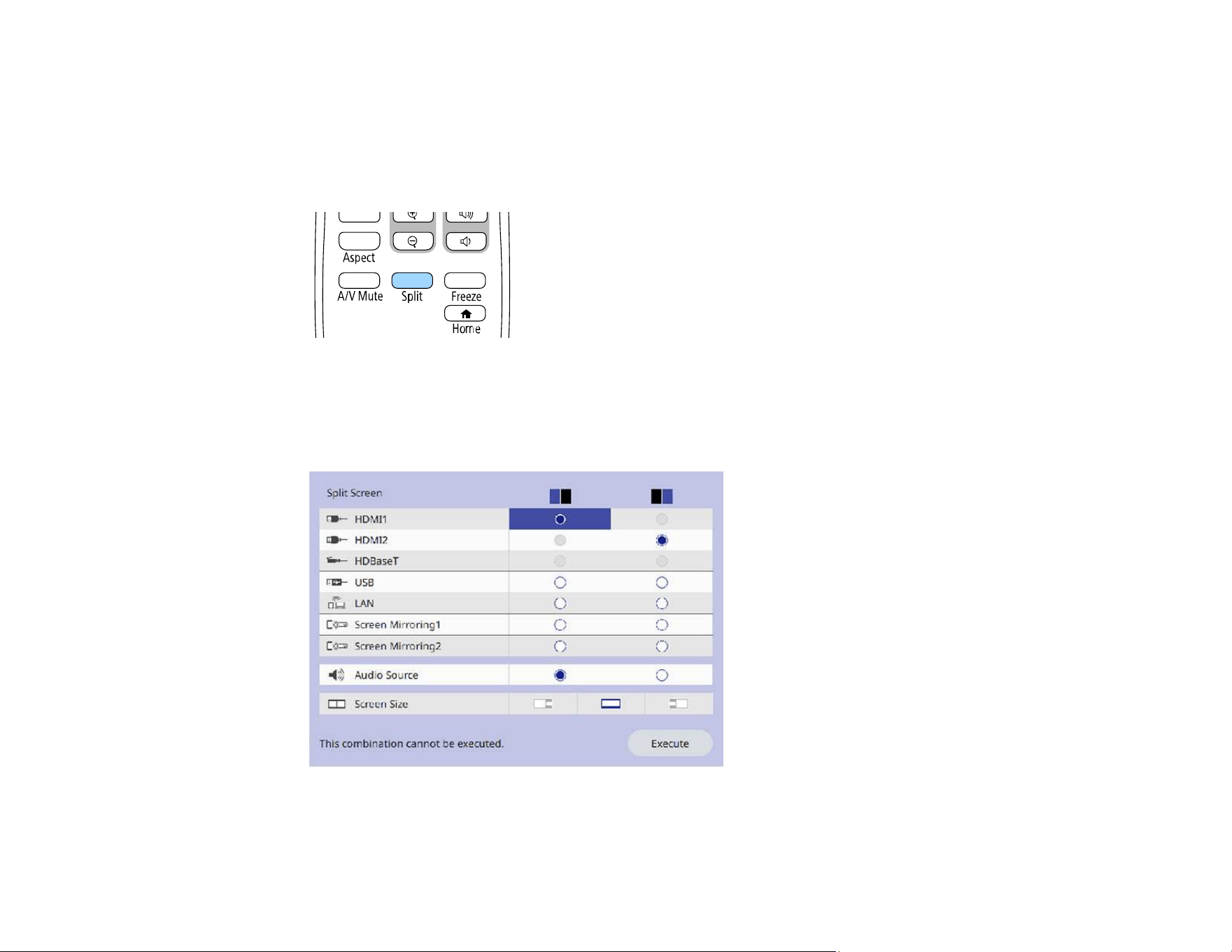

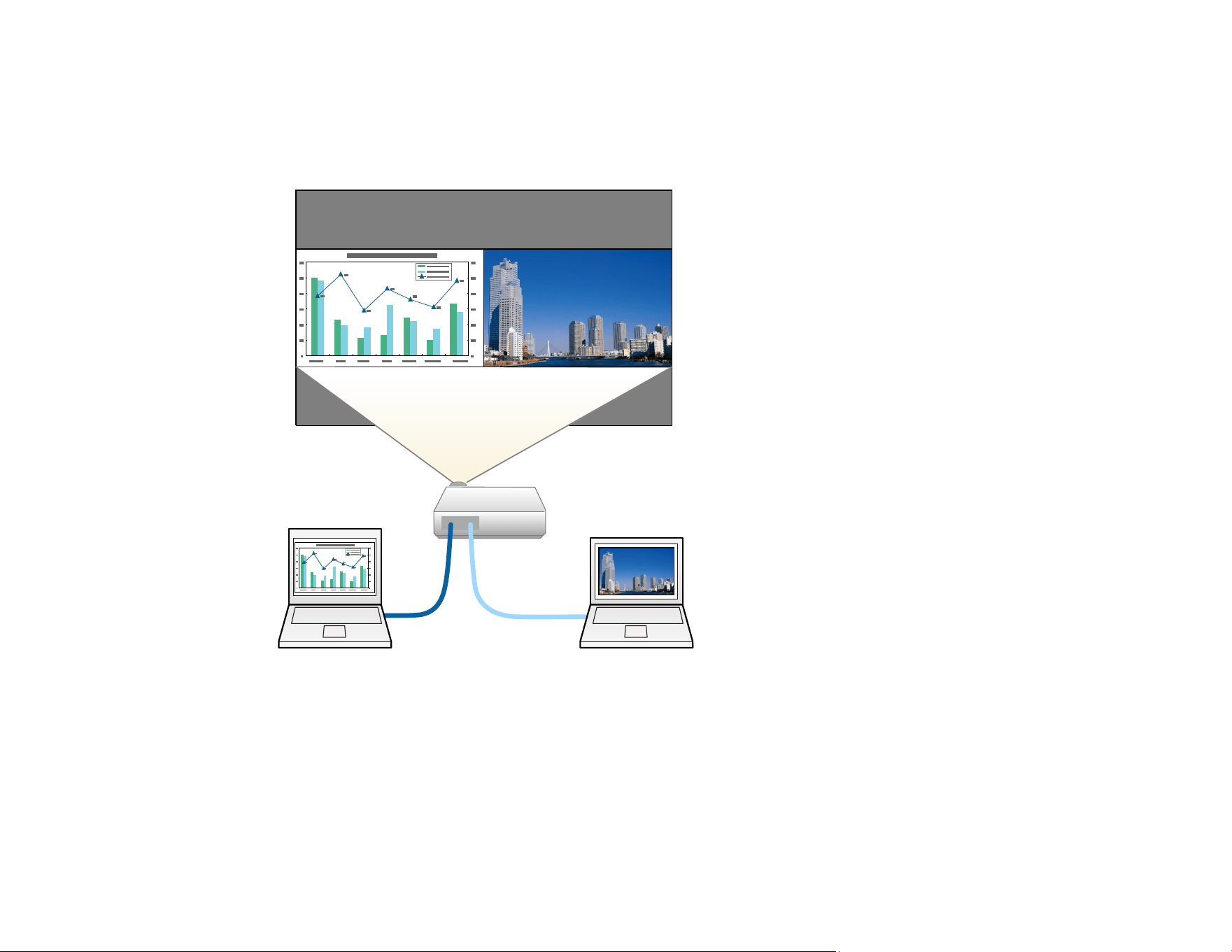

Projecting Two Images Simultaneously............................................................................................ 189
Split Screen Projection Restrictions............................................................................................. 191
Projector Security Features.............................................................................................................. 191
Password Security Types ............................................................................................................ 192

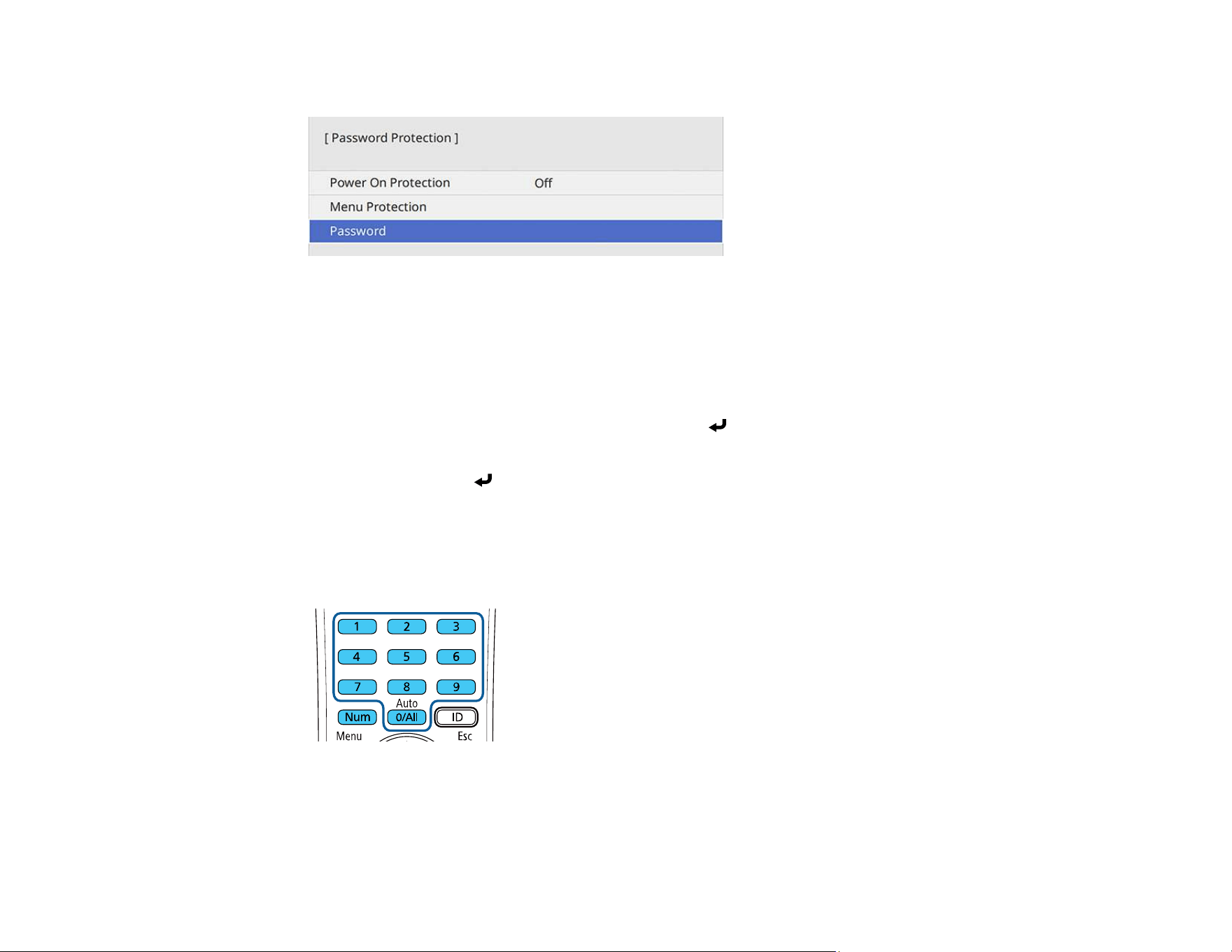

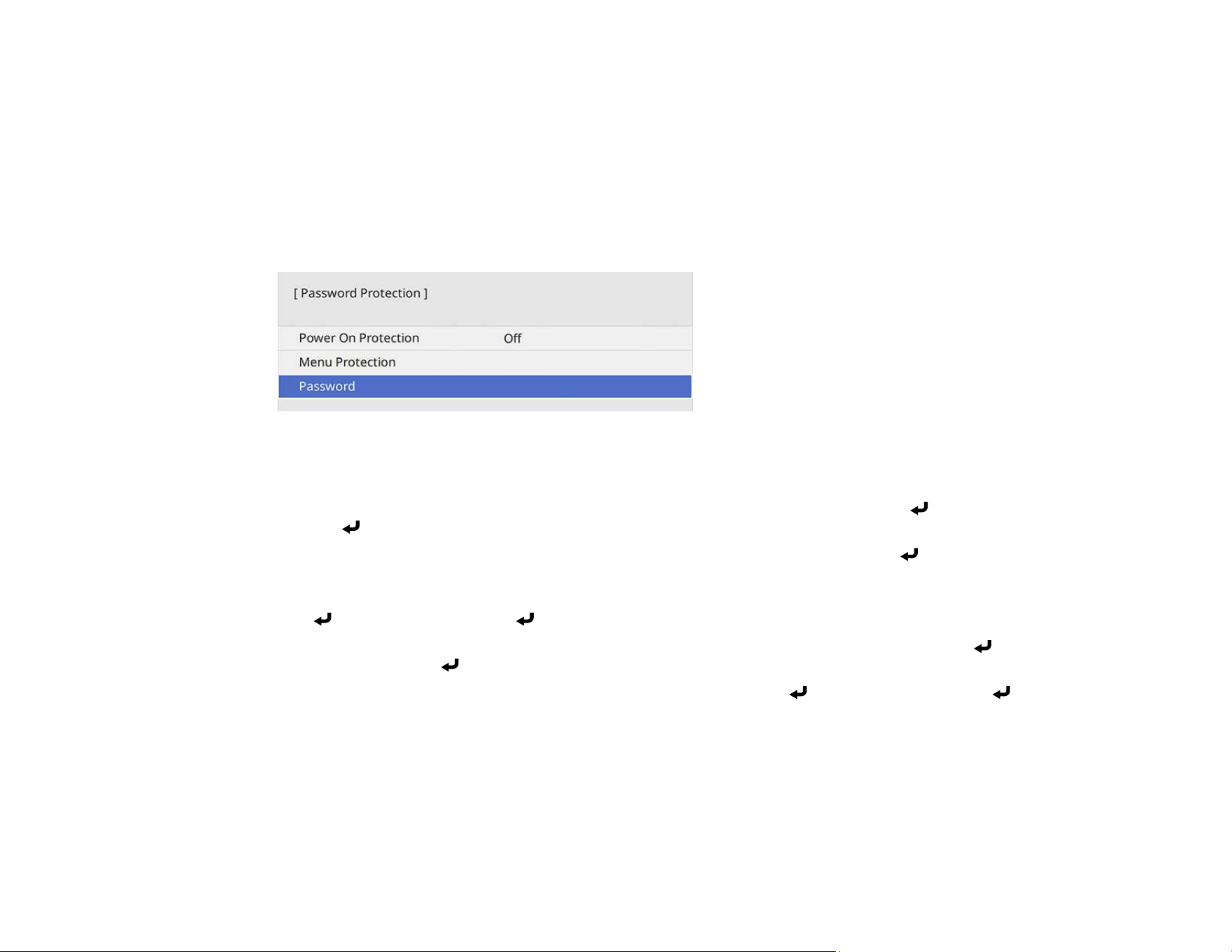

Setting a Password ................................................................................................................. 192
Selecting Password Security Types........................................................................................ 194
Entering a Password to Use the Projector............................................................................... 195
Saving a User's Logo Image to Display................................................................................... 196
Locking the Projector's Buttons ................................................................................................... 198
Unlocking the Projector's Buttons ........................................................................................... 199
Installing a Security Cable ........................................................................................................... 199
Creating a User Pattern to Display ................................................................................................... 201
Adjusting the Color Convergence (Panel Alignment) ....................................................................... 203

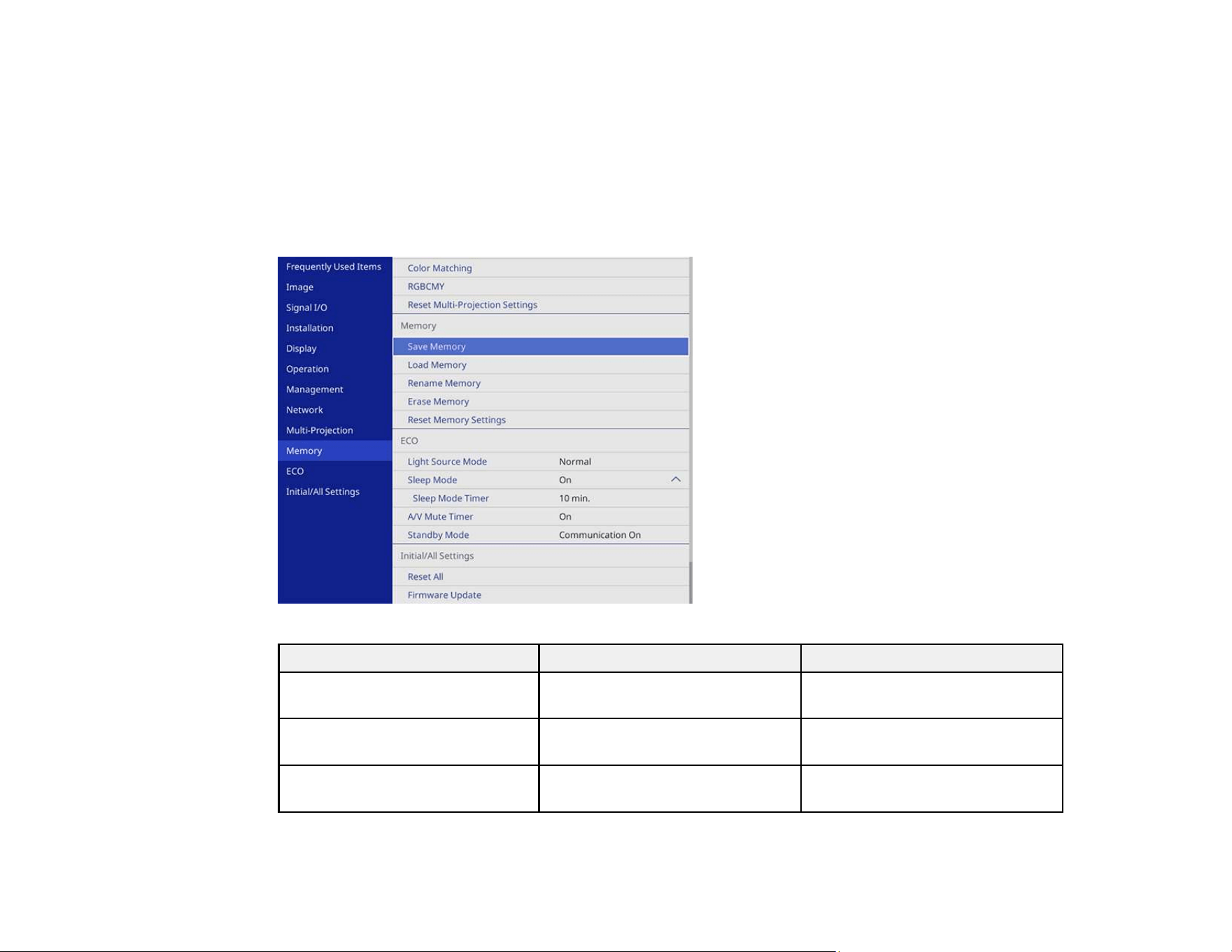

Saving Settings to Memory and Using Saved Settings .................................................................... 205
Copying Menu Settings Between Projectors .................................................................................... 206
Saving Settings to a USB Flash Drive.......................................................................................... 207
Transferring Settings from a USB Flash Drive ............................................................................. 208
Saving Settings to a Computer .................................................................................................... 209
8
Transferring Settings from a Computer ....................................................................................... 210

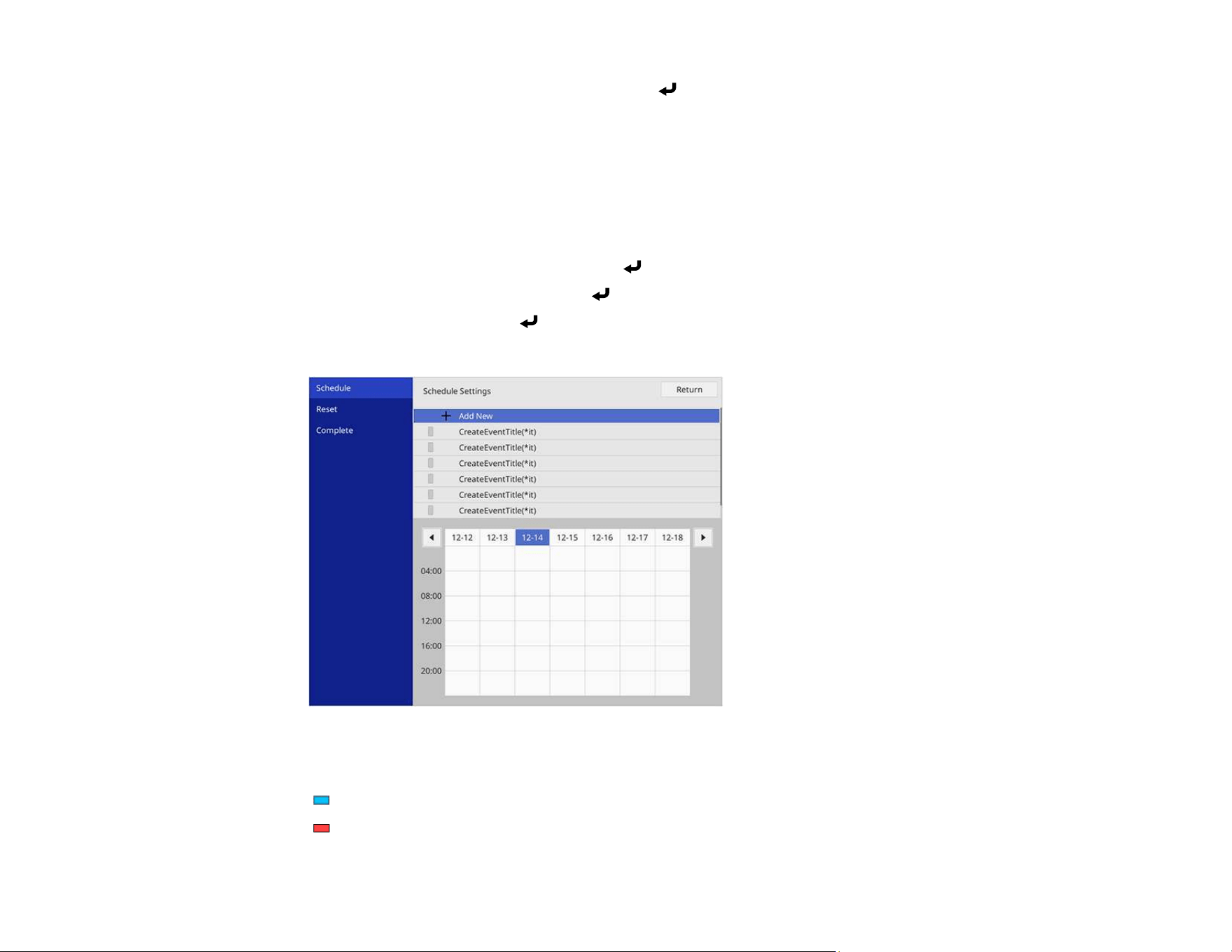

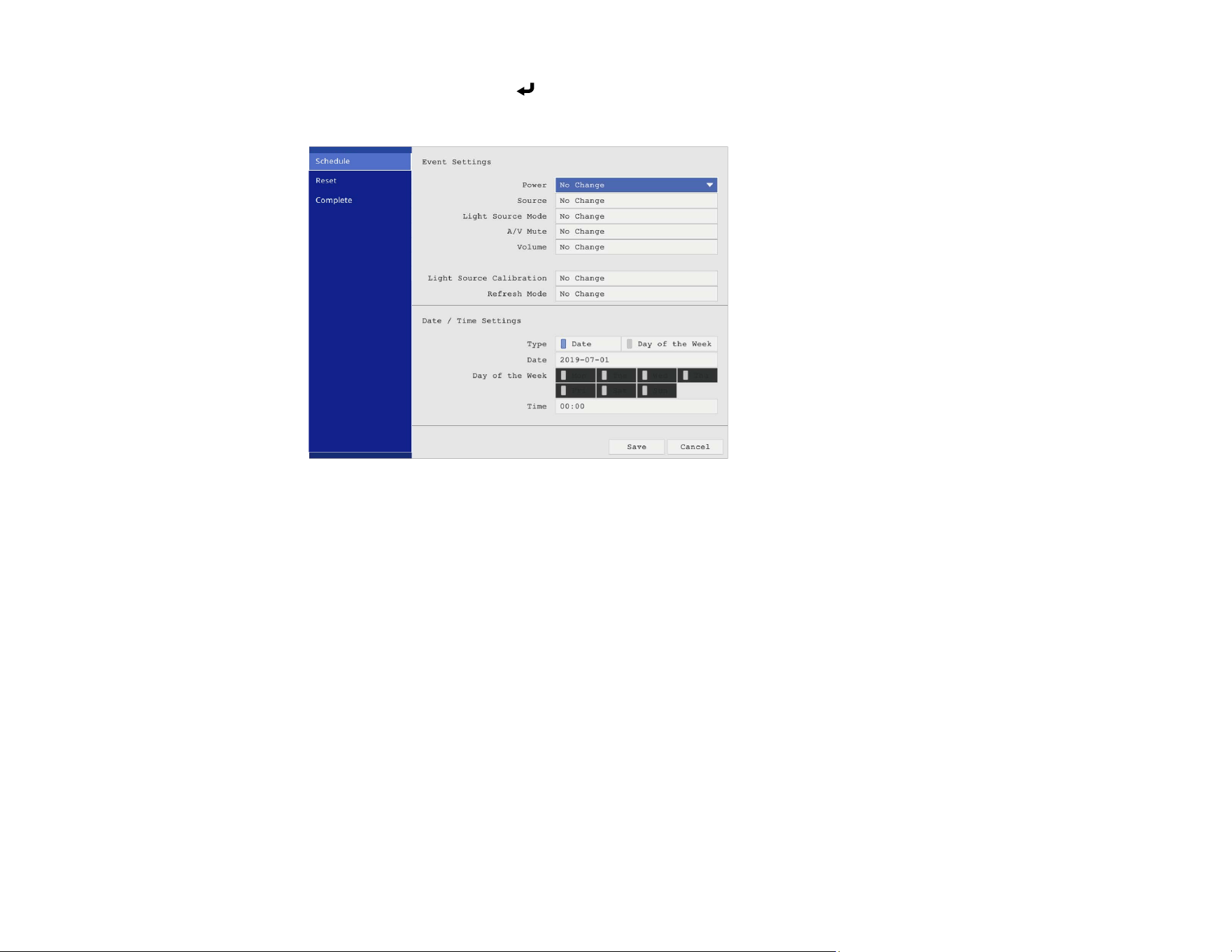

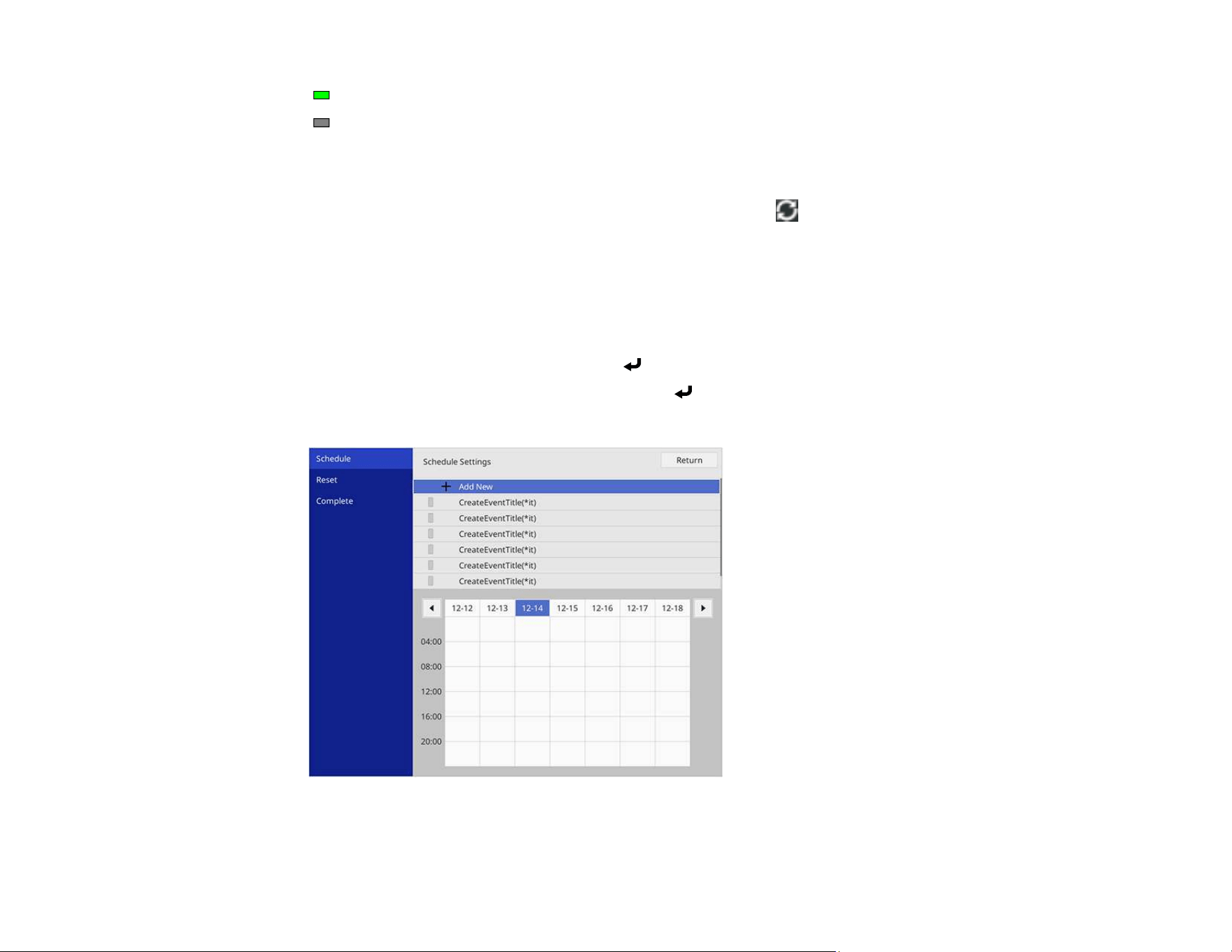

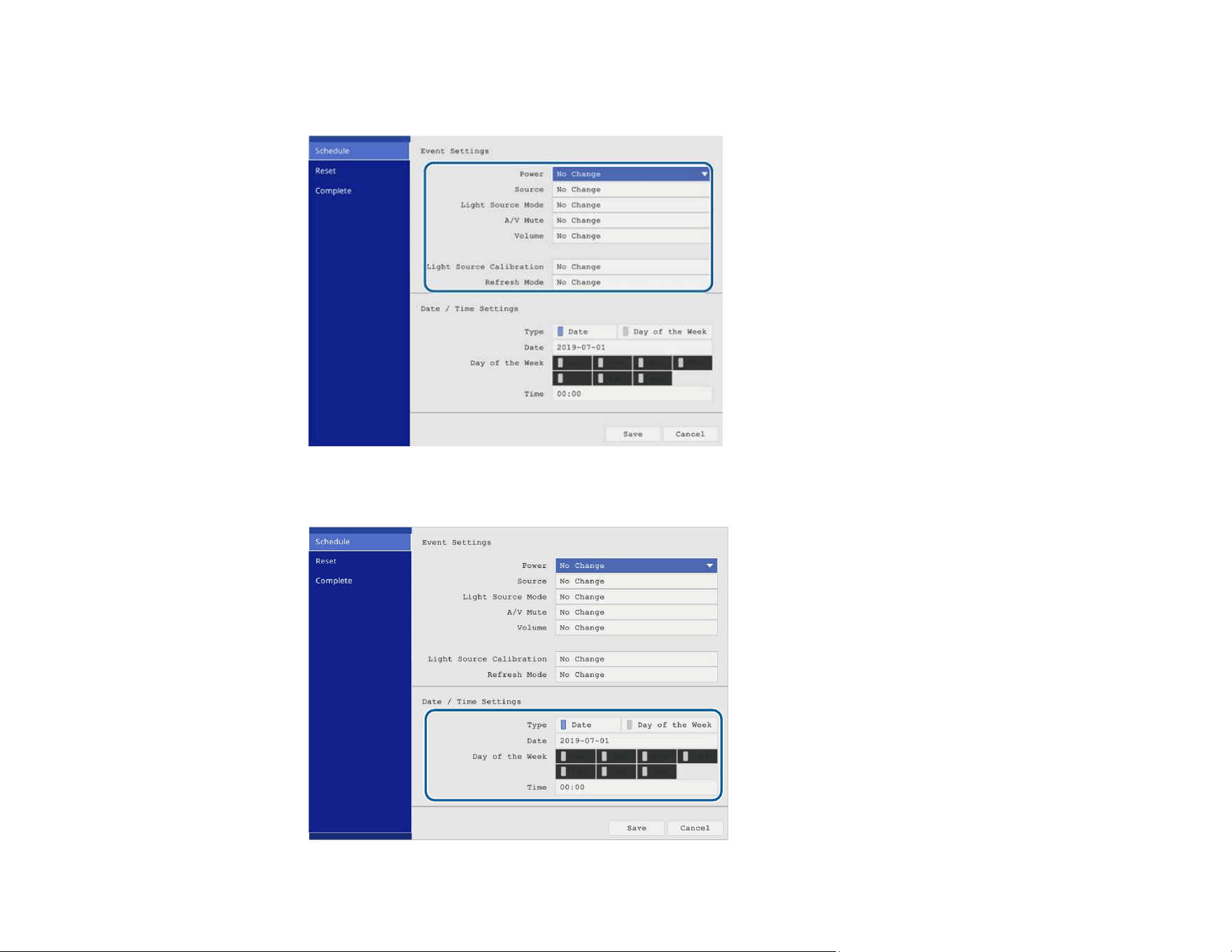

Scheduling Projector Events ............................................................................................................ 211
Saving a Scheduled Event........................................................................................................... 211
Viewing Scheduled Events .......................................................................................................... 214
Editing a Scheduled Event........................................................................................................... 215
Adjusting the Menu Settings .................................................................................................................. 217
Using the Projector's Menus............................................................................................................. 217

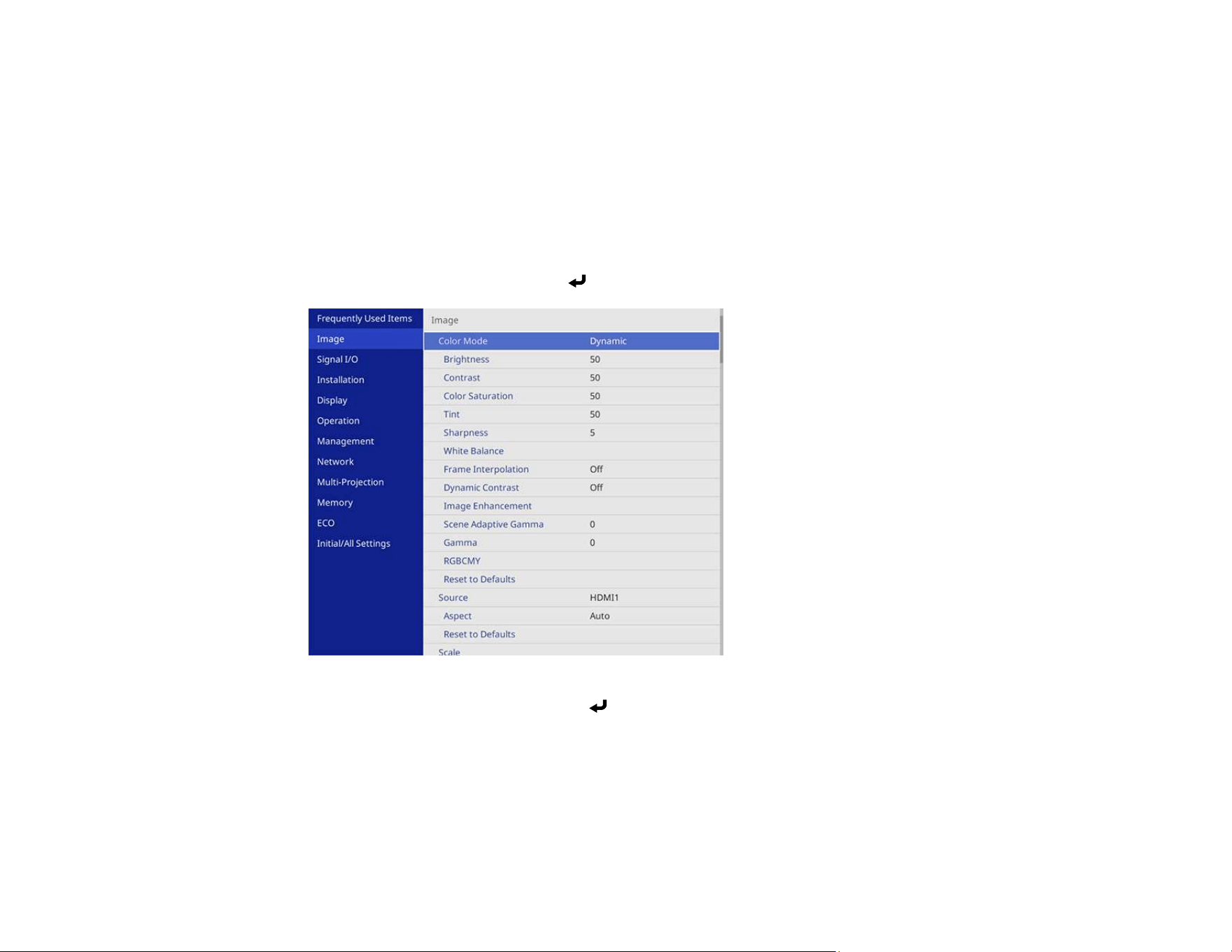

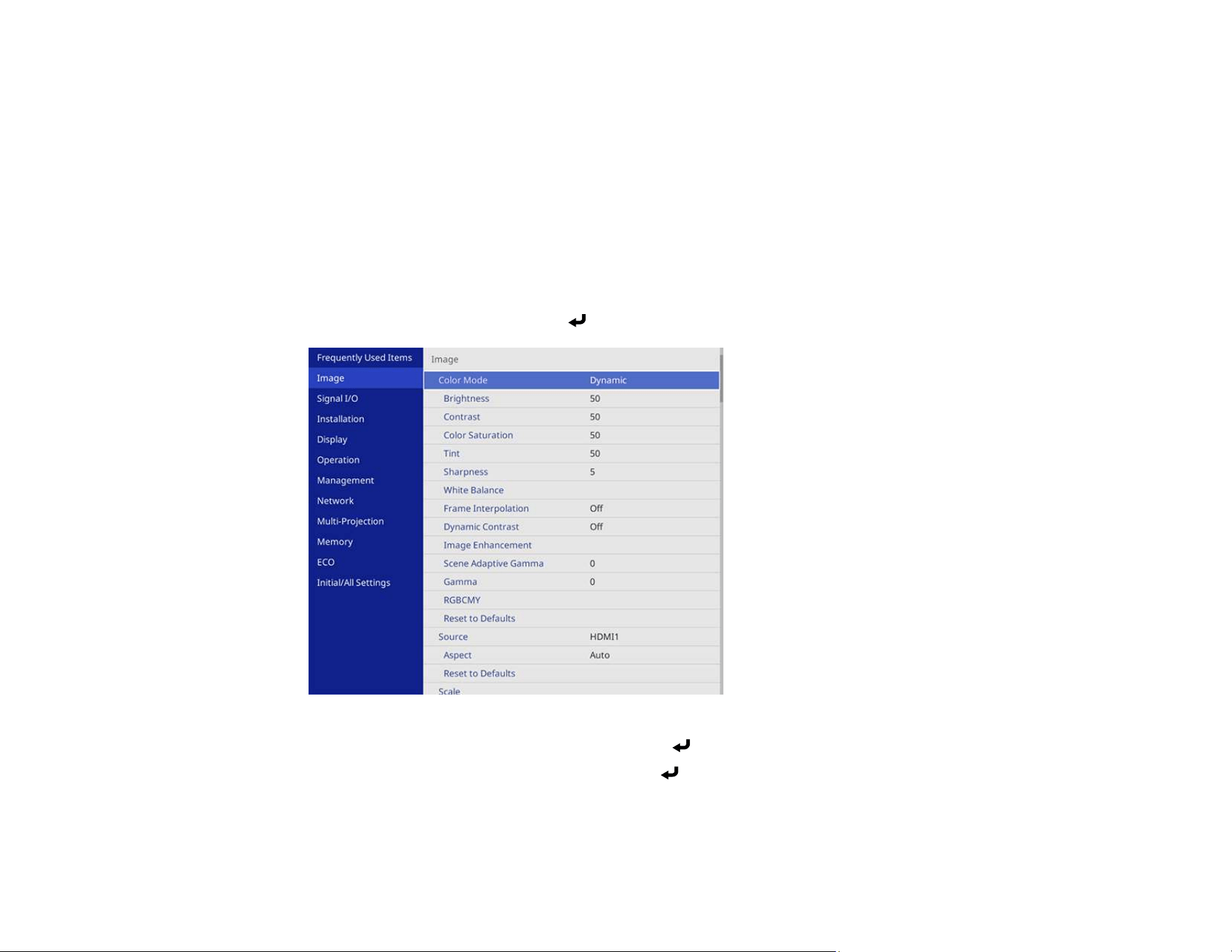

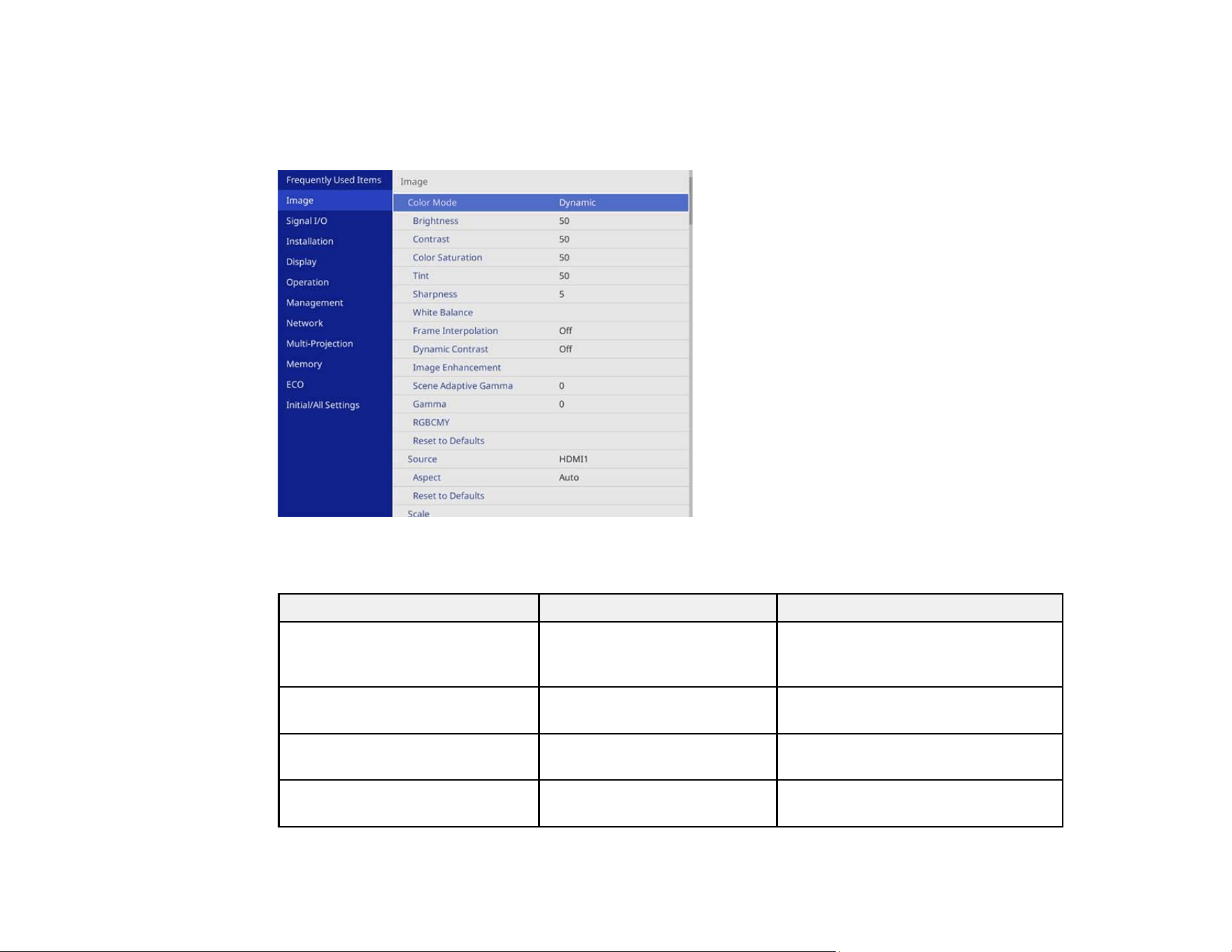

Image Quality Settings - Image Menu .............................................................................................. 219

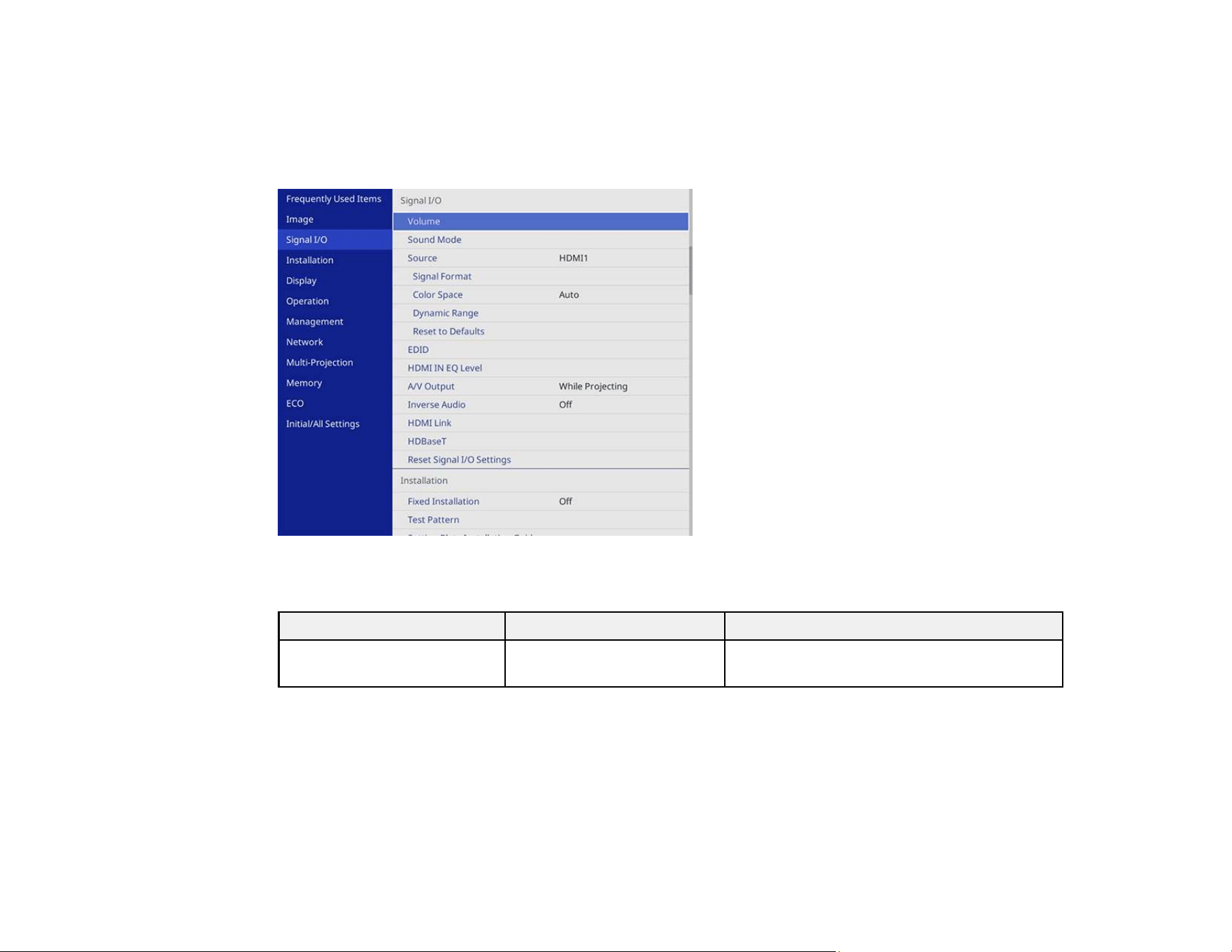

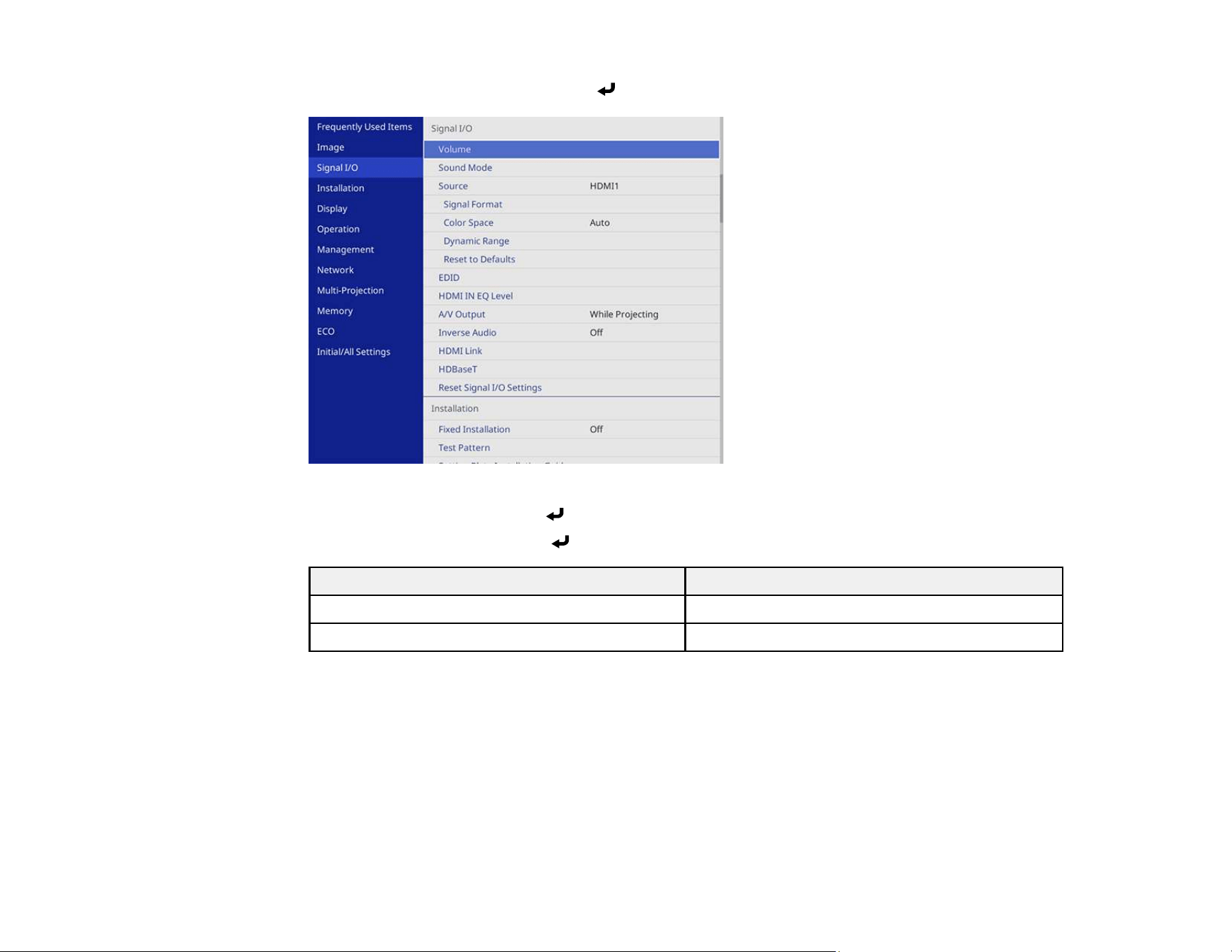

Input Signal Settings - Signal I/O Menu............................................................................................ 223

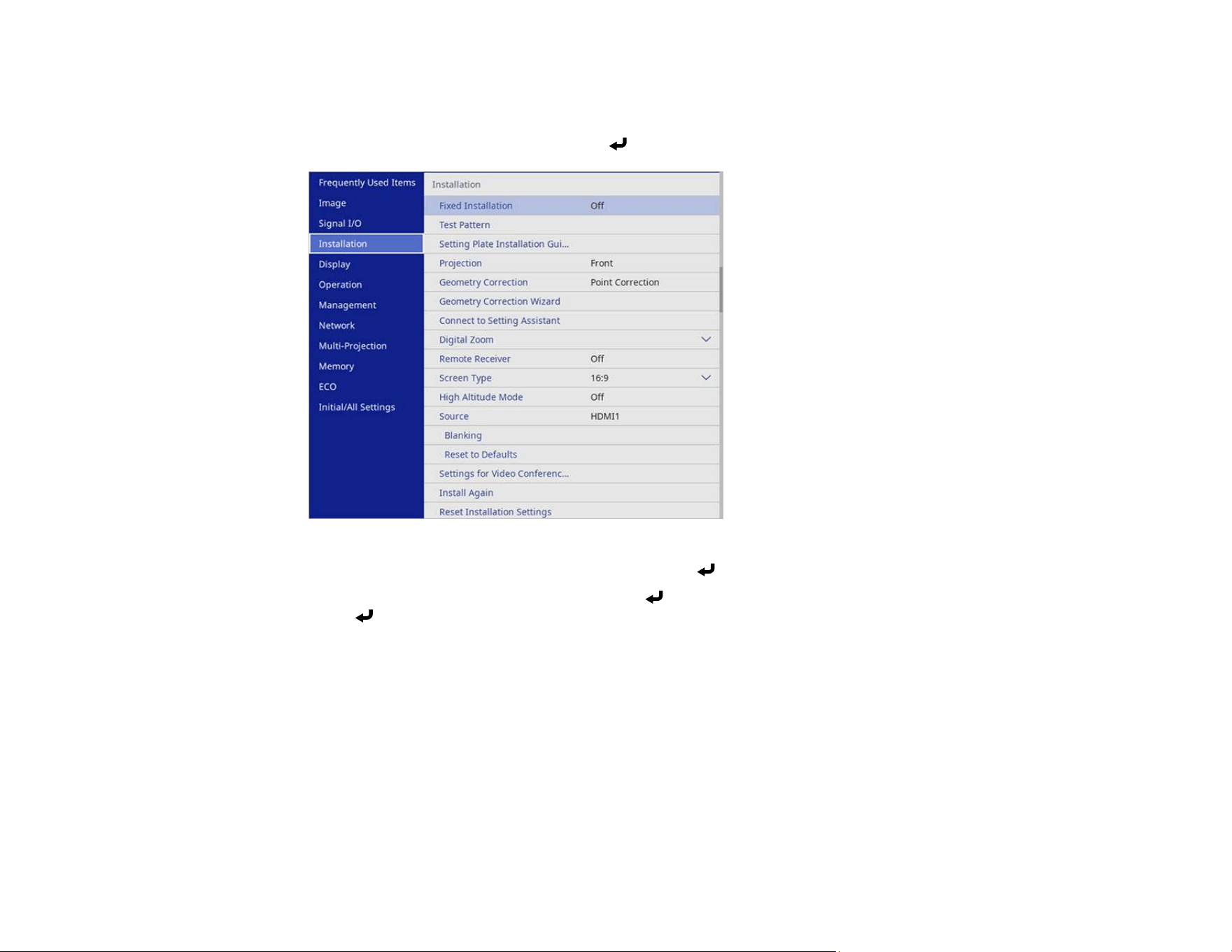

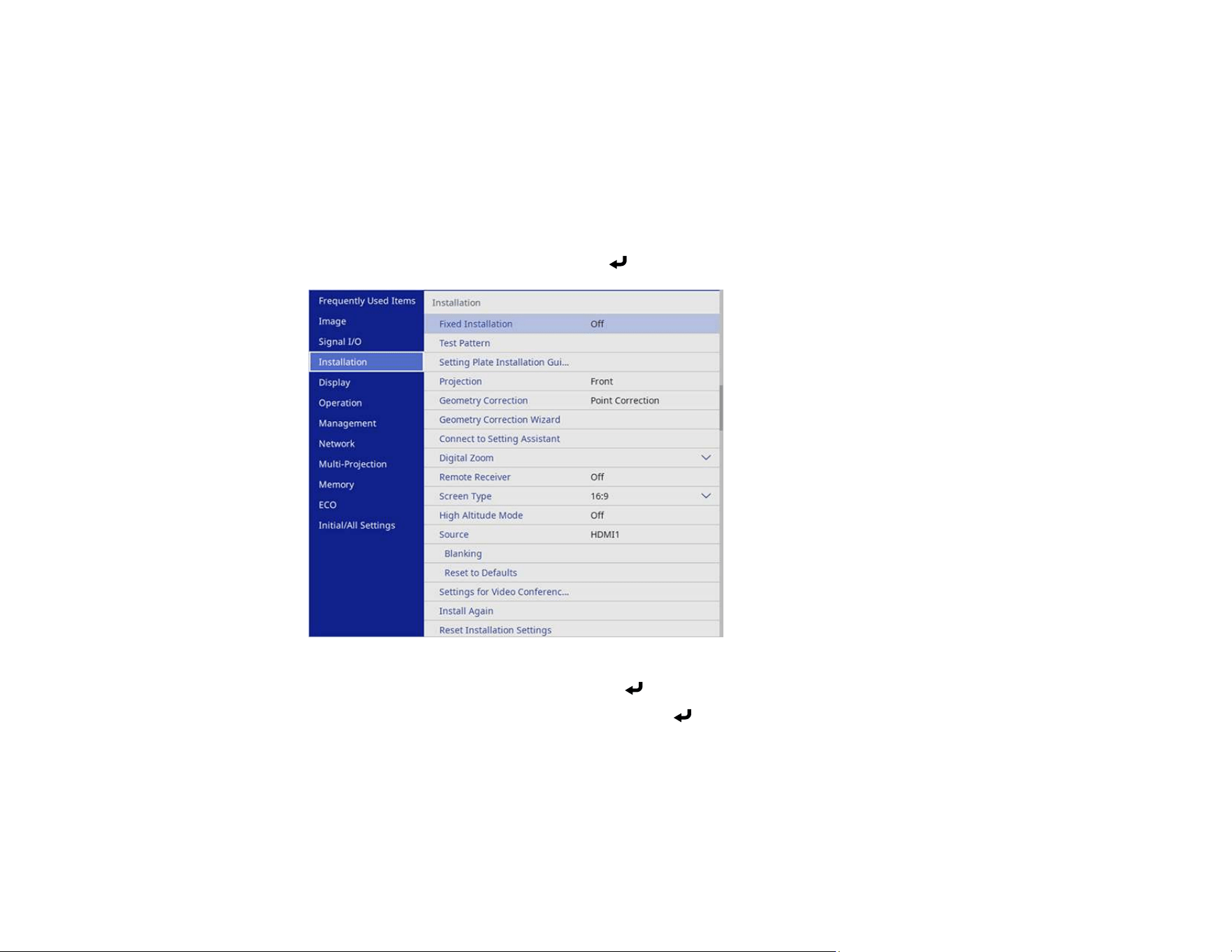

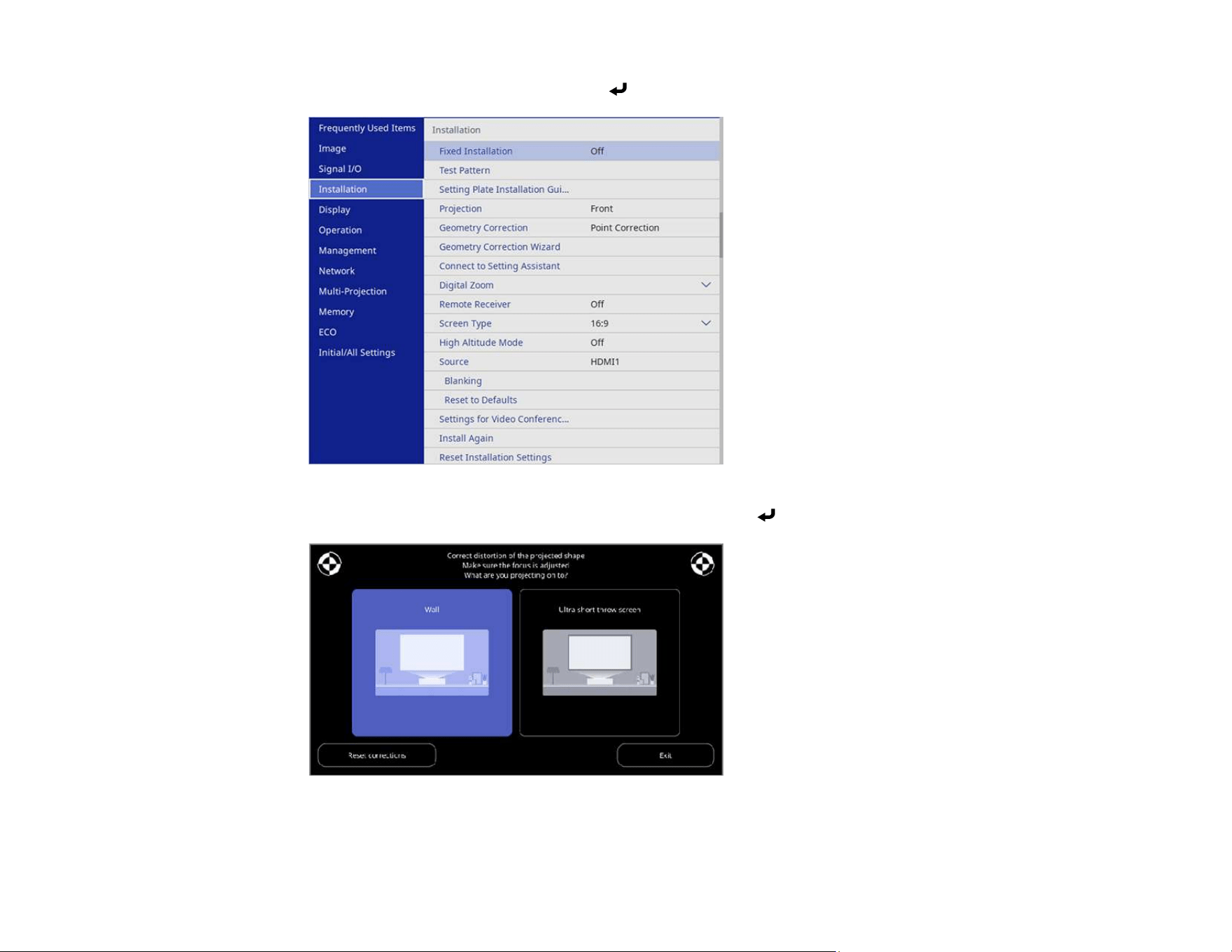

Installation Settings - Installation Menu............................................................................................ 228
Display Settings - Display Menu....................................................................................................... 233

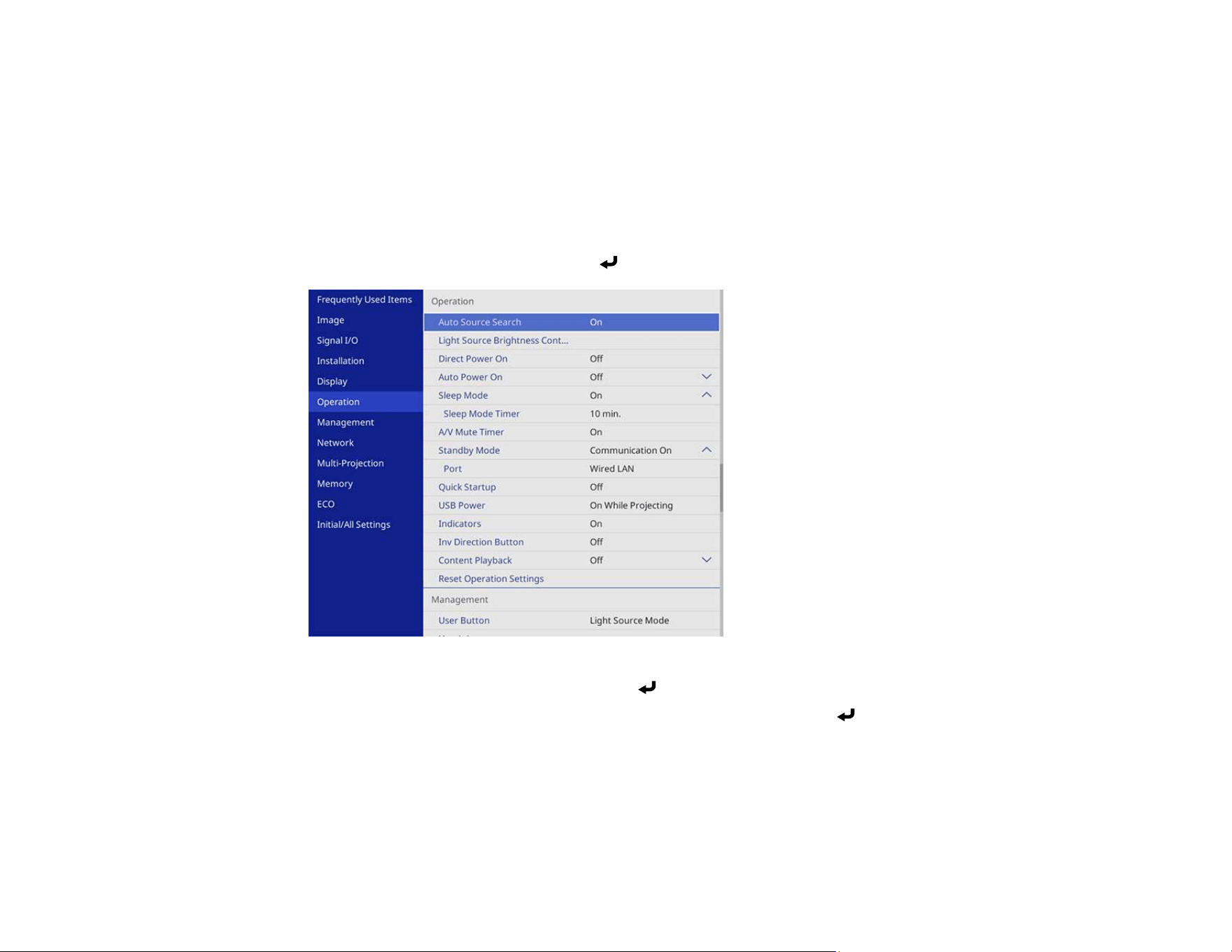

Feature Settings - Operation Menu .................................................................................................. 236

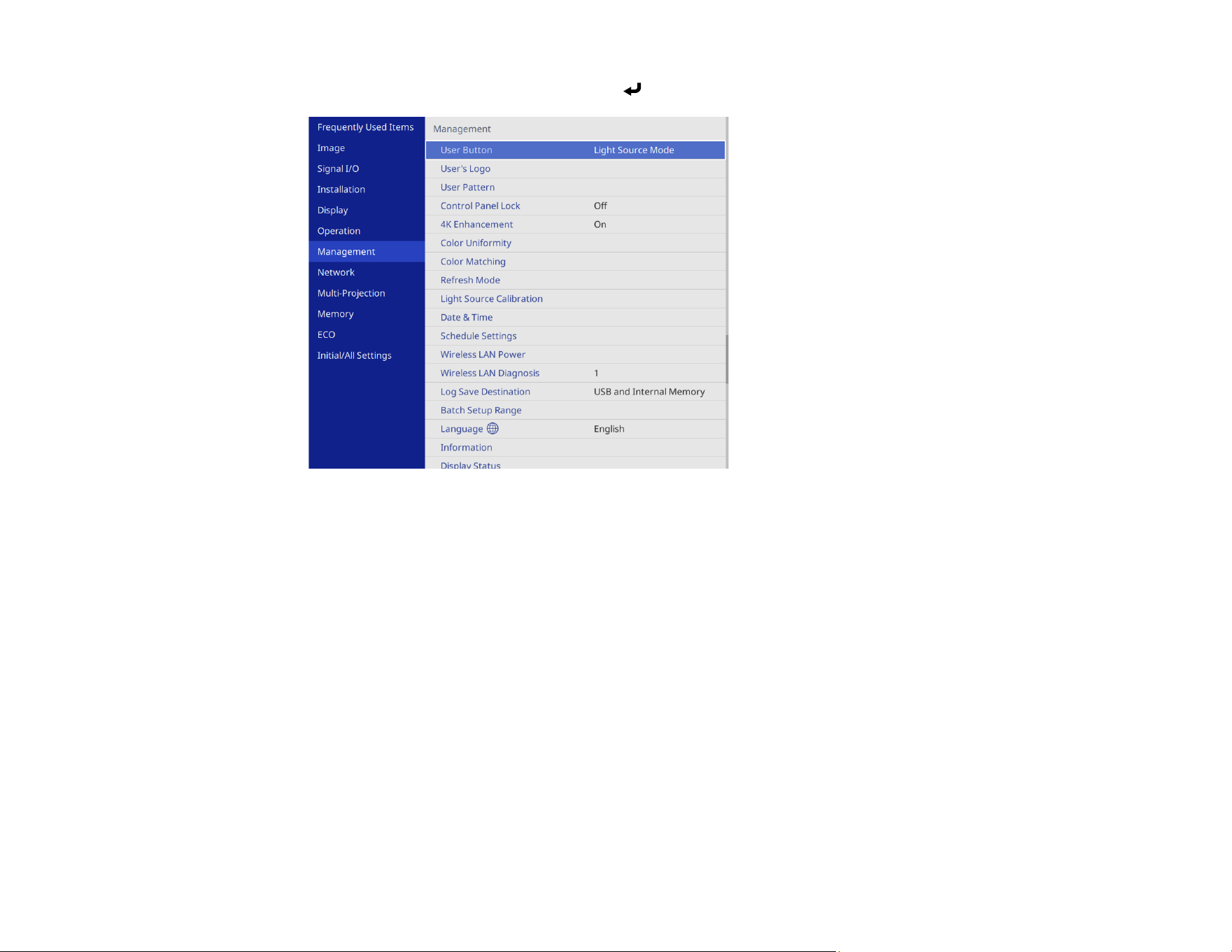

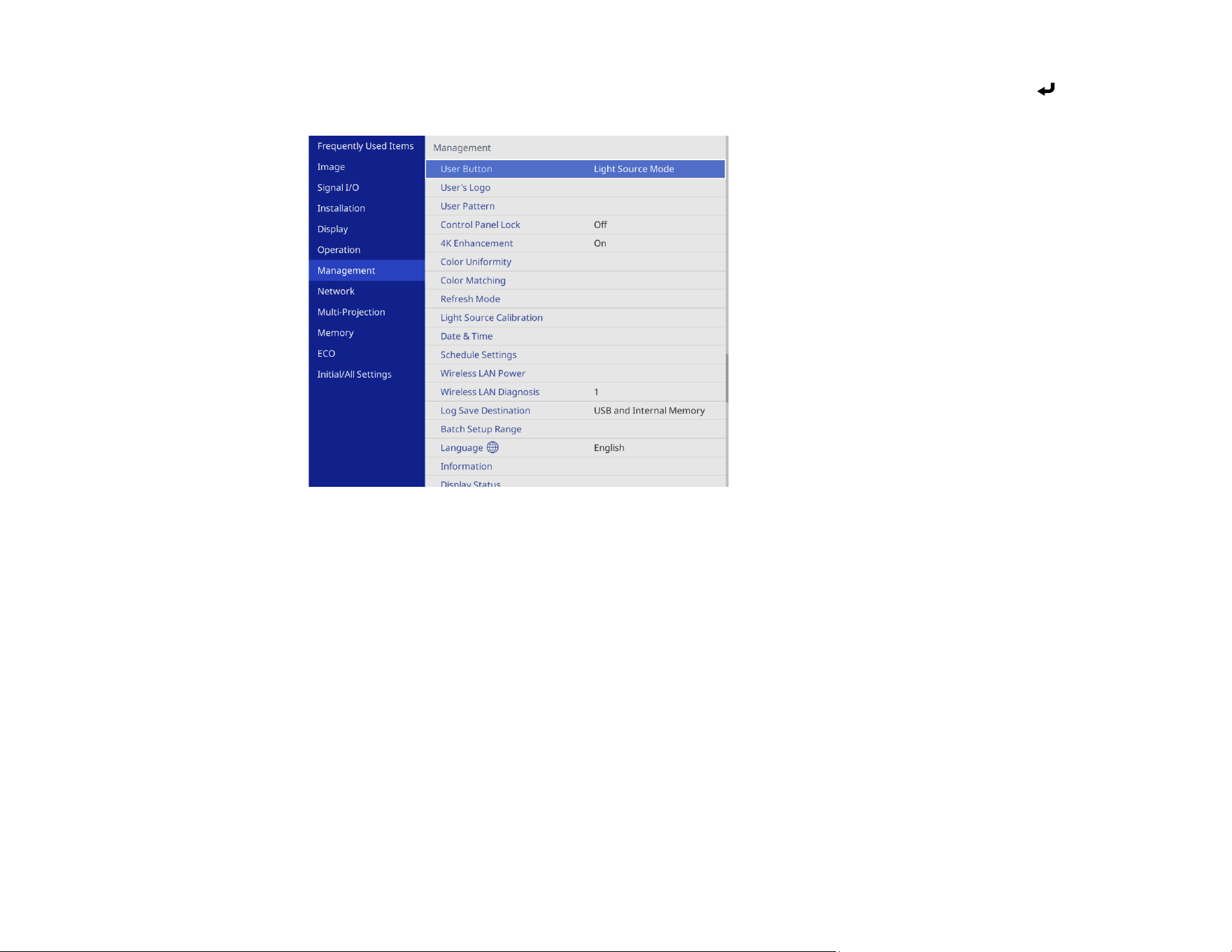

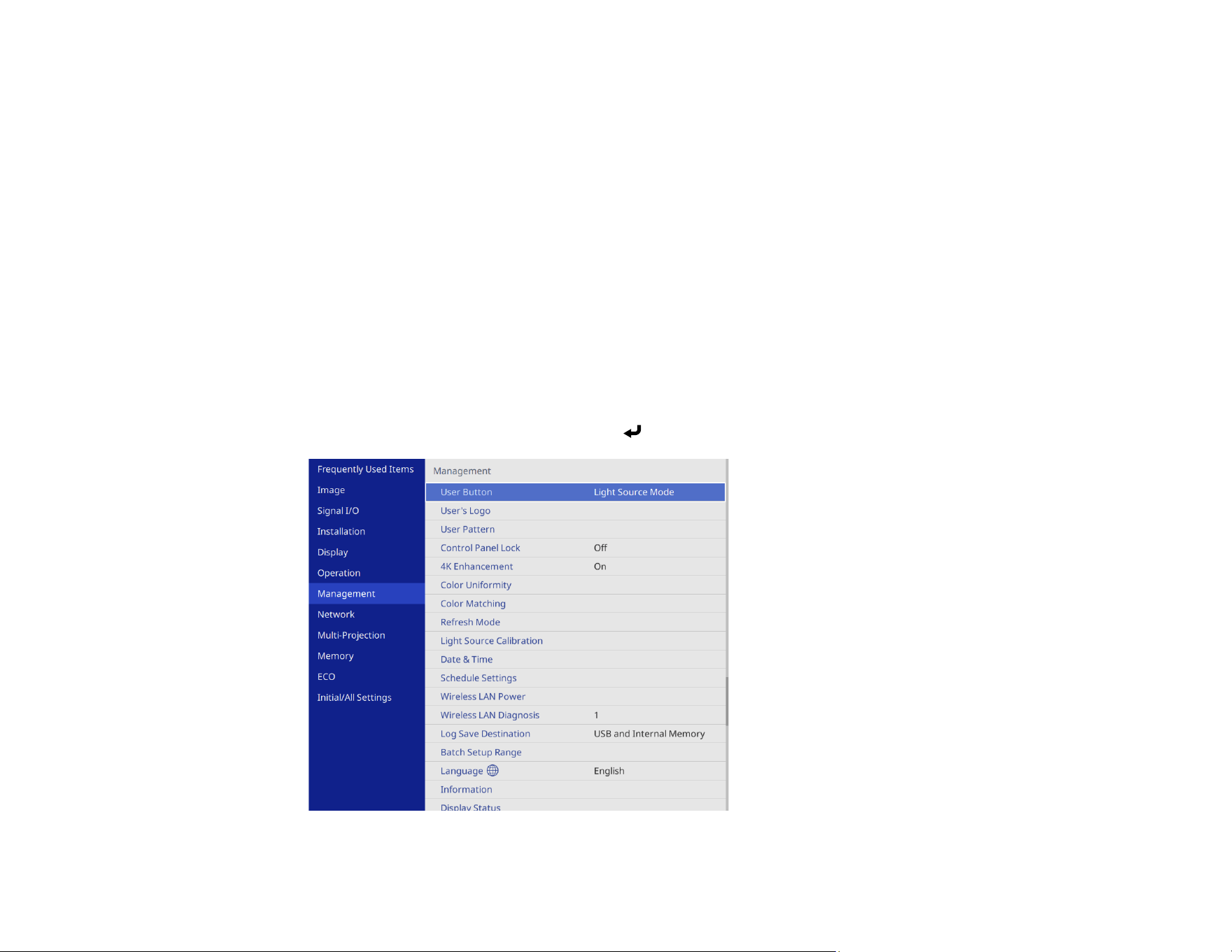

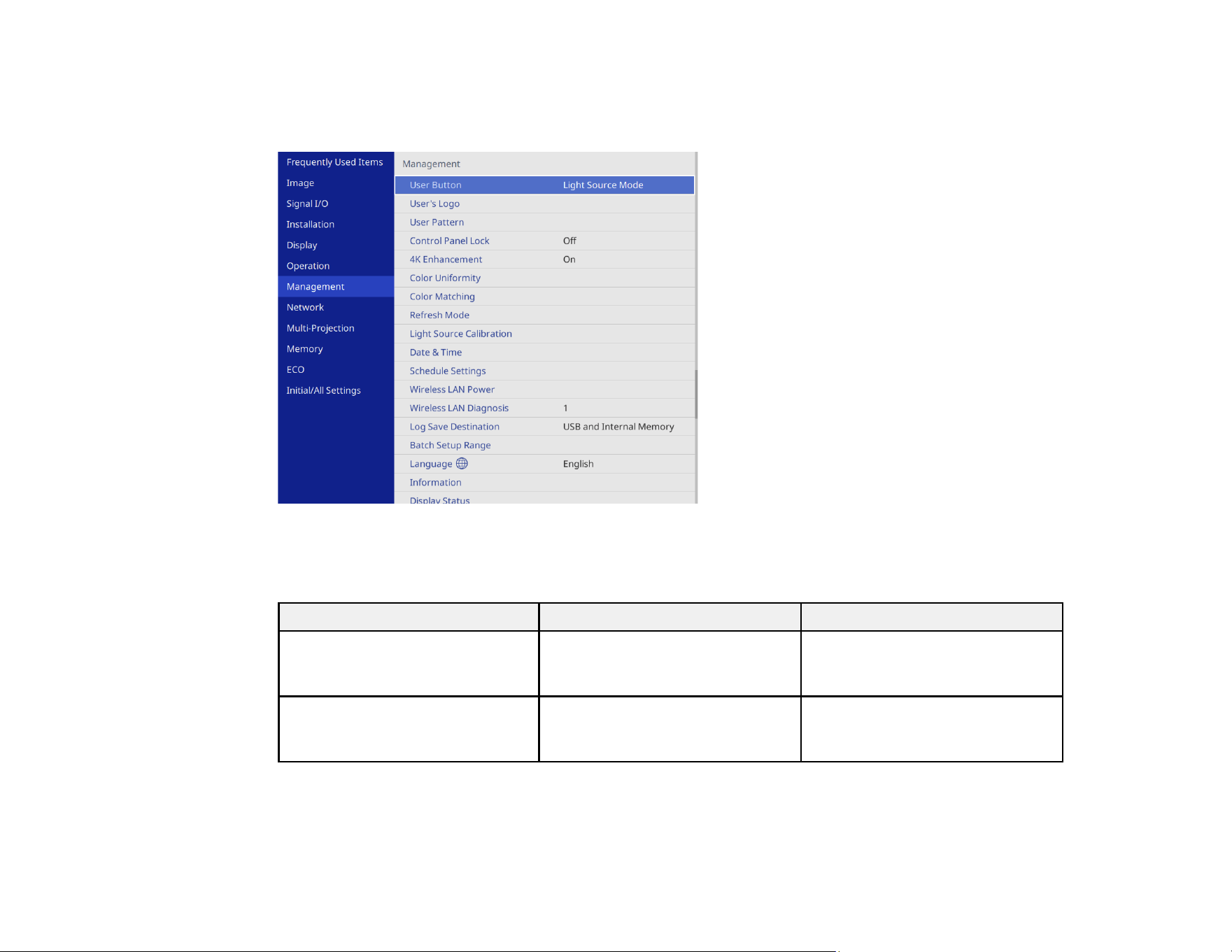

Administration Settings - Management Menu................................................................................... 242
Event ID Code List....................................................................................................................... 247

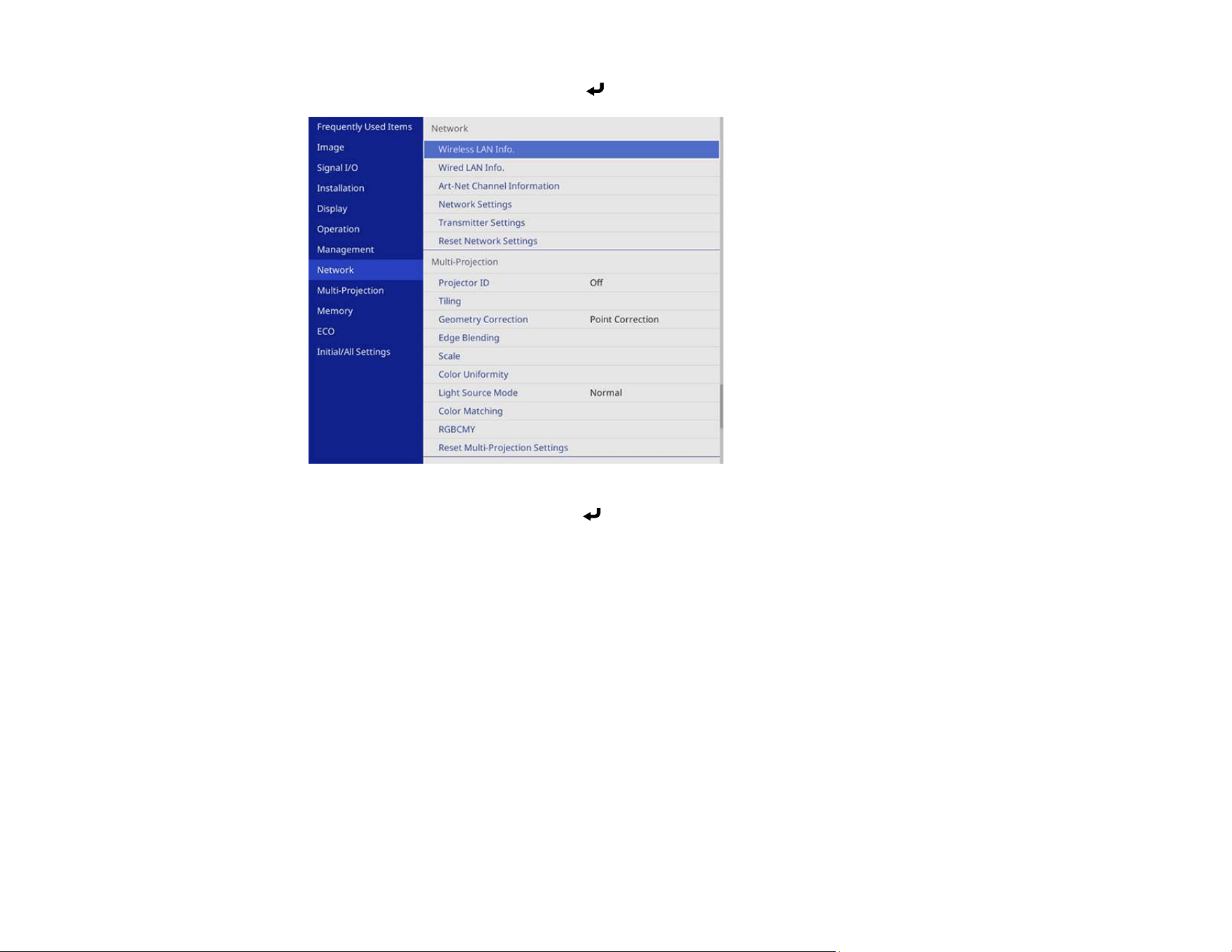

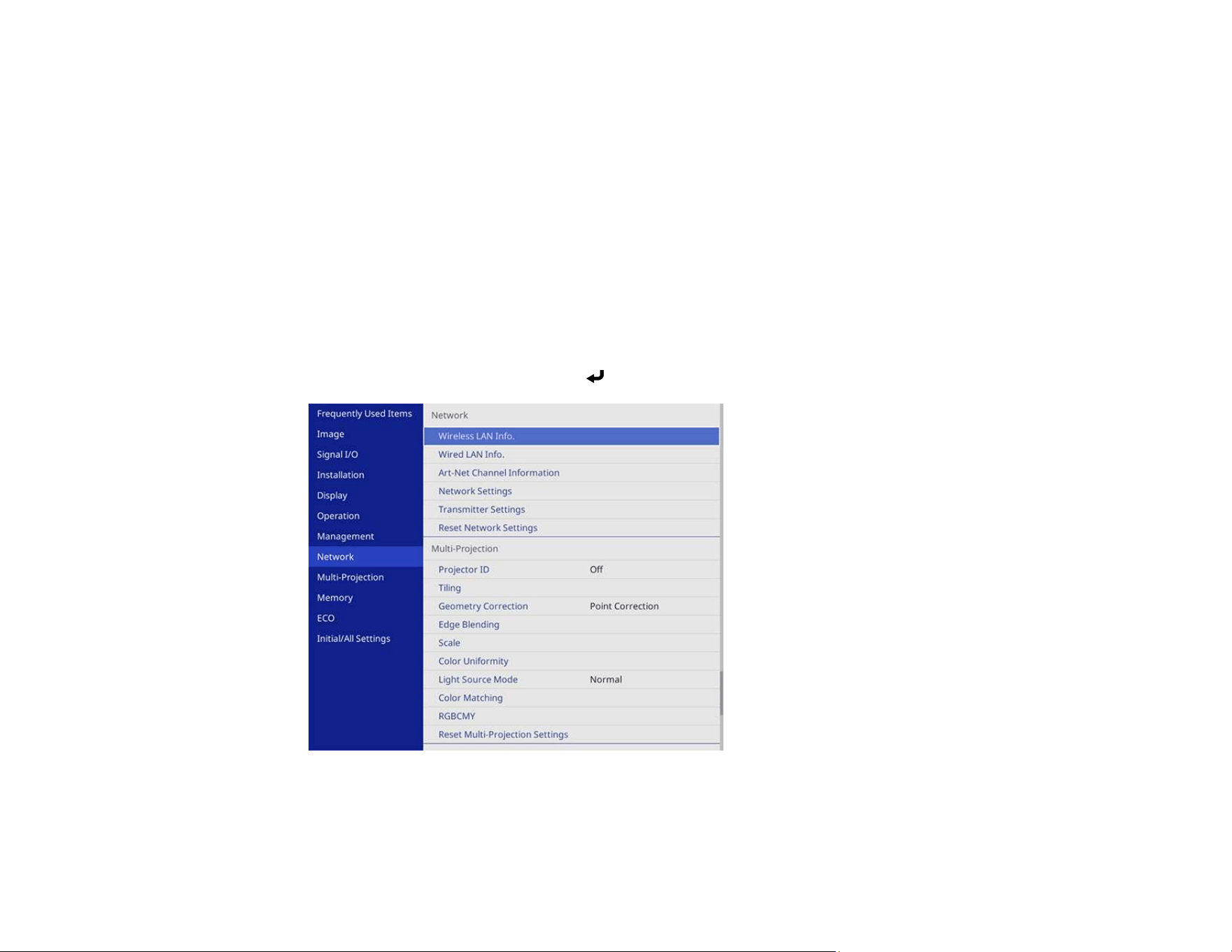

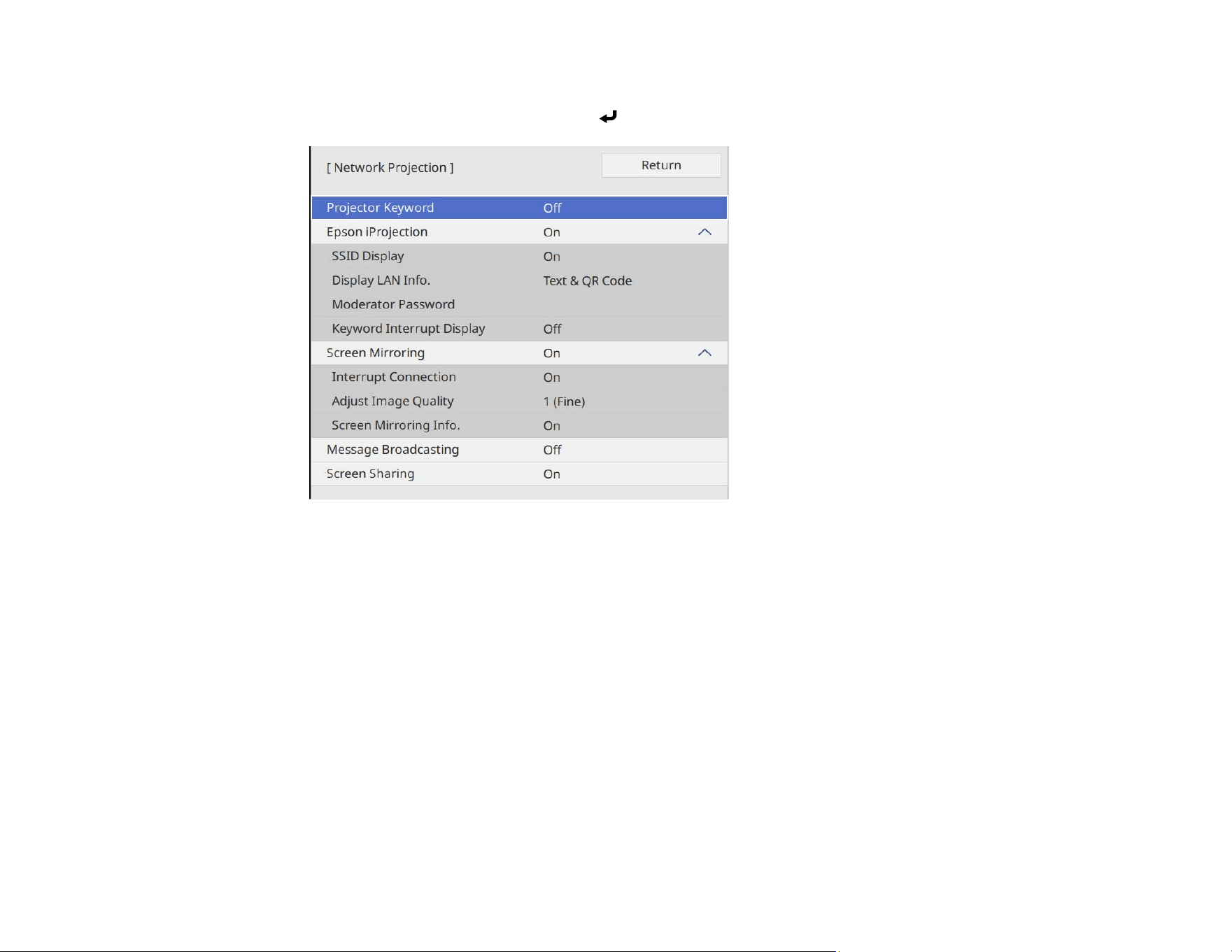

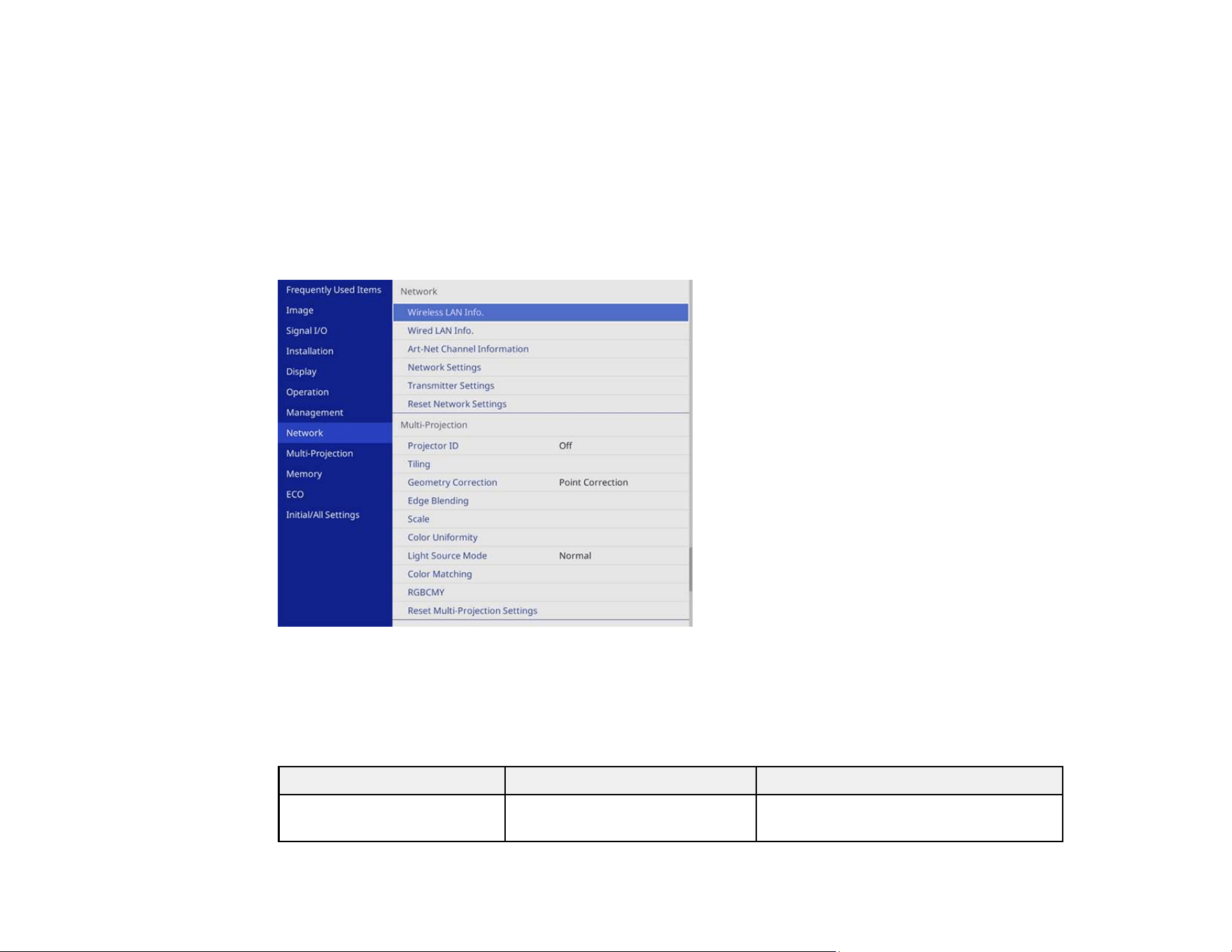

Network Settings - Network Menu .................................................................................................... 250

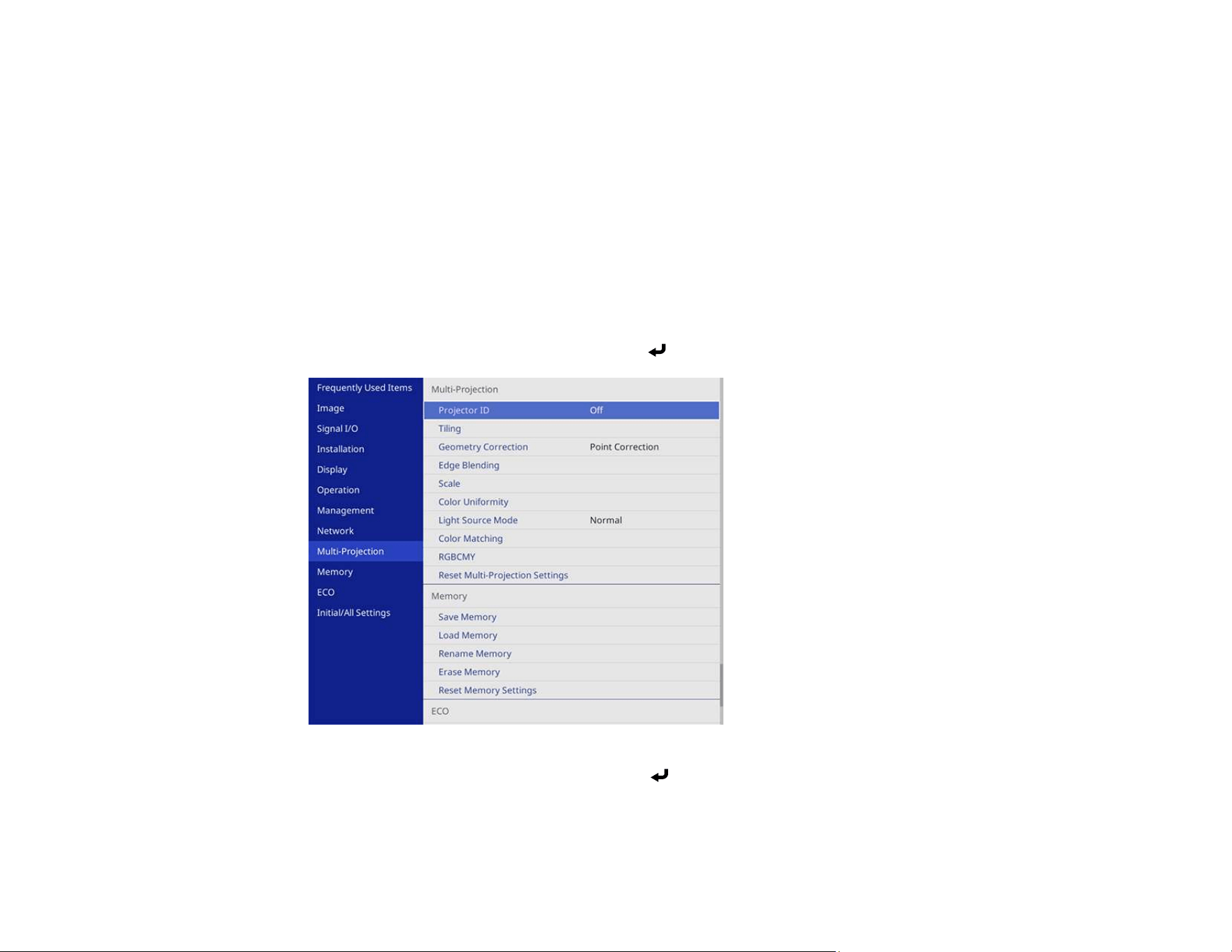

Multiple Projector Operation Settings - Multi-Projection Menu ......................................................... 252

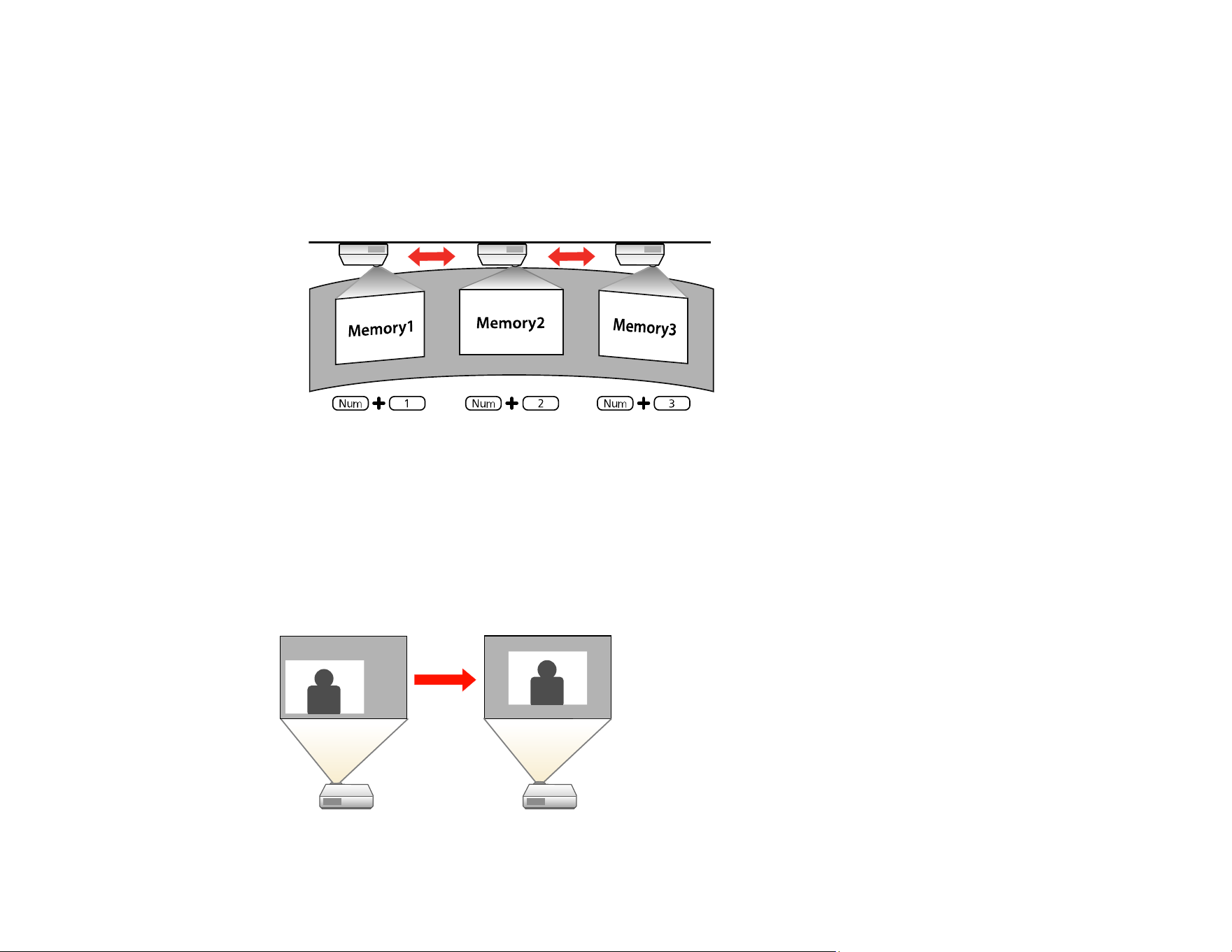

Image Quality Memory Settings - Memory Menu ............................................................................. 256

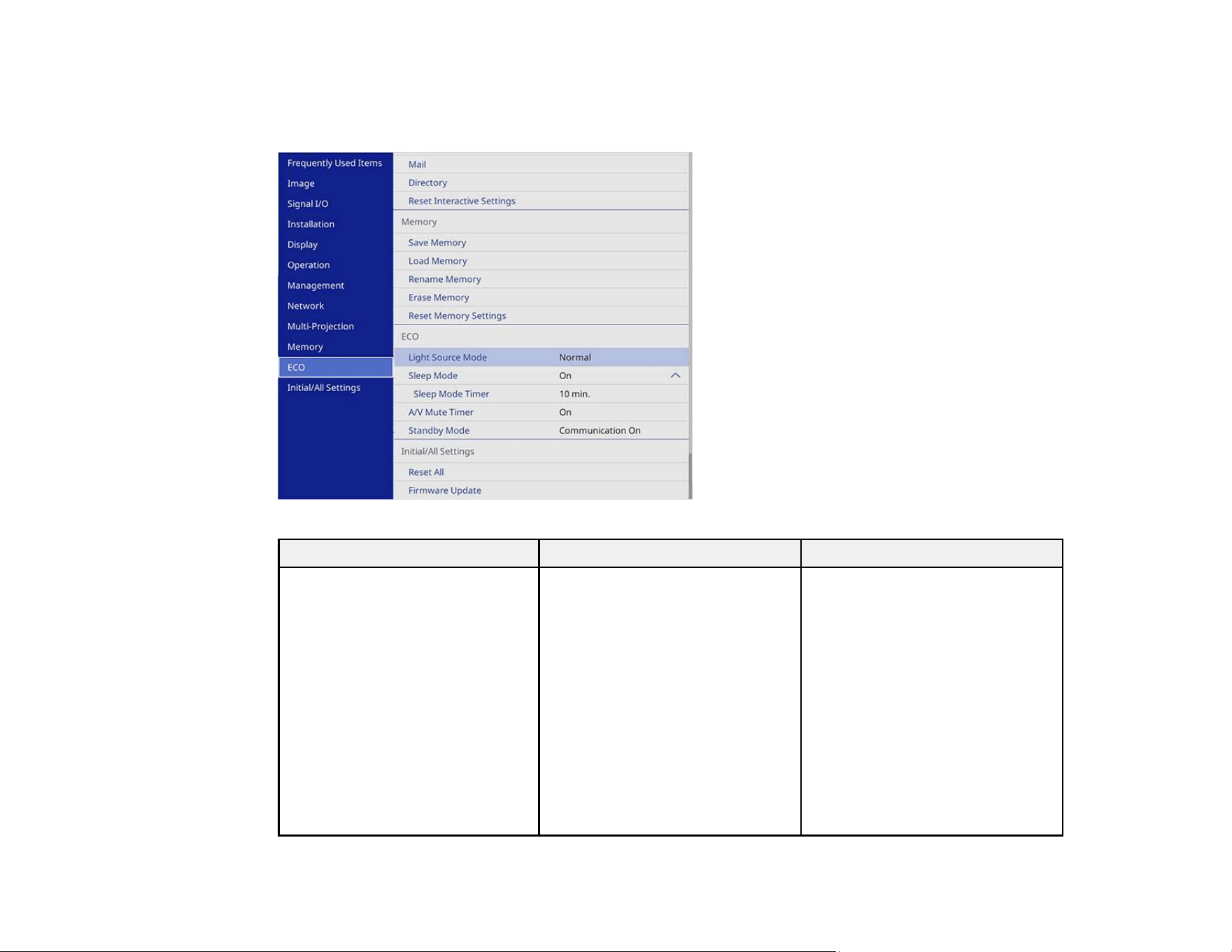

Setup Settings - ECO Menu ............................................................................................................. 258

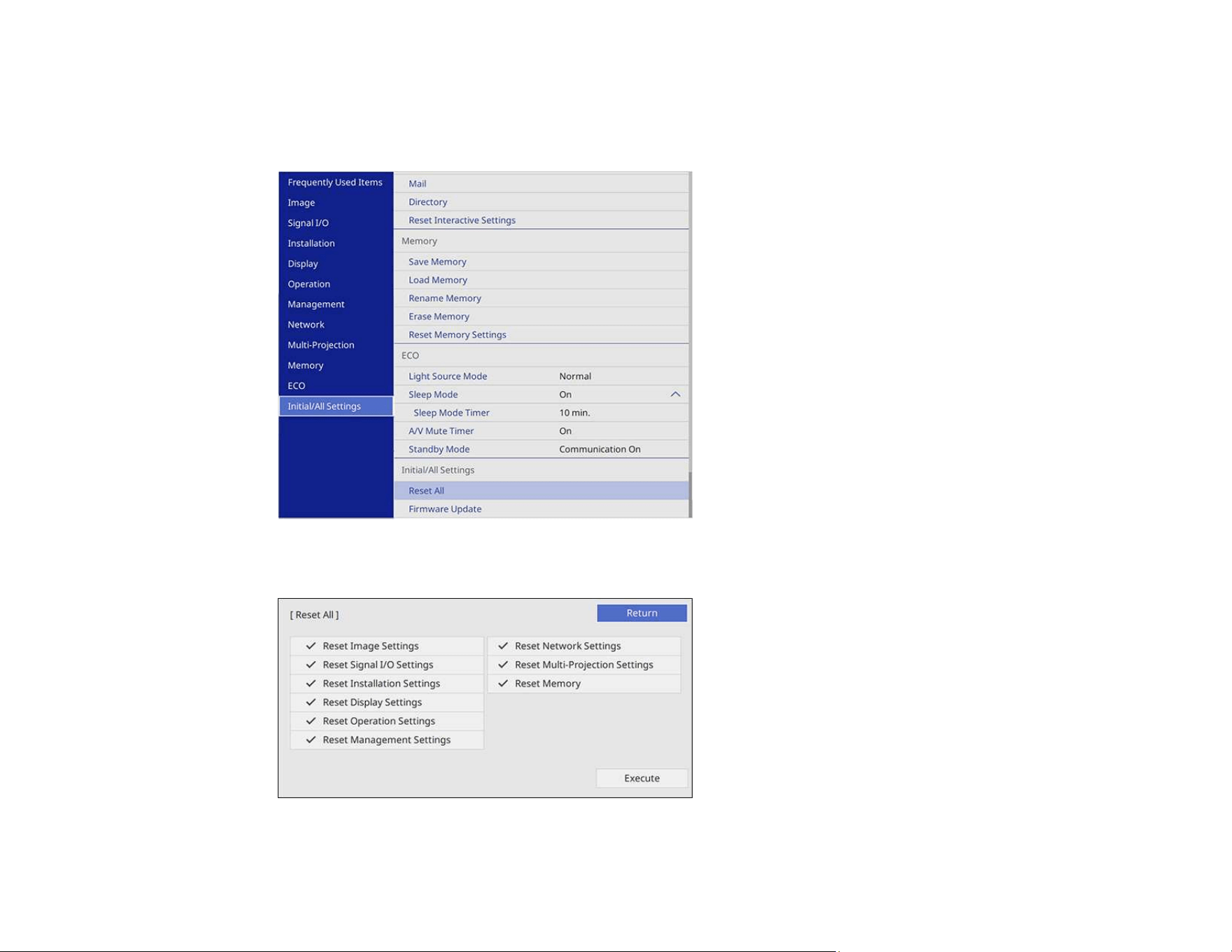

Initial Settings and Reset Options - Initial/All Settings Menu ............................................................ 260
Maintaining and Transporting the Projector ......................................................................................... 262
Projector Maintenance ..................................................................................................................... 262
Cleaning the Projection Window.................................................................................................. 262
Cleaning the Obstacle Sensor..................................................................................................... 263
Cleaning the Projector Case........................................................................................................ 264
Air Filter and Vent Maintenance ....................................................................................................... 264

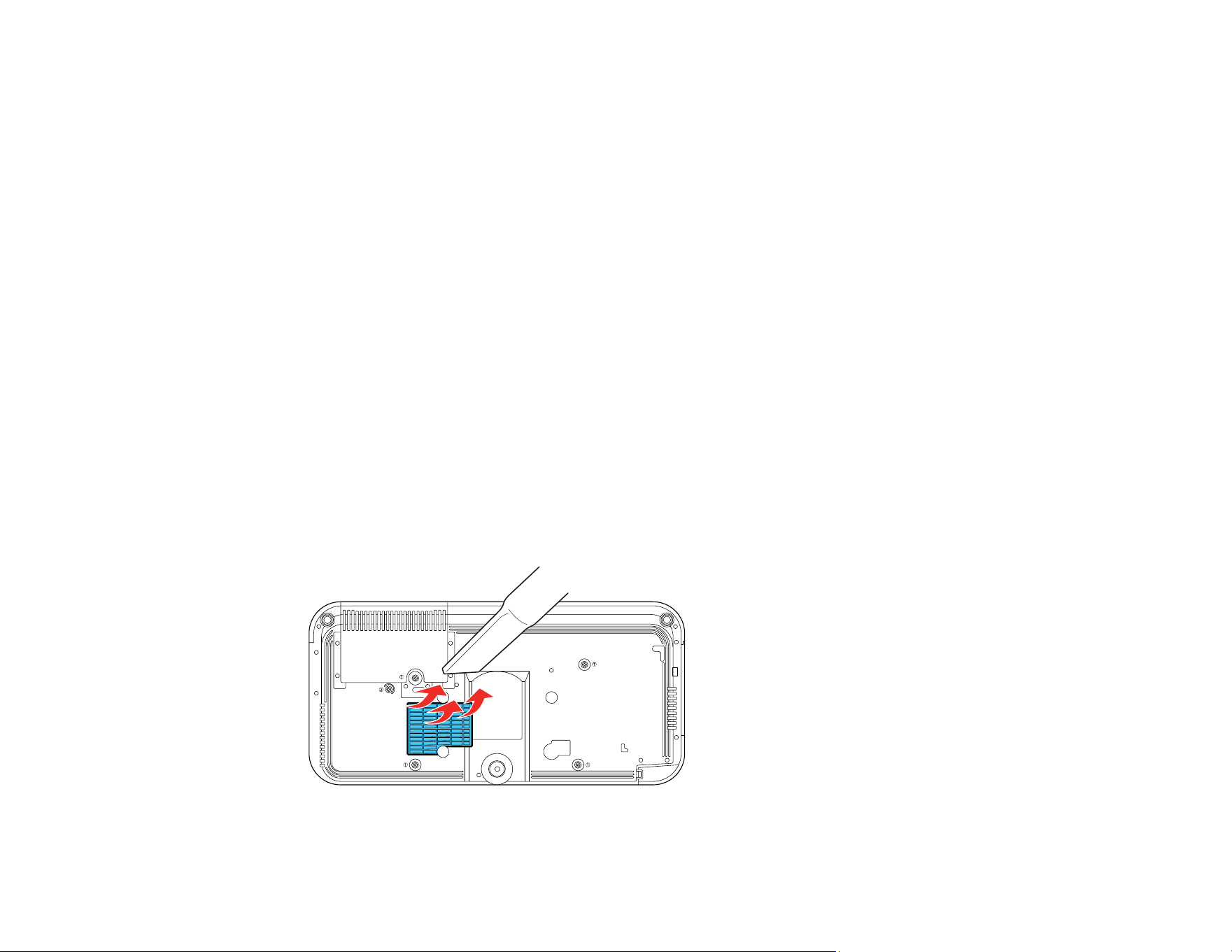

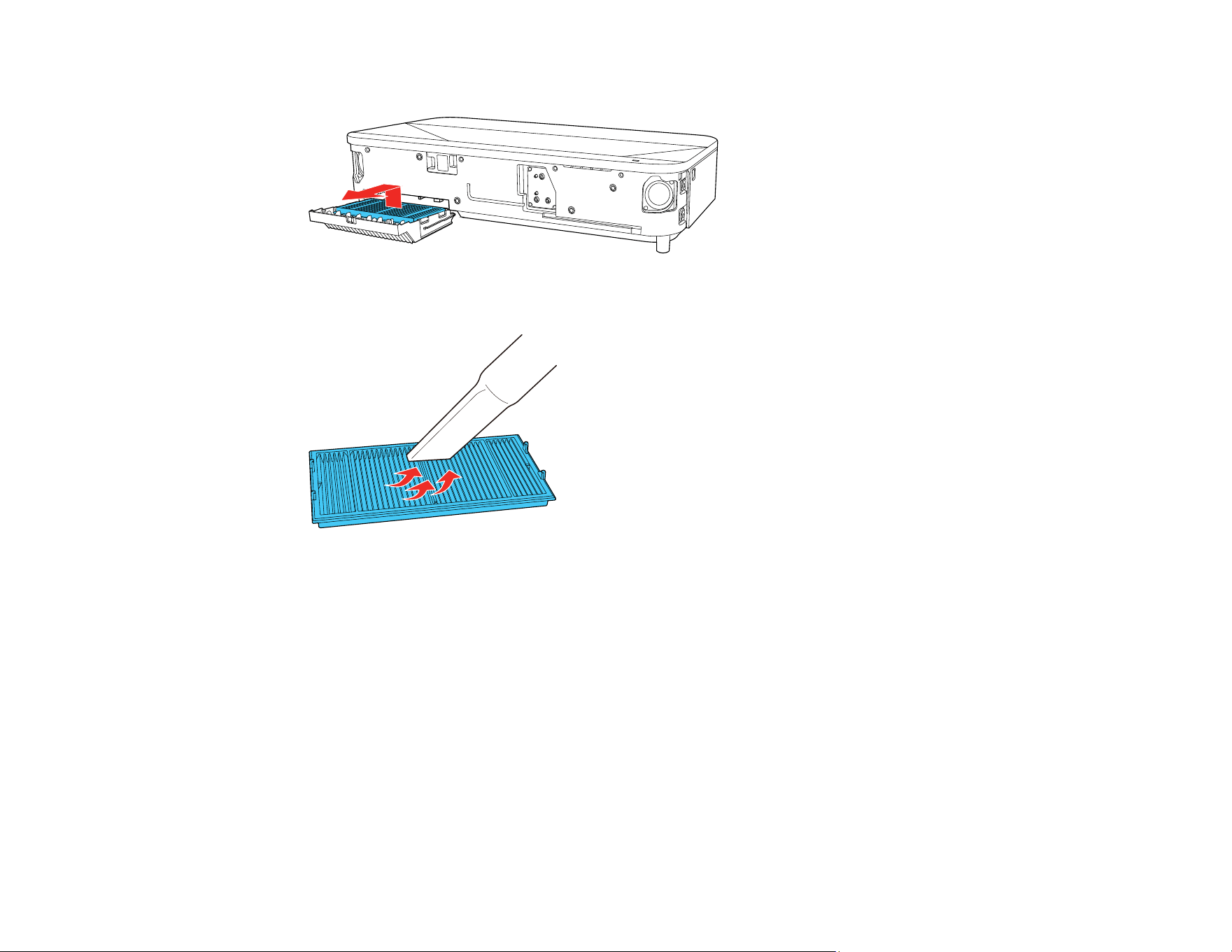

Cleaning the Air Filter and Vents ................................................................................................. 265

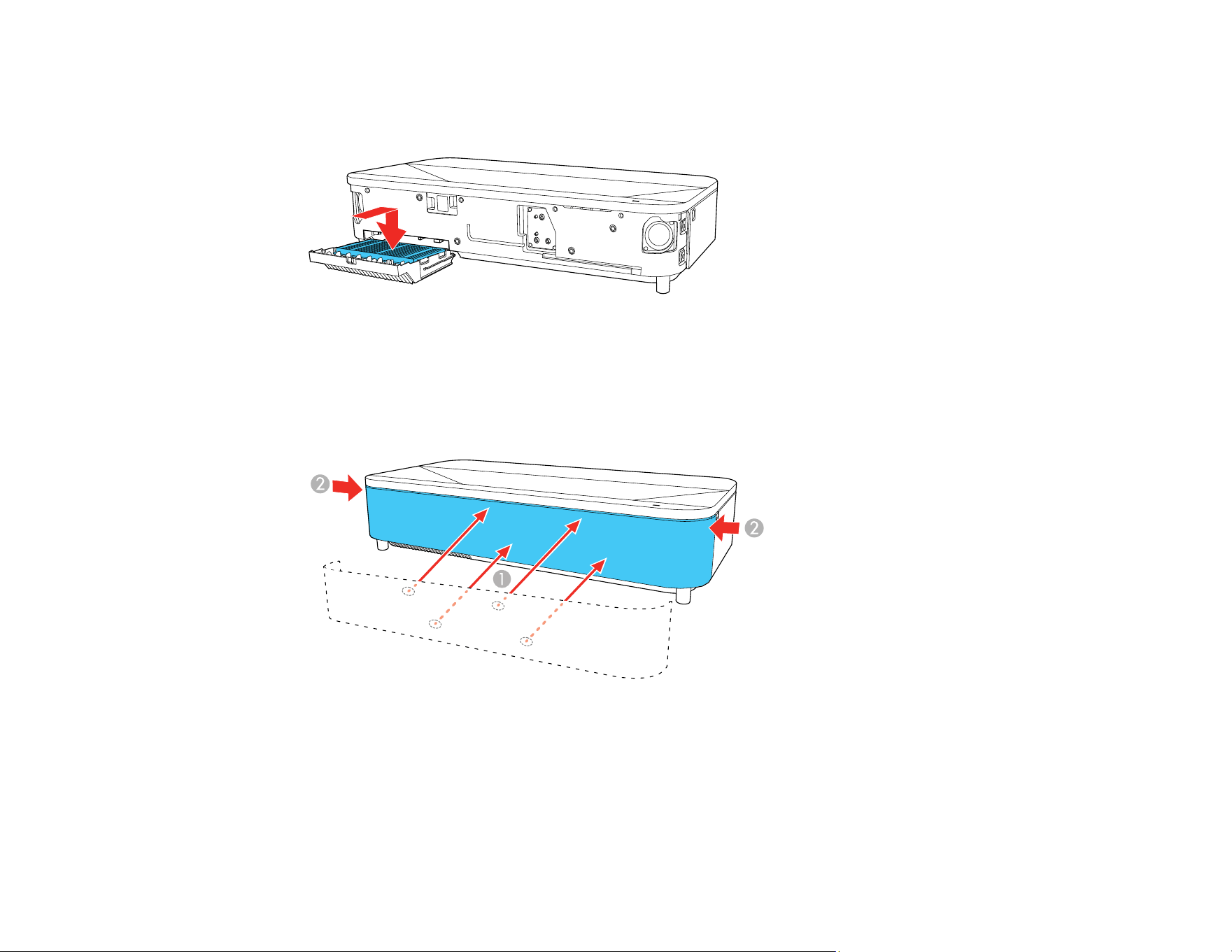

Replacing the Air Filter ................................................................................................................ 268
Replacing the Remote Control Batteries .......................................................................................... 271
Updating the Firmware ..................................................................................................................... 272
Updating Projector Firmware Using a USB Storage Device ........................................................ 273
Updating Projector Firmware Using a Computer and USB Cable................................................ 274
Transporting the Projector................................................................................................................ 275
9
Solving Problems .................................................................................................................................... 276
Projection Problem Tips ................................................................................................................... 276
Projector Light Status ....................................................................................................................... 277
Using the Projector Menu Displays .................................................................................................. 281
Solving Image or Sound Problems................................................................................................... 281
Solutions When No Image Appears............................................................................................. 281
Solutions When Image File Names are not Displayed Correctly in PC Free................................ 282
Solutions When You Cannot Project Images Using the PC Free ................................................ 283
Solutions When Image is Incorrect Using the USB Display Function .......................................... 283
Solutions When "No Signal" Message Appears........................................................................... 284
Displaying From a PC Laptop ................................................................................................. 284
Displaying From a Mac Laptop ............................................................................................... 285
Solutions When "Not Supported" Message Appears ................................................................... 285
Solutions When Only a Partial Image Appears............................................................................ 286
Solutions When the Image is Not Rectangular ............................................................................ 286
Solutions When the Image Contains Noise or Static ................................................................... 287
Solutions When the Image is Fuzzy or Blurry .............................................................................. 288
Solutions When the Image Brightness or Colors are Incorrect .................................................... 288
Solutions When an Afterimage Remains On the Projected Image............................................... 289
Solutions to Sound Problems ...................................................................................................... 289
Solutions to Problems Using Content Playback........................................................................... 290
Solving Projector or Remote Control Operation Problems ............................................................... 291
Solutions to Projector Power or Shut-Off Problems..................................................................... 291
Solutions to Remote Control Problems........................................................................................ 292
Solutions to Password Problems................................................................................................. 293
Solutions When a Battery Message Appears .............................................................................. 293
Solutions to HDMI Link Problems ................................................................................................ 294
Solving Network Problems ............................................................................................................... 294
Solutions When Wireless Authentication Fails ............................................................................ 294
Solutions When You Cannot Access the Projector Through the Web ......................................... 295
Solutions When Network Alert E-Mails are Not Received............................................................ 295
Solutions When the Image Contains Static During Network Projection ....................................... 296
Solutions When You Cannot Connect Using Screen Mirroring.................................................... 296
10
Solutions When the Image or Sound Contains Static When Using Screen Mirroring................... 297
Solutions When the Projected Screen is not Shared Correctly.................................................... 297
Where to Get Help (U.S. and Canada) ............................................................................................. 298
Where to Get Help (Latin America)................................................................................................... 299
Technical Specifications ........................................................................................................................ 302
General Projector Specifications ...................................................................................................... 302
Projector Light Source Specifications............................................................................................... 303
Remote Control Specifications ......................................................................................................... 304
Projector Dimension Specifications.................................................................................................. 304
Projector Electrical Specifications .................................................................................................... 304
Projector Environmental Specifications............................................................................................ 305
Projector Safety and Approvals Specifications................................................................................. 305
Supported Video Display Formats.................................................................................................... 306
USB Display System Requirements................................................................................................. 306
Notices ..................................................................................................................................................... 308
Recycling (U.S. and Canada)........................................................................................................... 308
Important Safety Information ............................................................................................................ 308
Laser Safety Information .................................................................................................................. 308
Important Safety Instructions............................................................................................................ 312
Restriction of Use ........................................................................................................................ 317
List of Safety Symbols...................................................................................................................... 317
FCC Compliance Statement............................................................................................................. 321
Binding Arbitration and Class Waiver ............................................................................................... 322
Trademarks...................................................................................................................................... 325
Copyright Notice............................................................................................................................... 326
A Note Concerning Responsible Use of Copyrighted Materials................................................... 326
Copyright Attribution.................................................................................................................... 327
11
EB-810E/EB-815E User's Guide
Welcome to the EB-810E/EB-815E User's Guide.
For a printable PDF copy o
f this guide, click here.
Note: Availability of products in this guide varies by country.
12
Introduction to Your Projector
Refer to these sections to learn more about your projector and this manual.
Projector Features
Notations Used in the Documentation
Where to Go for Additional Information
Additional Projector Software and Manuals
Projector Part Locations
Projector Features
The EB-810E/EB-815E projector includes these special features:
Innovative display and operation features
• You can use the Epson Setting Assistant app on a smartphone or tablet that has a camera function to
correct distortion more easily
• Long-life laser light source
• Motion sensor near the projection window reduces light output to help prevent dangerous light
exposure to the eyes
Bright, high-resolution projection system
• Up to 5,000 lumens of brightness (white light output and color light output), you can enjoy clear and
sharp images even in well-lit surroundings
Note: Color brightness (color light output) and white brightness (white light output) will vary depending
on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output
measured in accordance with ISO 21118.
• The high resolution of 4K enhancement technology allows you to display more information than when
using WUXGA or Full HD
Flexible connectivity
• Two HDMI ports for computer or video device connection
• You can connect a USB device or a document camera
• Connect with one USB cable to project images and output audio (USB Display)
• Screen Mirroring to connect your projector and mobile device wirelessly
13
Product Box Contents
Additional Components
Optional Equipment and Replacement Parts
Warranty and Registration Information (U.S. and Canada)
Warranty and Registration Information (Latin America)
Parent topic: Introduction to Your Projector
Related references
Additional Projector Software and Manuals
Product Box Contents
Save all the packaging in case you need to ship the projector. Always use the original packaging (or
equivalent) when shipping.
Make sure your projector box included all of these parts:
1 Projector
2 Remote control
3 Remote control batteries (2 AA batteries)
4 Power cord
Parent topic: Projector Features
Additional Components
Depending on how you plan to use the projector, you may need to obtain additional components.
Note: To connect a source that does not include a compatible video output port, you need to obtain an
adapter that allows you to connect to an input port on the projector. If the device is a Mac, contact Apple
14
for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter
that allows you to connect to the projector. This allows you to mirror your smartphone or tablet screens,
watch movies, and more. Contact your device manufacturer for compatible adapter options.
Unless listed as available from Epson in this table, see your local computer or electronics dealer for
purchase information.
Note: Availability of accessories varies by country.
Signal or connection
type
Additional component necessary
HDMI Compatible HDMI cable
U.S. and Canada: Available for purchase from Epson or an authorized
Epson reseller.
Note: Older Mac computers (2009 and earlier) may not support HDMI
audio.
USB Compatible USB cable
HDBaseT Compatible 100Base-TX LAN cable
Parent topic: Projector Features
Optional Equipment and Replacement Parts
U.S. and Canada: You can purchase screens, other optional accessories, and replacement parts from
an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the
U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or
epsonstore.ca (Canadian sales).
Latin America: You can purchase optional accessories and replacement parts from an Epson
authorized reseller. To find the nearest reseller, go to latin.epson.com. Or you can click the "Where to
Get Help" link below to contact your nearest sales office.
Note: Availability of accessories varies by country.
Epson offers the following optional accessories and replacement parts for your projector:
U.S. and Canada:
15
Option or part Part number
Replacement air filter (ELPAF64) V13H134AE0
Ultra Short Throw Screen 100" (ELPSC35) V12H002AL0
Ultra Short Throw Screen 120" (ELPSC36) V12H002AM0
Ultra Short Throw Wall mount (ELPMB75) V12HB12010
Wireless LAN module (ELPAP11) V12H005A02
Epson DC-07 document camera (ELPDC07) V12H759020
Epson DC-13 document camera (ELPDC13) V12H757020
Epson DC-21 document camera (ELPDC21) V12H758020
Epson DC-30 document camera (ELPDC30) V12HB09020
Note: Special expertise is required to suspend the projector from a ceiling. Contact your dealer or Epson
for help.
In addition to the accessories listed above, extended service plans are available.
Latin America:
Option or part Part number
Replacement air filter (ELPAF64) V13H134AE0
Ultra Short Throw Wall mount (ELPMB75) V12HB12010
Wireless LAN module (ELPAP11) V12H005A02
Parent topic: Projector Features
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Warranty and Registration Information (U.S. and Canada)
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty that came with your projector.
Register your product online at this site: epson.com/webreg
16
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Warranty and Registration Information (Latin America)
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty that came with your projector.
Register your product online at latin.epson.com/registro
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Notations Used in the Documentation
Follow the guidelines in these notations as you read your documentation:
• Warnings must be followed carefully to avoid bodily injury.
• Cautions must be observed to avoid damage to your equipment.
• Notes contain important information about your projector.
• Tips contain additional projection information.
Parent topic: Introduction to Your Projector
Where to Go for Additional Information
Need quick help on using your projector? Here's where to look for help:
• epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Latin America)
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24
hours a day.
• If you still need help after checking this manual and any other sources listed here, you can use the
Epson PrivateLine Support service to get help fast (U.S. and Canada only). For details, see "Where to
Get Help."
Parent topic: Introduction to Your Projector
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
17
Additional Projector Software and Manuals
After connecting and setting up the projector, install the projector software as necessary. You may need
to install it from a software CD, if included, or download the software and manuals as necessary.
You can install the projector software programs listed here and view their manuals for instructions on
using them.
Note: If you still need help after checking this manual and the sources listed here, you can use the
Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."
Projector software Manual Description
Epson Projector
Management (Windows
only)
Epson Projector
Management Operation
Guide
Lets you monitor and control your projector
through the network.
You can download the latest software and
documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support (Latin
America) and select your projector.
Epson iProjection
(Windows/Mac)
Epson iProjection
Operation Guide
(Windows/Mac)
Lets you project the computer screens of
users over a network.
You can download the latest software and
documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support (Latin
America) and select your projector.
Epson iProjection app Instructions are included
with the app
Visit epson.com/support (U.S.),
epson.ca/support (Canada), or
latin.epson.com/support (Latin America) for
more information.
— Open Source Software
License
You can download this document from the
Epson web site. Go to epson.com/support
(U.S.), epson.ca/support (Canada), or
latin.epson.com/support (Latin America) and
select your projector.
18
Projector software Manual Description
Epson Projector Content
Manager
Epson Projector Content
Manager Operation Guide
You can download the latest software and
documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support (Latin
America) and select your projector.
Epson Creative Projection
(iOS only)
Instructions are included
with the app
Lets you create custom content using built-in
templates and stamps, and wirelessly transfer
it to the projector if it is connected to a network
that includes a wireless access point.
You can download the latest software and
documentation from the Apple App Store.
Epson Setting Assistant
app
Instructions are included
with the app
Lets you use the camera on your iOS or
Android device to automatically adjust the
shape of your projected image if there is any
distortion.
You can download the latest software and
documentation from the Apple App Store or
Google Play Store.
Note: Epson iProjection is not recommended for use with streaming video.
Parent topic: Introduction to Your Projector
Projector Part Locations
Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front
Projector Parts - Top/Side
Projector Parts - Interface Ports
Projector Parts - Base
Projector Parts - Control Panel
Projector Parts - Remote Control
Parent topic: Introduction to Your Projector
21

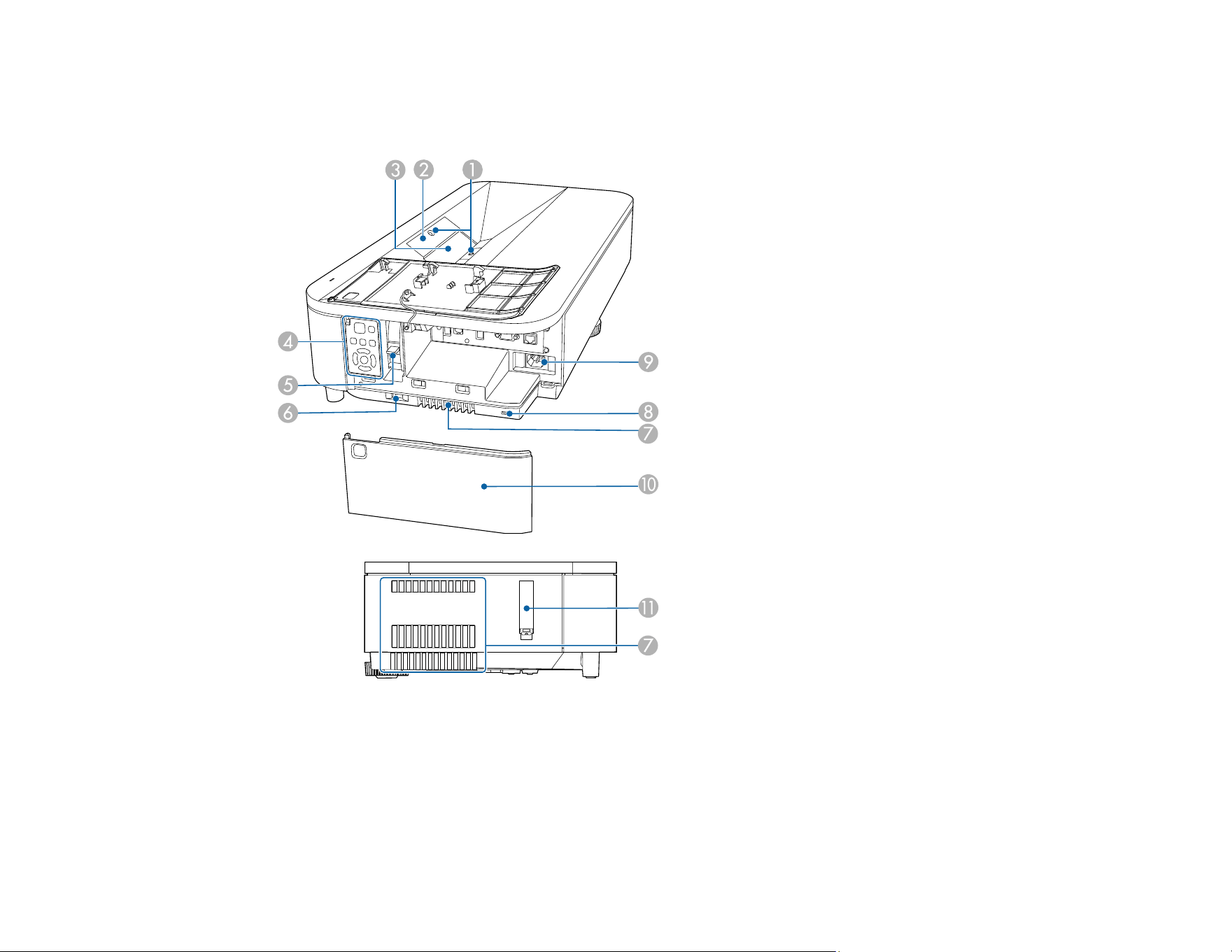

5 Focus lever
6 Side cover latch
7 Air exhaust vent
8 Security slot
9 Power inlet
10 Side cover
11 Safety bar cover
Parent topic: Projector Part Locations

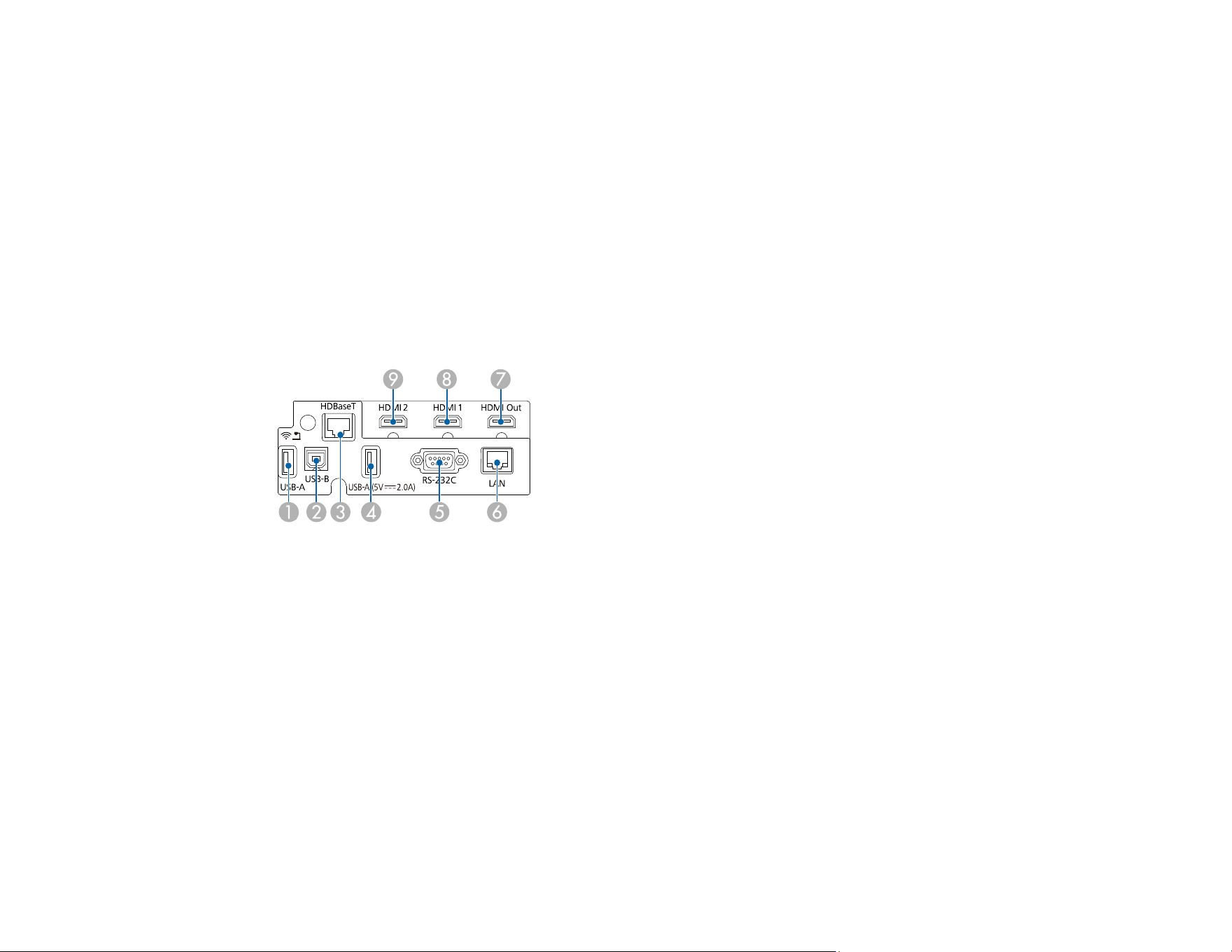

Projector Parts - Interface Ports
1 USB-A port
2 USB-B port
3 HDBaseT port
4 USB-A (5V - 2.0A) port
5 RS-232C port
6 LAN port
7 HDMI Out port
8 HDMI1 port
9 HDMI2 port
Parent topic: Projector Part Locations
22
Related concepts
Projector Connections
Projector Parts - Base
1 Front adjustable feet
2 Air intake vent (air filter)
3 Wire clamp fixing point
4 Exhaust vent
5 Fixing points (four points)
6 Air intake vent
7 Rear adjustable foot
8 VESA mount fixing points (four points)
Note: Remove all of the projector's feet when you mount the projector from the ceiling.
Parent topic: Projector Part Locations
23
Projector Parts - Control Panel
1 Power button
2 Menu button (accesses projector menu system)
3 Volume buttons and arrow buttons (adjusts the speaker volume and selects menu items while
displaying the projector's menu)
4 Enter button (selects options)
5 Arrow buttons (selects menu items while displaying the projector's menu)
6
Home button (accesses projector Home screen)
7 Esc button (stops the current function)
8 Source button (selects the next input source)
Parent topic: Projector Part Locations
24
Projector Parts - Remote Control
1 Power button
2 HDMI button (cycles through connected HDMI and video sources)
3 Computer button (button is not used with these projectors)
4 Numeric buttons
25
5 Auto button (button is not used with these projectors)
6 Num button (when held down, switches numeric buttons to number function)
7 Menu button (accesses projector menu system)
8 Arrow buttons (move through on-screen options)
9 Enter button (selects options)
10 User button (customizable for different functions)
11 Color Mode button (selects display modes)
12 Aspect button (selects the image aspect ratio)
13 E-Zoom +/- buttons (zoom into and out of the image)
14 A/V Mute button (turns off picture and sound)
15 Split button (splits the screen between up to four image sources)
16
Home button (accesses projector Home screen)
17 Freeze button (stops video action)
18 Volume up/down buttons (adjust speaker volume)
19 Default button (returns the current setting to its default)
20 Esc button (cancels/exits functions)
21 ID button (selects a projector to use with the remote control)
22 LAN button (connects to a network source)
23 USB button (cycles between USB Display and USB-A ports)
24 Source Search button (searches for connected sources)
25 Remote control emitter
Parent topic: Projector Part Locations
26
Setting Up the Projector
Follow the instructions in these sections to set up your projector for use.
Projector Placement
Projector Connections
Connecting to an HDBaseT Transmitter
Connecting Multiple Projectors of the Same Model
Attaching and Removing the Side Cover

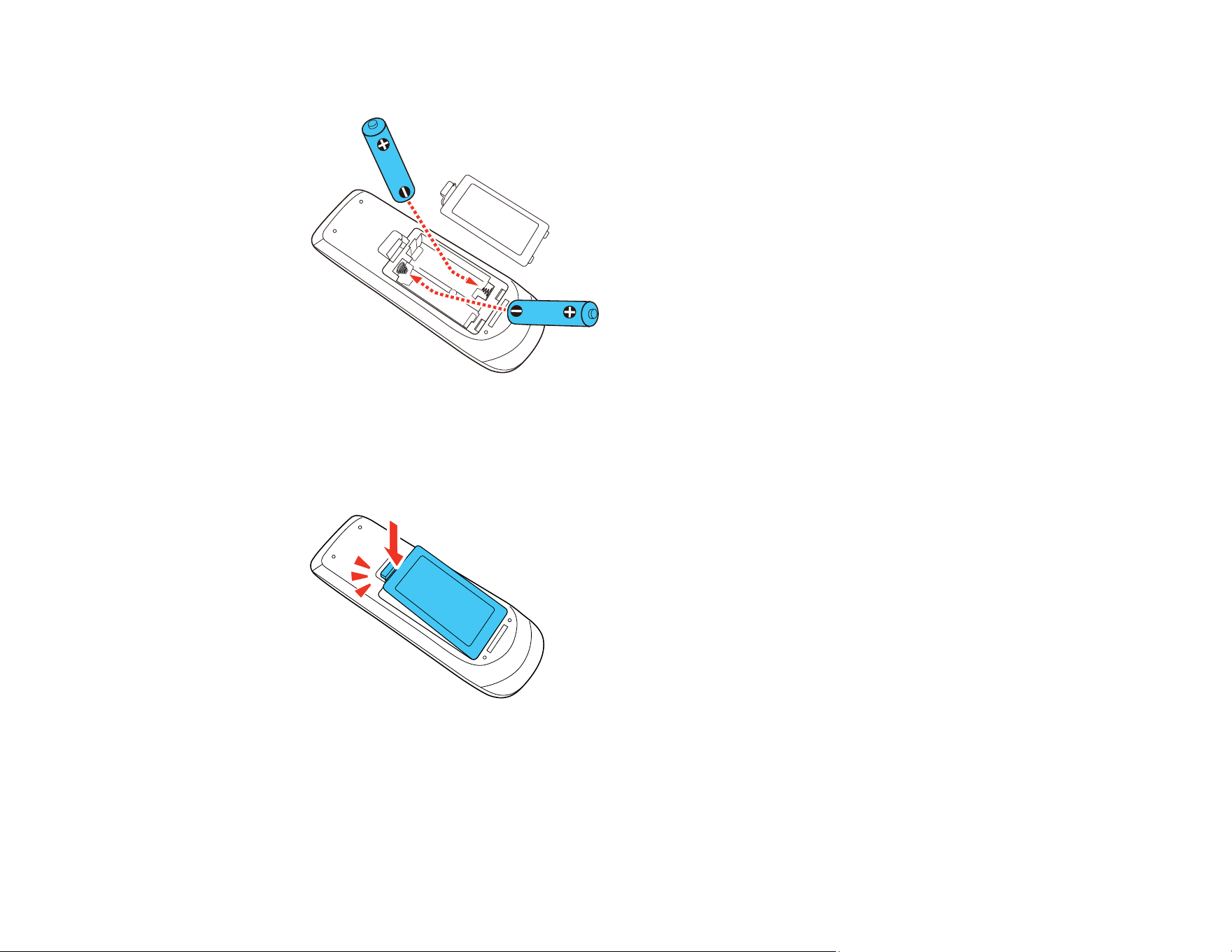

Installing Batteries in the Remote Control
Projector Placement
You can place the projector on a flat surface such as a desk or table to project in a portable setup.
You can also install your projector on a wall using the optional ELPMB75 wall mount (V12HB12010), or
mount it from the ceiling or vertically on a table using a commercially available mount compatible with the
VESA Mounting Interface Standard (100 x 200 mm).
Keep these considerations in mind as you select a projector location:
• If installing with the ELPMB75 wall mount, follow the instructions in the online Installation Guide to
install the projector.
• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or
next to anything that could block the vents.
• If you are using the projector at altitudes above 4921 feet (1500 m), set the High Altitude Mode
setting to On in the projector's Installation menu to ensure the projector's internal temperature is
regulated properly.
• Position the projector within reach of a grounded electrical outlet or extension cord.
• If the projector is not mounted, install the front adjustable feet and the rear adjustable foot and place it
on a sturdy, level surface.
• Place the projector so it squarely faces the screen, not at an angle. If you cannot install the projector
squarely facing the screen, correct any resulting image distortion using the projector controls.
• Try not to set up the projector in locations subject to high humidity and dust, or in locations subject to
smoke from fires or tobacco smoke.
• Make sure there is no strong light or sunlight shining on the projector or the projection screen.
Projector Setup and Installation Options
28
Mounted on the wall
Mounted on the ceiling and projecting from behind a translucent screen
Wherever you set up the projector, make sure to position it squarely in front of the screen, not at an
angle.

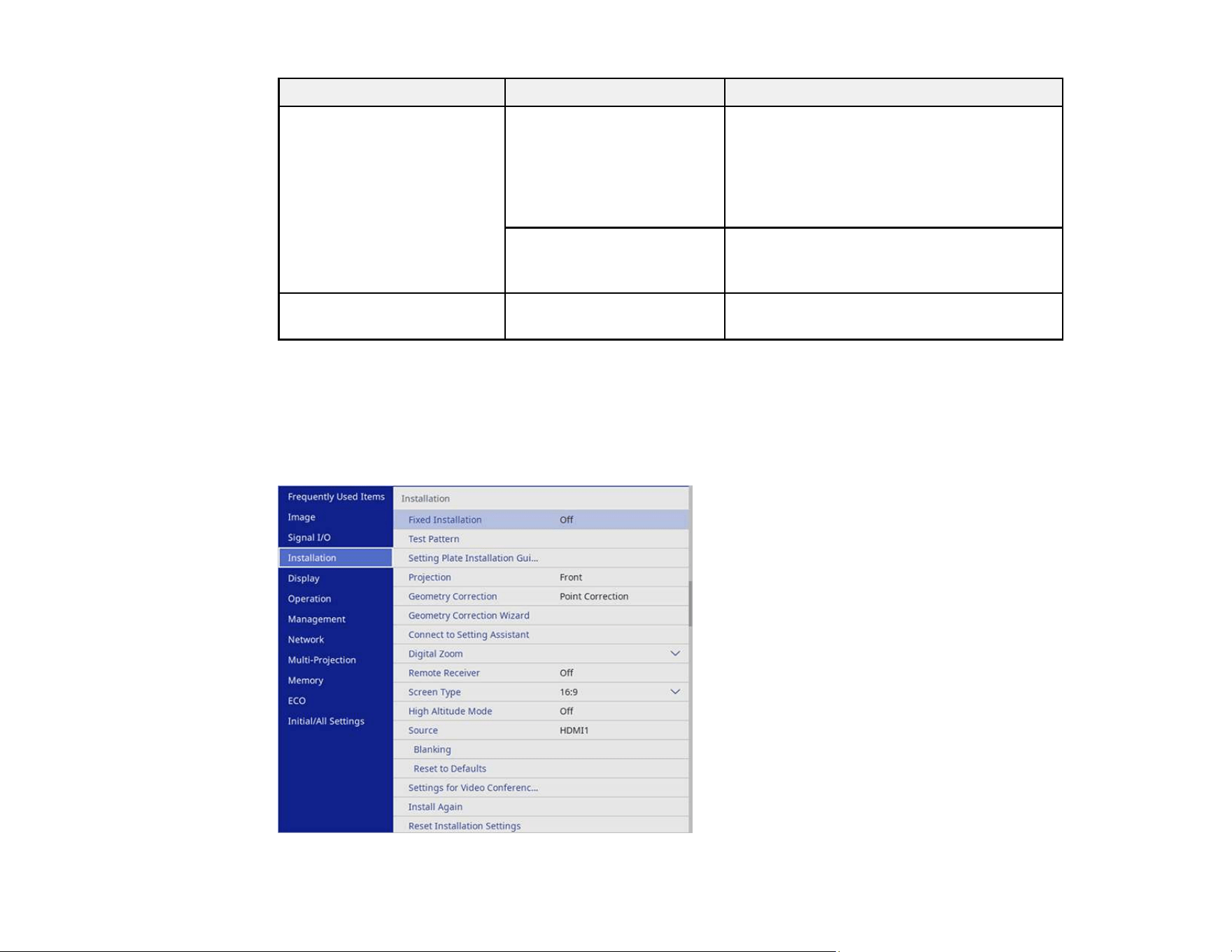

If you install the projector to a fixed location, turn on the Fixed Installation setting in the projector's
Installation menu.
Select the correct Projection option from the Projector's menu system depending on whether you're
projecting from the ceiling, wall, rear, table, or portable cart. If you're projecting from a table or portable
cart, make sure to install the projector feet before selecting the appropriate Projection option.
29
Note: If the projector is installed at an angle, it should be installed by qualified technicians using
mounting hardware designed for use with this projector. Install the projector appropriately to prevent it
from falling down.
Note: Install the projector appropriately to prevent it from falling down. Use M4 screws (up to a depth of
0.35 inches [9 mm]) to fix the projector's ceiling mount fixing points and the mounting hardware at the
four points.

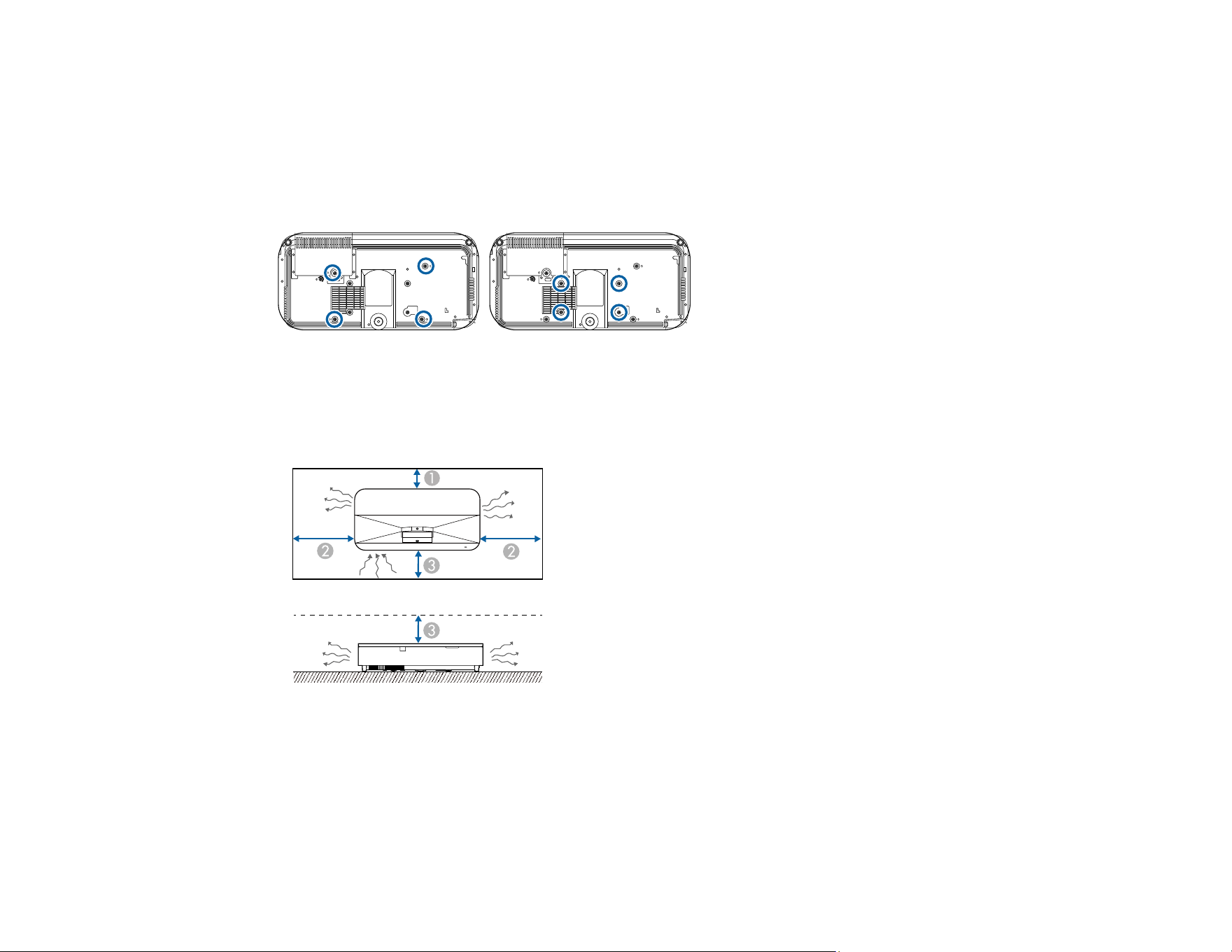

Installation space
Be sure to leave the following amount of space around the projector so as to not block the air exhaust or
intake vents.
1 0.9 inches (2.3 cm)
2 7.9 inches (20 cm)
3 3.9 inches (10 cm)
30
When installing multiple projectors side-by-side
Without partition
If you are installing multiple projectors next to each other, make sure hot air from the exhaust vent does
not go into the air intake vent of the other projector.
1 43.3 inches (110 cm)
With partition
If you use a partition, you can narrow the space between the projectors.
2 Partition
3 7.9 inches (20 cm)
Parent topic: Projector Placement
Projection Distance
The distance at which you place the projector from the screen determines the approximate size of the
image. The image size increases the farther the projector is from the screen, but can vary depending on
the zoom factor, aspect ratio, and other settings.
If placing the projector on a desk or table, use the tables here to determine approximately how far to
place the projector from the screen based on the size of the projected image. (Conversion figures may
have been rounded up or down.) You can also use the Projection Distance Calculator here (U.S.), here
(Canada), or here (Latin America).
31
If installing with the ELPMB75 wall mount, see the tables and follow the instructions in the online
Installation Guide to install the projector.
1 Projection distance (from image to rear of projector)
2 Distance from top of projector to base of image
3 Distance from top of projector to top of image
16:9 Aspect Ratio Image or Screen
Screen or image size Projection distance (1) Offset from top of
projector (2)
Offset from top of
projector (3)
60 inches (152.4 cm) 1 inch (2.5 cm) 9.5 inches (24.1 cm) 38.9 inches (98.8 cm)
65 inches (165.1 cm) 2 inches (5 cm) 10.5 inches (26.6 cm) 42.3 inches (107.4 cm)
70 inches (177.8 cm) 3 inches (7.6 cm) 11.4 inches (28.9 cm) 45.7 inches (116 cm)
80 inches (203.2 cm) 5 inches (12.7 cm) 13.4 inches (34 cm) 52.6 inches (133.6 cm)
32
16:9 Aspect Ratio Image or Screen
Screen or image size Projection distance (1) Offset from top of
projector (2)
Offset from top of
projector (3)
90 inches (228.6 cm) 7 inches (17.7 cm) 15.3 inches (38.8 cm) 59.4 inches (150.8 cm)
100 inches (254 cm) 9 inches (22.8 cm) 17.3 inches (43.9 cm) 66.3 inches (168.4 cm)
110 inches (279.4 cm) 11 inches (27.9 cm) 19.2 inches (48.7 cm) 73.1 inches (185.6 cm)
120 inches (304.8 cm) 13 inches (33 cm) 21.2 inches (53.8 cm) 80 inches (203.2 cm)
140 inches (355.6 cm) 17 inches (43.1 cm) 25 inches (63.5 cm) 93.7 inches (237.9 cm)
160 inches (406 cm) 20.9 inches (53 cm) 28.9 inches (73.4 cm) 107.3 inches (272.5 cm)
21:9 Aspect Ratio Image or Screen
Screen or image size Projection distance (1) Offset from top of
projector (2)
Offset from top of
projector (3)
57 inches (144.7 cm) 1.1 inches (2.7 cm) 13 inches (33 cm) 35.5 inches (90.1 cm)
60 inches (152.4 cm) 1.7 inches (4.3 cm) 13.8 inches (35 cm) 37.4 inches (94.9 cm)
70 inches (177.8 cm) 3.8 inches (9.6 cm) 16.5 inches (41.9 cm) 44.1 inches (112 cm)
76 inches (193 cm) 5.1 inches (12.9 cm) 18.1 inches (45.9 cm) 48 inches (121.9 cm)
80 inches (203.2 cm) 5.9 inches (14.9 cm) 19.1 inches (48.5 cm) 50.7 inches (128.7 cm)
90 inches (228.6 cm) 8 inches (20.3 cm) 21.8 inches (55.3 cm) 57.3 inches (145.5 cm)
100 inches (254 cm) 10.1 inches (25.6 cm) 24.5 inches (62.2 cm) 63.9 inches (162.3 cm)
110 inches (279.4 cm) 12.2 inches (30.9 cm) 27.1 inches (68.8 cm) 70.5 inches (179 cm)
120 inches (304.8 cm) 14.3 inches (36.3 cm) 29.8 inches (75.6 cm) 77.1 inches (195.8 cm)
130 inches (330.2 cm) 16.4 inches (41.6 cm) 32.5 inches (82.5 cm) 83.7 inches (212.5 cm)
151 inches (383.5 cm) 20.8 inches (52.8 cm) 38.1 inches (96.7 cm) 97.5 inches (247.6 cm)
Parent topic: Projector Placement
Projector Connections
See these sections to connect the projector to a variety of projection sources.
33
Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode
to ensure the projector's internal temperature is regulated properly.
Connecting to Computer Sources
Connecting to Video Sources
Connecting to External USB Devices
Connecting to a Document Camera
Parent topic: Setting Up the Projector
Related references
Installation Settings - Installation Menu
Additional Components
Connecting to Computer Sources
Follow the instructions in these sections to connect a computer to the projector.
Connecting to a Computer for HDMI Video and Audio
Connecting to a Computer for USB Video and Audio
Parent topic: Projector Connections
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using an HDMI cable (not
included).
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, USB-C port, or Mini-DVI
port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI
port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not
support audio through the HDMI port.
1. Connect the HDMI cable to your computer's HDMI output port.
34
2. Connect the other end to one of the projector's HDMI ports.
Parent topic: Connecting to Computer Sources
Connecting to a Computer for USB Video and Audio
If your computer meets the system requirements, you can send video and audio output to the projector
through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a
USB cable.
Note: Connecting through a USB hub may not work properly. Connect the USB cable directly to the
projector.
1. Turn on the projector, if necessary.
2. Turn on your computer.
3. Connect the cable to your projector's USB-B port.
35
4. Connect the other end to any available USB port on your computer.
5. Do one of the following:
• Windows 11/Windows 10/Windows 8.x: Click EPSON_PJ_UD when it appears on the desktop,
then select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display
software.
• Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to
install the Epson USB Display software.
• Mac: The USB Display setup folder appears on your screen. Select USB Display Installer and
follow the on-screen instructions to install the Epson USB Display software.
Follow any on-screen instructions. You need to install this software only the first time you connect
the projector to the computer.
The projector displays the image from your computer's desktop and outputs sound, if your presentation
contains audio.
Parent topic: Connecting to Computer Sources
Related references
Input Signal Settings - Signal I/O Menu
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the projector.
Connecting to an HDMI Video Source
Connecting to a Streaming Media Player
Parent topic: Projector Connections
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector using an HDMI cable (not
included). The HDMI connection provides the best image quality.
Caution: Do not turn on the video source before connecting it to the projector. Doing so could damage
the projector.
1. Connect the HDMI cable to your video source's HDMI output port.
36
2. Connect the other end to one of the projector's HDMI ports.
Note: The projector converts the digital audio signal sent from your video source into a mono analog
signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.
Parent topic: Connecting to Video Sources
Related references
Input Signal Settings - Signal I/O Menu
Connecting to a Streaming Media Player
You can connect a streaming media player to the projector. By connecting the streaming media player's
power supply USB cable, you can power the streaming media player from the projector.
1. Connect the streaming media player to an HDMI port.
2. If necessary, connect the streaming media player's power supply USB cable to the USB-A port.
Connect the other end of the cable to the USB port on the streaming media player.
Note: To keep supplying power to the optional streaming media player when the projector is not
projecting images, select Always On as the USB Power setting in the projector's Operation menu.
Parent topic: Connecting to Video Sources
Related references
Input Signal Settings - Signal I/O Menu
Connecting to External USB Devices
Follow the instructions in these sections to connect external USB devices to the projector.
37
USB Device Projection
Connecting a USB Device or Camera to the Projector
Selecting the Connected USB Source
Disconnecting a USB Device or Camera From the Projector
Parent topic: Projector Connections
Related tasks
Starting a PC Free Slideshow
USB Device Projection
You can project images and other content without using a computer or video device by connecting any of
these devices to your projector:
• USB flash drive
• Digital camera or smartphone
• USB hard drive
Note: Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices,
and must be USB Mass Storage Class-compliant.
Note: USB hard drives must meet these requirements:
• USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)
• Formatted in FAT16 or FAT32
• Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)
• Does not have multiple partitions
You can project slide shows from image files on a connected USB device.
You can also project playlists that contain images and movies saved on a USB device when in Content
Playback mode.
Parent topic: Connecting to External USB Devices
Related tasks
Starting a PC Free Slideshow
Connecting a USB Device or Camera to the Projector
You can connect your USB device or camera to the projector's USB-A port and use it to project images
and other content.
38
1. If your USB device came with a power adapter, plug the device into an electrical outlet.
2. Connect the USB cable (or USB flash drive) to one of the projector's USB-A ports.
Note: Use the USB cable supplied with or specified for use with your device. Do not connect a USB
hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly.
3. Connect the other end of the cable (if applicable) to your device.
Parent topic: Connecting to External USB Devices
Related tasks
Starting a PC Free Slideshow
Selecting the Connected USB Source
1. Make sure the connected USB source is turned on, if necessary.
2. Press the USB button on the remote control.
Parent topic: Connecting to External USB Devices
Related tasks
Starting a PC Free Slideshow
Disconnecting a USB Device or Camera From the Projector
When you finish presenting with a connected USB device or camera, you must prepare to disconnect the
device from the projector.
1. If the device has a power button, turn off and unplug the device.
2. Disconnect the USB device or camera from the projector.
Parent topic: Connecting to External USB Devices
39
Related tasks
Starting a PC Free Slideshow
Connecting to a Document Camera
You can connect a document camera to your projector to project images from the camera.
Note: The connection method varies depending on your document camera model. For additional
features supported by software, connect your document camera to your computer using the camera's
USB port instead of connecting the camera to the projector. See the document camera manual for
details.
Parent topic: Projector Connections
Connecting to an HDBaseT Transmitter
To send an HDMI or RS-232C signal over a long distance, you can connect the projector to an optional
HDBaseT transmitter using a 100Base-TX network cable. This is useful when you want to send a signal
to or control the projector from a remote location, such as in a hall or event site, since you can use a
network cable up to 328 feet (100 m) in length. To ensure proper data transmission, use a Category 5e
STP cable or better.
Note: Set the A/V Output setting to Always On in the Signal I/O menu to control the projector when it is
not projecting any images.
1. Turn off the projector and HDBaseT transmitter.
Note: Make sure the projector and HDBaseT transmitter are turned off when connecting or
disconnecting a network cable between the two devices.
2. Connect one end of the network cable to the HDBaseT port on the transmitter.
40
3. Connect the other end to the projector's HDBaseT port.
Note: See the documentation that came with the HDBaseT transmitter for instructions on connecting
it to your video device or computer.
4. Turn on the projector and HDBaseT transmitter.
Note: To enable communication from the Ethernet and serial ports on the transmitter, enable Control
Communications in the HDBaseT settings of the projector's Signal I/O menu. Turning on this setting
disables the projector's LAN and RS-232C ports. If you connected an Extron XTP transmitter or switcher
to the projector's HDBaseT port, select On as the Extron XTP setting in the projector's Signal I/O menu.
Parent topic: Setting Up the Projector
Connecting Multiple Projectors of the Same Model
You can project the same image from multiple projectors. You can connect multiple projectors using
either of the following methods:
• Daisy-chain connection
• Distributor connection
You can connect up to four projectors in a daisy-chain connection. You can connect up to four projectors
of the same model in the same room to project a single unified image.
Multiple Projector Connection Menu Settings
Parent topic: Setting Up the Projector
41
Multiple Projector Connection Menu Settings
After connecting multiple projectors to project a unified image, see the tables below to select the correct
projector menu settings. Make sure your computer is connected to Projector 1 (the left-most projector in
your setup).
Note: You may need to restart the projector during the process. Follow any on-screen instructions.
Setup (2-4 Projectors)
1. Connect the computer and the projectors using HDMI cables.
2. Press the Menu button on the control panel or remote control.
3. Select the necessary HDMI Link setting in the projector's Signal I/O menu. See the list of settings for
more details.
Setting Projector 1 Projector 2 Projectors 3-4
HDMI Out Power
Link
On On On
HDMI Out Terminal
End
Off Off On
Note: This may not work if five or more projectors are connected in a series or if the settings are not
correct.
Parent topic: Connecting Multiple Projectors of the Same Model
42
Attaching and Removing the Side Cover
You can remove and attach the side cover to hide the attached cables from view.
1. Remove the projector's side cover, if necessary.
2. Bundle the cables together using a band or other fastener (not provided) and pass it through the
cable holder as shown.
Caution: Do not bundle the power cord to the other cables. Otherwise, a fire may occur.
43
3. Carefully replace the side cover.
Parent topic: Setting Up the Projector
Installing Batteries in the Remote Control
The remote control uses the two AA batteries that came with the projector. Replace the batteries as soon
as they run out.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
1. Remove the battery cover.
44
2. Insert the batteries with the + and – ends facing as shown.
Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not
inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.
3. Replace the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Setting Up the Projector
45
Using the Projector on a Network
Follow the instructions in these sections to set up your projector for use on a network.
Note: Epson iProjection is not recommended for use with streaming video.
Wired Network Projection
Wireless Network Projection
Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)
Screen Sharing
Setting Up Projector Network E-Mail Alerts
Setting Up Monitoring Using SNMP
Controlling a Networked Projector Using a Web Browser
Web Control Options
Web Control Options in Content Playback Mode
Using Crestron Connected
Registering a Digital Certificate on the Projector
Art-Net Channel Definitions
Setting Up Web API
Wired Network Projection
You can project through a wired network. To do this, you connect the projector to your network with an
Ethernet cable, and then set up your projector and computer for network projection.
After connecting and setting up the projector, install the projector software. You may need to install it
from a software CD, if included, or download the software and manuals as necessary.
Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless
access point, you can connect to the projector wirelessly through the access point using the Epson
network software.
Connecting to a Wired Network
Selecting Wired Network Settings
Parent topic: Using the Projector on a Network
46
Related references
Additional Projector Software and Manuals
Related tasks
Turning On the Projector
Connecting to a Wired Network
To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network
cable. To ensure proper data transmission, use a Category 5 shielded cable or higher.
1. Connect one end of the network cable to your network hub, switch, or router.
2. Connect the other end of the cable to the projector's LAN port.
Parent topic: Wired Network Projection
Selecting Wired Network Settings
Before you can project from computers on your network, you must select the network settings for the
projector using its menu system.
Note: Make sure you already connected the projector to your wired network using the LAN port.
1. Turn on the projector.
2. Press the Menu button.
47
3. Select the Network menu and press Enter.
4. Select Network Settings and press Enter.
Note: If the Remote Password and the Web Control Password have not been set, a screen appears
prompting you to set them. Enter passwords up to 32 characters long. These passwords are used
for accessing the projector over a network, and you do not need to enter them to access the Network
Settings menu after you set them.
5. Select Projector Name and enter a name up to 16 alphanumeric characters long to identify the
projector on a network.
6. Set the Priority Control Interface setting to Wired LAN.
48
7. Select the Wired LAN menu and press Enter.
8. Select IP Settings and press Enter.
9. Select your IP settings as necessary:
• If your network assigns addresses automatically, turn on the DHCP setting.
• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet
Mask, and Gateway Address as needed.
Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on
the remote control. To select a highlighted number, press Enter. Alternatively, press and hold the
Num button on the remote control while entering the desired numbers.
10. To prevent display of the IP address on the standby screen, turn off IP Address Display in the
Wired LAN menu.
11. Select Return and press Enter to return to the Network Settings menu.
12. Select Network Projection and press Enter.
49
You see a screen like this:
13. Set the Projector Keyword setting to On if you want to prevent access to the projector by anyone
not in the room with it.
Note: When this setting is enabled, you must enter a displayed, randomized keyword from a
computer using Epson iProjection to access the projector and share the current screen.
14. Set the Epson iProjection setting to On.
15. Select the following options as necessary:
• SSID Display lets you display the SSID on the network information screen and home screen.
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices using the
Epson iProjection app.
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.
(No default password.)
50
• Keyword Interrupt Display lets you select whether to display a projector keyword on the
projected image when accessing the projector using Epson iProjection.
Note: Use the displayed keyboard to enter the password and keyword. Press the arrow buttons on
the remote control to highlight characters and press Enter to select them.
16. When you finish selecting settings, select Return and press Enter to return the Network
Settings menu.
17. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
18. Press the LAN button on the remote control and confirm that the correct IP address is displayed on
the network information screen.
Parent topic: Wired Network Projection
Related references
Network Settings - Network Menu
Wireless Network Projection
You can project over a wireless network. To do this, you must set up your projector and computer for
wireless projection.
Note: Infrastructure mode supports 802.11b/g/n (2.4 GHz) and 802.11a/n/ac (5 GHz). Simple AP mode
supports 802.11g/n (2.4 GHz) and 802.11a/n/ac (5 GHz).
There are multiple ways to connect to your projector wirelessly:
• Creating a Quick Wireless Connection USB Key (Windows only) using the Epson iProjection software
• Configuring the connection manually using the projector's Network menus
• Simple AP mode lets you directly connect to smartphones, tablets, or computers using your projector
as an access point. When you use this method, connect the projector using Quick Connection Mode of
the Epson iProjection software or use Screen Mirroring.
After connecting and setting up the projector, install the projector software as necessary. You may need
to install it from a software CD, if included, or download the software and manuals as necessary.
Note: If your projector is connected via a LAN cable to a network that includes a wireless access point,
you can connect to the projector wirelessly through the access point using the Epson network software.
51
Note: If you are monitoring or controlling the projector in standby mode using a wireless network
connection, connect your computer and projector via a wireless network router (infrastructure mode).
Connecting Directly to a Smartphone or Tablet
Using Quick Wireless Connection (Windows)
Selecting Wireless Network Settings Manually
Selecting Wireless Network Settings in Windows
Selecting Wireless Network Settings on Mac
Setting Up Wireless Network Security
Installing the Additional Wireless LAN Module
Parent topic: Using the Projector on a Network
Related references
Additional Projector Software and Manuals
Related tasks
Turning On the Projector
Connecting Directly to a Smartphone or Tablet
You can display a QR code on the screen and use it to connect a single smartphone or tablet to your
projector with the Epson iProjection app.
1. Download the latest version of the Epson iProjection app from the App Store or Google Play and
install it on your smartphone or tablet.
2. Press the Menu button on the projector or the remote control.
52
3. Select the Management menu and press Enter.
4. Select On as the Wireless LAN Power setting.
53
5. Select the Network menu and press Enter.
6. Select Network Settings and press Enter.
Note: If the Remote Password and the Web Control Password have not been set, a screen appears
prompting you to set them. Enter passwords up to 32 characters long. These passwords are used
for accessing the projector over a network, and you do not need to enter them to access the Network
Settings menu after you set them.
7. Set the Priority Control Interface setting to Wireless LAN.
54
8. Make sure Simple AP is set to On.
9. Select Network Projection and press Enter.
10. Turn on the Projector Keyword setting if you want to prevent access to the projector by anyone not
in the room with it.
Note: The projector displays a random keyword that you must enter from a computer using the
Epson iProjection (Windows/Mac) software to access the projector.
11. Select On as the Epson iProjection setting.
12. Select the following settings as necessary:
• SSID Display selects whether to display the SSID on the network standby screen and Home
screen.
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices using the
Epson iProjection app.
55
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.
(No default password.)
• Keyword Interrupt Display lets you select whether to display a projector keyword on the
projected image when accessing the projector using Epson iProjection.
13. When you finish selecting settings, select Return and press Enter to return to the Network
Settings menu.
14. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
15. Press the LAN button on the remote control.
Your projector displays a QR code on the projection surface. You can press Enter to hide and
show the QR code on the screen. If you do not see the QR code, set the Display LAN Info setting to
Text & QR Code in the Network menu.
16. Open the Epson iProjection app on your smartphone or tablet.
17. Use the QR code reader feature to read the QR code and connect your device to the projector.
Note: The projector and the smartphone must be on the same wireless network in order to establish
a connection.
Your smartphone or tablet is now connected to your projector. Visit epson.com/iprojection (U.S.),
epson.ca/iprojection (Canada), or latin.epson.com/iprojection (Latin America) for information on
controlling your projector with the Epson iProjection app.
Parent topic: Wireless Network Projection
Related references
Network Settings - Network Menu
Initial Settings and Reset Options - Initial/All Settings Menu
Administration Settings - Management Menu
Using Quick Wireless Connection (Windows)
You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows
computer wirelessly. Then you can project your presentation and remove the key when you are done.
1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection
(Windows) software.
Note: A USB flash drive is not included with your projector.
56
Note: See the online Epson iProjection Operation Guide for instructions.
2. Turn on the projector.
3. Press the LAN button on the remote control.
The LAN standby screen is displayed.
4. Verify the SSID and IP address.
5. Insert the USB key into the projector's USB-A port.
You see a projected message that the network information update is complete.
6. Remove the USB key.
7. Insert the USB key into a USB port on your computer.
8. Follow the on-screen instructions to install the Epson iProjection software.
Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need
administrator authority to install the software. If it is not installed automatically, double-click
MPPLaunch.exe in the USB key.
After a few minutes, your computer image is displayed by the projector. If it does not appear, press
the LAN or Source Search button on your remote control or restart your computer.
9. Run your presentation as necessary.
10. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows
taskbar, then remove the USB key from your computer.
Note: You can share the USB key with other computers without disconnecting your computer. You
may need to restart your computer to reactivate your wireless LAN connection.
Parent topic: Wireless Network Projection
Selecting Wireless Network Settings Manually
Before you can project from your wireless network, you must select the network settings for the projector
using its menu system.
1. Turn on the projector.
2. Press the Menu button.
57
3. Select the Management menu and press Enter.
4. Select On as the Wireless LAN Power setting.
58
5. Select the Network menu and press Enter.
6. Select Network Settings and press Enter.
Note: If the Remote Password and the Web Control Password have not been set, a screen appears
prompting you to set them. Enter passwords up to 32 characters long. These passwords are used
for accessing the projector over a network, and you do not need to enter them to access the Network
Settings menu after you set them.
7. Select Projector Name and enter a name up to 16 alphanumeric characters long to identify the
projector on the network.
8. Set the Priority Control Interface setting to Wireless LAN.
9. Select the connection method:
• To connect directly to a wireless device (Simple AP mode), set the Simple AP setting to On and
go to step 17.
• To connect to a device via a wireless network router (infrastructure mode), set the Simple AP
setting to Off and go to the next step.
59
• If you installed the optional wireless LAN module and want to use both connection methods, set
the Simple AP setting to On and go to the next step.
10. Select the Wireless LAN menu and press Enter.
11. Select Search Access Point and press Enter.
The projector searches for wireless networks.
12. Select the network you want to connect to and enter the password, if necessary.
Note: If you need to assign the SSID manually, select SSID to enter the SSID. The SSID and
password are case-sensitive. Make sure you enter them in the correct case.
13. Select IP Settings and press Enter.
14. Select your IP settings as necessary:
• If your network assigns addresses automatically, turn on the DHCP setting.
• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet
Mask, and Gateway Address as needed.
Note: Do not use these addresses: 0.0.0.0, 127.x.x.x, 192.0.2.x or 224.0.0.0 through
255.255.255.255 (where x is a number from 0 to 255) for IP Address, 255.255.255.255 or 0.0.0.0
through 254.255.255.255 for Subnet Mask, and 0.0.0.0, 127.x.x.x or 224.0.0.0 through
255.255.255.255 for Gateway Address. For DNS Server addresses, do not use the following IP
60
addresses: 127.x.x.x (where x is a number from 0 to 255). When these settings are not set, DNS
server information is acquired using DHCP.
Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on
the remote control. To select a highlighted number, press Enter.
15. To prevent display of the IP address on the network information screen, turn off IP Address
Display.
16. Select Return and press Enter to return to the Network Settings menu.
17. Select the Network Projection menu and press Enter.
18. Turn on the Projector Keyword setting if you want to prevent access to the projector by anyone not
in the room with it.
Note: The projector displays a random keyword that you must enter from a computer using the
Epson iProjection (Windows/Mac) software to access the projector.
19. Set the Epson iProjection setting to On.
61
20. Select the following options as necessary:
• SSID Display lets you select whether to display the projector's SSID on the standby screen and
Home screen.
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices with the
Epson iProjection app.
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.
• Keyword Interrupt Display lets you select whether to display a projector keyword on the
projected image when accessing the projector using Epson iProjection.
Note: Use the displayed keyboard to enter the password and keyword. Press the arrow buttons on
the remote control to highlight characters and press Enter to select them.
21. When you finish selecting settings, select Return to return to the Network Settings menu.
22. Select Set and follow the on-screen instructions to save your settings and exit the menus.
After you complete the wireless settings for your projector, you need to select the wireless network on
your computer, or iOS or Android device.
Note: You can press the LAN button on the remote control to check your network security settings after
completing the wireless settings.
Wireless LAN Menu Settings
Parent topic: Wireless Network Projection
Related references
Network Settings - Network Menu
Initial Settings and Reset Options - Initial/All Settings Menu
Wireless LAN Menu Settings
Setting Options Description
Search Access Point To Search View Search for available wireless
network access points in
Advanced connection mode
62
Setting Options Description
SSID Up 32 alphanumeric characters Manually set the SSID (network
name) of the wireless LAN
system the projector is
connecting to
Security WPA2/WPA3-PSK
WPA2/WPA3-EAP
WPA3-PSK
WPA3-EAP
Open
Selects the type of security used
on the wireless network
WPA2/WPA3-PSK: uses
WPA2/WPA3 personal mode;
encryption is dependent on the
access point settings;
Passphrase must be the same
as the access point
WPA2/WPA3-EAP: uses
WPA2/WPA3 enterprise mode;
encryption is dependent on the
access point settings
WPA3-PSK: uses WPA3 security
with AES for encryption. Use the
Passphrase value to establish a
connection from a computer
WPA3-EAP: uses WPA3
enterprise mode; encryption is
dependent on the access point
settings
Passphrase Various passphrases from 8 to
63 characters
Selects the pre-shared key used
on the network; passphrases are
case-sensitive. If the network
settings are reset after the
passphrase has been changed
more than once, the first
passphrase is restored. This
setting is only displayed when
Security is set to WPA3-PSK or
WPA2/WPA3-PSK.
63
Setting Options Description
EAP Method EAP Type
User name
Password
Client Certificate
Verify Server Certificate
CA certificate
RADIUS Server Name
Sets the EAP settings for WPA3-
EAP and WPA2/WPA3-EAP
security
IP Settings DHCP (On or Off)
IP Address
Subnet Mask
Gateway Address
Selects DHCP if your network
assigns IP addresses
automatically, or turns off DHCP
so you can enter the network's IP
address, subnet mask, and
gateway address as needed
DNS Server 1/ DNS Server 2 Various IP addresses Sets the IP address for the DNS
server using 0 to 255 for each
address field. The DNS server
resolves the host name
Note: Do not use 127.x.x.x
(where x is a number from 0 to
255). When these settings are
not set and remain as 0.0.0.0,
DNS server information is
acquired using DHCP. After
acquiring the information, the
values remain as 0.0.0.0.
IPv6 On
Off
Enables IPv6 to allow monitoring
and control of the projector over
a network using Epson Web
Control and PJLink
Auto Configuration On
Off
Selects whether to automatically
assign addresses according to
the Router Advertisement
64
Setting Options Description
Use Temporary Address On
Off
Enables use of a temporary IPv6
address
IP Address Display On
Off
Selects whether to display the IP
address on the network standby
screen and Home screen
Parent topic: Selecting Wireless Network Settings Manually
Selecting Wireless Network Settings in Windows
Before connecting to the projector, select the correct wireless network on your computer.
1. To access your wireless utility software, access the Desktop and double-click the network icon on
the Windows taskbar.
2. Do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
3. Click Connect.
Parent topic: Wireless Network Projection
Selecting Wireless Network Settings on Mac
Before connecting to the projector, select the correct wireless network on your Mac.
1. Click the AirPort or Wi-Fi icon on the menu bar at the top of the screen.
2. Make sure AirPort or Wi-Fi is turned on, then do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
Parent topic: Wireless Network Projection
65
Setting Up Wireless Network Security
You can set up security for your projector to use on a wireless network. Set up one of the following
security options to match the settings used on your network:
• WPA3-PSK
• WPA2/WPA3-PSK
• WPA3-EAP
• WPA2/WPA3-EAP
Note: To set up WPA3-EAP or WPA2/WPA3-EAP security, register your digital certificate file and place
it on a USB storage device for connection to your projector.
1. Press the Menu button.
2. Select the Network menu and press Enter.
66
3. Select Network Settings and press Enter.
Note: If the Remote Password and the Web Control Password have not been set, a screen appears
prompting you to set them. Enter passwords up to 32 characters long. These passwords are used
for accessing the projector over a network, and you do not need to enter them to access the Network
Settings menu after you set them.
4. Do one of the following:
• To connect directly to a wireless device (Simple AP mode), select Passphrase, press Enter,
and enter a passphrase from 8 to 63 characters long. When you are done, return to the Network
Settings screen, select Set, and follow the on-screen instructions to save your settings and exit
the menus. Skip the rest of these steps.
• To connect to a device via a wireless network router (infrastructure mode), select the Wireless
LAN menu and press Enter. Continue with the next step.
5. Select the Security setting and press Enter.
6. Select the security settings for your network.
7. Do one of the following according to the security you selected:
• WPA3-PSK or WPA2/WPA3-PSK: Select Passphrase, press Enter, and enter a passphrase
from 8 to 63 characters long. Then continue with step 9.
• WPA3-EAP or WPA2/WPA3-EAP: Select EAP Type and press Enter.
8. Select the protocol for authentication as the EAP Type setting.
9. When you are finished, select Return and press Enter to return to the Network Settings menu.
10. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Wireless Network Projection
Related tasks
Registering Digital Certificates from a Web Browser
Installing the Additional Wireless LAN Module
To use the additional wireless connections, install the optional Epson 802.11b/g/n wireless LAN module
in the projector. Do not install any other type of wireless module.
Note: With the additional wireless LAN module, a user without network access can still connect to the
projector.
67
Caution: Never remove the module while its indicator light is blue or flashing, or while you are projecting
wirelessly. You may damage the module or lose data.
1. Turn off the projector and unplug the power cord.
2. Remove side cover.
3. Use a cross-head screwdriver to remove the screw that secures the wireless LAN module cover.
68
4. Insert the wireless LAN module into a USB-A port on the projector.
5. Attach the cover comes with your wireless LAN module, and secure it in place with the screw.
6. Reinstall the side cover and turn on the projector.
Parent topic: Wireless Network Projection
Wireless Network Projection from a Mobile Device or Windows Computer
(Screen Mirroring)
You can send images to your projector from mobile devices such as laptops, smartphones, and tablets
using Miracast technology or from a Windows computer. If your device supports Miracast, you do not
need to install any additional software. When using a Windows computer, make sure the necessary
adapter for the Miracast connection is available.
The projector detects the input sources as Screen Mirroring1 and Screen Mirroring2. Set Interrupt
Connection to Off.
69
Screen Mirroring Restrictions
Selecting Screen Mirroring Settings
Connecting for Screen Mirroring with a Windows 8.x/Windows 10/Windows 11 Computer
Connecting for Screen Mirroring with Miracast
Parent topic: Using the Projector on a Network
Screen Mirroring Restrictions
Note the following when using Screen Mirroring features:
• You cannot project an interlaced image.
• You cannot play audio with more than 3 channels.
• You may not be able to project images depending on the resolution and frame rate.
• You cannot project 3D video.
• You cannot use extended Miracast features on Windows 8.1.
• You may not be able to view contents with copyright protection using a Miracast connection.
• Do not change the projector's Screen Mirroring settings during Screen Mirroring projection. Doing so
may cause the projector to disconnect and delay reconnection.
• Do not turn off the electrical supply to the projector during Screen Mirroring projection.
Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen
Mirroring)
Selecting Screen Mirroring Settings
You can select Screen Mirroring settings for your projector and then project images from your mobile
device.
1. Press the Menu button.
70
2. Select the Management menu and press Enter.
3. Set the Wireless LAN Power setting to On.
71
4. Select the Network menu and press Enter.
5. Select Network Settings and press Enter.
Note: If the Remote Password and the Web Control Password have not been set, a screen appears
prompting you to set them. Enter passwords up to 32 characters long. These passwords are used
for accessing the projector over a network, and you do not need to enter them to access the Network
Settings menu after you set them.
6. Select Priority Control Interface and press Enter.
7. Choose one of the following options:
• If you are casting images over a wired LAN, select Wired LAN.
• If you are casting images wirelessly directly or via a wireless network router, select Wireless LAN.
8. Set the Simple AP setting to On.
9. Select Network Projection and press Enter.
10. Set the Screen Mirroring setting to On.
72
11. Select these settings as necessary:
• Interrupt Connection lets you switch the screen to another device while projecting using Screen
Mirroring. If you want to connect two Screen Mirroring sources at once, select Off.
• Adjust Image Quality lets you adjust the screen mirroring speed and quality. Select a small
number to improve the quality or a large number to increase the speed.
• Screen Mirroring Info displays connection information when projecting from a Screen Mirroring
source.
12. When you finish selecting settings, select Return and press Enter to return to the Network
Settings screen.
13. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen
Mirroring)
Connecting for Screen Mirroring with a Windows 8.x/Windows 10/Windows 11
Computer
You can set up your computer to wirelessly project images and play sound using Screen
Mirroring/Miracast.
Note: If you are using Windows 10/Windows 11, you can cast images over a local area network or from
your device to the projector directly. When you cast images over a local area network, the connection is
more stable and secure. Connect the projector to the network with an Ethernet cable or install the
optional wireless LAN module and set the wireless LAN settings to connect to a wireless network.
1. Select the Screen Mirroring settings on your projector as necessary.
2. Press the LAN button on the remote control to switch to the Screen Mirroring source.
You see the Screen Mirroring standby screen.
3. Do one of the following:
• Windows 10/Windows 11: Hold down the Windows key and press K at the same time.
• Windows 8.x: Select Devices > Project > Add a wireless display.
4. Select your projector from the list.
Note: You can check the Projector Name in the projector's Network menu (Menu > Network >
Network Settings > Projector Name) to identify your projector in the list.
73
5. If you see the PIN entry screen on your computer, enter the PIN code displayed on the Screen
Mirroring standby screen or at the bottom right of the projected image.
The projector displays the image from your computer or mobile device.
Note: It may take some time to establish the connection. Do not disconnect the projector's power
cord while it is connecting to your device. This may cause your device to freeze or malfunction.
Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen
Mirroring)
Related references
Network Settings - Network Menu
Optional Equipment and Replacement Parts
Related tasks
Selecting Screen Mirroring Settings
Connecting for Screen Mirroring with Miracast
If your mobile device supports Miracast, you can connect it to the projector wirelessly and project images
and sound.
1. Select the Screen Mirroring settings on your projector as necessary.
2. Press the LAN button on the remote control to switch to the Screen Mirroring source.
You see the Screen Mirroring standby screen.
3. On your mobile device, use the Miracast function to search for the projector.
Note: See your mobile device's documentation for information on accessing the Miracast function.
You see a list of available devices.
4. Select your projector from the list.
5. If you see the PIN entry screen on your mobile device, enter the PIN code displayed on the Screen
Mirroring standby screen or at the bottom right of the projected image.
The projector displays the image from your mobile device.
Caution: It may take some time to establish the connection. Do not disconnect the projector's power
cord while it is connecting to your device. Doing so may cause your device to freeze or malfunction.
74
Note: Depending on the mobile device, you may need to delete a device when connecting. Follow
the on-screen instructions on your device.
Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen
Mirroring)
Related references
Network Settings - Network Menu
Related tasks
Selecting Screen Mirroring Settings
Screen Sharing
You can share the projected screen to up to four other compatible Epson projectors connected to the
same network with the screen sharing function.
The screen sharing function is limited by the following:
• You can only share the projected screen to other compatible projectors with the screen sharing
capability.
• If your projector's firmware version is older than the version installed on other projectors on the
network, you may not be able to project your screen or display a shared screen and may need to
update your projector's firmware.
• You cannot share images that are protected by HDCP.
• You cannot change the projector's Network settings while sharing your screen or displaying a shared
screen.
• This function is not available in Content Playback mode.
Sharing Your Screen
Receiving Shared Screen Images
Parent topic: Using the Projector on a Network
Related concepts
Updating the Firmware
Sharing Your Screen
You can share your projected image to up to four projectors connected to the same network.
To use the Screen Sharing feature, the distributing and receiving projectors must be connected to the
same network and have the Screen Sharing setting enabled in the projector's Network menu.
75
Note: Make sure your projector is not connected to any devices via Epson iProjection before you use the
screen sharing function.
1. Turn on the projector.
2. Press the Home button on the projector or the remote control.
3. Select Screen Sharing.
4. Select Start Screen Sharing.
5. Select the projector you want to share your screen with using one of the following methods:
• Enter the IP address of the projector using the numeric keypad.
• Enter the projector keyword using the numeric keypad, if required. The projector keyword is
displayed on the projected image of the receiving projector.
• Choose a previously selected projector by selecting an IP address from the connection history list.
6. Select Connect.
The connection is established and you see the Home screen. A status bar indicating the sharing
status appears on the screen.
7. Repeat steps 3 to 6 to add additional projectors as necessary.
8. Select the to allow drawing on the distributed screen.
• : You can draw from the receiving projector.
• : You cannot draw from the receiving projector.
9. When you are finished, select the input source from which to project images.
If you press the Esc button to stop sharing your screen, all connected projectors are disconnected. To
disconnect a specific projector, press the Home button and select Screen Sharing, then select the
projector you want to disconnect and select the icon next to the IP address.
Parent topic: Screen Sharing
Related references
Network Settings - Network Menu
Receiving Shared Screen Images
Before receiving the screen, you need to select settings on your projector:
• Connect the projectors to the same network as the projector that is sharing images.
76
• Make sure that no other device is connecting to the projector using the Epson iProjection software.
• Make sure the Screen Sharing setting is set to On.
When the other projector starts sharing screen, the shared screen image is automatically displayed. If
not, press the LAN button on the remote control. To remove the shared image during projection, press
the Esc button.
Parent topic: Screen Sharing
Setting Up Projector Network E-Mail Alerts
You can set up the projector to send you an e-mail alert over the network if there is a problem with the
projector.
Note: If the Standby Mode setting is set to Communication On in the Operation menu, you can
receive e-mail alerts even if the projector is in standby mode (the power is off). The Standby Mode
setting is displayed only if the A/V Output setting in the Signal I/O menu is set to While Projecting.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Settings and press Enter.
Note: If the Remote Password and the Web Control Password have not been set, a screen appears
prompting you to set them. Enter passwords up to 32 characters long. These passwords are used
for accessing the projector over a network, and you do not need to enter them to access the Network
Settings menu after you set them.
4. Select the Mail Notification menu and press Enter.
5. Turn on Mail Notification.
6. Enter the IP address for the SMTP Server setting.
Note: Do not use 127.x.x.x (where x is a number from 0 to 255).
77
7. Select a type of Authentication for the SMTP server.
8. Select a number for the SMTP server Port Number setting, from 0 to 65535 (default is 25).
9. Enter a User Name for the SMTP server.
10. Enter a Password for the SMTP server authentication.
11. Enter the sender's email address as the From setting.
12. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there.
Repeat for up to three addresses. Your e-mail address can be up to 64 alphanumeric characters
long.
13. If you are using the PJLink protocol for projector control, turn on the PJLink setting in the Projector
Control menu and enter the IP address where you want to receive PJLink notifications as the
Notified IP Address setting.
14. When you finish selecting settings, select Return and press Enter to return to the Network
Settings menu.
15. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Network Projector E-mail Alert Messages
Parent topic: Using the Projector on a Network
Network Projector E-mail Alert Messages
When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you
receive an e-mail containing the following information:
• The email address entered as the From setting
• Epson Projector on the subject line
• The name of the projector experiencing a problem
• The IP address of the affected projector
• Detailed information about the problem
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Parent topic: Setting Up Projector Network E-Mail Alerts
78
Setting Up Monitoring Using SNMP
Network administrators can install SNMP (Simple Network Management Protocol) software on network
computers so they can monitor projectors. If your network uses this software, you can set up the
projector for SNMP monitoring.
1. Press the Menu button.

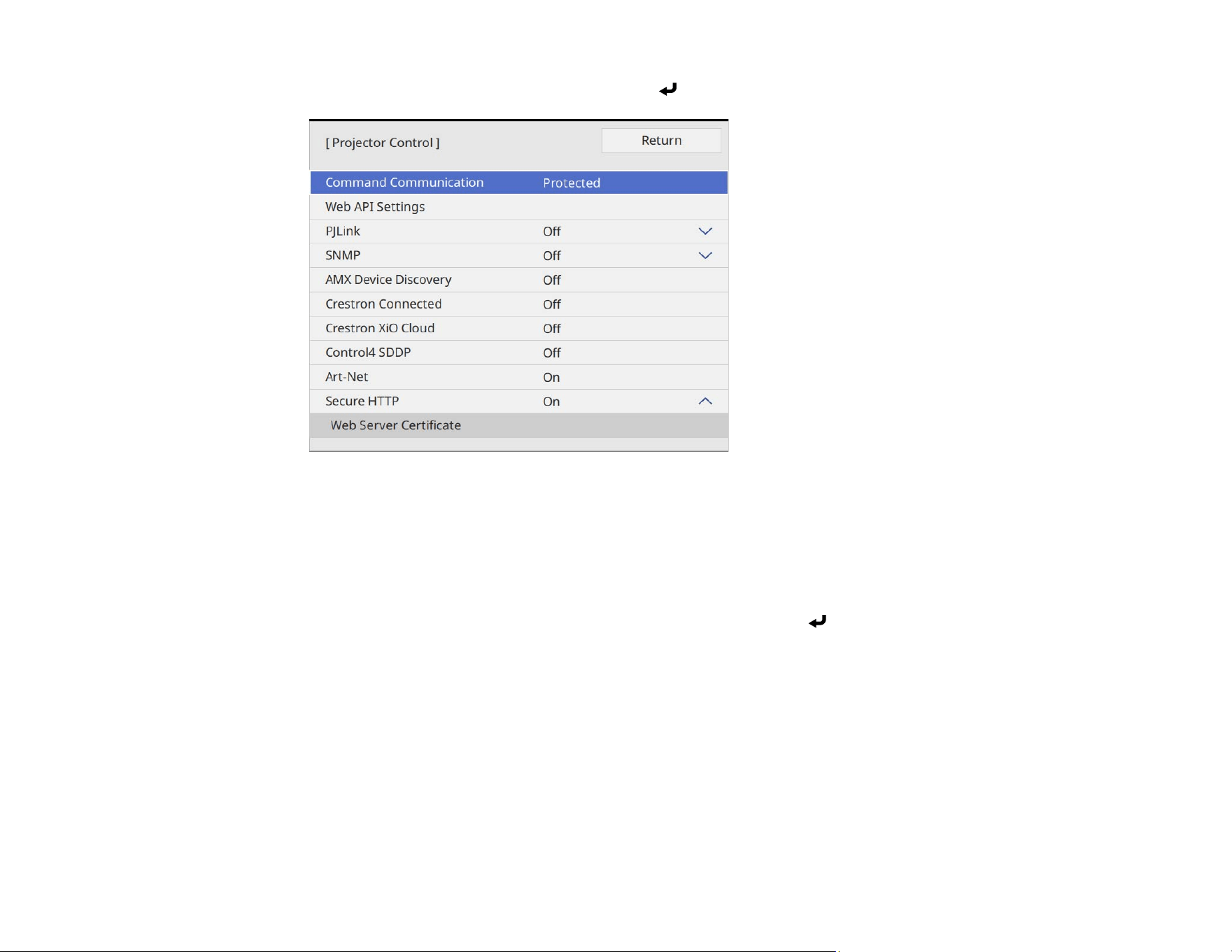

2. Select Network > Network Settings > Projector Control > SNMP > On.
Note: If the Remote Password and the Web Control Password have not been set, a screen appears
prompting you to set them. Enter passwords up to 32 characters long. These passwords are used
for accessing the projector over a network, and you do not need to enter them to access the Network
Settings menu after you set them.
3. If no SNMP Community Name has been set, a screen appears prompting you to set one.
Enter the SNMP Community Name (up to 32 alphanumeric characters).
4. Enter up to two IP addresses to receive SNMP notifications as the Trap IP Address 1 and Trap IP
Address 2 settings, using 0 to 255 for each address field.
Note: To enter the IP address using the numeric keys on the remote control, press and hold the
Num button. Do not use these addresses: 224.0.0.0 through 255.255.255.255. This projector
supports SNMP agent version 1 (SNMPv1).
5. When you finish selecting settings, select Return and press Enter to return to the Network
Settings menu.
6. Select Set, and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Using the Projector on a Network
Controlling a Networked Projector Using a Web Browser
Once you have connected your projector to your network, you can select projector settings and control
projection using a compatible web browser. This lets you access the projector remotely.
Note: The web setup and control features support Microsoft Edge, Google Chrome, and Safari on
networks that do not use a proxy server for connection. You cannot select all of the projector menu
settings or control all projector functions using a web browser.
79
Note: If you set Standby Mode to Communication On in the Operation menu, you can use a web
browser to select settings and control projection even if the projector is in standby mode (the power is
off). The Standby Mode setting is displayed only if the A/V Output setting in the Signal I/O menu is set
to While Projecting.
1. Make sure the projector is turned on.
2. Start your web browser on a computer or device connected to the network.
3. Type the projector's IP address into the browser's address box and press the computer's Enter key
(if you are entering an IPv6 address, wrap the address with [ and ]).
Note: You can find the projector's IP address in the projector's Network menu or on the LAN input
screen.
Note: If you attempt to connect to the Web Control screen via a proxy server, the screen will not be
displayed. Make a direct connection to the Web Control screen.
Caution: Do not remove the USB flash drive from the projector or disconnect the projector's power
cord when the Playlists or USB Memory Device screens are displayed in Content Playback mode.
Data saved on the flash drive may be damaged.
You see a Web Control screen like this.
In normal mode:
80
In Content Playback mode:
Note: To disable this mode, set Content Playback to Off in the Operation menu.
4. To control projection remotely, select the Basic Control option from the Web Control screen.
Note: If you see a log in window, enter your user name and Remote Password. (The default user
name is EPSONREMOTE. You can change the Remote Password using the projector's Network
Settings menu.)
81
You see a screen like this:
1 Returns to the Epson Web Control screen
2 Power button control
3 Selects the input source
4 A/V Mute button control
5 Freeze button control
6 Displays a QR code for connecting with iOS or Android devices using the Epson iProjection
app
7 Volume button controls
8 Searches for connected sources
5. Select the icon corresponding to the projector function you want to control.
82
6. To select projector menu settings, select Advanced on the Web Control screen.
Note: If you see a log in window, enter your user name and Web Control Password. (The default
user name is EPSONWEB. You can change the Web Control Password using the projector's
Network Settings menu. If you are prompted to set a Monitor Password, enter a password up to 16
characters long and then select Apply.)
7. Select the name of the menu and follow the on-screen instructions.
Parent topic: Using the Projector on a Network
Web Control Options
Basic Control
Note: If the Remote Password is set to On, you need to enter your user name and password. (The
default username is EPSONREMOTE. No password is set by default.)
1 Returns to the Epson Web Control screen
83
2 Turns the projector on or off
3 Input source selection controls
4 A/V Mute button control
5 Pauses or resumes images
6 Displays the QR code
7 Volume button controls
8 Searches for sources

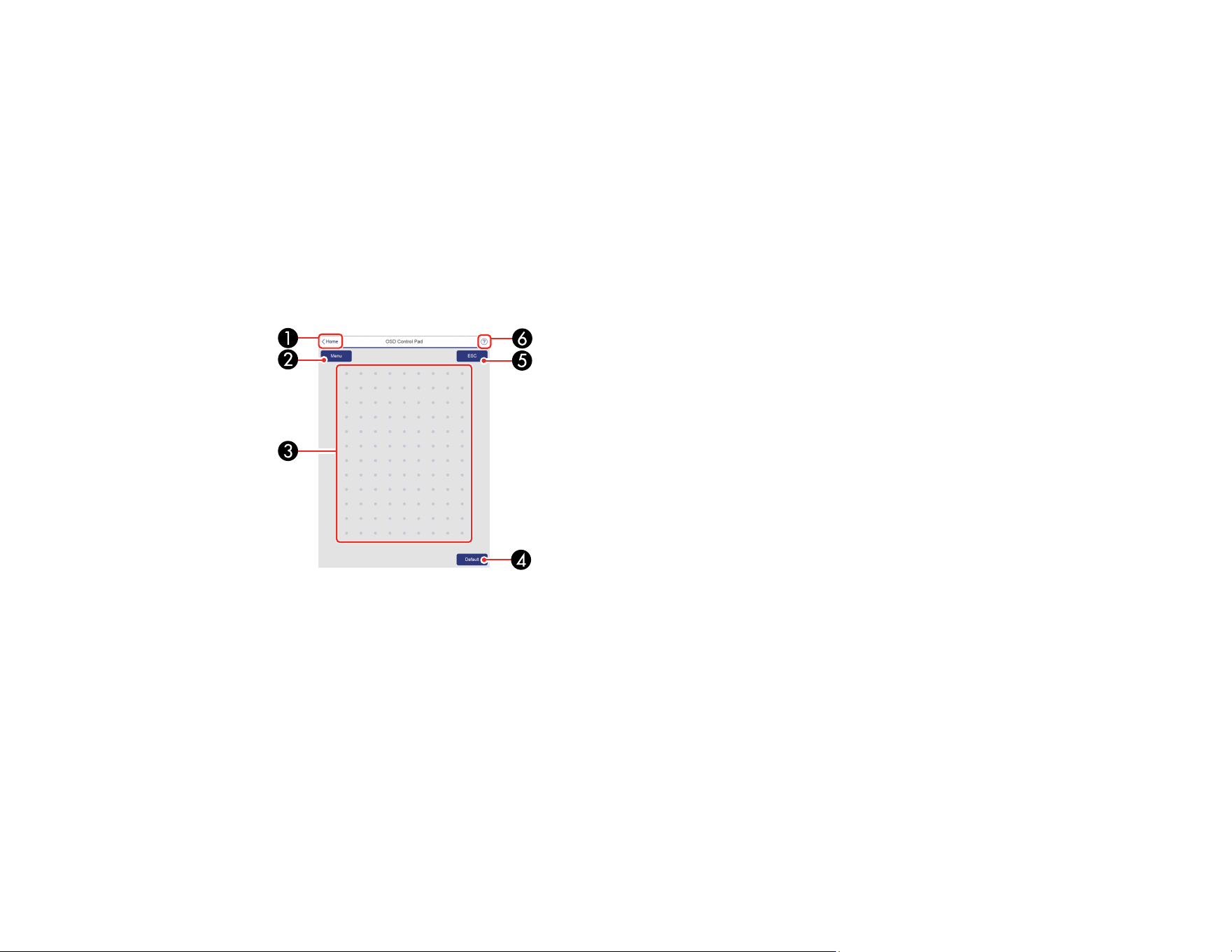

OSD Control Pad
1 Returns to the Epson Web Control screen
2 Displays the projector's setting menus
3 Use your finger or mouse to navigate the menus
4 Resets the selected setting to its default value
5 Returns to the previous menu
6 Displays help topics
Note: You cannot change some settings using Epson Web Control.
84
Test Pattern screen
1 Returns to the Epson Web Control screen
2 Displays available test patterns; select to project a test pattern
3 Turns off test pattern display

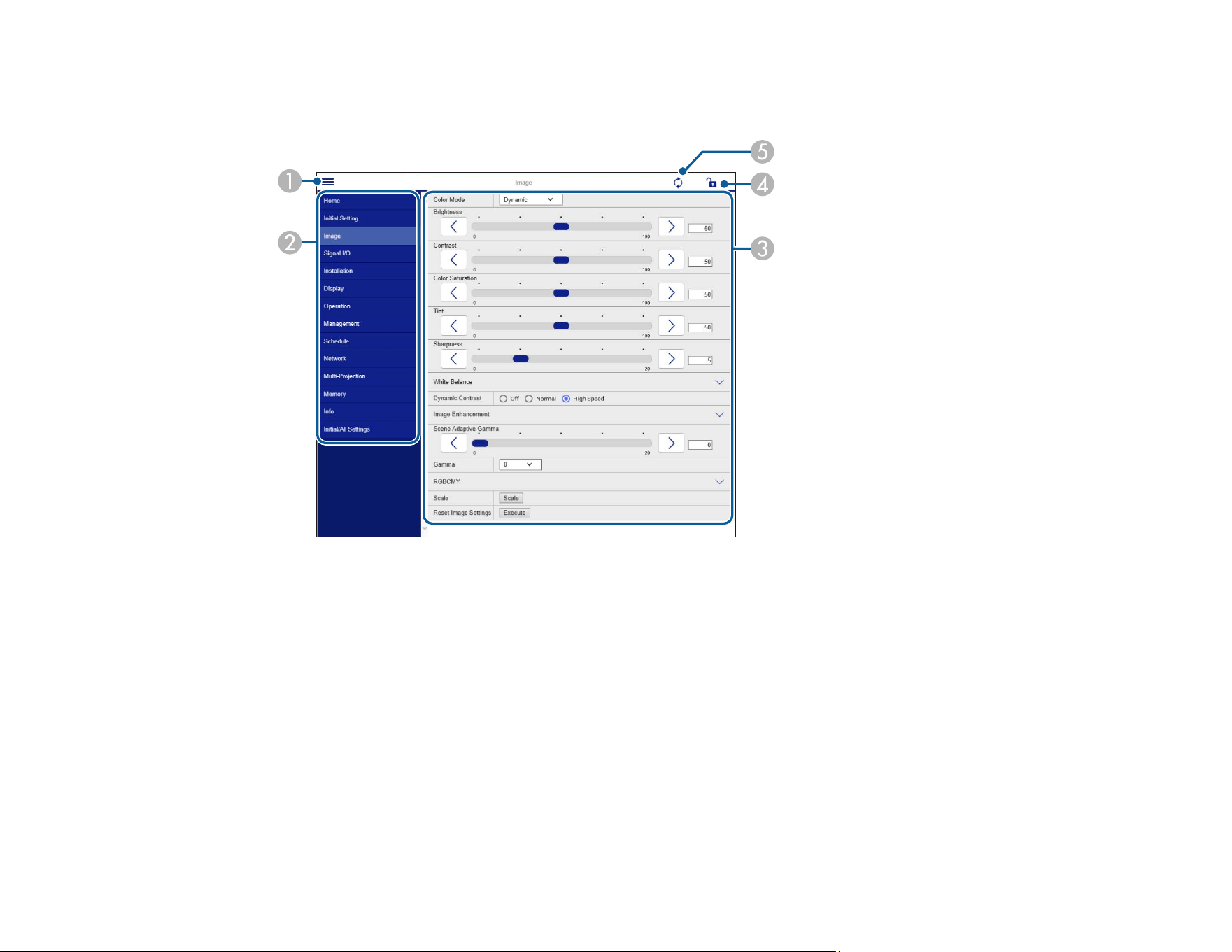

Advanced
If the default Web Control Password is set, a screen prompting you to change the password appears
before you can view the Advanced screen. It is strongly recommended that you change the password
regularly to prevent unauthorized access to your projector.
Note: Not all settings can be changed through Web Control. The following settings can only be set using
Web Control:
• Monitor Password (up to 16 alphanumeric characters)
• IPv6 Settings (manual)
85
• HTTP port (used for Web Control; cannot use 80 [default], 843, 3620, 3621, 3625, 3629, 4352, 4649,
5357, 10000, 10001, or 41794)
1 Opens the menus
2 Displays the selected menu name
3 Contains the selected projector settings
4 Locks or unlocks the projector settings
5 Updates the projector settings
Parent topic: Using the Projector on a Network
86
Web Control Options in Content Playback Mode
Remote
Note: If the Remote Password is set to On, you need to enter your user name and password. (The
default username is EPSONREMOTE. No password is set by default.)
1 Returns to the Epson Web Control screen
2 Turns the projector on or off
3 Selects the input source
4 A/V Mute button control
5 Turns Overlay Effect on or off
6 Displays the screen settings
7 Selects your favorite playlists
87
8 Displays playlist information
9 Adjusts the speaker volume
Playlists
1 Returns to the Epson Web Control screen
2 Controls playback of the playlist
3 Edits, copies, or deletes the playlist
4 Creates a new playlist
88

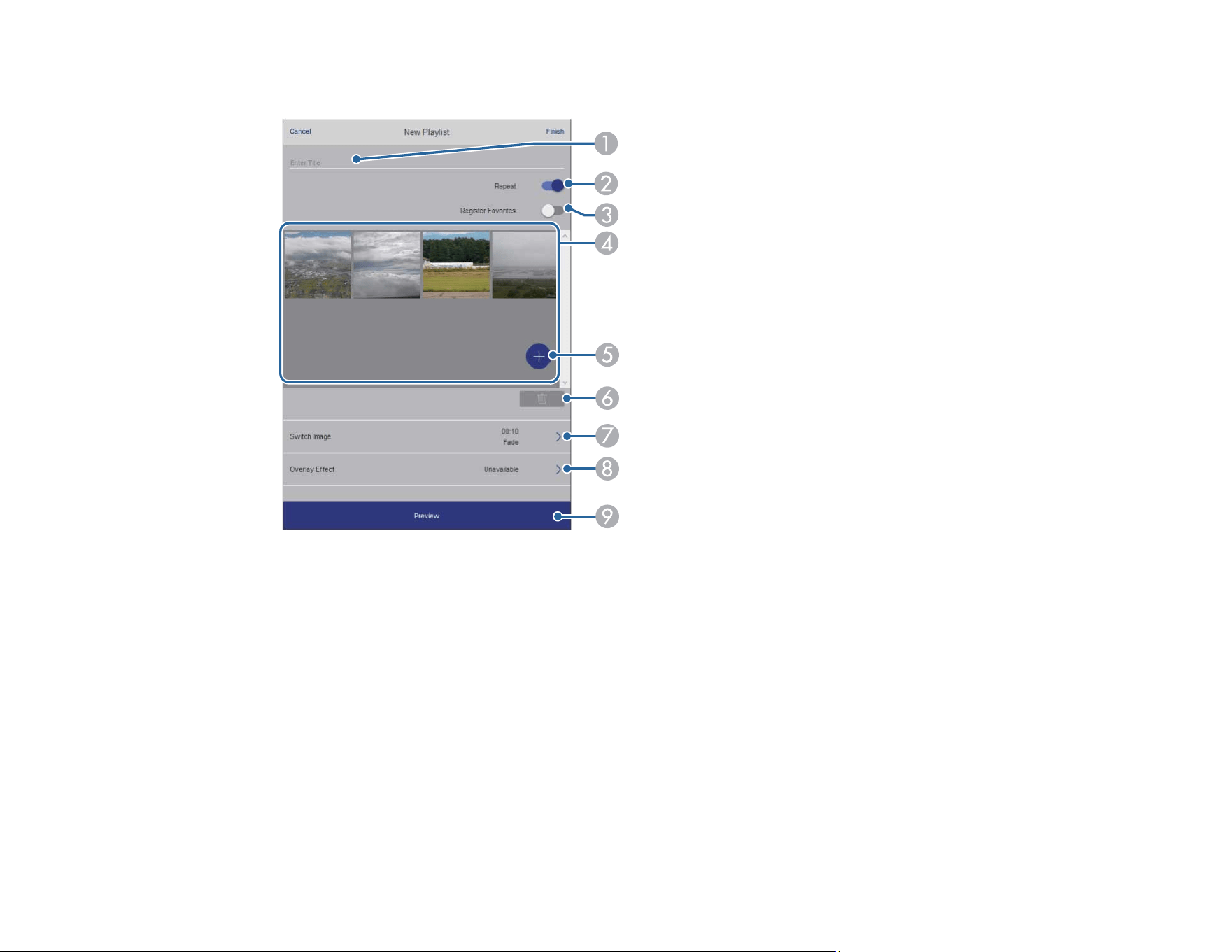

Create or Edit Playlist
1 Edits the playlist name
2 Enables repeat playback
3 Adds the playlist to your favorites list
4 Displays the images or movies in the order that they will be played
5 Adds items to the playlist
6 Deletes items from the playlist
7 Opens the Switch Image screen (specifies the time before the projector switches to the next item
in the playlist)
8 Opens the Effects screen
9 Previews the playlist
89

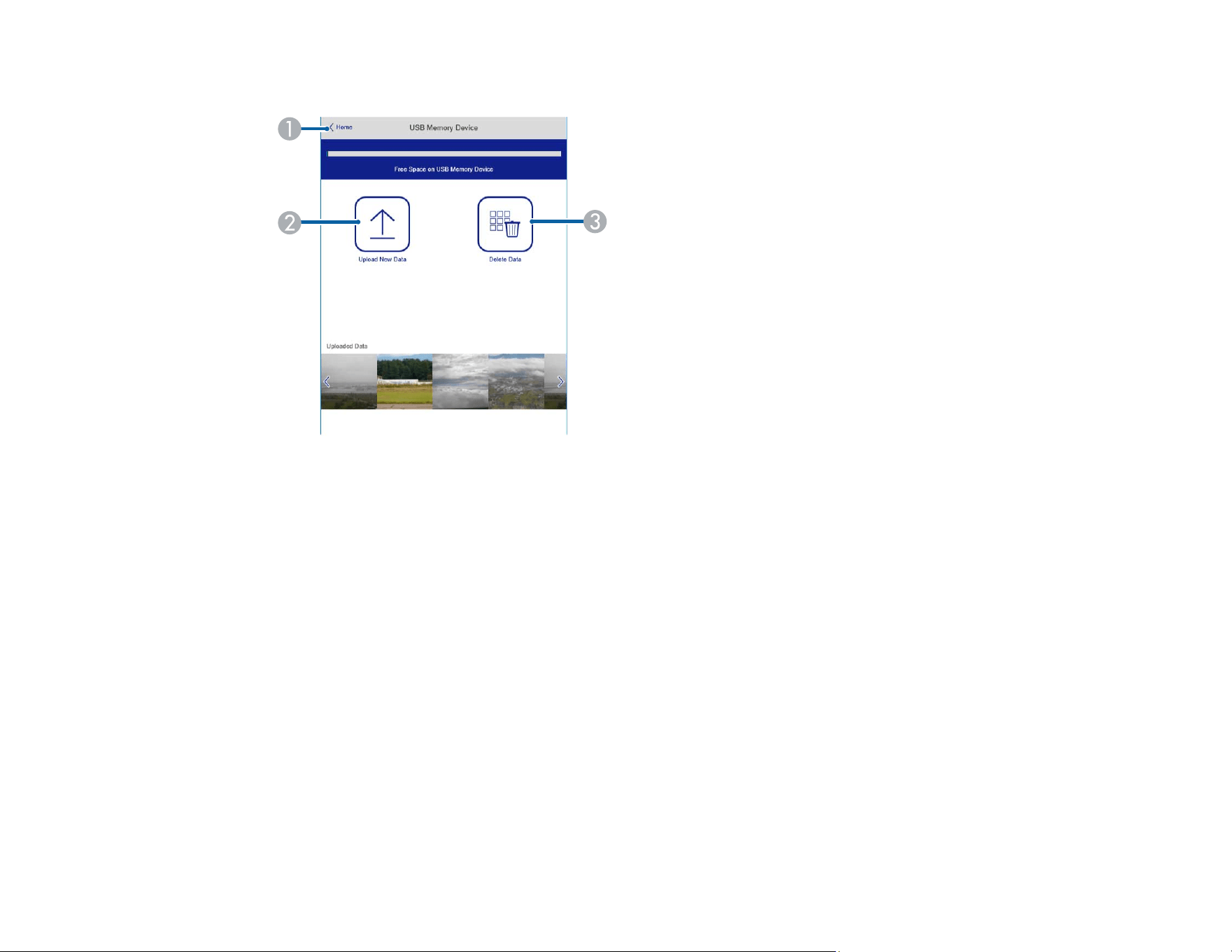

USB Memory Device
1 Returns to the Epson Web Control screen
2 Uploads images or videos to add to playlists on a USB device
3 Deletes images or videos on the USB device
Note: You can upload .avi, .jpeg (.jpg), .png, .bmp, or .gif files using Epson Web Control. If you want to
add .mp4 or .mov files to the playlist, use the Epson Projector Content Manager software or the Epson
Creative Projection app.
90
Time Table
1 Returns to the Epson Web Control screen
2 Turns the time table on or off (see the online Epson Projector Content Manager Operation Guide
for more information)
91

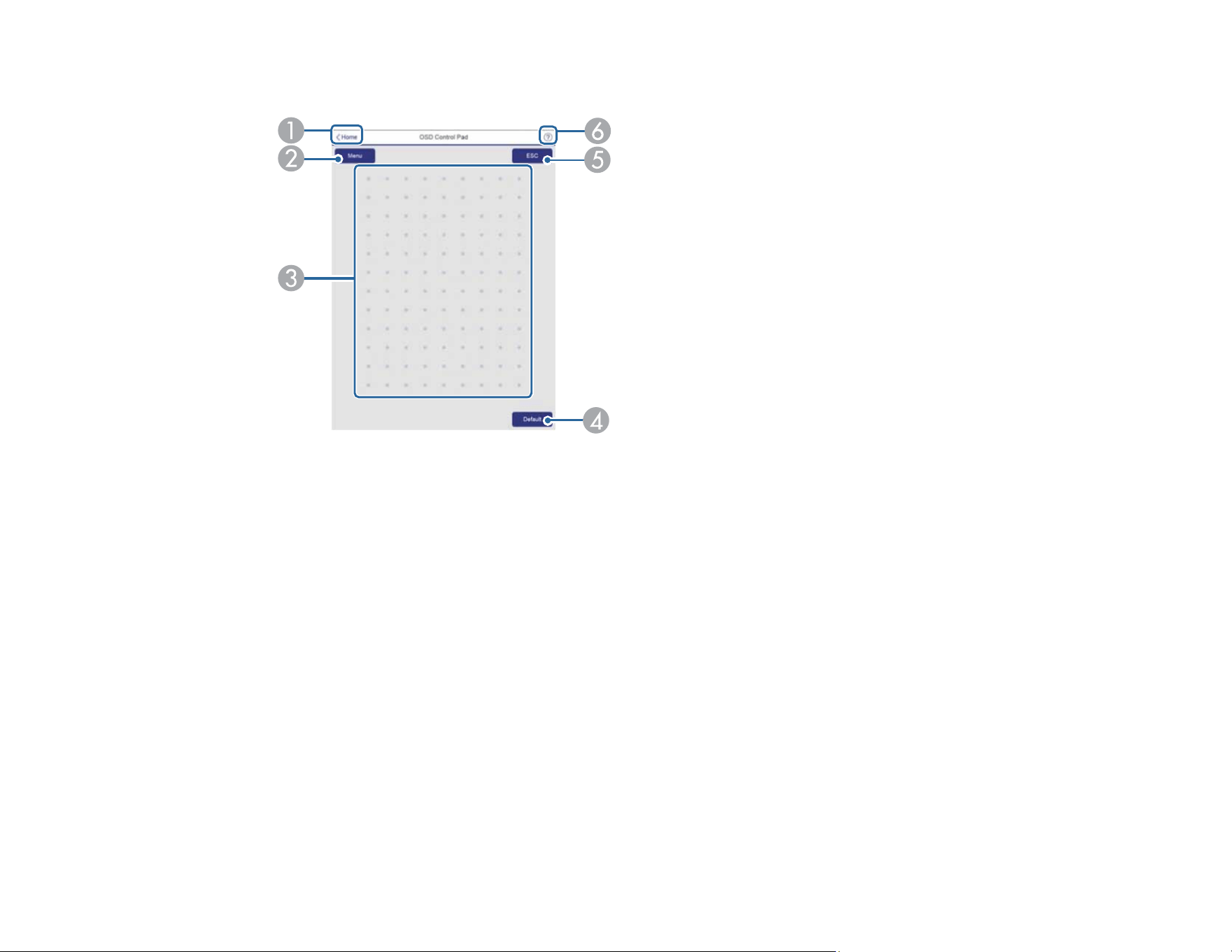

OSD Control Pad
1 Returns to the Epson Web Control screen
2 Displays the projector's setting menus
3 Use your finger or mouse to navigate the menus
4 Returns projector to default settings
5 Returns to the previous menu
6 Displays help topics
Note: You cannot change some settings using Epson Web Control.
Parent topic: Using the Projector on a Network
Using Crestron Connected
If you are using the Crestron Connected network monitoring and control system, you can set up your
projector for use on the system. Crestron Connected lets you control and monitor your projector using a
web browser.
92
Note: You cannot use the Message Broadcasting feature in the Epson Projector Management software
when you use Crestron Connected. If you set Standby Mode to Communication On in the Operation
menu, you can control the projector even if the projector is in standby mode (when the power is off).
For additional information on Crestron Connected, contact Crestron.
Setting Up Crestron Connected
Controlling a Networked Projector Using Crestron Connected
Parent topic: Using the Projector on a Network
Setting Up Crestron Connected
To set up your projector for monitoring and control using a Crestron Connected system, make sure your
computer and projector are connected to the network.
Note: You cannot use the Message Broadcasting feature in Epson Projector Management when you use
Crestron Connected.
Note: If you want to use the Crestron Connected system when the projector is turned off, you need to
adjust the Standby Mode setting in the Operation menu. The Standby Mode setting is displayed only if
the A/V Output setting in the Signal I/O menu is set to While Projecting.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Settings and press Enter.
Note: If the Remote Password and the Web Control Password have not been set, a screen appears
prompting you to set them. Enter passwords up to 32 characters long. These passwords are used
for accessing the projector over a network, and you do not need to enter them to access the Network
Settings menu after you set them.
93
4. Select the Projector Control menu and press Enter.
5. Set the Crestron Connected setting to On to allow the projector to be detected.
Note: Enabling Crestron Connected disables the Message Broadcasting feature in the Epson
Projector Management software. To enable the Crestron XiO Cloud service, set Crestron XiO
Cloud to On.
6. When you are finished selecting settings, select Return and press Enter to return to the Network
Settings menu.
7. Turn off the projector, then turn it on again to enable the setting.
8. Start your Web browser on a computer or device connected to the network.
9. Go to the Epson Web Control screen by entering the projector's IP address into the browser's
address box.
10. Select the Crestron Connected settings. See the Crestron Web site for details.
Parent topic: Using Crestron Connected
94
Related references
Input Signal Settings - Signal I/O Menu
Network Settings - Network Menu
Feature Settings - Operation Menu
Controlling a Networked Projector Using Crestron Connected
Once you have set up your projector to use Crestron Connected, you can control and monitor projection
using a compatible web browser.
1. Start your web browser on a computer connected to the network.
2. Type the projector's IP address into the browser's address box and press the computer's Enter key.
You see the Epson Web Control screen:
Note: You may need to log in to access some of the options on the Web Control screen. If you see a
log in window, enter your user name and password.
3. Select Crestron Connected.
4. Select the input source that you want to control in the Sources List box. You can scroll through
available sources using the up and down arrows in the box.
95
5. To control projection remotely, click the on-screen buttons that correspond to the projector's remote
control buttons. You can scroll through button options at the bottom of the screen.
Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:
• OK acts as the Enter button
• Menu displays the projector's menu
6. To view information about the projector, click the Info tab.
7. To change projector, Crestron, and password settings, click the Tools tab, select settings on the
displayed screen, and click Send.
8. When you finish selecting settings, click Exit to exit the program.
Parent topic: Using Crestron Connected
Registering a Digital Certificate on the Projector
Follow the instructions here if you need to install a digital certificate on the projector to provide security
for your presentation files.
Note: You can register a digital certificate using a web browser or through the projector's Network menu.
However, be sure to register just once, or the certificate may not install correctly.
Importing a Web Server Certificate Using the Projector Menus
Registering Digital Certificates from a Web Browser
Digital Certificate Types
Parent topic: Using the Projector on a Network
Importing a Web Server Certificate Using the Projector Menus
You can create your web server certificate and import it using the projector menus and a USB flash
drive.
Note: You can also register digital certificates from your web browser. Make sure to only register once,
or the certificate may not install correctly.
1. Make sure your digital certificate file is compatible with projector registration and saved in the root
directory of the USB flash drive.
2. Press the Menu button on the projector or remote control.
96
3. Select Network > Network Settings > Projector Control > Secure HTTP > On.
Note: If the Remote Password and the Web Control Password have not been set, a screen appears
prompting you to set them. Enter passwords up to 32 characters long. These passwords are used
for accessing the projector over a network, and you do not need to enter them to access the Network
Settings menu after you set them.
4. Select the Web Server Certificate setting and press Enter.
5. Select Register and press Enter.
6. Follow the on-screen instructions to connect a USB flash drive to the USB-A port on the projector.
7. Press Enter to display the certificate list.
8. Select the certificate you want to import from the displayed list.
A message is displayed prompting you to enter the password for the certificate.
9. Enter the password and press Enter.
The certificate is imported and a completion message appears.
Parent topic: Registering a Digital Certificate on the Projector
Registering Digital Certificates from a Web Browser
You can register the digital certificates on the projector for wireless LAN authentication.
Note: You can also register the digital certificates in the projector's Network menu. However, be sure to
register just once or the certificate may not install correctly.
1. Make sure your digital certificate file is compatible with projector registration.
2. Make sure the projector is turned on.
3. Start your web browser on a computer or mobile device connected to the network.
4. Type the projector's IP address into the browser's address box and press the computer's Enter key.
You see the Web Control screen and a prompt to enter a user ID and password.
5. Select Advanced and enter the following information in uppercase or lowercase letters, exactly as
shown:
• For the user ID, enter EPSONWEB. (You cannot change the user ID.)
• For the password, enter the Web Control Password. (You can change the Web Control Password
using the projector's Network Settings menu.)
97
6. Under Network, select Certificate.
Note: You may need to select the menu icon to find Network, depending on your device.
You see a screen like this:
7. Click the Choose File button, select the certificate file, and click Open.
Note: The button name may vary depending on the browser you are using.
8. Enter a password in the Password box and click Send.
9. When you finish registering the certificate, click Apply to finalize your changes and complete the
registration.
Parent topic: Registering a Digital Certificate on the Projector
Digital Certificate Types
You can register these types of digital certificates.
Client Certificate (PEAP-TLS/EAP-TLS)
98
Specification Description
Format PKCS#12
Extension PFX, P12
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Password Up to 64 alphanumeric characters; required
CA Certificate (PEAP/PEAP-TLS/EAP-TLS/EAP-FAST)
Specification Description
Format X509v3
Extension DER/CER/PEM
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Encoding BASE64/Binary
Web Server Certificate (Secure HTTP)
Specification Description
Format PKCS#12
Extension PFX, P12
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Common name Network host name
Organization Optional
Password Up to 64 alphanumeric characters; required
99
Parent topic: Registering a Digital Certificate on the Projector
Art-Net Channel Definitions
Art-Net is an Ethernet communication protocol based on the TCP/IP protocol. You can control the
projector by using a DMX controller or an application system.
The following table lists the channel definitions used to control the projector in Art-Net.
Channel/Function Operation Parameters Description
1 Adjusting light
(dimming)
0% to 100% 0 to 255 (default is 0) Adjusts the image
brightness
2 Shutter control Shutter open
Non-operational
Shutter closed
0 to 63 (default is 128)
64 to 191
192 to 255
Enables/disables A/V
Mute
3 Switch source Non-operational
HDMI1
HDMI2
LAN
Screen Mirroring1
Screen Mirroring2
USB Display
USB
0 to 7 (default is 0)
8 to 15
16 to 23
80 to 87
88 to 95
96 to 103
104 to 111
112 to 119
Switches to the
specified source
7 Digital Tele/Wide Digital Tele/Wide 0 to 255 (default is 255) Zooms using the
specified amount of
movement
11 Power control Power off
Non-operational
Power on
0 to 63 (default is 128)
64 to 191
192 to 255
Turns the projector
power on or off
13 Lock Cannot control
Can control
0 to 127 (default is 0)
128 to 255
Enables/disables Art-
Net operations
100
Channel/Function Operation Parameters Description
18 Content playback Non-operational
Playlist 1
Playlist 2
Playlist 3
Playlist 4
Playlist 5
Playlist 6
Playlist 7
Playlist 8
Playlist 9
Playlist 10
Playlist 11
Playlist 12
Playlist 13
Playlist 14
Playlist 15
0 to 3 (default is 0)
4 to 7
8 to 11
12 to 15
16 to 19
20 to 23
24 to 27
28 to 31
32 to 35
36 to 39
40 to 43
44 to 47
48 to 51
52 to 55
56 to 59
60 to 63
Plays the specified
playlist
101
Channel/Function Operation Parameters Description
18 Content playback Playlist 16
Playlist 17
Playlist 18
Playlist 19
Playlist 20
Playlist 21
Playlist 22
Playlist 23
Playlist 24
Playlist 25
Playlist 26
Playlist 27
Playlist 28
Playlist 29
Playlist 30
Playlist 31
Playlist 32
Playlist 33
Playlist 34
Playlist 35
Playlist 36
Playlist 37
Playlist 38
Playlist 39
Playlist 40
64 to 67
68 to 71
72 to 75
76 to 79
80 to 83
84 to 87
88 to 91
92 to 95
96 to 99
100 to 103
104 to 107
108 to 111
112 to 115
116 to 119
120 to 123
124 to 127
128 to 131
132 to 135
136 to 139
140 to 143
144 to 147
148 to 151
152 to 155
156 to 159
160 to 163
102
Channel/Function Operation Parameters Description
18 Content playback Playlist 41
Playlist 42
Playlist 43
Playlist 44
Playlist 45
Playlist 46
Playlist 47
Playlist 48
Playlist 49
Playlist 50
Non-operational
164 to 167
168 to 171
172 to 175
176 to 179
180 to 183
184 to 187
188 to 191
192 to 195
196 to 199
200 to 203
204 to 255
Note: If you are controlling the projector using Art-Net and operating it from the remote control, settings
made by the DMX controller or application software may differ from the projector's actual status. If you
want to apply all the channel controls to the projector, set Channel 13 to Cannot control, then set it back
to Can control.
Parent topic: Using the Projector on a Network
Setting Up Web API
You can setup Web API from the projector menu and operate the projector using Web API.
Note: You can authenticate Web API communications using API authentication (Digest authentication).
The user name for API authentication is EPSONWEB; use the password that is set for Web Control
Password.
1. Turn on the projector, if necessary.
2. Press the Menu button on the projector or remote control.
3. Select the Network menu and press Enter
103
4. Select Network Settings > Projector Control.
Note: If the Remote Password and the Web Control Password have not been set, a screen appears
prompting you to set them. Enter passwords up to 32 characters long. These passwords are used
for accessing the projector over a network, and you do not need to enter them to access the Network
Settings menu after you set them.
5. Select Web API Settings and then set Web API to On.
Parent topic: Using the Projector on a Network
104
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
Turning On the Projector
Turning Off the Projector
Selecting the Language for the Projector Menus
Setting the Date and Time
Image Shape
Adjusting the Image Position Using Image Shift
Adjusting the Image Position Using Screen Position
Adjusting the Image Height
Displaying a Test Pattern
Focusing the Image
Remote Control Operation
Selecting an Image Source
Projection Modes
Image Aspect Ratio
Color Mode

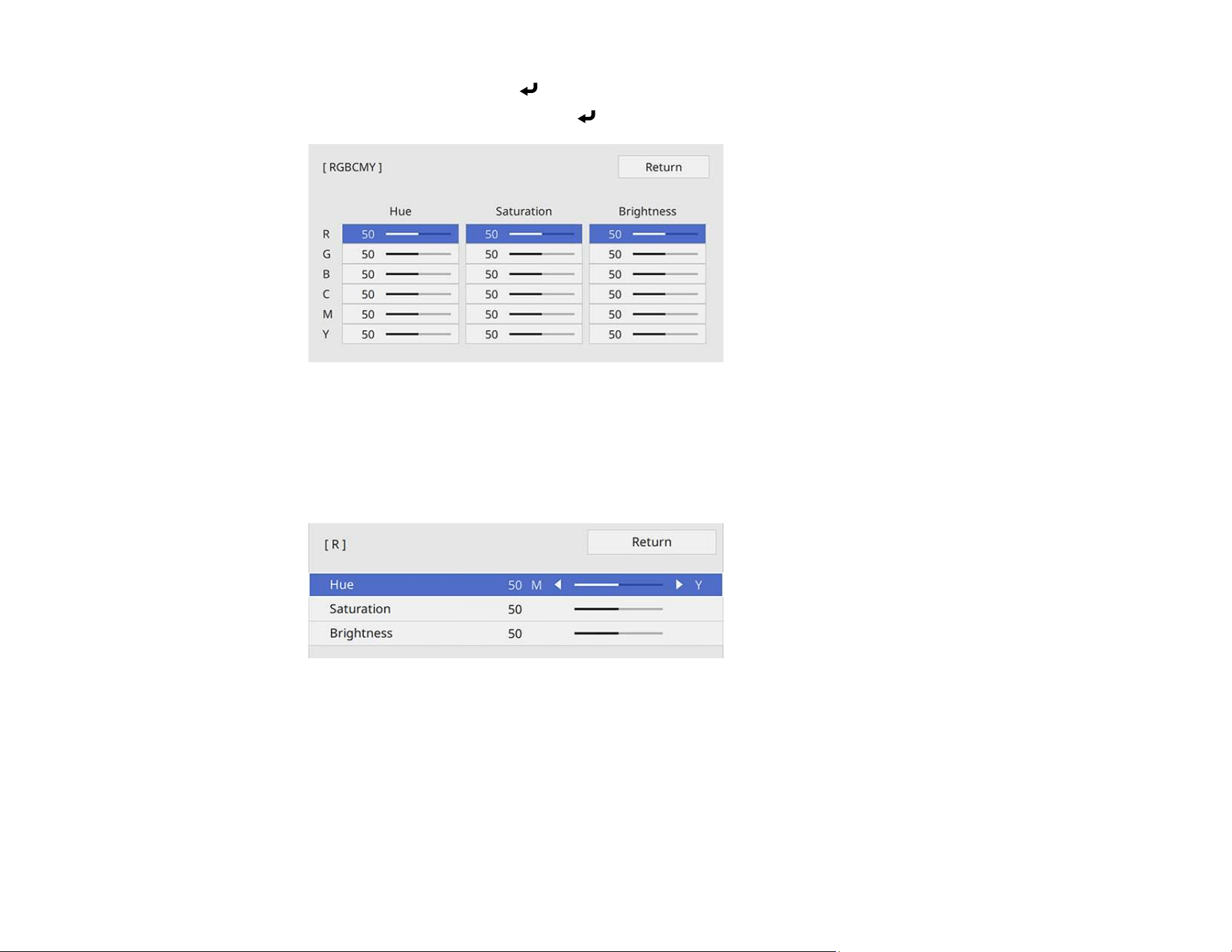

Adjusting the Hue, Saturation, and Brightness
Adjusting Gamma
Adjusting the Image Resolution
Adjusting the Projector's Brightness Level
Turning On Dynamic Contrast

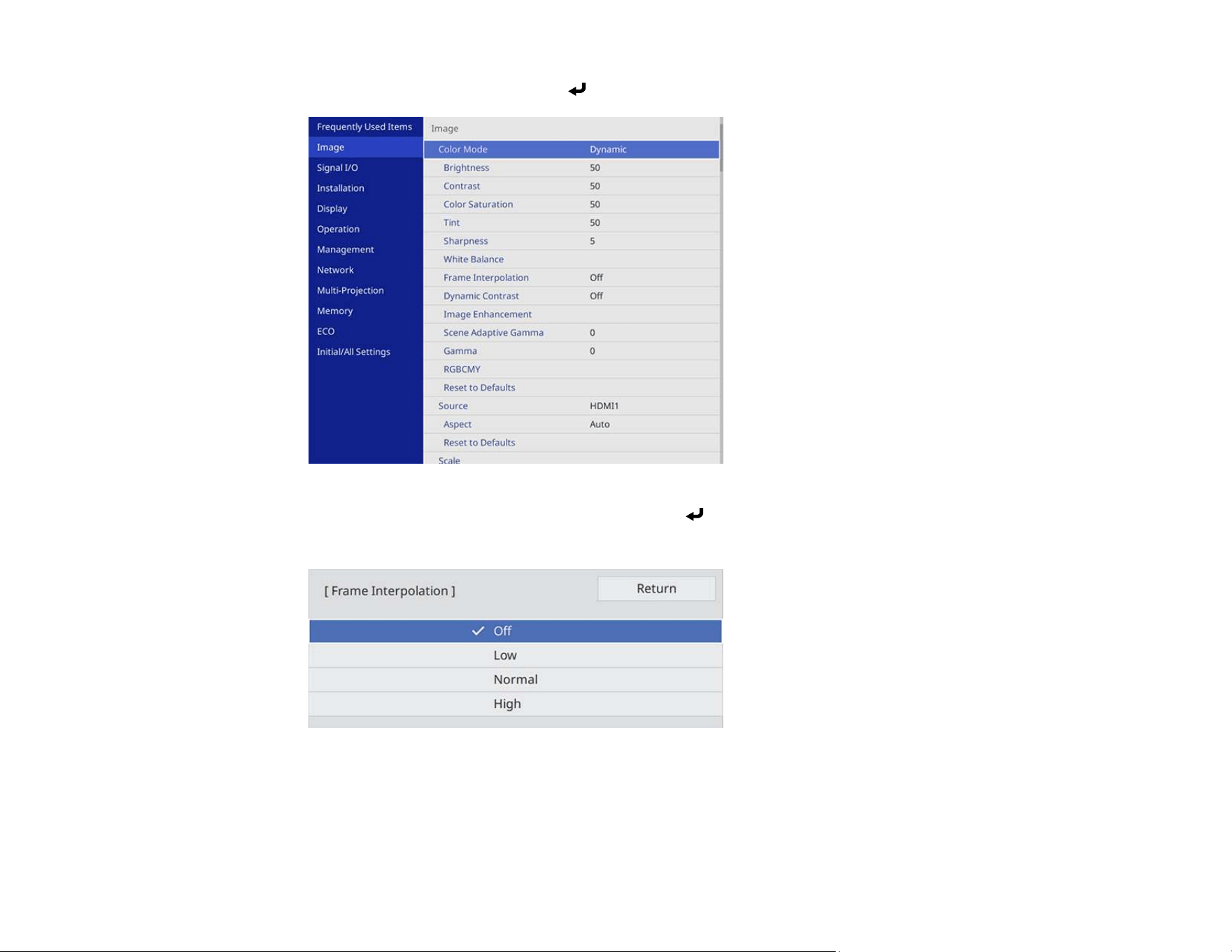

Using Frame Interpolation
Controlling the Volume with the Volume Buttons
Changing the Sound Mode
Inverting the Audio Channels
Selecting a Quick Startup Setting

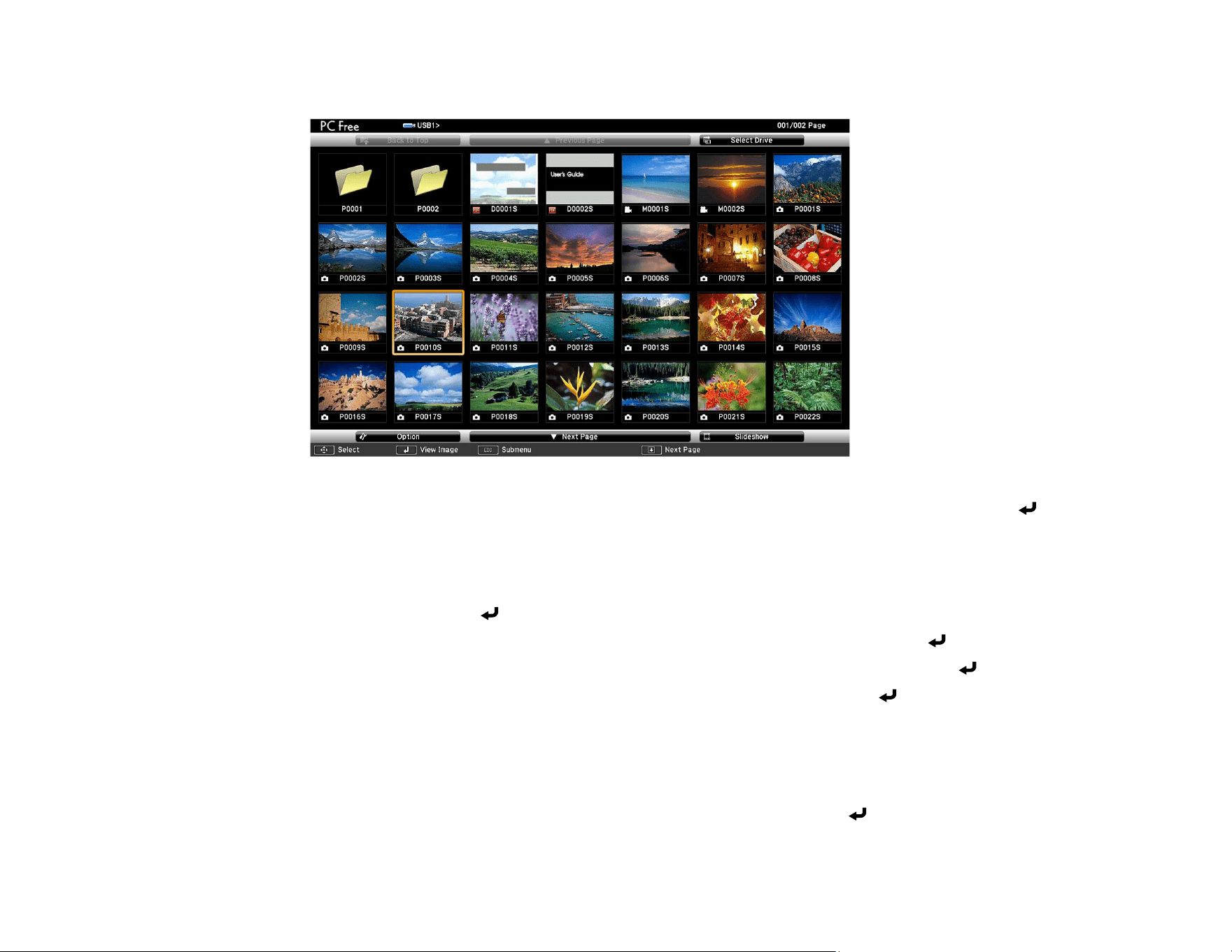

Projecting a PC Free Presentation
Projecting in Content Playback Mode
105
Turning On the Projector
Turn on the projector before you turn on the computer or video equipment you want to use.
Note: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode in
the projector's Settings menu to ensure the projector's internal temperature is regulated properly.
1. Remove the projector's side cover, if necessary.
2. Connect the computer or video equipment you want to use to one of the projector's HDMI ports, if
necessary.
106
3. Connect the power cord to the projector's power inlet.
4. Plug the power cord into an electrical outlet.
The projector enters standby mode. This means the projector is receiving power, but has not yet
been turned on.
5. Press the power button on the projector or remote control to turn on the projector.
The status light flashes blue as the projector warms up. When the projector is warmed up, the status
light stops flashing and turns blue.
Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is
especially dangerous for children and pets. If you are using the remote control to turn the projector
on, make sure no one is looking into the lens or in front of the projector before turning it on.
Caution: Make sure no objects are blocking the light from the projector lens. Objects blocking the
lens for an extended time can melt, burn, or start a fire, and light that is reflected back into the lens
107
can cause the projector to malfunction. To stop projection, use the A/V Mute function, or turn off the
projector (blanking the screen will not pause video content).
Note: When you turn on the projector for the first time, the initial setup wizard is displayed. Make the
necessary Projection, Language, and Date & Time changes using the control panel or remote
control. Adjust the shape and position settings for the projected image as necessary. Turn on the
Quick Startup setting to start the projector faster if necessary. When Quick Startup is enabled in
the projector's Operation menu, the projector becomes ready for use in several seconds the next
time you turn the projector on.
6. Turn on the connected video source.
7. Carefully replace the projector's side cover.
Note: When the Direct Power On setting is set to On in the projector's Operation menu, the
projector turns on as soon as you plug it in. Note that the projector also turns on automatically in
cases such as recovery from a power outage. If you select a specific port as the Auto Power On
setting in the projector's Operation menu, the projector turns on as soon as it detects a signal or
cable connection from that port.
If you do not see a projected image right away, try the following:
• Turn on the connected computer or video device.
• Insert a DVD or other video media and press the play button, if necessary.
• Press the Source button on the control panel or remote control and select the desired input.
• Change the screen output from the computer when using a laptop.
Using the Home Screen
Parent topic: Using Basic Projector Features
Related references
Feature Settings - Operation Menu
Related tasks
Using the Home Screen
Using the Home Screen
You can select input sources and other frequently used options from the Home screen.
108
1. To display the Home screen, do one of the following:
• Press the Home button on the control panel or remote control.
• Turn on the projector with the Home Screen Auto Disp setting enabled.
• Turn on the projector when no signal is received from the selected input source.
2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press
Enter to select an option.
1 Selects the source you want to project
A checkmark appears in the upper right corner of the current input source. For most sources,
a preview of the input image appears as a thumbnail.
2 Projects images from two or four input sources simultaneously in a grid format
3 Shares your projected image with other projectors connected to the same network
4 Displays the Connection Guide
You can view steps for different wireless connection methods depending on the devices you
are using, such as smartphones or computers.
109
5 Lets you select the following common projector settings (these settings may vary depending
on other selected settings):
• Color Mode
• Brightness Level
• Volume
• Geometry Correction (Quick Corner is available)
• Aspect
• Install Again
6 Displays the projector name and the projector keyword
7 Displays the current time
Note: The Home screen closes after 10 minutes of inactivity.
Note: The Geometry Correction setting is only displayed when Fixed Installation is set to Off and
Geometry Correction is set to Quick Corner in the projector's Installation menu.
3. Press the Home button to hide the Home screen.
Parent topic: Turning On the Projector
Related concepts
Projector Connections
Related tasks
Turning On the Projector
Turning Off the Projector
Before turning off the projector, shut down any computer connected to it so you can see the computer
display during shutdown.
Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
Note: The projector supports the direct shutdown feature; it can be turned off directly using the breaker.
1. Press the power button on the projector or remote control.
110
The projector displays a shutdown confirmation screen.
2. Press the power button again. (To leave it on, press any other button.)
The projector beeps twice, the laser turns off, and the status light turns off.
Note: If the Light Source Calibration setting is set to Run Periodically in the projector's
Management menu, light source calibration starts automatically if you turn off the projector and the
following conditions are present:
• 100 hours have passed since the last light source calibration.
• You have used the projector continuously for at least 20 minutes.
3. To transport or store the projector, make sure the on/standby light is blue (not flashing) and the
Status light is off, then unplug the power cord.
Caution: To avoid damaging the projector or laser, never unplug the power cord when the Status
light is on or flashing.
Parent topic: Using Basic Projector Features
Related references
Administration Settings - Management Menu
Selecting the Language for the Projector Menus
If you want to view the projector's menus and messages in another language, you can change the
Language setting.
1. Turn on the projector.
2. Press the Menu button on the projector or remote control.
111
3. Select the Management menu and press Enter.
4. Select the Language setting and press Enter.
5. Select the language you want to use and press Enter.
6. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Setting the Date and Time
You can set the date and time for the projector.
1. Press the Menu button.
2. Select the Management menu and press Enter.
3. Select the Date & Time setting and press Enter.
112
You see a screen like this:
4. Select the Date & Time setting and press Enter.
5. Select Date, press Enter, and use the displayed keyboard to enter today's date.
6. Select Time, press Enter, and use the displayed keyboard to enter the current time.
7. Adjust the Time Difference (UTC) settings to set the time difference from the Coordinated Universal
Time.
8. When you are finished, select Set and press Enter.
9. To activate daylight saving time, select the Daylight Saving Time setting and set it to On. Then
select settings.
10. When you are finished, select Set and press Enter.
11. To update the time automatically through an internet time server, select the Internet Time setting
and set it to On.
12. Select Internet Time and press Enter.
13. Enter the IP address for the Internet time server you want to use and select OK.
14. Select Set and press Enter.
15. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Related references
Administration Settings - Management Menu
113
Image Shape
You can project an evenly rectangular image by placing the projector directly in front of the center of the
screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off
to the side, you may need to correct the image shape for the best display quality. After correction, your
image is slightly smaller.
For the best quality images, try to adjust the projector's position to achieve the correct image size and
shape. After you have corrected the position of the projector, you can use the adjustments in this section
to correct the image shape.
To correct distortion more easily, you can use the Epson Setting Assistant app on a smartphone or
tablet that has a camera function. You can download it from the Apple App Store or Google Play Store.
Note: If you adjust the screen position using the Image Shift feature, perform Image Shift before
Geometry Correction.
Note: If you are using the ELPMB75 wall mount, use the adjustment dials on the wall mount to correct
the screen image before using any other digital correction methods. You can select Menu > Installation
> Setting Plate Installation Guide for information on the mount adjustments.
Correcting Distortion in the Image Using the Wizard
Correcting Image Shape with Quick Corner
Correcting Image Shape with Arc Correction
Correcting Image Shape with Point Correction
Applying Saved Image Shape Settings
Parent topic: Using Basic Projector Features
Related tasks
Adjusting the Image Height
Focusing the Image
Correcting Distortion in the Image Using the Wizard
You can correct distortion in the projected image by following the on-screen instructions from the
Installation menu.
1. Turn on the projector and display an image.
2. Press the Menu button on the projector or remote control.
114
3. Select the Installation menu and press Enter.
4. Select the Geometry Correction Wizard setting and press Enter.
115
5. Follow the on-screen instructions to correct distortion in the image.
6. Press Menu or Esc to exit the menus.
Parent topic: Image Shape
Correcting Image Shape with Quick Corner
You can use the projector's Quick Corner setting to correct the shape and size of an image that is
unevenly rectangular on all sides.
Note: If you change the Screen Type or Screen Position settings, your image adjustments are reset.
116
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Installation menu and press Enter.
4. Select the Geometry Correction setting and press Enter.
5. Select the Quick Corner setting and press Enter.
Note: You may see a confirmation screen. Select Yes and press Enter again.
117
You see the Quick Corner adjustment screen:
6. Use the arrow buttons on the projector or remote control to select the corner of the image you want
to adjust. Then press Enter.
Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a
reset screen. Then select Yes.
118
7. Press the arrow buttons to adjust the image shape as necessary. Press Enter to return to the
area selection screen.
Note: You can also use the numeric buttons on the remote control to adjust the image shape. If one
of the directional arrows on the screen turns gray, you cannot adjust the shape any further in that
direction.
8. When you are finished, press Esc.
The Geometry Correction setting is now set to Quick Corner in the projector's Installation menu.
Parent topic: Image Shape
Correcting Image Shape with Arc Correction
You can use the projector's Arc Correction setting to adjust the curve or arc of the sides of your image.
Note: If you change the Screen Type or Screen Position settings, your image adjustments are reset.
119
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Installation menu and press Enter.
4. Select the Geometry Correction setting and press Enter.
5. Select the Arc Correction setting and press Enter. Then select the Arc Correction setting and
press Enter again.
120
You see the Arc Correction adjustment screen:
Note: To reset your adjustments, press the Esc button for at least 2 seconds to display a reset
screen, and select Yes.
6. Use the arrow buttons on the projector or the remote control to select the corner or side of the image
you want to adjust. Then press Enter.
7. Press the arrow buttons to adjust the image shape as necessary.
121
8. When you are finished, press Esc.
Note: To save the current image shape, select Memory > Save Memory. You can save up to three
image shapes in the projector's memory.
Parent topic: Image Shape
Correcting Image Shape with Point Correction
You can use the projector's Point Correction feature to fine-tune the image shape using points on a grid.
This is useful for adjusting overlapping areas in multiple projected images that do not line up correctly.
Note: If you change the Screen Type or Screen Position settings, your image adjustments are reset.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select Installation > Geometry Correction > Point Correction.
Note: If you see a confirmation message, select Yes and press Enter.
4. Select the Point Correction setting again and press Enter.
Note: For fine tuning, select Quick Corner from the Point Correction menu to roughly correct the
shape and size of an image and then select Point Correction to adjust them more precisely.
5. Select the number of grid lines to display and press Enter.
You see a grid on the projected image.
Note: If you need to change the color of the grid lines, press Esc and then select a different Pattern
Color setting in the Point Correction menu.
122
6. Press the arrow buttons on the projector or remote control to move to the point on the grid that you
want to adjust. Then press Enter.
7. Press the arrow buttons as necessary to correct the image shape.
8. Press Esc to return to the previous screen and select another point to correct, if necessary.
9. When you are finished, press the Menu button.
Note: If necessary, you can fine-tune your image adjustments using the Quick Corner setting.
Note: To reset your adjustments, select Reset on the Point Correction screen.
Parent topic: Image Shape
Related tasks
Correcting Image Shape with Quick Corner
123
Applying Saved Image Shape Settings
You can load the image shape settings you selected and saved to the projector's memory and apply
them to the current image.
1. Turn on the projector and display an image.
2. Hold down the Num button on the remote control and press the number button (1, 2, or 3) that
matches the number of the saved image shape setting.
The saved image shape setting is applied and you are prompted to calibrate the screen.
3. Follow the on-screen instructions to calibrate the screen.
Parent topic: Image Shape
Adjusting the Image Position Using Image Shift
You can use the Image Shift feature to adjust the image position without moving the projector. Wait at
least 30 minutes after you start projecting to adjust the image position.
124
Note: This feature is not available if the Zoom option is set to the widest setting.
1. Turn on the projector and display an image.
2. Adjust the image size using the E-Zoom buttons.
After you adjust the image size, the Image Shift screen is displayed automatically.
3. Use the arrow buttons on the projector or remote control to adjust the image position.
Note: You can also use the Installation menu to adjust the Image Shift setting.
4. Press Esc to close the Image Shift screen. The screen closes if no operation is performed for
approximately 10 seconds.
Note: The Image Shift setting is retained even if the projector is turned off; however, you need to
readjust the image position if you change the projector's location or angle.
Parent topic: Using Basic Projector Features
125
Related references
Installation Settings - Installation Menu
Adjusting the Image Position Using Screen Position
You can adjust the image position if there are margins between the edge of the image and the projected
screen frame.
Note: You cannot adjust the screen position if the Screen Type setting is set to 16:9.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select Installation > Screen Position and press Enter.
4. Use the arrow buttons on the remote control or projector to adjust the position of the image.
5. When you are finished, press the Menu button.
Parent topic: Using Basic Projector Features
Adjusting the Image Height
If you are projecting from a table or another flat surface, and the image is too high or low, you can adjust
the image height using the projector's adjustable feet.
126
Note: Make slight or minor adjustments at a time. The image shape and position are very sensitive to
any adjustment due to the short throw ratio.
1. Turn on the projector and display an image.
2. To adjust the image height, rotate the rear foot.
3. Rotate the front feet to adjust any tilting or vertical distortion.
If the projected image is unevenly rectangular, you need to adjust the image shape.
Parent topic: Using Basic Projector Features
Displaying a Test Pattern
You can display a test pattern to adjust the projected image without connecting a computer or video
device.
127
Note: The test pattern's shape is determined by the Screen Type setting. Be sure to set the correct
screen type before adjusting with the test pattern.
Note: Some menu options may be unavailable when displaying a test pattern and you may need to
project from a connected device to change these settings.
1. Turn on the projector.
2. Press the Menu button on the remote control.
3. Select the Installation menu and press Enter.
4. Select the Test Pattern setting and press Enter.
5. Select the pattern you want to display and press Enter.
A test pattern is displayed.
6. Adjust the image as necessary.
7. Press Esc to clear the test pattern.
Parent topic: Using Basic Projector Features
128
Focusing the Image
1. Turn on the projector and display an image.
2. Remove the projector's side cover.
3. Raise or lower the focus lever to sharpen the image.
129
4. Carefully replace the projector's side cover.
Parent topic: Using Basic Projector Features
Remote Control Operation
The remote control lets you control the projector from almost anywhere in the room, up to 19.7 feet (6 m)
away. You can point it at the screen or board, or the front or back of the projector.
130

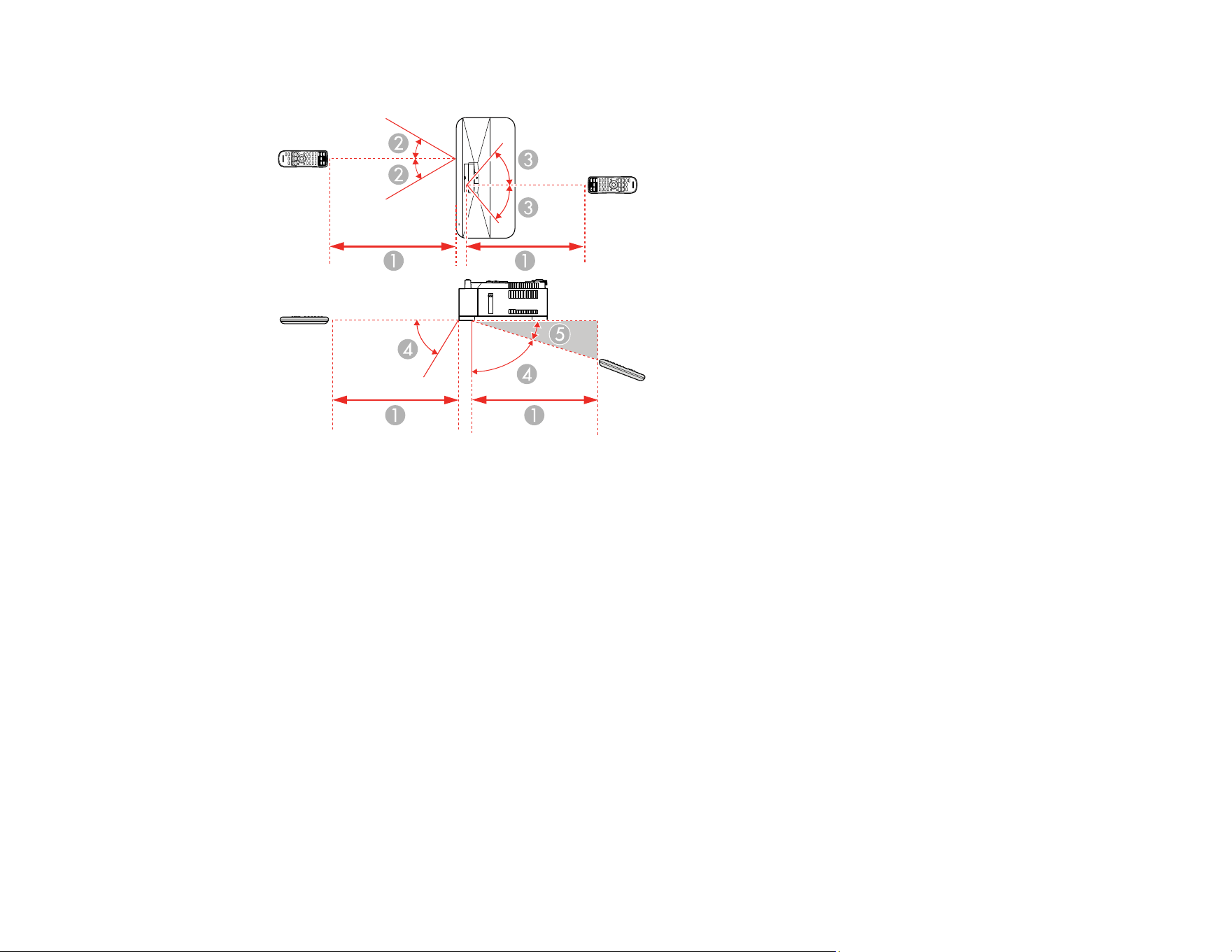

Make sure that you aim the remote control at the projector's receivers within the angles listed here.
1 19.7 feet (6 m)
2 30°
3 55°
4 60°
5 15°
Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or
the projector may not respond to commands. If you will not use the remote control for a long time,
remove the batteries.
Parent topic: Using Basic Projector Features
Selecting an Image Source
If you connected multiple image sources to the projector, such as a computer and DVD player, you may
want to switch from one image source to the other.
131
Note: If you turned on the Auto Source Search setting in the Operation menu, the projector
automatically switches to another detected image source if the signal to the current image source is lost.
1. Make sure the connected image source you want to use is turned on.
2. For video image sources, insert a DVD or other video media and press its play button, if necessary.
3. Do one of the following:
• Press the Source Search button on the projector or remote control until you see the image from
the source you want.
• Press the button for the source you want on the remote control. If there is more than one port for
that source, press the button again to cycle through the sources.
1 HDMI and HDBaseT sources (HDMI1, HDMI2, and HDBaseT ports)
3 USB port sources (USB-B port and external devices connected to the USB-A ports)
4 Network source (LAN and Screen Mirroring)
132
• Press the Home button on the remote control or projector and select your image source.
Note: Your Home screen may look different from the illustration shown here. A checkmark
appears on the image from the current input source. You can see thumbnail previews of most
input sources (except the USB input source when in Content Playback mode).
Note: If there are more than nine available input sources, your desired source may appear on the
next page. Select the right arrow to move to the next page.
The displayed order of the input sources changes. Detected input sources appear in the upper left
position. You can set the order of the input sources using the Sort Source Thumbnails setting in the
projector's Display menu.
Parent topic: Using Basic Projector Features
Related references
Feature Settings - Operation Menu
Related tasks
Using the Home Screen
Projection Modes
Depending on how you positioned the projector, you may need to change the projection mode so your
images project correctly.
• Front lets you project from a table in front of the screen.
133
• Front/Upside Down flips the image over top-to-bottom to project upside-down from a wall or ceiling
mount.
• Rear flips the image horizontally to project from behind a translucent screen.
• Rear/Upside Down flips the image over top-to-bottom and horizontally to project from the wall or
ceiling and behind a translucent screen.
You can change the projection mode using the remote control or by changing the Projection setting in
the Installation menu.
Changing the Projection Mode Using the Remote Control
Changing the Projection Mode Using the Menus
Setting the Screen Type
Parent topic: Using Basic Projector Features
Changing the Projection Mode Using the Remote Control
You can change the projection mode to flip the image over top-to-bottom.
1. Turn on the projector and display an image.
2. Hold down the A/V Mute button on the remote control for 5 to 10 seconds.
The image disappears briefly and reappears flipped top-to-bottom.
3. To change projection back to the original mode, hold down the A/V Mute button for 5 to 10 seconds
again.
Parent topic: Projection Modes
Changing the Projection Mode Using the Menus
You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the
projector menus.
134
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Installation menu and press Enter.
4. Select the Projection setting and press Enter.
5. Select a projection mode and press Enter.
6. Press Menu or Esc to exit the menus.
Parent topic: Projection Modes
Setting the Screen Type
You can use the Screen Type setting to match the aspect ratio of the displayed image to the screen you
are using.
Note: You cannot change the Screen Type settings when the Content Playback setting is set to On in
the projector's Operation menu.
1. Turn on the projector and display an image.
135
2. Press the Menu button.
3. Select the Installation menu and press Enter.
4. Select the Screen Type setting and press Enter.
You see a screen like this:
5. Select your screen's aspect ratio and press Enter.
6. Press the Menu button to exit.
7. Turn off the projector, then turn it on again to enable the setting.
8. Adjust the aspect ratio for the projected image, if necessary.
Parent topic: Projection Modes
Image Aspect Ratio
The projector can display images in different width-to-height ratios called aspect ratios. Normally the
input signal from your video source determines the image's aspect ratio setting. However, for certain
images you can change the aspect ratio to fit your screen.
If you always want to use a particular aspect ratio for a certain video input source, you can select it using
the projector's menus.
Changing the Image Aspect Ratio
Available Image Aspect Ratios
Parent topic: Using Basic Projector Features
136
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image to resize it.
Note: Set the Screen Type setting in the projector's Installation menu before changing the aspect ratio.
Note: This setting is available only when the Scale setting is turned off or the Scale Mode setting is set
to Full Display.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Aspect button on the remote control.
The shape and size of the displayed image changes, and the name of the aspect ratio appears
briefly on the screen.
3. To cycle through the available aspect ratios for your input signal, press the Aspect button
repeatedly.
Note: The available aspect ratio setting varies depending on the input signal. If there are margins
between the edge of the image and the projected screen frame, you can adjust the position of the image
using the Screen Position setting in the projector's Installation menu.
Parent topic: Image Aspect Ratio
Related references
Image Quality Settings - Image Menu
Available Image Aspect Ratios
You can select the following image aspect ratios, depending on the selected Screen Type setting and
input signal from your image source.
137
Note: When projecting images from an Epson document camera connected by USB, you can select only
Auto, H-Zoom, and V-Zoom.
Aspect ratio setting Description
Auto Automatically sets the aspect ratio according to the input signal and
the Resolution setting.
Full Displays images using the full width of the projection area, but does
not maintain the aspect ratio.
H-Zoom
V-Zoom
(Not available when Screen Type
is set to 16:6)
Displays images using the full width of the projection area and
maintains the aspect ratio of the image.
Native
(Not available when Screen Type
is set to 16:6)
Displays images as is (aspect ratio and resolution are maintained).
Note: The appearance of the Native image aspect ratio setting varies depending on the input signal.
Note: Using the aspect ratio function of the projector to reduce, enlarge, or split the projected image for
commercial purposes or for public viewing may infringe upon the rights of the copyright holder of that
image based on copyright law.
If there are margins between the image edges and the screen, you can adjust the position of the
projected image using the Screen Position setting in the Installation menu.
Parent topic: Image Aspect Ratio
Color Mode
The projector offers different Color Modes to provide optimum brightness, contrast, and color for a
variety of viewing environments and image types. You can select a mode designed to match your image
and environment, or experiment with the available modes.
Changing the Color Mode
Available Color Modes
Parent topic: Using Basic Projector Features
138
Changing the Color Mode
You can change the projector's Color Mode using the remote control to optimize the image for your
viewing environment.
1. Turn on the projector and switch to the image source you want to use.
2. If you are projecting from a DVD player or other video source, insert a disc or other video media and
press the play button, if necessary.
3. Press the Color Mode button on the remote control to change the Color Mode.
The image appearance changes and the name of the Color Mode appears briefly on the screen.
4. To cycle through all the available Color Modes for your input signal, press the Color Mode button
repeatedly.
Parent topic: Color Mode
Available Color Modes
You can set the projector to use these Color Modes, depending on the input source you are using:
Color Mode Description
Dynamic Best for video games in a bright room
Presentation Best for color presentations in a bright room
Face Brightness This brightens a person's face. Best for projecting content such as
video conferencing.
Cinema Best for movies projected in a dark room with natural tone images
Natural Reproduces natural colors. Best when you want to adjust the
image color.
Blackboard Best for projecting images directly on a green chalkboard
139
Color Mode Description
DICOM SIM Best for projecting X-rays and other medical images (shows clear
shadows)
Multi-Projection Best for projecting from multiple projectors (reduces the color tone
difference between images)
Note: The DICOM SIM color mode is for reference purposes only and should not be used to make
medical diagnoses.
Parent topic: Color Mode
Adjusting the Hue, Saturation, and Brightness
You can adjust the hue, saturation, and brightness settings for individual image colors.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
3. Select the Image menu and press Enter.
140
4. Select RGBCMY and press Enter.
5. Select the color to adjust and press Enter.
6. Do the following as necessary for each setting:
• To adjust the overall hue of the color (bluish, greenish, reddish), adjust the Hue setting.
• To adjust the overall vividness of the color, adjust the Saturation setting.
• To adjust the overall brightness of the color, adjust the Brightness setting.
7. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Adjusting Gamma
You can adjust the gamma to improve differences in halftone brightness that vary depending on the
connected device.
141
Note: Project a still image to adjust the gamma; you cannot adjust it properly when projecting a movie or
other moving video. Medical images may not reproduce correctly depending on your operating
environment and screen.
Note: To optimize the color tone according to the scene, and to obtain a more vivid image, correct the
image by adjusting the Scene Adaptive Gamma setting.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
3. Select the Image menu and press Enter.
4. Select the Gamma setting and press Enter.
142
You see a screen like this:
5. Select and adjust the correction value.
When you select a smaller value, you can reduce the overall brightness of the image to make the
image sharper. When you select a larger value, the dark areas of images become brighter, but the
color saturation for lighter areas may become weaker.
Note: If you set the Color Mode setting to DICOM SIM in the projector's Image menu, select the
adjustment value according to the projection size. If the projection size is 100 inches (254 cm) or
less, select a small value. If the projection size is 100 inches or more, select a large value.
6. If you want to make finer adjustments, select Custom and press Enter.
7. Press the left or right arrow button to select the tone you want to change, then press the up or down
arrow button to adjust the tone and press Enter.
143
You see a screen like this:
8. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Adjusting the Image Resolution
You can adjust the image resolution to project a clear image with an emphatic texture and material feel.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
144
3. Select the Image menu and press Enter.
4. Select Image Enhancement and press Enter.
5. Select Image Preset Mode and press Enter.
6. Select the preset option and press Enter.
7. The following settings saved in the preset option are applied to the image:
• Noise Reduction
• MPEG Noise Reduction
• Super-resolution
• Auto Contrast Enhancement
8. Adjust each setting in the projector's Image menu individually as necessary.
• Adjust the Noise Reduction setting to reduce flickering in images.
• Adjust the MPEG Noise Reduction setting to reduce the noise or artifacts seen in MPEG video.
• Adjust the Super-resolution setting to reduce blurring when projecting low-resolution images.
145
• Adjust the Auto Contrast Enhancement setting to create a more clearer and sharper image.
The setting values in the preset option are overwritten as you make changes.
9. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Related references
Image Quality Settings - Image Menu
Adjusting the Projector's Brightness Level
You can adjust the brightness of your projector's light source.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button.
3. Select the Operation menu and press Enter.
146
4. Select Light Source Brightness Control and press Enter.
5. If you turn on Maintain Brightness, select the Maintain Brightness Level setting.
6. If you turn off Maintain Brightness, select the Light Source Mode setting:
• Normal: Sets brightness to the maximum level (ideal for conference rooms, auditoriums, and
lecture halls)
• Quiet: Sets brightness to 70% and reduces fan noise (ideal for libraries, theaters, museums, and
art galleries)
• Extended: Sets brightness to 70% and extends the life expectancy of the light source (ideal for
darker environments with ambient light, such as museums and art galleries, where a reduced
maintenance cycle is desired)
• Custom: Allows you to select a custom brightness level between 70 to 100%
7. If you set the Light Source Mode setting to Custom, select Brightness Level and use the left and
right arrow buttons to select the brightness.
8. Press Menu or Esc to exit the menus.
Note: For the best results in maintaining the brightness level, set the Light Source Calibration
setting to Run Periodically in the projector's Management menu.
Light Source Life Span
Parent topic: Using Basic Projector Features
Related references
Feature Settings - Operation Menu
Administration Settings - Management Menu
147
Related tasks
Saving a Scheduled Event
Light Source Life Span
The estimated life span of the light source varies depending on the Brightness Level setting and
whether the Maintain Brightness setting is on or off.
Maintain Brightness off
Brightness Level setting Hours
100% 20000 hours
90% 21000 hours
80% 24000 hours
70% 30000 hours
Maintain Brightness on
1 Brightness level
2 Time the projector can maintain constant brightness (approximate)
Brightness Level setting Hours
85% 6000 hours
80% 10000 hours
70% 19000 hours
Note: The light source usage hours vary depending upon environmental conditions and usage. The
hours listed here are an approximate and are not guaranteed. You may need to replace internal parts
sooner than the estimated light source operation time. If Maintain Brightness is turned on, and you
148
have exceeded the usage hours listed here, you may not be able to select a high Maintain Brightness
Level setting.
Parent topic: Adjusting the Projector's Brightness Level
Turning On Dynamic Contrast
You can turn on the Dynamic Contrast setting to automatically optimize the image luminance. This
improves the image contrast based on the brightness of the content you project.
1. Turn on the projector and switch to the image source you want to use.
2. Press the Menu button on the projector's control panel or remote control.
3. Select the Image menu and press Enter.
4. Select the Dynamic Contrast setting and press Enter.
5. Choose one of the following options and press Enter:
• Normal to adjust brightness at the standard speed.
• High Speed to adjust brightness as soon as the scene changes.
149
6. Select the Dynamic Contrast setting, choose one of the following options, and press Enter:
• Normal to adjust brightness at the standard speed.
• High Speed to adjust brightness as soon as the scene changes.
7. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Using Frame Interpolation
You can use the projector's Frame Interpolation feature to smooth fast-moving video by comparing
consecutive image frames and inserting an intermediate image frame between them.
You can use this feature in any of the following conditions:
• Edge Blending is set to Off in the projector's Multi-Projection menu.
This setting is available when using one of the following input sources:
• HDMI1
• HDMI2
• HDBaseT
1. Press the Menu button.
150
2. Select the Image menu and press Enter.
3. Select the Frame Interpolation setting and press Enter.
You see a screen like this:
4. When you are finished, press the Menu button.
Note: If your resulting images contain noise, turn off the Frame Interpolation setting.
151
Parent topic: Using Basic Projector Features
Controlling the Volume with the Volume Buttons
You can use the Volume buttons on the projector or the remote control to adjust the volume of your
projected content.
You must adjust the volume separately for each connected input source.
Warning: Do not start playback at a high volume. Sudden loud noises may cause hearing loss. Always
lower the volume before turning off the projector. Gradually increase the volume after turning the
projector on.
1. Turn on the projector and start a presentation that includes audio.
2. To lower or raise the volume, press the Volume buttons on the projector or remote control.
A volume gauge appears on the screen.
3. To set the volume to a specific level for an input source, use the projector menus.
Parent topic: Using Basic Projector Features
Changing the Sound Mode
You can change the projector's sound mode to provide optimal sound for a variety of image types. These
settings are only available for sound that is output from the projector's speakers.
1. Turn on the projector and start a video.
2. Press the Menu button on the projector or remote control.
152
3. Select the Signal I/O menu and press Enter.
4. Select Sound Mode and press Enter.
5. Select a sound mode and press Enter.
Sound mode Description
Standard Outputs the audio using normal sound quality
Clear Voice Adjusts the voice so that it can be heard clearly
6. Select any additional sound settings according to your listening environment.
7. Press the Menu or Esc button to exit the menus.
Parent topic: Using Basic Projector Features
Inverting the Audio Channels
You can invert the audio's left and right channels to match the projector installation position.
1. Turn on the projector and start a presentation.
153
2. Press the Menu button on the projector or remote control.
3. Select the Signal I/O menu and press Enter.
4. Select Inverse Audio and press Enter.
5. Select the setting according to the installation position and press Enter.
• When the projector is mounted to the wall or ceiling, set to On.
• When the projector is placed on a table, set to Off.
6. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Selecting a Quick Startup Setting
If you want to quickly restart the projector within five seconds after turning it off, you can change the
Quick Startup setting. You can select 20, 60, 90 minutes, or Unlimited of Quick Startup time.
Note: The projector may take longer than five seconds to start up in the following conditions:
• When projecting from one of the projector's USB ports
154
• When projecting with Screen Mirroring
Note: The Quick Startup setting is displayed only if the A/V Output setting in the Signal I/O menu is set to
While Projecting, the Auto Power On setting in the Network menu is set to Off, or the Auto Power On
setting is set to HDMI1 and Power On Trigger setting in the Operation menu is set to Plug-in Detection.
1. Turn on the projector.
2. Press the Menu button.
3. Select the Operation menu and press Enter.
4. Select the Quick Startup setting and press Enter.
5. Select how long you want to enable Quick Startup mode for and press Enter.
6. Press Menu or Esc to exit the menus.
Press the power button to quickly restart the projector in this mode.
Parent topic: Using Basic Projector Features
155
Projecting a PC Free Presentation
You can use your projector's PC Free feature whenever you connect a USB device that contains
compatible files. This lets you quickly and easily display the contents of the files and control their display
using the projector's remote control.
PC Free Precautions
Supported PC Free File Types
Starting a PC Free Slideshow
Starting a PC Free Movie Presentation
PC Free Display Options
Parent topic: Using Basic Projector Features
PC Free Precautions
Note the following precautions when using PC Free features:
• You cannot use a USB key for quick wireless connection for PC Free features.
• Do not disconnect the USB device while it is being accessed; otherwise, PC Free may not operate
correctly.
• You may not be able to use the security features on certain USB devices with PC Free features.
• When connecting a USB device that includes an AC adapter, connect the AC adapter to an electrical
outlet when you use the USB device with your projector.
• Some commercially available USB card readers may not be compatible with your projector.
• The projector can recognize up to five cards at a time from a connected card reader.
• You can use the following features while projecting in PC Free:
• Freeze
• A/V Mute
• E-Zoom
Parent topic: Projecting a PC Free Presentation
Supported PC Free File Types
You can project these types of files using the projector's PC Free feature.
Note: For best results, place your files on media that is formatted in FAT16/32. If you have trouble
projecting from media formatted for non-Windows file systems, try formatting the media for Windows
156
instead. You may not be able to use the security features on certain USB storage devices with PC Free
features. When connecting a USB-compatible hard drive, connect the AC adapter supplied with the
drive. PC Free may not work with USB device security features. If you are using a connected card
reader, the projector can recognize up to five cards.
File type and
extension
Details
Image (.jpg) Make sure the file is not:
• CMYK format
• Progressive format
• Highly compressed
• Above 8192 × 8192 resolution
Image (.bmp) Make sure the file resolution is not above 1280 × 800
Image (.gif ) Make sure the file is not:
• Above 1280 × 800 resolution
• Animated
• Interlaced
Image (.png) Make sure the file resolution is not:
• Above 1920 × 1200 resolution
• Interlaced
Motion JPEG
movie (.avi)
Supports only AVI 1.0
Make sure the file is not:
• Saved with a video codec other than Motion JPEG
• Saved with an audio codec other than LPCM or IMA ADPCM
• Above 1280 × 720 resolution
• Larger than 2GB
• Saved with a frame rate higher than 30 fps
• Saved with an audio sampling rate other than 11.025 kHz, 16 kHz, 22.05 kHz, 24
kHz, 32 kHz, 44.1 kHz, or 48 kHz
157
Parent topic: Projecting a PC Free Presentation
Starting a PC Free Slideshow
After connecting a USB device or digital camera to the projector, you can switch to the USB input source
and start your slideshow.
Note: You can change the slideshow operation options or add special effects by highlighting Option at
the bottom of the screen and pressing Enter.
1. Press the USB button on the projector remote control until the PC Free file list appears.
The PC Free screen appears.
Note: If the Select Drive screen appears, press the arrow buttons to select the drive and press
Enter.
2. Do the following as necessary to locate your files:
• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight
the folder and press Enter.
158
• To move back up a folder level on your device, highlight Back to Top and press Enter.
• To view additional files in a folder, highlight Next Page or Previous Page and press Enter.
3. Do one of the following:
• To display an individual image, press the arrow buttons to highlight the image and press Enter.
(Press the Esc button to return to the file list screen.)
• To display a slide show of all the images in a folder, press the arrow buttons to highlight the
Slideshow option at the bottom of the screen and press Enter.
Note: If any file names are longer than the display area or include unsupported symbols, the file
names may be shortened or changed only in the screen display.
Note: You can change the image switching time by highlighting Option at the bottom of the screen
and pressing Enter.
4. While projecting, use the following commands to control the display as necessary:
• To rotate a displayed image, press the up or down arrow button.
• To move to the next or previous image, press the left or right arrow button.
5. To stop the display, follow the on-screen instructions or press the Esc button.
6. Turn off the USB device, if necessary, and then disconnect the device from the projector.
Parent topic: Projecting a PC Free Presentation
Starting a PC Free Movie Presentation
After connecting a USB device or digital camera to the projector, you can switch to the USB input source
and start your movie.
Note: You can change the operation options by highlighting Option at the bottom of the screen and
pressing Enter.
1. Press the USB button on the projector remote control until the PC Free screen appears.
159
The PC Free screen appears.
Note: If the Select Drive screen appears, press the arrow buttons to select the drive and press
Enter.
2. Do the following as necessary to locate your files:
• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight
the folder and press Enter.
• To move back up a folder level on your device, highlight Back to Top and press Enter.
• To view additional files in a folder, highlight Next Page or Previous Page and press Enter.
3. To play back a movie, press the arrow buttons to highlight the file and press Enter.
Note: If any file names are longer than the display area or include unsupported symbols, the file
names may be shortened or changed only in the screen display. If you want to play back all the
movies in a folder in sequence, select the Slideshow option at the bottom of the screen.
4. To stop movie playback, press the Esc button, highlight Exit, and press Enter.
5. Turn off the USB device, if necessary, and then disconnect the device from the projector.
160
Parent topic: Projecting a PC Free Presentation
PC Free Display Options
You can select these display options when using the projector's PC Free feature.
Setting Options Description
Display Order Name Order Displays files in name order
Date Order Displays files in date order
Sort Order In Ascending Sorts files in first-to-last order
In Descending Sorts files in last-to-first order
Continuous Play On Displays a slideshow continuously
Off Displays a slideshow one time through
Screen Switching
Time
No Does not display the next file automatically
1 Second to 60 Seconds Displays files for the selected time and
switches to the next file automatically; high
resolution images may switch at a slightly
slower rate
161
Setting Options Description
Effect No No effect
Wipe Transitions between images with a wipe effect
Dissolve Transitions between images with a dissolve
effect
Random Transitions between images using a random
variety of effects
Parent topic: Projecting a PC Free Presentation
Projecting in Content Playback Mode
You can project images or other content from an external storage device using Content Playback mode.
You can also add color or effects to the projected image.
Switching to Content Playback Mode
Projecting a Playlist in Content Playback Mode
Creating a Playlist Using Epson Web Control
Adding Effects to the Projected Image
Content Playback Mode Restrictions
Parent topic: Using Basic Projector Features
Switching to Content Playback Mode
You need to switch to Content Playback mode to use its features.
1. Turn on the projector.
2. Press the Menu button.
162
3. Select the Operation menu and press Enter.
4. Select the Content Playback setting and press Enter.
5. Select the On setting and press Enter.
You see a confirmation prompt.
6. Turn off the projector.
7. Turn on the projector again to enable Content Playback mode.
8. Press the Home button to make sure Content Playback mode is enabled.
Parent topic: Projecting in Content Playback Mode
Related references
Feature Settings - Operation Menu
Projecting a Playlist in Content Playback Mode
You can project playlists that contain images and movies in Content Playback mode.
163
1. Create a playlist and export it to a USB device using the Epson Projector Content Manager software.
Note: See the Epson Projector Content Manager Operation Guide for more information.
2. Turn on the projector.
3. Make sure the projector is in Content Playback mode.
4. Insert the USB device containing the playlist into the projector's USB-A port.
5. Press the USB button on the remote control to project the playlist.
The playlist that was played last is projected. If a timetable is assigned, the playlist will play back
according to the schedule in the timetable.
Note: You can also hold down the Num and numeric buttons to project your playlist. You can set a
remote control shortcut key using the software you used to create the playlists.
Note: To select a specific playlist, select the USB Viewer setting in the Operation menu and use the
arrow buttons to select your playlist.
Parent topic: Projecting in Content Playback Mode
Creating a Playlist Using Epson Web Control
You can create playlists using a web browser and save them to a USB flash drive connected to a
projector on a network when the projector is in Content Playback mode.
Caution: Do not remove the USB flash drive from the projector or disconnect the projector's power cord
while creating playlists. Data saved on the USB flash drive may be damaged.
1. Make sure the projector is in Content Playback mode.
164
2. Make sure your computer or device is connected to the same network as the projector.
3. Connect a USB device to the projector's USB-A port.
4. Start your web browser on your computer or device.
5. Enter the projector's IP address into the browser's address box and press the computer's Enter key.
Note: When entering an IPv6 address, wrap the address with [ and ].
Note: If you see a log in window, enter your user name and Web Control Password. (The default
user name is EPSONWEB. You can change the Web Control Password using the projector's
Network Settings menu. If you are prompted to set a Monitor Password, enter a password up to 16
characters long and then select Apply.)
You see the Epson Web Control screen.
6. Select USB Memory Device.
7. Select Upload New Data.
8. Select the images or movies you want to add to the playlist.
Note: You cannot upload .mp4 or .mov files. If you want to add .mp4 or .mov files to the playlist, use
Epson Projector Content Manager software or the Epson Creative Projection app.
The selected files are copied to the USB device that is connected to the projector.
9. Do one of the following:
• Select Create New Playlist to create a new playlist and add the files to it.
• Select Add to Playlist and select the existing playlist you want to add the files to.
10. Edit the playlist.
11. Select Finish when you are done editing the playlist.
You can play the playlist from the Remote or Playlist screen. If you want to specify when the playlist
starts and finishes, schedule the playlist using the Epson Projector Content Manager software. See the
Epson Projector Content Manager Operation Guide for details.
Parent topic: Projecting in Content Playback Mode
Adding Effects to the Projected Image
You can add color and effects to the projected image in Content Playback mode.
165
Note: When you use the effects feature, select Refresh Mode > Start on the Management menu
periodically. You can't add effects when using Edge Blending.
1. In Content Playback mode, press the Menu button on the remote control and select the Operation
menu.
2. Select Overlay Effect and press Enter.
3. Select the Overlay Effect setting and select On.
4. Select the Shape Filter setting and adjust the options as necessary.
• Shape: Select a circle, rectangle, or other shape effect
Note: You can add your images as customized shapes using the Epson Projector Content
Manager software. See the Epson Projector Content Manager Operation Guide for details.
• Filter Effect: Select an option to mask the inside or outside of the shape
• Size: Set the shape size
• Position: Set the shape position
Note: When you use a customized shape, you cannot change the Size and Position settings.
5. Select the Color Filter setting and adjust the options as necessary.
• Color Filter: Select the color
• Custom: Adjust red, green, or blue individually
6. Select the Lightness setting and adjust the brightness level.
7. Press the Menu button to exit.
166
Parent topic: Projecting in Content Playback Mode
Related references
Administration Settings - Management Menu
Content Playback Mode Restrictions
The following operations cannot be performed in Content Playback mode.
• Changing the Color Temp. setting in the Image menu (when Warm White or Cool White is selected
as Color Filter)
• Split Screen
• Changing the Screen Type setting in the Installation menu
• Changing the No-signal Screen setting in the Display menu
• Changing the Log Save Destination setting in the Management menu
• Using the Edge Blending feature with the Effects feature
• Detecting the input signal automatically
• Changing the Remote Password setting in the Network Settings menu
• Using the projector's PC Free feature
• Projecting from a USB document camera
• Using the screen delivery function in Epson iProjection software
Parent topic: Projecting in Content Playback Mode
167
Adjusting Projector Features
Follow the instructions in these sections to use your projector's feature adjustments.
Shutting Off the Picture and Sound Temporarily
Stopping Video Action Temporarily
Zooming Into and Out of Images
Using Multiple Projectors
Projecting Two Images Simultaneously
Projector Security Features
Creating a User Pattern to Display
Adjusting the Color Convergence (Panel Alignment)
Saving Settings to Memory and Using Saved Settings
Copying Menu Settings Between Projectors
Scheduling Projector Events
Shutting Off the Picture and Sound Temporarily
You can temporarily turn off the projected picture and sound if you want to redirect your audience's
attention during a presentation. Any sound or video action continues to run, however, so you cannot
resume projection at the point that you stopped it.
If you want to display an image such as a company logo or picture when the presentation is stopped, you
can set up this feature using the projector's menus.
1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.
168
2. To turn the picture and sound back on, press A/V Mute again.
Note: The projector's power automatically turns off thirty minutes after A/V Mute is enabled. You can
disable this feature in the projector's Operation menu.
Parent topic: Adjusting Projector Features
Stopping Video Action Temporarily
You can temporarily stop the action in a video or computer presentation and keep the current image on
the screen. Any sound or video action continues to run, however, so you cannot resume projection at the
point that you stopped it.
1. Press the Freeze button on the remote control to stop the video action.
2. To restart the video action in progress, press Freeze again.
Parent topic: Adjusting Projector Features
Zooming Into and Out of Images
You can draw attention to parts of a presentation by zooming into a portion of the image and enlarging it
on the screen.
169
Note: This feature is unavailable if the Scale setting in the Image menu is enabled.
1. Press the E-Zoom + button on the remote control.
You see a crosshair on the screen indicating the center of the zoom area.
2. Use the following buttons on the remote control to adjust the zoomed image:
• Use the arrow buttons to position the crosshair in the image area you want to zoom into.
• Press the E-Zoom + button repeatedly to zoom into the image area, enlarging it as necessary.
Press and hold the E-Zoom + button to zoom in more quickly.
• To pan around the zoomed image area, use the arrow buttons.
• To zoom out of the image, press the E-Zoom – button as necessary.
• To return to the original image size, press the Esc button.
Parent topic: Adjusting Projector Features
Using Multiple Projectors
You can combine the projected images from two or more projectors to create one large image. Follow
the instructions in these sections to set up and project from multiple projectors.
Note: Before projecting, make sure you set Color Mode to Multi-Projection in each projector's Image
menu.
For best results, wait at least 30 minutes after you start projecting, then select settings and make
adjustments in this order:
• Set the projector ID
• Adjust Color Uniformity
• Blend the image edges
170
• Match the image colors
• Adjust the Black Level
• Adjust the RGBCMY
• Scale the image
Note: In some cases, the brightness and color tones may not completely match, even after correction. If
brightness and color tone differences become more noticeable over time, repeat the adjustments.
Projector Identification System for Multiple Projector Control
Adjusting Color Uniformity
Blending the Image Edges
Matching the Image Colors
Adjusting the Black Level
Adjusting RGBCMY
Scaling an Image
Configuring Tiling Manually
Parent topic: Adjusting Projector Features
Projector Identification System for Multiple Projector Control
You can operate multiple projectors using one remote control for more elaborate presentations. To do
this, you assign an identification number to each projector and to the remote control. Then you can
operate all the projectors at once or individually.
Setting the Projector ID
Setting the Remote Control ID
Parent topic: Using Multiple Projectors
Setting the Projector ID
If you want to control multiple projectors from a remote control, give each projector a unique ID.
1. Press the Menu button.
2. Select the Multi-Projection menu and press Enter.
171
3. Select Projector ID and press Enter.
4. Press the arrow buttons on the remote control to select the identification number you want to use for
the projector. Then press Enter.
Repeat these steps for all the other projectors you want to operate from one remote control.
Note: If you don't know the projector's ID, aim the remote control at the projector and press the ID button
to temporarily display the projector's ID on the screen.
Parent topic: Projector Identification System for Multiple Projector Control
Setting the Remote Control ID
The remote control's ID is set to zero by default so it can operate any compatible projector. If you want to
set the remote control to operate only a particular projector, you need to set the remote control's ID to
match the projector's ID.
1. Turn on the projector you want the remote control to operate with exclusively.
172
2. Make sure you know the projector's ID number as set in the Multi-Projection menu's Projector ID
setting.
Note: If you have forgotten the projector's ID, aim the remote control at the projector and press the
ID button to temporarily display the projector's ID on the screen. If you turn off the Projector ID
setting, the remote control will operate the projector regardless of the ID selected on the remote.
3. Aim the remote control at that projector and press the ID button on the remote control.
The current projector ID is displayed on the screen for about 3 seconds.
4. Hold down the ID button on the remote control while you press the numeric button that matches the
projector's ID. Then release the buttons.
Note: If you select 0/All on the remote control, you can operate all projectors regardless of the
Projector ID setting.
The remote control's ID is set.
Note: If the batteries are left out of the remote control for an extended period, the remote control ID
returns to its default setting.
Parent topic: Projector Identification System for Multiple Projector Control
Adjusting Color Uniformity
If the color tone is uneven on each screen, adjust the color tone balance in the menu of each projector.
(The color tone may not be uniform even after performing color uniformity.)
173
1. Press the Menu button on the remote or control panel, select the Management menu, and press
Enter.
174
2. Select the Color Uniformity setting and press Enter.
3. Select On as the Color Uniformity setting and press Enter, then press Esc.
4. Select Adjustment Level and press Enter.
5. Select an adjustment level and press Esc.
6. Select Start Adjustments and press Enter.
175
7. Select the area you want to adjust and press Enter.
8. Select Red, Green, or Blue and press the left arrow button to weaken the color tone or the right
arrow button to strengthen the color tone.
Note: The adjustment screen changes each time you press Enter.
9. Press Esc to return to the area selection screen.
10. Repeat steps 7 through 9 for each area, then select All to adjust the entire screen.
11. Press Esc to exit the menus.
Parent topic: Using Multiple Projectors
176
Blending the Image Edges
You can use the projector's Edge Blending feature to create a seamless image from multiple projectors.
1. Press the Menu button.
2. Select the Multi-Projection menu and press Enter.
3. Select the Edge Blending setting and press Enter.
177
4. Turn on the Edge Blending, Line Guide, and Pattern Guide settings.
Note: Select a different Guide Color setting for each projector so that you can see the blended area
clearly.
5. Select the edge you want to blend on each projector and press Enter. For the projector on the left,
select the Right Edge and for the projector on the right, select Left Edge.
You see a screen like this:
6. Select the Blending setting and select On.
7. Press Esc to return to the previous screen.
8. Select the Blend Start Position setting and adjust the point where edge blending begins.
9. Select the Blend Range setting and use the arrow buttons to select the width of the blended area so
that the displayed guides are at the edges of the overlapping area between the two images.
10. Press Esc to go back to the previous screen.
11. Select the Blend Curve setting and select a gradient for the shaded area on the projectors.
178
12. When the edges are blended, turn off the Line Guide and Pattern Guide settings on each projector
to check the final settings.
13. When you are finished, press the Menu button.
If the blended area does not overlap exactly, correct the shape of the blended area using Point
Correction.
Parent topic: Using Multiple Projectors
Matching the Image Colors
You can match the display color of multiple projectors that will project next to one another. Turn on all the
projectors so you can properly adjust the color of the combined screen.
1. Press the Menu button.
2. Select the Multi-Projection menu and press Enter.
3. Select the Color Matching setting and press Enter.
179
You see this screen:
4. Press the left or right arrow button to select Adjustment Level 8.
Note: There are several adjustment levels and you can adjust each level individually.
5. Press the left or right arrow buttons to adjust the Brightness setting.
6. Press the left or right arrow buttons to adjust the color tone for the Red, Green, and Blue settings if
necessary.
7. Press Esc to return to the Multi-Projection menu.
8. Select the Operation menu and press Enter.
9. Select Light Source Brightness Control and press Enter.
10. Set the Light Source Mode setting to Custom and adjust the Brightness Level setting as
necessary.
11. Press Esc and repeat steps 2 through 6 for Adjustment Level 7 through 2.
12. When you are finished, press the Menu button.
Parent topic: Using Multiple Projectors
180
Adjusting the Black Level
When two images overlap, the overlapping area can appear differently from the areas that do not
overlap. You can use the projector's Black Level setting to make the difference less noticeable.
Note: You cannot adjust the black levels while projecting a test pattern, and you may not be able to
adjust the black levels correctly if the Geometry Correction settings are set too high. The brightness
and tone of the overlapping areas may differ from the rest of the image even after adjusting the black
level.
1. Press the Menu button.
181
2. Select the Multi-Projection menu and press Enter.
3. Select the Black Level setting and press Enter.
Note: The Black Level setting is displayed only if Edge Blending is enabled and at least one (top,
bottom, left, right) edge is set to On.
4. Select the Color Adjustment setting and press Enter.
You see a screen based on the Top Edge, Bottom Edge, Right Edge, and Left Edge settings you
selected for the Edge Blending setting.
5. Select the area you want to adjust and press Enter.
Note: The area you selected is displayed in orange. Adjust overlapping areas starting with the
brightest areas first. For example, adjust area 2 to match area 1, then adjust area 3 to match area 2.
182
6. Adjust the brightness and tone of the areas that do not overlap to match the areas that overlap using
the displayed adjustment sliders. Then press the Esc button.
7. Repeat the previous two steps as needed until all areas match.
8. If the tone of some areas do not match, you can adjust them using the Area Correction setting.
Continue with the next step. Otherwise, press the Menu button to exit.
9. Press the Esc button to return to the Black Level screen.
10. Select the Area Correction setting and press Enter.
11. Select the Start Adjustments setting and press Enter.
You see a screen with boundary lines indicating areas that are overlapping. The boundary lines are
based on the Top Edge, Bottom Edge, Right Edge, and Left Edge settings you selected for the
Edge Blending setting.
12. Use the arrow buttons to select a boundary line of the area you want to adjust and press Enter.
The selected line is displayed in orange.
13. Use the arrow buttons to adjust the boundary line position and press Enter.
183
14. Use the arrow buttons to select an adjustment point and press Enter.
Note: You can change the number of adjustment points displayed by changing the Points setting in
the Area Correction menu.
The selected point turns orange.
15. Use the arrow buttons to move the point.
16. To move another point, press the Esc button and repeat the previous two steps.
17. To move another boundary line, press the Esc button repeatedly until you can select a boundary
line.
18. When you are finished, press the Esc button until you see a confirmation message. Select Yes and
press Enter.
19. When you are finished, press the Menu button.
Note: Changing the Top Edge, Bottom Edge, Right Edge, or Left Edge settings resets the Black
Level setting to its default value.
Parent topic: Using Multiple Projectors
Adjusting RGBCMY
You can adjust the Hue, Saturation, and Brightness settings for R (red), G (green), B (blue), C (cyan),
M (magenta), and Y (yellow) color components.
Turn on all the projectors and select the RGBCMY setting in each projector's Image menu so that the
color tone on the combined screen becomes entirely even.
1. Press the Menu button.
184
2. Select the Image menu and press Enter.
3. Select the RGBCMY setting and press Enter.
4. Select the color you want to adjust and press Enter.
185
You see this screen:
• To adjust the overall hue of the color, adjust the Hue setting.
• To adjust the overall vividness of the color, adjust the Saturation setting.
• To adjust the overall brightness of the color, adjust the Brightness setting.
5. Press the left or right arrow buttons to adjust the Hue, Saturation, and Brightness settings.
6. Repeat the previous two steps as necessary to adjust each color.
7. Press Menu or Esc to exit the menus.
Parent topic: Using Multiple Projectors
Scaling an Image
You can project the same image from multiple projectors and use the Scale feature to crop and combine
them into one large image.
186
1. Press the Menu button.
2. Select the Multi-Projection menu and press Enter.
3. Select the Scale setting and press Enter.
You see this screen:
4. Select one of the following as the Scale setting:
• Auto to automatically adjust the clipped areas according to the Tiling and Edge Blending
settings you selected
• Manual to adjust the clipped areas manually
5. Select the Scale Mode setting and select one of these options:
• Zoom Display to maintain the image aspect ratio as you scale the image
187
• Full Display to adjust the image to the projector's screen size as you scale the image
6. If you selected Auto as the Scale setting, you can skip the remaining steps. If you selected Manual,
adjust each of the following options as necessary:
• Select – or + to scale the image horizontally and vertically at the same time
• Select Scale Vertically to scale the image vertically only
• Select Scale Horizontally to scale the image horizontally only
7. Select the Clip Adjustment setting and use the arrow buttons to adjust the coordinates and size of
each image as you view the screen.
8. Select the Clip Range setting to preview the area you just selected.
9. Press the Menu button to exit.
Parent topic: Using Multiple Projectors
Configuring Tiling Manually
You can project the same image from multiple projectors to create one large image.
Note: Before tiling, make sure the projected images are rectangular, correctly sized, and focused.
1. Turn on the projector.
2. Press the Menu button.
3. Select Multi-Projection > Tiling > Column.
188
4. Select the number of columns you are setting up as the Column setting. Then select Return and
press Enter.
5. Repeat the previous steps with each projector you are setting up before continuing with the next
step.
6. Select Column Order and press Enter.
7. Select the position of each projected image as the Column Order setting. Layout the screens from
left to right, starting with 1 on the left. Then press Enter.
8. Repeat the previous step with each projector you are setting up before continuing with the next step.
9. Select the input signal to display an image.
After performing the steps here, adjust the images for any gaps and differences in color.
Parent topic: Using Multiple Projectors
189
Projecting Two Images Simultaneously
You can use the split screen feature to simultaneously project two images from different image sources
next to each other. You can control the split screen feature using the remote control or the projector
menus.
Note: While you use the split screen feature, other projector features may not be available and some
settings may be automatically applied to both images. You cannot perform split screen projection when
the Connect ELPCB02 setting is set to On in the projector's Installation menu. You cannot perform split
screen projection when the Content Playback setting is set to On in the projector's Operation menu.
You may not be able to perform split screen projection when you use the Scale feature or the Edge
Blending feature.
190
Note: You cannot use split screen with the following input source combinations:
• HDMI1, HDMI2, and HDBaseT
• USB, USB Display, and LAN
1. Press the Split button on the remote control.
The currently selected input source moves to the left side of the screen.
2. Press the Menu button.
You see this screen:
191
3. Select the input source, select the screen from which you want to hear audio, select the screen size,
and press Enter.
Note: You can only select input sources that can be combined.
4. To exit the split screen feature, press the Split or Esc button.
Split Screen Projection Restrictions
Parent topic: Adjusting Projector Features
Split Screen Projection Restrictions
You cannot perform the following operations during split screen projection:
• Change settings in the projector's menu
• E-Zoom
• Switching the aspect mode (the aspect mode is set to Auto)
• Operations using the User button on the remote control, other than displaying the network information
on the projected surface
• Applying the Dynamic Contrast setting
• Applying the Image Shift setting
• Displaying the network information on the projected surface by a method other than pressing the User
button
• Displaying the Screen Mirroring information bar
Image restrictions
• Even if you set No-signal screen to Logo in the Display menu, the blue screen appears when no
image signal is being input.
Parent topic: Projecting Two Images Simultaneously
Projector Security Features
You can secure your projector to deter theft or prevent unintended use by setting up the following
security features:
• Password security to prevent the projector from being turned on, and prevent changes to the startup
screen and other settings.
• Button lock security to block operation of the projector using the buttons on the control panel.
192
• Security cabling to physically cable the projector in place.
Password Security Types
Locking the Projector's Buttons
Installing a Security Cable
Parent topic: Adjusting Projector Features
Password Security Types
You can set up these types of password security using one shared password:
• Power On Protection password ensures that the projector can only be used after entering a
password, preventing unauthorized usage.
• User's Logo password prevents anyone from changing the custom screen the projector can display
when it turns on. The presence of the custom screen discourages theft by identifying the projector’s
owner.
• Network password prevents anyone from changing the network settings in the projector menus.
• Schedule password prevents anyone from changing the projector's time or schedule settings.
Setting a Password
Selecting Password Security Types
Entering a Password to Use the Projector
Saving a User's Logo Image to Display
Parent topic: Projector Security Features
Setting a Password
To use password security, you must set a password.
Note: No password is set by default. You must set a password.
193
1. Hold down the Freeze button on the remote control for about 5 seconds or until you see this menu.
Note: If no password has been set, you will be prompted to set a password before you can view the
Password Protection setting.
Note: If Password Protection is already enabled, you must enter the correct password to display
the Password Protection setting menu.
2. Press the down arrow to select Password and press Enter.
You see the prompt "Change the password?".
3. Select Yes and press Enter.
Note: If you select No, the Password Protection setting menu is displayed again.
4. Press and hold down the Num button on the remote control and use the numeric buttons to set a
four-digit password.
The password displays as **** as you enter it. Then you see the confirmation prompt.
5. Enter the password again.
194
You see the message "Password accepted."
6. Press Esc to return to the menu.
7. Make a note of the password and keep it in a safe place in case you forget it.
Parent topic: Password Security Types
Selecting Password Security Types
After setting a password, you see this menu, allowing you to select the password security types you want
to use.
If you do not see this menu, hold down the Freeze button on the remote control for about five seconds or
until the menu appears.
• To prevent unauthorized use of the projector, select Power On Protection, press Enter, select On,
press Enter again, and press Esc.
• To prevent changes to certain projector settings, select Menu Protection, press Enter, and do the
following as necessary:
• To prevent changes to the User's Logo screen or related display settings, select User's Logo, press
Enter, select On, press Enter again, and press Esc.
• To prevent changes to the projector's time or schedule settings, select Schedule, press Enter,
select On, press Enter again, and press Esc.
• To prevent changes to network settings, select Network, press Enter, select On, press Enter
again, and press Esc.
Note: Be sure to keep the remote control in a safe place; if you lose it, you will not be able to enter the
password required to use the projector.
Parent topic: Password Security Types
195
Entering a Password to Use the Projector
If a password is set up and a Power On Protection password is enabled, you see a prompt to enter a
password whenever you turn on the projector.
You must enter the correct password to use the projector.
1. Press and hold down the Num button on the remote control while you enter the password using the
numeric buttons.
The password screen closes.
2. If the password is incorrect, the following may happen:
• You see a "wrong password" message and a prompt to try again. Enter the correct password to
proceed.
• If you have forgotten the password, make note of the Request Code: xxxxx number that appears
on the screen and contact Epson Support.
196
• If you enter an incorrect password three times in succession, you see a message telling you that
the projector is locked. After the message is displayed for 5 minutes, the projector enters standby
mode. Unplug the projector, plug in the power cord, and turn on the projector. You see a prompt to
enter the password.
• If you continue to enter an incorrect password many times in succession, the projector displays a
request code and a message to contact Epson Support. Do not attempt to enter the password
again. When you contact Epson Support, provide the displayed request code and proof of
ownership for assistance in unlocking the projector.
Parent topic: Password Security Types
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Saving a User's Logo Image to Display
You can transfer an image to the projector and then display it whenever the projector turns on. You can
also display the image when the projector is not receiving an input signal or when you temporarily stop
projection. This transferred image is called the User's Logo screen.
The image you select as the User's Logo can be a photo, graphic, or company logo, which is useful in
identifying the projector's owner to help deter theft. You can prevent changes to the User's Logo by
setting up password protection for it.
Note: You cannot save an image that is protected by HDCP as a User's Logo.
Note: When you copy the menu settings from one projector to another using the batch setup feature, the
user logo is also copied. Do not include any information in the user logo that you do not want to share
between multiple projectors.
1. Display the image you want to project as the User's Logo.
197
2. Press the Menu button, select the Management menu, and press Enter.
3. Select the User's Logo setting and press Enter.
4. Select Start Setting and press Enter.
You see a prompt asking if you want to use the displayed image as a user's logo.
5. Select Yes and press Enter.
Note: Depending on the image signal, the screen size may change to match the resolution of the
image signal.
6. Make sure the image appears as you want it, then select Yes again and press Enter.
You see a completion message.
7. Press Esc to exit the message screen.
8. Select the Display menu and press Enter.
9. Select when you want to display the User's Logo screen:
• To display it whenever there is no input signal, select No-Signal Screen and set it to Logo.
198
• To display it whenever you turn the projector on, select Startup Screen and set it to On.
To prevent anyone from changing the User's Logo settings without first entering a password, turn on
Menu Protection, set a password and enable User's Logo security.
Parent topic: Password Security Types
Related tasks
Setting a Password
Selecting Password Security Types
Locking the Projector's Buttons
You can lock the buttons on the projector's control panel to prevent anyone from using the projector. You
can lock all the buttons or all the buttons except the power button.
Note: The projector can still be operated using the remote control.
1. Press the Menu button.
2. Select the Management menu and press Enter.
199
3. Select the Control Panel Lock setting and press Enter.
4. Select one of these lock types and press Enter:
• To lock all of the projector's buttons, select Full Lock.
• To lock all buttons except the power button, select Except for Power.
You see a confirmation prompt.
5. Select Yes and press Enter.
Unlocking the Projector's Buttons
Parent topic: Projector Security Features
Unlocking the Projector's Buttons
If the projector's buttons have been locked, hold the Enter button on the projector's control panel for 7
seconds to unlock them. You can also set the Control Panel Lock setting to Off in the Management
menu.
Parent topic: Locking the Projector's Buttons
Related references
Administration Settings - Management Menu
Installing a Security Cable
You can install two types of security cables on the projector to deter theft.
• Use the security slot on the projector to attach a Kensington lock. See your local computer or
electronics dealer for purchase information.
200
• Use the security cable attachment point on the projector to attach a wire cable and secure it to a room
fixture or heavy furniture. Remove the safety bar cover.
201
Note: You can attach the safety bar cover to the back side of the side cover so that it is not lost.
Parent topic: Projector Security Features
Creating a User Pattern to Display
You can transfer an image to the projector and then display it as a pattern to aid in presentations when
you use the Pattern Display feature. This transferred image is called the User Pattern.
1. Display the image you want to project as the User Pattern from a connected computer or video
source.
202
2. Press the Menu button, select the Management menu, and press Enter.
3. Select the User Pattern setting and press Enter.
You see a prompt asking if you want to use the displayed image as a User Pattern.
Note: When you select User Pattern, adjustments such as Geometry Correction, E-Zoom,
Aspect, or Image Shift are temporarily canceled.
4. Select Yes and press Enter.
Note: It takes a few moments for the projector to save the image; do not use the projector, its remote
control, or any connected equipment until it is finished.
You see a completion message.
5. Press Esc to exit the message screen.
To view your user pattern, press the Menu button, select the Display menu, and press Enter. Set the
Pattern Type setting to User Pattern, then return to the Display menu and select Pattern Display.
203
Parent topic: Adjusting Projector Features
Adjusting the Color Convergence (Panel Alignment)
You can use the Panel Alignment feature to manually adjust the color convergence (the alignment of
the red and blue colors) in the projected image. You can adjust the pixels horizontally and vertically in
increments of 0.125 pixels within a range of ± 3 pixels.
Note:
• You can adjust only the red or blue color convergence. Green is the standard color panel and cannot
be adjusted.
• Image quality may decline after performing Panel Alignment.
• Images for pixels that extend beyond the edge of the projected screen are not displayed.
1. Press the Menu button, select the Display menu, and then press Enter.
2. Select Panel Alignment and press Enter.
3. Select Panel Alignment and set it to On.
204
4. Select Select Color and choose one of the following:
• R to adjust the red color convergence.
• B to adjust the blue color convergence.
5. Select Pattern Color and choose the grid color displayed when making adjustments. The available
color varies depending on the Select Color setting.
• R/G/B to display the grid color in white.
• R/G to display the grid color in yellow.
• G/B to display the grid color in cyan.
6. Select Start Adjustments and press Enter.
7. Select one of the following options:
• Select Shift the whole panel to adjust the entire panel at the same time and go to the next step.
• Select Adjust the four corners to adjust the corners of the panel one at a time and go to step 10.
8. Use the arrow buttons on the remote control to adjust the color alignment selected in Select Color,
and then press Enter.
Note: Adjustments affect the grid lines in the entire screen.
9. Select one of the following options:
• Select Adjust the four corners to fine-tune your adjustments.
• Select Exit when you are finished making adjustments.
10. Use the arrow buttons on the remote control to adjust the color alignment of the screen corner
highlighted by the orange box, and then press Enter.
11. When you are finished adjusting each corner of the screen, press Enter.
12. Select one of the following options:
• If your projector needs additional panel alignment, select Select intersection and adjust. Use the
arrow buttons on the remote control to highlight the corner of any misaligned box on the screen,
press Enter, make any necessary adjustments, and then press Enter again. Repeat this
step as necessary for the other intersections.
• Select Exit when you are finished.
Parent topic: Adjusting Projector Features
205
Saving Settings to Memory and Using Saved Settings
You can save customized settings for each of your video inputs and then select the saved settings
whenever you want to use them.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Memory menu and press Enter.
You see a screen like this:
4. Select one of the following options:
• Load Memory: Overwrites your current settings with saved settings
• Save Memory: Saves your current settings to memory (10 memories with different names are
available)
Note: A memory name that has already been used is indicated by a blue mark. Saving over a
previously saved memory overwrites the settings with your current settings.
206
Note: You can save the following settings:
• Image menu settings for each color mode
• Video Range in the Signal I/O menu
• Light Source Mode and Brightness Level in the Operation menu
• Color Matching in the Multi-Projection menu
• Erase Memory: Erases the selected memory settings
• Rename Memory: Renames a saved memory
5. Press Esc to exit.
Parent topic: Adjusting Projector Features
Copying Menu Settings Between Projectors
After you select menu settings for your projector, you can transfer them to another projector of the same
model.
Note: Copy the projector's settings before you adjust the projected image using the projector's Geometry
Correction settings. Any saved User's Logo setting on the projector will transfer to the other projector.
Caution: If the copy process fails due to a power failure, communication error, or for any other reason,
Epson will not be responsible for any repair costs incurred.
The following settings will not transfer between projectors:
• Light Source Hours
• Status
The following settings will not transfer between projectors if you set the Batch Setup Range setting to
Limited:
• Password Protection settings
• EDID in the Signal I/O menu
• Network menu settings
Note: In addition to the methods covered in this section, you can also copy and transfer settings to
multiple projectors over a network using the Epson Projector Management software. See the online
207
Epson Projector Management Operation Guide for instructions. You can download the latest software
and documentation from the Epson website.
Saving Settings to a USB Flash Drive
Transferring Settings from a USB Flash Drive
Saving Settings to a Computer
Transferring Settings from a Computer
Parent topic: Adjusting Projector Features
Saving Settings to a USB Flash Drive
You can save the projector settings you want to transfer to a USB flash drive.
Note: Use an empty flash drive. If the drive contains other files, the transfer may not complete correctly.
The flash drive must use the FAT format and cannot have any security features.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Insert the flash drive into the USB-A port.
Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be
saved correctly.
3. Press and hold the Esc button on the control panel or remote control as you connect the power cord
to the projector's power inlet.
4. When all of the projector lights turn on, release the Esc button.
The lights flash to indicate that settings are transferring to the flash drive. When the lights stop
flashing, the projector turns off.
Caution: Do not unplug the power cord or remove the flash drive while the lights are flashing. This
could damage the projector.
5. Remove the flash drive.
Note: The file name for the batch setup file is PJCONFDATA.bin. If you need to change the file
name, add text after PJCONFDATA using only alphanumeric characters. If you change the
PJCONFDATA section of the file name, the projector may not be able to recognize the file correctly.
208
Parent topic: Copying Menu Settings Between Projectors
Related references
Projector Light Status
Related tasks
Replacing the Air Filter
Cleaning the Air Filter and Vents
Transferring Settings from a USB Flash Drive
After saving projector settings to a USB flash drive, you can transfer them to another projector of the
same model.
Note: Make sure the USB flash drive contains only a single settings transfer from another projector of
the same model. The settings are contained in a file called pjconfdata.bin. If the drive contains other
files, the transfer may not complete correctly.
Do not adjust image settings on a projector until after you transfer settings to it. Otherwise, you may have
to repeat your adjustments.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Insert the flash drive into the USB-A port.
Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be
saved correctly.
3. Press and hold the Menu button on the projector or remote control as you connect the power cord to
the projector's power inlet.
4. When all of the projector lights turn on, release the Menu button.
The lights flash to indicate that settings are transferring to the projector. When the lights stop
flashing, the projector turns off.
Caution: Do not unplug the power cord or remove the flash drive while the lights are flashing. This
could damage the projector.
5. Remove the flash drive.
Parent topic: Copying Menu Settings Between Projectors
209
Related references
Projector Light Status
Related tasks
Replacing the Air Filter
Cleaning the Air Filter and Vents
Saving Settings to a Computer
You can save the projector settings you want to transfer to a computer.
Your computer must be running one of the following operating systems:
• Windows 8.1 or later.
• macOS 10.13.x or later
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Connect a USB cable to your projector's USB-B port.
3. Connect the other end to any available USB port on your computer.
4. Press and hold the Esc button on the control panel or remote control as you connect the power cord
to the projector's power inlet.
5. When all of the projector lights turn on, release the Esc button.
The projector shows up as a removable disk on your computer.
6. Open the removable disk and copy the pjconfdata.bin file to your computer.
7. Once the file has copied, do one of the following:
• Windows: Open the My Computer, Computer, Windows Explorer, or File Explorer utility.
Right-click the name of your projector (listed as a removable disk) and select Eject.
• Mac: Drag the removable disk icon for your projector from the desktop into the trash.
The projector turns off when you disconnect the USB cable.
Parent topic: Copying Menu Settings Between Projectors
Related references
Projector Light Status
Related tasks
Replacing the Air Filter
Cleaning the Air Filter and Vents
210
Transferring Settings from a Computer
After saving projector settings to a computer, you can transfer them to another projector of the same
model.
Your computer must be running one of the following operating systems:
• Windows 8.1 or later.
• macOS 10.13.x or later
Do not adjust image settings on a projector until after you transfer settings to it. Otherwise, you may have
to repeat your adjustments.
1. Turn off the projector and unplug the power cord from the projector's power inlet.
2. Connect a USB cable to your projector's USB-B port.
3. Connect the other end to any available USB port on your computer.
4. Press and hold the Menu button on the projector or remote control as you connect the power cord to
the projector's power inlet.
5. When all of the projector lights turn on, release the Menu button.
The projector shows up as a removable disk on your computer.
6. Copy the pjconfdata.bin file from your computer to the removable disk.
Note: Do not copy any other files to the removable disk.
7. Once the file has copied, do one of the following:
• Windows: Open the My Computer, Computer, Windows Explorer, or File Explorer utility.
Right-click the name of your projector (listed as a removable disk) and select Eject.
• Mac: Drag the removable disk icon for your projector from the desktop into the trash.
Disconnect the USB cable. When all of the indicators stop flashing, the projector turns off.
Caution: Do not unplug the power cord while the lights are flashing. This could damage the
projector.
Parent topic: Copying Menu Settings Between Projectors
Related references
Projector Light Status
211
Related tasks
Replacing the Air Filter
Cleaning the Air Filter and Vents
Scheduling Projector Events
You can save a projector command, such as turning the projector on or off or switching input sources, as
an "event." You can schedule when you want the projector to automatically execute the command.
Warning: Do not place flammable objects in front of the lens. If you schedule the projector to turn on
automatically, flammable objects in front of the lens could catch on fire.
Note: The Schedule setting in the Menu Protection menu must be turned off to schedule an event.
Saving a Scheduled Event
Viewing Scheduled Events
Editing a Scheduled Event
Parent topic: Adjusting Projector Features
Related tasks
Setting a Password
Selecting Password Security Types
Saving a Scheduled Event
You can select projector commands you want to perform and schedule them as an event.
Warning: Do not place flammable objects in front of the lens. If you schedule a projector to turn on
automatically, flammable objects in front of the lens could catch on fire.
Note: Light Source Calibration events do not start if the projector is not used continuously for at least 20
minutes, or if the projector is regularly turned off by shutting off the power outlet. Set Light Source
Calibration events to occur only after 100 hours of usage.
1. Press the Menu button.
2. Select the Management menu and press Enter.
3. Select the Schedule Settings setting and press Enter.
4. Select the Schedule menu and press Enter.
212
5. Select Add New and press Enter.
You see a screen like this:
213
6. In the Event Settings section, select the events you want to have occur. (Select No Change for
events that you do not want to occur.)
7. In the Date/Time Settings section, set the date and time for the scheduled events to occur.
214
8. When you are finished, select Save and press Enter.
9. To schedule more events, repeat the previous steps as necessary.
Parent topic: Scheduling Projector Events
Viewing Scheduled Events
You can view your scheduled events on the calendar displayed on the Schedule Settings screen.
1. Press the Menu button.
2. Select the Management menu and press Enter.
3. Select Schedule Settings and press Enter.
4. Select Schedule and press Enter.
You see a screen like this:
Colored boxes on the calendar indicate the following:
One-time event
Repeating event
215
Communication is on or off
Event is invalid
5. To view an event, press the left and right arrow buttons on the remote to select a day.
The screen displays the details of the events scheduled for that day. A blue icon indicates an
enabled event, a gray icon indicates a disabled event, and the icon indicates a repeating event.
Parent topic: Scheduling Projector Events
Editing a Scheduled Event
You can edit any currently scheduled event.
1. Press the Menu button.
2. Select the Management menu and press Enter.
3. Select the Schedule Settings setting and press Enter.
You see a screen like this:
216
4. Press the left or right arrow buttons to highlight the date on the calendar containing the scheduled
event you want to edit.
5. Press the up or down arrow buttons to highlight the event you want to edit, and press Enter.
6. Select one of the following:
• On/Off to enable or disable the selected event.
• Edit to edit the settings for the selected event.
• Clear to delete the selected event.
• Add New to add a new scheduled event.
7. When you are finished, select Return and press Enter.
8. Select Complete and press Enter to save your changes.
Note: To delete all scheduled events, select Schedule Reset and select Yes.
Parent topic: Scheduling Projector Events
217
Adjusting the Menu Settings
Follow the instructions in these sections to access the projector menu system and change projector
settings.
Using the Projector's Menus
Image Quality Settings - Image Menu
Input Signal Settings - Signal I/O Menu
Installation Settings - Installation Menu
Display Settings - Display Menu
Feature Settings - Operation Menu
Administration Settings - Management Menu
Network Settings - Network Menu
Multiple Projector Operation Settings - Multi-Projection Menu
Image Quality Memory Settings - Memory Menu
Setup Settings - ECO Menu
Initial Settings and Reset Options - Initial/All Settings Menu
Using the Projector's Menus
You can use the projector's menus to adjust the settings that control how your projector works. The
projector displays the menus on the screen.
1. Press the Menu button on the control panel or remote control.
218
You see the menu screen.
2. Press the up or down arrow button to move through the menus listed on the left. The settings for
each menu are displayed on the right.
Note: The available settings depend on the current input source, resolution, or other menu settings.
3. To change settings in the displayed menu, press Enter.
4. Press the up or down arrow button to move through the settings.
5. To return all the menu settings to their default values, select the Initial/All Settings menu.
6. When you finish changing settings on a menu, press Esc.
7. Press Menu or Esc to exit the menus.
Note: The icon indicates that a setting contains sub-settings.
Parent topic: Adjusting the Menu Settings
219
Image Quality Settings - Image Menu
Settings on the Image menu let you adjust the quality of your image for the input source you are currently
using. The available settings depend on the currently selected color mode and input source.
Color Mode Settings
Setting Options Description
Color Mode See the list of available Color
Modes
Adjusts the vividness of image
colors for various image types and
environments
Brightness Varying levels available Lightens or darkens the overall
Contrast Varying levels available Adjusts the difference between light
and dark areas of the image
Color Saturation Varying levels available Adjusts the intensity of the image
colors
220
Setting Options Description
Tint Varying levels available Adjusts the balance of green to
magenta tones in the image
Sharpness Varying levels available Adjusts the sharpness or softness of
image details
White Balance Color Temp.
G-M Correction
Custom
Sets the overall color tone of the
Color Temp.: sets the color
temperature according to the
selected color mode; lower values
tint the image red, and higher values
tint the image blue. This setting is
not displayed when Color Filter is
set to Warm White or Cool White
G-M Correction: makes fine
adjustments to the color tone; higher
values tint the image green and
lower values tint the image red
Custom: adjusts the individual RGB
components of the offset and gain
Frame Interpolation Off
Low
Normal
High
Adjusts the smoothness of image
movement. Setting is only displayed
in the following cases:
• Edge Blending is set to Off
• The current source is HDMI or
HDBaseT
Dynamic Contrast Off
Normal
High Speed
Adjusts the projected luminance
based on the image brightness
221
Setting Options Description
Image Enhancement Image Preset Mode Selects preset Image Enhancement
settings
Noise Reduction Reduces flickering in analog images
MPEG Noise Reduction Reduces the noise or static in
MPEG video
Super-resolution Sharpens blurred images when
projecting low-resolution images
Auto Contrast
Enhancement
Creates a clearer and sharper image
by automatically adjusting the
contrast of the projected image.
Reset Resets all settings in the Image
Enhancement menu
Scene Adaptive Gamma Varying levels available Adjusts the coloring according to the
scene to obtain a more vivid image;
larger numbers enhance the
contrast
Gamma –2 to 2
Custom
Reset
Adjusts the colors by selecting one
of the gamma correction values or
referring to a gamma graph
RGBCMY Varying levels available Adjusts the hue, saturation, and
brightness for each color
Reset to Defaults — Resets all settings for the Color
Mode currently selected
Note: The Brightness setting does not affect laser brightness. To change the laser brightness mode,
use the Light Source Brightness Control setting in the Operation menu.
Input Source Settings
To change settings for an input source, make sure the source is connected and select that source.
Note: You can restore the default settings of the Tracking, Sync, and Position settings by pressing the
Auto button on the remote control when connected to a Computer port on the projector.
222
Setting Options Description
Source — Displays the current input source
selected
Aspect See the list of available aspect
ratios
Sets the aspect ratio (width-to-
height ratio)
Turn off the Scale setting or set the
Scale Mode setting to Full Display
before selecting this setting. Setting
is only displayed when the current
source is HDMI, HDBaseT, or USB
and document camera.
Reset to Defaults — Resets all settings for the currently
selected input source
Scale Varying levels available When using multiple projectors to
project one image, adjusts the scale
of the image displayed by each
projector
Reset Image Settings — Resets all adjustment values on the
Image menu to their default settings
Note: Select Reset Image Settings to reset all settings on the Image menu to their default values.
Parent topic: Adjusting the Menu Settings
223
Input Signal Settings - Signal I/O Menu
Normally the projector detects and optimizes the input signal settings automatically. If you need to
customize the settings, you can use the Signal I/O menu. The available settings depend on the currently
selected input source.
To change settings for an input source, make sure the source is connected and select that source.
Setting Options Description
Volume Varying levels available Adjusts the volume of the projector's
speaker system or external speakers
224
Setting Options Description
Sound Mode
HDMI1
HDMI2
HDBaseT
USB Display
USB
LAN
Screen Mirroring1
Screen Mirroring2
Select your favorite mode for sound output
from the projector's speaker system
according to the playback contents
Source — Displays settings selected for the current
input source. To change settings for an
input source, make sure the source is
connected and select that source
Signal Format Video Range Sets the video range to match the setting of
input source. Setting is only displayed
when the current source is HDMI or
HDBaseT
Color Space
Auto
BT.709
BT.2020
Sets the conversion system for the color
space. Setting is only displayed in the
following cases:
• Color Mode is not set to DICOM SIM
• The current source is HDMI or HDBaseT
225
Setting Options Description
Dynamic Range Dynamic Range Changes the range of dark and bright areas
in images; choose from Auto
(recommended), SDR, HDR10, or HLG.
Setting is only displayed in the following
cases:
• Color Mode is not set to DICOM SIM
• The current source is HDMI or HDBaseT
Signal Status Displays the detected input image signal.
HDR10 Setting Changes the PQ (Perceptual Quantizer)
curve of the dynamic range using the HDR
PQ method. This setting is only displayed
when Signal Status is HDR10, or
Dynamic Range is set to HDR10.
HLG Setting Changes the HLG (Hybrid Log Gamma)
curve of the dynamic range using the HDR
HLG method. This setting is only displayed
when Signal Status is HLG, or Dynamic
Range is set to HLG.
Reset to Defaults — Resets all settings for current input source
EDID EDID (HDMI1)
EDID (HDMI2)
EDID (HDBaseT)
Describes the display capabilities of your
projector when the selected input source is
HDMI; change this setting as necessary
according to the resolution of the current
input source
HDMI IN EQ Level HDMI1
HDMI2
Adjusts the HDMI input signal level
depending on the devices connected to the
HDMI port; change the setting if there is a
lot of interference in the image or if no
image is projected
Note: You can select the settings for
individual input sources without changing
the input source.
226
Setting Options Description
A/V Output While Projecting
Always On
Determines when the projector outputs
audio and images to external devices; set
to Always On to output audio and images
when the projector is in standby mode
This setting is only displayed when Quick
Startup is set to Off in the projector's
Operation menu, Auto Power On is set to
Off in the projector's Network menu, or
Auto Power On is set to HDMI1 and
Power On Trigger is set to Plug-in
Detection in the projector's Operation
menu.
Inverse Audio On
Off
Set to On to invert the audio's left and right
channels to match the projector installation
position.
227
Setting Options Description
HDMI Link Device Connections
HDMI Link
Audio Out Device
Power On Link
Power Off Link
HDMI Out Power Link
HDMI Out Terminal End
Adjusts the HDMI Link options that allow
the projector or remote to control HDMI-
connected devices that support the CEC
standard
Device Connections: lists the devices
connected to the HDMI ports.
HDMI Link: enables or disables the HDMI
Link feature
Audio Out Device: selects whether to
output audio from the internal speakers or a
connected audio/visual system
Power On Link: controls what happens
when you turn on the projector or a linked
device
• Bidirectional: automatically turns on the
connected device when you turn on the
projector, and vice versa
• Device -> PJ: automatically turns on the
projector when you turn on the
connected device
• PJ -> Device: automatically turns on the
connected device when you turn on the
projector
Power Off Link: controls whether linked
devices are turned off when the projector is
turned off
HDMI Out Power Link: Turns on or off
devices connected to the HDMI Out port
when you turn the projector on or off.
HDMI Out Terminal End: Selects whether
to use the projector as the end projector.
228
Setting Options Description
HDBaseT Control Communications Enables or disables communication from
the Ethernet and serial ports on the
HDBaseT transmitter or switcher; turning
on this setting disables the projector's LAN
and RS-232C ports. Setting is only
displayed when Extron XTP is set to Off.
Extron XTP Set to On when you connect an Extron XTP
transmitter or switcher to the HDBaseT
ports.
Reset Signal I/O Settings — Resets all settings on the Signal I/O menu
to their default values
Parent topic: Adjusting the Menu Settings
Installation Settings - Installation Menu
Settings on the Installation menu let you set up your projector for your installation environment. The
available settings depend on the currently selected input source and other settings.
229
Setting Options Description
Fixed Installation On
Off
Set to On if you installed the
projector in a fixed location
Test Pattern — Displays a test pattern to assist in
focusing and zooming the image
and correcting image shape
Setting Plate Installation Guide — Displays an on-screen guide to
assist with installing the projection
screen when you have installed the
projector on a wall
Projection Front
Front/Upside Down
Rear
Rear/Upside Down
Selects the way the projector faces
the screen so the image is oriented
correctly
230
Setting Options Description
Geometry Correction
Quick Corner
Arc Correction
Point Correction
Correct Distortion Using
Smartphone
Fit to Screen Using
Smartphone
Memory
Adjusts image shape to rectangular
(horizontally and vertically)
Quick Corner: select to correct
image shape and alignment using
an on-screen display
Arc Correction: select to adjust the
curve or arc of the horizontal and
vertical sides
Point Correction: select to divide
the projected image into a grid and
correct distortion by moving a
selected point
Correct Distortion Using
Smartphone: corrects the distortion
of projected images using the Epson
Setting Assistant app
Fit to Screen Using Smartphone:
corrects the shape and position of
images to fit on your screen using
the Epson Setting Assistant app
Memory: controls memory functions
for current image shape settings
• Save Memory: saves the current
image shape as a memory setting
• Load Memory: loads a saved
image shape memory
• Rename Memory: renames a
saved image shape memory
• Erase Memory: deletes a saved
image shape memory
• Reset Memory: resets all the
image shape memory settings
231
Setting Options Description
Geometry Correction Wizard — Guides you step-by-step through
correcting the image shape
Connect to Setting Assistant — Displays the QR code to connect to
the Epson Setting Assistant app
Digital Zoom Varying levels available Adjusts the size of the projected
Image Shift Varying positions available Adjusts the position of the projected
image (setting does not appear if
Digital Zoom is at its widest setting)
Remote Receiver Front/Rear
Front
Rear
Off
Limits reception of remote control
signals by the selected receiver; Off
turns off all receivers
Screen Type 4:3
16:6
16:9
16:10
21:9
Sets the aspect ratio to fit the image
on the projection surface. Setting is
only displayed when Content
Playback is set to Off in the
projector's Operation menu.
Screen Position Varying positions available Shifts the image position on the
screen (only available if the Screen
Type setting is not set to the same
aspect ratio as the projector's native
resolution)
High Altitude Mode On
Off
Regulates the projector's operating
temperature at altitudes above 4921
feet (1500 m)
Source — Displays settings saved for each
input source. To change settings for
an input source, make sure the
source is connected and select that
source.
232
Setting Options Description
Blanking
Top
Bottom
Left
Right
Hides an area of the projected
image that you select using the
arrow buttons. Setting is only
displayed when Content Playback
is set to Off in the projector's
Operation menu.
Reset to Defaults — Resets all settings for current input
source. Setting is only displayed
when Content Playback is set to
Off in the projector's Operation
menu.
Settings for Video Conference
Rooms
— Changes multiple menu items at
once for video conference rooms.
Install Again — Opens the wizard to adjust the
projected image for re-installing the
projector.
Reset Installation Settings — Resets all settings on the Installation
menu to their default values except
for the following:
• Digital Zoom
• Image Shift
Parent topic: Adjusting the Menu Settings
Related tasks
Correcting Image Shape with Quick Corner
Adjusting the Image Position Using Image Shift
Locking the Projector's Buttons
Unlocking the Projector's Buttons
Related topics
Setting Up the Projector
233
Display Settings - Display Menu
Settings on the Display menu let you customize various projector display features. The available settings
depend on the currently selected input source and other settings.
Setting Options Description
Pattern Display — Displays the selected pattern
type to assist in adjusting the
Note: If a pattern is displayed for
a long time, a residual image
may be visible in projected
images.
234
Setting Options Description
Pattern Type Pattern 1
Pattern 2
Pattern 3
Pattern 4
User Pattern
Selects the type of grid pattern,
line pattern, or custom pattern to
display
No-signal Screen Black
Blue
Logo
Gradation
Select the screen color or logo to
display when no input signal is
detected; not available in Content
Playback mode
Startup Screen On
Off
Controls whether a logo is
displayed when the projector
starts up
Home Screen Auto Disp. On
Off
Controls whether the Home
screen is displayed automatically
when no input signal is detected
when the projector turns on
Sort Source Thumbnails On
Off
Displays the detected input
source in the upper left position
of the Home screen (the order of
the input sources changes based
on the detected input signals)
Messages On
Off
Controls whether projector status
and error messages are
displayed on the projected image
Menu Rotation Right 90 Degree
Left 90 Degree
Off
Rotates the menu display 90°
Menu Color White
Black
Sets the color theme of the Home
screen and projector menu
system
235
Setting Options Description
Panel Alignment On
Off
Select Color
Pattern Color
Start Adjustments
Reset
Set to On to correct color
misalignment in the projected
Select Color: select the color to
correct
Pattern Color: select the pattern
used for correction
Start Adjustments: start panel
alignment
Reset: resets all panel alignment
settings to their defaults
Split Screen Setting
Display Audio Output Source
Align
Adjusts the Split Screen feature.
Not available in Content
Playback mode
Display Audio Output Source:
controls whether an icon is
displayed with the source
providing audio output during
Split Screen projection
Align: if splitting the screen
between two images, determines
whether the images are aligned
at the top or in the middle of the
screen
Reset Display Settings — Resets all settings on the Display
menu to their default values
Note: You must disable User's Logo password protection to adjust the No-signal Screen and Startup
Screen settings.
Parent topic: Adjusting the Menu Settings
Related tasks
Creating a User Pattern to Display
236
Feature Settings - Operation Menu
Settings on the Operation menu let you customize various projector features that control its operation.
The available settings depend on the currently selected input source and other settings.
Setting Options Description
Auto Source Search On
Off
Enables the projector to
automatically select an input
source. Not available in Content
Playback mode
Note: This setting is disabled
when you turn the projector on in
Quick Startup mode
237
Setting Options Description
Light Source Brightness
Control
Maintain Brightness
Maintain Brightness Level
Light Source Mode
Brightness Level
Controls the constant brightness
of the projector's light source
Maintain Brightness: maintains
a constant brightness
Maintain Brightness Level:
selects the brightness level to
maintain when the Maintain
Brightness setting is enabled
Light Source Mode: selects the
brightness mode of the projector
when the Maintain Brightness
setting is disabled
• Normal: maximum brightness
• Quiet: 70% brightness with
reduced fan noise
• Extended: 70% brightness
and extends the life
expectancy of the light source
• Custom: select a custom
brightness level and enable
use of the next setting
Brightness Level: select the
Custom brightness level you
want when the Maintain
Brightness setting is disabled
Direct Power On On
Off
Controls whether the projector
automatically turns on when you
plug it in
238
Setting Options Description
Auto Power On HDMI1
USB Display
Off
Selects whether to automatically
turn on the projector when you
connect an input signal to a
specific input source; USB
Display is only available when
USB Display is enabled; adjust
the Power On Trigger setting to
change the power on settings for
the HDMI1 option
Power On Trigger Plug-in Detection
Signal Detection
Selects the power on condition
when Auto Power On is set to
HDMI1:
• Plug-in Detection:
automatically turns on the
projector when the device
connected to the HDMI1 port is
turned on
• Signal Detection:
automatically turns on the
projector when it detects an
HDMI video signal on the
HDMI1 port; selecting this
option increases standby
power consumption
Sleep Mode On
Off
Automatically turns off the
projector after an interval of
inactivity
Sleep Mode Timer 1 to 30 minutes Sets the time before the projector
automatically turns off (Sleep
Mode must be turned on)
A/V Mute Timer On
Off
Automatically turns off the
projector after 30 minutes if A/V
Mute is enabled
239
Setting Options Description
Standby Mode Communication On
Communication Off
Enable this setting to allow
monitoring and control of the
projector over a network when
the projector is in standby mode;
this setting is only displayed in
the following cases:
• Auto Power On is disabled in
the projector's Network menu
• Auto Power On is not set to
HDMI1 and Power On Trigger
is set to Plug-in Detection
• A/V Output is set to While
Projecting in the Signal I/O
menu
• USB Power is set to On While
Projecting
Port Wired LAN
Wireless LAN
Selects the port to use while the
Standby Mode setting is set to
Communication On
Startup Source Various input sources available Selects the source displayed on
startup in Content Playback
mode
240
Setting Options Description
Quick Startup
20min.
60min.
90min.
Unlimited
Off
Sets the time period for which
you want to be able to start
projecting within five seconds of
pressing the power button (Quick
Start mode)
It may take longer than five
seconds when projecting from
the projector's USB port, or when
using the Screen Mirroring
features. This setting is only
displayed when A/V Output is
set to While Projecting in the
projector's Signal I/O menu, Auto
Power On is set to HDMI1 and
Power On Trigger is set to Plug-
in Detection in the projector's
Operation menu, and when Auto
Power On is set to Off in the
projector's Network menu.
USB Power On While Projecting
Always On
Sets whether the USB-A port
continuously supplies power or
only when the projector is on.
This setting is only displayed
when Auto Power On is set to
HDMI1 and Power On Trigger is
set to Plug-in Detection in the
projector’s Operation menu, A/V
Output is set to While
Projecting in the projector's
Signal I/O menu, or Auto Power
On is disabled in the projector's
Network menu.
Note: When Always On is
selected, the projector's power
consumption increases in
standby mode.
241
Setting Options Description
Indicators On
Off
Enables or disables the status
indicator lights on the projector
(except for errors and warnings)
Inv Direction Button On
Off
Enable this setting if you want to
invert the direction of the arrow
buttons on the control panel to
match the projector's installation
position
Content Playback On
Off
Enable to play back a playlist
created in the Epson Projector
Content Manager software
Overlay Effect Overlay Effect
Shape Filter
Color Filter
Lightness
Adds color and shape effects to
the projected image; not
available when Content
Playback is disabled or Edge
Blending is enabled
USB Viewer — Select a playlist from the USB
device; not available when
Content Playback is disable
Reset Operation Settings — Reset all settings on the
Operation menu to their default
values
Parent topic: Adjusting the Menu Settings
Related references
Display Settings - Display Menu
Related tasks
Turning On the Projector
Turning Off the Projector
242
Administration Settings - Management Menu
Settings on the Management menu let you customize various projector administrative features.
Note: When you set Menu Protection of Schedule to On, you cannot change settings on the Schedule
Settings. Set Menu Protection of Schedule to Off first.
Setting Options Description
User Button — Assigns a menu option to the
User button on the remote
control for one-touch access
User's Logo Start Setting
Reset
Creates the screen that the
projector displays to identify itself
and enhance security
243
Setting Options Description
User Pattern — Captures a projected screen and
saves it as a pattern for display;
select Pattern Display in the
Display menu to display the
saved pattern
Control Panel Lock Full Lock
Except for Power
Off
Controls projector button locking
to secure the projector
Full Lock: locks all buttons
Except for Power: locks all
buttons except the power button
Off: no buttons locked
4k Enhancement On
Off
Projects an image at a doubled
resolution by diagonally shifting 1
pixel in increments of 0.5 pixels.
A high resolution image signal is
projected in fine detail. Setting is
only displayed in the following
cases:
• The Aspect setting is set to
other than Native in the
projector's Signal I/O menu.
• Screen sharing between
network projectors is not
performed.
244
Setting Options Description
Color Uniformity Color Uniformity
Adjustment Level
Start Adjustments
Reset
Adjusts the color tone balance
Color Uniformity: set to On to
adjust the color tone balance for
the whole screen
Adjustment Level: sets the
adjustment level
Start Adjustments: adjusts the
red, green, and blue color tones
individually for the selected area
Reset: resets all Color Uniformity
adjustment values to their
defaults
Color Matching — See the Multi-Projection menu
table for details on the Color
Matching settings.
Refresh Mode Timer
Messages
Start
Select Start to clear an
afterimage that remains in the
projected image and turn off the
projector after the time specified
in the Timer screen. Press any
button to cancel Refresh Mode.
Enable the Messages setting if
you want to display a message
when Refresh Mode is in
progress.
245
Setting Options Description
Light Source Calibration Run Now
Run Periodically
Last Run
Selects options to perform light
source calibration to maintain the
color balance of the projected
Run Now: Select On to start light
source calibration now. Make
sure the projector has been
turned on for at least 30 minutes
for maximum accuracy. You may
not be able to start calibration if
the projector's environmental
temperature is out of range.
Run Periodically: Select On to
perform calibration every 100
hours of usage
Last Run: Displays the date and
time light source calibration was
last performed
Date & Time Date & Time
Daylight Saving Time
Internet Time
Adjusts the projector's date and
time settings
• Date & Time: sets the date
and time on the projector
• Daylight Saving Time:
enables daylight saving time
• Internet Time: updates the
time automatically via an
online time server
Schedule Settings — Schedules projector events to
occur automatically at selected
dates and times
Wireless LAN Power On
Off
Enables or disables wireless
communication
246
Setting Options Description
Wireless LAN Diagnosis Ping
IP Address
Ping until stopped
Start
Displays the status of the
wireless LAN communication
Log Save Destination Internal Memory
USB and Internal Memory
Selects where you want to save
projector error and operation log
files; not available in Content
Playback mode.
Batch Setup Range All
Limited
Selects which projector menu
settings to copy using the batch
setup feature; select All to copy
all the settings, or select Limited
to copy all settings except for the
following:
• Password Protection settings
• EDID setting in the Signal I/O
menu
• Network menu settings
Language Various languages available Selects the language for
projector menu and message
displays
Information Various Information Displays information about the
projector and current input signal;
the displayed items vary
depending on the current input
source
247
Setting Options Description
Display Status System
Version
Network Wired
Network Wireless
Input Signal
Output Signal
Displays the projector's status
information.
Display Logs Temp Warning Info
Power On/Off History
Displays log data saved to the
location specified in the Log Save
Destination setting
Reset Management Settings — Resets all settings on the
Management menu to their
default values except for the
following:
• User Pattern
• Language
Event ID Code List
Parent topic: Adjusting the Menu Settings
Related references
Multiple Projector Operation Settings - Multi-Projection Menu
Related tasks
Setting the Date and Time
Selecting the Language for the Projector Menus
Saving a Scheduled Event
Viewing Scheduled Events
Editing a Scheduled Event
Adjusting Color Uniformity
Event ID Code List
If the Event ID option on the Information screen in the Management menu displays a code number,
check this list of Event ID codes for the solution to the projector problem associated with the code.
248
Event ID code Cause and solution
0026 A screen mirroring communication error has occurred. Turn the projector off and on
again, or restart the network software.
0032
0036
0037
0027 Unstable screen mirroring communication. Check the network communication
status, wait a few moments, and try connecting to the network again.
0028
0029
0030
0031
0035
0023 Connection failed. If you see the PIN entry screen on your computer, enter the PIN
code displayed on the network information screen or at the bottom right of the
projected image. If this does not solve the problem, restart the projector and the
connected devices, and then check the connection settings.
0024
0025
0043 The video format is not supported. Change the resolution of the mobile device and
reconnect. Alternatively, change the Adjust Image Quality setting for the projector
and reconnect.
0432 The network software did not start. Turn the projector off and then on again.
0435
0433 Cannot display the transferred images. Restart the network software.
0434 Unstable network communication. Check the network communication status, wait a
few moments, and try connecting to the network again.
0481
0482
0485
0483 The network software quit unexpectedly. Check the network communication status,
then turn the projector off and then on again.
04FE
0484 Communication with computer was disconnected. Restart the network software.
249
Event ID code Cause and solution
0479 A projector system error has occurred. Turn the projector off and then on again.
04FF
0891 Cannot find the SSID (network name). Make sure your computer and projector are
connected to your access point's current SSID.
0892 The WPA/WPA2/WPA3 authentication type does not match. Make sure the wireless
network security settings are correct.
0893 The TKIP/AES encryption type does not match. Make sure the wireless network
security settings are correct.
0894 Communication with unauthorized access point was disconnected. Contact your
network administrator.
0895 Communication with a connected device was disconnected. Check your device's
connection status.
0898 Failed to acquire DHCP address. Make sure the DHCP server is operating correctly.
If you are not using DHCP, turn off the DHCP setting in the Network menus.
0899 A communication error has occurred. Try restarting the network software and
restarting your projector. If that does not solve the problem, contact Epson for help.
089A The EAP authentication type does not match the network. Check the wireless LAN
security settings and make sure that the security certificate is installed correctly.
089B EAP server authentication failed. Check the wireless LAN security settings and
make sure that the security certificate is installed correctly.
089C EAP client authentication failed. Check the wireless LAN security settings and make
sure that the security certificate is installed correctly.
089D Key exchange failed. Check the wireless LAN security settings and make sure that
the security certificate is installed correctly.
0920 The internal battery that saves the projector's date and time settings is running low.
Contact Epson for help.
0B01 The internal storage could not be detected correctly. Turn off the projector and
disconnect the power cord, then reconnect the power cord and turn the projector
back on. When the projector is turned on, the security certificate and address book
are deleted. If that does not solve the problem, contact Epson for help.
Parent topic: Administration Settings - Management Menu
250
Related references
Network Settings - Network Menu
Related tasks
Setting Up Wireless Network Security
Network Settings - Network Menu
Settings on the Network menu let you view network information and set up the projector for control over
a network.
Note: You must disable Network password protection to adjust the network settings.
Note: Once you have connected your projector to your network, you can select projector settings and
control projection using a compatible Web browser. This allows you to access the projector remotely.
Setting Options Description
Wireless LAN Info. — Displays wireless network status and
details
251
Setting Options Description
Wired LAN Info. — Displays wired network status and
details
Art-Net Channel
Information
— Displays features and settings
assigned to the Art-Net channels
Network Settings — Configures your network settings
Note: If the Remote Password and the
Web Control Password have not been
set, a screen appears prompting you to
set them. Follow the on-screen
instructions.
Transmitter Settings — Menu is not used with these projectors
Reset Network Settings — Resets all settings on the Network
menu to their default values
Note: All of the passwords for settings
in the Network menu will be reset. To
prevent unauthorized users from
resetting these passwords, enable
Menu Protection for the Network
menu.
Parent topic: Adjusting the Menu Settings
Related concepts
Wired Network Projection
Wireless Network Projection
Related references
Wireless LAN Menu Settings
252
Multiple Projector Operation Settings - Multi-Projection Menu
Settings on the Multi-Projection menu let you set up multiple projectors to project a single unified image.
Setting Options Description
Projector ID Off
1 through 9
Assigns an ID for the projector when
you use multiple projectors
Tiling Column
Column Order
Sets the number of split screens and
the position of each projected image
for a tiled setup
253
Setting Options Description
Geometry Correction
Quick Corner
Arc Correction
Point Correction
Correct Distortion Using
Smartphone
Fit to Screen Using
Smartphone
Memory
Adjusts image shape to rectangular
(horizontally and vertically)
Quick Corner: select to correct
image shape and alignment using
an on-screen display
Arc Correction: select to adjust the
curve or arc of the horizontal and
vertical sides
Point Correction: select to divide
the projected image into a grid and
correct distortion by moving a
selected point
Correct Distortion Using
Smartphone: corrects the distortion
of projected images using the Epson
Setting Assistant app
Fit to Screen Using Smartphone:
corrects the shape and position of
images to fit on your screen using
the Epson Setting Assistant app
Memory: controls memory functions
for current image shape settings
• Save Memory: saves the current
image shape as a memory setting
• Load Memory: loads a saved
image shape memory
• Rename Memory: renames a
saved image shape memory
• Erase Memory: deletes a saved
image shape memory
• Reset Memory: resets all the
image shape memory settings
254
Setting Options Description
Edge Blending Edge Blending
Top Edge
Bottom Edge
Left Edge
Right Edge
Line Guide
Pattern Guide
Guide Color
Blends the border between multiple
images to create a seamless screen
Black Level Color Adjustment
Area Correction
Reset
Adjusts the brightness and tone
differences in overlapping images.
This setting is only displayed when
Blending is set to On for the Top
Edge, Bottom Edge, Left Edge, or
Right Edge setting.
Scale Varying levels available When using multiple projectors,
adjusts the scale of the image
displayed by each projector
Color Uniformity Color Uniformity
Adjustment Level
Start Adjustments
Reset
Adjusts the color tone balance
Color Uniformity: set to On to
adjust the color tone balance for the
whole screen
Adjustment Level: sets the
adjustment level
Start Adjustments: adjusts the red,
green, and blue color tones
individually for the selected area
Reset: resets all Color Uniformity
adjustment values to their defaults
255
Setting Options Description
Light Source Mode Normal
Quiet
Extended
Custom
Selects the brightness mode of the
projector when the Maintain
Brightness setting is disabled
Normal: maximum brightness
Quiet: 70% brightness with reduced
fan noise
Extended: 70% brightness and
extends the life expectancy of the
light source
Custom: select a custom brightness
level and enable use of the next
setting
Color Matching Adjustment Level
Red
Green
Blue
Brightness
Corrects the tint and brightness
differences between images
RGBCMY Varying levels available Adjusts the hue, saturation, and
brightness for each color
Reset Multi-Projection Settings — Resets all settings on the Multi-
Projection menu to their default
values
Parent topic: Adjusting the Menu Settings
Related concepts
Using Multiple Projectors
Projector Identification System for Multiple Projector Control
Related tasks
Adjusting Color Uniformity
Blending the Image Edges
Matching the Image Colors
256
Adjusting the Black Level
Adjusting RGBCMY
Scaling an Image
Configuring Tiling Manually
Image Quality Memory Settings - Memory Menu
Settings on the Memory menu let you save and load image quality settings in the projector's memory.
Setting Options Description
Save Memory Memory 1 to 10 Lets you save the current image
quality settings to memory
Load Memory Memory 1 to 10 Loads a saved image quality
setting memory
Rename Memory Memory 1 to 10 Renames a saved image quality
setting memory
257
Setting Options Description
Erase Memory Memory 1 to 10 Deletes a saved image quality
setting memory
Reset Memory Settings — Resets all the image quality
setting memory settings
Parent topic: Adjusting the Menu Settings
Related concepts
Image Aspect Ratio
Related references
Feature Settings - Operation Menu
Related tasks
Changing the Color Mode
Turning On Dynamic Contrast
Saving Settings to Memory and Using Saved Settings
258
Setup Settings - ECO Menu
Settings on the ECO menu let you customize projector functions to save power.
Setting Options Description
Light Source Mode Normal
Quiet
Extended
Custom
Selects the brightness mode of
the projector when the Maintain
Brightness setting is disabled
• Normal: maximum brightness
• Quiet: 70% brightness with
reduced fan noise
• Extended: 70% brightness
and extends the life
expectancy of the light source
• Custom: select a custom
brightness level and enable
use of the next setting
259
Setting Options Description
Sleep Mode On
Off
Automatically turns off the
projector after an interval of
inactivity
Sleep Mode Timer 1 to 30 minutes Sets the interval for Sleep Mode
A/V Mute Timer On
Off
Automatically turns off the
projector after 30 minutes if A/V
Mute is enabled
Standby Mode Communication On
Communication Off
Enable this setting to allow
monitoring and control of the
projector over a network when
the projector is in standby mode;
this setting is only displayed in
the following cases:
• Auto Power On is disabled in
the projector's Network menu
• Auto Power On is not set to
HDMI1 and Power On Trigger
is set to Plug-in Detection
• A/V Output is set to While
Projecting in the Signal I/O
menu
• USB Power is set to On While
Projecting
Parent topic: Adjusting the Menu Settings
Related references
Projector Light Source Specifications
260
Initial Settings and Reset Options - Initial/All Settings Menu
You can reset most of the projector settings to their default values using the Reset All option on the
Initial/All Settings menu.
When you select the Reset All option, you see a screen like this:
261
Checkmarks appear next to the menu settings that are selected to be reset. If you do not want to reset
settings in some menus, deselect them. When you are ready, select Execute and press Enter.
Note: If you perform Reset All, all of the passwords that have been set for the Network menu are also
reset and you need to set them again. To prevent the passwords from being reset by unauthorized
users, set Network to On in the Menu Protection menu.
You cannot reset the following settings using the Reset All option:
• Digital Zoom
• Image Shift
• User Pattern
• Language
Note: See the link below for details on updating the projector's firmware.
Parent topic: Adjusting the Menu Settings
Related concepts
Updating the Firmware
262
Maintaining and Transporting the Projector
Follow the instructions in these sections to maintain your projector and transport it from place to place.
Projector Maintenance
Air Filter and Vent Maintenance
Replacing the Remote Control Batteries
Updating the Firmware
Transporting the Projector
Projector Maintenance
Your projector needs little maintenance to keep working at its best.
You may need to clean the projection window, obstacle sensors periodically, and clean the air filter and
air vents to prevent the projector from overheating due to blocked ventilation.
The only parts you should replace are the air filter and remote control batteries. If any other part needs
replacing, contact Epson or an authorized Epson servicer.
This projector uses a sealed laser light source which does not need servicing and cannot be replaced.
Warning: Before cleaning any part of the projector, turn it off, unplug the power cord, and let it cool
down. Never open any cover on the projector, except as specifically explained in this manual.
Dangerous electrical voltages in the projector can injure you severely.
Warning: Do not try to service this product yourself, except as specifically explained in this manual.
Refer all other servicing to Epson qualified servicers.
Cleaning the Projection Window
Cleaning the Obstacle Sensor
Cleaning the Projector Case
Parent topic: Maintaining and Transporting the Projector
Cleaning the Projection Window
Clean the projection window periodically, or whenever you notice dust or smudges on the surface.
Warning: Before cleaning the projection window, turn off the projector and unplug the power cord.
263
• To remove dust or smudges, gently wipe the projection window with clean and dry lens-cleaning
paper.
Caution: Do not wipe the projection window right after you turn off the projector or you may damage it.
• If the projection window is dusty, blow off the dust and then wipe the projection window.
Warning: Do not use any flammable gas sprays such as air dusters to blow off dust. The high heat
generated by the projector may cause a fire.
Caution: Do not use canned air, or the gases may leave a flammable residue. Do not use glass
cleaner or any harsh materials to clean the projection window and do not subject the projection
window to any impacts or you may damage it.
Parent topic: Projector Maintenance
Related tasks
Turning Off the Projector
Cleaning the Obstacle Sensor
Clean the projector's obstacle sensor glass (circled in red) periodically, or if you see a message telling
you to remove any obstacles that are interfering with the projection area.
• To remove dust or smudges, gently wipe the obstacle sensor glass with lens-cleaning paper.
264
• To remove stubborn smudges, moisten a soft, lint-free cloth with lens cleaner and gently wipe the
obstacle sensor glass.
Warning: Do not use a lens cleaner that contains flammable gas. The high heat generated by the
projector may cause a fire.
Caution: Do not use canned air, or the gases may leave a flammable residue.
Caution: Do not use glass cleaner or any harsh materials to clean the obstacle and motion sensors
and do not subject them to any impacts. Damage on the surface of the sensors may cause
malfunction.
Parent topic: Projector Maintenance
Cleaning the Projector Case
Before cleaning the projector case, turn off the projector and unplug the power cord.
• To remove dust or dirt, use a soft, dry, lint-free cloth.
• To remove stubborn dirt, use a soft cloth moistened with water and mild soap. Do not spray liquid
directly on the projector.
Caution: Do not use wax, alcohol, benzine, paint thinner, or other chemicals to clean the projector
case. These can damage the case. Do not use canned air, or the gases may leave a flammable
residue.
Parent topic: Projector Maintenance
Related tasks
Turning Off the Projector
Air Filter and Vent Maintenance
Regular filter maintenance is important to maintaining your projector. Your Epson projector is designed
with an easily accessible, user-replaceable filter to protect your projector and make regular maintenance
simple. Filter maintenance intervals will depend on the environment.
If regular maintenance is not performed, your Epson projector will notify you when the temperature
inside the projector has reached a high level. Do not wait until this warning appears to maintain your
projector filter as prolonged exposure to high temperatures may reduce the life of your projector or laser.
265
Damage due to the failure to properly maintain the projector or its filter may not be covered by the
projector's Limited Warranty.
Cleaning the Air Filter and Vents
Replacing the Air Filter
Parent topic: Maintaining and Transporting the Projector
Related references
Projector Light Source Specifications
Projector Light Status
Cleaning the Air Filter and Vents
Clean the projector's air filter or vents if they get dusty, or if you see a message telling you to clean them.
It is recommended that you clean these parts at least once every three months, or more often if you use
the projector in an environment that is dustier than expected.
Caution: Do not use water or any detergent to clean the air filter. Do not use canned air, or the gases
may leave a flammable residue.
1. Turn off the projector and unplug the power cord.
2. Carefully turn the projector upside down.
3. Gently remove the dust using a small vacuum designed for computers or a very soft brush (such as
a paintbrush).
266
4. Carefully turn the projector over and place it as shown.
5. Remove the front cover.
6. Slide the air filter cover latch and pull out the air filter cover.
267
7. Pull the air filter out of the projector.
8. Vacuum the front of the air filter (the side with the tabs) to remove any remaining dust.
Caution: Do not rinse the air filter in water, or use any detergent or solvent to clean it. Do not use
canned air; the gases may leave a flammable residue, or push dust and debris into the projector's
optics or other sensitive areas.
Note: If dust is difficult to remove or the air filter is damaged, replace the air filter.
268
9. Place the air filter back in the projector with the four tabs facing down as shown.
Caution: Do not try to force the air filter cover closed if the tabs of the air filter are facing up. You
could damage the projector.
10. Insert the air filter cover and then push it up until it clicks into place.
11. Replace the front cover.
Parent topic: Air Filter and Vent Maintenance
Related tasks
Turning Off the Projector
Replacing the Air Filter
You need to replace the air filter in the following situations:
• After cleaning the air filter, you see a message telling you to clean or replace it
269
• The air filter is torn or damaged
You can replace the air filter while the projector is placed on a table.
1. Remove the front cover.
2. Slide the air filter cover latch and pull out the air filter cover.
3. Pull the air filter out of the projector.
270
Note: Air filters contain polypropylene. Dispose of used air filters according to local regulations.
4. Place the new air filter in the projector as shown (with the four tabs facing down).
Caution: Do not try to force the air filter cover closed if the tabs of the air filter are facing up. You
could damage the projector.
5. Insert the air filter cover and then push up until it clicks into place.
6. Replace the front cover.
Parent topic: Air Filter and Vent Maintenance
Related tasks
Turning Off the Projector
271
Replacing the Remote Control Batteries
The remote control uses two AA manganese or alkaline batteries. Replace the batteries as soon as they
run out.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
1. Remove the battery cover as shown.
2. Remove the old batteries.
Warning: If the battery fluid has leaked, wipe it away with a soft cloth and avoid getting the fluid on
your hands. If it gets on your hands, wash them immediately to avoid injury.
272
3. Insert the batteries with the + and – ends facing as shown.
4. Replace the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Maintaining and Transporting the Projector
Updating the Firmware
You can update the projector's firmware using a USB storage device or a computer and a USB cable.
273
Note: Your computer must be running one of the following operating systems to update the firmware:
• Windows 8.x or later
• macOS 10.13.x or later
If a firmware update is available for your product, you can select the Firmware Update option in the
projector's Initial/All Settings menu. The projector enters firmware update mode and is ready to perform
a firmware update. If a firmware update file is not found, the projector enters standby mode.
If your projector is on a network, you can use the Epson Projector Management software to check for
and update your product's firmware.
For more information, contact Epson support.
Updating Projector Firmware Using a USB Storage Device
Updating Projector Firmware Using a Computer and USB Cable
Parent topic: Maintaining and Transporting the Projector
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Additional Projector Software and Manuals
Updating Projector Firmware Using a USB Storage Device
You can update the projector's firmware using a USB storage device.
1. Download the projector firmware file from the Epson support website. Make sure it is the correct
firmware file for your model.
2. Copy the downloaded firmware file onto the root (top) folder of the USB storage device.
Note: Do not rename the firmware file. The USB device should be completely empty except for the
firmware file and should be formatted in FAT format.
3. Turn on the projector.
4. Connect the USB storage device to the projector's USB-A port.
5. Press the Menu button, select Initial/All Settings > Firmware Update and press Enter.
274
6. Select Yes to start the firmware update.
Note: Do not disconnect the power cable or remove the USB storage device while the firmware is
updating.
While the firmware is updating, all of the status indicators on the projector start flashing. After the update
is complete, the projector enters standby mode. If the Direct Power On setting is enabled, the projector
restarts automatically.
After the update is complete, check the Version setting in the Management > Information menu to
confirm that the firmware was updated successfully.
Parent topic: Updating the Firmware
Updating Projector Firmware Using a Computer and USB Cable
You can update the projector firmware using a computer and a USB cable.
Your computer must be running one of the following operating systems when updating firmware:
• Windows 8.1 (32- and 64-bit)
• Windows 10 (32- and 64-bit)
• macOS 10.13.x (64-bit)
• macOS 10.14.x (64-bit)
• macOS 10.15.x (64-bit)
• macOS 11.x (64-bit)
1. Download the projector firmware file from the Epson support website. Make sure it is the correct
firmware file for your model.
2. Turn on the projector.
3. Connect the USB cable to the computer's USB port and to the projector's Service port.
4. Press the Menu button, select Initial/All Settings > Firmware Update and press Enter.
5. Select Yes to start the firmware update.
Note: Do not disconnect the power cable or remove the USB cable while the firmware is updating.
All of the status indicators on the projector start flashing, and the projector enters firmware update
mode. The projector appears as a removable drive on the connected computer.
275
6. Copy the downloaded firmware file onto the root (top) directory of the projector's removable drive.
Note: Do not rename the firmware file.
7. Safely remove the projector's removable drive from the computer, then disconnect the USB cable
from the projector.
The firmware update starts.
While the firmware is updating, the status indicators on the projector start flashing. After the update is
complete, the projector enters standby mode. If Direct Power On is enabled, the projector restarts
automatically.
After the update is complete, check the Version setting in the Management > Information menu to
confirm that the firmware was updated successfully.
Parent topic: Updating the Firmware
Transporting the Projector
The projector contains precision parts, some of which are glass. Follow these guidelines to transport,
ship, or store the projector safely.
• Turn off the projector and make sure the status light is off before you unplug the power cord.
• Remove any equipment connected to the projector.
• When transporting the projector a long distance or as checked luggage, pack it in a firm box with
cushioning around it and mark the box "Fragile."
• When shipping the projector for repairs, place it in its original packing materials, if possible, or use
equivalent materials with cushioning around the projector. Mark the box "Fragile."
Note: Epson shall not be liable for any damages incurred during transportation.
Parent topic: Maintaining and Transporting the Projector
276
Solving Problems
Check the solutions in these sections if you have any problems using the projector.
Projection Problem Tips
Projector Light Status
Using the Projector Menu Displays
Solving Image or Sound Problems
Solving Projector or Remote Control Operation Problems
Solving Network Problems
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Projection Problem Tips
If the projector is not working properly, try turning it off and unplugging it. Then plug it back in and turn it
on.
If this does not solve the problem, check the following:
• The lights on the projector may indicate what the problem is.
• The solutions in this manual can help you solve many problems.
If none of these solutions help, you can contact Epson for technical support.
Parent topic: Solving Problems
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Projector Light Status
Related tasks
Cleaning the Projection Window
Cleaning the Air Filter and Vents
Replacing the Air Filter
Turning On the Projector
Turning Off the Projector
277
Projector Light Status
The lights on the projector indicate the projector status and let you know when a problem occurs. Check
the status and color of the lights and look for a solution in the table here.
Note: If the Indicators setting in the Operation menu is Off, all lights are off under normal projection
conditions.
1 Wireless LAN light
2 Temp (temperature) light
3 Laser light
4 Status light
5 On/Standby light
On/Standby
light
Status light Laser light Temp light Status and solution
Blue Blue Off Off Normal operation.
278
On/Standby
light
Status light Laser light Temp light Status and solution
Blue Flashing blue Off Off Warming up. Wait for an image to
appear.
Shutting down. (When the status light
stops flashing, you can unplug the
projector.)
Blue Off Off Off In standby, sleep mode, or
monitoring.
Flashing blue Off Off Off Preparing for monitoring or quick
startup mode; all features are
disabled.
Flashing blue Varies Varies Flashing
orange
Projector is too hot.
• Make sure that the vents and air
filter are not clogged with dust or
obstructed by nearby objects.
• Clean or replace the air filter.
• Make sure the environmental
temperature is not too hot.
279
On/Standby
light
Status light Laser light Temp light Status and solution
Off Flashing blue Off Orange Projector has overheated and turned
off. Leave it turned off to cool down.
After about five minutes, do the
following:
• Make sure that the vents and air
filter are not clogged with dust or
obstructed by nearby objects.
• Make sure the environmental
temperature is not too hot.
• Clean or replace the air filter.
• If operating the projector at high
altitude, turn on High Altitude
Mode.
• If the problem persists, unplug the
projector and contact Epson for
help.
Flashing blue Varies Flashing
orange
Varies Laser warning. Turn the projector off,
unplug it, and contact Epson for help.
Off Flashing blue Orange Off Laser has a problem. Turn the
projector off, unplug it, and contact
Epson for help.
Off Flashing blue Off Flashing
orange
A fan or sensor has a problem. Turn
the projector off, unplug it, and
contact Epson for help.
Off Flashing blue Flashing
orange
Off Internal projector error. Turn the
projector off, unplug it, and contact
Epson for help.
Varies Flashing blue Flashing
orange
Varies Refresh Mode is in progress.
280
On/Standby
light
Status light Laser light Temp light Status and solution
Flashing blue Varies Flashing
orange
Flashing
orange
Obstacle detection warning. The
brightness of the light source is
reduced.
• Make sure that there are no
obstacles interfering with the
projection window. Remove any
obstacles.
• Clean the obstacle sensor if there
are no obstacles.
The projector turns off automatically if
no action is taken.
Off Flashing blue Orange Orange Obstacle detection error. If there are
no obstacles interfering with the
projection window, turn the projector
off, unplug it, and contact Epson for
help.
Wireless LAN Light Status
The Wireless LAN light indicates the following:
• Blue: Wireless LAN connection is available and operating normally.
• Flashing blue (quickly): Connecting to a device or communicating.
• Flashing blue (slowly): An error has occurred. Turn off the projector and restart it.
• Off: Wireless LAN connection is not available. Make sure the Wireless LAN Power setting is set to
On in the projector's Management menu.
Note: If the lights display a pattern not listed in the tables above, turn the projector off, unplug it, and
contact Epson for help.
Parent topic: Solving Problems
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
281
Administration Settings - Management Menu
Feature Settings - Operation Menu
Using the Projector Menu Displays
The projector displays descriptions in the menu system to help you navigate the projector's settings. The
descriptions appear on the right side of the screen as you scroll the menu settings.
Parent topic: Solving Problems
Solving Image or Sound Problems
Check the solutions in these sections if you have any problems with projected images or sound.
Solutions When No Image Appears
Solutions When Image File Names are not Displayed Correctly in PC Free
Solutions When You Cannot Project Images Using the PC Free
Solutions When Image is Incorrect Using the USB Display Function
Solutions When "No Signal" Message Appears
Solutions When "Not Supported" Message Appears
Solutions When Only a Partial Image Appears
Solutions When the Image is Not Rectangular
Solutions When the Image Contains Noise or Static
Solutions When the Image is Fuzzy or Blurry
Solutions When the Image Brightness or Colors are Incorrect
Solutions When an Afterimage Remains On the Projected Image
Solutions to Sound Problems
Solutions to Problems Using Content Playback
Parent topic: Solving Problems
Solutions When No Image Appears
If no image appears, try the following solutions:
• Press the A/V Mute button on the remote control to see if the image was temporarily turned off.
• Make sure all necessary cables are securely connected and the power is on for the projector and
connected video sources.
• Make sure the image being projected is not completely black (only when projecting computer images).
282
• Press the projector's power button to wake it from standby or sleep mode. Also see if your connected
computer is in sleep mode or displaying a blank screen saver.
• If the projector does not respond when you press the control panel buttons, the buttons may be locked
for security. Unlock the buttons in the Control Panel Lock setting in the projector's Management
menu or use the remote control to turn on the projector.
• If the projector does not respond when you press any buttons on the projector, an internal error may
have occurred in the projector. Contact Epson for help.
• Adjust the Brightness setting on the Image menu.
• Adjust the brightness of your projector's light source.
• Check the Display menu to make sure the Messages setting is set to On.
• For images projected with Windows Media Center, reduce the screen size from full screen mode.
• For images projected from applications using Windows DirectX, turn off DirectX functions.
• The projector may not be able to project copyrighted videos that you play back on a computer. For
details, see the manual supplied with your computer.
Parent topic: Solving Image or Sound Problems
Related references
Input Signal Settings - Signal I/O Menu
Image Quality Settings - Image Menu
Setup Settings - ECO Menu
Display Settings - Display Menu
Related tasks
Selecting an Image Source
Unlocking the Projector's Buttons
Shutting Off the Picture and Sound Temporarily
Solutions When Image File Names are not Displayed Correctly in PC Free
If any file names are longer than the display area or include unsupported symbols, the file names are
shortened or changed in PC Free. Shorten or change the file name.
Parent topic: Solving Image or Sound Problems
283
Solutions When You Cannot Project Images Using the PC Free
If you cannot project images using the PC Free feature, try the following solution:
• If you are using a USB device with a slow transfer speed, you may not be able to project movies
correctly.
Parent topic: Solving Image or Sound Problems
Solutions When Image is Incorrect Using the USB Display Function
If no image appears or if the image appears incorrectly using the USB Display function, try the following
solutions:
• Press the USB button on the remote control.
• Disconnect and reconnect the USB cable.
• Make sure the USB Display software has installed correctly. Install it manually if necessary.
• Make sure the USB Display setting is set to On in the projector's Signal I/O menu.
• On a Mac, select the USB Display icon in the Dock or from the Applications folder.
• If the mouse cursor flickers, select Make the movement of the mouse pointer smooth in the Epson
USB Display Settings program on your computer.
• Turn off the Transfer layered window setting in the Epson USB Display Settings program on your
computer.
• If you change the computer resolution during projection, the video quality and performance may
decline.
• For images projected with Windows Media Center, reduce the screen size from full screen mode.
• For images projected from applications using Windows DirectX, turn off DirectX functions.
• Make sure you are using the most recent version of the USB Display software. You can download the
latest version from the Epson web site. Go to epson.com/support (U.S.), epson.ca/support (Canada),
or latin.epson.com/support (Latin America) and select your projector.
Parent topic: Solving Image or Sound Problems
Related references
Input Signal Settings - Signal I/O Menu
Related tasks
Selecting an Image Source
Connecting to a Computer for USB Video and Audio
284
Solutions When "No Signal" Message Appears
If the "No Signal" message appears, try the following solutions:
• Press the Search button and wait a few seconds for an image to appear.
• Turn on the connected computer or video source, and press its play button to begin your presentation,
if necessary.
• Check the connection from the projector to your video sources.
• If you are projecting from a laptop computer, make sure it is set up to display on an external monitor.
• If necessary, turn the projector and the connected computer or video source off and then on again.
• If you are projecting from an HDMI source, replace the HDMI cable with a shorter one.
• Try a different video cable.
• If the other solutions do not solve the problem, reset all of the projector settings using the options on
the Initial/All Settings menu.
Displaying From a PC Laptop
Displaying From a Mac Laptop
Parent topic: Solving Image or Sound Problems
Related tasks
Selecting an Image Source
Related topics
Connecting to Computer Sources
Connecting to Video Sources
Displaying From a PC Laptop
If you see the "No Signal" message when you display from a PC laptop, you need to set up the laptop to
display on an external monitor.
1. Hold down the laptop's Fn key and press the key labeled with a monitor icon or CRT/LCD. (See your
laptop manual for details.) Wait a few seconds for an image to appear. To display on both the
laptop's monitor and the projector, try pressing the same keys again.
Note: On Windows 7 or later, hold down the Windows key and press P at the same time, then click
Duplicate.
285
2. If the same image is not displayed by the laptop and projector, check the Windows Display utility to
make sure the external monitor port is enabled and extended desktop mode is disabled. (See your
computer or Windows manual for instructions.)
3. If necessary, check your video card settings and set the multiple display option to Clone, Mirror, or
Duplicate.
Parent topic: Solutions When "No Signal" Message Appears
Displaying From a Mac Laptop
If you see the "No Signal" message when you display from a Mac laptop, you need to set up the laptop
for mirrored display. (See your laptop manual for details.)
1. Open the System Preferences utility and select Displays, Display, or Color LCD.
2. Click the Arrange or Arrangement tab.
3. Select the Mirror Displays checkbox.
Parent topic: Solutions When "No Signal" Message Appears
Solutions When "Not Supported" Message Appears
If the "Not Supported" message appears, try the following solutions:
• Make sure the correct input signal is selected on the Signal I/O menu.
• Make sure the computer's display resolution does not exceed the projector's resolution and frequency
limit. If necessary, select a different display resolution for your computer. (See your computer manual
for details.)
• If you are projecting from an HDMI source, change the HDMI IN EQ Level setting in the projector's
Signal I/O menu. Follow the on-screen instructions. You may need to restart the projector.
• If you are projecting using a thumb-sized media streaming device, set the HDMI IN EQ Level to Auto
in the projector's Signal I/O menu. If a problem occurs, change the setting.
Parent topic: Solving Image or Sound Problems
Related references
Input Signal Settings - Signal I/O Menu
286
Solutions When Only a Partial Image Appears
If only a partial computer image appears, try the following solutions:
• Make sure you selected the correct Screen Type setting in the projector's Installation menu for the
screen you are using. If there are margins between the edge of the image and the projected screen
frame, use the Screen Position setting to adjust the position of the image.
• Make sure the Scale setting in the Image menu is turned off.
• If you adjusted the image size using the Digital Zoom setting in the Installation menu, use the Image
Shift setting to adjust the image position.
• Press the Aspect button on the remote control to select a different image aspect ratio.
• If you zoomed into or out of the image using the E-Zoom buttons, press the Esc button until the
projector returns to a full display.
• Check your computer display settings to disable dual display and set the resolution within the
projector's limits. (See your computer manual for details.)
• Check the resolution assigned to your presentation files to see if they are created for a different
resolution than you are projecting in. (See your software help for details.)
• Make sure you selected the correct Projection setting in the Installation menu.
• If you are projecting in Content Playback mode, make sure you are using the correct Overlay Effect
setting in the Operation > Content Playback menu.
Parent topic: Solving Image or Sound Problems
Related references
Input Signal Settings - Signal I/O Menu
Installation Settings - Installation Menu
Image Quality Settings - Image Menu
Related tasks
Zooming Into and Out of Images
Changing the Image Aspect Ratio
Solutions When the Image is Not Rectangular
If the projected image is not evenly rectangular, try the following solutions:
• If the projector is not mounted on the wall or ceiling, place it directly in front of the screen, lining up the
lens with the center of the screen, if possible.
• Adjust the image shape using the Geometry Correction menu settings.
287
Note: If the projector is mounted on the wall, always use the adjustment dials on the mount to center
the image.
Parent topic: Solving Image or Sound Problems
Related references
Image Quality Settings - Image Menu
Installation Settings - Installation Menu
Related tasks
Correcting Image Shape with Quick Corner
Correcting Image Shape with Arc Correction
Correcting Image Shape with Point Correction
Solutions When the Image Contains Noise or Static
If the projected image seems to contain electronic interference (noise) or static, try the following
solutions:
• Check the cables connecting your computer or video source to the projector. They should be:
• Separated from the power cord to prevent interference
• Securely connected at both ends
• Not connected to an extension cable
• If you adjusted the image shape, adjust the Sharpness setting in the Image menu.
• Try adjusting the Noise Reduction or MPEG Noise Reduction setting in the Image menu.
• Make sure you selected the correct Signal Format or EDID settings in the projector's Signal I/O
menu, if available for your image source.
• Select a computer video resolution and refresh rate that are compatible with the projector.
• If you adjusted the image shape using the projector controls, try decreasing the Sharpness setting to
improve image quality.
• If you connected an extension power cable, try projecting without it to see if it caused interference in
the signal.
• If you are using the USB Display function, turn off the Transfer layered window setting in the Epson
USB Display Settings program on your computer.
Parent topic: Solving Image or Sound Problems
288
Solutions When the Image is Fuzzy or Blurry
If the projected image is fuzzy or blurry, try the following solutions:
• Clean the projection window.
Note: To avoid condensation on the projection window after bringing the projector in from a cold
environment, let the projector warm up to room temperature before using it.
• Position the projector close enough to the screen.
• Position the projector so the keystone adjustment angle is not so wide that it distorts the image.
• If you are projecting from a computer, use a lower resolution or adjust the computer's resolution to
match the projector's native resolution, if possible.
• Display a test pattern and use it to adjust the image focus using the focus lever.
• Adjust the Sharpness setting to improve image quality.
Parent topic: Solving Image or Sound Problems
Related references
Image Quality Settings - Image Menu
Related tasks
Cleaning the Projection Window
Focusing the Image
Solutions When the Image Brightness or Colors are Incorrect
If the projected image is too dark or light, or the colors are incorrect, try the following solutions:
• Press the Color Mode button on the remote control to try different color modes for the image and
environment.
• Check your video source settings.
• Adjust the available settings on the Image menu for the current input source, such as Brightness,
Contrast, Tint, Color Saturation, and RGBCMY. RGBCMY should be set by a professional color
calibrator using specialized color calibration tools in a controlled lighting environment.
• Make sure you selected the correct Signal Format or EDID setting in the Signal I/O menu, if available
for your video source.
• Make sure all the cables are securely connected to the projector and your video device. If you
connected long cables, try connecting shorter cables.
289
• Position the projector close enough to the screen.
• Make sure you have run the Light Source Calibration in the Management menu recently. If using
multiple projectors, perform the calibration on all projectors to ensure a consistent image quality.
Parent topic: Solving Image or Sound Problems
Related references
Input Signal Settings - Signal I/O Menu
Administration Settings - Management Menu
Image Quality Settings - Image Menu
Solutions When an Afterimage Remains On the Projected Image
If you see an afterimage in the projected image, select Refresh Mode > Start in the Management menu.
Parent topic: Solving Image or Sound Problems
Related references
Administration Settings - Management Menu
Solutions to Sound Problems
If there is no sound when you expect it or the volume is too low or high, try the following solutions:
• Adjust the projector's volume settings.
• Press the A/V Mute button on the remote control to resume video and audio if they were temporarily
stopped.
• Check your computer or video source to make sure the volume is turned up and the audio output is set
for the correct source.
• Check the cable connection between the projector and your video source.
• If you do not hear sound from an HDMI source, set the connected device to PCM output.
• If you are using the USB Display function, turn on the Output audio from the projector setting in the
Epson USB Display Settings program on your computer.
• If you are using a Mac and you do not hear sound from an HDMI source, make sure your Mac
supports audio through the HDMI port. If not, you need to connect an audio cable.
• If you want to use a connected audio source when the projector isn't projecting any images, set the
Quick Startup option in the Operation menu to Off and make sure the A/V Output setting in the
Signal I/O menu is set to Always On.
290
• If the volume for the computer is set to the minimum while the projector's volume is set to maximum,
the sound level may be mixed. Turn up the computer's volume and decrease the projector's volume.
• Make sure the Audio Out Device option is set to the correct audio port for your video device.
Parent topic: Solving Image or Sound Problems
Related references
Input Signal Settings - Signal I/O Menu
Related tasks
Controlling the Volume with the Volume Buttons
Related topics
Connecting to Computer Sources
Connecting to Video Sources
Solutions to Problems Using Content Playback
If you cannot play back a playlist correctly, try the following solutions:
• Check the following on all projectors:
• All projectors are the same model. If any of the projectors are a different model or have a different
resolution, synchronized playback may not be performed properly.
• Make sure the name, date, and time settings are correct.
• Make sure all projectors are connected to the same network.
• Make sure the Content Playback setting is turned on in the Operation menu.
• Make sure your USB device contains a playlist.
• Make sure your USB device is connected directly to the projector and not through a USB hub or card
reader.
• If the USB device is partitioned, you may not be able to play back playlists. Delete all of the partitions
before saving the playlists on your USB device.
• Do not share a playlist between projectors that are different in resolution. Color and shape effects
added by using the Overlay Effect setting may not be reproduced correctly.
Parent topic: Solving Image or Sound Problems
Related references
Feature Settings - Operation Menu
291
Related tasks
Projecting a Playlist in Content Playback Mode
Adding Effects to the Projected Image
Creating a Playlist Using Epson Web Control
Related topics
Projecting in Content Playback Mode
Solving Projector or Remote Control Operation Problems
Check the solutions in these sections if you have problems operating the projector or remote control.
Solutions to Projector Power or Shut-Off Problems
Solutions to Remote Control Problems
Solutions to Password Problems
Solutions When a Battery Message Appears
Solutions to HDMI Link Problems
Parent topic: Solving Problems
Solutions to Projector Power or Shut-Off Problems
If the projector does not come on when you press the power button or it shuts off unexpectedly, try the
following solutions:
• Make sure the power cord is securely connected to the projector and to a working electrical outlet.
• The projector's buttons may be locked for security. Unlock the buttons or use the remote control to
turn on the projector.
• If the projector's laser shuts off unexpectedly, it may have entered standby mode after a period of
inactivity. Press the power button to wake the projector and adjust the Sleep Mode setting to change
the sleep interval. The A/V Mute Timer may be set. Set the A/V Mute Timer to Off in the Operation
menu.
• If the power button on the remote control does not turn on the projector, check its batteries and make
sure the Remote Receiver setting is turned on in the projector's menu, if available.
• The power cord may be defective. Try another power cord. If that doesn't work, disconnect the cord
and contact Epson.
• The cooling fans may run in standby status depending on the projector settings. Also, when the
projector wakes from standby status, the fans may cause an unexpected noise. This is not a
malfunction.
292
• Make sure there are no obstacles interfering with the projection window. Clean the obstacle sensor if
there are no obstacles.
Parent topic: Solving Projector or Remote Control Operation Problems
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Projector Light Status
Feature Settings - Operation Menu
Related tasks
Unlocking the Projector's Buttons
Solutions to Remote Control Problems
If the projector does not respond to remote control commands, try the following solutions:
• Check that the remote control batteries are installed correctly and have power. If necessary, replace
the batteries.
• Make sure you are operating the remote control within the reception angle and range of the projector.
• Make sure the projector is not warming up or shutting down.
• Check to see if a button on the remote control is stuck down, causing it to enter sleep mode. Release
the button to wake the remote control up.
• Strong fluorescent lighting, direct sunlight, or infrared device signals may be interfering with the
projector's remote receivers. Dim the lights or move the projector away from the sun or interfering
equipment.
• If available, turn on one of the remote receivers in the projector's menu system, or check if all the
remote receivers were turned off.
• If the remote receiver setting is off, press and hold the Menu button on the remote for at least 15
seconds to restore the default setting.
• If you assigned an ID number to the remote control to operate multiple projectors, you may need to
check or change the ID setting (feature not available with all projectors).
• If you lose the remote control, you can purchase another from an Epson parts distributor.
• Press the 0 (zero) button on the remote control while holding down the ID button. By selecting 0 on the
remote control, you can operate all of the projectors regardless of the projector ID settings.
Parent topic: Solving Projector or Remote Control Operation Problems
293
Related references
Remote Control Operation
Related tasks
Replacing the Remote Control Batteries
Installing Batteries in the Remote Control
Solutions to Password Problems
If you cannot enter or remember a password, try the following solutions:
• If you lose the remote control, you cannot enter a password. Order a new one from an Epson parts
distributor.
• If you have entered an incorrect password too many times and see a message displaying a request
code, write down the code and contact Epson. Do not attempt to enter the password again. Provide
the request code and proof of ownership for assistance in unlocking the projector.
Note: If you perform Reset All or Reset Network Settings in the projector's menu, all of the
passwords that have been set for the Network menu are also reset and you need to set them again.
To prevent the passwords from being reset by unauthorized users, set Network to On in the Menu
Protection menu.
Parent topic: Solving Projector or Remote Control Operation Problems
Related concepts
Projector Security Features
Solutions When a Battery Message Appears
If you see a message telling you that the battery that saves your clock settings is running low, contact
Epson for help.
Parent topic: Solving Projector or Remote Control Operation Problems
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
294
Solutions to HDMI Link Problems
If you cannot control an HDMI device using the HDMI Link feature, try the following solutions:
• Make sure all necessary cables are securely connected and the power is on for the projector and
connected video sources.
• Make sure the cables meet the HDMI CEC standard.
• Make sure the connected device meets the HDMI CEC standard. See the documentation supplied
with the device for more information.
• Make sure the connected devices are turned on and in standby status. See the documentation
supplied with the device for more information.
• If you connected a new device or changed any connections, make sure the CEC function is set for the
connected device. You may need to restart the device.
• Connect no more than four devices that support HDMI Link at the same time.
• Connect no more than three devices that support HDMI CEC at the same time.
Parent topic: Solving Projector or Remote Control Operation Problems
Solving Network Problems
Check the solutions in these sections if you have problems using the projector on a network.
Solutions When Wireless Authentication Fails
Solutions When You Cannot Access the Projector Through the Web
Solutions When Network Alert E-Mails are Not Received
Solutions When the Image Contains Static During Network Projection
Solutions When You Cannot Connect Using Screen Mirroring
Solutions When the Image or Sound Contains Static When Using Screen Mirroring
Solutions When the Projected Screen is not Shared Correctly
Parent topic: Solving Problems
Solutions When Wireless Authentication Fails
If you cannot authenticate a wireless connection, try the following solutions:
• If the wireless settings are correct, but authentication fails, you may need to update the Date & Time
settings in the Management menu, if available.
• Check the Security settings and passphrase in the Network menu.
295
• If the access point security is WPA3-EAP, change the access point setting to WPA2/WPA3-EAP.
Parent topic: Solving Network Problems
Related references
Administration Settings - Management Menu
Event ID Code List
Network Settings - Network Menu
Related tasks
Setting the Date and Time
Solutions When You Cannot Access the Projector Through the Web
If you are unable to access the projector through a web browser, make sure you are using the correct ID
and password, which are case sensitive.
Note: You cannot change the user ID.
• For the user ID, enter EPSONWEB. For the password, enter the password set in the projector's
Network menu. No password is set by default.
• Make sure you have access to the network the projector is on.
• If you set the Standby Mode setting to Communication On in the projector's Operation menu, make
sure the network device is turned on. After turning on the network device, turn on the projector.
• For the infrastructure mode, make sure you have access to the network the projector is on.
• If your Web browser is set up to connect via a proxy server, the Epson Web Control screen cannot
be displayed. Make settings for a connection without using a proxy server.
Note: The user ID and password are case sensitive.
Parent topic: Solving Network Problems
Solutions When Network Alert E-Mails are Not Received
If you do not receive an e-mail alerting you to problems with a projector over the network, try the
following solutions:
• Make sure the projector is turned on and connected to the network correctly. (If an error shut down the
projector, it cannot send an e-mail.)
296
• Make sure you set up the projector e-mail alert settings correctly on the projector's Network Mail
Notification menu or in the network software.
• Set the Standby Mode setting to Communication On so the network software can monitor the
projector in standby mode. Change the Port setting according to your network environment.
Parent topic: Solving Network Problems
Related references
Network Projector E-mail Alert Messages
Related tasks
Setting Up Projector Network E-Mail Alerts
Solutions When the Image Contains Static During Network Projection
If the projected image contains static during network projection, try the following solutions:
• Check for any obstacles between the access point, the computer, the mobile device, and the projector.
If necessary, change their positions to improve communication. Also make sure that they are not too
far apart; move them closer together and try to connect again.
• If the wireless connection is slow or your projected image contains noise, check for interference from
other equipment, such as a Bluetooth device or microwave. Move the interfering device farther away
or expand your wireless bandwidth.
• If the connection speed declines, reduce the number of connected devices.
Parent topic: Solving Network Problems
Solutions When You Cannot Connect Using Screen Mirroring
If you are unable to connect to the projector using Screen Mirroring, try the following solutions:
• Select On as the Screen Mirroring setting in the projector's Network menu.
• Select On as the Simple AP setting in the projector's Network menu.
• Select Off as the Screen Mirroring setting, then select On again.
• Make sure the mobile device settings are correct and restart the device.
• You may not be able to connect immediately after disconnecting from the projector. Wait a while and
try connecting again.
• If you have previously connected to the projector using Screen Mirroring, the device may have saved
the previous connection information. Delete the saved information and connect to the projector from
the list of available devices.
297
• If you are unable to use two Screen Mirroring sources at the same time, set the Interrupt Connection
setting to Off.
Parent topic: Solving Network Problems
Solutions When the Image or Sound Contains Static When Using Screen Mirroring
If the projected image or sound contains static when connecting using Screen Mirroring, try the following
solutions:
• Avoid covering the Wi-Fi antenna of the mobile device.
• If you use a Screen Mirroring connection and an internet connection at the same time, the image may
freeze or contain noise. Disconnect from the internet to improve the connection speed of the mobile
device.
• Make sure the projection contents meet the Screen Mirroring requirements.
• Depending on the settings of the mobile device, the connection may be lost when the device enters
power saving mode. Check the power saving settings on the mobile device.
• Make sure your mobile device has the latest version of its wireless driver and firmware installed.
Parent topic: Solving Network Problems
Related references
Input Signal Settings - Signal I/O Menu
Image Quality Settings - Image Menu
Supported Video Display Formats
Related topics
Connecting to Computer Sources
Connecting to Video Sources
Solutions When the Projected Screen is not Shared Correctly
If the Screen Sharing feature does not deliver the screen to a receiving projector properly, try the
following solutions:
• Connect the projector to the same network as the projector that is sharing its screen.
• Make sure the receiving projector supports the Screen Sharing function.
• Make sure that the projector is not in Content Playback mode.
• Make sure the Screen Sharing setting in the Network menu is set to On for all projectors.
• Close any running Epson iProjection (Windows/Mac) software.
298
• Make sure the image being projected is not protected by copyright.
• Make sure Sharing is displayed on the status bar that appears in the upper center part of the screen.
If it is not displayed, try reconnecting.
• If the firmware version of the projectors sharing the screen is not the same, you may need to update
the projector's firmware to share your screen.
Parent topic: Solving Network Problems
Related concepts
Screen Sharing
Related references
Network Settings - Network Menu
Where to Get Help (U.S. and Canada)
If you need to contact Epson for technical support services, use the following support options.
Internet Support
Visit Epson's support website at epson.com/support (U.S.) or epson.ca/support (Canada) and select
your product for solutions to common problems with your projector. You can download utilities and
documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions.
Speak to a Support Representative
To use the Epson PrivateLine Support service, call (800) 637-7661. This service is available for the
duration of your warranty period. You may also speak with a projector support specialist by dialing
(562) 276-4394 (U.S.) or (905) 709-3839 (Canada).
Support hours are Monday through Friday, 7 a.m. to 4 p.m., Pacific Time.
Days and hours of support are subject to change without notice. Toll or long distance charges may
apply.
Before you call, have the following information ready:
• Product name
• Product serial number (located on the bottom or rear of the projector, or in the menu system)
• Proof of purchase (such as a store receipt) and date of purchase
• Computer or video configuration
• Description of the problem
299
Purchase Supplies and Accessories
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in
Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).
You can purchase a replacement remote control from an Epson parts distributor here (U.S. sales) or
here (Canadian sales).
Parent topic: Solving Problems
Related references
Projector Light Status
Where to Get Help (Latin America)
If you need to contact Epson for technical support services, use the following support options.
Internet Support
Visit Epson's support website at latin.epson.com/support and select your product for solutions to
common problems with your projector. You can download utilities and documentation, get FAQs and
troubleshooting advice, or e-mail Epson with your questions.
Speak to a Support Representative
Before you call for support, please have the following information ready:
• Product name
• Product serial number (located on the bottom or rear of the projector, or in menu system)
• Proof of purchase (such as a store receipt) and date of purchase
• Computer or video configuration
• Description of the problem
Then call:
Country Telephone
Argentina (54 11) 5167-0300
0800-288-37766
Bolivia* 800-100-116
300
Country Telephone
Brazil State capitals and metropolitan areas: 3004-6627
Other areas: 0800-377-6627 / 0800-EPSONBR
Chile (56 2) 2484-3400
Colombia Bogota: (57 1) 602-4751
Other cities: 01-8000-915235
Costa Rica 800-377-6627
Dominican Republic* 1-888-760-0068
Ecuador* 1-800-000-044
El Salvador* 800-6570
Guatemala* 1-800-835-0358
Mexico Mexico City: (52 55) 1323-2052
Other cities: 800-087-1080
Nicaragua* 00-1-800-226-0368
Panama* 00-800-052-1376
Paraguay 009-800-521-0019
Peru Lima: (51 1) 418-0210
Other cities: 0800-10126
Uruguay 00040-5210067
Venezuela (58 212) 240-1111
*Contact your local phone company to call this toll-free number from a mobile phone.
Note: Toll or long distance charges may apply. If your country does not appear on the list, contact the
sales office in the nearest country.
Purchase Supplies and Accessories
You can purchase optional accessories and replacement parts from an Epson authorized reseller. To
find the nearest reseller, go to latin.epson.com. Or you can contact your nearest sales office as
described in "Where to Get Help."
302
Technical Specifications
These sections list the technical specifications of your projector.
General Projector Specifications
Projector Light Source Specifications
Remote Control Specifications
Projector Dimension Specifications
Projector Electrical Specifications
Projector Environmental Specifications
Projector Safety and Approvals Specifications
Supported Video Display Formats
USB Display System Requirements
General Projector Specifications
Type of display Poly-silicon TFT active matrix
Resolution 1920 × 1080 pixels (Full HD)
Lens F=1.8
Focal length: 2.3 mm
Color reproduction Full color, up to 1.07 billion colors
Brightness White light output 5000 lumens (Dynamic color mode)
Color light output 5000 lumens (Dynamic color mode, Scene
Adaptive Gamma: 0)
Normal power consumption mode:
5000 lumens (Dynamic color mode, Dynamic contrast off)
Extended power consumption mode:
3500 lumens (Dynamic color mode, Auto iris off)
Note: Color brightness (color light output) and white brightness
(white light output) will vary depending on usage conditions. Color
light output measured in accordance with IDMS 15.4; white light
output measured in accordance with ISO 21118.
303
Contrast ratio Over 2,500,000 with Dynamic Color Mode and Normal light source
mode
Image size
(in native aspect ratio)
80 inches (2.03 m) to 160 inches (4.06 m)
Projection distance
(in native aspect ratio)
10.9 inches (0.28 m) to 22.8 inches (0.58 m)
Projection methods Front, rear, front upside down, rear upside down
Optical aspect ratio
(width-to-height)
16:9
Focus adjustment Manual
Zoom adjustment Digital
Zoom ratio
(Tele-to-Wide)
1-1.35
Internal sound system 8 W x 2 (stereo)
Noise level 35 dB (Normal power consumption)
26 dB (Quiet power consumption)
USB Type mini-B port
compatibility
One port for service and projecting images from a computer.
USB Type A port compatibility Two USB 2.0 compliant ports for connecting a flash drive, Wireless
LAN adapter and a Document Camera
One port for providing power to a streaming media device (5 V, 2 A)
Parent topic: Technical Specifications
Projector Light Source Specifications
Type Laser diode
Light source output power Up to 108 W
Wavelength 449 to 461 nm
304
Light source life
(approximate)
Normal power consumption mode:
Up to about 20000 hours
Extended power consumption mode:
Up to about 30000 hours
Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
Parent topic: Technical Specifications
Remote Control Specifications
Reception range 19.7 feet (6 m)
Batteries Two alkaline or manganese AA
Parent topic: Technical Specifications
Projector Dimension Specifications
Height (excluding feet) 5.7 inches (145 mm)
Width 27.4 inches (695 mm)
Depth 13.4 inches (341 mm)
Weight Approximately 27.5 lb (12.5 kg)
Parent topic: Technical Specifications
Projector Electrical Specifications
Rated frequency 50/60 Hz
Power supply 100 to 240 V AC ±10%
4.0 to 1.8 A
305
Power consumption
(100 to 120 V)
Operating:
Normal power consumption mode: 398 W
Quiet/Extended power consumption mode: 296 W
Standby:
0.4 W (Energy Saving), 2.0 W (Network Standby)
Power consumption
(220 to 240 V)
Operating:
Normal power consumption mode: 380 W
Quiet/Extended power consumption mode: 286 W
Standby:
0.4 W (Energy Saving), 2.0 W (Network Standby)
Parent topic: Technical Specifications
Projector Environmental Specifications
Temperature Operating:
Up to 7500 feet (2286 m): 32 to 104 °F (0 to 40 °C)
7500 feet (2286 m) to 10000 feet (3048 m): 32 to 95 °F (0 to 35 °C)
Storage: 14 to 140 °F (–10 to 60 °C)
Humidity (relative, non-
condensing)
Operating: 20 to 80%
Storage: 10 to 90%
Operating altitude Up to 4921 feet (1500 m)
Up to 10000 feet (3048 m) with High Altitude Mode enabled
Parent topic: Technical Specifications
Projector Safety and Approvals Specifications
United States FCC Part 15 Class B
UL62368-1 2nd edition (cTUVus Mark)
306
Canada ICES-003 Class B
CSA C22.2 No. 62368-1-14 (cTUVus Mark)
Parent topic: Technical Specifications
Supported Video Display Formats
For best results, your computer's monitor port or video card resolution should be set to display in the
projector's native resolution. However, your projector includes Epson's SizeWise chip that supports other
computer display resolutions, so your image will be resized to fit automatically.
Your computer's monitor port or video card refresh rate (vertical frequency) must be compatible with the
projector. (See your computer or video card manual for details.)
The table here lists the compatible refresh rate and resolution for each compatible video display format.
Display format Refresh rate (in Hz) Resolution (in pixels)
HDMI Input Signals
PC 59.94 640 × 480
480p 59.94 720 × 480
576p 50 720 × 576
720p 50/59.94/60 1280 × 720
1080i 50/59.94/60 1920 × 1080
1080p 23.98/24/29.97/30/50/59.94/60 1920 × 1080
4K 23.98/24/25/29.97/30/50/59.94/6
0
3840 × 2160
4K (SMPTE) 23.98/24/25/29.97/30/50/59.94/6
0
4096 × 2160
Parent topic: Technical Specifications
USB Display System Requirements
Your computer system must meet the system requirements here to use the projector's USB Display
software.
307
Requirement Windows Mac
Operating system Windows 8.x, Pro, and Enterprise (32-
and 64-bit)
macOS 10.13.x (64-bit), macOS
10.14.x (64-bit), macOS 10.15.x (64-
bit), macOS 11.0.x (64-bit), and
macOS 12.0.x (64-bit)
Windows 10 Home, Pro, and Enterprise
(32- and 64-bit)
Windows 11 Home, Pro, Enterprise, and
Education (64-bit)
CPU Intel Core2 Duo or faster (Intel Core i3 or
faster recommended)
Intel Core2 Duo or faster (Intel Core
i5 or faster recommended)
Memory 2GB or more (4GB or more recommended)
Hard disk space 20MB or more
Display Resolution between 640 × 480 and 1920 × 1200, 16-bit color or greater
Parent topic: Technical Specifications
Related references
Input Signal Settings - Signal I/O Menu
308
Notices
Check these sections for important notices about your projector.
Recycling (U.S. and Canada)
Important Safety Information
Laser Safety Information
Important Safety Instructions
List of Safety Symbols
FCC Compliance Statement
Binding Arbitration and Class Waiver
Trademarks
Copyright Notice
Recycling (U.S. and Canada)
Epson offers a recycling program for end of life products. Please go to this site for information on how to
return your products for proper disposal.
Parent topic: Notices
Important Safety Information
Caution: Never look into the projector lens when the laser is turned on; the bright light can damage your
eyes. Never let children look into the lens when it is on. Never open the projector case. Dangerous
electrical voltages inside the projector can severely injure you. Except as specifically explained in this
User's Guide, do not attempt to service this product yourself. Refer all servicing to qualified service
personnel.
Warning: The projector and its accessories come packaged in plastic bags. Keep plastic bags away
from small children to avoid any risk of suffocation.
Parent topic: Notices
Laser Safety Information
This projector is a Class 1 laser product that complies with the IEC/EN60825-1:2014 international
standard for lasers. Follow these safety instructions when using the projector.
309
Warning: Possibly hazardous optical radiation emitted from this product. Do not look at operating light
source. Eye injury may result.
• If an error occurs in the projector, turn off the power and unplug the projector immediately. Continuing
to use the projector could result in an electric shock, fire, or visual impairment. Contact Epson support.
• Do not attempt to disassemble or modify the projector. The projector contains a high-power laser
component. Serious injury could result.
• Do not look into the lens or projection window during projection. Also, do not look into the lens or
projection window using optical devices, such as a magnifying glass or telescope. This could cause
visual impairment.
• Do not place objects or put your hand near the projection window. It could cause burns, fire, or the
object to warp because this area reaches a high temperature due to the concentrated projection light.
• When turning on the projector at a distance using the remote control, make sure no one is looking into
the lens.
• Do not allow small children to operate the projector. Children must be accompanied by an adult.
• Do not apply optical devices, such as a magnifying glass or reflector, to the projected image. Using the
projector may result in physical harm, fire, or an accident.
• Do not block the light from the lens during projection. The high temperature in this area could cause
burns, fire, or other damage. The lens may overheat due to the reflected light and could cause the
projector to malfunction.
• Before using the projector, make sure there is nothing in the area that could reflect the projected
image.
• When disposing of the projector, do not disassemble it. Dispose of the projector in accordance with
your local or national laws and regulations.
Labels are attached to the projector to indicate it is a Class 1 laser product and complies with FDA
performance standards for laser products except for conformance as a Risk Group 2 LIP as defined in
IEC 62471-5: Ed. 1.0 (for more information see Laser Notice No. 57, dated May 8, 2019):
310
Laser warning labels are attached to the projector.
• Inside
• Top
311
As with any bright source, do not stare into the beam (RG2 IEC/EN 62471-5:2015).
• Bottom
312
The label attached on the projector varies depending on the countries and regions.
Warning: MOUNT ABOVE THE HEADS OF CHILDREN. The use of a ceiling mount is recommended
with this product to place it above the eyes of children.
Parent topic: Notices
Important Safety Instructions
Follow these safety instructions when setting up and using the projector:
• Do not look into the lens when the projector is on. The bright light can damage your eyes. Avoid
standing in front of the projector so you do not block the projected image and the bright light does not
shine into your eyes. Be especially careful if children are around.
• When turning on the projector at a distance using the remote control, make sure there is no one
looking into the lens.
• Do not place any flammable objects in front of the projector lens, otherwise, a fire may occur.
• Do not touch the lens with bare hands. You may not be able to project clearly if the surface of the lens
is smeared with fingerprints or oil.
• Do not place the projector on an unstable cart, stand, or table or on a surface that is unable to support
its weight. Otherwise, it could fall or topple causing damage, deformation or an accident and injury.
• Route any cords or cables so that they are out of the way; otherwise people may trip and fall or injure
themselves.
313
• Installing the projector on the ceiling or on a wall requires specialist knowledge. If installation work is
not carried out correctly, the projector could fall down. This may result in injury or accidents. Contact
your dealer to carry out the installation work.
• You must install a ceiling mount when suspending the projector from a ceiling. If you do not install the
projector correctly, it could fall and cause damage or injury. Special expertise is required to suspend
the projector from a ceiling.
• Failure to install the ceiling mount and projector correctly may cause the projector to fall. After
installing the specific Epson mount that supports your projector, make sure you secure the mount to all
of the projector's ceiling mount fixing points. Also, secure the projector and the mounts using wire that
is strong enough to hold their weight.
• When installing the projector in a high position, take measures to prevent it from falling by using wires
to ensure safety in an emergency, such as an earthquake, and to prevent accidents. If the projector is
not installed correctly, the projector could fall. This may result in injury or accidents. Contact your
dealer to carry out the installation work.
• Do not install in locations where salt damage could occur, or in locations subject to corrosive gas such
as sulphuric gas from hot springs. Otherwise, corrosion could cause the projector to fall. It could also
cause the projector to malfunction.
• When installing or adjusting a ceiling or wall mount, do not use adhesives to prevent the screws from
loosening and do not use oils or lubricants. This may cause the projector case to crack and the
projector to fall from its ceiling mount. This could cause serious injury to anyone under the mount and
could damage the projector.
• Do not install the projector in locations exposed to high humidity and dust, such as on a kitchen
counter, in the kitchen, or near a humidifier, or in locations exposed to oil smoke or steam. Doing so
could cause fire or electric shock. The projector's case could also deteriorate and be damaged
causing the projector to fall from the mount.
Examples of environments that could cause the projector to fall due to case deterioration:
• Locations subject to excessive smoke or airborne oil particles, such as factories or kitchens
• Locations containing volatile solvents or chemicals, such as factories or laboratories
• Locations where the projector could be subjected to detergents or chemicals, such as factories or
kitchens
• Locations in which aroma oils are often used, such as relaxation rooms
• Near devices that produce excessive smoke, airborne oil particles, or foam at events
• Locations where the projector could be subjected to ultraviolet rays, such as a sunny room
• Locations near humidifiers
314
• Do not use the projector near water, sources of heat, high-voltage electrical wires, or sources of
magnetic fields. These may interfere with correct operation.
• Do not use the device near any medical equipment or equipment that is automatically controlled, such
as automatic doors or fire alarms. Electromagnetic interference from the device may cause such
equipment to malfunction and cause an accident.
• Use the type of power source indicated on the projector. Use of a different power source may result in
fire or electric shock. If you are not sure of the power available, consult your dealer or power company.
• Place the projector near a wall outlet where the plug can be easily unplugged.
• Take the following precautions when handling the plug: Do not hold the plug with wet hands. Do not
insert the plug into a dusty outlet. Insert the plug firmly into the outlet. Do not pull the power cord when
disconnecting the plug; always be sure to hold the plug when disconnecting it. Do not overload wall
outlets, extension cords, or power strips. Failure to comply with these precautions could result in fire or
electric shock.
• Do not place the projector where the cord can be walked on. This may result in fraying or damage to
the plug.
• Unplug the projector from the wall outlet and allow to cool before cleaning. Use a dry cloth (or, for
stubborn dirt or stains, a moist cloth that has been wrung dry) for cleaning. Do not use liquid or aerosol
cleaners, any sprays containing flammable gas, or solvents such as alcohol, paint thinner, or benzine.
• Do not block the slots and openings in the projector case. They provide ventilation and prevent the
projector from overheating. If the vents are covered, the internal temperature could rise and cause a
fire. Do not place the projector in locations subject to high temperatures, such as near heating
equipment. Do not operate the projector on a sofa, rug, or other soft surface, or set it on top of loose
papers. Do not cover the projector with a blanket, curtain, or tablecloth. If you are setting up the
projector near a wall, leave at least 7.9 inches (20 cm) of space between the wall and the projector.
• Do not operate the projector in a closed-in cabinet unless proper ventilation is provided.
• For projectors with air intake vents at the bottom, do not place anything under the projector, such as
cloth or paper. If these are pulled to the air intake vent during projection, the internal temperature
could rise and cause a fire.
• Never allow objects of any kind to enter any openings in the projector. Do not leave objects, especially
flammable objects, near the projector. Do not place any containers of liquid or chemicals on top of the
unit. Never spill liquid of any kind into the projector. Fire or electric shock may result.
• Do not insert or drop metal, flammable, or foreign objects into the projector's vents or openings nor
leave them nearby. Doing so may result in fire, electric shock, or burns.
• You may need to clean the air filter and vent. A clogged air filter or vent can block ventilation needed
to cool the projector. Do not use canned air, or the gases may leave a residue.
315
• Do not use or store the projector in locations where it will be subject to dust or dirt. Otherwise, the
quality of the projected image may decline, or the air filter may become clogged, resulting in a
malfunction or fire.
• Follow the maintenance schedule for this projector. If the interior of the projector has not been cleaned
for a long time, dust may build up, which could cause the internal temperature of the projector to rise,
resulting in malfunctions, early deterioration of optical parts, and even fire or electric shock. Replace
your air filter periodically and contact your dealer to clean the interior of the projector, as needed.
• Do not store the projector outdoors for an extended length of time.
• Except as specifically explained in this manual, do not attempt to service this product yourself. Refer
all servicing to qualified personnel. Opening or removing covers may expose you to dangerous
voltages and other hazards.
• Never open any covers on the projector except as specifically explained in this manual. Never attempt
to disassemble or modify the projector (including consumables). Refer all repairs to qualified service
personnel. Electrical voltages inside the projector can cause serious injury.
• Unplug the projector from the wall outlet and refer servicing to qualified service personnel under the
following conditions: if it does not operate normally when you follow the operating instructions, or
exhibits a distinct change in performance; if smoke, strange odors, or strange noises come from the
projector; if the power cord or plug is damaged or frayed; if liquid or foreign objects get inside the
projector, or if it has been exposed to rain or water; if it has been dropped or the housing has been
damaged. Continuing to use the projector under these conditions may result in fire or electric shock.
• Do not touch the plug during an electrical storm. Otherwise, you may receive an electric shock.
• Unplug the projector when it will not be used for extended periods.
• Do not use the projector where it may be exposed to rain, water, or excessive humidity.
• Do not install the projector in locations where it may be subject to salt damage or corrosive gas. Doing
so may result in malfunction and the corrosion may cause the projector to fall.
• Do not use or store the projector where it may be exposed to smoke, steam, corrosive gases,
excessive dust, vibration, or shock.
• Do not use the projector where flammable or explosive gases may be present.
• Do not use or store the projector or remote control in a hot location, such as near a heater, in direct
sunlight, or in a closed vehicle.
• If you use the projector in a country other than where you purchased it, use the correct power cord for
that country.
• Do not stand on the projector or place heavy objects on it.
316
• If you are using the projector at altitudes above 4,921 feet (1,500 m), enable the High Altitude Mode
setting in the projector's menu to ensure the projector's internal temperature is regulated properly.
• Do not use the projector outside of the required temperature range below (20 to 80% humidity, no
condensation):
32 to 104 °F (0 to 40 °C) at an altitude of 7500 feet (2286 m) or less, or 32 to 95 °F (0 to 35 °C) at an
altitude of 7500 to 10000 feet (2286 to 3048 m)
Doing so may cause an unstable display and could lead to projector damage. Do not use or store the
projector where it may be exposed to sudden changes in temperature.
• Do not store the projector outside of the required temperature range of 14 to 140 °F (–10 to 60 °C) or
in direct sunlight for long periods of time. Doing so may cause damage to the case.
• Do not place anything that can become warped or damaged by heat near the exhaust vents. Do not
bring your hands or face close to the vents while projection is in progress. Do not bring your face close
to the projector while it is in use.
• Before you move the projector, make sure its power is turned off, the plug is disconnected from the
outlet, and all cables are disconnected. Fire or electric shock may result.
• Do not place the source of an open flame, such as a lit candle, on or near the projector.
• During projection, do not block the light from the projector with a book or other objects. If the light from
the projector is blocked, the area on which the light shines becomes hot which could cause it to melt,
burn, or start a fire. Also, the lens may get hot due to the reflected light which could cause the
projector to malfunction. To stop projection, use the A/V Mute function, or turn off the projector.
• Do not modify the power cord. Do not place heavy objects on top of the power cord or bend, twist, or
pull it excessively. Keep the power cord away from hot electrical appliances. Do not tie the power cord
to other cables. Do not use the power cord if it is damaged. Fire or electric shock may result. Contact
your dealer if the cable becomes damaged.
• Make sure you keep a distance of at least 7.9 inches (20 cm) between the device and your body.
Otherwise, it could cause you to feel unwell.
• Always lower the volume before turning off the projector. Turning on the projector with the volume too
high can damage your ears. Gradually increase the volume after turning on the projector.
• Incorrect battery usage may cause leakage of battery fluid and battery rupture, which could result in
fire, injury, or corrosion. When replacing batteries, take the following precautions: insert batteries so
that the polarities (+ and -) are correct; do not use batteries of different types or mix old and new
batteries; do not use any batteries other than those specified in this manual; if batteries leak, wipe
away battery fluid with a soft cloth and replace them with new batteries; if battery fluid gets on your
hands, wash them immediately; replace the batteries as soon as they run out; remove the batteries if
you will not be using the projector for a long period of time; do not expose batteries to heat or flame
317
and do not put them in water; dispose of used batteries according to local regulations; keep batteries
out of the reach of children. Batteries are choking hazards and are very dangerous if swallowed.
• Do not disassemble the projector when disposing of it. Dispose of the projector according to your local
or national laws and regulations.
• Do not beam any lasers into the projector. If a high-powered laser is beamed through the surface of
the projection lens, it can cause a malfunction. Use non-permeable and incombustible metal plates,
such as aluminum or iron, to block lasers and protect the projection lens, if needed.
Restriction of Use
Parent topic: Notices
Restriction of Use
When this product is used for applications requiring high reliability/safety such as transportation devices
related to aviation, rail, marine, automotive; disaster prevention devices; various safety devices; or
functional/precision devices, you should use this product only after giving consideration to including fail-
safes and redundancies into your design to maintain safety and total system reliability.
Because this product was not intended for use in applications requiring extremely high reliability/safety
such as aerospace equipment, main communication equipment, nuclear power control equipment, or
medical equipment related to direct medical care, please make your own judgment on this product's
suitability after a full evaluation.
Parent topic: Important Safety Instructions
List of Safety Symbols
The following table lists the meaning of the safety symbols labeled on the equipment.
Symbol Approved Standards Description
IEC60417
No. 5007
"ON" (power)
To indicate connection to the mains.
IEC60417
No. 5008
"OFF" (power)
To indicate disconnection from the mains.
318
Symbol Approved Standards Description
IEC60417
No. 5009
Stand-by
To identify the switch or switch position by
means of which part of the equipment is
switched on in order to bring it into the stand-
by condition.
ISO7000
No. 0434B,
IEC3864-B3.1
Caution
To identify general caution when using the
product.
IEC60417
No. 5041
Caution, hot surface
To indicate that the marked item can be hot
and should not be touched without taking
care.
IEC60417
No. 6042
ISO3864-B3.6
Caution, risk of electric shock
To identify equipment that has risk of electric
shock.
IEC60417
No. 5957
For indoor use only
To identify electrical equipment designed
primarily for indoor use.
IEC60417
No. 5926
Polarity of DC power connector
To identify the positive and negative
connections (the polarity) on a piece of
equipment to which a DC power supply may
be connected.
— Polarity of DC power connector
To identify the positive and negative
connections (the polarity) on a piece of
equipment to which a DC. power supply may
be connected.
319
Symbol Approved Standards Description
IEC60417
No. 5001B
Battery, general
On battery powered equipment. To identify a
device for instance a cover for the battery
compartment, or the connector terminals.
IEC60417
No. 5002
Positioning of cell
To identify the battery holder itself and to
identify the positioning of the cell(s) inside the
battery holder.
— Positioning of cell
To identify the battery holder itself and to
identify the positioning of the cell(s) inside the
battery holder.
IEC60417
No. 5019
Protective earth
To identify any terminal which is intended for
connection to an external conductor for
protection against electric shock in case of a
fault, or the terminal of a protective earth
electrode.
IEC60417
No. 5017
Earth
To identify an earth (ground) terminal in
cases where neither the symbol No.13 is
explicitly required.
IEC60417
No. 5032
Alternating current
To indicate on the rating plate that the
equipment is suitable for alternating current
only; to identify relevant terminals.
IEC60417
No. 5031
Direct current
To indicate on the rating plate that the
equipment is suitable for direct current only;
to identify relevant terminals.
320
Symbol Approved Standards Description
IEC60417
No. 5172
Class II equipment
To identify equipment meeting the safety
requirements specified for Class II equipment
according to IEC 61140.
ISO 3864 General prohibition
To identify actions or operations that are
prohibited.
ISO 3864 Contact prohibition
To indicate injury that could occur due to
touching a specific part of the equipment.
— Never look into the projector lens while the
projector is on.
— To indicate that the marked item don’t place
anything on projector.
ISO3864
IEC60825-1
Caution, laser radiation
To indicate the equipment has a laser
radiation part.
ISO 3864 Disassembly prohibition
To indicate a risk of injury, such as electric
shock, if the equipment is disassembled.
IEC60417
No. 5266
Standby, partial standby
To indicate that part of the equipment is in the
ready status.
321
Symbol Approved Standards Description
ISO3864
IEC60417
No. 5057
Caution, movable parts
To indicate that you must keep away from
movable parts according to protection
standards.
IEC 60417
No. 6056
Caution (movable fan blades)
To indicate that you must keep away from
movable parts according to protection
standards.
IEC 60417
No. 6043
Caution (sharp corners)
To indicate that you must not touch the sharp
corners of the product according to protection
standards.
— Never look into the projection lens while the
projector is on.
ISO7010
No. W027
ISO 3864
Warning, light emission (UV, visible light, IR
and so on)
To indicate that you must be careful not to
injure your eyes or skin when near light
emitting sections.
IEC60417
No. 5109
Not to be used in residential areas
To indicate that the electrical
equipment/device is not suitable for use in
residential area.
Parent topic: Notices
FCC Compliance Statement
For United States Users
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
322
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause interference to radio and television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING
The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification or Declaration of this device and may cause interference levels which exceed the limits
established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded
equipment interface cable with this device. If this equipment has more than one interface connector, do
not leave cables connected to unused interfaces. Changes or modifications not expressly approved by
the manufacturer could void the user’s authority to operate the equipment.
For Canadian Users
CAN ICES-003(B)/NMB-003(B)
Parent topic: Notices
Binding Arbitration and Class Waiver
1. DISPUTES, BINDING INDIVIDUAL ARBITRATION, AND WAIVER OF CLASS ACTIONS AND
CLASS ARBITRATIONS
1.1 Disputes. The terms of this Section 1 shall apply to all Disputes between you and Epson. The term
"Dispute" is meant to have the broadest meaning permissible under law and includes any dispute, claim,
controversy or action between you and Epson arising out of or relating to this Agreement, Epson
branded products (hardware and including any related software), or other transaction involving you and
Epson, whether in contract, warranty, misrepresentation, fraud, tort, intentional tort, statute, regulation,
ordinance, or any other legal or equitable basis. "DISPUTE" DOES NOT INCLUDE IP CLAIMS, or more
specifically, a claim or cause of action for (a) trademark infringement or dilution, (b) patent infringement,
(c) copyright infringement or misuse, or (d) trade secret misappropriation (an "IP Claim"). You and Epson
323
also agree, notwithstanding Section 1.6,that a court, not an arbitrator, may decide if a claim or cause of
action is for an IP Claim.
1.2 Binding Arbitration. You and Epson agree that all Disputes shall be resolved by binding arbitration
according to this Agreement. ARBITRATION MEANS THAT YOU WAIVE YOUR RIGHT TO A JUDGE
OR JURY IN A COURT PROCEEDING AND YOUR GROUNDS FOR APPEAL ARE LIMITED.
Pursuant to this Agreement, binding arbitration shall be administered by JAMS, a nationally recognized
arbitration authority, pursuant to its code of procedures then in effect for consumer related disputes, but
excluding any rules that permit joinder or class actions in arbitration (for more detail on procedure, see
Section 1.6 below). You and Epson understand and agree that (a) the Federal Arbitration Act (9 U.S.C.
§1, et seq.) governs the interpretation and enforcement of this Section 1, (b) this Agreement
memorializes a transaction in interstate commerce, and (c) this Section 1 shall survive termination of this
Agreement.
1.3 Pre-Arbitration Steps and Notice. Before submitting a claim for arbitration, you and Epson agree to
try, for sixty (60) days, to resolve any Dispute informally. If Epson and you do not reach an agreement to
resolve the Dispute within the sixty (60) days), you or Epson may commence an arbitration. Notice to
Epson must be addressed to: Epson America, Inc., ATTN: Legal Department, 3131 Katella Ave., Los
Alamitos, CA 90720 (the "Epson Address"). The Dispute Notice to you will be sent to the most recent
address Epson has in its records for you. For this reason, it is important to notify us if your address
changes by emailing us at [email protected] or writing us at the Epson Address above. Notice of
the Dispute shall include the sender's name, address and contact information, the facts giving rise to the
Dispute, and the relief requested (the "Dispute Notice"). Following receipt of the Dispute Notice, Epson
and you agree to act in good faith to resolve the Dispute before commencing arbitration.
1.4 Small Claims Court. Notwithstanding the foregoing, you may bring an individual action in the small
claims court of your state or municipality if the action is within that court's jurisdiction and is pending only
in that court.
1.5 WAIVER OF CLASS ACTIONS AND CLASS ARBITRATIONS. YOU AND EPSON AGREE THAT
EACH PARTY MAY BRING DISPUTES AGAINST THE OTHER PARTY ONLY IN AN INDIVIDUAL
CAPACITY, AND NOT AS A PLAINTIFF OR CLASS MEMBER IN ANY CLASS OR
REPRESENTATIVE PROCEEDING, INCLUDING WITHOUT LIMITATION FEDERAL OR STATE
CLASS ACTIONS, OR CLASS ARBITRATIONS. CLASS ACTION LAWSUITS, CLASS-WIDE
ARBITRATIONS, PRIVATE ATTORNEY-GENERAL ACTIONS, AND ANY OTHER PROCEEDING
WHERE SOMEONE ACTS IN A REPRESENTATIVE CAPACITY ARE NOT ALLOWED.
ACCORDINGLY, UNDER THE ARBITRATION PROCEDURES OUTLINED IN THIS SECTION, AN
ARBITRATOR SHALL NOT COMBINE OR CONSOLIDATE MORE THAN ONE PARTY'S CLAIMS
WITHOUT THE WRITTEN CONSENT OF ALL AFFECTED PARTIES TO AN ARBITRATION
PROCEEDING.
1.6 Arbitration Procedure. If you or Epson commences arbitration, the arbitration shall be governed by
the rules of JAMS that are in effect when the arbitration is filed, excluding any rules that permit arbitration
on a class or representative basis (the "JAMS Rules"), available at http://www.jamsadr.com or by calling
324
1-800-352-5267 (U.S. or Canada), or https://www.jamsadr.com/about/ or by calling +1-949-224-1810
(Latin America), and under the rules set forth in this Agreement. All Disputes shall be resolved by a
single neutral arbitrator, and both parties shall have a reasonable opportunity to participate in the
selection of the arbitrator. The arbitrator is bound by the terms of this Agreement. The arbitrator, and not
any federal, state or local court or agency, shall have exclusive authority to resolve all disputes arising
out of or relating to the interpretation, applicability, enforceability or formation of this Agreement,
including any claim that all or any part of this Agreement is void or voidable. Notwithstanding this broad
delegation of authority to the arbitrator, a court may determine the limited question of whether a claim or
cause of action is for an IP Claim, which is excluded from the definition of "Disputes" in Section 1.1
above. The arbitrator shall be empowered to grant whatever relief would be available in a court under
law or in equity. The arbitrator may award you the same damages as a court could, and may award
declaratory or injunctive relief only in favor of the individual party seeking relief and only to the extent
necessary to provide relief warranted by that party's individual claim. In some instances, the costs of
arbitration can exceed the costs of litigation and the right to discovery may be more limited in arbitration
than in court. The arbitrator's award is binding and may be entered as a judgment in any court of
competent jurisdiction.
You may choose to engage in arbitration hearings by telephone. Arbitration hearings not conducted by
telephone shall take place in a location reasonably accessible from your primary residence, or in Orange
County, California, at your option.
a) Initiation of Arbitration Proceeding. If either you or Epson decides to arbitrate a Dispute, both parties
agree to the following procedure:
(i) Write a Demand for Arbitration. The demand must include a description of the Dispute and the amount
of damages sought to be recovered. You can find a copy of a Demand for Arbitration at
http://www.jamsadr.com ("Demand for Arbitration").
(ii) Send three copies of the Demand for Arbitration, plus the appropriate filing fee, to: JAMS, 500 North
State College Blvd., Suite 600 Orange, CA 92868, U.S.A.
(iii) Send one copy of the Demand for Arbitration to the other party (same address as the Dispute
Notice), or as otherwise agreed by the parties.
b) Hearing Format. During the arbitration, the amount of any settlement offer made shall not be disclosed
to the arbitrator until after the arbitrator determines the amount, if any, to which you or Epson is entitled.
The discovery or exchange of non-privileged information relevant to the Dispute may be allowed during
the arbitration.
c) Arbitration Fees. Epson shall pay, or (if applicable) reimburse you for, all JAMS filings and arbitrator
fees for any arbitration commenced (by you or Epson) pursuant to provisions of this Agreement.
d) Award in Your Favor. For Disputes in which you or Epson seeks $75,000 or less in damages exclusive
of attorney's fees and costs, if the arbitrator's decision results in an award to you in an amount greater
than Epson's last written offer, if any, to settle the Dispute, Epson will: (i) pay you $1,000 or the amount
325
of the award, whichever is greater; (ii) pay you twice the amount of your reasonable attorney's fees, if
any; and (iii) reimburse you for any expenses (including expert witness fees and costs) that your attorney
reasonably accrues for investigating, preparing, and pursuing the Dispute in arbitration. Except as
agreed upon by you and Epson in writing, the arbitrator shall determine the amount of fees, costs, and
expenses to be paid by Epson pursuant to this Section 1.6d).
e) Attorney's Fees. Epson will not seek its attorney's fees and expenses for any arbitration commenced
involving a Dispute under this Agreement. Your right to attorney's fees and expenses under Section
1.6d) above does not limit your rights to attorney's fees and expenses under applicable law;
notwithstanding the foregoing, the arbitrator may not award duplicative awards of attorney's fees and
expenses.
1.7 Opt-out. You may elect to opt-out (exclude yourself) from the final, binding, individual
arbitration procedure and waiver of class and representative proceedings specified in this
Agreement by sending a written letter to the Epson Address within thirty (30) days of your assent
to this Agreement (including without limitation the purchase, download, installation of the
Software or other applicable use of Epson Hardware, products and services) that specifies (i)
your name, (ii) your mailing address, and (iii) your request to be excluded from the final, binding
individual arbitration procedure and waiver of class and representative proceedings specified in
this Section 1. In the event that you opt-out consistent with the procedure set forth above, all
other terms shall continue to apply, including the requirement to provide notice prior to litigation.
1.8 Amendments to Section 1. Notwithstanding any provision in this Agreement to the contrary, you
and Epson agree that if Epson makes any future amendments to the dispute resolution procedure and
class action waiver provisions (other than a change to Epson's address) in this Agreement, Epson will
obtain your affirmative assent to the applicable amendment. If you do not affirmatively assent to the
applicable amendment, you are agreeing that you will arbitrate any Dispute between the parties in
accordance with the language of this Section 1 (or resolve disputes as provided for in Section 1.7, if you
timely elected to opt-out when you first assented to this Agreement).
1.9 Severability. If any provision in this Section 1 is found to be unenforceable, that provision shall be
severed with the remainder of this Agreement remaining in full force and effect. The foregoing shall not
apply to the prohibition against class or representative actions as provided in Section 1.5. This
means that if Section 1.5 is found to be unenforceable, the entire Section 1 (but only Section 1)
shall be null and void.
Parent topic: Notices
Trademarks
EPSON
®
and Quick Corner
®
