14PC METAL PUNCH SET
MODEL NO: AK9821
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure that Health and Safety, local authority and general workshop practice regulations are adhered to when using this
product.
8 DO NOT use this product if it is damaged.
9 Maintain tools in good and clean condition for best and safest performance.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Wear suitable clothing to avoid snagging. Do not wear loose jewellery and tie back long hair.
8 DO NOT operate punch if you are tired or under the influence of alcohol, drugs or intoxicating medication.
2. INTRODUCTION
Heavy-duty drop-forged and heat treated steel punch body with compound lever action. Suitable for precision punching of holes in steel,
aluminium, brass, copper and plastic. Fitted with gauge for depth adjustment up to 50mm. Suitable for materials up to 14 gauge. Punches and
dies hardened to 55-60 HRC. Supplied in storage case.
3. SPECIFICATION
Model no ................................................................... AK9821
Punch & Die Sizes
............................. 3/32”, 1/8”, 5/32”, 3/16”, 7/32”, 1/4”, 9/32”
4. OPERATION

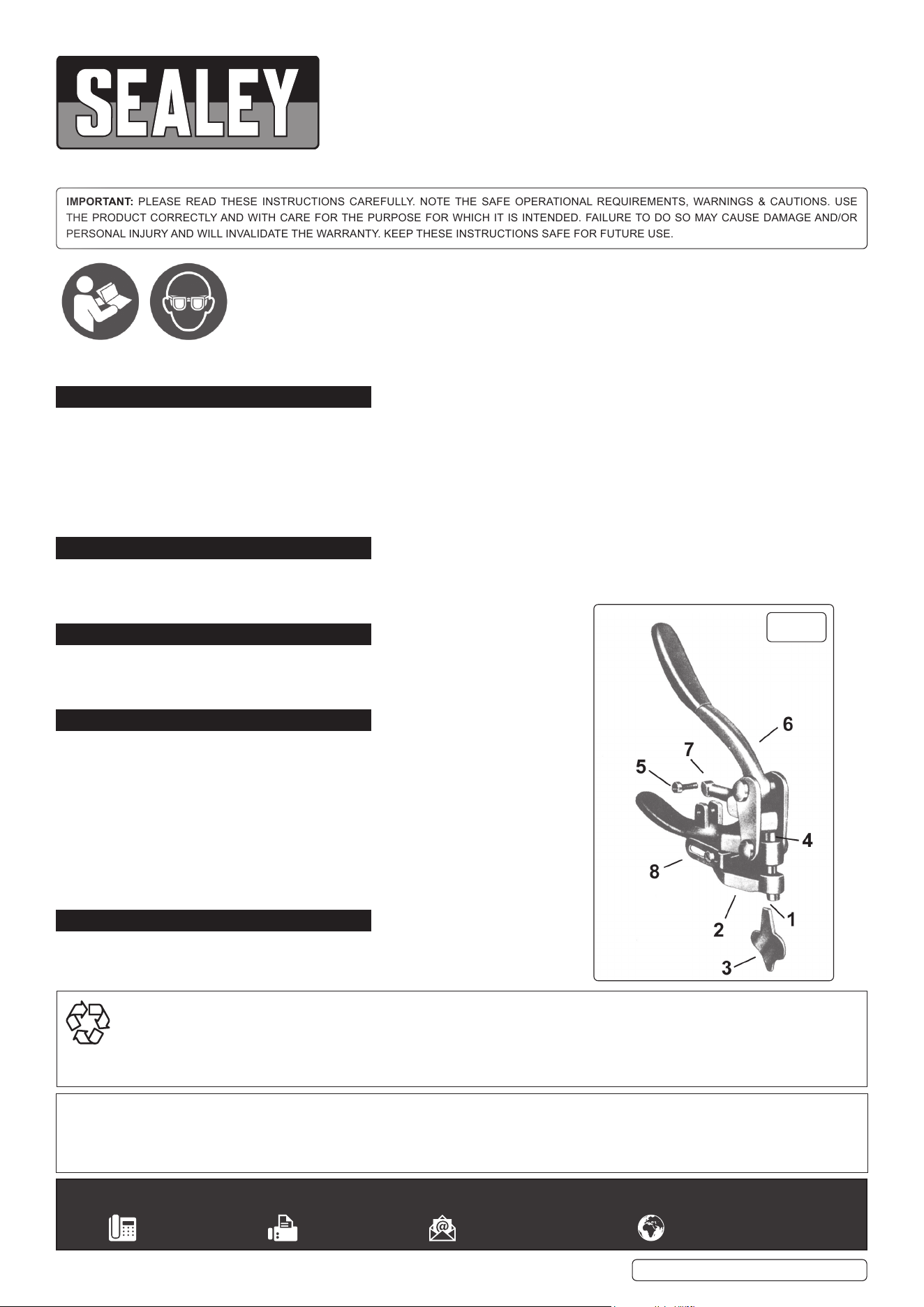

Note: Numbers in brackets refer to fig.1.
4.1. Dies (1) are screwed into the lower throated handle (2) using the die key (3).
4.2. To replace a punch (4), remove the pivot arm screw (5) and lift the upper pivot handle
(6).
4.3. Pull the upper pivot handle (6) and pivot arm (7) back away from the punch.
4.4. Lift out the punch (4).
4.5. Installation of a punch is the reverse of paragraphs 4.2 to 4.4 ensuring the grooved
sides of the punch align with the slotted portion of the pivot arm.
4.6. Set the throat depth gauge (8) by undoing the screw, adjusting the gauge as required
and re-tightening the screw.
5. MAINTENANCE
5.1. Oil the pivot points, die and punch holes in the lower handle, to avoid excess wear.
5.2. Keep the punches and dies well lubricated.
Refer to
instruction
manual
Wear eye
protection
AK9821 Issue:2 (H,F) 18/11/20
Original Language Version
© Jack Sealey Limited
fig.
1
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
