Sealey AK4013 Integrated Test Light/Voltmeter 3-60V User Manual

3-60V INTEGRATED TEST LIGHT/VOLTMETER

MODEL NO: AK4013

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these

instructions, and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

 WARNING! DO NOT use test light with domestic 110-230Volt supplies. Only use with DC Voltages between 3 and 60Volts.

9 Observe standard workshop safety procedures when using the meter.

9 Keep the work area clean, uncluttered and ensure there is adequate lighting. Keep tools and other items away from the engine and

ensure you can see the working parts of the engine clearly.

9  Maintaincorrectbalanceandfooting.Ensuretheoorisnotslipperyandwearnonslipshoes.

9  Removeillttingclothing.Removeties,watches,ringsandotherloosejewellery.Containortiebacklonghair.

9 Ensure extension leads and probes are kept clear of hot surfaces and rotating parts.

8 DO NOT drape cables around neck or arms – danger of entanglement.

8 DO NOT disassemble meter.

8 DO NOT get test light wet or use in damp or wet locations or areas where there is condensation.

8 DO NOT use the meter for any purpose other than for which it is designed.

8 DO NOT use the meter if damaged.

9 When not in use, store tester in a safe, dry, childproof location.

2. INTRODUCTION

IdentiesthepolarityofthecircuitbeingtestedontheLCD,redforpositiveandgreenfornegative.Wirehookprobedesign,makespiercingwire

insulation easier, the hook can be locked out of the way when probing terminals. LCD meter draws minute currents making this tool safe around

delicate electronic components. With a range of 3-60V DC, this tool is suitable for motorcycle, car, mild hybrid and commercial vehicles. Supplied

with 3m coiled cable and insulated crocodile earth clamp. Do not use on airbags. Battery 1 x CR2032 (supplied).

3. SPECIFICATION

Model No.:................................................................ AK4013

Accuracy: ............................................................ ±(1%+0.3V)

Computer Safe: ..................................Testing current < 10mA

Range: .......................................................... 03-60V

4. OPERATION

4.1. VOLTAGE MEASUREMENT

4.1.1. Push down the hook and rotate it clockwise to expose the testing probe.

4.1.2. Contact the probe to the 3 ~ 60V DC voltage source.

4.1.3.  Connectthetestprobetopositiveandcliptothenegativeofthetestobjectorcircuit.Thevoltagevalueand“+”willbedisplayedon

 theLCDwitha“Red”backgroundwhenthecircuitislive.

4.1.4.  Connectthetestprobetonegativeandcliptothepositiveofthetestobjectorcircuit.Thevoltagevalueand“-”willbedisplayedon

 LCDwith“Green”backgroundwhenthecircuitislive.

NOTE: If user removes the probe away from the voltage source, the measured value will be held on the LCD about 3 seconds.

AK4013 Issue 4 16/05/23

Original Language Version

Refer to

instructions

Wear eye

protection

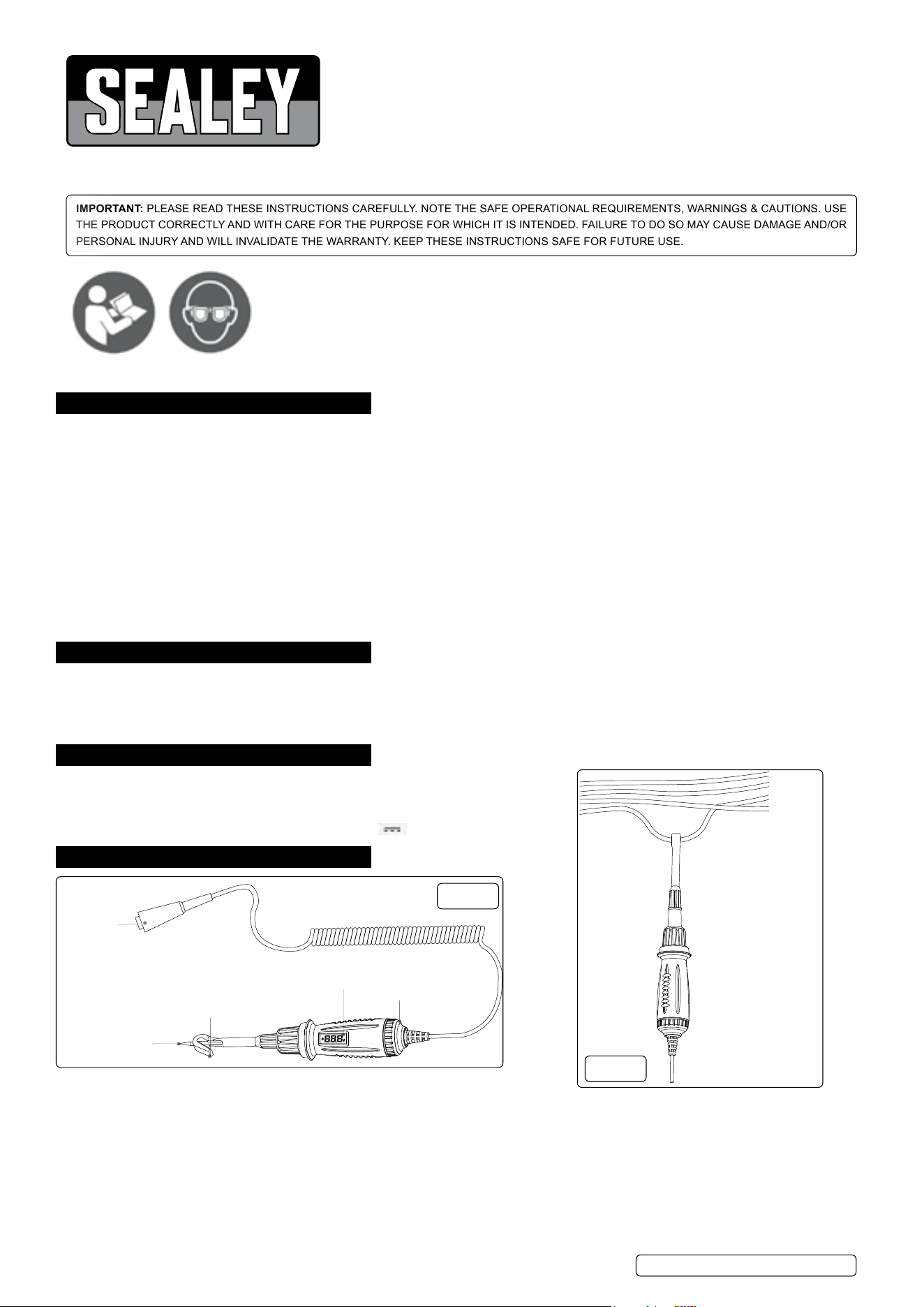

LCD

wire hooker

testing probe

clip

tail cover

The hook can

be used to

select and pull

the wire out

from multiple

wires safely.

Fig.1

Fig.2

4.2. AC/DC INDICATION

4.2.1. A red background and ‘+’ sign indicates positive polarity.

4.2.2. A green background and ‘-’ sign indicates negative polarity.

4.2.3.  Ifno“+”or“-“signshowsontheLCD,andthebackgroundlightisredcolour,youareconnectingwithanACvoltagesource.Please

stop the measurement.

4.3. OVER-VOLTAGE WARNING

4.3.1.  Onlyusethetesterwithinthespeciedvoltagerange. Exceeding this range may damage the tester and/or cause harm.

 WARNING! Please stop the measurement if any of the following warnings appear on the LCD:

4.3.2.  70~100V,“OL0”willshowontheLCD

4.3.3.  100~200V,“OL1”willshowontheLCD

4.3.4.  200~300V,“OL2”willshowontheLCD

4.3.5.  >300V,“OL3”willshowontheLCD

4.3.6. Voltage greater than 400V may damage the tester, please make sure the tester is not damaged before next measurement.

5. MAINTENANCE

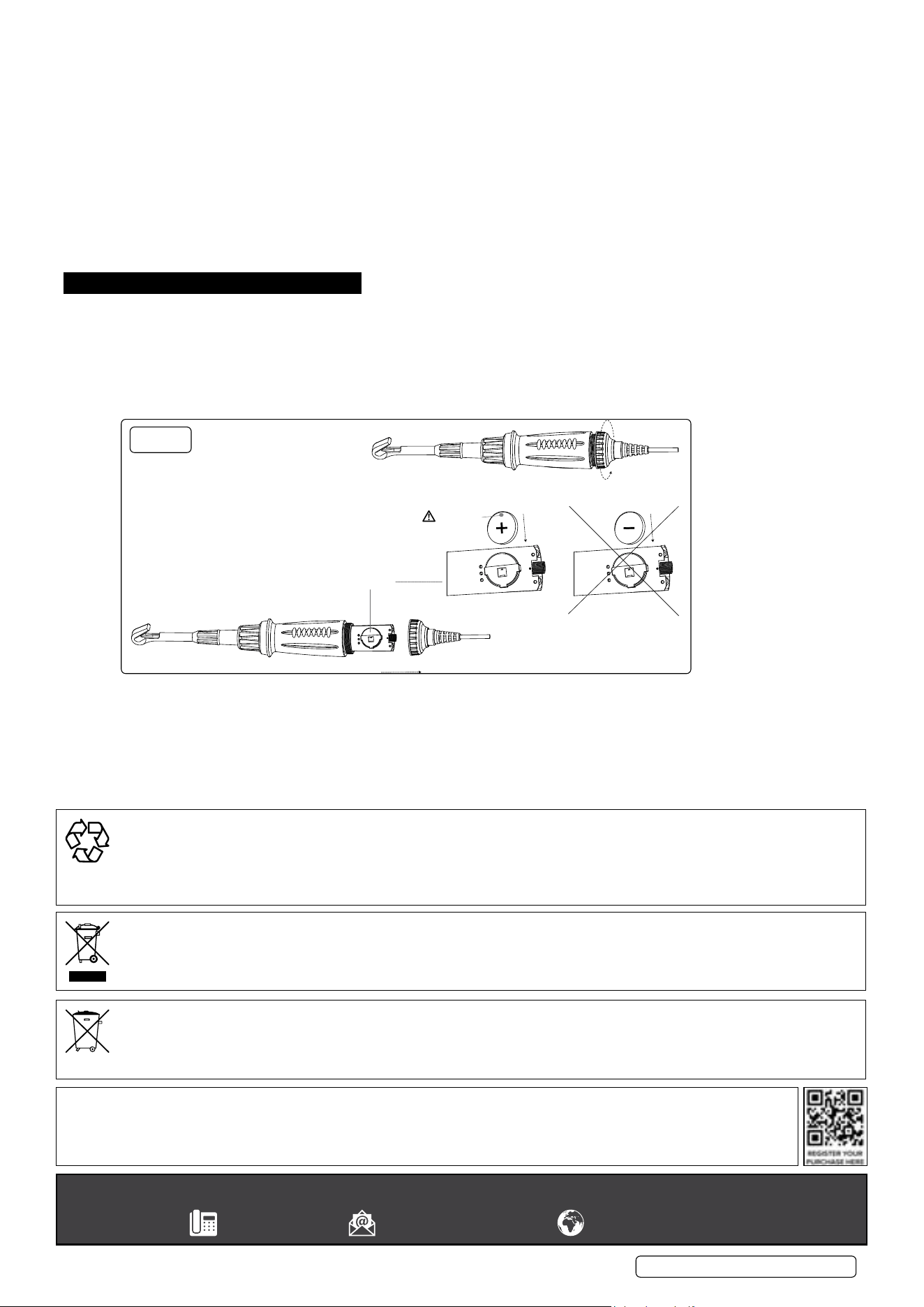

5.1. REPLACING THE BATTERY (FIG.3)

5.1.1. Rotate the tail cover and pull out the PCB to replace the battery.

5.1.2. Insert the new battery into the battery slot, with the positive side facing outward.

5.1.3.  If“Lo”andredcolourbackgroundlightappearsonLCD,itindicateslowbatterypower.Pleasereplacethebattery.

5.1.4.  IfthevalueontheLCDisashing,itindicateslowbatterypower.Pleasereplacethebattery.

5.1.5. If nothing appears on LCD and the background light doesn’t light up, it indicates no battery power or the battery polarity is reversely

installed. Please check the battery polarity or replace the battery.

5.2. REPAIRS

NOTE:  Repairsorservicingshouldonlybeperformedbyqualiedpersonnel.

5.3. CLEANING

5.3.1. Remove grease and grime with a clean, dry cloth.

8 DO NOT use abrasives or solvents. DO NOT use alcohol, ammonia or cleaners containing solvents.

Original Language Version

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to

a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely

unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids

according to local regulations.

WEEE REGULATIONS

Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment

(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid

waste authority for recycling information.

BATTERY REMOVAL

Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products

containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme. Jack

Sealey Ltd Batteries Producer Registration Number (BPRN) is BPRN00705.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts

without prior notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.

Battery Slot

CORRECT

PCB

WRONG

PCB

Bat+ up

Fig.3

AK4013 Issue 4 16/05/23
